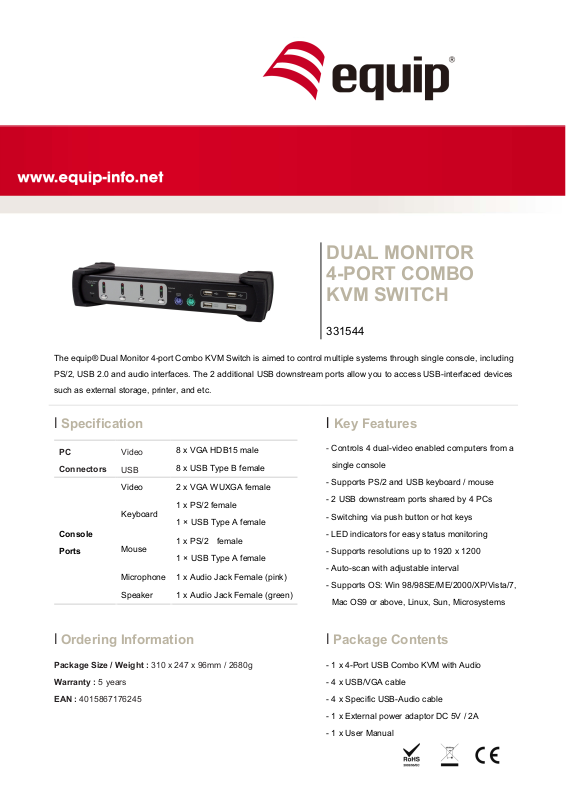

Equip 331544 User Manual

DUAL MONITOR
4-PORT COMBO
KVM SWITCH

331544

The equip® Dual Monitor 4-port Combo KVM Switch is aimed to control multiple systems through single console, including

PS/2, USB 2.0 and audio interfaces. The 2 additional USB downstream ports allow you to access USB-interfaced devices

such as external storage, printer, and etc.

l

Specification

PC

Connectors

Console

Ports

Video

USB

Video 2 x VGA WUXGA female

Keyboard

Mouse

Microphone 1 x Audio Jack Female (pink)

Speaker 1 x Audio Jack Female (green)

8 x VGA HDB15 male

8 x USB Type B female

1 x PS/2 female

1 × USB Type A female

1 x PS/2 female

1 × USB Type A female

l

Key Features

- Controls 4 dual-video enabled computers from a

single console

- Supports PS/2 and USB keyboard / mouse

- 2 USB downstream ports shared by 4 PCs

- Switching via push button or hot keys

- LED indicators for easy status monitoring

- Supports resolutions up to 1920 x 1200

- Auto-scan with adjustable interval

- Supports OS: Win 98/98SE/ME/2000/XP/Vista/7,

Mac OS9 or above, Linux, Sun, Microsystems

l

Ordering Information

Package Size / Weight : 310 x 247 x 96mm / 2680g

Warranty : 5 years

EAN : 4015867176245

l

Package Contents

- 1 x 4-Port USB Combo KVM with Audio

- 4 x USB/VGA cable

- 4 x Specific USB-Audio cable

- 1 x External power adaptor DC 5V / 2A

- 1 x User Manual
