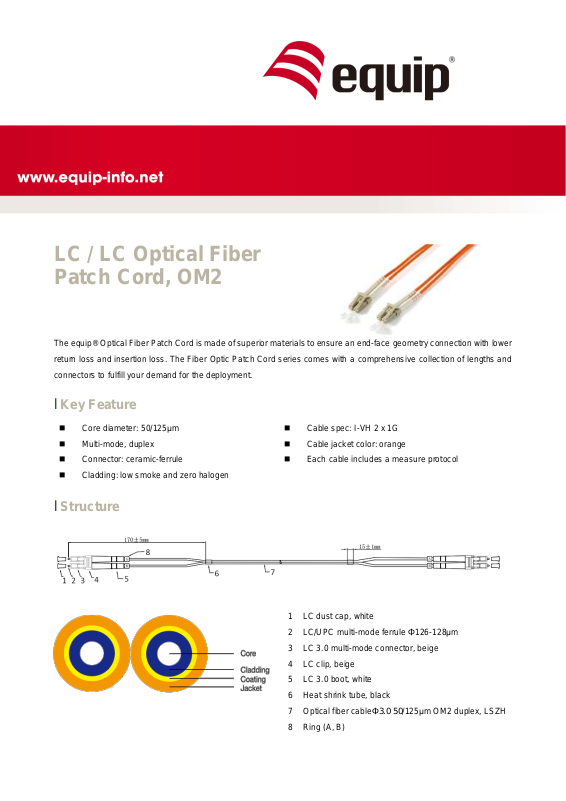

Equip 254415 User Manual
LC / LC Optical Fiber
Patch Cord, OM2
The equip® Optical Fiber Patch Cord is made of superior materials to ensure an end-face geometry connection with lower
return loss and insertion loss. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and
connectors to fulfill your demand for the deployment.
l Key Feature
Core diameter: 50/125μm
Multi-mode, duplex
Connector: ceramic-ferrule
Cladding: low smoke and zero halogen
Cable spec: I-VH 2 x 1G
Cable jacket color: orange
Each cable includes a measure protocol
l Structure
1
LC dust cap, white
2
LC/UPC multi-mode ferrule Φ126-128μm
3
LC 3.0 multi-mode connector, beige
4
LC clip, beige
5
LC 3.0 boot, white
6
Heat shrink tube, black
7
Optical fiber cableΦ3.0 50/125μm OM2 duplex, LSZH
8
Ring (A, B)
l Specification
Core
50 ± 2.5μm (YOFC)
Cladding
124.8 ± 1.0μm
Bare Fiber Diameter
245 ± 7μm
Tight Buffer Fiber Diameter
0.9 ± 0.05mm
Tight Buffer Fiber Color
White, Orange
Aramid yarn Kevlar (Dupont)
4 sheaf
Max Load
Long Term
100N
Short Term
200N
Bending Radius (cm)
Dynamic
20XD (D: Cable axis)
Static
10XD (D: Cable axis)
Crush Resistance (N/100mm)
Long Term
100
Short Term
500
Attenuation (dB/km)
@850nm
≦2.7
@1300nm
≦0.6
Least Bandwidth (MHz/km)
@850nm
≧200
@1300nm
≧600
l Ordering Information
Length (meter)
PN
0.5
254419
1
254411
2
254412
3
254413
5
254415
10
254416
15
254417
20
254418
Packing: PE bag
