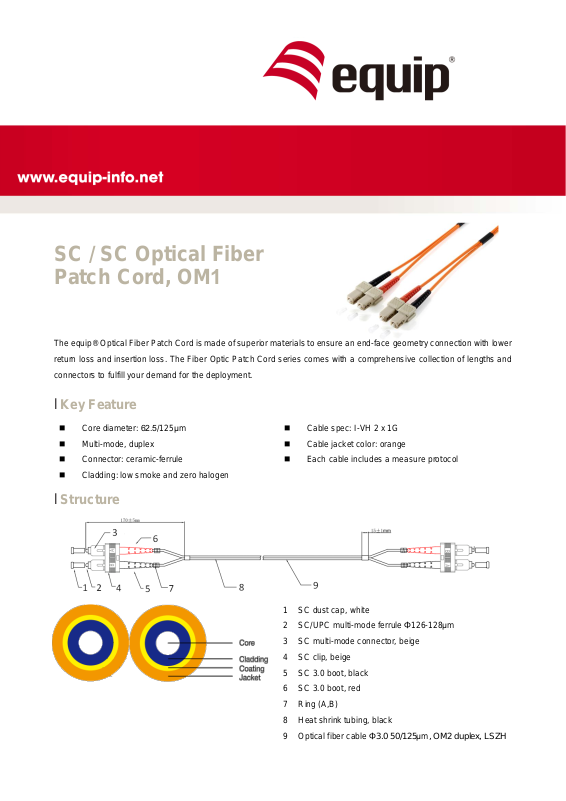

SC / SC Optical Fiber

The equip® Optical Fiber Patch Cord is made of superior materials to ensure an end-face geometry connection with lower
return loss and insertion loss. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and
connectors to fulfill your demand for the deployment.

l Key Feature



 Multi-mode, duplex
 Connector: ceramic-ferrule
 Cladding: low smoke and zero halogen

 Cable spec: I-VH 2 x 1G
 Cable jacket color: orange
 Each cable includes a measure protocol

l Structure

1

SC dust cap, white

2

SC/UPC multi-mode ferrule Φ126-128μm

3

SC multi-mode connector, beige

4

SC clip, beige

5

SC 3.0 boot, black

6

SC 3.0 boot, red

7

Ring (A,B)

8

Heat shrink tubing, black

9

Optical fiber cable Φ3.0 50/125μm, OM2 duplex, LSZH

Patch Cord, OM1

Core diameter: 62.5/125μm

l Specification

Core

Cladding

124.8 ± 1.0μm

Bare Fiber Diameter

245 ± 7μm

Tight Buffer Fiber Diameter

0.9 ± 0.05mm

Tight Buffer Fiber Color

White, Orange

Aramid yarn Kevlar (Dupont)

4 sheaf

Max Load
Long Term

100N

Short Term

200N

Bending Radius (cm)
Dynamic

20XD (D: Cable axis)

Static

10XD (D: Cable axis)

Crush Resistance (N/100mm)
Long Term

100

Short Term

500

Attenuation (dB/km)
@850nm

≦2.5

@1300nm

≦0.7

Least Bandwidth (MHz/km)
@850nm

≧500

@1300nm

≧500

l Ordering Information

Length (meter)

PN

50± 2.5μm (YOFC)

Packing: Equip Zipper bag

1 253321
2 253322
3 253323
5 253325

10 253320
