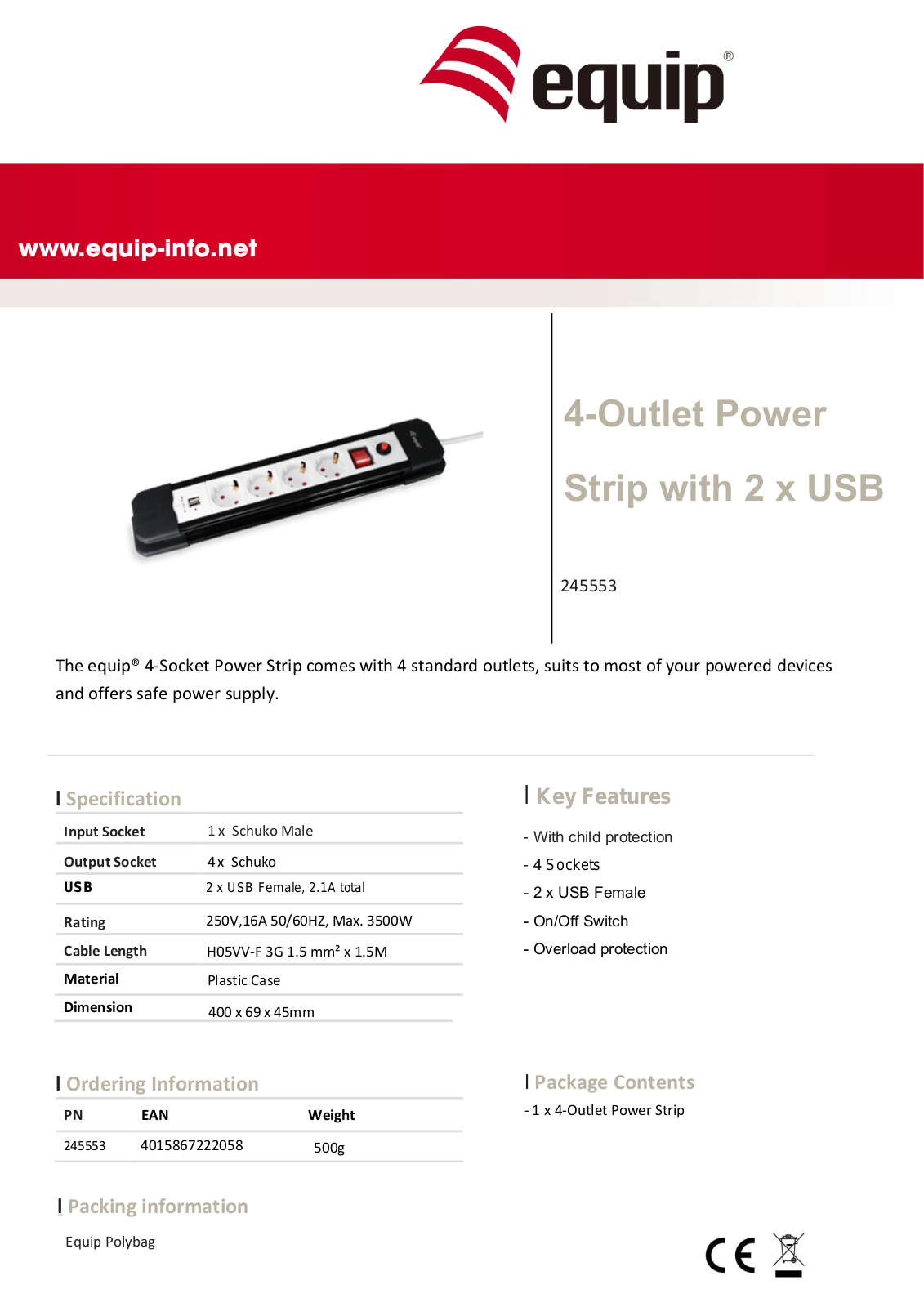

Equip 245553 User Manual

l Specification

Input Socket

Output Socket

4-Outlet Power

Strip with 2 x USB

245553

The equip® 4-Socket Power Strip comes with 4 standard outlets, suits to most of your powered devices

and offers safe power supply.

l Key Features

USB

Rating

Cable Length

Material

Dimension

l Ordering Information

PN EAN Weight

3

24555

l Packing information

Equip Polybag

1 x Schuko Male

4 x Schuko

2 x USB Female, 2.1A total

250V,16A 50/60HZ, Max. 3500W

H05VV-F 3G 1.5 mm² x 1.5M

Plastic Case

400 x 69 x 45mm

4015867222058

- With child protection

- 4 Sockets

- 2 x USB Female

- On/Off Switch

- Overload protection

l Package Contents

- 1 x 4-Outlet Power Strip

500g

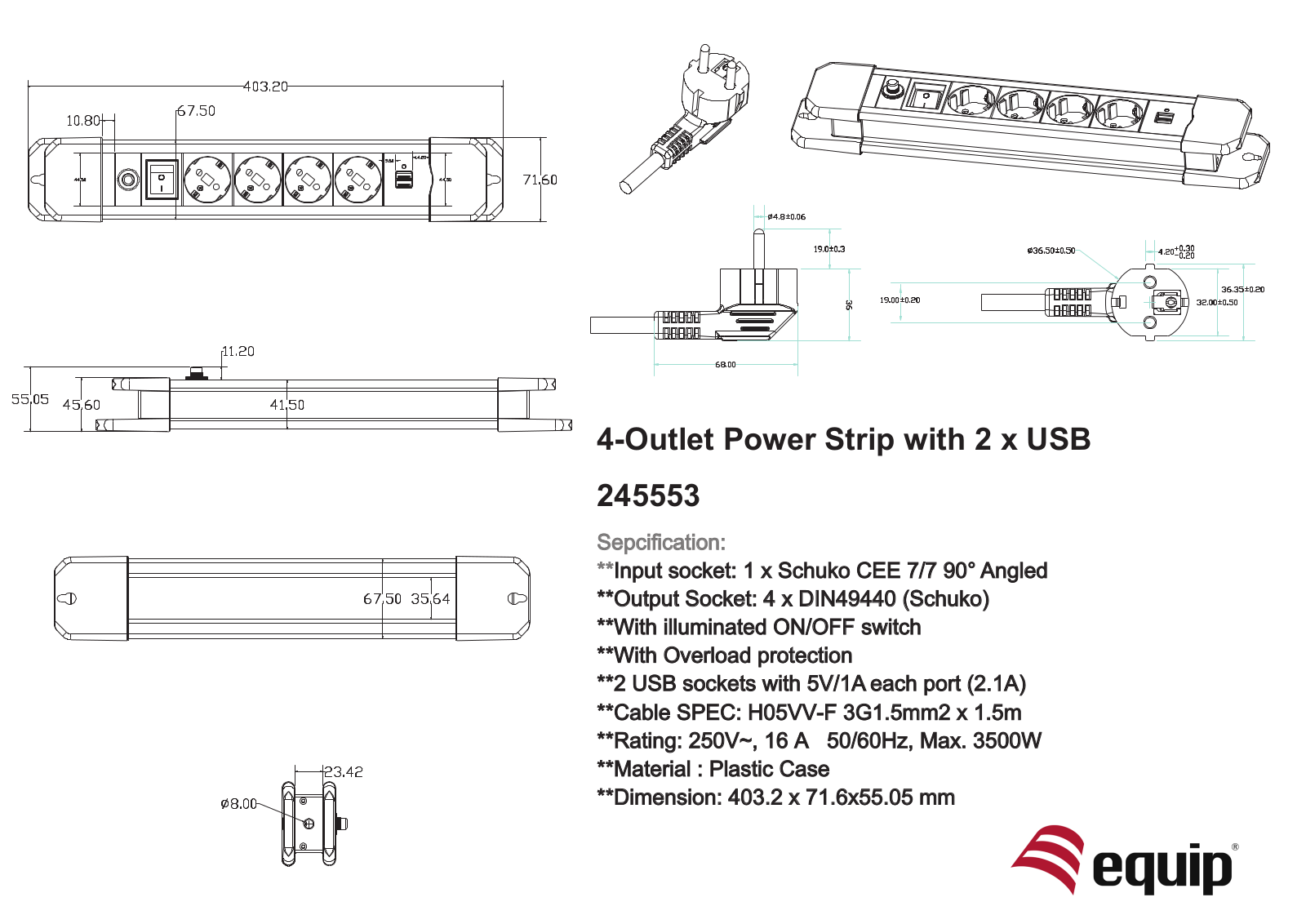

4-Outlet Power Strip with 2 x USB

245553

Sepcification:

**Input socket: 1 x Schuko CEE 7/7 90° Angled

**Output Socket: 4 x DIN49440 (Schuko)
**

With illuminated ON/OFF switch

**With Overload protection
**2 USB sockets with 5V/1A each port (2.1A)
**Cable SPEC: H05VV-F 3G1.5mm2 x 1.5m
**Rating: 250V~, 16 A 50/60Hz, Max. 3500W
**Material : Plastic Case
**Dimension: 403.2 x 71.6x55.05 mm
