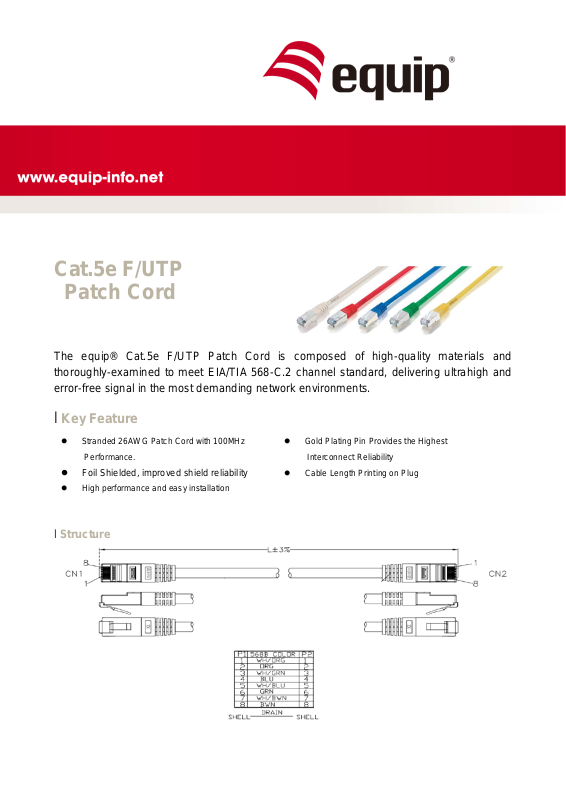

Equip 205523 User Manual

Cat.5e F/UTP Patch Cord
Stranded 26AWG Patch Cord with 100MHz
Performance.
Foil Shielded, improved shield reliability
High performance and easy installation
Gold Plating Pin Provides the Highest
Interconnect Reliability
Cable Length Printing on Plug
Conductor
Material
Bare Copper
Construction
26AWG, 7/0.16 ± 0.015mm
Insulation
Thickness
MIN at any point: 0.15mm / MAX AVG:0.21mm
Diameter
0.87± 0.03mm
Colors
Blue/White-BlueOrange/White-OrangeGreen/White-GreenBrown/White-Brown
Jacket
Material
PVC
Thickness
MIN at any point: 0.40mm MAX AVG: 0.55mm
Diameter
5.3 ± 0.3mm
Marking
equip CAT.5E SF/UTP PATCH CABLE E213738 CM (UL) C(UL) 4PR 26AWG ISO/IEC 11801 & EN 50288 & TIA/EIA-568-B.2
Connector
RJ45 Plug
8P8C
Beige
Red
Blue
Green
Yellow
0.25m
205413
205523
205533
205543
205463
0.5m
205417
205427
205437
205447
205467
1.0m
205410
205420
205430
205440
205460
2.0m
205411
205421
205431
205441
205461
3.0m
205412
205422
205432
205442
205462
5.0m
205414
205424
205434
205444
205464
7.5m
205415
205425
205435
205445
205465
10m
205416
205426
205436
205446
205466
15m
205418
205428
205438
205448
205468
20m
205419
205429
205439
205449
205469
