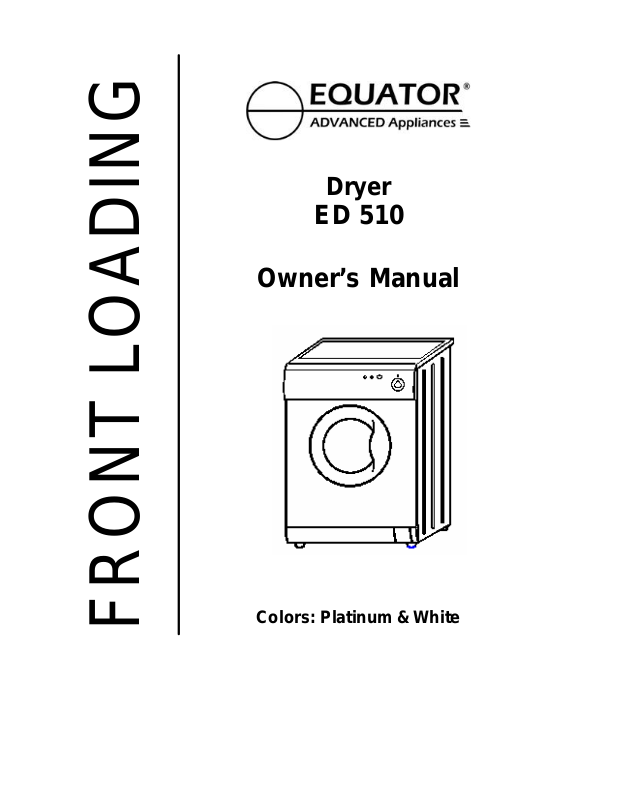

Equator ED510 User Manual
Dryer
ED 510
Owner’s Manual
FRONT LOADING
Colors: Platinum & White
TABLE OF CONTENTS
Warranty……………………………………………………………………………2-3
Introduction ………………………………………………………………………….4
Important Safety Instructions ………………………………………………………5
Picture of the Dryer ………………………………………………8
Installation………………………………………………………………………….9-10
Control Panel ……………………………………………………………………11
Operating Instructions …………………………………………………………….12
How to dry ………………………………………………………………………….13
Maintenance ……………………………………………………………………….14
Technical Data …………………………………………………………………….14
Troubleshooting .………………………………………………….……………… 15
Company Information …………………………………………………………….16
Please read the Owner’s Manual carefully before using your
new Equator Dryer
1 Tumble Dryer Owner’s Manual
WARRANTY INFORMATI ON
Your Equator® appliance is protected by this warranty under normal,
personal, family or household use (1 Year), and limited commercial use
(90 days) in the USA and Canada.
WARRANTY
Equator Corporation undertakes to the consumer-owner to repair or, at Equator
Corporation’s option, to replace any part of this product which proves to be defective in
workmanship or material under normal personal, family or household use, in the USA and
Canada, for a period of one year from the date of original purchase. For commercial use, the
product is warranteed for a period of 90 days. During this period, Equator Corporation will
provide all labor and parts necessary to correct such defect, free of charge, if the appliance
has been installed and operated in accordance with Equator Corporation’s written
instructions with the appliance. Ready access to the appliance, for service, is the
responsibility of the consumer-owner.
Geographic Exception: If the product is installed at a location more than 50 miles from an
urban area (minimum population 25,000), Equator Corporation may, at its option, offer a
2-year parts only Warranty, if a service agent cannot be found. Responsibility for labor, in
such instances will be that of the consumer-owner. Equator Corporation will, however
provide free technical assistance for repairs.
EXCLUSIONS
In no event shall Equator Corporation be liable for incidental or consequential damages or
for damages resulting from external causes such as abuse, misuse, incorrect voltage or acts
God. This warranty does not cover service calls which do not involve defective workmanship
or materials covered by this warranty. Accordingly, diagnosis and repair costs for a service
call which does not involve defective workmanship or materials will be the resp onsibility of
the consumer-owner.
Specifically, the following work is not covered under warranty and does not constitute
warranty work:
§ Installation – e.g. improper hook-up or leveling or non-removal of shipping bolts
§ Maintenance – e.g. cleaning of lint filter
§ Damage – e.g. replacing broken door handle
Most work is covered. The defining factor is, has the machine malfunctioned (Equator is
responsible) or has the customer omitted or done something to cause machine to
malfunction (customer is responsible ). Some States do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation or exclusion may not apply
to you.
2 Tumble Dryer Owner’s Manual
WARRANTY SERVICE
This warranty is given by:
Equator Corporation,
Equator Plaza,
2801 W. Sam Houston Parkway N.
Houston, TX 77043-1611
Service under this warranty must be obtained by the following steps, in order:
Call an Equator Corporation Authorized Service Agent (obtain number of nearest agent
from your dealer or by calling Equator Service at 1-800-776-3538). Under normal
circumstances, Service will be provided during regular business hours (9:00 a.m. to 5:00
p.m. weekdays).
GENERAL
Since it is responsibility of the consumer-owner to establish the warranty period by verifying
the original purchase date, Equator Corporation recommends that a receipt, delivery slip or
some other appropriate payment record be kept for that purpose. Remember to send in your
Warranty Registration Card so that a proof of your purchase exists with Equator. You can
also register online or by calling Equator Customer Service at 1-800-776-3538. This
warranty gives you specific legal rights, and you may also have other rights which vary from
State to State.
Corporate Office
EQUATOR CORPORATION
Equator Plaza
2801 W. Sam Houston Parkway N.
Houston, Texas 77043 -1611
Tel: 713 -464-3422
Fax: 713-464-2151
Toll Free: 800 -935-1955
European Testing Laboratories
US N° 3008319 CANADA
The ETL Listed Mark is the legal equivalent to the UL and CSA Listed Marks
EQUATOR CONTACT NUMBERS
Service: 800-776-3538
Parts & Accessories: 888-483-9627
Technical Support: 888-935-1565
3 Tumble Dryer Owner’s Manual
INTRODUCTION
Congratulations on your new Equator Vented Tumble Dryer. In addition to its unique design,
this is a highly sophisticated product that will give you many years of satisfaction. Please
spend a few moments to read the Owner’s Manual. This will show you ways to best utilize
your valuable purchase.
Here are some of the best reasons for buying your Dryer:
1. Energy Savings
This appliance is engineered to provide valuable energy savings when compared to other
dryers.
2. Space Savings
The Dryer is designed to utilize horizontal and vertical space effectively. By using the
stacking kit (available separately) this unit can be mounted onto the Equator Combo
Washer-Dryer or the Equator Washer.
3. Temperature Selection
Choose your drying temperature for the quantity and quality of clothes you place in the dryer.
High and low heat settings are available for cottons/mixed thread clothing and f or delicates.
4. Meeting Standards
The dryer vents using a standard 4" duct that fits most dryer exhaust vents.
5. Convenient Lint Control
This unit does not use a lint filter and no cleaning is required after every load.
6. 110V operation
The dryer power cord plugs into a standard 110V outlet - available in most homes.
7. Safety
The dryer has a built in safety switch that reset when air flow is restricted. This lets the dryer
electronics remain unharmed by pausing the appliance till the conditions are corrected.
8. Easy Operation
Just set the dryer time based on type of clothing and press the Power button. Easy as
1-2-3.
4 Tumble Dryer Owner’s Manual
1. Read all instructions before using the appliance.
IMPORTANT SAFETY INSTRUCTIONS
Your safety and that of you children
Your machine has been built in compliance with safety regulations, to protect
you and all your family.
WARNING - To reduce the risk of fire, electric shock, or injury to persons when using
your appliance, follow basic precautions, including the following:
2. Do not dry articles that have been previously cleaned in, washed in, or spotted with gasoline,
dry-cleaning solvents, other flammable or explosive substances, as they emit vapors that
could ignite or explode.
3. Do not allow children to play on or in the appliance. Close supervision of children is necessary
when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the door.
5. Do not reach into the appliance if the tub or drum is moving.
6. Do not install or store this appliance where it will be exposed to the weather.
7. Do not tamper with controls.
8. Do not repair or replace any part of the appliance or attempt any servicing unless specifically
recommended in the user-maintenance instructions or in published user-repair instructions
that you understand and have skills to carry out.
9. Do not use fabric softeners or products to reduce static unless recommended by the
manufacturers of the fabric softener product.
10. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like
materials.
11. For vented dryers keep the exhaust opening and surrounding areas free from accumulation of
lint, dust, and dirt.
12. Do not place items exposed to cooking oils in your dryer. Item contaminated with cooking oils
may contribute to a chemical reaction that could cause a load to catch fire.
5 Tumble Dryer Owner’s Manual
SAVE THESE INSTRUCTIONS
