Epson V11H744041 Product Data Sheet

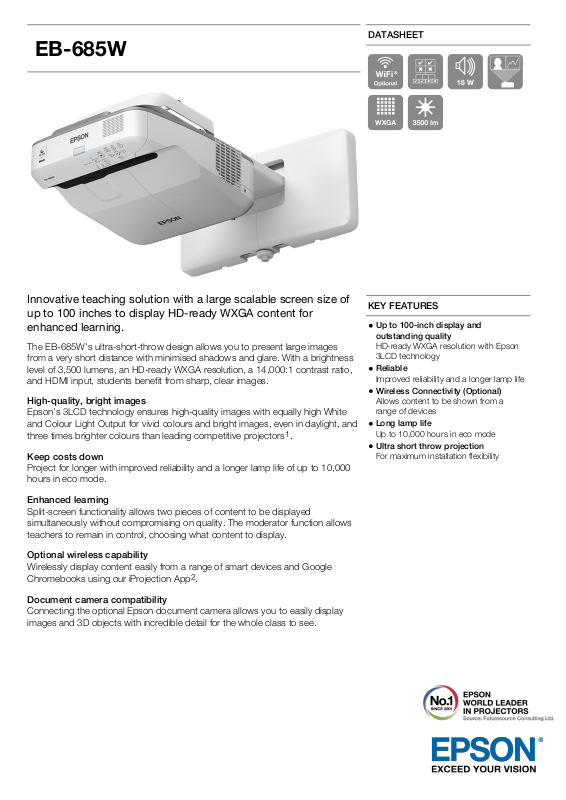

EB-685W

DATASHEET

Innovative teaching solution with a large scalable screen size of
up to 100 inches to display HD-ready WXGA content for
enhanced learning.

The EB-685W's ultra-short-throw design allows you to present large images
from a very short distance with minimised shadows and glare. With a brightness
level of 3,500 lumens, an HD-ready WXGA resolution, a 14,000:1 contrast ratio,
and HDMI input, students benefit from sharp, clear images.

High-quality, bright images

Epson’s 3LCD technology ensures high-quality images with equally high White
and Colour Light Output for vivid colours and bright images, even in daylight, and
three times brighter colours than leading competitive projectors1.

Keep costs down

Project for longer with improved reliability and a longer lamp life of up to 10,000
hours in eco mode.

Enhanced learning

Split-screen functionality allows two pieces of content to be displayed
simultaneously without compromising on quality. The moderator function allows
teachers to remain in control, choosing what content to display.

Optional wireless capability

Wirelessly display content easily from a range of smart devices and Google
Chromebooks using our iProjection App2.

KEY FEATURES

Up to 100-inch display and
outstanding quality

HD-ready WXGA resolution with Epson
3LCD technology

Reliable

Improved reliability and a longer lamp life

Wireless Connectivity (Optional)

Allows content to be shown from a
range of devices

Long lamp life

Up to 10,000 hours in eco mode

Ultra short throw projection

For maximum installation flexibility

Document camera compatibility

Connecting the optional Epson document camera allows you to easily display
images and 3D objects with incredible detail for the whole class to see.

PRODUCT SPECIFICATIONS

TECHNOLOGY

Projection System 3LCD Technology
LCD Panel 0.59 inch with D9


Colour Light Output 3,500 lumen- 2,900 lumen (economy)
White Light Output 3,500 lumen - 2,900 lumen (economy) In accordance with ISO 21118:2012
Resolution WXGA, 1280 x 800, 16:10
Contrast Ratio 14,000 : 1
Native Contrast 300 : 1
Lamp 250 W, 5,000 h durability, 10,000 h durability (economy mode), 9,000 h durability (economy

mode)
Keystone Correction Manual vertical: ± 3 °, Manual horizontal ± 3 °
Colour Reproduction Upto 1.07 billion colours

OPTICAL

Projection Ratio 0.28:1
Zoom Digital, Factor: 1 - 1.35
Image Size 60 inches - 100 inches
Projection Distance Wide 0.4 m ( 60 inch screen)
Projection Distance Tele 0.6 m ( 100 inch screen)
Projection Lens F Number 1.6
Focal Distance 3.76 mm
Focus Manual
Offset 6 : 1

CONNECTIVITY

USB Display Function 3 in 1: Image / Mouse / Sound
Interfaces USB 2.0 Type A, USB 2.0 Type B, RS-232C, HDMI in (3x), Composite in, RGB in (2x), RGB out,

Stereo mini jack audio out, Stereo mini jack audio in (3x), Microphone input, Ethernet interface

(100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11b/g/n (optional), VGA in (2x), VGA out,

MHL
Epson iProjection App Ad-Hoc / Infrastructure

OTHER

Warranty 36 months On site service or 8,000 h, Lamp: 12 months or 1,000 h

EB-685W

WHAT'S IN THE BOX

Power cable
Remote control incl. batteries
CD Manual
Quick Start Guide
USB cable
Wall mounting bracket
Warranty card

OPTIONAL ACCESSORIES

Active Speakers (2 x 15W) - ELPSP02
V12H467040DA
Control and Connection Box - ELPCB02
V12H614040DA
Wireless LAN Adapter - ELPAP10
V12H731P01
Quick Wireless Connect USB key - ELPAP09
V12H005M09
Table Mount for Ultra-short-throw Series - ELPMB29
V12H516040
Ceiling Mount (White) - ELPMB23
V12H003B23
Ceiling Pipe (450mm) - ELPFP13
V12H003P13
Ceiling Pipe (700mm) - ELPFP14
V12H003P14

LOGISTICS INFORMATION

SKU V11H744041

EAN code 8715946605227

Country of Origin Philippines

For more information please contact:
Telephone: [phone] (UK)+

01 436 7742 (Republic of Ireland)
E-mail: [e-mail]
Chat: etalk.epson-europe.com
Fax: [phone]
+ Local call rate.

Trademarks and registered trademarks are the property of Seiko Epson Corporation or their respective owners.
Product information is subject to change without prior notice.

Web: www.epson.co.uk
www.epson.ie

1. - Colour Brightness (Colour Light Output) measured
in accordance with IDMS 15.4. Colour Brightness will
vary depending on usage conditions. Leading Epson 3LCD
business and education projectors compared to leading
one-chip DLP projectors, based on NPD data for June 2013
through May 2014 and PMA Research data for Q1 through Q3

2013. For more information please visit www.epson.eu/CLO

2. -iProjection App available on Android and iOS
devices, and Google Chromebooks.
