2 | Unpacking and Assembling the Printer

Unpacking and Assembling the Printer

Note: Unless otherwise indicated, the illustrations in this manual show the SureColor® T7000, but the instructions

apply to all three models.

Before beginning assembly, make sure you have sufficient space to set up and use the printer. The
following illustration shows the minimum space required for using the printer:

5.9 in. (150 mm)

0.4 in. (10 mm)

23.6 in. (600 mm)

5.9 in. (150 mm)

When choosing a place for the printer, leave adequate room for easy access and ventilation. Avoid locations
subject to direct sunlight, excessive heat, humidity, or dust. Be sure the printer is placed on a flat, stable
location that can support the following weight for each printer:

• SureColor T3000 - 112 lb (51 kg)

• SureColor T5000 - 165 lb (75 kg)

• SureColor T7000 - 180 lb (82 kg)

WARNING: Two people are required to unpack and install the SureColor T3000 printer; four people are
recommended to unpack and install the SureColor T5000 or SureColor T7000 printer.

You need an even larger floor space to assemble the printer and stand, so be sure to prepare a large, clear
area before unpacking them. Also make sure you save the box and packaging in case you need to ship the
printer later.

The following items are included with your printer:

Assembling the Stand | 3

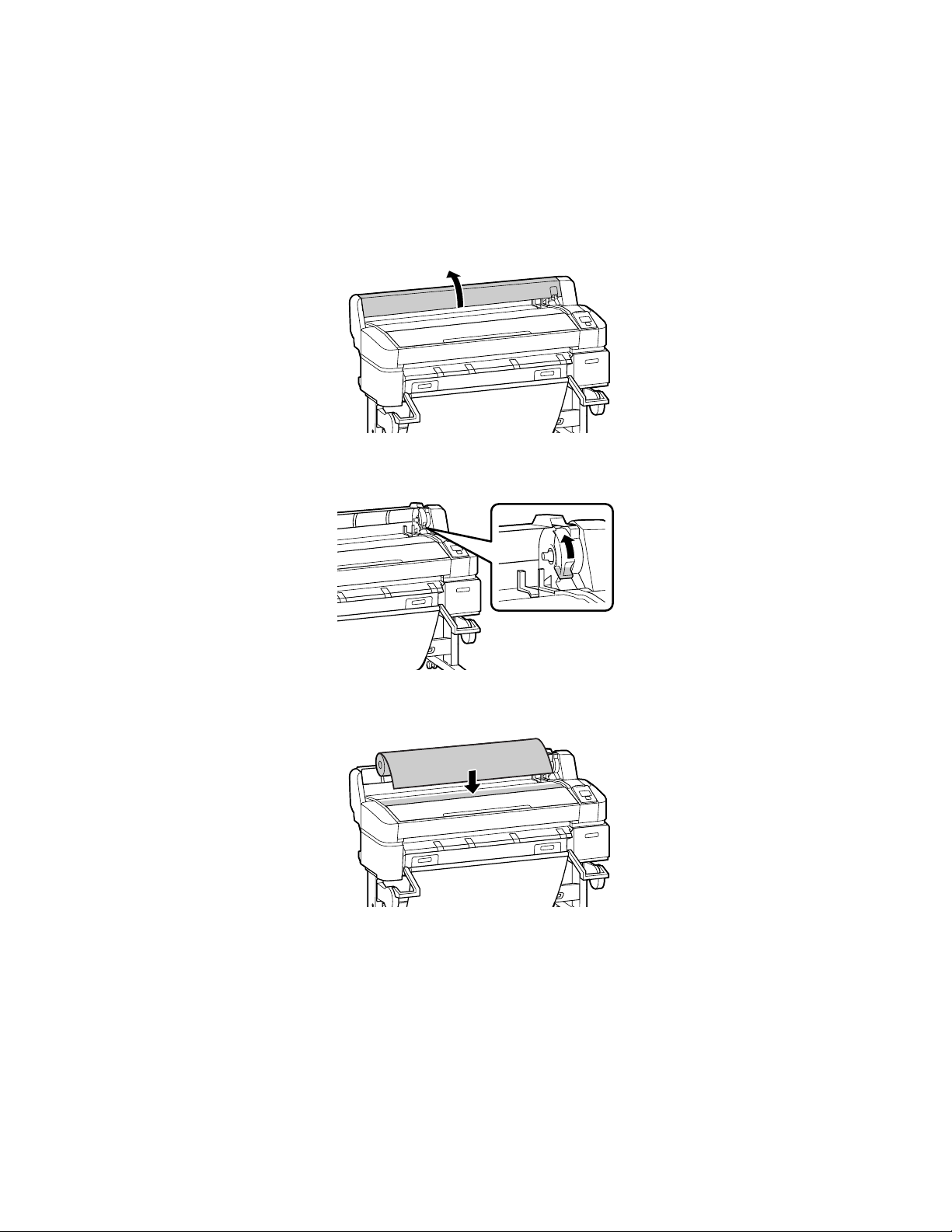

Printer

Roll media adapter

Power cord

Basket holders

Ink cartridges

Plastic connector

1 square pole and
1 rounded pole

Software and guides

Basket arms

Paper basket

Assembling the Stand

1. Unpack the stand and make sure you have all of these items.

Horizontal strut

Legs

Hex wrench

Stack guide

4 | Assembling the Stand

2. Slide the horizontal strut into both of the legs as shown.

3. Use the long end of the hex wrench to tighten the pre-placed screws on each side of the horizontal

strut.

4. Lock the casters to fix the stand in place. (When moving the printer, unlock the casters.)

Mounting the Printer on the Stand | 5

Mounting the Printer on the Stand

You need at least two people (SureColor T3000) or four people (SureColor T5000/T7000) to install the
printer and position it on the stand. When lifting the printer, only hold the areas shown below. Otherwise,
damage may occur.

SureColor T3000

SureColor T5000/T7000

Caution: Before installing the printer, lock the casters to make sure the stand is fixed in place.

1.

Lift the printer onto the stand. Line up the marks on the bottom of the printer with the arrows on the

top of the stand legs before setting the printer down.

6 | Attaching the Paper Basket

2. Attach the printer to the stand using three bolts.

Attaching the Paper Basket

The paper basket is a cloth sheet that attaches to the printer stand and catches your prints as they come
out. You need the following parts to assemble and attach the paper basket:

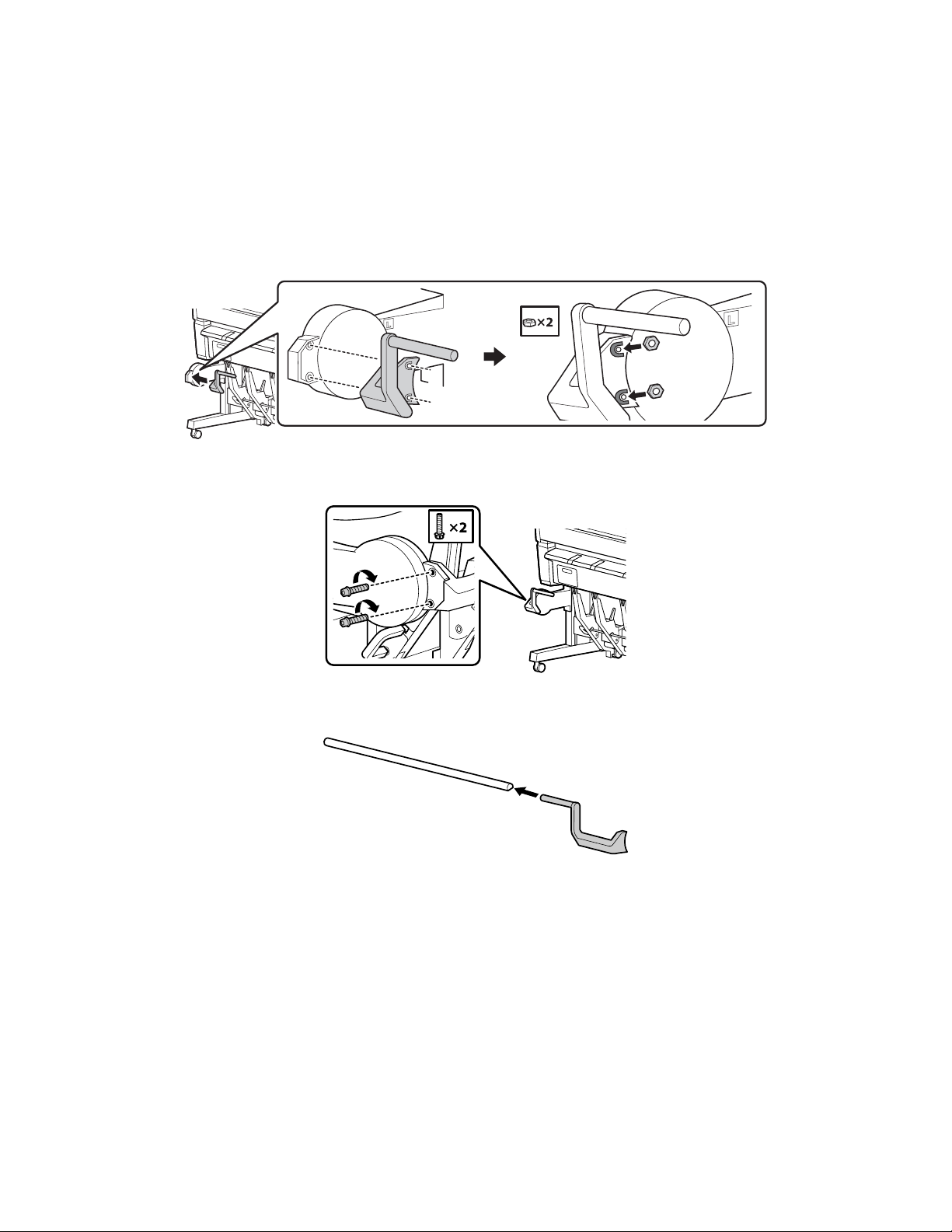

1. Attach the two basket holders as shown, one on each side of the stand. Use four bolts to fasten the

holders in place.
