Epson SureColor, T2170, T3170, T5170 User Manual

Download

Epson

SureColor

T2170/T3170/T5170

User's Guide

Epson SureColor T2170/T3170/T5170 User's Guide................................................................................. 9

Introduction to Your Printer...................................................................................................................... 10

Wi-Fi or Wired Networking........................................................................................................................ 35

Printer Features ................................................................................................................................. 10

Optional Equipment and Replacement Parts................................................................................. 11

Notations Used in the Documentation ................................................................................................ 11

Printer Part Locations......................................................................................................................... 12

Product Parts - Front ..................................................................................................................... 12

Product Parts - Top/Inside ............................................................................................................. 13

Product Parts - Rear...................................................................................................................... 14

Control Panel Parts ....................................................................................................................... 15

Using the Control Panel ..................................................................................................................... 17

Changing the LCD Screen Language............................................................................................ 17

Selecting the Date and Time ......................................................................................................... 18

Setting a Password and Locking the Control Panel ....................................................................... 19

Using AirPrint .................................................................................................................................... 21

Assembling the Printer Stand and Paper Basket................................................................................ 21

Network Security Recommendations ................................................................................................. 35

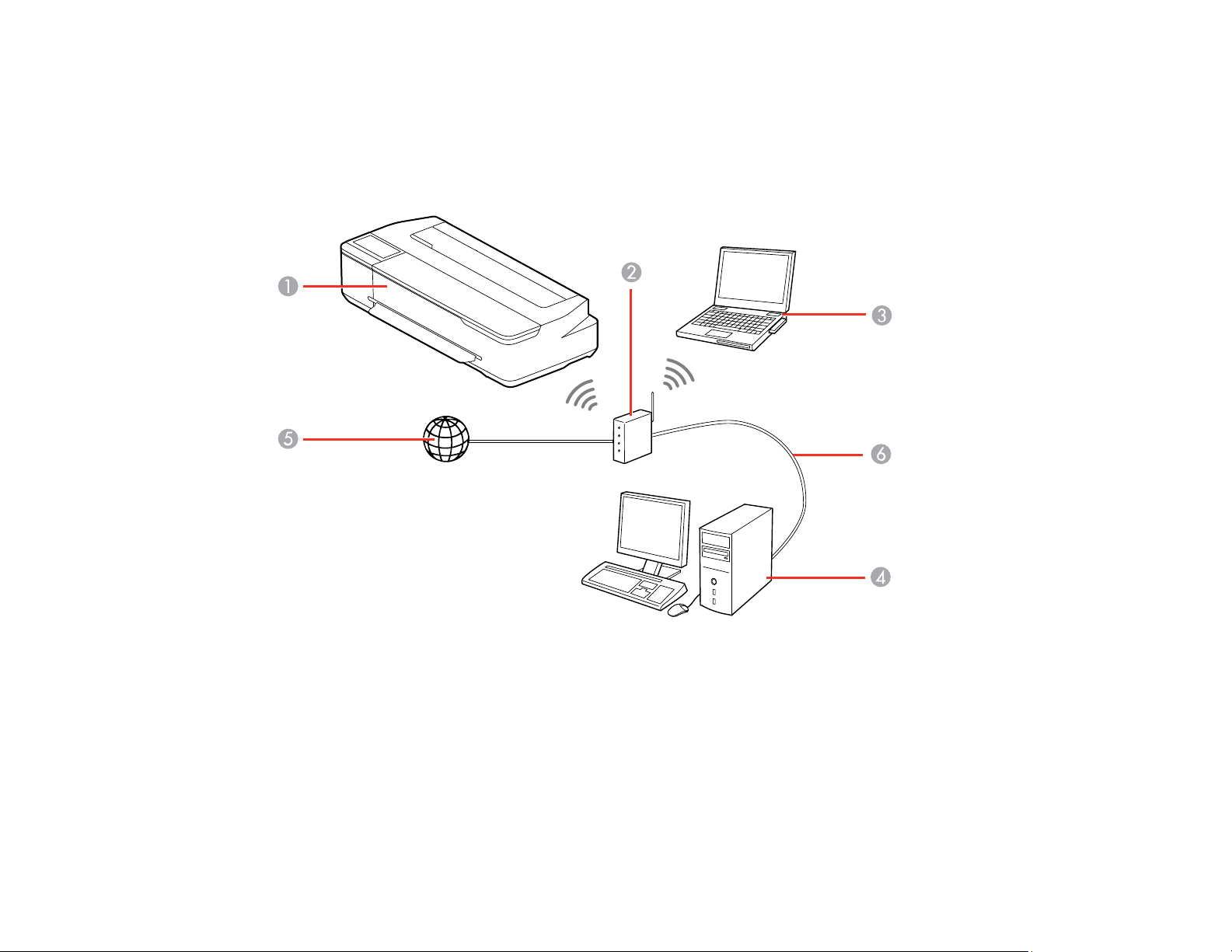

Wi-Fi Infrastructure Mode Setup......................................................................................................... 36

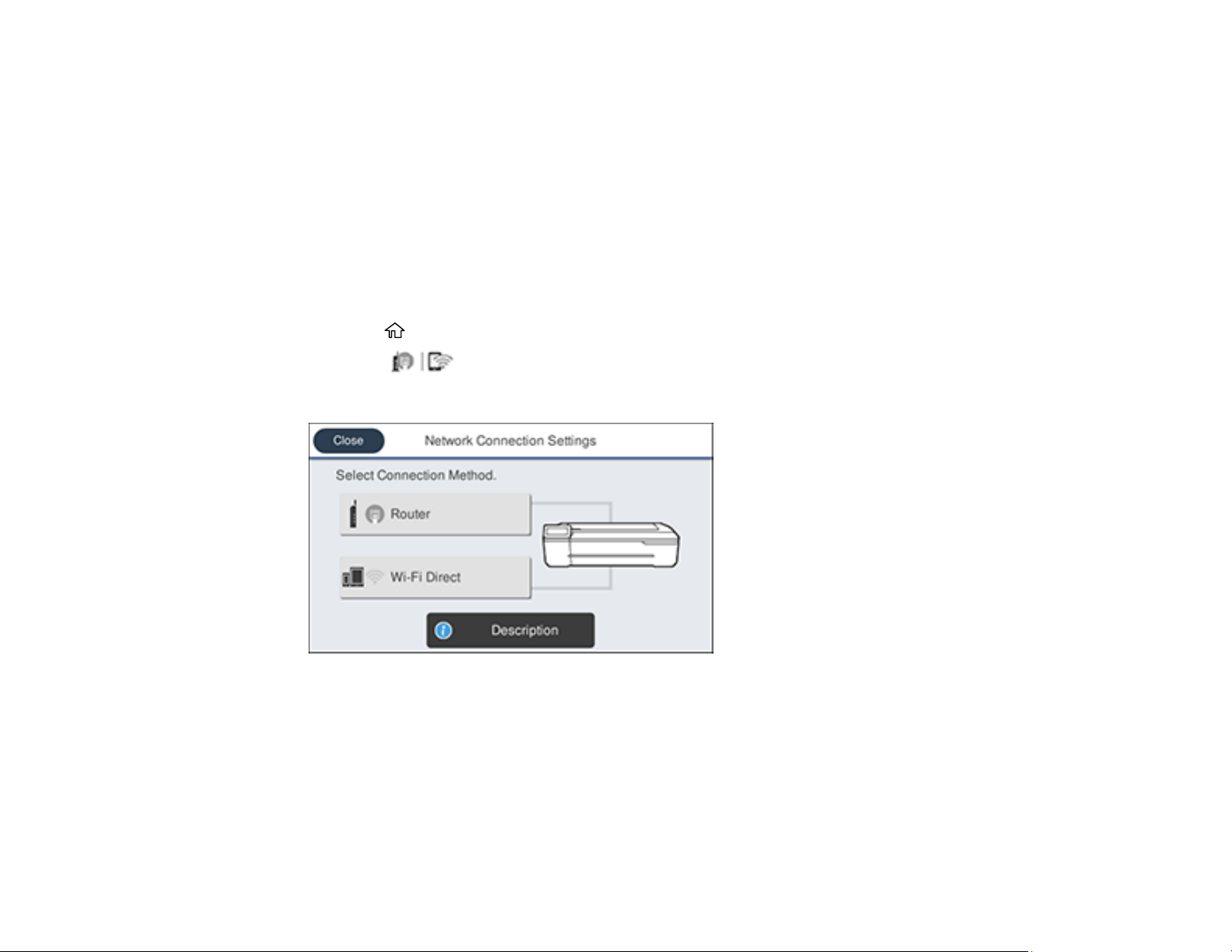

Selecting Wireless Network Settings from the Control Panel ........................................................ 37

Wi-Fi Direct Mode Setup .................................................................................................................... 39

Enabling Wi-Fi Direct Mode ........................................................................................................... 39

Wi-Fi Protected Setup (WPS)............................................................................................................. 41

Using WPS to Connect to a Network ............................................................................................. 41

Printing a Network Status Sheet......................................................................................................... 42

Changing or Updating Network Connections ..................................................................................... 43

Accessing the Web Config Utility................................................................................................... 43

Changing a USB Connection to a Wi-Fi Connection...................................................................... 44

Changing a Wi-Fi Connection to a Wired Network Connection...................................................... 44

Connecting to a New Wi-Fi Router ................................................................................................ 45

Disabling Wi-Fi Features ............................................................................................................... 46

Media Handling.......................................................................................................................................... 47

Roll Paper Handling ........................................................................................................................... 47

Loading Roll Paper ........................................................................................................................ 47

Cutting Roll Paper ......................................................................................................................... 51

Cutting Roll Paper Manually...................................................................................................... 51

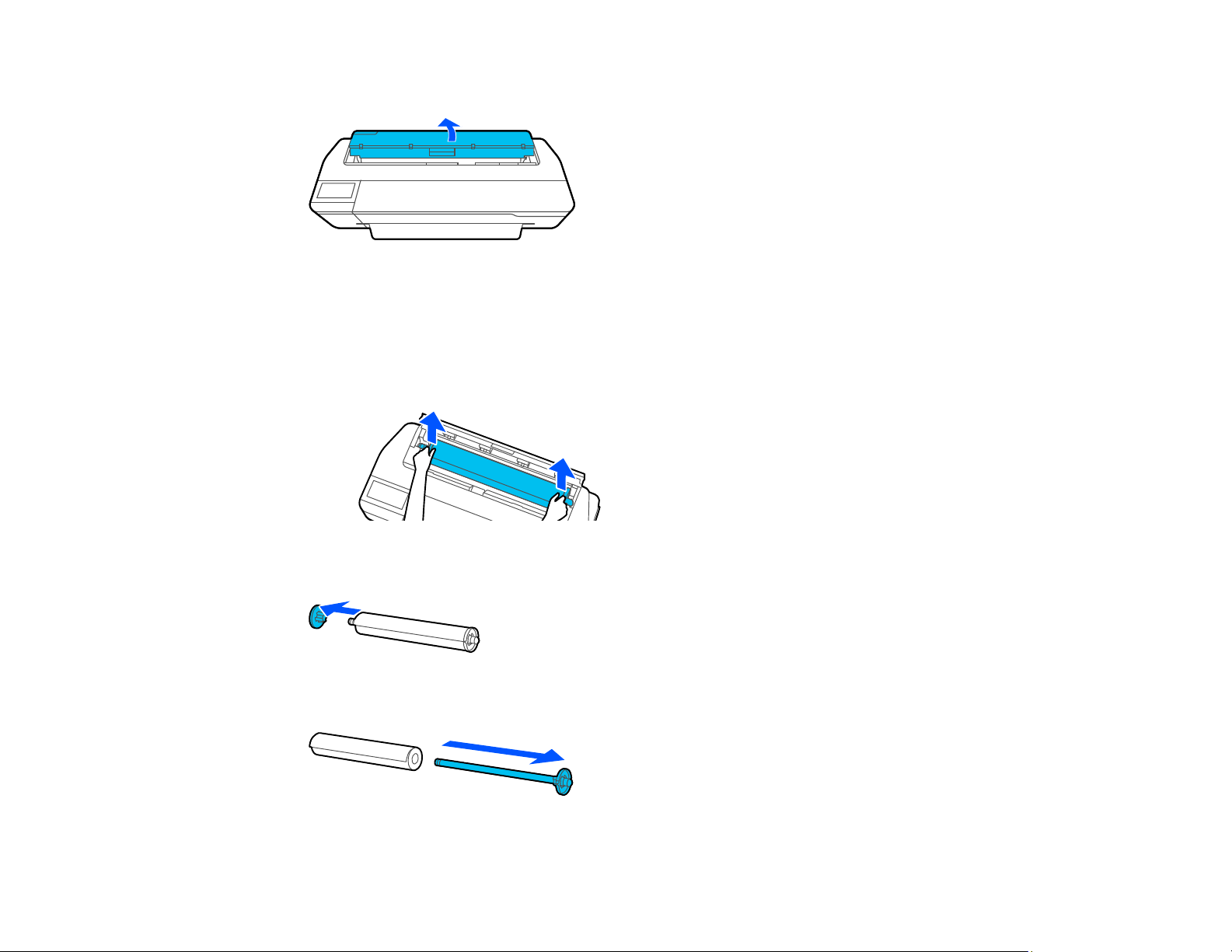

Removing Roll Paper..................................................................................................................... 52

Cut Sheet Handling ............................................................................................................................ 54

Loading Single Cut Sheets ............................................................................................................ 55

Loading Paper in the Auto Sheet Feeder....................................................................................... 57

Removing Paper from the Auto Sheet Feeder............................................................................... 61

Creating Custom Paper Configurations.............................................................................................. 64

Selecting Custom Paper Configurations........................................................................................ 64

Compatible Epson Papers.................................................................................................................. 65

Paper or Media Type Settings - Printing Software.............................................................................. 67

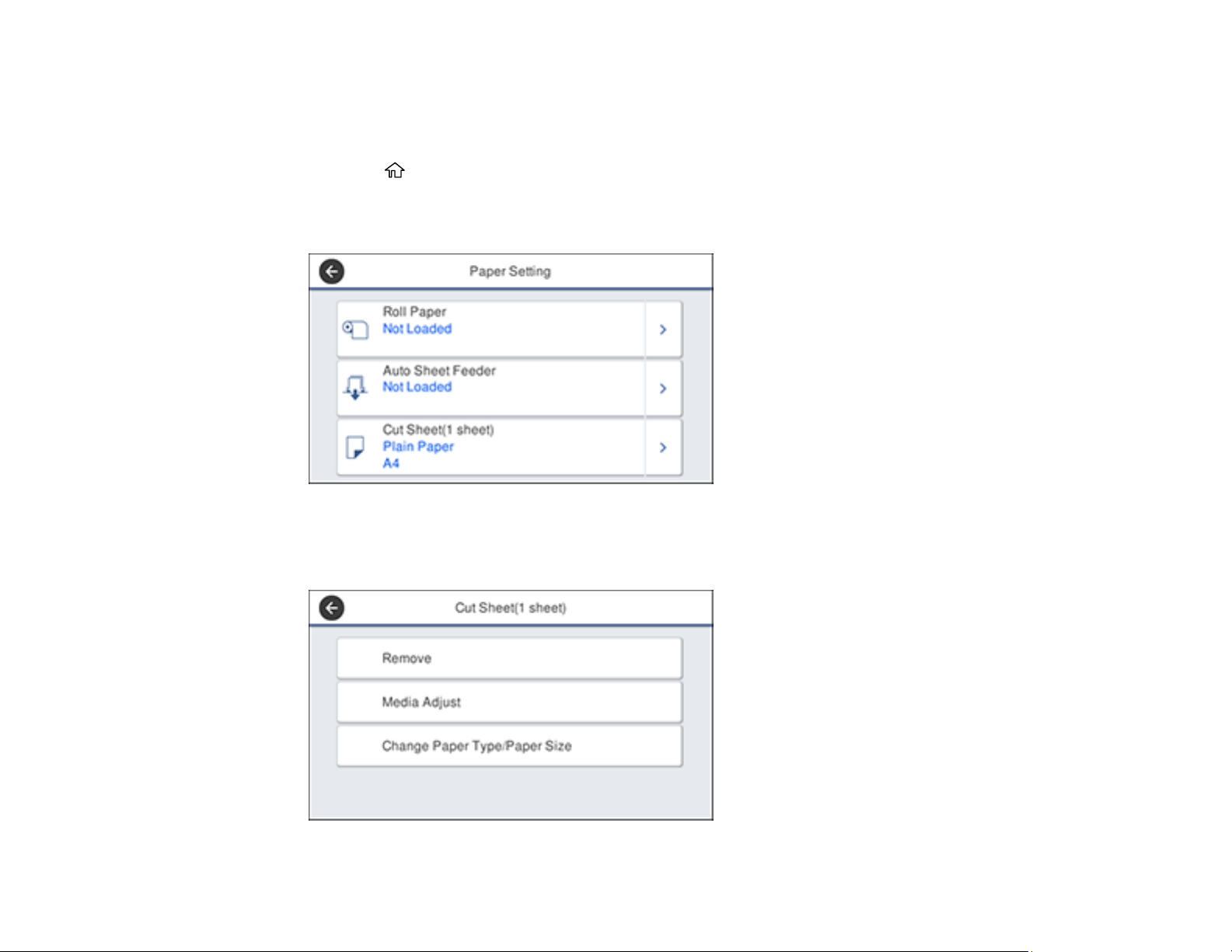

Selecting the Paper Settings for Each Source - Control Panel ........................................................... 68

Paper Type Settings - Control Panel ............................................................................................. 69

Printing from a Computer ......................................................................................................................... 70

Printing with Windows ........................................................................................................................ 70

Selecting Basic Print Settings - Windows ...................................................................................... 71

Document Size Options - Windows........................................................................................... 73

Paper Source Options - Windows ............................................................................................. 73

Print Mode Options - Windows.................................................................................................. 74

Color Mode Options - Windows ................................................................................................ 74

Level Options - Windows .......................................................................................................... 75

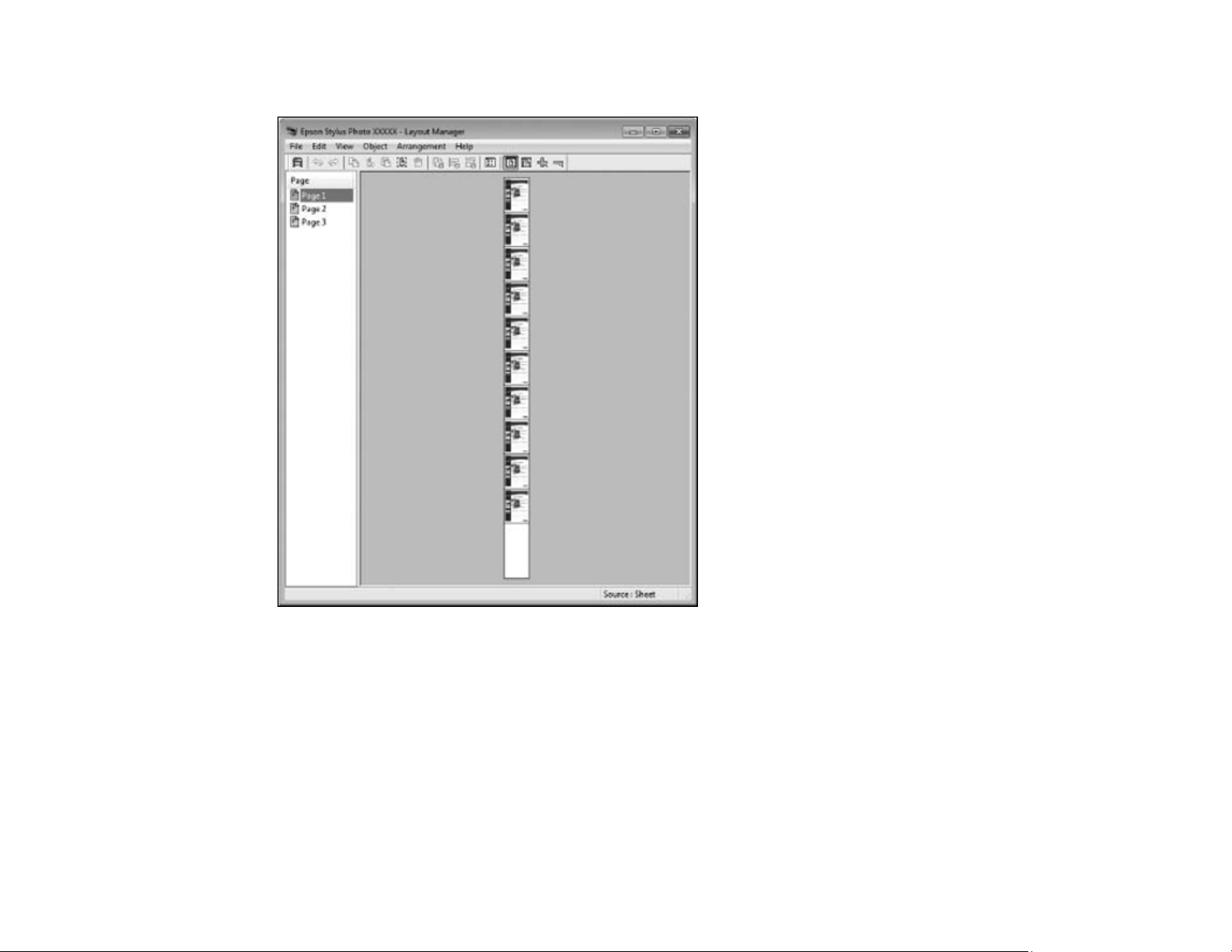

Using Layout Manager - Windows ............................................................................................ 77

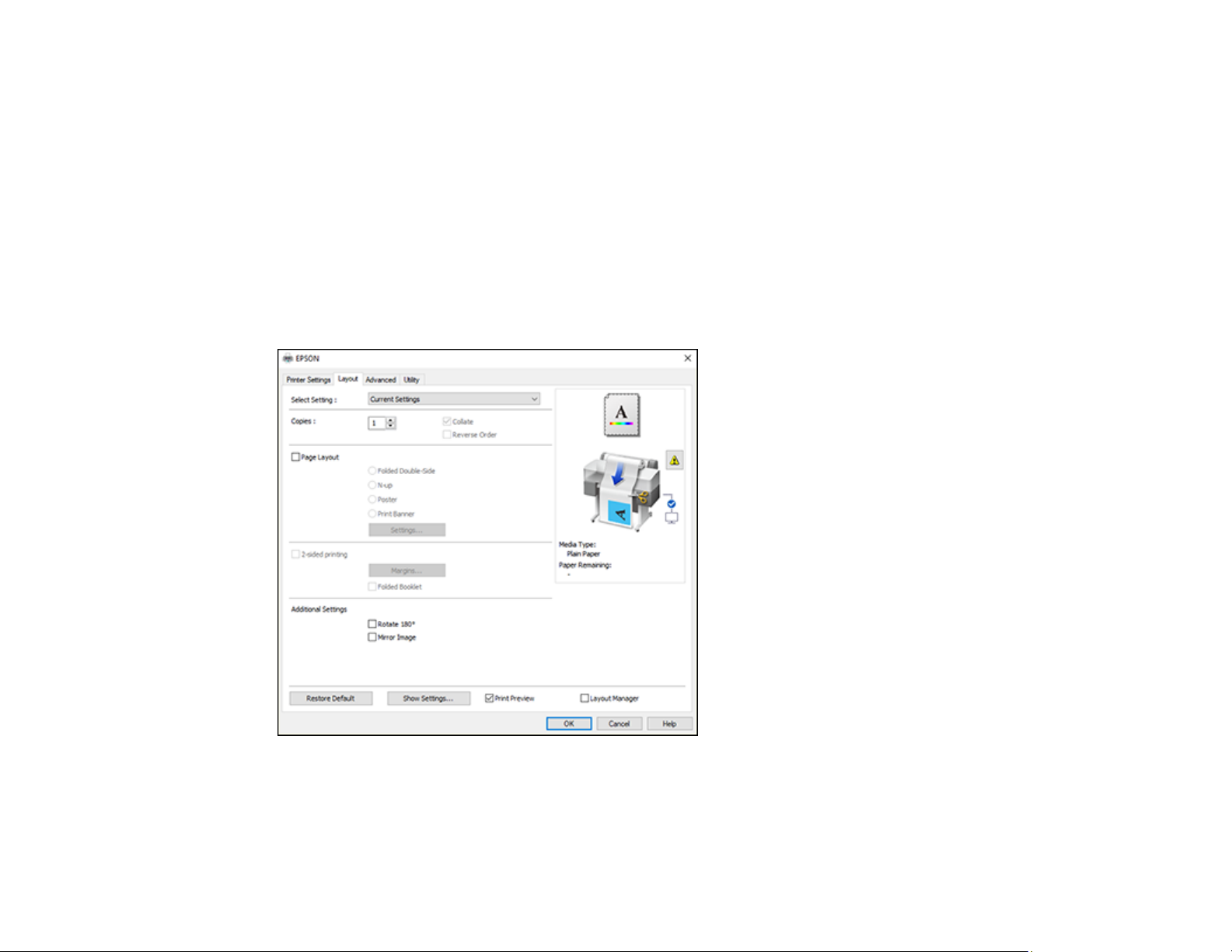

Selecting Print Layout Options - Windows..................................................................................... 82

Page Layout Options - Windows............................................................................................... 83

Selecting Advanced Settings - Windows ....................................................................................... 84

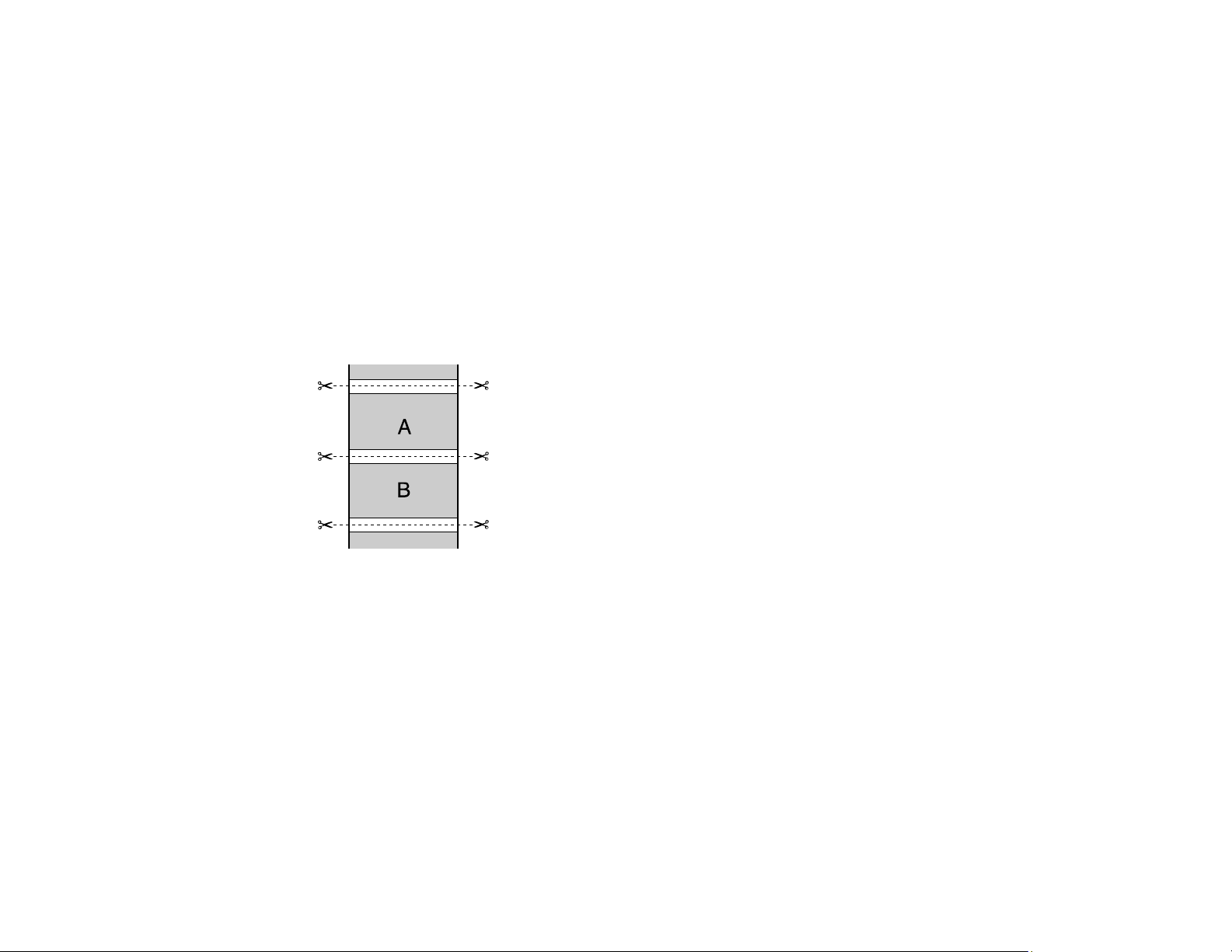

Roll Paper Options - Windows .................................................................................................. 85

Selecting Additional Settings - Windows ....................................................................................... 86

Printing Your Document - Windows............................................................................................... 87

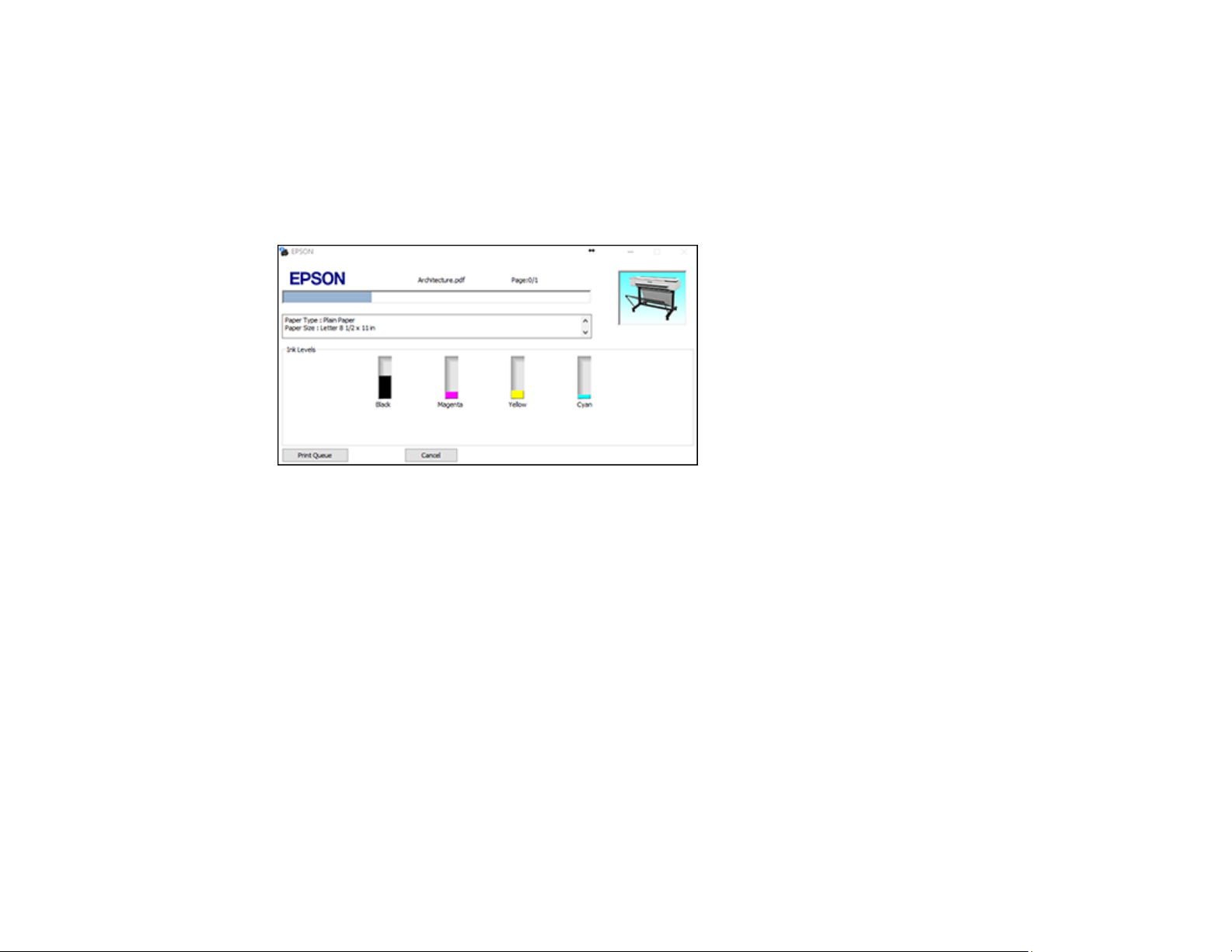

Checking Print Status - Windows.............................................................................................. 88

Saving, Sharing, and Customizing the Printer Settings ................................................................. 88

Saving and Sharing Print Settings - Windows........................................................................... 88

Editing Print Setting Displays - Windows .................................................................................. 90

Selecting Default Print Settings - Windows.................................................................................... 91

Changing the Language of the Printer Software Screens.............................................................. 92

Changing Automatic Update Options ............................................................................................ 93

Printing with the Built-in Epson Driver - Windows 10 S....................................................................... 94

Selecting Print Settings - Windows 10 S........................................................................................ 95

Printing on a Mac ............................................................................................................................... 97

Selecting Basic Print Settings - Mac .............................................................................................. 98

Paper Size Options - Mac ....................................................................................................... 102

Paper Source Options - Mac................................................................................................... 102

Print Mode Options - Mac ....................................................................................................... 103

Color Mode Options - Mac ...................................................................................................... 103

Level Options - Mac ................................................................................................................ 104

Selecting Print Layout Options - Mac........................................................................................... 105

Selecting Advanced Settings - Mac ............................................................................................. 105

Managing Color - Mac ................................................................................................................. 107

Color Matching Options - Mac................................................................................................. 108

Sizing Printed Images - Mac........................................................................................................ 108

Selecting Printing Preferences - Mac .......................................................................................... 108

Printing Preferences - Mac...................................................................................................... 109

Printing Your Document - Mac..................................................................................................... 110

Checking Print Status - Mac.................................................................................................... 111

Printing CAD Drawings..................................................................................................................... 112

Printing CAD Drawings from the Printer Driver............................................................................ 112

Printing CAD Drawings in HP-GL/2 or HP RTL Mode.................................................................. 114

Using Your Printer as a Copier............................................................................................................... 116

Connecting a Scanner to Your Printer.............................................................................................. 116

Placing Originals in the Scanner ...................................................................................................... 117

Printing Enlarged Copies from the Scanner ..................................................................................... 117

Supported Copy Sizes................................................................................................................. 118

Using the Control Panel Menus.............................................................................................................. 120

Accessing the Printer's Menus ......................................................................................................... 120

Paper Setting Menu.......................................................................................................................... 121

Basic Settings Menu......................................................................................................................... 123

Printer Settings Menu....................................................................................................................... 125

Network Settings Menu .................................................................................................................... 131

System Administration Settings Menu.............................................................................................. 131

Maintenance Menu........................................................................................................................... 133

Printer Status/Print Menu ................................................................................................................. 134

Replacing Ink Cartridges and Maintenance Boxes............................................................................... 135

Check Cartridge and Maintenance Box Status................................................................................. 135

Checking Ink Cartridge and Maintenance Box Status on the LCD Screen .................................. 135

Checking Ink Cartridge and Maintenance Box Status with Windows........................................... 136

Checking Cartridge and Maintenance Box Status - Mac ............................................................. 137

Purchase Epson Ink Cartridges and Maintenance Box .................................................................... 138

Ink Cartridge and Maintenance Box Part Numbers...................................................................... 139

Removing and Installing Ink Cartridges............................................................................................ 139

Replacing the Maintenance Box....................................................................................................... 142

Adjusting Print Quality............................................................................................................................ 145

Print Head Maintenance................................................................................................................... 145

Print Head Nozzle Check............................................................................................................. 145

Checking the Nozzles Using the Product Control Panel ......................................................... 145

Checking the Nozzles Using a Computer Utility...................................................................... 147

Print Head Cleaning .................................................................................................................... 149

Cleaning the Print Head Using the Product Control Panel ...................................................... 150

Cleaning the Print Head Using a Computer Utility................................................................... 151

Using the Powerful Cleaning Utility ......................................................................................... 153

Adjusting Print Quality Using the Product Control Panel .................................................................. 155

Cleaning the Auto Sheet Feeder ...................................................................................................... 157

Cleaning the Roll Paper Feeder ....................................................................................................... 158

Maintenance and Transportation ........................................................................................................... 159

Replacing the Cutter......................................................................................................................... 159

Moving or Transporting Your Product............................................................................................... 162

Discharging Ink............................................................................................................................ 164

Solving Problems .................................................................................................................................... 166

Checking for Software Updates........................................................................................................ 166

Product Status Messages ................................................................................................................ 167

Resetting Control Panel Defaults ..................................................................................................... 168

Solving Printer Problems.................................................................................................................. 169

Printer Does Not Turn On ............................................................................................................ 169

LCD Screen Shuts Off ................................................................................................................. 170

Solving Network Problems ............................................................................................................... 170

Product Cannot Connect to a Wireless Router or Access Point .................................................. 170

Network Software Cannot Find Product on a Network................................................................. 171

Product Does Not Appear in Mac Printer Window ....................................................................... 172

Cannot Print Over a Network....................................................................................................... 173

Solving Printing Problems ................................................................................................................ 174

Nothing Prints.............................................................................................................................. 174

Print Head Moves But Nothing Prints .......................................................................................... 175

Solving Paper Problems................................................................................................................... 175

Paper Feeding Problems............................................................................................................. 176

Printout Quality Problems............................................................................................................ 177

Roll Paper Jam Problems ............................................................................................................ 177

Cut Sheet Paper Jam Problems .................................................................................................. 179

Solving Print Quality Problems......................................................................................................... 180

Overall Print Quality is Poor......................................................................................................... 180

Lines Are Misaligned ................................................................................................................... 182

Prints are Scuffed or Smeared .................................................................................................... 182

Prints are Not Positioned Properly............................................................................................... 183

Too Much Ink is Consumed ......................................................................................................... 183

Cannot Make Enlarged Copies from Scanner .................................................................................. 184

Uninstall Your Product Software....................................................................................................... 184

Uninstalling Product Software - Windows.................................................................................... 184

Uninstalling Product Software - Mac............................................................................................ 185

Where to Get Help............................................................................................................................ 186

Technical Specifications ........................................................................................................................ 188

Windows System Requirements ...................................................................................................... 188

Mac System Requirements .............................................................................................................. 189

Paper Specifications ........................................................................................................................ 189

Printable Area Specifications ........................................................................................................... 191

Ink Cartridge Specifications.............................................................................................................. 193

Dimension Specifications ................................................................................................................. 194

Electrical Specifications ................................................................................................................... 195

Environmental Specifications ........................................................................................................... 196

Interface Specifications .................................................................................................................... 196

Network Interface Specifications ...................................................................................................... 196

Safety and Approvals Specifications ................................................................................................ 197

Notices ..................................................................................................................................................... 199

Important Safety Instructions............................................................................................................ 199

General Product Safety Instructions ............................................................................................ 199

Ink Cartridge Safety Instructions.................................................................................................. 201

LCD Screen Safety Instructions................................................................................................... 202

Wireless Connection Safety Instructions ..................................................................................... 202

FCC Compliance Statement............................................................................................................. 203

Binding Arbitration and Class Waiver ............................................................................................... 203

Trademarks...................................................................................................................................... 207

Copyright Notice............................................................................................................................... 207

A Note Concerning Responsible Use of Copyrighted Materials................................................... 208

Default Delay Times for Power Management for Epson Products ............................................... 208

Copyright Attribution.................................................................................................................... 208

Epson SureColor T2170/T3170/T5170 User's Guide

Welcome to the Epson SureColor T2170/T3170/T5170 User's Guide.

For a printable PDF copy of this guide, click here.

Introduction to Your Printer

Refer to these sections to learn more about your printer and this manual.

Printer Features Notations Used in the Documentation Printer Part Locations Using the Control Panel Using AirPrint Assembling the Printer Stand and Paper Basket

Printer Features

The Epson SureColor T2170/T3170/T5170 printer includes these special features:

High productivity

• Print accurate A1/D-size prints in 31 seconds (SureColor T5170), 34 seconds (SureColor T3170), or 43 seconds (SureColor T2170)

• Available 50-ml color or 80-ml black high-capacity ink cartridges with next generation UltraChrome XD2, 4-color, all-pigment ink

• HP-GL2 support for CAD software

• Wirelessly print from computers, tablets, or smartphones

Reliability

• Improved anti-dust design for reduced print head nozzle maintenance

• PrecisionCore Micro TFP print head offers Precision Droplet Control

• Nozzle Verification Technology detects nozzle condition and adjusts print quality

High resolution

• Prints at resolutions up to 2400 dpi

Easy-to-use setup and operation

• Intuitive, easy-to-read, 4.3-inch, color LCD touchscreen

• Sleek, minimal design that easily fits on desktops

• Easy-to-use software

• Supports both roll and sheet paper up to 24 inches (609.6 mm) [SureColor T2170/T3170] or 36 inches (914.4 mm) [SureColor T5170]. The auto sheet feeder supports sheets up to 11 × 17 inches (279 × 432 mm).

Optional Equipment and Replacement Parts

Parent topic: Introduction to Your Printer

Optional Equipment and Replacement Parts

You can purchase genuine Epson ink, paper, and accessories from an Epson authorized reseller. To find the nearest reseller, visit proimaging.epson.com (U.S.) or proimaging.epson.ca (Canada), select your product series and product, and click the Where to Buy button. Or call 800-GO-EPSON (800-463-

7766) in the U.S. or 800-807-7766 in Canada.

Option or part Part number

Printer stand and paper basket (24") [SureColor T2170/T3170] C12C933151

Roll media spindle (24") [SureColor T2170/T3170] C12C935701

Roll media spindle (36") [SureColor T5170] C12C933131

Maintenance box C13S210057

Replacement printer cutter blade C13S210055

Output tray C12C936361

1-year extended Epson Preferred Plus service plan EPPT3151B1

Parent topic: Printer Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:

• Warnings must be followed carefully to avoid bodily injury.

• Cautions must be observed to avoid damage to your equipment.

• Notes contain important information about your printer.

• Tips contain additional printing information.

Parent topic: Introduction to Your Printer

Printer Part Locations

Check the printer part illustrations to learn about the parts on your printer.

Product Parts - Front Product Parts - Top/Inside Product Parts - Rear Control Panel Parts

Parent topic: Introduction to Your Printer

Product Parts - Front

1 Control panel

2 Cutter cover

3 Stand and paper basket (included with optional stand for SureColor T2170/T3170)

4 Casters (included with optional stand for SureColor T2170/T3170)

5 Output tray (optional for SureColor T2170)

6 B1-size paper support (available only on SureColor T5170)

7 Edge guides

8 Auto sheet feeder

9 Cut sheet cover

10 Front cover

Parent topic: Printer Part Locations

Product Parts - Top/Inside

1 Roll paper cover

2 Paper feeder

3 Ink cartridges

4 Ink cartridge cover

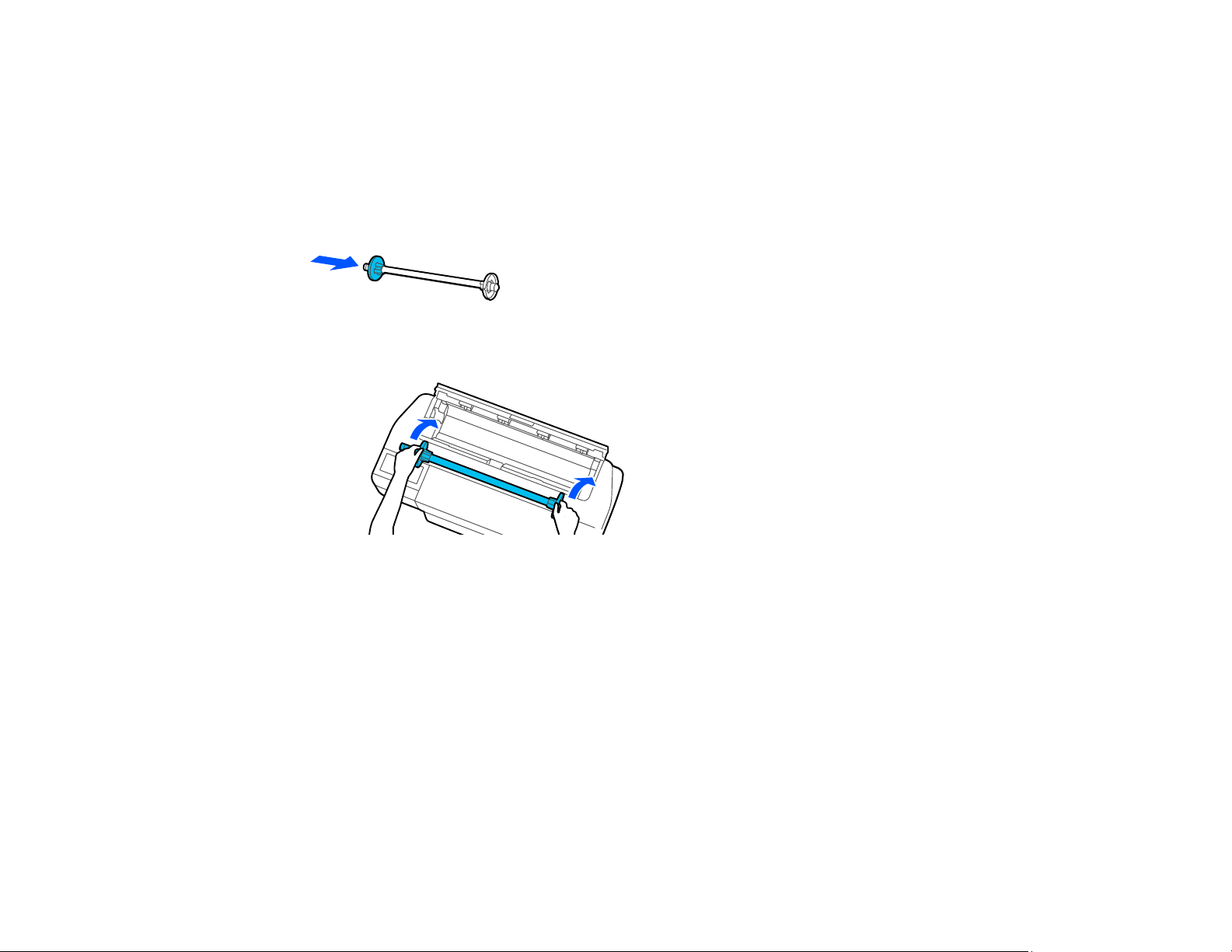

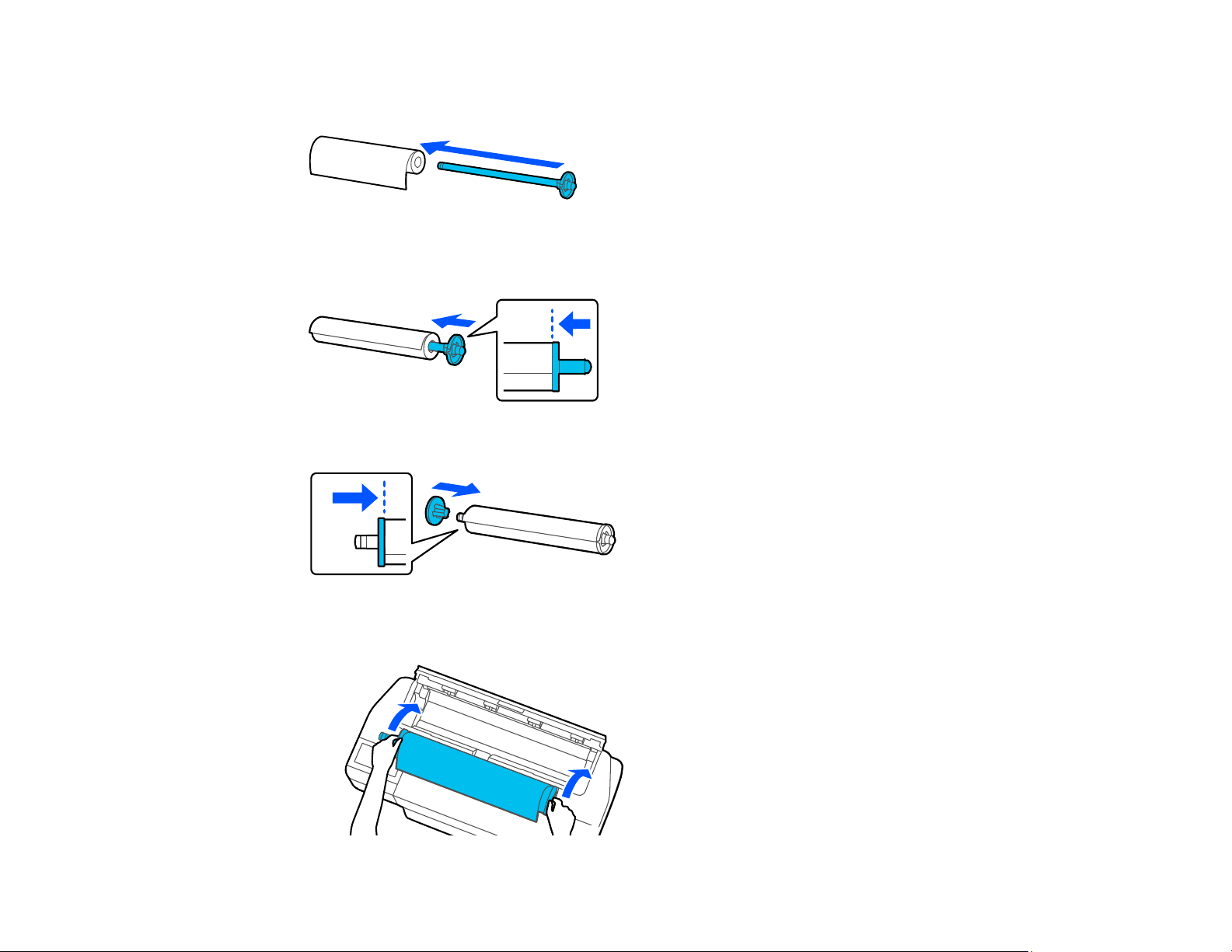

5 Roll paper spindle

6 2-inch core paper stop (left side is removeable)

7 Roll paper spindle holders

Parent topic: Printer Part Locations

Product Parts - Rear

1 Maintenance box cover

2 Maintenance box

3 AC inlet

4 Ethernet LAN port

5 Status light

6 Data light

7 OPTION port (for scanner connection)

8 USB port

9 Airflow vents

Caution: Do not block the airflow vents shown above.

Parent topic: Printer Part Locations

Control Panel Parts

4 LCD touchscreen

home button

power light

power button

LCD Screen Display

1 Status messages

2 Roll paper information

When roll paper is not loaded, - - - is displayed.

3 Paper Setting menu

4 Printer Status menu (or Enlarged Copy if a scanner is connected)

5 Settings menu

6 Message List (displays notifications or warnings)

7 Network Connection Settings

: No Ethernet connection

: Ethernet connection established

: No Wi-Fi connection

: Wi-Fi network error or the product is searching for a connection

: Wi-Fi connection established; the number of bars indicates signal strength

: No Wi-Fi Direct connection

: Wi-Fi Direct connection established

8 Supply Status (displays remaining ink cartridge and maintenance box levels)

Parent topic: Printer Part Locations

Using the Control Panel

See these sections to learn about the control panel and select control panel settings.

Changing the LCD Screen Language Selecting the Date and Time Setting a Password and Locking the Control Panel

Parent topic: Introduction to Your Printer

Changing the LCD Screen Language

You can change the language used on the LCD screen.

1. Press the home button, if necessary.

2. Select Settings > Language.

You see this screen:

3. Select a language.

4. Press the home button to exit.

Parent topic: Using the Control Panel

Selecting the Date and Time

Before using your product, select the current date, time, and daylight saving phase in your area, and choose your preferred date and time format.

Note: This setting can be locked by an administrator. If you cannot access or change this setting, contact your administrator for assistance.

1. Press the home button, if necessary.

2. Select Settings > General Settings > Basic Settings > Date/Time Settings.

You see this screen:

3. Select Date/Time.

4. Select the date format you want to use.

5. Use the on-screen keyboard to enter the current date and select OK.

6. Select the time format you want to use.

7. Use the on-screen keyboard to enter the current time and select OK.

8. Press the home button to exit.

Parent topic: Using the Control Panel

Setting a Password and Locking the Control Panel

You can set an administrator password to lock the following settings and prevent them from being changed:

• Network settings

• Certain Printer Settings

• Certain Maintenance Settings

• System Administration settings

• Web Config settings

• EpsonNet Config settings

Note: This setting can be locked by an administrator. If you cannot access or change this setting,

contact your administrator for assistance.

Note: For more information on administration settings, see the Administrator's Guide.

1. Press the home button, if necessary.

2. Select Settings > General Settings > System Administration > Security Settings > Admin

Settings.

You see a screen like this:

3. Select Admin Password.

4. Select Register.

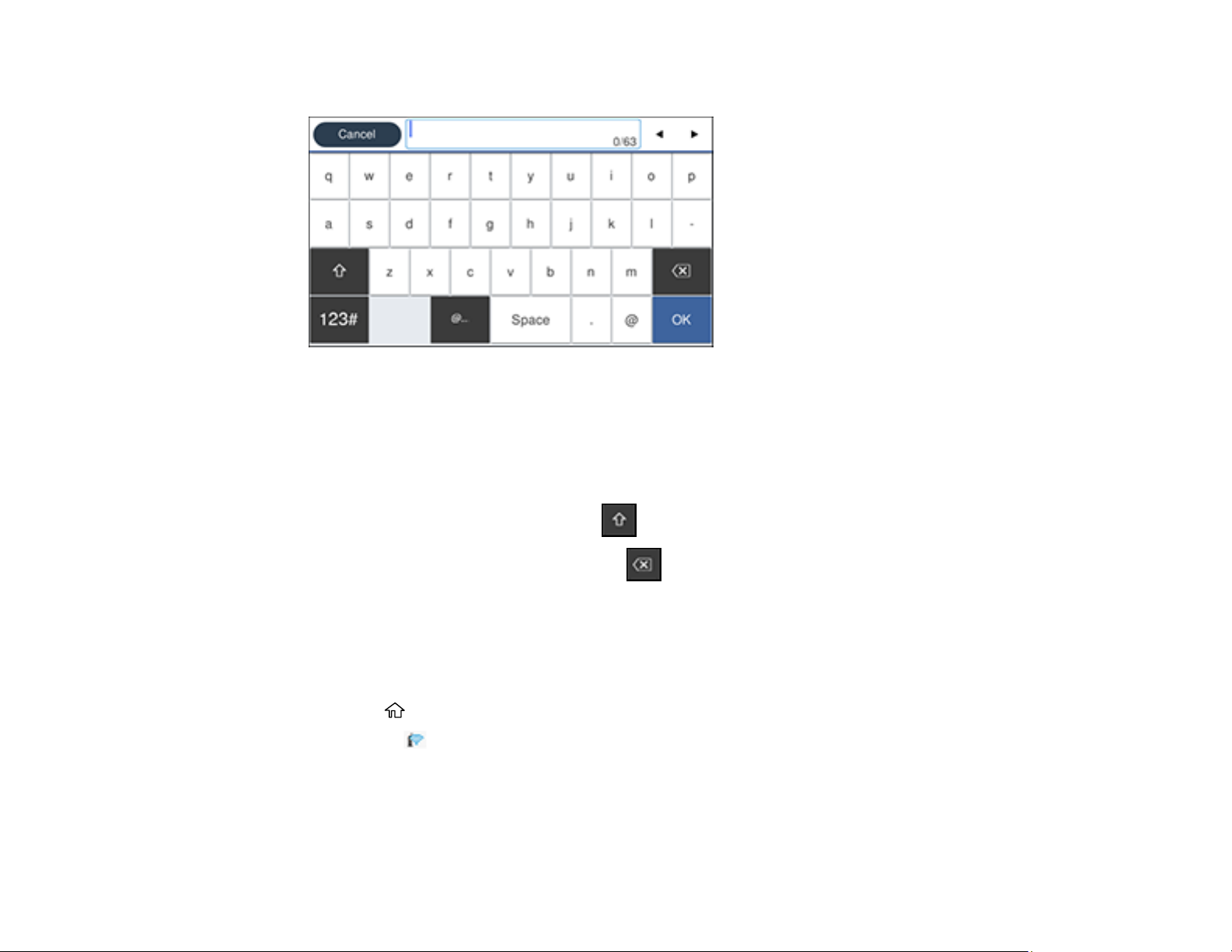

5. Use the on-screen keyboard to enter a password and select OK.

6. Enter the password again to confirm and select OK.

Note: Keep a copy of your password in a safe place.

7. Select OK.

8. Select Lock Setting > On to lock settings.

A prompt appears confirming that you want to enable locked settings. Select Yes to enable the setting and return to the home screen.

You must enter the admin password to access any of the locked settings.

Note: If you forget your password, contact Epson for assistance.

Parent topic: Using the Control Panel

Using AirPrint

AirPrint enables instant wireless printing from iPhone, iPad, iPod touch, and Mac without the need to install drivers or download software.

1. Load paper in your product.

2. Set up your product for wireless printing. See the link below.

3. Connect your Apple device to the same wireless network that your product is using.

4. Print from your device to your product.

Note: For details, see the AirPrint page on the Apple website.

Parent topic: Introduction to Your Printer

Assembling the Printer Stand and Paper Basket

Follow these steps to assemble the printer stand and paper basket for the SureColor T5170 printer.

Note: You can purchase an optional printer stand and paper basket for the SureColor T2170/T3170 printer.

Before you begin, make sure you have enough space to set up the printer as shown here.

1 2 inches (50 mm)

2 12 inches (310 mm)

3 6 inches (150 mm)

Note: At least two people are required to lift the printer onto the stand after it is assembled.

1. Make sure you have all of these items for assembly:

1 Left mounting bracket

2 Right mounting bracket

3 Support brace

4 Left leg

5 Right leg

6 Paper basket bar

7 Left leg base (square hole is the front side)

8 Right leg base (square hole is the front side)

9 Allen wrench

10 Paper basket rod

11 Left paper basket support rod

12 Right paper basket support rod

13 Screws (28; 24 if thumbscrews are included)

14 Screw holders (4)

15 Thumbscrews (4; not included with all stands)

2. Attach the support brace to the left leg base and the right leg base.

3. Use the Allen wrench to insert 8 screws (four on each side) into the holes on the support brace and

leg bases.

4. Attach the legs to the bases.

5. Insert 8 screws (4 on each side) into the holes in the legs.

6. Push in the cloth on the paper basket bar so it does not get caught between the bar and the legs,

and attach the bar to the legs.

Note: Make sure the L and R stickers on the paper basket bar are correctly oriented with the L and R

stickers on the leg bases.

7. Insert 4 screws (2 on each side) into the holes on the paper basket bar to secure it to the legs.

8. Make sure the L and R stickers on the mounting brackets are correctly oriented with the left and right

legs and attach them as shown.

9. Insert 4 screws into 4 screw holders (2 on each side) and insert them into the holes on the legs to

secure the mounting brackets.

10. Slide the paper basket rod into the pocket on the end of the paper basket cloth.

11. Insert the top of the paper basket support rods through the loops on the paper basket cloth and

attach them to the paper basket rods.

12. Insert the ends of the paper basket support rods into the holes on the leg bases.

13. Close the paper basket as shown.

14. On the back of the paper basket and stand, attach the loops on the paper basket cloth to the hooks

on the leg bases as shown.

15. On the front of the stand, lock the casters.

16. Have at least two people lift the printer using the indented areas as shown.

Caution: Do not hold the printer by the paper support. You may damage it.

17. Align the notches on the printer with the notches on the back of the stand as shown and place the

printer on the stand.

18. Do one of the following:

• If your stand does not include thumbscrews, insert 4 screws (2 on each side) into the bottom of the mounting brackets to secure the printer to the stand. On the left rear side, insert the screw through the wired loop on the printer as shown.

• If your stand includes thumbscrews, insert 4 thumbscrews (2 on each side) into the bottom of the mounting brackets to secure the printer to the stand. On the left rear side, insert the thumbscrew through the wired loop on the printer as shown.

Parent topic: Introduction to Your Printer

Related references

Optional Equipment and Replacement Parts

Wi-Fi or Wired Networking

See these sections to use your product on a Wi-Fi or wired network.

Network Security Recommendations Wi-Fi Infrastructure Mode Setup Wi-Fi Direct Mode Setup Wi-Fi Protected Setup (WPS) Printing a Network Status Sheet Changing or Updating Network Connections

Network Security Recommendations

To help deter unauthorized access to your product over a network, you should protect your network environment using appropriate security measures.

Security measures such as these can help deter threats such as loss of user data, use of telephone and fax lines, and other intrusions:

• Enable security on your wireless LAN

Enable the appropriate security on the wireless LAN you plan to use with your product. Network security such as a network password can deter interception of traffic over the wireless LAN. Your router may already have a default password enabled by your Internet service provider (ISP). See your ISP and router documentation for instructions on how to change the default password and better secure your network.

• Connect your product only to a network protected by a firewall

Connecting your product directly to the Internet may leave it vulnerable to security threats. Instead, connect it to a router or other network connection protected by a firewall. Your router may already have a firewall set up by your Internet service provider; check with your ISP for confirmation. For best results, set up and use a private IP address for your network connection.

• Change the default administrator password on your product

If your product has an option to set an administrator password, change the default administrator password to deter access by unauthorized users to personal data stored on your product, such as IDs, passwords, and contact lists.

Parent topic: Wi-Fi or Wired Networking

Wi-Fi Infrastructure Mode Setup

You can set up your product to communicate with your computer using a wireless router or access point. The wireless router or access point can be connected to your computer over a wireless or wired network.

Note: You cannot connect to a wired and wireless network at the same time.

1 Epson product

2 Wireless router or access point

3 Computer with a wireless interface

4 Computer

5 Internet

6 Ethernet cable (used only for wired connection to the wireless router or access point)

Selecting Wireless Network Settings from the Control Panel

Parent topic: Wi-Fi or Wired Networking

Selecting Wireless Network Settings from the Control Panel

You can select or change wireless network settings using your product control panel.

To install your product on a wireless network, install the necessary software by downloading it from the Epson website. The installer program guides you through network setup.

Note: This setting can be locked by an administrator. If you cannot access or change this setting, contact your administrator for assistance.

1. Press the home button, if necessary.

2. Select the icon.

You see a screen like this:

3. Select Router > Start Setup o Change Settings > Wi-Fi Setup Wizard.

4. Select the name of your wireless network or select Enter Manually to enter the name manually. Use the on-screen keyboard to enter your network name.

5. Select the Enter Password field and enter your wireless password using the on-screen keyboard.

Note: The network name and password are case sensitive. Be sure to correctly enter uppercase and

lowercase letters, and numeric or special characters.

• To move the cursor, press the left or right arrows.

• To enter numbers or symbols, select 123#.

• To change the case of letters, select .

• To delete the previous character, select .

• To enter a space, select Space.

6. Select OK when you finish entering your password.

7. Confirm the displayed network settings and select Start Setup to save them.

8. If you want to print a network setup report, select Print Check Report. (Otherwise, select OK.)

9. Press the home button to exit.

You see the icon on the LCD screen and should be able to connect to your product directly from your computer or device, and then print. If you are printing from a computer, make sure you installed the network software from the Epson website.

Note: If you don't see the icon, you may have selected the wrong network name or entered the

password incorrectly. Repeat these steps to try again.

Parent topic: Wi-Fi Infrastructure Mode Setup

Wi-Fi Direct Mode Setup

You can set up your product to communicate directly with your computer or another device without requiring a wireless router or access point. In Wi-Fi Direct Mode, the product itself acts as a network access point for up to 4 devices.

1 Epson product

2 Computer with a wireless interface

3 Other wireless device

Enabling Wi-Fi Direct Mode

Parent topic: Wi-Fi or Wired Networking

Enabling Wi-Fi Direct Mode

You can enable Wi-Fi Direct mode to allow direct communication between your product and computer or other devices without a wireless router or access point.

Note: This setting can be locked by an administrator. If you cannot access or change this setting,

contact your administrator for assistance.

1. Press the home button, if necessary.

2. Select the icon.

You see a screen like this:

3. Select Wi-Fi Direct > Start Setup > Start Setup.

You see a screen like this:

4. Use your computer or wireless device to select the Wi-Fi network name (SSID) displayed on the LCD screen, then enter the password shown.

5. Press the home button to exit.

Note: If you don't see the icon on the LCD screen, you may have selected the wrong network name or entered the password incorrectly. Repeat these steps to try again.

Parent topic: Wi-Fi Direct Mode Setup

Wi-Fi Protected Setup (WPS)

If your network uses a WPS-enabled wireless router or access point, you can quickly connect your product to the network using Wi-Fi Protected Setup (WPS).

Note: To check if your router is WPS-enabled, look for a button labeled WPS on your router or access point. If there is no hardware button, there may be a virtual WPS button in the software for the device. Check your network product documentation for details.

Using WPS to Connect to a Network

Parent topic: Wi-Fi or Wired Networking

Using WPS to Connect to a Network

If you have a WPS-enabled wireless router or access point, you can use Wi-Fi Protected Setup (WPS) to connect your product to the network.

Note: This setting can be locked by an administrator. If you cannot access or change this setting, contact your administrator for assistance.

1. Press the home button, if necessary.

2. Select the icon.

You see a screen like this:

3. Select Router > Start Setup or Change Settings > Push Button Setup (WPS).

4. Follow the instructions on the LCD screen to complete WPS setup.

5. Press the home button to exit.

Note: If you don't see the icon, repeat these steps to try again.

Parent topic: Wi-Fi Protected Setup (WPS)

Printing a Network Status Sheet

You can print a network status sheet to help you determine the causes of any problems you may have using your product on a network.

Before you begin, make sure paper is loaded in the product.

1. Press the home button, if necessary.

2. Select Settings > General Settings > Network Settings > Network Status.

You see a screen like this:

3. Select Print Status Sheet > Print.

Examine the settings shown on the network status sheet to diagnose any problems you have.

Parent topic: Wi-Fi or Wired Networking

Changing or Updating Network Connections

See these sections to change or update how your product connects to a network.

Accessing the Web Config Utility Changing a USB Connection to a Wi-Fi Connection Changing a Wi-Fi Connection to a Wired Network Connection Connecting to a New Wi-Fi Router Disabling Wi-Fi Features

Parent topic: Wi-Fi or Wired Networking

Accessing the Web Config Utility

You can select your product's network settings and confirm its operating status using a web browser. You do this by accessing your product's built-in Web Config utility from a computer or other device that is connected to the same network as your product.

Note: For more information on the Web Config utility, see the Administrator's Guide.

1. Print a network status sheet.

2. Locate the IP address for your product that is listed on the network status sheet.

3. On a computer or other device connected to the same network as your product, open a web browser.

4. Enter your product's IP address into the address bar.

You see the available Web Config utility options.

Parent topic: Changing or Updating Network Connections

Related tasks

Printing a Network Status Sheet

Changing a USB Connection to a Wi-Fi Connection

If you have already connected your product to your computer using a USB connection, you can change to a Wi-Fi connection.

1. Disconnect the USB cable from your product.

2. Uninstall your product software.

3. Download and install your product software from the Epson website using the instructions on the Start Here sheet.

Parent topic: Changing or Updating Network Connections

Related concepts

Uninstall Your Product Software

Changing a Wi-Fi Connection to a Wired Network Connection

If you have already connected your product to your computer wirelessly, you can change to a wired network connection if necessary.

1. Press the home button, if necessary.

2. Select the icon.

You see a screen like this:

3. Select Description > Wired LAN Connection Method > Start Setup.

The Wi-Fi connection is disabled. Select OK.

4. Connect one end of an Ethernet network cable to the product's LAN port.

5. Connect the other end to any available LAN port on your router or access point.

Parent topic: Changing or Updating Network Connections

Connecting to a New Wi-Fi Router

If you change the wireless router you have been using on your network, you need to update your product's Wi-Fi connection to the new router.

Note: If you switch to a 5 GHz wireless router, set the router to operate in dual band (2.4 GHz and 5 GHz) mode. See your router documentation for instructions.

1. Do one of the following:

• Windows: Uninstall your product software.

• Mac: Go to the next step.

2. Download and install your product software from the Epson website using the instructions on the Start Here sheet.

Parent topic: Changing or Updating Network Connections

Related concepts

Uninstall Your Product Software

Disabling Wi-Fi Features

You may need to disable your product's Wi-Fi features if you change your network connection type or need to solve a problem with your network connection.

Note: Before disabling Wi-Fi features, make a note of your product's SSID (network name) and password.

Note: This setting can be locked by an administrator. If you cannot access or change this setting, contact your administrator for assistance.

1. Press the home button, if necessary.

2. Select the icon.

You see a screen like this:

3. Select Router > Start Setup or Change Settings > Others > Disable Wi-Fi.

4. Select Yes to disable Wi-Fi.

Parent topic: Changing or Updating Network Connections

Media Handling

See these sections to load and handle media on your product.

Roll Paper Handling Cut Sheet Handling Creating Custom Paper Configurations Compatible Epson Papers Paper or Media Type Settings - Printing Software Selecting the Paper Settings for Each Source - Control Panel

Roll Paper Handling

See these sections to load, cut, and remove roll paper in your product.

Loading Roll Paper Cutting Roll Paper Removing Roll Paper

Parent topic: Media Handling

Loading Roll Paper

Load roll paper onto the spindle before loading the roll paper in the printer.

Note: To prevent dust from accumulating inside the printer, always keep the roll paper cover and cut sheet cover closed unless you are loading or unloading media.

Note: This product does not support 3-inch core diameter media.

1. Remove any tape and protective paper from the end of the roll. Make sure the paper is cut straight across to avoid paper feeding problems.

Note: Avoid touching the surface of your paper or leaving it on a dusty area.

2. Make sure Load paper is displayed on the home screen.

3. Open the cut sheet cover.

4. Release the central lock and open the roll paper cover.

5. Remove the spindle.

6. Remove the transparent paper stop from the spindle.

7. Insert the spindle into the roll paper core as shown, with the lead edge of the roll paper facing towards you.

8. Push the fixed paper stop against the roll paper until there is no gap between the paper stop and the roll paper.

9. Attach the transparent paper stop to the spindle and press it in until there is no gap between the paper stop and the roll paper.

10. Place the roll paper into the printer with the black end of the spindle on the right.

11. Insert the leading edge of the roll paper into the paper feeder until you hear a beep.

Note: Make sure the leading edge of the roll paper is not bent or skewed, or a paper jam or skew error may occur.

12. Close the roll paper cover and the cut sheet cover.

Note: When you load B1 (27.8 × 39.4 inches [707 × 1000 mm]) paper in the SureColor T5170, raise the B1 width paper support as shown or the printout may be scuffed or soiled. Lower the support when printing on any other paper size.

13. Select the paper type you loaded on the LCD screen and set the remaining amount, if necessary.

If your printer includes a stand and paper basket, make sure the paper basket is open to catch printouts.

Parent topic: Roll Paper Handling

Related references

Compatible Epson Papers Paper Specifications Roll Paper Options - Windows

Related tasks

Removing Roll Paper Selecting Advanced Settings - Mac

Cutting Roll Paper

The printer has a built-in cutter that can automatically cut most paper types. When Auto Cut is turned on, paper is automatically cut after each page prints, or if the roll paper leading edge is not straight.

Caution: Use of the built-in cutter is not recommended for commercially available canvas or synthetic paper, as it may dull the blade and require more frequent blade replacement. When you print on this paper type, disable the Auto Cut setting and cut the print off the roll manually.

To switch between automatic or manual cutting methods, adjust the Auto Cut settings in the printer driver. The setting selected in the printer driver overrides the control panel setting.

Cutting Roll Paper Manually

Parent topic: Roll Paper Handling

Related references

Roll Paper Options - Windows

Related tasks

Selecting Advanced Settings - Mac

Cutting Roll Paper Manually

You can keep your prints on the roll until you manually cut them.

1. Turn off the Auto Cut setting in the printer driver or the control panel, depending on the situation:

• If you want to cut the paper manually, turn off the setting in the printer driver. Select Advanced >

Roll Paper Option > Auto Cut.

Note: The Auto Cut setting in the printer driver takes priority over the setting in the control panel.

The printer driver setting returns to automatic cutting when you close the application.

• If you are using a paper type that cannot be cut with the built-in cutter, turn off the setting in the

control panel. From the roll paper information area, select Advanced Media Setting > Auto Cut > Off.

2. Print your document.

3. From the roll paper information area, select Feed/Cut Paper.

4. To move the paper into a cutting position, press and hold Forward or Backward until the position you want to cut appears at the dotted line as shown.

5. To cut the paper, select Cut.

• If the auto cut setting is turned off only in the printer driver, the paper is cut and the paper leading

edge returns to the print wait position.

• If the auto cut setting is turned off in the control panel, select Cut to manually cut the paper with

scissors or select Print Cutting Guideline to print a line on the paper to guide with manual cutting.

Parent topic: Cutting Roll Paper

Removing Roll Paper

When you finish printing on roll paper, you should remove it from the printer to avoid indenting or creasing the lead edge of the paper.

1. Open the cut sheet cover.

2. Release the central lock and open the roll paper cover.

3. Select Remove on the LCD screen. The roll paper rewinds and ejects automatically.

Note: Make sure the roll paper is rewound completely before removing it from the printer.

4. Hold both ends of the spindle and lift it up from the spindle holder.

5. Remove the transparent paper stop from the spindle.

6. Remove the spindle from the roll paper.

7. Place the roll paper in its original package.

Note: Store roll paper on its end or horizontally (if the packaging end-caps are installed). Never store roll paper on its edge, as a flat spot can develop and lead to imaging artifacts on the prints. Do not store roll paper in dusty areas. Print head maintenance and cleanings increase if dust accumulates on the paper.

8. Reattach the transparent paper stop to the spindle.

9. Place the spindle back into the printer.

10. Close the roll paper cover and the cut sheet cover.

Note: To prevent dust from accumulating inside the printer, always keep the roll paper cover and cut sheet cover closed unless you are loading or unloading media.

Parent topic: Roll Paper Handling

Cut Sheet Handling

You can load a variety of types and sizes of cut sheet paper in your product.

Loading Single Cut Sheets Loading Paper in the Auto Sheet Feeder Removing Paper from the Auto Sheet Feeder

Parent topic: Media Handling

Loading Single Cut Sheets

You can print on a variety of cut sheet paper types and sizes up to 24 inches (61 cm) [SureColor T2170/T3170] or 36 inches (91 cm) [SureColor T5170] wide and 0.1 inch (0.27 mm) thick. You can load and print on one sheet at a time.

Before printing on cut sheets, remove any loaded roll paper, close the auto sheet feeder, and remove the output tray.

1. Make sure Load paper is displayed on the home screen.

2. Select Paper Setting > Cut Sheet (1 sheet) on the LCD screen

3. Open the cut sheet cover.

4. Load one sheet of paper, printable side up in portrait orientation. Align the right edge of the paper with the right mark line and plastic ledge on the printer and the left mark line for the paper size you are using.

5. Insert the paper into the paper feeder until you hear a beep.

Note: Make sure the leading edge of the paper is straight to prevent a skew error or paper jam.

6. Select the paper type and size you loaded on the LCD screen.

Note: If your printer includes a stand and paper basket, make sure the paper basket is open to catch

the printout.

To remove a loaded cut sheet without printing, select Paper Setting > Cut Sheet (1 sheet) > Remove. The paper is ejected.

Parent topic: Cut Sheet Handling

Related references

Compatible Epson Papers Paper Specifications

Loading Paper in the Auto Sheet Feeder

You can load up to 50 sheets of plain paper up to 0.1 inch (0.27 mm) thick in the auto sheet feeder in the following sizes: A3 (11.7 × 16.5 inches [297 × 420 mm]), A4 (8.3 × 11.7 inches [210 × 297 mm]), Letter (8.5 × 11 inches [216 × 279 mm]), or Legal (8.5 × 14 inches [216 × 356 mm]).

Note: Roll paper can remain loaded when using the auto sheet feeder. Switch between paper sources in the printer driver.

1. Attach the output tray (optional for SureColor T2170) by inserting its hooks into the holes in the front of the printer.

2. Make sure Load paper is displayed on the home screen.

3. Open the cut sheet cover.

4. Tilt back the auto sheet feeder and pull the paper support extensions all the way out and upward.

5. Slide the edge guides out.

6. Load paper, printable side up, into the auto sheet feeder.

7. Adjust the edge guides to fit the paper width.

8. Select the paper type and size you loaded on the LCD screen.

Parent topic: Cut Sheet Handling

Related references

Compatible Epson Papers Paper Specifications

Removing Paper from the Auto Sheet Feeder

Remove paper from the auto sheet feeder when you finish printing.

Note: To prevent dust from accumulating inside the printer, always remove any paper from the auto sheet feeder and keep the auto sheet feeder closed unless you are loading or unloading media.

1. Slide out the edge guides and remove the paper from the auto sheet feeder.

2. Fold down and push in the paper support extensions and close the auto sheet feeder.

3. Close the cut sheet cover.

4. Remove the output tray.

Note: Remove the output tray when printing on roll paper or cut sheets so the paper can eject smoothly.

Parent topic: Cut Sheet Handling

Creating Custom Paper Configurations

You can create and store up to 10 custom paper configurations for use if printing on non-Epson paper or paper that is not supported by the Epson printer driver.

1. Load the type of paper that you want to configure in the printer.

2. Press the home button, if necessary.

3. Select Settings > General Settings > Printer Settings > Custom Paper Setting.

4. Select a number for the custom paper configuration.

5. Select Change Name and enter a name.

6. Select OK when you are done.

7. Select Change Reference Paper.

8. Select a paper type that is similar to the paper that you want to use.

9. Select Advanced Media Setting.

10. Select any additional settings as necessary.

11. When you finish changing the custom paper configuration settings, press the left arrow button to return to exit the menu.

Selecting Custom Paper Configurations

Parent topic: Media Handling

Selecting Custom Paper Configurations

Once you have created a custom paper configuration, you can select the configuration whenever you print on the associated media.

1. Press the home button, if necessary.

2. Select Paper Setting.

3. Select the paper type you are printing on.

4. Select Change Paper Type or Change Paper Type/Paper Size.

5. Select Paper Type > Others > Custom Paper.

6. Select the custom paper configuration you want to use.

7. Press the left arrow button to exit the menu.

Parent topic: Creating Custom Paper Configurations

Compatible Epson Papers

7766) in the U.S. or 800-807-7766 in Canada.

Note: Paper/media availability varies by country.

Note: For the most updated list of supported Epson papers, visit proimaging.epson.com (U.S.) or

proimaging.epson.ca (Canada).

Roll Paper

Paper Type Size Part number Amount

Epson Singleweight Matte Paper 17 inches (432 mm) × 132 feet

(40.2 m)

24 inches (610 mm) × 132 feet (40.2 m)

36 inches (914 mm) × 132 feet (40.2 m)

Epson Doubleweight Matte Paper 24 inches (610 mm) × 132 feet

(40.2 m)

36 inches (914 mm) × 132 feet (40.2 m)

S041746 1 roll

S041853 1 roll

S041854 1 roll

S041385 1 roll

S041386 1 roll

Paper Type Size Part number Amount

Epson Premium Luster Photo Paper (260)

24 inches (610 mm) × 100 feet (30.5 m)

36 inches (914 mm) × 100 feet

S042081 1 roll

S042082 1 roll

(30.5 m)

Epson Premium Semigloss Photo Paper (170)

24 inches (610 mm) × 100 feet (30.5 m)

36 inches (914 mm) × 100 feet

S041393 1 roll

S041394 1 roll

(30.5 m)

Epson Premium Glossy Photo Paper (170)

24 inches (610 mm) × 100 feet (30.5 m)

36 inches (914 mm) × 100 feet

S041390 1 roll

S041391 1 roll

(30.5 m)

Enhanced Adhesive Synthetic Paper

24 inches (610 mm) × 100 feet (30.5 m)

S041617 1 roll

Cut Sheets

Paper Type Size Part number Amount

Epson Ultra Premium Photo Paper Luster

Letter (8.5 × 11 inches [216 × 279 mm])

S041405 50 sheets

Epson Premium Photo Paper Glossy

Epson Premium Photo Paper Semi-gloss

Epson Premium Presentation Paper Matte

Parent topic: Media Handling

Letter (8.5 × 11 inches [216 × 279 mm])

S041667 50 sheets

S041331 20 sheets

S041257 50 sheets

Paper or Media Type Settings - Printing Software

For this paper Select this Paper Type or Media Type setting

Plain paper 16 to 20 lb (60 to 75 g/m2) Plain Paper

Epson Singleweight Matte Paper Singleweight Matte Paper

Epson Doubleweight Matte Paper Doubleweight Matte Paper

Epson Premium Presentation Paper Matte Enhanced Matte Paper

Archival Matte Paper

Epson High Quality Ink Jet Paper Photo Quality Inkjet Paper

Coated paper (generic) Coated Paper (Generic)

Epson Premium Glossy Photo Paper (170) Premium Glossy Photo Paper (170)

Epson Premium Semigloss Photo Paper (170) Premium Semigloss Photo Paper (170)

Epson Premium Photo Paper Glossy Premium Glossy Photo Paper

Photo Paper Glossy

Epson Premium Photo Paper Semi-gloss Premium Semigloss Photo Paper

Epson Premium Luster Photo Paper (260)

Epson Ultra Premium Photo Paper Luster

Photo paper (generic) Photo Paper (Generic)

Tracing paper/vellum paper Tracing Paper

Enhanced Adhesive Synthetic Paper Enhanced Adhesive Synthetic Paper

Polyester banner (generic) Heavy Weight Polyester Banner

Note: The settings listed here are available only when printing from your computer; they do not apply to your product's control panel settings.

Parent topic: Media Handling

Premium Luster Photo Paper

Tracing Paper <Low Duty>

Matte Film

Enhanced Low Adhesive Synthetic Paper

Selecting the Paper Settings for Each Source - Control Panel

You can change the default paper size and paper type for each source using the control panel on the product.

1. Press the home button, if necessary.

2. Select Paper Setting.

You see a screen like this:

3. Select the paper source you want to select settings for.

You see a screen like this:

4. Select Change Paper Type/Paper Size.

5. Select Paper Type.

6. Select the paper type for the paper you loaded.

7. Select Paper Size.

8. Select the paper size you loaded.

9. Press the home button to exit.

Paper Type Settings - Control Panel

Parent topic: Media Handling

Paper Type Settings - Control Panel

Select a Paper Type setting that matches the paper you loaded. If you do not see your paper type listed, select Others in the menu.

Paper type loaded Paper Type setting

Plain paper 16 to 20 lb (60 to 75 g/m2) Plain Paper

Coated paper (generic) Coated Paper (Generic)

Epson Doubleweight Matte Paper Doubleweight Matte

Epson Premium Photo Paper Glossy Premium Glossy Sheet

Photo Paper

Epson Premium Presentation Paper Matte Matte Paper

Tracing paper/vellum paper CAD

Polyester banner (generic) Heavyweight Polyester

Enhanced Adhesive Synthetic Paper Enhanced Adhesive Syn.

Enhanced Low Adh. Syn.

Parent topic: Selecting the Paper Settings for Each Source - Control Panel

Printing from a Computer

Before printing from your computer, make sure you have set up your product and installed its software as described on the Start Here sheet.

Note: If you have an Internet connection, it is a good idea to check for updates to your product software on Epson's support website. If you see a Software Update screen, select Enable automatic checking and click OK. The update scans your system to see if you have the latest product software. Follow the on-screen instructions.

Printing with Windows Printing with the Built-in Epson Driver - Windows 10 S Printing on a Mac Printing CAD Drawings

Printing with Windows

You can print with your product using any Windows application, as described in these sections.

Note: If you are using your Epson product with the Windows 10 S operating system, you cannot use the software described in this section. You also cannot download and install any Epson product software from the Epson website for use with Windows 10 S; you must obtain software only from the Windows Store.

Selecting Basic Print Settings - Windows Selecting Print Layout Options - Windows Selecting Advanced Settings - Windows Selecting Additional Settings - Windows Printing Your Document - Windows Saving, Sharing, and Customizing the Printer Settings Selecting Default Print Settings - Windows Changing the Language of the Printer Software Screens Changing Automatic Update Options

Parent topic: Printing from a Computer

Selecting Basic Print Settings - Windows

Select the basic settings for the document you want to print.

1. Open a document for printing.

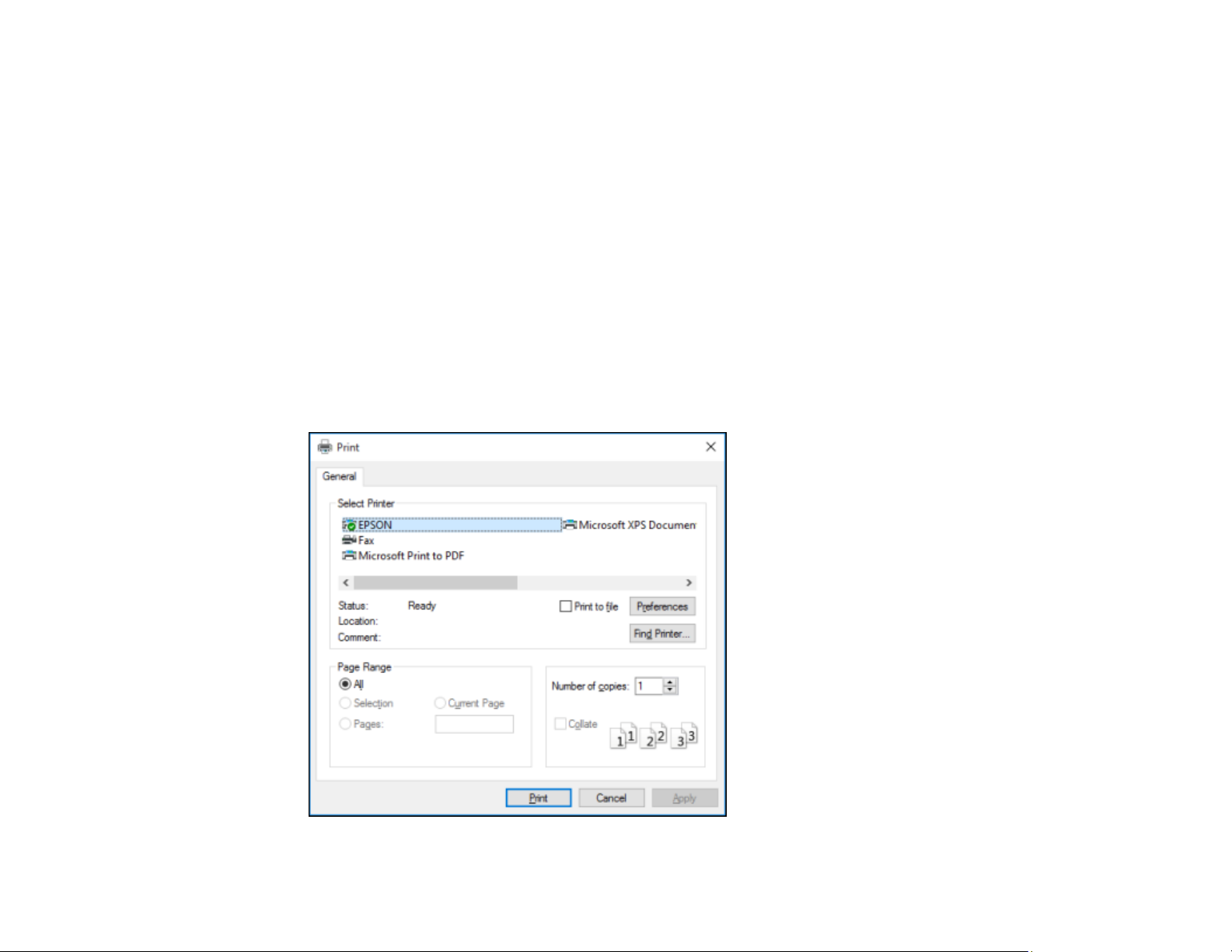

2. Select the print command in your application.

Note: You may need to select a print icon on your screen, the Print option in the File menu, or another command. See your application's help utility for details.

3. If necessary, select your product name as the printer you want to use.

Note: You may also need to select Preferences, Properties, Print Settings, or Printer Properties to view your print settings.

You see the Printer Settings window:

4. Select the Current Settings option or a custom setting.

5. Click Settings to select the Document Size setting that matches the size of the document you are printing.

6. If you want your printout to be a different size than the selected document size, select the Output

Size setting.

Note: If you select Fit to Output Size, you can select a different output size. If you select Same as Paper Size, the Document Size and Output Size settings are the same.

Note: Select Custom Paper Size to set a user-defined output size.

7. Select the Source setting that matches the paper source you are using.

8. Select the Media Type setting that matches the paper you loaded.

Note: If you want to use paper settings that have been set in the printer's control panel, select Use Printer Settings.

Note: Click Acquire Info to refresh the settings if you loaded or changed paper after opening the

print window.

9. Select the Select Target setting that matches the type of document you are printing.

Note: If you want the printer driver to determine print settings based on the document type, select the Simple Settings checkbox. Deselect the checkbox if you want to select your own color correction, print mode, or other settings.

10. If you want to prioritize quality over print speed, select the Print with High Quality checkbox.

11. If you deselect the Simple Settings checkbox, the following options are available:

• Print Mode: choose a printout color

• Color Mode: choose a color mode to fine-tune printout colors

• Level: choose speed or quality as the printing priority

• High Speed: select to speed up printing, but quality may be reduced

• Emphasize Thin Lines: select to smooth out jagged edges in low-resolution images

Note: The Emphasize Thin Lines setting may reduce print speed, especially if the printer is

connected wirelessly. Use a wired connection if you enable this setting.

Note: Available options depend on the selected Select Target setting.

12. To see a preview of how your document will print, select Print Preview. (The preview appears after you click Print but before printing starts.)

13. To layout multiple print data or images for printing all at once, select Layout Manager.

Document Size Options - Windows Paper Source Options - Windows Print Mode Options - Windows Color Mode Options - Windows Level Options - Windows Using Layout Manager - Windows

Parent topic: Printing with Windows

Related tasks

Printing Your Document - Windows

Document Size Options - Windows

You can select any of the Document Size options to size your printed image.

Same as Paper Size

Sizes your printed image to fit the selected paper size.

Fit to Roll Paper Width

Sizes your printed image to fit the width of the roll paper you loaded.

Fit to Output Size

Sizes your printed image to fit the selected output size.

Others

Sizes your printed image to a specified size.

Parent topic: Selecting Basic Print Settings - Windows

Paper Source Options - Windows

You can select any of the available options in the Source menu to print on the paper loaded in that source.

Roll Paper

Selects roll paper loaded in the roll paper holder.

Auto Sheet Feeder

Selects cut sheets loaded in the auto sheet feeder.

Sheet

Selects the cut sheet loaded in the paper feeder.

Parent topic: Selecting Basic Print Settings - Windows

Print Mode Options - Windows

You can select a Print Mode option to determine the color of your printouts.

Color

Select to print your document in color.

Black

Select to print your document in black and white (grayscale is supported).

Black (Bi-Level)

Select to print CAD drawings in black and white (grayscale is not supported).

Colored Paper (Yellow)

Select if you are printing your document on yellow paper. This option is used for some poster applications.

Parent topic: Selecting Basic Print Settings - Windows

Color Mode Options - Windows

You can adjust the Color Mode setting to fine-tune the colors in your printout or turn off color management in your printer software.

EPSON Standard (sRGB)

Optimizes the sRGB space and corrects the color.

Business Graphics

Performs color correction to optimize your images based on the sRGB space.

Line Drawing

Optimizes color correction for line drawings by processing the border between lines and the background as discontinuous.

GIS

Performs optimal printing for topographic maps and other geographic information system (GIS) data.

ICM

Automatically adjusts colors based on the printer’s ICC profile and the selected Media Type setting, using the Image Color Matching system. Click the Advanced button to choose the input profile and other settings.

Note: In most cases, you get better results by applying color management in your application, rather

than in the printer driver.

Off (No Color Adjustment)

Turns off color management in your printer software so you can manage color using only your application software.

Note: An ICC profile is required if color management is turned off.

Click Settings to open the Color Controls window, where you can specify values for adjusting brightness, contrast, saturation, and individual Cyan, Magenta, and Yellow color tones. You can choose from two Gamma settings, and use either a color circle or slide bar to adjust color.

Parent topic: Selecting Basic Print Settings - Windows

Level Options - Windows

You can select a print speed or print quality priority for your printouts.

Speed

Select to prioritize print speed over print quality; quality may be reduced.

Quality

Select to prioritize print quality over print speed.

Max Quality

Select to use the maximum print quality; print speed may be slower.

Quality Options

Select print speed or print quality levels using a slider.

Parent topic: Selecting Basic Print Settings - Windows

Using Layout Manager - Windows

Layout Manager lets you include multiple pieces of print data created in different applications onto one sheet of paper for printing.

You can also place the same print data multiple times as shown here.

You can place print data in different sizes and orientations to maximize media usage, as shown here.

You can place print data on roll paper as shown here.

1. Open the file you want to print in your application.

2. Select the print command in your application.

3. Select the Layout Manager checkbox on the Printer Settings tab.

4. Choose an option for the Document Size setting that matches the size of the document in your application.

5. Click OK and then click Print, if necessary.

The Layout Manager screen opens and displays one page in the layout.

6. Leave the Layout Manager screen open and repeat steps 1 to 4 to arrange additional print data. The pages are added to the Layout Manager screen.

7. Do the following to arrange objects on the Layout Manager screen:

• Drag pages to move and resize them.

• Use the tool buttons and the Object menu to align and rotate pages.

• Resize and replace whole pages in the Preference or Arrangement Settings screens.

Note: See the Layout Manager screen help for details.

8. Click File > Properties and select your print settings, including the size of the paper you are printing on.

9. Open the File menu on the Layout Manager screen and click Print.

Note: To save the current job to a file, open the File menu on the Layout Manager screen, save the file, and close the Layout Manager screen. To open the saved file later for editing or reprinting, rightclick the printer icon in the Windows taskbar, click Layout Manager, and select the file.

Parent topic: Selecting Basic Print Settings - Windows

Selecting Print Layout Options - Windows

You can select a variety of layout options for your document on the Layout tab.

• To select multiple copies and their print order, select the Copies, Collate, and Reverse Order

options.

• To print multiple pages on one sheet of paper, or print one image on multiple sheets of paper, select

the Page Layout checkbox and select the option you want.

• To print on both sides of the paper, select the 2-sided Printing checkbox and select the options you

want.

• To rotate or flip the printed image, select the Rotate 180° or Mirror Image checkbox.

Page Layout Options - Windows

Parent topic: Printing with Windows

Page Layout Options - Windows

You can select these Page Layout options to set up your multi-page print job.

Note: Available options depend on the Paper Source setting.

Folded Double-Side

Prints two consecutive pages on one sheet of paper. The second page is flipped and printed next to the first page, allowing the sheet to be folded to make a 2-sided document. Click Settings to select a binding edge option and set margins.

N-up

Prints 2 (2-up) or 4 (4-up) pages on one sheet of paper. Click Settings to choose the number of pages per sheet and set the page order.

Poster

Prints one image on multiple sheets of paper to create a large poster. Click the Settings button to select the layout and guideline options.

Print Banner

Select when using a Windows application designed for banners.

Parent topic: Selecting Print Layout Options - Windows

Selecting Advanced Settings - Windows

You can select advanced printing settings on the Advanced tab.

• To control how roll paper is cut after printing, select an Auto Cut option. Select other roll paper options

as necessary.

• To print on cut sheet paper with 14 mm margins above and below your print, select Vertical

Centering.

• To adjust the ink saturation level, select Advanced Media Control.

• To create or edit custom printing settings, select Custom Settings.

• To print a color background on the page, select the Print Bckg Color checkbox and click Color

Settings to select the color you want to use.

• To print the time, date, and other information about your print job at the top or bottom of the page,

select the Job Settings checkbox and click Details to select the settings you want to use.

Roll Paper Options - Windows

Parent topic: Printing with Windows

Roll Paper Options - Windows

Select any of the available roll paper options.

Note: Some settings may not be available, depending on the Roll Paper Option you selected for your paper size.

Auto Cut

• Off: Select this option to cut your prints manually.

• Normal Cut: Creates a margin at the top and bottom of your image and automatically cuts the paper. These margins vary by media type and may be changed from their defaults using custom media settings.

Auto Rotate

Automatically positions the image or print data to fit the roll paper.

Print Page Line

Prints lines between pages as a guide for manual cutting.

Save Roll Paper

When Auto Cut is enabled, the printer cuts the roll paper at the end of the image as positioned on the page.

Parent topic: Selecting Advanced Settings - Windows

Selecting Additional Settings - Windows

You can run maintenance utilities and select additional settings that apply to all your print jobs on the Utility tab.

• Click Nozzle Check to print a nozzle check pattern to check whether the print head nozzles are clogged.

• Click Head Cleaning to clean the print head if you notice banding or gaps in your printouts.

• Click Epson Status Monitor 3 to check the printer's status.

• Click Monitoring Preferences to select the error notifications displayed on the Epson Status Monitor 3 screen, or add a shortcut to the utility in the Windows taskbar.

• Click Print Queue to display a list of all waiting print jobs, view information on the data waiting to be printed, and delete or reprint the jobs.

• Click Speed and Progress to select various printing options.

• Click Menu Arrangement to arrange the Select Setting, Media Type, and Paper Size options by frequency of use.

• Click Export or Import to save the print settings to a file or import them from a file. This is useful when you want to select the same print settings on multiple computers.

• Select a Language option for the language you want to use for the printer software screens.

Parent topic: Printing with Windows

Related tasks

Checking the Nozzles Using a Computer Utility Cleaning the Print Head Using a Computer Utility

Printing Your Document - Windows

Once you have selected your print settings, you are ready to save your settings and print.

1. Click OK to save your settings.

You see your application's Print window, such as this one:

2. Click OK or Print to start printing.

Checking Print Status - Windows

Parent topic: Printing with Windows

Checking Print Status - Windows

During printing, you see this window showing the progress of your print job. It allows you to control printing and check ink cartridge status.

• To cancel printing, click Cancel.

• To see print jobs waiting to print, click Print Queue.

Parent topic: Printing Your Document - Windows

Saving, Sharing, and Customizing the Printer Settings

You can save groups of print settings or media settings so you can reuse them for future print jobs. You can export these settings as a file so you can share them with other users. You can also edit the settings displayed in the printer software screens.

Saving and Sharing Print Settings - Windows Editing Print Setting Displays - Windows

Parent topic: Printing with Windows

Saving and Sharing Print Settings - Windows

You can save your print settings so you can use them for future print jobs.

1. Make sure the selected settings on the Printer Settings, Layout, and Advanced tabs are set to what

you want to save.

2. Under the Select Setting dropdown menu, select Custom Settings.

You see a window like this:

3. Verify that your settings are correct, enter a name for the group of settings in the Name field, and

click Save.

4. Do the following as necessary:

• If you need to delete a group of settings you have created, select the name of the group of settings from the list and click Delete.

• To export the settings, select the name of the group of settings, click Export, select a location, and enter a file name.

• To import a group of settings, click Import, select the file you want to use, and click Open. Then use the settings to print.

Once custom settings are saved, you can select the name of the group of settings from the Select Setting dropdown menu and use them to print.

Parent topic: Saving, Sharing, and Customizing the Printer Settings

Related tasks

Selecting Basic Print Settings - Windows Printing Your Document - Windows

Editing Print Setting Displays - Windows

You can arrange the displayed print settings so you can easily select the settings you use most often.

1. Click the Utility tab in the printer software.

2. Select Menu Arrangement.

You see this window:

3. Select the item you want to edit.

4. Order or group items in the List box as follows:

• To move and reorder items, drag and drop them in the list.

• To add a new group (folder), click Add Group.

• To delete a group (folder), select the group and click Delete Group.

• To hide a group, drag and drop it to Not Display.

Note: If you delete a group, the group folder is deleted but the items within the folder remain.

5. Click Save.

Parent topic: Saving, Sharing, and Customizing the Printer Settings

Selecting Default Print Settings - Windows

When you change your print settings in a program, the changes apply only while you are printing in that program session. If you want to change the print settings you use in all your Windows programs, you can select new default print settings.

1. Access the Windows Desktop and right-click the icon for your product in the right side of the Windows taskbar, or click the up arrow and right-click .

2. Select Printer Settings.

You see the printer settings window:

3. Select the print settings you want to use as defaults in all your Windows programs.

4. Click OK.

These settings are now the defaults selected for printing. You can still change them as needed for printing in any program session.

Parent topic: Printing with Windows

Related tasks

Selecting Basic Print Settings - Windows

Changing the Language of the Printer Software Screens

You can change the language used on the Windows printer software screens.

1. Access the Windows Desktop and right-click the icon for your product in the right side of the Windows taskbar, or click the up arrow and right-click .

2. Select Printer Settings.

You see the printer settings window.

3. Click the Utility tab.

You see these options:

4. Select the language you want to use as the Language setting.

5. Click OK to close the printer software window.

The printer software screens appear in the language you selected the next time you access them.

Parent topic: Printing with Windows

Changing Automatic Update Options

Your printer software for Windows automatically checks for updates to the product software. You can change how often the software checks for updates or disable this feature.

1. Access the Windows Desktop and right-click the icon for your product in the right side of the Windows taskbar, or click the up arrow and right-click .

2. Select Software Update Settings.

You see this window:

3. Do one of the following:

• To change how often the software checks for updates, select a setting in the Check every menu.

• To disable the automatic update feature, select the Never option.

4. Click OK to exit.

Note: If you choose to disable the automatic update feature, you can check for updates manually.

Parent topic: Printing with Windows

Printing with the Built-in Epson Driver - Windows 10 S

You can print with the built-in Epson printer driver using any printing program on Windows 10 S, as described in these sections.

Note: The built-in Epson driver in Windows 10 S does not include all the available print settings for your product. To print with additional settings, download and install the Epson Print and Scan utility from the Windows Store. You cannot download and install any Epson product software from the Epson website for use with Windows 10 S; you must obtain software only from the Windows Store.

Selecting Print Settings - Windows 10 S

Parent topic: Printing from a Computer

Selecting Print Settings - Windows 10 S

Select the settings for your print job in your Windows 10 S application.

1. Open a document for printing.

2. Select the print command in your application.

Note: You may need to select a print icon on your screen, the Print option in the File menu, or another command. See your application's help utility for details.

3. If necessary, select your product name as the printer you want to use.

Note: You may also need to select Properties or Preferences to view your print settings.

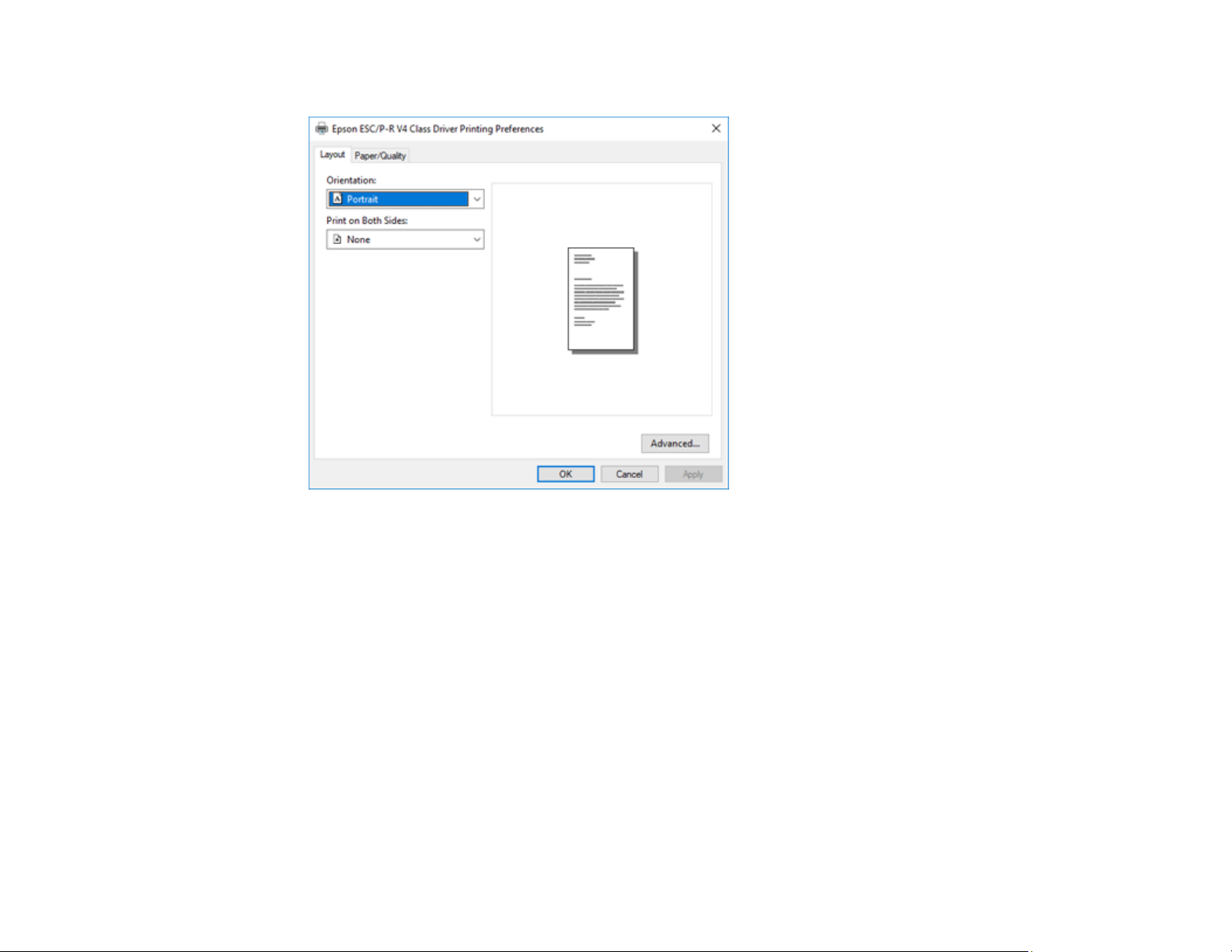

You see a window like this:

4. Select the type of paper you loaded as the Media setting.

Note: The setting may not exactly match the name of your paper. Check the paper type settings list

for details.

5. Click the Advanced button.

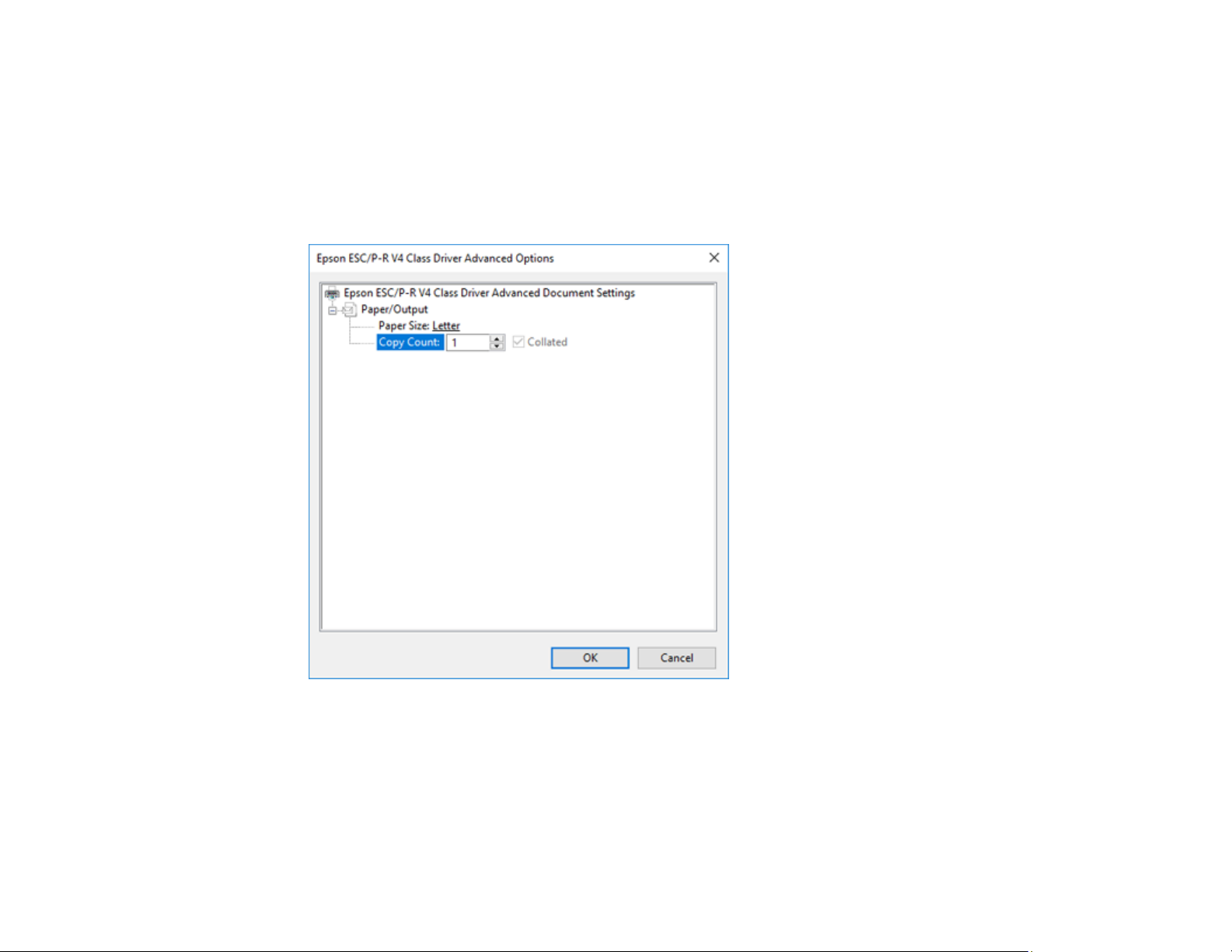

You see a window like this:

6. Select the size of the paper you loaded as the Paper Size setting.

7. To print multiple copies, select or enter the number as the Copy Count setting.

8. To print multiple copies of multi-page documents in sets, select the Collated checkbox.

9. Click OK.

You return to the printing preferences window.

10. Select the Layout tab.

11. Select the orientation of your document as the Orientation setting.

12. Click OK to save your settings.

You see your application's Print window.

13. Click OK or Print to start printing.

Parent topic: Printing with the Built-in Epson Driver - Windows 10 S

Printing on a Mac

You can print with your product using any Mac printing program, as described in these sections.

Note: If you have an Internet connection, it is a good idea to check for updates to your product software on Epson's support website.

Selecting Basic Print Settings - Mac

Selecting Print Layout Options - Mac Selecting Advanced Settings - Mac Managing Color - Mac Sizing Printed Images - Mac Selecting Printing Preferences - Mac Printing Your Document - Mac

Parent topic: Printing from a Computer

Selecting Basic Print Settings - Mac

Select the basic settings for the document you want to print.

1. Open a document for printing.

2. Select the print command in your application.

Note: You may need to select a print icon on your screen, the Print option in the File menu, or another command. See your application's help utility for details.

3. Select your product as the Printer setting.

4. If necessary, click the arrow next to the Printer setting or the Show Details button to expand the print window.

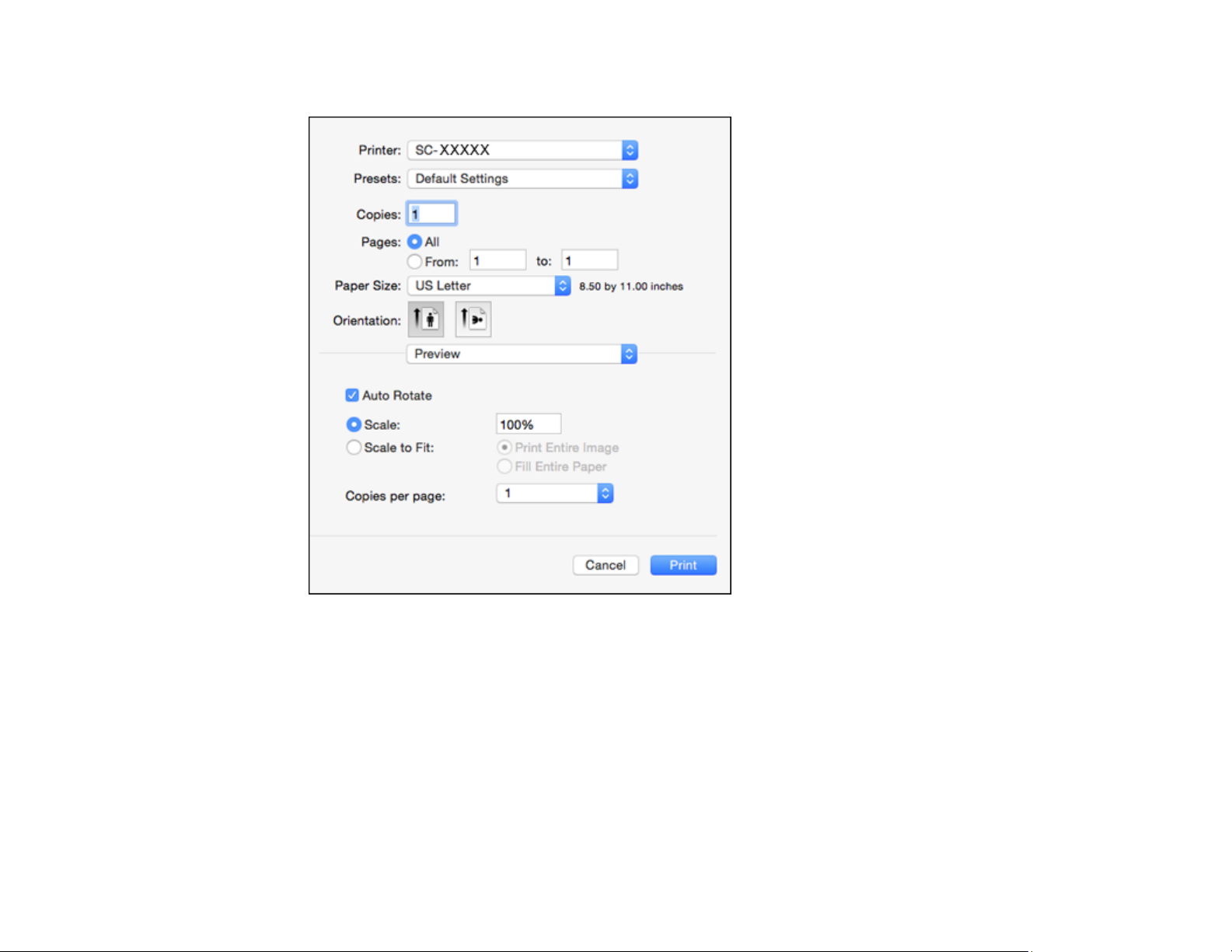

You see the expanded printer settings window for your product:

Note: The print window may look different, depending on the Mac OS version and the application you are using.

5. Select the Copies and Pages settings as necessary.

Note: If you do not see these settings in the print window, check for them in your application before printing. They may be accessible by selecting Page Setup from the File menu.

6. Select the size of the paper you loaded as the Paper Size setting.

Note: You can reduce or enlarge the size of the printed image by selecting Paper Handling from the

pop-up menu and selecting a scaling option.

7. Choose portrait or landscape as the Orientation setting.

8. Select Printer Settings from the pop-up menu.

Note: In certain programs, you may need to select Advanced before you can select Printer Settings. For more information about printer settings, click the ? button.

You see a screen like this:

Note: Depending on the Mac OS version you are using, you may not see a Printer Settings option. If not, select Printer Features from the pop-up menu and scroll down to view all of the driver options.

9. If you want your printout to be a different size than the displayed Paper Size setting, select the

Output Size setting in the dropdown menu.

Note: Select Specify Size to set a user-defined output size.

100

Epson SureColor, T2170, T3170, T5170 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction to Your Printer

Printer Features

Optional Equipment and Replacement Parts

Notations Used in the Documentation

Printer Part Locations
