Epson Pro Cinema 6050UB User Manual

Pro Cinema 4050/6050UB User's Guide

Pro Cinema 4050/6050UB User's Guide..................................................................................................... 9

Introduction to Your Projector ................................................................................................................. 10

Setting Up the Projector ........................................................................................................................... 24

Projector Features.............................................................................................................................. 10

Product Box Contents.................................................................................................................... 11

Additional Components ................................................................................................................ 12

Optional Equipment and Replacement Parts................................................................................. 13

Warranty and Registration Information .......................................................................................... 13

Notations Used in the Documentation ................................................................................................ 14

Where to Go for Additional Information .............................................................................................. 14

Additional Projector Software and Manuals........................................................................................ 14

Projector Part Locations ..................................................................................................................... 15

Projector Parts - Front/Top ............................................................................................................ 16

Projector Parts - Rear .................................................................................................................... 17

Projector Parts - Base.................................................................................................................... 18

Projector Parts - Control Panel ...................................................................................................... 19

Projector Parts - Remote Control................................................................................................... 20

Projector Placement........................................................................................................................... 24

Projector Setup and Installation Options ....................................................................................... 24

Projection Distance........................................................................................................................ 26

Projector Connections........................................................................................................................ 29

Connecting to an HDMI Video Source ........................................................................................... 29

Connecting to Computer Sources.................................................................................................. 30

Connecting to a Computer for VGA Video................................................................................. 30

Connecting to a Computer for HDMI Video............................................................................... 31

Attaching and Removing the Cable Clips ...................................................................................... 31

Connecting to External Speakers .................................................................................................. 32

Connecting to a Trigger Out Port ................................................................................................... 33

Installing Batteries in the Remote Control .......................................................................................... 33

Using the Projector on a Network ............................................................................................................ 36

Wired Network Projection................................................................................................................... 36

Connecting to a Wired Network ..................................................................................................... 36

Selecting Wired Network Settings ................................................................................................. 37

Wireless Network Projection .............................................................................................................. 39

Installing the Wireless LAN Module ............................................................................................... 40

Selecting Wireless Network Settings Manually.............................................................................. 41

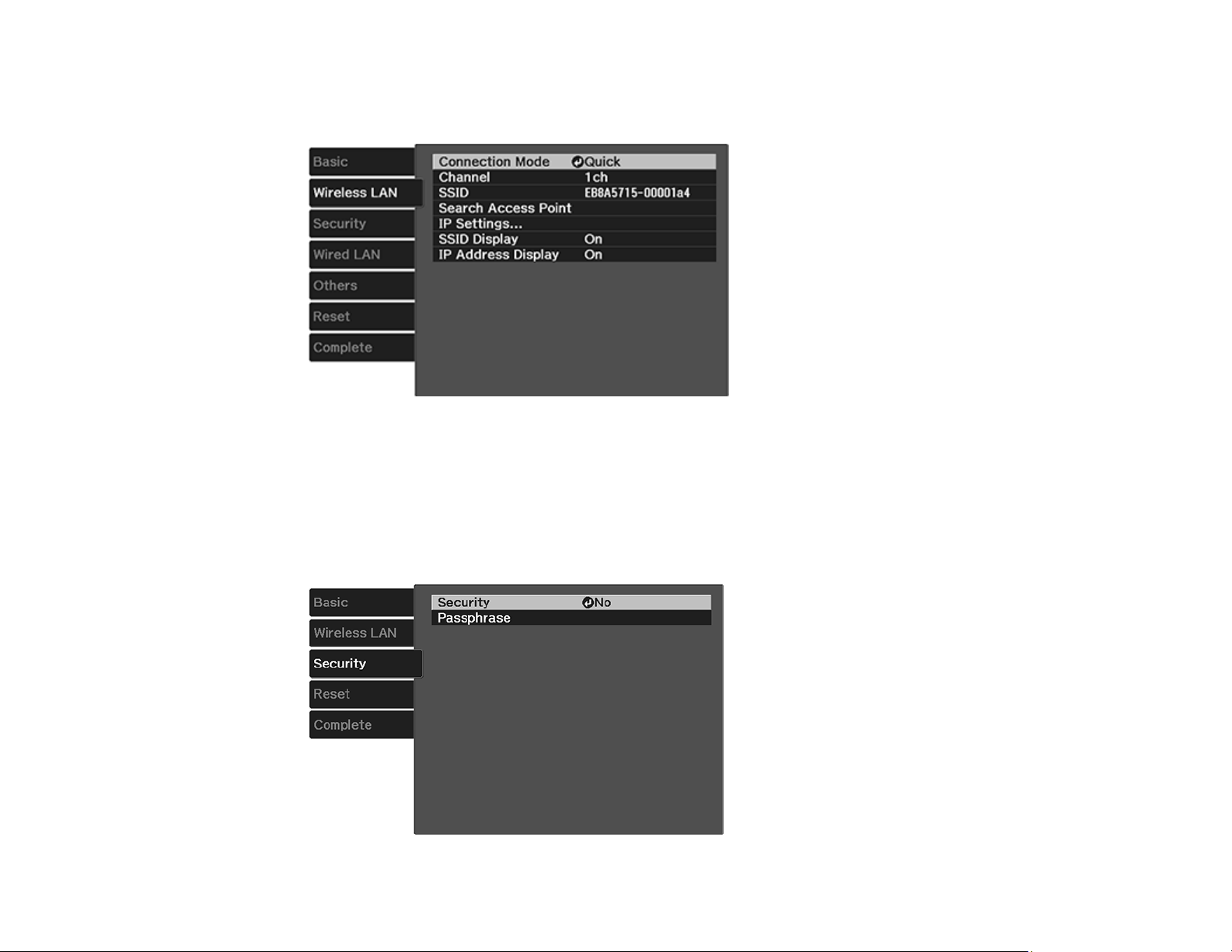

Wireless LAN Menu Settings .................................................................................................... 44

Restricted IP Addresses ........................................................................................................... 45

Using a QR Code to Connect a Mobile Device .............................................................................. 45

Searching for a Wireless Network ................................................................................................. 47

Selecting Wireless Network Settings in Windows.......................................................................... 49

Selecting Wireless Network Settings on Mac ................................................................................ 49

Enabling WPA or WPA2 Security .................................................................................................. 49

Wireless Security Menu Settings .............................................................................................. 50

Selecting External Network Detection Settings .................................................................................. 51

Using Basic Projector Features ............................................................................................................... 53

Turning On the Projector .................................................................................................................... 53

Using the Home Screen................................................................................................................. 54

Turning Off the Projector .................................................................................................................... 56

Viewing 3D Images ............................................................................................................................ 57

Pairing the 3D Glasses with the Projector...................................................................................... 58

Charging the 3D Glasses............................................................................................................... 59

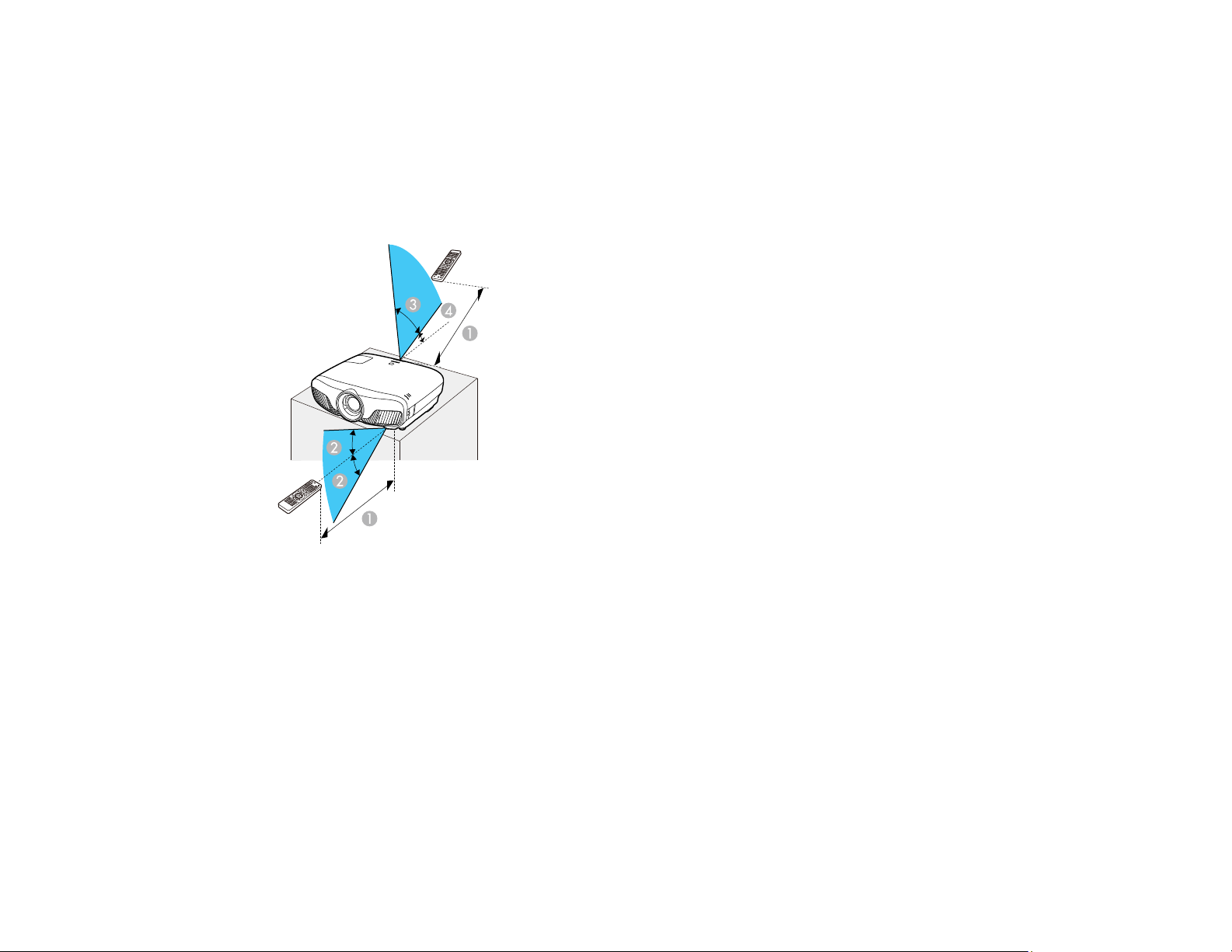

3D Viewing Range......................................................................................................................... 61

Selecting the Language for the Projector Menus................................................................................ 61

Adjusting the Image Height ................................................................................................................ 62

Adjusting the Image Position Using Lens Shift ................................................................................... 63

Image Shape...................................................................................................................................... 65

Correcting Image Shape With the Keystone Buttons..................................................................... 65

Resizing the Image with the Zoom Feature ........................................................................................ 65

Focusing the Image with the Lens Button........................................................................................... 66

Remote Control Operation ................................................................................................................. 67

Selecting an Image Source ................................................................................................................ 68

Projection Modes ............................................................................................................................... 70

Changing the Projection Mode Using the Menus ........................................................................... 71

Image Aspect Ratio ............................................................................................................................ 71

Changing the Image Aspect Ratio ................................................................................................. 72

Available Image Aspect Ratios ...................................................................................................... 73

Color Mode......................................................................................................................................... 73

Changing the Color Mode.............................................................................................................. 74

Available Color Modes................................................................................................................... 74

Turning On Auto Iris....................................................................................................................... 75

Adjusting Projector Features ................................................................................................................... 77

Shutting Off the Picture Temporarily .................................................................................................. 77

Using Picture in Picture ...................................................................................................................... 77

Available Picture in Picture Options............................................................................................... 78

Projector Security Features................................................................................................................ 79

Locking the Projector's Lens Settings and Buttons........................................................................ 79

Unlocking the Projector's Buttons ............................................................................................. 80

Installing a Security Cable ............................................................................................................. 81

Using Advanced Image Adjustment Features .................................................................................... 81

Using Frame Interpolation ............................................................................................................ 81

Using 4K Enhancement................................................................................................................. 82

Creating Image Presets................................................................................................................. 84

Using MPEG Noise Reduction....................................................................................................... 85

Adjusting Scaled Resolution Images (Super-resolution) ............................................................... 86

Adjusting Detail Enhancement ...................................................................................................... 87

Image Adjustment Restrictions...................................................................................................... 88

Adjusting the Color Convergence (Panel Alignment)..................................................................... 90

Adjusting the Color Tone (Color Uniformity) .................................................................................. 94

Saving Settings to Memory and Using Saved Settings ...................................................................... 96

Saving the Lens Position and Using Saved Lens Positions................................................................ 97

Adjusting the Menu Settings .................................................................................................................. 100

Using the Projector's Menus............................................................................................................. 100

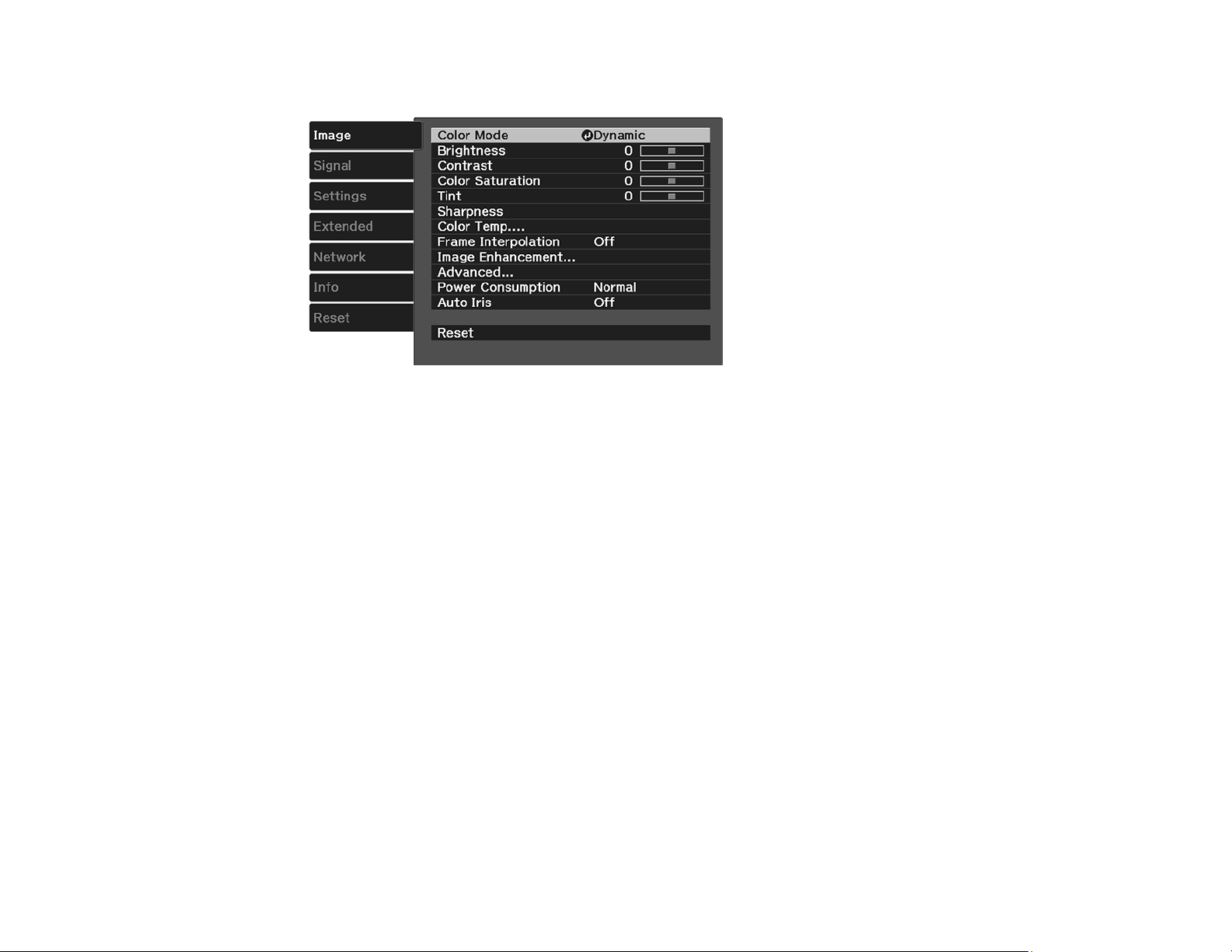

Image Quality Settings - Image Menu .............................................................................................. 101

Input Signal Settings - Signal Menu.................................................................................................. 106

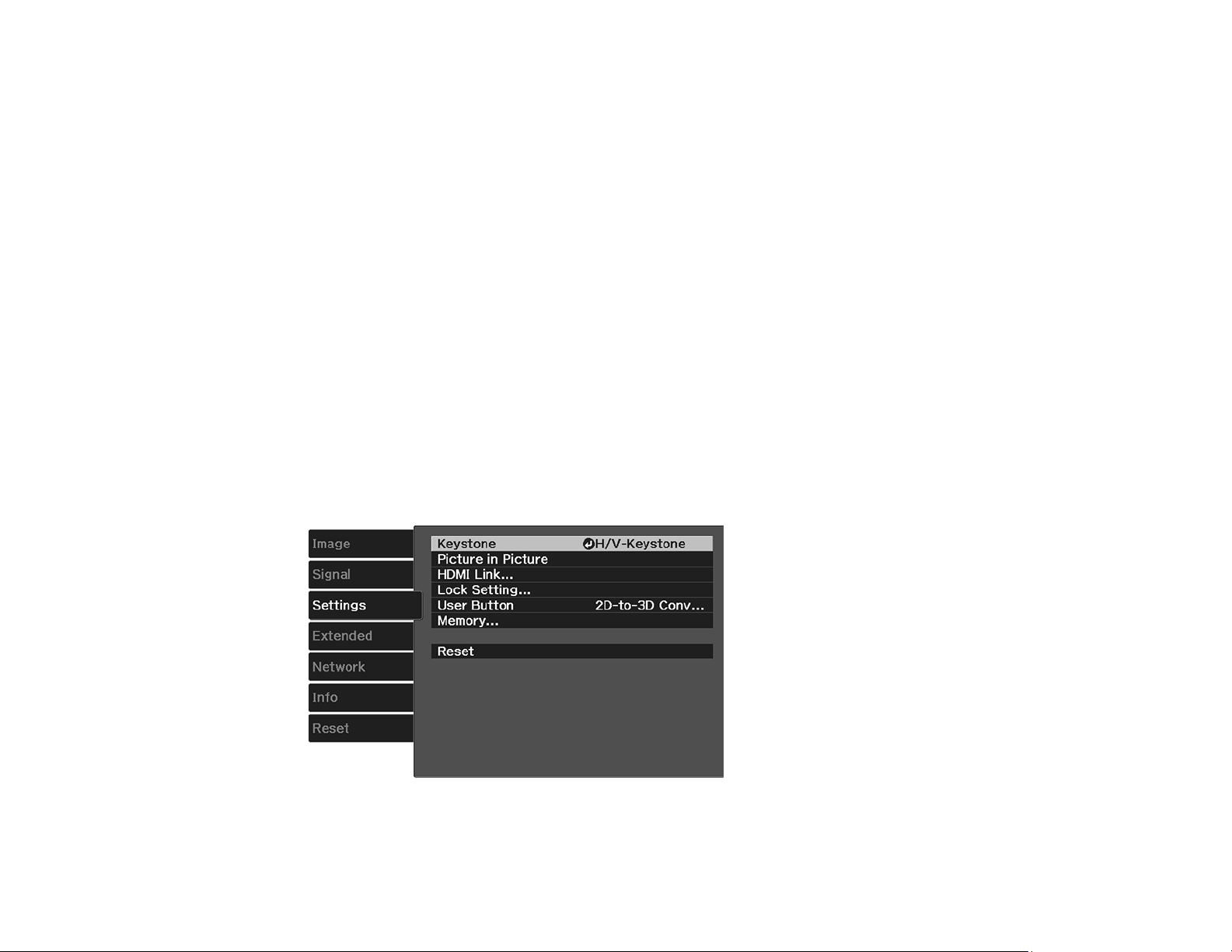

Projector Feature Settings - Settings Menu...................................................................................... 111

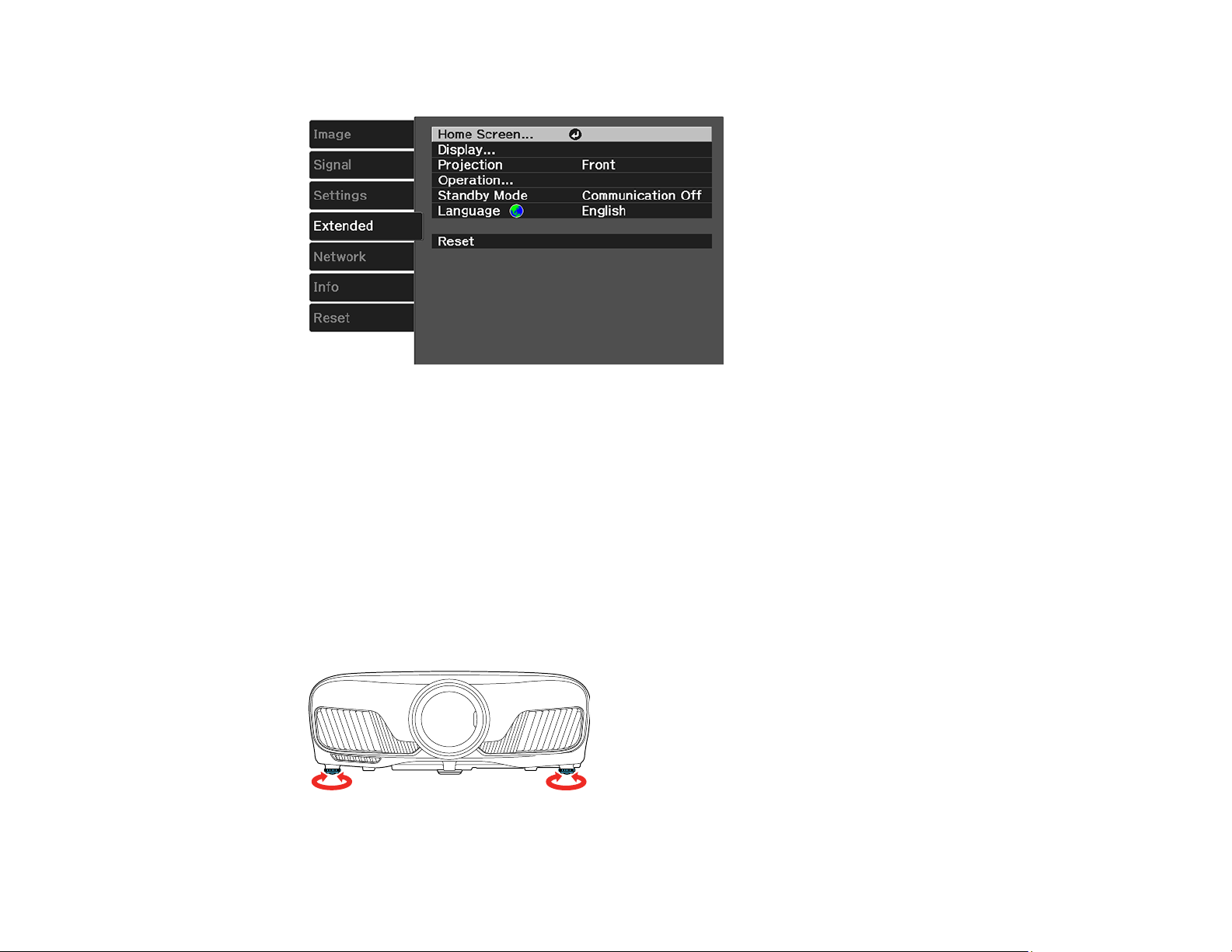

Projector Setup Settings - Extended Menu....................................................................................... 114

Projector Network Settings - Network Menu..................................................................................... 117

Projector Information Display - Info Menu ........................................................................................ 118

Event ID Code List....................................................................................................................... 120

Projector Reset Options - Reset Menu............................................................................................. 121

Maintaining and Transporting the Projector ......................................................................................... 123

Projector Maintenance ..................................................................................................................... 123

Cleaning the Lens........................................................................................................................ 123

Cleaning the Projector Case ........................................................................................................ 124

Cleaning the 3D Glasses............................................................................................................. 124

Air Filter and Vent Maintenance .................................................................................................. 125

Cleaning the Air Filter.............................................................................................................. 125

Replacing the Air Filter............................................................................................................ 128

Projector Lamp Maintenance....................................................................................................... 130

Replacing the Lamp ................................................................................................................ 131

Resetting the Lamp Timer....................................................................................................... 134

Replacing the Remote Control Batteries ..................................................................................... 135

Transporting the Projector................................................................................................................ 137

Solving Problems .................................................................................................................................... 139

Projection Problem Tips ................................................................................................................... 139

Projector Light Status ....................................................................................................................... 140

Solving Image Problems .................................................................................................................. 143

Solutions When No Image Appears............................................................................................. 143

Solutions When "No Signal" Message Appears........................................................................... 144

Displaying From a PC Laptop ................................................................................................. 145

Displaying From a Mac Laptop ............................................................................................... 145

Solutions When "Not Supported" Message Appears ................................................................... 145

Solutions When Only a Partial Image Appears............................................................................ 146

Solutions When the Image is Not Rectangular ............................................................................ 146

Solutions When the Image Contains Noise or Static ................................................................... 147

Solutions When the Image is Fuzzy or Blurry .............................................................................. 148

Solutions When the Image Brightness or Colors are Incorrect .................................................... 149

Solutions When a 3D Image Does Not Display Correctly ............................................................ 149

Solving Projector or Remote Control Operation Problems ............................................................... 150

Solutions to Projector Power or Shut-Off Problems..................................................................... 151

Solutions to Problems with the Remote Control........................................................................... 152

Solutions to Panel Alignment Problems....................................................................................... 152

Solutions When Using HDMI Link................................................................................................ 153

Solving Network Problems ............................................................................................................... 153

Solutions When Wireless Authentication Fails ............................................................................ 153

Solutions When the Image Contains Static During Network Projection ....................................... 154

Where to Get Help............................................................................................................................ 154

Technical Specifications ........................................................................................................................ 156

General Projector Specifications ...................................................................................................... 156

Projector Lamp Specifications.......................................................................................................... 158

Remote Control Specifications ......................................................................................................... 158

Projector Dimension Specifications.................................................................................................. 158

Projector Electrical Specifications .................................................................................................... 159

Projector Environmental Specifications............................................................................................ 159

Projector Safety and Approvals Specifications................................................................................. 160

Supported Video Display Formats.................................................................................................... 160

Notices ..................................................................................................................................................... 163

Recycling.......................................................................................................................................... 163

Important Safety Information ............................................................................................................ 163

Important Safety Instructions............................................................................................................ 164

Restriction of Use ........................................................................................................................ 166

List of Safety Symbols...................................................................................................................... 167

FCC Compliance Statement............................................................................................................. 170

Binding Arbitration and Class Waiver ............................................................................................... 171

Trademarks...................................................................................................................................... 174

Copyright Notice............................................................................................................................... 175

A Note Concerning Responsible Use of Copyrighted Materials................................................... 175

Copyright Attribution.................................................................................................................... 176

Pro Cinema 4050/6050UB User's Guide

Welcome to the Pro Cinema 4050/6050UB User's Guide.

For a printable PDF copy of this guide, click here.

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.

Projector Features Notations Used in the Documentation Where to Go for Additional Information Additional Projector Software and Manuals Projector Part Locations

Projector Features

The Pro Cinema 4050 and Pro Cinema 6050UB projectors include these special features:

Bright, high-resolution projection system

• Pro Cinema 4050: Up to 2400 lumens of color brightness (color light output) and 2400 lumens of white brightness (white light output)

Pro Cinema 6050UB: Up to 2600 lumens of color brightness (color light output) and 2600 lumens of white brightness (white light output)

Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

• 1080p native resolution with 4K Enhancement

• Images up to 300 inches (7.62 m) for projection on any wall or screen

Full 3D projection

• Active 3D projection with optional RF active shutter glasses

• Supports side-by-side, top-and-bottom, and frame-packing 3D formats

Flexible connectivity

• Two HDMI ports for video device or computer connections

• Support for an optical HDMI connection

Easy-to-use setup and operation features

• Powered vertical and horizontal lens shift, and vertical keystone correction buttons for flexible projector placement

• 2.1× optical zoom ratio for improved zooming capability

• Powered zoom and focus adjustments

Product Box Contents Additional Components Optional Equipment and Replacement Parts Warranty and Registration Information

Parent topic: Introduction to Your Projector

Product Box Contents

Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.

Make sure your product box included all of these parts:

1 Projector

2 Remote control

3 Remote control batteries (two AA alkaline)

4 Power cord

5 HDMI cable clips (2)

Your product box also includes the following items (not pictured):

• Projector mount

• Replacement lamp

• Cable cover

The product box contents may vary by country.

Parent topic: Projector Features

Additional Components

Depending on how you plan to use the projector, you may need to obtain additional components.

Note: To connect a Mac that does not include a compatible video output port, you need to obtain an adapter that allows you to connect to an input port on the projector. Contact Apple for compatible adapter options. To connect a smartphone or tablet, you may need to obtain an adapter that allows you to connect to the projector. This allows you to mirror your smartphone or tablet screens, watch movies, and more. Contact your device manufacturer for compatible adapter options.

Unless listed as available from Epson in this table, see your local computer or electronics dealer for purchase information.

Signal or connection type

HDMI Compatible HDMI cable

Optical HDMI Compatible optical HDMI cable

3D Compatible HDMI cable and active shutter 3D glasses

External audio Speakers, an audio video receiver, or a video source with speaker

Additional component necessary

Available for purchase from Epson or an authorized Epson reseller.

If your video source is a 3D Blu-ray disc, you also need a Blu-ray player that supports 3D playback. See your local computer or electronics dealer for purchase information.

connections, and the cables necessary for connecting them

Your projector does not have an internal speaker or audio out ports.

Signal or connection type

VGA To connect a computer through its VGA port to the projector's VGA video

Parent topic: Projector Features

Additional component necessary

port, you need a VGA computer cable.

Available for purchase from Epson or an authorized Epson reseller.

Optional Equipment and Replacement Parts

You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in Canada. Or you can purchase online at epsonstore.com (U.S. sales) or epsonstore.ca (Canadian sales).

Epson offers the following optional accessories and replacement parts for your projector:

Option or part Part number

Genuine Epson replacement lamp (ELPLP89) V13H010L89

Replacement air filter (ELPAF39) V13H134A39

RF 3D glasses (ELPGS03) V12H548006

Wireless LAN module (ELPAP10) V12H731P02

Projector ceiling mount CHF4500

Belkin PureAV HDMI audio video cable, 6 ft AV22300-06

Belkin PureAV HDMI audio video cable, 3 ft AV22300-03

In addition to the accessories listed above, a 1-year extended service plan is available.

Parent topic: Projector Features

Warranty and Registration Information

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty brochure that came with your projector.

In addition, Epson offers free Extra Care Home Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See the Extra Care Home Service brochure for details.

Registering also lets you receive special updates on new accessories, products, and services.

Parent topic: Projector Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:

• Warnings must be followed carefully to avoid bodily injury.

• Cautions must be observed to avoid damage to your equipment.

• Notes contain important information about your projector.

• Tips contain additional projection information.

Parent topic: Introduction to Your Projector

Where to Go for Additional Information

Need quick help on using your projector? Here's where to look for help:

• epson.com/support (U.S.) or epson.ca/support (Canada)

View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24 hours a day.

• If you still need help after checking this manual and any other sources listed here, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help."

Parent topic: Introduction to Your Projector

Related references

Where to Get Help

Additional Projector Software and Manuals

After connecting and setting up the projector, install the projector software. You may need to install it from a software CD, if included, or download the software and manuals as necessary.

You can install the projector software programs listed here and view their manuals for instructions on using them.

Note: If you still need help after checking this manual and the sources listed here, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help."

Projector software Manual Description

Epson iProjection (Windows/Mac)

Epson iProjection app Instructions are included

— Open Source Software

Note: Epson iProjection is not recommended for use with streaming video.

Parent topic: Introduction to Your Projector

Related references

Where to Get Help

Epson iProjection Operation Guide (Windows/Mac)

with the app

License

Lets you project the computer screens of users over a network.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support

(Canada) and select your projector.

Lets you project from an iOS or Android device if your projector is connected to a network that includes a wireless access point.

Visit epson.com/iprojection (U.S.) or

epson.ca/iprojection (Canada) for more

information.

You can download this document from the Epson web site. Go to epson.com/support (U.S.) or epson.ca/support (Canada) and select your projector.

Projector Part Locations

Check the projector part illustrations to learn about the parts on your projector.

Projector Parts - Front/Top Projector Parts - Rear Projector Parts - Base Projector Parts - Control Panel Projector Parts - Remote Control

Parent topic: Introduction to Your Projector

Projector Parts - Front/Top

1 Lamp cover

2 Exhaust vent

3 Lens shutter

4 Lens

5 Air intake/air filter cover

6 Remote receivers

7 Control panel

Parent topic: Projector Part Locations

Projector Parts - Rear

1 Security slot

2 AC input port

3 Remote receiver

4 Opt.HDMI (300mA) port (USB power for optical HDMI connections)

5 HDMI1 port (supports HDCP 2.2)

6 HDMI2 port (Pro Cinema 6050UB: supports HDCP 2.2)

7 USB port (for optional wireless LAN module and firmware updates)

8 Service port

9 LAN port

10 PC port (VGA)

11 RS-232C port

12 Trigger Out port (12V DC @ 200 mA max)

Parent topic: Projector Part Locations

Related tasks

Installing a Security Cable Attaching and Removing the Cable Clips

Projector Parts - Base

1 Mounting bracket holes (M4x9)

2 Rear foot

3 Cable cover screw holes

4 Front adjustable feet

Parent topic: Projector Part Locations

Projector Parts - Control Panel

1 Status light

2 Lamp light

3 Temp light

4 Menu button (accesses projector menu system)

5 Enter button (selects options)

6 Control panel cover

7 Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons

8 Arrow buttons

9 Esc button (cancels/exits functions)

10 Lens button (cycles through lens adjustment options)

11 Source button (cycles through the list of sources)

12 Power button/light

Parent topic: Projector Part Locations

Projector Parts - Remote Control

Pro Cinema 4050

1 On button (turns on projector)

2 Home button (displays Home screen)

3 Source buttons (select specific video input sources)

4 Link Menu button (displays the main menu of the connected device)

Control buttons (control playback and other features of connected devices that support the HDMI CEC standard)

5 HDMI Link button (displays the settings menu for HDMI Link)

6 Lens button (cycles through lens adjustment options)

7 Arrow buttons (move though on-screen options)

8 Default button (returns selected setting to default value)

9 Menu button (accesses projector menu system)

10 Memory button (accesses the Memory menu)

11 Frame Int button (adjusts the Frame Interpolation setting)

12 RGBCMY button (adjusts hue, saturation, and brightness for each RGBCMY color)

13 User button (customizable for different functions)

14 3D Format button (changes the 3D format)

15 Aspect button (selects the image aspect ratio)

16 Pattern button (displays a test pattern)

17 Lens2 button (loads the second saved lens position)

18 Lens1 button (loads the first saved lens position)

19 Esc button (cancels/exits functions)

20 Enter button (selects options)

21 Image Enh button (displays the Image Enhancement menu)

22 Color Mode button (selects display modes)

23 P-in-P button (controls the Picture-in-Picture mode)

24 Blank button (turns off video projection)

25 Illumination button (lights the remote control)

26 Standby button (turns off the projector)

Pro Cinema 6050UB

1 On button (turns on projector)

2 Home button (displays Home screen)

3 Source buttons (select specific video input sources)

4 Link Menu button (displays the main menu of the connected device)

Control buttons (control playback and other features of connected devices that support the HDMI CEC standard)

5 HDMI Link button (displays the settings menu for HDMI Link)

6 Lens button (cycles through lens adjustment options)

7 Arrow buttons (move though on-screen options)

8 Default button (returns selected setting to default value)

9 Menu button (accesses projector menu system)

10 Memory button (accesses the Memory menu)

11 Frame Int button (adjusts the Frame Interpolation setting)

12 RGBCMY button (adjusts hue, saturation, and brightness for each RGBCMY color)

13 User button (customizable for different functions)

14 3D Format button (changes the 3D format)

15 HDR button (adjusts the dynamic color range)

16 Pattern button (displays a test pattern)

17 Lens2 button (loads the second saved lens position)

18 Lens1 button (loads the first saved lens position)

19 Esc button (cancels/exits functions)

20 Enter button (selects options)

21 Image Enh button (displays the Image Enhancement menu)

22 Color Mode button (selects display modes)

23 Aspect button (selects the image aspect ratio)

24 Blank button (turns off video projection)

25 Illumination button (lights the remote control)

26 Standby button (turns off the projector)

Parent topic: Projector Part Locations

Setting Up the Projector

Follow the instructions in these sections to set up your projector for use.

Projector Placement Projector Connections Installing Batteries in the Remote Control

Projector Placement

You can place the projector on almost any flat surface to project an image.

You can also install the projector in a ceiling mount if you want to use it in a fixed location.

Keep these considerations in mind as you select a projector location:

• Place the projector on a sturdy, level surface or install it using a compatible mount.

• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or next to anything that could block the vents.

• Place the projector parallel to the screen.

• Position the projector within reach of a grounded electrical outlet or extension cord.

Projector Setup and Installation Options Projection Distance

Parent topic: Setting Up the Projector

Related tasks

Changing the Projection Mode Using the Menus

Projector Setup and Installation Options

You can set up or install your projector in the following ways:

Front

Rear

Front Ceiling

Rear Ceiling

Wherever you set up the projector, make sure to position it squarely in front of the center of the screen, not at an angle, if possible. If the projector cannot be centered in front of the screen, use lens shift to reposition the image instead of using keystone correction for better image quality.

If you project from the ceiling or from the rear, be sure to select the correct Projection option in the projector's menu system.

Parent topic: Projector Placement

Related references

Projector Setup Settings - Extended Menu

Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.)

You can also use the projector Throw Distance Calculator at epson.com/support (U.S.) or

epson.ca/support (Canada).

16:9 Aspect Ratio Image or Screen

Screen or image size

Projection distance (1)

Wide to Tele

50 inches (127 cm) 58 to 123 inches

(148 to 313 cm)

60 inches (152.4 cm)

80 inches (203.2 cm)

100 inches (254 cm)

150 inches (381 cm)

200 inches (508 cm)

70 to 148 inches

(178 to 376 cm)

94 to 198 inches

(239 to 630 cm)

118 to 248 inches

(300 to 630 cm)

178 to 373 inches

(452 to 947 cm)

238 to 498 inches

(604 to 1264 cm)

Offset from lens center (2)

11.3 inches (29 cm)

13.6 inches (35

Offset from lens center (3)

35.9 inches (91 cm)

43 inches (109 cm) ±24.6 inches (63

cm)

18.2 inches (46 cm)

22.7 inches (58 cm)

57.4 inches (146 cm)

71.7 inches (182 cm)

34 inches (86 cm) 107.6 inches (273

cm)

45.4 inches (115 cm)

143.4 inches (364 cm)

Horizontal offset from lens center

±20.5 inches (52 cm)

cm)

±32.8 inches (83 cm)

±41 inches (104 cm)

±61.6 inches (156 cm)

±82.1 inches (209 cm)

Screen or image size

Projection distance (1)

Wide to Tele

Offset from lens center (2)

Offset from lens center (3)

Horizontal offset from lens center

250 inches (635 cm)

300 inches (762 cm)

297 to 623 inches

(756 to 1582 cm)

357 to 748 inches

(908 to 1899 cm)

4:3 Aspect Ratio Image or Screen

Screen or image size

Projection distance (1)

Wide to Tele

50 inches (127 cm) 72 to 151 inches

(182 to 384 cm)

60 inches (152.4 cm)

80 inches (203.2 cm)

100 inches (254 cm)

86 to 182 inches

(219 to 462 cm)

115 to 243 inches

(293 to 617 cm)

145 to 304 inches

(368 to 772 cm)

56.7 inches (144 cm)

68.1 inches (173 cm)

Offset from lens center (2)

13.9 inches (35 cm)

16.7 inches (42 cm)

22.2 inches (56 cm)

27.8 inches (71 cm)

179.3 inches (455 cm)

215.2 inches (547 cm)

Offset from lens center (3)

43.9 inches (111 cm)

52.7 inches (134 cm)

70.2 inches (178 cm)

87.8 inches (223 cm)

±102.6 inches (261 cm)

±123.1 inches (313 cm)

Horizontal offset from lens center

±25.1 inches (56 cm)

±30.1 inches (77 cm)

±40.2 inches (102 cm)

±50.2 inches (128 cm)

120 inches (304.8 cm)

150 inches (381 cm)

200 inches (508 cm)

220 inches (558.8 cm)

174 to 365 inches

(442 to 927 cm)

218 to 457 inches

(554 to 1160 cm)

291 to 610 inches

(740 to 1548 cm)

321 to 671 inches

(814 to 1704 cm)

33.3 inches (854 cm)

41.7 inches (106 cm)

55.6 inches (141 cm)

61.1 inches (155 cm)

105.3 inches (268 cm)

131.7 inches (334 cm)

175.6 inches (446 cm)

193.1 inches (491 cm)

±60.3 inches (153 cm)

±75.4 inches (191 cm)

±100.5 inches (255 cm)

±110.5 inches (281 cm)

Screen or image size

Projection distance (1)

Wide to Tele

Offset from lens center (2)

Offset from lens center (3)

Horizontal offset from lens center

244.8 inches (622 cm)

Parent topic: Projector Placement

Projector Connections

See these sections to connect the projector to a variety of projection sources.

Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode to ensure the projector's internal temperature is regulated properly.

Connecting to an HDMI Video Source Connecting to Computer Sources Attaching and Removing the Cable Clips Connecting to External Speakers Connecting to a Trigger Out Port

Parent topic: Setting Up the Projector

Related references

Projector Setup Settings - Extended Menu

357 to 746 inches

(906 to 1896 cm)

68 inches (173 cm) 214.8 inches (546

cm)

±123 inches (312 cm)

Connecting to an HDMI Video Source

If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable. The HDMI connection provides the best image quality.

1. Connect the HDMI cable to your video source's HDMI output port.

Note: To display signals in the 18 Gbps transmission band, such as from a 4K 60 fps source, use a cable rated for 18Gbps signals (Pro Cinema 6050UB).

2. Connect the other end to one of the projector's HDMI ports. If you are connecting an optical HDMI

cable, you must also connect the cable's USB power connector to the Opt.HDMI (300mA) port.

Note: When an audio/video source that meets the HDMI CEC standard is connected to the projector's HDMI port, you can use the projector's remote control to control certain features of the linked device by pressing the HDMI Link button on the remote control and setting HDMI Link to On.

Parent topic: Projector Connections

Connecting to Computer Sources

Follow the instructions in these sections to connect a computer to the projector.

Connecting to a Computer for VGA Video Connecting to a Computer for HDMI Video

Parent topic: Projector Connections

Connecting to a Computer for VGA Video

You can connect the projector to your computer using a VGA computer cable.

1. If necessary, disconnect your computer's monitor cable.

2. Connect the VGA computer cable to your computer's monitor port.

3. Connect the other end to a PC port on the projector.

4. Tighten the screws on the VGA connector.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for HDMI Video

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.

1. Connect the HDMI cable to your computer's HDMI output port.

2. Connect the other end to one of the projector's HDMI ports. If you are connecting an optical HDMI

cable, you must also connect the cable's USB power connector to the Opt.HDMI (300mA) port.

Parent topic: Connecting to Computer Sources

Attaching and Removing the Cable Clips

You can install the cable clips that came with your projector to provide additional support to the HDMI cables.

1. Plug in the HDMI cables.

2. Insert each guide into the cable clip holes near the HDMI port.

3. Attach the cable clips to the HDMI cables. Be sure to leave the clamps unlocked.

4. Slide each cable clip onto the guides and lock the clamps onto the connectors.

To remove the cable clips, open the clamps and disconnect the cables. Then pinch the sides of each guide and carefully pull them out of the cable clip holes.

Parent topic: Projector Connections

Connecting to External Speakers

To add sound, you can connect your video source and speakers to an audio video receiver, then connect the receiver to the projector using one of the receiver's compatible video outputs (an HDMI connection provides the best image quality, if available). You can also connect speakers to any video source that has its own speaker connections.

1 Video source

2 Surround sound speakers

3 Receiver

4 Video cable

Parent topic: Projector Connections

Connecting to a Trigger Out Port

You can connect your projector to external devices such as motorized screens that support a trigger signal. When active, a 12V (200 mA maximum) signal is sent to the connected device while the projector is powered on.

1. Connect a 3.5 mm stereo mini-jack cable to the external device's trigger port. See your device's

documentation for details.

2. Connect the other end to the projector's Trigger Out port.

3. Turn on the Trigger Out setting in the projector's Extended menu.

Parent topic: Projector Connections

Related references

Projector Setup Settings - Extended Menu

Installing Batteries in the Remote Control

The remote control uses the two AA batteries that came with the projector.

Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types, or mix new and old batteries.

1. Remove the battery cover.

2. Insert the batteries with the + and – ends facing as shown.

3. Replace the battery cover and press it down until it clicks into place.

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.

Parent topic: Setting Up the Projector

Related references

Remote Control Specifications

Using the Projector on a Network

Follow the instructions in these sections to set up your projector for use on a network.

Note: Epson iProjection is not recommended for use with streaming video.

Wired Network Projection Wireless Network Projection Selecting External Network Detection Settings

Wired Network Projection

You can project through a wired network. To do this, you connect the projector to your network with an Ethernet cable, and then set up your projector and computer for network projection.

You can use Epson iProjection to project static images and presentations over a wired network.

Note: Epson iProjection is not recommended for use with streaming video.

After connecting and setting up the projector, install the projector software. You may need to install it from a software CD, if included, or download the software and manuals as necessary.

Note: If your projector is connected via a LAN (Ethernet) cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software.

Connecting to a Wired Network Selecting Wired Network Settings

Parent topic: Using the Projector on a Network

Related references

Additional Projector Software and Manuals

Connecting to a Wired Network

To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10Base-T network cable. To ensure proper data transmission, use a Category 5 shielded cable or better.

1. Connect one end of the network cable to your network hub, switch, or router.

2. Connect the other end of the cable to the projector's LAN port.

Parent topic: Wired Network Projection

Selecting Wired Network Settings

Before you can project from computers, tablets, or smartphones over your network, you must select the network settings for the projector using its menu system.

Note: Make sure you already connected the projector to your wired network using the LAN port.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Basic menu and press Enter.

6. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the PJLink protocol for projector control.

• Remote Password lets you enter a password up to 8 alphanumeric characters long for accessing the Remote or Basic Control screen on a smartphone or tablet.

• Display LAN Info lets you select how the projector displays network information. You can select an option to display a QR code that lets you quickly connect your iOS or Android devices using the Epson iProjection app.

Note: Use the displayed keyboard to enter the name, passwords, and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them. Press Finish when you are done.

7. Select the Wired LAN menu and press Enter.

8. Select your IP Settings as necessary:

• If your network assigns addresses automatically, turn on the DHCP setting.

• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet

Mask, and Gateway Address as needed.

Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on

the remote control. To select a highlighted number, press Enter. Press Finish when you are done.

9. To prevent display of the IP address on the standby screen, turn off IP Address Display.

10. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wired Network Projection

Wireless Network Projection

You can project over a wireless network. To do this, you must set up your projector and computer for wireless projection.

Note: The Epson 802.11b/g/n wireless LAN module is not included with your projector and is optional.

To connect wirelessly to your projector, configure the connection using the projector's Network menus.

After connecting and setting up the projector, install the projector software. You may need to install it from a software CD, if included, or download the software and manuals as necessary.

You can use Epson iProjection to project static images and presentations over a wireless network.

Note: Epson iProjection is not recommended for use with streaming video.

Note: If your projector is connected via a LAN cable to a network that includes a wireless access point,

you can connect to the projector wirelessly through the access point using the Epson network software.

Installing the Wireless LAN Module Selecting Wireless Network Settings Manually Using a QR Code to Connect a Mobile Device Searching for a Wireless Network Selecting Wireless Network Settings in Windows Selecting Wireless Network Settings on Mac Enabling WPA or WPA2 Security

Parent topic: Using the Projector on a Network

Related references

Additional Projector Software and Manuals

Installing the Wireless LAN Module

To use the projector over a wireless network, install the Epson 802.11b/g/n wireless LAN module in the projector. Do not install any other type of wireless module.

Note: The wireless LAN module is not included with your projector.

Insert the wireless LAN module into the USB port.

The light on the wireless LAN module turns on when the module is installed and operating. The light flashes when the module is communicating over the network.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings Manually

Before you can project from your wireless network, you must select the network settings for the projector using its menu system.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Make sure the Wireless LAN Power setting is set to On.

5. Select Network Configuration and press Enter.

6. Select the Basic menu and press Enter.

7. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Remote Password lets you enter a password up to 8 alphanumeric characters long for accessing

the Remote or Basic Control screen on a smartphone or tablet.

• Display LAN Info lets you select how the projector displays network information. You can select

an option to display a QR code that lets you quickly connect your iOS or Android devices with the Epson iProjection app.

Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them. Press Finish when you are done.

8. Select the Wireless LAN menu and press Enter.

9. Select the settings on the Wireless LAN menu as necessary for your network.

10. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

After you complete the wireless settings for your projector, you need to select the wireless network on your computer, or iOS or Android device.

Wireless LAN Menu Settings Restricted IP Addresses

Parent topic: Wireless Network Projection

Wireless LAN Menu Settings

Setting Options Description

Connection Mode Quick

Advanced

Selects the type of wireless connection:

Quick: lets you quickly connect to local devices without an internet connection

Advanced: lets you connect to multiple computers via a wireless network access point (infrastructure mode)

Channel 1ch

6ch

11ch

In Quick connection mode, selects the frequency band (channel) used by the wireless LAN

SSID Up 32 alphanumeric characters Sets the SSID (network name) of

the wireless LAN system the projector is connecting to

Search Access Point To Search View Searches for available wireless

network access points in

Advanced connection mode

IP Settings — Turns on DHCP if your network

assigns addresses automatically; set to Off to manually enter the network's IP Address, Subnet Mask, and Gateway Address (see list of restricted IP addresses in link below)

SSID Display On

Off

IP Address Display On

Off

Selects whether to display the SSID on the network standby screen and the Home screen

Selects whether to display the IP address on the network standby screen and the Home screen

Parent topic: Selecting Wireless Network Settings Manually

Related references

Restricted IP Addresses

When manually entering IP Settings, you cannot use these ranges of IP addresses:

Setting Restricted IP addresses

IP Address 0.0.0.0

Subnet Mask 0.0.0.0

Gateway Address 0.0.0.0

Parent topic: Selecting Wireless Network Settings Manually

Using a QR Code to Connect a Mobile Device

127.x.x.x

224.0.0.0 to 255.255.255.255

255.255.255.255

127.x.x.x

224.0.0.0 to 255.255.255.255

After you select the wireless network settings for your projector, you can display a QR code on the screen and use it to connect a mobile device using the Epson iProjection app.

Note: Make sure you have installed the latest version of Epson iProjection on your device. Visit

epson.com/iprojection (U.S.) or epson.ca/iprojection (Canada) for more information.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Basic menu and press Enter.

5. Set the Display LAN Info setting to Text & QR Code.

6. Select Complete and follow the on-screen instructions to save your settings and exit the menus.

7. Do one of the following:

• Press the LAN button on the remote control.

• Select Display the QR Code in the projector's Network menu.

• Press the Home button on the remote control and select Display the QR Code on the Home

screen.

Your projector displays the QR code on the projection surface.

Note: If you do not see the QR code after pressing the LAN button, press Enter to display it.

8. Start Epson iProjection on your mobile device.

9. Use the QR code reader feature to read the QR code and connect your device to the projector. Visit

epson.com/iprojection (U.S.) or epson.ca/iprojection (Canada) for instructions.

Parent topic: Wireless Network Projection

Searching for a Wireless Network

You can use your projector's site survey function to quickly locate and connect to available wireless networks.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Wireless LAN menu and press Enter.

6. Select Advanced as the Connection Mode setting and press Enter.

7. Select Search Access Point and press Enter.

8. Select the name of the wireless network you want to connect to and press Enter.

9. If the network has security enabled, enter the wireless password.

You see a screen like this:

10. Select the settings on the Security menu as necessary for your network.

11. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings in Windows

Before connecting to the projector, select the correct wireless network on your computer.

1. To access your wireless utility software, access the Desktop and double-click the network icon on the Windows taskbar.

2. Do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

3. Click Connect.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings on Mac

Before connecting to the projector, select the correct wireless network on your Mac.

1. Click the AirPort icon on the menu bar at the top of the screen.

2. Make sure AirPort is turned on, then do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

Parent topic: Wireless Network Projection

Enabling WPA or WPA2 Security

Set up the WPA or WPA2 security settings to match your network's settings. Check with your network administrator for guidance on entering the correct information.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Security menu and press Enter.

6. Select the settings on the Security menu as necessary for your network.

7. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Wireless Security Menu Settings

Parent topic: Wireless Network Projection

Wireless Security Menu Settings

Settings on the Security menu let you select the type of security and security settings that match the network you are connecting the projector to.

Setting Options Description

Security No

WPA2-PSK

WPA/WPA2-PSK

Selects the type of security used on the wireless network

Setting Options Description

Passphrase — For the selected security, selects

Parent topic: Enabling WPA or WPA2 Security

Selecting External Network Detection Settings

If you are using a compatible network control system, you can select settings that allow your projector to be detected by those systems.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Others menu and press Enter.

the pre-shared passphrase used on the network

5. If you want to use the notification function of PJLink, turn on the PJLink Notification setting and enter the IP address of the notification recipient in the Notified IP Address setting (Pro Cinema 6050UB).

6. If your network environment uses an AMX controller, turn on the AMX Device Discovery setting to allow the projector to be detected.

7. If your network environment uses a Control4 or Control4 SDDP controller, turn on the Control4 SDDP setting to allow the projector to be detected.

8. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Using the Projector on a Network

Using Basic Projector Features

Follow the instructions in these sections to use your projector's basic features.

Turning On the Projector Turning Off the Projector Viewing 3D Images Selecting the Language for the Projector Menus Adjusting the Image Height Adjusting the Image Position Using Lens Shift Image Shape Resizing the Image with the Zoom Feature Focusing the Image with the Lens Button Remote Control Operation Selecting an Image Source Projection Modes Image Aspect Ratio Color Mode

Turning On the Projector

Turn on the computer or video equipment you want to use before you turn on the projector so it can display the image source.

1. Connect the power cord to the projector's power inlet.

2. Plug the power cord into an electrical outlet.

Note: With Direct Power On turned on, the projector turns on as soon as you plug it in.

The projector's power light turns blue. This indicates that the projector is receiving power.

3. Press the power button on the projector or the On button on the remote control to turn on the projector.

The shutter opens and the status light flashes blue as the projector warms up. Once the projector is warmed up, the status light stops flashing and turns blue.

Warning: Never look into the projector lens when the lamp is on. This can damage your eyes and is especially dangerous for children.

If you do not see a projected image right away, try the following:

• Turn on the connected computer or video device.

• Insert a DVD or other video media and press the play button, if necessary.

• Press the Source button on the projector to detect the video source, or press a source button on the

remote control.

• If the Home screen is displayed, select the source you want to project.

Using the Home Screen

Parent topic: Using Basic Projector Features

Related references

Projector Setup Settings - Extended Menu

Using the Home Screen

You can select input sources and other frequently used options from the Home screen.

1. To display the Home screen, do one of the following:

• Press the Home button on the remote control.

• Turn on the projector with the Home Screen Auto Disp setting enabled.

• Turn on the projector when no signal is received from the selected input source.

2. Press the arrow buttons on the remote control or control panel to navigate the screen, and press Enter to select an option.

1 Select the video source you want to project

2 Display the QR code (Pro Cinema 4050)

Display the Connection Guide (Pro Cinema 6050UB)

3 Display the projector's menus

4 Select customizable menu options

5 Select to change the 3D settings

6 Select to change the Color Mode

Note: Your Home screen may look different from the illustration shown here. You can select the customizable menu options using the Custom Function 1 and Custom Function 2 settings in the Extended menu.

3. Press the Home button to hide the Home screen.

Parent topic: Turning On the Projector

Related references

Projector Setup Settings - Extended Menu

Turning Off the Projector

Before turning off the projector, shut down any computer connected to it so you can see the computer display during shutdown.

Note: Turn off this product when not in use to prolong the life of the projector. Lamp life will vary depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.

Note: When using the Blank feature, the projector lamp is still on. To turn off the lamp, turn off the projector.

1. Press the power button on the projector or the Standby button on the remote control.

The projector displays a shutdown confirmation screen.

2. Press the power button on the projector or the Standby button on the remote control again. (To leave it on, press any other button.)

The lamp turns off and the lens shutter closes. The projector's Status light flashes and then turns off.

Note: If you unplug the projector before the Status light stops flashing and need to turn the projector back on, wait until the lamp has cooled down (about 10 minutes), plug the power cord back in, and turn the projector on again. You cannot operate the projector until it finishes cooling down.

3. To transport or store the projector, make sure the Status light is off, then unplug the power cord.

Caution: To avoid damaging the projector or lamp, never unplug the power cord when the Status light is on or flashing.

Parent topic: Using Basic Projector Features

Related references

Projector Feature Settings - Settings Menu

Related tasks

Shutting Off the Picture Temporarily Transporting the Projector

Viewing 3D Images

You can view 3D images using your projector. Viewing 3D images requires a 3D-compatible video device, a compatible HDMI cable, and a pair of Epson RF 3D glasses (not included with your projector). You can also convert 2D images to 3D using the 2D-to-3D Conversion setting in your projector's Signal > 3D Setup menu (Pro Cinema 4050).

You can purchase Epson RF 3D glasses from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in Canada. Or you can purchase online at epsonstore.com (U.S. sales) or epsonstore.ca (Canadian sales).

Note: Make sure the 3D Display setting on the Signal menu is set to Auto or 3D.

1. Connect a 3D-compatible video device to the projector using a compatible HDMI cable.

2. Turn on the video device, then turn on the projector.

3. Begin playback from the video device.

Note: Make sure you set the video device to play content in 3D mode.

4. Slide the power switch on the 3D glasses to the On position.

5. Put on the 3D glasses and view the projected image. If you do not see a 3D image, pair the glasses with the projector.

Note: If you change the video source or you are not within range of your projector, the glasses enter standby mode and the status light flashes green. Slide the power switch on the glasses to the Off position and then back to the On position to resume 3D viewing.

Pairing the 3D Glasses with the Projector Charging the 3D Glasses 3D Viewing Range

Parent topic: Using Basic Projector Features

Related references

Input Signal Settings - Signal Menu

Related tasks

Connecting to an HDMI Video Source

Pairing the 3D Glasses with the Projector

Pair the glasses with the projector to establish communication between them for 3D viewing.

1. Turn on the projector.

2. Set the image source on the projector to HDMI.

3. Project a 3D image.

4. Slide the power switch on the 3D glasses to the On position.

5. Move the glasses within 10 feet (3 m) of the projector and hold down the Pairing button for at least three seconds.

The status light on the glasses flashes green and red. If pairing is successful, the light turns green for 10 seconds and then turns off.

Parent topic: Viewing 3D Images

Charging the 3D Glasses

When the status light on the glasses flashes red to indicate a low battery, it is time to charge the glasses.

1. Connect the smaller end of the charging cable to the port on the bridge of the glasses.

Note: Make sure you connect the cable in the correct orientation or you may damage the glasses or cable.

2. Do one of the following:

• Plug the other end of the charging cable into a powered USB port on a computer or other device.

• Plug the other end of the charging cable into a USB-to-AC adapter with the following

specifications:

Input: 100-240V, ~0.15A, 50-60Hz

Output: 5V=1A

The glasses are fully charged when the status light on the glasses stays green.

Parent topic: Viewing 3D Images

3D Viewing Range

When you view 3D images, make sure you are positioned within the viewing range shown here.

1 32 ft (10 m)

Parent topic: Viewing 3D Images

Selecting the Language for the Projector Menus

If you want to view the projector's menus and messages in another language, you can change the Language setting.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select the Language setting and press Enter.

5. Select the language you want to use and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Using Basic Projector Features

Adjusting the Image Height

If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust the image height using the projector's adjustable feet.

1. Turn on the projector and display an image.

2. If the image is tilted, rotate the front feet to adjust their height.

3. To adjust the position of the projected image further, press the Lens button on the remote control or projector until Adjust Lens Shift appears on the screen and follow the on-screen instructions.

If the projected image is unevenly rectangular, you need to adjust the image shape.

Parent topic: Using Basic Projector Features

Related concepts

Image Shape

Adjusting the Image Position Using Lens Shift

If you cannot install the projector directly in front of the screen, you can adjust the position of the projected image using the lens shift feature.

1. Turn on the projector and display an image.

2. Press the Lens button on the control panel or remote control.

3. Press the Lens button repeatedly until Adjust Lens Shift appears on the screen.

4. Press the arrow buttons on the remote control or the control panel to adjust the position of the projected image as necessary.

1 Maximum horizontal range (H × 47%)

2 Maximum vertical range (V × 96%)

3 1/2 the vertical height of the image

4 1/2 the horizontal width of the image

Note: You cannot move the image to both the horizontal and vertical maximum values.

5. When you are finished, press the Esc button on the control panel or remote control.

Note: When adjusting the image height, position the image lower than where you want it to be and then move it up. This will help prevent the image from moving down after adjustment. The image is clearest when the lens is at the home position. To move the lens to the home position, press the arrow buttons on the remote control or the control panel to move the image towards the center of the screen until it stops at the home position (Pro Cinema 4050) or press and hold the Lens button on the remote control for three seconds (Pro Cinema 6050UB).

Parent topic: Using Basic Projector Features

Image Shape

You can project an evenly rectangular image by placing the projector directly in front of the center of the screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off to the side, you may need to correct the image shape for the best display quality.

Correcting Image Shape With the Keystone Buttons

Parent topic: Using Basic Projector Features

Correcting Image Shape With the Keystone Buttons

You can use the projector's keystone correction buttons to correct the shape of an image that is unevenly rectangular on the sides.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Pattern button on the remote control.

2. Press a keystone button on the projector's control panel.

After correction, your image is slightly smaller.

Note: If the projector is installed out of reach, you can also correct the image shape using the Keystone settings in the projector menus.

Parent topic: Image Shape

Related references

Projector Feature Settings - Settings Menu

Resizing the Image with the Zoom Feature

You can adjust the size of the projected image using the zoom feature.

1. Turn on the projector and display an image.

2. Press the Lens button on the control panel or remote control.

3. Press the Lens button repeatedly until Adjust Zoom is displayed on the screen.

4. Press and hold the left or right arrow button on the control panel or remote control to resize the image.

5. Press the Esc button on the control panel or remote control when finished.

Parent topic: Using Basic Projector Features

Focusing the Image with the Lens Button

You can adjust the sharpness of the projected image using the focus feature.

1. Turn on the projector and display an image.

2. Press the Lens button on the control panel or remote control.

3. Press the Lens button repeatedly until Adjust Focus is displayed on the screen.

4. Press and hold the left or right arrow button on the control panel or remote control to focus the image.

5. Press the Esc button on the control panel or remote control when finished.

Parent topic: Using Basic Projector Features

Remote Control Operation

The remote control lets you control the projector from almost anywhere in the room. You can point it at the screen, or the front or back of the projector.

Make sure that you aim the remote control at the projector's receivers within the distance and angles listed here.

Vertical

1 32 feet (10 m)

2 ± 30°

3 60°

4 10°

Horizontal

1 32 feet (10 m)

2 ± 30°

Note: Avoid using the remote control in conditions with bright fluorescent lights or in direct sunlight, or the projector may not respond to commands. If you will not use the remote control for a long time, remove the batteries.

Parent topic: Using Basic Projector Features

Related tasks

Using the Home Screen

Selecting an Image Source

If you connected multiple image sources to the projector, such as a computer and DVD player, you may want to switch from one image source to the other.

1. Make sure the connected image source you want to use is turned on.

2. For video image sources, insert a DVD or other video media and press its play button, if necessary.

3. Do one of the following:

• Press the Source button on the projector until you see the image from the source you want.

• Press the button for the source you want on the remote control. If there is more than one port for

that source, press the button again to cycle through the sources.

Pro Cinema 4050

Pro Cinema 6050UB:

1 HDMI port sources

2 Computer port source (VGA)

3 Network source

• Press the Home button on the remote control and select your image source.

Parent topic: Using Basic Projector Features

Projection Modes

Depending on how you positioned the projector, you may need to change the projection mode so your images project correctly.

• Front (default setting) lets you project from a table in front of the screen.

• Front/Ceiling flips the image over top-to-bottom to project upside-down from a ceiling or wall mount.

• Rear flips the image horizontally to project from behind a translucent screen.

• Rear/Ceiling flips the image over top-to-bottom and horizontally to project from the ceiling and behind

a translucent screen.

Changing the Projection Mode Using the Menus

Parent topic: Using Basic Projector Features

Changing the Projection Mode Using the Menus

You can change the projection mode to flip the image over top-to-bottom and/or left-to-right using the projector menus.

1. Turn on the projector and display an image.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select the Projection setting and press Enter.

5. Select a projection mode and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Projection Modes

Related concepts

Projector Placement

Image Aspect Ratio

The projector can display images in different width-to-height ratios called aspect ratios. Normally the input signal from your video source determines the image's aspect ratio. However, for certain images you can change the aspect ratio to fit your screen by pressing a button on the remote control.

If you always want to use a particular aspect ratio for a certain video input source, you can select it using the projector's menus.

Changing the Image Aspect Ratio Available Image Aspect Ratios

Parent topic: Using Basic Projector Features

Changing the Image Aspect Ratio

You can change the aspect ratio of the displayed image to resize it.

Note: For HDMI sources, the input signal determines the image's aspect ratio.

1. Turn on the projector and switch to the image source you want to use.

2. Press the Aspect button on the remote control.

Pro Cinema 4050

Pro Cinema 6050UB

A list of the available aspect ratios appears.

3. To cycle through the available aspect ratios for your input signal, press the up or down arrow button.

4. Press Enter to select the aspect ratio.

Parent topic: Image Aspect Ratio

Available Image Aspect Ratios

You can select the following image aspect ratios, depending on the input signal from your image source.

Note: When the projector is in 3D mode, the aspect ratio is automatically set to Normal.

Note: Black bands and cropped images may project in certain aspect ratios, depending on the aspect

ratio and resolution of your input signal.

Aspect ratio setting Description

Auto Automatically sets the aspect ratio according to the input signal.

Normal Displays images using the full projection area and maintains the

Zoom Displays images using the full width of the projection area and

Full Displays images using the full width of the projection area, but does

aspect ratio of the image.

maintains the aspect ratio of the image.

not maintain the aspect ratio.

Anamorphic Wide

(Pro Cinema 6050UB)

Horiz. Squeeze

(Pro Cinema 6050UB)

Note: When projecting a 4K signal, you can select only Normal, Anamorphic Wide (Pro Cinema 6050UB), or Horiz. Squeeze (Pro Cinema 6050UB) as the aspect ratio setting.

Parent topic: Image Aspect Ratio

Color Mode

The projector offers different Color Modes to provide optimum brightness, contrast, and color for a variety of viewing environments and image types. You can select a mode designed to match your image and environment, or experiment with the available modes.

If you always want to use a particular color mode for a certain video input source, you can select it using the projector menus.

Changing the Color Mode

Displays images that have a 2.40:1 aspect ratio when using a commercially available anamorphic lens. Set the Overscan setting to Off or the image will not display correctly.

Displays images using the full width of the projection area when using a commercially available anamorphic lens.

Available Color Modes Turning On Auto Iris

Parent topic: Using Basic Projector Features

Changing the Color Mode

You can change the projector's Color Mode using the remote control to optimize the image for your viewing environment.

1. Turn on the projector and switch to the image source you want to use.

2. If you are projecting from a DVD player or other video source, insert a disc or other video media and press the play button, if necessary.

3. Press the Color Mode button on the remote control to change the Color Mode.

A list of available Color Modes appears.

4. To cycle through all the available Color Modes for your input signal, press the up or down arrow button.

5. Press Enter to select a Color Mode.

Parent topic: Color Mode

Available Color Modes

You can set the projector to use these Color Modes, depending on the input source you are using:

2D Images

Color Mode Description

Dynamic Best for projecting in a bright room

Natural Best for projecting in a dark room

Bright Cinema Best for projecting in a room with closed curtains

Color Mode Description

Cinema Best for projecting color movies in a dark room

B&W Cinema Best for projecting black and white movies in a dark room

Digital Cinema Projects using the same color spectrum as digital movie theaters

3D Images

Color Mode Description

3D Dynamic Best for projecting in a bright room

3D Cinema Best for projecting movies in a dark room

Parent topic: Color Mode

Turning On Auto Iris

In certain color modes, you can turn on the Auto Iris setting to automatically optimize the image based on the brightness of the content you project.

1. Turn on the projector and switch to the image source you want to use.

2. Press the Menu button.

3. Select the Image menu and press Enter.

4. Select the Auto Iris setting and choose one of the following:

• High Speed to adjust brightness as soon as the scene changes.

• Normal for standard brightness adjustment.

Note: You can set Auto Iris for each Color Mode that supports the feature.

5. Press Menu or Esc to exit the menus.

Parent topic: Color Mode

Adjusting Projector Features

Follow the instructions in these sections to use your projector's feature adjustments.

Shutting Off the Picture Temporarily Using Picture in Picture Projector Security Features Using Advanced Image Adjustment Features Saving Settings to Memory and Using Saved Settings Saving the Lens Position and Using Saved Lens Positions

Shutting Off the Picture Temporarily

You can temporarily turn off the projected picture if you want to redirect your audience's attention during a presentation. Any video action continues to run, however, so you cannot resume projection at the point that you stopped it.

1. Press the Blank button on the remote control to temporarily stop projection.

2. To turn the picture back on, press the Blank button again.

Parent topic: Adjusting Projector Features

Using Picture in Picture

You can use Picture in Picture mode to view two image sources simultaneously (Pro Cinema 4050).

Note: You can display only HDMI video sources when using Picture in Picture mode. You cannot use Picture in Picture while projecting 3D or 4K images.

1. Turn on the projector and switch to the HDMI image source you want to use.

2. Press the P-in-P button on the remote control.

Pro Cinema 4050

The second HDMI video source appears as a sub-screen in the corner of the image.

Note: Press the Menu button on the remote control to adjust picture-in-picture options.

3. To swap the main screen and sub-screen video sources, press and hold the P-in-P button for at least three seconds.

4. Press the P-in-P button again to exit.

Available Picture in Picture Options

Parent topic: Adjusting Projector Features

Available Picture in Picture Options

You can adjust the following options by pressing the Menu button on the remote control while using Picture in Picture (Pro Cinema 4050):

Setting Description

Subscreen Size Adjusts the size of the sub-screen

Subscreen Position Adjusts the location of the sub-screen

Swap Main/Sub Switches the video source displayed on the main screen with the

source displayed on the sub-screen

Exit Picture in Picture Exits picture-in-picture mode

Parent topic: Using Picture in Picture

Projector Security Features

You can secure your projector to deter theft or prevent unintended use by setting up the following security features:

• Lens lock to prevent changing the zoom, focus, or lens shift settings.

• Button lock security to block operation of the projector using the buttons on the control panel.

• Security cabling to physically cable the projector in place.

Locking the Projector's Lens Settings and Buttons Installing a Security Cable

Parent topic: Adjusting Projector Features

Locking the Projector's Lens Settings and Buttons

You can lock the buttons on the projector's control panel to prevent anyone from using the projector. You can also lock the zoom, focus, and lens shift settings to prevent them from being adjusted.

Note: You can use the remote control to control the projector when the control panel buttons are locked.

1. Press the Menu button.

2. Select the Settings menu and press Enter.

3. Select the Lock Setting setting and press Enter.

4. Select one of these lock types and press Enter:

• To lock the zoom, focus, and lens shift settings, select Lens Lock.

• To lock the projector's power button, select Child Lock. To turn the projector on, you must press

the power button for longer than three seconds.

Note: Child Lock does not prevent the projector from turning on when the power cord is connected if the Direct Power On Setting is set to On.

• To lock all buttons, select Control Panel Lock > Full Lock.

• To lock all buttons except the power button, select Control Panel Lock > Partial Lock.

Note: The lock icon is displayed on the screen if any control panel buttons are pressed while this setting is enabled.

You see a confirmation prompt.

5. Select Yes and press Enter.

6. Restart the projector for the lock settings to take effect.

Unlocking the Projector's Buttons

Parent topic: Projector Security Features

Unlocking the Projector's Buttons

If the projector's buttons have been locked, hold the Enter button on the projector's control panel for seven seconds to unlock them. You can also set the Control Panel Lock setting to Off in the Settings menu.

Parent topic: Locking the Projector's Lens Settings and Buttons

Related references

Projector Feature Settings - Settings Menu

Installing a Security Cable

You can use the security slot on the back of the projector to attach a Kensington lock. See your local computer or electronics dealer for purchase information.

Parent topic: Projector Security Features

Using Advanced Image Adjustment Features

Follow the instructions in these sections to use your projector's advanced image adjustments.

Note: Not all adjustments may be available depending on the projection mode and input signal.

Using Frame Interpolation Using 4K Enhancement Creating Image Presets Using MPEG Noise Reduction Adjusting Scaled Resolution Images (Super-resolution) Adjusting Detail Enhancement Image Adjustment Restrictions Adjusting the Color Convergence (Panel Alignment) Adjusting the Color Tone (Color Uniformity)

Parent topic: Adjusting Projector Features

Related references

Image Adjustment Restrictions

Using Frame Interpolation

You can use the projector's Frame Interpolation feature to smooth fast-moving video by comparing consecutive image frames and inserting an intermediate image frame between them.

Note: This feature may not be available depending on the projection mode and input signal.

1. Press the Frame Int button.

You see a screen like this:

2. Select the level of interpolation and press Enter.

3. When you are finished, press the Frame Int button.

Note: If your resulting images contain noise, turn off the Frame Interpolation setting.

Parent topic: Using Advanced Image Adjustment Features

Related references

Image Adjustment Restrictions

Using 4K Enhancement

Using the projector's 4K Enhancement Technology, you can receive 4K (3840 × 2160 pixel) signals and project ultra high-definition images. This technology shifts each pixel diagonally by 0.5 pixel to double the image resolution.

Note: This feature may not be available depending on the projection mode and input signal.

1. Press the Menu button on the remote control.

You see a screen like this:

2. Select the Image Enhancement setting and press Enter.

You see a screen like this:

3. Select the 4K Enhancement setting and press Enter.

4. Select one of the following options and press Enter:

• Off to disable 4K enhancement

• On to enable 4K enhancement

5. Press Menu to exit the menus.

Parent topic: Using Advanced Image Adjustment Features

Related references

Image Adjustment Restrictions

Creating Image Presets

You can quickly optimize your projected image by selecting image adjustment settings and saving them as a preset you can reuse later.

To quickly switch between image presets, press the Image Enh button on the remote control, select an image preset and press Enter.

You can save the following settings in a preset:

• Noise Reduction

• MPEG Noise Reduction

• Super-resolution

• Detail Enhancement

1. Press the Menu button.

You see a screen like this:

2. Select the Image Enhancement setting and press Enter.

3. Select the Image Preset Mode setting and press Enter.

4. Select one of the presets and press Enter.

Note: If you select a previously used preset, your new adjustments overwrite the old ones.

5. Press Esc to return to the Image Enhancement menu.

6. Fine-tune the following settings:

• Noise Reduction

• MPEG Noise Reduction

• Super-resolution

• Detail Enhancement

7. Press Menu or Esc to exit the menus.

The currently selected Image Preset Mode will be updated with the current settings.

Parent topic: Using Advanced Image Adjustment Features

Using MPEG Noise Reduction

If you are projecting MPEG movies, you can reduce dots and block noise by adjusting the MPEG Noise Reduction setting.

Note: This feature may not be available depending on the projection mode and input signal.

1. Press the Menu button.

You see a screen like this:

2. Select the Image Enhancement setting and press Enter.

3. Select the MPEG Noise Reduction setting and press Enter.

4. Select the level of noise reduction and press Enter.

5. Press Menu or Esc to exit the menus.

Parent topic: Using Advanced Image Adjustment Features

Related references

Image Adjustment Restrictions

Adjusting Scaled Resolution Images (Super-resolution)

You can sharpen blurry, low-resolution images that had their resolution scaled up for projection using the

Super-resolution setting.

Note: This feature may not be available depending on the projection mode and input signal.

1. Turn on the projector and switch to the image source you want to use.

2. Press the Menu button.

You see a screen like this:

3. Select the Image Enhancement setting and press Enter.

4. Select the Super-resolution setting and press Enter.

5. Adjust each of the following options as necessary:

• Fine Line Adjust to enhance fine details such as hair and fabric patterns

• Soft Focus Detail to enhance the outline, background, and main parts of an image

Note: Higher values increase the intensity of the effect.

6. Press Menu or Esc to exit the menus.

Parent topic: Using Advanced Image Adjustment Features

Related references

Image Adjustment Restrictions

Adjusting Detail Enhancement

You can enhance the contrast in detailed areas of an image to create a more textured look.

Note: This feature may not be available depending on the projection mode and input signal.

1. Turn on the projector and switch to the image source you want to use.

2. Press the Menu button.

You see a screen like this:

3. Select the Image Enhancement setting and press Enter.

4. Select the Detail Enhancement setting and press Enter.

5. Adjust each of the following options as necessary:

• Strength to adjust the image contrast

• Range to adjust the enhanced area of the image

Note: Higher values increase the intensity of the effect.

6. Press Menu or Esc to exit the menus.

Parent topic: Using Advanced Image Adjustment Features

Related references

Image Adjustment Restrictions

You cannot use some advanced adjustment settings with certain projection modes or input signals.

Fine mode

Fast mode

2D-to-3D

4K input

(Image

Processing)

Input type 2K 2K 2K 2D or

(Image

Processing)

2K 3D

Projection Mode 2K 4K Enh. 2K 4K Enh. 2K 2D or

4K Enh.

2K 3D

Frame Interpolation Yes Yes

— — Yes

—

Image Enhancement - 4K Preset — Yes — Yes — Yes

Noise Reduction — Yes — — — —

MPEG Noise Reduction — Yes — — — —

Super-resolution/Detail

— Yes — Yes — Yes

Enhancement

Image Enhancement - 2K Preset Yes — Yes — Yes —

Noise Reduction Yes — — — Yes —

MPEG Noise Reduction Yes — — — Yes —

Super-resolution/Detail

Yes — Yes — Yes —

Enhancement

2D-to-3D Conversion is only available on the Pro Cinema 4050.

Frame Interpolation can only be used with 3D or 4K Enhancement if the signal is 1080p @ 24 Hz.

The following restrictions apply when using image enhancements:

• Fast mode (Image Processing) is not available when displaying a 4K picture.

• Picture in Picture (Pro Cinema 4050) and Fast mode (Image Processing) cannot be used with 3D or

4K projection.

• 2D-to-3D Conversion and 3D projection cannot be used with 4K projection.

• You can only use the Anamorphic Wide aspect mode with a 3D signal if the signal is 1080p @ 24 Hz

with Frame Packing (Pro Cinema 6050UB).

Parent topic: Using Advanced Image Adjustment Features

Adjusting the Color Convergence (Panel Alignment)

You can use the Panel Alignment feature to manually adjust the color convergence (the alignment of the red, green and blue colors) in the projected image.

Note: You can adjust only the red or blue color convergence. Green is the standard color panel and cannot be adjusted.

Note: Allow your projector to warm up for at least 10 to 15 minutes and make sure the image is in focus before you use the Panel Alignment feature. For best results, project an image sized at least 60 inches (152 cm) diagonally in a dark room and on a projection surface that is not colored or textured.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select the Display setting and press Enter.

5. Select the Panel Alignment setting and press Enter.

6. Select the Panel Alignment setting and press Enter.

7. Select On and press Enter.

8. Select the Select Color setting and choose one of the following:

• R to adjust the red color convergence.

• B to adjust the blue color convergence.

9. Select the Pattern Color setting and press Enter.

10. Select the pattern you want to use and press Enter.

11. Select Start Adjustments and press Enter.

You see this screen:

12. Select one of the following:

• Select Shift the whole panel to adjust the whole panel at the same time. (This is not

recommended, as usually only certain areas of the panel need to be adjusted.) Continue with step

13.

• Select Adjust the four corners to adjust the corners of the panel one at a time. Skip to step 16.

13. Press Enter.

You see a screen like this:

14. Use the arrow buttons on the remote control to adjust the color alignment of the color you selected for the Select Color setting.

15. When you are finished adjusting the screen, press Enter.

You see this screen:

Note: The Shift the whole panel option affects the grid lines in the entire screen. To fine-tune your adjustments, continue with the next steps.

16. Select Adjust the four corners and press Enter. (Otherwise, select Exit and press Enter.)

17. Use the arrow buttons on the remote control to adjust the color alignment in the corner of the screen highlighted by the orange box.

18. Press the Enter button to move to the next corner of the screen.

19. When you are finished adjusting each corner of the screen, press Enter.

You see this screen:

20. Do one of the following:

• If your projector's panel alignment is now correct, select Exit and press Enter to return to the

Panel Alignment menu.

• If your projector needs additional panel alignment, select Select intersection and adjust and

press Enter. Use the arrow keys on the remote control to highlight the corner of any misaligned box on the screen, press Enter, make any necessary adjustments and press Enter again. Repeat this step as necessary for the other intersections.

Parent topic: Using Advanced Image Adjustment Features

Adjusting the Color Tone (Color Uniformity)

You can use the Color Uniformity feature to manually adjust the color tone balance in the projected image.

1. Press the Menu button.

2. Select the Extended menu and press Enter.

3. Select the Display setting and press Enter.

4. Select the Color Uniformity setting and press Enter.

You see this screen:

5. Press Enter and select On.

6. Press Esc.

7. Select the Adjustment Level setting and press Enter.

8. Press the right and left arrow buttons to adjust the level, then press Esc.

9. Select the Start Adjustments setting and press Enter.

10. Select the area of the screen that you want to adjust and press Enter.

Note: Adjust the outer areas first, then adjust the entire screen.

11. Select the color (Red, Green, or Blue) you want to adjust, and use the left arrow button to weaken the color tone and the right arrow button to strengthen the color tone.

12. Press Esc.

13. Repeat steps 10 and 11 for each area you want to adjust.

14. Repeat steps 7 to 11 for each adjustment level.

15. When you are finished, press the Menu button.

Parent topic: Using Advanced Image Adjustment Features

Saving Settings to Memory and Using Saved Settings

You can save customized settings for each of your video inputs and then select the saved settings whenever you want to use them.

Note: You can save the Image settings and the Lens Adjustment (Focus, Zoom, and Lens Shift) function values.

1. Turn on the projector and display an image.

2. Press the Menu button.

Note: You can also press the Memory button on the remote control to access the Memory menu directly.

3. Select the Settings menu and press Enter.

4. Select the Memory setting and press Enter.

You see this screen:

5. Select one of the following options:

• Load Memory: Overwrites your current settings with saved settings

• Save Memory: Saves your current settings to memory (10 memories with different names are

available)

Note: A memory name that has already been used is indicated by a blue mark. Saving over a previously saved memory overwrites the settings with your current settings.

• Erase Memory: Erases the selected memory settings

• Rename Memory: Renames a saved memory

6. Press Esc to exit.

Parent topic: Adjusting Projector Features

Saving the Lens Position and Using Saved Lens Positions

You can save the focus, zoom, and lens shift settings and then select the saved settings whenever you want to use them.

1. Turn on the projector and display an image.

2. Adjust the focus, zoom, and lens shift settings.

3. Press the Menu button.

Note: You can also press the Memory button on the remote control to access the Memory menu

directly.

4. Select the Settings menu and press Enter.

5. Select the Memory setting and press Enter.

You see this screen:

6. Select one of the following options:

• Load Lens Position: Overwrites your current focus, zoom, and lens shift settings with saved

settings

Note: You can load the saved settings from Memory1 or Memory2 by pressing the Lens1 or Lens2 buttons on the remote control.

• Save Lens Position: Saves your current focus, zoom, and lens shift settings to memory (10

memories with different names are available)

Note: A memory name that has already been used is indicated by a blue mark. Saving over a previously saved memory overwrites the settings with your current settings.

• Erase Lens Position: Erases the selected lens position settings

• Rename Lens Position: Renames a saved lens position (12 characters maximum)

7. Press Esc to exit.

Parent topic: Adjusting Projector Features

Adjusting the Menu Settings

Follow the instructions in these sections to access the projector menu system and change projector settings.

Using the Projector's Menus Image Quality Settings - Image Menu Input Signal Settings - Signal Menu Projector Feature Settings - Settings Menu Projector Setup Settings - Extended Menu Projector Network Settings - Network Menu Projector Information Display - Info Menu Projector Reset Options - Reset Menu

Using the Projector's Menus

You can use the projector's menus to adjust the settings that control how your projector works. The projector displays the menus on the screen.

1. Press the Menu button on the control panel or remote control.

100

Epson Pro Cinema 6050UB User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction to Your Projector

Projector Features

Product Box Contents

Additional Components
