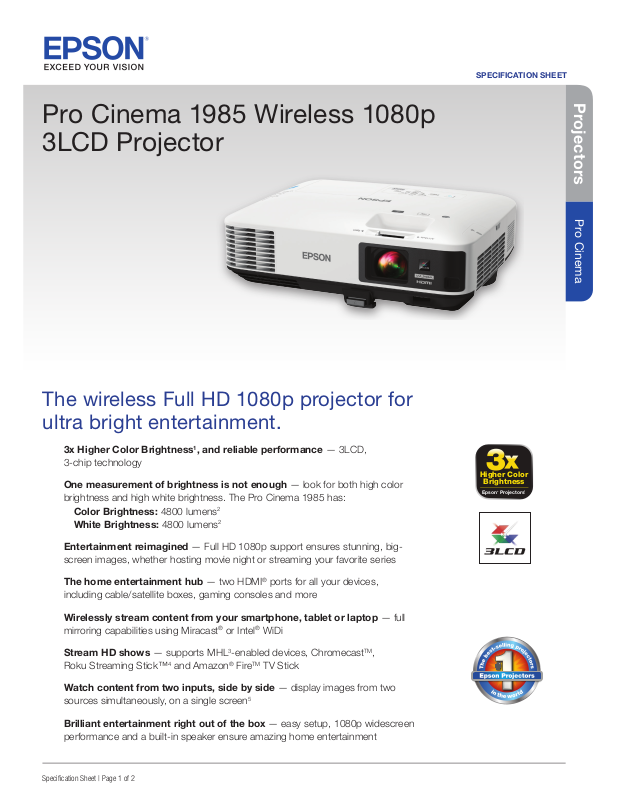

Epson Pro Cinema 1985 Product Sheet

Pro Cinema 1985 Wireless 1080p 3LCD Projector
SPECIFICATION SHEET
Projectors
Pro Cinema
The wireless Full HD 1080p projector for ultra bright entertainment.
3x Higher Color Brightness1, and reliable performance — 3LCD, 3-chip technology
One measurement of brightness is not enough — look for both high color brightness and high white brightness. The Pro Cinema 1985 has: Color Brightness: 4800 lumens White Brightness: 4800 lumens
Entertainment reimagined — Full HD 1080p support ensures stunning, big­screen images, whether hosting movie night or streaming your favorite series
The home entertainment hub — two HDMI® ports for all your devices, including cable/satellite boxes, gaming consoles and more
Wirelessly stream content from your smartphone, tablet or laptop — full mirroring capabilities using Miracast® or Intel® WiDi
Stream HD shows — supports MHL3-enabled devices, ChromecastTM, Roku Streaming Stick™4 and Amazon® FireTM TV Stick
Watch content from two inputs, side by side — display images from two sources simultaneously, on a single screen
2
2
5
Higher Color
Brightness
Epson® Projectors
1
Brilliant entertainment right out of the box — easy setup, 1080p widescreen performance and a built-in speaker ensure amazing home entertainment
Specification Sheet | Page 1 of 2
Pro Cinema 1985 Wireless 1080p 3LCD Projector
Name
Email
Phone Number
Projector s
Specifications
Projection System 3LCD, 3-chip technology Projection Method Front/rear/ceiling mount Driving Method Poly-silicon TFT Active Matrix Pixel Number 2,304,000 dots (1920 x 1200) x 3 Color Brightness2 Color Light Output: 4800 lumens White Brightness2 White Light Output: 4800 lumens Aspect Ratio 16:10 Native Resolution 1920 x 1200 (WUXGA)/1080p Support Resize 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050 Lamp Type 280 W UHE Lamp Life6
Up to 4000 hours (ECO Mode) Up to 3000 hours (Normal Mode)
Throw Ratio Range 1.38 (Zoom:Wide), 2.28 (Zoom:Tele) Size (projected distance)
50" – 300" (1.46 – 8.95 m) (Zoom:Wide) Keystone Correction (Automatic)
Vertical: ± 30 degrees Horizontal: ± 20 degrees
USB Plug ’n Play Projector is compatible with PC and Mac® computers
Contrast Ratio Up to 10,000:1 Color Reproduction Up to 1 billion colors
Projection Lens
Type Optical Zoom (Manual) / Focus (Manual) F-number 1.5 – 2 Focal Length 23 – 38.4 mm Zoom Ratio 1 – 1.6
Other
Display Performance NTSC: 480 lines, PAL: 576 lines (Depends on observation of the multi-burst pattern)
Input Signal NTSC/NTSC4.43/PAL/M-PAL/N-PAL/ PAL60/SECAM
Speaker 16 W (mono) Operating Temperature 41 ˚ to 95 ˚F (5 ˚ to 35 ˚C) Power Supply Voltage 100 – 240 V AC ±10%, 50/60 Hz Power Consumption
435 W (Normal Mode) 330 W (ECO Mode)
3.5 W Standby (Communication On)
0.21 W Standby (Communication Off) Fan Noise
39 dB (Normal Mode) 31 dB (ECO Mode)
Security Kensington-style lock provision Country of Origin China
Interfaces
HDMI 1/MHL HDMI 2 Audio 1 Audio 2 Audio Out Audio R & L Computer 1 Computer 2 LAN Monitor Out RS-232c USB (Type A) USB (Type B) Video Wireless Kensington® Security Lock Port
Dimensions (W x D x H)
Including feet 14.8" x 11.4" x 4.9" Excluding feet 14.8" x 11.4" x 4.3" Weight 10.2 lb (4.6 kg)
Remote Control
Features Brightness, contrast, tint, saturation, sharpness, input signal, sync, tracking, position, color temperature, volume
Operating Angle Right/left: ± 45 degrees Upper/lower: +45 to -15 degrees
Operating Distance 26.2 ft (8 m)
Eco Features
RoHS compliant Recyclable product7 Epson America, Inc. is a SmartWay SM Transport Partner
8
Support
The Epson Connection SM
Pre-sales support (U.S. and Canada): 800-463-7766 Internet website: www.epson.com
Service Programs Two-year projector limited warranty, Epson Road Service program, PrivateLine® dedicated toll-free support and 90-day lamp limited warranty
What’s in the Box
PowerLite® 1985WU Projector, wireless LAN module, remote control, batteries, power cable, computer cable (VGA), CD with User Guide Link, warranty card, Quick Setup Sheet
Ordering Information
Pro Cinema 1985 projector V11H619020KB Replacement Lamp (ELPLP77) V13H010L77 Replacement Filter (ELPAF41) V13H134A41 Wireless LAN module (ELPAP07) V12H418P12 Quick Connect wireless key (ELPAP09) V12H005M09 Soft carrying case (ELPKS68) V12H001K68
Pro Cinema
1 Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. The projectors used by a third-party lab for measuring color brightness were leading Epson 3LCD business and education projectors and leading 1-chip DLP projectors, based on NPD sales data for June 2013 through May 2014 and PMA Research sales data for Q1 through Q3 2013. | 2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118. | 3 Includes one Mobile High-Denition Link® (MHL) HDMI port. | 4 Roku Streaming Stick allows you to watch content from popular Internet streaming services. Roku's Streaming Stick only available in the U.S. | 5 Consult your user manual for input combinations. | 6 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time. | 7 For convenient and reasonable recycling options, visit www.epson.com/recycle 8 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efciency.
eco.epson.com
Epson America, Inc.
3840 Kilroy Airport Way, Long Beach, CA 90806
Specications and terms are subject to change without notice. EPSON and PowerLite are registered trademarks, EPSON Exceed Your Vision is a registered logomark and Better Products for a Better Future is a trademark of Seiko Epson Corporation. PrivateLine is a registered trademark and Epson Connection is a service mark of Epson America, Inc. Mac is a trademark of Apple Inc., registered in the U.S. and other countries. Chromecast is a trademark of Google Inc. Miracast® is a registered trademark of Wi-Fi Alliance®. SmartWay is a service mark of the U.S. Environmental Protection Agency. All other product and brand names are trademarks and/or registered trademarks of their respective companies. Epson disclaims any and all rights in these marks. Copyright 2015 Epson America, Inc. Com-SS-Oct-13 CPD-50065 07/15
Specification Sheet | Page 2 of 2
Epson Canada Limited
185 Renfrew Drive, Mar kham, Ont ario L3R 6G3
www.epson.com www.epson.ca
