PowerLite

Pro Cinema 4030/6030UB

User's Guide

PowerLite Pro Cinema 4030/6030UB User's Guide .................................................................................. 7

Introduction to Your Projector ................................................................................................................... 8

Setting Up the Projector ........................................................................................................................... 21

Projector Features................................................................................................................................ 8

Product Box Contents...................................................................................................................... 9

Additional Components ................................................................................................................ 10

Optional Equipment and Replacement Parts................................................................................. 10

Warranty and Registration Information.......................................................................................... 11

Notations Used in the Documentation................................................................................................ 11

Where to Go for Additional Information .............................................................................................. 12

Projector Part Locations..................................................................................................................... 12

Projector Parts - Front/Top............................................................................................................ 13

Projector Parts - Rear.................................................................................................................... 14

Projector Parts - Base.................................................................................................................... 15

Projector Parts - Control Panel...................................................................................................... 16

Projector Parts - Remote Control................................................................................................... 18

Projector Placement........................................................................................................................... 21

Projector Setup and Installation Options ....................................................................................... 21

Projection Distance........................................................................................................................ 23

Projector Connections........................................................................................................................ 25

Connecting to Video Sources........................................................................................................ 26

Connecting to an HDMI Video Source ...................................................................................... 26

Connecting to a Component Video Source............................................................................... 27

Connecting to a Composite Video Source ................................................................................ 28

Connecting to Computer Sources.................................................................................................. 29

Connecting to a Computer for VGA Video................................................................................. 29

Connecting to a Computer for HDMI Video............................................................................... 29

Connecting to External Speakers.................................................................................................. 30

Installing Batteries in the Remote Control .......................................................................................... 31

Using Basic Projector Features ............................................................................................................... 33

Turning On the Projector.................................................................................................................... 33

Turning Off the Projector.................................................................................................................... 35

Viewing 3D Images ............................................................................................................................ 36

Pairing the 3D Glasses with the Projector...................................................................................... 37

Charging the 3D Glasses............................................................................................................... 38

3D Viewing Range......................................................................................................................... 39

Selecting the Language for the Projector Menus................................................................................ 40

Adjusting the Image Height ................................................................................................................ 41

Adjusting the Image Position Using Lens Shift .............................................................................. 42

Image Shape...................................................................................................................................... 44

Correcting Image Shape with the Keystone Buttons...................................................................... 44

Resizing the Image With the Zoom Ring ............................................................................................ 45

Focusing the Image Using the Focus Ring......................................................................................... 46

Adjusting the Color Convergence (Panel Alignment) ......................................................................... 47

Remote Control Operation ................................................................................................................. 49

Selecting an Image Source ................................................................................................................ 51

Projection Modes ............................................................................................................................... 52

Changing the Projection Mode Using the Menus........................................................................... 53

Image Aspect Ratio............................................................................................................................ 54

Changing the Image Aspect Ratio................................................................................................. 54

Available Image Aspect Ratios...................................................................................................... 54

Color Mode......................................................................................................................................... 55

Changing the Color Mode.............................................................................................................. 56

Available Color Modes................................................................................................................... 56

Turning On Auto Iris....................................................................................................................... 57

Using Picture in Picture...................................................................................................................... 58

Available Picture in Picture Options............................................................................................... 59

Adjusting Projector Features................................................................................................................... 60

Shutting Off the Picture Temporarily .................................................................................................. 60

Projector Security Features................................................................................................................ 60

Locking the Projector's Buttons ..................................................................................................... 60

Unlocking the Projector's Buttons............................................................................................. 61

Installing a Security Cable............................................................................................................. 62

Adjusting the Menu Settings.................................................................................................................... 63

Using the Projector's Menus............................................................................................................... 63

Image Quality Settings - Image Menu ................................................................................................ 64

Input Signal Settings - Signal Menu.................................................................................................... 67

Projector Feature Settings - Settings Menu........................................................................................ 71

Projector Setup Settings - Extended Menu......................................................................................... 73

Projector Memory Options - Memory Menu........................................................................................ 76

Projector Information Display - Info Menu .......................................................................................... 77

Projector Reset Options - Reset Menu............................................................................................... 79

Maintaining and Transporting the Projector........................................................................................... 81

Projector Maintenance....................................................................................................................... 81

Cleaning the Lens.......................................................................................................................... 81

Cleaning the 3D Glasses............................................................................................................... 82

Cleaning the Projector Case.......................................................................................................... 83

Air Filter and Vent Maintenance .................................................................................................... 83

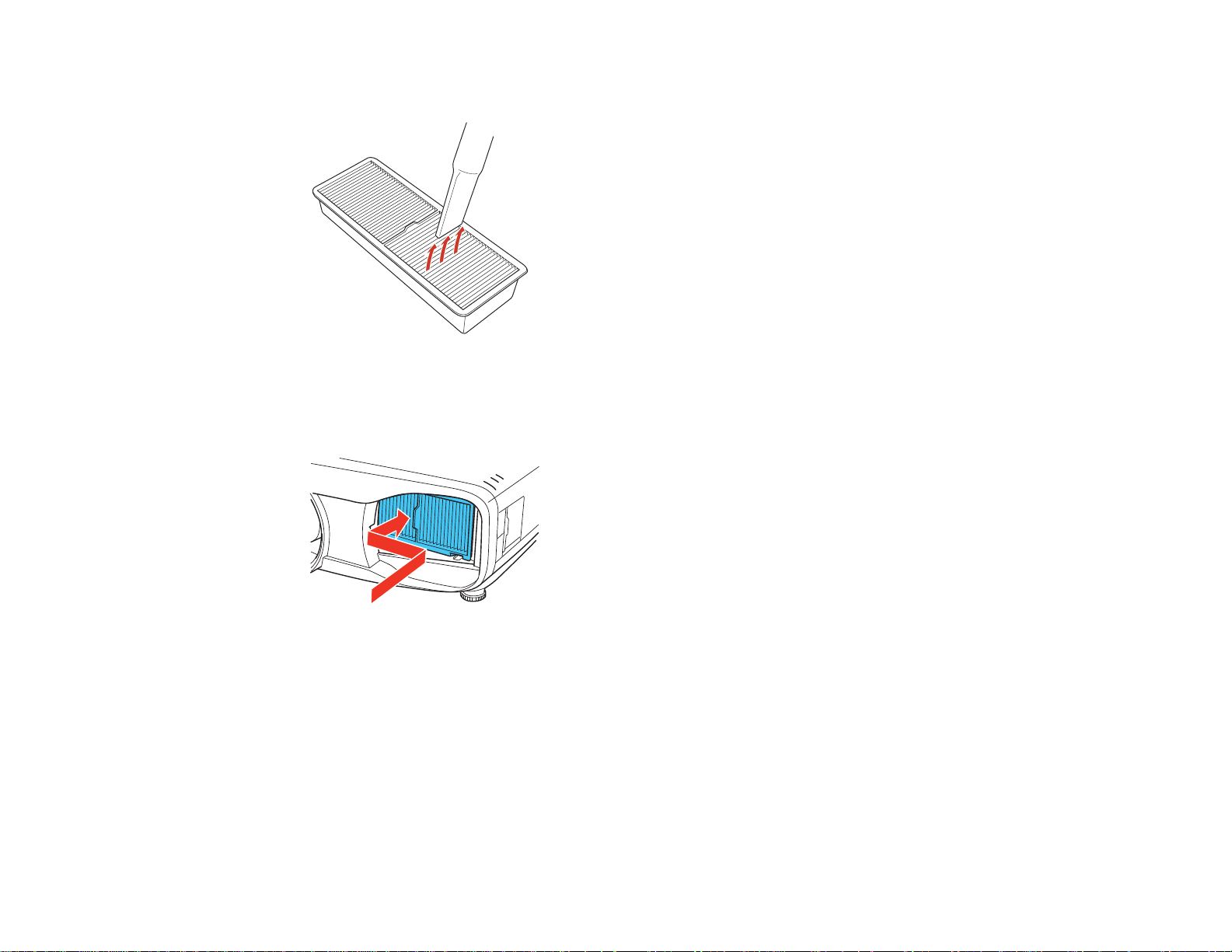

Cleaning the Air Filter................................................................................................................ 84

Replacing the Air Filter.............................................................................................................. 86

Projector Lamp Maintenance......................................................................................................... 88

Replacing the Lamp.................................................................................................................. 88

Resetting the Lamp Timer......................................................................................................... 93

Replacing the Remote Control Batteries ....................................................................................... 93

Transporting the Projector.................................................................................................................. 95

Solving Problems...................................................................................................................................... 96

Projection Problem Tips..................................................................................................................... 96

Projector Light Status......................................................................................................................... 96

Solving Image Problems .................................................................................................................. 100

Solutions When No Image Appears............................................................................................. 100

Solutions When "No Signal" Message Appears........................................................................... 101

Displaying From a PC Laptop................................................................................................. 101

Displaying From a Mac Laptop ............................................................................................... 102

Solutions When "Not Supported" Message Appears................................................................... 102

Solutions When Only a Partial Image Appears............................................................................ 102

Solutions When the Image is Not Rectangular ............................................................................ 103

Solutions When the Image Contains Noise or Static ................................................................... 103

Solutions When the Image is Fuzzy or Blurry.............................................................................. 104

Solutions When the Image Brightness or Colors are Incorrect .................................................... 104

Solutions When a 3D Image Does Not Display Correctly ............................................................ 105

Solving Projector or Remote Control Operation Problems ............................................................... 106

Solutions to Projector Power or Shut-Off Problems..................................................................... 106

Solutions to Problems with the Remote Control........................................................................... 107

Where to Get Help............................................................................................................................ 107

Technical Specifications ........................................................................................................................ 109

General Projector Specifications...................................................................................................... 109

Projector Lamp Specifications.......................................................................................................... 111

Remote Control Specifications......................................................................................................... 111

Projector Dimension Specifications.................................................................................................. 111

Projector Electrical Specifications.................................................................................................... 112

Projector Environmental Specifications............................................................................................ 112

Projector Safety and Approvals Specifications................................................................................. 112

Supported Video Display Formats.................................................................................................... 113

Notices ..................................................................................................................................................... 116

Recycling.......................................................................................................................................... 116

Important Safety Information............................................................................................................ 116

Important Safety Instructions............................................................................................................ 117

3D Safety Instructions ................................................................................................................. 119

Restriction of Use........................................................................................................................ 121

FCC Compliance Statement............................................................................................................. 121

Trademarks...................................................................................................................................... 122

Open Source Software License........................................................................................................ 122

Copyright Notice............................................................................................................................... 167

A Note Concerning Responsible Use of Copyrighted Materials................................................... 168

Copyright Attribution.................................................................................................................... 168

PowerLite Pro Cinema 4030/6030UB User's Guide

Welcome to the PowerLite Pro Cinema 4030/6030UB User's Guide.

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.

Projector Features Notations Used in the Documentation Where to Go for Additional Information Projector Part Locations

Projector Features

The PowerLite Pro Cinema 4030 and 6030UB projectors include these special features:

Bright, high-resolution projection system

• PowerLite Pro Cinema 4030: Up to 2000 lumens of white brightness (white light output) and 2000 lumens of color brightness (color light output)

PowerLite Pro Cinema 6030UB: Up to 2400 lumens of white brightness (white light output) and 2400 lumens of color brightness (color light output)

Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

• 1080p native resolution

• Images up to 300 inches (7.62 m) for projection on any wall or screen

• Fujinon lens for uniformity

Full 3D projection

• Active 3D projection with RF active shutter glasses

• Supports side-by-side, top-and-bottom, and frame packing 3D formats

Flexible connectivity

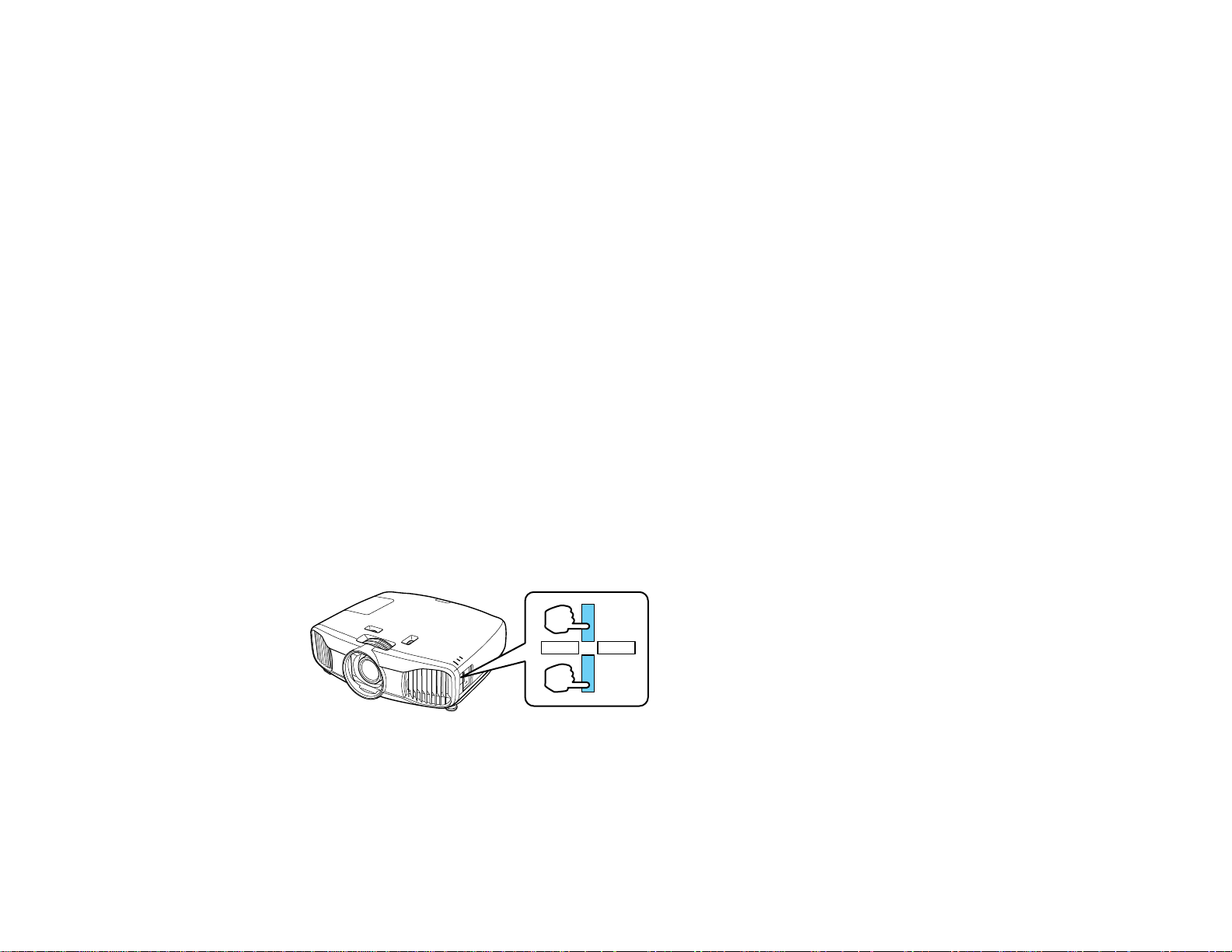

• Two HDMI ports for video device or computer connections

Easy-to-use setup and operation features

• Vertical and horizontal lens shift dials, and vertical keystone correction buttons for flexible projector placement

• 2.1× optical zoom ratio for improved zooming capability

Product Box Contents Additional Components Optional Equipment and Replacement Parts Warranty and Registration Information

Parent topic: Introduction to Your Projector

Product Box Contents

Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.

Make sure your projector box included all of these parts:

1 Projector 2 Remote control 3 Remote control batteries (two AA alkaline) 4 Power cord 5 Projector documentation CD 6 3D glasses (2 pairs)

Parent topic: Projector Features

Additional Components

Depending on how you plan to use the projector, you may need to obtain the following additional components:

• To receive a component video signal, you need a compatible component cable. You can purchase one from Epson or an authorized Epson reseller.

• To receive an HDMI signal, you need a compatible HDMI cable. You can purchase one from Epson or an authorized Epson reseller.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port. Contact Apple for compatible adapter options.

• To receive and view a 3D signal, you need a compatible HDMI cable. You can purchase one from Epson or an authorized Epson reseller. If your video source is a 3D Blu-ray disc, you also need a Bluray player that supports 3D playback. See your local computer or electronics dealer for purchase information.

Parent topic: Projector Features Related references

Optional Equipment and Replacement Parts

You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at epsonstore.com (U.S. sales) or epson.ca (Canadian sales).

Epson offers the following optional accessories and replacement parts for your projector:

Option or part Part number

Genuine Epson replacement lamp (ELPLP69) V13H010L69 Replacement air filter V13H134A39 RF 3D glasses (ELPGS03) V12H548006 Belkin Pro Series VGA/SVGA cable, 6 ft F3H982-06 Belkin Pro Series VGA/SVGA cable, 10 ft F3H982-10 Belkin Pro Series VGA/SVGA cable, 25 ft F3H982-25

Option or part Part number

Belkin PureAV HDMI audio video cable, 3 ft AV22300-03 Belkin PureAV HDMI audio video cable, 6 ft AV22300-06 Belkin PureAV HDMI audio video cable, 12 ft AV22300-12 Kensington security lock ELPSL01 Remote control 1598522 Fixed anamorphic lens kit ELPFALKED Motorized anamorphic lens kit ELPALK3

In addition to the accessories listed above, 1-year and 2-year extended service plans are available.

Parent topic: Projector Features

Warranty and Registration Information

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty brochure that came with your projector.

In addition, Epson offers free Extra Care Home Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See the Extra Care Home Service brochure for details.

Register your product online using the projector CD or at this site: epson.com/webreg Registering also lets you receive special updates on new accessories, products, and services.

Parent topic: Projector Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:

• Warnings must be followed carefully to avoid bodily injury.

• Cautions must be observed to avoid damage to your equipment.

• Notes contain important information about your projector.

• Tips contain additional projection information.

Parent topic: Introduction to Your Projector

Where to Go for Additional Information

Need quick help on using your projector? Here's where to look for help:

• epson.com/support (U.S) or epson.ca/support (Canada) View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24

hours a day.

• If you still need help after checking this manual and the sources listed above, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help".

Parent topic: Introduction to Your Projector Related references

Where to Get Help

Projector Part Locations

Check the projector part illustrations to learn about the parts on your projector.

Projector Parts - Front/Top Projector Parts - Rear Projector Parts - Base Projector Parts - Control Panel Projector Parts - Remote Control

Parent topic: Introduction to Your Projector

Projector Parts - Front/Top

1 Lamp cover 2 Horizontal and vertical lens shift dials 3 Exhaust vent 4 Remote receiver 5 Lens shutter 6 Lens 7 Air intake/air filter cover 8 Front adjustable foot 9 Control panel and lights 10 Focus ring 11 Zoom ring

Parent topic: Projector Part Locations

Projector Parts - Rear

1 Cable clip holes 2 HDMI1 port 3 HDMI2 port 4 Component port 5 Video port 6 PC port (VGA) 7 RS-232C port 8 Trigger out port 9 Service port 10 Remote receiver 11 AC input port

Parent topic: Projector Part Locations Related tasks

Installing a Security Cable Attaching and Removing the Cable Clips

Projector Parts - Base

1 Front adjustable feet 2 Mounting bracket holes 3 Cable cover attachment point 4 Air exhaust vent 5 Anamorphic lens attachment point (PowerLite Pro Cinema 6030UB)

Parent topic: Projector Part Locations

Projector Parts - Control Panel

1 Status light 2 Lamp light 3 Temp light 4 Menu button (accesses projector menu system) 5 Control panel cover

6 Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons 7 Arrow buttons 8 Esc button (cancels/exits functions) 9 Enter button (selects options) 10 Source button (cycles through the list of sources) 11 Power button/light

Parent topic: Projector Part Locations Related references

Projector Light Status

Projector Parts - Remote Control

1 On button (turns on projector) 2 P-in-P button (controls the Picture-in-Picture function) 3 Source buttons (select specific video input sources)

4 HDMI Link button (displays the settings menu for HDMI Link)

Link Menu button (displays the main menu of the connected device)

Control buttons (control playback and other features of connected devices that support the HDMI

CEC standard) 5 2D/3D button (cycles between 2D and 3D modes) 6 Arrow buttons (move though on-screen options) 7 Default button (returns selected setting to default value) 8 Menu button (accesses projector menu system) 9 Auto Iris button (optimizes the image based on brightness of content) 10 User button (customizable for different functions) 11 Memory button (accesses the Memory menu) 12 WirelessHD Transmitter control buttons (buttons are not functional) 13 Pattern button (displays a test pattern) 14 3D Format button (changes the 3D format) 15 Frame Int button (adjusts the Frame Interpolation setting) 16 Aspect button (selects the image aspect ratio) 17 RGBCMY button (adjusts hue, saturation, and brightness for each RGBCMY color) 18 Esc button (cancels/exits functions) 19 Enter button (selects options) 20 Super Res button (reduces blurring around the edges of images when viewing 3D content) 21 Color Mode button (selects display modes) 22 Volume up/down buttons (adjust volume for devices connected via HDMI Link) 23 Blank button (turns off video projection) 24 Illumination button (lights the remote control) 25 Standby button (turns off the projector)

Parent topic: Projector Part Locations Related references

Remote Control Operation

Projector Memory Options - Memory Menu

Setting Up the Projector

Follow the instructions in these sections to set up your projector for use.

Projector Placement Projector Connections Installing Batteries in the Remote Control

Projector Placement

You can place the projector on almost any flat surface to project an image. You can also install the projector in a ceiling mount if you want to use it in a fixed location. Keep these considerations in mind as you select a projector location:

• Place the projector on a sturdy, level surface or install it using a compatible mount.

• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or next to anything that could block the vents.

• Position the projector within reach of a grounded electrical outlet or extension cord.

Projector Setup and Installation Options Projection Distance

Parent topic: Setting Up the Projector Related tasks

Changing the Projection Mode Using the Menus

Projector Setup and Installation Options

You can set up or install your projector in the following ways: Front

Rear

Front Ceiling

Rear Ceiling

Wherever you set up the projector, make sure to position it squarely in front of the center of the screen, not at an angle, if possible.

If you project from the ceiling or from the rear, be sure to select the correct Projection option in the projector's menu system.

Parent topic: Projector Placement Related references

Projector Feature Settings - Settings Menu

Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.)

4:3 Aspect Ratio Image or Screen

Screen or image size Projection distance (1) Offset from lens center Offset from lens center

Wide to Tele

(2) (3)

40 inches (101.6 cm) 57 to 121.7 inches 11 inches (28 cm) 35.0 inches (89 cm)

(144 to 309 cm)

60 inches (152.4 cm) 85.8 to 183.5 inches 16.5 inches (42 cm) 52.4 inches (133 cm)

(218 to 466 cm)

80 inches (203.2 cm) 115 to 245.3 inches 22 inches (56 cm) 70.1 inches (178 cm)

(292 to 623 cm)

100 inches (254 cm) 144.1to306.7inches 27.6 inches (70 cm) 87.4 inches (222 cm)

(366 to 779 cm)

120 inches (304.8 cm) 173.2 to 368.5 inches 33.1 inches (84 cm) 105.1 inches (267 cm)

(440 to 936 cm)

150 inches (381 cm) 216.9to461.0inches 41.3 inches (105 cm) 131.1 inches (333 cm)

(551 to 1171 cm)

180 inches (457.2 cm) 289.8 to 615 inches 54.7 inches (139 cm) 174.8 inches (444 cm)

(736 to 1562 cm)

16:9 Aspect Ratio Image or Screen

Screen or image size Projection distance (1) Offset from lens center Offset from lens center

Wide to Tele

(2) (3)

40 inches (101.6 cm) 46.1 to 94.2 inches 9.1 inches (23 cm) 28.7inches(73cm)

(117 to 252 cm)

60 inches (152.4 cm) 69.7 to 149.6 inches 13.4 inches (34 cm) 42.9 inches (109 cm)

(177 to 380 cm)

80 inches (203.2 cm) 93.7 to 200 inches 18.1 inches (46 cm) 57.1 inches (145 cm)

(238 to 508 cm)

Screen or image size Projection distance (1) Offset from lens center Offset from lens center

100 inches (254 cm) 117.3to250.4inches 22.4 inches (57 cm) 71.3 inches (181 cm)

120 inches (304.8 cm) 141.3 to 300.8 inches 26.8 inches (68 cm) 85.8 inches (218 cm)

150 inches (381 cm) 177.2to376.4inches 33.5 inches (85 cm) 107.1 inches (272 cm)

180 inches (457.2 cm) 212.6 to 452 inches 40.6 inches (103 cm) 128.7 inches (327 cm)

Parent topic: Projector Placement

Projector Connections

You can connect the projector to a variety of computer, video, and audio sources to display presentations, movies, or other images, with or without sound.

• For video projection, connect devices such as DVD players, gaming consoles, streaming devices, digital cameras, smartphones, and tablets with compatible video output ports.

Wide to Tele

(298 to 636 cm)

(359 to 764 cm)

(450 to 956 cm)

(540 to 1148 cm)

(2) (3)

Note: To connect a smartphone or tablet, you may need to obtain an adapter that allows you to

connect to the projector. This allows you to mirror your smartphone or tablet screens, watch movies, and more. Contact your device manufacturer for compatible adapter options.

• Connect any type of computer (Windows or Mac) that has a standard video output (15-pin VGA monitor) port, or HDMI port.

Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode to ensure the projector's internal temperature is regulated properly.

Connecting to Video Sources Connecting to Computer Sources Connecting to External Speakers

Parent topic: Setting Up the Projector

Related references

Projector Setup Settings - Extended Menu

Connecting to Video Sources

Follow the instructions in these sections to connect video devices to the projector.

Connecting to an HDMI Video Source Connecting to a Component Video Source Connecting to a Composite Video Source

Parent topic: Projector Connections

Connecting to an HDMI Video Source

If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable. The HDMI connection provides the best image quality.

1. Connect the HDMI cable to your video source's HDMI output port.

2. Connect the other end to one of the projector's HDMI ports.

Note: If you connected a game console, it may take a few seconds for your image to appear when you switch to the game console's input source. To reduce the potential lag in response time to game commands, set your game console's output format to a progressive signal of 480p or 720p. See your game console documentation for instructions.

You can also select the Fast Image Processing setting to reduce lag time. Note: When an audio/video source that meets the HDMI CEC standard is connected to the projector's

HDMI port, you can use the projector's remote control to control certain features of the linked device by pressing the HDMI Link button on the remote control and setting HDMI Link to On.

Attaching and Removing the Cable Clips

Parent topic: Connecting to Video Sources Related references

Input Signal Settings - Signal Menu

Attaching and Removing the Cable Clips *** level=5 not mapped

You can install the cable clips that came with your projector to provide additional support to the power and HDMI cables.

1. Plug in the power and HDMI cables.

2. Insert each guide into the cable clip holes near the power inlet and HDMI port.

3. Attach the cable clips to the power and HDMI cables. Be sure to leave the clamps unlocked.

4. Slide each cable clip onto the guides and lock the clamps onto the connectors.

To remove the cable clips, open the clamps and disconnect the cables. Then pinch the sides of each guide and carefully pull them out of the cable clip holes.

Parent topic: Connecting to an HDMI Video Source

Connecting to a Component Video Source

If your video source has component video ports, you can connect it to the projector using an optional component video cable. Depending on your component ports, you may need to use an adapter cable along with a component video cable.

1. Connect the component connectors to your video source's color-coded component video output

ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component video cable.

2. Connect the other end to the projector's color-coded Component video input ports.

If your image colors appear incorrect, you may need to change the Input Signal setting in the projector's Extended menu.

You can also select the Fast Image Processing setting to reduce lag time.

Parent topic: Connecting to Video Sources Related references

Input Signal Settings - Signal Menu

Connecting to a Composite Video Source

If your video source has a composite video port, you can connect it to the projector using an optional RCA-style video or A/V cable.

1. Connect the cable with the yellow connector to your video source's yellow video output port.

2. Connect the other end to the projector's Video port.

Parent topic: Connecting to Video Sources

Connecting to Computer Sources

Follow the instructions in these sections to connect a computer to the projector.

Connecting to a Computer for VGA Video Connecting to a Computer for HDMI Video

Parent topic: Projector Connections

Connecting to a Computer for VGA Video

You can connect the projector to your computer using a VGA computer cable. Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for

video output, you need to obtain an adapter that allows you to connect to the projector's VGA video port. Contact Apple for compatible adapter options.

1. If necessary, disconnect your computer's monitor cable.

2. Connect the VGA computer cable to your computer's monitor port.

3. Connect the other end to a PC port on the projector.

4. Tighten the screws on the VGA connector.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for HDMI Video

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable. Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for

video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port.

1. Connect the HDMI cable to your computer's HDMI output port.

2. Connect the other end to one of the projector's HDMI ports.

Parent topic: Connecting to Computer Sources Related tasks

Attaching and Removing the Cable Clips

Connecting to External Speakers

To add sound, you can connect your video source and speakers to an audio video receiver, then connect the receiver to the projector using one of the receiver's compatible video outputs (an HDMI connection provides the best image quality, if available). You can also connect speakers to any video source that has its own speaker connections.

1 Video source 2 Surround sound

+ 138 hidden pages
