Epson Pro 10000CF, Pro 10000 User Manual
Color Ink Jet Printer
Startup Guide
4013587-00
C01
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system, or transmitted in any form or by any means, electronic, mechanical, photocopying,
recording, or otherwise, without the prior written permission of SEIKO EPSON
CORPORATION. The information contained herein is designed only for use with this EPSON
printer. EPSON is not responsible for any use of this information as applied to other printers.
Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of
this product or third parties for damages, losses, costs, or expenses incurred by the purchaser
or third parties as a result of: accident, misuse, or abuse of this product or unauthorized
modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly
comply with SEIKO EPSON CORPORATION's operating and maintenance instructions.
SEIKO EPSON CO RPORATION shall not be liable for any damages or problems arisin g from
the use of any options or any consumable products other than those designated as Original
EPSON Products or EPSON Approved Products by SEIKO EPSON CORPORATION.
SEIKO EPSON CORPORATION shall not be held liable for any damage resulting from
electromagnetic interference that occurs from the use of any interface cables other than those
designated as EPSON Approved Products by SEIKO EPSON CORPORATION.
EPSON is a registered trademark and ESC/P Raster and EPSON STYLUS are trademarks of
SEIKO EPSON CORPORATION.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
General Notice: Other product names used herein are for identification purposes only and may be
trademarks of their respective owners. EPSON disclaims any and all rights in those marks.
Copyright © 2001 by SEIKO EPSON CORPORATION, Nagano, Japan.
Where to Find Information
This Startup Guide
Provides you with the basic information you need to start using
your EPSON STYLUS PRO 10000/10000CF and its optional and
consumable products.
Reference Guide included on the CD-ROM
Provides you with detailed information about printing on roll
paper or cut sheet media, the control panel, the printer software,
and tips that will help you get the results you want.

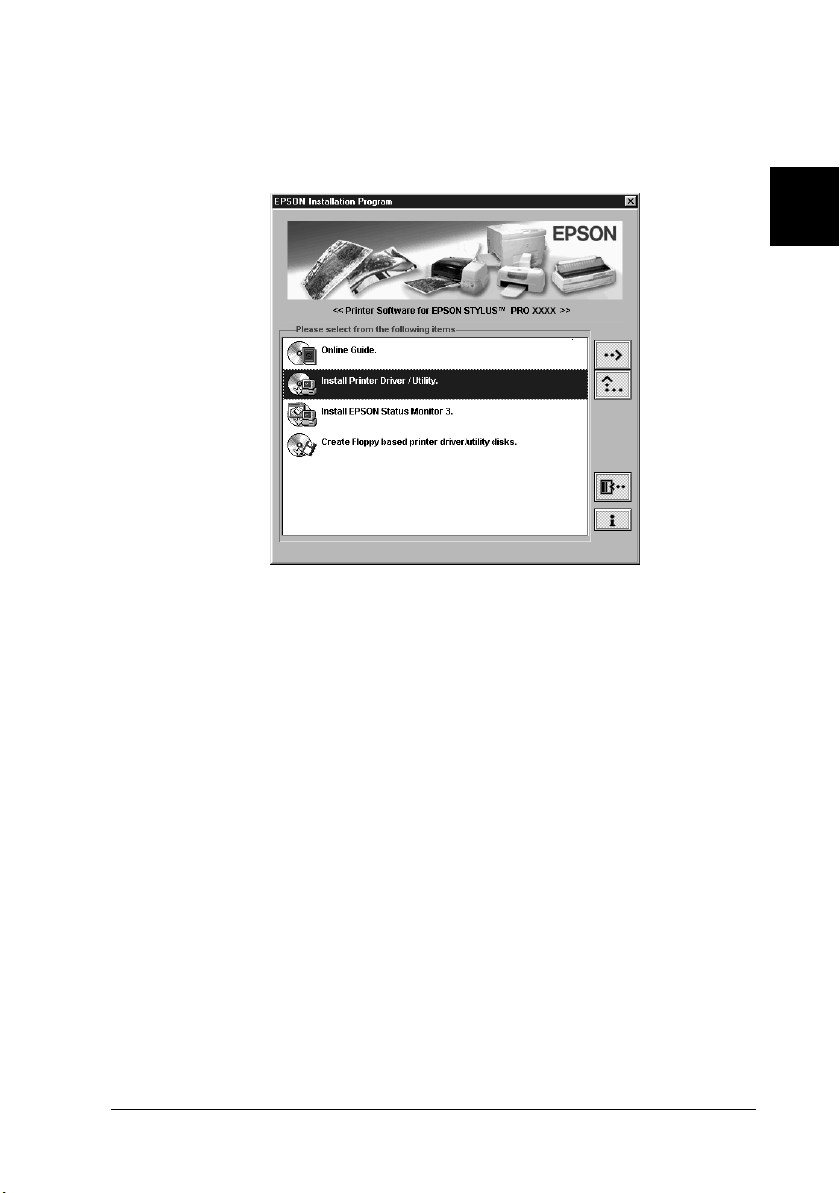

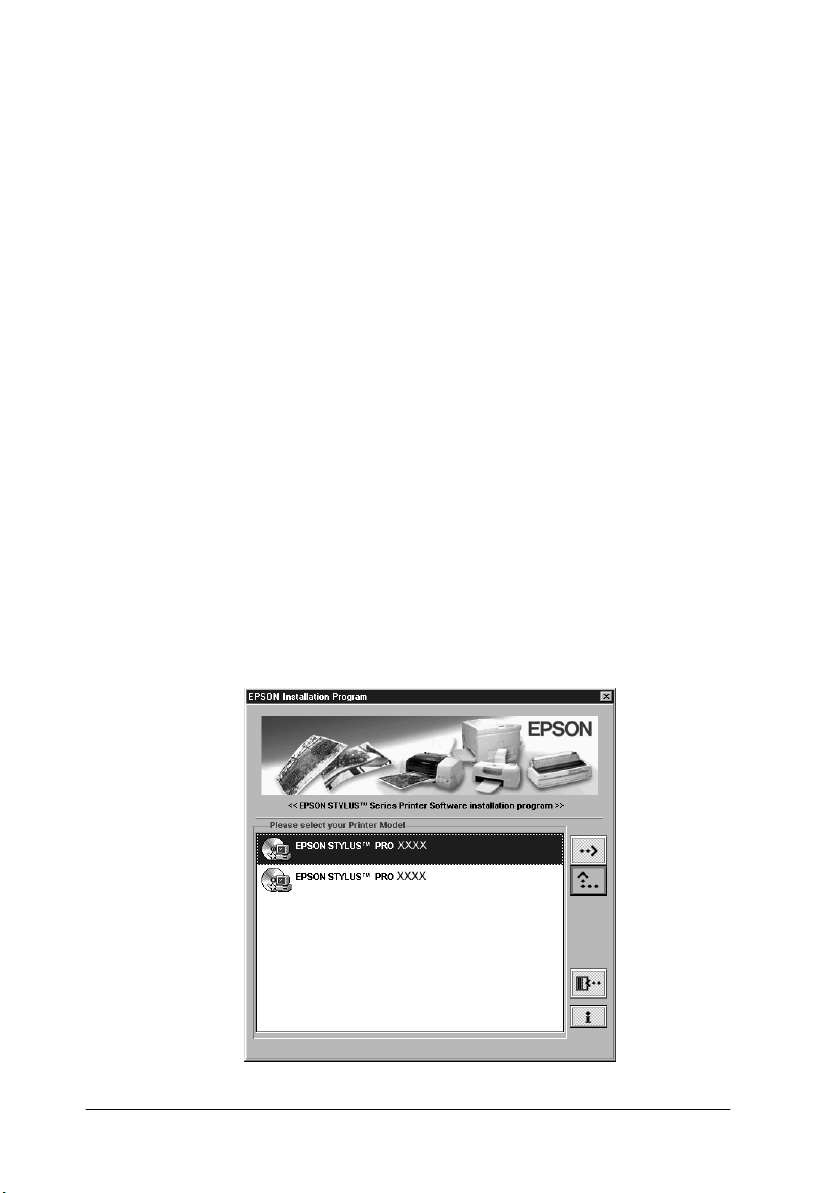

Opening the Reference Guide
Insert the printer software CD in the CD-ROM drive. Double-click
EPSON STYLUS PRO 10000 or EPSON STYLUS PRO 10000CF.
Double-click Online Guide in the Installer dialog box (Windows)
or double-click the Online Guide folder in the EPSON STYLUS
PRO 10000 or EPSON STYLUS PRO 10000CF window, then
EPSON STYLUS PRO 10000 or EPSON STYLUS PRO 10000CF in
the Online Guide folder (Macintosh). The dialog box shown
below appears.
i
Click View Reference Guide to open the guide.
To install the Reference Guide on your hard disk, click Install
Reference Guide and follow the on-screen instructions. When
installation is complete, the ESPR10000/10000CF (Windows) or
a View Reference Guide (Macintosh) icon appears in the
EPSON folder. Double-click the icon to open the guide.
Note:
If your hard disk does not have enough space to install the Reference
Guide, view it directly from the CD.
Online Help
Provides you with detailed information and instructions on the
printer software that controls your printer. (Online help will be
automatically installed when you install the printer software.)
See your Online Guide for information on accessing online help.
ii
System Requirements
To use your printer with a PC
To use your printer, you need Microsoft® Windows® Millennium
®
Edition, 98, 95, 2000, and NT
4.0; and a shielded, twisted-pair
parallel cable. If you want to connect your printer to a USB port,
you need a Windows Me, 98, or 2000 pre-installed PC equipped
with a USB port; and a shielded USB cable.
Minimum system Recommended
Pentium for Windows 98, 95, and NT 4.0
Pentium 133 MHz for Windows 2000
Pentium 150 MHz for Windows Me
32 MB RAM for Windows Me, 98, 95, NT 4.0
64 MB RAM for Windows 2000
100 MB hard disk space for Windows Me, 98,
95, 2000, and NT 4.0
VGA monitor VGA or bette r monitor
*1 is for graphic data use
*2 is for line data use
system
Pentium II 400 MHz or
higher processor
128 MB RAM or more
500 MB*
more free disk space
(B0)
1
/300 MB*2 or
Your computer dealer can help you update your system if it does
not meet these requirements.
iii
To use your printer with a Macintosh
To use this printer, your Apple® Macintosh® must meet the
following system requirements. You also need a USB cable to
connect this printer to Apple Macintosh computers.
Minimum system Recommended system
PowerPC PowerPC G4 400 MHz or higher
System 7.6.1 Mac OS 8.1 or later
11 MB of available memory
14 MB of available memory when
background printing is turned on.
- 500 MB*
*1 is for graphic data use
*2 is for line data use
processor
33 MB or more of avai lable memory
56 MB of available memory when
background printing is turned on.
1
disk space (B0)
/300 MB*2 or more free
Note:
❏ The amount of available memory varies according to the number and
kind of applications that are open. To see how much memory is
available, choose About This Macintosh
from the Apple menu and
refer to the memory size (listed in kilobytes) under “Largest Unused
Block” (1,024 K = 1 MB).
❏ The memory requirements above are for printing on B0 (1030 ×
1456 mm) size paper. These requirements may vary depending on
the size of the paper, the type of application you are using, and the
complexity of the document you want to print.
❏ The available interface varies according to Macintosh system
version as follows.
Network interface: 7.6.1 to 9.x
USB interface: 8.1 to 9.x
IEEE 1394 interface: 8.6.x to 9.x
In addition to these system and memory requirements, you also
need 15 MB of free hard disk space to install your printer software.
iv
To use the Online Guide with a PC
System Microsoft Windows 98, 95, 2000, or NT 4.0
CPU i486/25 MHz (for Windows 95/NT 4.0)
Memory 16 MB (32 MB or more recommended)
Hard disk space 2 MB free to install the Reference Guide
CD-ROM drive Double-speed
Display 640 × 480 pixel or 800 × 600 pixel resolution,
Browser Web browser
i486/66 MHz (for Windows 98)
(Pentium or better recommended)
(Pentium 133 MHz (for Windows 2000))
(Quad-speed or better recommended)
with High Color (16 bit) or True Color
(32 bit) setting
(Microsoft Internet Explorer 4.0 or later
recommended)
To use the Online Guide with a Macintosh
System System 7.5.1 or later recommended
Memory 16 MB (32 MB or more recommended)
Hard disk space 2 MB free to install the Reference Guide
CD-ROM drive Double-speed
(System 7.6 or later recommended)
(Quad-speed or better recommended)
Display Color monitor with 640 × 480 pixel
resolution or greater
(Thousands of colors recommended)
Browser Web browser
Microsoft Internet Explorer 4.0 or later
recommended)
v
vi
Contents
Safety Instructions
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
A Few Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
For United Kingdom Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Use of options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Warnings, Cautions, and Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Taking a Look at Your Printer
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Chapter 1 Installing the Ink Cartridges and Loading Paper
Installing the ink cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Loading Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

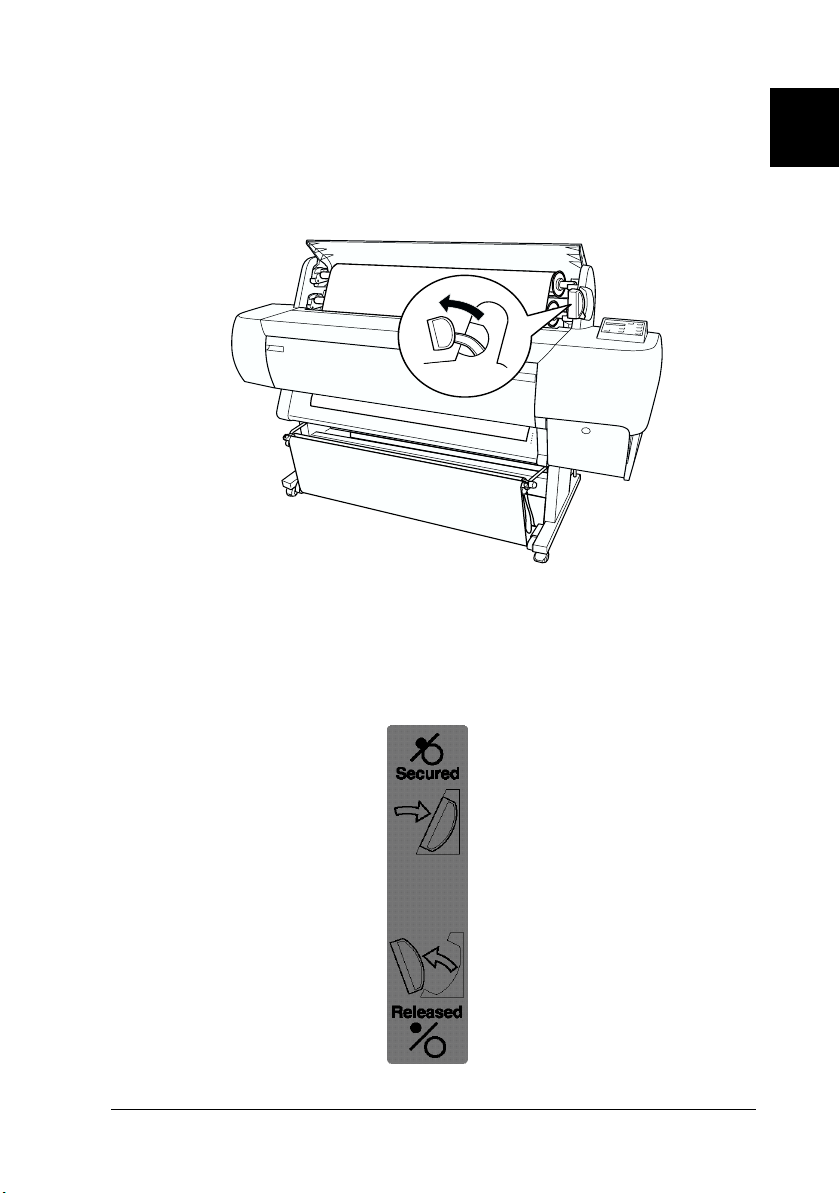

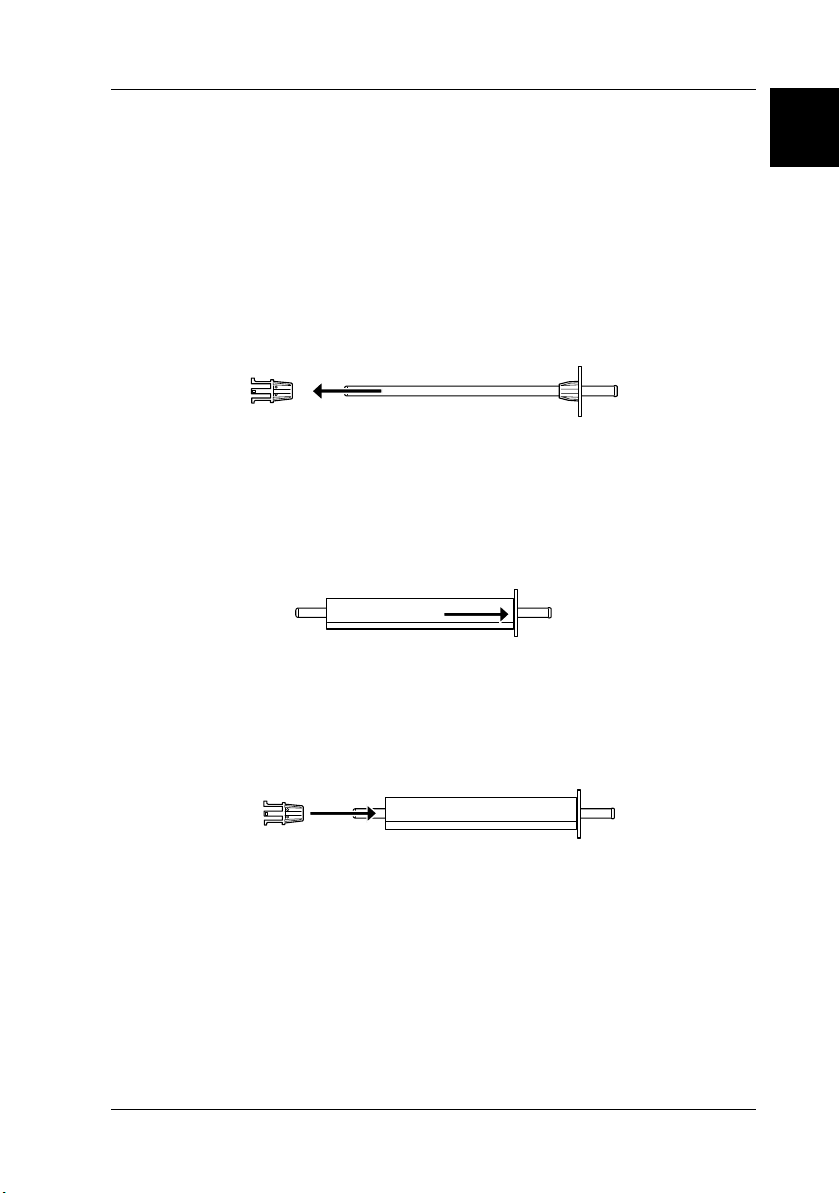

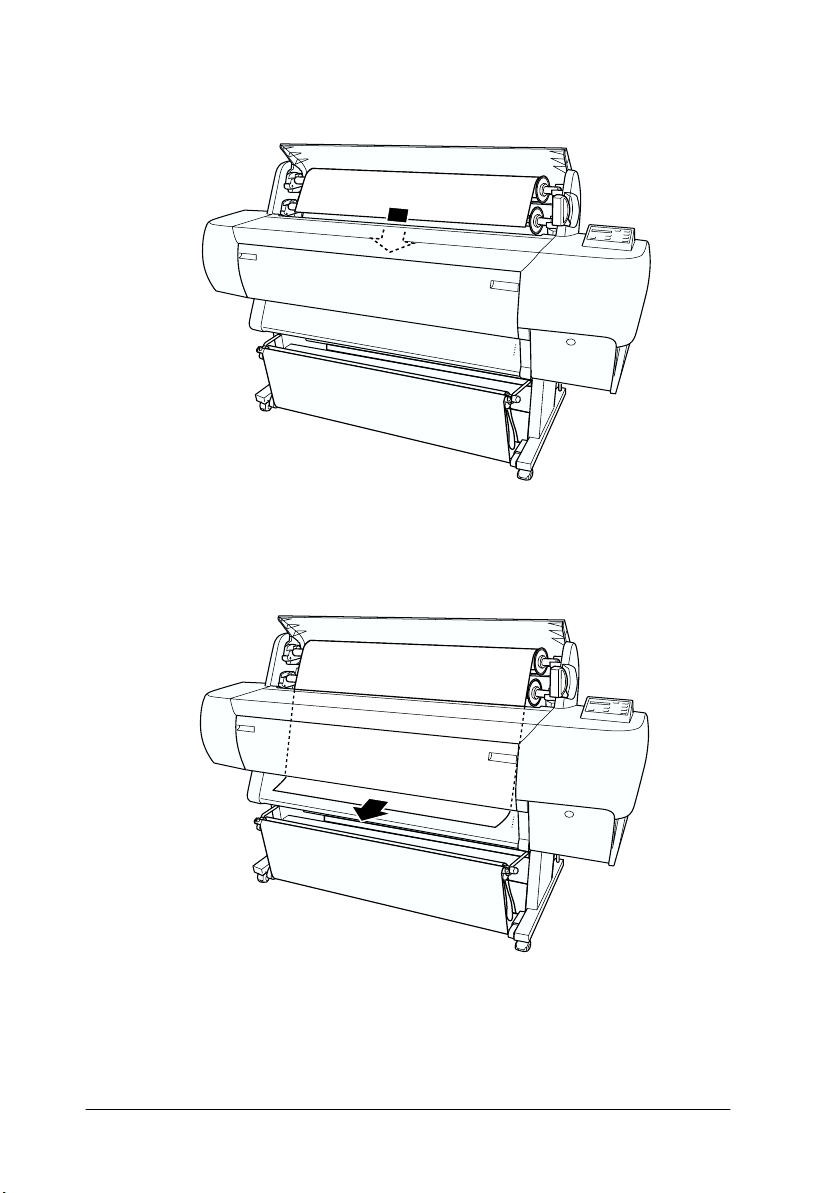

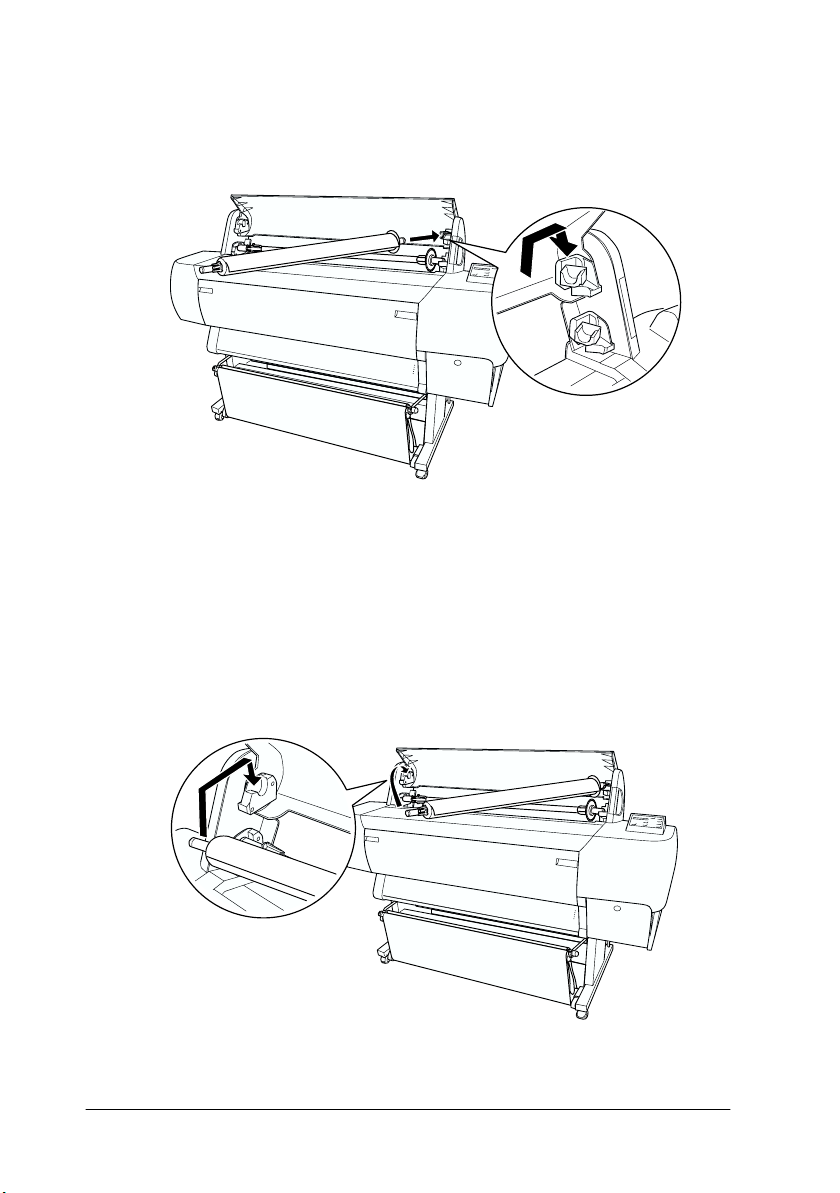

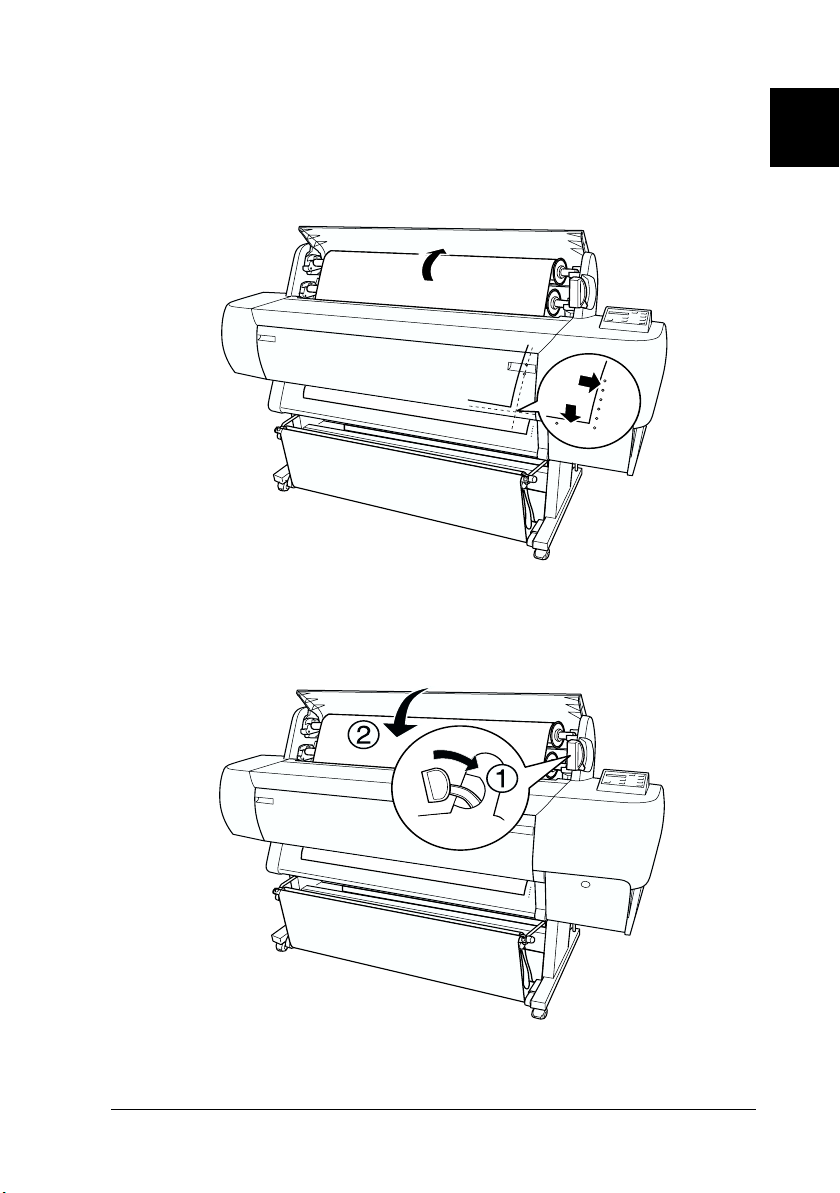

Loading roll paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Loading cut sheet media . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10
Loading cut sheet media longer than 279 mm
(long edge of letter size) . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Loading cut sheet with a length of
A4/Letter, A3/US B, and Super A3/B. . . . . . . . . . . . . . . 1-13
vii
Chapter 2 Setting up the Printer with Your PC
Connecting the Printer to Your PC . . . . . . . . . . . . . . . . . . . . . . . . 2-2

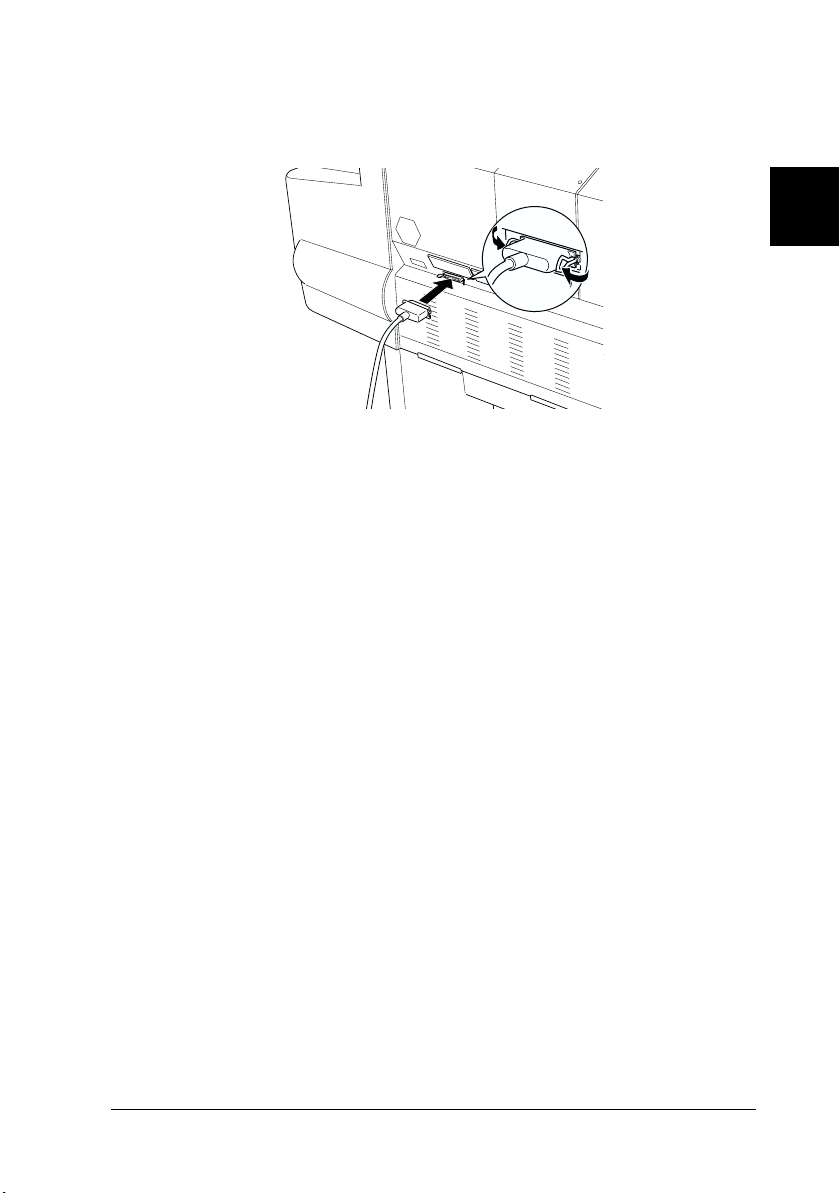

Using the built-in parallel interface . . . . . . . . . . . . . . . . . . . 2-2

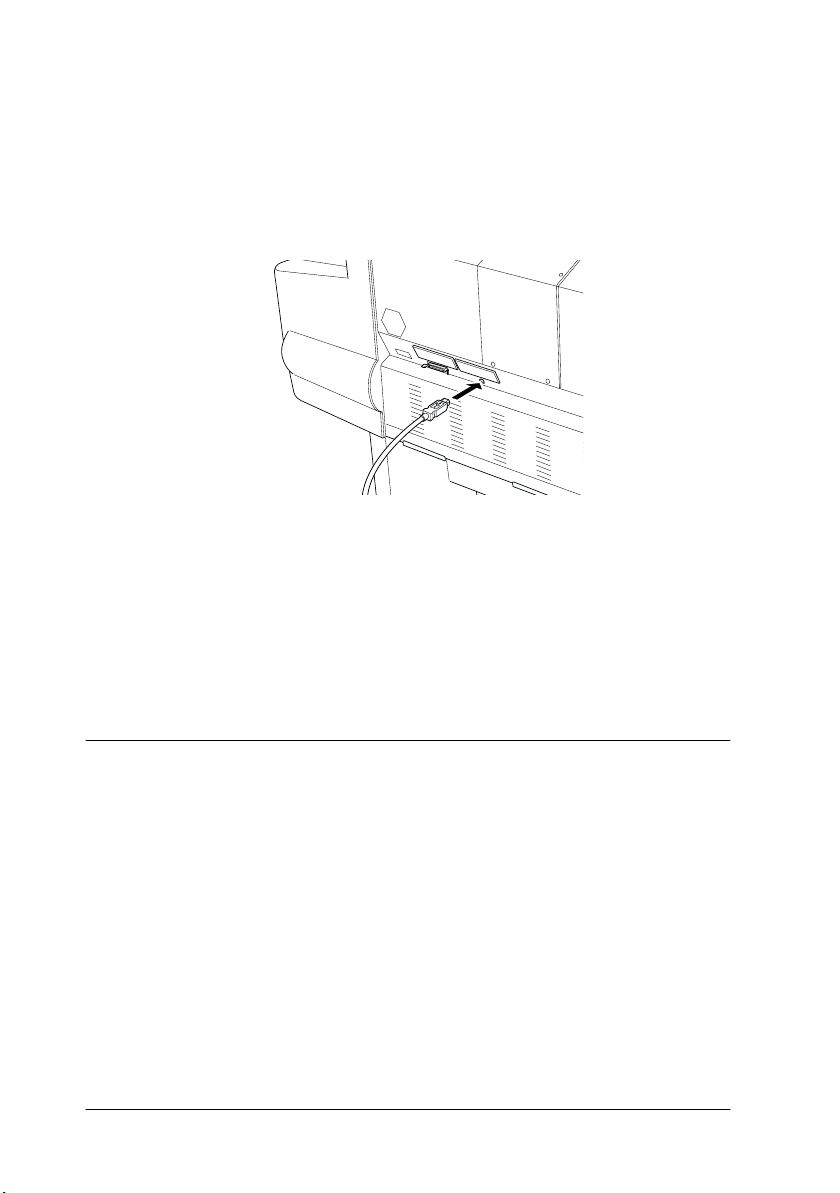

Using a USB connection
(For Windows Me, 98, and 2000) . . . . . . . . . . . . . . . . . . . 2-3
Installing the Printer Software on Your PC . . . . . . . . . . . . . . . . . 2-4
Printer software components. . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Installing on Windows Me, 98, 95, 2000, and NT 4.0 . . . . . 2-6

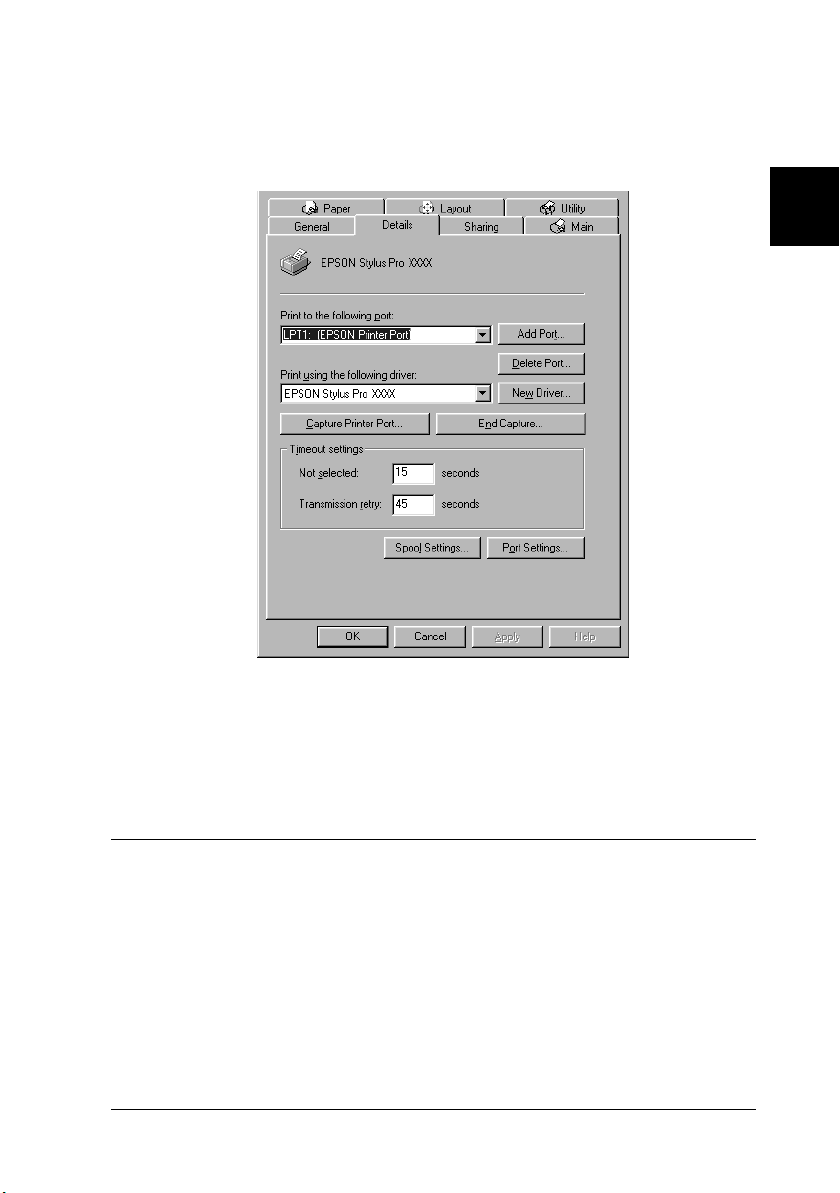

Setting Up Your Printer on a Network . . . . . . . . . . . . . . . . . . . . . 2-9

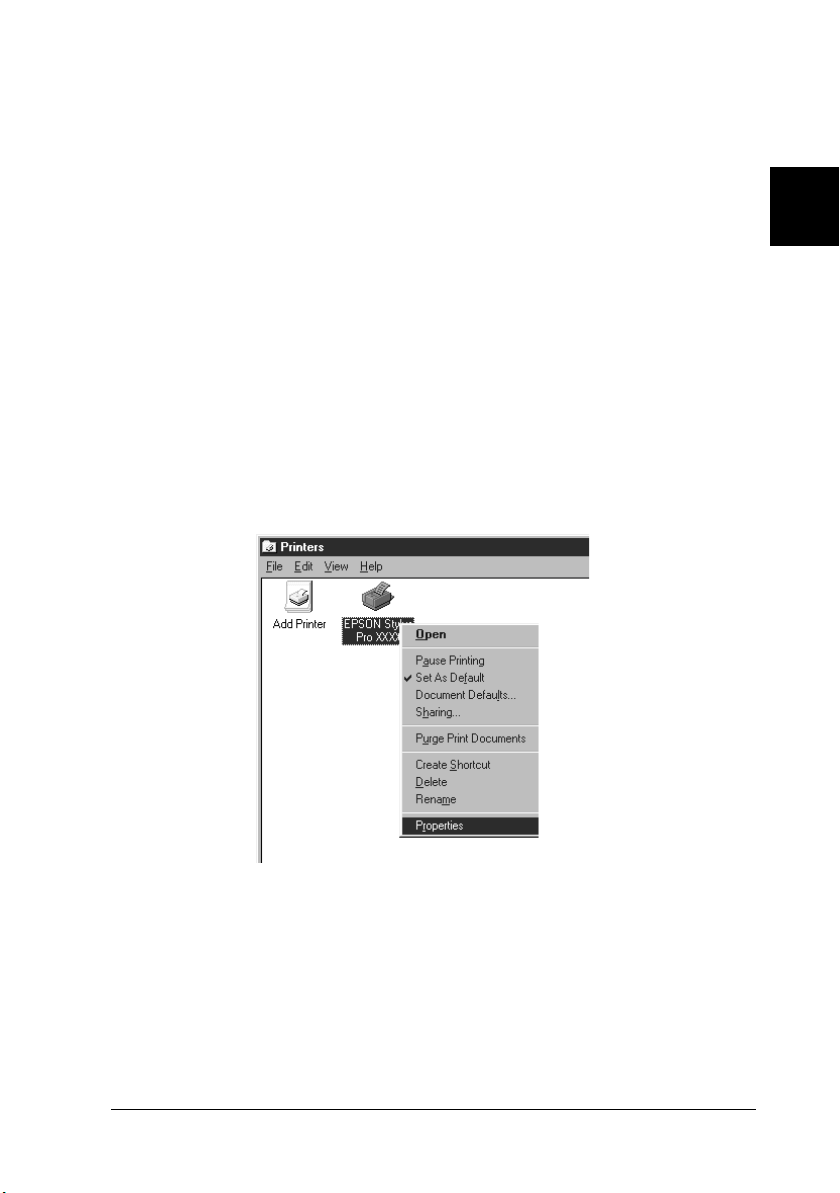

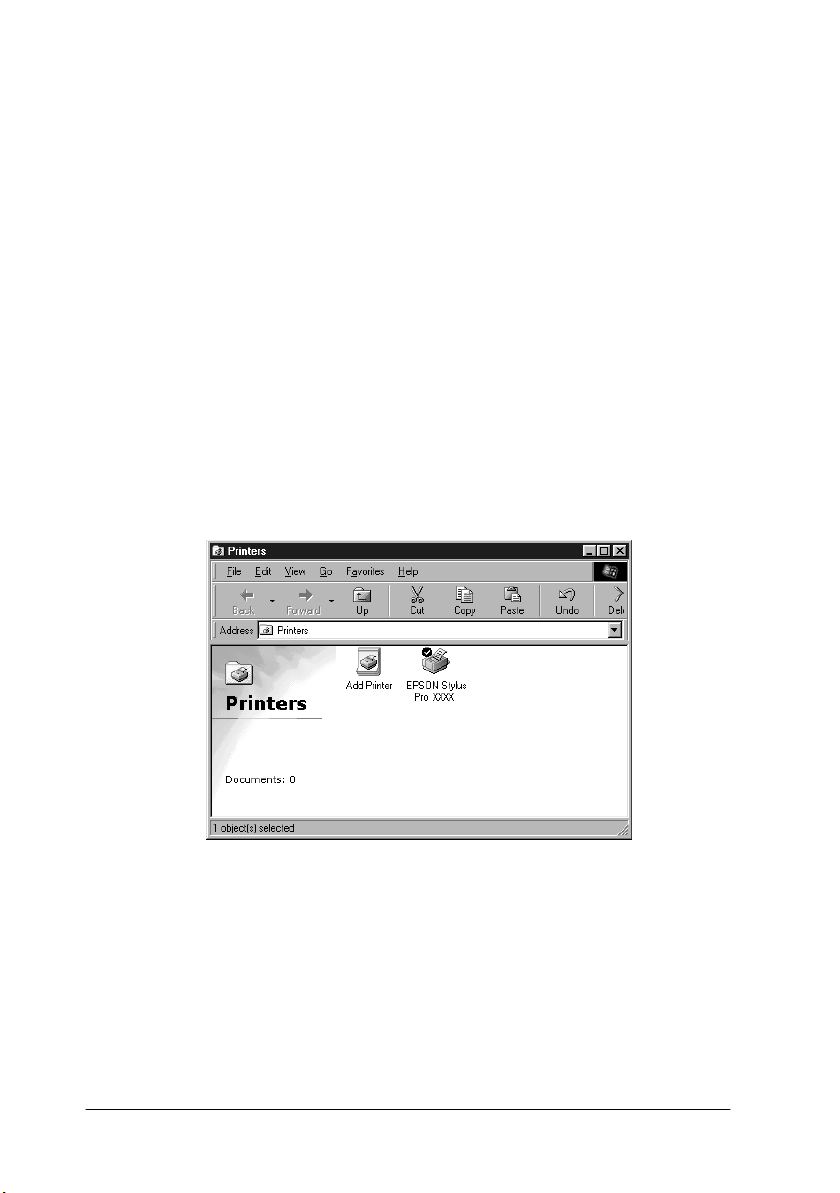

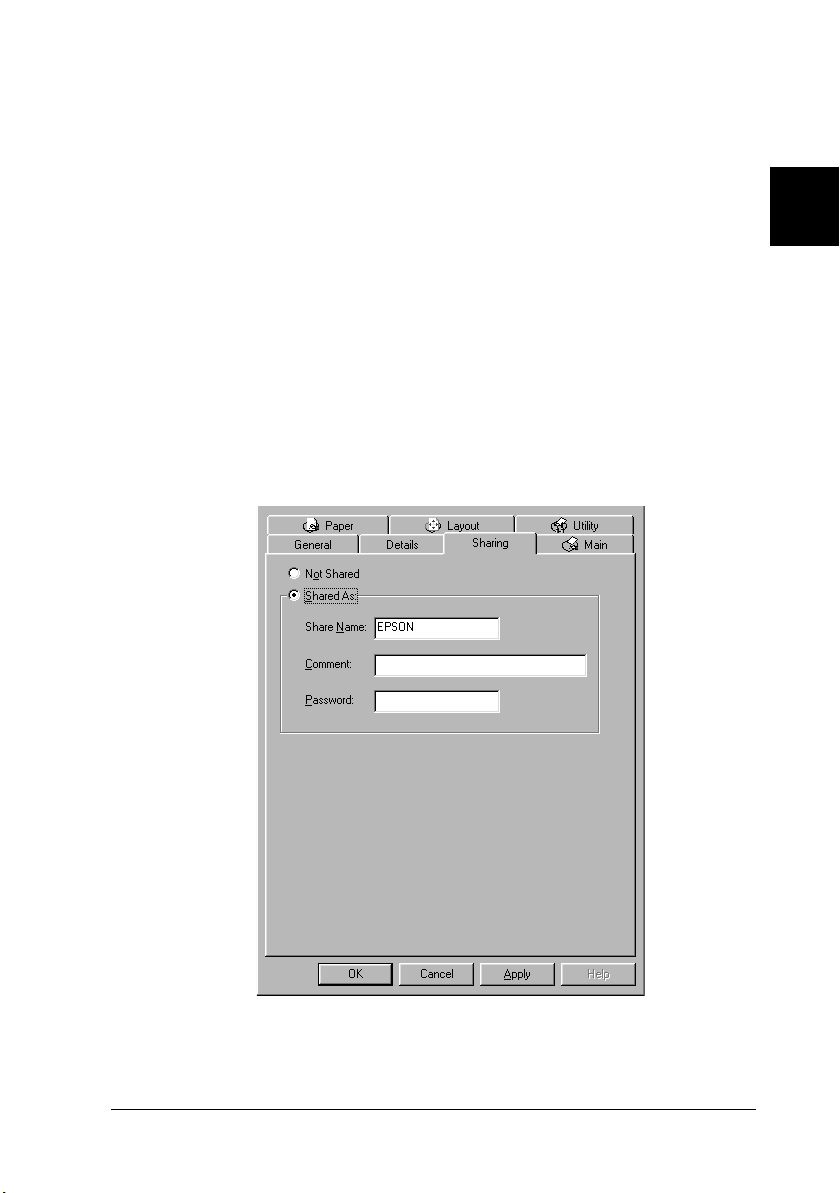

For Windows Me, 98, and 95 . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

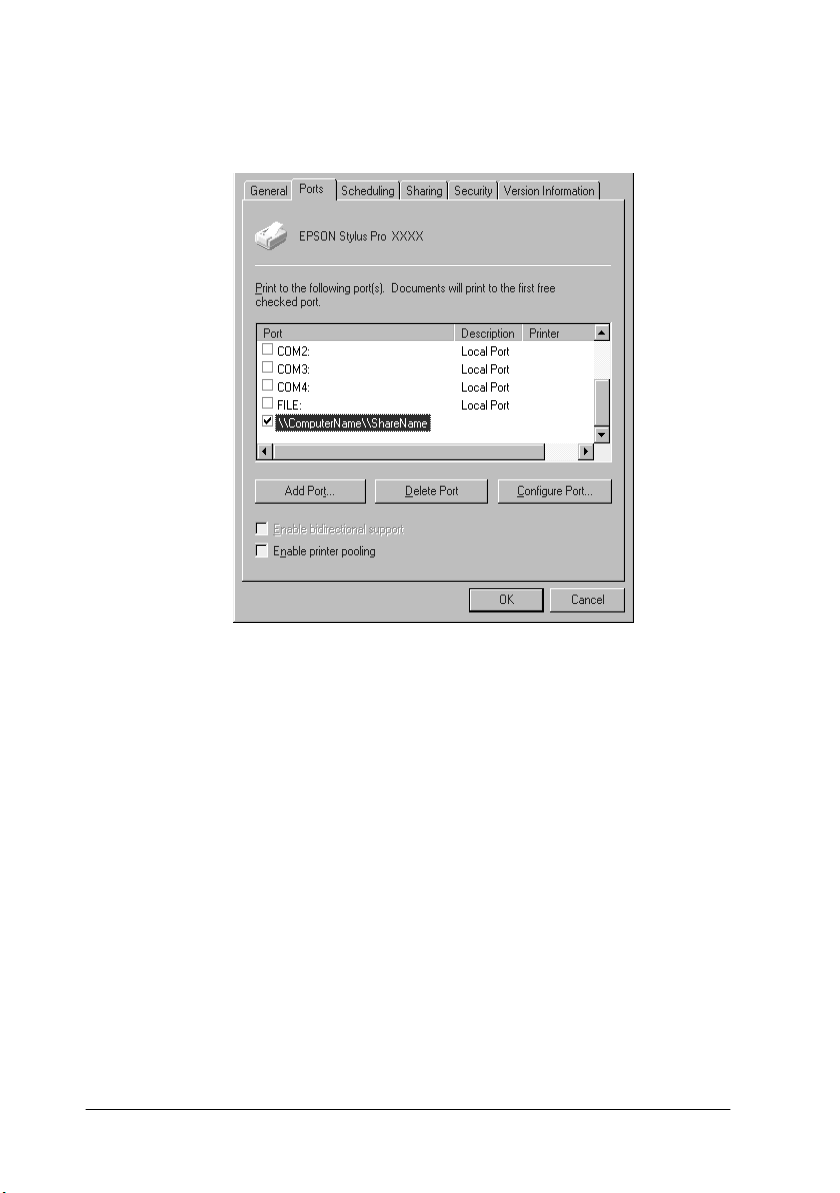

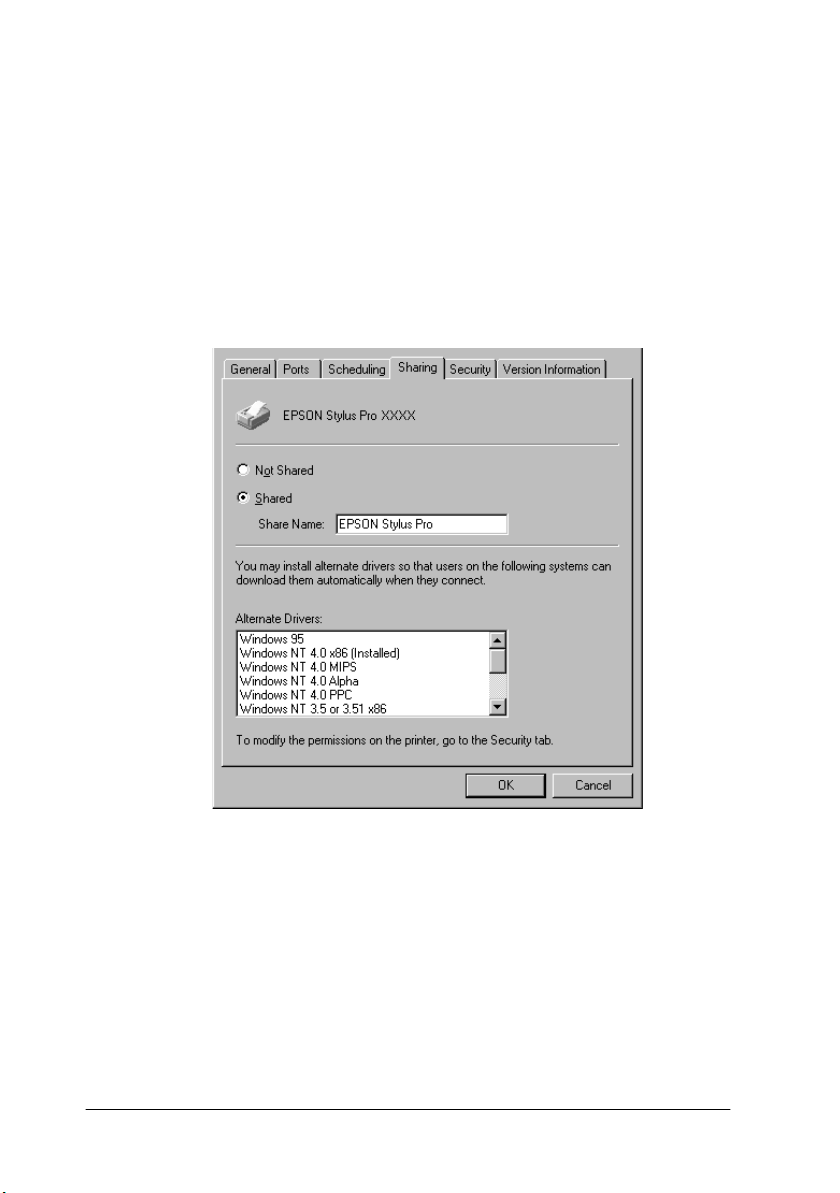

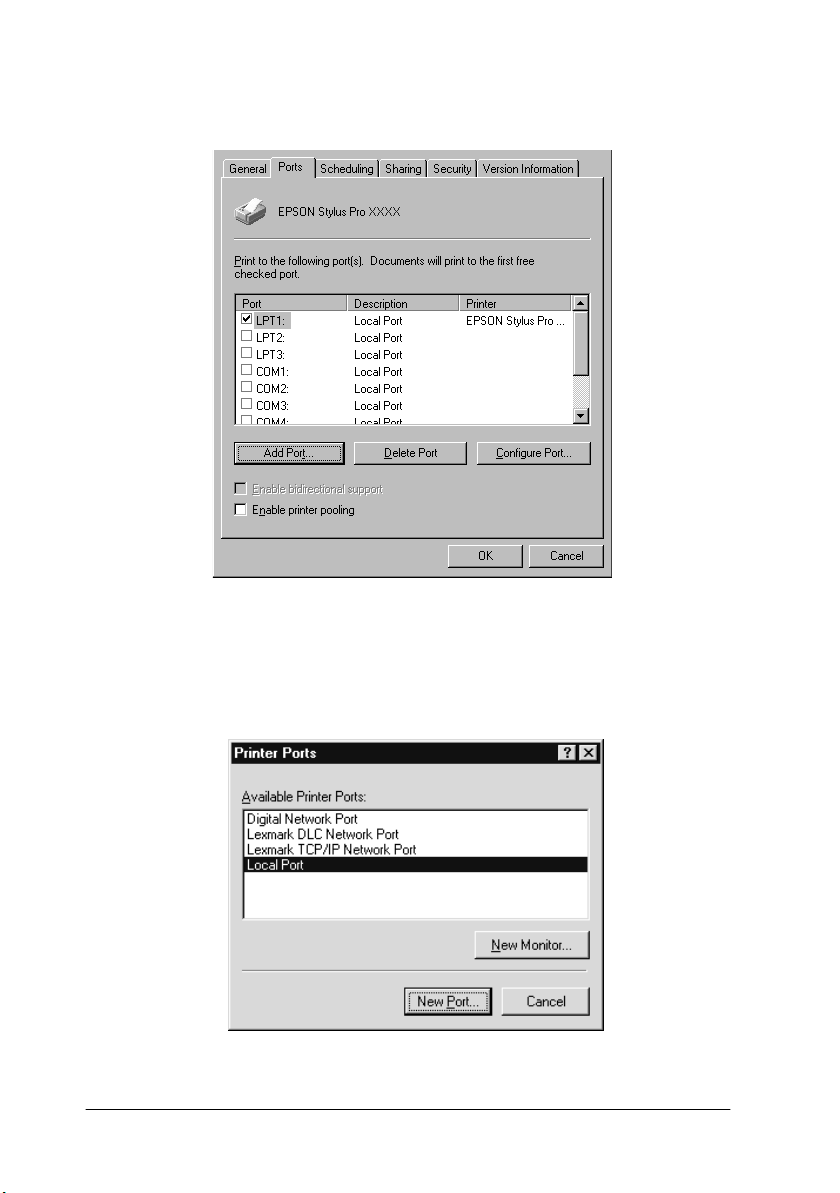

For Windows 2000 and NT 4.0 . . . . . . . . . . . . . . . . . . . . . . . 2-13
Chapter 3 Setting up the Printer with Your Macintosh
Connecting the Printer to Your Macintosh. . . . . . . . . . . . . . . . . . 3-2

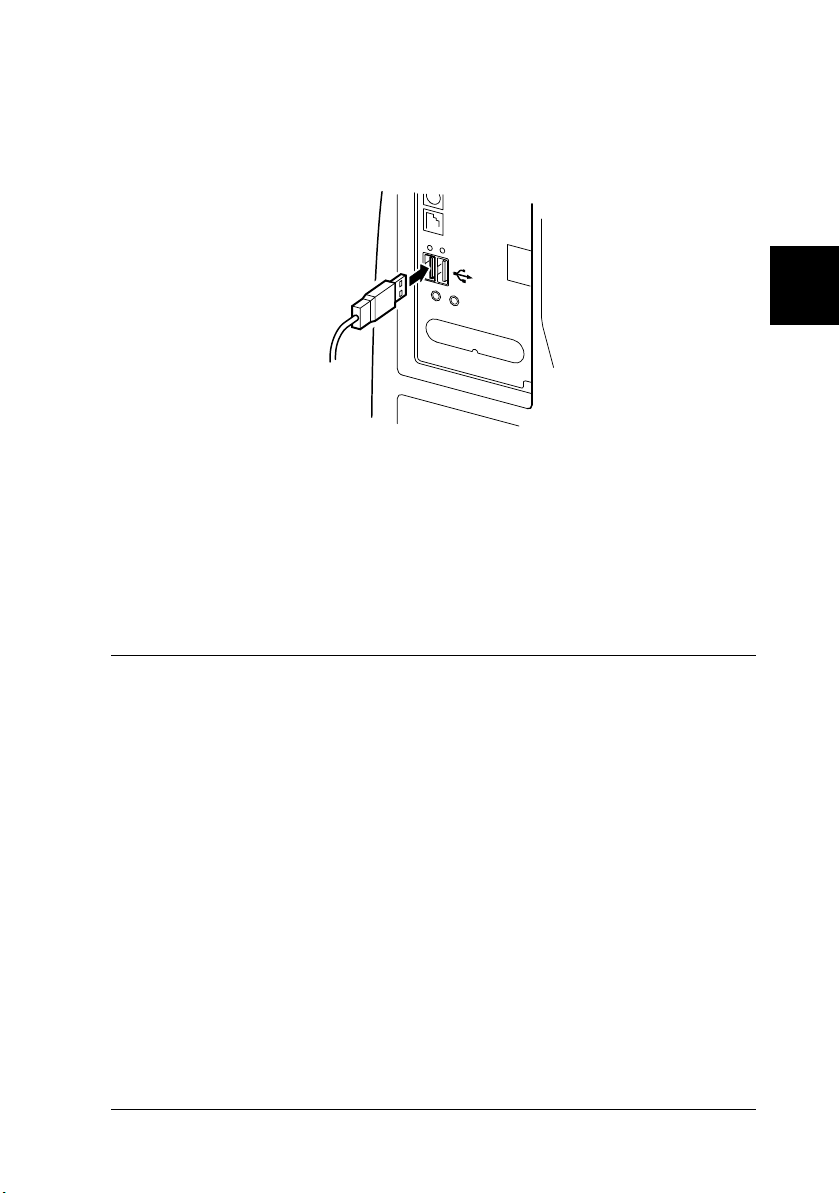

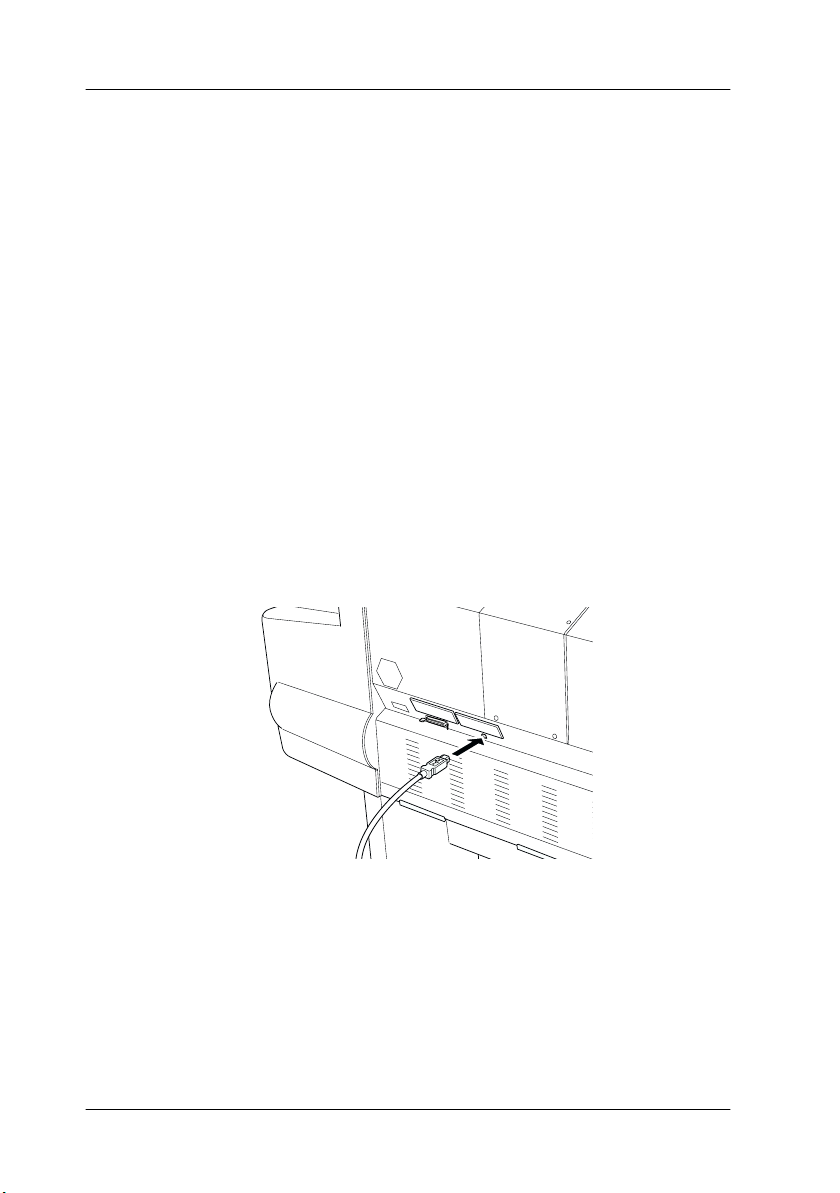

Using the built-in USB interface . . . . . . . . . . . . . . . . . . . . . . 3-2
Installing the Printer Software on Macintosh. . . . . . . . . . . . . . . . 3-3
Printer software components. . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Installing on Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

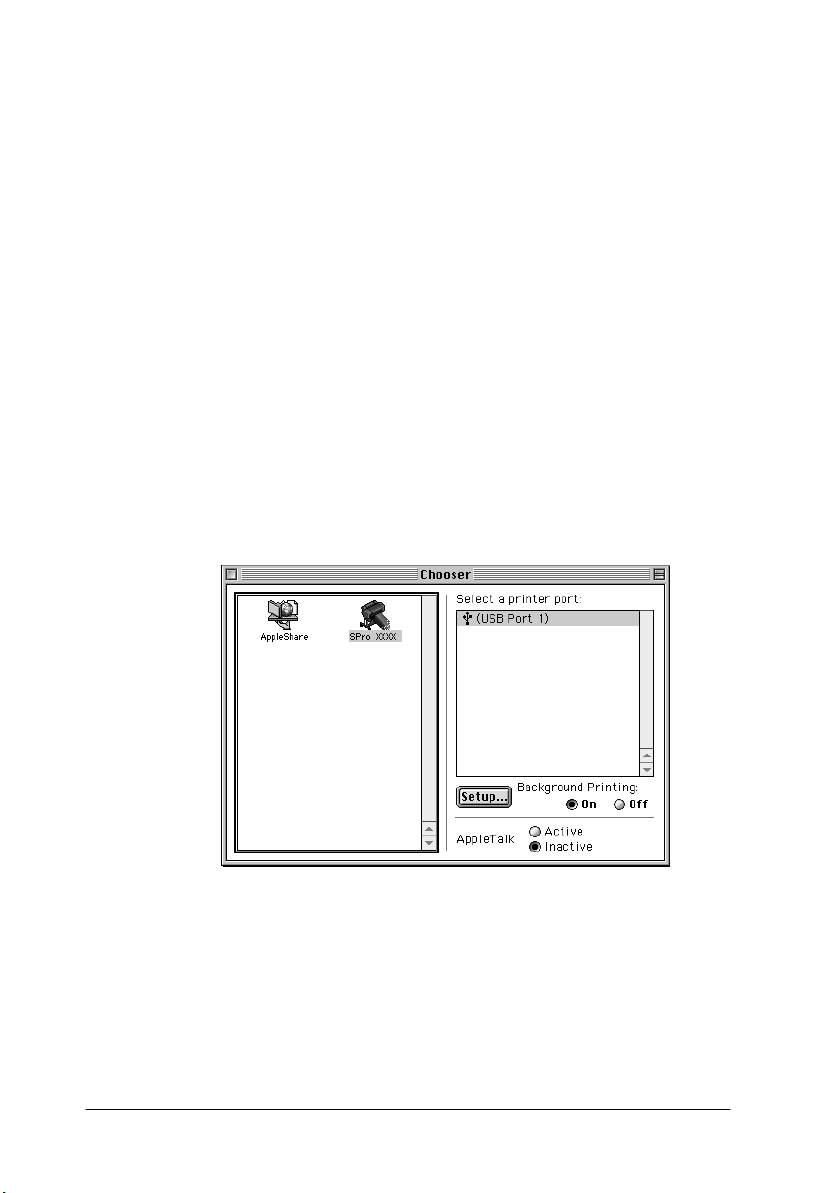

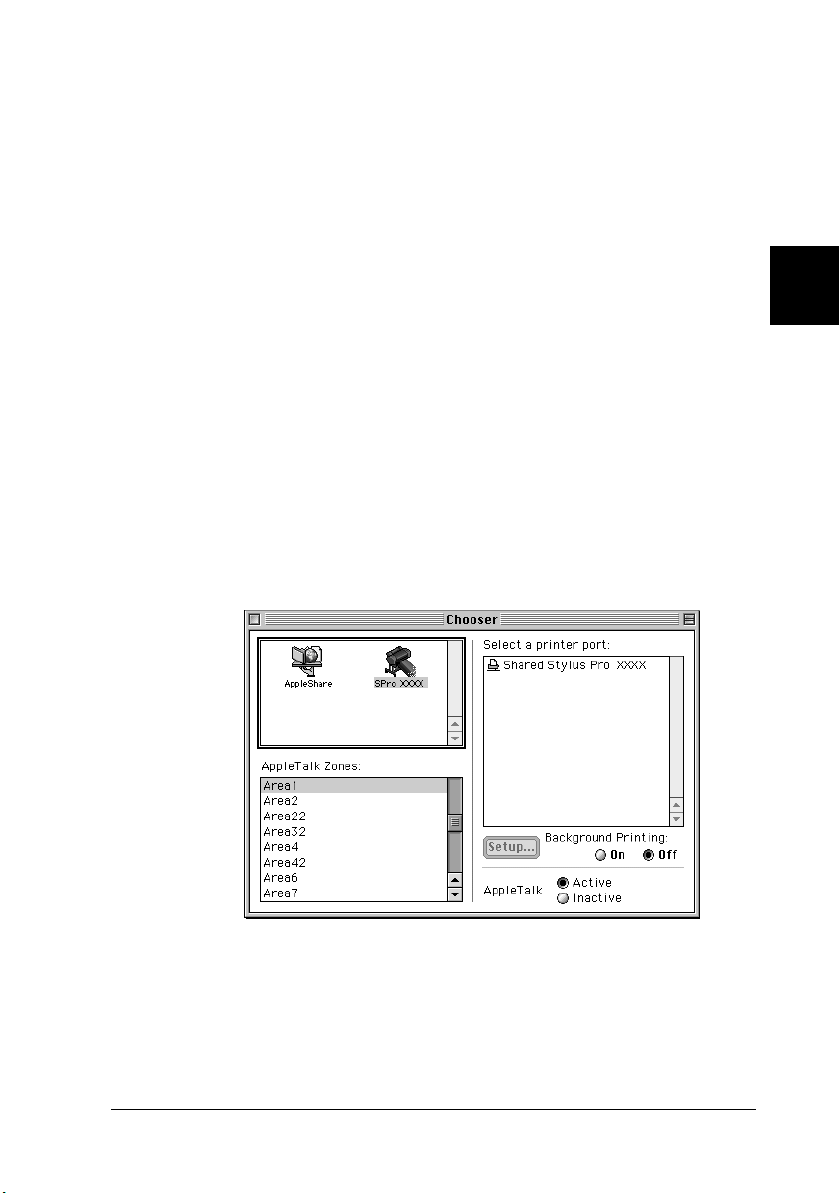

Using the Chooser to select your printer . . . . . . . . . . . . . . . 3-6

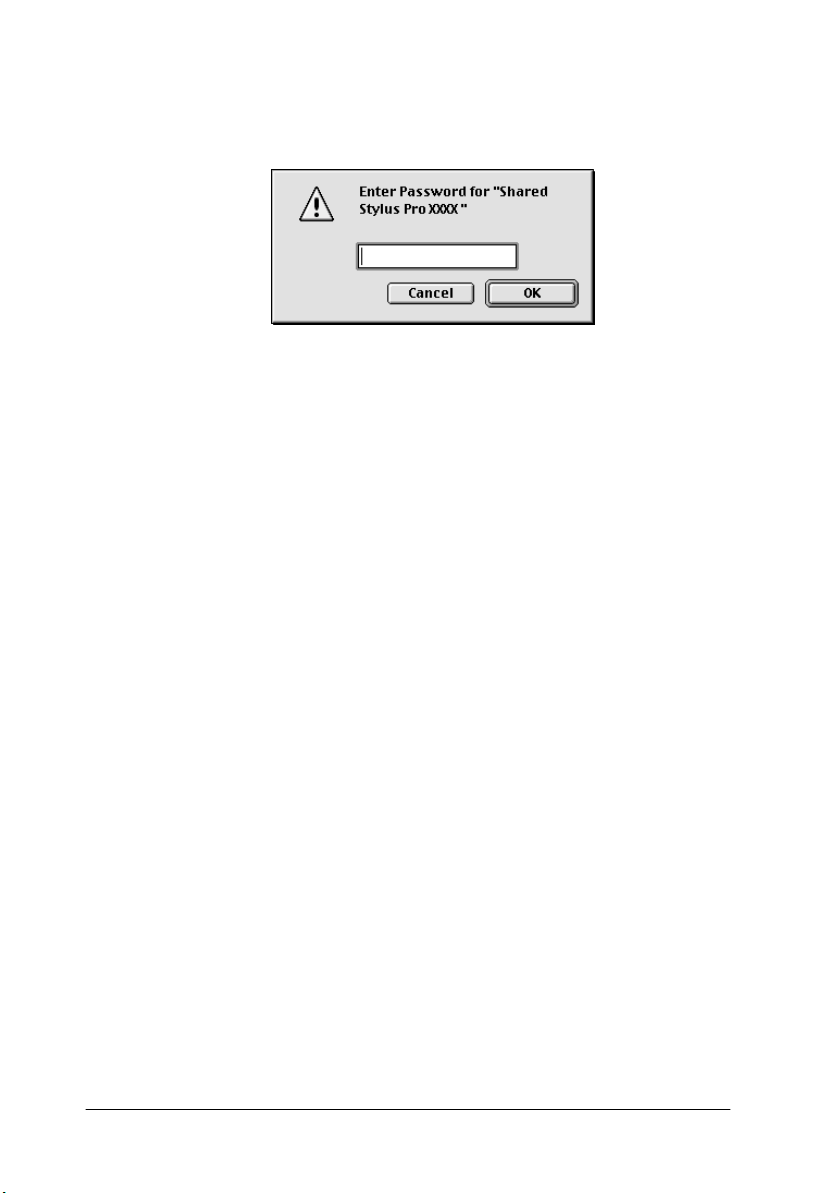

Setting up Your Printer on a Network. . . . . . . . . . . . . . . . . 3-7
Chapter 4 Printing and Printer Management
Printing From Your PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

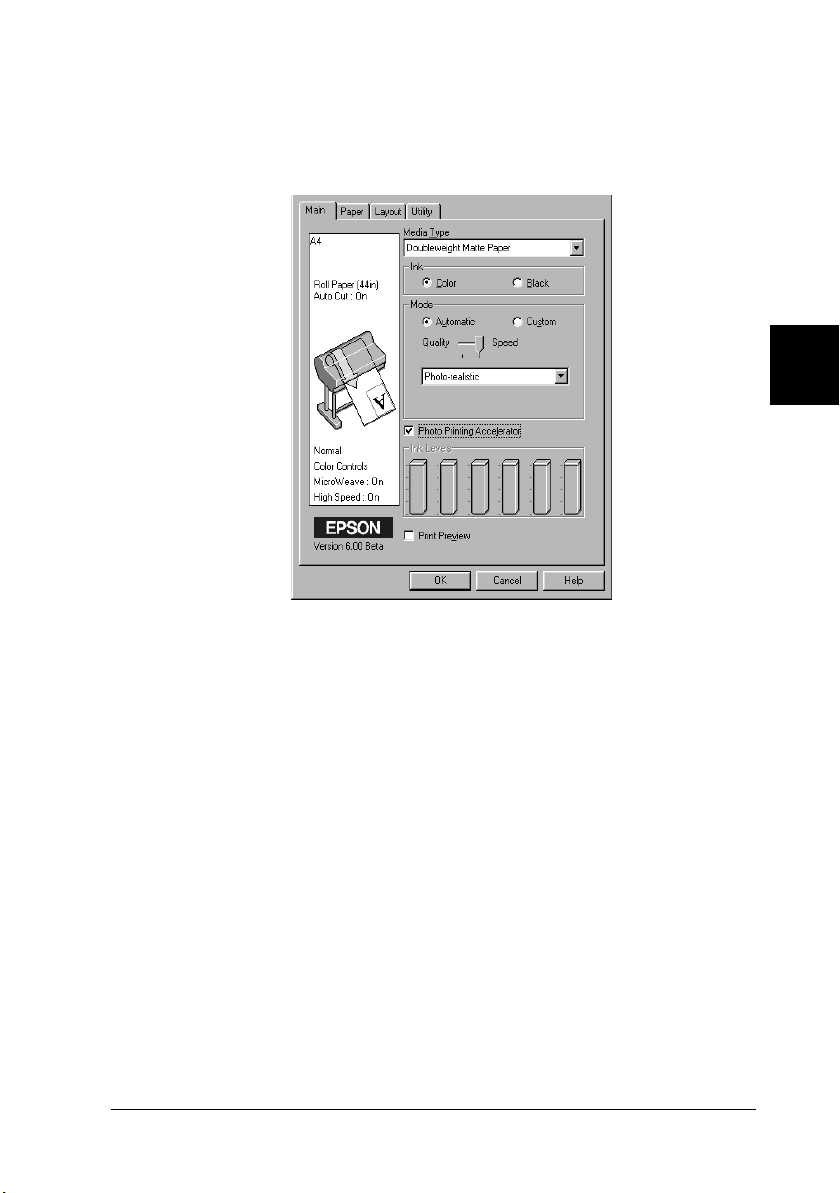

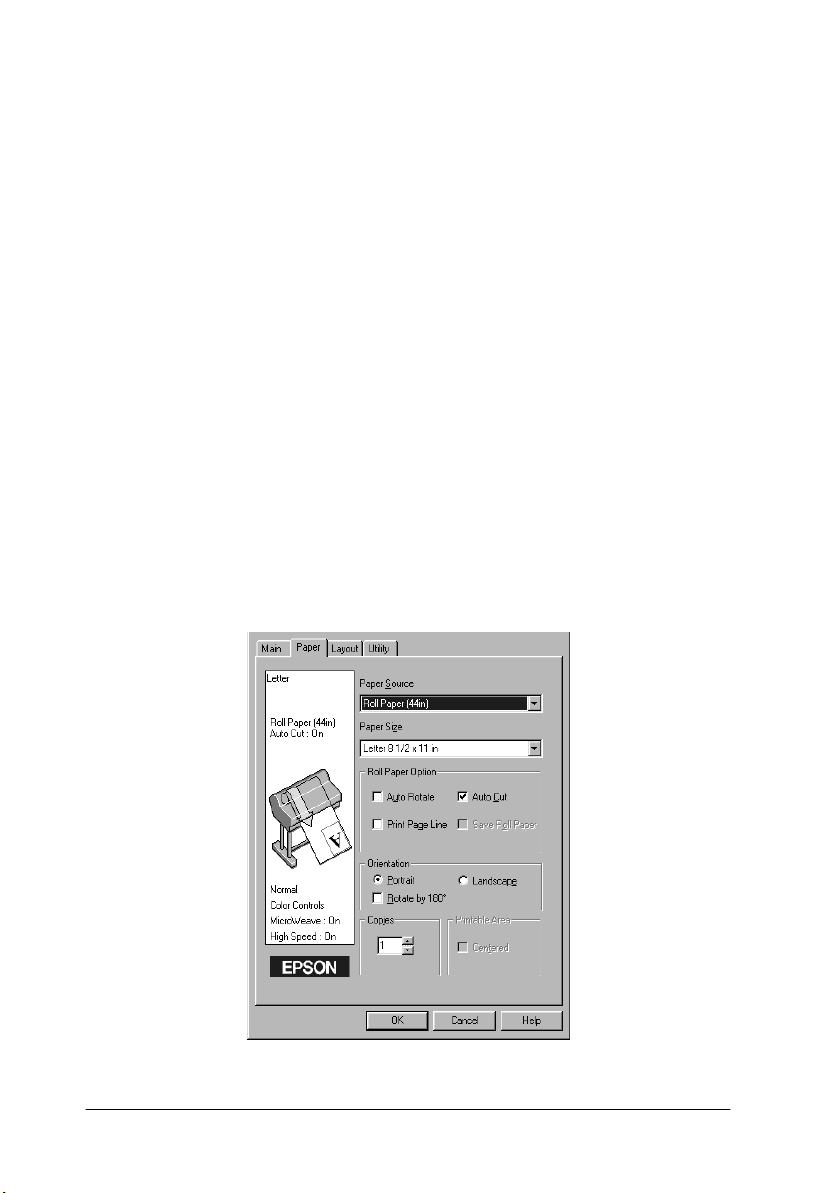

Making the printer driver settings . . . . . . . . . . . . . . . . . . . . 4-2
Cancelling printing from your PC . . . . . . . . . . . . . . . . . . . . 4-7
Printing From Your Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

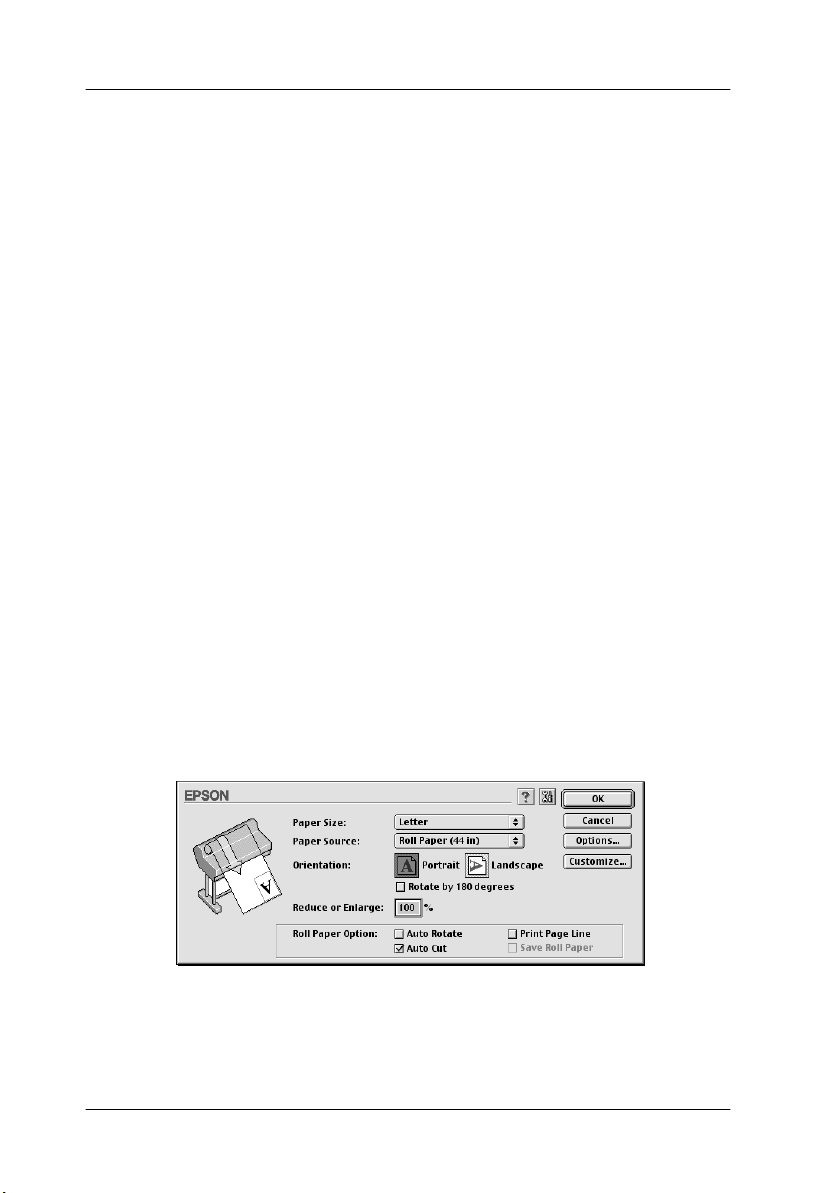

Making the printer driver settings . . . . . . . . . . . . . . . . . . . . 4-8

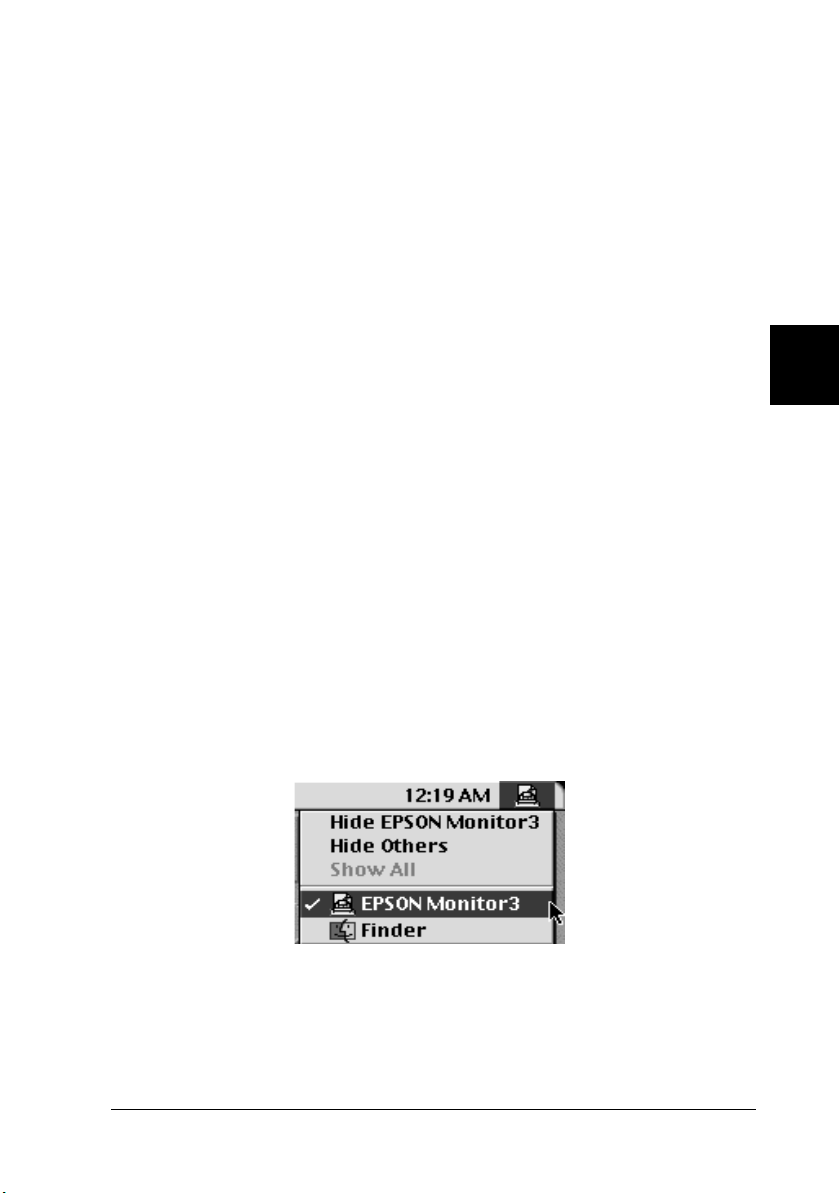

Cancelling printing from your Macintosh. . . . . . . . . . . . . . 4-11
viii
Chapter 5 Checking the Printer’s Condition
Using Printer Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Accessing the printer utilities . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

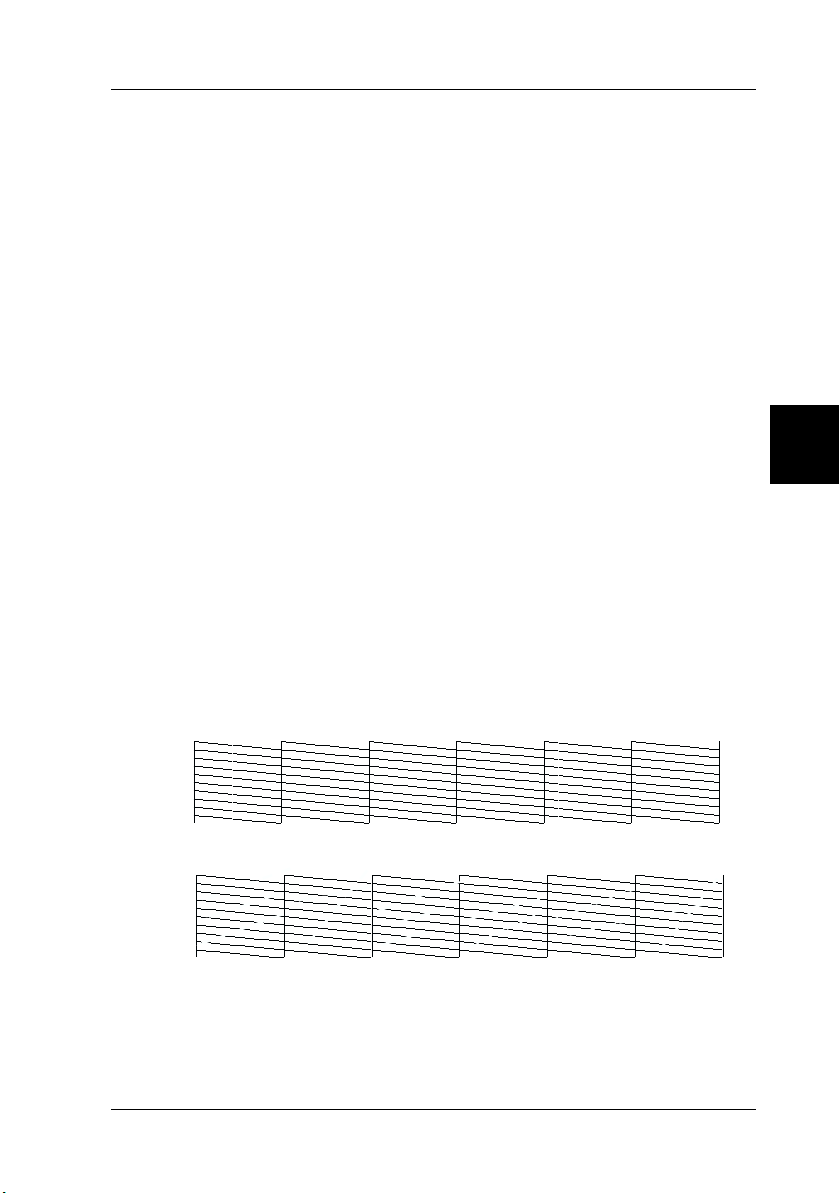

Printing the Nozzle Check Pattern . . . . . . . . . . . . . . . . . . . . . . . . .5-3
Cleaning the Print Heads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4

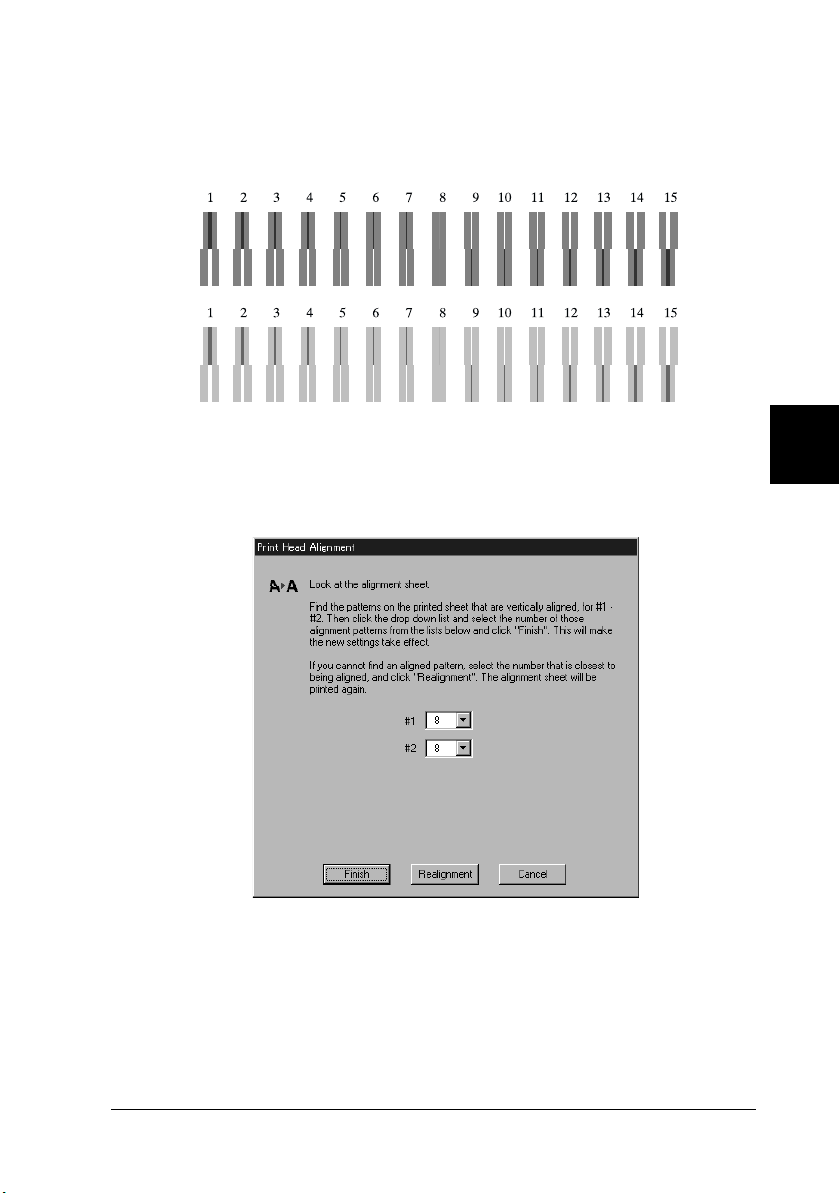

Aligning the Print Heads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Chapter 6 Using an Optional Interface Card
Available Optional Interface Cards . . . . . . . . . . . . . . . . . . . . . . . . 6-2

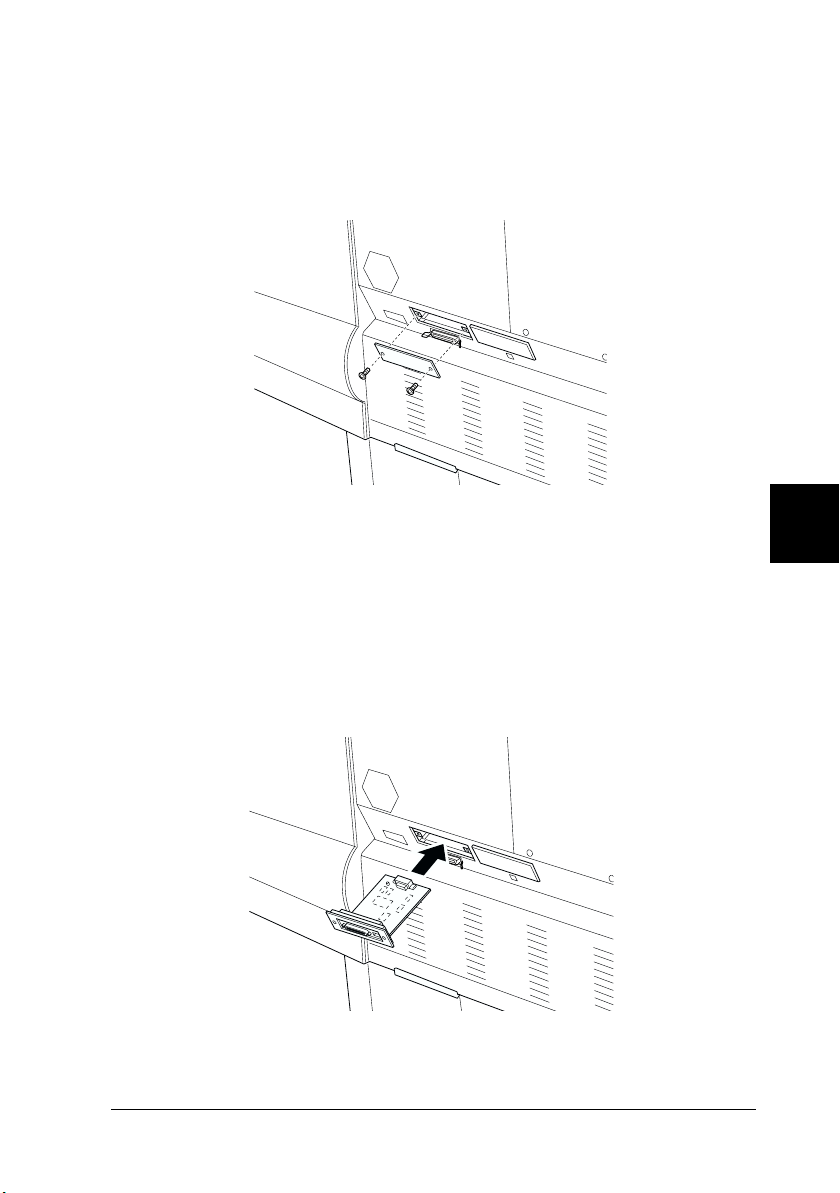

Installing the Optional Interface Card . . . . . . . . . . . . . . . . . . . . . . 6-2
ix
x
Safety Instructions
Important Safety Instructions
Read all of these instructions before using your printer. Also be
sure to follow all warnings and instructions marked on the
printer.
❏ Do not block or cover the openings in the printer’s cabinet.
❏ Do not insert objects through the slots. Take care not to spill
liquid on the printer.
❏ Use only the type of power source indicated on the printer’s
label.
❏ Connect all equipment to properly grounded power outlets.
Avoid using outlets on the same circuit as photocopiers or air
control systems that regularly switch on and off.
❏ Avoid electrical outlets controlled by wall switches or
automatic timers.
❏ Keep the entire computer system away from potential sources
of electromagnetic interference, such as loudspeakers or the
base units of cordless telephones.
❏ Do not use a damaged or frayed power cord.
❏ If you use an extension cord with the printer, make sure the
total ampere rating of the devices plugged into the extension
cord does not exceed the cord’s ampere rating. Also, make
sure the total ampere rating of all devices plugged into the
wall outlet does not exceed the wall outlet’s ampere rating.
Safety Instructions
1
❏ Do not attempt to service the printer yourself.
❏ Unplug the printer and refer servicing to qualified service
personnel under the following conditions:
The power cord or plug is damaged; liquid has entered the
printer; the printer has been dropped or the cabinet damaged;
the printer does not operate normally or exhibits a distinct
change in performance.
❏ The interface connectors (including Type B interface card) and
the connector for optional Auto Take-up Reel Unit are NonLPS (non-limited power source).
❏ If you plan to use the printer in Germany, observe the
following:
To provide adequate short-circuit protection and overcurrent protection for this printer, the building installation
must be protected by a 10 or 16 amp circuit breaker.
Bei Anschluss des Druckers an die Stromversorgung muss
sichergestellt werden, dass die Gebäudeinstallation mit einer
10 A-oder 16 A-Sicherung abgesichert ist.
A Few Precautions
When using the printer
❏ Do not put your hand inside the printer or touch the ink
cartridges during printing.
❏ Do not move the print heads by hand; otherwise you may
damage the printer.
2
Safety Instructions
❏ Always turn the printer off using the Power button on the
control panel. When this button is pressed, the Operate light
flashes briefly then goes off. Do not unplug the printer or turn
off the power to the outlet until the Operate light stops
flashing.
❏ Before transporting the printer, make sure the print heads are
in the home (far right) position.
When handling the ink cartridges
❏ Keep ink cartridges out of the reach of children and do not
drink.
❏ If ink gets on your skin, wash it off with soap and water. If it
gets in your eyes, flush them immediately with water.
❏ If you use ColorFast type ink cartridges, shake the ink
cartridge gently before installing it for best results.
Caution
c
❏ If you use dye type ink cartridges, do not use an ink cartridge
❏ If you use ColorFast type ink cartridges, use up the ink
Do not shake cartridges that have been installed previously.
beyond the date printed on the cartridge carton.
cartridge within six months of installation for best results.
Safety Instructions
3
❏ Do not dismantle the ink cartridges or try to refill them. This
could damage the print heads.
❏ Store ink cartridges in a cool, dark place.
❏ After bringing an ink cartridge inside from a cold storage site,
allow it to warm up at room temperature for at least three
hours before using it.
❏ Do not touch the green IC chip on the side of the cartridge.
This may affect normal operation and printing.
❏ In this ink cartridge, the IC chip retains a variety of cartridge
related-information, such as the amount of ink remaining, so
that a cartridge may be removed and reinserted freely.
However, each time the cartridge is inserted, some ink is
consumed because the printer automatically performs a
reliability check.
❏ If you remove an ink cartridge for later use, protect the ink
supply area from dirt and dust, and store it in the same
environment as the printer. Note that there is a valve in the
ink supply port, making covers or plugs unnecessary, but care
is needed to prevent the ink from staining items that the
cartridge touches. Do not touch the ink cartridge ink supply
port or surrounding area.
When choosing a place for the printer
❏ Place the printer on a flat, stable surface that is larger than the
printer. The printer will not operate properly if it is tilted or
at an angle.
❏ Avoid places subject to rapid changes in temperature and
humidity. Also keep it away from direct sunlight, strong light,
or heat sources.
❏ Avoid places subject to shocks and vibrations.
4
Safety Instructions
❏ Keep the printer away from the dusty areas.
❏ Place the printer near a wall outlet where the plug can be
easily unplugged.
Note for French-speaking users:
Placez l’imprimante près d’une prise de contacte où la fiche peut être
débranchée facilement.
E
NERGY STAR® Compliance
As an ENERGY STAR® Partner, EPSON has
determined that these products meet the
TAR® guidelines for energy efficiency.
S
NERGY
E
The International
a voluntary partnership with the computer and office equipment
industry to promote the introduction of energy-efficient personal
computers, monitors, printers, fax machines, copiers, and
scanners in an effort to reduce air pollution caused by power
generation.
NERGY STAR® Office Equipment Program is
E
Laser safety
This printer is certified as a Class 1 laser product under the U.S.
Department of Health and Human Services (DHHS) Radiation
Performance Standard according to the Radiation Control for
Health and Safety Act of 1968. This means that the printer does
not produce hazardous laser radiation.
Since radiation emitted by the laser is completely confined within
protective housings and external covers, the laser beam cannot
escape from the machine during any phase of user operation.
The EPSON STYLUS PRO 10000/10000CF is a large format
printer which utilizes a semiconductor laser.
Safety Instructions
5
There is no possibility of danger from the laser, provided that the
printer is operated according to the instructions in the guides
provided.
Since radiation emitted by the laser is completely confined within
protective housings and external covers, the laser beam cannot
escape from the machine during any phase of user operation.
Warning:
w
This is a semiconductor laser. The maximum power of the laser
diode is 7 mW
CDRH regulations
The Center for Devices and Radiological Health (CDRH) of the
U.S. Food and Drug Administration implemented regulations for
laser products on August 2, 1976. Compliance is mandatory for
products marketed in the United States. The label shown below
indicates compliance with the CDRH regulations and must be
attached to laser products marketed in the United States.
The use of controls, or the performance of procedures and
adjustments other than those specified in this guide may result
in hazardous radiation exposure.
and the wavelength is 640 to 670 nm.
6
Safety Instructions
Laser safety labels
Your printer is a Class 1 laser product as defined in the IEC 60825
specifications. The label shown below is attached in countries
where required.
Internal laser radiation
Maximum Radiation Power: 120 µW at laser aperture of the
Auto Print Head Optimization
System Unit
Wavelength: 640 to 670 nm
This product employs a Class IIIb Laser Diode that emits an
visible laser beam. The Laser Diode is incorporated in the Auto
Print Head Optimization System Unit. The unit is NOT A FIELD
SERVICE ITEM and should not be opened under any
circumstances.
Safety Instructions
7
An additional laser warning label is affixed to the inside of the
printer, as shown below.
For United Kingdom Users
Use of options
EPSON (UK) Limited shall not be liable against any damages or
problems arising from the use of any options or consumable
products other than those designated as Original EPSON
Pr od uc ts or EP SON Ap pr ov ed Pr odu ct s b y E PS ON (U K) Li mit ed .
8
Safety Instructions
Safety information
Warning:
w
Important:
The wires in the mains lead fitted to this appliance are coloured in
accordance with the following code:
Green and yellow — Earth
Blue — Neutral
Brown — Live
If you have to fit a plug:
As the colours of the mains lead of this appliance may not match
coloured markings used to identify the terminals in a plug, please
proceed as follows:
The green and yellow wire must be connected to the terminal in
the plug which is marked with the letter E or the earth symbol (
The blue wire must be connected to the terminal in the plug
marked with the letter N.
This appliance must be earthed. Refer to rating plate for voltage
and check that the appliance voltage corresponds to the supply
voltage.
G).
The brown wire must be connected to the terminal in the plug
marked with the letter L.
If damage occurs to the plug, replace the cord set or consult a
qualified electrician.
Replace fuses only with a fuse of the correct size and rating.
Safety Instructions
9
Warnings, Cautions, and Notes
Warnings
must be followed carefully to avoid bodily injury.
w
Cautions
must be observed to avoid damage to your equipment.
c
contain important information and useful tips on the operation
Notes
of your printer.
Taking a Look at Your Printer
Front view
roll paper spindles
mounting
brackets
roll paper cover
paper set lever
control panel
paper basket
10
Taking a Look at Your Printer
ink cartridge
compartment
lower cover
Rear view
Optional
interface card
slot cover 2
Optional
interface card
slot cover 1
Optional
connector for
Auto Take -up
Reel Unit

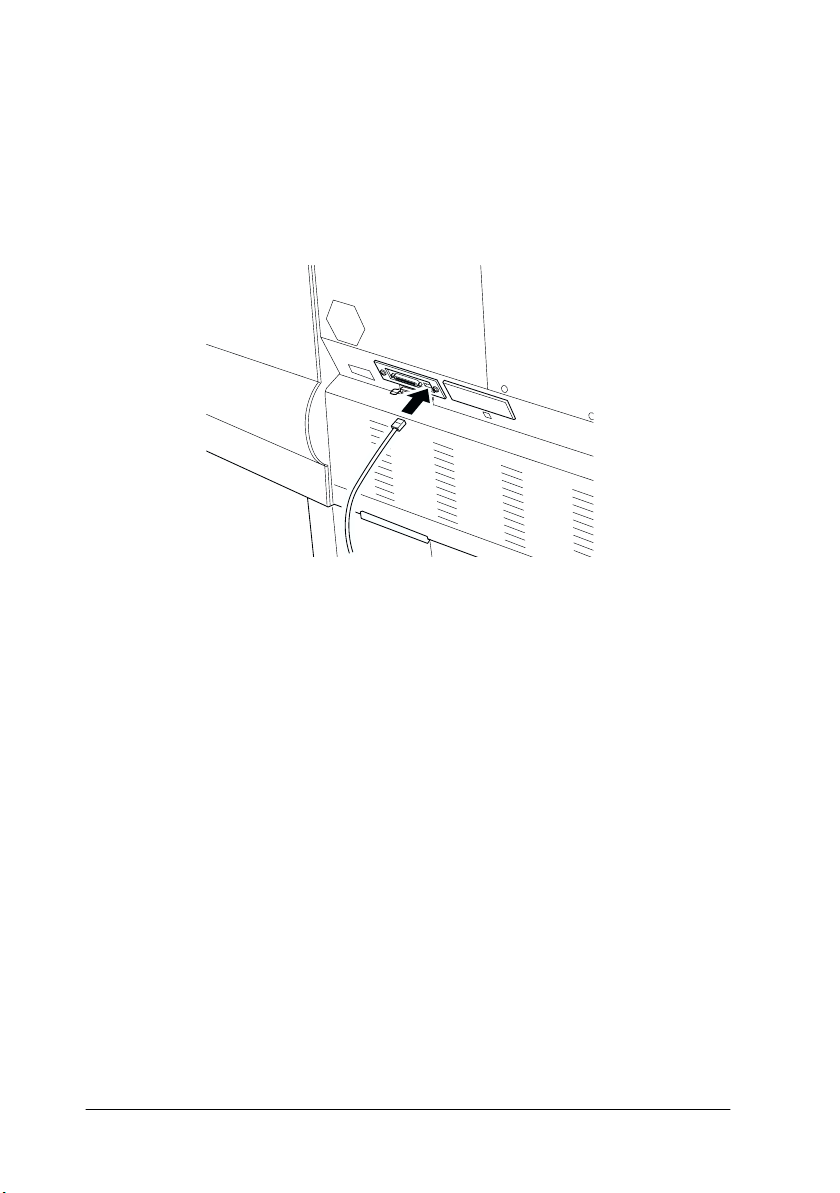

parallel interface
connector
Photo Printing
Accelerator slot
AC inlet
USB interface connector
Taking a Look at Your Printer
11
12
Taking a Look at Your Printer
Chapter 1
Installing the Ink Cartridges and Loading Paper
Installing the ink cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Loading Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Loading roll paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Loading cut sheet media . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10
Loading cut sheet media longer than 279 mm
(long edge of letter size) . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Loading cut sheet with a length of
A4/Letter, A3/US B, and Super A3/B. . . . . . . . . . . . . . . 1-13
1
Installing the Ink Cartridges and Loading Paper
1-1
Installing the ink cartridges
To install the ink cartridges, follow the instructions below.
Warning:
The ink cartridges are self-contained units. Under ordinary use,
w
ink will not leak from the cartridges. If ink does get on your hands,
wash them thoroughly with soap and water. If ink gets into your
eyes, flush them immediately with water.
1. Turn on the printer by pressing the Power button. After a
short time NO IN K CAR T RID GE is displayed on the LCD panel.
2. Push the ink compartment cover to open it.
1-2
Installing the Ink Cartridges and Loading Paper
3. Put the attached label on the back of the ink compartment
cover.
4. Push the top of the clamp, and pull it forward.
1
5. Remove the package from an ink cartridge.
Note:
If you use the ColorFast type ink cartridge, shake the cartridge gently
before installing it.
Installing the Ink Cartridges and Loading Paper
1-3
6. Hold the ink cartridge with arrow mark on the left side and
pointing to the rear of the printer, and insert it into the slot.
Be sure to match the colors of the seal of compartment and the
cartridge you are replacing.
7. Close the cartridge clamp backwards. Make sure the
corresponding Ink Out light goes off. Repeat step 5 to 6 for
the other five color ink cartridges.
8. Close the Ink compartment cover.
After installing all six ink cartridges, the printer begins
charging the ink delivery system and the Pause light flashes
(for about 4 minutes). When the ink delivery system is
charged, the Pause light stops flashing.
1-4
Caution:
c
Never do the following while the Pause light is flashing;
otherwise damage may occur:
❏ Turn off the printer
❏ Open the lower cover
❏ Open the ink compartment cover

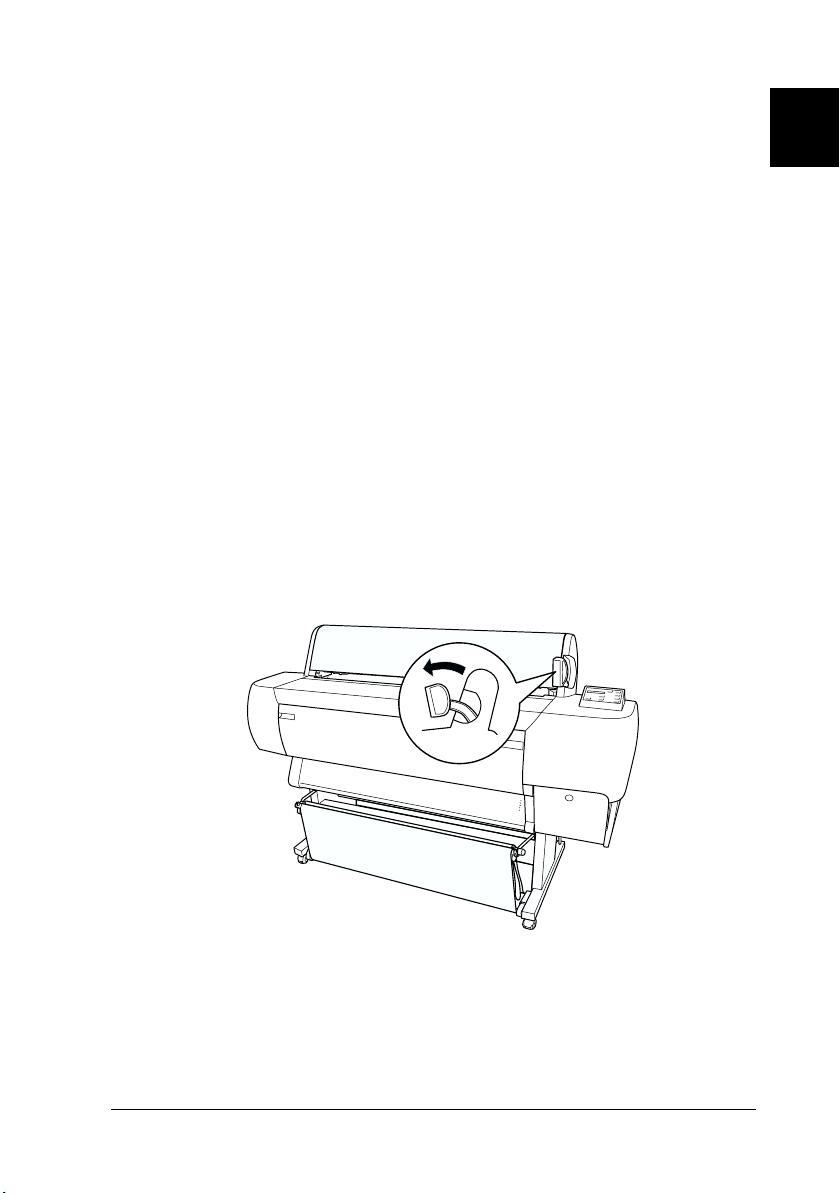

❏ Move the paper set lever to the released position
❏ Unplug the power cord

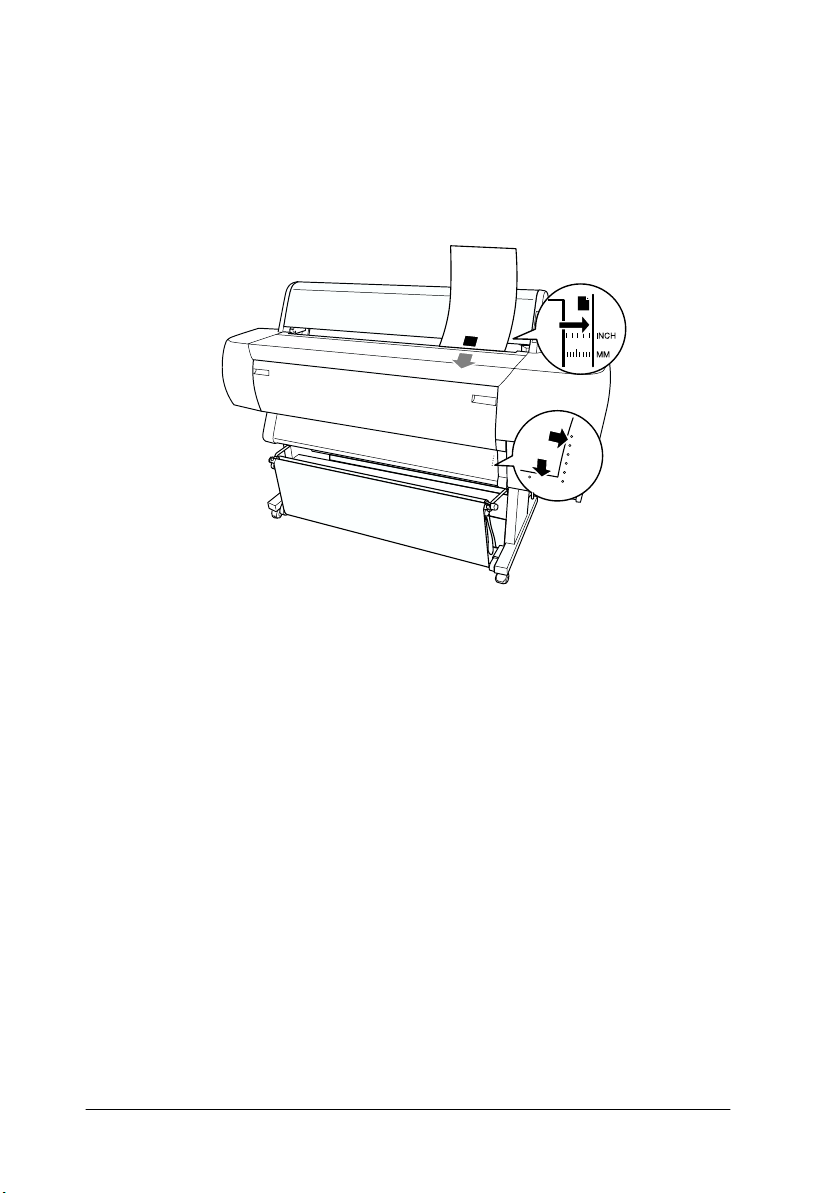

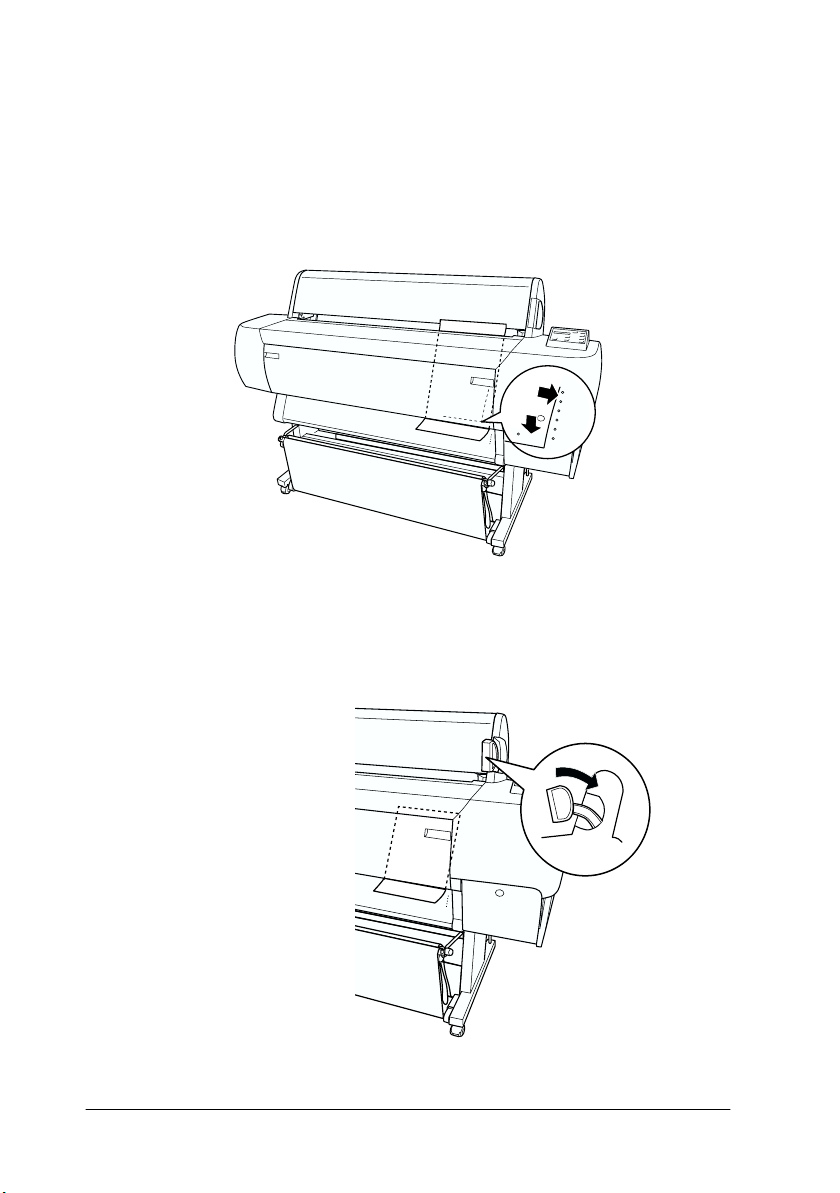

Installing the Ink Cartridges and Loading Paper
Loading...
