Epson Presenter User Manual

PowerLite® Presenter

User’s Guide

Copyright Notice

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. The information contained herein is designed only for use with this Epson product. Epson is not responsible for any use of this information as applied to other products.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.

Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation.

Responsible Use

This unit is equipped with Macrovision copy protection. The intellectual property rights to the patent of this copy protection technology are owned by the Macrovision Company of America, and others. When employing this technology, a license is required from the Macrovision Company. The Macrovision Company does not authorize the use of this technology except for a limited range of intended purposes, including home use. Further, remodeling, disassembly, and reverse engineering are prohibited.

Reproduction of a disc for the purposes of broadcast, projection in public, public musical performance, or rental (regardless of compensation, remuneration, or lack thereof) without the permission of the copyright owner, is strictly prohibited. This publication and the features described herein are subject to change without notice.

Trademarks

Epson is a registered trademark and Epson Exceed Your Vision is a registered logomark of Seiko Epson Corporation.

PowerLite, PrivateLine, and Accolade are registered trademarks, Duet is a trademark, and Extra Care is a service mark of Epson America, Inc.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks.

This information is subject to change without notice.

© 2009 Epson America, Inc.

7/09

CPD-27692

2

Contents

Welcome	6
Registration and Warranty	6
Optional Accessories	7
About This Manual	7
PowerLite Presenter Parts and Controls	8
Important Safety Instructions	11
Unpacking and Setting Up	15
Unpacking	15
Choosing a Location	16
Setting Up PowerLite Presenter	18
Turning the Projector Off	19
Playing DVDs	20
Starting a DVD	20
Adjusting the Picture	21
Adjusting the Sound	22
Controlling Playback	23
Pausing	23
Searching (Fast Forward or Reverse)	24
Playing in Slow Motion	24
Skipping	24
Zooming In or Out	24

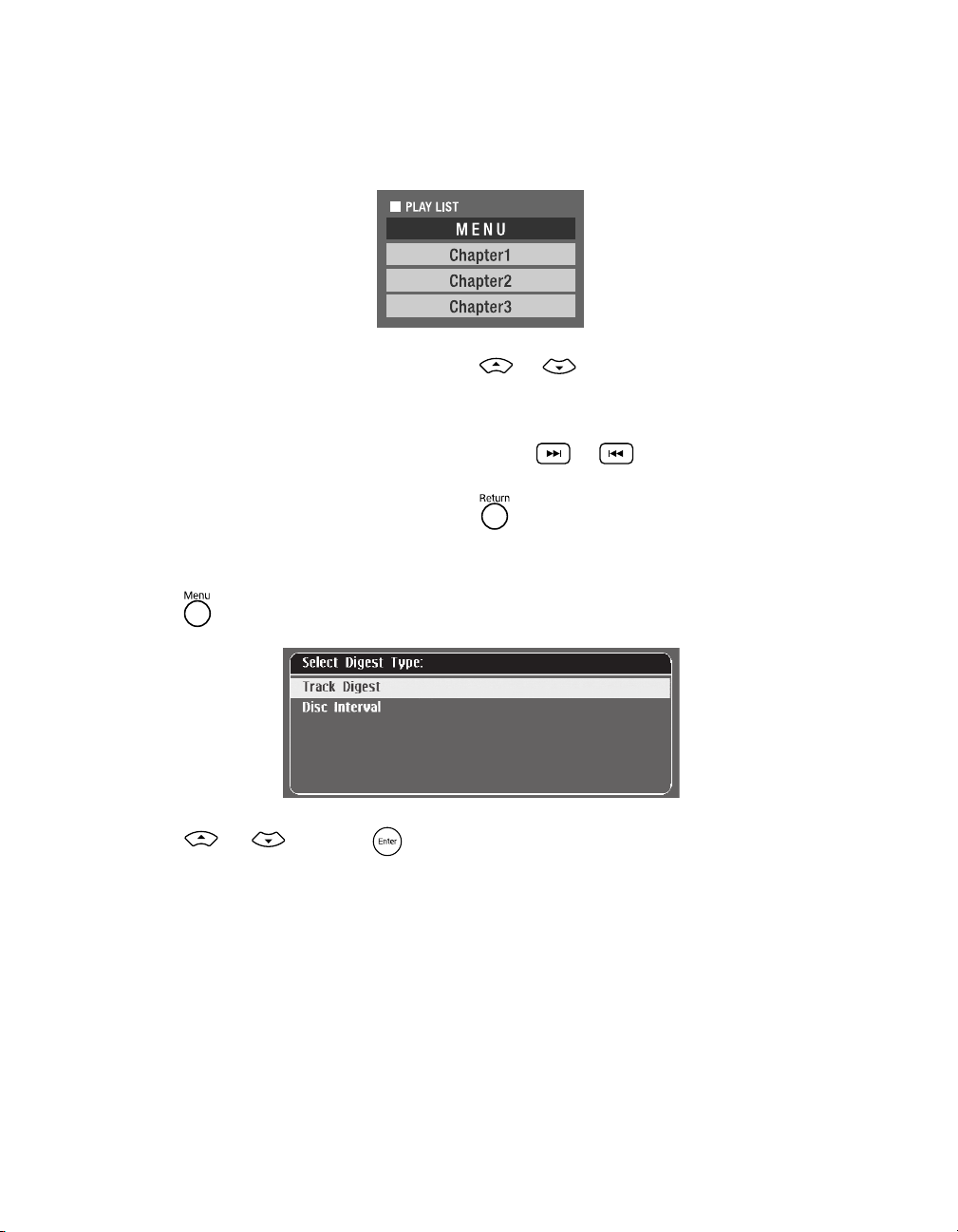

Using DVD Menus	25
Temporarily Stopping Audio	25
Adjusting the Color Mode	26
Adjusting the Sound and Audio Modes	26

Contents 3

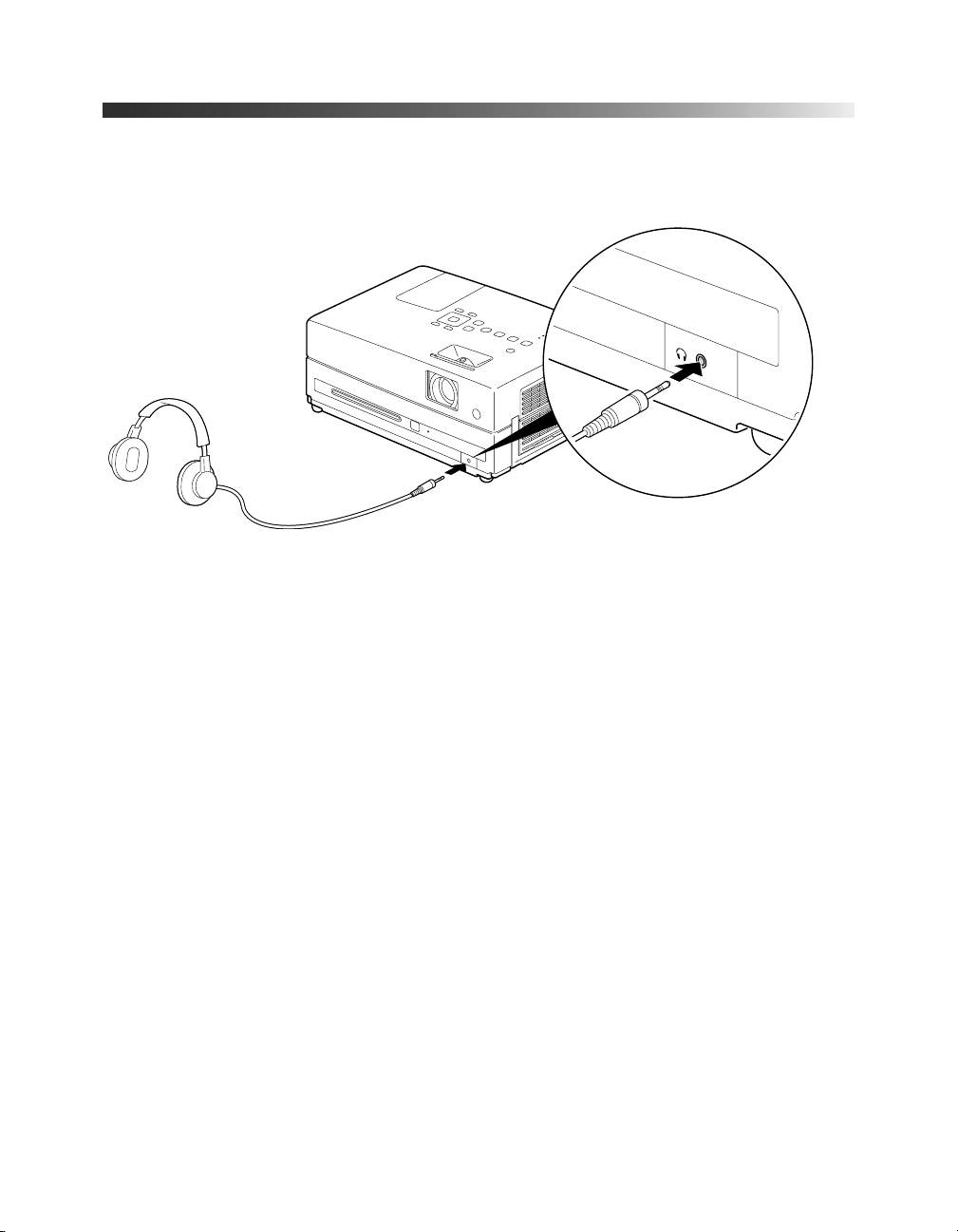

Listening with Headphones	27

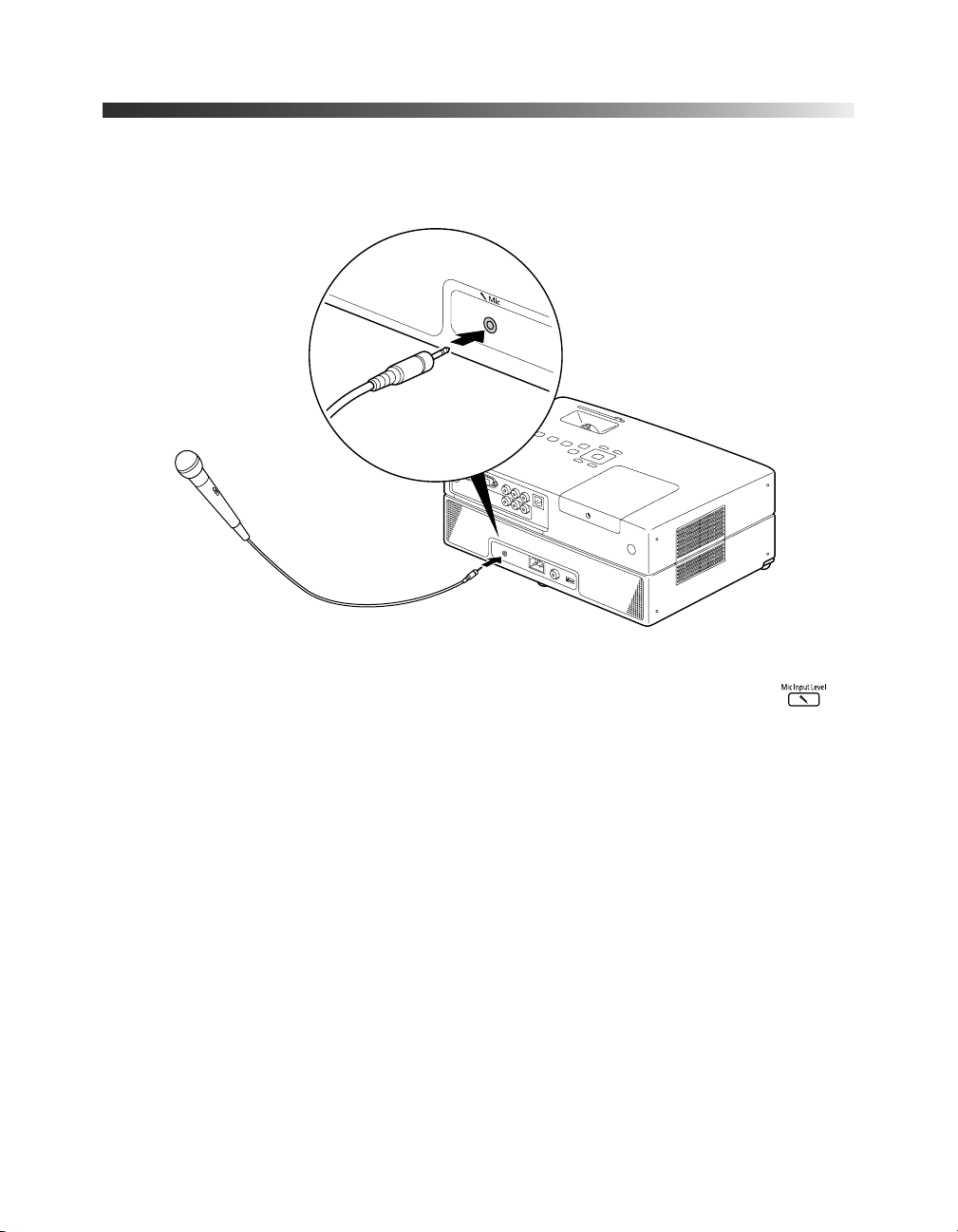

Connecting a Microphone	28

Using PowerLite Presenter with Other Equipment	29

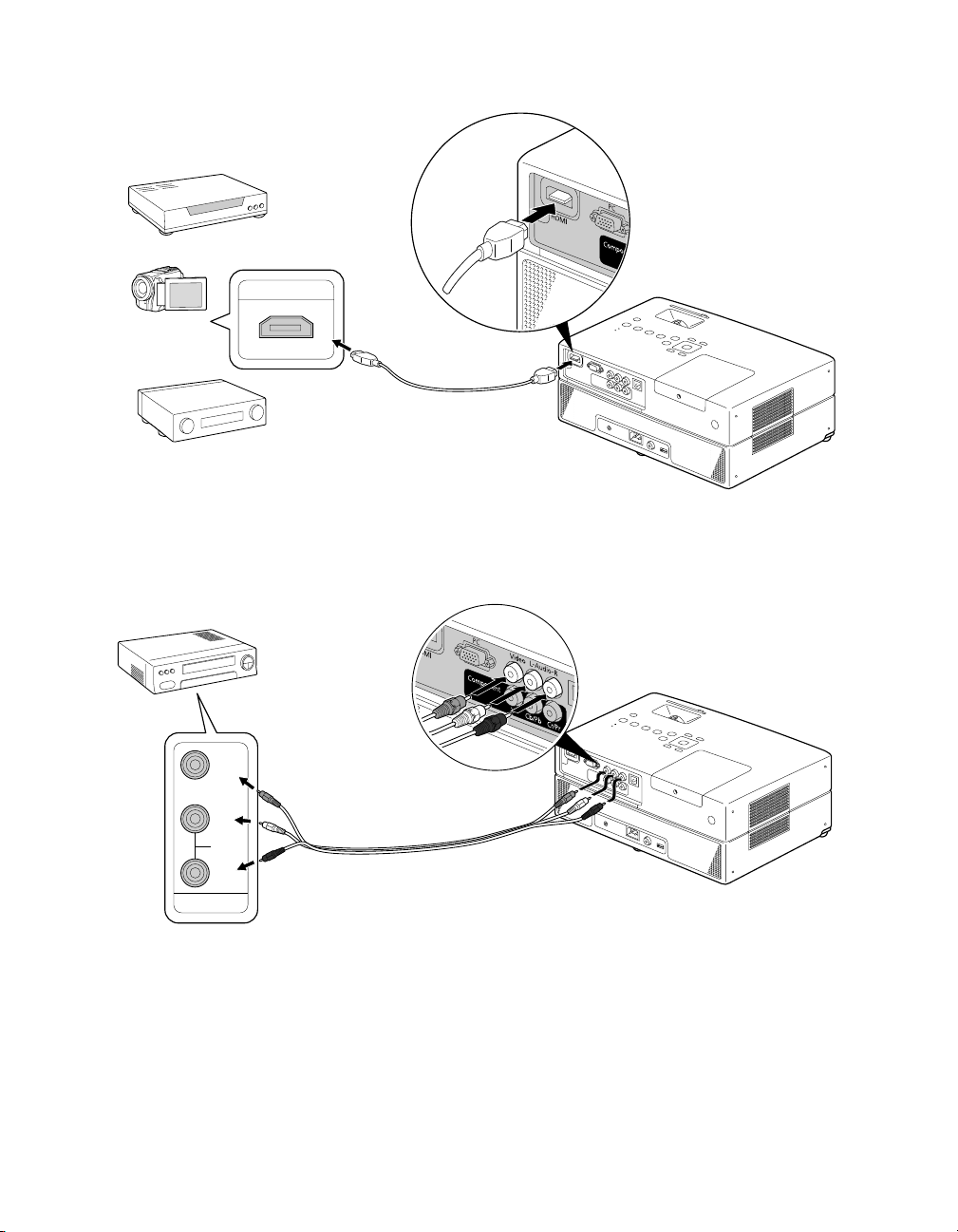

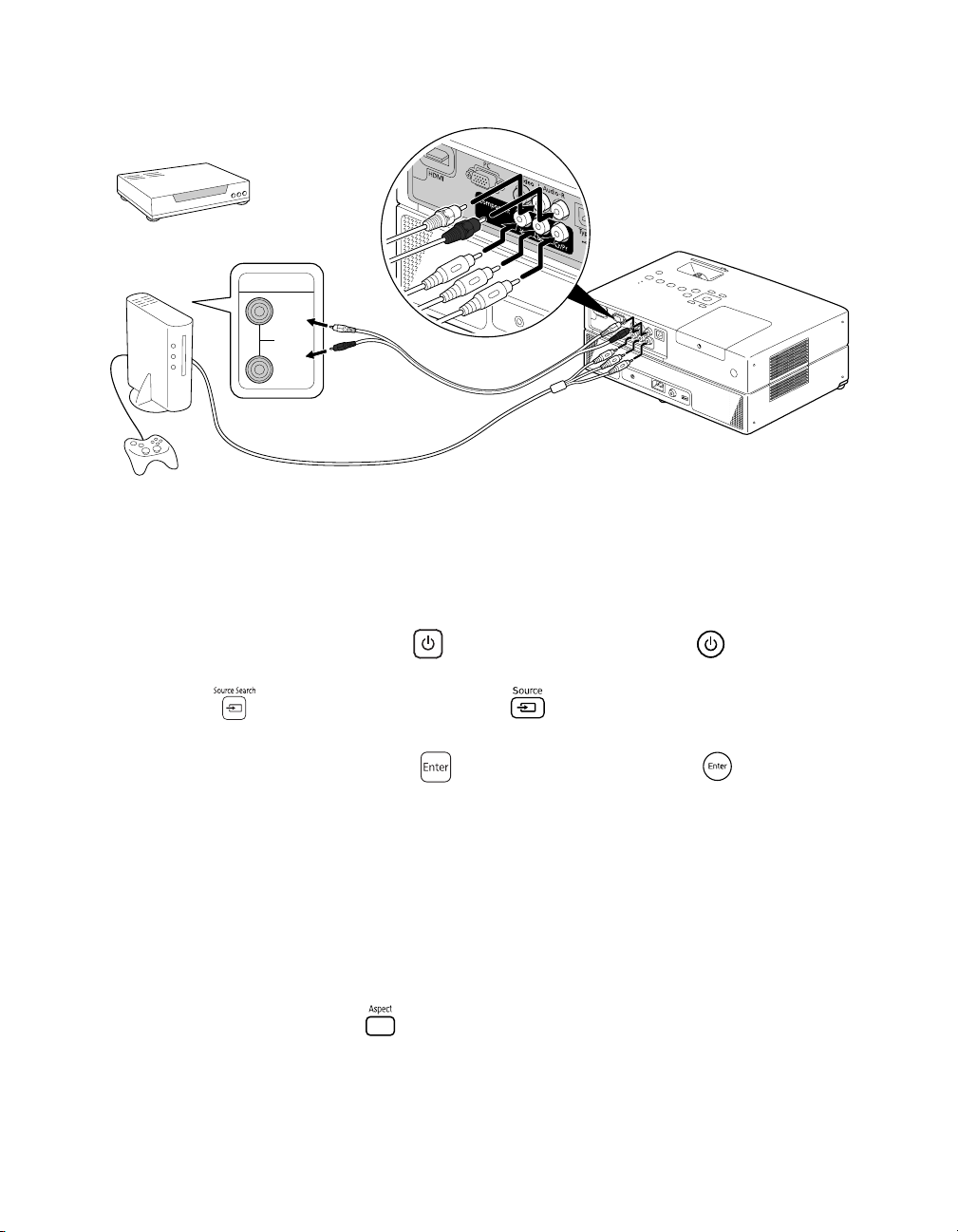

Viewing Video from External Devices	29

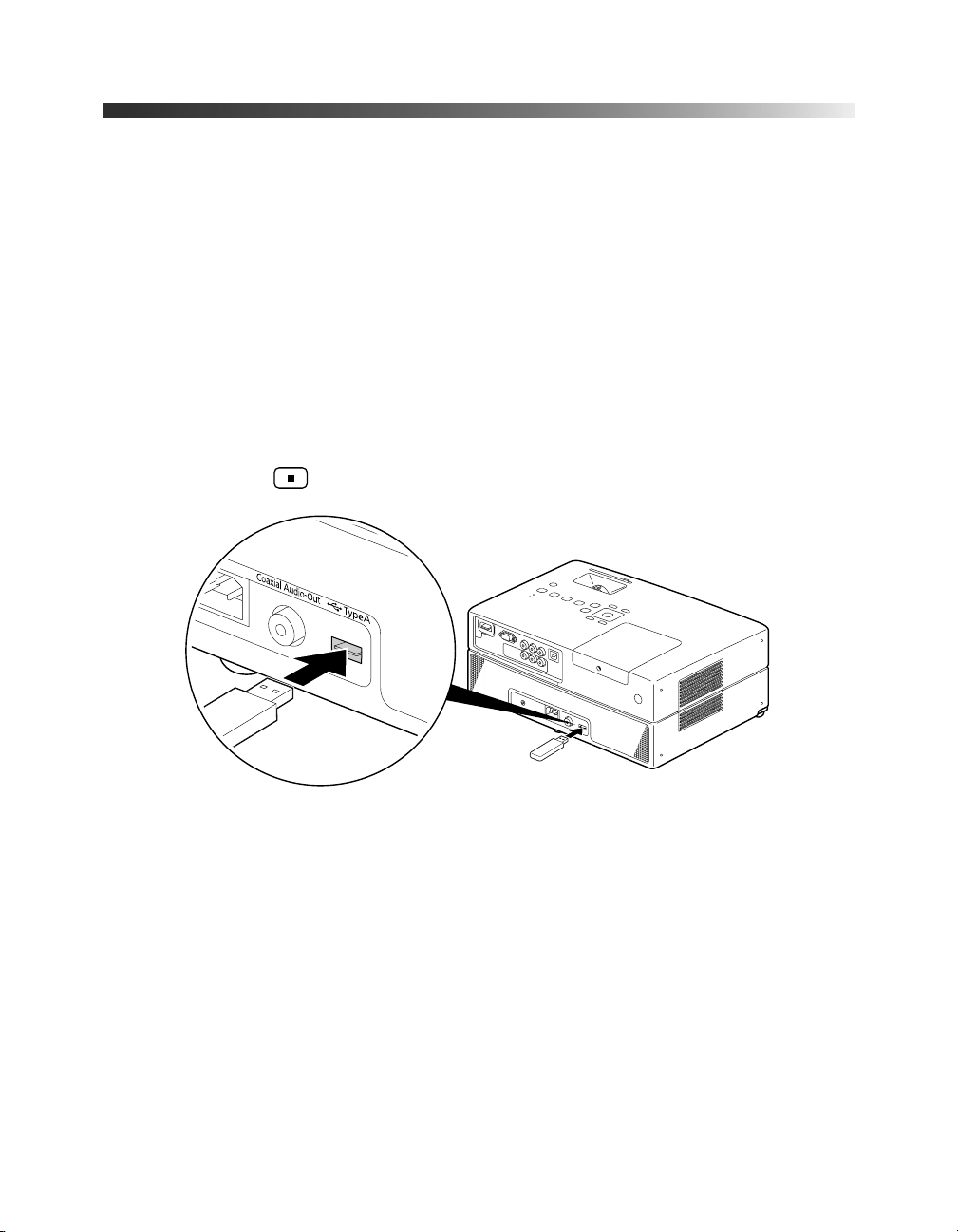

Connecting a USB Device	32

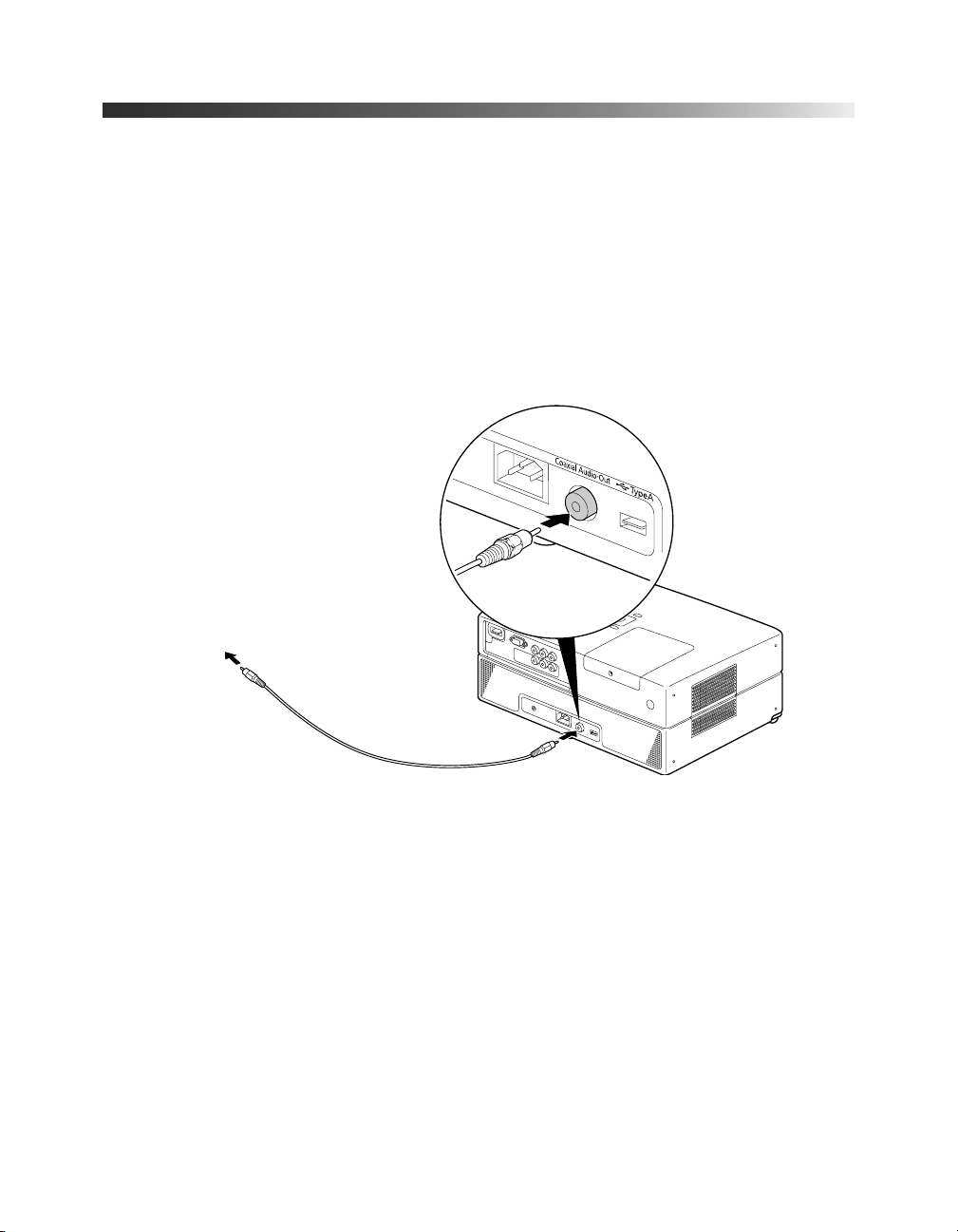

Playing Projector Audio Through an External Audio System	33

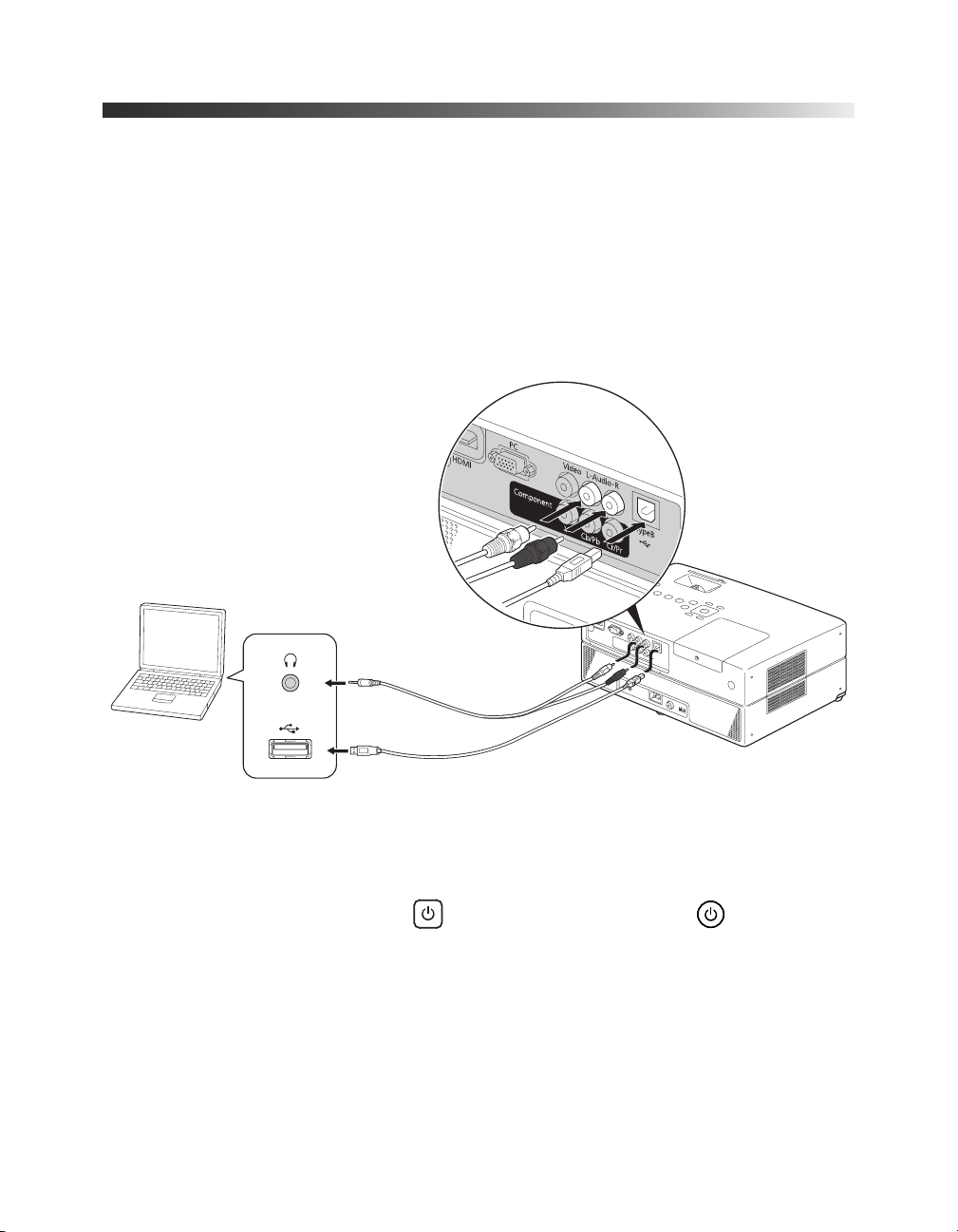

Connecting a Computer or Laptop	34
Connecting to the USB Port	34

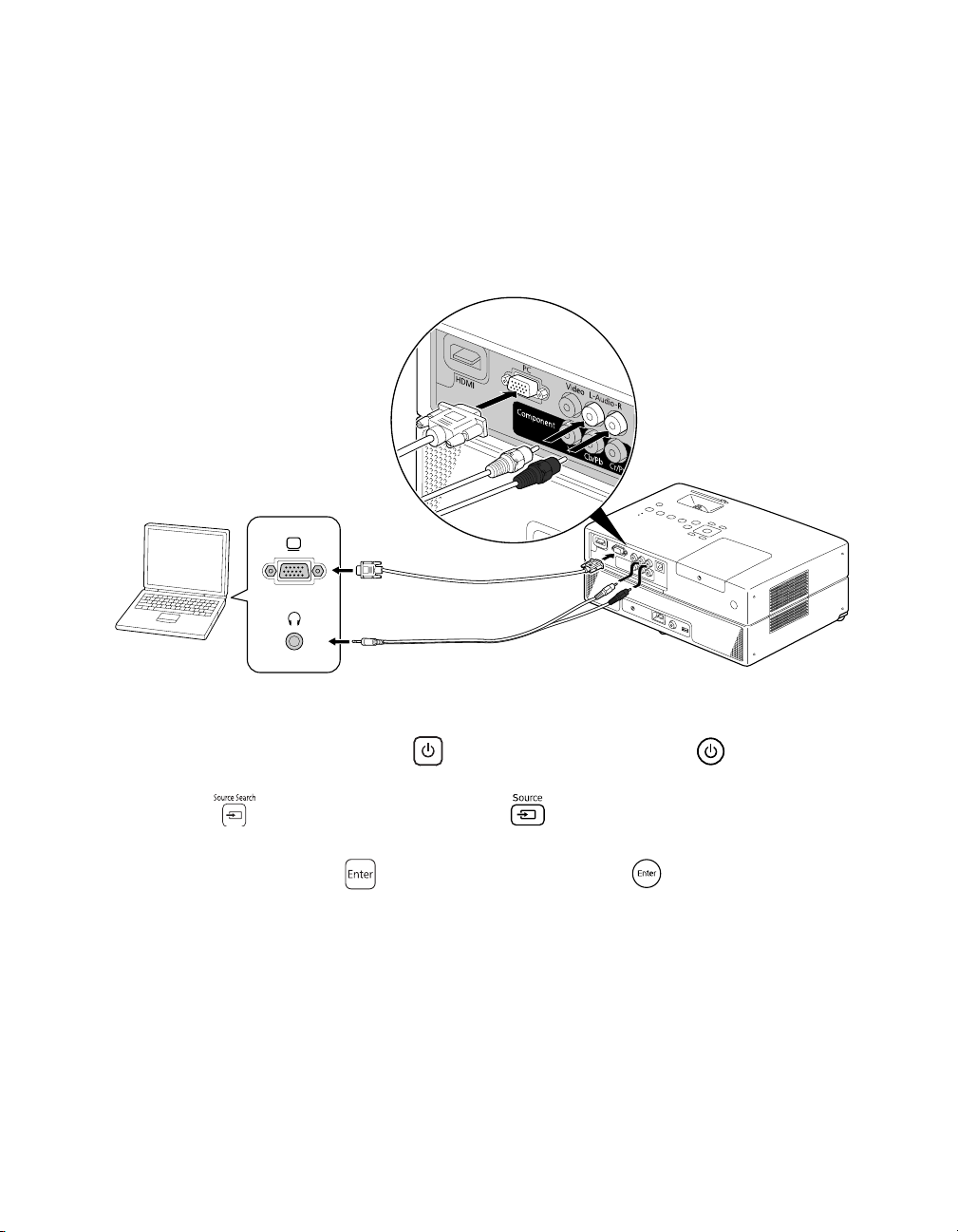

Connecting to the PC Port	36
Doing More with PowerLite Presenter	38
Playing Music and DivX Videos and Viewing Photos	38
Playing Music CDs	38

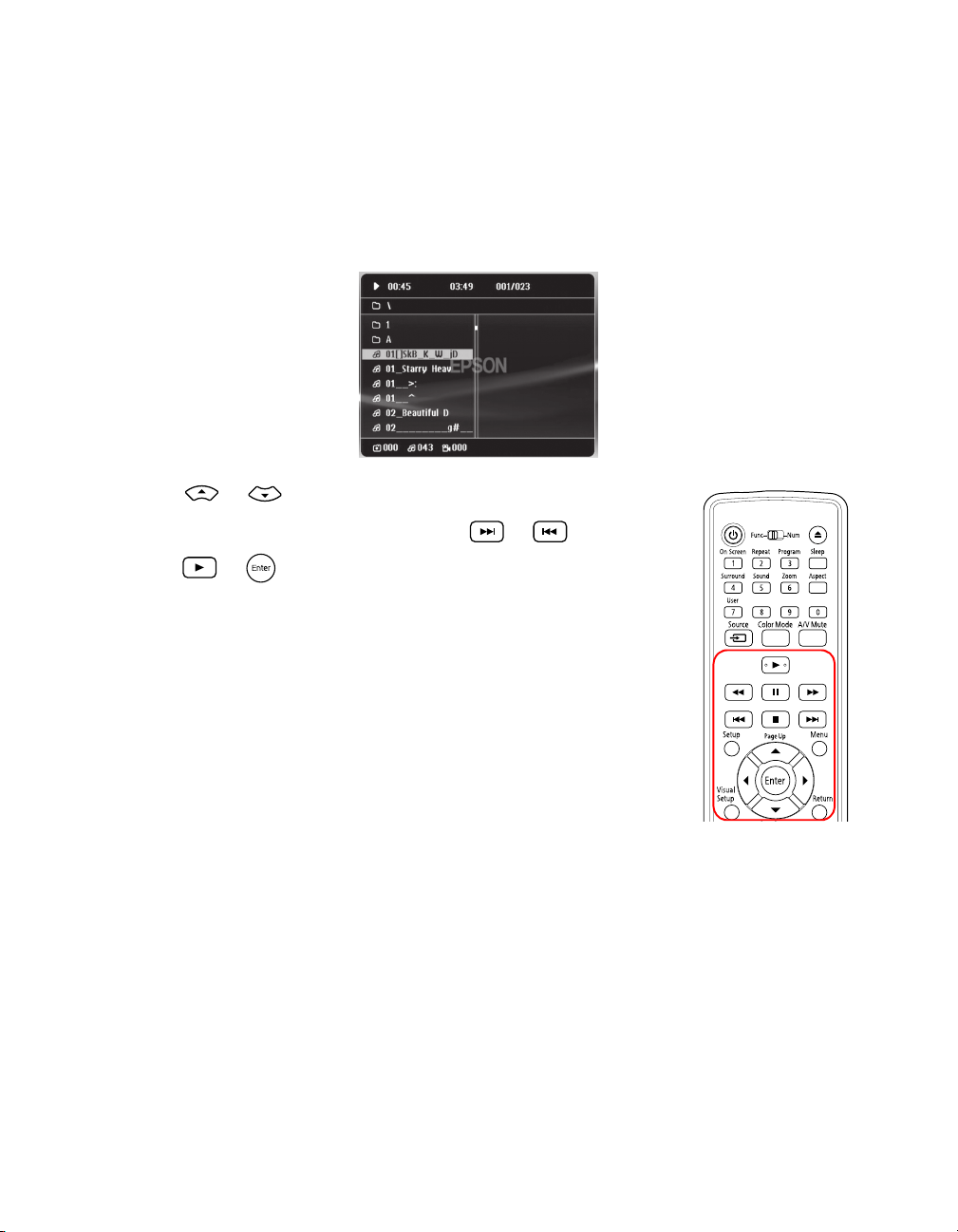

Playing MP3/WMA Music or DivX Videos	39

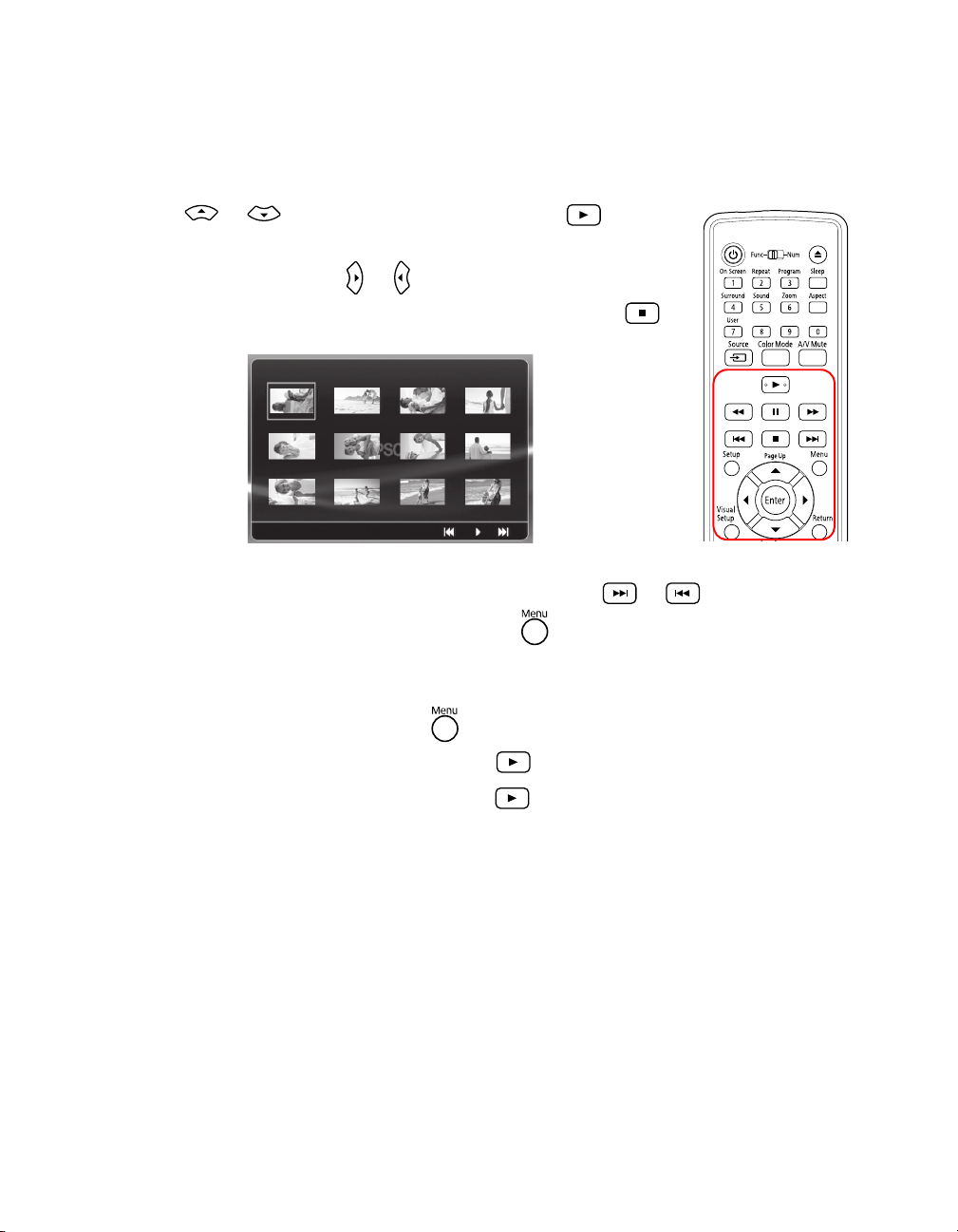

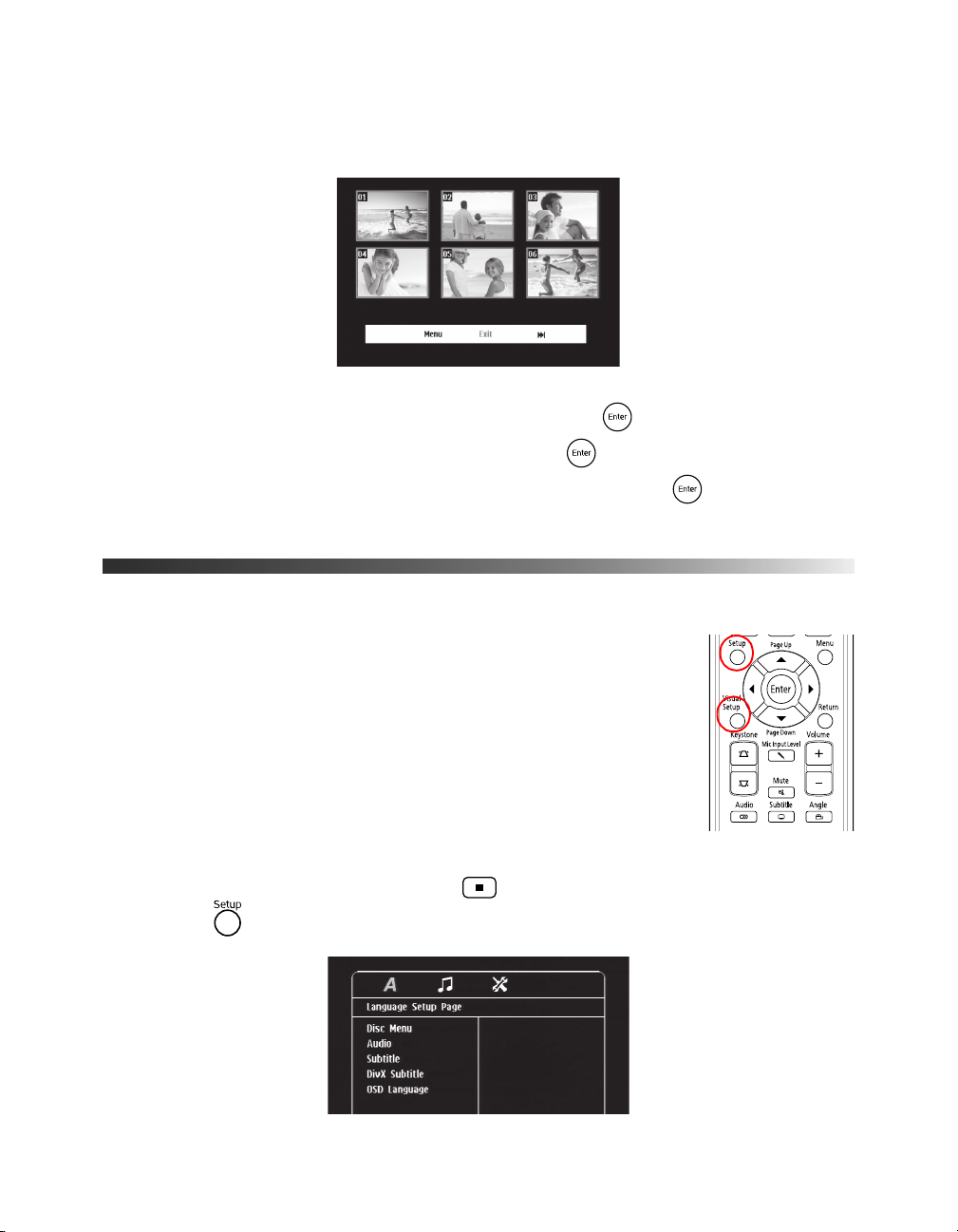

Viewing JPEG Photos	40
Using Advanced Playback Controls	41
Repeating a Chapter, Title, Track, or File	41

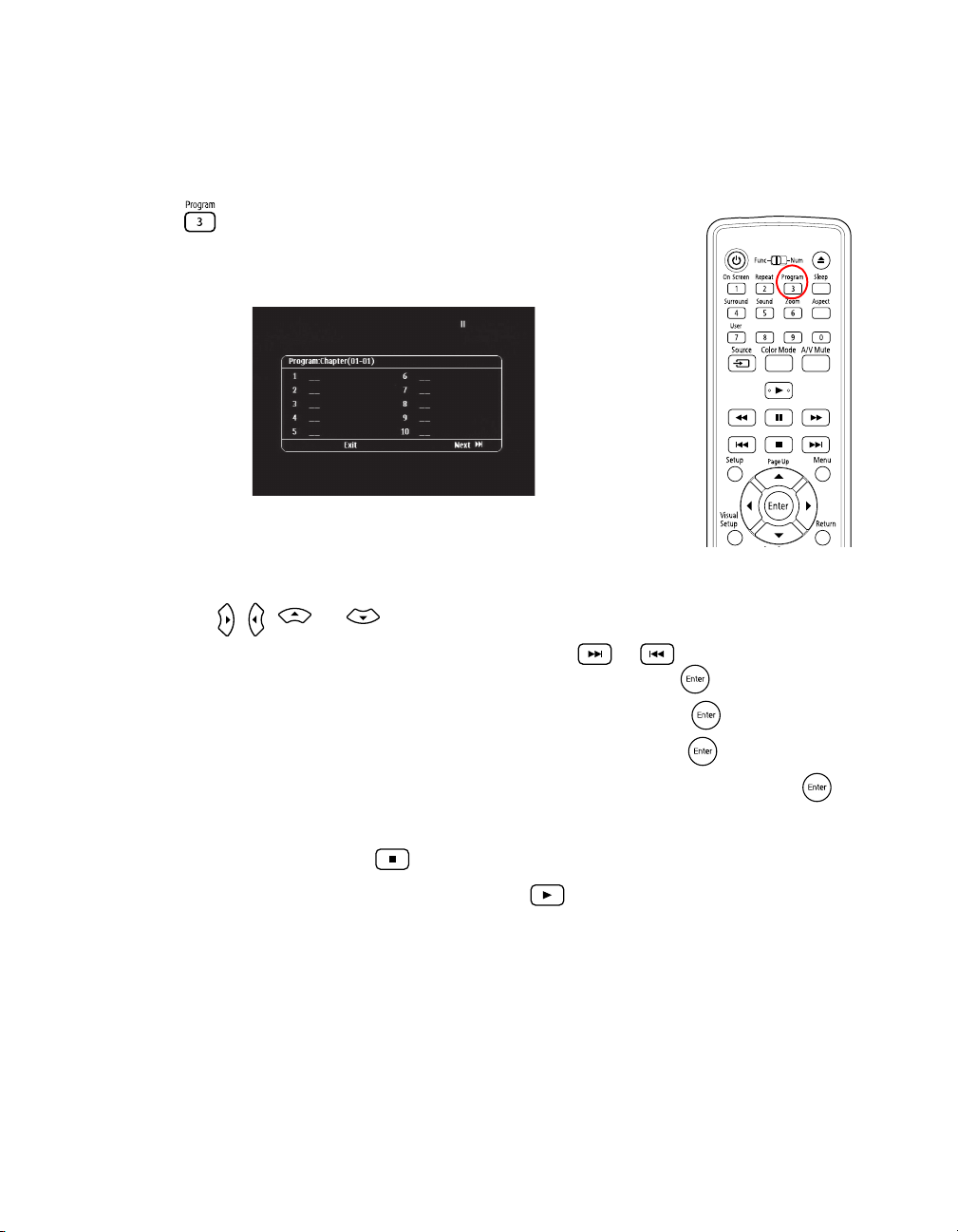

Changing the Play Sequence (Program Play)	42
Selecting Language, Subtitles, and Camera Angles	43

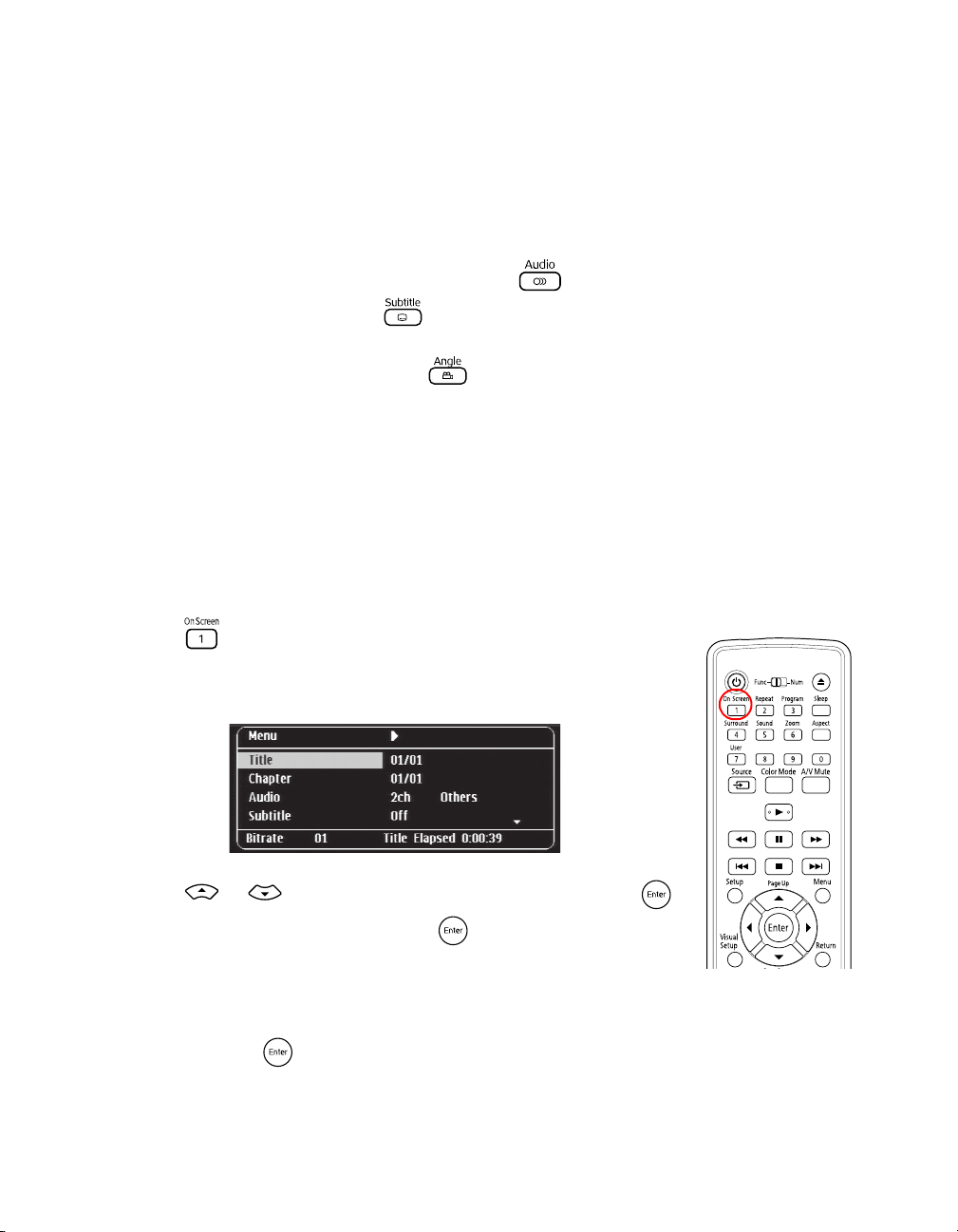

Using the Playback Information Screen	43
Playing Video CDs with Playback Control (PBC)	44

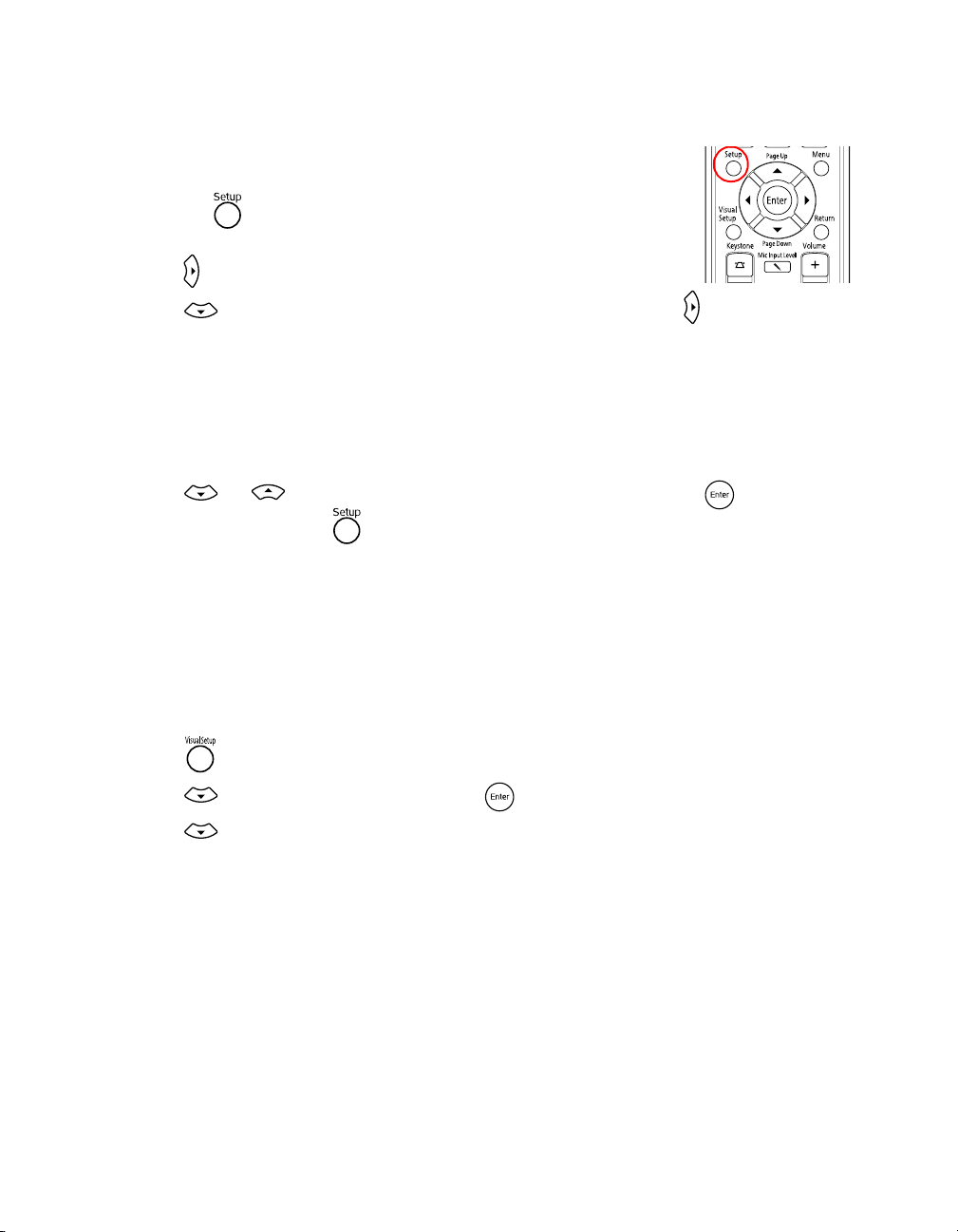

Customizing PowerLite Presenter	45
Locking DVDs	45
Locking the Power Button on the Control Panel	46

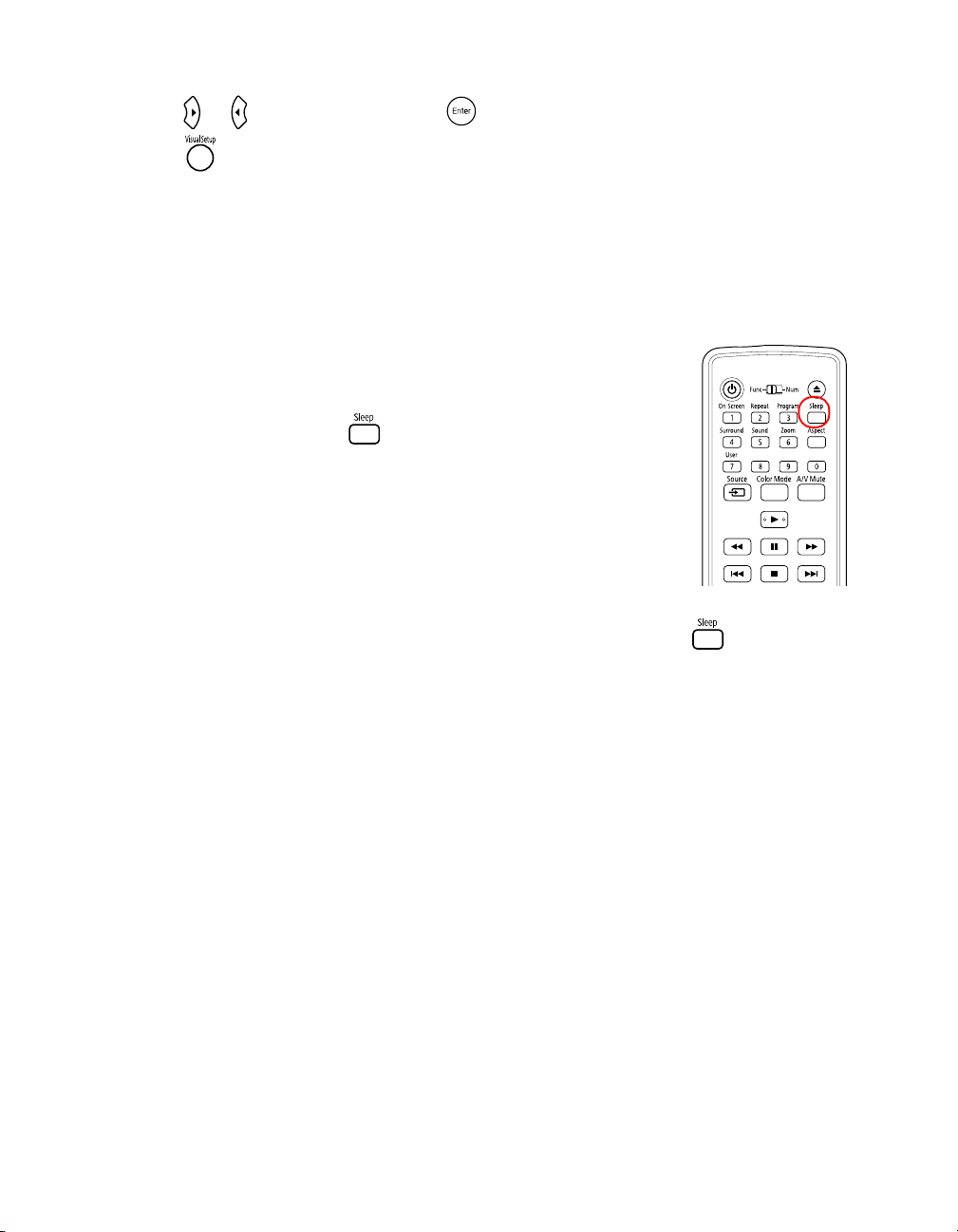

Saving Power	47

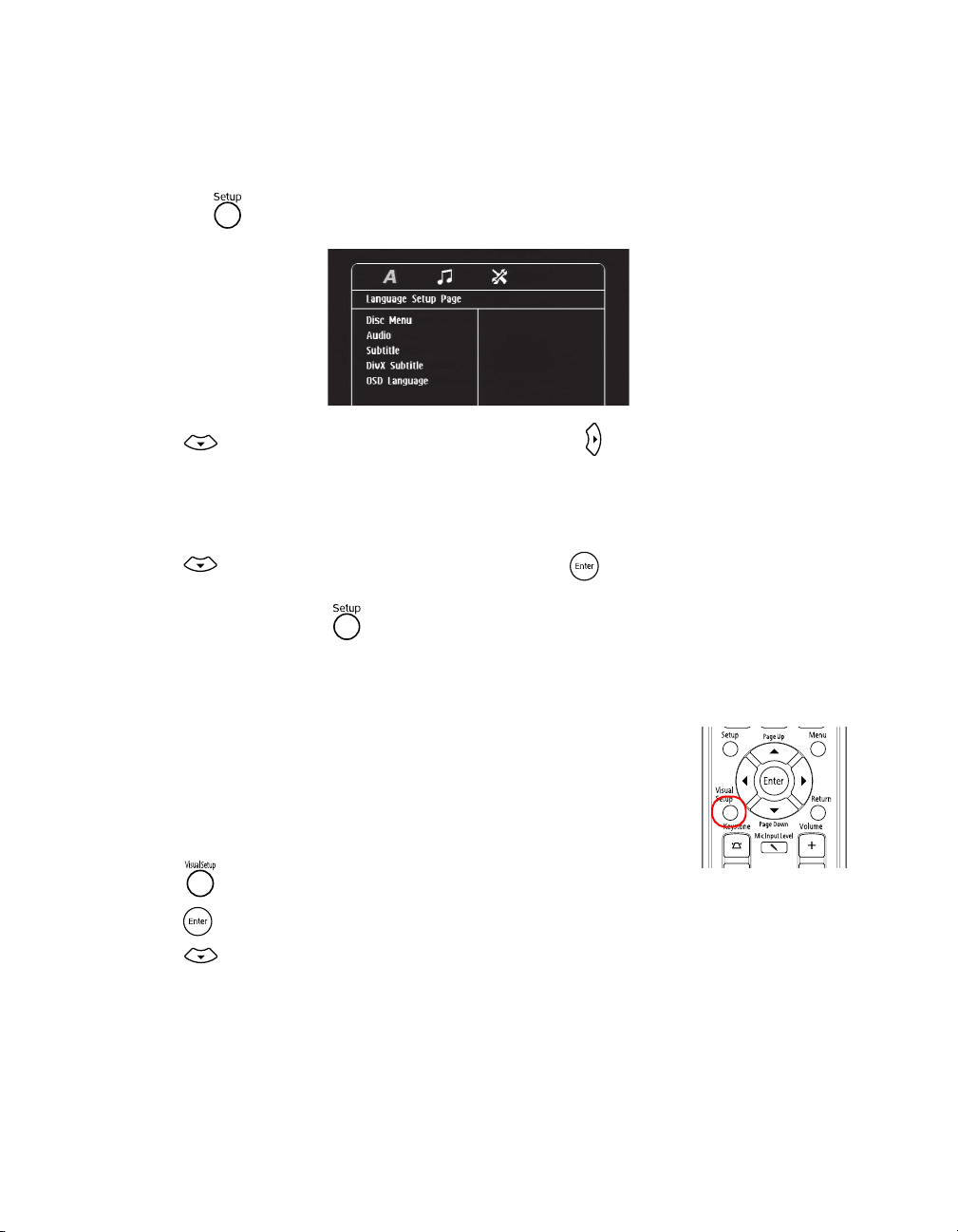

Changing Language Settings	48
Adjusting Picture Quality	48
Using the Others Setup Page	49
Adjusting Dolby Audio Settings	50

4 Contents

Setting Video and Other Options	50

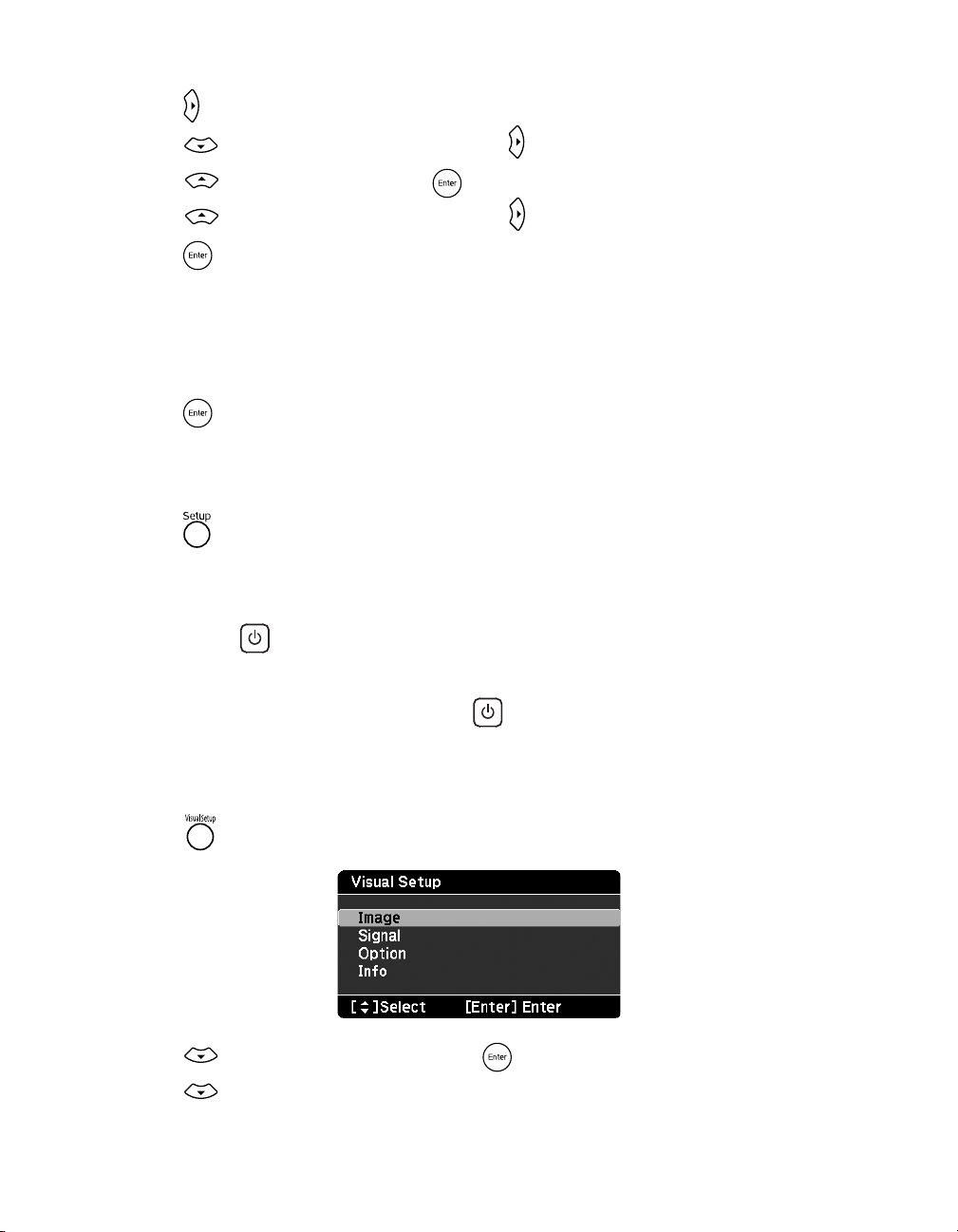

Viewing Status Information and Resetting the Lamp Timer	52

Caring for Your PowerLite Presenter	53
Protecting PowerLite Presenter	53
Cleaning the Lens	53
Cleaning the Case	54

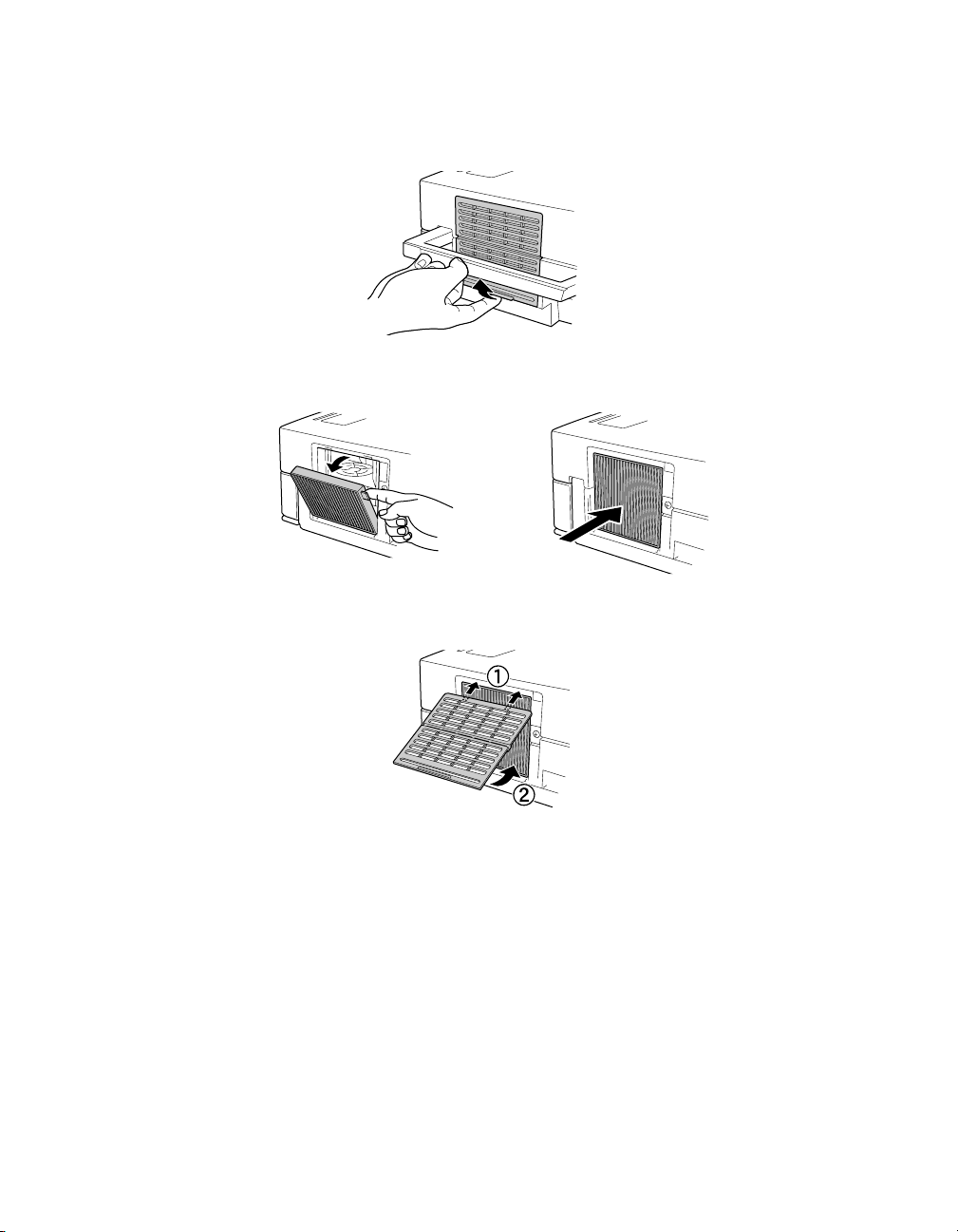

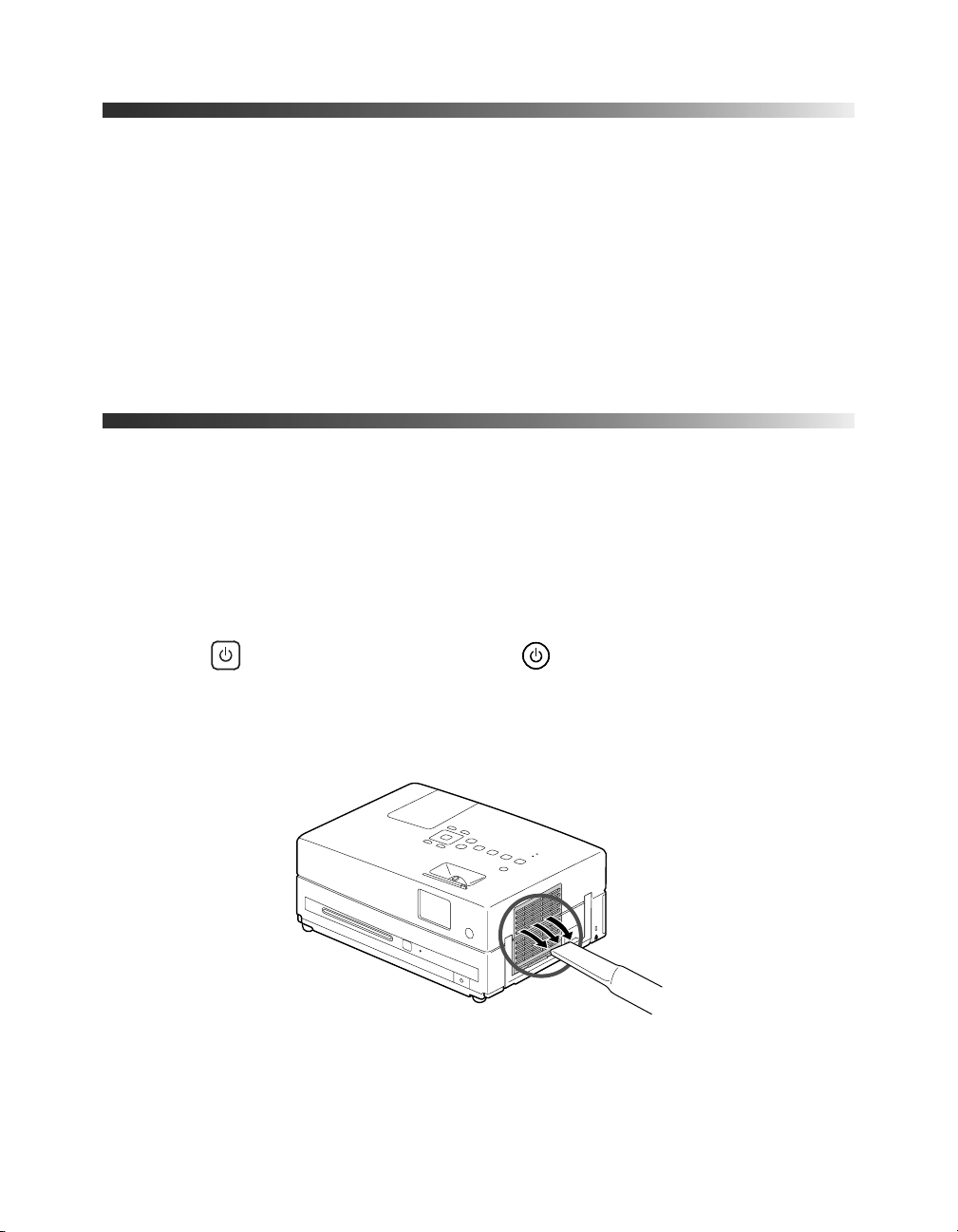

Cleaning and Replacing the Air Filter	54

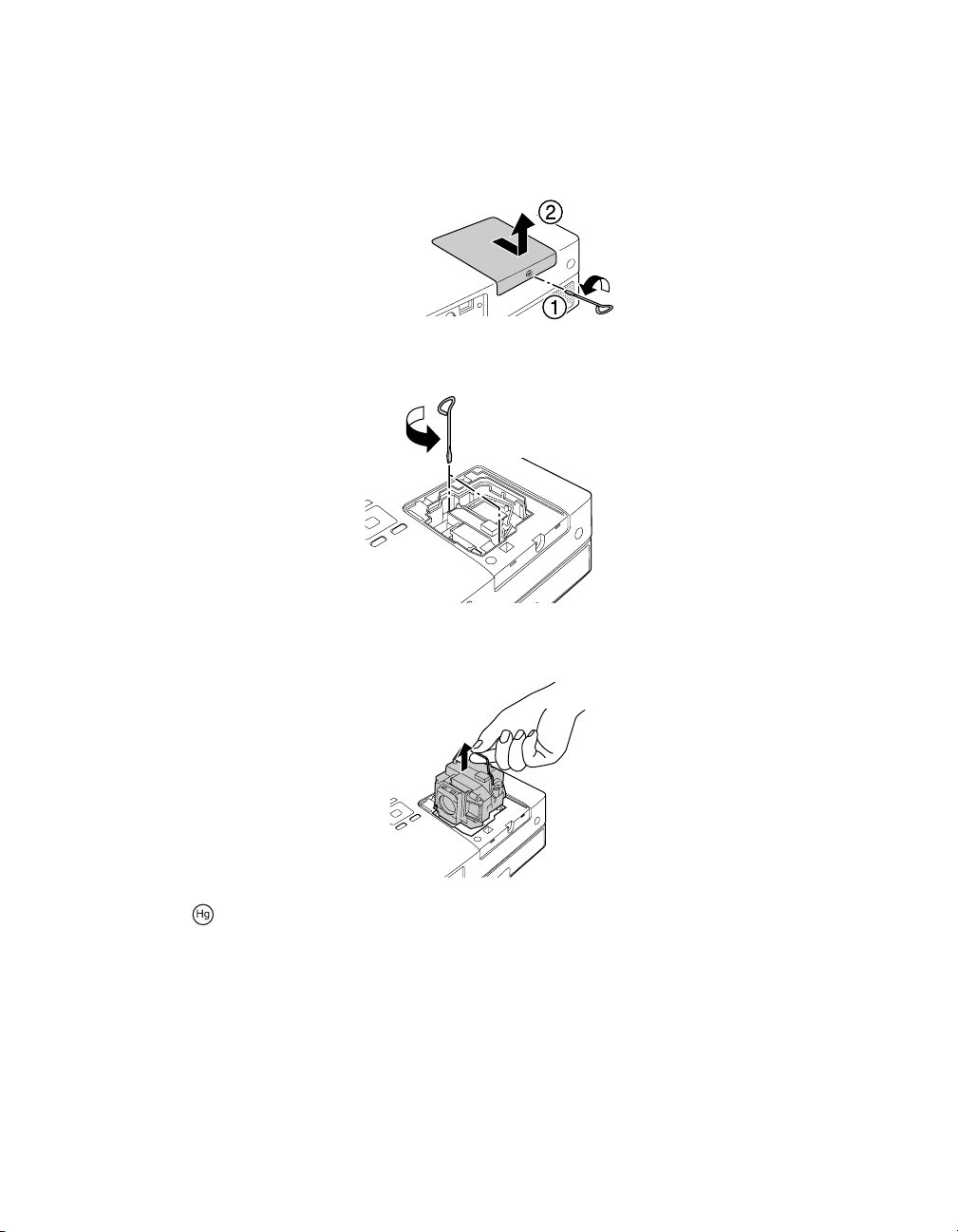

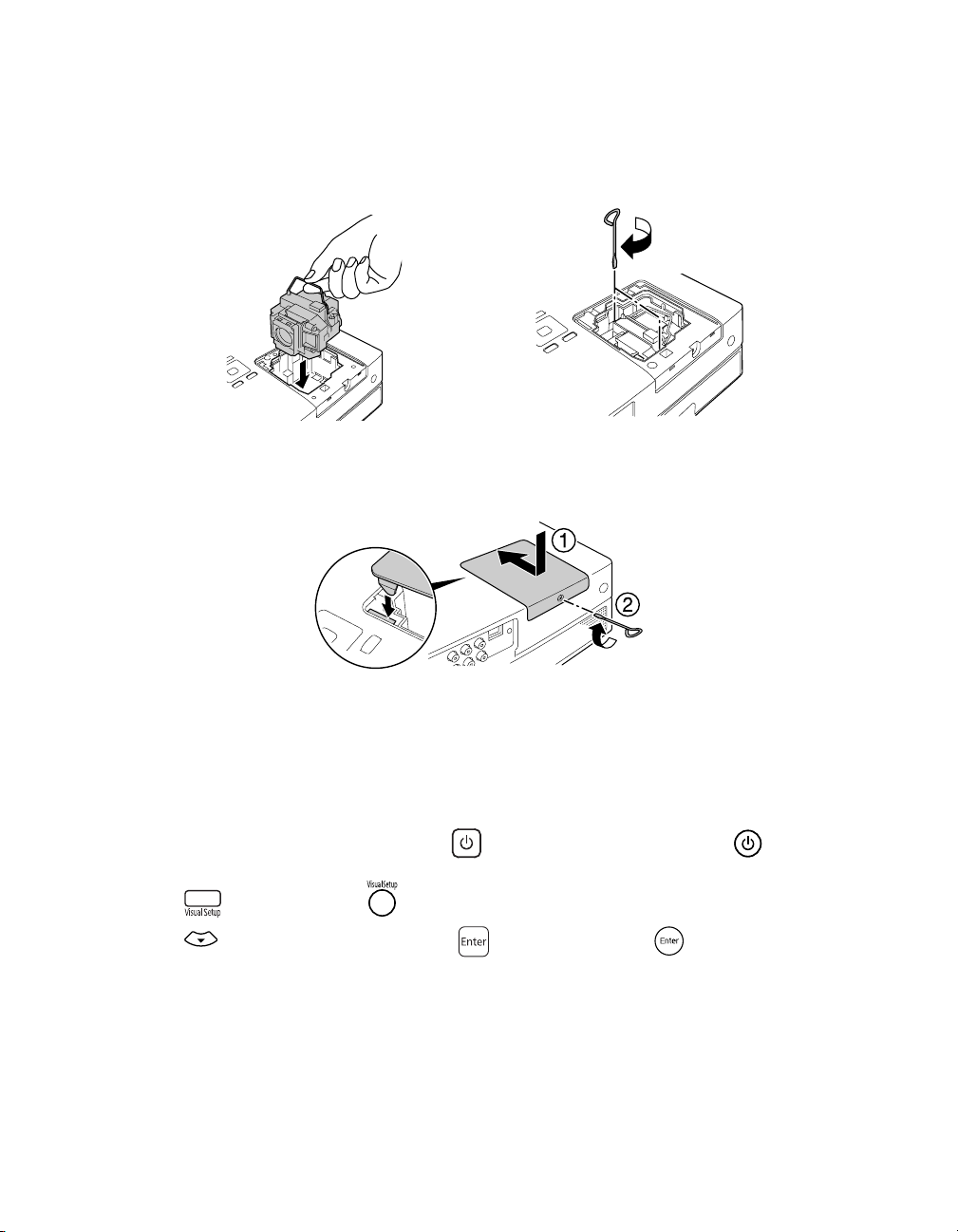

Replacing the Lamp	56

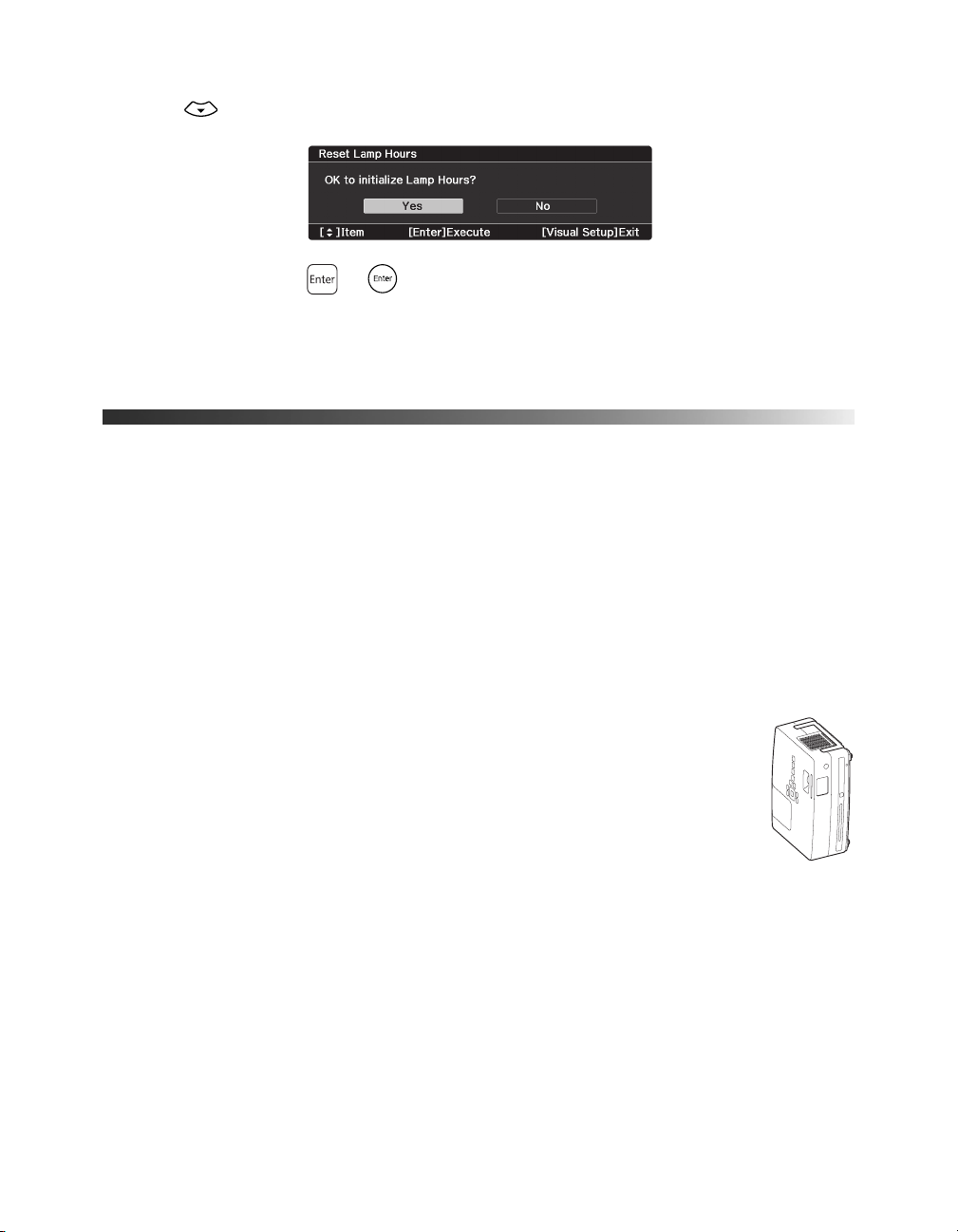

Resetting the Lamp Timer	58
Storing PowerLite Presenter	59

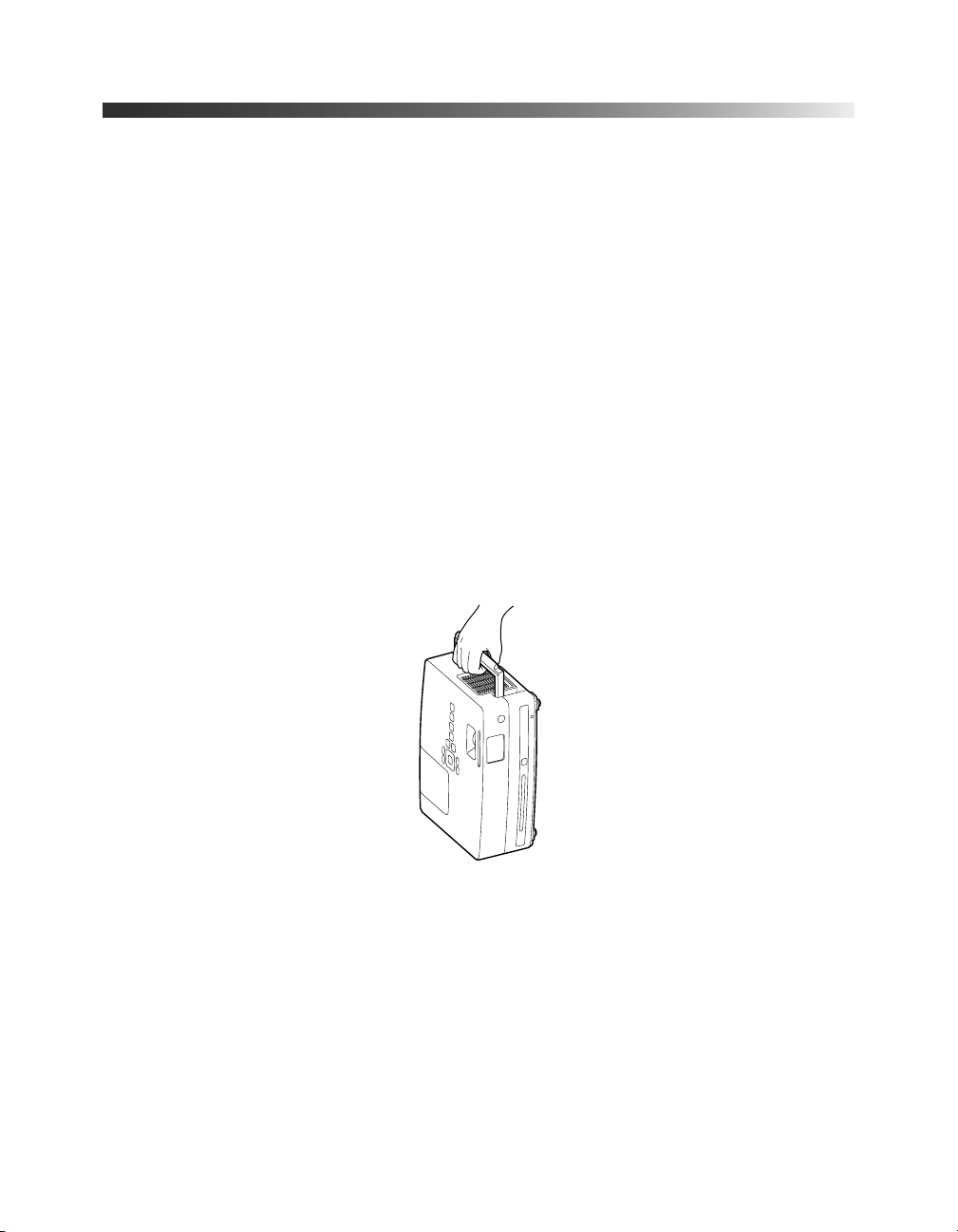

Transporting PowerLite Presenter	60
Problem Solving	61

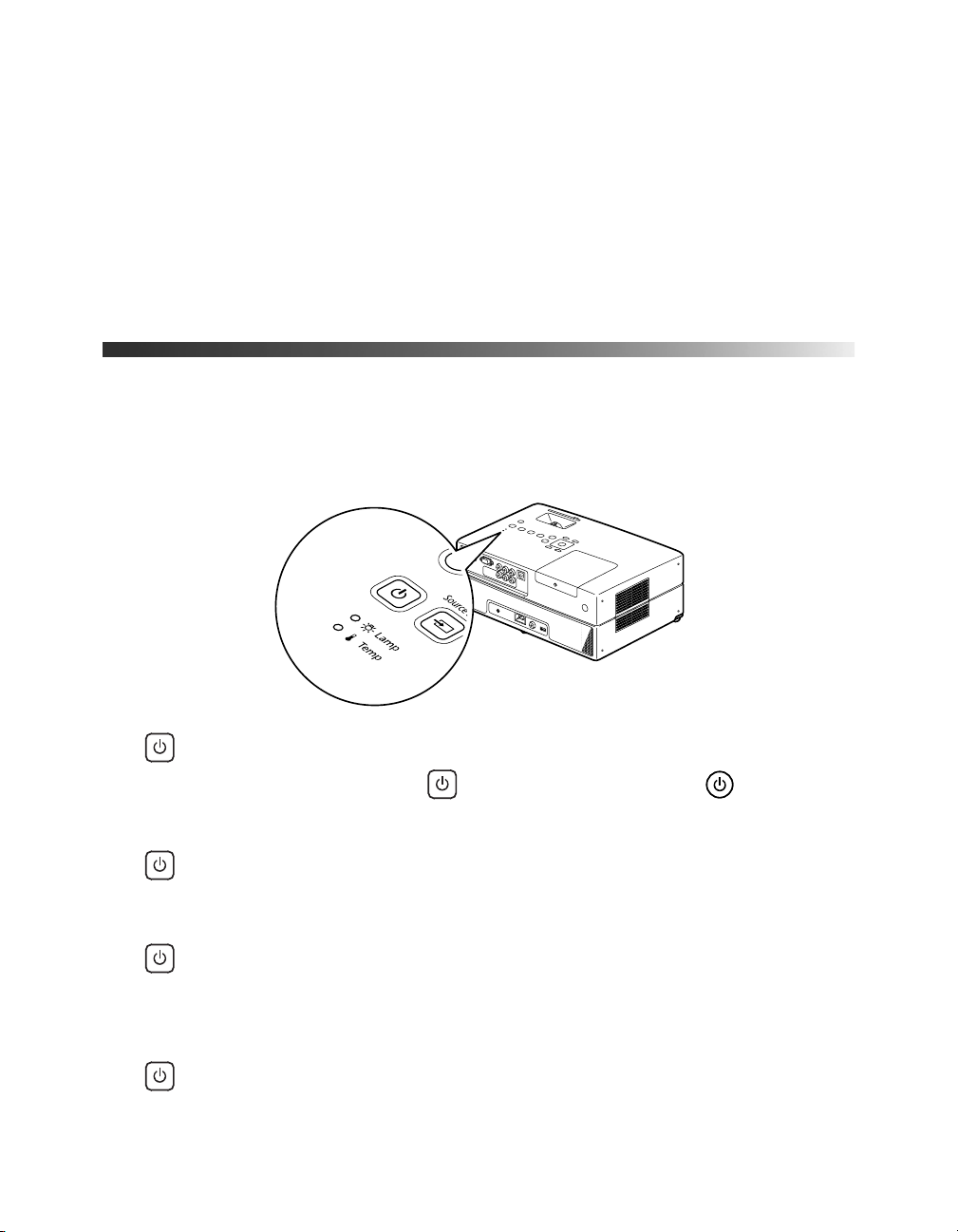

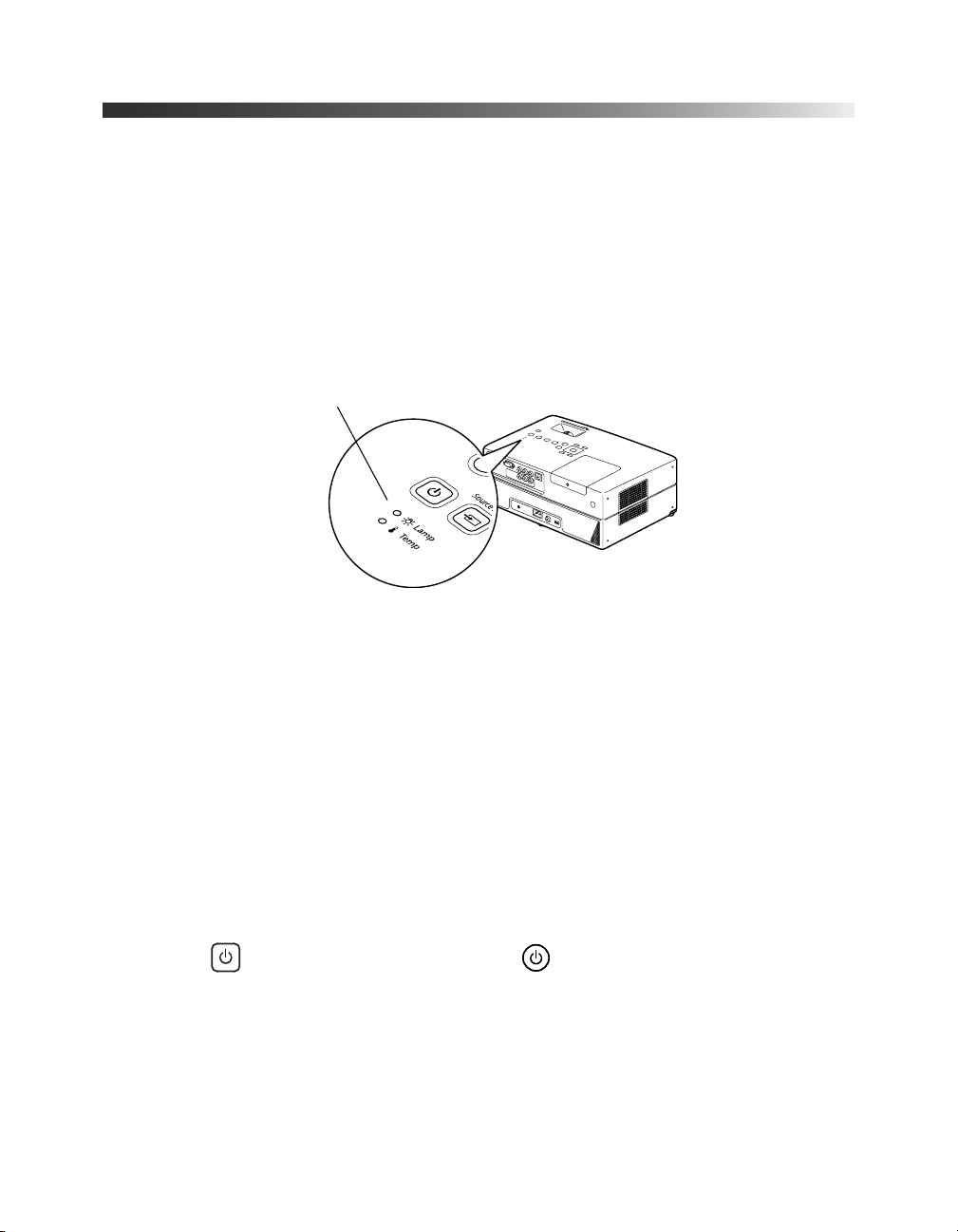

What To Do When the Lights Flash	61
Solving PowerLite Presenter Operation Problems	63
Solving Picture and Sound Problems	64
Problems with External Video Equipment	66
Where To Get Help	68
Internet Support	68
Speak to a Support Representative	68
Purchase Supplies and Accessories	68
Specifications	69
Index	76

Contents 5

Welcome

Your PowerLite Presenter is a portable, lightweight projector with a built-in DVD player and powerful speakers. From classrooms to boardrooms, your full-color presentations and videos will be bright and vibrant even in ordinary indoor lighting. You can connect the projector to a wide range of computers and video sources, as well as USB storage devices.

PowerLite Presenter offers these outstanding features:

■Widescreen viewing with native WXGA (1280 × 800) resolution and a 16:10 aspect ratio

■Up to 2500 lumens of White and Color Light Output (brightness), enough for viewing in daylight

■DVD player with Dolby® Digital and DTS®

■Built-in speakers with DTS digital surround sound

■Closed captioning

■Microphone input

■HDMI interface for connecting high-end video equipment.

■Long-life bulb providing up to 5000 hours of use

■USB plug and play connectivity for quick and easy setup

■Automatic digital keystone correction and automatic color mode

Registration and Warranty

Your PowerLite Presenter comes with a warranty that lets you project with confidence. For details, see the warranty brochure included with your projector.

In addition, Epson® offers free Extra CareSM Road Service during your warranty period. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States or Canada. See the brochure included with your projector for details.

We encourage you to register your PowerLite Presenter. You can register using the CD that came in the box. Or you can register online at http://www.epson.com/webreg. Registering also lets you receive special updates on new accessories, products, and service.

6 Welcome

Optional Accessories

Epson provides these replacement parts and optional accessories for the PowerLite Presenter:

Product	Part number
Replacement lamp (ELPLP55)	V13H010L55
Replacement air filter (ELPAF26)	V13H134A26
Kensington® security lock	ELPSL01
Accolade® Duet™ Ultra Portable	ELPSC80
Projection Screen
Portable Pop-up Screen 80”	ELPSC08
Portable Projection Screen 50”	ELPSC06
DC-10s Document Camera	ELPDC10S
DC06 Document Camera	V12H321001

You can purchase accessories from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

About This Manual

See the Quick Setup sheet to set up your PowerLite Presenter and start using it. This book contains information on using all the features of PowerLite Presenter, troubleshooting tips, and specifications.

Please follow these guidelines as you read through the manual:

Warnings: Must be followed carefully to avoid bodily injury.

Cautions: Must be observed to avoid damage to your equipment.

Notes: Contain important information about your equipment.

Tips: Contain helpful projection tips.

Need additional help? Visit Epson’s U.S. support website or Canadian support website for solutions to common problems. You can download utilities and documentation, get FAQ’s and troubleshooting advice, or e-mail Epson with your questions.

If you need more help, you can use the Epson PrivateLine® Support service. Call

[phone] and enter the PIN on the PrivateLine support card that came with PowerLite Presenter.

Welcome 7

PowerLite Presenter Parts and Controls

Front View

	A/V mute/
	Lens cover slide				Remote control
					receiver
	Lens
	cover				Air filter/
					Air intake vent
	Foot
	adjustment
	lever
	Adjustable				Security
	foot				slot
	Disc slot				Handle
	Eject
	button				Foot
		Disc	Lens		adjustment
					lever
		indicator light
				Headphone	Adjustable
				jack	foot
	Back View
	Audio		USB port	Remote control
			(Type B)
	inputs			receiver
	Video port				Air exhaust
					vent
	HDMI port
	Computer
	port
	Speaker
	Component
	video ports
	Mic input				Storage
					feet
	port
	Power	Digital coaxial
	inlet	audio-out port		USB port
				(Type A)	Speaker

8 Welcome

Top View

Lamp cover

Focus image

Zoom image

Control panel

	Ambient light
Power	sensor	Access Setup menu	Access DVD
status light
		(DVD settings)	menu (chapter
		Play/Pause	selection, etc.)

Turn PowerLite

Presenter

on or off

Select menu settings

Lamp warning light

Temperature
warning light					Return to
Project from	Stop
					previous menu
external equipment

Control

volume Access Visual Setup menu (projector settings)

Welcome 9

Remote Control

Turn PowerLite Presenter on or off

Open menus/functions assigned by user

Project from external equipment

Adjust picture for different lighting

Fix image shape (if PowerLite Presenter is tilted)

Note: The remote control buttons can glow in the dark. Expose the remote control to light for several minutes before using it in the dark.

Function/numerics	Eject DVD
toggle switch

Change aspect ratio

Temporarily turn off the image and sound

Control playback

Control volume

Access DVD features

10 Welcome

Important Safety Instructions

Follow these safety instructions when setting up and using your PowerLite Presenter:

■Except as specifically explained in this User’s Guide, do not attempt to service this product yourself. Refer all servicing to qualified service personnel.

■Never open any cover on the projector, except the lamp and filter covers. Dangerous electrical voltages inside the projector can severely injure you.

■The projector’s accessories come packaged in plastic bags. Keep plastic bags away from small children to avoid any risk of suffocation.

■Never look into the projector lens when the lamp is turned on; the bright light can damage your eyes. Never let children or pets look into the lens when it is on.

■Don’t place the projector on an unstable cart, stand, or table. Also, don’t stand on the projector or place heavy objects on it.

■Never push objects through the cabinet slots or spill liquid into the projector.

■Do not use the projector near water, or sources of heat or vibration. Do not expose it to rain or moisture.

■Do not move the unit during playback.

■Do not touch the projection lens with bare hands.

■Use a damp cloth for cleaning. Do not use liquid or aerosol cleaners. Do not use solvents such as alcohol, thinner, or benzine. Unplug the projector from the wall outlet before cleaning.

■Do not use the projector in places where flammable gases or explosive gases may be present in the atmosphere.

■Do not use the projector in places where there is excessive humidity or dust, near cooking or heating appliances, or in places where it may come into contact with smoke or steam. Do not use or store the projector outdoors for an extended length of time.

■Never try to remove the lamp immediately after use. Doing so will result in serious burns. Before removing the lamp, turn off the projector and wait approximately one hour for the lamp to cool completely.

■The lamp is fragile and can easily break. If the lamp breaks, handle the projector with extreme care to avoid injury from broken glass, and contact Epson to replace the lamp.

■Do not use the lamp after the lamp replacement period has elapsed, because the possibility of lamp breakage increases. When the lamp replacement message appears, replace the lamp with a new one as soon as possible.

Welcome 11

■ The lamp(s) in this product contain mercury. Please consult your state and local regulations regarding disposal or recycling. Do not put in the trash.

■The lamp in this projector is under high internal pressure and may make a loud noise if it breaks. If it breaks, ventilate the room to prevent mercury gas inside the lamp from being inhaled or coming into contact with the eyes or mouth.

■Do not bring your face close to the projector while it is in use, to prevent burns from hot air leaving the exhaust vent, and to prevent inhaling or contact with the gases inside the lamp if it breaks.

■Do not place anything that can become warped or damaged by heat near the air exhaust vents.

■Do not place the projector near a flame.

■Before you move the projector, make sure it is turned off, the plug is disconnected from the outlet, and all cables are disconnected.

■If the lamp breaks and gas from the lamp or fragments of broken glass are inhaled or get into the eyes or mouth, or if any other ill effects are noticed, immediately seek medical advice.

■Do not disassemble or damage the lamp or subject it to any impacts.

■Use the type of power source indicated on the projector. If you’re not sure of the power available, consult the power company.

■If you use the projector in a country other than where you purchased it, use the correct power cord for that country.

■Place the projector near a wall outlet where the plug can be easily unplugged.

■Don’t place the projector where the cord can be walked on. This may result in fraying or damage to the plug.

■Do not bend, twist, or pull the power cable excessively, and do not place heavy objects on top of the power cable.

■Do not modify the power cable.

■Keep the power cable away from hot electrical appliances.

■Do not pull the power cable when disconnecting the plug. Always be sure to hold the plug when disconnecting it.

■Don’t insert the plug into an outlet with dust present, and insert the plug firmly into the outlet. Failure to do so could result in sparks or fire.

■Don’t handle the plug with wet hands.

12 Welcome

■Don’t overload wall outlets, extension cords, or integral convenience receptacles. This can cause fire or electric shock.

■Unplug the projector from the wall outlet and refer servicing to qualified service personnel under the following conditions: when the power cord or plug is damaged or frayed; if liquid has been spilled into the projector, or if it has been exposed to rain, water, or excessive humidity; if smoke, unusual smells, or unusual noises come from the projector; if it doesn’t operate normally when you follow the operating instructions, or if it exhibits a distinct change in performance, indicating a need for service; if it has been dropped or the housing has been damaged.

■If there is an electrical storm, do not touch the power plug, otherwise you may receive an electric shock.

■Keep the projector unplugged during electrical storms and when the projector is not in use for extended periods.

■Keep the batteries for the remote control out of the reach of children. Batteries are choking hazards and can be very dangerous if swallowed. If they are swallowed, seek medical attention immediately.

■Replace the batteries as soon as they run out.

■Do not expose batteries to heat or flame and do not put them in water.

■Dispose of used batteries according to local regulations.

■Remove the batteries if you won’t be using the projector for an extended period.

■Insert batteries so that the polarities are correct, and do not mix new and old batteries.

■Do not use batteries other than those specified in this User’s Guide.

■Don’t block the slots and openings in the projector case. They provide ventilation and prevent the projector from overheating. Don’t operate the projector on a sofa, rug, or other soft surface, or in a closed-in cabinet unless proper ventilation is provided.

■Don’t leave the projector or remote control on top of heat-producing equipment or in a heated place, such as a car.

■Don’t use the projector outside of the required temperature range (41 to 95 °F [5 to 35 °C]). Doing so may cause an unstable display and could lead to projector damage.

■Don’t store the projector outside of the required temperature range (14 to 140 °F [–10 to 60 °C]) or in direct sunlight for long periods of time. Doing so may cause damage to the case.

■Make sure there is at least 8 inches of space between the exhaust ventilation slots and the wall or other object.

Welcome 13

■Make sure there is at least 4 inches of space between the intake ventilation slots and the wall or other object.

■Avoid projecting a high-contrast still image for more than 15 minutes to prevent burn-in. If this happens, project a bright screen until the burn-in disappears (from 30 to 60 minutes). If you can’t eliminate the burn-in, contact Epson as described on page 68.

■Do not turn the volume too high, especially when using headphones. Listening to high volume sounds over an extended period can damage your hearing. Sudden high volume can also damage the speakers.

WARNING: The cords included with this product contain chemicals, including lead, known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. (This notice is provided in accordance with Proposition 65 in Cal. Health & Safety Code § 25249.5 and following.)

14 Welcome

Unpacking and Setting Up

Follow these instructions to unpack your projector, choose a location, and set up your projector.

Unpacking

Make sure you have all the parts shown here:

	Remote control and
PowerLite Presenter	2 AA Batteries

Password Protected sticker

VGA computer cable

Power cord

CD with User’s Guide and
electronic registration	Protective
	case

Unpacking and Setting Up 15

Choosing a Location

You can use your PowerLite Presenter just about anywhere—in the classroom or conference room, on a tabletop, desktop, or cart.

Your projector should be directly in front of the screen, facing straight ahead (at a 90-degree angle to the surface).

If the image is too low, you can raise it by extending the feet and tilting the projector up. This causes the image to lose its rectangular shape, but the projector will correct it automatically. If necessary, you can adjust the shape using the keystone buttons on the remote control or the Visual Setup menu. See page 21 for instructions.

The farther you place the projector from the screen, the larger the image will be.

The following tables list the distances required for various image sizes (measured diagonally). Note that the zoom adjustment also affects image size.

Wide screen aspect ratio (16:10)

Image size (diagonal)	Projection distance
33 in.	3.0 to 3.6 ft. (0.91 to 1.1 meters)
40 in.	3.6 to 4.4 ft. (1.1 to 1.3 meters)
50 in.	4.6 to 5.5 ft. (1.4 to 1.7 meters)
60 in.	5.5 to 6.6 ft. (1.7 to 2.0 meters)
80 in.	7.4 to 8.9 ft. (2.3 to 2.7 meters)
100 in.	9.2 to 11.1 ft. (2.8 to 3.4 meters)
150 in.	13.9 to 16.7 ft. (4.2 to 5.1 meters)
200 in.	18.6 to 22.3 ft. (5.7 to 6.8 meters)
320 in.	29.8 to 35.7 ft. (9.1 to 10.9 meters)

Standard aspect ratio (4:3)

Image size (diagonal)	Projection distance
29 in.	3 to 3.6 ft. (0.9 to 1.1 meters)
30 in.	3.1 to 3.7 ft. (0.9 to 1.1 meters)

16 Unpacking and Setting Up

Standard aspect ratio (4:3)

Image size (diagonal)	Projection distance
40 in.	4.1 to 5 ft. (1.3 to 1.5 meters)
50 in.	5.2 to 6.2 ft. (1.6 to 1.9 meters)
60 in.	6.2 to 7.5 ft. (1.9 to 2.3 meters)
70 in.	7.3 to 8.8 ft. (2.2 to 2.7 meters)
80 in.	8.4 to 10 ft. (2.6 to 3.1 meters)
100 in.	10.5 to 12.6 ft. (3.2 to 3.8 meters)
150 in.	15.7 to 18.9 ft. (4.8 to 5.8 meters)
200 in.	21 to 25.3 ft. (6.4 to 7.7 meters)
280 in.	29.5 to 35.4 ft. (9 to 10.8 meters)

Wide screen aspect ratio (16:9)

Image size (diagonal)	Projection distance
32 in.	3 to 3.6 ft. (0.9 to 1.1 meters)
40 in.	3.7 to 4.5 ft. (1.1 to 1.4 meters)
50 in.	4.7 to 5.7 ft. (1.4 to 1.7 meters)
60 in.	5.7 to 6.8 ft. (1.7 to 2.1 meters)
70 in.	6.6 to 8 ft. (2 to 2.4 meters)
80 in.	7.6 to 9.1 ft. (2.3 to 2.8 meters)
100 in.	9.5 to 11.4 ft. (2.9 to 3.5 meters)
150 in.	14.3 to 17.2 ft. (4.4 to 5.2 meters)
200 in.	19.1 to 22.9 ft. (5.8 to 7 meters)
310 in.	29.6 to 35.6 ft. (9 to 10.8 meters)

When setting up the projector, keep these considerations in mind:

■Make sure you don’t block the air vents on the sides.

■Make sure you place the projector within 9 feet (2.7 meters) of an electrical outlet, power strip, or extension cord.

■Do not tilt the projector more than 10 degrees while playing CDs or DVDs.

Unpacking and Setting Up 17

Setting Up PowerLite Presenter

1.If you have a screen, set it up following the instructions included with the screen. Make sure you read all the instructions to avoid damaging the screen.

2.Put the batteries in the remote control.

Note: Use only AA-size alkaline or manganese dry batteries.

3. Reattach the battery cover.

4.Expose the remote control to bright light for several minutes before using it in the dark. The buttons will glow in the dark briefly.

18 Unpacking and Setting Up

5.Open the lens cover, then connect the power cord and plug in the projector. The light turns orange.

Once you’ve finished setting up the projector, do one of the following:

■If you would like to play a DVD, see “Playing DVDs” on page 20.

■If you would like to connect other equipment to the projector, see“Using PowerLite Presenter with Other Equipment” on page 29.

Turning the Projector Off

1.If there is a disc inside the projector, eject it.

2.Press the button on the projector or the on the remote control. The projector will beep twice when it is finished powering off.

Warning: Do not disconnect the power cable before the projector beeps, or you may damage the projector.

3. Close the lens cover.

Unpacking and Setting Up 19

Playing DVDs

Follow the instructions in this section to play a DVD and control playback.

Starting a DVD

Insert your DVD into the slot.

Warning: Close the lens cover before inserting or ejecting a disc. When the picture appears, do not look into the lens, and do not allow children or pets to look into the lens. The bright light may affect your vision.

After about 30 seconds, the projector warms up and the picture comes on.

20 Playing DVDs

Adjusting the Picture

After you set up and start the projector, you may need to make certain adjustments.

■If the image is too low, you can extend the feet (by pressing the foot adjustment levers) and tilt the projector up.

■ If the image is horizontally tilted, you can turn the feet to level it.

■Your projector automatically detects the vertical tilt and corrects the image shape. If you find that the image is not rectangular, however, use the Keystone buttons on the remote control or the Keystone setting in the Signal menu (see page 51) to adjust the image shape.

Playing DVDs 21

■ Use the zoom ring to adjust the image size.

■ Rotate the focus ring to sharpen the picture.

■To enlarge or reduce the aspect ratio of the picture, press the button on the remote control to select Normal, 16:9, or Zoom (if available for the video source you’re using).

Adjusting the Sound

To adjust the volume, use the + or – Volume buttons on the control panel or remote control.

You can also press the button on the remote control to temporarily turn off the sound.

22 Playing DVDs

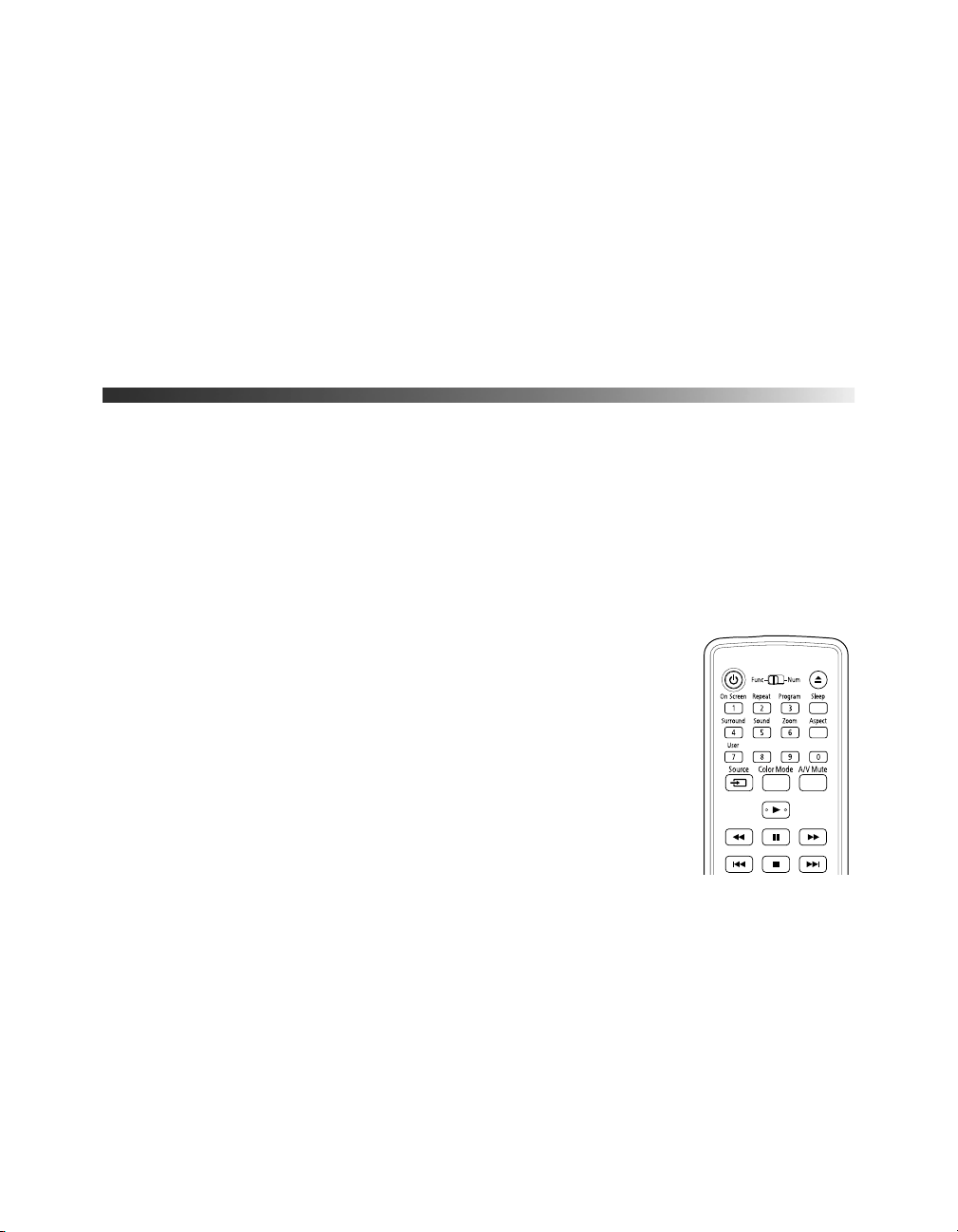

Controlling Playback

You can use the buttons on the remote control or the control panel to pause, fast-forward, or replay sections of your video or audio. You can also select items on a DVD menu by using the remote control.

Note:

DVD movies are divided into units called titles. Each title may contain any number of chapters. Music CDs and video CDs are divided into tracks.

Some features may not be available depending on your media or file type.

Pausing

There are three ways to pause a DVD or audio track:

■To pause a movie, or a music CD or MP3 player track, press on the remote control or on the control panel.

To resume, press on the remote control or on the control panel.

■To pause a movie and display the Epson logo, press on the remote control or control panel.

To resume, press on the remote control or on the control panel.

■To temporarily turn off the image and sound, press on the remote control or close the lens cover. Press the button again or

open the lens cover to resume your DVD or presentation.

Playing DVDs 23

Searching (Fast Forward or Reverse)

■To move forward or backward through a video or music CD, press or on the remote control.

Each time you press the button, the search (or “shuttle”) speed increases.

■To return to normal play, press .

Playing in Slow Motion

You can play a video frame by frame or in slow motion (“jog control”).

1.Press on the remote control.

2.Press repeatedly to advance the video frame by frame.

3.Press or to move forward or backward in slow motion. Each time you press the button, the speed decreases.

4.Press to return to normal play.

Skipping

■To skip to the next chapter or track, press on the remote control.

■To return to the start of the current chapter or track, press on the remote control.

Zooming In or Out

■Press to zoom in the image. (Make sure the toggle switch on the remote control is set to the Func- position.)

■Continue pressing to zoom in or out. Use the , , , and buttons to pan around the image if necessary.

24 Playing DVDs
