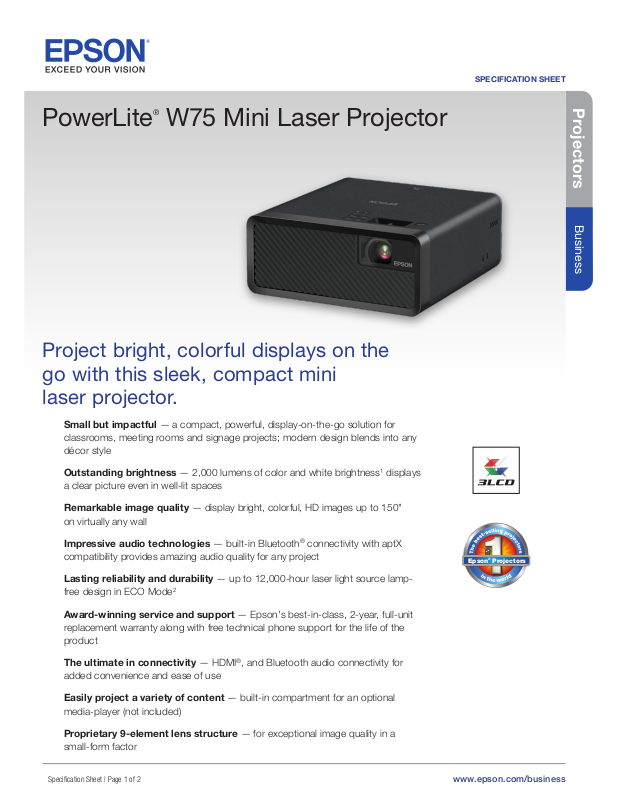

Epson PowerLite W75 Product Sheet

PowerLite® W75 Mini Laser Projector

Project bright, colorful displays on the

SPECIFICATION SHEET

Projectors

Business

go with this sleek, compact mini
laser projector.

Small but impactful — a compact, powerful, display-on-the-go solution for
classrooms, meeting rooms and signage projects; modern design blends into any
décor style

Outstanding brightness — 2,000 lumens of color and white brightness1 displays
a clear picture even in well-lit spaces

Remarkable image quality — display bright, colorful, HD images up to 150"
on virtually any wall

Impressive audio technologies — built-in Bluetooth® connectivity with aptX
compatibility provides amazing audio quality for any project

Lasting reliability and durability — up to 12,000-hour laser light source lamp­free design in ECO Mode

Award-winning service and support — Epson's best-in-class, 2-year, full-unit
replacement warranty along with free technical phone support for the life of the
product

The ultimate in connectivity — HDMI®, and Bluetooth audio connectivity for
added convenience and ease of use

2

Epson® Projectors

Easily project a variety of content — built-in compartment for an optional
media-player (not included)

Proprietary 9-element lens structure — for exceptional image quality in a
small-form factor

Specification Sheet | Page 1 of 2

www.epson.com/business

PowerLite® W75 Mini Laser Projector

Projectors

Descriptor

Specifications

Projection System Epson 3LCD
Chip Design (Architecture) 3-Chip
Projection Method Front/rear/floor stand
Product Color Black
Driving Method Poly-silicon TFT Active Matrix
Pixel Number 1,024,000 dots (1280 x 800) x 3
Aspect Ratio 16:10
Native Resolution WXGA
Maximum Resolution 1920 x 1080
Color Brightness1 Color Light Output: 2,000 lumens
White Brightness1 White Light Output: 2,000 lumens
Contrast Ratio 2,500,000:1
Color Reproduction Full-color (up to 16.77 million colors)
Throw Ratio Range 1.04 - 1.40
Size (Projected Distance) 22"–150" (Zoom: Wide and

Zoom: Tele)
Keystone Correction Auto/Manual
Vertical: ± 45 degrees
Horizontal ± 40 degrees

Color Processing
Illumination Technology Laser Diode
Light Source Life2

Normal Mode: 12,000 hours
Extended Mode: 20,000 hours

Full 10-bit

Projection Lens

Type No Optical Zoom / Focus (Manual)
F-number 1.58
Focal Length 13.53 mm
Zoom Ratio 1.0 - 1.35 (digital)
Throw Ratio 1.04 - 1.40

Other Features

Color Modes
Dynamic, Bright Cinema, Natural, Cinema, HDMI® (HDCP 1.4)

Input Signal
Operating Temperature 41 ° to 95 °F (5 ° to 35 °C)
Power Supply Voltage 100–240 VAC ± 10%, 50/60 Hz
Power Consumption

ECO Mode: 118 W
Normal Mode: 178 W

Fan Noise
Security Kensington Lock

HDMI

26 – 29 dB

Dimensions (W x D x H)

Including feet: 8.3" x 9.1" x 3.6"
Weight: 6.0 lb

Remote Control

Features Front and rear directional
Operating Distance 16.4 ft (5 m)
Operating Angle

Front Right/Left: ± 30 degrees
Upper/Lower: ± 15 degrees
Rear Right/Left: ± 30 degrees
Upper/Lower: ± 15 degrees

Eco Features

RoHS compliant
Recyclable product
Epson America, Inc. is a SmartWay® Transport Partner

3

4

Support

Epson Connection

Pre-sales support: U.S. and Canada 800-463-7766
Internet website: www.epson.com
Service Programs 2-year projector limited warranty, Extra

SM

Care

Home Service program, PrivateLine® dedicated
toll-free support (U.S. and Canada only) and 90-day limited
lamp warranty

SM

What’s in the Box

PowerLite W75 projector, power cable, remote control, 2 AAA
batteries, Documentation

Ordering Information

PowerLite W75 Projector V11HA20120
Air Filter Set (ELPAF57) V13H134A57
Ceiling Mount/Floor Stand (ELPMB60W) (White) V12H963210
Ceiling Mount/Floor Stand (ELPMB60B) (Black) V12H963110
Lightning Track Mount (ELPMB61W) (White) V12H964210
Lightning Track Mount (ELPMB61B) (Black) V12H964120

Business

1 Color brightn ess (color ligh t output) and whi te brightness (white light output) will vary de pendi ng on usa ge cond itions. Color light ou tput me asure d in accordance with ID MS 15.4; white
light output measure d in acco rdanc e with ISO 21118. | 2 No requ ired ma intena nce for t he light source for up to 20,0 00 hou rs. Approximate time un til brightness decr eases 50% from r st
usage. M easured by acc eleration test assuming us e of 0.04 - 0. 20 mg/m
than the light source may b e required in a shorter perio d. | 3 For convenient and rea sonab le recyc ling options, visit www.epson.com/recycle | 4 Smar tWay is an in novative partnership of
the U.S. Environme ntal Protecti on Agen cy that re duces green house g ases and other air poll utant s and imp roves fuel ef ciency.
