Epson PowerLite W29, PowerLite X27, PowerLite 98H, PowerLite 965H, PowerLite 99WH User Manual

...

Download

PowerLite

S27/X27/X29/W29/97H/

98H/99WH/955WH/965H User's Guide

PowerLite S27/X27/X29/W29/97H/98H/99WH/955WH/965H User's Guide............................................... 9

Introduction to Your Projector ................................................................................................................. 10

Setting Up the Projector ........................................................................................................................... 24

Projector Features.............................................................................................................................. 10

Product Box Contents.................................................................................................................... 11

Additional Components ................................................................................................................ 13

Optional Equipment and Replacement Parts................................................................................. 13

Warranty and Registration Information.......................................................................................... 15

Notations Used in the Documentation................................................................................................ 15

Where to Go for Additional Information .............................................................................................. 15

Projector Part Locations..................................................................................................................... 16

Projector Parts - Front/Top............................................................................................................ 17

Projector Parts - Rear.................................................................................................................... 18

Projector Parts - Base.................................................................................................................... 20

Projector Parts - Control Panel...................................................................................................... 21

Projector Parts - Remote Control................................................................................................... 22

Projector Placement........................................................................................................................... 24

Projector Setup and Installation Options ....................................................................................... 24

Projection Distance........................................................................................................................ 26

Projector Connections........................................................................................................................ 28

Connecting to Computer Sources.................................................................................................. 29

Connecting to a Computer for USB Video and Audio................................................................ 29

Connecting to a Computer for VGA Video................................................................................. 30

Connecting to a Computer for HDMI Video and Audio.............................................................. 31

Connecting to a Computer for USB Mouse Control................................................................... 32

Connecting to a Computer for Sound........................................................................................ 32

Connecting to Video Sources........................................................................................................ 33

Connecting to an HDMI Video Source ...................................................................................... 33

Connecting to an MHL-Compatible Device............................................................................... 33

Connecting to a Component-to-VGA Video Source.................................................................. 34

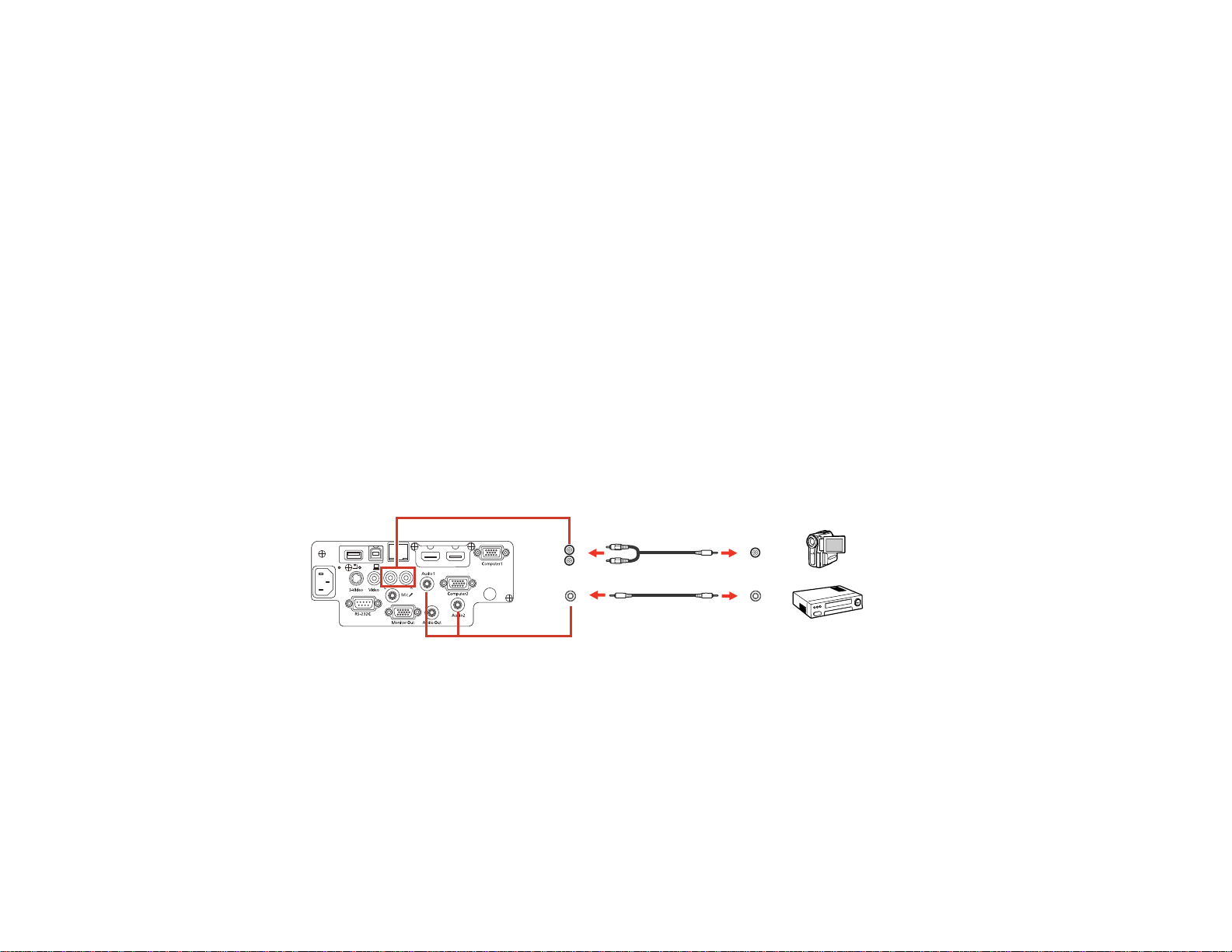

Connecting to a Composite Video Source ................................................................................ 35

Connecting to an S-Video Video Source................................................................................... 35

Connecting to a Video Source for Sound.................................................................................. 36

Connecting to an External Computer Monitor................................................................................ 36

Connecting to External Speakers.................................................................................................. 37

Connecting a Microphone.............................................................................................................. 38

Connecting to External USB Devices............................................................................................ 39

USB Device Projection.............................................................................................................. 39

Connecting a USB Device or Camera to the Projector.............................................................. 40

Selecting the Connected USB Source...................................................................................... 40

Disconnecting a USB Device or Camera From the Projector.................................................... 40

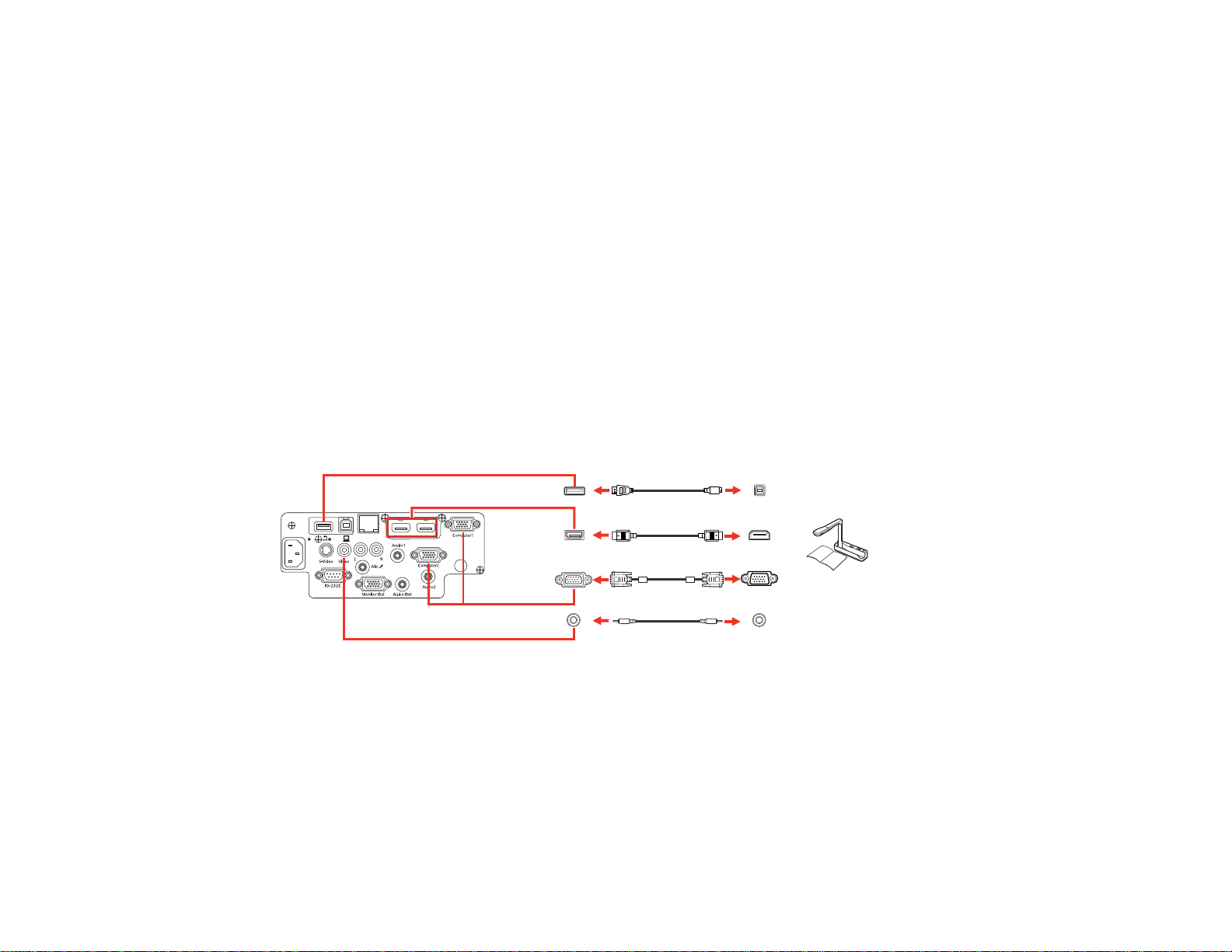

Connecting to a Document Camera .............................................................................................. 41

Installing Batteries in the Remote Control .......................................................................................... 42

Opening the Lens Cover .................................................................................................................... 43

Using the Projector on a Network............................................................................................................ 44

Wired Network Projection................................................................................................................... 44

Connecting to a Wired Network..................................................................................................... 45

Selecting Wired Network Settings ................................................................................................. 45

Wireless Network Projection .............................................................................................................. 48

Installing the Wireless LAN Module............................................................................................... 49

Using Quick Wireless Connection (Windows Only)....................................................................... 51

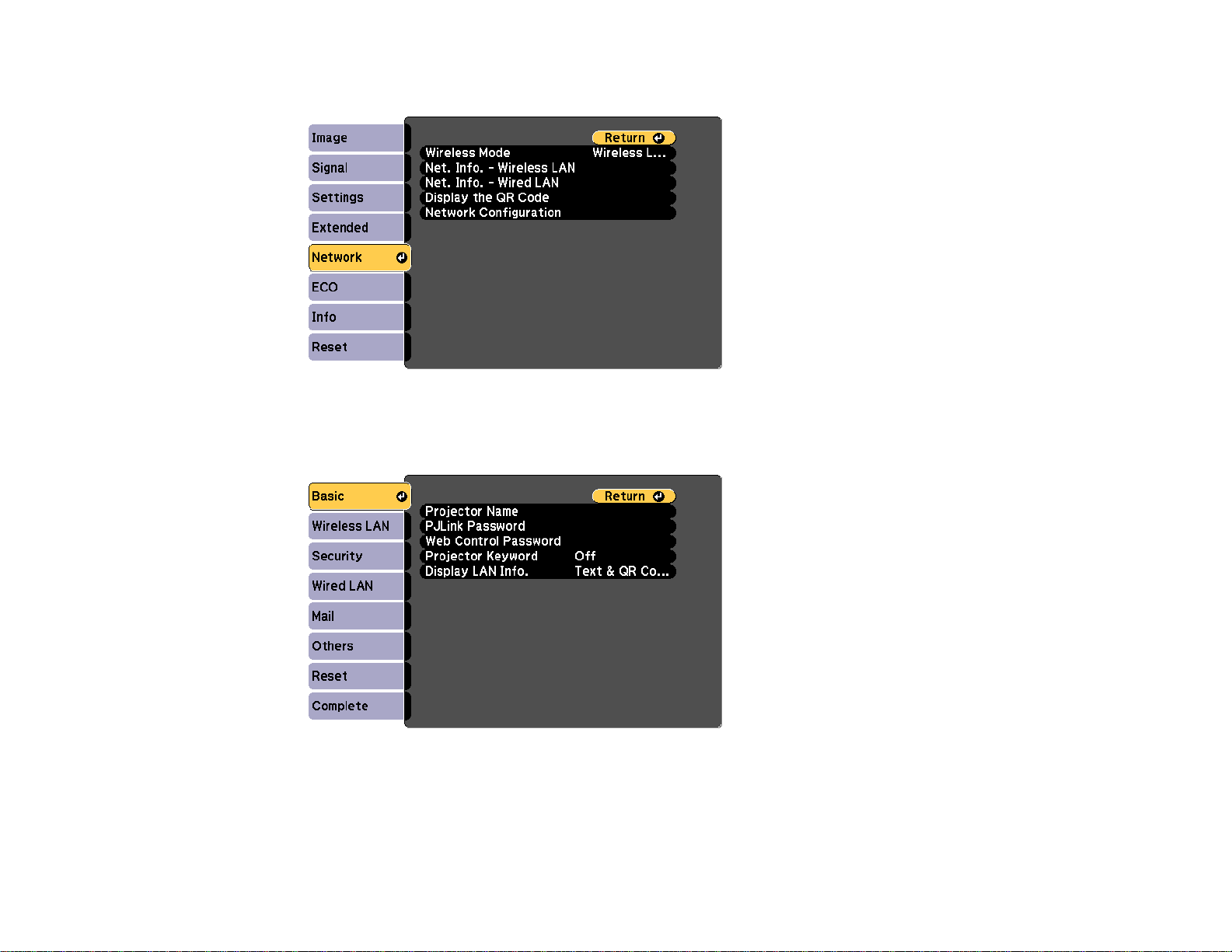

Selecting Wireless Network Settings Manually.............................................................................. 53

Wireless LAN Menu Settings .................................................................................................... 56

Searching for a Wireless Network ................................................................................................. 57

Using a QR Code to Connect a Mobile Device.............................................................................. 59

Selecting Wireless Network Settings in Windows.......................................................................... 61

Selecting Wireless Network Settings in OS X................................................................................ 61

Setting Up Wireless Network Security........................................................................................... 62

Wireless Security Menu Settings .............................................................................................. 63

Setting Up Projector Network E-Mail Alerts........................................................................................ 63

Network Projector E-mail Alert Messages ..................................................................................... 64

Setting Up Monitoring Using SNMP ................................................................................................... 65

Controlling a Networked Projector Using a Web Browser .................................................................. 66

Crestron RoomView Support.............................................................................................................. 68

Setting Up Crestron RoomView Support ....................................................................................... 69

Controlling a Networked Projector Using Crestron RoomView...................................................... 70

Using Basic Projector Features ............................................................................................................... 72

Turning On the Projector.................................................................................................................... 72

Turning Off the Projector.................................................................................................................... 74

Selecting the Language for the Projector Menus................................................................................ 76

Adjusting the Image Height ................................................................................................................ 76

Image Shape...................................................................................................................................... 77

Correcting Image Shape with the Horizontal Keystone Slider ....................................................... 78

Correcting Image Shape with the Keystone Buttons...................................................................... 79

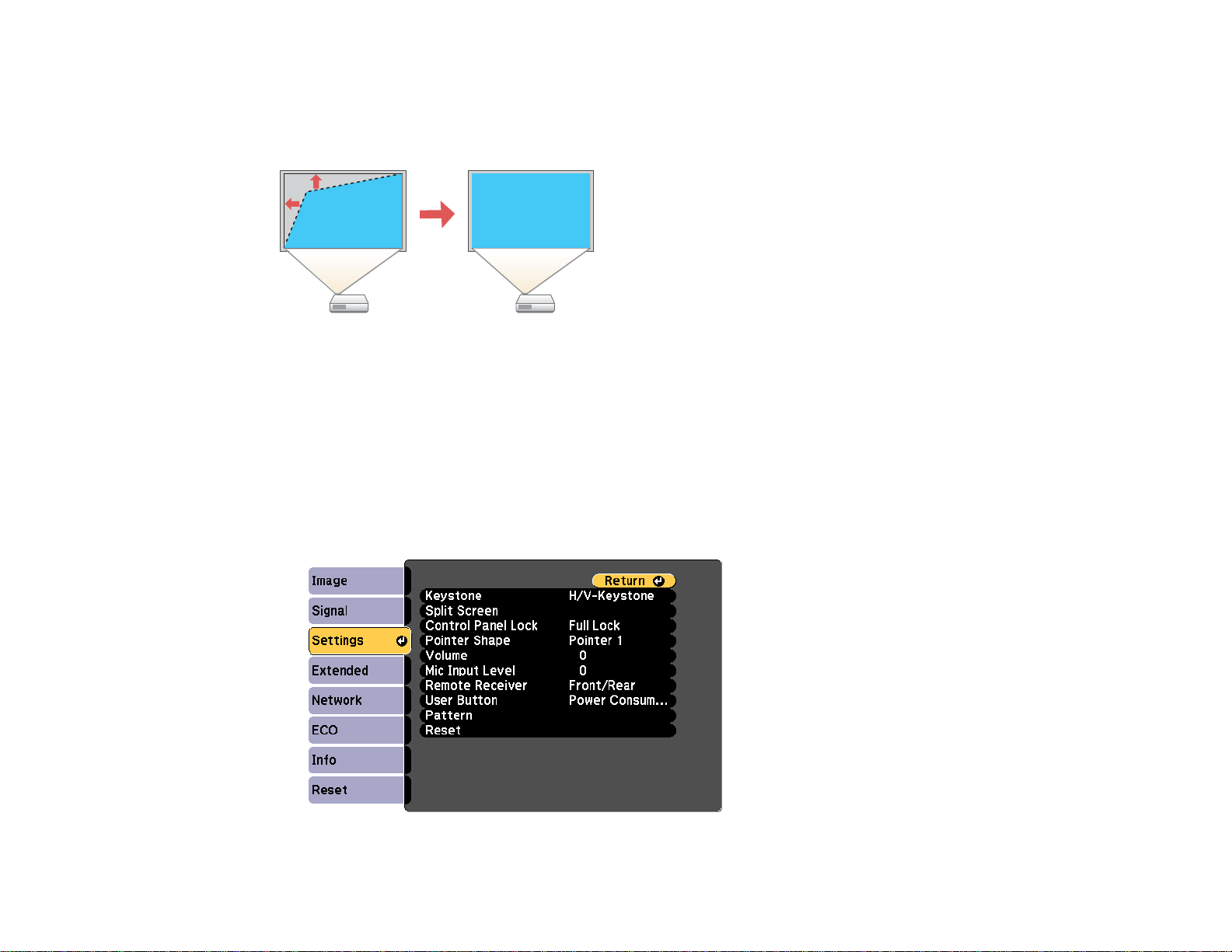

Correcting Image Shape with Quick Corner .................................................................................. 81

Resizing the Image............................................................................................................................. 82

Focusing the Image Using the Focus Ring......................................................................................... 83

Remote Control Operation ................................................................................................................. 84

Using the Remote Control as a Wireless Mouse ........................................................................... 85

Using the Remote Control as a Pointer.......................................................................................... 86

Selecting an Image Source ................................................................................................................ 87

Projection Modes ............................................................................................................................... 89

Changing the Projection Mode Using the Remote Control ............................................................ 89

Changing the Projection Mode Using the Menus........................................................................... 90

Image Aspect Ratio............................................................................................................................ 91

Changing the Image Aspect Ratio................................................................................................. 91

Available Image Aspect Ratios...................................................................................................... 92

Color Mode......................................................................................................................................... 93

Changing the Color Mode.............................................................................................................. 93

Available Color Modes................................................................................................................... 94

Turning On Auto Iris....................................................................................................................... 94

Controlling the Volume with the Volume Buttons................................................................................ 95

Projecting a PC Free Presentation..................................................................................................... 96

Supported PC Free File Types ...................................................................................................... 96

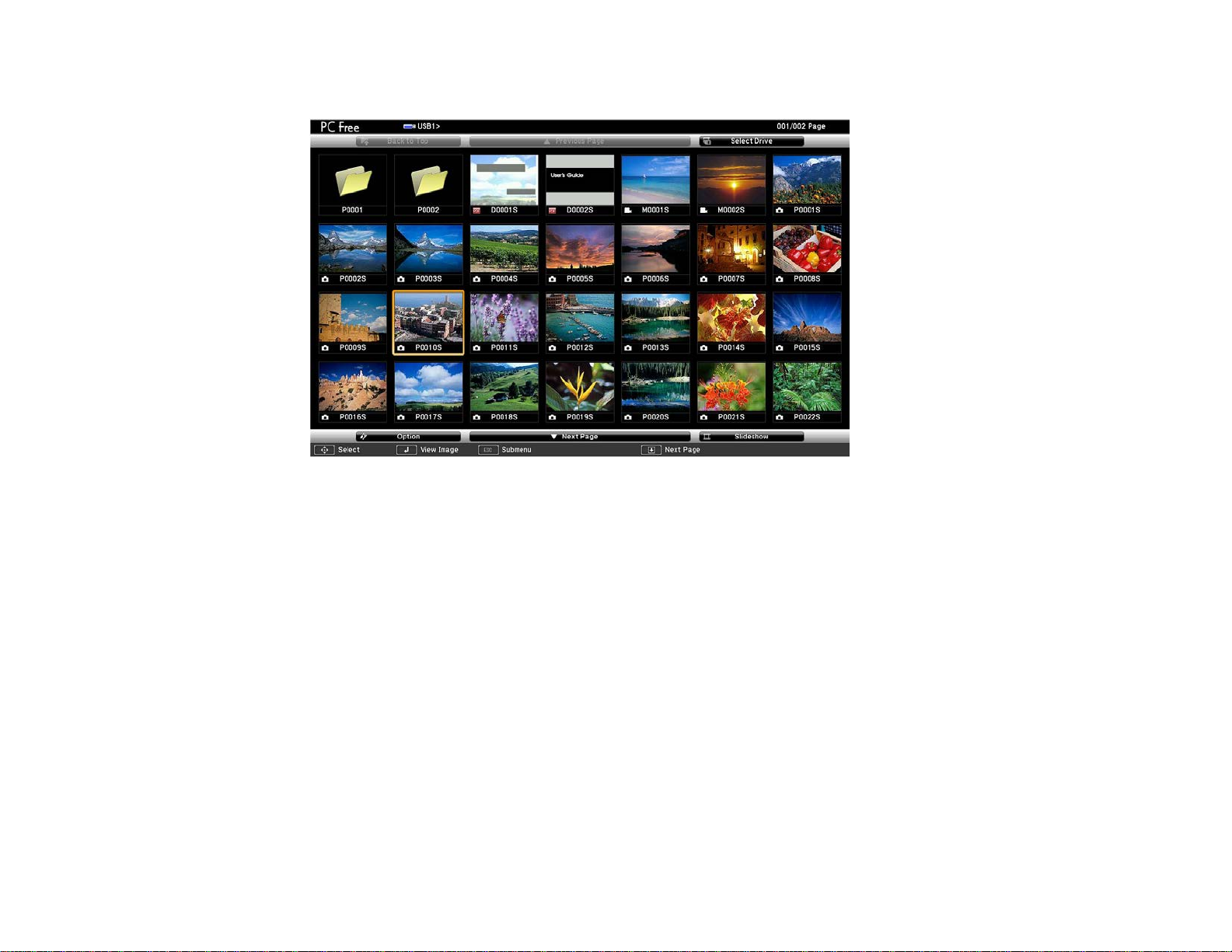

Starting a PC Free Slide Show...................................................................................................... 97

Starting a PC Free Movie Presentation ......................................................................................... 99

PC Free Display Options............................................................................................................. 101

Adjusting Projector Features................................................................................................................. 103

Shutting Off the Picture and Sound Temporarily .............................................................................. 103

Stopping Video Action Temporarily.................................................................................................. 104

Zooming Into and Out of Images...................................................................................................... 104

Projector Security Features.............................................................................................................. 105

Password Security Types............................................................................................................ 105

Setting a Password................................................................................................................. 106

Selecting Password Security Types........................................................................................ 107

Entering a Password to Use the Projector............................................................................... 108

Saving a User's Logo Image to Display................................................................................... 109

Locking the Projector's Buttons ................................................................................................... 112

Unlocking the Projector's Buttons........................................................................................... 112

Installing a Security Cable........................................................................................................... 113

Creating a User Pattern to Display................................................................................................... 113

Projector Identification System for Multiple Projector Control........................................................... 114

Setting the Projector ID................................................................................................................ 115

Setting the Remote Control ID..................................................................................................... 116

Matching Multiple-Projector Display Quality................................................................................ 117

Projecting Two Images Simultaneously............................................................................................ 117

Copying Menu Settings Between Projectors.................................................................................... 119

Saving Settings to a USB Flash Drive.......................................................................................... 119

Transferring Settings From a USB Flash Drive............................................................................ 121

Saving Settings To a Computer................................................................................................... 122

Transferring Settings From a Computer ...................................................................................... 124

Adjusting the Menu Settings.................................................................................................................. 127

Using the Projector's Menus............................................................................................................. 127

Image Quality Settings - Image Menu .............................................................................................. 129

Input Signal Settings - Signal Menu.................................................................................................. 131

Projector Feature Settings - Settings Menu...................................................................................... 134

Projector Setup Settings - Extended Menu....................................................................................... 137

Projector Network Settings - Network Menu..................................................................................... 140

Projector Setup Settings - ECO Menu.............................................................................................. 141

Projector Information Display - Info Menu ........................................................................................ 144

Event ID Code List....................................................................................................................... 145

Projector Reset Options - Reset Menu............................................................................................. 146

Maintaining and Transporting the Projector......................................................................................... 148

Projector Maintenance..................................................................................................................... 148

Cleaning the Lens........................................................................................................................ 148

Cleaning the Projector Case........................................................................................................ 149

Air Filter and Vent Maintenance .................................................................................................. 149

Cleaning the Air Filter and Vents............................................................................................. 150

Replacing the Air Filter............................................................................................................ 150

Projector Lamp Maintenance....................................................................................................... 152

Replacing the Lamp................................................................................................................ 153

Resetting the Lamp Timer....................................................................................................... 157

Replacing the Remote Control Batteries ..................................................................................... 158

Transporting the Projector................................................................................................................ 160

Solving Problems.................................................................................................................................... 161

Projection Problem Tips................................................................................................................... 161

Projector Light Status....................................................................................................................... 161

Using the Projector Help Displays.................................................................................................... 165

Solving Image or Sound Problems................................................................................................... 165

Solutions When No Image Appears............................................................................................. 166

Solutions When Image is Incorrect Using the USB Display Function .......................................... 167

Solutions When "No Signal" Message Appears........................................................................... 167

Displaying From a PC Laptop................................................................................................. 168

Displaying From a Mac Laptop ............................................................................................... 168

Solutions When "Not Supported" Message Appears................................................................... 168

Solutions When Only a Partial Image Appears............................................................................ 169

Solutions When the Image is Not Rectangular ............................................................................ 169

Solutions When the Image Contains Noise or Static ................................................................... 170

Solutions When the Image is Fuzzy or Blurry.............................................................................. 171

Solutions When the Image Brightness or Colors are Incorrect .................................................... 172

Solutions to Sound Problems ...................................................................................................... 173

Solutions to Microphone Problems.............................................................................................. 173

Solving Projector or Remote Control Operation Problems ............................................................... 174

Solutions to Projector Power or Shut-Off Problems..................................................................... 174

Solutions to Problems with the Remote Control........................................................................... 175

Solutions to Password Problems................................................................................................. 176

Solving Network Problems............................................................................................................... 176

Solutions When You Cannot Access the Projector Through the Web ......................................... 176

Solutions When Network Alert E-Mails are Not Received............................................................ 177

Solutions When You Cannot Access the Projector Using iProjection.......................................... 177

Where to Get Help............................................................................................................................ 177

Technical Specifications ........................................................................................................................ 179

General Projector Specifications...................................................................................................... 179

Projector Lamp Specifications.......................................................................................................... 183

Remote Control Specifications......................................................................................................... 183

Projector Dimension Specifications.................................................................................................. 184

Projector Electrical Specifications.................................................................................................... 184

Projector Environmental Specifications............................................................................................ 186

Projector Safety and Approvals Specifications................................................................................. 186

Supported Video Display Formats.................................................................................................... 186

USB Display System Requirements................................................................................................. 190

Notices ..................................................................................................................................................... 191

Recycling.......................................................................................................................................... 191

Important Safety Information............................................................................................................ 191

Important Safety Instructions............................................................................................................ 192

Restriction of Use........................................................................................................................ 195

FCC Compliance Statement............................................................................................................. 195

Trademarks...................................................................................................................................... 196

Open Source Software License........................................................................................................ 196

Copyright Notice............................................................................................................................... 241

A Note Concerning Responsible Use of Copyrighted Materials................................................... 242

Copyright Attribution.................................................................................................................... 242

PowerLite S27/X27/X29/W29/97H/98H/99WH/955WH/965H User's Guide

Welcome to the PowerLite S27/X27/X29/W29/97H/98H/99WH/955WH/965H User's Guide.

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.

Projector Features Notations Used in the Documentation Where to Go for Additional Information Projector Part Locations

Projector Features

The PowerLite S27, X27, X29, W29, 97H, 98H, 99WH, 955WH, and 965H projectors include these special features:

Bright, high-resolution projection system

• PowerLite S27/X27/97H: Up to 2700 lumens of color brightness (color light output) and 2700 lumens of white brightness (white light output)

PowerLite X29/W29/98H/99WH: Up to 3000 lumens of color brightness (color light output) and 3000 lumens of white brightness (white light output)

PowerLite 955WH: Up to 3200 lumens of color brightness (color light output) and 3200 lumens of white brightness (white light output)

PowerLite 965H: Up to 3500 lumens of color brightness (color light output) and 3500 lumens of white brightness (white light output)

Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

• PowerLite S27: Native resolution of 800 × 600 pixels (SVGA) PowerLite X27/X29/97H/98H/965H: Native resolution of 1024 × 768 pixels (XGA) PowerLite W29/99WH/955WH: Native resolution of 1280 × 800 pixels (WXGA)

Flexible connectivity

• Plug-and-play 3-in-1 USB projection, audio, and mouse control for instant setup

• Projection from iOS or Android devices with the optional wireless LAN module and free Epson iProjection app; visit epson.com/projectorapp (U.S.) or epson.ca/projectorapp (Canada) for more information

• Wired (most models) and wireless network support for projection, monitoring, and control via remote network computer

• Connect up to 50 devices to the projector via a network and project from up to 4 devices simultaneously

• PC Free photo slide shows and videos via connected USB memory devices

• Two HDMI ports for multiple high-definition AV devices, including MHL support (PowerLite 97H/98H/99WH/955WH/965H)

• Ports for connecting an external monitor, microphone (PowerLite 97H/98H/99WH/955WH/965H), and external speakers

Easy-to-use setup and operation features

• Low total cost of ownership with longer lamp life

• Innovative horizontal keystone correction slider for flexible projector placement

• 1.2× (PowerLite X27/X29/W29/97H/98H/99WH) and 1.6× (PowerLite 955WH/965H) optical zoom ratio for improved zooming capability

• Built-in closed captioning decoder

• Epson's Instant Off and Direct Power On features for quick setup and shut down

Note: The PowerLite 97H/98H/99WH/955WH/965H projector is shown in most illustrations in this manual, unless noted otherwise.

Product Box Contents Additional Components Optional Equipment and Replacement Parts Warranty and Registration Information

Parent topic: Introduction to Your Projector

Product Box Contents

Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.

Make sure your projector box included all of these parts:

1 Projector 2 Remote control and batteries (two AA alkaline) 3 Power cord 4 VGA computer cable 5 Wireless LAN module cover 6 Projector documentation CD 7 Projector software CD 8 Password Protected sticker

Parent topic: Projector Features

Additional Components

Depending on how you plan to use the projector, you may need to obtain the following additional components:

• To receive a composite video signal, you need an RCA-style video or A/V cable. See your local computer or electronics dealer for purchase information.

• To receive an S-Video signal, you need an S-Video cable compatible with your device. See your local computer or electronics dealer for purchase information.

• To receive a component video signal, you need a D-sub, 15-pin, component-to-VGA video cable. You can purchase one from Epson or an authorized Epson reseller.

• To receive an HDMI signal, you need a compatible HDMI cable. You can purchase one from Epson or an authorized Epson reseller.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port. Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through the HDMI port.

• To receive an HDMI signal via MHL, you need an MHL-compatible device, an MHL cable, or an HDMI cable and an MHL adapter compatible with your device (PowerLite 97H/98H/99WH/955WH/965H). Devices with an integrated MHL connector may not require a cable. You can purchase an HDMI cable from Epson or an authorized Epson reseller.

• To project with audio from certain ports, you may need a commercially available audio cable compatible with your device. See your local computer or electronics dealer for purchase information.

• To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output to the projector's VGA video port, you need to obtain an adapter. Contact Apple for compatible adapter options.

Parent topic: Projector Features Related references

Optional Equipment and Replacement Parts

You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at epsonstore.com (U.S. sales) or epson.ca (Canadian sales).

Epson offers the following optional accessories and replacement parts for your projector:

Option or part Part number

Genuine Epson Replacement lamp (ELPLP88) V13H010L88 Air filter replacement set (2 filters; ELPAF32) V13H134A32 Wireless LAN module (ELPAP07) V12H418P12 Quick Wireless Connection USB Key (ELPAP09) V12H005M09 Epson DC-06 document camera (ELPDC06) V12H321005 Epson DC-11 document camera (ELPDC11) V12H377020 Epson DC-12 document camera (ELPDC12) V12H594020 Epson DC-20 document camera (ELPDC20) V12H500020 BrightLink Solo interactive module (IU-01) V12H415020 AP-60 Projector Sound Solution V12H329020 PixiePlus Control System ELPSP10 Accolade Duet portable projector screen ESPSC80 ES1000 Ultra Portable Tabletop Projection screen V12H002S4Y ES3000 Ultra Portable Tabletop Projection screen V12H002S3Y Universal projector ceiling mount ELPMBPJF Adjustable suspended ceiling channel kit ELPMBP01 False ceiling plate kit ELPMBP02 Structural Round ceiling plate ELPMBP03 Adjustable Extension Column (pipe) 8" - 11" (20 to 28 cm) ELPMBC01 Soft carrying case V12H001K67 Component-to-VGA video cable (ELPKC19) V12H005C19 VGA video cable 1.8 m length ELPKC02 VGA video cable 3.0 m length ELPKC09 VGA video cable 20 m length ELPKC10 Remote control 1599176 1-Year Extended Service Program - Exchange Service EPPEXPA1

Option or part Part number

2-Year Extended Service Program - Exchange Service EPPEXPA2 1-Year Extended Service Program - Depot Repair Service EPPFTPA1 2-Year Extended Service Program - Depot Repair Service EPPFTPA2

Parent topic: Projector Features

Warranty and Registration Information

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty that came with your projector.

In addition, Epson offers free Extra Care Road Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See the Extra Care Road Service brochure for details.

Register your product online using the projector CD or at this site: epson.com/webreg. Registering also lets you receive special updates on new accessories, products, and services.

Parent topic: Projector Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:

• Warnings must be followed carefully to avoid bodily injury.

• Cautions must be observed to avoid damage to your equipment.

• Notes contain important information about your projector.

• Tips contain additional projection information.

Parent topic: Introduction to Your Projector

Where to Go for Additional Information

Need quick help on using your projector? Here's where to look for help:

• Built-in help system Press the Help button on the remote control or projector to get quick solutions to common problems.

• epson.com/support (U.S) or epson.ca/support (Canada)

View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24 hours a day.

• For detailed instructions on using your projector in a network environment, see the EasyMP Network Projection Operation Guide.

• For detailed instructions on monitoring your projector in a network environment (Windows only), see the EasyMP Monitor Operation Guide.

• For detailed instructions on using your projector to hold interactive meetings in a network environment, see the EasyMP Multi PC Projection Operation Guide.

• If you still need help after checking this manual and the sources listed above, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help".

Parent topic: Introduction to Your Projector Related references

Where to Get Help

Related tasks

Using the Projector Help Displays

Projector Part Locations

Check the projector part illustrations to learn about the parts on your projector. Note: The PowerLite 97H/98H/99WH/955WH/965H projector is shown in most illustrations in this

manual, unless noted otherwise.

Projector Parts - Front/Top Projector Parts - Rear Projector Parts - Base Projector Parts - Control Panel Projector Parts - Remote Control

Parent topic: Introduction to Your Projector

Projector Parts - Front/Top

1 Exhaust vent 2 A/V Mute slide lever 3 Foot release lever 4 Front adjustable foot 5 A/V Mute slide 6 Remote receiver 7 Focus ring 8 Zoom ring (not available on PowerLite S27) 9 Intake vent 10 Air filter cover 11 Security slot 12 Focus ring (PowerLite S27) 13 Control panel

14 Horizontal keystone slider 15 Lamp cover

Parent topic: Projector Part Locations

Projector Parts - Rear

PowerLite S27/X27/X29/W29

PowerLite 97H/98H/99WH/955WH/965H

1 AC input port 2 S-Video port 3 RS-232C port 4 Video port 5 Audio-L/R ports 6 Mic port (PowerLite 97H/98H/99WH/955WH/965H) 7 Monitor Out port 8 Audio1 port 9 Audio Out port 10 Audio2 port 11 Remote control receiver 12 Speaker 13 Computer1 (VGA) port 14 Computer2 (VGA) port 15 HDMI2/MHL port (PowerLite 97H/98H/99WH/955WH/965H) 16 HDMI1 port 17 Network (LAN) port (not available on PowerLite S27) 18 USB-B port 19 USB-A port 20 Wireless LAN module cover screw

Parent topic: Projector Part Locations

Projector Parts - Base

1 Mounting bracket holes 2 Security cable attachment point 3 Rear feet 4 Front adjustable foot

Parent topic: Projector Part Locations Related tasks

Installing a Security Cable

Projector Parts - Control Panel

1 Source Search button (searches for connected sources) 2 Enter button (selects options) 3 Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons 4 Help button (accesses projector help information) 5 Esc button (cancels/exits functions) 6 Volume control buttons, horizontal keystone adjustment buttons (adjusts screen shape), and

arrow buttons; on the PowerLite S27, these buttons are labelled Wide and Tele and adjust the

projected image size, rather than the audio volume 7 Menu button (accesses projector menu system) 8 Power button and light 9 Status, Lamp, and Temp (Temperature) lights

Parent topic: Projector Part Locations Related references

Projector Light Status

Projector Parts - Remote Control

1 Power button

2 Computer button (cycles through connected computer sources) 3 Video button (cycles through connected video sources) 4 Numeric buttons (enter numbers) 5 Auto button (automatically adjusts position, tracking, and sync settings) 6 Aspect button (selects the image aspect ratio) 7 Num button (when held down, switches numeric buttons to number function) 8 Menu button (accesses projector menu system) 9 Arrow buttons (move through on-screen options and control wireless mouse functions) 10 Enter button (selects options and controls wireless mouse functions) 11 User button (customizable for different functions) 12 Page up/down buttons (control presentation slides) 13 E-Zoom +/– buttons (zoom into and out of the image) 14 A/V Mute button (turns off picture and sound) 15 Split button (splits the screen) 16 Help button (accesses projector help information) 17 Freeze button (stops video action) 18 Volume up/down buttons (adjust speaker volume) 19 Pointer button (activates on-screen pointer) 20 Esc button (cancels/exits functions and controls wireless mouse functions) 21 ID button (selects projector and remote control ID numbers) 22 Color Mode button (selects display modes) 23 MHL Menu button (displays settings or performs functions for the MHL device; PowerLite

97H/98H/99WH/955WH/965H) 24 LAN button (switches to available network sources) 25 USB button (cycles through connected USB sources) 26 Source Search button (searches for connected sources)

Parent topic: Projector Part Locations

Setting Up the Projector

Follow the instructions in these sections to set up your projector for use.

Projector Placement Projector Connections Installing Batteries in the Remote Control Opening the Lens Cover

Projector Placement

You can place the projector on almost any flat surface to project an image. You can also install the projector in a ceiling mount if you want to use it in a fixed location. Keep these considerations in mind as you select a projector location:

• Place the projector on a sturdy, level surface or install it using a compatible mount.

• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or next to anything that could block the vents.

• Position the projector within reach of a grounded electrical outlet or extension cord.

Projector Setup and Installation Options Projection Distance

Parent topic: Setting Up the Projector

Projector Setup and Installation Options

You can set up or install your projector in the following ways: Front

Rear

Front Ceiling

Rear Ceiling

Wherever you set up the projector, make sure to position it squarely in front of the center of the screen, not at an angle, if possible.

If you project from the ceiling or from the rear, be sure to select the correct Projection option in the projector's menu system.

Parent topic: Projector Placement

Related references

Projector Setup Settings - Extended Menu

Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.) You can also use the projector Throw Distance Calculator at epson.com/support (U.S.) or epson.ca/support (Canada).

PowerLite S27

4:3 Aspect Ratio Image or Screen

Screen or Projection distance image size

1 50 inches 58 to 79 inches (147 to 200 cm) 2 80 inches 93 to 126 inches (237 to 321 cm) 3 100 inches 117 to 158 inches (297 to 401 cm) 4 150 inches 176 to 237 inches (446 to 603 cm)

Wide to Tele

PowerLite X27/X29/97H/98H

4:3 Aspect Ratio Image or Screen

Screen or Projection distance image size

Wide to Tele

1 50 inches 59 to 71 inches (150 to 180 cm) 2 80 inches 95 to 114 inches (241 to 290 cm) 3 100 inches 119 to 143 inches (302 to 363 cm) 4 150 inches 179 to 215 inches (454 to 546 cm)

PowerLite W29/99WH

16:10 Aspect Ratio Image or Screen

Screen or Projection distance image size

Wide to Tele

1 50 inches 55 to 66 inches (139 to 168 cm) 2 80 inches 88 to 106 inches (225 to 270 cm) 3 100 inches 111 to 133 inches (281 to 338 cm) 4 150 inches 167 to 200 inches (424 to 509 cm)

PowerLite 955WH

16:10 Aspect Ratio Image or Screen

Screen or Projection distance image size

Wide to Tele

1 50 inches 58 to 95 inches (149 to 243 cm) 2 80 inches 94 to 153 inches (239 to 390 cm) 3 100 inches 118 to 192 inches (300 to 488 cm) 4 150 inches 178 to 289 inches (451 to 733 cm)

PowerLite 965H

4:3 Aspect Ratio Image or Screen

Screen or Projection distance image size

1 50 inches 55 to 90 inches (140 to 229 cm) 2 80 inches 89 to 145 inches (226 to 368 cm) 3 100 inches 111 to 181 inches (283 to 460 cm) 4 150 inches 168 to 272 inches (426 to 692 cm)

Parent topic: Projector Placement

Projector Connections

You can connect the projector to a variety of computer, video, and audio sources to display presentations, movies, or other images, with or without sound.

• Connect any type of computer (Windows or Mac) that has a USB port, standard video output (monitor) port, or HDMI port.

• For video projection, connect devices such as DVD players, gaming consoles, digital cameras, and smartphones with compatible video output ports.

Wide to Tele

• If your presentation or video includes sound, you can connect audio input cables, if necessary.

• For slide shows without a computer, you can connect USB devices (such as a flash drive or camera) or an optional Epson document camera.

Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode to ensure the projector's internal temperature is regulated properly.

Connecting to Computer Sources Connecting to Video Sources Connecting to an External Computer Monitor Connecting to External Speakers Connecting a Microphone Connecting to External USB Devices Connecting to a Document Camera

Parent topic: Setting Up the Projector Related references

Projector Setup Settings - Extended Menu

Connecting to Computer Sources

Follow the instructions in these sections to connect a computer to the projector.

Connecting to a Computer for USB Video and Audio Connecting to a Computer for VGA Video Connecting to a Computer for HDMI Video and Audio Connecting to a Computer for USB Mouse Control Connecting to a Computer for Sound

Parent topic: Projector Connections

Connecting to a Computer for USB Video and Audio

If your computer meets the system requirements, you can send video and audio output to the projector through the computer's USB port (preferably USB 2.0). Connect the projector to your computer using a USB cable.

Note: An HDMI connection is recommended for projecting content requiring high bandwidth.

1. Turn on your computer.

2. Connect the cable to your projector's USB-B port.

3. Connect the other end to any available USB port on your computer.

4. Do one of the following:

• Windows 8.x: Click EPSON_PJ_UD in the upper right-corner, thenselect Run EMP_UDSE.EXE in the dialog box that appears to install the Epson USB Display software.

• Windows 7/Windows Vista: Select Run EMP_UDSE.EXE in the dialog box that appears to install the Epson USB Display software.

• Windows XP: Wait as messages appear on your computer screen and the projector installs the Epson USB Display software on your computer.

• OS X: The USB Display setup folder appears on your screen. Select USB Display Installer and follow the on-screen instructions to install the Epson USB Display software.

Follow any on-screen instructions. You need to install this software only the first time you connect the projector to the computer.

Note: If you are using Windows XP and you see a message asking if you want to restart your computer, select No.

The projector displays the image from your computer's desktop and outputs sound, if your presentation contains audio.

Parent topic: Connecting to Computer Sources Related references

USB Display System Requirements

Related tasks

Connecting to a Computer for HDMI Video and Audio

Connecting to a Computer for VGA Video

You can connect the projector to your computer using a VGA computer cable. Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for

video output, you need to obtain an adapter that allows you to connect to the projector's VGA video port. Contact Apple for compatible adapter options.

1. If necessary, disconnect your computer's monitor cable.

2. Connect the VGA computer cable to your computer's monitor port.

3. Connect the other end to a Computer port on the projector.

4. Tighten the screws on the VGA connector.

Parent topic: Connecting to Computer Sources Related tasks

Connecting to a Computer for Sound

Connecting to a Computer for HDMI Video and Audio

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable. Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for

video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port. Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through the HDMI port.

1. Connect the HDMI cable to your computer's HDMI output port.

2. Connect the other end to one of the projector's HDMI ports.

Note: The projector converts the digital audio signal sent from your computer into a mono analog signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for USB Mouse Control

If you connected your computer to a Computer, USB-B, or HDMI port on the projector, you can set up the remote control to act as a wireless mouse. This lets you control projection at a distance from your computer. To do this, connect the projector to your computer using a USB cable, if it is not connected already.

1. Connect the USB cable to your projector's USB-B port.

2. Connect the other end to any available USB port on your computer.

3. If necessary, configure your computer to work with an external USB mouse. See your computer documentation for details.

Parent topic: Connecting to Computer Sources Related tasks

Using the Remote Control as a Wireless Mouse

Connecting to a Computer for Sound

If your computer presentation includes sound and you did not connect it to the projector's USB-B or HDMI port, you can still play sound through the projector's speaker system. Just connect an optional

3.5 mm stereo mini-jack audio cable as described here.

1. Connect the audio cable to your laptop's headphone or audio-out jack, or your desktop's speaker or audio-out port.

2. Connect the other end to the Audio port that corresponds to the Computer port you are using.

Parent topic: Connecting to Computer Sources

Connecting to Video Sources

Follow the instructions in these sections to connect video devices to the projector.

Connecting to an HDMI Video Source Connecting to an MHL-Compatible Device Connecting to a Component-to-VGA Video Source Connecting to a Composite Video Source Connecting to an S-Video Video Source Connecting to a Video Source for Sound

Parent topic: Projector Connections

Connecting to an HDMI Video Source

If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable. The HDMI connection provides the best image quality.

1. Connect the HDMI cable to your video source's HDMI output port.

2. Connect the other end to one of the projector's HDMI ports.

Note: The projector converts the digital audio signal sent from your video source into a mono analog signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.

Parent topic: Connecting to Video Sources

Connecting to an MHL-Compatible Device

If you have an MHL-compatible smartphone or tablet, you can connect it to the projector using either an MHL cable or an HDMI cable with a device-compatible MHL adapter. If you have a device with a built-in MHL connector, plug it directly into the HDMI2/MHL port (PowerLite 97H/98H/99WH/955WH/965H).

Note: Some connected devices may not charge when using an MHL adapter.

1. Connect the MHL cable or adapter to your device's Micro-USB port.

2. If you are using an MHL adapter, connect it to an MHL-compatible HDMI cable.

3. Connect the other end of the cable to the projector's HDMI2/MHL port.

Parent topic: Connecting to Video Sources

Connecting to a Component-to-VGA Video Source

If your video source has component video ports, you can connect it to the projector using an optional component-to-VGA video cable. Depending on your component ports, you may need to use an adapter cable along with a component video cable.

1. Connect the component connectors to your video source's color-coded component video output ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component video cable.

2. Connect the VGA connector to a Computer port on the projector.

3. Tighten the screws on the VGA connector.

If your image colors appear incorrect, you may need to change the Input Signal setting in the projector's Signal menu.

Parent topic: Connecting to Video Sources Related references

Input Signal Settings - Signal Menu

Related tasks

Connecting to a Video Source for Sound

Connecting to a Composite Video Source

If your video source has a composite video port, you can connect it to the projector using an optional RCA-style video or A/V cable.

1. Connect the cable with the yellow connector to your video source's yellow video output port.

2. Connect the other end to the projector's Video port.

Parent topic: Connecting to Video Sources Related tasks

Connecting to a Video Source for Sound

Connecting to an S-Video Video Source

If your video source has an S-Video port, you can connect it to the projector using an optional S-Video cable.

1. Connect the S-Video cable to your video source's S-Video output port.

2. Connect the other end to the projector's S-Video port.

Parent topic: Connecting to Video Sources Related tasks

Connecting to a Video Source for Sound

You can play sound through the projector's speaker system if your video source has audio output ports. If you are projecting video using a Computer port, connect the projector to the video source using an

optional stereo mini-jack audio cable. If you are projecting video using the Video or S-Video port, connect the projector to the video source

using an RCA audio cable. Note: If you connected your video source to the projector using an HDMI cable, the audio signal is

transferred with the video signal; you do not need an additional cable for sound.

1. Connect the audio cable to your video source's audio-out ports.

2. Do one of the following:

• Connect the other end of the cable to the projector's Audio port that corresponds to the

Computer port you are using for video.

• Connect the red and white plugs on the other end of the cable to the projector's L-Audio-R ports.

Parent topic: Connecting to Video Sources

Connecting to an External Computer Monitor

If you connected a computer to the projector's Computer port, you can also connect an external monitor to the projector. This lets you see your presentation on the external monitor even when the projected image is not visible.

If you want to output images to an external monitor when the projector is turned off, you need to select Communication On as the Standby Mode setting and Always On as the A/V Output setting in the projector's menu system.

Note: Monitors that use a refresh rate less than 60 Hz may not be able to display images correctly.

1. Make sure your computer is connected to the projector's Computer port.

2. Connect the external monitor's cable to your projector's Monitor Out port.

Parent topic: Projector Connections Related references

Projector Setup Settings - Extended Menu Projector Setup Settings - ECO Menu

Connecting to External Speakers

To enhance the sound from your presentation, you can connect the projector to external self-powered speakers. You can control the volume using the projector's remote control.

You can also connect the projector to an amplifier with speakers. If you want to output audio from the external speakers when the projector is turned off, you need to

select Communication On for the Standby Mode setting and Always On for the A/V Output setting in the projector's menu system.

Note: The projector's built-in speaker system is disabled when you connect external speakers.

1. Make sure your computer or video source is connected to the projector with both audio and video cables as necessary.

2. Locate the appropriate cable to connect your external speakers, such as a stereo mini-jack-to-pinjack cable, or another type of cable or adapter.

3. Connect one end of the cable to your external speakers as necessary.

4. Connect the stereo mini-jack end of the cable to your projector's Audio Out port.

Parent topic: Projector Connections Related references

Projector Setup Settings - Extended Menu Projector Setup Settings - ECO Menu

Connecting a Microphone

You can connect a microphone to the projector's Mic port to provide audio support during presentations (PowerLite 97H/98H/99WH/955WH/965H).

Note: If you connect a condenser microphone with plug-in power support, turn on the Plug-in Power setting in the Extended menu. If you want to output audio from the external speakers when the projector is turned off, you need to select Communication On for the Standby Mode setting and Always On for the A/V Output setting in the projector's menu system.

1. Connect the microphone cable to the projector's Mic port.

2. Turn on the microphone, if necessary.

Parent topic: Projector Connections

Related references

Projector Setup Settings - Extended Menu Projector Setup Settings - ECO Menu

Connecting to External USB Devices

Follow the instructions in these sections to connect external USB devices to the projector.

USB Device Projection Connecting a USB Device or Camera to the Projector Selecting the Connected USB Source Disconnecting a USB Device or Camera From the Projector

Parent topic: Projector Connections

USB Device Projection

You can project images and other content without using a computer or video device by connecting any of these devices to your projector:

• USB flash drive

• Digital camera or smartphone

• USB hard drive

• Multimedia storage viewer

• USB memory card reader

Note: Digital cameras or smartphones must be USB-mounted devices, not TWAIN-compliant devices, and must be USB Mass Storage Class-compliant.

Note: USB hard drives must meet these requirements:

• USB Mass Storage Class-compliant (not all USB Mass Storage Class devices are supported)

• Formatted in FAT or FAT32

• Self-powered by their own AC power supplies (bus-powered hard drives are not recommended)

• Does not have multiple partitions

You can project slide shows from image files on a connected USB device or memory card reader.

Parent topic: Connecting to External USB Devices

Connecting a USB Device or Camera to the Projector

You can connect your USB device or camera to the projector's USB-A port and use it to project images and other content.

1. If your USB device came with a power adapter, plug the device into an electrical outlet.

2. Connect the USB cable (or USB flash drive or USB memory card reader) to the projector's USB-A port.

Note: Do not connect a USB hub or a USB cable longer than 10 feet (3 m), or the device may not operate correctly.

3. Connect the other end of the cable (if applicable) to your device.

Parent topic: Connecting to External USB Devices Related topics

Projecting a PC Free Presentation

Selecting the Connected USB Source

You can switch the projector's display to the source you connected to the USB-A port.

1. Make sure the connected USB source is turned on, if necessary.

2. Press the USB button on the remote control.

3. Press the button again to cycle through other USB sources, if available.

Parent topic: Connecting to External USB Devices

Disconnecting a USB Device or Camera From the Projector

When you finish presenting with a connected USB device or camera, you must prepare to disconnect the device from the projector.

1. If the device has a power button, turn off and unplug the device.

2. Disconnect the USB device or camera from the projector.

Parent topic: Connecting to External USB Devices

Connecting to a Document Camera

You can connect a document camera to your projector to project images viewed by the camera. Depending on your Epson document camera model, do one of the following to connect the document

camera to your projector:

• For the Epson DC-06 document camera, locate the USB cable that came with the camera and

connect it to the projector's USB-A port and to the document camera's USB Type B port.

• For the Epson DC-11 document camera, connect it to the projector's Computer or Video port and to

the corresponding port on the document camera. See the document camera manual for details.

• For the Epson DC-12 document camera, connect it to the projector's HDMI, Computer, or Video port

and to the corresponding port on the document camera. See the document camera manual for details.

• For the Epson DC-20 document camera, connect it to the projector's HDMI, Computer, or Video port

and to the corresponding port on the document camera. See the document camera manual for details.

Note: For additional features supported by software, connect your document camera to your computer instead of the projector. See the document camera manual for details.

Parent topic: Projector Connections Related references

Optional Equipment and Replacement Parts

Installing Batteries in the Remote Control

The remote control uses the two AA batteries that came with the projector. Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types,

or mix new and old batteries.

1. Remove the battery cover.

2. Insert the batteries with the + and – ends facing as shown.

3. Replace the battery cover and press it down until it clicks into place.

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.

Parent topic: Setting Up the Projector Related references

Remote Control Specifications

Opening the Lens Cover

To open the projector's lens cover, slide the A/V Mute slide lever until it clicks into the open position.

Parent topic: Setting Up the Projector

Using the Projector on a Network

Follow the instructions in these sections to set up your projector for use on a network.

Wired Network Projection Wireless Network Projection Setting Up Projector Network E-Mail Alerts Setting Up Monitoring Using SNMP Controlling a Networked Projector Using a Web Browser Crestron RoomView Support

Wired Network Projection

You can send images to your projector through a wired network (not supported on the PowerLite S27). To do this, you connect the projector to your network, and then set up your projector and computer for network projection.

After connecting and setting up the projector as described here, install the network software from the Epson Projector Software CD or download the software as necessary. Use the following software and documentation to set up, control, and monitor network projection:

• EasyMP Network Projection software sets up your computer for network projection. See the EasyMP

Network Projection Operation Guide for instructions.

• EasyMP Monitor software (Windows only) lets you monitor and control your projector through the

network. You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support (Canada) and select your projector.

• EasyMP Multi PC Projection software allows you to hold interactive meetings by projecting the

computer screens of users over a network. See the EasyMP Multi PC Projection Operation Guide for instructions.

• EasyMP Network Updater software (Windows only) allows you to update firmware for a projector over

a wired LAN. See the EasyMP Network Updater Operation Guide for instructions. You can download the latest software and documentation from the Epson web site. Go to epson.com/support (U.S.) or

epson.ca/support (Canada) and select your projector.

Note: If your projector is connected via a LAN cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the EasyMP Network Projection software.

Connecting to a Wired Network

Selecting Wired Network Settings

Parent topic: Using the Projector on a Network Related references

Projector Network Settings - Network Menu

Connecting to a Wired Network

To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10Base-T network cable. To ensure proper data transmission, use a Category 5 shielded cable or better.

1. Connect one end of the network cable to your network hub, switch, or router.

2. Connect the other end of the cable to the projector's LAN port.

Parent topic: Wired Network Projection

Selecting Wired Network Settings

Before you can project from computers on your network, you must select the network settings for the projector using its menu system.

Note: Make sure you already connected the projector to your wired network using the LAN port.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Basic menu and press Enter.

6. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for

accessing the projector over the web. (Default user name is EPSONWEB; default password is admin.)

• Projector Keyword lets you turn on a security password to prevent access to the projector by

anyone not in the room with it. You must enter a displayed, randomized keyword from a computer using the EasyMP Network Projection software to access the projector.

• Display LAN Info lets you select how the projector displays network information. You can select

an option to display a QR code that lets you quickly connect your iOS or Android devices using the Epson iProjection app.

Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

7. Select the Wired LAN menu and press Enter.

8. If necessary, select IP Settings and press Enter.

9. Select your IP Settings as necessary:

• If your network assigns addresses automatically, turn on the DHCP setting.

• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet

Mask, and Gateway Address as needed.

Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on

the remote control. To select a highlighted number, press Enter.

10. To prevent display of the IP address on the standby screen, turn off IP Address Display.

11. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wired Network Projection

Wireless Network Projection

You can send images to your projector through a wireless network. To do this, you must install the Epson 802.11b/g/n wireless LAN module, and then set up your projector and computer for wireless projection.

Note: The wireless LAN module is not included with your projector and is optional. Note: If your projector is connected via a LAN cable to a network that includes a wireless access point,

you can connect to the projector wirelessly using the EasyMP Network Projection software. There are two ways to connect the projector to your wireless network:

• Using the optional Quick Wireless Connection USB Key (Windows only)

• Configuring the connection manually using the projector's Network menus

After installing the module and setting up the projector, install the network software from the Epson Projector Software CD or download the software, as necessary. Use the following software and documentation to set up, control, and monitor wireless projection:

• EasyMP Network Projection software sets up your computer for wireless network projection. See the

EasyMP Network Projection Operation Guide for instructions.

• EasyMP Monitor software (Windows only) lets you monitor and control your projector through the

network. You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support (Canada) and select your projector.

• EasyMP Multi PC Projection software allows you to hold interactive meetings by projecting the

computer screens of users over a network. See the EasyMP Multi PC Projection Operation Guide for instructions.

• EasyMP Network Updater software (Windows only) allows you to update firmware for a projector over

a wired LAN. See the EasyMP Network Updater Operation Guide for instructions. You can download the latest software and documentation from the Epson web site. Go to epson.com/support (U.S.) or

epson.ca/support (Canada) and select your projector.

• Projection from iOS or Android devices with the wireless LAN module and free Epson iProjection app;

visit epson.com/projectorapp (U.S.) or epson.ca/projectorapp (Canada) for more information.

Installing the Wireless LAN Module Using Quick Wireless Connection (Windows Only) Selecting Wireless Network Settings Manually Searching for a Wireless Network Using a QR Code to Connect a Mobile Device Selecting Wireless Network Settings in Windows Selecting Wireless Network Settings in OS X Setting Up Wireless Network Security

Parent topic: Using the Projector on a Network Related references

Optional Equipment and Replacement Parts Projector Network Settings - Network Menu

Installing the Wireless LAN Module

To use the projector over a wireless network, install the Epson 802.11b/g/n wireless LAN module in the projector. Do not install any other type of wireless module.

1. Remove the wireless LAN module cover screw.

2. Insert the wireless LAN module into the USB-A port.

3. Attach the wireless LAN module cover and secure it using the screw you removed.

The light on the wireless LAN module turns on when the module is installed and operating. The light flashes when the module is communicating over the network.

Parent topic: Wireless Network Projection Related references

Optional Equipment and Replacement Parts

Using Quick Wireless Connection (Windows Only)

You can use the Quick Wireless Connection USB key to quickly connect your computer to the projector wirelessly. Then you can project your presentation and remove the key when you are done.

Note: The Quick Wireless Connection USB key is not included with your projector and is optional. Note: Make sure the wireless LAN module is installed. The wireless LAN module is not included with

your projector and is optional.

1. Turn on the projector.

2. Press the LAN button on the remote control.

You see a screen like this:

3. Verify that an SSID and IP address are displayed, then remove the wireless LAN module from the projector.

4. Insert the Quick Wireless Connection USB key into the same port used for the wireless LAN module.

You see a projected message that the network information update is complete.

5. Remove the USB key.

6. Reinsert the wireless LAN module into the projector.

7. Connect the USB key to a USB port on your computer or laptop. Note: In Windows Vista, if you see the AutoPlay window, select Run LaunchQWRD.exe, then

select Allow on the next screen.

8. Follow the on-screen instructions to install the Quick Wireless Connection driver. Note: If you see a Windows Firewall message, click Yes to disable the firewall for this application. After a few minutes, your computer image is displayed by the projector. If it does not appear, press

the LAN button on your remote control or restart your computer.

9. Run your presentation as necessary.

10. When you finish projecting wirelessly, select the Safely Remove Hardware option in the Windows taskbar, then remove the USB key from your computer.

Note: You may need to restart your computer to reactivate your wireless LAN connection.

Parent topic: Wireless Network Projection Related references

Optional Equipment and Replacement Parts

Selecting Wireless Network Settings Manually

Before you can project from your wireless network, you must select the network settings for the projector using its menu system.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Basic menu and press Enter.

6. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for

accessing the projector over the web. (Default user name is EPSONWEB; default password is admin.)

• Projector Keyword lets you turn on a security password to prevent access to the projector by

anyone not in the room with it. The projector displays a random keyword that you must enter from a computer using the EasyMP Network Projection software or an iOS or Android device using iProjection.

• Display LAN Info lets you select how the projector displays network information. You can select

an option to display a QR code that lets you quickly connect your iOS or Android devices using the Epson iProjection app.

Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

7. Select the Wireless LAN menu and press Enter.

8. Select the settings on the Wireless LAN menu as necessary for your network.

9. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

After you complete the wireless settings for your projector, you need to select the wireless network on your computer.

Wireless LAN Menu Settings

Parent topic: Wireless Network Projection

Wireless LAN Menu Settings

Setting Options Description Connection Mode Quick Selects the type of wireless

Channel 1ch In Quick connection mode,

SSID Auto Setting On Turnson automatic SSID

Advanced

6ch 11ch

Off

connection: Quick: lets you quickly connect

to one computer or use the optional Quick Wireless Connection USB key to connect

Advanced: lets you connect to multiple computers via a wireless network access point

selects the frequency band (channel) used by the wireless LAN

searching in Quick connection mode; set to Off when connecting to multiple projectors at the same time ; set to On when connecting in Quick connection mode with an Android device using iProjection

SSID Up 32 alphanumeric characters Sets the SSID (network name) of

the wireless LAN system the projector is connecting to

Search Access Point — Search for available wireless

network access points in

Advanced connection mode

Setting Options Description IP Settings DHCP In Advanced connection mode,

SSID Display On Selects whether to display the

IP Address Display On Selects whether to display the IP

Parent topic: Selecting Wireless Network Settings Manually

Searching for a Wireless Network

You can use your projector's site survey function to quickly locate and connect to available wireless networks.

1. Turn on the projector.

2. Press the Menu button.

IP Address Subnet Mask Gateway Address

Off

select DHCP if your network assigns addresses automatically, or manually enter the network's

IP Address, Subnet Mask, and Gateway Address

SSID on the network standby screen

address on the network standby screen

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Wireless LAN menu and press Enter.

6. Select Advanced as the Connection Mode setting and press Enter.

7. Select Search Access Point and press Enter.

8. Select the name of the wireless network you want to connect to and press Enter.

9. If the network has security enabled, enter the wireless password.

You see a screen like this:

10. Select the settings on the security menu as necessary for your network.

11. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wireless Network Projection

Using a QR Code to Connect a Mobile Device

After you select the wireless network settings for your projector, you can display a QR code on the screen and use it to connect a mobile device using the Epson iProjection app.

Note: Make sure you have installed the latest version of Epson iProjection on your device. Visit

epson.com/projectorapp (U.S.) or epson.ca/projectorapp (Canada) for more information.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Basic menu and press Enter.

5. Set the Display LAN Info setting to Text & QR Code.

6. Select Complete and follow the on-screen instructions to save your settings and exit the menus.

7. Press the LAN button on the remote control or select Display the QR Code in the projector's Network menu.

Your projector displays the QR code on the projection surface. Note: If you do not see the QR code after pressing the LAN button, press Enter to display it.

8. Start Epson iProjection on your mobile device.

9. Use the QR code reader feature to read the QR code and connect your device to the projector. Visit

epson.com/projectorapp (U.S.) or epson.ca/projectorapp (Canada) for instructions.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings in Windows

Before connecting to the projector, select the correct wireless network on your computer.

1. To access your wireless utility software, access the Desktop and double-click the network icon on the Windows taskbar.

2. Do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

3. Click Connect.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings in OS X

Before connecting to the projector, select the correct wireless network in OS X.

1. Click the AirPort icon on the menu bar at the top of the screen.

2. Make sure AirPort is turned on, then do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

Parent topic: Wireless Network Projection

Setting Up Wireless Network Security

You can set up security for your projector to use on the wireless network. Set up one of the following security options to match the settings used on your network:

• WEP encryption

• WPA security

Note: Check with your network administrator for guidance on entering the correct information.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Security menu and press Enter.

5. Select the security settings as necessary to match your network settings.

6. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Wireless Security Menu Settings

Parent topic: Wireless Network Projection

Wireless Security Menu Settings

Settings on the Security menu let you select the type of security and security settings that match the network you are connecting the projector to.

Setting Options Description Security WPA2-PSK and WPA types Selects the type of security used

available on the wireless network

Passphrase Various keys from 8 to 32 Selects the pre-shared key used

characters onthe network; passphrases are

Parent topic: Setting Up Wireless Network Security

Setting Up Projector Network E-Mail Alerts

You can set up the projector to send you an e-mail alert over the network if there is a problem with the projector.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Mail menu and press Enter.

case-sensitive

5. Turn on Mail Notification.

6. Enter the IP address for the SMTP Server option.

Note: To enter the IP address using the numeric keys on the remote control, press and hold the Num button. Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x

is a number from 0 to 255).

7. Select a number for the SMTP server Port Number, from 1 to 65535 (default is 25).

8. Choose an Address field, enter the e-mail address, and select the alerts you want to receive there. Repeat for up to three addresses.

Note: Your e-mail address can be up to 32 alphanumeric characters long.

9. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Network Projector E-mail Alert Messages

Parent topic: Using the Projector on a Network

Network Projector E-mail Alert Messages

When a problem occurs with a networked projector, and you selected to receive e-mail alerts, you receive an e-mail containing the following information:

• Epson Projector on the subject line

• The name of the projector experiencing a problem

• The IP address of the affected projector

• Detailed information about the problem

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert. Parent topic: Setting Up Projector Network E-Mail Alerts

Setting Up Monitoring Using SNMP

Network administrators can install SNMP (Simple Network Management Protocol) software on network computers so they can monitor projectors. If your network uses this software, you can set up the projector for SNMP monitoring.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Others menu and press Enter.

5. Enter up to two IP addresses to receive SNMP notifications, using 0 to 255 for each address field.

Note: To enter the IP address using the numeric keys on the remote control, press and hold the Num button. Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x

is a number from 0 to 255).

6. If available, select the Priority Gateway setting for your network.

7. If your network environment uses an AMX controller, turn on the AMX Device Discovery setting to allow the projector to be detected.

8. If your network environment uses a Crestron RoomView controller, turn on the Crestron RoomView setting to allow the projector to be detected.

Note: Enabling Crestron RoomView disables the Epson Message Broadcast feature in the EasyMP

Monitor software.

9. If your network environment uses a Control4 or Control4 SDDP controller, turn on the Control4 SDDP setting to allow the projector to be detected.

10. If you are connecting to a network using Bonjour, turn on the Bonjour setting.

11. If you want this projector to receive broadcasted messages over the network, turn on the Message Broadcasting setting. Administrators can broadcast messages over the network using the Message Broadcasting plug-in for EasyMP Monitor (Windows only).

12. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Using the Projector on a Network Related tasks

Controlling a Networked Projector Using a Web Browser

Once you have connected your projector to your network, you can select projector settings and control projection using a compatible web browser. This lets you access the projector remotely.

Note: The web setup and control features support Microsoft Internet Explorer 8.0 or later, and Safari on networks that do not use a proxy server for connection. You cannot select all of the projector menu settings or control all projector functions using a web browser.

Note: If you set Standby Mode to Communication On, you can use a web browser to select settings and control projection even if the projector is in standby mode.

1. Make sure the projector is turned on.

2. Start your web browser on a computer or device connected to the network.

3. Type the projector's IP address into the browser's address box and press the computer's Enter key. Note: You may need to log in before you see the Web Control screen. If you see a log in window,

enter your user name and password. (The default user name is EPSONWEB and the default password is admin.)

You see the Web Control screen.

Note: If you connect from a web browser on a smartphone or tablet, a screen with two options is

displayed. Select remote to display the Web Remote page, or select config to display the Web Control page.

4. To select projector menu settings, select the name of the menu and follow the on-screen instructions.

5. To control projection remotely, select the Web Remote option. You see a screen like this:

1 Power button control 2 Selects the Computer port source

3 Selects Video, S-Video, and HDMI/MHL port sources 4 Freeze button control 5 A/V Mute button control 6 Page Up and Page Down button controls 7 Searches for sources 8 Selects the network source 9 Selects the USB Display or USB device source 10 Volume button controls 11 Closed Caption control 12 Displays a QR code for connecting with iOS or Android devices using the Epson iProjection

app

6. Select the icon corresponding to the projector function you want to control.

Parent topic: Using the Projector on a Network Related references

Projector Setup Settings - ECO Menu

Crestron RoomView Support

If you are using the Crestron RoomView network monitoring and control system, you can set up your projector for use on the system (not supported for the PowerLite S27). Crestron RoomView lets you control and monitor your projector using a web browser.

Note: You cannot use the Epson Web Control feature or the Message Broadcasting plug-in for EasyMP Monitor when you use Crestron RoomView.

For additional information on Crestron RoomView, contact Crestron.

Setting Up Crestron RoomView Support Controlling a Networked Projector Using Crestron RoomView

Parent topic: Using the Projector on a Network Related references

Projector Setup Settings - ECO Menu

Setting Up Crestron RoomView Support

To set up your projector for monitoring and control using a Crestron RoomView system, make sure your computer and projector are connected to the network. If you are connecting wirelessly, set up the projector using the Advanced network connection mode.

Note: If you want to use the Crestron RoomView system when the projector is turned off, you need to adjust the Standby Mode settings in the ECO menu.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Others menu and press Enter.

5. Set the Crestron RoomView setting to On to allow the projector to be detected. Note: Enabling Crestron RoomView disables the Epson Message Broadcasting feature in the

EasyMP Monitor software.

6. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

7. Turn off the projector, then turn it on again to enable the setting.

Parent topic: Crestron RoomView Support

Controlling a Networked Projector Using Crestron RoomView

Once you have set up your projector to use Crestron RoomView, you can control and monitor projection using a compatible web browser.

1. Start your web browser on a computer connected to the network.

2. Type the projector's IP address into the browser's address box and press the computer's Enter key. You see this screen:

3. Select the input source that you want to control in the Sources List box. You can scroll through available sources using the up and down arrows in the box.

4. To control projection remotely, click the on-screen buttons that correspond to the projector's remote control buttons. You can scroll through button options at the bottom of the screen.

Note: These on-screen buttons do not directly correspond to the projector's remote control buttons:

• OK acts as the Enter button

• Menu displays the projector's menu

5. To view information about the projector, click the Info tab.

6. To change projector, Crestron, and password settings, click the Tools tab, select settings on the displayed screen, and click Send.

7. When you finish selecting settings, click Exit to exit the program.

Parent topic: Crestron RoomView Support
