Epson PowerLite EB-800F, PowerLite EB-805F User manual

Download

Page 1

PowerLite EB-800F/805F User's Guide

Page 2

Page 3

PowerLite EB-800F/805F User's Guide.................................................................................................... 11

Introduction to Your Projector ................................................................................................................. 12

Projector Features.............................................................................................................................. 12

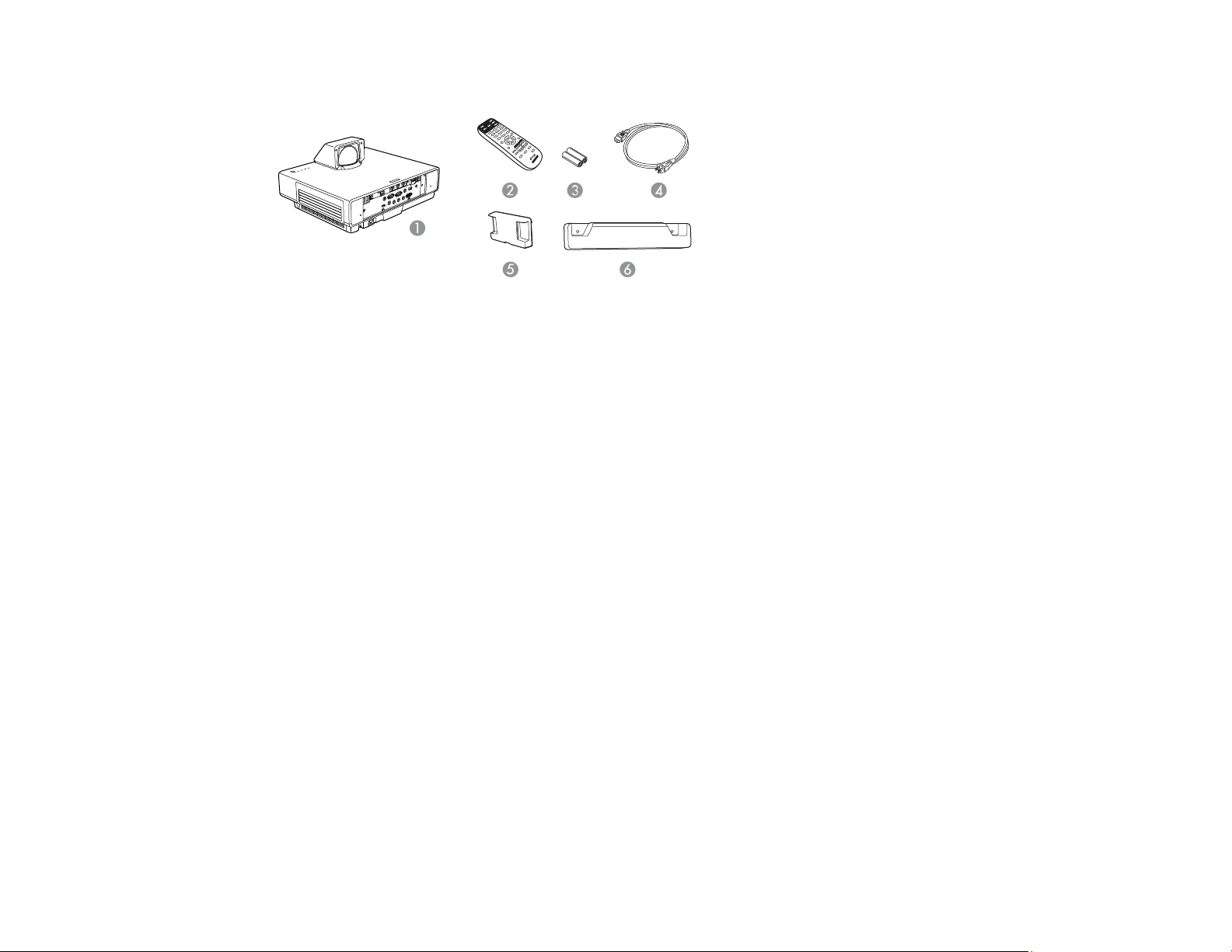

Product Box Contents.................................................................................................................... 13

Additional Components ................................................................................................................ 14

Optional Equipment and Replacement Parts................................................................................. 15

Warranty and Registration Information (U.S. and Canada) ........................................................... 16

Warranty and Registration Information (Latin America)................................................................. 17

Notations Used in the Documentation ................................................................................................ 17

Where to Go for Additional Information .............................................................................................. 17

Additional Projector Software and Manuals........................................................................................ 17

Projector Part Locations ..................................................................................................................... 19

Projector Parts - Front/Side ........................................................................................................... 20

Projector Parts - Top/Side ............................................................................................................. 21

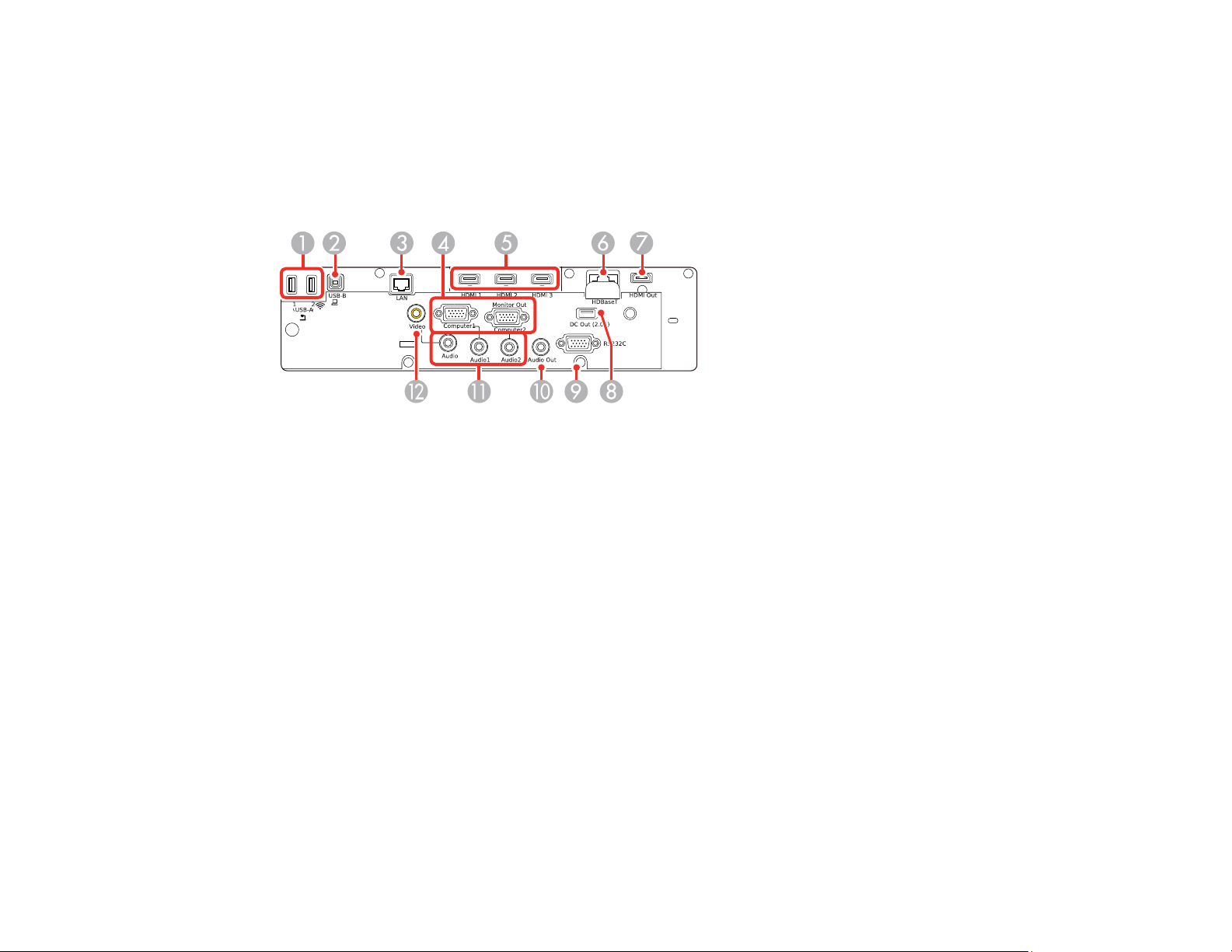

Projector Parts - Interface.............................................................................................................. 22

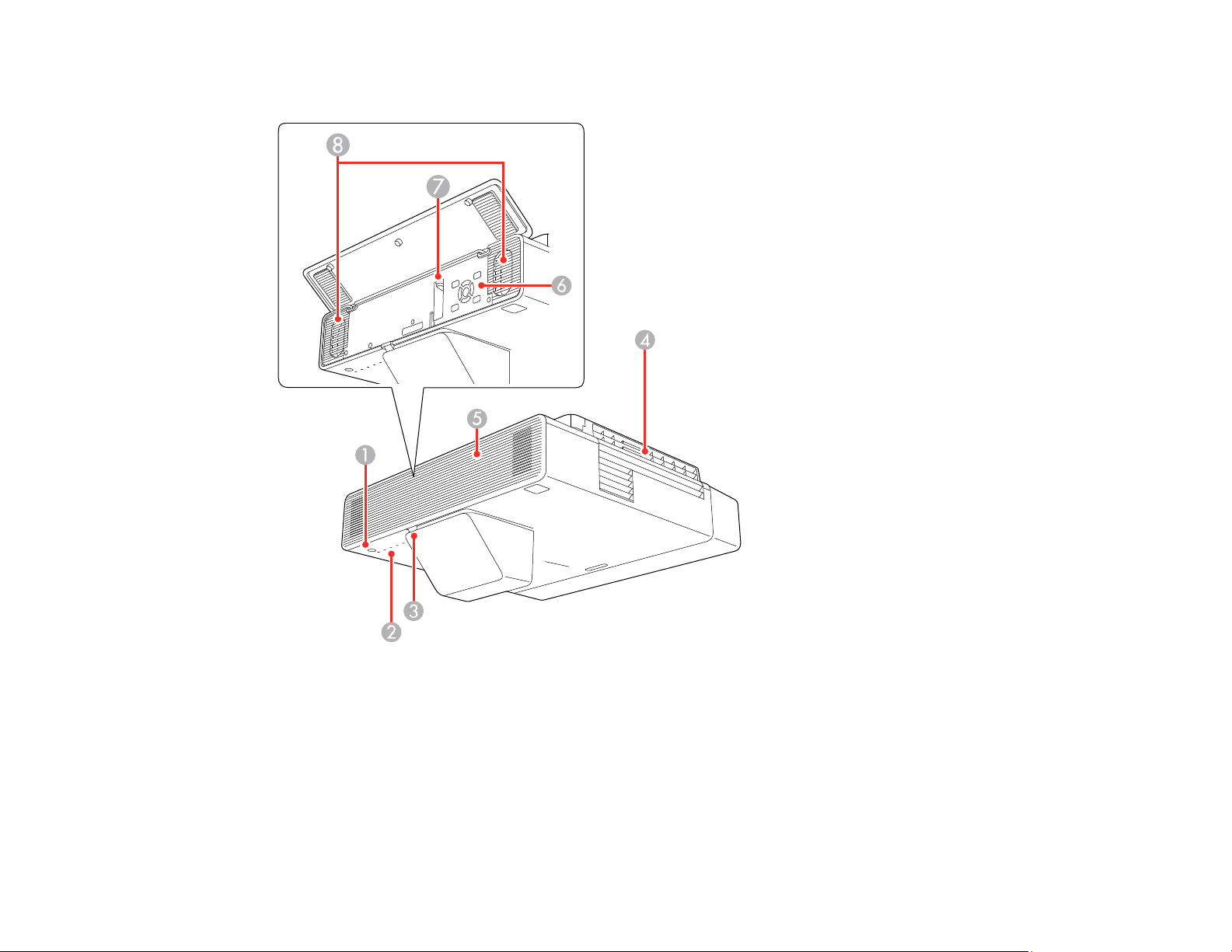

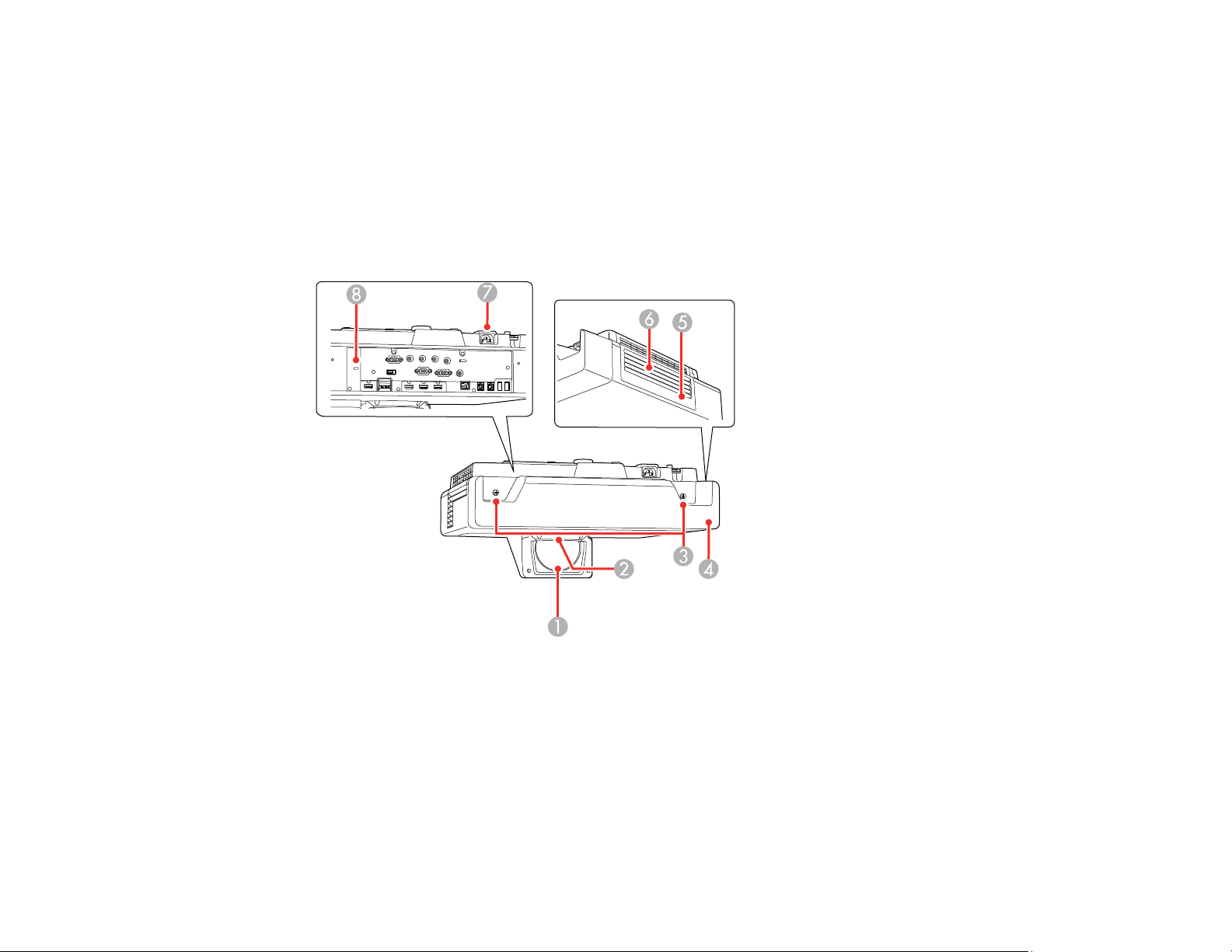

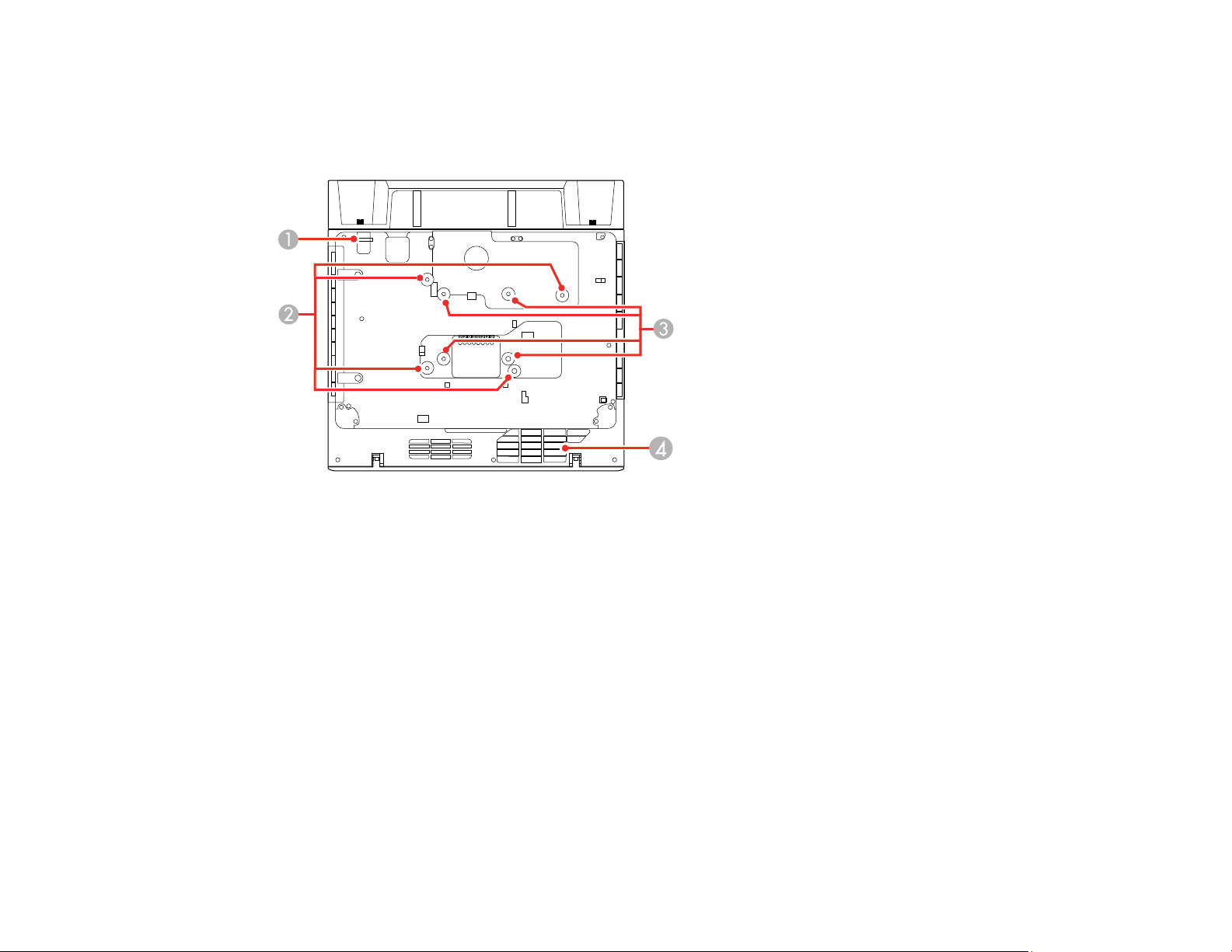

Projector Parts - Base.................................................................................................................... 23

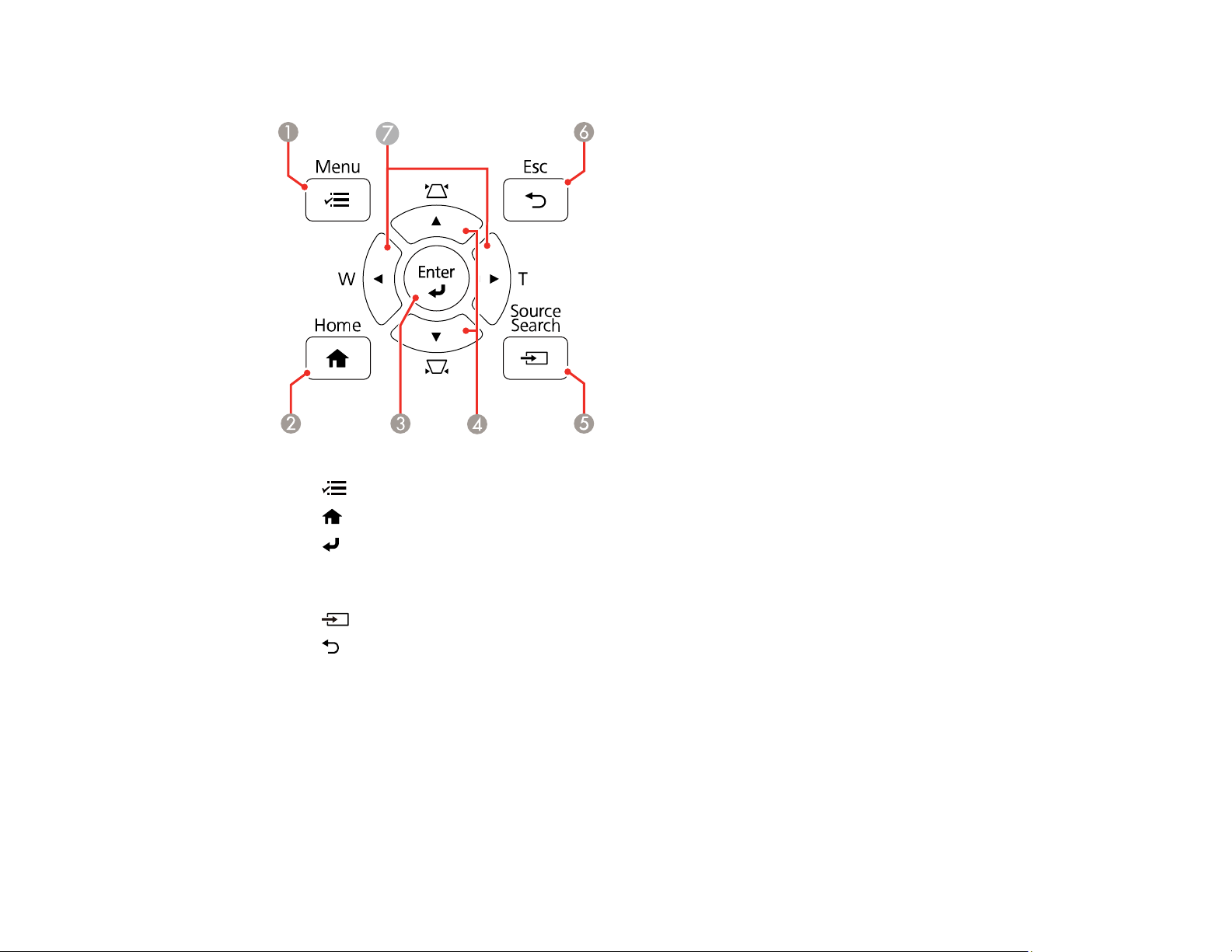

Projector Parts - Control Panel ...................................................................................................... 24

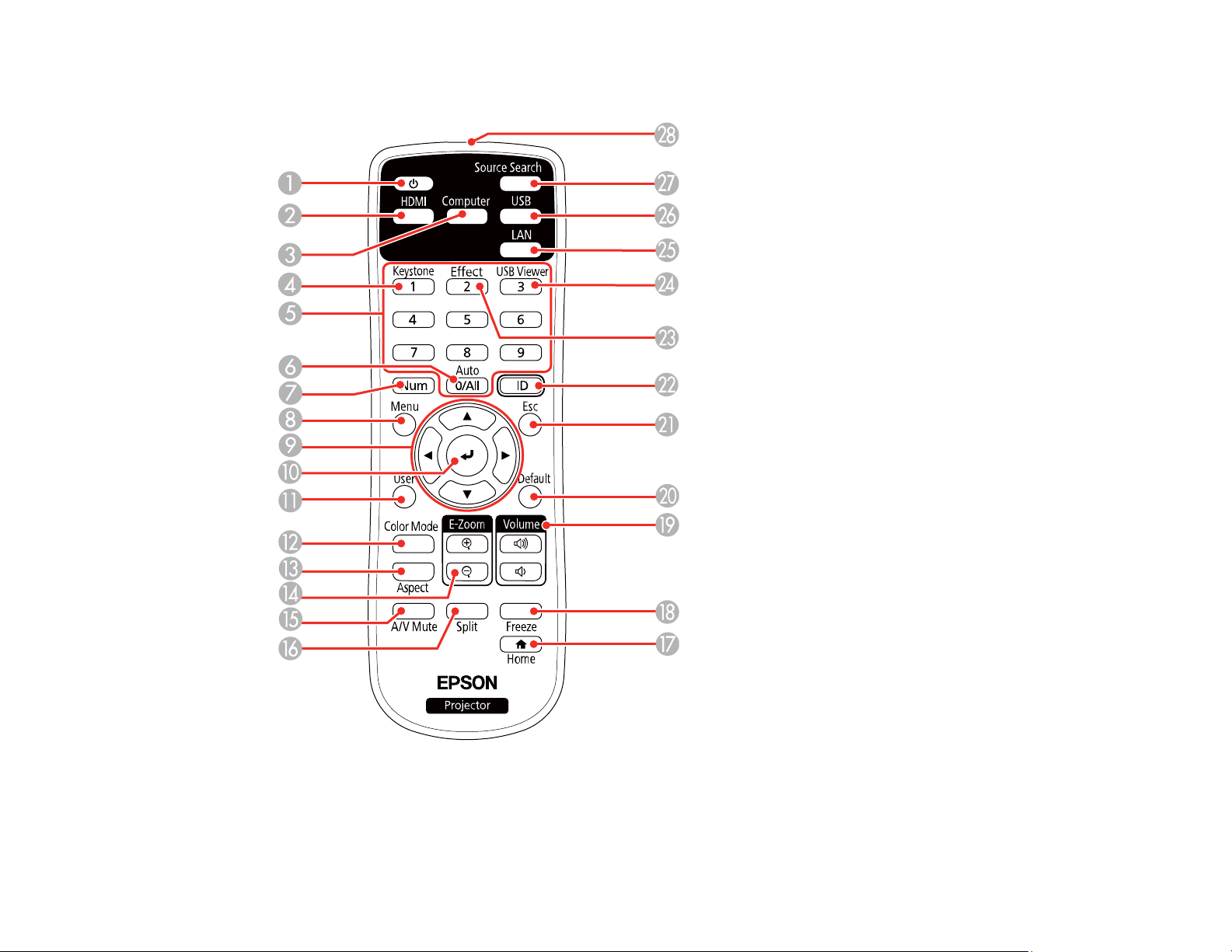

Projector Parts - Remote Control................................................................................................... 25

Setting Up the Projector ........................................................................................................................... 27

Projector Placement........................................................................................................................... 27

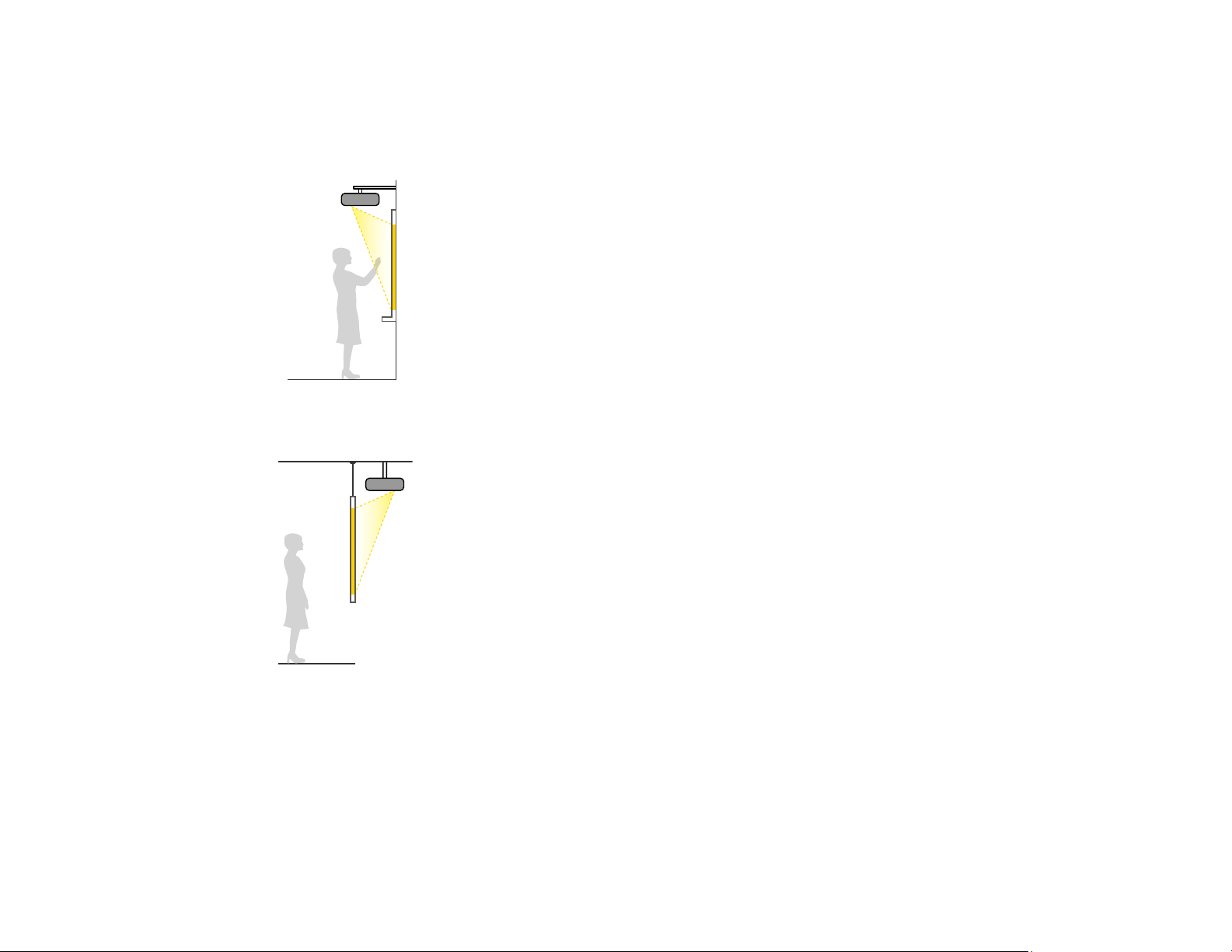

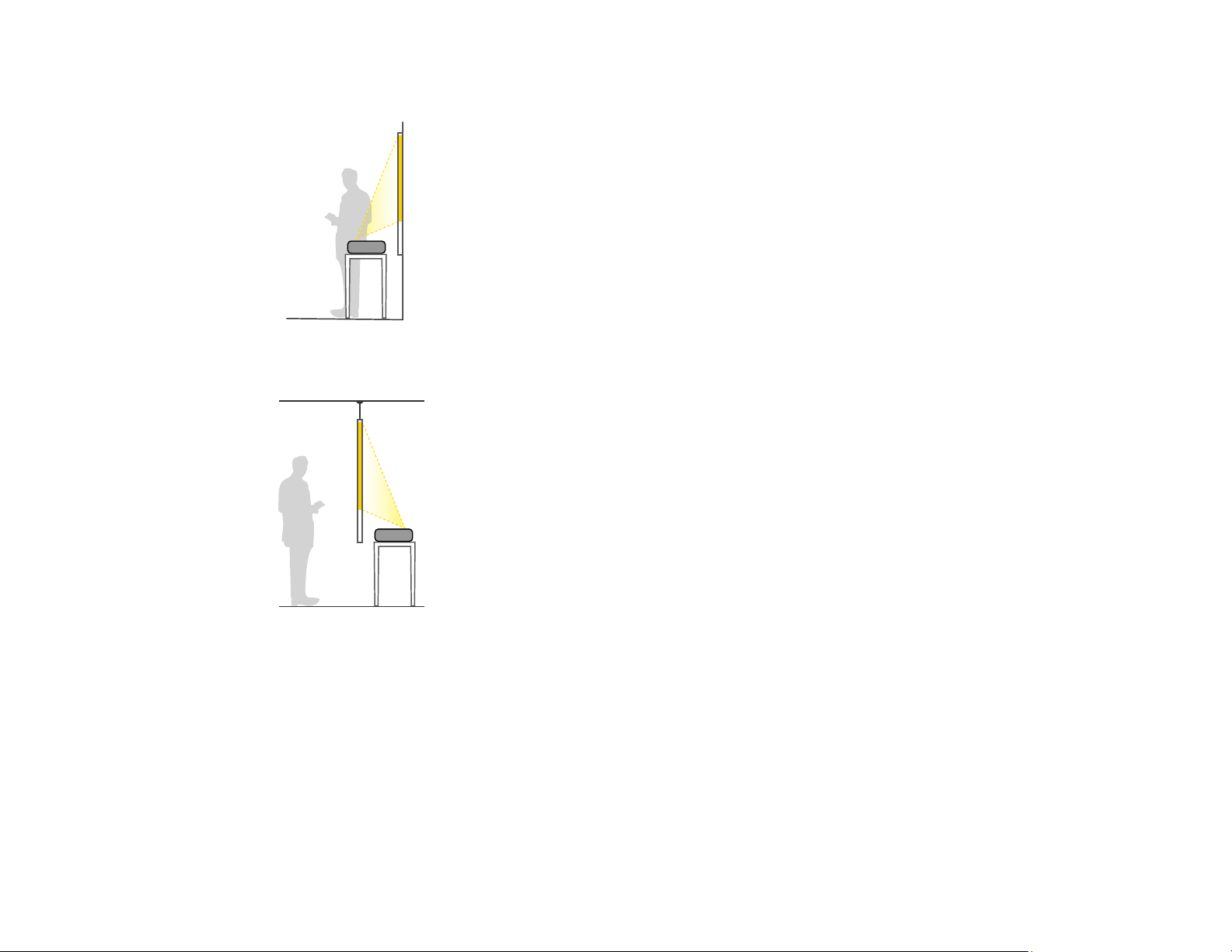

Projector Setup and Installation Options ....................................................................................... 28

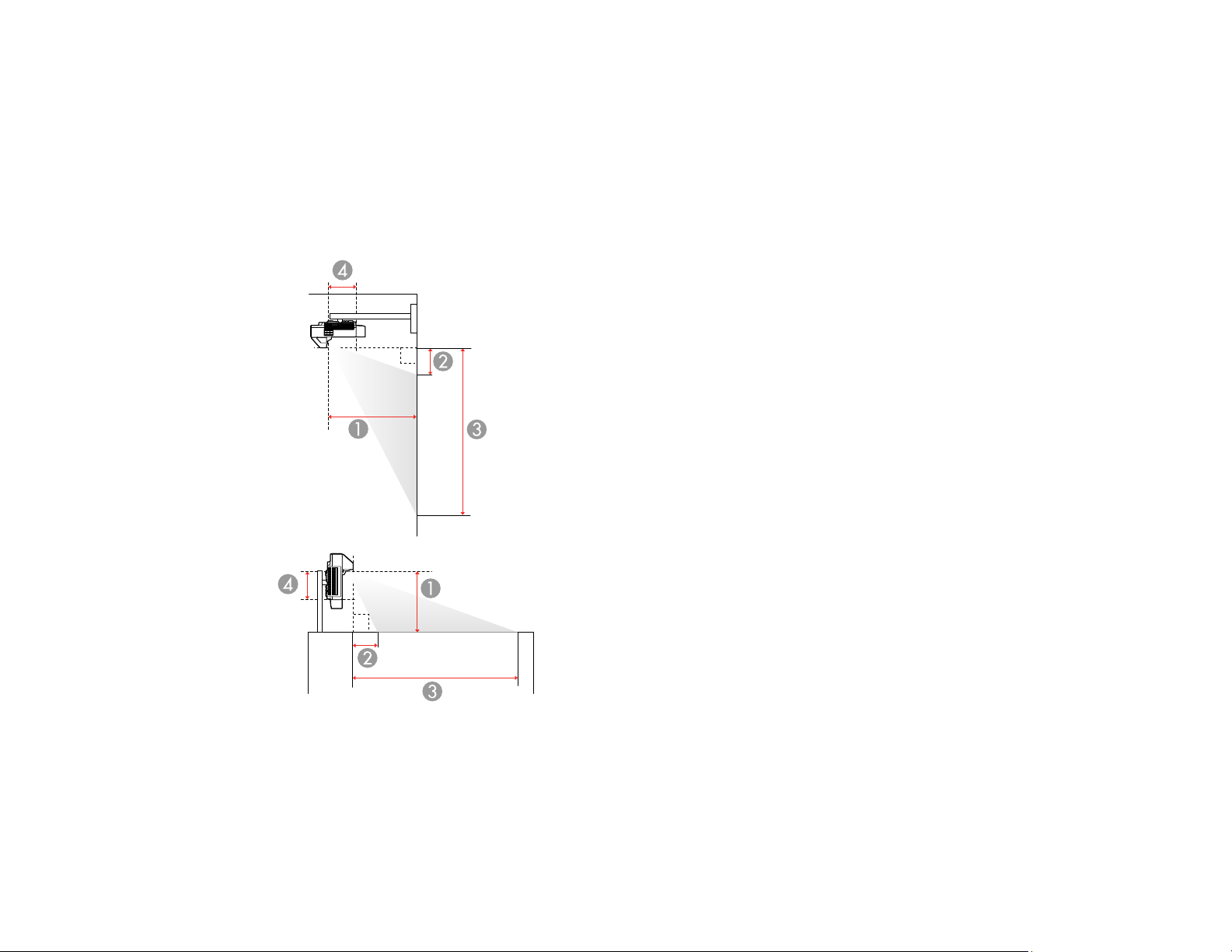

Projection Distance........................................................................................................................ 30

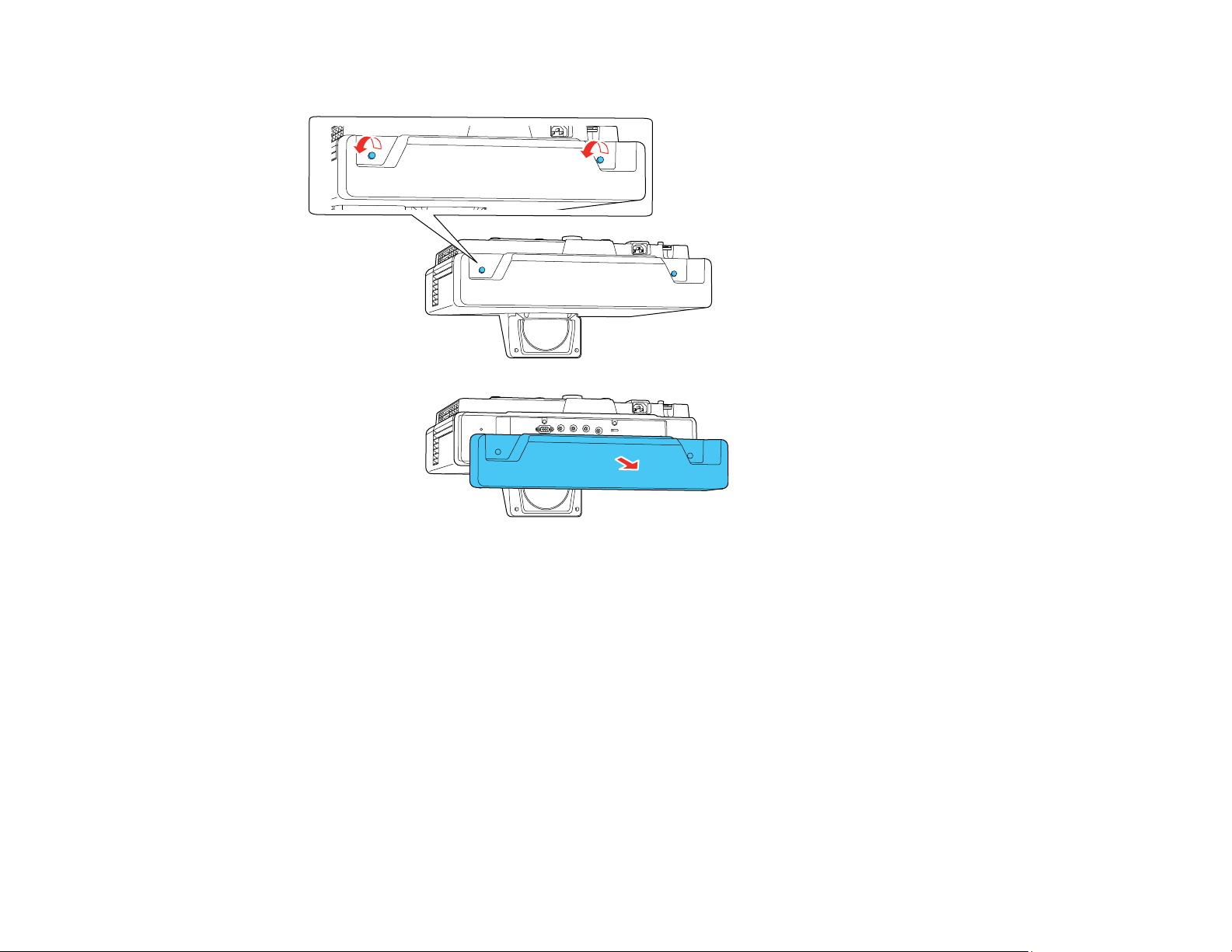

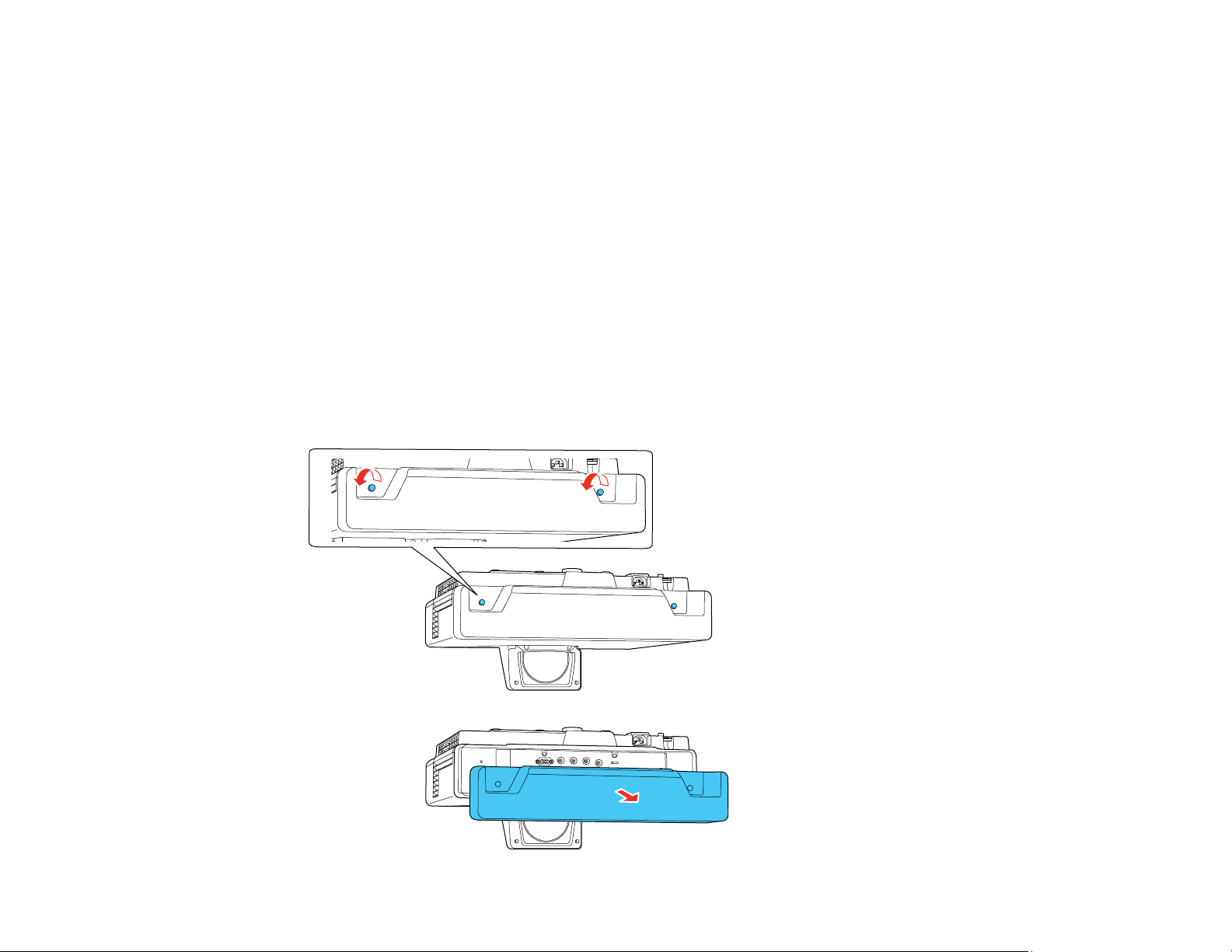

Removing and Attaching the Cable Cover.......................................................................................... 33

Projector Connections........................................................................................................................ 34

Connecting to Computer Sources.................................................................................................. 35

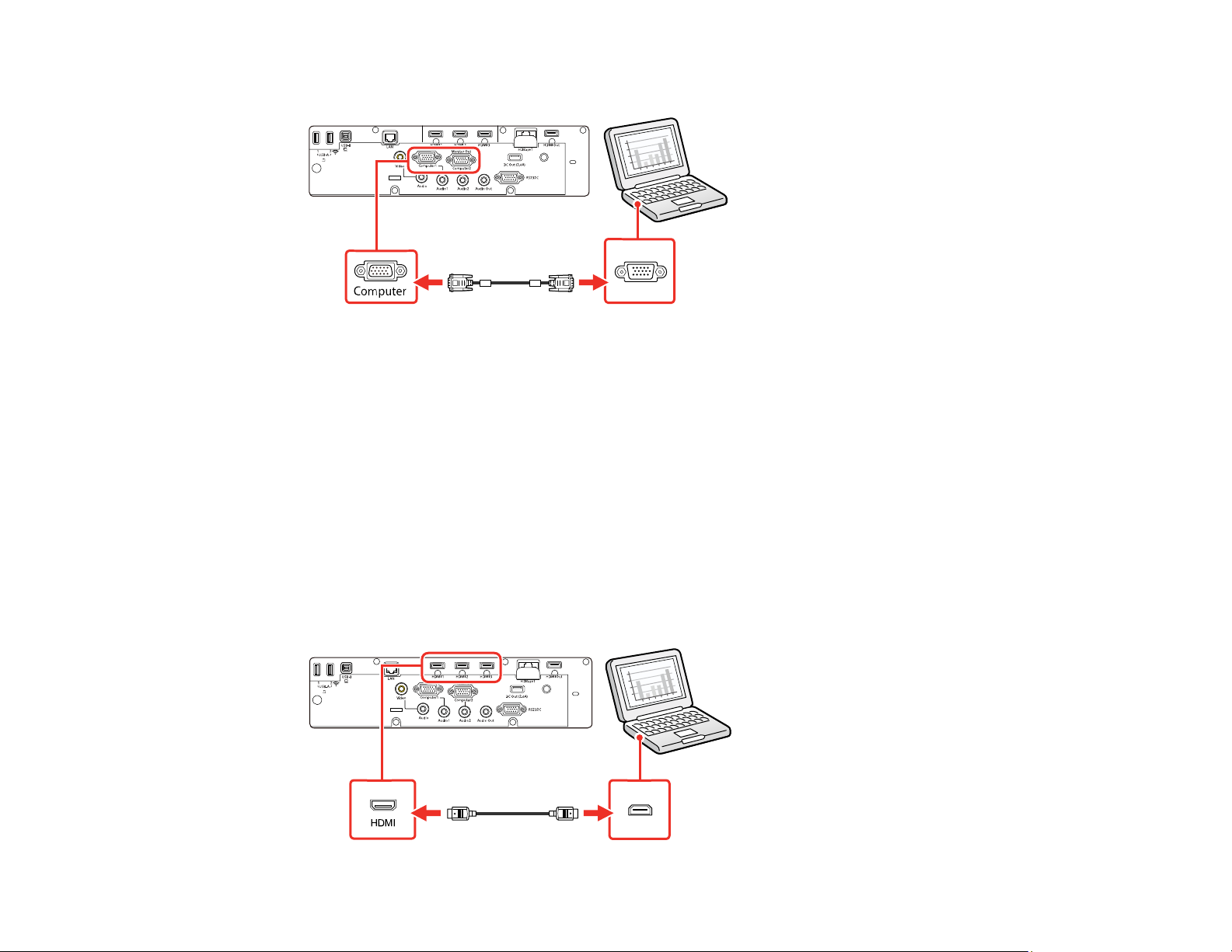

Connecting to a Computer for VGA Video................................................................................. 35

Connecting to a Computer for HDMI Video and Audio.............................................................. 36

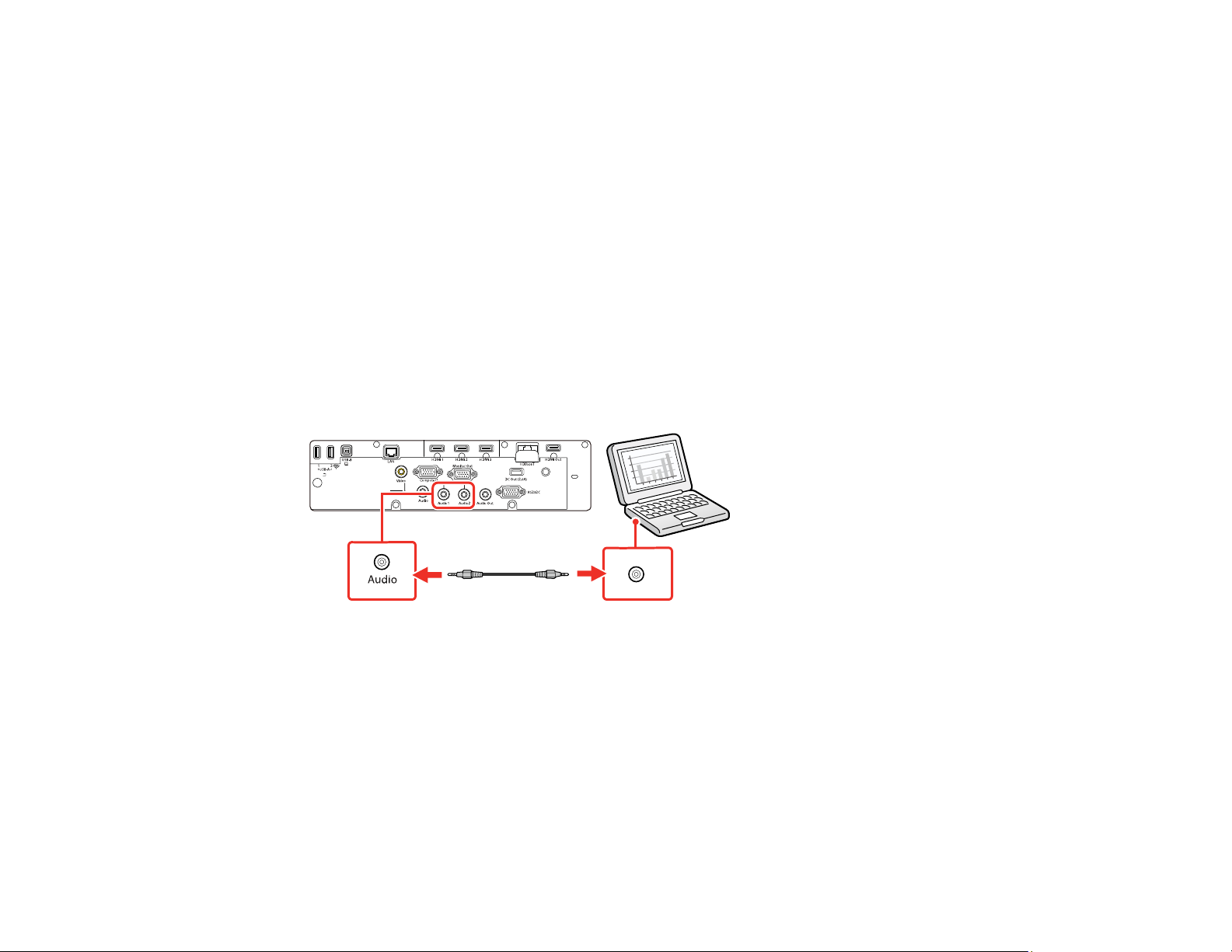

Connecting to a Computer for Sound........................................................................................ 37

Connecting to Video Sources ........................................................................................................ 37

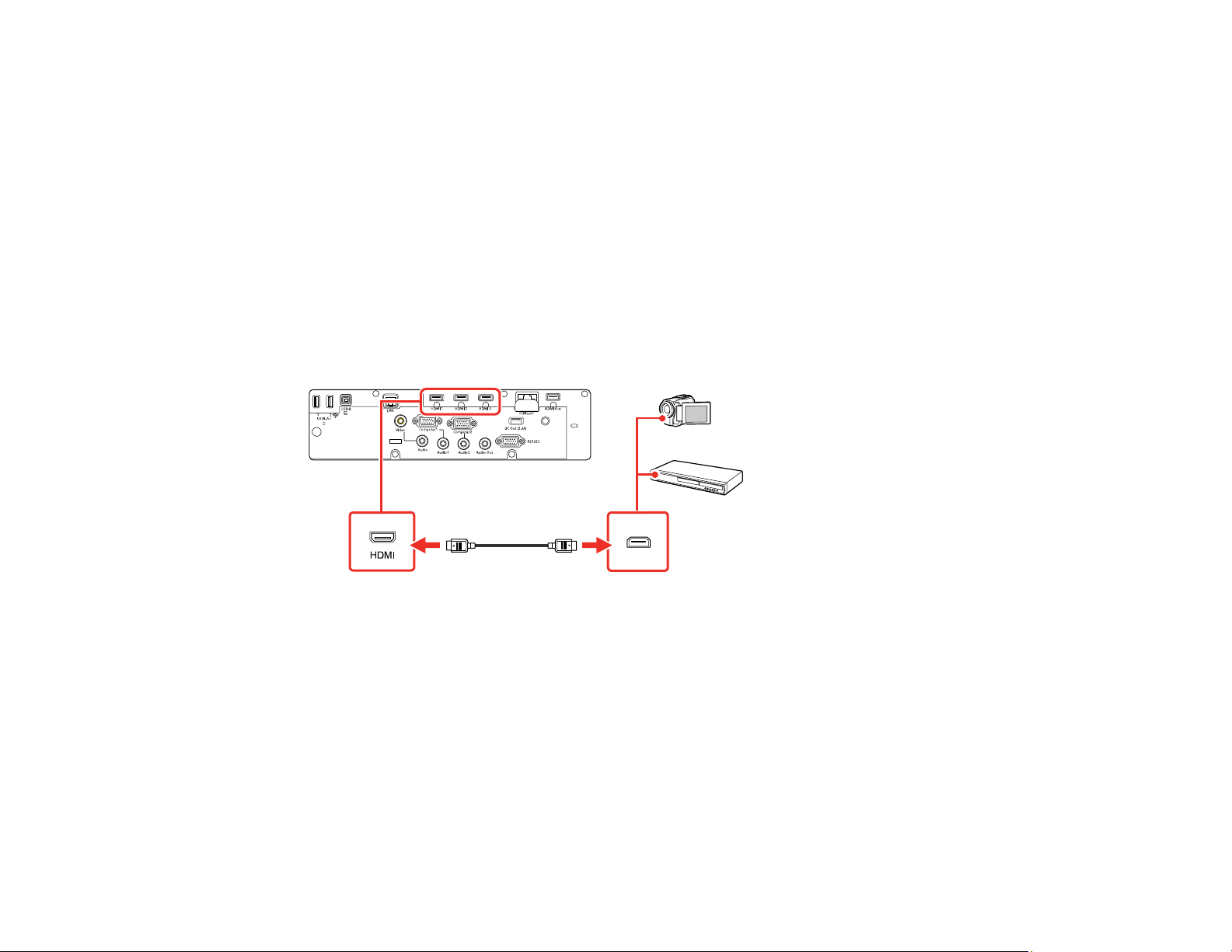

Connecting to an HDMI Video Source ...................................................................................... 38

Page 4

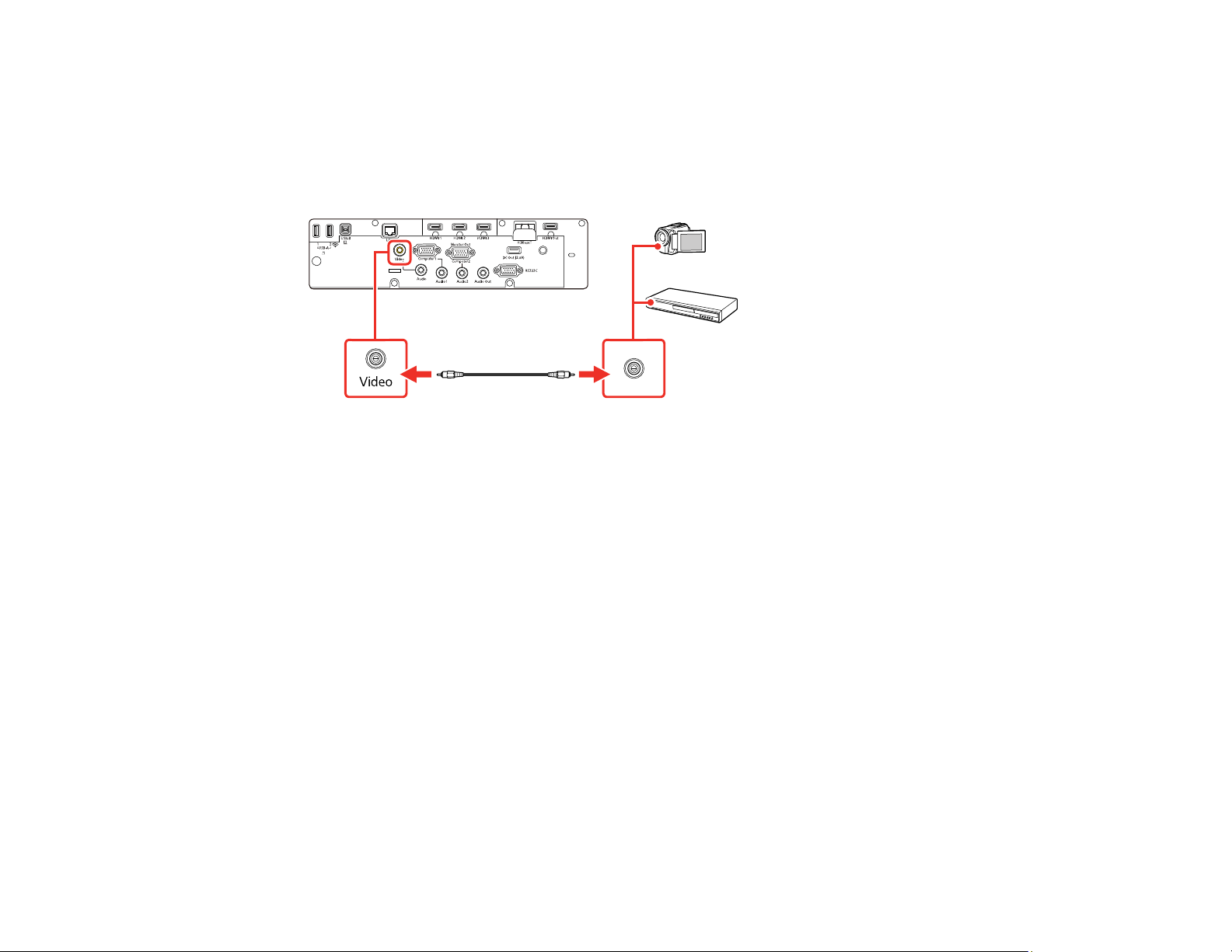

Connecting to a Composite Video Source ................................................................................ 39

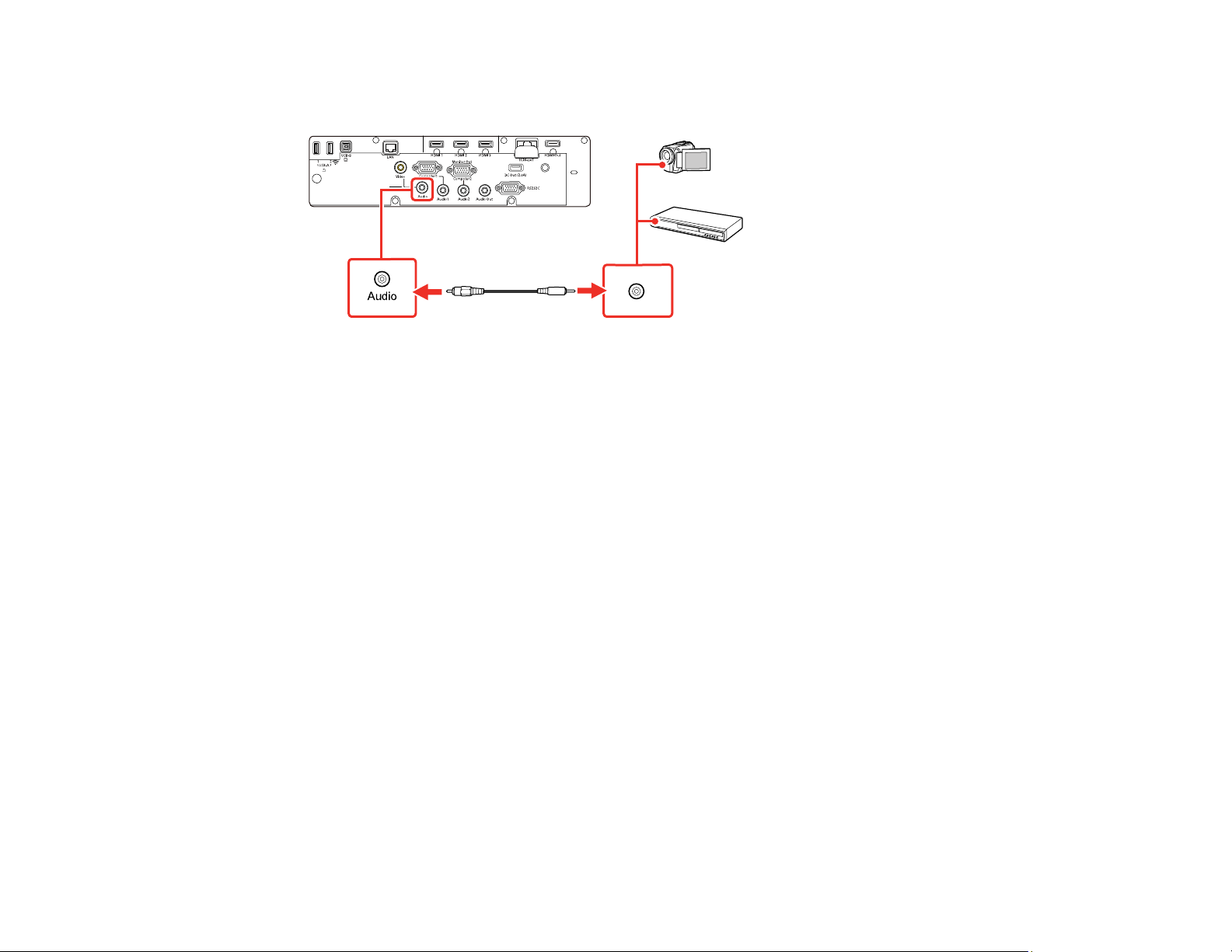

Connecting to a Video Source for Sound .................................................................................. 39

Connecting External Output Devices............................................................................................. 40

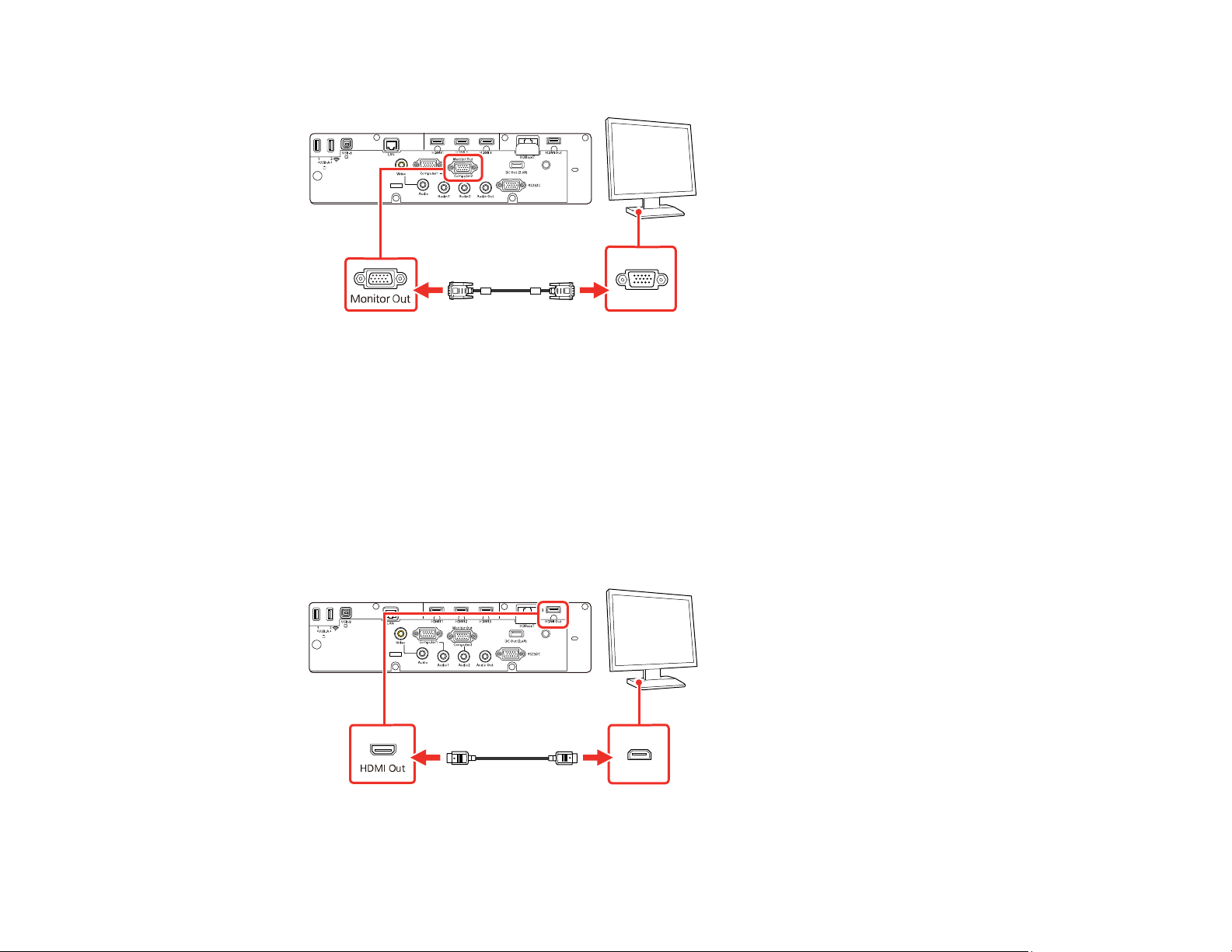

Connecting to an External Computer Monitor ........................................................................... 40

Connecting to an External HDMI Monitor.................................................................................. 41

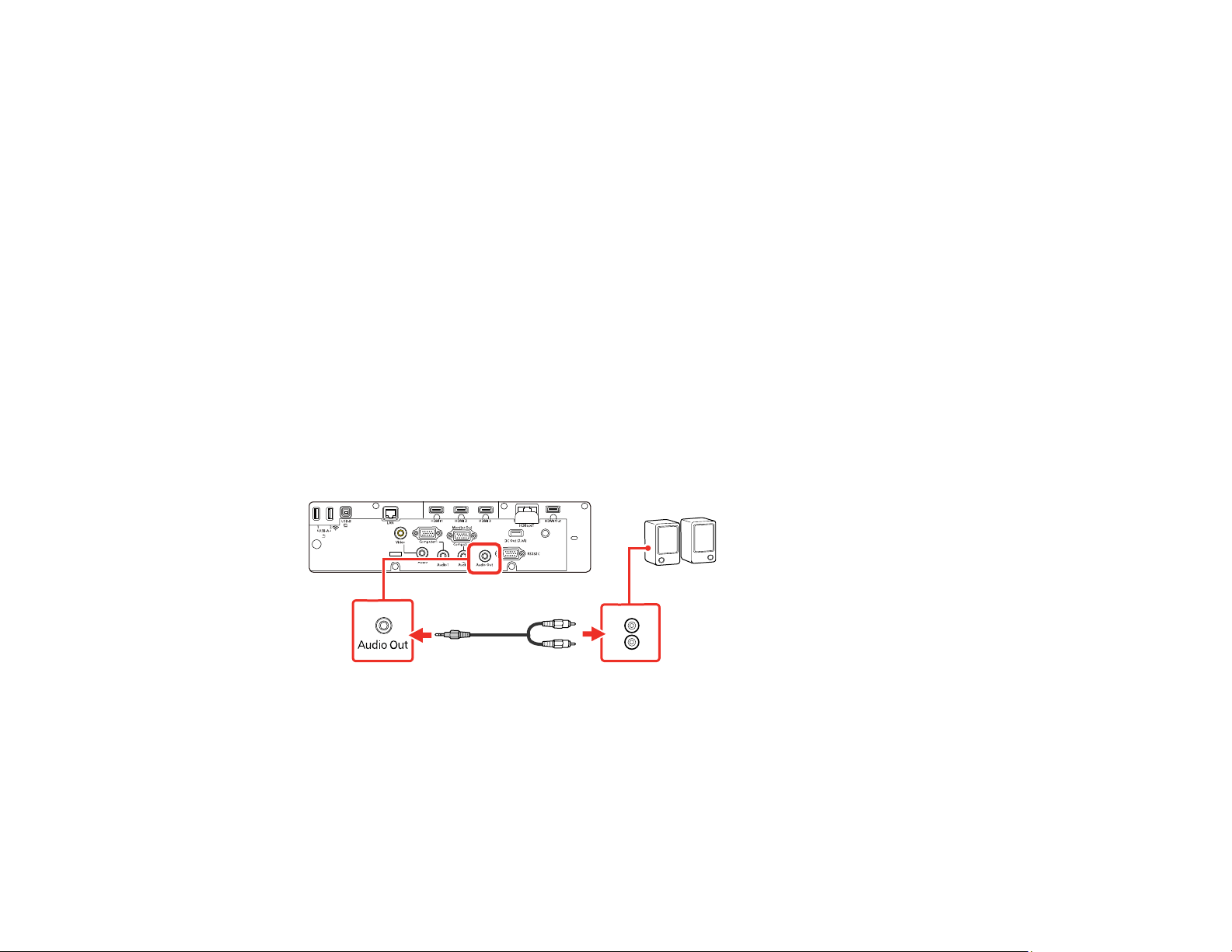

Connecting to External Speakers.............................................................................................. 42

Connecting to External USB Devices ............................................................................................ 42

USB Device Projection.............................................................................................................. 43

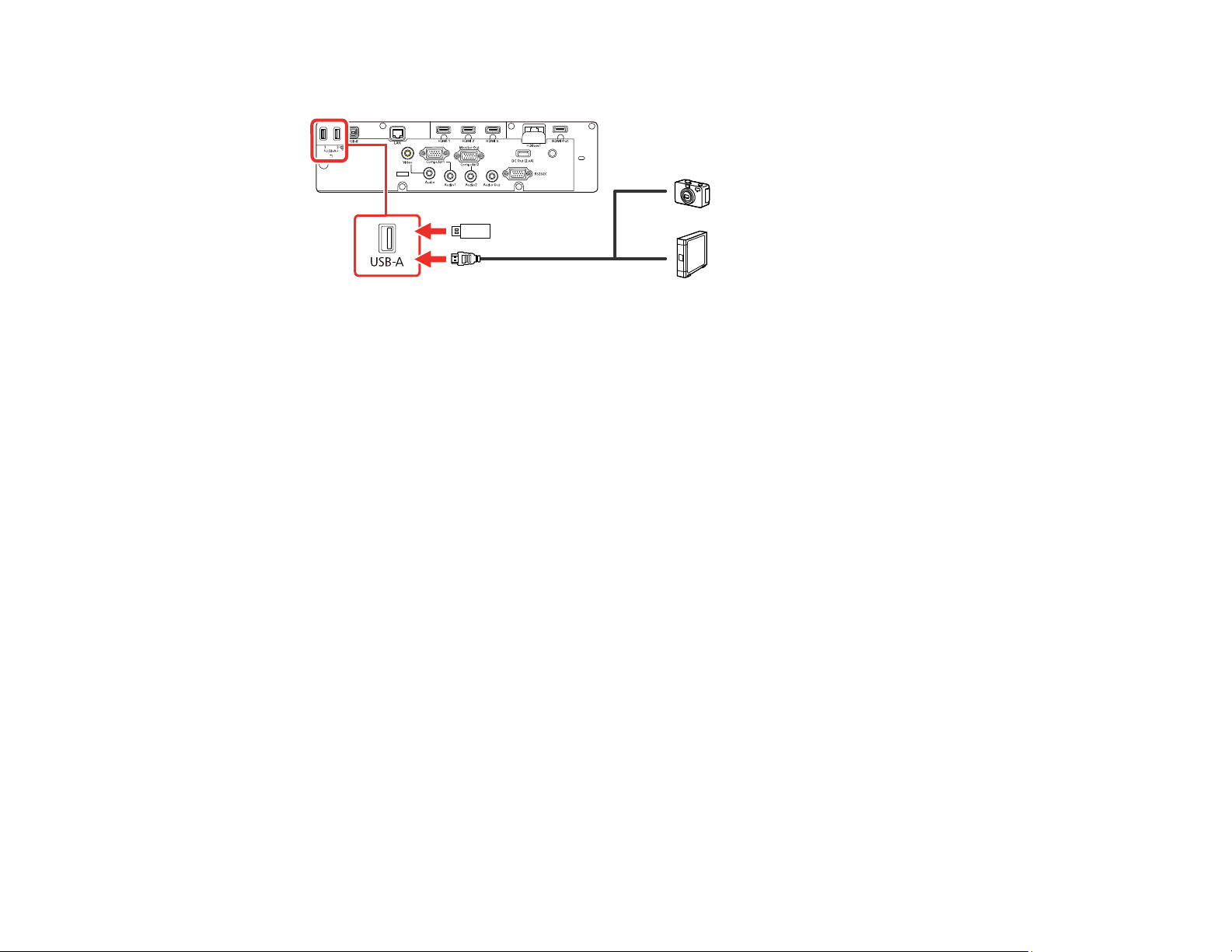

Connecting a USB Device or Camera to the Projector.............................................................. 43

Selecting the Connected USB Source ...................................................................................... 44

Disconnecting a USB Device From the Control Pad or Projector.............................................. 45

Connecting to a Document Camera .............................................................................................. 45

Connecting to an HDBaseT Transmitter ....................................................................................... 46

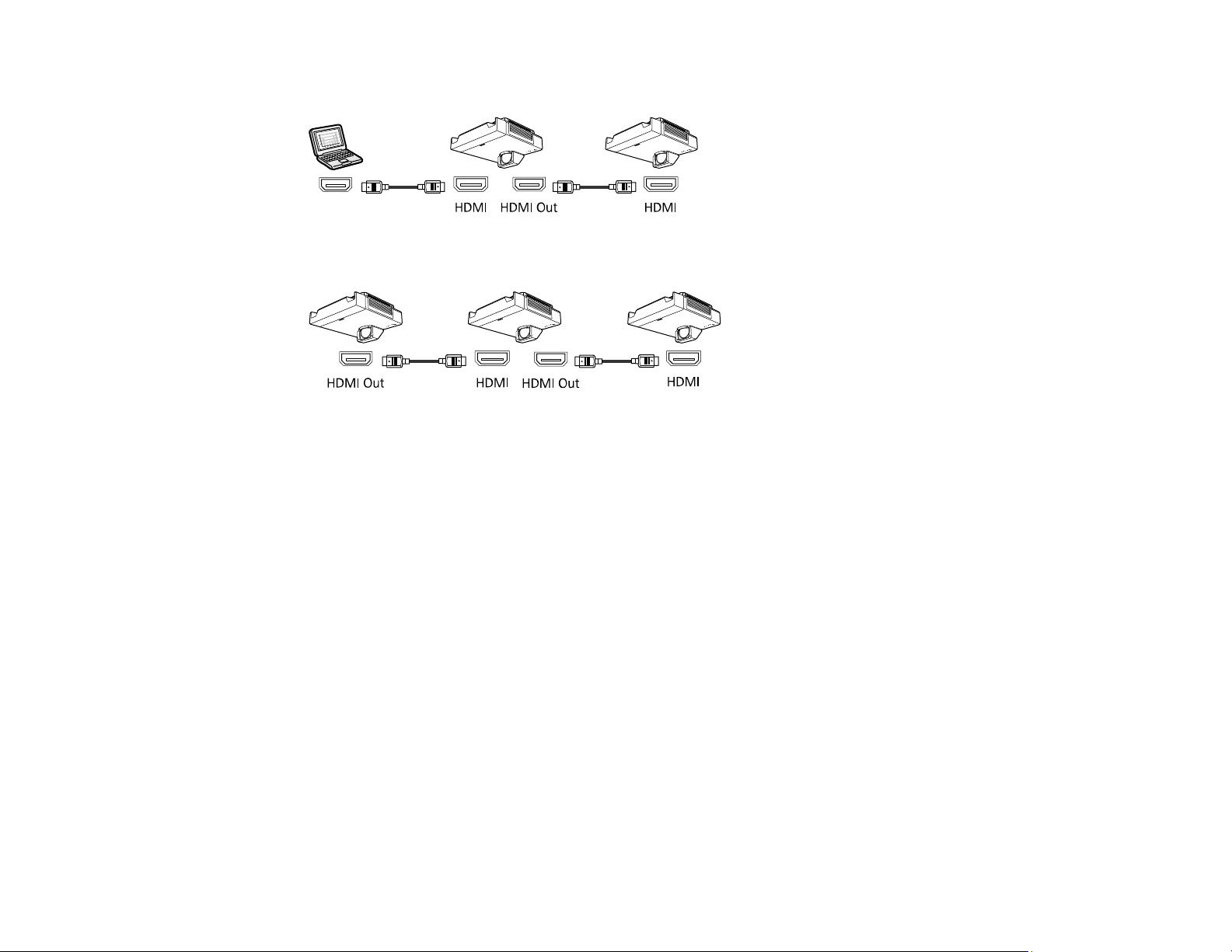

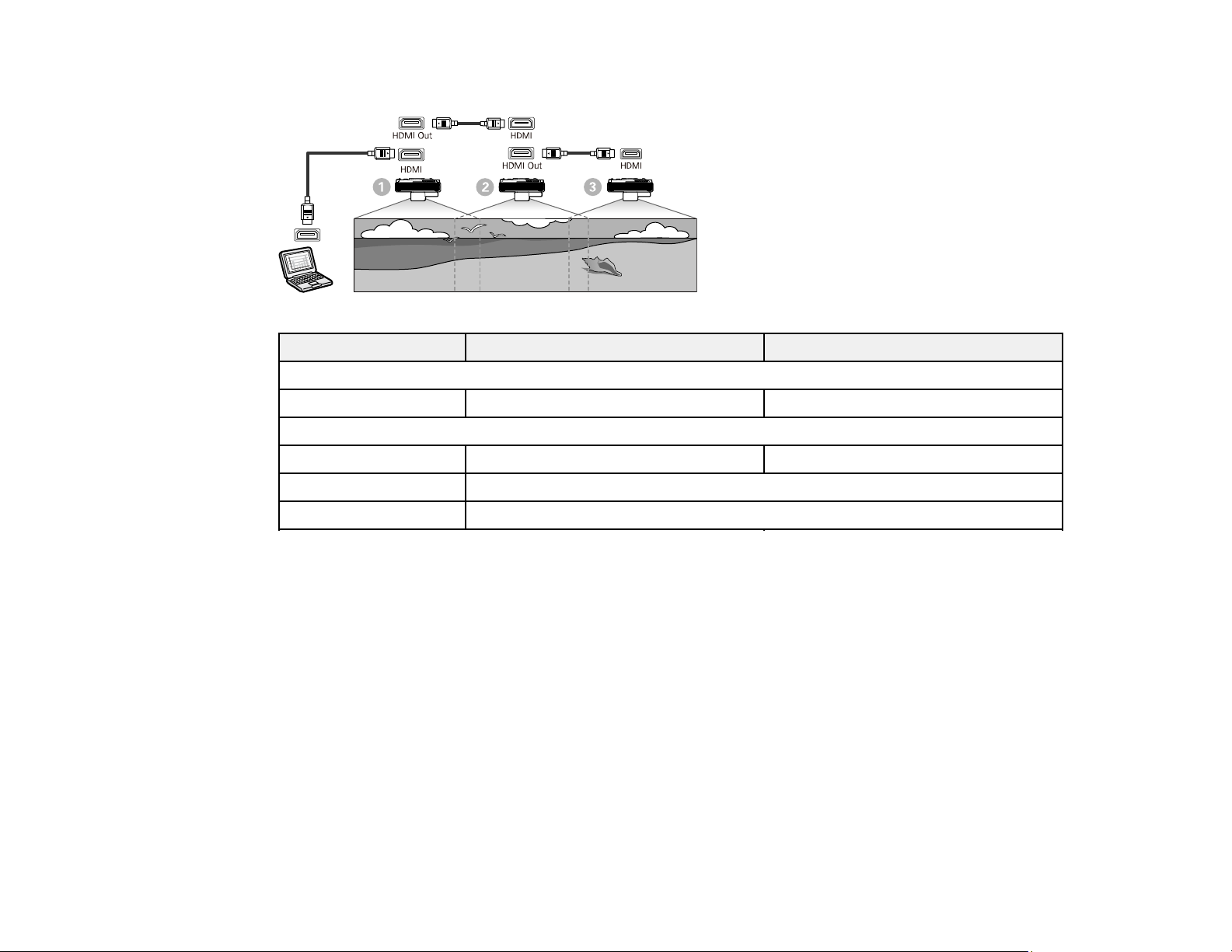

Connecting Multiple Projectors of the Same Model ....................................................................... 46

Multiple Projector Connection Menu Settings ........................................................................... 47

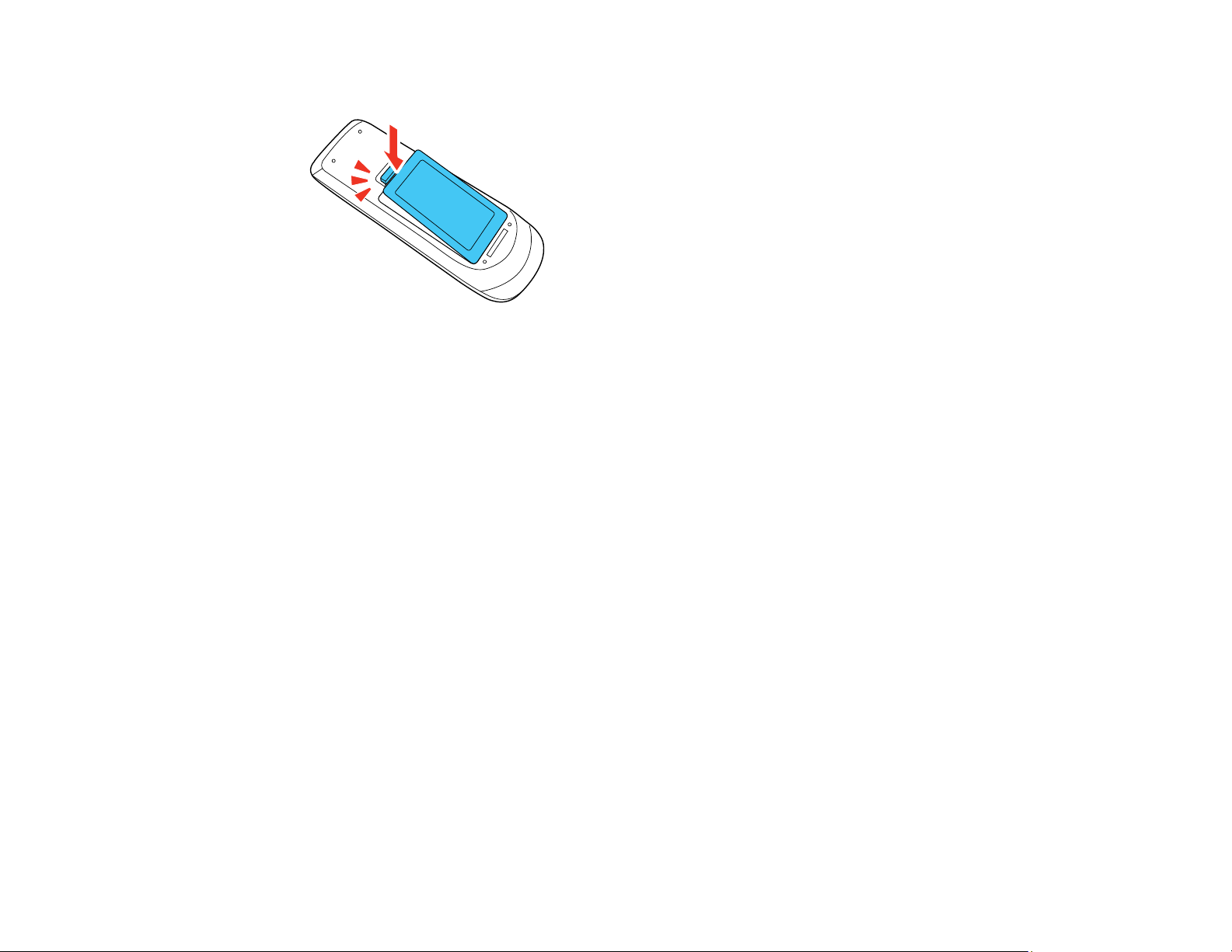

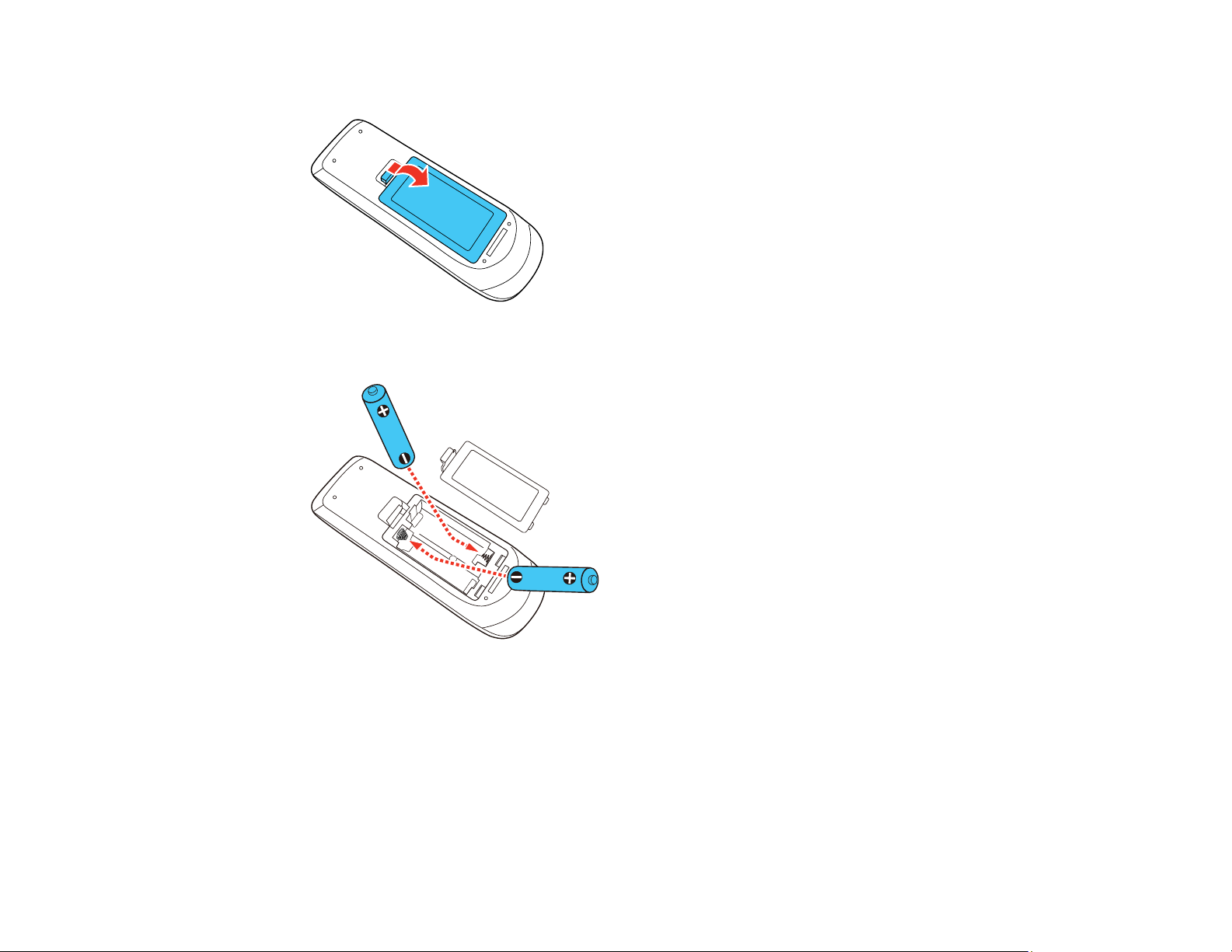

Installing Batteries in the Remote Control .......................................................................................... 48

Using the Projector on a Network ............................................................................................................ 51

Wired Network Projection................................................................................................................... 51

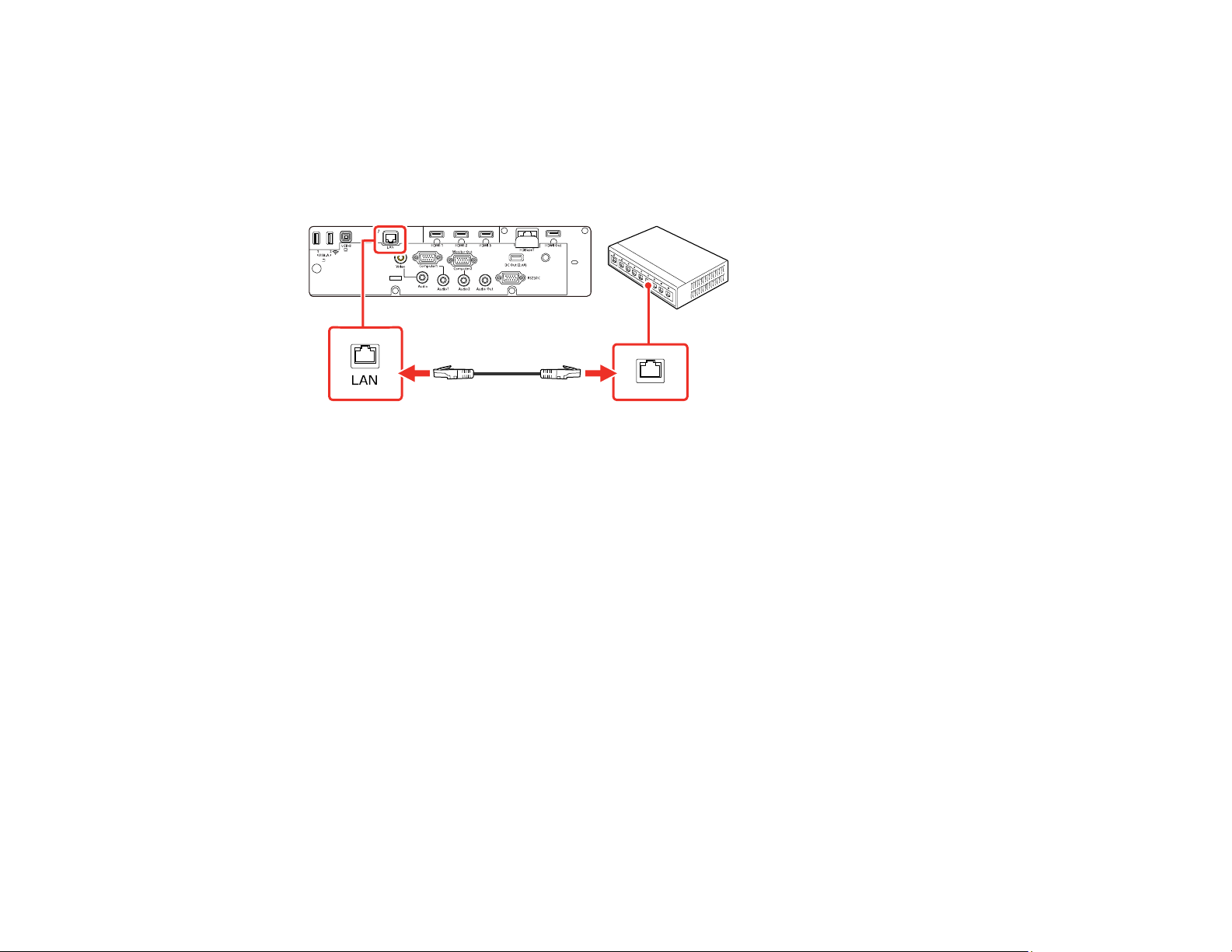

Connecting to a Wired Network ..................................................................................................... 52

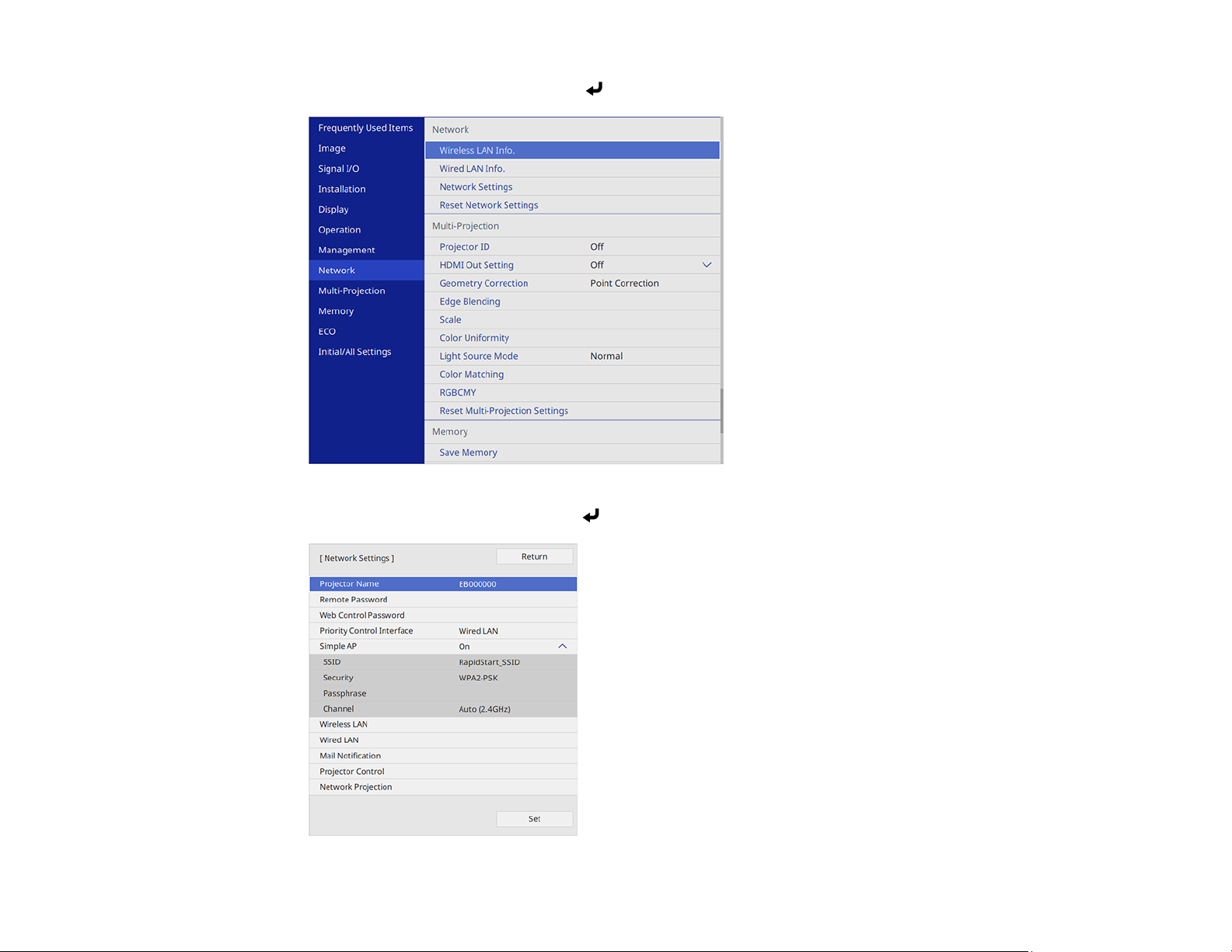

Selecting Wired Network Settings ................................................................................................. 52

Wireless Network Projection .............................................................................................................. 55

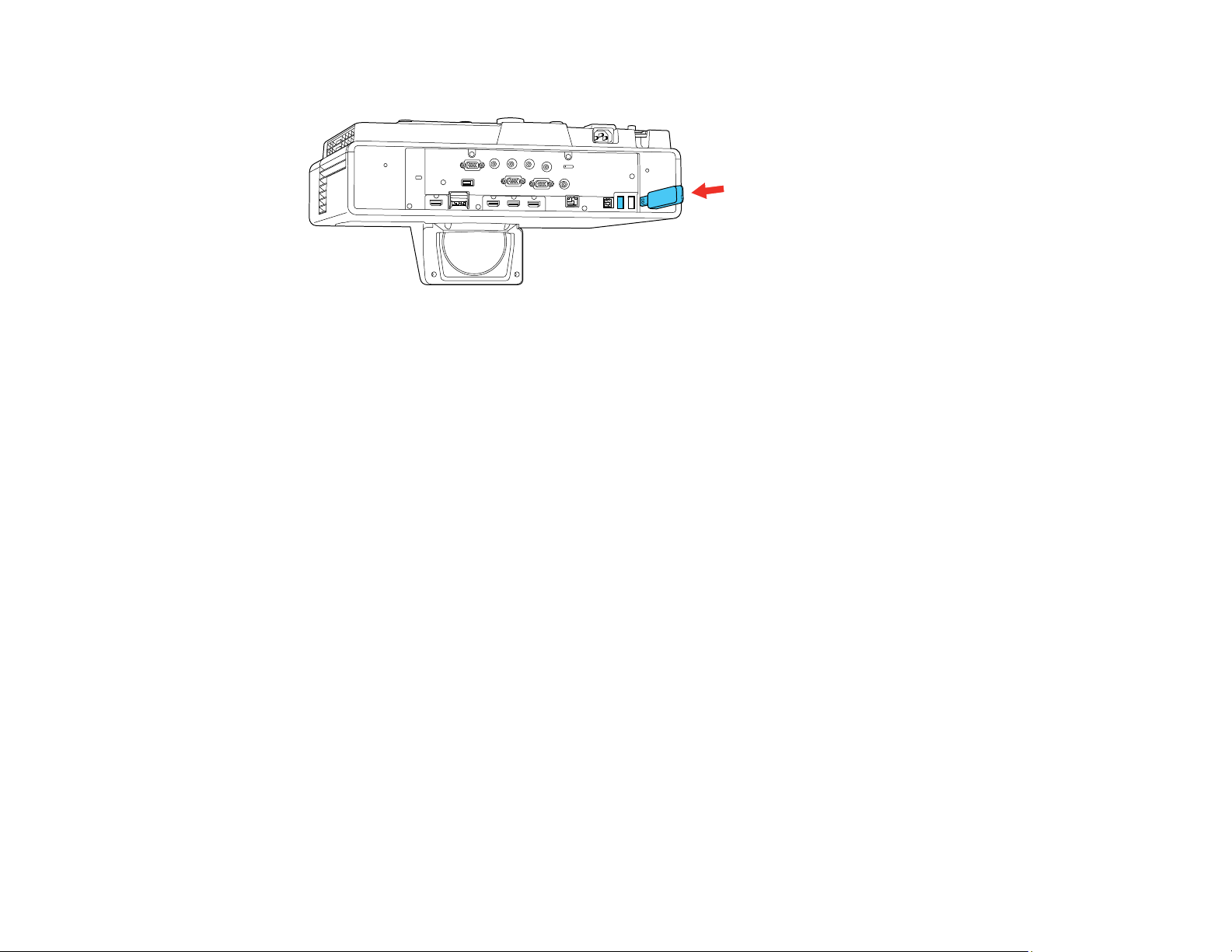

Installing the Wireless LAN Module ............................................................................................... 56

Connecting Directly to a Smartphone or Tablet ............................................................................. 57

Using Quick Wireless Connection (Windows)................................................................................ 60

Selecting Wireless Network Settings Manually.............................................................................. 61

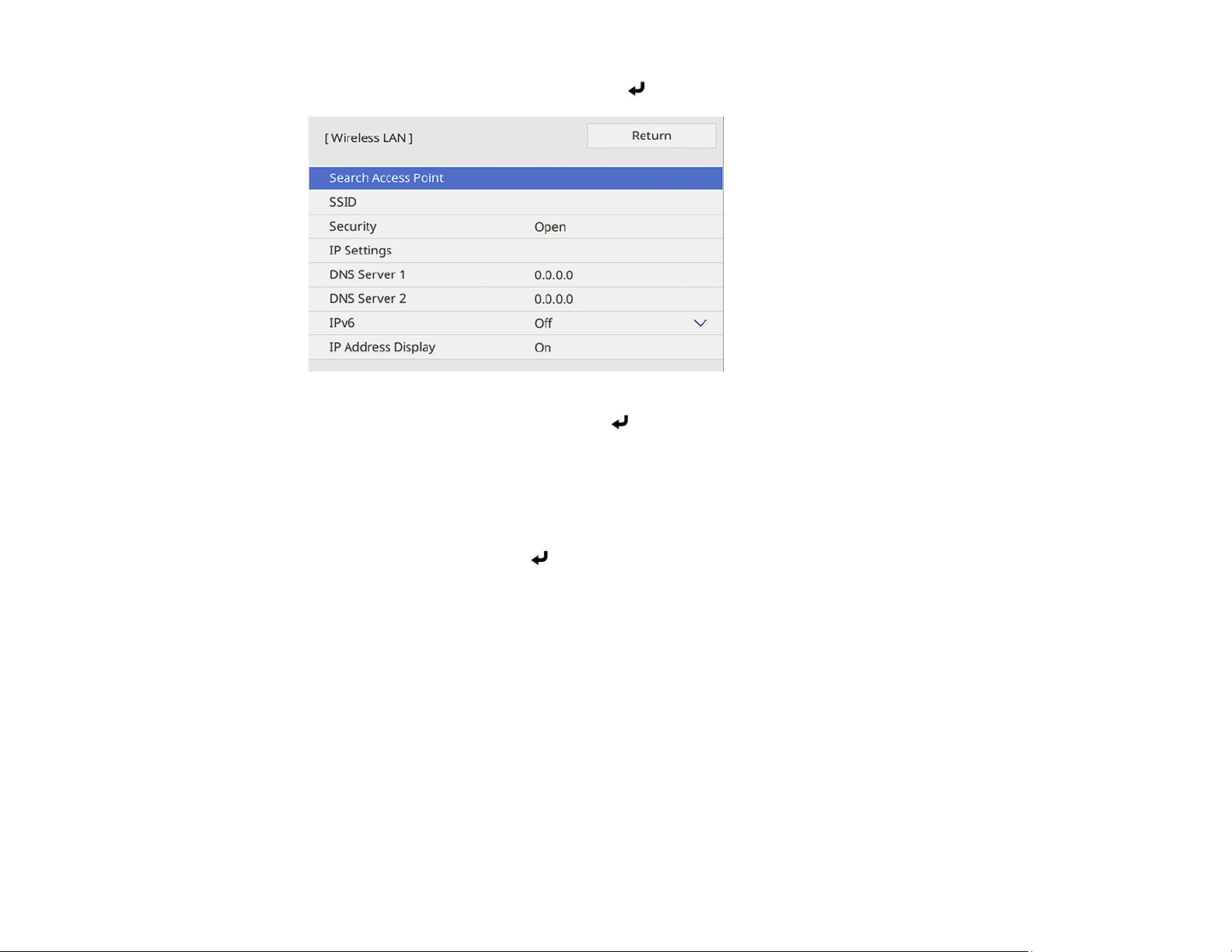

Wireless LAN Menu Settings .................................................................................................... 66

Selecting Wireless Network Settings in Windows.......................................................................... 69

Selecting Wireless Network Settings on Mac ................................................................................ 69

Setting Up Wireless Network Security ........................................................................................... 69

Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring) .......... 71

Screen Mirroring Restrictions ........................................................................................................ 71

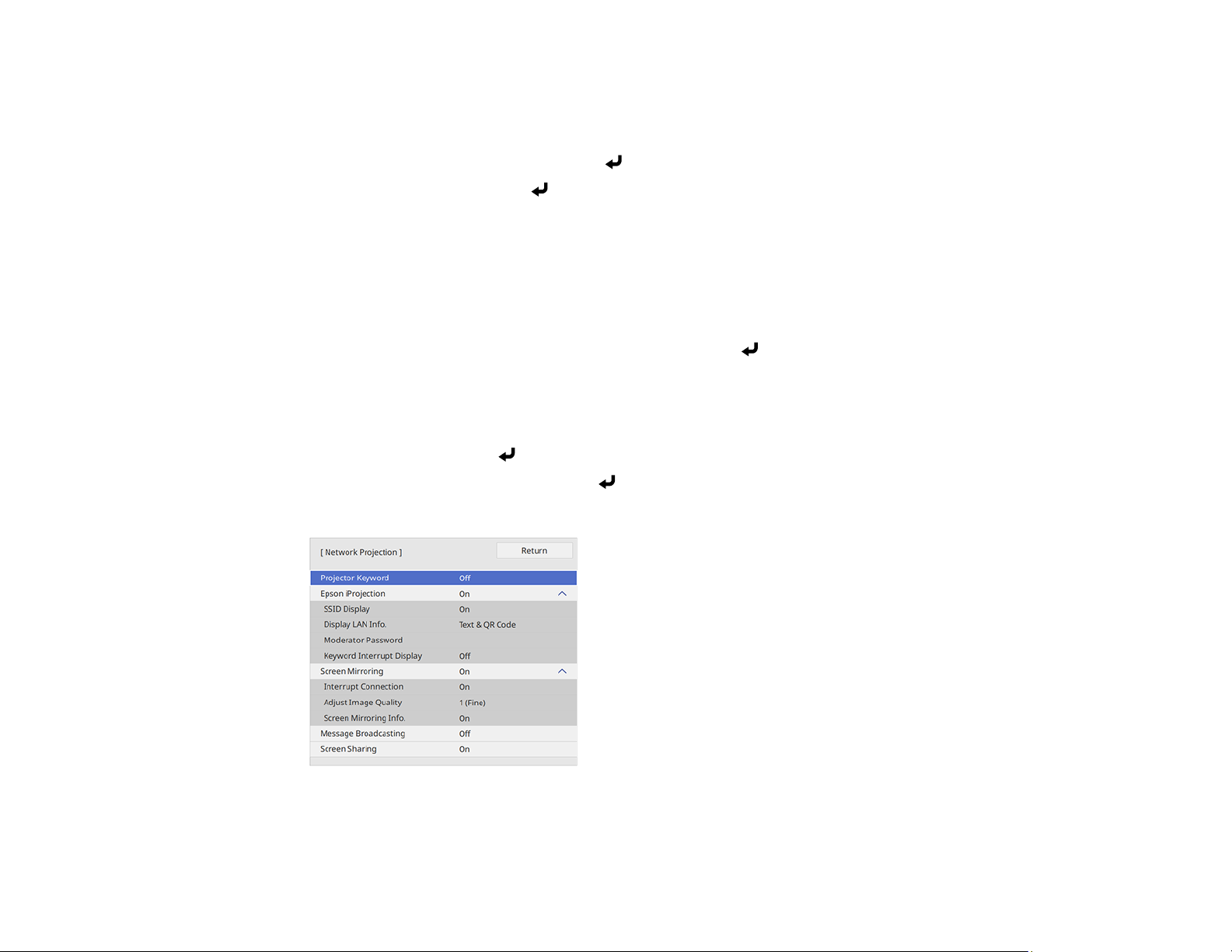

Selecting Screen Mirroring Settings .............................................................................................. 72

Connecting for Screen Mirroring with a Windows 8.x/Windows 10 Computer ............................... 74

Page 5

Connecting for Screen Mirroring with Miracast .............................................................................. 75

Screen Sharing .................................................................................................................................. 76

Projecting Screen Sharing Images ................................................................................................ 76

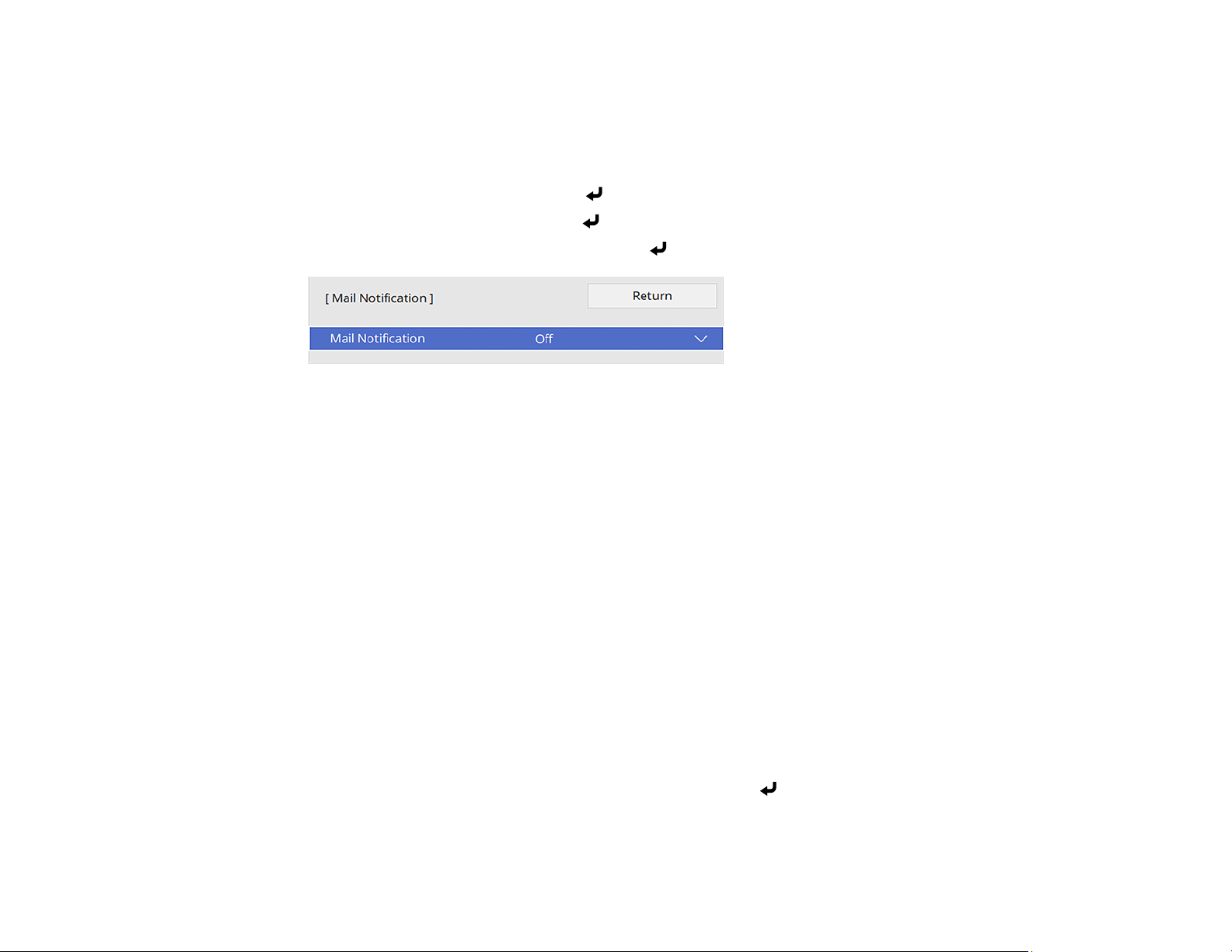

Setting Up Projector Network E-Mail Alerts ........................................................................................ 77

Network Projector E-mail Alert Messages ..................................................................................... 79

Setting Up Monitoring Using SNMP ................................................................................................... 79

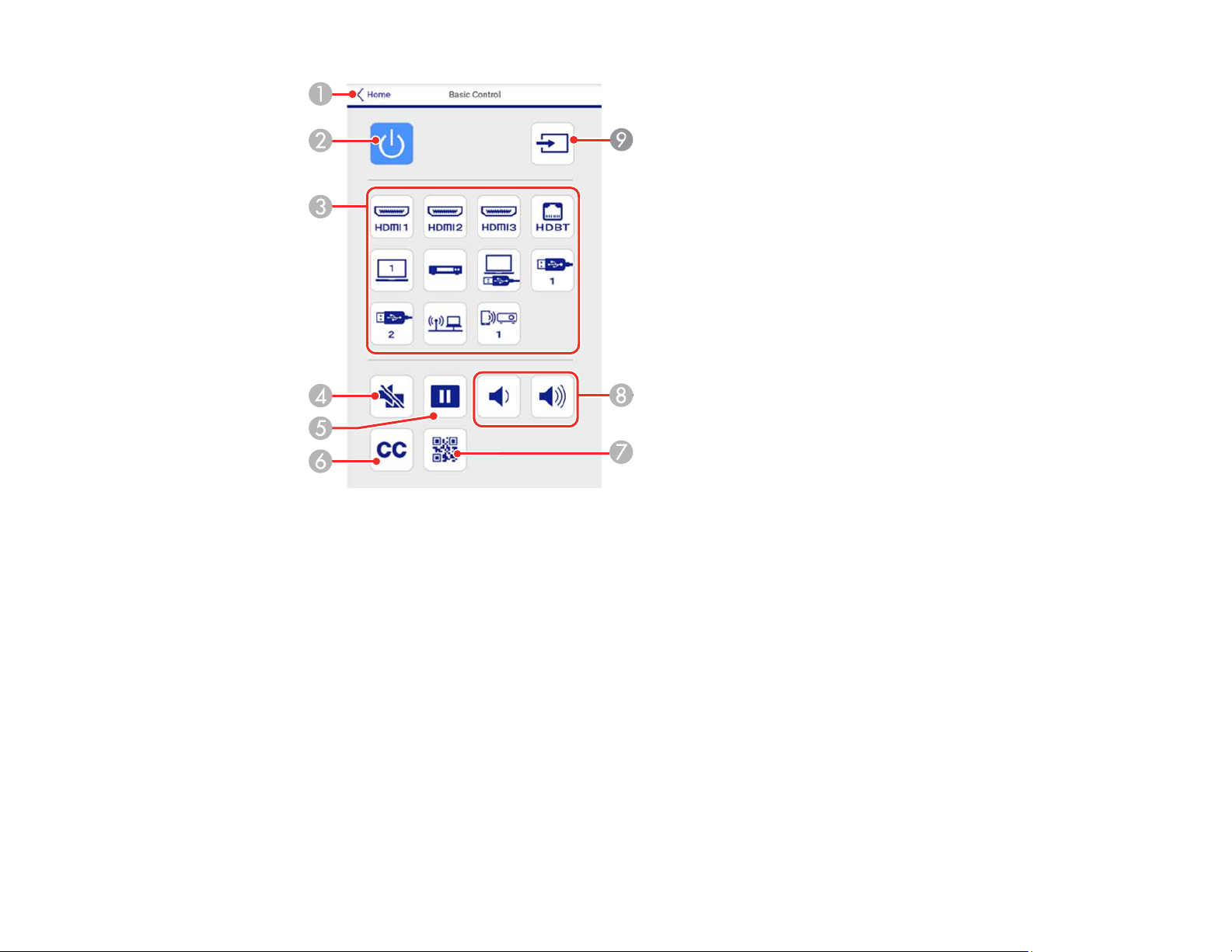

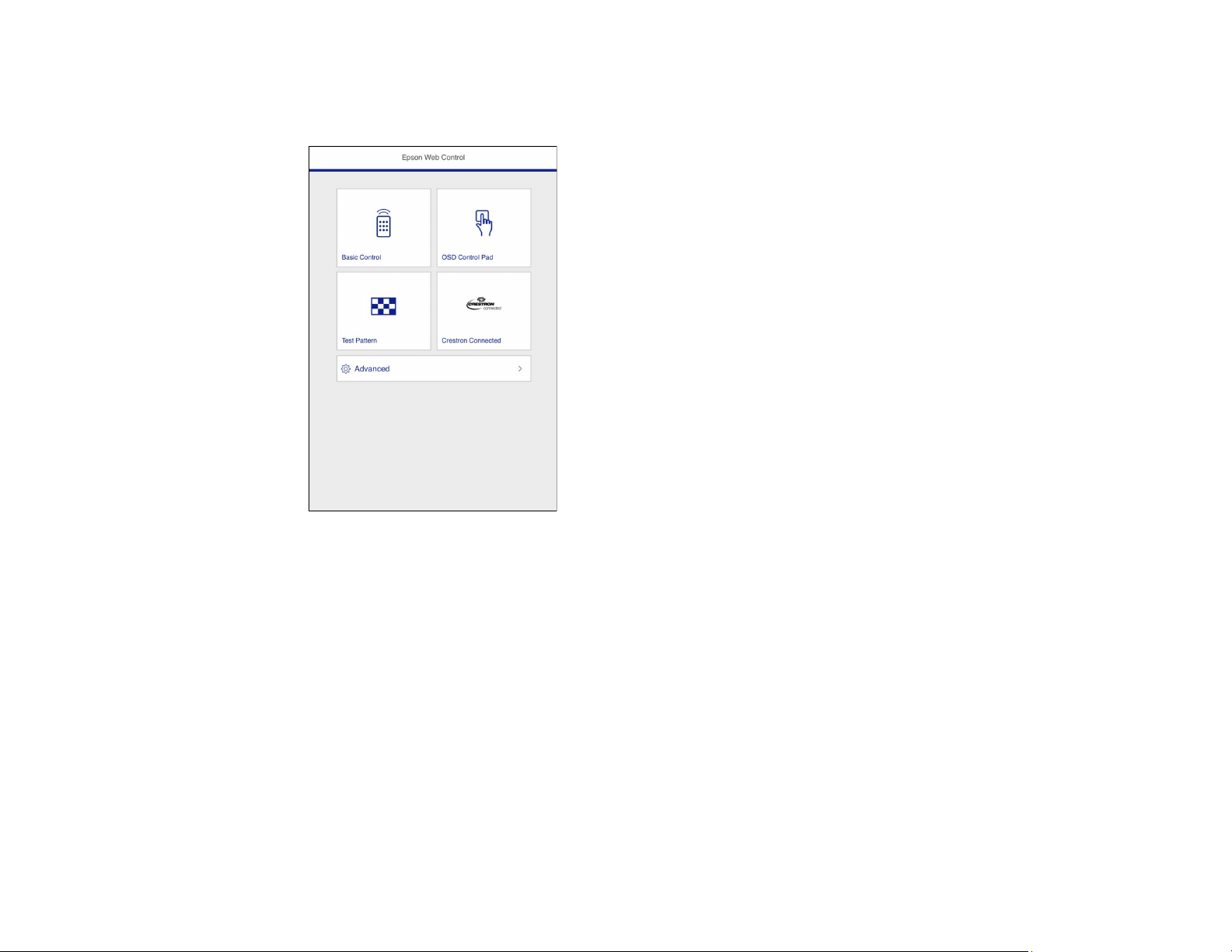

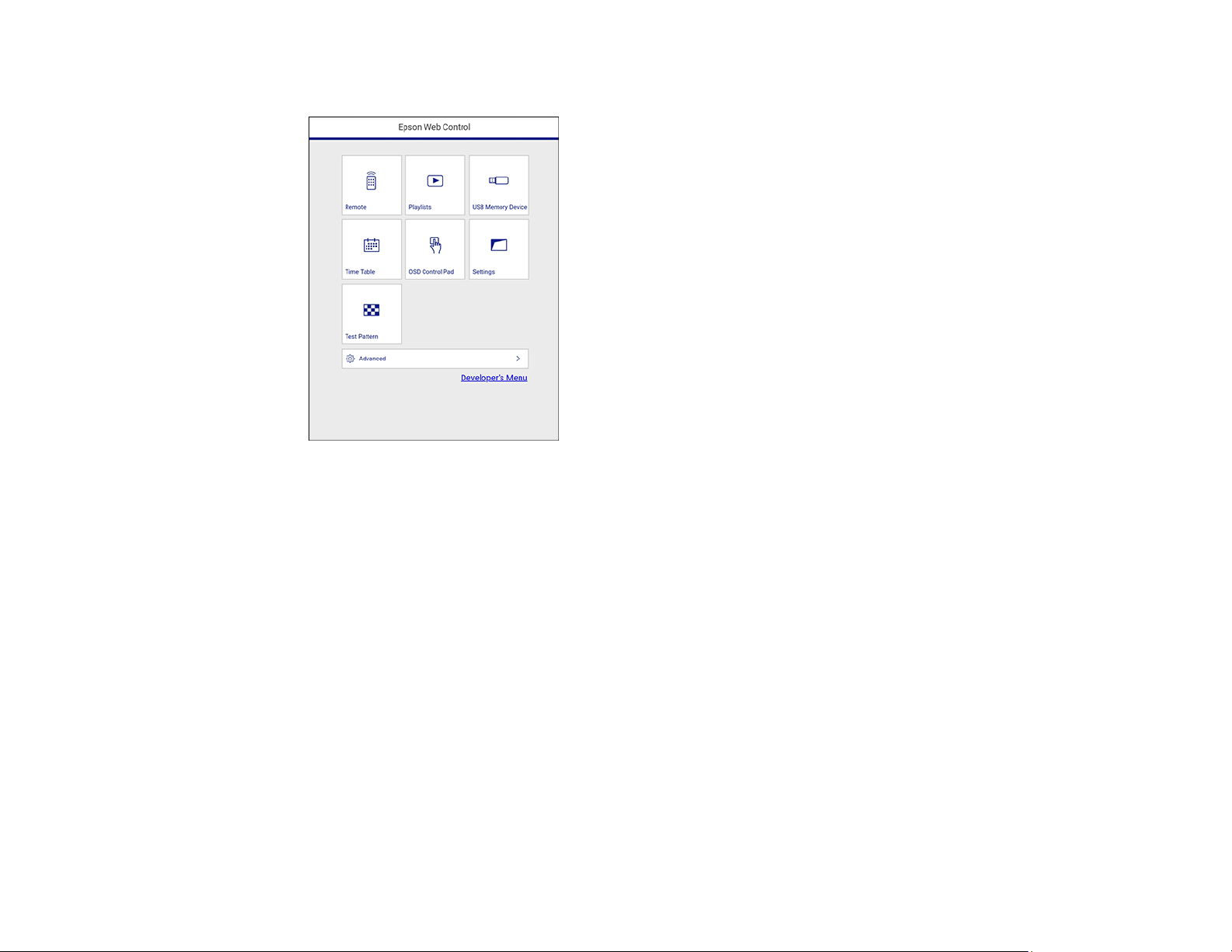

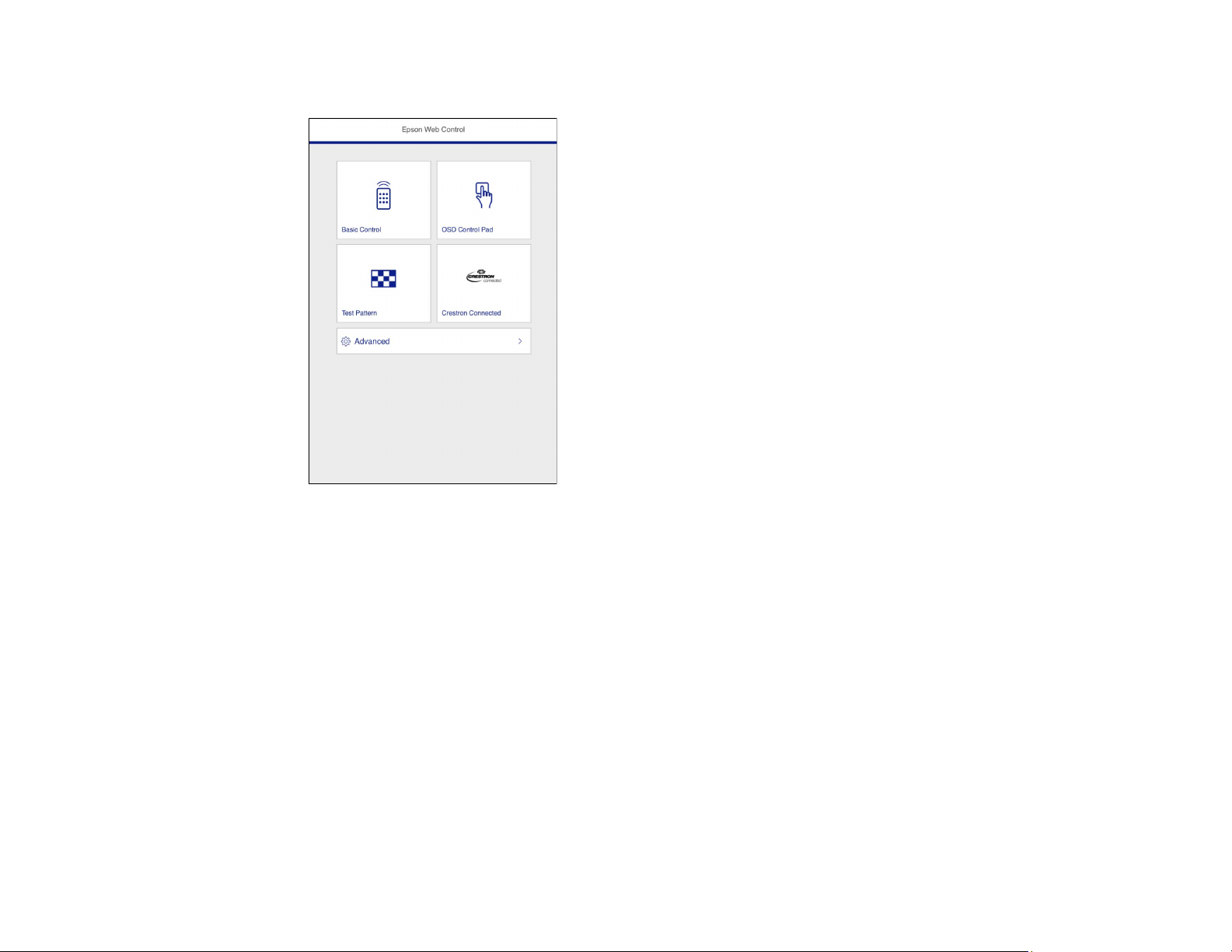

Controlling a Networked Projector Using a Web Browser .................................................................. 80

Using Crestron Connected................................................................................................................. 84

Setting Up Crestron Connected..................................................................................................... 84

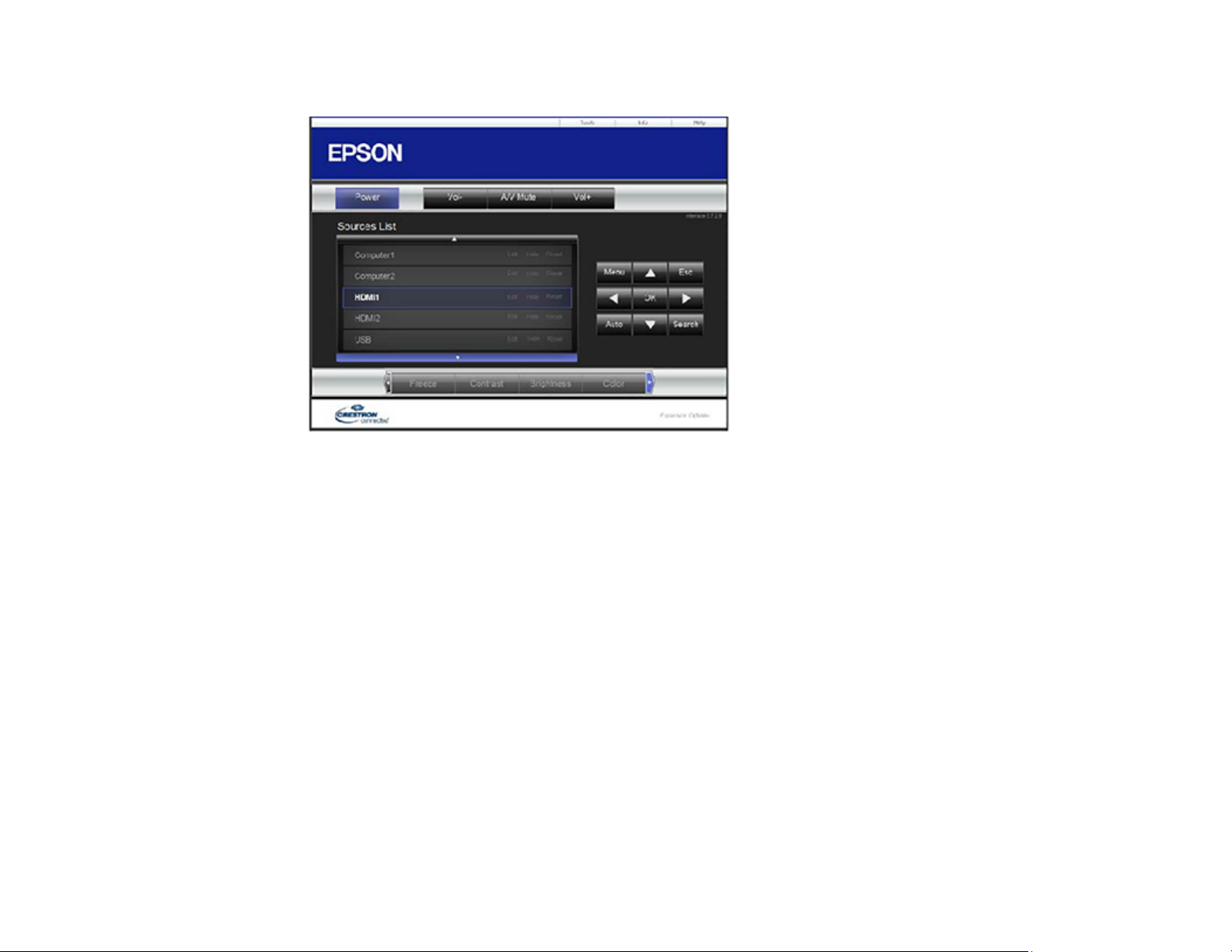

Controlling a Networked Projector Using Crestron Connected...................................................... 85

Registering a Digital Certificate on the Projector ................................................................................ 88

Importing a Web Server Certificate Using the Projector Menus..................................................... 88

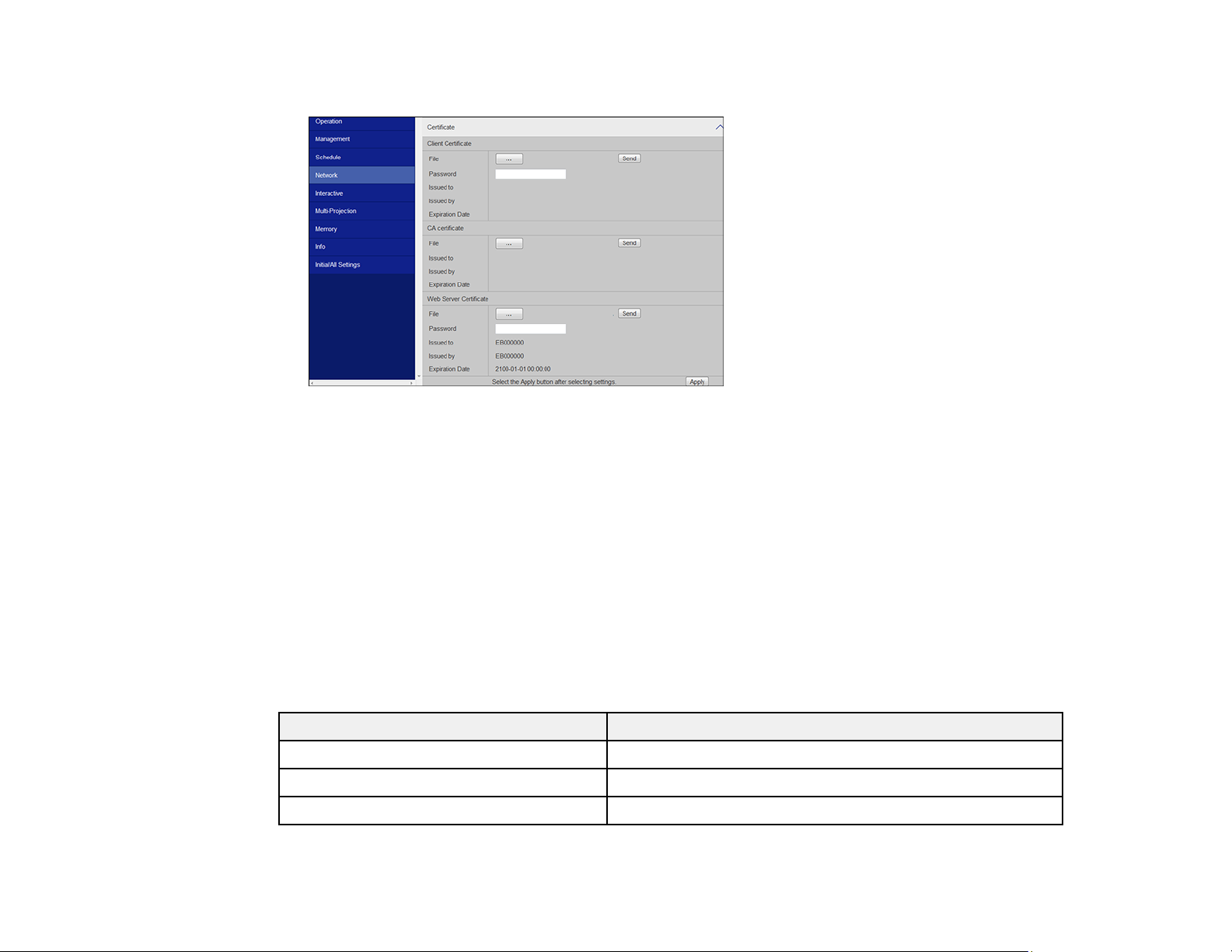

Registering Digital Certificates from a Web Browser ..................................................................... 89

Digital Certificate Types................................................................................................................. 90

Using Basic Projector Features ............................................................................................................... 92

Turning On the Projector .................................................................................................................... 92

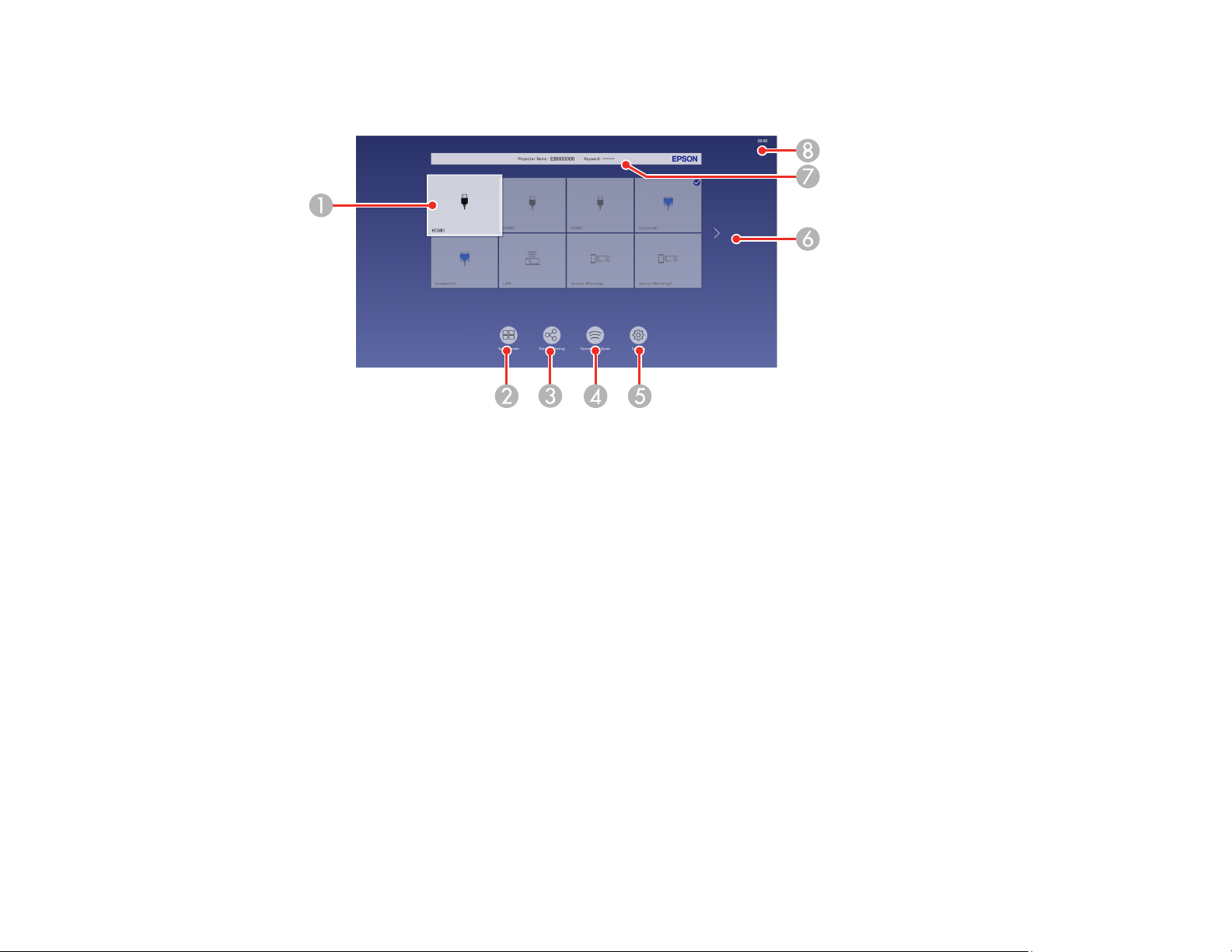

Using the Home Screen................................................................................................................. 94

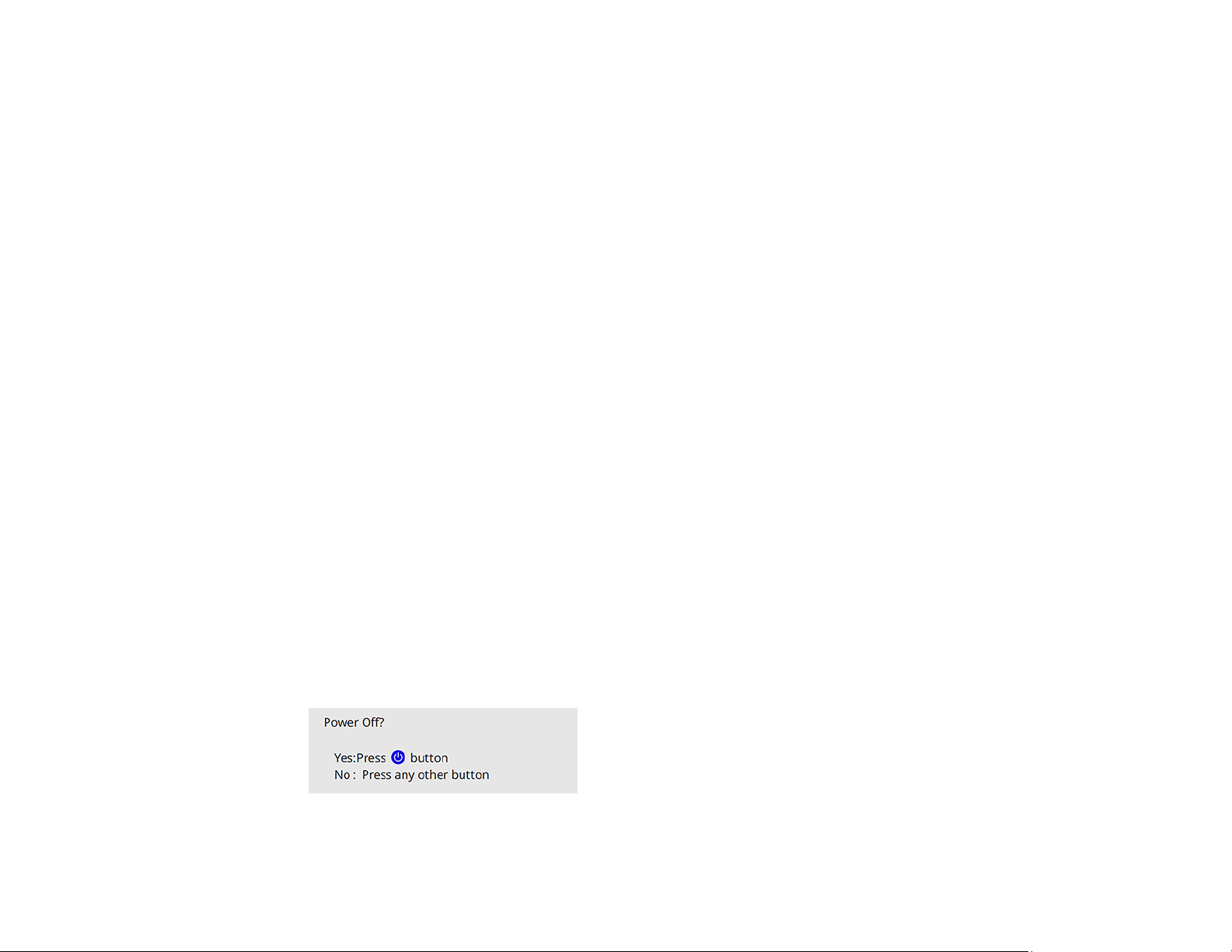

Turning Off the Projector .................................................................................................................... 96

Selecting the Language for the Projector Menus................................................................................ 98

Setting the Date and Time.................................................................................................................. 98

Image Shape.................................................................................................................................... 100

Adjusting the Front Feet .............................................................................................................. 100

Correcting Image Shape with the Keystone Buttons.................................................................... 101

Correcting Image Shape with Quick Corner ................................................................................ 104

Correcting Image Shape with Arc Correction............................................................................... 107

Correcting Image Shape with Point Correction............................................................................ 110

Applying Saved Image Shape Settings ....................................................................................... 112

Resizing the Image with the Wide and Tele Buttons ........................................................................ 112

Adjusting the Image Position............................................................................................................ 113

Focusing the Image.......................................................................................................................... 115

Remote Control Operation ............................................................................................................... 117

Selecting an Image Source .............................................................................................................. 118

Projection Modes ............................................................................................................................. 120

Page 6

Changing the Projection Mode Using the Remote Control .......................................................... 120

Changing the Projection Mode Using the Menus......................................................................... 121

Image Aspect Ratio .......................................................................................................................... 122

Changing the Image Aspect Ratio ............................................................................................... 123

Available Image Aspect Ratios .................................................................................................... 123

Color Mode....................................................................................................................................... 124

Changing the Color Mode............................................................................................................ 124

Available Color Modes................................................................................................................. 125

Adjusting the Hue, Saturation, and Brightness................................................................................. 126

Adjusting Gamma............................................................................................................................. 127

Adjusting the Image Resolution........................................................................................................ 129

Adjusting the Projector's Brightness Level ....................................................................................... 131

Constant Brightness Usage Hours .............................................................................................. 133

Turning On Automatic Luminance Adjustment ................................................................................. 135

Controlling the Volume with the Volume Buttons.............................................................................. 136

Inverting the Audio Channels ........................................................................................................... 137

Selecting a Quick Startup Setting..................................................................................................... 138

Projecting a PC Free Presentation ................................................................................................... 139

Supported PC Free File Types .................................................................................................... 140

Starting a PC Free Slide Show .................................................................................................... 141

Starting a PC Free Movie Presentation ....................................................................................... 143

PC Free Display Options ............................................................................................................. 145

Projecting in Content Playback Mode............................................................................................... 146

Switching to Content Playback Mode .......................................................................................... 146

Projecting a Playlist in Content Playback Mode........................................................................... 148

Creating a Playlist Using Epson Web Control.............................................................................. 149

Adding Effects to the Projected Image......................................................................................... 150

Adjusting Projector Features ................................................................................................................. 152

Shutting Off the Picture and Sound Temporarily .............................................................................. 152

Stopping Video Action Temporarily .................................................................................................. 153

Zooming Into and Out of Images ...................................................................................................... 153

Using Multiple Projectors ................................................................................................................. 154

Projector Identification System for Multiple Projector Control ...................................................... 155

Page 7

Setting the Projector ID........................................................................................................... 155

Setting the Remote Control ID ................................................................................................ 156

Adjusting Color Uniformity ........................................................................................................... 157

Blending the Image Edges .......................................................................................................... 159

Matching the Image Colors ......................................................................................................... 161

Adjusting the Black Level ............................................................................................................ 163

Adjusting RGBCMY .................................................................................................................... 166

Scaling an Image......................................................................................................................... 168

Projecting Multiple Images Simultaneously...................................................................................... 170

Input Sources for Split Screen Projection .................................................................................... 173

Split Screen Projection Restrictions............................................................................................. 173

Projector Security Features.............................................................................................................. 174

Password Security Types ............................................................................................................ 174

Setting a Password ................................................................................................................. 174

Selecting Password Security Types........................................................................................ 176

Entering a Password to Use the Projector............................................................................... 177

Saving a User's Logo Image to Display................................................................................... 178

Locking the Projector's Buttons ................................................................................................... 180

Unlocking the Projector's Buttons ........................................................................................... 181

Installing a Security Cable ........................................................................................................... 181

Creating a User Pattern to Display ................................................................................................... 182

Saving Settings to Memory and Using Saved Settings .................................................................... 183

Copying Menu Settings Between Projectors .................................................................................... 185

Saving Settings to a USB Flash Drive.......................................................................................... 186

Transferring Settings from a USB Flash Drive ............................................................................. 187

Saving Settings to a Computer .................................................................................................... 188

Transferring Settings from a Computer ....................................................................................... 190

Scheduling Projector Events ............................................................................................................ 191

Saving a Scheduled Event........................................................................................................... 192

Viewing Scheduled Events .......................................................................................................... 194

Editing a Scheduled Event........................................................................................................... 195

Adjusting the Menu Settings .................................................................................................................. 198

Using the Projector's Menus............................................................................................................. 198

Page 8

Image Quality Settings - Image Menu .............................................................................................. 200

Input Signal Settings - Signal I/O Menu............................................................................................ 204

Installation Settings - Installation Menu ............................................................................................ 208

Display Settings - Display Menu....................................................................................................... 214

Feature Settings - Operation Menu .................................................................................................. 217

Administration Settings - Management Menu................................................................................... 221

Event ID Code List....................................................................................................................... 226

Network Settings - Network Menu .................................................................................................... 229

Multiple Projector Operation Settings - Multi-Projection Menu ......................................................... 232

Image Quality Memory Settings - Memory Menu ............................................................................. 236

Setup Settings - ECO Menu ............................................................................................................. 237

Initial Settings and Reset Options - Initial/All Settings Menu ............................................................ 239

Maintaining and Transporting the Projector ......................................................................................... 241

Projector Maintenance ..................................................................................................................... 241

Cleaning the Lens........................................................................................................................ 241

Cleaning the Projector Case ........................................................................................................ 242

Air Filter and Vent Maintenance ....................................................................................................... 242

Cleaning the Air Filter and Vents ................................................................................................. 243

Replacing the Air Filter ................................................................................................................ 246

Replacing the Remote Control Batteries .......................................................................................... 248

Updating the Firmware ..................................................................................................................... 250

Transporting the Projector................................................................................................................ 250

Solving Problems .................................................................................................................................... 252

Projection Problem Tips ................................................................................................................... 252

Projector Light Status ....................................................................................................................... 253

Using the Projector Menu Displays .................................................................................................. 256

Solving Image or Sound Problems ................................................................................................... 256

Solutions When No Image Appears............................................................................................. 257

Solutions When "No Signal" Message Appears........................................................................... 258

Displaying From a PC Laptop ................................................................................................. 259

Displaying From a Mac Laptop ............................................................................................... 259

Solutions When "Not Supported" Message Appears ................................................................... 260

Solutions When Only a Partial Image Appears............................................................................ 260

Page 9

Solutions When the Image is Not Rectangular ............................................................................ 261

Solutions When the Image Contains Noise or Static ................................................................... 261

Solutions When the Image is Fuzzy or Blurry .............................................................................. 262

Solutions When the Image Brightness or Colors are Incorrect .................................................... 263

Solutions When an Afterimage Remains On the Projected Image............................................... 264

Solutions to Sound Problems ...................................................................................................... 264

Solutions to Problems using Content Playback ........................................................................... 265

Solving Projector or Remote Control Operation Problems ............................................................... 265

Solutions to Projector Power or Shut-Off Problems..................................................................... 266

Solutions to Remote Control Problems........................................................................................ 267

Solutions to Password Problems ................................................................................................. 267

Solutions When a Battery Message Appears .............................................................................. 268

Solving Network Problems ............................................................................................................... 268

Solutions When Wireless Authentication Fails ............................................................................ 269

Solutions When You Cannot Access the Projector Through the Web ......................................... 269

Solutions When Network Alert E-Mails are Not Received............................................................ 270

Solutions When the Image Contains Static During Network Projection ....................................... 270

Solutions When You Cannot Connect Using Screen Mirroring.................................................... 270

Solutions When the Image or Sound Contains Static When Using Screen Mirroring................... 271

Solutions When the Projected Screen is not Shared Correctly .................................................... 271

Where to Get Help (U.S. and Canada) ............................................................................................. 272

Where to Get Help (Latin America)................................................................................................... 273

Technical Specifications ........................................................................................................................ 276

General Projector Specifications ...................................................................................................... 276

Projector Light Source Specifications............................................................................................... 277

Remote Control Specifications ......................................................................................................... 278

Projector Dimension Specifications.................................................................................................. 278

Projector Electrical Specifications .................................................................................................... 278

Projector Environmental Specifications............................................................................................ 279

Projector Safety and Approvals Specifications................................................................................. 280

Supported Video Display Formats.................................................................................................... 280

Notices ..................................................................................................................................................... 283

Recycling.......................................................................................................................................... 283

Page 10

Important Safety Information ............................................................................................................ 283

Laser Safety Information .................................................................................................................. 284

Laser Light Source Warning ............................................................................................................ 287

Important Safety Instructions............................................................................................................ 287

Restriction of Use ........................................................................................................................ 292

List of Safety Symbols (corresponding to IEC60950-1 A2)............................................................... 292

FCC Compliance Statement............................................................................................................. 296

Binding Arbitration and Class Waiver ............................................................................................... 297

Trademarks (U.S. and Canada) ....................................................................................................... 300

Trademarks (Latin America) ............................................................................................................. 301

Copyright Notice............................................................................................................................... 302

A Note Concerning Responsible Use of Copyrighted Materials................................................... 302

Copyright Attribution.................................................................................................................... 303

Page 11

PowerLite EB-800F/805F User's Guide

Welcome to the PowerLite EB-800F/805F User's Guide.

For a printable PDF copy of this guide, click here.

Note: Availability of products in this guide varies by country.

Page 12

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.

Projector Features Notations Used in the Documentation Where to Go for Additional Information Additional Projector Software and Manuals Projector Part Locations

Projector Features

The PowerLite EB-800F/805F projectors includes these special features:

Bright, high-resolution projection system

• Up to 5000 lumens of color brightness (color light output) and white brightness (white light output)

Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

• 1080p native resolution

Flexible connectivity

• Three HDMI ports for computer or video device connection

• Plug-and-play USB projection and audio for instant setup

• Optional HDBaseT control pad with single connection to projector for simplified cabling and installation

• Wired and wireless (optional accessory required) network support for projection

• Screen mirroring to connect your mobile device wirelessly using Miracast technology (optional accessory may be required)

• Projector monitoring and control via remote network computer

• PC Free photo slide shows via connected USB memory devices or Epson document camera (only on models that support the slide show function)

• One HDMI Out port for connecting an external display or linking another compatible projector

• Use Epson iProjection (Windows/Mac) to simultaneously project up to four images from network computers or mobile devices (optional accessory may be required)

Page 13

• Projection from an iOS device, Android device, or Chromebook with the free Epson iProjection app; visit epson.com/iprojection (U.S.), epson.ca/iprojection (Canada), or latin.epson.com/iprojection (Caribbean) for more information (optional accessory may be required)

Innovative display and operation features

• Long-life laser light source

• Easy-to-use and free content management software for creating amazing effects and experiences for digital signage

• Support for side-by-side projector mounting

• High digital zoom ratio for larger images in shorter projection distances

• 2,500,000:1 dynamic contrast ratio and Dynamic Contrast control for sharp, detailed images

• Built-in closed captioning decoder

• Powerful 16 W (2 x 8 W) speaker system with audio out port for connecting external speakers

• Epson's Direct Power On and Auto Power On features for quick and easy setup

• Support for Crestron Connected network monitoring systems

• Network message broadcast system to project timely messages to all networked projectors

Product Box Contents Additional Components Optional Equipment and Replacement Parts Warranty and Registration Information (U.S. and Canada) Warranty and Registration Information (Latin America)

Parent topic: Introduction to Your Projector

Product Box Contents

Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.

Page 14

Make sure your projector box included all of these parts:

1 Projector

2 Remote control

3 Remote control batteries (2 AA alkaline)

4 Power cord

5 Lens cap

6 Cable cover

Parent topic: Projector Features

Additional Components

Depending on how you plan to use the projector, you may need to obtain additional components.

Note: To connect a Mac that does not include a compatible video output port, you need to obtain an adapter that allows you to connect to an input port on the projector. Contact Apple for compatible adapter options. To connect a smartphone or tablet, you may need to obtain an adapter that allows you to connect to the projector. This allows you to mirror your smartphone or tablet screens, watch movies, and more. Contact your device manufacturer for compatible adapter options.

Unless listed as available from Epson in this table, see your local computer or electronics dealer for purchase information.

Page 15

Signal or connection type

Composite video RCA-style video or A/V cable

HDMI Compatible HDMI cable

Audio from certain ports Commercially available audio cable compatible with your device

VGA To connect a computer through its VGA port to the projector's VGA video

USB Compatible USB cable

Parent topic: Projector Features

Additional component necessary

Available for purchase from Epson or an authorized Epson reseller (U.S. and Canada).

Available for purchase from an authorized Epson reseller (Caribbean).

Note: Older Mac computers (2009 and earlier) may not support HDMI audio.

port, you need a VGA computer cable.

Optional Equipment and Replacement Parts

U.S. and Canada: You can purchase screens, other optional accessories, and replacement parts from

an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in Canada. Or you can purchase online at epsonstore.com (U.S. sales) or

epsonstore.ca (Canadian sales).

Latin America: You can purchase optional accessories and replacement parts from an Epson authorized reseller. To find the nearest reseller, go to latin.epson.com. Or you can contact your nearest sales office as described in "Where to Get Help".

Note: Availability of accessories varies by country.

Epson offers the following optional accessories and replacement parts for your projector:

U.S. and Canada:

Option or part Part number

Replacement air filter (ELPAF56) V13H134A56

Page 16

Option or part Part number

Ultra-short throw wall mount (ELPMB62) V12HA06A05

Control Pad (ELPHD02) V12H007A14

HDBaseT Transmitter (ELPHD01) V12H547020

Wireless LAN module (ELPAP11) V12H005A02

Epson DC-07 document camera (ELPDC07) V12H759020

Epson DC-13 document camera (ELPDC13) V12H757020

Epson DC-21 document camera (ELPDC21) V12H758020

PowerLite Pilot 3 connection and control box (ELPCB03) V12H927020

Active speakers (ELPSP02) V12H467020

USB extension cable (ELPKC31) V12H525001

PixiePlus control system ELPSP10

In addition to the accessories listed above, extended service plans are available.

Latin America:

Option or part Part number

Replacement air filter (ELPAF56) V13H134A56

Ultra-short throw wall mount (ELPMB62) V12HA06A05

HDBaseT Transmitter (ELPHD01) V12H547020

Wireless LAN module (ELPAP11) V12H005A02

Parent topic: Projector Features

Warranty and Registration Information (U.S. and Canada)

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty brochure that came with your projector.

Registering also lets you receive special updates on new accessories, products, and services.

Parent topic: Projector Features

Page 17

Warranty and Registration Information (Latin America)

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty that came with your projector.

Registering also lets you receive special updates on new accessories, products, and services.

Parent topic: Projector Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:

• Warnings must be followed carefully to avoid bodily injury.

• Cautions must be observed to avoid damage to your equipment.

• Notes contain important information about your projector.

• Tips contain additional projection information.

Parent topic: Introduction to Your Projector

Where to Go for Additional Information

Need quick help on using your projector? Here's where to look for help:

• epson.com/support (U.S.), epson.ca/support (Canada), or latin.epson.com/support (Caribbean)

View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24 hours a day.

• If you still need help after checking this manual and any other sources listed here, you can use the Epson PrivateLine Support service to get help fast (U.S. and Canada only). For details, see "Where to Get Help."

Parent topic: Introduction to Your Projector

Related references

Where to Get Help (U.S. and Canada) Where to Get Help (Latin America)

Additional Projector Software and Manuals

After connecting and setting up the projector, install the projector software as necessary. You may need to install it from a software CD, if included, or download the software and manuals as necessary.

Page 18

You can install the projector software programs listed here and view their manuals for instructions on using them.

Note: If you still need help after checking this manual and the sources listed here, you can use the Epson PrivateLine Support service to get help fast (U.S. and Canada only). For details, see "Where to Get Help."

Projector software Manual Description

Epson Projector Management (Windows only)

Epson iProjection (Windows/Mac)

Epson Projector Management Operation Guide

Epson iProjection Operation Guide (Windows/Mac)

Epson iProjection app Instructions are included

with the app (instructions included with the app available only in English)

Lets you update firmware and monitor and control your projector through the network.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.), epson.ca/support

(Canada), or latin.epson.com/support (Caribbean) and select your projector.

Lets you project the computer screens of users over a network.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.), epson.ca/support

(Canada), or latin.epson.com/support (Caribbean) and select your projector.

Lets you project from an iOS device, Android device, or Chromebook if your projector is connected to a network that includes a wireless access point.

Visit epson.com/support (U.S.),

epson.ca/support (Canada), or latin.epson.com/support (Caribbean) for more

information. (Software available only in English.)

— Open Source Software

License

You can download this document from the Epson web site. Go to epson.com/support (U.S.), epson.ca/support (Canada), or

latin.epson.com/support (Caribbean) and

select your projector. (Document available only in English.)

Page 19

Projector software Manual Description

Epson Projector Content Manager

Epson Creative Projection (iOS only)

Parent topic: Introduction to Your Projector

Projector Part Locations

Epson Projector Content Manager Operation Guide

Instructions are included with the app

Lets you add images and movies to playlists, and save them on a USB device; insert the USB device into the projector to project your playlist content without using a cable connection.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.), epson.ca/support

(Canada), or latin.epson.com/support (Caribbean) and select your projector.

Lets you create custom content using built-in templates and stamps, and wirelessly transfer it to the projector if it is connected to a network that includes a wireless access point.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.), epson.ca/support

(Canada), or latin.epson.com/support (Caribbean) and select your projector.

Check the projector part illustrations to learn about the parts on your projector.

Projector Parts - Front/Side Projector Parts - Top/Side Projector Parts - Interface Projector Parts - Base Projector Parts - Control Panel Projector Parts - Remote Control

Parent topic: Introduction to Your Projector

Page 20

Projector Parts - Front/Side

1 Power button

2 Status lights

3 Remote control receiver

4 Exhaust vent

5 Front cover

6 Control panel

Page 21

7 Focus lever

8 Speakers

Parent topic: Projector Part Locations

Related references

Projector Light Status

Projector Parts - Top/Side

1 Projection lens

2 Remote receiver

3 Cable cover screws

4 Cable cover

5 Air filter cover

6 Air intake vent (air filter)

Page 22

7 Power inlet

8 Security cable installation slot

Parent topic: Projector Part Locations

Projector Parts - Interface

1 USB-A1/USB-A2 ports

2 USB-B port

3 LAN port

4 Computer1/Computer2 Monitor Out ports

5 HDMI1/HDMI2/HDMI3 ports

6 HDBaseT port

7 HDMI Out port

8 DC Out (2.0A) port

9 RS-232C port

10 Audio Out port

11 Audio/Audio1/Audio2 ports

12 Video port

Parent topic: Projector Part Locations

Page 23

Related concepts

Projector Connections

Projector Parts - Base

1 Security cable attachment point

2 Wall mounting plate holes (4)

3 VESA-compatible mount fixing points (4)

4 Air intake vent

Parent topic: Projector Part Locations

Page 24

Projector Parts - Control Panel

1 Menu button (accesses projector menu system)

3 Enter button (selects options)

4 Vertical keystone adjustment buttons (display the adjustment screen and adjust screen shape)

5 Source Search button (searches for connected video sources)

6 Esc button (cancels/exits functions)

7 W/T (Wide/Tele) buttons (adjust projected image size) and arrow buttons

Parent topic: Projector Part Locations

Home button (accesses projector Home screen)

and arrow buttons

Page 25

Projector Parts - Remote Control

1 Power button

2 HDMI button (cycles through connected HDMI sources)

Page 26

3 Computer button

4 Keystone button (corrects distortion in the image)

5 Numeric buttons

6 Auto button (automatically adjusts position, tracking, and sync settings)

7 Num button (when held down, switches numeric buttons to number function)

8 Menu button (accesses projector menu system)

9 Arrow buttons (move through on-screen options)

10 (Enter) button (selects options)

11 User button (customizable for different functions)

12 Color Mode button (selects display modes)

13 Aspect button (selects the image aspect ratio)

14 E-Zoom +/– buttons (zoom into and out of the image)

15 A/V Mute button (turns off picture and sound)

16 Split button (splits the screen between two image sources)

Home button (accesses projector Home screen)

18 Freeze button (stops video action)

19 Volume up/down buttons (adjust speaker volume)

20 Default button (resets the selected setting to its default value)

21 Esc button (cancels/exits functions and controls wireless mouse functions)

22 ID button (selects a projector to use with the remote control)

23 Effect button (changes the shape and color of an image)

24 USB Viewer button (displays the playlists stored on the USB flash drive)

25 LAN button (connects to a network source)

26 USB button (cycles through connected USB sources)

27 Source Search button (searches for connected sources)

28 Remote control emitter

Parent topic: Projector Part Locations

Page 27

Setting Up the Projector

Follow the instructions in these sections to set up your projector for use.

Projector Placement Removing and Attaching the Cable Cover Projector Connections Installing Batteries in the Remote Control

Projector Placement

Your ultra-short throw projector is designed to be installed on a wall (with a wall mount).

You can also place the projector on a flat surface such as a desk or table to project in a portable setup.

Keep these considerations in mind as you select a projector location:

• Follow the instructions in the Installation Guide provided with your mounting hardware to install the projector.

• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or next to anything that could block the vents.

• If you are using the projector at altitudes above 4921 feet (1500 m), set the High Altitude Mode setting to On in the projector's Installation menu to ensure the projector's internal temperature is regulated properly.

• Position the projector within reach of a grounded electrical outlet or extension cord.

• If installing vertically on a table, a commercially available mount compatible with the VESA Mounting Interface Standard (100 x 100 mm) is required.

• If installing on a wall, the wall mount (V12HA06A05) is required.

• If the projector is not mounted, place it on a sturdy, level surface.

• Place the projector so it squarely faces the screen, not at an angle. If you cannot install the projector squarely facing the screen, correct any resulting image distortion using the projector controls.

• Try not to set up the projector in locations subject to high humidity and dust, or in locations subject to smoke from fires or tobacco smoke.

Projector Setup and Installation Options Projection Distance

Parent topic: Setting Up the Projector

Page 28

Projector Setup and Installation Options

You can set up or install your projector in the following ways:

Mounted on the wall or ceiling

Mounted on the wall or ceiling and projecting from behind a translucent screen

Page 29

Front projection from a table or portable cart

Rear projection from a table or portable cart behind a translucent screen

Wherever you set up the projector, make sure to position it squarely in front of the screen, not at an angle.

If you place the projector vertically, turn on the Vertical Installation setting in the projector's Installation menu.

If you install the projector to a fixed location, turn on the Fixed Installation setting in the projector's Installation menu.

If you project from a table or portable cart, be sure to select the correct Projection option in the projector's menu system.

Parent topic: Projector Placement

Page 30

Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.)

You can also use the Projection Distance Calculator here (U.S.), here (Canada), or here (Caribbean).

1 Projection distance

2 Distance from the top of the projector to the top of the image (when projecting from a wall or table

mount) or base of the image (when projecting from a flat surface)

Page 31

3 Distance from the top of the projector to the base of the image (when projecting from a wall or

table mount) or top of the image (when projecting from a flat surface)

4 Distance from the center of the lens to the rear of the projector: 9.2 inches (23.3 cm)

16:9 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide

Offset from lens center (2)

Offset from lens center (3)

65 inches (165.1 cm) 15.4 inches (39.2 cm) 4.1 inches (10.5 cm) 36.0 inches (91.5 cm)

70 inches (177.8 cm) 16.7 inches (42.3 cm) 4.5 inches (11.4 cm) 38.8 inches (98.5 cm)

75 inches (190.5 cm) 17.9 inches (45.5 cm) 4.8 inches (12.2 cm) 41.6 inches (105.6 cm)

80 inches (203.2 cm) 19.2 inches (48.7 cm) 5.1 inches (13.0 cm) 44.3 inches (112.6 cm)

85 inches (215.9 cm) 20.4 inches (51.8 cm) 5.4 inches (13.8 cm) 47.1 inches (119.6 cm)

90 inches (228.6 cm) 21.7 inches (55.0 cm) 5.8 inches (14.6 cm) 49.9 inches (126.7 cm)

100 inches (254 cm) 24.1 inches (61.3 cm) 6.4 inches (16.2 cm) 55.4 inches (140.7 cm)

110 inches (279.4 cm) 26.6 inches (67.6 cm) 7.0 inches (17.8 cm) 61.0 inches (154.8 cm)

120 inches (304.8 cm) 29.1 inches (74.0 cm) 7.7 inches (19.5 cm) 66.5 inches (168.9 cm)

130 inches (330.2 cm) 31.6 inches (80.3 cm) 8.3 inches (21.1 cm) 72.1 inches (183.0 cm)

16:10 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide

Offset from lens center (2)

Offset from lens center (3)

60 inches (152.4 cm) 15.4 inches (39.1 cm) 4.1 inches (10.5 cm) 36.0 inches (91.3 cm)

65 inches (165.1 cm) 16.7 inches (42.5 cm) 4.5 inches (11.4 cm) 38.9 inches (98.9 cm)

70 inches (177.8 cm) 18.1 inches (45.9 cm) 4.8 inches (12.3 cm) 41.9 inches (106.5 cm)

75 inches (190.5 cm) 19.4 inches (49.3 cm) 5.2 inches (13.1 cm) 44.9 inches (114.1 cm)

80 inches (203.2 cm) 20.8 inches (52.8 cm) 5.5 inches (14.0 cm) 47.9 inches (121.7 cm)

85 inches (215.9 cm) 22.1 inches (56.2 cm) 5.9 inches (14.9 cm) 50.9 inches (129.3 cm)

90 inches (228.6 cm) 23.5 inches (59.6 cm) 6.2 inches (15.8 cm) 53.9 inches (136.9 cm)

Page 32

16:10 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide

Offset from lens center (2)

Offset from lens center (3)

95 inches (241.3 cm) 24.8 inches (63.0 cm) 6.6 inches (16.7 cm) 56.9 inches (144.5 cm)

100 inches (254 cm) 26.1 inches (66.4 cm) 6.9 inches (17.5 cm) 59.9 inches (152.1 cm)

110 inches (279.4 cm) 28.9 inches (73.3 cm) 7.6 inches (19.3 cm) 65.9 inches (167.4 cm)

120 inches (304.8 cm) 31.5 inches (80.1 cm) 8.3 inches (21.0 cm) 71.9 inches (182.6 cm)

4:3 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide

Offset from lens center (2)

Offset from lens center (3)

53 inches (134.6 cm) 15.4 inches (39.1 cm) 4.1 inches (10.5 cm) 36.0 inches (91.3 cm)

55 inches (139.7 cm) 16.0 inches (40.6 cm) 4.3 inches (10.9 cm) 37.3 inches (94.7 cm)

60 inches (152.4 cm) 17.5 inches (44.5 cm) 4.7 inches (11.9 cm) 40.7 inches (103.3 cm)

65 inches (165.1 cm) 19.1 inches (48.4 cm) 5.1 inches (12.9 cm) 44.1 inches (112.0 cm)

70 inches (177.8 cm) 20.6 inches (52.2 cm) 5.5 inches (13.9 cm) 47.5 inches (120.6 cm)

75 inches (190.5 cm) 22.1 inches (56.1 cm) 5.9 inches (14.9 cm) 50.9 inches (129.2 cm)

80 inches (203.2 cm) 23.6 inches (60.0 cm) 6.3 inches (15.9 cm) 54.3 inches (137.8 cm)

85 inches (215.9 cm) 25.2 inches (63.9 cm) 6.7 inches (16.9 cm) 57.6 inches (146.4 cm)

90 inches (228.6 cm) 26.7 inches (67.7 cm) 7.1 inches (17.9 cm) 61.0 inches (155.0 cm)

100 inches (254 cm) 29.7 inches (75.5 cm) 7.8 inches (19.8 cm) 67.8 inches (172.2 cm)

105 inches (279.4 cm) 31.3 inches (79.4 cm) 8.2 inches (20.8 cm) 71.2 inches (180.9 cm)

21:9 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele

Offset from lens center (2)

Offset from lens center (3)

62 inches (157.5 cm) 15.5 inches (39.4 cm) 8.0 inches (20.3 cm) 32.4 inches (82.3 cm)

65 inches (165.1 cm) 16.3 inches (41.4 cm) 8.4 inches (21.3 cm) 34.0 inches (86.3 cm)

Page 33

21:9 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele

70 inches (177.8 cm) 17.6 inches (44.7 cm) 9.0 inches (22.9 cm) 36.6 inches (93.0 cm)

75 inches (190.5 cm) 18.9 inches (48.1 cm) 9.7 inches (24.5 cm) 39.2 inches (99.6 cm)

80 inches (203.2 cm) 20.2 inches (51.4 cm) 10.3 inches (26.2 cm) 41.8 inches (106.2 cm)

85 inches (215.9 cm) 21.6 inches (54.8 cm) 11.0 inches (27.8 cm) 44.5 inches (112.9 cm)

90 inches (228.6 cm) 22.9 inches (58.1 cm) 11.6 inches (29.5 cm) 47.1 inches (119.5 cm)

100 inches (254 cm) 25.5 inches (64.8 cm) 12.9 inches (32.7 cm) 52.3 inches (132.8 cm)

110 inches (279.4 cm) 28.2 inches (71.5 cm) 14.2 inches (36.0 cm) 57.5 inches (146.1 cm)

120 inches (304.8 cm) 30.8 inches (78.1 cm) 15.5 inches (39.3 cm) 62.7 inches (159.3 cm)

123 inches (317.5 cm) 31.5 inches (80.1 cm) 15.9 inches (40.3 cm) 64.3 inches (163.3 cm)

Parent topic: Projector Placement

Removing and Attaching the Cable Cover

Before you can connect equipment to your projector, you need to remove the cable cover.

Offset from lens center (2)

Offset from lens center (3)

Page 34

1. Loosen both of the screws securing the cable cover and lift off the cable cover.

To attach the cable cover, replace the cable cover and tighten the cable cover screws.

Parent topic: Setting Up the Projector

Projector Connections

See these sections to connect the projector to a variety of projection sources.

Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode to ensure the projector's internal temperature is regulated properly.

Connecting to Computer Sources Connecting to Video Sources Connecting External Output Devices Connecting to External USB Devices

Page 35

Connecting to a Document Camera Connecting to an HDBaseT Transmitter Connecting Multiple Projectors of the Same Model

Parent topic: Setting Up the Projector

Related references

Installation Settings - Installation Menu Additional Components

Connecting to Computer Sources

Follow the instructions in these sections to connect a computer to the projector.

Connecting to a Computer for VGA Video Connecting to a Computer for HDMI Video and Audio Connecting to a Computer for Sound

Parent topic: Projector Connections

Connecting to a Computer for VGA Video

You can connect the projector to your computer using a VGA computer cable.

Note: To project an image source connected to the Computer2/Monitor Out port, set Monitor Out Port to Computer2 in the projector's Signal I/O menu.

1. If necessary, disconnect your computer's monitor cable.

2. Connect the VGA computer cable to your computer's monitor port.

Page 36

3. Connect the other end to a Computer port on the projector.

4. Tighten the screws on the VGA connector.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for HDMI Video and Audio

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.

1. Connect the HDMI cable to your computer's HDMI output port.

2. Connect the other end to one of the projector's HDMI ports.

Page 37

Note: If you have problems hearing audio through the HDMI connection, connect one end of an optional

3.5 mm stereo mini-jack audio cable to the projector's Audio port and the other end to your computer's

audio out port. Then select the audio port you connected to as the HDMI Audio Output setting in the Signal I/O menu.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for Sound

If your computer presentation includes sound and you did not connect it to a projector port that receives audio signals, you can still play sound through the projector's speaker system. Just connect an optional

3.5 mm stereo mini-jack audio cable as described here.

Note: Make sure the audio cable you use is labeled "No resistance."

1. Connect the audio cable to your laptop's headphone or audio-out jack, or your desktop's speaker or

audio-out port.

2. Connect the other end to the Audio port that corresponds to the Computer port you are using.

Parent topic: Connecting to Computer Sources

Connecting to Video Sources

Follow the instructions in these sections to connect video devices to the projector.

Connecting to an HDMI Video Source Connecting to a Composite Video Source Connecting to a Video Source for Sound

Parent topic: Projector Connections

Page 38

Connecting to an HDMI Video Source

If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable. The HDMI connection provides the best image quality. You can also connect your video source to an HDMI port on the control pad (optional accessory required).

Caution: Do not turn on the video source before connecting it to the projector. Doing so could damage the projector.

Note: If you are connecting a video source to an HDMI port on the optional control pad, enable Connect ELPHD02 in the HDBaseT settings of the projector's Signal I/O menu.

1. Connect the HDMI cable to your video source's HDMI output port.

2. Connect the other end to one of the projector's HDMI ports. Connect the other end to one of the

HDMI ports on the projector or the optional control pad, if installed.

Note: If you have problems hearing audio through the HDMI connection, you can use one of the projector's audio ports instead to play sound. Connect one end of an optional 3.5 mm stereo mini-jack audio cable to one of the projector's audio ports and the other end to your computer's audio out port. Then select the audio port you connected to as the HDMI Audio Output setting in the Signal I/O menu.

Parent topic: Connecting to Video Sources

Related references

Input Signal Settings - Signal I/O Menu

Page 39

Connecting to a Composite Video Source

If your video source has a composite video port, you can connect it to the projector using an optional RCA-style video or A/V cable.

1. Connect the cable with the yellow connector to your video source's yellow video output port.

2. Connect the other end to the projector's Video port.

Parent topic: Connecting to Video Sources

Connecting to a Video Source for Sound

You can play sound through the projector's speaker system if your video source has audio output ports.

If you are projecting video using the Video or a Computer port, connect the projector to the video source using an optional stereo mini-jack audio cable.

Note: If you connected your video source to the projector using an HDMI cable, the audio signal is transferred with the video signal; you do not need an additional cable for sound.

1. Connect the audio cable to your video source's audio-out ports.

Page 40

2. Connect the other end of the cable to the projector's Audio port that corresponds to the Computer

or Video port you are using for video.

Parent topic: Connecting to Video Sources

Connecting External Output Devices

See these sections to connect the projector to external output devices.

Connecting to an External Computer Monitor Connecting to an External HDMI Monitor Connecting to External Speakers

Parent topic: Projector Connections

Connecting to an External Computer Monitor

If you connected a computer to the projector's Computer1 port, you can also connect an external monitor to the projector. This lets you see your presentation on the external monitor even when the projected image is not visible.

To output images to an external VGA monitor, set the Monitor Out Port setting to Monitor Out in the projector's Signal I/O menu.

If you want to output images to an external monitor when the projector is not projecting any images, you need to select Always On as the A/V Output setting in the projector's Signal I/O menu.

Note: Monitors that use a refresh rate less than 60 Hz may not be able to display images correctly.

1. Make sure your computer is connected to the projector's Computer port. If there are two computer

ports, make sure you use the Computer1 port.

Page 41

2. Connect the external monitor's cable to your projector's Computer2/Monitor Out port.

Parent topic: Connecting External Output Devices

Related references

Input Signal Settings - Signal I/O Menu

Connecting to an External HDMI Monitor

You can connect an external HDMI monitor to the projector's HDMI Out port and use it to display projected content from the currently selected input source (except for the Home screen and images from a Screen Mirroring source).

1. Connect an HDMI cable to your monitor's HDMI input port.

2. Connect the other end to the projector's HDMI Out port.

Parent topic: Connecting External Output Devices

Page 42

Connecting to External Speakers

To enhance the sound from your presentation, you can connect the projector to external self-powered speakers. You can control the volume using the projector's remote control.

You can also connect the projector to an amplifier with speakers.

Set the Audio Out Device setting to AV System in the projector's Signal I/O menu. When an audio/video system is not connected to the projector, audio is output from the external speakers even if Audio Out Device is set to AV System.

If you want to output audio from the external speakers when the projector is not projecting images, you need to select Always On as the A/V Output setting in the projector's Signal I/O menu.

Note: The projector's built-in speaker system is disabled when you connect external speakers.

1. Make sure your computer or video source is connected to the projector with both audio and video

cables as necessary.

2. Locate the appropriate cable to connect your external speakers, such as a stereo mini-jack-to-pin-

jack cable, or another type of cable or adapter.

3. Connect one end of the cable to your external speakers as necessary.

4. Connect the stereo mini-jack end of the cable to your projector's Audio Out port.

Parent topic: Connecting External Output Devices

Related references

Input Signal Settings - Signal I/O Menu

Connecting to External USB Devices

Follow the instructions in these sections to connect external USB devices to the projector.

Page 43

USB Device Projection Connecting a USB Device or Camera to the Projector Selecting the Connected USB Source Disconnecting a USB Device From the Control Pad or Projector

Parent topic: Projector Connections

USB Device Projection

You can project images and other content without using a computer or video device by connecting any of these devices to your projector or to the optional control pad:

• USB flash drive

• Digital camera or smartphone

• USB hard drive

Note: Digital cameras or smartphones must be USB-mounted devices, not TWAIN-compliant devices, and must be USB Mass Storage Class-compliant.

Note: USB hard drives must meet these requirements:

• USB Mass Storage Class-compliant (not all USB Mass Storage Class devices are supported)

• Formatted in FAT or FAT32

• Self-powered by their own AC power supplies (bus-powered hard drives are not recommended)

• Does not have multiple partitions

You can project slide shows from image files on a connected USB device.

You can also project playlists that contain images and movies saved on a USB device when in Content Playback mode.

Parent topic: Connecting to External USB Devices

Related tasks

Starting a PC Free Slide Show Starting a PC Free Movie Presentation

Connecting a USB Device or Camera to the Projector

You can connect your USB device or camera to the projector's USB-A port and use it to project images and other content.

1. If your USB device came with a power adapter, plug the device into an electrical outlet.

Page 44

2. Connect the USB cable (or USB flash drive) to one of the projector's USB-A ports.

Note: Use the USB cable supplied with or specified for use with your device. Do not connect a USB

hub or a USB cable longer than 10 feet (3 m), or the device may not operate correctly.

3. Connect the other end of the cable (if applicable) to your device.

Parent topic: Connecting to External USB Devices

Related tasks

Starting a PC Free Slide Show Starting a PC Free Movie Presentation

Selecting the Connected USB Source

You can switch the projector's display to the source you connected to one of the ports. To display the connected USB device, select the USB1 source.

Note: If you have connected a document camera using a USB cable, select the USB2 source.

1. Make sure the connected USB source is turned on, if necessary.

2. Press the USB or Source Search button on the remote control and select the USB1 or USB2

source.

Parent topic: Connecting to External USB Devices

Related tasks

Starting a PC Free Slide Show Starting a PC Free Movie Presentation

Page 45

Disconnecting a USB Device From the Control Pad or Projector

When you finish presenting with a connected USB device, you must prepare to disconnect the device from the control pad (optional accessory required) or projector.

1. If the device has a power button, turn off and unplug the device.

2. Disconnect the USB device (or cable) from the control pad or projector.

Parent topic: Connecting to External USB Devices

Related tasks

Starting a PC Free Slide Show Starting a PC Free Movie Presentation

Connecting to a Document Camera

You can connect a document camera to your projector to project images viewed by the camera.

Note: If you connect a document camera to one of the USB-A ports on the projector, select the USB2 source to display the image. You cannot simultaneously connect two document cameras to the USB-A ports.

Depending on your Epson document camera model, do one of the following to connect the document camera to your projector:

• For the Epson DC-07 document camera, locate the USB cable that came with the camera and connect it to the projector's port and to the document camera's USB Type B port.

• For the Epson DC-11 document camera, connect it to the projector's Computer or Video port and to the corresponding port on the document camera. See the document camera manual for details.

• For the Epson DC-12 document camera, connect it to the projector's HDMI, Computer, or Video port and to the corresponding port on the document camera. See the document camera manual for details.

• For the Epson DC-13 document camera, connect it to the projector's HDMI, Computer, or Video port and to the corresponding port on the document camera. See the document camera manual for details.

• For the Epson DC-20 document camera, connect it to the projector's HDMI, Computer, or Video port and to the corresponding port on the document camera. See the document camera manual for details.

• For the Epson DC-21 document camera, connect it to the projector's HDMI, Computer, or Video port and to the corresponding port on the document camera. See the document camera manual for details.

Note: For additional features supported by software, connect your document camera to your computer instead of the projector. See the document camera manual for details.

Page 46

Parent topic: Projector Connections

Connecting to an HDBaseT Transmitter

To send an HDMI or RS-232C signal over a long distance, you can connect the projector to an optional HDBaseT transmitter using a 100Base-TX network cable. This is useful when you want to send a signal to or control the projector from a remote location, such as in a hall or event site, since you can use a network cable up to 328 feet (100 m) in length. To ensure proper data transmission, use a Category 5e STP cable or better.

Note: Set the A/V Output setting to Always On in the Signal I/O menu to control the projector when it is not projecting any images.

1. Turn off the projector and HDBaseT transmitter.

Note: Make sure the projector and HDBaseT transmitter are turned off when connecting or disconnecting a network cable between the two devices.

2. Connect one end of the network cable to the HDBaseT port on the transmitter.

3. Connect the other end to the projector's HDBaseT port.

Note: See the documentation that came with the HDBaseT transmitter for instructions on connecting it to your video device or computer.

4. Turn on the projector and HDBaseT transmitter.

Note: To enable communication from the Ethernet and serial ports on the transmitter, enable Control Communications in the HDBaseT settings of the projector's Signal I/O menu. Turning on this setting

disables the projector's LAN and RS-232C ports. If you connected an Extron XTP transmitter or switcher to the projector's HDBaseT port, select On as the Extron XTP setting in the projector's Signal I/O menu.

Parent topic: Projector Connections

Connecting Multiple Projectors of the Same Model

You can connect up to four projectors of the same model in the same room to project a single unified image.

Page 47

1. Connect the computer and the projectors using HDMI cables as shown.

Note: If you are connecting three or more projectors, connect the projectors in a chain as shown.

2. After making the appropriate connections, you need to adjust the necessary projector menu settings

accordingly. Click the link below.

Multiple Projector Connection Menu Settings

Parent topic: Projector Connections

Related concepts

Using Multiple Projectors

Multiple Projector Connection Menu Settings

After connecting multiple projectors to project a unified image, see the tables below to select the correct projector menu settings. Make sure your computer is connected to Projector 1 (the left-most projector in your setup).

Note: You may need to restart the projector during the process. Follow any on-screen instructions.

Page 48

Setup (2-4 Projectors)

Setting Projector 1 Projectors 2-4

Image Menu

Color Mode Multi-Projection Multi-Projection

Multi-Projection Menu

HDMI Out Setting Process Out Pass Through

Number of Projectors Specify the number of projectors connected in a series

Order Specify the position of the projectors in number order from left to right

Parent topic: Connecting Multiple Projectors of the Same Model

Installing Batteries in the Remote Control

The remote control uses the two AA batteries that came with the projector. Replace the batteries as soon as they run out.

Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types, or mix new and old batteries.

Page 49

1. Remove the battery cover.

2. Insert the batteries with the + and – ends facing as shown.

Warning: Make sure the batteries are inserted in the correct positions. If the batteries are not inserted correctly, they could explode or leak, causing a fire, injury, or damage to the product.

Page 50

3. Replace the battery cover and press it down until it clicks into place.

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.

Parent topic: Setting Up the Projector

Page 51

Using the Projector on a Network

Follow the instructions in these sections to set up your projector for use on a network.

Note: Epson iProjection is not recommended for use with streaming video.

Wired Network Projection Wireless Network Projection Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring) Screen Sharing Setting Up Projector Network E-Mail Alerts Setting Up Monitoring Using SNMP Controlling a Networked Projector Using a Web Browser Using Crestron Connected Registering a Digital Certificate on the Projector

Wired Network Projection

You can project through a wired network. To do this, you connect the projector to your network with an Ethernet cable, and then set up your projector and computer for network projection.

After connecting and setting up the projector, install the projector software. You may need to install it from a software CD, if included, or download the software and manuals as necessary.

Note: If your projector is connected via a LAN (Ethernet) cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software.

Connecting to a Wired Network Selecting Wired Network Settings

Parent topic: Using the Projector on a Network

Related references

Additional Projector Software and Manuals

Page 52

Connecting to a Wired Network

To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10Base-T network cable. To ensure proper data transmission, use a Category 5 shielded cable or better.

1. Connect one end of the network cable to your network hub, switch, or router.

2. Connect the other end of the cable to the projector's LAN port.

Parent topic: Wired Network Projection

Selecting Wired Network Settings

Before you can project from computers on your network, you must select the network settings for the projector using its menu system.

Note: Make sure you already connected the projector to your wired network using the LAN port.

1. Turn on the projector.

2. Press the Menu button.

Page 53

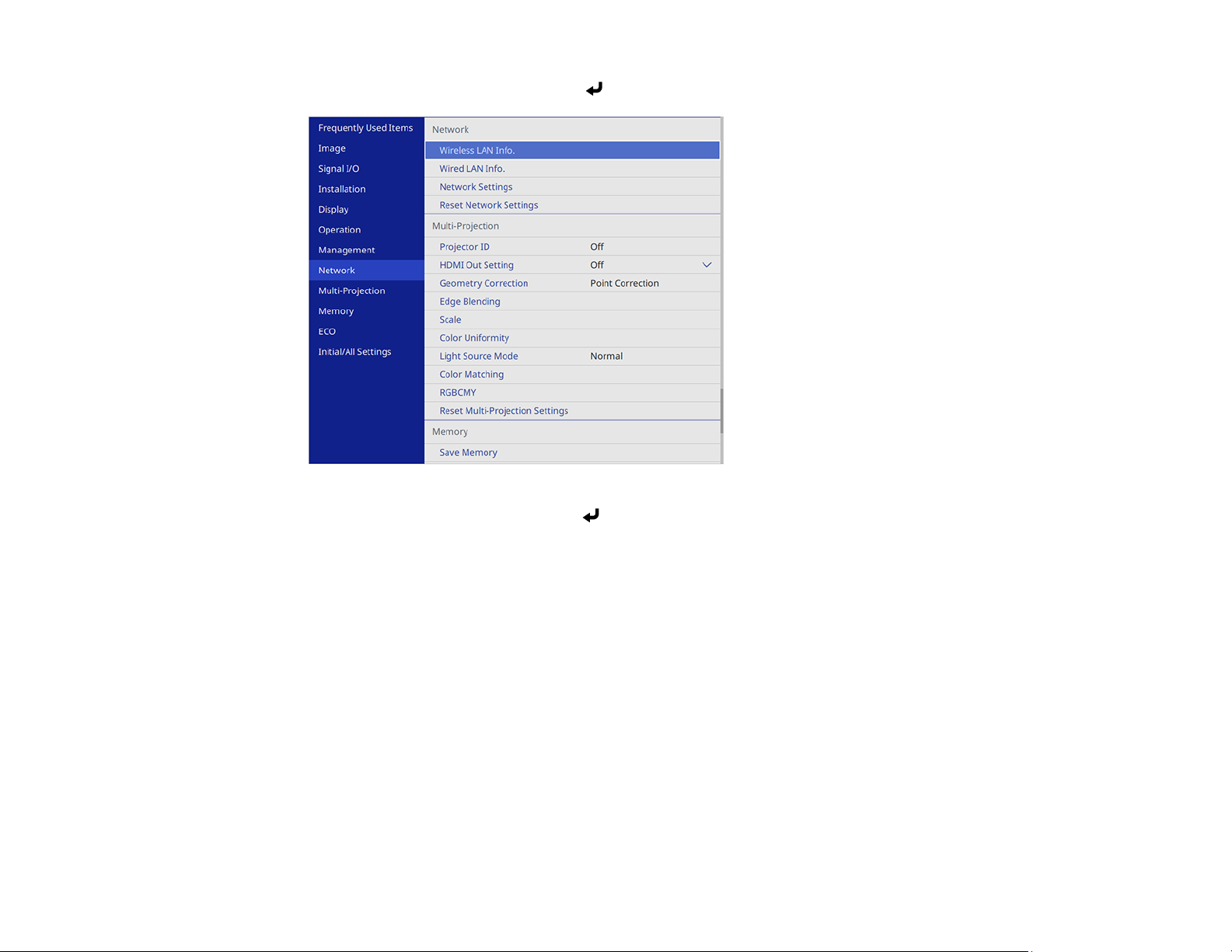

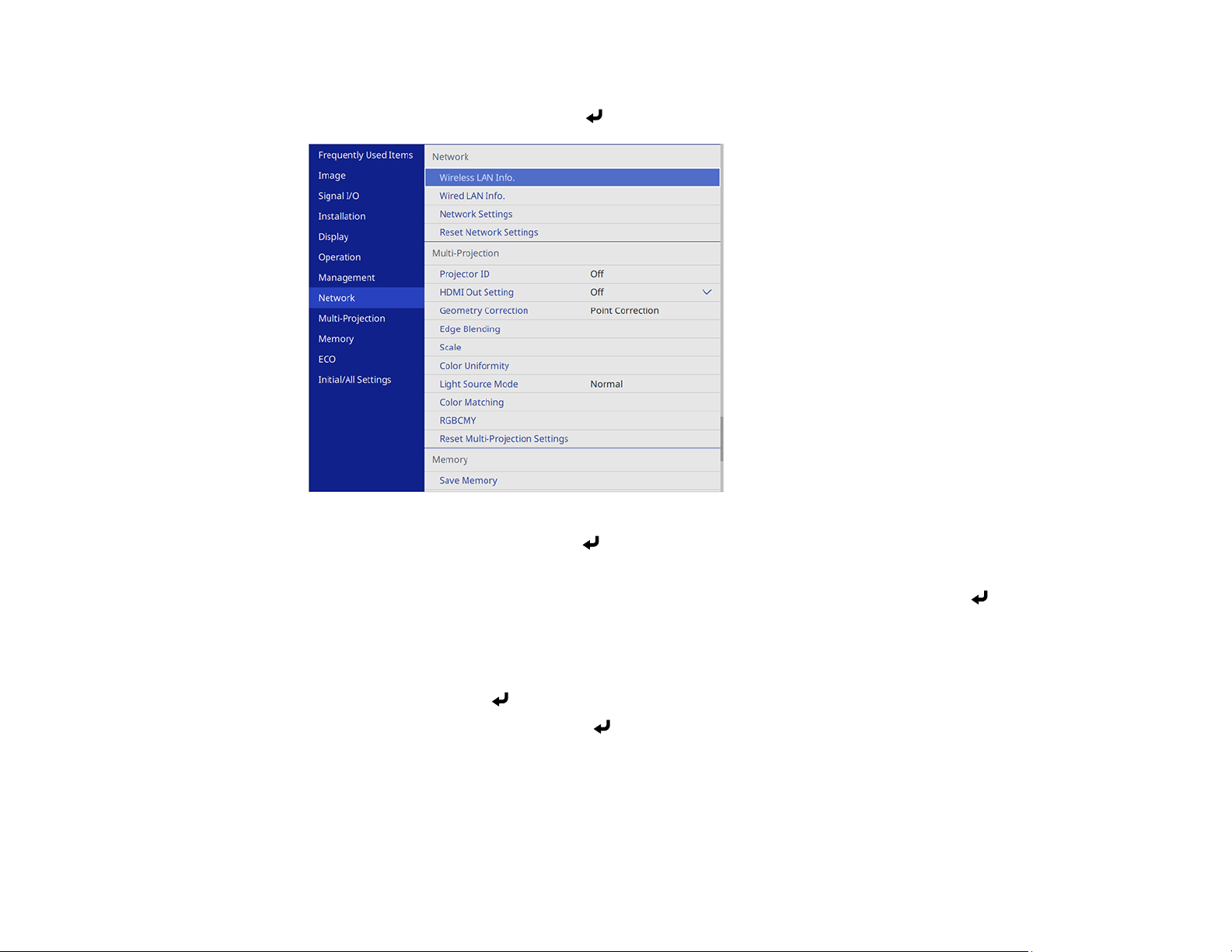

3. Select the Network menu and press Enter.

4. Select Network Settings and press Enter.

Page 54

5. Select Projector Name and enter a name up to 16 alphanumeric characters long to identify the

projector on a network.

6. Set the Priority Control Interface setting to Wired LAN.

7. Select the Wired LAN menu and press Enter.

8. Select IP Settings and press Enter.

9. Select your IP settings as necessary:

• If your network assigns addresses automatically, turn on the DHCP setting.

• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet

Mask, and Gateway Address as needed.

Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on the remote control. To select a highlighted number, press Enter. Alternatively, press and hold the Num button on the remote control while entering the desired numbers.

10. To prevent display of the IP address on the standby screen, turn off IP Address Display in the

Wired LAN menu.

11. Select Return and press Enter to return to the Network Settings menu.

12. Select Network Projection and press Enter.

You see a screen like this:

13. Turn on the Projector Keyword setting if you want to prevent access to the projector by anyone not

in the room with it.

Page 55

14. Set the Epson iProjection setting to On.

15. Select the following options as necessary:

• Display LAN Info lets you select how the projector displays network information. You can select an option to display a QR code that lets you quickly connect your iOS or Android devices using the Epson iProjection app.

• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app. (No default password.)

• Keyword Interrupt Display lets you select whether to display a projector keyword on the projected image when accessing the projector using Epson iProjection.

Note: Use the displayed keyboard to enter the password and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

16. When you finish selecting settings, select Return and press Enter to return the Network Settings menu.

17. Select Set, and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wired Network Projection

Wireless Network Projection

You can project over a wireless network. To do this, you must set up your projector and computer for wireless projection.

Note: The Epson wireless LAN module (ELPAP11) is not included with your projector and is optional. If your projector is connected via a LAN cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software.

After connecting and setting up the projector, install the projector software. You may need to install it from a software CD, if included, or download the software and manuals as necessary.

Installing the Wireless LAN Module Connecting Directly to a Smartphone or Tablet Using Quick Wireless Connection (Windows) Selecting Wireless Network Settings Manually Selecting Wireless Network Settings in Windows Selecting Wireless Network Settings on Mac

Page 56

Setting Up Wireless Network Security

Parent topic: Using the Projector on a Network

Related references

Additional Projector Software and Manuals

Installing the Wireless LAN Module

To use the projector over a wireless network, install the optional Epson wireless LAN module (ELPAP11) in the projector. Do not install any other type of wireless module.

Caution: Never remove the module while its indicator light is blue or flashing, or while you are projecting wirelessly. You may damage the module or lose data.

Note: The wireless LAN module is not included with your projector.

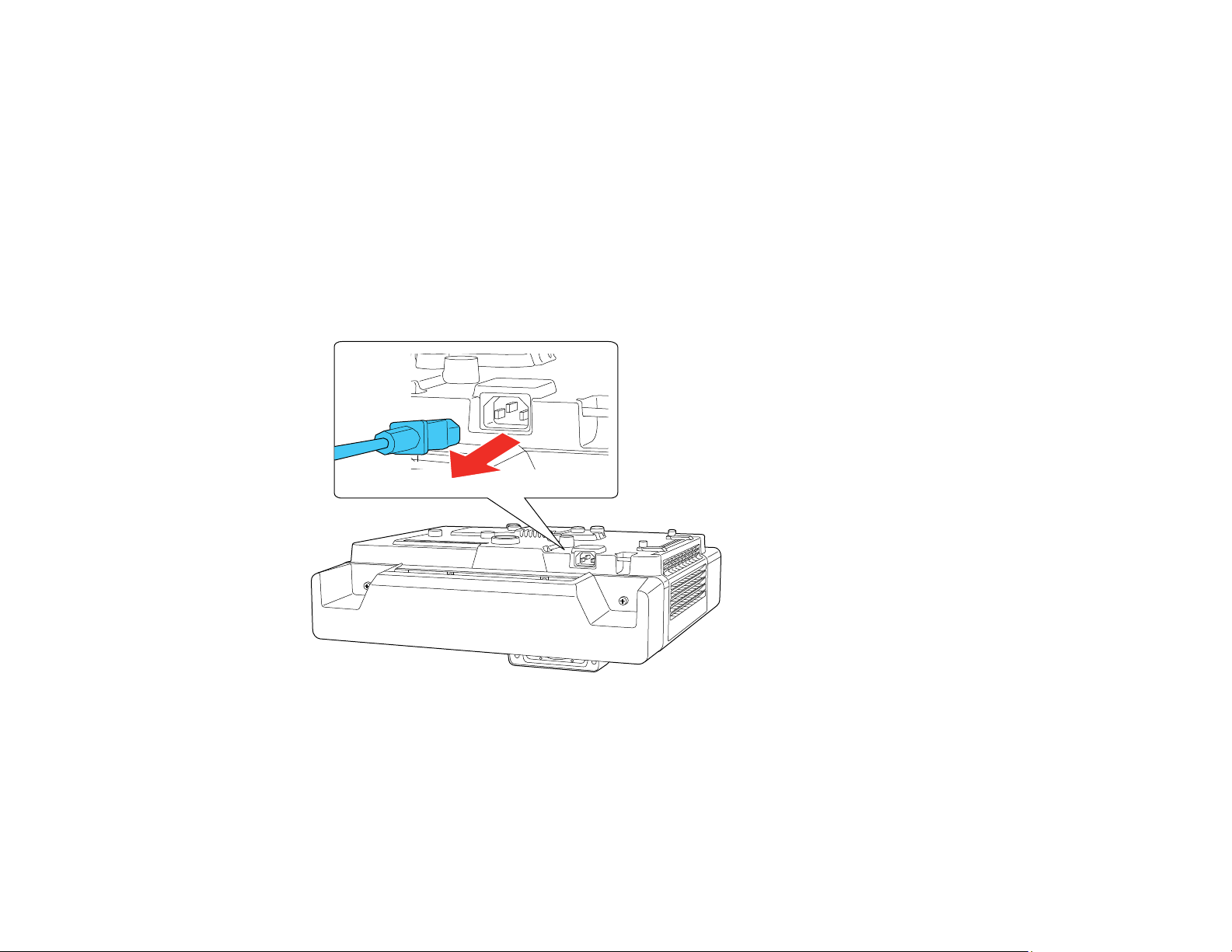

1. Turn off the projector and unplug the power cord.

2. Loosen the screws securing the cable cover and lift off the cable cover, if it is attached.

Page 57

3. Insert the wireless LAN module into a USB-A2 port on the projector.

4. Replace the cable cover and tighten the cable cover screws.

5. Plug in and turn on the projector.

Parent topic: Wireless Network Projection

Related references

Optional Equipment and Replacement Parts

Connecting Directly to a Smartphone or Tablet

You can display a QR code on the screen and use it to connect a single smartphone or tablet to your projector with the Epson iProjection app.

1. Download the latest version of the Epson iProjection app from the App Store or Google Play and install it on your smartphone or tablet.

2. Press the Menu button on the projector or the remote control.

Page 58

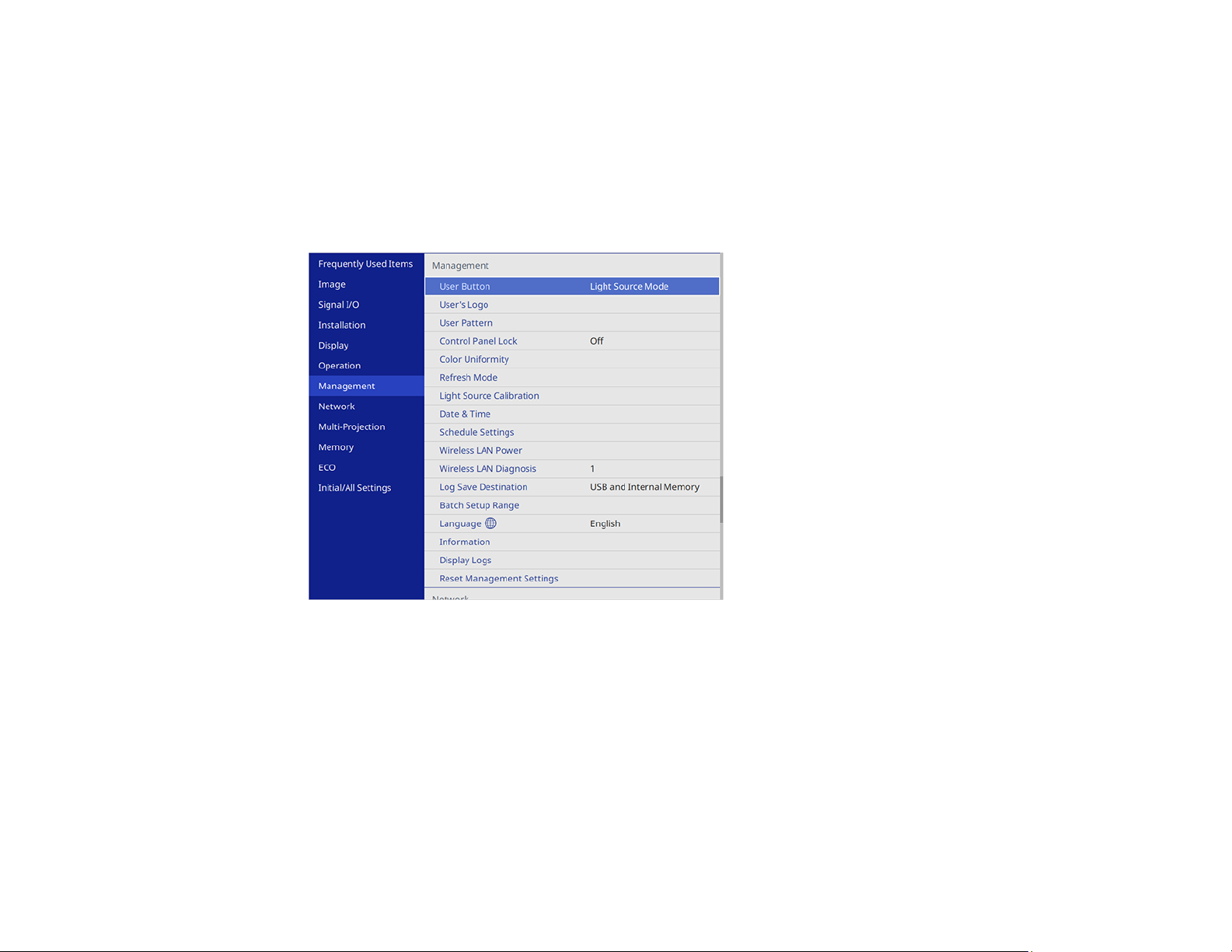

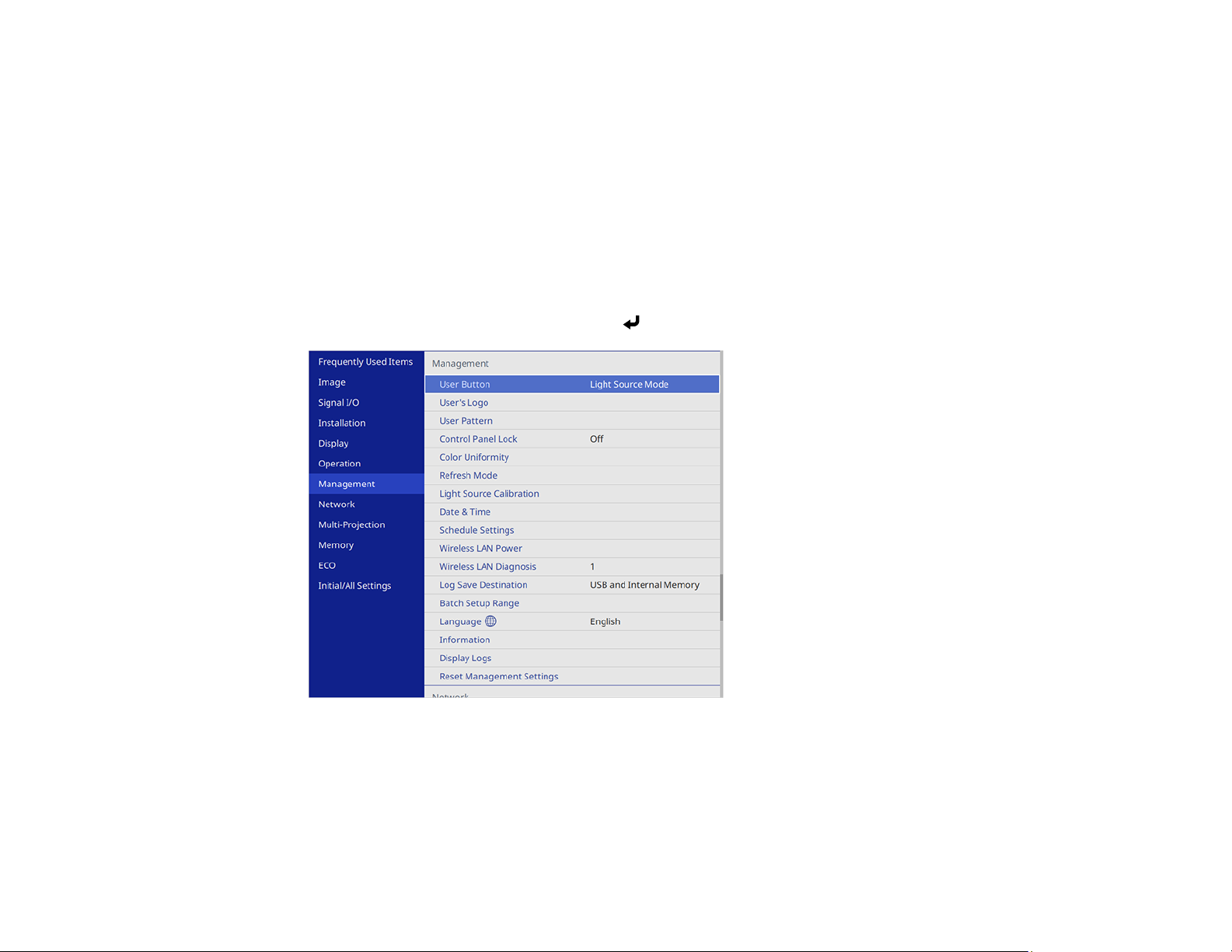

3. Select the Management menu and press Enter.

4. Select On as the Wireless LAN Power setting.

5. Select the Network menu and press Enter.

6. Select Network Settings and press Enter.

7. Make sure Simple AP is set to On.

Page 59

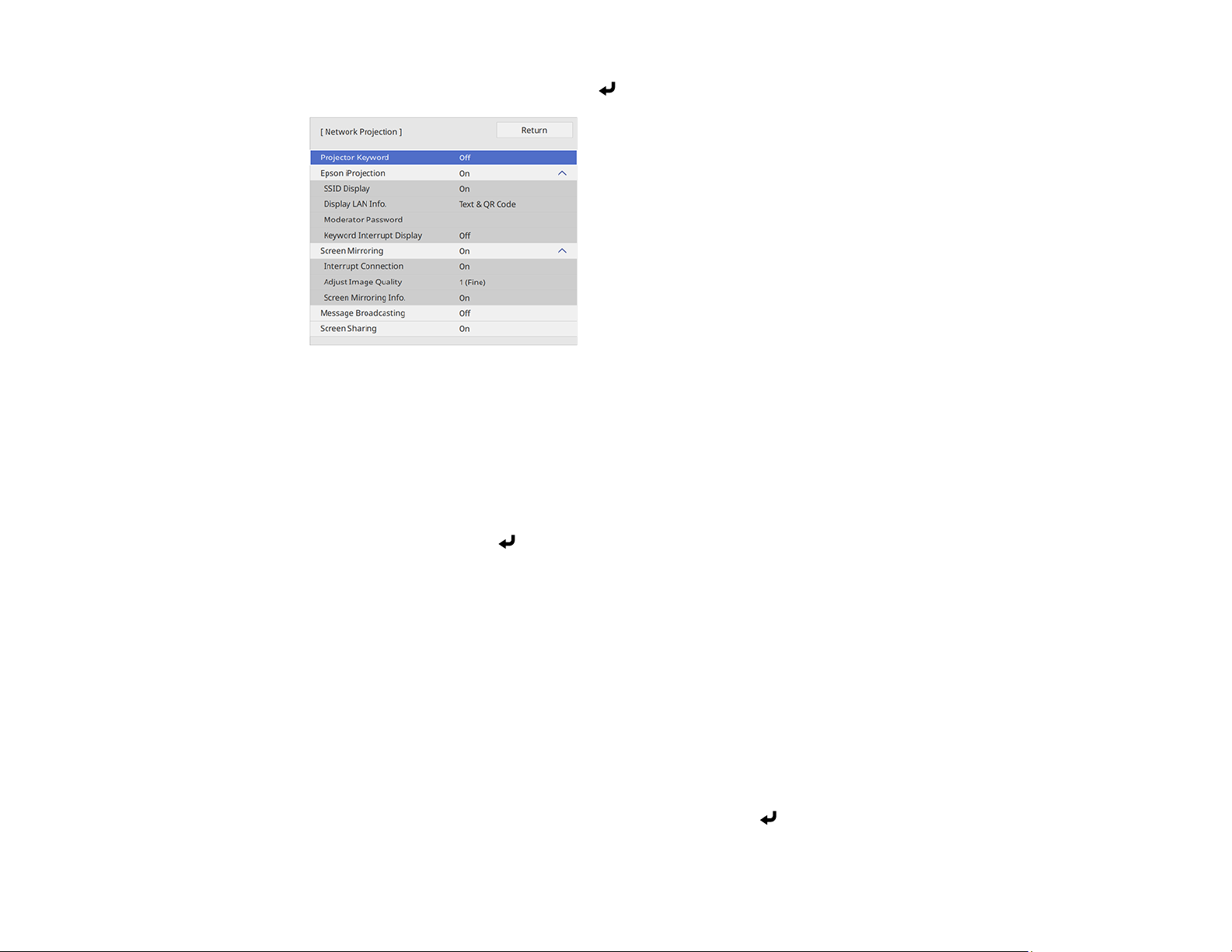

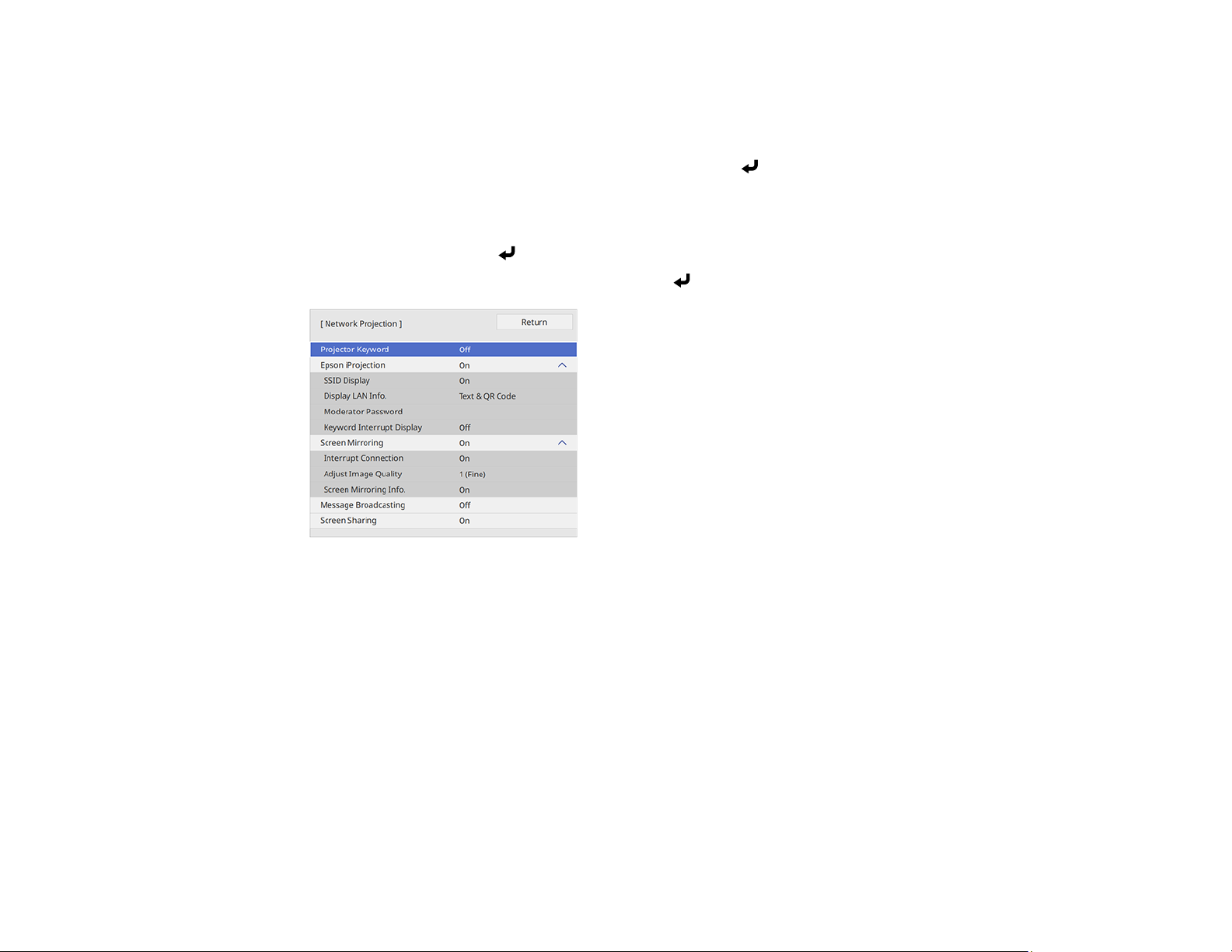

8. Select Network Projection and press Enter.

9. Turn on the Projector Keyword setting if you want to prevent access to the projector by anyone not in the room with it.

Note: The projector displays a random keyword that you must enter from a computer using the Epson iProjection (Windows/Mac) software to access the projector.

10. Select On as the Epson iProjection setting.

11. Select Return and press Enter to return to the Network Settings menu.

12. Select the following settings as necessary:

• SSID Display selects whether to display the SSID on the network standby screen and Home

screen.

• Display LAN Info lets you select how the projector displays network information. You can select

an option to display a QR code that lets you quickly connect your iOS or Android devices using the Epson iProjection app.

• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector

as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app. (No default password.)

• Keyword Interrupt Display lets you select whether to display a projector keyword on the

projected image when accessing the projector using Epson iProjection.

13. When you finish selecting settings, select Return and press Enter to return to the Network

Settings menu

Page 60

14. Select Set, and follow the on-screen instructions to save your settings and exit the menus.

15. Press the LAN button on the remote control.

Your projector displays a QR code on the projection surface. You can press the Enter button to hide and show the QR code on the screen. If you do not see the QR code, set the Display LAN Info setting to Text & QR Code in the Network menu.

16. Open the Epson iProjection app on your smartphone or tablet.

17. Use the QR code reader feature to read the QR code and connect your device to the projector.

Note: The projector and the smartphone must be on the same wireless network in order to establish a connection.

Your smartphone or tablet is now connected to your projector. Visit epson.com/iprojection (U.S.),

epson.ca/iprojection (Canada), or latin.epson.com/iprojection (Caribbean) for information on controlling

your projector with the Epson iProjection app.

Parent topic: Wireless Network Projection

Using Quick Wireless Connection (Windows)

You can create a Quick Wireless Connection USB Key to quickly connect the projector to a Windows computer wirelessly. Then you can project your presentation and remove the key when you are done.

Note: A USB flash drive is not included with your projector.

1. Create a Quick Wireless Connection USB Key with a USB flash drive and the Epson iProjection (Windows) software.

Note: See the online Epson iProjection Operation Guide for instructions.

2. Make sure the wireless LAN module is installed in your projector.

3. Turn on the projector.

4. Press the LAN button on the remote control.

The LAN standby screen is displayed.

5. Verify the SSID and IP address.

Page 61

6. Insert the USB key into the projector's USB-A1 port.

Note: If the control pad is connected to the projector, you can connect the USB key to the USB-A

port on the control pad instead.

You see a projected message that the network information update is complete.

7. Remove the USB key.

8. Insert the USB key into a USB port on your computer.

9. Follow the on-screen instructions to install the Epson iProjection software.

Note: If you see a Windows Firewall message, click Yes to disable the firewall. You need administrator authority to install the software. If it is not installed automatically, double-click MPPLaunch.exe in the USB key.

After a few minutes, your computer image is displayed by the projector. If it does not appear, press the LAN or Source Search button on your remote control or restart your computer.

10. Run your presentation as necessary.

11. When you finish projecting wirelessly, select the Safely Remove Hardware option in the Windows taskbar, then remove the USB key from your computer.

Note: You can share the USB key with other computers without disconnecting your computer. You may need to restart your computer to reactivate your wireless LAN connection.

Parent topic: Wireless Network Projection

Related references

Additional Projector Software and Manuals

Selecting Wireless Network Settings Manually

Before you can project from your wireless network, you must select the network settings for the projector using its menu system.

1. Turn on the projector.

2. Press the Menu button.

Page 62

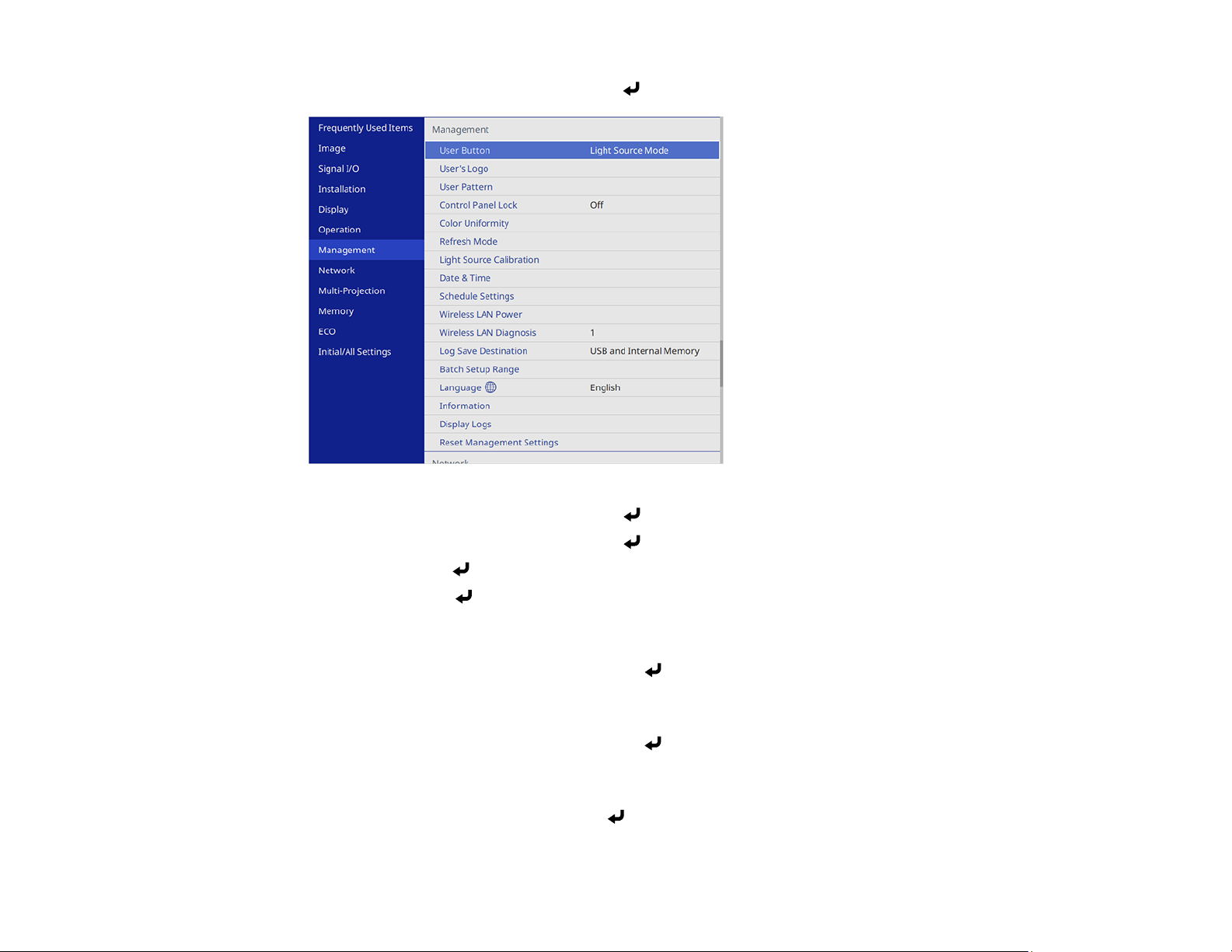

3. Select the Management menu and press Enter.

4. Select On as the Wireless LAN Power setting.

Page 63

5. Select the Network menu and press Enter.

6. Select Network Settings and press Enter.

7. Select Projector Name and enter a name up to 16 alphanumeric characters long to identify the projector on the network.

8. Set the Priority Control Interface setting to Wireless LAN.

9. Select the connection method:

• To connect directly to a wireless device (Simple AP mode), set the Simple AP setting to On and

go to step 16.

• To connect to a device via a wireless network router (infrastructure mode), set the Simple AP

setting to Off and go to the next step.

Page 64

10. Select the Wireless LAN menu and press Enter.

11. Select Search Access Point and press Enter.

The projector searches for wireless networks.

12. Select the network you want to connect to and enter the password, if necessary.

Note: If you need to assign the SSID manually, select SSID to enter the SSID.

13. Select IP Settings and press Enter.

14. Select your IP settings as necessary:

• If your network assigns addresses automatically, turn on the DHCP setting.

• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet

Mask, and Gateway Address as needed.

Note: Do not use these addresses: 0.0.0.0, 127.x.x.x, 192.0.2.x or 224.0.0.0 through

255.255.255.255 (where x is a number from 0 to 255) for IP Address, 255.255.255.255 or 0.0.0.0 through 254.255.255.255 for Subnet Mask, and 0.0.0.0, 127.x.x.x or 224.0.0.0 through

255.255.255.255 for Gateway Address. For DNS Server addresses, do not use the following IP

Page 65

addresses: 127.x.x.x (where x is a number from 0 to 255). When these settings are not set, DNS server information is acquired using DHCP.

Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on the remote control. To select a highlighted number, press Enter.

15. To prevent display of the IP address on the network information screen, turn off IP Address Display.

16. Select Return and press Enter to return to the Network Settings menu.

17. Select the Network Projection menu and press Enter.

18. Turn on the Projector Keyword setting to prevent access to the projector by anyone not in the room with it.

Note: The projector displays a random keyword that you must enter from a computer using the Epson iProjection (Windows/Mac) software or an iOS or Android device using the Epson iProjection app to access the projector.

19. Set the Epson iProjection setting to On.

20. Select the following options as necessary:

• SSID Display lets you select whether to display the projector's SSID on the standby screen and

Home screen.

Page 66

• Display LAN Info lets you select how the projector displays network information. You can select

an option to display a QR code that lets you quickly connect your iOS or Android devices with the Epson iProjection app.

• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector

as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app.

• Keyword Interrupt Display lets you select whether to display a projector keyword on the

projected image when accessing the projector using Epson iProjection.

Note: Use the displayed keyboard to enter the password and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

21. When you finish selecting settings, select Return to return to the Network Settings menu.

22. Select Set and follow the on-screen instructions to save your settings and exit the menus.

After you complete the wireless settings for your projector, you need to select the wireless network on your computer, or iOS or Android device.

Note: You can press the LAN button on the remote control to check your network security settings after completing the wireless settings.

Wireless LAN Menu Settings

Parent topic: Wireless Network Projection

Related references

Optional Equipment and Replacement Parts

Wireless LAN Menu Settings

Setting Options Description

Search Access Point To Search View Search for available wireless

SSID Up 32 alphanumeric characters Manually set the SSID (network

network access points in Advanced connection mode

name) of the wireless LAN system the projector is connecting to

Page 67

Setting Options Description

Security WPA2/WPA3-PSK

WPA2/WPA3-EAP

WPA3-PSK

WPA3-EAP

Open

Passphrase Various passphrases from 8 to

32 characters (from a web browser, the maximum is 63 characters)

Selects the type of security used on the wireless network

WPA2/WPA3-PSK: uses WPA2/WPA3 personal mode; encryption is dependent on the access point settings; Passphrase must be the same as the access point

WPA2/WPA3-EAP: uses WPA2/WPA3 enterprise mode; encryption is dependent on the access point settings

WPA3-PSK: uses WPA3 security with AES for encryption. Use the Passphrase value to establish a connection from a computer

WPA3-EAP: uses WPA3 enterprise mode; encryption is dependent on the access point settings

Selects the pre-shared key used on the network; passphrases are case-sensitive. If the network settings are reset after the passphrase has been changed more than once, the first passphrase is restored. This setting is only displayed when

Security is set to WPA3-PSK or WPA2/WPA3-PSK.

Page 68

Setting Options Description

EAP Method EAP Type

User name

Sets the EAP settings for WPA3EAP and WPA2/WPA3-EAP security

Password

Client Certificate

Verify Server Certificate

CA certificate

RADIUS Server Name

IP Settings DHCP (On or Off)

IP Address

Subnet Mask

Gateway Address

Selects DHCP if your network assigns IP addresses automatically, or turns off DHCP so you can enter the network's IP address, subnet mask, and gateway address as needed

DNS Server 1/ DNS Server 2 Various IP addresses Sets the IP address for the DNS

server using 0 to 255 for each address field. The DNS server resolves the host name

IPv6 On

Off

Enables IPv6 to allow monitoring and control of the projector over a network using Epson Web Control and PJLink

Auto Configuration On

Off

Use Temporary Address On

Off

IP Address Display On

Off

Parent topic: Selecting Wireless Network Settings Manually

Selects whether to automatically assign addresses according to the Router Advertisement

Enables use of a temporary IPv6 address

Selects whether to display the IP address on the network standby screen and Home screen

Page 69

Selecting Wireless Network Settings in Windows

Before connecting to the projector, select the correct wireless network on your computer.

1. To access your wireless utility software, access the Desktop and double-click the network icon on the Windows taskbar.

2. Do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

3. Click Connect .

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings on Mac

Before connecting to the projector, select the correct wireless network on your Mac.

1. Click the AirPort icon on the menu bar at the top of the screen.

2. Make sure AirPort is turned on, then do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

Parent topic: Wireless Network Projection

Setting Up Wireless Network Security

You can set up security for your projector to use on a wireless network. Set up one of the following security options to match the settings used on your network:

• WPA2-PSK (Simple AP mode only)

• WPA3-PSK

• WPA2/WPA3-PSK

• WPA3-EAP

• WPA2/WPA3-EAP

Note: To set up WPA3-EAP or WAP2/WAP3-EAP security, register your digital certificate file and place it on a USB storage device for connection to your projector.

Page 70

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Settings and press Enter.

4. Do one of the following:

• To connect directly to a wireless device (Simple AP mode), select Passphrase, press Enter,

and enter a passphrase from 8 to 63 characters long. When you are done, return to the Network Settings screen, select Set, and follow the on-screen instructions to save your settings and exit the menus. Skip the rest of these steps.

• To connect to a device via a wireless network router (infrastructure mode), select the Wireless

LAN menu and press Enter. Continue with the next step.

5. Select the Security setting and press Enter.

6. Select the security settings for your network.

7. Do one of the following according to the security you selected:

• WPA3-PSK or WPA2/WPA3-PSK: Select Passphrase, press Enter, and enter a passphrase

from 8 to 63 characters long. Then continue with step 9.

Page 71

• WPA3-EAP or WPA2/WPA3-EAP: Select EAP Type and press Enter.

8. Select the protocol for authentication as the EAP Type setting.

9. When you are finished, select Return and press Enter to return to the Network Settings menu.

10. Select Set, and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wireless Network Projection

Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring)

You can send images to your projector from mobile devices such as laptops, smartphones, and tablets using Miracast technology or from a Windows computer. If your device supports Miracast, you do not need to install any additional software.

The projector detects the input sources as Screen Mirroring1 and Screen Mirroring2.

Screen Mirroring Restrictions Selecting Screen Mirroring Settings Connecting for Screen Mirroring with a Windows 8.x/Windows 10 Computer Connecting for Screen Mirroring with Miracast

Parent topic: Using the Projector on a Network

Screen Mirroring Restrictions

Note the following when using Screen Mirroring features:

• You cannot play audio with more than 3 channels.

• You may not be able to project images depending on the resolution and frame rate.

• You cannot project 3D video.

• You can only play audio saved using the LPCM or AAC-LC audio codec.

• You can only play movies saved using the H.264 or H.265 movie codec (H.265 only supports the Main

Profile)

• You cannot use extended Miracast features on Windows 8.1.

• You may not be able to view contents with copyright protection using a Miracast connection.

Page 72

• Do not change the projector's Screen Mirroring settings during Screen Mirroring projection. Doing so

may cause the projector to disconnect and delay reconnection.

• Do not turn off the electrical supply to the projector during Screen Mirroring projection.

Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen

Mirroring)

Selecting Screen Mirroring Settings

You can select Screen Mirroring settings for your projector and then project images from your mobile device.

1. Press the Menu button.

2. Select the Management menu and press Enter.

3. Set the Wireless LAN Power setting to On.

Page 73

4. Select the Network menu and press Enter.

5. Select Network Settings and press Enter.

6. Select Priority Control Interface and press Enter.

7. Choose one of the following options:

• If you are casting images over a wired LAN, select Wired LAN.

• If you are casting images wirelessly directly or via a wireless network router, select Wireless LAN.

8. Set the Simple AP setting to On.

9. Select Network Projection and press Enter.

10. Set the Screen Mirroring setting to On.

11. Select these settings as necessary:

• Interrupt Connection lets you connect another mobile device while projecting using Screen

Mirroring or to exclusively connect to one device. If you want to use two Screen Mirroring sources, turn this setting off.

Page 74

• Adjust Image Quality lets you adjust the screen mirroring speed and quality. Select a small

number to improve the quality or a large number to increase the speed.

• Screen Mirroring Info displays connection information when projecting from a Screen Mirroring

source.

12. When you finish selecting settings, select Return and press Enter to return to the Network Settings screen.

13. Select Set, and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen

Mirroring)

Connecting for Screen Mirroring with a Windows 8.x/Windows 10 Computer

You can set up your computer to wirelessly project images and play sound using Screen Mirroring.

Note: If you are using Windows 10, you can cast images over a local area network or from your device to the projector directly. When you cast images over a local area network, the connection is more stable and secure. Connect the projector to the network with an Ethernet cable or install the optional wireless LAN module and set the wireless LAN settings to connect to a wireless network.

1. Select the Screen Mirroring settings on your projector as necessary.

2. Press the LAN button on the remote control to switch to the Screen Mirroring source.

You see the Screen Mirroring standby screen.

3. Do one of the following:

• Windows 10: Open Action Center and select Connect.

• Windows 8.x: Select Devices > Project > Add a wireless display.

4. Select your projector's Display Name from the list.

5. If you see the PIN entry screen on your computer, enter the PIN code displayed on the Screen Mirroring standby screen or at the bottom right of the projected image.

The projector displays the image from your computer or mobile device.

Note: It may take some time to establish the connection. Do not disconnect the projector's power cord while it is connecting to your device. This may cause your device to freeze or malfunction.

Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen

Mirroring)

Page 75

Related references

Network Settings - Network Menu Optional Equipment and Replacement Parts

Related tasks

Selecting Screen Mirroring Settings

Connecting for Screen Mirroring with Miracast

If your mobile device supports Miracast, you can connect it to the projector wirelessly and project images and sound.

1. Select the Screen Mirroring settings on your projector as necessary.

2. Press the LAN button on the remote control to switch to the Screen Mirroring source.

You see the Screen Mirroring standby screen.

3. On your mobile device, use the Miracast function to search for the projector.

Note: See your mobile device's documentation for information on accessing the Miracast function.

You see a list of available devices.

4. Select your projector from the list.

5. If you see the PIN entry screen on your mobile device, enter the PIN code displayed on the Screen Mirroring standby screen or at the bottom right of the projected image.

The projector displays the image from your mobile device.

Caution: It may take some time to establish the connection. Do not disconnect the projector's power cord while it is connecting to your device. Doing so may cause your device to freeze or malfunction.

Note: Depending on the mobile device, you may need to delete a device when connecting. Follow the on-screen instructions on your device.

Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen

Mirroring)

Related references

Network Settings - Network Menu

Related tasks

Selecting Screen Mirroring Settings

Page 76

Screen Sharing

You can display the projected screen of other compatible Epson projectors connected to the same network with the screen sharing function.

The screen sharing function is limited by the following:

• You cannot share your projected screen with other projectors. You can only display the projected

screen from projectors with the sharing capability.

• If your projector's firmware version is older than the version installed on other projectors on the

network, you may not be able to display the shared screen and may need to update your projector's firmware.

• You cannot change the projector's Network settings while displaying a shared screen.

Projecting Screen Sharing Images

Parent topic: Using the Projector on a Network

Related concepts

Updating the Firmware

Projecting Screen Sharing Images

You can display shared images from other Epson projectors connected to the same network.

Note: Make sure your projector is not connected to any devices via Epson iProjection before you use the screen sharing function.

1. Turn on the projector.

2. Connect your projector to the same network as the projector that is sharing its screen.

3. Press the Menu button on the projector or the remote control.

Page 77

4. Select the Network menu and press Enter.

5. Select Network Settings and press Enter.

6. Select Network Projection and press Enter.

7. Set the Screen Sharing setting to On.

8. When you finish selecting settings, select Return and press Enter to return the Network Settings menu.

9. Select Set, and follow the on-screen instructions to save your settings and exit the menus.

When a projector on the same network shares its screen, the shared screen is automatically displayed on your projector. If it isn't, press the LAN button on the remote control to switch to the screen sharing source. To exit screen sharing, press the Esc button on the remote control.

Parent topic: Screen Sharing

Setting Up Projector Network E-Mail Alerts

You can set up the projector to send you an e-mail alert over the network if there is a problem with the projector.

Page 78

Note: If the Standby Mode setting is set to Communication On in the Operation menu, you can

receive e-mail alerts even if the projector is in standby mode (the power is off). The Standby Mode setting is displayed only if the A/V Output setting in the Signal I/O menu is set to While Projecting.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Settings and press Enter.

4. Select the Mail Notification menu and press Enter.

5. Turn on Mail Notification.

6. Enter the IP address for the SMTP Server setting.

Note: Do not use 127.x.x.x (where x is a number from 0 to 255).

7. Select a type of Authentication for the SMTP server.

8. Select a number for the SMTP server Port Number setting, from 1 to 65535 (default is 25).

9. Enter a User Name for the SMTP server.

10. Enter a Password for the SMTP server authentication.

11. Enter the sender's email address as the From setting.

12. Choose an Address field, enter the e-mail address, and select the alerts you want to receive there. Repeat for up to three addresses. Your e-mail address can be up to 64 alphanumeric characters long.

13. If you are using the PJLink protocol for projector control, turn on the PJLink setting in the Projector Control menu and enter the IP address where you want to receive PJLink notifications as the Notified IP Address setting.

14. When you finish selecting settings, select Return and press Enter to return to the Network Settings menu.

15. Select Set, and follow the on-screen instructions to save your settings and exit the menus.

Page 79

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Network Projector E-mail Alert Messages

Parent topic: Using the Projector on a Network

Network Projector E-mail Alert Messages

When a problem occurs with a networked projector, and you selected to receive e-mail alerts, you receive an e-mail containing the following information:

• The email address entered as the From setting

• Epson Projector on the subject line

• The name of the projector experiencing a problem

• The IP address of the affected projector

• Detailed information about the problem

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Parent topic: Setting Up Projector Network E-Mail Alerts

Setting Up Monitoring Using SNMP

Network administrators can install SNMP (Simple Network Management Protocol) software on network computers so they can monitor projectors. If your network uses this software, you can set up the projector for SNMP monitoring.

1. Press the Menu button.

2. Select Network > Network Settings > Projector Control > SNMP > On.

3. Enter up to two IP addresses to receive SNMP notifications as the Trap IP Address setting, using 0 to 255 for each address field.

Note: To enter the IP address using the numeric keys on the remote control, press and hold the Num button. Do not use these addresses: 224.0.0.0 through 255.255.255.255. This projector

supports SNMP agent version 1 (SNMPv1).

4. Enter the SNMP Community Name (up to 32 alphanumeric characters).

5. When you finish selecting settings, select Return and press Enter to return to the Network

Settings menu.

Page 80

6. Select Set, and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Using the Projector on a Network

Controlling a Networked Projector Using a Web Browser

Once you have connected your projector to your network, you can select projector settings and control projection using a compatible web browser. You can also edit playlists when the projector is in Content Playback mode. This lets you access the projector remotely.

Note: The web setup and control features support Microsoft Internet Explorer 11.0 or later, Microsoft Edge, Google Chrome, and Safari on networks that do not use a proxy server for connection. You cannot select all of the projector menu settings or control all projector functions using a web browser. You can also control the projector using a web browser through the Epson iProjection app on iOS and Android devices.

Note: If you set Standby Mode to Communication On in the Operation menu, you can use a web browser to select settings and control projection even if the projector is in standby mode (the power is off). The Standby Mode setting is displayed only if the A/V Output setting in the Signal I/O menu is set to While Projecting.

Caution: When the projector is in Content Playback mode and the Playlists screen or the USB Memory Device screen is displayed, do not remove the USB flash drive from the projector or disconnect the power cord. You could damage the data on the USB flash drive.

1. Make sure the projector is turned on.

2. Start your web browser on a computer or device connected to the network.

3. Type the projector's IP address into the browser's address box and press the computer's Enter key (if you are entering an IPv6 address, wrap the address with [ and ]).

Note: You can find the projector's IP address in the projector's Network menu or on the LAN input screen.

Note: If you attempt to connect to the Web Control screen via a proxy server, the screen will not be displayed. Make a direct connection to the Web Control screen.

Caution: Do not remove the USB flash drive from the projector or disconnect the projector's power cord when the Playlists or USB Memory Device screens are displayed in Content Playback mode. Data saved on the flash drive may be damaged.

Page 81

You see the Web Control screen.

In normal mode:

Page 82

In Content Playback mode:

4. To control projection remotely, select the Basic Control (in normal mode) or Remote (in Content Playback mode) option from the Web Control screen.

Note: If you see a log in window, enter your user name and password. (If you selected the Basic Control option, the default user name is EPSONREMOTE and the default password is guest. If you selected the Remote option, the default user name is EPSONWEB and the default password is admin.)

You see a screen like this:

Page 83

1 Returns to the Epson Web Control screen

2 Power button control

3 Selects the input source

4 A/V Mute button control

5 Freeze button control

6 Displays closed captions

7 Displays a QR code for connecting with iOS or Android devices using the Epson iProjection

app

8 Volume button controls

9 Searches for connected sources

5. Select the icon corresponding to the projector function you want to control.

Page 84

6. To select projector menu settings, select Advanced on the Web Control screen.

Note: If you see a log in window, enter your user name and password. (The default user name is EPSONWEB and the default password is admin.)

7. Select the name of the menu and follow the on-screen instructions.

Parent topic: Using the Projector on a Network

Using Crestron Connected

If you are using the Crestron Connected network monitoring and control system, you can set up your projector for use on the system. Crestron Connected lets you control and monitor your projector using a web browser.

Note: You cannot use the Message Broadcasting feature in the Epson Projector Management software when you use Crestron Connected.

For additional information on Crestron Connected, contact Crestron.

Setting Up Crestron Connected Controlling a Networked Projector Using Crestron Connected

Parent topic: Using the Projector on a Network

Setting Up Crestron Connected

To set up your projector for monitoring and control using a Crestron Connected system, make sure your computer and projector are connected to the network.

Note: If you want to use the Crestron Connected system when the projector is turned off, you need to adjust the Standby Mode setting in the Operation menu. The Standby Mode setting is displayed only if the A/V Output setting in the Signal I/O menu is set to While Projecting.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Settings and press Enter.

4. Select the Projector Control menu and press Enter.

5. Set the Crestron Connected setting to On to allow the projector to be detected.

Page 85

Note: Enabling Crestron Connected disables the Message Broadcasting feature in the Epson

Projector Management software.

6. When you are finished selecting settings, select Return and press Enter to return to the Network Settings menu.

7. Select Set, and follow the on-screen instructions to save your settings and exit the menus.

8. Turn off the projector, then turn it on again to enable the setting.

Parent topic: Using Crestron Connected

Related references

Feature Settings - Operation Menu Input Signal Settings - Signal I/O Menu Network Settings - Network Menu

Controlling a Networked Projector Using Crestron Connected

Once you have set up your projector to use Crestron Connected, you can control and monitor projection using a compatible web browser.

1. Start your web browser on a computer connected to the network.

2. Type the projector's IP address into the browser's address box and press the computer's Enter key.

Page 86

You see the Epson Web Control screen:

3. Select Crestron Connected.

Page 87

You see a screen like this:

Note: Sources in the image above vary depending on ports available on your product.

4. Select the input source that you want to control in the Sources List box. You can scroll through available sources using the up and down arrows in the box.

5. To control projection remotely, click the on-screen buttons that correspond to the projector's remote control buttons. You can scroll through button options at the bottom of the screen.

Note: These on-screen buttons do not directly correspond to the projector's remote control buttons:

• OK acts as the Enter button

• Menu displays the projector's menu

6. To view information about the projector, click the Info tab.

7. To change projector, Crestron, and password settings, click the Tools tab, select settings on the displayed screen, and click Send.

8. When you finish selecting settings, click Exit to exit the program.

Parent topic: Using Crestron Connected

Page 88

Registering a Digital Certificate on the Projector

Follow the instructions here if you need to install a digital certificate on the projector to provide security for your presentation files.

Note: You can register a digital certificate over a network. However, be sure to register just once or the certificate may not install correctly.

Importing a Web Server Certificate Using the Projector Menus Registering Digital Certificates from a Web Browser Digital Certificate Types

Parent topic: Using the Projector on a Network

Importing a Web Server Certificate Using the Projector Menus

You can create your web server certificate and import it using the projector menus and a USB flash drive.

Note: You can also register digital certificates from your web browser. Make sure to only register once, or the certificate may not install correctly.

1. Make sure your digital certificate file is compatible with projector registration and saved in the root directory of the USB flash drive.

2. Press the Menu button on the projector or remote control.

3. Select Network > Network Settings > Projector Control > Secure HTTP > On.

4. Select the Web Server Certificate setting and press Enter.

5. Select Save or Register and press Enter.

6. Follow the on-screen instructions to connect a USB flash drive to the USB-A port on the projector or control pad (optional accessory required).

7. Press Enter to display the certificate list.

8. Select the certificate you want to import from the displayed list.

A message is displayed prompting you to enter the password for the certificate.

9. Enter the password and press Enter.

The certificate is imported and a completion message appears.

Parent topic: Registering a Digital Certificate on the Projector

Page 89

Registering Digital Certificates from a Web Browser

You can register the digital certificates on the projector for wireless LAN authentication.

Note: You can also register the digital certificates in the projector's Network menu. However, be sure to register just once or the certificate may not install correctly.

1. Make sure your digital certificate file is compatible with projector registration.

2. Make sure the projector is turned on.

3. Start your web browser on a computer or mobile device connected to the network.

4. Type the projector's IP address into the browser's address box and press the computer's Enter key.

You see the Web Control screen and a prompt to enter a user ID and password.

5. Select Advanced and enter the following information in uppercase or lowercase letters, exactly as shown:

• For the user ID, enter EPSONWEB. (You cannot change the user ID.)

• For the password, enter the default password admin. (You can change the Web Control password

using the projector's Network Settings menu.)

6. Under Network, select Certificate.

Note: You may need to select the menu icon to find Network, depending on your device.

Page 90

You see a screen like this:

7. Click the Choose File button, select the certificate file, and click Open.

Note: The button name may vary depending on the browser you are using.

8. Enter a password in the Password box and click Send.

9. When you finish registering the certificate, click Apply to finalize your changes and complete the registration.

Parent topic: Registering a Digital Certificate on the Projector

Digital Certificate Types

You can register these types of digital certificates.

Client Certificate (PEAP-TLS/EAP-TLS)

Specification Description

Format PKCS#12

Extension PFX, P12

Encryption RSA

Page 91

Specification Description

Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512

Key length 512/1024/2048/4096 bit

Password Up to 64 alphanumeric characters; required

CA Certificate (PEAP/PEAP-TLS/EAP-TLS/EAP-FAST)

Specification Description

Format X509v3

Extension DER/CER/PEM

Encryption RSA

Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512

Key length 512/1024/2048/4096 bit

Encoding BASE64/Binary

Web Server Certificate (Secure HTTP)

Specification Description

Format PKCS#12

Extension PFX, P12

Encryption RSA

Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512

Key length 512/1024/2048/4096 bit

Common name Network host name

Organization Optional

Password Up to 64 alphanumeric characters; required

Parent topic: Registering a Digital Certificate on the Projector

Page 92

Using Basic Projector Features

Follow the instructions in these sections to use your projector's basic features.

Turning On the Projector Turning Off the Projector Selecting the Language for the Projector Menus Setting the Date and Time Image Shape Resizing the Image with the Wide and Tele Buttons Adjusting the Image Position Focusing the Image Remote Control Operation Selecting an Image Source Projection Modes Image Aspect Ratio Color Mode Adjusting the Hue, Saturation, and Brightness Adjusting Gamma Adjusting the Image Resolution Adjusting the Projector's Brightness Level Turning On Automatic Luminance Adjustment Controlling the Volume with the Volume Buttons Inverting the Audio Channels Selecting a Quick Startup Setting Projecting a PC Free Presentation Projecting in Content Playback Mode

Turning On the Projector

Turn on the projector before you turn on the computer or video equipment you want to use.

Page 93

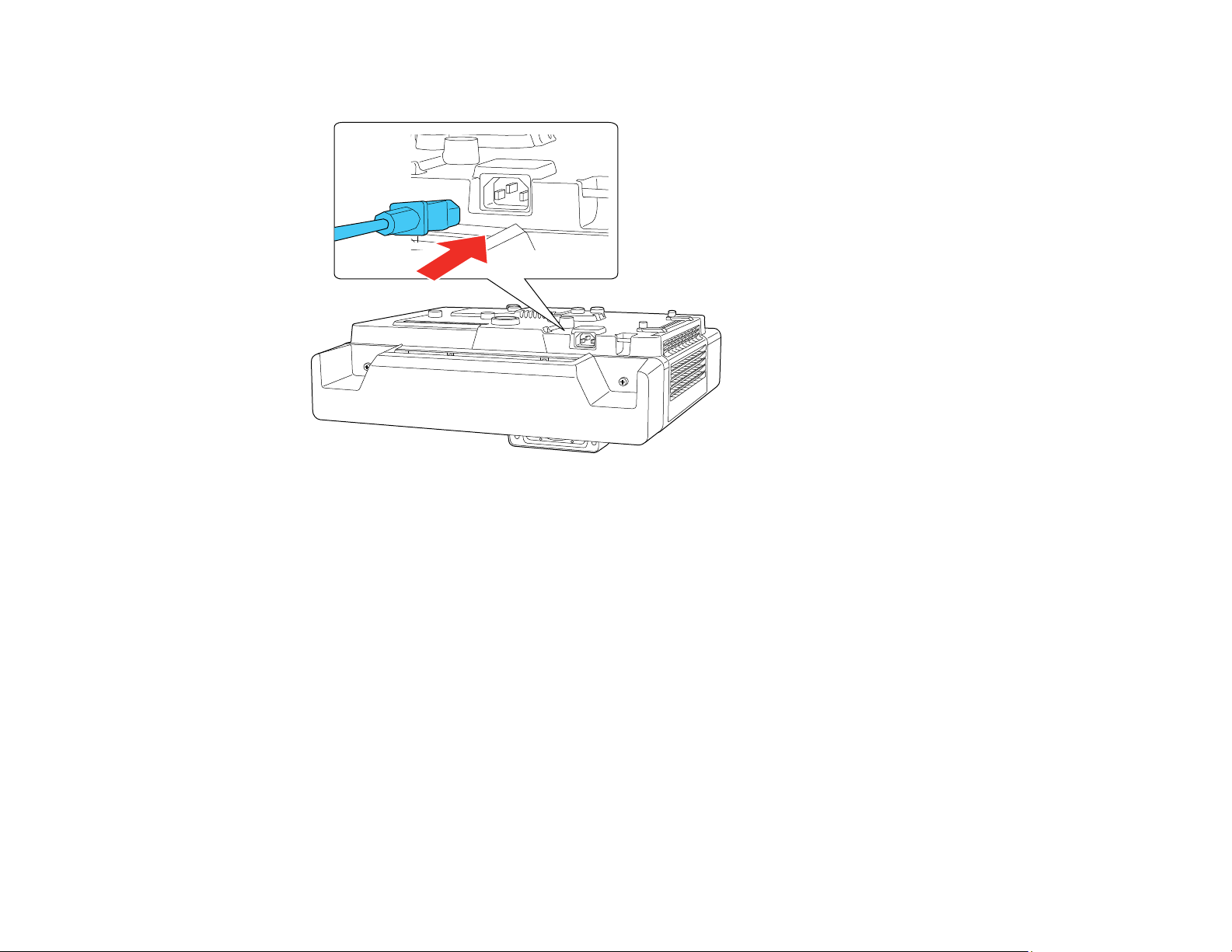

1. Connect the power cord to the projector's power inlet.

2. Plug the power cord into an electrical outlet.

The projector's On/Standby light turns blue. This indicates that the projector is receiving power.

Note: With Direct Power On turned on, the projector turns on as soon as you plug it in. If you enable the Auto Power On setting in the projector's Operation menu, the projector turns on when it detects a signal or cable connection from the selected port.

3. Press the power button on the projector or remote control to turn on the projector.

The projector beeps and the Status light flashes blue as the projector warms up. After about 30 seconds, the Status light stops flashing and turns blue.

Note: When Quick Startup is enabled in the projector's Operation menu, the projector becomes ready for use in several seconds the next time you press the power button.

Warning: Never look into the projector lens when the laser is on. This can damage your eyes and is especially dangerous for children and pets. If you are using the remote control to turn the projector on, make sure no one is looking into the lens or in front of the projector before turning it on.

Page 94

Caution: Make sure no objects are blocking the light from the projector lens. Objects blocking the

lens for an extended time can melt and light that is reflected back into the lens can cause the projector to malfunction.

If you do not see a projected image right away, try the following:

• Turn on the connected computer or video device.

• Insert a DVD or other video media and press the play button, if necessary.

• Press the Source Search button on the projector or remote control to detect the video source.

Note: If the Auto Source Search setting in the Operation menu is enabled, the projector automatically detects the input signal when you turn it on.

• Change the screen output from the computer when using a laptop.

• Press the button for the video source on the remote control.

• If the Home screen is displayed, select the source you want to project.

Using the Home Screen

Parent topic: Using Basic Projector Features

Related references

Feature Settings - Operation Menu

Using the Home Screen

You can select input sources and other frequently used options from the Home screen.

1. To display the Home screen, do one of the following:

• Press the Home button on the control panel or remote control.

• Turn on the projector with the Home Screen Auto Disp setting enabled.

• Turn on the projector when no signal is received from the selected input source.

Page 95

2. Press the arrow buttons on the remote control or control panel to navigate the screen, and press Enter to select an option.

1 Selects the source you want to project

A checkmark appears in the upper right corner of the current input source. For most sources, a preview of the input image appears as a thumbnail.

2 Projects images from two or four input sources simultaneously in a grid format (not shown in

Content Playback mode)

3 Receives shared images from other projectors connected to the same network

4 Displays the Connection Guide

You can view steps for different wireless connection methods depending on the devices you are using, such as smartphones or computers.

Page 96

5 Lets you select the following common projector settings (these settings may vary depending

on other selected settings):

• Color Mode

• Brightness Level

• Volume

• Geometry Correction (H/V-Keystone and Quick Corner are available)

• Aspect

6 Moves to the previous or next page if there are more available input sources

7 Displays the projector name and the projector keyword

8 Displays the current time

Note: The Home screen closes after 10 minutes of inactivity.

3. Press the Home button to hide the Home screen.

Parent topic: Turning On the Projector

Turning Off the Projector

Before turning off the projector, shut down any computer connected to it so you can see the computer display during shutdown.

Note: Turn off this product when not in use to prolong the life of the projector. Laser life will vary depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.

1. Press the power button on the projector or remote control.Press the power button on the projector, control pad (optional accessory required), or remote control.

The projector displays a shutdown confirmation screen.

Page 97

2. Press the power button again. (To leave it on, press any other button.)

The projector beeps twice, the laser turns off, and the Status light turns off.

Note: If the Light Source Calibration setting is set to Run Periodically in the projector's Management menu, light source calibration starts automatically if you turn off the projector and the following conditions are present:

• 100 hours have passed since the last light source calibration.

• You have used the projector continuously for at least 20 minutes.

3. To transport or store the projector, make sure the On/Standby light is blue (not flashing) and the Status light is off, then unplug the power cord.

Caution: To avoid damaging the projector or laser, never unplug the power cord when the Status light is on or flashing.

Parent topic: Using Basic Projector Features

Related references

Administration Settings - Management Menu

Page 98

Selecting the Language for the Projector Menus

If you want to view the projector's menus and messages in another language, you can change the Language setting.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Management menu and press Enter.

4. Select the Language setting and press Enter.

5. Select the language you want to use and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Using Basic Projector Features

Setting the Date and Time

You can set the date and time for the projector.

1. Press the Menu button.

Page 99

2. Select the Management menu and press Enter.

3. Select the Date & Time setting and press Enter.

4. Select the Date & Time setting and press Enter.

5. Select Date, press Enter, and use the displayed keyboard to enter today's date.

6. Select Time, press Enter, and use the displayed keyboard to enter the current time.

7. Adjust the Time Difference (UTC) settings to set the time difference from the Coordinated Universal Time.

8. When you are finished, select Set and press Enter.

9. To activate daylight saving time, select the Daylight Saving Time setting and set it to On. Then select settings.

10. When you are finished, select Set and press Enter.

11. To update the time automatically through an internet time server, select the Internet Time setting and set it to On.

12. Select Internet Time Server and press Enter.

Page 100

13. Enter the IP address for the Internet time server you want to use and select OK.

14. Select Set and press Enter.

15. Press Menu or Esc to exit the menus.

Parent topic: Using Basic Projector Features

Image Shape

You can project an evenly rectangular image by placing the projector directly in front of the center of the screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off to the side, you may need to correct the image shape for the best display quality. After correction, your image is slightly smaller.

For the best quality images, try to adjust the projector's position to achieve the correct image size and shape. You cannot correct an image shape using multiple correction methods at the same time.

Adjusting the Front Feet Correcting Image Shape with the Keystone Buttons Correcting Image Shape with Quick Corner Correcting Image Shape with Arc Correction Correcting Image Shape with Point Correction Applying Saved Image Shape Settings

Parent topic: Using Basic Projector Features

Adjusting the Front Feet

If you are projecting from a table or other flat surface, you can adjust the image using the projector's adjustable feet. To adjust the image height, set the projector higher or lower while keeping it level and parallel to the screen.

1. Turn on the projector and display an image.

100
