Epson PowerLite 585W SMART User Manual

PowerLite

570/575W/580/585W

User's Guide

PowerLite 570/575W/580/585W User's Guide............................................................................................ 9

Introduction to Your Projector ................................................................................................................. 10

Setting Up the Projector ........................................................................................................................... 23

Projector Features.............................................................................................................................. 10

Product Box Contents.................................................................................................................... 11

Additional Components ................................................................................................................ 13

Optional Equipment and Replacement Parts................................................................................. 13

Warranty and Registration Information .......................................................................................... 14

Notations Used in the Documentation ................................................................................................ 15

Where to Go for Additional Information .............................................................................................. 15

Projector Part Locations ..................................................................................................................... 15

Projector Parts - Front/Top ............................................................................................................ 16

Projector Parts - Side..................................................................................................................... 17

Projector Parts - Interface Panel.................................................................................................... 18

Projector Parts - Base.................................................................................................................... 19

Projector Parts - Control Panel ...................................................................................................... 20

Projector Parts - Remote Control................................................................................................... 21

Projector Placement........................................................................................................................... 23

Projector Setup and Installation Options ....................................................................................... 23

Projection Distance........................................................................................................................ 24

Removing and Attaching the Cable Cover.......................................................................................... 29

Projector Connections........................................................................................................................ 30

Connecting to Computer Sources.................................................................................................. 30

Connecting to a Computer for USB Video and Audio................................................................ 31

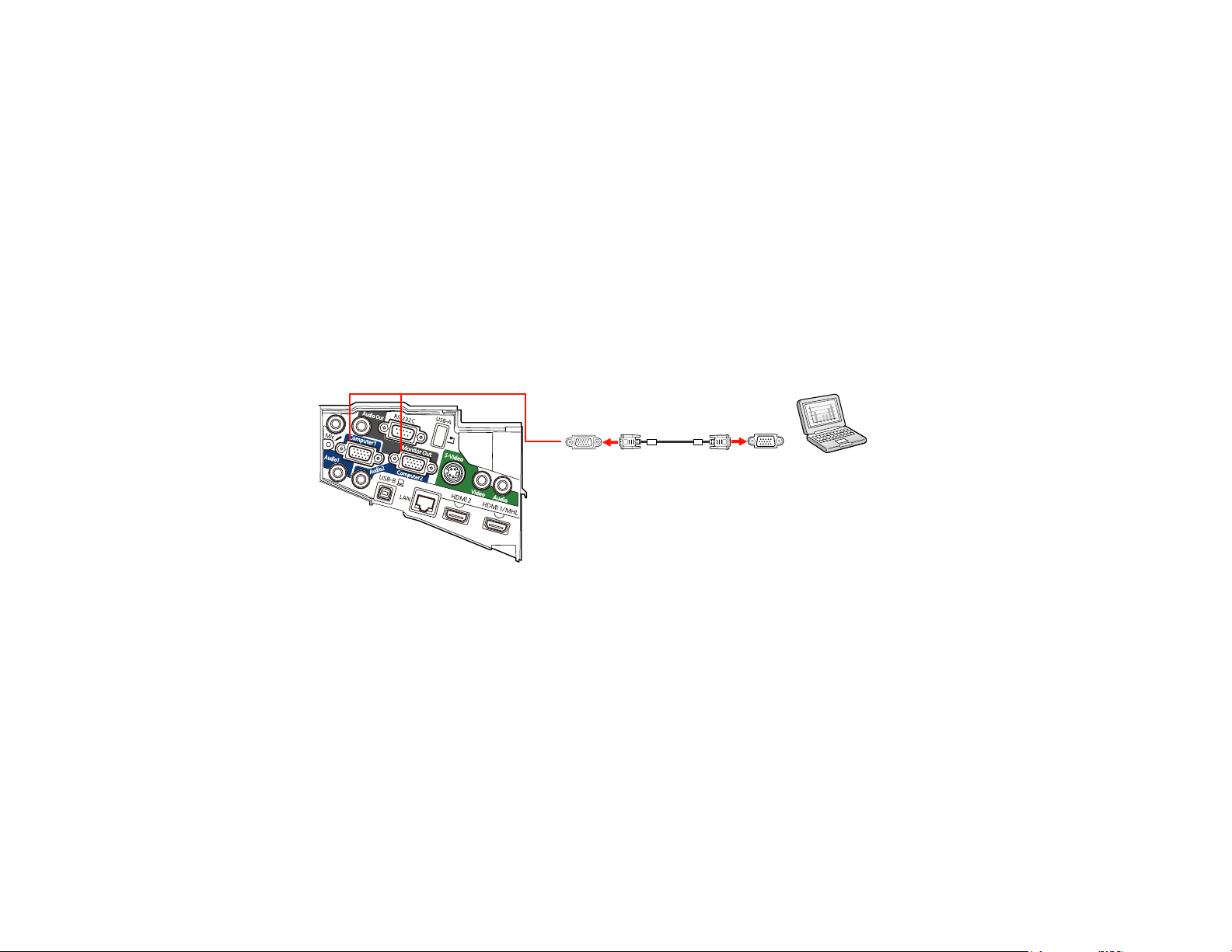

Connecting to a Computer for VGA Video................................................................................. 32

Connecting to a Computer for HDMI Video and Audio .............................................................. 32

Connecting to a Computer for USB Mouse Control................................................................... 33

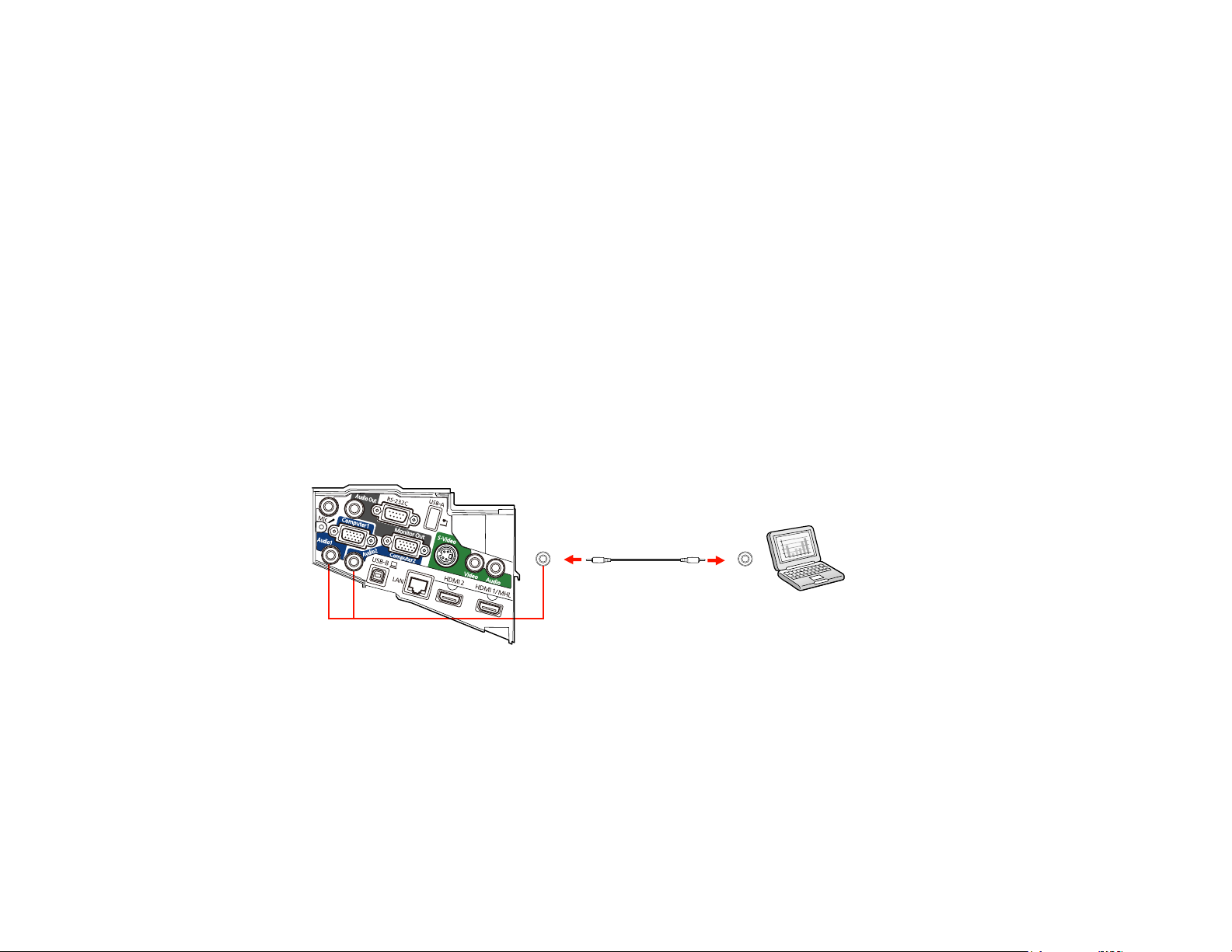

Connecting to a Computer for Sound........................................................................................ 34

Connecting to Video Sources ........................................................................................................ 34

Connecting to an HDMI Video Source ...................................................................................... 35

Connecting to an MHL-Compatible Device ............................................................................... 35

Connecting to a Component-to-VGA Video Source .................................................................. 36

Connecting to a Composite Video Source ................................................................................ 37

Connecting to an S-Video Video Source................................................................................... 37

Connecting to a Video Source for Sound .................................................................................. 38

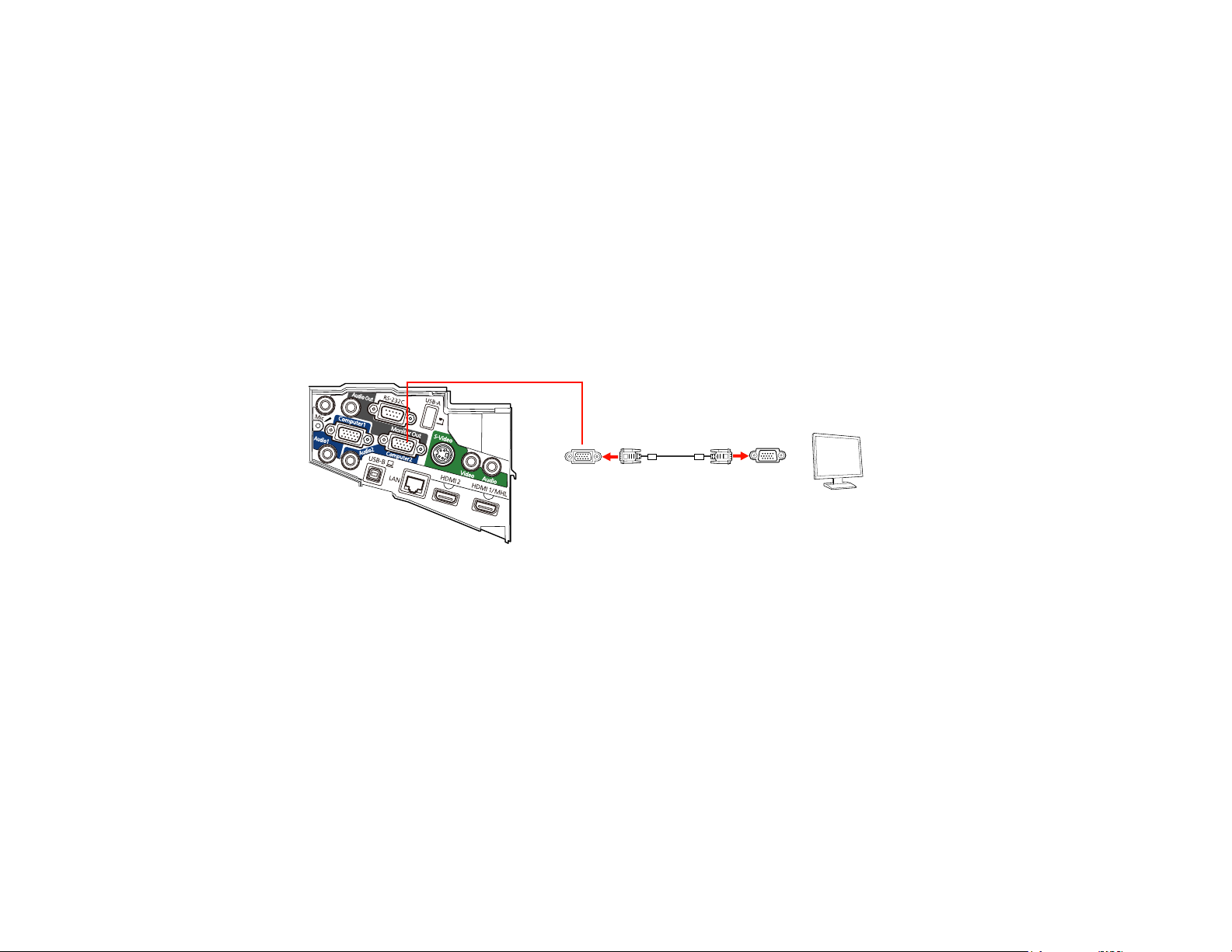

Connecting to an External Computer Monitor................................................................................ 39

Connecting to External Speakers .................................................................................................. 39

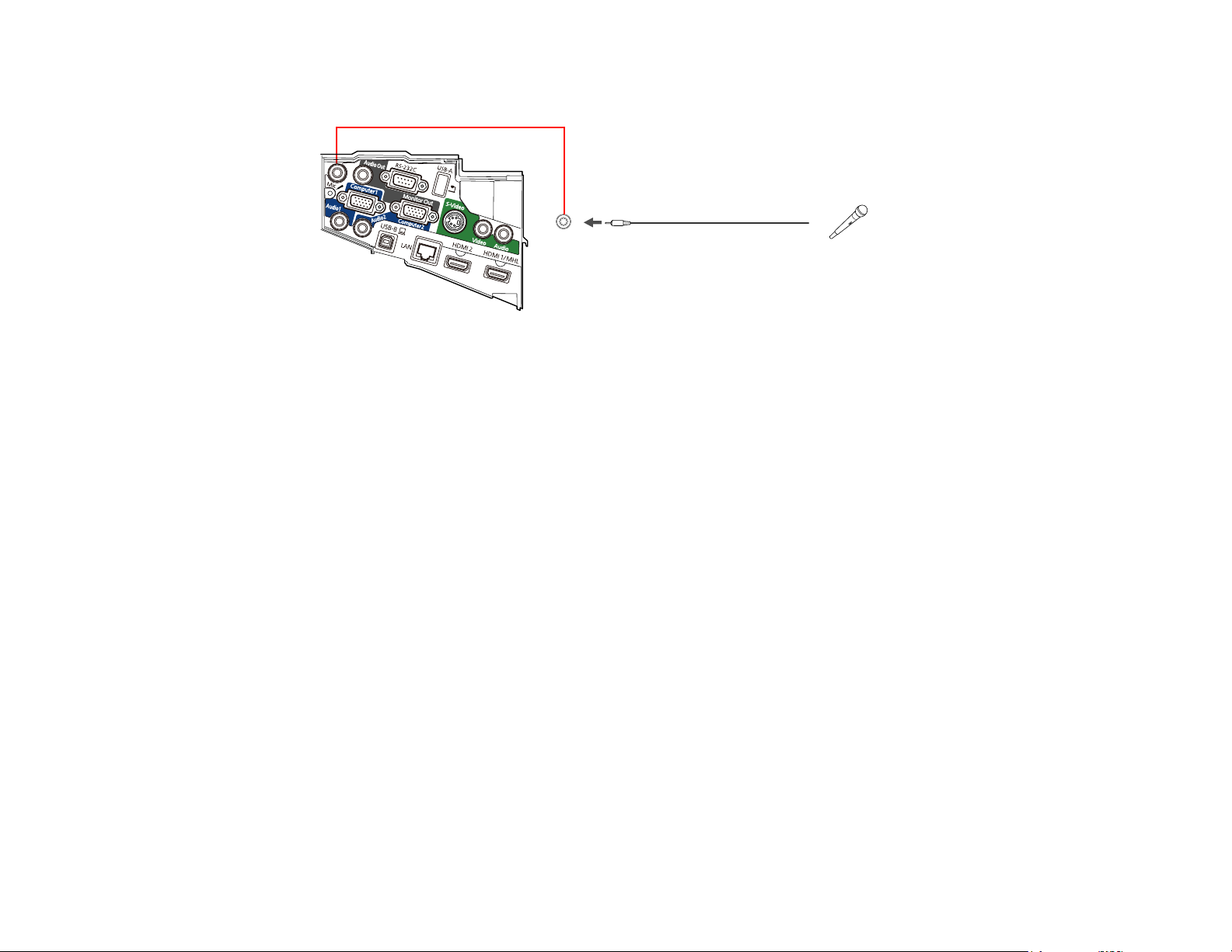

Connecting a Microphone.............................................................................................................. 40

Connecting to External USB Devices ............................................................................................ 41

USB Device Projection.............................................................................................................. 41

Connecting a USB Device or Camera to the Projector.............................................................. 42

Selecting the Connected USB Source ...................................................................................... 43

Disconnecting a USB Device or Camera From the Projector .................................................... 43

Connecting to a Document Camera .............................................................................................. 43

Installing Batteries in the Remote Control .......................................................................................... 44

Using the Projector on a Network ............................................................................................................ 47

Wired Network Projection................................................................................................................... 47

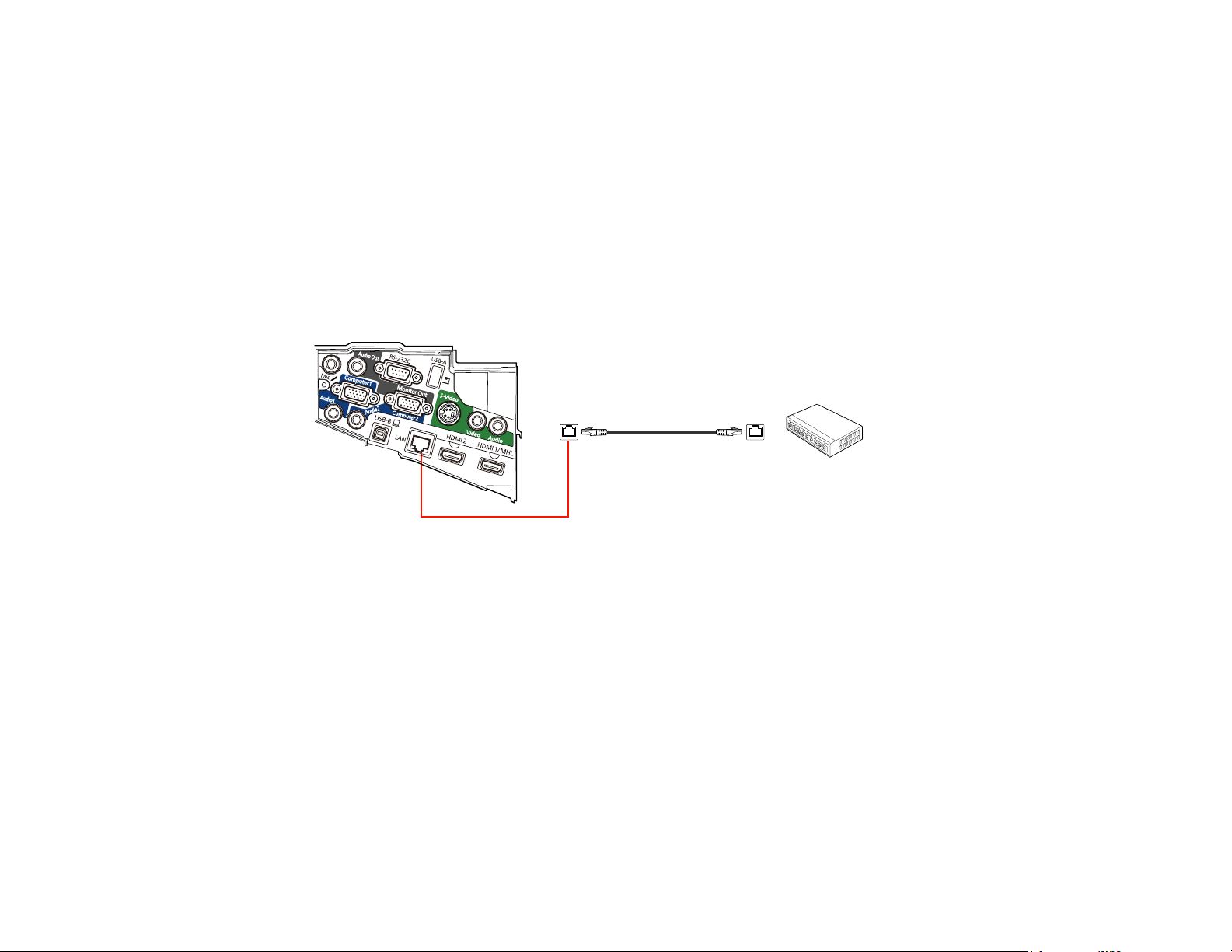

Connecting to a Wired Network ..................................................................................................... 48

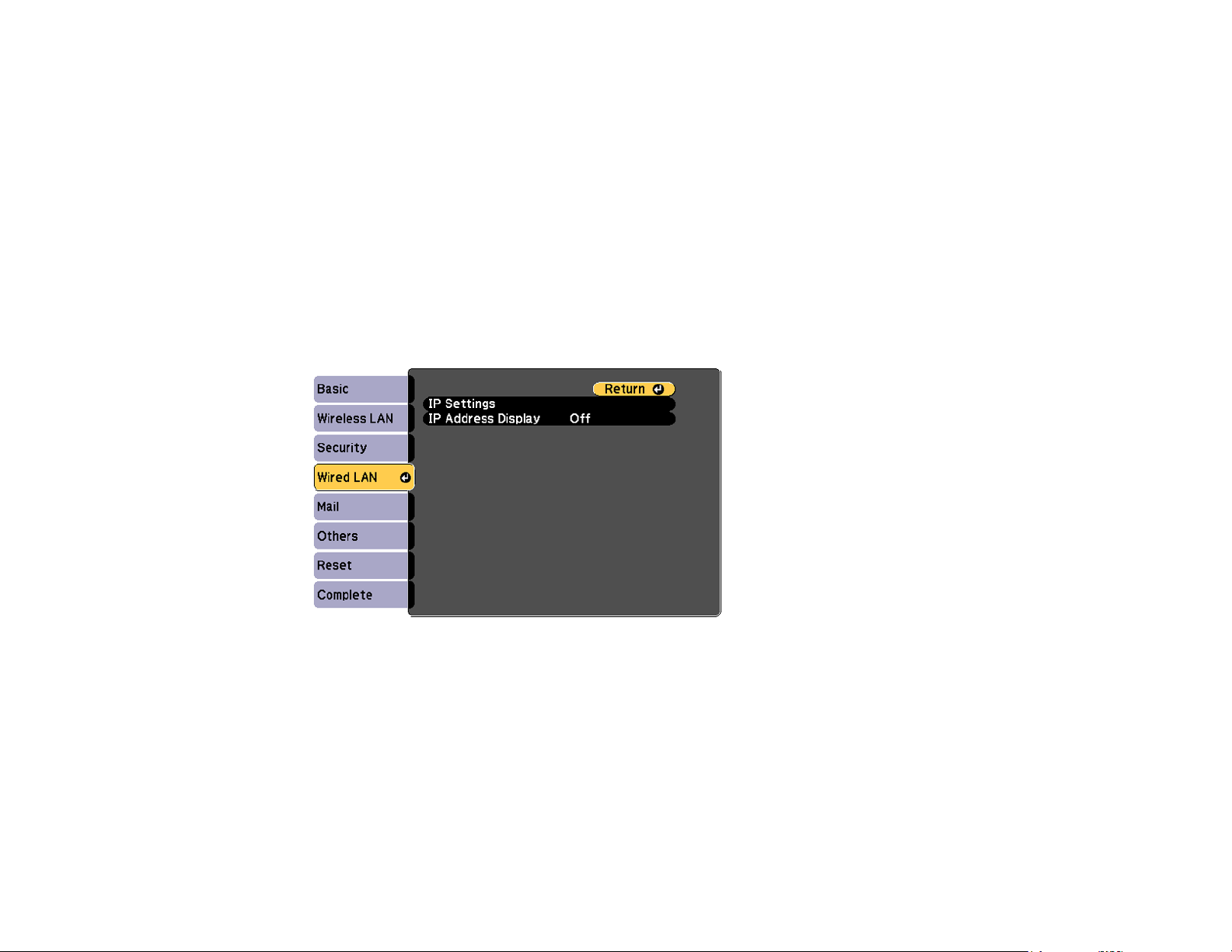

Selecting Wired Network Settings ................................................................................................. 48

Wireless Network Projection .............................................................................................................. 51

Installing the Wireless LAN Module ............................................................................................... 52

Using Quick Wireless Connection (Windows Only) ....................................................................... 54

Selecting Wireless Network Settings Manually.............................................................................. 55

Wireless LAN Menu Settings .................................................................................................... 57

Selecting Wireless Network Settings in Windows.......................................................................... 59

Selecting Wireless Network Settings in OS X ................................................................................ 59

Setting Up Wireless Network Security ........................................................................................... 59

Wireless Security Menu Settings .............................................................................................. 60

Setting Up Projector Network E-Mail Alerts ........................................................................................ 61

Network Projector E-mail Alert Messages ..................................................................................... 62

Setting Up Monitoring Using SNMP ................................................................................................... 62

Controlling a Networked Projector Using a Web Browser .................................................................. 64

Crestron RoomView Support.............................................................................................................. 66

Setting Up Crestron RoomView Support ....................................................................................... 66

Controlling a Networked Projector Using Crestron RoomView ...................................................... 67

Using Basic Projector Features ............................................................................................................... 69

Turning On the Projector .................................................................................................................... 69

Turning Off the Projector .................................................................................................................... 71

Selecting the Language for the Projector Menus................................................................................ 72

Image Shape...................................................................................................................................... 73

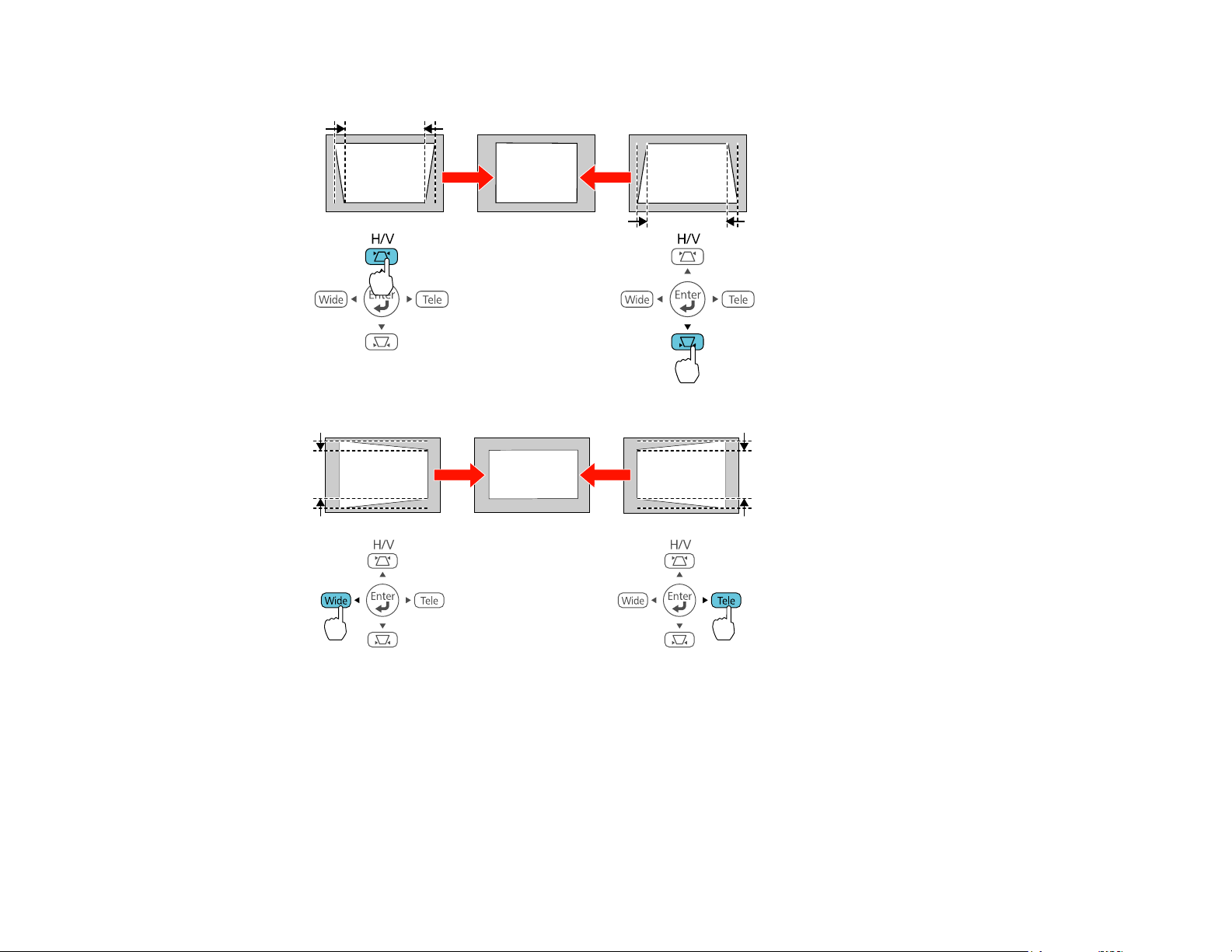

Correcting Image Shape with the Keystone Buttons...................................................................... 73

Correcting Image Shape with Quick Corner .................................................................................. 76

Resizing the Image with the Wide and Tele Buttons .......................................................................... 77

Adjusting the Image Position.............................................................................................................. 78

Focusing the Image............................................................................................................................ 79

Remote Control Operation ................................................................................................................. 80

Using the Remote Control as a Wireless Mouse ........................................................................... 82

Using the Remote Control as a Pointer.......................................................................................... 83

Selecting an Image Source ................................................................................................................ 83

Projection Modes ............................................................................................................................... 85

Changing the Projection Mode Using the Remote Control ............................................................ 85

Changing the Projection Mode Using the Menus........................................................................... 86

Image Aspect Ratio ............................................................................................................................ 86

Changing the Image Aspect Ratio ................................................................................................. 87

Available Image Aspect Ratios ...................................................................................................... 87

Color Mode......................................................................................................................................... 88

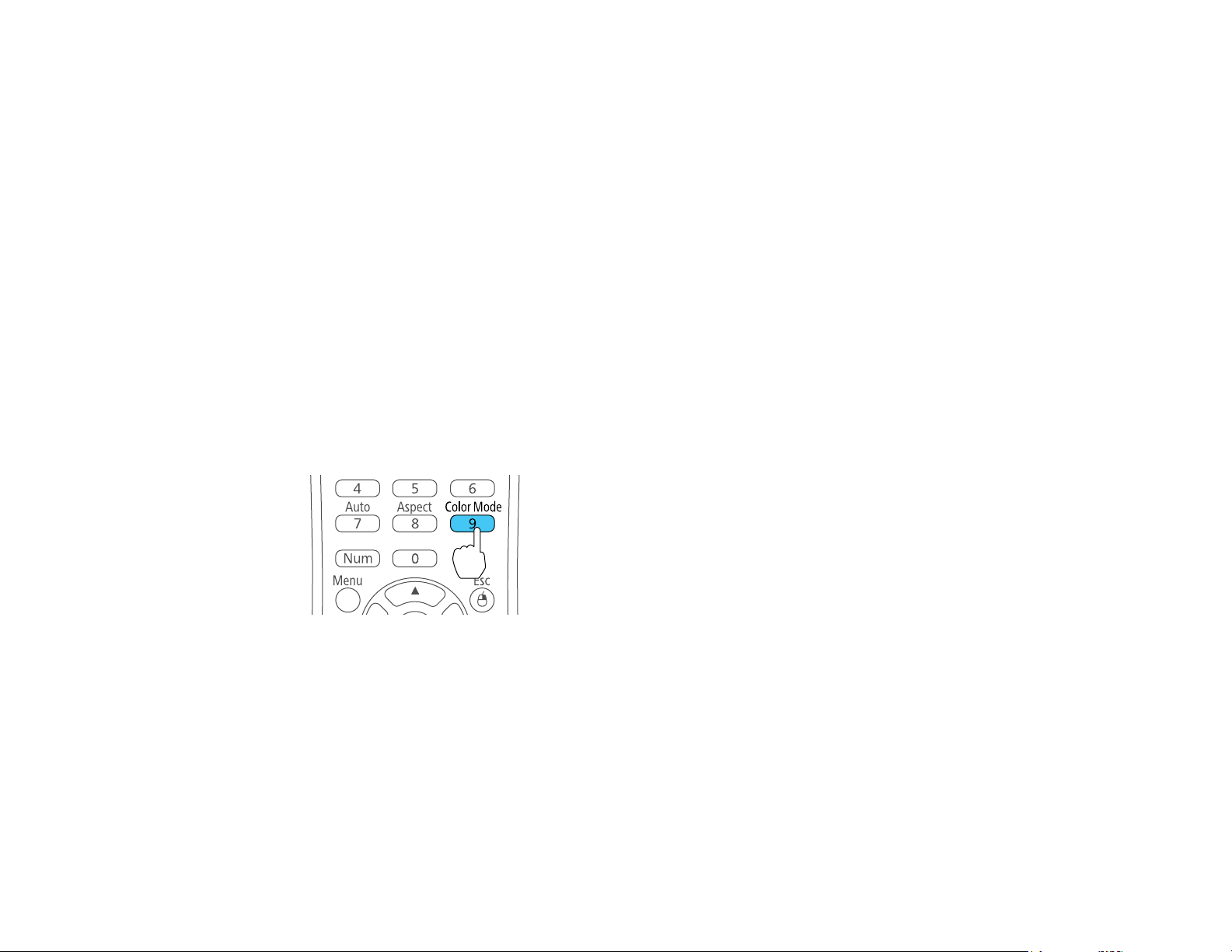

Changing the Color Mode.............................................................................................................. 89

Available Color Modes................................................................................................................... 89

Turning On Auto Iris....................................................................................................................... 90

Controlling the Volume with the Volume Buttons................................................................................ 91

Projecting a PC Free Presentation ..................................................................................................... 91

Supported PC Free File Types ...................................................................................................... 92

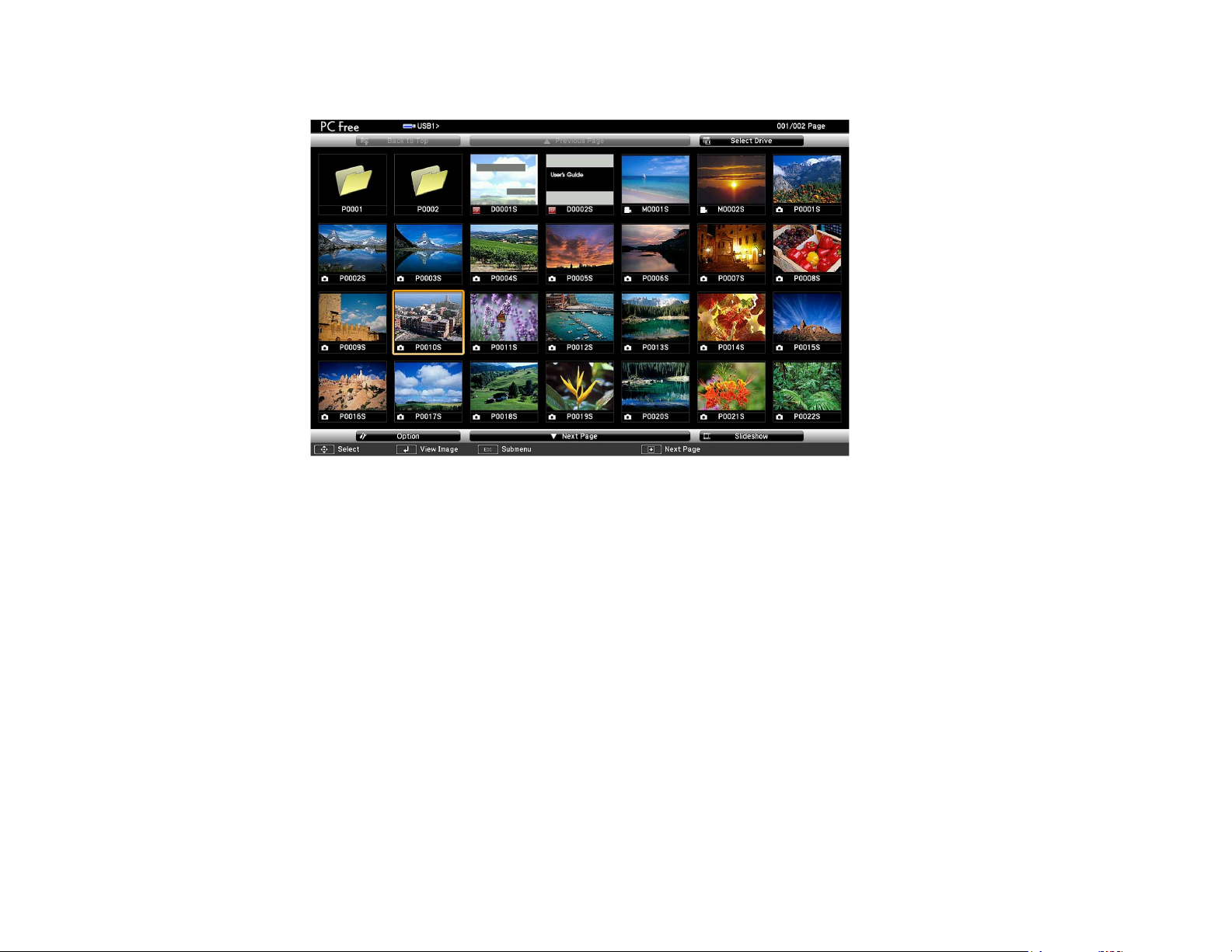

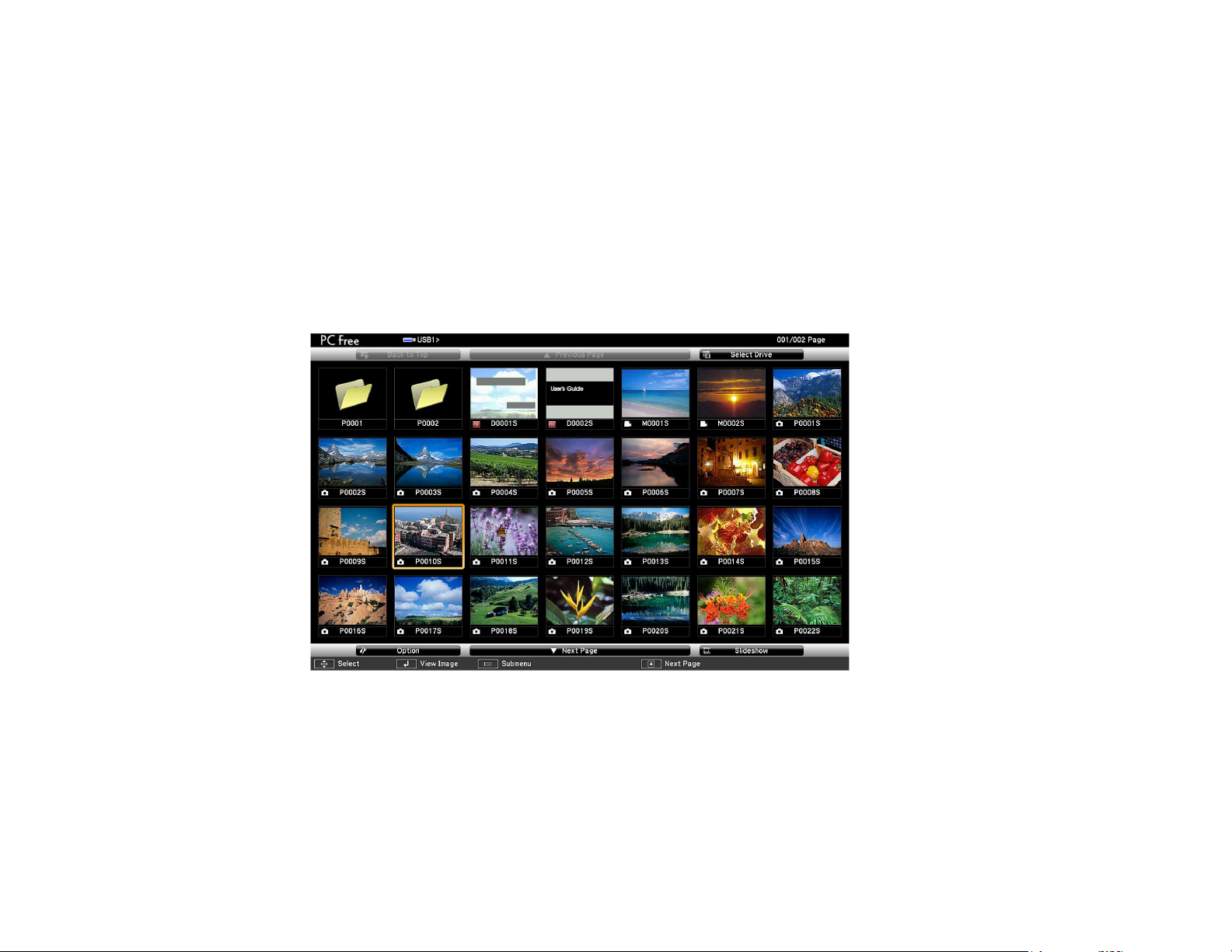

Starting a PC Free Slide Show ...................................................................................................... 93

Starting a PC Free Movie Presentation ......................................................................................... 94

PC Free Display Options ............................................................................................................... 96

Adjusting Projector Features ................................................................................................................... 98

Shutting Off the Picture and Sound Temporarily ................................................................................ 98

Stopping Video Action Temporarily .................................................................................................... 98

Zooming Into and Out of Images ........................................................................................................ 99

Projector Security Features.............................................................................................................. 100

Password Security Types ............................................................................................................ 100

Setting a Password ................................................................................................................. 100

Selecting Password Security Types........................................................................................ 102

Entering a Password to Use the Projector............................................................................... 103

Saving a User's Logo Image to Display................................................................................... 104

Locking the Projector's Buttons ................................................................................................... 106

Unlocking the Projector's Buttons ........................................................................................... 106

Installing a Security Cable ........................................................................................................... 107

Creating a User Pattern to Display ................................................................................................... 107

Adjusting the Menu Settings .................................................................................................................. 109

Using the Projector's Menus............................................................................................................. 109

Image Quality Settings - Image Menu .............................................................................................. 111

Input Signal Settings - Signal Menu.................................................................................................. 112

Projector Feature Settings - Settings Menu...................................................................................... 115

Projector Setup Settings - Extended Menu....................................................................................... 118

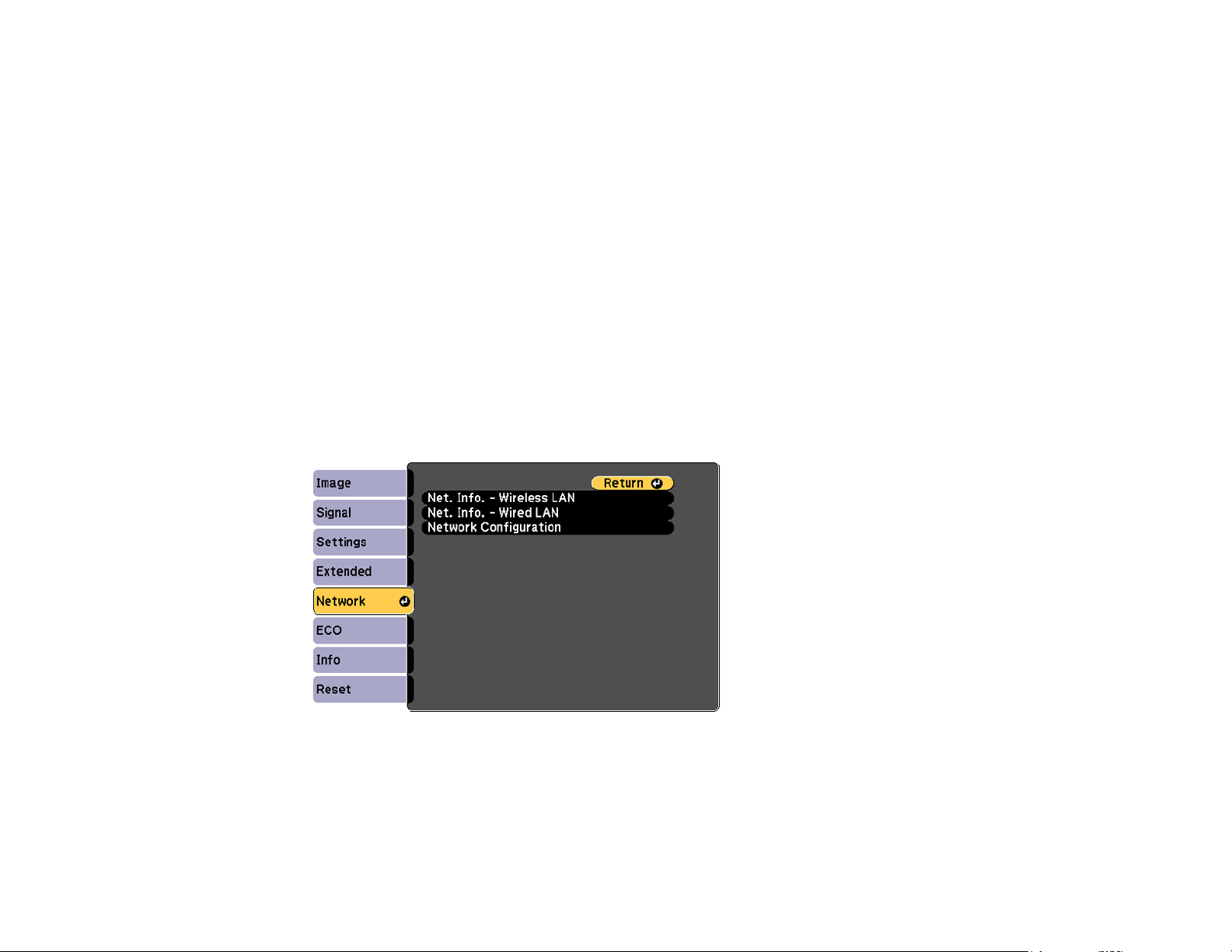

Projector Network Settings - Network Menu..................................................................................... 121

Projector Setup Settings - ECO Menu .............................................................................................. 122

Projector Information Display - Info Menu ........................................................................................ 124

Event ID Code List....................................................................................................................... 125

Projector Reset Options - Reset Menu ............................................................................................. 126

Maintaining and Transporting the Projector ......................................................................................... 128

Projector Maintenance ..................................................................................................................... 128

Cleaning the Projection Window.................................................................................................. 128

Cleaning the Obstacle Sensor ..................................................................................................... 129

Cleaning the Projector Case ........................................................................................................ 130

Air Filter and Vent Maintenance .................................................................................................. 130

Cleaning the Air Filter and Vents............................................................................................. 130

Replacing the Air Filter ............................................................................................................ 135

Projector Lamp Maintenance....................................................................................................... 140

Replacing the Lamp ................................................................................................................ 140

Resetting the Lamp Timer....................................................................................................... 144

Replacing the Remote Control Batteries ..................................................................................... 145

Transporting the Projector................................................................................................................ 147

Solving Problems .................................................................................................................................... 148

Projection Problem Tips ................................................................................................................... 148

Projector Light Status ....................................................................................................................... 149

Using the Projector Help Displays .................................................................................................... 152

Solving Image or Sound Problems ................................................................................................... 152

Solutions When No Image Appears............................................................................................. 153

Solutions When Image is Incorrect Using the USB Display Function .......................................... 154

Solutions When "No Signal" Message Appears........................................................................... 154

Displaying From a PC Laptop ................................................................................................. 154

Displaying From a Mac Laptop ............................................................................................... 155

Solutions When "Not Supported" Message Appears ................................................................... 155

Solutions When Only a Partial Image Appears ............................................................................ 155

Solutions When the Image is Not Rectangular ............................................................................ 156

Solutions When the Image Contains Noise or Static ................................................................... 156

Solutions When the Image is Fuzzy or Blurry .............................................................................. 157

Solutions When the Image Brightness or Colors are Incorrect .................................................... 158

Solutions to Sound Problems ...................................................................................................... 158

Solutions to Microphone Problems .............................................................................................. 159

Solving Projector or Remote Control Operation Problems ............................................................... 160

Solutions to Projector Power or Shut-Off Problems ..................................................................... 160

Solutions to Problems with the Remote Control........................................................................... 161

Solutions to Password Problems ................................................................................................. 161

Solutions When Network Alert E-Mails are Not Received ................................................................ 162

Where to Get Help............................................................................................................................ 162

Technical Specifications ........................................................................................................................ 164

General Projector Specifications ...................................................................................................... 164

Projector Lamp Specifications.......................................................................................................... 166

Remote Control Specifications ......................................................................................................... 167

Projector Dimension Specifications.................................................................................................. 167

Projector Electrical Specifications .................................................................................................... 167

Projector Environmental Specifications............................................................................................ 169

Projector Safety and Approvals Specifications................................................................................. 169

Supported Video Display Formats.................................................................................................... 169

USB Display System Requirements................................................................................................. 172

Notices ..................................................................................................................................................... 173

Recycling.......................................................................................................................................... 173

Important Safety Information ............................................................................................................ 173

Important Safety Instructions............................................................................................................ 174

Restriction of Use ........................................................................................................................ 177

FCC Compliance Statement............................................................................................................. 177

Wireless Telegraphy Act Regulations............................................................................................... 178

Trademarks...................................................................................................................................... 178

Open Source Software License........................................................................................................ 178

Copyright Notice............................................................................................................................... 224

A Note Concerning Responsible Use of Copyrighted Materials................................................... 225

Copyright Attribution.................................................................................................................... 225

PowerLite 570/575W/580/585W User's Guide

Welcome to the PowerLite 570/575W/580/585W User's Guide.

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.

Projector Features Notations Used in the Documentation Where to Go for Additional Information Projector Part Locations

Projector Features

The PowerLite 570/575W/580/585W projectors include these special features:

Ultra short throw projection system

• Project an 80-inch (203 cm) image (16:10) from just 7.3 inches (187 mm) away

• Easily mounted to the wall for fast, low-cost installations

• Ideal for use with interactive whiteboards

• Reduced shadow interference and glare

Bright, high-resolution images

• PowerLite 570/575W: Up to 2700 lumens of color brightness (color light output) and 2700 lumens of white brightness (white light output)

PowerLite 580: Up to 3200 lumens of color brightness (color light output) and 3200 lumens of white brightness (white light output)

PowerLite 585W: Up to 3300 lumens of color brightness (color light output) and 3300 lumens of white brightness (white light output)

Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

• PowerLite 570/580: Native resolution of 1024 × 768 pixels (XGA)

PowerLite 575W/585W: Native resolution of 1280 × 800 pixels (WXGA)

Flexible connectivity

• 2 HDMI ports for computer or video device connection

• Plug-and-play 3-in-1 USB projection, audio, and mouse control for instant setup

• Wired network support for projection

• Projector monitoring and control via remote network computer

• Optional wireless network support, including video and audio transfer

• PC Free photo slide shows via connected USB memory devices or Epson document camera

• Dual VGA ports for connections by multiple presenters

• Port for connecting an external monitor

• Port for connecting a microphone

Innovative display and operation features

• Low total cost of ownership with long-life projector lamp and high-efficiency air filter

• High digital zoom ratio for larger images in shorter projection distances

• 10000:1 contrast ratio and Auto Iris control for sharp, detailed images

• Built-in closed captioning decoder

• Powerful 16 W speaker system with audio out port for connecting external speakers

• Epson's Instant Off and Direct Power On features for quick setup and shut down

• Support for Crestron RoomView network monitoring systems

• Network message broadcast system to project timely messages to all networked projectors

Product Box Contents Additional Components Optional Equipment and Replacement Parts Warranty and Registration Information

Parent topic: Introduction to Your Projector

Related concepts

Projector Part Locations

Product Box Contents

Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.

Make sure your projector boxes included all of these parts:

1 Projector

2 Wall mount and setting plate

3 Remote control

4 Remote control batteries (two AA alkaline)

5 Power cord

6 VGA computer cable (not included with all models)

7 Projector documentation CD

8 Password Protected sticker

9 Projector software CD

Parent topic: Projector Features

Related concepts

Projector Connections

Additional Components

Depending on how you plan to use the projector, you may need to obtain the following additional components:

• To receive an S-Video signal, you need an S-Video cable compatible with your device. See your local computer or electronics dealer for purchase information.

• To receive a component video signal, you need a D-sub, 15-pin, component-to-VGA video cable. You can purchase one from Epson or an authorized Epson reseller.

• To receive an HDMI signal, you need a compatible HDMI cable. You can purchase one from Epson or an authorized Epson reseller.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port. Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through the HDMI port.

• To receive an HDMI signal via MHL, you need an HDMI cable and an MHL adapter compatible with your device.

• To project with audio from certain ports, you may need a commercially available audio cable compatible with your device. See your local computer or electronics dealer for purchase information.

• To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output to the projector's VGA video port, you need to obtain an adapter. Contact Apple for compatible adapter options.

Parent topic: Projector Features

Optional Equipment and Replacement Parts

You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at epsonstore.com (U.S. sales) or epson.ca (Canadian sales).

Epson offers the following optional accessories and replacement parts for your projector:

Option or part Part number

Genuine Epson replacement lamp (ELPLP79; PowerLite 570/575W) V13H010L79

Genuine Epson replacement lamp (ELPLP80; PowerLite 580/585W) V13H010L80

Replacement air filter (ELPAF40) V13H134A40

Option or part Part number

Wireless LAN module (ELPAP07) V12H418P12

Quick wireless connection USB key (ELPAP08) V12H005M08

Replacement wall mount V12H675020

Table projection mount V12H516020

Epson DC-06 USB document camera (ELPDC06) V12H321005

Epson DC-11 document camera (ELPDC11) V12H377020

Epson DC-12 document camera (ELPDC12) V12H594020

Epson DC-20 document camera (ELPDC20) V12H500020

PowerLite Pilot 2 (ELPCB02) V12H614020

Active speakers (ELPSP02) V12H467020

On Wall Cable Management Kit ELPCK01

Kensington security lock ELPSL01

90-inch whiteboard V12H468002

96-inch whiteboard V12H468001

6 ft. (1.8 m) VGA computer cable F3H982-06

10 ft. (3.0 m) VGA computer cable F3H982-10

10 ft. (3.0 m) Component-to-VGA video cable ELPKC19

In addition to the accessories listed above, 1-year and 2-year extended service plans are available.

Parent topic: Projector Features

Warranty and Registration Information

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty that came with your projector.

In addition, Epson offers free Extra Care Road Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See the Extra Care Road Service brochure for details.

Registering also lets you receive special updates on new accessories, products, and services.

Parent topic: Projector Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:

• Warnings must be followed carefully to avoid bodily injury.

• Cautions must be observed to avoid damage to your equipment.

• Notes contain important information about your projector.

• Tips contain additional projection information.

Parent topic: Introduction to Your Projector

Where to Go for Additional Information

Need quick help on using your projector? Here's where to look for help:

• Built-in help system

• epson.com/support (U.S) or epson.ca/support (Canada)

View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24 hours a day.

• For detailed instructions on using your projector in a network environment, see the EasyMP Network Projection Operation Guide.

• For detailed instructions on monitoring your projector in a network environment (Windows only), see the EasyMP Monitor Operation Guide.

• If you still need help after checking this manual and the sources listed above, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help".

Parent topic: Introduction to Your Projector

Related references

Where to Get Help

Projector Part Locations

Check the projector part illustrations to learn about the parts on your projector.

Projector Parts - Front/Top Projector Parts - Side

Projector Parts - Interface Panel Projector Parts - Base Projector Parts - Control Panel Projector Parts - Remote Control

Parent topic: Introduction to Your Projector

Projector Parts - Front/Top

1 Remote control receiver

2 Speaker

3 Control panel

4 Cable cover screws

5 Cable cover

6 Exhaust vent

7 Lamp cover screw

8 Lamp cover

Parent topic: Projector Part Locations

Projector Parts - Side

1 Filter cover switch

2 Security cable installation slot

3 Wireless LAN light

4 Obstacle sensor

5 Remote receiver

6 Projection window

7 Security lock port

8 Air filter cover

9 Air intake vent (air filter)

10 Focus lever

Parent topic: Projector Part Locations

Projector Parts - Interface Panel

1 Optional wireless LAN unit slot

2 Audio1 port

3 Computer1 port

4 Audio2 port

5 USB-B port

6 Network (LAN) port

7 Monitor Out/Computer2 port

8 HDMI 2 port

9 S-Video port

10 HDMI 1/MHL port

11 Audio port

12 Video port

13 Power inlet

14 USB-A port

15 RS-232C port

16 Audio Out port

17 Mic (microphone) port

Parent topic: Projector Part Locations

Projector Parts - Base

1 Ceiling mount holes (5)

2 Security cable attachment point

3 Wall mount plate holes (4)

4 Illumination sensor

Parent topic: Projector Part Locations

Projector Parts - Control Panel

1 Projector status lights

2 Source Search button (searches for connected video sources)

3 Enter button (selects options)

4 Horizontal/Vertical keystone adjustment buttons (display the adjustment screen and adjust screen

shape) and arrow buttons

5 Help button (accesses projector help information)

6 Esc button (cancels/exits functions)

7 Wide/Tele buttons (adjust projected image size), horizontal keystone adjustment buttons (adjust

screen shape), and arrow buttons

8 Menu button (accesses projector menu system)

9 Power button

Parent topic: Projector Part Locations

Related references

Projector Light Status

Projector Parts - Remote Control

1 Power button

2 Computer button (cycles through connected computer sources)

3 Video button (cycles through connected video sources)

4 Numeric buttons (enter numbers)

5 Auto button (automatically adjusts position, tracking, and sync settings)

6 Aspect button (selects the image aspect ratio)

7 Num button (when held down, switches numeric buttons to number function)

8 Menu button (accesses projector menu system)

9 Arrow buttons (move through on-screen options and control wireless mouse functions)

10 Enter button (selects options and controls wireless mouse functions)

11 User button (customizable for different functions)

12 Page up/down buttons (control presentation slides)

13 E-Zoom +/– buttons (zoom into and out of the image)

14 A/V Mute button (turns off picture and sound)

15 Strap attachment point

16 Help button (accesses projector help information)

17 Freeze button (stops video action)

18 Volume up/down buttons (adjust speaker volume)

19 Pointer button (activates on-screen pointer)

20 Esc button (cancels/exits functions and controls wireless mouse functions)

21 Color Mode button (selects display modes)

22 MHL Menu button (displays settings or performs functions for the MHL device)

23 LAN button

24 USB button (cycles through connected USB sources)

25 Source Search button (searches for connected sources)

Parent topic: Projector Part Locations

Setting Up the Projector

Follow the instructions in these sections to set up your projector for use.

Projector Placement Removing and Attaching the Cable Cover Projector Connections Installing Batteries in the Remote Control

Projector Placement

Your ultra-short throw projector is designed to be installed on a wall.

Keep these considerations in mind as you select a projector location:

• Follow the instructions in the Installation Guide to install the projector using the included mounting equipment.

• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or next to anything that could block the vents.

• Position the projector within reach of a grounded electrical outlet or extension cord.

Projector Setup and Installation Options Projection Distance

Parent topic: Setting Up the Projector

Projector Setup and Installation Options

You can set up or install your projector in the following ways:

Mounted on the wall or ceiling

Mounted on the wall or ceiling and projecting from behind a translucent screen

Wherever you set up the projector, make sure to position it squarely in front of the screen, not at an angle.

Parent topic: Projector Placement

Related references

Projector Setup Settings - Extended Menu

Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.) For more detailed information and installation instructions, see the Installation Guide. You can also use the projector Throw Distance Calculator at epson.com/support (U.S.) or epson.ca/support (Canada).

PowerLite 570/580

4:3 Aspect Ratio

Diagonal Min. Image width Image height Min. projection Distance from top image recommended distance of image to wall size ceiling height plate

56 inches 80 inches 44.8 inches 33.6 inches 2.5 inches 6.0 inches

(202.1 cm) (113.9 cm) (85.3 cm) (6.3 cm) (15.2 cm)

60 inches 82 inches 48 inches 36 inches 3.5 inches 6.4 inches

(209.1 cm) (122.0 cm) (91.4 cm) (8.9 cm) (16.1 cm)

70 inches 89 inches 56.0 inches 42 inches 6.1 inches 7.3 inches

(226.9 cm) (142.2 cm) (106.7 cm) (15.6 cm) (18.6 cm)

77 inches 94 inches 61.6 inches 46.2 inches 8.0 inches 8.0 inches

(239.2 cm) (156.4 cm) (117.3 cm) (20.2 cm) (20.3 cm)

80 inches 96 inches 64 inches 48 inches 8.8 inches 8.3 inches

(244.6 cm) (162.5 cm) (121.9 cm) (22.2 cm) (21.1 cm)

90 inches 103 inches 72 inches 54 inches 11.4 inches 9.3 inches

(262.3 cm) (182.9 cm) (137.2 cm) (28.9 cm) (23.5 cm)

93 inches 105 inches 74.4 inches 55.8 inches 12.2 inches 9.6 inches

(267.5 cm) (189.1 cm) (141.7 cm) (30.9 cm) (24.2 cm)

16:9 Aspect Ratio

Diagonal Min. Image width Image height Min. projection Distance from top image recommende distance of image to wall size d ceiling plate

height

52 inches 75.8 inches 45.3 inches 25.5 inches 2.6 inches 10.3 inches

(192.5 cm) (115.1 cm) (64.8 cm) (6.7 cm) (26.1 cm)

Diagonal Min. Image width Image height Min. projection Distance from top image recommende distance of image to wall size d ceiling plate

height

60 inches 81.2 inches 52.3 inches 29.4 inches 4.9 inches 11.8 inches

(206.2 cm) (132.8 cm) (74.7 cm) (12.5 cm) (29.9 cm)

70 inches 88.0 inches 61.0 inches 34.3 inches 7.8 inches 13.7 inches

(223.5 cm) (155.0 cm) (87.2 cm) (19.7 cm) (34.7 cm)

77 inches 92.7 inches 67.1 inches 37.8 inches 9.8 inches 15.0 inches

(235.5 cm) (170.5 cm) (95.9 cm) (24.8 cm) (38.0 cm)

80 inches 94.7 inches 69.7 inches 39.2 inches 10.6 inches 15.5 inches

(240.6 cm) (177.1 cm) (99.6 cm) (27.0 cm) (39.4 cm)

85 inches 98.1 inches 74.1 inches 41.7 inches 12.1 inches 16.5 inches

(249.2 cm) (188.2 cm) (105.8 cm) (30.6 cm) (41.8 cm)

16:10 Aspect Ratio

Diagonal Min. Image width Image height Min. projection Distance from top image recommende distance of image to wall size d ceiling plate

height

53 inches 77.2 inches 44.9 inches 28.1 inches 2.5 inches 8.8 inches (22.3 cm)

(196.1 cm) (114.2 cm) (71.3 cm) (6.4 cm)

60 inches 82.0 inches 50.9 inches 31.8 inches 4.5 inches 9.9 inches (25.1 cm)

(208.4 cm) (129.2 cm) (80.8 cm) (11.3 cm)

70 inches 89.0 inches 59.4 inches 37.1 inches 7.2 inches 11.4 inches

(226.0 cm) (150.8 cm) (94.2 cm) (18.4 cm) (29.1 cm)

75 inches 92.4 inches 63.6 inches 39.7 inches 8.6 inches 12.2 inches

(234.7 cm) (161.5 cm) (101.0 cm) (21.9 cm) (31.0 cm)

80 inches 95.9 inches 67.8 inches 42.4 inches 10.0 inches 13.0 inches

(243.5 cm) ( 172.3 cm) (107.7 cm) (25.4 cm) (33.0 cm)

85 inches 99.3 inches 72.1 inches 45.0 inches 11.4 inches 13.8 inches

(252.3 cm) (183.1 cm) (114.4 cm) (28.9 cm) (35.0 cm)

Diagonal Min. Image width Image height Min. projection Distance from top image recommende distance of image to wall size d ceiling plate

height

88 inches 101.4 inches 74.6 inches 46.6 inches 12.2 inches 14.2 inches

(257.6 cm) (189.5 cm) (118.5 cm) (31.1 cm) (36.2 cm)

PowerLite 575W/585W

16:10 Aspect Ratio

Diagonal Min. Image width Image height Min. projection Distance from top image recommended distance of image to wall size ceiling height plate

60 inches 78.7 inches 50.9 inches 31.8 inches 2.5 inches 6.9 inches (17.4 cm)

(199.8 cm) (129.2 cm) (80.8 cm) (6.2 cm)

70 inches 85.0 inches 59.4 inches 37.1 inches 4.9 inches 7.9 inches (20.1 cm)

(215.9 cm) (150.8 cm) (94.2 cm) (12.4 cm)

80 inches 91.4 inches 67.8 inches 42.4 inches 7.3 inches 9.0 inches (22.7 cm)

(232.0 cm) (172.3 cm) (107.7 cm) (18.7 cm)

88 inches 96.4 inches 74.6 inches 46.6 inches 9.3 inches 9.8 inches (24.9 cm)

(245.0 cm) (189.5 cm) (118.5 cm) (23.6 cm)

90 inches 97.7 inches 76.3 inches 47.7 inches 9.8 inches 10.0 inches

(248.2 cm) (193.9 cm) (121.2 cm) (24.9 cm) (25.4 cm)

100 inches 104.1 inches 84.8 inches 53.0 inches 12.2 inches 11.1 inches

(264.3 cm) (215.4 cm) (134.6 cm) (31.1 cm) (28.1 cm)

16:9 Aspect Ratio

Diagonal Min. Image width Image height Min. projection Distance from top image recommende distance of image to wall size d ceiling plate

height

59 inches 77.5 inches 51.5 inches 28.9 inches 2.6 inches 8.5 inches (21.7 cm)

(196.8 cm) (130.6 cm) (73.5 cm) (6.6 cm)

Diagonal Min. Image width Image height Min. projection Distance from top image recommende distance of image to wall size d ceiling plate

height

60 inches 78.1 inches 52.3 inches 29.4 inches 2.9 inches 8.7 inches (22.0 cm)

(198.3 cm) (132.8 cm) (74.7 cm) (7.3 cm)

70 inches 84.3 inches 61.0 inches 34.3 inches 5.4 inches 10.0 inches

(214.2 cm) (155.0 cm) (87.2 cm) (13.7 cm) (25.4 cm)

77 inches 88.7 inches 67.1 inches 37.8 inches 7.1 inches 11.0 inches

(225.3 cm) (170.5 cm) (95.9 cm) (18.1 cm) (27.8 cm)

80 inches 90.6 inches 69.7 inches 39.2 inches 7.9 inches 11.4 inches

(230.1 cm) (177.1 cm) (99.6 cm) (20.0 cm) (28.9 cm)

90 inches 96.8 inches 78.4 inches 44.1 inches 10.4 inches 12.7 inches

(246.0 cm) (199.2 cm) (112.1 cm) (26.4 cm) (32.3 cm)

97 inches 101.2 inches 84.5 inches 47.6 inches 12.2 inches 13.7 inches

(257.1 cm) (214.7 cm) (120.8 cm) (30.9 cm) (34.7 cm)

4:3 Aspect Ratio

Diagonal Min. Image width Image height Min. projection Distance from top image recommende distance of image to wall size d ceiling plate

height

53 inches 78.7 inches 42.4 inches 31.8 inches 2.5 inches 6.9 inches (17.4 cm)

(199.8 cm) (107.7 cm) (80.8 cm) (6.2 cm)

60 inches 83.7 inches 48 inches 36 inches 4.4 inches 7.7 inches (19.5 cm)

(212.5 cm) (121.9 cm) (91.4 cm) (11.2 cm)

70 inches 90.9 inches 56.0 inches 42 inches 7.2 inches 8.9 inches (22.5 cm)

(230.8 cm) (142.2 cm) (106.7 cm) (18.2 cm)

77 inches 95.9 inches 61.6 inches 46.2 inches 9.1 inches 9.7 inches (24.7 cm)

(243.6 cm) (156.5 cm) (117.3 cm) (23.1 cm)

80 inches 98.1 inches 64 inches 48 inches 9.9 inches 10.1 inches

(249.1 cm) (162.6 cm) (121.9 cm) (25.2 cm) (25.6 cm)

Diagonal Min. Image width Image height Min. projection Distance from top image recommende distance of image to wall size d ceiling plate

height

88 inches 103.8 inches 70.4 inches 52.8 inches 12.1 inches 11.0 inches

(263.7 cm) (182.9 cm) (134.1 cm) (30.8 cm) (28.0 cm)

Parent topic: Projector Placement

Removing and Attaching the Cable Cover

Before you can connect equipment to your projector, you need to remove the cable cover.

1. Remove both of the cable cover screws (screwdriver not included).

2. Slide off the cable cover.

To attach the cable cover, slide it into position and tighten the screws.

Parent topic: Setting Up the Projector

Projector Connections

You can connect the projector to a variety of computer, video, and audio sources to display presentations, movies, or other images, with or without sound.

• Connect any type of computer that has a USB port, standard video output (monitor) port, or HDMI port.

• For video projection, connect devices such as DVD players, gaming consoles, digital cameras, and smartphones with compatible video output ports.

• If your presentation or video includes sound, you can connect audio input cables, if necessary.

• For slide shows without a computer, you can connect USB devices (such as a flash drive or camera) or an optional Epson document camera.

Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode to ensure the projector's internal temperature is regulated properly.

Connecting to Computer Sources Connecting to Video Sources Connecting to an External Computer Monitor Connecting to External Speakers Connecting a Microphone Connecting to External USB Devices Connecting to a Document Camera

Parent topic: Setting Up the Projector

Related references

Projector Setup Settings - Extended Menu Product Box Contents

Connecting to Computer Sources

Follow the instructions in these sections to connect a computer to the projector.

Connecting to a Computer for USB Video and Audio Connecting to a Computer for VGA Video Connecting to a Computer for HDMI Video and Audio

Connecting to a Computer for USB Mouse Control Connecting to a Computer for Sound

Parent topic: Projector Connections

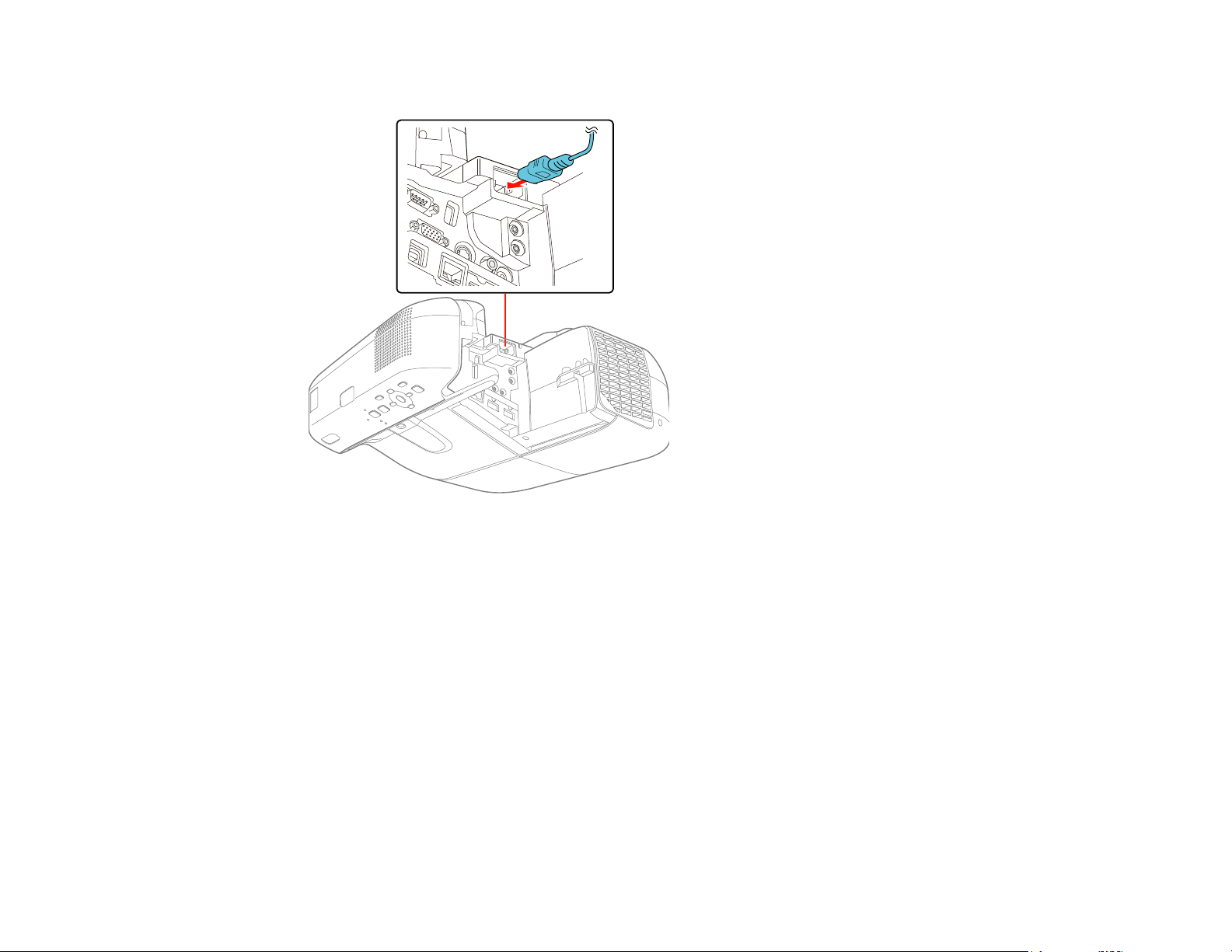

Connecting to a Computer for USB Video and Audio

If your computer meets the system requirements, you can send video and audio output to the projector through the computer's USB port (preferably USB 2.0). Connect the projector to your computer using a USB cable.

1. Turn on your computer.

2. Connect the cable to your projector's USB-B port.

3. Connect the other end to any available USB port on your computer.

4. To use USB Display, do one of the following:

• Windows 8.x: Click EPSON_PJ_UD in the upper right-corner, then select Run EMP_UDSE.exe

in the dialog box that appears to install the Epson USB Display software.

• Windows 7/Windows Vista: Select Run EMP_UDSE.exe in the dialog box that appears to install

the Epson USB Display software.

• Windows XP: Wait as messages appear on your computer screen and the projector installs the

Epson USB Display software on your computer.

• Windows 2000: Select Computer, EPSON_PJ_UD, and EMP_UDSE.EXE to install the Eposn

USB Display software.

• OS X: The USB Display setup folder appears on your screen. Select USB Display Installer and

follow the on-screen instructions to install the Epson USB Display software.

Follow any on-screen instructions. You need to install this software only the first time you connect the projector to the computer.

The projector displays the image from your computer's desktop and outputs sound, if your presentation contains audio.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for VGA Video

You can connect the projector to your computer using a VGA computer cable.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's VGA video port. Contact Apple for compatible adapter options.

1. If necessary, disconnect your computer's monitor cable.

2. Connect the VGA computer cable to your computer's monitor port.

3. Connect the other end to a Computer port on the projector.

Note: If you choose the Computer2 port, you may need to change the Monitor Out Port setting in the projector's Extended menu.

4. Tighten the screws on the VGA connector.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for HDMI Video and Audio

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.

Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through the HDMI port.

1. Connect the HDMI cable to your computer's HDMI output port.

2. Connect the other end to one of the projector's HDMI ports.

Note: The projector converts the digital audio signal sent from your computer into a mono analog signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for USB Mouse Control

If you connected your computer to a Computer, USB-B, or HDMI port on the projector, you can set up the remote control to act as a wireless mouse. This lets you control projection at a distance from your computer. To do this, connect the projector to your computer using a USB cable, if it is not connected already.

1. Connect the USB cable to your projector's USB-B port.

2. Connect the other end to any available USB port on your computer.

3. If necessary, configure your computer to work with an external USB mouse. See your computer

documentation for details.

Parent topic: Connecting to Computer Sources

Related references

Projector Parts - Remote Control

Related tasks

Using the Remote Control as a Wireless Mouse

Connecting to a Computer for Sound

If your computer presentation includes sound and you did not connect it to the projector's USB-B or an HDMI port, you can still play sound through the projector's speaker system. Just connect an optional

3.5 mm stereo mini-jack audio cable as described here.

1. Connect the audio cable to your laptop's headphone or audio-out jack, or your desktop's speaker or

audio-out port.

2. Connect the other end to the Audio port that corresponds to the Computer port you are using.

Parent topic: Connecting to Computer Sources

Connecting to Video Sources

Follow the instructions in these sections to connect video devices to the projector.

Connecting to an HDMI Video Source Connecting to an MHL-Compatible Device Connecting to a Component-to-VGA Video Source

Connecting to a Composite Video Source Connecting to an S-Video Video Source Connecting to a Video Source for Sound

Parent topic: Projector Connections

Connecting to an HDMI Video Source

If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable. The HDMI connection provides the best image quality.

1. Connect the HDMI cable to your video source's HDMI output port.

2. Connect the other end to one of the projector's HDMI ports.

Note: The projector converts the digital audio signal sent from your video source into a mono analog signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.

Parent topic: Connecting to Video Sources

Connecting to an MHL-Compatible Device

If you have an MHL-compatible smartphone or tablet, you can connect it to the projector using either an MHL cable or an HDMI cable with a device-compatible MHL adapter. If you have a device with a built-in MHL connector, plug it directly into the HDMI 1 / MHL port.

Note: Some connected devices may not charge when using an MHL adapter.

1. Connect the MHL cable or adapter to your device's Micro-USB port.

2. If you are using an MHL adapter, connect it to an MHL-compatible HDMI cable.

3. Connect the other end of the cable to the projector's HDMI 1 / MHL port.

Note: The projector converts the digital audio signal sent from your video source into a mono analog

signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.

Parent topic: Connecting to Video Sources

Connecting to a Component-to-VGA Video Source

If your video source has component video ports, you can connect it to the projector using an optional component-to-VGA video cable. Depending on your component ports, you may need to use an adapter cable along with a component video cable.

1. Connect the component connectors to your video source's color-coded component video output

ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component video cable.

2. Connect the VGA connector to a Computer port on the projector.

Note: If you choose the Computer2 port, you may need to change the Monitor Out Port setting in

the projector's Extended menu.

3. Tighten the screws on the VGA connector.

If your image colors appear incorrect, you may need to change the Input Signal setting in the projector's Signal menu.

Parent topic: Connecting to Video Sources

Related references

Input Signal Settings - Signal Menu

Connecting to a Composite Video Source

If your video source has a composite video port, you can connect it to the projector using an optional RCA-style video or A/V cable.

1. Connect the cable with the yellow connector to your video source's yellow video output port.

2. Connect the other end to the projector's Video port.

Parent topic: Connecting to Video Sources

Connecting to an S-Video Video Source

If your video source has an S-Video port, you can connect it to the projector using an optional S-Video cable.

1. Connect the S-Video cable to your video source's S-Video output port.

2. Connect the other end to the projector's S-Video port.

Parent topic: Connecting to Video Sources

Connecting to a Video Source for Sound

You can play sound through the projector's speaker system if your video source has audio output ports. If you are projecting video using the Video, S-Video, or a Computer port, connect the projector to the video source using an optional stereo mini-jack audio cable.

Note: If you connected your video source to the projector using an HDMI cable, the audio signal is transferred with the video signal; you do not need an additional cable for sound.

1. Connect the audio cable to your video source's audio-out ports.

2. Connect the other end of the cable to the projector's Audio port that corresponds to the port you are

using for video.

Parent topic: Connecting to Video Sources

Connecting to an External Computer Monitor

If you connected the projector to a computer using a Computer port, you can also connect an external monitor to the projector. This lets you see your presentation on the external monitor even when the projected image is not visible.

If you want to output images to an external monitor when the projector is turned off, you need to select Communication On for the Standby Mode setting and Always On for the A/V Output setting in the projector's menu system.

Note: Monitors that use a refresh rate less than 60 Hz may not be able to display images correctly.

1. Make sure your computer is connected to the projector's Computer port. If there are two computer

ports, make sure you use the Computer1 port.

2. Connect the external monitor's cable to your projector's Monitor Out/Computer 2 port.

Note: You may need to change the Monitor Out Port setting in the projector's Extended menu and restart the computer.

Parent topic: Projector Connections

Connecting to External Speakers

To enhance the sound from your presentation, you can connect the projector to external self-powered speakers. You can control the volume using the projector's remote control.

Note: You can also connect the projector to an amplifier with speakers.

If you want to output audio from the external speakers when the projector is turned off, you need to select Communication On for the Standby Mode setting and Always On for the A/V Output setting in the projector's menu system.

Note: The projector's built-in speaker system is disabled when you connect external speakers.

1. Make sure your computer or video source is connected to the projector with both audio and video

cables as necessary.

2. Locate the appropriate cable to connect your external speakers, such as a stereo mini-jack-to-pin-

jack cable, or another type of cable or adapter.

3. Connect one end of the cable to your external speakers as necessary.

4. Connect the stereo mini-jack end of the cable to your projector's Audio Out port.

Parent topic: Projector Connections

Related references

Projector Setup Settings - Extended Menu

Connecting a Microphone

You can connect a microphone to the projector's Mic port to provide audio support during presentations.

Note: If you want to output audio from the microphone when the projector is turned off, you need to

select Communication On for the Standby Mode setting and Always On for the A/V Output setting in the projector's menu system.

1. Connect the microphone cable to the projector's Mic port.

2. Turn on the microphone, if necessary.

Parent topic: Projector Connections

Related references

Projector Setup Settings - Extended Menu

Connecting to External USB Devices

Follow the instructions in these sections to connect external USB devices to the projector.

USB Device Projection Connecting a USB Device or Camera to the Projector Selecting the Connected USB Source Disconnecting a USB Device or Camera From the Projector

Parent topic: Projector Connections

USB Device Projection

You can project images and other content without using a computer or video device by connecting any of these devices to your projector:

• USB flash drive

• Digital camera or smartphone

• USB hard drive

• Multimedia storage viewer

• USB memory card reader

Note: Digital cameras or smartphones must be USB-mounted devices, not TWAIN-compliant devices, and must be USB Mass Storage Class-compliant.

Note: USB hard drives must meet these requirements:

• USB Mass Storage Class-compliant (not all USB Mass Storage Class devices are supported)

• Formatted in FAT or FAT32

• Self-powered by their own AC power supplies (bus-powered hard drives are not recommended)

• Avoid using hard drives with multiple partitions

You can project slide shows from image files on a connected USB device or memory card reader.

Parent topic: Connecting to External USB Devices

Connecting a USB Device or Camera to the Projector

You can connect your USB device or camera to the projector's USB-A port and use it to project images and other content.

1. If your USB device came with a power adapter, plug the device into an electrical outlet.

2. Connect the USB cable (or USB flash drive or USB memory card reader) to the projector's USB-A

port shown here.

Note: Do not connect a USB hub or a USB cable longer than 10 feet (3 m), or the device may not operate correctly.

3. Connect the other end of the cable (if applicable) to your device.

Parent topic: Connecting to External USB Devices

Selecting the Connected USB Source

You can switch the projector's display to the source you connected to the USB-A port.

1. Make sure the connected USB source is turned on, if necessary.

2. Press the USB button on the remote control.

3. Press the button again to cycle through other USB sources, if available.

Parent topic: Connecting to External USB Devices

Disconnecting a USB Device or Camera From the Projector

When you finish presenting with a connected USB device or camera, you must prepare to disconnect the device from the projector.

1. If the device has a power button, turn off and unplug the device.

2. Disconnect the USB device or camera from the projector.

Parent topic: Connecting to External USB Devices

Connecting to a Document Camera

You can connect a document camera to your projector to project images viewed by the camera.

Depending on your Epson document camera model, do one of the following to connect the document camera to your projector:

• For the Epson DC-06 document camera, locate the USB cable that came with the camera and connect it to the to the projector's USB TypeA port and to the document camera's USB Type B port.

• For the Epson DC-11 document camera, connect it to the projector's Computer or Video port and to the corresponding port on the document camera. See the document camera manual for details.

• For the Epson DC-12 document camera, connect it to the projector's HDMI, Computer, or Video port and to the corresponding port on the document camera. See the document camera manual for details.

• For the Epson DC-20 document camera, connect it to the projector's HDMI, Computer, or Video port and to the corresponding port on the document camera. See the document camera manual for details.

Note: For additional features supported by software, connect your document camera to your computer instead of the projector. See the document camera manual for details.

Parent topic: Projector Connections

Related references

Optional Equipment and Replacement Parts

Installing Batteries in the Remote Control

The remote control uses the two AA batteries that came with the projector.

Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types, or mix new and old batteries.

1. Open the battery cover.

2. Insert the batteries with the + and – ends facing as shown.

3. Close the battery cover and press it down until it clicks into place.

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.

Parent topic: Setting Up the Projector

Using the Projector on a Network

Follow the instructions in these sections to set up your projector for use on a network.

Wired Network Projection Wireless Network Projection Setting Up Projector Network E-Mail Alerts Setting Up Monitoring Using SNMP Controlling a Networked Projector Using a Web Browser Crestron RoomView Support

Wired Network Projection

You can send images to your projector through a wired network. To do this, you connect the projector to your network, and then set up your projector and computer for network projection.

After connecting and setting up the projector as described here, install the network software from the Epson Projector Software CD or download the software as necessary. Use the following software and documentation to set up, control, and monitor network projection:

• EasyMP Network Projection software sets up your computer for network projection. See the EasyMP Network Projection Operation Guide for instructions.

• EasyMP Monitor software (Windows only) lets you monitor and control your projector through the network. You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support (Canada) and select your projector.

• EasyMP Multi PC Projection software allows you to hold interactive meetings by projecting the computer screens of users over a network. See the EasyMP Multi PC Projection Operation Guide for instructions.

• EasyMP Network Updater software (Windows only) allows you to update firmware for a projector over a wired LAN. See the EasyMP Network Updater Operation Guide for instructions. You can download the latest software and documentation from the Epson web site. Go to epson.com/support (U.S.) or

epson.ca/support (Canada) and select your projector.

Note: If your projector is connected via a LAN cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the EasyMP Network Projection software.

Connecting to a Wired Network

Selecting Wired Network Settings

Parent topic: Using the Projector on a Network

Related references

Projector Network Settings - Network Menu

Connecting to a Wired Network

To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10Base-T network cable. To ensure proper data transmission, use a Category 5 shielded cable or better.

1. Connect one end of the network cable to your network hub, switch, or router.

2. Connect the other end of the cable to the projector's LAN port.

Parent topic: Wired Network Projection

Selecting Wired Network Settings

Before you can project from computers on your network, you must select the network settings for the projector using its menu system.

Note: Make sure you already connected the projector to your wired network using the LAN port.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Basic menu and press Enter.

6. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for accessing the projector over the web. (Default user name is EPSONWEB; default password is admin.)

• Projector Keyword lets you turn on a security password to prevent access to the projector by anyone not in the room with it. You must enter a displayed, randomized keyword from a computer using the EasyMP Network Projection software to access the projector.

Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

7. Select the Wired LAN menu and press Enter.

8. If necessary, select IP Settings and press Enter.

9. Select your IP Settings as necessary:

• If your network assigns addresses automatically, turn on the DHCP setting.

• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet

Mask, and Gateway Address as needed.

Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on the remote control. To select a highlighted number, press Enter.

10. To prevent display of the IP address on the standby screen, turn off IP Address Display.

11. When you finish selecting settings, select Complete and follow the on-screen instructions to save

your settings and exit the menus.

Parent topic: Wired Network Projection

Wireless Network Projection

You can send images to your projector through a wireless network. To do this, you must install the Epson 802.11b/g/n wireless LAN module, and then set up your projector and computer for wireless projection.

Note: The wireless LAN module is not included with all projector models.

Note: If your projector is connected via a LAN cable to a network that includes a wireless access point,

you can connect to the projector wirelessly using the EasyMP Network Projection software.

There are two ways to connect the projector to your wireless network:

• Using the optional Quick Wireless Connection USB Key (Windows only)

• Configuring the connection manually using the projector's Network menus

After installing the module and setting up the projector, install the network software from the Epson Projector Software CD or download the software, as necessary. Use the following software and documentation to set up, control, and monitor wireless projection:

• EasyMP Network Projection software sets up your computer for wireless network projection. See the EasyMP Network Projection Operation Guide for instructions.

• EasyMP Monitor software (Windows only) lets you monitor and control your projector through the network. You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support (Canada) and select your projector.

• Projection from iOS or Android devices with the wireless LAN module and free Epson iProjection app; visit epson.com/projectorapp (U.S.) or epson.ca/projectorapp (Canada) for more information.

Installing the Wireless LAN Module Using Quick Wireless Connection (Windows Only) Selecting Wireless Network Settings Manually

Selecting Wireless Network Settings in Windows Selecting Wireless Network Settings in OS X Setting Up Wireless Network Security

Parent topic: Using the Projector on a Network

Related references

Optional Equipment and Replacement Parts Projector Network Settings - Network Menu

Installing the Wireless LAN Module

To use the projector over a wireless network, install the Epson 802.11b/g/n wireless module in the projector. Do not install any other type of wireless module.

Caution: Never remove the module while its indicator light is green or flashing, or while you are projecting wirelessly. You may damage the module or lose data.

Note: The wireless LAN module is not included with all projector models.

1. Turn off the projector and unplug the power cord.

2. Unscrew and remove the cable cover if it is attached (screwdriver not included).

3. Insert the wireless LAN module into the port shown here.

4. Replace the cable cover and tighten the screws.

5. Plug in and turn on the projector.

Parent topic: Wireless Network Projection

Using Quick Wireless Connection (Windows Only)

You can use the Quick Wireless Connection USB Key to quickly connect the projector to a Windows computer wirelessly. Then you can project your presentation and remove the key when you are done.

Note: The Quick Wireless Connection USB key is not included with your projector.

1. Turn on the projector.

2. Connect the USB key to the projector's USB-A port.

You see a projected message that the network information update is complete.

3. Remove the USB key.

4. Now connect the USB key to a USB port on your computer or notebook.

Note: In Windows Vista, if you see the AutoPlay window, select Run LaunchU3.exe, then select Allow on the next screen.

5. Follow the on-screen instructions to install the Quick Wireless Connection driver.

Note: If you see a Windows Firewall message, click Yes to disable the firewall.

After a few minutes, your computer image is displayed by the projector. If it does not appear, press the LAN button on your projector remote control or restart your computer.

6. Run your presentation as necessary.

7. When you finish projecting wirelessly, select the Safely Remove Hardware option in the Windows

taskbar, then remove the USB key from your computer.

Note: You may need to restart your computer to reactivate your wireless LAN connection.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings Manually

Before you can project from your wireless network, you must select the network settings for the projector using its menu system.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Basic menu and press Enter.

6. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for accessing the projector over the web. (Default user name is EPSONWEB; default password is admin.)

Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

7. Select the Wireless LAN menu and press Enter.

8. Select the settings on the Wireless LAN menu as necessary for your network.

9. When you finish selecting settings, select Complete and follow the on-screen instructions to save

your settings and exit the menus.

After you complete the wireless settings for your projector, you need to select the wireless network on your computer.

Wireless LAN Menu Settings

Parent topic: Wireless Network Projection

Wireless LAN Menu Settings

Setting Options Description

Wireless LAN Power On Turns on wireless LAN support

Off

Setting Options Description

Connection Mode Quick Selects the type of wireless

Advanced

connection:

Quick: lets you quickly connect to one computer or use the optional Quick Wireless Connection USB Key to connect

Advanced: lets you connect to multiple computers via a wireless network access point

Channel 1ch In Quick connection mode,

6ch

11ch

selects the frequency band (channel) used by the wireless LAN

SSID Auto Setting On Turns on automatic SSID

Off

searching in Quick connection mode; set to Off when connecting to multiple projectors at the same time

SSID Up 32 alphanumeric characters Sets the SSID (network name) of

the wireless LAN system the projector is connecting to

IP Settings DHCP (On or Off) Selects DHCP if your network

IP Address

Subnet Mask

Gateway Address

assigns addresses automatically, or turns off DHCP so you can enter the network's IP address, subnet mask, and gateway address as needed

SSID Display On Selects whether to display the

Off

SSID on the network standby screen

IP Address Display On Selects whether to display the IP

Off

address on the network standby screen

Parent topic: Selecting Wireless Network Settings Manually

Selecting Wireless Network Settings in Windows

Before connecting to the projector, select the correct wireless network on your computer.

1. To access your wireless utility software, double-click the network icon on the Windows taskbar.

2. Do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name (SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

3. Click Connect.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings in OS X

Before connecting to the projector, select the correct wireless network in OS X.

1. Click the AirPort icon on the menu bar at the top of the screen.

2. Make sure AirPort is turned on, then do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name (SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

Parent topic: Wireless Network Projection

Setting Up Wireless Network Security

You can set up security for your projector to use on the wireless network. Set up one of the following security options to match the settings used on your network:

• WPA/WPA2-PSK security (Advanced connection mode)

• WPA2-PSK security (Advanced and Quick connection mode)

Note: Check with your network administrator for guidance on entering the correct information.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Security menu and press Enter.

5. Select the security settings as necessary to match your network settings.

6. When you finish selecting settings, select Complete and follow the on-screen instructions to save

your settings and exit the menus.

Wireless Security Menu Settings

Parent topic: Wireless Network Projection

Wireless Security Menu Settings

Settings on the Security menu let you select the type of security and security settings that match the network you are connecting the projector to.

Setting Options Description

Security WPA2-PSK and WPA types Selects the type of security used

Passphrase Various keys from 8 to 32 For WPA or WPA2-PSK security,

Parent topic: Setting Up Wireless Network Security

available on the wireless network

characters selects the pre-shared key used

on the network

Setting Up Projector Network E-Mail Alerts

You can set up the projector to send you an e-mail alert over the network if there is a problem with the projector.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Mail menu and press Enter.

5. Turn on Mail Notification.

6. Enter the IP address for the SMTP Server option.

Note: Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x is a number from 0 to 255).

7. Select a number for the SMTP server Port Number, from 1 to 65535 (default is 25).

8. Choose an Address field, enter the e-mail address, and select the alerts you want to receive there.

Repeat for up to three addresses.

Note: Your e-mail address can be up to 32 alphanumeric characters long.

9. When you finish selecting settings, select Complete and follow the on-screen instructions to save

your settings and exit the menus.

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Network Projector E-mail Alert Messages

Parent topic: Using the Projector on a Network

Network Projector E-mail Alert Messages

When a problem occurs with a networked projector, and you selected to receive e-mail alerts, you receive an e-mail containing the following information:

• Epson Projector on the subject line

• The name of the projector experiencing a problem

• The IP address of the affected projector

• Detailed information about the problem

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Parent topic: Setting Up Projector Network E-Mail Alerts

Setting Up Monitoring Using SNMP

Network administrators can install SNMP (Simple Network Management Protocol) software on network computers so they can monitor projectors. If your network uses this software, you can set up the projector for SNMP monitoring.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Others menu and press Enter.

5. Enter up to two IP addresses to receive SNMP notifications, using 0 to 255 for each address field.

Note: Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x is a number from 0 to 255).

6. If available, select the Priority Gateway setting for your network.

7. If your network environment uses an AMX controller, turn on the AMX Device Discovery setting to

allow the projector to be detected.

8. If your network environment uses a Crestron RoomView controller, turn on the Crestron RoomView

setting to allow the projector to be detected.

9. If you are connecting to a network using Bonjour, turn on the Bonjour setting.

10. If you want this projector to receive broadcasted messages over the network, turn on the Message Broadcasting setting. Administrators can broadcast messages over the network using the Message Broadcasting plug-in for EasyMP Monitor (Windows only).

11. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Using the Projector on a Network

Controlling a Networked Projector Using a Web Browser

Once you have connected your projector to your network, you can select projector settings and control projection using a compatible web browser. This lets you access the projector remotely.

Note: The web setup and control features support Microsoft Internet Explorer or later, and Safari on networks that do not use a proxy server for connection. You cannot select all of the projector menu settings or control all projector functions using a web browser.

Note: If you set Standby Mode to Communication On, you can use a web browser to select settings and control projection even if the projector is in standby mode.

1. Make sure the projector is turned on.

2. Start your web browser on a computer connected to the network.

3. Type the projector's IP address into the browser's address box and press the computer's Enter key.

You see the Web Control screen.

Note: You may need to log in before you see the Web Control screen. If you see a log in window, enter your user name and password. (The default user name is EPSONWEB and the default password is admin.)

4. To select projector menu settings, select the name of the menu and follow the on-screen instructions to select settings.

5. To control projection remotely, select the Web Remote option.

You see a screen like this:

1 Power button control

2 Selects Computer port source

3 Selects Video, S-Video, and HDMI port sources

4 Freeze button control

5 A/V Mute button control

6 Page Up and Page Down button controls

7 Searches for sources

8 Selects the network source

9 Selects the USB Display or USB device source

10 Volume button controls

11 Closed Caption control

6. Select the icon corresponding to the projector function you want to control.

Parent topic: Using the Projector on a Network

Related references

Projector Setup Settings - Extended Menu

Crestron RoomView Support

If you are using the Crestron RoomView network monitoring and control system, you can set up your projector for use on the system. Crestron RoomView lets you control and monitor your projector using a web browser.

Note: You cannot use the Epson Web Control feature or the Message Broadcasting plug-in for EasyMP Monitor when you use Crestron RoomView.

For additional information on Crestron RoomView, contact Crestron.

Setting Up Crestron RoomView Support Controlling a Networked Projector Using Crestron RoomView

Parent topic: Using the Projector on a Network

Setting Up Crestron RoomView Support

To set up your projector for monitoring and control using a Crestron RoomView system, make sure your computer and projector are connected to the network. If you are connecting wirelessly, set up the projector using the Advanced network connection mode.

Note: If you want to use the Crestron RoomView system when the projector is turned off, you need to adjust the Standby Mode settings in the ECO menu.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Others menu and press Enter.

5. Set the Crestron RoomView setting to On to allow the projector to be detected.

Note: Enabling Crestron RoomView disables the Epson Message Broadcast feature in the EasyMP Monitor software.

6. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

7. Turn off the projector, then turn it on again to enable the setting.

Parent topic: Crestron RoomView Support

Related references

Projector Setup Settings - Extended Menu

Controlling a Networked Projector Using Crestron RoomView

Once you have set up your projector to use Crestron RoomView, you can control and monitor projection using a compatible web browser.

1. Start your web browser on a computer connected to the network.

2. Type the projector's IP address into the browser's address box and press the computer's Enter key.

You see this screen:

3. Select the input source that you want to control in the Sources List box. You can scroll through available sources using the up and down arrows in the box.

4. To control projection remotely, click the on-screen buttons that correspond to the projector's remote control buttons. You can scroll through button options at the bottom of the screen.

Note: These on-screen buttons do not directly correspond to the projector's remote control buttons:

• OK acts as the Enter button

• Menu displays the projector's menu

5. To view information about the projector, click the Info tab.

6. To change projector, Crestron, and password settings, click the Tools tab, select settings on the displayed screen, and click Send.

7. When you finish selecting settings, click Exit to exit the program.

Parent topic: Crestron RoomView Support

Using Basic Projector Features

Follow the instructions in these sections to use your projector's basic features.

Turning On the Projector Turning Off the Projector Selecting the Language for the Projector Menus Image Shape Resizing the Image with the Wide and Tele Buttons Adjusting the Image Position Focusing the Image Remote Control Operation Selecting an Image Source Projection Modes Image Aspect Ratio Color Mode Controlling the Volume with the Volume Buttons Projecting a PC Free Presentation

Turning On the Projector

Turn on the computer or video equipment you want to use before you turn on the projector so it can display the image source.

1. Connect the power cord to the projector's power inlet.

2. Plug the power cord into an electrical outlet.

Note: With Direct Power On turned on, the projector turns on as soon as you plug it in.

The projector's power light turns blue. This indicates that the projector is receiving power.

3. Press the power button on the projector or the remote control to turn on the projector.

The projector beeps and the Status light flashes blue as the projector warms up. Once the projector is warmed up, the Status light stops flashing and turns blue.

Warning: Never look into the projector lens when the lamp is on. This can damage your eyes and is especially dangerous for children.

If you do not see a projected image right away, try the following:

• Turn on the connected computer or video device.

• Insert a DVD or other video media and press the play button, if necessary.

• Press the Source Search button on the projector or remote control to detect the video source.

Parent topic: Using Basic Projector Features

Turning Off the Projector

Before turning off the projector, shut down any computer connected to it so you can see the computer display during shutdown.

Note: Turn off this product when not in use to prolong the life of the projector. Lamp life will vary depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.

Note: When using the A/V Mute feature, the projector lamp is still on. To turn off the lamp, turn off the projector.

1. Press the power button on the projector or the remote control.

The projector displays a shutdown confirmation screen.

2. Press the power button again. (To leave it on, press any other button.)

The projector beeps twice, the lamp turns off, and the Status light turns off.

Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the projector for transport right away (if necessary).

3. To transport or store the projector, make sure the Status light is off, then unplug the power cord.

Caution: To avoid damaging the projector or lamp, never unplug the power cord when the Status light is on or flashing.

4. Parent topic: Using Basic Projector Features

Related references

Projector Setup Settings - Extended Menu

Selecting the Language for the Projector Menus

If you want to view the projector's menus and messages in another language, you can change the Language setting.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select the Language setting and press Enter.

5. Select the language you want to use and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Using Basic Projector Features

Image Shape

You can project an evenly rectangular image by placing the projector directly in front of the center of the screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off to the side, you may need to correct the image shape for the best display quality.

Correcting Image Shape with the Keystone Buttons Correcting Image Shape with Quick Corner

Parent topic: Using Basic Projector Features

Correcting Image Shape with the Keystone Buttons

You can use the projector's keystone correction buttons to correct the shape of an image that is unevenly rectangular on the sides.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display the pattern by pressing the User button on the remote control (if the test

pattern is assigned to this button).

2. Press one of these keystone buttons on the control panel to display the Keystone adjustment screen.

3. Press a keystone button on the projector's control panel to adjust the image shape.

Note: The horizontal keystone adjustment buttons are labeled Wide and Tele.

After correction, your image is slightly smaller.

Note: If the projector is installed out of reach, you can also correct the image shape with the remote control using the Keystone settings in the projector menus.

Parent topic: Image Shape

Related references

Projector Feature Settings - Settings Menu

Correcting Image Shape with Quick Corner

You can use the projector's Quick Corner setting to correct the shape and size of an image that is unevenly rectangular on all sides.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display the pattern by pressing the User button on the remote control (if the test

pattern is assigned to this button).

2. Press the Menu button.

3. Select the Settings menu and press Enter.

4. Select the Keystone setting and press Enter.

5. Select the Quick Corner setting and press Enter. Then press Enter again.

You see the Quick Corner adjustment screen:

6. Use the arrow buttons on the projector or the remote control to select the corner of the image you want to adjust. Then press Enter.

7. Press the arrow buttons to adjust the image shape as necessary.

8. When you are finished, press Esc.

Parent topic: Image Shape

Resizing the Image with the Wide and Tele Buttons

1. Turn on the projector and display an image.

2. To enlarge the image size, press the Wide button on the projector's control panel.

3. To reduce the image size, press the Tele button.

After you adjust the image size, the Image Shift screen is displayed automatically for adjusting the image position.

Note: If the projector is installed out of reach, you can also adjust the image size with the remote control using the Zoom setting in the projector menus.

Parent topic: Using Basic Projector Features

Related references

Projector Feature Settings - Settings Menu

Related tasks

Adjusting the Image Position

You can use the Image Shift feature to adjust the image position without moving the projector.

Note: This feature is not available if the Zoom option is set to the widest setting.

1. Turn on the projector and display an image.

2. Adjust the image size using the Wide and Tele buttons.

After you adjust the image size, the Image Shift screen is displayed automatically.

3. Use the arrow buttons on the projector or remote control to adjust the image position.

Note: You can also use the Settings menu to adjust the Image Shift setting.

Parent topic: Using Basic Projector Features

Related references

Projector Feature Settings - Settings Menu

Focusing the Image

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

2. Slide the switch to open the air filter cover on the side of the projector.

3. Raise or lower the focus lever to sharpen the image.

Parent topic: Using Basic Projector Features

Related references

Projector Feature Settings - Settings Menu

Remote Control Operation

The remote control lets you control the projector from almost anywhere in the room, up to 19.7 feet (6 m) away. You can point it at the screen or board, or the front or back of the projector.

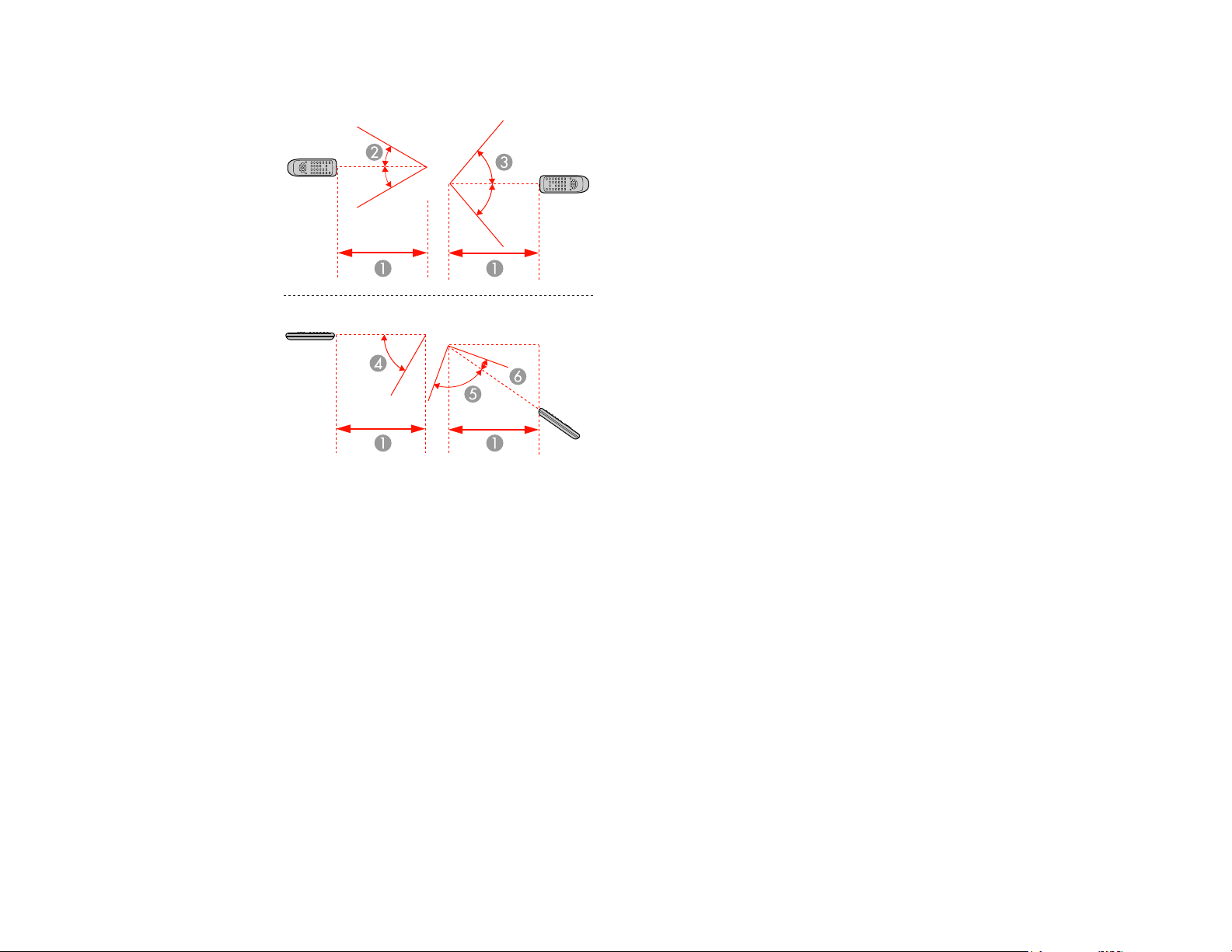

Make sure that you aim the remote control at the projector's receivers within the angles listed here.

1 19.7 feet (6 m)

2 ± 30°

3 ± 55°

4 ± 60°

5 ± 75°

6 ± 15°

Note: Avoid using the remote control in conditions with bright fluorescent lights or in direct sunlight, or the projector may not respond to commands. If you will not use the remote control for a long time, remove the batteries.

Using the Remote Control as a Wireless Mouse Using the Remote Control as a Pointer

Parent topic: Using Basic Projector Features

Using the Remote Control as a Wireless Mouse

You can use the projector's remote control as a wireless mouse so you can control projection at a distance from the computer.

1. Connect the projector to a computer using the projector's USB-B, Computer, or HDMI port to display video.

2. If you connected your computer to the Computer or HDMI port, also connect a USB cable to the projector's USB-B port and to a USB port on your computer (for wireless mouse support).

3. Start your presentation.

4. Use the following buttons on the remote control to control your presentation:

• To move through slides or pages, press the up or down Page buttons.

• To move the cursor on the screen, use the arrow buttons.

• To left-click, press the button once (press it twice to double-click).

• To right-click, press the Esc button.

• To drag-and-drop, hold the button as you move the cursor with the arrow buttons, then release

at the destination.

Parent topic: Remote Control Operation

Related tasks

Connecting to a Computer for USB Mouse Control

Using the Remote Control as a Pointer

You can use the projector's remote control as a pointer to help you call out important information on the screen. The default pointer shape is an arrow, but you can select an alternative shape using the Settings menu.

1. Press the Pointer button on the remote control.

2. Use the arrow buttons on the remote control to move the pointer on the screen.

3. Press Esc to clear the pointer from the screen.

Parent topic: Remote Control Operation

Related references

Projector Feature Settings - Settings Menu

Selecting an Image Source

If you connected multiple image sources to the projector, such as a computer and DVD player, you may want to switch from one image source to the other.

1. Make sure the connected image source you want to use is turned on.

2. For video image sources, insert a DVD or other video media and press its play button, if necessary.

3. Do one of the following:

• Press the Source Search button on the projector or remote control until you see the image from

the source you want.

• Press the button for the source you want on the remote control. If there is more than one port for

that source, press the button again to cycle through the sources.

1 Computer port sources

2 Video and HDMI sources

3 USB port sources (computer display and external devices)

4 Network source (LAN)

Parent topic: Using Basic Projector Features

Projection Modes

Depending on how you positioned the projector, you may need to change the projection mode so your images project correctly.

• Front/Upside Down (default setting) flips the image over top-to-bottom to project upside-down from a

wall or ceiling mount.

• Front lets you project from a table in front of the screen.

• Rear/Upside Down flips the image over top-to-bottom and horizontally to project from the wall or

ceiling and behind a translucent screen.

• Rear flips the image horizontally to project from behind a translucent screen.

You can change the projection mode using the remote control or by changing the Projection setting in the Extended menu.

Changing the Projection Mode Using the Remote Control Changing the Projection Mode Using the Menus

Parent topic: Using Basic Projector Features

Changing the Projection Mode Using the Remote Control

You can change the projection mode to flip the image over top-to-bottom.

1. Turn on the projector and display an image.

2. Hold down the A/V Mute button on the remote control for five seconds.

The image disappears briefly and reappears flipped top-to-bottom.

3. To change projection back to the original mode, hold down the A/V Mute button for five seconds again.

Parent topic: Projection Modes

Changing the Projection Mode Using the Menus

You can change the projection mode to flip the image over top-to-bottom and/or left-to-right using the projector menus.

1. Turn on the projector and display an image.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select the Projection setting and press Enter.

5. Select a projection mode and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Projection Modes

Image Aspect Ratio

The projector can display images in different width-to-height ratios called aspect ratios. Normally the input signal from your video source determines the image's aspect ratio. However, for certain images you can change the aspect ratio to fit your screen by pressing a button on the remote control.

If you always want to use a particular aspect ratio for a certain video input source, you can select it using the projector's menus.

Changing the Image Aspect Ratio Available Image Aspect Ratios

Parent topic: Using Basic Projector Features

Related references

Image Quality Settings - Image Menu

Changing the Image Aspect Ratio

You can change the aspect ratio of the displayed image to resize it.

1. Turn on the projector and switch to the image source you want to use.

2. Press the Aspect button on the remote control.

The shape and size of the displayed image changes, and the name of the aspect ratio appears briefly on the screen.

3. To cycle through the available aspect ratios for your input signal, press the Aspect button repeatedly.

Parent topic: Image Aspect Ratio

Available Image Aspect Ratios

You can select the following image aspect ratios, depending on the input signal from your image source.

Note: Black bands and cropped images may project in certain aspect ratios, depending on the aspect ratio and resolution of your input signal.

PowerLite 575W/585W

Aspect ratio setting Description

Auto Automatically sets the aspect ratio according to the input signal and

the Resolution setting.

Normal Displays images using the full projection area and maintains the

aspect ratio of the image.

16:9 Converts the aspect ratio of the image to 16:9.

Full Displays images using the full width of the projection area, but does

not maintain the aspect ratio.

Zoom Displays images using the full width of the projection area and

maintains the aspect ratio of the image.

Native Displays images as is (aspect ratio and resolution are maintained).

PowerLite 570

Aspect ratio setting Description

Auto Automatically sets the aspect ratio according to the input signal and

the Resolution setting.

Normal Displays images using the full projection area and maintains the

aspect ratio of the image.

4:3 Displays images using the full projection area at 4:3 aspect ratio.

16:9 Converts the aspect ratio of the image to 16:9.

Note: The Auto aspect ratio setting is available only for HDMI image sources.

Parent topic: Image Aspect Ratio

Color Mode

The projector offers different Color Modes to provide optimum brightness, contrast, and color for a variety of viewing environments and image types. You can select a mode designed to match your image and environment, or experiment with the available modes.

If you always want to use a particular color mode for a certain video input source, you can select it using the projector menus.

Changing the Color Mode Available Color Modes Turning On Auto Iris

Parent topic: Using Basic Projector Features

Related references

Image Quality Settings - Image Menu

Changing the Color Mode

You can change the projector's Color Mode using the remote control to optimize the image for your viewing environment.

1. Turn on the projector and switch to the image source you want to use.

2. If you are projecting from a DVD player or other video source, insert a disc or other video media and press the play button, if necessary.

3. Press the Color Mode button on the remote control to change the Color Mode.

The image appearance changes and the name of the Color Mode appears briefly on the screen.

4. To cycle through all the available Color Modes for your input signal, press the Color Mode button repeatedly.

Parent topic: Color Mode

Available Color Modes

You can set the projector to use these Color Modes, depending on the input source you are using:

Color Mode Description

Presentation Best for color presentations in a bright room

Theatre Best for movies projected in a dark room

Sports Best for television images in a bright room

Photo Best for still images projected in a bright room

sRGB Best for standard sRGB computer displays

Blackboard Best for presentations onto a green chalkboard (adjusts the colors

Whiteboard Best for presentations onto a whiteboard (adjusts the colors

Dynamic Best for video games in a bright room

Parent topic: Color Mode

Turning On Auto Iris

In certain color modes, you can turn on the Auto Iris setting to automatically optimize the image based on the brightness of the content you project.

1. Turn on the projector and switch to the image source you want to use.

2. Press the Menu button.

accordingly)

3. Select the Image menu and press Enter.

4. Select the Auto Iris setting and select On.

Note: You can turn Auto Iris on or off for each Color Mode that supports the feature. You cannot

change the Auto Iris setting when you are using a Closed Caption setting.

5. Press Menu or Esc to exit the menus.

Parent topic: Color Mode

Controlling the Volume with the Volume Buttons

You can use the Volume buttons on the remote control to adjust the volume as you project a presentation with audio. The volume buttons control the projector’s internal speaker system or any external speakers you connected to the projector.

You must adjust the volume separately for each connected input source.

1. Turn on the projector and start a presentation that includes audio.

2. To lower or raise the volume, press the Volume buttons on the remote control.

A volume gauge appears on the screen.

3. To set the volume to a specific level for an input source, use the projector menus.

Parent topic: Using Basic Projector Features

Related references

Projector Feature Settings - Settings Menu

Projecting a PC Free Presentation

You can use your projector's PC Free feature whenever you connect a USB device that contains compatible image or movie files. This lets you quickly and easily display and control them using the projector's remote control. You can also display a slide show of the images.

Supported PC Free File Types Starting a PC Free Slide Show Starting a PC Free Movie Presentation PC Free Display Options

Parent topic: Using Basic Projector Features

Related tasks

Connecting a USB Device or Camera to the Projector

Supported PC Free File Types

You can project these types of files using the projector's PC Free feature.

Note: For best results, place your files on media that is formatted in FAT16/32. If you have trouble projecting from media formatted for non-Windows file systems, try formatting the media for Windows instead. You may not be able to use the security features on certain USB storage devices with PC Free features.

File contents File type Details

(extension)

Image .jpg Make sure the file is not:

• CMYK format

• Progressive format

• Highly compressed

• Above 8192 × 8192 resolution

.bmp Make sure the file resolution is not above 1280 × 800

.gif Make sure the file is not:

• Above 1280 × 800 resolution

• Animated

.png Make sure the file resolution is not above 1280 × 800

Movie .avi Make sure the file is not:

• Saved with an audio codec other than linear PCM or ADPCM

• Above 1280 × 720 resolution

Parent topic: Projecting a PC Free Presentation

Starting a PC Free Slide Show

After connecting a USB device or digital camera to the projector, you can switch to the USB input source and start your slide show.

Note: You can change the PC Free operation options or add special effects by highlighting Option at the bottom of the screen and pressing Enter.

1. Press the USB button on the projector remote control.

The PC Free screen appears.

2. Do the following as necessary to locate your files:

• If you need to display files inside a subfolder on your device, press the arrow buttons to highlight

the folder and press the Enter button.

• To move back up a folder level on your device, highlight Back to Top and press Enter.

• To view additional files in a folder, highlight Next page or Previous page and press Enter.

3. Do one of the following:

• To display an individual image, press the arrow buttons to highlight the image and press Enter.

(Press the Esc button to return to the file list screen.)

• To display a slide show of all the images in a folder, press the arrow buttons to highlight the

Slideshow option at the bottom of the screen and press Enter.

Note: If any file names are longer than 8 characters or include unsupported symbols, the file names

may be shortened or changed only in the screen display.

4. While projecting, use the following commands to control the display as necessary:

• To rotate a displayed image, press the up or down arrow button.

• To move to the next or previous image, press the left or right arrow button.

5. To stop the display, follow the on-screen instructions or press the Esc button.

Parent topic: Projecting a PC Free Presentation

Starting a PC Free Movie Presentation

After connecting a USB device or digital camera to the projector, you can switch to the USB input source and start your movie.

Note: You can change the PC Free operation options by highlighting Option at the bottom of the screen and pressing Enter.

1. Press the USB button on the projector remote control.

The PC Free screen appears.

2. Do the following as necessary to locate your files:

• If you need to display files inside a subfolder on your device, press the arrow buttons to highlight

the folder and press the Enter button.

• To move back up a folder level on your device, highlight Back to Top and press Enter.

• To view additional files in a folder, highlight Next page or Previous page and press Enter.

3. To play back a movie, press the arrow buttons to highlight the file and press Enter.

Note: If any file names are longer than 8 characters or include unsupported symbols, the file names may be shortened or changed only in the screen display. If you want to play back all the movies in a folder in sequence, select the Slideshow option at the bottom of the screen.

4. To stop movie playback, press the Esc button, highlight Exit, and press Enter.

Parent topic: Projecting a PC Free Presentation

PC Free Display Options

You can select these display options when using the projector's PC Free feature.

Setting Options Description

Display Order Name Order Displays files in name order

Sort Order In Ascending Sorts files in first-to-last order

Date Order Displays files in date order

In Descending Sorts files in last-to-first order

Continuous Play On Displays a slide show continuously

Off Displays a slide show one time through

Screen Switching No Does not display the next file automatically Time

1 Second to 60 Seconds Displays files for the selected time and

switches to the next file automatically; high resolution images may switch at a slightly slower rate

Setting Options Description

Effect Wipe Transitions between images with a wipe effect

Dissolve Transitions between images with a dissolve

effect

Random Transitions between images using a random

variety of effects

Parent topic: Projecting a PC Free Presentation

Adjusting Projector Features

Follow the instructions in these sections to use your projector's feature adjustments.

Shutting Off the Picture and Sound Temporarily Stopping Video Action Temporarily Zooming Into and Out of Images Projector Security Features Creating a User Pattern to Display

Shutting Off the Picture and Sound Temporarily

You can temporarily turn off the projected picture and sound if you want to redirect your audience's attention during a presentation. Any sound or video action continues to run, however, so you cannot resume projection at the point that you stopped it.

If you want to display an image such as a company logo or picture when the presentation is stopped, you can set up this feature using the projector's menus.

1. Press the A/V Mute button on the remote control to temporarily stop projection and mute any sound.

2. To turn the picture and sound back on, press A/V Mute again.

Parent topic: Adjusting Projector Features

Stopping Video Action Temporarily

You can temporarily stop the action in a video or computer presentation and keep the current image on the screen. Any sound or video action continues to run, however, so you cannot resume projection at the point that you stopped it.

1. Press the Freeze button on the remote control to stop the video action.

2. To restart the video action in progress, press Freeze again.

Parent topic: Adjusting Projector Features

Zooming Into and Out of Images

You can draw attention to parts of a presentation by zooming into a portion of the image and enlarging it on the screen.

1. Press the E-Zoom + button on the remote control.

You see a crosshair on the screen indicating the center of the zoom area.

2. Use the following buttons on the remote control to adjust the zoomed image:

• Use the arrow buttons to position the crosshair in the image area you want to zoom into.

• Press the E-Zoom + button repeatedly to zoom into the image area, enlarging it as necessary.

Press and hold the E-Zoom + button to zoom in more quickly.

• To pan around the zoomed image area, use the arrow buttons.

• To zoom out of the image, press the E-Zoom – button as necessary.

• To return to the original image size, press Esc.

Parent topic: Adjusting Projector Features

Projector Security Features

You can secure your projector to deter theft or prevent unintended use by setting up the following security features:

• Password security to prevent the projector from being turned on, and prevent changes to the startup

screen and other settings.

• Button lock security to block operation of the projector using the buttons on the control panel.

• Security cabling to physically cable the projector in place.

Password Security Types Locking the Projector's Buttons Installing a Security Cable

Parent topic: Adjusting Projector Features

Password Security Types

You can set up these types of password security using one shared password:

• Power On Protection password prevents anyone from using the projector without first entering a

password.

• User's Logo Protection password prevents anyone from changing the custom screen the projector

can display when it turns on or when you use the A/V Mute feature. The presence of the custom screen discourages theft by identifying the projector’s owner.

• Network Protection password prevents anyone from changing the network settings in the projector

menus.

Setting a Password Selecting Password Security Types Entering a Password to Use the Projector Saving a User's Logo Image to Display

Parent topic: Projector Security Features

Setting a Password

To use password security, you must set a password.

100

Epson PowerLite 585W SMART User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction to Your Projector

Projector Features

Product Box Contents

Additional Components

Optional Equipment and Replacement Parts

Warranty and Registration Information

Notations Used in the Documentation

Where to Go for Additional Information

Projector Part Locations

Projector Parts - Front/Top

Projector Parts - Side

Projector Parts - Interface Panel
