Epson M8000N User Manual

Network Guide
NPD3934-00 EN
EPSON Network Guide

Copyright and Trademarks

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. No patent liability is assumed with respect to the use of the information contained herein. Neither is any liability assumed for damages resulting from the use of the information contained herein.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.
Seiko Epson Corporation and its affiliates shall not be liable against any damages or problems arising from the use of any options or any consumable products other than those designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation.
Features Zoran Corporation Integrated Print System (IPS) for print language emulation.
NEST Office Kit Copyright © 1996, Novell, Inc. All rights reserved.
A part of the ICC Profile contained within this product was created by Gretag Macbeth ProfileMaker. Gretag Macbeth is the registered trademark of Gretag Macbeth Holding AG Logo. ProfileMaker is a trademark of LOGO GmbH.
IBM and PS/2 are registered trademarks of International Business Machines Corporation.
Microsoft
Apple Apple Chancery, Chicago, Geneva, Hoefler Text, Monaco and New York are trademarks or registered trademarks of Apple, Inc.
EPSON and EPSON ESC/P are registered trademarks and EPSON AcuLaser and EPSON ESC/P 2 are trademarks of Seiko Epson Corporation.
Monotype is a trademark of Monotype Imaging, Inc. registered in the United States Patent and Trademark Office and may be registered in certain jurisdictions.
The UFST printer devices.
MicroType significantly reduce font file sizes.
, Windows®, and Windows Vista® are registered trademarks of Microsoft Corporation.
®
, Macintosh®, Mac®, Mac OS®, AppleTalk®, and Bonjour® are registered trademarks of Apple, Inc.
®
(Universal Font Scaling Technology™) product is Monotype Imaging’s scalable font rendering subsystem for
®
font compression technology from Monotype Imaging works with the UFST® font rendering subsystem to
®
Monotype Imaging’s MicroType
CG Omega, CG Times, Garamond Antiqua, Garamond Halbfett, Garamond Kursiv, Garamond Halbfett Kursiv are trademarks of Monotype Imaging, Inc. and may be registered in certain jurisdictions.
font format is a MicroType-compressed font format.
®
Copyright and Trademarks 2
EPSON Network Guide
Scalable type outlines are licensed from Monotype Imaging, Inc.
Albertus, Arial, Coronet, Gillsans, and Times New Roman are trademarks of The Monotype Corporation registered in the United States Patent and Trademark Office and may be registered in certain jurisdictions.
ITC Avant Garde Gothic, ITC Bookman, ITC Zapf-Chancery, and ITC ZapfDingbats are trademarks of International Typeface Corporation registered in the United States Patent and Trademark Office and may be registered in certain jurisdictions.
Clarendon, Helvetica, Palatino, Times and Univers are registered trademarks of Heidelberger Druckmaschinen AG, which may be registered in certain jurisdictions, exclusively licensed through Linotype Library GmbH, a wholly owned subsidiary of Heidelberger Druckmaschinen AG.
Wingdings is a registered trademark of Microsoft Corporation in the United States and other countries.
Marigold is a trademark of Arthur Baker and may be registered in some jurisdictions.
Antique Olive is a trademark of Marcel Olive and may be registered in certain jurisdictions.
HP and HP LaserJet are registered trademarks of the Hewlett-Packard Company.
PCL is a registered trademark of Hewlett-Packard Company.
Adobe, the Adobe logo and PostScript3 are trademarks of Adobe Systems Incorporated, which may be registered in certain jurisdictions.
CompactFlash is a trademark of SanDisk Corporation, registered in the United States and other countries.
This product includes software developed by the University of California, Berkeley, and its contributors.
This product includes RSA BSAFE RSA, BSAFE are either registered trademarks or trademarks of RSA Security Inc. in the United States and/or other countries. RSA Security Inc. All rights reserved.
Info-ZIP copyright and license
This is version 2007-Mar-4 of the Info-ZIP license. The definitive version of this document should be available at ftp:// ftp.info-zip.org/pub/infozip/license.html indefinitely and a copy at http://www.info-zip.org/pub/infozip/license.html.
Cryptographic software from RSA Security Inc.
®
Copyright © 1990-2007 Info-ZIP. All rights reserved.
For the purposes of this copyright and license, “Info-ZIP” is defined as the following set of individuals:
Copyright and Trademarks 3
EPSON Network Guide
Mark Adler, John Bush, Karl Davis, Harald Denker, Jean-Michel Dubois, Jean-loup Gailly, Hunter Goatley, Ed Gordon, Ian Gorman, Chris Herborth, Dirk Haase, Greg Hartwig, Robert Heath, Jonathan Hudson, Paul Kienitz, David Kirschbaum, Johnny Lee, Onno van der Linden, Igor Mandrichenko, Steve P. Miller, Sergio Monesi, Keith Owens, George Petrov, Greg Roelofs, Kai Uwe Rommel, Steve Salisbury, Dave Smith, Steven M. Schweda, Christian Spieler, Cosmin Truta, Antoine Verheijen, Paul von Behren, Rich Wales, Mike White.
Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the above disclaimer and the following restrictions:
Redistributions of source code (in whole or in part) must retain the above copyright notice, definition, disclaimer, and
this list of conditions.
Redistributions in binary form (compiled executables and libraries) must reproduce the above copyright notice,
definition, disclaimer, and this list of conditions in documentation and/or other materials provided with the distribution. The sole exception to this condition is redistribution of a standard UnZipSFX binary (including SFXWiz) as part of a self-extracting archive; that is permitted without inclusion of this license, as long as the normal SFX banner has not been removed from the binary or disabled.
Altered versions--including, but not limited to, ports to new operating systems, existing ports with new graphical
interfaces, versions with modified or added functionality, and dynamic, shared, or static library versions not from Info-ZIP--must be plainly marked as such and must not be misrepresented as being the original source or, if binaries, compiled from the original source. Such altered versions also must not be misrepresented as being Info-ZIP releases--including, but not limited to, labeling of the altered versions with the names “Info-ZIP” (or any variation thereof, including, but not limited to, different capitalizations), “Pocket UnZip,” “WiZ” or “MacZip” without the explicit permission of Info-ZIP. Such altered versions are further prohibited from misrepresentative use of the Zip-Bugs or Info-ZIP e-mail addresses or the Info-ZIP URL(s), such as to imply Info-ZIP will provide support for the altered versions.
Info-ZIP retains the right to use the names “Info-ZIP,” “Zip,” “UnZip,” “UnZipSFX,” “WiZ,” “Pocket UnZip,” “Pocket Zip,”
and “MacZip” for its own source and binary releases.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks.
Copyright © 2008 Seiko Epson Corporation. All rights reserved.
Copyright and Trademarks 4
EPSON Network Guide

Contents

Safety Instructions
Warnings, Cautions, and Notes............................................................ 9
Chapter 1 Introduction
About Your Printer..................................................................... 10
About This Guide...................................................................... 10
Operating Environment................................................................. 11
For users of printers supporting NetWare queue-based printing........................... 11
For users of printers not supporting NetWare queue-based printing........................ 13
Inkjet printers/Large format inkjet printers............................................. 14
Features of the Network Interface......................................................... 14
Network Interface Operation............................................................. 15
Status light........................................................................ 15
Network connector................................................................. 16
About the Software..................................................................... 16
Terms and Concepts.................................................................... 17
Chapter 2 How To
Overview............................................................................. 18
Selecting a Printing Method.............................................................. 19
Printing from Windows............................................................. 19
Printing from Macintosh............................................................ 19
Features of the Printing Methods..................................................... 20
Installing Components on Your Computer................................................. 22
About Installing Components on Your Computer....................................... 22
Windows Vista/Server 2008. . . . . . . . . ................................................. 22
Windows XP...................................................................... 24
Windows Me/98 ................................................................... 26
Windows Server 2003. .............................................................. 28
Windows 2000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Windows NT 4.0................................................................... 32
Macintosh........................................................................ 36
Contents 5
EPSON Network Guide
Setting Up the Network Interface......................................................... 36
Connecting the Network Interface to the Network....................................... 36
Configuring the Network Interface (For Windows Users)................................. 37
Configuring the Network Interface (For Macintosh Users)................................ 41
Installing the Printer Driver.............................................................. 45
About Installing the Printer Driver.................................................... 45
Windows Vista/Server 2008. . . . . . . . . ................................................. 45
Windows XP...................................................................... 50
Windows Me/98................................................................... 56
Windows Server 2003. .............................................................. 58
Windows 2000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Windows NT 4.0................................................................... 69
Macintosh........................................................................ 71
Settings for NetWare Users.............................................................. 74
Overview......................................................................... 74
Configuring the Network Interface.................................................... 74
Chapter 3 Network Software
EpsonNet Config for Windows. .......................................................... 91
About EpsonNet Config............................................................. 91
System Requirements............................................................... 91
Installing EpsonNet Config.......................................................... 92
Accessing the EpsonNet Config User’s Guide........................................... 92
EpsonNet Config for Macintosh.......................................................... 93
About EpsonNet Config............................................................. 93
System Requirements............................................................... 93
Installing EpsonNet Config.......................................................... 94
Accessing the EpsonNet Config User’s Guide........................................... 94
EpsonNet Config with Web Browser...................................................... 95
About EpsonNet Config............................................................. 95
Configuring the Network Interface Using Web-Based EpsonNet Config..................... 96
Opening Screen................................................................... 100
EpsonNet Print....................................................................... 102
About EpsonNet Print............................................................. 102
System Requirements.............................................................. 102
Installing EpsonNet Print........................................................... 103
For Windows Vista/XP/Server 2008/Server 2003/2000/NT 4.0 Users....................... 103
For Windows Me/98/95 Users....................................................... 111
Contents 6
EPSON Network Guide
Configuring the Printer Port. . ...................................................... 116
Chapter 4 Troubleshooting
General Problems..................................................................... 118
Cannot configure the network interface or cannot print from the network.................. 118
Cannot print even if you have assigned the IP address to the computer and the printer........ 118
Unable to start EpsonNet Config..................................................... 118
The message “EpsonNet Config cannot be used because no network is installed.” appears when
you start EpsonNet Config........................................................ 119
The message “Could not complete communicating configuration data” appears when you send
settings to the network interface.. . . . . . . ........................................... 119
Unable to start EpsonNet Config with Web Browser..................................... 119
The Model Name and IP Address do not appear in the EpsonNet Config dialog box.......... 120
An extra account is generated when using the dial-up network. ........................... 120
Problems Specific to Your Network Environment .......................................... 120
Windows Me/98 environment....................................................... 120
Windows 2000/NT environment.................................................... 121
Macintosh environment............................................................ 122
NetWare environment............................................................. 122
Printing a Network Status Sheet......................................................... 123
Printing a Network Status Sheet (Large Format Inkjet Printers)............................... 124
Initializing Your Printer................................................................ 125
Reformatting the Hard Disk Drive....................................................... 125
Chapter 5 Tips for Administrator
Setting an IP Address on the Printer’s Control Panel........................................ 126
Network Menu................................................................... 127
AUX Menu...................................................................... 128
Setting an IP Address on the Printer’s Control Panel (Large Format Inkjet Printers).............. 129
Network Setup Menu.............................................................. 131
Instructions on Using a Dial-Up Router................................................... 131
Function of Universal Plug and Play...................................................... 132
Setting up the device by using WSD (Windows Vista)....................................... 133
Setting up the printer that is connected via a different router on the network................ 134
Uninstalling Software.................................................................. 134
Windows Vista/Server 2008. . . . . . . . . . . . . . . . . . . . . .................................... 134
Contents 7
EPSON Network Guide
Windows Me/98/95/2000/NT 4.0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Windows XP/Server 2003.......................................................... 135
Macintosh....................................................................... 135
Index
Contents 8

Safety Instructions

Warnings, Cautions, and Notes

Warnings
w
must be followed carefully to avoid bodily injury.
Cautions
c
must be observed to avoid damage to your equipment.
Notes
contain important information and useful tips on the operation of your printer.
EPSON Network Guide
Safety Instructions 9
EPSON Network Guide
Chapter 1

Introduction

About Your Printer

Your printer has a built-in Ethernet interface and can connect anywhere on your network using 10Base-T or 100Base-TX. (On some models, 1000Base-T is also supported.) The built-in Ethernet interface, which is called the network interface in this manual, automatically selects the correct standard when it connects to a network. In addition, it supports and automatically selects the IEEE
802.2, IEEE 802.3, Ethernet II, and Ethernet SNAP network protocols.
Because the network interface supports multiple protocols and automatically detects protocols on your network, you can print from Microsoft
Windows® and Apple® Macintosh® applications.
®
Use the Software CD-ROM to easily configure the network interface for use on the TCP/IP network and install the printer driver. You can use the printer on the TCP/IP network at once.
If you want to configure the network interface for protocols such as TCP/IP, NetWare, NetBEUI, AppleTalk product, to quickly and easily configure the network interface to use those protocols.
Note:
The EpsonNet Config utility configures the network interface to work only with protocols that exist
on your network. This does not imply that you can use all of the above-mentioned protocols on your network or operating system. The protocols that the network interface can use may vary depending on the operating system and the network configuration.
Some printers do not support NetWare queue-based printing. See the manual shipped with your
printer for details.
, IPP, and SNMP, use EpsonNet Config, the configuration utility provided with your
®

About This Guide

This Network Guide contains information about using the network interface on a network. It includes how to set up the network interface, install the configuration software, and modify network settings of your printer and computers.
For information about your printer, see your User’s Guide.
Introduction 10
EPSON Network Guide
Note:
To read the online guide, you must have Adobe Reader or Adobe Acrobat Reader installed on your
computer.
This guide is written for network administrators, and many of the steps included here require
detailed network knowledge and administrator rights.
The term “network administrator” refers to the person responsible for maintaining the network.
“Administrator” is synonymous with “Supervisor” in this guide.
The term “network interface” refers to the built-in Ethernet interface of the printer in this guide.
Some screen shots in this guide may list a printer name other than your printer. This difference does
not alter the instructions.
The supported operating systems are different depending on the printer. See your printer’s User’s
Guide for the supported operating systems.

Operating Environment

The network interface supports the following environments.

For users of printers supporting NetWare queue-based printing

OS Version Protocol
Windows Vista
Windows XP (Home, Professional)
Windows Server 2008
Windows Server 2003
Windows 2000 (Professional, Server)
Windows Me - TCP/IP (using EpsonNet Print)
- TCP/IP (using LPR, Standard TCP/IP Port, or EpsonNet Print)
IPP
IPP
NetBEUI
Windows 98
Windows 98 SE
- TCP/IP (using EpsonNet Print)
NetBEUI
Introduction 11
OS Version Protocol
EPSON Network Guide
Windows NT 4.0 with Service Pack 5 or higher
Macintosh Mac OS X 10.5 Bonjour
Mac OS X 10.4 Bonjour
Mac OS X 10.2.4 or later Rendezvous
Mac OS X 10.2 or later TCP/IP
NetWare 3.x Bindery mode
- TCP/IP (using LPR or EpsonNet Print)
NetBEUI
TCP/IP
TCP/IP
AppleTalk
TCP/IP
AppleTalk
AppleTalk
4.x/IntranetWare NDS mode
Bindery emulation mode
5.x/6.x NDS Queue-based print system
NDPS
Note:
Only the Intel version of Windows NT is supported.
If you use the printer in a dial-up router environment, you must set an IP address for the printer.
Make sure the IP address is suitable for the segment; incorrect IP address may generate unexpected dial-up.
Introduction 12
EPSON Network Guide

For users of printers not supporting NetWare queue-based printing

OS Version Protocol
Windows Vista
Windows XP (Home, Professional)
Windows Server 2008
Windows Server 2003
Windows 2000 (Professional, Server)
Windows Me - TCP/IP (using EpsonNet Print)
Windows 98
Windows 98 SE
Windows NT 4.0 with Service Pack 5 or higher
Macintosh Mac OS X 10.5 Bonjour
- TCP/IP (using LPR, Standard TCP/IP Port, or EpsonNet Print)
IPP
IPP
NetBEUI
- TCP/IP (using EpsonNet Print)
NetBEUI
- TCP/IP (using LPR or EpsonNet Print)
NetBEUI
TCP/IP
Mac OS X 10.4 Bonjour
Mac OS X 10.2.4 or later Rendezvous
Mac OS X 10.2 or later TCP/IP
NetWare 5.x/6.x NDPS
Note:
Only the Intel version of Windows NT is supported.
TCP/IP
AppleTalk
TCP/IP
AppleTalk
AppleTalk
Introduction 13
EPSON Network Guide
If you use the printer in a dial-up router environment, you must set an IP address for the printer.
Make sure the IP address is suitable for the segment; incorrect IP address may generate unexpected dial-up.

Inkjet printers/Large format inkjet printers

OS Version Protocol
Windows Vista
Windows XP (Home, Professional)
Windows 2000 (Professional, Server)
Macintosh Mac OS X 10.5 Bonjour
Mac OS X 10.4 Bonjour
Mac OS X 10.2.8 or later Rendezvous
* IPP and AppleTalk are not supported on some models.
- TCP/IP (using LPR, Standard TCP/IP Port, or EpsonNet Print)
IPP*
TCP/IP
TCP/IP
AppleTalk*
TCP/IP
AppleTalk*

Features of the Network Interface

Connects your Epson printer using a built-in Ethernet interface, which is called the network
interface in this manual, to the network.
Supports multiple protocols, such as TCP/IP, NetWare, NetBEUI, AppleTalk, and IPP.
Supports both 10Base-T and 100Base-TX. (On some models, 1000Base-T is also supported.)
Supports DHCP.
Supports Automatic Private IP Addressing (APIPA) that assigns an IP address automatically to
the network interface even if there is no DHCP server on the network.
Introduction 14
EPSON Network Guide
Supports the Dynamic DNS function.
Supports SNMP and MIB.
Supports SNTP (Simple Network Time Protocol).
Supports Rendezvous on Mac OS X 10.2.4 or later.
Supports Bonjour on Mac OS X 10.4 or later.

Network Interface Operation

Status light

The indicator lights provide you with important information on the operations of the network interface.
Laser printers
Status light Data light Network Status
Off Green Ready (10 M link)
Off Green (Flashing) Receiving packets (10 M link)
Orange Green Ready (100 M link)
Orange Green (Flashing) Receiving packets (100 M link)
Inkjet printers/Large format inkjet printers (Models that do not support 1000 Mbps communication)
Status light Data light Network Status
Green Yellow Ready (10 M link)
Green Yellow (Flashing) Receiving packets (10 M link)
Red Yellow Ready (100 M link)
Red Yellow (Flashing) Receiving packets (100 M link)
Introduction 15
EPSON Network Guide
Large format inkjet printers (Models that support 1000 Mbps communication)
Status light Data light Network Status
Red Yellow Ready (100 M link)
Red Yellow (Flashing) Receiving packets (100 M link)
Green Yellow Ready (1000 M link)
Green Yellow (Flashing) Receiving packets (1000 M link)

Network connector

RJ-45 connector: This connector is used to connect an Ethernet cable to a network. You can use this cable for both 10Base-T and 100Base-TX. (On some models, 1000Base-T is also supported.)
Caution:
c
You must use the following shielded twisted-pair cable to connect the network interface to a network.
Category-5 or higher for the 10Base-T or 100Base-TX connection
Category-5e or higher for the 1000Base-T connection

About the Software

The software CD-ROM provided with your printer includes the following network software.
Note:
The software provided varies depending on your printer model.
EpsonNet Config for Windows is a Windows-based configuration utility for administrators that
allows you to configure the network interface for various protocols such as TCP/IP, NetWare, MS Network, AppleTalk, IPP, and SNMP. See “EpsonNet Config for Windows” on page 91.
EpsonNet Config for Macintosh is a Macintosh-based configuration utility for administrators
that allows you to configure the network interface for TCP/IP, AppleTalk, and IPP. See “EpsonNet Config for Macintosh” on page 93.
Introduction 16
EPSON Network Guide
EpsonNet Config with Web Browser is a Web-based configuration utility that allows you to
configure the network interface for TCP/IP, NetWare, MS Network, AppleTalk, IPP, and SNMP. See “EpsonNet Config with Web Browser” on page 95.
EpsonNet Print is a utility that enables TCP/IP printing for Windows. (Windows Vista/XP/Server
2008/Server 2003/2000/NT 4.0 also support OS standard LPR printing.) See “EpsonNet Print” on page 102.
Epson Firmware Updater is a wizard utility that allows you to update firmware for devices, such
as printers and network interface cards. Visit the Epson Web site to acquire the latest version of the firmware.

Terms and Concepts

Configuration -- a prepared set of conditions for proper operation of a device. Configuring the network interface is to prepare it to work with protocols available on a network.
DHCP -- a dynamic host configuration protocol. It is a protocol that assigns dynamic IP addresses to devices on a network.
EtherTalk -- the communication protocol of AppleTalk governing Ethernet transmissions
ftp -- a TCP/IP application protocol for file transfer
lpd -- a TCP/IP remote printing protocol application
Print queue -- a location where a print job is stored as a file, until the network interface sends the job to the assigned printer
Protocol -- a rule that controls how data or information is exchanged through a network. Computers and software cannot communicate with each other using different protocols.
Remote printer -- a shared printer connected elsewhere on the network, but under the control of a NetWare print server
TCP/IP -- Transmission Control Protocol/Internet Protocol, a layer of protocols that provides communication between nodes on a network
SSL -- Secure Sockets Layer, a security protocol for transmitting data between a web server and a browser
Introduction 17
EPSON Network Guide
Chapter 2

How To

Overview

This section describes the general procedure on how to set up the network interface for use on a network.
1. Check the network interface operation.
Check the functions and operations of the network interface, such as status lights and RJ-45 connector. See “Network Interface Operation” on page 15 for details.
2. Select a printing method.
Select a printing method appropriate for your network environment and operating system. If you are not sure, see “Printing from Windows” on page 19 or “Printing from Macintosh” on page 19 for details.
3. Install the necessary components on your computer.
Make sure the necessary components (such as TCP/IP, NetBEUI, etc.) are installed on the computer, and network settings (such as IP address, subnet mask, etc.) of the computer is set. See “About Installing Components on Your Computer” on page 22 for details.
4. Connect the network interface to the network.
Connect the network interface to the network. See “Connecting the Network Interface to the Network” on page 36 for details.
5. Configure the network interface and install the printer driver.
See “Configuring the Network Interface (For Windows Users)” on page 37 or “Configuring the Network Interface (For Macintosh Users)” on page 41 for details.
6. If necessary, configure the network settings of the network interface using EpsonNet Config.
Configure the network interface for TCP/IP, AppleTalk, MS Network, etc. using EpsonNet Config. For Windows users, see “About EpsonNet Config” on page 91. For Macintosh users, see “About EpsonNet Config” on page 93.
How To 18
EPSON Network Guide

Selecting a Printing Method

Printing from Windows

Check if there is a Windows Vista/XP/Server 2008/Server 2003/2000/NT print server on your network, and then use the suggestions below.
Note:
Only the recommended printing methods are introduced here. See “Features of the Printing Methods” on page 20 for information on additional methods.
If no Windows Vista/XP/Server 2008/Server 2003/2000/NT print server exists
Use a printing method appropriate to your operating system:
For Windows Me/98
We recommend TCP/IP printing via EpsonNet Print. See “About EpsonNet Print” on page
102.
For Windows Vista/XP/Server 2008/Server 2003/2000/NT
We recommend TCP/IP printing via LPR. See “Windows Vista/Server 2008” on page 45, “Windows XP” on page 50, “Windows Server 2003” on page 58, “Windows 2000” on page 64, or “Windows NT 4.0” on page 69.
If a Windows Vista/XP/Server 2008/Server 2003/2000/NT print server exists
On the server, set the printer to connect with LPR and turn it into a shared printer. Your clients can then print to this shared printer.

Printing from Macintosh

Mac OS X 10.5
Bonjour
EPSON TCP/IP
Mac OS X 10.4
Bonjour
How To 19
EPSON TCP/IP
EPSON AppleTalk
Mac OS X 10.2.4 or later
Rendezvous
EPSON TCP/IP
EPSON AppleTalk
Mac OS X 10.2 or later
EPSON TCP/IP
EPSON AppleTalk
EPSON Network Guide

Features of the Printing Methods

This section describes features of the printing methods available for you to choose.
LPR (TCP/IP) printing
Advantages
No computer as a network interface is required.
No special utility for Windows Vista/XP/Server 2008/Server 2003/2000/NT is required.
You can see the printer status using EPSON Status Monitor.
For Windows Vista/XP/Server 2008/Server 2003/2000/NT, you can create a print log using the
event viewer.
You can print via a router.
Disadvantages
You need to set up TCP/IP.
For Windows Me/98, EpsonNet Print must be installed on all computers to use for printing.
How To 20
EPSON Network Guide
Internet printing
Advantages
No proxy server (computer) is required.
You can print to the printer over the Internet.
Disadvantages
EPSON Status Monitor cannot be used.
TCP/IP and DNS settings are required.
For Windows Vista/XP/Server 2008/Server 2003/2000, you cannot share the Internet printer.
Microsoft Network Shared printing
Advantages
Easy to set up (IP address is not required if NetBEUI protocol is installed).
No computer as a network interface is required.
No special print utility is required.
Disadvantages
EPSON Status Monitor cannot be used.
You cannot print via a router.
It takes a longer time to start printing because more time is required to search for a network
printer.
How To 21
EPSON Network Guide

Installing Components on Your Computer

About Installing Components on Your Computer

Before configuring the network interface and printing from the computer, you need to install the necessary components (such as TCP/IP, NetBEUI, etc.) and assign an IP address and subnet mask for your computer, depending on the printing method you want to use. See the section in this chapter appropriate for your operating system.
Note:
The Windows operating system CD-ROM may be required during the installation.
When using TCP/IP or IPP for printing, you need to set the IP address, the subnet mask, and the
default gateway of the computer.

Windows Vista/Server 2008

Use the following procedure to install the necessary components.
1. Click Start, click Control Panel, and then click View network status and tasks or double-click Network and Sharing Center.
2. Click View Status, and then click the Properties button.
Note:
If the User Account Control screen appears, click the Continue button.
How To 22
EPSON Network Guide
3. Check if the following necessary components are in the list. If they are already installed, go to the next chapter.
The following table lists the components required for configuring the network interface with EpsonNet Config.
EpsonNet Config’s setting screens Necessary components
TCP/IP, AppleTalk, IPP, SNMP (IP trap) Internet Protocol (TCP/IP)
MS Network Internet Protocol (TCP/IP)
The following table lists the components required for network printing.
Printing method Necessary components
LPR or Internet printing Internet Protocol (TCP/IP)
4. If the necessary components are not in the list, click Install to install them, as described below.
For LPR or Internet printing: Internet Protocol (TCP/IP) is installed by default. You cannot add or delete it.
How To 23
EPSON Network Guide
5. For LPR or Internet printing: Double-click Internet Protocol Version 4 (TCP/IPv4) on the Local Area Connection Properties dialog box to open the Internet Protocols Version 4 (TCP/IPv4) Properties dialog box. Set the IP address, the subnet mask, etc. and then click OK.
6. Restart the computer.
The necessary components are now installed. Go to the section “Connecting the Network Interface to the Network” on page 36.

Windows XP

For Windows XP, use the following procedure to install the necessary components.
1. Click Start, highlight Control Panel, and then click Network and Internet Connections. Select Network Connections.
2. Under LAN or High-Speed Internet, click the Local Area Connection icon.
3. Under Network Tasks, click Change settings of this connection.
How To 24
EPSON Network Guide
4. Check if the following necessary components are in the list. If they are already installed, go to the next chapter.
The following table lists the components required for configuring the network interface with EpsonNet Config.
EpsonNet Config’s setting screens Necessary components
TCP/IP, AppleTalk, IPP, SNMP (IP trap) Internet Protocol (TCP/IP)
MS Network Internet Protocol (TCP/IP)
NetWare, SNMP (IPX trap)* Latest Novell Client downloaded from the Novell Web site
* Only for printers supporting NetWare queue-based printing
The following table lists the components required for network printing.
Printing method Necessary components
LPR or Internet printing Internet Protocol (TCP/IP)
Microsoft Network Shared printing TCP/IP or NetBEUI
Client for Microsoft Networks
Printing via NetWare server Latest Novell Client downloaded from the Novell Web site
How To 25
EPSON Network Guide
5. If the necessary components are not in the list, click Install to install them, as described below.
For LPR or Internet printing: Internet Protocol (TCP/IP) is installed by default. You cannot add or delete it.
For Microsoft Network Shared printing: Select Client and then click Add. Select Client for Microsoft Networks and then click OK.
For printing via NetWare server: Download the latest Novell Client from the Novell Web site and install it on the computer. Also, be sure to install either IP or IPX. See the Novell Web site for detailed information.
6. For LPR, Internet, Microsoft Network Shared printing: Double-click Internet Protocol (TCP/IP) on the Local Area Connection Properties dialog box to open the Internet Protocols (TCP/IP) Properties dialog box. Set the IP address, the subnet mask, etc. and then click OK.
7. Restart the computer.
The necessary components are now installed. Go to the section “Connecting the Network Interface to the Network” on page 36.

Windows Me/98

For Windows Me/98, use the following procedure to install the necessary components.
1. Click Start, point to Settings, and then select Control Panel.
How To 26
EPSON Network Guide
2. Double-click the Network icon. Check if the following necessary components are in the list of installed network components on the Configuration menu. If they are already installed, go to the next chapter.
The following table lists the components required for configuring the network interface with EpsonNet Config.
EpsonNet Config’s setting screens Necessary components
TCP/IP, AppleTalk, IPP, SNMP (IP trap) TCP/IP
MS Network NetBEUI or TCP/IP
NetWare, SNMP (IPX trap)* Latest Novell Client downloaded from the Novell Web site
* Only for printers supporting NetWare queue-based printing
Note for users of printers supporting NetWare queue-based printing:
Do not run Novell Client for Windows 95/98 version 3.00 and Novell Client for Windows NT version
4.50 when using the following modes: NetWare 3.x/4.x Bindery Print Server mode, NetWare 3.x Remote Printer mode, NetWare 4.x Bindery Remote Printer mode, and NetWare 4.x/5.x NDS Remote Printer mode.
The following table lists the components required for network printing.
How To 27
EPSON Network Guide
Printing method Necessary components
LPR or Internet printing TCP/IP
Microsoft Network Shared printing TCP/IP or NetBEUI
Client for Microsoft Networks
Printing via NetWare server Latest Novell Client downloaded from the Novell Web site
3. If the necessary components are not in the list, click Add to install them, as described below.
For LPR or Internet printing: Select Protocol and then click Add. Select Microsoft from the Manufacturers list and TCP/IP from the Network Protocols list. Then click OK.
For Microsoft Network Shared printing: To use TCP/IP, see the description described earlier to install TCP/IP. To use NetBEUI, select Protocol and then click Add. Select Microsoft from the Manufacturers list and NetBEUI from the Network Protocols list. Then click OK. Select Client and then click Add. Select Microsoft from the Manufacturers list and Client for Microsoft Networks from the Network Clients list. Then click OK.
For printing via NetWare server: Download the latest Novell Client from the Novell Web site and install it on the computer. Also, be sure to install either IP or IPX. See the Novell Web site for detailed information.
4. For LPR, Internet, Microsoft Network Shared printing: Double-click TCP/IP on the Configuration menu to open the TCP/IP Properties dialog box. Set the IP address, the subnet mask, etc. and then click OK.
5. Restart the computer.
The necessary components are now installed. Go to the section “Connecting the Network Interface to the Network” on page 36.

Windows Server 2003

For Windows Server 2003, use the following procedure to install the necessary components.
1. Click Start, point to Control Panel, and then select Network Connections. Click Local Area Connections.
How To 28
EPSON Network Guide
2. Click the Properties button.
3. Check if the following necessary components are in the list. If they are already installed, go to the next chapter.
The following table lists the components required for configuring the network interface with EpsonNet Config.
EpsonNet Config’s setting screens Necessary components
TCP/IP, AppleTalk, IPP, SNMP (IP trap) Internet Protocol (TCP/IP)
MS Network Internet Protocol (TCP/IP)
NetWare, SNMP (IPX trap)* Latest Novell Client downloaded from the Novell Web site
* Only for printers supporting NetWare queue-based printing
The following table lists the components required for network printing.
Printing method Necessary components
LPR or Internet printing Internet Protocol (TCP/IP)
Microsoft Network Shared printing TCP/IP or NetBEUI
Client for Microsoft Networks
Printing via NetWare server Latest Novell Client downloaded from the Novell Web site
How To 29
EPSON Network Guide
4. If the necessary components are not in the list, click Install to install them, as described below.
For LPR or Internet printing: Internet Protocol (TCP/IP) is installed by default. You cannot add or delete it.
For Microsoft Network Shared printing: Select Client and then click Add. Select Client for Microsoft Networks and then click OK.
For printing via NetWare server: Download the latest Novell Client from the Novell Web site and install it on the computer. Also, be sure to install either IP or IPX. See the Novell Web site for detailed information.
5. For LPR, Internet, Microsoft Network Shared printing: Double-click Internet Protocol (TCP/IP) on the Local Area Connection Properties dialog box to open the Internet Protocols (TCP/IP) Properties dialog box. Set the IP address, the subnet mask, etc. and then click OK.
6. Restart the computer.
The necessary components are now installed. Go to the section “Connecting the Network Interface to the Network” on page 36.

Windows 2000

For Windows 2000, use the following procedure to install the necessary components.
1. Click Start, point to Settings, and then select Network and Dial-up Connections. The Network and Dial-up Connections screen appears.
2. Right-click the desired network connection and then select Properties.
How To 30
EPSON Network Guide
3. Check if the following necessary components are in the list. If they are already installed, go to the next chapter.
The following table lists the components required for configuring the network interface with EpsonNet Config.
EpsonNet Config’s setting screens Necessary components
TCP/IP, AppleTalk, IPP, SNMP (IP trap) Internet Protocol (TCP/IP)
MS Network NetBEUI or Internet Protocol (TCP/IP)
NetWare, SNMP (IPX trap)* Latest Novell Client downloaded from the Novell Web site
* Only for printers supporting NetWare queue-based printing
Note for users of printers supporting NetWare queue-based printing:
Do not run Novell Client for Windows 95/98 version 3.00 and Novell Client for Windows NT version
4.50 when using the following modes: NetWare 3.x/4.x Bindery Print Server mode, NetWare 3.x Remote Printer mode, NetWare 4.x Bindery Remote Printer mode, and NetWare 4.x/5.x NDS Remote Printer mode.
The following table lists the components required for network printing.
Printing method Necessary components
LPR or Internet printing Internet Protocol (TCP/IP)
How To 31
EPSON Network Guide
Printing method Necessary components
Microsoft Network Shared printing Internet Protocol (TCP/IP) or NetBEUI
Client for Microsoft Networks
Printing via NetWare server Latest Novell Client downloaded from the Novell Web site
4. If the necessary components are not in the list, click Install to install them, as described below.
For LPR or Internet printing: Select Protocol and then click Add. In the Select Network Protocol dialog box, select Internet Protocol (TCP/IP) and then click OK.
For Microsoft Network Shared printing: To use Internet Protocol, see the description described earlier to install Internet Protocol (TCP/ IP). To use NetBEUI, select Protocol and then click Add. Select NetBEUI Protocol and then click OK. Select Client and then click Add. Select Client for Microsoft Networks and then click OK.
For printing via NetWare server: Download the latest Novell Client from the Novell Web site and install it on the computer. Also, be sure to install either IP or IPX. See the Novell Web site for detailed information.
5. For LPR, Internet, Microsoft Network Shared printing: Double-click Internet Protocol (TCP/IP) on the Configuration menu to open the TCP/IP Properties dialog box. Set the IP address, the subnet mask, etc. and then click OK.
6. Restart the computer.
The necessary components are now installed. Go to the section “Connecting the Network Interface to the Network” on page 36.

Windows NT 4.0

For Windows NT 4.0, use the following procedure to install the necessary components.
1. Click Start, point to Settings, and then select Control Panel.
2. Double-click the Network icon in the Control Panel.
How To 32
EPSON Network Guide
3. Check if the following necessary components are in the list. If they are already installed, go to the next chapter.
The following table lists the components required for configuring the network interface with EpsonNet Config.
EpsonNet Config’s setting screens Necessary components
TCP/IP, AppleTalk, IPP, SNMP (IP trap) TCP/IP
MS Network NetBEUI or TCP/IP
NetWare, SNMP (IPX trap)* Latest Novell Client downloaded from the Novell Web site
* Only for printers supporting NetWare queue-based printing
Note for users of printers supporting NetWare queue-based printing:
Do not run Novell Client for Windows 95/98 version 3.00 and Novell Client for Windows NT version
4.50 when using the following modes: NetWare 3.x/4.x Bindery Print Server mode, NetWare 3.x Remote Printer mode, NetWare 4.x Bindery Remote Printer mode, and NetWare 4.x/5.x NDS Remote Printer mode.
The following table lists the components required for network printing.
How To 33
EPSON Network Guide
Printing method Necessary components
LPR or Internet printing Protocols menu: TCP/IP
Services menu: Microsoft TCP/IP Printing
Microsoft Network Shared printing Protocols menu: TCP/IP or NetBEUI
Services menu: Workstation
Printing via NetWare server Latest Novell Client downloaded from the Novell Web site
How To 34
EPSON Network Guide
4. If the necessary components are not in the list, click Add to install them, as described below.
For LPR or Internet printing: Select the Protocols tab and then click Add. Select TCP/IP from the list and then click OK. Set the IP address, the subnet mask, etc. and then click OK. Select the Services tab and then click Add. Select Microsoft TCP/IP Printing from the list and then click OK.
For Microsoft Network Shared printing: To use TCP/IP, see the description described earlier to install TCP/IP. To use NetBEUI, select the Protocols tab and then click Add. Select NetBEUI from the list and then click OK. Select the Services tab and then click Add. Select Workstation from the list and then click OK.
For printing via NetWare server: Download the latest Novell Client from the Novell Web site and install it on the computer. Also, be sure to install either IP or IPX. See the Novell Web site for detailed information.
5. Restart the computer.
The necessary components are now installed. Go to the section “Connecting the Network Interface to the Network” on page 36.
How To 35
EPSON Network Guide

Macintosh

To assign an IP address, subnet mask, etc. to your Macintosh, follow the steps below.
Note:
To print using the AppleTalk protocol and configure the network interface with EpsonNet Config for Macintosh, select Ethernet or Built-in Ethernet on the AppleTalk Control Panel or the AppleTalk tab. Then configure the network interface with EpsonNet Config for Macintosh.
Mac OS X
1. From the Apple menu, select System Preferences.
2. Open the Network control panel. Click the TCP/IP tab.
Note:
For Mac OS X 10.5, select Ethernet as the connecting method on the Network control panel, select the method to assign the IP address from the Configure menu, and then assign the IP address.
3. Select Built-in Ethernet from the Show pull down menu.
4. Assign an IP address and other settings if necessary.
5. Click the Apply Now button to save any changes.
Go to the section “Connecting the Network Interface to the Network” on page 36.

Setting Up the Network Interface

Connecting the Network Interface to the Network

Follow the instructions below to connect the network interface to the network.
1. Make sure that your printer is turned off.
How To 36
EPSON Network Guide
2. Connect one end of the network cable to the RJ-45 connector on the network interface, and the other end to the network.
Caution:
c
You must use a Category 5 shielded twisted-pair cable to connect the network interface
to prevent malfunction.
Do not connect or disconnect the network cable when the printer is on.
Do not connect the network interface and the computer directly. Be sure to use a HUB to
connect the network interface to the network.
Note:
You can use both 10Base-T and 100Base-TX. (On some models, 1000Base-T is also supported.) When you print a lot of data, we recommend you use a higher-speed with light network traffic.
3. Turn on your printer. After the status lights go off, print a network status sheet.
Caution:
c
After turning off the printer, wait until the status lights go off before turning it back on; otherwise the network interface may not work correctly.
Note for Mac OS X 10.2.4 or later:
Since the printer supports Bonjour/Rendezvous and is on by default, you can use the printer on a network just by connecting it to the network. If you want to disable the Bonjour/Rendezvous setting, use the printer’s control panel. See “Setting an IP Address on the Printer’s Control Panel” on page 126 or “Setting an IP Address on the Printer’s Control Panel (Large Format Inkjet Pr in ter s) ” o n p age 129 for details.
Now, you can configure the network interface to use on the TCP/IP network and also install the printer driver.
If you are using Windows, see “Configuring the Network Interface (For Windows Users)” on page
37.
If you are using Macintosh, see “Configuring the Network Interface (For Macintosh Users)” on page
41.

Configuring the Network Interface (For Windows Users)

Configure the network interface for use on the TCP/IP network and install the printer driver on your computer.
How To 37
EPSON Network Guide
1. Insert the Software CD-ROM in the CD-ROM drive.
2. The Software Installation screen opens automatically.
If the Software Installation screen does not appear, double-click EPSETUP.EXE on the CD-ROM.
3. Click User Installation if it appears.
4. Make sure that all applications are closed, and then click the Easy Install button.
5. Select Network.
Note:
If your printer is connected to your computer with a USB cable or a parallel cable, select Local. Then follow the on-screen instructions.
6. If you wa nt to instal l software ot her than printer driver, select those check boxes. Click the Install button and follow the on-screen instructions.
Note:
If the Windows Security Alert window appears, click the Unblock button; otherwise the printer is not listed on the screen of EpsonNet EasyInstall.
7. EpsonNet EasyInstall starts. Select the printer and then click the Next button.
How To 38
EPSON Network Guide
8. Select a method for specifying the IP address. If you select Automatic, DHCP becomes available and assigns an IP address automatically. If you want to set the IP address manually, select Manual and then enter the IP address, subnet mask, and default gateway. Click the Next button.
9. Confirm the settings you have made, and then click the Next button.
10. Select the printer with its IP address you have just set, and then click the Next button to install the printer driver.
How To 39
EPSON Network Guide
11. Enter the printer name. If you want to print a test page, select the Print test page check box. Click the Next button.
Note:
If the Windows Security Alert window appears, click the Unblock button.
12. Select the default printer, and then click the Next button.
How To 40
EPSON Network Guide
13. Click the Finish button, and then follow the on-screen instructions to complete the installation.
Now you can use the printer on the TCP/IP network.

Configuring the Network Interface (For Macintosh Users)

Configure the network interface for use on the TCP/IP network and install the printer driver on your computer.
1. Insert the Software CD-ROM in the CD-ROM drive.
EPSON folder opens automatically.
2. Double-click the appropriate OS icon in the EPSON folder.
3. Make sure that all applications are closed, and then click the Easy Install button.
4. Select Network.
Note:
If your printer is connected to your computer with a USB cable or a parallel cable, select Local, and then follow the on-screen instructions.
5. Click the Install button, and then follow the on-screen instructions.
How To 41
EPSON Network Guide
6. EpsonNet EasyInstall starts. Select the printer and then click the Next button.
7. Select a method for specifying the IP address. If you select Automatic, DHCP becomes available and assigns an IP address automatically. If you want to set the IP address manually, select Manual and then enter the IP address, subnet mask, and default gateway. Click the Next button.
How To 42
EPSON Network Guide
8. Check the settings you have made, and then click the Next button.
9. Click the Finish button, and then follow the on-screen instructions to complete the installation.
Then you need to setup the printer. Follow the steps below.
Setting Up the Printer
Mac OS X 10.5
1. Open System Preferences.
2. Open Print & Fax.
How To 43
3. Click the + button to add a new printer.
4. Select the desired printer model that is connected with Bonjour.
Note:
If your printer is not displayed with the desired connection, click More Printers, select the desired connection from the drop down list, and then select the printer model.
5. Click Add.
Now you can use the printer on the TCP/IP network.
Note:
If your product supports the scanning function, see the product’s User’s Guide to make the settings.
Mac OS X 10.4 or below
EPSON Network Guide
1. Open the Applications folder.
2. Open the Utilities folder.
3. Open Print Center (for Mac OS X 10.2 or below) or Printer Setup Utility (for Mac OS X 10.3 or later), and then click Add.
4. For Mac OS X 10.4, select the printer model that is connected with Bonjour. For Mac OS X 10.2 or 10.3, select Rendezvous from the drop down list, and then select the printer model from the list.
Note:
For Mac OS X 10.4, if your printer is not displayed with the desired connection, click More Printers, select the desired connection from the drop down list, and then select the printer model.
5. Click Add.
Now you can use the printer on the TCP/IP network.
Note:
If your product supports the scanning function, see the product’s User’s Guide to make the settings.
How To 44
EPSON Network Guide

Installing the Printer Driver

About Installing the Printer Driver

To print to the network printer, you need to install the printer driver on the computer. See the section in this chapter appropriate for your operating system.

Windows Vista/Server 2008

The printer driver installation procedure differs depending on the printing method you prefer. Epson recommends printing with EpsonNet Print. See “For Windows Vista/XP/Server 2008/Server 2003/2000/NT 4.0 Users” on page 103.
LPR printing
Note:
If you are using EpsonNet Print, the setup procedure is different. See “About EpsonNet Print” on page 102 for details.
1. Click Start, Control Panel, and then Printers.
2. Click Add a printer to start the Add Printer wizard.
3. Click Add a local printer.
How To 45
EPSON Network Guide
4. Select the Create a new port radio button, and then select Standard TCP/IP Port from the list. Then click Next.
5. Enter the IP address of the network interface and then click Next.
How To 46
EPSON Network Guide
6. If an error occurs, the following dialog box appears. Select the Standard radio button and then select EPSON Network Printer. Click Next.
7. Click Finish .
8. See “Installing a printer driver” on page 48 to install the printer driver.
Internet printing
1. Click Start, Control Panel, and then Printers.
2. Click Add a printer to start the Add Printer wizard.
3. Click Add a network, wireless or Bluetooth printer.
4. Click The printer that I want isn’t listed.
5. Select the Add a printer using a TCP/IP address or hostname radio button and then click Next.
How To 47
EPSON Network Guide
6. Enter the URL of the target device to the Hostname or IP address box using the format below. The URL should be the same as the URL you set on EpsonNet Config’s IPP configuration page.
http://IP address of network interface:631/Printer name
Example: http://192.168.100.201:631/EPSON_IPP_Printer
Note:
To check the IP address of the network interface, use EpsonNet Config. See “About EpsonNet Config” on page 91 for details.
7. Follow the on-screen instructions to set up the device. See “Installing a printer driver” on page 48 if necessary.
Installing a printer driver
1. Insert the Software CD-ROM shipped with the device.
2. Close the EPSON Software Installation screen if it appears.
3. Click the Have Disk button. The Install From Disk dialog box appears.
4. Click Browse.
5. Select the CD-ROM drive for Drives, and double-click the WINVISTA_XP_2K folder or the WINVISTA_XP64 folder depending on your operating system. Click Open.
6. Click OK in the Install From Disk dialog box.
How To 48
EPSON Network Guide
7. Select the model name of the device, and then click Next.
Note:
If the Add Printer wizard prompts you to select either Keep existing driver or Replace existing driver, be sure to select the Replace existing driver radio button.
8. Click Finish and follow the on-screen instructions to complete the setup.
Using the NET USE command
If you are running Windows Vista/XP/Server 2008/Server 2003/2000/NT 4.0 and using NetBIOS to connect to the device, we recommend that you use the NET USE command, as follows:
1. Click Start, click Control Panel, and then click View network status and tasks or double-click Network and Sharing Center.
2. Click View Status, and then click the Properties button.
Note:
If the User Account Control screen appears, click the Continue button.
3. Check that Client for Microsoft Networks is installed. If it is not installed, click Install to install it.
4. Run the command prompt and enter the following command.
NET USE printer port: \\NetBIOS name of network interface\Device name of network interface
Selecting the port
1. Click Start, click Control Panel, and then click Printers.
2. Right-click the printer icon and then select Properties.
3. Click the Ports tab and then select the port you have set with the NET USE command.
Encrypting print data (Secure IPP printing)
Internet printing (IPP) enables you to encrypt data to print.
How To 49
EPSON Network Guide
Required settings
Configure the following settings using EpsonNet Config with Web Browser. See “EpsonNet Config with Web Browser” on page 95 for details.
Importing server certificate
Selecting server certificate
Setting encryption strength
Setting printer port
Configuring the printer port
1. Select Connect to a printer on the I nt er ne t o r o n a hom e o r o ff ic e n et wo rk: in th e I nt er ne t pr in ti ng (IPP) wizard.
2. Enter the URL using the format below.
https://IP address of network interface:443/EPSON_IPP_Printer

Windows XP

For Windows XP, the printer driver installation procedure differs depending on the printing method you prefer. Epson recommends printing with EpsonNet Print. See “For Windows Vista/XP/Server 2008/Server 2003/2000/NT 4.0 Users” on page 103.
LPR printing
Note:
If you are using EpsonNet Print, the setup procedure is different. See “About EpsonNet Print” on page 102 for details.
1. Click Start, click Control Panel, click Printers and Other Hardware, and then click Printers and Faxes.
2. Under Printer Tasks, click Add a printer to start the Add Printer wizard, and then click Next.
How To 50
EPSON Network Guide
3. Click Local printer attached to this computer, clear the Automatically detect and install my Plug and Play printer check box, and then click Next.
Note:
You must clear the Automatically detect and install my Plug and Play printer check box because the printer is attached directly to the network, not to a Windows XP computer.
4. Select the Create a new port radio button, and then select Standard TCP/IP Port from the list. Then click Next.
How To 51
EPSON Network Guide
5. Enter the IP address of the network interface and then click Next.
6. If an error occurs, the following dialog box appears. Select the Standard radio button and then select EPSON Network Printer. Click Next.
7. Click Finish.
8. See “Installing a printer driver” on page 54 to install the printer driver.
Internet printing
1. Click Start, click Control Panel, click Printers and Other Hardware, and then click Printers and Faxes.
How To 52
EPSON Network Guide
2. Under Printer Tasks, click Add a printer to start the Add Printer wizard, and then click Next.
3. Click A network printer, or a printer attached to another computer, and then click Next.
4. Select the Connect to a printer on the Internet or on a home or office network radio button.
5. Enter the URL of the target printer using the format below. The URL should be the same as the URL you set on EpsonNet Config’s IPP configuration page.
http://IP address of printer:631/Printer name
Example: http://192.168.100.201:631/EPSON_IPP_Printer
Note:
To check the IP address of the network interface, use EpsonNet Config. See “About EpsonNet Config” on page 91 for details.
6. Follow the on-screen instructions to set up the printer. See “Installing a printer driver” on page 54 if necessary.
Microsoft Network Shared printing
1. Click Start, click Control Panel, click Printers and Other Hardware, and then click Printers and Faxes.
2. Under Printer Tasks, click Add a printer to start the Add Printer wizard, and then click Next.
How To 53
EPSON Network Guide
3. Click A network printer, or a printer attached to another computer, and then click Next.
4. Select the Browse for a printer radio button, and then click Next.
5. Enter the following in the Printer box or select the printer you want to use from the Shared printers list box, and then click Next.
\\NetBIOS name of network interface\Device name of network interface
6. Follow the on-screen instructions to set up the printer. See “Installing a printer driver” on page 54 if necessary.
Installing a printer driver
1. Insert the Software CD-ROM shipped with the printer.
2. Close the Software Installation screen if it appears.
3. Click the Have Disk button. The Install From Disk dialog box appears.
4. Click Browse.
5. Select the CD-ROM drive for Drives, and double-click the WINVISTA_XP_2K or WINXP_2K folder. Click Open.
6. Click OK in the Install From Disk dialog box.
7. Select the model name of the printer, and then click Next.
Note:
If the Add Printer wizard prompts you to select either Keep existing driver or Replace existing driver, be sure to select the Replace existing driver radio button.
8. Click Finish and follow the on-screen instructions to complete the setup.
Using the NET USE command
If you are running Windows Vista/XP/Server 2008/Server 2003/2000/NT 4.0 and using NetBIOS to connect to the device, we recommend that you use the NET USE command, as follows:
1. Click Start, click Control Panel, click Network and Internet Connections, and then select Network Connections.
How To 54
EPSON Network Guide
2. Under LAN or High-Speed Internet, click the Local Area Connection icon.
3. Under Network Tasks, click Change settings of this connection.
4. Check that Client for Microsoft Networks is installed. If it is not installed, click Install to install it.
5. Run the command prompt and enter the following command.
NET USE printer port: \\NetBIOS name of network interface\Device name of network interface
Selecting the port
1. Click Start, click Control Panel, click Printers and Other Hardware, and then click Printers and Faxes.
2. Right-click the printer icon and then select Properties.
3. Click the Ports tab and then select the port you have set with the NET USE command.
Encrypting print data (Secure IPP printing)
Internet printing (IPP) enables you to encrypt data to print.
Required settings
Configure the following settings using EpsonNet Config with Web Browser. See “EpsonNet Config with Web Browser” on page 95 for details.
Importing server certificate
Selecting server certificate
Setting encryption strength
Setting printer port
Configuring the printer port
1. Select Connect to a printer on the I nt er ne t o r o n a hom e o r o ff ic e n et wo rk: in th e I nt er ne t pr in ti ng (IPP) wizard.
How To 55
EPSON Network Guide
2. Enter the URL using the format below.
https://IP address of network interface:443/EPSON_IPP_Printer

Windows Me/98

For Windows Me/98, the printer driver installation procedure differs depending on the printing method you prefer. Epson recommends printing with EpsonNet Print. See “For Windows Me/98/95 Users” on page 111.
LPR printing
Since Windows Me/98 does not support LPR, standard TCP/IP printing cannot be used. However, you can print via TCP/IP using the EpsonNet Print utility included on the Software CD-ROM. First, install EpsonNet Print. Then, install the printer driver. See “About EpsonNet Print” on page 102 for more details.
Internet printing (Windows Me)
Installing the IPP client
The IPP client must be installed on your computer. Follow the steps below to install it.
1. Insert the Windows Me CD-ROM.
2. Select the add-ons folder, and then select the IPP folder.
3. Double-click wpnpins.exe. Then follow the on-screen instructions.
4. Click OK to restart your computer.
Setting up the printer
Connect your computer to a printer through IPP.
1. Click Start, point to Settings, and then select Printers.
2. Double-click Add Printer, and then click Next.
3. Select the Network Printer radio button, and then click Next.
How To 56

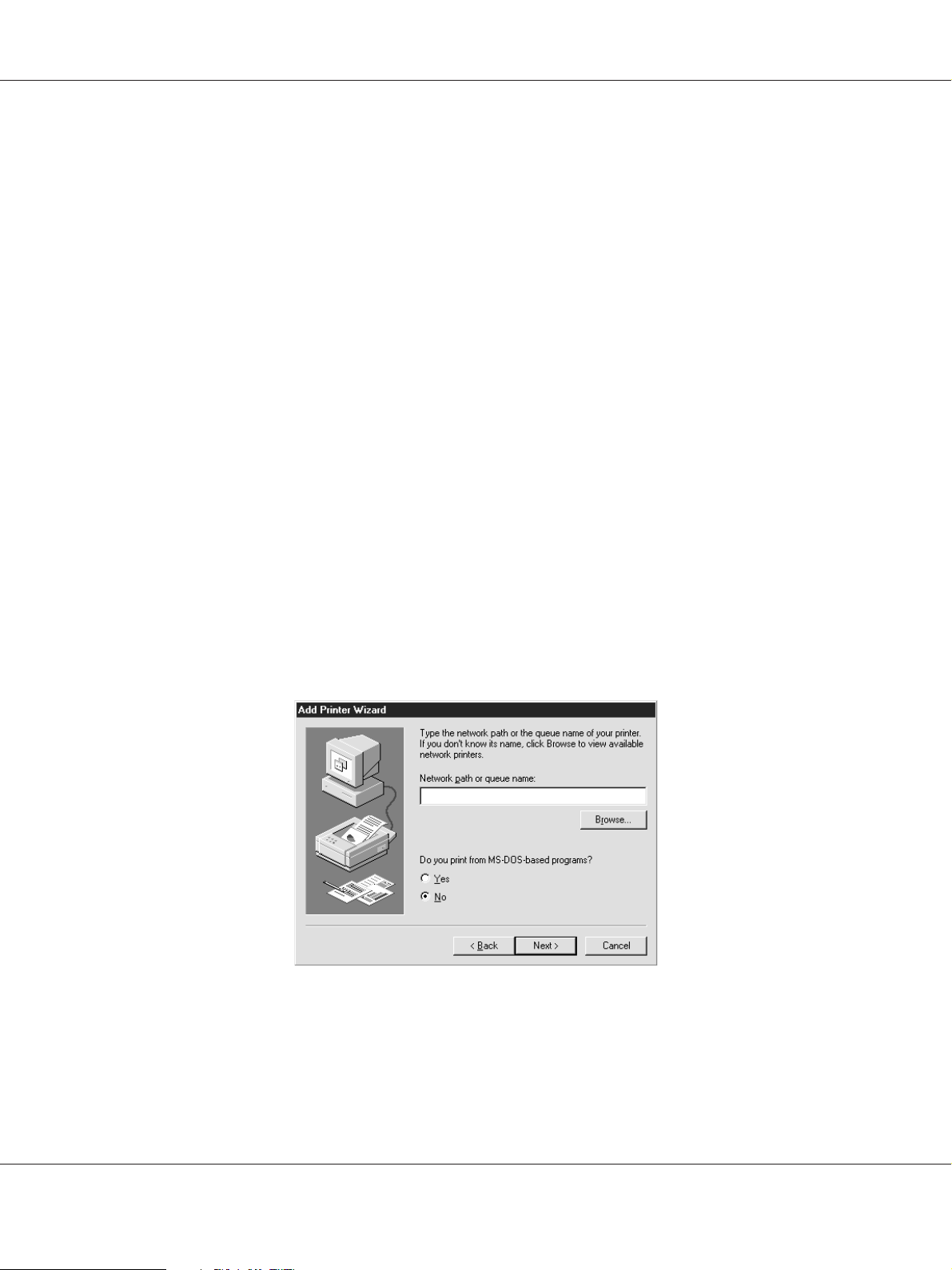

4. Type the URL of the printer, and then click Next.
http://IP address of network interface:631/printer name
Example: http://192.168.100.201:631/EPSON_IPP_Printer
Note:
To check the IP address of the network interface, use EpsonNet Config. See “About EpsonNet Config” on page 91 for details.
5. See “Installing a printer driver” on page 58 to install the printer driver.
Microsoft Network Shared printing
1. Click Start, point to Settings, and then select Printers.
2. Double-click Add Printer, and then click Next.
EPSON Network Guide
3. Select the Network Printer radio button, and then click Next.
\\NetBIOS name of network interface\Device name of network interface
4. Click Browse, and then select the network path from the list. If you cannot browse, enter the following in the Network path or queue name box.
5. The Add Printer wizard appears. Click Next.
6. Follow the on-screen instructions to set up the printer. See “Installing a printer driver” on page 58 to install the printer driver.
How To 57
EPSON Network Guide
Installing a printer driver
1. Insert the Software CD-ROM shipped with the printer.
2. Close the Software Installation screen if it appears.
3. Click the Have Disk button. The Install From Disk dialog box appears.
4. Click Browse.
5. Select the CD-ROM drive for Drives, and then double-click the WIN9X folder. Click OK.
6. Click OK in the Install From Disk dialog box.
7. Select the model name of the printer, and then click Next.
Note:
If the Add Printer wizard prompts you to select either Keep existing driver or Replace existing driver, be sure to select the Replace existing driver radio button.
8. Click Finish and follow the on-screen instructions to complete the setup.

Windows Server 2003

For Windows Server 2003, the printer driver installation procedure differs depending on the printing method you prefer. Epson recommends printing with EpsonNet Print. See “For Windows Vista/XP/ Server 2008/Server 2003/2000/NT 4.0 Users” on page 103.
LPR printing
Note:
If you are using EpsonNet Print, the setup procedure is different. See “About EpsonNet Print” on page 102 for details.
1. Click Start, and then select Printers and Faxes.
2. Double-click the Add Printer icon to start the Add Printer wizard, and then click Next.
How To 58
EPSON Network Guide
3. Click Local printer attached to this computer, clear the Automatically detect and install my Plug and Play printer check box, and then click Next.
Note:
You must clear the Automatically detect and install my Plug and Play printer check box because the printer is attached directly to the network, not to a computer.
4. Select the Create a new port radio button, and then select Standard TCP/IP Port from the list. Click Next.
5. When Add Standard TCP/IP Printer Port Wizard dialog box appears, click Next.
How To 59
EPSON Network Guide
6. Enter the IP address of the network interface and then click Next.
7. If an error occurs, the following dialog box appears. Select the Standard radio button and then select EPSON Network Printer. Click Next.
8. Click Finish.
9. See “Installing a printer driver” on page 62 to install the printer driver.
Internet printing
1. Click Start, and then select Printers and Faxes.
How To 60
EPSON Network Guide
2. Double-click the Add Printer icon to start the Add Printer wizard, and then click Next.
3. Select A network printer, or a printer attached to another computer, and then click Next.
4. Select the Connect to a printer on the Internet or on a home or office network radio button.
5. Enter the URL of the target printer using the format below. The URL must be the same URL you set on EpsonNet Config’s IPP configuration page.
http://IP address of printer:631/Printer name
Example: http://192.168.100.201:631/EPSON_IPP_Printer
Note:
To check the IP address of the network interface, use EpsonNet Config. See “About EpsonNet Config” on page 91 for details.
6. Follow the on-screen instructions to set up the printer. See “Installing a printer driver” on page 62 if necessary.
Microsoft Network Shared printing
1. Click Start, and then select Printers and Faxes.
2. Double-click the Add Printer icon to start the Add Printer wizard, and then click Next.
3. Click A network printer, or a printer attached to another computer, and then click Next.
How To 61
EPSON Network Guide
4. Select the Browse for a printer radio button, and then click Next.
5. Enter the following in the Printer box or select the printer you want to use from the Shared printers list box. Click Next.
\\NetBIOS name of network interface\Device name of network interface
6. Follow the on-screen instructions to set up the printer. See “Installing a printer driver” on page 62 if necessary.
Installing a printer driver
1. Insert the Software CD-ROM shipped with the printer.
2. Close the Software Installation screen if it appears.
3. Click the Have Disk button. The Install From Disk dialog box appears.
4. Click Browse.
5. Select the CD-ROM drive for Drives, and double-click the WINVISTA_XP_2K, WINXP_2K, or WIN2000 folder. Click Open.
6. Click OK in the Install From Disk dialog box.
7. Select the model name of the printer, and then click Next.
Note:
If the Add Printer wizard prompts you to select either Keep existing driver or Replace existing driver, be sure to select the Replace existing driver radio button.
8. Click Finish and then follow the on-screen instructions to complete the setup.
Using the NET USE command
If you are running Windows Vista/XP/Server 2008/Server 2003/2000/NT 4.0 and using NetBIOS to connect to the device, we recommend that you use the NET USE command, as follows:
1. Click Start, point to Control Panel, and then select Network Connections. Click Local Area Connections.
2. Click the Properties button.
How To 62
EPSON Network Guide
3. Check that Client for Microsoft Networks is installed. If necessary, click Install to install it.
4. Run the command prompt and then enter the following command.
NET USE printer port: \\NetBIOS name of network interface\Device name of network interface
Selecting the port
1. Click Start, and then select Printers and Faxes.
2. Right-click the printer icon and then select Properties.
3. Click the Ports tab and then select the port you have set using the NET USE command.
Encrypting print data (Secure IPP printing)
Internet printing (IPP) enables you to encrypt data to print.
Required settings
Configure the following settings using EpsonNet Config with Web Browser. See “EpsonNet Config with Web Browser” on page 95 for details.
Importing server certificate
Selecting server certificate
Setting encryption strength
Setting printer port
Configuring the printer port
1. Select Connect to a printer on the I nt er ne t o r o n a hom e o r o ff ic e n et wo rk: in th e I nt er ne t pr in ti ng (IPP) wizard.
2. Enter the URL using the format below.
https://IP address of network interface:443/EPSON_IPP_Printer
How To 63
EPSON Network Guide

Windows 2000

For Windows 2000, the printer driver installation procedure differs depending on the printing method you prefer. Epson recommends printing with EpsonNet Print. See “For Windows Vista/XP/ Server 2008/Server 2003/2000/NT 4.0 Users” on page 103.
LPR printing
Note:
If you are using EpsonNet Print, the setup procedure is different. See “About EpsonNet Print” on page 102 for details.
1. Click Start, point to Settings, and then select Printers.
2. Double-click Add Printer to start the Add Printer wizard, and then click Next.
3. Click Local printer, clear the Automatically detect and install my Plug and Play printer check box, and then click Next.
Note:
You must clear the Automatically detect and install my Plug and Play printer check box because the printer is attached directly to the network, not to a Windows 2000 computer.
How To 64
EPSON Network Guide
4. Select the Create a new port radio button, and then select Standard TCP/IP Port from the list. Then click Next.
5. Enter the IP address of the network interface and then click Next.
How To 65
EPSON Network Guide
6. If an error occurs, the following dialog box appears. Select the Standard radio button and then select EPSON Network Printer. Click Next.
7. Click Finish.
8. See “Installing a printer driver” on page 67 to install the printer driver.
Internet printing
1. Click Start, point to Settings, and then select Printers.
2. Double-click Add Printer to start the Add Printer wizard, and then click Next.
3. Select the Network printer radio button and then click Next.
4. Select the Connect to a printer on the Internet or on your intranet radio button.
5. Enter the URL of the target printer using the format below. The URL should be the same as the URL you set on EpsonNet Config’s IPP configuration page.
http://IP address of printer:631/Printer name
Example: http://192.168.100.201:631/EPSON_IPP_Printer
Note:
To check the IP address of the network interface, use EpsonNet Config. See “About EpsonNet Config” on page 91 for details.
How To 66
EPSON Network Guide
6. Follow the on-screen instructions to set up the printer. See “Installing a printer driver” on page 67 if necessary.
Microsoft Network Shared printing
1. Click Start, point to Settings, and then select Printers.
2. Double-click Add Printer to start the Add Printer wizard, and then click Next.
3. Select the Network printer radio button and then click Next.
4. Select the Type the printer name, or click Next to browse for a printer radio button.
5. Enter the following in the Name box or click Next to browse for a printer.
\\NetBIOS name of network interface\Device name of network interface
6. Follow the on-screen instructions to set up the printer. See “Installing a printer driver” on page 67 if necessary.
Installing a printer driver
1. Insert the Software CD-ROM shipped with the printer.
2. Close the Software Installation screen if it appears.
3. Click the Have Disk button. The Install From Disk dialog box appears.
4. Click Browse.
5. Select the CD-ROM drive for Drives, and double-click the WINVISTA_XP_2K, WINXP_2K, or WIN2000 folder. Click Open.
6. Click OK in the Install From Disk dialog box.
7. Select the model name of the printer, and then click Next.
Note:
If the Add Printer wizard prompts you to select either Keep existing driver or Replace existing driver, be sure to select the Replace existing driver radio button.
8. Click Finish and follow the on-screen instructions to complete the setup.
How To 67
EPSON Network Guide
Using the NET USE command
If you are running Windows Vista/XP/Server 2008/Server 2003/2000/NT 4.0 and using NetBIOS to connect to the device, we recommend that you use the NET USE command, as follows:
1. Right-click the My Network Places icon and then select Properties.
2. Right-click the Local Area Connections icon and then select Properties.
3. Check that Client for Microsoft Networks is in the Components list. If it is not installed, click Install to install it.
4. Run the command prompt and enter the following command.
NET USE printer port: \\NetBIOS name of network interface\Device name of network interface
Selecting the port
1. Click Start, point to Settings, and then select Printers.
2. Right-click the printer icon and then select Properties.
3. Click the Ports tab and then select the port you have set with the NET USE command.
Encrypting print data (Secure IPP printing)
Internet printing (IPP) enables you to encrypt data to print.
Required settings
Configure the following settings using EpsonNet Config with Web Browser. See “EpsonNet Config with Web Browser” on page 95 for details.
Importing server certificate
Selecting server certificate
Setting encryption strength
Setting printer port
How To 68
EPSON Network Guide
Configuring the printer port
1. Select Connect to a printer on the I nt er ne t o r o n a hom e o r o ff ic e n et wo rk: in th e I nt er ne t pr in ti ng (IPP) wizard.
2. Enter the URL using the format below.
https://IP address of network interface:443/EPSON_IPP_Printer

Windows NT 4.0

For Windows NT 4.0, the printer driver installation procedure differs depending on the printing method you prefer. Epson recommends printing with EpsonNet Print. See “For Windows Vista/XP/ Server 2008/Server 2003/2000/NT 4.0 Users” on page 103.
LPR printing
Note:
If you are using EpsonNet Print, the setup procedure is different. See “About EpsonNet Print” on page 102 for details.
1. Click Start, point to Settings, and then select Printers.
2. Double-click the Add Printers icon.
3. Select the My Computer radio button, and then click Next.
4. Click Add Port in the Add Printer wizard dialog box.
5. Select LPR Port from the Available Printer Port list, and then click New Port.
Note:
You cannot use the Lexmark TCP/IP Network Port with this network interface.
6. Enter the IP address of the network interface in the first text box and the printer name in the second text box. Click OK.
How To 69
EPSON Network Guide
7. In the Printer Ports dialog box, click Close.
8. In the Add Printer Wizard dialog box, click Next.
9. See “Installing a printer driver” on page 70 to install the printer driver.
Microsoft Network Shared printing
1. Click Start, point to Settings, and then select Printers.
2. Double-click Add Printer.
3. Select the Network printer server radio button and then click Next. The Connect to Printer dialog box appears.
4. Select the printer you want to configure from the Shared Printers list. If you cannot select the printer, enter the following in the Printer box:
\\NetBIOS name of network interface\Device name of network interface
5. Click OK.
6. Follow the on-screen instructions to set up the printer. See “Installing a printer driver” on page 70 if necessary.
Installing a printer driver
1. Insert the Software CD-ROM shipped with the printer.
2. Close the Software Installation screen if it appears.
3. Click the Have Disk button. The Install From Disk dialog box appears.
4. Click Browse.
5. Select the CD-ROM drive for Drives, and then double-click the WINNT40 folder. Click Open.
6. Click OK in the Install From Disk dialog box.
How To 70
EPSON Network Guide
7. Select the model name of the printer, and then click Next.
Note:
Announce the share name to your clients so that they know the share name of the printer they
want to use.
If the Add Printer wizard prompts you to select either Keep existing driver or Replace existing
driver, be sure to select the Replace existing driver radio button.
8. Click Finish and follow the on-screen instructions to complete the setup.
Using the NET USE command
If you are running Windows Vista/XP/Server 2008/Server 2003/2000/NT 4.0 and using NetBIOS to connect to the device, we recommend that you use the NET USE command, as follows:
1. Check that the following services are installed.
Right-click the Network Neighborhood icon on the desktop and select Properties. Click the Services tab and check that Server or Workstation is listed.
2. If it is not installed, click Add.
3. Run the command prompt and enter the following command.
NET USE printer port: \\NetBIOS name of network interface\Device name of network interface
Selecting the port
1. Click Start, point to Settings, and then select Printers.
2. Right-click the printer icon and then select Properties.
3. Click the Ports tab and then select the port you have set with the NET USE command.

Macintosh

Follow the steps below to set a printer.
How To 71
EPSON Network Guide
Note:
Make sure that the printer driver is installed on your Macintosh before following the steps below. See the manual shipped with your printer for instruction on how to install the printer driver.
Mac OS X 10.5
Bonjour printing
1. Open System Preferences.
2. Open Print & Fax.
3. Click the + button to add a new printer.
4. Select the desired printer model that is connected with Bonjour.
5. Click Add.
TCP/IP printing
1. Open System Preferences.
2. Open Print & Fax.
3. Click the + button to add a new printer.
4. Click More Printers, select EPSON TCP/IP from the drop down list, and then select the printer model.
5. Click Add.
Mac OS X 10.4 or below
Bonjour/Rendezvous printing
1. Open the Applications folder.
2. Open the Utilities folder.
3. Open Print Center (for Mac OS X 10.2 or below) or Printer Setup Utility (for Mac OS X 10.3 or later), and then click Add.
How To 72
EPSON Network Guide
4. For Mac OS X 10.4, select the printer model that is connected with Bonjour. For Mac OS X 10.2 or 10.3, select Rendezvous from the drop down list, and then select the printer model from the list.
5. Click Add.
TCP/IP printing
1. Open the Applications folder.
2. Open the Utilities folder.
3. Open Print Center (for Mac OS X 10.2 or below) or Printer Setup Utility (for Mac OX 10.3 or later), and then click Add.
4. For Mac OS X 10.4, click More Printers, select EPSON TCP/IP from the drop down list, and then select the printer model. For Mac OS X 10.2 or 10.3, select EPSON TCP/IP from the drop down list, and then select the printer model from the list.
5. Click Add.
AppleTalk printing
1. Open the Applications folder.
2. Open the Utilities folder.
3. Open Print Center (for Mac OS X 10.2 or below) or Printer Setup Utility (for Mac OS X 10.3 or later), and then click Add.
4. For Mac OS X 10.4, click More Printers, select EPSON Apple Talk from the drop down list, select the zone from the drop down list, and then select the printer model. For Mac OS X 10.2 or 10.3, select EPSON Apple Talk from the drop down list, select the zone from the drop down list, and then select the printer model from the list.
5. Click Add.
How To 73
EPSON Network Guide

Settings for NetWare Users

Overview

If you are using a printer that supports NetWare queue-based printing, see “Configuring the Network Interface” on page 74 for detailed information.
Note:
To find out whether your printer supports NetWare queue-based printing, see the User’s Guide.

Configuring the Network Interface

This section explains how to configure the network interface for NetWare. First, you need to set up the printer in a NetWare environment, and then configure the network interface using EpsonNet Config.
Introduction to NetWare settings
Supported systems
Server environment
NetWare 3.1/3.11/3.12/3.2 (Bindery)
NetWare 4.1/4.11/4.2 (NDS, Bindery emulation)
IntranetWare (NDS, Bindery emulation)
NetWare 5.0/5.1 (NDS, NDPS)
NetWare 6.0 (NDS, NDPS)
Client environment
The client environment must be supported by NetWare. The clients are able to use the printer driver mounted on the network interface.
The following Novell Client is supported.
For Windows 98:
Novell Client 3.4 or later for Windows 98/95
How To 74
EPSON Network Guide
For Windows 2000/NT 4.0:
Novell Client 4.8 or later for Windows 2000/NT 4.0
For Windows XP:
Novell Client 4.9 or later for Windows XP
About modes
You can choose either the Print Server, Remote Printer, or Standby mode. We recommend that you use the Print Server mode unless the number of users exceeds the limit.
Features of these modes are described below.
Print Server mode (NDS/Bindery Print Server):
High-speed printing with direct printing
Uses the NetWare user account
Can connect up to 8 file servers simultaneously
Can register up to 32 print queues
Remote Printer mode:
A NetWare user account is not required.
A print server is needed to control the remote printer.
Can attach up to 16 printers for NetWare 3.x, and up to 255 for NetWare 4.x or later.
Note:
When you turn on the printer, the user account is temporarily accessed in the Remote Printer mode. If there is no user account available, turn on the printer before connecting the client to the network.
Standby mode (factory default mode):
The Standby mode is the default mode. This mode disables all NetWare related functions. Use the Standby mode when you are not using the network interface in a NetWare environment.
Instructions for using NetWare
Printing a text file
When you print a text file using the NPRINT command of NetWare or DOS, redirection, misconversion or a gap in characters may occur depending on the client environment.
How To 75
EPSON Network Guide
IPX routing protocol “NLSP”
It is possible to set the IPX routing protocol “NLSP” from NetWare 4.x or later; however, the network interface does not support NLSP. RIP/SAP controls the communication.
You can select the routing protocol from a) NLSP with RIP/SAP Compatibility, or b) RIP/SAP Only. If you remove the bind of RIP or SAP when NLSP with RIP/SAP Compatibility is specified, the network interface then cannot communicate with the file server and NDS. (See “Protocols” and “Bindings” in NetWare’s INETCFG utility.)
Bindery and NDS
You can check the bindery context path from the server console by using the SET BINDERY
CONTEXT command.
If the bindery context path has not been set, or if you want to use the printing environment of
another context from a non-NDS client, you need to specify the context for the bindery context. Use the SET BINDERY CONTEXT command to set the context in the AUTOEXEC.NCF file.
You cannot use the bindery print server mode with EpsonNet Config if you are running Novell
Client for Windows 95/98 version 3.00 or Novell Client for Windows NT version 4.50. To configure the network interface for bindery mode, use Novell IntranetWare Client or EpsonNet Config with Web Browser.
See your NetWare documentation for more information.
Time required to recognize the network interface
It takes up to two minutes for the NetWare server to recognize the network interface, after the printer is turned on. During this start-up time, the status sheet does not show the correct information.
Frame type
The same frame type should be used for the NetWare server and IPX router on the same network. If more than one frame type is used on the same network, bind all the frame types to the NetWare servers and IPX routers.
For NetWare 5.x
The IPX protocol must be installed (bound) on the NetWare 5.x server.
How To 76
EPSON Network Guide
About modes
If the mode you have logged in is different from the mode you set for the network interface, a message appears when you try to configure the network interface for NetWare. If you do not want to change the current settings, click Cancel and log in again using the same mode set for the network interface.
Using Bindery Print Server (NetWare 3.x/4.x)
This section contains instructions on using the network interface in the Print Server mode on NetWare 3.x/4.x/IntranetWare with Bindery emulation.
Note:
The network interface in the Print Server mode of NetWare 3.x does not allow you to use the Print Server status display control with PCONSOLE.
1. Turn on your printer.
2. From any NetWare client, log in to the target NetWare server with supervisor privileges. You must log in with the bindery connection.
3. Configure the network interface using EpsonNet Config. See the EpsonNet Config User’s Guide for details.
If NetWare objects are already created, you can also use EpsonNet Config with Web Browser. See the EpsonNet Config with Web Browser help for details.
Using NDS Print Server (NetWare 4.x/5.x/6.0)
This section contains instructions for using the network interface in the Print Server mode on NetWare 4.x, IntranetWare, NetWare 5.x, or NetWare 6.0 with NDS mode.
1. Turn on your printer.
2. From any NetWare client, log in to the target context of the NDS tree as an ADMIN.
3. Configure the network interface using EpsonNet Config. See the EpsonNet Config User’s Guide for details.
If NetWare objects are already created, you can also use EpsonNet Config with Web Browser. See the EpsonNet Config with Web Browser help for details.
How To 77
EPSON Network Guide
Using Remote Printer Mode (NetWare 3.x)
For NetWare 3.x users, follow the steps below to make the printer environment with PCONSOLE.
Creating print queues in a file server
1. From any NetWare client, log in to the network with supervisor privileges.
2. Run PCONSOLE. From the Available Options screen, select Print Queue Information and press Enter.
3. Press the Insert key on your keyboard and enter the print queue name. Press Enter.
Note:
Since your clients need the print queue name you set here when they use the printer, announce the print queue name to your clients.
4. From the Print Queue list, select the print queue name that you just entered and press Enter. From the Print Queue Information list, select Queue Users and press Enter. Next, select EVERYONE from the list. If EVERYONE is not in the list, press Insert and select EVERYONE from the queue user list.
Creating a print server
1. From the Available Options screen, select Print Server Information and press Enter.
2. Press the Insert key on your keyboard and type the print server name. Press Enter. It is a good idea to write down the print server name for later use.
How To 78
EPSON Network Guide
3. From the Print Server list, select the print server name that you just typed and press Enter. From the Print Server Information list, select Print Server Configuration and press Enter.
4. Select Printer Configuration from the Print Server Configuration Menu and press Enter.
5. From the Configured Printers list, select Not Installed (port number = 0) and press Enter.
How To 79
EPSON Network Guide
6. From the Printer configuration screen, type the printer name. Highlight Type and press Enter. Select Remote Parallel, LPT1 for Remote Printer mode.
Note:
Be sure to select Remote Parallel, LPT1 for Remote Printer mode.
7. Press Esc; then press Enter to save your changes.
8. Press Esc.
9. Select Queues Serviced by Printer from the Print Server Configuration menu and press Enter.
10. Select the printer that you want to use from the Defined Printers list and press Enter.
11. Press the Insert key and assign a queue to the print server port from the Available Queues list.
12. Specify a priority level between 1 to 10. One is top priority.
13. Press Esc to exit PCONSOLE.
Configuring for NetWare using EpsonNet Config
1. Turn on your printer.
How To 80
EPSON Network Guide
2. Load the print server from the file server’s system console which the print queue volume is set. >LOAD PSERVER print server name you set using PCONSOLE
3. Configure the network interface using EpsonNet Config. See the EpsonNet Config User’s Guide for details.
If NetWare objects are already created, you can also use EpsonNet Config with Web Browser. See the EpsonNet Config with Web Browser help for details.
Using Bindery Remote Printer Mode (NetWare 4.x)
Follow the steps below to make the printer environment on NetWare 4.x and IntranetWare with Bindery emulation.
Note:
Assign Trusteeships for users if necessary.
Be sure to use PCONSOLE to set the print queue and print server instead of using NWAdmin.
Creating objects
1. From any NetWare client, log in to the server as an ADMIN. Make sure to log in with Bindery connection.
Note:
If the client using for this setting has been logged in with NDS mode, press F4 key while PCONSOLE is starting to switch to the bindery mode.
2. Run PCONSOLE. From the Available Options screen, select Print Queues and press Enter. Press Insert and type the print queue name. Press Enter.
Note:
Since your clients need the print queue name you set here when they use the printer, announce the print queue name to your clients.
3. From the Print Queue list, select the print queue name that you just entered and press Enter. From the Print Queue Information list, select Queue Users and press Enter. Next, select EVERYONE from the list. If EVERYONE is not in the list, press Insert and select EVERYONE from the queue user list.
4. From the Available Options screen, select Print Servers and press Enter. Press Insert and type the print server name. Press Enter.
How To 81
EPSON Network Guide
5. Press Esc to exit PCONSOLE, and log out from the server.
6. Log in to the server as an ADMIN. Be sure to log in with NDS connection.
7. Start NWAdmin.
8. To create the Printer Object, click the container specified as the Bindery context and select Create from the Object menu, then Printer. Type the printer name and click Create.
9. To assign the print queue, double-click the Printer object icon (created in step 8). The Printer dialog box appears.
10. Click Assignments and then click Add. From the print queue list, select the queue (created in step 2) and click OK.
11. Click Configuration in the Printer dialog box, and select Parallel from the Printer type pull-down menu.
12. Click Communication. The Parallel Communication dialog box appears.
13. Select LPT1 for Port; check Polled for Interrupts; and check Manual load (Remote from Print Server) for Connection type, then click OK.
14. Click OK in the Printer dialog box.
15. To assign the printer, double-click the Print Server object icon (created in step 4). The Print Server dialog box appears.
16. Click Assignments and then click Add. From the printer object list, select the printer object (created in step 8) and click OK.
17. In the Print Server dialog box, select the assigned printer from the printer object list, and click the Printer Number button to set the printer number from 0 to 15, then click OK.
18. To confirm the objects you have assigned, double-click the Print Server object icon. Click Print Layout, and check that the print server, printer, and print queue are connected.
Configuring for NetWare using EpsonNet Config
1. Turn on your printer.
How To 82
EPSON Network Guide
2. Load the print server from the file server’s system console which the print queue volume is set. >LOAD PSERVER print server name you set using PCONSOLE
3. Configure the network interface using EpsonNet Config. See the EpsonNet Config User’s Guide for details.
If NetWare objects are already created, you can also use EpsonNet Config with Web Browser. See the EpsonNet Config with Web Browser help for details.
Using NDS Remote Printer Mode (NetWare 4.x/5.x/6.0)
Follow the steps below to make the printer environment using NWAdmin under NetWare 4.x, IntranetWare, NetWare 5.x, or NetWare 6.0 with NDS mode.
Creating objects
1. From any NetWare client, log in to the target context of the NDS tree as an ADMIN.
2. Run the Administrator tool (NWAdmin).
3. Create a printer:
Click the directory context icon, and select Create from the Object menu, then Printer. Type the Printer name and click Create.
4. Create a print server:
Click the directory context icon, and select Create from the Object menu, then Print Server. Type the Print Server name and click Create.
How To 83
EPSON Network Guide
5. Create a print queue:
Click the directory context icon, and select Create from the Object menu, then Print Queue. Type the Print Queue name and select the Print Queue Volume, then click Create. Double-click the print queue object, and register the user.
Note:
Since your clients need the print queue name you set here when they use the printer, announce the print queue name to your clients.
6. Double-click the Printer Object icon in the NetWare Administrator screen.
How To 84
EPSON Network Guide
7. In the Printer dialog box appears, click Assignments and then click Add.
8. From the print queue list, select the queue you created in step 5 and click OK.
9. Click Configuration, and select Other/Unknown for the Printer type list box and click OK.
How To 85
EPSON Network Guide
10. Double-click the Print Server Object icon in the NetWare Administrator screen.
11. In the Print Server dialog box that appears, click Assignments and then click Add.
12. From the printer object list, select the printer object you want to assign and click OK.
13. Go back to the screen in step 11, and click the Printer Number button to set the printer number from 0 to 254.
How To 86
EPSON Network Guide
14. To confirm the objects you have assigned, double-click the Print Server object icon. Click Print Layout, and check that the print server, printer, and print queue are connected.
Configuring for NetWare using EpsonNet Config
1. Turn on your printer.
2. Load the print server from the file server’s system console which the print queue volume is set. >LOAD PSERVER print server name you set using NWAdmin
3. Configure the network interface using EpsonNet Config. See the EpsonNet Config User’s Guide for details.
If you use the NetWare objects that are already created, you can use EpsonNet Config with Web Browser too. See the EpsonNet Config with Web Browser help for details.
Instructions for using a dial-up network
This section explains about using a dial-up network.
Note:
The primary server described in this manual indicates a primary time server which offers time to the workstations on the network.
Using a dial-up network in each mode
Print Server mode
You must use a dedicated dial-up line. Since polling is performed on the file server in the print server mode, no vicarious response by the router is possible. Therefore, no dial-up connection is possible in this case.
Remote Printer mode
In Remote Printer mode, use of a router with a vicarious response function allows the primary server to be installed at the dial-up destination. However, an extra account might be generated when the primary server is down. To avoid that, it is recommend to use connections via a dedicated dial-up line.
Follow the instructions for using a dial-up line.
How To 87
When there is a primary server at the dial-up destination
For local networks with file servers:
EPSON Network Guide
Primary file server
(primary print server)
Printer
File
server
Local network
Dial-up
router
Dial-up
router
Remote network
When the power is turned on
A dial-up is generated because access is made to a local file server first and then to a primary server. There is no problem since this dial-up only occurs at startup.
When the network interface is not correctly set
A dial-up is generated because access is made to a local file server first and then to a primary server. This dial-up is repeated at intervals of approximately 5 minutes. Make the network interface settings correctly to avoid this problem.
During normal operation (standby)
An SPX Watchdog packet is sent according to the NetWare protocol convention. Use a router with a vicarious response function to avoid a dial-up.
During normal operation (printing)
A dial-up is generated while the printing data is being transferred. This is not a problem because it is a dial-up specific to the dial-up network.
When the primary server is down during operation
A dial-up is generated because a connection to the primary server is attempted periodically. Since this is attributable to the automatic re-connection function, turn off the printer once.
When the file server on the local network is down
When there is no file server on the local network, NetWare cannot be used on the local network. In this case, the NetWare protocol for the network interface is also not available. No dial-up is generated under this condition. When the file server on the local network is restored, the network interface is also automatically restored.
How To 88
For local networks with no file server:
EPSON Network Guide
Primary file server
(primary print server)
Printer
Dial-up
router
Local network
Dial-up
router
Remote network
Depending on the router settings, the NetWare protocol can be used without a file server on a local network. This setup follows the same pattern as that described above.
When there is a primary server in the local network
Even if a primary server is installed on the local network, an unnecessary dial-up may be generated depending on the configuration.
The following problems are common to both Print Server mode and Remote Printer mode.
File server
(print server)
Primary file server
(primary print server)
Dial-up
router
Dial-up
router
Printer
Local network
Remote network
When the power is turned on
Since access is made only to the primary server, no dial-up is generated.
When the network interface is not correctly set
Since access is made only to the primary server, no dial-up is generate d. Ho we ve r, if th e fi le ser ve r/ print server of the remote network is erroneously set as the primary server, an unnecessary dial-up might be generated. Correct the settings to avoid this problem.
During normal operation (standby/printing)
Since access is made only to the primary server, no dial-up is generated.
When the primary server is down during operation
How To 89
EPSON Network Guide
Connection to the primary server is periodically attempted, but no dial-up is generated. However, if the router is set to pass SAP packets (Find Nearest Server), an unnecessary dial-up might be generated. To avoid this, turn off the printer once, or do not allow the router to pass SAP packets (Find Nearest Server).
How To 90
EPSON Network Guide
Chapter 3

Network Software

This chapter explains how to use the network software provided with your printer.
Note:
The software provided varies depending on your printer model.

EpsonNet Config for Windows

About EpsonNet Config

EpsonNet Config is a Windows-based configuration software for administrators to configure the network interface for TCP/IP.
Note:
Be sure to use EpsonNet Config included on the Software CD-ROM shipped with this product.
Note for Windows 98/Me/NT 4.0 users:
EpsonNet Config on the Software CD-ROM shipped with this product does not support Windows 98, Me, and NT 4.0. To configure the network interface, use the previous version of the software (EpsonNet Config Ver.2). You can download EpsonNet Config Ver.2 from the Epson Web site. http://support.epson.net/netconfig_down.html

System Requirements

The following table lists the system requirements of EpsonNet Config.
Operating systems Windows Vista
Windows XP Professional/Home Edition
Windows Server 2008
Windows Server 2003
Windows 2000 Server/Professional
Memory 150 MB or more
Network Software 91
EPSON Network Guide
Hard disk drive space 50 MB

Installing EpsonNet Config

Follow the steps below to install EpsonNet Config on your computer to configure the network interface.
Note:
Log on to the operating system with an administrator account to install EpsonNet Config.
If you add or delete protocols or services from your operating system after installing EpsonNet Config,
EpsonNet Config may not work correctly. If this happens, uninstall EpsonNet Config and then install it again.
1. Make sure all the applications are closed, then insert the Software CD-ROM in the CD-ROM drive.
2. The Software Installation screen opens automatically.
If the Software Installation screen does not appear, double-click EPSETUP.EXE on the CD-ROM.
3. Click User Installation if it appears.
4. Click the Install Network Utility button.
5. Click the icon located next to EpsonNet Config Ver.3.
6. Follow the on-screen instructions to complete the installation.
Note:
If the Windows Security Alert window appears after you start EpsonNet Config, click the Unblock button; otherwise the devices are not listed on the screen of EpsonNet Config.

Accessing the EpsonNet Config User’s Guide

The EpsonNet Config User’s Guide contains detailed information on EpsonNet Config. Follow the steps below to access the EpsonNet Config User’s Guide.
Network Software 92
EPSON Network Guide
1. Click Start, point to Programs (for Windows 2000 users) or All Programs (for Windows Vista, XP, Server 2008, and Server 2003 users), select EpsonNet, and then select EpsonNet Config V3.
2. Click EpsonNet Config User’s Guide.
The EpsonNet Config User’s Guide appears. By clicking the links on the front page or contents page, you can get information on using EpsonNet Config.

EpsonNet Config for Macintosh

About EpsonNet Config

EpsonNet Config for Macintosh is a Macintosh-based configuration software for administrators that allows you to configure the network interface for TCP/IP.
Note:
Be sure to use EpsonNet Config included on the Software CD-ROM shipped with this product.
Note for Mac OS 9 users:
EpsonNet Config on the Software CD-ROM shipped with this product does not support Mac OS 9. To configure the network interface, use the previous version of the software (EpsonNet Config Ver.2). You can download EpsonNet Config Ver.2 from the Epson Web site. http://support.epson.net/netconfig_down.html

System Requirements

The following table lists the system requirements of EpsonNet Config.
Operating systems Mac OS 10.2.x or higher
Java 1.4 or later is installed
Models PowerPC Macintosh/Intel Macintosh
Memory 150 MB or more
Hard disk drive space 50 MB
Network Software 93
EPSON Network Guide

Installing EpsonNet Config

Follow the steps below to install EpsonNet Config to configure the network interface.
1. Make sure all the applications are closed, then insert the Software CD-ROM in the CD-ROM drive.
EPSON folder opens automatically.
2. Select the Mac OS X icon in the EPSON folder, and then double-click it.
3. Click the Install Network Utility button.
4. Click the icon located next to EpsonNet Config Ver.3.
5. Follow the on-screen instructions to complete the installation.

Accessing the EpsonNet Config User’s Guide

The EpsonNet Config User’s Guide contains detailed information on EpsonNet Config. Follow the steps below to access the EpsonNet Config User’s Guide.
1. Double-click the Macintosh HD icon.
2. In the Applications folder, double-click the EpsonNet folder, and then double-click the EpsonNet Config V3 folder. Finally, double-click the EpsonNet Config icon.
EpsonNet Config starts.
3. From the Help menu, select EpsonNet Config Help.
The EpsonNet Config User’s Guide appears. By clicking the links on the front page or contents page, you can get information on using EpsonNet Config.
Network Software 94
EPSON Network Guide

EpsonNet Config with Web Browser

About EpsonNet Config

EpsonNet Config with Web Browser is a Web-based utility designed to configure the printer for use on a network.
By typing the IP address of the network interface for the URL in your browser, you can start EpsonNet Config to allow you to configure the network interface for TCP/IP, NetWare, MS Network, AppleTalk, IPP, and SNMP.
Supported Web browser
Windows:
Microsoft Internet Explorer version 5.5 or later
Note:
To use EpsonNet Config with WebBrowser, Java can download Java
Mac OS X:
Microsoft Internet Explorer version 5.5 or later
Apple Safari 1.2 or later
About Web browser setting
When running EpsonNet Config with Web Browser, be sure not to use a proxy server to access the Internet. If the Access the Internet using a proxy server check box is selected, you cannot use EpsonNet Config with Web Browser. Use the following steps to clear the Access the Internet using a proxy server check box.
1. Right-click the Internet Explorer icon on the desktop, and then select Properties.
2. Click the Connection tab.
3. Clear the Access the Internet using a proxy server check box.
Plug-in from the following Web site: http://go.epson.com/en-US/java
Plug-in must be installed on your computer. You
Network Software 95
EPSON Network Guide

Configuring the Network Interface Using Web-Based EpsonNet Config

After you have assigned an IP address to the network interface using EpsonNet EasyInstall, EpsonNet Config for Windows or Macintosh, or the arp/ping command, you can configure the network interface using Web-based EpsonNet Config.
Note:
A Web browser must be installed on your computer.
TCP/IP must be correctly set for the computer and the network interface.
Do not run both EpsonNet Config for Windows or Macintosh and Web-based EpsonNet Config at
the same time.
Your browser may restrict some characters you can use. For details, see your browser or operating
system documentation.
Note for users of printers supporting NetWare queue-based printing:
If you are using the dial-up environment without running NetWare, select Disable on the NetWare screen. If Enable is selected, the extra account may be charged when you are using the dial-up router.
Follow the steps below to change the IP address using EpsonNet Config.
1. Turn on your printer.
Network Software 96
EPSON Network Guide
2. Run EpsonNet Config using one of the following ways.
Run EpsonNet Config for Windows or Macintosh. Select the printer you want to configure
from the list and then click Launch Browser.
Open your browser, and then type in the IP address of the network interface directly. Do not
run EpsonNet Config for Windows or Macintosh.
http://IP address of network interface/
Example: http://192.168.100.201/
Note:
To check the IP address of the network interface, use EpsonNet Config. See “About EpsonNet Config” on page 91 for Windows users, or see “About EpsonNet Config” on page 93 for Macintosh users for details.
Note for users of printers supporting NetWare queue-based printing:
From any NetWare client, log in to the target NetWare server or NDS context with supervisor
privileges.
You cannot create a print server, print queue, or printer with Web-based EpsonNet Config. You
must create these objects before using Web-based EpsonNet Config.
3. Click TCP/IP under Network on the Configuration menu to display the TCP/IP setting screen.
Note:
If you want to configure a protocol other than TCP/IP, configure the desired settings on Configuration - Network screen.
Network Software 97
EPSON Network Guide
4. Select a method for acquiring the IP address. When you select Auto, DHCP becomes available and assigns an IP address automatically. If you want to set the IP address manually, select Manual.
Note:
The network administrator must check any changes made to the IP address settings.
When Auto is selected, DHCP becomes available. To use the DHCP server, make sure it is
installed on your computer and correctly configured. See your operating system’s online help for detailed instructions.
If Set Using Automatic Private IP Addressing (APIPA) is enabled, a private IP address is
automatically assigned to the network interface even when there are no DHCP servers on your system or your network.
If the Dynamic DNS function is not supported, we recommend that you select Manual and then
enter an IP address. This is because if you select Auto, the IP address of the network interface changes every time you turn on the printer so that you need to change the printer port setting accordingly.
5. To assign an IP address manually, enter the IP address, the subnet mask, and the default gateway. Be sure the IP address does not conflict with any other devices on the network.
Note:
If there is a server or a router functioning as a gateway, enter the IP address of the server or the router for the gateway address. If there is no gateway, leave the default values there.
6. If you want to get a private address between 169.254.1.1 and 169.254.254.254 automatically when an IP address cannot be obtained by the DHCP server, leave it at Enable for Set Using Automatic Private IP Addressing (APIPA); otherwise, select Disable.
7. When setting an IP address using the ping command, select Enable for Set Using PING. Select Disable when setting an IP address with EpsonNet Config; this prevents any unexpected change of the IP address.
8. Select Enable for Acquire DNS Server Address Automatically if you want to acquire the DNS server address using the DHCP server.
If you want to enter the DNS server address manually, select Disable and then enter the IP address of the DNS server.
Network Software 98
EPSON Network Guide
9. Select Enable for Acquire Host Name and Domain Name Automatically if you want to acquire the host name and the domain name using the DHCP server.
If you want to specify manually, enter the host name and the domain name in the text boxes.
10. Select Enable for Register Network Interface Address to DNS Server if you want to register the host name and domain name to the DNS server through the DHCP server that supports Dynamic DNS.
If you want to register the host name and the domain name directly to the DNS server, select Enable for Register Network Interface Address Directly to DNS Server.
11. Select Enable or Disable for Use Universal Plug and Play. Select Enable if you want to use the Universal Plug and Play function on Windows Me or future operating systems.
12. Change the default Universal Plug and Play device name, if desired. This device name is used for Windows that supports the Universal Plug and Play function.
13. Mac OS X only: Select Enable or Disable for Use Bonjour. If you select Enable, enter the Bonjour Name and the Bonjour Printer Name. If your network environment supports DHCP, you can use the printer on the network just by enabling this setting.
14. Click Submit and then enter the password to update the settings.
Note:
If you have set the Administrator Name on the Administrator screen, enter the administrator name for the user name.
15. If the message “Configuration change is complete!” appears on your screen, the update is complete. Do not exit the Web browser and do not send a job to the printer until this message appears. Follow the on-screen instructions to reset the printer.
Note:
Since the new IP address becomes available after the printer is reset, you need to restart EpsonNet
Config by entering the new IP address.
Only changes on the page where you press the Submit button take effect.
Network Software 99
EPSON Network Guide

Opening Screen

Any user can access the following screen by typing the IP address of the network interface for the URL in your browser.
Note:
The item appears only if your printer supports the function, and the name of the item may vary
depending on the model.
See the EpsonNet Config with Web Browser help for details about each item.
Index
Home Links to the opening screen.
Favorite Links to a Web site previously defined by the administrator.
Help Links to Help.
Menu
About Links to the copyright and version information for EpsonNet Config.
EPSON Logo Links to the Epson Web site (http://www.epson.com).
Information - Printer
Device Displays the printer device information.
Consumables Displays the consumables information.
Confirmation Confirms and executes the Information Sheet, Reserve Job, and Form Overlay.
Input Displays the paper type information.
Print Displays the print information.
Emulation Displays the information for each type of emulation.
Interface Displays the printer interface information.
Information - Network
General Displays the network interface information.
*
NetWare Displays information about NetWare.
TCP/IP Displays information about TCP/IP.
Network Software 100
