Setting Up Your LX-90™ Printer
Setting up your
LX-90
printer is easy, even if you’ve never used a
printer before. By following the instructions in this manual, you’ll
have your new printer ready to go in just a few minutes.
Do You Have All the Parts You Need?
When you unpack your printer, be sure that the box contains all of
the items shown:
Paper separator
Paper feed
knob
Ribbon cassette
Also be sure that you have an Epson Printer Interface Cartridge
(PIP’) specifically designed for use with your computer. The PIC is
sold separately and comes with its own operation. manual.
1
Where to Place Your Printer
Now that your printer is unpacked, you need to find the best place
to put it. Keep the following tips in mind:
l
Place the printer close enough to the computer for the PIC cable to
reach between them.
l
Place the printer on a stable surface. Avoid setting the
carpeting or chairs.
l
Use a grounded outlet, and do not use an adapter plug.
l Avoid using outlets that are controlled by wall switches-if you
accidentally turn off a switch, you could wipe out valuable information in your computer’s memory and stop your printing.
l
Try not to use an outlet on the same circuit breaker with large elec-
trical machines or appliances-they can disrupt the flow of power
to your printer.
l
Protect your printer from direct sunlight, and keep it away from
excessive heat, moisture, and dust.
l
In order to use the tractor and continuous paper, put your
where the paper can flow freely in and out of the printer. See the
illustrations for suggestions.
LX-90
on
LX-90
Many types of printer stands are available; the previous illustration
shows one type. The next illustration shows a setup that does not
require a stand. These are only two examples; you can use any
arrangement that allows you to put the paper underneath or behind
the printer.
Once you’ve found the right location for your new
ready to start putting the printer together.
LX-90,
you’re

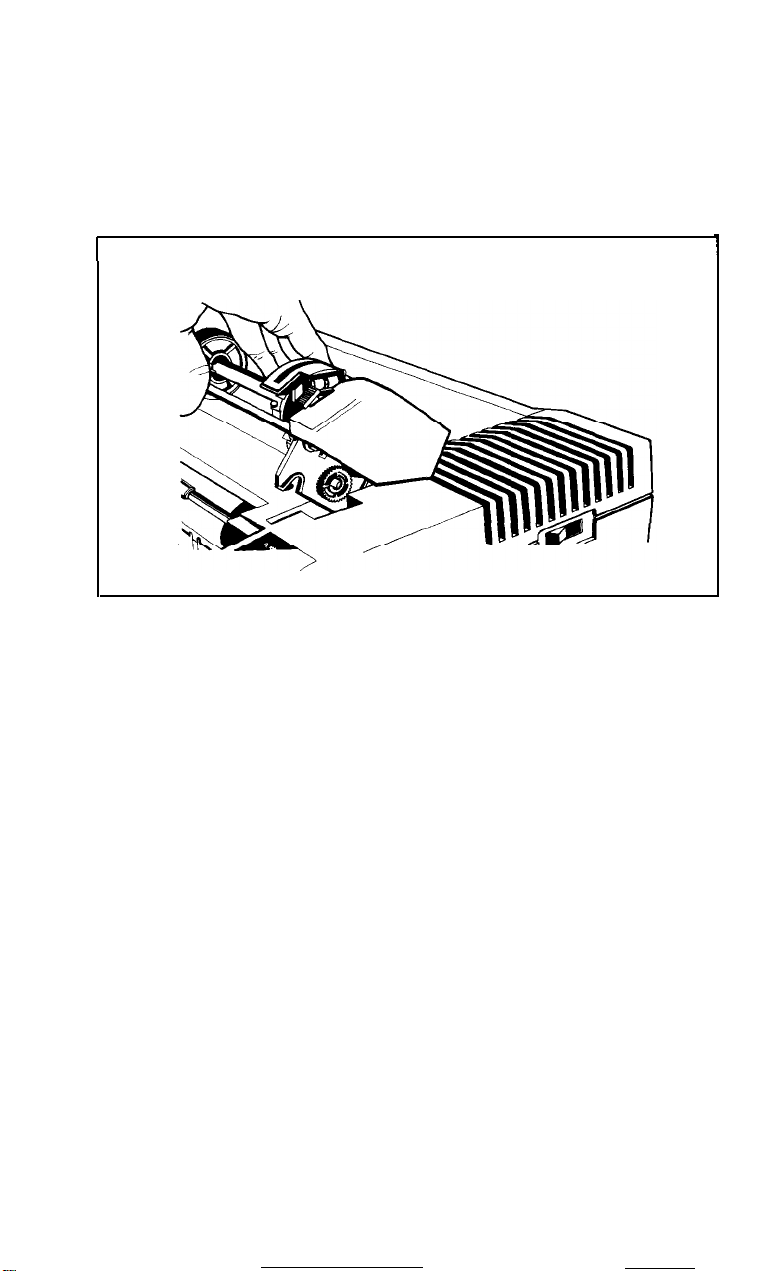

Installing the Ribbon
The ribbon for your
installation a clean and easy job. The parts of this cassette are labelled
below.
LX-90
is enclosed in a cassette that makes
3
