Pro G7000W/G7100/G7200W/G7400U/

G7500U/G7805/G7905U User's Guide

Pro G7000W/G7100/G7200W/G7400U/G7500U/G7805/G7905U User's Guide ...................................... 11

Introduction to Your Projector ................................................................................................................. 12

Setting Up the Projector ........................................................................................................................... 29

Projector Features.............................................................................................................................. 12

Product Box Contents.................................................................................................................... 13

Additional Components ................................................................................................................ 15

Additional Projector Software and Manuals................................................................................... 16

Optional Equipment and Replacement Parts................................................................................. 17

Warranty and Registration Information .......................................................................................... 19

Notations Used in the Documentation ................................................................................................ 19

Where to Go for Additional Information .............................................................................................. 20

Projector Part Locations ..................................................................................................................... 20

Projector Parts - Front/Top ............................................................................................................ 21

Projector Parts - Rear .................................................................................................................... 22

Projector Parts - Interface Ports .................................................................................................... 23

Projector Parts - Base.................................................................................................................... 24

Projector Parts - Control Panel ...................................................................................................... 25

Projector Parts - Remote Control................................................................................................... 26

Projector Placement........................................................................................................................... 29

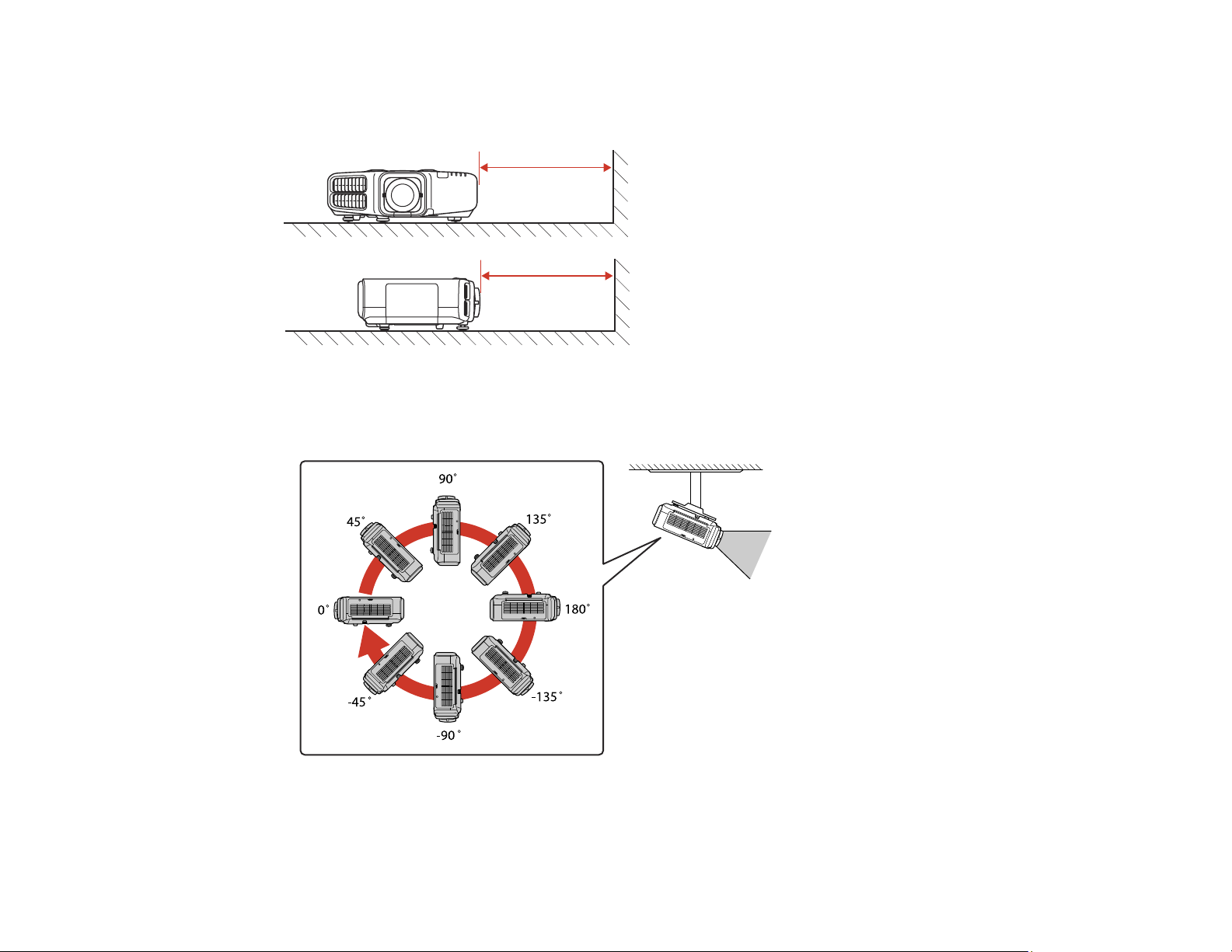

Projector Setup and Installation Options ....................................................................................... 29

Projection Distance........................................................................................................................ 32

Projector Connections........................................................................................................................ 39

Connecting to Computer Sources.................................................................................................. 40

Connecting to a Computer for VGA Video................................................................................. 40

Connecting to a Computer for HDMI Video and Audio .............................................................. 41

Connecting to a Computer for DVI-D Video .............................................................................. 42

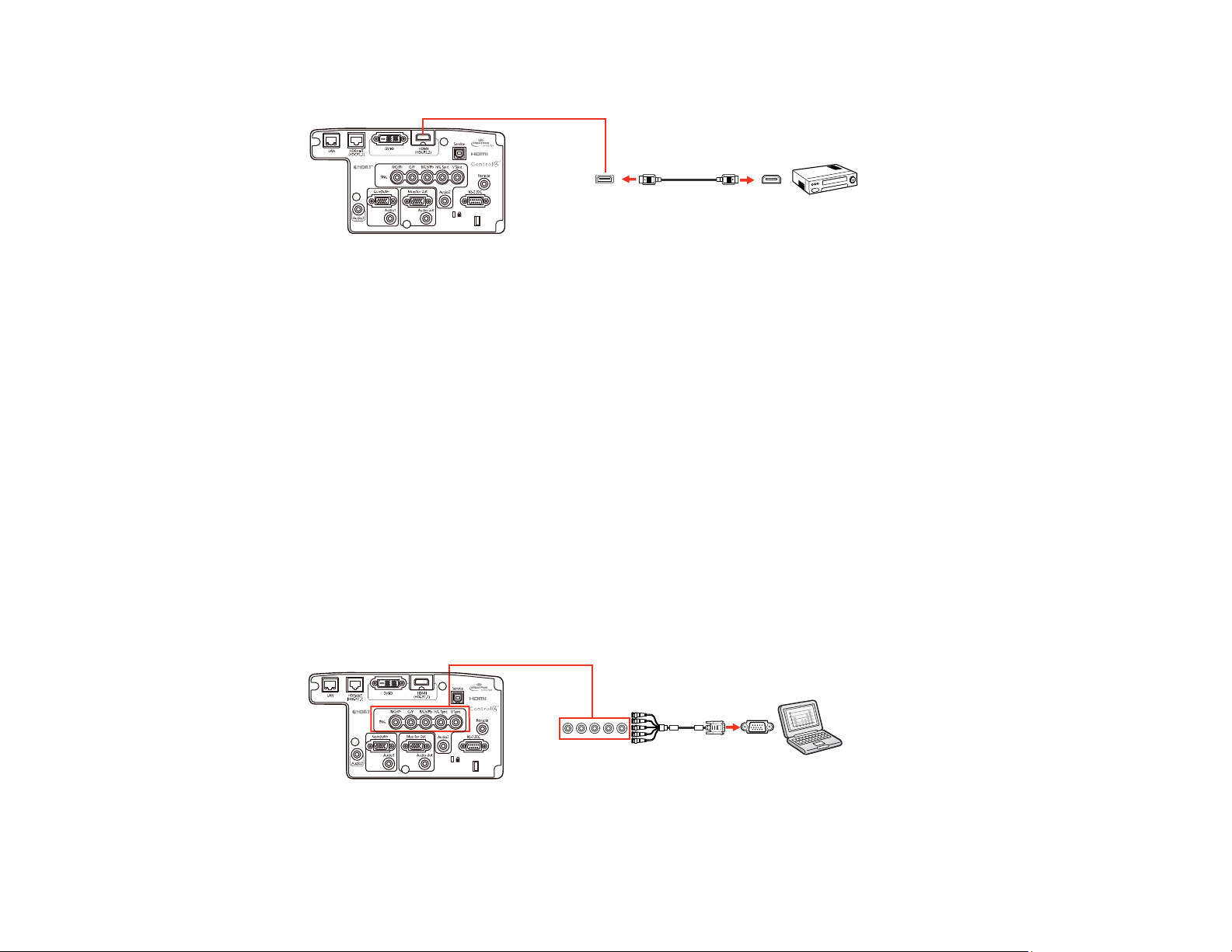

Connecting to a Computer for 5 BNC Video.............................................................................. 42

Connecting to a Computer for Sound........................................................................................ 43

Connecting to Video Sources ........................................................................................................ 43

Connecting to an HDMI Video Source ...................................................................................... 43

Connecting to a Component-to-BNC Video Source .................................................................. 44

Connecting to a Component Video Source ............................................................................... 45

Connecting to a Video Source for Sound .................................................................................. 45

Connecting to an HDBaseT Transmitter ....................................................................................... 46

Connecting to an External Computer Monitor................................................................................ 47

Connecting to External Speakers .................................................................................................. 48

Attaching and Removing a Lens......................................................................................................... 48

Attaching a Lens ........................................................................................................................... 49

Removing a Lens .......................................................................................................................... 51

Attaching and Removing the Cable Cover.......................................................................................... 53

Installing Batteries in the Remote Control .......................................................................................... 54

Using the Projector on a Network ............................................................................................................ 57

Wired Network Projection................................................................................................................... 57

Connecting to a Wired Network ..................................................................................................... 57

Selecting Wired Network Settings ................................................................................................. 58

Wireless Network Projection .............................................................................................................. 60

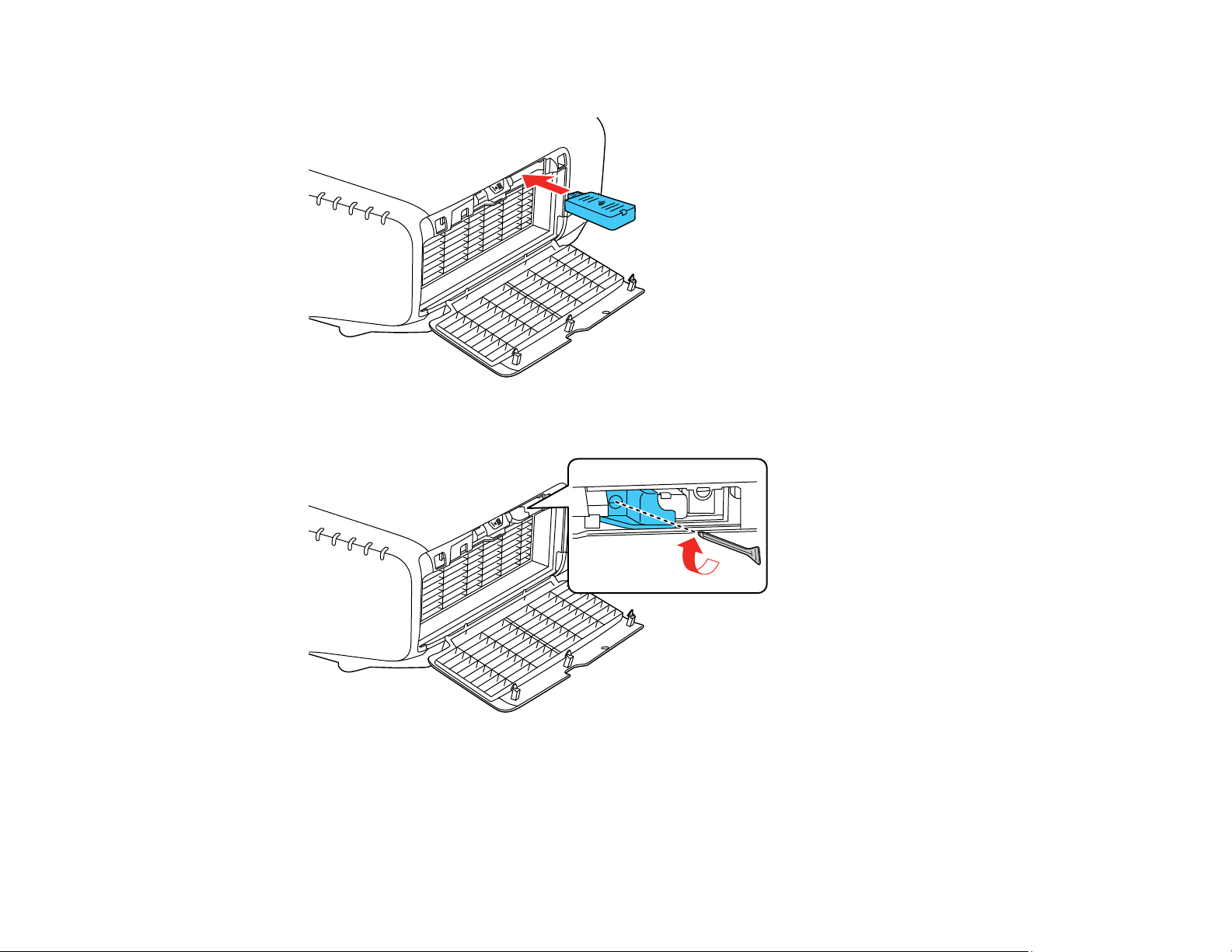

Installing the Wireless LAN Module ............................................................................................... 61

Using Quick Wireless Connection (Windows Only) ....................................................................... 64

Selecting Wireless Network Settings Manually.............................................................................. 66

Wireless LAN Menu Settings .................................................................................................... 69

Selecting Wireless Network Settings in OS X ................................................................................ 70

Selecting Wireless Network Settings in Windows.......................................................................... 70

Setting Up Projector Network E-Mail Alerts ........................................................................................ 71

Network Projector E-mail Alert Messages ..................................................................................... 72

Selecting Other Network Settings....................................................................................................... 72

Controlling a Networked Projector Using a Web Browser .................................................................. 74

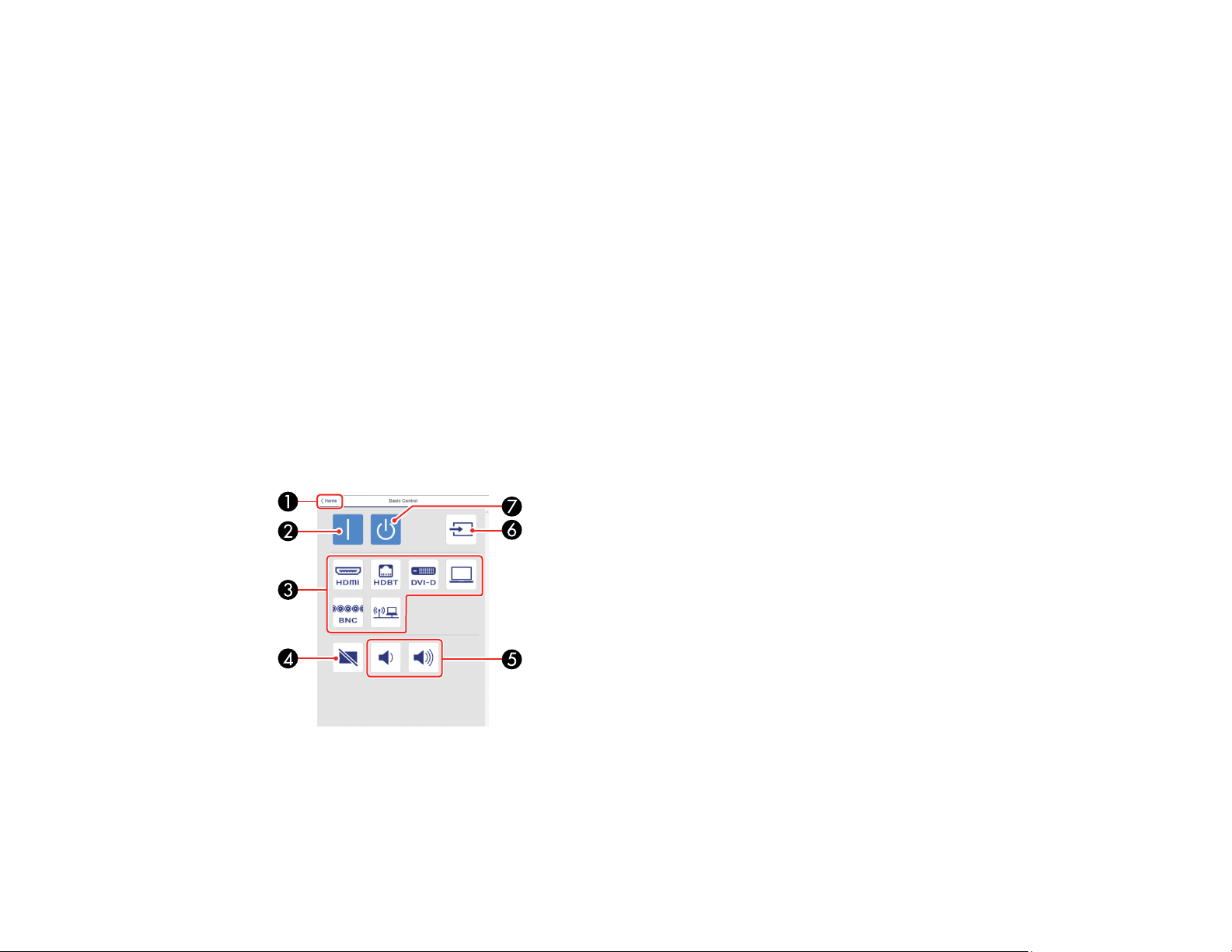

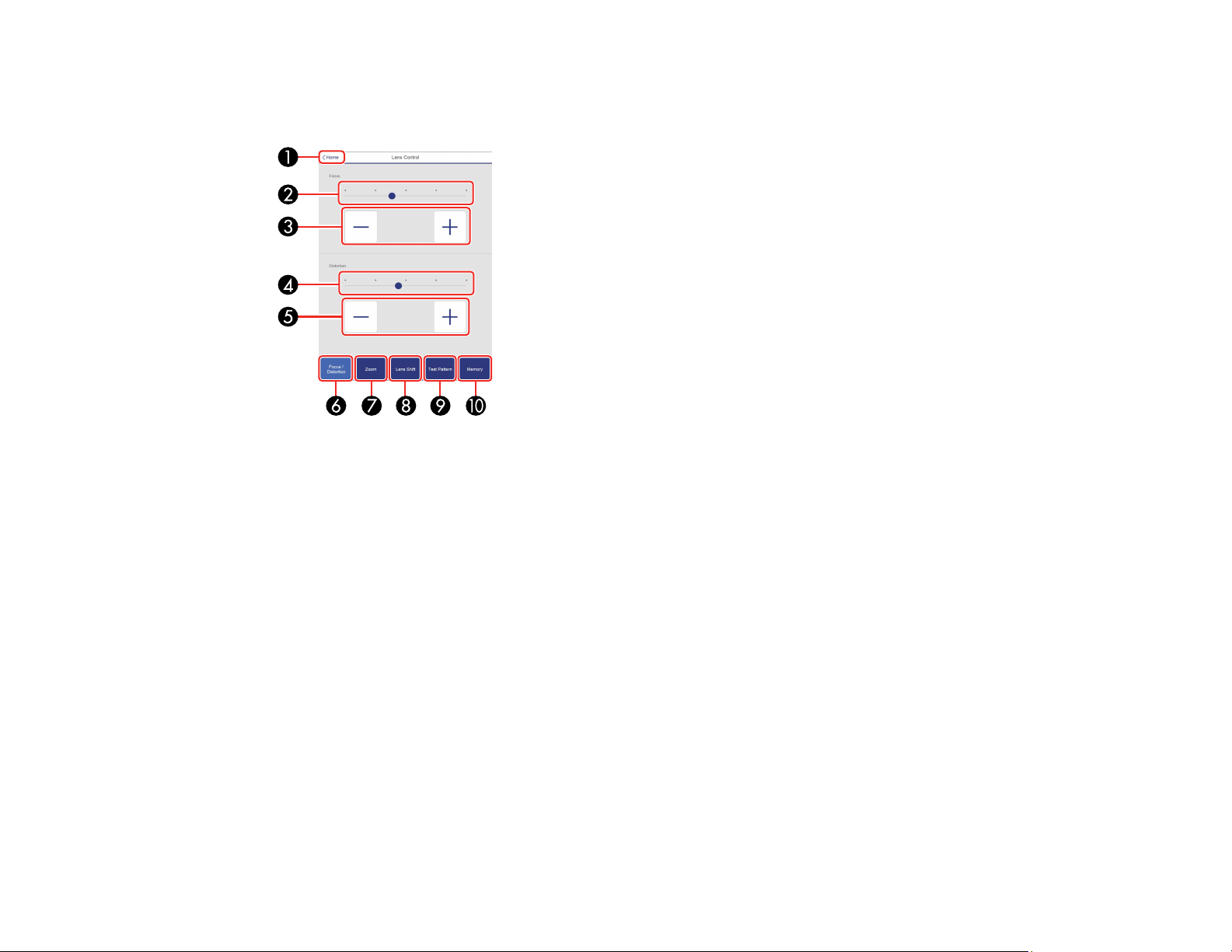

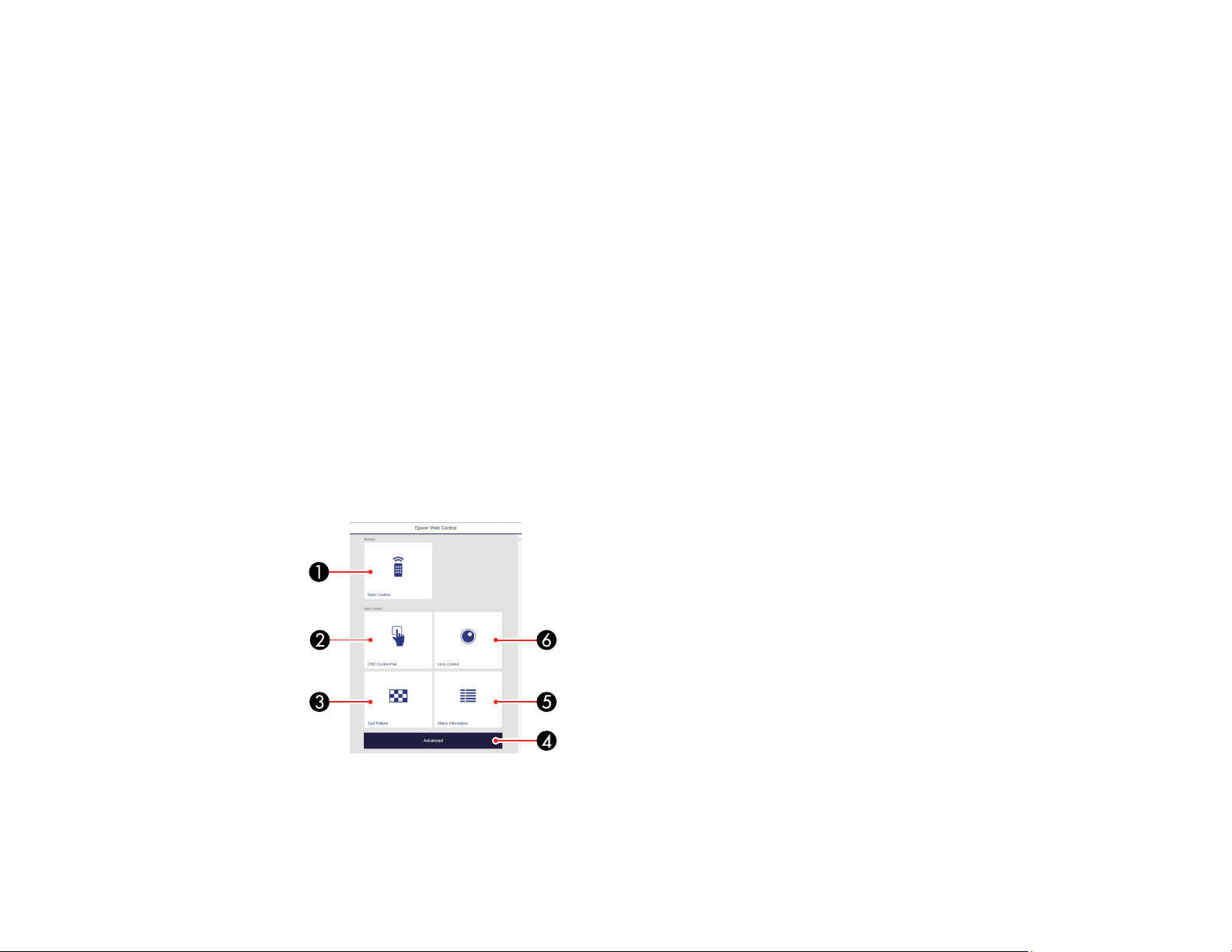

Web Control Options ..................................................................................................................... 75

Crestron RoomView Support.............................................................................................................. 81

Setting Up Crestron RoomView Support ....................................................................................... 81

Controlling a Networked Projector Using Crestron RoomView ...................................................... 82

Using Basic Projector Features ............................................................................................................... 84

Turning On the Projector .................................................................................................................... 84

Turning Off the Projector .................................................................................................................... 86

Selecting the Language for the Projector Menus................................................................................ 86

Resizing the Image with the Zoom Button .......................................................................................... 87

Focusing the Image Using the Focus Button...................................................................................... 88

Focusing the Image with the Optional Short Throw Lens............................................................... 89

Setting the Lens Type ........................................................................................................................ 91

Setting the Screen Type..................................................................................................................... 92

Adjusting the Image Position Using Lens Shift ................................................................................... 93

Adjusting the Image Position Using Screen Position.......................................................................... 93

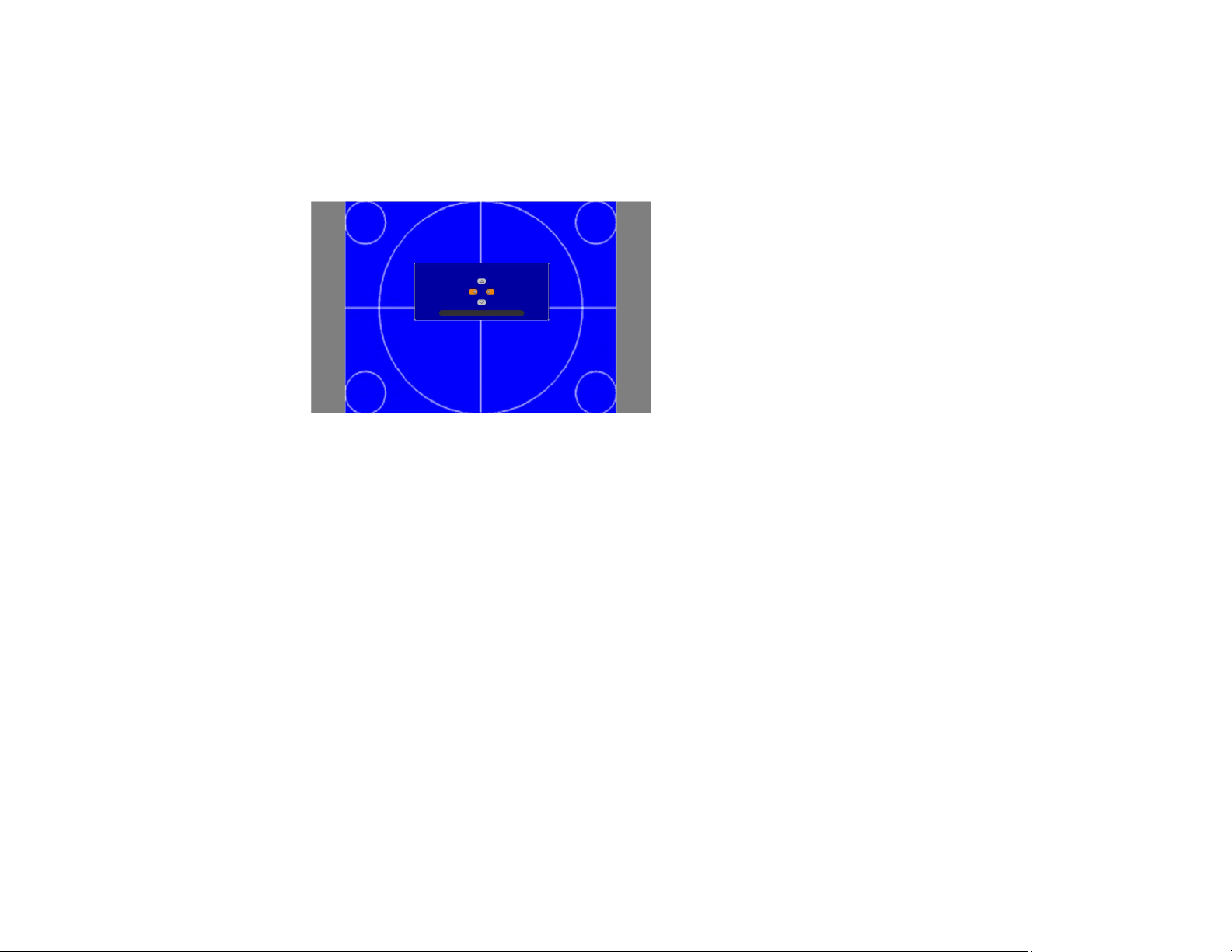

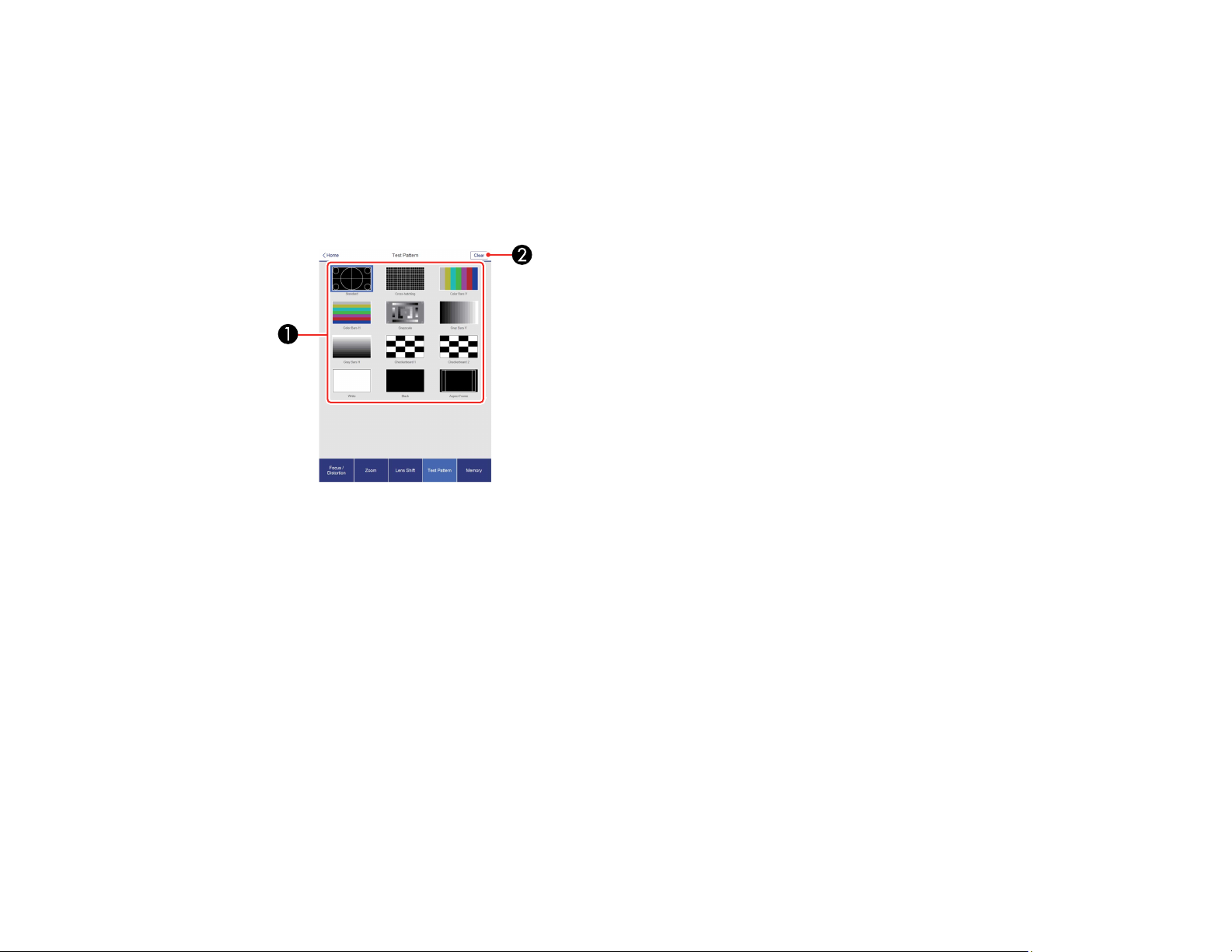

Displaying a Test Pattern ................................................................................................................... 94

Available Test Pattern Image Adjustments.................................................................................... 95

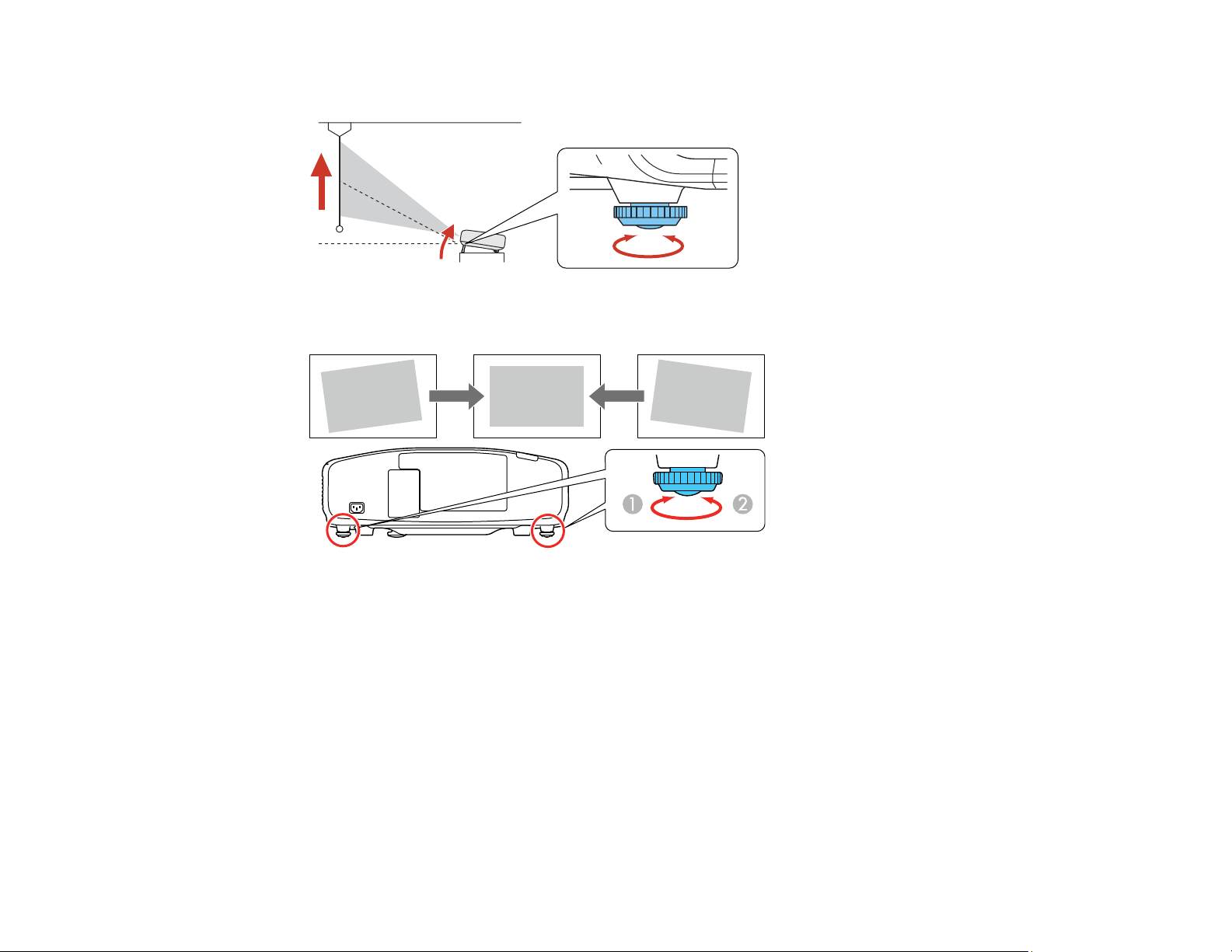

Adjusting the Image Height ................................................................................................................ 95

Image Shape...................................................................................................................................... 96

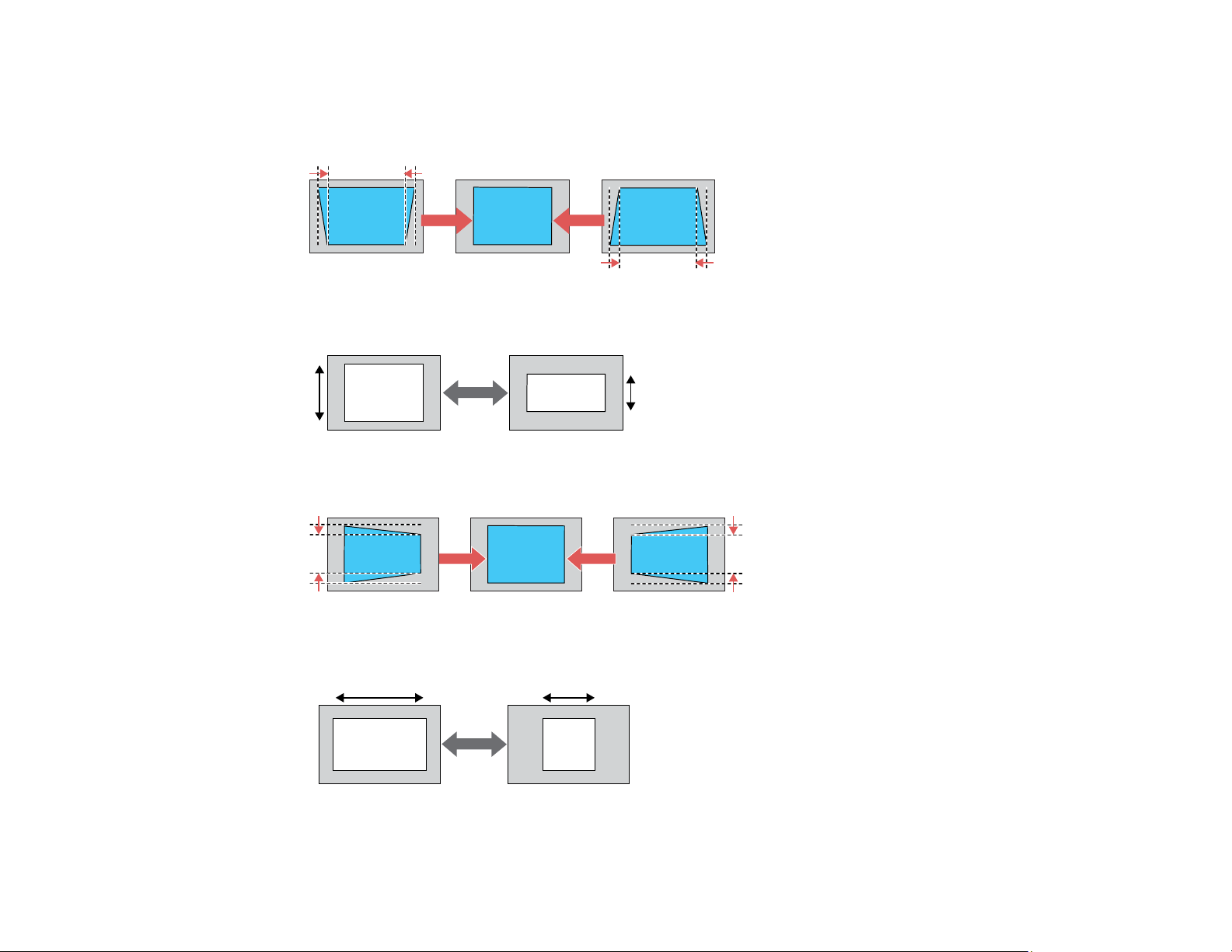

Correcting Image Shape with H/V Keystone.................................................................................. 97

Correcting Image Shape with Quick Corner ................................................................................ 100

Correcting Image Shape with Curved Surface ............................................................................ 102

Correcting Image Shape with Point Correction............................................................................ 106

Correcting Image Shape with Corner Wall................................................................................... 108

Selecting an Image Source .............................................................................................................. 114

Remote Control Operation ............................................................................................................... 115

Projection Modes ............................................................................................................................. 117

Changing the Projection Mode Using the Remote Control .......................................................... 117

Changing the Projection Mode Using the Menus ......................................................................... 118

Image Aspect Ratio .......................................................................................................................... 118

Changing the Image Aspect Ratio ............................................................................................... 119

Available Image Aspect Ratios .................................................................................................... 119

Color Mode....................................................................................................................................... 120

Changing the Color Mode............................................................................................................ 121

Available Color Modes................................................................................................................. 121

Turning On Auto Iris..................................................................................................................... 122

Controlling the Volume with the Volume Buttons.............................................................................. 123

Setting the Date and Time................................................................................................................ 124

Adjusting Projector Features ................................................................................................................. 126

Shutting Off the Picture and Sound Temporarily .............................................................................. 126

Stopping Video Action Temporarily .................................................................................................. 127

Zooming Into and Out of Images ...................................................................................................... 127

Projector Security Features.............................................................................................................. 128

Password Security Types ............................................................................................................ 129

Setting a Password ................................................................................................................. 129

Selecting Password Security Types........................................................................................ 130

Entering a Password to Use the Projector............................................................................... 131

Saving a User's Logo Image to Display................................................................................... 132

Locking the Projector's Buttons ................................................................................................... 134

Unlocking the Projector's Buttons ........................................................................................... 135

Installing a Security Cable ........................................................................................................... 136

Projecting Two Images Simultaneously............................................................................................ 137

Using Multiple Projectors.................................................................................................................. 139

Projector Identification System for Multiple Projector Control ...................................................... 140

Setting the Projector ID ........................................................................................................... 140

Setting the Remote Control ID ................................................................................................ 141

Adjusting the Position of the Projected Image From Multiple Projectors ...................................... 142

Scaling an Image......................................................................................................................... 143

Adjusting the Lamp's Brightness ................................................................................................. 144

Blending the Image Edges .......................................................................................................... 145

Adjusting the Black Level ............................................................................................................ 147

Matching the Image Colors.......................................................................................................... 149

Adjusting the Color Tone (Color Uniformity) ................................................................................ 151

Adjusting the Color Convergence (Panel Alignment)................................................................... 152

Configuring Tiling......................................................................................................................... 155

Enabling Protocol Emulation ............................................................................................................ 156

Viewing 3D Images ......................................................................................................................... 157

Saving Settings to Memory and Using Saved Settings .................................................................... 157

Saving a Scheduled Event ............................................................................................................... 158

Viewing Scheduled Events .......................................................................................................... 159

Editing a Scheduled Event........................................................................................................... 160

Copying Menu Settings Between Projectors .................................................................................... 161

Saving Settings to a USB Flash Drive.......................................................................................... 162

Transferring Settings From a USB Flash Drive............................................................................ 163

Saving Settings to a Computer .................................................................................................... 164

Transferring Settings From a Computer ...................................................................................... 166

Adjusting the Menu Settings .................................................................................................................. 168

Using the Projector's Menus............................................................................................................. 168

Image Quality Settings - Image Menu .............................................................................................. 170

Input Signal Settings - Signal Menu.................................................................................................. 172

Projector Feature Settings - Settings Menu...................................................................................... 175

Projector Setup Settings - Extended Menu....................................................................................... 178

Projector Network Settings - Network Menu..................................................................................... 185

Projector Information Display - Info Menu ........................................................................................ 186

Event ID Code List....................................................................................................................... 188

Projector Reset Options - Reset Menu ............................................................................................. 189

Maintaining and Transporting the Projector ......................................................................................... 191

Projector Maintenance ..................................................................................................................... 191

Cleaning the Lens........................................................................................................................ 191

Cleaning the Projector Case ........................................................................................................ 192

Air Filter and Vent Maintenance .................................................................................................. 192

Cleaning the Air Filter.............................................................................................................. 193

Replacing the Air Filter............................................................................................................ 196

Projector Lamp Maintenance....................................................................................................... 198

Replacing the Lamp ................................................................................................................ 198

Resetting the Lamp Timer....................................................................................................... 202

Replacing the Remote Control Batteries ..................................................................................... 203

Transporting the Projector................................................................................................................ 205

Solving Problems .................................................................................................................................... 206

Projection Problem Tips ................................................................................................................... 206

Projector Light Status ....................................................................................................................... 207

Using the Projector Help Displays .................................................................................................... 211

Solving Image or Sound Problems ................................................................................................... 212

Solutions When No Image Appears............................................................................................. 212

Solutions When "No Signal" Message Appears........................................................................... 213

Displaying From a PC Laptop ................................................................................................. 213

Displaying From a Mac Laptop ............................................................................................... 214

Solutions When "Not Supported" Message Appears ................................................................... 214

Solutions When Only a Partial Image Appears ............................................................................ 215

Solutions When the Image is Not Rectangular ............................................................................ 215

Solutions When the Image Contains Noise or Static ................................................................... 216

Solutions When the Image is Fuzzy or Blurry .............................................................................. 217

Solutions When the Image Brightness or Colors are Incorrect .................................................... 217

Solutions When a 3D Image Does Not Display Correctly ............................................................ 218

Solutions to Sound Problems ...................................................................................................... 219

Solving Projector or Remote Control Operation Problems ............................................................... 220

Solutions to Projector Power or Shut-Off Problems ..................................................................... 220

Solutions to Problems with the Remote Control........................................................................... 220

Solutions to Password Problems ................................................................................................. 221

Solving Network Problems ............................................................................................................... 222

Solutions When You Cannot Access the Projector Through the Web ......................................... 222

Solutions When Network Alert E-Mails are Not Received............................................................ 222

Solutions When You Cannot Access the Projector Using iProjection .......................................... 223

Where to Get Help............................................................................................................................ 223

Technical Specifications ........................................................................................................................ 225

General Projector Specifications ...................................................................................................... 225

Projector Lamp Specifications.......................................................................................................... 227

Remote Control Specifications ......................................................................................................... 228

Projector Dimension Specifications.................................................................................................. 228

Projector Electrical Specifications .................................................................................................... 229

Projector Environmental Specifications............................................................................................ 230

Projector Safety and Approvals Specifications................................................................................. 231

Supported Video Display Formats.................................................................................................... 231

Notices ..................................................................................................................................................... 235

Recycling.......................................................................................................................................... 235

Important Safety Information ............................................................................................................ 235

Important Safety Instructions............................................................................................................ 235

Restriction of Use ........................................................................................................................ 238

List of Safety Symbols (corresponding to IEC60950-1 A2)............................................................... 238

FCC Compliance Statement............................................................................................................. 242

Open Source Software License........................................................................................................ 243

Trademarks...................................................................................................................................... 289

Copyright Notice............................................................................................................................... 290

A Note Concerning Responsible Use of Copyrighted Materials................................................... 290

Copyright Attribution.................................................................................................................... 291

Pro G7000W/G7100/G7200W/G7400U/G7500U/G7805/G7905U User's Guide

Welcome to the Pro G7000W/G7100/G7200W/G7400U/G7500U/G7805/G7905U User's Guide.

For a printable PDF copy of this guide, click here.

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.

Projector Features Notations Used in the Documentation Where to Go for Additional Information Projector Part Locations

Projector Features

The Pro G7000W, G7100, G7200W, G7400U, G7500U, G7805, and G7905U projectors include these special features:

Bright, high-resolution projection system

• Pro G7000W/G7100/G7500U: Up to 6500 lumens of brightness (white light output and color light output)

Pro G7200W: Up to 7500 lumens of brightness (white light output and color light output)

Pro G7400U: Up to 5500 lumens of brightness (white light output and color light output)

Pro G7805: Up to 8000 lumens of brightness (white light output and color light output)

Pro G7905U: Up to 7000 lumens of brightness (white light output and color light output)

Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

• Pro G7000W/G7200W: Native resolution of 1280 × 800 pixels (WXGA)

Pro G7100/G7805: Native resolution of 1024 × 768 pixels (XGA)

Pro G7400U/G7500U/G7905U: Native resolution of 1920 × 1200 pixels (WUXGA)

Flexible connectivity

• Wired and wireless (optional) network support for projection, monitoring, and control via remote network computer

• Wired network support for monitoring and control via remote network computer

• Variety of connection methods to a computer or video device including HDMI, BNC, DVD-D, and HDBaseT

• Ports for connecting an external monitor and external speakers

Easy-to-use setup and operation features

• Interchangeable bayonet lens options available

• Project images side by side from two separate input sources

• Create one large seamless display when projecting from multiple projectors using Edge Blending

• Epson's Instant Off and Direct Power On features for quick setup and shut down

• Support for Crestron RoomView network monitoring systems

• Network message broadcast system to project timely messages to all networked projectors (Windows only)

Note: The Pro G7905U projector with a zoom lens is shown in most illustrations in this manual, unless noted otherwise.

Product Box Contents Additional Components Additional Projector Software and Manuals Optional Equipment and Replacement Parts Warranty and Registration Information

Parent topic: Introduction to Your Projector

Related concepts

Projector Part Locations

Product Box Contents

Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.

Make sure your projector box included all of these parts:

1 Projector with standard zoom lens*

2 Cable cover

3 Remote control

4 Remote control batteries (two AA alkaline)

5 Power cord

6 VGA computer cable

7 Lens unit screw*

8 Projector documentation CD

9 Projector software CD

* Lens and lens unit screw not included with the Pro G7000WNL/G7100NL/G7200WNL/G7400UNL/G7500UNL/G7805NL/G7905UNL

Parent topic: Projector Features

Related concepts

Projector Connections

Additional Components

Depending on how you plan to use the projector, you may need to obtain additional components.

Note: To connect a Mac that does not include a compatible video output port, you need to obtain an adapter that allows you to connect to an input port on the projector. Contact Apple for compatible adapter options. To connect a smartphone or tablet, you may need to obtain an adapter that allows you to connect to the projector. This allows you to mirror your smartphone or tablet screens, watch movies, and more. Contact your device manufacturer for compatible adapter options.

Unless listed as available from Epson in this table, see your local computer or electronics dealer for purchase information.

Signal or connection type

Component video D-sub, 15-pin, component-to-VGA video cable and two VGA computer

HDMI Three compatible HDMI cables

Additional component necessary

cables

Available for purchase from Epson or an authorized Epson reseller.

You also need a splitter that supports component video signals (commercially available).

Available for purchase from Epson or an authorized Epson reseller.

You also need a splitter that supports HDMI signals (commercially available).

Note: Older Mac computers (2009 and earlier) may not support HDMI audio.

Signal or connection type

3D Three compatible HDMI cables, a splitter that supports 3D signals, and a

Audio from certain ports Commercially available audio cable compatible with your device

VGA Two VGA computer cables

BNC VGA-to-5-BNC cable or adapter

DVI-D Compatible DVI-D cable

HDBaseT Compatible 100Base-TX LAN cable

Additional component necessary

silver screen (recommended gain: 2.3 to 2.7)

You can purchase HDMI cables from Epson or an authorized Epson reseller.

Note: If your video source is a 3D Blu-ray disc, you also need a Blu-ray player that supports 3D playback. See your local computer or electronics dealer for purchase information.

Available for purchase from Epson or an authorized Epson reseller.

If you want to connect the projector using a splitter, you also need a splitter that supports VGA signals (commercially available) and a third VGA computer cable.

Available for purchase from Epson or an authorized Epson reseller.

Control pad To power the control pad from the projector, you need the remote control

cable set (ELPKC28).

Available for purchase from Epson or an authorized Epson reseller.

Parent topic: Projector Features

Additional Projector Software and Manuals

After connecting and setting up the projector, install the projector software from the included software CD, or download the software and manuals as necessary.

You can install the projector software programs listed here and view their manuals for instructions on using them.

Note: If you still need help after checking this manual and the sources listed here, you can use the

Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help".

Projector software Manual Description

EasyMP Monitor (Windows only)

EasyMP Multi PC Projection

EasyMP Network Updater (Windows only)

Epson iProjection app Instructions are included

EasyMP Monitor Operation Guide

EasyMP Multi PC Projection Operation Guide

EasyMP Network Updater Operation Guide

with the app

Lets you monitor and control your projector through the network.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support

(Canada) and select your projector.

Lets you hold interactive meetings by projecting the computer screens of users over a network.

Lets you update firmware for a projector over a wired LAN.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support

(Canada) and select your projector.

Lets you project from an iOS or Android device if your projector is connected to a network that includes a wireless access point.

Visit epson.com/projectorapp (U.S.) or

epson.ca/projectorapp (Canada) for more

information.

Parent topic: Projector Features

Optional Equipment and Replacement Parts

You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at epsonstore.com (U.S. sales) or epson.ca (Canadian sales).

Epson offers the following optional accessories and replacement parts for your projector:

Option or part Part number

Genuine Epson replacement lamp (ELPLP93) V13H010L93

Air filter (ELPAF30) V13H134A30

Quick Wireless Connection USB key (ELPAP09) V12H005M09

Wireless LAN module (ELPAP10) V12H731P02

HDBaseT Transmitter (ELPHD01) V12H547020

Replacement remote control 158279900

Remote control cable set (ELPKC28) V12H005C28

Epson DC-11 document camera (ELPDC11) V12H377020

Epson DC-13 document camera (ELPDC13) V12H757020

Epson DC-20 document camera (ELPDC20) V12H500020

Epson DC-21 document camera (ELPDC21) V12H758020

Wireless IR mouse receiver for remote control (ELPST16) V12H007T16

Polarizer Kit for 3D Stacking

ELPPL01

Passive 3D glasses (adult) ELPGS02A

Passive 3D glasses (children) ELPGS02B

Component-to-VGA video cable (ELPKC19) V12H005C19

VGA video cable 10 feet (3.0 m) length F3H982-10

HDMI audio video cable 3 feet (0.9 m) length AV22300-03

HDMI audio video cable 6 feet (1.8 m) length AV22300-06

Ultra short throw zoom lens (ELPLX01) V12H004X01

Short throw zoom lens #1 (ELPLU03) V12H004U03

Short throw zoom lens #2 (ELPLU04) V12H004U04

Wide throw zoom lens #1 (ELPLW05) V12H004W05

Wide throw zoom lens #2 (ELPLW06) V12H004W06

Middle throw zoom lens #1 (ELPLM08) V12H004M08

Middle throw zoom lens #2 (ELPLM09) V12H004M09

Option or part Part number

Middle throw zoom lens #3 (ELPLM10) V12H004M10

Middle throw zoom lens #4 (ELPLM11) V12H004M11

Long throw zoom lens (ELPLL08) V12H004L08

Ceiling Mount - low ceiling (ELPMB47) V12H802010

Ceiling Mount - high ceiling (ELPMB48) V12H803010

Active speakers (ELPSP02) V12H467020

PixiePlus control system for Epson projectors ELPSP10

1-Year Extended Exchange Service Plan EPPEXPB1

2-Year Extended Exchange Service Plan EPPEXPB2

Compatible with ELPLW06, ELPLM08, ELPLM09, ELPLM10, ELPLW04, ELPLS04, ELPLM06 lenses.

Parent topic: Projector Features

Warranty and Registration Information

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty that came with your projector.

In addition, Epson offers free Extra Care Road Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See the Extra Care Road Service brochure for details.

Registering also lets you receive special updates on new accessories, products, and services.

Parent topic: Projector Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:

• Warnings must be followed carefully to avoid bodily injury.

• Cautions must be observed to avoid damage to your equipment.

• Notes contain important information about your projector.

• Tips contain additional projection information.

Parent topic: Introduction to Your Projector

Where to Go for Additional Information

Need quick help on using your projector? Here's where to look for help:

• Built-in help system

Press the Home button on the remote control or projector, select Help, and press Enter to get quick solutions to common problems.

• epson.com/support (U.S) or epson.ca/support (Canada)

View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24 hours a day.

• If you still need help after checking this manual and any other sources listed here, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help".

Parent topic: Introduction to Your Projector

Projector Part Locations

Check the projector part illustrations to learn about the parts on your projector.

Note: The Pro G7900W projector with a zoom lens is shown in most illustrations in this manual, unless noted otherwise.

Projector Parts - Front/Top Projector Parts - Rear Projector Parts - Interface Ports Projector Parts - Base Projector Parts - Control Panel Projector Parts - Remote Control

Parent topic: Introduction to Your Projector

Projector Parts - Front/Top

1 Exhaust vent

2 Remote receiver

3 Projection lens

4 Projector status lights

5 Speaker

6 Air filter/intake vent

7 Wireless LAN module light

8 Air filter cover latch

9 Cable cover

10 Lens cover

11 Lamp cover

Parent topic: Projector Part Locations

Projector Parts - Rear

1 AC input port

2 Control panel

3 Kensington security slot

4 Interface ports

Parent topic: Projector Part Locations

Projector Parts - Interface Ports

1 BNC ports

2 Computer port

3 Audio3 port

4 Audio1 port

5 Monitor Out port

6 Audio Out port

7 Audio2 port

8 Cable holder

9 RS-232C port

10 Remote port

11 Service port

12 HDMI port

13 DVI-D connector

14 HDBaseT port

15 Network LAN port

Parent topic: Projector Part Locations

Projector Parts - Base

1 Front adjustable foot

2 Rear feet

3 Security cable attachment point

4 Screw holes for cable cover

5 Mounting bracket holes for ELPMB47/ELPMB48

6 Mounting bracket holes for ELPMB22

Parent topic: Projector Part Locations

Projector Parts - Control Panel

1 On button (turns on the projector)

2 Source Search button (searches for connected sources)

3 Menu button (accesses projector menu system)

4 Enter button (selects options)

5 Left arrow button and displays the Control Panel Lock screen

6 Down arrow button and displays a test pattern

7 A/V Mute button (turns the video and audio on or off)

8 Lens button (displays the lens shift, zoom, focus, and distortion adjustment screens; hold for 3

seconds to return the lens to the home position)

9 Right arrow button and displays the Info menu

10 Up arrow button and displays screen adjustment options

11 Esc button (cancels/exits functions)

12 Standby button (turns off the projector)

Parent topic: Projector Part Locations

Related references

Projector Parts - Remote Control

1 On button (turns on the projector)

2 Standby button (turns off the projector)

3 Source buttons (select an image source)

4 Aspect button (selects the image aspect ratio)

5 Auto button (automatically adjusts computer images)

6 Freeze button (stops video action)

7 Test Pattern button (displays a test pattern)

8 Lens Shift button (adjusts the image position)

9 Zoom button (changes the image size)

10 Menu button (accesses projector menu system)

11 Arrow buttons (move through on-screen options and move pointer)

12 Enter button (selects options and left mouse button)

13 A/V Mute button (turns the video and audio on or off)

14 Page up and down buttons (scroll through image files when projecting from a computer over a

network connection)

15 Volume up and down buttons (adjust speaker volume)

16 i button (displays the Info menu)

17 User1, User2, and User3 buttons (open menu assigned by user)

18 Numeric buttons (enter numbers)

19 ID button (hold down and use numeric keys to select projector to control)

20 ID switch (control one or all projectors)

21 Remote port (connects to a remote control cable)

22 Home button (displays the home screen)

23 Num button (hold down and use numeric keys to enter numbers)

24 Geometry button (corrects image distortion)

25 Memory button (saves and applies presets)

26 E-Zoom +/– buttons (zoom into and out of the image)

27 Default button (resets settings to their default values in the projector menu system)

28 Esc button (cancels/exits functions and right mouse button)

29 Focus button (adjusts the image focus)

30 Split button (splits the screen between two inputs)

31 Color Mode button (selects display modes)

32 Search button (searches for connected sources)

33 Light button (lights up the remote control buttons temporarily)

34 Indicator light (lights up when the remote control is in use)

35 Remote control signal emitter (emits remote control signals)

Parent topic: Projector Part Locations

Setting Up the Projector

Follow the instructions in these sections to set up your projector for use.

Projector Placement Projector Connections Attaching and Removing a Lens Attaching and Removing the Cable Cover Installing Batteries in the Remote Control

Projector Placement

You can place the projector on almost any flat surface to project an image.

You can also install the projector in a ceiling mount if you want to use it in a fixed location.

Keep these considerations in mind as you select a projector location:

• Place the projector on a sturdy, level surface or install it using a compatible mount.

• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or next to anything that could block the vents.

• Position the projector within reach of a grounded electrical outlet or extension cord.

Projector Setup and Installation Options Projection Distance

Parent topic: Setting Up the Projector

Projector Setup and Installation Options

You can set up or install your projector in the following ways:

Front

Rear

Front ceiling

Rear ceiling

Note: Be sure to leave at least 20 inches (50 cm) of space in front of the air exhaust and intake vents

and, when setting up multiple projectors, 20 inches (50 cm) of space between the projectors.

If you mount the projector to the ceiling, install it within the following angles:

• Vertically: Any angle in a complete 360 degree circle.

• Horizontally: Within the adjustment range of the rear adjustable feet.

If you project from the ceiling or from the rear, select the correct Projection setting and, if necessary, turn on the Inv Direction Button setting. If you installed the projector at an angle, select the Direction setting.

Note: Selecting an incorrect Direction setting may shorten the lamp life.

Parent topic: Projector Placement

Related references

Projector Setup Settings - Extended Menu

Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.)

You can also use the projector Throw Distance Calculator at epson.com/support (U.S.) or

epson.ca/support (Canada).

Pro G7000W/G7200W/G7400U/G7500U/G7905U (Standard Zoom Lens)

16:10 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele (Minimum to

Vertical lens shift (2)

Top to bottom

Maximum)

50 inches (127 cm) 60 to 98 inches

(153 to 248 cm)

–31.2 to 4.7 inches

(–79 to 12 cm)

16:10 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele (Minimum to Maximum)

60 inches (152 cm) 73 to 117 inches

(185 to 298 cm)

80 inches (203 cm) 98 to 157 inches

(248 to 399 cm)

100 inches (254 cm) 123 to 197 inches

(311 to 500 cm)

120 inches (305 cm) 147 to 237 inches

(374 to 601 cm)

150 inches (381 cm) 185 to 296 inches

(469 to 753 cm)

200 inches (508 cm) 247 to 396 inches

(627 to 1005 cm)

250 inches (635 cm) 309 to 495 inches

(785 to 1258 cm)

Vertical lens shift (2)

Top to bottom

–37.4 to 5.6 inches

(–95 to 14 cm)

–49.9 to 7.5 inches

(–127 to 19 cm)

–62.4 to 9.4 inches

(–158 to 24 cm)

–74.8 to 11.2 inches

(–190 to 29 cm)

–93.7 to 14.2 inches

(–238 to 36 cm)

–124.7 to 18.7 inches

(–317 to 48 cm)

–155.9 to 23.2 inches

(–396 to 59 cm)

300 inches (762 cm) 371 to 595 inches

(943 to 1510 cm)

16:9 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele (Minimum to Maximum)

49 inches (125 cm) 61 to 98 inches

(154 to 250 cm)

–187.1 to 28.1 inches

(–475 to 71 cm)

Vertical lens shift (2)

Top to bottom

–30.1 to 6 inches

(–76 to 15 cm)

16:9 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele (Minimum to Maximum)

50 inches (127 cm) 62 to 100 inches

(157 to 255 cm)

60 inches (152 cm) 75 to 121 inches

(190 to 307 cm)

80 inches (203 cm) 100 to 162 inches

(255 to 411 cm)

100 inches (254 cm) 126 to 203 inches

(320 to 514 cm)

120 inches (305 cm) 152 to 243 inches

(385 to 618 cm)

150 inches (381 cm) 190 to 305 inches

(482 to 774 cm)

200 inches (508 cm) 254 to 407 inches

(645 to 1033 cm)

Vertical lens shift (2)

Top to bottom

–30.7 to 6.3 inches

(–78 to 16 cm)

–36.8 to 7.4 inches

(–94 to 19 cm)

–49.1 to 9.9 inches

(–125 to 25 cm)

–61.4 to 12.3 inches

(–156 to 31 cm)

–73.6 to 14.8 inches

(–187 to 38 cm)

–92 to 18.5 inches

(–234 to 47 cm)

–122.7 to 24.7 inches

(–312 to 63 cm)

250 inches (635 cm) 318 to 509 inches

(807 to 1293 cm)

290 inches (737 cm) 369 to 591 inches

(937 to 1500 cm)

–153.5 to 30.7 inches

(–390 to 78 cm)

–178 to 35.8 inches

(–452 to 91 cm)

4:3 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele (Minimum to Maximum)

45 inches (114 cm) 61 to 99 inches

(156 to 253 cm)

50 inches (127 cm) 68 to 111 inches

(174 to 281 cm)

60 inches (152 cm) 83 to 133 inches

(210 to 338 cm)

80 inches (203 cm) 111 to 178 inches

(281 to 453 cm)

100 inches (254 cm) 139 to 223 inches

(353 to 567 cm)

120 inches (305 cm) 167 to 268 inches

(424 to 681 cm)

150 inches (381 cm) 209 to 336 inches

(532 to 853 cm)

Vertical lens shift (2)

Top to bottom

–31.8 to 4.8 inches

(–81 to 12 cm)

–35.4 to 5.1 inches

(–90 to 13 cm)

–42.4 to 6.4 inches

(–108 to 16 cm)

–56.5 to 8.5 inches

(–143 to 22 cm)

–70.6 to 10.6 inches

(–179 to 27 cm)

–84.7 to 12.7 inches

(–215 to 32 cm)

–105.9 to 15.9 inches

(–269 to 40 cm)

200 inches (508 cm) 280 to 448 inches

(711 to 1139 cm)

250 inches (635 cm) 350 to 561 inches

(890 to 1424 cm)

265 inches (673 cm) 371 to 595 inches

(943 to 1510 cm)

–141.2 to 21.2 inches

(–359 to 54 cm)

–176.4 to 26.4 inches

(–448 to 67 cm)

–187.1 to 28.1 inches

(–475 to 71 cm)

Pro G7100/G7805 (Standard Zoom Lens)

4:3 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele (Minimum to Maximum)

50 inches (127 cm) 58 to 94 inches

(147 to 239 cm)

60 inches (152 cm) 70 to 113 inches

(178 to 288 cm)

80 inches (203 cm) 94 to 152 inches

(239 to 385 cm)

100 inches (254 cm) 118 to 190 inches

(299 to 482 cm)

120 inches (305 cm) 142 to 228 inches

(360 to 580 cm)

150 inches (381 cm) 178 to 286 inches

(452 to 726 cm)

200 inches (508 cm) 238 to 382 inches

(604 to 969 cm)

Vertical lens shift (2)

Top to bottom

–32.3 to 2.3 inches

(–82 to 6 cm)

–38.7 to 2.7 inches

(–98 to 7 cm)

–51.6 to 3.6 inches

(–131 to 9 cm)

–64.6 to 4.6 inches

(–164 to 12 cm)

–77.5 to 5.5 inches

(–197 to 14 cm)

–96.9 to 6.7 inches

(–246 to 17 cm)

–129.1 to 9.1 inches

(–328 to 23 cm)

250 inches (635 cm) 298 to 478 inches

(756 to 1213 cm)

300 inches (762 cm) 358 to 573 inches

(908 to 1456 cm)

–161.4 to 11.4 inches

(–410 to 29 cm)

–193.7 to 13.7 inches

(–492 to 35 cm)

16:9 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele (Minimum to Maximum)

46 inches (117 cm) 58 to 94 inches

(148 to 240 cm)

50 inches (127 cm) 63 to 103 inches

(161 to 261 cm)

60 inches (152 cm) 76 to 124 inches

(194 to 314 cm)

80 inches (203 cm) 102 to 165 inches

(260 to 420 cm)

100 inches (254 cm) 129 to 207 inches

(327 to 526 cm)

120 inches (305 cm) 155 to 249 inches

(393 to 632 cm)

150 inches (381 cm) 194 to 312 inches

(493 to 791 cm)

Vertical lens shift (2)

Top to bottom

–28.6 to 6 inches

(–73 to 15 cm)

–31.1 to 6.7 inches

(–79 to 17 cm)

–37.3 to 7.9 inches

(–95 to 20 cm)

–49.7 to 10.5 inches

(–126 to 27 cm)

–62.2 to 13.1 inches

(–158 to 33 cm)

–74.6 to 15.8 inches

(–189 to 40 cm)

–93.2 to 19.7 inches

(–237 to 50 cm)

200 inches (508 cm) 259 to 416 inches

(658 to 1057 cm)

250 inches (635 cm) 325 to 520 inches

(824 to 1322 cm)

275 inches (699 cm) 357 to 573 inches

(907 to 1454 cm)

–124.3 to 26.3 inches

(–316 to 67 cm)

–155.5 to 32.7 inches

(–395 to 83 cm)

–170.9 to 36.1 inches

(–434 to 92 cm)

16:10 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele (Minimum to Maximum)

48 inches (122 cm) 59 to 96 inches

(150 to 243 cm)

50 inches (127 cm) 62 to 100 inches

(156 to 254 cm)

60 inches (152 cm) 74 to 120 inches

(189 to 305 cm)

80 inches (203 cm) 100 to 161 inches

(253 to 408 cm)

100 inches (254 cm) 125 to 201 inches

(318 to 512 cm)

120 inches (305 cm) 151 to 242 inches

(382 to 615 cm)

150 inches (381 cm) 189 to 303 inches

(479 to 770 cm)

Vertical lens shift (2)

Top to bottom

–30.3 to 4.9 inches

(–77 to 12 cm)

–31.5 to 5.1 inches

(–80 to 13 cm)

–37.9 to 6.1 inches

(–96 to 15 cm)

–50.5 to 8.1 inches

(–128 to 21 cm)

–63.1 to 10.1 inches

(–160 to 26 cm)

–75.8 to 12.2 inches

(–192 to 31 cm)

–94.7 to 15.2 inches

(–241 to 39 cm)

200 inches (508 cm) 252 to 405 inches

250 inches (635 cm) 316 to 506 inches

280 inches (711 cm) 354 to 567 inches

Parent topic: Projector Placement

Projector Connections

See these sections to connect the projector to a variety of projection sources.

(640 to 1028 cm)

(802 to 1286 cm)

(899 to 1441 cm)

–126.3 to 20.3 inches

(–321 to 51 cm)

–157.9 to 25.2 inches

(–401 to 64 cm)

–176.8 to 28.4 inches

(–449 to 72 cm)

Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode to ensure the projector's internal temperature is regulated properly.

Connecting to Computer Sources Connecting to Video Sources Connecting to an HDBaseT Transmitter Connecting to an External Computer Monitor Connecting to External Speakers

Parent topic: Setting Up the Projector

Related references

Projector Setup Settings - Extended Menu Product Box Contents

Connecting to Computer Sources

Follow the instructions in these sections to connect a computer to the projector.

Connecting to a Computer for VGA Video Connecting to a Computer for HDMI Video and Audio Connecting to a Computer for DVI-D Video Connecting to a Computer for 5 BNC Video Connecting to a Computer for Sound

Parent topic: Projector Connections

Connecting to a Computer for VGA Video

You can connect the projector to your computer using a VGA computer cable.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's VGA video port. Contact Apple for compatible adapter options.

1. If necessary, disconnect your computer's monitor cable.

2. Connect the VGA computer cable to your computer's monitor port.

3. Connect the other end to a Computer port on the projector.

4. Tighten the screws on the VGA connector.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for HDMI Video and Audio

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port. Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through the HDMI port.

1. Connect the HDMI cable to your computer's HDMI output port.

2. Connect the other end to the projector's HDMI port.

Note: The projector converts the digital audio signal sent from your computer into a mono analog signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.

Note: If you have problems hearing audio through the HDMI connection, you can use the Audio3 port instead to play sound. Connect one end of an optional 3.5 mm stereo mini-jack audio cable to the

projector's Audio3 port and the other end to your computer's audio out port. Then select Audio3 for the HDMI Audio Output setting in the Extended menu.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for DVI-D Video

If your computer has a DVI-D connector, you can connect it to the projector using an optional DVI-D cable.

1. Connect the DVI-D cable to your computer's DVI-D connector.

2. Connect the other end to the projector's DVI-D connector.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for 5 BNC Video

You can connect the projector to your computer using an optional VGA-to-5-BNC cable.

1. Connect the VGA connector to your computer's monitor port.

2. Connect the 5 BNC connectors to the projector's BNC ports.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for Sound

If your computer presentation includes sound and you did not connect it to the projector's HDMI port, you can still play sound through the projector's speaker system. Just connect an optional 3.5 mm stereo mini-jack audio cable as described here.

1. Connect the audio cable to your laptop's headphone or audio-out jack, or your desktop's speaker or

audio-out port.

2. Connect the other end to the Audio port that corresponds to the Computer port you are using.

Note: If you are projecting video through the projector's DVI-D port, connect the end of your audio cable to the Audio3 port.

Parent topic: Connecting to Computer Sources

Connecting to Video Sources

Follow the instructions in these sections to connect video devices to the projector.

Connecting to an HDMI Video Source Connecting to a Component-to-BNC Video Source Connecting to a Component Video Source Connecting to a Video Source for Sound

Parent topic: Projector Connections

Connecting to an HDMI Video Source

If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable. The HDMI connection provides the best image quality.

1. Connect the HDMI cable to your video source's HDMI output port.

2. Connect the other end to the projector's HDMI port.

Note: The projector converts the digital audio signal sent from your video source into a mono analog

signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.

Note: If you have problems hearing audio through the HDMI connection, you can use the Audio3 port instead to play sound. Connect one end of an optional 3.5 mm stereo mini-jack audio cable to the projector's Audio3 port and the other end to your computer's audio out port. Then select Audio3 for the

HDMI Audio Output setting in the Extended menu.

Parent topic: Connecting to Video Sources

Connecting to a Component-to-BNC Video Source

If your video source has component video ports, you can connect it to the projector using an optional component-to-BNC video cable. Depending on your component ports, you may need to use an adapter cable along with a component video cable.

1. Connect the component connectors to your video source's color-coded component video output

ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component video cable.

2. Connect the BNC connectors to the projector's R/Cr/Pr, G/Y, B/Cb/Pb ports.

Parent topic: Connecting to Video Sources

Connecting to a Component Video Source

If your video source has component video ports, you can connect it to the projector using an optional component-to-VGA video cable. Depending on your component ports, you may need to use an adapter cable along with a component video cable.

1. Connect the component connectors to your video source's color-coded component video output

ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component video cable.

2. Connect the VGA connector to a Computer port on the projector.

3. Tighten the screws on the VGA connector.

If your image colors appear incorrect, you may need to change the Input Signal setting in the projector's Signal menu.

Parent topic: Connecting to Video Sources

Connecting to a Video Source for Sound

You can play sound through the projector's speaker system if your video source has audio output ports. Just connect an optional stereo mini-jack audio cable as described here.

Note: If you connected your video source to the projector using an HDMI cable, the audio signal is transferred with the video signal; you do not need an additional cable for sound.

1. Connect the audio cable to your video source's audio-out ports.

2. Connect the other end of the cable to the projector's Audio port that corresponds to the Computer

or BNC port you are using for video.

Parent topic: Connecting to Video Sources

Connecting to an HDBaseT Transmitter

To send an HDMI or RS-232C signal over a long distance, you can connect the projector to an optional HDBaseT transmitter using a 100Base-TX network cable. This is useful when you want to send a signal to or control the projector from a remote location, such as in a hall or event site, since you can use a network cable up to 328 feet (100 m) in length. To ensure proper data transmission, use a Category 5e STP cable or better.

1. Turn off the projector and HDBaseT transmitter.

Note: Make sure the projector and HDBaseT transmitter are turned off when connecting or disconnecting a network cable between the two devices.

2. Connect one end of the network cable to the HDBaseT port on the transmitter.

3. Connect the other end to the projector's HDBaseT port.

Note: See the documentation that came with the HDBaseT transmitter for instructions on connecting it to your video device or computer.

4. Turn on the projector and HDBaseT transmitter.

Note: To enable communication from the Ethernet and serial ports on the transmitter, select On as the Control Communications setting in the projector's Extended menu. Turning on this setting disables the

projector's LAN, RS-232C, and Remote ports. If you connected an Extron XTP transmitter or switcher to the projector's HDBaseT port, select On as the Extron XTP setting in the projector's Extended menu.

Parent topic: Projector Connections

Related references

Projector Setup Settings - Extended Menu

Related tasks

Connecting to an External Computer Monitor

If you connected a computer to the projector's Computer or BNC port, you can also connect an external monitor to the projector. This lets you see your presentation on the external monitor even when the projected image is not visible.

If you want to output images to an external monitor when the projector is turned off, you need to select Communication On as the Standby Mode setting and Always On as the A/V Output setting in the projector's Extended menu.

Note: Monitors that use a refresh rate less than 60 Hz may not be able to display images correctly.

1. Make sure your computer is connected to the projector's Computer or BNC port.

2. Connect the external monitor's cable to your projector's Monitor Out port.

Note: If you do not see an image on the external monitor, you may need to change the Monitor Out setting in the Extended menu.

Parent topic: Projector Connections

Connecting to External Speakers

To enhance the sound from your presentation, you can connect the projector to external self-powered speakers. You can control the volume using the projector's remote control.

You can also connect the projector to an amplifier with speakers.

If you want to output audio from the external speakers when the projector is turned off, you need to select Communication On for the Standby Mode setting and Always On for the A/V Output setting in the projector's Extended menu.

Note: The projector's built-in speaker system is disabled when you connect external speakers.

1. Make sure your computer or video source is connected to the projector with both audio and video

cables as necessary.

2. Locate the appropriate cable to connect your external speakers, such as a stereo mini-jack-to-pin-

jack cable, or another type of cable or adapter.

3. Connect one end of the cable to your external speakers as necessary.

4. Connect the stereo mini-jack end of the cable to your projector's Audio Out port.

Parent topic: Projector Connections

Attaching and Removing a Lens

Follow the instructions in these sections to attach or remove a compatible lens.

Attaching a Lens Removing a Lens

Parent topic: Setting Up the Projector

Attaching a Lens

You can attach a compatible lens to the projector.

Caution: Unplug the power cord from the projector before attaching the lens. Avoid touching the lens with your bare hands to prevent fingerprints on or damage to the lens surface.

1. Pull the lens cover off of the projector.

2. When using one of the following lenses, attach the lens connector cap: ELPLS04, ELPLU02,

ELPLR04, ELPLW04, ELPLM06, ELPLM07, or ELPLL07.

3. Slide the lock lever to the Release position (as shown) until you hear it click.

4. Insert the lens straight into the projector's lens socket with the white dot facing up.

5. Hold the lens firmly and slide the lock lever to the Lock position (as shown) until it locks.

6. Replace the lens cover.

7. If prompted, select Yes to calibrate the lens.

Note: Lens calibration helps the projector to correctly acquire the lens position and adjustment range, and can take up to 100 seconds to complete. When calibration is finished, the lens returns to the same position it was in before calibration. (ELPX01 returns to the standard position.)

8. When using one of the following lenses, select the lens type in the Extended menu: ELPLS04,

ELPLU02, ELPLR04, ELPLW04, ELPLM06, ELPLM07, or ELPLL07.

Parent topic: Attaching and Removing a Lens

Removing a Lens

You can remove a lens to replace it with a different lens.

Caution: Remove the lens only when necessary and make sure the front of the projector is not facing up

when you remove the lens. This prevents dirt or dust from entering the projector and lowering the projection quality. Avoid touching the lens with your bare hands to prevent fingerprints on or damage to the lens surface.

1. Center the lens using the Lens Shift (remote) or Lens (control panel) button.

2. Turn off the projector and unplug the power cord.

3. Pull the lens cover off of the projector.

4. Hold the lens firmly as you slide the lock lever to the Release position (as shown) until you hear it

click.

5. Gently pull the lens straight out of the projector.

Parent topic: Attaching and Removing a Lens

Attaching and Removing the Cable Cover

You can attach the cable cover that came with your projector to hide the attached cables from view.

1. Bundle the cables together using a band or other fastener (not provided).

Caution: Do not bundle the power cord to the other cables. Otherwise, a fire may occur.

2. Place the cable cover on the projector as shown, guiding the cables through the notch on the base of

the cable cover.

3. Tighten both cable cover screws.

To remove the cover, loosen both screws and pull the cover off of the projector.

Parent topic: Setting Up the Projector

Installing Batteries in the Remote Control

The remote control uses the two AA batteries that came with the projector.

Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types, or mix new and old batteries.

1. Remove the battery cover.

2. Insert the batteries with the + and – ends facing as shown.

3. Replace the battery cover and press it down until it clicks into place.

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.

Parent topic: Setting Up the Projector

Using the Projector on a Network

Follow the instructions in these sections to set up your projector for use on a network.

Wired Network Projection Wireless Network Projection Setting Up Projector Network E-Mail Alerts Selecting Other Network Settings Controlling a Networked Projector Using a Web Browser Crestron RoomView Support

Wired Network Projection

You can project through a wired network. To do this, you connect the projector to your network, and then set up your projector and computer for network projection.

After connecting and setting up the projector as described here, install the network software from the included CD or download the software and manuals as necessary.

Note: If your projector is connected via a LAN cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software.

Connecting to a Wired Network Selecting Wired Network Settings

Parent topic: Using the Projector on a Network

Related references

Projector Network Settings - Network Menu

Connecting to a Wired Network

To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10Base-T network cable. To ensure proper data transmission, use a Category 5 shielded cable or better.

1. Connect one end of the network cable to your network hub, switch, or router.

2. Connect the other end of the cable to the projector's LAN port.

Parent topic: Wired Network Projection

Selecting Wired Network Settings

Before you can project from computers on your network, you must select the network settings for the projector using its menu system.

Note: Make sure you already connected the projector to your wired network using the LAN port.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Basic menu and press Enter.

6. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the projector over the network.

• Remote Password lets you enter a password up to 8 alphanumeric characters long for accessing the Remote in the Epson Web Control. (Default user name is EPSONREMOTE; default password is guest.)

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for accessing the Epson Web Control. (Default user name is EPSONWEB; default password is admin.)

• Projector Keyword lets you turn on a security password to prevent access to the projector by anyone not in the room with it. You must enter a displayed, randomized keyword from a computer using the EasyMP Multi PC Projection software to access the projector.

Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

7. Select the Wired LAN menu and press Enter.

8. Select your IP Settings as necessary:

• If your network assigns addresses automatically, turn on the DHCP setting.

• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet

Mask, and Gateway Address as needed.

Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on

the remote control. To select a highlighted number, press Enter.

9. To prevent display of the IP address on the standby screen, turn off IP Address Display.

10. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wired Network Projection

Wireless Network Projection

You can project over a wireless network. To do this, you must set up your projector and computer for wireless projection.

Note: The Epson 802.11b/g/n wireless LAN module is not included with your projector and is optional.

There are two ways to connect to your projector wirelessly:

• Using the optional Quick Wireless Connection USB Key (Windows only); your computer does not

need to be connected to a wireless network or use additional network software to connect with this option

• Configuring the connection manually using the projector's Network menus

After setting up the projector as described here, install the network software from the included CD or download the software and manuals as necessary.

Installing the Wireless LAN Module Using Quick Wireless Connection (Windows Only) Selecting Wireless Network Settings Manually Selecting Wireless Network Settings in OS X Selecting Wireless Network Settings in Windows

Parent topic: Using the Projector on a Network

Related references

Optional Equipment and Replacement Parts

Installing the Wireless LAN Module

To use the projector over a wireless network, install the optional Epson 802.11b/g/n wireless LAN module. Do not install any other type of wireless LAN module.

Caution: Never remove the module while its indicator light is green or flashing, or while you are projecting wirelessly. You may damage the module or lose data.

1. Turn off the projector and unplug the power cord.

2. Slide the air filter cover latch and open the air filter cover.

3. Remove the screw securing the wireless LAN module stopper, then remove the stopper.

4. Insert the wireless LAN module into the port.

5. Replace the wireless LAN module stopper and secure it using the screw you removed.

6. Close the air filter cover.

7. Plug in and turn on the projector.

Parent topic: Wireless Network Projection

Related references

Optional Equipment and Replacement Parts

Using Quick Wireless Connection (Windows Only)

You can use the Quick Wireless Connection USB key to quickly connect your computer to the projector wirelessly. Then you can project your presentation and remove the key when you are done.

Note: The Quick Wireless Connection USB key is not included with your projector and is optional.

Note: Make sure the wireless LAN module is installed. The wireless LAN module is not included with

your projector and is optional.

1. Turn on the projector.

2. Press the LAN button on the remote control.

You see a screen like this:

3. Verify that an SSID and IP address are displayed, then remove the wireless LAN module from the projector if necessary.

4. Insert the Quick Wireless Connection USB key into the same port used for the wireless LAN module.

You see a projected message that the network information update is complete.

5. Remove the USB key.

6. Reinsert the wireless LAN module into the projector.

7. Connect the USB key to a USB port on your computer or laptop.

Note: In Windows Vista, if you see the AutoPlay window, select Run LaunchQWRD.exe, then select Allow on the next screen.

8. Follow the on-screen instructions to install the Quick Wireless Connection driver.

Note: If you see a Windows Firewall message, click Yes to disable the firewall for this application.

After a few minutes, your computer image is displayed by the projector. If it does not appear, press the LAN button on your remote control or restart your computer.

9. Run your presentation as necessary.

10. When you finish projecting wirelessly, select the Safely Remove Hardware option in the Windows taskbar, then remove the USB key from your computer.

Note: You may need to restart your computer to reactivate your wireless LAN connection.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings Manually

Before you can project from your wireless network, you must select the network settings for the projector using its menu system.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Make sure the Wireless Mode setting is set to Wireless LAN On.

5. Select Network Configuration and press Enter.

6. Select the Basic menu and press Enter.

7. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for

accessing the projector over the web.

• Projector Keyword lets you turn on a security password to prevent access to the projector by

anyone not in the room with it. You must enter a displayed, randomized keyword from a computer using the EasyMP Multi PC Projection software to access the projector.

• Display LAN Info lets you select how the projector displays network information. You can select

an option to display a QR code that lets you quickly connect your iOS or Android devices using the Epson iProjection app.

Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

8. Select the Wireless LAN menu and press Enter.

9. Select the settings on the Wireless LAN menu as necessary for your network.

10. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

After you complete the wireless settings for your projector, you need to select the wireless network on your computer, or iOS or Android device.

Wireless LAN Menu Settings

Parent topic: Wireless Network Projection

Wireless LAN Menu Settings

Setting Options Description

Connection Mode Quick

Advanced

Selects the type of wireless connection:

Quick: lets you quickly connect to one computer or use the optional Quick Wireless Connection USB key to connect

Advanced: lets you connect to multiple computers via a wireless network access point (infrastructure mode)

Security Open

WPA2-PSK

Selects the type of wireless security used in the wireless network

WPA/WPA2-PSK

Passphrase Up to 64 alphanumeric

characters

Channel 1ch

6ch

11ch

Enter a paraphrase for the wireless network

In Quick connection mode, selects the frequency band (channel) used by the wireless LAN

Search Access Point To Search View Search for available wireless

network access points in

Advanced connection mode

SSID Up 32 alphanumeric characters Sets the SSID (network name) of

the wireless LAN system the projector is connecting to

SSID Display On

Off

Selects whether to display the SSID on the network standby screen

Setting Options Description

IP Settings — Turns on DHCP if your network

assigns addresses automatically; set to Off to manually enter the network's IP Address, Subnet

Mask, and Gateway Address

IP Address Display On

Off

Parent topic: Selecting Wireless Network Settings Manually

Selecting Wireless Network Settings in OS X

Before connecting to the projector, select the correct wireless network in OS X.

1. Click the AirPort icon on the menu bar at the top of the screen.

2. Make sure AirPort is turned on, then do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings in Windows

Before connecting to the projector, select the correct wireless network on your computer.

1. To access your wireless utility software, access the Desktop and double-click the network icon on the Windows taskbar.

2. Do one of the following:

Selects whether to display the IP address on the network standby screen

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

3. Click Connect.

Parent topic: Wireless Network Projection

Setting Up Projector Network E-Mail Alerts

You can set up the projector to send you an e-mail alert over the network if there is a problem with the projector.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Notifications menu and press Enter.

5. Turn on Mail Notification.

6. Enter the IP address for the SMTP Server setting.

Note: To enter the IP address using the numeric keys on the remote control, press and hold the Num button. Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x

is a number from 0 to 255).

7. Select a number for the SMTP server Port Number setting, from 1 to 65535 (default is 25).

8. Choose an Address field, enter the e-mail address, and select the alerts you want to receive there. Repeat for up to three addresses. Your e-mail address can be up to 32 alphanumeric characters long.

9. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Network Projector E-mail Alert Messages

Parent topic: Using the Projector on a Network

Network Projector E-mail Alert Messages

When a problem occurs with a networked projector, and you selected to receive e-mail alerts, you receive an e-mail containing the following information:

• Epson Projector on the subject line

• The name of the projector experiencing a problem

• The IP address of the affected projector

• Detailed information about the problem

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Parent topic: Setting Up Projector Network E-Mail Alerts

Selecting Other Network Settings

You can select optional network settings on the Others menu.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Others menu and press Enter.

5. If available, select the Priority Gateway setting for your network.

6. If your network environment uses an AMX controller, turn on the AMX Device Discovery setting to allow the projector to be detected.

7. If your network environment uses a Crestron RoomView controller, turn on the Crestron RoomView setting to allow the projector to be detected.

Note: Enabling Crestron RoomView disables the Epson Message Broadcast feature in the EasyMP Monitor software.

8. If your network environment uses a Control4 or Control4 SDDP controller, turn on the Control4 SDDP setting to allow the projector to be detected.

9. If you want this projector to receive broadcasted messages over the network, turn on the Message Broadcasting setting. Administrators can broadcast messages over the network using the Message Broadcasting plug-in for EasyMP Monitor (Windows only).

10. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Using the Projector on a Network

Controlling a Networked Projector Using a Web Browser

Once you have connected your projector to your network, you can select projector settings and control projection using a compatible web browser. This lets you access the projector remotely.

Note: The web setup and control features support Microsoft Internet Explorer 9.0 or later, and Safari on networks that do not use a proxy server for connection. You cannot select all of the projector menu settings or control all projector functions using a web browser.

Note: If you set Standby Mode to Communication On, you can use a web browser to select settings and control projection even if the projector is in standby mode.

1. Make sure the projector is turned on.

2. Start your web browser on a computer or device connected to the network.

3. Type the projector's IP address into the browser's address box and press the computer's Enter key.

Note: You may need to log in before you see the Web Control screen. If you see a log in window, enter your user name and password. (The default user name is EPSONWEB and the default password is admin.)

You see the Web Control screen.

1 Select Basic Control to control the projector remotely

2 Select OSD Control Pad to change the projector's menu settings

3 Select Test Pattern to display a test pattern

4 Select Advanced to open the advanced menu screen

5 Select Status Information to view the projector's status

6 Select Lens Control to adjust the lens (focus, zoom, and lens shift)

4. Select the option corresponding to the projector function you want to control.

Web Control Options

Parent topic: Using the Projector on a Network

Related references

Projector Setup Settings - Extended Menu

Web Control Options

Basic Control

Note: If the Remote Password is set to On, you need to enter your user name and password. (The

default username is EPSONREMOTE and the default password is guest).

1 Returns to the Home screen

2 Turns on the projector

3 Input source selection controls

4 A/V Mute button control

5 Volume button controls

6 Searches for sources

7 Turns off the projector

OSD Control Pad

1 Returns to the Home screen

2 Displays the projector's setting menus

3 Use your finger or mouse to navigate the menus

4 Returns settings to their default values

5 Returns to the previous menu

6 Displays help topics

Note: You cannot change some settings using Epson Web Control.

Lens Control

Focus/Distortion screen

1 Returns to the Home screen

2 Focus adjustment slider

3 Focus adjustment buttons

4 Distortion adjustment slider (not available for ELPLU02)

5 Distortion adjustment buttons (not available for ELPLU02)

6 Displays the Focus/Distortion screen

7 Displays the Zoom screen

8 Displays the Lens Shift screen

9 Displays the Test Pattern screen

10 Displays the Memory screen

Zoom screen

Note: Zoom is not available for ELPLX01 and ELPLR04.

1 Zoom adjustment slider

2 Zoom adjustment buttons

Lens Shift screen

1 The current image position is displayed as a blue square and the new image position is displayed

as a red square

2 Displays the vertical image position; select to change the value

3 Moves the image position up, down, left, or right

4 Moves the lens to the home position

5 Displays the horizontal image position; select to change the value

Test Pattern screen

1 Displays available test patterns; select to project a test pattern

2 Turns off test pattern display

Memory screen

1 Overwrites your current settings with saved settings

2 Saves your current settings to memory

3 Displays a list of saved memories

4 Erases a saved memory

5 Renames a saved memory

Status Information

1 Returns to the Home screen

2 Displays a list of monitored items

3 Displays the item status

4 Select to view different status information

Parent topic: Controlling a Networked Projector Using a Web Browser

Crestron RoomView Support

If you are using the Crestron RoomView network monitoring and control system, you can set up your projector for use on the system. Crestron RoomView lets you control and monitor your projector using a web browser.

Note: You cannot use the Epson Web Control feature when you use Crestron RoomView.

For additional information on Crestron RoomView, contact Crestron.

Setting Up Crestron RoomView Support Controlling a Networked Projector Using Crestron RoomView

Parent topic: Using the Projector on a Network

Setting Up Crestron RoomView Support

To set up your projector for monitoring and control using a Crestron RoomView system, make sure your computer and projector are connected to the network.

Note: If you want to use the Crestron RoomView system when the projector is turned off, you need to adjust the Standby Mode settings in the Extended menu.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Others menu and press Enter.

5. Set the Crestron RoomView setting to On to allow the projector to be detected.

6. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

7. Turn off the projector, then turn it on again to enable the setting.

Parent topic: Crestron RoomView Support

Related references

Projector Setup Settings - Extended Menu

Controlling a Networked Projector Using Crestron RoomView

Once you have set up your projector to use Crestron RoomView, you can control and monitor projection using a compatible web browser.

1. Start your web browser on a computer connected to the network.

2. Type the projector's IP address into the browser's address box and press the computer's Enter key.

You see this screen:

3. Select the input source that you want to control in the Sources List box. You can scroll through available sources using the up and down arrows in the box.

4. To control projection remotely, click the on-screen buttons that correspond to the projector's remote control buttons. You can scroll through button options at the bottom of the screen.

Note: These on-screen buttons do not directly correspond to the projector's remote control buttons:

• OK acts as the Enter button

• Menu displays the projector's menu

5. To view information about the projector, click the Info tab.

6. To change projector, Crestron, and password settings, click the Tools tab, select settings on the displayed screen, and click Send.

7. When you finish selecting settings, click Exit to exit the program.

Parent topic: Crestron RoomView Support

Using Basic Projector Features

Follow the instructions in these sections to use your projector's basic features.

Turning On the Projector Turning Off the Projector Selecting the Language for the Projector Menus Resizing the Image with the Zoom Button Focusing the Image Using the Focus Button Setting the Lens Type Setting the Screen Type Adjusting the Image Position Using Lens Shift Adjusting the Image Position Using Screen Position Displaying a Test Pattern Adjusting the Image Height Image Shape Selecting an Image Source Remote Control Operation Projection Modes Image Aspect Ratio Color Mode Controlling the Volume with the Volume Buttons Setting the Date and Time

Turning On the Projector

Turn on the computer or video equipment you want to use before you turn on the projector so it can display the image source.

1. Connect the power cord to the projector's power inlet.

2. Plug the power cord into an electrical outlet.

The projector's On/Standby light turns blue. This indicates that the projector is receiving power, but is not yet turned on (it is in standby mode).

Note: With Direct Power On turned on, the projector turns on as soon as you plug it in.

3. Press the On button on the projector or remote control to turn on the projector.

The projector beeps and the status light flashes blue as the projector warms up. After about 30 seconds, the status light stops flashing and turns blue.

Warning: Never look into the projector lens when the lamp is on. This can damage your eyes and is especially dangerous for children and pets.

Note: If the Auto Source Search setting in the Extended menu is enabled, the projector automatically detects the input signal when you turn it on.

If you do not see a projected image right away, try the following:

• Turn on the connected computer or video device.

• Insert a DVD or other video media, and press the play button (if necessary).

• Press the Source Search button on the projector or the Search button on the remote control to detect

the video source.

Parent topic: Using Basic Projector Features

Related references

Projector Setup Settings - Extended Menu

Turning Off the Projector

Before turning off the projector, shut down any computer connected to it so you can see the computer display during shutdown.

Note: Turn off this product when not in use to prolong the life of the projector. Lamp life will vary depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.

1. Press the Standby button on the projector or remote control.

2. If you see a shutdown confirmation screen, press the Standby button on the projector or remote control again. (To leave the projector on, press any other button.)

The projector beeps twice, the lamps turn off, and the Status light turns off.

Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the projector for transport right away (if necessary).

Caution: Do not turn the projector on immediately after turning it off. Turning the projector on and off frequently may shorten the life of the lamp.

3. To transport or store the projector, make sure the Status light is off, then unplug the power cord.

Caution: To avoid damaging the projector or lamp, never unplug the power cord when the Status light is on or flashing blue.

Parent topic: Using Basic Projector Features

Selecting the Language for the Projector Menus

If you want to view the projector's menus and messages in another language, you can change the Language setting.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select the Language setting and press Enter.

5. Select the language you want to use and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Using Basic Projector Features

Resizing the Image with the Zoom Button

You can adjust the size of the image using the zoom buttons.

Note: Wait 20 minutes after turning on the projector before setting the focus, zoom, and lens shift for maximum accuracy.

1. Turn on the projector and display an image.

2. Press the Lens button on the control panel repeatedly until the zoom adjustment screen appears, or press the Zoom button on the remote control.

3. Press and hold the arrow buttons on the projector's control panel or remote control to resize the image.

4. Press the Esc button on the projector's control panel or remote control when finished.

Parent topic: Using Basic Projector Features

Focusing the Image Using the Focus Button

You can adjust the sharpness of the projected image using the focus buttons.

Note: Wait 20 minutes after turning on the projector before setting the focus, zoom, and lens shift for maximum accuracy.

1. Turn on the projector and display an image.

2. Press the Lens button on the control panel repeatedly until the focus adjustment screen appears, or press the Focus button on the remote control.

3. Press and hold the arrow buttons on the projector's control panel or remote control to adjust the focus.

4. Press the Esc button on the projector's control panel or remote control when finished.

Focusing the Image with the Optional Short Throw Lens

Parent topic: Using Basic Projector Features

Focusing the Image with the Optional Short Throw Lens

If you installed the optional short throw lens (ELPLU02/ELPLU03/ELPLU04) and used the lens shift option to shift the lens, you can focus the image using the distortion and focus rings.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display a pattern to aid in adjusting the projected image using the Test Pattern

button on the remote control.

2. Carefully rotate the distortion ring all the way counter-clockwise.

Note: Be careful not to shift the short throw lens when adjusting it to prevent the projected image from shifting.

3. Support the front of the lens with one hand and use the other to carefully rotate the focus ring until the center of the image is focused.

4. Rotate the distortion ring until the edges of the image are also focused.

5. Rotate the focus ring again to focus the entire screen image.

6. If the center of the image out of focus, rotate the distortion ring again to bring the area into focus.

Parent topic: Focusing the Image Using the Focus Button

Related tasks

Adjusting the Image Position Using Lens Shift Adjusting the Image Position Using Screen Position

Setting the Lens Type

After installing one of the following lenses, you need to select the model number for the lens: ELPLS04, ELPLU02, ELPLR04, ELPLW04, ELPLM06, ELPLM07, or ELPLL07.

1. Turn on the projector and display an image.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select Operation > Advanced > Lens Type.

You see this screen:

5. Select your lens model number and press Enter.

6. Press the Menu button to exit.

Parent topic: Using Basic Projector Features

Setting the Screen Type

You can use the Screen Type setting to match the aspect ratio of the displayed image to the screen you are using.

1. Turn on the projector and display an image.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select Display > Screen > Screen Type.

You see this screen:

5. Select your screen's aspect ratio and press Enter.

6. Press the Menu button to exit.

7. Adjust the aspect ratio for the projected image, if necessary.

Parent topic: Using Basic Projector Features

Related concepts

Image Aspect Ratio

Adjusting the Image Position Using Lens Shift

If you cannot install the projector directly in front of the screen, you can adjust the position of the projected image using the lens shift feature.

Note: Wait 20 minutes after turning on the projector before setting the focus, zoom, and lens shift for maximum accuracy. Lens shift is not supported for the ELPLR04 lens.

1. Turn on the projector and display an image.

2. Press the Lens Shift button on the remote control or the Lens button on the control panel.

3. Press the arrow buttons to adjust the position of the projected image as necessary.

4. When you are finished, press the Esc button on the control panel or remote control.

Note: When adjusting the image height, position the image lower than where you want it to be and then move it up. This will help prevent the image from moving down after adjustment. The image is clearest when the lens is at the home position. To move the lens to the home position, press and hold the Lens

Shift button on the remote control or the Lens button on the control panel for at least three seconds.

Parent topic: Using Basic Projector Features

Adjusting the Image Position Using Screen Position

You can adjust the image position if there are margins between the edge of the image and the projected screen frame.

Note: You cannot adjust the screen position if the Screen Type is set to 16:10 for a WXGA/WUXGA projector model or 4:3 for a XGA projector model.

1. Turn on the projector and display an image.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select Display > Screen > Screen Position.

5. Use the arrow buttons on the remote control or projector to adjust the position of the image.

6. When you are finished, press the Menu button.

Parent topic: Using Basic Projector Features

Displaying a Test Pattern

You can display a test pattern to adjust the projected image without connecting a computer or video device.

Note: The test pattern's shape is determined by the Screen Type setting. Be sure to set the correct screen type before adjusting with the test pattern.

1. Turn on the projector.

2. Press the Test Pattern button on the remote control or the down arrow button on the control panel.

3. Press the left or right arrow buttons on the remote control or press Enter on the control panel to cycle through the available test patterns.

4. Adjust the image as necessary.

5. Press the Esc to clear the test pattern.

Available Test Pattern Image Adjustments

Parent topic: Using Basic Projector Features

Related tasks

Setting the Screen Type

Available Test Pattern Image Adjustments

You can adjust the following settings while the test pattern is displayed.

Menu Settings

Image Color Mode

White Balance

Advanced

• Gamma

• RGBCMY

Settings Geometric Correction

Extended Multi-Projection

Except for custom Gamma settings

Except for the Scale, Color Uniformity, and Black Level settings

Parent topic: Displaying a Test Pattern

Adjusting the Image Height

If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust the image height using the projector's adjustable feet.

1. Turn on the projector and display an image.

2. To adjust the image height, rotate the front foot to extend or retract it.

3. If the image is tilted, rotate the rear feet to adjust their height.

If the projected image is unevenly rectangular, you need to adjust the image shape.

Parent topic: Using Basic Projector Features

Related concepts

Image Shape

Related references

Projector Feature Settings - Settings Menu

Image Shape

You can project an evenly rectangular image by placing the projector directly in front of the center of the screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off to the side, you may need to correct the image shape for the best display quality.

Note: You cannot combine multiple image adjustment methods, except adjusting the Point Correction

setting after adjusting the Curved Surface or Corner Wall settings.

Correcting Image Shape with H/V Keystone Correcting Image Shape with Quick Corner Correcting Image Shape with Curved Surface Correcting Image Shape with Point Correction Correcting Image Shape with Corner Wall

Parent topic: Using Basic Projector Features

Correcting Image Shape with H/V Keystone

You can use the projector's H/V Keystone setting to correct the shape of an image that is unevenly rectangular on the sides.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display a pattern to aid in adjusting the projected image using the Test Pattern

button on the remote control.

2. Press the Menu button.

3. Select the Settings menu and press Enter.

4. Select the Geometric Correction setting and press Enter.

5. Select the H/V-Keystone setting and press Enter. Then press Enter again.

You see the H/V-Keystone adjustment screen:

6. Use the arrow buttons on the projector or the remote control to select between vertical and horizontal keystone correction and to adjust the image shape as necessary.

V-Keystone

V-Balance

H-Keystone

H-Balance

7. When you are finished, press Esc.

After correction, your image is slightly smaller.

Parent topic: Image Shape

Related references

Projector Feature Settings - Settings Menu

Related tasks

Displaying a Test Pattern

Correcting Image Shape with Quick Corner

You can use the projector's Quick Corner setting to correct the shape and size of an image that is unevenly rectangular on all sides.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display a pattern to aid in adjusting the projected image using the Test Pattern

button on the remote control.

2. Press the Menu button.

100

Epson G7000W, G7000WNL, G7100, G7100NL, G7200W User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction to Your Projector

Projector Features

Product Box Contents

Additional Components

Additional Projector Software and Manuals

Optional Equipment and Replacement Parts

Warranty and Registration Information

Notations Used in the Documentation

Where to Go for Additional Information

Projector Part Locations
