User’s Guide
Notations Used in This Guide
•Safety indications
The documentation and the projector use graphical symbols to show how to use the projector safely. Please understand and respect these caution symbols in order to avoid injury to persons or property.
|
Warning |
This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling. |
|
|
|
|
Caution |
This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling. |
|
|
|
• General information indications |
|
|
|
|
|
|
Attention |
Indicates procedures which may result in damage or injury if sufficient care is not taken. |
|
|
|
|
a |
Indicates additional information and points which may be useful to know regarding a topic. |
|
|
|
|
s |
Indicates a page where detailed information regarding a topic can be found. |
|
|
|
|
g |
Indicates that an explanation of the underlined word or words in front of this symbol appears in the glossary of terms. See the "Glossary" |
|
|
section of the "Appendix". |
|
|
s "Glossary" p.98 |
|
|
|
|
[Name] |
Indicates the name of the buttons on the remote control or the control panel. |
|
|
Example: [Esc] button |
|
|
|
|
Menu Name |
Indicates Configuration menu items. |
|
|
Example: |
|
|
Select Brightness from Image. |
|
|
Image - Brightness |
|
|
|
Contents |
|
3 |
|
|
|
Notations Used in This Guide . . . . . . . . . . . . . . . . . . . . . . . . 2
Introduction
Projector Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
List of Functions by Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Quick and Easy Set up, Projection, and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Connecting with a USB cable and projecting (USB Display) . . . . . . . . . . . . . . . . 7
Detecting projector movements and automatically correcting image distortion (EB-X15 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Horizontal keystone adjuster (EB-X15 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Useful Functions for Projecting Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Making the most of the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Enhanced security functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Part Names and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Front/Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

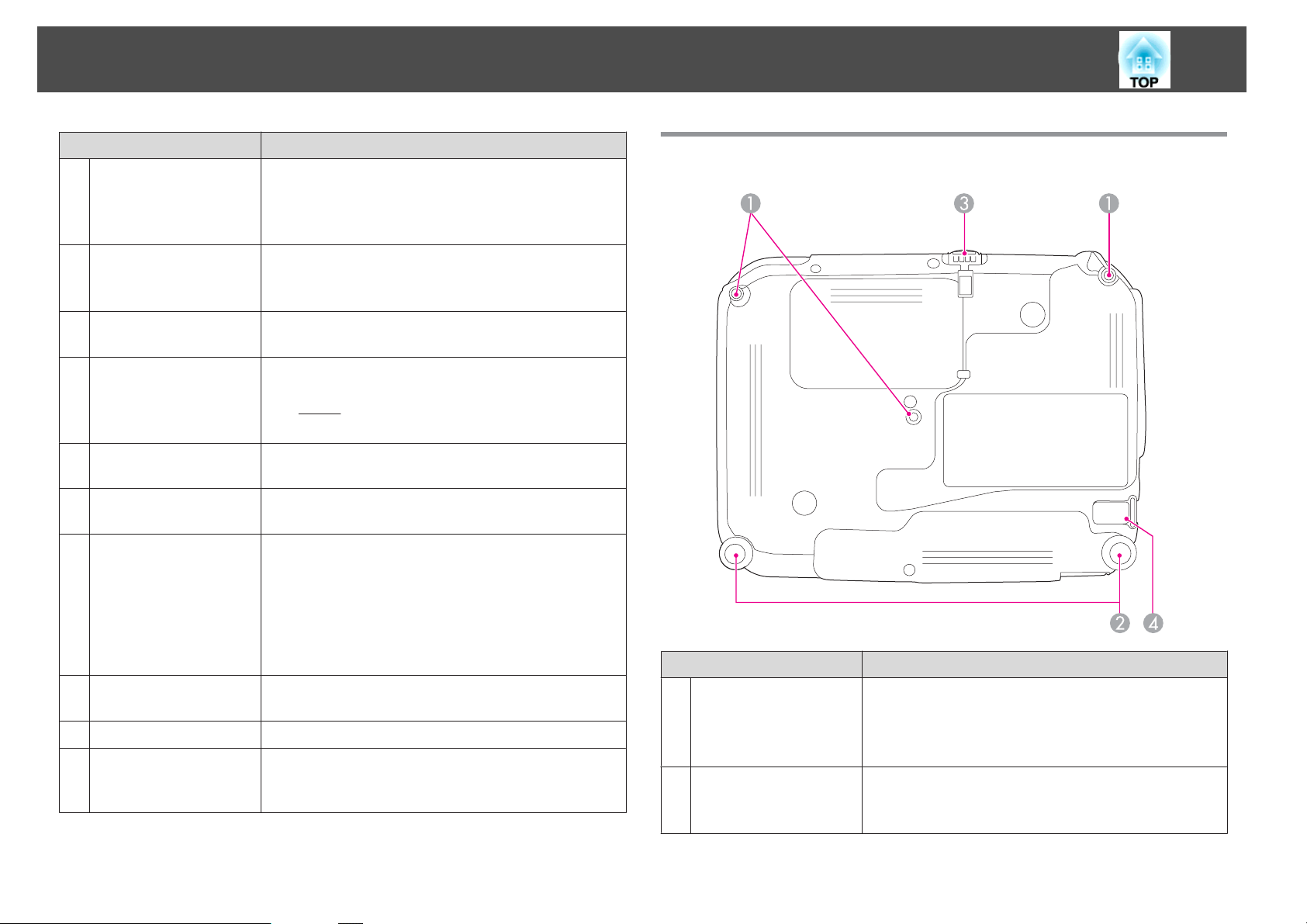

Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

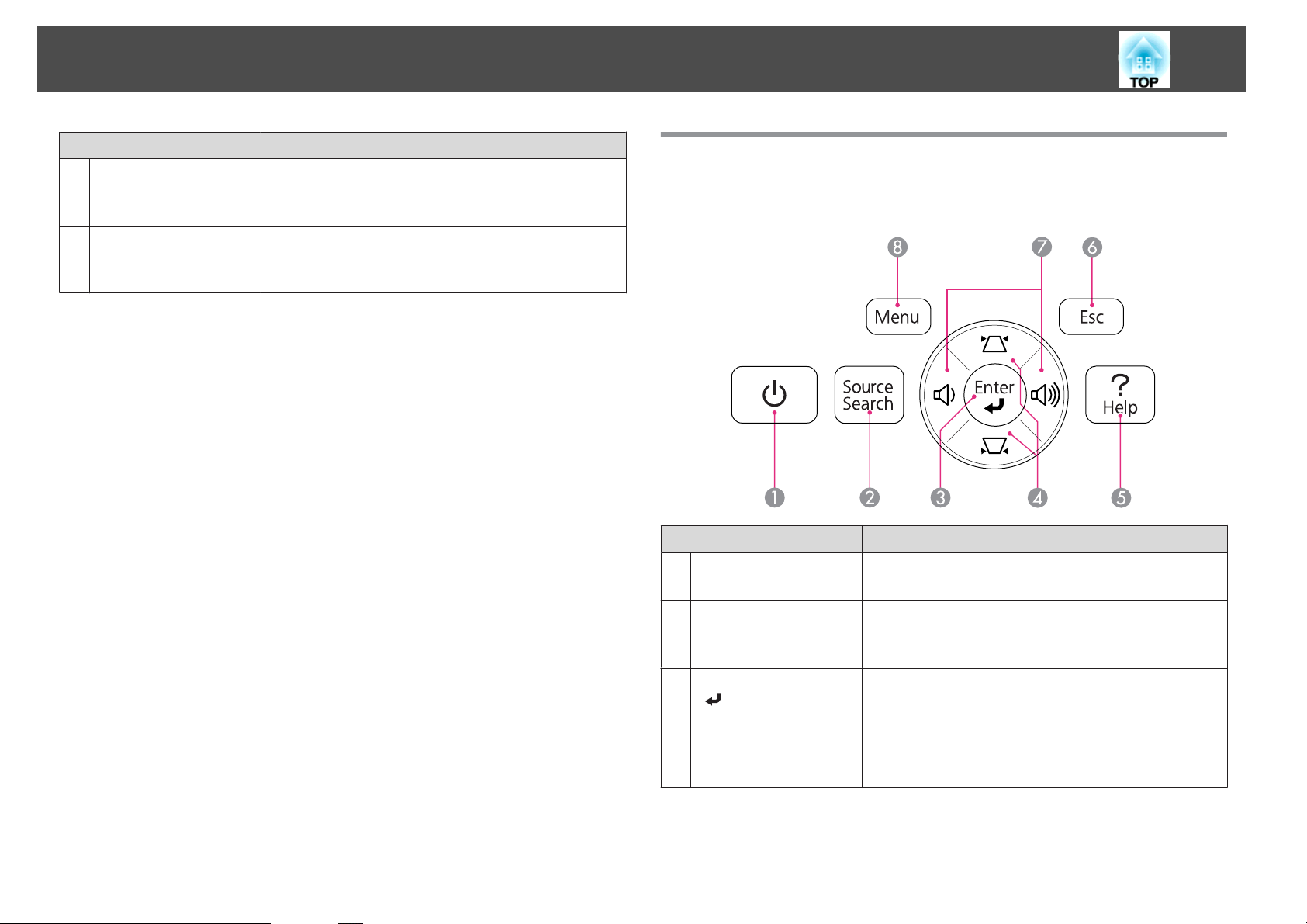

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

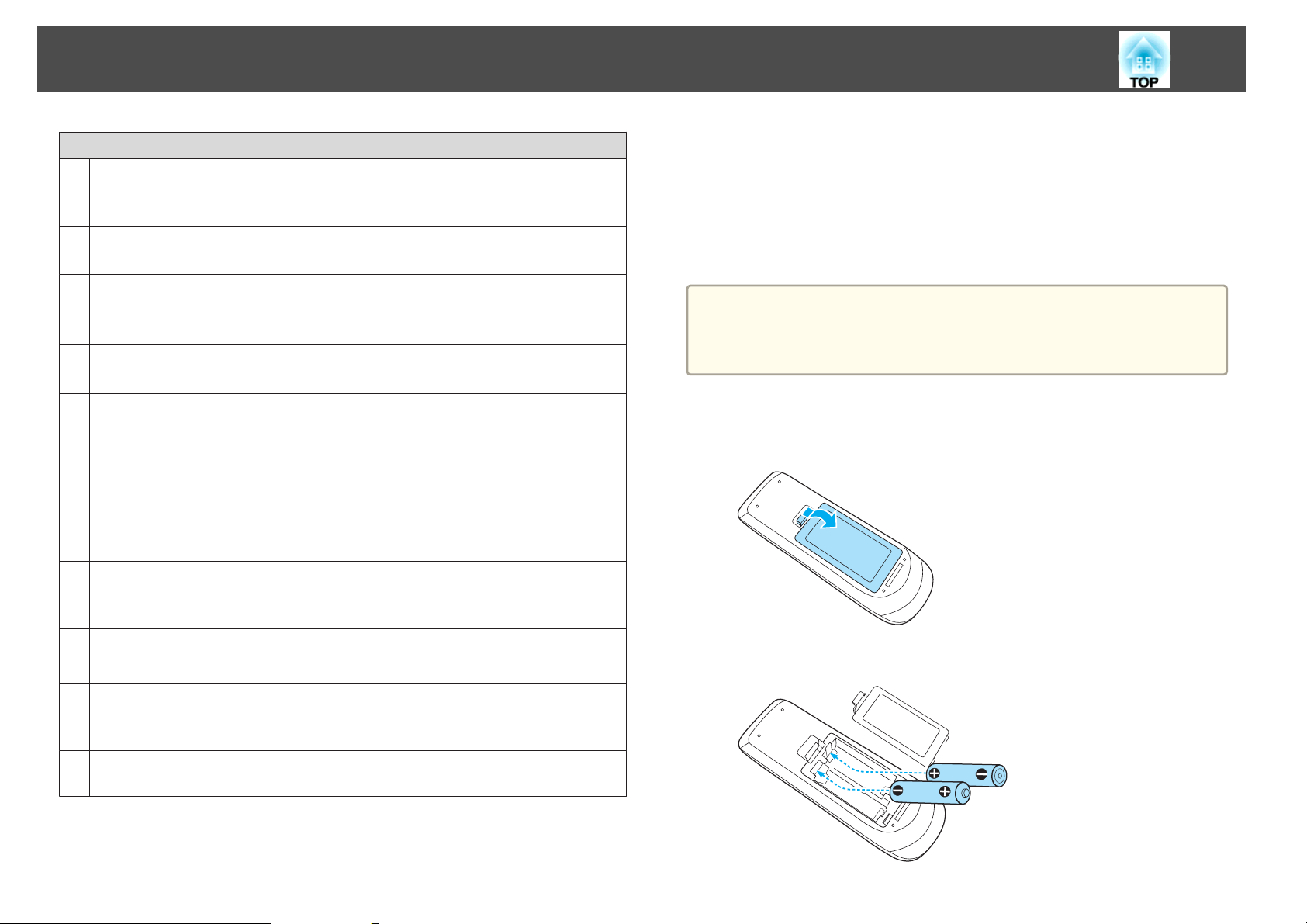

Replacing the remote control batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

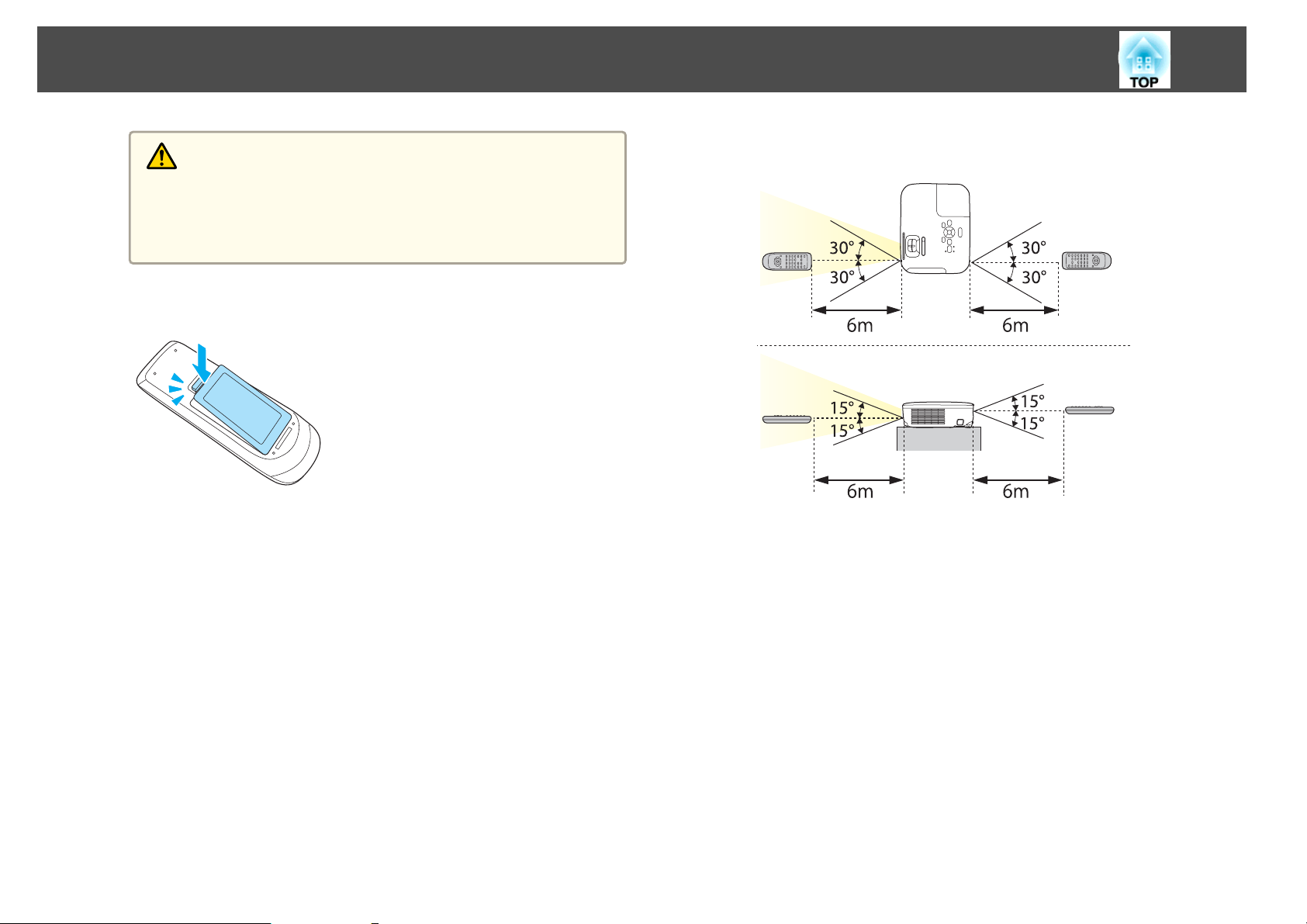

Remote control operating range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Preparing the Projector
Installing the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

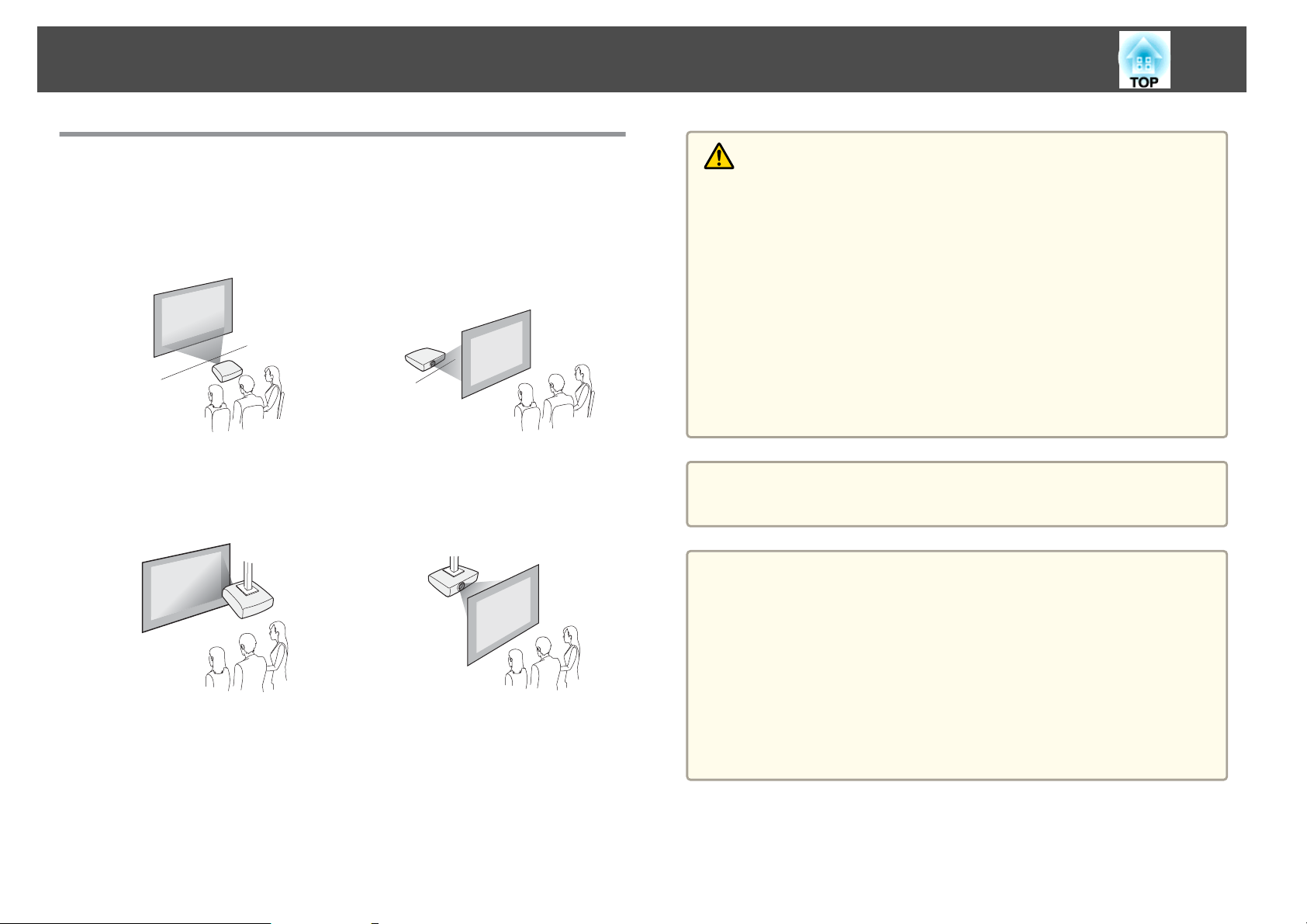

Installation Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Installation methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Screen Size and Approximate Projection Distance . . . . . . . . . . . . . . . . . . . . . . . 19
Connecting Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

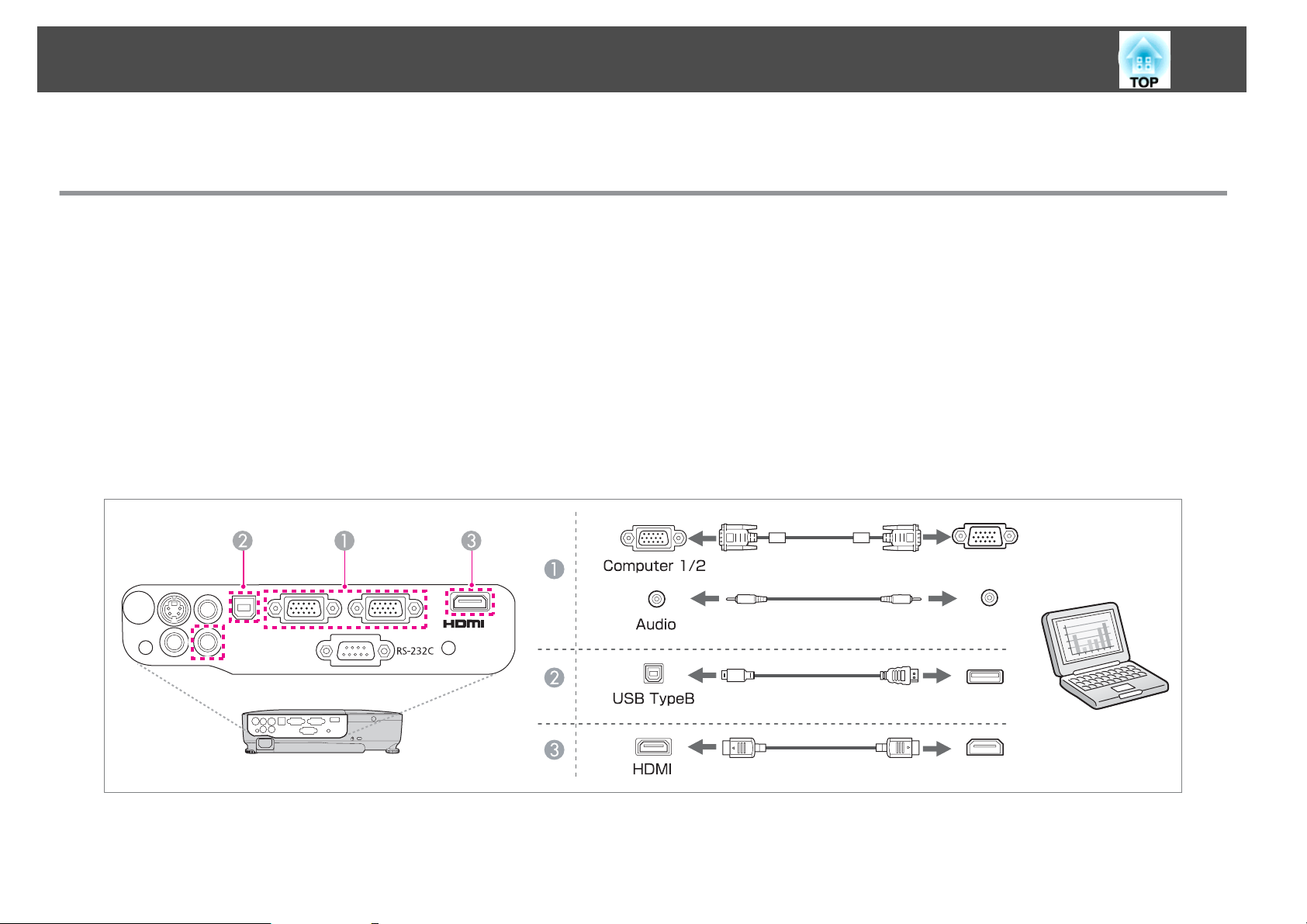

Connecting a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Connecting Image Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Connecting External Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Basic Usage
Projecting Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

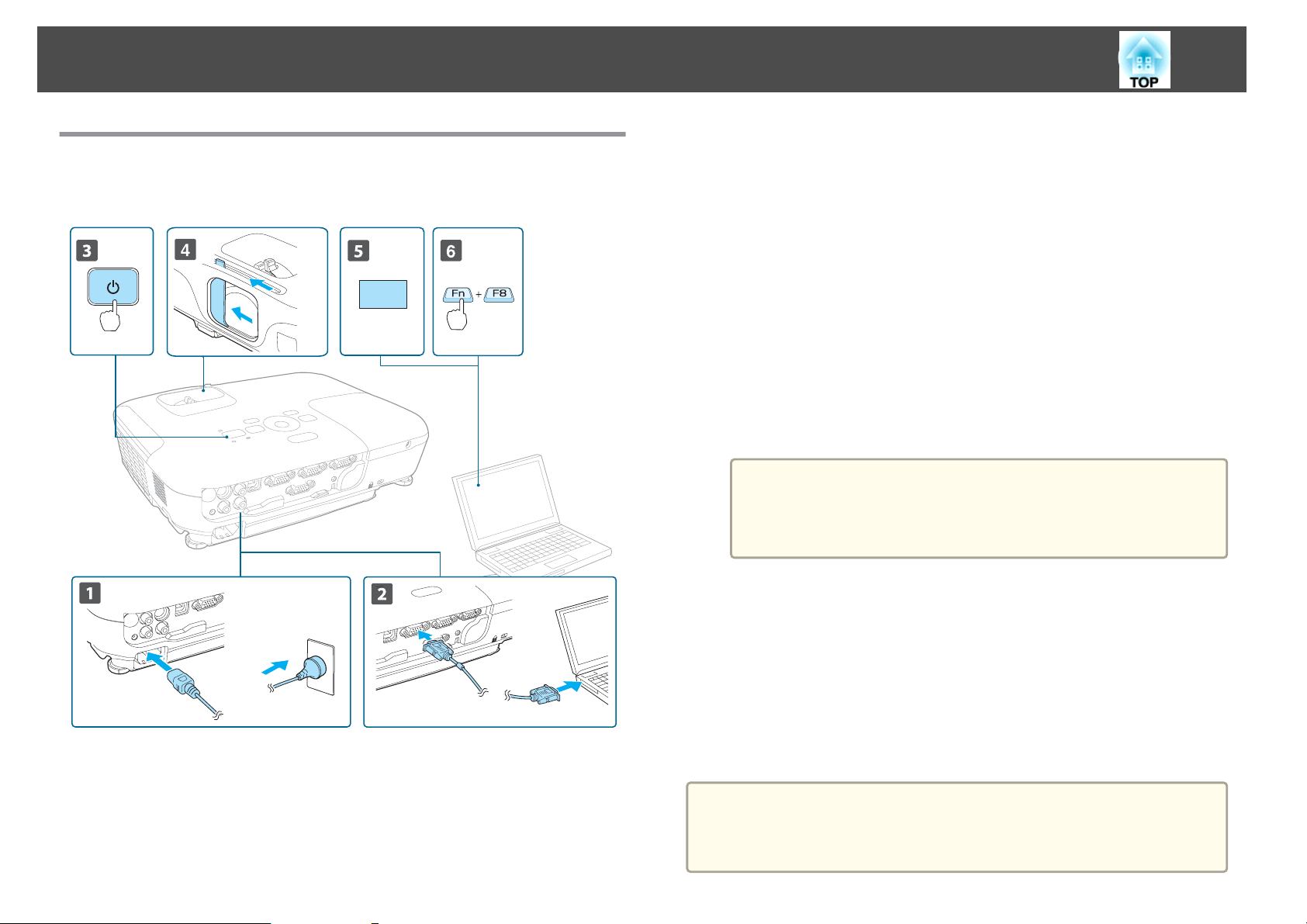

From Installation to Projection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

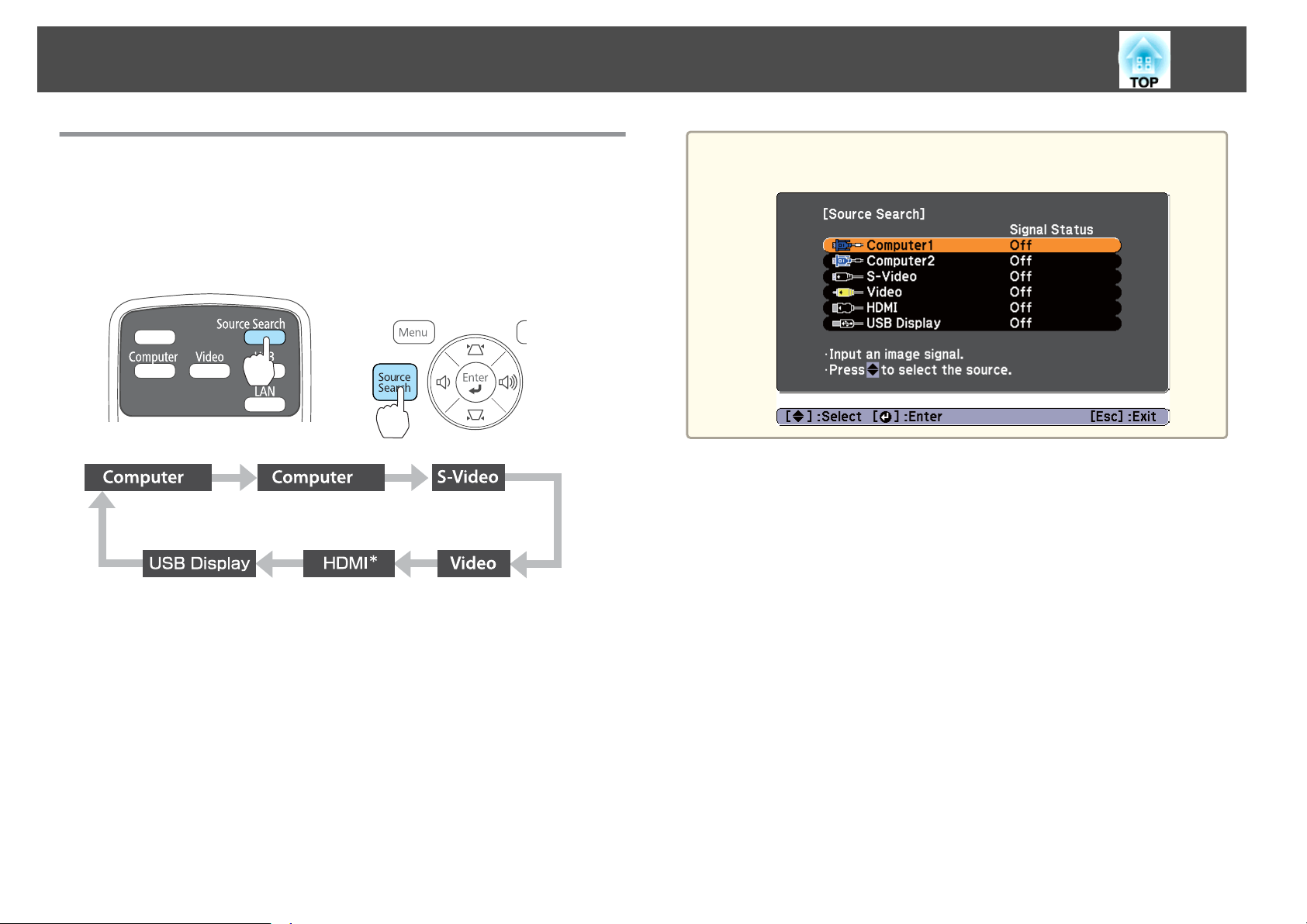

Automatically Detect Input Signals and Change the Projected Image (Source Search)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Switching to the Target Image by Remote Control . . . . . . . . . . . . . . . . . . . . . . . 28 Projecting with USB Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Connecting for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Uninstalling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Adjusting Projected Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Correcting Keystone Distortion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Correcting automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Correcting manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Adjusting the Image Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Adjusting the Image Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Adjusting the Horizontal Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Correcting the Focus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Selecting the Projection Quality (Selecting Color Mode) . . . . . . . . . . . . . . . . . . . 37 Setting Auto Iris . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Changing the Aspect Ratio of the Projected Image . . . . . . . . . . . . . . . . . . . . . . 39 Changing methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Changing the aspect mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Useful Functions
Projection Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Hiding the Image and Sound Temporarily (A/V Mute) . . . . . . . . . . . . . . . . . . . . . 42 Freezing the Image (Freeze) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Pointer Function (Pointer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Enlarging Part of the Image (E-Zoom) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse) . . . . . . 45 Saving a User's Logo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Contents |
|
4 |
|
|
|
Security Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Managing Users (Password Protect) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Kinds of Password Protect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Setting Password Protect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Entering the Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Restricting Operation (Control Panel Lock) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Anti-Theft Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Installing the wire lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Monitoring and Controlling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
ESC/VP21 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Before starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Command list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Communications protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Configuration Menu
Using the Configuration Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
List of Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Configuration Menu Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Image Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Signal Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Settings Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Extended Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Info Menu (Display Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Reset Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Troubleshooting
Using the Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Problem Solving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
No images appear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Moving images are not displayed (only the moving image portion turns black)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 Projection stops automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 The message Not supported is displayed. . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 The message No Signal is displayed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 Images are fuzzy, out of focus, or distorted . . . . . . . . . . . . . . . . . . . . . . . . . . 72 Interference or distortion appear in images . . . . . . . . . . . . . . . . . . . . . . . . . . 73 The image is truncated (large) or small, or the aspect is not suitable . . . . . . . . . 73 Image colors are not right . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 Images appear dark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Problems when Projection Starts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 The projector does not turn on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 Other Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 No sound can be heard or the sound is faint . . . . . . . . . . . . . . . . . . . . . . . . . 76 The remote control does not work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 I want to change the language for messages and menus . . . . . . . . . . . . . . . . . 77
Maintenance
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Cleaning the Projector's Surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Cleaning the Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Cleaning the Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Replacing Consumables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Replacing the Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 Lamp replacement period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 How to replace the lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 Resetting the lamp hours . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 Replacing the Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 Air filter replacement period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 How to replace the air filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Reading the Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 When the Indicators Provide No Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Problems Relating to Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Contents |
|
5 |
|
|
|
Appendix
Optional Accessories and Consumables . . . . . . . . . . . . . . . . . . . . . . 87
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Consumables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Screen Size and Projection Distance . . . . . . . . . . . . . . . . . . . . . . . . . 88
Projection Distance (For EB-X15/EB-X14H/EB-X11H) . . . . . . . . . . . . . . . . . . . . . . 88 Projection Distance (For EB-S11H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Supported Monitor Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Supported Resolutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 Computer signals (analog RGB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 Component Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 Composite video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 Input signal from the HDMI port (EB-X15 only) . . . . . . . . . . . . . . . . . . . . . . . . 91
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Projector General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
General Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
About Notations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
General Notice: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Introduction
This chapter explains the projector's features and the part names.
Projector Features |
|
7 |
|
|
|
List of Functions by Model
Available functions differ depending on the model being used. See the table below for a list of the functions available for each model.
Function |
EB-X15 |
EB-X14H |
EB-X11H |
EB-S11H |
USB Display |
|
|
|
|
|
|
|
|
|
HDMI Connection |
|
- |
- |
- |
|
|
|
|
|
External Equipment |
- |
|
|
|
Connection |
|
|
|
|
|
|
|
|
|
Auto V-Keystone |
|
- |
- |
- |
|
|
|
|
|
H-Keystone Adjuster |
|
-* |
-* |
-* |
|
|
|
|
|
Quick Corner |
|
|
|
|
|
|
|
|
|
Quick and Easy Set up, Projection, and Storage
• Turn the projector |
on and off by simply plugging in or unplugging. |
• Project onto large |
screens from a short distance. |
•Make easy height adjustments with one lever.
•No cool down delay makes it easy to put away.
Connecting with a USB cable and projecting (USB Display)
By simply connecting a USB cable, you can project images from a computer's screen without a computer cable.
s "Projecting with USB Display" p.28
* Although the H-Keystone Slider is not installed for this model, you can perform H-Keystone from the control panel or the Configuration menu.
Detecting projector movements and automatically correcting image distortion (EB-X15 only)
This projector automatically corrects vertical keystone distortion which occurs when positioning or moving the projector.
s "Correcting automatically" p.32
Projector Features
Horizontal keystone adjuster (EB-X15 only)
This allows you to quickly correct horizontal distortion in the projected image. This is useful if you cannot install the projector parallel to the screen.
s "Correcting manually" p.33
8
•Control Panel Lock restricts button operation on the control panel
You can use this to prevent people changing projector settings without permission at events, in schools, and so on.
s "Restricting Operation (Control Panel Lock)" p.50
•Equipped with various anti-theft devices
The projector is equipped with the following types of anti-theft security devices.
•Security slot
•Security cable installation point
s "Anti-Theft Lock" p.51
Useful Functions for Projecting Images
Making the most of the remote control
You can use the remote control to perform operations such as enlarging part of the image. You can also use the remote control as a pointer during presentations or as a mouse for the computer.
s "Pointer Function (Pointer)" p.43
s "Enlarging Part of the Image (E-Zoom)" p.44
s "Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse)" p.45
Enhanced security functions
•Password Protect to restrict and manage users
By setting a Password you can restrict who can use the projector. s "Managing Users (Password Protect)" p.48
Part Names and Functions
Front/Top
EB-X15
9
EB-X14H/EB-X11H/EB-S11H
Name |
Function |
A Air exhaust vent |
Exhaust vent for air used to cool the projector internally. |
|
|
Caution |
|
|
|
While projecting, do not put your face or hands |
|
|
|
near the air exhaust vent, and do not place objects |
|
|
|
that may become warped or damaged by heat near |
|
|
|
the vent. The hot air from the vent may cause |
|
|
|
burns, distortions, or injuries. |
|
|
|
|
|
|
|
|
|
B A/V mute slide knob |
Slide the knob to open and close the A/V mute slide. |
|
|
|
|
|
|
C Foot adjust lever |
Press the foot adjust lever to extend and retract the front |
|
|
|
adjustable foot. |
|
|
|
s "Adjusting the Image Position" p.36 |
|
|
Part Names and Functions |
|
10 |
|
|
|
|
Name |
Function |
D |
Front adjustable foot |
When setup on a surface such as a desk, extend the foot to |
|
|
adjust the position of the image. |
|
|
s "Adjusting the Image Position" p.36 |
|
|
|
E |
A/V mute slide |
Close when not using the projector to protect the lens. By |
|
|
closing during projection you can hide the image and the |
|
|
sound. |
|
|
s "Hiding the Image and Sound Temporarily (A/V |
|
|
Mute)" p.42 |
|
|
|
F |
Remote receiver |
Receives signals from the remote control. |
|
|
|
G |
Focus ring |
Adjusts the image focus. |
|
|
s "Correcting the Focus" p.37 |
|
|
|
H |
Zoom ring |
Adjusts the image size. |
|
(EB-X15/EB-X14H/EB- |
s "Adjusting the Image Size" p.36 |
|
X11H only) |
|
|
|
|
I |
Air intake vent |
Takes in air to cool the projector internally. |
|
(air filter) |
s "Cleaning the Air Filter" p.79 |
|
|
|
J |
Air filter cover |
Opens and closes the air filter cover. |
|
|
s "Replacing the Air Filter" p.84 |
|
|
|
K |
Speaker |
Outputs audio. |
|
|
|
L |
Indicators |
Indicates the projector's status. |
|
|
s "Reading the Indicators" p.66 |
|
|
|
M |
Control panel |
Operates the projector. |
|
|
s "Control Panel" p.12 |
|
|
|
N |
Horizontal keystone |
Corrects horizontal distortion in the projected image. |
|
adjuster |
s "Correcting manually" p.33 |
|
(EB-X15 only) |
|
|
|
|
O |
Lamp cover |
Open when replacing the projector's lamp. |
|
|
s "Replacing the Lamp" p.81 |
|
|
|
Rear
EB-X15
EB-X14H/EB-X11H/EB-S11H
|
Name |
Function |
A |
Remote receiver |
Receives signals from the remote control. |
|
|
|
B |
Video port |
Inputs composite video signals from video sources. |
|
|
|
C |
Power inlet |
Connects the power cord to the projector. |
|
|
s "From Installation to Projection" p.26 |
|
|
|
D |
Audio port |
Inputs audio from equipment connected to the Computer |
|
|
port, the S-Video port, or the Video port. |
Part Names and Functions |
|
11 |
|
|
|
|
Name |
|
|
Function |
E |
RS-232C port |
When controlling the projector from a computer, connect |
||
|
|
it to the computer with an RS-232C cable. This port is for |
||
|
|
control use and should not normally be used. |
||
|
|
s "ESC/VP21 Commands" p.52 |
||
|
|
|
||
F |
Security slot |
The Security slot is compatible with the Microsaver |
||
|
|
Security System manufactured by Kensington. |
||
|
|
s "Anti-Theft Lock" p.51 |
||
|
|
|
||
G |
Lamp Cover Fixing |
Screw to fix the lamp cover in place. |
||
|
Screw |
|
|
|
|
|
|
||
H |
HDMI port (EB-X15 |
Inputs video signals from HDMI compatible video |
||
|
only) |
equipment and computers. This projector is compatible |
||
|
|
with HDCPg. |
||
|
|
|
|
|
|
|
s "Connecting Equipment" p.20 |
||
|
|
|
||
I |
Computer2 port |
Inputs image signals from a computer and component |
||
|
|
video signals from other video sources. |
||
|
|
|
||
J |
Computer1 port |
Inputs image signals from a computer and component |
||
|
|
video signals from other video sources. |
||
|
|
|
||
K |
USB(TypeB) port |
• Connects the projector to a computer via the USB cable, |
||
|
|
and the image on the computer is projected. |
||
|
|
s "Projecting with USB Display" p.28 |
||
|
|
• Also use this port to connect to a computer via the USB |
||
|
|
cable to use the Wireless Mouse function. |
||
|
|
s "Using the Remote Control to Operate the |
||
|
|
Mouse Pointer (Wireless Mouse)" p.45 |
||
|
|
|
||
L |
Audio Output port |
Outputs the sound of the image currently being projected |
||
|
|
to external speakers. |
||
|
|
|
||
M |
S-Video port |
For S-video signals from video sources. |
||
|
|
|
||
N |
Monitor Out port |
Outputs analog RGB signals input from the Computer1 |
||
|
(EB-X14H/EB-X11H/ |
port to an external monitor. You cannot output signals |
||
|
EB-S11H only) |
input from other ports or component video signals. |
||
|
|
|
|
|
Base
Name |
Function |
|
|
ACeiling mount fixing Attach the optional Ceiling Mount here when suspending points (three points) the projector from a ceiling.
|
s "Installing the Projector" p.18 |
|
s "Optional Accessories" p.87 |
|
|
B Rear feet |
When setup on a surface such as a desk, turn to extend and |
|
retract to adjust the horizontal tilt. |
|
s "Adjusting the Horizontal Tilt" p.37 |
Part Names and Functions |
|
12 |
|
|
|
|
Name |
Function |
C |
Front adjustable foot |
When setup on a surface such as a desk, extend the foot to |
|
|
adjust the position of the image. |
|
|
s "Adjusting the Image Position" p.36 |
|
|
|
D |
Security cable |
Pass a commercially available wire lock through here and |
|
installation point |
lock it in place. |
|
|
s "Installing the wire lock" p.51 |
|
|
|
Control Panel
All of the features in this guide are explained using illustrations of EBX14H unless otherwise mentioned.
Name |
Function |
A [t] button |
Turns the projector power on or off. |
|
s "From Installation to Projection" p.26 |
|
|
B [Source Search] |
Changes to the next input source that is sending an image. |
button |
s "Automatically Detect Input Signals and Change the |
|
Projected Image (Source Search)" p.27 |
|
|
C [Enter] button |
• When the Configuration menu or the Help screen is |
[ ] |
displayed, it accepts and enters the current selection and |
|
moves to the next level. |
•If pressed while projecting analog RGB signals from the Computer1 or Computer2 port, you can automatically optimize Tracking, Sync., and Position.
Part Names and Functions |
|
13 |
|
|
|
|
Name |
Function |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Remote Control |
||||||||||||||||||||||||
D |
[w][v] buttons |
• Displays the Keystone screen allowing you to correct |
|||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
keystone distortion in vertical and horizontal |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
directions. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
s "Correcting manually" p.33 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
• If pressed when the Configuration menu or the Help |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
screen is displayed, these buttons select menu items and |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
setting values. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
s "Using the Configuration Menu" p.55 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
s "Using the Help" p.65 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
E |
[Help] button |
Displays and closes the Help screen which shows you how |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
to deal with problems if they occur. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
s "Using the Help" p.65 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
F |
[Esc] button |
• Stops the current function. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
• If pressed when the Configuration menu is displayed, it |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
moves to the previous menu level. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
s "Using the Configuration Menu" p.55 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
G |
[a][b] buttons |
• For EB-X15/EB-X14H/EB-X11H |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
or [Wide][Tele] |
[a] Decreases the volume. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
buttons |
[b] Increases the volume. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
s "Adjusting the Volume" p.37 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
• For EB-S11H |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
[Wide]: Enlarges the size of the projected image. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[Tele]: Reduces the size of the projected image. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
s "Adjusting the Image Size" p.36 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
• Corrects keystone distortion in the horizontal direction |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
when the Keystone screen is displayed. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
s "H/V-Keystone" p.33 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
• If pressed when the Configuration menu or the Help |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
screen is displayed, these buttons select menu items and |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
setting values. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
s "Using the Configuration Menu" p.55 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
s "Using the Help" p.65 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
H |
[Menu] button |
Displays and closes the Configuration menu. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
s "Using the Configuration Menu" p.55 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Part Names and Functions |
|
14 |
|
|
|
|
|
Name |
|
Function |
A |
[t] button |
|
Turns the projector power on or off. |
|
|
|
|
|
s "From Installation to Projection" p.26 |
|
|
|
||
B |
[Computer] button |
Each time the button is pressed, the input changes |
||
|
|
|
|
between images from the Computer1 and Computer2 |
|
|
|
|
port. |
|
|
|
||
C |
[Video] button |
• For EB-X15 |
||
|
|
|
|
Each time the button is pressed, the image cycles |
|
|
|
|
through the S-Video, Video, and HDMI ports. |
|
|
|
|
• For EB-X14H/EB-X11H/EB-S11H |
|
|
|
|
Each time the button is pressed, the input changes |
|
|
|
|
between images from the S-Video port to the Video |
|
|
|
|
port. |
|
|
|
||
D |
Numeric buttons |
Enter the Password. |
||
|
|
|
|
s "Setting Password Protect" p.48 |
|
|
|
||
E |
[Auto] button |
If pressed while projecting analog RGB signals from the |
||
|
|
|
|
Computer1 or Computer2 port, you can automatically |
|
|
|
|
optimize Tracking, Sync., and Position. |
|
|
|
||
F |
[Aspect] button |
Each time the button is pressed, the aspect mode changes. |
||
|
|
|
|
s "Changing the Aspect Ratio of the Projected Image " |
|
|
|
|
p.39 |
|
|
|
||
G |
[Num] button |
Hold down this button and press the numeric buttons to |
||
|
|
|
|
enter passwords and numbers. |
|
|
|
|
s "Setting Password Protect" p.48 |
|
|
|
||
H |
[Menu] button |
Displays and closes the Configuration menu. |
||
|
|
|
|
s "Using the Configuration Menu" p.55 |
|
|
|
|
|
I |
[ |
][ |
][ ][ ] |
• When the Configuration menu or the Help screen is |
|
|
|
|
displayed, pressing these buttons selects menu items |
|
buttons |
|
and setting values. |
|
|
|
|
|
s "Using the Configuration Menu" p.55 |
|
|
|
|
• During Wireless Mouse function, the mouse pointer |
|
|
|
|
moves in the direction of the button that was pushed. |
|
|
|
|
s "Using the Remote Control to Operate the |
|
|
|
|
Mouse Pointer (Wireless Mouse)" p.45 |
|
|
|
|
|
Name |
Function |
J [ ] button |
• When the Configuration menu or the Help screen is |
|
displayed, it accepts and enters the current selection and |
|
moves to the next level. |
|
s "Using the Configuration Menu" p.55 |
•Acts as a mouse's left button when using the Wireless Mouse function.
s "Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse)" p.45
K [User] button |
Select any frequently used item from the five available |
|
Configuration menu items, and assign it to this button. By |
|
pressing the [User] button, the assigned menu item |
|
selection/adjustment screen is displayed, allowing you to |
|
make one-touch settings/adjustments. |
|
s "Settings Menu" p.60 |
|
Power Consumption is assigned as the default setting. |
|
|
L [Page] buttons |
Changes pages in files such as PowerPoint files when using |
[[][]] |
the following projection methods. |
|
• When using the Wireless Mouse function |
|
s "Using the Remote Control to Operate the |
|
Mouse Pointer (Wireless Mouse)" p.45 |
|
• When using USB Display |
|
s "Projecting with USB Display" p.28 |
|
|
M [E-Zoom] buttons |
Enlarges or reduces the image without changing the |
[z][x] |
projection size. |
|
s "Enlarging Part of the Image (E-Zoom)" p.44 |
|
|
N [A/V Mute] button |
• Turns the video and audio on or off. |
|
s "Hiding the Image and Sound Temporarily (A/V |
|
Mute)" p.42 |
|
• You can change the Projection mode as follows by |
|
pressing the button for about five seconds. |
|
FrontWFront/Ceiling |
|
RearWRear/Ceiling |
Part Names and Functions |
|
15 |
|
|
|
|
Name |
Function |
O |
[Help] button |
Displays and closes the Help screen which shows you how |
|
|
to deal with problems if they occur. |
|
|
s "Using the Help" p.65 |
|
|
|
P |
[Freeze] button |
Images are paused or unpaused. |
|
|
s "Freezing the Image (Freeze)" p.42 |
|
|
|
Q |
[Volume] buttons |
[a] Decreases the volume. |
|
[a][b] |
[b] Increases the volume. |
|
|
s "Adjusting the Volume" p.37 |
|
|
|
R |
[Pointer] button |
Displays the on-screen pointer. |
|
|
s "Pointer Function (Pointer)" p.43 |
|
|
|
S |
[Esc] button |
• Stops the current function. |
|
|
• If pressed when the Configuration menu is displayed, it |
|
|
moves to the previous level. |
|
|
s "Using the Configuration Menu" p.55 |
|
|
• Acts as a mouse's right button when using the Wireless |
|
|
Mouse function. |
|
|
s "Using the Remote Control to Operate the |
|
|
Mouse Pointer (Wireless Mouse)" p.45 |
|
|
|
T |
[Color Mode] button |
Each time the button is pressed, the Color Mode changes. |
|
|
s "Selecting the Projection Quality (Selecting Color |
|
|
Mode)" p.37 |
|
|
|
U |
[LAN] button |
Not available for this projector. |
|
|
|
V |
[USB] button |
Changes to USB Display. |
|
|
|
W |
[Source Search] |
Changes to the next input source that is sending an image. |
|
button |
s "Automatically Detect Input Signals and Change the |
|
|
Projected Image (Source Search)" p.27 |
|
|
|
X |
Remote control light- |
Outputs remote control signals. |
|
emitting area |
|
|
|
|
Replacing the remote control batteries
If delays in the responsiveness of the remote control occur or if it does not operate after it has been used for some time, it probably means that the batteries are becoming flat. When this happens, replace them with new batteries. Have two AA size manganese or alkaline batteries ready. You cannot use other batteries except for the AA size manganese or alkaline.
Attention
Make sure you read the following manual before handling the batteries.
s Safety Instructions
a Remove the battery cover.
While pushing the battery compartment cover catch, lift the cover up.
b Replace the old batteries with new batteries.
Part Names and Functions |
|
16 |
|
|
|
Caution
Remote control operating range
Check the positions of the (+) and (-) marks inside the battery holder to ensure the batteries are inserted the correct way. If the batteries are not handled correctly, they could explode or leak causing a fire, injury, or damage to the product.
c Replace the battery cover.
Press the battery compartment cover until it clicks into place.
Preparing the Projector
This chapter explains how to install the projector and connect projection sources.
Installing the Projector |
|
18 |
|
|
|
Installation Methods
The projector supports the following four different projection methods. Install the projector according to the conditions of the installation location.
• Project images from in front of |
• Project images from behind a |
||||
the screen. (Front projection) |
translucent screen. (Rear projec |
||||
|
|
|
tion) |
||
|
|
|
|
|
|
|
|
|
|
|
|
• Suspend the projector from the |
• Suspend the projector from the |
ceiling and project images from |
ceiling and project images from |
in front of a screen. (Front/Ceil |
behind a translucent screen. |
ing projection) |
(Rear/Ceiling projection) |
Warning
•A special method of installation is required when suspending the projector from a ceiling (ceiling mount). If it is not installed correctly, it could fall causing an accident and injury.
•If you use adhesives on the Ceiling mount fixing points to prevent the screws from loosening, or if you use things such as lubricants or oils on the projector, the projector case may crack causing it to fall from its ceiling mount. This could cause serious injury to anyone under the ceiling mount and could damage the projector.
When installing or adjusting the ceiling mount, do not use adhesives to prevent the screws from loosening and do not use oils or lubricants and so on.
•Do not cover the projector's air intake vent or air exhaust vent. If either of the vents are covered, the internal temperature could rise and cause a fire.
Attention
Do not use the projector on its side. This may cause malfunctions to occur.
a• An optional Ceiling mount is required when suspending the projector from a ceiling.
s "Optional Accessories" p.87
•The default Projection setting is Front. You can change from Front to Rear from the Configuration menu.
s Extended - Projection p.61
•You can change the Projection mode as follows by pressing down the [A/V Mute] button on the remote control for about five seconds.
FrontWFront/Ceiling RearWRear/Ceiling
Installation methods
Install the projector as follows.
Installing the Projector |
|
19 |
|
|
|
• Install the projector so |
that it |
is parallel |
to the screen. |
If the projector is installed at an angle to |
the screen, keystone distortion |
||
occurs in the projected |
image. |
|
|
•Place the projector on a level surface.
If the projector is tilted the projected image is also tilted.
a• See the following if you cannot install the projector parallel to the screen.
s "Correcting Keystone Distortion" p.32
•See the following if you cannot install the projector on a level surface.
s "Adjusting the Horizontal Tilt" p.37 s "Correcting Keystone Distortion" p.32
Screen Size and Approximate Projection Distance
Projection size is determined by the distance from the projector to the screen. See the illustrations on the right to select the best position according to the screen size. The illustrations show the approximate shortest distance at maximum zoom. See the following for more information on the projection distance.
s "Screen Size and Projection Distance" p.88
aWhen you correct keystone distortion, the projected image may be reduced.
4:3 Screen Size
EB-X15/EB-X14H/EB-X11H |
EB-S11H |
Connecting Equipment |
|
20 |
|
|
|
Illustrations in this section are of EB-X15. The port name, location, and connector orientation differ depending on the source being connected.
Connecting a Computer
To project images from a computer, connect the computer using one of the following methods.
AWhen using the supplied computer cable
Connect the computer's display output to the projector's Computer1 or Computer2 port.
You can output audio from the projector's speaker by connecting the audio output port on the computer to the projector's Audio port using a commercially available audio cable.
BWhen using the supplied or commercially available USB cable
Connect the computer's USB port to the projector's USB(TypeB) port. You can send the computer's audio with the projected image.
CWhen using a commercially available HDMI cable (EB-X15 only)
Connect the computer's HDMI port to the projector's HDMI port. You can send the computer's audio with the projected image.
Connecting Equipment |
|
21 |
|
|
|
a |
• You can use a USB cable to connect the projector to a computer |
to project |
images |
from the |
computer. This function is called USB Display. |
|
|
s "Projecting with USB Display" p.28 |
|
|
|
|
|
|
• Depending on the model used and the |
area of purchase, the USB |
cable may |
not be |
supplied |
with the projector. |
|
|
|
|
|
|
|
Connecting Equipment |
|
22 |
|
|
|
Connecting Image Sources
To project images from DVD players or VHS video and so on, connect to the projector using one of the following methods.
AWhen using a commercially available video or S-video cable
Connect the video output port on the image source to the projector's Video port.
Or, connect the S-video output port on the image source to the projector's S-Video port.
You can output audio from the projector's speaker by connecting the audio output port on the image source to the projector's Audio port using a commercially available audio cable.
BWhen using the optional component video cable s "Optional Accessories" p.87
Connect the component output port on the image source to the projector's Computer1 or Computer2 port.
You can output audio from the projector's speaker by connecting the audio output port on the image source to the projector's Audio port using a commercially available audio cable.
CWhen using a commercially available HDMI cable (EB-X15 only)
Connect the HDMI port on the image source to the projector's HDMI port. You can send the image source's audio with the projected image.
Connecting Equipment |
|
23 |
|
|
|
Attention |
• If |
the |
input source is on when you connect it to the projector, it could |
cause a malfunction. |
• If |
the orientation or shape of the plug differs, do not try to force it in. The device could be damaged or could malfunction. |
||
|
|
||
a |
• If the source you want to connect to has an unusually shaped port, use the cable supplied with the device or an optional cable to connect to the projector. |
||
|
|
• When using a commercially available 2RCA(L/R)/stereo mini-pin |
audio cable, make sure it is labeled "No resistance". |
Connecting Equipment |
|
24 |
|
|
|
Connecting External Equipment
You can output images and audio by connecting an external monitor or speaker. The illustration in this section is of EB-X14H/EB-X11H/EB-S11H.
AWhen outputting images to an external monitor (EB-X14H/EB-X11H/EB-S11H only)
Connect the external monitor to the projector's Monitor Out port using the cable supplied with the external monitor.
BWhen outputting audio to an external speaker
Connect the external speaker to the projector's Audio Out port using a commercially available audio cable.
a |
• If you set Standby Mode to Communication On, you can output images to |
an external |
monitor even |
if the projector is in standby mode. |
|
s Extended - Standby Mode p.61 |
|
|
|
|
• Only analog RGB signals from the Computer1 port can be output to an external monitor. You cannot output signals input from other ports or component video |
|||
|
signals. |
|
|
|
|
• Setting gauges for functions such as Keystone, Configuration Menu, or Help |
screens are |
not output to |
the external monitor. |
•When the audio cable jack is inserted into the Audio Out port, audio stops being output from the projector's built-in speakers and switches to external output.
Basic Usage
This chapter explains how to project and adjust images.
Projecting Images
From Installation to Projection
This section explains the procedure for connecting the projector to a computer with the computer cable and projecting images.
ON
26
a Connect the projector to an electrical outlet with the power cord.
b Connect the projector to the computer with the computer cable.
c Turn on the projector.
d Slide open the A/V mute slide.
e Turn on your computer.
f Change the computer's screen output.
When using a laptop computer, you need to change the screen output from the computer.
Hold down the Fn key (function key), and press the b key.
a• The method for changing differs depending on the computer being used. See the documentation supplied with the computer.
• Press the [t] button twice to turn off the projector.
If the image is not projected, you can change the projected image using one of the following methods.
•Press the [Source Search] button on the control panel or the remote control.
s "Automatically Detect Input Signals and Change the Projected Image (Source Search)" p.27
•Press the button for the target port on the remote control. s "Switching to the Target Image by Remote Control" p.28
aAfter projecting the image, adjust the image if necessary. s "Correcting Keystone Distortion" p.32
s "Correcting the Focus" p.37
Projecting Images |
|
27 |
|
|
|
Automatically Detect Input Signals and Change |
|
a |
The following screen is displayed while no image signals are input. |
|||
|
||||||
the Projected Image (Source Search) |
|
Example: EB-X15 |
||||
Press the [Source Search] button to project images from the port currently |
|
|
||||
receiving an image. |
|
|
|
|
|
|
Using the remote control |
Using the control panel |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
2 |
* (EB-X15 only)
When two or more image sources are connected, press the [Source Search] button until the target image is projected.
When your video equipment is connected, start playback before beginning this operation.
Projecting Images |
|
28 |
|
|
|
Switching to the Target Image by Remote Control
You can change directly to the target image by pressing the following buttons on the remote control.
Remote control
AEach time the button is pressed, it cycles through the images being input from the following sources.
•Computer1 port
•Computer2 port
BEach time the button is pressed, it cycles through the images being input from the following sources.
•S-Video port
•Video port
•HDMI port (EB-X15 only)
CChanges to USB Display.
Projecting with USB Display
You can use a USB cable to connect the projector to a computer to project images from the computer.
You can send the computer's audio with the projected image.
System requirements
For Windows
OS |
Windows 2000*1 |
|
|
Windows XP*2 |
Professional 32 bit |
|
|
Home Edition 32 bit |
|
|
Tablet PC Edition 32 bit |
|
|
|
|
Windows Vista |
Ultimate 32 bit |
|
|
Enterprise 32 bit |
|
|
Business 32 bit |
|
|
Home Premium 32 bit |
|
|
Home Basic 32 bit |
|
|
|
|
Windows 7 |
Ultimate 32/64 bit |
|
|
Enterprise 32/64 bit |
|
|
Professional 32/64 bit |
|
|
Home Premium 32/64 bit |
|
|
Home Basic 32 bit |
|
|
Starter 32 bit |
|
|
|
CPU |
Mobile Pentium III 1.2 GHz or faster |
|
|
Recommended: Pentium M 1.6 GHz or faster |
|
|
|
|
Amount of Memory |
256 MB or more |
|
|
Recommended: 512 MB or more |
|
|
|
|
Hard Disk Space |
20 MB or more |
|
|
|
|
Projecting Images |
|
29 |
|
|
|
Display |
|
|
|
Resolution of no less than 640x480 and no higher |
|
|
|
|
|
|
than 1600x1200. |
|
|
|
|
|
Display color in 16-bit color or greater |
|
|
|
|
|
|
*1 |
Service |
Pack 4 only |
|||
*2 |
Except |
for Service |
Pack 1 |
||
|
|
|
|
||
For Mac OS X |
|
|
|||
|
|
|
|
|
|
OS |
|
|
|
Mac OS X 10.5.x 32 bit |
|
|
|
|
|
|
Mac OS X 10.6.x 32/64 bit |
|
|
|
|
|
Mac OS X 10.7.x 32/64 bit |
|
|
|
|
|
|
CPU |
|
|
|
Power PC G4 1GHz or faster |
|
|
|
|
|
|
Recommended: Core Duo 1.83GHz or faster |
|
|
|
|||
Amount of Memory |
|
512 MB or more |
|||
|
|
|
|||
Hard Disk Space |
|
20 MB or more |
|||
|
|
|
|
|
|
Display |
|
|
|
Resolution of no less than 640x480 and no higher than |
|
|
|
|
|
|
1600x1200. |
|
|
|
|
|
Display color in 16-bit color or greater |
|
|
|
|
|
|
Connecting for the first time
The first time you connect the projector and the computer using the USB cable, the driver needs to be installed. The installation procedure is different for Windows and Mac OS X.
a• You do not need to install the driver the next time you connect.
•When inputting images from multiple sources, change the input source to USB Display.
•If you use a USB hub, the connection may not operate correctly.
Connect the USB cable directly to the projector.
• Depending on the model used and the area of purchase, the USB cable may not be supplied with the projector.
• You cannot change option settings while using USB Display.
For Windows
a Connect the computer's USB port to the projector's USB(TypeB) port using a USB cable.
aFor Windows 2000 or Windows XP, a message asking you if you want to restart your computer may be displayed. Select
No.
For Windows 2000
Double-click Computer, EPSON PJ_UD, and then
EMP_UDSE.EXE.
For Windows XP
Driver installation starts automatically.
For Windows Vista/Windows 7
When the dialog box is displayed, click Run EMP_UDSE.exe. b When the License Agreement screen is displayed, click Agree.
Projecting Images |
|
30 |
|
|
|
c Computer images are projected.
It may take a while before computer images are projected. Until computer images are projected, leave the equipment as it is and do not disconnect the USB cable or turn off the power to the projector.
d Disconnect the USB cable when you finish projection.
When disconnecting the USB cable, there is no need to use Safely Remove Hardware.
a• If it is not installed automatically, double-click My Computer
- EPSON_PJ_UD - EMP_UDSE.EXE on your computer.
•If nothing is projected for some reason, click All Programs -
EPSON Projector - Epson USB Display - Epson USB Display Vx.xx on your computer.
•When using a computer running Windows 2000 under user authority, a Windows error message is displayed and you may not be able to use the software. In this case, try updating Windows to the latest version, restart, and then try to connect again.
For more details, contact your local dealer or the nearest address provided in the following document.
s Epson Projector Contact List
For Mac OS X
a Connect the computer's USB port to the projector's USB(TypeB) port using a USB cable.
The Setup folder of USB Display is displayed in the Finder. b Double-click the USB Display Installer icon.
c Follow the on-screen instructions to install.
d When the License Agreement screen is displayed, click Agree.
Enter the administrator authority password and start the installation.
When the installation is complete, the USB Display icon is displayed in the Dock and menu bar.
e Computer images are projected.
It may take a while before computer images are projected. Until computer images are projected, leave the equipment as it is and do not disconnect the USB cable or turn off the power to the projector.
f When you finish projection, select Disconnect from the USB Display icon menu on the menu bar or Dock, and then remove the USB cable.
a• If the USB Display setup folder is not displayed automatically in the Finder, double-click EPSON PJ_UD - USB Display Installer on your computer.
•If nothing is projected for some reason, click the USB Display icon in the Dock.
•If there is no USB Display icon in the Dock, double-click USB Display from the Applications folder.
•If you select Exit from the USB Display icon menu on the Dock, USB Display does not start automatically when you connect the USB cable.
Uninstalling
For Windows 2000
a Click Start, select Settings, and then click Control Panel. b Double-click Add/Remove Programs.
c Click Change or Remove Programs.
d Select Epson USB Display and click Change/Remove.
Loading...
