User's Guide
Contents
2
Notations Used in This Guide 6
Introduction to Your Projector 7
Projector Features.............................................................................. 8
Quick and Easy Setup..................................................................................................................... 8
Easy Wireless Projection................................................................................................................ 8
Flexible Connectivity...................................................................................................................... 9
Connect with Computers........................................................................................................ 9
Connect with Mobile Devices............................................................................................. 10
Projector Parts and Functions ........................................................ 11
Projector Parts - Front.................................................................................................................. 11
Projector Parts - Rear.................................................................................................................... 12
Projector Parts - Base ................................................................................................................... 13
Projector Parts - Control Panel................................................................................................. 14
Projector Parts - Remote Control ............................................................................................ 15
Setting Up the Projector 18
Projector Placement ........................................................................ 19
Projector Setup and Installation Options............................................................................. 19
Projection Distance....................................................................................................................... 20
Projector Connections ..................................................................... 21
Connecting to a Computer........................................................................................................ 21
Connecting to a Computer for VGA Video and Audio .............................................. 21
Connecting to a Computer for USB Video and Audio............................................... 22
Connecting to a Computer for HDMI Video and Audio ........................................... 23
Connecting to Smartphones or Tablets................................................................................ 23
Connecting to Video Sources ................................................................................................... 24
Connecting to an HDMI Video Source ............................................................................ 24
Connecting to a Component-to-VGA Video Source .................................................. 25
Connecting to an S-Video Video Source ........................................................................ 26
Connecting to a Composite Video Source..................................................................... 26
Connecting to External USB Devices..................................................................................... 27
USB Device Projection ........................................................................................................... 27
Connecting to a USB Device ............................................................................................... 27
Disconnecting a USB Device ............................................................................................... 28
Connecting to a Document Camera...................................................................................... 28
Installing Batteries in the Remote Control.................................... 29
Remote Control Operation.............................................................. 30
Opening the Lens Cover.................................................................. 31
Using Basic Projector Features 32
Turning On the Projector ................................................................ 33
Home Screen................................................................................................................................... 34
Turning Off the Projector................................................................ 36
Selecting the Language for the Projector Menus......................... 37
Projection Modes ............................................................................. 38
Changing the Projection Mode Using the Remote Control.......................................... 38
Changing the Projection Mode Using the Menus ............................................................ 38
Adjusting the Image Height............................................................ 40
Image Shape..................................................................................... 41
Auto V-Keystone ............................................................................................................................ 41

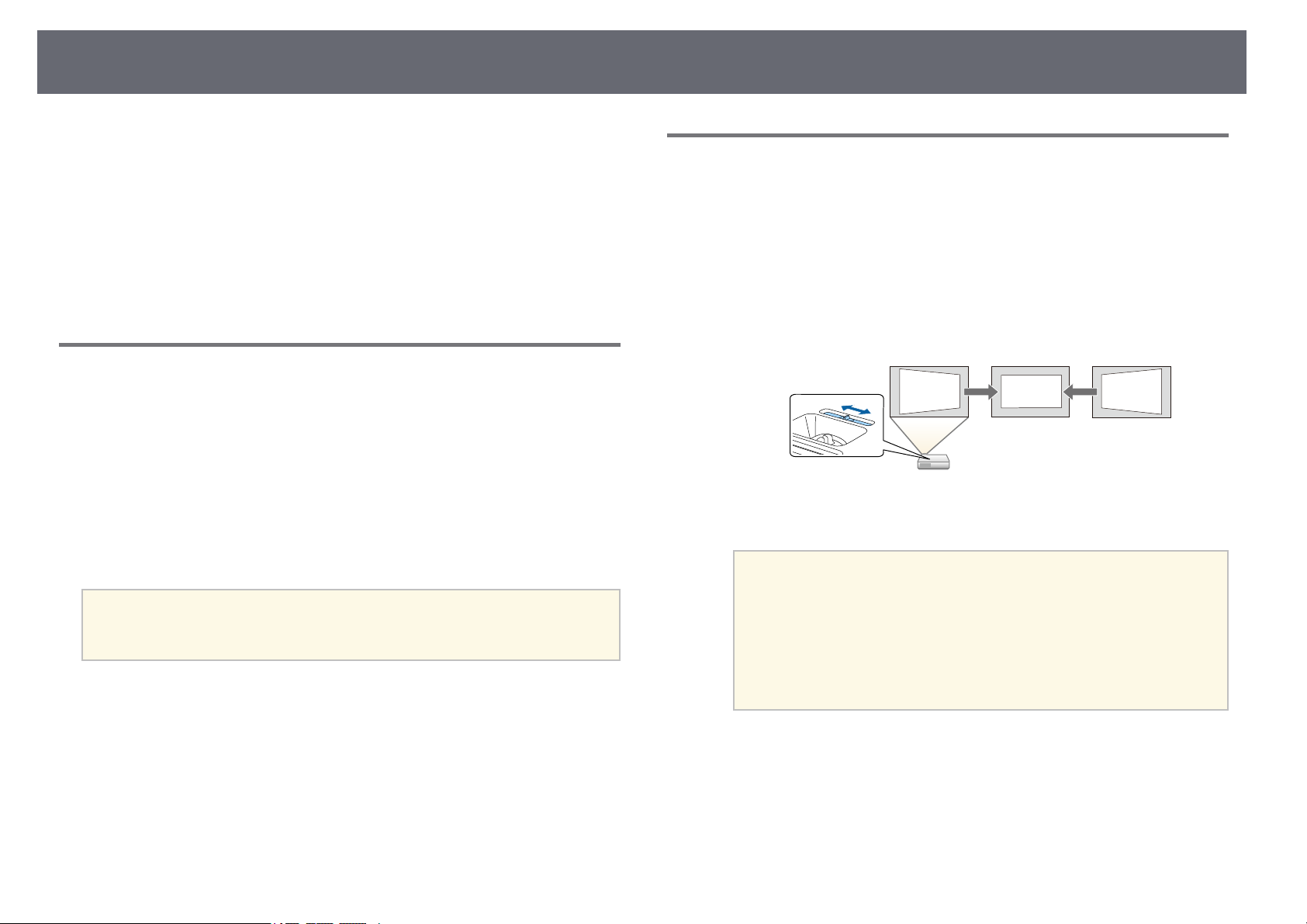

Correcting the Image Shape with the Horizontal Keystone Slider............................. 41
Correcting the Image Shape with the Keystone Buttons .............................................. 42
Correcting the Image Shape with Quick Corner ............................................................... 43
Resizing the Image with the Zoom Ring........................................ 46
Resizing the Image with the Buttons ............................................. 47
Focusing the Image Using the Focus Ring..................................... 48
Selecting an Image Source .............................................................. 49
Image Aspect Ratio .......................................................................... 51
Contents
3
Changing the Image Aspect Ratio.......................................................................................... 51
Available Image Aspect Ratios ................................................................................................. 51
Projected Image Appearance with Each Aspect Mode .................................................. 52
Color Mode ....................................................................................... 53
Changing the Color Mode ......................................................................................................... 53
Available Color Modes................................................................................................................. 53
Setting Auto Iris ............................................................................................................................. 53
Controlling the Volume with the Volume Buttons ....................... 55
Adjusting Projector Features 56
Projecting Two Images Simultaneously ........................................ 57
Unsupported Input Source Combinations for Split Screen Projection..................... 58
Split Screen Projection Restrictions........................................................................................ 59
Projecting a PC Free Presentation.................................................. 60
Supported PC Free File Types................................................................................................... 60
Precautions on PC Free Projection ......................................................................................... 60
Starting a PC Free Slide Show .................................................................................................. 61
Starting a PC Free Movie Presentation ................................................................................. 62
PC Free Display Options ............................................................................................................. 63
Shutting Off the Image and Sound Temporarily .......................... 65
Projector Security Features............................................................. 76
Password Security Types ............................................................................................................ 76
Setting a Password.................................................................................................................. 76
Selecting Password Security Types................................................................................... 77
Entering a Password to Use the Projector ..................................................................... 78
Locking the Projector's Buttons ............................................................................................... 78
Unlocking the Projector's Buttons .................................................................................... 79
Installing a Security Cable .......................................................................................................... 80
Using the Projector on a Network 81
Wireless Network Projection........................................................... 82
Installing the Wireless LAN Module ....................................................................................... 82
Selecting Wireless Network Settings Manually.................................................................. 83
Selecting Wireless Network Settings in Windows ............................................................ 85
Selecting Wireless Network Settings in OS X...................................................................... 85
Setting Up Wireless Network Security................................................................................... 85
Using a QR Code to Connect a Mobile Device............................... 87
Using Quick Wireless Connection (Windows Only)....................... 89
Monitoring and Controlling the Projector 90
Stopping Video Action Temporarily .............................................. 66
Zooming Images............................................................................... 67
Using the Remote Control as a Wireless Mouse............................ 68
Using the Remote Control as a Pointer.......................................... 70
Saving a User's Logo Image ............................................................ 71
Color Difference Correction when Projecting from Multiple
Projectors.......................................................................................... 73
Setting the Projector ID .............................................................................................................. 73
Selecting the Projector You want to Operate .................................................................... 73
Matching Multiple-Projector Display Quality ..................................................................... 75
EasyMP Monitor ............................................................................... 91
Controlling a Networked Projector Using a Web Browser........... 92
Setting Up Projector Network E-Mail Alerts.................................. 94
Network Projector E-mail Alert Messages............................................................................ 94
Setting Up Monitoring Using SNMP............................................... 95
Using ESC/VP21 Commands ........................................................... 96
Setting Up for Using ESC/VP21 Commands........................................................................ 96
ESC/VP21 Command List ............................................................................................................ 96
Communications Protocol ......................................................................................................... 96
Contents
4
Adjusting the Menu Settings 98
Using the Projector's Menus ........................................................... 99
Using the On-screen Keyboard..................................................... 100
Available Text Using the On-screen Keyboard ................................................................ 100
Image Quality Settings - Image Menu ......................................... 101
Input Signal Settings - Signal Menu............................................. 103
Projector Feature Settings - Settings Menu ................................ 105
Projector Setup Settings - Extended Menu ................................. 107
Projector Network Settings - Network Menu.............................. 109
Network Menu - Basic Menu .................................................................................................. 109
Network Menu - Wireless LAN Menu .................................................................................. 110
Network Menu - Security Menu ............................................................................................ 111
Network Menu - Mail Menu .................................................................................................... 112
Network Menu - Others Menu ............................................................................................... 113
Network Menu - Reset Menu.................................................................................................. 113
Projector Setup Settings - ECO Menu .......................................... 115
Projector Information Display - Info Menu ................................. 116
Info Menu - Projector Info Menu .......................................................................................... 116
Event ID Code List................................................................................................................. 117
Projector Reset Options - Reset Menu ......................................... 118
Copy Menu Settings to Another Projector (Batch Setup).......... 119
Performing Batch Setup Using a USB Flash Drive .......................................................... 119
Performing Batch Setup Using a USB Cable..................................................................... 120
Batch Setup Error Notification ......................................................................................... 121
Air Filter and Vent Maintenance .................................................. 125
Cleaning the Air Filter and Vents.......................................................................................... 125
Replacing the Air Filter ............................................................................................................. 125
Projector Lamp Maintenance ....................................................... 127
Replacing the Lamp ................................................................................................................... 127
Resetting the Lamp Timer ....................................................................................................... 130
Replacing the Remote Control Batteries ..................................... 132
Solving Problems 133
Projection Problems ...................................................................... 134
Projector Indicators Status ........................................................... 135
Using the Projector Help Displays................................................ 137
Solving Image or Sound Problems............................................... 138
Solutions When No Image Appears..................................................................................... 138
Solutions When Image is Incorrect Using the USB Display Function ..................... 138
Solutions When "No Signal" Message Appears ............................................................... 139
Displaying From a Laptop.................................................................................................. 139
Displaying From a Mac Laptop........................................................................................ 139
Solutions When "Not Supported" Message Appears .................................................... 140
Solutions When Only a Partial Image Appears................................................................ 140
Solutions When the Image is not Rectangular ................................................................ 140
Solutions When the Image Contains Noise or Static..................................................... 141
Solutions When the Image is Fuzzy or Blurry .................................................................. 141
Solutions When the Image Brightness or Colors are Incorrect ................................. 142
Solutions to Sound Problems................................................................................................. 142
Solutions When Image File Names are not Displayed Correctly in PC Free......... 143
Maintaining the Projector 122
Cleaning the Lens........................................................................... 123
Cleaning the Projector Case.......................................................... 124
Solving Projector or Remote Control Operation Problems....... 144
Solutions to Projector Power or Shut-Off Problems...................................................... 144
Solutions to Problems with the Remote Control............................................................ 144
Solutions to Password Problems........................................................................................... 145
Solving Network Problems ........................................................... 146
Contents
Solutions When You Cannot Access the Projector Through the Web ................... 146
Solutions When Network Alert E-Mails are not Received............................................ 146
Solutions When the Image Contains Static During Network Projection............... 146
Appendix 147
Optional Accessories and Replacement Parts............................. 148
Optional Accessories ................................................................................................................. 148
Replacement Parts...................................................................................................................... 148
Screen Size and Projection Distance............................................ 149
Supported Monitor Display Resolutions ..................................... 153
Projector Specifications ................................................................ 155
Connector Specifications ......................................................................................................... 156
External Dimensions ...................................................................... 157
USB Display System Requirements .............................................. 159
5
List of Safety Symbols (corresponding to IEC60950-1 A2) ........ 160
Glossary .......................................................................................... 162
Notices ............................................................................................ 164
FCC Compliance Statement .................................................................................................... 164
Indication of the manufacturer and the importer in accordance with
requirements of EU directive.................................................................................................. 165
Restriction of Use ........................................................................................................................ 165
Operating System References................................................................................................ 165
Trademarks.................................................................................................................................... 165
Copyright Notice......................................................................................................................... 166
Copyright Attribution................................................................................................................ 166
Notations Used in This Guide
Safety Symbols
The projector and its manuals use graphical symbols and labels to indicate content that tells you how to use the projector safely.
Read and carefully follow the instructions that are marked with these symbols and labels to avoid injury to persons or damage to property.
This symbol indicates information that, if ignored, could possibly result in personal injury or even death.
Warning
This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.
Caution
General Information Notations
This label indicates procedures that may result in damage or injury if sufficient care is not taken.
Attention
This label indicates additional information that may be useful to know.
[Button name] Indicates the name of the buttons on the remote control or the control panel.
Example: [Esc] button
Menu/Setting name Indicates projector menu and setting names.
Example:
Select the Image menu
s Image > Advanced
This label indicates links to the related pages.
s
This label indicates a page where detailed information regarding a topic can be found.
Introduction to Your Projector
Refer to these sections to learn more about your projector's features and part names.
gg Related Links
• "Projector Features" p.8
• "Projector Parts and Functions" p.11
Projector Features
8
This projector has a quick and easy setup, and flexible connectivity features.
gg Related Links
• "Quick and Easy Setup" p.8
• "Easy Wireless Projection" p.8
• "Flexible Connectivity" p.9
Quick and Easy Setup
• Direct Power On feature to turn on the projector as soon as you plug it in.
• Auto Power On feature to turn on the projector when the projector detects
an image signal from the port you specified as the Auto Power On source.
• Home screen feature to easily select an input source and useful functions.
• Real-time, automatic vertical keystone correction always displays a
rectangular screen (Auto V-Keystone).
• Horizontal keystone adjuster allows you to quickly correct horizontal
distortion in the projected image.
Easy Wireless Projection
• EasyMP Network Projection to share the projector over the network and
project images from any of the computers on the network.
See the EasyMP Network Projection Operation Guide for details.
• Epson iProjection to connect your projector and mobile device wirelessly
using the app available on App Store or Google play.
Any fees incurred when communicating with the App Store or
a
Google play are the responsibility of the customer.
gg Related Links
• "Auto V-Keystone" p.41
• "Projector Setup Settings - Extended Menu" p.107
• "Turning On the Projector" p.33
• "Correcting the Image Shape with the Horizontal Keystone Slider" p.41
• "Correcting the Image Shape with Quick Corner" p.43
• EasyMP Multi PC Projection to project up to four images at the same time
by splitting the projected screen. You can project images from computers
on the network, or from smartphones or tablet devices on which Epson
iProjection is installed.
Projector Features
9
See the EasyMP Multi PC Projection Operation Guide for details.
gg Related Links
• "Wireless Network Projection" p.82
• "Using a QR Code to Connect a Mobile Device" p.87
Flexible Connectivity
This projector supports a wide variety of easy-to-use connectivity options as
shown below.
gg Related Links
• "Connect with Computers" p.9
• "Connect with Mobile Devices" p.10
Connect with Computers
Connect with one USB cable to project images and output audio (USB
Display).
a
• When projecting images using a wireless LAN, you must install the
Epson 802.11b/g/n wireless LAN module, and then set up your
projector and computer for wireless projection (EB-W31/EBX36/EB-X31/EB-S31/EB-U04/EB-W04/EB-X04/EB-S04/EBU130/EB-W130/EB-X130/EB-S130/EB-X350/EB-X300/EB-S300).
The Epson 802.11b/g/n wireless LAN module may not be included
with your projector.
• Some models have built-in wireless LAN modules (EB-U32/EBW32).
• You can download the necessary software and manuals from the
following Web site:
http://www.epson.com/
Projector Features
Connect with Mobile Devices
• HDMI/MHL port to connect an MHL cable to the mobile device and to the
projector.
10
Projector Parts and Functions
11
The following sections explain the projector parts and their functions.
gg Related Links
• "Projector Parts - Front" p.11
• "Projector Parts - Rear" p.12
• "Projector Parts - Base" p.13
• "Projector Parts - Control Panel" p.14
• "Projector Parts - Remote Control" p.15
Projector Parts - Front
All of the features in this guide are explained using illustrations of EB-W04
unless otherwise mentioned.
Name Function
Air exhaust vent Exhaust vent for air used to cool the projector
A
internally.
Warning
Do not look into the vents. If the lamp
explodes, gases may escape and small
fragments of glass may be scattered which
could cause an injury. Contact a doctor if any
fragments of broken glass are inhaled or get
into the eyes or mouth.
Caution
While projecting, do not put your face or
hands near the air exhaust vent, and do not
place objects that may become warped or
damaged by heat near the vent. Hot air from
the air exhaust vent could cause burns,
warping, or accidents to occur.
A/V Mute slide lever Slide the knob to open and close the lens cover.
B
Foot release lever Press the foot release lever to extend and retract the
C
Lens cover Close when not using the projector to protect the lens.
D
Front adjustable foot When the projector is set up on a surface such as a
E
Lens Images are projected from here.
F
Remote receiver Receives signals from the remote control.
G
Horizontal keystone Corrects horizontal distortion in the projected image.
H
adjuster
Air intake vent (air Takes in air to cool the projector internally.
I
filter)
Air filter cover Open to access the air filter.
J
front adjustable foot.
By closing it during projection you can hide the image
and the sound.
desk, extend the foot to adjust the position of the
image.
Projector Parts and Functions
12
Name Function
Security slot The security slot is compatible with the Microsaver
K
Control panel Operates the projector.
L
Zoom ring Adjusts the image size.
M
(EB-U32/EBW32/EB-W31/EBX36/EB-X31/EBU04/EB-W04/EBX04/EB-U130/EBW130/EB-X130/EBX350/EB-X300)
Focus ring Adjusts the image focus.
N
Lamp cover Open to access the projector's lamp.
O
Security System manufactured by Kensington.
gg Related Links
• "Projector Indicators Status" p.135
• "Resizing the Image with the Zoom Ring" p.46
• "Focusing the Image Using the Focus Ring" p.48
Projector Parts - Rear
EB-W32/EB-W31/EB-X36/EB-X31/EB-S31/EB-W04/EB-X04/EB-S04/EBW130/EB-X130/EB-S130/EB-X350/EB-X300/EB-S300
EB-U32/EB-U04/EB-U130
Name Function
Power inlet Connects the power cord to the projector.
A
Wireless LAN module Secures the wireless LAN module cover.
B
fixing screw
(EB-W31/EB-
X36/EB-X31/EBS31/EB-W04/EBX04/EB-S04/EBW130/EB-X130/EBS130/EB-X350/EBX300/EB-S300)
Audio ports Inputs audio from equipment connected to the
C
Video port Inputs composite video signals from video sources.
D
Remote receiver Receives signals from the remote control.
E
Speaker Outputs audio.
F
Computer, S-Video, or Video port.
Projector Parts and Functions
13
Name Function
HDMI port Inputs video signals from HDMI compatible video
G
(EB-X36/EB-X31/EBS31/EB-W04/EB- The HDMI/MHL port can also input video signals
X04/EB-S04/EB- from MHL (Mobile High-Definition) compatible
W130/EB-X130/EB- mobile devices.
S130/EB-X350/EBX300/EB-S300)
HDMI/MHL port
(EB-W32/EB-W31)
HDMI1,
HDMI2/MHL port
(EB-U32/EB-U04/EB-
U130)
Computer port Inputs image signals from a computer and component
H
S-Video port For S-video signals from video sources.
I
(EB-W32/EBW31/EB-X36/EBX31/EB-S31/EBW04/EB-X04/EBS04/EB-W130/EBX130/EB-S130/EBX350/EB-X300/EBS300)
USB-B port Connects a USB cable to the computer to project
J
USB-A port Connects a USB memory device or a digital camera
K
equipment and computers.
This projector is compatible with HDCP.
video signals from other video sources.
computer images or to use the Wireless Mouse
function.
and projects movies or images using PC Free.
Connects the optional Document Camera.
Connects the wireless LAN module (EB-W31/EB-
X36/EB-X31/EB-S31/EB-U04/EB-W04/EB-X04/EBS04/EB-U130/EB-W130/EB-X130/EB-S130/EBX350/EB-X300/EB-S300).
Connects the optional Quick Wireless Connection USB
Key.
gg Related Links
• "Using the Remote Control as a Wireless Mouse" p.68
• "Installing a Security Cable" p.80
• "Projecting a PC Free Presentation" p.60
Projector Parts - Base
Name Function
Ceiling mount fixing Attach the optional ceiling mount here when
A
points (three points) suspending the projector from a ceiling.
Security cable Pass a commercially available wire lock through here
B
attachment point and lock it in place.
Projector Parts and Functions
Name Function Name Function
Rear feet When the projector is set up on a surface such as a
C
Front adjustable foot When the projector is set up on a surface such as a
D
desk, turn to extend and retract the feet to adjust the while displaying the projector's menu or help.
horizontal tilt.
desk, extend the foot to adjust the position of the
image. From now on, referred to as the [Enter] button.
gg Related Links
• "Installing a Security Cable" p.80
Projector Parts - Control Panel
[Enter] button [ ] Enters the current selection and moves to the next level
B
Keystone adjustment Displays the Keystone screen allowing you to correct
C
buttons and arrow keystone distortion.
buttons
[Esc] button Stops the current function.
D
Volume buttons and
E
arrow buttons
Wide/Tele buttons
14
Optimizes Tracking, Sync., and Position in the
projector's Signal menu while projecting an analog
RGB signal from the Computer port.
Selects menu items while displaying the projector's
menu or help.
Moves back to the previous menu level while
displaying the projector's menu.
• EB-U32/EB-W32/EB-W31/EB-X36/EB-X31/EBU04/EB-W04/EB-X04/EB-U130/EB-W130/EBX130/EB-X350/EB-X300:
Name Function
[Source Search] Changes to the next input source.
A
button
: Decreases the volume.
: Increases the volume.
• EB-S31/EB-S04/EB-S130/EB-S300:
: Enlarges the size of the projected image.
: Reduces the size of the projected image.
Corrects keystone distortion in the horizontal direction
when the Keystone screen is displayed.
Selects menu items while displaying the projector's
menu or help.
[Menu] button Displays and closes the projector's menu.
F
[Home] button Displays and closes the Home screen.
G
H
Power button [ ]
Indicators Indicates the projector's status.
I
Turns the projector on or off.
From now on, referred to as the power button.
Projector Parts and Functions
15
gg Related Links
• "Home Screen" p.34
• "Input Signal Settings - Signal Menu" p.103
• "Projector Indicators Status" p.135
• "Correcting the Image Shape with the Keystone Buttons" p.42
Projector Parts - Remote Control
Projector Parts and Functions
Name Function Name Function
A
Power button [ ]
[Computer] button Selects the Computer port as the image source.
B
[Video] button Switches the image source between the S-Video, Video
C
Numeric buttons Enters numbers in the projector's menu while holding
D
[Auto] button Optimizes Tracking, Sync., and Position in the displaying the projector's menu.
E
[Aspect] button Changes the aspect mode.
F
[Num] button Hold down this button to enter numbers using the
G
[Menu] button Displays and closes the projector's menu.
H
Arrow buttons Selects menu items while displaying the projector's
I
[Enter] button [ ] Enters the current selection and moves to the next level
J
[User] button Performs settings assigned in the User Button setting
K
[Page] up/down Controls page up and down on your computer when
L
buttons you connect a projector and computer using a USB
[E-Zoom +/–] Zooms in or zooms out the image area.
M
buttons
[A/V Mute] button Turns the video and audio on or off temporarily.
N
[Split] button Projects two images from different image sources
O
Turns the projector on or off.
From now on, referred to as the power button.
and HDMI port.
down the [Num] button.
projector's Signal menu while projecting an analog
RGB signal from the Computer port.
numeric buttons.
menu or help.
while displaying the projector's menu or help.
Acts as a mouse's left button when using the Wireless
Mouse function. and USB-A port.
From now on, referred to as the [Enter] button.
in the projector's Settings menu.
cable or over a network.
Displays the previous or next screen while using the PC
Free feature.
simultaneously by splitting the projected screen.
[Home] button Displays and closes the Home screen.
P
[Freeze] button Pauses or resumes images.
Q
[Volume] up/down Adjusts the speaker volume.
R
buttons
[Pointer] button Displays the on-screen pointer.
S
[Esc] button Stops the current function.
T
[ID] button Hold down this button and press the numeric buttons
U
[Color Mode] button Changes the color mode.
V
[MHL Menu] button Displays the settings menu for the device linked to the
W
[LAN] button Switches the image source between the network
X
[USB] button Switches the image source between the USB Display
Y
[Source Search] Changes to the next input source.
Z
button
Remote control light Outputs remote control signals.
a
emitting area
gg Related Links
• "Image Aspect Ratio" p.51
• "Color Mode" p.53
• "Input Signal Settings - Signal Menu" p.103
• "Projector Setup Settings - Extended Menu" p.107
• "Projecting Two Images Simultaneously" p.57
• "Using the Remote Control as a Wireless Mouse" p.68
• "Using the Remote Control as a Pointer" p.70
16
Moves back to the previous menu level while
Acts as a mouse's right button when using the Wireless
Mouse function.
to select the ID for the projector you want to operate
using the remote control.
projector's HDMI/MHL port.
connected devices.
Projector Parts and Functions
• "Connecting to a Computer" p.21
• "Projecting a PC Free Presentation" p.60
• "Using the Projector on a Network" p.81
17
Setting Up the Projector
Follow the instructions in these sections to set up your projector.
gg Related Links
• "Projector Placement" p.19
• "Projector Connections" p.21
• "Installing Batteries in the Remote Control" p.29
• "Remote Control Operation" p.30
• "Opening the Lens Cover" p.31
Projector Placement
19
You can place the projector on almost any flat surface to project an image.
You can also install the projector in a ceiling mount if you want to use it in a
fixed location. An optional ceiling mount is required when suspending the
projector from a ceiling.
Note the following points when selecting a projector location:
• Place the projector on a sturdy, level surface or install it using a compatible
mount.
• Leave plenty of space around and under the projector for ventilation, and
do not place it on top of or next to anything that could block the vents.
• Position the projector within reach of a grounded electrical outlet or
extension cord.
• Place the projector parallel to the screen.
If you cannot install the projector parallel to the screen, correct
a
keystone distortion using the projector controls.
Warning
• You must install a ceiling mount when suspending the projector from a ceiling.
If you do not install the projector correctly, it could fall and cause damage or
injury.
• Do not use adhesives on the ceiling mount fixing points to prevent the screws
from loosening, or use lubricants, oils, or similar substances on the projector; the
projector case may crack causing it to fall from its ceiling mount. This could
cause serious injury to anyone under the ceiling mount and could damage the
projector.
• Do not cover the projector's air intake or air exhaust vents. If the vents are
covered, the internal temperature could rise and cause a fire.
Attention
• Do not operate the projector on its side. This may cause the projector to
malfunction.
• If you are using the projector at altitudes above 1500 m, set the High Altitude
Mode setting to On in the projector's Extended menu to ensure the projector's
internal temperature is regulated properly.
s Extended > Operation > High Altitude Mode
gg Related Links
• "Projector Setup and Installation Options" p.19
• "Projection Distance" p.20
• "Image Shape" p.41
• "Projector Setup Settings - Extended Menu" p.107
• "Optional Accessories" p.148
Projector Setup and Installation Options
You can set up or install your projector in the following ways:
Projector Placement
20
Front/Rear
Front Ceiling/Rear Ceiling
When correcting keystone distortion, your image is slightly smaller.
a
gg Related Links
• "Screen Size and Projection Distance" p.149
When projecting from the ceiling or from the rear, make sure you select the
correct Projection option in the projector's Extended menu.
gg Related Links
• "Projection Modes" p.38
Projection Distance
The distance at which you place the projector from the screen determines the
approximate size of the image. The image size increases the farther the
projector is from the screen, but can vary depending on the zoom factor,
aspect ratio, and other settings.
See the Appendix for details about how far to place the projector from the
screen based on the size of the projected image.
Projector Connections
You can connect the projector to a variety of computer, video, and audio You can play sound through the projector's speaker system by connecting a
sources to display presentations, movies, or other images, with or without commercially available RCA audio cable.
sound.
Illustrations in this section are of EB-W04.
• Connect a computer that has a USB port, standard video output (monitor)
• For video projection, connect devices such as DVD players, gaming
consoles, digital cameras, and smartphones with compatible video output
ports.
• If your presentation or video includes sound, you can connect audio input
cables.
• For slide shows or presentations without a computer, you can connect USB
devices (such as a flash drive or camera) or the optional Epson document
camera.
gg Related Links
• "Connecting to a Computer" p.21
• "Connecting to Smartphones or Tablets" p.23
• "Connecting to Video Sources" p.24
• "Connecting to External USB Devices" p.27
• "Connecting to a Document Camera" p.28
a
a
b
To connect a Mac that includes only a Mini DisplayPort, Thunderbolt
port, or Mini-DVI port for video output, you need to obtain an adapter
that allows you to connect to the projector's VGA video port. Contact
Apple for compatible adapter options.port, or HDMI port.
Connect the VGA computer cable to your computer's monitor port.
Connect the other end to a Computer port on the projector.
21
Connecting to a Computer
Follow the instructions in these sections to connect a computer to the
projector.
gg Related Links
• "Connecting to a Computer for VGA Video and Audio" p.21
• "Connecting to a Computer for USB Video and Audio" p.22
• "Connecting to a Computer for HDMI Video and Audio" p.23
Connecting to a Computer for VGA Video and Audio
You can connect the projector to your computer using a VGA computer
cable. The VGA computer cable may not be included with your projector.
Tighten the screws on the VGA connector.
c
Connect the audio cable to your laptop's headphone or audio-out jack,
d
or your desktop's speaker or audio-out port.
Projector Connections
22
Connect the other end to the projector's Audio ports.
e
Connecting to a Computer for USB Video and Audio
If your computer meets the system requirements, you can send video and
audio output to the projector through the computer's USB port. This function
is called USB Display. The USB cable may not be included with your
projector.
If you use a USB hub, the connection may not operate correctly.
a
Connect the USB cable directly to the projector.
Turn on the projector.
c
Do one of the following to install the Epson USB Display software:
d
You only need to install this software the first time you connect
a
• Windows 2000: Double-click Computer > EPSON_PJ_UD >
EMP_UDSE.EXE.
• Windows XP: Wait as messages are displayed on your computer
screen and the projector installs the Epson USB Display software on
your computer. If it is not installed automatically, double-click My
Computer > EPSON_PJ_UD > EMP_UDSE.EXE.
• Windows Vista/Windows 7/Windows 8/Windows 8.1: Select Run
EMP_UDSE.EXE in the dialog box that is displayed to install the
Epson USB Display software.
• OS X: The Epson USB Display setup folder is displayed on your
screen. Select USB Display Installer and follow the on-screen
instructions to install the Epson USB Display software. If the USB
Display Setup folder is not displayed automatically, double-click
EPSON_PJ_UD > USB Display Installer.
the projector to the computer.
Connect the cable to your projector's USB-B port.
a
Connect the other end to any available USB port on your computer.
b
Follow any on-screen instructions.
e
Do not disconnect the USB cable or turn off the projector until the
projector displays an image.
If you are using Windows 2000 or Windows XP and you see a
a
The projector displays the image from your computer's desktop and outputs
sound if your presentation contains audio.
message asking if you want to restart your computer, select No.
Projector Connections
23
• If the projector does not project any images, do one of the following:
a
gg Related Links
• "USB Display System Requirements" p.159
Connecting to a Computer for HDMI Video and Audio
If your computer has an HDMI port, you can connect it to the projector using
a commercially available HDMI cable and send the computer's audio with the
projected image.
a
Connect the HDMI cable to your computer's HDMI output port.
a
• Windows: Click All Programs > EPSON Projector > Epson USB
Display > Epson USB Display Ver.x.xx.
• OS X: Double-click the USB Display icon in the Application
folder.
• When you finish projection, do one of the following:
• Windows: Disconnect the USB cable. You do not need to operate
Safely Remove Hardware.
• OS X: Select Disconnect from the USB Display icon menu on the
menu bar or Dock, and then disconnect the USB cable.
To connect a Mac that includes only a Mini DisplayPort, Thunderbolt
port, or Mini-DVI port for video output, you need to obtain an adapter
that allows you to connect to the projector's HDMI port. Contact
Apple for compatible adapter options. Older Mac computers (2009 and
earlier) may not support audio through the HDMI port.
Connect the other end to the projector's HDMI port.
b
gg Related Links
• "Projector Setup Settings - Extended Menu" p.107
Connecting to Smartphones or Tablets
You can connect the projector to smartphones and tablets using a
commercially available MHL cable and send the audio with the projected
image (EB-U32/EB-W32/EB-W31/EB-U04/EB-U130).
• You may not be able to connect an MHL cable to all devices.
a
a
• You may not be able to project correctly, depending on the model
and settings of the smartphone or tablet.
• To check if your smartphone or tablet device supports MHL, contact
the manufacturer of your smartphone or tablet device.
Connect the MHL cable to your device's MHL port.
Connect the other end to the projector's HDMI/MHL port.
b
Projector Connections
24
EB-W32/EB-W31
EB-U32/EB-U04/EB-U130
If images are not projected correctly, disconnect and then reconnect
a
the MHL cable.
Connecting to Video Sources
Follow the instructions in these sections to connect video devices to the
projector.
Attention
Check the shape and orientation of the connectors on any cable you plan to
connect. Do not force a connector into a port if it does not fit. The device or your
projector could be damaged or could malfunction.
If the port on the device you connect has an unusual shape, use the
a
gg Related Links
• "Connecting to an HDMI Video Source" p.24
• "Connecting to a Component-to-VGA Video Source" p.25
• "Connecting to an S-Video Video Source" p.26
• "Connecting to a Composite Video Source" p.26
cable supplied with the device or an optional cable to connect to the
projector.
Attention
If you connect an MHL cable that does not support the MHL standard, the
smartphone or tablet device may become hot, or leakage or explosion may
happen.
The connected smartphone or tablet begins charging when images are
projected. If you connect using a commercially available MHL-HDMI
conversion adapter, charging the smartphone or tablet device may not
work or you may not be able to perform operations using the
projector's remote control.
Connecting to an HDMI Video Source
If your video source has an HDMI port, you can connect it to the projector
using a commercially available HDMI cable and send the image source's audio
with the projected image.
Attention
Do not turn on the video source before connecting it to the projector. Doing so
could damage the projector.
Connect the HDMI cable to your video source's HDMI output port.
a
Projector Connections
25
Connect the other end to the projector's HDMI port.
b
gg Related Links
• "Projector Setup Settings - Extended Menu" p.107
Connecting to a Component-to-VGA Video Source
If your video source has component video ports, you can connect it to the
projector using an optional component-to-VGA video cable. Depending on
your component ports, you may need to use an adapter cable along with a
component video cable.
You can play sound through the projector's speaker system by connecting a
commercially available RCA audio cable.
Connect the VGA connector to a Computer port on the projector.
b
Tighten the screws on the VGA connector.
c
Connect the audio cable to your video source's audio-out ports.
d
Connect the other end to the projector's Audio ports.
e
Make sure the audio cable is labeled "No resistance".
a
Connect the component connectors to your video source's color-coded
a
component video output ports.
The ports usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using
a
an adapter, connect these connectors to your component video
cable.
If your image colors appear incorrectly, you may need to change the Input
Signal setting in the projector's Signal menu.
s Signal > Advanced > Input Signal
gg Related Links
• "Input Signal Settings - Signal Menu" p.103
Projector Connections
26
Connecting to an S-Video Video Source
If your video source has an S-Video port, you can connect it to the projector
using a commercially available S-Video cable (EB-W32/EB-W31/EB-X36/EBX31/EB-S31/EB-W04/EB-X04/EB-S04/EB-W130/EB-X130/EB-S130/EBX350/EB-X300/EB-S300).
You can play sound through the projector's speaker system by connecting a
commercially available RCA audio cable.
Make sure the audio cable is labeled "No resistance".
a
Connect the S-Video cable to your video source's S-Video output port.
a
Connect the other end to the projector's S-Video port.
b
Connect the other end to the projector's Audio ports.
d
Connecting to a Composite Video Source
If your video source has a composite video port, you can connect it to the
projector using a commercially available RCA-style video or A/V cable.
You can play sound through the projector's speaker system by connecting a
commercially available RCA audio cable.
Make sure the audio cable is labeled "No resistance".
a
Connect the audio cable to your video source's audio-out ports.
c
Connect the cable with the yellow connector to your video source's
a
yellow video output port.
Connect the other end to the projector's Video port.
b
Projector Connections
27
Connect the audio cable to your video source's audio-out ports.
c
Connect the other end to the projector's Audio ports.
d
Connecting to External USB Devices
Follow the instructions in these sections to connect external USB devices to
the projector.
gg Related Links
• "USB Device Projection" p.27
• "Connecting to a USB Device" p.27
• "Disconnecting a USB Device" p.28
• Digital cameras or smartphones must be USB-mounted devices, not
a
You can project image files on a connected USB device using PC Free.
gg Related Links
• "Projecting a PC Free Presentation" p.60
Connecting to a USB Device
You can connect your USB device to the projector's USB-A port and use it to
project images and other content.
If your USB device came with a power adapter, plug the device into an
a
electrical outlet.
TWAIN-compliant devices, and must be USB Mass Storage Classcompliant.
• USB hard drives must meet these requirements:
• USB Mass Storage Class-compliant (not all USB Mass Storage
Class devices are supported)
• Formatted in FAT or FAT32
• Self-powered by their own AC power supplies (bus-powered hard
drives are not recommended)
• Avoid using hard drives with multiple partitions
USB Device Projection
You can project images and other content without using a computer or video
device by connecting any of these devices to your projector:
• USB flash drive
• Digital camera or smartphone
• USB hard drive
• Multimedia storage viewer
Connect the USB cable (or USB flash drive or USB memory card
b
reader) to the projector's USB-A port shown here.
Projector Connections
Attention
• Use the USB cable supplied with or specified for use with the device.
• Do not connect a USB hub or a USB cable longer than 3 meters, or the
device may not operate correctly.
Connect the other end to your device, if necessary.
c
Disconnecting a USB Device
When you have finished presenting with a connected USB device, disconnect
the device from the projector.
Turn off and unplug the device, if necessary.
a
Disconnect the USB device from the projector.
b
Connecting to a Document Camera
28
You can connect a document camera to your projector to project images
viewed by the camera.
The connection method varies depending on your Epson document camera
model. See the document camera manual for details.
Installing Batteries in the Remote Control
The remote control uses the two AA batteries that came with the projector.
29
Warning
Attention
Make sure you read the Safety Instructions before handling the batteries.
Open the battery cover as shown.
a
Insert the batteries with the + and – ends facing as shown.
b
Check the positions of the (+) and (–) marks inside the battery holder to
ensure the batteries are inserted the correct way. If the batteries are not used
correctly, they could explode or leak causing a fire, injury, or damage to the
product.
Close the battery cover and press it down until it clicks into place.
c
Remote Control Operation
The remote control lets you control the projector from almost anywhere in
the room.
Make sure that you aim the remote control at the projector's receivers within
the distance and angles listed here.
30
a
Avoid using the remote control in conditions with bright fluorescent
lights or in direct sunlight, or the projector may not respond to
commands. If you are not going to use the remote control for a long
time, remove the batteries.
Opening the Lens Cover
To open the projector's lens cover, slide the A/V Mute slide lever until
a
it clicks.
To cover the lens or temporarily turn off the projected image and
b
sound, close the lens cover.
31
Using Basic Projector Features
Follow the instructions in these sections to use your projector's basic features.
gg Related Links
• "Turning On the Projector" p.33
• "Turning Off the Projector" p.36
• "Selecting the Language for the Projector Menus" p.37
• "Projection Modes" p.38
• "Adjusting the Image Height" p.40
• "Image Shape" p.41
• "Resizing the Image with the Zoom Ring" p.46
• "Resizing the Image with the Buttons" p.47
• "Focusing the Image Using the Focus Ring" p.48
• "Selecting an Image Source" p.49
• "Image Aspect Ratio" p.51
• "Color Mode" p.53
• "Controlling the Volume with the Volume Buttons" p.55
Turning On the Projector
33
Turn on the computer or video equipment you want to use after you turn on
the projector.
Connect the power cord to the projector's power inlet and plug it into
a
an electrical outlet.
The projector's power indicator turns blue. This indicates that the
projector is receiving power, but is not yet turned on (it is in standby
mode).
Press the power button on the control panel or remote control to turn
b
on the projector.
The projector beeps and the status indicator flashes blue as the
projector warms up. Once the projector is warmed up, the status
indicator stops flashing and turns blue.
Open the projector's lens cover.
c
Try the following if you do not see a projected image.
• Verify the lens cover is open all the way.
• Turn on the connected computer or video device.
• Change the screen output from the computer when using a laptop
computer.
• Insert a DVD or other video media, and press play (if necessary).
• Press the [Source Search] button on the control panel or remote control to
detect the source.
• Press the button for the desired video source on the remote control.
• If the Home screen is displayed, select the source you want to project.
Turning On the Projector
Warning
34
• "Projector Setup Settings - ECO Menu" p.115
• Never look into the projector lens when the lamp is on. This can damage your
eyes and is especially dangerous for children.
• During projection, do not block the light from the projector with a book or other
objects. If the light from the projector is blocked, the area on which the light
shines becomes hot which could cause it to melt, burn, or start a fire. Also, the
lens may get hot due to the reflected light which could cause the projector to
malfunction. To stop projection, use the A/V Mute function, or turn off the
projector.
• A mercury lamp with high internal pressure is used as the projector's light
source. If the lamp is subjected to vibrations or shocks, or if it is used for an
overly extended length of time, the lamp may break or it may not turn on. If the
lamp explodes, gases may escape and small fragments of glass may be scattered
which could cause an injury. Be sure to observe the instructions below.
• Do not disassemble or damage the lamp or subject it to any impacts.
• Do not bring your face close to the projector while it is in use.
• Particular care should be taken when the projector is installed to a ceiling, as
small pieces of glass may fall down when the lamp cover is removed. When
cleaning the projector or replacing the lamp yourself, be very careful not to
allow such pieces of glass to get into the eyes or mouth.
If the lamp breaks, ventilate the area immediately, and contact a doctor if any
fragments of broken glass are inhaled or get into the eyes or mouth.
• When the Direct Power On setting is set to On in the projector's
a
Extended menu, the projector turns on as soon as you plug it in.
Note that the projector also turns on automatically in cases such as
recovery from a power outage.
s Extended > Operation > Direct Power On
• If you select a specific port as the Auto Power On setting in the
projector's Extended menu, the projector turns on as soon as it
detects a signal or cable connection from that port. (Set Standby
Mode to Communication On in the projector's ECO menu first.)
s Extended > Operation > Auto Power On
gg Related Links
• "Home Screen" p.34
• "Projector Setup Settings - Extended Menu" p.107
Home Screen
The Home screen feature allows you to easily select an image source and
access useful functions. You can display the Home screen by pressing the
[Home] button on the control panel or remote control. The Home screen is
also displayed when you turn on the projector and no signal is being input
from the selected input source.
Press the arrow buttons on the control panel or remote control to select a
menu item, and then press [Enter].
Select the source you want to project.
A
Displays the QR code and projects data on a smartphone or tablet device.
B
Displays the Help screen.
C
Displays the projector's menu.
D
Performs menu options assigned to Home Screen setting in the projector's
E
Extended menu.
Turning On the Projector
Projects two images from different image sources simultaneously by splitting
F
the projected screen.
Corrects the shape of an image that is an uneven rectangle.
G
The Home screen disappears after 10 minutes of inactivity.
a
gg Related Links
• "Image Shape" p.41
• "Projector Setup Settings - Extended Menu" p.107
• "Using a QR Code to Connect a Mobile Device" p.87
• "Using the Projector's Menus" p.99
• "Using the Projector Help Displays" p.137
• "Connecting to a Computer" p.21
35
Turning Off the Projector
36
Turn off the projector after use.
Turn off this product when it is not in use to prolong the life of the
a
a
b
projector. Lamp life varies depending on the mode selected,
environmental conditions, and usage. Brightness decreases over time.
Press the power button on the control panel or remote control.
The projector displays a shutdown confirmation screen.
Press the power button again. (To leave it on, press any other button.)
The projector beeps twice, the lamp turns off, and the status indicator
turns off.
To transport or store the projector, make sure the power indicator is
c
blue (but not flashing) and the status indicator is off, then unplug the
power cord.
Close the projector's lens cover.
d
a
With Epson's Instant Off technology, there is no cool-down
period so you can pack up the projector for transport right away.
Selecting the Language for the Projector Menus
37
If you want to view the projector's menus and messages in another language,
you can change the Language setting.
Turn on the projector.
a
Press the [Menu] button on the control panel or remote control.
b
Select the Extended menu and press [Enter].
c
Press [Menu] or [Esc] to exit the menus.
f
Select the Language setting and press [Enter].
d
Select the language you want to use and press [Enter].
e
Projection Modes
38
Depending on how you positioned the projector, you may need to change the
projection mode so your images project correctly.
• Front (default setting) lets you project from a table in front of the screen.
• Front/Ceiling flips the image over top-to-bottom to project upside-down
from a ceiling or wall mount.
• Rear flips the image horizontally to project from behind a translucent
screen.
• Rear/Ceiling flips the image over top-to-bottom and horizontally to project
from the ceiling and behind a translucent screen.
gg Related Links
• "Changing the Projection Mode Using the Remote Control" p.38
• "Changing the Projection Mode Using the Menus" p.38
• "Projector Setup and Installation Options" p.19
Changing the Projection Mode Using the Remote Control
You can change the projection mode to flip the image over top-to-bottom.
Turn on the projector and display an image.
a
Changing the Projection Mode Using the Menus
You can change the projection mode to flip the image over top-to-bottom
and/or left-to-right using the projector menus.
Turn on the projector and display an image.
a
Press the [Menu] button on the control panel or remote control.
b
Select the Extended menu and press [Enter].
c
Hold down the [A/V Mute] button on the remote control for 5 seconds.
b
The image disappears briefly and reappears flipped top-to-bottom.
To change projection back to the original mode, hold down the [A/V
c
Mute] button for 5 seconds again.
Projection Modes
Select Projection setting and press [Enter].
d
Select a projection mode and press [Enter].
e
39
Press [Menu] or [Esc] to exit the menus.
f
Adjusting the Image Height
40
If you are projecting from a table or other flat surface and the image is too
high or low, you can adjust the image height using the projector's adjustable
feet. The larger the angle of tilt, the harder it becomes to focus. Locate the
projector so that it only needs to be tilted at a small angle.
Turn on the projector and display an image.
a
To adjust the front foot, pull up on the foot release lever and lift the
b
front of the projector.
The foot extends from the projector. You can adjust the position up to
12 degrees.
Extend the rear foot
A
Retract the rear foot
B
If the projected image is unevenly rectangular, you need to adjust the image
shape.
gg Related Links
• "Image Shape" p.41
Release the lever to lock the foot.
c
If the image is tilted, rotate the rear feet to adjust their height.
d
Image Shape
41
You can project an even, rectangular image by placing the projector directly
in front of the center of the screen and keeping it level. If you place the
projector at an angle to the screen, or tilt it up or down, or off to the side, you
may need to correct the image shape.
gg Related Links
• "Auto V-Keystone" p.41
• "Correcting the Image Shape with the Horizontal Keystone Slider" p.41
• "Correcting the Image Shape with the Keystone Buttons" p.42
• "Correcting the Image Shape with Quick Corner" p.43
Auto V-Keystone
When the projector is moved or tilted, Auto V-Keystone automatically
corrects any vertical keystone distortion.
When the projector is moved, it displays an adjustment screen and then
automatically corrects the projected image.
Auto V-Keystone can correct the projected image distortion in these
conditions:
• Projection angle is about 30º up or down
• The Projection setting is set to Front in the projector's Extended menu
If you do not want to use the Auto V-Keystone function, set Auto V-
a
gg Related Links
• "Projection Modes" p.38
• "Projector Feature Settings - Settings Menu" p.105
• "Projector Setup Settings - Extended Menu" p.107
Keystone to Off in the projector's Settings menu.
s Settings > Keystone > H/V-Keystone > Auto V-Keystone
Correcting the Image Shape with the Horizontal Keystone Slider
You can use the projector's horizontal keystone slider to correct the shape of
an image that is an uneven horizontal rectangle, such as when the projector is
placed to the side of the projection area.
Turn on the projector and display an image.
a
Adjust the slider until the image is an even rectangle.
b
After correction, your image is slightly smaller.
• When you use the horizontal keystone slider, set H-Keystone
a
Adjuster to On in the projector's Settings menu.
s Settings > Keystone > H/V-Keystone > H-Keystone
Adjuster
• You can also correct the shape of the image in the horizontal
direction by pressing the [Menu] button on the remote control
and selecting H/V-Keystone in the projector's Settings menu.
s Settings > Keystone > H/V-Keystone
Image Shape
42
Correcting the Image Shape with the Keystone Buttons
You can use the projector's keystone correction buttons to correct the shape
of an image that is unevenly rectangular.
You can use keystone buttons to correct images up to 30º right, left, up, or
down.
Turn on the projector and display an image.
a
Press one of the keystone adjustment buttons on the control panel to
b
display the Keystone adjustment screen.
Press a keystone button to adjust the image shape.
c
After correction, your image is slightly smaller.
If the projector is installed out of your reach, you can also correct
a
the shape of the image by pressing the [Menu] button on the
remote control and selecting H/V-Keystone in the projector's
Settings menu.
s Settings > Keystone > H/V-Keystone
Image Shape
43
gg Related Links
• "Projector Feature Settings - Settings Menu" p.105
Correcting the Image Shape with Quick Corner
You can use the projector's Quick Corner setting to correct the shape and size
of an image that is unevenly rectangular.
Turn on the projector and display an image.
a
Press the [Menu] button on the control panel or remote control.
b
Select the Settings menu and press [Enter].
c
Select Keystone and press [Enter].
d
Image Shape
44
Select Quick Corner and press [Enter]. Press [Enter] again if necessary.
e
You see the Quick Corner adjustment screen.
Use the arrow buttons to select the corner of the image you want to
f
adjust. Then press [Enter].
a
• If you see this screen, you cannot adjust the shape any further
in the direction indicated by the gray triangle.
• To reset the Quick Corner corrections, hold down [Esc] for
about 2 seconds while the Quick Corner adjustment screen is
displayed, and select Reset Quick Corner. Select Switch to
H/V-Keystone to switch the image shape correction method to
H/V-Keystone.
Press the arrow buttons to adjust the image shape as necessary.
g
When you press [Enter], the Quick Corner adjustment screen is
displayed.
Repeat steps 6 and 7 as needed to adjust any remaining corners.
h
When you are finished, press [Esc].
i
The Keystone setting is now set to Quick Corner in the projector's Settings
menu. The next time you press the keystone adjustment buttons on the
control panel, the Quick Corner adjustment screen is displayed.
Image Shape
gg Related Links
• "Projector Feature Settings - Settings Menu" p.105
45
Resizing the Image with the Zoom Ring
You can resize the image using the projector's zoom ring (EB-U32/EBW32/EB-W31/EB-X36/EB-X31/EB-U04/EB-W04/EB-X04/EB-U130/EBW130/EB-X130/EB-X350/EB-X300).
Turn on the projector and display an image.
a
Rotate the zoom ring to enlarge or reduce the image.
b
46
Resizing the Image with the Buttons
You can resize the image using the Wide and Tele buttons (EB-S31/EBS04/EB-S130/EB-S300).
Turn on the projector and display an image.
a
Press the Wide button on the projector's control panel to enlarge the
b
image size. Press the Tele button to reduce the image size.
47
Focusing the Image Using the Focus Ring
You can correct the focus using the focus ring.
EB-U32/EB-W32/EB-W31/EB-X36/EB-X31/EB-U04/EB-W04/EB-X04/EBU130/EB-W130/EB-X130/EB-X350/EB-X300
EB-S31/EB-S04/EB-S130/EB-S300
48
Selecting an Image Source
49
When multiple image sources are connected to the projector, such as a
computer and DVD player, you can switch from one image source to the
other.
Make sure the connected image source you want to use is turned on.
a
For video image sources, insert a DVD or other video media and press
b
play.
Do one of the following:
c
• Press the [Source Search] button on the control panel or remote
control until you see the image from the source you want.
This screen is displayed when no image signal is detected.
a
• Press the button for the source you want on the remote control. If
there is more than one port for that source, press the button again to
cycle through the sources.
Check the cable connections between the projector and image
source.
Computer port source (Computer port)
A
Video, S-Video, HDMI, and MHL sources (Video, S-Video, HDMI,
B
and HDMI/MHL ports)
USB port sources (USB-B port and external devices connected to the
C
USB-A port)
Network source (LAN)
D
Selecting an Image Source
• Press the [Home] button on the control panel or remote control.
Then select the source you want to use from the screen displayed.
50
a
S-Video is available with the EB-W32/EB-W31/EB-X36/EBX31/EB-S31/EB-W04/EB-X04/EB-S04/EB-W130/EB-X130/EBS130/EB-X350/EB-X300/EB-S300.
Image Aspect Ratio
51
The projector can display images in different width-to-height ratios called
aspect ratios. Normally, the input signal from your video source determines
the image's aspect ratio. However, for certain images you can change the
aspect ratio to fit your screen by pressing a button on the remote control.
If you always want to use a particular aspect ratio for a certain video input
source, you can select it using the projector's Signal menu.
gg Related Links
• "Changing the Image Aspect Ratio" p.51
• "Available Image Aspect Ratios" p.51
• "Projected Image Appearance with Each Aspect Mode" p.52
• "Input Signal Settings - Signal Menu" p.103
Changing the Image Aspect Ratio
You can change the aspect ratio of the displayed image.
Turn on the projector and switch to the image source you want to use.
a
Press the [Aspect] button on the remote control.
b
To cycle through the available aspect ratios for your input signal, press
c
the [Aspect] button repeatedly.
To display images without black bars, set Resolution to Wide or
a
gg Related Links
• "Input Signal Settings - Signal Menu" p.103
Normal in the projector’s Signal menu according to the computer’s
resolution.
Available Image Aspect Ratios
You can select the following image aspect ratios, depending on the input
signal from your image source.
• Black bands and cropped images may project in certain aspect ratios,
a
For projectors with a resolution of WUXGA (1920 × 1200) or WXGA
(1280 × 800)
Aspect mode Description
Auto Automatically sets the aspect ratio according to the
Normal Displays images using the full projection area and
16:9 Converts the aspect ratio of the image to 16:9.
Full Displays images using the full size of the projection
Zoom Displays images using the full width of the projection
Native Displays images as is (aspect ratio and resolution are
depending on the aspect ratio and resolution of your input signal.
• The Auto aspect ratio setting is available only for HDMI/MHL image
sources.
input signal and the Resolution setting.
maintains the aspect ratio of the image.
area, but does not maintain the aspect ratio.
area and maintains the aspect ratio of the image.
maintained).
Image Aspect Ratio
52
For projectors with a resolution of XGA (1024 × 768) or SVGA (800 × 600)
Aspect mode Description
Auto Automatically sets the aspect ratio according to the
input signal and the Resolution setting.
4:3 Converts the aspect ratio of the image to 4:3.
16:9 Converts the aspect ratio of the image to 16:9.
Projected Image Appearance with Each Aspect Mode
Black bands and cropped images may project in certain aspect ratios,
depending on the aspect ratio and resolution of your input signal. See the
following table to confirm the position of black bands and cropped images.
The image for Native varies depending on the input signal.
a
For projectors with a resolution of WUXGA (1920 × 1200) or WXGA
(1280 × 800)
Aspect mode Aspect ratio for input signals
16:10 16:9 4:3
Normal
Auto
Aspect mode Aspect ratio for input signals
16:10 16:9 4:3
Native
For projectors with a resolution of XGA (1024 × 768) or SVGA (800 × 600)
Aspect mode Aspect ratio for input signals
16:10 16:9 4:3
Auto
4:3
16:9
16:9
Full
Zoom
Color Mode
53
The projector offers different Color Modes to provide optimum brightness,
contrast, and color for a variety of viewing environments and image types.
You can select the mode designed to match your image and environment, or
experiment with the available modes.
gg Related Links
• "Changing the Color Mode" p.53
• "Available Color Modes" p.53
• "Setting Auto Iris" p.53
Changing the Color Mode
You can change the projector's Color Mode using the remote control to
optimize the image for your viewing environment.
Turn on the projector and switch to the image source you want to use.
a
Press the [Color Mode] button on the remote control to change the
b
Color Mode.
You can also set the Color Mode setting in the projector's Image
a
gg Related Links
• "Image Quality Settings - Image Menu" p.101
menu.
Available Color Modes
You can set the projector to use these Color Modes, depending on the input
source you are using:
Color Mode Description
Presentation Best for color presentations and television images in a
bright room, with vivid images in sharp contrast.
Dynamic Best for projecting in a bright room. This is the
brightest mode.
Cinema Best for movies projected in a dark room with natural
tone images.
sRGB Best for still images projected in a bright room that
conform to the sRGB color standard.
Blackboard Best for presentations onto a green chalkboard
(adjusts the colors accordingly).
The name of the Color Mode appears briefly on the screen and then
image appearance changes.
To cycle through all of the available Color Modes for your input signal,
c
press the [Color Mode] button repeatedly.
Setting Auto Iris
In Dynamic or Cinema color modes, you can turn on Auto Iris to
automatically optimize the image based on the brightness of the content.
Turn on the projector and switch to the image source you want to use.
a
Color Mode
54
Press the [Menu] button on the control panel or remote control.
b
Select the Image menu and press [Enter].
c
Select Auto Iris and press [Enter].
d
Choose one of the following options and press [Enter]:
e
• High Speed to adjust brightness as soon as the scene changes.
• Normal for standard brightness adjustment.
Press [Menu] or [Esc] to exit the menus.
f
Controlling the Volume with the Volume Buttons
The volume buttons control the projector's internal speaker system.
You must adjust the volume separately for each connected input source.
Turn on the projector and start a presentation.
a
To lower or raise the volume, press the [Volume] buttons on the
b
control panel or remote control as shown.
The [Volume] buttons on the control panel are available only
a
with EB-U32/EB-W32/EB-W31/EB-X36/EB-X31/EB-U04/EBW04/EB-X04/EB-U130/EB-W130/EB-X130/EB-X350/EB-X300.
55
A volume gauge appears on the screen.
To set the volume to a specific level for an input source, select Volume
c
in the projector's Settings menu.
Caution
Do not start a presentation at a high volume setting. Sudden loud noises may cause
hearing loss.
Always lower the volume before powering off, so that you can power on and then
gradually increase the volume.
gg Related Links
• "Projector Feature Settings - Settings Menu" p.105
Adjusting Projector Features
Follow the instructions in these sections to use your projector's adjustment features.
gg Related Links
• "Projecting Two Images Simultaneously" p.57
• "Projecting a PC Free Presentation" p.60
• "Shutting Off the Image and Sound Temporarily" p.65
• "Stopping Video Action Temporarily" p.66
• "Zooming Images" p.67
• "Using the Remote Control as a Wireless Mouse" p.68
• "Using the Remote Control as a Pointer" p.70
• "Saving a User's Logo Image" p.71
• "Color Difference Correction when Projecting from Multiple Projectors" p.73
• "Projector Security Features" p.76
Projecting Two Images Simultaneously
57
You can use the split screen feature to simultaneously project two images
from different image sources. You can control the split screen feature using
the remote control or the projector menus.
Press [Split] button on the remote control.
a
The currently selected input source moves to the left of the screen.
You can perform the same operations from Split Screen in the
a
Press the [Menu] button.
b
You see this screen:
projector's Settings menu.
a
While using the split screen feature, other projector features may not
be available and some settings may be automatically applied to both
images.
Projecting Two Images Simultaneously
58
To select an input source for the other image, select the Source setting,
c
press [Enter], select the input source, select Execute, and press [Enter]. Size, press [Enter], select a size, press [Enter], and press [Menu] to exit.
• You can only select input sources that can be combined.
a
• While using the split screen feature, the source screen appears
when you change the input source from the remote control.
To enlarge one image while reducing the other image, select Screen
e
Depending on the video input signals, the images may not
a
To select the audio, select Audio Source, press [Enter], select an audio
f
option, press [Enter], and press [Menu] to exit.
a
To exit the split screen feature, press [Split] or [Esc].
g
appear at the same size even if you select Equal.
Select Auto to hear audio from the largest screen or the left
screen.
To switch images, select Swap Screens and press [Enter].
d
The projected images on the left and right are swapped.
gg Related Links
• "Unsupported Input Source Combinations for Split Screen Projection" p.58
• "Split Screen Projection Restrictions" p.59
Unsupported Input Source Combinations for Split Screen Projection
These input source combinations cannot be projected on a split screen.
• Computer, Video and S-Video
• USB Display, USB and LAN
Projecting Two Images Simultaneously
Split Screen Projection Restrictions
Operating restrictions
The following operations cannot be performed during split screen projection.
• Setting the projector's menu
• E-Zoom
• Switching the aspect mode (the aspect mode is set to Normal)
• Operations using the [User] button on the remote control
• Auto Iris
Help can only be displayed when no image signals are being input or
a
Image restrictions
• If you make adjustments such as Brightness, Contrast, Color Saturation,
Tint, and Sharpness in the projector's Image menu, you can apply them
only to the image on the left. Default adjustments are applied to the image
on the right. Adjustments that affect the entire projected image such as
Color Mode and Color Temp. are applied for both left and right images.
• Even if you make adjustments for Noise Reduction and Deinterlacing in
the projector's Image menu, Noise Reduction is set to 0 and Deinterlacing
is set to Off for the image on the right.
• Even if you set Display Background to Logo in the projector's Extended
menu, the blue screen appears when no image signal is being input.
when an error or warning notification is displayed.
59
gg Related Links
• "Image Aspect Ratio" p.51
• "Color Mode" p.53
• "Input Signal Settings - Signal Menu" p.103
• "Projector Feature Settings - Settings Menu" p.105
• "Projector Setup Settings - Extended Menu" p.107
• "Zooming Images" p.67
• "Setting Auto Iris" p.53
Projecting a PC Free Presentation
60
You can use your projector's PC Free feature whenever you connect a USB
device that contains compatible presentation files. This lets you quickly and
easily display a presentation and control it using the projector's remote
control.
gg Related Links
• "Supported PC Free File Types" p.60
• "Precautions on PC Free Projection" p.60
• "Starting a PC Free Slide Show" p.61
• "Starting a PC Free Movie Presentation" p.62
• "PC Free Display Options" p.63
File contents File type Details
(extension)
Image .jpg Make sure the file is not:
• CMYK format
• Progressive format
• Highly compressed
• Above 8192 × 8192 resolution
.bmp Make sure the file resolution is not above 1280 × 800
.gif Make sure the file is not:
• Above 1280 × 800 resolution
• Animated
.png Make sure the file resolution is not above 1280 × 800
Movie .avi Make sure the file is not:
(Motion
JPEG)
• Saved with an audio codec other than PCM or
ADPCM
• Above 1280 × 720 resolution
• Larger than 2 GB
Precautions on PC Free Projection
Supported PC Free File Types
You can project these types of files using the projector's PC Free feature.
• For best results, place your files on media that is formatted in
a
FAT16/32.
• If you have trouble projecting from media formatted for nonWindows file systems, try formatting the media for Windows
instead.
Note the following precautions when using PC Free features.
• Do not disconnect the USB storage device while it is being accessed;
otherwise, PC Free may not operate correctly.
• You may not be able to use the security features on certain USB storage
devices with PC Free features.
• When connecting a USB device that includes an AC adapter, connect the
AC adapter to an electrical outlet when you use the device with your
projector.
• Some commercially available USB card readers may not be compatible with
the projector.
• The projector can recognize up to 5 cards inserted into the connected card
reader at one time.
Projecting a PC Free Presentation
61
• You cannot correct keystone distortion while projecting in PC Free, so
correct the image shape before you begin your presentation.
• You can use the following functions while projecting in PC Free.
• Freeze
• A/V Mute
• E-Zoom
• Pointer
gg Related Links
• "Stopping Video Action Temporarily" p.66
• "Shutting Off the Image and Sound Temporarily" p.65
• "Zooming Images" p.67
• "Using the Remote Control as a Pointer" p.70
Starting a PC Free Slide Show
After connecting a USB device to the projector, you can switch to the USB
input source and start your slide show.
You can change the PC Free operation options or add special effects by
a
a
highlighting Option at the bottom of the screen and pressing [Enter].
Press the [USB] button on the remote control.
The PC Free file list screen is displayed.
• If the Select Drive screen is displayed, press the arrow buttons
a
Do one of the following to locate your files:
b
• If you need to display files inside a subfolder on your device, press
the arrow buttons to highlight the folder and press [Enter].
to select the drive and press [Enter].
• To display the Select Drive screen, highlight Select Drive at the
top of the file list screen and press [Enter].
• To move back up a folder level on your device, highlight Back to
Top and press [Enter].
• To view additional files in a folder, highlight Next Page or Previous
Page and press [Enter], or press the [Page] up or down buttons on
the remote control.
Do one of the following:
c
• To display an individual image, press the arrow buttons to highlight
the image and press [Enter]. (Press the [Esc] button to return to the
file list screen.)
Projecting a PC Free Presentation
62
• To display a slide show of all the images in a folder, press the arrow
buttons to highlight the Slideshow option at the bottom of the screen from the projector.
and press [Enter].
• You can change the image switching time by highlighting
a
While projecting, use the following commands to control the display:
d
• To rotate a displayed image, press the up or down arrow button.
Option at the bottom of the screen and pressing [Enter].
• If any file names are longer than the display area or include
unsupported symbols, the file names may be shortened or
changed only on the screen display.
Turn off the USB device, if necessary, and then disconnect the device
f
gg Related Links
• "PC Free Display Options" p.63
• "Connecting to a USB Device" p.27
Starting a PC Free Movie Presentation
After connecting a USB device to the projector, you can switch to the USB
input source and start your movie.
You can change the PC Free operation options by highlighting Option
a
a
at the bottom of the screen and pressing [Enter].
Press the [USB] button on the remote control.
The PC Free file list screen is displayed.
• To move to the next or previous image, press the left or right arrow
button.
To stop the display, follow the on-screen instructions or press the [Esc]
e
button.
You return to the file list screen.
Projecting a PC Free Presentation
63
• If the Select Drive screen is displayed, press the arrow buttons
a
Do one of the following to locate your files:
b
• If you need to display files inside a subfolder on your device, press
the arrow buttons to highlight the folder and press [Enter].
• To move back up a folder level on your device, highlight Back to
Top and press [Enter].
• To view additional files in a folder, highlight Next Page or Previous
Page, and press [Enter], or press the [Page] up or down buttons on
the remote control.
To play back a movie, press the arrow buttons to highlight the file and
c
press [Enter].
a
To stop movie playback, press the [Esc] button, highlight Exit, and
d
press [Enter].
You return to the file list screen.
Turn off the USB device, if necessary, and then disconnect the device
e
from the projector.
gg Related Links
• "PC Free Display Options" p.63
• "Connecting to a USB Device" p.27
to select the drive and press [Enter].
• To display the Select Drive screen, highlight Select Drive at the
top of the file list screen and press [Enter].
• If any file names are longer than the display area or include
unsupported symbols, the file names may be shortened or
changed only on the screen display.
• If you want to play back all the movies in a folder in sequence,
select the Slideshow option at the bottom of the screen.
PC Free Display Options
You can select these display options when using PC Free. To access this
screen, highlight Option at the bottom of the PC Free file list screen and press
[Enter].
Setting Options Description
Display Order Name Order Displays files in name order
Date Order Displays files in date order
Sort Order In Ascending Sorts files in first-to-last order
In Descending Sorts files in last-to-first order
Continuous Play On Displays a slide show continuously
Off Displays a slide show once
Screen Switching No Does not display the next file
Time automatically
1 Second to 60 Seconds Displays files for the selected time
and switches to the next file
automatically; high resolution images
may switch at a slightly slower rate
Projecting a PC Free Presentation
Setting Options Description
Effect No No effect
Wipe Transitions between images using a
wipe effect
Dissolve Transitions between images using a
dissolve effect
Random Transitions between images using a
random variety of effects
64
Shutting Off the Image and Sound Temporarily
65
You can temporarily turn off the projected image and sound if you want to
redirect your audience's attention during a presentation. Any sound or video
action continues to run, however, so you cannot resume projection at the
point that you stopped it.
If you want to display an image such as a company logo or picture
a
a
when the [A/V Mute] button is pressed, you can select the screen
displayed in the A/V Mute setting in the projector's Extended menu.
s Extended > Display > A/V Mute
Press the [A/V Mute] button on the remote control to temporarily stop
projection and mute any sound.
• You can also stop projection using the A/V Mute slide lever on the
a
gg Related Links
• "Projector Setup Settings - Extended Menu" p.107
• "Projector Setup Settings - ECO Menu" p.115
projector.
• The projector's power automatically turns off 30 minutes after A/V
Mute is enabled. You can disable this feature in the projector's ECO
menu.
s ECO > Lens Cover Timer
s ECO > A/V Mute Timer
• The lamp is still operating during A/V Mute, so the lamp hours
continue to accumulate.
To turn the image and sound back on, press [A/V Mute] again.
b
Stopping Video Action Temporarily
You can temporarily stop the action in a video or computer presentation and
keep the current image on the screen. Any sound or video action continues to
run, however, so you cannot resume projection at the point that you stopped
it.
Press the [Freeze] button on the remote control to stop the video
a
action.
To restart the video action in progress, press [Freeze] again.
b
66
Zooming Images
You can draw attention to parts of a presentation by zooming into a portion The enlarged image is projected and the enlargement ratio is displayed
of the image and enlarging it on the screen. on the screen.
Press the [E-Zoom +] button on the remote control.
a
67
You see a crosshair on the screen indicating the center of the zoom
area.
Use the following buttons on the remote control to adjust the zoomed
b
image:
• Use the arrow buttons to position the crosshair in the image area you
want to zoom into. To move the crosshair diagonally, press any pair
of adjacent arrow buttons at the same time.
• Press the [E-Zoom +] button repeatedly to zoom into the image area.
Press and hold the [E-Zoom +] button to zoom in more quickly. The
selected area can be enlarged to between one to four times in 25
incremental steps.
• To pan around the zoomed image area, use the arrow buttons.
• To zoom out of the image, press the [E-Zoom –] button.
• To return to the original image size, press [Esc].
Using the Remote Control as a Wireless Mouse
68
You can use the projector's remote control as a wireless mouse so you can
control projection at a distance from the computer. presentation:
You can use the wireless mouse features with Windows 2000 and later,
a
a
b
c
or OS X 10.3.x and later.
Connect the projector to a computer using the projector's USB-B,
Computer, or HDMI port.
The wireless mouse function does not work when projecting
a
If you connected your computer to the port other than the USB-B port,
also connect a USB cable to the projector's USB-B port and to a USB
port on your computer (for wireless mouse support).
Start your presentation.
images from a device connected to the HDMI/MHL port using
an MHL cable.
Use the following buttons on the remote control to control your
d
• To move through slides or pages, press the [Page] up or down
buttons.
• To move the cursor on the screen, use the arrow buttons. To move
the cursor diagonally, press any pair of adjacent arrow buttons at the
same time.
• To left-click, press the [Enter] button once (press it twice to doubleclick). To right-click, press the [Esc] button.
• To drag-and-drop, hold the [Enter] button as you move the cursor
with the arrow buttons, then release [Enter] at the destination.
• If the mouse button settings are set to reverse on the computer, the
a
operation of the remote control buttons is also reversed.
• The Wireless Mouse function does not work under the following
conditions:
• When the projector's menu or a Help screen is displayed.
• When operating functions other than the Wireless Mouse function
(such as adjusting the volume).
However, when using the E-Zoom or Pointer function, the page up
or down function is available.
Using the Remote Control as a Wireless Mouse
gg Related Links
• "Zooming Images" p.67
• "Using the Remote Control as a Pointer" p.70
69
Using the Remote Control as a Pointer
70
You can use the projector's remote control as a pointer to help you focus your
audience on important information on the screen. The default pointer shape
is an arrow. You can change the shape in the Pointer Shape setting in the
projector's Settings menu.
Press the [Pointer] button on the remote control.
a
gg Related Links
• "Projector Feature Settings - Settings Menu" p.105
Use the arrow buttons to move the pointer on the screen. To move the
b
pointer diagonally, press any pair of adjacent arrow buttons at the same
time.
Press [Esc] to remove the pointer from the screen.
c
Saving a User's Logo Image
71
You can save an image on the projector and display it whenever the projector
turns on. You can also display the image when the projector is not receiving
an input signal or when you temporarily stop projection (using A/V Mute).
This image is called the user's logo screen.
You can select a photo, graphic, or company logo as the user's logo, which is
useful in identifying the projector's owner to help deter theft. You can prevent
changes to the user's logo by setting up password protection.
• Once you save a user's logo, you cannot return to the factory default
a
Display the image you want to project as the user's logo.
a
Press the [Menu] button on the control panel or remote control.
b
Select the Extended menu and press [Enter].
c
logo.
• If the User's Logo Protection setting is set to On in the Password
Protection menu, set to Off before saving the user's logo.
• When you copy the menu settings from one projector to another
using the batch setup feature, user's logo is also copied. Do not
register the information that you do not want to share between
multiple projectors as a user's logo.
Select User's Logo and press [Enter].
d
You see a prompt asking if you want to use the displayed image as a
user's logo.
Adjustments such as Keystone, E-Zoom, or Aspect are
a
temporarily cancelled when you select User's Logo.
Select Yes and press [Enter].
e
You see a selection box overlaying your image.
Depending on the current image signal, the screen size may
a
change to match the resolution of the image signal.
Saving a User's Logo Image
72
Use the arrow buttons to surround the image area you want to use as
f
the user's logo and press [Enter].
You see a prompt asking if you want to select this image area.
You cannot change the image area size (400 × 300 pixels).
a
Select Yes and press [Enter]. (If you want to change the selected area,
g
select No, press [Enter], and repeat the last step.)
You see the User's Logo zoom factor menu.
Select a zoom percentage and press [Enter].
h
Select Yes and press [Enter].
i
The user's logo is overwritten and a completion message appears.
Press [Esc] to exit the message screen.
j
Select the Extended menu and press [Enter].
k
Select Display and press [Enter].
l
Select when you want to display the User's Logo screen:
m
• To display it whenever there is no input signal, select Display
Background and set it to Logo.
• To display it whenever you turn the projector on, select Startup
Screen and set it to On.
• To display it whenever you press the [A/V Mute] button, select A/V
Mute and set it to Logo.
To prevent anyone from changing the User's Logo settings without first
entering a password, set the User's Logo Protection setting to On in the
Password Protection menu and set the password.
gg Related Links
• "Shutting Off the Image and Sound Temporarily" p.65
• "Selecting Password Security Types" p.77
You see a prompt asking if you want to save the image as the user's
logo.
Color Difference Correction when Projecting from Multiple Projectors
73
When lining up multiple projectors to project images, you can correct the
brightness and color tone of each projector's image so that the images match use for the projector. Then press [Enter].
closely.
You can set a unique projector ID for each projector to operate them
individually using a remote control, and then correct the brightness and color
for each projector.
• In some cases the brightness and color tone may not match
a
gg Related Links
• "Setting the Projector ID" p.73
• "Selecting the Projector You want to Operate" p.73
• "Matching Multiple-Projector Display Quality" p.75
completely even after correction.
• If brightness and color tone differences become more noticeable over
time, repeat the adjustments.
Use the arrow buttons to select the identification number you want to
d
Press [Menu] or [Esc] to exit the menus.
e
Setting the Projector ID
Repeat these steps for all the other projectors you want to operate from one
If you want to control multiple projectors from a remote control, give each
projector a unique ID.
Press the [Menu] button on the control panel or remote control.
a
Select the Extended menu and press [Enter].
b
remote control.
Selecting the Projector You want to Operate
After setting the projector's ID, select the ID for the projector you want to
operate using the remote control.
Select Projector ID and press [Enter].
c
Color Difference Correction when Projecting from Multiple Projectors
74
Aim the remote control at the target projector and press the [ID]
a
button. the ID of the projector you want to operate.
The current Projector ID is displayed on the projected screen. It
disappears after about 3 seconds.
While holding the [ID] button, press the number button that matches
b
The projector you want to operate is selected.
Press the [ID] button to check if the ID-setting process worked.
c
You see a message displayed by the projector.
• If the remote control is listed as On, you can operate the projector
from the remote control.
• If the remote control is listed as Off, you cannot operate the projector
from the remote control. Repeat the steps above to enable the remote
control.
a
• You must select the projector ID from the remote control each
time you turn on the projector you have set it to control. When
you turn on the projector, 0 is selected as the remote control's
projector ID.
• When you set the Projector ID setting to Off, you can operate
the projector using the remote control whichever ID you select
on the remote control.
• When you select 0 on the remote control, you can operate all
projectors regardless the Projector ID setting.
Color Difference Correction when Projecting from Multiple Projectors
Matching Multiple-Projector Display Quality
You can match the display quality of multiple projectors that will project next
to each other.
Turn on all the projectors on which you want to match the display
a
quality.
Set ID numbers on each projector.
b
Make sure all the projectors are using the same Color Mode setting.
c
Select the remote control ID to match the first projector.
d
Press the [Menu] button, select the Image menu, and press [Enter].
e
75
Select settings as necessary.
f
Select the remote control ID to match the next projector, then repeat
g
Image menu adjustments as necessary to match the projectors' displays.
Projector Security Features
76
You can secure your projector to deter theft or prevent unintended use by
setting up the following security features:
• Password security to prevent people who do not know the password from
using the projector, and prevent changes to the startup screen and other
settings. This acts as an anti-theft function as the projector cannot be used
even if it is stolen, and you can limit who can use the projector.
• Button lock security to block operation of the projector using the buttons
on the control panel. This is useful at events or shows when you want to
deactivate all buttons during projection or at schools when you want to
limit button operation.
• Security cabling to physically secure the projector in place.
gg Related Links
• "Password Security Types" p.76
• "Locking the Projector's Buttons" p.78
• "Installing a Security Cable" p.80
Password Security Types
You can set up the following types of password security using one shared
password:
• Power On Protection password prevents anyone from using the projector
without first entering a password. When plugging the power cord and
turning on the projector at first time, you must enter the correct password.
This also applies to Direct Power On and Auto Power On.
• User's Logo Protection password prevents anyone from changing the
custom screen displayed when the projector turns on, when no signal is
being input, or when you use the A/V Mute feature. The custom screen
discourages theft by identifying the projector's owner.
• Network Protection password prevents anyone from changing the
projector's Network settings.
Setting a Password
To use password security, you must set a password.
The default password is set to "0000". Change this to your own
a
a
b
password.
Hold down the [Freeze] button on the remote control for about 5
seconds.
You see the Password Protection setting menu.
If Password Protection is already activated, you must enter the
a
Select Password and press [Enter].
correct password to display the Password Protection setting
menu.
gg Related Links
• "Setting a Password" p.76
• "Selecting Password Security Types" p.77
• "Entering a Password to Use the Projector" p.78
Projector Security Features
77
You see the prompt "Change the password?".
Select Yes and press [Enter].
c
If you select No, the Password Protection setting menu is
a
Hold down the [Num] button on the remote control and use the
d
numeric buttons to set a four-digit password.
The password displays as **** as it is entered. A confirmation prompt is
displayed when you enter the fourth digit.
Enter the password again.
e
You see the message "Password accepted". If you enter the password
incorrectly, a message is displayed prompting you to re-enter the
password.
displayed again.
Selecting Password Security Types
After setting a password, you see this menu, allowing you to select the
password security types you want to use.
If you do not see this menu, hold down the [Freeze] button on the remote
control for 5 seconds until the menu appears.
• To prevent unauthorized use of the projector, select On as the Power On
Protection setting.
• To prevent changes to the User's Logo screen or related display settings,
select On as the User's Logo Protection setting.
• To prevent changes to network settings, select On as the Network
Protection setting.
You can attach the password protect sticker to the projector as an additional
theft deterrent.
Be sure to keep the remote control in a safe place; if you lose it, you will
a
not be able to enter the password.
Press [Esc] to return to the menu.
f
Make a note of the password and keep it in a safe place.
g
Projector Security Features
78
Entering a Password to Use the Projector
When the password screen is displayed, enter the correct password.
Hold down the [Num] button on the remote control while you enter
a
the password using the numeric buttons.
Attention
• If an incorrect password is entered three times in succession, the message
"The projector's operation will be locked." is displayed for approximately
5 minutes, and the projector switches to standby mode. If this happens,
disconnect the power plug from the electrical outlet, reinsert it, and turn
the projector back on. The projector displays the password entry screen
again so that you can enter the correct password.
• If you have forgotten the password, make a note of the "Request Code:
xxxxx" number that appears on the screen and contact Epson for help.
• If you continue to repeat the above operation and input the wrong
password 30 times in succession, the message "The projector's operation
will be locked. Contact Epson as described in your documentation." is
displayed and the projector does not accept any more password entries.
Contact Epson for help.
Locking the Projector's Buttons
You can lock the buttons on the control panel to prevent anyone from using
the projector. You can lock all the buttons or all the buttons except the power
button. The projector can still be operated using the remote control.
Press the [Menu] button on the control panel or remote control.
a
The password screen closes.
If the password is incorrect, you see a message and a prompt to try
b
again. Enter the correct password to proceed.
Projector Security Features
79
Select Settings and press [Enter].
b
Select Lock Setting and press [Enter].
c
Select Control Panel Lock and press [Enter].
d
Select one of these lock types and press [Enter]:
e
• To lock all of the projector's buttons, select Full Lock.
• To lock all buttons except the power button, select Partial Lock.
You see a confirmation prompt.
Select Yes and press [Enter].
f
The control panel buttons are locked using the setting you chose.
gg Related Links
• "Unlocking the Projector's Buttons" p.79
Unlocking the Projector's Buttons
If the projector's buttons have been locked, do one of the following to unlock
them.
• Hold down the [Enter] button on the control panel for 7 seconds.
A message is displayed and the lock is released.
Projector Security Features
• Select Off as the Control Panel Lock setting in the projector's Settings
menu.
s Settings > Lock Setting > Control Panel Lock
gg Related Links
• "Projector Feature Settings - Settings Menu" p.105
Installing a Security Cable
You can install two types of security cables on the projector to deter theft.
• Use the security slot on the projector to attach a Kensington Microsaver
Security system.
For more details on the Microsaver Security System, see
a
• Use the security cable attachment point on the projector to attach a wire
cable and secure it to a room fixture or heavy furniture.
http://www.kensington.com/.
80
a
You can use a commercially available theft-prevention wire lock. See
the documentation supplied with the wire lock for locking
instructions.
Using the Projector on a Network
Follow the instructions in these sections to set up your projector for use on a network.
gg Related Links
• "Wireless Network Projection" p.82
• "Using a QR Code to Connect a Mobile Device" p.87
• "Using Quick Wireless Connection (Windows Only)" p.89
Wireless Network Projection
82
You can send images to your projector through a wireless network.
• To do this, you must install the Epson 802.11b/g/n wireless LAN module,
and then set up your projector and computer for wireless projection (EBW31/EB-X36/EB-X31/EB-S31/EB-U04/EB-W04/EB-X04/EB-S04/EBU130/EB-W130/EB-X130/EB-S130/EB-X350/EB-X300/EB-S300).
• Some models have built-in wireless LAN modules (EB-U32/EB-W32). You
don't need to install the Epson 802.11b/g/n wireless LAN module.
There are two ways to connect the projector to your wireless network:
• Using the optional Quick Wireless Connection USB Key (Windows only)
• Configuring the connection manually using the projector's Network menus
After installing the wireless LAN module and setting up the projector, install
the network software from the Epson Projector Software CD-ROM (if
available) or download the software, as necessary. Use the following software
and documentation to set up and control wireless projection:
• EasyMP Network Projection software sets up your computer for wireless
network projection. See the EasyMP Network Projection Operation Guide for
instructions.
• EasyMP Multi PC Projection software allows you to hold interactive
meetings by projecting the computer screens of users over a network. See
the EasyMP Multi PC Projection Operation Guide for instructions.
gg Related Links
• "Installing the Wireless LAN Module" p.82
• "Selecting Wireless Network Settings Manually" p.83
• "Selecting Wireless Network Settings in Windows" p.85
• "Selecting Wireless Network Settings in OS X" p.85
• "Setting Up Wireless Network Security" p.85
Attention
Never remove the module while its indicator is blue or flashing, or while you are
projecting wirelessly. This could damage the module or lose data.
Use a cross-head screwdriver to remove the screw that secures the
a
wireless LAN module cover.
Connect the wireless LAN module to the USB-A port.
b
Installing the Wireless LAN Module
To use the projector over a wireless network, install the Epson 802.11b/g/n
wireless LAN module (EB-W31/EB-X36/EB-X31/EB-S31/EB-U04/EBW04/EB-X04/EB-S04/EB-U130/EB-W130/EB-X130/EB-S130/EB-X350/EBX300/EB-S300). Do not install any other type of wireless LAN module.
Wireless Network Projection
83
Attach the wireless LAN module cover, and secure it in place with the
c
screw.
Selecting Wireless Network Settings Manually
Before you can project from your wireless network, you need to select
network settings for the projector.
Select the Network menu and press [Enter].
b
Select Wireless LAN On as the Wireless Mode setting.
c
Press the [Menu] button on the control panel or remote control.
a
Select Network Configuration and press [Enter].
d
Wireless Network Projection
84
Select the Basic menu and press [Enter].
e
Select the basic options as necessary.
f
• Projector Name lets you enter a name up to 16 alphanumeric
characters long to identify the projector over the network.
• Web Control Password lets you enter a password up to 8
alphanumeric characters long for accessing the projector over the
Web. (Default user name is EPSONWEB; default password is
admin.) Point to select the access point you want to connect to.
Select the Wireless LAN menu and press [Enter].
g
Select the Connection Mode setting.
h
• Quick lets you quickly connect to one computer.
• Advanced lets you connect to computers over a wireless network
access point.
If you selected the Advanced connection mode, select Search Access
i
• Projector Keyword lets you turn on a security password to prevent
access to the projector by anyone not in the room with it. You must
enter a displayed, randomized keyword from a computer using the
EasyMP Network Projection software to access the projector.
Use the displayed keyboard to enter the name, passwords and
a
keyword. Press the arrow buttons on the remote control to
highlight characters and press [Enter] to select them.
If you need to assign the SSID manually, select SSID to enter the
a
For the Advanced connection mode, assign the IP settings for your
j
network as necessary.
• If your network assigns addresses automatically, select IP Settings to
set the DHCP setting to On.
• If you must set addresses manually, select IP Settings to set the
DHCP setting to Off, and then enter the projector's IP Address,
Subnet Mask, and Gateway Address as necessary.
SSID.
EB＊＊＊＊
＊＊
Wireless Network Projection
85
To prevent the SSID or IP address from being displayed on the standby
k
screen, set the SSID Display setting or the IP Address Display setting on the Windows taskbar.
to Off.
When you have finished selecting settings, select Complete and then name (SSID) of the network the projector is connecting to.
l
follow the on-screen instructions to save your settings and exit the
menus.
Press the [LAN] button on the remote control.
m
The wireless network settings are complete when you see the correct IP
address on the LAN standby screen.
Selecting Wireless Network Settings in OS X
To access your wireless utility software, double-click the network icon
a
When connecting in Advanced connection mode, select the network
b
Click Connect.
c
Before connecting to the projector, select the correct wireless network in OS
X.
Click the AirPort icon on the menu bar at the top of the screen.
a
When connecting in Advanced connection mode, make sure AirPort is
b
turned on and select the network name (SSID) of the network the
projector is connecting to.
Setting Up Wireless Network Security
When you have finished making wireless settings for your projector, you need
to select the wireless network on your computer. Then start the network
software to send images to your projector through a wireless network.
If you use the EasyMP Network Projection software, make sure you
a
select the connection mode that matches the projector's connection
mode you selected.
Selecting Wireless Network Settings in Windows
Before connecting to the projector, select the correct wireless network on your
computer.
You can set up security for your projector to use on a wireless network. Set up
one of the following security options to match the settings used on your
network:
• WPA2-PSK security
• WPA/WPA2-PSK security
Contact your network administrator for guidance on entering the
a
a
b
correct information.
Press the [Menu] button on the control panel or remote control.
Select the Network menu and press [Enter].
Wireless Network Projection
Select Network Configuration and press [Enter].
c
Select the Security menu and press [Enter].
d
86
Select the security settings to match your network settings.
e
When you have finished making settings, select Complete and follow
f
the on-screen instructions to save your settings and exit the menus.
gg Related Links
• "Network Menu - Security Menu" p.111
Using a QR Code to Connect a Mobile Device
87
After selecting the wireless network settings for your projector, you can
display a QR code on the screen and use it to connect a mobile device using
the Epson iProjection app.
• Make sure you have installed the latest version of Epson iProjection
a
Press the [Menu] button on the control panel or remote control.
a
Select the Network menu and press [Enter].
b
(V1.3.0 or later) on your device.
• You can download Epson iProjection for free from the App Store or
from Google play. Any fees incurred when communicating with the
App Store or Google play are the responsibility of the customer.
• You need to setup a Wi-Fi profile when using Epson iProjection for
iOS for the first time.
Select the Basic menu and press [Enter].
d
Set the Display LAN Info. setting to Text & QR Code.
e
Select Complete and then follow the on-screen instructions to save
f
your settings and exit the menus.
Press the [LAN] button on the remote control or select Display the QR
g
Code in the projector's Network menu.
The QR code is displayed on the projected surface.
Select Network Configuration and press [Enter].
c
If you do not see the QR code after pressing the [LAN] button,
a
Start Epson iProjection on your mobile device.
h
Read the projected QR code with your mobile device to connect it to
i
the projector.
press [Enter] to display the code.
Using a QR Code to Connect a Mobile Device
To correctly read the QR code, make sure you face the screen
a
When a connection is established, the image from the mobile device is
displayed. Tap Files on the application screen, and then select the file
you want to project.
squarely and closely enough so that the projected code fits into
the guide of the mobile device's QR code reader. If you are too
far from the screen, the code may not be read.
88
Using Quick Wireless Connection (Windows Only)
89
You can use the Quick Wireless Connection USB Key to quickly connect the
projector to a Windows computer wirelessly and project your presentation.
The Quick Wireless Connection USB Key is not included with your
a
a
b
c
d
projector.
Make sure the wireless LAN module is installed or built into your
projector.
Turn on the projector.
Press the [LAN] button on the remote control.
The LAN standby screen is displayed. Verify that an SSID and IP
address are displayed.
Do one of the following to connect the Quick Wireless Connection
USB Key.
• Remove the wireless LAN module from the projector and insert the
Quick Wireless Connection USB Key into the same port used for the
wireless LAN module (EB-W31/EB-X36/EB-X31/EB-S31/EBU04/EB-W04/EB-X04/EB-S04/EB-U130/EB-W130/EB-X130/EBS130/EB-X350/EB-X300/EB-S300).
In Windows Vista, if the AutoPlay window is displayed, select
a
Follow the on-screen instructions to install the Quick Wireless
g
Connection driver.
a
After a few minutes, your computer image is displayed by the projector.
If it does not appear, press the [LAN] button on your projector's
remote control or restart your computer.
Run your presentation.
h
When you have finished projecting wirelessly, select the Safely Remove
i
Hardware option in the Windows taskbar, and then remove the Quick
Wireless Connection USB Key from your computer.
a
Run LaunchQWRD.exe, then select Allow.
If the Windows Firewall message is displayed, click Yes to disable
the firewall.
You may need to restart your computer to reactivate your
wireless LAN connection.
• Connect the Quick Wireless Connection USB Key to the projector's
USB-A port (EB-U32/EB-W32).
You see a projected message that the network information update is
complete.
Remove the Quick Wireless Connection USB Key.
e
If your projector needs the wireless LAN module, reinsert the wireless
LAN module into the projector.
Connect the Quick Wireless Connection USB Key to a USB port on
f
your computer.
Monitoring and Controlling the Projector
Follow the instructions in these sections to monitor and control the projector over a network.
gg Related Links
• "EasyMP Monitor" p.91
• "Controlling a Networked Projector Using a Web Browser" p.92
• "Setting Up Projector Network E-Mail Alerts" p.94
• "Setting Up Monitoring Using SNMP" p.95
• "Using ESC/VP21 Commands" p.96
EasyMP Monitor
EasyMP Monitor software (Windows only) lets you monitor and control your
projector through the network. See the EasyMP Monitor Operation Guide for
instructions.
You can download EasyMP Monitor from the following Web site.
http://www.epson.com/
91
Controlling a Networked Projector Using a Web Browser
92
Once you have connected your projector to your network, you can select
projector settings and control projection using a compatible Web browser.
This lets you access the projector remotely.
• Make sure the computer and projector are connected to the network.
a
Make sure the projector is turned on.
a
Start your Web browser on a computer connected to the network.
b
Type the projector's IP address into the browser's address box and press
c
the computer's Enter key.
You see the Web Control screen.
When projecting images via a wireless LAN, connect in Advanced
connection mode.
• The Web setup and control features support Internet Explorer 8.0 or
later, and Safari on networks that do not use a proxy server for
connection. Use Safari for OS X. You cannot select all of the
projector menu settings or control all projector functions using a
Web browser.
• If you set Standby Mode to Communication On in the projector's
ECO menu, you can use a Web browser to select settings and control
projection even if the projector is in standby mode (when the power
is off).
• You cannot select the following settings using a Web browser.
a
To control projection remotely, select the Web Remote option.
e
Test Pattern, Pointer Shape, User Button, User's Logo,
Language, Reset Lamp Hours and all the settings in the
Network menu
• You can select the following settings only using a Web
browser.
• SNMP Community Name (up to 32 alphanumeric
characters)
• Monitor Password (up to 16 alphanumeric characters)
• HTTP port (port number used for Web Control except for
80 [default], 843, 3620, 3621, 3625, 3629, 4352, 4649, 5357,
10000, 10001, 41794)
• You may need to log in before you see the Web Control screen.
a
To select projector menu settings, select the name of the menu and
d
follow the on-screen instructions to select settings.
If you see a log in window, enter your user name and
password. (The default user name is EPSONWEB and the
default password is admin.)
• You can change the password in the Web Control Password
menu in the projector's Network menu.
s Network > Basic > Web Control Password
Controlling a Networked Projector Using a Web Browser
Select the icon corresponding to the projector function you want to
f
control.
gg Related Links
• "Network Menu - Basic Menu" p.109
• "Projector Setup Settings - ECO Menu" p.115
a
93
S-Video is available with the EB-W32/EB-W31/EB-X36/EBX31/EB-S31/EB-W04/EB-X04/EB-S04/EB-W130/EB-X130/EBS130/EB-X350/EB-X300/EB-S300.
Power button control
A
Selects Computer port source
B
Selects S-Video, Video or HDMI/MHL port source
C
Freeze button control
D
A/V Mute button control
E
Page Up and Page Down button controls
F
Searches for sources
G
Selects the network source
H
Selects the USB Display or USB device source
I
Volume button controls
J
Displays the QR code
K
Setting Up Projector Network E-Mail Alerts
94
You can set up the projector to send you an e-mail alert over the network if
there is a problem with the projector. (default is 25).
If you set the Standby Mode setting to Communication On in the projector's
ECO menu, you can receive the e-mail alerts even if the projector is in
standby mode (when the power is off).
Press the [Menu] button on the control panel or remote control.
a
Select the Network menu and press [Enter].
b
Select Network Configuration and press [Enter].
c
Select the Mail menu and press [Enter].
d
Select a number for the SMTP server Port Number, from 1 to 65535
g
Choose an address field, enter the e-mail address, and select the alerts
h
you want to receive. Repeat for up to three addresses.
Your e-mail address can be up to 32 alphanumeric characters
a
When you finish selecting settings, select Complete and follow the on-
i
screen instructions to save your settings and exit the menus.
a
gg Related Links
• "Network Projector E-mail Alert Messages" p.94
• "Projector Setup Settings - ECO Menu" p.115
long.
If a critical problem causes a projector to shut down, you may not
receive an e-mail alert.
Network Projector E-mail Alert Messages
Set the Mail Notification setting to On.
e
Enter the IP address for the SMTP Server option.
f
Do not use these addresses: 127.x.x.x or 224.0.0.0 through
a
255.255.255.255 (where x is a number from 0 to 255).
When a problem occurs with a projector on the network, and you selected to
receive e-mail alerts, you receive an e-mail containing the following
information:
• Address for Address 1 as the mail sender
• Epson Projector in the subject line
• The name of the projector experiencing a problem
• The IP address of the affected projector
• Detailed information about the problem
Setting Up Monitoring Using SNMP
95
Network administrators can install SNMP (Simple Network Management
Protocol) software on network computers so they can monitor projectors. If the on-screen instructions to save your settings and exit the menus.
your network uses this software, you can set up the projector for SNMP
monitoring.
Press the [Menu] button on the control panel or remote control.
a
Select the Network menu and press [Enter].
b
Select Network Configuration and press [Enter].
c
Select the Others menu and press [Enter].
d
When you have finished selecting settings, select Complete and follow
g
Set the SNMP setting to On.
e
Enter up to two IP addresses to receive SNMP notifications, using 0 to
f
255 for each address field.
Do not use these addresses: 127.x.x.x or 224.0.0.0 through
a
255.255.255.255 (where x is a number from 0 to 255).
Using ESC/VP21 Commands
You can monitor and control the projector from a computer via USB. If the command being processed terminates abnormally, an error message is
Connect the computer and the projector with a USB cable, and enter the output and a ":" is returned.
communication commands (ESC/VP21 commands).
gg Related Links
• "Setting Up for Using ESC/VP21 Commands" p.96
• "ESC/VP21 Command List" p.96
• "Communications Protocol" p.96
Setting Up for Using ESC/VP21 Commands
The first time you control and monitor the projector using ESC/VP21
commands, you must install the USB communication driver on your
computer and set up the projector. You do not need to install the driver the
next time.
Install the USB communication driver (EPSON USB-COM Driver) on
a
your computer. For information about the EPSON USB-COM Driver,
contact Epson.
Set the USB Type B setting to Link 21L in the projector's Extended
b
menu.
Connect your computer to the projector's USB-B port using a USB
c
cable.
The following commands are available.
Item Command
Power On/Off On PWR ON
Off PWR OFF
Signal selection Computer Auto SOURCE 1F
RGB SOURCE 11
Component SOURCE 14
HDMI, HDMI1 SOURCE 30
HDMI2 * SOURCE A0
Video SOURCE 41
S-Video ** SOURCE 42
USB Display SOURCE 51
USB SOURCE 52
LAN SOURCE 53
A/V Mute On/Off On MUTE ON
Off MUTE OFF
96
You can start from step 2 the next time you use the commands.
ESC/VP21 Command List
When the power ON command is transmitted to the projector, the power
turns on and it enters warm-up mode. When the projector's power has turned
on, a colon ":" (3Ah) is returned.
When a command is input, the projector executes the command and returns a
":", and then accepts the next command.
* HDMI2 is available only with the EB-U32/EB-U04/EB-U130.
** S-Video is available only with the EB-W32/EB-W31/EB-X36/EB-X31/EBS31/EB-W04/EB-X04/EB-S04/EB-W130/EB-X130/EB-S130/EB-X350/EBX300/EB-S300.
Add a Carriage Return (CR) code (0Dh) to the end of each command and
transmit.
Contact Epson for more details.
Communications Protocol
• Default baud rate setting: 9600 bps
Using ESC/VP21 Commands
• Data length: 8 bit
• Parity: None
• Stop-bit: 1 bit
• Flow control: None
97
Adjusting the Menu Settings
Follow the instructions in these sections to access the projector menu system and change projector settings.
gg Related Links
• "Using the Projector's Menus" p.99
• "Using the On-screen Keyboard" p.100
• "Image Quality Settings - Image Menu" p.101
• "Input Signal Settings - Signal Menu" p.103
• "Projector Feature Settings - Settings Menu" p.105
• "Projector Setup Settings - Extended Menu" p.107
• "Projector Network Settings - Network Menu" p.109
• "Projector Setup Settings - ECO Menu" p.115
• "Projector Information Display - Info Menu" p.116
• "Projector Reset Options - Reset Menu" p.118
• "Copy Menu Settings to Another Projector (Batch Setup)" p.119
Using the Projector's Menus
99
You can use the projector's menus to adjust the settings that control how your
projector works. The projector displays the menus on the screen.
Press the [Menu] button on the control panel or remote control.
a
You see the menu screen displaying the Image menu settings.
To change settings in the displayed menu, press [Enter].
c
Press the up or down arrow button to move through the settings.
d
Change the settings using the buttons listed on the bottom of the menu
e
screens.
To return all the menu settings to their default values, select Reset.
f
When you finish changing settings on a menu, press [Esc].
g
Press [Menu] or [Esc] to exit the menus.
h
Press the up or down arrow buttons to move through the menus listed
b
on the left. The settings for each menu are displayed on the right.
The available settings depend on the current input source.
a
Using the On-screen Keyboard
100
The on-screen keyboard is displayed when you need to enter numbers and
characters.
Use the arrow buttons on the control panel or remote control to
a
highlight the number or character you want to enter and press the
[Enter] button.
Each time you select the CAPS key, the characters change
a
between upper case and lower case. Each time you select the
SYM1/2 key, the symbols enclosed by the frame change.
Text type Details
Alphabet ABCDEFGHIJKLMNOPQRSTUVWXY
Z
abcdefghijklmnopqrstuvwxyz
Symbols ! " # $ % & ' ( ) * + , - . / : ; < = > ? @ [ \ ]
^ _ ` { | } ~
After entering the text, select Finish on the keyboard to confirm your
b
entries. Select Cancel to cancel entering text.
gg Related Links
• "Available Text Using the On-screen Keyboard" p.100
• "Controlling a Networked Projector Using a Web Browser" p.92
Available Text Using the On-screen Keyboard
You can enter the following text when using the on-screen keyboard.
Text type Details
Numbers 0123456789
Loading...
