PowerLite
®
EB-L520W User's Guide
Page 2
Page 3
Contents
PowerLite®EB-L520W User's Guide ........................................................................................................ 11
Introduction to Your Projector ................................................................................................................. 12
Projector Features.............................................................................................................................. 12
Product Box Contents.................................................................................................................... 13
Additional Components ................................................................................................................ 14
Additional Projector Software and Manuals................................................................................... 15
Optional Equipment and Replacement Parts (U.S. and Canada) .................................................. 16
Optional Equipment and Replacement Parts (Latin America)........................................................ 17
Warranty and Registration Information (U.S. and Canada) ........................................................... 17
Warranty and Registration Information (Latin America)................................................................. 18
Notations Used in the Documentation ................................................................................................ 18
Where to Go for Additional Information .............................................................................................. 18
Projector Part Locations ..................................................................................................................... 19

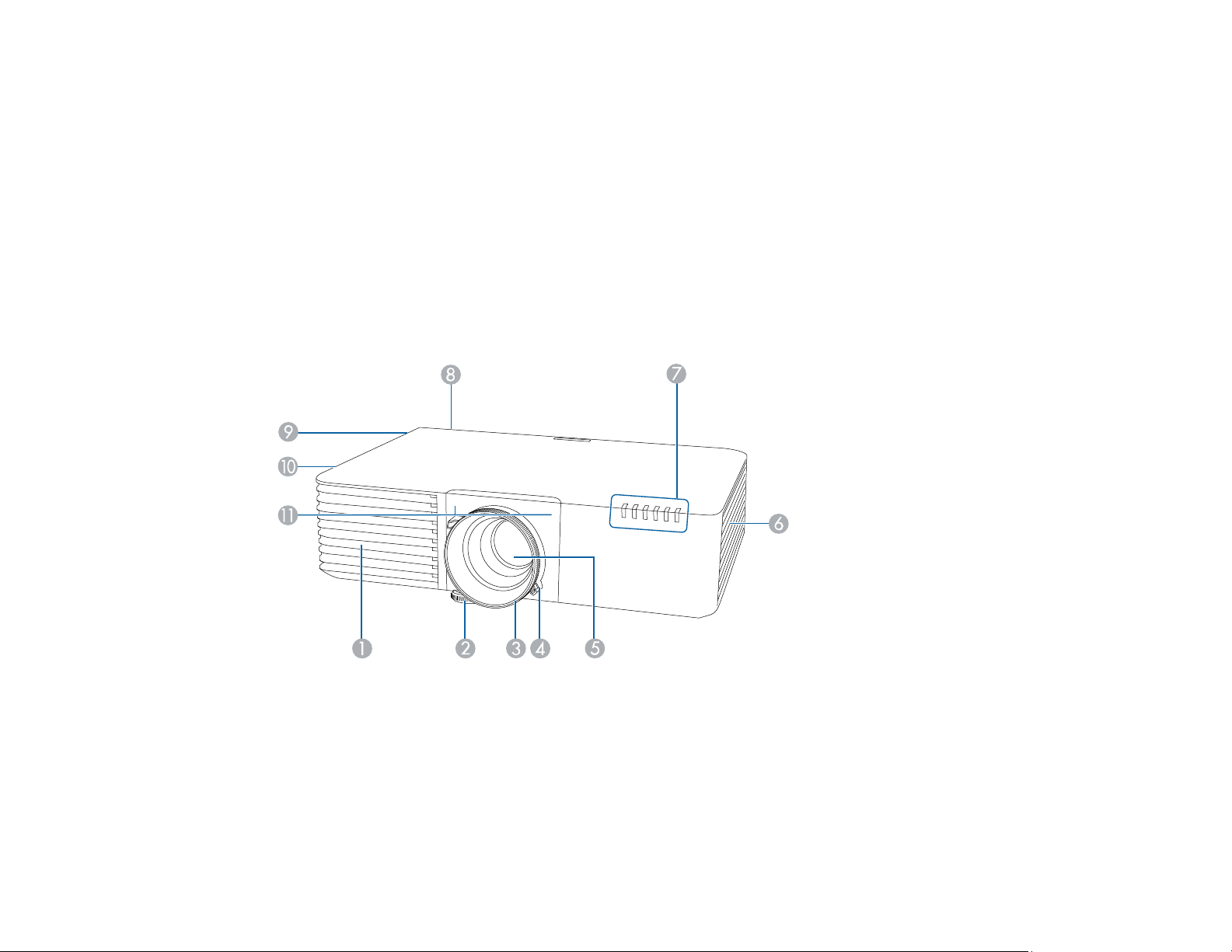

Projector Parts - Front/Top ............................................................................................................ 19

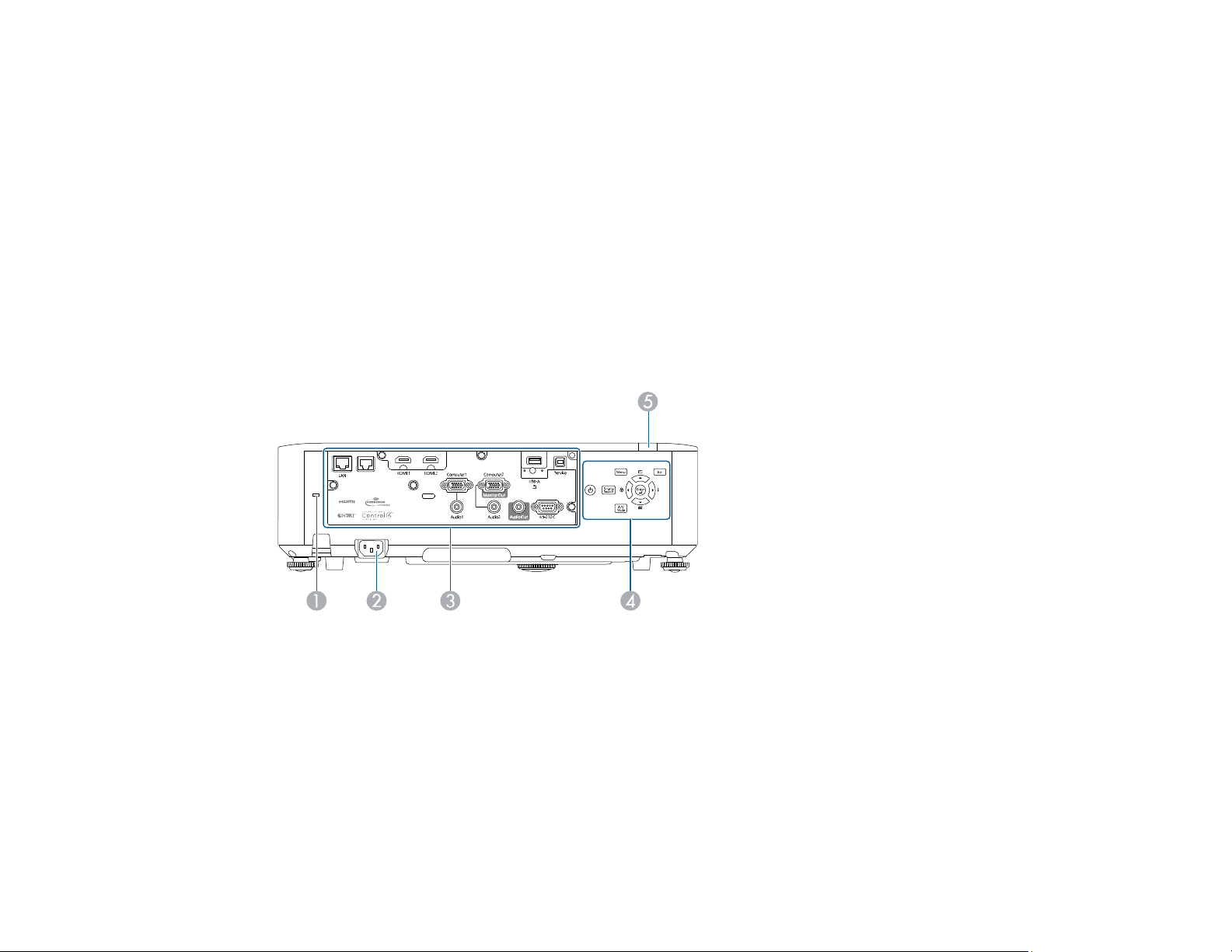

Projector Parts - Rear .................................................................................................................... 20

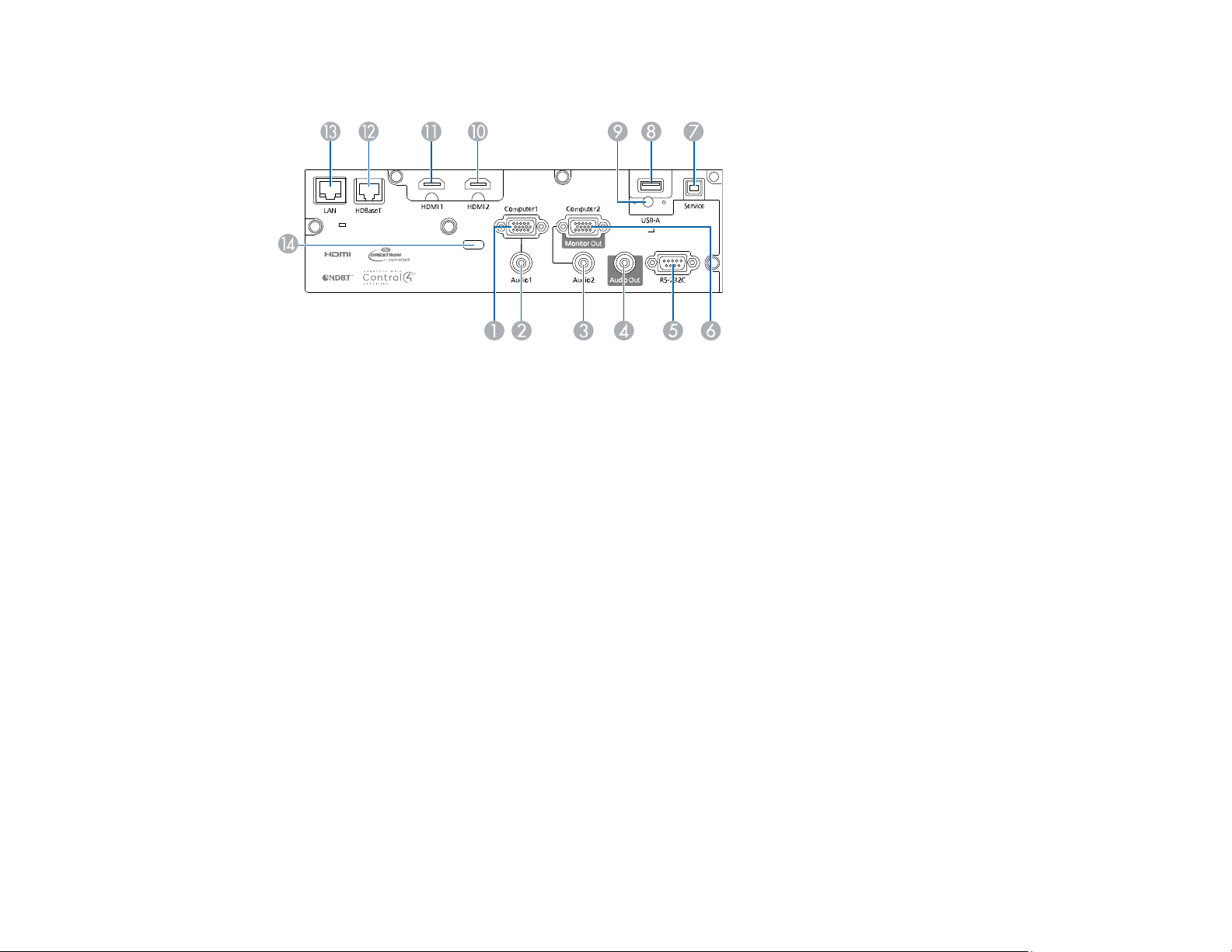

Projector Parts - Interface Ports .................................................................................................... 21

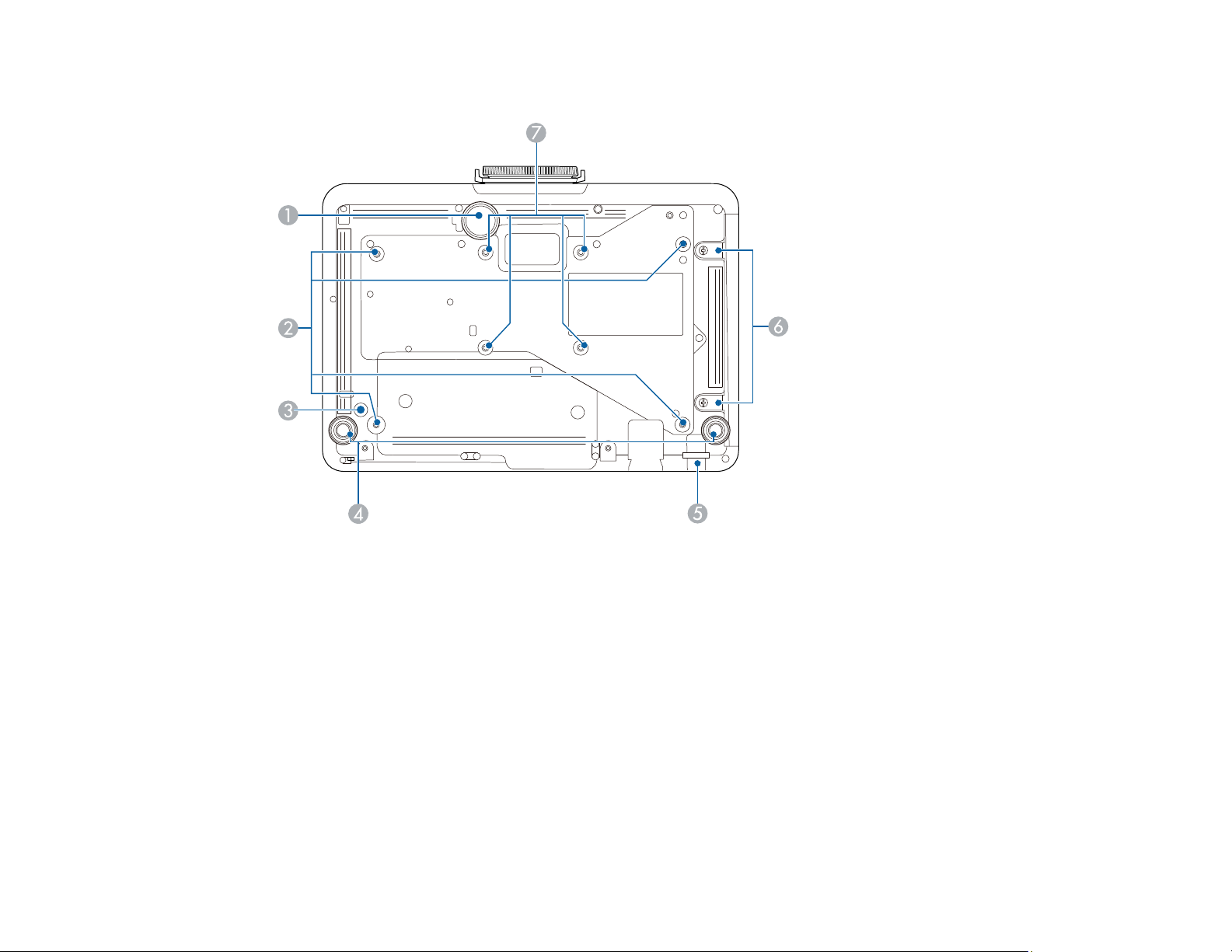

Projector Parts - Base.................................................................................................................... 22

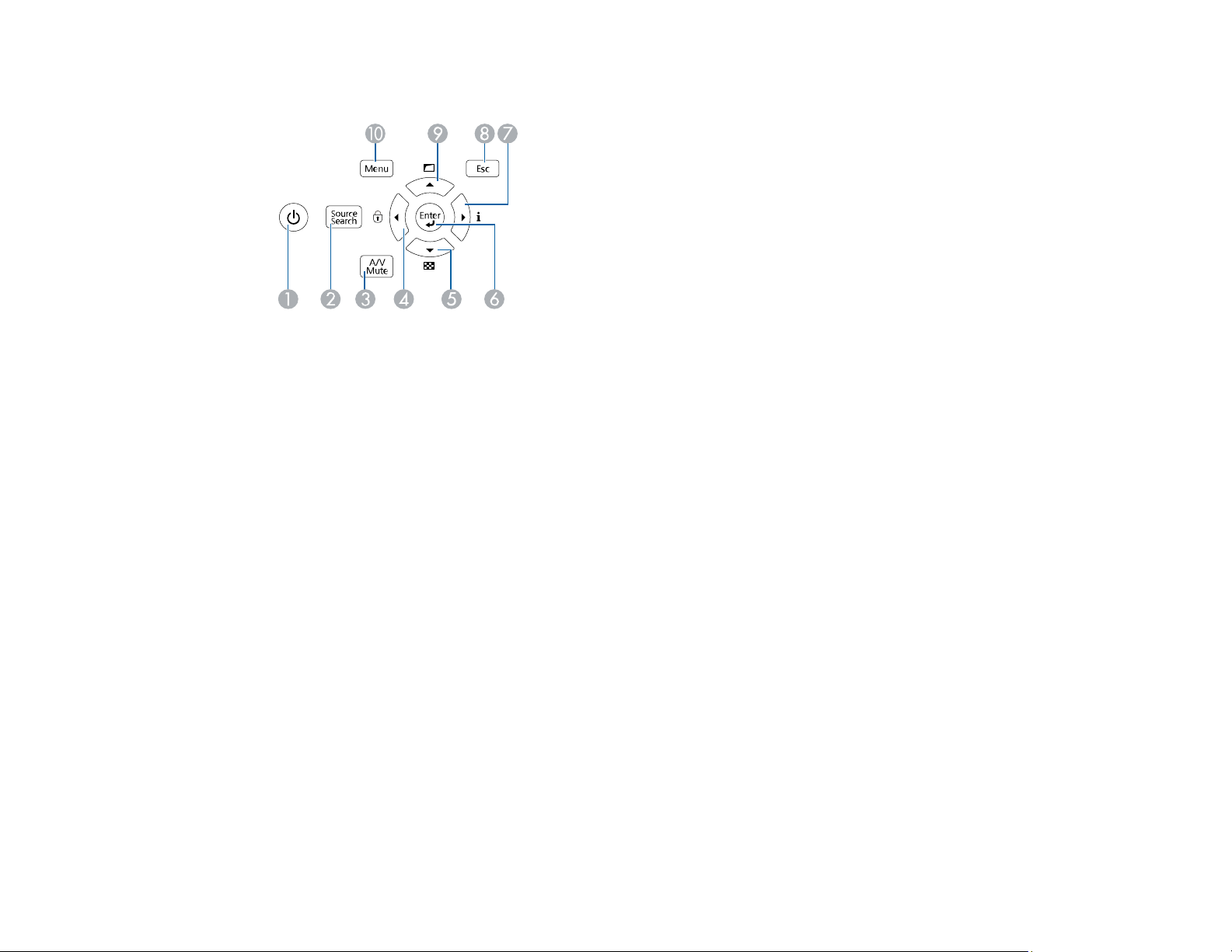

Projector Parts - Control Panel ...................................................................................................... 23

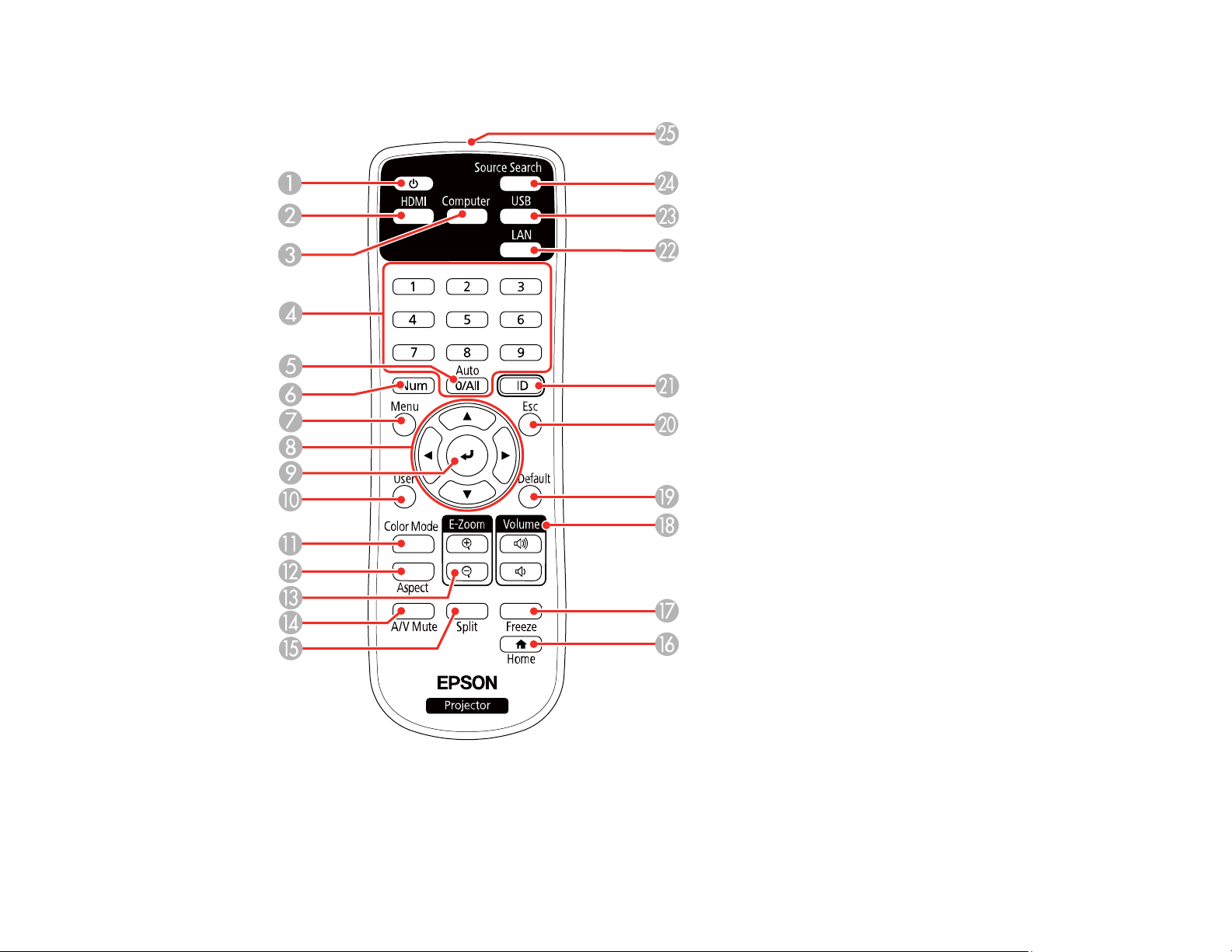

Projector Parts - Remote Control................................................................................................... 24
Setting Up the Projector ........................................................................................................................... 26

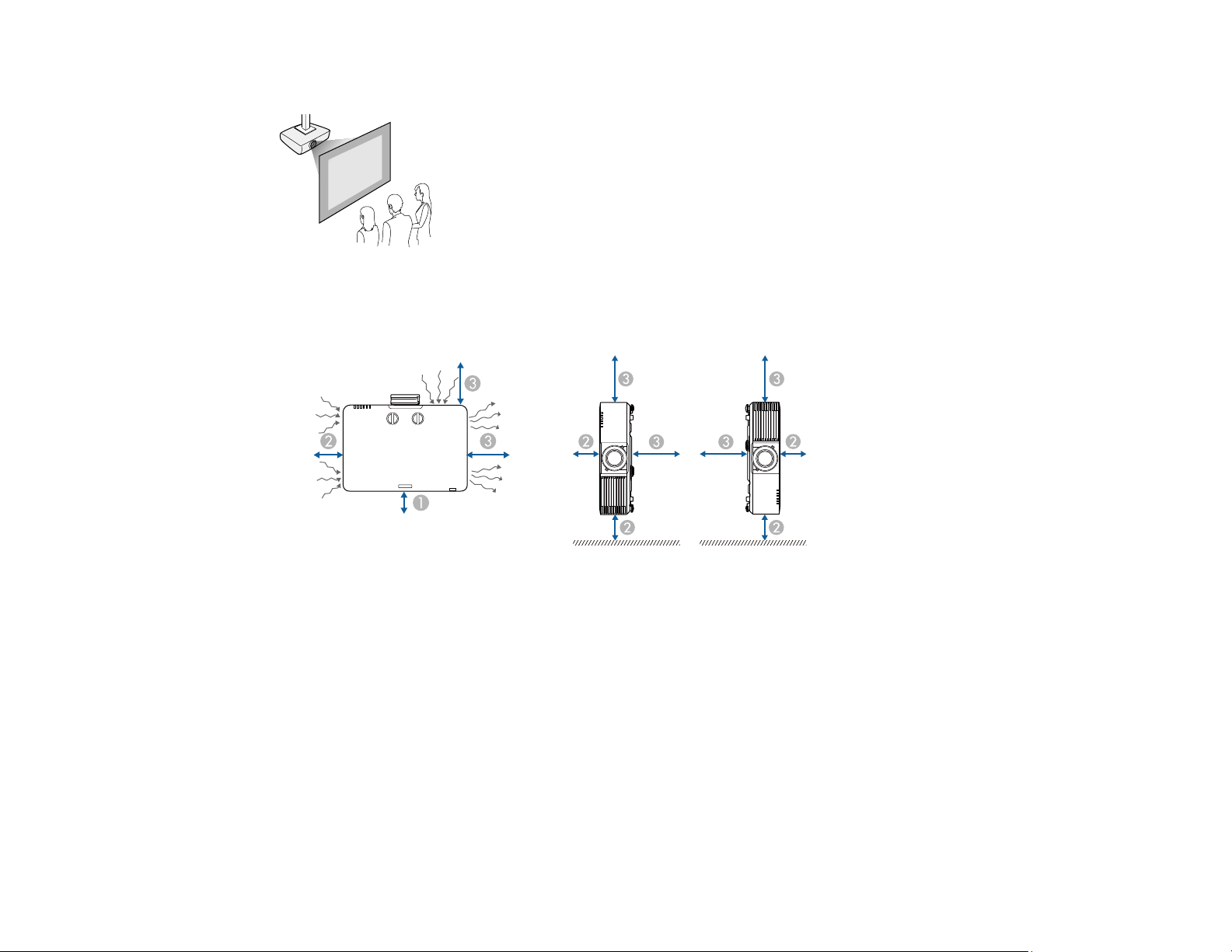

Projector Placement........................................................................................................................... 26

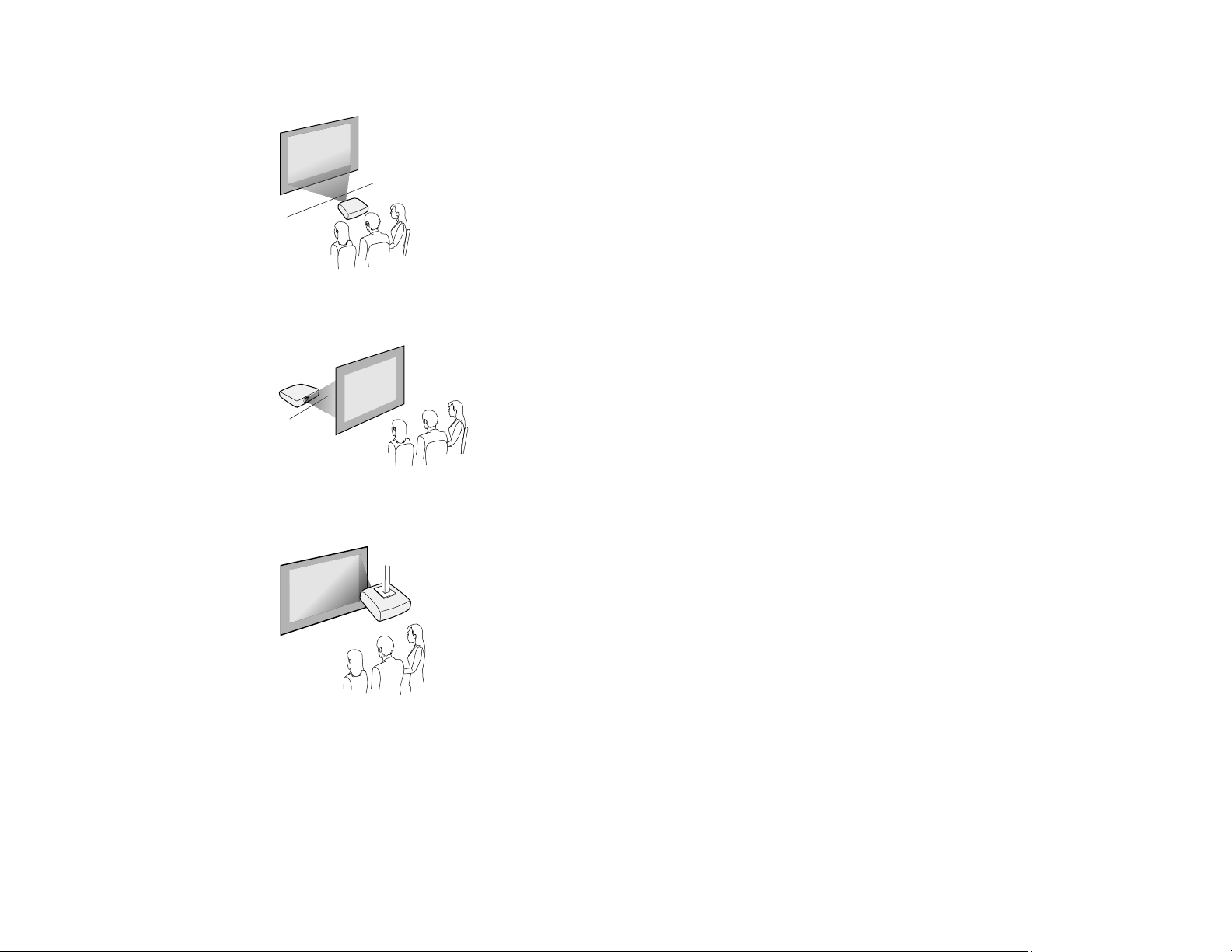

Projector Setup and Installation Options ....................................................................................... 26

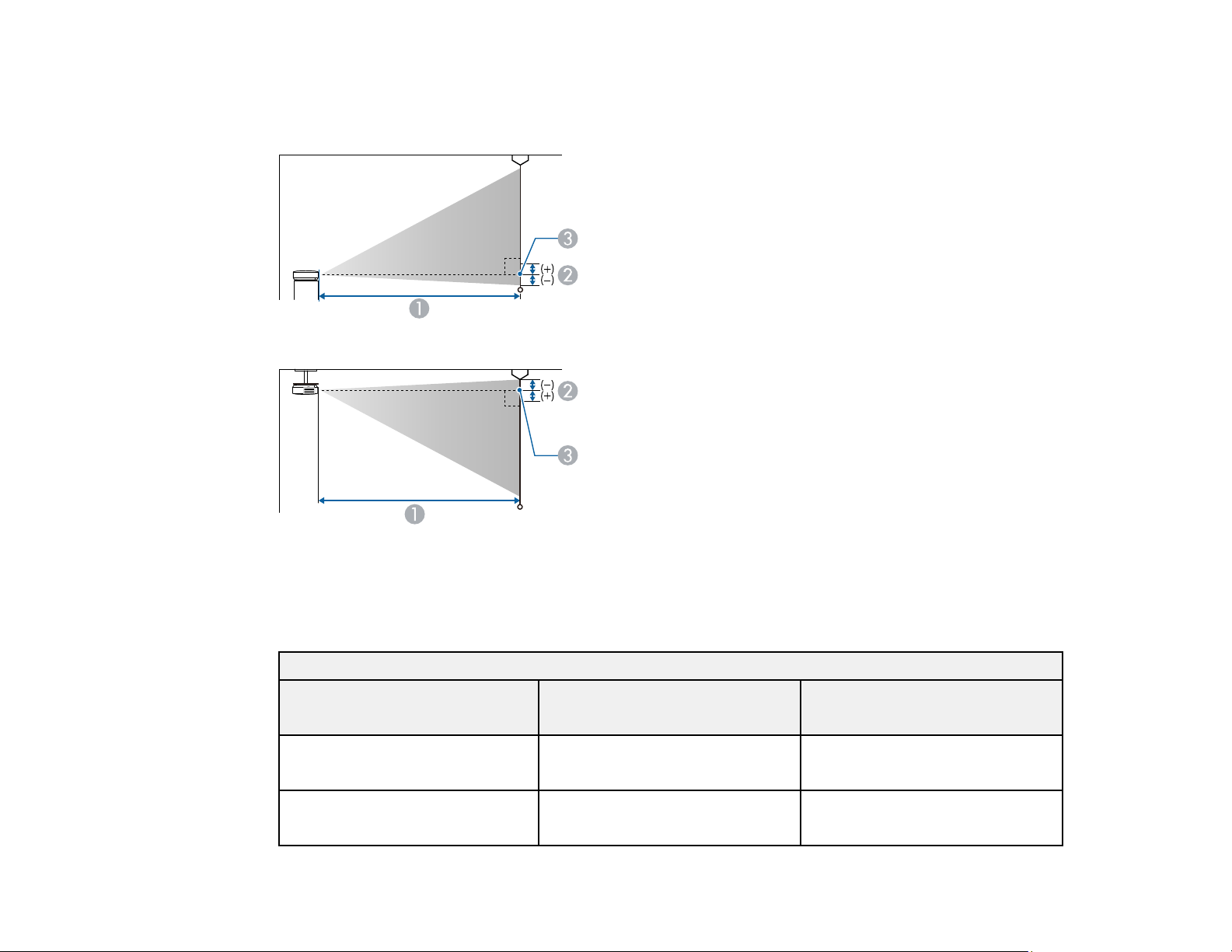

Projection Distance........................................................................................................................ 29
Projector Connections........................................................................................................................ 33
Connecting to Computer Sources.................................................................................................. 34

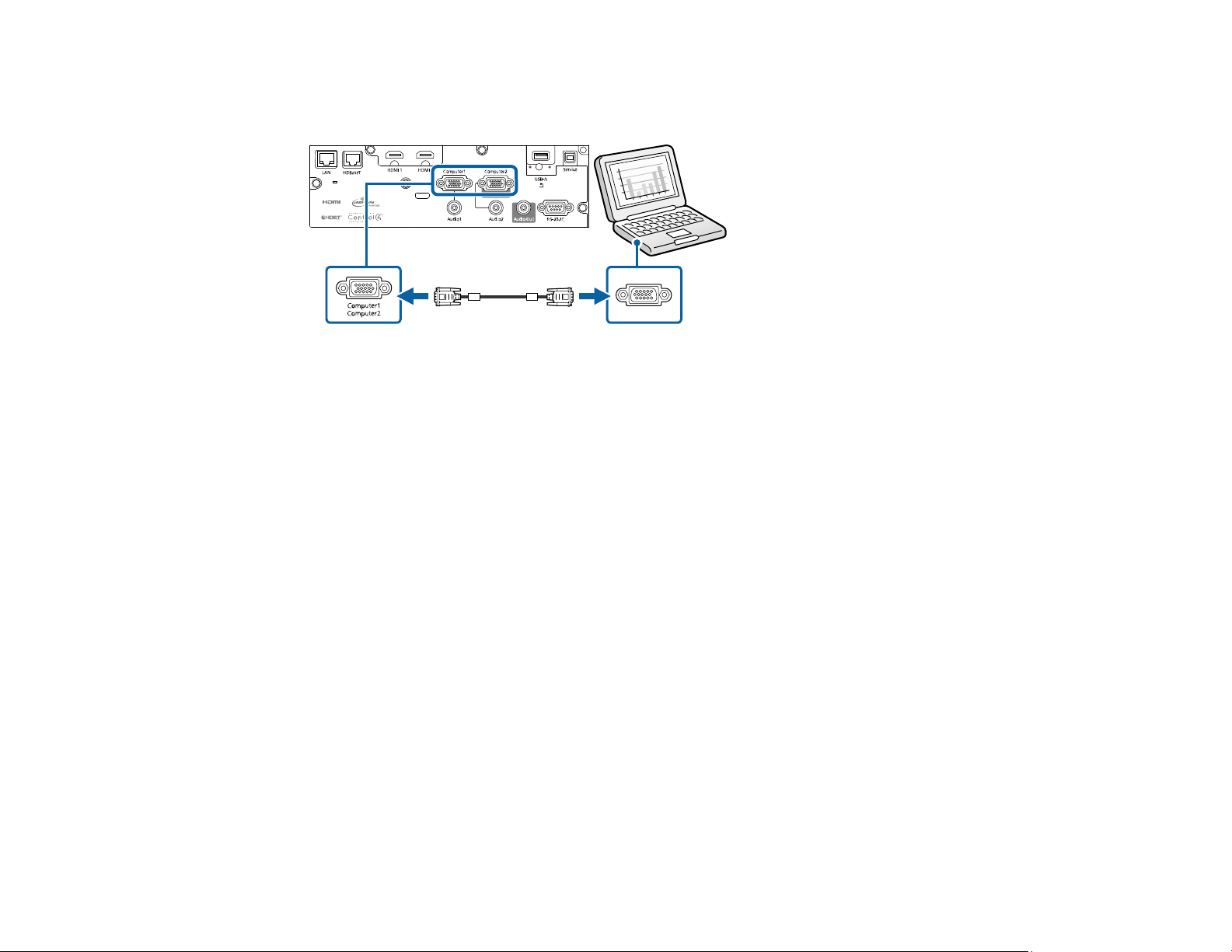

Connecting to a Computer for VGA Video and Audio................................................................ 34

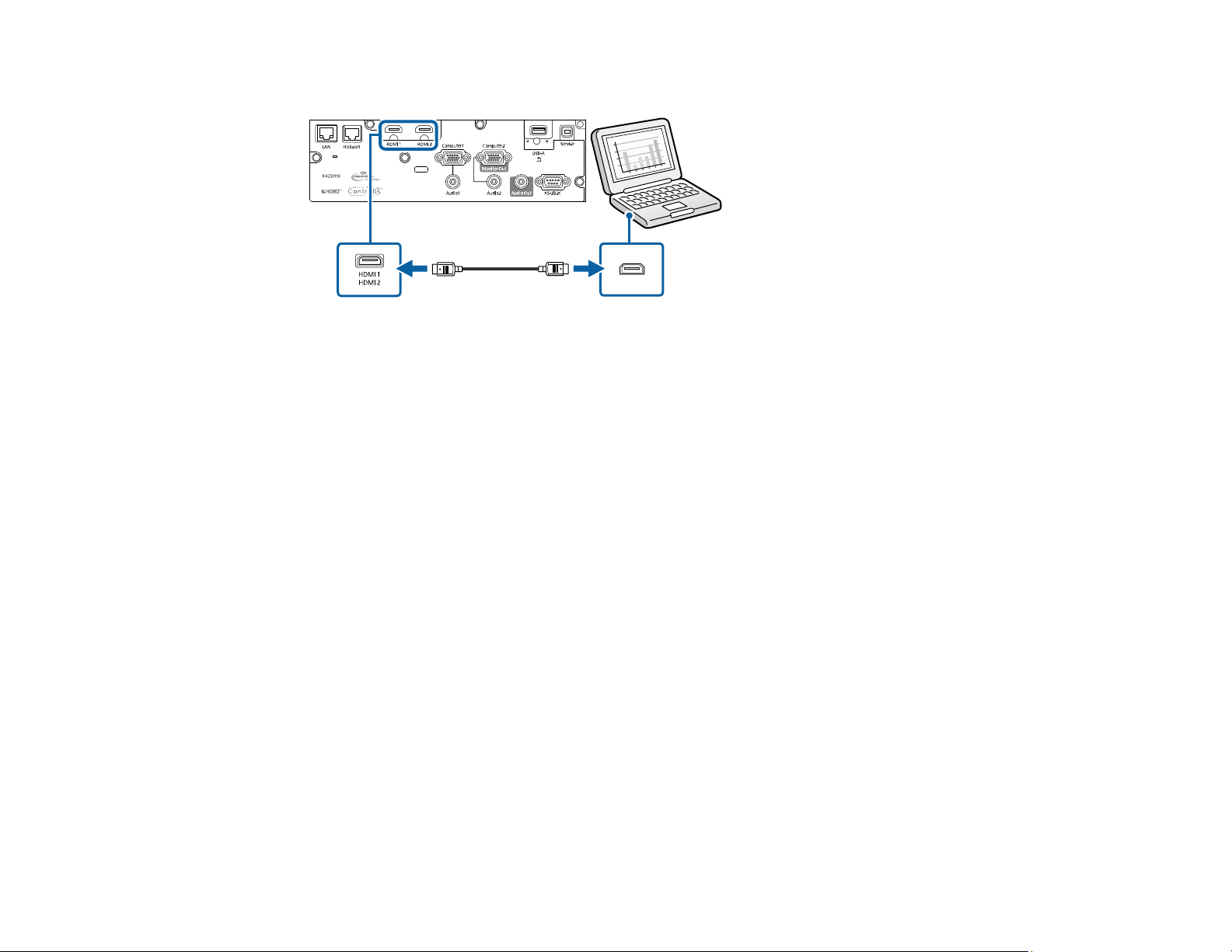

Connecting to a Computer for HDMI Video and Audio.............................................................. 35
Connecting to a Computer for Sound........................................................................................ 36
Connecting to Video Sources ........................................................................................................ 36

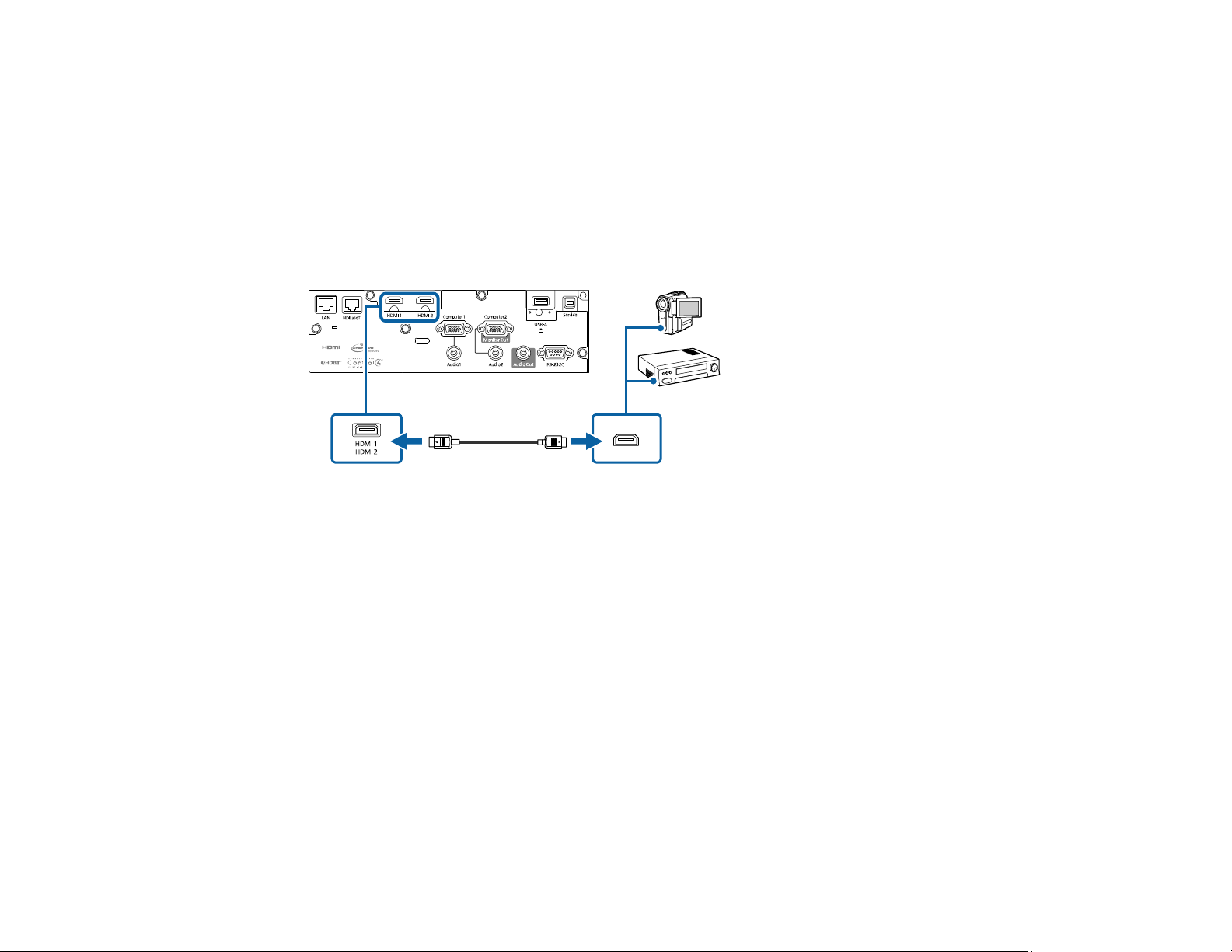

Connecting to an HDMI Video Source ...................................................................................... 37
3
Page 4

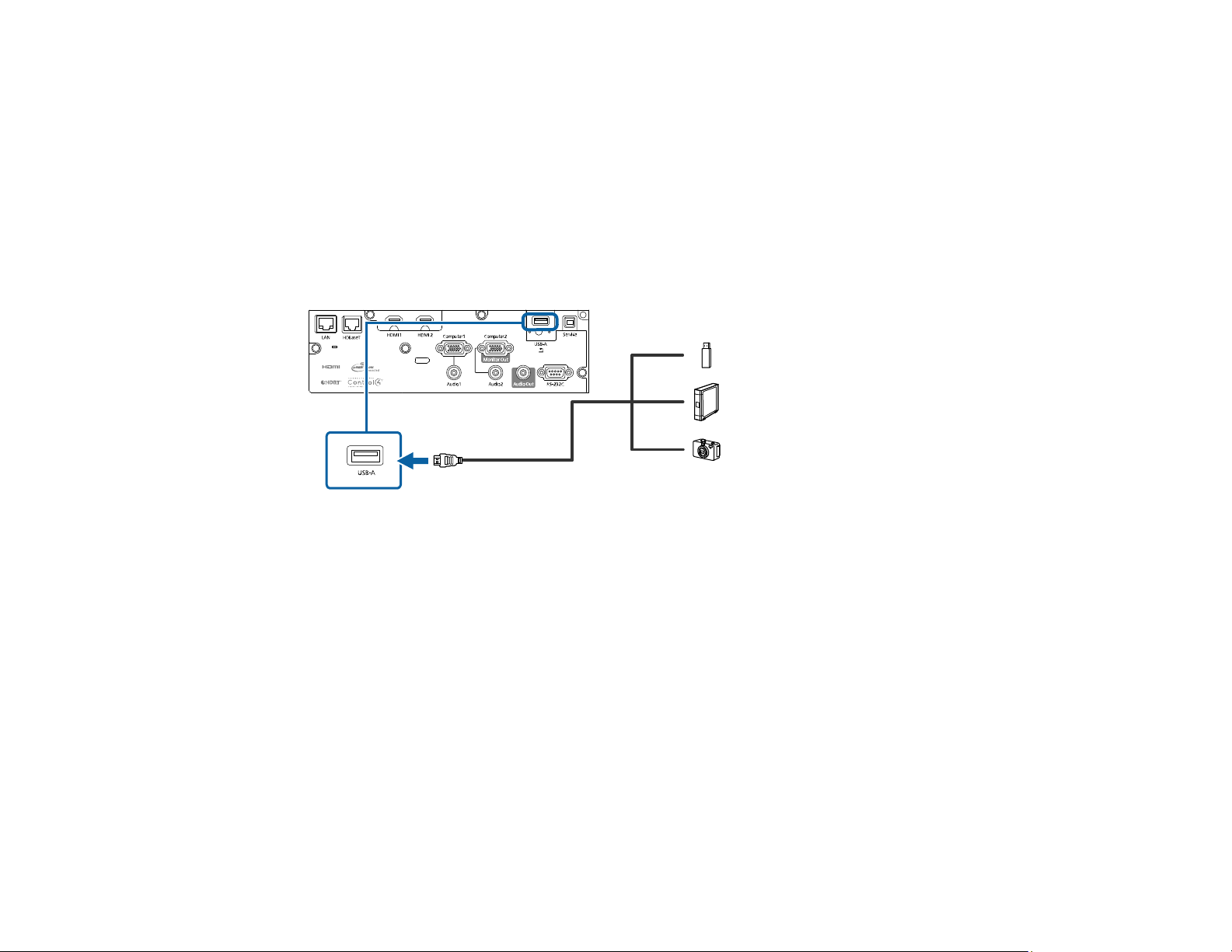

Connecting to a USB Device ......................................................................................................... 37
Connecting to a Document Camera .............................................................................................. 38

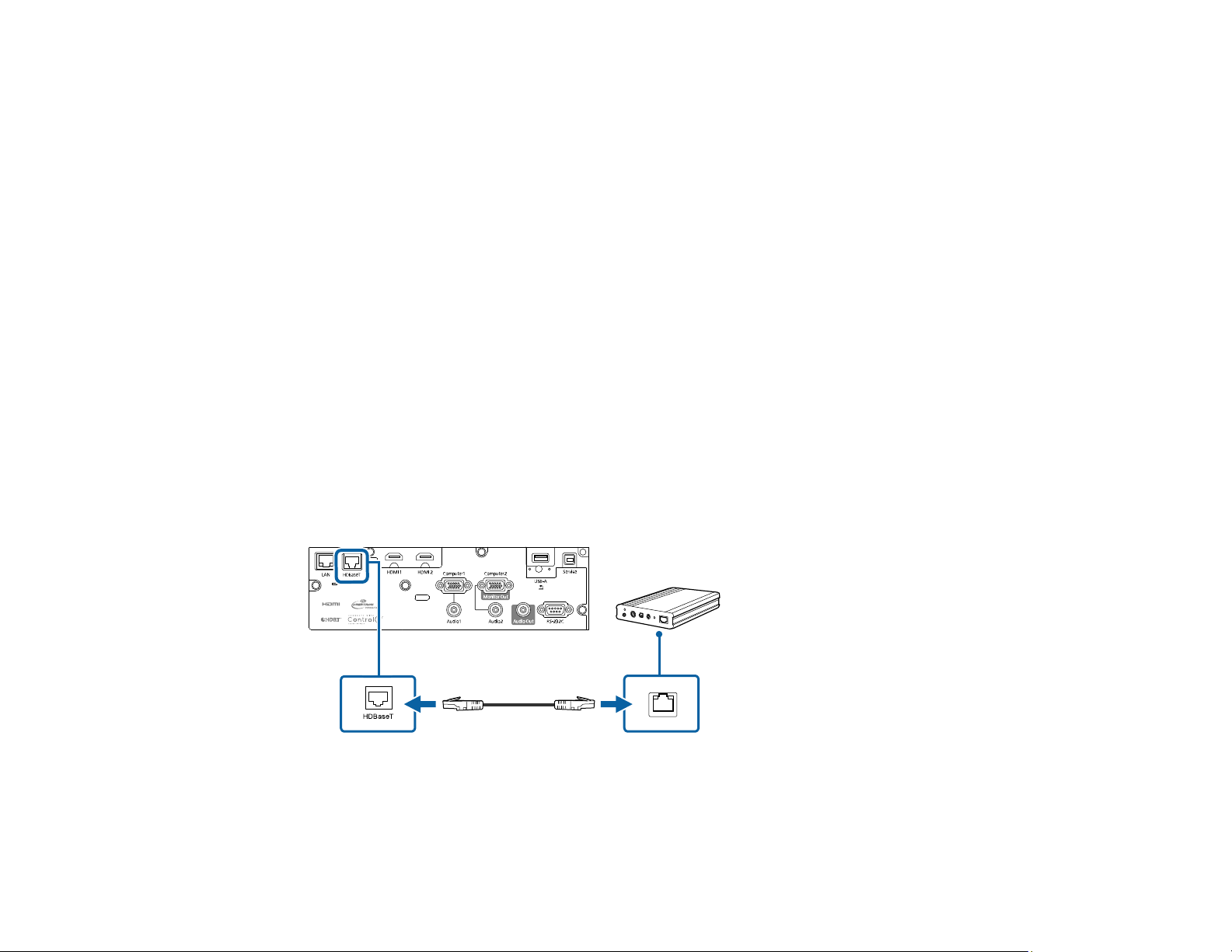

Connecting to an HDBaseT Transmitter ....................................................................................... 39
Connecting to an External Computer Monitor................................................................................ 40

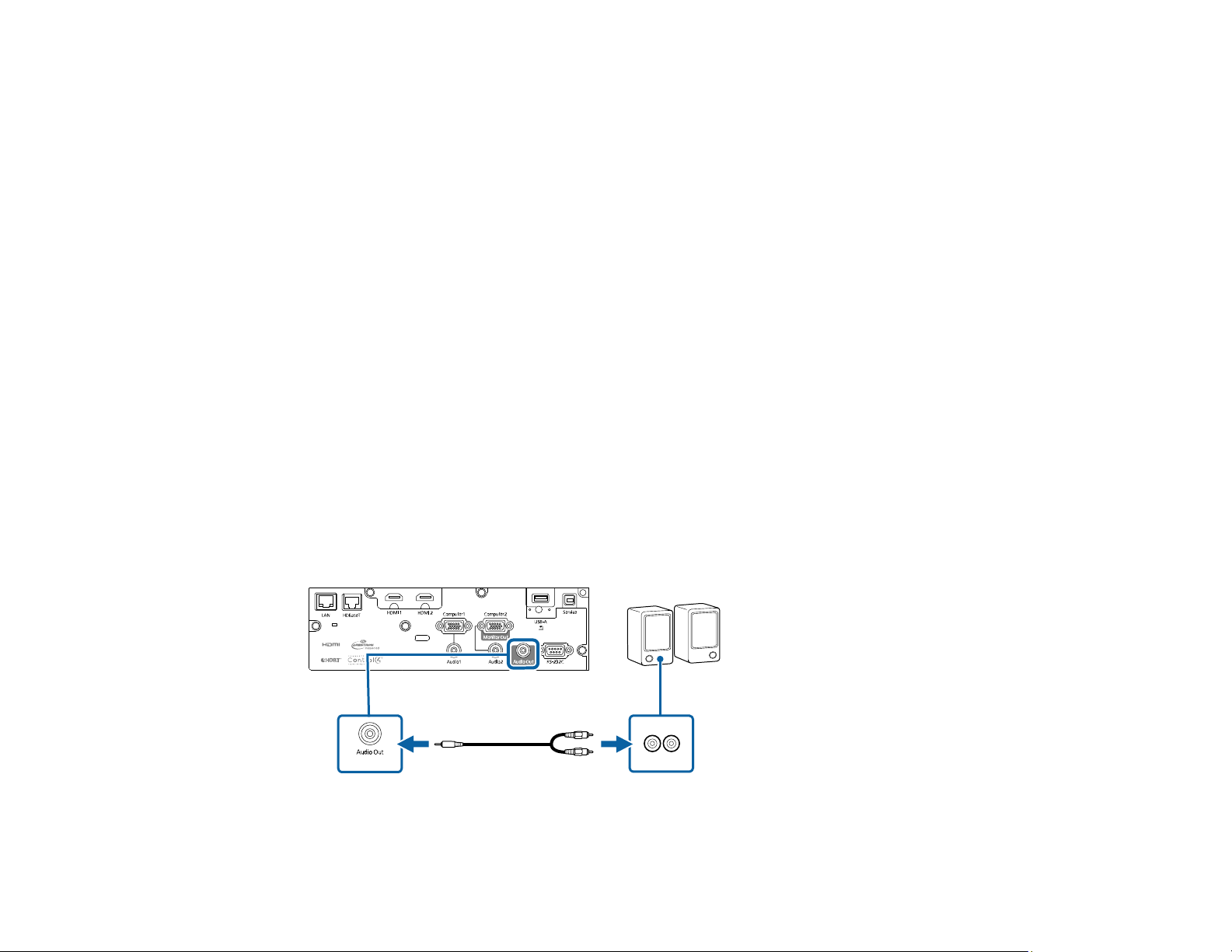

Connecting to External Speakers .................................................................................................. 41

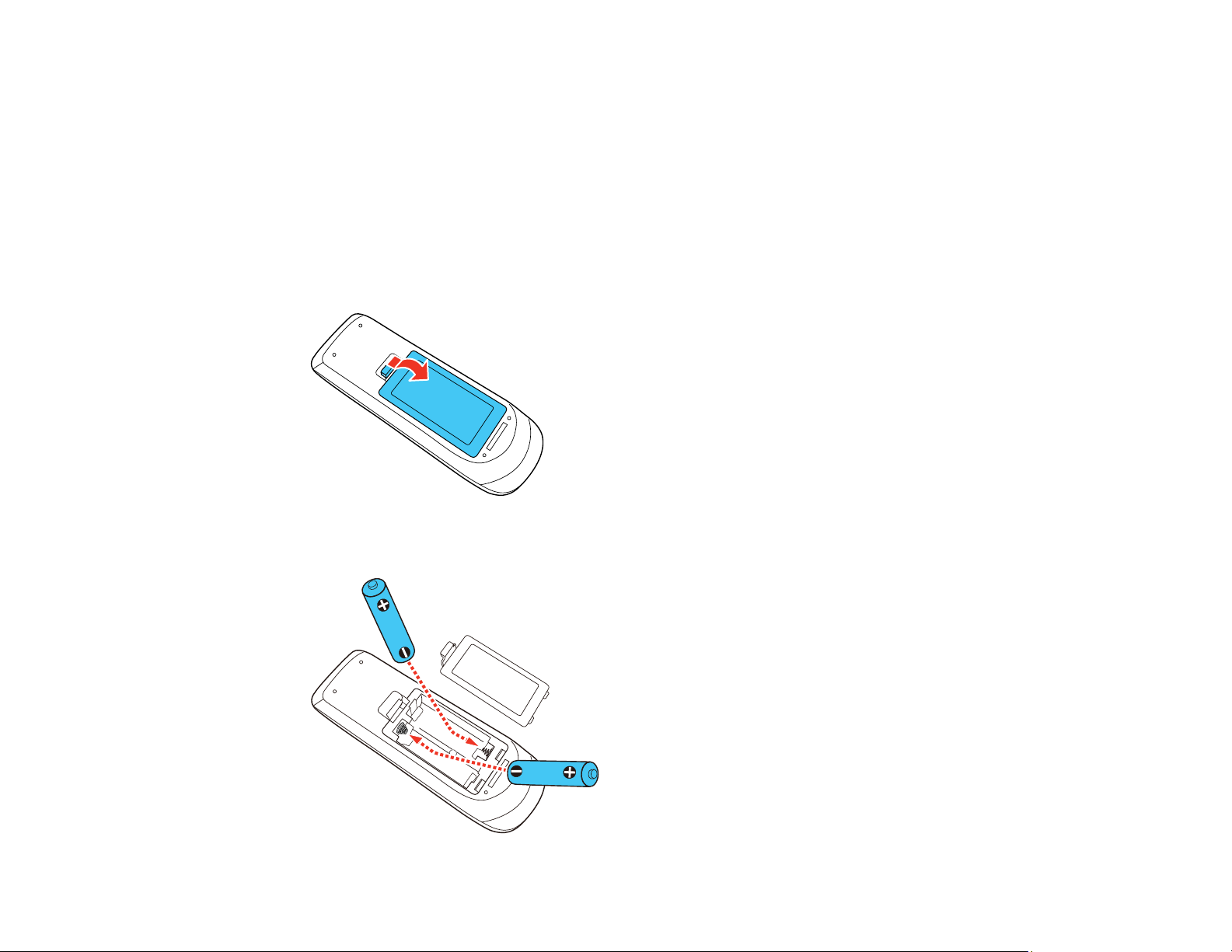

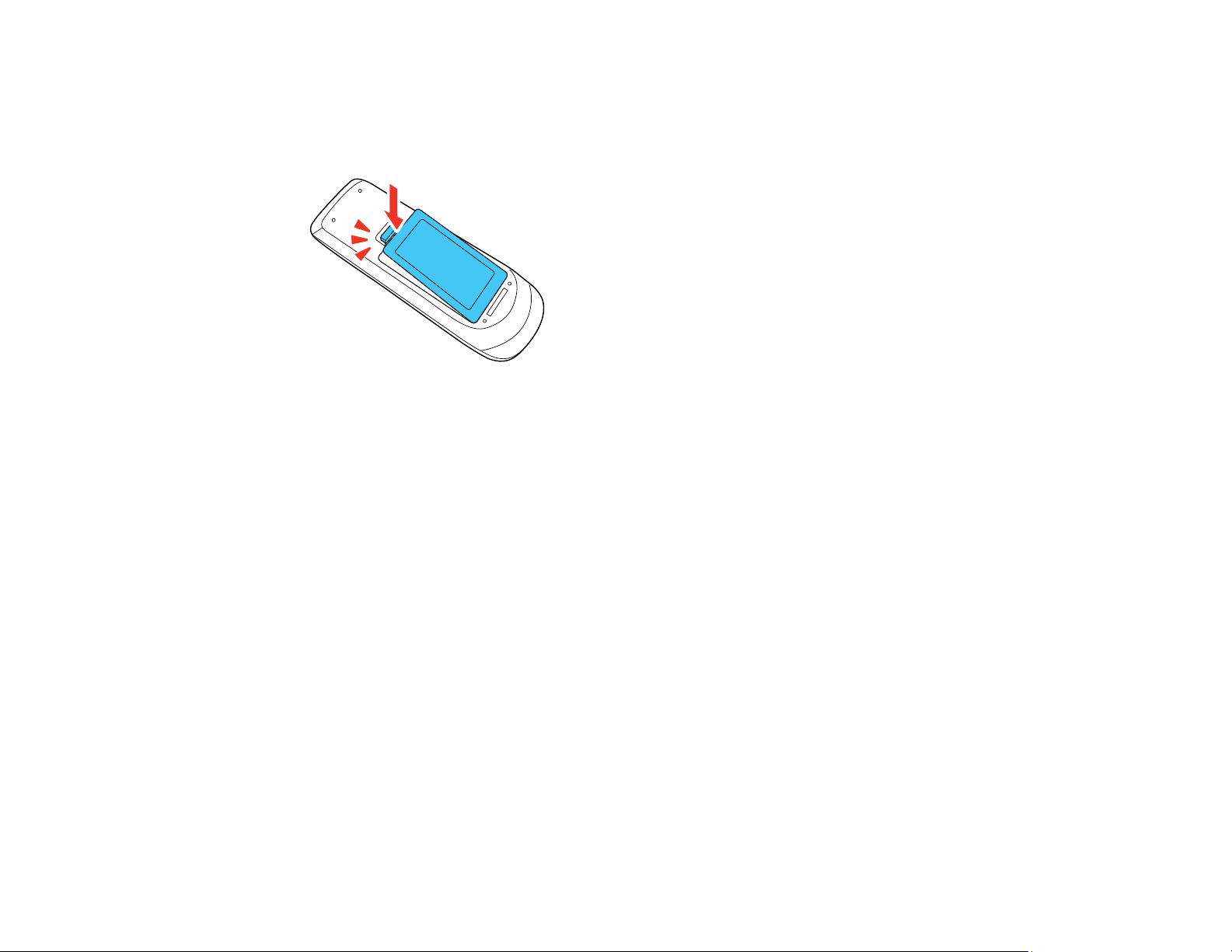

Installing Batteries in the Remote Control .......................................................................................... 42
Using the Projector on a Network ............................................................................................................ 44
Wired Network Projection................................................................................................................... 44
Connecting to a Wired Network ..................................................................................................... 45

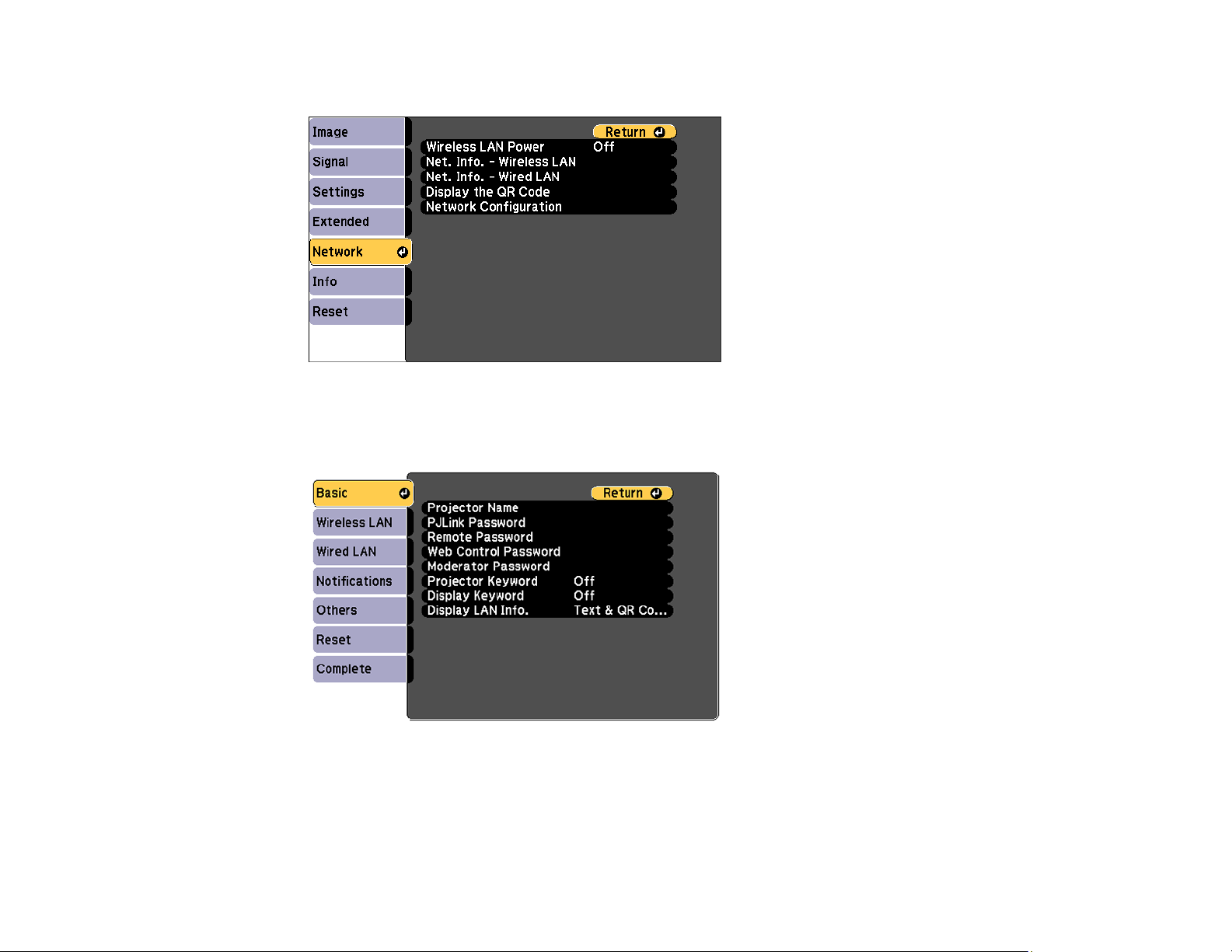

Selecting Wired Network Settings ................................................................................................. 45
Wireless Network Projection .............................................................................................................. 48

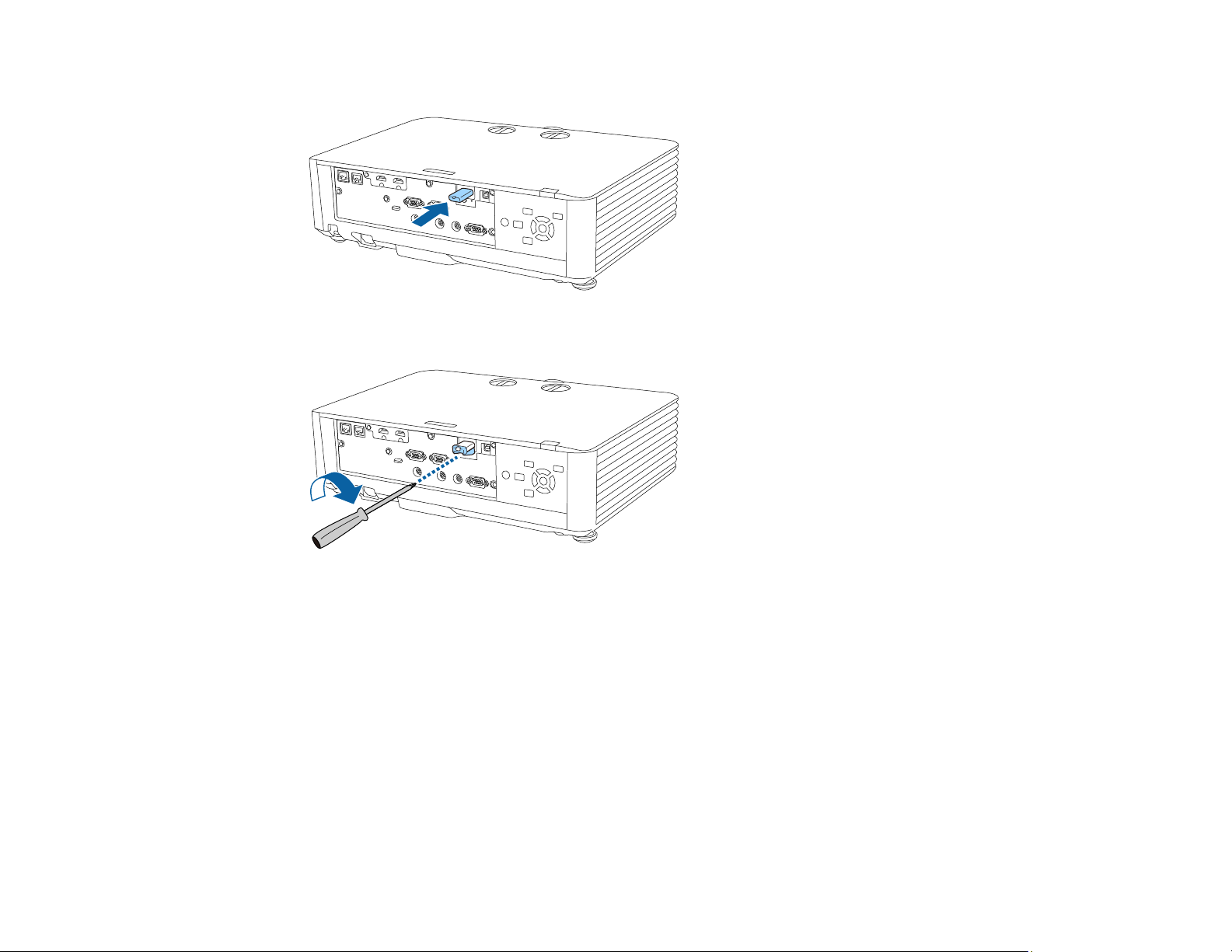

Installing the Wireless LAN Module ............................................................................................... 49
Using Quick Wireless Connection (Windows)................................................................................ 50
Selecting Wireless Network Settings Manually.............................................................................. 52

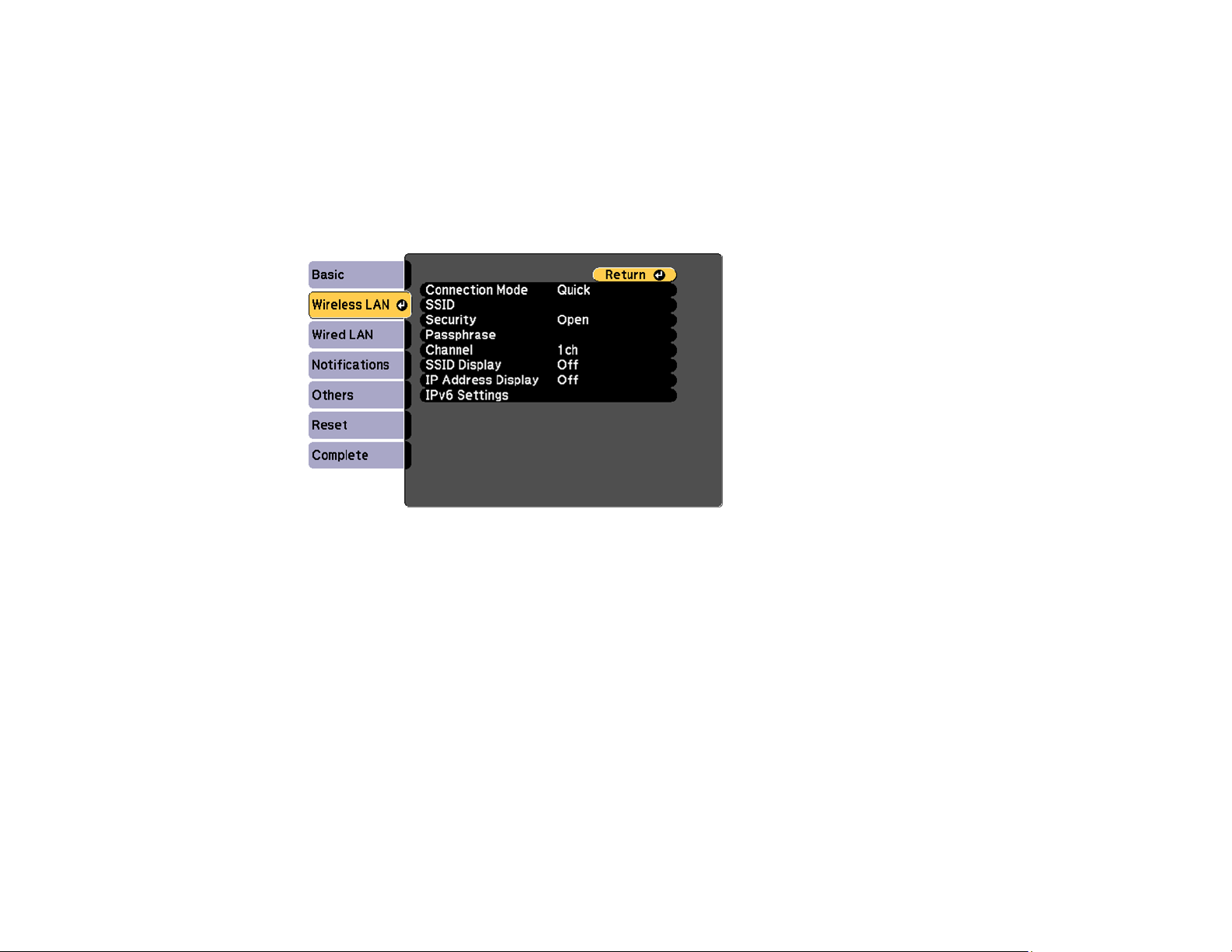

Wireless LAN Menu Settings .................................................................................................... 55
Selecting Wireless Network Settings in Windows.......................................................................... 57
Selecting Wireless Network Settings on Mac ................................................................................ 57
Setting Up Wireless Network Security ........................................................................................... 57
Using a QR Code to Connect a Mobile Device .............................................................................. 59

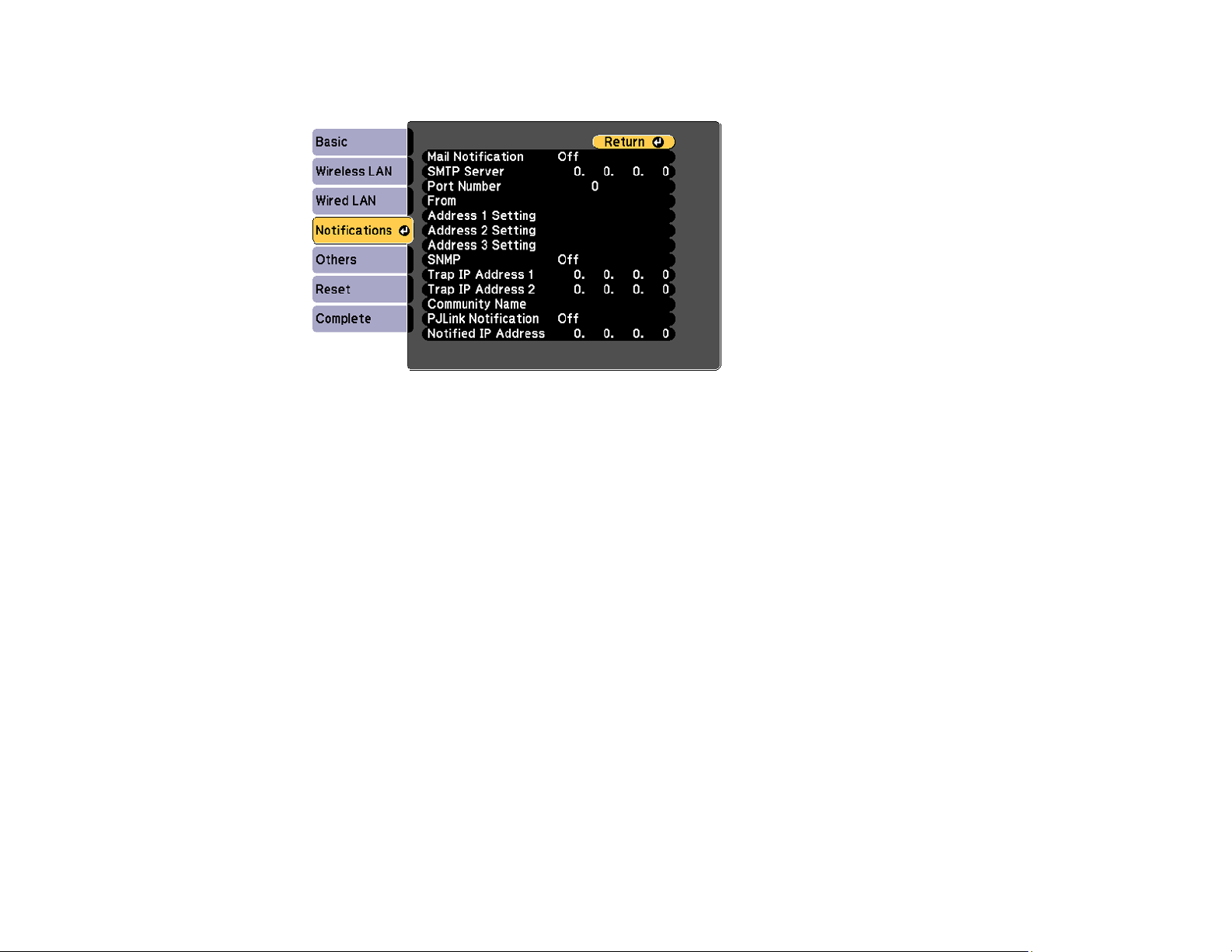

Setting Up Projector Network E-Mail Alerts ........................................................................................ 60
Network Projector E-mail Alert Messages ..................................................................................... 62
Setting Up Monitoring Using SNMP ................................................................................................... 62

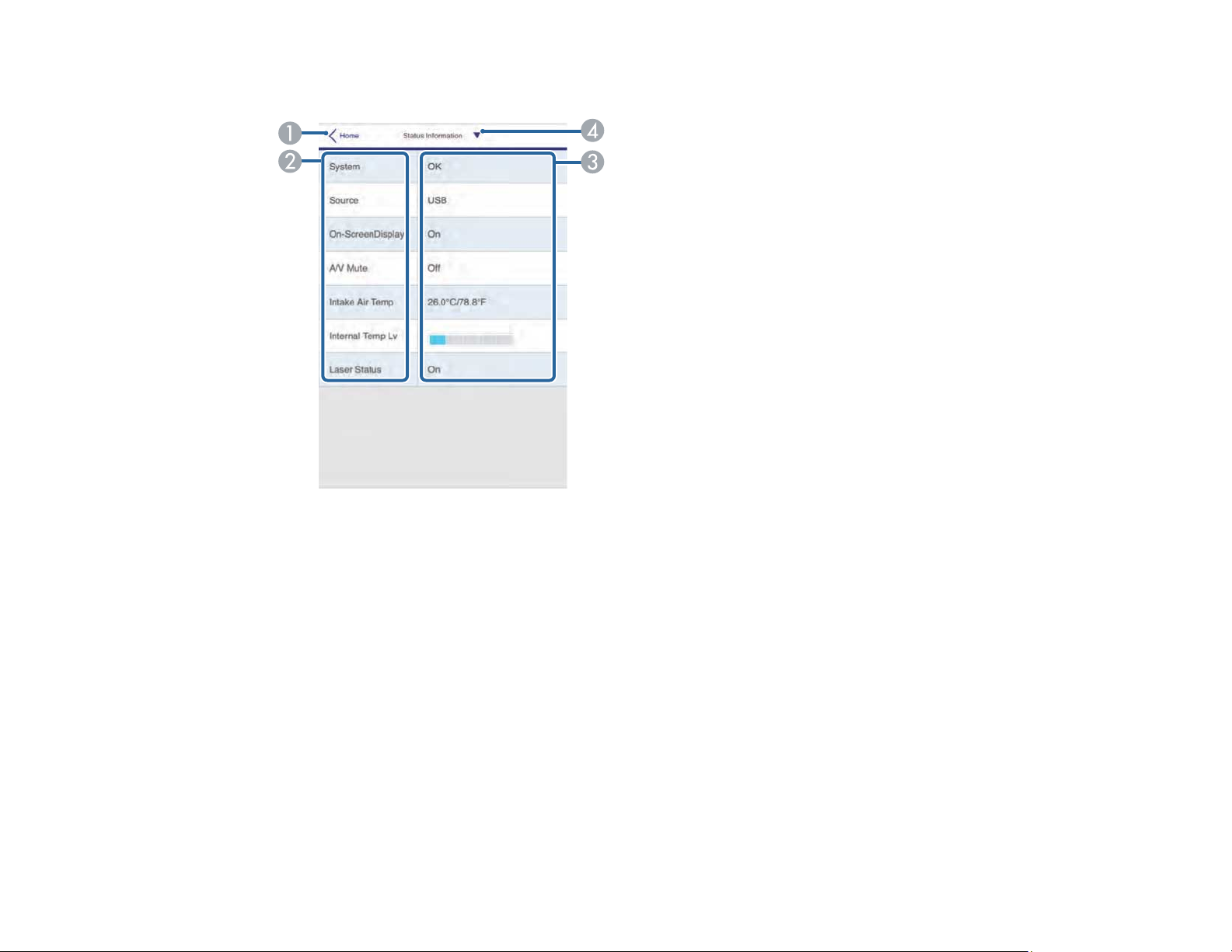

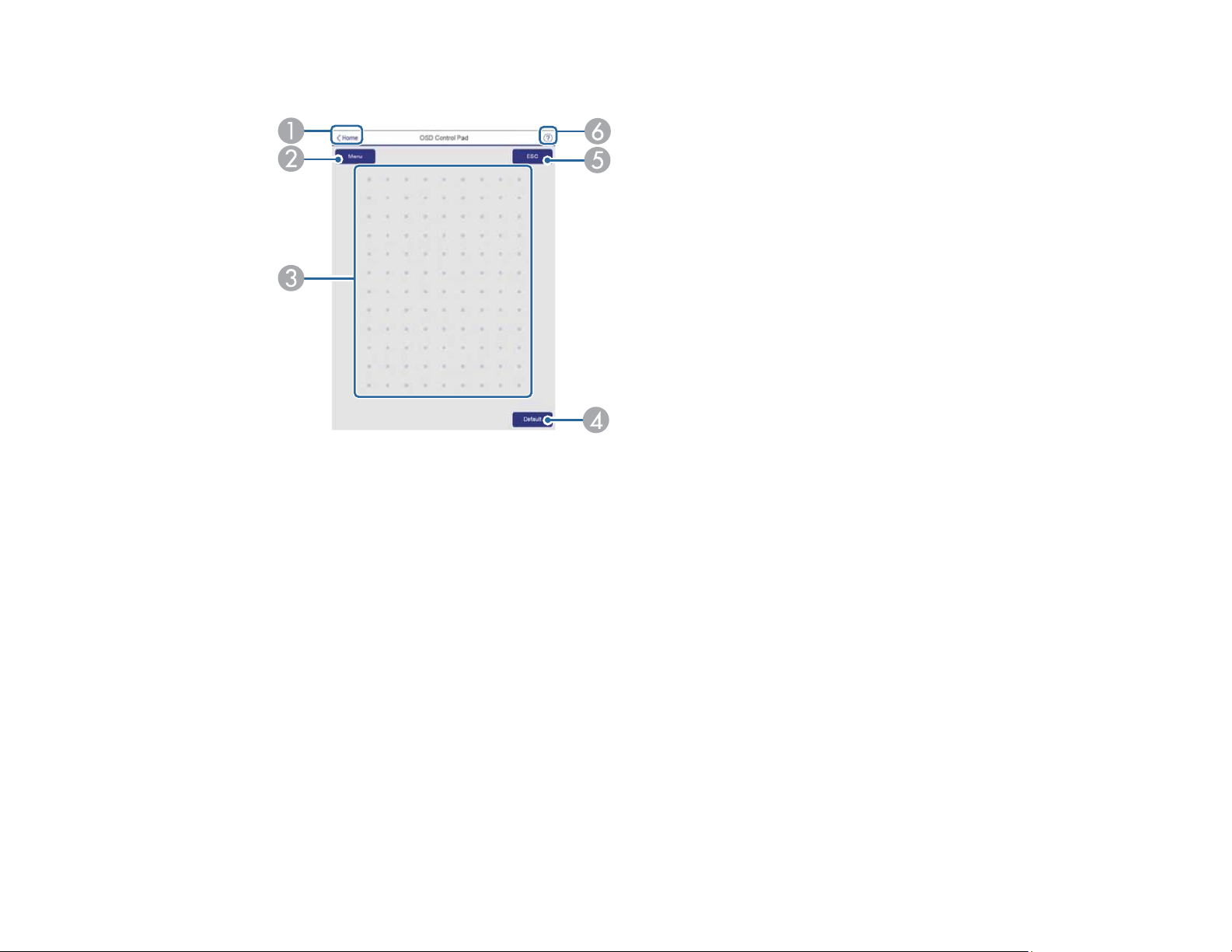

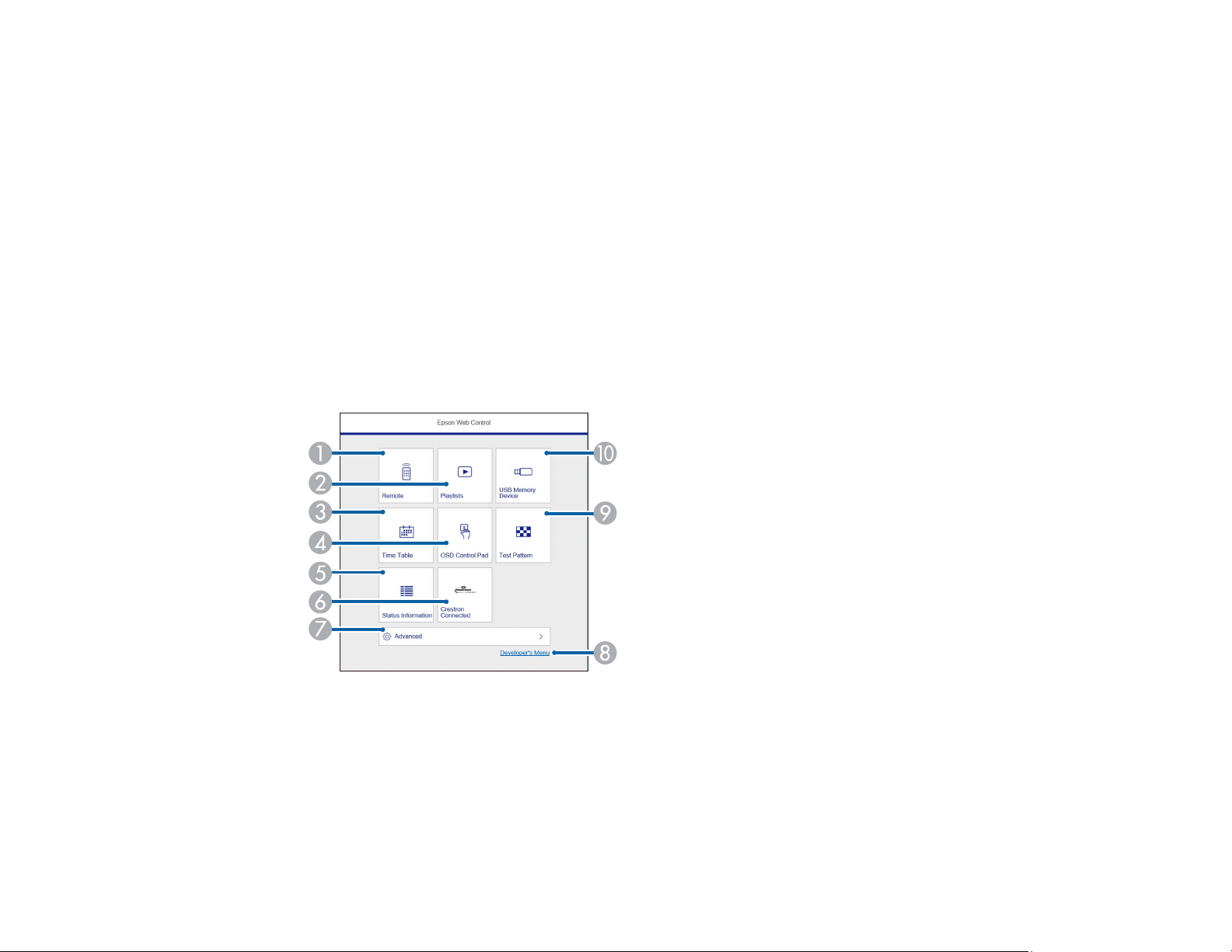

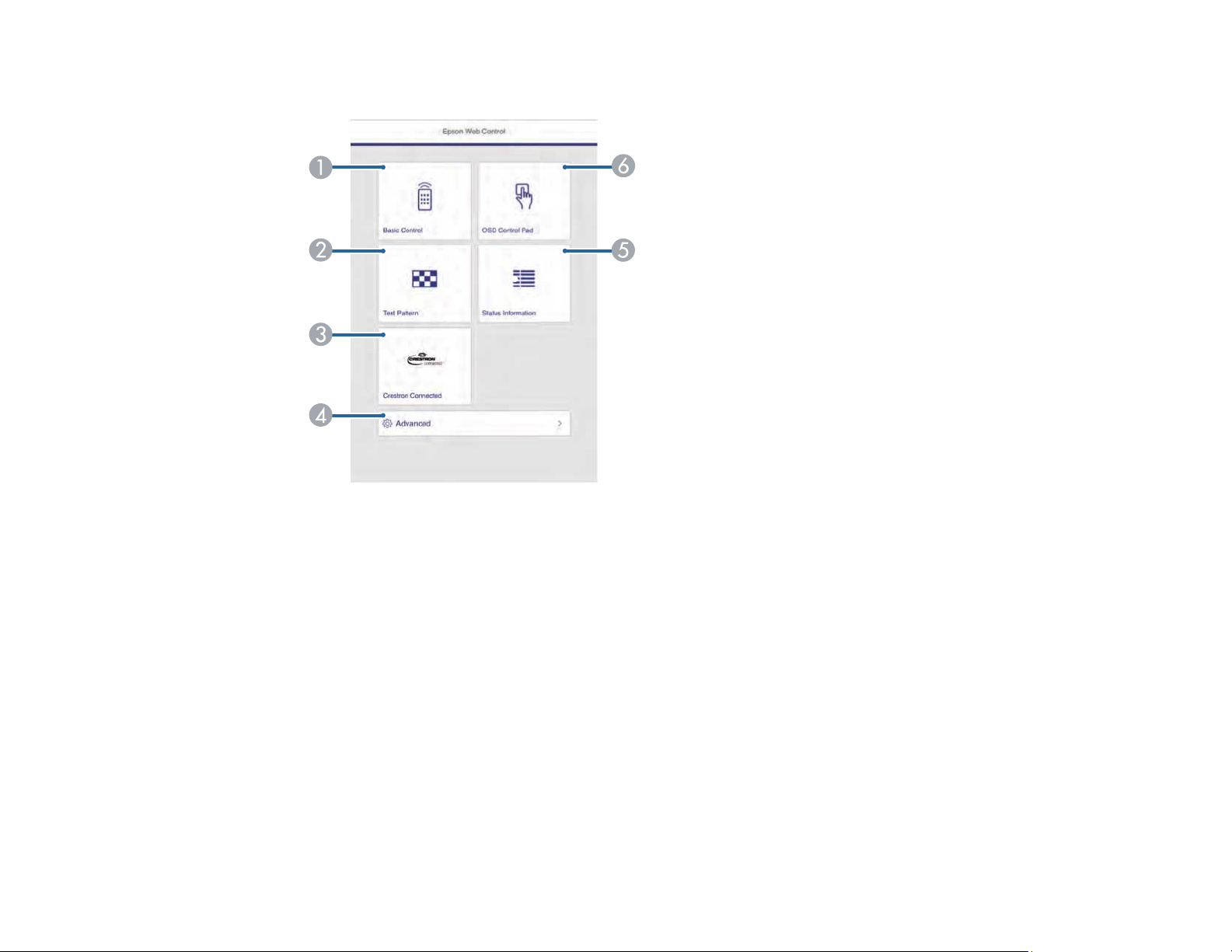

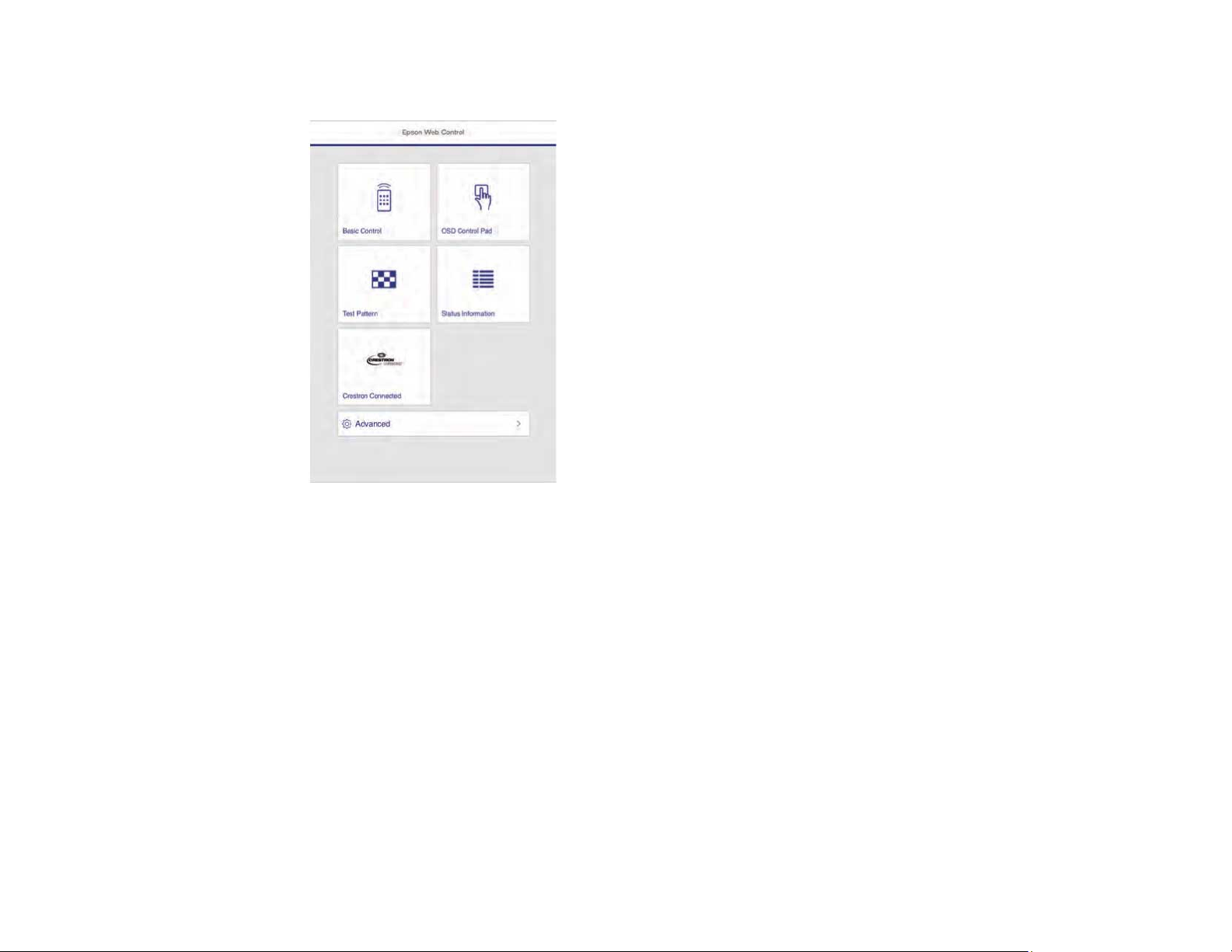

Controlling a Networked Projector Using a Web Browser .................................................................. 64

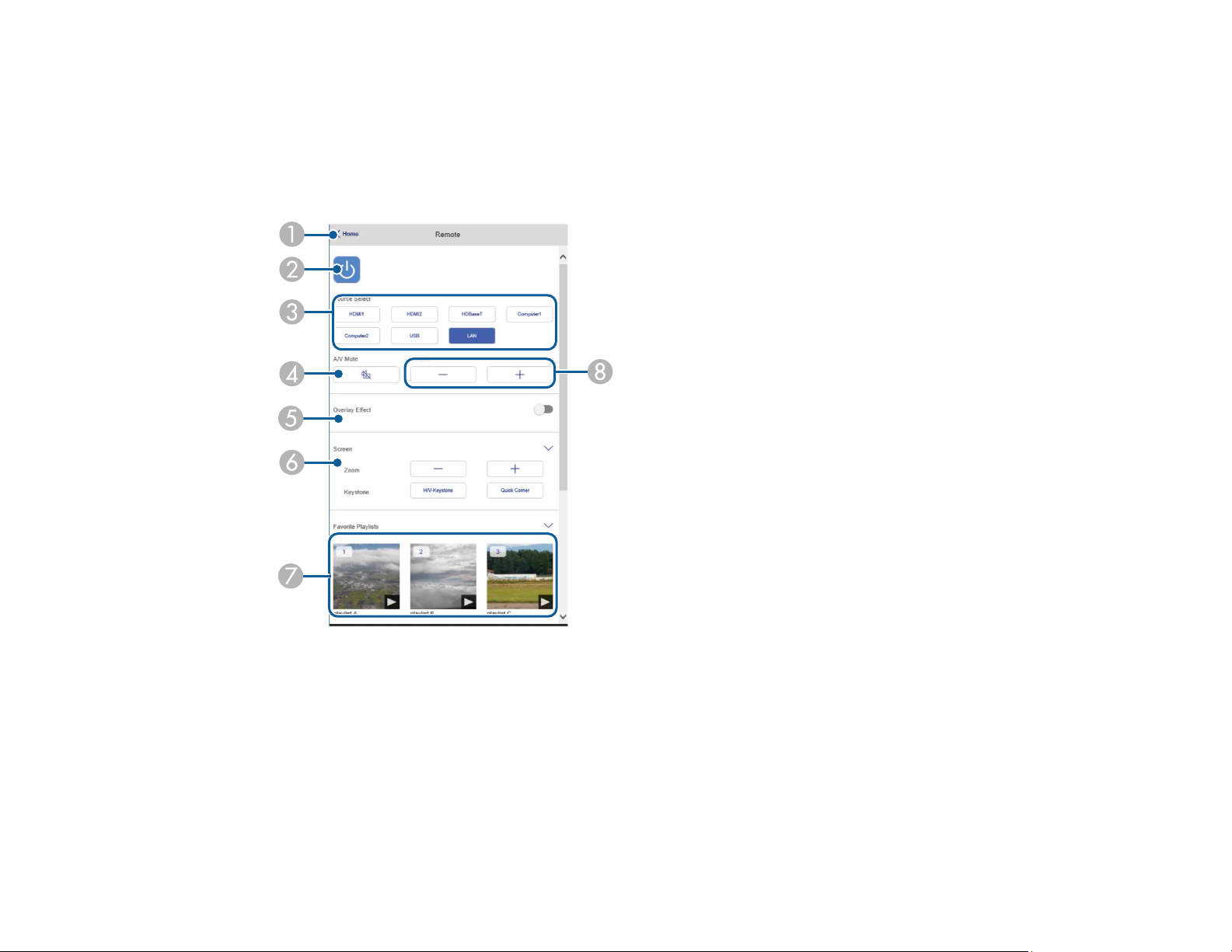

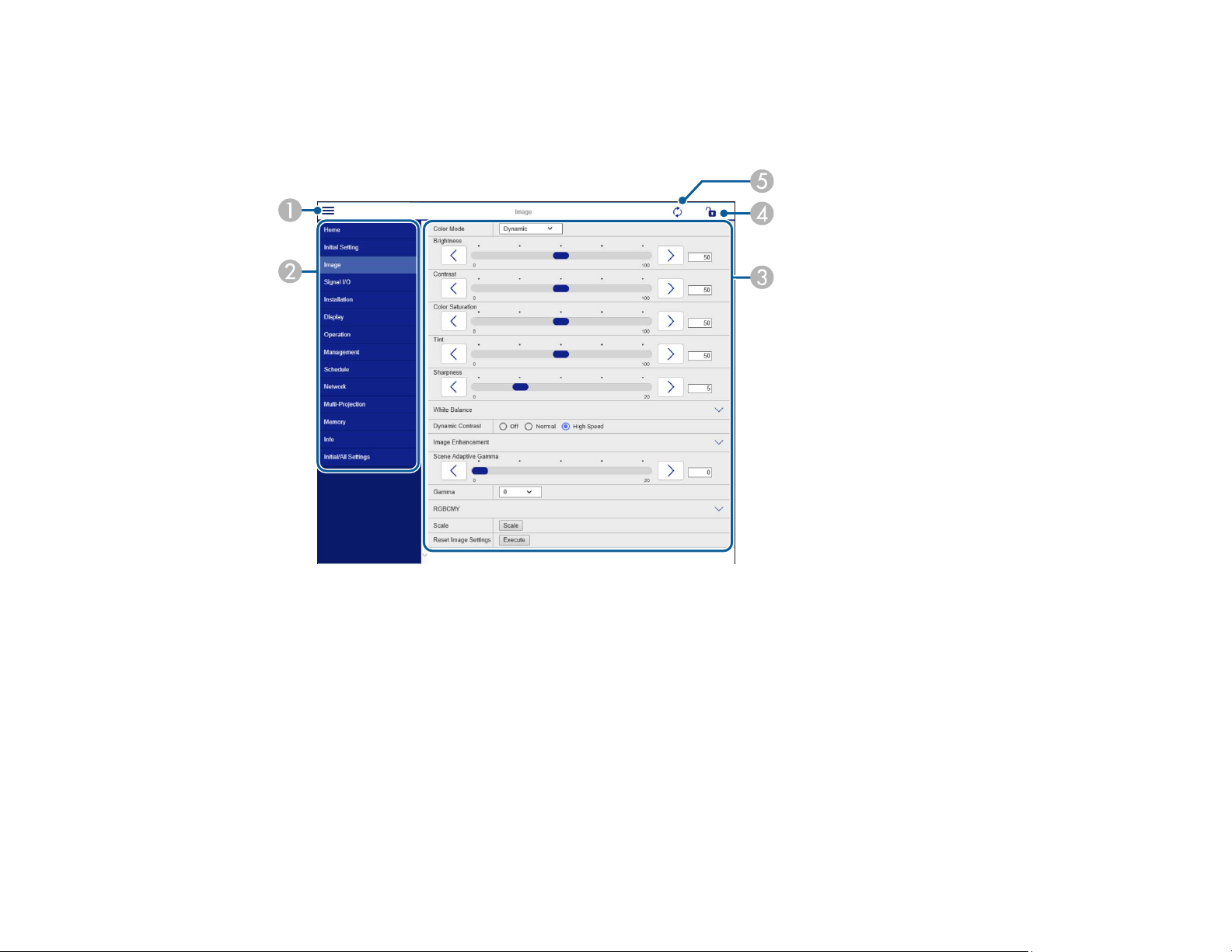

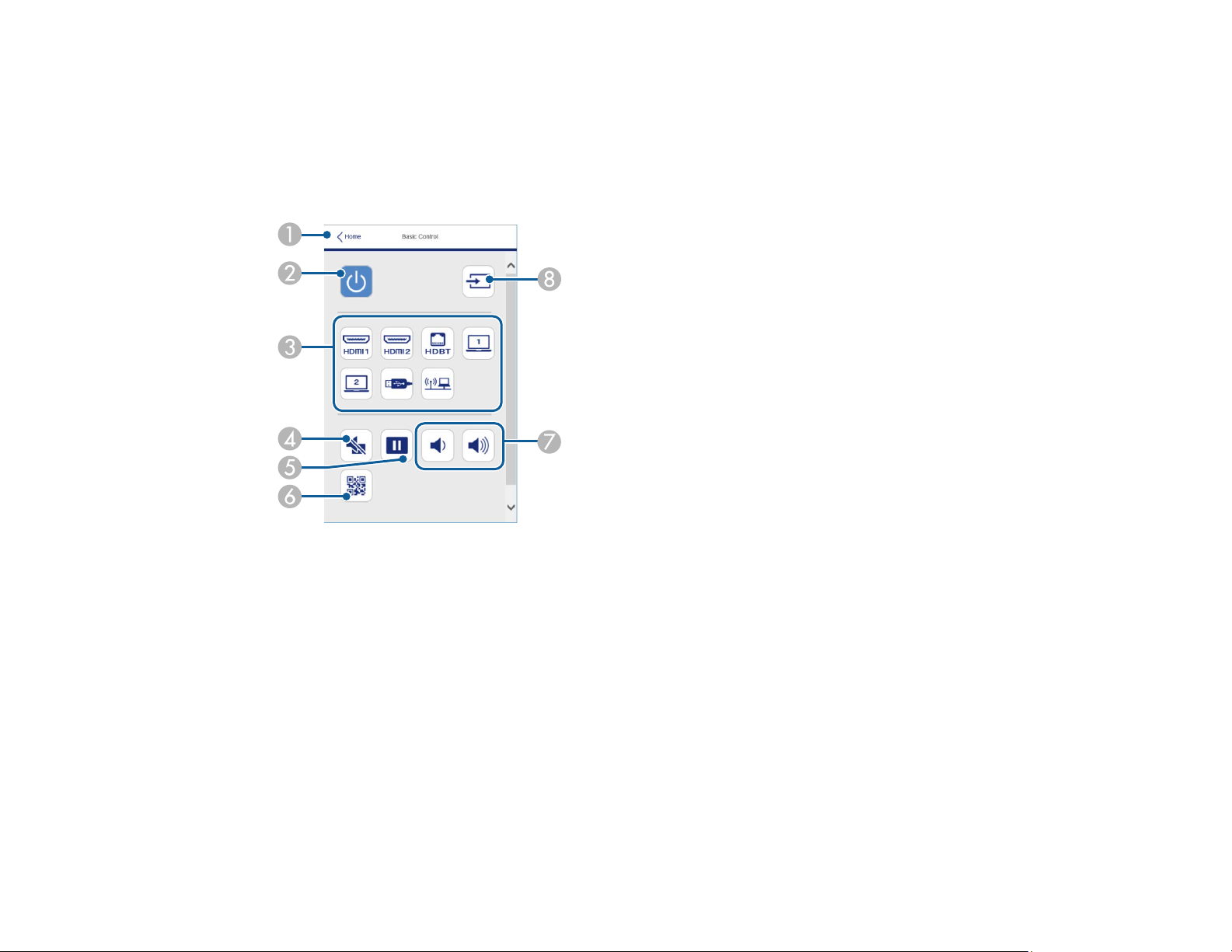

Web Control Options ..................................................................................................................... 66
Controlling a Networked Projector in Content Playback Mode ........................................................... 71
Web Control Options in Content Playback Mode........................................................................... 73
Using Crestron Connected................................................................................................................. 78
Setting Up Crestron Connected..................................................................................................... 79
Controlling a Networked Projector Using Crestron Connected...................................................... 80
Setting Up Web API ........................................................................................................................... 81
Secure HTTP ..................................................................................................................................... 82
Importing a Web Server Certificate Using the Projector Menus..................................................... 83
Registering a Digital Certificate on the Projector ................................................................................ 84
4
Page 5

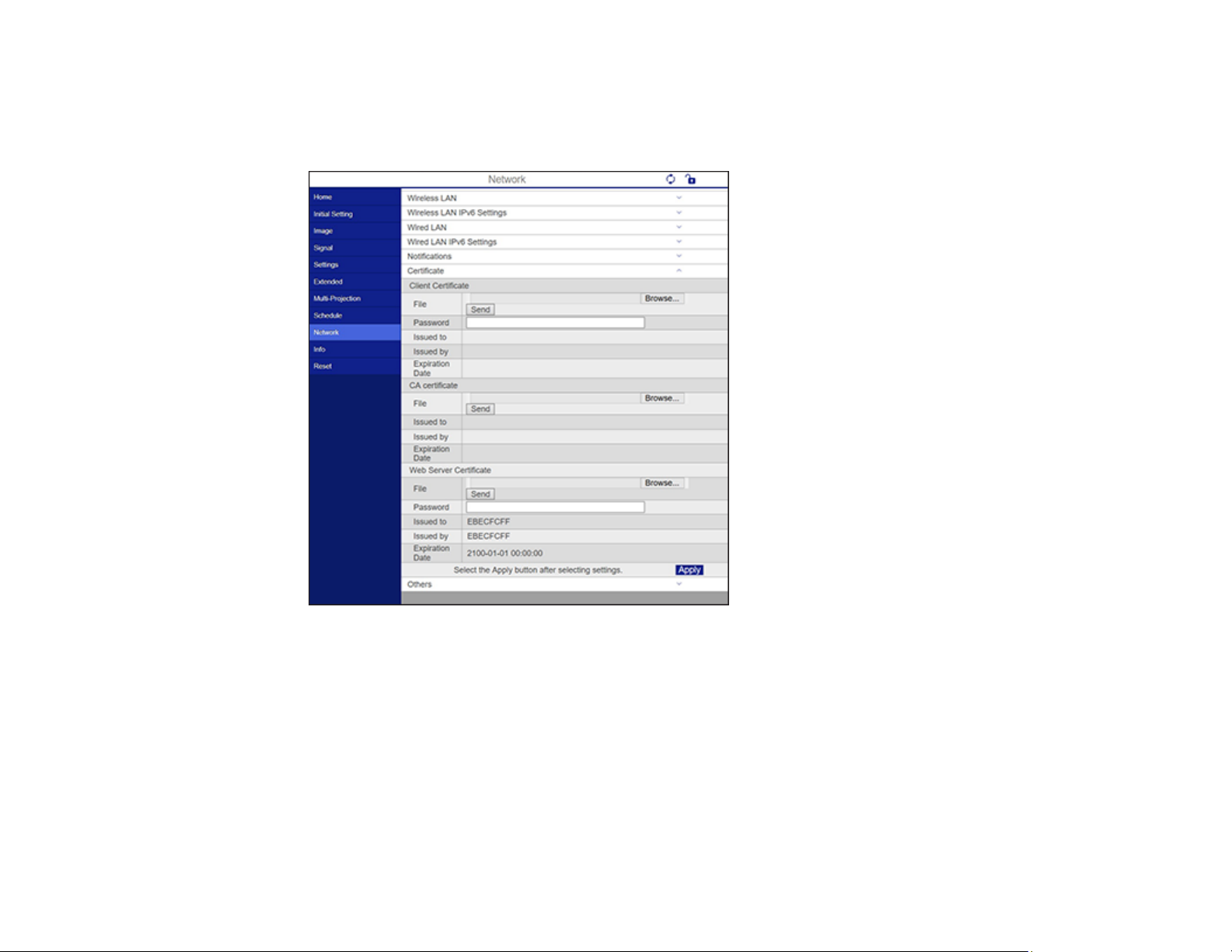

Registering Digital Certificates from a Web Browser ..................................................................... 84
Digital Certificate Types................................................................................................................. 86
Using Basic Projector Features ............................................................................................................... 88
Turning On the Projector .................................................................................................................... 88
Using the Home Screen................................................................................................................. 90
Turning Off the Projector .................................................................................................................... 92
Selecting the Language for the Projector Menus................................................................................ 93

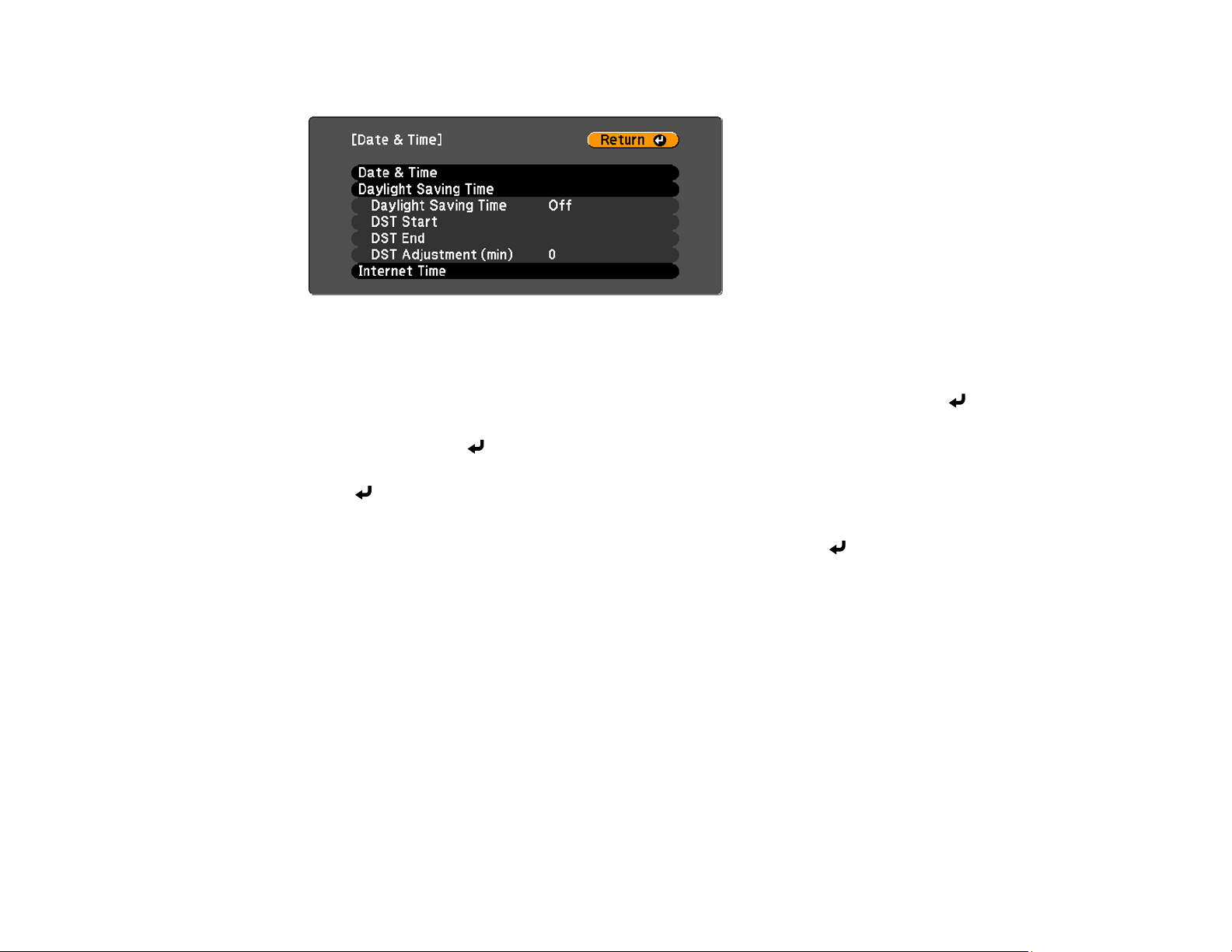

Setting the Date and Time.................................................................................................................. 94
Date and Time Settings ................................................................................................................. 96

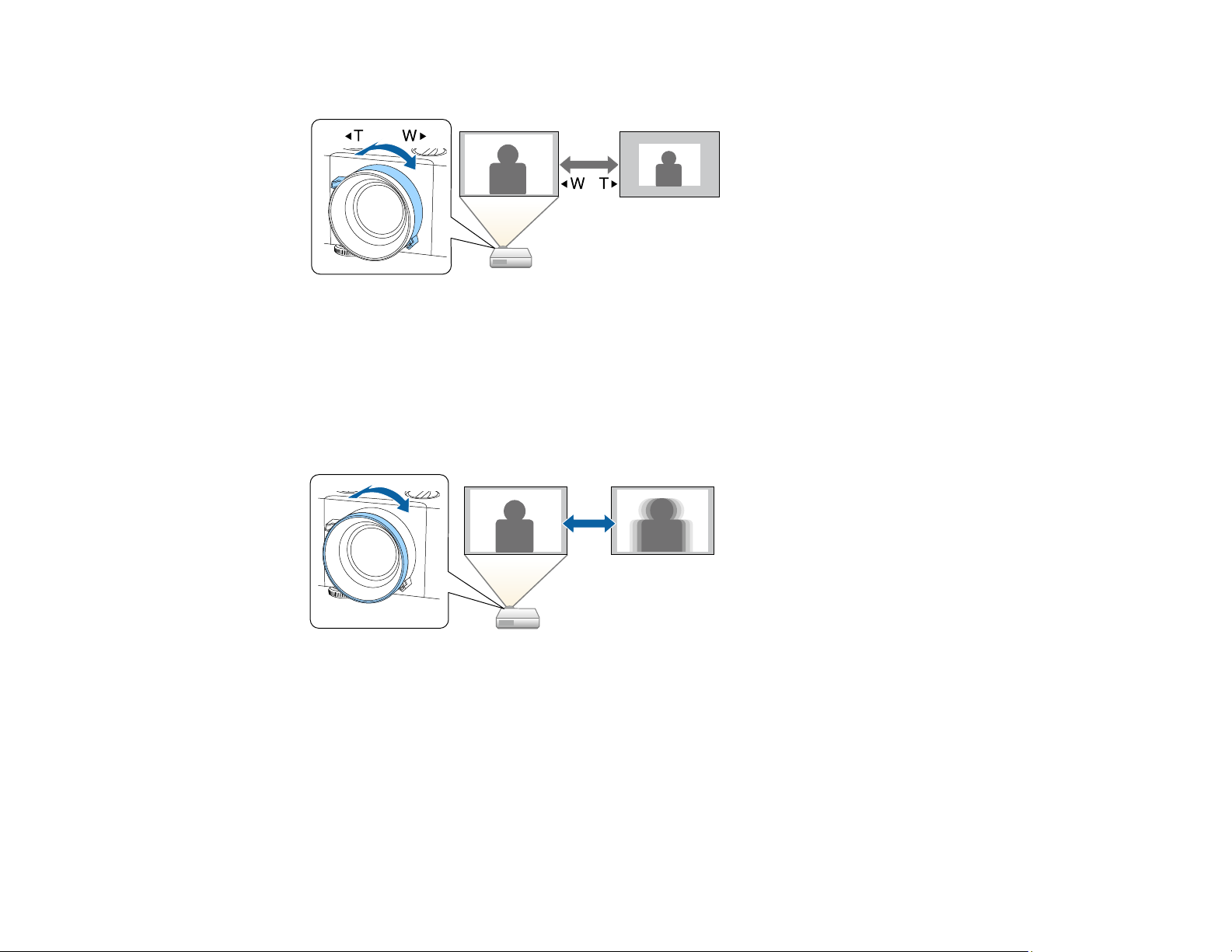

Resizing the Image with the Zoom Ring ............................................................................................. 96
Focusing the Image Using the Focus Ring......................................................................................... 97
Setting the Screen Type..................................................................................................................... 97
Adjusting the Image Position Using Screen Position.......................................................................... 98

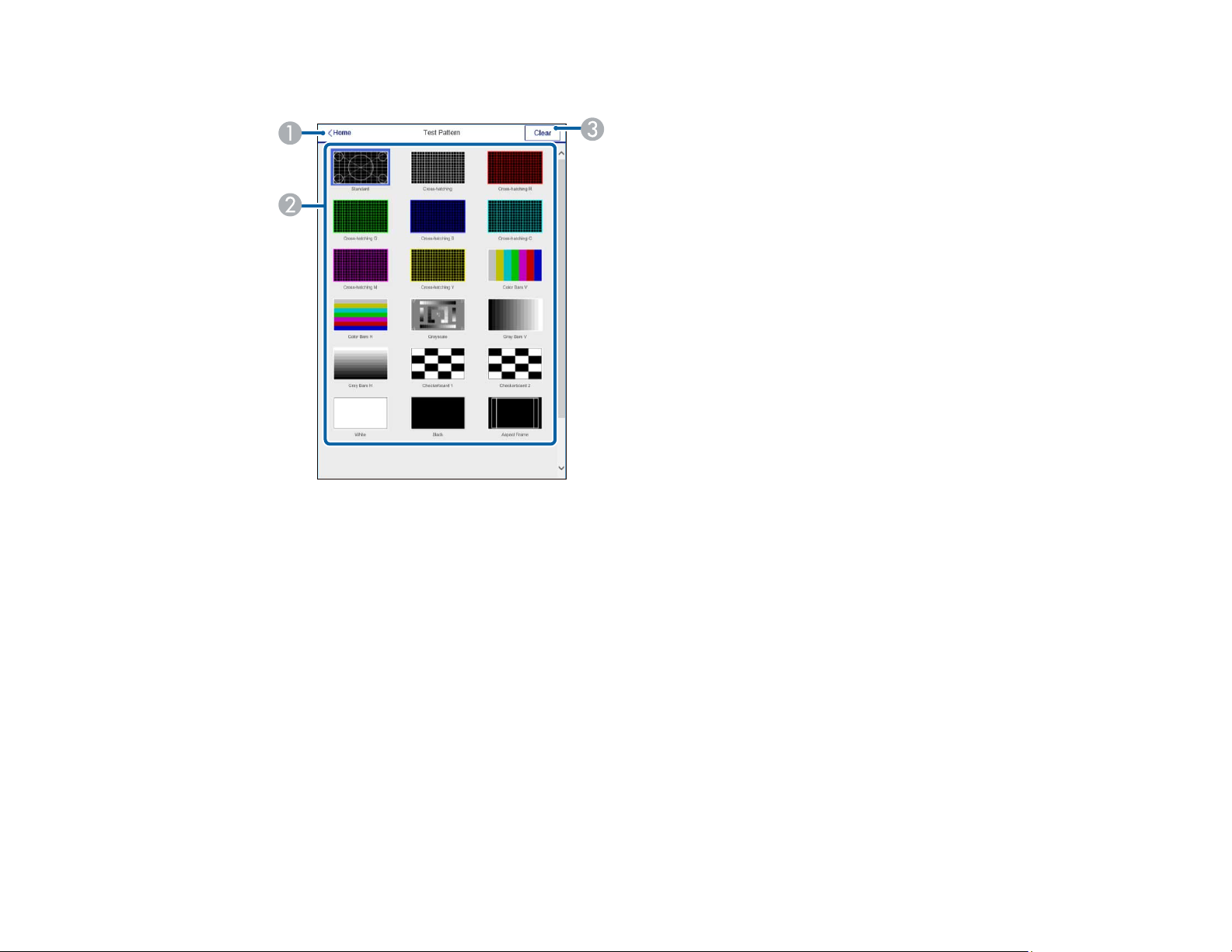

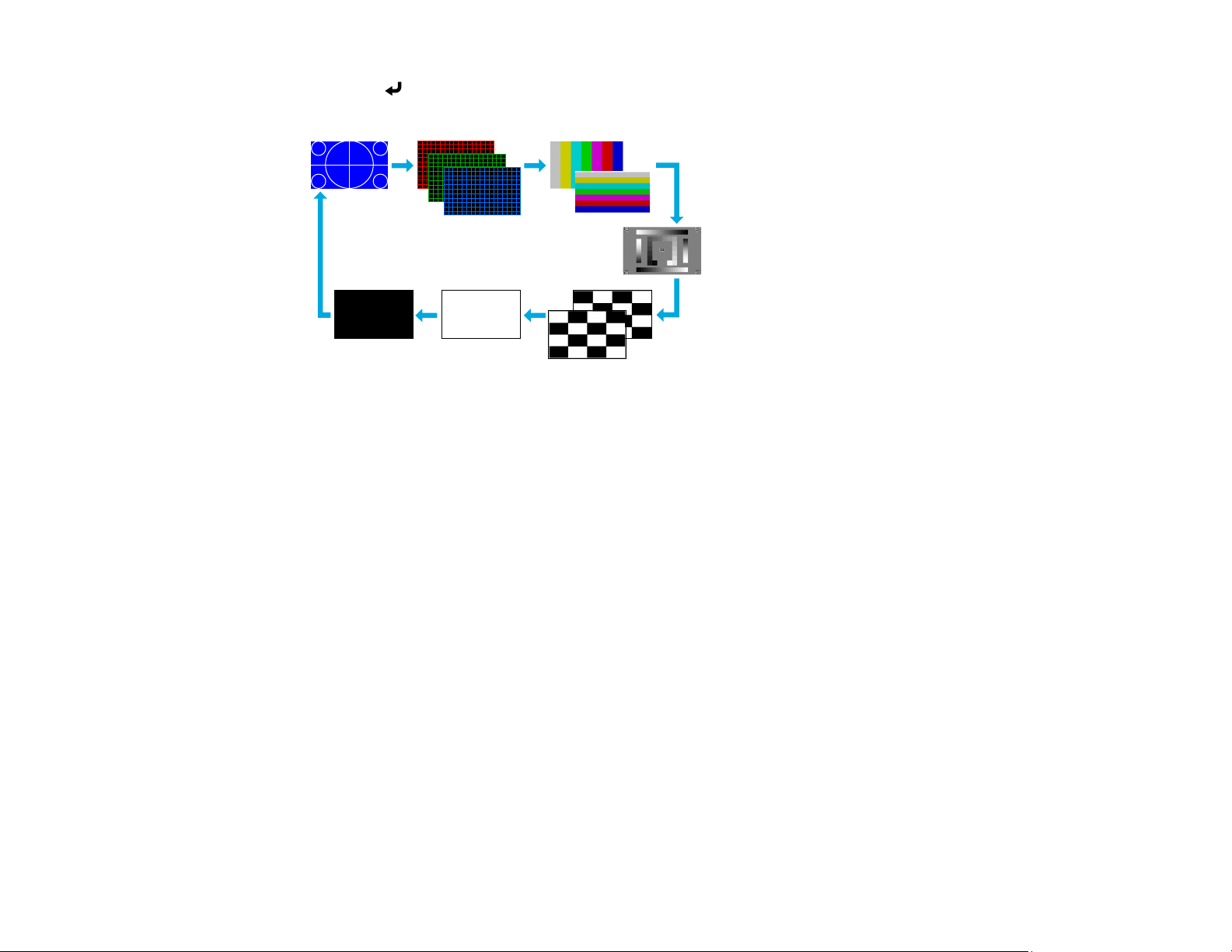

Displaying a Test Pattern ................................................................................................................... 99
Adjusting the Image Height .............................................................................................................. 100
Image Shape.................................................................................................................................... 101
Correcting Image Shape with H/V-Keystone ............................................................................... 102
Correcting Image Shape with Quick Corner ................................................................................ 104
Correcting Image Shape with Arc Correction............................................................................... 106
Selecting an Image Source .............................................................................................................. 107
Remote Control Operation ............................................................................................................... 109
Projection Modes ............................................................................................................................. 111
Changing the Projection Mode Using the Remote Control .......................................................... 111
Changing the Projection Mode Using the Menus......................................................................... 112
Image Aspect Ratio .......................................................................................................................... 112
Changing the Image Aspect Ratio ............................................................................................... 113
Available Image Aspect Ratios .................................................................................................... 114
Color Mode....................................................................................................................................... 115
Changing the Color Mode............................................................................................................ 115
Available Color Modes................................................................................................................. 116
Turning On Dynamic Contrast.......................................................................................................... 116
Adjusting the Hue, Saturation, and Brightness ................................................................................ 117
Adjusting Gamma............................................................................................................................. 119
5
Page 6
Adjusting the Brightness................................................................................................................... 120
Constant Brightness Usage Hours .............................................................................................. 122
Controlling the Volume with the Volume Buttons.............................................................................. 123
Projecting a PC Free Presentation ................................................................................................... 124
PC Free Precautions ................................................................................................................... 125
Supported PC Free File Types .................................................................................................... 125
Starting a PC Free Slideshow...................................................................................................... 126
Starting a PC Free Movie Presentation ....................................................................................... 128
PC Free Display Options ............................................................................................................. 130
Projecting in Content Playback Mode............................................................................................... 131
Switching to Content Playback Mode .......................................................................................... 131
Projecting a Playlist in Content Playback Mode........................................................................... 133

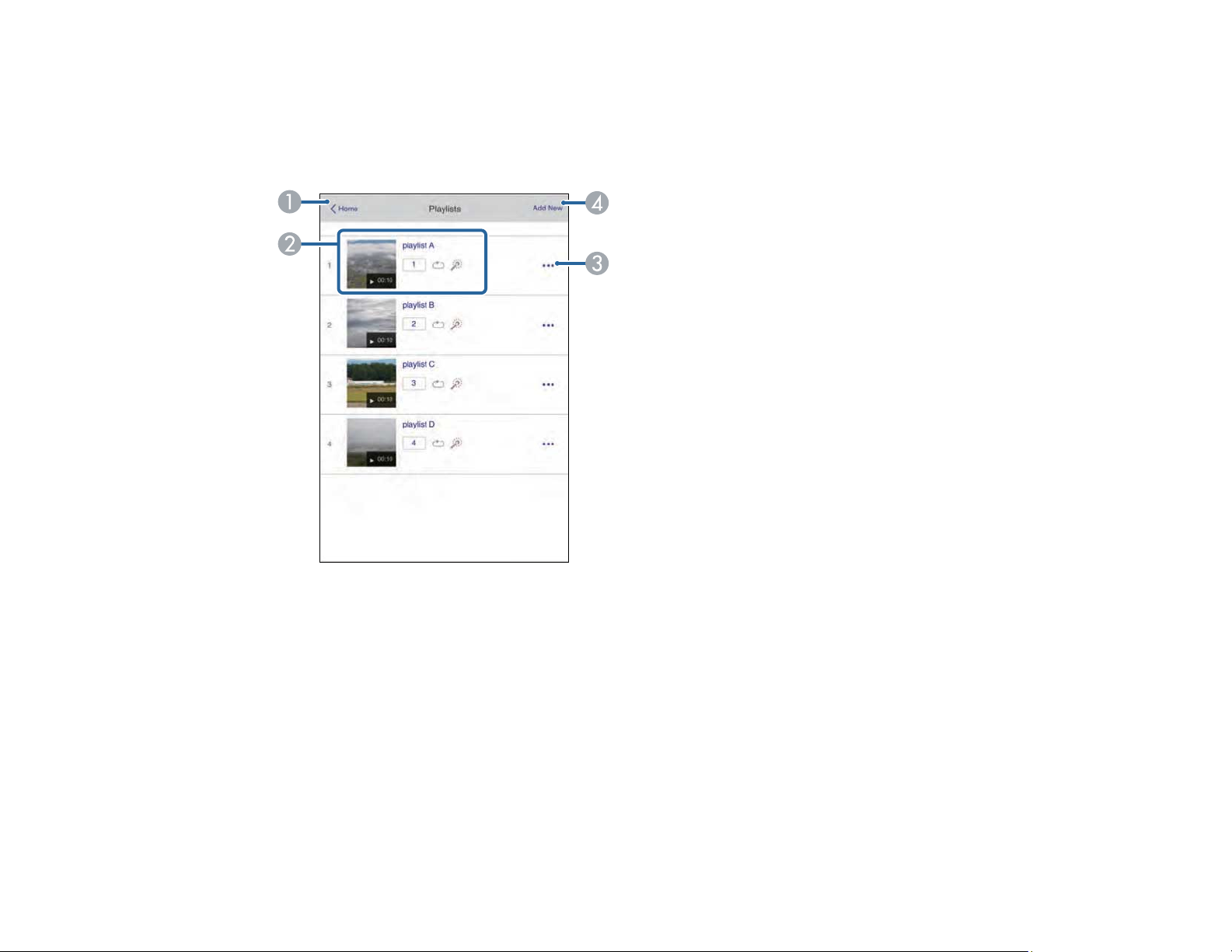

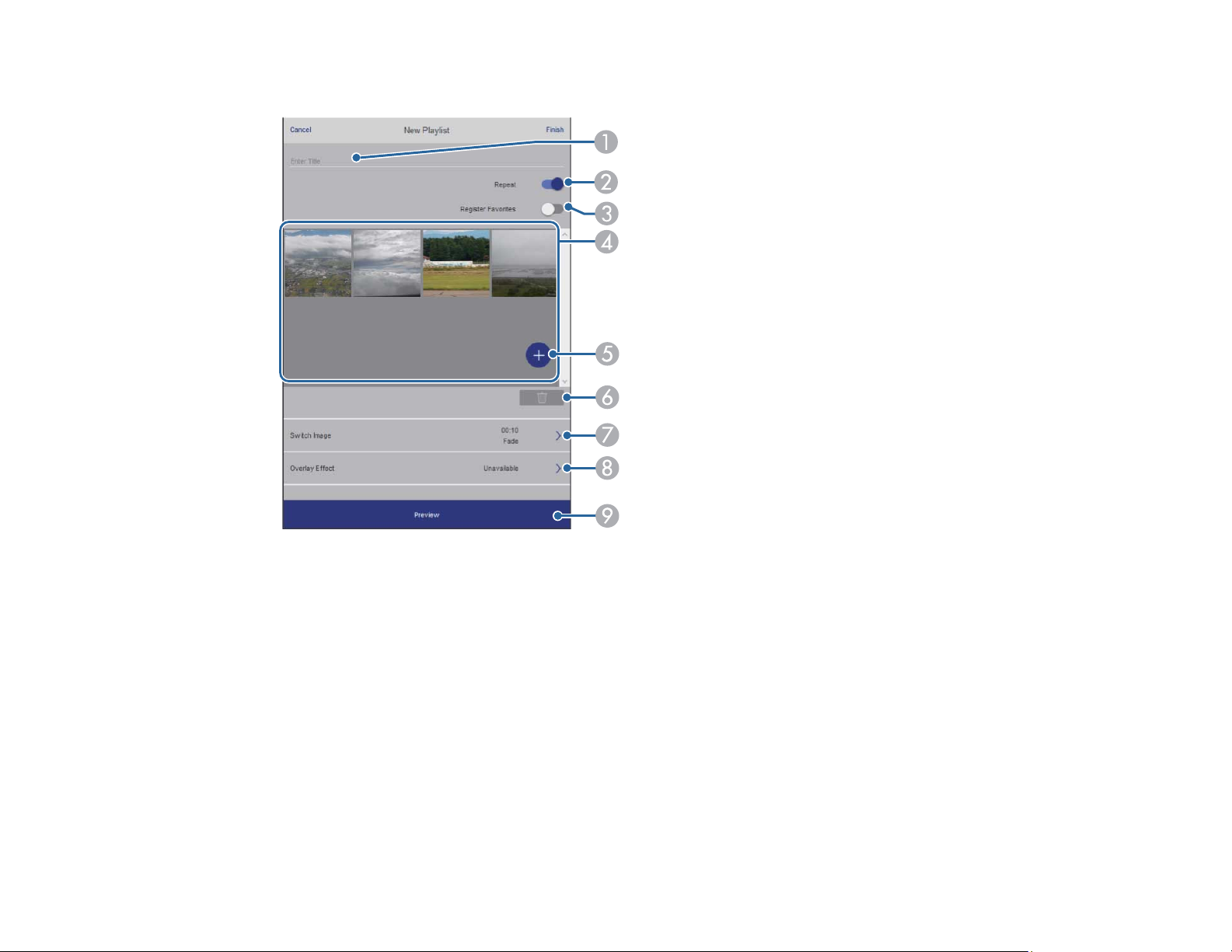

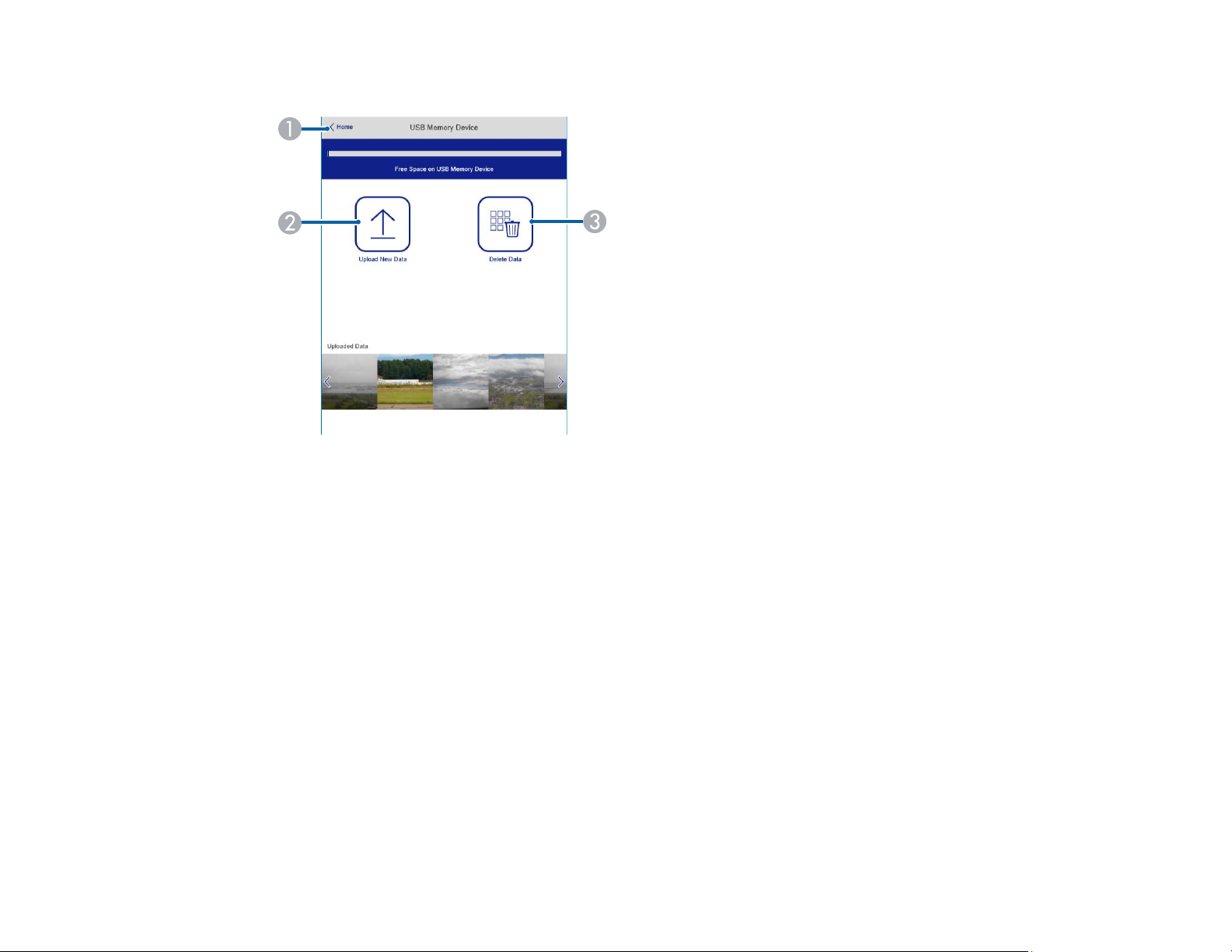

Creating a Playlist Using Epson Web Control.............................................................................. 134
Adding Effects to the Projected Image......................................................................................... 135
Adjusting Projector Features ................................................................................................................. 138
Shutting Off the Picture and Sound Temporarily .............................................................................. 138
Stopping Video Action Temporarily .................................................................................................. 139
Zooming Into and Out of Images ...................................................................................................... 139
Projector Security Features.............................................................................................................. 140
Password Security Types ............................................................................................................ 141
Setting a Password ................................................................................................................. 141
Selecting Password Security Types........................................................................................ 143
Entering a Password to Use the Projector............................................................................... 144
Saving a User's Logo Image to Display................................................................................... 145
Locking the Projector's Buttons ................................................................................................... 147
Unlocking the Projector's Buttons ........................................................................................... 148
Locking the Remote Control Buttons .......................................................................................... 148
Installing a Security Cable ........................................................................................................... 149
Projecting Two Images Simultaneously............................................................................................ 150
Using Multiple Projectors ................................................................................................................. 152
Multiple Projector Adjustment Overview ...................................................................................... 152
Projector Identification System for Multiple Projector Control ...................................................... 153
Setting the Projector ID........................................................................................................... 153
6
Page 7
Setting the Remote Control ID ................................................................................................ 154
Adjusting the Color Tone (Color Uniformity) ................................................................................ 155
Matching the Screens Manually .................................................................................................. 157
Adjusting RGBCMY .................................................................................................................... 158
Scaling an Image......................................................................................................................... 159
Running Light Source Calibration..................................................................................................... 161
Saving Settings to Memory and Using Saved Settings .................................................................... 162
Scheduling Projector Events ............................................................................................................ 163
Saving a Scheduled Event........................................................................................................... 164
Viewing Scheduled Events .......................................................................................................... 165
Editing a Scheduled Event........................................................................................................... 166
Copying Menu Settings Between Projectors .................................................................................... 167
Saving Settings to a USB Flash Drive.......................................................................................... 168
Transferring Settings from a USB Flash Drive ............................................................................. 170
Saving Settings to a Computer .................................................................................................... 171
Transferring Settings from a Computer ....................................................................................... 173
Adjusting the Menu Settings .................................................................................................................. 176
Using the Projector's Menus............................................................................................................. 176
Image Quality Settings - Image Menu .............................................................................................. 177
Input Signal Settings - Signal Menu.................................................................................................. 180
Projector Feature Settings - Settings Menu...................................................................................... 183

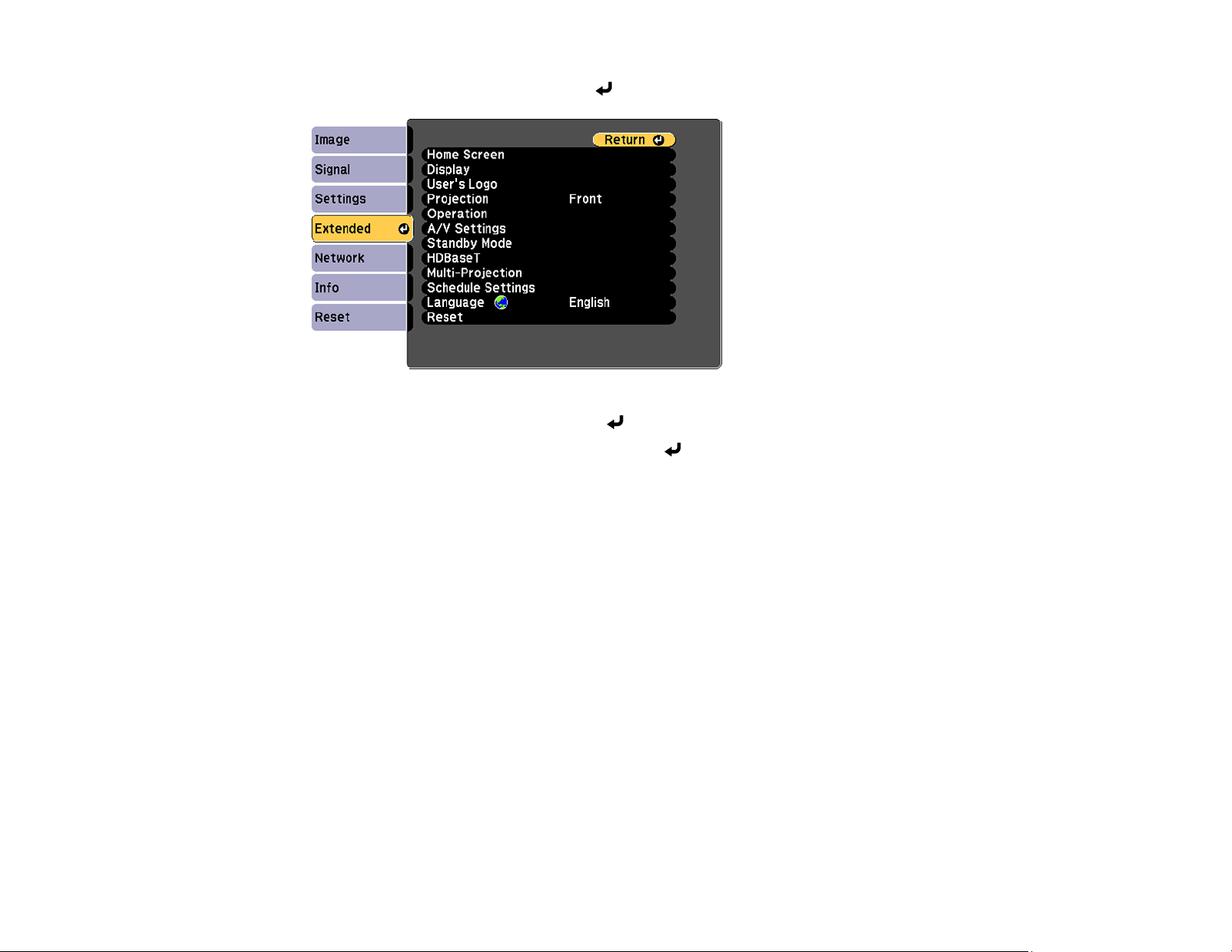

Projector Setup Settings - Extended Menu....................................................................................... 187

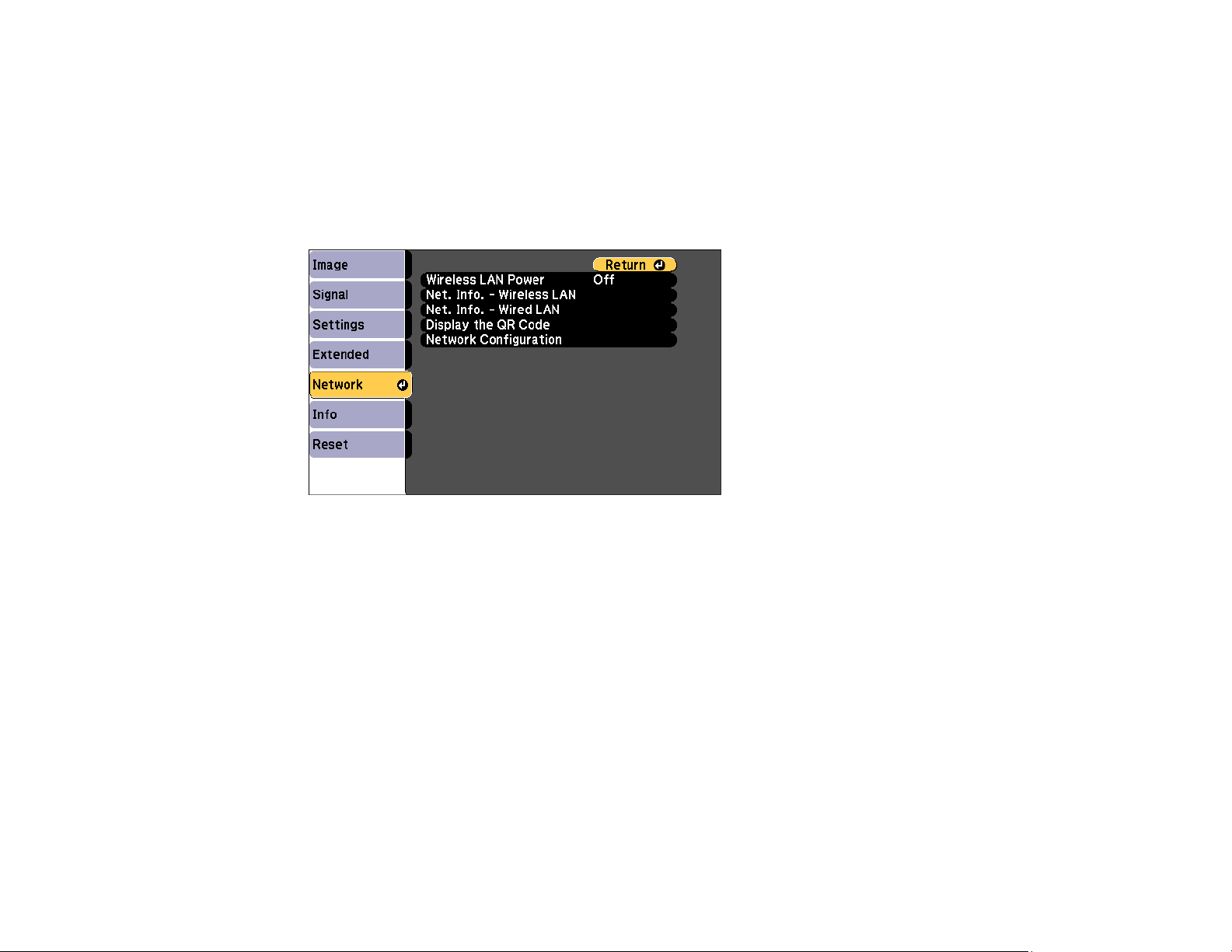

Projector Network Settings - Network Menu..................................................................................... 195
Projector Information Display - Info Menu ........................................................................................ 197
Event ID Code List....................................................................................................................... 199
Projector Reset Options - Reset Menu............................................................................................. 201
Maintaining and Transporting the Projector ......................................................................................... 204
Projector Maintenance ..................................................................................................................... 204
Cleaning the Lens........................................................................................................................ 204
Cleaning the Projector Case ........................................................................................................ 205
Air Filter and Vent Maintenance .................................................................................................. 205
Cleaning the Air Filter.............................................................................................................. 206
Replacing the Air Filter ............................................................................................................ 210
7
Page 8
Replacing the Remote Control Batteries ..................................................................................... 212
Transporting the Projector................................................................................................................ 214
Solving Problems .................................................................................................................................... 215
Projection Problem Tips ................................................................................................................... 215
Projector Light Status ....................................................................................................................... 216
Viewing Projector Status Information ............................................................................................... 220
Projector Status Display Messages ............................................................................................. 221
Using the Projector Help Displays .................................................................................................... 225
Solving Image or Sound Problems ................................................................................................... 225
Solutions When No Image Appears............................................................................................. 226
Solutions When "No Signal" Message Appears........................................................................... 227
Displaying From a PC Laptop ................................................................................................. 228
Displaying From a Mac Laptop ............................................................................................... 228
Solutions When No Image Appears on an External Monitor ........................................................ 228
Solutions When "Not Supported" Message Appears ................................................................... 229
Solutions When Only a Partial Image Appears............................................................................ 229
Solutions When the Image is Not Rectangular ............................................................................ 230
Solutions When the Image Contains Noise or Static ................................................................... 230
Solutions When the Image is Fuzzy or Blurry .............................................................................. 231
Solutions When the Image Brightness or Colors are Incorrect .................................................... 232
Solutions When an Afterimage Remains On the Projected Image............................................... 233
Solutions to Sound Problems ...................................................................................................... 233
Solutions to PC Free Problems ................................................................................................... 234
Solving Projector or Remote Control Operation Problems ............................................................... 234
Solutions to Projector Power or Shut-Off Problems..................................................................... 234
Solutions to Remote Control Problems........................................................................................ 235
Solutions to Password Problems ................................................................................................. 236
Solutions When a Battery Message Appears .............................................................................. 237
Solving Network Problems ............................................................................................................... 237
Solutions When Wireless Authentication Fails ............................................................................ 237
Solutions When You Cannot Access the Projector Through the Web ......................................... 238
Solutions When Network Alert E-Mails are Not Received............................................................ 238
Solutions When the Image Contains Static During Network Projection ....................................... 239
8
Page 9
Solutions to Problems Using Content Playback ............................................................................... 239
Solutions to HDMI Link Problems..................................................................................................... 240
Where to Get Help (U.S. and Canada) ............................................................................................. 240
Where to Get Help (Latin America)................................................................................................... 241
Technical Specifications ........................................................................................................................ 244
General Projector Specifications ...................................................................................................... 244
Projector Light Source Specifications............................................................................................... 245
Remote Control Specifications ......................................................................................................... 246
Projector Dimension Specifications.................................................................................................. 246
Projector Electrical Specifications .................................................................................................... 246
Projector Environmental Specifications............................................................................................ 247
Projector Safety and Approvals Specifications................................................................................. 248
Supported Video Display Formats.................................................................................................... 248
Notices ..................................................................................................................................................... 251
Recycling (U.S. and Canada)........................................................................................................... 251
Important Safety Information ............................................................................................................ 251
Laser Safety Information .................................................................................................................. 251
Important Safety Instructions............................................................................................................ 253
Restriction of Use ........................................................................................................................ 257
List of Safety Symbols (corresponding to IEC60950-1 A2)............................................................... 257
FCC Compliance Statement............................................................................................................. 261
Binding Arbitration and Class Waiver ............................................................................................... 262
Trademarks...................................................................................................................................... 265
Copyright Notice............................................................................................................................... 266
A Note Concerning Responsible Use of Copyrighted Materials................................................... 267
Copyright Attribution.................................................................................................................... 267
9
Page 10
Page 11
PowerLite®EB-L520W User's Guide
Welcome to the PowerLite EB-L520W User's Guide.
For a printable PDF copy of this guide, click here.
11
Page 12
Introduction to Your Projector
Refer to these sections to learn more about your projector and this manual.
Projector Features
Notations Used in the Documentation
Where to Go for Additional Information
Projector Part Locations
Projector Features
The PowerLite EB-L520W projector includes these special features:
Bright, high-resolution projection system
• Up to 5200 lumens of brightness (white light output and color light output)
Note: Color brightness (color light output) and white brightness (white light output) will vary depending
on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output
measured in accordance with ISO 21118.
• Native resolution of 1280 × 800 pixels (WXGA)
Flexible connectivity
• Wired and wireless (optional) network support for projection, monitoring, and control via remote
network computer
• Projection from iOS or Android devices with free Epson iProjection app
• Two HDMI ports for multiple high-definition input devices
• Variety of connection methods to computer or video devices including HDMI and HDBaseT
• Ports for connecting an external monitor and external speakers
Easy-to-use setup and operation features
• Epson's quick-connect on-screen QR code feature for easy wireless setup
• Project images side by side from two separate input sources
• Epson's Instant Off and Direct Power On features for quick setup and shut down
• Support for Crestron Connected network monitoring systems
12
Page 13
• Network message broadcast system to project timely messages to all networked projectors (Windows
only)
Product Box Contents
Additional Components
Additional Projector Software and Manuals
Optional Equipment and Replacement Parts (U.S. and Canada)
Optional Equipment and Replacement Parts (Latin America)
Warranty and Registration Information (U.S. and Canada)
Warranty and Registration Information (Latin America)
Parent topic: Introduction to Your Projector
Related concepts
Projector Connections
Related tasks
Using a QR Code to Connect a Mobile Device
Projecting Two Images Simultaneously

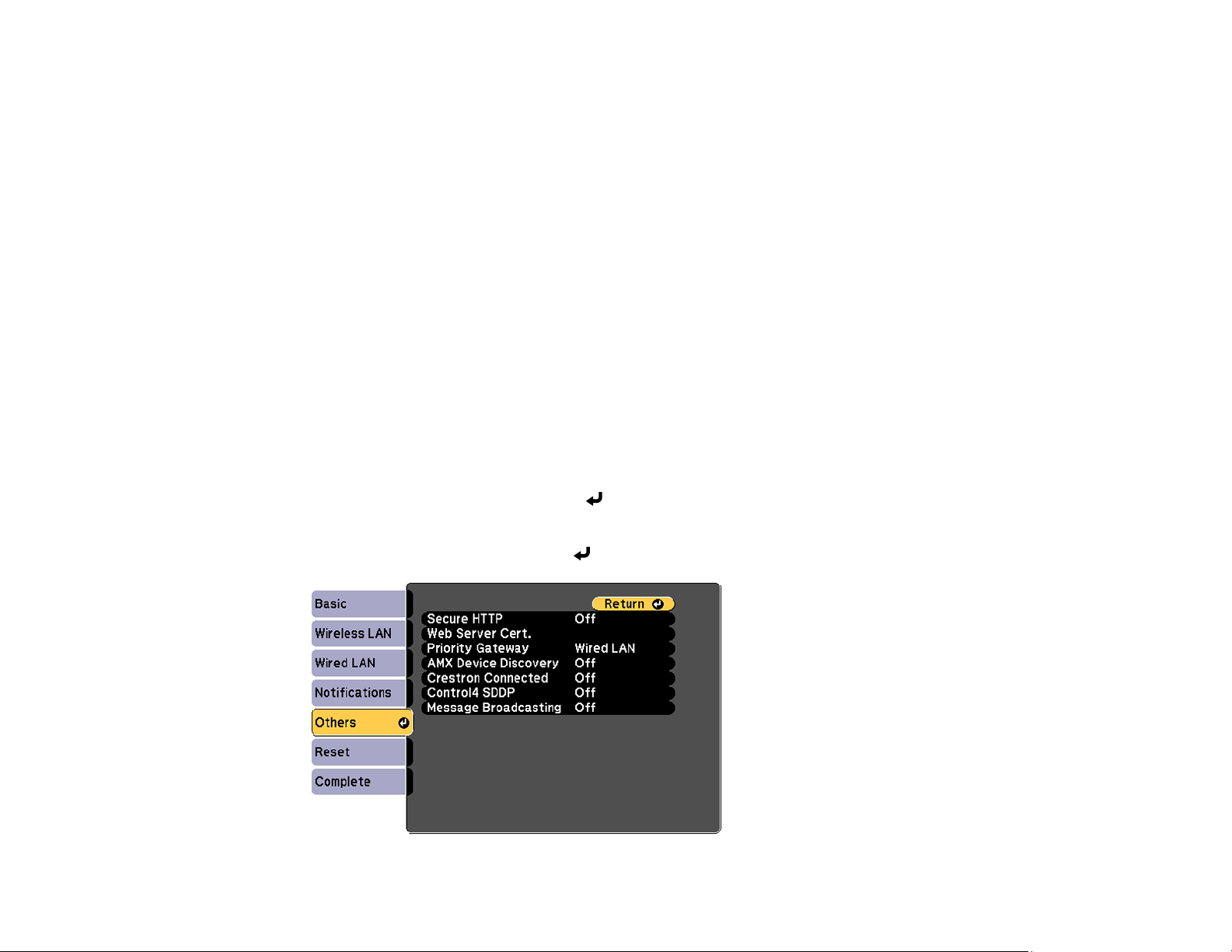

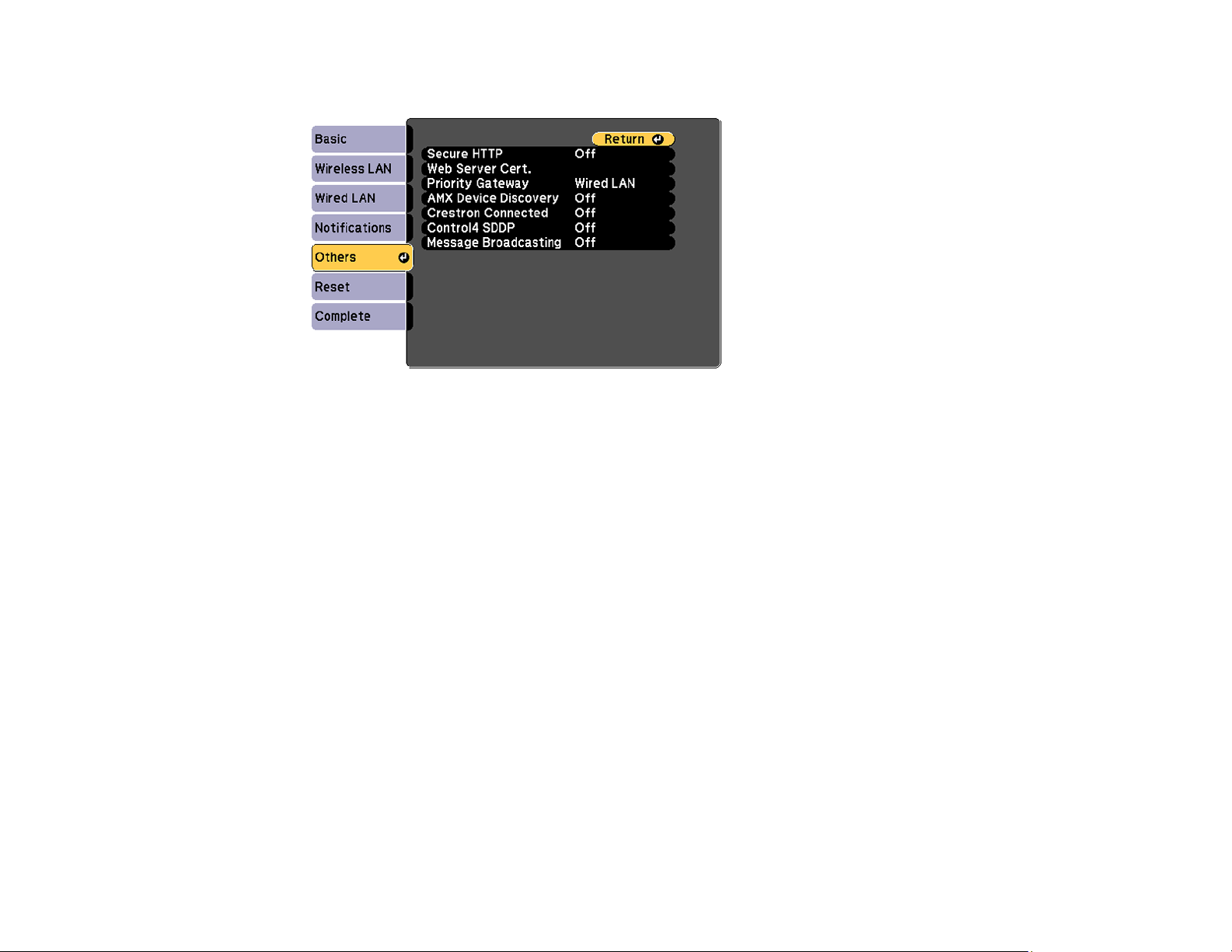

Setting Up Crestron Connected
Product Box Contents
Save all the packaging in case you need to ship the projector. Always use the original packaging (or
equivalent) when shipping.
Make sure your projector box included all of these parts:
13
Page 14

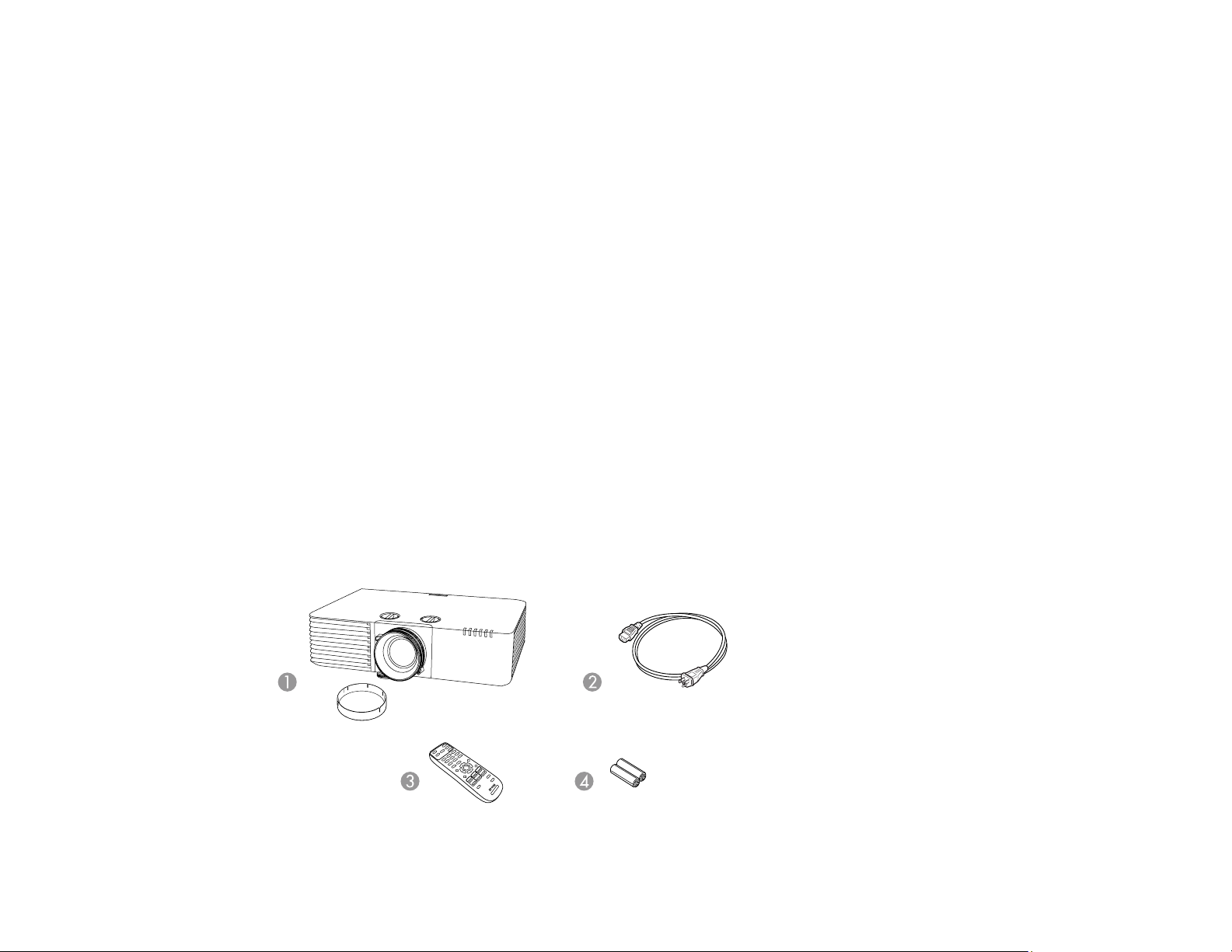

1 Projector with lens cap
2 Power cord
3 Remote control
4 Remote control batteries (two AA alkaline)
Parent topic: Projector Features
Additional Components
Depending on how you plan to use the projector, you may need to obtain additional components.
Note: To connect a Mac that does not include a compatible video output port, you need to obtain an
adapter that allows you to connect to an input port on the projector. Contact Apple for compatible
adapter options. To connect a smartphone or tablet, you may need to obtain an adapter that allows you
to connect to the projector. This allows you to mirror your smartphone or tablet screens, watch movies,
and more. Contact your device manufacturer for compatible adapter options.
Unless listed as available from Epson in this table, see your local computer or electronics dealer for
purchase information.
Signal or connection
type
Component video D-sub, 15-pin, component-to-VGA video cable or adapter
HDMI Compatible HDMI cable
Audio from certain ports Commercially available audio cable compatible with your device
VGA To connect a computer through its VGA port to the projector's VGA video
USB Compatible USB cable
HDBaseT Compatible 100Base-TX LAN cable
Additional component necessary
Available for purchase from Epson or an authorized Epson reseller.
Available for purchase from Epson or an authorized Epson reseller.
Note: Older Mac computers (2009 and earlier) may not support HDMI
audio.
port, you need a VGA computer cable.
14
Page 15
Parent topic: Projector Features
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Additional Projector Software and Manuals
After connecting and setting up the projector, install the projector software as necessary. You may need
to install it from a software CD, if included, or download the software and manuals as necessary.
You can install the projector software programs listed here and view their manuals for instructions on
using them.
Note: If you still need help after checking this manual and the sources listed here, you can use the
Epson PrivateLine Support service to get help fast (U.S. and Canada only). For details, see "Where to
Get Help."
Projector software Manual Description
Epson Projector
Management (Windows
only)
Epson iProjection
(Windows/Mac)
Epson iProjection app Instructions are included
— Open Source Software
Epson Projector
Management Operation
Guide
Epson iProjection
Operation Guide
(Windows/Mac)
with the app
License
15
Lets you monitor and control your projector
through the network.
You can download the latest software and
documentation from the Epson web site.
Lets you project the computer screens of
users over a network.
You can download the latest software and
documentation from the Epson web site.
Lets you project from an iOS device, Android
device, or Chromebook if your projector is
connected to a network that includes a
wireless access point.
Visit epson.com/support (U.S.),
epson.ca/support (Canada), or
latin.epson.com/support (Caribbean) for more
information.
You can download this document from the
Epson web site.
Page 16
Projector software Manual Description
Epson Projector Content
Manager
Epson Creative Projection
(iOS only)
Note: Epson iProjection is not recommended for use with streaming video.
Parent topic: Projector Features
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
Epson Projector Content
Manager Operation Guide
Instructions are included
with the app (instructions
included with the app
available only in English)
You can download the latest software and
documentation from the Epson web site. Go to
epson.com/support (U.S.), epson.ca/support
(Canada), or latin.epson.com/support
(Caribbean) and select your projector.
Lets you create custom content using built-in
templates and stamps, and wirelessly transfer
it to the projector if it is connected to a network
that includes a wireless access point.
You can download the latest software and
documentation from the Apple App Store.
Optional Equipment and Replacement Parts (U.S. and Canada)
You can purchase screens, other optional accessories, and replacement parts from an Epson authorized
reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in
Canada. Or you can purchase online at epsonstore.com (U.S. sales) or epsonstore.ca (Canadian sales).
Epson offers the following optional accessories and replacement parts for your projector:
Option or part Part number
Replacement air filter (ELPAF56) V13H134A56
Wireless LAN module (ELPAP11) V12H731P02
HDBaseT transmitter (ELPHD01) V12H547020
Safety wire (ELPWR01) V12H003W01
External speakers (ELPSP02) V12H467020
Epson DC-07 document camera (ELPDC07) V12H759020
16
Page 17
Option or part Part number
Epson DC-13 document camera (ELPDC13) V12H757020
Epson DC-21 document camera (ELPDC21) V12H758020
Universal mount (ELPMBPJG) V12H808001
Custom Micro-Adjustable Projector Mount (ELPMBPRH) V12H809001
In addition to the accessories listed above, 1-year and 2-year extended service plans are available.
Parent topic: Projector Features
Related references
Where to Get Help (U.S. and Canada)
Optional Equipment and Replacement Parts (Latin America)
You can purchase optional accessories and replacement parts from an Epson authorized reseller. To
find the nearest reseller, go to Or you can contact your nearest sales office as described in "Where to
Get Help".
Note: Availability of accessories varies by country.
Epson offers the following optional accessories and replacement parts for your projector:
Option or part Part number
Replacement air filter (ELPAF56) V13H134A56
Wireless LAN module (ELPAP11) V12H731P02
HDBaseT transmitter (ELPHD01) V12H547020
Safety wire (ELPWR01) V12H003W01
Parent topic: Projector Features
Related references
Where to Get Help (Latin America)
Warranty and Registration Information (U.S. and Canada)
Your projector comes with a basic warranty that lets you project with confidence. For details, see the
warranty brochure that came with your projector.
17
Page 18
Register your product online at this site: epson.com/webreg
Registering also lets you receive special updates on new accessories, products, and services.
Parent topic: Projector Features
Warranty and Registration Information (Latin America)
Your projector comes with a basic warranty that lets you project with confidence. For details, see the
warranty that came with your projector.
Register your product online at latin.epson.com/support, search for your product, and select Register.
Registering also lets you receive special updates on new accessories, products, and services.
Parent topic: Projector Features
Notations Used in the Documentation
Follow the guidelines in these notations as you read your documentation:
• Warnings must be followed carefully to avoid bodily injury.
• Cautions must be observed to avoid damage to your equipment.
• Notes contain important information about your projector.
• Tips contain additional projection information.
Parent topic: Introduction to Your Projector
Where to Go for Additional Information
Need quick help on using your projector? Here's where to look for help:
• epson.com/support (U.S.), epson.ca/support (Canada), or latin.epson.com/support (Caribbean)
View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24
hours a day.
• If you still need help after checking this manual and any other sources listed here, you can use the
Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help."
Parent topic: Introduction to Your Projector
Related references
Where to Get Help (U.S. and Canada)
Where to Get Help (Latin America)
18
Page 19
Projector Part Locations
Check the projector part illustrations to learn about the parts on your projector.
Projector Parts - Front/Top
Projector Parts - Rear
Projector Parts - Interface Ports
Projector Parts - Base
Projector Parts - Control Panel
Projector Parts - Remote Control
Parent topic: Introduction to Your Projector
Projector Parts - Front/Top
1 Air intake vent
2 Front adjustable foot
3 Focus ring
4 Zoom ring
5 Projection lens
19
Page 20
6 Air intake vent (air filter)
7 Status lights
8 Remote receiver
9 Speaker
10 Air exhaust vent
11 Remote receiver
Parent topic: Projector Part Locations
Related references
Projector Light Status
Projector Parts - Rear
1 Kensington security slot
2 AC inlet
3 Interface ports
4 Control panel
5 Remote receiver
Parent topic: Projector Part Locations
20
Page 21
Projector Parts - Interface Ports
1 Computer1 port
2 Audio1 port
3 Audio2 port
4 Audio Out port
5 RS-232C port
6 Computer2/Monitor Out port
7 Service port
8 USB-A port
9 Wireless LAN module cover screw
10 HDMI2 port
11 HDMI1 port
12 HDBaseT port
13 Network LAN port
14 Cable holder
Parent topic: Projector Part Locations
21
Page 22
Projector Parts - Base
1 Front adjustable foot
2 Ceiling mount attachment points (4)
3 Safety wire carabiner attachment point
4 Rear feet
5 Security cable attachment point
Note: Do not attach the optional safety wire to this point.
6 Air filter cover screws (2)
7 VESA-compliant mount attachment points (4)
Parent topic: Projector Part Locations
22
Page 23
Projector Parts - Control Panel
1 Power button (turns on the projector)
2 Source Search button (searches for connected sources)
3 A/V Mute button (turns the video and audio on or off)
4 Left arrow button and displays the Control Panel Lock screen
5 Down arrow button and displays a test pattern
6 Enter button (selects options)
7 Right arrow button and displays the Info menu
8 Esc button (cancels/exits functions)
9 Up arrow button and displays screen adjustment options
10 Menu button (accesses projector menu system)
Parent topic: Projector Part Locations
23
Page 24
Projector Parts - Remote Control
1 Power button
2 HDMI button (cycles through connected HDMI sources)
24
Page 25
3 Computer button
4 Numeric buttons
5 Auto button (automatically adjusts position, tracking, and sync settings)
6 Num button (when held down, switches numeric buttons to number function)
7 Menu button (accesses projector menu system)
8 Arrow buttons (move through on-screen options)
9 Enter button (selects options)
10 User button (customizable for different functions)
11 Color Mode button (selects display modes)
12 Aspect button (selects the image aspect ratio)
13 E-Zoom +/– buttons (zoom into and out of the image)
14 A/V Mute button (turns off picture and sound)
15 Split button (splits the screen between two image sources)
16
Home button (accesses projector Home screen)
17 Freeze button (stops video action)
18 Volume up/down buttons (adjust speaker volume)
19 Default button (resets the selected setting to its default value)
20 Esc button (cancels/exits functions and controls wireless mouse functions)
21 ID button (selects a projector to use with the remote control)
22 LAN button (connects to a network source)
23 USB button (cycles through connected USB sources)
24 Source Search button (searches for connected sources)
25 Remote control emitter
Parent topic: Projector Part Locations
25
Page 26
Setting Up the Projector
Follow the instructions in these sections to set up your projector for use.
Projector Placement
Projector Connections
Installing Batteries in the Remote Control
Projector Placement
You can place the projector on almost any flat surface to project an image.
You can also install the projector in a ceiling mount if you want to use it in a fixed location.
There is no vertical or horizontal limit to how the projector can be installed.
Keep these considerations in mind as you select a projector location:
• Place the projector on a sturdy, level surface or install it using a compatible mount.
• Place the projector parallel to the screen.
• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or
next to anything that could block the vents.
• Position the projector within reach of a grounded electrical outlet or extension cord.
Projector Setup and Installation Options
Projection Distance
Parent topic: Setting Up the Projector
Related references
Important Safety Instructions
Projector Setup and Installation Options
You can set up or install your projector in the following ways:
26
Page 27
Front
Rear
Front ceiling
27
Page 28
Rear ceiling
Note: Be sure to leave the following amount of space around the projector to avoid blocking the air
exhaust and intake vents.
1 3.94 inches (10 cm)
2 7.87 inches (20 cm)
3 15.75 inches (40 cm)

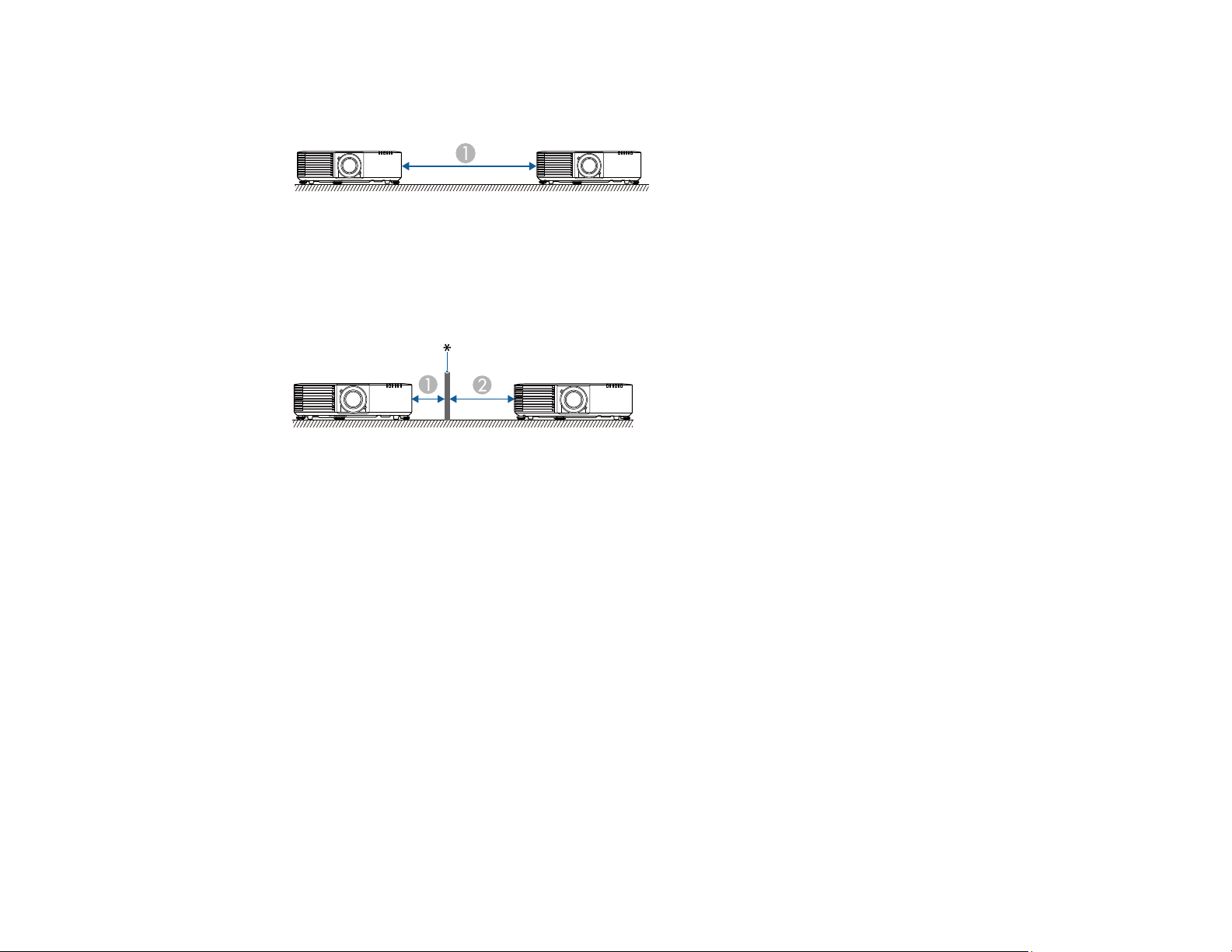

Note: When setting up multiple projectors, be sure to leave the following amount of space between the
projectors.
28
Page 29
Without a partition
1 59.05 inches (150 cm)
With a partition
* Partition
1 7.87 inches (20 cm)
2 15.75 inches (40 cm)
If you project from the ceiling or from the rear, be sure to select the correct Projection setting in the
Extended menu. If necessary, enable the Inv Direction Button setting in the Extended > Operation >
Advanced menu and adjust the OSD Rotation setting in the Extended > Display menu.
Parent topic: Projector Placement
Related references
Projector Setup Settings - Extended Menu
Important Safety Instructions
Projection Distance
The distance at which you place the projector from the screen determines the approximate size of the
image. The image size increases the farther the projector is from the screen, but can vary depending on
the zoom factor, aspect ratio, and other settings.
29
Page 30
Use the tables here to determine approximately how far to place the projector from the screen based on
the size of the projected image. (Conversion figures may have been rounded up or down.) You can also
use the Projection Distance Calculator here (U.S.), here (Canada), or here (Caribbean).
1 Projection distance
2 Distance from the center of the lens to the base of the screen
3 Center of lens
16:10 Aspect Ratio Image or Screen
Screen or image size Projection distance (1)
Wide to Tele
29 inches 33 to 55 inches
(85 to 140 cm)
40 inches 47 to 76 inches
(118 to 193 cm)
30
Distance from center of lens to
base of screen (2)
0.4 to 15 inches (1 to 38 cm)
0.5 to 20.7 inches (1 to 53 cm)
Page 31
16:10 Aspect Ratio Image or Screen
Screen or image size Projection distance (1)
Wide to Tele
50 inches 58 to 95 inches
(149 to 243 cm)
60 inches 70 to 115 inches
(179 to 292 cm)
80 inches 94 to 153 inches
(239 to 390 cm)
100 inches 118 to 192 inches
(300 to 488 cm)
150 inches 178 to 289 inches
(451 to 733 cm)
200 inches 237 to 385 inches
(603 to 979 cm)
250 inches 297 to 482 inches
(754 to 1224 cm)
280 inches 333 to 540 inches
Distance from center of lens to
base of screen (2)
0.7 to 25.8 inches (2 to 66 cm)
0.8 to 31 inches (2 to 79 cm)
1.1 to 41.3 inches (3 to 105 cm)
1.3 to 51.7 inches (3 to 131 cm)
2.0 to 77.5 inches (5 to 197 cm)
2.6 to 103.3 inches (7 to 263 cm)
3.3 to 129.2 inches (8 to 328 cm)
3.7 to 144.7 inches (9 to 368 cm)
(845 to 1371 cm)
4:3 Aspect Ratio Image or Screen
Screen or image size Projection distance (1)
Wide to Tele
25 inches 33 to 54 inches
(83 to 136 cm)
30 inches 39 to 65 inches
(100 to 164 cm)
31
Distance from center of lens to
base of screen (2)
0,4 to 14.6 inches (1 to 37 cm)
0.5 to 17.6 inches (1 to 45 cm)
Page 32
4:3 Aspect Ratio Image or Screen
Screen or image size Projection distance (1)
Wide to Tele
40 inches 53 to 86 inches
(134 to 219 cm)
50 inches 66 to 108 inches
(169 to 275 cm)
60 inches 80 to 130 inches
(203 to 331 cm)
80 inches 107 to 174 inches
(271 to 442 cm)
100 inches 134 to 218 inches
(340 to 553 cm)
120 inches 161 to 261 inches
(408 to 664 cm)
150 inches 201 to 327 inches
(511 to 831 cm)
200 inches 269 to 436 inches
Distance from center of lens to
base of screen (2)
0.6 to 23.4 inches (2 to 59 cm)
0.8 to 29.3 inches (2 to 74 cm)
0.9 to 35.1 inches (2 to 89 cm)
1.2 to 46.8 inches (3 to 119 cm)
1.5 to 58.5 inches (4 to 149 cm)
1.8 to 70.2 inches (5 to 178 cm)
2.3 to 87.8 inches (6 to 223 cm)
3.0 to 117 inches (8 to 297 cm)
(682 to 1108 cm)
250 inches 336 to 546 inches
(854 to 1386 cm)
16:9 Aspect Ratio Image or Screen
Screen or image size Projection distance (1)
Wide to Tele
28 inches 33 to 55 inches
(84 to 138 cm)
32
3.8 to 146.3 inches (10 to 371
cm)
Distance from center of lens to
base of screen (2)
0.4 to 14.1 inches (1 to 31 cm)
Page 33
16:9 Aspect Ratio Image or Screen
Screen or image size Projection distance (1)
Wide to Tele
30 inches 36 to 58 inches
(91 to 149 cm)
40 inches 48 to 78 inches
(122 to 199 cm)
50 inches 60 to 98 inches
(153 to 249 cm)
60 inches 72 to 118 inches
(184 to 300 cm)
80 inches 97 to 158 inches
(246 to 401 cm)
100 inches 121 to 197 inches
(308 to 502 cm)
150 inches 183 to 297 inches
(464 to 754 cm)
200 inches 244 to 396 inches
Distance from center of lens to
base of screen (2)
0.4 to 15.1 inches (1 to 38 cm)
0.5 to 20.2 inches (1 to 51 cm)
0.7 to 25.2 inches (2 to 64 cm)
0.8 to 30.2 inches (2 to 77 cm)
1.1 to 40.3 inches (3 to 102 cm)
1.4 to 50.4 inches (3 to 128 cm)
2.0 to 75.6 inches (5 to 192 cm)
2.7 to 100.8 inches (7 to 256 cm)
250 inches 305 to 495 inches
275 inches 336 to 545 inches
Parent topic: Projector Placement
Projector Connections
See these sections to connect the projector to a variety of projection sources.
(619 to 1006 cm)
(775 to 1258 cm)
(853 to 1384 cm)
33
3.4 to 126.0 inches (9 to 320 cm)
3.7 to 138.6 inches (10 to 352
cm)
Page 34
Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode
to ensure the projector's internal temperature is regulated properly.
Caution: Check the shape and orientation of the connectors on any cable you plan to connect. Do not
force a connector into a port if it does not fit. The device or your projector could be damaged or could
malfunction.
Connecting to Computer Sources
Connecting to Video Sources
Connecting to a USB Device
Connecting to a Document Camera
Connecting to an HDBaseT Transmitter
Connecting to an External Computer Monitor
Connecting to External Speakers
Parent topic: Setting Up the Projector
Related references
Projector Setup Settings - Extended Menu
Connecting to Computer Sources
Follow the instructions in these sections to connect a computer to the projector.
Connecting to a Computer for VGA Video and Audio
Connecting to a Computer for HDMI Video and Audio
Connecting to a Computer for Sound
Parent topic: Projector Connections
Connecting to a Computer for VGA Video and Audio
You can connect the projector to your computer using a VGA computer cable. You can play sound
through the projector's speaker system by connecting a commercially available 3.5 mm stereo mini-jack
audio cable.
Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for
video output, you need to obtain an adapter that allows you to connect to the projector's VGA video port.
Contact Apple for compatible adapter options.
1. If necessary, disconnect your computer's monitor cable.
34
Page 35
2. Connect the VGA computer cable to your computer's monitor port.
3. Connect the other end to a Computer port on the projector.
Note: If you choose the Computer2 port, you may need to change the Monitor Out Port setting in
the projector's Extended menu.
4. Tighten the screws on the VGA connector.
5. Connect an audio cable to your laptop's headphone or audio out jack, or your desktop's speaker or
audio out port.
6. Connect the other end to the Audio port that corresponds to the Computer port you are using.
Parent topic: Connecting to Computer Sources
Connecting to a Computer for HDMI Video and Audio
If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.
Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for
video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port.
Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not support
audio through the HDMI port.
1. Connect the HDMI cable to your computer's HDMI output port.
35
Page 36
2. Connect the other end to one of the projector's HDMI ports.
Note: If you have problems hearing audio through the HDMI connection, you can use one of the
projector's audio ports instead to play sound. Connect one end of an optional 3.5 mm stereo mini-jack
audio cable to one of the projector's audio ports and the other end to your computer's audio out port.
Then select the audio port you connected to as the HDMI1 Audio Output or HDMI2 Audio Output
setting in the Extended menu.
Parent topic: Connecting to Computer Sources
Related references
Projector Setup Settings - Extended Menu
Connecting to a Computer for Sound
If your computer presentation includes sound and you did not connect it to the projector's HDMI port, you
can still play sound through the projector's speaker system. Just connect an optional 3.5 mm stereo
mini-jack audio cable as described here.
1. Connect the audio cable to your laptop's headphone or audio-out jack, or your desktop's speaker or
audio-out port.
2. Connect the other end to the Audio port that corresponds to the Computer port you are using.
Parent topic: Connecting to Computer Sources
Connecting to Video Sources
Follow the instructions in these sections to connect video devices to the projector.
Connecting to an HDMI Video Source
Parent topic: Projector Connections
36
Page 37
Connecting to an HDMI Video Source
If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable.
The HDMI connection provides the best image quality.
Caution: Do not turn on the video source before connecting it to the projector. Doing so could damage
the projector.
1. Connect the HDMI cable to your video source's HDMI output port.
2. Connect the other end to one of the projector's HDMI ports.
Note: If you have problems hearing audio through the HDMI connection, you can use one of the
projector's audio ports instead to play sound. Connect one end of an optional 3.5 mm stereo mini-jack
audio cable to one of the projector's audio ports and the other end to your video source's audio out port.
Then select the audio port you connected to as the HDMI1 Audio Output or HDMI2 Audio Output
setting in the Extended menu.
Parent topic: Connecting to Video Sources
Related references
Projector Setup Settings - Extended Menu
Connecting to a USB Device
You can connect a USB device or cable to the projector's USB-A port to project images from the device.
Use the USB cable supplied with the device.
Note: Do not connect a USB hub or a USB cable longer than 9.8 feet (3 m), or the device may not
operate correctly.
37
Page 38
Make sure the USB device meets the following requirements:
• The device must be a USB flash drive, USB hard drive, or a digital camera or smartphone
• Digital cameras and smartphones must be USB-mounted devices (not TWAIN-compliant) and must be
USB Mass Storage Class compliant.
• USB hard drives must be USB Mass Storage Class compliant (not all compliant devices are
supported); formatted in FAT16/32; self-powered by their own AC power supplies (bus powered drives
are not recommended); and should not have multiple partitions.
1. If your USB device came with an AC adapter, plug the device into an electrical outlet.
2. Connect the USB device or cable to the projector's USB-A port.
3. If you connected a USB cable, connect the other end to the USB device as necessary.
The projector displays images stored on the USB device.
If you turned on the Content Playback setting in the Settings menu, you can only view images that have
been added to a playlist created in Epson Projector Content Manager.
Parent topic: Projector Connections
Related references
Projector Feature Settings - Settings Menu
Connecting to a Document Camera
You can connect a document camera to your projector to project images from the camera.
Note: The connection method varies depending on your document camera model. For additional
features supported by software, connect your document camera to your computer using the camera's
38
Page 39
USB port instead of connecting the camera to the projector. See the document camera manual for
details.
Parent topic: Projector Connections
Related references
Optional Equipment and Replacement Parts (U.S. and Canada)
Optional Equipment and Replacement Parts (Latin America)
Connecting to an HDBaseT Transmitter
To send an HDMI or RS-232C signal over a long distance, you can connect the projector to an optional
HDBaseT transmitter using a 100Base-TX network cable. This is useful when you want to send a signal
to or control the projector from a remote location, such as in a hall or event site, since you can use a
network cable up to 328 feet (100 m) in length. To ensure proper data transmission, use a Category 5e
STP cable or better.
1. Turn off the projector and HDBaseT transmitter.
Note: Make sure the projector and HDBaseT transmitter are turned off when connecting or
disconnecting a network cable between the two devices.
2. Connect one end of the network cable to the HDBaseT port on the transmitter.
3. Connect the other end to the projector's HDBaseT port.
Note: See the documentation that came with the HDBaseT transmitter for instructions on connecting
it to your video device or computer.
39
Page 40
4. Turn on the projector and HDBaseT transmitter.
Note: To enable communication from the Ethernet and serial ports on the transmitter, select On as the
Control Communications setting in the projector's Extended menu. Turning on this setting disables the
projector's LAN and RS-232C ports. If you connected an Extron XTP transmitter or switcher to the
projector's HDBaseT port, select On as the Extron XTP setting in the projector's Extended menu.
Parent topic: Projector Connections
Related references
Projector Setup Settings - Extended Menu
Connecting to an External Computer Monitor
If you connected a computer to the projector's Computer port, you can also connect an external monitor
to the projector. This lets you see your presentation on the external monitor even when the projected
image is not visible.
To output images to an external VGA monitor, set the Monitor Out Port setting to Monitor Out in the
projector's Extended menu.
If you want to output images to an external monitor when the projector is turned off, you need to select
Always On as the A/V Output setting in the projector's Extended menu.
Note: Monitors that use a refresh rate less than 60 Hz may not be able to display images correctly.
1. Make sure your computer is connected to the projector's Computer1 port. If there are two computer
ports, make sure you use the Computer1 port.

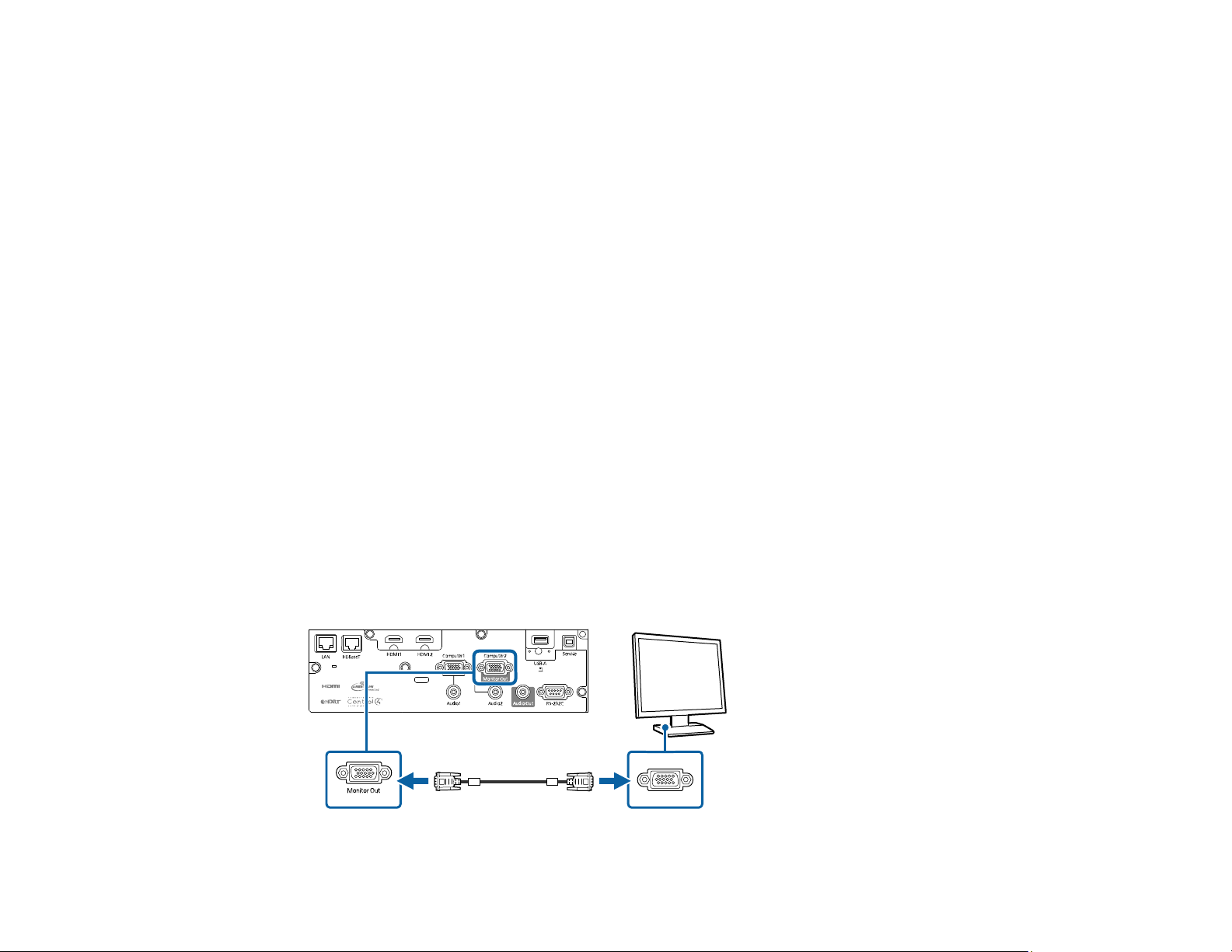

2. Connect the external monitor's cable to your projector's Monitor Out port.
40
Page 41
Note: You can only output analog RGB signals from the Computer1 port to an external monitor. You
cannot output signals from other ports.
Parent topic: Projector Connections
Related references
Projector Setup Settings - Extended Menu
Connecting to External Speakers
You can connect the projector to external self-powered speakers and control the volume using the
projector's remote control.
You can also connect the projector to an amplifier with speakers.
If you want to output audio from the external speakers when the projector is turned off, you need to
select Always On as the A/V Output setting in the projector's Extended menu.
Note: The projector's built-in speaker system is disabled when you connect external speakers.
1. Make sure your computer or video source is connected to the projector with both audio and video
cables as necessary.
2. Locate the appropriate cable to connect your external speakers, such as a stereo mini-jack-to-pin-
jack cable, or another type of cable or adapter.
3. Connect one end of the cable to your external speakers as necessary.
4. Connect the stereo mini-jack end of the cable to your projector's Audio Out port.
Parent topic: Projector Connections
41
Page 42
Related references
Projector Setup Settings - Extended Menu
Installing Batteries in the Remote Control
The remote control uses the two AA batteries that came with the projector.
Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types,
or mix new and old batteries.
1. Remove the battery cover.
2. Insert the batteries with the + and – ends facing as shown.
42
Page 43
Warning: Make sure the batteries are inserted in the correct positions. If the batteries are not
inserted correctly, they could explode or leak, causing a fire, injury, or damage to the product.
3. Replace the battery cover and press it down until it clicks into place.
Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat
or flame. Keep batteries out of the reach of children; they are choking hazards and are very
dangerous if swallowed.
Parent topic: Setting Up the Projector
43
Page 44
Using the Projector on a Network
Follow the instructions in these sections to set up your projector for use on a network.
Note: Epson iProjection is not recommended for use with streaming video.
Wired Network Projection
Wireless Network Projection
Setting Up Projector Network E-Mail Alerts
Setting Up Monitoring Using SNMP
Controlling a Networked Projector Using a Web Browser
Controlling a Networked Projector in Content Playback Mode
Using Crestron Connected
Setting Up Web API
Secure HTTP
Registering a Digital Certificate on the Projector
Wired Network Projection
You can project through a wired network. To do this, you connect the projector to your network with an
Ethernet cable, and then set up your projector and computer for network projection.
You can use Epson iProjection to project static images and presentations over a wired network.
Note: Epson iProjection is not recommended for use with streaming video.
After connecting and setting up the projector, install the projector software. You may need to install it
from a software CD, if included, or download the software and manuals as necessary.
Note: If your projector is connected via a LAN (Ethernet) cable to a network that includes a wireless
access point, you can connect to the projector wirelessly through the access point using the Epson
network software.
Connecting to a Wired Network
Selecting Wired Network Settings
Parent topic: Using the Projector on a Network
44
Page 45
Connecting to a Wired Network
To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10Base-T network
cable. To ensure proper data transmission, use a Category 5 shielded cable or higher.

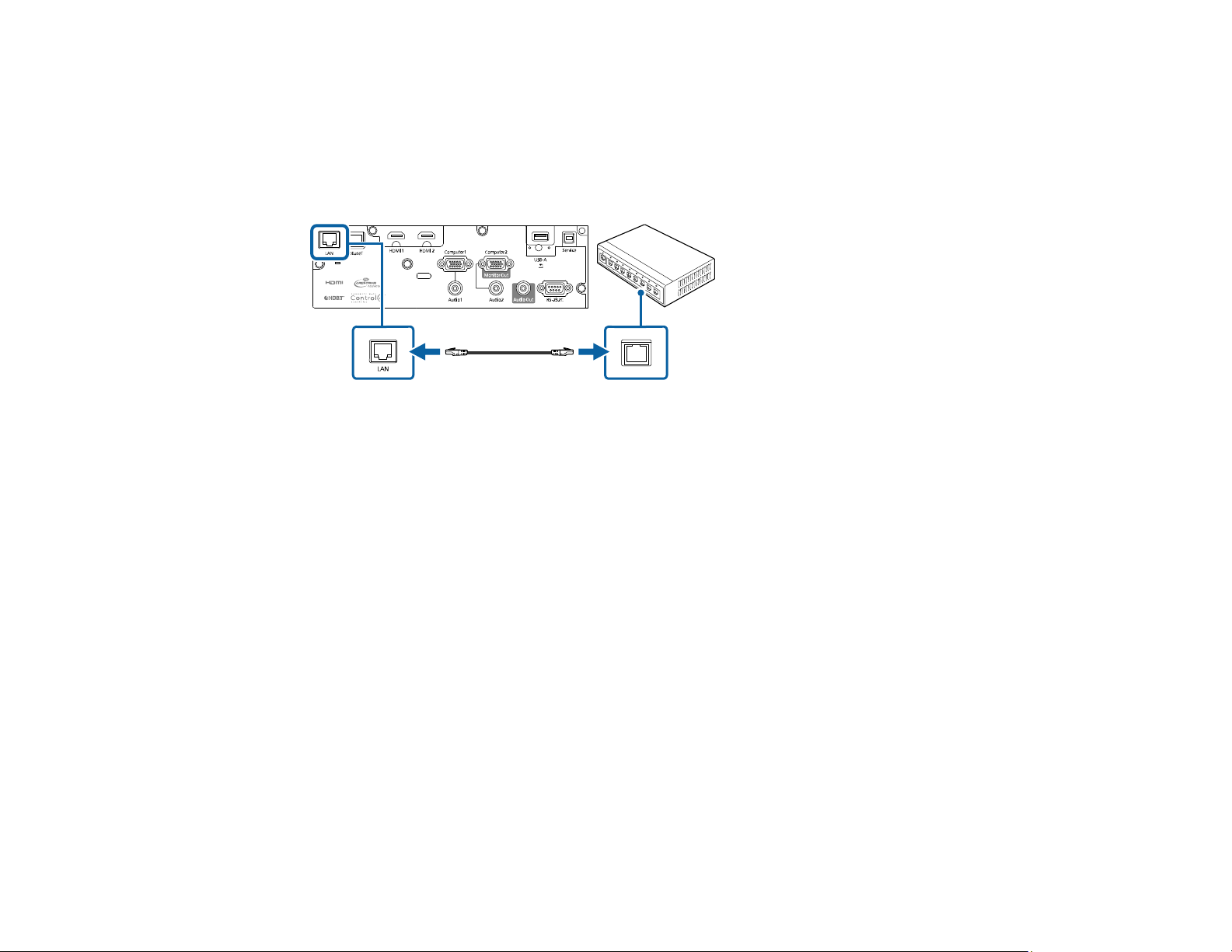

1. Connect one end of the network cable to your network hub, switch, or router.
2. Connect the other end of the cable to the projector's LAN port.
Parent topic: Wired Network Projection
Selecting Wired Network Settings
Before you can project from computers on your network, you must select the network settings for the
projector using its menu system.
Note: Make sure you already connected the projector to your wired network using the LAN port.
1. Turn on the projector.
2. Press the Menu button.
45
Page 46
3. Select the Network menu and press Enter.
4. Select Network Configuration and press Enter.

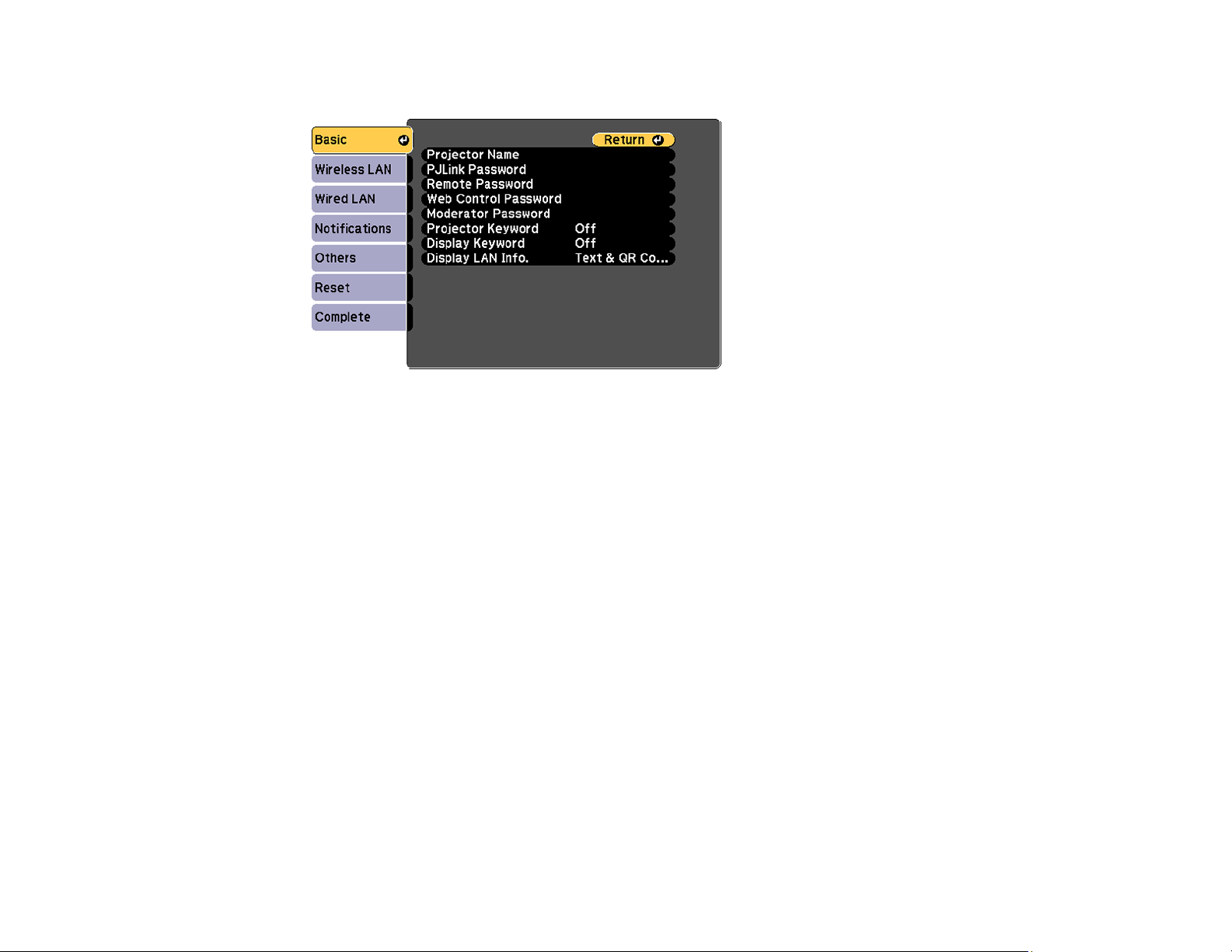

5. Select the Basic menu and press Enter.
6. Select the following basic options as necessary:
• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the
projector over the network.
46
Page 47
• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the
PJLink protocol for projector control.
• Remote Password lets you enter a password up to 8 alphanumeric characters long for accessing
the Remote or Basic Control screen in Epson Web Control. (Default user name is
EPSONREMOTE; default password is guest.)
• Web Control Password lets you enter a password up to 8 alphanumeric characters long for
accessing the projector over the web.
• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector
as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app.
(No default password.)
• Projector Keyword lets you turn on a security password to prevent access to the projector by
anyone not in the room with it. You must enter a displayed, randomized keyword from a computer
using the Epson iProjection (Windows/Mac) software to access the projector.
• Display Keyword lets you select whether or not to display a projector keyword on the projected
image when using the Epson iProjection (Windows/Mac) software to access the projector.
• Display LAN Info lets you select how the projector displays network information. You can select
an option to display a QR code that lets you quickly connect your iOS or Android devices using the
Epson iProjection app.
Note: Use the displayed keyboard to enter the name, passwords, and keyword. Press the arrow
buttons on the remote control to highlight characters and press Enter to select them.

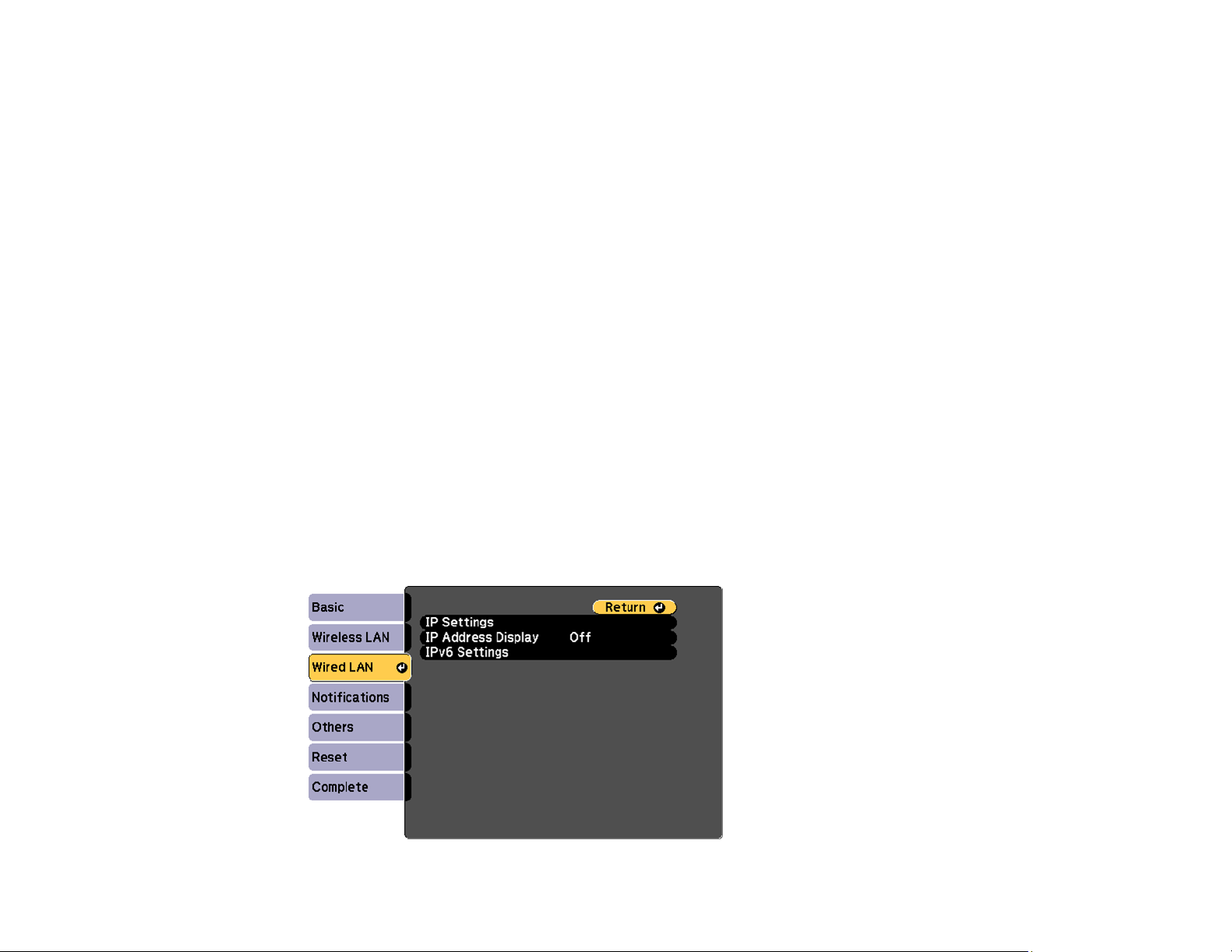

7. Select the Wired LAN menu and press Enter.
47
Page 48
8. If necessary, select IP Settings and press Enter.
9. Select your IP Settings as necessary:
• If your network assigns addresses automatically, turn on the DHCP setting.
• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet
Mask, and Gateway Address as needed.
Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on
the remote control. To select a highlighted number, press Enter.
10. To prevent display of the IP address on the standby screen, turn off IP Address Display.
11. To connect the projector to the network using IPv6, select On as the IPv6 Settings option. Then
select the Auto Configuration and Use Temporary Address settings as necessary.
12. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.
Parent topic: Wired Network Projection
Related references
Projector Network Settings - Network Menu
Wireless Network Projection
You can project over a wireless network. To do this, you must set up your projector and computer for
wireless projection.
Note: The Epson 802.11b/g/n wireless LAN module is not included with your projector and is optional.
There are two ways to connect to your projector wirelessly:
• Creating a Quick Wireless Connection USB Key (Windows only) using the Epson iProjection software
• Configuring the connection manually using the projector's Network menus
After connecting and setting up the projector, install the projector software. You may need to install it
from a software CD, if included, or download the software and manuals as necessary.
You can use Epson iProjection to project static images and presentations over a wireless network.
Note: Epson iProjection is not recommended for use with streaming video.
Installing the Wireless LAN Module
48
Page 49
Using Quick Wireless Connection (Windows)
Selecting Wireless Network Settings Manually
Selecting Wireless Network Settings in Windows
Selecting Wireless Network Settings on Mac
Setting Up Wireless Network Security
Using a QR Code to Connect a Mobile Device
Parent topic: Using the Projector on a Network
Related references
Projector Network Settings - Network Menu
Additional Projector Software and Manuals
Installing the Wireless LAN Module
To use the projector over a wireless network, install the optional Epson wireless LAN module. Do not
install any other type of wireless LAN module.
Caution: Never remove the module while its indicator light is blue or flashing, or while you are projecting
wirelessly. You may damage the module or lose data.
Note: The indicator on the wireless LAN module does not operate. See the wireless LAN indicator on the
projector to check the wireless LAN status.
1. Turn off the projector and unplug the power cord.

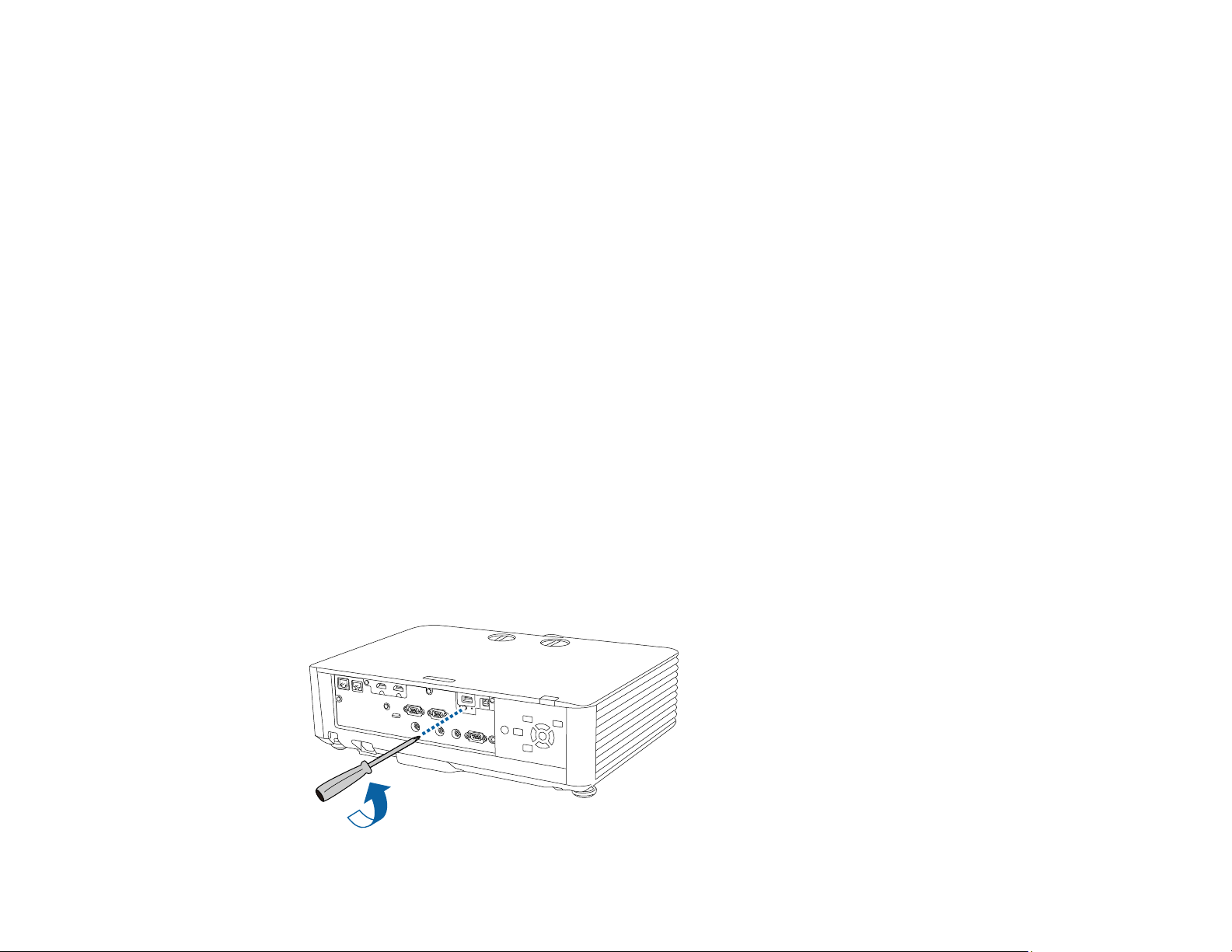

2. Use a Phillips-head screwdriver to remove the screw securing the wireless LAN module cover, then
remove the cover.
49
Page 50
3. Insert the wireless LAN module into the USB-A port.
4. Replace the wireless LAN module cover and secure it using the screw you removed.
5. Plug in and turn on the projector.
Parent topic: Wireless Network Projection
Related references
Projector Light Status
Using Quick Wireless Connection (Windows)
You can create a Quick Wireless Connection USB Key to quickly connect the projector to a Windows
computer wirelessly. Then you can project your presentation and remove the key when you are done.
Note: A USB flash drive is not included with your projector.
50
Page 51
1. Create a Quick Wireless Connection USB Key with a USB flash drive and the Epson iProjection
(Windows/Mac) software.
Note: See the Epson iProjection Operation Guide (Windows/Mac) for instructions.
2. Turn on the projector.
3. Press the LAN button on the remote control.
You see the LAN standby screen.
4. Verify that an SSID and IP address are displayed.
5. Remove the wireless LAN module from the projector's USB-A port (if installed) and insert the USB
key into the same port.
You see a projected message that the network information update is complete.
6. Remove the USB key.
7. Reinsert the wireless LAN module into the projector, if necessary
8. Insert the USB key into a USB port on your computer.
Note: In Windows Vista, if you see the AutoPlay window, select Run MPPLaunch.exe, and select
Allow on the next screen.
9. Follow the on-screen instructions to install the Epson iProjection (Windows/Mac) software.
Note: If you see a Windows Firewall message, click Yes to disable the firewall. You need
administrator authority to install the software. If it is not installed automatically, double-click
MPPLaunch.exe in the USB key.
After a few minutes, your computer image is displayed by the projector. If it does not appear, press
the LAN or Source Search button on your remote control or restart your computer.
10. Run your presentation as necessary.
11. When you finish projecting wirelessly, select the Safely Remove Hardware option in the Windows
taskbar, then remove the USB key from your computer.
Note: You can share the USB key with other computers without disconnecting your computer. You
may need to restart your computer to reactivate your wireless LAN connection.
Parent topic: Wireless Network Projection
51
Page 52
Selecting Wireless Network Settings Manually
Before you can project from your wireless network, you must select the network settings for the projector
using its menu system.
1. Turn on the projector.
2. Press the Menu button.

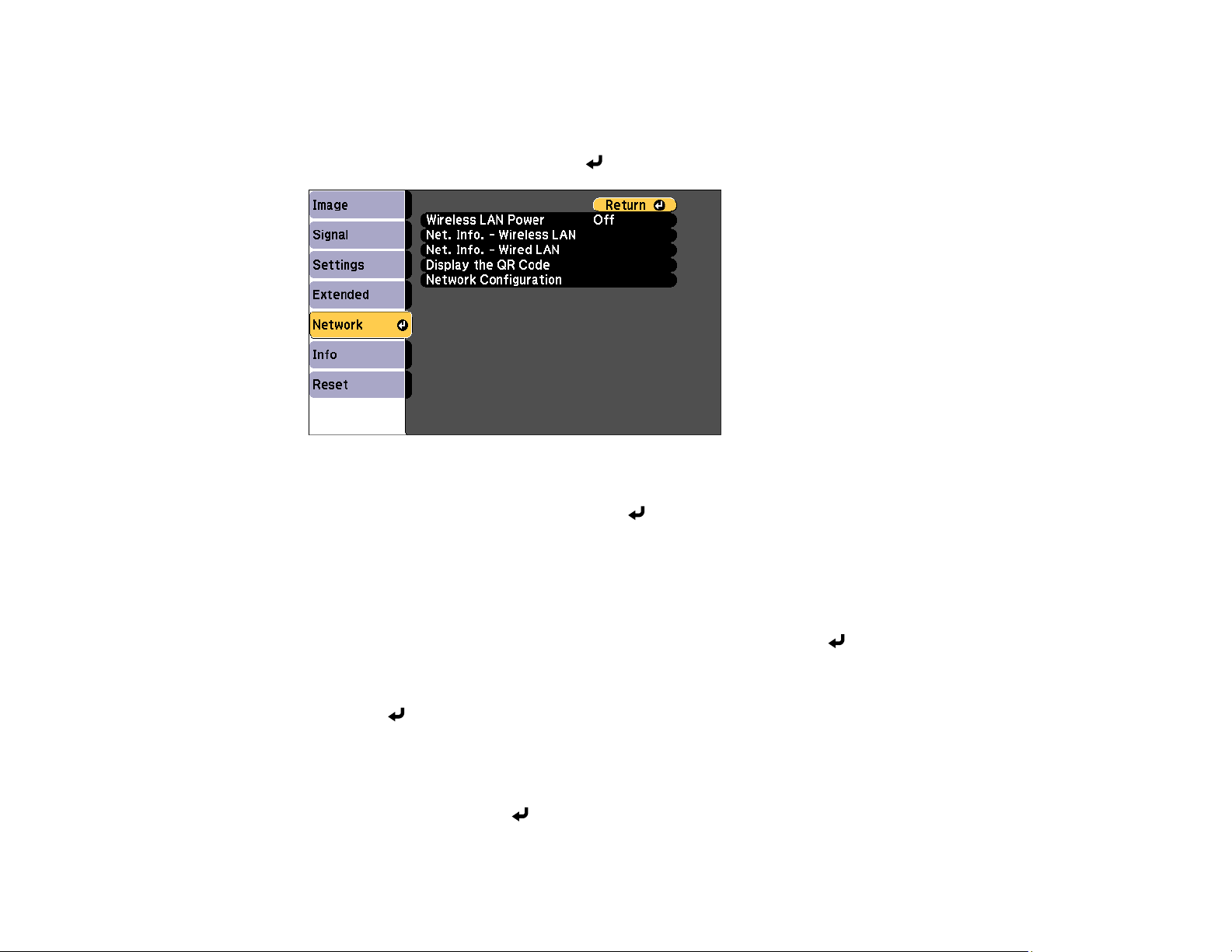

3. Select the Network menu and press Enter.
4. Make sure the Wireless LAN Power setting is set to On.
5. Select Network Configuration and press Enter.
52
Page 53
6. Select the Basic menu and press Enter.
7. Select the following basic options as necessary:
• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the
projector over the network.
• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the
PJLink protocol for projector control.
• Remote Password lets you enter a password up to 8 alphanumeric characters long for accessing
the Remote or Basic Control screen in the Epson Web Control. (Default user name is
EPSONREMOTE; default password is guest.)
• Web Control Password lets you enter a password up to 8 alphanumeric characters long for
accessing the projector over the web. (Default user name is EPSONWEB; default password is
admin.)
• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector
as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app.
• Projector Keyword lets you turn on a security password to prevent access to the projector by
anyone not in the room with it. The projector displays a random keyword that you must enter from
a computer using the Epson iProjection (Windows/Mac) software or an iOS or Android device, or
on a Chromebook, using the Epson iProjection app.
• Display Keyword lets you display a keyword on the projected image when accessing the
projector from a computer using the Epson iProjection (Windows/Mac) software or an iOS or
Android device, or on a Chromebook, using the Epson iProjection app.
53
Page 54
• Display LAN Info lets you select how the projector displays network information. You can select
an option to display a QR code that lets you quickly connect your iOS or Android devices with the
Epson iProjection app.
Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow
buttons on the remote control to highlight characters and press Enter to select them.
8. Select the Wireless LAN menu and press Enter.
9. Select the settings on the Wireless LAN menu as necessary for your network.
10. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.
After you complete the wireless settings for your projector, you need to select the wireless network on
your computer, Chromebook, or iOS or Android device.
Wireless LAN Menu Settings
Parent topic: Wireless Network Projection
Related references
Projector Network Settings - Network Menu
54
Page 55
Wireless LAN Menu Settings
Setting Options Description
Connection Mode Quick
Advanced
Selects the type of wireless
connection:
Quick: lets you connect to
multiple smartphones, tablets, or
computers directly
Advanced: lets you connect to
multiple smartphones, tablets, or
computers via a wireless network
access point
Search Access Point To Search View Search for available wireless
network access points in
Advanced connection mode
SSID Up 32 alphanumeric characters Sets the SSID (network name) of
the wireless LAN system the
projector is connecting to
Security Open
WPA2-PSK
WPA3-PSK
WPA2/WPA3-PSK
Selects the type of wireless
security used in the wireless
network (some options are only
available when the Connection
Mode setting is set to
Advanced)
WPA3-EAP
WPA2/WPA3-EAP
Passphrase Between 8 to 63 alphanumeric
characters
55
Enter a passphrase for the
wireless network
Page 56
Setting Options Description
EAP Method EAP Type
User name
Password
Client Certificate
Verify Server Cert.
CA certificate
RADIUS Serv.Name
Channel 1ch
6ch
11ch
IP Settings DHCP
IP Address
Subnet Mask
Gateway Address
SSID Display On
Off
Sets the EAP settings for WPA3EAP and WPA2/WPA3-EAP
security
In Quick connection mode,
selects the frequency band
(channel) used by the wireless
LAN
Turns on DHCP if your network
assigns addresses automatically;
set to Off to manually enter the
network's IP Address, Subnet
Mask, and Gateway Address
(some options are only available
when the Connection Mode
setting is set to Advanced)
Selects whether to display the
SSID on the network standby
screen
IP Address Display On
Off
IPv6 Settings IPv6
Auto Configuration
Use Temporary Address
Parent topic: Selecting Wireless Network Settings Manually
56
Selects whether to display the IP
address on the network standby
screen
Selects the IPv6 settings when
you connect the projector to the
network using IPv6
The Epson Web Control and
PJLink functions support IPv6.
Page 57
Selecting Wireless Network Settings in Windows
Before connecting to the projector, select the correct wireless network on your computer.
1. To access your wireless utility software, access the Desktop and double-click the network icon on
the Windows taskbar.
2. Do one of the following:
• If your projector is set up on an existing network (Advanced mode), select the network name
(SSID).
• If your projector is configured for Quick mode, select the projector's SSID.
3. Click Connect.
Parent topic: Wireless Network Projection
Selecting Wireless Network Settings on Mac
Before connecting to the projector, select the correct wireless network on your Mac.
1. Click the AirPort icon on the menu bar at the top of the screen.
2. Make sure AirPort is turned on, then do one of the following:
• If your projector is set up on an existing network (Advanced mode), select the network name
(SSID).
• If your projector is configured for Quick mode, select the projector's SSID.
Parent topic: Wireless Network Projection
Setting Up Wireless Network Security
You can set up security for your projector to use on a wireless network. Set up one of the following
security options to match the settings used on your network:
• WPA2-PSK (Quick connection mode)
• WPA3-PSK (Advanced connection mode)
• WPA3-EAP (Advanced connection mode)
• WPA2/WPA3-PSK (Advanced connection mode)
• WPA2/WPA3-EAP (Advanced connection mode)
Note: Contact your network administrator for guidance on entering the correct information.
57
Page 58
1. If you want to set up WPA3-EAP or WPA2/WPA3-EAP security, make sure your digital certificate file
is compatible with projector registration and placed directly on the USB storage device.
2. Press the Menu button.
3. Select the Network menu and press Enter.
4. Select Network Configuration and press Enter.
5. Select the Wireless LAN menu and press Enter.
6. Set the Security setting to match your network settings.
7. Do one of the following depending on the network security setting you selected:
• WPA2-PSK, WPA3-PSK, or WPA2/WPA3-PSK: Select Complete and follow the on-screen
instructions to save your settings and exit the menus. Skip the remaining steps.
• WPA3-EAP or WPA2/WPA3-EAP: Select EAP Method and press Enter.
8. Select your authentication protocol as the EAP Type setting.
9. To import your certification, select the certificate type (either Client Certificate or CA certificate)
and press Enter.
Note: You can also register a digital certificate from your web browser. Make sure to register just
once or the certificate may not install correctly.
10. Select Register and press Enter.
11. Follow the on-screen instructions to connect a USB storage device to the projector's USB-A port.
58
Page 59
12. Press Enter to display the certificate list.
13. Select the certificate to import from the displayed list.
You see a message to enter the certificate password.
14. Enter a password and press Enter.
You see a completion message after the certificate is imported.
15. Set the following EAP settings as necessary:
• User name lets you enter a user name up to 64 alphanumeric characters long. To enter more than
32 characters, use your web browser.
• Password lets you enter a password up to 64 alphanumeric characters long when using the
PEAP or EAP-FAST protocols. To enter more than 32 characters, use your web browser.
• Verify Server Cert. lets you select whether or not to verify the server certificate when a CA
certificate has been set.
• RADIUS Serv.Name lets you enter the server name to be verified.
16. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.
Parent topic: Wireless Network Projection
Related tasks
Registering Digital Certificates from a Web Browser
Using a QR Code to Connect a Mobile Device
After you select the wireless network settings for your projector, you can display a QR code on the
screen and use it to connect a mobile device using the Epson iProjection app.
Note: Make sure you have installed the latest version of Epson iProjection on your device. Visit
epson.com/iprojection (U.S.), epson.ca/iprojection (Canada), or latin.epson.com/iprojection (Caribbean)
for more information.
If you are using Epson iProjection in Quick connection mode, it is recommended that you enable
wireless security, such as a moderator password.
1. Press the LAN button on the remote control.
Your projector displays the QR code on the projection surface.
Note: If you do not see the QR code after pressing the LAN button, press Enter to display it.
59
Page 60
2. Start Epson iProjection on your mobile device.
3. Use the QR code reader feature to read the QR code and connect your device to the projector. Visit
epson.com/iprojection (U.S.), epson.ca/iprojection (Canada), or latin.epson.com/iprojection
(Caribbean) for instructions.
If you do not see the QR code, press the Menu button on the remote control and select the Network >
Network Configuration > Basic > Display LAN Info. menu. Set the Display LAN Info. setting to Text
& QR Code.
Parent topic: Wireless Network Projection
Related references
Projector Network Settings - Network Menu
Additional Projector Software and Manuals
Setting Up Projector Network E-Mail Alerts
You can set up the projector to send you an e-mail alert over the network if there is a problem with the
projector.
Note: If the Standby Mode setting is set to Communication On in the Extended menu, you can receive
e-mail alerts even if the projector is in standby mode (the power is off). The projector must be connected
to a wired LAN or a wireless LAN with the Connection Mode setting set to Advanced.
1. Press the Menu button.
2. Select the Network menu and press Enter.
3. Select Network Configuration and press Enter.
60
Page 61
4. Select the Notifications menu and press Enter.
5. Turn on Mail Notification.
6. Enter the IP address for the SMTP Server setting.
Note: Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x is a
number from 0 to 255).
7. Select a number for the SMTP server Port Number setting, from 1 to 65535 (default is 25).
8. Enter the sender's email address as the From setting.
9. Choose an Address Setting field, enter the e-mail address, and select or deselect the alerts you
want to receive there. Your e-mail address can be up to 32 alphanumeric characters long. Repeat
for up to three addresses.
10. If you are using the PJLink protocol for projector control, turn on the PJLink Notification setting and
enter the IP address where you want to receive PJLink notifications as the Notified IP Address
setting.
11. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.
Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.
Network Projector E-mail Alert Messages
61
Page 62
Parent topic: Using the Projector on a Network
Related references
Projector Setup Settings - Extended Menu
Network Projector E-mail Alert Messages
When a problem occurs with a networked projector, and you selected to receive e-mail alerts, you
receive an e-mail containing the following information:
• The email address entered as the From setting
• Epson Projector on the subject line
• The name of the projector experiencing a problem
• The IP address of the affected projector
• Detailed information about the problem
Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.
Parent topic: Setting Up Projector Network E-Mail Alerts
Setting Up Monitoring Using SNMP
Network administrators can install SNMP (Simple Network Management Protocol) software on network
computers so they can monitor projectors. If your network uses this software, you can set up the
projector for SNMP monitoring.
1. Press the Menu button.
2. Select the Network menu and press Enter.
3. Select Network Configuration and press Enter.
4. Select the Notifications menu and press Enter.
5. Turn on the SNMP setting.
6. Enter up to two IP addresses to receive SNMP notifications as the Trap IP Address setting, using 0
to 255 for each address field.
Note: To enter the IP address using the numeric keys on the remote control, press and hold the
Num button. Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x
is a number from 0 to 255).
62
Page 63

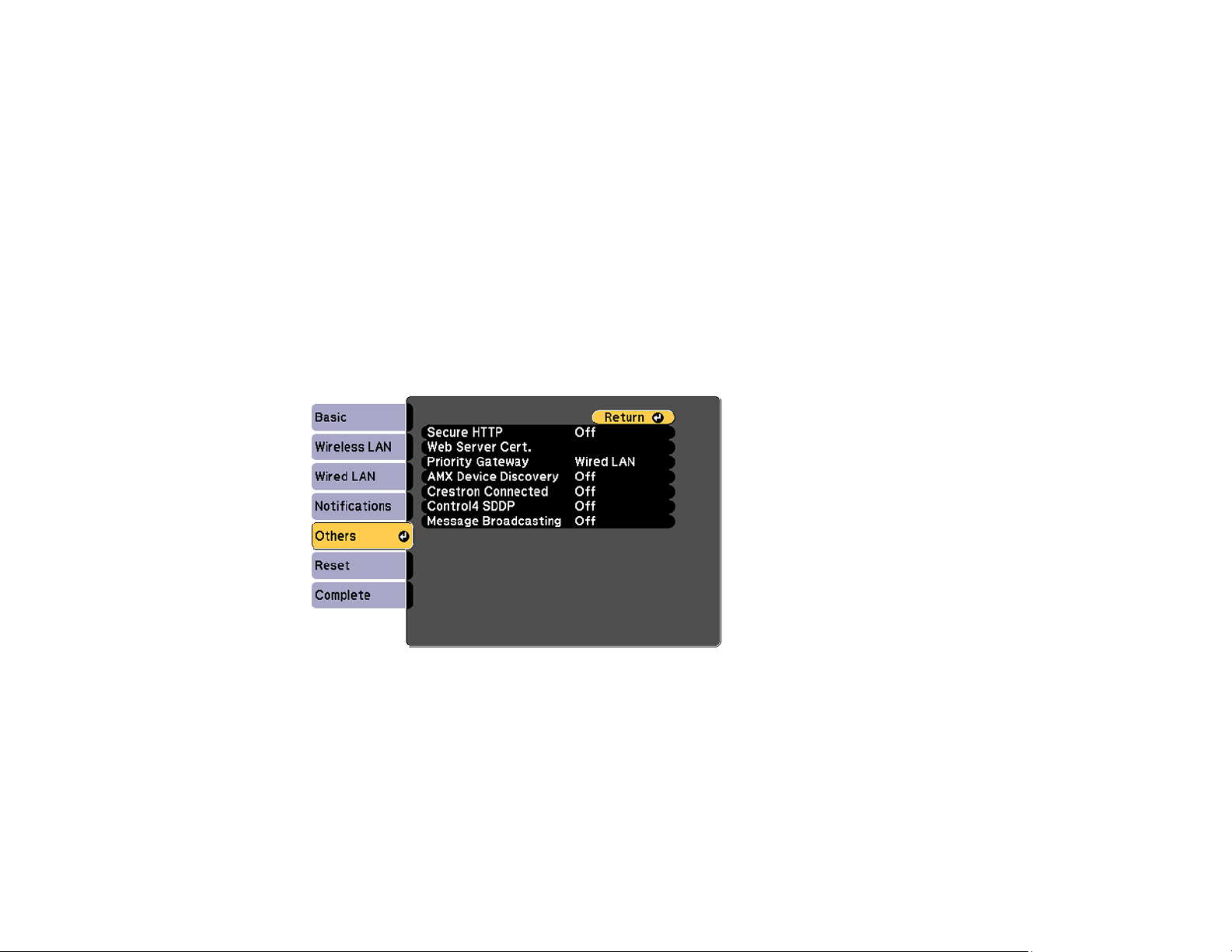

7. Select the Others menu and press Enter.
8. If you want to use the Secure HTTP protocol to encrypt communication when using Web Control,
turn on the Secure HTTP setting and import the web server certificate using the Web Server Cert.
setting.
9. If available, select the Priority Gateway setting for your network.
10. If your network environment uses an AMX controller, turn on the AMX Device Discovery setting to
allow the projector to be detected.
11. If your network environment uses a Crestron RoomView controller, turn on the Crestron Connected
setting to allow the projector to be detected.
12. If you are using the projector with a Control 4 Simple Device Discovery Protocol (SDDP) automation
system, turn on the Control4 SDDP setting.
13. If you want this projector to receive broadcast messages over the network, turn on the Message
Broadcasting setting. Administrators can broadcast messages over the network using the Epson
Projector Management software.
14. When you finish selecting settings, select Complete and follow the on-screen instructions to save
your settings and exit the menus.
Parent topic: Using the Projector on a Network
Related references
Projector Network Settings - Network Menu
63
Page 64
Controlling a Networked Projector Using a Web Browser
Once you have connected your projector to your network, you can select projector settings and control
projection using a compatible web browser. This lets you access the projector remotely. You can also
control the projector using a web browser through the Epson iProjection app on iOS or Android.
Note: The web setup and control features support Microsoft Internet Explorer 11.0 or later (Windows),
Microsoft Edge (Windows), Safari (Mac), and Chrome (Android) on networks that do not use a proxy
server for connection. You cannot select all of the projector menu settings or control all projector
functions using a web browser.
1. Make sure the projector is turned on.
2. Start your web browser on a computer or device connected to the network.
3. Type the projector's IP address into the browser's address box and press the computer's Enter key.
Note: You may need to log in to access some of the options on the Web Control screen. If you see a
log in window, enter your user name and password. (For the Basic Control option, the default user
name is EPSONREMOTE and the default password is guest. For all other options, the default
password is EPSONWEB and the default password is admin.)
64
Page 65
You see the Epson Web Control screen.
1 Select Basic Control to control the projector remotely.
2 Select Test Pattern to display a test pattern
3 Select Crestron Connected to open the menu
4 Select Advanced to open the advanced menu screen.
5 Select Status Information to view the projector's status.
6 Select OSD Control Pad to change the projector's menu settings.
4. Select the option corresponding to the projector function you want to control.
Web Control Options
Parent topic: Using the Projector on a Network
65
Page 66
Web Control Options
Basic Control
Note: If the Remote Password is set to On, you need to enter your user name and password. (The
default username is EPSONREMOTE and the default password is guest).
1 Returns to the Home screen
2 Turns the projector on or off
3 Input source selection controls
4 A/V Mute button control
5 Pauses or resumes images
6 Displays the QR code
7 Volume button controls
8 Searches for sources
66
Page 67
OSD Control Pad
1 Returns to the Epson Web Control screen
2 Displays the projector's setting menus
3 Use your finger or mouse to navigate the menus
4 Returns projector to default settings
5 Returns to the previous menu
6 Displays help topics
Note: You cannot change some settings using Epson Web Control.
67
Page 68
Test Pattern screen
1 Returns to the Home screen
2 Displays available test patterns; select to project a test pattern
3 Turns off test pattern display
68
Page 69
Status Information screen
1 Returns to the Home screen
2 Displays a list of monitored settings
3 Displays the setting status
4 Select to view different status information
Advanced
If the default Web Control Password is set, a screen prompting you to change the password appears
before you can view the Advanced screen. It is strongly recommended that you change the password
regularly to prevent unauthorized access to your projector.
Note: Not all settings can be changed through Web Control. The following settings can only be set using
Web Control:
• Monitor Password (up to 16 alphanumeric characters)
69
Page 70
• IPv6 Settings (manual)
• HTTP port (used for Web Control; cannot use 80 [default], 843, 3620, 3621, 3625, 3629, 4352, 4649,
5357, 10000, 10001, or 41794)
1 Opens the menus
2 Displays the selected menu name
3 Contains the selected projector settings
4 Locks or unlocks the projector settings
5 Updates the projector settings
Parent topic: Controlling a Networked Projector Using a Web Browser
70
Page 71
Controlling a Networked Projector in Content Playback Mode
When Content Playback mode is turned on in the Settings menu, you can select projector settings,
control projection, and edit playlists using a web browser.
Note: You can also control the projector using a web browser through the Epson iProjection app.
Note: Do not remove any USB device connected to the projector or unplug the power cord when the
Playlists or USB Memory Device screen is displayed; data saved on the USB device may be damaged.
1. Make sure the projector is turned on and your computer or device is connected to the same network
as the projector.
2. Start your web browser on the computer or device.
3. Type the projector's IP address into the browser's address box and press the computer's Enter key.
You see the Epson Web Control screen.
1 Controls the projector remotely
2 Edits playlists for Content Playback mode
3 Opens the Time Table screen
4 Operates the projector's menus with your finger or a mouse
5 Displays the projector's status
71
Page 72
6 Opens the Crestron Connected window (available when Crestron Connected is turned on)
7 Opens detailed projector settings
8 Opens the Developer's Menu screen
9 Displays a test pattern
10 Registers or deletes playlist data on the USB device
4. Select the option corresponding to the projector function you want to control.
Note: You may need to log in to access some of the options on the Web Control screen. If you see a
log in window, enter your user name and password. (The default user name is EPSONWEB and the
default password is admin.)
Web Control Options in Content Playback Mode
Parent topic: Using the Projector on a Network
Related references
Additional Projector Software and Manuals
Related tasks
Switching to Content Playback Mode
Projecting a Playlist in Content Playback Mode
Creating a Playlist Using Epson Web Control
Adding Effects to the Projected Image
Displaying a Test Pattern
72
Page 73
Web Control Options in Content Playback Mode
Remote
Note: If the Remote Password is set to On, you need to enter your user name and password. (The
default username is EPSONREMOTE and the default password is guest).
1 Returns to the Epson Web Control screen
2 Turns the projector on or off
3 Selects the input source
4 A/V Mute button control
5 Turns Overlay Effect on or off
6 Displays the screen settings
73
Page 74
7 Selects your favorite playlists
8 Adjusts the speaker volume
Playlists
1 Returns to the Epson Web Control screen
2 Controls playback of the playlist
3 Edits, copies, or deletes the playlist
4 Creates a new playlist
74
Page 75
Create or Edit Playlist
1 Edits the playlist name
2 Enables repeat playback
3 Adds the playlist to your favorites list
4 Displays the images or movies in the order that they will be played
5 Adds items to the playlist
6 Deletes items from the playlist
7 Opens the Switch Image screen (specifies the time before the projector switches to the next item
in the playlist)
8 Opens the Effects screen
9 Previews the playlist
75
Page 76
USB Memory Device
1 Returns to the Epson Web Control screen
2 Uploads images or videos to add to playlists on a USB device
3 Deletes images or videos on the USB device
Note: You can upload .avi, .jpeg (.jpg), .png, .bmp, or .gif files using Epson Web Control. If you want to
add .mp4 or .mov files to the playlist, use the Epson Projector Content Manager software or the Epson
Creative Projection app.
76
Page 77

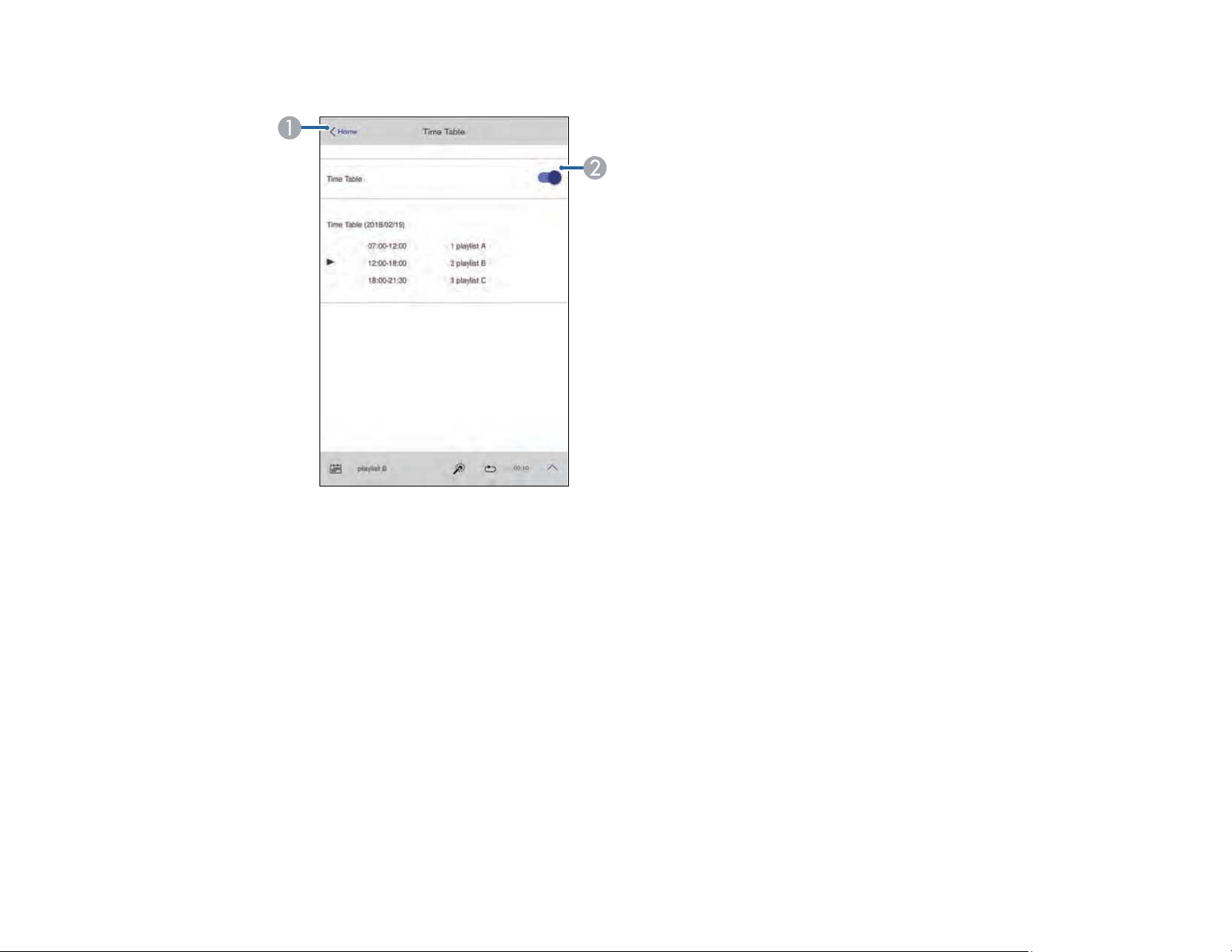

Time Table
1 Returns to the Epson Web Control screen
2 Turns the time table on or off (see the Epson Projector Content Manager Operation Guide for
more information)
77
Page 78
OSD Control Pad
1 Returns to the Epson Web Control screen
2 Displays the projector's setting menus
3 Use your finger or mouse to navigate the menus
4 Returns projector to default settings
5 Returns to the previous menu
6 Displays help topics
Note: You cannot change some settings using Epson Web Control.
Parent topic: Controlling a Networked Projector in Content Playback Mode
Using Crestron Connected
If you are using the Crestron Connected network monitoring and control system, you can set up your
projector for use on the system. Crestron Connected lets you control and monitor your projector using a
web browser.
78
Page 79
Note: You cannot use the Message Broadcasting feature in the Epson Projector Management software
when you use Crestron Connected.
For additional information on Crestron Connected, contact Crestron.
Setting Up Crestron Connected
Controlling a Networked Projector Using Crestron Connected
Parent topic: Using the Projector on a Network
Setting Up Crestron Connected
To set up your projector for monitoring and control using a Crestron Connected system, make sure your
computer and projector are connected to the network.
Note: If you want to use the Crestron Connected system when the projector is turned off, you need to
adjust the Standby Mode settings in the Extended menu.
Note: If you are connecting wirelessly, set up the projector using the Advanced network connection
mode.
1. Press the Menu button.
2. Select the Network menu and press Enter.
3. Select Network Configuration and press Enter.
4. Select the Others menu and press Enter.
79
Page 80
5. Set the Crestron Connected setting to On to allow the projector to be detected.
Note: Enabling Crestron Connected disables the Message Broadcasting feature in the Epson
Projector Management software.
6. Start your Web browser on a computer or device connected to the network.
7. Go to the Epson Web Control screen by entering the projector's IP address into the browser's
address box.
8. Select the Crestron Connected settings. See the Crestron Web site for details.
Parent topic: Using Crestron Connected
Related references
Projector Setup Settings - Extended Menu
Projector Network Settings - Network Menu
Controlling a Networked Projector Using Crestron Connected
Once you have set up your projector to use Crestron Connected, you can control and monitor projection
using a compatible web browser.
1. Start your web browser on a computer connected to the network.
2. Type the projector's IP address into the browser's address box and press the computer's Enter key.
80
Page 81
You see the Epson Web Control screen:
Note: You may need to log in to access some of the options on the Web Control screen. If you see a
log in window, enter your user name and password. (The default user name is EPSONWEB and the
default password is admin.)
3. Select Crestron Connected.
4. When you finish selecting settings, select Set and then select Yes to save the network settings.
Parent topic: Using Crestron Connected
Setting Up Web API
You can setup Web API from a Web browser and operate the projector using Web API.
Note: You can authenticate Web API communications using API authentication (Digest authentication).
The user name for API authentication is EPSONWEB; use the password that is set for Web Control
Password.
81
Page 82
1. Open the Epson Web Control from your Web browser.
2. Select Developer's Menu.
3. Set the Enable API setting to On.
4. Enter one of the following Web APIs to operate the projector:
URL Supported methods Description
http://<ip>/api/v01/contentmgr/remote/power/on GET/POST/PUT Turns the projector on
(WebAPI may not
respond immediately)
http://<ip>/api/v01/contentmgr/remote/power/off 0 to 63 (default is 128)
http://<ip>/api/v01/contentmgr/playlist/play/:id 0 to 7 (default is 0)
http://<ip>/api/v01/contentmgr/playlist/stop 0 to 31 (default is 128)
Note: In the above URLs, enter the IP address for the projector in the <ip> field. For example, a URL
instructing a projector with the IP address 192.168.0.2 to playback playlist ID 3 would look like this:
http://192.168.0.2/api/v01/contentmgr/playlist/play/3
If secure HTTP is enabled, change the http in the URL to https.
Parent topic: Using the Projector on a Network
Related tasks
Controlling a Networked Projector Using a Web Browser
Secure HTTP
You can use the HTTPS protocol to increase security between the projector and a web browser
communicating with it. To do this, you create a server certificate, install it on the projector, and turn on
the Secure HTTP setting in the projector menus to verify the reliability of the web browser.
Even if you do not install a server certificate, the projector automatically creates a self-signed certificate
and allows communication. However, because the self-signed certificate cannot verify reliability from a
web browser, you see a warning about the server's reliability when you access the projector from a web
browser. This warning does not prevent communication.
Importing a Web Server Certificate Using the Projector Menus
Parent topic: Using the Projector on a Network
82
Page 83
Importing a Web Server Certificate Using the Projector Menus
You can create your web server certificate and import it using the projector menus and a USB flash
drive.
Note: You can also register digital certificates from your web browser. Make sure to only register once,
or the certificate may not install correctly.
1. Make sure your digital certificate file is compatible with projector registration and saved in the root
directory of the USB flash drive.
2. Press the Menu button on the remote control.
3. Select the Network menu and press Enter.
4. Select the Network Configuration setting and press Enter.
5. Select the Others menu and press Enter.
6. Select On as the Secure HTTP setting.
7. Select the Web Server Cert. setting and press Enter.
8. Select Register and press Enter.
9. Insert a USB flash drive into the projector's USB-A port. If the wireless LAN module is installed,
remove it before inserting the USB flash drive.
10. Press Enter to display the certificate list.
83
Page 84
11. Select the certificate you want to import from the displayed list.
A message is displayed prompting you to enter the password for the certificate.
12. Enter the password and press Enter.
The certificate is imported and a completion message appears.
13. Remove the USB flash drive, then re-insert the wireless LAN module.
Parent topic: Secure HTTP
Related references
Projector Network Settings - Network Menu
Registering a Digital Certificate on the Projector
Follow the instructions here if you need to install a digital certificate on the projector to provide security
for your presentation files.
Note: You can register a digital certificate using a web browser or through the projector's Network menu.
However, be sure to register just once, or the certificate may not install correctly.
Registering Digital Certificates from a Web Browser
Digital Certificate Types
Parent topic: Using the Projector on a Network
Registering Digital Certificates from a Web Browser
You can register the digital certificates on the projector for wireless LAN authentication.
1. Make sure your digital certificate file is compatible with projector registration.
2. Make sure the projector is turned on.
3. Start your web browser on a computer or mobile device connected to the network.
4. Type the projector's IP address into the browser's address box and press the computer's Enter key.
You see the Web Control screen and a prompt to enter a user ID and password.
5. Enter the following information in uppercase or lowercase letters, exactly as shown:
• For the user ID, enter EPSONWEB. (You cannot change the user ID.)
• For the password, enter the default password admin. (You can change the Web Control password
using the projector's Network menu.)
84
Page 85
6. Select Advanced.
7. Under Network, select Certificate.
You see a screen like this:
8. Click the Browse button, select the certificate file, and click Open.
9. Enter a password in the Password box, and click Send.
10. When you finish registering the certificate, click Apply to finalize your changes and complete the
registration.
Parent topic: Registering a Digital Certificate on the Projector
Related references
Digital Certificate Types
85
Page 86
Digital Certificate Types
You can register these types of digital certificates.
Client Certificate (PEAP-TLS/EAP-TLS)
Specification Description
Format PKCS#12
Extension PFX, P12
Encryption RSA
Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512
Key length 512/1024/2048/4096 bit
Password Up to 32 alphanumeric characters; required
CA Certificate (PEAP/PEAP-TLS/EAP-TLS/EAP-FAST)
Specification Description
Format X509v3
Extension DER/CER/PEM
Encryption RSA
Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512
Key length 512/1024/2048/4096 bit
Encoding BASE64/Binary
Web Server Certificate (Secure HTTP)
Specification Description
Format PKCS#12
Extension PFX, P12
Encryption RSA
Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512
Key length 512/1024/2048/4096 bit
86
Page 87
Specification Description
Common name Network host name
Organization Optional
Password Up to 32 alphanumeric characters; required
Note: You can set a password of up to 64 characters if you use a web browser to enter the text.
Parent topic: Registering a Digital Certificate on the Projector
Related tasks
Registering Digital Certificates from a Web Browser
87
Page 88
Using Basic Projector Features
Follow the instructions in these sections to use your projector's basic features.
Turning On the Projector
Turning Off the Projector
Selecting the Language for the Projector Menus
Setting the Date and Time
Resizing the Image with the Zoom Ring
Focusing the Image Using the Focus Ring
Setting the Screen Type
Adjusting the Image Position Using Screen Position
Displaying a Test Pattern
Adjusting the Image Height
Image Shape
Selecting an Image Source
Remote Control Operation
Projection Modes
Image Aspect Ratio
Color Mode
Turning On Dynamic Contrast
Adjusting the Hue, Saturation, and Brightness
Adjusting Gamma
Adjusting the Brightness
Controlling the Volume with the Volume Buttons
Projecting a PC Free Presentation
Projecting in Content Playback Mode
Turning On the Projector
Turn on the computer or video equipment you want to use before you turn on the projector so it can
display the image source.
88
Page 89

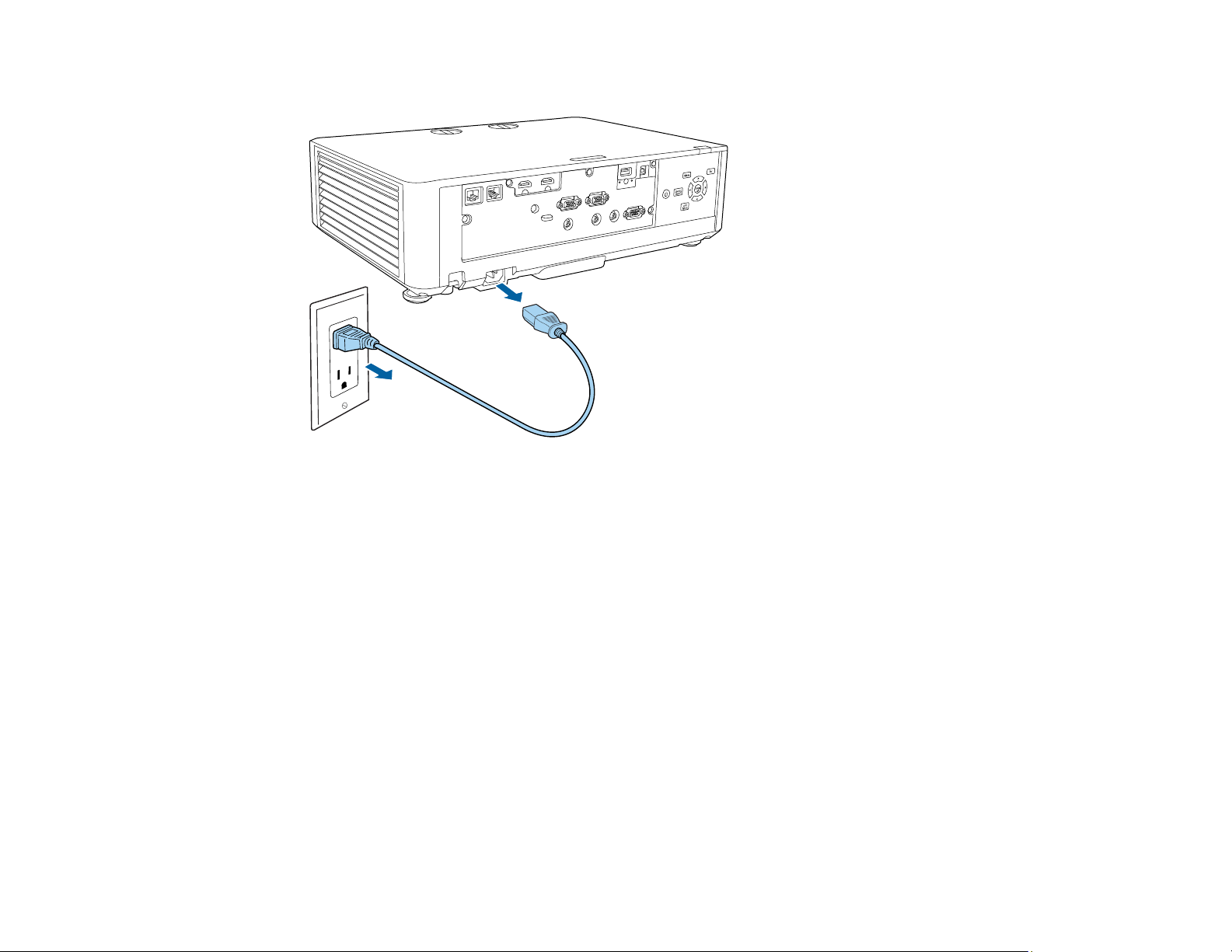

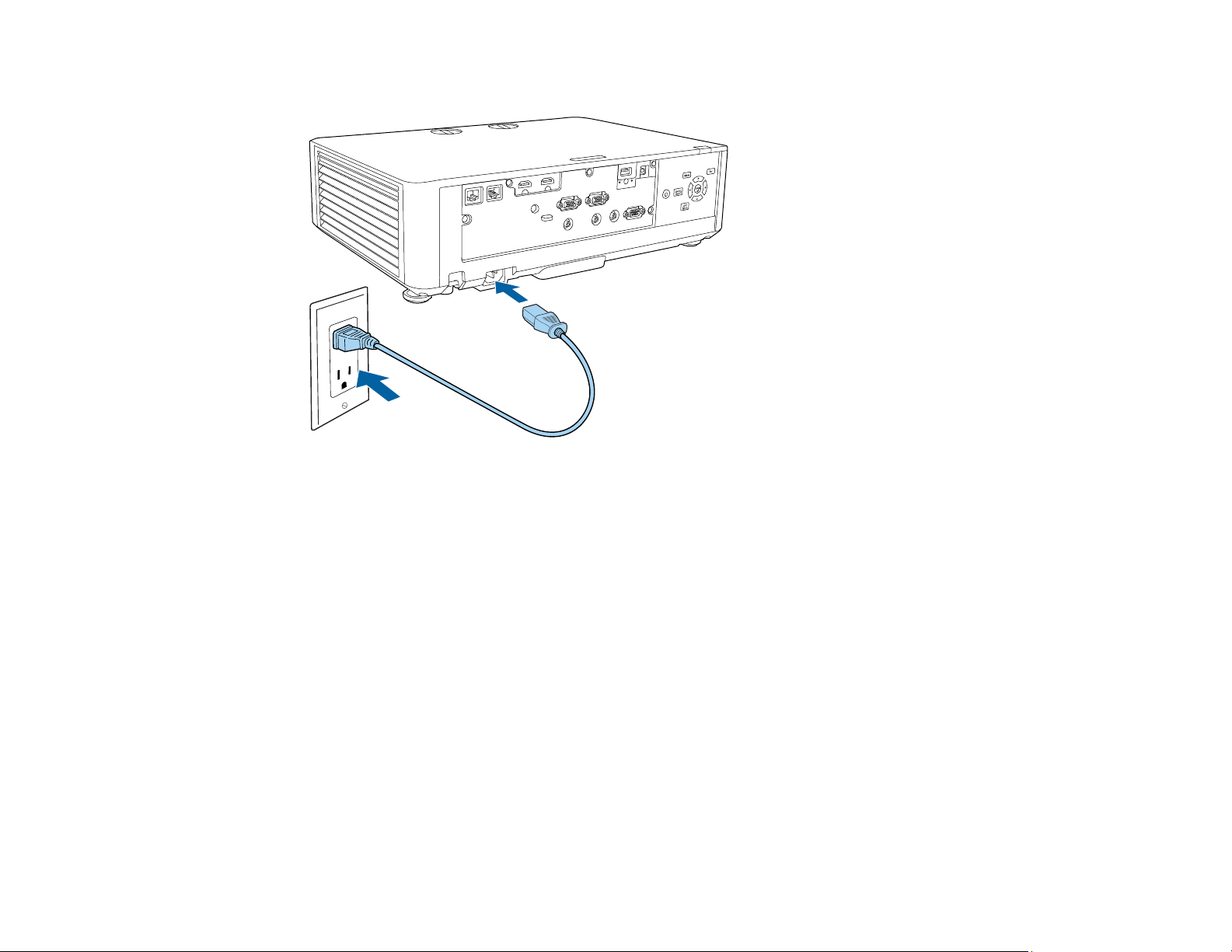

1. Connect the power cord to the projector's power inlet.
2. Plug the power cord into an electrical outlet.
The projector's On/Standby light turns blue. This indicates that the projector is receiving power, but
is not yet turned on (it is in standby mode).
Note: With Direct Power On turned on, the projector turns on as soon as you plug it in.
3. Remove the lens cover, if necessary.
4. Press the power button on the projector or the remote control to turn on the projector.
The projector beeps and the Status light flashes blue as the projector warms up. After about 30
seconds, the Status light stops flashing and turns blue.
Warning: Never look into the projector lens when the laser is on. This can damage your eyes and is
especially dangerous for children and pets. When turning on the projector at a distance using the
remote control, make sure there is no one looking into the lens. Make sure no objects are blocking
the light from the projector lens. Objects blocking the lens for an extended time can melt and light
that is reflected back into the lens can cause the projector to malfunction.
89
Page 90
Note: When Quick Startup is enabled in the projector's Operation menu, the projector becomes
ready for use in several seconds the next time you press the power button.
Note: If the Auto Source Search setting in the Extended menu is enabled, the projector
automatically detects the input signal when you turn it on. This setting is disabled if the Quick
Startup or Content Playback setting is enabled.
Note: If the Auto Power On setting in the Extended menu is enabled, the projector automatically
detects the input signal for the HDMI1 or Computer1 ports when you turn it on.
If you do not see a projected image right away, try the following:
• Turn on the connected computer or video device.
• Insert a DVD or other video media, and press the play button (if necessary).
• Change the screen output from the computer if you are using a laptop computer.
• Press the Source Search button on the projector or remote control to detect the video source.
• Press the Home button and select the source you want to project on the Home screen.
Using the Home Screen
Parent topic: Using Basic Projector Features
Related references
Projector Light Status
Projector Setup Settings - Extended Menu
Using the Home Screen
You can select input sources and other frequently used options from the Home screen.
1. To display the Home screen, do one of the following:
• Press the Home button on the remote control.
• Turn on the projector with the Home Screen Auto Disp setting enabled.
• Turn on the projector when no signal is received from the selected input source.
90
Page 91
2. Press the arrow buttons on the remote control or control panel to navigate the screen, and press
Enter to select an option.

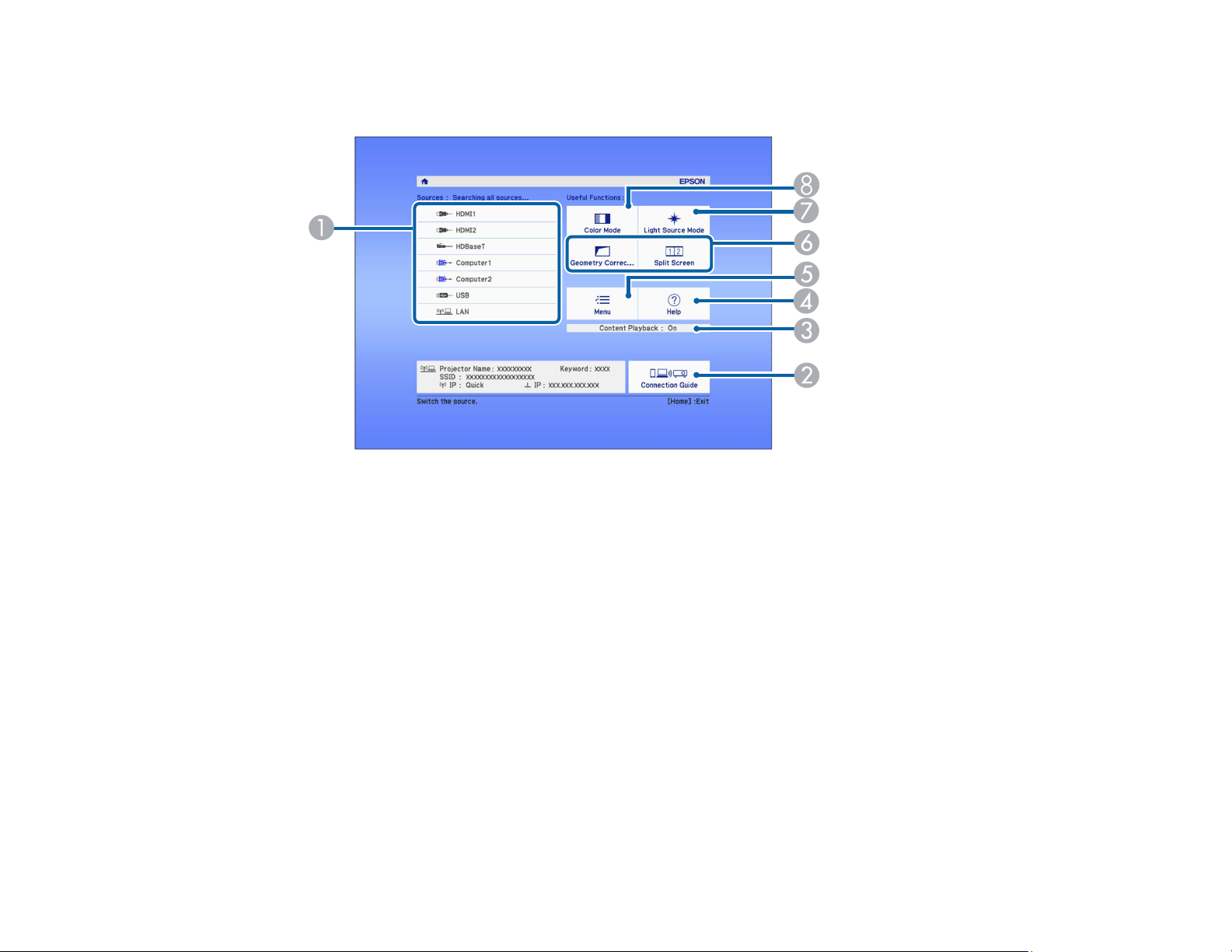

1 Select the video source you want to project
2 Display the Connection Guide
3 Indicates the Content Playback mode
4 Display the Help screen
5 Display the projector's menus
6 Select customizable menu options
7 Select to change the Light Source Mode
8 Select to change the Color Mode
3. Press the Home button to hide the Home screen.
Parent topic: Turning On the Projector
Related tasks
Switching to Content Playback Mode
Using the Projector Help Displays
91
Page 92
Changing the Color Mode
Selecting an Image Source
Adjusting the Brightness
Turning Off the Projector
Before turning off the projector, shut down any computer connected to it so you can see the computer
display during shutdown.
Note: Turn off this product when not in use to prolong the life of the projector. Laser life will vary
depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.
1. Press the power button on the projector or the remote control.
2. If you see a shutdown confirmation screen, press the power button on the projector or the remote
control again. (To leave the projector on, press any other button.)
The projector beeps twice, the laser turns off, and the Status light turns off.
Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the
projector for transport right away (if necessary).
Note: If the Light Source Calibration setting is set to Run Periodically in the projector's Reset
menu, light source calibration starts automatically if you turn off the projector and the following
conditions are present:
• 100 hours have passed since the last light source calibration.
• You have used the projector continuously for at least 20 minutes.
92
Page 93
3. To transport or store the projector, make sure the Status light is off, then unplug the power cord.
4. Attach the lens cover.
Parent topic: Using Basic Projector Features
Selecting the Language for the Projector Menus
If you want to view the projector's menus and messages in another language, you can change the
Language setting.
1. Turn on the projector.
2. Press the Menu button.
93
Page 94
3. Select the Extended menu and press Enter.
4. Select the Language setting and press Enter.
5. Select the language you want to use and press Enter.
6. Press Menu or Esc to exit the menus.
Parent topic: Using Basic Projector Features
Related references
Projector Setup Settings - Extended Menu
Setting the Date and Time
You can set the date and time for the projector.
1. Press the Menu button.
2. Select the Extended menu and press Enter.
3. Select the Operation setting and press Enter.
4. Select the Date & Time setting and press Enter.
94
Page 95
You see a screen like this:
5. Select the Date & Time setting and press Enter.
6. Use the displayed keyboard to enter the date and time.
7. To activate daylight savings time, select the Daylight Saving Time setting and press .
8. Select the Daylight Saving Time setting and set it to On. Select your daylight saving settings. Then
select Set and press Enter to confirm your changes.
9. To update the time automatically from an internet time server, select the Internet Time setting and
press Enter.
10. Select the Internet Time setting and set it to On.
11. Enter the IP address of the internet time server. Select Set and press Enter to confirm your
changes.
12. When you are finished, press the Menu button to exit.
Date and Time Settings
Parent topic: Using Basic Projector Features
Related references
Projector Setup Settings - Extended Menu
95
Page 96
Date and Time Settings
Settings Options Description
Date & Time Date
Time
Time Difference (UTC)
Daylight Saving Time Daylight Saving Time
DST Start
DST End
DST Adjustment (min)
Internet Time Internet Time
Internet Time Server
Adjusts the projector's date and time
settings
Date and Time: sets the date and time
Time Difference (UTC): sets the time
difference from Coordinated Universal
Time
Adjusts the daylight saving time
settings
Daylight Saving Time: enables or
disables daylight saving time
DST Start and DST End: sets the date
and time to start or end daylight saving
time
DST Adjustment (min): sets the
difference between standard and
daylight saving time
Automatically adjusts the time through
an Internet connection
Internet Time: turn on this setting to
update the date and time automatically
through an Internet time server
Parent topic: Setting the Date and Time
Resizing the Image with the Zoom Ring
You can resize the image using the projector's zoom ring.
1. Turn on the projector and display an image. Wait 20 minutes after turning on the projector before
setting the focus and zoom for maximum accuracy.
96
Internet Time Server: sets the IP
address for the Internet time server
Page 97
2. To enlarge or reduce the image size, rotate the projector's zoom ring.
Parent topic: Using Basic Projector Features
Focusing the Image Using the Focus Ring
1. Turn on the projector and display an image. Wait 20 minutes after turning on the projector before
setting the focus and zoom for maximum accuracy.
2. To sharpen the image focus, rotate the projector’s focus ring.
Parent topic: Using Basic Projector Features
Setting the Screen Type
You can use the Screen Type setting to match the aspect ratio of the displayed image to the screen you
are using.
Note: This setting is unavailable when using the USB or LAN input source.
97
Page 98
Note: If you change the Screen Type setting, the Geometry Correction settings are initialized. You
cannot change the Screen Type setting when the Content Playback setting is enabled.
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select the Extended menu and press Enter.
4. Select Display > Screen > Screen Type.
You see this screen:

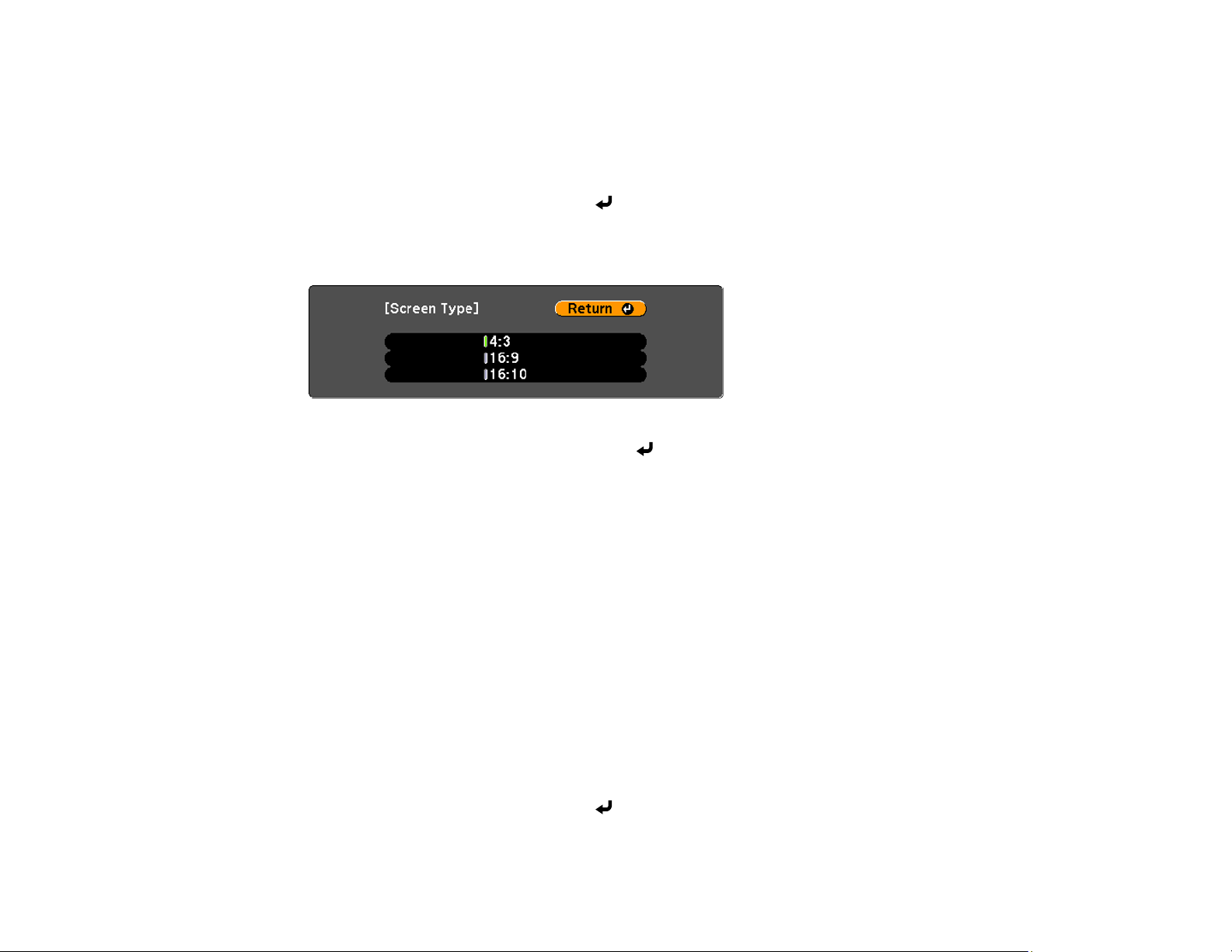

5. Select your screen's aspect ratio and press Enter.
6. Press the Menu button to exit.
7. Adjust the aspect ratio for the projected image, if necessary.
Parent topic: Using Basic Projector Features
Related references
Projector Feature Settings - Settings Menu
Adjusting the Image Position Using Screen Position
You can adjust the image position if there are margins between the edge of the image and the projected
screen frame.
Note: You cannot adjust the screen position if the Screen Type setting is set to 16:10.
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select the Extended menu and press Enter.
4. Select Display > Screen > Screen Position.
98
Page 99
5. Use the arrow buttons on the remote control or projector to adjust the position of the image.
6. When you are finished, press the Menu button.
Parent topic: Using Basic Projector Features
Displaying a Test Pattern
You can display a test pattern to adjust the projected image without connecting a computer or video
device.
Note: The test pattern's shape is determined by the Screen Type setting. Be sure to set the correct
screen type before adjusting with the test pattern.
1. Turn on the projector.
2. Press the down arrow button on the control panel.
99
Page 100
3. Press the left or right arrow button on the remote control, or press Enter on the control panel to
cycle through the available test patterns.
4. Adjust the image as necessary.
5. Press the Esc button to clear the test pattern.
Parent topic: Using Basic Projector Features
Related references
Projector Feature Settings - Settings Menu
Related tasks
Setting the Screen Type
Adjusting the Image Height
If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust
the image height using the projector's adjustable feet.
1. Turn on the projector and display an image.
100
