Page 1
User's Guide
Page 2
Contents
2
Notations Used in This Guide 8

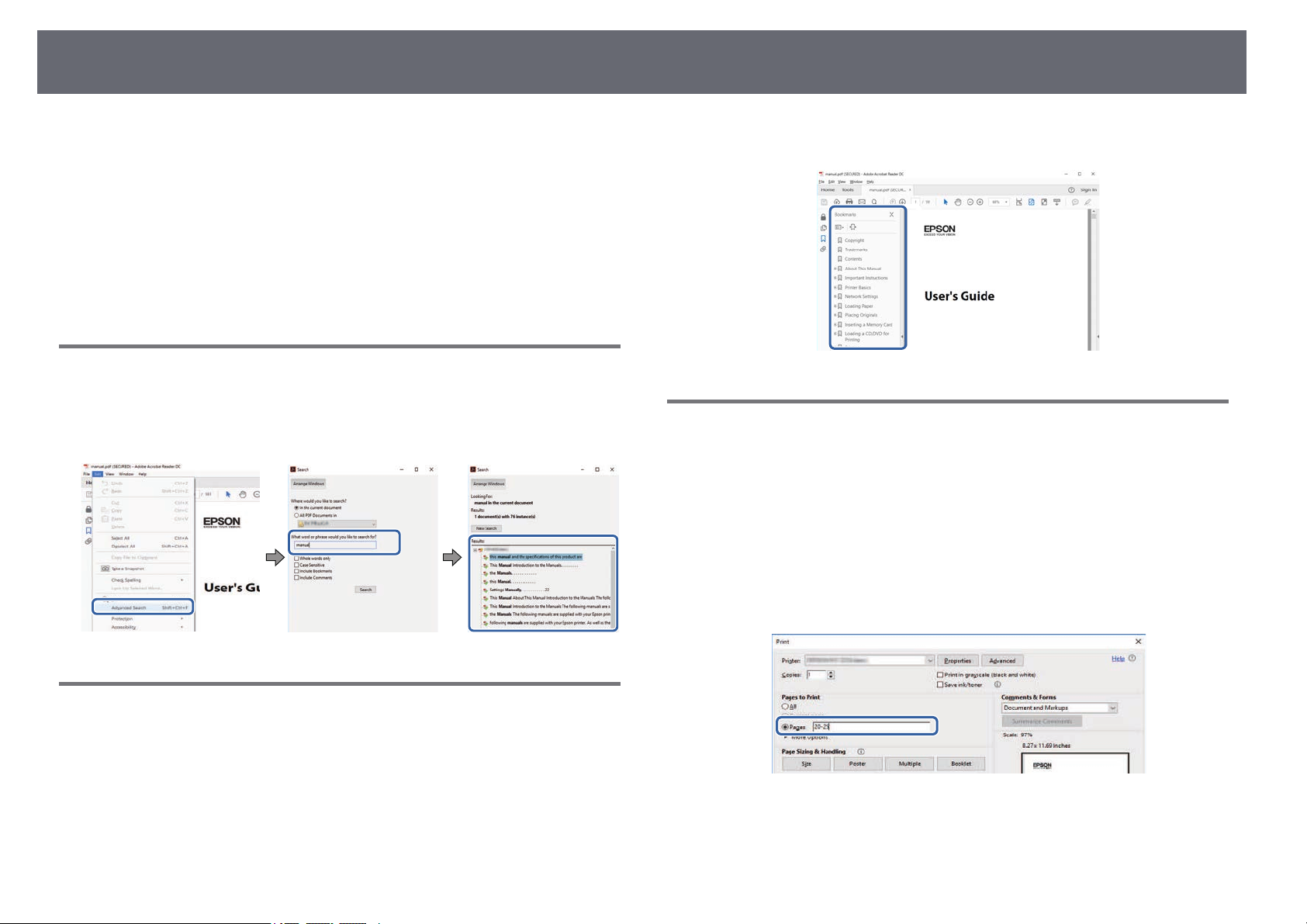

Using the Manual to Search for Information .................................. 9
Searching by Keyword................................................................................................................... 9
Jumping Directly from Bookmarks............................................................................................ 9
Printing Only the Pages You Need............................................................................................ 9
Getting the Latest Version of the Documents............................... 10
Introduction to Your Projector 11
Projector Features............................................................................ 12
Long-life Laser Light Source...................................................................................................... 12
Quick and Easy Setup .................................................................................................................. 12
Easy Wireless Projection ............................................................................................................. 12
Managing over a Network ......................................................................................................... 13

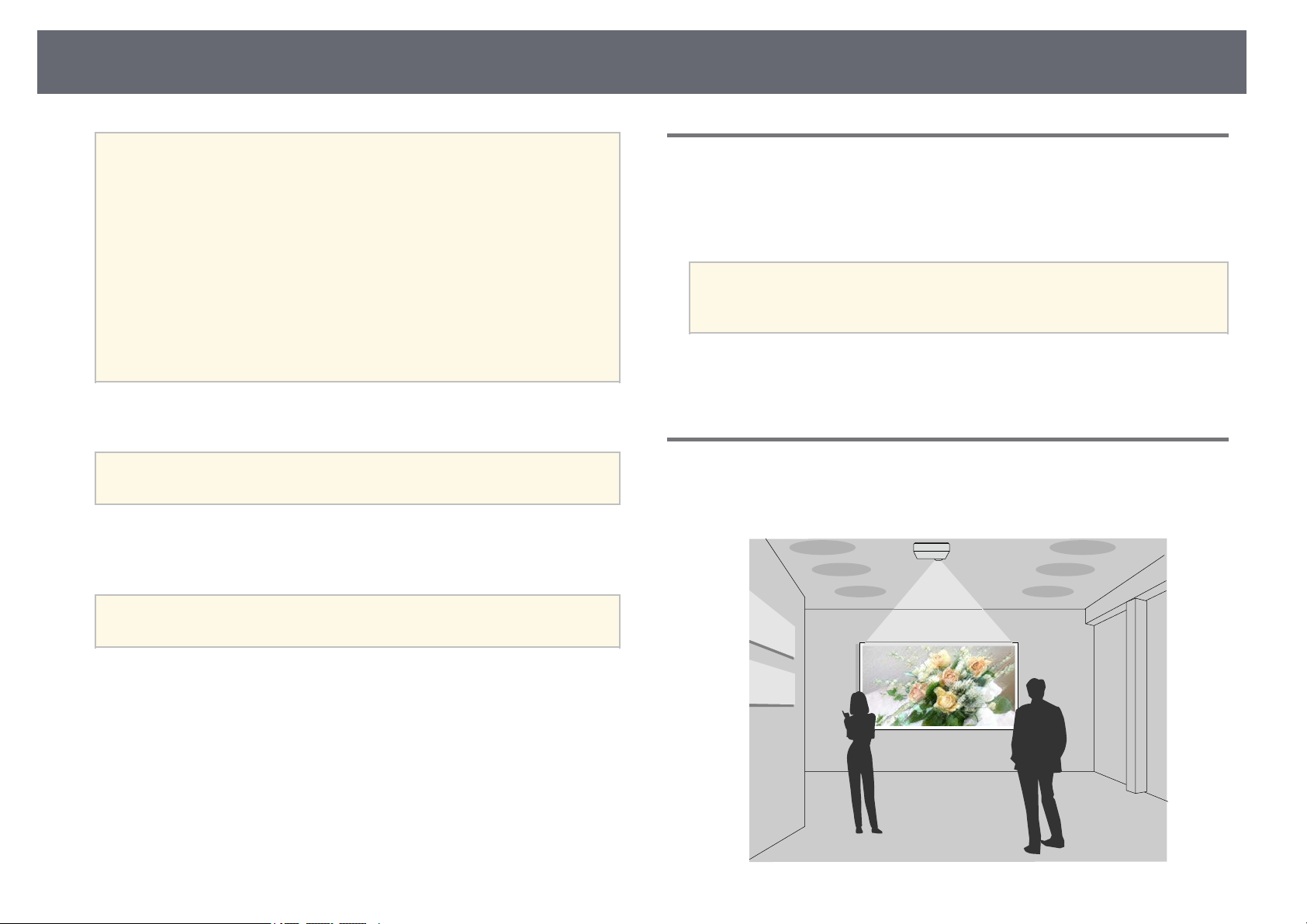

Projecting for Exhibitions........................................................................................................... 13
Projector Parts and Functions ........................................................ 15

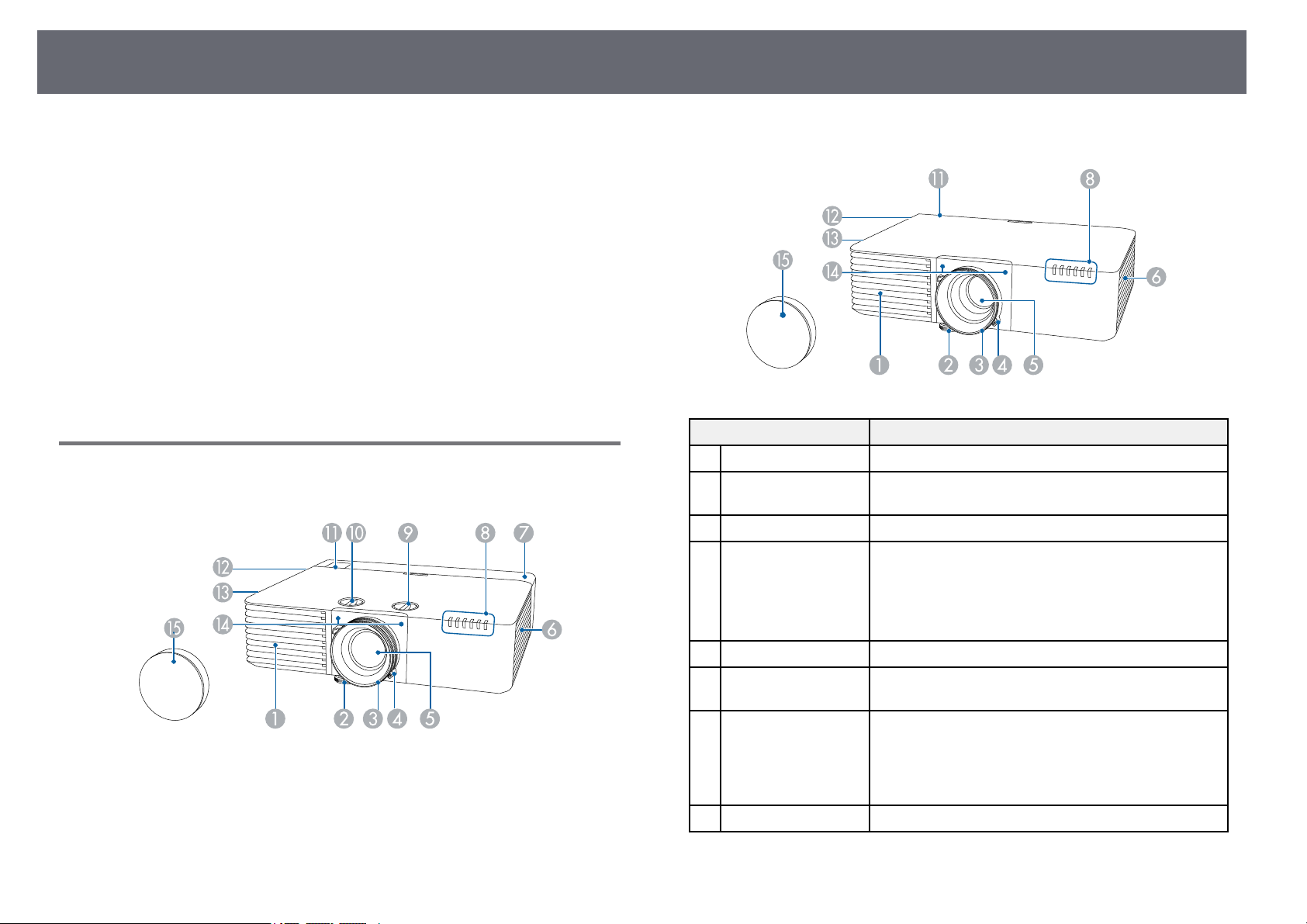

Projector Parts - Front/Top ........................................................................................................ 15

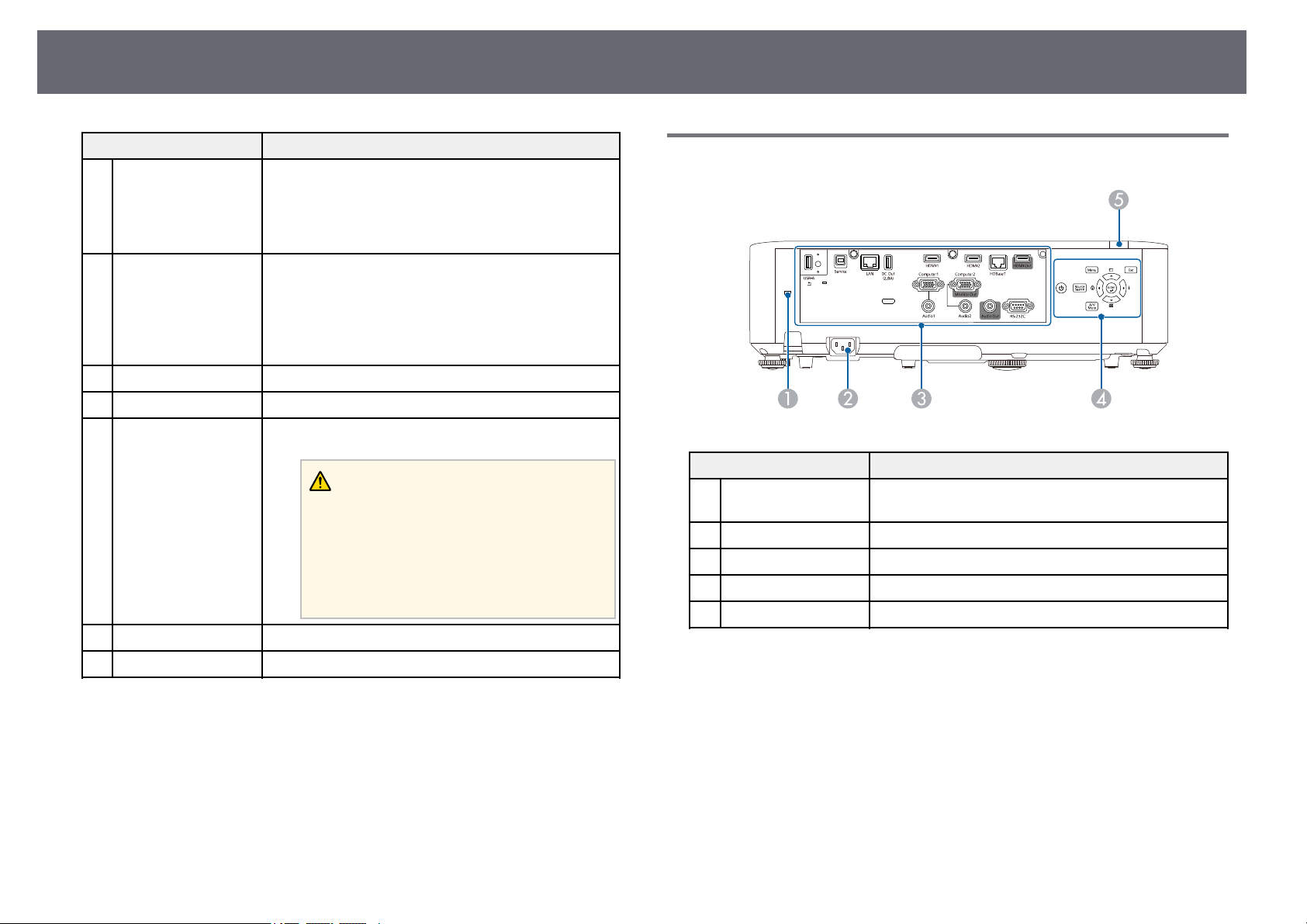

Projector Parts - Rear.................................................................................................................... 16

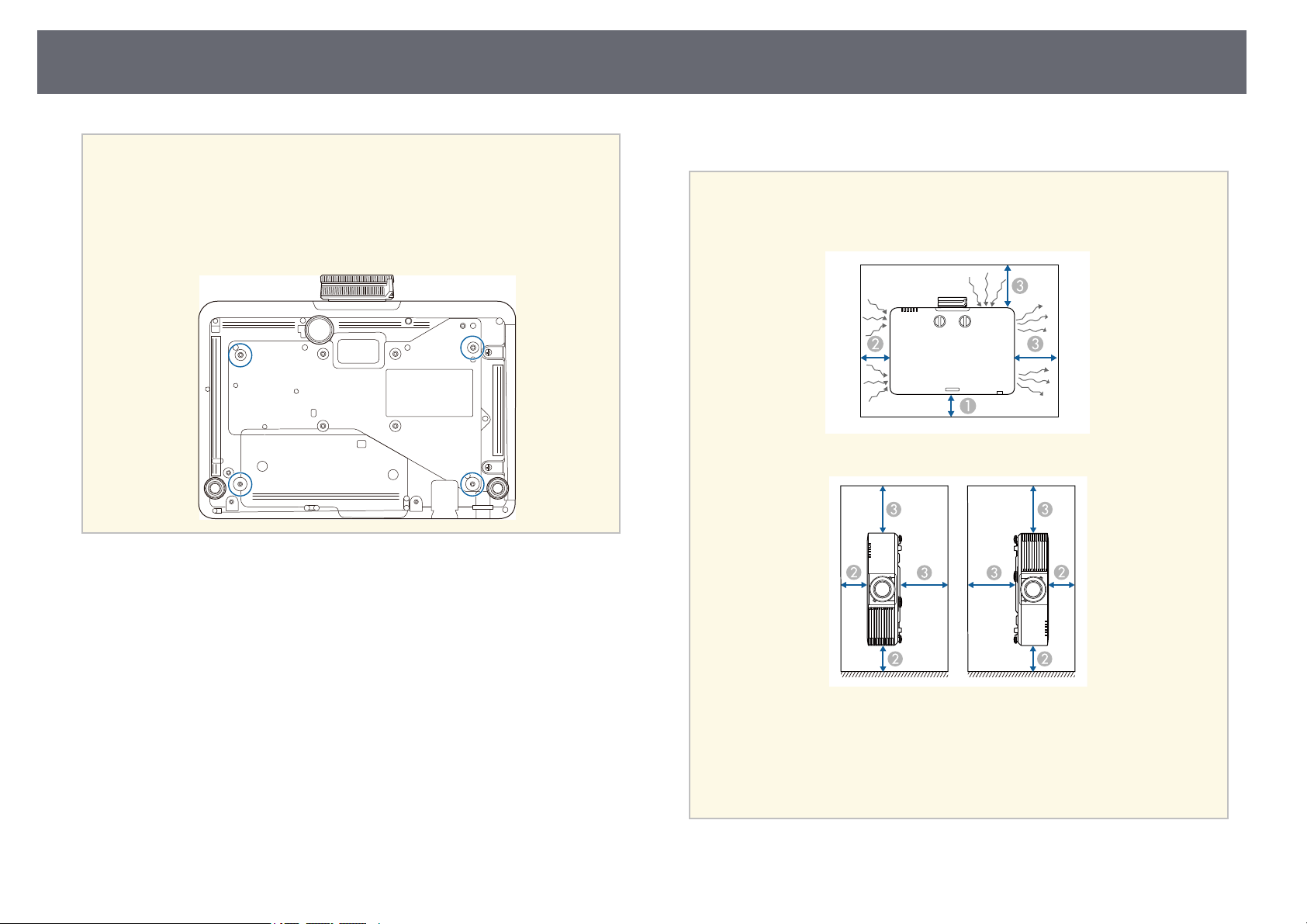

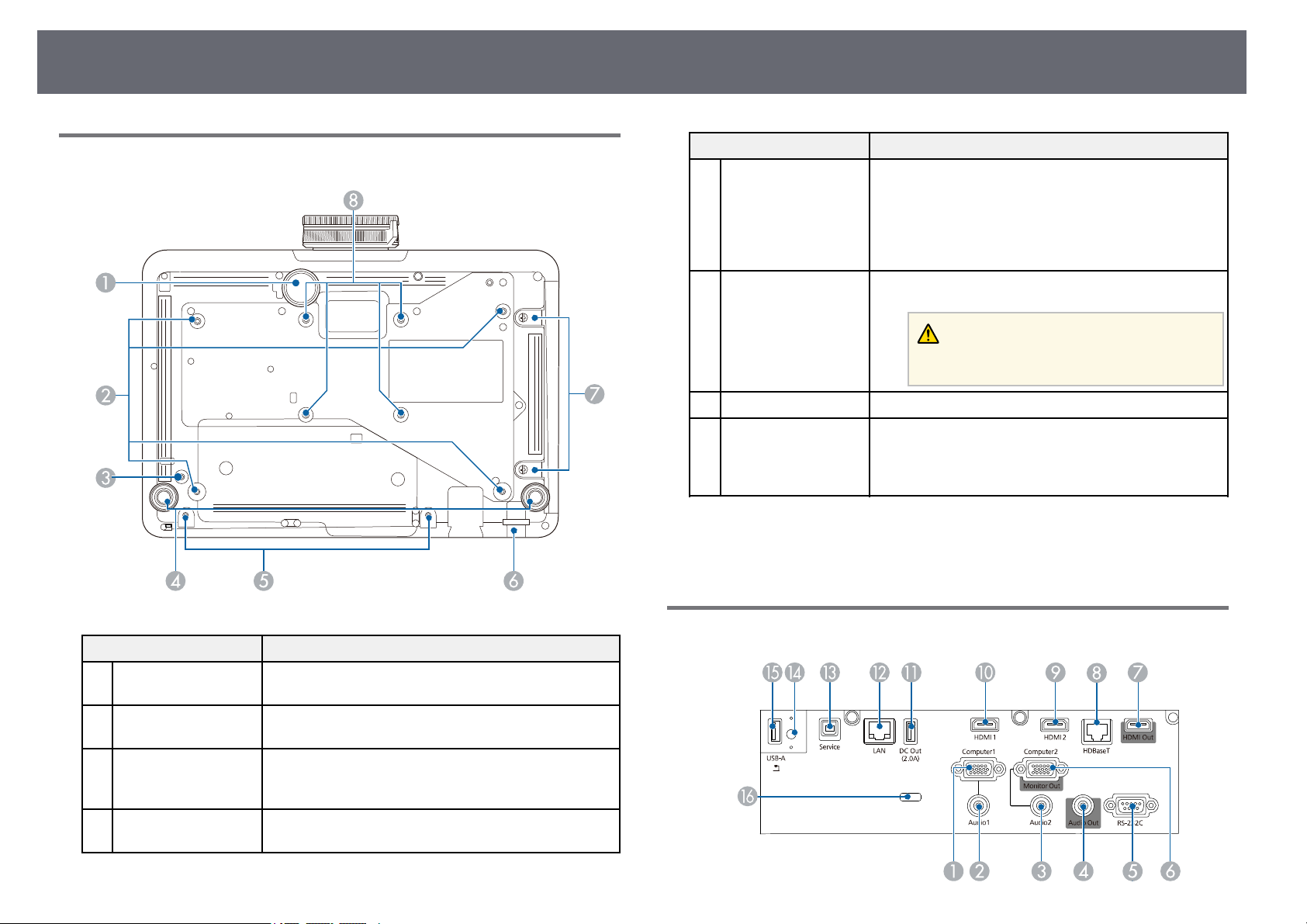

Projector Parts - Base ................................................................................................................... 17
Projector Parts - Interface Ports ............................................................................................... 17

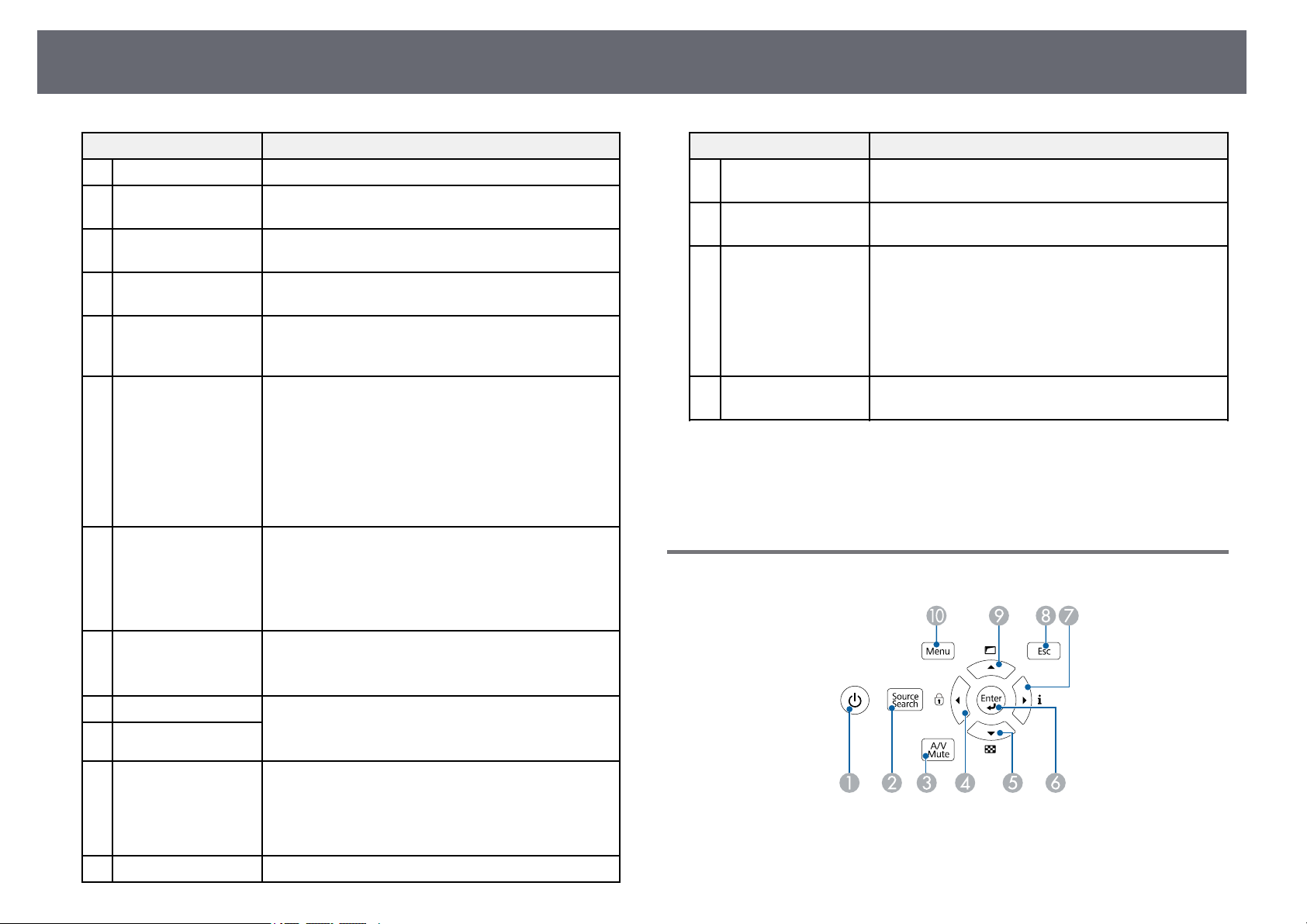

Projector Parts - Control Panel................................................................................................. 18

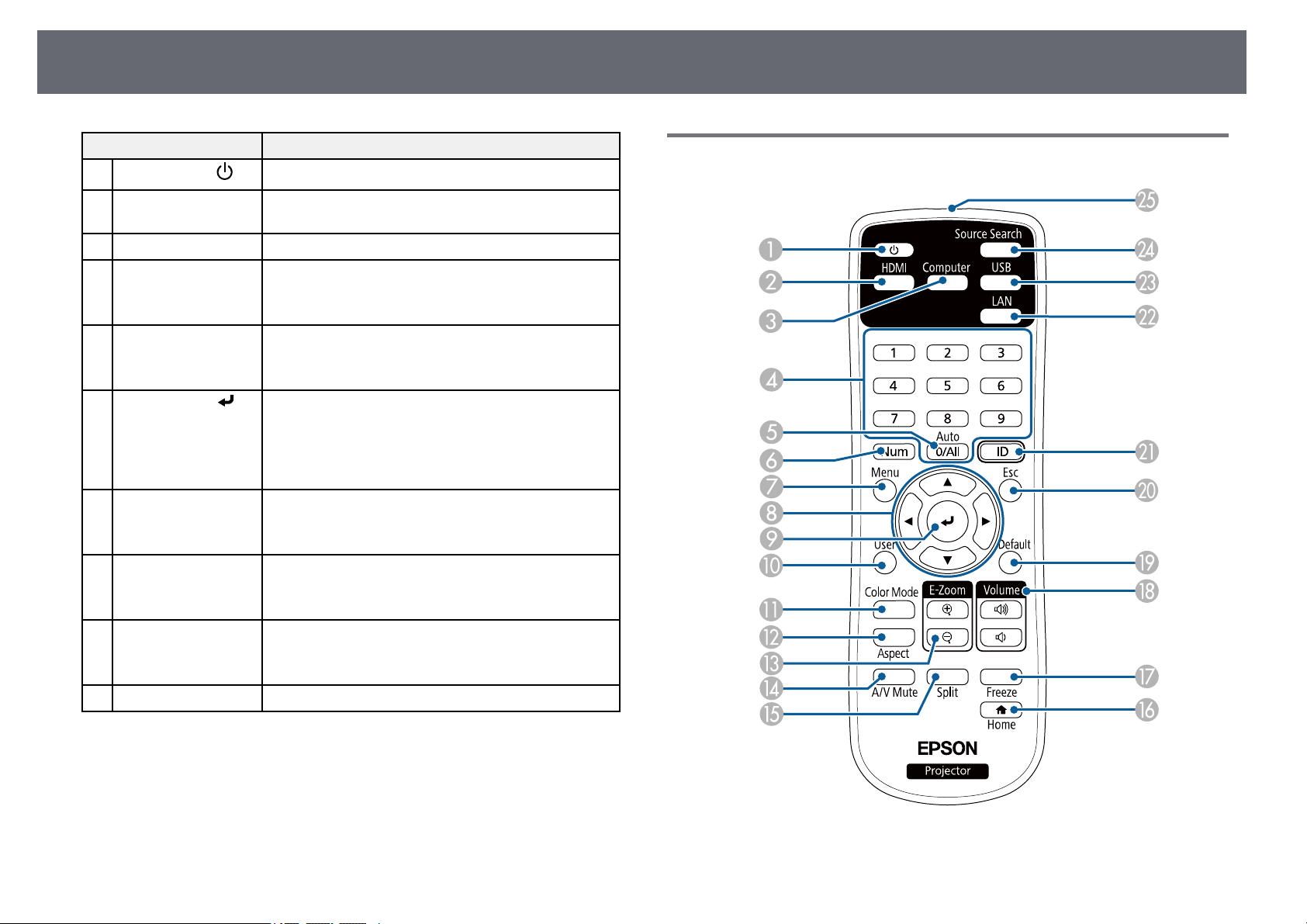

Projector Parts - Remote Control ............................................................................................ 19
When Using the Ceiling Mount ELPMB22............................................................................ 27
When Using the Ceiling Mount ELPMB30............................................................................ 28
Projector Connections ..................................................................... 30
Connecting to a Computer........................................................................................................ 30

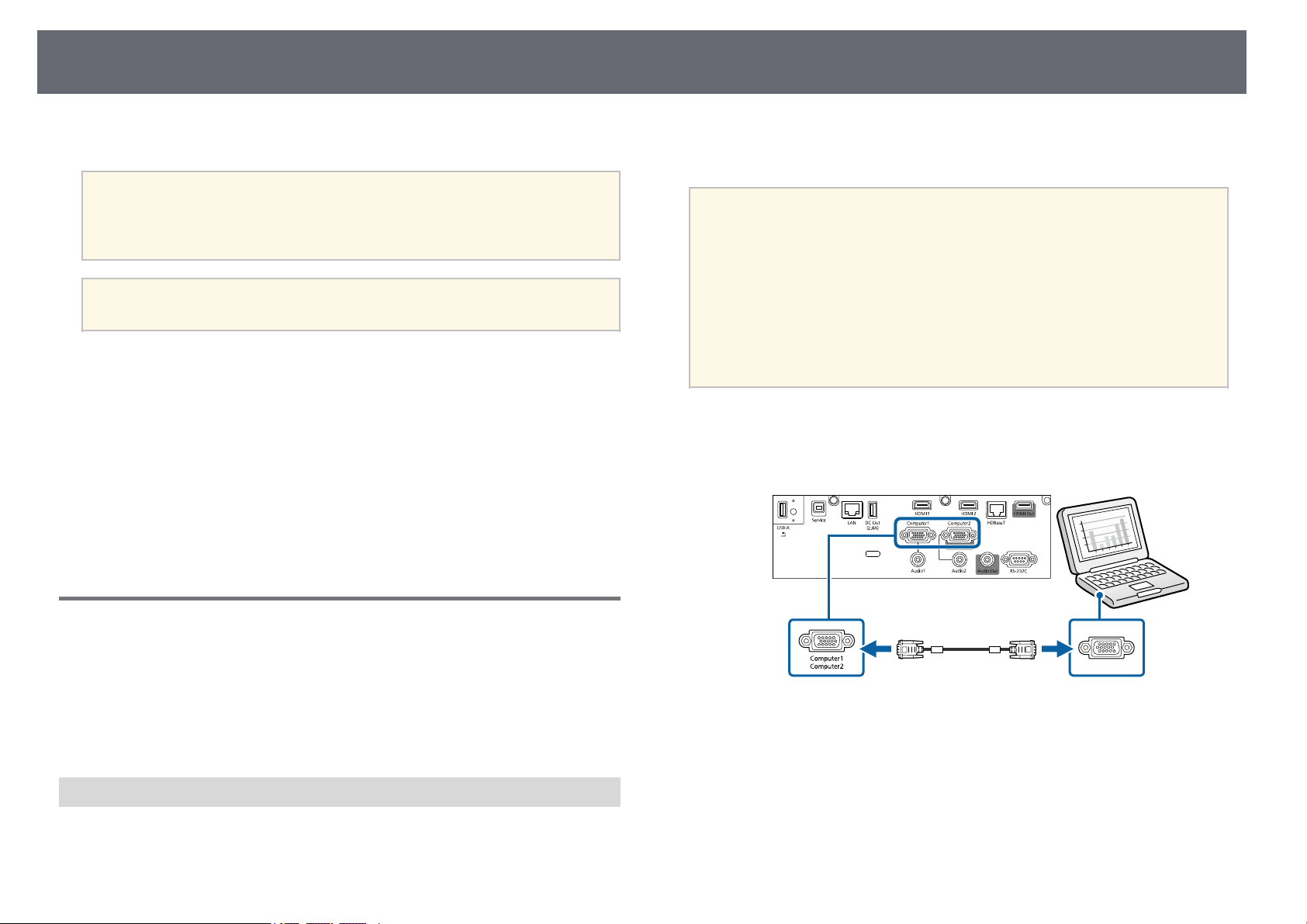

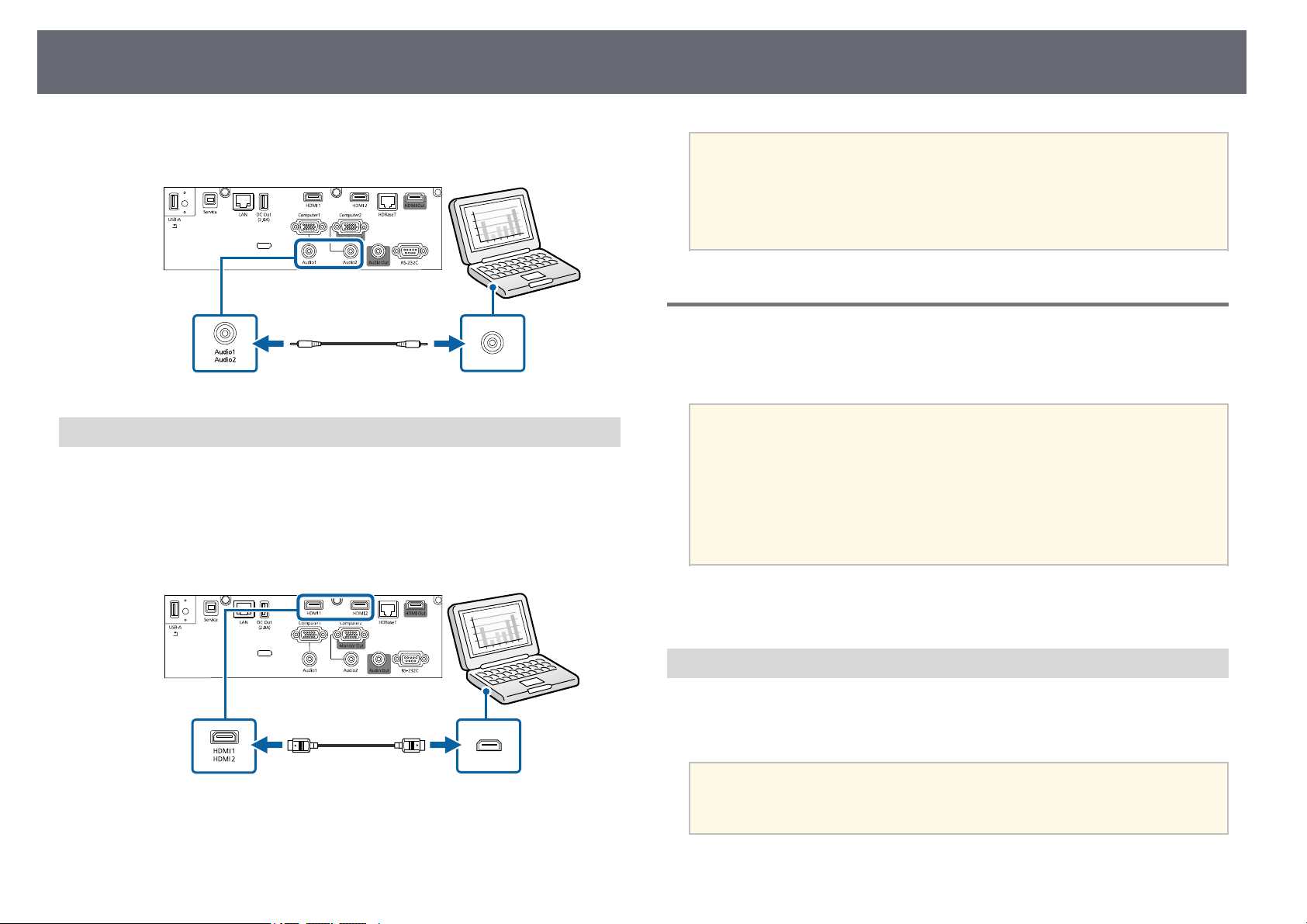

Connecting to a Computer for VGA Video and Audio.............................................. 30
Connecting to a Computer for HDMI Video and Audio ........................................... 31
Connecting to Video Sources ................................................................................................... 31

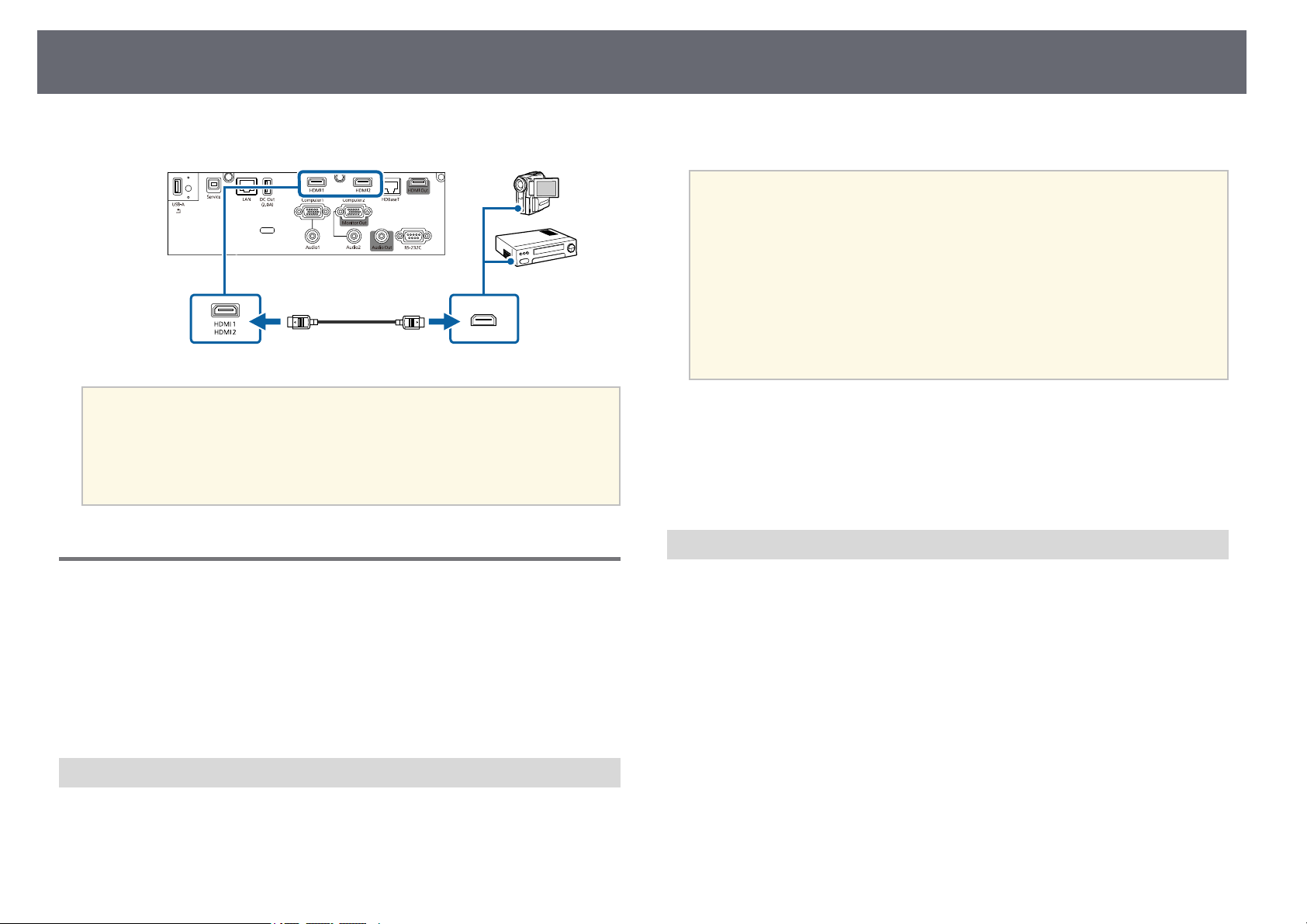

Connecting to an HDMI Video Source ............................................................................ 31
Connecting to External USB Devices ..................................................................................... 32
USB Device Projection ........................................................................................................... 32

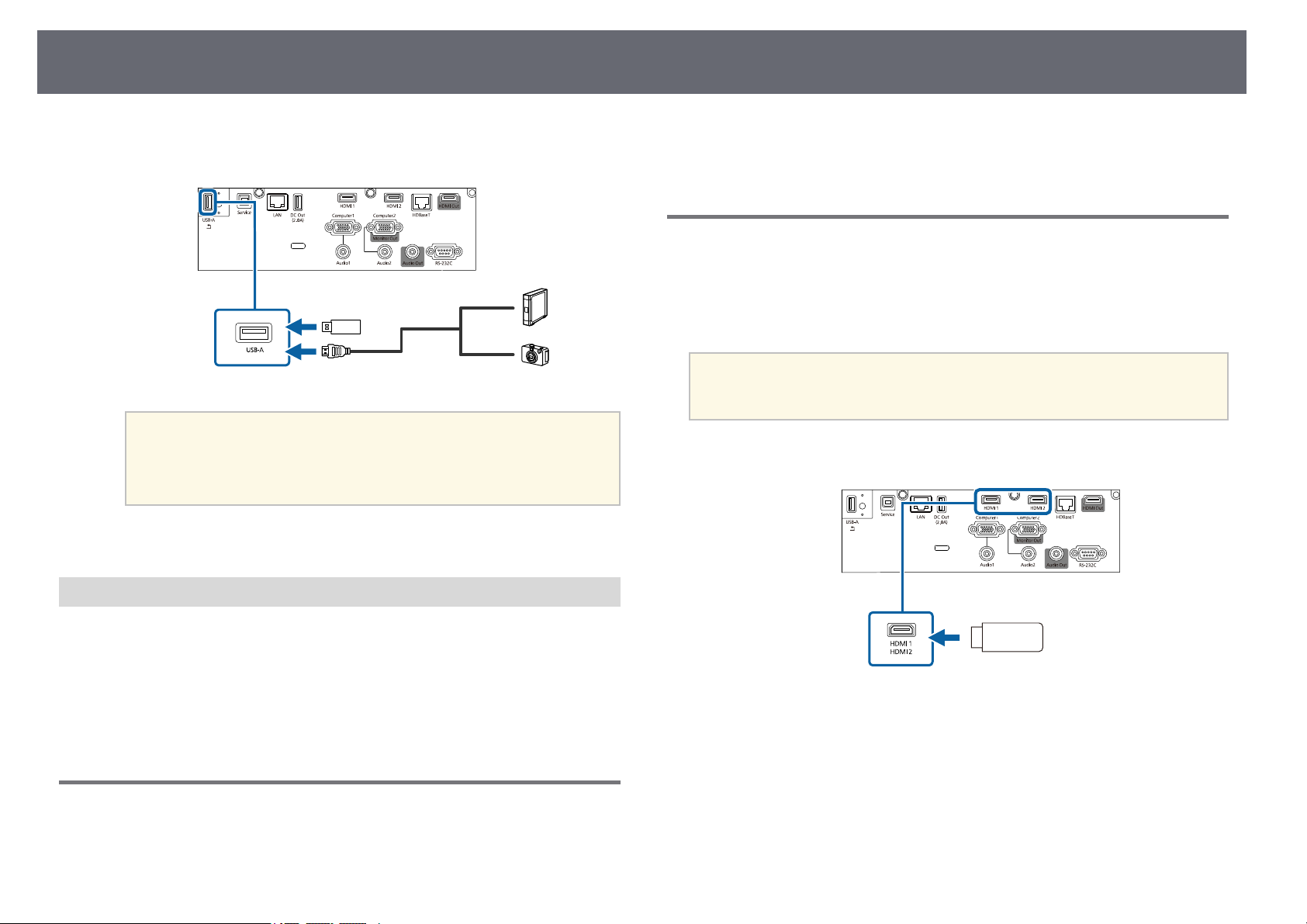

Connecting to a USB Device ............................................................................................... 32
Disconnecting a USB Device ............................................................................................... 33
Connecting to a Document Camera ...................................................................................... 33

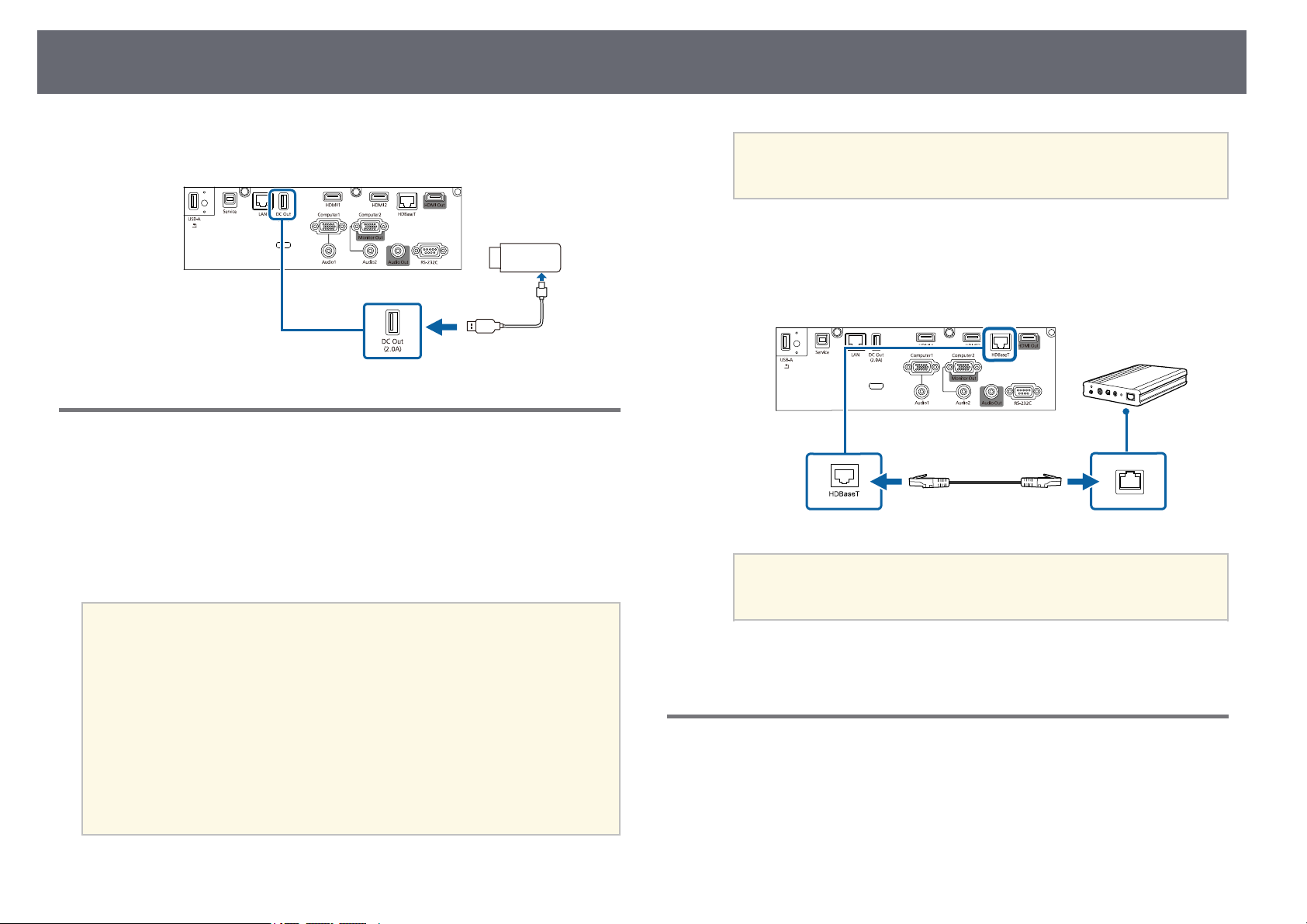

Connecting to a Streaming Media Player ............................................................................ 33
Connecting to an HDBaseT Transmitter .............................................................................. 34
Connecting to External Devices............................................................................................... 34

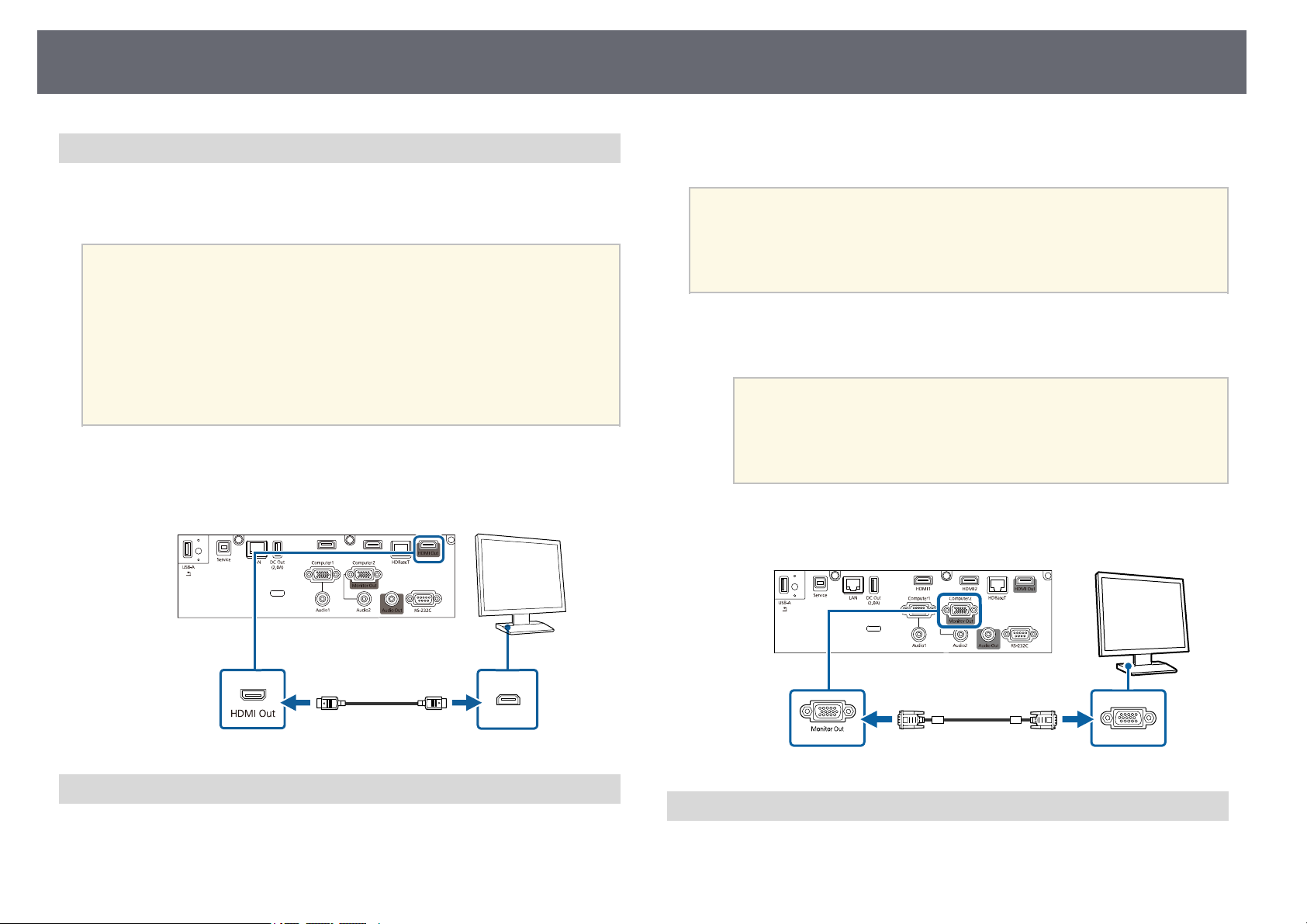

Connecting to an External HDMI Monitor ..................................................................... 35
Connecting to a VGA Monitor ............................................................................................ 35

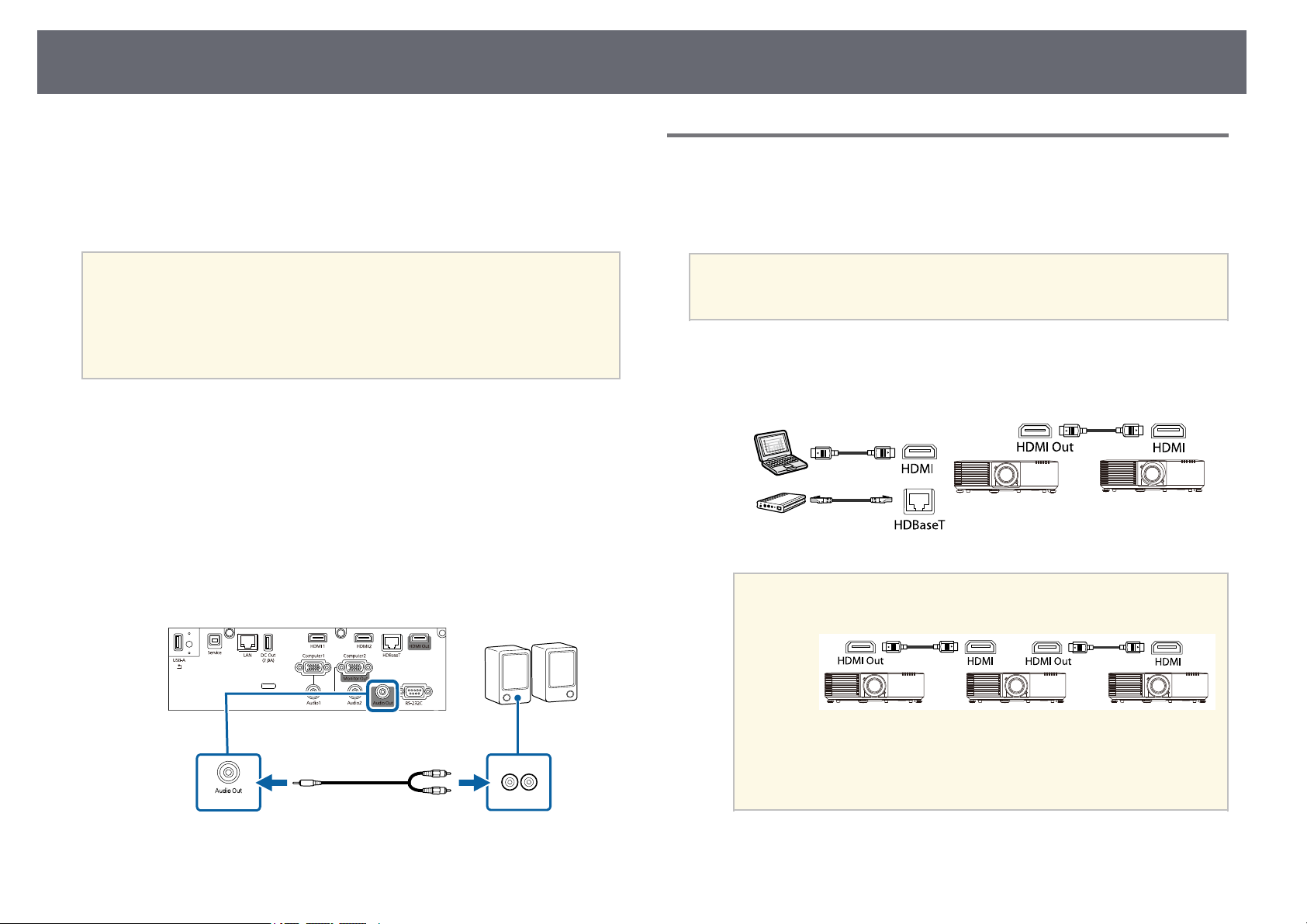

Connecting to External Speakers ...................................................................................... 35

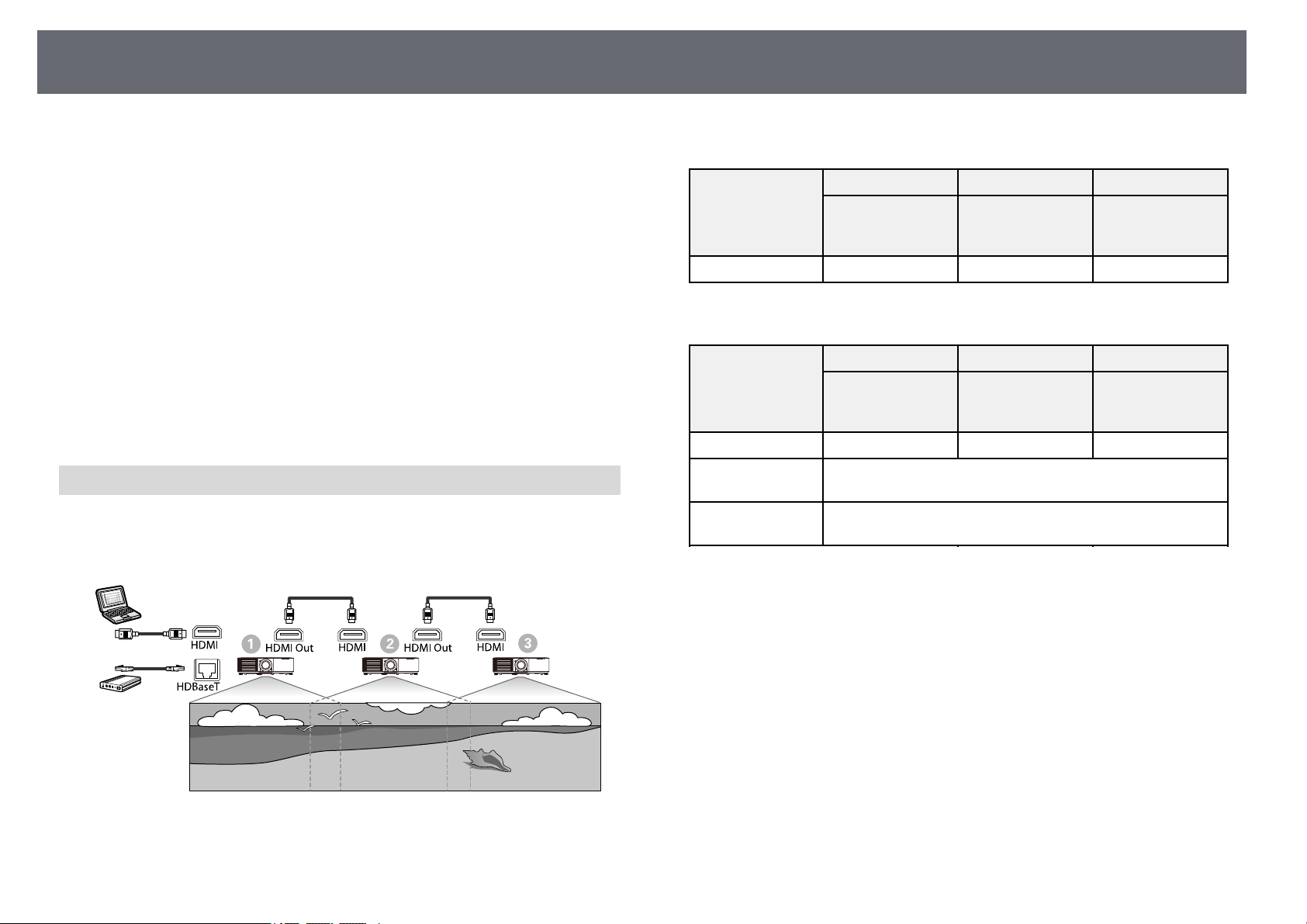

Connecting Multiple Projectors of the Same Model ....................................................... 36
Menu Settings for Multiple Projector Connections .................................................... 37

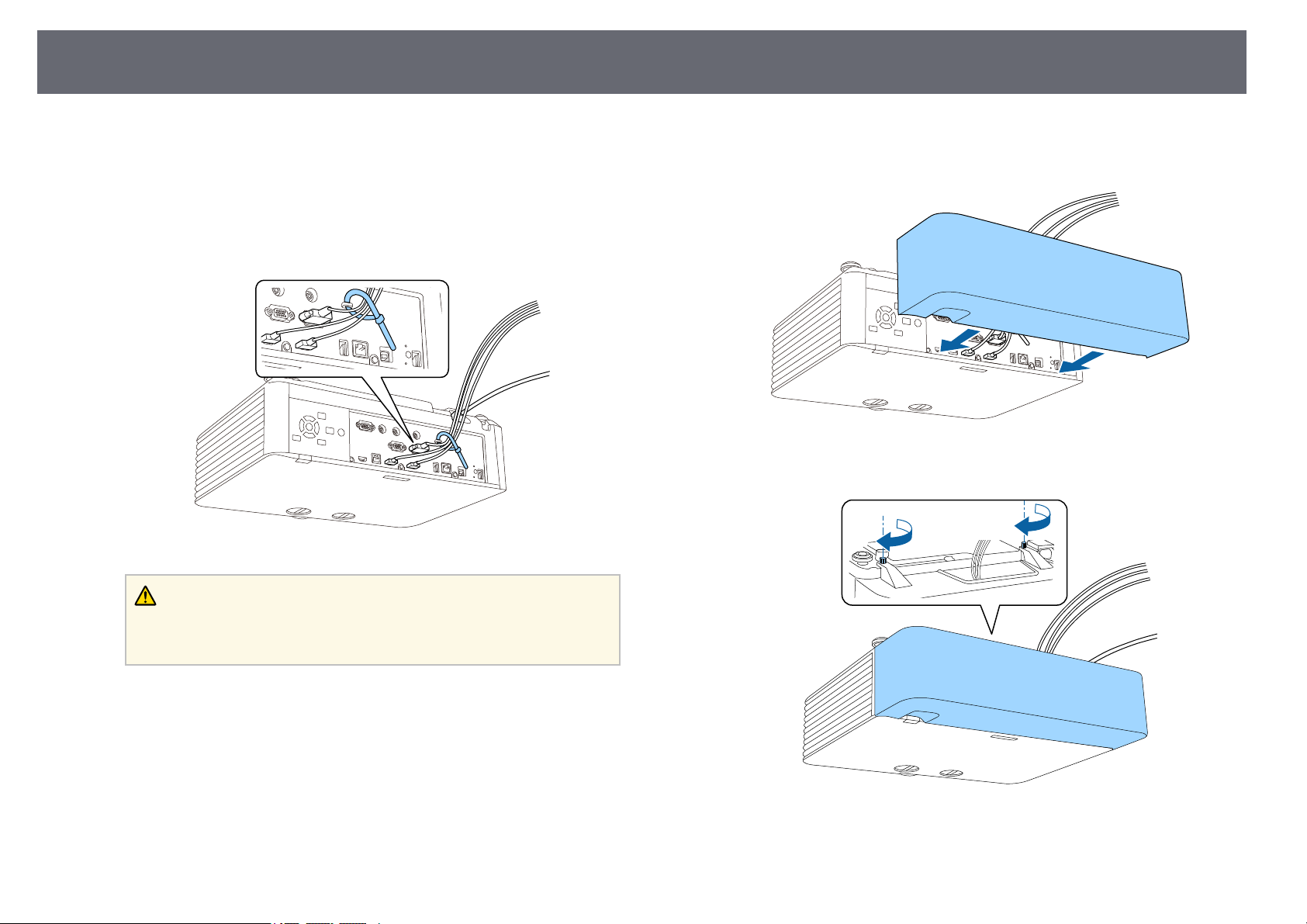

Attaching and Removing the Cable Cover .................................... 38

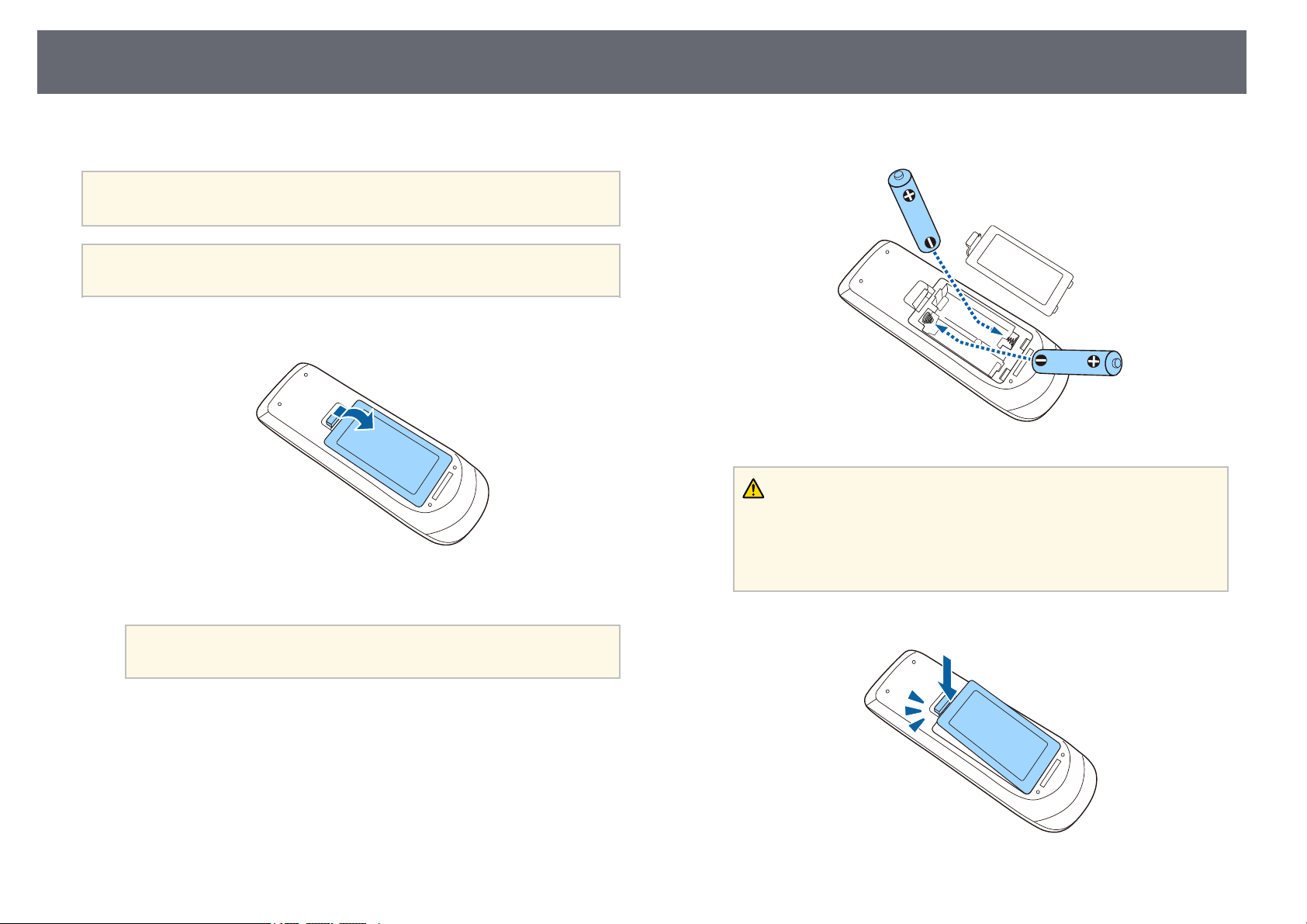

Installing Batteries in the Remote Control.................................... 39

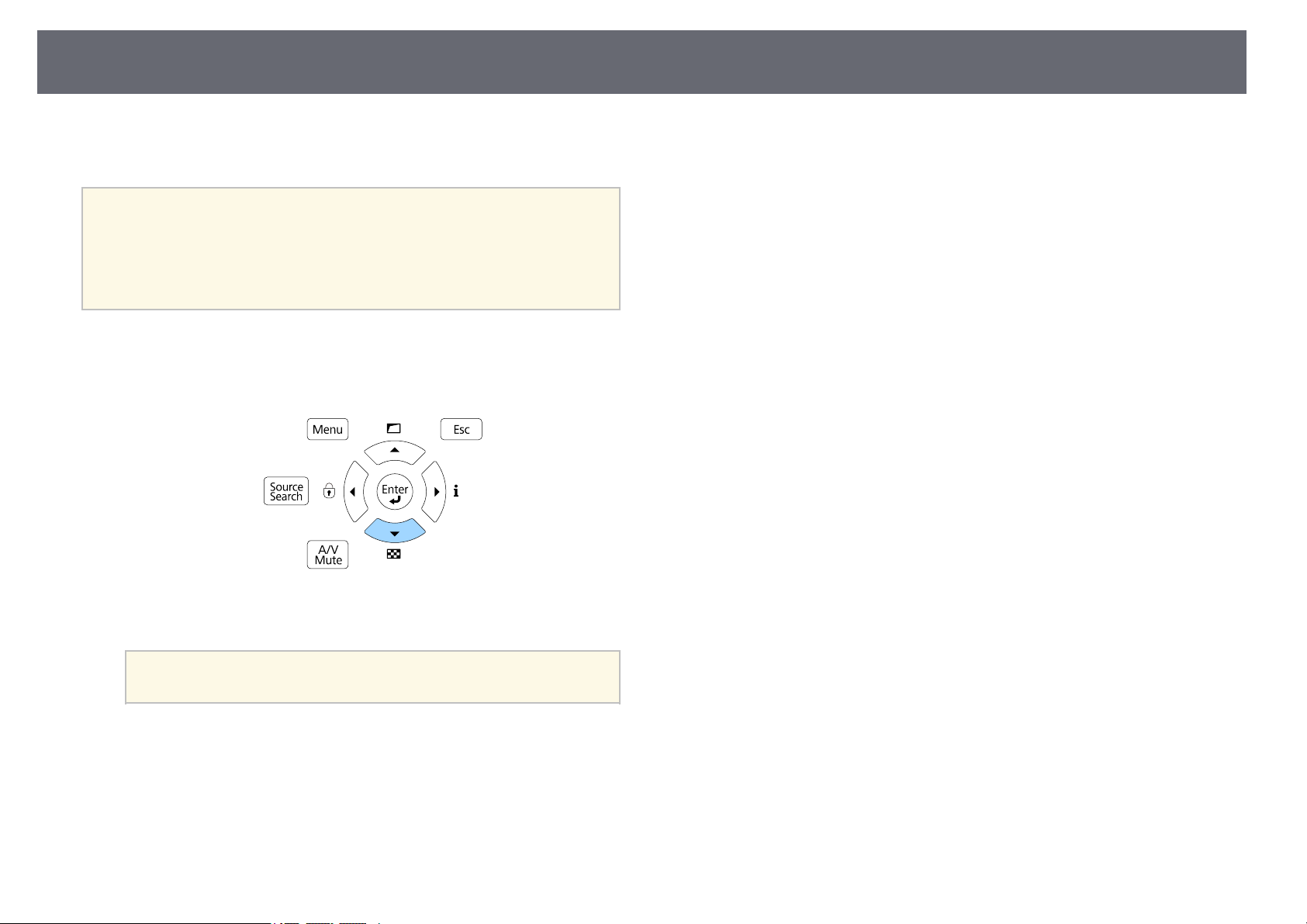

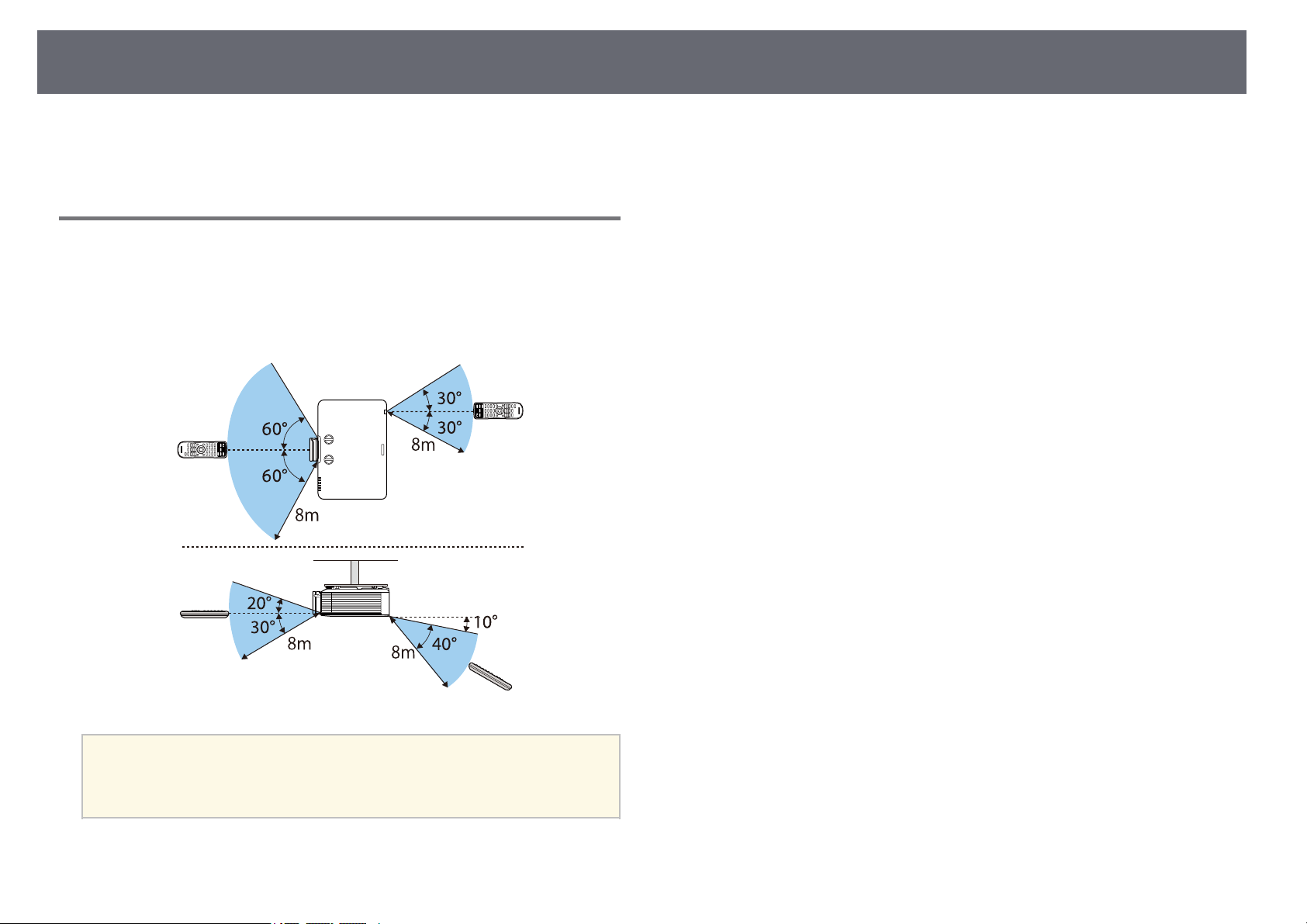

Remote Control Operation ........................................................................................................ 40
Setting Up the Projector 21

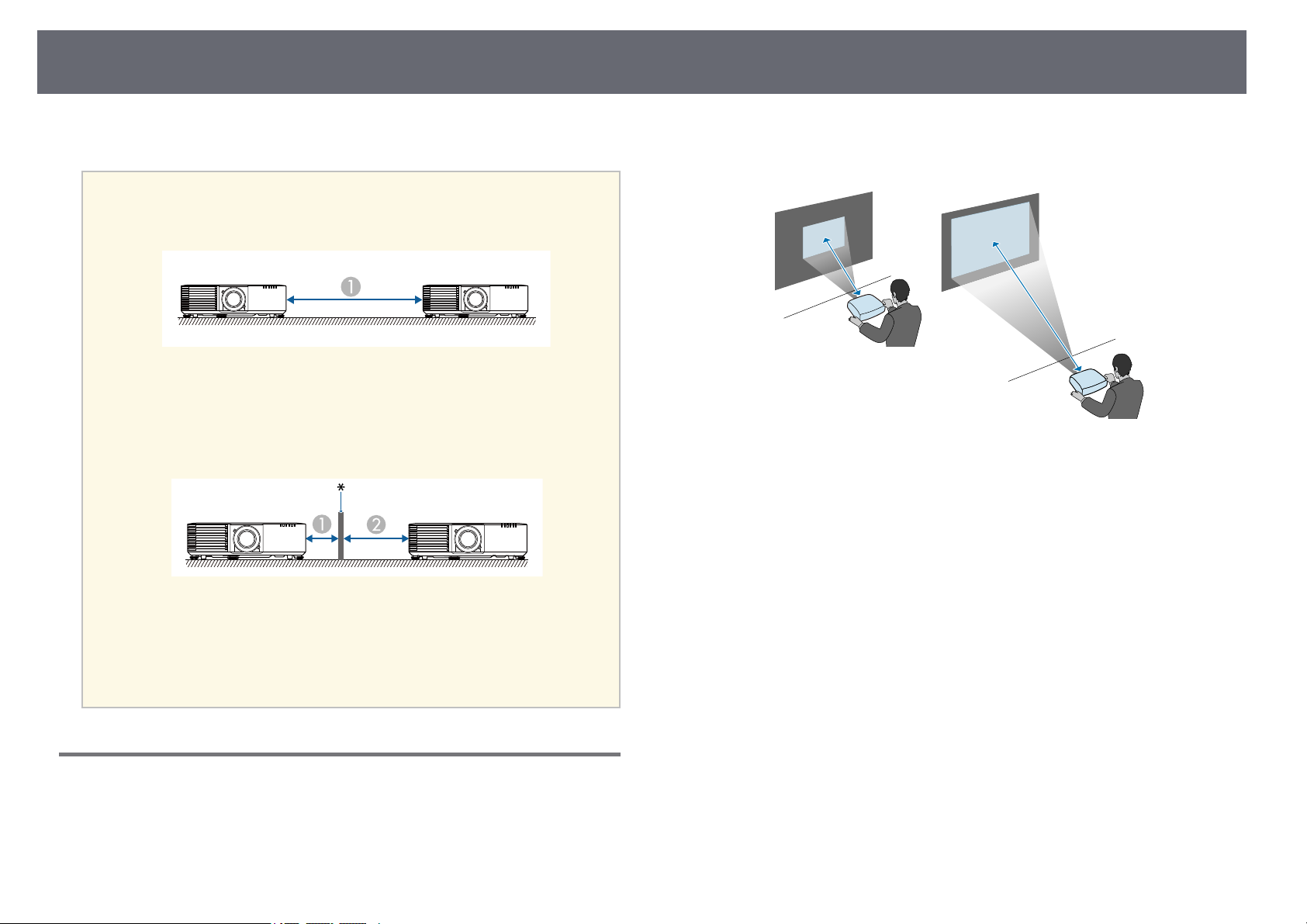

Projector Placement ........................................................................ 22
Notes on Transporting ................................................................................................................ 23

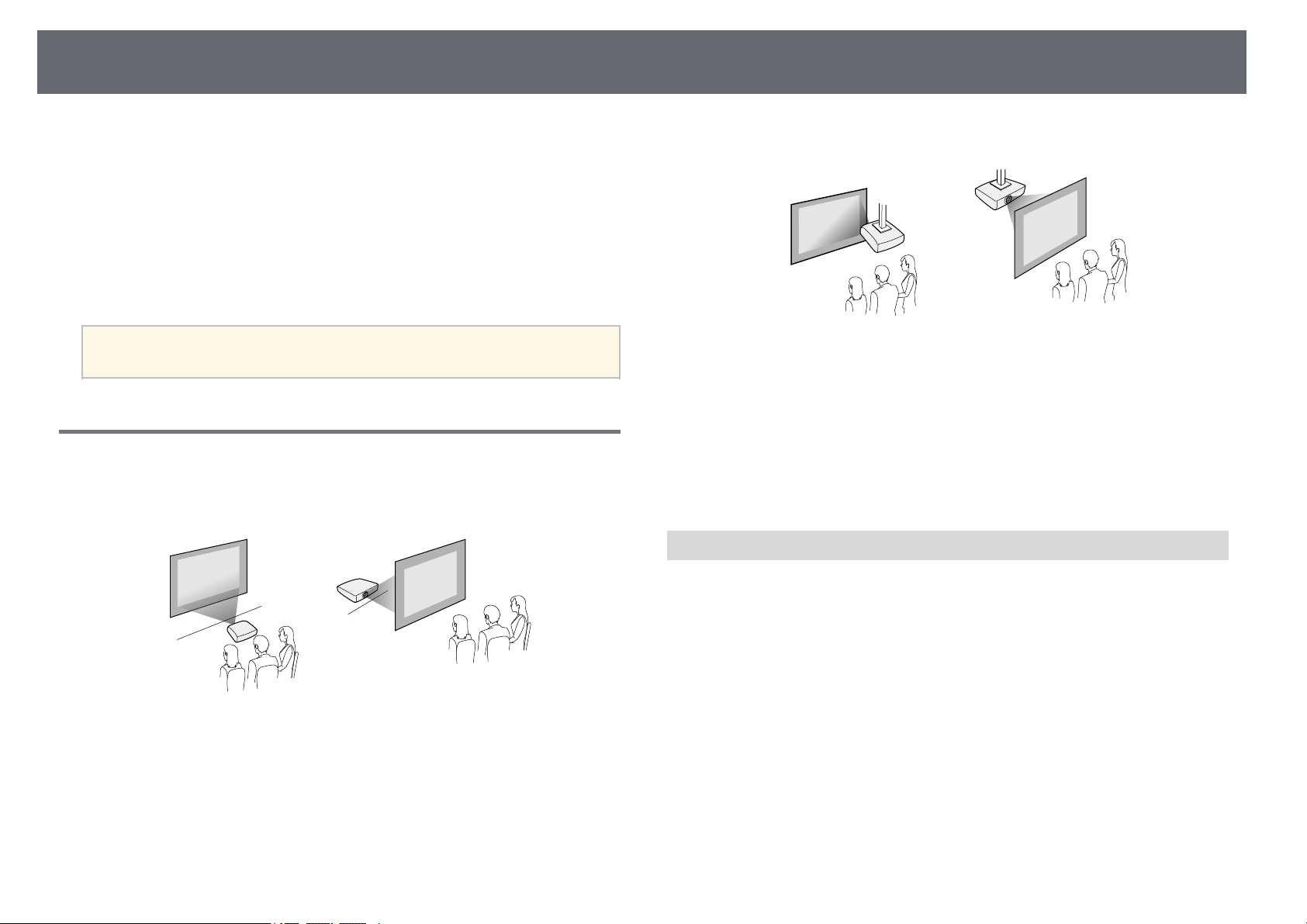

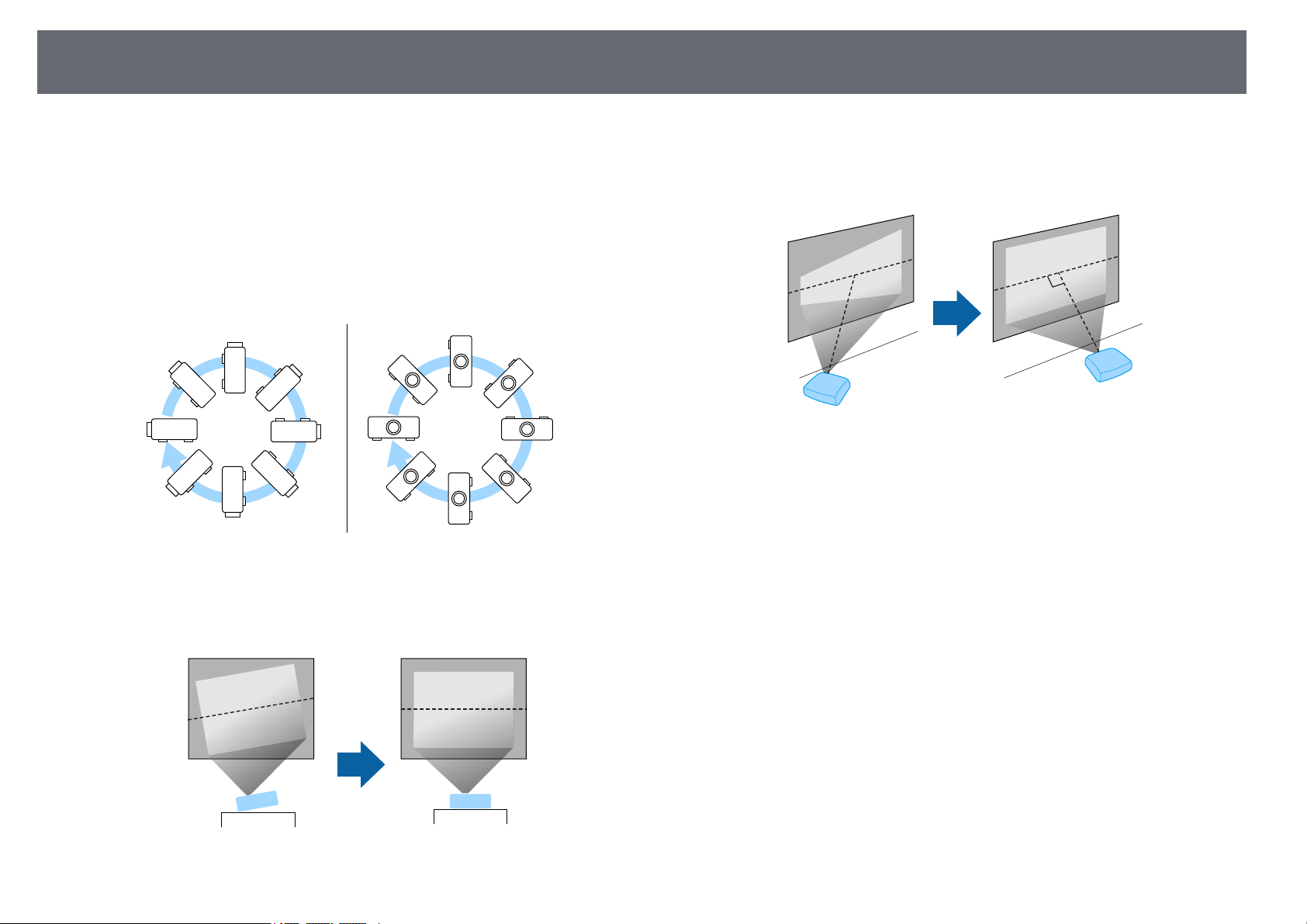

Projector Setup and Installation Options............................................................................. 24
Precautions on Installation .................................................................................................. 24
Projection Distance....................................................................................................................... 26

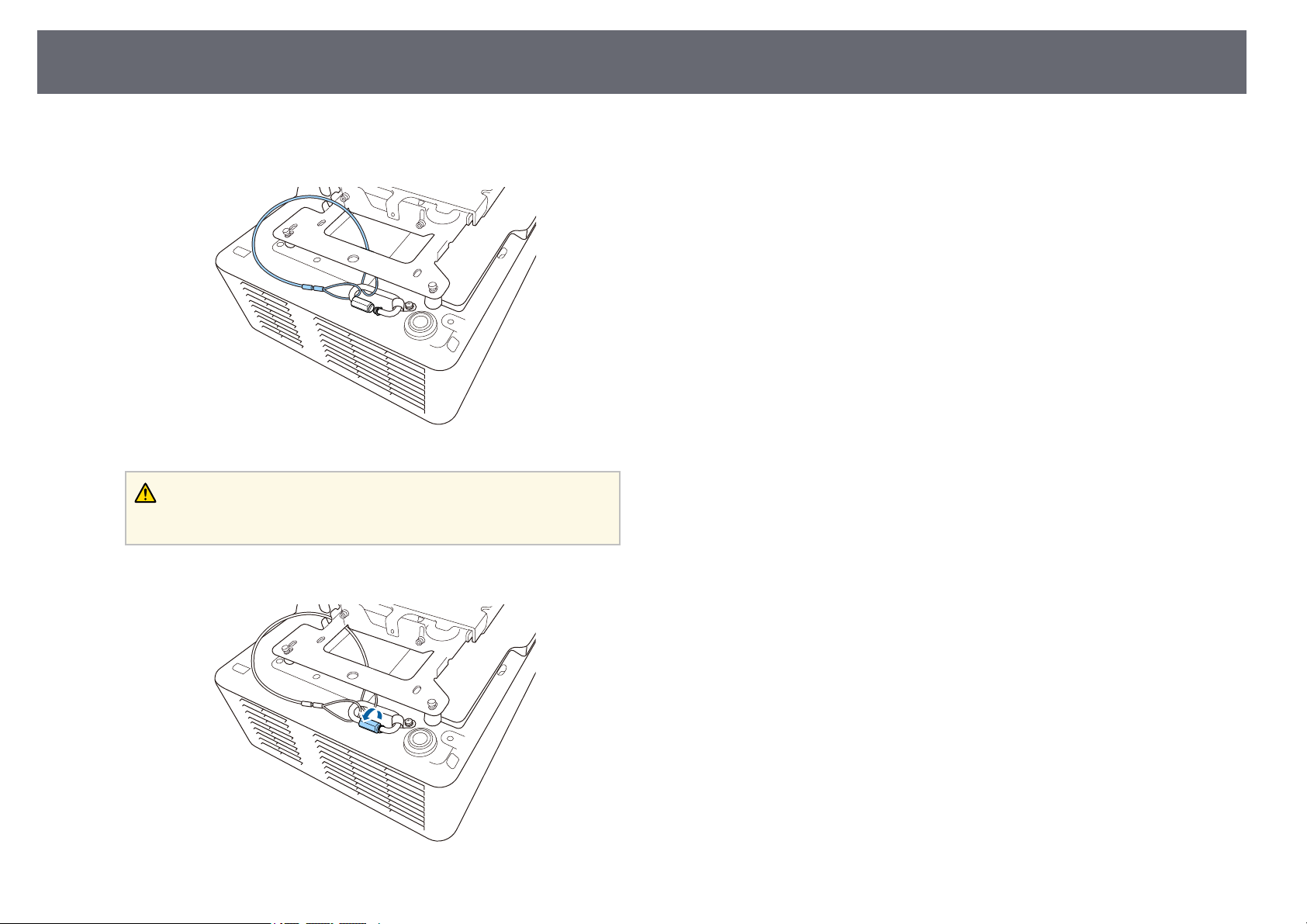

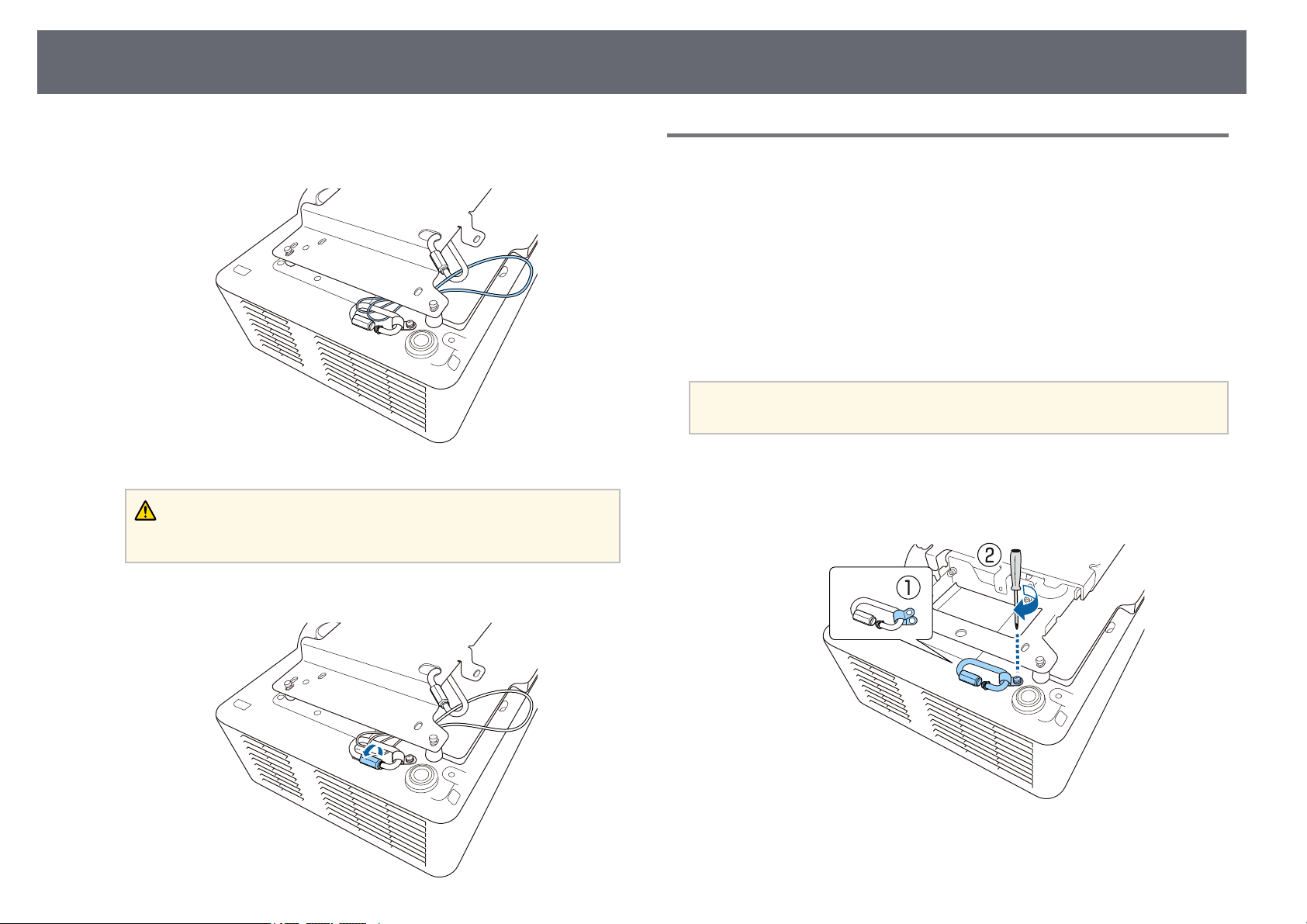

Installing the Safety Wire................................................................ 27
Using Basic Projector Features 41

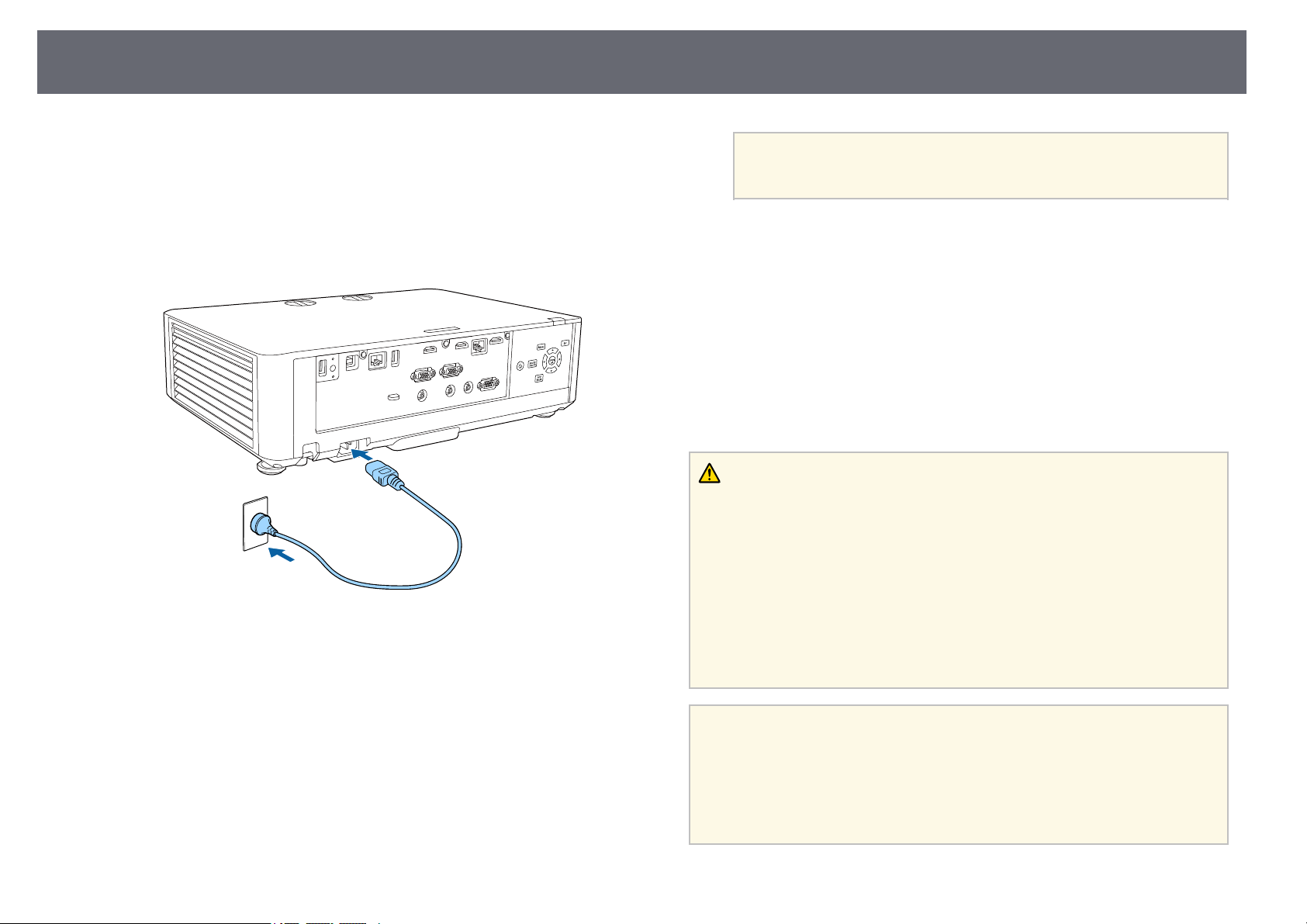

Turning On the Projector ................................................................ 42

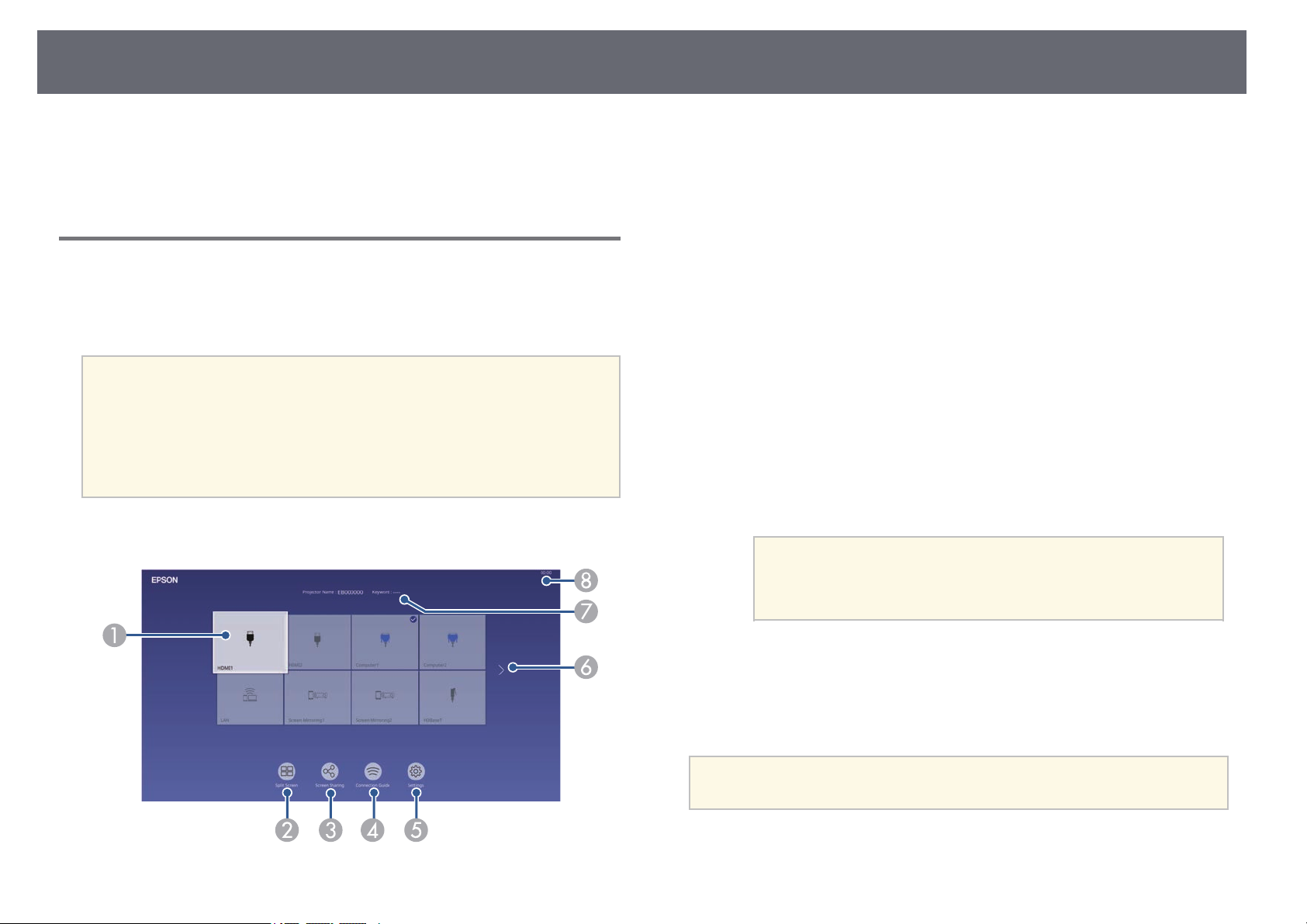

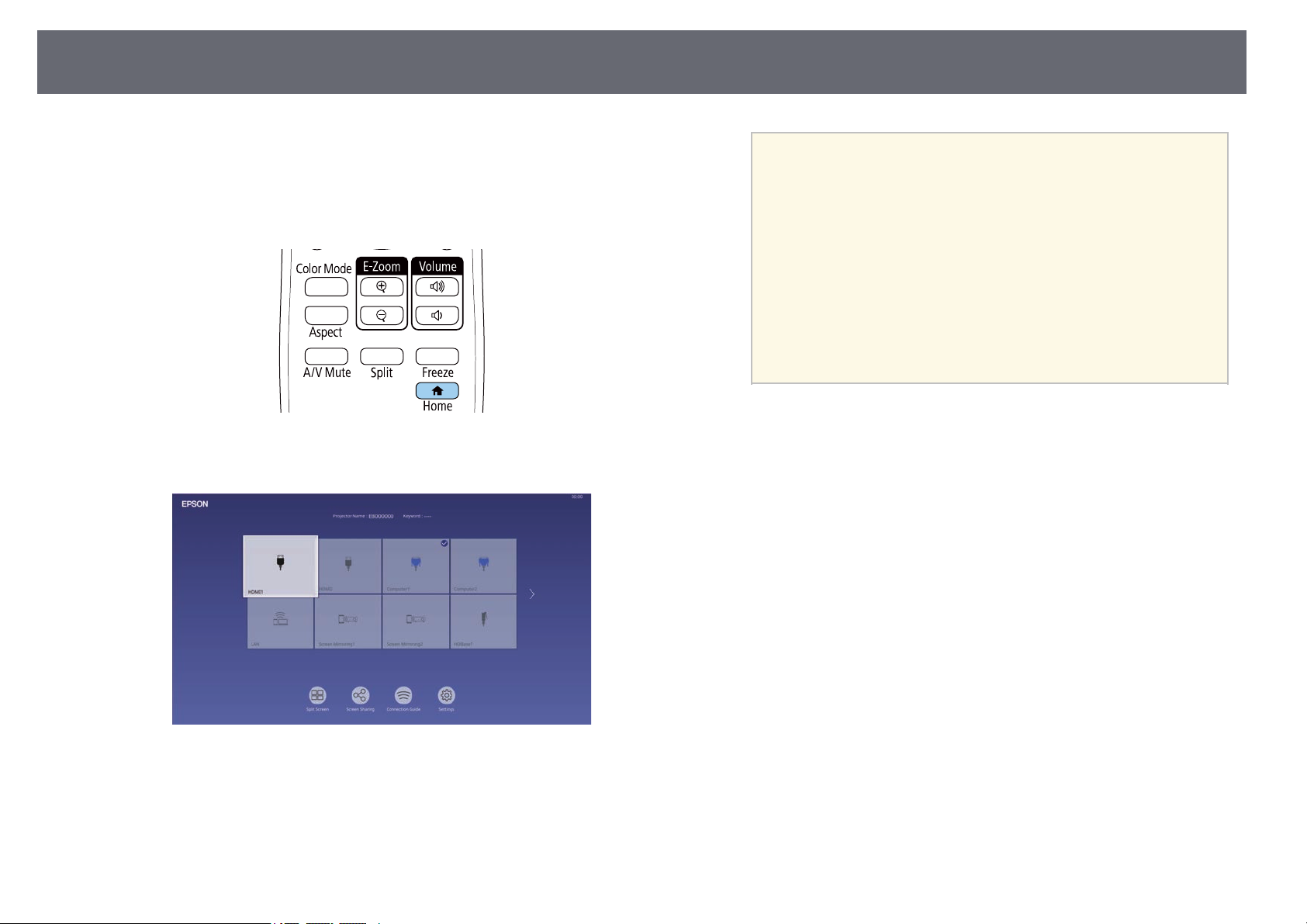

Home Screen ................................................................................................................................... 43

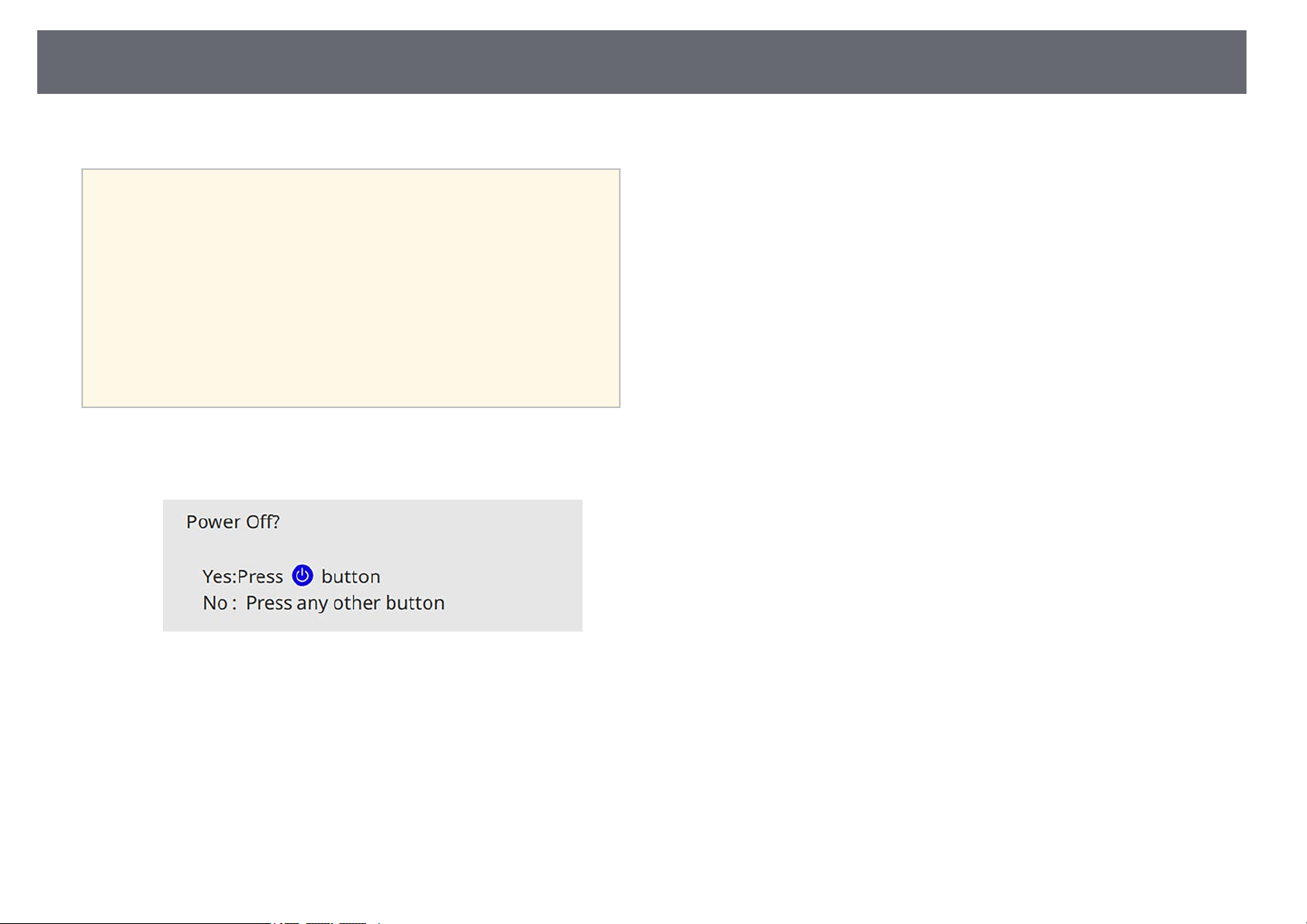

Turning Off the Projector ................................................................ 44

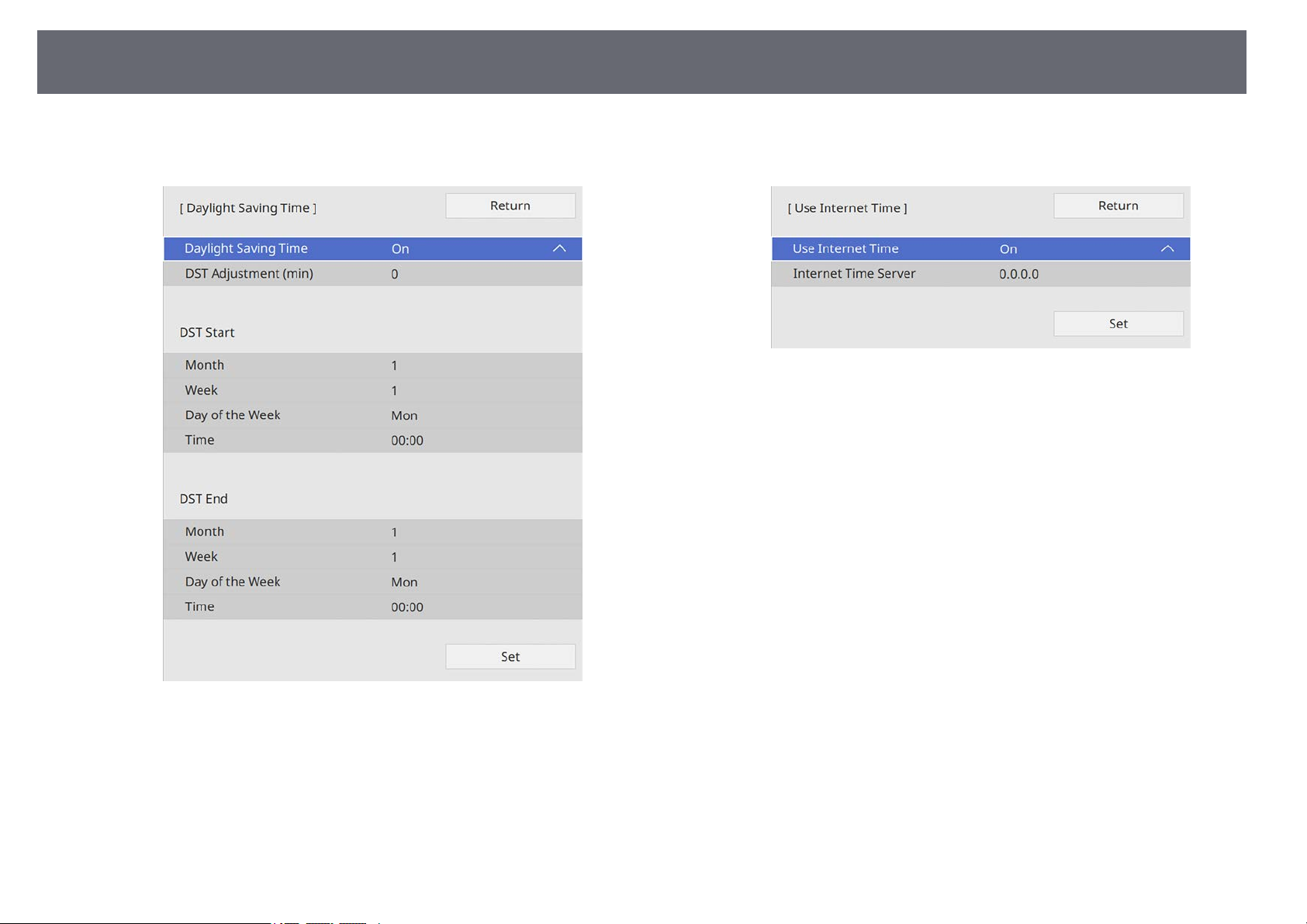

Setting the Date and Time .............................................................. 45

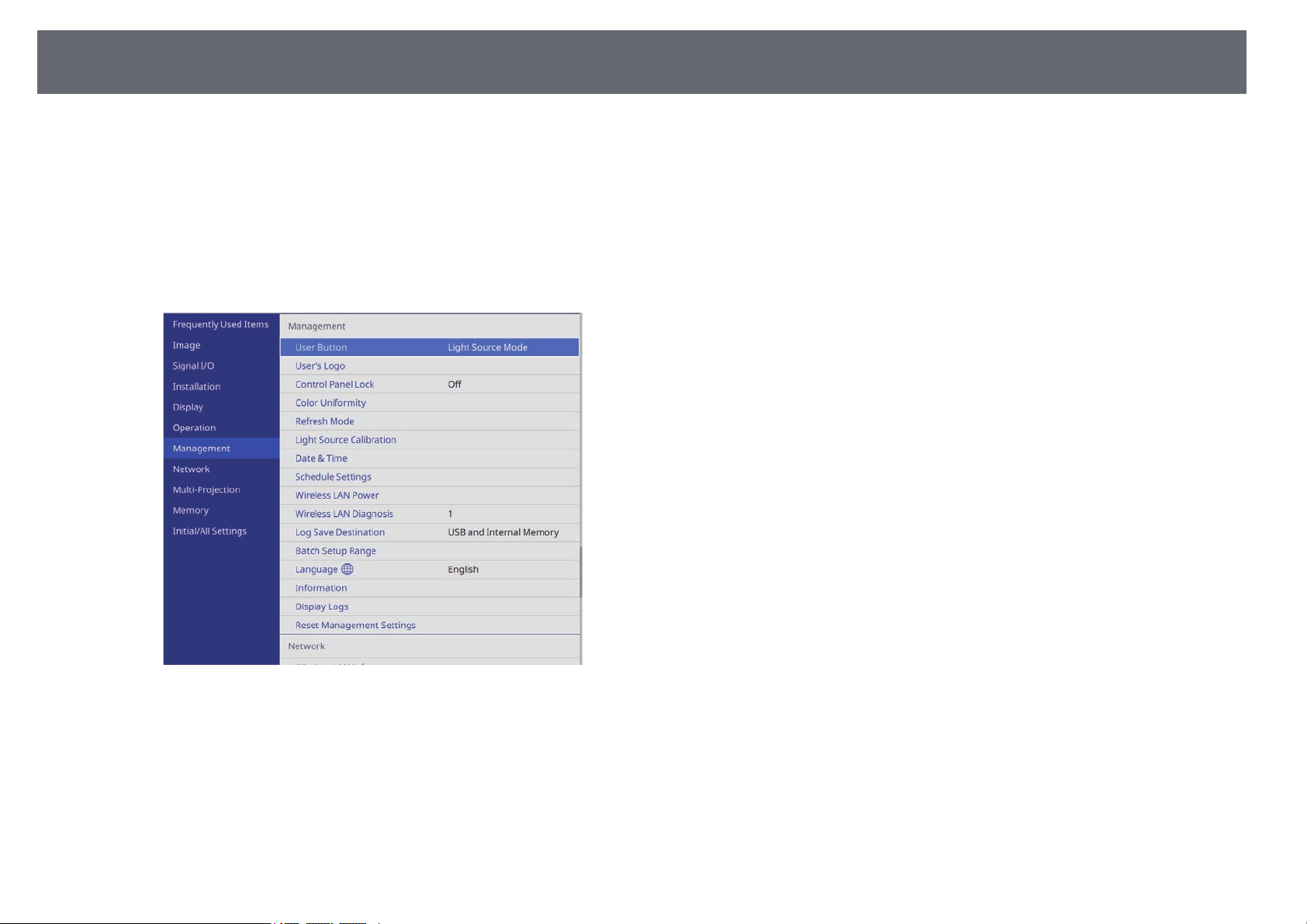

Selecting the Language for the Projector Menus ......................... 47
Page 3
Contents
3
Projection Modes ............................................................................. 48
Changing the Projection Mode Using the Remote Control.......................................... 48

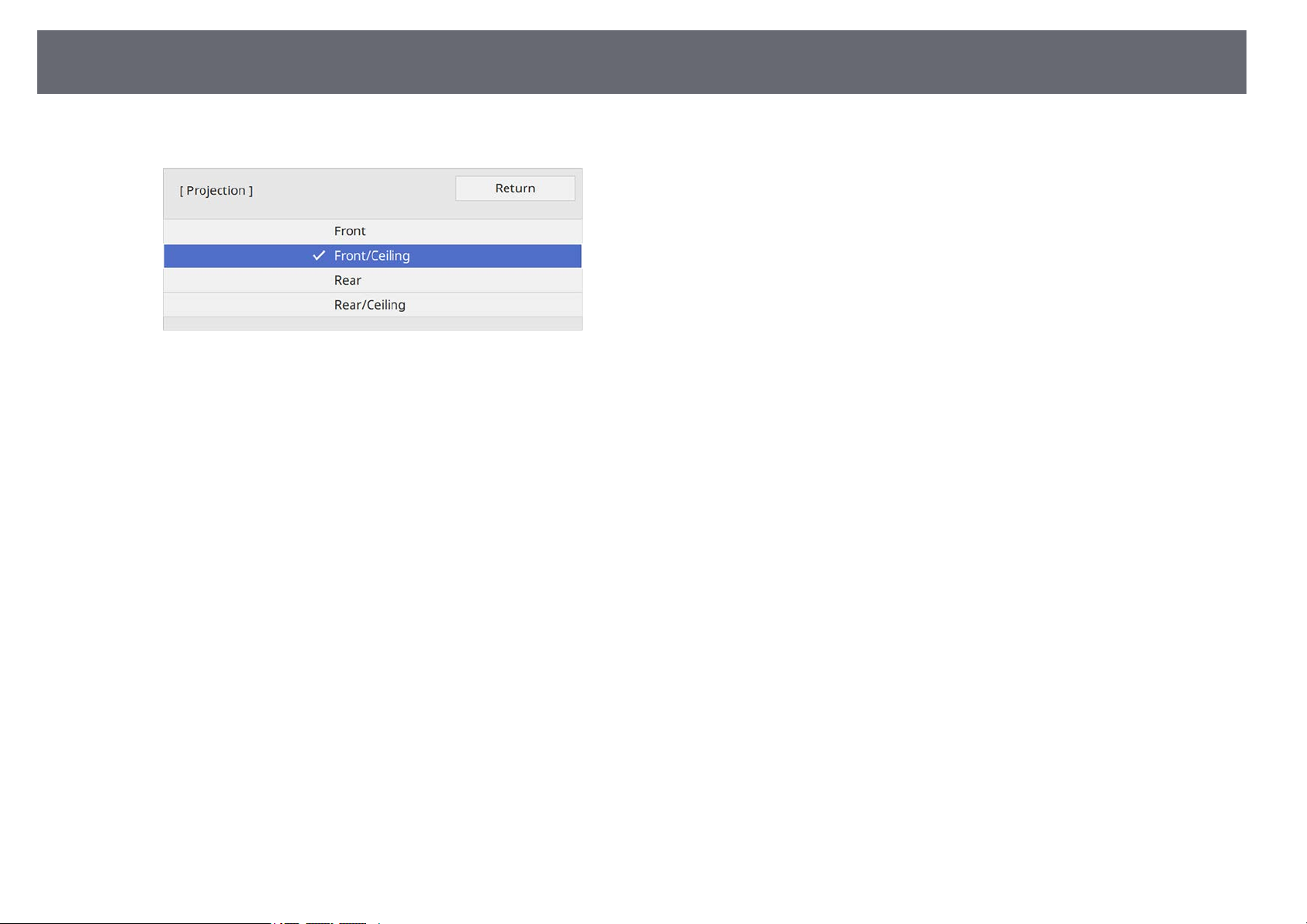

Changing the Projection Mode Using the Menus ............................................................ 48

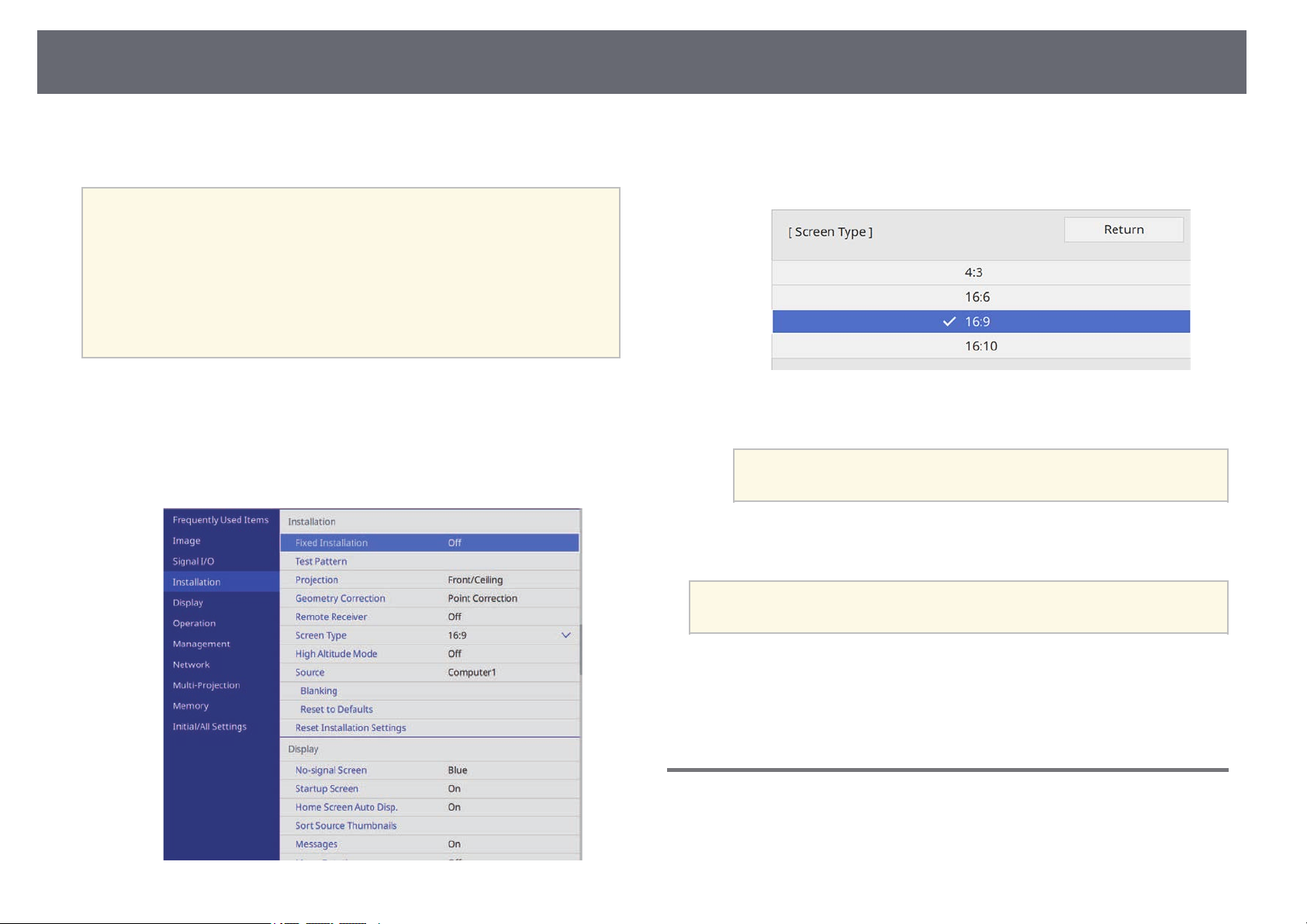

Setting the Screen Type .................................................................. 50
Adjusting the Image Position Using Screen Position...................................................... 50
Changing the Horizontal Position of the Image Using Screen Shift.......................... 51

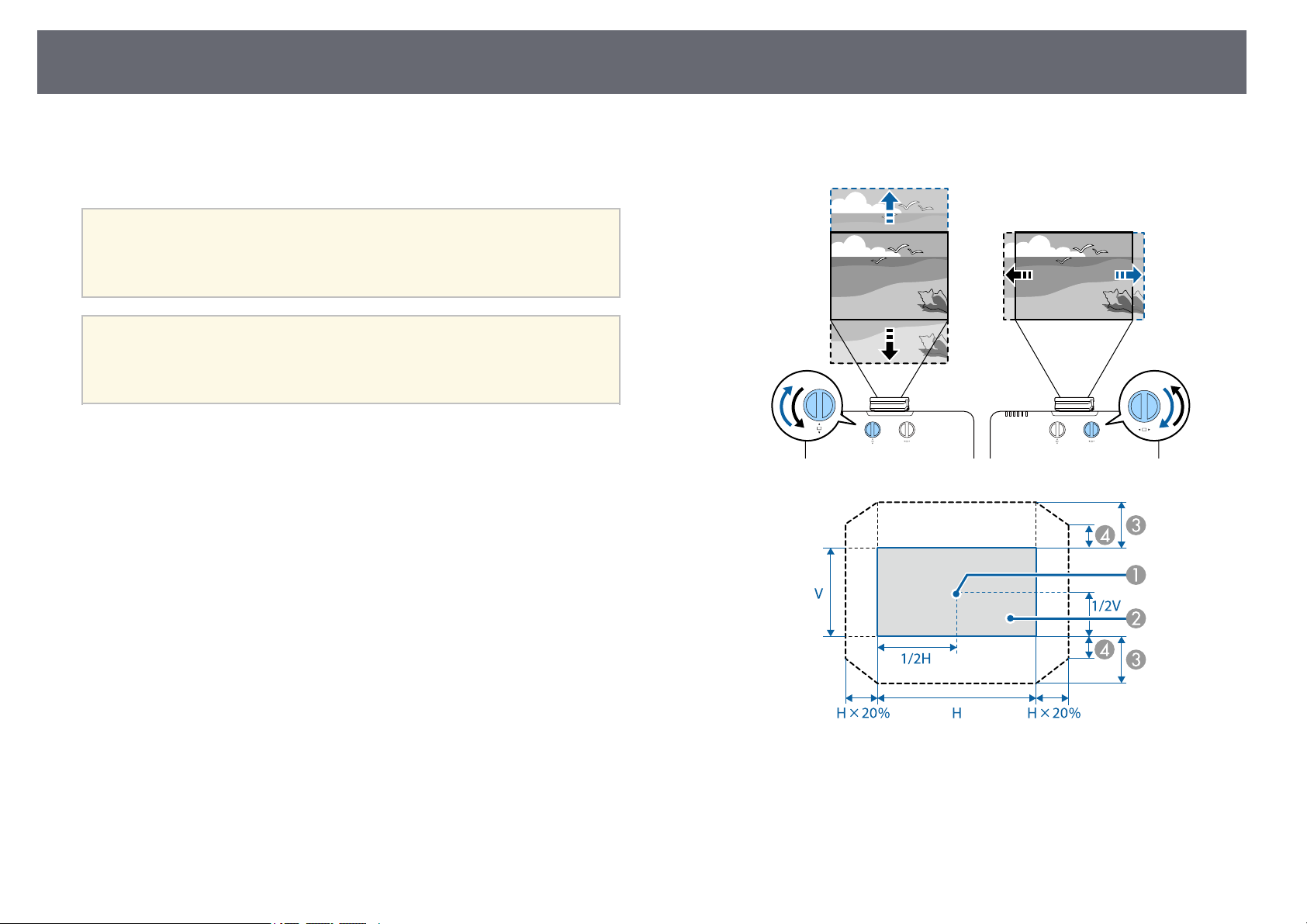

Adjusting the Image Position Using Lens Shift............................. 53
Displaying a Test Pattern ................................................................ 55

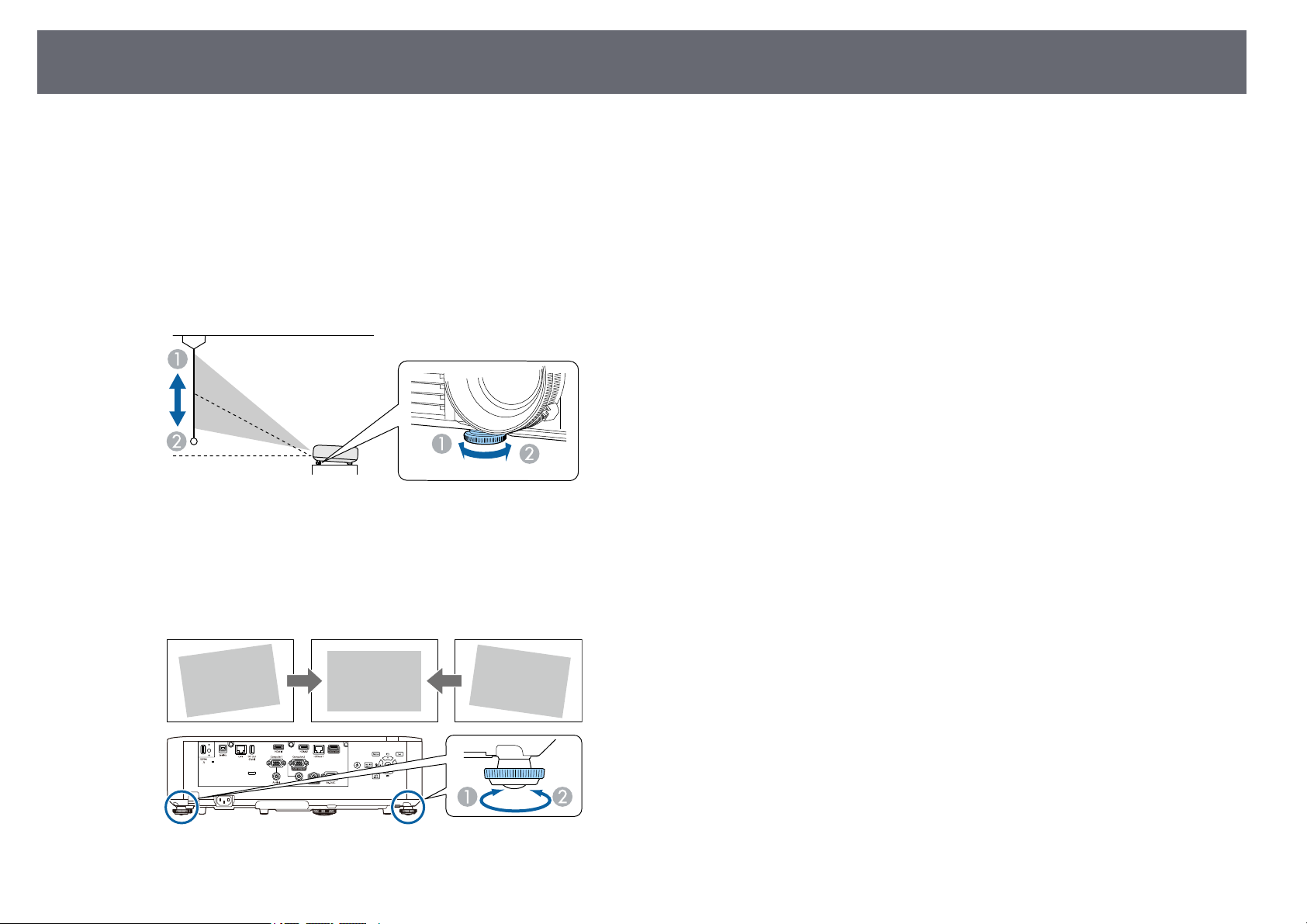

Adjusting the Image Height............................................................ 56

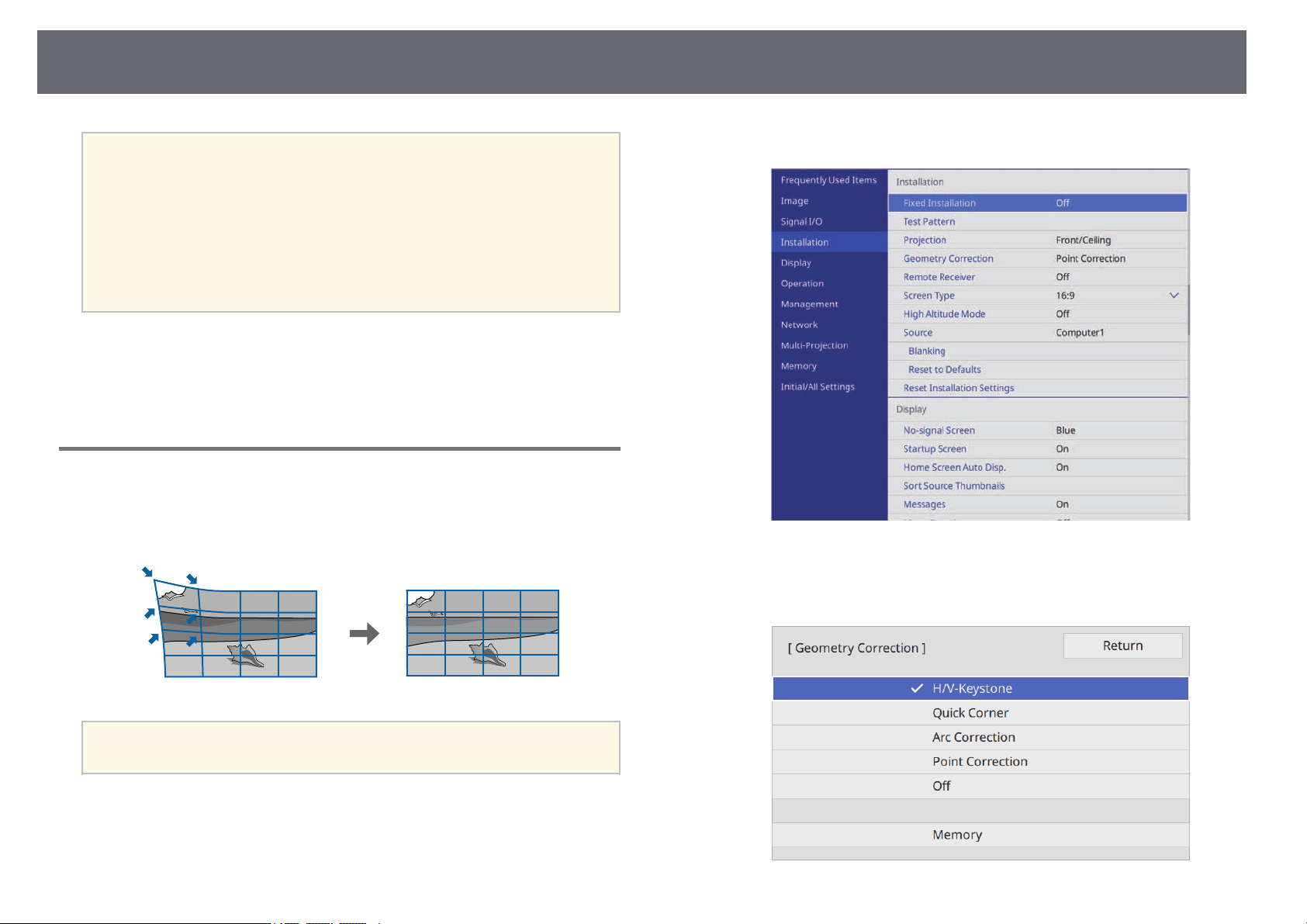

Image Shape..................................................................................... 57

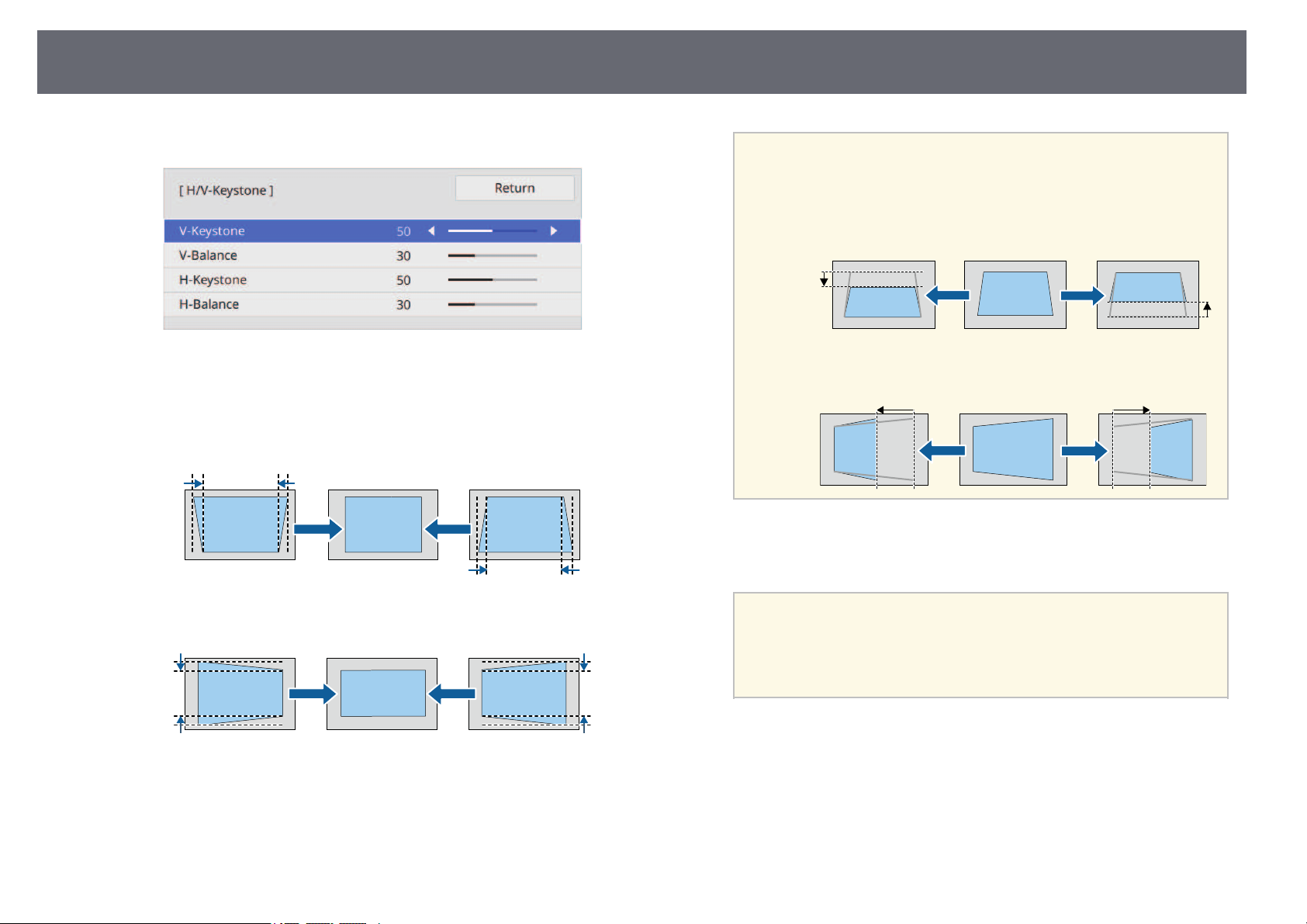

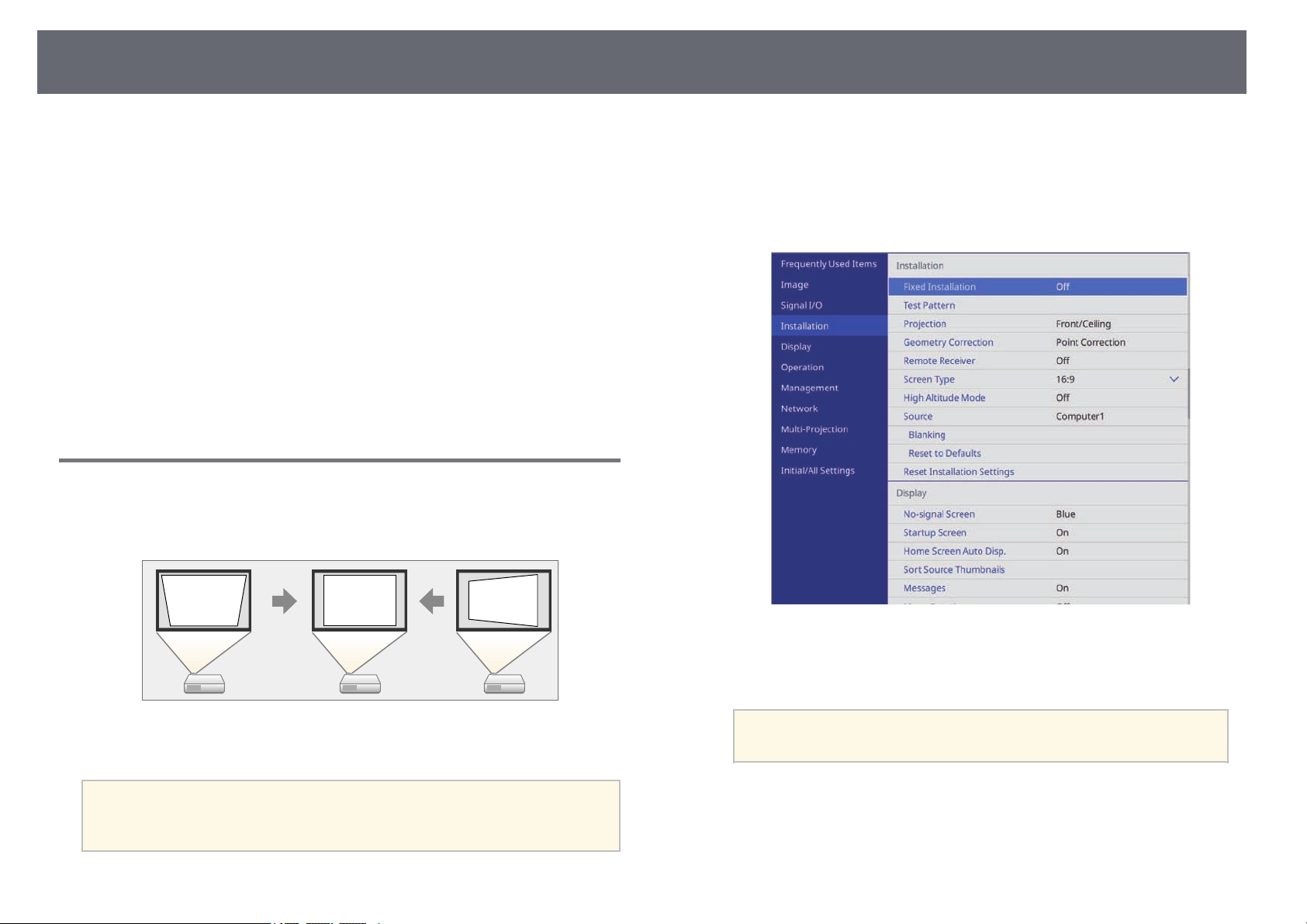

Correcting Image Shape with H/V Keystone ...................................................................... 57

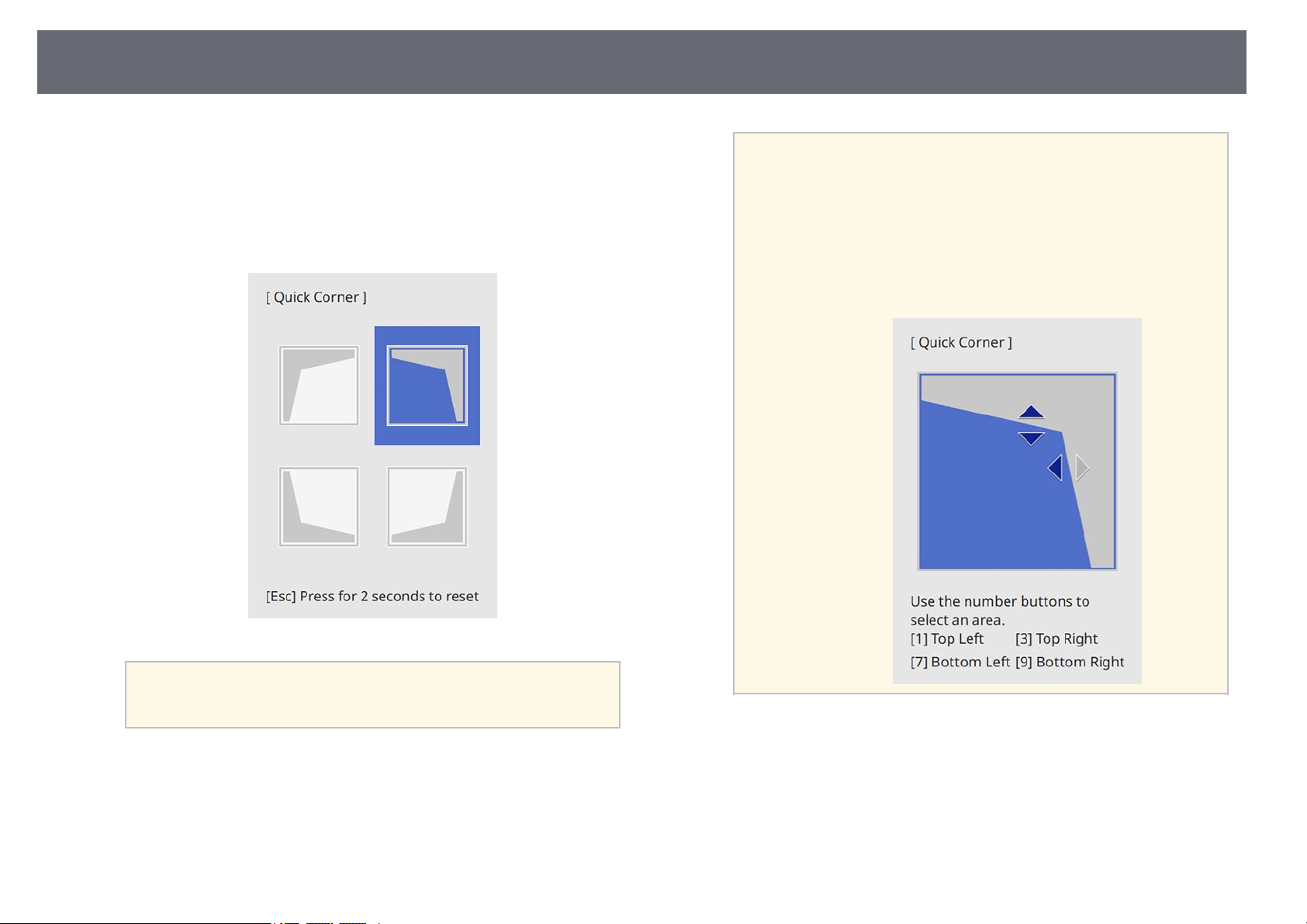

Correcting the Image Shape with Quick Corner ............................................................... 59

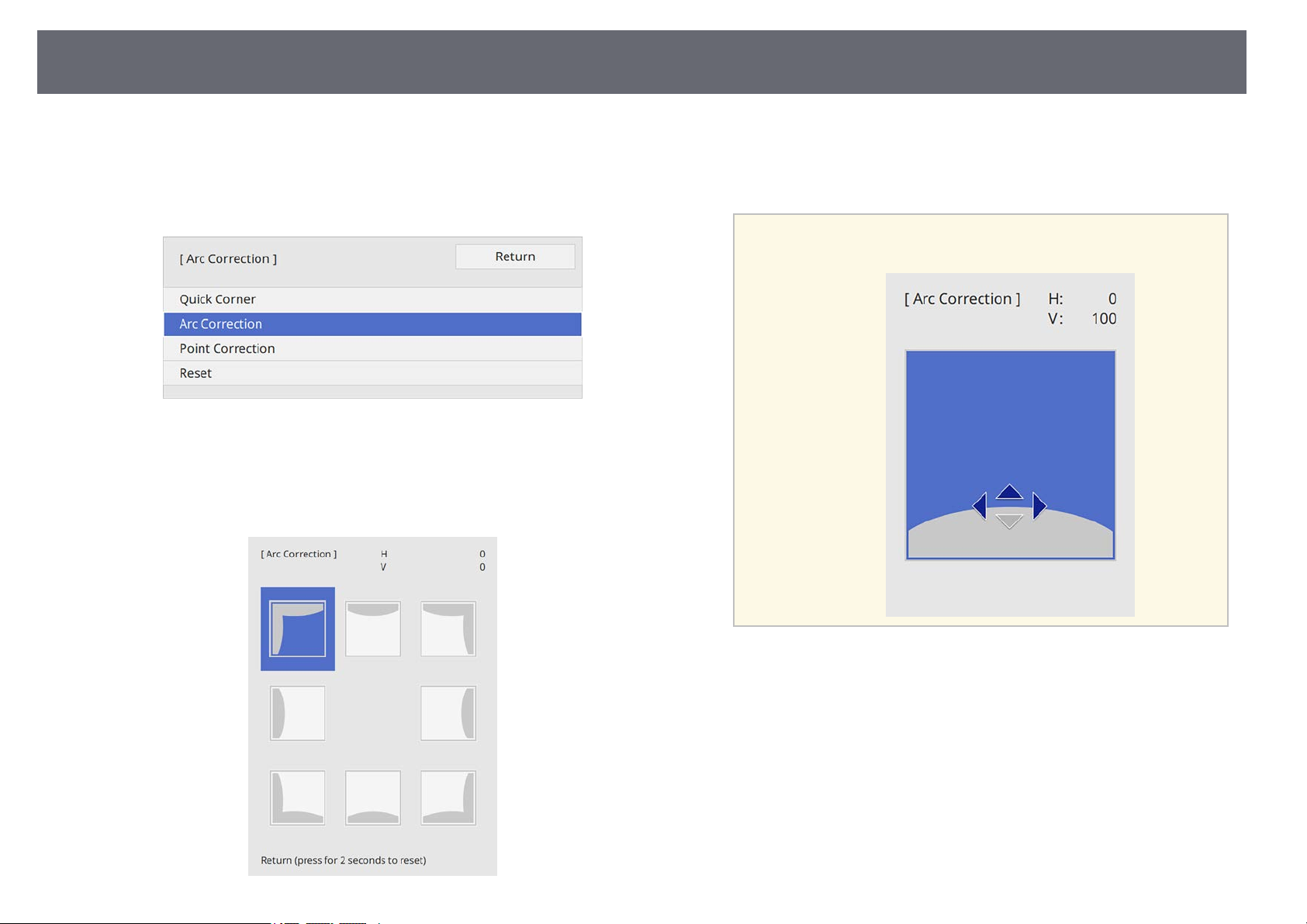

Correcting Image Shape with Arc Correction..................................................................... 61

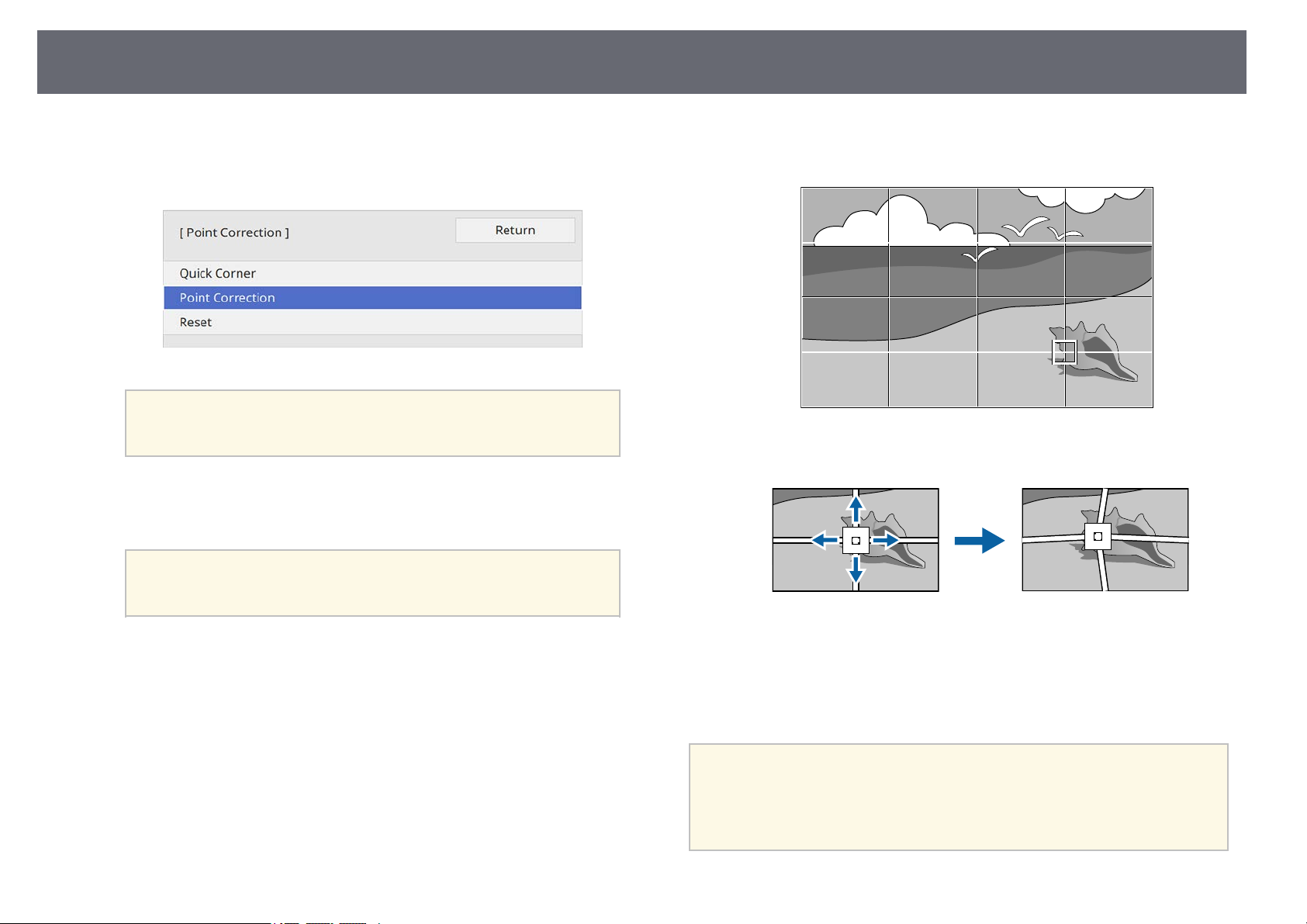

Correcting Image Shape with Point Correction................................................................. 63
Loading Image Shape Setting from Memory ..................................................................... 65

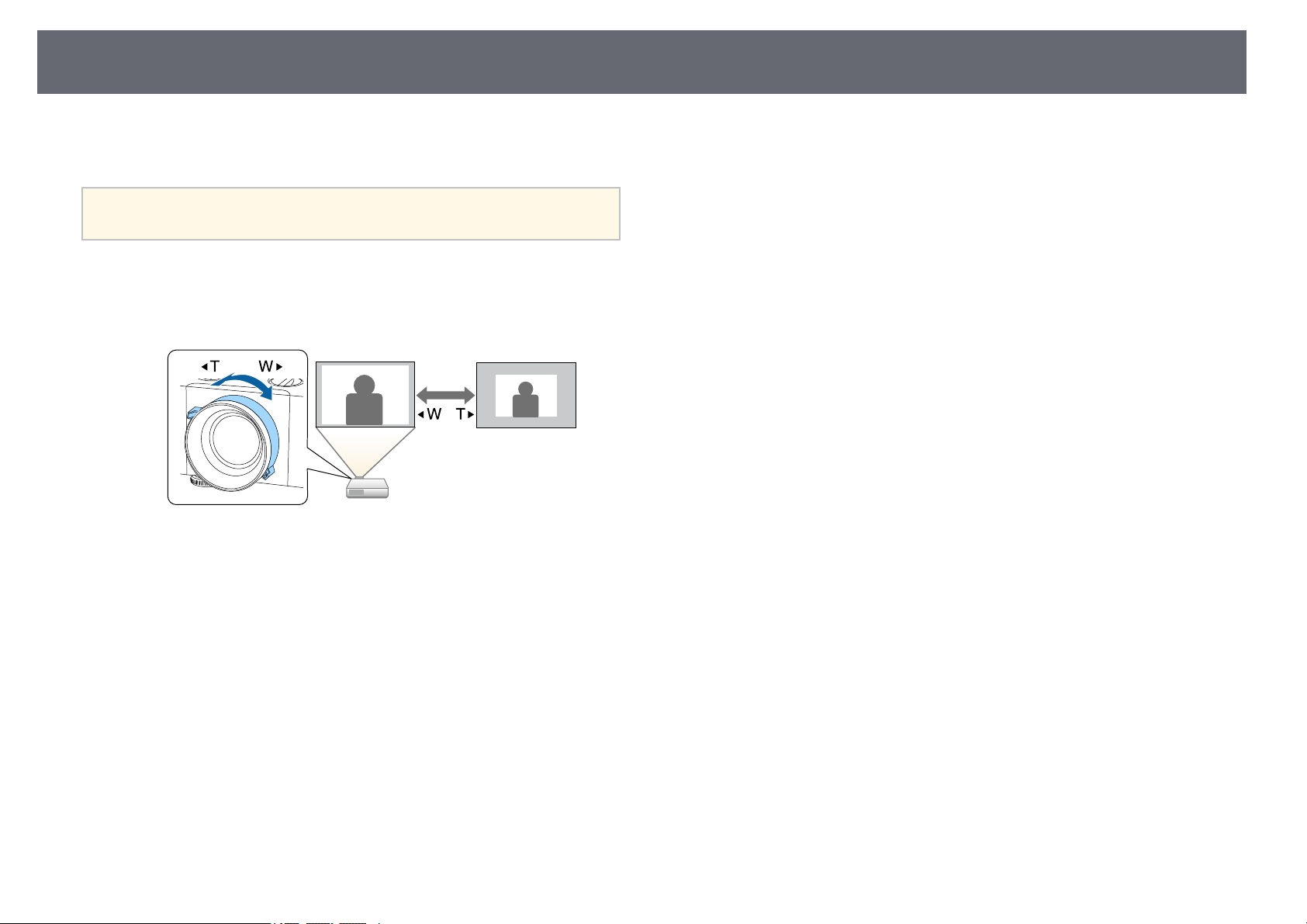

Resizing the Image with the Zoom Ring........................................ 66
Reducing the Image Using Digital Zoom....................................... 67
Adjusting the Image Position Using Image Shift .............................................................. 67

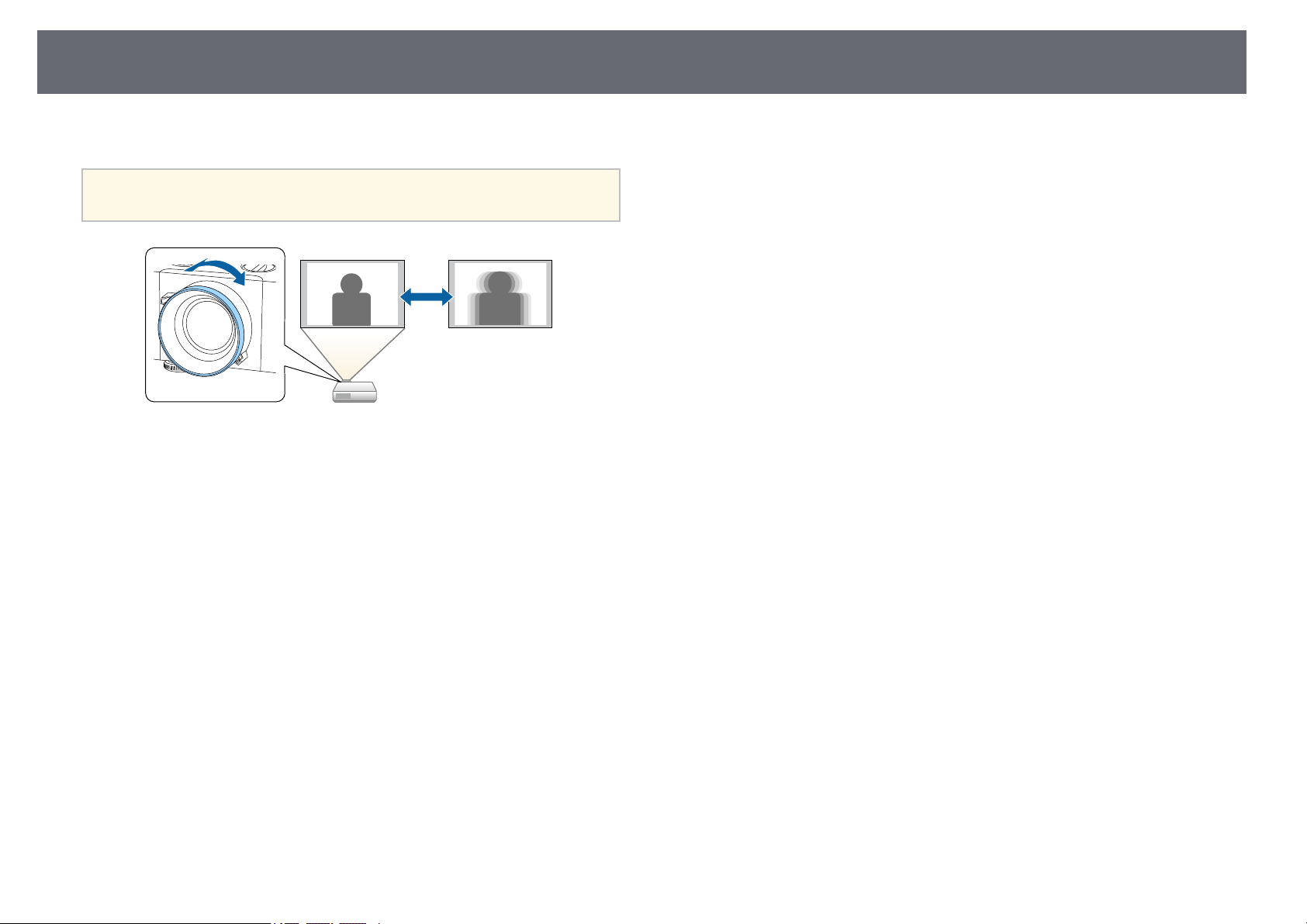

Focusing the Image Using the Focus Ring..................................... 69

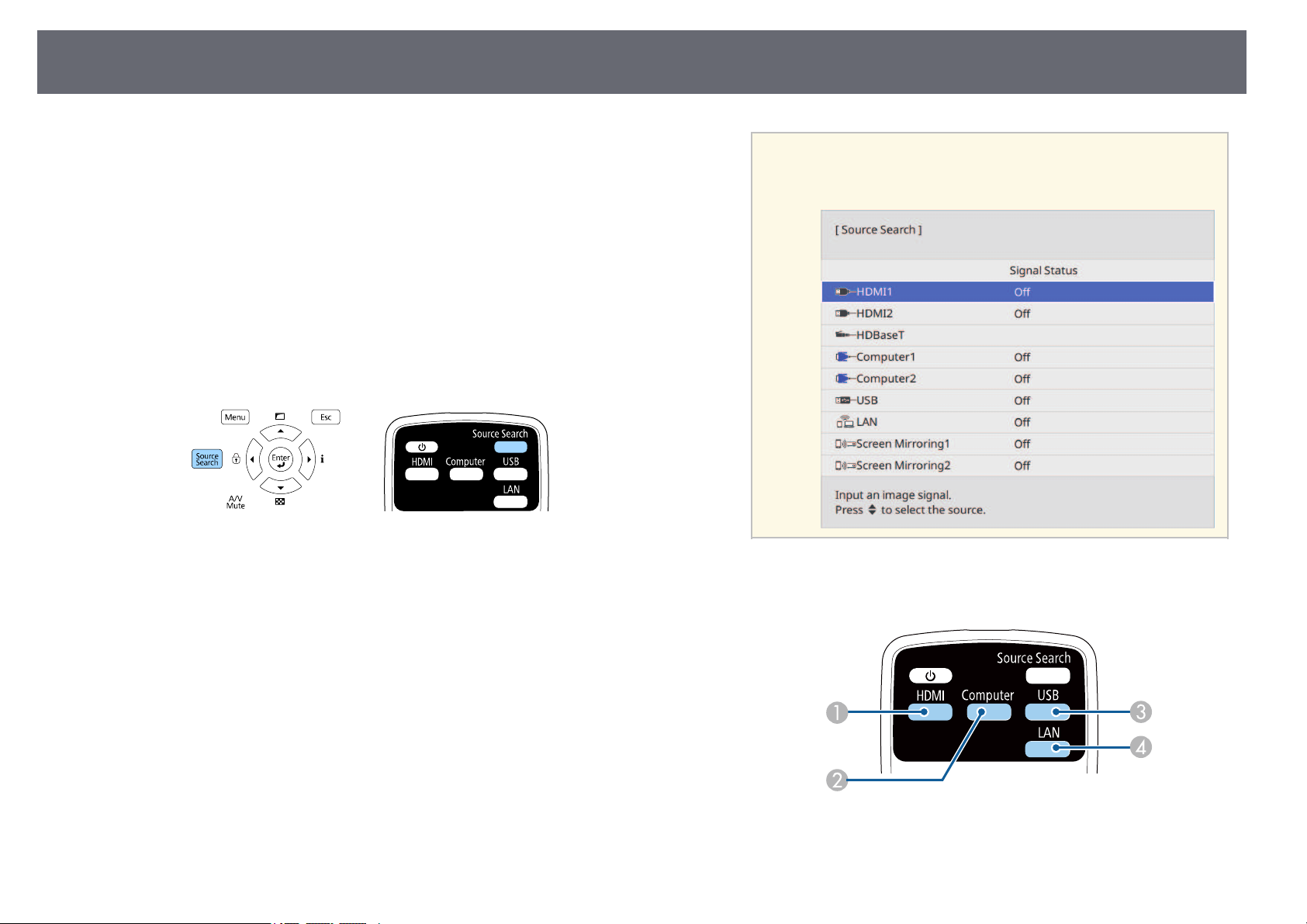

Selecting an Image Source .............................................................. 70
Image Aspect Ratio .......................................................................... 72

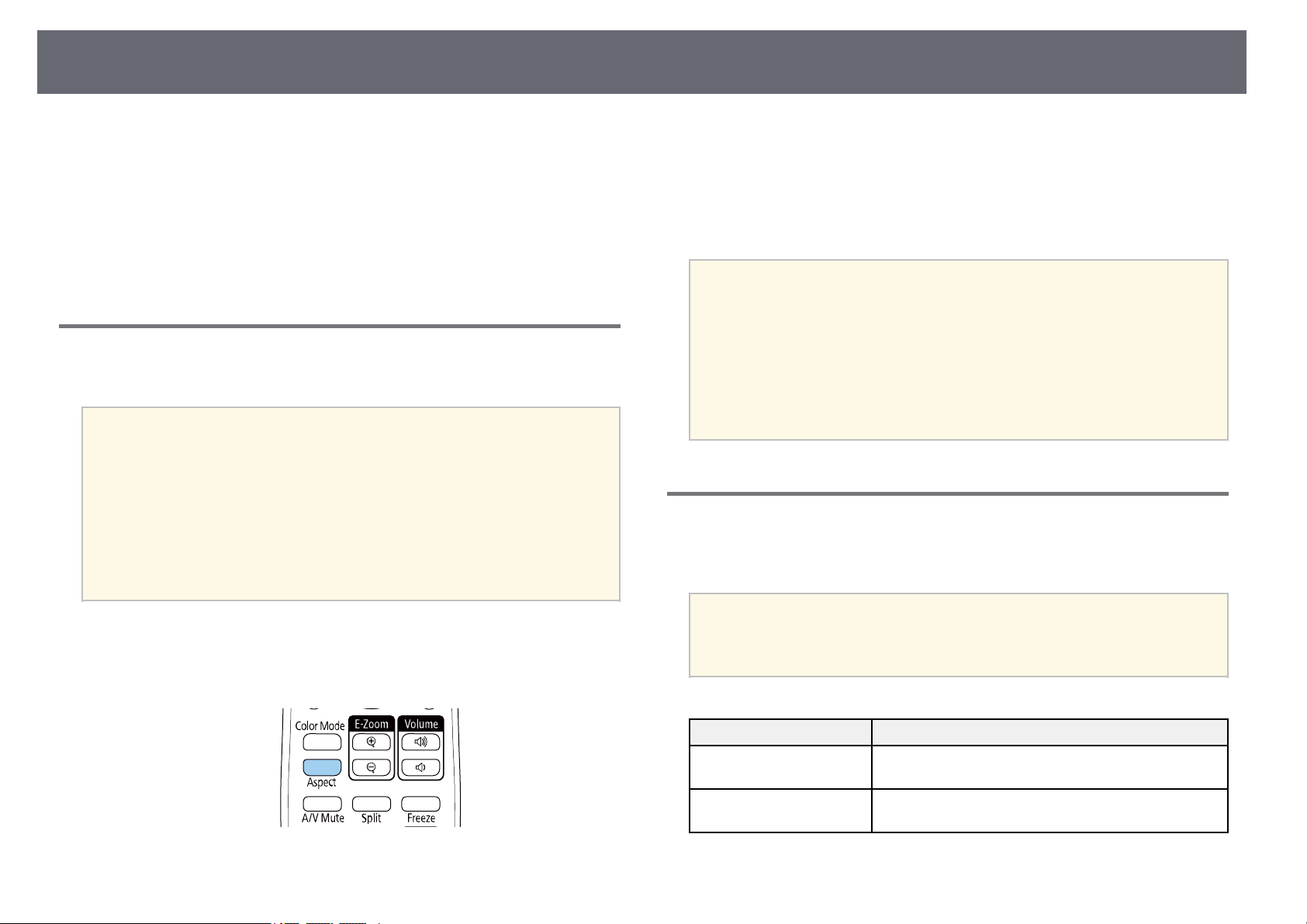

Changing the Image Aspect Ratio.......................................................................................... 72
Available Image Aspect Ratios ................................................................................................. 72
Adjusting Image Quality (Color Mode).......................................... 74
Changing the Color Mode ......................................................................................................... 74
Available Color Modes................................................................................................................. 74
Adjusting the Image Resolution ..................................................... 79
Adjusting the Brightness................................................................. 81
Constant Brightness Usage Hours .......................................................................................... 82

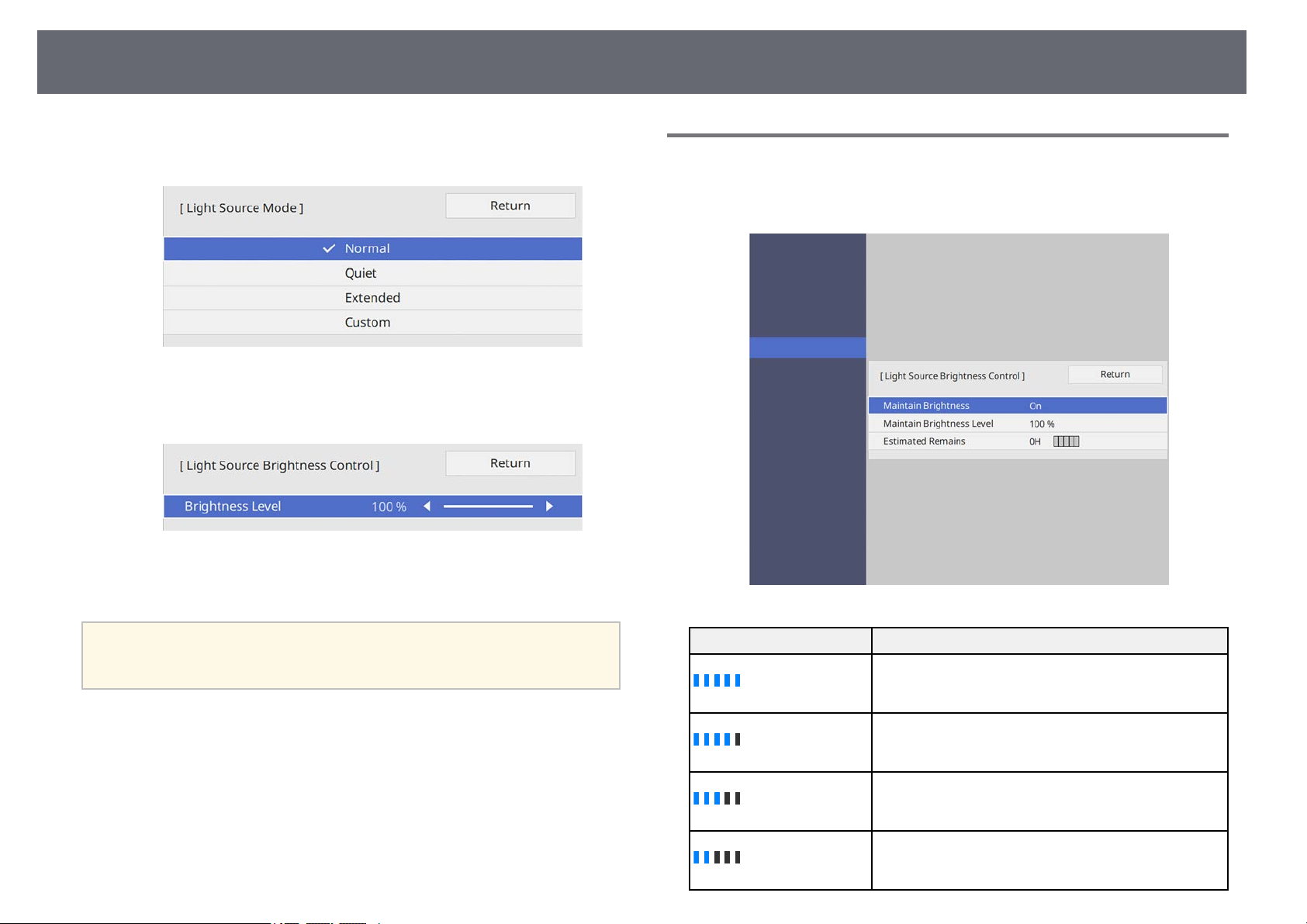

Light Source Operation Time.................................................................................................... 83

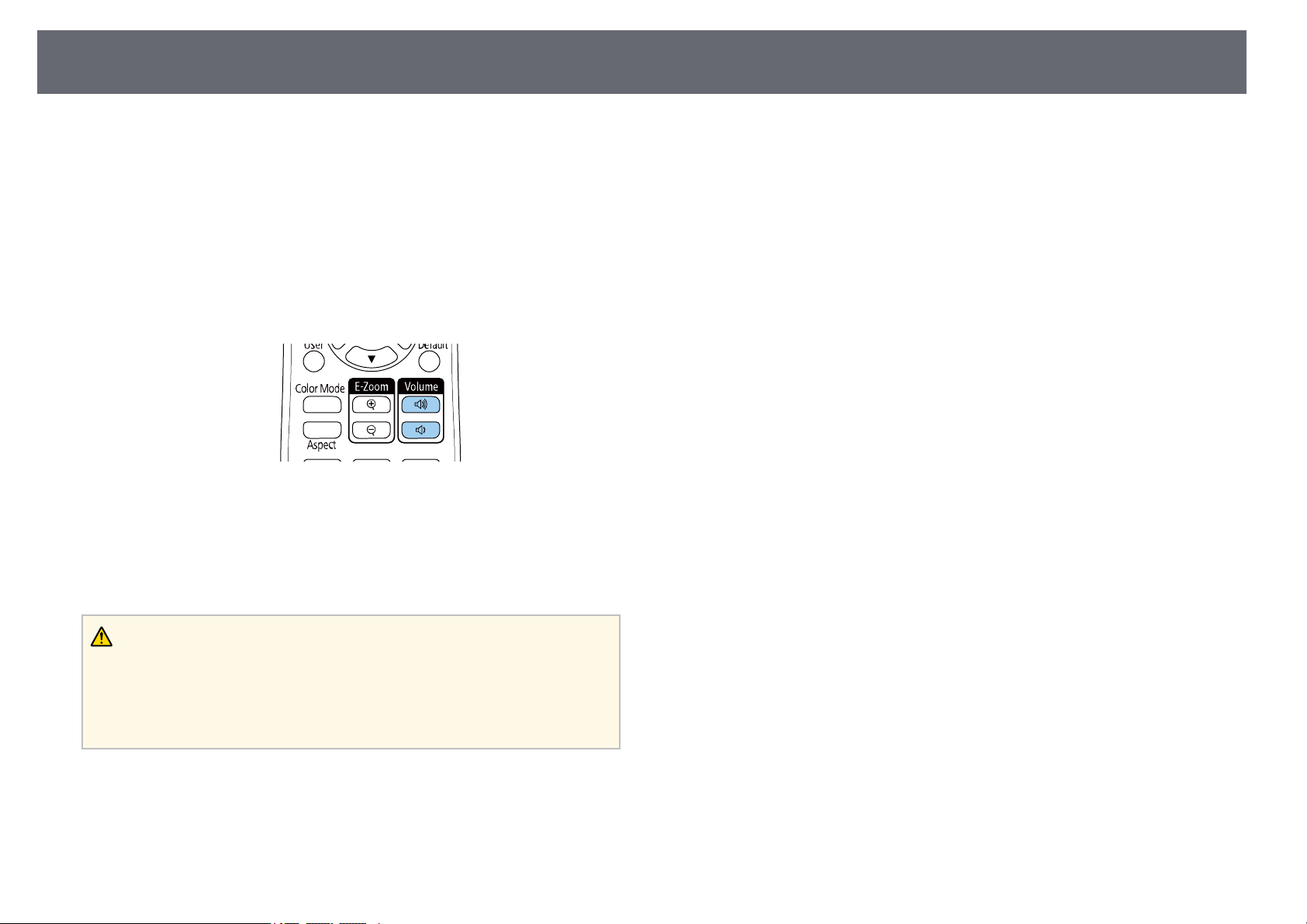

Controlling the Volume with the Volume Buttons ....................... 84
Adjusting Projector Features 85

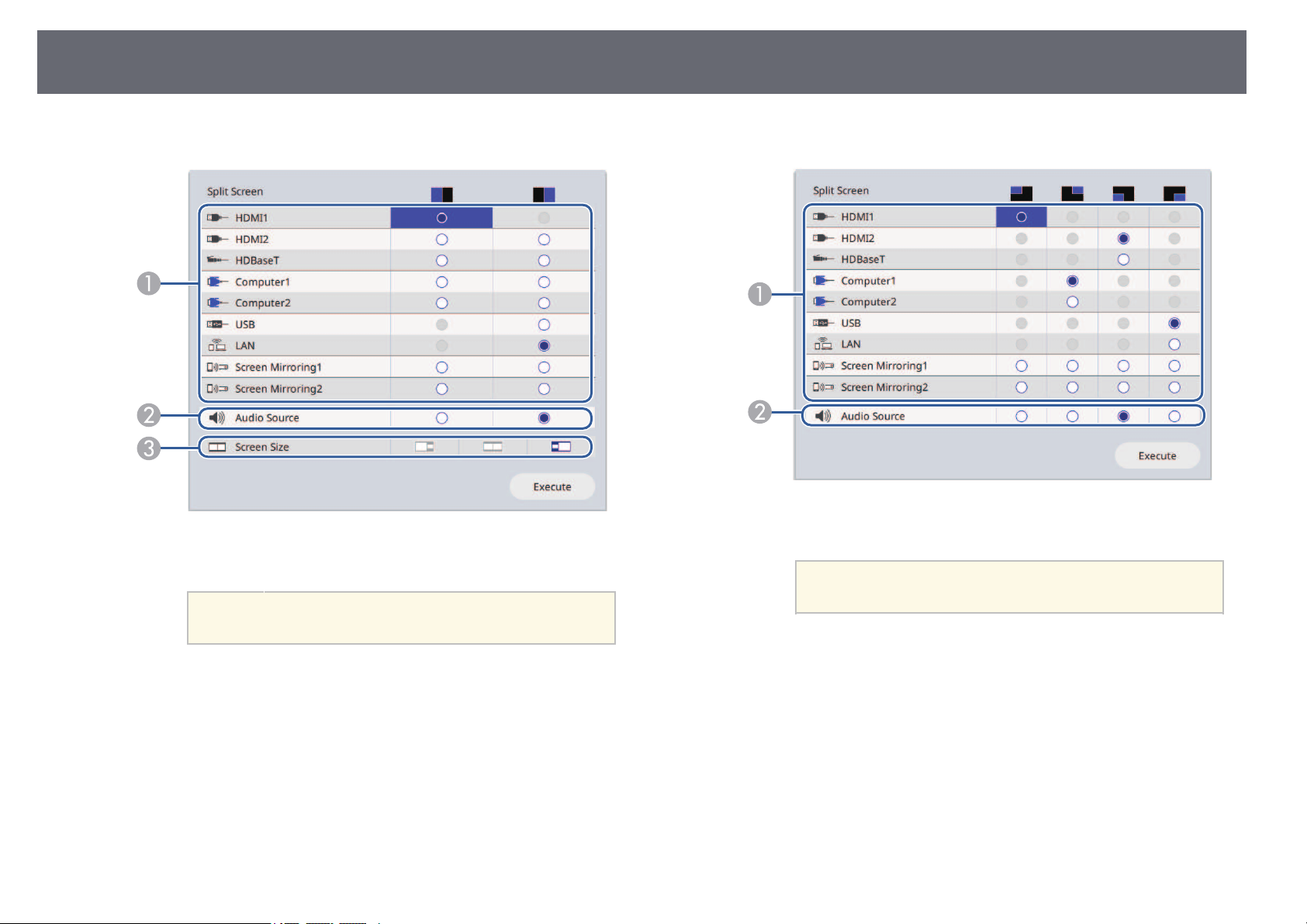

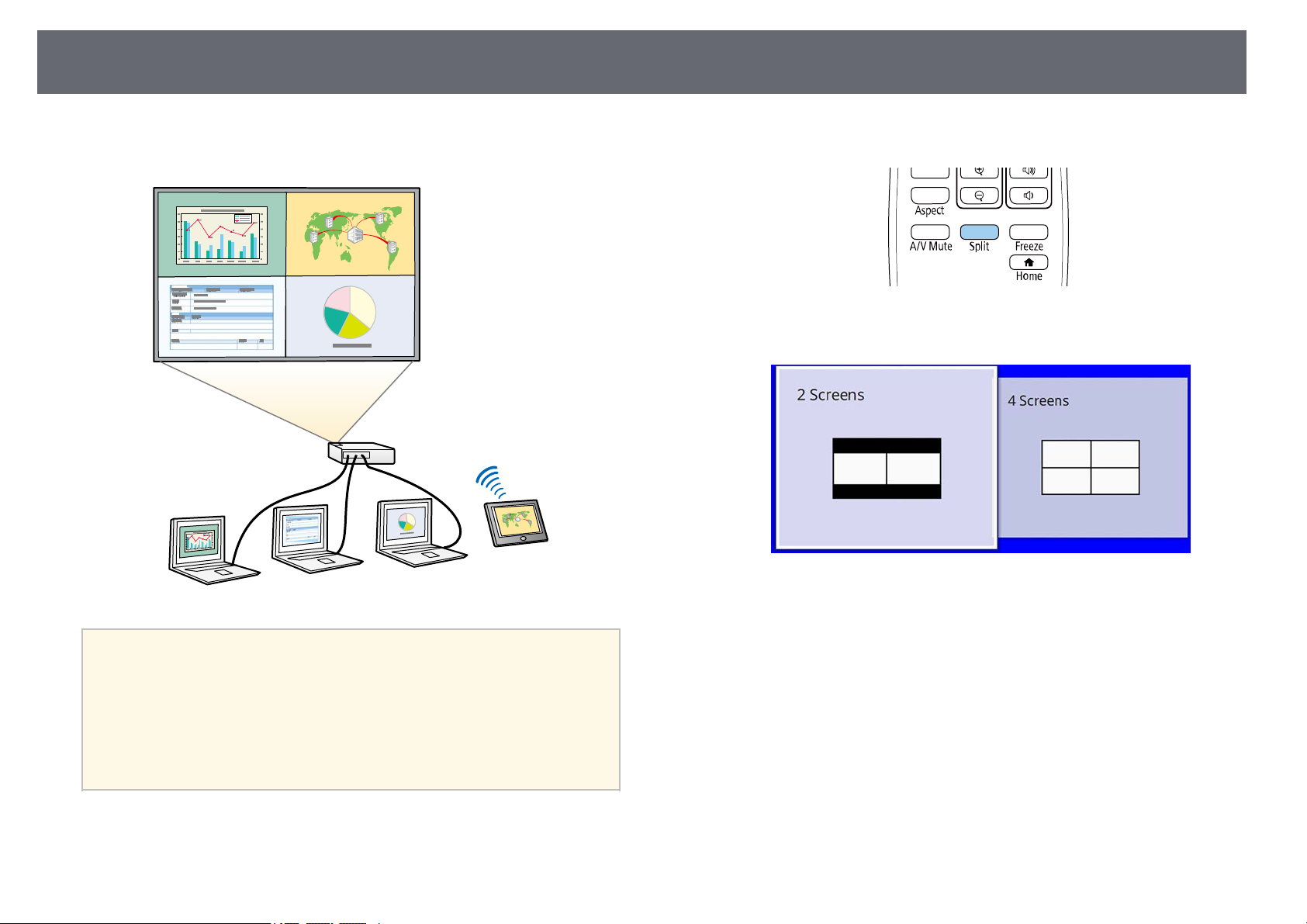

Projecting Multiple Images Simultaneously ................................. 86
Unsupported Input Source Combinations for Split Screen Projection..................... 88
Split Screen Projection Restrictions........................................................................................ 88

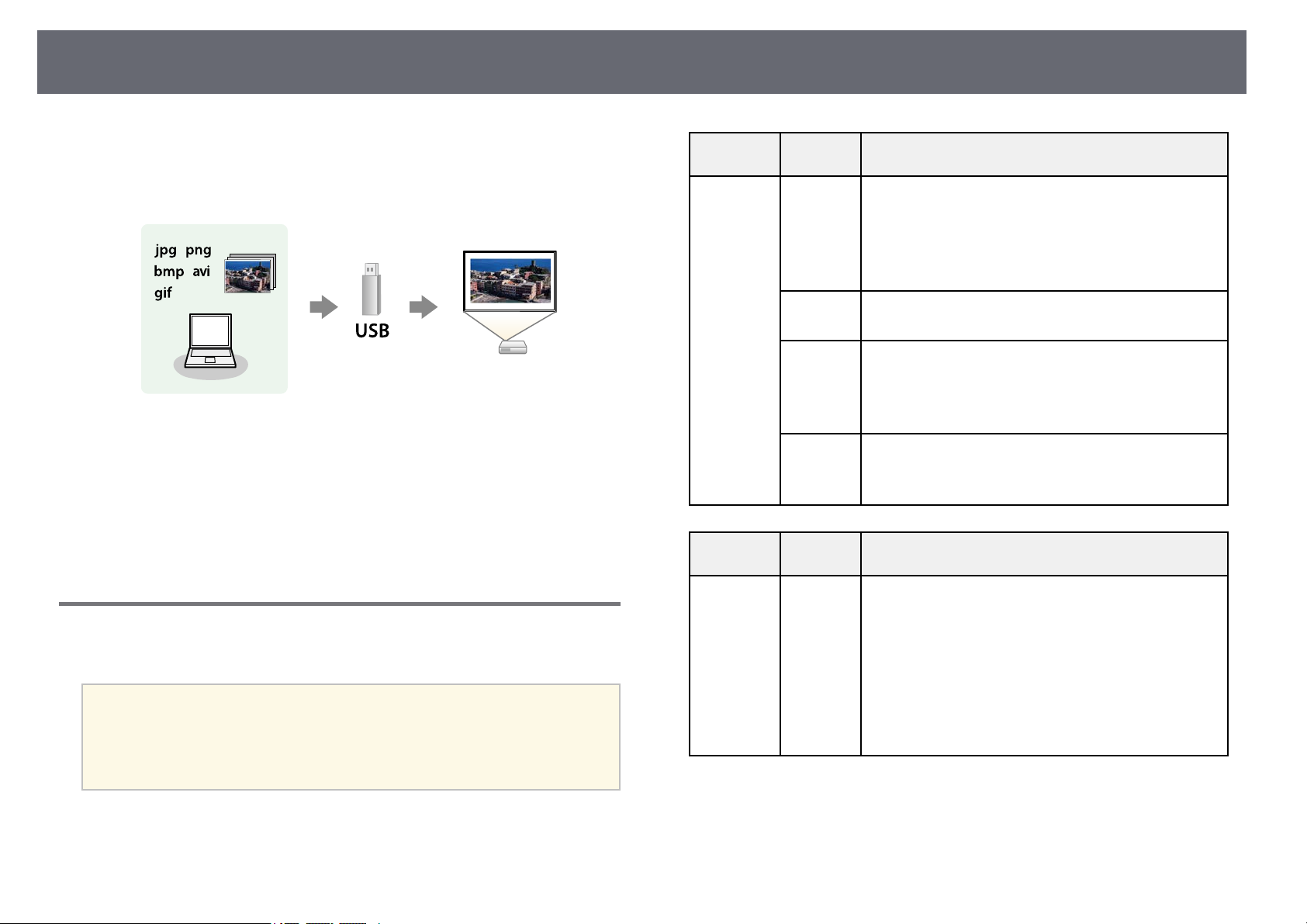

Projecting a PC Free Presentation.................................................. 89
Supported PC Free File Types................................................................................................... 89
Precautions on PC Free Projection ......................................................................................... 90

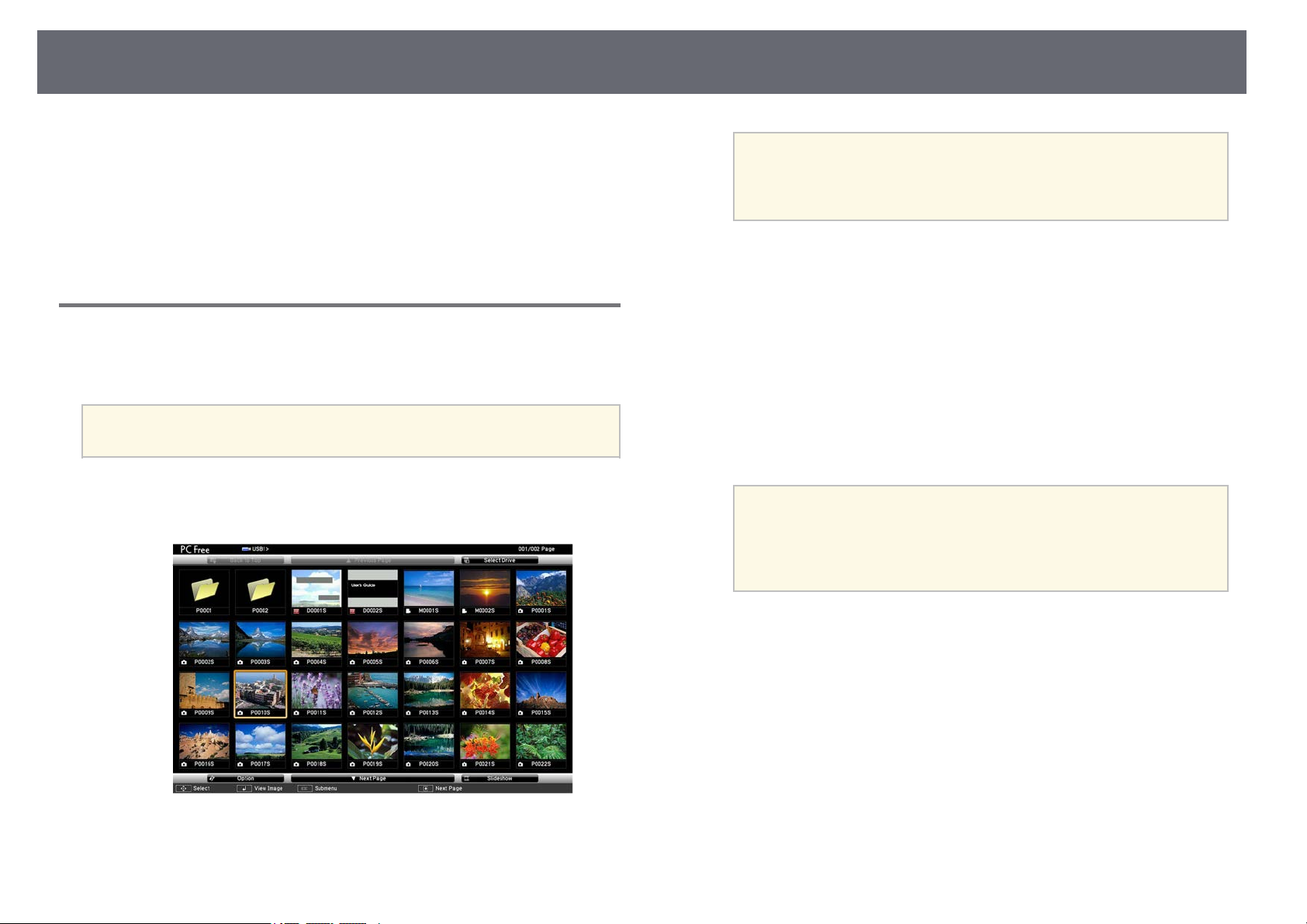

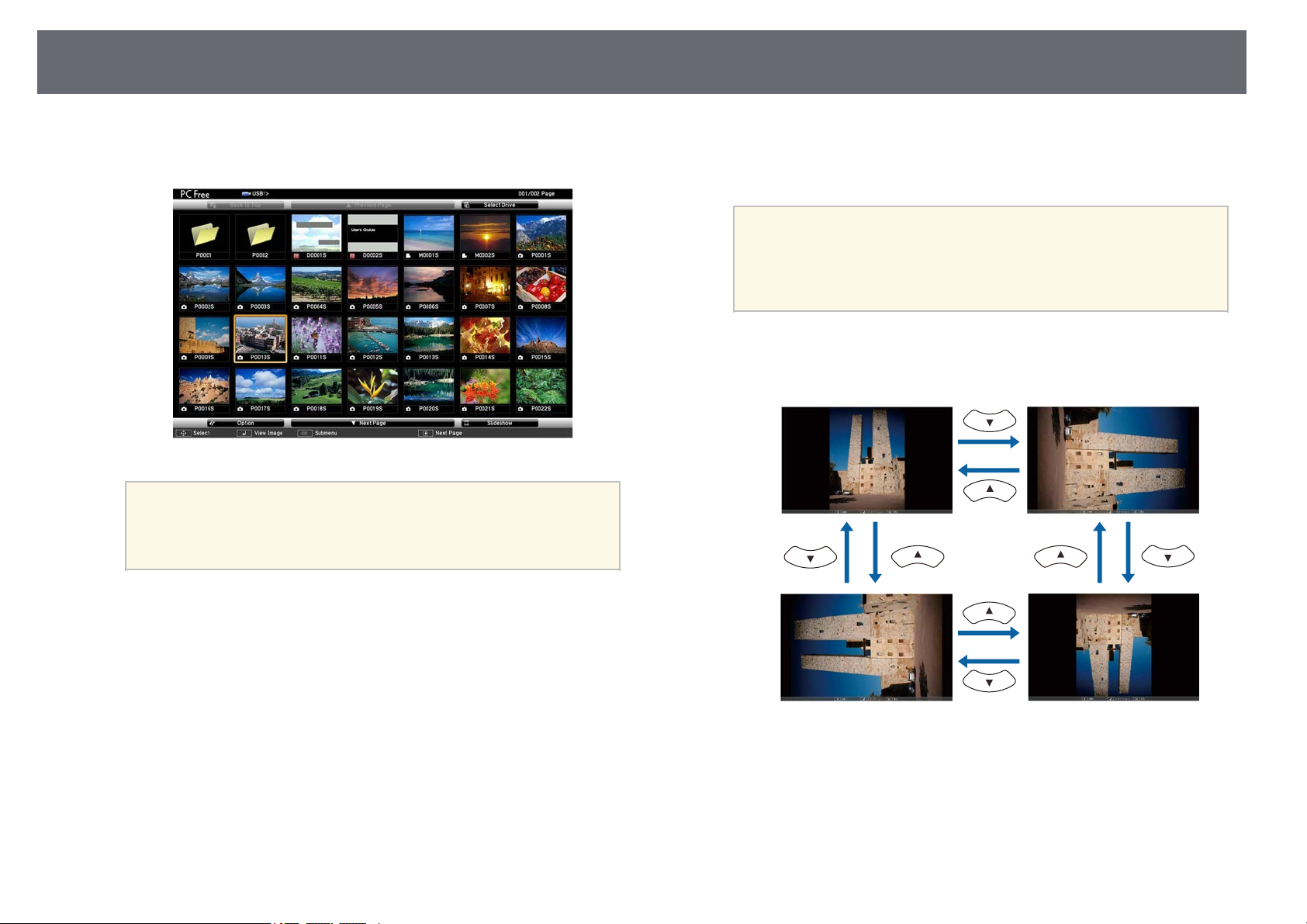

Starting a PC Free Slide Show .................................................................................................. 90
Starting a PC Free Movie Presentation ................................................................................. 92

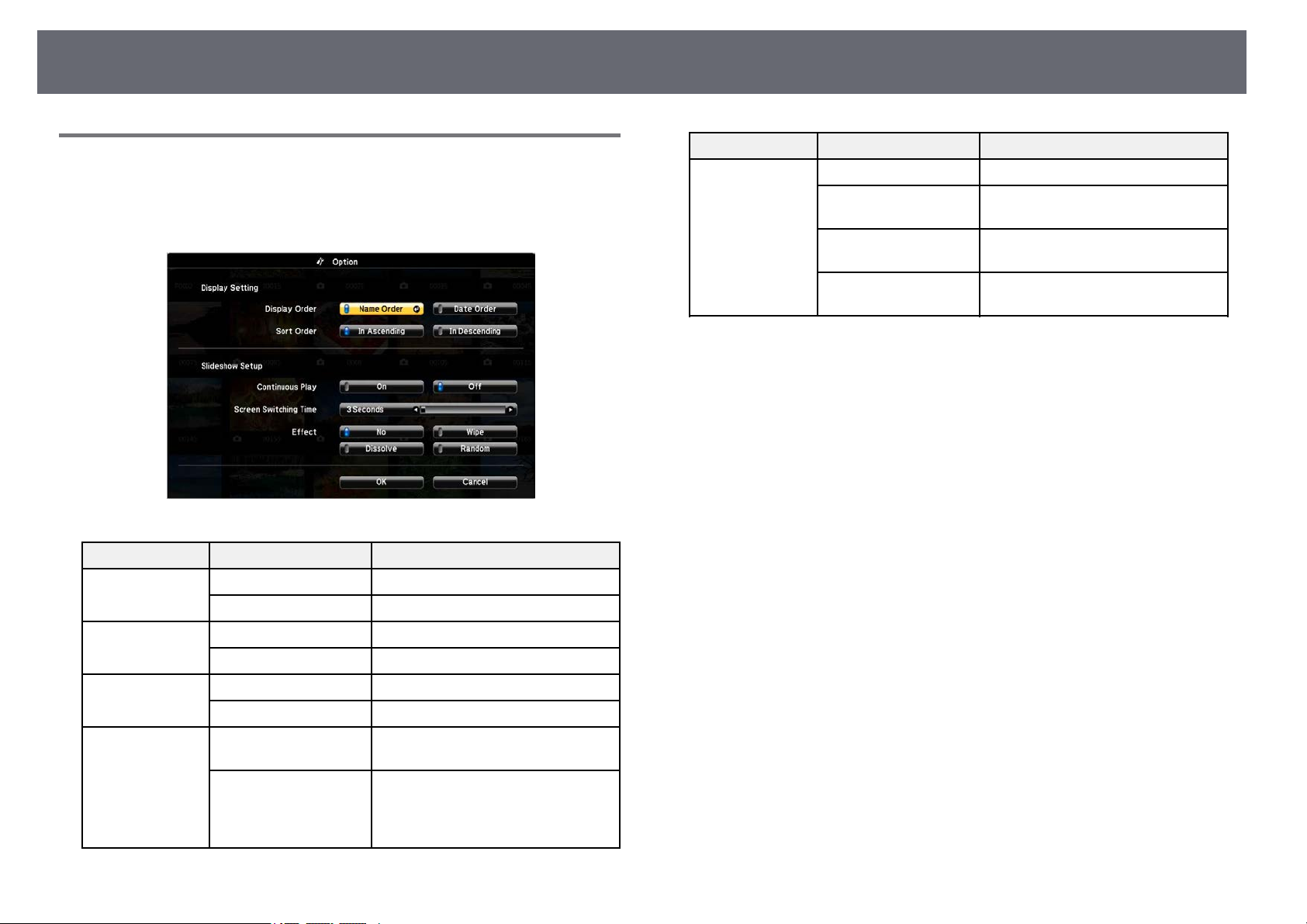

PC Free Display Options ............................................................................................................. 93

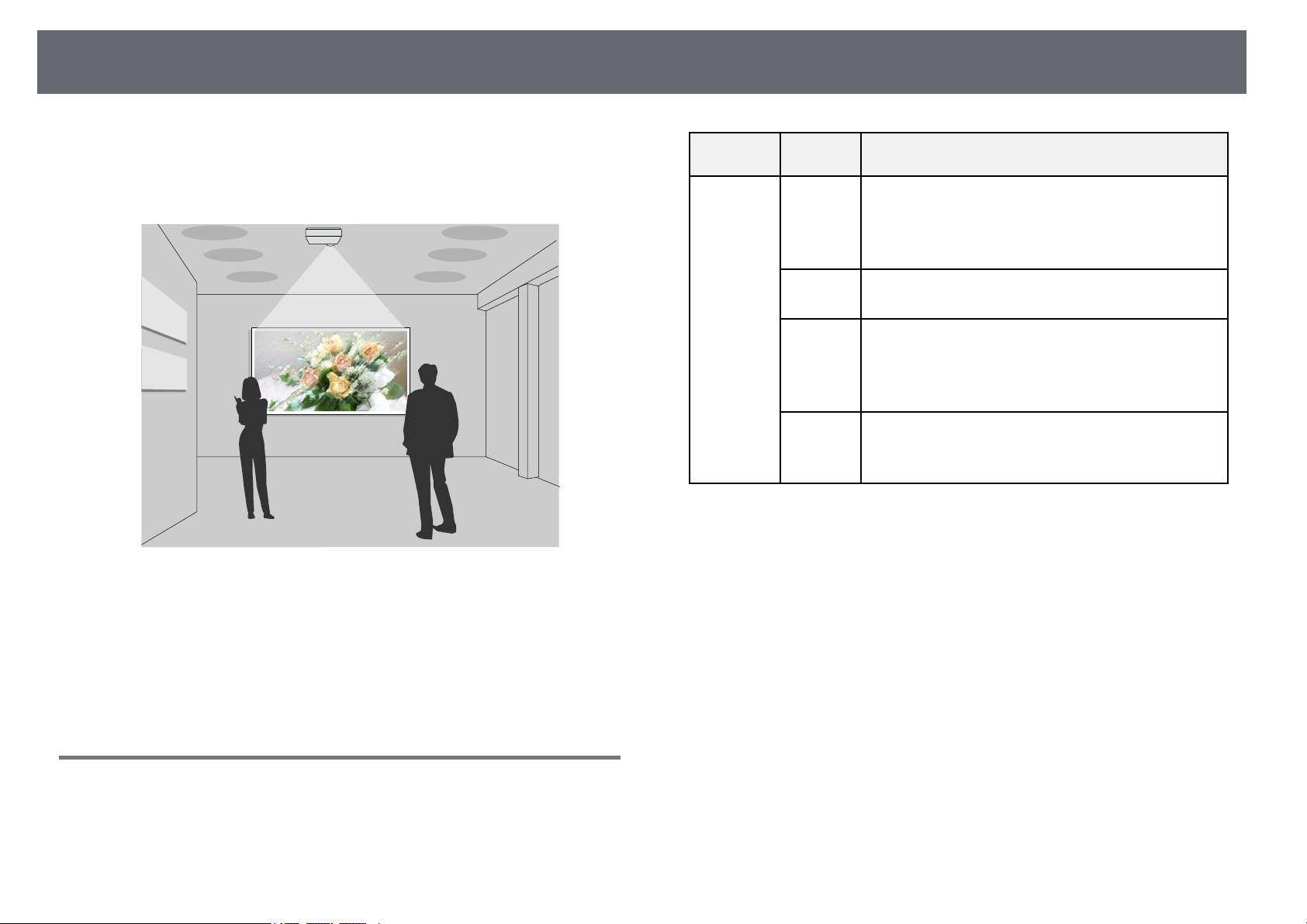

Projecting in Content Playback Mode ........................................... 94
Supported Content Playback Mode File Types.................................................................. 94
Switching to Content Playback Mode................................................................................... 95
Projecting Your Playlists ............................................................................................................. 96

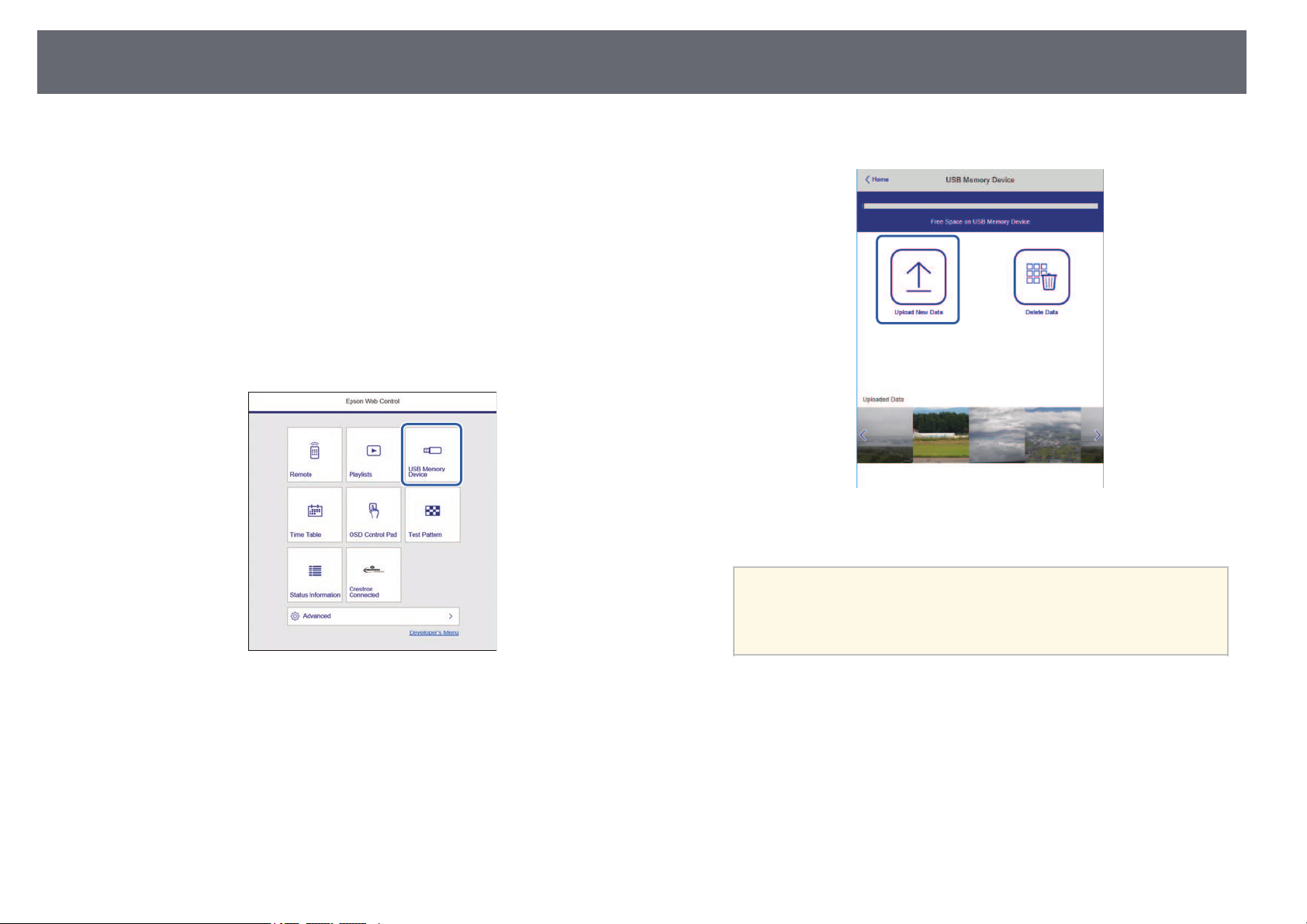

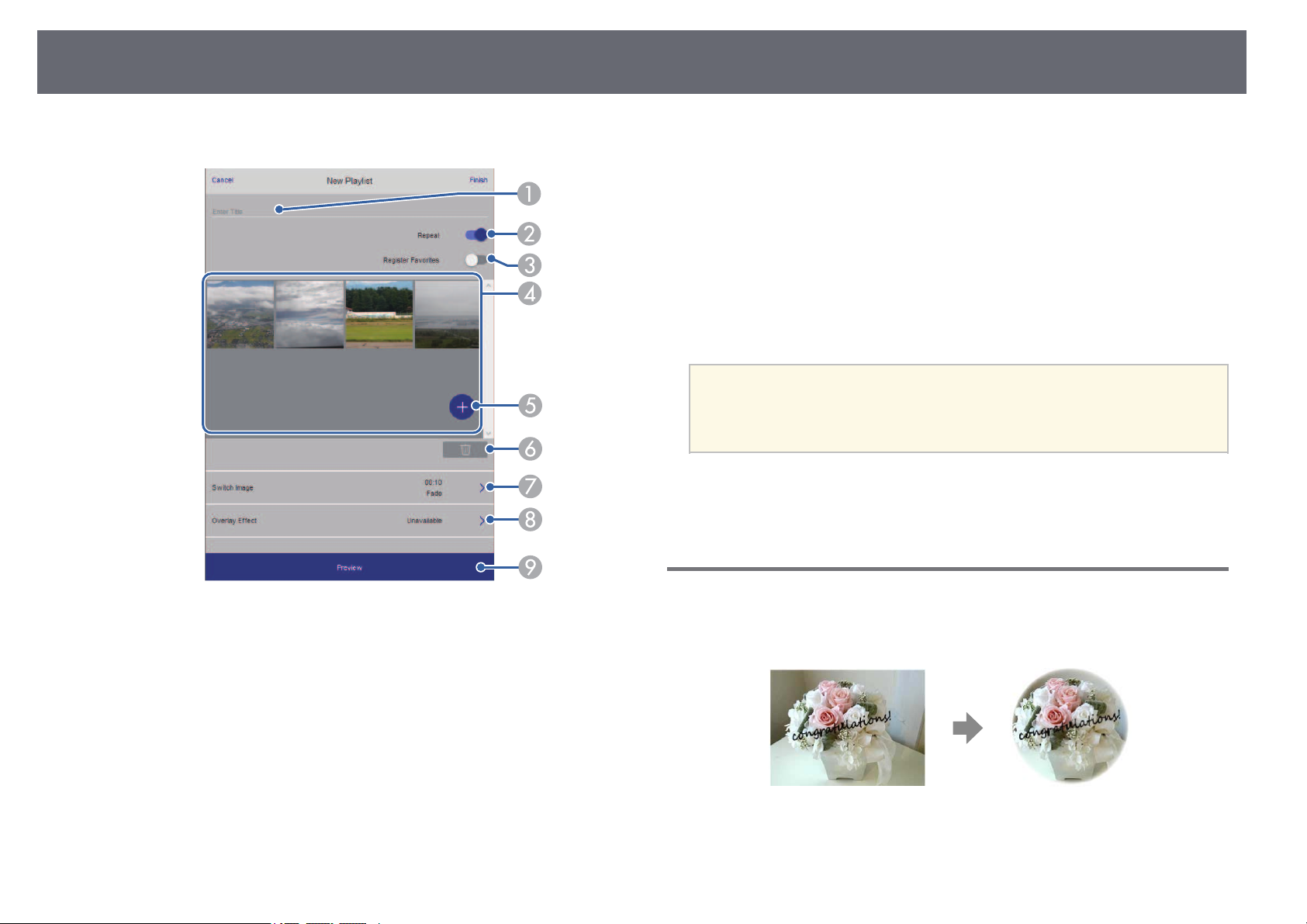

Creating Playlists Using Epson Web Control................................................................. 96

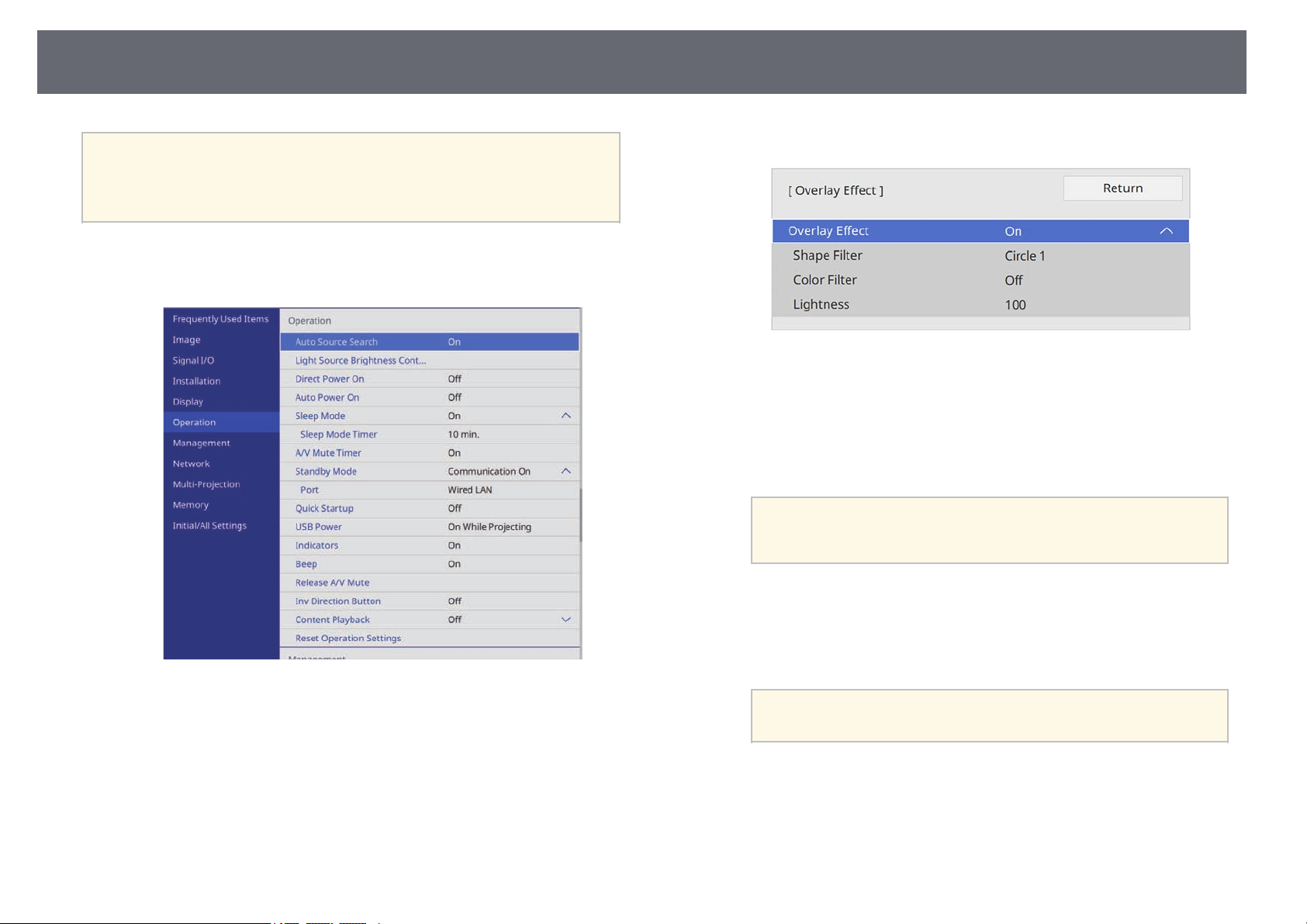

Adding Effects to Your Projected Image .............................................................................. 98
Content Playback Mode Restrictions................................................................................... 100
Shutting Off the Image and Sound Temporarily ........................ 101
Stopping Video Action Temporarily ............................................ 102
Zooming Images (E-Zoom)............................................................ 103
Turning On Automatic Luminance Adjustment ............................ 75
Adjusting the Image Color .............................................................. 76

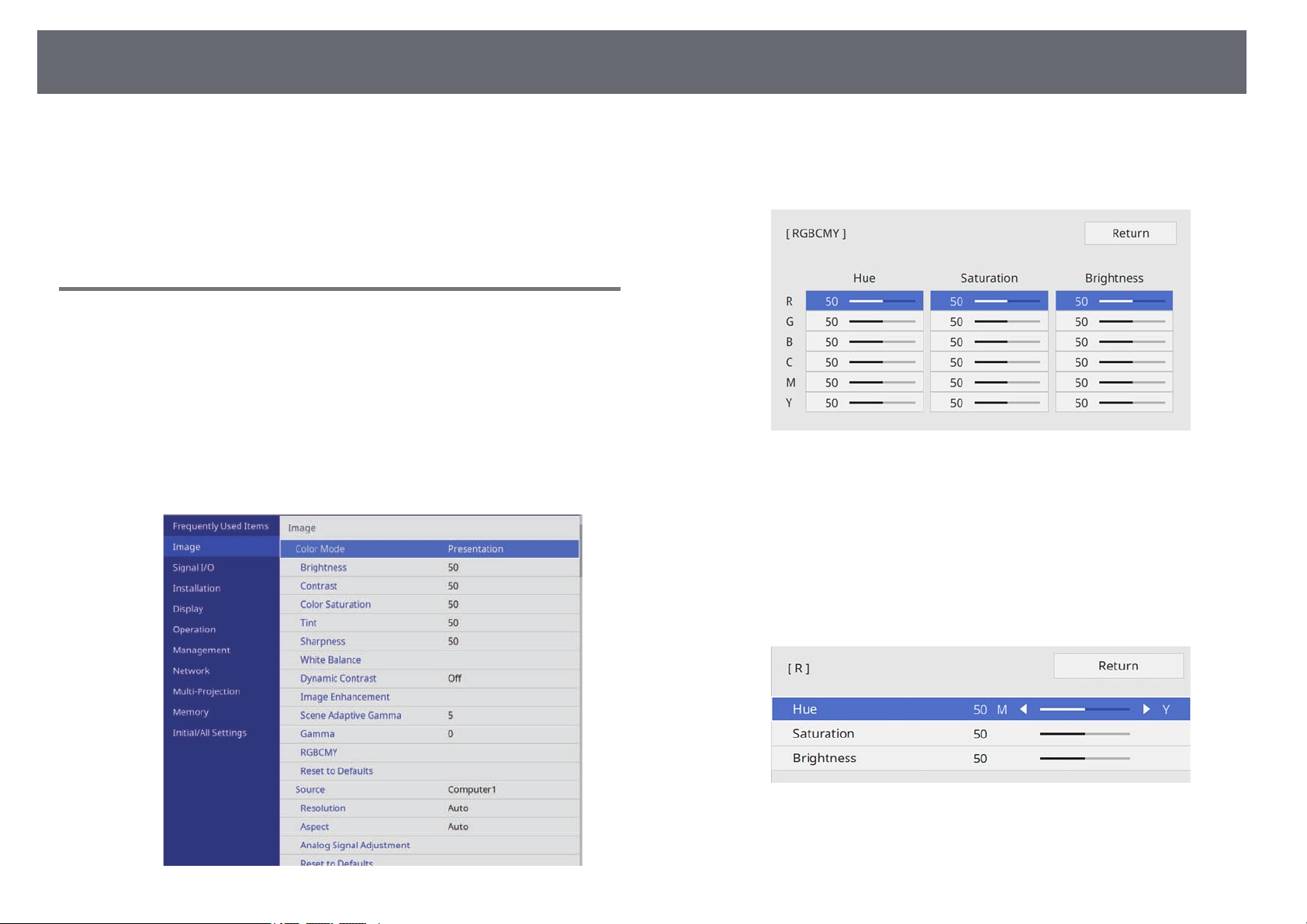

Adjusting the Hue, Saturation, and Brightness.................................................................. 76

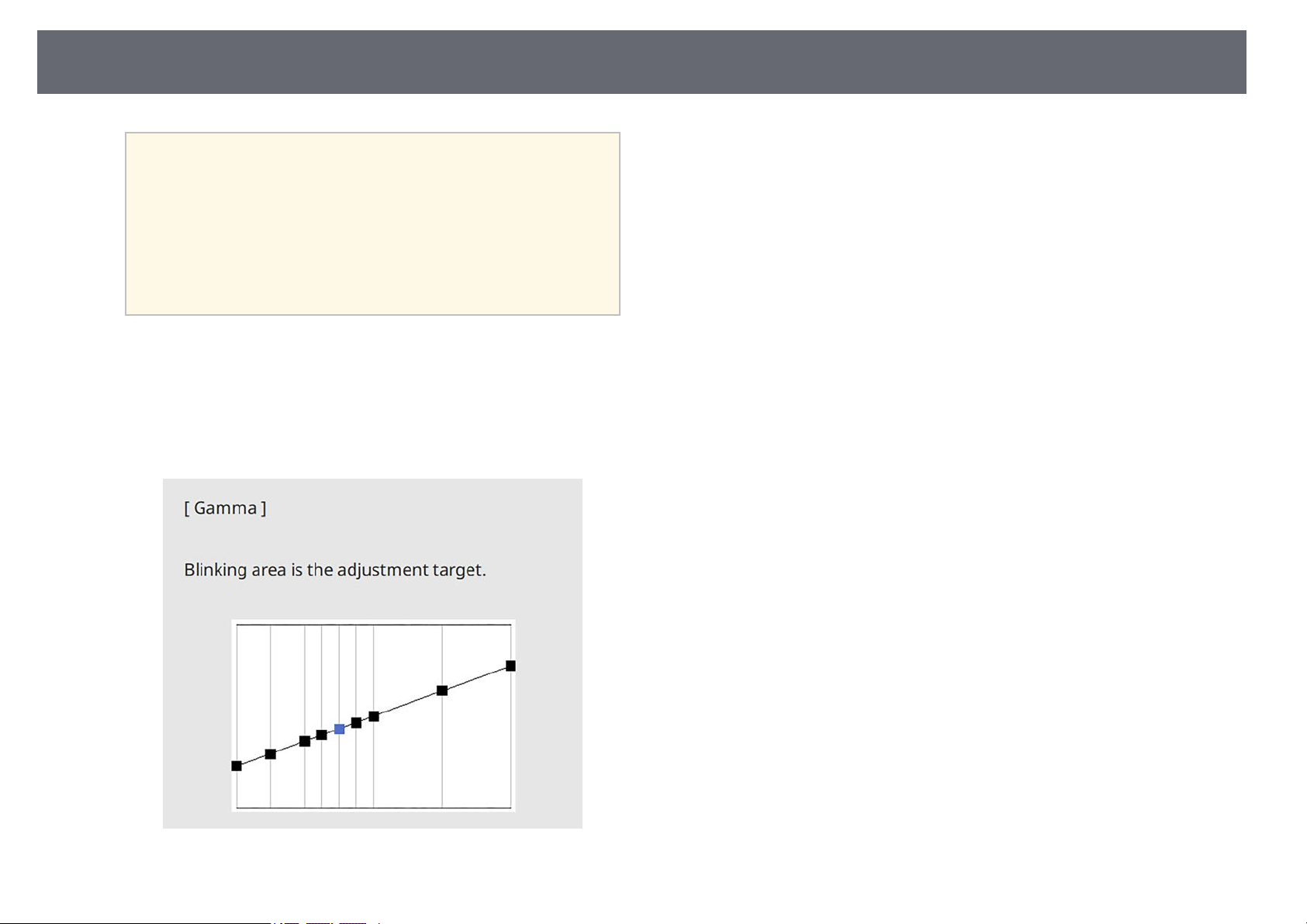

Adjusting the Gamma ................................................................................................................. 77
Zooming In/Zooming Out of Images (E-Zoom)........................... 104
Zooming Into Images................................................................................................................ 104
Zooming Out of Images ........................................................................................................... 104
Saving a User's Logo Image .......................................................... 106
Page 4
Contents
4
Saving Settings to Memory and Using Saved Settings ............. 108
Using Advanced Image Adjustment Features ............................ 109
Adjusting the Color Tone (Color Uniformity) ................................................................... 109
Running Light Source Calibration ........................................................................................ 110
Using Multiple Projectors ............................................................. 112
Multiple Projector Adjustment Overview .......................................................................... 112
Projector Identification System for Multiple Projector Control................................. 113
Setting the Projector ID ...................................................................................................... 113
Selecting the Projector You want to Operate............................................................ 114
Tiling Images into One Image................................................................................................ 115
Configuring Tiling ................................................................................................................. 115
Blending the Image Edges ...................................................................................................... 116
Adjusting the Black Level................................................................................................... 118
Modifying the Black Level Adjustment Area .............................................................. 120
Matching the Image Colors..................................................................................................... 120
Scaling an Image......................................................................................................................... 121
Projector Security Features .......................................................... 124
Password Security Types.......................................................................................................... 124
Setting a Password ............................................................................................................... 124
Selecting Password Security Types ................................................................................ 125
Entering a Password to Use the Projector................................................................... 126
Locking the Projector's Buttons ............................................................................................ 126
Unlocking the Projector's Buttons .................................................................................. 127
Locking the Remote Control Buttons.................................................................................. 127
Installing a Security Cable ....................................................................................................... 128
Using the Projector on a Network 129
Installing the Wireless LAN Module..................................................................................... 133
Connection Methods for Wireless Network Projection ................................................ 134
Selecting Wireless Network Settings Manually ............................................................... 135
Selecting Wireless Network Settings in Windows .................................................... 138
Selecting Wireless Network Settings in Mac............................................................... 139
Setting Up Wireless Network Security for Simple AP Mode....................................... 139
Setting Up Wireless Network Security for Infrastructure Mode ................................ 139
Supported Client and CA Certificates............................................................................ 141
Using a QR Code to Connect a Mobile Device ................................................................ 142
Using a USB Key to Connect a Windows Computer...................................................... 142
Using the Wireless Presentation System to Connect Windows/Mac
Computers..................................................................................................................................... 143
Setting Up the Wireless Presentation System for the First Time ........................ 143
Projecting with the Wireless Presentation System................................................... 144
Wireless Network Projection from a Mobile Device (Screen
Mirroring)........................................................................................ 145
Selecting Screen Mirroring Settings .................................................................................... 145
Connecting Using Screen Mirroring with the Miracast Function ............................. 147
Connecting Using Screen Mirroring in Windows 10..................................................... 148
Connecting Using Screen Mirroring in Windows 8.1 .................................................... 148
Secure HTTP.................................................................................... 150
Importing a Web Server Certificate Using the Menus .................................................. 150
Supported Web Server Certificates ................................................................................ 151
Screen Sharing ............................................................................... 152
Sharing the Screen ..................................................................................................................... 152
Finishing the Screen Sharing............................................................................................ 153
Receiving Shared Screen Images .......................................................................................... 154
Wired Network Projection............................................................. 130
Connecting to a Wired Network ........................................................................................... 130
Selecting Wired Network Settings........................................................................................ 130
Wireless Network Projection ........................................................ 133
Safety Instructions for Built-in Wireless LAN Module.................................................... 133
Monitoring and Controlling the Projector 155
Epson Projector Management ...................................................... 156
Controlling a Networked Projector Using a Web Browser ........ 157
Web Control Options................................................................................................................. 158
Page 5
Contents
5
Registering Digital Certificates from a Web Browser................. 166
Setting Up Projector Network E-Mail Alerts ............................... 168
Network Projector E-mail Alert Messages ......................................................................... 168
Setting Up Monitoring Using SNMP............................................. 169
Using ESC/VP21 Commands ........................................................ 170
ESC/VP21 Command List ......................................................................................................... 170
Cable Layouts ............................................................................................................................... 170
PJLink Support ............................................................................... 171
Crestron Connected Support........................................................ 172
Setting Up Crestron Connected Support........................................................................... 172
Operating the Projector Using Web API...................................... 173
Enabling Web API ....................................................................................................................... 173
Setting Projector Event Schedules ............................................... 174
Adjusting the Menu Settings 177
Using the Projector's Menus ......................................................... 178
Using the Displayed Keyboard..................................................... 179
Available Text Using the Displayed Keyboard................................................................. 179
Image Quality Settings - Image Menu ......................................... 180
Input Signal Settings - Signal I/O Menu....................................... 183
Projector Installation Settings - Installation Menu .................... 185
Projector Display Settings - Display Menu .................................. 187
Projector Feature Settings - Operation Menu............................. 189
Network Menu - Wired LAN Menu ................................................................................. 199
Network Menu - Mail Notification Menu ..................................................................... 200
Network Menu - Projector Control Menu .................................................................... 200
Network Menu - Network Projection Settings ........................................................... 201
Multiple Projector Operation Settings - Multi-Projection
Menu ............................................................................................... 203
Image Quality Memory Settings - Memory Menu....................... 205
Projector Initial Settings and Reset Options - Initial/All
Settings Menu ................................................................................ 206
Copying Menu Settings Between Projectors (Batch Setup) ...... 207
Transferring Settings From a USB Flash Drive ................................................................. 207
Transferring Settings From a Computer ............................................................................ 208
Batch Setup Error Notification ......................................................................................... 209
Maintaining the Projector 210
Projector Maintenance .................................................................. 211
Cleaning the Lens........................................................................... 212
Cleaning the Projector Case.......................................................... 213
Air Filter and Vent Maintenance .................................................. 214
Cleaning the Air Filters and Intake Vents ......................................................................... 214
Replacing the Air Filter ............................................................................................................. 216
Updating the Firmware ................................................................. 218
Updating Firmware Using a USB Storage Device........................................................... 218
Updating Firmware Using a Computer and USB Cable ............................................... 219
Projector Administration Settings - Management Menu .......... 192
Event ID Code List....................................................................................................................... 193
Projector Network Settings - Network Menu.............................. 195
Network Menu - Network Settings Menu.......................................................................... 196
Network Menu - Wireless LAN Menu............................................................................. 197
Solving Problems 221
Projection Problems ...................................................................... 222
Projector Indicator Status ............................................................. 223
Page 6
Contents
6
Viewing the Status Display ........................................................... 226
Projector Status Display Messages....................................................................................... 226
Solving Image or Sound Problems............................................... 229
Solutions When No Image Appears..................................................................................... 229
Solutions When "No Signal" Message Appears ............................................................... 229
Displaying From a Windows Laptop.............................................................................. 230
Displaying From a Mac Laptop........................................................................................ 230
Solutions When "Not Supported" Message Appears .................................................... 230
Solutions When Only a Partial Image Appears................................................................ 230
Solutions When the Image is not Rectangular................................................................ 231
Solutions When the Image Contains Noise or Static..................................................... 231
Solutions When the Image is Fuzzy or Blurry .................................................................. 232
Solutions When the Image Brightness or Colors are Incorrect ................................. 233
Solutions When an Afterimage Remains on the Projected Image .......................... 233
Solutions to Sound Problems................................................................................................. 233
Solutions When Image File Names are not Displayed Correctly in PC Free......... 234
Solutions When You Cannot Project Images Using the PC Free Feature.............. 234
Solving Projector or Remote Control Operation Problems....... 235
Solutions to Projector Power or Shut-Off Problems...................................................... 235
Solutions to Problems with the Remote Control............................................................ 235
Solutions to Password Problems........................................................................................... 236
Solution When "The Battery that Saves Your Clock Settings is Running Low"
Message Appears ........................................................................................................................ 236
Solving Network Problems ........................................................... 237
Solutions When Wireless Authentication Fails ................................................................ 237
Solutions When You Cannot Access the Projector Through the Web ................... 237
Solutions When Network Alert E-Mails are not Received............................................ 237
Solutions When the Image Contains Static During Network Projection............... 238
Solutions When You Cannot Connect Using Screen Mirroring................................. 238
Solutions When You Cannot Use Two Screen Mirroring Sources............................ 238
Solutions When the Image or Sound Contains Static During Screen Mirroring
Connection.................................................................................................................................... 239
Solutions When You Cannot Receive Shared Images................................................... 239
Solutions to Problems in Content Playback Mode ..................... 240
Solutions When HDMI Link does not Function ........................... 241
Appendix 242
Optional Accessories and Replacement Parts............................. 243
Screens............................................................................................................................................ 243
Cables .............................................................................................................................................. 243
Mounts............................................................................................................................................ 243
For Wireless Connection .......................................................................................................... 243
External Devices .......................................................................................................................... 243
Replacement Parts...................................................................................................................... 244
Screen Size and Projection Distance............................................ 245
EB‑L735U/EB‑L730U/EB‑L635SU/EB‑L630SU/EB‑L630U/EB‑L530U........................... 245
EB‑L720U/EB‑L520U ................................................................................................................... 248
Supported Monitor Display Resolutions ..................................... 250
Projector Specifications ................................................................ 254
Connector Specifications ......................................................................................................... 255
External Dimensions...................................................................... 256
Supported Features for Epson Projector Content Manager...... 257
Supported Features for the Epson Projector Professional Tool 258
List of Safety Symbols and Instructions ...................................... 259
Laser Safety Information............................................................... 261
Laser Warning Labels................................................................................................................. 261
Glossary .......................................................................................... 263
Notices ............................................................................................ 265
FCC Compliance Statement.................................................................................................... 265
Indication of the manufacturer and the importer in accordance with
requirements of EU directive.................................................................................................. 266
Restriction of Use........................................................................................................................ 266
Operating System References................................................................................................ 266
Trademarks.................................................................................................................................... 266
Page 7
Contents
Copyright Notice ......................................................................................................................... 267
Copyright Attribution................................................................................................................ 267
7
Page 8
Notations Used in This Guide
Safety Symbols
The projector and its manuals use graphical symbols and labels to indicate content that tells you how to use the projector safely.
Read and carefully follow the instructions that are marked with these symbols and labels to avoid injury to persons or damage to property.
This symbol indicates information that, if ignored, could possibly result in personal injury or even death.
Warning
This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.
Caution
General Information Notations
This label indicates procedures that may result in damage or injury if sufficient care is not taken.
Attention
This label indicates additional information that may be useful to know.
[Button name] Indicates the name of the buttons on the remote control or the control panel.
Example: [Esc] button
Menu/Setting name Indicates projector menu and setting names.
Example:
Select the Image menu
s Image > Color Mode
This label indicates links to the related pages.
s
This label indicates the projector's current menu level.
gg Related Links
• "Using the Manual to Search for Information" p.9
• "Getting the Latest Version of the Documents" p.10
Page 9
Using the Manual to Search for Information
9
The PDF manual allows you to search for information you are looking for by
keyword, or jump directly to specific sections using the bookmarks. You can
also print only the pages you need. This section explains how to use a PDF
manual that has been opened in Adobe Reader X on your computer.
gg Related Links
• "Searching by Keyword" p.9
• "Jumping Directly from Bookmarks" p.9
• "Printing Only the Pages You Need" p.9
Searching by Keyword
Click Edit > Advanced Search. Enter the keyword (text) for information you
want to find in the search window, and then click Search. Hits are displayed
as a list. Click one of the displayed hits to jump to that page.
• Mac OS: Hold down the command key, and then press ←.
Printing Only the Pages You Need
You can extract and print only the pages you need. Click Print in the File
menu, and then specify the pages you want to print in Pages in Pages to
Print.
• To specify a series of pages, enter a hyphen between the start page and the
end page.
Example: 20-25
• To specify pages that are not in series, divide the pages with commas.
Example: 5, 10, 15
Jumping Directly from Bookmarks
Click a title to jump to that page. Click + or > to view the lower level titles in
that section. To return to the previous page, perform the following operation
on your keyboard.
• Windows: Hold down Alt, and then press ←.
Page 10
Getting the Latest Version of the Documents
You can get the latest version of the manuals and specifications on the Epson
Web site.
Visit epson.sn, and enter your model name.
10
Page 11
Introduction to Your Projector
Refer to these sections to learn more about your projector's features and part names.
gg Related Links
• "Projector Features" p.12
• "Projector Parts and Functions" p.15
Page 12
Projector Features
12
This projector comes with these special features. Refer to these sections for
more details.
gg Related Links
• "Long-life Laser Light Source" p.12
• "Quick and Easy Setup" p.12
• "Easy Wireless Projection" p.12
• "Managing over a Network" p.13
• "Projecting for Exhibitions" p.13
Long-life Laser Light Source
A solid-state laser light source provides virtually maintenance-free operation
until light source brightness is reduced.
Quick and Easy Setup
• Direct Power On feature to turn on the projector as soon as you plug it in.
• Auto Power On feature to turn on the projector when the projector detects
an image signal from the port you specified as the Auto Power On source.
• Home screen feature to easily select an input source and useful functions.

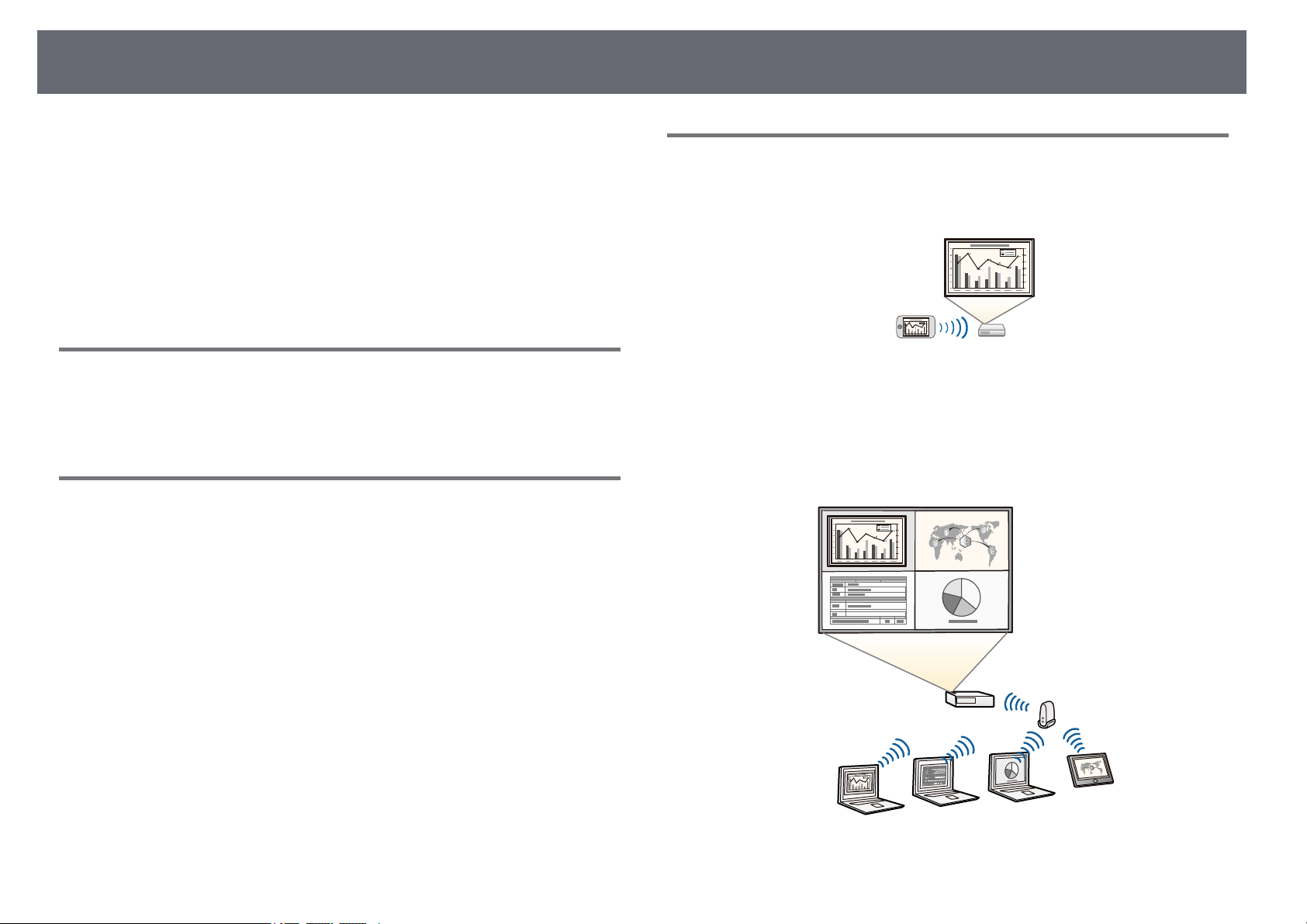

Easy Wireless Projection
• Screen Mirroring to connect your projector and mobile device wirelessly
using Miracast technology.
• Epson iProjection (Windows/Mac) to project up to four images at the same
time by splitting the projected screen. You can project images from
computers on the network, or from smartphones or tablet devices on which
Epson iProjection is installed.
See the Epson iProjection Operation Guide (Windows/Mac) for details.
gg Related Links
• "Home Screen" p.43
• "Turning On the Projector" p.42
Page 13
Projector Features
13
• When projecting images using a wireless LAN, you must install the
a
• Epson iProjection (iOS/Android) to connect your projector and mobile
device wirelessly using the app available on the App Store or Google Play.
a
• Epson iProjection (Chromebook) to connect your projector and
Chromebook device wirelessly using the app available on the Chrome Web
Store.
Epson 802.11b/g/n wireless LAN module, and then set up your
projector and computer for wireless projection
(EB‑L720U/EB‑L520U).
Depending on your projector model, you may need to purchase the
optional wireless LAN module. See the Quick Reference for a list of
items supplied with your projector.
• Some models have built-in wireless LAN modules
(EB‑L735U/EB‑L730U/EB‑L635SU/EB‑L630SU/EB‑L630U/EB‑L530
U).
• You can download the necessary software and manuals from the
following Web site:
epson.sn
Any fees incurred when communicating with the App Store or
Google Play are the responsibility of the customer.
Managing over a Network
Epson Projector Professional Tool to adjust the projected image or monitor
the projector from your computer over a network.
See the Epson Projector Professional Tool Operation Guide for details.
You can download the necessary software and manuals from the
a
gg Related Links
• "Supported Features for the Epson Projector Professional Tool" p.258
following Web site:
epson.sn
Projecting for Exhibitions
Your projector allows you to project your content for exhibitions as digital
signage.
Any fees incurred when communicating with the Chrome Web Store
a
gg Related Links
• "Wired Network Projection" p.130
• "Wireless Network Projection" p.133
• "Wireless Network Projection from a Mobile Device (Screen Mirroring)"
p.145
are the responsibility of the customer.
Page 14
Projector Features
• Content Playback mode to play your playlists, and add color and shape
effects to your projected image.
• You can use one of the following methods to create content played in
Content Playback mode.
• The Epson Projector Content Manager software allows you to create
playlists and save them on an external storage device. You can also add
color and shape effects to your projected image, and schedule playlists.
See the Epson Projector Content Manager Operation Guide for details.
• Epson Web Control allows you to create playlists using a Web browser
and save them to an external storage device connected to a projector on a
network. You can also add color and shape effects to your projected
image.
• The Epson Creative Projection app allows you to create content on iOS
devices. You can also transfer content to the projector wirelessly.
You can download Epson Creative Projection from the App Store. Any
fees incurred when communicating with the App Store are the
responsibility of the customer.
14
You can download the necessary software and manuals from the
a
gg Related Links
• "Projecting in Content Playback Mode" p.94
• "Supported Features for Epson Projector Content Manager" p.257
following Web site:
epson.sn
Page 15
Projector Parts and Functions
15
The following sections explain the projector parts and their functions.
All of the features in this guide are explained using illustrations of EB‑L735U
unless otherwise mentioned.
The shape of the projector part may vary depending on the model of your
projector.
gg Related Links
• "Projector Parts - Front/Top" p.15
• "Projector Parts - Rear" p.16
• "Projector Parts - Base" p.17
• "Projector Parts - Interface Ports" p.17
• "Projector Parts - Control Panel" p.18
• "Projector Parts - Remote Control" p.19
Projector Parts - Front/Top
EB‑L735U/EB‑L730U/EB‑L635SU/EB‑L630SU/EB‑L630U/EB‑L530U
EB‑L720U/EB‑L520U
Name Function
Air intake vent Takes in air to cool the projector internally.
A
Front adjustable foot When setup on a surface such as a desk, extend the foot
B
Focus ring Adjusts the image focus.
C
Zoom ring
D
(EB‑L735U/EB‑L730U
/EB‑L720U/EB‑L630U
/EB‑L530U/EB‑L520U
)
Lens Images are projected from here.
E
Air intake vent (air
F
filter)
Cable cover
G
(EB‑L735U/EB‑L730U
/EB‑L635SU/EB‑L630
SU/EB‑L630U/EB‑L53
0U)
Indicators Indicates the projector's status.
H
to adjust the position of the image.
Adjusts the image size.
Takes in air to cool the projector internally.
Cover for the rear interface ports section.
Loosen the two screws and pull the cover off when
connecting cables for external devices or installing the
wireless LAN module.
Page 16
Projector Parts and Functions
16
Name Function
Vertical lens shift dial
I
(EB‑L735U/EB‑L730U
/EB‑L635SU/EB‑L630
SU/EB‑L630U/EB‑L53
0U)
Horizontal lens shift
J
dial
(EB‑L735U/EB‑L730U
/EB‑L635SU/EB‑L630
SU/EB‑L630U/EB‑L53
0U)
Remote receiver Receives signals from the remote control.
K
Speaker Outputs audio.
L
Air exhaust vent Exhaust vent for air used to cool the projector
M
Turn the dial to move the position of the projected
image up or down.
Turn the dial to move the position of the projected
image left or right.
internally.
Caution
While projecting, do not put your face or
hands near the air exhaust vent, and do not
place objects that may become warped or
damaged by heat near the vent. Hot air from
the air exhaust vent could cause burns,
warping, or accidents to occur.
Remote receiver Receives signals from the remote control.
N
Lens cover Attach when not using the projector to protect the lens.
O
gg Related Links
• "Air Filter and Vent Maintenance" p.214
• "Projector Indicator Status" p.223
• "Remote Control Operation" p.40
• "Resizing the Image with the Zoom Ring" p.66
• "Focusing the Image Using the Focus Ring" p.69
• "Attaching and Removing the Cable Cover" p.38
• "Adjusting the Image Position Using Lens Shift" p.53
Projector Parts - Rear
Name Function
Security slot The security slot is compatible with the Microsaver
A
Power inlet Connects the power cord to the projector.
B
Interface ports Connects cables for external devices.
C
Control panel Operates the projector.
D
Remote receiver Receives signals from the remote control.
E
gg Related Links
• "Projector Parts - Interface Ports" p.17
• "Installing a Security Cable" p.128
Security System manufactured by Kensington.
Page 17
Projector Parts and Functions
17
Projector Parts - Base
Name Function
Screw holes for cable
E
cover
(EB‑L735U/EB‑L730U
/EB‑L635SU/EB‑L630
SU/EB‑L630U/EB‑L53
0U)
Security cable
F
attachment point
Screw holes to fix the cable cover in place.
Pass a commercially available wire lock through here
and lock it in place.
Warning
Do not attach the safety wire to this point.
Air filter cover screws Screws to fix the air filter cover in place.
G
Fixing points (four
H
points)
gg Related Links
• "Installing a Security Cable" p.128
Use these points to attach a commercially available
mount compatible with the VESA Mounting Interface
Standard (100 × 100 mm) when installing the projector
on a wall, or suspending the projector from a ceiling.
Name Function
Front adjustable foot When setup on a surface such as a desk, extend the foot
A
Ceiling mount fixing
B
points (four points)
Wire clamp fixing
C
point
Rear feet When setup on a surface such as a desk, turn to extend
D
to adjust the position of the image.
Attach the optional ceiling mount here when
suspending the projector from a ceiling.
When you use the optional ceiling mount, fix the
carabiner here to attach the safety wire and prevent the
projector from falling from the ceiling or wall.
and retract to adjust the horizontal tilt.
Projector Parts - Interface Ports
Page 18
Projector Parts and Functions
18
Name Function
Computer1 port Inputs image signal from a computer.
A
Audio1 port Inputs audio from equipment connected to the
B
Audio2 port Inputs audio from equipment connected to the
C
Audio Out port Outputs audio from the current input source to an
D
RS-232C port Connects an RS-232C cable to control the projector
E
Computer2/Monitor
F
Out port
HDMI Out port
G
(EB‑L735U/EB‑L730U
/EB‑L635SU/EB‑L630
SU/EB‑L630U/EB‑L53
0U)
HDBaseT port Connects a LAN cable to the optional HDBaseT
H
HDMI2 port Inputs video signals from HDMI compatible video
I
HDMI1 port
J
DC Out port
K
(EB‑L735U/EB‑L730U
/EB‑L635SU/EB‑L630
SU/EB‑L630U/EB‑L53
0U)
LAN port Connects a LAN cable to connect to a network.
L
Computer1 port.
Computer2 port.
external speaker.
from a computer. (You do not need to use this port
normally.)
When Monitor Out Port is set to Monitor Out in the
projector's Signal I/O menu, analog RGB signals input
from the Computer1 port are output to an external
monitor. You cannot output signals input from other
ports.
When Monitor Out Port is set to Computer2 in the
projector's Signal I/O menu, image signal from a
computer is input.
Outputs video signals to an external monitor.
Connecting an HDMI cables from this port to the
HDMI port of another projectors lets you create and
project a single unified image.
This port is compatible with HDCP2.3.
Transmitter.
This port is compatible with HDCP2.3.
equipment and computers.
This port is compatible with HDCP2.3.
Provides a connection for an optional or commercially
available streaming media player allowing you to power
it.
USB data transfer is not available.
Name Function
Service port This port is used for batch settings and firmware
M
Wireless LAN module
N
fixing screw
USB-A port Connects a USB device and projects movies or images.
O
Cable holder Pass a commercially available cable tie through here to
P
update.
Secures the wireless LAN module cover.
Use to connect the optional document camera.
Use to connect the wireless LAN module.
Use to pair the optional wireless transmitter.
Use to connect a USB memory device to save error and
operation log files.
secure cables.
gg Related Links
• "Projector Connections" p.30
• "Wireless Network Projection" p.133
Projector Parts - Control Panel
Page 19
Projector Parts and Functions
19
Name Function
A
Power button ( )
[Source Search]
B
button
[A/V Mute] button Turns the video and audio on or off temporarily.
C
Left arrow button Displays the Control Panel Lock screen.
D
Down arrow button Displays a test pattern.
E
[Enter] button ( ) Enters the current selection and moves to the next level
F
Right arrow button Displays the Information screen.
G
[Esc] button Stops the current function.
H
Up arrow button Displays the Geometry Correction screen.
I
[Menu] button Displays and closes the projector's menu.
J
Turns the projector on or off.
Changes to the next input source.
Selects menu items while displaying the projector's
menu or help.
Selects menu items while displaying the projector's
menu or help.
while displaying the projector's menu or help.
When projecting an analog RGB signal from the
Computer port, optimizes the Analog Signal
Adjustment settings (Tracking, Sync., and Position).
Selects menu items while displaying the projector's
menu or help.
Moves back to the previous menu level while
displaying the projector's menu.
Selects menu items while displaying the projector's
menu or help.
Projector Parts - Remote Control
gg Related Links
• "Selecting an Image Source" p.70
• "Adjusting the Menu Settings" p.177
Page 20
Projector Parts and Functions
20
Name Function
A
Power button ( )
[HDMI] button Switches the image source between the HDMI1 and
B
[Computer] button Switches the image source to the Computer1 and
C
Numeric buttons Enters numbers in the projector's menu while holding
D
[Auto] button When projecting an analog RGB signal from the
E
[Num] button Hold down this button to enter numbers using the
F
[Menu] button Displays and closes the projector's menu.
G
Arrow buttons Selects menu items while displaying the projector's
H
[Enter] button ( ) Enters the current selection and moves to the next level
I
[User] button Performs settings assigned in the User Button setting
J
[Color Mode] button Changes the color mode.
K
[Aspect] button Changes the aspect mode.
L
[E-Zoom] +/–
M
buttons
[A/V Mute] button Turns the video and audio on or off temporarily.
N
[Split] button Projects up to four images from different image sources
O
[Home] button Displays and closes the Home screen.
P
[Freeze] button Pauses or resumes images.
Q
[Volume] up/down
R
buttons
[Default] button Returns the selected setting to its default value.
S
Turns the projector on or off.
HDMI2 ports.
Computer2 ports.
down the [Num] button.
Computer port, optimizes the Analog Signal
Adjustment settings (Tracking, Sync., and Position).
numeric buttons.
menu.
while displaying the projector's menu.
in the projector's Management menu.
Resizes the projected image.
simultaneously by splitting the projected screen.
Adjusts the speaker volume.
Name Function
[Esc] button Stops the current function.
T
Moves back to the previous menu level while
displaying the projector's menu.

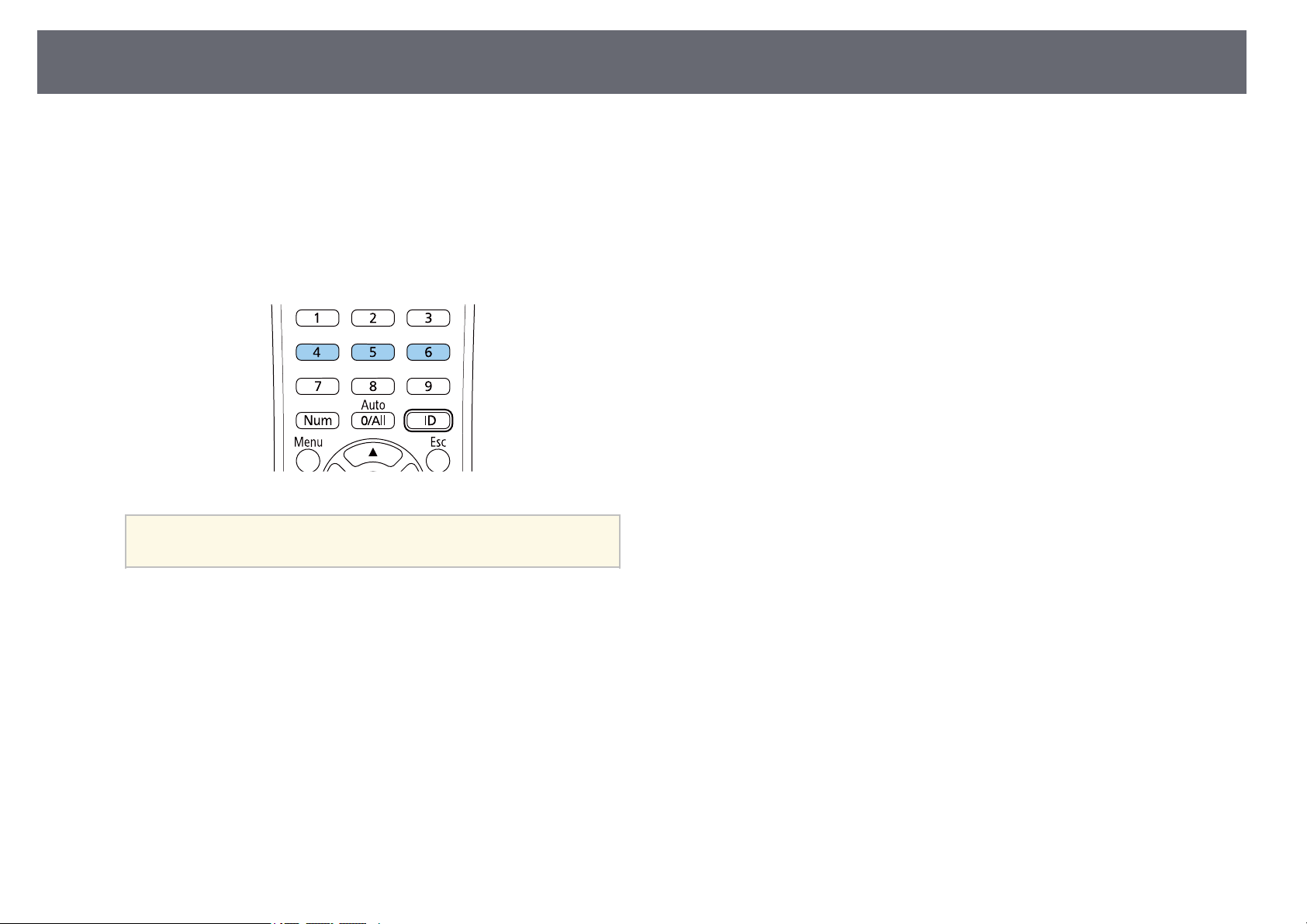

[ID] button Hold down this button and press the numeric buttons
U
[LAN] button Switches the image source to the network connected
V
[USB] button Selects the USB-A port as the image source.
W
[Source Search]
X
button
Remote control light
Y
emitting area
to select the ID for the projector you want to operate
using the remote control.
device.
Switches to the next input source.
Outputs remote control signals.
gg Related Links
• "Projecting in Content Playback Mode" p.94
• "Adjusting Image Quality (Color Mode)" p.74
• "Image Aspect Ratio" p.72
• "Zooming In/Zooming Out of Images (E-Zoom)" p.104
• "Home Screen" p.43
• "Selecting an Image Source" p.70
• "Zooming Images (E-Zoom)" p.103
• "Shutting Off the Image and Sound Temporarily" p.101
• "Projecting Multiple Images Simultaneously" p.86
• "Stopping Video Action Temporarily" p.102
• "Controlling the Volume with the Volume Buttons" p.84
• "Setting the Projector ID" p.113
• "Adjusting the Menu Settings" p.177
Page 21
Setting Up the Projector
Follow the instructions in these sections to set up your projector.
gg Related Links
• "Projector Placement" p.22
• "Installing the Safety Wire" p.27
• "Projector Connections" p.30
• "Attaching and Removing the Cable Cover" p.38
• "Installing Batteries in the Remote Control" p.39
Page 22
Projector Placement
22
You can place the projector on almost any flat surface to project an image.
You can also install the projector in a ceiling mount if you want to use it in a
fixed location. An optional ceiling mount is required when suspending the
projector from a ceiling.
You can also use a commercially available mount compatible with the VESA
Mounting Interface Standard (100 × 100 mm).
The projector can be installed at various angles. There is no vertical or
horizontal limit to how the projector can be installed.
Note the following points when selecting a projector location:
• Place the projector on a sturdy, level surface or install it using a compatible
mount.
• Leave plenty of space around and under the projector for ventilation, and
do not place it on top of or next to anything that could block the vents.
• Place the projector so it squarely faces the screen, not at an angle.
Page 23
Projector Placement
23
Warning
• You must install a ceiling mount when suspending the projector from a ceiling.
If you do not install the projector correctly, it could fall and cause damage or
injury.
• Do not use adhesives on the ceiling mount fixing points to prevent the screws
from loosening, or use lubricants, oils, or similar substances on the projector; the
projector case may crack causing it to fall from its ceiling mount. This could
cause serious injury to anyone under the ceiling mount and could damage the
projector.
• Failure to install the ceiling mount and projector may cause the projector to fall.
After installing the specific Epson mount that supports your projector, make
sure you secure the mount to all of the projector's ceiling mount fixing points.
Also, secure the projector and the mounts using wire that is strong enough to
hold their weight.
• Do not install the projector in a location subject to high levels of dust or
humidity, or in a location subject to smoke or steam. Otherwise, it could cause a
fire or electric shock to occur. The projector's case could also deteriorate and be
damaged causing the projector to fall from the mount.
Examples of environments that could cause the projector to fall due to case
deterioration
• Locations subject to excessive smoke or airborne oil particles, such as factories
or kitchens
• Locations containing volatile solvents or chemicals, such as factories or
laboratories
• Locations where the projector could be subjected to detergents or chemicals,
such as factories or kitchens
• Locations in which aroma oils are often used, such as relaxation rooms
• Near devices that produce excessive smoke, airborne oil particles, or foam at
events
Warning
• Do not cover the projector's air intake or air exhaust vents. If the vents are
covered, the internal temperature could rise and cause a fire.
• Do not use or store the projector in locations where it will be subject to dust or
dirt. Otherwise, the quality of the projected image may decline. If the lens or air
filter gets dusty, it may result in a malfunction or fire.
• Do not install the projector on an unstable surface or in a location beyond the
weight specifications of the projector. Otherwise, it could fall or topple causing
an accident and injury.
• When installing the projector in a high position, take measures to prevent falling
by using wires to ensure safety in an emergency, such as an earthquake, and to
prevent accidents. If it is not installed correctly, it could fall causing an accident
and injury.
• Do not install in locations where salt damage could occur, or in locations subject
to corrosive gas such as sulphuric gas from hot springs. Otherwise, corrosion
could cause the projector to fall. It could also cause the projector to malfunction.
Attention
• If you are using the projector at altitudes above 1,500 m, set the High Altitude
Mode setting to On in the projector's Installation menu to ensure the projector's
internal temperature is regulated properly.
• Try not to setup the projector in locations subject to high humidity and dust, or
in locations subject to smoke from fires or tobacco smoke.
gg Related Links
• "Notes on Transporting" p.23
• "Projector Setup and Installation Options" p.24
• "Projection Distance" p.26
Notes on Transporting
There are many glass parts and precision components inside the projector. To
prevent damage due to impacts when transporting, handle the projector as
follows.
• Remove any equipment connected to the projector.
Page 24
Projector Placement
24
• Center the lens position by turning the vertical and horizontal lens shift
dials until they click.
• Attach the lens cover that was included with the projector.
• When transporting the projector a long distance or as checked luggage, pack
it in a firm box with cushioning around it and mark the box "Fragile."
• When shipping the projector for repairs, place it in its original packing
materials, if possible, or use equivalent materials with cushioning around
the projector. Mark the box "Fragile."
Epson shall not be liable for any damages incurred during
a
transportation.
Projector Setup and Installation Options
You can set up or install your projector in the following ways:
Front/Rear
Front Ceiling/Rear Ceiling
Select the correct Projection option in the projector's Installation menu
according to the installation method being used. If necessary, turn on the Inv
Direction Button setting in the projector's Operation menu and adjust the
Menu Rotation setting in the projector's Display menu.
gg Related Links
• "Precautions on Installation" p.24
• "Projection Modes" p.48
Precautions on Installation
Note the following precautions when installing the projector.
Page 25
Projector Placement
25
Attention
• If the projector is installed at an angle, it should be installed by qualified
technicians using mounting hardware designed for use with this projector.
• Install the projector appropriately to prevent it from falling down.
• Use M4 screws (up to a depth of 9 mm) to fix the projector's ceiling mount
fixing points and the mounting hardware at four points.
Installation space
Attention
Be sure to leave the following amount of space around the projector so as not to
block the air exhaust and intake vents.
A
B
C
10 cm
20 cm
40 cm
Page 26
Projector Placement
26
Installation space (When installing multiple projectors side by side)
Attention
• If you are installing multiple projectors next to each other, make sure hot air
from the exhaust vent does not go into the air intake vent of another projector.
150 cm
A
• If you use a partition, you can narrow the space between the projectors.
See the Appendix for details about how far to place the projector from the
screen based on the size of the projected image.
gg Related Links
• "Screen Size and Projection Distance" p.245
20 cm
A
40 cm
B
* Partition
Projection Distance
The distance at which you place the projector from the screen determines the
approximate size of the image. The image size increases the farther the
projector is from the screen, but can vary depending on the zoom factor,
aspect ratio, and other settings.
Page 27
Installing the Safety Wire
27
You can install the safety wire to prevent the projector from falling from the
ceiling.
Warning
Be sure to use the safety wire provided with the Epson ceiling mount. The safety
wire is available as an optional Safety Wire Set ELPWR01.
gg Related Links
• "When Using the Ceiling Mount ELPMB22" p.27
• "When Using the Ceiling Mount ELPMB30" p.28

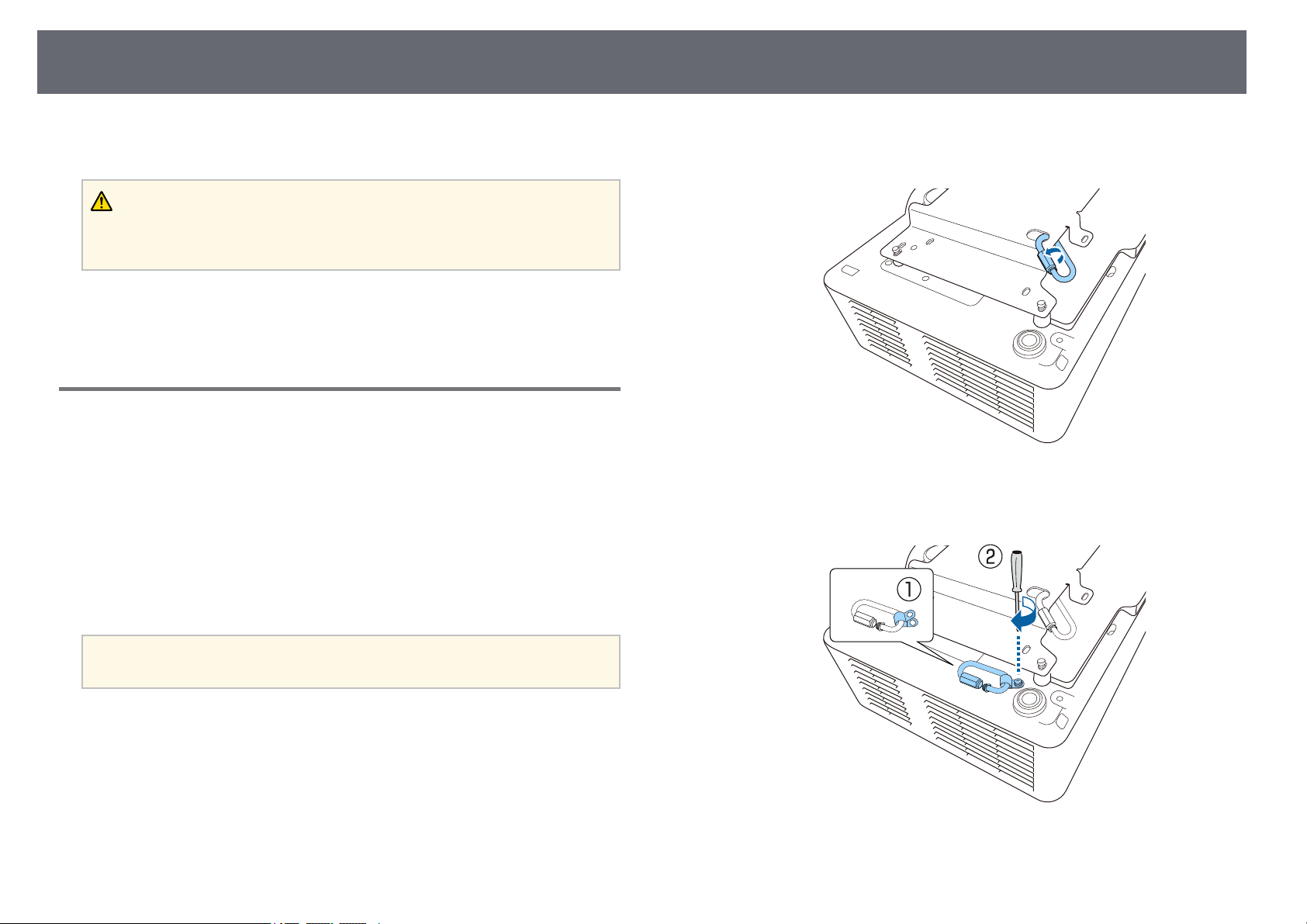

When Using the Ceiling Mount ELPMB22
You can attach a safety wire to your projector for increased safety as shown.
Before you start, make sure you have firmly installed the ELPMB22 ceiling
mount on the projector and have the following items included in the safety
wire set:
• Safety wire × 1
• Carabiner × 2
• Wire clamp × 1
• Attaching screw (M4 × 10 mm) × 1
Attach a carabiner to the hole on the ceiling mount, and tighten the
a
carabiner lock.
Attach the wire clamp to another carabiner, and then use the screw to
b
fix the wire clamp to the wire clamp fixing point on the projector.
a
For details on installing the ELPMB22, see the Ceiling Mount
ELPMB22/ELPMB23 Instruction Manual.
Page 28
Installing the Safety Wire
28
Loop the safety wire through the carabiner on the ceiling mount, and
c
attach both ends to the carabiner on the projector.
Warning
Do not attach the safety wire to the security cable attachment point.
When Using the Ceiling Mount ELPMB30
You can attach a safety wire to your projector for increased safety as shown.
Before you start, make sure you have firmly installed the ELPMB30 ceiling
mount on the projector and have the following items included in the safety
wire set:
• Safety wire × 1
• Carabiner × 2 (Only one carabiner is used for the ELPMB30.)
• Wire clamp × 1
• Attaching screw (M4 × 10 mm) × 1
For details on installing the ELPMB30, see the ELPMB30 User's Guide.
a
Attach the wire clamp to the carabiner, and then use the screw to fix
a
the wire clamp to the screw into the wire clamp fixing point on the
projector.
Tighten the carabiner lock.
d
Page 29
Installing the Safety Wire
Loop the safety wire through the hole in the ceiling mount, and then
b
attach both ends to the carabiner.
Warning
29
Do not attach the safety wire to the security cable attachment point.
Tighten the carabiner lock.
c
Page 30
Projector Connections
30
See these sections to connect the projector to a variety of projection sources.
Attention
Check the shape and orientation of the connectors on any cable you plan to
connect. Do not force a connector into a port if it does not fit. The device or your
projector could be damaged or could malfunction.
See the Quick Reference for a list of cables supplied with your projector.
a
gg Related Links
• "Connecting to a Computer" p.30
• "Connecting to Video Sources" p.31
• "Connecting to External USB Devices" p.32
• "Connecting to a Document Camera" p.33
• "Connecting to a Streaming Media Player" p.33
• "Connecting to an HDBaseT Transmitter" p.34
• "Connecting to External Devices" p.34
• "Connecting Multiple Projectors of the Same Model" p.36
• "Getting the Latest Version of the Documents" p.10
Purchase optional or commercially available cables when necessary.
You can play sound through the projector's speaker system by connecting a
commercially available 3.5 mm stereo mini-jack audio cable.
• To connect a computer that does not have a VGA video port, you
a
Connect the VGA computer cable to your computer's monitor port.
a
Connect the other end to a Computer port on the projector.
b
need an adapter that allows you to connect to the projector's VGA
video port.
• To project an image source connected to the Computer2/Monitor
Out port, set Monitor Out Port to Computer2 in the projector's
Signal I/O menu.
• You can also set the port to input audio when projecting the
computer source as the Audio Output setting in the projector's
Signal I/O menu.
• Make sure the audio cable is labeled "No resistance".
Connecting to a Computer
Follow the instructions in these sections to connect a computer to the
projector.
gg Related Links
• "Connecting to a Computer for VGA Video and Audio" p.30
• "Connecting to a Computer for HDMI Video and Audio" p.31
Connecting to a Computer for VGA Video and Audio
You can connect the projector to your computer using a VGA computer
cable.
Tighten the screws on the VGA connector.
c
Connect the audio cable to your laptop's headphone or audio-out jack,
d
or your desktop's speaker or audio-out port.
Page 31
Projector Connections
31
Connect the other end to the Audio port that corresponds to the
e
Computer port you are using.
Connecting to a Computer for HDMI Video and Audio
If your computer has an HDMI port, you can connect it to the projector using
an HDMI cable and send the computer's audio with the projected image.
Connect the HDMI cable to your computer's HDMI output port.
a
Connect the other end to the projector's HDMI port.
b
If you have problems hearing audio through the HDMI connection,
a
connect one end of a commercially available 3.5 mm stereo mini-jack
audio cable to the projector's Audio port and the other end to your
computer's audio out port. Select the audio input port you connected
to as the HDMI Audio Output setting in the projector's Signal I/O
menu.
Connecting to Video Sources
Follow the instructions in these sections to connect video devices to the
projector.
• If the port on the device you connect has an unusual shape, use the
a
gg Related Links
• "Connecting to an HDMI Video Source" p.31
cable supplied with the device or an optional cable to connect to the
projector.
• The cable differs depending on the output signal from the connected
video devices.
• Some video devices are capable of outputting different types of
signals. See your video device manual to confirm what type of signals
can be output.
Connecting to an HDMI Video Source
If your video source has an HDMI port, you can connect it to the projector
using an HDMI cable and send the image source's audio with the projected
image.
Attention
Do not turn on the video source before connecting it to the projector. Doing so
could damage the projector.
Connect the HDMI cable to your video source's HDMI output port.
a
Page 32
Projector Connections
32
Connect the other end to the projector's HDMI port.
b
If you have problems hearing audio through the HDMI connection,
a
connect one end of a commercially available 3.5 mm stereo mini-jack
audio cable to the projector's Audio port and the other end to your
video source's audio out port. Select the audio input port you
connected to as the HDMI Audio Output setting in the projector's
Signal I/O menu.
Connecting to External USB Devices
Follow the instructions in these sections to connect external USB devices to
the projector.
gg Related Links
• "USB Device Projection" p.32
• "Connecting to a USB Device" p.32
• "Disconnecting a USB Device" p.33
• USB hard drive
• Digital cameras or smartphones must be USB-mounted devices, not
a
You can also project playlists that contain images and movies saved on a USB
flash drive in Content Playback mode.
gg Related Links
• "Projecting in Content Playback Mode" p.94
• "Projecting a PC Free Presentation" p.89
Connecting to a USB Device
You can connect your USB device to the projector's USB-A port and use it to
project images and other content.
If your USB device came with a power adapter, plug the device into an
a
electrical outlet.
TWAIN-compliant devices, and must be USB Mass Storage Classcompliant.
• USB hard drives must meet these requirements:
• USB Mass Storage Class-compliant (not all USB Mass Storage
Class devices are supported)
• Formatted in FAT16/32
• Self-powered by their own AC power supplies (bus-powered hard
drives are not recommended)
• Avoid using hard drives with multiple partitions
USB Device Projection
You can project images and other content without using a computer or video
device by connecting any of these devices to your projector:
• USB flash drive
• Digital camera or smartphone
Page 33
Projector Connections
33
Connect the USB cable or USB flash drive to the projector's USB-A port
b
as shown.
Attention
• Use the USB cable supplied with or specified for use with the device.
• Do not connect a USB hub or a USB cable longer than 3 meters, or the
device may not operate correctly.
Connect the other end to your device, if necessary.
c
The connection method varies depending on your Epson document camera
model. See the document camera manual for details.
Connecting to a Streaming Media Player
You can connect your streaming media player to the projector's HDMI port.
By connecting the power supply USB cable, you can power the streaming
media player from the projector
(EB‑L735U/EB‑L730U/EB‑L635SU/EB‑L630SU/EB‑L630U/EB‑L530U).
To keep supplying power to the optional streaming media player when
a
a
the projector is not projecting images, select Always On as the USB
Power setting in the projector's Operation menu.
Connect your streaming media player to the projector's HDMI port.
Disconnecting a USB Device
When you have finished projecting with a connected USB device, disconnect
the device from the projector.
Turn off and unplug the device, if necessary.
a
Disconnect the USB device from the projector.
b
Connecting to a Document Camera
You can connect a document camera to your projector to project images
viewed by the camera.
Connect the power supply USB cable to the projector's DC Out port.
b
Page 34
Projector Connections
34
Connect the other end to the streaming media player's USB port (Type-
c
B).
Connecting to an HDBaseT Transmitter
To send an HDMI or RS-232C signal over a long distance, you can connect
the projector to an optional HDBaseT transmitter using a 100Base-TX
network cable. This is useful when you want to send a signal to or control the
projector from a remote location, such as in a hall or event site, since you can
use a network cable up to 100 m in length. To ensure proper data
transmission, use a Category 5e STP cable or better. However, operation is
not guaranteed for all input/output devices and environments.
• To enable communication from the Ethernet and serial ports on the
a
Turn off the projector and HDBaseT transmitter.
a
transmitter, set the Control Communications setting to On in the
projector's Signal I/O menu. Turning on this setting disables the
projector's LAN and RS-232C ports.
s Signal I/O > HDBaseT > Control Communications
• If you connected an Extron XTP transmitter or switcher to the
projector's HDBaseT port, set the Extron XTP setting to On in the
projector's Signal I/O menu.
s Signal I/O > HDBaseT > Extron XTP
• If you want to control the projector when the projector does not
project any images, set the A/V Output setting to Always On in the
projector's Signal I/O menu.
Make sure the projector and HDBaseT transmitter are turned off
a
Connect one end of the network cable to the HDBaseT port on the
b
transmitter.
Connect the other end to the projector's HDBaseT port.
c
a
Turn on the projector and HDBaseT transmitter.
d
when connecting or disconnecting a network cable between the
two devices.
See the documentation that came with the HDBaseT transmitter
for instructions on connecting it to your video device or
computer.
Connecting to External Devices
Follow the instructions in these sections to connect external devices to the
projector.
gg Related Links
• "Connecting to an External HDMI Monitor" p.35
• "Connecting to a VGA Monitor" p.35
• "Connecting to External Speakers" p.35
Page 35
Projector Connections
35
Connecting to an External HDMI Monitor
You can connect an external HDMI monitor to the projector's HDMI Out
port and use it to display images from the current input source
(EB‑L735U/EB‑L730U/EB‑L635SU/EB‑L630SU/EB‑L630U/EB‑L530U).
• You cannot display the Home screen on an external HDMI monitor.
a
a
b
• You can only display images from a Screen Mirroring source when
HDMI Out Setting is set to Off and HDMI Out Image Output is
set to On.
s Multi-Projection > HDMI Out Setting
s Network > Network Settings > Network Projection > Screen
Mirroring > HDMI Out Image Output
• When HDMI Out Setting is set to Pass Through, you can only
display images from the HDMI1, HDMI2, and HDBaseT ports.
Connect the HDMI cable to your monitor's HDMI input port.
Connect the other end to the projector's HDMI Out port.
To output images to an external monitor, set the Monitor Out Port setting to
Monitor Out in the projector's Signal I/O menu.
• If you want to output images to an external monitor when the
a
Make sure your computer is connected to the projector's Computer
a
port.
Connect the external monitor's cable to your projector's Monitor Out
b
port.
projector does not project any images, set the A/V Output setting to
Always On in the projector's Signal I/O menu.
• Monitors that use a refresh rate of less than 60 Hz may not be able to
display images correctly.
• If there are two computer ports, make sure you use the
a
Computer1 port.
• Only analog RGB signals from the Computer1 port can be
output to an external monitor. You cannot output signals
input from other ports.
Connecting to a VGA Monitor
If you connected the projector to a computer using a Computer port, you can
also connect an external monitor to the projector. This lets you see your
presentation on the external monitor even when the projected image is not
visible.
Connecting to External Speakers
You can connect the projector to external self-powered speakers. You can
control the volume using the projector's remote control.
Page 36
Projector Connections
36
To output audio from external speakers, set the Audio Out Device setting to
Projector in the projector's Signal I/O menu. When an audio/video system is
not connected to the projector, audio is output from the external speakers
even if Audio Out Device is set to AV System.
s Signal I/O > HDMI Link > Audio Out Device
• If you want to output audio from the external speakers when the
a
Make sure your computer or video source is connected to the projector
a
with both audio and video cables as necessary.
Locate the appropriate cable to connect your external speakers, such as
b
a stereo mini-jack-to-pin-jack cable, or another type of cable or adapter.
Connect one end of the cable to your external speakers as necessary.
c
Connect the stereo mini-jack end of the cable to your projector's Audio
d
Out port.
projector does not project any images, set the A/V Output setting to
Always On in the projector's Signal I/O menu.
• You can also connect the projector to an amplifier with speakers.
• The projector's built-in speaker system is disabled when you connect
external speakers.
Connecting Multiple Projectors of the Same Model
You can create a single unified image projected from multiple projectors
(EB‑L735U/EB‑L730U/EB‑L635SU/EB‑L630SU/EB‑L630U/EB‑L530U). The
image is unified horizontally.
If you create one large image vertically or connect five or more
a
a
projectors, you can use the Tiling setting in the projector's MultiProjection menu.
Connect projector to the computer using the HDMI cable or the
HDBaseT transmitter using the network cable and then connect the
projectors using the HDMI cables as shown.
• If you are connecting three or more projectors, connect the
a
projectors in a chain as shown.
• When installing the projectors, make sure hot air from the
exhaust vent does not go into the air intake vent of another
projector.
Press the [Menu] button on the control panel or remote control.
b
Page 37
Projector Connections
37
Select the Color Mode setting to Multi-Projection in the projector's
c
Image menu for all of the projectors.
Select the necessary HDMI Out Setting setting in the projector's Multi-
d
Projection menu. See the list of settings for more details.
Select the necessary settings in the projector's Multi-Projection menu
e
to create a seamless unified image area.
Press [Menu] or [Esc] to exit the menus.
f
gg Related Links
• "Menu Settings for Multiple Projector Connections" p.37
• "Precautions on Installation" p.24
• "Using Multiple Projectors" p.112
Menu Settings for Multiple Projector Connections
See the following tables for details on menu settings when you connect
multiple projectors to create a horizontally wide screen. You can connect up
to four projectors in a chain.
Image Settings
Setting Item
Color Mode Multi-Projection Multi-Projection Multi-Projection
Multi-Projection Settings
Setting Item
HDMI Out Setting Pass Through Pass Through Pass Through
Number of
Projectors
Order Specifies the position of this projector in number order from
A B C
Projector on the left
(connected to the
device)
A B C
Projector on the left
(connected to the
device)
Specifies the number of projectors connected in a chain
left to right
Projectors in the
middle
Projectors in the
middle
Projectors on the
right
Projector on the
right
Page 38
Attaching and Removing the Cable Cover
38
When suspending the projector from a ceiling, you can attach the cable cover
that came with your projector to hide the attached cables from view
(EB‑L735U/EB‑L730U/EB‑L635SU/EB‑L630SU/EB‑L630U/EB‑L530U).
Pass a commercially available cable tie through the cable holder and tie
a
the cables together.
Place the cable cover on the projector as shown, guiding the cables
b
through the notch on the base of the cable cover.
Tighten the cable cover screws.
c
Caution
Do not bundle the power cord to the other cables. Otherwise, a fire may
occur.
To remove the cover, loosen the cover screws and pull the cover off of
the projector.
Page 39
Installing Batteries in the Remote Control
39
The remote control uses the two AA batteries that came with the projector.
Attention
Make sure you read the Safety Instructions before handling the batteries.
Replace the batteries as soon as they run out. The remote control uses
a
a
b
two AA manganese or alkaline batteries.
Remove the battery cover as shown.
Remove the old batteries, if necessary.
Dispose of used batteries according to local regulations.
a
Insert the batteries with the + and – ends facing as shown.
c
Warning
Check the positions of the (+) and (–) marks inside the battery holder to
ensure the batteries are inserted the correct way. If the batteries are not used
correctly, they could explode or leak causing a fire, injury, or damage to the
product.
Replace the battery cover and press it down until it clicks into place.
d
Page 40
Installing Batteries in the Remote Control
gg Related Links
• "Remote Control Operation" p.40
Remote Control Operation
The remote control lets you control the projector from almost anywhere in
the room.
Make sure that you aim the remote control at the projector's receivers within
the distance and angles listed here.
40
a
Avoid using the remote control in conditions with bright fluorescent
lights or in direct sunlight, or the projector may not respond to
commands. If you are not going to use the remote control for a long
time, remove the batteries.
Page 41
Using Basic Projector Features
Follow the instructions in these sections to use your projector's basic features.
gg Related Links
• "Turning On the Projector" p.42
• "Turning Off the Projector" p.44
• "Setting the Date and Time" p.45
• "Selecting the Language for the Projector Menus" p.47
• "Projection Modes" p.48
• "Setting the Screen Type" p.50
• "Adjusting the Image Position Using Lens Shift" p.53
• "Displaying a Test Pattern" p.55
• "Adjusting the Image Height" p.56
• "Image Shape" p.57
• "Resizing the Image with the Zoom Ring" p.66
• "Reducing the Image Using Digital Zoom" p.67
• "Focusing the Image Using the Focus Ring" p.69
• "Selecting an Image Source" p.70
• "Image Aspect Ratio" p.72
• "Adjusting Image Quality (Color Mode)" p.74
• "Turning On Automatic Luminance Adjustment" p.75
• "Adjusting the Image Color" p.76
• "Adjusting the Image Resolution" p.79
• "Adjusting the Brightness" p.81
• "Controlling the Volume with the Volume Buttons" p.84
Page 42
Turning On the Projector
42
Turn on the computer or video equipment you want to use after you turn on
the projector.
Remove the lens cover.
a
Connect the power cord to the projector's power inlet and plug it into
b
an electrical outlet.
The projector's power indicator turns blue. This indicates that the
projector is receiving power, but is not yet turned on (it is in standby
mode).
• When Quick Startup is enabled in the projector's Operation
a
Try the following if you do not see a projected image.
• Turn on the connected computer or video device.
• Change the screen output from the computer when using a laptop
computer.
• Insert a DVD or other video media, and press play (if necessary).
• Press the [Source Search] button on the control panel or remote control to
detect the source.
• Press the button for the desired video source on the remote control.
• If the Home screen is displayed, select the source you want to project.
menu, the projector becomes ready for use in several seconds
the next time you press the power button.
Warning
• Never look into the projector lens when the light source is on. This can damage
your eyes and is especially dangerous for children.
• When turning on the projector at a distance using the remote control, make sure
there is no one looking into the lens.
• During projection, do not block the light from the projector with a book or other
objects. If the light from the projector is blocked, the area on which the light
shines becomes hot which could cause it to melt, burn, or start a fire. Also, the
lens may get hot due to the reflected light which could cause the projector to
malfunction. To stop projection, use the A/V Mute function, or turn off the
projector.
Press the power button on the control panel or remote control to turn
c
on the projector.
The projector beeps and the status indicator flashes blue as the
projector warms up. Once the projector is warmed up, the status
indicator stops flashing and turns blue.
a
• When the Direct Power On setting is set to On in the projector's
Operation menu, the projector turns on as soon as you plug it in.
Note that the projector also turns on automatically in cases such as
recovery from a power outage.
• If you select a specific port as the Auto Power On setting in the
projector's Operation menu, the projector turns on as soon as it
detects a signal or cable connection from that port.
Page 43
Turning On the Projector
43
gg Related Links
• "Home Screen" p.43
• "Projector Feature Settings - Operation Menu" p.189
Home Screen
The Home screen feature allows you to easily select an image source and
access useful functions. You can display the Home screen by pressing the
[Home] button on the remote control.
• The Home screen is also displayed when you turn on the projector
a
Press the arrow buttons on the control panel or remote control to select a
menu item, and then press [Enter].
and no signal is being input.
• When Connection Guide Display is set to On in the projector's
Network menu, the connection guide for the wireless transmitter
(Epson Wireless Presentation) is displayed instead of the Home
screen when no signal is being input.
s Network > Transmitter Settings > Connection Guide Display
Selects the source you want to project.
A
A check mark appears on the upper right of the current input source.
You can check a preview of the current input image for most sources as a
thumbnail (other than the USB input source in Content Playback mode).
Projects images from two or four different image sources simultaneously in a
B
grid format.
Shares your projected screen image with other projectors connected to the same
C
network.
Displays the connection guide. You can select the wireless connection methods
D
according to the devices you are using, such as smartphones or computers.
Lets you select the following common projector settings (settings may vary
E
depending on other selected settings):
• Color Mode
• Brightness Level
• Volume
• E-Zoom (EB‑L720U/EB‑L520U)
• Geometry Correction (H/V-Keystone and Quick Corner are available.)
• Aspect
The Geometry Correction setting is only displayed when
a
Fixed Installation is set to Off and Geometry
Correction is set to H/V-Keystone or Quick Corner in
the projector's Installation menu.
Moves to the previous or next page if there are more than nine available input
F
sources.
Displays the projector name and the projector keyword.
G
Displays the current time.
H
The Home screen disappears after 10 minutes of inactivity.
a
gg Related Links
• "Screen Sharing" p.152
• "Projecting Multiple Images Simultaneously" p.86
Page 44
Turning Off the Projector
Turn off the projector after use.
• Turn off this product when it is not in use to prolong the life of the
a
Press the power button on the control panel or remote control.
a
The projector displays a shutdown confirmation screen.
projector. Light source life varies depending on the mode selected,
environmental conditions, and usage. Brightness decreases over time.
• If the Light Source Calibration setting is set to Run Periodically in
the projector's Management menu, light source calibration starts
automatically if you turn off the projector and the following
conditions are present:
• 100 hours have passed since the last light source calibration
• You have used the projector continuously for more than 20
minutes
• Since the projector supports the direct shutdown feature, it can be
turned off directly using the breaker.
44
Press the power button again. (To leave it on, press any other button.)
b
The projector beeps twice, the light source turns off, and the status
indicator turns off.
To transport or store the projector, make sure the power indicator is
c
blue (but not flashing) and the status indicator is off, then unplug the
power cord.
Attach the lens cover.
d
Page 45
Setting the Date and Time
45
You can set the date and time for the projector.
Turn on the projector.
a
Press the [Menu] button on the control panel or remote control.
b
Select the Management setting and press [Enter].
c
You see this screen:
Select Date, press [Enter], and use the displayed keyboard to enter
f
today's date.
Select Time, press [Enter], and use the displayed keyboard to enter the
g
current time.
Select Time Difference (UTC), press [Enter], and set the time
h
difference from Coordinated Universal Time.
Select the Date & Time setting and press [Enter].
d
Select the Date & Time setting and press [Enter].
e
When you are finished, select Set and press [Enter].
i
Page 46
Setting the Date and Time
46
To activate daylight saving time, select the Daylight Saving Time
j
setting and set it to On. Then select settings.
To update the time automatically through an Internet time server,
l
select the Internet Time setting and set it to On. Then select settings.
When you are finished, select Set and press [Enter].
m
Press [Menu] or [Esc] to exit the menus.
n
When you are finished, select Set and press [Enter].
k
Page 47
Selecting the Language for the Projector Menus
If you want to view the projector's menus and messages in another language,
you can change the Language setting.
Turn on the projector.
a
Press the [Menu] button on the control panel or remote control.
b
Select the Management setting and press [Enter].
c
47
Select the Language setting and press [Enter].
d
Select the language you want to use and press [Enter].
e
Press [Menu] or [Esc] to exit the menus.
f
Page 48
Projection Modes
48
Depending on how you positioned the projector, you may need to change the
projection mode so your images project correctly.
• Front lets you project from a table in front of the screen.
• Front/Ceiling flips the image over top-to-bottom to project upside-down
from a ceiling or wall mount.
• Rear flips the image horizontally to project from behind a translucent
screen.
• Rear/Ceiling flips the image over top-to-bottom and horizontally to project
from a ceiling or wall mount and behind a translucent screen.
gg Related Links
• "Changing the Projection Mode Using the Remote Control" p.48
• "Changing the Projection Mode Using the Menus" p.48
• "Projector Setup and Installation Options" p.24

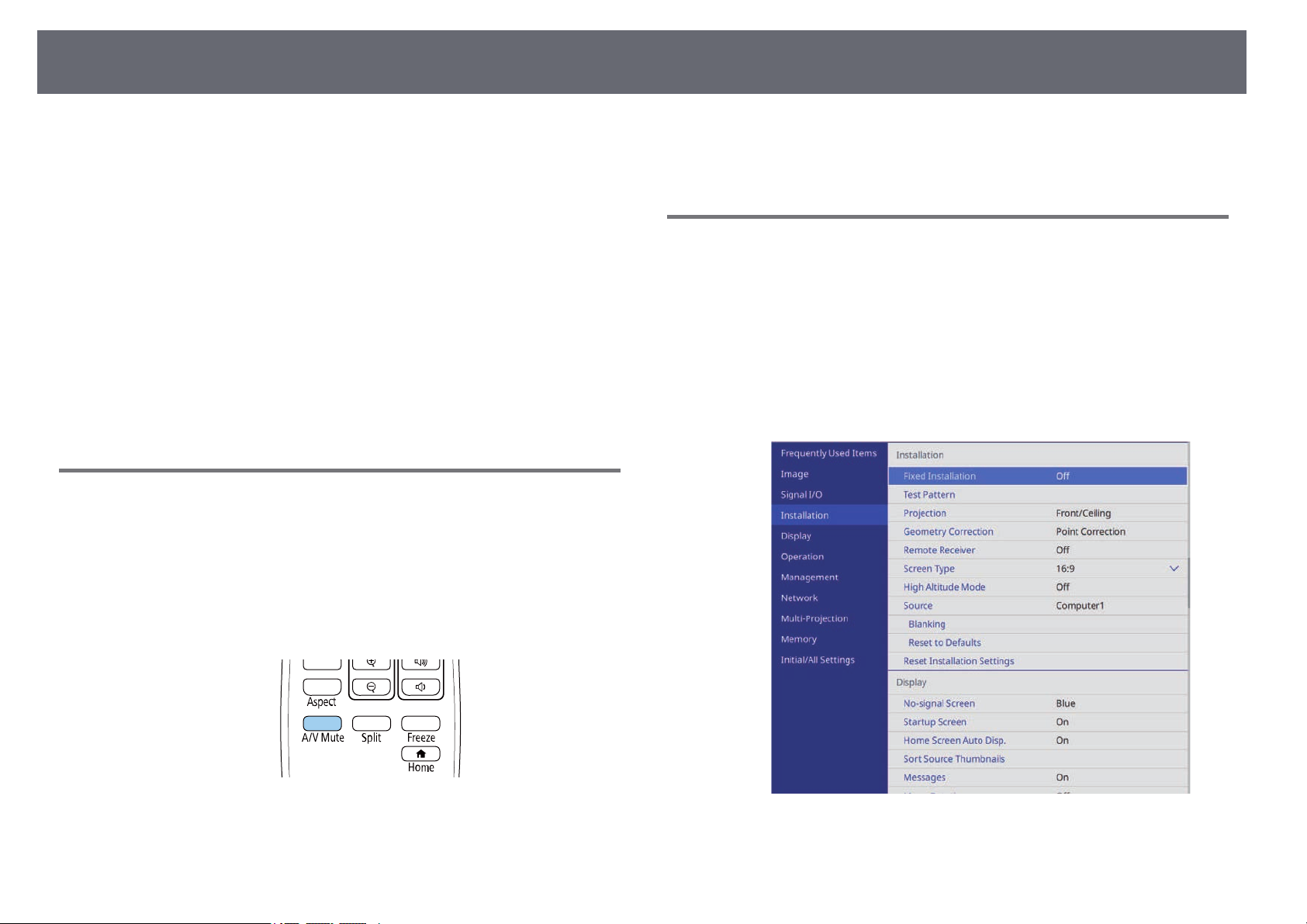

Changing the Projection Mode Using the Remote Control
You can change the projection mode to flip the image over top-to-bottom.
Turn on the projector and display an image.
a
To change projection back to the original mode, hold down the [A/V
c
Mute] button for 5 seconds again.
Changing the Projection Mode Using the Menus
You can change the projection mode to flip the image over top-to-bottom
and/or left-to-right using the projector menus.
Turn on the projector and display an image.
a
Press the [Menu] button on the control panel or remote control.
b
Select the Installation menu and press [Enter].
c
Hold down the [A/V Mute] button on the remote control for 5 seconds.
b
The image disappears briefly and reappears flipped top-to-bottom.
Select Projection and press [Enter].
d
Page 49
Projection Modes
Select a projection mode and press [Enter].
e
Press [Menu] or [Esc] to exit the menus.
f
49
Page 50
Setting the Screen Type
50
You can use the Screen Type setting to match the aspect ratio of the displayed
image to the screen you are using.
• This setting is unavailable when using one of the following input
a
Turn on the projector and display an image.
a
Press the [Menu] button on the control panel or remote control.
b
Select the Installation menu and press [Enter].
c
sources:
• USB
• LAN
• You cannot change the Screen Type setting when the Content
Playback setting is set to On in the projector's Operation menu.
• If you change the Screen Type setting, the Geometry Correction
settings are initialized.
Select Screen Type and press [Enter].
d
Select your screen's aspect ratio and press [Enter].
e
Press [Menu] to exit the menus.
f
You may need to restart the projector. Follow the on-screen
a
Adjust the aspect ratio for the projected image, if necessary.
g
instructions.
When the Screen Type setting changes, the EDID settings are
a
gg Related Links
• "Adjusting the Image Position Using Screen Position" p.50
• "Changing the Horizontal Position of the Image Using Screen Shift" p.51
automatically adjusted.

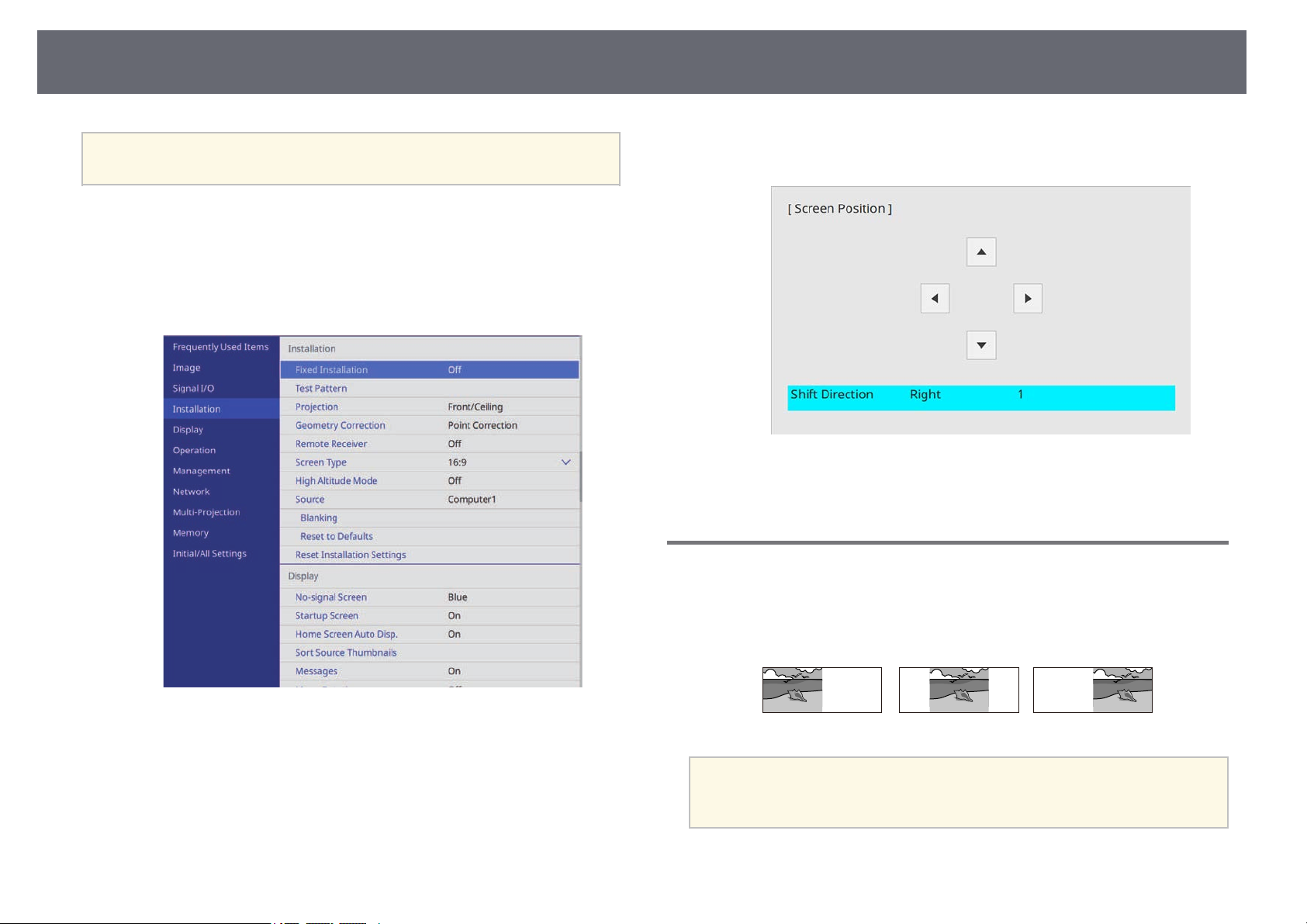

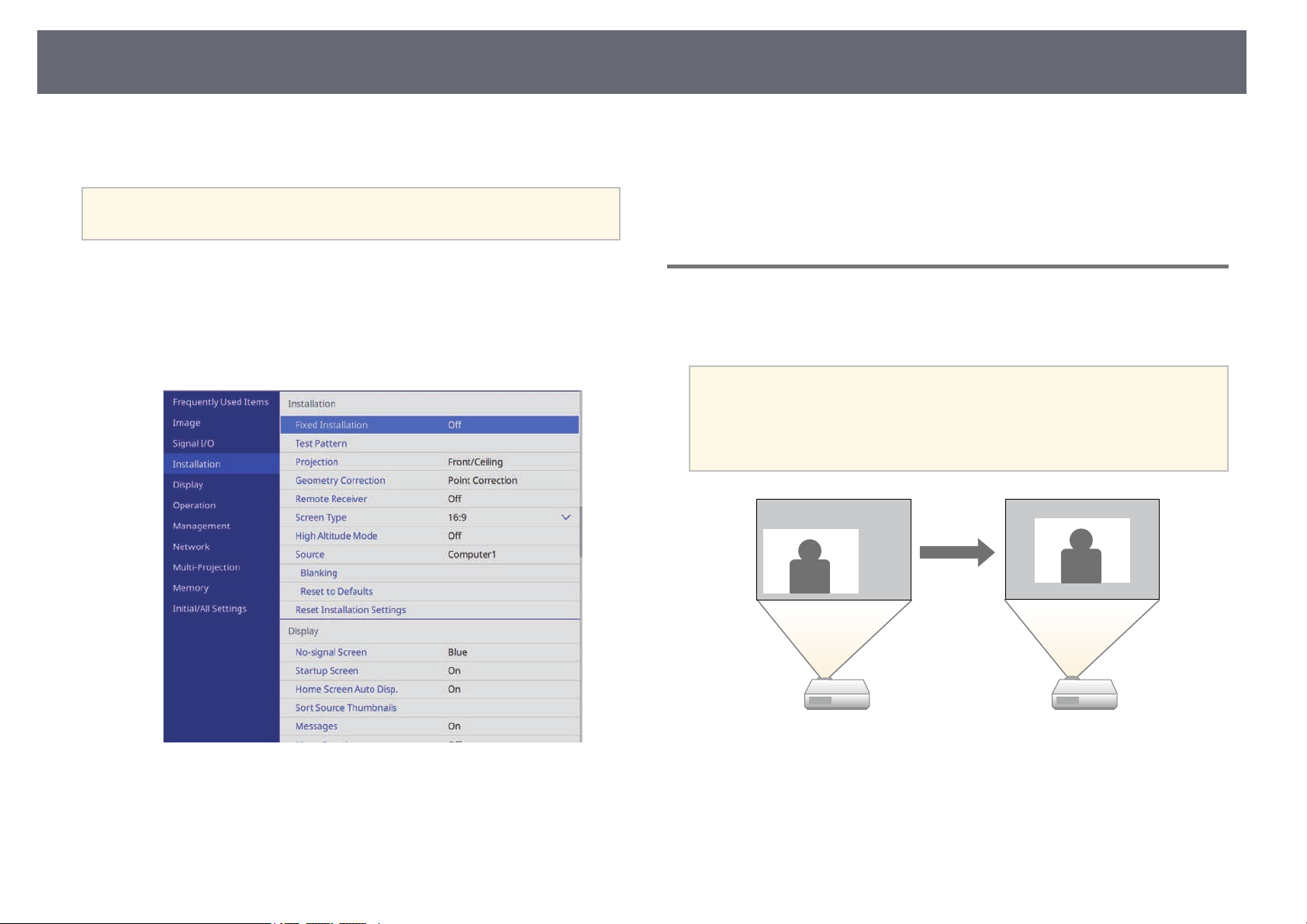

Adjusting the Image Position Using Screen Position
You can adjust the image position if there are margins between the edge of
the image and the projected screen frame.
Page 51
Setting the Screen Type
51
You cannot adjust the screen position if the Screen Type setting is set
a
a
b
c
to 16:10.
Turn on the projector and display an image.
Press the [Menu] button on the control panel or remote control.
Select the Installation menu and press [Enter].
Use the arrow buttons on the control panel or remote control to adjust
e
the position of the image.
When you are finished, press [Menu].
f
Changing the Horizontal Position of the Image Using Screen Shift
Select Screen Position, and press [Enter].
d
You can specify the horizontal position of the image inside the ultra-wide
display when the Screen Type is set to 16:6.
• Available only when Aspect is set to Auto for the HDMI, Computer,
a
Turn on the projector and display an image.
a
and HDBaseT sources in the projector's Image menu.
• Unavailable in the split screen projection.
Page 52
Setting the Screen Type
Press the [4], [5], or [6] button on the remote control.
b
Adjust the horizontal position of the projected image by pressing the
c
following numeric buttons on the remote control:
• [4] to project the image in the left position.
• [5] to project the image in the center.
• [6] to project the image in the right position.
52
The setting is saved until the projector is turned off.
a
When you are finished, press [Esc].
d
Page 53
Adjusting the Image Position Using Lens Shift
53
If you cannot install the projector directly in front of the screen, you can
adjust the position of the projected image using the lens shift feature
(EB‑L735U/EB‑L730U/EB‑L635SU/EB‑L630SU/EB‑L630U/EB‑L530U).
Attention
When adjusting the image position with the vertical lens shift, adjust it by moving
the image from the bottom to the top. If you adjust it from the top to the bottom,
the image position may move down slightly after adjusting.
• Wait 20 minutes after turning on the projector before setting the
a
Turn on the projector and display an image.
a
focus, zoom, and lens shift for maximum accuracy.
• Keep the vertical and horizontal lens shift dials in their center
positions for the clearest picture.
Turn the vertical and horizontal lens shift dials on the projector to
b
adjust the position of the projected image as necessary.
Center of lens
A
Projected image when the lens is set to the home position
B
Maximum range: V × 50%
C
When the horizontal direction is at the maximum value: V × 12%
D
Page 54
Adjusting the Image Position Using Lens Shift
You cannot move the image horizontally when the lens is shifted
a
vertically all the way.
54
Page 55
Displaying a Test Pattern
You can display a test pattern to adjust the projected image without
connecting a computer or video device.
• The test pattern's shape is determined by the Screen Type setting. Be
a
Turn on the projector.
a
Press the down arrow button on the control panel.
b
sure to set the correct screen type before adjusting with the test
pattern.
• To set menu items that cannot be set while the test pattern is being
displayed or to fine-tune the projected image, project an image from
the connected device.
55
A test pattern is displayed.
You can also display a test pattern from the projector's
a
Press the left or right arrow button on the remote control, or press
c
[Enter] on the control panel to cycle through the available test patterns.
Adjust the image as necessary.
d
To remove the test pattern, press [Esc].
e
Installation menu.
Page 56
Adjusting the Image Height
56
If you are projecting from a table or other flat surface and the image is too
high or low, you can adjust the image height using the projector's adjustable
feet.
The larger the angle of tilt, the harder it becomes to focus. Locate the
projector so that it only needs to be tilted at a small angle.
Turn on the projector and display an image.
a
To adjust the image height, rotate the front foot to extend or retract it.
b
Extend the front foot
A
Retract the front foot
B
Extend the rear foot
A
Retract the rear foot
B
If the projected image is unevenly rectangular, you need to adjust the image
shape.
gg Related Links
• "Image Shape" p.57
If the image is tilted, rotate the rear feet to adjust their height.
c
Page 57
Image Shape
57
You can project an even, rectangular image by placing the projector directly
in front of the center of the screen and keeping it level. If you place the
projector at an angle to the screen, or tilt it up or down, or off to the side, you
may need to correct the image shape.
After correction, your image is slightly smaller.
For the best quality images, we recommend adjusting the installation position
of the projector to achieve the correct image size and shape.
gg Related Links
• "Correcting Image Shape with H/V Keystone" p.57
• "Correcting the Image Shape with Quick Corner" p.59
• "Correcting Image Shape with Arc Correction" p.61
• "Correcting Image Shape with Point Correction" p.63
• "Loading Image Shape Setting from Memory" p.65

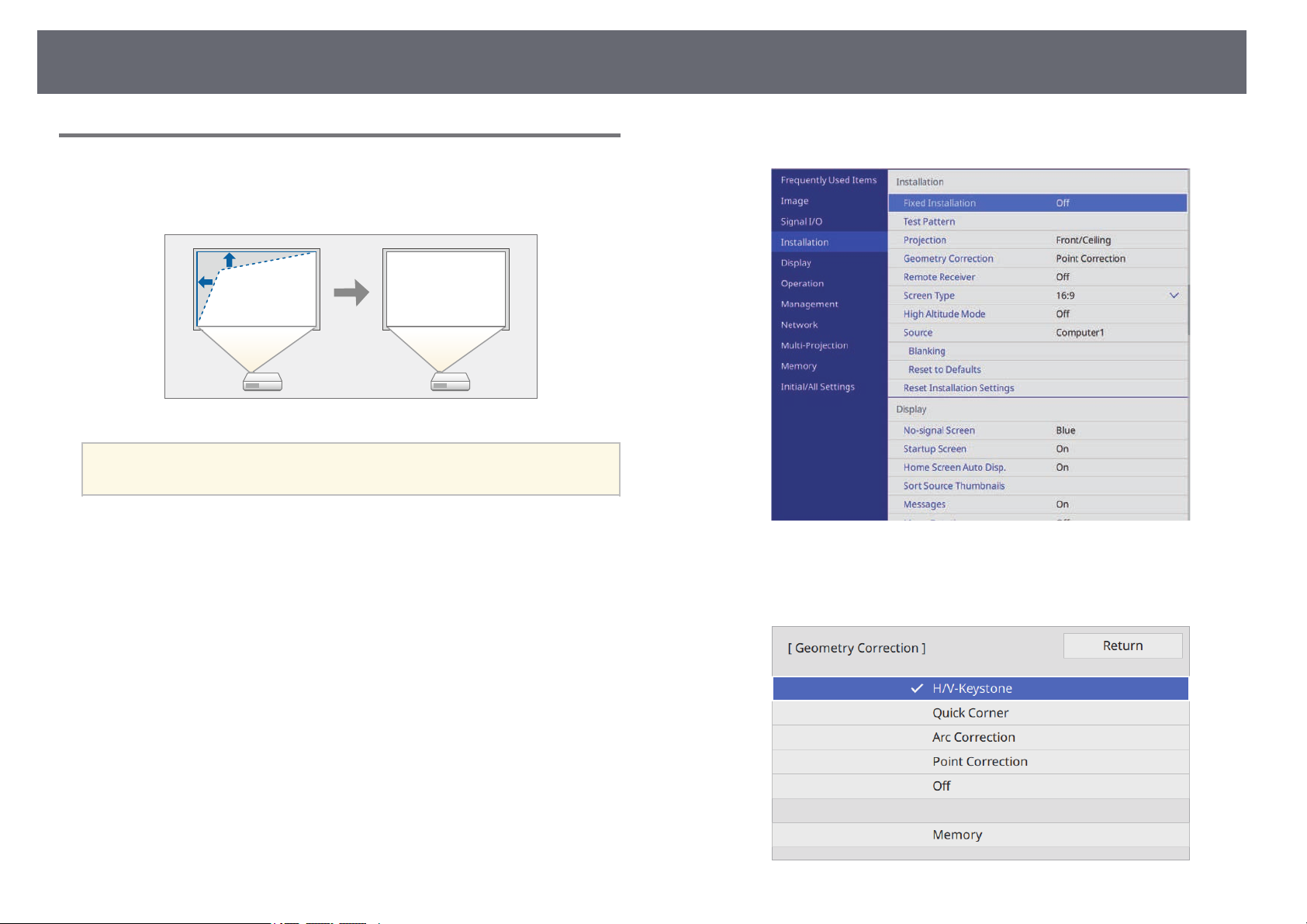

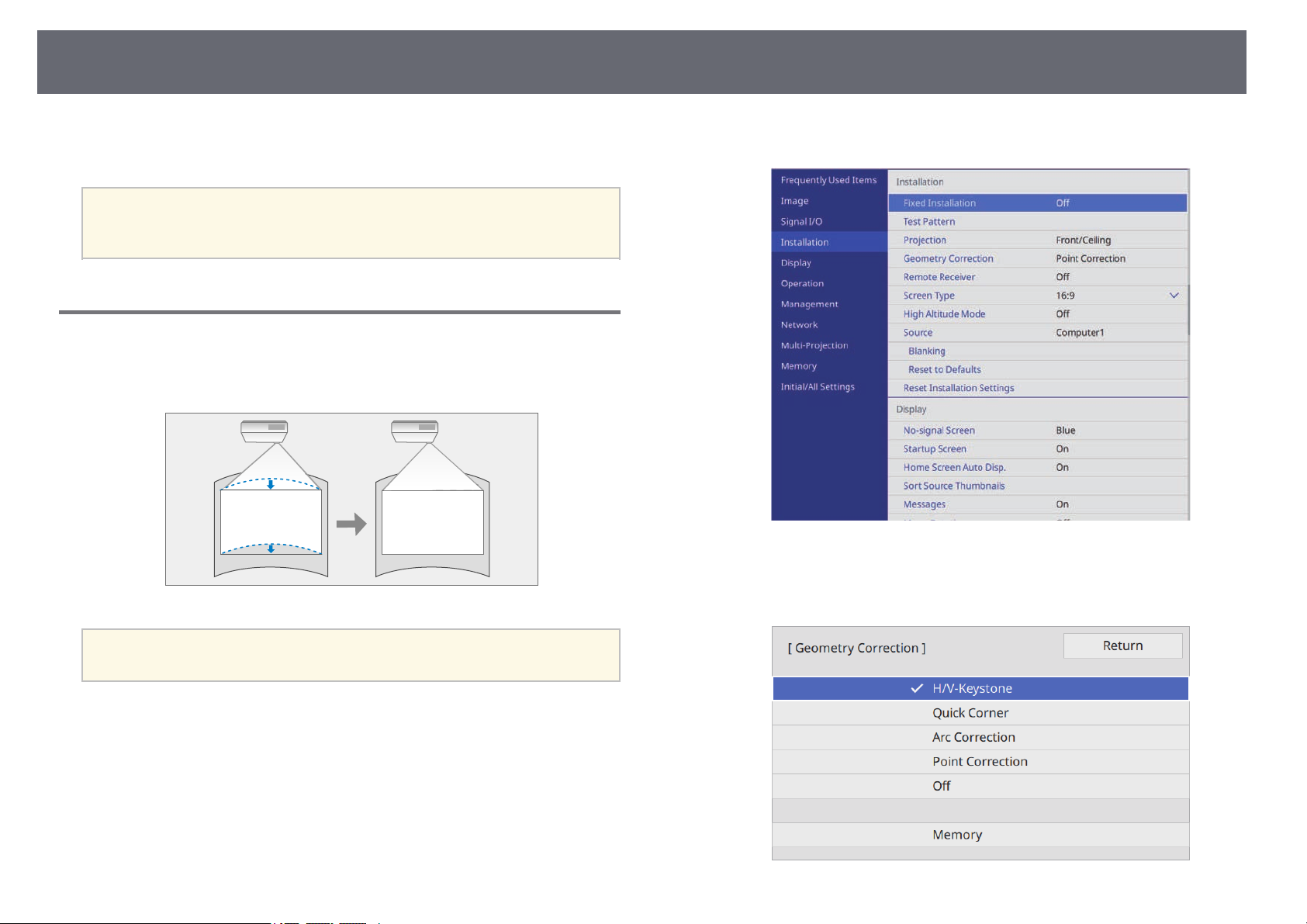

Correcting Image Shape with H/V Keystone
You can use the projector's H/V-Keystone setting to correct the shape of an
image that is unevenly rectangular on the sides.
Turn on the projector and display an image.
a
Press the [Menu] button on the control panel or remote control.
b
Select the Installation menu and press [Enter].
c
You can correct images up to 30º right, left, up, or down.
• If you need to change the Screen Type and Screen Position settings,
a
change them first.
• You cannot combine with other correction methods.
Select Geometry Correction and press [Enter].
d
The Geometry Correction screen is displayed.
You can also access the Geometry Correction screen by pressing
a
Select H/V-Keystone and press [Enter]. Then press [Enter] again.
e
the up arrow button on the control panel.
Page 58
Image Shape
58
You see the H/V-Keystone adjustment screen:
Use the arrow buttons on the projector or the remote control to select
f
between vertical and horizontal keystone correction and to adjust the
image shape as necessary.
• V-Keystone
If you have adjusted the position of the projected image by using
a
When you are finished, press [Esc].
g
After correction, your image is slightly smaller.
the lens shift feature, adjust the V-Balance and H-Balance
settings as necessary
(EB‑L735U/EB‑L730U/EB‑L635SU/EB‑L630SU/EB‑L630U/EB‑L5
30U).
• V-Balance
• H-Balance
• H-Keystone
a
To save the current shape of an image you have adjusted, select
Save Memory. You can save up to three image shapes in the
memory.
s Installation > Geometry Correction > Memory > Save
Memory
Page 59
Image Shape
59
Correcting the Image Shape with Quick Corner
You can use the projector's Quick Corner setting to correct the shape and size
of an image that is unevenly rectangular.
If you change the Screen Type and Screen Position settings, the
a
a
b
adjustments are reset.
Turn on the projector and display an image.
Press the [Menu] button on the control panel or remote control.
Select the Installation menu and press [Enter].
c
Select Geometry Correction and press [Enter].
d
You see the Geometry Correction screen.
Page 60
Image Shape
60
Select Quick Corner and press [Enter]. Then press [Enter] again if
e
necessary.
You see the area selection screen.
Use the arrow buttons to select the area of the image you want to
f
adjust. Then press [Enter].
a
• You can also select the area by pressing the following numeric
buttons on the remote control:
• [1] selects the upper left area.
• [3] selects the upper right area.
• [7] selects the lower left area.
• [9] selects the lower right area.
• If you see this screen, you cannot adjust the shape any further
in the direction indicated by the gray triangle.
To reset the Quick Corner corrections, hold down [Esc] for
a
Press the arrow buttons to adjust the image shape as necessary.
g
To return to the area selection screen, press [Enter].
about 2 seconds while the area selection screen is displayed, and
then select Yes.
Repeat steps 6 and 7 as needed to adjust any remaining corners.
h
When you are finished, press [Esc].
i
The Geometry Correction setting is now set to Quick Corner in the
projector's Installation menu.
Page 61
Image Shape
61
The next time you press the up arrow button on the control panel, the area
selection screen is displayed.
To save the current shape of an image you have adjusted, select Save
a
Correcting Image Shape with Arc Correction
You can use the projector's Arc Correction setting to adjust the shape of an
image projected on a curved or spherical surface.
Memory. You can save up to three image shapes in the memory.
s Installation > Geometry Correction > Memory > Save Memory
Select the Installation menu and press [Enter].
c
Select Geometry Correction and press [Enter].
d
You see the Geometry Correction screen.
If you change the Screen Type and Screen Position settings, the
a
a
b
adjustments are reset.
Turn on the projector and display an image.
Press the [Menu] button on the control panel or remote control.
Page 62
Image Shape
62
Select Arc Correction and press [Enter].
e
You see the Arc Correction screen.
Select Arc Correction and press [Enter].
f
You see the area selection screen.
Use the arrow buttons to select the area of the image you want to
g
adjust, then press [Enter].
Press the arrow buttons to adjust the image shape of the selected area as
h
necessary.
To return to the area selection screen, press [Enter].
If you see this screen, you cannot adjust the shape any further in
a
the direction indicated by the gray triangle.
Repeat steps 7 and 8 as needed to adjust any remaining corners.
i
When you are finished, press [Esc].
j
Page 63
Image Shape
63
• You can fine tune the corrected results. Use Quick Corner to adjust
a
gg Related Links
• "Correcting the Image Shape with Quick Corner" p.59
• "Correcting Image Shape with Point Correction" p.63
the tilt of the image, and then use Point Correction for fine tuning.
Select Quick Corner or Point Correction on the screen in step 6.
• To save the current shape of an image you have adjusted, select Save
Memory. You can save up to three image shapes in the memory.
s Installation > Geometry Correction > Memory > Save Memory
• To reset the Arc Correction settings, hold down [Esc] for about 2
seconds while the area selection screen is displayed, and then select
Yes.
Correcting Image Shape with Point Correction
You can use the projector's Point Correction setting to fine-tune the image
shape in portions of an image. The image is divided into a grid which allows
you to move intersection points on the grid as necessary to correct distortion.
Select the Installation menu and press [Enter].
c
Select Geometry Correction and press [Enter].
d
You see the Geometry Correction screen.
If you change the Screen Type and Screen Position settings, the
a
a
b
adjustments are reset.
Turn on the projector and display an image.
Press the [Menu] button on the control panel or remote control.
Page 64
Image Shape
64
Select Point Correction and press [Enter].
e
Select Point Correction and press [Enter].
f
For fine tuning, select Quick Corner to correct the shape and
a
Select the point number and press [Enter].
g
You see the grid on the projected image.
a
size of an image roughly, and then select Point Correction to
adjust them precisely.
If you want to change the grid color for visibility, press [Esc],
then select a different Pattern Color setting in the Point
Correction menu.
Use the arrow buttons to move to the point you want to correct, then
h
press [Enter].
Use the arrow buttons to correct distortion as necessary.
i
To correct any remaining points, press [Esc] to return to the previous
j
screen, then repeat steps 8 and 9.
When you are finished, press [Esc].
k
• To save the current shape of an image you have adjusted, select Save
a
Memory. You can save up to three image shapes in the memory.
s Installation > Geometry Correction > Memory > Save Memory
• To reset the Point Correction settings to their original positions,
select Reset on the Point Correction screen.
Page 65
Image Shape
gg Related Links
• "Correcting the Image Shape with Quick Corner" p.59

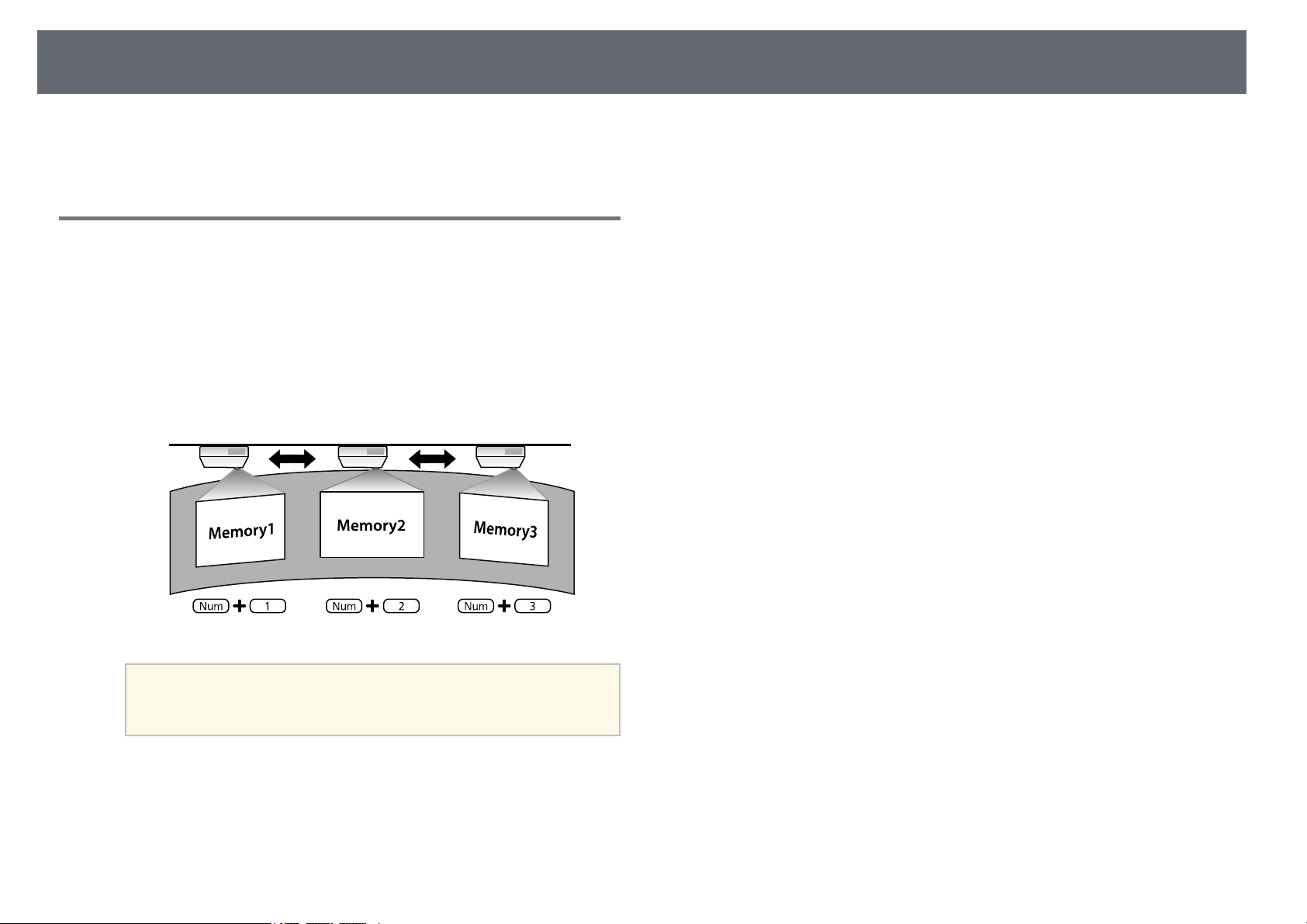

Loading Image Shape Setting from Memory
You can load the image shape settings you selected and saved to the
projector's memory and apply them to the current image.
Turn on the projector and display an image.
a
Hold down the [Num] button on the remote control, and then press
b
the numeric button (1, 2, or 3) that matches the number of the saved
setting.
65
• The illustration above is only an example.
a
When you have finished loading the settings, follow the on-screen
c
instructions.
• You can also load the saved image shape settings by selecting
Load Memory in the Memory menu.
Page 66
Resizing the Image with the Zoom Ring
You can resize the image using the projector's zoom ring
(EB‑L735U/EB‑L730U/EB‑L720U/EB‑L630U/EB‑L530U/EB‑L520U).
Wait 20 minutes after turning on the projector before setting the focus,
a
a
b
zoom, and lens shift for maximum accuracy.
Turn on the projector and display an image.
Rotate the zoom ring to enlarge or reduce the image.
66
Page 67
Reducing the Image Using Digital Zoom
67
You can resize the image using the projector's Digital Zoom
(EB‑L635SU/EB‑L630SU).
Wait 20 minutes after turning on the projector before setting for
a
a
b
c
maximum accuracy.
Turn on the projector and display an image.
Press the [Menu] button on the control panel or remote control.
Select the Installation menu and press [Enter].
When you are finished, press [Esc].
f
gg Related Links
• "Adjusting the Image Position Using Image Shift" p.67
Adjusting the Image Position Using Image Shift
You can use the Image Shift feature to adjust the image position without
moving the projector (EB‑L635SU/EB‑L630SU).
• This feature is available when you reduce the image using the Digital
a
Zoom setting.
• We recommend adjusting the image position at least 20 minutes after
you start projecting, because images are not stable right after turning
on the projector.
Select Digital Zoom and press [Enter].
d
Press the right and left arrow buttons on the remote control or the
e
control panel to adjust the image size.
Turn on the projector and display an image.
a
Page 68
Reducing the Image Using Digital Zoom
68

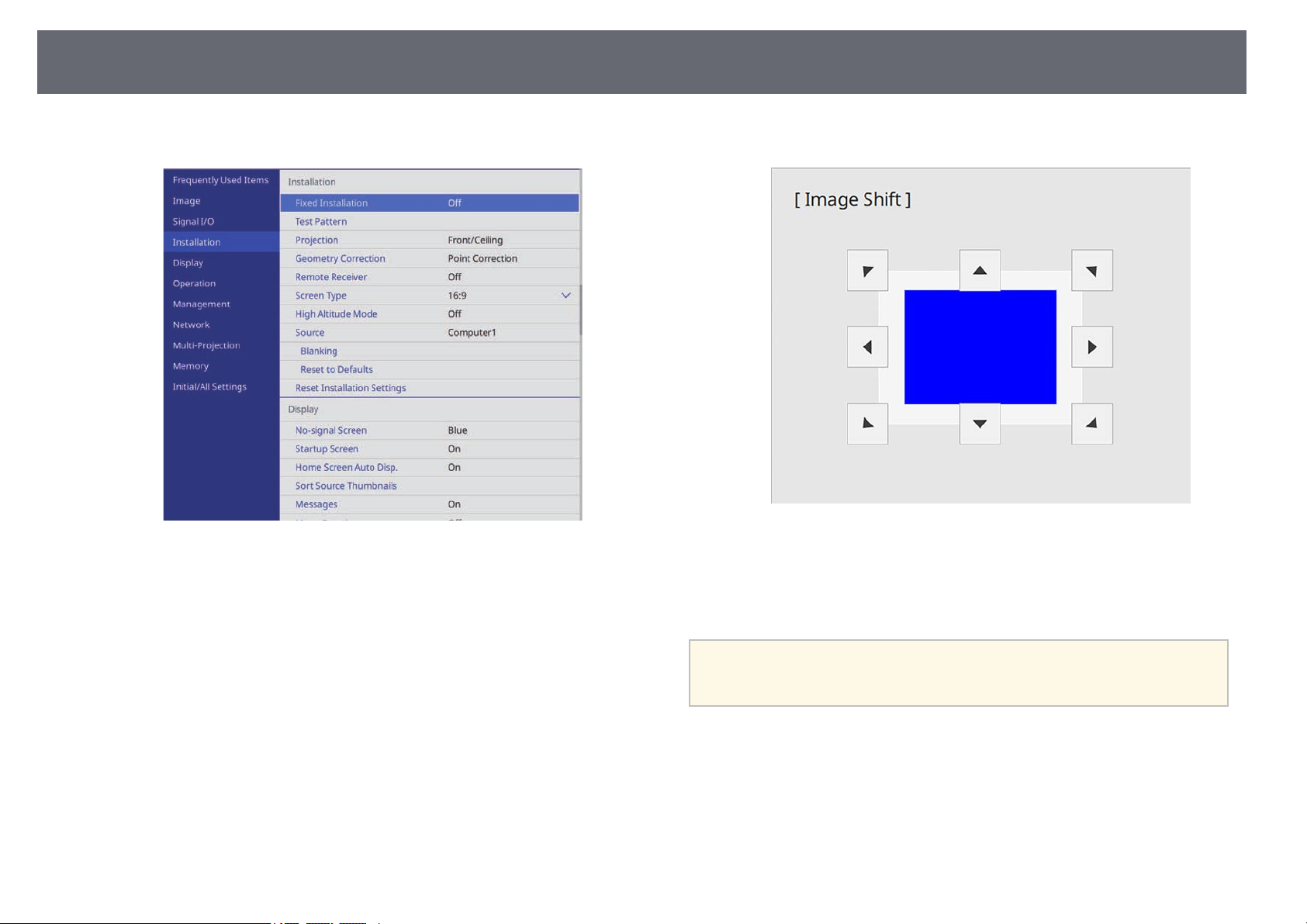

Select the Installation menu and press [Enter].
b
Select Image Shift and press [Enter].
c
Use the arrow buttons to adjust the image position.
d
Press the [Esc] button to close the adjustment screen.
e
The adjustment screen disappears if no operation is performed after
approximately 10 seconds.
a
• The Image Shift setting is retained even if the projector is turned off.
You need to re-adjust the position if you change the installation
location or angle of the projector.
Page 69
Focusing the Image Using the Focus Ring
You can correct the focus using the focus ring.
Wait 20 minutes after turning on the projector before setting the focus,
a
zoom, and lens shift for maximum accuracy.
69
Page 70

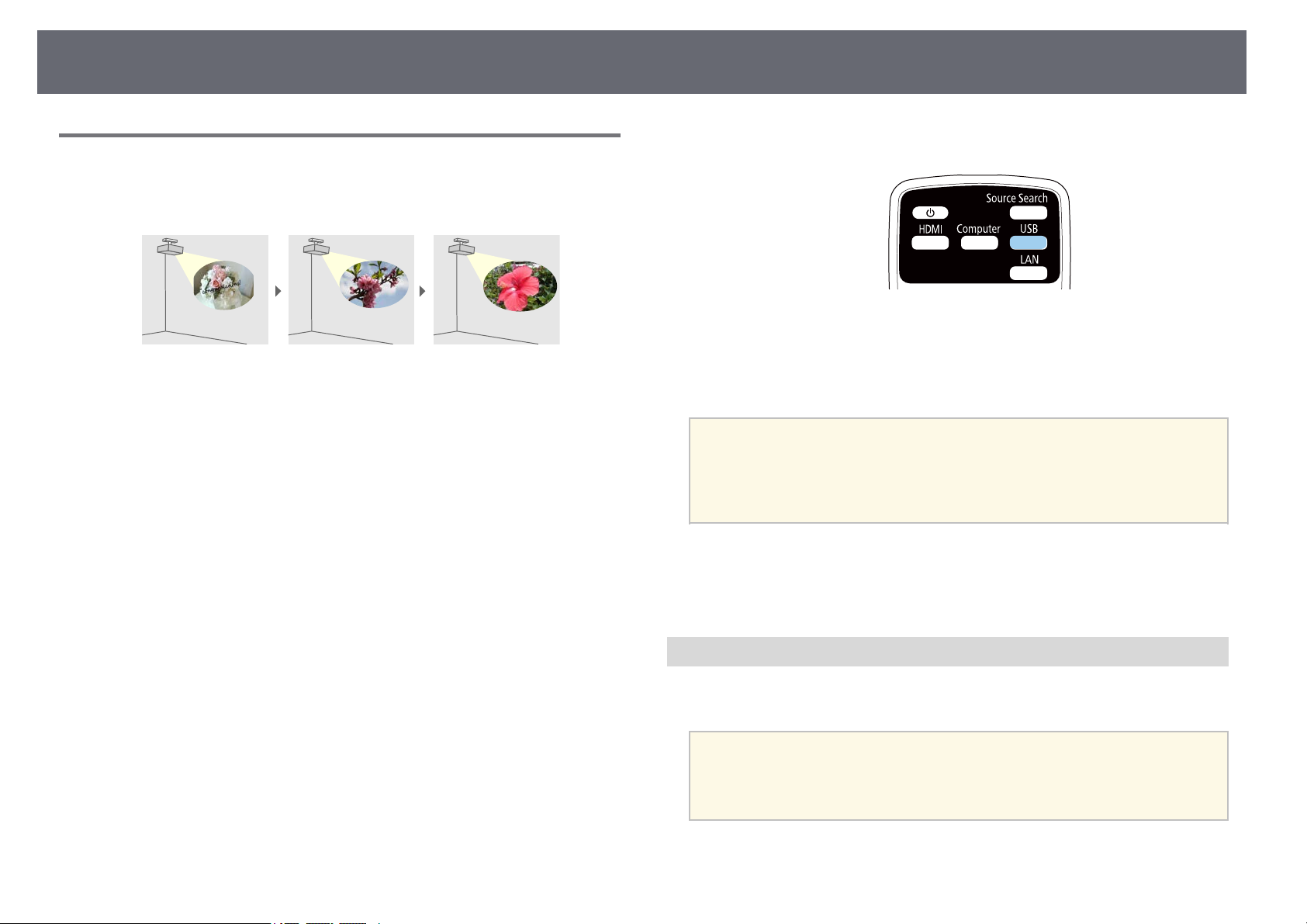

Selecting an Image Source
70
When multiple image sources are connected to the projector, such as a
computer and DVD player, you can switch from one image source to the
other.
Make sure the connected image source you want to use is turned on.
a
For video image sources, insert a DVD or other video media and press
b
play.
Do one of the following:
c
• Press the [Source Search] button on the control panel or remote
control until you see the image from the source you want.
This screen is displayed when no image signal is detected.
a
• Press the button for the source you want on the remote control. If
there is more than one port for that source, press the button again to
cycle through the sources.
Check the cable connections between the projector and image
source.
HDMI and HDBaseT sources (HDMI1, HDMI2, and HDBaseT ports)
A
Computer port source (Computer1 and Computer2 ports)
B
Page 71
Selecting an Image Source
USB port source
C
Network source (LAN and Screen Mirroring)
D
• Press the [Home] button on the remote control.
Then select the source you want to use from the screen displayed.
a
71
• The display order of the input sources changes when the
projector detects an input signal. (The detected input source
appears in the upper left position.)
• You can fix the display order of the input sources using the
Sort Source Thumbnails setting in the projector's Display
menu.
• A check mark appears on the image from the current input
source. You can check a preview of the current input image
for most sources as a thumbnail (other than the USB input
source in Content Playback mode).
• If there are more than nine available input sources, your
desired source may appear on the next page. Select the right
arrow to move to the next page.
Page 72
Image Aspect Ratio
72
The projector can display images in different width-to-height ratios called
aspect ratios. Normally, the input signal from your video source determines
the image's aspect ratio. However, you can change the aspect ratio for certain
images to fit your screen.
gg Related Links
• "Changing the Image Aspect Ratio" p.72
• "Available Image Aspect Ratios" p.72
Changing the Image Aspect Ratio
You can change the aspect ratio of the displayed image.
• Set the Screen Type setting in the projector's Installation menu
a
Turn on the projector and switch to the image source you want to use.
a
Press the [Aspect] button on the remote control.
b
before changing the aspect ratio.
• Available only when using one of the following input sources:
• Computer
• HDMI
• HDBaseT
• Available only when the Scale setting is turned off or the Scale Mode
setting is set to Full Display.
s Image > Scale > Scale Mode
The shape and size of the displayed image changes, and the name of the
aspect ratio appears briefly on the screen.
To cycle through the available aspect ratios for your input signal, press
c
the [Aspect] button repeatedly.
• The available aspect ratio setting varies depending on the input
a
signal.
• To display images without black bars, set Resolution to Wide or
Normal in the projector’s Image menu according to the computer’s
resolution.
• If there are margins between the edge of the image and the projected
screen frame, you can adjust the position of the image using the
Screen Position setting in the projector's Installation menu.
s Installation > Screen Type > Screen Position
Available Image Aspect Ratios
You can select the following image aspect ratios, depending on the selected
Screen Type setting and the input signal from your image source.
• Note that using the aspect ratio function of the projector to reduce,
a
enlarge, or split the projected image for commercial purposes or for
public viewing may infringe upon the rights of the copyright holder
of that image based on copyright law.
Aspect mode Description
Auto Automatically sets the aspect ratio according to the
input signal and the Resolution setting.
Full Displays images using the full size of the projection
area, but does not maintain the aspect ratio.
Page 73
Image Aspect Ratio
Aspect mode Description
H-Zoom
V-Zoom
(Available when Screen
Type is set to 4:3, 16:9 or
16:10)
Native
(Available when Screen
Type is set to 4:3, 16:9 or
16:10)
Displays images using the full width (H-Zoom) or full
height (V-Zoom) of the projection area and maintains
the aspect ratio of the image. Areas that exceed the
edges of the projected screen are not projected.
Displays images as is (aspect ratio and resolution are
maintained). Areas that exceed the edges of the
projected screen are not projected.
73
Page 74
Adjusting Image Quality (Color Mode)
74
The projector offers different color modes to provide optimum brightness,
contrast, and color for a variety of viewing environments and image types.
You can select the mode designed to match your image and environment, or
experiment with the available modes.
gg Related Links
• "Changing the Color Mode" p.74
• "Available Color Modes" p.74
Changing the Color Mode
You can change the projector's Color Mode using the remote control to
optimize the image for your viewing environment.
Turn on the projector and switch to the image source you want to use.
a

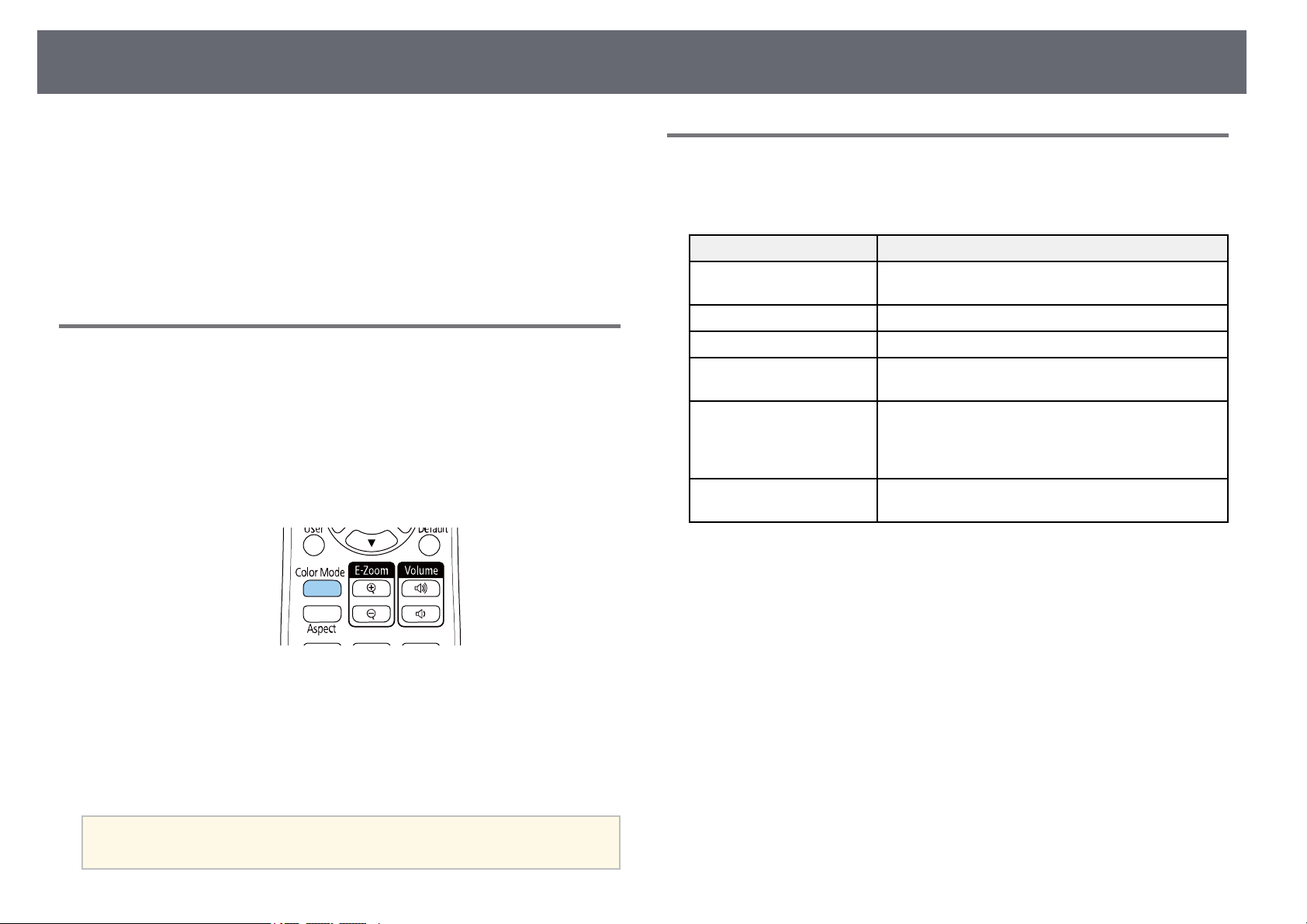

Press the [Color Mode] button on the remote control to change the
b
Color Mode.
Available Color Modes
You can set the projector to use these color modes, depending on the input
source you are using:
Color mode Description
Dynamic This is the brightest mode. Best for prioritizing
brightness.
Presentation Best for projecting vivid images.
Cinema Best for enjoying content such as movies.
sRGB Best for faithfully reproducing the color of the source
image.
DICOM SIM Best for projecting X-ray photographs and other
medical images. This mode is for reference purposes
only and should not be used to make medical
diagnoses.
Multi-Projection Best for projecting from multiple projectors (reduces
the color tone difference between images).
The name of the Color Mode appears briefly on the screen and then
image appearance changes.
To cycle through all of the available color modes for your input signal,
c
press the [Color Mode] button repeatedly.
You can also set the Color Mode setting in the projector's Image
a
menu.
Page 75
Turning On Automatic Luminance Adjustment
75

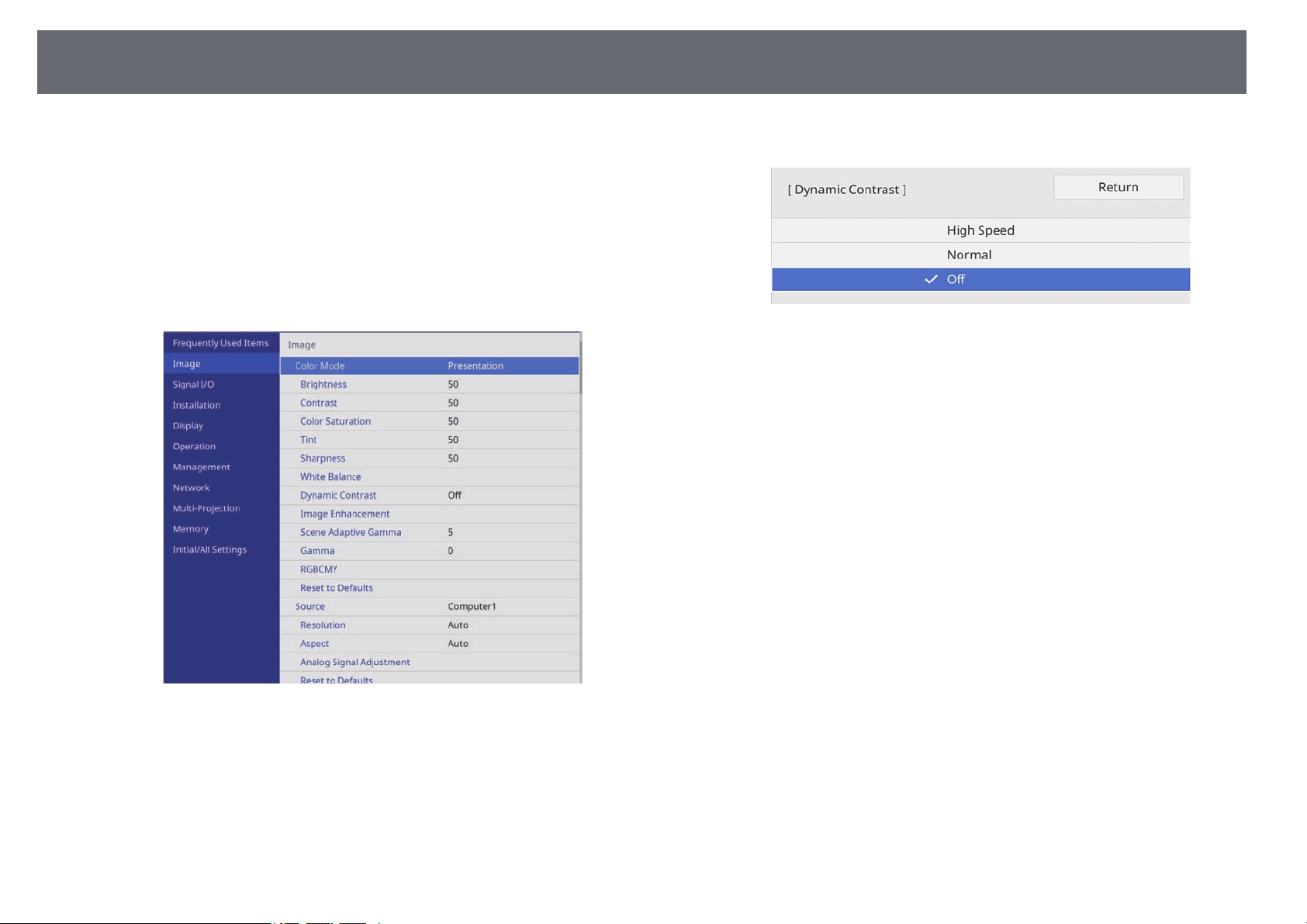

You can turn on Dynamic Contrast to automatically optimize the image
luminance. This improves the image contrast based on the brightness of the
content you project.
Turn on the projector and switch to the image source you want to use.
a
Press the [Menu] button on the control panel or remote control.
b
Select the Image menu and press [Enter].
c
• High Speed to adjust brightness as soon as the scene changes.
Press [Menu] or [Esc] to exit the menus.
f
Select Dynamic Contrast and press [Enter].
d
Choose one of the following options and press [Enter]:
e
• Normal for standard brightness adjustment.
Page 76
Adjusting the Image Color
76
You can fine-tune various aspects of how colors are displayed in your
projected images.
gg Related Links
• "Adjusting the Hue, Saturation, and Brightness" p.76

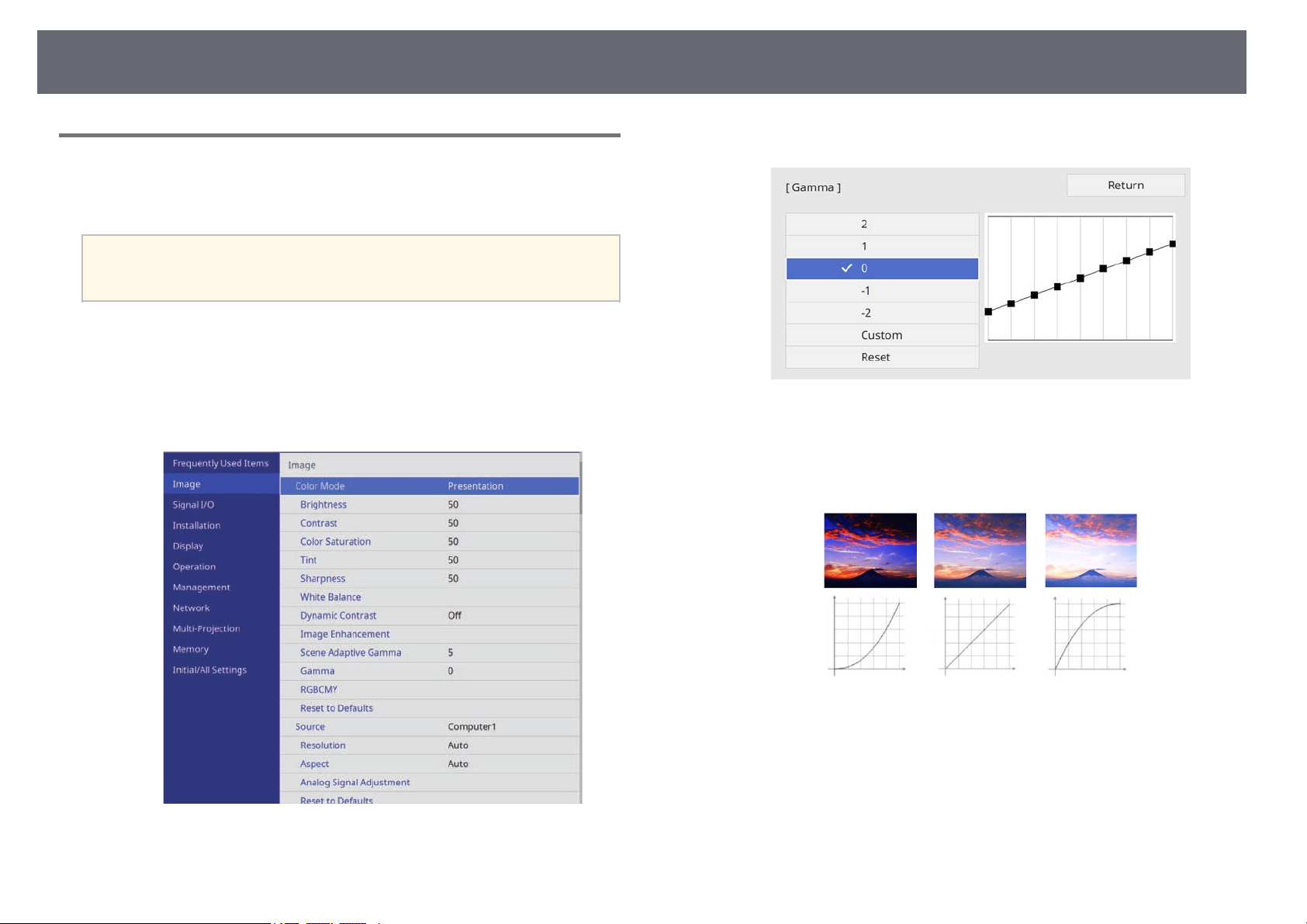

• "Adjusting the Gamma" p.77
Adjusting the Hue, Saturation, and Brightness
You can adjust the Hue, Saturation, and Brightness settings for individual
image colors.
Turn on the projector and switch to the image source you want to use.
a
Press the [Menu] button on the control panel or remote control.
b
Select the Image menu and press [Enter].
c
Select RGBCMY and press [Enter].
d
Select the color to adjust, and press [Enter].
e
Do the following as necessary for each setting:
f
• To adjust the overall hue of the color, bluish - greenish - reddish,
adjust the Hue setting.
• To adjust the overall vividness of the color, adjust the Saturation
setting.
• To adjust the overall color brightness of the color, adjust the
Brightness setting.
Press [Menu] or [Esc] to exit the menus.
g
Page 77
Adjusting the Image Color
77
Adjusting the Gamma
You can correct differences in projected image colors that occur between
different image sources by adjusting the Gamma setting.
To optimize the color tone according to the scene, and to obtain a
a
a
b
c
more vivid image, correct the image by adjusting the Scene Adaptive
Gamma setting.
Turn on the projector and switch to the image source you want to use.
Press the [Menu] button on the control panel or remote control.
Select the Image menu and press [Enter].
Select and adjust the correction value.
e
When you select a smaller value, you can reduce the overall brightness
of the image to make the image sharper. When you select a larger value,
the dark areas of images become brighter, but the color saturation for
lighter areas may become weaker.
Select Gamma and press [Enter].
d
Page 78
Adjusting the Image Color
• If you set the Color Mode setting to DICOM SIM in the
a
If you want to make finer adjustments, select Custom and press
f
[Enter].
Press the left or right arrow buttons to select the color tone you want to
g
adjust on the gamma adjustment graph. Then press the up or down
arrow button to adjust the value and press [Enter].
projector's Image menu, select the adjustment value according
to the projection size.
• If the projection size is 120 inches or less, select a small
value.
• If the projection size is 120 inches or more, select a large
value.
• Medical images may not be reproduced correctly depending on
your settings and screen specifications.
78
Press [Menu] or [Esc] to exit the menus.
h
Page 79

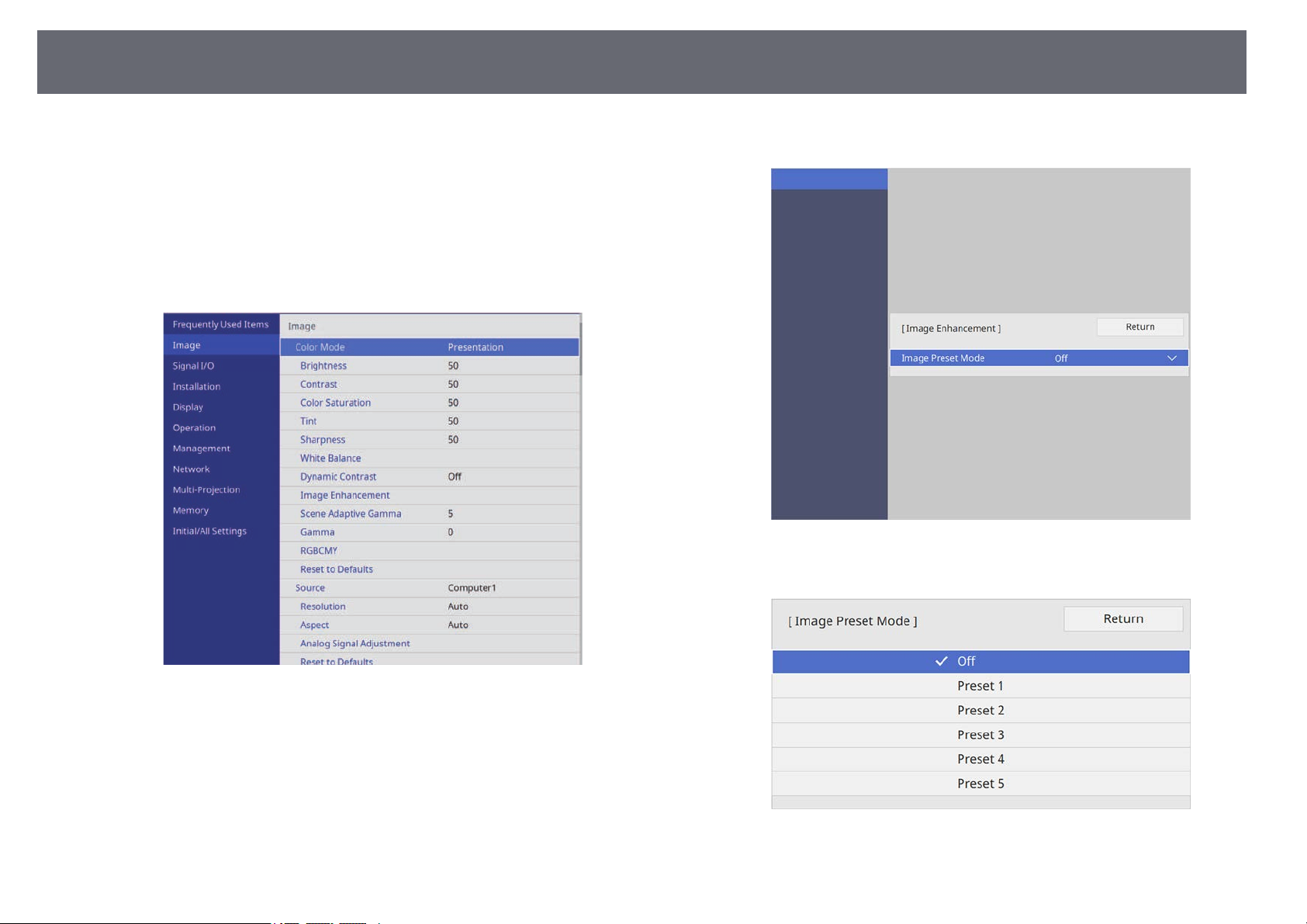

Adjusting the Image Resolution
79
You can adjust the resolution of the image to reproduce a clear image with an
emphatic texture and material feel.
Turn on the projector and switch to the image source you want to use.
a
Press the [Menu] button on the control panel or remote control.
b
Select the Image menu and press [Enter].
c
Select Image Preset Mode and press [Enter].
e
Select the preset option and press [Enter].
f
Select Image Enhancement and press [Enter].
d
The following settings saved in the preset option are applied to the
image.
Page 80
Adjusting the Image Resolution
• Noise Reduction
• MPEG Noise Reduction
• Deinterlacing
• Super-resolution
• Detail Enhancement
Adjust each setting in the projector's Image menu individually as
g
necessary.
• To reduce flickering in images, adjust the Noise Reduction setting.
• To reduce the noise or artifacts seen in MPEG video, adjust the
MPEG Noise Reduction setting.
• To convert interlaced-to-progressive signals for certain video image
types, adjust the Deinterlacing setting.
• Off: for fast-moving video images.
• Video: for most video images.
• Film/Auto: for movies, computer graphics, and animation.
80
Setting is only displayed when the current signal is interlaced
a
• To reduce blurring appeared when projecting low resolution image,
adjust the Super-resolution setting.
• To create a more emphatic texture and material feel of the image,
adjust the Detail Enhancement setting.
signal (480i/576i/1080i).
The settings value in the preset option are overwritten.
a
Press [Menu] or [Esc] to exit the menus.
h
Page 81
Adjusting the Brightness
81
You can adjust the brightness of your projector's light source.
Turn on the projector and switch to the image source you want to use.
a
Press the [Menu] button on the control panel or remote control.
b

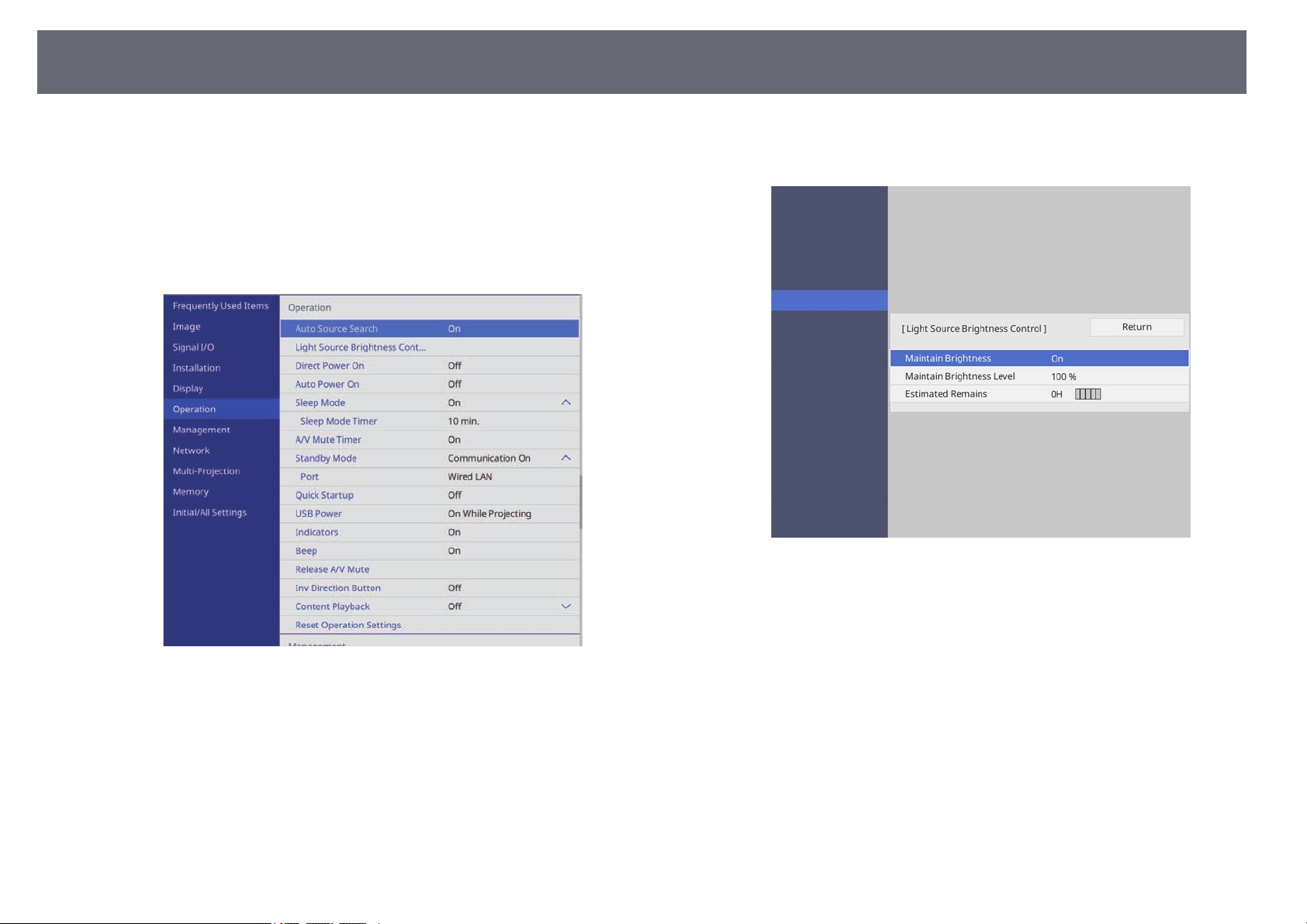

Select the Operation menu and press [Enter].
c
If you want to maintain the brightness at a specific level, select the
e
Maintain Brightness setting and select On.
If you turn on Maintain Brightness, select the Maintain Brightness
f
Level setting and check the Estimated Remains information.
Select Light Source Brightness Control and press [Enter].
d
If you turn off Maintain Brightness, select the Light Source Mode
g
setting:
• Normal lets you set the brightness to the maximum level. This makes
the light source operation time approximately 20,000 hours.
• Quiet lets you set the brightness to 70% and reduces fan noise. This
makes the light source operation time approximately 20,000 hours.
• Extended lets you set the brightness to 70% and extends the life
expectancy of the light source. This makes the light source operation
time approximately 30,000 hours.
Page 82
Adjusting the Brightness
82
• Custom lets you to select a custom brightness level between 70 to
100%.
If you set the Light Source Mode setting to Custom, select Brightness
h
Level and use the left and right arrow buttons to select the brightness.
Press [Menu] or [Esc] to exit the menus.
i
Constant Brightness Usage Hours
If you turn on Maintain Brightness, the number of hours the projector can
maintain constant brightness is displayed as Estimated Remains.
For the best results in maintaining a constant brightness, set the Light
a
gg Related Links
• "Constant Brightness Usage Hours" p.82
• "Light Source Operation Time" p.83
• "Projector Specifications" p.254
Source Calibration setting to Run Periodically in the projector's
Management menu.
Display level Estimated remaining hours
10000 or more hours
8000 to 9999 hours
6000 to 7999 hours
4000 to 5999 hours
Page 83
Adjusting the Brightness
83

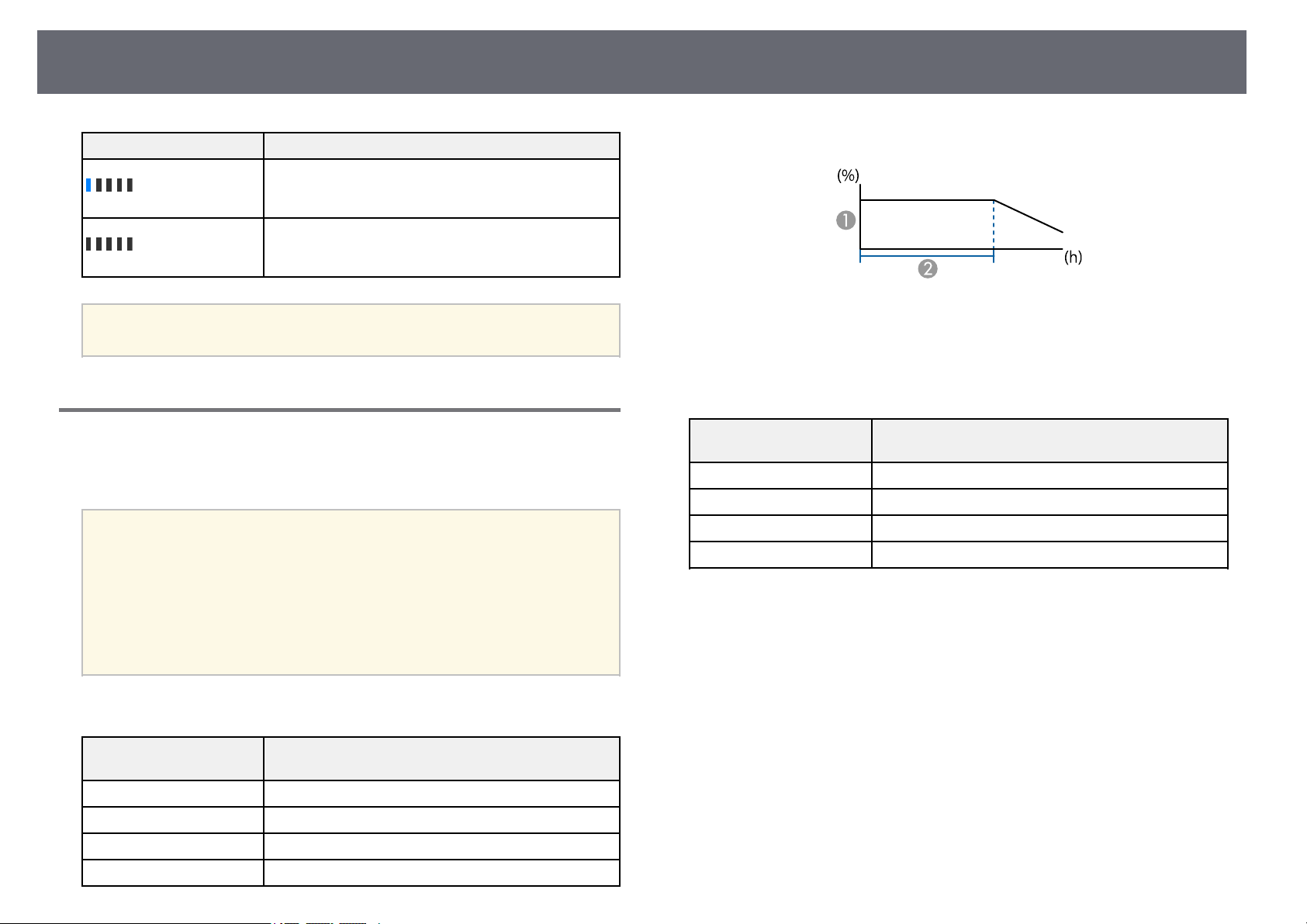

Display level Estimated remaining hours
2000 to 3999 hours
0 to 1999 hours
The number of hours displayed as Estimated Remains is just a guide.
a
Light Source Operation Time
The light source operation time varies depending on the Brightness Level
setting and whether Maintain Brightness is on or off.
• The light source operation time varies depending on the
a
environmental conditions and usage.
• The hours listed here are an approximate and are not guaranteed.
• You may need to replace internal parts sooner than the estimated
light source operation time.
• If Maintain Brightness is turned on, and you have exceeded the
usage hours listed here, you may not be able to select a high
Maintain Brightness Level setting.
Maintain Brightness on
Maintain brightness level
A
Time the projector can maintain constant brightness (approximate)
B
Maintain Brightness Level
setting
85% 6,000 hours
80% 10,000 hours
75% 14,000 hours
70% 19,000 hours
Hours
Maintain Brightness off
Brightness Level setting Time before the brightness of the light source is
reduced by half (approximate)
100% 20,000 hours
90% 21,000 hours
80% 24,000 hours
70% 30,000 hours
Page 84
Controlling the Volume with the Volume Buttons
The volume buttons control the projector's internal speaker system.
You can also control the volume of any external speakers you connected to
the projector.
You must adjust the volume separately for each connected input source.
Turn on the projector and start a presentation.
a
To lower or raise the volume, press the [Volume] buttons on the
b
remote control as shown.
A volume gauge appears on the screen.
84
To set the volume to a specific level for an input source, select Volume
c
in the projector's Signal I/O menu.
Caution
Do not start a presentation at a high volume setting. Sudden loud noises may cause
hearing loss.
Always lower the volume before powering off, so that you can power on and then
gradually increase the volume.
Page 85
Adjusting Projector Features
Follow the instructions in these sections to use your projector's adjustment features.
gg Related Links
• "Projecting Multiple Images Simultaneously" p.86
• "Projecting a PC Free Presentation" p.89
• "Projecting in Content Playback Mode" p.94
• "Shutting Off the Image and Sound Temporarily" p.101
• "Stopping Video Action Temporarily" p.102
• "Zooming Images (E-Zoom)" p.103
• "Zooming In/Zooming Out of Images (E-Zoom)" p.104
• "Saving a User's Logo Image" p.106
• "Saving Settings to Memory and Using Saved Settings" p.108
• "Using Advanced Image Adjustment Features" p.109
• "Using Multiple Projectors" p.112
• "Projector Security Features" p.124
Page 86
Projecting Multiple Images Simultaneously
86
You can use the split screen feature to simultaneously project two or four
images from different image sources.
Press the [Split] button on the remote control.
a
Select 2 Screens or 4 Screens.
b
a
• While using the split screen feature, other projector features may not
be available and some settings may be automatically applied to all
images.
• You cannot perform split screen projection when the Content
Playback setting is set to On in the projector's Operation menu.
• You may not be able to perform split screen projection when you use
the Scale feature or the Edge Blending feature in the projector's
Multi-Projection menu.
When splitting screen into halves, the currently selected input source
moves to the left of the screen.
When you have split screen into quarters previously, the input sources
of the previous split screen projection are selected and are projected at
the same position.
Press the [Menu] button.
c
Page 87
Projecting Multiple Images Simultaneously
87
When splitting screen into halves, do the following as necessary:
d
Select the input source.
A
You can only select input sources that can be
a
combined.
When splitting screen into quarters, do the following as necessary:
e
Select the input source.
A
You can only select input sources that can be
a
Select the screen from which you want to hear audio.
B
combined.
Select the screen from which you want to hear audio.
B
Select the screen size.
C
Select Execute and press [Enter].
f
To exit the split screen feature, press [Split] or [Esc].
g
gg Related Links
• "Unsupported Input Source Combinations for Split Screen Projection" p.88
• "Split Screen Projection Restrictions" p.88
Page 88
Projecting Multiple Images Simultaneously
88
Unsupported Input Source Combinations for Split Screen Projection
These input source combinations cannot be projected simultaneously.
• HDMI2 and HDBaseT
• Computer1 and Computer2
• USB and LAN
When you split the screen into quarters and select the USB and the
a
Screen Mirroring input source at the same time, you can select only
one Screen Mirroring source.
Split Screen Projection Restrictions
Operating restrictions
The following operations cannot be performed during split screen projection.
• Setting the projector's menu
• E-Zoom
• Switching the aspect mode (the aspect mode is set to Auto)
• Operations using the [User] button on the remote control, other than
displaying the network information on the projected surface.
• Applying the Dynamic Contrast setting
• Applying the Image Shift setting
• Displaying the network information on the projected surface by a method
other than pressing the [User] button.
• Displaying the Screen Mirroring information bar
• When you create a single unified image projected from multiple projectors
and use the split screen feature, the second projector does not detect an
image signal.
gg Related Links
• "Zooming In/Zooming Out of Images (E-Zoom)" p.104
• "Image Aspect Ratio" p.72
• "Zooming Images (E-Zoom)" p.103
• "Turning On Automatic Luminance Adjustment" p.75
• "Adjusting the Menu Settings" p.177
Image restrictions
• Even if you set No-signal Screen to Logo in the projector's Display menu,
the blue screen appears when no image signal is being input.
Page 89
Projecting a PC Free Presentation
89
You can use your projector's PC Free feature whenever you connect a USB
device that contains compatible presentation files. This lets you quickly and
easily display a presentation and control it using the projector's remote
control.
gg Related Links
• "Supported PC Free File Types" p.89
• "Precautions on PC Free Projection" p.90
• "Starting a PC Free Slide Show" p.90
• "Starting a PC Free Movie Presentation" p.92
• "PC Free Display Options" p.93
Supported PC Free File Types
You can project these types of files using the projector's PC Free feature.
• For best results, place your files on media that is formatted in
a
FAT16/32.
• If you have trouble projecting from media formatted for nonWindows file systems, try formatting the media for Windows
instead.
File contents File type
(extension)
Image .jpg Make sure the file is not:
.bmp Make sure the file is not:
.gif Make sure the file is not:
.png Make sure the file is not:
File contents File type
(extension)
Movie .avi
(Motion
JPEG)
Details
• CMYK format
• Progressive format
• Highly compressed
• Above 8192 × 8192 resolution
• Above 1280 × 800 resolution
• Above 1280 × 800 resolution
• Animated
• Interlaced
• Above 1920 × 1200 resolution
• Interlaced
Details
• Version: AVI 1.0 only
• Resolution: 1280 × 720 or less
• Size: 2 GB or less
• Movie Codec: Motion JPEG
• Frame Rate: up to 30 fps
• Audio Codec: LPCM or IMA ADPCM
• Audio Sampling Rate: 11.025 kHz, 16 kHz, 22.05 kHz,
24 kHz, 32 kHz, 44.1 kHz, or 48 kHz
Page 90
Projecting a PC Free Presentation
90
File contents File type
(extension)
Movie .mp4/.mov
(H.264,
H265)
Details
• Resolution: 1920 × 1200 or less
• Size: 2 GB or less
• Movie Codec: H.264/MPEG-4 AVC or H.265/MPEGH HEVC
• Frame Rate: up to 30 fps
• Profile:
• H.264/MPEG-4 AVC: Baseline Profile, Main Profile,
High Profile
• H.265/MPEG-H HEVC: Main Profile
• Color Format: YUV420
• Single slice structure
• Audio Codec: MPEG-2 AAC-LC, MPEG-4 AAC-LC,
or LPCM
• Audio Channel: up to 2ch (channel 2)
• Audio Bit: 8 bits or 16 bits
• Audio Sampling Rate:
• MPEG-2 AAC-LC: 44.1 kHz, 48 kHz
• MPEG-4 AAC-LC: 44.1 kHz, 48 kHz
• LPCM: 11.025 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32
kHz, 44.1 kHz, or 48 kHz
• When connecting a USB device that includes an AC adapter, connect the
AC adapter to an electrical outlet when you use the device with your
projector.
• Some commercially available USB card readers may not be compatible with
the projector.
• The projector can recognize up to 5 cards inserted into the connected card
reader at one time.
• You can use the following functions while projecting in PC Free.
• Freeze
• A/V Mute
• E-Zoom
gg Related Links
• "Zooming In/Zooming Out of Images (E-Zoom)" p.104
• "Stopping Video Action Temporarily" p.102
• "Shutting Off the Image and Sound Temporarily" p.101
• "Zooming Images (E-Zoom)" p.103
Starting a PC Free Slide Show
After connecting a USB device to the projector, you can switch to the USB
input source and start your slide show.
Precautions on PC Free Projection
Note the following precautions when using PC Free features.
• You cannot use a USB key for PC Free features.
• Do not disconnect the USB storage device while it is being accessed;
otherwise, PC Free may not operate correctly.
• You may not be able to use the security features on certain USB storage
devices with PC Free features.
a
• You can change the PC Free operation options or add special effects
by highlighting Option at the bottom of the screen and pressing
[Enter].
Page 91
Projecting a PC Free Presentation
91
Press the [USB] button on the remote control until the PC Free file list
a
screen appears.
• If the Select Drive screen is displayed, press the arrow buttons
a
to select the drive and press [Enter].
• To display images on the other USB drive, highlight Select
Drive at the top of the file list screen and press [Enter].
• To display a slide show of all the images in a folder, press the arrow
buttons to highlight the Slideshow option at the bottom of the screen
and press [Enter].
• You can change the image switching time by highlighting
a
While projecting, use the following commands to control the display:
d
• To rotate a displayed image, press the up or down arrow button.
Option at the bottom of the screen and pressing [Enter].
• If any file names are longer than the display area or include
unsupported symbols, the file names may be shortened or
changed only on the screen display.
Do one of the following to locate your files:
b
• If you need to display files inside a subfolder on your device, press
the arrow buttons to highlight the folder and press [Enter].
• To move back up a folder level on your device, highlight Back to
Top and press [Enter].
• To view additional files in a folder, highlight Next Page or Previous
Page and press [Enter].
Do one of the following:
c
• To display an individual image, press the arrow buttons to highlight
the image and press [Enter]. (Press the [Esc] button to return to the
file list screen.)
• To move to the next or previous image, press the left or right arrow
button.
To stop the display, follow the on-screen instructions or press the [Esc]
e
button.
You return to the file list screen.
Page 92
Projecting a PC Free Presentation
92
Turn off the USB device, if necessary, and then disconnect the device
f
from the projector.
gg Related Links
• "PC Free Display Options" p.93
• "Connecting to a USB Device" p.32
Starting a PC Free Movie Presentation
After connecting a USB device to the projector, you can switch to the USB
input source and start your movie.
• You can change the PC Free operation options by highlighting
a
Press the [USB] button on the remote control until the PC Free file list
a
screen appears.
Option at the bottom of the screen and pressing [Enter].
• If the Select Drive screen is displayed, press the arrow buttons
a
Do one of the following to locate your files:
b
• If you need to display files inside a subfolder on your device, press
the arrow buttons to highlight the folder and press [Enter].
• To move back up a folder level on your device, highlight Back to
Top and press [Enter].
• To view additional files in a folder, highlight Next Page or Previous
Page and press [Enter].
To play back a movie, press the arrow buttons to highlight the file and
c
press [Enter].
a
to select the drive and press [Enter].
• To display images on the other USB drive, highlight Select
Drive at the top of the file list screen and press [Enter].
• If any file names are longer than the display area or include
unsupported symbols, the file names may be shortened or
changed only on the screen display.
• If you want to play back all the movies in a folder in sequence,
select the Slideshow option at the bottom of the screen.
To stop movie playback, press the [Esc] button, highlight Exit, and
d
press [Enter].
You return to the file list screen.
Turn off the USB device, if necessary, and then disconnect the device
e
from the projector.
gg Related Links
• "PC Free Display Options" p.93
• "Connecting to a USB Device" p.32
Page 93
Projecting a PC Free Presentation
93
PC Free Display Options
You can select these display options when using PC Free. To access this
screen, highlight Option at the bottom of the PC Free file list screen and press
[Enter].
Setting Options Description
Display Order Name Order Displays files in name order
Date Order Displays files in date order
Sort Order In Ascending Sorts files in first-to-last order
In Descending Sorts files in last-to-first order
Continuous Play On Displays a slide show continuously
Off Displays a slide show once
Screen Switching
Time
No Does not display the next file
automatically
1 Second to 60 Seconds Displays files for the selected time
and switches to the next file
automatically; high resolution images
may switch at a slightly slower rate
Setting Options Description
Effect No No effect
Wipe Transitions between images using a
wipe effect
Dissolve Transitions between images using a
dissolve effect
Random Transitions between images using a
random variety of effects
Page 94
Projecting in Content Playback Mode
94
Your projector's Content Playback feature allows you to project your digital
signage content. You can easily project playlists that contain images and
movies saved on an external storage device. You can also add color and shape
effects to your projected image.
File contents File type
(extension)
Image .jpg Make sure the file is not:
.bmp Make sure the file is not:
.gif Make sure the file is not:
.png Make sure the file is not:
Details
• Progressive format
• Highly compressed
• Above 8192 × 8192 resolution
• Above 1280 × 800 resolution
• Above 1280 × 800 resolution
• Animated
• Interlaced
• Above 1280 × 800 resolution
• Interlaced
gg Related Links
• "Supported Content Playback Mode File Types" p.94
• "Switching to Content Playback Mode" p.95
• "Projecting Your Playlists" p.96
• "Adding Effects to Your Projected Image" p.98
• "Content Playback Mode Restrictions" p.100
Supported Content Playback Mode File Types
You can project these types of files using the projector's Content Playback
feature.
Page 95
Projecting in Content Playback Mode
95
File contents File type
(extension)
Movie .avi
(Motion
JPEG)
.mp4/.mov
(H.264/H.2
65)
Details
• Version: AVI 1.0 only
• Resolution: 1280 × 800 or less
• Size: 2 GB or less
• Movie Codec: Motion JPEG
• Audio Codec: LPCM or IMA ADPCM
• Audio Sampling Rate: 11.025 kHz, 22.05 kHz, 44.1
kHz, 16 kHz, 24 kHz, 32 kHz, or 48 kHz
• Resolution: 1920 × 1200 or less
• Size: 2 GB or less
• Movie Codec: H.264/MPEG-4 AVC or H.265/MPEGH HEVC
• Profile:
• H.264/MPEG-4 AVC: Baseline Profile, Main Profile,
High Profile
• H.265/MPEG-H HEVC: Main Profile
• Color Format: YUV420
• Audio Codec: MPEG-4 AAC-LC, or LPCM
• Audio Sampling Rate:
• MPEG-2 AAC-LC: 44.1 kHz, 48 kHz
• MPEG-4 AAC-LC: 44.1 kHz, 48 kHz
• LPCM: 11.025 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32
kHz, 44.1 kHz, or 48 kHz

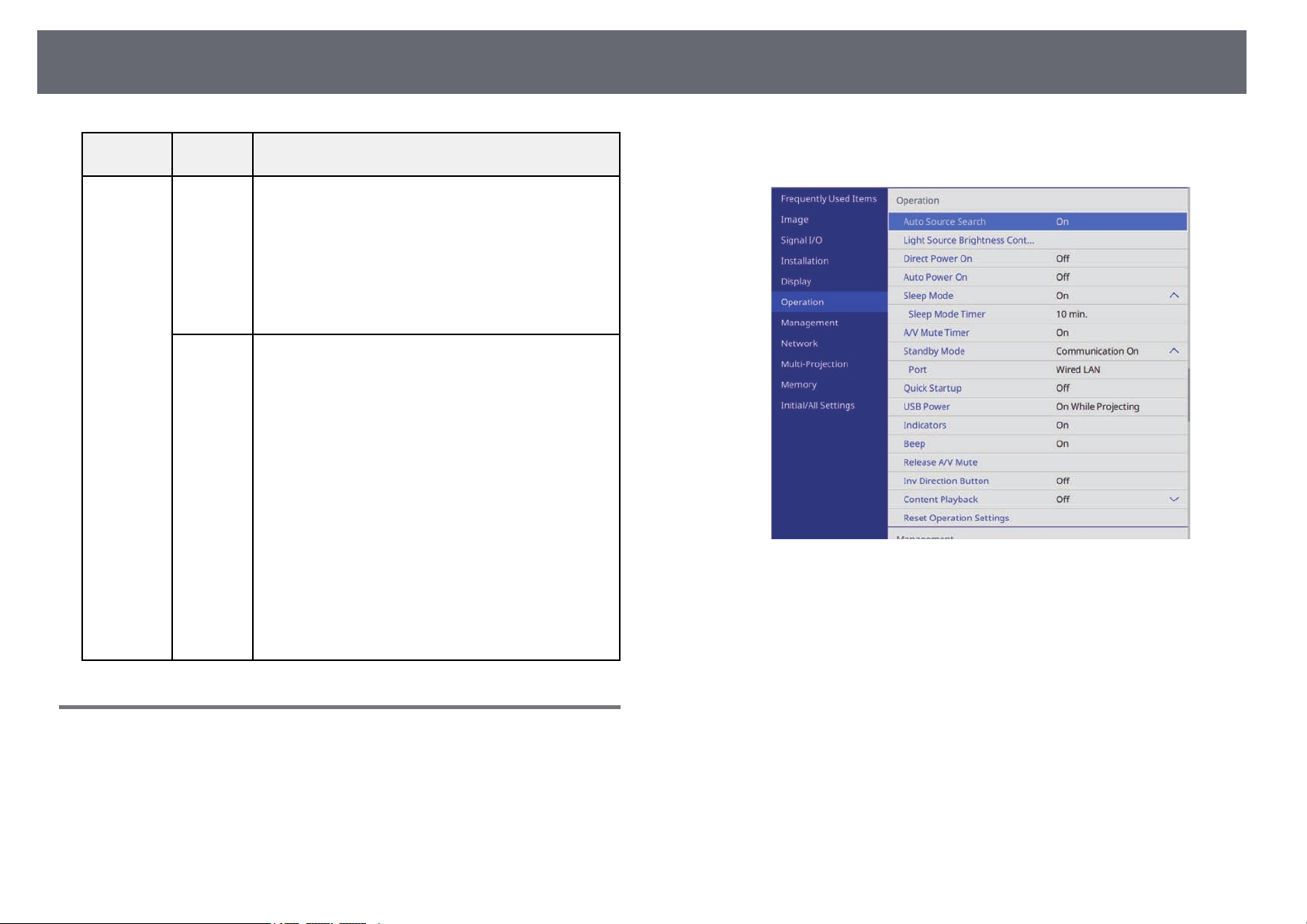

Press the [Menu] button, select the Operation menu, and then press
b
[Enter].
Select the Content Playback setting and set it to On.
c
You see a confirmation prompt.
Turn off the projector, then turn it on again to enable Content Playback
d
mode.
Switching to Content Playback Mode
Before you project your playlists, you need to switch to Content Playback
mode.
Turn on the projector.
a
Page 96
Projecting in Content Playback Mode
96
Projecting Your Playlists
You can project playlists that contain images and movies in Content Playback
mode.
Create your playlists and export them to a USB flash drive using one of
a
the following methods:
• The Epson Projector Content Manager software lets you create
playlists and save them on an external storage device. You can also
add color and shape effects to your projected image, and schedule
playlists.
You can download and install Epson Projector Content Manager
from the following Web site.
epson.sn
See the Epson Projector Content Manager Operation Guide for
instructions.
Press the [USB] button on the remote control.
c
The playlist that was played last is projected. If there is a timetable
assigned, the playlist will play back according to the schedule in the
timetable.
• You can also hold down the [Num] and numeric buttons to project
a
gg Related Links
• "Creating Playlists Using Epson Web Control" p.96
• "Getting the Latest Version of the Documents" p.10
your favorite playlist. You can set a remote control shortcut key
using the software you used to create the playlists.
• To select the target playlist from the list, select USB Viewer in the
projector's Operation menu, and use the arrow buttons.
• Epson Web Control allows you to create playlists using a Web
browser and save them to an external storage device connected to a
projector on a network. You can also add color and shape effects to
your projected image.
• The Epson Creative Projection app lets you create content on iOS
devices. You can also transfer content to the projector wirelessly.
You can download Epson Creative Projection from the App Store.
Any fees incurred when communicating with the App Store are the
responsibility of the customer.
In Content Playback mode, connect the USB flash drive into the
b
projector's USB-A port.
Creating Playlists Using Epson Web Control
In Content Playback mode, you can create playlists using a Web browser and
save them to a USB flash drive connected to a projector on a network.
Attention
Do not remove the USB flash drive from the projector or disconnect the projector's
power cord while creating playlists. Data saved on the USB flash drive may be
damaged.
Make sure the projector is operating in Content Playback mode.
a
Page 97
Projecting in Content Playback Mode
97
Make sure your computer or device is connected to the same network
b
as the projector.
Make sure a USB flash drive is connected to the projector's USB-A port.
c
Start your Web browser on your computer or device.
d
Go to the Epson Web Control screen by entering the projector's IP
e
address into the browser's address box. When entering an IPv6 address,
wrap the address with [ and ].
Select USB Memory Device.
f
Select Upload New Data.
g
Select the images or movies you want to add to the playlist.
h
You can upload .avi, .jpeg (.jpg), .png, .bmp, or .gif files.
a
If you want to add .mp4 or .mov files to the playlist, use the
Epson Projector Content Manager software or the Epson
Creative Projection app.
The selected files are copied to the connected USB flash drive.
Do one of the following:
i
• To add them to the existing playlist, select Add to Playlist and select
the playlist you want to add them to.
• To create a new playlist and add them to it, select Create New
Playlist.
Page 98
Projecting in Content Playback Mode
98
Edit the playlist.
j
Opens the Switch Image screen.
G
You can specify the time interval to switch to the next image file. You can
also select a transition effect.
Opens the Effects screen.
H
You can add predefined color and shape effect filters to a playlist. You
can also create a customized effect.
Previews the playlist.
I
When you have finished editing the playlist, select Finish.
k
• You can play the playlist from the Remote or Playlist screen.
a
gg Related Links
• "Web Control Options" p.158
• When you want to specify when the playlist starts and finishes,
schedule the playlist using the Epson Projector Content Manager
software.
Adding Effects to Your Projected Image
Edits the playlist name.
A
Selects whether to enable repeat playback or not.
B
Registers the playlist to your favorites.
C
When a playlist has been registered as a favorite, you can start playback
quickly using the Remote screen or the remote control.
Displays the images or movies you have added to the playlist. The playlist
D
plays the images or movies in order.
Adds images or movies to the playlist.
E
Deletes images or movies from the playlist.
F
You can add color and shape effects to the projected image in Content
Playback mode.
Page 99
Projecting in Content Playback Mode
99
• To use the effect functions, make sure you perform Refresh Mode
a
In Content Playback mode, press the [Menu] button, select the
a
Operation menu, and then press [Enter].
regularly.
s Management > Refresh Mode
• This feature is not available when using the Edge Blending feature.
Select On as the Overlay Effect setting and press [Enter].
c
Select Shape Filter and press [Enter].
d
Adjust each of the following options as necessary:
e
• Shape to select the shape effect you want from circles, rectangles, or
customized shapes.
You can add your images as customized shapes using the
a
• Filter Effect to select whether to mask inside or outside of the
selected shape.
Epson Projector Content Manager software. See the Epson
Projector Content Manager Operation Guide for details.
Select Overlay Effect and press [Enter].
b
• Size to set the shape size.
• Position to set the shape position.
When you use a customized shape, you cannot change the Size
a
Select Color Filter and press [Enter].
f
Adjust each of the following options as necessary:
g
• Color Filter to select the color.
and Position settings.
Page 100
Projecting in Content Playback Mode
• Custom to set a customized color by adjusting Red, Green, and Blue
individually.
Select Lightness to set the brightness level.
h
When you are finished, press [Menu] to exit the menus.
i
Content Playback Mode Restrictions
Operating restrictions
The following operations cannot be performed in Content Playback mode.
• Changing the Color Temp. setting in the Image menu (when Warm White
or Cool White is selected as Color Filter)
• Split Screen
• Log Save Destination
• Blanking
• Changing the Screen Type setting in the Installation menu
• Changing the No-signal Screen setting in the Display menu
• Detecting the input signal automatically
• Changing Remote Password in the Network Settings menu
• PC Free
• USB Document camera
• Screen delivery function using the Epson iProjection software
• Changing the Connection Guide Display setting in the Network Settings
menu
100
