Epson EB-FH54 User guide

Download
Page 1

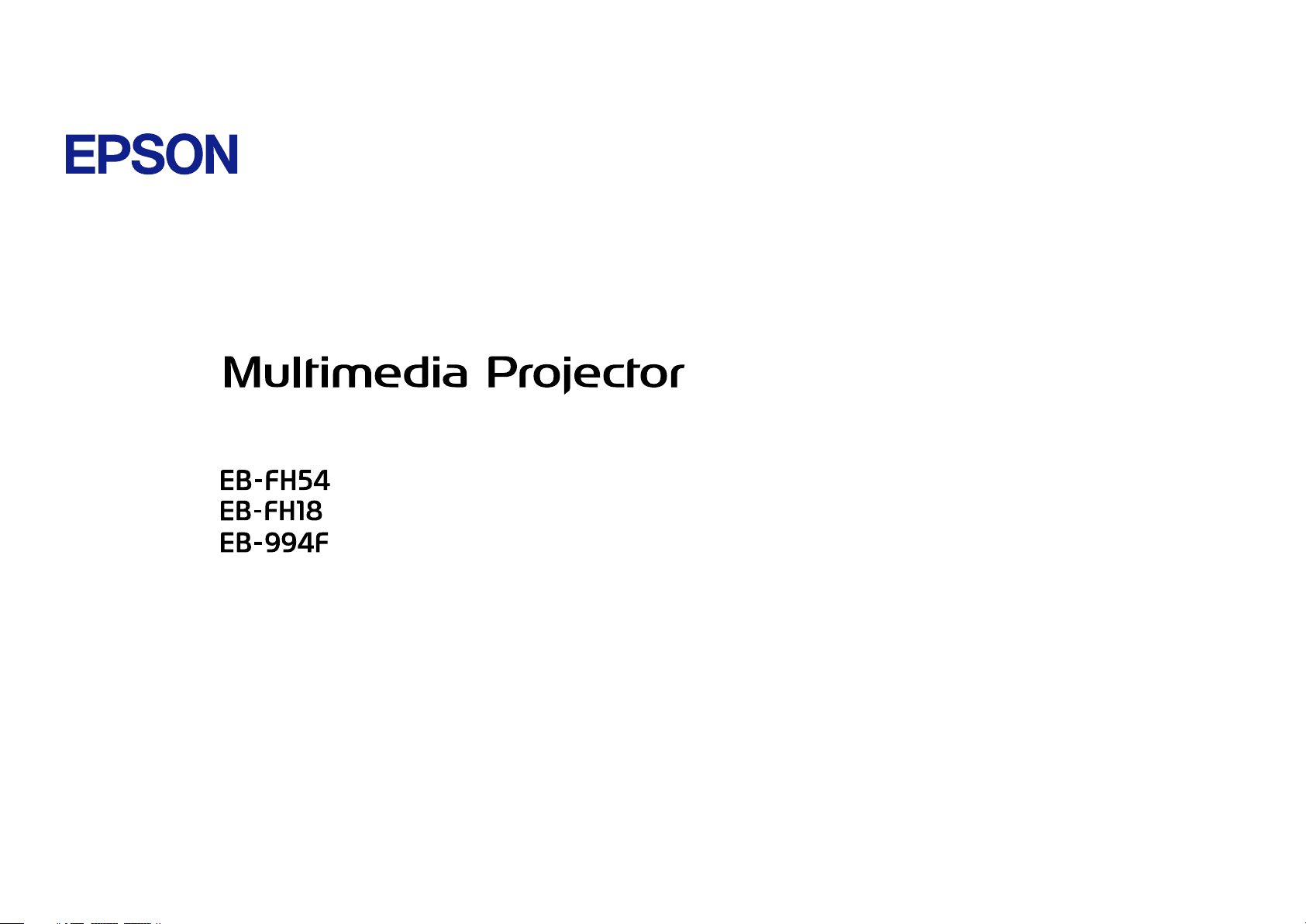

User's Guide
Page 2
Contents
2
Notations Used in This Guide 7
Using the Manual to Search for Information .....................................8
Searching by Keyword ......................................................................................8
Jumping Directly from Bookmarks .....................................................................8
Printing Only the Pages You Need ..................................................................... 8
Getting the Latest Version of the Documents ................................... 9
Introduction to Your Projector 10
Projector Features ............................................................................. 11
Easy Wireless Projection ..................................................................................11
Linking with Apple Devices ............................................................................. 12
Projector Parts and Functions .......................................................... 13
Projector Parts - Front
Projector Parts - Rear .......................................................................................14
Projector Parts - Control Panel ......................................................................... 16
Projector Parts - Remote Control ......................................................................17
.....................................................................................13
Connecting to External USB Devices .................................................................26
USB Device Projection ..................................................................................26
Connecting to a USB Device ......................................................................... 27
Disconnecting a USB Device .........................................................................27
Connecting to a Document Camera ................................................................. 27
Connecting to External Devices ....................................................................... 27
Connecting to a VGA Monitor .......................................................................27
Connecting to External Speakers .................................................................. 28
Connecting a Microphone ............................................................................29
Connecting to a Streaming Media Player .......................................................29
Installing Batteries in the Remote Control ...................................... 31
Remote Control Operation ............................................................... 32
Opening the Lens Cover ....................................................................33
Using Basic Projector Features 34
Turning On the Projector .................................................................. 35
Home Screen ................................................................................................. 36
Turning O the Projector ..................................................................38
Setting the Date and T
ime ................................................................ 39
Setting Up the Projector 19
Projector Placement ..........................................................................20
Projector Setup and Installation Options .......................................................... 21
Projection Distance .........................................................................................21
Projector Connections .......................................................................23
Connecting to a Computer
Connecting to a Computer for VGA Video and Audio ......................................23
Connecting to a Computer for HDMI Video and Audio ....................................24
Connecting to Video Sources ...........................................................................24
Connecting to an HDMI Video Source ............................................................25
Connecting to a Composite Video Source ......................................................25
..............................................................................23
Selecting the Language for the Projector Menus ........................... 41
Projection Modes ...............................................................................42
Changing the Projection Mode Using the Remote Control ................................. 42
Changing the Projection Mode Using the Menus ...............................................42
Displaying a Test Pattern ..................................................................44
Adjusting the Image Height ............................................................. 45
Image Shape .......................................................................................46
Auto V-Keystone .............................................................................................46
Correcting the Image Shape with the Horizontal Keystone Slider ........................46
Correcting the Image Shape with the Keystone Buttons .....................................47
Correcting the Image Shape with Quick Corner .................................................48
Page 3
Contents
3
Resizing the Image with the Zoom Ring .......................................... 50
Focusing the Image Using the Focus Ring .......................................51
Selecting an Image Source ................................................................
52
Image Aspect Ratio ............................................................................54
Changing the Image Aspect Ratio ....................................................................54
Available Image Aspect Ratios .........................................................................54
Projected Image Appearance with Each Aspect Mode ....................................... 55
Adjusting Image Quality (Color Mode) ............................................ 56
Changing the Color Mode ............................................................................... 56
Setting Auto Iris ..............................................................................................56
Controlling the Volume with the Volume Buttons ......................... 58
Adjusting Projector Features 59
Projecting Two Images Simultaneously (EB-994F) ......................... 60
Unsupported Input Source Combinations for Split Screen Projection ..................62
Split Screen Projection Restrictions .................................................................. 62
HDMI Link Features ........................................................................... 63
Operating the Connected Devices Using the HDMI Link Features
Projecting a PC Free Presentation ....................................................65
Supported PC Free File Types .......................................................................... 65
Precautions on PC Free Projection ....................................................................65
Starting a PC Free Slide Show .......................................................................... 66
Starting a PC Free Movie Presentation ..............................................................67
PC Free Display Options ..................................................................................68
Shutting O the Image and Sound Temporarily .............................70
Shutting O the Sound Temporarily ................................................71
Stopping Video Action Temporarily ................................................ 72
Zooming In/Zooming Out of Images (E-Zoom) ............................... 73
....................... 63
Zooming Into Images ......................................................................................73
Zooming Out of Images .................................................................................. 73
Saving a User's Logo Image .............................................................. 75
Saving a User Pattern ........................................................................ 77
Color Dierence Correction when Projecting from Multiple
Projectors ........................................................................................... 78
Setting the Projector ID ...................................................................................78
Selecting the Projector You want to Operate .................................................... 78
Matching Multiple-Projector Display Quality .....................................................79
Projector Security Features .............................................................. 81
Password Security Types .................................................................................81
Setting a Password ...................................................................................... 81
Selecting Password Security Types ................................................................82
Entering a Password to Use the Projector .......................................................83
Unlocking the Projector's Buttons .................................................................84
Installing a Security Cable ................................................................................84
Using the Projector on a Network 86
Wired Network Projection ................................................................ 87
Selecting Wired Network Settings ....................................................................87
Wireless Network Projection ............................................................ 90
Safety Instructions for Built-in Wireless LAN Module
Connection Methods for Wireless Network Projection ....................................... 90
Selecting Wireless Network Settings Manually .................................................. 91
Selecting Wireless Network Settings in Windows ...............................................93
Selecting Wireless Network Settings in Mac ......................................................94
Setting Up Wireless Network Security when Simple AP Mode is Set to On ........... 94
Setting Up Wireless Network Security when Simple AP Mode is Set to O ........... 94
Supported Client and CA Certicates .............................................................97
Using a QR Code to Connect a Mobile Device ....................................................97
Using a USB Key to Connect a Windows Computer ............................................98
..........................................90
Page 4
Contents
4
Wireless Network Projection from a Mobile Device (Miracast) ..... 99
Selecting Miracast Settings ..............................................................................99
Connecting Using Miracast ............................................................................100
Connecting Using Miracast in Windows 10 ...................................................101
Connecting Using Miracast in Windows 11 ...................................................102
Using AirPlay ....................................................................................103
Settings for AirPlay
Streaming/Mirroring Media with an AirPlay Connection ...................................105
........................................................................................103
Secure HTTP ..................................................................................... 107
Importing a Web Server Certicate Using the Menus ....................................... 107
Supported Web Server Certicates ..............................................................108
Monitoring and Controlling the Projector 109
Epson Projector Management Connected / Epson Projector
Management ....................................................................................110
Controlling a Networked Projector Using a Web Browser ...........
Web Control Options .................................................................................... 112
Registering Digital Certicates from a Web Browser ................... 115
Setting Up Projector Network E-Mail Alerts ..................................116
Network Projector E-mail Alert Messages ........................................................117
111
Web API ............................................................................................ 127
Enabling Web API ......................................................................................... 127
Adjusting the Menu Settings 128
Using the Projector's Menus ...........................................................129
Using the Displayed Keyboard .......................................................130
Available Text Using the Displayed Keyboard
Image Quality Settings - Image Menu ............................................131
Input Signal Settings - Signal Menu ...............................................133
Projector Feature Settings - Settings Menu .................................. 134
Projector Setup Settings - Extended Menu ................................... 137
Projector Network Settings - Network Menu ................................ 140
Network Menu - Basic Menu .......................................................................... 141
Network Menu - Wireless LAN Menu ...............................................................142
Network Menu - Wired LAN Menu ..................................................................146
Network Menu - Notications Menu ...............................................................146
Network Menu - Others Menu ........................................................................148
Network Menu - Reset Menu ..........................................................................149
Projector Setup Settings - ECO Menu ............................................ 151
..................................................130
Setting Up Monitoring Using SNMP ...............................................118
Using ESC/VP21 Commands .......................................................... 119
ESC/VP21 Command List ...............................................................................119
Cable Layouts ...............................................................................................119
PJLink Support .................................................................................121
Crestron Connected Support ..........................................................122
Setting Up Crestron Connected Support .........................................................122
Setting Projector Event Schedules .................................................124
Projector Information Display - Info Menu ................................... 153
Info Menu - Projector Info Menu .....................................................................153
Event ID Code List ......................................................................................154
Projector Reset Options - Reset Menu ........................................... 156
Copying Menu Settings Between Projectors (Batch Setup) .........157
Transferring Settings From a USB Flash Drive .................................................. 157
Transferring Settings From a Computer ..........................................................158
Batch Setup Error Notication .....................................................................159
Page 5
Contents
5
Maintaining the Projector 160
Projector Maintenance ....................................................................161
Cleaning the Lens ............................................................................ 162
Cleaning the Projector Case ...........................................................
163
Air Filter and Vent Maintenance .................................................... 164
Cleaning the Air Filter and Vents ....................................................................164
Replacing the Air Filter ..................................................................................164
Projector Lamp Maintenance ......................................................... 167
Resetting the Lamp Timer ..............................................................................170
Updating the Firmware ...................................................................171
Updating Firmware Using a USB Storage Device ..............................................171
Updating the Firmware over the Network .......................................................172
Solving Problems 174
Projection Problems ........................................................................175
Projector Indicator Status ...............................................................176
Using the Projector Help Displays ..................................................
Solving Image or Sound Problems .................................................180
Solutions When No Image Appears ................................................................ 180
Solutions When "No Signal" Message Appears .................................................180
Displaying From a Laptop ...........................................................................181
Displaying From a Mac Laptop ....................................................................181
Solutions When Only a Partial Image Appears ................................................. 181
Solutions When the Image is not Rectangular ................................................. 182
Solutions When the Image is Fuzzy or Blurry ................................................... 183
Solutions When the Image Brightness or Colors are Incorrect ...........................183
179
Solutions to Sound Problems .........................................................................184
Solutions When Image File Names are not Displayed Correctly in PC Free ..........184
Solving Projector or Remote Control Operation Problems ......... 185
Solutions to Projector Power or Shut-O Problems ..........................................185
Solutions to Problems with the Remote Control ..............................................185
Solutions to Password Problems .................................................................... 186
Solution When "The Battery that Saves Your Clock Settings is Running Low"
Message Appears ..........................................................................................186
Solving Network Problems ............................................................. 187
Solutions When Wireless Authentication Fails ................................................. 187
Solutions When You Cannot Access the Projector Through the Web .................187
Solutions When Network Alert E-Mails are not Received ...................................187
Solutions When the Image Contains Static During Network Projection ..............188
Solutions When You Cannot Connect Using Miracast .......................................188
Solutions When the Image or Sound Contains Static During Miracast Connection
....................................................................................................................188
Solutions When HDMI Link does not Function ............................. 190
Appendix 191
Optional Accessories and Replacement Parts ...............................192
Screens ........................................................................................................192
Mounts ........................................................................................................192
External Devices ........................................................................................... 192
Replacement Parts ........................................................................................192
Screen Size and Projection Distance ..............................................194
Supported Monitor Display Resolutions .......................................
Projector Specications .................................................................. 197
Connector Specications ...............................................................................198
External Dimensions ....................................................................... 200
196
Page 6
Contents
Warning Label ..................................................................................202
List of Safety Symbols and Instructions ........................................ 203
6
Glossary ............................................................................................
205
Notices ..............................................................................................207
FCC Compliance Statement ...........................................................................207
Indication of the manufacturer and the importer in accordance with requirements
of EU directive ..............................................................................................208
Restriction of Use ..........................................................................................208
Operating System References ........................................................................208
Trademarks ..................................................................................................208
Copyright Notice .......................................................................................... 209
Copyright Attribution ....................................................................................209
Page 7

Notations Used in This Guide

ety Symbols
Saf
e projector and its manuals use graphical symbols and labels to indicate content that tells you how to use the projector safely.
Read and carefully follow the instructions that are marked with these symbols and labels to avoid injury to persons or damage to property.
is symbol indicates information that, if ignored, could possibly result in personal injury or even death.
Warning
Caution
is symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.
General Information Notations
Attention
[B
utton name] Indicates the name of the buttons on the remote control or the projector.
Menu/Setting name Indicates projector menu and setting names.
s
Related Links
g
•
•
g the Manual to Search for Information" p.8
"Usin "Getting the Latest Version of the Documents" p.9
is label indicates procedures that may result in damage or injury if sucient care is not taken.
is label indicates additional information that may be useful to know.
Exam
ple: [Esc] button
Example:
Select the Image menu
s Image > Color Mode
is label indicates links to the related pages.
s label indicates the projector's current menu level.
i
Page 8

Using the Manual to Search for Information

e PDF manual allows you to search for information you are looking for by
eyword, or jump directly to specic sections using the bookmarks. You can
k also print only the pages you need. is section explains how to use a PDF manual that has been opened in Adobe Reader X on your computer.
Related Links
g
•
"Searching by Keyword" p.8
•
"Jumping Directly from Bookmarks" p.8
•
"Printing Only the Pages You Need" p.8
8

Searching by Keyword

Click Edit > Advanced Search. Enter the keyword (text) for information you want to nd in the search window, and then click Search. Hits are displayed as a list. Click one of the displayed hits to jump to that page.

Jumping Directly from Bookmarks

Click a title to jump to that page. Click + or > to view the lower level titles in t
at section. To return to the previous page, perform the following operation on
h
your keyboard.
•
Windows: Hold down Alt, and then press ←.
•
Mac OS: Hold down the command key, and then press ←.

Printing Only the Pages You Need

You can extract and print only the pages you need. Click Prin and then specify the pages you want to print in Pages in Pages to Print.
•
To specify a series of pages, enter a hyphen between the start page and the end page.
Example: 20-25
•
To specify pages that are not in series, divide the pages with commas.
Example: 5, 10, 15
t in the File menu,
Page 9

Getting the Latest Version of the Documents

9
You can get the latest version of the manuals and sp Web site.
Visit epson.sn, and enter your projector's name.
ecications on the Epson
Page 10

Introduction to Your Projector

er to these sections to learn more about your projector's features and part names.
Ref
Related Links
g
•
"Projector Features" p.11
•
"Projector Parts and Functions" p.13
Page 11

Projector Features

11
is projector comes with these special features. Refer to these sections for more
ails.
det
Related Links
g
•
"Quick and Easy Setup" p.11
•
"Easy Wireless Projection" p.11
•
"Linking with Apple Devices" p.12

Quick and Easy Setup

•
Direct Power On feature to turn on the projector as soon as you plug it in.
•
Auto Power On feature to turn on the projector when the projector detects an image signal from the port you specied as the Auto Power On source.
•
Home screen feature to easily select an input source and useful functions.
•
Automatic vertical keystone correction always displays a rectangular screen ( Auto V-Keystone).
•
Horizontal keystone slider allows you to quickly correct horizontal distortion in the projected image.

Easy Wireless Projection

•
Mirac
ast to connect your projector and mobile device wirelessly using
Miracast technology.
•
Epson iProjection (Windows/Mac) to project up to four images at the same time by splitting the projected screen. You can project images from computers on the network, or from smartphones or tablet devices.
See the Epson iProjection Operation Guide (Windows/Mac) for details.
Related Links
g
•
"Tur
ning On the Projector" p.35
•
"Projector Setup Settings - Extended Menu" p.137
•
"Correcting the Image Shape with the Horizontal Keystone Slider" p.46
•
"Auto V-Keystone" p.46
Page 12
Projector Features
You can download the necessary so following Web site:
http://www.epson.com/
•
Epson iProjection (iOS/Android) to connect your projector and mobile device wirelessly using the app available on the App Store or Google Play.
ware and manuals from the
•
egistering the projector with Apple HomeKit on your Apple device, you
By r can control the projector using your Apple device.
12
Any fees incurred when communicating with the App Store or Google
ay are the responsibility of the customer.
Pl
•
Epson iProjection (Chromebook) to connect your projector and Chromebook device wirelessly using the app available on the Chrome Web Store.
Any fees incurred when communicating with the Chrome Web Store
he responsibility of the customer.
are t
Related Links
g
•
g the Projector on a Network" p.86
"Usin

Linking with Apple Devices

•
Wi
th AirPlay, you can stream media such as videos, music, and photos to this
projector using Apple devices that support AirPlay.
Use of the Works with Apple AirPlay badge means that an accessory has been
ed to work specically with the technology identied in the badge and
design has been certied by the developer to meet Apple performance standards.
Use of the Works with Apple badge means that an accessory has been designed to work specically with the technology identied in the badge and has been certied by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
Controlling this HomeKit-enabled accessory automatically and away from home requires a HomePod, HomePod mini, or Apple TV set up as a home hub. It is recommended that you update to the latest soware and operating system.
Page 13

Projector Parts and Functions

13
e following sections explain the projector parts and their functions.
ll of the features in this guide are explained using illustrations of EB-FH54
A unless otherwise mentioned.
Related Links
g
•
"Projector Parts - Front" p.13
•
"Projector Parts - Rear" p.14
•
"Projector Parts - Base" p.15
•
"Projector Parts - Control Panel" p.16
•
"Projector Parts - Remote Control" p.17

Projector Parts - Front

Name Function
Warning
Do n
ot look into the vents. If the lamp explodes, gases may escape and small fragments of glass may be scattered which could cause an injury. Contact a doctor if any fragments of broken glass are inhaled or get into the eyes or mouth.
Caution
Whi
le projecting, do not put your face or hands near the air exhaust vent, and do not place objects that may become warped or damaged by heat near the vent. Hot air from the air exhaust vent could cause burns, warping, or accidents to occur.
A/V Mute slide lever Slide the knob to open and close the lens cover.
B
Foot release lever Press the foot release lever to extend and retract the
C
Lens cover Close when not using the projector to protect the lens.
D
fr
ont adjustable foot.
By c
losing it during projection you can hide the image
and the sound.
Name Function
Air exhaust vent Exhaust vent for air used to cool the projector internally.
A
Front adjustable foot When the projector is set up on a surface such as a desk,
E
Lens Images are projected from here.
F
Remote receiver Receives signals from the remote control.
G
Horizontal keystone
H
slider
Air intake vent (air
I
lt
er)
Air lter cover Open to access the air lt
J
exten
d the foot to adjust the position of the image.
C
orrects horizontal distortion in the projected image.
Takes in air to cool the projector internally.
er.
Page 14
Projector Parts and Functions
14
Name Function
Security slot e security slot is compatible with the Microsaver
K
Control panel Operates the projector.
L
Zoom ring Adjusts the image size.
M
Focus ring Adjusts the image focus.
N
Lamp cover Open to access the projector's lamp.
O
Related Links
g
•
"R
•
"Focusing the Image Using the Focus Ring" p.51
•
"Projector Indicator Status" p.176
•
"Correcting the Image Shape with the Horizontal Keystone Slider" p.46
g the Image with the Zoom Ring" p.50
esizin
Security System manufactured by Kensington.
e sh
ape may vary depending on the model of your
projector.

Projector Parts - Rear

EB-FH54/EB-FH18
EB-994F
Name Function
Power inlet Connects the power cord to the projector.
A
Remote receiver Receives signals from the remote control.
B
Audio Out port Outputs audio from the current input source to an
C
Speaker Outputs audio.
D
HDMI1, HDMI2
E
po
rts
ext
nal speaker.
er
Inputs video signals from HDMI compatible video equipment and computers.
is projector is compatible with HDCP.
USB-B port Use this to copy menu settings when using the batch
F
G
USB-A ( po
rt
set
tings function.
Connects a USB memory device or a digital camera and
)
projects movies or images using PC Free.
Connects the optional document camera.
Provides a connection for a commercially available streaming media player allowing you to power it.
Page 15
Projector Parts and Functions
15
Name Function
RS-232C port Connects an RS-232C cable to control the projector
H
Video port Inputs composite video signals from video sources.
I
Mic port Inputs audio from the microphone.
J
L-Audio-R ports Inputs audio from equipment connected to the Video
K
Monitor Out port Outputs analog RGB signals input from the Computer1
L
Audio 1 port Inputs audio from equipment connected to the
M
Audio 2 port Inputs audio from equipment connected to the
N
Computer2 port Inputs image signals from a computer.
O
Computer1 port Inputs image signals from a computer.
P
LAN port Connects a LAN cable to connect to a network.
Q
om a computer. (You do not need to use this port
fr normally.)
po
rt.
po
rt to an external monitor. You cannot output signals
input from other ports.
Co
mputer1 port.
Co
mputer2 port.

Projector Parts - Base

Name Function
Ceiling mount xing
A
oints (three points)
p
Security cable
B
att
achment point
Use all the xing points to attach the optional ceiling mount here when suspending the projector from a ceiling.
Pass a commercially available wire lock through here and lock it in place.
You can also attach the optional safety wire here to prevent the projector from falling from the ceiling or wall.
Page 16
Projector Parts and Functions
16
Name Function
Rear feet When the projector is set up on a surface such as a
C
Front adjustable foot When the projector is set up on a surface such as a desk,
D
Related Links
g
•
"In
stalling a Security Cable" p.84
desk, turn to extend and retract the feet to adjust the horizontal tilt.
extend the foot to adjust the position of the image.

Projector Parts - Control Panel

Name Function
[Enter] button [ ]
B
Keystone adjustment
C
buttons and arrow buttons
[Esc] button Stops the current function.
D
Volume buttons and
E
arrow buttons
Enters the current selection and moves to the next level while displaying the projector's menu or help.
Optimizes Tracking, Sync., and Position in the projector's Signal menu while projecting an analog RGB signal from the Computer port.
Displays the Keystone screen allowing you to correct keystone distortion.
Selects menu items while displaying the projector's menu or help.
Mo
ves back to the previous menu level while displaying
the projector's menu.
: Decreases the volume.
: Increases the volume.
rrects keystone distortion in the horizontal direction
Co when the Keystone screen is displayed.
Selects menu items while displaying the projector's menu or help.
Name Function
[Source Search]
A
b
tton
u
Switches to the next input source.
[Menu] button Displays and closes the projector's menu.
F
[Home] button Displays and closes the Home screen.
G
H
Power button [
I
ndicators Indicates the projector's status.
I
Related Links
g
•
"Input Signal Settings - Signal Menu" p.133
•
"Home Screen" p.36
•
"Projector Indicator Status" p.176
•
"Correcting the Image Shape with the Keystone Buttons" p.47
Turns the projector on or o.
]
Page 17
Projector Parts and Functions
17

Projector Parts - Remote Control

Name Function
A
Power button [
MI] button Switches the image source between the HDMI ports.
[HD
B
[Wireless] button Switches the image source to a device connected over
C
Numeric buttons Enters numbers in the projector's menu.
D
[Customize] button Performs the function set for the Cus
E
[Menu] button Displays and closes the projector's menu.
F
Arrow buttons Selects menu items while displaying the projector's
G
[Enter] button [
H
[Home] button Displays/exits the home screen.
I
[Volume] up/down
J
bu
ttons
[A/V Mute] button Turns the video and audio on or o
K
[Mute] button Mutes the audio temporarily.
L
Turns the projector on or o
]
e network.
th
the Settings menu.
men
u.
Enters the current selection and moves to the next level
]
whi
le displaying the projector's menu.
Adjusts the speaker volume.
.
tomize Button in
temporarily.
Playback control
M
bu
ttons
[Freeze] button Pauses or resumes images.
N
[E-Zoom] +/– buttons Resizes the projected image.
O
[Default] button Returns the selected setting to its default value.
P
[Esc] button Stops the current function.
Q
Controls devices that comply with the HDMI CEC standard.
Controls media being streamed with AirPlay.
M
ves back to the previous menu level while displaying
o
the projector's menu.
Page 18
Projector Parts and Functions
Name Function
[ID] button Hold down this button and press the numeric buttons to
R
[0/All] button Allows you to operate all projectors regardless of the
S
lect the ID for the projector you want to operate using
se the remote control.
Pr
ojector ID setting.
18
[Computer/
T
HDB
aseT] button
[USB] button Switches the image source to the USB-A port.
U
[Source Search]
V
bu
tton
Remote control light
W
emit
ting area
Related Links
g
•
put Signal Settings - Signal Menu" p.133
"In
•
"Projector Setup Settings - Extended Menu" p.137
•
"Projecting a PC Free Presentation" p.65
•
"Projecting Two Images Simultaneously (EB-994F)" p.60
•
"Using the Projector on a Network" p.86
•
"Home Screen" p.36
Switches the image source to the Computer ports.
is button may not be available depending on the model you are using.
Switches to the next input source.
Outputs remote control signals.
Page 19

Setting Up the Projector

llow the instructions in these sections to set up your projector.
Fo
Related Links
g
•
"Projector Placement" p.20
•
"Projector Connections" p.23
•
"Installing Batteries in the Remote Control" p.31
•
"Remote Control Operation" p.32
•
"Opening the Lens Cover" p.33
Page 20

Projector Placement

20
You can place the projector on almost any at sur
face to project an image.
You can also install the projector in a ceiling mount if you want to use it in a xed location. An optional ceiling mount is required when suspending the projector from a ceiling.
Note the following points when selecting a projector location:
•
Place the projector on a sturdy, level surface or install it using a compatible mount.
•
Leave plenty of space around and under the projector for ventilation, and do not place it on top of or next to anything that could block the vents.
•
Place the projector so it squarely faces the screen, not at an angle.
If you cannot install the projector squarely facing the screen, correct any r
esulting keystone distortion using the projector controls. For the best quality images, we recommend adjusting the installation position of the projector to achieve the correct image size and shape.
Warning
•
Yo
u must install a ceiling mount when suspending the projector from a ceiling. If
you do not install the projector correctly, it could fall and cause damage or injury.
•
Do not use adhesives on the ceiling mount xing points to prevent the screws from loosening, or use lubricants, oils, or similar substances on the projector; the projector case may crack causing it to fall from its ceiling mount. is could cause serious injury to anyone under the ceiling mount and could damage the projector.
•
Improper installation of the ceiling mount and projector could cause the projector to fall. Secure the ceiling mount using all of the ceiling mount xing points specied in the projector's User's Guide. Also, use a wire or other item that is strong enough to secure the projector and the mount. Use only mounts specied by Epson that are compatible with this projector.
•
Do not install the projector in a location subject to high levels of dust or humidity, or in a location subject to smoke or steam. Otherwise, it could cause a re or electric shock to occur. e projector's case could also deteriorate and be damaged causing the projector to fall from the mount.
Examples of environments that could cause the projector to fall due to case deterioration
•
Locations subject to excessive smoke or airborne oil particles, such as factories or kitchens
•
Locations containing volatile solvents or chemicals, such as factories or laboratories
•
Locations where the projector could be subjected to detergents or chemicals, such as factories or kitchens
•
Locations in which aroma oils are oen used, such as relaxation rooms
•
Near devices that produce excessive smoke, airborne oil particles, or foam at events
Page 21
Projector Placement
21
Warning
•
Do not cover the projector's air intake or air exhaust vents. If the vents are covered, the internal temperature could rise and cause a re.
•
Do not use or store the projector in locations where it will be subject to dust or dirt. Otherwise, the quality of the projected image may decline, or the air lter may become clogged, resulting in a malfunction or re.
•
Do not install the projector on an unstable surface or in a location beyond the weight specications of the projector. Otherwise, it could fall or topple causing an accident and injury.
•
When installing the projector in a high position, take measures to prevent falling by using wires to ensure safety in an emergency, such as an earthquake, and to prevent accidents. If it is not installed correctly, it could fall causing an accident and injury.
•
Do not install in locations where salt damage could occur, or in locations subject to corrosive gas such as sulphuric gas from hot springs. Otherwise, corrosion could cause the projector to fall. It could also cause the projector to malfunction.
Attention
•
Do n
ot operate the projector on its side. is may cause the projector to
malfunction.
•
If you are using the projector at altitudes above 1,500 m, set the High Altitude Mode setting to On in the projector's menu to ensure the projector's internal temperature is regulated properly.
s Extended > Operation > High Altitude Mode
•
Try not to setup the projector in locations subject to high humidity and dust, or in locations subject to smoke from res or tobacco smoke.

Projector Setup and Installation Options

You can set up or install your projector in the following ways:
Fr
ont/Rear
Front Ceiling/Rear Ceiling
Make sure you select the correct Pr menu according to the installation method being used.
Related Links
g
•
"Projection Modes" p.42
ojection option in the projector's Extended
Related Links
g
•
"Projector Setup and Installation Options" p.21
•
"Projection Distance" p.21
•
"Image Shape" p.46
•
"Projector Setup Settings - Extended Menu" p.137

Projection Distance

e distance at which you place the projector from the screen determines the approximate size of the image. e image size increases the farther the projector
Page 22
Projector Placement
is from the screen, but can vary depending on the zoom factor, aspect ratio, and
her settings.
ot
See the Appendix for details about how far to place the projector from the screen based on the size of the projected image.
When correcting keystone distortion, your image is slightly smaller.
22
Related Links
g
•
"Screen Size and Projection Distance" p.194
Page 23

Projector Connections

23
See these sections to connect the projector to a variety of projection sources.
Attention
Ch
eck the shape and orientation of the connectors on any cable you plan to connect. Do not force a connector into a port if it does not t. e device or your projector could be damaged or could malfunction.
See the Quick Start Guide for a list of cables supplied with your projector.
chase optional or commercially available cables when necessary.
Pur
Related Links
g
•
"Connecting to a Computer" p.23
•
"Connecting to Video Sources" p.24
•
"Connecting to External USB Devices" p.26
•
"Connecting to a Document Camera" p.27
•
"Connecting to External Devices" p.27

Connecting to a Computer

•
To co
nnect a computer that does not have a VGA video port, you need an adapter that allows you to connect to the projector's VGA video port.
•
You can also set the port used for audio input in the projector's Extended menu.
s Extended > A/V Settings > Audio Settings > Audio Output
•
Make sure the audio cable is labeled "No resistance".
Connect the VGA computer cable to your computer's monitor port.
a
Connect the other end to a Computer port on the projector.
b
Follow the instructions in these sections to connect a computer to the projector.
Related Links
g
•
"Co
nnecting to a Computer for VGA Video and Audio" p.23
•
"Connecting to a Computer for HDMI Video and Audio" p.24
Connecting to a Computer for VGA Video and Audio
You can connect the projector to your computer using a VGA computer cable. (EB-994F)
You can play sound through the projector's speaker system by connecting a commercially available 3.5 mm stereo mini-jack audio cable.
Tighten the screws on the VGA connector.
c
Connect the audio cable to your laptop's headphone or audio-out jack, or
d
yo
ur desktop's speaker or audio-out port.
Page 24
Projector Connections
24
Connect the other end to the Audio port that corresponds to the
e
Computer port you are using.
Related Links
g
•
"Pr
ojector Setup Settings - Extended Menu" p.137
Connecting to a Computer for HDMI Video and Audio
our computer has an HDMI port, you can connect it to the projector using
If y an HDMI cable and send the computer's audio with the projected image.
To connect a Mac that does not have an HDMI port, you need an adapter
at allows you to connect to the projector's HDMI port. Contact Apple
th for compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through the HDMI port.
Connect the other end to the projector's HDMI port.
b
If you have problems hearing audio through the HDMI connection, conn
ect one end of a commercially available 3.5 mm stereo mini-jack audio cable to the projector's Audio port and the other end to your computer's audio out port. Select the audio input port you connected to in the projector's Extended menu. (EB-994F)
s Extended > A/V Settings > Audio Settings > HDMI1 Audio Output
s Extended > A/V Settings > Audio Settings > HDMI2 Audio Output
Related Links
g
•
ojector Setup Settings - Extended Menu" p.137
"Pr

Connecting to Video Sources

Connect the HDMI cable to your computer's HDMI output port.
a
Follow the instructions in these sections to connect video devices to the pr
ojector.
Page 25
Projector Connections
25
•
If t
he port on the device you connect has an unusual shape, use the cable supplied with the device or an optional cable to connect to the projector.
•
e cable diers depending on the output signal from the connected video devices.
•
Some video devices are capable of outputting dierent types of signals. See your video device manual to conrm what type of signals can be output.
Related Links
g
•
"Co
nnecting to an HDMI Video Source" p.25
•
"Connecting to a Composite Video Source" p.25
Connecting to an HDMI Video Source
our video source has an HDMI port, you can connect it to the projector
If y using an HDMI cable and send the image source's audio with the projected image.
Attention
o n
ot turn on the video source before connecting it to the projector. Doing so could
D damage the projector.
Connect the other end to the projector's HDMI port.
b
If you have problems hearing audio through the HDMI connection,
ect one end of a commercially available 3.5 mm stereo mini-jack
conn audio cable to the projector's Audio port and the other end to your video source's audio out port. Select the audio input port you connected to in the projector's Extended menu. (EB-994F)
s Extended > A/V Settings > Audio Settings > HDMI1 Audio Output
s Extended > A/V Settings > Audio Settings > HDMI2 Audio Output
Related Links
g
•
"Pr
ojector Setup Settings - Extended Menu" p.137
Connect the HDMI cable to your video source's HDMI output port.
a
Connecting to a Composite Video Source
If y
our video source has a composite video port, you can connect it to the
projector using a RCA-style video or A/V cable. (EB-994F)
You can play sound through the projector's speaker system by connecting a commercially available RCA audio cable.
Make sure the audio cable is labeled "No resistance".
Page 26
Projector Connections
Connect the cable with the yellow connector to your video source's yellow
a
video output port.
Connect the other end to the projector's Video port.
b
Connect the audio cable to your video source's audio-out ports.
c
Connect the other end to the projector's L-Audio-R ports.
d
Related Links
g
•
"USB Device Projection" p.26
•
"Connecting to a USB Device" p.27
•
"Disconnecting a USB Device" p.27
USB Device Projection
o
u can project images and other content without using a computer or video
Y device by connecting any of these devices to your projector:
•
USB ash drive
•
Digital camera or smartphone
•
USB hard drive
•
Digi
tal cameras or smartphones must be USB-mounted devices, not TWAIN-compliant devices, and must be USB Mass Storage Class­compliant.
•
USB hard drives must meet these requirements:
•
USB Mass Storage Class-compliant (not all USB Mass Storage Class devices are supported)
•
Formatted in FAT16/32
•
Self-powered by their own AC power supplies (bus-powered hard drives are not recommended)
•
Avoid using hard drives with multiple partitions
26

Connecting to External USB Devices

Follow the instructions in these sections to connect external USB devices to the
ojector.
pr
You can project slide shows from image les on a connected USB device.
Related Links
g
•
"Projecting a PC Free Presentation" p.65
Page 27
Projector Connections
27
Connecting to a USB Device
u can connect your USB device to the projector's USB-A port and use it to
Yo project images and other content.
If your USB device came with a power adapter, plug the device into an
a
ele
ctrical outlet.
Connect the USB cable or USB ash
b
shown.
Attention
•
Us
e the USB cable supplied with or specied for use with the device.
•
Do not connect a USB hub or a USB cable longer than 3 meters, or the device may not operate correctly.
drive to the projector's USB-A port as
Turn o
a b
and unplug the device, if necessary.
sconnect the USB device from the projector.
Di

Connecting to a Document Camera

You can connect a document camera to your projector to project images viewed by the camera.
e connection method varies depending on your Epson document camera model. See the document camera manual for details.

Connecting to External Devices

Follow the instructions in these sections to connect external devices to the p
ojector.
r
Related Links
g
•
"Connecting to a VGA Monitor" p.27
•
"Connecting to External Speakers" p.28
•
"Connecting a Microphone" p.29
•
"Connecting to a Streaming Media Player" p.29
Connecting to a VGA Monitor
Connect the other end to your device, if necessary.
c
Disconnecting a USB Device
Wh
en you have nished presenting with a connected USB device, disconnect
the device from the projector.
If y
ou connected the projector to a computer using a Computer port, you can also connect an external monitor to the projector. is lets you see your presentation on the external monitor even when the projected image is not visible. (EB-994F)
Page 28
Projector Connections
28
•
If y
ou want to output images to an external monitor when the projector is turned o, select Always On as the A/V Output setting in the projector's Extended menu.
s Extended > A/V Settings > A/V Output
•
Monitors that use a refresh rate of less than 60 Hz may not be able to display images correctly.
Make sure your computer is connected to the projector's Computer port.
a
Only analog RGB signals from the Computer1 port can be output to an ext ports.
Connect the external monitor's cable to your projector's Monitor Out
b
po
rt.
ernal monitor. You cannot output signals input from other
Connecting to External Speakers
hance the sound from your presentation, you can connect the projector to
To en external self-powered speakers. You can control the volume using the projector's remote control.
•
If y
ou want to output audio from the external speakers when the projector is turned o, select Always On as the A/V Output setting in the projector's Extended menu.
s Extended > A/V Settings > A/V Output
•
You can also connect the projector to an amplier with speakers.
•
e projector's built-in speaker system is disabled when you connect external speakers.
Make sure your computer or video source is connected to the projector
a
wi
th both audio and video cables as necessary.
Locate the appropriate cable to connect your external speakers, such as a
b
st
ereo mini-jack-to-pin-jack cable, or another type of cable or adapter.
Connect one end of the cable to your external speakers as necessary.
c
Related Links
g
•
"Projector Setup Settings - Extended Menu" p.137
Page 29
Projector Connections
29
Connect the stereo mini-jack end of the cable to your projector's Audio
d
Out port.
Related Links
g
•
"Pr
ojector Setup Settings - Extended Menu" p.137
Connecting a Microphone
Yo
u can connect a microphone to the projector's Mic port to provide audio
support during presentations. (EB-994F)
Connect the microphone cable to the projector's Mic port.
a
Turn on the microphone, if necessary.
b
Connecting to a Streaming Media Player
u can connect your streaming media player to the projector's HDMI port. By
Yo connecting the power supply USB cable, you can power the streaming media player from the projector.
•
ug-in-power is not supported.
Pl
•
If you want to output audio from a microphone when the projector is turned o, select Always On as the A/V Output setting in the projector's Extended menu.
s Extended > A/V Settings > A/V Output
•
Adjust Mic Input Level if the microphone audio is dicult to hear, or if it is too loud resulting in a crackling sound.
s Settings > Mic Input Level
e co
nnection method and operating environment for the streaming
edia player vary depending on the model you are using. For details, see
m the documentation supplied with your streaming media player; otherwise, it may not operate properly.
Page 30
Projector Connections
Connect your streaming media player to the projector's HDMI port.
a
Connect the power supply USB cable to the projector's USB-A port.
b
Connect the other end to the streaming media player.
c
30
Page 31

Installing Batteries in the Remote Control

31
e remote control uses the two AA batteries that came with the projector.
Attention
Mak
e sure you read the Safety Instructions before handling the batteries.
Remove the battery cover as shown.
a
Remove the old batteries, if necessary.
b
Dispose of used batteries according to local regulations.
Insert the batteries with the + and – ends facing as shown.
c
Warning
eck the positions of the (+) and (–) marks inside the battery holder to
Ch ensure the batteries are inserted the correct way. If the batteries are not used correctly, they could explode or leak causing a re, injury, or damage to the product.
Replace the battery cover and press it down until it clicks into place.
d
Page 32

Remote Control Operation

e remote control lets you control the projector from almost anywhere in the
oom.
r
Make sure that you aim the remote control at the projector's receivers within the distance and angles listed here.
32
Avoid using the remote control in conditions with bright uor or in direct sunlight, or the projector may not respond to commands. If you are not going to use the remote control for a long time, remove the batteries.
escent lights
Page 33

Opening the Lens Cover

To open the projector's lens cover, slide the A/V Mute slide lever until it
a
clicks.
33
To cover the lens or temporarily turn o
b
close the lens cover.
e projector's power automatically turns o 30 minutes aer A/V Mute is enabled. You can disable this feature.
s ECO > Lens Cover Timer
the projected image and sound,
Page 34

Using Basic Projector Features

llow the instructions in these sections to use your projector's basic features.
Fo
Related Links
g
•
"Turning On the Projector" p.35
•
"Turning O the Projector" p.38
•
"Setting the Date and Time" p.39
•
"Selecting the Language for the Projector Menus" p.41
•
"Projection Modes" p.42
•
"Displaying a Test Pattern" p.44
•
"Adjusting the Image Height" p.45
•
"Image Shape" p.46
•
"Resizing the Image with the Zoom Ring" p.50
•
"Focusing the Image Using the Focus Ring" p.51
•
"Selecting an Image Source" p.52
•
"Image Aspect Ratio" p.54
•
"Adjusting Image Quality (Color Mode)" p.56
•
"Controlling the Volume with the Volume Buttons" p.58
Page 35

Turning On the Projector

35
Turn on the computer or video equipment you want to use aer yo projector.
Connect the power cord to the projector's power inlet and plug it into an
a
ele
ctrical outlet.
e projector's power indicator turns blue. is indicates that the p
rojector is receiving power, but is not yet turned on (it is in standby
mode).
Press the power button on the control panel or remote control to turn on
b
th
e projector.
e projector beeps and the status indicator ashes blue as the projector warms up. Once the projector is warmed up, the status indicator stops ashing and turns blue.
u turn on the
Open the projector's lens cover.
c
Try the following if you do not see a projected image.
•
Verify the lens cover is open all the way.
•
Turn on the connected computer or video device.
•
Change the screen output from the computer when using a laptop computer.
•
Insert a DVD or other video media, and press play (if necessary).
•
Press the [Source Search] button on the control panel or remote control to detect the source.
•
Press the button for the desired video source on the remote control.
•
If the Home screen is displayed, select the source you want to project.
Page 36
Turning On the Projector
Warning
•
Never look into the projector lens when the lamp is on. is can damage your eyes and is especially dangerous for children.
•
When turning on the projector at a distance using the remote control, make sure there is no one looking into the lens.
•
During projection, do not block the light from the projector with a book or other objects. If the light from the projector is blocked, the area on which the light shines becomes hot which could cause it to melt, burn, or start a re. Also, the lens may get hot due to the reected light which could cause the projector to malfunction. To stop projection, use the A/V Mute function, or turn o the projector.
•
A mercury lamp with high internal pressure is used as the projector's light source. If the lamp is subjected to vibrations or shocks, or if it is used for an overly extended length of time, the lamp may break or it may not turn on. If the lamp explodes, gases may escape and small fragments of glass may be scattered which could cause an injury. Be sure to observe the instructions below.
•
Do not disassemble or damage the lamp or subject it to any impacts.
•
Do not bring your face close to the projector while it is in use.
•
Particular care should be taken when the projector is installed to a ceiling, as small pieces of glass may fall down when the lamp cover is removed. When cleaning the projector or replacing the lamp yourself, be very careful not to allow such pieces of glass to get into the eyes or mouth.
If the lamp breaks, ventilate the area immediately, and contact a doctor if any fragments of broken glass are inhaled or get into the eyes or mouth.
•
Wh
en the Direct Power On setting is set to On in the projector's Extended menu, the projector turns on as soon as you plug it in. Note that the projector also turns on automatically in cases such as recovery from a power outage.
s Extended > Operation > Direct Power On
•
If you select a specic port as the Auto Power On setting in the projector's Extended menu, the projector turns on as soon as it detects a signal or cable connection from that port.
s Extended > Operation > Auto Power On
Related Links
g
•
"Ho
me Screen" p.36
•
"Projector Setup Settings - Extended Menu" p.137

Home Screen

e Home screen feature allows you to easily select an image source and acces
s useful functions. You can display the Home screen by pressing the [Home] button on the control panel or remote control. e Home screen is also displayed when you turn on the projector and no signal is being input.
Press the arrow buttons on the control panel or remote control to select a menu item, and then press [Enter].
36
Page 37
Turning On the Projector
Selects the source you want to project.
A
Displays the Connection Guide. You can select the wireless connection methods
B
C
D E F
G
H
ding to the devices you are using, such as smartphones or computers.
accor Removes all devices from the block list. e block list contains devices that are
automatically denied Miracast projection.
is message is displayed when a device has been added to the block list. Displays the Help screen.
Displays the projector's menu.
Performs menu options assigned to Home Screen in the projector's Extended menu.
Displays the Info menu. (Other than EB-994F)
Projects two images from dierent image sources simultaneously by splitting the projected screen. (EB-994F)
Corrects the shape of an image that is an uneven rectangle.
Related Links
g
•
age Shape" p.46
"Im
•
"Projector Setup Settings - Extended Menu" p.137
•
"Using the Projector's Menus" p.129
•
"Using the Projector Help Displays" p.179
•
"Projecting Two Images Simultaneously (EB-994F)" p.60
37
e H
ome screen disappears aer 10 minutes of inactivity.
Page 38
Turning O the Projector
Turn o the projector aer use.
•
Tur
n o this product when it is not in use to prolong the life of the projector. Lamp life varies depending on the mode selected, environmental conditions, and usage. Brightness decreases over time.
•
Since the projector supports the direct shutdown feature, it can be turned o directly using the breaker.
Press the power button on the control panel or remote control.
a
e pr
ojector displays a shutdown conrmation screen.
38
Press the power button again. (To leave it on, press any other button.)
b
e p
ojected image disappears, the projector beeps twice, and the status
r
indicator turns o.
With Epson's Instant O te
so you can pack up the projector for transport right away.
To transport or store the projector, make sure the power indicator is blue
c
d
t not ashing) and the status indicator is o, then unplug the power
(bu cord.
Close the projector's lens cover.
chnology, there is no cool-down period
Page 39

Setting the Date and Time

You can set the date and time for the projector.
If the date and time are not correctly set on the projector, the AirPlay conn
ection may be disconnected while projecting. Set the correct date and time in Date & Time and Daylight Saving Time from the Extended menu.
s Extended > Operation > Date & Time
Turn on the projector.
a
Press the [Menu] button on the control panel or remote control.
b
Select Date, press [Enter], and use the displayed keyboard to enter today's
g
d
ate.
39
c d e
f
Select the E
S
elect the Operation setting and press [Enter].
S
elect the Date & Time setting and press [Enter].
Y
ou see this screen:
Select the D
ou see this screen:
Y
xtended menu and press [Enter].
ate & Time setting and press [Enter].
Select Time, press [Enter], and use the displayed keyboard to enter the
h
c
urrent time.
Select Time Dierence (UTC), press [Enter], and set the time dierence
i
f
rom Coordinated Universal Time.
When you are nis
j
hed, select Set and press [Enter].
Page 40
Setting the Date and Time
40
To activate daylight saving time, select the Day
k
and press [Enter]. en select settings.
When you are nis
l
hed, select Set and press [Enter].
light Saving Time setting
Press [Menu] or [Esc] to exit the menus.
o
To update the time automatically through an Internet time server, select
m
th
e Internet Time setting and press [Enter]. en select settings.
When you are nis
n
hed, select Set and press [Enter].
Page 41

Selecting the Language for the Projector Menus

If you want to view the projector's menus and messages in another language,
u can change the Language setting.
yo
Turn on the projector.
a
Press the [Menu] button on the control panel or remote control.
b
41
Select the E
c
Select the L
d
elect the language you want to use and press [Enter].
S
e
Press [Menu] or [Esc] to exit the menus.
f
xtended menu and press [Enter].
anguage setting and press [Enter].
Page 42

Projection Modes

42
Depending on how you positioned the projector, you may need to change the
ojection mode so your images project correctly.
pr
•
Front lets you project from a table in front of the screen.
•
Front/Ceiling ips the image over top-to-bottom to project upside-down from a ceiling or wall mount.
•
Rear ips the image horizontally to project from behind a translucent screen.
•
Rear/Ceiling ips the image over top-to-bottom and horizontally to project from a ceiling or wall mount and behind a translucent screen.
Related Links
g
•
"Changing the Projection Mode Using the Remote Control" p.42
•
"Changing the Projection Mode Using the Menus" p.42
•
"Projector Setup and Installation Options" p.21

Changing the Projection Mode Using the Remote Control

You can change the projection mode to ip the image over top-to-bottom.
T
c
o change projection back to the original mode, hold down the [A/V
te] button for 5 seconds again.
Mu

Changing the Projection Mode Using the Menus

You can change the projection mode to ip and/or le-to-right using the projector menus.
Turn on the projector and display an image.
a
Press the [Menu] button on the control panel or remote control.
b c
Select the E
xtended menu and press [Enter].
the image over top-to-bottom
Turn on the projector and display an image.
a
Hold down the [A/V Mute] button on the remote control for 5 seconds.
b
e image disappears briey and reappears ipped top-to-bottom.
Page 43
Projection Modes
Select Projection and press [Enter].
d
S
e
f
elect a projection mode and press [Enter].
Press [Menu] or [Esc] to exit the menus.
43
Page 44

Displaying a Test Pattern

You can display a test pattern to adjust the projected image without connecting
puter or video device.
a com
To set menu items that cannot be set while the test pattern is being dis
played or to ne-tune the projected image, project an image from the
connected device.
Turn on the projector.
a
Press the [Menu] button on the control panel or remote control.
b
44
Select the S
c
Select P
d
e f
test pattern is displayed.
e
Adjust the image as necessary.
Press [Esc] to clear the test pattern.
ettings menu and press [Enter].
attern > Test Pattern, and press [Enter].
Page 45

Adjusting the Image Height

If you are projecting from a table or other at sur or low, you can adjust the image height using the projector's adjustable feet.
e larger the angle of tilt, the harder it becomes to focus. Locate the projector so that it only needs to be tilted at a small angle.
face and the image is too high
Extend the rear foot
A
Retract the rear foot
B
If the projected image is unevenly rectangular, you need to adjust the image
ape.
sh
45
Turn on the projector and display an image.
a
To adjust the front foot, pull up on the foot release lever and li t
b
of the projector.
e foot extends from the projector.
Y
ou can adjust the position up to approximately 12 degrees.
Release the lever to lock the foot.
c
If the image is tilted, rotate the rear feet to adjust their height.
d
e front
h
Related Links
g
•
"Image Shape" p.46
Page 46

Image Shape

46
You can project an even, rectangular image by placing the projector directly in
ont of the center of the screen and keeping it level. If you place the projector at
fr an angle to the screen, or tilt it up or down, or o to the side, you may need to correct the image shape.
Aer correction, your image is slightly smaller.
For the best quality images, we recommend adjusting the installation position of the projector to achieve the correct image size and shape.
Related Links
g
•
"Auto V-Keystone" p.46
•
"Correcting the Image Shape with the Horizontal Keystone Slider" p.46
•
"Correcting the Image Shape with the Keystone Buttons" p.47
•
"Correcting the Image Shape with Quick Corner" p.48

Auto V-Keystone

When the projector is moved or tilted, Auto V-Keystone automatically corrects any vertical keystone distortion.
Auto V-Keystone can correct the projected image distortion in these conditions:
•
Projection angle is about 30º up or down
•
e Projection setting is set to Front in the projector's Extended menu
If you do not want to use the Au Keystone to O in the projector's menu.
s Settings > Keystone > H/V-Keystone > Auto V-Keystone
Related Links
g
•
"Pr
ojection Modes" p.42
•
"Projector Setup Settings - Extended Menu" p.137
•
"Projector Feature Settings - Settings Menu" p.134
to V-Keystone function, set Auto V-

Correcting the Image Shape with the Horizontal Keystone Slider

You can use the projector's horizontal keystone slider to correct the shape of an imag placed to the side of the projection area.
You can make eective corrections when the projection angle is about 30º right or le.
a b
g
•
e that is an uneven horizontal rectangle, such as when the projector is
Turn on the projector and display an image.
Adjust the slider until the image is an even rectangle.
Aer correction, your image is slightly smaller.
•
When you use the horizontal keystone slider, set H-Keystone Adjuster to On in the projector's Settings menu.
s Settings > Keystone > H/V-Keystone > H-Keystone
Adjuster
•
You can also correct the shape of the image in the horizontal direction in the projector's Settings menu.
s Settings > Keystone > H/V-Keystone
Related Links
ojector Feature Settings - Settings Menu" p.134
"Pr
Page 47
Image Shape
47

Correcting the Image Shape with the Keystone Buttons

You can use the projector's keystone correction buttons to correct the shape of an imag
You can use keystone buttons to correct images up to 30º right, le, up, or down.
a b
e that is unevenly rectangular.
Turn on the projector and display an image.
Press one of the keystone adjustment buttons on the control panel to di
play the Keystone adjustment screen.
s
Press a keystone button to adjust the image shape.
c
If the projector is installed out of your reach, you can also correct the
ape of the image using the remote control.
sh
s Settings > Keystone > H/V-Keystone
Related Links
g
•
"P
ojector Feature Settings - Settings Menu" p.134
r
Page 48
Image Shape
48

Correcting the Image Shape with Quick Corner

You can use the projector's Qui of an image that is unevenly rectangular.
Turn on the projector and display an image.
a
Press the [Menu] button on the control panel or remote control.
b c
Select the S
ettings menu and press [Enter].
ck Corner setting to correct the shape and size
Select Keystone and press [Enter].
d
S
e
f
elect Quick Corner and press [Enter]. en press [Enter] again if
n
ecessary.
You see the area selection screen.
Use the arrow buttons to select the corner of the image you want to adjust. en p
ess [Enter].
r
Press the arrow buttons to adjust the image shape as necessary.
g
To return to the area selection screen, press [Enter].
Page 49
Image Shape
•
•
If y
ou see this screen, you cannot adjust the shape any further in
the direction indicated by the gray triangle.
To r
eset the Quick Corner corrections, hold down [Esc] for about 2 seconds while the Quick Corner adjustment screen is displayed, and select Reset Quick Corner. Select Switch to H/ V-Keystone to switch the image shape correction method to H/V-Keystone.
Related Links
g
•
ojector Feature Settings - Settings Menu" p.134
"Pr
49
Repeat steps 6 and 7 as needed to adjust any remaining corners.
h
When you are ni
i
e Keystone setting is now set to Quick Corner in the projector's Settings menu. e next time you press the keystone adjustment buttons on the control panel, the area selection screen is displayed.
shed, press [Esc].
Page 50

Resizing the Image with the Zoom Ring

You can resize the image using the projector's zoom ring.
Turn on the projector and display an image.
a
Rotate the zoom ring to enlarge or reduce the image.
b
50
Page 51

Focusing the Image Using the Focus Ring

You can correct the focus using the focus ring.
Turn on the projector and display an image.
a
Rotate the focus ring to adjust the focus.
b
51
Page 52

Selecting an Image Source

52
When multiple image sources are connected to the projector, such as a
puter and DVD player, you can switch from one image source to the other.
com
Available sources vary depending on the projector model.
Make sure the connected image source you want to use is turned on.
a
For video image sources, insert a DVD or other video media and press
b
p
ay.
l
Do one of the following:
c
•
Pr
ess the [Source Search] button on the control panel or remote control
until you see the image from the source you want.
is screen is displayed when no image signal is detected. Check t
he cable connections between the projector and image source.
•
ess the button for the source you want on the remote control. If there
Pr is more than one port for that source, press the button again to cycle through the sources.
•
Press the [Home] button on the control panel or remote control.
en select the source you want to use from the screen displayed.
Page 53
Selecting an Image Source
53
Page 54

Image Aspect Ratio

54
e projector can display images in dierent width-to-height ratios called
pect ratios. Normally, the input signal from your video source determines
as the image's aspect ratio.
If you always want to use a particular aspect ratio for a certain video input source, you can select it using the projector's Signal menu.
Related Links
g
•
"Changing the Image Aspect Ratio" p.54
•
"Available Image Aspect Ratios" p.54
•
"Projected Image Appearance with Each Aspect Mode" p.55
•
"Input Signal Settings - Signal Menu" p.133

Changing the Image Aspect Ratio

You can change the aspect ratio of the displayed image.
Turn on the projector and switch to the image source you want to use.
a
Press the [Menu] button on the control panel or remote control.
b
Select S
c
Select A
d
S
e
Press [Menu] or [Esc] to exit the menus.
f
ignal and press [Enter].
spect and press [Enter].
elect one of the displayed aspect modes and press [Enter].
To display images without black bars, set Res in the projector’s Signal menu according to the computer’s resolution. (EB-994F)
Related Links
g
•
put Signal Settings - Signal Menu" p.133
"In
olution to Wide or Normal

Available Image Aspect Ratios

You can select the following image aspect ratios, depending on the input signal from your image source.
Page 55
Image Aspect Ratio
55
•
e avail
•
Note that using the aspect ratio function of the projector to reduce, enlarge, or split the projected image for commercial purposes or for public viewing may infringe upon the rights of the copyright holder of that image based on copyright law.
Aspect mode Description
Auto
No
rmal
Full Displays images using the full size of the projection
Zoom Displays images using the full width of the projection
Native Displays images as is (aspect ratio and resolution are
able aspect ratio setting varies depending on the input signal.
Automatically sets the aspect ratio according to the input signal and the Resolution setting.
are
a, but does not maintain the aspect ratio.
area and maintains the aspect ratio of the image.
maintained).

Projected Image Appearance with Each Aspect Mode

Black bands and cropped images may project in certain aspect ratios, depending on t
he aspect ratio and resolution of your input signal. See the following table to
conrm the position of black bands and cropped images.
Aspect mode Aspect ratio for input signals
16:10 16:9 4:3
Full
Zoom
Native
e image for Native varies depending on the input signal.
Aspect mode Aspect ratio for input signals
16:10 16:9 4:3
Auto
No
rmal
Page 56

Adjusting Image Quality (Color Mode)

56
e projector oers dierent color modes to provide optimum brightness,
ntrast, and color for a variety of viewing environments and image types.
co You can select the mode designed to match your image and environment, or experiment with the available modes.
Related Links
g
•
"Changing the Color Mode" p.56
•
"Available Color Modes" p.56
•
"Setting Auto Iris" p.56

Changing the Color Mode

You can change the projector's Color Mode to optimize the image for your viewing environment.
Turn on the projector and switch to the image source you want to use.
a
Press the [Menu] button on the control panel or remote control.
b c
Select I
mage and press [Enter].
Select Color Mode and press [Enter].
d
S
e f
g
•
elect one of the displayed color modes and press [Enter].
Press [Menu] or [Esc] to exit the menus.
Related Links
"I
age Quality Settings - Image Menu" p.131
m

Available Color Modes

You can set the projector to use these color modes, depending on the input so
urce you are using:
Color mode Description
Dynamic is is the brightest mode. Best for prioritizing
b
rightness.
Presentation Best for projecting vivid images.
Cinema Best for enjoying content such as movies.
sRGB Best for faithfully reproducing the color of the source
imag
e.
Blackboard Best for projecting images directly on a green
ch
alkboard.

Setting Auto Iris

You can turn on Au brightness of the content.
Turn on the projector and switch to the image source you want to use.
a
to Iris to automatically optimize the image based on the
Page 57
Adjusting Image Quality (Color Mode)
Press the [Menu] button on the control panel or remote control.
b
57
Select the I
c
Select Auto Iris and press [Enter].
d
C
e
hoose one of the following options and press [Enter]:
mage menu and press [Enter].
•
rmal for standard brightness adjustment.
No
•
High Speed to adjust brightness as soon as the scene changes.
Press [Menu] or [Esc] to exit the menus.
f
Page 58

Controlling the Volume with the Volume Buttons

e volume buttons control the projector's internal speaker system.
ou can also control the volume of any external speakers you connected to the
Y projector.
You must adjust the volume separately for each connected input source.
Turn on the projector and start a presentation.
a
To lower or raise the volume, press the [Volume] buttons on the control
b
p
el or remote control as shown.
an
58
A volume gauge appears on the screen.
To set the volume to a sp
c
the projector's Settings menu.
ecic level for an input source, select Volume in
Caution
ot start a presentation at a high volume setting. Sudden loud noises may cause
Do n hearing loss.
Always lower the volume before powering o, so that you can power on and then gradually increase the volume.
Related Links
g
•
"Pr
ojector Feature Settings - Settings Menu" p.134
Page 59

Adjusting Projector Features

llow the instructions in these sections to use your projector's adjustment features.
Fo
Related Links
g
•
"Projecting Two Images Simultaneously (EB-994F)" p.60
•
"HDMI Link Features" p.63
•
"Projecting a PC Free Presentation" p.65
•
"Shutting O the Image and Sound Temporarily" p.70
•
"Shutting O the Sound Temporarily" p.71
•
"Stopping Video Action Temporarily" p.72
•
"Zooming In/Zooming Out of Images (E-Zoom)" p.73
•
"Saving a User's Logo Image" p.75
•
"Saving a User Pattern" p.77
•
"Color Dierence Correction when Projecting from Multiple Projectors" p.78
•
"Projector Security Features" p.81
Page 60

Projecting Two Images Simultaneously (EB-994F)

60
You can use the split screen feature to simultaneously project two images from
dieren
remote control or the projector menus.
is function may not be available depending on the model you are using.
t image sources. You can control the split screen feature using the
Select S
b
S
c
e
Press the [Menu] button.
d
Yo
ettings and press [Enter].
elect Split Screen and press [Enter].
currently selected input source moves to the le of the screen.
u see this screen:
While using the split screen feature, other projector features may not be available and some settings may be automatically applied to both images.
Press the [Menu] button on the control panel or remote control.
a
Page 61
Projecting Two Images Simultaneously (EB-994F)
61
To select an input source for the other image, select the Source setting,
e
press [Enter], select the input source, select Execute, and press [Enter].
•
Y
u can only select input sources that can be combined.
o
•
While using the split screen feature, the Source screen appears when you change the input source from the remote control.
To enlarge one image while reducing the other image, select Screen Size,
g
press [Enter], select a size, and press [Enter]. To exit the menu, press [Menu].
Depending on the video input signals, the images may not appear at
e same size even if you select Equal.
th
To select the audio, select Au
h
option, and press [Enter]. To exit the menu, press [Menu].
Select Auto to hear audio from the largest screen or the le screen.
dio Source, press [Enter], select an audio
To switch images, select S
f
e projected images on the le and right are swapped.
creens and press [Enter].
wap S
To align the projected images, select Alig
i
setting, and press [Enter] again. To exit the menu, press [Menu].
To exit the split screen feature, press [Esc].
j
Related Links
g
•
"Un
supported Input Source Combinations for Split Screen Projection" p.62
•
"Split Screen Projection Restrictions" p.62
, press [Enter], select the
n
Page 62
Projecting Two Images Simultaneously (EB-994F)
62

Unsupported Input Source Combinations for Split Screen Projection

ese input source combinations cannot be projected on a split screen.
•
C
omputer1 and Computer2
•
Computer1/Computer2 and Video
•
HDMI1 and HDMI2
•
HDMI1/HDMI2 and LAN/Miracast1/Miracast2
•
USB and LAN
•
LAN and Miracast1/Miracast2
•
Miracast1 and Miracast2
•
Combinations that include AirPlay

Split Screen Projection Restrictions

Operating restrictions
right. Adjustments that aect the entire projected image such as Color Mode and Color Temp. are applied for both le and right images.
•
Even if you make adjustments for Noise Reduction and Deinterlacing in the projector's Image menu, Noise Reduction is set to 0 and Deinterlacing is set to O for the image on the right.
•
Even if you set Display Background to Logo in the projector's Extended menu, the blue screen appears when no image signal is being input.
Related Links
g
•
"Image Aspect Ratio" p.54
•
"Adjusting Image Quality (Color Mode)" p.56
•
"Projector Feature Settings - Settings Menu" p.134
•
"Projector Setup Settings - Extended Menu" p.137
•
"Image Quality Settings - Image Menu" p.131
•
"Zooming In/Zooming Out of Images (E-Zoom)" p.73
•
"Setting Auto Iris" p.56
llowing operations cannot be performed during split screen projection.
e fo
•
Setting the projector's menu
•
E-Zoom
•
Switching the aspect mode
•
Operations using the [Customize] button on the remote control
•
Auto Iris
Image restrictions
•
If you make adjustments such as Brightness, Contrast, Color Saturation, Tint, and Sharpness in the projector's Image menu, you can apply them only to the image on the le. Default adjustments are applied to the image on the
Page 63

HDMI Link Features

63
When an audio/video source that meets the HDMI CEC standard is connected
he projector's HDMI port, you can use the projector's remote control to
to t control certain features of the linked device.
Example: Projector, audio/video system, and multi-media players connection
•
•
Related Links
g
•
"Op
erating the Connected Devices Using the HDMI Link Features" p.63
ng as the connected device meets the HDMI CEC standard,
As lo you can use the HDMI Link features even if the audio/video system in-between does not meet the HDMI CEC standard.
Up to 3 multi-media players that meet the HDMI CEC standard can be connected at the same time.
Operating the Connected Devices Using the HDMI Link
•
Wh
en you use the HDMI Link features, set the HDMI Link setting to
On in the projector's Settings menu.
s Settings > HDMI Link > HDMI Link
•
You must also congure the connected device. See the documentation supplied with the device for more information.
•
Some connected devices or functions of those devices may not operate properly even if they meet the HDMI CEC standard. See the documentation supplied with the device for more information.
•
Use a cable that supports the HDMI standard.
Press the [Menu] button on the control panel or remote control.
a
Select S
b
S
c
On t
Select Device Connections and press [Enter].
d
ettings and press [Enter].
elect HDMI Link and press [Enter].
he screen displayed, make sure that HDMI Link is set to On.
Features
You can select the connected device that is available for HDMI Link and control
h
e selected device using the HDMI Link features.
t
Page 64
HDMI Link Features
64
Select the device you want to control and project the image from, and
e
press [Enter].
•
•
Press [Esc] to select the HDMI Link options as necessary.
f
•
A
dio Out Device: Select the device for audio output.
u
•
Po
wer On Link lets you control what happens when you turn on the
projector or linked device.
ed device is indicated by a blue mark.
A link
e device name is le blank if it cannot be acquired.
•
S
lect Projector to output audio from the projector itself.
e
•
Select AV System to output audio from an AV amplier that is connected using an HDMI cable.
•
lect PJ -> Device or Bidirectional to turn the linked device
Se on when the projector is turned on.
•
Select Device -> PJ or Bidirectional to turn the projector on when the linked device is turned on.
You can use the projector's remote control to control the linked device, such as p
ayback, stop, fast forward, and rewind.
l
•
o
wer O Link lets you control whether linked devices are turned o
P
when the projector is turned o.
•
•
Press [Esc] to exit the menus.
g
Po
wer O Link only works when the connected device's CEC
power link function is enabled.
Note that depending on the status of the connected device (for example, if it is recording), the device may not be turned o.
Page 65

Projecting a PC Free Presentation

65
You can use your projector's PC Free feature whenever you connect a USB
ice that contains compatible presentation les. is lets you quickly and
dev easily display a presentation and control it using the projector's remote control.
Related Links
g
•
pported PC Free File Types" p.65
"Su
•
"Precautions on PC Free Projection" p.65
•
"Starting a PC Free Slide Show" p.66
•
"Starting a PC Free Movie Presentation" p.67
•
"PC Free Display Options" p.68

Supported PC Free File Types

You can project these types of les usin
•
o
r best results, place your les on media that is formatted in
F FAT16/32.
•
If you have trouble projecting from media formatted for non-Windows le systems, try formatting the media for Windows instead.
g the projector's PC Free feature.
File contents File type
(exten
Image .jpg Make sure the le is n
.bmp Make sure the le is not:
.gif Make sure the le is n
.png Make sure the le is not:
Movie .avi
(Mo
tion
JPEG)
Details
sion)
•
CMYK format
•
Progressive format
•
Highly compressed
•
Above 8192 × 8192 resolution
•
Above 1280 × 800 resolution
•
Above 1280 × 800 resolution
•
Animated
•
Interlaced
•
Above 1920 × 1200 resolution
•
Interlaced
Supports only AVI 1.0.
Make sure the le is not:
•
Saved with an audio codec other than PCM or ADPCM
•
Above 1280 × 720 resolution
•
Larger than 2 GB
ot:
ot:

Precautions on PC Free Projection

Note the following precautions when using PC Free features.
•
You cannot use a USB key for PC Free features.
•
Do not disconnect the USB storage device while it is being accessed; otherwise, PC Free may not operate correctly.
Page 66
Projecting a PC Free Presentation
•
u may not be able to use the security features on certain USB storage
Yo devices with PC Free features.
•
When connecting a USB device that includes an AC adapter, connect the AC adapter to an electrical outlet when you use the device with your projector.
•
Some commercially available USB card readers may not be compatible with the projector.
•
e projector can recognize up to 5 cards inserted into the connected card reader at one time.
•
You cannot correct keystone distortion while projecting in PC Free, so correct the image shape before you begin your presentation.
•
You can use the following functions while projecting in PC Free.
•
Freeze
•
A/V Mute
•
E-Zoom
Related Links
g
•
"Stopping Video Action Temporarily" p.72
•
"Shutting O the Image and Sound Temporarily" p.70
•
"Zooming In/Zooming Out of Images (E-Zoom)" p.73

Starting a PC Free Slide Show

Aer connecting a USB device to the projector, you can switch to the USB input source and start your slide show.
You can change the PC Free operation options or add special eec highlighting Option at the bottom of the screen and pressing [Enter].
Press the [USB] button on the remote control.
a
e PC Fr
ee le list screen is displayed.
ts by
•
If t
he Select Drive screen is displayed, press the arrow buttons to
select the drive and press [Enter].
•
To display images on the other USB drive, highlight Select Drive at the top of the le list screen and press [Enter].
Do one of the following to locate your les:
b
•
If y
ou need to display les inside a subfolder on your device, press the
arrow buttons to highlight the folder and press [Enter].
•
To move back up a folder level on your device, highlight Back to Top and press [Enter].
Do one of the following:
c
•
To di
splay an individual image, press the arrow buttons to highlight the image and press [Enter]. (Press the [Esc] button to return to the le list screen.)
•
To display a slide show of all the images in a folder, press the arrow buttons to highlight the Slideshow option at the bottom of the screen and press [Enter].
66
Page 67
Projecting a PC Free Presentation
•
Yo
u can change the image switching time by highlighting Option
at the bottom of the screen and pressing [Enter].
•
If any le names are longer than the display area or include unsupported symbols, the le names may be shortened or changed only on the screen display.
Related Links
g
•
"PC Free Display Options" p.68
•
"Connecting to a USB Device" p.27

Starting a PC Free Movie Presentation

67
While projecting, use the following commands to control the display:
d
•
To r
otate a displayed image, press the up or down arrow button.
•
To move to the next or previous image, press the le or right arrow button.
Aer connecting a USB device to the projector, you can switch to the USB input source and start your movie.
You can change the PC Free operation options by highlighting Op the bottom of the screen and pressing [Enter].
Press the [USB] button on the remote control.
a
e PC Fr
ee le list screen is displayed.
tion at
To stop the display, follow the on-screen instructions or press the [Esc]
e
bu
tton.
You return to the le list screen.
Turn o the USB device, if necessary, and then disconnect the device from
f
t
he projector.
•
If the Select Drive screen is displayed, press the arrow buttons to select the drive and press [Enter].
•
To display movie les on the other USB drive, highlight Select Drive at the top of the le list screen and press [Enter].
Page 68
Projecting a PC Free Presentation
Do one of the following to locate your les:
b
•
If y
ou need to display les inside a subfolder on your device, press the
arrow buttons to highlight the folder and press [Enter].
•
To move back up a folder level on your device, highlight Back to Top and press [Enter].
To play back a movie, press the arrow buttons to highlight the le and
c
p
ress [Enter].
•
If an
y le names are longer than the display area or include unsupported symbols, the le names may be shortened or changed only on the screen display.
•
If you want to play back all the movies in a folder in sequence, select the Slideshow option at the bottom of the screen.
68
Setting Options Description
Display Order Name Order Displays les in name order
To stop movie playback, press the [Esc] button, highlight Exi
d
[Enter]. You return to the le list screen.
Turn o the USB device, if necessary, and then disconnect the device from
e
t
he projector.
Related Links
g
•
"PC Free Display Options" p.68
•
"Connecting to a USB Device" p.27
t, and press

PC Free Display Options

You can select these display options when using PC Free. To access this screen,
light Option at the bottom of the PC Free le list screen and press [Enter].
high
Date Order Displays les in dat
Sort Order In Ascending Sorts les in rs
In Descending Sorts les in las
Continuous Play On Displays a slide show continuously
O Displays a slide show once
Screen Switching Tim
e
Eect No No eect
No Does not display the next le
automatically
1 Second to 60 Seconds Displays les fo
switches to the next le automatically; high resolution images may switch at a slightly slower rate
W
ipe Transitions between images using a
wi
pe eect
Dissolve Transitions between images using a
dis
solve eect
e order
t-to-last order
t-to-rst order
r the selected time and
Page 69
Projecting a PC Free Presentation
Setting Options Description
Random Transitions between images using a
random variety of eects
69
Page 70
Shutting O the Image and Sound Temporarily
70
You can temporarily turn o redirect your audience's attention during a presentation. Any sound or video action continues to run, however, so you cannot resume projection at the point that you stopped it.
If you want to display an image such as a company logo or picture when th
e [A/V Mute] button is pressed, you can select the screen displayed in
the A/V Mute setting in the projector's Extended menu.
s Extended > Display > A/V Mute
Press the [A/V Mute] button on the remote control to temporarily stop
a
pr
ojection and mute any sound.
the projected image and sound if you want to
•
Yo
u can also stop projection using the A/V Mute slide lever on the
projector.
•
e projector's power automatically turns o 30 minutes aer A/V Mute is enabled. You can disable this feature.
s ECO > A/V Mute Timer
•
e lamp is still operating during A/V Mute, so the lamp hours continue to accumulate.
Related Links
g
•
"Pr
ojector Setup Settings - Extended Menu" p.137
•
"Projector Setup Settings - ECO Menu" p.151
To turn the image and sound back on, press [A/V Mute] again.
b
Page 71
Shutting O the Sound Temporarily
You can temporarily mute the audio.
Press the [Mute] button on the remote control to mute the audio.
a
To unmute, press [Mute] again.
b
71
Page 72

Stopping Video Action Temporarily

You can temporarily stop the action in a video or computer presentation and
ep the current image on the screen. Any sound or video action continues to
ke run, however, so you cannot resume projection at the point that you stopped it.
Press the [Freeze] button on the remote control to stop the video action.
a
To restart the video action in progress, press [Freeze] again.
b
72
Page 73

Zooming In/Zooming Out of Images (E-Zoom)

You can zoom in or zoom out of the projected image using the [E-Zoom] button
he remote control.
on t
e size and the position of the zoomed image remain even aer switching the input source or turning o the projector.
Related Links
g
•
"Zo
oming Into Images" p.73
•
"Zooming Out of Images" p.73

Zooming Into Images

Press the [E-Zoom] + button on the remote control.
a
•
To pan around the zoomed image, use the arrow buttons.
•
To zoom out of the image, press the [E-Zoom] – button.
•
To return to the original image size, press the [Default] button.
When projecting images from an Epson document camera, you can enl
arge the image from one to eight times its size in 57 incremental steps
using the [E-Zoom] + button on the document camera.
When the zoom ratio display disappears, the size and the position of the zoomed image will be saved. Press the [E-Zoom] +/- buttons to make adjustment again.

Zooming Out of Images

Press the [E-Zoom] - button on the remote control.
a
73
e projected image is enlarged focusing around the center of the image. Y
ou can enlarge the image between one to four times in 25 incremental
steps.
Use the following buttons on the remote control to adjust the zoomed
b
imag
e while the zoom ratio is displayed:
•
Press the [E-Zoom] + button repeatedly to zoom into the image.
e projected image is reduced. You can reduce the image between 100% t
o 50% in incremental steps.
Use the following buttons on the remote control to adjust the zoomed-out
b
imag
e while the zoom ratio is displayed:
•
Press the [E-Zoom] - button repeatedly to zoom out of the projected image.
Page 74
Zooming In/Zooming Out of Images (E-Zoom)
74
•
•
•
When the zoom ratio display disappears, the size and the position of the
med image will be saved. Press the [E-Zoom] +/- buttons to make
zoo adjustment again.
ove the zoomed-out image in the projection area, use the arrow
To m buttons.
To zoom into the image, press the [E-Zoom] + button.
To return to the original image size, press the [Default] button.
When projecting image from an Epson document camera, you can also re
duce the image using the [E-Zoom] - button on the document camera.
Page 75

Saving a User's Logo Image

75
You can save an image on the projector and display it whenever the projector
ns on. You can also display the image when the projector is not receiving an
tur input signal. is image is called the user's logo screen.
You can select a photo, graphic, or company logo as the user's logo, which is useful in identifying the projector's owner to help deter the. You can prevent changes to the user's logo by setting up password protection.
•
If t
he User's Logo Protection setting in the Password Protection
setting menu is set to On, set to O before saving the user's logo.
•
When you copy the menu settings from one projector to another using the batch setup feature, user's logo is also copied. Do not register the information that you do not want to share between multiple projectors as a user's logo.
•
You cannot save content that is protected by HDCP.
•
is function is unavailable if the input source is AirPlay, LAN, or Miracast.
Display the image you want to project as the user's logo.
a
Press the [Menu] button, select the E
b
ended menu, and press [Enter].
xt
Select User's Logo > Start Setting and press [Enter].
c
You see a prompt asking if you want to use the displayed image as a user's logo.
Adjustments such as Keystone, E-Zoom, or Aspect are temporarily
celed when you select User's Logo.
can
Select Yes and press [Enter].
d
C
e
f g h i
heck the displayed image, and then select Yes
e user's logo is overwritten and a completion message is displayed.
Press [Esc] to exit the message screen.
Select the E
elect Display and press [Enter].
S
S
elect when you want to display the User's Logo screen:
•
To di Background and set it to Logo.
s Extended > Display > Display Background
•
To display it whenever you turn the projector on, select Startup Screen and set it to On.
s Extended > Display > Startup Screen
•
To display it whenever you press the [A/V Mute] button, select A/V Mute and set it to Logo.
s Extended > Display > A/V Mute
xtended menu and press [Enter].
splay it whenever there is no input signal, select Display
to save it as the user's logo.
Page 76
Saving a User's Logo Image
76
To prevent anyone from changing the User's Logo settings without rs a password, set the User's Logo Protection setting to On in the Password Protection setting menu and set the password.
Related Links
g
•
"Shutting O the Image and Sound Temporarily" p.70
•
"Selecting Password Security Types" p.82
t entering
Page 77

Saving a User Pattern

77
ere are four types of patterns pre-registered in the projector, such as ruled
es and grid patterns. You can project these patterns to aid in presentations
lin using the Pattern Display settings.
You can also save the image that is currently being projected as a User Pattern.
Once you save a User Pattern, the pattern cannot be returned to the fact
ory default.
Project the image you want to save as the User Pattern, and then press the
a
[Menu] button on the control panel or remote control.
Select the Settings menu and press [Enter].
b
•
Ad temporarily cancelled when you select User Pattern.
•
You cannot save digital images protected by HDCP technology as a User Pattern.
Select Yes and press [Enter].
d
P
e
f
ress [Enter].
Yo
u see a prompt asking if you want to save the image as the User Pattern.
Select Yes and press [Enter]. Y
ou see a completion message.
justments such as Keystone, E-Zoom, or Aspect are
c
Select P Y
Pattern.
attern > User Pattern and press [Enter].
ou see a prompt asking if you want to use the displayed image as a User
Page 78
Color Dierence Correction when Projecting from Multiple Projectors
78
When lining up multiple projectors to project images, you can correct the
ightness and color tone of each projector's image so that the images match
br closely.
You can set a unique projector ID for each projector to operate them individually using a remote control, and then correct the brightness and color for each projector.
•
In s
ome cases the brightness and color tone may not match completely
even aer correction.
•
If brightness and color tone dierences become more noticeable over time, repeat the adjustments.
Related Links
g
•
"Set
ting the Projector ID" p.78
•
"Selecting the Projector You want to Operate" p.78
•
"Matching Multiple-Projector Display Quality" p.79

Setting the Projector ID

To control multiple projectors from a remote control, give each projector a unique ID
.
U
c
d e
se the arrow buttons to select the identication number you want to use
for the projector. en press [Enter].
Press [Menu] or [Esc] to exit the menus.
Repeat these steps for all the other projectors you want to operate from o
e remote control.
n

Selecting the Projector You want to Operate

Press the [Menu] button, select the Ext
a
Select Projector ID and press [Enter].
b
ended menu, and press [Enter].
Aer setting the projector's ID, select the ID for the projector you want to o
perate using the remote control.
Page 79
Color Dierence Correction when Projecting from Multiple Projectors
79
Aim the remote control at the target projector and press the [ID] button.
a
urrent Projector ID is displayed on the projected screen. It
e c di
sappears aer about 3 seconds.
While holding the [ID] button, press the number button that matches the
b
ID of t
he projector you want to operate.
•
Wh
en you select [0/All] on the remote control, you can operate
all projectors regardless the Projector ID setting.
•
When you set the Projector ID setting to O, you can operate the projector using the remote control whichever ID you select on the remote control.
•
e projector ID setting is saved in the remote control. Even if the remote control batteries are removed to replace them and so on, the saved ID setting is retained. However, if the batteries are le out of the remote control for an extended period, the ID returns to its default setting ( 0/All).
•
When you use multiple remote controls at the same time, you may not be able to operate projectors as intended due to infrared interference.

Matching Multiple-Projector Display Quality

You can match the display quality of multiple projectors that will project next to
ac
h other.
e
Turn on all the projectors on which you want to match the display quality.
a
Set ID numbers on each projector.
b
e projector you want to operate is selected.
Make sure all the projectors are using the same Color Mode setting.
c
Select the remote control ID to match the r
d
t projector.
s
Page 80
Color Dierence Correction when Projecting from Multiple Projectors
Press the [Menu] button, select the Image menu, and press [Enter].
e
Select settings as necessary.
f
80
Select the remote control ID to match the next projector, then repeat
g
Im
age menu adjustments as necessary to match the projectors' displays.
Page 81

Projector Security Features

81
You can secure your projector to deter th setting up the following security features:
•
Password security to prevent people who do not know the password from using the projector, and prevent changes to the startup screen and other settings.
is acts as an anti-the function as the projector cannot be used even if it is stolen, and you can limit who can use the projector.
•
Button lock security to block operation of the projector using the buttons on the control panel.
is is useful at events or shows when you want to deactivate all buttons during projection or at schools when you want to limit button operation.
•
Security cabling to physically secure the projector in place.
Related Links
g
•
"Password Security Types" p.81
•
"Locking the Projector's Buttons" p.83
•
"Installing a Security Cable" p.84
e or prevent unintended use by

Password Security Types

•
g
•
•
•
dule Protection password prevents anyone from changing the
Sche
projector's schedule settings.
Related Links
"Setting a Password" p.81 "Selecting Password Security Types" p.82 "Entering a Password to Use the Projector" p.83
Setting a Password
o
r the rst time you use the projector, you must set a password.
F
No password is set by default. You must set a password.
Hold down the [Freeze] button on the remote control for about 5 seconds.
a
You can set up the following types of password security using one shared password:
•
Power On Protection password prevents anyone from using the projector without rst entering a password. When plugging the power cord and turning on the projector, you must enter the correct password. is also applies to Direct Power On and Auto Power On.
•
User's Logo Protection password prevents anyone from changing the custom screen displayed when the projector turns on, when no signal is being input, or when you use the A/V Mute feature. e custom screen discourages the by identifying the projector's owner.
•
Network Protection password prevents anyone from changing the projector's Network settings.
You see the Password Protection setting menu.
•
If no password has been set, a screen prompting you to set a password is displayed before you can view the Password Protection setting menu.
•
If Password Protection is already activated, you must enter the correct password to display the Password Protection setting menu.
Page 82
Projector Security Features
82
Select Password and press [Enter].
b
You see the prompt Change the password?.
Select Yes and press [Enter].
c
If you select No again.
Use the numeric buttons on the remote control to set a four-digit
d
p
sword.
as
, the Password Protection setting menu is displayed
Enter the password again.
e
f g
Selecting Password Security Types
Aer
security types you want to use.
u see the message Password accepted. If you enter the password
Yo incorrectly, a message is displayed prompting you to re-enter the password.
Press [Esc] to return to the menu.
Make a note of the password and keep it in a safe place.
setting a password, you see this menu, allowing you to select the password
e password displays as **** as it is entered. A conrmation prompt is di
splayed when you enter the fourth digit.
If you do not see this menu, hold down the [Freeze] button on the remote
trol for 5 seconds until the menu appears.
con
•
To prevent unauthorized use of the projector, select On as the Power On Protection setting.
•
To prevent changes to the User's Logo screen or related display settings, select On as the User's Logo Protection setting.
•
To prevent changes to network settings, select On as the Network Protection setting.
Page 83
Projector Security Features
83
•
You can attach the password protect sticker to the projector as an additional the deterrent.
revent changes to the projector's schedule settings, select On as the
To p Schedule Protection setting.
Be sure to keep the remote control in a safe place; if you lose it, you will no
t be able to enter the password.
Entering a Password to Use the Projector
en the password screen is displayed, enter the correct password.
Wh
e password screen closes.
f the password is incorrect, you see a message and a prompt to try again.
I
b
Ent
er the correct password to proceed.
Attention
•
•
•
correct password is entered three times in succession, the message
If an in e projector's operation will be locked. is displayed for approximately 5 minutes, and the projector switches to standby mode. If this happens, disconnect the power plug from the electrical outlet, reinsert it, and turn the projector back on. e projector displays the password entry screen again so that you can enter the correct password.
If you have forgotten the password, make a note of the " Request Code: xxxxx" number that appears on the screen and contact Epson for help.
If you continue to repeat the above operation and input the wrong password 30 times in succession, the message e projector's operation will be locked. Contact Epson as described in your documentation. is displayed and the projector does not accept any more password entries. Contact Epson for help.
Use the numeric buttons on the remote control to enter the password.
a

Locking the Projector's Buttons

You can lock the buttons on the control panel to prevent anyone from using the
ojector. e projector can still be operated using the remote control.
pr
Page 84
Projector Security Features
84
Press the [Menu] button on the control panel or remote control.
a
Select the S
b
Select Lock Setting > Control Panel Lock, and press [Enter].
c
Select one of these lock types and press [Enter]:
d
•
To lo
•
To lock all buttons except the power button, select Partial Lock.
You see a conrmation prompt.
Select Yes and press [Enter].
e
e
Control Panel Lock setting takes eect.
ettings menu and press [Enter].
ck all of the projector's buttons, select Full Lock.
Unlocking the Projector's Buttons
he projector's buttons have been locked, do one of the following to unlock
If t them.
•
Hold down the [Enter] button on the control panel for 7 seconds. A message is displayed and the lock is released.
•
Select O as the Control Panel Lock setting in the projector's Settings menu.
s Settings > Lock Setting > Control Panel Lock
Related Links
g
•
"Projector Feature Settings - Settings Menu" p.134

Installing a Security Cable

You can install the security cable on the projector to deter the.
•
Use the security slot on the projector to attach a Kensington Microsaver Security system.
For more details on the Microsaver Security System, visit the
sington Web site.
Ken
https://www.kensington.com/
•
Us
e the security cable attachment point on the projector to attach a wire cable
and secure it to a room xture or heavy furniture.
Related Links
g
•
"Unlocking the Projector's Buttons" p.84
Page 85
Projector Security Features
85
You can use a commercially available th the documentation supplied with the wire lock for locking instructions.
e-prevention wire lock. See
Page 86

Using the Projector on a Network

llow the instructions in these sections to set up your projector for use on a network.
Fo
Related Links
g
•
"Wired Network Projection" p.87
•
"Wireless Network Projection" p.90
•
"Wireless Network Projection from a Mobile Device (Miracast)" p.99
•
"Using AirPlay" p.103
•
"Secure HTTP" p.107
Page 87

Wired Network Projection

87
is feature is available only for models that support wired LAN projection.
ou can send images to your projector through a wired network. To do this,
Y connect the projector to your network, and then set up your projector and computer for network projection.
Aer connecting and setting up the projector as described here, download and install Epson iProjection (Windows/Mac) from the following Web site.
epson.sn/
Epson iProjection soware sets up your computer for network projection. It also allows you to hold interactive meetings by projecting user's computer screens over a network. See the Epson iProjection Operation Guide (Windows/Mac) for instructions.
•
If t
he Web Control Password has not been set, a screen prompting you to set a password is displayed when you save the network settings. Follow the on-screen instructions to set the password.
•
When using the Moderator function in Epson iProjection to display the projector screen on a computer, you cannot capture the screen on that computer.
Related Links
g
•
"Co
nnecting to a Wired Network" p.87
•
"Selecting Wired Network Settings" p.87
Connect the other end of the cable to the projector's LAN port.
b

Selecting Wired Network Settings

Before you can project from computers on your network, you need to select net
work settings on the projector.
Make sure you already connected the projector to your wired network using the LAN port.

Connecting to a Wired Network

To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10B
ase-T network cable. To ensure proper data transmission, use a Category
5 shielded cable or better.
Connect one end of the network cable to your network hub, switch, or
a
ro
uter.
Page 88
Wired Network Projection
88
Press the [Menu] button, select the Network menu, and press [Enter].
a
Select Network Conguration and press [Enter].
b
S
c
elect the Basi
c menu and press [Enter].
Select the basic options as necessary.
d
•
Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the projector over the network.
•
PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the PJLink protocol for projector control.
•
Remote Password lets you enter a password between 8 and 32 alphanumeric characters long for accessing the projector using Basic Control. (e user name is EPSONREMOTE. No password is set by default.)
•
Web Control Password lets you enter a password between 8 and 32 alphanumeric characters long for accessing the projector over the Web. (e user name is EPSONWEB. No password is set by default.)
•
Monitor Password lets you enter a password up to 16 alphanumeric characters long when using Epson Projector Management Ver.5.30 or earlier, or when monitoring the projector in combination with a switcher or controller. (No password is set by default.)
•
Moderator Password lets you enter a four-digit number password for accessing the projector as a moderator using Epson iProjection. (No password is set by default.)
•
Projector Keyword lets you turn on a security password to prevent access to the projector by anyone not in the room with it. You must enter a displayed, randomized keyword from a computer using Epson iProjection to access the projector and share the current screen.
•
Display Keyword lets you select whether to display a projector keyword on the projected image when accessing the projector using Epson iProjection.
•
Display LAN Info. lets you set the display format for the projector's network information.
Use the displayed keyboard to enter numbers and characters. Press the arrow buttons on the remote control to highlight characters and press [Enter] to select them.
Page 89
Wired Network Projection
89
Select the Wired LAN menu and press [Enter].
e
Assign the IP settings for your network as necessary.
f
•
I
our network assigns addresses automatically, select IP Settings to set
f y
the DHCP setting to On.
•
If you must set addresses manually, select IP Settings to set the DHCP setting to O, and then enter the projector's IP Address, Subnet Mask, and Gateway Address as necessary.
When you ni
h
screen instructions to save your settings and exit the menus.
Press the [Source Search] button on the control panel or remote control
i
un
il you see the LAN standby screen.
t
e wired network settings complete when you see the correct IP address on the LAN standby screen.
h selecting settings, select Complete and follow the on-
s
If no Web Control Password has been set, a screen prompting
ou to set a password is displayed before you can save the settings.
y Follow the on-screen instructions to set the password.
To highlight the numbers you want from the displayed keyboard, pr
ess the arrow buttons on the remote control. To select a
highlighted number, press [Enter].
To prevent the IP address from being displayed on the LAN standby
g
scr
een and Home screen, set the IP Address Display setting to O.
Page 90

Wireless Network Projection

You can send images to your projector through a wireless network.
u can connect the projector to your wireless network by conguring the
Yo connection manually using the projector's Network menus.
When you have nished making the projector's network settings, download and install the necessary network soware. Use the following soware and documentation to set up and control wireless projection.
•
Epson iProjection (Windows/Mac) soware allows you to hold interactive meetings by projecting the computer screens of users over a network. See the Epson iProjection Operation Guide (Windows/Mac) for instructions.
•
Epson iProjection (iOS/Android) app allows you to project from iOS or Android devices.
You can download Epson iProjection from the App Store or Google Play. Any fees incurred when communicating with the App Store or Google Play are the responsibility of the customer.
•
Epson iProjection (Chromebook) app allows you to project from Chromebook devices.
You can download Epson iProjection from the Chrome Web Store. Any fees incurred when communicating with the Chrome Web Store are the responsibility of the customer.
•
et
ting Up Wireless Network Security when Simple AP Mode is Set to On"
"S
p.94
•
"Setting Up Wireless Network Security when Simple AP Mode is Set to O"
p.94
•
"Using a QR Code to Connect a Mobile Device" p.97
•
"Using a USB Key to Connect a Windows Computer" p.98

Safety Instructions for Built-in Wireless LAN Module

is projector contains built-in wireless LAN modules. Be sure to follow these im
portant guidelines when using a wireless LAN connection.
Warning
•
•
ot use the device near medical equipment such as pace makers. Furthermore,
Do n when using the device, make sure there is no medical equipment such as pace makers, in the surrounding area. Electromagnetic interference may cause medical equipment to malfunction.
Electromagnetic interference may cause automatically controlled equipment to malfunction which could cause an accident. Do not use the device near automatically controlled equipment such as automatic doors or re alarms.
90
•
f t
he Web Control Password has not been set, a screen prompting
I you to set a password is displayed when you save the network settings. Follow the on-screen instructions to set the password.
•
When using the Moderator function in Epson iProjection to display the projector screen on a computer, you cannot capture the screen on that computer.
Related Links
g
•
"Safet
y Instructions for Built-in Wireless LAN Module" p.90
•
"Connection Methods for Wireless Network Projection" p.90
•
"Selecting Wireless Network Settings Manually" p.91
•
"Selecting Wireless Network Settings in Windows" p.93
•
"Selecting Wireless Network Settings in Mac" p.94
Caution
e sure you keep a distance of at least 20 cm between the device and your body.
Mak Otherwise, it could cause you to feel unwell.

Connection Methods for Wireless Network Projection

Choose a connection method for connecting your computer and projector over
work based on your network environment.
a net
•
Turning on simple AP mode lets you directly connect to smartphones, tablets, or computers using your projector as an access point. When you use this
Page 91
Wireless Network Projection
91
method, connect the projector using Qui iProjection soware or use Miracast.
ck Connection Mode of the Epson

Selecting Wireless Network Settings Manually

Before you can project from your wireless network, you need to select network set
tings for the projector.
Press the [Menu] button, select the Network menu, and press [Enter].
a
Select On as th
b
Select Network Conguration and press [Enter].
c
S
d
elect the Basi
e Wireless LAN Power setting.
c menu and press [Enter].
You can use the wireless LAN even when the projector is o. To do so, follow the steps below to congure the wireless LAN, and then set A/V Output to Always On in A/V Settings from the Extended menu.
s Extended > A/V Settings > A/V Output
Page 92
Wireless Network Projection
92
Select the basic options as necessary.
e
•
Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the projector over the network.
•
PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the PJLink protocol for projector control. (EB-994F)
•
Remote Password lets you enter a password between 8 and 32 alphanumeric characters long for accessing the projector using Basic Control. (e user name is EPSONREMOTE. No password is set by default.)
•
Web Control Password lets you enter a password between 8 and 32 alphanumeric characters long for accessing the projector over the Web. (e user name is EPSONWEB. No password is set by default.)
•
Monitor Password lets you enter a password up to 16 alphanumeric characters long when using Epson Projector Management Ver.5.30 or earlier, or when monitoring the projector in combination with a switcher or controller. (No password is set by default.)
•
Moderator Password lets you enter a four-digit number password for accessing the projector as a moderator using Epson iProjection. (No password is set by default.)
•
Projector Keyword lets you turn on a security password to prevent access to the projector by anyone not in the room with it. You must enter a displayed, randomized keyword from a computer using Epson iProjection to access the projector and share the current screen.
•
Display Keyword lets you select whether to display a projector keyword on the projected image when accessing the projector using Epson iProjection.
•
Display LAN Info. lets you set the display format for the projector's network information.
Use the displayed keyboard to enter numbers and characters. Press th
e arrow buttons on the remote control to highlight characters and
press [Enter] to select them.
Select the Wireless LAN menu and press [Enter].
f
Select the connection method.
g
•
To connect in simple AP mode, set the Simple AP setting to On and go to step 11.
You must set the Pass for the rst time. Follow the on-screen instructions to set the passphrase.
•
If y
ou are not using simple AP mode and want to connect using a
wireless LAN access point, go to the next step.
phrase when using simple AP mode
Page 93
Wireless Network Projection
Select Search Access Point to select the access point you want to connect
h
to.
93
If you need to assign the SSID manually, select SSID SSID.
Assign the IP settings for your network as necessary.
i
•
If y
our network assigns addresses automatically, select IP Settings to set
the DHCP setting to On.
•
If you must set addresses manually, select IP Settings to set the DHCP setting to O, and then enter the projector's IP Address, Subnet Mask, and Gateway Address as necessary.
To prevent the SSID or IP address from being displayed on the LAN
j
st
andby screen and Home screen, set the SSID Display setting or the IP
Address Display setting to O.
When you nis
k
screen instructions to save your settings and exit the menus.
h selecting settings, select Complete and follow the on-
If no Web Control Password has been set, a screen prompting you to set a password is displayed before you can save the settings. Follow the on-screen instructions to set the password.
to enter the
When you have nis select the wireless network on your computer. en start the network soware to send images to your projector through a wireless network.
hed making wireless settings for your projector, you need to

Selecting Wireless Network Settings in Windows

Before connecting to the projector, select the correct wireless network on your computer.
To access your wireless utility so
a
Windows taskbar.
ware, click the network icon on the
Press the [Wireless] button on the remote control until you see the LAN
l
standby screen. e wireless network settings are complete when you see the correct IP
address on the LAN standby screen.
Select the network name (SSID) of the network the projector is connecting
b
t
.
o
Click Connect.
c
Page 94
Wireless Network Projection

Selecting Wireless Network Settings in Mac

Before connecting to the projector, select the correct wireless network in Mac.
Click the Wi-Fi icon on the menu bar at the top of the screen.
a
Make sure Wi-Fi is turned on and select the network name (SSID) of the
b
n
etwork the projector is connecting to.

Setting Up Wireless Network Security when Simple AP Mode is Set to On

You can set up security for your projector to use on a wireless network with simp
le AP mode. You can use WPA2-PSK security.
Contact your network administrator for guidance on entering the correct info
rmation.
c
d e
S
elect the Wireless LAN menu and press [Enter].
Select S
S c
imple AP and press [Enter].
elect Passphrase, press [Enter], and enter a passphrase from 8 to 63 haracters long. To enter more than 32 characters, use your Web browser.
94
Press the [Menu] button, select the N
a
Select Network Conguration and press [Enter].
b
twork menu, and press [Enter].
e
When you have nis
f
on-screen instructions to save your settings and exit the menus.
hed making settings, select Complete and follow the
Setting Up Wireless Network Security when Simple AP Mode is Set to O
You can set up security for your projector to use on a wireless network. Set up one of the following security options to match the settings used on your network:
•
WPA3-PSK security
•
WPA2/WPA3-PSK security
Page 95
Wireless Network Projection
95
•
WPA3-EAP s
•
WPA2/WPA3-EAP security
When setting WPA3-EAP or WPA2/WPA3-PSK security, store the
a
certicate in a format that is compatible with the projector in the root directory of the USB storage device.
Press the [Menu] button, select the Ne
b
Select Network Conguration and press [Enter].
c
S
d
elect the Wireless LAN menu and press [Enter].
ecurity
Contact your network administrator for guidance on entering the correct info
rmation.
twork menu, and press [Enter].
Select the Security setting and press [Enter].
e
Select the security settings to match your network settings.
f
Do one of the following according to the security you selected.
g
•
WP
A3-PS
K or WPA2/WPA3-PSK: Select Passphrase, press [Enter],
and enter a passphrase from 8 to 63 characters long. To enter more than 32 characters, use your Web browser. en go to step 16.
•
WPA3-EAP or WPA2/WPA3-EAP: Select EAP Method and press [Enter].
Page 96
Wireless Network Projection
96
Select the protocol for authentication as the EAP Type setting.
h
To import your cer
i
•
Client Certicate for the EAP-TLS type
•
CA certicate for all EAP types
You can also register the digital cert However, be sure to register just once or the certicate may not install correctly.
icate, select the certicate type and press [Enter].
t
icates from your Web browser.
Select the certicate to import using the displayed list.
m
A message is displayed prompting you to enter the password for the
certicate.
Enter a password and press [Enter].
n
e cert
Select your EAP settings as necessary.
o
•
•
•
icate is imported and a completion message appears.
Us
er name lets you enter a user name using up to 64 alphanumeric
characters. To enter more than 32 characters, use your Web browser. When importing a client certicate, the name the certicate was issued to is automatically set.
Password lets you enter a password using up to 64 alphanumeric characters for authentication when using the PEAP type. To enter more than 32 characters, use your Web browser.
RADIUS Serv.Name lets you enter the server name to be veried.
Select Register and press [Enter].
j
F
k
l
ollow the on-screen instructions to connect a USB storage device to the
pr
ojector's USB-A port.
Press [Enter] to display the cert
icate list.
When you have nis
p
on-screen instructions to save your settings and exit the menus.
hed making settings, select Complete and follow the
Page 97
Wireless Network Projection
Related Links
g
•
pported Client and CA Certicates" p.97
"Su
•
"Network Menu - Wireless LAN Menu" p.142
Supported Client and CA Certicates
o
u can register these types of digital certicates.
Y
Client Certicate (EAP-TLS)
Specication Description
Format PKCS#12
Extension PFX, P12

Using a QR Code to Connect a Mobile Device

Aer selecting the wireless network settings for your projector, you can display a Q
R code on the screen and use it to connect a mobile device using the Epson
iProjection (iOS/Android) app.
•
e sure you have installed the latest version of Epson iProjection on
Mak your device.
•
You can download Epson iProjection for free from the App Store or Google Play. Any fees incurred when communicating with the App Store or Google Play are the responsibility of the customer.
•
When using Epson iProjection in Quick connection mode, we recommend making security settings.
97
Encryption RSA
Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512
Key length 512/1024/2048/4096 bit
Password * Up to 64 alphanumeric characters; required
CA Certicate (PEAP/EAP-TLS)
Specication Description
Format X509v3
Extension DER/CER/PEM
Encryption RSA
Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512
Key length 512/1024/2048/4096 bit
Encoding BASE64/Binary
* You can set a password using up to 64 alphanumeric characters. However, you ne
ed to use your Web browser to enter more than 32 characters.
Press the [Wireless] button on the remote control.
a
e QR code is displayed on the projected surface.
•
ou do not see the QR code, set the Display LAN Info. setting
If y to Text & QR Code in the projector's Network menu.
s Network > Network Conguration > Basic > Display LAN
Info.
•
To hide the QR code, press [Esc].
•
When the QR code is hidden, press [Enter] to display the code.
Start Epson iProjection on your mobile device.
b
Page 98
Wireless Network Projection
98
Read the projected QR code using Epson iProjection to connect it to the
c
projector.
To correctly read the QR code, make sure you face the screen
uarely and closely enough so that the projected code ts into the
sq guide of the mobile device's QR code reader. If you are too far from the screen, the code may not be read.
When a connection is established, select Co th
en select the le you want to project.
ntents menu from

Using a USB Key to Connect a Windows Computer

You can set up your USB ash projector to a wireless LAN supported Windows computer. Aer creating the USB key, you can quickly project images from the network projector.
Set up the USB key using Epson iProjection (Windows) so
a
See the Epson iProjection Operation Guide (Windows/Mac) for
structions.
in
drive as a USB key to quickly connect the
ware.
, and
Connect the USB key to the projector's USB-A port.
d
Yo
u see a projected message that the network information update is
complete.
Remove the USB key.
e
Connect the USB key to a USB port on your computer.
f
Follow the on-screen instructions to install the necessary application.
g
•
he Windows Firewall message is displayed, click Yes to disable
If t the rewall.
•
You need administrator authority to install the soware.
•
If it is not installed automatically, double-click MPPLaunch.exe in the USB key.
Aer a few minutes, your computer image is displayed by the projector.
hen you have nis
W
h
Hardware option in the Windows taskbar, and then remove the USB key from your computer.
hed projecting wirelessly, select the Safely Remove
Turn on the projector.
b
Press the [Wireless] button on the remote control until you see the LAN
c
s
andby screen.
t
e LAN standby screen is displayed. Verify that an SSID and IP address are displayed.
You may need to restart your computer to reactivate your wireless LAN co
nnection.
Page 99

Wireless Network Projection from a Mobile Device (Miracast)

99
You can send image to your projector from mobile devices such as laptops,
tphones, and tablets using Miracast technology.
smar
If your device supports Miracast, you do not need to install any additional soware. When using a Windows computer, make sure the necessary adapter for the Miracast connection is available.
Note the following limitations when using Miracast features.
•
You cannot play an interlaced image.
•
You cannot play multi-channel audio over 3ch (channel 3).
•
You cannot project images with a resolution above 1920 × 1080 and a frame rate above 30 fps.
•
You cannot play 3D video.
•
e projector cannot play copyright-protected content using a Miracast connection.
•
Do not change the projector's Miracast settings during Miracast projection. Doing so may cause the projector to disconnect and it may take a while to re-connect.
s Network > Network Conguration > Wireless LAN > Miracast
•
Do not turn o the projector directly by the breaker during Miracast projection.

Selecting Miracast Settings

You must select Miracast settings for your projector to project images from your mo
bile device.
Press the [Menu] button, select the Ne
a
Select Network Conguration and press [Enter].
b
twork menu, and press [Enter].
•
M
bile devices with Android installed or Windows 8.1 or later installed
o
mainly support Miracast.
Support for Miracast varies depending on the mobile device. See your mobile device manual for details.
•
If the Web Control Password has not been set, a screen prompting you to set a password is displayed when you save the network settings. Follow the on-screen instructions to set the password.
Related Links
g
•
"Se
lecting Miracast Settings" p.99
•
"Connecting Using Miracast" p.100
Select Wireless LAN and press [Enter].
c
S
d e
f
elect Simple AP and press [Enter].
S
elect On as th
Go back to the W
e Simple AP setting.
If no Passphrase has been set, a screen prompting to set the
assphrase appears. Follow the on-screen instructions to set the
P Passphrase.
eless LAN screen, select Miracast, and press [Enter].
ir
Page 100
Wireless Network Projection from a Mobile Device (Miracast)
100
Select On as the Miracast setting.
g
Change the following settings as needed.
h
•
A
cess Control lets you select whether or not to connect to another
c
mobile device during Miracast projection.
•
Secondary Connections lets you select the connection behavior for devices attempting to connect during a Miracast connection.
•
Adjust Image Quality lets you adjust the Miracast speed/quality. Select a small number to improve the quality and select large number to increase the speed.
•
Miracast Info. lets you select whether or not to display Miracast information.
Press the [Home] button on the remote control. e settings are complete
j
when you see the Display Name on the Home screen.

Connecting Using Miracast

If your mobile device such as a smartphone supports Miracast, you can connect
o the projector wirelessly and project images. You can play audio through the
it t projector's speaker system by connecting using Miracast.
Select Miracast settings on your projector as necessary.
a
P
b
c
d
ress the [Wireless] button on the remote control to switch to the Miracast
so
urce.
You see the Miracast standby screen.
On your mobile device, use your Miracast function to search for the pr
ojector.
You see a list of available devices.
Select the projector's Display Name from the list. If y
ou see the screen asking if you allow the projection using Miracast on the projector, check the device name displayed and select if you allow the projection or not.
e projector displays the image from your mobile device.
When you have ni
i
on-screen instructions to save your settings and exit the menus.
If no Web Control Password has been set, a screen prompting
ou to set a password is displayed before you can save the settings.
y Follow the on-screen instructions to set the password.
hed selecting settings, select Complete and follow the
s
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
