Epson EB-905, EB-95, EB-96W, EB-915W, EB-900 User Manual

...

User’s Guide

Notations Used in This Guide

• Safety indications

The documentation and the projector use graphical symbols to show how to use the projector safely. Please understand and respect these caution symbols in order to avoid injury to persons or property.

Warning

Caution

• General information indications

Attention

s Indicates a page where detailed information regarding a topic can be found.

[Name] Indicates the name of the buttons on the remote control or the control panel.

Menu Name Indicates Configuration menu items.

This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

Indicates procedures which may result in damage or injury if sufficient care is not taken.

Indicates additional information and points which may be useful to know regarding a topic.

Indicates that an explanation of the underlined word or words in front of this symbol appears in the glossary of terms. See the "Glossary" section of the "Appendix".

s "Glossary" p.136

Example: [Esc] button

Example: Select Brightness from Image. Image - Brightness

Notations Used in This Guide ........................ 2

Introduction

Projector Features .......................................... 7

List of Functions by Model........................................7

Quick and Easy Set up, Projection, and Storage ..........................8

Easy writing on a whiteboard or blackboard using the pattern function ........8

Connecting with a USB cable and projecting (USB Display)................ 8

Detecting projector movements and automatically correcting image distortion

.........................................................8

Useful Functions for Projecting Images ................................ 8

Increasing projection content in wide (WXGA) screen (EB-915W/EB-910W/EB-96W

only) ..................................................... 8

Connecting to a network and projecting images from the computer's screen

.........................................................8

Easy connection to a computer with Quick Wireless.....................9

Making the most of the remote control.............................9

Enlarge and project your files with the Document Camera.................9

Enhanced security functions..................................... 9

Part Names and Functions .................................. 10

Front/Top ...................................................10

Rear.......................................................11

Base ...................................................... 12

Control Panel................................................13

Remote Control...............................................14

Replacing the remote control batteries............................. 16

Remote control operating range.................................17

Preparing the Projector

Installing the Projector ..................................... 19

Installation Methods ...........................................19

Installation methods .........................................19

Screen Size and Approximate Projection Distance.......................20

Connecting Equipment ..................................... 22

Connecting a Computer ......................................... 22

Connecting Image Sources.......................................23

Connecting USB Devices.........................................25

Connecting External Equipment...................................26

Connecting a LAN Cable (EB-925/EB-915W/EB-905/EB-96W/EB-95 only) . . . . . . . . 27

Installing the Wireless LAN Unit.................................... 28

Basic Usage

Projecting Images ......................................... 30

From Installation to Projection.....................................30

Automatically Detect Input Signals and Change the Projected Image (Source Search)

.......................................................... 31

Switching to the Target Image by Remote Control ....................... 32

Projecting with USB Display......................................32

System requirements......................................... 32

Connecting for the first time ....................................33

Uninstalling...............................................34

Adjusting Projected Images ................................ 36

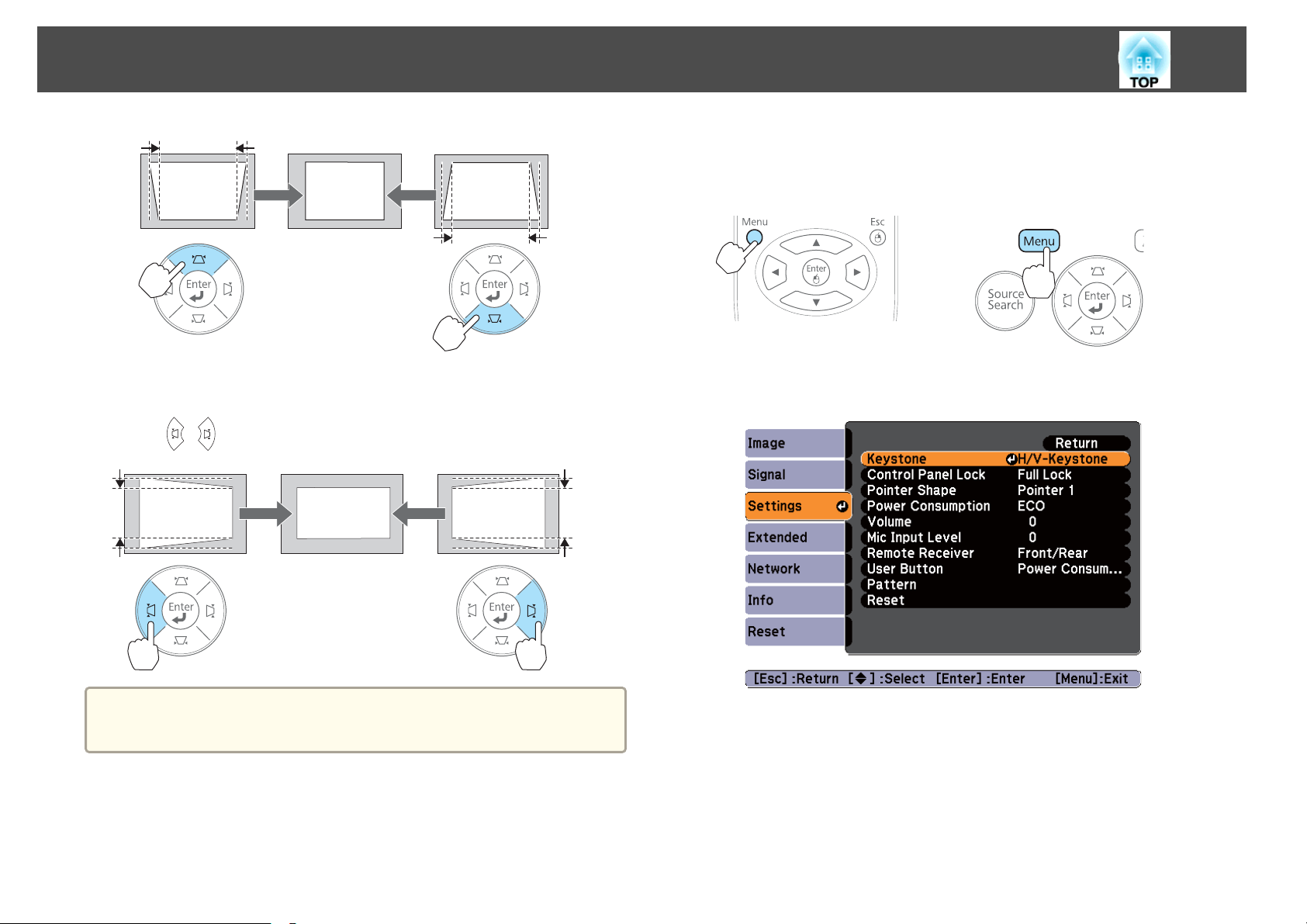

Correcting Keystone Distortion .................................... 36

Correcting automatically (Auto V-Keystone) .........................36

Correcting manually (manual H/V-Keystone) .........................36

Correcting manually (Quick Corner)............................... 37

Adjusting the Image Size ........................................ 39

Adjusting the Image Position ..................................... 39

Adjusting the Horizontal Tilt......................................39

Correcting the Focus...........................................40

Adjusting the Volume..........................................40

Selecting the Projection Quality (Selecting Color Mode) ...................40

Setting Auto Iris ..............................................41

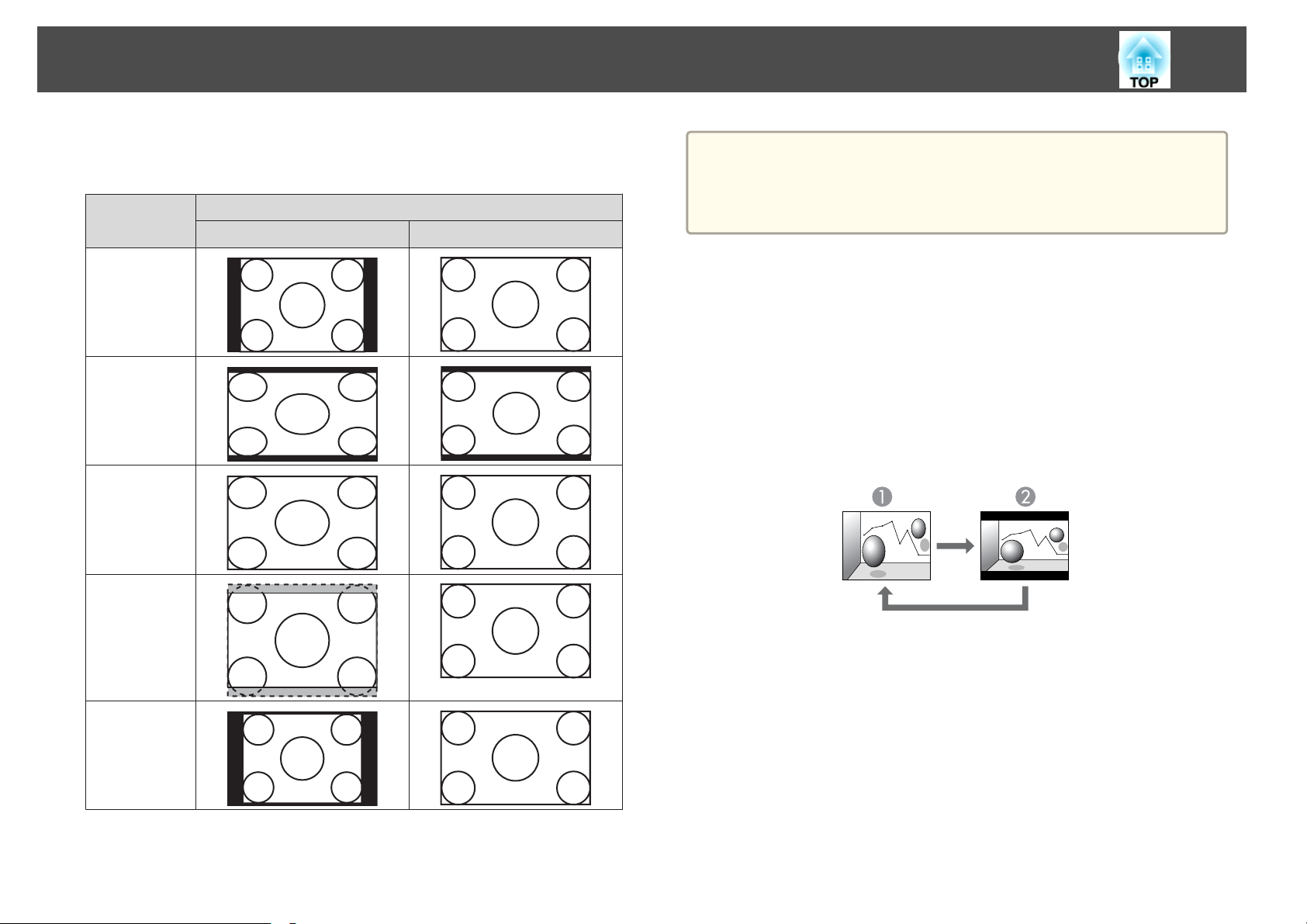

Changing the Aspect Ratio of the Projected Image ......................42

Changing methods ..........................................42

Changing the aspect mode (EB-915W/EB-910W/EB-96W only).............42

Changing the aspect mode (EB-925/EB-905/EB-900/EB-95 only) . ...........43

Contents

Useful Functions

Projection Functions ....................................... 46

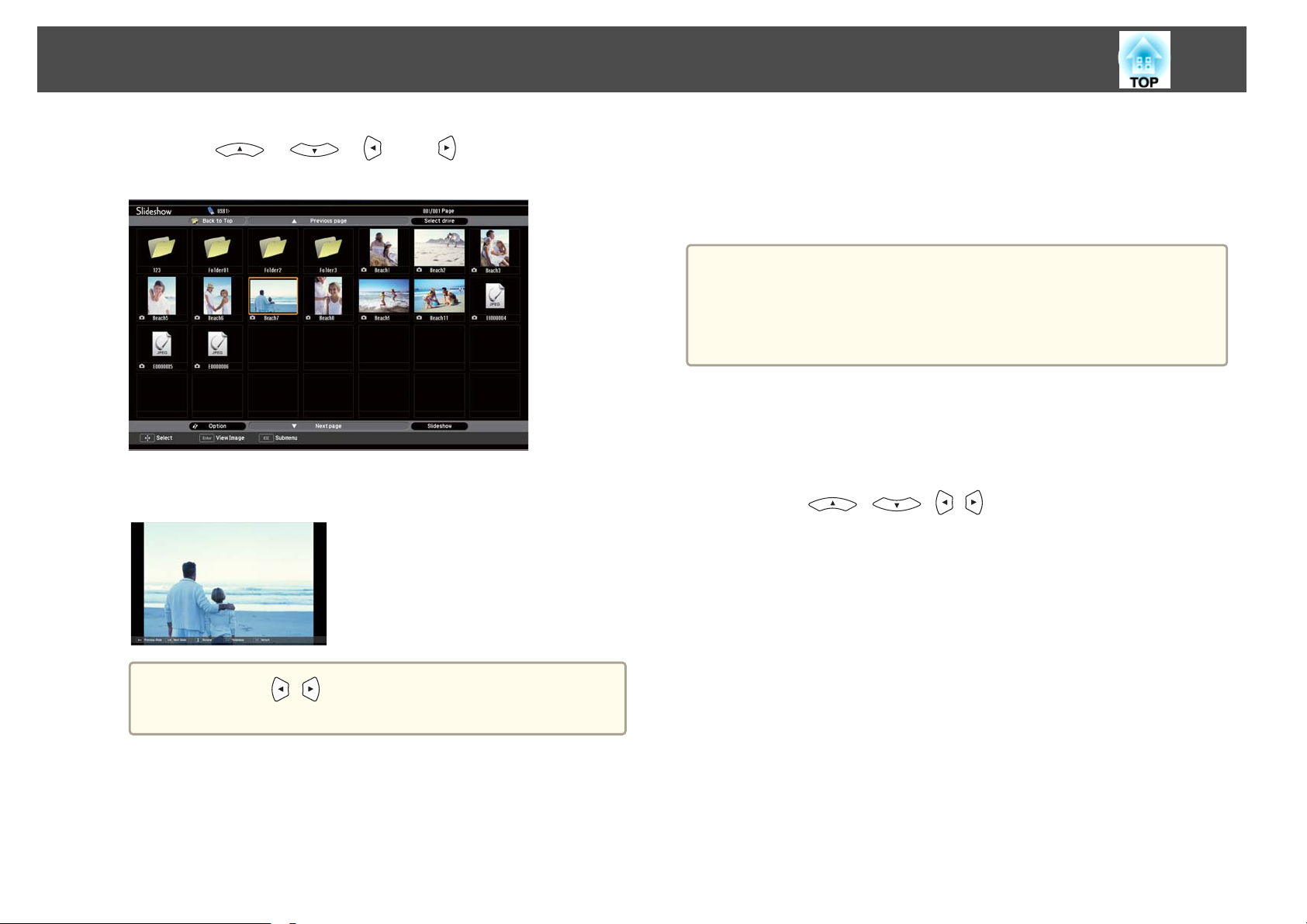

Projecting Without a Computer (Slideshow) ...........................46

Specifications for files that can be projected using Slideshow..............46

Slideshow examples .........................................46

Slideshow operating methods...................................46

Projecting the selected image...................................48

Projecting image files in a folder in sequence (Slideshow) ................ 49

Image file display settings and Slideshow operation settings..............50

Hiding the Image and Sound Temporarily (A/V Mute).....................51

Freezing the Image (Freeze) ......................................51

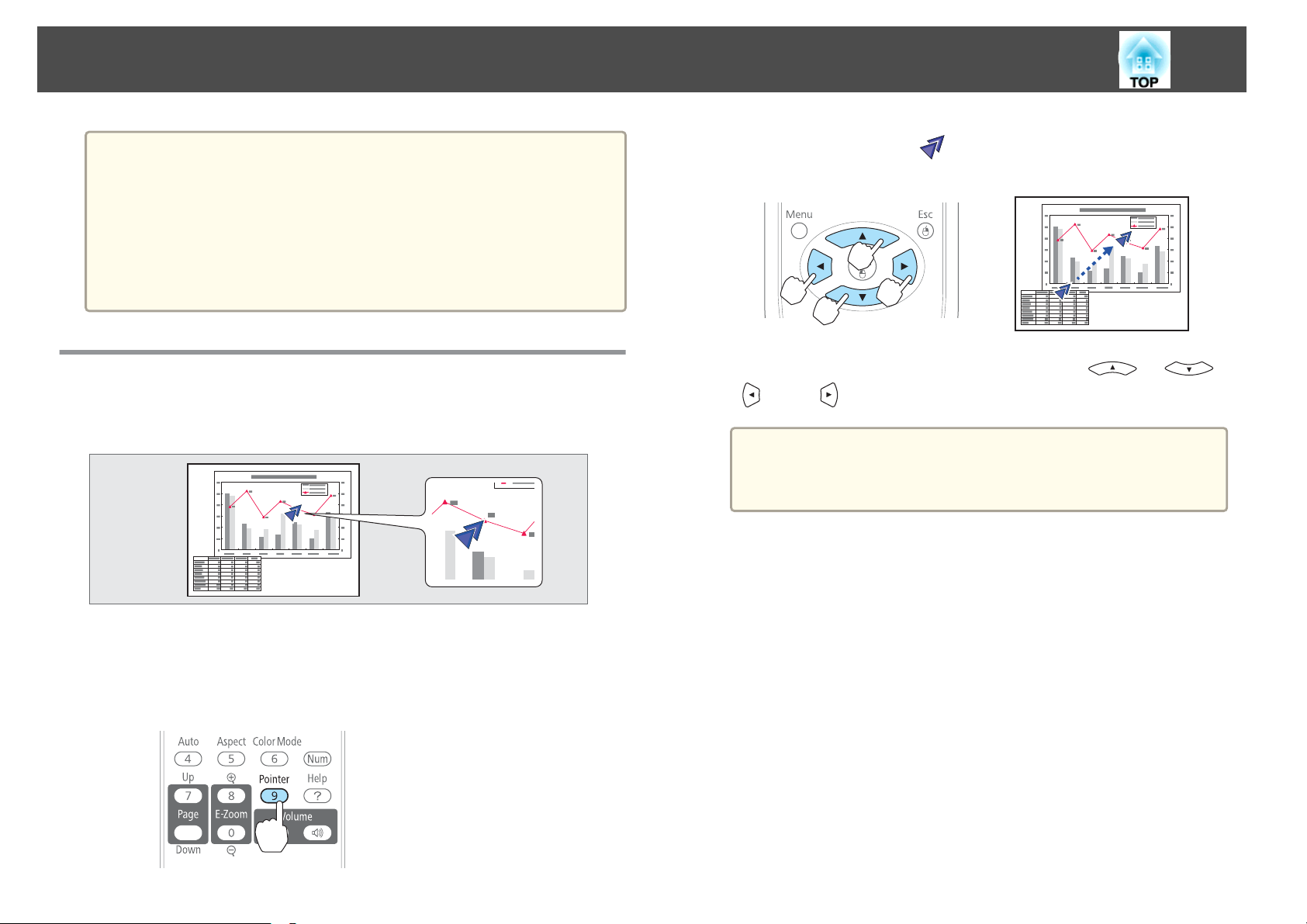

Pointer Function (Pointer) ........................................52

Enlarging Part of the Image (E-Zoom) ................................ 53

Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse) . . . . . . 54

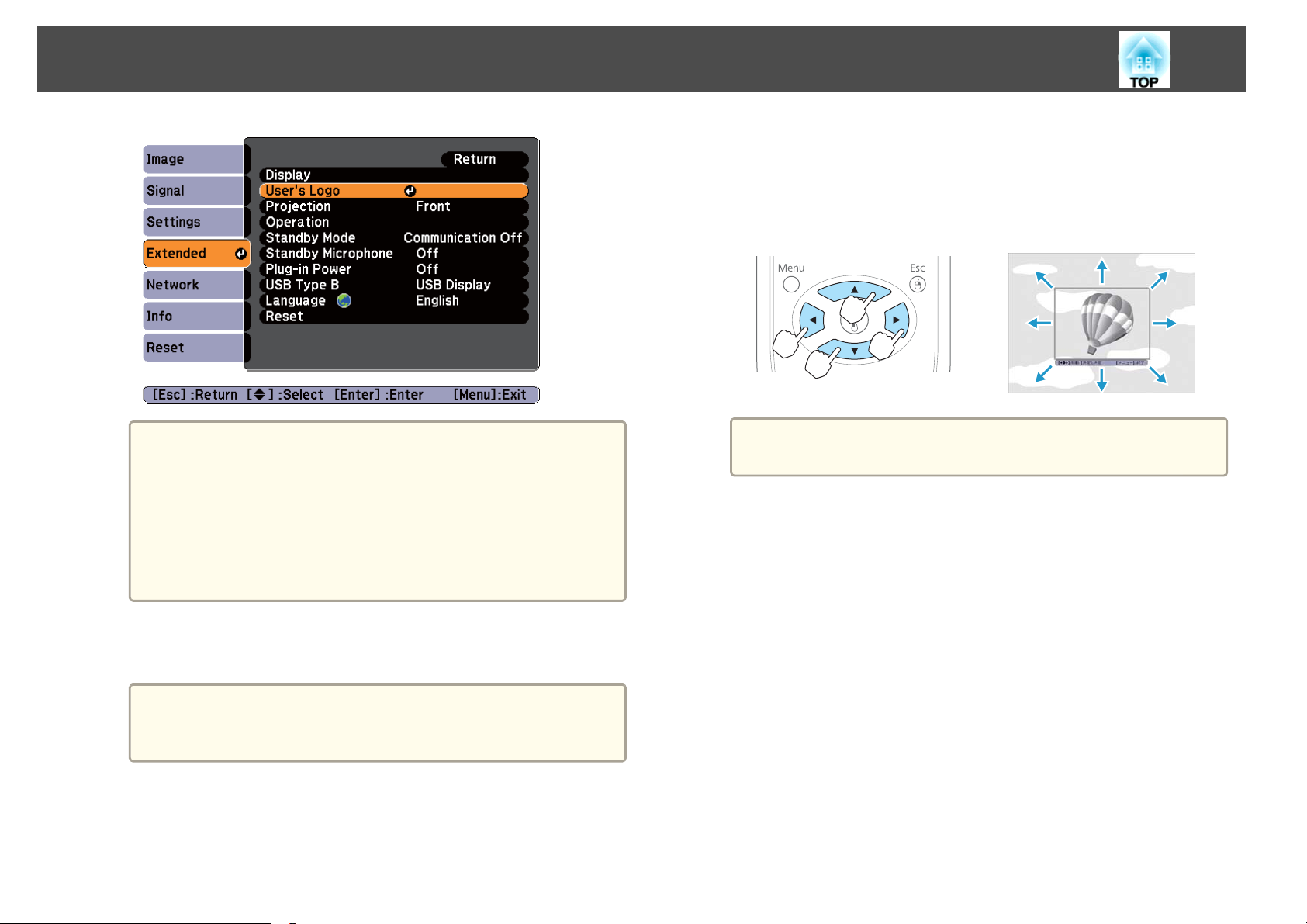

Saving a User's Logo ........................................... 55

Saving User Pattern ............................................57

Security Functions ......................................... 59

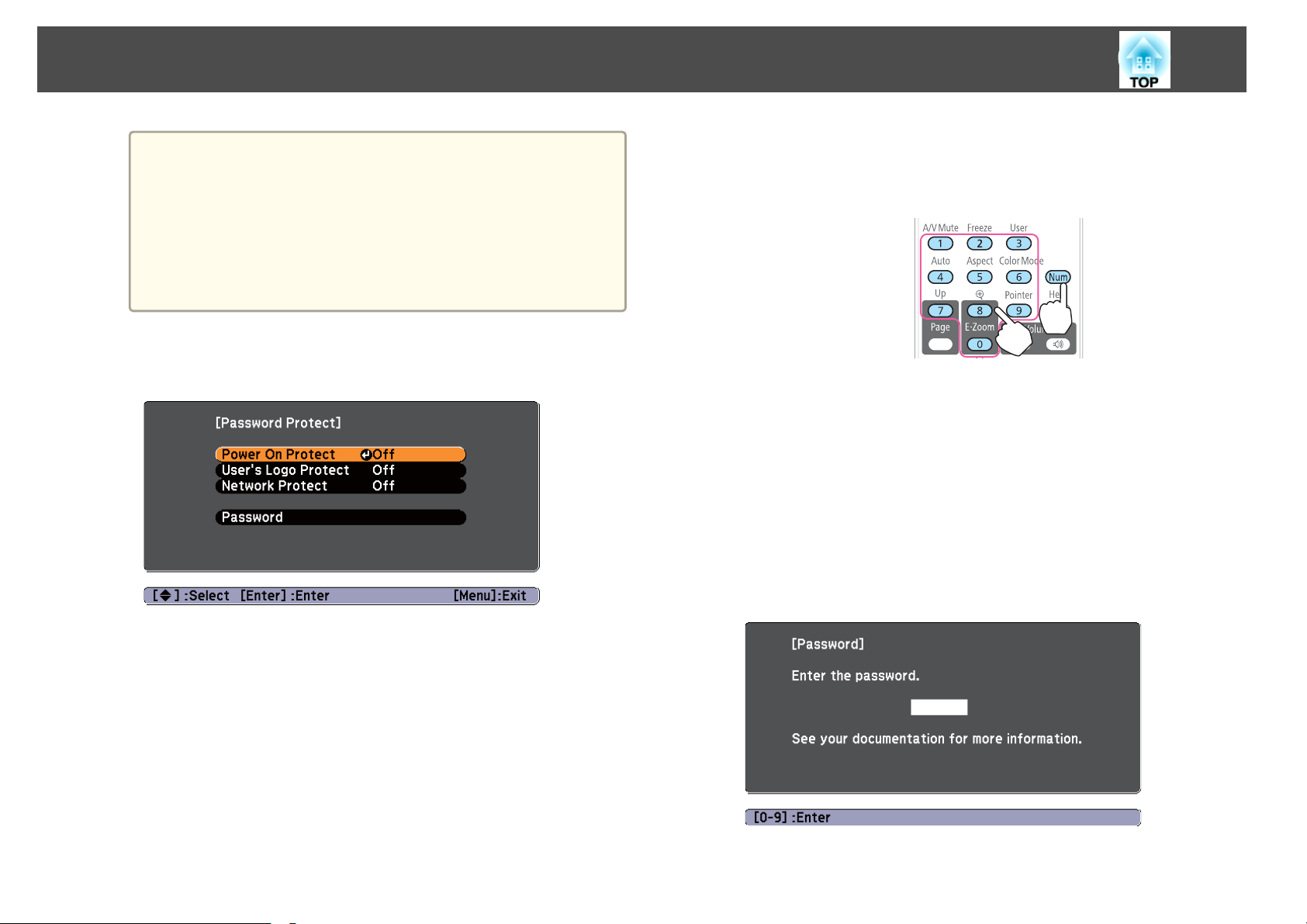

Managing Users (Password Protect)................................. 59

Kinds of Password Protect ......................................59

Setting Password Protect......................................59

Entering the Password ........................................60

Restricting Operation (Control Panel Lock)............................ 61

Anti-Theft Lock ............................................... 62

Installing the wire lock ........................................62

Monitoring and Controlling ................................ 63

About EasyMP Monitor..........................................63

Changing Settings Using a Web Browser (Web Control) ....................63

Projector setup ............................................. 63

Displaying the Web Control screen ...............................64

Displaying the Web Remote screen............................... 64

Using the Mail Notification Function to Report Problems...................66

Reading Error Notification Mail ..................................66

Management Using SNMP .......................................66

ESC/VP21 Commands ........................................... 67

Command list.............................................. 67

Cable layouts.............................................. 67

About PJLink ................................................ 68

About Crestron RoomView

Operating a projector from your computer..........................69

...................................... 69

Configuration Menu

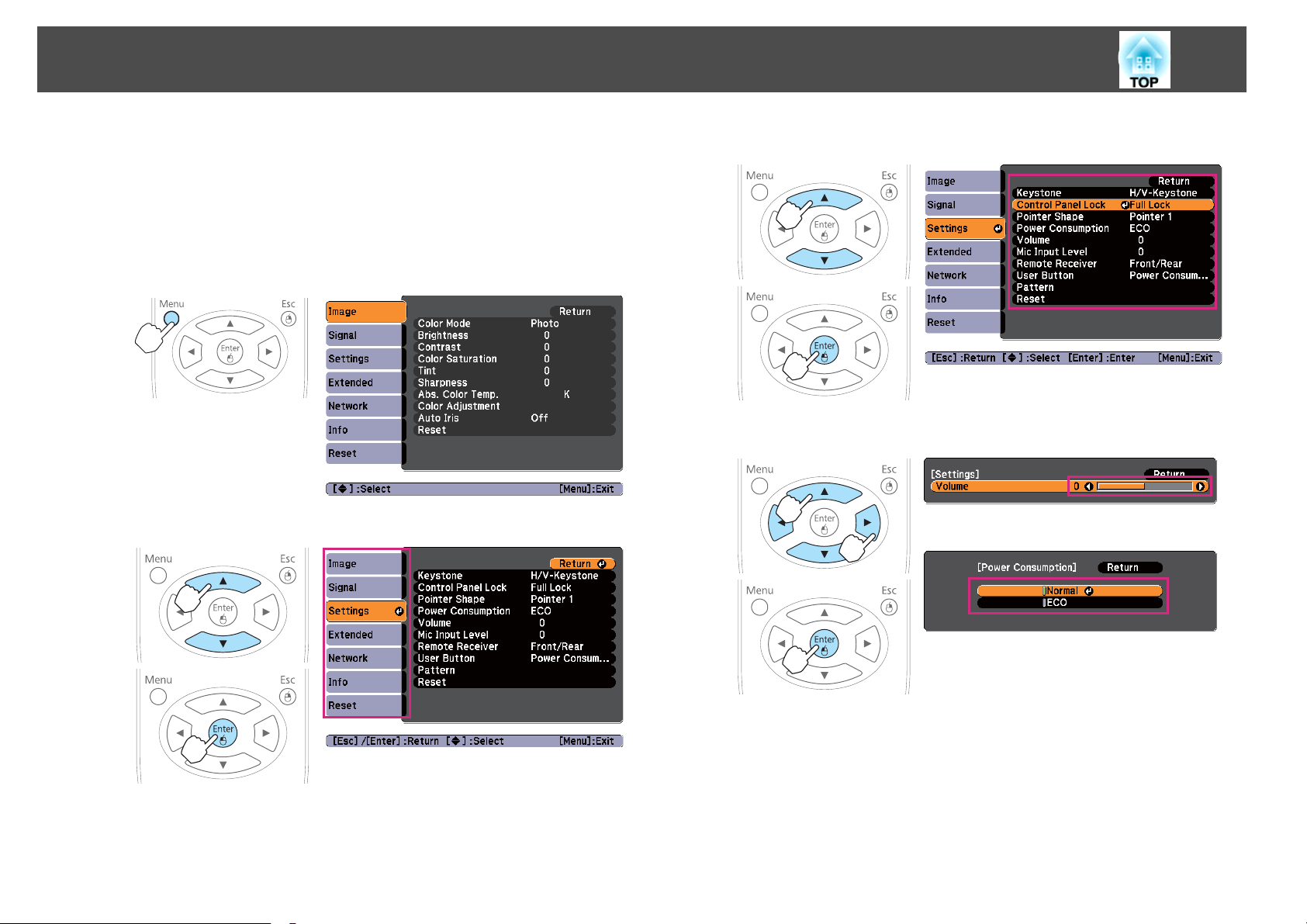

Using the Configuration Menu .............................. 74

List of Functions ........................................... 75

Configuration Menu Table.......................................75

Network menu ............................................. 76

Image Menu ................................................. 77

Signal Menu ................................................. 78

Settings Menu ................................................80

Extended Menu ...............................................81

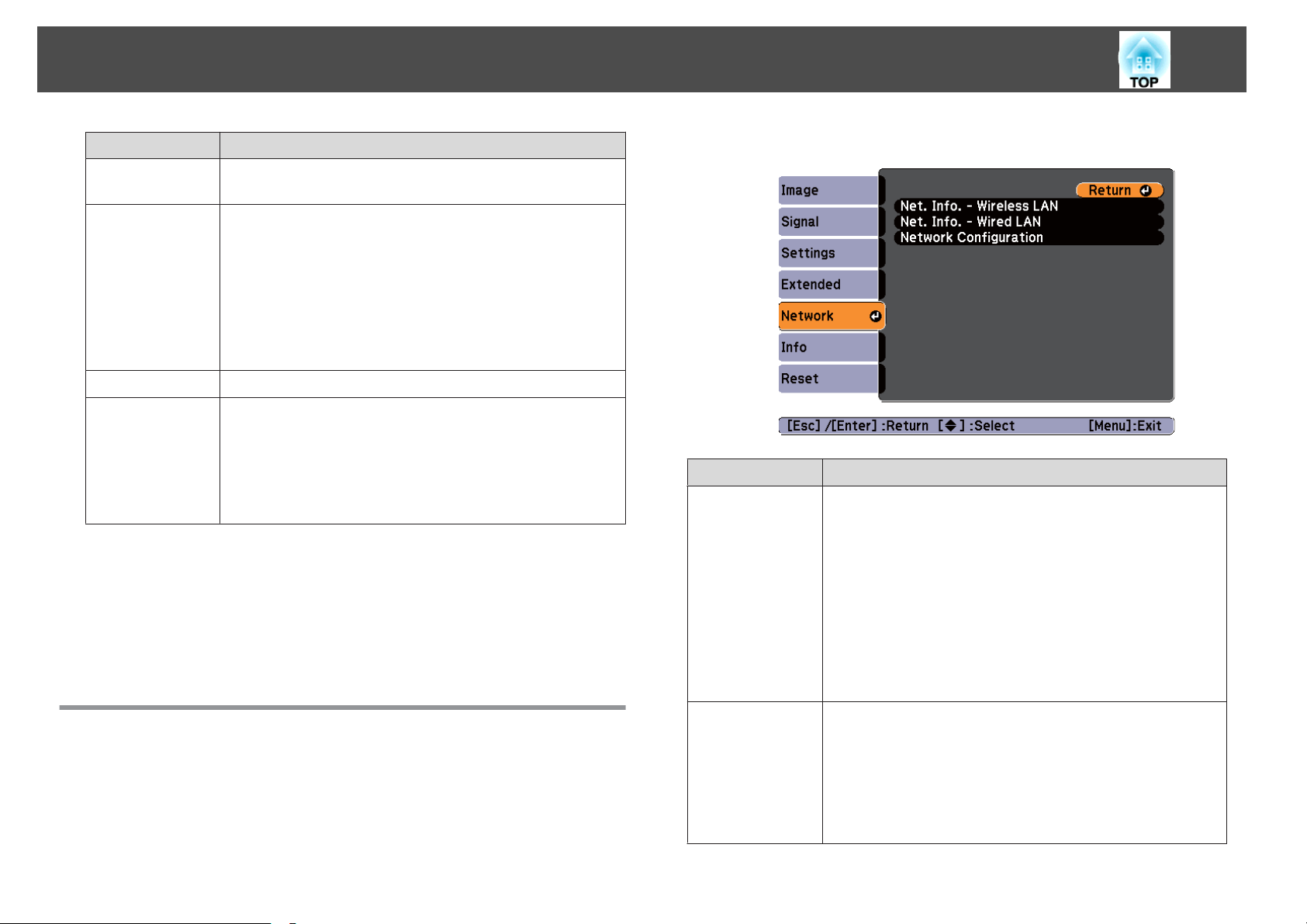

Network Menu ............................................... 83

Notes on operating the Network menu.............................84

Soft keyboard operations......................................84

Basic menu ................................................85

Wireless LAN menu ..........................................85

Security menu..............................................87

Wired LAN menu (EB-925/EB-915W/EB-905/EB-96W/EB-95 only) . . . . . . . . . . . . 88

Mail menu................................................ 89

Others menu..............................................90

Reset menu ............................................... 91

Info Menu (Display Only) ........................................91

Reset Menu .................................................92

Troubleshooting

Using the Help ............................................. 94

Problem Solving ........................................... 95

Reading the Indicators.......................................... 95

When the Indicators Provide No Help ................................98

Contents

Problems Relating to Images ......................................99

No images appear...........................................99

Moving images are not displayed (only the moving image portion turns black)

........................................................100

Projection stops automatically ..................................100

"Not supported" is displayed................................... 100

"No Signal" is displayed ...................................... 100

Images are fuzzy, out of focus, or distorted......................... 101

Interference or distortion appear in images ......................... 102

The image is truncated (large) or small, or the aspect is not suitable........ 102

Image colors are not right..................................... 103

Images appear dark......................................... 104

Problems when Projection Starts .................................. 104

The projector does not turn on ................................. 104

Other Problems.............................................. 105

No sound can be heard or the sound is faint........................ 105

No sound can be heard from the microphone....................... 105

The remote control does not work ............................... 106

I want to change the language for messages and menus................ 106

Mail is not received even if an error occurs with the projector . . . . . . . . . . . . . 106

About Event ID ........................................... 108

How to replace the air filter .................................... 116

Appendix

Optional Accessories and Consumables .................... 118

Optional Accessories .......................................... 118

Consumables............................................... 118

Screen Size and Projection Distance ........................ 119

Projection Distance (For EB-925/EB-905) . ............................ 119

Projection Distance (For EB-915W)................................. 120

Projection Distance (For EB-910W)................................. 121

Projection Distance (For EB-900).................................. 123

Projection Distance (For EB-96W) .................................. 124

Projection Distance (For EB-95) ................................... 125

Supported Monitor Displays ............................... 127

Supported Resolutions ......................................... 127

Computer signals (analog RGB)................................. 127

Component Video .......................................... 127

Composite video ........................................... 127

Input signal from the HDMI port ................................ 127

Maintenance

Cleaning ................................................. 110

Cleaning the Projector's Surface ................................... 110

Cleaning the Lens ............................................ 110

Cleaning the Air Filter ..........................................110

Replacing Consumables ................................... 112

Replacing the Lamp........................................... 112

Lamp replacement period .....................................112

How to replace the lamp ......................................113

Resetting the lamp hours ..................................... 115

Replacing the Air Filter ......................................... 116

Air filter replacement period ................................... 116

Specifications ............................................ 129

Projector General Specifications...................................129

Appearance .............................................. 134

Glossary ................................................. 136

General Notes ............................................ 138

About Notations ............................................. 138

General Notice: .............................................. 138

Index .................................................... 156

Introduction

This chapter explains the projector's features and the part names.

Projector Features

List of Functions by Model

Available functions differ depending on the model being used. See the table below for a list of the functions available for each model.

Function EB-925 EB-915W EB-910W EB-905 EB-900 EB-96W EB-95

USB Display

HDMI Connection

Auto V-Keystone

WXGA Resolutions - -- -

Quick Wireless Connection

Wired LAN Connection - -

Wireless LAN Connection

Network Settings

Slideshow

*1 The USB display requires a commercially available USB cable. *2 The HDMI connection requires a commercially available HDMI cable. *3 The Quick Wireless Connection requires a Quick Wireless Connection USB Key.

The wireless LAN connection requires a Wireless LAN unit.

Projector Features

Quick and Easy Set up, Projection, and Storage

• Turn the projector on and off by simply plugging in or unplugging.

• Project onto large screens from a short distance.

• Make easy height adjustments with one lever.

• No cool down delay makes it easy to put away.

Easy writing on a whiteboard or blackboard using the pattern function

You can project ruled lines and grid patterns. This is useful when drawing diagrams on a whiteboard or blackboard.

s Settings - Pattern p.80

Connecting with a USB cable and projecting (USB Display)

Detecting projector movements and automatically correcting image distortion

This projector automatically corrects keystone distortion which occurs when positioning or moving the projector.

"Correcting automatically (Auto V-Keystone)" p.36

Useful Functions for Projecting Images

Increasing projection content in wide (WXGA) screen (EB-915W/ EB-910W/EB-96W only)

With a computer that has a 16:10 WXGA wide LCD display, the image can be projected in the same aspect. You can use whiteboards and other landscape format screens.

s "Changing the Aspect Ratio of the Projected Image " p.42

By simply connecting a commercially available USB cable, you can project images from a computer's screen without a computer cable.

s "Projecting with USB Display" p.32

Connecting to a network and projecting images from the computer's screen

You can connect the projector to a computer on a network and project the computer's screen using the supplied EasyMP Network Projection (application software).

s EasyMP Network Projection Operation

Guide

Projector Features

Easy connection to a computer with Quick Wireless

By simply connecting the optional Quick Wireless Connection USB Key to a computer, you can project the computer's screen. (Windows computers only)

Making the most of the remote control

You can use the remote control to perform operations such as enlarging part of the image. You can also use the remote control as a pointer during presentations or as a mouse for the computer.

"Pointer Function (Pointer)" p.52

"Enlarging Part of the Image (E-Zoom)" p.53

"Using the Remote Control to Operate the Mouse Pointer (Wireless

Mouse)" p.54

• Control Panel Lock restricts button operation on the control panel

You can use this to prevent people changing projector settings without permission at events, in schools, and so on.

"Restricting Operation (Control Panel Lock)" p.61

• Equipped with various anti-theft devices

The projector is equipped with the following types of anti-theft security devices.

• Security slot

• Security cable installation point

"Anti-Theft Lock" p.62

Enlarge and project your files with the Document Camera

You can project paper documents and objects using the optional Document Camera. Image focus is automatically adjusted using the auto focus function. You can also enlarge images using digital zoom.

"Optional Accessories" p.118

Enhanced security functions

• Password Protect to restrict and manage users

By setting a Password you can restrict who can use the projector.

"Managing Users (Password Protect)" p.59

Part Names and Functions

All of the features in this guide are explained using illustrations of EB-925 unless otherwise mentioned.

Front/Top

Name Function

Foot adjust lever

Front adjustable foot

A/V mute slide

Focus ring

Air intake vent

(air filter)

Air filter cover open/

close switch

Wireless LAN indicator

Press the foot lever to extend and retract the front foot. s "Adjusting the Image Position" p.39

When setup on a surface such as a desk, extend the foot to adjust the position of the image.

s "Adjusting the Image Position" p.39

Close when not using the projector to protect the lens. By closing during projection you can hide the image and the sound.

s "Hiding the Image and Sound Temporarily (A/V Mute)" p.51

Adjusts the image focus. s "Correcting the Focus" p.40

Takes in air to cool the projector internally. s "Cleaning the Air Filter" p.110

Opens and closes the air filter cover. Open this cover when installing the optional wireless LAN unit.

s "Replacing the Air Filter" p.116

Displays the access status of the optional Wireless LAN unit.

Name Function

Air exhaust vent

Remote receiver

A/V mute slide knob

Exhaust vent for air used to cool the projector internally.

Caution

While projecting, do not put your face or hands near the air exhaust vent, and do not place objects that may become warped or damaged by heat near the vent.

Receives signals from the remote control.

Slide the knob to open and close the A/V mute slide.

Zoom ring

Control panel

Lamp cover

Indicators

Adjusts the image size. s "Adjusting the Image Size" p.39

Operates the projector. s "Control Panel" p.13

Open when replacing the projector's lamp. s "Replacing the Lamp" p.112

Indicates the projector's status. s "Reading the Indicators" p.95

Part Names and Functions

Rear

HDMI port

Power inlet

S-Video port

Video port

Audio-L/R port

Audio1 port

Monitor Out port

Audio Out port

Name Function

Inputs video signals from HDMI compatible video equipment and computers. This projector is compatible with

HDCPg.

s "Connecting Equipment" p.22

Connects the power cable to the projector. s "From Installation to Projection" p.30

For S-video signals from video sources.

Inputs composite video signals from video sources.

Inputs audio from equipment connected to the S-Video port or the Video port.

Inputs audio from equipment connected to the Computer1 port.

Outputs analog RGB signals input from the Computer1 port to an external monitor. You cannot output signals input from other ports or component video signals.

Outputs audio from the currently projected image or the Mic port to an external speaker.

Name Function

RS-232C port

Mic port

Security slot

Speaker

Remote receiver

LAN port

(EB-925/EB-915W/ EB-905/EB-96W/EB-95 only)

USB(TypeA) port

USB(TypeB) port

Computer2 port

Computer1 port

When controlling the projector from a computer, connect it to the computer with an RS-232C cable. This port is for control use and should not normally be used.

s "ESC/VP21 Commands" p.67

Inputs audio from the microphone.

The security slot is compatible with the Microsaver Security System manufactured by Kensington.

s "Anti-Theft Lock" p.62

Plays back audio.

Receives signals from the remote control.

Connects a LAN cable to connect to a network.

• Connects a USB memory device or a digital camera, and projects images as a Slideshow.

"Projecting Without a Computer (Slideshow)"

p.46

• Connects the optional Document Camera.

• Connects the projector to a computer via a

commercially available USB cable, and projects the images on the computer. s "Projecting with USB Display" p.32

• Connects the projector to a computer via the commercially available USB cable to use the Wireless Mouse function. s "Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse)" p.54

Inputs image signals from a computer and component video signals from other video sources.

Audio2 port

Inputs audio from equipment connected to the Computer2 port.

Part Names and Functions

Base

Name Function

Security cable

installation point

Pass a commercially available wire lock through here and lock it in place.

s "Installing the wire lock" p.62

Name Function

Ceiling mount fixing

points (three points)

Rear feet

Front adjustable foot

Attach the optional Ceiling Mount here when suspending the projector from a ceiling.

s "Installing the Projector" p.19 s "Optional Accessories" p.118

When setup on a surface such as a desk, turn to extend and retract to adjust the horizontal tilt.

s "Adjusting the Horizontal Tilt" p.39

When setup on a surface such as a desk, extend the foot to adjust the position of the image.

s "Adjusting the Image Position" p.39

Part Names and Functions

Control Panel

Name Function

[t] button

[Source Search]

button

[Enter] button

Turns the projector power on or off. s "From Installation to Projection" p.30

Changes to the next input source that is sending an image. s "Automatically Detect Input Signals and Change the

Projected Image (Source Search)" p.31

• When the Configuration menu or the Help screen is displayed, it accepts and enters the current selection and moves to the next level.

• If pressed while projecting analog RGB signals from the Computer1 port or Computer2 port, you can automatically optimize Tracking, Sync., and Display Position.

[w][v] buttons

[a][b] button

[Help] button

[Esc] button

[<][>] buttons

[Menu] button

Name Function

• Performs vertical keystone correction.

s "Correcting keystone distortion in vertical directions" p.36

• If pressed when the Configuration menu or the Help screen is displayed, these buttons select menu items and setting values.

s "Using the Configuration Menu" p.74 s "Using the Help" p.94

[a] Decreases the volume. [b] Increases the volume.

"Adjusting the Volume" p.40

Displays and closes the Help screen which shows you how to deal with problems if they occur.

s "Using the Help" p.94

• Stops the current function.

• If pressed when the Configuration menu is displayed, it

moves to the previous menu level. s "Using the Configuration Menu" p.74

• Performs horizontal keystone correction. s "Correcting keystone distortion in horizontal directions" p.37

• If pressed when the Configuration menu or the Help screen is displayed, these buttons select menu items and setting values.

s "Using the Configuration Menu" p.74 s "Using the Help" p.94

Displays and closes the Configuration menu. s "Using the Configuration Menu" p.74

Part Names and Functions

Remote Control

Name Function

[t] button

[Computer] button

[Video] button

Numeric buttons

[A/V Mute] button

[Freeze] button

[Auto] button

Turns the projector power on or off. s "From Installation to Projection" p.30

Each time you press the button, the input changes between images from the Computer1 port and the Computer2 port.

Each time the button is pressed, the image cycles through the S-Video, Video, and HDMI ports.

• Enter the Password. s "Setting Password Protect" p.59

• Use this button to enter numbers in Network settings from the Configuration menu.

Turns the video and audio on or off. s "Hiding the Image and Sound Temporarily (A/V

Mute)" p.51

Images are paused or unpaused. s "Freezing the Image (Freeze)" p.51

If pressed while projecting analog RGB signals from Computer1 port or Computer2 port, you can automatically optimize Tracking, Sync., and Display Position.

[Aspect] button

[Page] buttons

[Up] [Down]

Each time the button is pressed, the aspect mode changes. s "Changing the Aspect Ratio of the Projected Image "

p.42

Changes pages in files such as PowerPoint files when using the following projection methods.

• When using the Wireless Mouse function s "Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse)" p.54

• When using USB Display s "Projecting with USB Display" p.32

• When connecting to a network

When projecting images using Slideshow, pressing these buttons displays the previous/next screen.

Part Names and Functions

Name Function

[E-Zoom] buttons

[z][x]

[Menu] button

[ ][ ]

[

][ ] buttons

[Enter] button

[Esc] button

Enlarges or reduces the image without changing the projection size.

s "Enlarging Part of the Image (E-Zoom)" p.53

Displays and closes the Configuration menu. s "Using the Configuration Menu" p.74

• When the Configuration menu or the Help screen is displayed, pressing these buttons selects menu items and setting values. s "Using the Configuration Menu" p.74

• When projecting a Slideshow, pressing these buttons displays the previous/next image, rotates the image, and so on. s "Slideshow operating methods" p.46

• During Wireless Mouse function, the mouse pointer moves in the direction of the button that was pushed. s "Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse)" p.54

• When the Configuration menu or the Help screen is displayed, it accepts and enters the current selection and moves to the next level. s "Using the Configuration Menu" p.74

• Acts as a mouse's left button when using the Wireless Mouse function. s "Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse)" p.54

• Stops the current function.

• If pressed when the Configuration menu is displayed, it

moves to the previous level. s "Using the Configuration Menu" p.74

• Acts as a mouse's right button when using the Wireless Mouse function. s "Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse)" p.54

Name Function

[Volume] buttons

[a][b]

[Pointer] button

[Help] button

[Color Mode] button

[Num] button

[User] button

[USB] button

[LAN] button

[Source Search]

button

[a] Decreases the volume. [b] Increases the volume. s "Adjusting the Volume" p.40

Displays the on-screen pointer. s "Pointer Function (Pointer)" p.52

Displays and closes the Help screen which shows you how to deal with problems if they occur.

s "Using the Help" p.94

Each time the button is pressed, the Color Mode changes. s "Selecting the Projection Quality (Selecting Color

Mode)" p.40

Hold down this button and press the numeric buttons to enter passwords and numbers.

s "Setting Password Protect" p.59

Select any frequently used item from the seven available Configuration menu items, and assign it to this button. By pressing the [User] button, the assigned menu item selection/adjustment screen is displayed, allowing you to make one-touch settings/adjustments.

s "Settings Menu" p.80 Power Consumption is assigned as the default setting.

Each time the button is pressed, it cycles through the following images:

• USB Display

• Images from the device connected to the USB(TypeA)

port

Changes to the image projected with EasyMP Network Projection. When projecting using the optional Quick Wireless Connection USB Key, this button switches to that image.

Changes to the next input source that is sending an image. s "Automatically Detect Input Signals and Change the

Projected Image (Source Search)" p.31

Part Names and Functions

Name Function

Remote control light-

emitting area

Outputs remote control signals.

Replacing the remote control batteries

If delays in the responsiveness of the remote control occur or if it does not operate after it has been used for some time, it probably means that the batteries are becoming flat. When this happens, replace them with new batteries. Have two AA size manganese or alkaline batteries ready. You cannot use other batteries except for the AA size manganese or alkaline.

Attention

Make sure you read the following manual before handling the batteries. s Safety Instructions

Remove the battery cover.

While pushing the battery compartment cover catch, lift the cover up.

Replace the old batteries with new batteries.

Part Names and Functions

Caution

Check the positions of the (+) and (-) marks inside the battery holder to ensure the batteries are inserted the correct way.

Remote control operating range

Replace the battery cover.

Press the battery compartment cover until it clicks into place.

Preparing the Projector

This chapter explains how to install the projector and connect projection sources.

Installing the Projector

Installation Methods

The projector supports the following four different projection methods. Install the projector according to the conditions of the installation location.

• Project images from in front of the screen. (Front projection)

• Suspend the projector from the ceiling and project images from in front of a screen. (Front/Ceiling projection)

• Project images from behind a translucent screen. (Rear projection)

• Suspend the projector from the ceiling and project images from behind a translucent screen. (Rear/Ceiling projection)

Warning

• A special method of installation is required when suspending the projector from a ceiling (ceiling mount). If it is not installed correctly, it could fall causing an accident and injury.

• If you use adhesives on the Ceiling mount fixing points to prevent the screws from loosening, or if you use things such as lubricants or oils on the projector, the projector case may crack causing it to fall from its ceiling mount. This could cause serious injury to anyone under the ceiling mount and could damage the projector. When installing or adjusting the ceiling mount, do not use adhesives to prevent the screws from loosening and do not use oils or lubricants and so on.

Attention

• Do not use the projector on its side. This may cause malfunctions to occur.

• Do not cover the projector's air intake vent or air exhaust vent. If either of

the vents are covered, the internal temperature could rise and cause a fire.

• An optional Ceiling mount is required when suspending the

projector from a ceiling. s "Optional Accessories" p.118

• You can change the setting as follows by pressing down the [A/V Mute] button on the remote control for about five seconds.

FrontWFront/Ceiling Set Rear or Rear/Ceiling from the Configuration menu. s Extended - Projection p.81

Installation methods

Install the projector as follows.

Installing the Projector

• Install the projector so that it is parallel to the screen. If the projector is installed at an angle to the screen, keystone distortion occurs in the projected image.

• Place the projector on a level surface. If the projector is tilted the projected image is also tilted.

• See the following if you cannot install the projector parallel to the

screen. s "Correcting Keystone Distortion" p.36

• See the following if you cannot install the projector on a level surface.

s "Adjusting the Horizontal Tilt" p.39

When you correct keystone distortion, the projected image may be

16:10 Screen Size

EB-915W

EB-910W

reduced.

80”

(170×110cm)

50”

(110×67cm)

150”

(320×200cm)

100”

(220×130cm)

Screen Size and Approximate Projection Distance

Projection size is determined by the distance from the projector to the screen. See the illustrations on the right to select the best position according to the screen size. The illustrations show the approximate shortest distance at maximum zoom. See the following for more information on the projection distance.

"Screen Size and Projection Distance" p.119

80”

(170×110cm)

50”

(110×67cm)

150”

(320×200cm)

100”

(220×130cm)

Installing the Projector

EB-96W

4:3 Screen Size

EB-925/EB-905

80”

(170×110cm)

50”

(110×67cm)

100”

(220×130cm)

150”

(320×200cm)

EB-900

150”

100”

80”

50”

EB-95

Connecting Equipment

Illustrations in this section are of EB-925/EB-915W/EB-905/EB-96W/EB-95.

The port name, location, and connector orientation differ depending on the source being connected.

Connecting a Computer

To project images from a computer, connect the computer using one of the following methods.

When using the supplied computer cable

Connect the computer's display output port to the projector's Computer1 or Computer2 port.

When using a commercially available USB cable

Connect the computer's USB port to the projector's USB(TypeB) port.

When using a commercially available HDMI cable

Connect the computer's HDMI port to the projector's HDMI port.

Computer1/2

Audio1/2

USBTypeB

HDMI

• You can use a commercially available USB cable to connect the projector to a computer to project images from the computer. This function is called USB Display.

s "Projecting with USB Display" p.32

• You can output audio from the projector's speaker by connecting the computer's audio output port to the projector's Audio1 or Audio2 port using a commercially available audio cable.

Connecting Equipment

Connecting Image Sources

To project images from DVD players or VHS video and so on, connect to the projector using one of the following methods.

When using a commercially available video or S-video cable

Connect the video or S-video output port on the image source to the projector's Video or S-Video port.

When using the optional component video cable

s "Optional Accessories" p.118

Connect the component output port on the image source to the projector's Computer1 or Computer2 port.

When using a commercially available HDMI cable

Connect the HDMI port on the image source to the projector's HDMI port using a commercially available HDMI cable.

Video

S-Video

S-VIDEO

Audio(L-R)

Computer1/2

Audio1/2

HDMI

Connecting Equipment

Attention

• If the input source is on when you connect it to the projector, it could cause a malfunction.

• If the orientation or shape of the plug differs, do not try to force it in. The device could be damaged or could malfunction.

• If the source you want to connect to has an unusually shaped port, use the cable supplied with the device or an optional cable to connect to the projector.

• When using a commercially available 2RCA(L/R)/stereo mini-pin audio cable, make sure it is labeled "No resistance".

• You can output audio from the projector's speaker by connecting the audio output port on the image source to the projector's Audio-L/R port using a

commercially available audio cable.

Connecting Equipment

Connecting USB Devices

You can connect devices such as USB memory, the optional Document Camera, and USB compatible hard disks and digital cameras.

Using the USB cable supplied with the USB device, connect the USB device to the USB(TypeA) port on the projector.

When the USB device is connected, you can project image files on the USB memory or digital camera using Slideshow.

"Slideshow examples" p.46

If the Document Camera is connected while projecting images from another input port, press the [USB] button on the remote control, or the [Source Search] button on the control panel, to switch to images from the Document Camera.

"Automatically Detect Input Signals and Change the Projected Image (Source Search)" p.31

Attention

• If you use a USB hub, the connection may not operate correctly. Devices such as digital cameras and USB devices should be connected to the projector directly.

• When connecting and using a USB-compatible hard disk, make sure you connect the AC adaptor supplied with the hard disk.

• Connect a digital camera or hard disk to the projector using a USB cable supplied with or specified for use with the device.

• Use a USB cable less than 3 m in length. If the cable exceeds 3 m, Slideshow may not function correctly.

Connecting Equipment

Removing USB devices

After finishing projecting, remove USB devices from the projector. For devices such as digital cameras or hard disks, turn off the device and then remove it from the projector.

Connecting External Equipment

You can output images and audio by connecting an external monitor or speaker. You can also output microphone audio from the projector's speaker by connecting a microphone.

When outputting images to an external monitor

Connect the external monitor to the projector's Monitor Out port using the cable supplied with the external monitor.

When outputting audio to an external speaker

Connect the external speaker to the projector's Audio Out port using a commercially available audio cable.

When outputting microphone audio

Connect the microphone to the projector's Mic port. When using a condenser microphone, set Plug-in Power to On. s Extended - Plug-in Power p.81

MonitorOut

AudioOut

Mic

Connecting Equipment

• If you set Standby Mode to Communication On, you can perform the following operations even if the projector is in standby mode.

- Outputting images to an external monitor

- Outputting microphone audio from the projector's speaker (only when Standby Microphone is set to On).

Extended - Standby Mode p.81

s s Extended - Standby Microphone p.81

• Only analog RGB signals from the Computer1 port can be output to an external monitor. You cannot output signals input from other ports or component video signals.

• Setting gauges for functions such as Keystone, Configuration Menu, or Help screens are not output to the external monitor.

• When the audio cable jack is inserted into the Audio Out port, audio stops being output from the projector's built-in speakers and switches to external

output.

Connecting a LAN Cable (EB-925/EB-915W/EB-905/EB-96W/EB-95 only)

Connect a LAN port on network hubs or other equipment to the projector's LAN port with a commercially available 100BASE-TX or 10BASE-T LAN cable.

To prevent malfunctions, use a category 5 shielded LAN cable.

Connecting Equipment

Installing the Wireless LAN Unit

Open the air filter cover.

Slide the air filter cover open/close switch, and open the air filter cover.

①

②

Fix the stopper in place with the screw.

Remove the stopper for the Wireless LAN unit.

①

②

Close the air filter cover.

Install the Wireless LAN unit.

Basic Usage

This chapter explains how to project and adjust images.

Projecting Images

From Installation to Projection

This section explains the procedure for connecting the projector to a computer with the computer cable and projecting images.

Turn on your computer.

If the image is not projected, you can change the projected image using one of the following methods.

• Press the [Source Search] button on the control panel or the remote

• Press the button for the target port on the remote control.

Change the computer's screen output.

When using a laptop computer, you need to change the screen output from the computer.

Hold down the Fn key (function key), and press the b key.

The method for changing differs depending on the computer

control.

"Automatically Detect Input Signals and Change the Projected Image

(Source Search)" p.31

"Switching to the Target Image by Remote Control" p.32

being used. See the documentation supplied with the computer.

After projecting the image, adjust the image if necessary.

s "Correcting Keystone Distortion" p.36 s "Correcting the Focus" p.40

a b c d

Connect the projector to an electrical outlet with the power cable.

Connect the projector to the computer with the computer cable.

Turn on the projector.

Slide open the A/V mute slide.

Projecting Images

Automatically Detect Input Signals and Change the Projected Image (Source Search)

Press the [Source Search] button to project images from the port currently receiving an image.

Because only images from ports receiving an image are projected, you can quickly project the image you want.

Using the remote control Using the control panel

The following screen is displayed while no image signals are input.

When two or more image sources are connected, press the [Source Search] button until the target image is projected.

When your video equipment is connected, start playback before beginning this operation.

Projecting Images

Switching to the Target Image by Remote Control

You can change directly to the target image by pressing the following buttons on the remote control.

Remote control

Each time the button is pressed, it cycles through the following images:

• Computer1 port

• Computer2 port

Each time the button is pressed, it cycles through the following images:

• S-Video port

• Video port

• HDMI port

Each time the button is pressed, it cycles through the following images:

• USB Display

• Images from the device connected to the USB(TypeA) port

Changes to the image projected with EasyMP Network Projection. When

projecting using the optional Quick Wireless Connection USB Key, this button switches to that image.

Projecting with USB Display

You can use the commercially available USB cable to connect the projector to a computer to project images from the computer.

To start USB Display, set USB Type B to USB Display from the Configuration menu.

Extended - USB Type B p.81

System requirements

For Windows

CPU

Amount of Memory

Hard Disk Space

Display

Windows 2000 Service Pack 4 The following 32 bit operating systems: Windows XP Windows XP Service Pack 2 or later Windows Vista Windows Vista Service Pack 1 or later Windows 7 The following 64 bit operating systems: Windows 7

Mobile Pentium III 1.2 GHz or faster Recommended: Pentium M 1.6 GHz or faster

256 MB or more Recommended: 512 MB or more

20 MB or more

Resolution of no less than 640x480 and no higher than 1600x1200.

Display color in 16-bit color or greater

Projecting Images

For Mac OS

CPU

Amount of Memory

Hard Disk Space

Display

Mac OS X 10.5.1 or later Mac OS X 10.6.x

Power PC G4 1GHz or faster Recommended: Core Duo 1.83GHz or faster

512 MB or more

20 MB or more

Resolution of no less than 640x480 and no higher than 1680x1200.

Display color in 16-bit color or greater

Connecting for the first time

The first time you connect the projector and the computer using the USB cable, the driver needs to be installed. The procedure is different for Windows and Mac OS.

• You do not need to install the driver the next time you connect.

For Windows

• When inputting images from multiple sources, change the input source to USB Display.

Connect the computer's USB port to the projector's USB(TypeB) port using a commercially available USB cable.

For Windows 2000

Double-click Computer, EPSON PJ_UD, and then EMP_UDSE.EXE.

For Windows XP

Driver installation starts automatically.

For Windows Vista/Windows 7

b c

When the dialog box is displayed, click Run EMP_UDSE.exe.

When the License Agreement screen is displayed, click Agree.

Computer images are projected.

It may take a while before computer images are projected. Until computer images are projected, leave the equipment as it is and do not disconnect the USB cable or turn off the power to the projector.

Disconnect the USB cable when you are finished.

When disconnecting the USB cable, there is no need to use Safely Remove Hardware.

Projecting Images

For Mac OS

b c d

Connect the computer's USB port to the projector's USB(TypeB) port using a commercially available USB cable.

The Setup folder of USB Display is displayed in the Finder.

Double-click the USB Display Installer icon.

Follow the on-screen instructions to install.

When the License Agreement screen is displayed, click Agree.

Enter the administrator authority password and start the installation.

When the installation is complete, the USB Display icon is displayed in the Dock and menu bar.

Computer images are projected.

It may take a while before computer images are projected. Until computer images are projected, leave the equipment as it is and do not disconnect the USB cable or turn off the power to the projector.

• If it is not installed automatically, double-click My Computer

- EPSON_PJ_UD - EMP_UDSE.EXE on your computer.

• If nothing is projected for some reason, click All Programs EPSON Projector - Epson USB Display - Epson USB Display Vx.xx on your computer.

• When using a computer running Windows 2000 under user authority, a Windows error message is displayed and you may not be able to use the software. In this case, try updating Windows to the latest version, restart, and then try to connect again.

For more details, contact your local dealer or the nearest address provided in the following document.

s Epson Projector Contact List

• If the USB Display setup folder is not displayed automatically

Uninstalling

For Windows 2000

Click Start, select Settings, and then click Control Panel.

in the Finder, double-click EPSON PJ_UD - USB Display Installer on your computer.

• If nothing is projected for some reason, click the USB Display icon in the Dock.

• If there is no USB Display icon in the Dock, double-click USB Display from the Applications folder.

• If you select Exit from the USB Display icon menu on the Dock, USB Display does not start automatically when you connect the USB cable.

a b

Double-click Add/Remove Programs.

Click Change or Remove Programs.

Select Epson USB Display and click Change/Remove.

For Windows XP

Click Start, and then click Control Panel.

a b

Double-click Add or Remove Programs.

Select Epson USB Display and click Remove.

For Windows Vista/Windows 7

When you finish projection, select Disconnect from the USB Display icon menu on the menu bar or Dock, and then remove

the USB cable.

Click Start, and then click Control Panel.

Click Uninstall a program under Programs.

Projecting Images

Select Epson USB Display and click Uninstall.

For Mac OS

Open the Applications folder, doucle-click USB Display, and then double-click Tool.

Run USB Display UnInstaller.

Adjusting Projected Images

Correcting Keystone Distortion

You can correct keystone distortion using one of the following methods.

• Correcting automatically (Auto V-Keystone) Automatically corrects vertical keystone distortion.

• Correcting manually (manual H/V-Keystone) Manually correct distortion in the horizontal and vertical directions independently.

• Correcting manually (Quick Corner) Manually correct the four corners independently.

Correcting automatically (Auto V-Keystone)

When the projector detects any movement, for example when it is installed, moved, or tilted, it automatically corrects vertical keystone distortion. This function is called Auto V-Keystone.

When the projector remains still for about two seconds after it detects movement, it displays a screen for adjustment and then automatically corrects the projected image.

The following conditions are necessary to correct the projected image using Auto V-Keystone.

Correction angle: approx. 30˚ up and down

• Auto V-Keystone works only when Projection is set to Front from

the Configuration menu. s Extended - Projection p.81

• If you do not want to use Auto V-Keystone, set Auto V-Keystone to Off.

s Settings - Keystone - H/V-Keystone - Auto V-Keystone

p.80.

When you correct keystone distortion, the projected image may be reduced.

Correcting manually (manual H/V-Keystone)

Manually correct distortion in the horizontal and vertical directions independently. H/V-Keystone correction is ideal for fine-tuning keystone distortion.

The following conditions are necessary to correct the projected image using Auto H/V-Keystone.

Correction angle: approx 30˚ right and left/approx. 30˚ up and down

Correcting keystone distortion in vertical directions

Press the [ ][ ] buttons on the control panel.

Adjusting Projected Images

Correcting keystone distortion in horizontal directions

Press the [ ][ ] buttons on the control panel.

Press the [Menu] button while projecting.

"Using the Configuration Menu" p.74

Using the remote control Using the control panel

Select Keystone from Settings.

You can set manual H/V-Keystone from the Configuration menu.

Correcting manually (Quick Corner)

This allows you to manually correct each of the four corners of the projected image separately.

s Settings - Keystone - H/V-Keystone p.80

Select Quick Corner, and then press the [Enter] button.

Adjusting Projected Images

Using the [ ], [ ], [ ], and [ ] buttons on the

remote control, or the [

control panel, select the corner to correct, and then press the [Enter] button.

], [ ], [ ], and [ ] buttons on the

Using the [ ], [ ], [ ], and [ ] buttons on the

remote control, or the [

control panel, correct the position of the corner.

When you press the [Enter] button, the screen shown in step 4 is displayed.

If the message "Cannot adjust any further." is displayed while adjusting, you cannot adjust the shape any further in the direction indicated by the gray triangle.

], [ ], [ ], and [ ] buttons on the

Repeat procedures 4 and 5 as needed to adjust any remaining corners.

Adjusting Projected Images

When you are done, press the [Esc] button to exit the correction menu.

Because Keystone was changed to Quick Corner, the corner selection screen from step 3 is displayed when you press the [

[

], [ ], and [ ] buttons on the control panel next time.

Change Keystone to H/V-Keystone if you want to perform

horizontal and vertical correction using the [

[

] buttons on the control panel.

Settings - Keystone - H/V-Keystone p.80

If the [Esc] button is held down for about two seconds while

correcting with Quick Corner, the following screen is displayed.

], [ ], [ ], and

Adjusting the Image Position

Press the foot lever to extend and retract the front foot. You can adjust the position of the image by tilting the projector up to 16 degrees.

W T

Reset Quick Corner: Resets the result of Quick Corner corrections.

Switch to H/V-Keystone: Switches the correction method to H/V-Keystone.

s "Settings Menu" p.80

Adjusting the Image Size

Turn the zoom ring to adjust the size of the projected image.

The larger the angle of tilt, the harder it becomes to focus. Install the

projector so that it only needs to be tilted at a small angle.

Adjusting the Horizontal Tilt

Extend and retract the rear feet to adjust the projector's horizontal tilt.

Adjusting Projected Images

Extend the rear foot.

Retract the rear foot.

• Press the [Volume] button on the control panel or the remote control to adjust the volume.

a] Decreases the volume.

[

b] Increases the volume.

[

Using the remote control Using the control panel

Correcting the Focus

You can correct the focus using the focus ring.

Adjusting the Volume

You can adjust the volume using one of the following methods.

• Adjust the volume from the Configuration menu.

s Settings - Volume p.80

Caution

Do not start at high volume. A sudden excessive volume may cause loss of hearing. Always lower the volume before powering off, so that you can power on and then gradually increase the volume.

Selecting the Projection Quality (Selecting Color Mode)

You can easily obtain the optimum image quality simply by selecting the setting that best corresponds to your surroundings when projecting. The brightness of the image varies depending on the mode selected.

Mode Application

Dynamic

Ideal for use in a bright room. This is the brightest mode, and reproduces shadow tones well.

Adjusting Projected Images

Mode Application

Presentation

Theatre


Sports

sRGB

Blackboard

Whiteboard

This selection is only available when the input signal is RGB or when the

source is USB Display, USB, or LAN.

*2 This selection is only available when the input signal is component video, or

when the source is Video.

Ideal for making presentations using color materials in a bright room.

Ideal for watching films in a dark room. Gives images a natural tone.

Ideal for projecting still pictures, such as photos, in a bright room. The images are vivid and brought into contrast.

Ideal for watching TV programmes in a bright room. The images are vivid and brought to life.

Ideal for images that conform to the standard.

Even if you are projecting onto a blackboard (greenboard), this setting gives your images a natural tint, just like when projecting onto a screen.

Ideal for making presentations using a whiteboard.

sRGBg color

You can set Color Mode from the Configuration menu.

s Image - Color Mode p.77

Setting Auto Iris

By automatically setting the luminance according to the brightness of the displayed image, it lets you enjoy deep and rich images.

Press the [Menu] button.

"Using the Configuration Menu" p.74

Using the remote control Using the control panel

Each time you press the [Color Mode] button, the Color Mode name is displayed on the screen and the Color Mode changes.

Remote control

Select Auto Iris from Image.

Adjusting Projected Images

Select On.

The setting is stored for each Color Mode.

Press the [Menu] button to finish making settings.

Auto Iris can only be set when the Color Mode is Dynamic or

Changing the Aspect Ratio of the Projected Image

You can change the Aspect Ratiog of the projected image to suit the type, the ratio of height and width, and the resolution of the input signals.

Available Aspect Modes vary depending on the image signal currently being projected.

Changing methods

Each time you press the [Aspect] button, the Aspect Mode name is displayed on the screen and the aspect ratio changes.

Theatre.

You can set the aspect ratio from the Configuration menu.

Changing the aspect mode (EB-915W/EB-910W/EB-96W only)

Projecting images from video equipment or from the HDMI port

Each time the [Aspect] button on the remote control is pressed, the aspect mode changes in the order Normal or Auto, 16:9, Full, Zoom, and Native.

Example: 1080p signal input (resolution: 1920x1080, aspect ratio: 16:9)

s Signal - Aspect p.78

Remote control

Normal or Auto

16:9

Full

Zoom

Native

Adjusting Projected Images

Projecting images from a computer

The following shows projection examples for each aspect mode.

Aspect Mode Input Signal

XGA 1024X768(4:3) WXGA 1280X800(16:10)

Normal

16:9

Full

Zoom

If parts of the image are missing, set the Resolution setting to Wide

or Normal from the Configuration menu, according to the size of the computer panel.

s Signal - Resolution p.78

Changing the aspect mode (EB-925/EB-905/EB-900/EB-95 only)

Projecting images from video equipment

Each time the [Aspect] button on the remote control is pressed, the aspect mode changes in the order 4:3 and 16:9.

When inputting a 720p/1080i signal and the aspect mode is set to 4:3, a 4:3 zoom is applied (the right and left sides of the image are cut off).

Example: 720p signal input (resolution: 1280x720, aspect ratio: 16:9)

Native

4:3

16:9

Projecting images from the HDMI port

Each time the Aspect button on the remote control is pressed, the aspect mode changes in the order Auto, 4:3, and 16:9.

Example: 1080p signal input (resolution: 1920x1080, aspect ratio: 16:9)

Adjusting Projected Images

Auto

4:3

16:9

Projecting images from a computer

Each time the [Aspect] button on the remote control is pressed, the aspect mode changes in the order Normal, 4:3, and 16:9.

The following shows projection examples for each aspect mode.

If parts of the image are missing, set the Resolution setting to Wide or Normal from the Configuration menu, according to the size of the computer panel.

s Signal - Resolution p.78

Aspect Mode Input Signal

XGA 1024X768(4:3) WXGA 1280X800(16:10)

Normal

4:3

16:9

Useful Functions

This chapter explains useful tips for giving presentations, and the Security functions.

Projection Functions

Projecting Without a Computer (Slideshow)

By connecting a USB storage device such as a USB memory or a USB hard disk to the projector, you can project the files stored on the device without using a computer. This function is called Slideshow.

• You may not be able to use USB storage devices that incorporate

Specifications for files that can be projected using Slideshow

Type File Type (Ex-

Image .jpg The following cannot be projected.

security functions.

• You cannot correct keystone distortion while projecting a Slideshow,

even if you press the [

control panel.

tension)

.bmp Cannot project images with a resolution greater

.gif • Cannot project images with a resolution greater

.png Cannot project images with a resolution greater

], [ ], [ ], and [ ] buttons on the

Notes

- CMYK color mode formats

- Progressive formats

- Images with a resolution greater than 8192x8192 Due to the characteristics of JPEG files, images may

not be projected clearly if the compression ratio is too high.

than 1280x800.

• Cannot project animated GIFs.

than 1280x800.

• When connecting and using a USB-compatible hard disk, make sure

you connect the AC adaptor supplied with the hard disk.

• The projector does not support some file systems, so use media that has been formatted in Windows.

• Format the media in FAT16/32.

Slideshow examples

Projecting images stored on USB storage

"Projecting the selected image" p.48

"Projecting image files in a folder in sequence (Slideshow)" p.49

Slideshow operating methods

Although the following steps are explained based on the remote control, you can perform the same operations from the control panel.

Starting Slideshow

Change the source to USB.

"Switching to the Target Image by Remote Control" p.32

Projection Functions

* When it cannot be displayed as a thumbnail, it is displayed as an icon.

Connect the USB storage device or digital camera to the projector.

"Connecting USB Devices" p.25

Slideshow starts and the file list screen is displayed.

• JPEG files are displayed as thumbnails (file contents are displayed as small images).

• Other files or folders are displayed as icons as shown in the following table.

Icon File Icon File

JPEG files

GIF files PNG files

BMP files

• You can also insert a memory card into a USB card reader and then connect the reader to the projector. However, some commercially available USB card readers may not be compatible with the projector.

• If the following screen (Select Drive screen) is displayed, press the

[

you want to use, and then press the [Enter] button.

• To display the Select Drive screen, position the cursor on Select Drive at the top of the file list screen, and then press the [Enter]

button.

], [ ], [ ], and [ ] buttons to select the drive

Projecting images

Use the [ ], [ ], [ ], and [ ] buttons to select the

file or folder you want to project.

Projection Functions

If not all of the files and folders are displayed on the current screen, press the [Down] button on the remote control, or position the cursor on Next Page at the bottom of the screen and press the [Enter] button.

To return to the previous screen, press the [Up] button on the remote control, or position the cursor on Previous Page at the top of the screen and press the [Enter] button.

While projecting, press the [ ] or [ ] button.

Stopping Slideshow

To close Slideshow, disconnect the USB device from the USB port on the projector. For digital cameras, hard disks, and so on, turn off the power to the device and then remove.

Rotating images

You can rotate the played images in 90˚ increments. The rotating function is also available during Slideshow.

Press the [Enter] button.

The selected image is displayed.

When a folder is selected, the files in the selected folder are displayed. To return to the previous screen, position the cursor on Back to Top and press the [Enter] button.

Play images, or run Slideshow.

Projecting the selected image

Attention

Do not disconnect the USB storage device while it is being accessed. Slideshow may not operate correctly.

Start Slideshow.

The file list screen is displayed.

"Starting Slideshow" p.46

Projection Functions

Press the [ ], [ ], [ ], and [ ] buttons to select the

image file you want to project.

Press the [Enter] button.

The image is displayed.

Press the [Esc] button to return to the file list screen.

Press the [ ][ ] buttons to move to the next or previous

image file.

Projecting image files in a folder in sequence (Slideshow)

You can project the image files in a folder in sequence, one at a time. This function is called Slideshow. Use the following procedure to run Slideshow.

To change files automatically when you run Slideshow, set Screen

Switching Time from Option in Slideshow to anything other than No. The default setting is 3 seconds.

s "Image file display settings and Slideshow operation settings"

p.50

Start Slideshow.

The file list screen is displayed.

"Starting Slideshow" p.46

Use the [ ][ ][ ][ ] buttons to position the cursor

over the folder for the Slideshow that you want to run and press the [Enter] button.

Select Slideshow at the bottom right of the file list screen, and then press the [Enter] button.

Slideshow starts, and the image files in the folder are automatically projected in sequence, one at a time.

When the last file is projected, the file list is displayed again automatically. If you set Continuous Play to On in the Option window, projection starts again from the beginning when it reaches the end.

"Image file display settings and Slideshow operation settings"

p.50

You can proceed to the next screen, return to the previous screen, or stop playback while projecting a Slideshow.

Projection Functions

If Screen Switching Time on the Option screen is set to No, files do

You can use the following functions when projecting an image file with Slideshow.

• Freeze

• A/V Mute

• E-Zoom

not change automatically when you select Play Slideshow. Press the

] button, the [Enter] button, or the [Down] button on the remote

[

control to continue to the next file.

"Freezing the Image (Freeze)" p.51

"Hiding the Image and Sound Temporarily (A/V Mute)" p.51

"Enlarging Part of the Image (E-Zoom)" p.53

Display Order

Sort Order

You can select to display the files in Name Order or Date Order.

You can select to sort the files In Ascending or In Descending order.

Image file display settings and Slideshow operation settings

You can set the file display order and Slideshow operations on the Option screen.

Press the [ ][ ][ ][ ] buttons to position the cursor

over the folder where you want to set display conditions and press the [Esc] button. Select Option from the submenu displayed, then press the [Enter] button.

When the following Option screen is displayed, set each of the items.

Enable settings by positioning the cursor on the target item and pressing the [Enter] button.

The following table shows the details for each item.

Continuous Play

Screen Switching Time

Effect

When you have finished making settings, use the [ ],

[

and press [Enter].

The settings are applied.

If you do not want to apply the settings, position the cursor on Cancel and press the [Enter] button.

], [ ], and [ ] buttons to position the cursor over OK

You can set whether to repeat the Slideshow.

You can set the time for a single file to be displayed in Slideshow. You can set a time between No (0) to 60 Seconds. When you set No, auto play is disabled.

You can set the screen effects when changing slides.

Projection Functions

Hiding the Image and Sound Temporarily (A/V Mute)

You can use this when you want to focus the audience's attention on what you are saying, or if you do not want to show details such as when you are changing between files during presentations from a computer.

Each time you press the [A/V Mute] button, or open/close the lens cover A/V Mute turns on or off.

Remote control Projector

• If you use this function when projecting moving images, the images

and sound continue to be played back by the source, and you cannot return to the point where A/V Mute was activated.

• Microphone audio is still output even when A/V Mute is turned on.

• You can select the screen displayed when the [A/V Mute] button is pressed from the Configuration menu.

s Extended - Display - A/V Mute p.81

• When the A/V mute slide is closed for approximately 30 minutes, Lens Cover Timer activates and the power is automatically turned off. If you do not want Lens Cover Timer to activate, set Lens Cover Timer to Off.

s Extended - Operation - Lens Cover Timer p.81

• The lamp is still lit during A/V Mute, so the lamp hours continue to accumulate.

Freezing the Image (Freeze)

When Freeze is activated on moving images, the frozen image continues to project on the screen, so you can project a moving image one frame at a time like a still photo. Also, you can perform operations such as changing between files during presentations from a computer without projecting any images if the Freeze function is activated beforehand.

Each time you press the [Freeze] button, Freeze turns on or off.

Remote control

Projection Functions

• Audio does not stop.

• For moving images, the images continue to play back while the screen is frozen, so it is not possible to resume projection from the point where the screen was frozen.

• If the [Freeze] button is pressed while the Configuration menu or the Help screen is displayed, the menu or the Help screen that is displayed is closed.

• Freeze still works while E-Zoom is being used.

Pointer Function (Pointer)

This allows you to move a Pointer icon on the projected image, and helps you draw attention to the area you are talking about.

Move the Pointer icon ( ).

Remote control

When pressed in conjunction with the adjacent [ ], [ ],

], and [ ] buttons, the pointer can be moved diagonally.

[

You can select the shape of the pointer icon from the

Configuration menu.

Settings - Pointer Shape p.80

Display the Pointer.

Each time you press the [Pointer] button, the pointer appears or disappears.

Remote control

Projection Functions

Enlarging Part of the Image (E-Zoom)

This is useful when you want to expand images to see them in greater detail, such as graphs and tables.

Start E-Zoom.

Press the [

] button to display the Cross ( ).

Remote control

Move the Cross ( ) to the area of the image that you want to

enlarge.

Remote control

When pressed in conjunction with the adjacent [ ], [ ],

[

], and [ ] buttons, the pointer can be moved diagonally.

Enlarge.

Remote control

[z] button: Expands the area each time it is pressed. You can expand quickly by holding the button down.

[x] button: Reduces images that have been enlarged.

[Esc] button: Cancels E-Zoom.

• The enlargement ratio appears on the screen. The selected area can be enlarged to between 1 to 4 times in 25 incremental steps.

• During enlarged projection, press the [

], and [ ] buttons to scroll the image.

[

], [ ],

Projection Functions

Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse)

You can control the computer's mouse pointer from the projector's remote control. This function is called Wireless Mouse.

The following operating systems are compatible with Wireless Mouse.

Windows Mac OS

* It may not be possible to use the Wireless Mouse function under some

versions of the operating systems.

Use the following procedure to enable the Wireless Mouse function.

Connect the projector to a computer using one of the following cables.

• A computer cable or a commercially available HDMI cable

• A commercially available USB cable

"Connecting a Computer" p.22

Windows 98 Windows 98SE Windows Me Windows 2000 Windows XP Windows Vista Windows 7

Mac OS X 10.3.x Mac OS X 10.4.x Mac OS X 10.5.x Mac OS X 10.6.x

Once set, the mouse pointer can be controlled as follows.

Set USB Type B to Wireless Mouse.

Extended - USB Type B p.81

Moving the mouse pointer

Mouse clicks

Drag and drop

[ ][ ][ ][ ] buttons:

Moves the mouse pointer.

[Enter] button: Left click. Press quickly twice to double-click.

[Esc] button: Right click.

While holding down the [Enter] button,

press the [

] buttons.

[

Release the [Enter] button to drop at the desired location.

], [ ], [ ], and

Change the source to one of the following.

• Computer1

• Computer2

• HDMI

"Switching to the Target Image by Remote Control" p.32

Projection Functions

Page Up/Down

• When pressed in conjunction with the adjacent [ ],

[

diagonally.

• If the mouse button settings are set to reverse on the computer, the operation of the remote control buttons will also be reversed.

• The Wireless Mouse function cannot be used while the following functions are being used.

- While the Configuration menu is being displayed

- While a help menu is being displayed

- While the E-Zoom function is being used

- While a user's logo is being captured

- While a pointer function is being used

- While adjusting sound volume

- While USB Display is being operated

- While displaying a Test Pattern

- While Color Mode is being set

- While Color Mode name is being displayed

- While the Source name is being displayed

- While switching input source

- While Message Broadcasting is being displayed

- While patterns are being displayed

[Up] button: Moves to the previous page. [Down] button: Moves to the next page.

], [ ], and [ ] buttons, the pointer can be moved

Saving a User's Logo

You can save the image that is currently being projected as a User's Logo.

Once a User's Logo has been saved, the logo cannot be returned to the

factory default.

Project the image you want to save as the User's Logo, and then press the [Menu] button.

"Using the Configuration Menu" p.74

Using the remote control Using the control panel

Select User's Logo from Extended.

Projection Functions

• When User's Logo Protect from Password Protect is set to On, a message is displayed and the User's Logo cannot be changed. You can make changes after setting User's Logo Protect to Off.

s "Managing Users (Password Protect)" p.59

• If User's Logo is selected when Keystone, E-Zoom, Aspect, or Adjust Zoom are being performed, the function currently being performed is cancelled.

Move the box to select the part of the image to use as the User's Logo.

You can perform the same operations from the projector's control panel.

Remote control

You can save at 400x300 dots in size.

When you press the [Enter] button and the message "Select this image?" is displayed, select Yes.

When the message "Choose this image as the User's Logo?" is displayed, select Yes.

When you press the [Enter] button on the remote control or

the control panel, the screen size may change depending on the signal to match the actual resolution of the image signal.

Projection Functions

Select the zoom factor from the zoom setting screen.

When the message "Save this image as the User's Logo?" is displayed, select Yes.

The image is saved. After the image has been saved, the message "Completed." is displayed.

• When a User's Logo is saved, the previous User's Logo is

erased.

• It takes a while to save. Do not operate the projector or any connected equipment while it is saving, otherwise malfunctions may occur.

Project the image you want to use as the User Pattern, and then press the [Menu] button.

"Using the Configuration Menu" p.74

Using the remote control Using the control panel

Select Pattern from Settings.

Saving User Pattern

You can save the image that is currently being projected as a User Pattern.

When a User Pattern is saved, the previous User Pattern is erased.

Select User Pattern.

Projection Functions

If User Pattern is selected when Keystone, E-Zoom, Aspect, or

Zoom adjustment are being performed, the function currently being performed is cancelled.

When "Do you want to use the currently projected image as the User Pattern?" is displayed, select Yes.

When you press the [Enter] button, the message "Do you save this image as the User Pattern?" is displayed. Then, select Yes.

The image is saved. After the image has been saved, the message "The User Pattern setting is complete." is displayed.

• Once a User Pattern has been saved, User Pattern cannot be

returned to the factory default.

• It takes a while to save a User Pattern. Do not operate the projector or any connected equipment while it is saving, otherwise malfunctions may occur.

Security Functions

The projector has the following enhanced security functions.

• Password Protect You can limit who can use the projector.

• Control Panel Lock You can prevent people changing the settings on the projector without

permission.

"Restricting Operation (Control Panel Lock)" p.61

• Anti-Theft Lock The projector is equipped with the following anti-theft security device.

"Anti-Theft Lock" p.62

Managing Users (Password Protect)

When Password Protect is activated, people who do not know the password cannot use the projector to project images even if the projector power is on. Furthermore, the user's logo that is displayed when you turn on the projector cannot be changed. This acts as an anti-theft device as the projector cannot be used even if it is stolen. At the time of purchase, Password Protect is not activated.

• User's Logo Protect

Even if someone tries to change the User's Logo set by the owner of the projector, it cannot be changed. When User's Logo Protect is set to On, the following setting changes for the User's Logo are prohibited.

• Capturing a User's Logo

• Setting Display Background, Startup Screen, or A/V Mute from

Display

Extended - Display p.81

• Network Protect

When Network Protect is set to On, changing the settings for Network is prohibited.

"Network Menu" p.83

Setting Password Protect

Use the following procedure to set Password Protect.

During projection, hold down the [Freeze] button for about five seconds.

The Password Protect setting menu is displayed.

Kinds of Password Protect

The following three kinds of Password Protect settings can be made according to how the projector is being used.

• Power On Protect

When Power On Protect is On, you need to enter a preset password after the projector is plugged in and turned on (this also applies to Direct Power On). If the correct password is not entered, projection does not start.

Remote control

Security Functions

• If Password Protect is already activated, you must enter the

Select the type of Password Protect you want to set, and then press the [Enter] button.

password. If the password is entered correctly, the Password Protect setting menu is displayed.

s "Entering the Password" p.60

• When the password is set, stick the supplied password protect sticker in a visible position on the projector as a further theft deterrent.

(3) While holding down the [Num] button, enter a four digit number using

the numeric buttons. The number entered is displayed as "* * * *". When you enter the fourth digit, the confirmation screen is displayed.

Remote control

(4) Re-enter the password.

The message "Password accepted." is displayed. If you enter the password incorrectly, a message is displayed prompting

you to re-enter the password.

Entering the Password

When the password entry screen is displayed, enter the password using the numeric buttons on the remote control.

While holding down the [Num] button, enter the password by pressing the numeric buttons.

Select On, and then press the [Enter] button.

Press the [Esc] button, the screen displayed in step 2 is displayed again.

Set the password.

(1) Select Password, and then press the [Enter] button.

(2) When the message "Change the password?" is displayed, select Yes and

then press the [Enter] button. The default password is set to "0000". Change this to your own desired Password. If you select No, the screen displayed in step 2 is displayed again.

Security Functions

When you enter the correct password, Password Protect is temporarily released.

Attention

• If an incorrect password is entered three times in succession, the message "The projector's operation will be locked." is displayed for approximately five minutes, and then the projector switches to standby mode. If this happens, disconnect the power plug from the electrical outlet and then reinsert it and turn the projector's power back on. The projector displays the password entry screen again so that you can enter the correct password.

• If you have forgotten the password, make a note of the "Request Code: xxxxx" number that appears on the screen and contact the nearest address provided in the Epson Projector Contact List.

s Epson Projector Contact List

• If you continue to repeat the above operation and enter the wrong password thirty times in succession, the following message is displayed and the projector does not accept any more password entries. "The projector's operation will be locked. Contact Epson as described in your documentation."

s Epson Projector Contact List

This is useful at events or shows when you want to deactivate all buttons during projection or at schools when you want to limit button operation. The projector can still be operated using the remote control.

Press the [Menu] button while projecting.

"Using the Configuration Menu" p.74

Using the remote control Using the control panel

Select Control Panel Lock from Settings.

Restricting Operation (Control Panel Lock)

Perform one of the following to lock the operation buttons on the control panel.

• Full Lock All of the buttons on the control panel are locked. You cannot perform

any operations from the control panel, including turning the power on or off.

• Partial Lock All of the buttons on the control panel, except for the [

locked.

] button, are

Select either Full Lock or Partial Lock according to your purpose.

Security Functions

Select Yes when the confirmation message is displayed.

The control panel buttons are locked according to the setting you chose.

You can release the control panel lock by one of the following

two methods.

• Select Off from Control Panel Lock.

s Settings - Control Panel Lock p.80

• Press and hold down the [Enter] button on the control panel for about seven seconds, a message is displayed and the lock is released.

Anti-Theft Lock

The projector is equipped with the following types of anti-theft security devices.

• Security slot The security slot is compatible with the Microsaver Security System

manufactured by Kensington. See the following for more details on the Microsaver Security System.

http://www.kensington.com/

• Security cable installation point A commercially available theft-prevention wire lock can be passed

through the installation point to secure the projector to a desk or pillar.

Installing the wire lock

Pass an anti-theft wire lock through the installation point.

See the documentation supplied with the wire lock for locking instructions.

Monitoring and Controlling

About EasyMP Monitor

EasyMP Monitor lets you carry out operations such as checking the status of multiple Epson projectors that are connected to a network at a computer monitor, and controlling the projectors from the computer.

You can download EasyMP Monitor from the following Web site.

http://www.epson.com

The following provides brief descriptions of the monitoring and control functions that can be carried out using EasyMP Monitor.

• Registering projectors for monitoring and control

Projectors on the network can be searched for automatically, and you can then select which projectors you want to register from the projectors that are detected. You can register target projectors by entering their IP addresses.

• Registered projectors can also be assigned to groups so that they can be monitored and controlled in groups.

• Monitoring the status of registered projectors

You can check the power status (ON/OFF) for projectors and problems or warnings that require attention by using the icons. You can select groups of projectors or a single projector and then check the cumulative lamp operating time or information such as input sources, problems, and warnings for the projectors.

• Controlling registered projectors

Projectors can be selected in groups or as single projectors, and you can then carry out operations for the selected projectors such as turning the power on and off and switching their input sources. You can use Web Control functions to change the settings in the projector's configuration menu. If there are certain control actions which are carried out regularly at particular times or on particular days, you can use Timer Settings to register timer settings.

• Mail Notification settings

You can set e-mail addresses to which notifications are sent if a status that requires attention, such as a problem, occurs with a registered projector.

• Sending messages to registered projectors

You can use the Message Broadcasting plugin for EasyMP Monitor to send JPEG files to registered projectors.

Download the Message Broadcasting plugin from the Web site address provided at the beginning of this chapter.

Changing Settings Using a Web Browser (Web Control)

By using a Web browser of a computer connected to the projector on a network, you can make settings and control the projector. This function allows you to perform setup and control operations remotely. In addition, since you can use the computer's keyboard, entering characters required for the setup is easier.

Use Microsoft Internet Explorer 6.0 or later as the Web browser. If using a Mac OS, use Safari or Firefox.

If you set Standby Mode to Communication On, you can use a Web

Projector setup

In a Web browser, you can set items that are usually set in the projector's Configuration menu. The settings are reflected in the Configuration menu. There are also items that can only be set in a Web browser.

browser to make settings and perform control even if the projector is in standby mode (when the power is off).

s Extended - Standby Mode p.81

Monitoring and Controlling

Items in the Configuration menu that cannot be set by a Web browser

• Settings menu - Keystone - Quick Corner

• Settings Menu - Pointer Shape

• Settings Menu - Pattern

• Settings Menu - User Button

• Extended Menu - User's Logo

• Extended Menu - Language

• Extended Menu - Operation - High Altitude Mode

• Extended Menu - Operation - Lens Cover Timer

• Reset Menu - Reset All and Reset Lamp Hours

The settings for items on each menu are the same as the projector's Configuration menu.

"Configuration Menu" p.73

Items that can only be set with a Web browser

• SNMP Community Name

• Monitor Password

Displaying the Web Control screen

Displaying the Web Remote screen

The Web Remote function allows you to perform projector remote control operations with a Web browser.

Enter the IP address of the projector in the address input box of the Web browser, and press the Enter key on the computer's keyboard.

The Web Control screen is displayed.

When Web Control Password is set in the Network menu from the projector's Configuration menu, the password entry screen is displayed.

Display the Web Control screen.

a b

Click Web Remote.

Use the following procedure to display the Web Control screen.

Make network settings on the computer and projector and put them into network connection status. Use Advanced when connecting via a Wireless LAN.

If your Web browser is set up to connect via a proxy server, the Web

Control screen cannot be displayed. To display Web Control, you need to make settings so that a proxy server is not used for a connection.

Start a Web browser on the computer.

The Web Remote screen is displayed.

Monitoring and Controlling

[Page] buttons

[Up] [Down]

Name Function

Changes pages in files such as PowerPoint files when using the following projection methods.

• When using the Wireless Mouse function

s "Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse)" p.54

• When using USB Display

s "Projecting with USB Display" p.32

• When connecting to a network

When projecting images using Slideshow, pressing these buttons displays the previous/next screen.

Name Function

[t] button

[Computer] button

[Video] button

[Freeze] button

[A/V Mute] button

Turns the projector power on or off. s "From Installation to Projection" p.30

Each time the button is pressed, input changes between images from the Computer1 port and the Computer2 port.

Each time the button is pressed, the image cycles through Video, S-Video, and HDMI ports.

Images are paused or unpaused. s "Freezing the Image (Freeze)" p.51

Turns the video and audio on or off. s "Hiding the Image and Sound Temporarily (A/V

Mute)" p.51

[Source Search]

button

[LAN] button

[USB] button

[Volume] buttons

[a][b]

Changes to the next input source that is sending an image. s "Automatically Detect Input Signals and Change the

Projected Image (Source Search)" p.31

Changes to the image projected with EasyMP Network Projection. When projecting using the optional Quick Wireless Connection USB Key, this button switches to that image.

"Switching to the Target Image by Remote Control"

p.32

Each time the button is pressed, it cycles through the following images:

• USB Display

• Images from the device connected to the USB(TypeA)

port

s "Switching to the Target Image by Remote Control"

p.32

[a] Decreases the volume. [b] Increases the volume. s "Adjusting the Volume" p.40

Monitoring and Controlling

Using the Mail Notification Function to Report Problems

When you set Mail Notification, notification messages are sent to the preset email addresses when a problem or warning occurs with a projector. This will enable the operator to be notified of problems with projectors even at locations away from the projectors.

Network - Mail - Mail Notification p.89

• Up to a maximum of three notification destinations (addresses) can

be registered, and notification messages can be sent to all three destinations at once.

• If a projector develops a critical problem and suddenly stops working, it may not be able to send a message notifying an operator of the problem.

• If you set Standby Mode to Communication On, you can control the projector even if it is in standby mode (when the power is off).

s Extended - Standby Mode p.81

• Internal error

• Fan related error

• Sensor error

• Lamp timer failure

• Lamp out

• Internal temperature error

• High-speed cooling in progress

• Lamp replacement notification

• No-signal

No Signal is input to the projector. Check the connection status or check that the power for the signal source is turned on.

• Auto Iris Error

• Power Err. (Ballast)

See the following to deal with problems or warnings.

"Reading the Indicators" p.95

Reading Error Notification Mail

When the Mail Notification function is set to On and a problem or warning occurs in the projector, the following email will be sent.

Subject: EPSON Projector

Line 1: The projector name where the problem has occurred

Line 2: The IP address set for the projector where the problem has occurred.

Line 3 and on: Details of the problem

The details of the problem are listed line by line. The main message contents are listed below.

Management Using SNMP

By setting SNMP to On in the Configuration menu, notification messages are sent to the specified computer when a problem or warning occurs. This will enable the operator to be notified of problems with projectors even at locations away from the projectors.

Network - Others - SNMP p.90

Monitoring and Controlling

• SNMP should be managed by a network administrator or someone

who is familiar with the network.

• To use the SNMP function to monitor the projector, you need to install the SNMP manager program on your computer.

• The managing function using SNMP cannot be used via wireless LAN in Quick connection mode.

• Up to two destination IP addresses can be saved.

ESC/VP21 Commands

You can control the projector from an external device using ESC/VP21.

Command list

When the power ON command is transmitted to the projector, the power turns on and it enters warm-up mode. When the projector's power has turned on, a colon ":" (3Ah) is returned.

When a command is input, the projector executes the command and returns a ":", and then accepts the next command.

Item Command

RGB SOURCE 21

Component SOURCE 24

HDMI SOURCE 30

Video SOURCE 41

S-Video SOURCE 42

USB Display SOURCE 51

USB SOURCE 52

LAN SOURCE 53

A/V Mute On/Off On MUTE ON

Off MUTE OFF

Add a Carriage Return (CR) code (0Dh) to the end of each command and transmit.

For more details, contact your local dealer or the nearest address provided in the Epson Projector Contact List.

Epson Projector Contact List

If the command being processed terminates abnormally, an error message is output and a ":" is returned.

The main contents are listed below.

Item Command

Power ON/OFF On PWR ON

Off PWR OFF

Signal selection Computer1 Auto SOURCE 1F

RGB SOURCE 11

Component SOURCE 14

Computer2 Auto SOURCE 2F

Cable layouts

Serial connection

• Connector shape: D-Sub 9-pin (male)

Monitoring and Controlling

• Projector input port name: RS-232C

<At the projector> (PC serial cable) <At the computer>

Signal Name Function

GND Signal wire ground

TD Transmit data

RD Receive data

About PJLink

PJLink Class1 was established by the JBMIA (Japan Business Machine and Information System Industries Association) as a standard protocol for controlling network-compatible projector's as part of their efforts to standardize projector control protocols.

The projector complies with the PJLink Class1 standard established by the JBMIA.

It complies with all commands except for the following commands defined by PJLink Class1, and agreement was confirmed by the PJLink standard adaptability verification.

URL:http://pjlink.jbmia.or.jp/english/

• Non-compatible commands

Function PJLink Command

Mute settings Image muting set AVMT 11

Audio muting set AVMT 21

• Input names defined by PJLink and corresponding projector sources

Source PJLink Command

Computer1 INPT 11

Computer2 INPT 12

Communications protocol

• Default baud rate setting: 9600 bps

• Data length: 8 bit

• Parity: None

• Stop-bit: 1 bit

• Flow control: None

Video INPT 21

S-Video INPT 22

HDMI INPT 32

USB INPT 41

LAN INPT 52

USB Display INPT 53

Monitoring and Controlling

• Manufacturer name displayed for "Manufacture name information query"

EPSON

• Model name displayed for "Product name information query"

EB-925/C2080XN/PowerLite 1835 EB-915W/C2070WN/PowerLite 915W EB-910W/C2050WN/PowerLite 910W EB-905/C2060XN/PowerLite 905 EB-900/C2040XN/PowerLite 900 EB-96W/C2030WN/PowerLite 96W EB-95/C2020XN/PowerLite 95

About Crestron RoomView

Crestron RoomView® is an integrated control system provided by Crestron connected on a network.

The projector supports the control protocol, and can therefore be used in a system built with Crestron RoomView

Visit the Crestron English-language displays are supported.)

http://www.crestron.com

. It can be used to monitor and control multiple devices

Web site for details on Crestron RoomView®. (Only

• Monitoring and control with application software

You can use Crestron RoomView Server Edition provided by Creston® to monitor devices in the system, to communicate with the help desk, and to send emergency messages. See the following Web site for details.

http://www.crestron.com/getroomview

This manual describes how to perform operations on your computer using a Web browser.

• You can only enter single-byte alphanumeric characters and symbols.

Operating a projector from your computer

• The following functions cannot be used while using Crestron RoomView

s "Changing Settings Using a Web Browser (Web Control)"

p.63

Message Broadcasting (EasyMP Monitor plug-in)

• Controling is possible if Standby Mode is set to Communication On, even if the projector is in standby state (when the power is

off). s Extended - Standby Mode p.81

Express or Crestron RoomView

The following provides an overview of Crestron RoomView

• Remote operation using a Web browser

You can operate a projector from your computer just like using a remote control.

Displaying the operation window

Check the following before carrying out any operations.

• Make sure the computer and projector are connected to the network. When communicating with a wireless LAN, connect in Advanced connection mode.

"Wireless LAN menu" p.85

• Set RoomView to On from the Network menu.

Network - Others - RoomView p.90

Monitoring and Controlling

Start a Web browser on the computer.

Using the operation window

Enter the IP address of the projector in the address field of the Web browser, and press the Enter key on the keyboard.

The operation window is displayed.

Button Function

A/V Mute Turns the video and audio on or off.

s "Hiding the Image and Sound Temporarily (A/V Mute)" p.51

Switch to the image from the selected input source. To display input sources that

are not shown in Source List, click (a) or (b) to scroll up or down. You can change the source name if necessary.

You can perform the following operations when you click the buttons. To display

buttons that are not shown in Source List, click (c) or (d) to scroll left or right.

Button Function

Freeze Images are paused or unpaused.

s "Freezing the Image (Freeze)" p.51

Contrast Adjusts the difference between light and shade in the

images.

Brightness Adjusts the image brightness.

Color Adjusts the color saturation for the images.

Sharpness Adjusts the image sharpness.

You can perform the following operations when you click the buttons.

Button Function

Power Turns the projector power on or off.

Vol-/Vol+ Adjusts the volume.

Zoom

The [ ], [ ], [ ], or [ ] buttons perform the same operations as the

[

the following operations when you click the other buttons.

][ ][ ][ ] buttons on the remote control. You can perform

Click the [z] button to enlarge the image without changing the projection size. Click the [x] button to reduce an image that was enlarged with the [z] button. Click the [ position of an enlarged image.

"Enlarging Part of the Image (E-Zoom)" p.53

], [ ], [ ], or [ ] buttons to change the

Monitoring and Controlling

Button Function

OK Performs the same operation as the [Enter] button on

the remote control. s "Remote Control" p.14

Menu Displays and closes the Configuration menu.

Auto If clicked while projecting analog RGB signals from

Computer1 port or Computer2 port, automatically optimizes the image by adjusting the Tracking, Sync., and Position.

Search Switches to the image from the input port where video

signals are being input. s "Automatically Detect Input Signals and Change the

Projected Image (Source Search)" p.31

Esc Performs the same operation as the [Esc] button on the

remote control. s "Remote Control" p.14

You can perform the following operations when you click the tabs.

Tab Function

Contact IT Help Displays the Help Desk window. Used to send messages

to, and receive messages from, the administrator using Crestron RoomView

Info Displays information on the projector that is currently

connected.

Tools Changes settings in the projector that is currently

connected. See the next section.

Using the tools window

Express.

The following window is displayed when you click the Tools tab on the operation window. You can use this window to change settings in the projector that is currently connected.

Crestron Control

Make settings for Crestron

Projector

The following items can be set.

Item Function

Projector Name Enter a name to differentiate the projector that is

Location Enter an installation location name for the projector

Assigned To Enter a user name for the projector. (The name can

central controllers.

currently connected from other projectors on the network. (The name can contain up to 15 single-byte alphanumeric characters.)

that is currently connected on the network. (The name can contain up to 32 single-byte alphanumeric characters and symbols.)

contain up to 32 single-byte alphanumeric characters and symbols.)

Monitoring and Controlling

Item Function

DHCP Select the Enabled check box to use DHCP. You cannot

enter an IP address if DHCP is enabled.

IP Address Enter the IP address to assign to the currently connected

projector.

Subnet Mask Enter a subnet mask for the currently connected

projector.

Default Gateway Enter the gateway address for the currently connected

projector.

Send Click this button to confirm the changes made to the

Projector.

Admin Password

Select the Enabled check box to require a password to open the Tools window. The following items can be set.

Item Function

New Password Enter the new password when changing the password to

open the Tools window. (The name can contain up to 26 single-byte alphanumeric characters.)

Item Function

New Password Enter the new password when changing the password to

open the operation window. (The name can contain up to 26 single-byte alphanumeric characters.)

Confirm Enter the same password as you entered in New

Password. If the passwords are not the same, an error is

displayed.

Send Click this button to confirm the changes made to the

User Password.

Confirm Enter the same password as you entered in New

Password. If the passwords are not the same, an error is

displayed.

Send Click this button to confirm the changes made to the

Admin Password.

User Password

Select the Enabled check box to require a password to open the operation window on the computer. The following items can be set.

Configuration Menu

This chapter explains how to use the Configuration menu and its functions.

Using the Configuration Menu

This section explains how to use the Configuration menu.

Although steps are explained using the remote control as an example, you can perform the same operations from the control panel. Check the guide under the menu for the available buttons and their operations.

Display the Configuration menu screen.

Select a top menu item.

Select a submenu item.

①

②

Change settings.

①

②

Press the [Menu] button to finish making settings.

List of Functions

Configuration Menu Table

Settable items vary depending on the model being used and the image signal and source being projected.

Top Menu Name Submenu Name Items or Setting Values

Image menu s p.77

Signal menu s p.78

Color Mode Dynamic, Presentation, Theatre,

Photo, sRGB, Blackboard, and Whiteboard

Brightness -24 to 24

Contrast -24 to 24

Color Saturation -32 to 32

Tint -32 to 32

Sharpness -5 to 5

Abs. Color Temp. 5000K to 10000K

Color Adjustment R: -16 to 16

G: -16 to 16 B: -16 to 16

Auto Iris On and Off

Auto Setup On and Off

Resolution Auto, Wide, and Normal

Tracking -

Sync. -

Position Up, Down, Left, and Right

Progressive Off, Video, and Film/Auto

Noise Reduction Off, NR1, and NR2

HDMI Video Range Auto, Normal, and Expanded

Input Signal Auto, RGB, and Component

Top Menu Name Submenu Name Items or Setting Values

Video Signal Auto, NTSC, NTSC4.43, PAL,

M-PAL, N-PAL, PAL60, and SECAM

Aspect Normal, 4:3, 16:9, Full, Zoom,

and Native

Overscan Auto, Off, 4%, and 8%

Settings menu s p.80

Extended menu s p.81

Keystone H/V-Keystone and Quick Corner

Control Panel Lock Full Lock, Partial Lock, and Off

Pointer Shape Pointer 1, 2, and 3

Power Consumption Normal and ECO

Volume 0 - 20

Mic Input Level 0 - 5

Remote Receiver Front/Rear, Front, Rear and Off

User Button Power Consumption, Info,

Progressive,Test Pattern, Resolution, Mic Input Level, and Pattern Display

Pattern Pattern Display, Pattern Type,

User Pattern, and Test Pattern

Display Messages, Display Background,

Startup Screen, and A/V Mute

User's Logo -

Projection Front, Front/Ceiling, Rear, and

Rear/Ceiling

Operation Direct Power On, Sleep Mode,

Sleep Mode Timer, Lens Cover Timer, and High Altitude Mode

Standby Mode Communication On and

Communication Off

Standby Microphone On and Off

List of Functions

Top Menu Name Submenu Name Items or Setting Values

Plug-in Power On and Off

USB Type B USB Display and Wireless

Mouse

Language 15 or 35 languages

Info menu s p.91

Reset menu s p.92

*1 The number of supported languages differs depending on the region where the

projector is used.

Lamp Hours -

Source -

Input Signal -

Resolution -

Video Signal -

Refresh Rate -

Sync Info -

Status -

Serial Number -

Event ID -

Reset All -

Reset Lamp Hours -

Top Menu Name Submenu Name Items or Setting Values

Connection Mode Quick and Advanced

Channel 1ch, 6ch, and 11ch

Wireless LAN Sys. 802.11b/g and 802.11b/g/n

SSID Auto Setting On and Off

SSID -

IP Settings DHCP, IP Address, Subnet Mask,

and Gateway Address

SSID Display On and Off

IP Address Display On and Off

Security menu s p.87

Security No, WEP, WPA-PSK, and WPA2-

PSK

WEP Encryption 128Bit and 64Bit

Format ASCII and HEX

Key ID 1, 2, 3, 4

Encryption Key 1, Encryption Key 2, Encryption Key 3, and Encryption Key 4

Authentication Type Open and Shared

PSK -

Network menu

Top Menu Name Submenu Name Items or Setting Values

Basic menu s p.85

Wireless LAN menu s p.85

Projector Name -

PJLink Password -

Web Control Password -

Projector Keyword On and Off

Wireless LAN Power On and Off

Wired LAN menu (EB-925/EB-915W/ EB-905/EB-96W/ EB-95 only)

s p.88

Mail menu s p.89

IP Settings DHCP, IP Address, Subnet Mask,

and Gateway Address

IP Address Display On and Off

Mail Notification On and Off

SMTP Server -

Port Number -

List of Functions

Top Menu Name Submenu Name Items or Setting Values

Address 1 Setting, Address 2 Setting, and Address 3 Setting

"Automatically Detect Input Signals and Change the Projected Image

(Source Search)" p.31

Others menu s p.90

SNMP On and Off

Trap IP Address 1 and Trap IP Address 2

Priority Gateway Wired LAN and Wireless LAN

AMX Device Discovery On and Off

RoomView On and Off

Image Menu

Settable items vary depending on the image signal and source currently being projected. Setting details are saved for each image signal.

Submenu Function

Color Mode

Brightness

Contrast

Color Saturation

Tint

You can select the quality of the image to suit your surroundings. s "Selecting the Projection Quality (Selecting Color Mode)"

p.40

You can adjust the image brightness.

You can adjust the difference between light and dark in the images.

You can adjust the color saturation for the images.

(Adjustment is only possible when NTSC signals are being input if you use composite video/S-Video signals.)

You can adjust the image tint.

Sharpness

You can adjust the image sharpness.

List of Functions

Submenu Function

Abs. Color Temp.

(This item cannot be selected if Color Mode is set to You can adjust the overall tint of the image. You can adjust tints

in 10 stages from 5000 K to 10000 K. The image is tinted blue when a high value is selected and tinted red when a low value is selected.

sRGBg.)

Color Adjustment

Auto Iris

Reset

(This item cannot be selected if Color Mode is set to You can adjust the color strength for Red, Green, and Blue

individually.

(This item can be set only if Color Mode is set to Dynamic or Theatre.)

Set to On to adjust the iris to obtain the optimum light for images being projected.

The setting is stored for each Color Mode. s "Setting Auto Iris" p.41

You can reset all adjustment values for the Image menu to their default settings. See the following to return all menu items to their default settings.

s "Reset Menu" p.92

Signal Menu

Settable items vary depending on the image signal and source currently being projected. Setting details are saved for each image signal.

You cannot make settings on the Signal menu when the source is USB Display, USB, or LAN.

"Automatically Detect Input Signals and Change the Projected Image

(Source Search)" p.31

sRGBg.)

Submenu Function

Auto Setup

Resolution

Tracking

Sync.

Position

Set to On to automatically adjust Tracking, Sync., and Position to the optimum state when the input signal changes.

Set to Auto to automatically identify the resolution of the input signal. If images are not projected correctly when set to Auto, for example if some of the image is missing, adjust to Wide for wide screens, or set to Normal for 4:3 or 5:4 screens depending on the connected computer.

You can adjust computer images when vertical stripes appear in the images.

You can adjust computer images when flickering, fuzziness, or interference appear in the images.

You can adjust the display position up, down, left, and right when a part of the image is missing so that the whole image is projected.

List of Functions

Submenu Function

Progressive

Noise Reduction

HDMI Video Range

Input Signal

(This setting can only be adjusted when a component video or RGB video with an interlaced signal (480i/576i/1080i) is input. This cannot be set when a digital RGB signal is input.)

Interlaceg (i) signal is converted to Progressiveg (p). (IP conversion)

Off: Ideal for images with a large amount of movement. Video: Ideal for general video images. Film/Auto: This is ideal for movie films, computer graphics, and

animation.

(This cannot be set when a digital RG B si gn al i s i np ut , o r w he n an interlace signal is being displayed when Progressive is set to Off.)

Smoothes out rough images. There are two modes. Select your favorite setting. It is recommended that this is set to Off when viewing image sources in which noise is very low, such as for DVDs.

When the projector's HDMI port is connected to a DVD player, the projector's video range is set according to the DVD player's video range setting.

You can select input signal from Computer port. If set to Auto, the input signal is set automatically according to

the connected equipment. If colors do not appear correctly when set to Auto, select the

appropriate signal according to the connected equipment.

Submenu Function

Overscan

Reset

Changes the output image ratio (the range of the projected image). You can set the cropping range to Off, 4%, or 8%. When the source is HDMI, Auto is available. When Auto is selected, it automatically changes to Off or 8% according to the input signal.

You can reset all adjustment values on the Signal menu to their default settings, except for Input Signal.

See the following to return all menu items to their default settings.

s "Reset Menu" p.92

Video Signal

Aspect

You can select the input signal from the Video port. If this is set to Auto, video signals are recognized automatically. If interference appears in the image or a problem occurs such as no image is being projected when set to Auto, select the appropriate signal depending on the connected equipment.

You can set the s "Changing the Aspect Ratio of the Projected Image " p.42

aspect ratiog for projected images.

List of Functions

Settings Menu

Submenu Function

Keystone

You can correct keystone distortion.

• When H/V-Keystone is selected:

• Correcting manually

Adjust V-Keystone and H-Keystone to correct horizontal and vertical keystone distortion.

• Correcting automatically Set Auto V-Keystone to On. (This item cannot be selected if Projection is set to

Front/Ceiling, Rear, or Rear/Ceiling.) s "Correcting automatically (Auto V-Keystone)" p.36

• When Quick Corner is selected: Select and correct the four corners of the projected image. s "Correcting manually (Quick Corner)" p.37

Submenu Function

Pointer Shape

Power Consumption

Volume

Mic Input Level

Remote Receiver

You can select the shape of the pointer.

Pointer 1:

Pointer 2:

Pointer 3:

s "Pointer Function (Pointer)" p.52

You can set the lamp brightness to one of two settings. Select ECO if the images being projected are too bright, such as

when projecting images in a dark room or onto a small screen. When ECO is selected, the power consumption and the lamp's operating life are changed as follows, and fan rotation noise during projection is reduced.

Electrical consumption: about 20% decrease, lamp life: about 1.2 times longer

You can adjust the volume. Setting values are saved for each source.

Adjust this if the microphone input level is low and the microphone audio output from the projector's speaker is difficult to hear, or if the input level is too high, resulting in a crackling sound in audio from the microphone. When Mic Input Level is turned down to 0, no microphone audio is output from the speaker.

You can limit the reception of the operation signal from the remote control.

When set to Off, you cannot perform any operations from the remote control. If you want to make operations from the remote control, hold down the [Menu] button on the remote control or the control panel for at least 15 seconds to reset the setting to its default value.

Control Panel Lock

You can use this to restrict operation of the projector's control panel.

s "Restricting Operation (Control Panel Lock)" p.61

List of Functions

Submenu Function

User Button

Pattern

You can select and assign an item from the Configuration menu with the remote control's [User] button. Pressing the [User] button directly displays the assigned menu item selection/ adjustment screen, allowing you to make one-touch changes to settings/adjustments. You can assign one of the following items to the [User] button.

Power Consumption, Info, Progressive,Test Pattern, Resolution, Mic Input Level, and Pattern Display

Pattern Display: Display a pattern. Pattern Type: You can select from Patterns 1 to 4 or User

Pattern. Patterns 1 to 4 display projection lines such as ruled lines or a grid.

Pattern 1:

Pattern 3:

User Pattern: Captures a user pattern. s "Saving User Pattern" p.57 Test Pattern: When the projector is set up, a test pattern is

displayed so that you can adjust the projection status without connecting equipment. While the test pattern is displayed, zoom, focus adjustments, and keystone correction can be performed. To cancel the test pattern, press the [Esc] button on the remote control or the control panel.

Pattern 2:

Pattern 4:

Submenu Function

Reset

Extended Menu

You can reset all adjustment values on the Settings menu to their default settings, except for User Button.

See the following to return all menu items to their default settings.

s "Reset Menu" p.92

Attention

If a pattern is displayed for a long time, a residual image may be visible in projected images.

List of Functions

Submenu Function

Display

You can make settings related to the projector's display. Messages: When set to Off, the following items will not be

displayed. Item names when the Source, Color Mode, or Aspect Ratio

is changed, messages when no signal is being input, and warnings such as High Temp Warning.

Display Background

: You can set the screen background

to Black, Blue, or Logo when no image signal is available.

Startup Screen

: Set to On to display the User's Logo

when projection starts.

A/V Mute

: You can set the screen displayed when the remote control's [A/V Mute] button is pressed to Black, Blue, or Logo.

User's Logo

You can change the user's logo that is displayed as a background during Display Background, A/V Mute, and so on.

s "Saving a User's Logo" p.55

Projection

Select from one of the following projection methods depending on how the projector is installed.

Front, Front/Ceiling, Rear, and Rear/Ceiling You can change the setting as follows by pressing down

the [A/V Mute] button on the remote control for about five seconds.

FrontWFront/Ceiling RearWRear/Ceiling

s "Installation Methods" p.19

Submenu Function

Operation

Direct Power On: Set to On to turn on the projector simply by plugging it in.

When the power cable is plugged in, note that the projector turns on automatically in cases such as a power outage being restored.

Sleep Mode: When set to On, this automatically stops projection when no image signal is being input and no operations are carried out.

Sleep Mode Timer: When Sleep Mode is set to On, you can set the time before the projector automatically turns off within a range of 1 to 30 minutes.

Lens Cover Timer: When set to On, this turns off the power automatically 30 minutes after the A/V mute slide is closed.

This is set to On by default. High Altitude Mode: Set to On when using the projector

above an altitude of 1500 m.

Standby Mode

If you set Communication On, you can perform the following operations even if the projector is in standby mode.

• Monitoring and controlling the projector over the network. s "Monitoring and Controlling" p.63

• Outputting analog RGB signals from the Computer1 port to an external monitor.

• Outputting audio from the microphone to the projector's speaker. (Only when the Standby Microphone is set to On.) s "Connecting Image Sources" p.23

Standby Microphone

(This item can only be set when Standby Mode is set to Communication On.)

When set to On, you can output audio from the microphone from the projector's speaker even if the projector is in standby mode.

List of Functions

Submenu Function

Plug-in Power

When set to On you can use a microphone with Plug-in Power support.

"Setting Password Protect" p.59

USB Type B

Language

Reset

*1When User's Logo Protect is set to On in Password Protect, settings related

to user's logo cannot be changed. You can make changes after setting User's Logo Protect to Off.

s "Managing Users (Password Protect)" p.59 Audio is not output from the microphone when Power On Protect from

Password Protect is set to On.

*3 Except for High Altitude Mode.

Set to USB Display when the projector and a computer are connected by a USB cable and computer images are projected.

s "Projecting with USB Display" p.32 Set to Wireless Mouse when the mouse pointer is to be

operated by the Remote Control.

"Using the Remote Control to Operate the Mouse

Pointer (Wireless Mouse)" p.54

You can set the language for messages and menus.

You can reset the adjustment values for Display

Operation

settings. See the following to return all menu items to their default

settings. s "Reset Menu" p.92

from the Extended menu to their default

and

Submenu Function

Net. Info. - Wireless LAN

Displays the following network setting status information.

• Connection Mode

• Antenna Level

• Projector Name

• SSID

• DHCP

• IP Address

• Subnet Mask

• Gateway Address

• MAC Address

• Region Code

Network Menu

When Network Protect is set to On in Password Protect, a message is displayed and the network settings cannot be changed. Turn Network Protect Off and then configure the network.

Net. Info. Wired LAN

Displays the following network setting status information.

• Projector Name

• DHCP

• IP Address

• Subnet Mask

• Gateway Address

• MAC Address

List of Functions

Submenu Function

Network Configuration

* Displays available region information for the Wireless LAN unit being used.

For more details, contact your local dealer or the nearest address provided in the Epson Projector Contact List.

s Epson Projector Contact List

By using a Web browser of a computer connected to the projector on

a network, you can set functions and control the projector. This function is called Web Control. You can easily enter text using a keyboard to make settings for Web Control such as security settings.

s "Changing Settings Using a Web Browser (Web Control)" p.63

The following menus are available for setting Network items.

Basic, Wireless LAN, Security, Wired LAN, Mail, Others, Reset, and Complete

Notes on operating the Network menu

Selecting from the top menu and sub menus, and changing selected items is the same as making operations from the Configuration menu.

Yes: Saves the settings and exits the Network menu.

No: Does not save the settings and exits the Network menu.

Cancel: Continues displaying the Network menu.

Soft keyboard operations

The Network menu contains items that require input of alphanumerics during setup. In this case, the following software keyboard is displayed. Use

the [

cursor to the desired key, and then press the [Enter] button to enter the alphanumeric character. Enter figures by holding down the [Num] button on the remote control, and pressing the numeric buttons. After inputting, press Finish on the keyboard to confirm your input. Press Cancel on the keyboard to cancel your input.

], [ ], [ ], and [ ] buttons on the remote control or

], [ ], [ ], and [ ] buttons on the control panel to move the

When done, make sure you go to the Complete menu, and select Yes, No, or Cancel. When you select Yes or No, you are returned to the Configuration menu.

• Each time the CAPS key is selected and the [Enter] button is pressed, it sets and changes between upper case and lower case letters.

• Each time the SYM1/2 key is selected and the [Enter] button is pressed, it sets and changes the symbol keys for the section enclosed by the frame.

List of Functions

Basic menu

Submenu Function

Projector Name

Displays the projector name used to identify the projector when connected to a network.

When editing, you can enter up to 16 single-byte alphanumeric characters.

Submenu Function

Projector Keyword

Wireless LAN menu

When set to On, you have to enter the keyword when you try to connect the projector to a computer via a network. As a result, you can prevent presentations from being interrupted by connections from other computers. Normally this should be set to On.

s EasyMP Network Projection Operation Guide

PJLink Password

Web Control Password

Set a password to use when you access the projector using compatible PJLink software.

You can enter up to 32 single-byte alphanumeric characters.

Set a password to use when making settings and controlling the projector using Web Control. Enter up to eight single-byte alphanumeric characters. Web Control is a function that allows you to set up and control the projector by using a Web browser on a computer connected on a network.

s "Changing Settings Using a Web Browser (Web Control)"

p.63

Submenu Function

Wireless LAN Power

Turn On when connecting the projector to the computer over wireless LAN.

If you do not want to connect via wireless LAN, turn it Off to prevent unauthorized access by others.

This is set to On by default.

List of Functions

Submenu Function

Connection Mode

Channel

Wireless LAN Sys.

SSID Auto Setting

SSID

Set the connection mode when using EasyMP Network Projection to connect the projector and computer.

This is set to Quick by default. See the following manual for details on connection mode. s EasyMP Network Projection Operation Guide

(This can only be set if Connection Mode is set to Quick.) Select the frequency band used by the wireless LAN from 1ch,

6ch, or 11ch. This is set to 11ch by default.

Set the Wireless LAN system to either 802.11b/g or

802.11b/g/n. The default value is 802.11b/g/n.

(This can only be set if Connection Mode is set to Quick.) Set to On to speed up the projector search. Set to Off when connecting to multiple projectors at the same

time. This is set to On by default.

(This can be set only if SSID Auto Setting is set to Off.) Enter an

system in which the projector participates, enter the SSID. You can enter up to 32 single-byte alphanumeric characters.

SSIDg. When an SSID is provided for the wireless LAN

Submenu Function

IP Settings

SSID Display

IP Address Display

(This can only be set if Connection Mode is set to Advanced.) You can make network settings. DHCP: Set to On to make network settings using

is set to On, you cannot set any more addresses. IP Address: You can input the

projector. You can enter a number from 0 to 255 in each field of the address. However, the following IP addresses cannot be used.

0.0.0.0, 127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from 0 to 255)

Subnet Mask: You can input the You can enter a number from 0 to 255 in each field of the address. However, the following subnet masks cannot be used.

0.0.0.0, 255.255.255.255 Gateway Address: You can input the IP address for the gateway

for the projector. You can enter a number from 0 to 255 in each field of the address. However, the following cannot be used.

0.0.0.0, 127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from 0 to 255)

To prevent the screen, set this to Off.

To prevent the Standby screen, set this to Off.

SSIDg from being displayed on the LAN Standby

IP addressg from being displayed on the LAN

DHCPg. If this

IP addressg assigned to the

subnet maskg for the projector.

gateway addresses

List of Functions

Security menu

Submenu Function

Security

WEP Encryption

Format

Key ID

Select the security type from the items that are displayed. When setting up Security, follow the instructions from the

administrator of the network system you are about to access.

You can set the encryption for WEP encryption.

128Bit: Uses 128 (104) bit encoding. 64Bit: Uses 64 (40) bit encoding.

You can set the input method for the WEP encryption key to ASCII or HEX.

Selects the WEP encryption ID key.

Submenu Function

Encryption Key 1/Encryption Key 2/Encryption Key 3/Encryption Key 4

Authentication Type

PSK

You can enter the key used for WEP encryption. Enter the key in single-byte characters following instructions from the network administrator for the network in which the projector participates. The type and number of characters that can be entered differs depending on the WEP Encryption and Format settings.

128Bit - ASCII: Single-byte alphanumeric, 13 characters. 64Bit - ASCII: Single-byte alphanumeric, 5 characters. 128Bit - HEX: 0 to 9 and A to F, 26 characters 64Bit - HEX: 0 to 9 and A to F, 10 characters

Set the WEP authentication type.

Open: Uses open system authentication. Shared: Uses shared key authentication.

(This can only be set when WPA-PSK or WPA2-PSK are selected from Security.)

You can enter a Pre-Shared Key (encrypted key) in single-byte alphanumeric characters. Enter at least 8 and up to 32 characters.

Type of security

When the optional wireless LAN unit is installed and being used in Advanced connection mode, it is strongly recommended that you set security. Select one of the following security methods.

• WEP

Data is encrypted with a code key (WEP key). This mechanism prevents communication unless the encrypted keys for the access point and the projector match.

List of Functions

• WPA

This is an encryption standard that improves security which is a weak point of WEP. Although there are multiple kinds of WPA encryption methods, this projector uses TKIP and AES.

WPA also includes user authentication functions. WPA authentication provides two methods: using an authentication server, or authenticating between a computer and an access point without using a server. This projector supports the latter method, without a server.

For setting details, follow the directions from the network

administrator of your network.

Wired LAN menu (EB-925/EB-915W/EB-905/EB-96W/EB-95 only)

Submenu Function

IP Settings

You can make settings related to the following addresses. DHCPg: Set to On to configure the network using DHCP. If this

is set to On, you cannot set any more addresses. IP Addressg: You can input the IP address assigned to the

projector. You can input a number from 0 to 255 in each field of the address. However, the following IP addresses cannot be used.

0.0.0.0, 127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from 0 to 255)

Subnet Maskg: You can input the subnet mask for the projector. You can input a number from 0 to 255 in each field of the address. However, the following subnet masks cannot be used.

0.0.0.0, 255.255.255.255 Gateway Addressg: You can input the IP address for the gateway

for the projector. You can input a number from 0 to 255 in each field of the address. However, the following gateway addresses cannot be used.

0.0.0.0, 127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from 0 to 255)

List of Functions

Submenu Function

IP Address Display

To prevent the IP address from being displayed on Network Info in the Network Menu and on the LAN Standby screen, set this to Off.

Mail menu

When this is set, you receive an email notification if a problem or warning occurs in the projector.

"Using the Mail Notification Function to Report Problems" p.66

Submenu Function

SMTP Server

Port Number

Address 1 Setting/Address 2 Setting/Address 3 Setting

You can input the projector.

You can enter a number from 0 to 255 in each field of the address. However, the following IP addresses cannot be used.

127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from 0 to 255)

You can input the port number for the SMTP server. The default value is 25. You can input numbers between 1 to 65535.

You can input the email address of the destination to send the notification email to. You can register up to three destinations. You can enter up to 32 single-byte alphanumeric characters for the email addresses.

You can select the problems or warnings to be notified about by email. When the selected problem or warning occurs in the projector, an email is sent to the specified destination address notifying that a problem or warning has occurred. You can select multiple items from the displayed items.

IP addressg for the SMTP server for the

Submenu Function

Mail Notification

Set to On to send an email to the preset addresses when a problem or warning occurs with a projector.

List of Functions

Others menu

Submenu Function

SNMP

Set to On to monitor the projector using SNMP. To monitor the projector, you need to install the SNMP manager

program on your computer. SNMP should be managed by a network administrator.

The default value is Off.

Submenu Function

AMX Device Discovery

RoomView

When the projector is connected to a network, set this to On when you want to enable the projector to be detected by Device Discoveryg. Set this to Off if you are not connected to an environment controlled by a controller from AMX or AMX Device Discovery.

Set this to On only when monitoring or controlling the projector over the network using Crestron RoomView this to Off.

s "About Crestron RoomView When this is set to On, the following functions are not available.

• Web control

• Message Broadcasting (EasyMP Monitor Plug-in)

" p.69

. Otherwise, set

AMX

Trap IP Address 1/Trap IP Address 2

Priority Gateway (EB-925/ EB-915W/ EB-905/EB-96W/ EB-95 only)

You can register up to two IP addresses for the SNMP trap notification destination. You can enter a number from 0 to 255 in each field of the address. However, the following IP addresses cannot be used. 127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from 0 to 255)

You can set the priority gateway to a Wired LAN or Wireless LAN.

List of Functions

Reset menu

Resets all of the network settings.

Submenu Function

Reset network settings.

To reset all of the Network settings, select Yes.

"Automatically Detect Input Signals and Change the Projected Image

(Source Search)" p.31

Submenu Function

Lamp Hours

Source

You can display the cumulative lamp operating time When it reaches the lamp warning time, the characters are

displayed in yellow.

You can display the source name for the connected equipment currently being projected.

Info Menu (Display Only)

Lets you check the status of the image signals being projected and the status of the projector. Items that can be displayed vary depending on the source currently being projected. Depending on the model used, some input sources are not supported.

Input Signal

Resolution

Video Signal

Refresh Rate

Sync Info

You can display the content of Input Signal set in the Signal menu according to the source.

You can display the resolution.

You can display the settings for Video Signal in the Signal menu.

You can display the

You can display the image signal information. This information may be needed if service is required.

refresh rateg.

List of Functions

Submenu Function

Status

Serial Number

Event ID

* The cumulative use time is displayed as "0H" for the first 10 hours. 10 hours

and above is displayed as "10H", "11H", and so on.

This is information about errors that have occurred on the projector.

This information may be needed if service is required.

Displays the projector's serial number.

Displays the application error log. s "About Event ID" p.108

Reset Menu

Submenu Function

Reset Lamp Hours

Clears the cumulative lamp hours use time. Reset when you replace the lamp.

Submenu Function

Reset All

You can reset all items in the Configuration menu to their default settings.

The following items are not reset to their defaults: Input Signal,

User's Logo, all items for Network menus, Lamp Hours, Language, Password, and User Button.

Troubleshooting

This chapter explains how to identify problems and what to do if a problem is found.

Using the Help

If a problem occurs with the projector, the Help screen is displayed to assist you by pressing the Help button. You can solve problems by answering the questions.

Press the [Help] button.

The Help screen is displayed.

Using the remote control Using the control panel

Select a menu item.

Confirm the selection.

Using the remote control Using the control panel

Questions and solutions are displayed as shown on the screen below.

Press the [Help] button to exit the Help.

Using the remote control Using the control panel

See the following if the Help function does not provide a solution to the problem.

s "Problem Solving" p.95

Problem Solving

If you are having a problem with the projector, first check the projector's indicators and refer to "Reading the Indicators" below.

See the following if the indicators do not show clearly what the problem might be.

"When the Indicators Provide No Help" p.98

Reading the Indicators

The projector is provided with the following three indicators that indicate the operating status of the projector.

Power indicator Indicates the operating status.

Standby condition When the [t] button is pressed in this condition, projection starts.

Preparing for network monitoring or cool down in progress All buttons are disabled while the indicator is flashing.

Warming up Warm-up time is about 30 seconds. After warm-up is complete, the indicator stops flashing. The [t] button is disabled during warm-up.

Projecting

Lamp indicator Indicates the projection lamp status.

Temp indicator Indicates the internal temperature status.

Problem Solving

Refer to the following table to see what the indicators mean and how to remedy problems that they indicate.

If all indicators are off, check that the power cable is connected correctly and that the power is being supplied normally.

Sometimes, when the power cable is unplugged, the

Status Cause Remedy or Status

Internal Error Stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest address provided in the

Epson Projector Contact List. s Epson Projector Contact List

indicator remains lit for a short period, but this is not a fault.

: Lit : Flashing : Off : Varies according to the projector status

Fan Error Sensor Error

High Temp Error (overheating)

Lamp Error Lamp Failure

Stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List.

Epson Projector Contact List

The lamp turns off automatically and projection stops. Wait for about five minutes. After about five minutes the projector switches to standby mode, so check the following two points.

• Check that the air filter and air exhaust vent are clear, and that the projector is not positioned against a wall.

• If the air filter is clogged, clean or replace it.

s "Cleaning the Air Filter" p.110, "Replacing the Air Filter" p.116

If the error continues after checking the points above, stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List.

s Epson Projector Contact List

When using at an altitude of 1500 m or more, set High Altitude Mode to On. s "Extended Menu" p.81

Check the following two points.

• Take out the lamp and check if it is cracked.

s "Replacing the Lamp" p.112

• Clean the air filter.

s "Cleaning the Air Filter" p.110

Problem Solving

Status Cause Remedy or Status

If it is not cracked: Reinstall the lamp and turn on the power. If the error continues: Replace the lamp with a new one and then turn on the power. If the error continues: Stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest

address provided in the Epson Projector Contact List. s Epson Projector Contact List

If it is cracked: Contact your local dealer or the nearest address provided in the Epson Projector Contact List. (Images cannot be projected until the lamp is replaced.)

s Epson Projector Contact List

When using at an altitude of 1500 m or more, set High Altitude Mode to On. s "Extended Menu" p.81

Auto Iris Error Power Err.

High Temp Warning (This is not an abnormality. However, if the temperature rises too high again, projection stops automatically.)

Replace Lamp Replace it with a new lamp.

• See the following if the projector is not operating properly, even though the indicators are all showing normal.

s "When the Indicators Provide No Help" p.98

• If the indicators are in a state not shown in this table, stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List.

s Epson Projector Contact List

Stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List.

s Epson Projector Contact List

• Check that the air filter and air exhaust vent are clear, and that the projector is not positioned against a wall.

• If the air filter is clogged, clean or replace it.

s "Cleaning the Air Filter" p.110, "Replacing the Air Filter" p.116

s "Replacing the Lamp" p.112

If you continue to use the lamp after the replacement period has passed, the possibility that the lamp may explode increases. Replace it with a new lamp as soon as possible.

Problem Solving

When the Indicators Provide No Help

If any of the following problems occur and the indicators do not offer a solution, refer to the pages given for each problem.

Problems Relating to Images

• No images appear

Projection does not start, the projection area is completely black, or the projection area is completely blue.

• Moving images are not displayed

Moving images being projected from a computer appear black and nothing is projected.

• Projection stops automatically s p.100

• The message "Not supported" is displayed s p.100

• The message "No Signal" is displayed s p.100

• Interference or distortion appear in images s p.102

• The image is truncated (large) or small, or the aspect ratio is not

suitable

Only part of the image is displayed, or the height and width ratios of the image are not correct.

• Image colors are not right

The whole image appears purplish or greenish, images are black & white, or colors appear dull.

s p.99

s p.100

s p.102

s p.103

• The remote control does not work s p.106

• I want to change the language for messages and menus s p.106

• Mail is not received even if an error occurs with the projector s p.106

• Images appear dark s p.104

Problems when projection starts

• The projector does not turn on s p.104

Problems Relating to Images

No images appear

Check Remedy

Did you press the [t] button? Press the [t] button to turn the power on.

Are the indicators switched off? The power cable is not connected correctly or power is not being supplied.

Connect the projector's power cable correctly.

"From Installation to Projection" p.30

Check that your electrical outlet or power source is functioning correctly.

Is A/V Mute active? Press the [A/V Mute] button on the remote control to cancel A/V Mute.

s "Hiding the Image and Sound Temporarily (A/V Mute)" p.51

Is the A/V mute slide closed? Open the A/V mute slide.

s "Front/Top" p.10

Are the Configuration menu settings correct? Reset all of the settings.

s Reset - Reset All p.92 When using USB Display, set USB Type B to USB Display. s Extended - USB Type B p.81

Is the image to be projected completely black? (Only when projecting computer images)

Is the image signal format setting correct? (Only when projecting images from a video source)

Is the USB cable connected correctly? (Only when projecting USB Display)

Is Windows Media Center displayed in full screen? (Only when projecting using USB Display or network connection)

Is an application using the Windows DirectX function displayed? (Only when projecting using USB Display or network connection)

Some input images, such as screen savers, may be completely black.

Change the setting according to the signal for the connected equipment. s Signal - Video Signal p.78

Check that the USB cable is connected correctly. Reconnect it if it is not connected or not connected properly.

When Windows Media Center is displayed at full screen, you cannot project using USB Display or network connection. Reduce the screen size.

Applications using the Windows DirectX function may not display images correctly.

Problem Solving

Moving images are not displayed (only the moving image portion turns black)

Check Remedy

Is the computer's image signal being output to the LCD and the monitor?

(Only when projecting images from a laptop computer or a computer with a built-in LCD screen)

Projection stops automatically

Check Remedy

Is Sleep Mode set to On? Press the [t] button to turn the power on. If you do not want to use Sleep Mode, change the setting to Off.

"Not supported" is displayed

Change the image signal from the computer to external output only. Check your computer's documentation, or contact the computer's manufacturer.

s Extended - Operation - Sleep Mode p.81

100

Check Remedy

Is the image signal format setting correct? (Only when projecting images from a video source)

Do the image signal resolution and the refresh rate correspond to the mode?

(Only when projecting computer images)

Change the setting according to the signal for the connected equipment. s Signal - Video Signal p.78

Refer to the computer's documentation for how to change the image signal resolution and the refresh rate output from the computer.

s "Supported Monitor Displays" p.127

"No Signal" is displayed

Check Remedy

Are the cables connected correctly? Check that all the cables required for projection are securely connected.

s "From Installation to Projection" p.30

Is the correct port selected? Change the image by pressing the [Source Search] button on the remote control or the control panel.

s "Automatically Detect Input Signals and Change the Projected Image (Source Search)" p.31

Is the power for the computer or video source turned on? Turn the power on for the equipment.

Epson EB-905, EB-95, EB-96W, EB-915W, EB-900 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Notations Used in This Guide

Contents

Introduction

Projector Features

List of Functions by Model

Quick and Easy Set up, Projection, and Storage

Easy writing on a whiteboard or blackboard using the pattern function

Connecting with a USB cable and projecting (USB Display)

Detecting projector movements and automatically correcting image distortion
