Page 1
User's Guide
Page 2
Contents
2
Notations Used in This Guide 7

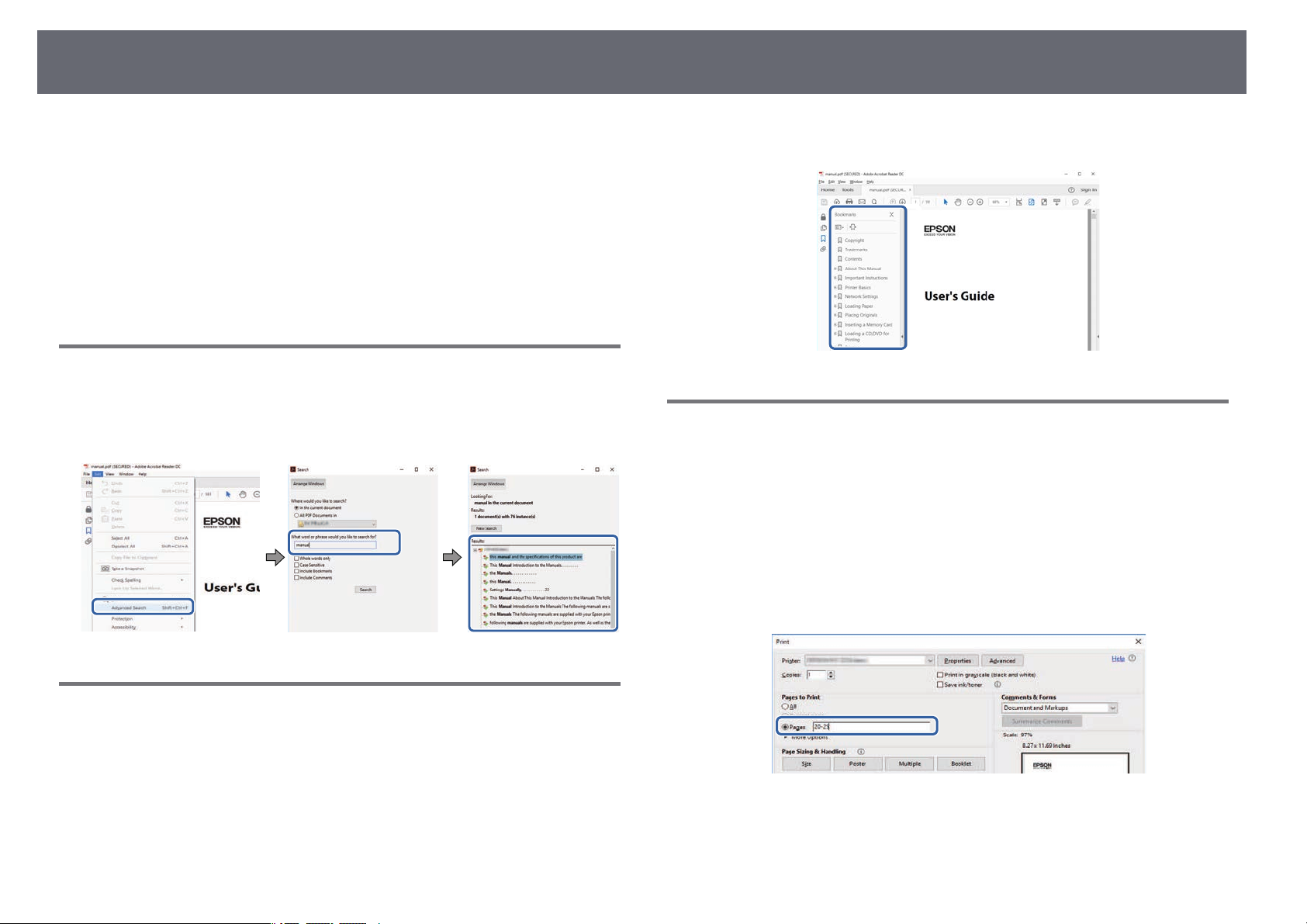

Using the Manual to Search for Information .................................. 8
Searching by Keyword................................................................................................................... 8
Jumping Directly from Bookmarks............................................................................................ 8
Printing Only the Pages You Need............................................................................................ 8
Getting the Latest Version of the Documents................................. 9
Introduction to Your Projector 10

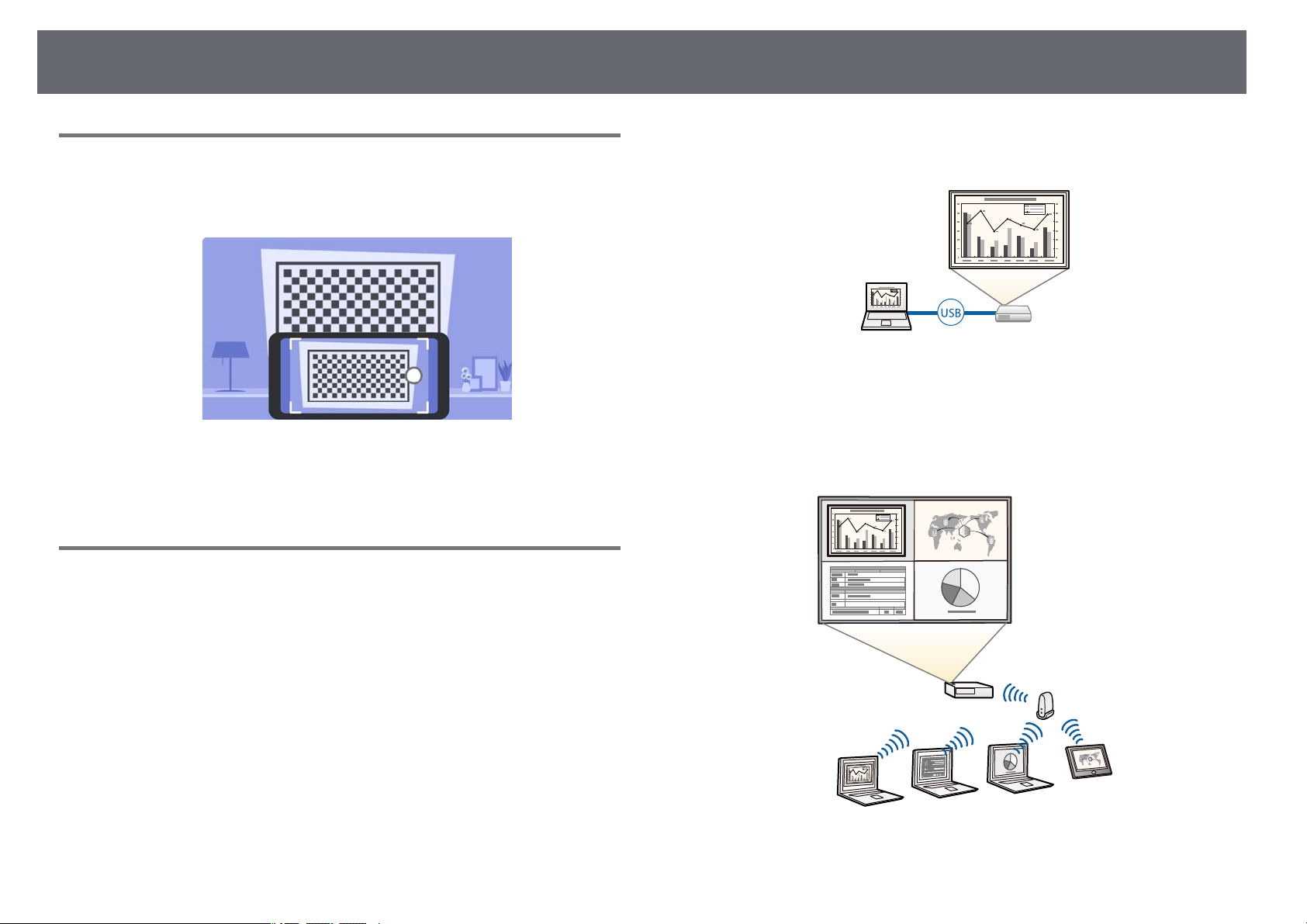

Projector Features............................................................................ 11

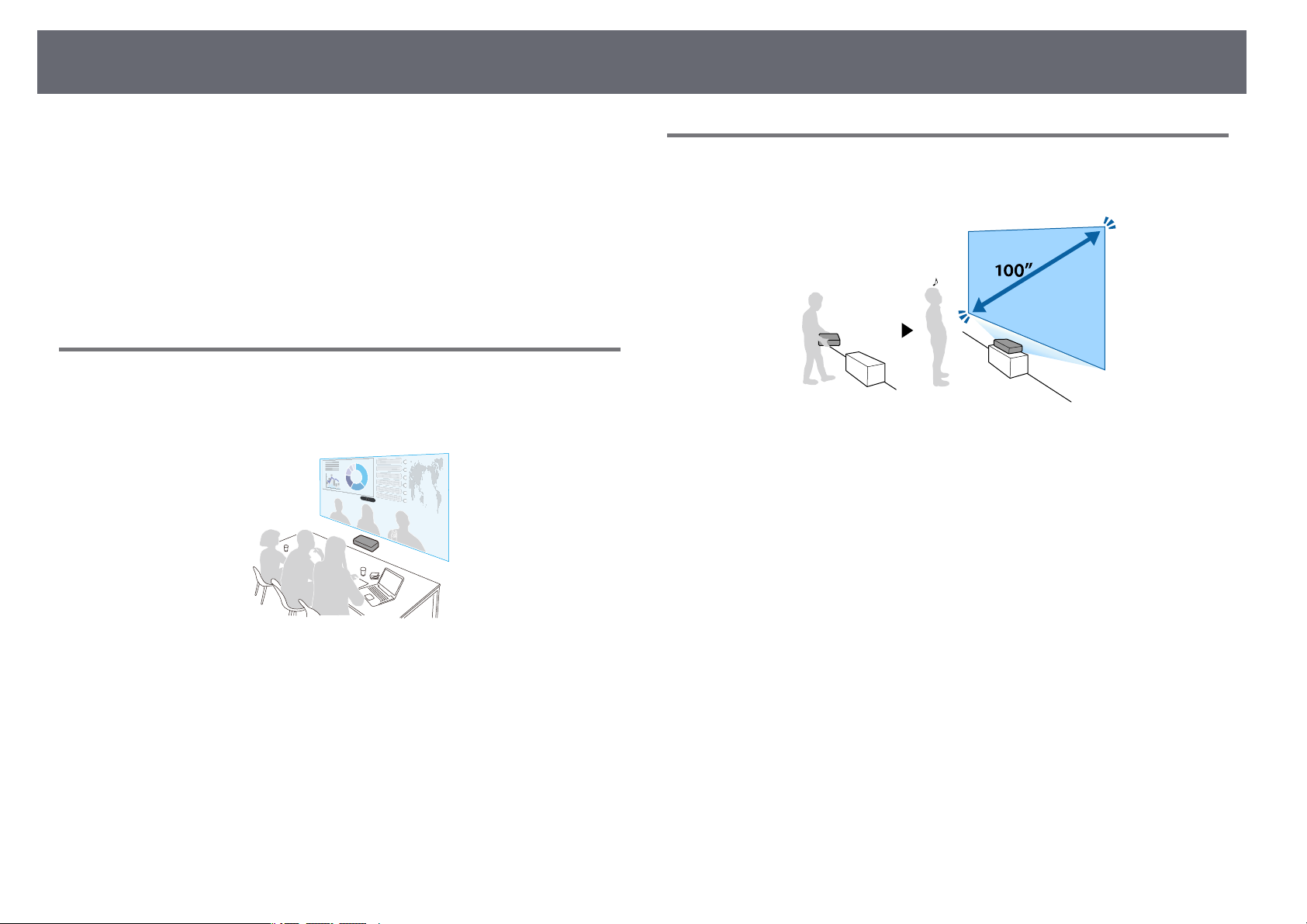

Providing a New Videoconferencing Experience with a High Sense of
Presence and Imparting Information at a Glance............................................................. 11
Realizing a Space-saving Large Screen ................................................................................. 11
Quick and Easy Setup .................................................................................................................. 12
Flexible Connectivity.................................................................................................................... 12
Projector Parts and Functions ........................................................ 14
Projector Parts - Front.................................................................................................................. 14
Projector Parts - Top/Side .......................................................................................................... 15

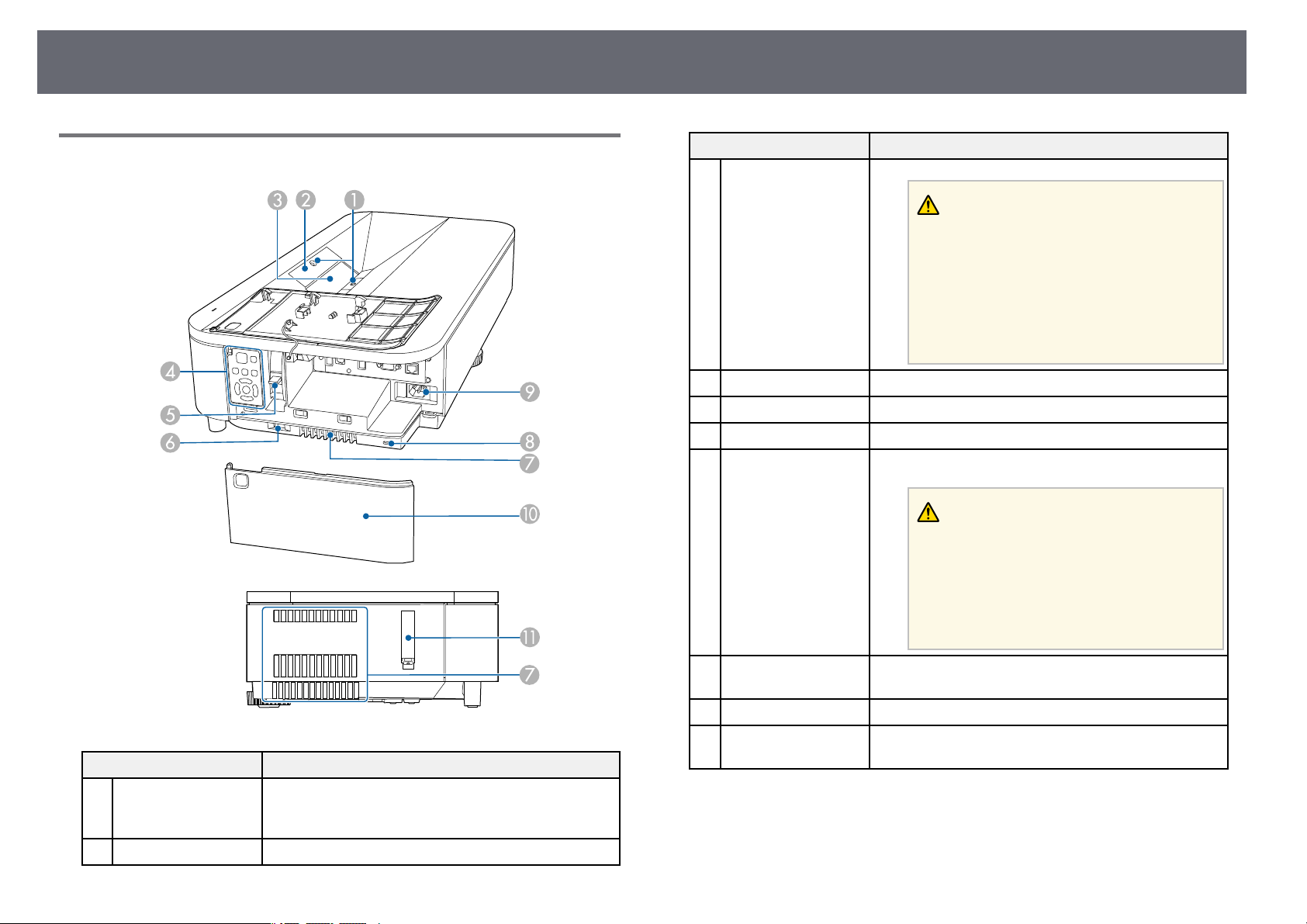

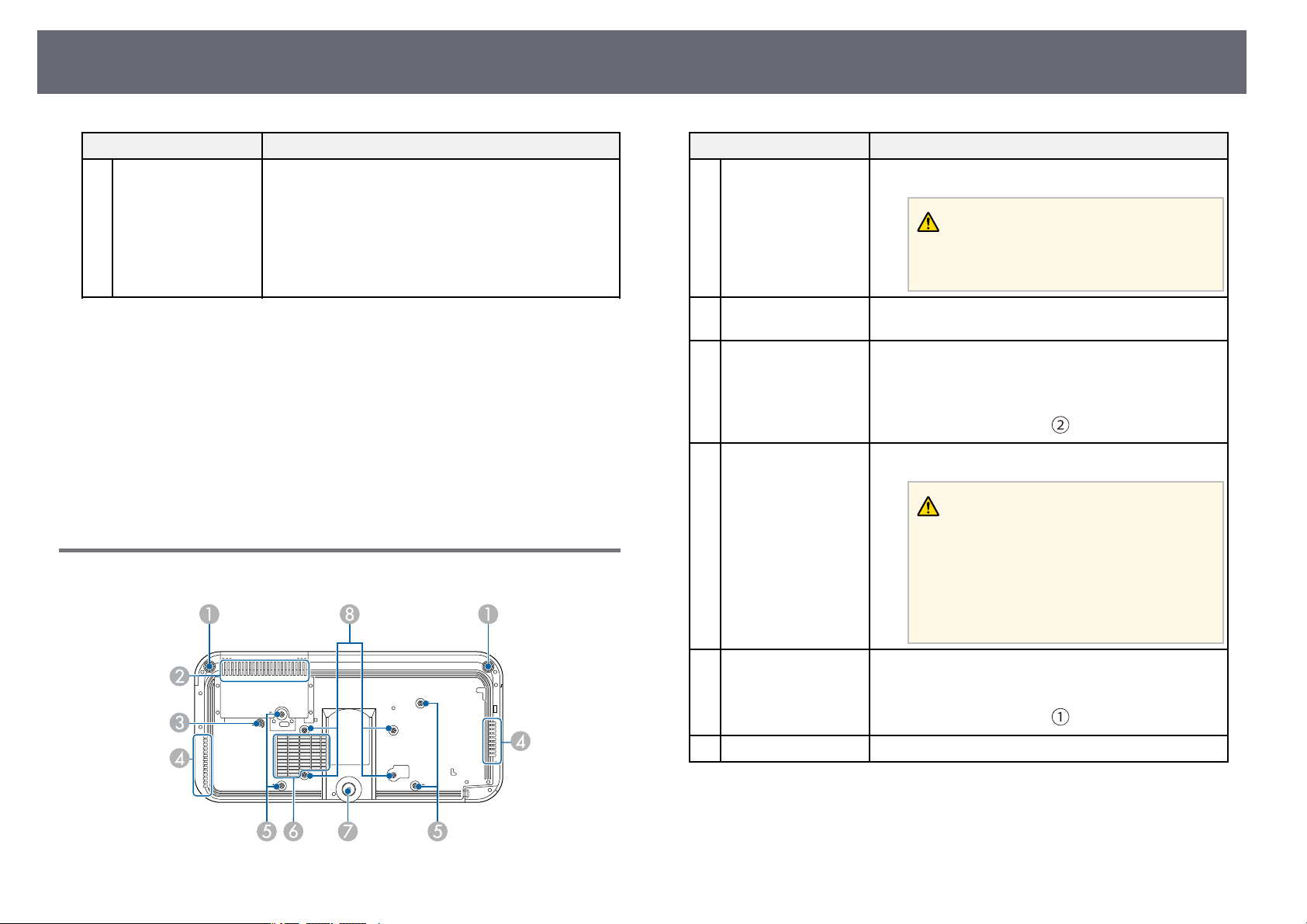

Projector Parts - Base ................................................................................................................... 16

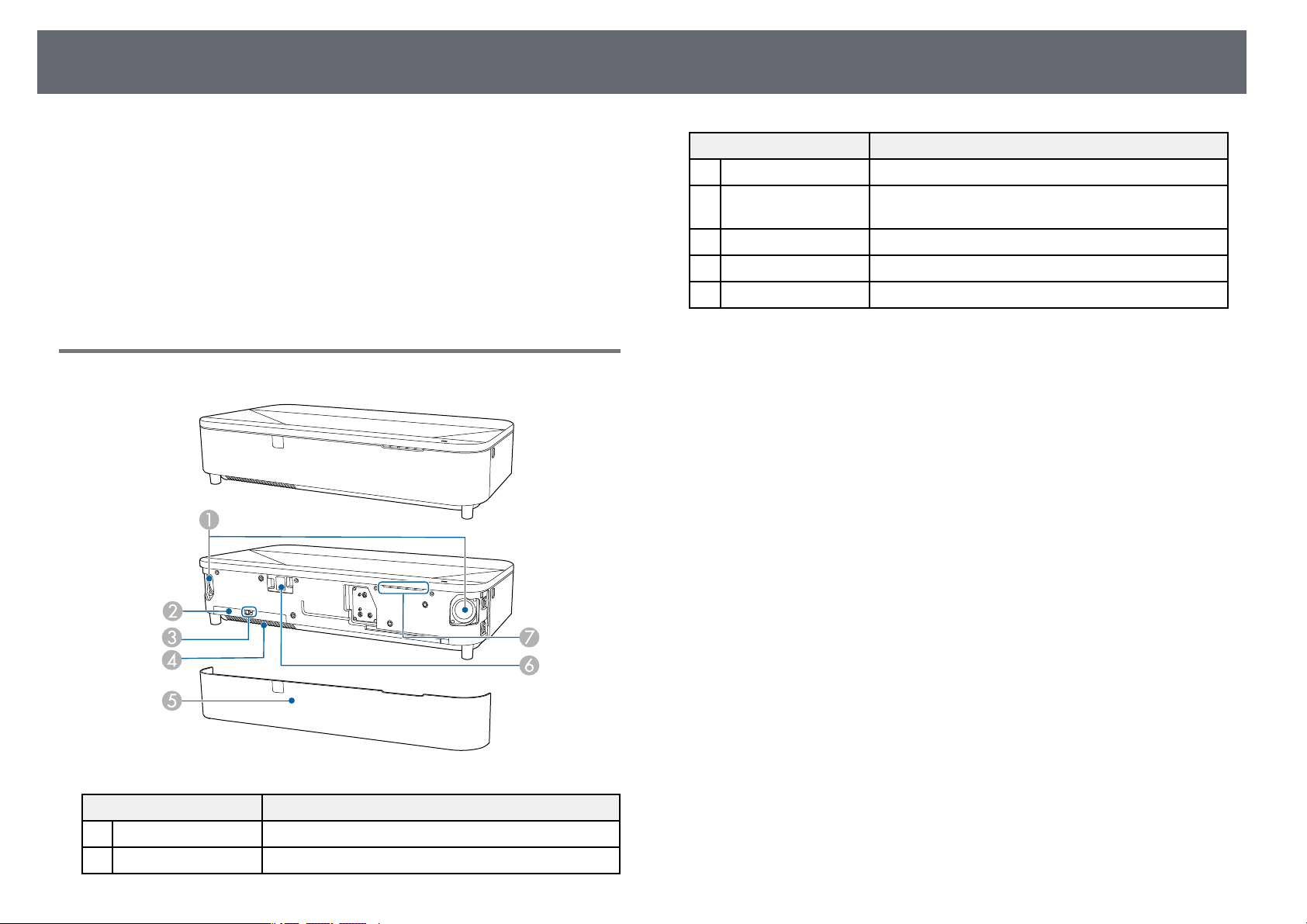

Projector Parts - Interface Ports ............................................................................................... 17

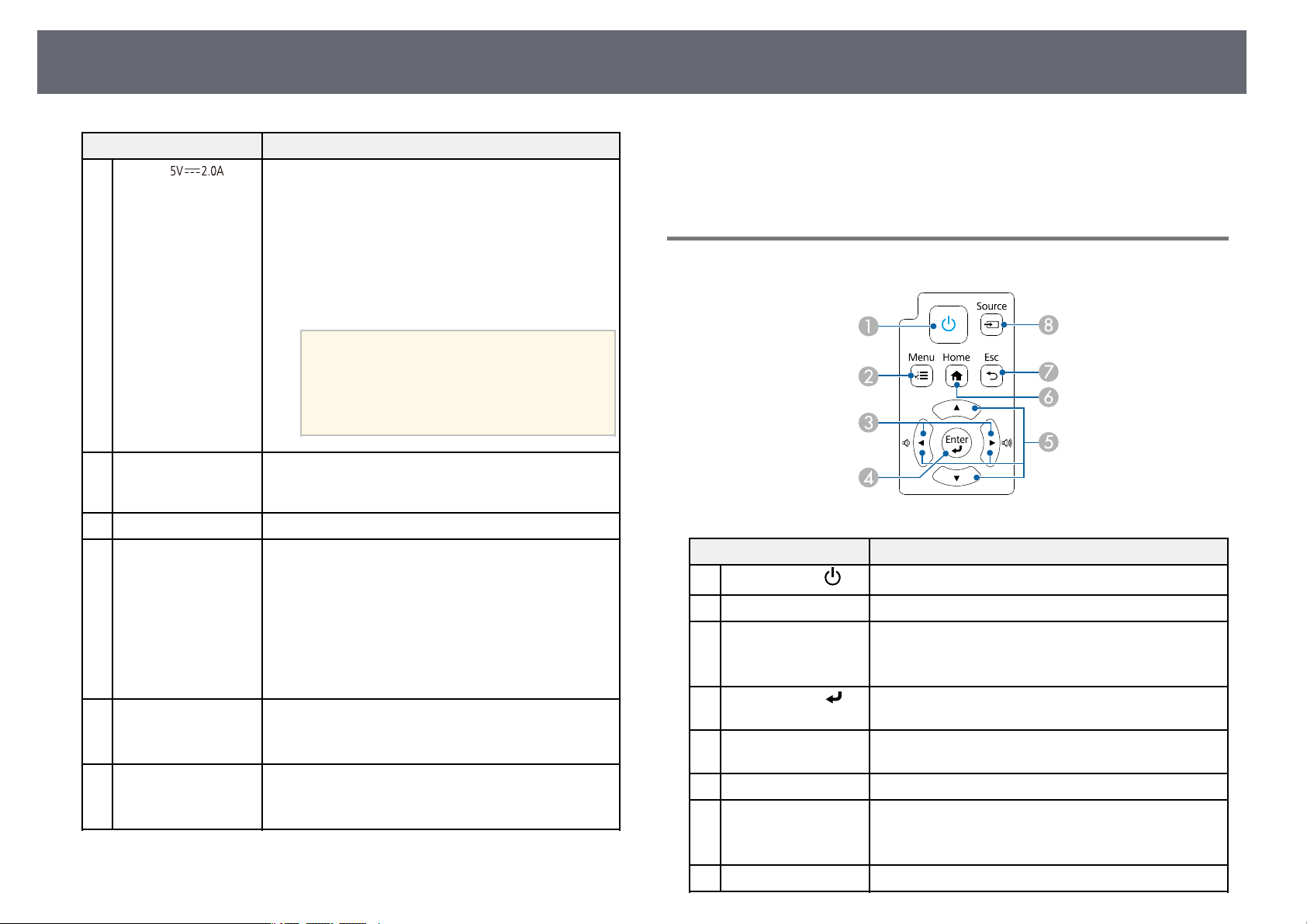

Projector Parts - Control Panel ................................................................................................. 18

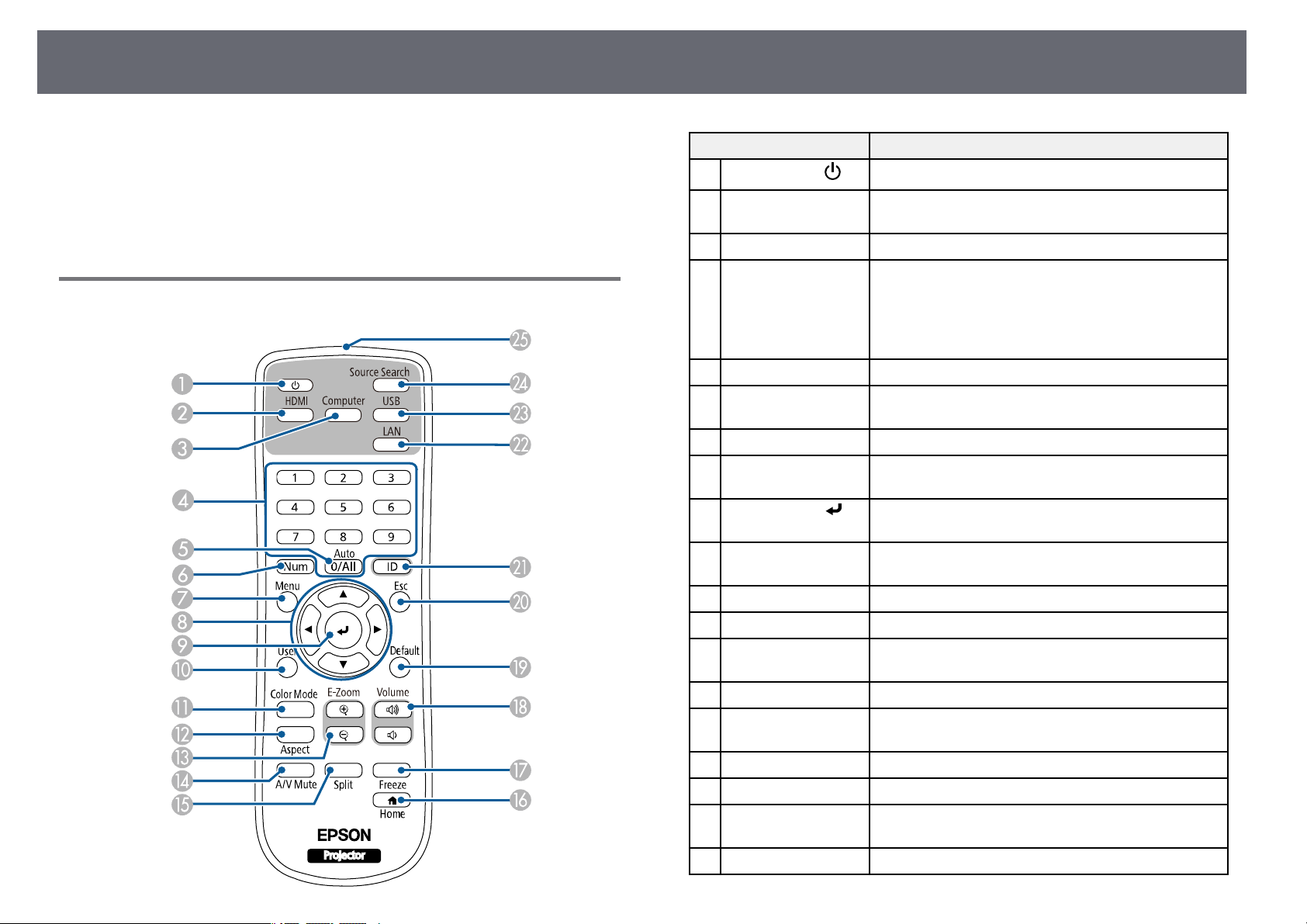

Projector Parts - Remote Control ............................................................................................ 19
When Using the Setting Plate ELPMB75............................................................................... 28
Projector Connections ..................................................................... 31
Connecting to a Computer........................................................................................................ 31

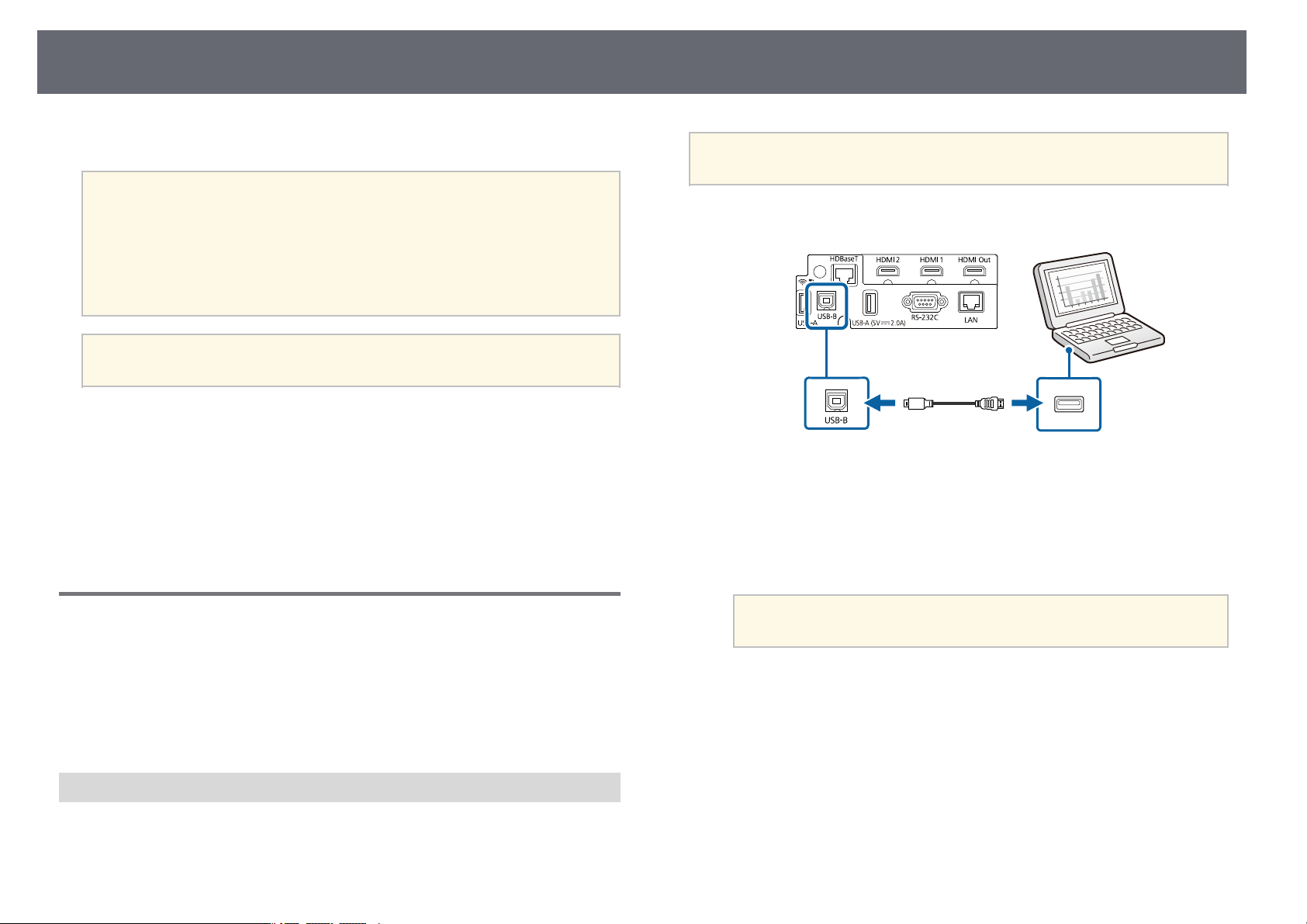

Connecting to a Computer for USB Video and Audio............................................... 31

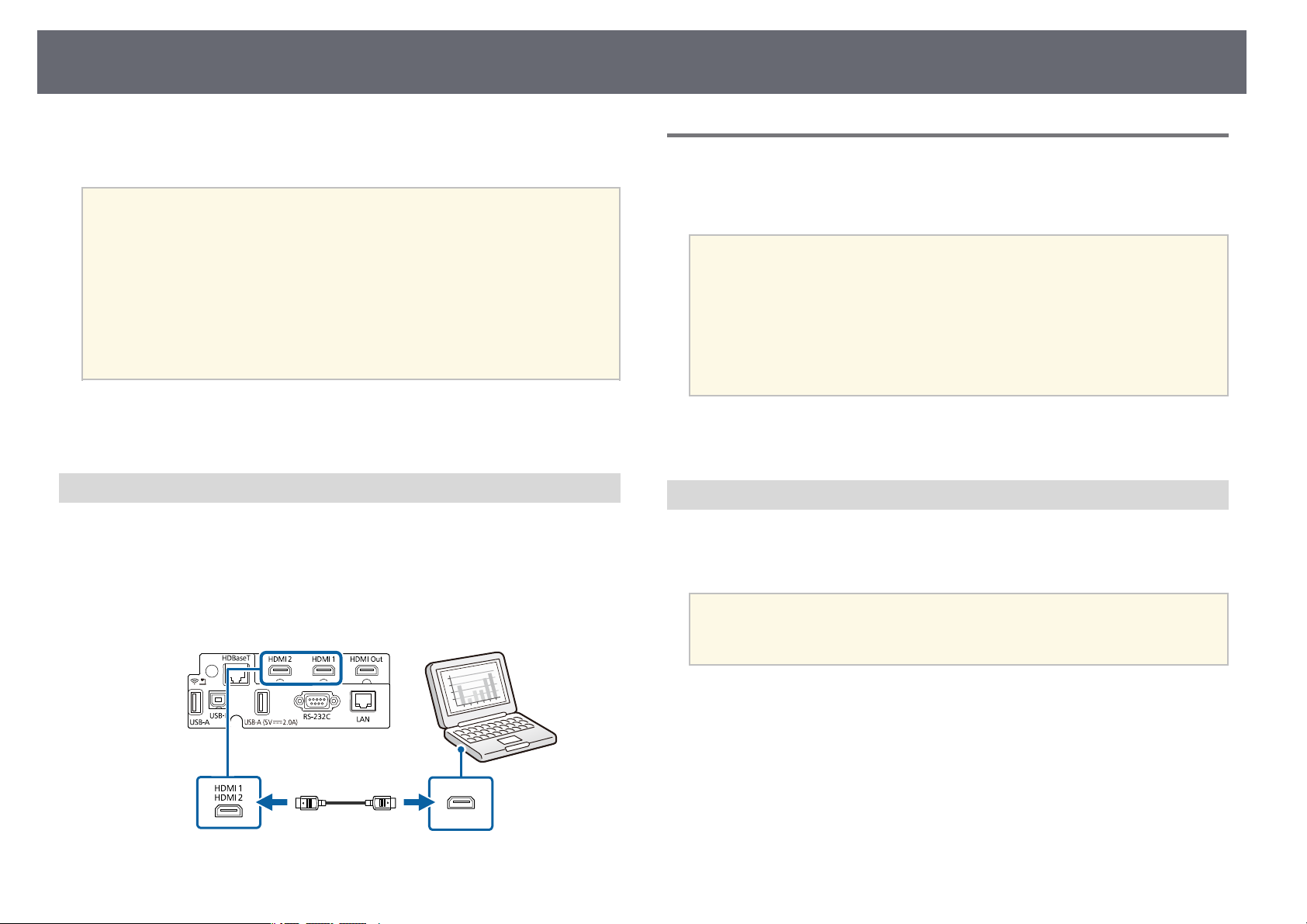

Connecting to a Computer for HDMI Video and Audio ........................................... 32
Connecting to Video Sources................................................................................................... 32

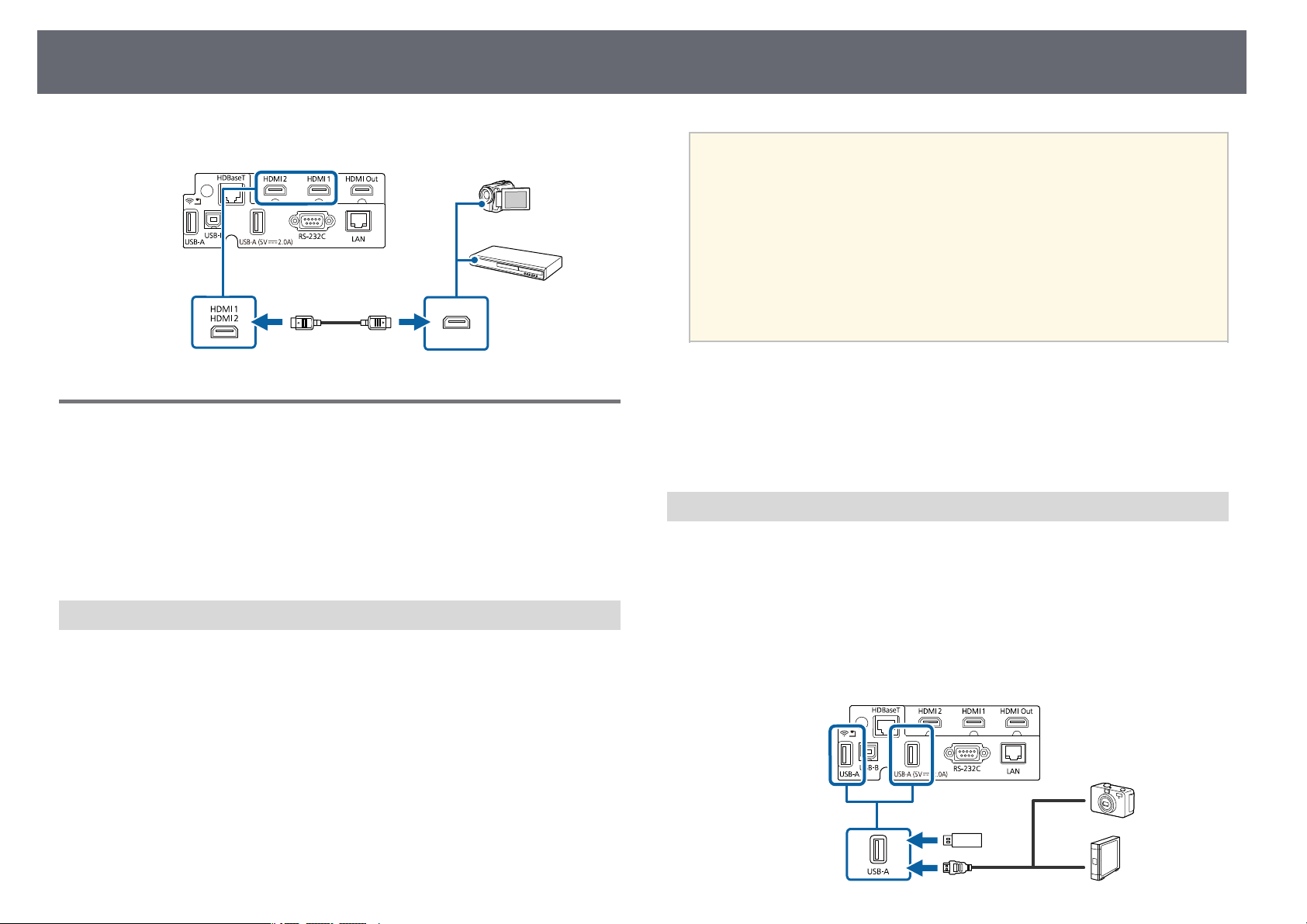

Connecting to an HDMI Video Source ............................................................................ 32
Connecting to External USB Devices ..................................................................................... 33
USB Device Projection........................................................................................................... 33
Connecting to a USB Device ............................................................................................... 33
Disconnecting a USB Device ............................................................................................... 34
Connecting to a Document Camera ...................................................................................... 34

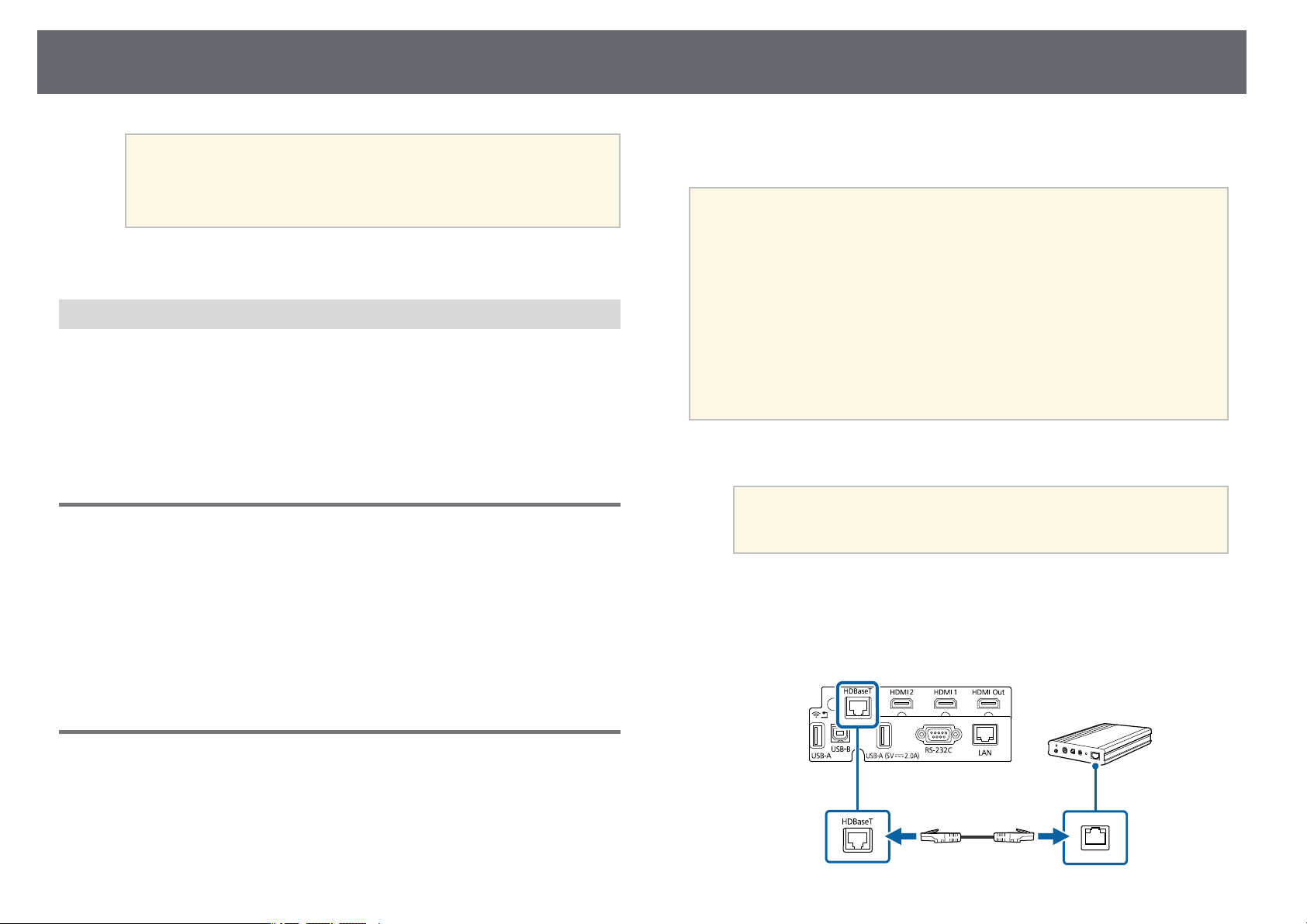

Connecting to an HDBaseT Transmitter .............................................................................. 34
Connecting Multiple Projectors of the Same Model .................... 36

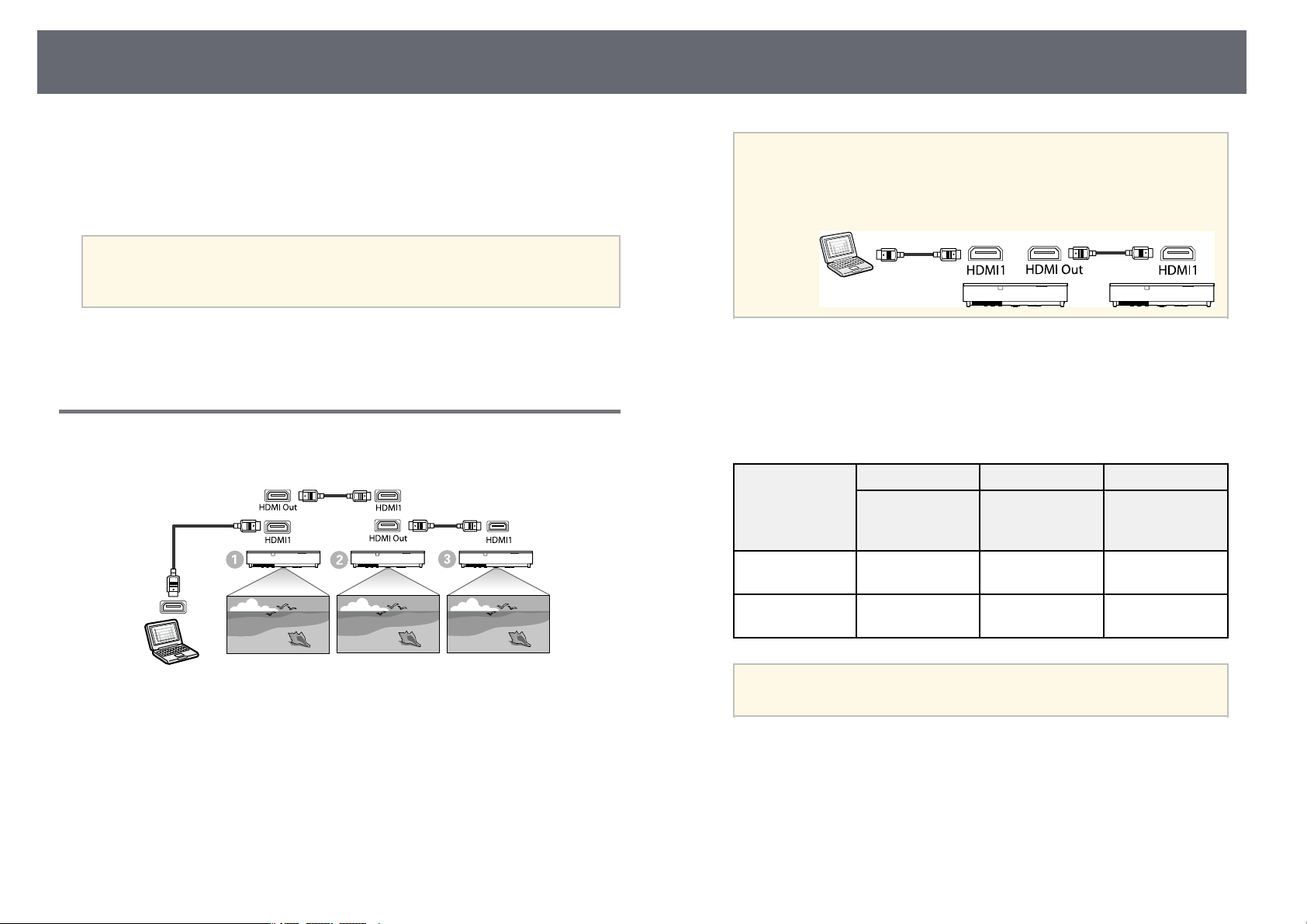

Projecting the Same Image in a Daisy-Chain Connection............................................. 36

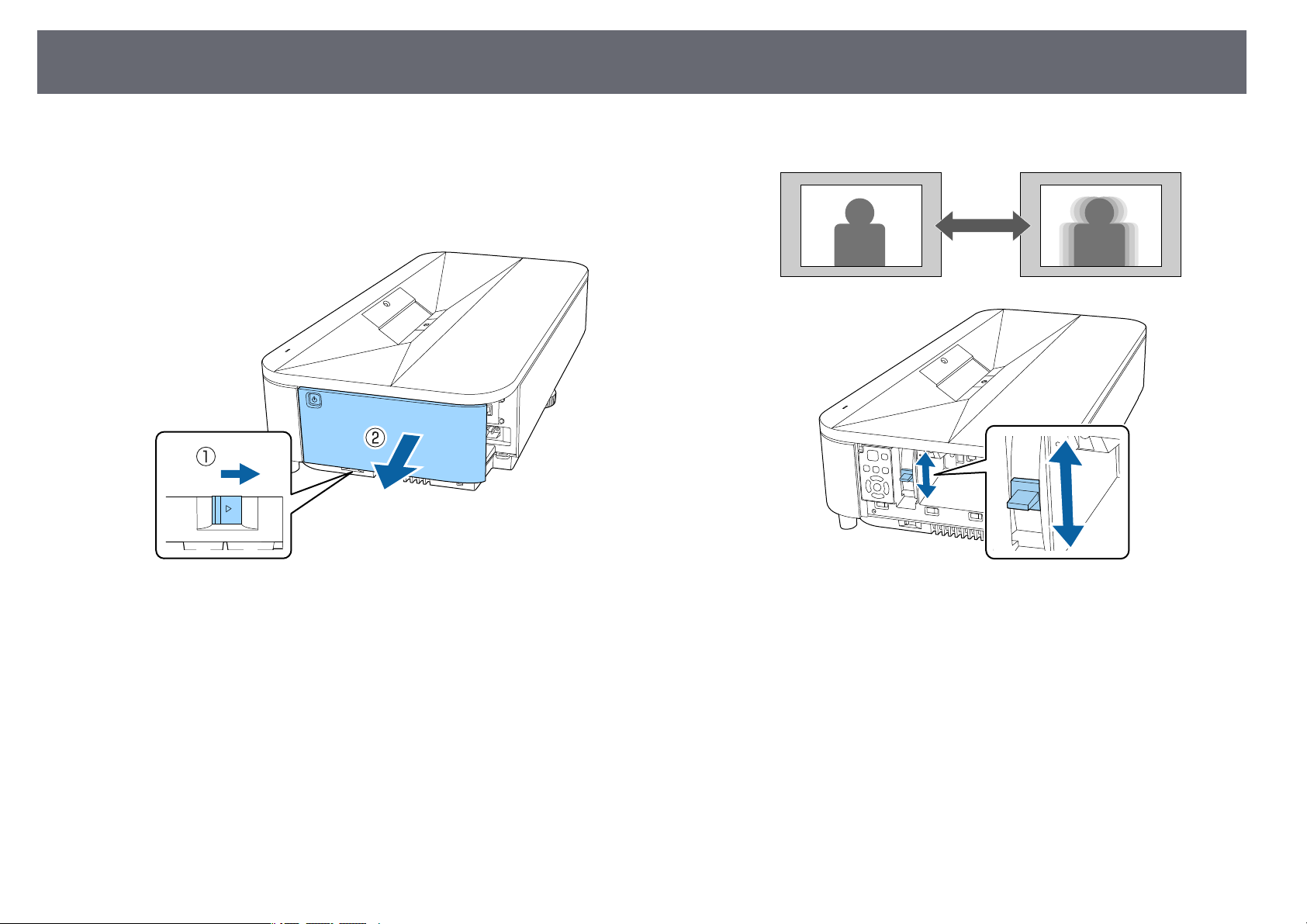

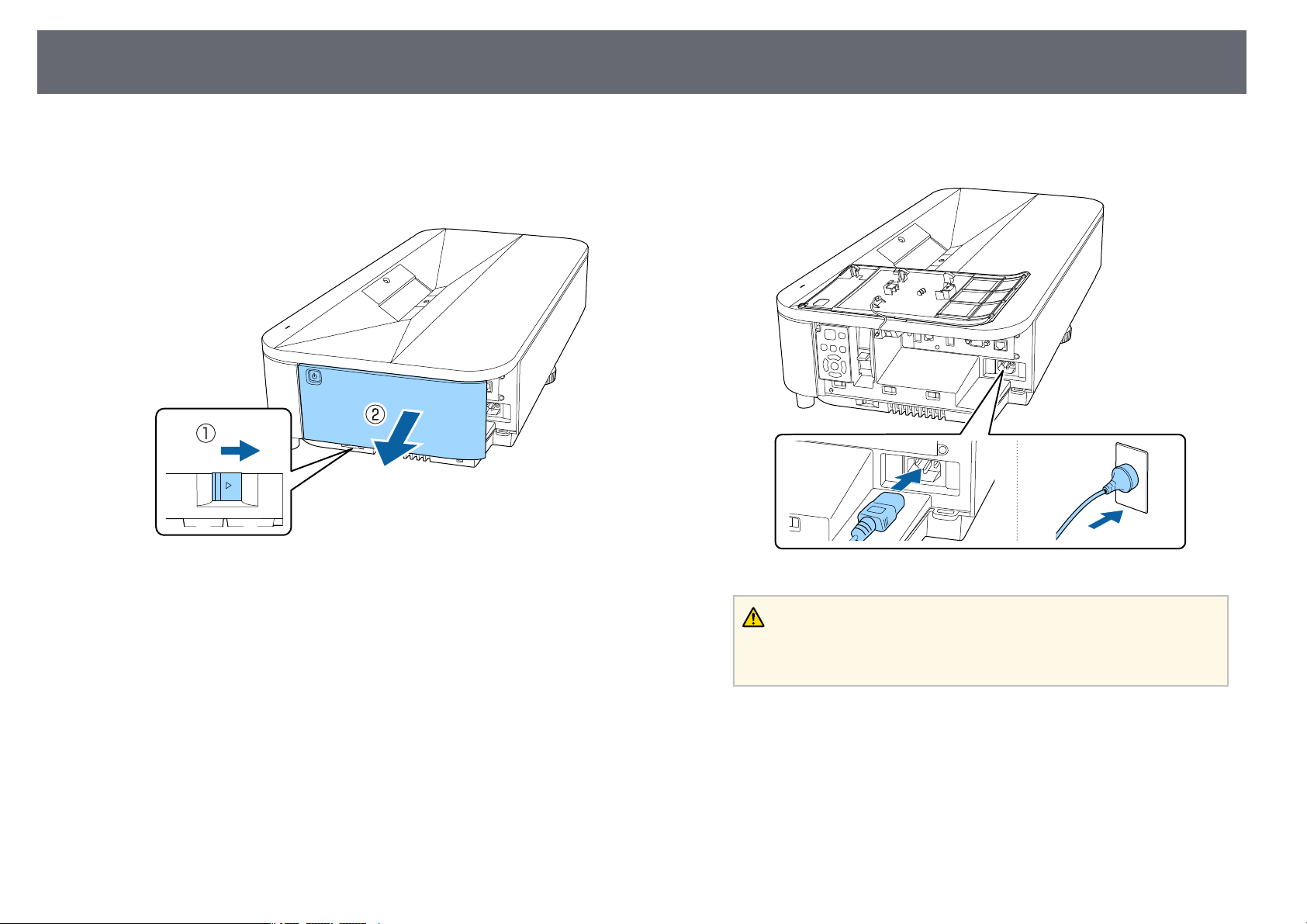

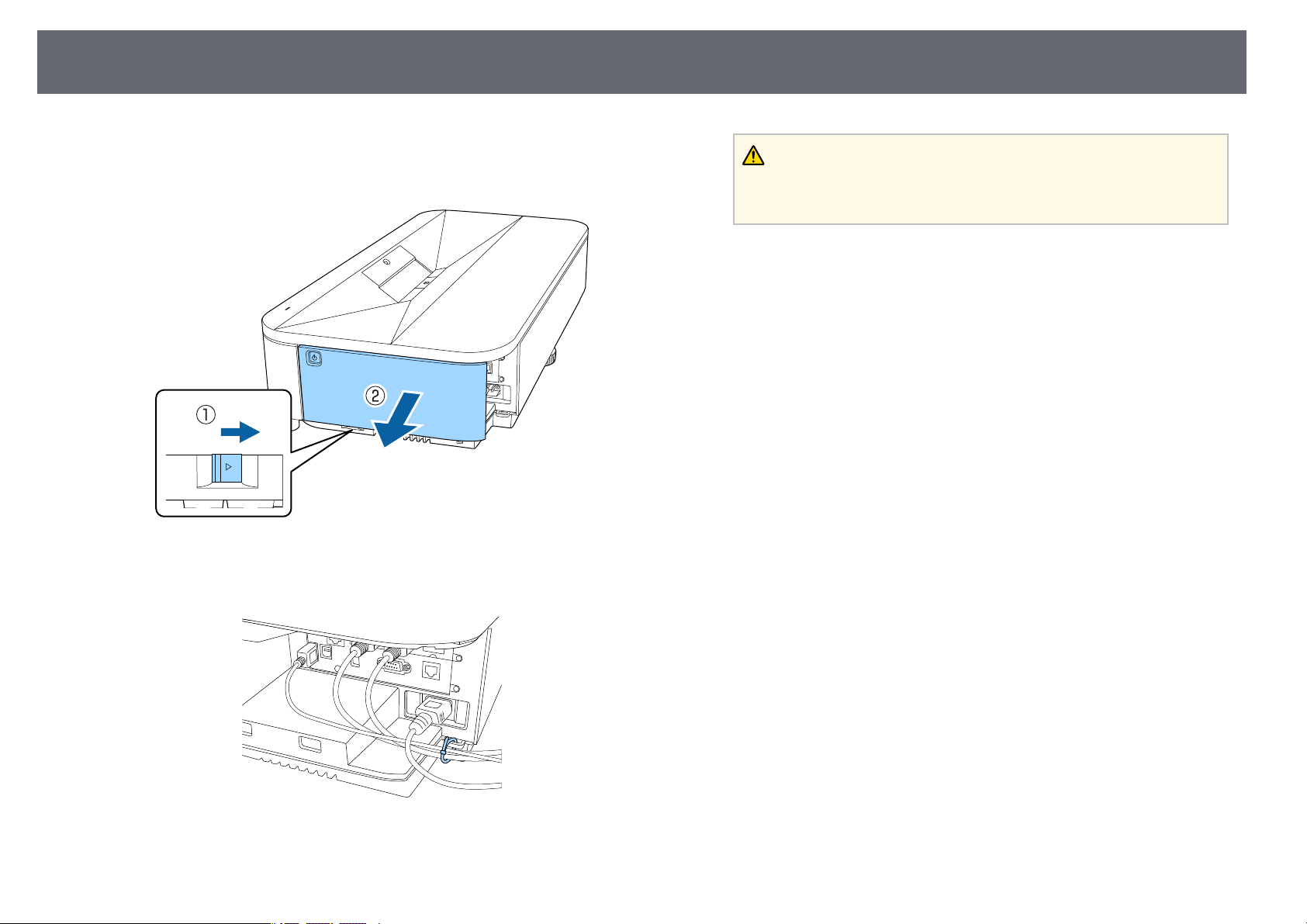

Attaching and Removing the Side Cover....................................... 37

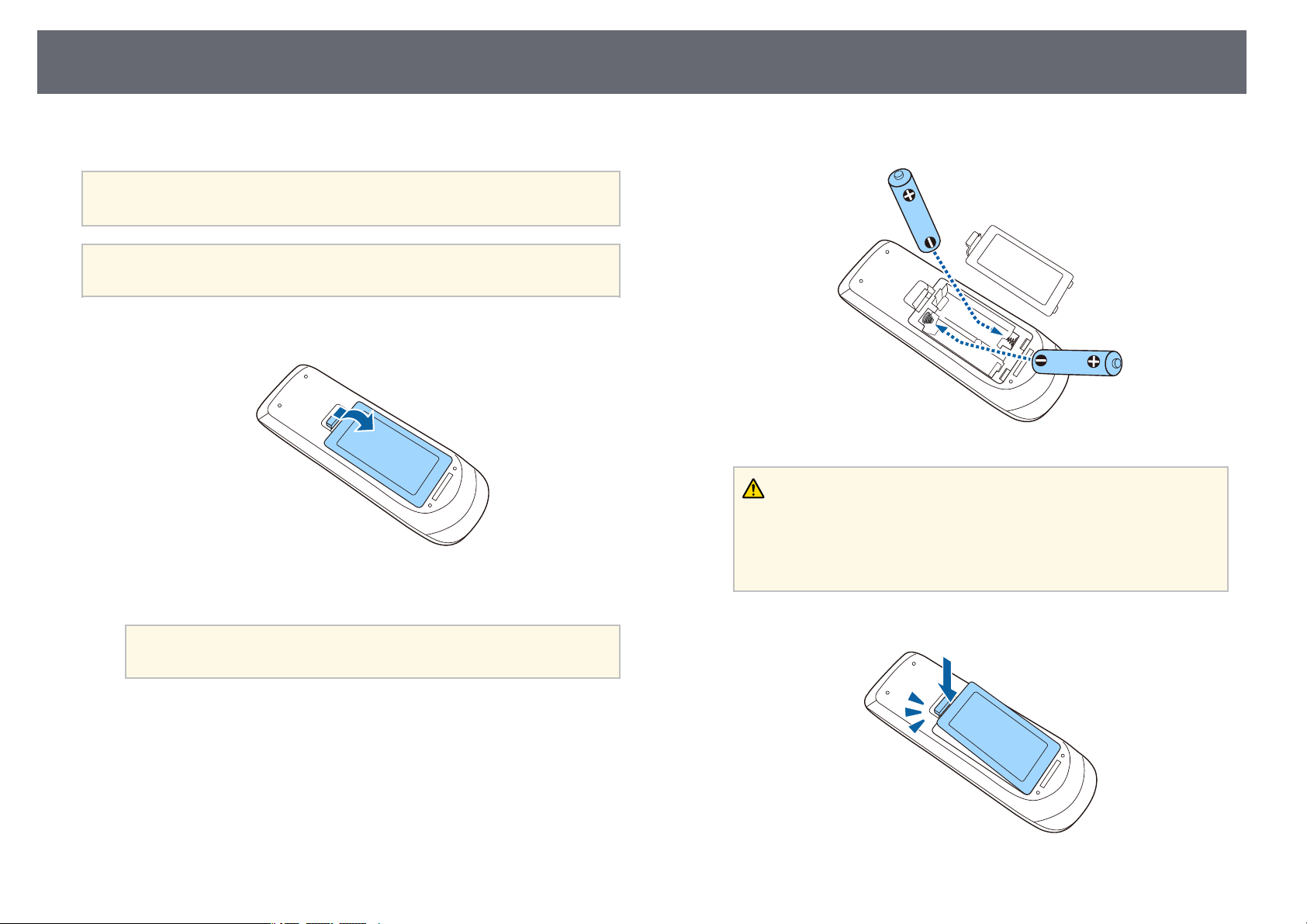

Installing Batteries in the Remote Control.................................... 38
Remote Control Operation.............................................................. 39
Using Basic Projector Features 40
Turning On the Projector ................................................................ 41

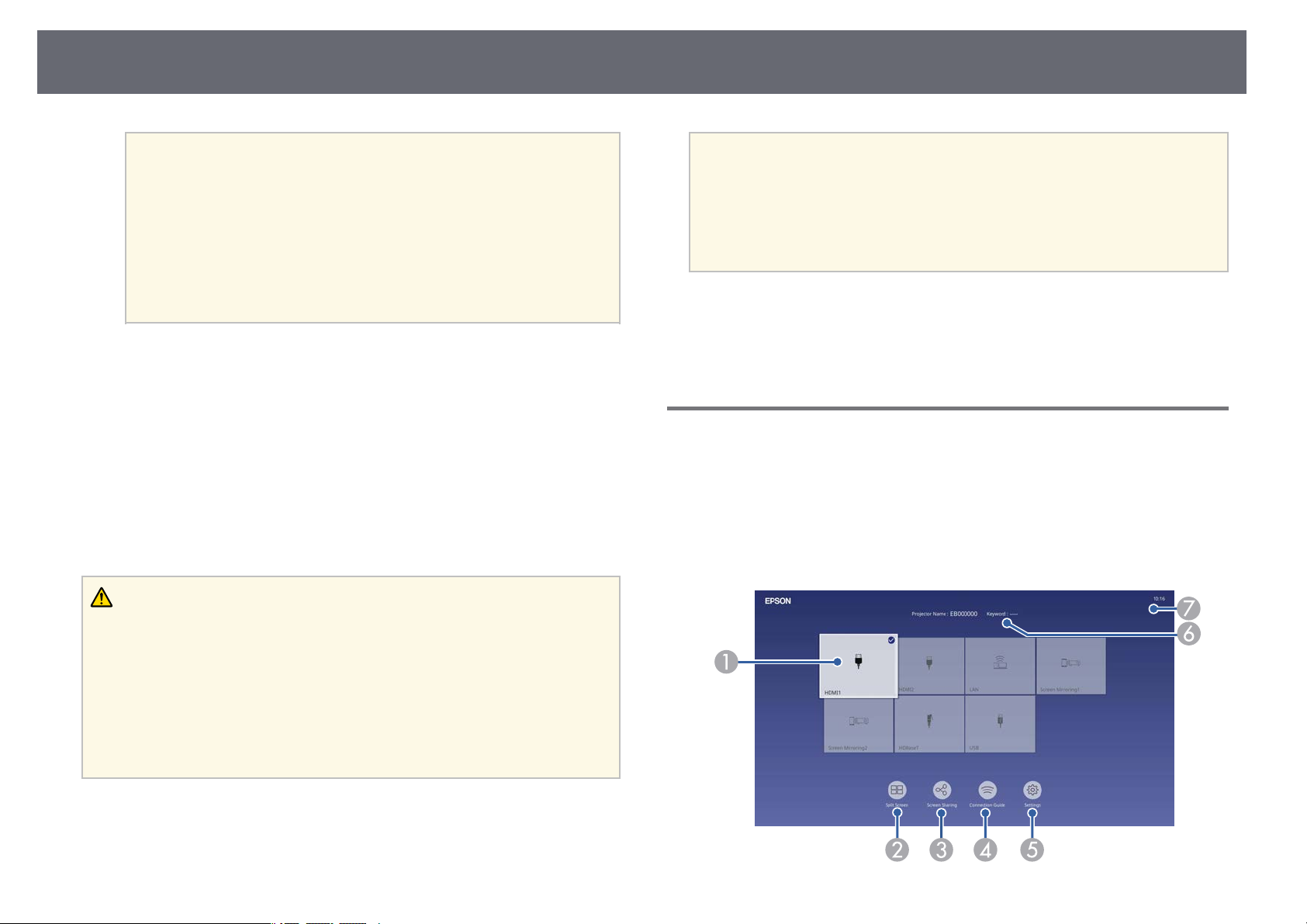

Home Screen................................................................................................................................... 42
Setting Up the Projector 21
Projector Placement ........................................................................ 22

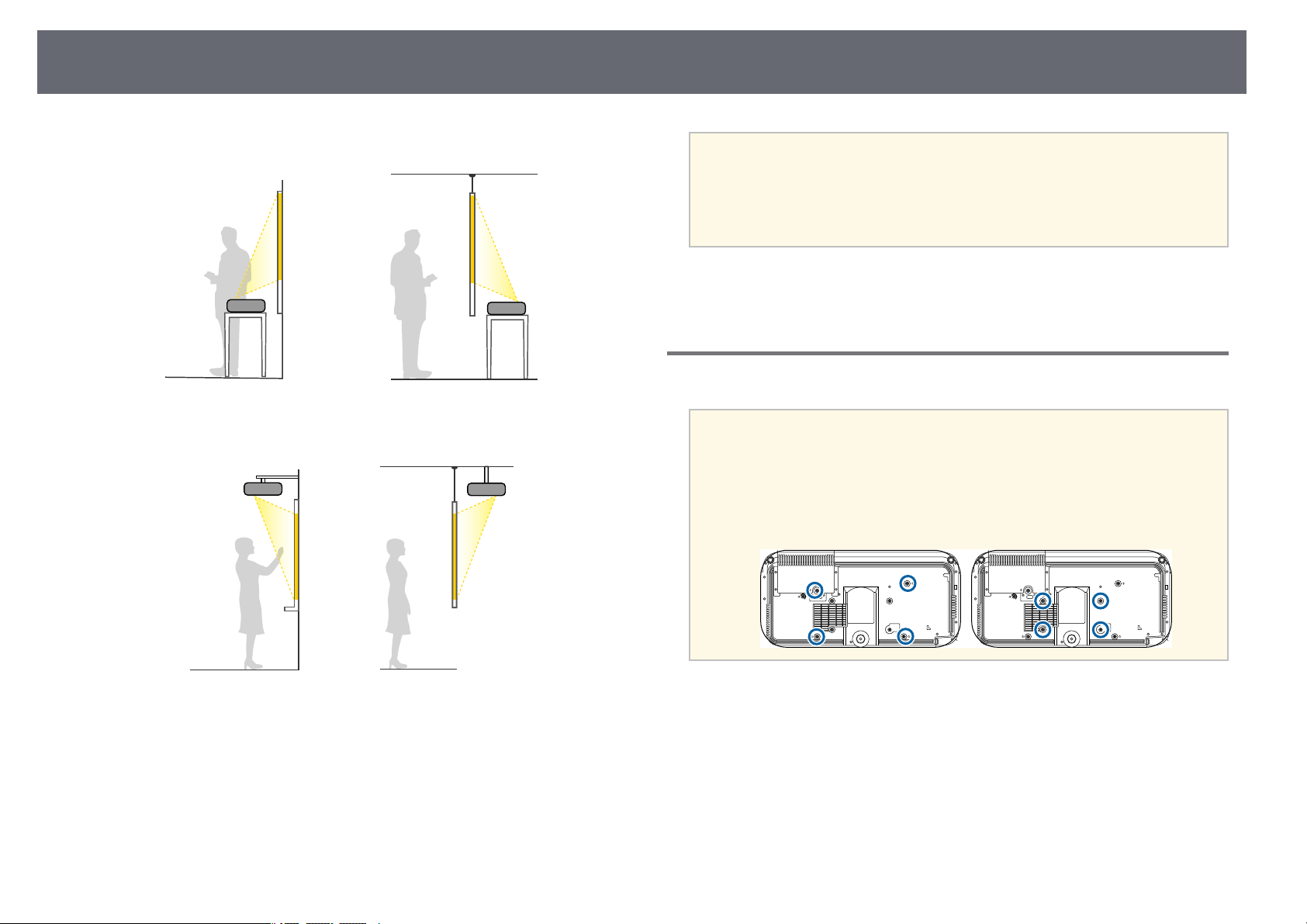

Projector Setup and Installation Options............................................................................. 23

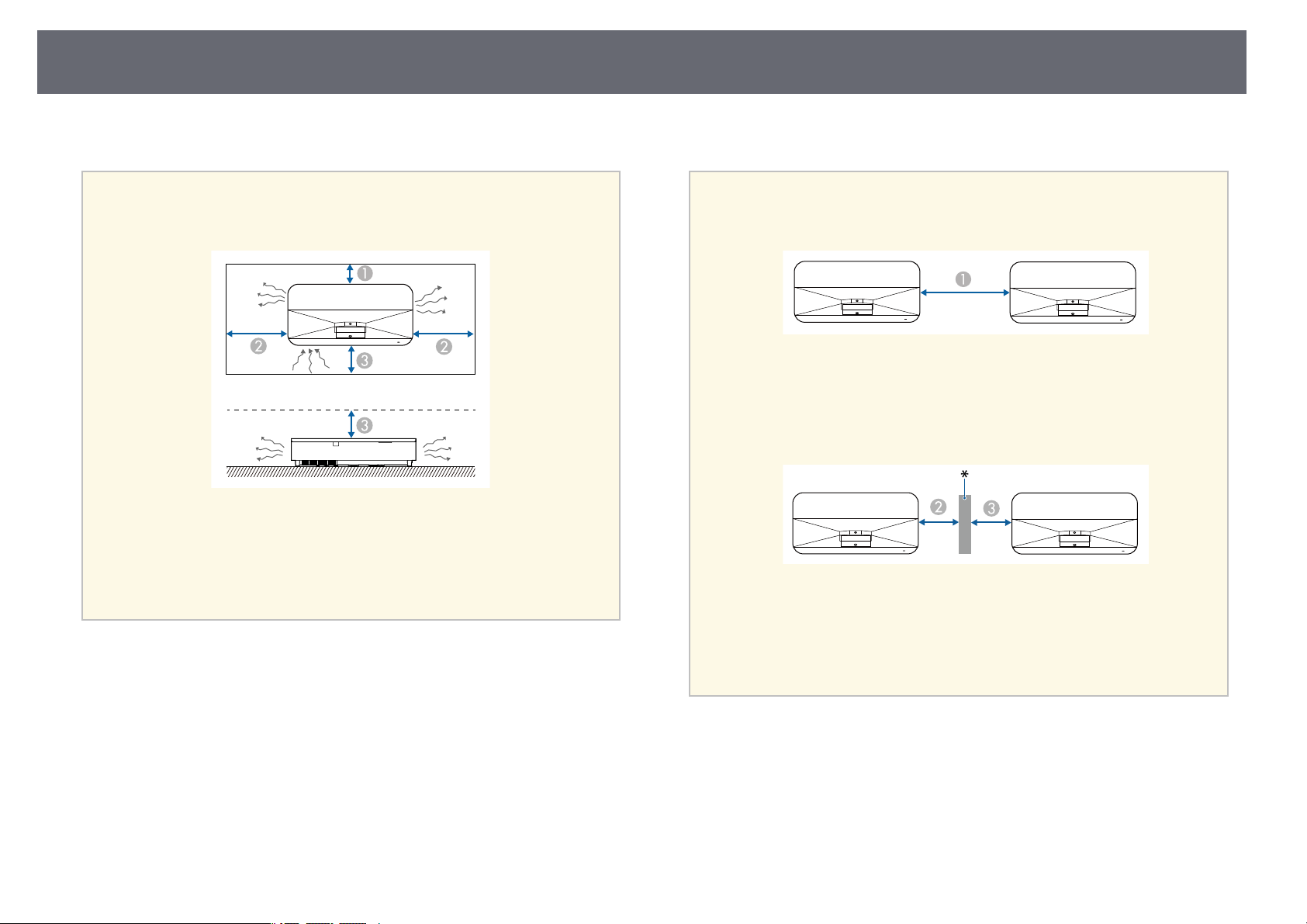

Precautions on Installation........................................................................................................ 24

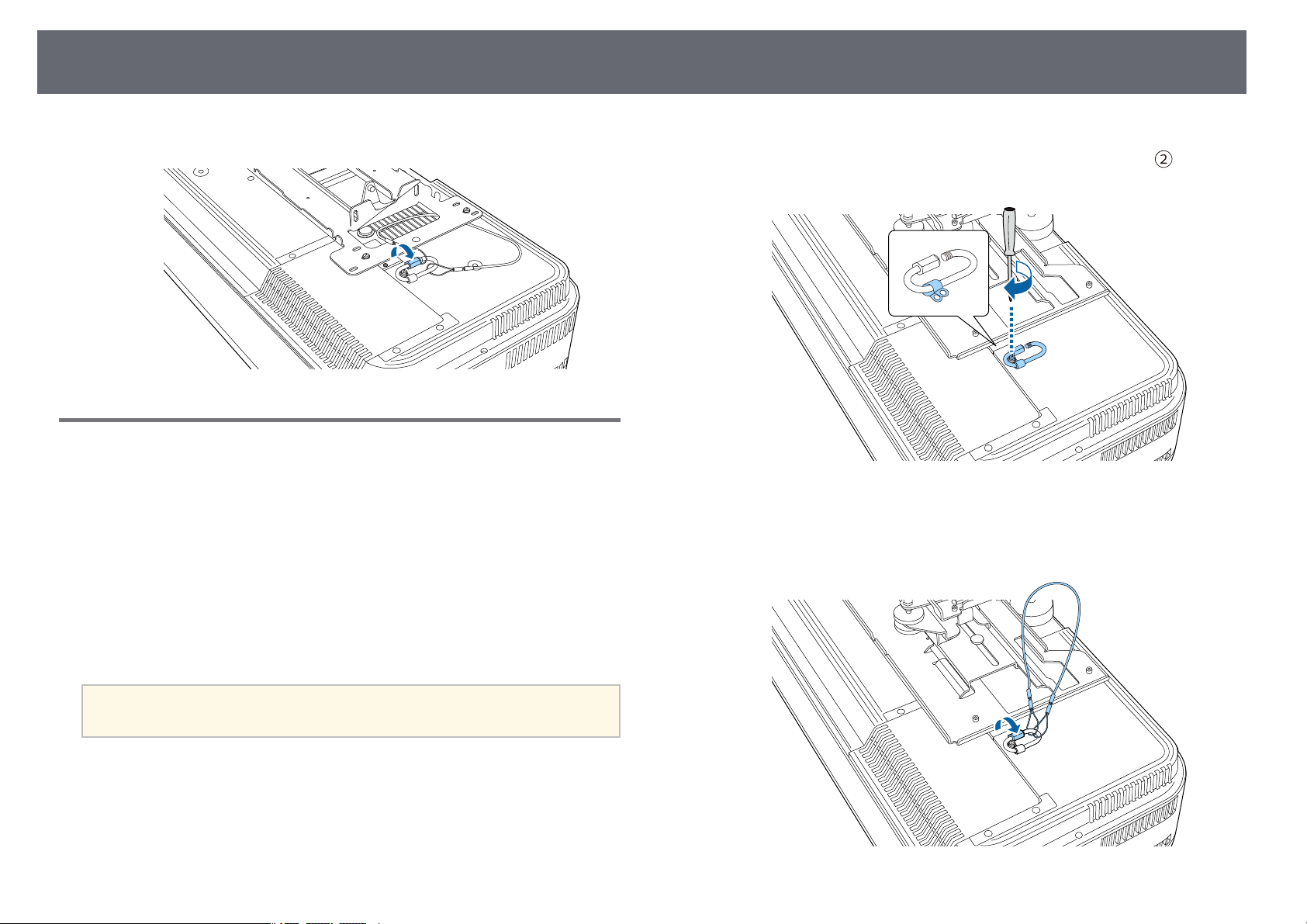

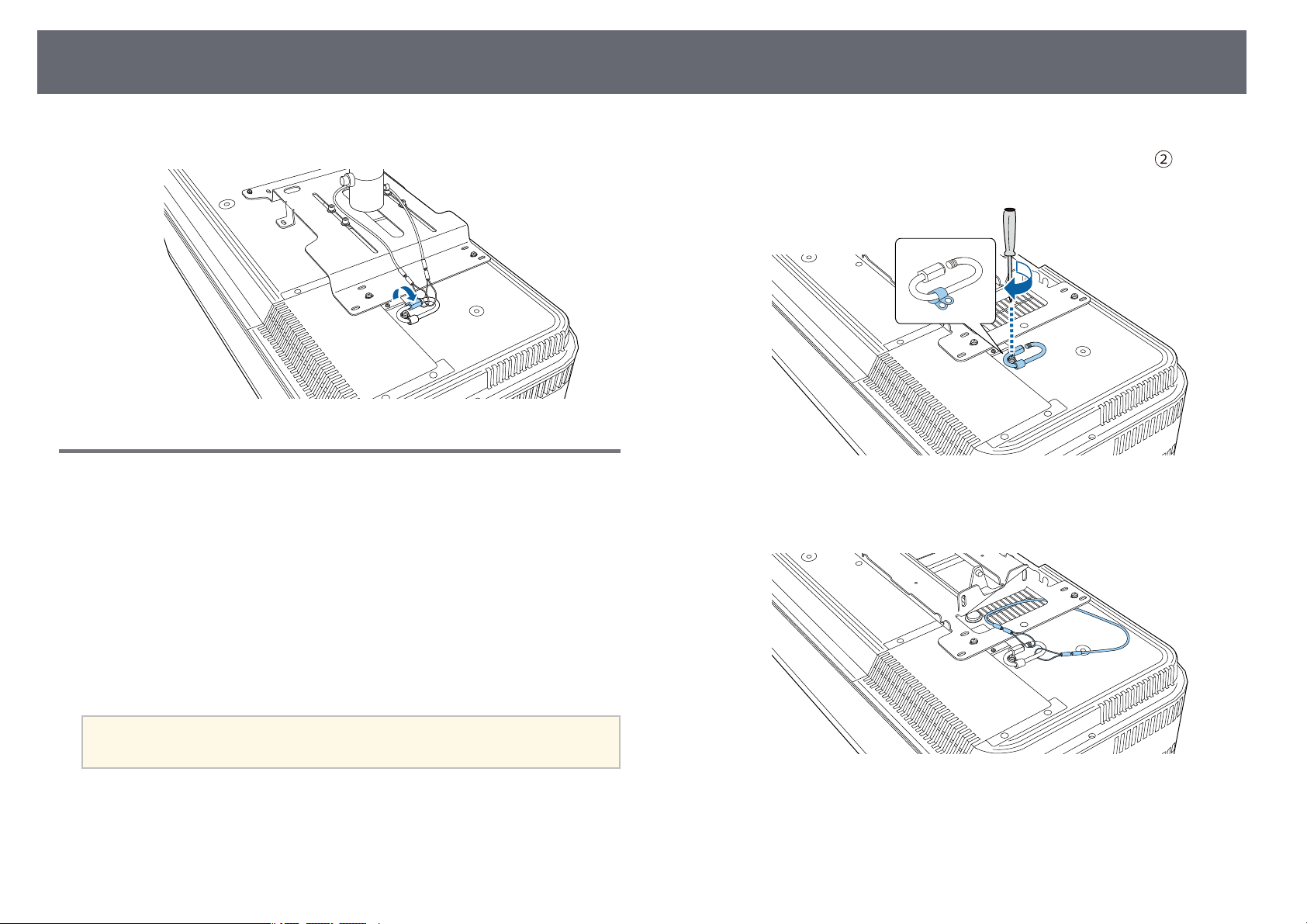

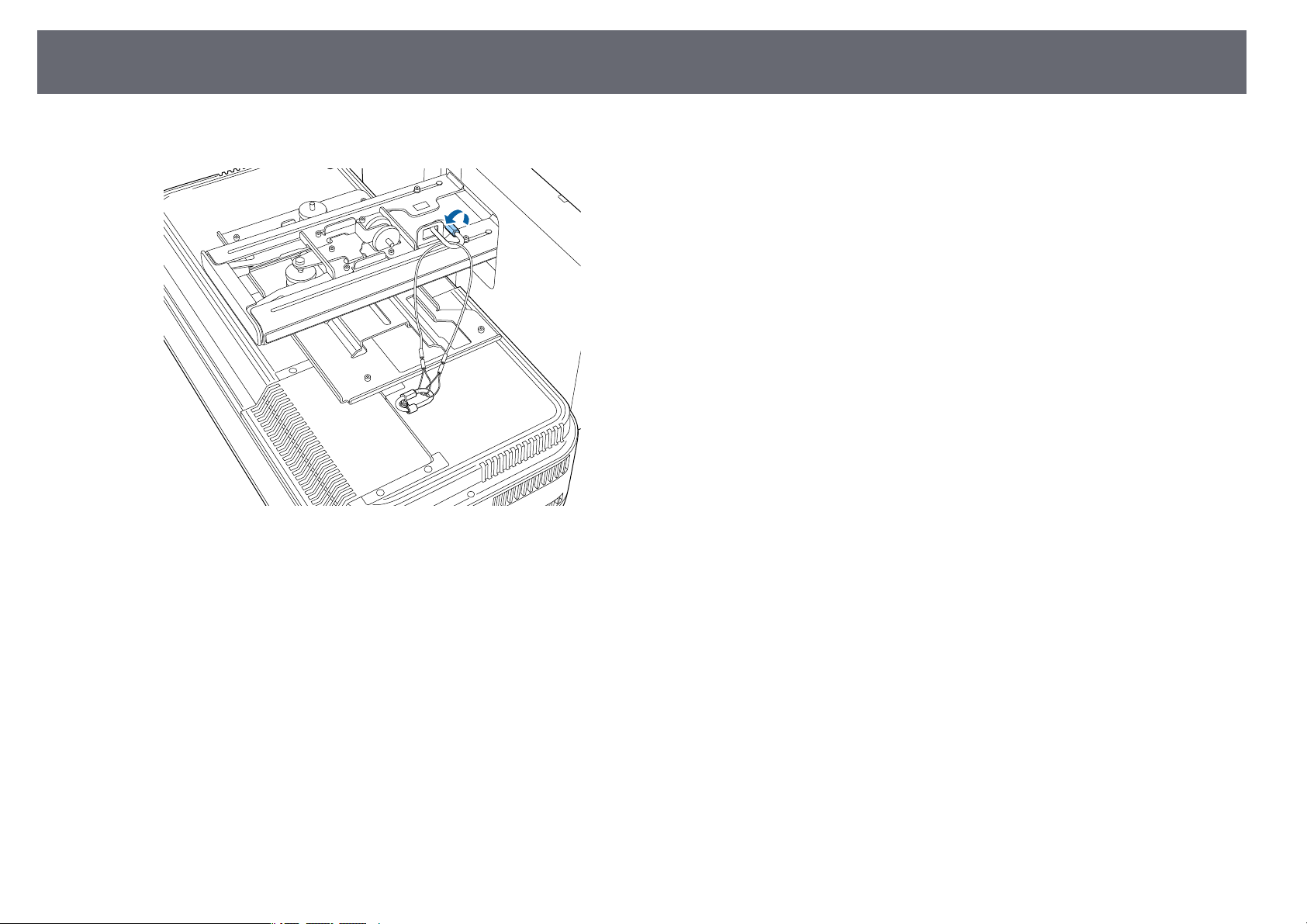

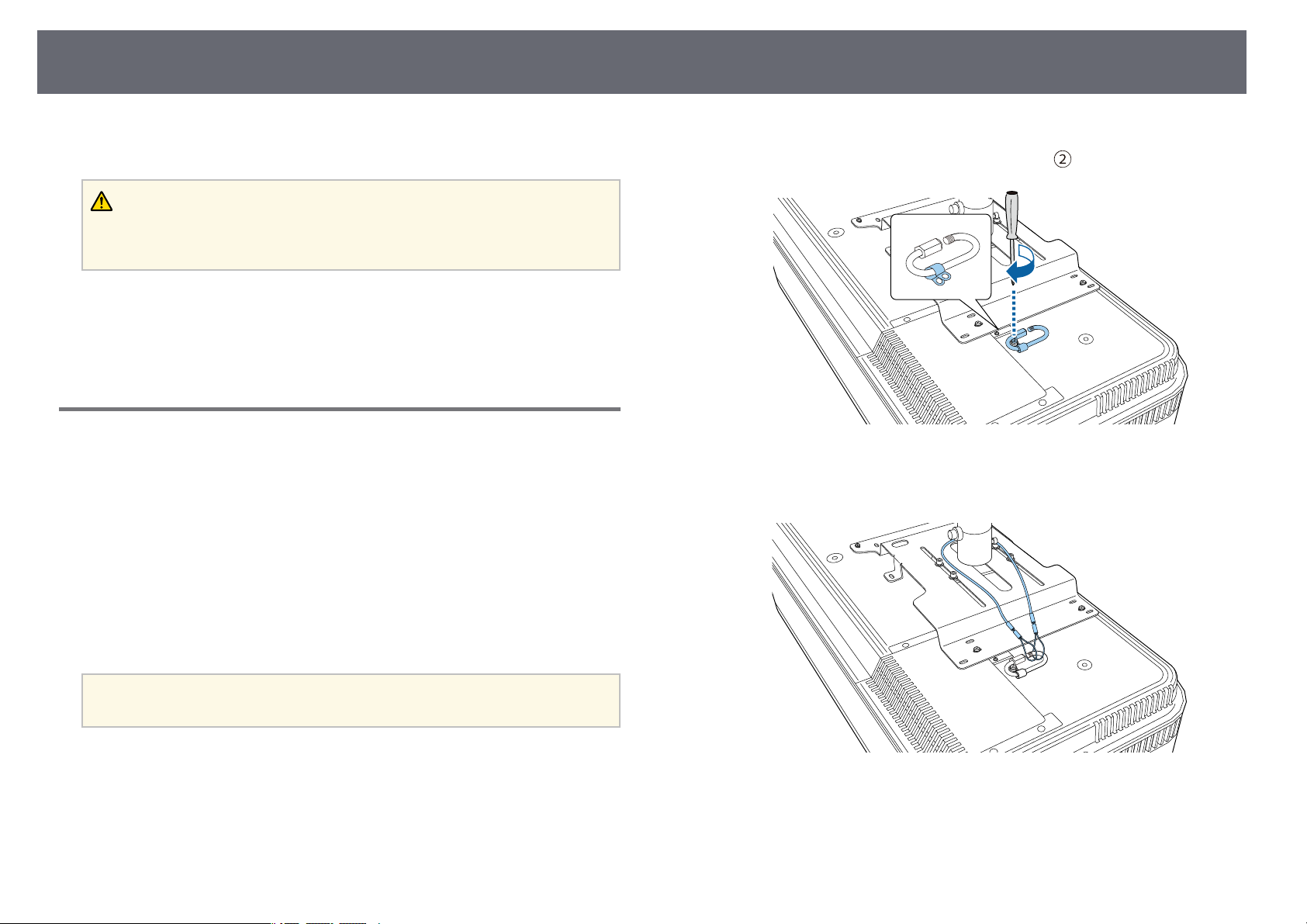

Installing the Safety Wire................................................................ 26

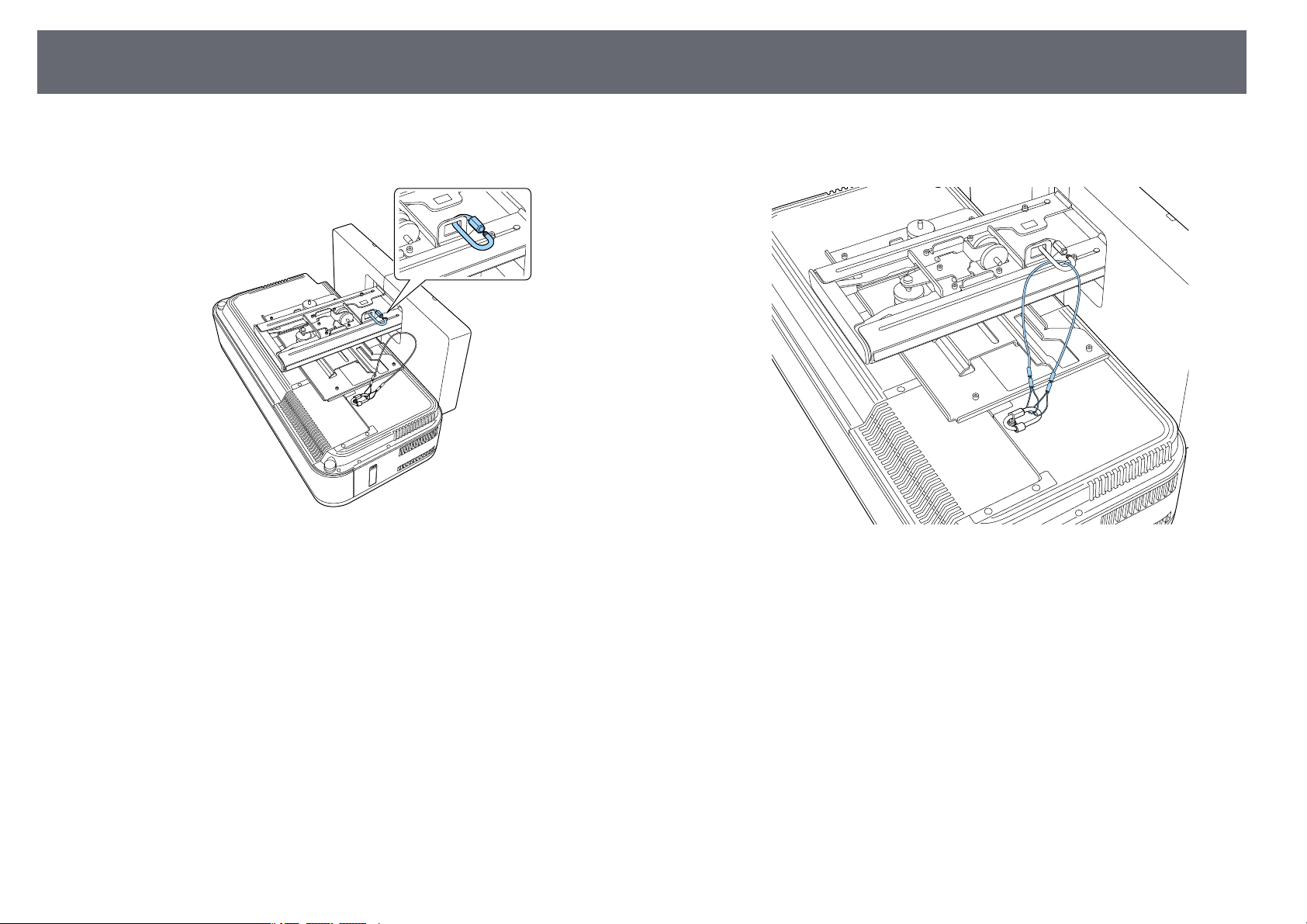

When Using the Ceiling Mount ELPMB22............................................................................ 26
When Using the Ceiling Mount ELPMB30............................................................................ 27
Turning Off the Projector ................................................................ 44

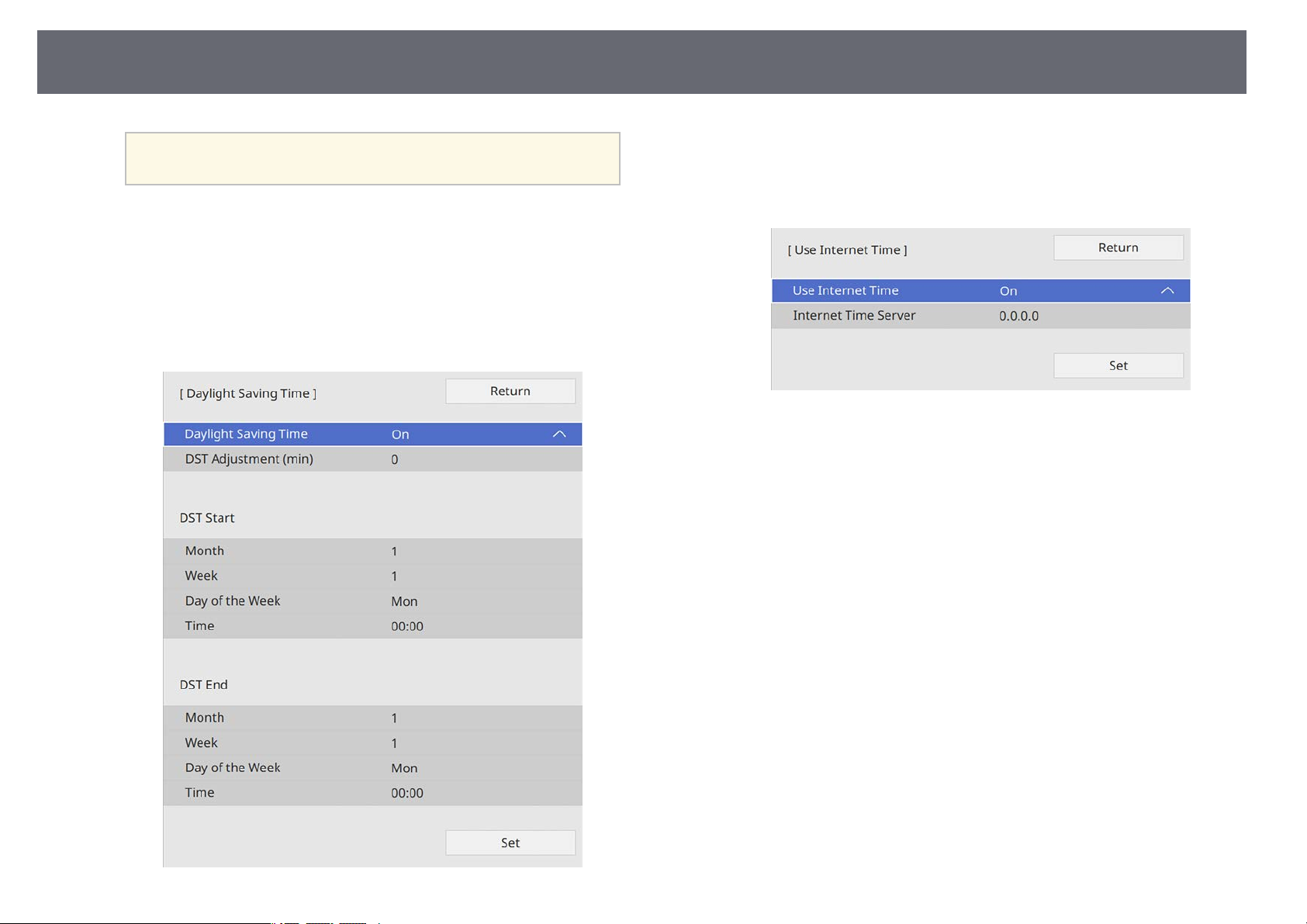

Setting the Date and Time .............................................................. 45
Selecting the Language for the Projector Menus ......................... 47

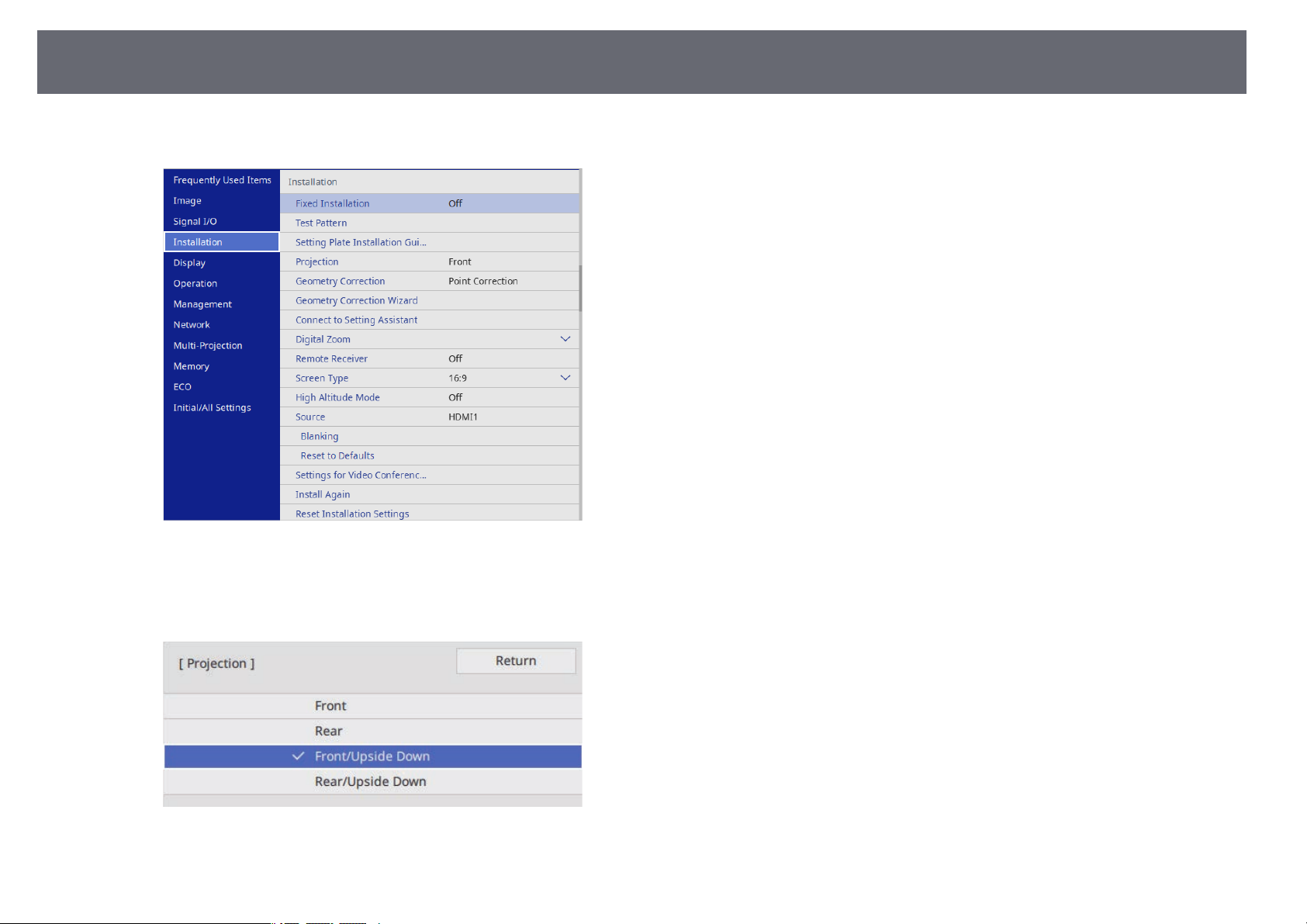

Projection Modes ............................................................................. 48
Changing the Projection Mode Using the Remote Control.......................................... 48
Changing the Projection Mode Using the Menus............................................................ 48

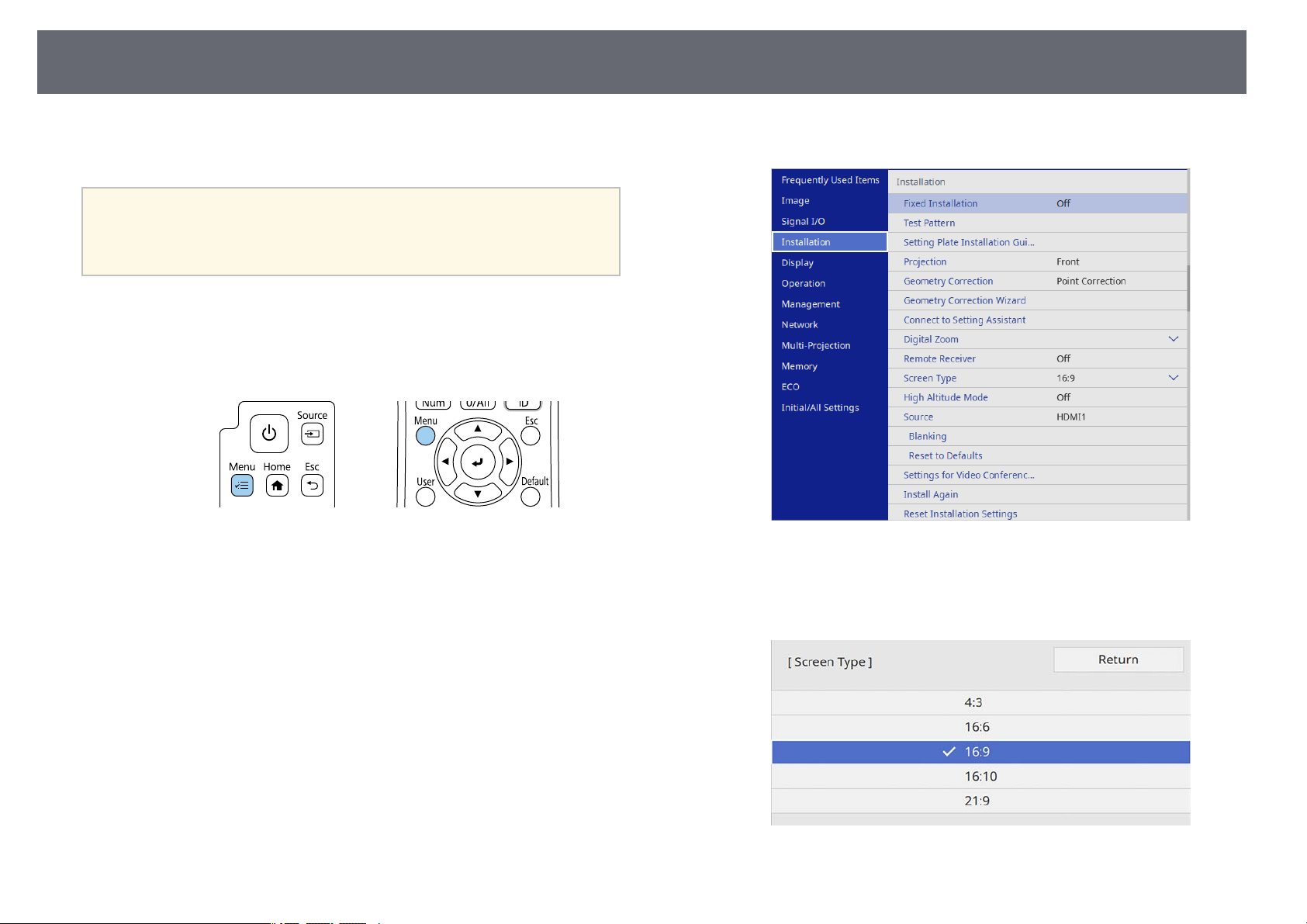

Setting the Screen Type .................................................................. 50

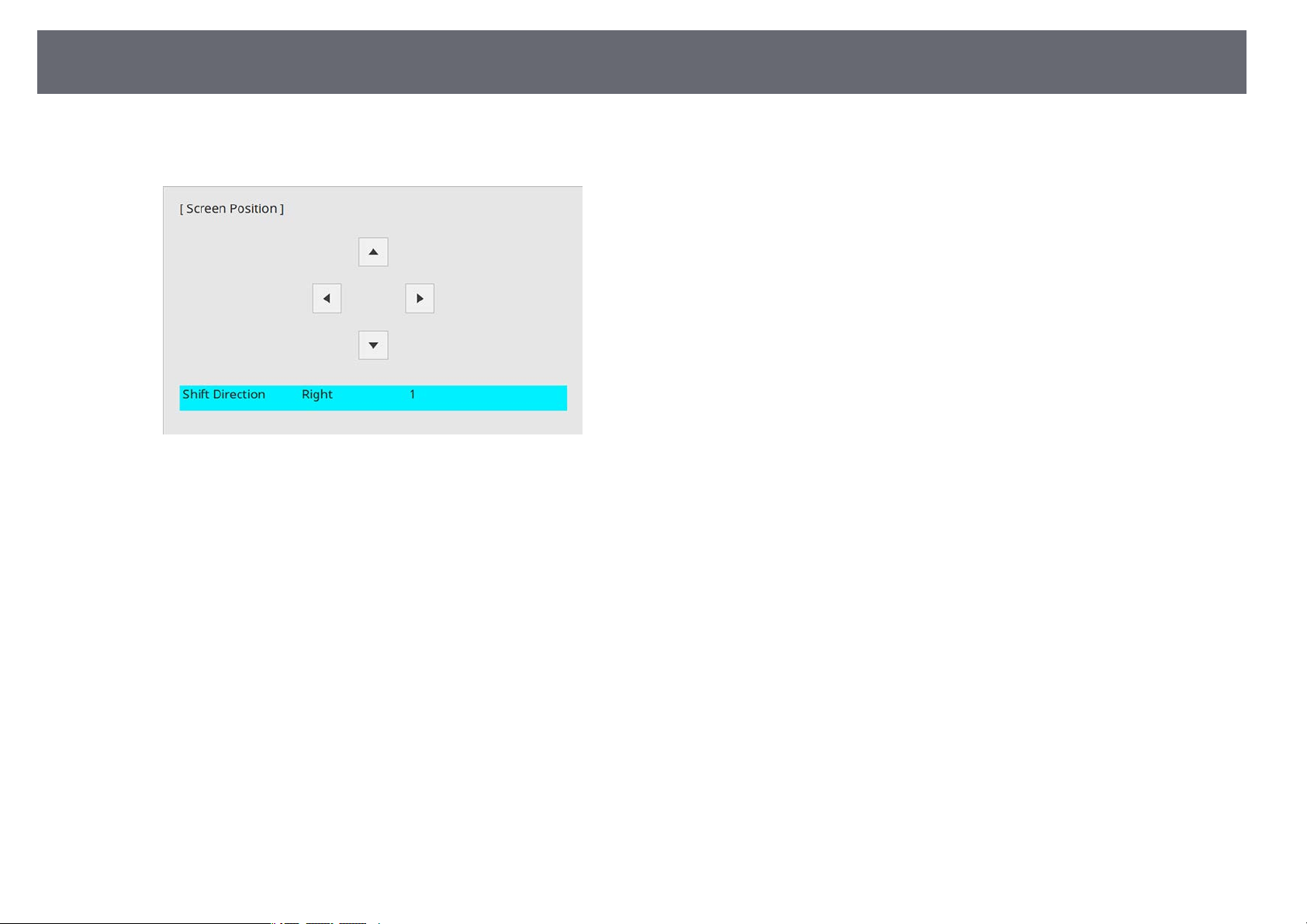

Adjusting the Image Position Using Screen Position...................................................... 51
Page 3
Contents
3

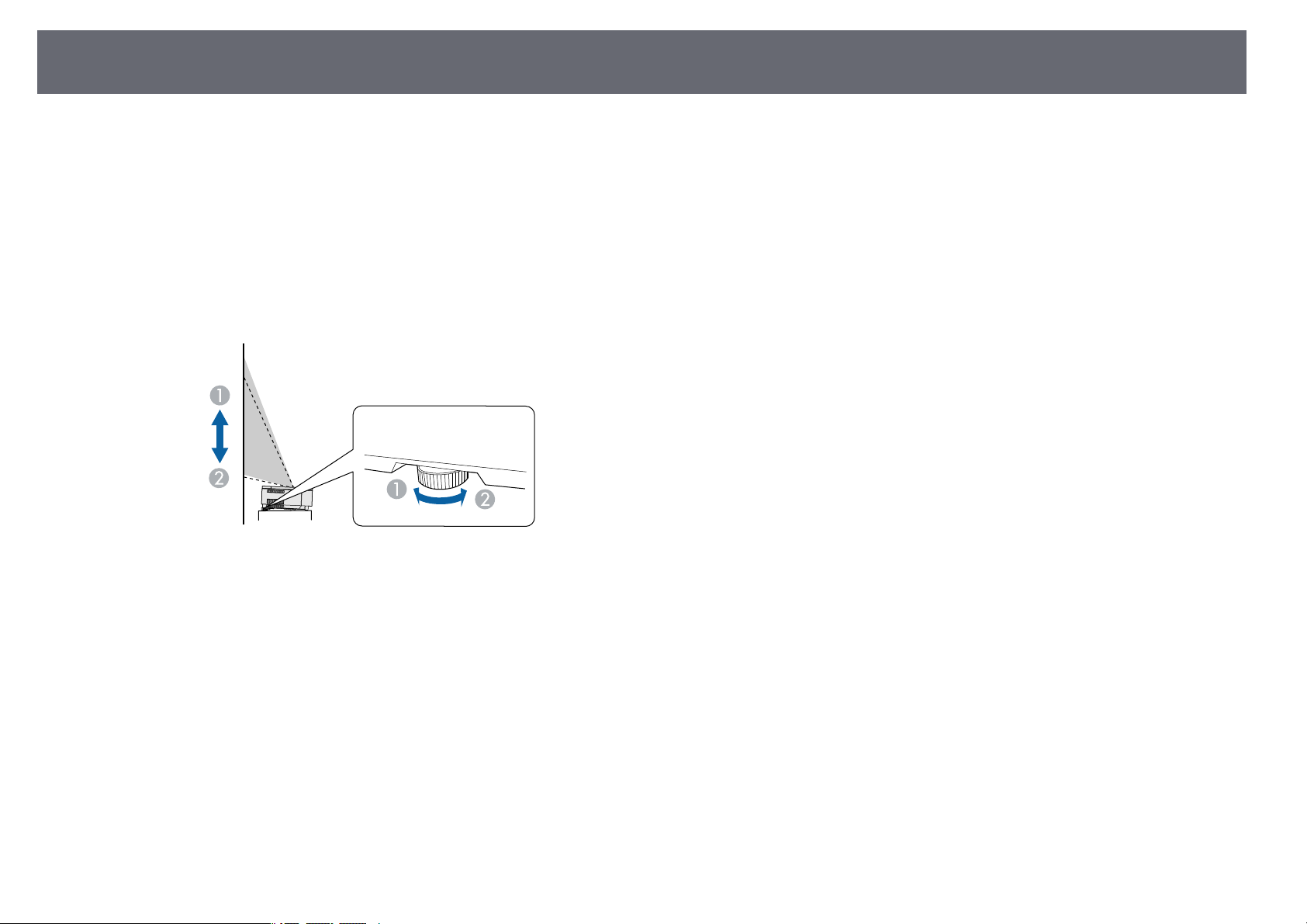

Adjusting the Image Height............................................................ 53

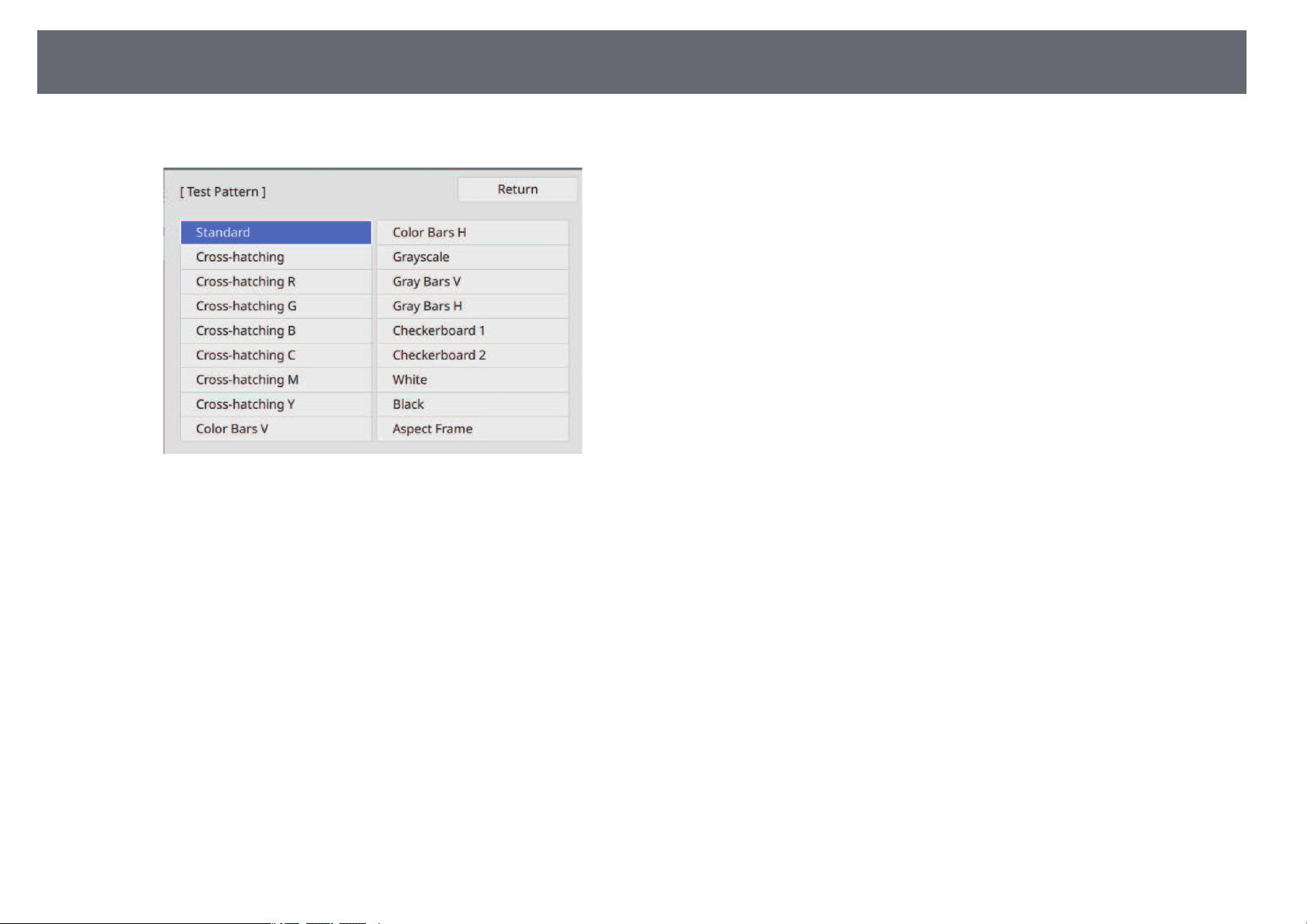

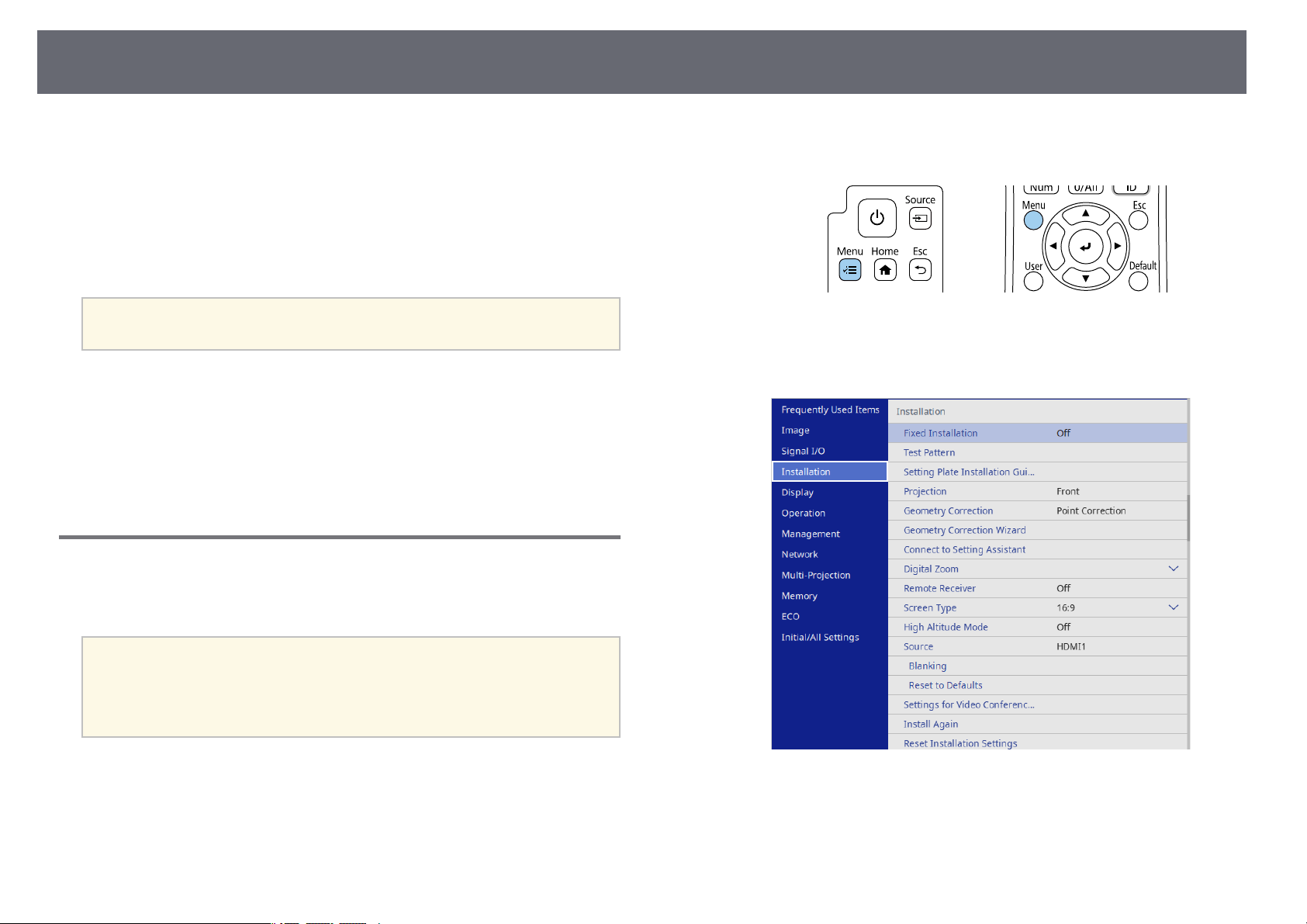

Displaying a Test Pattern ................................................................ 54
Focusing the Image Using the Focus Lever ................................... 56
Image Shape ..................................................................................... 57

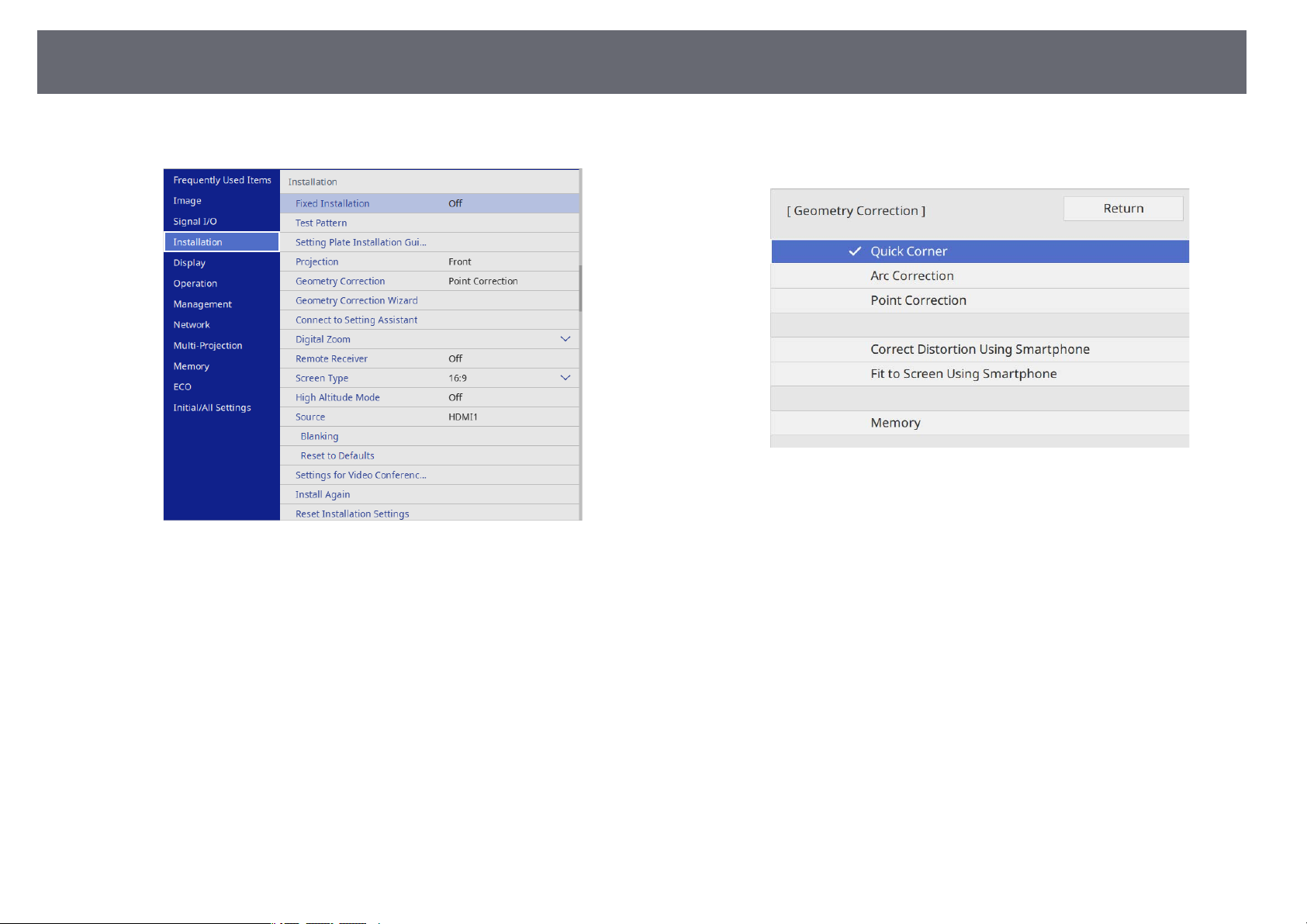

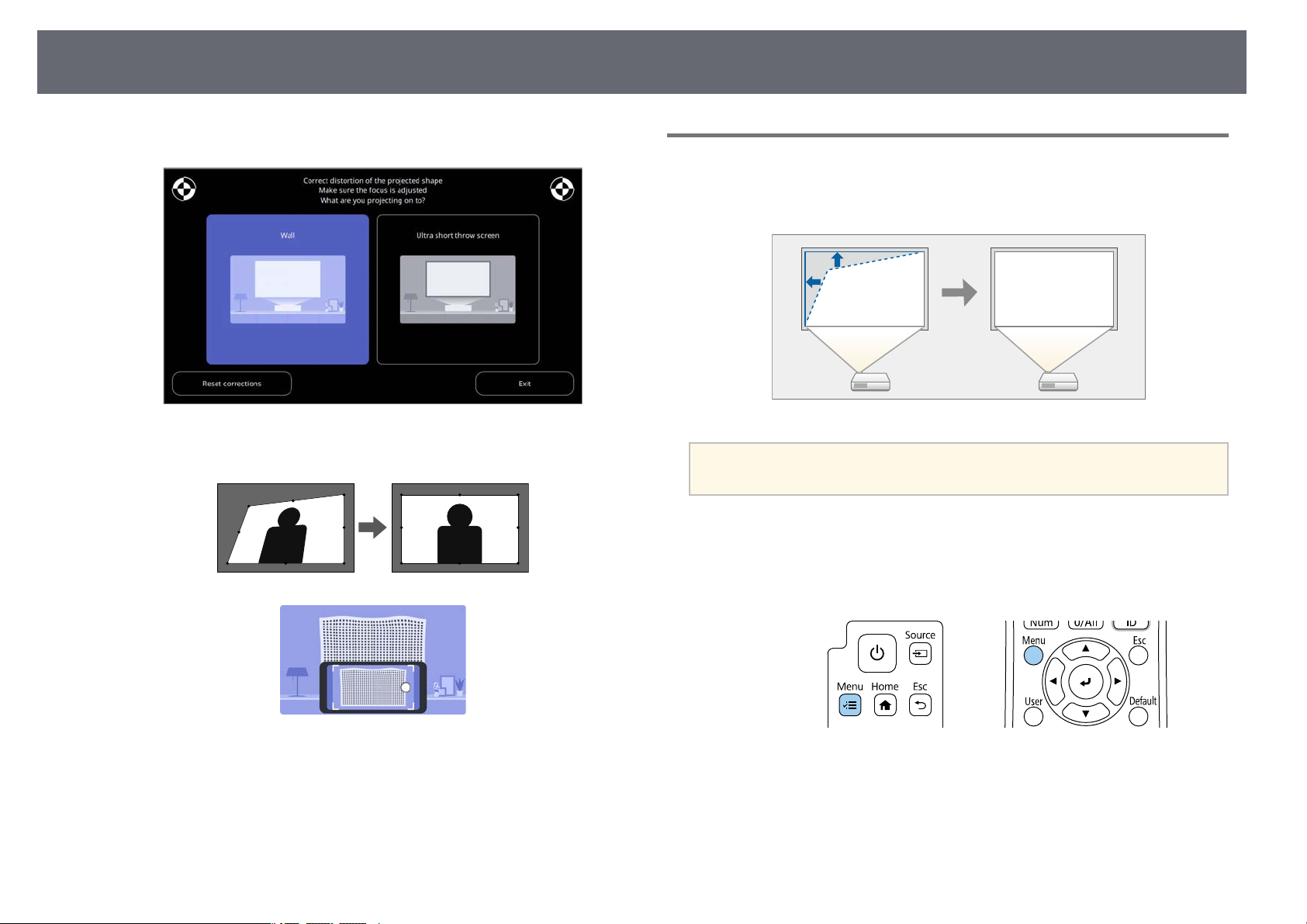

Correcting Distortion in the Image Using the Wizard..................................................... 57
Correcting the Image Shape with Quick Corner ............................................................... 58

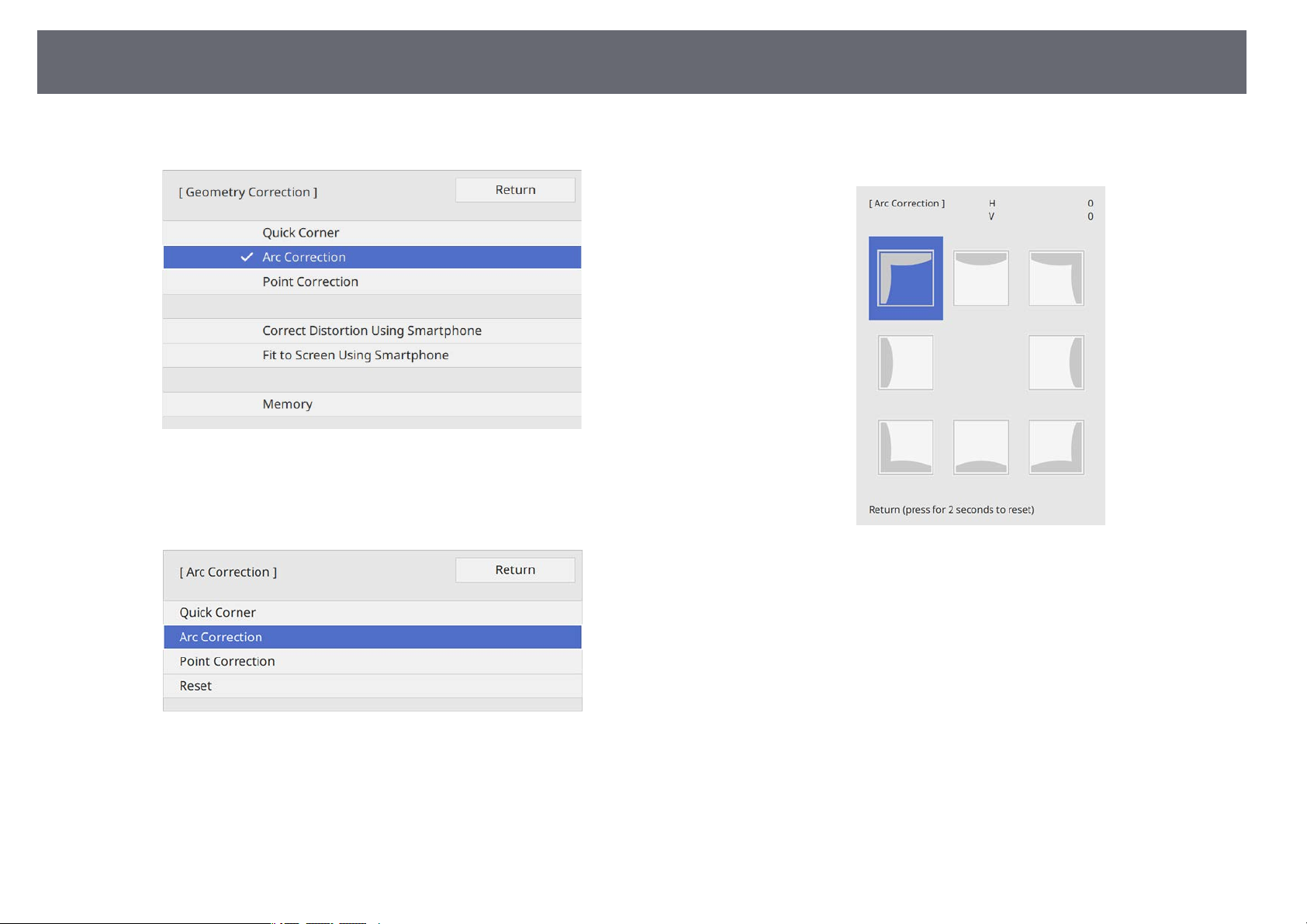

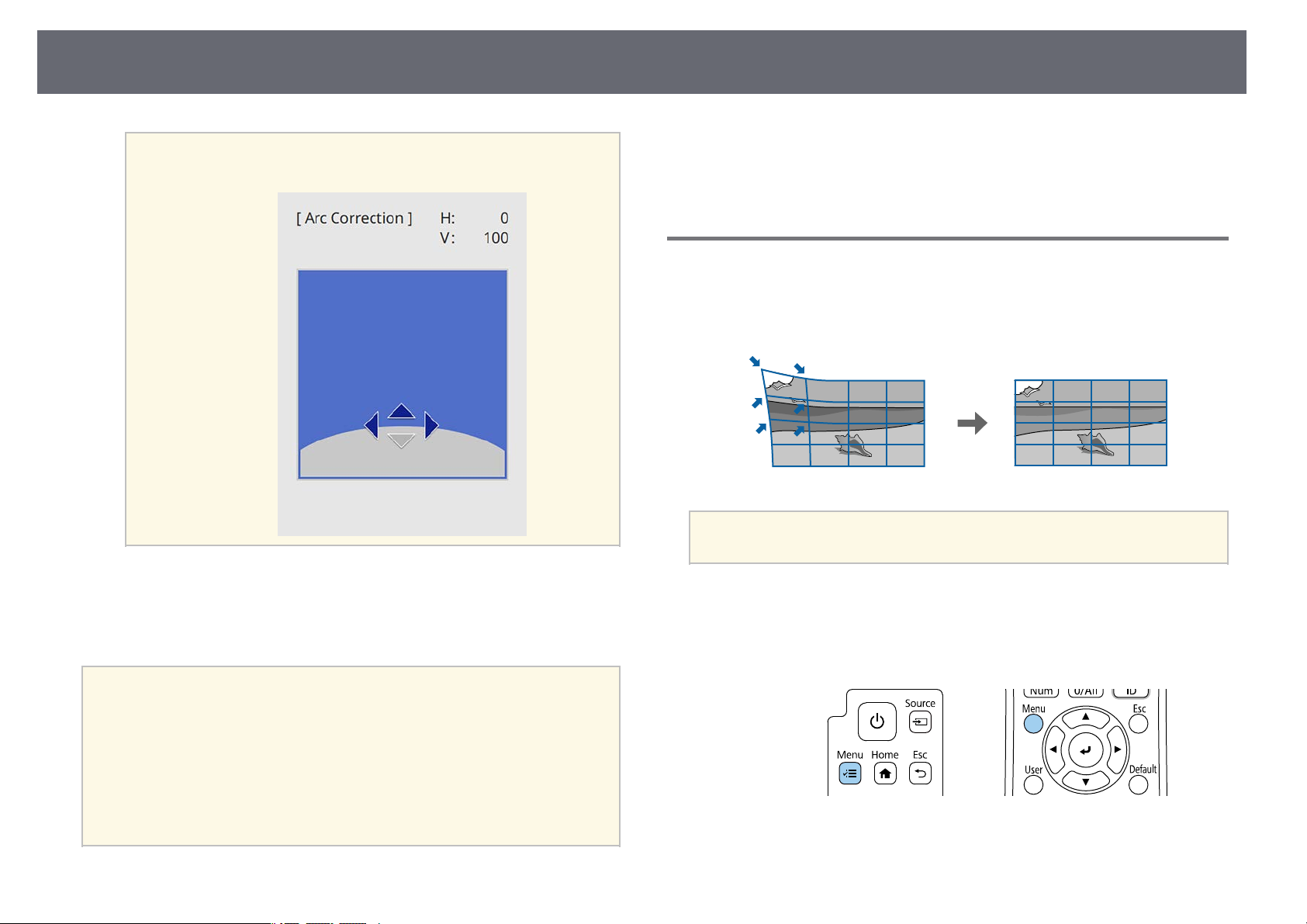

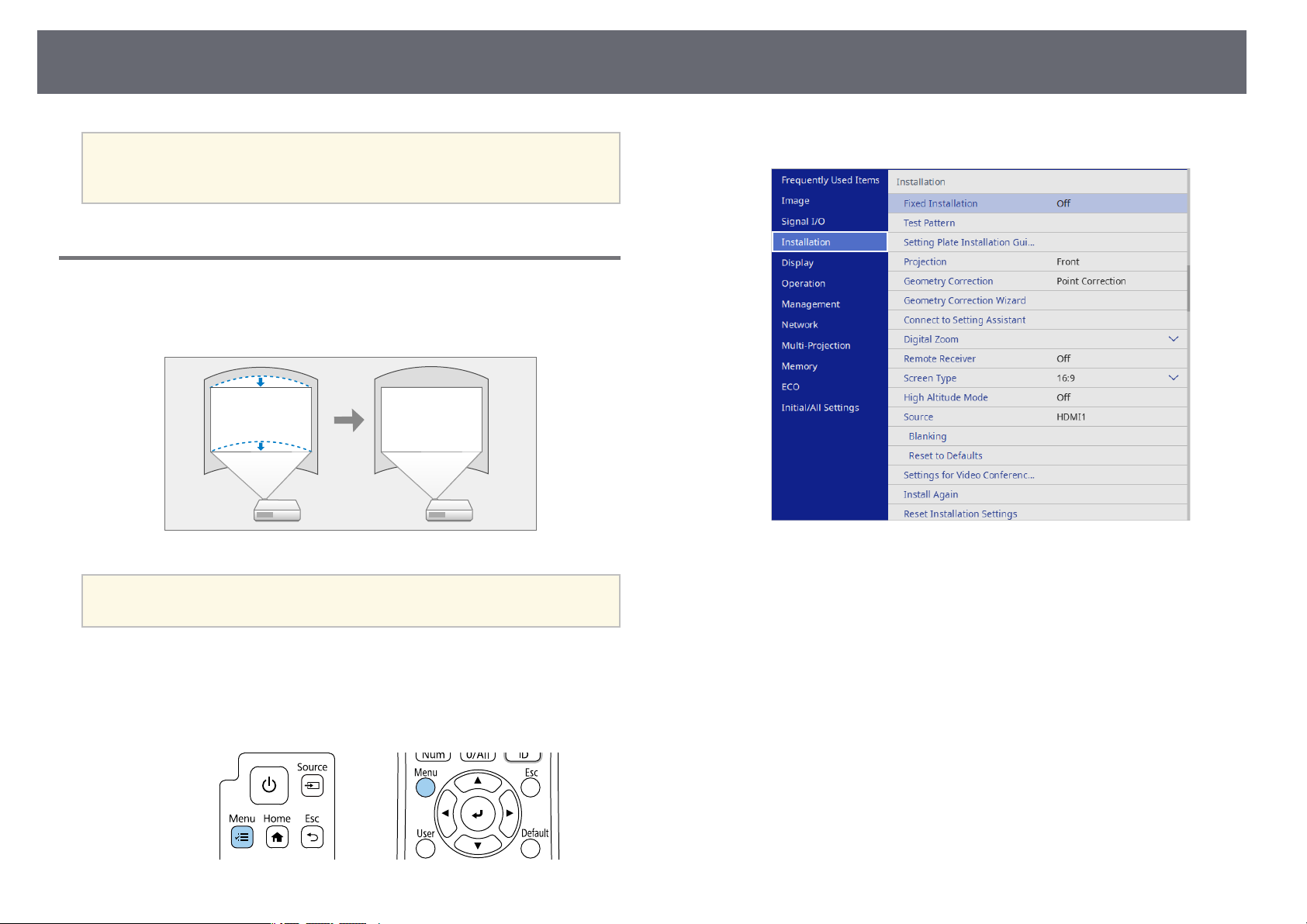

Correcting Image Shape with Arc Correction..................................................................... 61

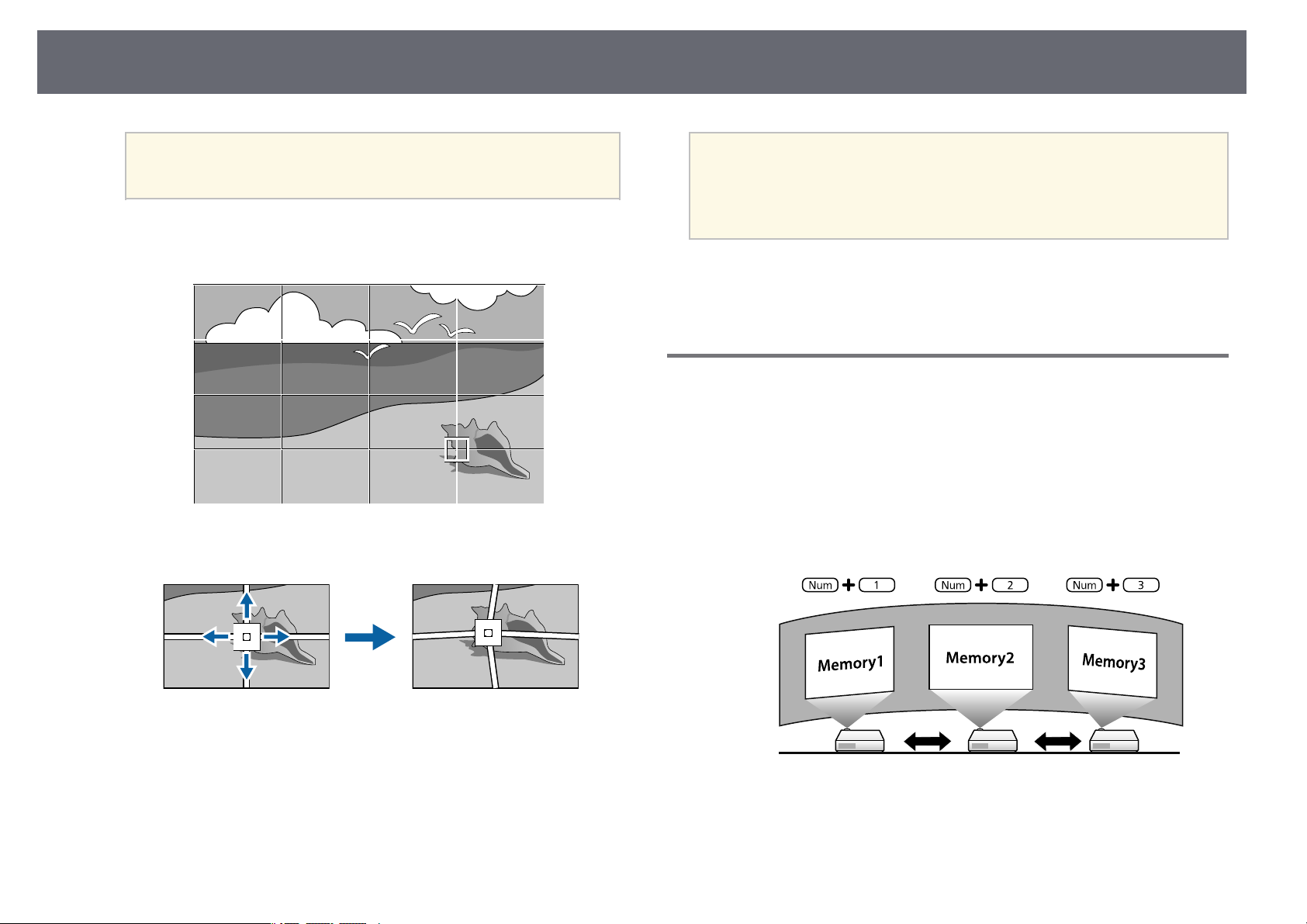

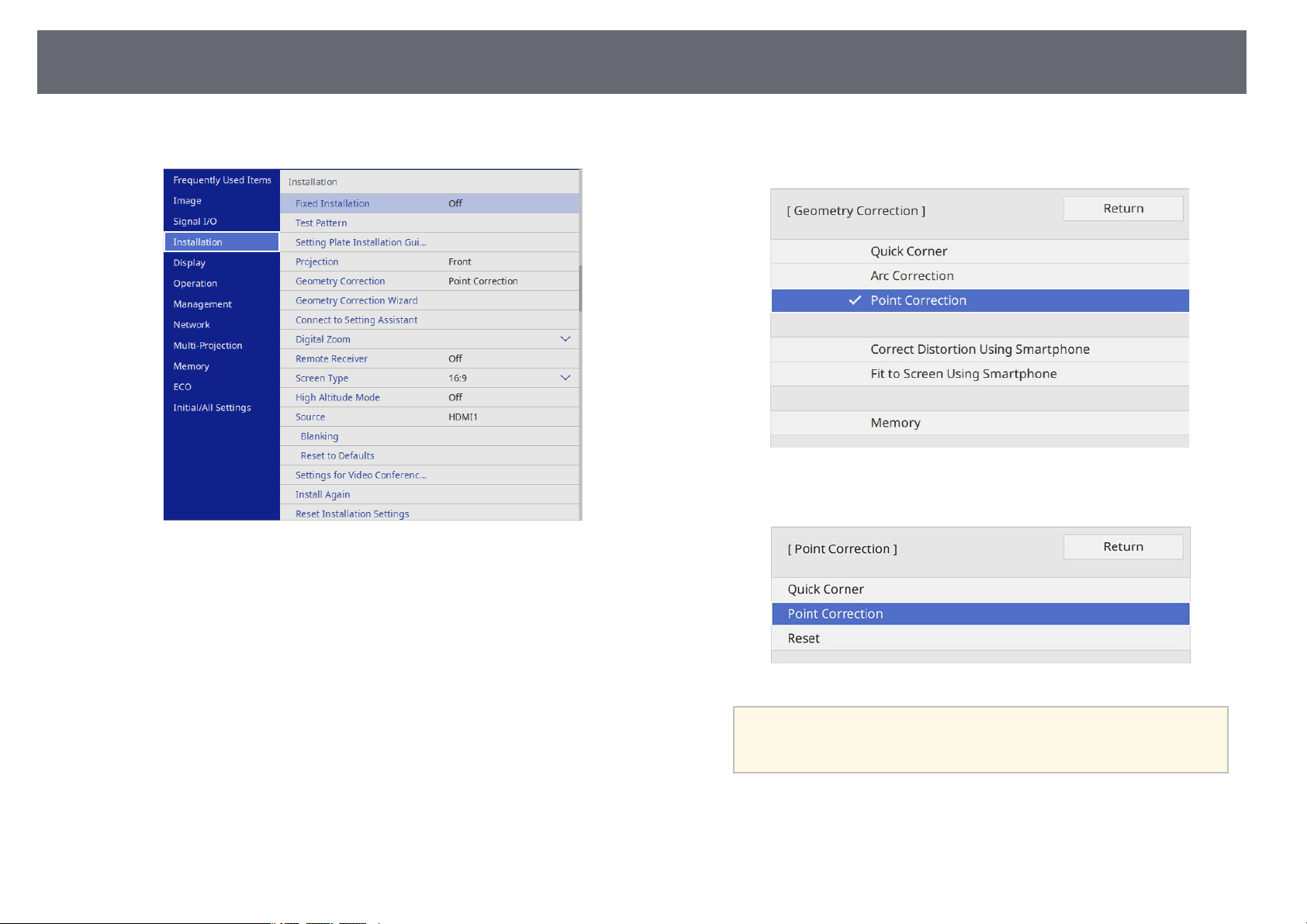

Correcting Image Shape with Point Correction................................................................. 63
Loading Image Shape Setting from Memory ..................................................................... 65

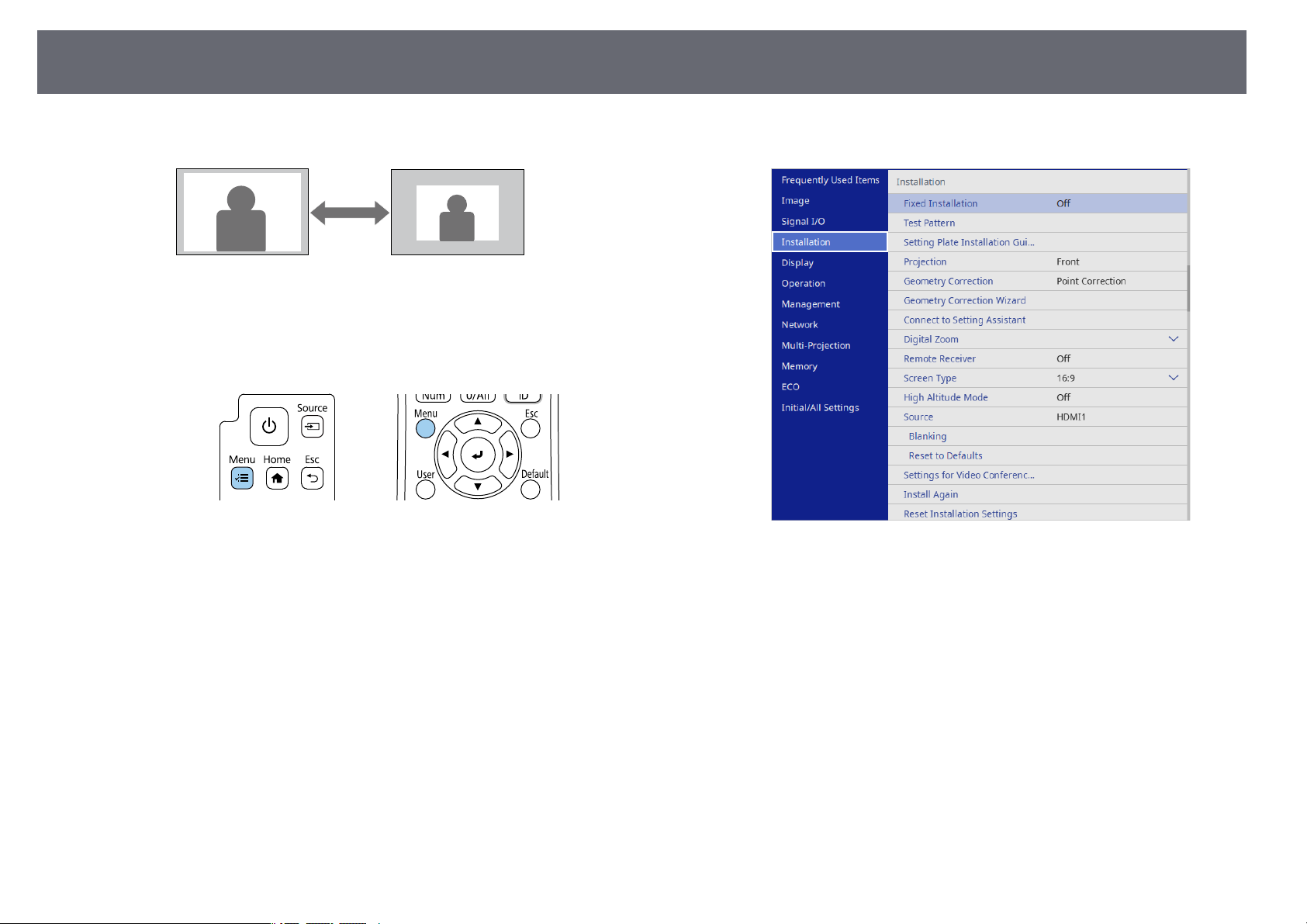

Resizing the Image with Digital Zoom........................................... 66

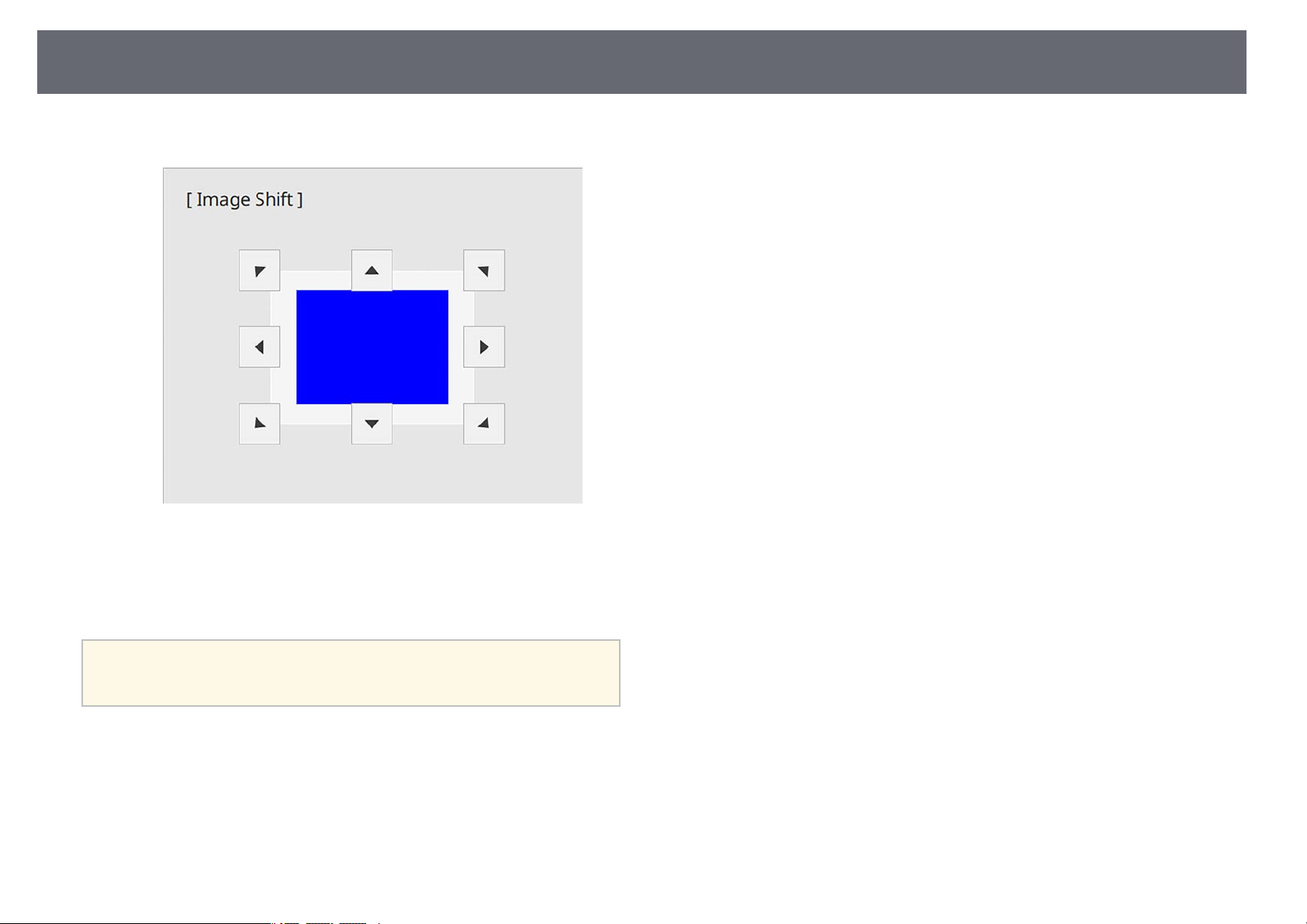

Adjusting the Image Position Using Image Shift.......................... 67

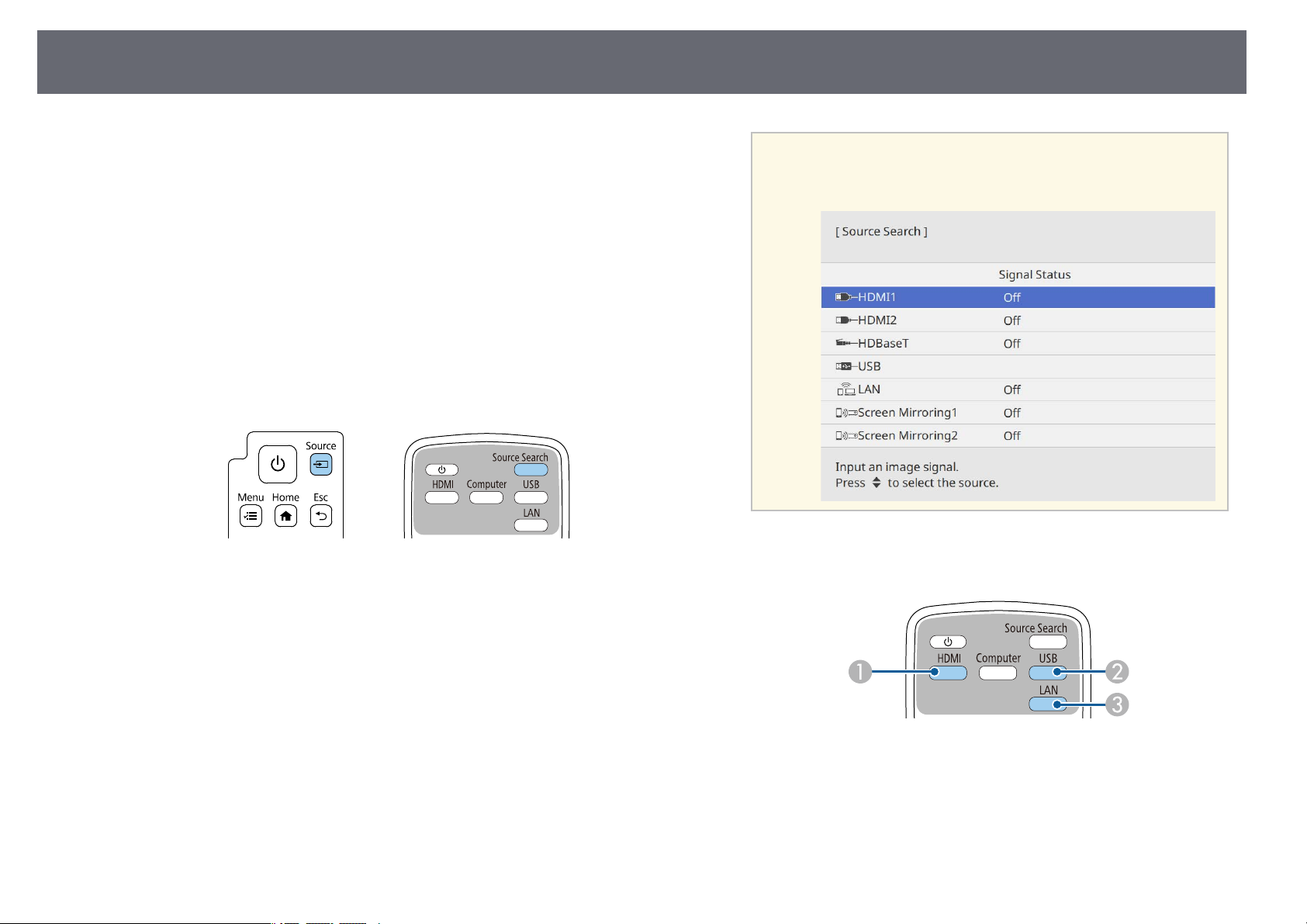

Selecting an Image Source.............................................................. 69
Image Aspect Ratio .......................................................................... 71

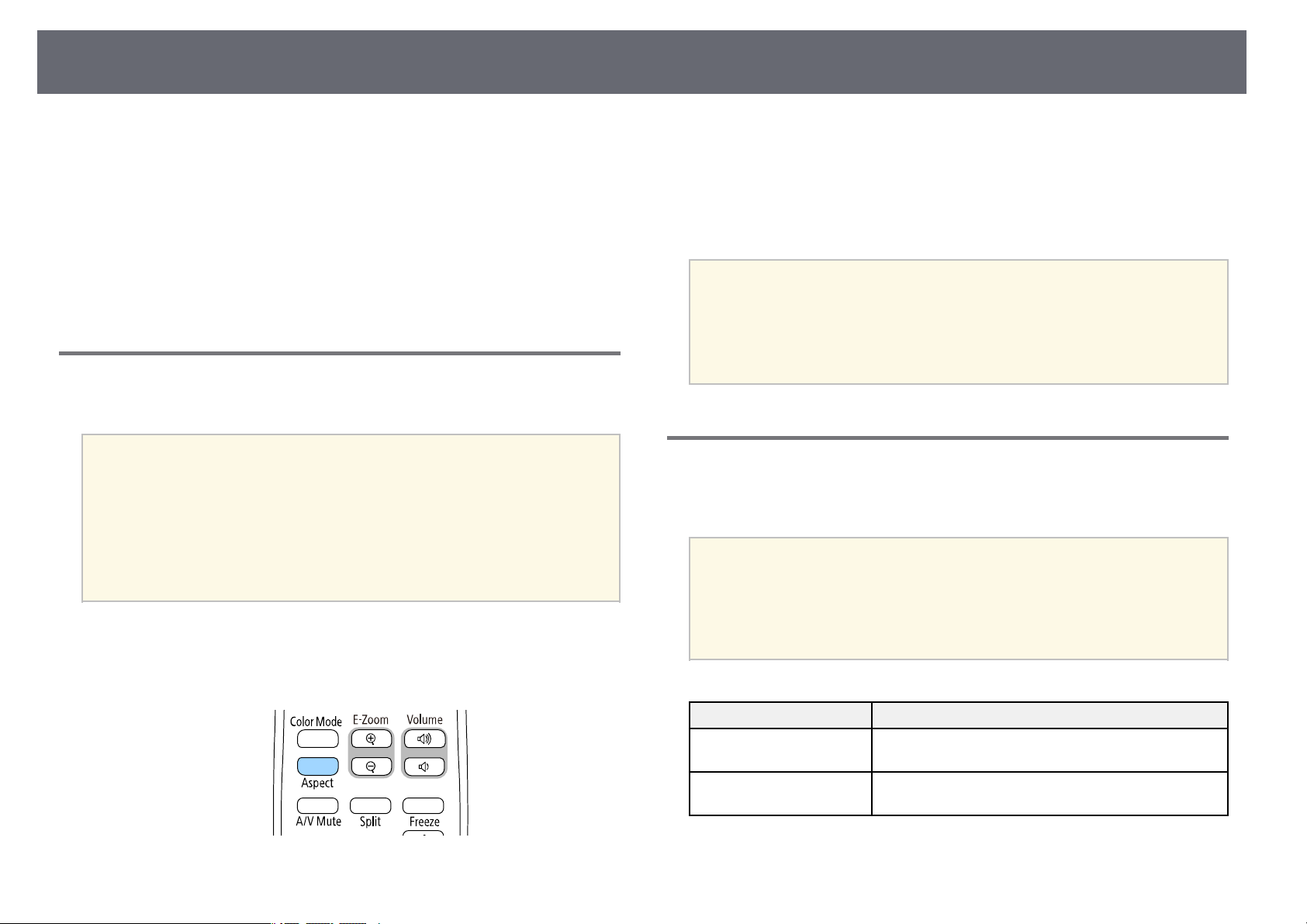

Changing the Image Aspect Ratio .......................................................................................... 71
Available Image Aspect Ratios ................................................................................................. 71
Adjusting Image Quality (Color Mode).......................................... 73

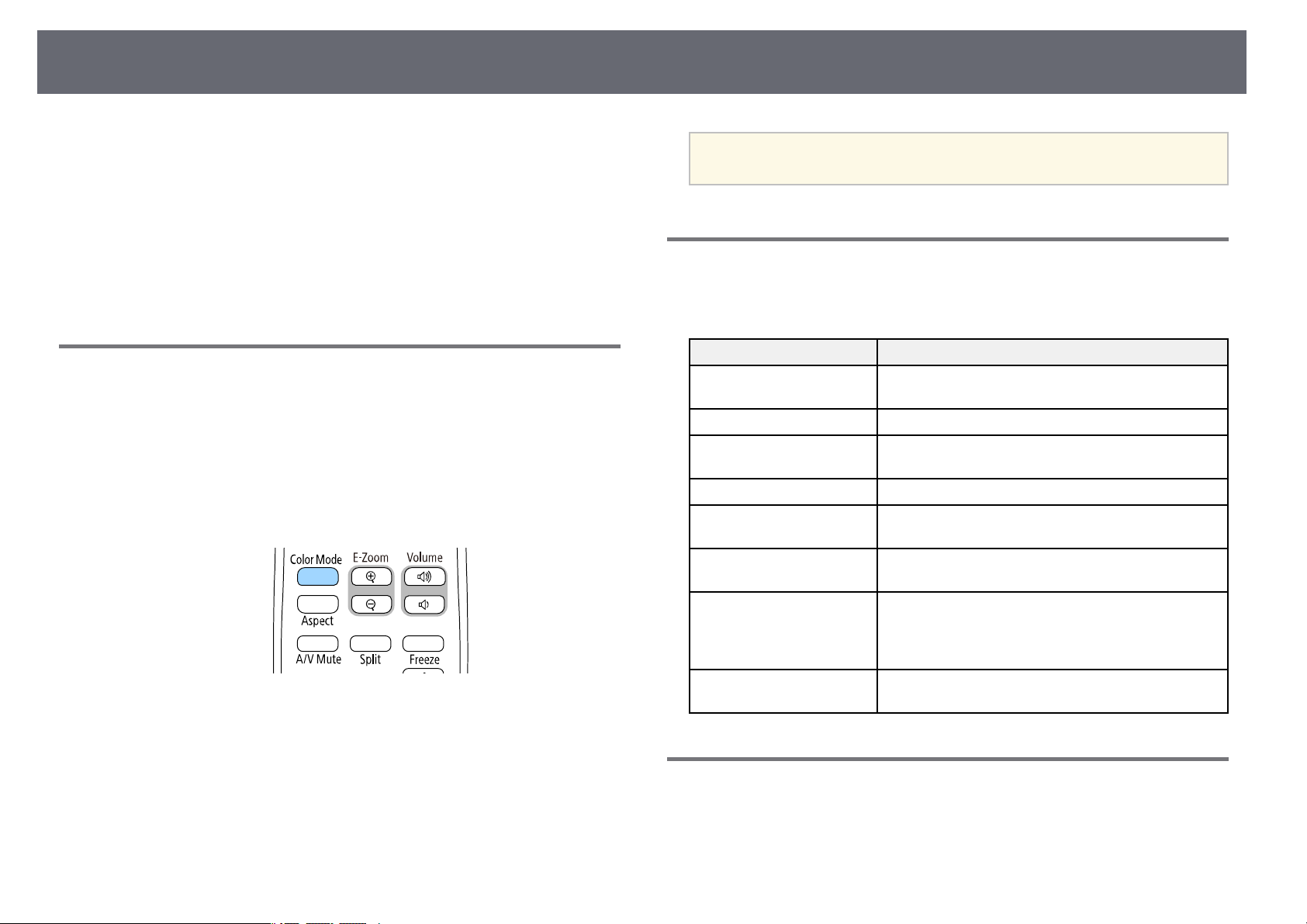

Changing the Color Mode ......................................................................................................... 73
Available Color Modes................................................................................................................. 73
Turning On Automatic Luminance Adjustment ................................................................ 73

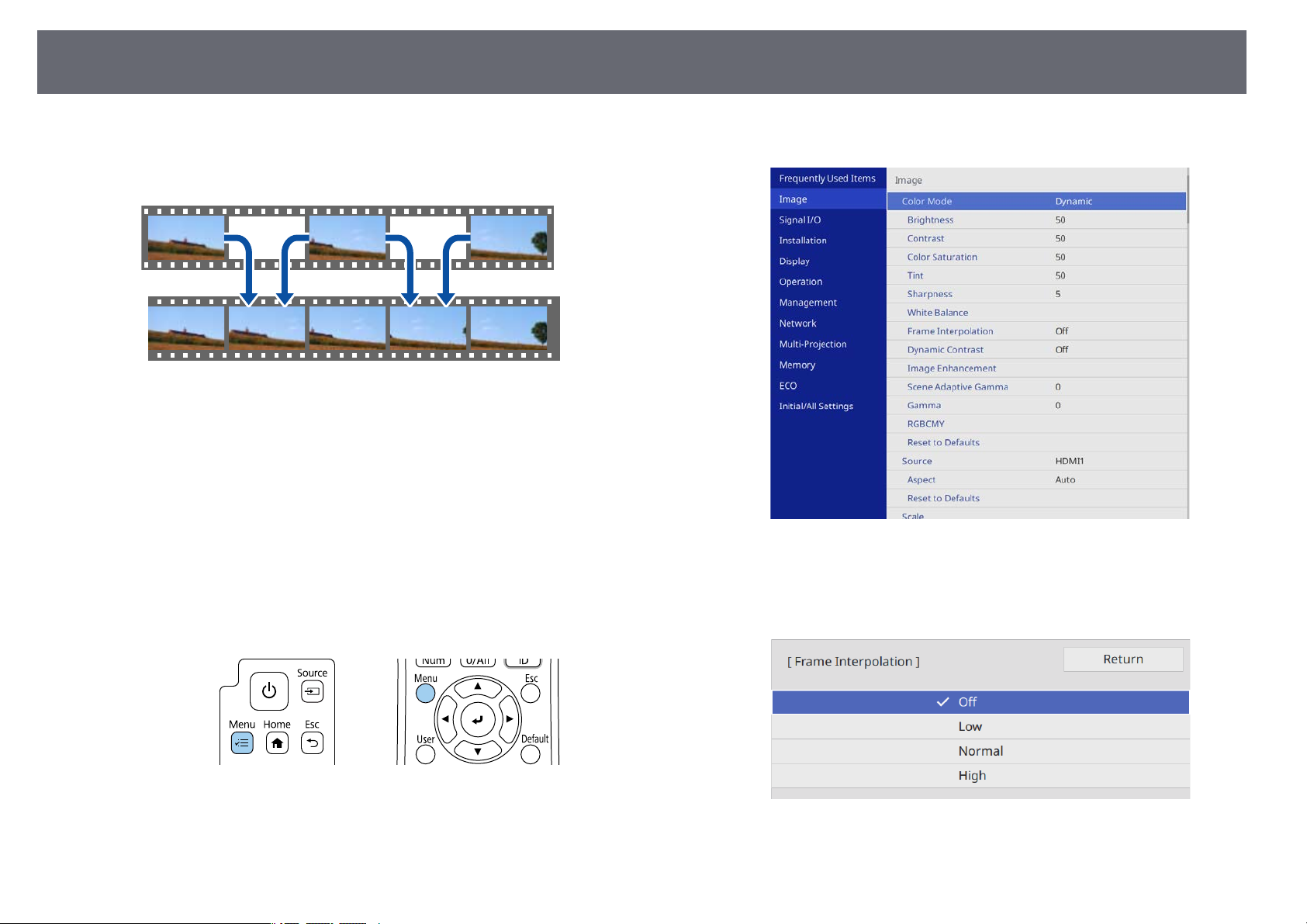

Setting Frame Interpolation ........................................................... 75
Adjusting the Image Color .............................................................. 77

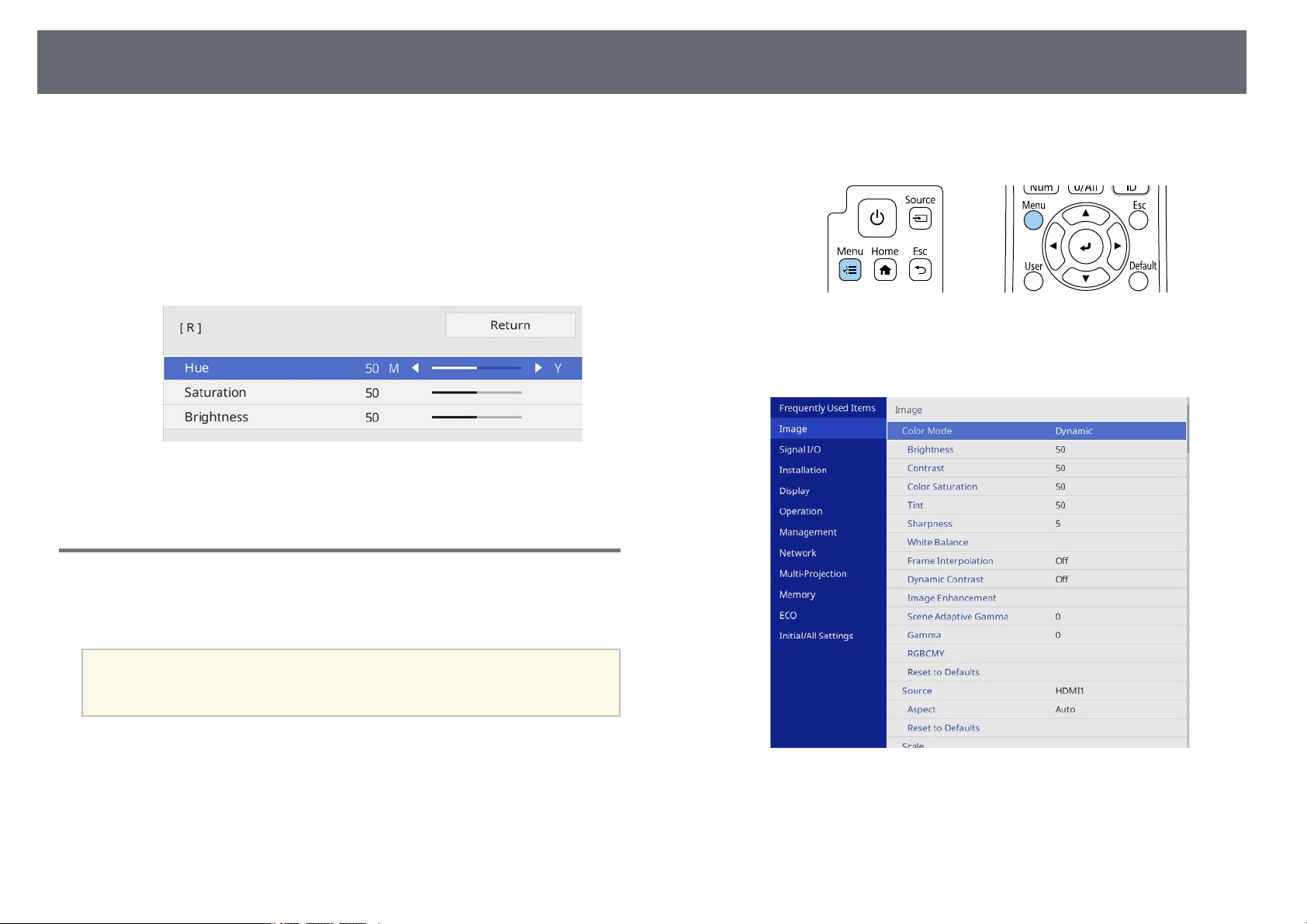

Adjusting the Hue, Saturation, and Brightness.................................................................. 77

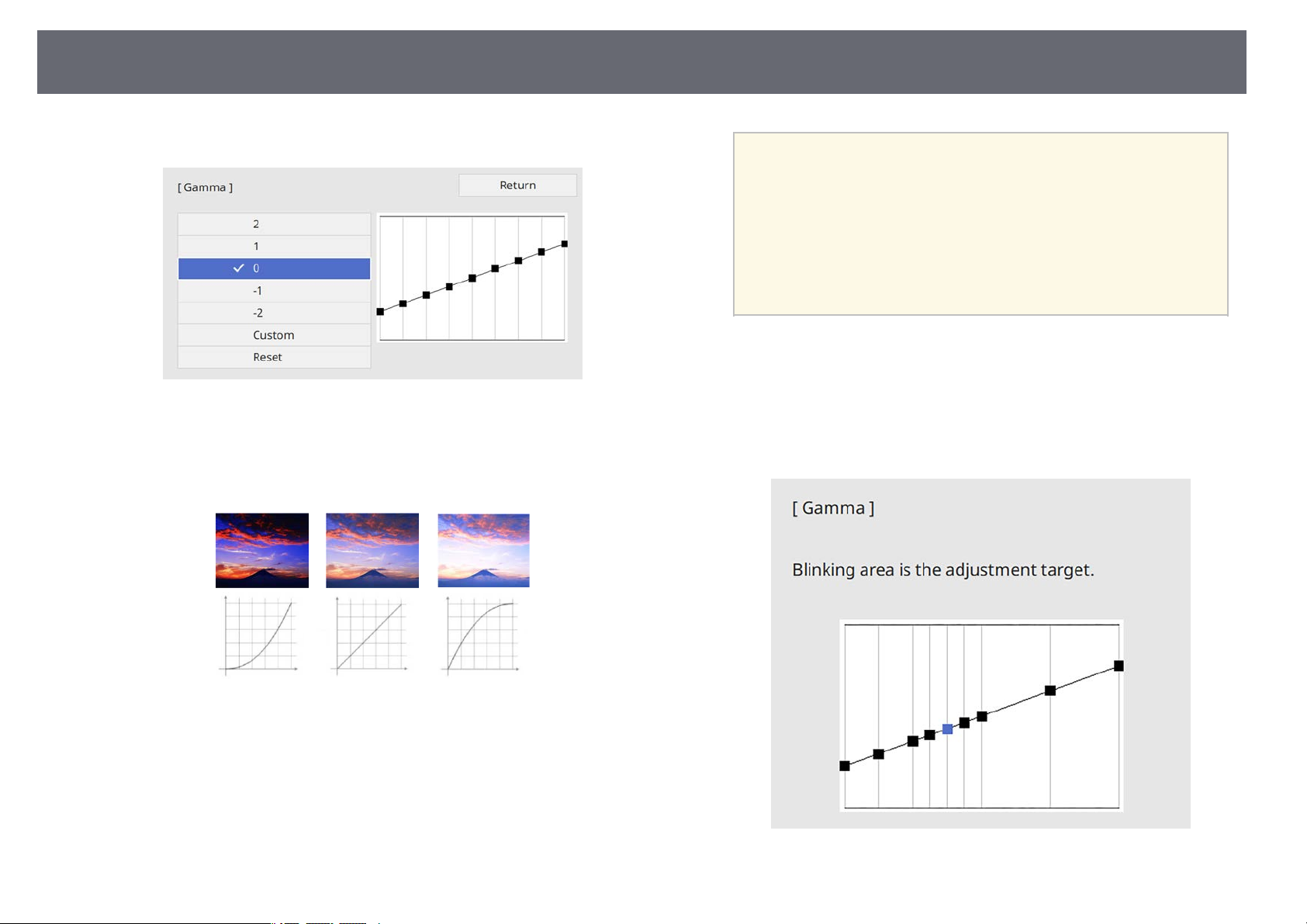

Adjusting the Gamma ................................................................................................................. 78
Adjusting the Image Resolution..................................................... 80

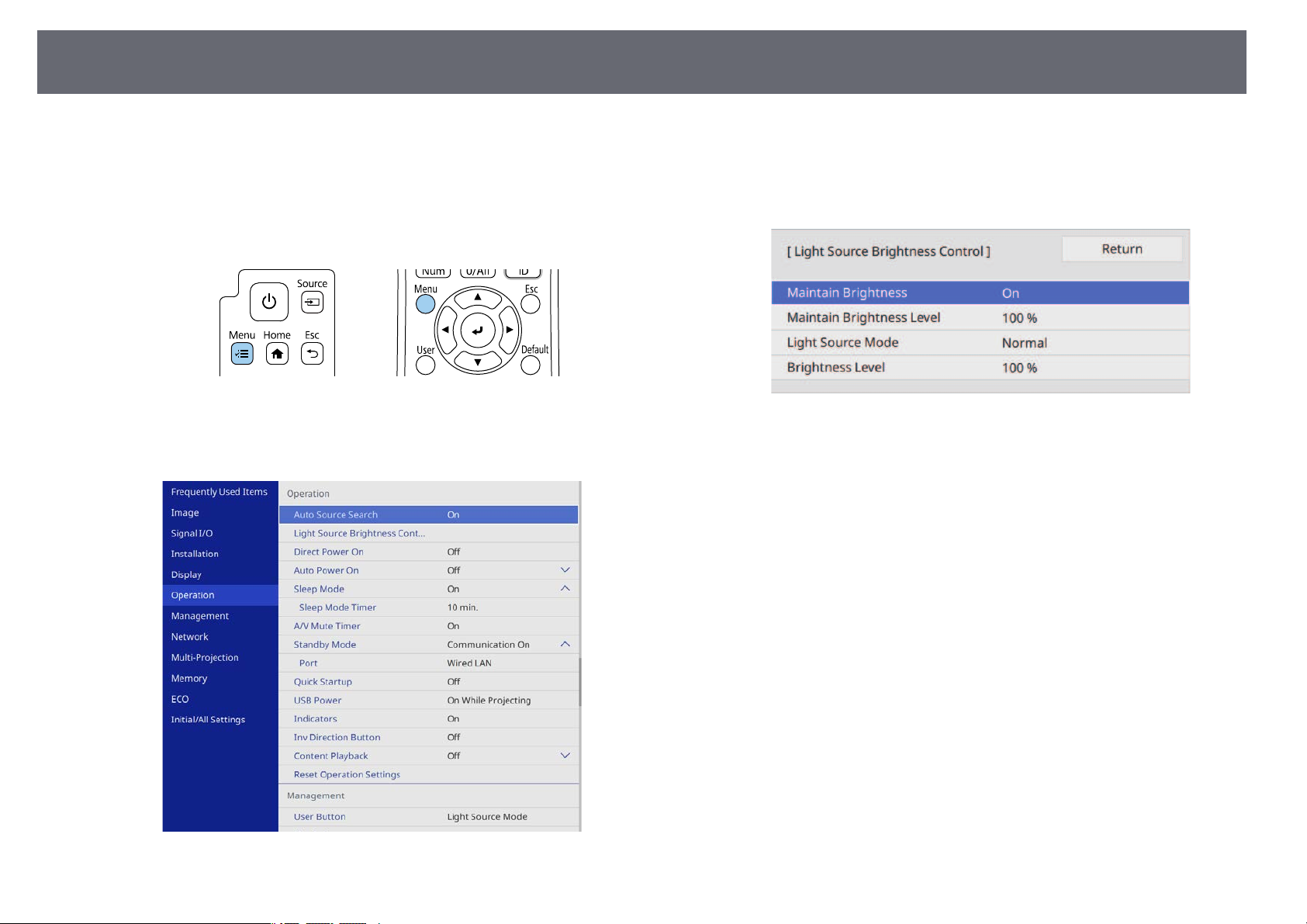

Adjusting the Brightness................................................................. 82

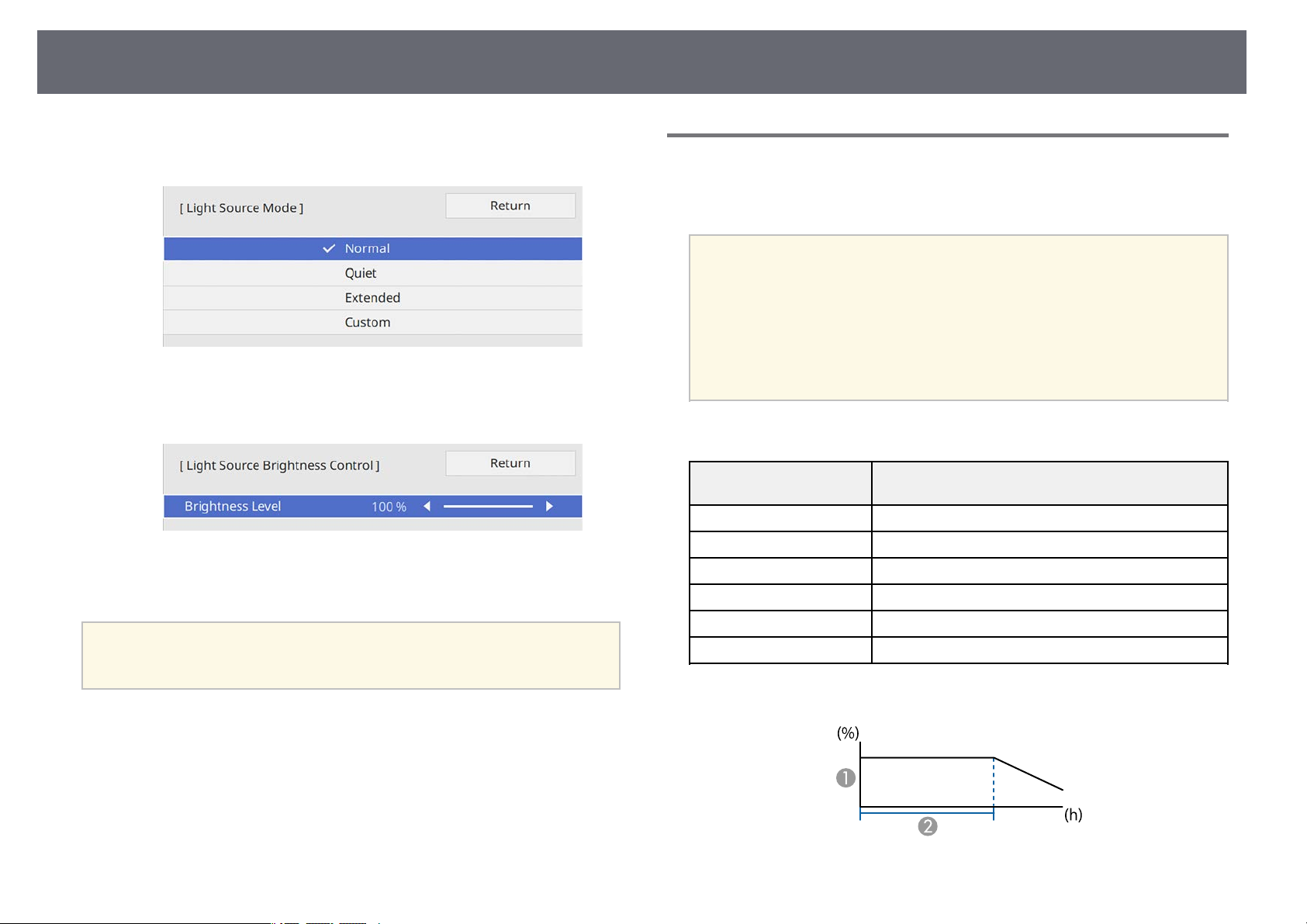

Light Source Operation Time.................................................................................................... 83

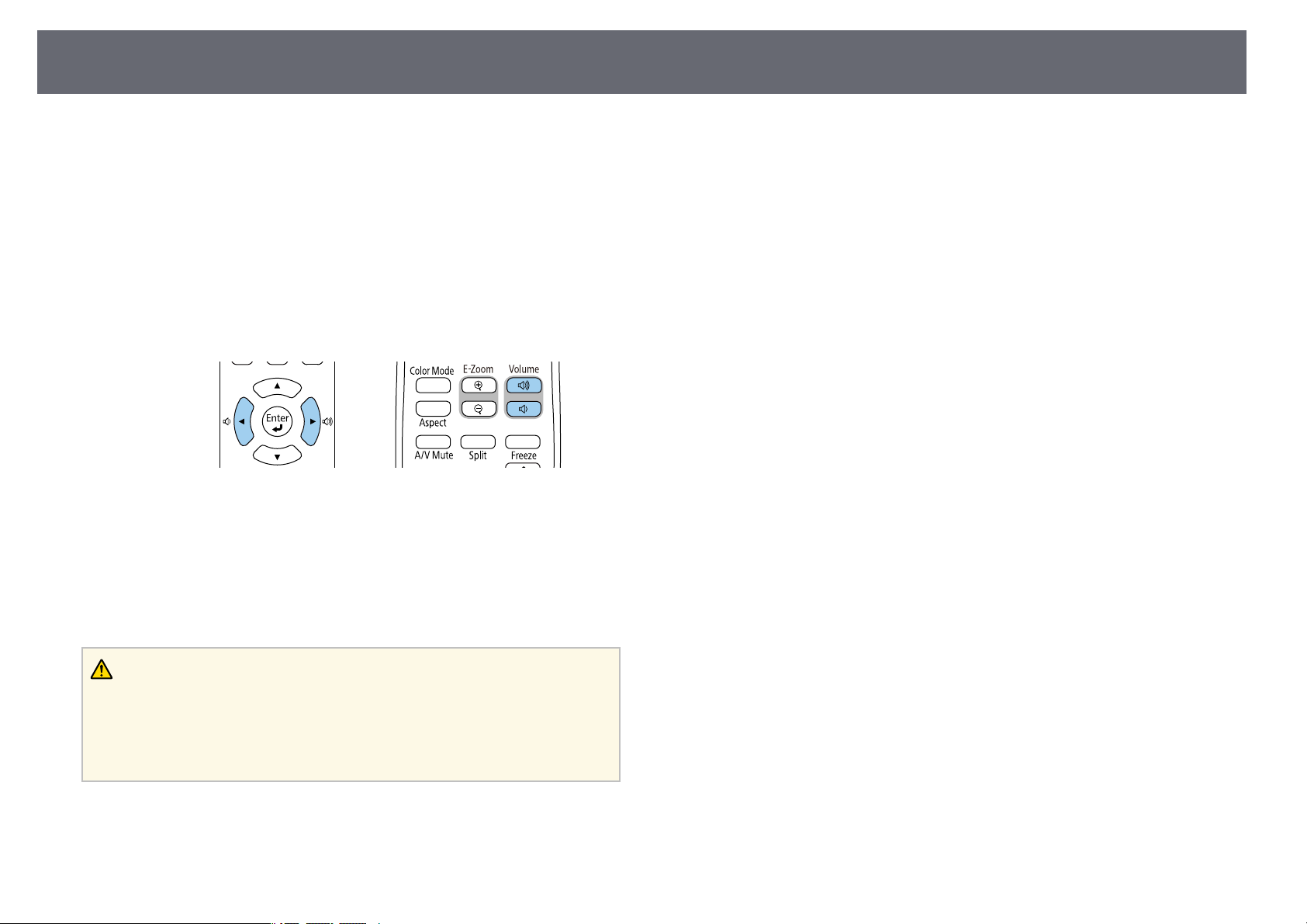

Controlling the Volume with the Volume Buttons ....................... 85
Adjusting the Sound Settings (Sound Mode) ............................... 86
Available Sound Modes.............................................................................................................. 86

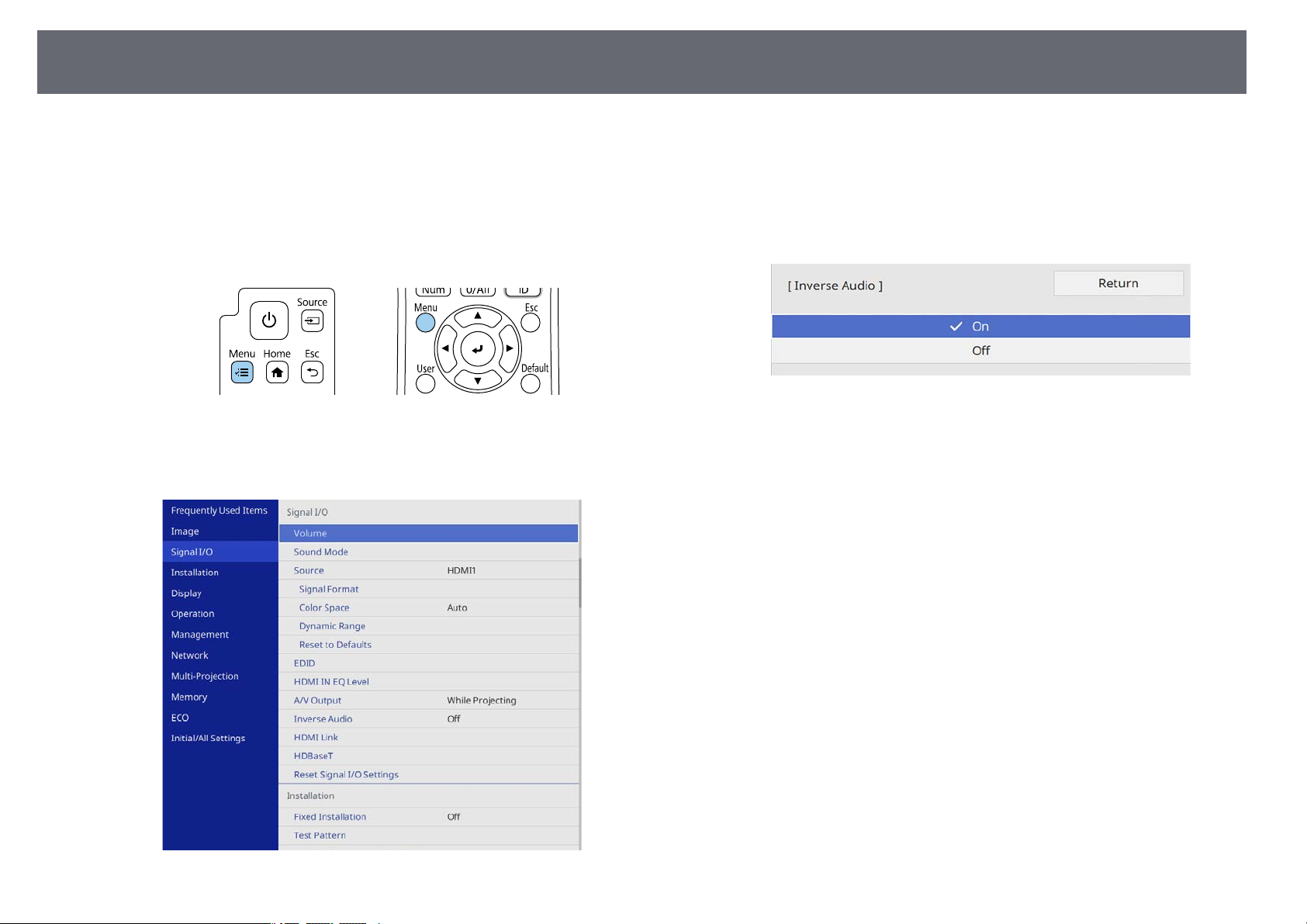

Inverting the Audio Channels......................................................... 88
Adjusting Projector Features 89

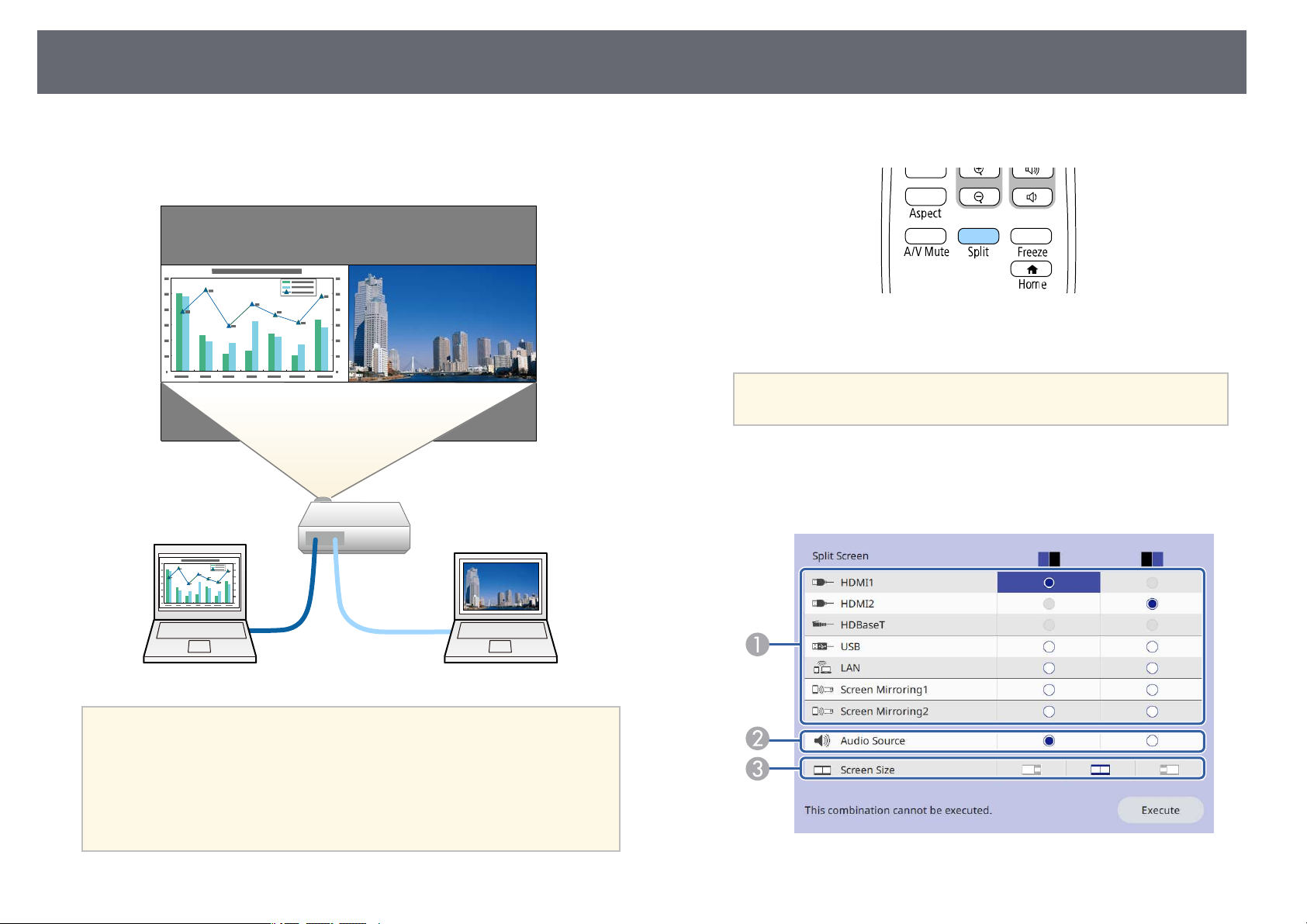

Projecting Two Images Simultaneously ........................................ 90
Unsupported Input Source Combinations for Split Screen Projection..................... 91
Split Screen Projection Restrictions........................................................................................ 91

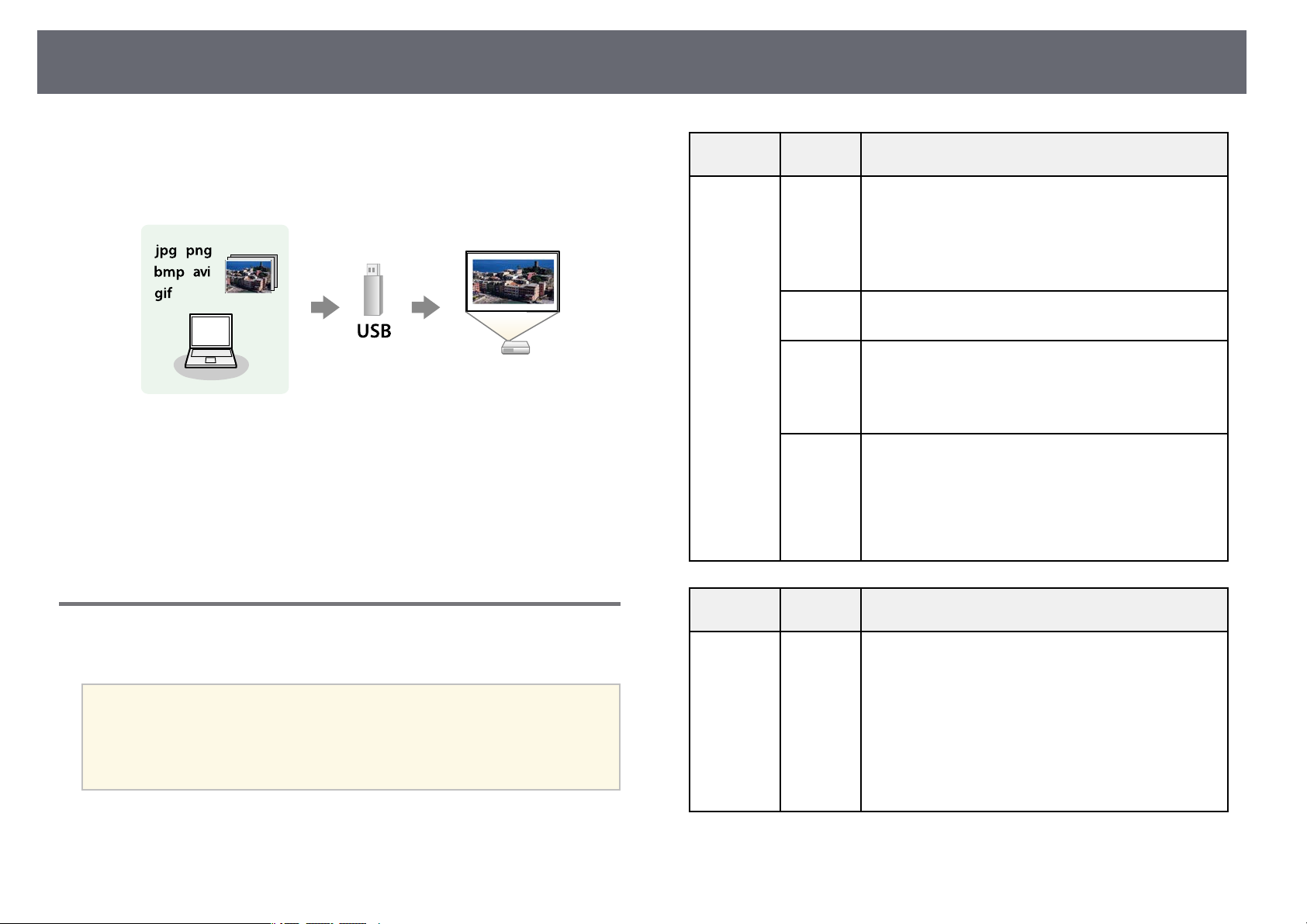

Projecting a PC Free Presentation.................................................. 92
Supported PC Free File Types................................................................................................... 92
Precautions on PC Free Projection ......................................................................................... 93

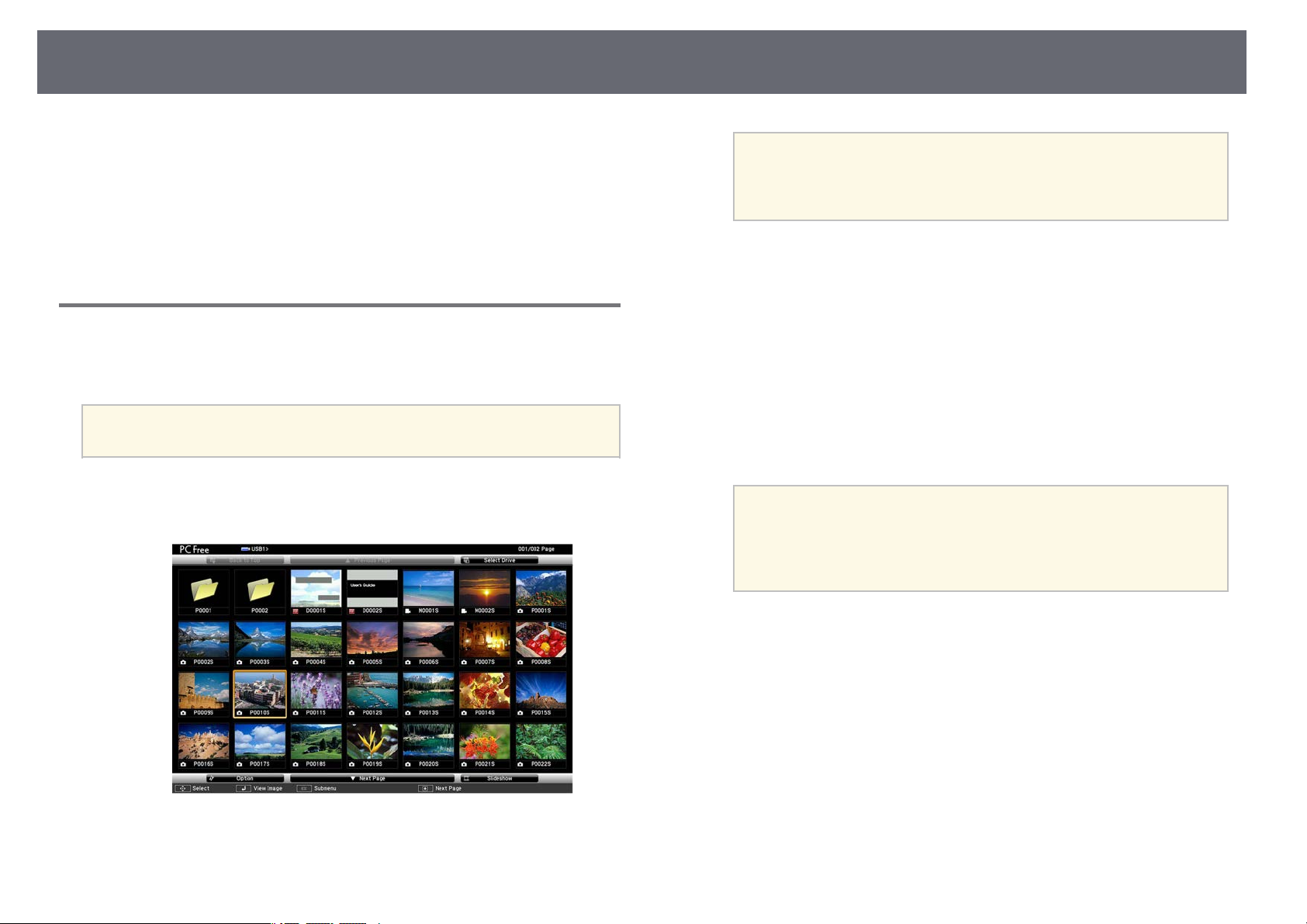

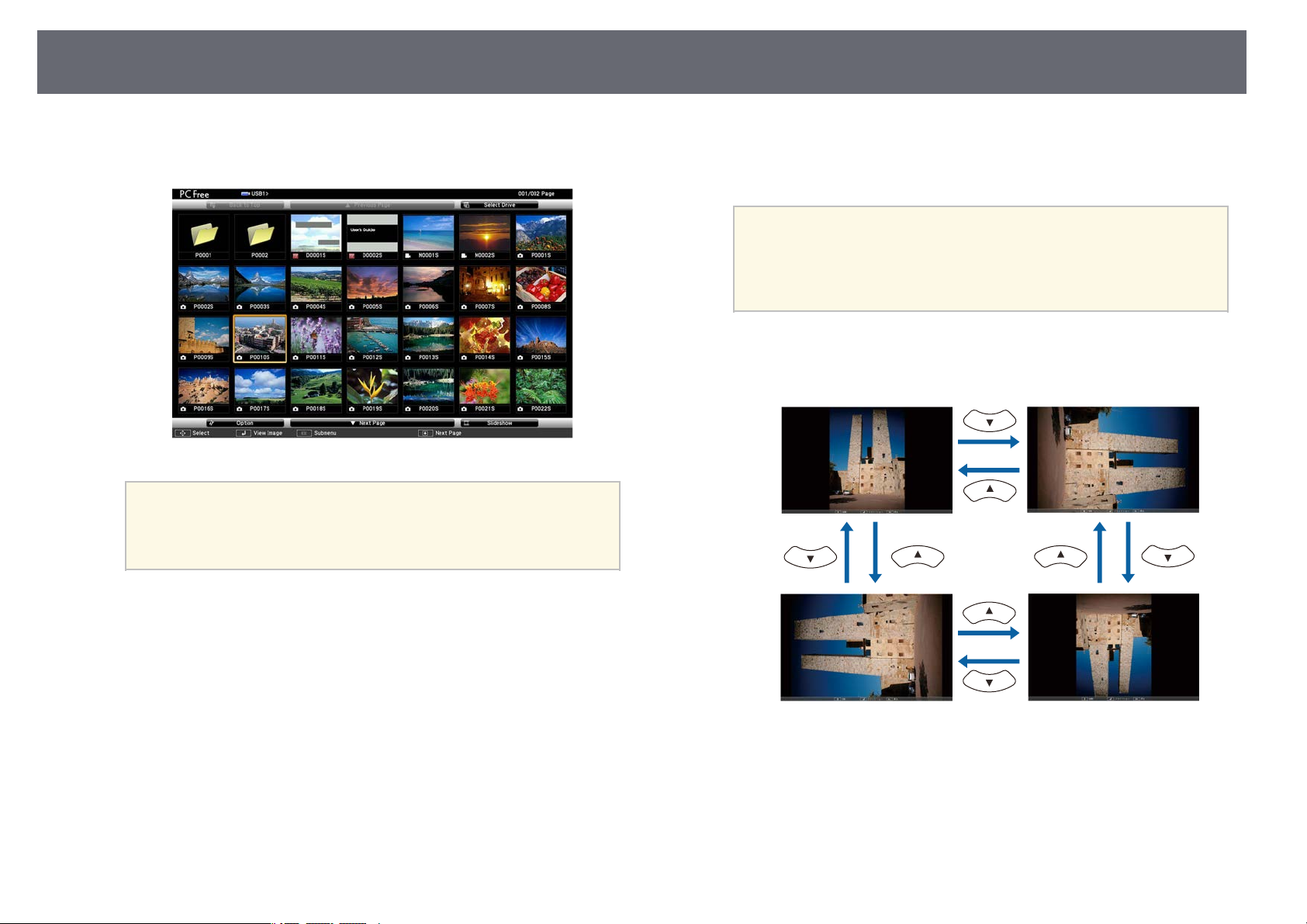

Starting a PC Free Slide Show .................................................................................................. 93
Starting a PC Free Movie Presentation ................................................................................. 95

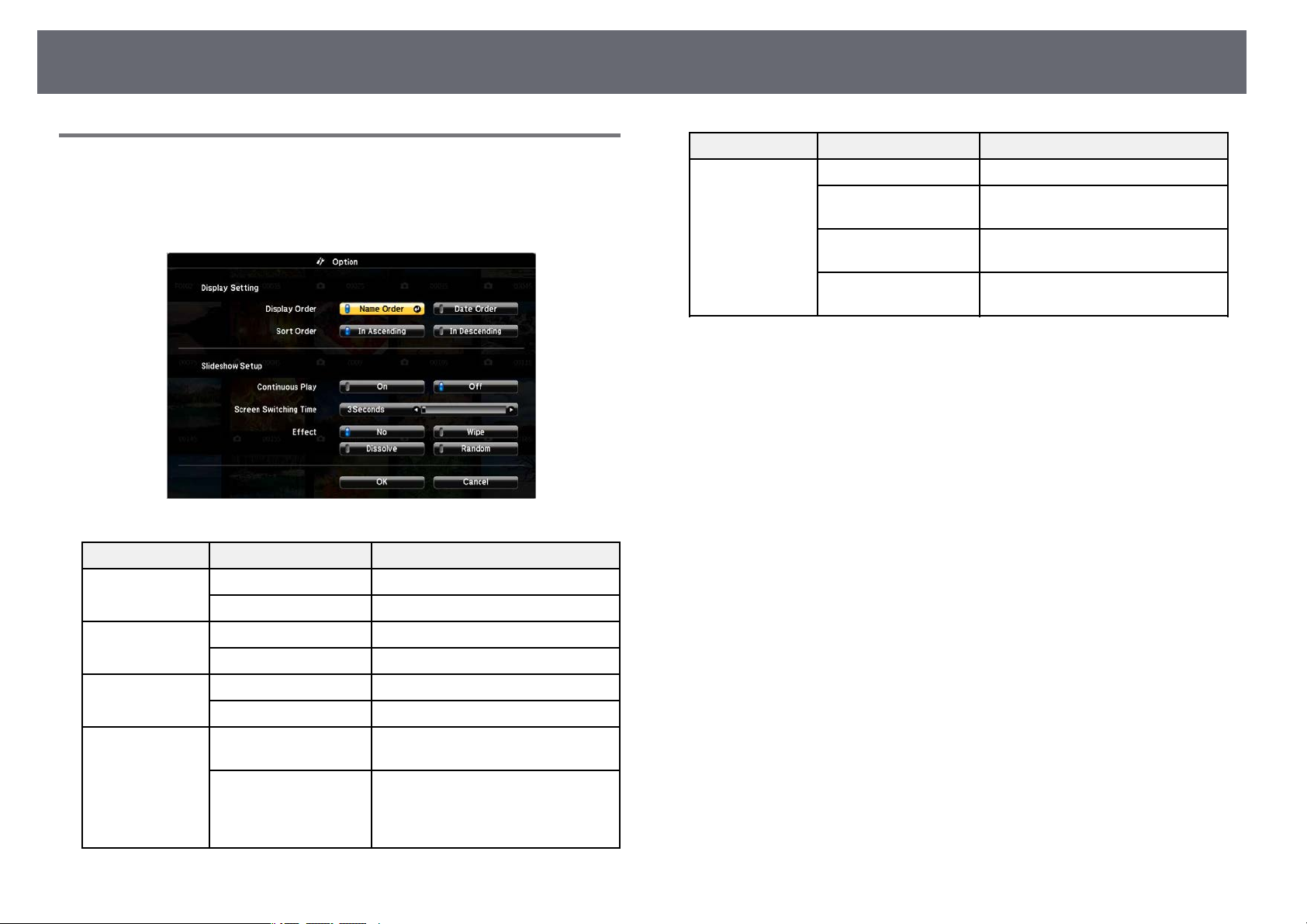

PC Free Display Options ............................................................................................................. 96

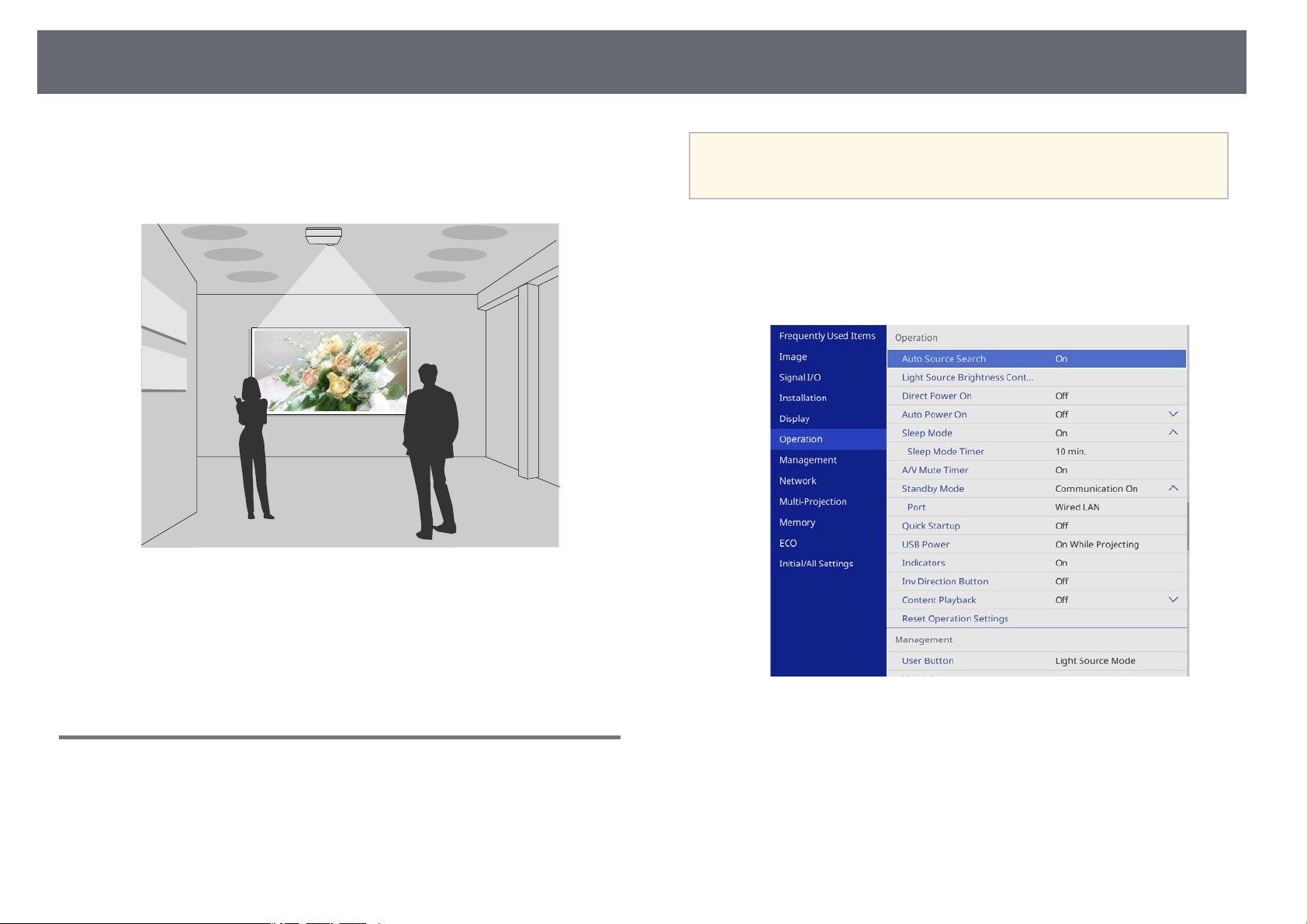

Projecting in Content Playback Mode ........................................... 97
Switching to Content Playback Mode................................................................................... 97
Projecting Your Playlists ............................................................................................................. 98

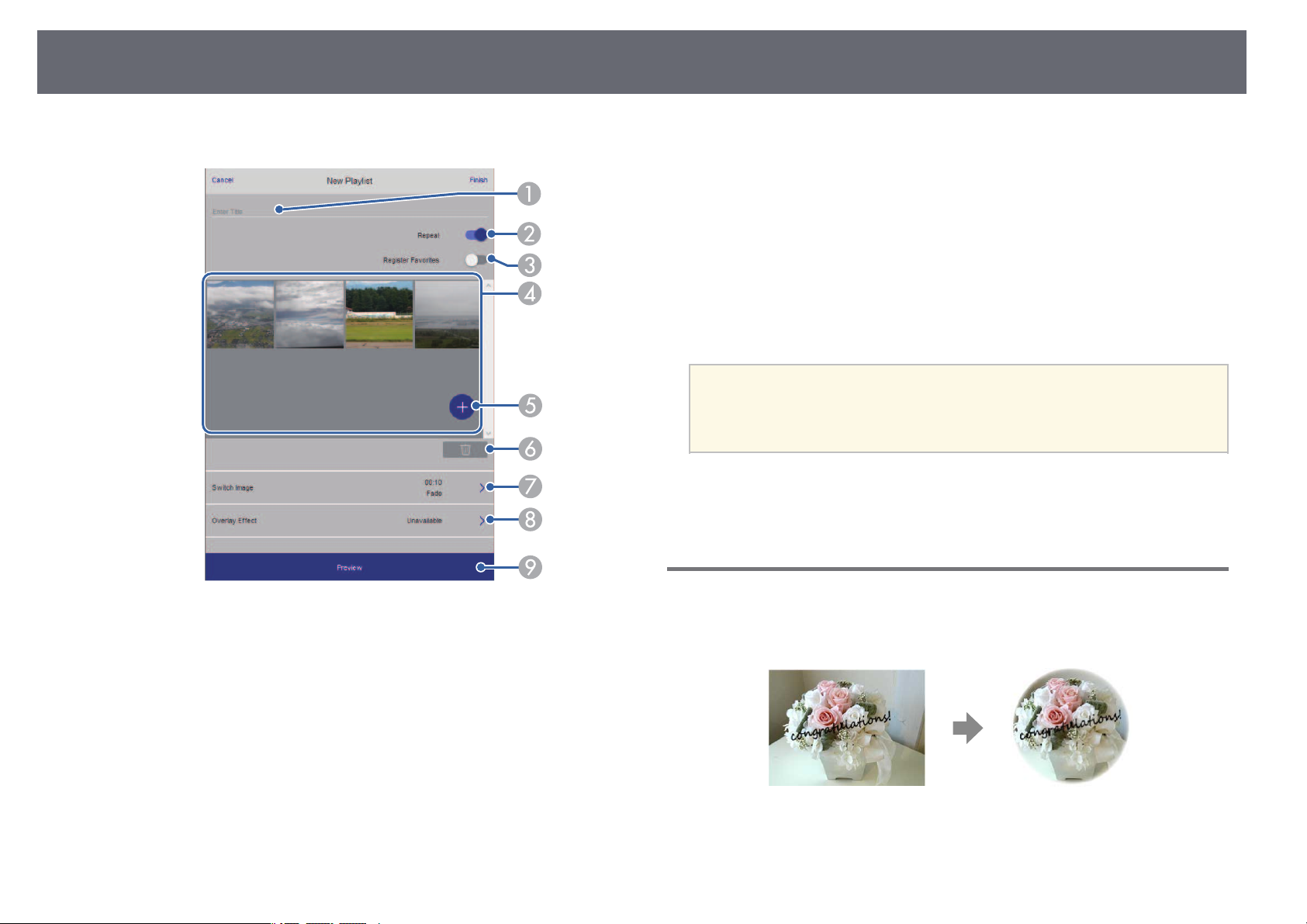

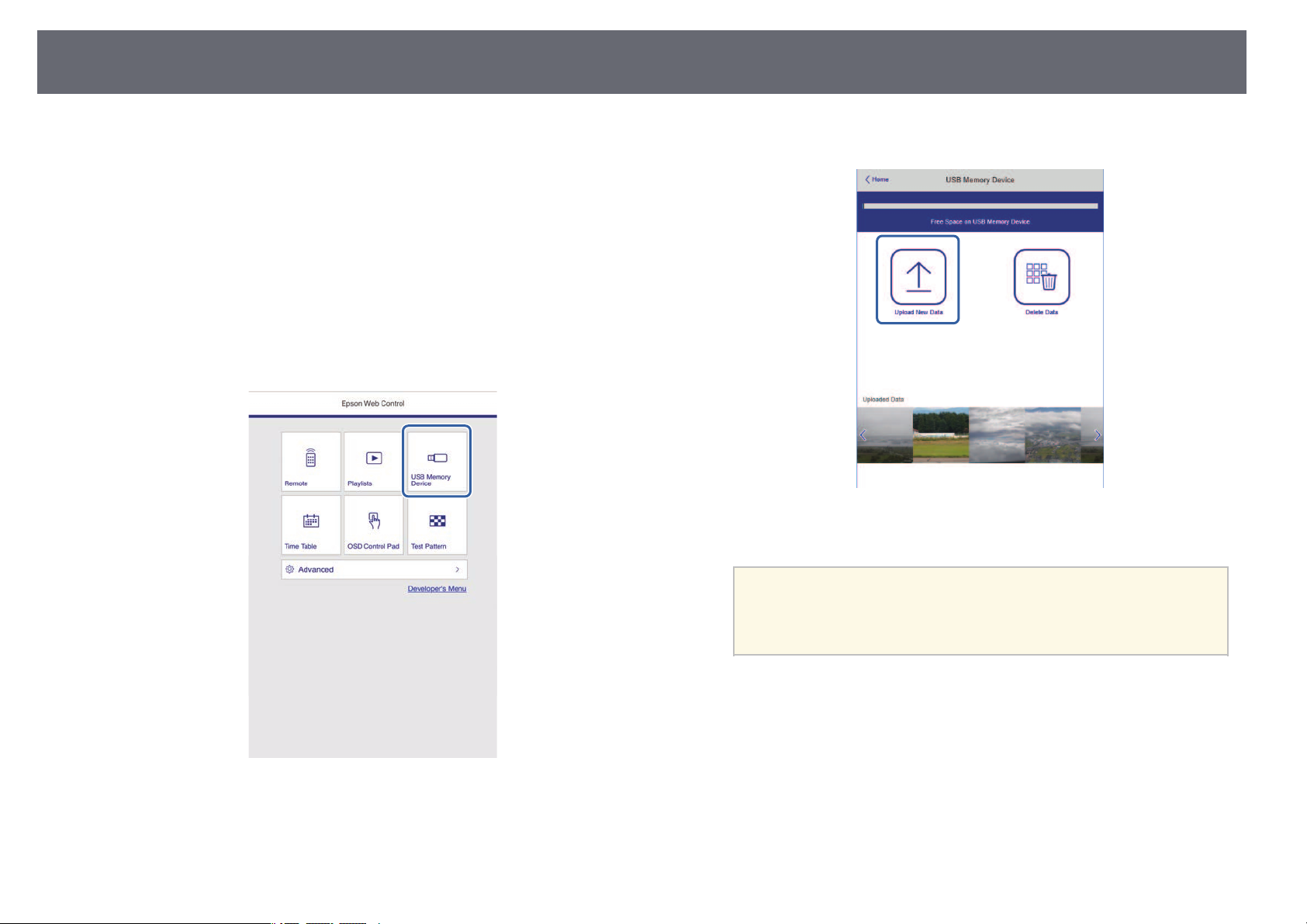

Creating Playlists Using Epson Web Control................................................................. 98
Adding Effects to Your Projected Image............................................................................ 100
Content Playback Mode Restrictions................................................................................... 102

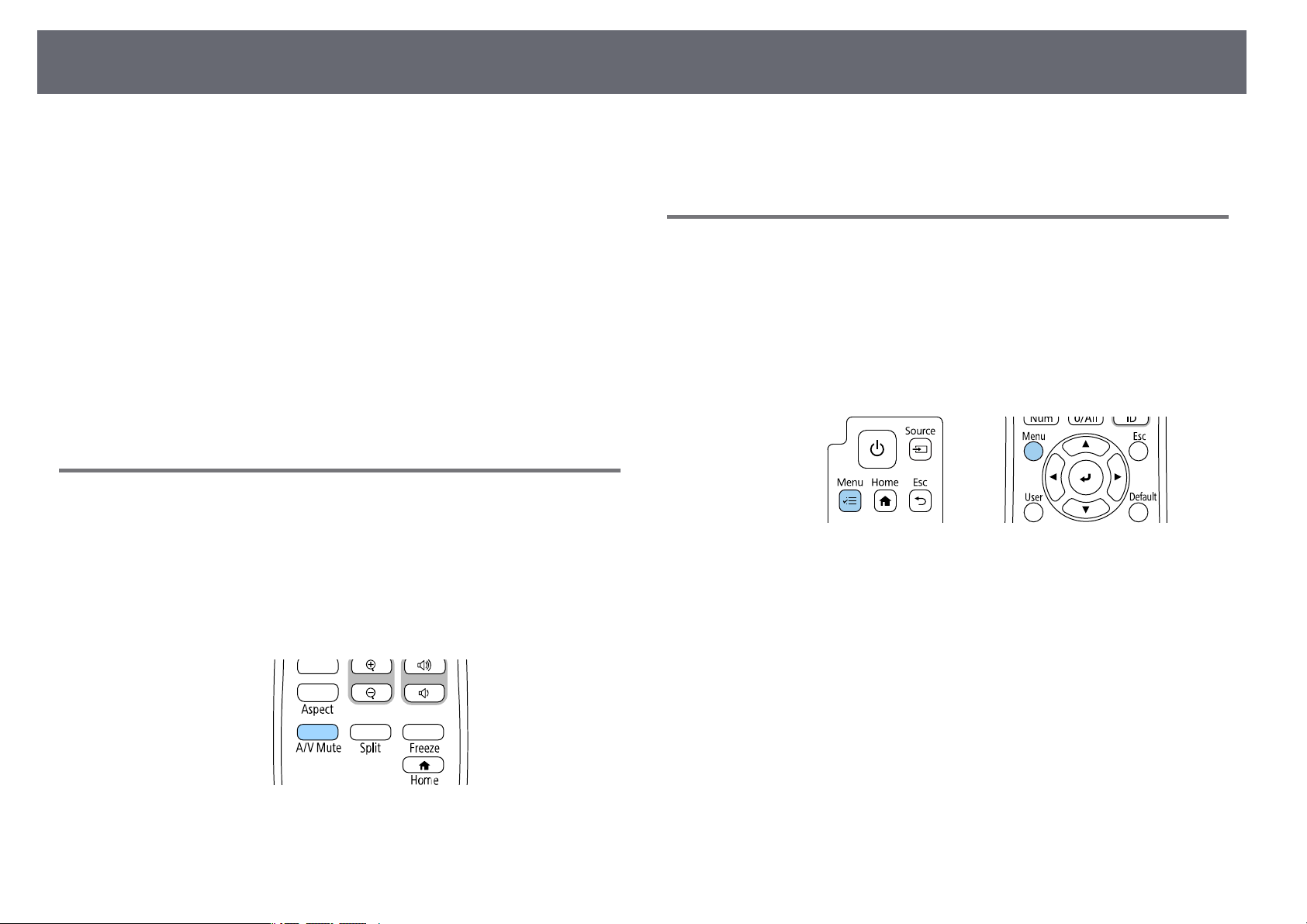

Shutting Off the Image and Sound Temporarily ........................ 103
Stopping Video Action Temporarily ............................................ 104
Zooming Images ............................................................................ 105
Saving a User's Logo Image .......................................................... 106
Saving a User Pattern .................................................................... 108
Saving Settings to Memory and Using Saved Settings ............. 110
Using Multiple Projectors ............................................................. 111
Projector Identification System for Multiple Projector Control................................. 111
Setting the Projector ID...................................................................................................... 111
Selecting the Projector You want to Operate............................................................ 112
Adjusting Color Uniformity..................................................................................................... 113
Tiling Images into One Image................................................................................................ 115
Page 4
Contents
4
Configuring Tiling ................................................................................................................. 116
Blending the Image Edges ...................................................................................................... 116
Matching the Image Colors..................................................................................................... 118
Adjusting the Black Level......................................................................................................... 119
Modifying the Black Level Adjustment Area .............................................................. 121

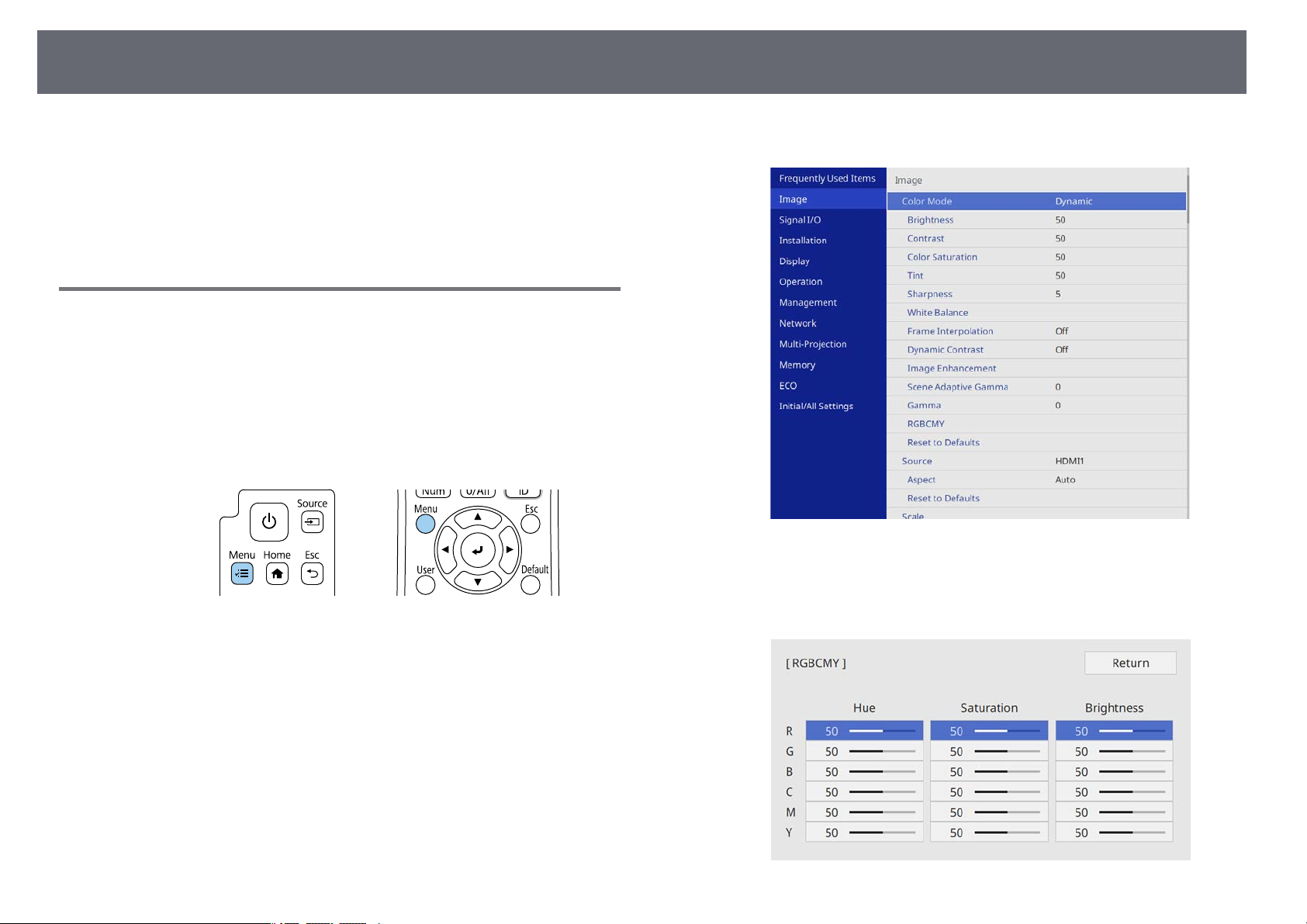

Adjusting RGBCMY ..................................................................................................................... 122
Scaling an Image......................................................................................................................... 122
Projector Security Features .......................................................... 125
Password Security Types.......................................................................................................... 125
Setting a Password............................................................................................................... 125
Selecting Password Security Types ................................................................................ 126
Entering a Password to Use the Projector................................................................... 127
Locking the Projector's Buttons ............................................................................................ 127
Unlocking the Projector's Buttons.................................................................................. 128
Installing a Security Cable ....................................................................................................... 128
Using the Projector on a Network 130
Wired Network Projection............................................................. 131
Connecting to a Wired Network ........................................................................................... 131
Selecting Wired Network Settings........................................................................................ 131
Wireless Network Projection ........................................................ 134
Safety Instructions for Built-in Wireless LAN Module.................................................... 134
Connection Methods for Wireless Network Projection ................................................ 134
Installing the Wireless LAN Module..................................................................................... 135
Selecting Wireless Network Settings Manually ............................................................... 136
Selecting Wireless Network Settings in Windows .......................................................... 140
Selecting Wireless Network Settings in Mac .................................................................... 140
Setting Up Wireless Network Security for Simple AP Mode....................................... 140
Setting Up Wireless Network Security for Infrastructure Mode................................ 141
Supported Client and CA Certificates............................................................................ 143
Using a QR Code to Connect a Mobile Device ................................................................ 143
Using a USB Key to Connect a Windows Computer...................................................... 144
Using the Wireless Presentation System to Connect Windows/Mac
Computers..................................................................................................................................... 144
Setting Up the Wireless Presentation System for the First Time........................ 144
Projecting with the Wireless Presentation System................................................... 145
Wireless Network Projection from a Mobile Device (Screen
Mirroring)........................................................................................ 147
Selecting Screen Mirroring Settings .................................................................................... 147
Connecting Using Screen Mirroring with the Miracast Function............................. 149
Connecting Using Screen Mirroring in Windows 10..................................................... 150
Connecting Using Screen Mirroring in Windows 11..................................................... 150
Secure HTTP.................................................................................... 151
Importing a Web Server Certificate Using the Menus .................................................. 151
Supported Web Server Certificates................................................................................ 152
Screen Sharing ............................................................................... 153
Sharing the Screen..................................................................................................................... 153
Finishing the Screen Sharing............................................................................................ 154
Receiving Shared Screen Images.......................................................................................... 155
Monitoring and Controlling the Projector 156
Epson Projector Management ...................................................... 157
Controlling a Networked Projector Using a Web Browser ........ 158
Web Control Options................................................................................................................. 159
Registering Digital Certificates from a Web Browser................. 166
Setting Up Projector Network E-Mail Alerts ............................... 167
Network Projector E-mail Alert Messages ......................................................................... 167
Setting Up Monitoring Using SNMP............................................. 168
Using ESC/VP21 Commands ........................................................ 169
ESC/VP21 Command List ......................................................................................................... 169
Cable Layouts ............................................................................................................................... 169
PJLink Support ............................................................................... 170
Page 5
Contents
5
Art-Net ............................................................................................ 171
Crestron Connected Support........................................................ 172
Setting Up Crestron Connected Support........................................................................... 172
Web API........................................................................................... 174
Enabling Web API....................................................................................................................... 174
Setting Projector Event Schedules............................................... 175
Adjusting the Menu Settings 178
Using the Projector's Menus ......................................................... 179
Using the Displayed Keyboard ..................................................... 180
Available Text Using the Displayed Keyboard................................................................. 180
Image Quality Settings - Image Menu ......................................... 181
Input Signal Settings - Signal I/O Menu....................................... 183
Projector Installation Settings - Installation Menu .................... 186
Projector Display Settings - Display Menu.................................. 188
Projector Feature Settings - Operation Menu............................. 190
Projector Administration Settings - Management Menu .......... 193
Event ID Code List....................................................................................................................... 195
Projector Network Settings - Network Menu.............................. 197
Network Menu - Network Settings Menu.......................................................................... 198
Network Menu - Wireless LAN Menu............................................................................. 199
Network Menu - Wired LAN Menu ................................................................................. 201
Network Menu - Mail Notification Menu ..................................................................... 202
Network Menu - Projector Control Menu .................................................................... 202
Network Menu - Network Projection Settings ........................................................... 204
Multiple Projector Operation Settings - Multi-Projection
Menu ............................................................................................... 205
Image Quality Memory Settings - Memory Menu....................... 207
Projector Setup Settings - ECO Menu .......................................... 208
Projector Initial Settings and Reset Options - Initial/All
Settings Menu ................................................................................ 209
Copying Menu Settings Between Projectors (Batch Setup) ...... 211
Transferring Settings From a USB Flash Drive................................................................. 211
Transferring Settings From a Computer ............................................................................ 212
Batch Setup Error Notification ......................................................................................... 213
Maintaining the Projector 214
Projector Maintenance .................................................................. 215
Cleaning the Projection Window.................................................. 216
Cleaning the Obstacle Sensor....................................................... 217
Cleaning the Projector Case.......................................................... 218
Air Filter and Vent Maintenance .................................................. 219
Cleaning the Air Filter .............................................................................................................. 219
Replacing the Air Filter ............................................................................................................. 220
Cleaning the Air Intake Vents ............................................................................................... 221
Adjusting the Color Convergence (Panel Alignment)................ 223
Updating the Firmware ................................................................. 225
Updating Firmware Using a USB Storage Device........................................................... 225
Updating Firmware Using a Computer and USB Cable ............................................... 226
Solving Problems 228
Projection Problems ...................................................................... 229
Projector Indicator Status............................................................. 230
Solving Image or Sound Problems............................................... 233
Solutions When No Image Appears..................................................................................... 233
Solutions When Image is Incorrect Using the USB Display Function..................... 233
Page 6
Contents
6
Solutions When "No Signal" Message Appears ............................................................... 234
Displaying From a Windows Laptop.............................................................................. 234
Displaying From a Mac Laptop........................................................................................ 234
Solutions When "Not Supported" Message Appears .................................................... 235
Solutions When Only a Partial Image Appears................................................................ 235
Solutions When the Image is not Rectangular................................................................ 235
Solutions When the Image Contains Noise or Static..................................................... 236
Solutions When the Image is Fuzzy or Blurry .................................................................. 236
Solutions When the Image Brightness or Colors are Incorrect ................................. 236
Solutions When an Afterimage Remains on the Projected Image .......................... 237
Solutions to Sound Problems................................................................................................. 237
Solutions When Image File Names are not Displayed Correctly in PC Free......... 238
Solutions When You Cannot Project Images Using the PC Free Feature.............. 238
Solving Projector or Remote Control Operation Problems....... 239
Solutions to Projector Power or Shut-Off Problems...................................................... 239
Solutions to Problems with the Remote Control............................................................ 239
Solutions to Password Problems........................................................................................... 240
Solution When "The Battery that Saves Your Clock Settings is Running Low"
Message Appears ........................................................................................................................ 240
Solutions to Problems in Content Playback Mode ..................... 241
Solving Network Problems ........................................................... 242
Solutions When You Cannot Search for an Access Point ............................................ 242
Solutions When Wireless Authentication Fails ................................................................ 242
Solutions When You Cannot Access the Projector Through the Web................... 242
Solutions When Network Alert E-Mails are not Received............................................ 243
Solutions When the Image Contains Static During Network Projection ............... 243
Solutions When You Cannot Connect Using Screen Mirroring................................. 243
Solutions When You Cannot Use Two Screen Mirroring Sources ............................ 243
Solutions When the Image or Sound Contains Static During Screen Mirroring
Connection.................................................................................................................................... 244
Solutions When You Cannot Receive Shared Images................................................... 244
Solutions When HDMI Link does not Function ........................... 245
Appendix 246
Optional Accessories and Replacement Parts............................. 247
Screens............................................................................................................................................ 247
Mounts............................................................................................................................................ 247
External Devices .......................................................................................................................... 247
Replacement Parts...................................................................................................................... 247
For Wireless Connection .......................................................................................................... 247
Compatible Accessories from Other Projectors .............................................................. 248
Screen Size and Projection Distance ............................................ 249
Supported Monitor Display Resolutions ..................................... 251
Projector Specifications ................................................................ 252
Connector Specifications ......................................................................................................... 252
External Dimensions ...................................................................... 253
USB Display System Requirements .............................................. 254
Supported Features for Epson Projector Content Manager...... 255
List of Safety Symbols and Instructions ...................................... 256
Laser Safety Information............................................................... 258
Laser Warning Labels................................................................................................................. 258
Glossary .......................................................................................... 261
Notices ............................................................................................ 263
FCC Compliance Statement.................................................................................................... 263
Indication of the manufacturer and the importer in accordance with
requirements of EU directive.................................................................................................. 264
Indication of the manufacturer and the importer in accordance with
requirements of United Kingdom directive...................................................................... 264
Restriction of Use........................................................................................................................ 264
Operating System References................................................................................................ 264
Trademarks.................................................................................................................................... 265
Copyright Notice ......................................................................................................................... 265
Copyright Attribution................................................................................................................ 265
Page 7
Notations Used in This Guide
Safety Symbols
The projector and its manuals use graphical symbols and labels to indicate content that tells you how to use the projector safely.
Read and carefully follow the instructions that are marked with these symbols and labels to avoid injury to persons or damage to property.
This symbol indicates information that, if ignored, could possibly result in personal injury or even death.
Warning
This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.
Caution
General Information Notations
This label indicates procedures that may result in damage or injury if sufficient care is not taken.
Attention
This label indicates additional information that may be useful to know.
[Button name] Indicates the name of the buttons on the remote control or the control panel.
Example: [Esc] button
Menu/Setting name Indicates projector menu and setting names.
Example:
Select the Image menu
This label indicates links to the related pages.
s
This label indicates the projector's current menu level.
gg Related Links
• "Using the Manual to Search for Information" p.8
• "Getting the Latest Version of the Documents" p.9
Page 8
Using the Manual to Search for Information
8
The PDF manual allows you to search for information you are looking for by
keyword, or jump directly to specific sections using the bookmarks. You can
also print only the pages you need. This section explains how to use a PDF
manual that has been opened in Adobe Reader X on your computer.
gg Related Links
• "Searching by Keyword" p.8
• "Jumping Directly from Bookmarks" p.8
• "Printing Only the Pages You Need" p.8
Searching by Keyword
Click Edit > Advanced Search. Enter the keyword (text) for information you
want to find in the search window, and then click Search. Hits are displayed
as a list. Click one of the displayed hits to jump to that page.
• Mac OS: Hold down the command key, and then press ←.
Printing Only the Pages You Need
You can extract and print only the pages you need. Click Print in the File
menu, and then specify the pages you want to print in Pages in Pages to
Print.
• To specify a series of pages, enter a hyphen between the start page and the
end page.
Example: 20-25
• To specify pages that are not in series, divide the pages with commas.
Example: 5, 10, 15
Jumping Directly from Bookmarks
Click a title to jump to that page. Click + or > to view the lower level titles in
that section. To return to the previous page, perform the following operation
on your keyboard.
• Windows: Hold down Alt, and then press ←.
Page 9
Getting the Latest Version of the Documents
You can get the latest version of the manuals and specifications on the Epson
Web site.
Visit epson.sn, and enter your model name.
9
Page 10
Introduction to Your Projector
Refer to these sections to learn more about your projector's features and part names.
gg Related Links
• "Projector Features" p.11
• "Projector Parts and Functions" p.14
Page 11
Projector Features
11
This projector comes with these special features. Refer to these sections for
more details.
gg Related Links
• "Providing a New Videoconferencing Experience with a High Sense of
Presence and Imparting Information at a Glance" p.11
• "Realizing a Space-saving Large Screen" p.11
• "Quick and Easy Setup" p.12
• "Flexible Connectivity" p.12
Providing a New Videoconferencing Experience with a High Sense of Presence and Imparting Information at a Glance
• This projector supports ultra wide aspect ratio 21:9. By holding a video
conference with horizontally wide and large screen images, you can realize
remote communication with a high sense of presence.
• You can also change multiple setting items for the video conference room at
once using the Settings for Video Conference Rooms setting in the
projector's Installation menu.
Realizing a Space-saving Large Screen
You can easily install an impressive, 100 inch screen in a small space.
• 5,000 lm of high brightness realizes crisp, clean images even in bright
environments.
• The high resolution of 4K enhancement technology allows you to display
more information than when using WUXGA or Full HD.
• The projector can be carried by one person and can be easily installed by
just placing it beside a wall.
• You can project a 100 inch screen from the projector installed close to the
wall. Since the projected light is not blocked by shadows, you can make
effective use of your meeting space.
• You can install the projector in a variety of positions such as on a desk, wall,
or ceiling.
gg Related Links
• "Projector Installation Settings - Installation Menu" p.186
• "Setting the Screen Type" p.50
Page 12
Projector Features
12
Quick and Easy Setup
• You can use the Epson Setting Assistant application on a smart phone or
tablet that has a camera function to correct distortion more easily.
gg Related Links
• "Correcting Distortion in the Image Using the Wizard" p.57
Flexible Connectivity
• Connect with one USB cable to project images and output audio (USB
Display).
• Epson iProjection (Windows/Mac) to project up to four images at the same
time by splitting the projected screen. You can project images from
computers on the network, or from smartphones or tablet devices on which
Epson iProjection is installed.
See the Epson iProjection Operation Guide (Windows/Mac) for details.
This projector supports a wide variety of connectivity options as shown
below.
• You can use an HDMI cable to output video and audio from your computer
or video source.
• To send an HDMI or RS-232C signal over a long distance, you can connect
the projector to an HDBaseT transmitter using a 100Base-TX network cable.
• You can connect a USB device or a document camera.
Page 13
Projector Features
• You can download the necessary software and manuals from the
a
• Epson iProjection (iOS/Android) to connect your projector and mobile
device wirelessly using the app available on the App Store or Google Play.
a
• Epson iProjection (Chromebook) to connect your projector and
Chromebook device wirelessly using the app available on the Google Play.
See the Epson iProjection Operation Guide (Chromebook) for details.
a
• Screen Mirroring to connect your projector and mobile device wirelessly
using Miracast technology.
following Web site:
epson.sn
Any fees incurred when communicating with the App Store or
Google Play are the responsibility of the customer.
Any fees incurred when communicating with the Google Play are the
responsibility of the customer.
13
gg Related Links
• "Wired Network Projection" p.131
• "Wireless Network Projection" p.134
• "Wireless Network Projection from a Mobile Device (Screen Mirroring)"
p.147
• "Connecting to a Computer for USB Video and Audio" p.31
Page 14
Projector Parts and Functions
14
The following sections explain the projector parts and their functions.
gg Related Links
• "Projector Parts - Front" p.14
• "Projector Parts - Top/Side" p.15
• "Projector Parts - Base" p.16
• "Projector Parts - Interface Ports" p.17
• "Projector Parts - Control Panel" p.18
• "Projector Parts - Remote Control" p.19
Projector Parts - Front
Name Function
Air filter cover latch Slide to remove the air filter cover.
C
Air intake vent (air
D
filter)
Front cover Open to access the air filter cover.
E
Remote receiver Receives signals from the remote control.
F
Status indicator Indicates the projector's status.
G
Takes in air to cool the projector internally.
gg Related Links
• "Air Filter and Vent Maintenance" p.219
• "Remote Control Operation" p.39
• "Projector Indicator Status" p.230
Name Function
Speaker Outputs audio.
A
Air filter cover Open to access the air filter.
B
Page 15
Projector Parts and Functions
15
Projector Parts - Top/Side
Name Function
Projection window Images are projected from the lens inside the projector.
C
Warning
• Do not look into the projection window
while projecting.
• Do not place any objects or put your hand
near the projection window. It could cause
burns, fire, or the object to warp because this
area reaches a high temperature due to the
concentrated projection light.
Control panel Operates the projector.
D
Focus lever Adjusts the image focus.
E
Side cover latch Slide to remove the side cover.
F
Air exhaust vent Exhaust vent for air used to cool the projector
G
internally.
Caution
While projecting, do not put your face or
hands near the air exhaust vent, and do not
place objects that may become warped or
damaged by heat near the vent. Hot air from
the air exhaust vent could cause burns,
warping, or accidents to occur.
Name Function
Obstacle sensors Detects obstacles that are interfering with the
A
Remote receiver Receives signals from the remote control.
B
projection area and reduces the brightness of the light
source for safety.
Security slot The security slot is compatible with the Microsaver
H
Power inlet Connects the power cord to the projector.
I
Side cover Open to access the interface ports, focus lever, and
J
Security System manufactured by Kensington.
control panel.
Page 16
Projector Parts and Functions
16
Name Function
Security cable
K
attachment point
Pass a commercially available wire lock through here
and lock it in place.
Remove the cover when using the security cable
attachment point.
You can attach the security cable attachment point
cover to the back of the side cover so that it does not
get lost.
gg Related Links
• "Air Filter and Vent Maintenance" p.219
• "Projector Parts - Control Panel" p.18
• "Remote Control Operation" p.39
• "Cleaning the Obstacle Sensor" p.217
• "Cleaning the Projection Window" p.216
• "Focusing the Image Using the Focus Lever" p.56
• "Installing a Security Cable" p.128
• "Attaching and Removing the Side Cover" p.37
Projector Parts - Base
Name Function

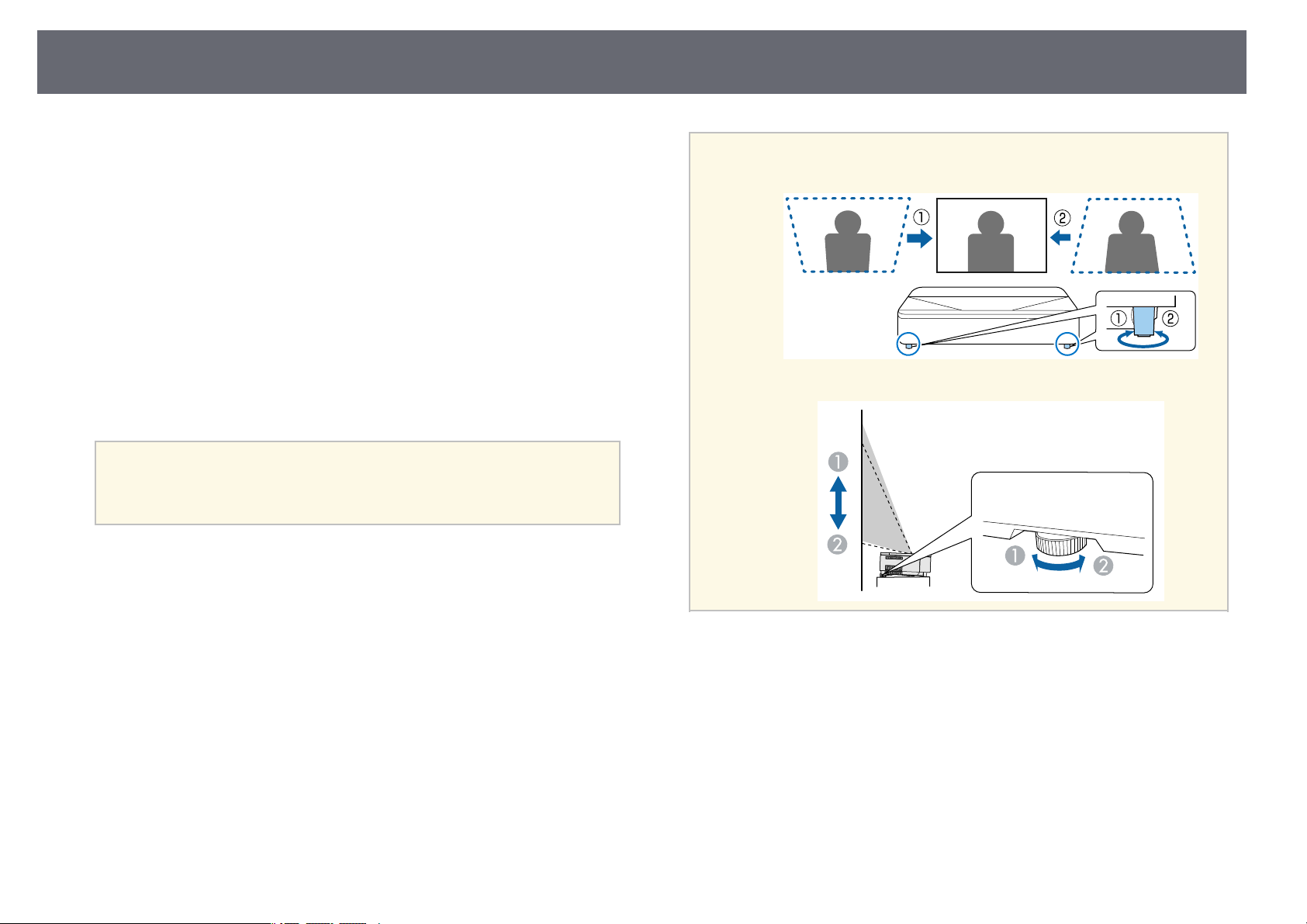

Front adjustable feet When the projector is setup on a surface such as a desk,
A
turn the feet to correct image distortion.
Caution
Remove all feet when you install the projector
on a wall or suspend it from a ceiling.
Air intake vent (air
B
filter)
Wire clamp fixing
C
point
Air exhaust vent Exhaust vent for air used to cool the projector
D
Takes in air to cool the projector internally.
When you use the optional setting plate or ceiling
mount, fix the carabiner here to attach the safety wire
and prevent the projector from falling from the wall or
ceiling.
This point is marked with a on the projector.
internally.
Caution
While projecting, do not put your face or
hands near the air exhaust vent, and do not
place objects that may become warped or
damaged by heat near the vent. Hot air from
the air exhaust vent could cause burns,
warping, or accidents to occur.
Fixing points (four
E
points)
Air intake vent Takes in air to cool the projector internally.
F
Use these points to attach the optional mount when
installing the projector on a wall or suspending the
projector from a ceiling.
This point is marked with a on the projector.
Page 17
Projector Parts and Functions
17
Name Function
Rear adjustable foot When setup on a surface such as a desk, extend the foot
G
to adjust the position of the image.
Caution
Remove all feet when you install the projector
on a wall or suspend it from a ceiling.
VESA mount fixing
H
points (four points)
Use these points to attach the commercially available
mount compatible with the VESA Mounting Interface
Standard (100 × 200 mm) when installing the projector
on a wall or suspending the projector from a ceiling.
gg Related Links
• "Air Filter and Vent Maintenance" p.219
• "Installing a Security Cable" p.128

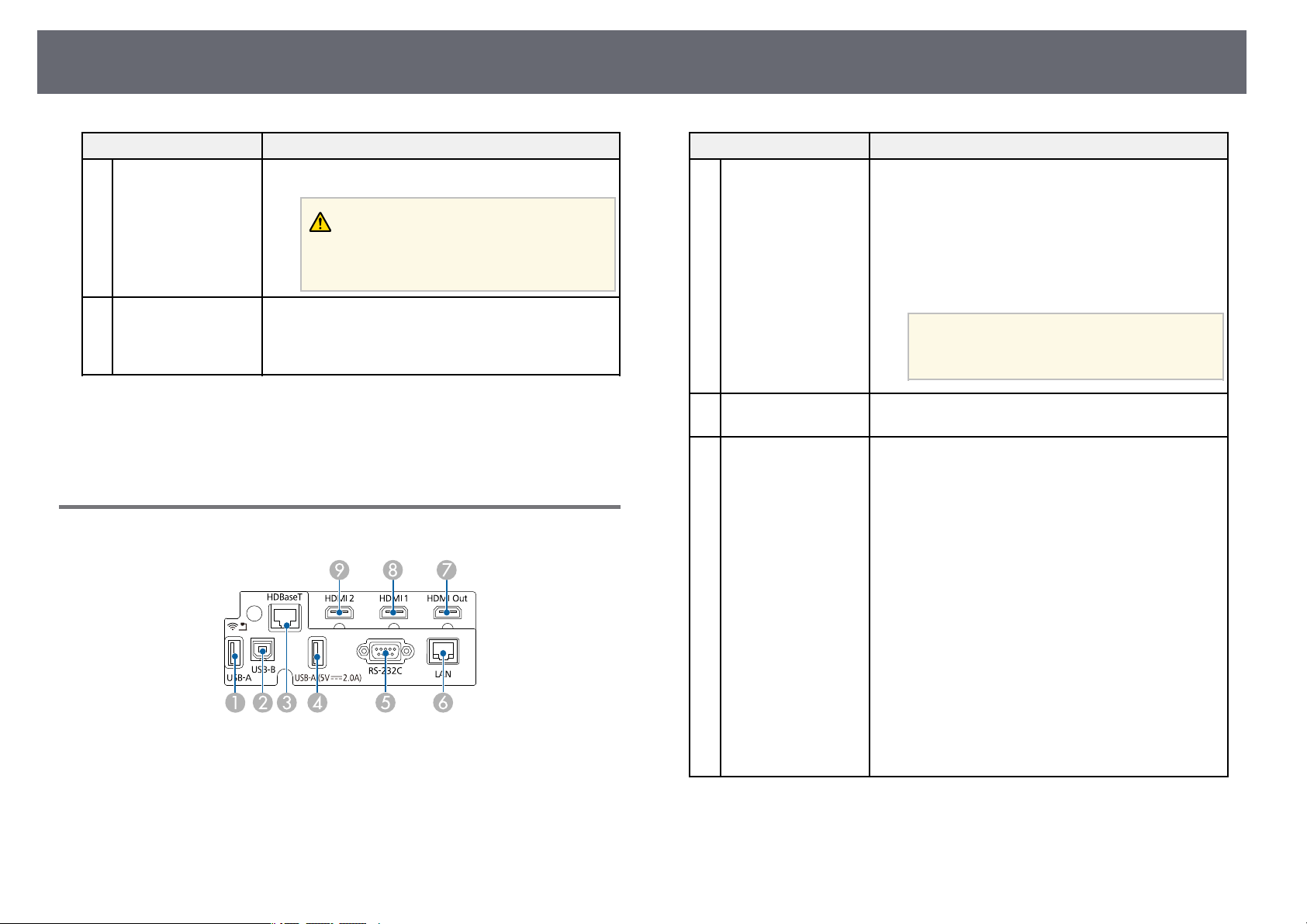

Projector Parts - Interface Ports
Name Function
USB-A port (USB-
A
A1)
USB-B port Use to connect a USB cable to the computer to project
B
HDBaseT port
C
(RJ-45)
Use to connect a USB memory device or digital camera
for projecting movies or images using the PC Free
feature or in Content Playback mode.
Use to connect the optional document camera.
Use to connect a USB memory device to save error and
operation log files.
Use to connect the wireless LAN module.
In this guide, USB-A1 and USB-A2
a
computer images.
Use to connect a LAN cable to the HDBaseT
Transmitter. You can use a network cable up to 100 m
in length. To ensure proper data transmission, use a
Category 5e STP cable or better. However, operation is
not guaranteed for all input/output devices and
environments.
This port is compatible with HDCP2.3.
Check the following settings:
• To enable communication from the Ethernet and
serial ports on the transmitter, select On as the
Control Communications setting in the projector's
Signal I/O menu.
s Signal I/O > HDBaseT > Control
Communications
• If you have connected an Extron XTP transmitter or
switcher, select On as the Extron XTP setting in the
projector's Signal I/O menu.
s Signal I/O > HDBaseT > Extron XTP
ports are collectively referred to as
the USB-A port.
Page 18
Projector Parts and Functions
18
Name Function
USB-A ( )
D
port (USB-A2)
RS-232C port Use to connect an RS-232C cable to control the
E
LAN port Use to connect a LAN cable to connect to a network.
F
HDMI Out port Outputs signals to an external monitor or another
G
HDMI1 port Inputs video signals from HDMI compatible video
H
HDMI2 port Inputs video signals from HDMI compatible video
I
Use to connect a USB memory device or digital camera
for projecting movies or images using the PC Free
feature or in Content Playback mode.
Use to connect the optional document camera.
Use to connect a USB memory device to save error and
operation log files.
Provides a connection for a commercially available
streaming media player allowing you to power it.
• You cannot install the wireless
a
projector from a computer. (This port is for control use
and should not normally be used.)
projector.
Connecting an HDMI cable from this port to the
HDMI port on another projector allows you to project
the same image from multiple projectors.
The image is output from the HDMI Out port only
when HDMI1 is selected as the image source.
This port is compatible with HDCP2.3.
equipment and computers.
Compatible with HDCP 2.3.
equipment and computers.
Compatible with HDCP 2.3.
LAN module.
• In this guide, USB-A1 and USBA2 ports are collectively referred
to as the USB-A port.
gg Related Links
• "Projector Connections" p.31
• "Installing a Security Cable" p.128
Projector Parts - Control Panel
Name Function
A
Power button [ ]
[Menu] button Displays and closes the projector's menu.
B
Volume buttons Adjusts the speaker volume.
C
[Enter] button [ ] Enters the current selection and moves to the next level
D
Arrow buttons Selects menu items while displaying the projector's
E
[Home] button Displays and closes the Home screen.
F
[Esc] button Stops the current function.
G
[Source] button Changes to the next input source.
H
Turns the projector on or off.
Selects menu items while displaying the projector's
menu.
while displaying the projector's menu.
menu.
Moves back to the previous menu level while
displaying the projector's menu.
Page 19
Projector Parts and Functions
19
gg Related Links
• "Home Screen" p.42
• "Turning On the Projector" p.41
• "Selecting an Image Source" p.69
• "Adjusting the Menu Settings" p.178
Projector Parts - Remote Control
Name Function
A
Power button [ ]
[HDMI] button Switches the image source between the HDMI and
B
[Computer] button This button is not used.
C
Numeric buttons Enters numbers in the projector's menu while holding
D
[Auto] button The [Auto] function is not available.
E
[Num] button Hold down this button to enter numbers using the
F
[Menu] button Displays and closes the projector's menu.
G
Arrow buttons Selects menu items while displaying the projector's
H
[Enter] button [ ] Enters the current selection and moves to the next level
I
[User] button Performs settings assigned in the User Button setting
J
[Color Mode] button Changes the color mode.
K
[Aspect] button Changes the aspect mode.
L
[E-Zoom] +/–
M
buttons
[A/V Mute] button Turns the video and audio on or off temporarily.
N
[Split] button Projects up to two images from different image sources
O
[Home] button Displays and closes the Home screen.
P
[Freeze] button Pauses or resumes images.
Q
[Volume] up/down
R
buttons
[Default] button Returns the selected setting to its default value.
S
Turns the projector on or off.
HDBaseT ports.
down the [Num] button.
In Content Playback mode, enter numbers while
holding down the [Num] button to play back your
favorite playlists.
numeric buttons.
menu.
while displaying the projector's menu.
in the projector's Management menu.
Resizes the projected image.
simultaneously by splitting the projected screen.
Adjusts the speaker volume.
Page 20
Projector Parts and Functions
Name Function
[Esc] button Stops the current function.
T
Moves back to the previous menu level while
displaying the projector's menu.
[ID] button Hold down this button and press the numeric buttons
U
[LAN] button Switches the image source between the network
V
[USB] button Switches the image source between the USB Display
W
[Source Search]
X
button
Remote control light
Y
emitting area
gg Related Links
• "Projecting in Content Playback Mode" p.97
• "Adjusting Image Quality (Color Mode)" p.73
• "Image Aspect Ratio" p.71
• "Home Screen" p.42
• "Remote Control Operation" p.39
• "Turning On the Projector" p.41
• "Selecting an Image Source" p.69
• "Zooming Images" p.105
• "Shutting Off the Image and Sound Temporarily" p.103
• "Projecting Two Images Simultaneously" p.90
• "Stopping Video Action Temporarily" p.104
• "Controlling the Volume with the Volume Buttons" p.85
• "Setting the Projector ID" p.111
• "Adjusting the Menu Settings" p.178
to select the ID for the projector you want to operate
using the remote control.
connected devices.
and USB-A port.
Switches to the next input source.
Outputs remote control signals.
20
Page 21
Setting Up the Projector
Follow the instructions in these sections to set up your projector.
gg Related Links
• "Projector Placement" p.22
• "Installing the Safety Wire" p.26
• "Projector Connections" p.31
• "Connecting Multiple Projectors of the Same Model" p.36
• "Attaching and Removing the Side Cover" p.37
• "Installing Batteries in the Remote Control" p.38
• "Remote Control Operation" p.39
Page 22
Projector Placement
22
You can install the projector on a wall or ceiling, or place it on a table to
project images.
To install the projector on a wall or mount the projector from a ceiling, you
can use an optional mount or a commercially available mount compatible
with the VESA Mounting Interface Standard (100 × 200 mm).
The projector can be installed at various angles. There is no vertical or
horizontal limit to how the projector can be installed.
Note the following points when selecting a projector location:
• Place the projector on a sturdy, level surface or install it using a compatible
mount.
• Leave plenty of space around and under the projector for ventilation, and
do not place it on top of or next to anything that could block the vents.

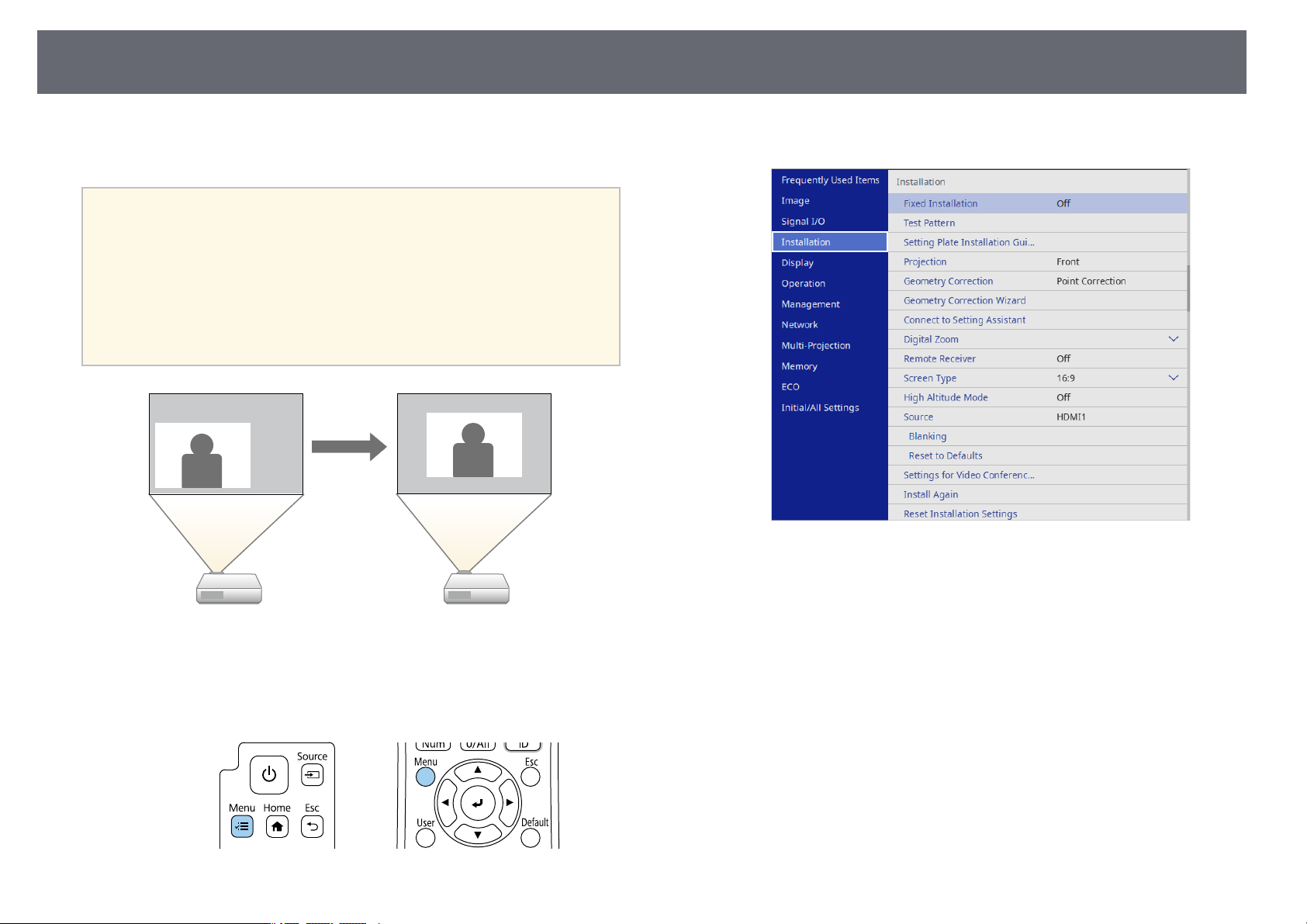

• Place the projector so it squarely faces the screen, not at an angle.
If you cannot install the projector squarely facing the screen, correct
a
• When you install the projector to a fixed location, turn on the Fixed
Installation setting in the projector's Installation menu.
any resulting keystone distortion using the projector controls. For the
best quality images, we recommend adjusting the installation position
of the projector to achieve the correct image size and shape.
a
You can adjust distortion and the height of the projected image using
the front adjustable feet and rear adjustable foot.
Page 23
Projector Placement
23
Warning
• A special method of installation is required when suspending the projector from
a wall or ceiling. If you do not install the projector correctly, it could fall and
cause damage or injury.
• Do not use adhesives on the setting plate fixing points or other mount fixing
points to prevent the screws from loosening, or use lubricants, oils, or similar
substances on the projector; the projector case may crack causing it to fall from
its mount. This could cause serious injury to anyone under the mount and could
damage the projector.
• Failure to install the ceiling mount and projector may cause the projector to fall.
After installing the specific Epson mount that supports your projector, make
sure you secure the mount to all of the projector's ceiling mount fixing points.
Also, secure the projector and the mounts using the safety wire supplied with the
projector or an optional wire.
• Do not install the projector in a location subject to high levels of dust or
humidity, or in a location subject to smoke or steam. Otherwise, it could cause a
fire or electric shock to occur. The projector's case could also deteriorate and be
damaged causing the projector to fall from the mount.
Examples of environments that could cause the projector to fall due to case
deterioration
• Locations subject to excessive smoke or airborne oil particles, such as factories
or kitchens
• Locations containing volatile solvents or chemicals, such as factories or
laboratories
• Locations where the projector could be subjected to detergents or chemicals,
such as factories or kitchens
• Locations in which aroma oils are often used, such as relaxation rooms
• Near devices that produce excessive smoke, airborne oil particles, or foam at
events
• Locations near humidifiers
Warning
• Do not cover the projector's air intake or air exhaust vents. If the vents are
covered, the internal temperature could rise and cause a fire.
• Do not use or store the projector in locations where it will be subject to dust or
dirt. Otherwise, the quality of the projected image may decline, or the air filter
may become clogged, resulting in a malfunction or fire.
• Do not install the projector on an unstable surface or in a location beyond the
weight specifications of the projector. Otherwise, it could fall or topple causing
an accident and injury.
• When installing the projector in a high position, take measures to prevent falling
by using wires to ensure safety in an emergency, such as an earthquake, and to
prevent accidents. If it is not installed correctly, it could fall causing an accident
and injury.
• Do not install in locations where salt damage could occur, or in locations subject
to corrosive gas such as sulphuric gas from hot springs. Otherwise, corrosion
could cause the projector to fall. It could also cause the projector to malfunction.
Attention
• If you are using the projector at altitudes above 1,500 m, set the High Altitude
Mode setting to On in the projector's Installation menu to ensure the projector's
internal temperature is regulated properly.
• Try not to setup the projector in locations subject to high humidity and dust, or
in locations subject to smoke from fires or tobacco smoke.
gg Related Links
• "Projector Setup and Installation Options" p.23
• "Precautions on Installation" p.24
Projector Setup and Installation Options
You can set up or install your projector in the following ways:
Page 24
Projector Placement
24
Front/Rear
Front Upside Down/Rear Upside Down
• The default Projection setting is Front.
a
gg Related Links
• "Projection Modes" p.48
• You can change the Projection setting as follows by pressing down
the [A/V Mute] button on the remote control for about 5 seconds.
• Switch Front to/from Front/Upside Down
• Switch Rear to/from Rear/Upside Down
Precautions on Installation
Attention
• If the projector is installed at an angle, it should be installed by qualified
technicians using mounting hardware designed for use with this projector.
• Install the projector appropriately to prevent it from falling down.
• Use M4 screws (up to a depth of 9 mm) to secure the projector's fixing points, or
VESA mount fixing points, to the mounting hardware at four points.

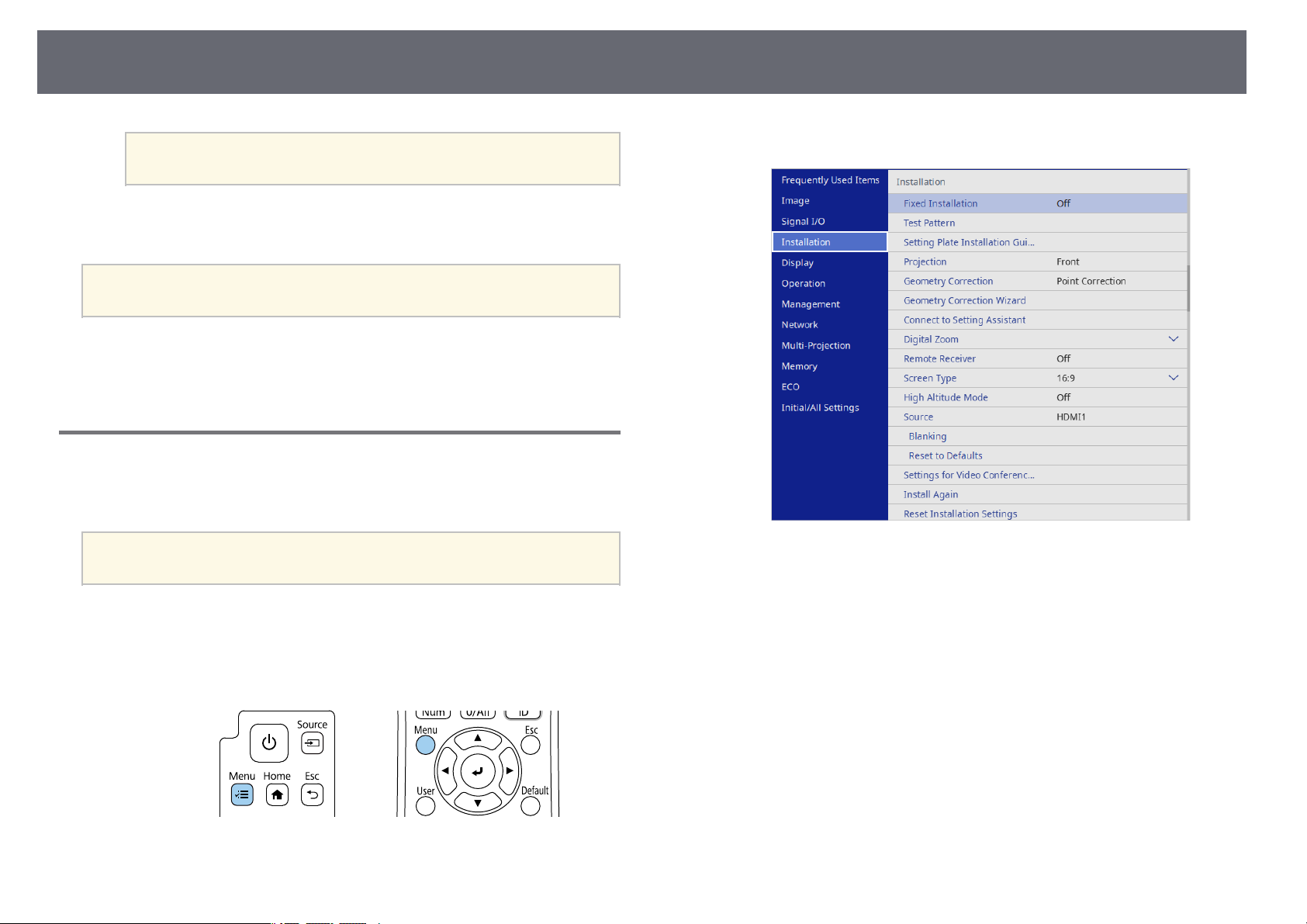

Select the correct Projection option in the projector's Installation menu
according to the installation method being used. If necessary, turn on the Inv
Direction Button setting in the projector's Operation menu and adjust the
Menu Rotation setting in the projector's Display menu.
Page 25
Projector Placement
25
Installation space
Attention
Be sure to leave the following amount of space around the projector so as not to
block the air exhaust and intake vents.
2.3 cm
A
20 cm
B
10 cm
C
Installation space (When installing multiple projectors side by side)
Attention
• If you are installing multiple projectors next to each other, make sure hot air
from the exhaust vent does not go into the air intake vent of another projector.
75 cm or more
A
• If you use a partition, you can narrow the space between the projectors.
10 cm or more
B
35 cm or more
C
* Partition
Page 26
Installing the Safety Wire
26
You can install the safety wire to prevent the projector from falling from the
ceiling.
Warning
Be sure to use the safety wire provided with the Epson ceiling mount. The safety
wire is available as an optional Safety Wire Set ELPWR01.
gg Related Links
• "When Using the Ceiling Mount ELPMB22" p.26
• "When Using the Ceiling Mount ELPMB30" p.27
• "When Using the Setting Plate ELPMB75" p.28
When Using the Ceiling Mount ELPMB22
You can attach a safety wire to your projector for increased safety as shown.
Before you start, you need to remove the front adjustable feet and the rear
adjustable foot from the projector. Also, make sure you have securely attached
the ELPMB22 ceiling mount to the projector and have the following items
that are included in the safety wire set:
• Safety wire × 1
• Carabiner × 2 (Only one carabiner is used for the ELPMB22.)
• Wire clamp × 1
• Attaching screw (M4 × 10 mm) × 1
Attach the wire clamp to the carabiner, and then use the screw to fix
a
the wire clamp to the wire clamp fixing point ( ) on the projector.
Loop the safety wire around the support shaft of the ceiling mount, and
b
attach both ends to the carabiner on the projector.
a
For details on installing the ELPMB22, see the Ceiling Mount
ELPMB22/ELPMB23 Instruction Manual.
Page 27
Installing the Safety Wire
27
Tighten the carabiner lock.
c
When Using the Ceiling Mount ELPMB30
You can attach a safety wire to your projector for increased safety as shown.
Before you start, you need to remove the front adjustable feet and the rear
adjustable foot from the projector. Also, make sure you have securely attached
the projector plate for the ELPMB30 ceiling mount to the projector and have
the following items that are included in the safety wire set:
• Safety wire × 1
• Carabiner × 2 (Only one carabiner is used for the ELPMB30.)
• Wire clamp × 1
• Attaching screw (M4 × 10 mm) × 1
Attach the wire clamp to the carabiner, and then use the screw to fix
a
the wire clamp to the screw into the wire clamp fixing point ( ) on the
projector.
Loop the safety wire through the hole in the ceiling mount, and then
b
attach both ends to the carabiner.
a
For details on installing the ELPMB30, see the ELPMB30 User's Guide.
Page 28
Installing the Safety Wire
28
Tighten the carabiner lock.
c
When Using the Setting Plate ELPMB75
You can attach a safety wire to your projector for increased safety as shown.
Before you start, you need to remove the front adjustable feet and the rear
adjustable foot from the projector. Also, make sure you have securely attached
the ELPMB75 setting plate to the projector and have the following items that
are included in the safety wire set:
• Safety wire × 1
• Carabiner × 2
• Wire clamp × 1
• Attaching screw (M4 × 10 mm) × 1
Attach the wire clamp to the carabiner, and then use the screw to fix
a
the wire clamp to the screw into the wire clamp fixing point ( ) on the
projector.
Loop both ends of the safety wire through the carabiner, and then
b
tighten the carabiner lock.
a
For details on installing the ELPMB75, see the ELPMB75 User's Guide.
Page 29
Installing the Safety Wire
29
Pass the other carabiner through the hole in the arm of the setting
c
plate.
Loop the safety wire through the carabiner attaching it to the setting
d
plate.
Page 30
Installing the Safety Wire
Tighten the carabiner lock.
e
30
Page 31
Projector Connections
31
See these sections to connect the projector to a variety of projection sources.
Attention
• Check the shape and orientation of the connectors on any cable you plan to
connect. Do not force a connector into a port if it does not fit. The device or
your projector could be damaged or could malfunction.
• Depending on the connected device and the shape of the cable, you may not be
able to attach the side cover to the projector. In that case, do not force the cover
into place. The device or your projector could be damaged or could malfunction.
See the Quick Start Guide for a list of cables supplied with your
a
gg Related Links
• "Connecting to a Computer" p.31
• "Connecting to Video Sources" p.32
• "Connecting to External USB Devices" p.33
• "Connecting to a Document Camera" p.34
• "Connecting to an HDBaseT Transmitter" p.34
• "Getting the Latest Version of the Documents" p.9
projector. Purchase commercially available cables when necessary.
• If you use a USB hub, the connection may not operate correctly.
a
Connect the cable to your projector's USB-B port.
a
Connect the other end to any available USB port on your computer.
b
Turn on the projector and your computer.
c
Do one of the following to install the Epson USB Display software:
d
Connect the USB cable directly to the projector.
Connecting to a Computer
Follow the instructions in these sections to connect a computer to the
projector.
gg Related Links
• "Connecting to a Computer for USB Video and Audio" p.31
• "Connecting to a Computer for HDMI Video and Audio" p.32
Connecting to a Computer for USB Video and Audio
If your computer meets the system requirements, you can send video and
audio output to the projector through the computer's USB port. This function
is called USB Display. Connect the projector to your computer using a USB
cable.
You only need to install this software the first time you connect
a
• Windows: Select Run EMP_UDSE.EXE in the dialog box that is
displayed to install the Epson USB Display software.
• Mac: The Epson USB Display setup folder is displayed on your
screen. Select USB Display Installer and follow the on-screen
instructions to install the Epson USB Display software. If the USB
Display Setup folder is not displayed automatically, double-click
EPSON_PJ_UD > USB Display Installer.
Follow any on-screen instructions.
e
Do not disconnect the USB cable or turn off the projector until the
projector displays an image.
the projector to the computer.
Page 32
Projector Connections
32
The projector displays the image from your computer's desktop and outputs
sound if your presentation contains audio.
• If the projector does not project any images, do one of the following:
a
gg Related Links
• "USB Display System Requirements" p.254
Connecting to a Computer for HDMI Video and Audio
If your computer has an HDMI port, you can connect it to the projector using
an HDMI cable and send the computer's audio with the projected image.
Connect the HDMI cable to your computer's HDMI output port.
a
Connect the other end to the projector's HDMI port.
b
• Windows: Click All Programs or Start > EPSON Projector >
Epson USB Display Ver.x.xx.
• Mac: Double-click the USB Display icon in the Application folder.
• When you finish projection, do one of the following:
• Windows: Disconnect the USB cable. You do not need to operate
Safely Remove Hardware.
• Mac: Select Disconnect from the USB Display icon menu on the
menu bar or Dock, and then disconnect the USB cable.
Connecting to Video Sources
Follow the instructions in these sections to connect video devices to the
projector.
• If the port on the device you connect has an unusual shape, use the
a
gg Related Links
• "Connecting to an HDMI Video Source" p.32
Connecting to an HDMI Video Source
If your video source has an HDMI port, you can connect it to the projector
using an HDMI cable and send the image source's audio with the projected
image.
Attention
Do not turn on the video source before connecting it to the projector. Doing so
could damage the projector.
cable supplied with the device or an optional cable to connect to the
projector.
• The cable differs depending on the output signal from the connected
video devices.
• Some video devices are capable of outputting different types of
signals. See your video device manual to confirm what type of signals
can be output.
Connect the HDMI cable to your video source's HDMI output port.
a
Page 33
Projector Connections
33
Connect the other end to the projector's HDMI port.
b
Connecting to External USB Devices
Follow the instructions in these sections to connect external USB devices to
the projector.
gg Related Links
• "USB Device Projection" p.33
• "Connecting to a USB Device" p.33
• "Disconnecting a USB Device" p.34
• Digital cameras or smartphones must be USB-mounted devices, not
a
You can also project playlists that contain images and movies saved on a USB
flash drive in Content Playback mode.
gg Related Links
• "Projecting in Content Playback Mode" p.97
• "Projecting a PC Free Presentation" p.92
Connecting to a USB Device
You can connect your USB device to the projector's USB-A port and use it to
project images and other content.
TWAIN-compliant devices, and must be USB Mass Storage Classcompliant.
• USB hard drives must meet these requirements:
• USB Mass Storage Class-compliant (not all USB Mass Storage
Class devices are supported)
• Formatted in FAT16/32
• Self-powered by their own AC power supplies (bus-powered hard
drives are not recommended)
• Avoid using hard drives with multiple partitions
USB Device Projection
You can project images and other content without using a computer or video
device by connecting any of these devices to your projector:
• USB flash drive
• Digital camera or smartphone
• USB hard drive
If your USB device came with a power adapter, plug the device into an
a
electrical outlet.
Connect the USB cable or USB flash drive to the projector's USB-A port
b
as shown.
Page 34
Projector Connections
34
Attention
• Use the USB cable supplied with or specified for use with the device.
• Do not connect a USB hub or a USB cable longer than 3 meters, or the
device may not operate correctly.
Connect the other end to your device, if necessary.
c
Disconnecting a USB Device
When you have finished projecting with a connected USB device, disconnect
the device from the projector.
Turn off and unplug the device, if necessary.
a
Disconnect the USB device from the projector.
b
Connecting to a Document Camera
You can connect a document camera to your projector to project images
viewed by the camera.
The connection method varies depending on your Epson document camera
model. See the document camera manual for details.
Category 5e STP cable or better. However, operation is not guaranteed for all
input/output devices and environments.
• To enable communication from the Ethernet and serial ports on the
a
Turn off the projector and HDBaseT transmitter.
a
Connect one end of the network cable to the HDBaseT port on the
b
transmitter.
transmitter, set the Control Communications setting to On in the
projector's Signal I/O menu. Turning on this setting disables the
projector's LAN and RS-232C ports.

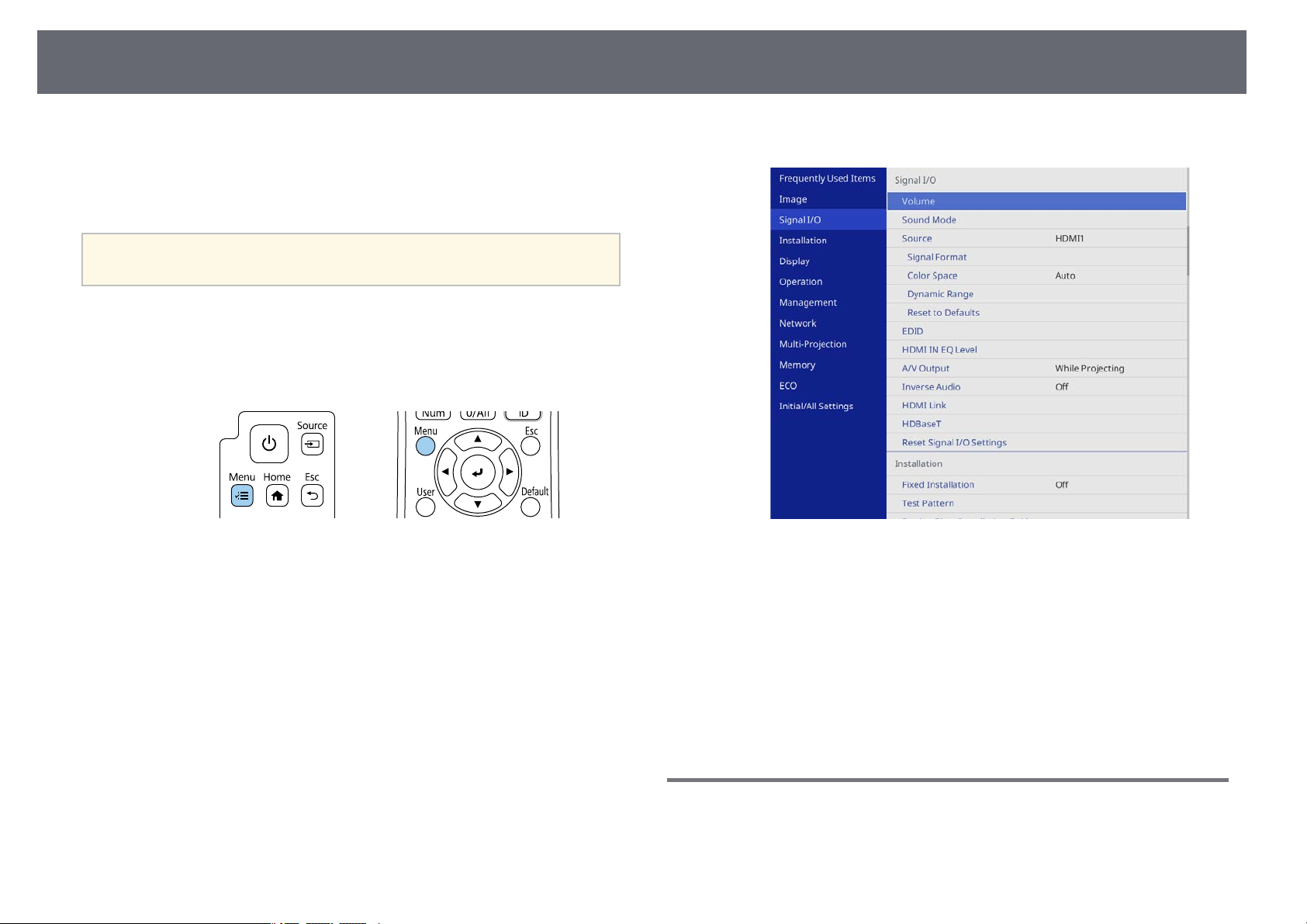

s Signal I/O > HDBaseT > Control Communications
• If you connected an Extron XTP transmitter or switcher to the
projector's HDBaseT port, set the Extron XTP setting to On in the
projector's Signal I/O menu.
s Signal I/O > HDBaseT > Extron XTP
• If you want to control the projector when the projector does not
project any images, set the A/V Output setting to Always On in the
projector's Signal I/O menu.
Make sure the projector and HDBaseT transmitter are turned off
a
when connecting or disconnecting a network cable between the
two devices.
gg Related Links
• "Getting the Latest Version of the Documents" p.9
Connecting to an HDBaseT Transmitter
To send an HDMI or RS-232C signal over a long distance, you can connect
the projector to an HDBaseT transmitter using a 100Base-TX network cable.
This is useful when you want to send a signal to or control the projector from
a remote location, such as in a hall or event site, since you can use a network
cable up to 100 m in length. To ensure proper data transmission, use a
Connect the other end to the projector's HDBaseT port.
c
Page 35
Projector Connections
See the documentation that came with the HDBaseT transmitter
a
Turn on the projector and HDBaseT transmitter.
d
for instructions on connecting it to your video device or
computer.
35
Page 36
Connecting Multiple Projectors of the Same Model
36
You can project the same image from multiple projectors.
You can connect multiple projectors using either of the following methods:
daisy-chain connection or distributor connection. You can connect up to four
projectors in a daisy-chain connection.
Attention
When installing the projectors, make sure hot air from the exhaust vent does not
go into the air intake vent of another projector.
gg Related Links
• "Projecting the Same Image in a Daisy-Chain Connection" p.36
Projecting the Same Image in a Daisy-Chain Connection
• The image is output from the HDMI Out port only when
a
Press the [Menu] button on the control panel or remote control.
b
Select the necessary HDMI Link setting in the projector's Signal I/O
c
menu. See the following list for example settings when connecting three
projectors.
Setting Item
HDMI Out Power
Link
HDMI Out
Terminal End
HDMI1 is selected as the image source.
• If you are connecting projectors in a daisy-chain, connect them
as shown below.
A B C
First projector to
connect to the
device
On On On
Off Off On
Projectors in the
middle
Terminal
projector
Connect the projector to the computer using the HDMI cable, and then
a
connect the HDMI1 port and HDMI Out port of the projectors using
the HDMI cable.
a
This may not work if five or more projectors are connected in a
daisy-chain or if the settings are not correct.
Page 37
Attaching and Removing the Side Cover
You can attach the side cover to hide the attached cables from view.
Remove the side cover from the projector.
a
Caution
Do not bundle the power cord to the other cables. Otherwise, a fire may
occur.
Replace the side cover.
c
37
Pass a commercially available cable tie through the cable holder and tie
b
the cables together.
Page 38
Installing Batteries in the Remote Control
38
The remote control uses the two AA batteries that came with the projector.
Attention
Make sure you read the Safety Instructions before handling the batteries.
Replace the batteries as soon as they run out. The remote control uses
a
a
b
two AA manganese or alkaline batteries.
Remove the battery cover as shown.
Remove the old batteries, if necessary.
Dispose of used batteries according to local regulations.
a
Insert the batteries with the + and – ends facing as shown.
c
Warning
Check the positions of the (+) and (–) marks inside the battery holder to
ensure the batteries are inserted the correct way. If the batteries are not used
correctly, they could explode or leak causing a fire, injury, or damage to the
product.
Replace the battery cover and press it down until it clicks into place.
d
Page 39
Remote Control Operation
The remote control lets you control the projector from almost anywhere in
the room.

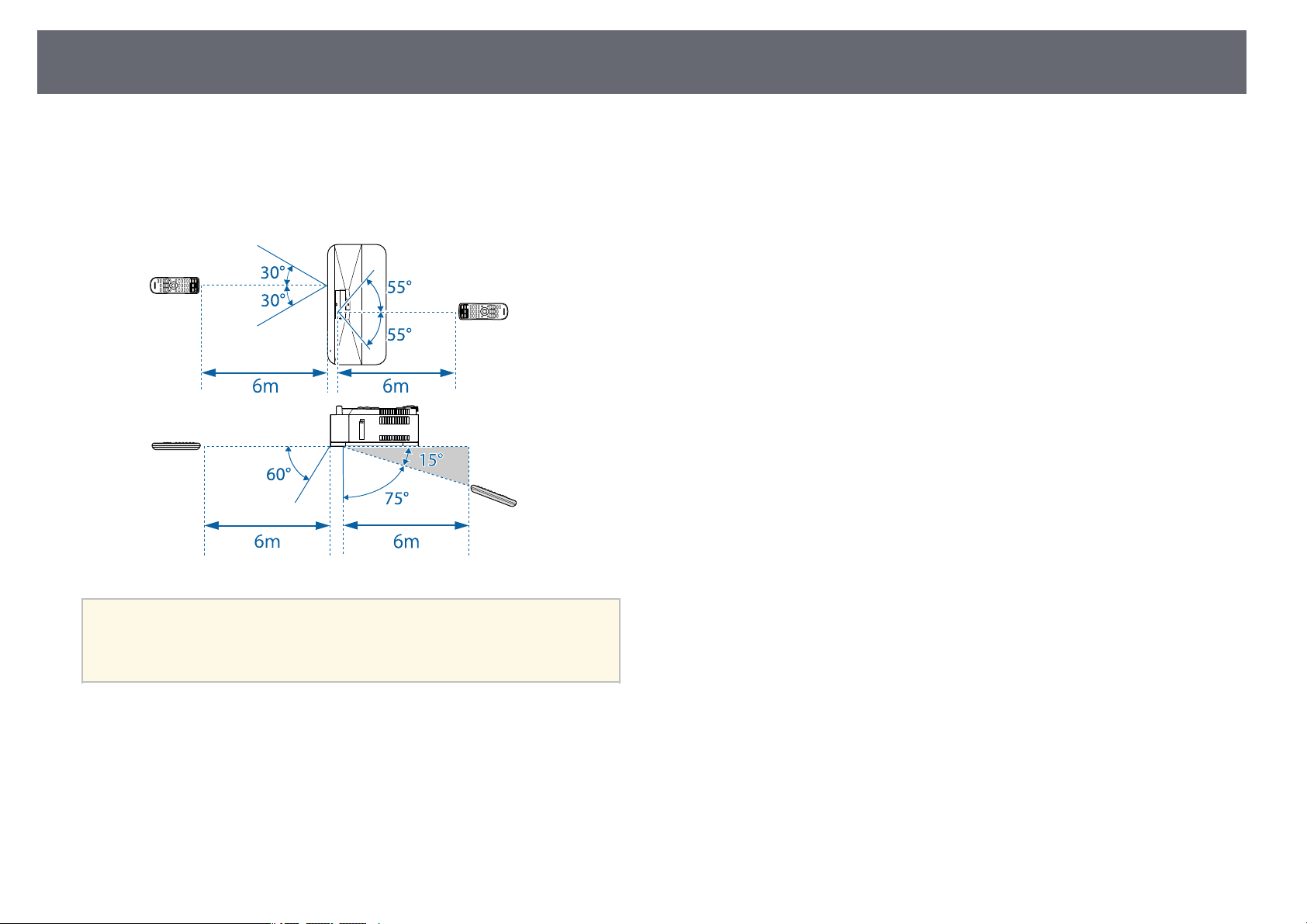

Make sure that you aim the remote control at the projector's receivers within
the distance and angles listed here.
39
a
• Avoid using the remote control in conditions with bright fluorescent
lights or in direct sunlight, or the projector may not respond to
commands. If you are not going to use the remote control for a long
time, remove the batteries.
Page 40
Using Basic Projector Features
Follow the instructions in these sections to use your projector's basic features.
gg Related Links
• "Turning On the Projector" p.41
• "Turning Off the Projector" p.44
• "Setting the Date and Time" p.45
• "Selecting the Language for the Projector Menus" p.47
• "Projection Modes" p.48
• "Setting the Screen Type" p.50
• "Adjusting the Image Height" p.53
• "Displaying a Test Pattern" p.54
• "Focusing the Image Using the Focus Lever" p.56
• "Image Shape" p.57
• "Resizing the Image with Digital Zoom" p.66
• "Adjusting the Image Position Using Image Shift" p.67
• "Selecting an Image Source" p.69
• "Image Aspect Ratio" p.71
• "Adjusting Image Quality (Color Mode)" p.73
• "Setting Frame Interpolation" p.75
• "Adjusting the Image Color" p.77
• "Adjusting the Image Resolution" p.80
• "Adjusting the Brightness" p.82
• "Controlling the Volume with the Volume Buttons" p.85
• "Adjusting the Sound Settings (Sound Mode)" p.86
• "Inverting the Audio Channels" p.88
Page 41
Turning On the Projector
41
Turn on the computer or video equipment you want to use after you turn on
the projector.
Remove the side cover.
a
Connect the power cord to the projector's power inlet and plug it into
b
an electrical outlet.
Warning
Be sure to connect to ground before plugging in. When you remove the
ground connection, unplug the power cord and disconnect from ground.
The projector's power indicator turns blue. This indicates that the
projector is receiving power, but is not yet turned on (it is in standby
mode).
Press the power button on the control panel or remote control to turn
c
on the projector.
The projector beeps and the status indicator flashes blue as the
projector warms up. Once the projector is warmed up, the status
indicator stops flashing and turns blue.
Page 42
Turning On the Projector
42
• When you turn on the projector for the first time, the initial
a
Try the following if you do not see a projected image.
• Turn on the connected computer or video device.
• Change the screen output from the computer when using a laptop
computer.
• Insert a DVD or other video media, and press play (if necessary).
• Press the [Source] button on the control panel or the [Source Search]
button on the remote control to detect the source.
• Press the button for the desired video source on the remote control.
• If the Home screen is displayed, select the source you want to project.
setup wizard is displayed. Make the Projection, Language, and
Date & Time settings using the arrow and [Enter] buttons on
the control panel or remote control. Next, turn on the Quick
Startup setting to start the projector faster if necessary. Note
that enabling this item increases standby power consumption.
Finally, adjust the shape and position settings for the projected
image as necessary.
• You can also select the Quick Startup setting in the projector's
Operation menu.
• When the Direct Power On setting is set to On in the projector's
a
gg Related Links
• "Home Screen" p.42
• "Projector Feature Settings - Operation Menu" p.190
Operation menu, the projector turns on as soon as you plug it in.
Note that the projector also turns on automatically in cases such as
recovery from a power outage.
• If you select a specific port as the Auto Power On setting in the
projector's Operation menu, the projector turns on as soon as it
detects a signal or cable connection from that port.

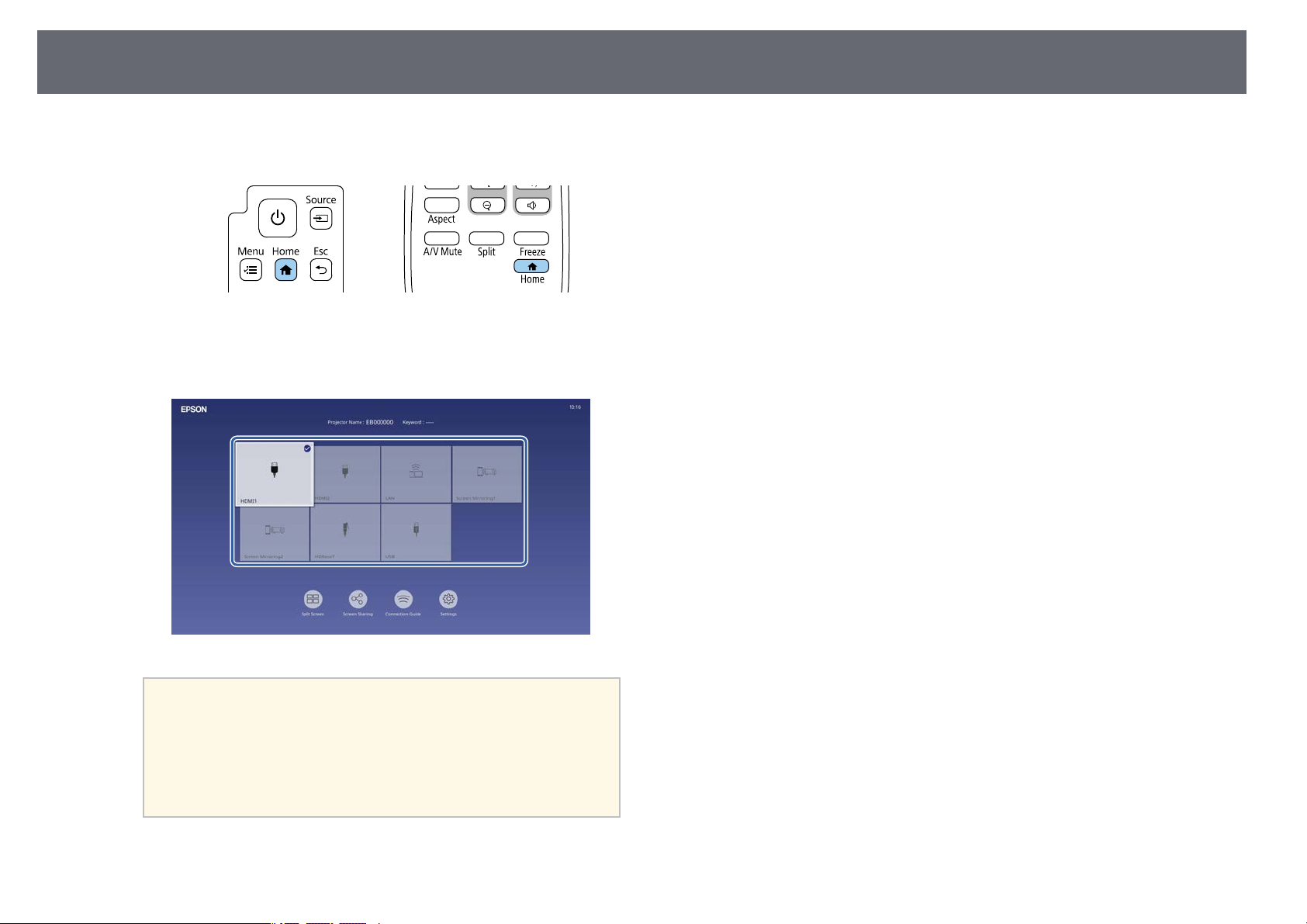

Home Screen
The Home screen feature allows you to easily select an image source and
access useful functions. You can display the Home screen by pressing the
[Home] button on the control panel or remote control. The Home screen is
also displayed when you turn on the projector and no signal is being input.
Press the arrow buttons on the control panel or remote control to select a
menu item, and then press [Enter].
Warning
• Never look into the projector lens when the light source is on. This can damage
your eyes and is especially dangerous for children.
• When turning on the projector at a distance using the remote control, make sure
there is no one looking into the lens.
• If the light from the projector is blocked, the area on which the light shines
becomes hot which could cause it to melt, burn, or start a fire. Also, the lens may
get hot due to the reflected light which could cause the projector to malfunction.
To stop projection, use the A/V Mute function, or turn off the projector.
Page 43
Turning On the Projector
Selects the source you want to project.
A
A check mark appears on the upper right of the current input source.
You can check a preview of the current input image for most sources as a
thumbnail (other than the USB input source in Content Playback mode).
Projects images from two different image sources simultaneously in a grid
B
format.
Shares your projected screen image with other projectors connected to the same
C
network.
Displays the connection guide. You can select the wireless connection methods
D
according to the devices you are using, such as smartphones or computers.
Lets you select the following common projector settings (settings may vary
E
depending on other selected settings):
• Color Mode
• Brightness Level
• Volume
• Geometry Correction (Quick Corner is available.)
• Aspect
• Install Again
43
The Geometry Correction setting is only displayed when
a
Displays the projector name and the projector keyword.
F
Displays the current time.
G
The Home screen disappears after 10 minutes of inactivity.
Fixed Installation is set to Off and Geometry
Correction is set to Quick Corner in the projector's
Installation menu.
a
gg Related Links
• "Screen Sharing" p.153
• "Projecting Two Images Simultaneously" p.90
Page 44
Turning Off the Projector
Turn off the projector after use.
• Turn off this product when it is not in use to prolong the life of the
a
Press the power button on the control panel or remote control.
a
The projector displays a shutdown confirmation screen.
projector. Light source life varies depending on the mode selected,
environmental conditions, and usage. Brightness decreases over time.
• If the Light Source Calibration setting is set to Run Periodically in
the projector's Management menu, light source calibration starts
automatically if you turn off the projector and the following
conditions are present:
• 100 hours have passed since the last light source calibration
• You have used the projector continuously for more than 20
minutes
• Since the projector supports the direct shutdown feature, it can be
turned off directly using the breaker.
44
Press the power button again. (To leave it on, press any other button.)
b
The projector beeps twice, the light source turns off, and the status
indicator turns off.
To transport or store the projector, make sure the power indicator is
c
blue (but not flashing) and the status indicator is off, then unplug the
power cord.
Page 45

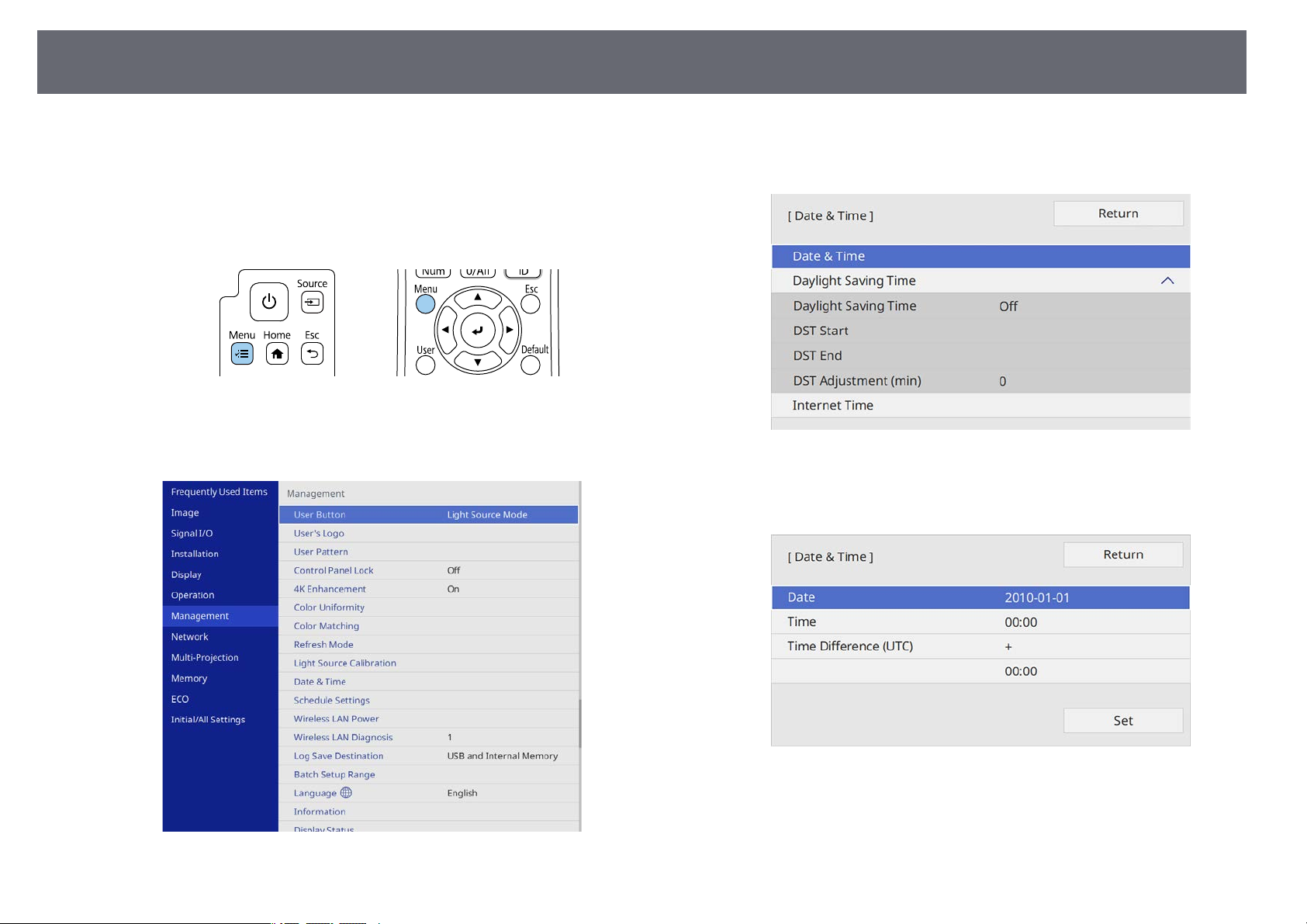

Setting the Date and Time
45
You can set the date and time for the projector.
Turn on the projector.
a

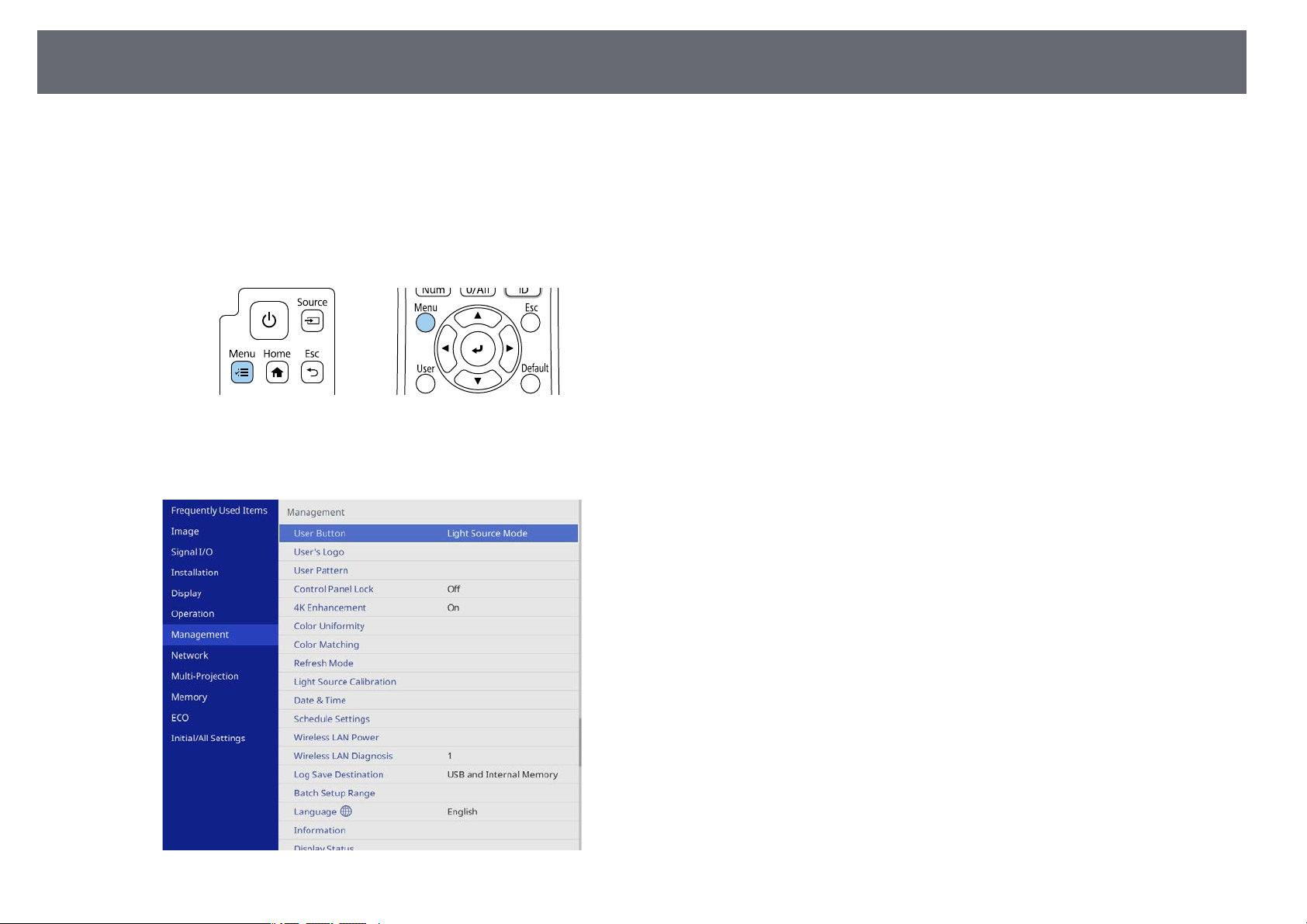

Press the [Menu] button on the control panel or remote control.
b
Select the Management setting and press [Enter].
c
Select the Date & Time setting and press [Enter].
d
You see this screen:
Select the Date & Time setting and press [Enter].
e
You see this screen:
Select Date, press [Enter], and use the displayed keyboard to enter
f
today's date.
Select Time, press [Enter], and use the displayed keyboard to enter the
g
current local time.
Page 46
Setting the Date and Time
46
To set the Time Difference (UTC) as explained in step 8, enter
a
Select Time Difference (UTC), press [Enter], and set the time
h
difference from Coordinated Universal Time.
When you are finished, select Set and press [Enter].
i
To activate daylight saving time, select the Daylight Saving Time
j
setting and set it to On. Then select settings.
Coordinated Universal Time instead of the current local time.
When you are finished, select Set and press [Enter].
k
To update the time automatically through an Internet time server,
l
select the Internet Time setting and set it to On. Then select settings.
When you are finished, select Set and press [Enter].
m
Press [Menu] or [Esc] to exit the menus.
n
Page 47
Selecting the Language for the Projector Menus
47
If you want to view the projector's menus and messages in another language,
you can change the Language setting.
Turn on the projector.
a
Press the [Menu] button on the control panel or remote control.
b
Select the Management setting and press [Enter].
c
Select the Language setting and press [Enter].
d
Select the language you want to use and press [Enter].
e
Press [Menu] or [Esc] to exit the menus.
f
Page 48
Projection Modes
48
Depending on how you positioned the projector, you may need to change the
projection mode so your images project correctly.
• Front lets you project from a table in front of the screen.
• Front/Upside Down flips the image over top-to-bottom to project upsidedown from a wall mount or ceiling.
• Rear flips the image horizontally to project from behind a translucent
screen.
• Rear/Upside Down flips the image over top-to-bottom and horizontally to
project from a wall mount or ceiling and behind a translucent screen.
gg Related Links
• "Changing the Projection Mode Using the Remote Control" p.48
• "Changing the Projection Mode Using the Menus" p.48
• "Projector Setup and Installation Options" p.23
Changing the Projection Mode Using the Remote Control
You can change the projection mode to flip the image over top-to-bottom.
Turn on the projector and display an image.
a
To change projection back to the original mode, hold down the [A/V
c
Mute] button for 5 seconds again.
Changing the Projection Mode Using the Menus
You can change the projection mode to flip the image over top-to-bottom
and/or left-to-right using the projector menus.
Turn on the projector and display an image.
a
Press the [Menu] button on the control panel or remote control.
b
Hold down the [A/V Mute] button on the remote control for 5 seconds.
b
The image disappears briefly and reappears flipped top-to-bottom.
Page 49
Projection Modes
Select the Installation menu and press [Enter].
c
49
Select Projection and press [Enter].
d
Select a projection mode and press [Enter].
e
Press [Menu] or [Esc] to exit the menus.
f
Page 50
Setting the Screen Type
50
You can use the Screen Type setting to match the aspect ratio of the displayed
image to the screen you are using.
• You cannot change the Screen Type setting when the Content
a
Turn on the projector and display an image.
a
Press the [Menu] button on the control panel or remote control.
b
Playback setting is set to On in the projector's Operation menu.
• If you change the Screen Type setting, the Geometry Correction
settings are initialized.
Select the Installation menu and press [Enter].
c
Select Screen Type and press [Enter].
d
Select your screen's aspect ratio and press [Enter].
e
Press [Menu] to exit the menus.
f
Page 51
Setting the Screen Type
51
You need to restart the projector. Follow the on-screen
a
Adjust the aspect ratio for the projected image, if necessary.
g
a
gg Related Links
• "Adjusting the Image Position Using Screen Position" p.51
Adjusting the Image Position Using Screen Position
You can adjust the image position if there are margins between the edge of
the image and the projected screen frame.
a
instructions.
When the Screen Type setting changes, the EDID settings are
automatically adjusted.
You cannot adjust the screen position if the Screen Type setting is set
to 16:9.
Select the Installation menu and press [Enter].
c
Select Screen Position, and press [Enter].
d
Turn on the projector and display an image.
a
Press the [Menu] button on the control panel or remote control.
b
Page 52
Setting the Screen Type
Use the arrow buttons on the control panel or remote control to adjust
e
the position of the image.
When you are finished, press [Menu].
f
52
Page 53
Adjusting the Image Height
If you are projecting from a table or other flat surface and the image is too
high or low, you can adjust the image height using the projector's adjustable
feet.
The larger the angle of tilt, the harder it becomes to focus. Locate the
projector so that it only needs to be tilted at a small angle.
Turn on the projector and display an image.
a
Rotate the rear feet to adjust the image height.
b
53
Extend the rear foot
A
Retract the rear foot
B
If the projected image is unevenly rectangular, you need to adjust the image
shape.
gg Related Links
• "Image Shape" p.57
Page 54
Displaying a Test Pattern
54
You can display a test pattern to adjust the projected image without
connecting a computer or video device.
• The test pattern's shape is determined by the Screen Type setting. Be
a
Turn on the projector.
a
Press the [Menu] button on the control panel or remote control.
b
sure to set the correct screen type before adjusting with the test
pattern.
• To set menu items that cannot be set while the test pattern is being
displayed or to fine-tune the projected image, project an image from
the connected device.
Select the Installation menu and press [Enter].
c
Select Test Pattern and press [Enter].
d
Page 55
Displaying a Test Pattern
Select the test pattern, and then press [Enter].
e
Adjust the image as necessary.
f
55
To remove the test pattern, press [Esc].
g
Page 56
Focusing the Image Using the Focus Lever
56
You can correct the focus using the focus lever.
Turn on the projector and display an image.
a
Remove the side cover.
b
Move the focus lever to adjust the focus.
c
Replace the side cover.
d
Page 57
Image Shape
57
You can project an even, rectangular image by placing the projector directly
in front of the center of the screen and keeping it level. If you place the
projector at an angle to the screen, or tilt it up or down, or off to the side, you
may need to correct the image shape.
After correction, your image is slightly smaller.
For the best quality images, we recommend adjusting the installation position
of the projector to achieve the correct image size and shape.
If you adjust the screen position using the Image Shift feature, perform
a
gg Related Links
• "Correcting Distortion in the Image Using the Wizard" p.57
• "Correcting the Image Shape with Quick Corner" p.58
• "Correcting Image Shape with Arc Correction" p.61
• "Correcting Image Shape with Point Correction" p.63
• "Loading Image Shape Setting from Memory" p.65
Image Shift before Geometry Correction.
Correcting Distortion in the Image Using the Wizard
You can correct distortion in the projected image by following the on-screen
instructions from the Installation menu.
Press the [Menu] button on the control panel or remote control.
b
Select the Installation menu and press [Enter].
c
To correct distortion more easily, you can use the Epson Setting
a
a
Assistant application on a smart phone or tablet that has a camera
function. Install the application by using the QR code displayed on the
projected screen. The customer is responsible for any communication
charges incurred when downloading the app.
Turn on the projector and display an image.
Page 58
Image Shape
58
Select the Geometry Correction Wizard, and press [Enter].
d
Follow the on-screen instructions to correct distortion in the image.
e
Correcting the Image Shape with Quick Corner
You can use the projector's Quick Corner setting to correct the shape and size
of an image that is unevenly rectangular.
If you change the Screen Type and Screen Position settings, the
a
a
b
adjustments are reset.
Turn on the projector and display an image.
Press the [Menu] button on the control panel or remote control.
To close the menus, press [Esc].
f
Page 59
Image Shape
59
Select the Installation menu and press [Enter].
c
Select Geometry Correction and press [Enter].
d
Select Quick Corner and press [Enter]. Then select Yes and press
e
[Enter] if necessary.
You see the area selection screen.
Page 60
Image Shape
60

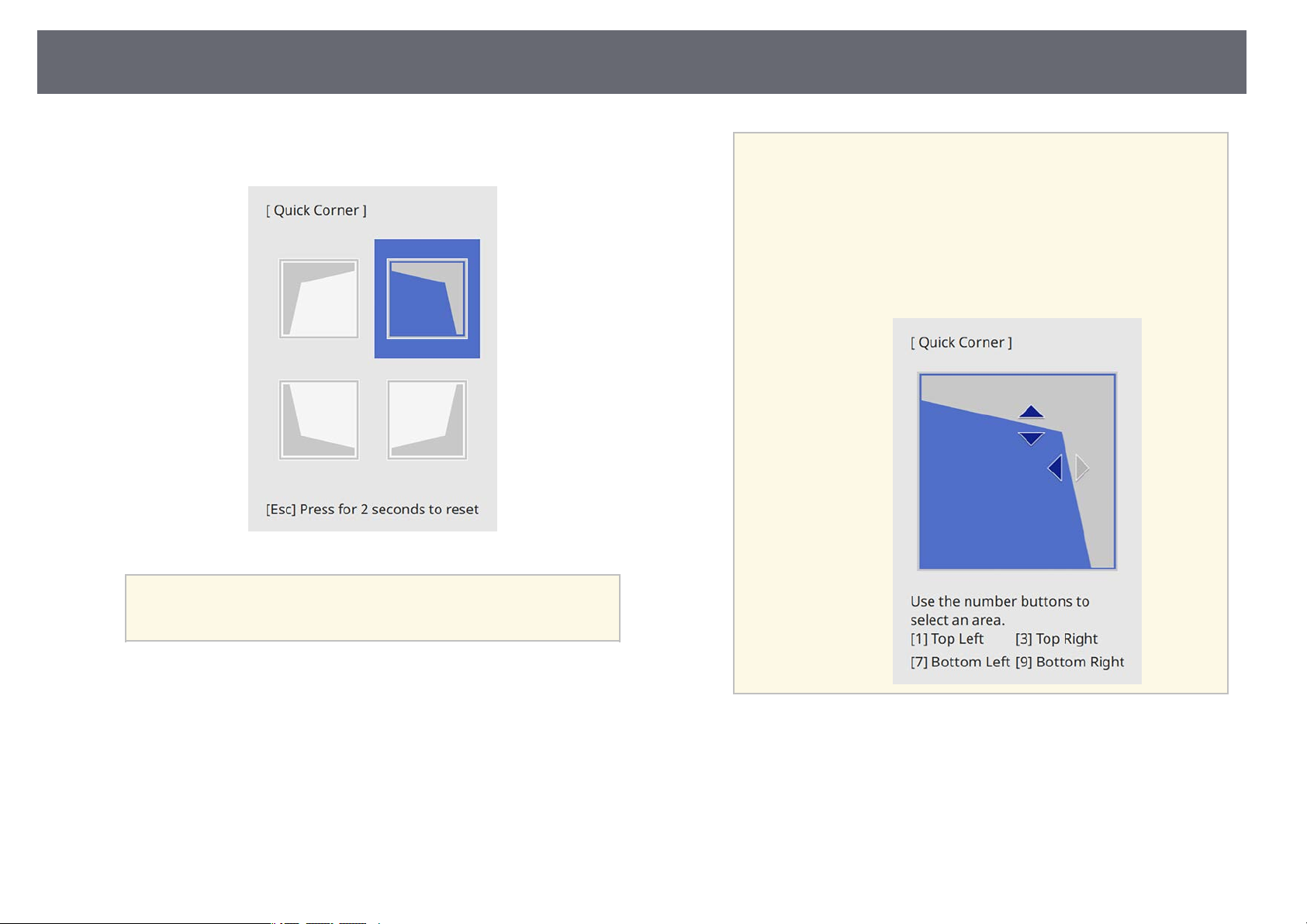

Use the arrow buttons to select the area of the image you want to
f
adjust. Then press [Enter].
To reset the Quick Corner corrections, hold down [Esc] for
a
about 2 seconds while the area selection screen is displayed, and
then select Yes.
a
• You can also select the area by pressing the following numeric
buttons on the remote control:
• [1] selects the upper left area.
• [3] selects the upper right area.
• [7] selects the lower left area.
• [9] selects the lower right area.
• If you see this screen, you cannot adjust the shape any further
in the direction indicated by the gray triangle.
Press the arrow buttons to adjust the image shape as necessary.
g
To return to the area selection screen, press [Enter].
Repeat steps 6 and 7 as needed to adjust any remaining corners.
h
When you are finished, press [Esc].
i
The Geometry Correction setting is now set to Quick Corner in the
projector's Installation menu.
Page 61
Image Shape
61
To save the current shape of an image you have adjusted, select Save
a
Correcting Image Shape with Arc Correction
You can use the projector's Arc Correction setting to adjust the shape of an
image projected on a curved or spherical surface.
a
Memory. You can save up to three image shapes in the memory.
s Installation > Geometry Correction > Memory > Save Memory
If you change the Screen Type and Screen Position settings, the
adjustments are reset.
Select the Installation menu and press [Enter].
c
Select Geometry Correction and press [Enter].
d
Turn on the projector and display an image.
a
Press the [Menu] button on the control panel or remote control.
b
Page 62
Image Shape
62
Select Arc Correction and press [Enter].
e
You see the Arc Correction screen.
Select Arc Correction and press [Enter].
f
Use the arrow buttons to select the area of the image you want to
g
adjust, then press [Enter].
Press the arrow buttons to adjust the image shape of the selected area as
h
necessary.
To return to the area selection screen, press [Enter].
You see the area selection screen.
Page 63
Image Shape
63
If you see this screen, you cannot adjust the shape any further in
a
Repeat steps 7 and 8 as needed to adjust any remaining corners.
i
When you are finished, press [Esc].
j
a
the direction indicated by the gray triangle.
• You can fine tune the corrected results. Use Quick Corner to adjust
the tilt of the image, and then use Point Correction for fine tuning.
Select Quick Corner or Point Correction on the screen in step 6.
• To save the current shape of an image you have adjusted, select Save
Memory. You can save up to three image shapes in the memory.
s Installation > Geometry Correction > Memory > Save Memory
• To reset the Arc Correction settings, hold down [Esc] for about 2
seconds while the area selection screen is displayed, and then select
Yes.
gg Related Links
• "Correcting the Image Shape with Quick Corner" p.58
• "Correcting Image Shape with Point Correction" p.63
Correcting Image Shape with Point Correction
You can use the projector's Point Correction setting to fine-tune the image
shape in portions of an image. The image is divided into a grid which allows
you to move intersection points on the grid as necessary to correct distortion.
If you change the Screen Type and Screen Position settings, the
a
a
b
adjustments are reset.
Turn on the projector and display an image.
Press the [Menu] button on the control panel or remote control.
Page 64
Image Shape
64
Select the Installation menu and press [Enter].
c
Select Geometry Correction and press [Enter].
d
Select Point Correction and press [Enter]. Then select Yes and press
e
[Enter] if necessary.
Select Point Correction and press [Enter].
f
For fine tuning, select Quick Corner to correct the shape and
a
Select the point number and press [Enter].
g
You see the grid on the projected image.
size of an image roughly, and then select Point Correction to
adjust them precisely.
Page 65
Image Shape
65
If you want to change the grid color for visibility, press [Esc],
a
Use the arrow buttons to move to the point you want to correct, then
h
press [Enter].
Use the arrow buttons to correct distortion as necessary.
i
then select a different Pattern Color setting in the Point
Correction menu.
• To save the current shape of an image you have adjusted, select Save
a
gg Related Links
• "Correcting the Image Shape with Quick Corner" p.58
Memory. You can save up to three image shapes in the memory.
s Installation > Geometry Correction > Memory > Save Memory
• To reset the Point Correction settings to their original positions,
select Reset on the Point Correction screen.
Loading Image Shape Setting from Memory
You can load the image shape settings you selected and saved to the
projector's memory and apply them to the current image.
Turn on the projector and display an image.
a
Hold down the [Num] button on the remote control, and then press
b
the numeric button (1, 2, or 3) that matches the number of the saved
setting.
To correct any remaining points, press [Esc] to return to the previous
j
screen, then repeat steps 8 and 9.
When you are finished, press [Esc].
k
When you have finished loading the settings, follow the on-screen
c
instructions.
Page 66
Resizing the Image with Digital Zoom
66
You can resize the image using the projector's menu.
Turn on the projector and display an image.
a
Press the [Menu] button on the control panel or remote control.
b
Select the Installation menu and press [Enter].
c
Select Digital Zoom and press [Enter].
d
Press the left or right arrow button to adjust the zoom setting and press
e
[Enter].
Press [Menu] or [Esc] to exit the menus.
f
Page 67
Adjusting the Image Position Using Image Shift
67
You can use the Image Shift feature to adjust the image position without
moving the projector.
• This feature is available when you reduce the image using the Digital
a
Zoom setting.
• We recommend adjusting the image position at least 30 minutes after
you start projecting, because images are not stable right after turning
on the projector.
• You cannot use the Epson Setting Assistant app and the Image Shift
feature together. If you want to adjust the screen size and position
when using the Epson Setting Assistant app, adjust with Quick
Corner.
Select the Installation menu and press [Enter].
c
Select Image Shift and press [Enter].
d
Turn on the projector and display an image.
a
Press the [Menu] button on the control panel or remote control.
b
Page 68
Adjusting the Image Position Using Image Shift
Use the arrow buttons to adjust the image position.
e
68
Press the [Esc] button to close the adjustment screen.
f
The adjustment screen disappears if no operation is performed after
approximately 10 seconds.
• The Image Shift setting is retained even if the projector is turned off.
a
You need to re-adjust the position if you change the installation
location or angle of the projector.
Page 69
Selecting an Image Source
69
When multiple image sources are connected to the projector, such as a
computer and DVD player, you can switch from one image source to the
other.
Make sure the connected image source you want to use is turned on.
a
For video image sources, insert a DVD or other video media and press
b
play.
Do one of the following:
c
• Press the [Source] button on the control panel or the [Source Search]
button on the remote control until you see the image from the source
you want.
This screen is displayed when no image signal is detected.
a
• Press the button for the source you want on the remote control. If
there is more than one port for that source, press the button again to
cycle through the sources.
Check the cable connections between the projector and image
source.
HDMI and HDBaseT sources (HDMI1, HDMI2, and HDBaseT ports)
A
USB port sources (USB-B port and external devices connected to the
B
USB-A ports)
Network source (LAN and Screen Mirroring)
C
Page 70
Selecting an Image Source
• Press the [Home] button on the control panel or remote control.
Then select the source you want to use from the screen displayed.
70
a
• The display order of the input sources changes when the
projector detects an input signal. (The detected input source
appears in the upper left position.)
• A check mark appears on the image from the current input
source. You can check a preview of the current input image
for most sources as a thumbnail (other than the USB input
source in Content Playback mode).
Page 71
Image Aspect Ratio
71
The projector can display images in different width-to-height ratios called
aspect ratios. Normally, the input signal from your video source determines
the image's aspect ratio.
If you always want to use a particular aspect ratio for a certain video input
source, you can select it using the projector's Image menu.
gg Related Links
• "Changing the Image Aspect Ratio" p.71
• "Available Image Aspect Ratios" p.71
Changing the Image Aspect Ratio
You can change the aspect ratio of the displayed image.
• Set the Screen Type setting in the projector's Installation menu
a
Turn on the projector and switch to the image source you want to use.
a
before changing the aspect ratio.
• Available only when the following conditions are met:
• The Scale setting is turned off or the Scale Mode setting is set to
Full Display.
s Image > Scale > Scale Mode
• The current source is HDMI, HDBaseT, or USB and document
camera.
The shape and size of the displayed image changes, and the name of the
aspect ratio appears briefly on the screen.
To cycle through the available aspect ratios for your input signal, press
c
the [Aspect] button repeatedly.
• The available aspect ratio setting varies depending on the input
a
signal.
• If there are margins between the edge of the image and the projected
screen frame, you can adjust the position of the image using the
Screen Position setting in the projector's Installation menu.
s Installation > Screen Type > Screen Position
Available Image Aspect Ratios
You can select the following image aspect ratios, depending on the selected
Screen Type setting and the input signal from your image source.
• Note that using the aspect ratio function of the projector to reduce,
a
enlarge, or split the projected image for commercial purposes or for
public viewing may infringe upon the rights of the copyright holder
of that image based on copyright law.
• When projecting images from an Epson document camera connected
by USB, you can select only Auto, H-Zoom, and V-Zoom.
Press the [Aspect] button on the remote control.
b
Aspect mode Description
Auto Automatically sets the aspect ratio according to the
input signal.
Full Displays images using the full size of the projection
area, but does not maintain the aspect ratio.
Page 72
Image Aspect Ratio
Aspect mode Description
H-Zoom
V-Zoom
(Not available when Screen
Type is set to 16:6)
Native
(Not available when Screen
Type is set to 16:6)
Displays images using the full width (H-Zoom) or full
height (V-Zoom) of the projection area and maintains
the aspect ratio of the image. Areas that exceed the
edges of the projected screen are not projected.
Displays images as is (aspect ratio and resolution are
maintained). Areas that exceed the edges of the
projected screen are not projected.
72
Page 73
Adjusting Image Quality (Color Mode)
73
The projector offers different color modes to provide optimum brightness,
contrast, and color for a variety of viewing environments and image types.
You can select the mode designed to match your image and environment, or
experiment with the available modes.
gg Related Links
• "Changing the Color Mode" p.73
• "Available Color Modes" p.73
• "Turning On Automatic Luminance Adjustment" p.73
Changing the Color Mode
You can change the projector's Color Mode using the remote control to
optimize the image for your viewing environment.
Turn on the projector and switch to the image source you want to use.
a
Press the [Color Mode] button on the remote control to change the
b
Color Mode.
You can also set the Color Mode setting in the projector's Image
a
menu.
Available Color Modes
You can set the projector to use these color modes, depending on the input
source you are using:
Color mode Description
Dynamic This is the brightest mode. Best for prioritizing
brightness.
Presentation Best for projecting vivid images.
Face Brightness This brightens a person's face. Best for projecting
content such as video conferencing.
Cinema Best for enjoying content such as movies.
Natural Best for faithfully reproducing the color
representation of the content.
Blackboard Best for projecting images directly on a green
chalkboard.
DICOM SIM Best for projecting X-ray photographs and other
medical images. This mode is for reference purposes
only and should not be used to make medical
diagnoses.
Multi-Projection Best for projecting from multiple projectors (reduces
the color tone difference between images).
The name of the Color Mode appears briefly on the screen and then
image appearance changes.
To cycle through all of the available color modes for your input signal,
c
press the [Color Mode] button repeatedly.

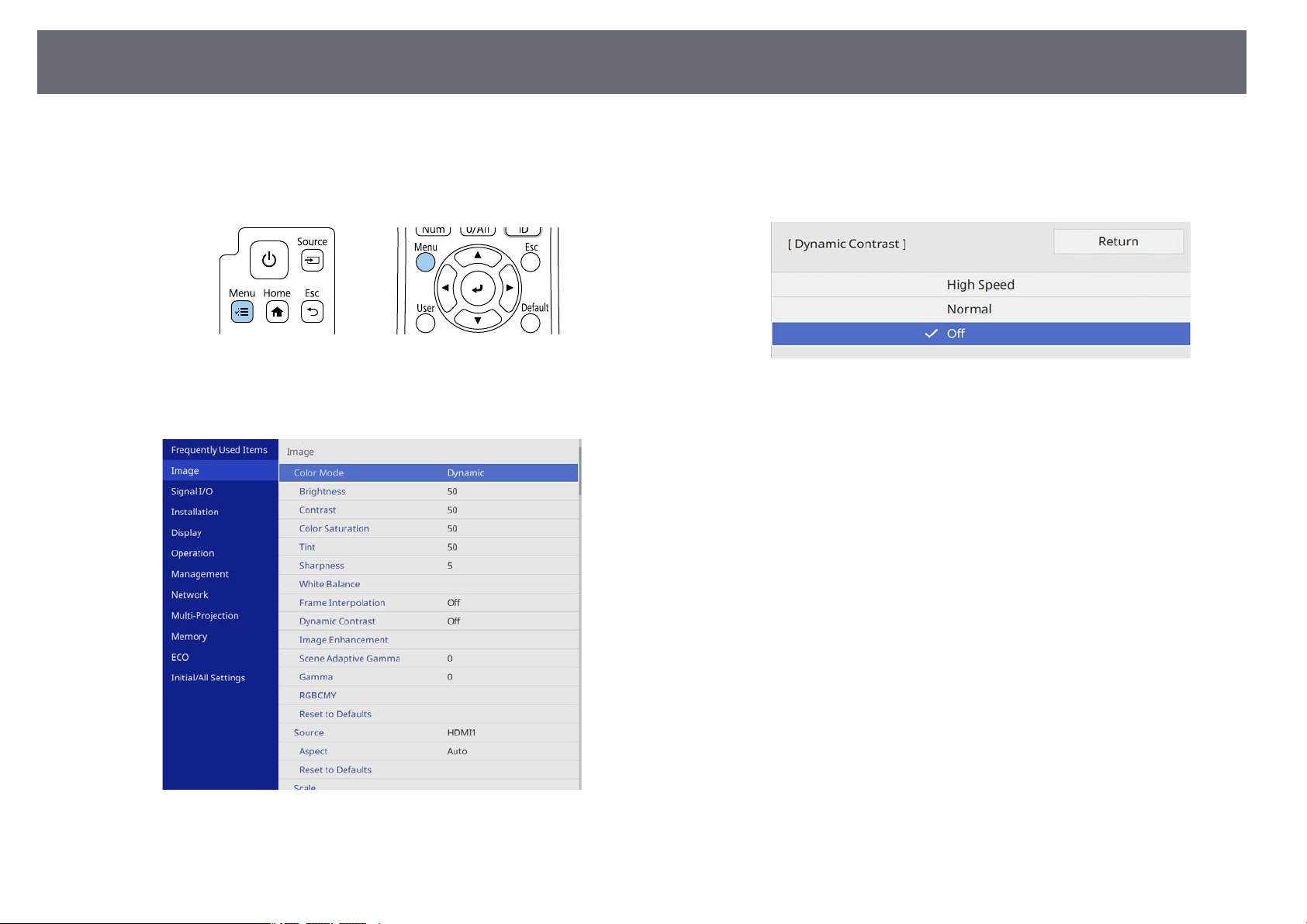

Turning On Automatic Luminance Adjustment
You can turn on Dynamic Contrast to automatically optimize the image
luminance. This improves the image contrast based on the brightness of the
content you project.
Page 74
Adjusting Image Quality (Color Mode)
74
Turn on the projector and switch to the image source you want to use.
a
Press the [Menu] button on the control panel or remote control.
b
Select the Image menu and press [Enter].
c
Choose one of the following options and press [Enter]:
e
• Normal for standard brightness adjustment.
• High Speed to adjust brightness as soon as the scene changes.
Press [Menu] or [Esc] to exit the menus.
f
Select Dynamic Contrast and press [Enter].
d
Page 75
Setting Frame Interpolation
75
You can use the projector's Frame Interpolation feature to smooth fastmoving video by comparing consecutive image frames and inserting an
intermediate image frame between them.
Frame Interpolation is available in these conditions:
• This setting is available when using one of the following input sources:
• HDMI1
• HDMI2
• HDBaseT
• Edge Blending is set to Off in the projector's Multi-Projection menu.
Turn on the projector and switch to the image source you want to use.
a
Select the Image menu and press [Enter].
c
Select Frame Interpolation and press [Enter].
d
Press the [Menu] button on the control panel or remote control.
b
Select the level of interpolation and press [Enter].
e
Press [Menu] or [Esc] to exit the menus.
f
Page 76
Setting Frame Interpolation
If your resulting images contain noise, turn off the Frame
a
Interpolation setting.
76
Page 77
Adjusting the Image Color
77
You can fine-tune various aspects of how colors are displayed in your
projected images.
gg Related Links
• "Adjusting the Hue, Saturation, and Brightness" p.77
• "Adjusting the Gamma" p.78
Adjusting the Hue, Saturation, and Brightness
You can adjust the Hue, Saturation, and Brightness settings for individual
image colors.
Turn on the projector and switch to the image source you want to use.
a
Press the [Menu] button on the control panel or remote control.
b
Select the Image menu and press [Enter].
c
Select RGBCMY and press [Enter].
d
Select the color to adjust, and press [Enter].
e
Page 78
Adjusting the Image Color
78
Do the following as necessary for each setting:
f
• To adjust the overall hue of the color, bluish - greenish - reddish,
adjust the Hue setting.
• To adjust the overall vividness of the color, adjust the Saturation
setting.
• To adjust the overall color brightness of the color, adjust the
Brightness setting.
Press [Menu] or [Esc] to exit the menus.
g
Adjusting the Gamma
Press the [Menu] button on the control panel or remote control.
b
Select the Image menu and press [Enter].
c
You can correct differences in projected image colors that occur between
different image sources by adjusting the Gamma setting.
To optimize the color tone according to the scene, and to obtain a
a
a
more vivid image, correct the image by adjusting the Scene Adaptive
Gamma setting.
Turn on the projector and switch to the image source you want to use.
Select Gamma and press [Enter].
d
Page 79
Adjusting the Image Color
79
Select and adjust the correction value.
e
When you select a smaller value, you can reduce the overall brightness
of the image to make the image sharper. When you select a larger value,
the dark areas of images become brighter, but the color saturation for
lighter areas may become weaker.
• If you set the Color Mode setting to DICOM SIM in the
a
If you want to make finer adjustments, select Custom and press
f
[Enter].
Press the left or right arrow buttons to select the color tone you want to
g
adjust on the gamma adjustment graph. Then press the up or down
arrow button to adjust the value and press [Enter].
projector's Image menu, select the adjustment value according
to the projection size.
• If the projection size is 100 inches or less, select a small
value.
• If the projection size is 100 inches or more, select a large
value.
• Medical images may not be reproduced correctly depending on
your settings and screen specifications.
Press [Menu] or [Esc] to exit the menus.
h
Page 80

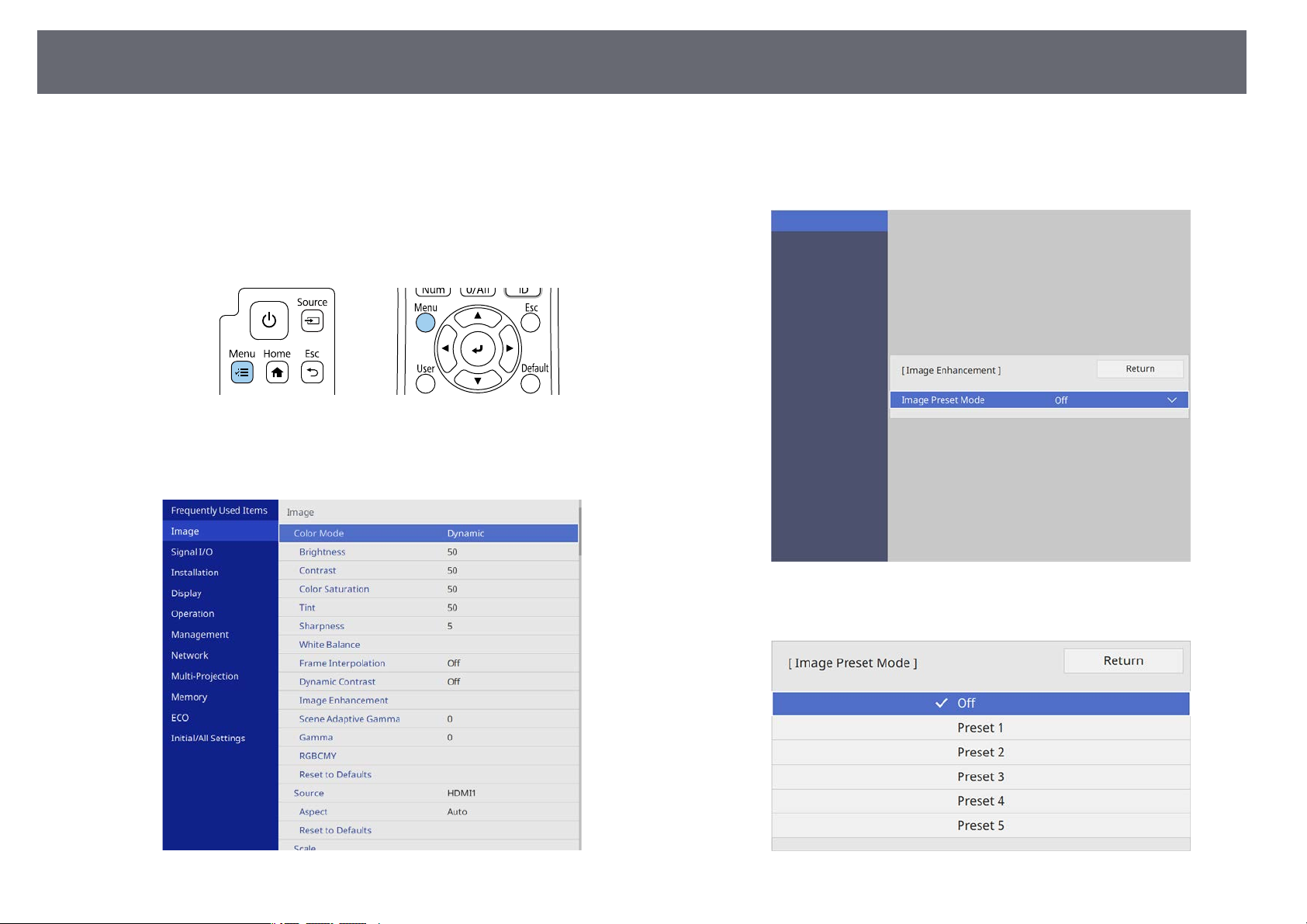

Adjusting the Image Resolution
80
You can adjust the resolution of the image to reproduce a clear image with an
emphatic texture and material feel.
Turn on the projector and switch to the image source you want to use.
a
Press the [Menu] button on the control panel or remote control.
b
Select the Image menu and press [Enter].
c
Select Image Enhancement and press [Enter].
d
Select Image Preset Mode and press [Enter].
e
Select the preset option and press [Enter].
f
Page 81
Adjusting the Image Resolution
The following settings saved in the preset option are applied to the
image.
• Noise Reduction
• MPEG Noise Reduction
• Super-resolution
• Auto Contrast Enhancement
Adjust each setting in the projector's Image menu individually as
g
necessary.
• To reduce flickering in images, adjust the Noise Reduction setting.
• To reduce the noise or artifacts seen in MPEG video, adjust the
MPEG Noise Reduction setting.
• To reduce blurring appeared when projecting low resolution image,
adjust the Super-resolution setting.
• To create a clearer and sharper image by automatically adjusting the
contrast, adjust the Auto Contrast Enhancement setting.
81
The settings value in the preset option are overwritten.
a
Press [Menu] or [Esc] to exit the menus.
h
Page 82
Adjusting the Brightness
82
You can adjust the brightness of your projector's light source.
Turn on the projector and switch to the image source you want to use.
a
Press the [Menu] button on the control panel or remote control.
b
Select the Operation menu and press [Enter].
c
Select Light Source Brightness Control and press [Enter].
d
If you want to maintain the brightness at a specific level, select the
e
Maintain Brightness setting and select On.
If you turn on Maintain Brightness, select the Maintain Brightness
f
Level setting.
If you turn off Maintain Brightness, select the Light Source Mode
g
setting:
• Normal lets you set the brightness to the maximum level. This makes
the light source operation time approximately 20,000 hours.
• Quiet lets you set the brightness to 70% and reduces fan noise. This
makes the light source operation time approximately 20,000 hours.
• Extended lets you set the brightness to 70% and extends the life
expectancy of the light source. This makes the light source operation
time approximately 30,000 hours.
Page 83
Adjusting the Brightness
83
• Custom lets you to select a custom brightness level between 50 to
100%.
If you set the Light Source Mode setting to Custom, select Brightness
h
Level and use the left and right arrow buttons to select the brightness.
Press [Menu] or [Esc] to exit the menus.
i
For the best results in maintaining a constant brightness, set the Light
a
Source Calibration setting to Run Periodically in the projector's
Management menu.
Light Source Operation Time
The light source operation time varies depending on the Brightness Level
setting and whether Maintain Brightness is on or off.
• The light source operation time varies depending on the
a
Maintain Brightness off
Brightness Level setting Time before the brightness of the light source is
100% 20,000 hours
90% 21,000 hours
80% 24,000 hours
70% 30,000 hours
60% 37,000 hours
50% 47,000 hours
Maintain Brightness on
environmental conditions and usage.
• The hours listed here are an approximate and are not guaranteed.
• You may need to replace internal parts sooner than the estimated
light source operation time.
• If Maintain Brightness is turned on, and you have exceeded the
usage hours listed here, you may not be able to select a high
Maintain Brightness Level setting.
reduced by half (approximate)
gg Related Links
• "Light Source Operation Time" p.83
• "Projector Specifications" p.252
Page 84
Adjusting the Brightness
Maintain brightness level
A
Time the projector can maintain constant brightness (approximate)
B
84
Maintain Brightness Level
setting
85% 6,000 hours
80% 10,000 hours
70% 19,000 hours
60% 29,000 hours
50% 41,000 hours
Time the projector can maintain constant brightness
(approximate)
Page 85
Controlling the Volume with the Volume Buttons
The volume buttons control the projector's internal speaker system.
You can also control the volume of any external speakers you connected to
the projector.
You must adjust the volume separately for each connected input source.
Turn on the projector and start a presentation.
a
To lower or raise the volume, press the [Volume] buttons on the
b
control panel or remote control.
85
A volume gauge appears on the screen.
To set the volume to a specific level for an input source, select Volume
c
in the projector's Signal I/O menu.
Caution
Do not start a presentation at a high volume setting. Sudden loud noises may cause
hearing loss.
Always lower the volume before powering off, so that you can power on and then
gradually increase the volume.
Page 86
Adjusting the Sound Settings (Sound Mode)
86
The projector offers various sound settings to fine-tune the sound quality for
a variety of listening environments.
You can select the mode designed to match your image, or experiment with
the available modes.
Sound settings explained in the following section are only available for
a
a
b
sound that is being output from the projector's speaker.
Turn on the projector and start a video.
Press the [Menu] button on the control panel or remote control.
Select the Signal I/O menu and press [Enter].
c
Select Sound Mode and press [Enter].
d
Select your sound mode and press [Enter].
e
Press [Menu] or [Esc] to exit the menus.
f
gg Related Links
• "Available Sound Modes" p.86
Available Sound Modes
You can set the following sound modes in the projector's Sound menu.
Page 87
Adjusting the Sound Settings (Sound Mode)
Sound mode Description
Standard Outputs the audio using normal sound quality.
Clear Voice Adjusts the voice so that it can be heard clearly.
87
Page 88
Inverting the Audio Channels
88
You can invert the audio's left and right channels to match the projector
installation position.
Turn on the projector and start a presentation.
a
Press the [Menu] button on the control panel or remote control.
b
Select the Signal I/O menu and press [Enter].
c
Select Inverse Audio and press [Enter].
d
Select setting according to the installation position and press [Enter].
e
• When the projector is mounted to the wall or ceiling, set to On.
• When the projector is placed on a table, set to Off.
Press [Menu] or [Esc] to exit the menus.
f
Page 89
Adjusting Projector Features
Follow the instructions in these sections to use your projector's adjustment features.
gg Related Links
• "Projecting Two Images Simultaneously" p.90
• "Projecting a PC Free Presentation" p.92
• "Projecting in Content Playback Mode" p.97
• "Shutting Off the Image and Sound Temporarily" p.103
• "Stopping Video Action Temporarily" p.104
• "Zooming Images" p.105
• "Saving a User's Logo Image" p.106
• "Saving a User Pattern" p.108
• "Saving Settings to Memory and Using Saved Settings" p.110
• "Using Multiple Projectors" p.111
• "Projector Security Features" p.125
Page 90
Projecting Two Images Simultaneously
90
You can use the split screen feature to simultaneously project two images
from different image sources. You can control the split screen feature using
the remote control or the projector menus.
Press the [Split] button on the remote control.
a
The currently selected input source moves to the left of the screen.
You can perform the same operations from Split Screen in the
a
Press the [Menu] button.
b
Do the following as necessary:
c
projector's Display menu.
a
• While using the split screen feature, other projector features may not
be available and some settings may be automatically applied to both
images.
• You cannot perform split screen projection when the Content
Playback setting is set to On in the projector's Operation menu.
• You may not be able to perform split screen projection when you use
the Scale feature or the Edge Blending feature.
Page 91
Projecting Two Images Simultaneously
91
Select the input source.
A
You can only select input sources that can be
a
Select the screen from which you want to hear audio.
B
Select the screen size.
C
Select Execute and press [Enter].
d
To exit the split screen feature, press [Split] or [Esc].
e
gg Related Links
• "Unsupported Input Source Combinations for Split Screen Projection" p.91
• "Split Screen Projection Restrictions" p.91
combined.
Unsupported Input Source Combinations for Split Screen Projection
These input source combinations cannot be projected simultaneously.
• Operations using the [User] button on the remote control, other than
displaying the network information on the projected surface.
• Applying the Dynamic Contrast setting
• Applying the Image Shift setting
• Displaying the network information on the projected surface by a method
other than pressing the [User] button.
• Displaying the Screen Mirroring information bar
Image restrictions
• Even if you set No-signal Screen to Logo in the projector's Display menu,
the blue screen appears when no image signal is being input.
gg Related Links
• "Image Aspect Ratio" p.71
• "Zooming Images" p.105
• "Turning On Automatic Luminance Adjustment" p.73
• "Adjusting the Menu Settings" p.178
• HDMI1, HDMI2, and HDBaseT
• USB, USB Display, and LAN
Split Screen Projection Restrictions
Operating restrictions
The following operations cannot be performed during split screen projection.
• Setting the projector's menu
• E-Zoom
• Switching the aspect mode (the aspect mode is set to Auto)
Page 92
Projecting a PC Free Presentation
92
You can use your projector's PC Free feature whenever you connect a USB
device that contains compatible presentation files. This lets you quickly and
easily display a presentation and control it using the projector's remote
control.
gg Related Links
• "Supported PC Free File Types" p.92
• "Precautions on PC Free Projection" p.93
• "Starting a PC Free Slide Show" p.93
• "Starting a PC Free Movie Presentation" p.95
• "PC Free Display Options" p.96
File contents File type
(extension)
Image .jpg Make sure the file is not:
.bmp Make sure the file is not:
.gif Make sure the file is not:
.png Make sure the file is not:
Details
• CMYK format
• Progressive format
• Highly compressed
• Above 8,192 × 8,192 resolution
• Above 1,280 × 800 resolution
• Above 1,280 × 800 resolution
• Animated
• Interlaced
• Above 1,920 × 1,200 resolution
• Interlaced
When you use a projector with a resolution of 1,080p,
you can project a file with a maximum resolution of
1,920 × 1,200.
Supported PC Free File Types
You can project these types of files using the projector's PC Free feature.
• For best results, place your files on media that is formatted in
a
FAT16/32.
• If you have trouble projecting from media formatted for nonWindows file systems, try formatting the media for Windows
instead.
File contents File type
(extension)
Movie .avi
(Motion
JPEG)
Details
• Version: AVI 1.0 only
• Resolution: 1280 × 720 or less
• Size: 2 GB or less
• Movie Codec: Motion JPEG
• Frame Rate: up to 30 fps
• Audio Codec: LPCM or IMA ADPCM
• Audio Sampling Rate: 11.025 kHz, 16 kHz, 22.05 kHz,
24 kHz, 32 kHz, 44.1 kHz, or 48 kHz
Page 93
Projecting a PC Free Presentation
93
File contents File type
(extension)
Movie .mp4/.mov
(H.264,
H265)
Details
• Resolution: 1920 × 1200 or less
• Size: 2 GB or less
• Movie Codec: H.264/MPEG-4 AVC or H.265/MPEGH HEVC
• Frame Rate: up to 30 fps
• Profile:
• H.264/MPEG-4 AVC: Baseline Profile, Main Profile,
High Profile
• H.265/MPEG-H HEVC: Main Profile
• Color Format: YUV420
• Single slice structure
• Audio Codec: MPEG-2 AAC-LC, MPEG-4 AAC-LC,
or LPCM
• Audio Channel: up to 2ch (channel 2)
• Audio Bit: 8 bits or 16 bits
• Audio Sampling Rate:
• MPEG-2 AAC-LC: 44.1 kHz, 48 kHz
• MPEG-4 AAC-LC: 44.1 kHz, 48 kHz
• LPCM: 11.025 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32
kHz, 44.1 kHz, or 48 kHz
• When connecting a USB device that includes an AC adapter, connect the
AC adapter to an electrical outlet when you use the device with your
projector.
• Some commercially available USB card readers may not be compatible with
the projector.
• The projector can recognize up to 5 cards inserted into the connected card
reader at one time.
• You can use the following functions while projecting in PC Free.
• Freeze
• A/V Mute
• E-Zoom
gg Related Links
• "Stopping Video Action Temporarily" p.104
• "Shutting Off the Image and Sound Temporarily" p.103
• "Zooming Images" p.105
Starting a PC Free Slide Show
After connecting a USB device to the projector, you can switch to the USB
input source and start your slide show.
Precautions on PC Free Projection
Note the following precautions when using PC Free features.
• You cannot use a USB key for PC Free features.
• Do not disconnect the USB storage device while it is being accessed;
otherwise, PC Free may not operate correctly.
• You may not be able to use the security features on certain USB storage
devices with PC Free features.
a
• You can change the PC Free operation options or add special effects
by highlighting Option at the bottom of the screen and pressing
[Enter].
Page 94
Projecting a PC Free Presentation
94

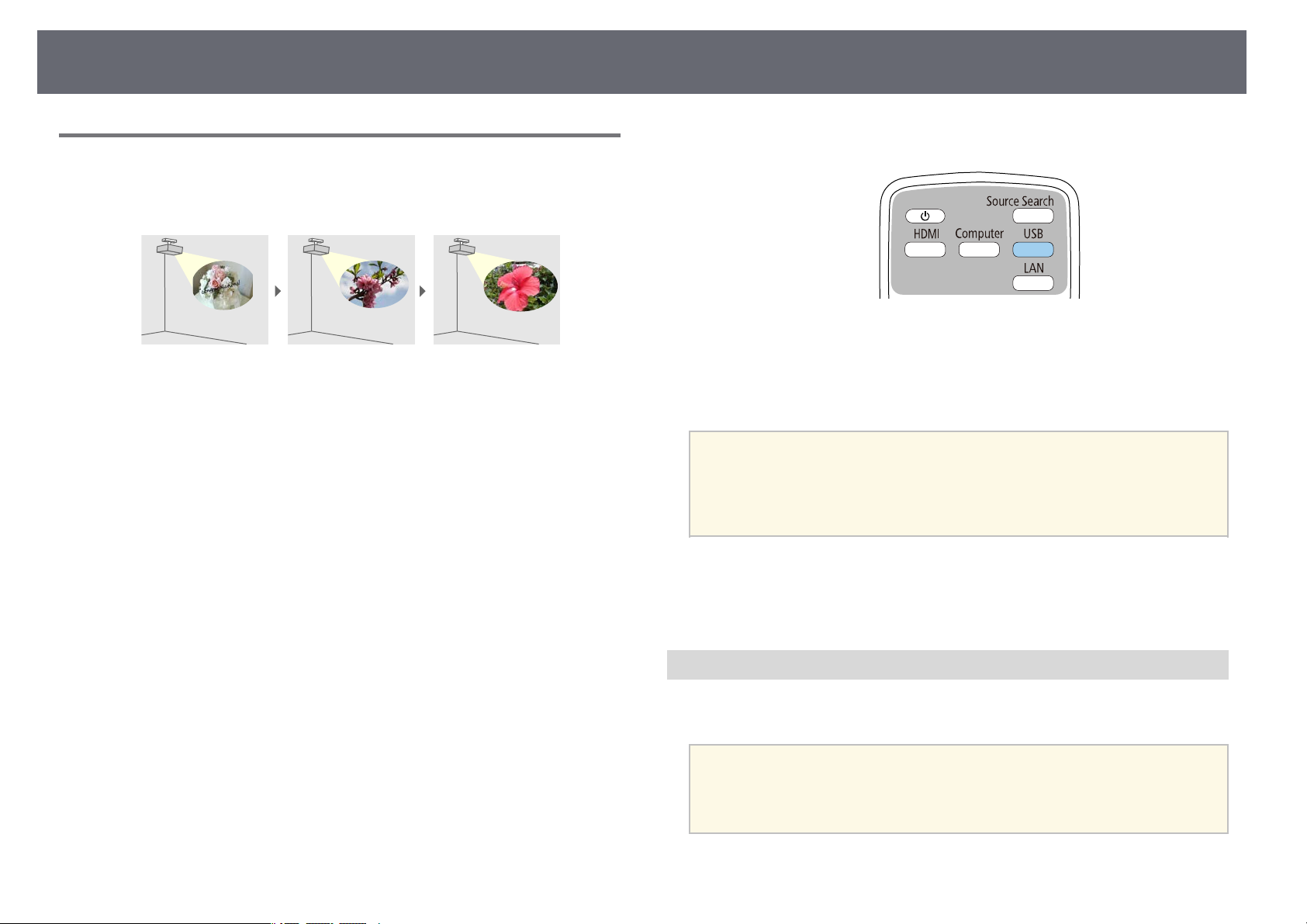

Press the [USB] button on the remote control until the PC Free file list
a
screen appears.
• If the Select Drive screen is displayed, press the arrow buttons
a
to select the drive and press [Enter].
• To display images on the other USB drive, highlight Select
Drive at the top of the file list screen and press [Enter].
• To display a slide show of all the images in a folder, press the arrow
buttons to highlight the Slideshow option at the bottom of the screen
and press [Enter].
• You can change the image switching time by highlighting
a
While projecting, use the following commands to control the display:
d
• To rotate a displayed image, press the up or down arrow button.
Option at the bottom of the screen and pressing [Enter].
• If any file names are longer than the display area or include
unsupported symbols, the file names may be shortened or
changed only on the screen display.
Do one of the following to locate your files:
b
• If you need to display files inside a subfolder on your device, press
the arrow buttons to highlight the folder and press [Enter].
• To move back up a folder level on your device, highlight Back to
Top and press [Enter].
• To view additional files in a folder, highlight Next Page or Previous
Page and press [Enter].
Do one of the following:
c
• To display an individual image, press the arrow buttons to highlight
the image and press [Enter]. (Press the [Esc] button to return to the
file list screen.)
• To move to the next or previous image, press the left or right arrow
button.
To stop the display, follow the on-screen instructions or press the [Esc]
e
button.
You return to the file list screen.
Page 95
Projecting a PC Free Presentation
95
Turn off the USB device, if necessary, and then disconnect the device
f
from the projector.
gg Related Links
• "PC Free Display Options" p.96
• "Connecting to a USB Device" p.33
Starting a PC Free Movie Presentation
After connecting a USB device to the projector, you can switch to the USB
input source and start your movie.
• You can change the PC Free operation options by highlighting
a
Press the [USB] button on the remote control until the PC Free file list
a
screen appears.
Option at the bottom of the screen and pressing [Enter].
• If the Select Drive screen is displayed, press the arrow buttons
a
Do one of the following to locate your files:
b
• If you need to display files inside a subfolder on your device, press
the arrow buttons to highlight the folder and press [Enter].
• To move back up a folder level on your device, highlight Back to
Top and press [Enter].
• To view additional files in a folder, highlight Next Page or Previous
Page and press [Enter].
To play back a movie, press the arrow buttons to highlight the file and
c
press [Enter].
a
to select the drive and press [Enter].
• To display images on the other USB drive, highlight Select
Drive at the top of the file list screen and press [Enter].
• If any file names are longer than the display area or include
unsupported symbols, the file names may be shortened or
changed only on the screen display.
• If you want to play back all the movies in a folder in sequence,
select the Slideshow option at the bottom of the screen.
To stop movie playback, press the [Esc] button, highlight Exit, and
d
press [Enter].
You return to the file list screen.
Turn off the USB device, if necessary, and then disconnect the device
e
from the projector.
gg Related Links
• "PC Free Display Options" p.96
• "Connecting to a USB Device" p.33
Page 96
Projecting a PC Free Presentation
96
PC Free Display Options
You can select these display options when using PC Free. To access this
screen, highlight Option at the bottom of the PC Free file list screen and press
[Enter].
Setting Options Description
Display Order Name Order Displays files in name order
Date Order Displays files in date order
Sort Order In Ascending Sorts files in first-to-last order
In Descending Sorts files in last-to-first order
Continuous Play On Displays a slide show continuously
Off Displays a slide show once
Screen Switching
Time
No Does not display the next file
automatically
1 Second to 60 Seconds Displays files for the selected time
and switches to the next file
automatically; high resolution images
may switch at a slightly slower rate
Setting Options Description
Effect No No effect
Wipe Transitions between images using a
wipe effect
Dissolve Transitions between images using a
dissolve effect
Random Transitions between images using a
random variety of effects
Page 97
Projecting in Content Playback Mode
97
Your projector's Content Playback feature allows you to project your digital
signage content. You can easily project playlists that contain images and
movies saved on an external storage device. You can also add color and shape
effects to your projected image.
If you set the Content Playback setting to On when the Screen Type
a
a
b
setting is set to a different aspect ratio from the projector's resolution,
the Screen Type setting is reset.
Turn on the projector.
Press the [Menu] button, select the Operation menu, and then press
[Enter].
gg Related Links
• "Switching to Content Playback Mode" p.97
• "Projecting Your Playlists" p.98
• "Adding Effects to Your Projected Image" p.100
• "Content Playback Mode Restrictions" p.102
Switching to Content Playback Mode
Before you project your playlists, you need to switch to Content Playback
mode.
Select the Content Playback setting and set it to On.
c
You see a confirmation prompt.
Turn off the projector, then turn it on again to enable Content Playback
d
mode.
Page 98
Projecting in Content Playback Mode
98
Projecting Your Playlists
You can project playlists that contain images and movies in Content Playback
mode.
Create your playlists and export them to a USB flash drive using one of
a
the following methods:
• The Epson Projector Content Manager software lets you create
playlists and save them on an external storage device. You can also
add color and shape effects to your projected image, and schedule
playlists.
You can download and install Epson Projector Content Manager
from the following Web site.
epson.sn
See the Epson Projector Content Manager Operation Guide for
instructions.
Press the [USB] button on the remote control.
c
The playlist that was played last is projected. If there is a timetable
assigned, the playlist will play back according to the schedule in the
timetable.
• You can also hold down the [Num] and numeric buttons to project
a
gg Related Links
• "Creating Playlists Using Epson Web Control" p.98
• "Getting the Latest Version of the Documents" p.9
your favorite playlist. You can set a remote control shortcut key
using the software you used to create the playlists.
• To select the target playlist from the list, select USB Viewer in the
projector's Operation menu, and use the arrow buttons.
• Epson Web Control allows you to create playlists using a Web
browser and save them to an external storage device connected to a
projector on a network. You can also add color and shape effects to
your projected image.
• The Epson Creative Projection app lets you create content on iOS
devices. You can also transfer content to the projector wirelessly.
You can download Epson Creative Projection from the App Store.
Any fees incurred when communicating with the App Store are the
responsibility of the customer.
In Content Playback mode, connect the USB flash drive into the
b
projector's USB-A port.
Creating Playlists Using Epson Web Control
In Content Playback mode, you can create playlists using a Web browser and
save them to a USB flash drive connected to a projector on a network.
Attention
Do not remove the USB flash drive from the projector or disconnect the projector's
power cord while creating playlists. Data saved on the USB flash drive may be
damaged.
Make sure the projector is operating in Content Playback mode.
a
Page 99
Projecting in Content Playback Mode
99
Make sure your computer or device is connected to the same network
b
as the projector.
Make sure a USB flash drive is connected to the projector's USB-A port.
c
Start your Web browser on your computer or device.
d
Go to the Epson Web Control screen by entering the projector's IP
e
address into the browser's address box. When entering an IPv6 address,
wrap the address with [ and ].
Select USB Memory Device.
f
Select Upload New Data.
g
Select the images or movies you want to add to the playlist.
h
You can upload .avi, .jpeg (.jpg), .png, .bmp, or .gif files.
a
If you want to add .mp4 or .mov files to the playlist, use the
Epson Projector Content Manager software or the Epson
Creative Projection app.
The selected files are copied to the connected USB flash drive.
Do one of the following:
i
• To add them to the existing playlist, select Add to Playlist and select
the playlist you want to add them to.
• To create a new playlist and add them to it, select Create New
Playlist.
Page 100
Projecting in Content Playback Mode
100
Edit the playlist.
j
Opens the Switch Image screen.
G
You can specify the time interval to switch to the next image file. You can
also select a transition effect.
Opens the Effects screen.
H
You can add predefined color and shape effect filters to a playlist. You
can also create a customized effect.
Previews the playlist.
I
When you have finished editing the playlist, select Finish.
k
• You can play the playlist from the Remote or Playlist screen.
a
gg Related Links
• "Web Control Options" p.159
• When you want to specify when the playlist starts and finishes,
schedule the playlist using the Epson Projector Content Manager
software.
Adding Effects to Your Projected Image
Edits the playlist name.
A
Selects whether to enable repeat playback or not.
B
Registers the playlist to your favorites.
C
When a playlist has been registered as a favorite, you can start playback
quickly using the Remote screen or the remote control.
Displays the images or movies you have added to the playlist. The playlist
D
plays the images or movies in order.
Adds images or movies to the playlist.
E
Deletes images or movies from the playlist.
F
You can add color and shape effects to the projected image in Content
Playback mode.
