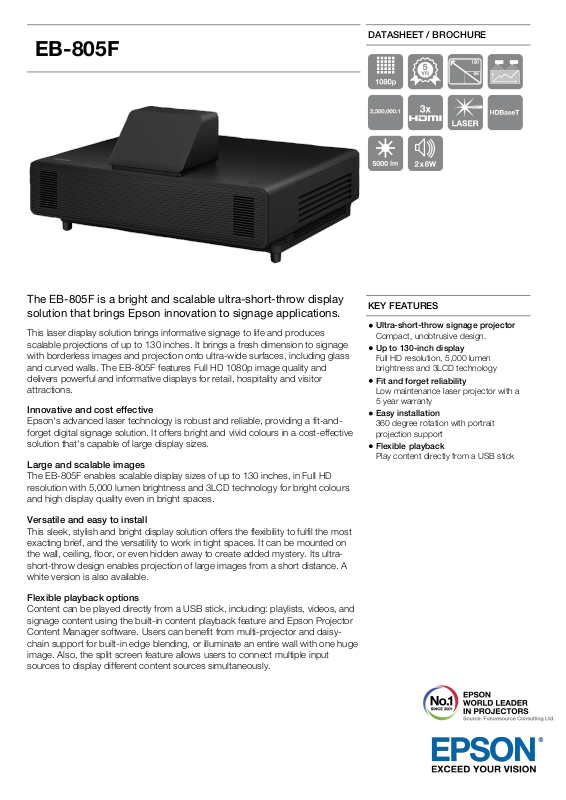

EB-805F

DATASHEET / BROCHURE

The EB-805F is a bright and scalable ultra-short-throw display
solution that brings Epson innovation to signage applications.

This laser display solution brings informative signage to life and produces
scalable projections of up to 130 inches. It brings a fresh dimension to signage
with borderless images and projection onto ultra-wide surfaces, including glass
and curved walls. The EB-805F features Full HD 1080p image quality and
delivers powerful and informative displays for retail, hospitality and visitor
attractions.

Innovative and cost effective

Epson's advanced laser technology is robust and reliable, providing a fit-and­forget digital signage solution. It offers bright and vivid colours in a cost-effective
solution that's capable of large display sizes.

Large and scalable images

The EB-805F enables scalable display sizes of up to 130 inches, in Full HD
resolution with 5,000 lumen brightness and 3LCD technology for bright colours
and high display quality even in bright spaces.

Versatile and easy to install

This sleek, stylish and bright display solution offers the flexibility to fulfil the most
exacting brief, and the versatility to work in tight spaces. It can be mounted on
the wall, ceiling, floor, or even hidden away to create added mystery. Its ultra­short-throw design enables projection of large images from a short distance. A
white version is also available.

KEY FEATURES

Ultra-short-throw signage projector

Compact, unobtrusive design.

Up to 130-inch display

Full HD resolution, 5,000 lumen
brightness and 3LCD technology

Fit and forget reliability

Low maintenance laser projector with a
5 year warranty

Easy installation

360 degree rotation with portrait
projection support

Flexible playback

Play content directly from a USB stick

Flexible playback options

Content can be played directly from a USB stick, including: playlists, videos, and
signage content using the built-in content playback feature and Epson Projector
Content Manager software. Users can benefit from multi-projector and daisy­chain support for built-in edge blending, or illuminate an entire wall with one huge
image. Also, the split screen feature allows users to connect multiple input
sources to display different content sources simultaneously.

PRODUCT SPECIFICATIONS

TECHNOLOGY

Projection System 3LCD Technology
LCD Panel 0.62 inch with C2 Fine


Color Light Output 5,000 Lumen- 3,500 Lumen (economy)
White Light Output 5,000 Lumen - 3,500 Lumen (economy)
Resolution Full HD 1080p, 1920 x 1080, 16:9
Aspect Ratio 16:9
Contrast Ratio Over 2,500,000 : 1
Light source Laser
Laser Light source 20,000 hours Durability High, 30,000 hours Durability Eco
Keystone Correction Manual vertical: ± 3 °, Manual horizontal ± 3 °
Colour Video Processing 10 Bits
2D Vertical Refresh Rate 192 Hz - 240 Hz
Colour Reproduction Upto 1.07 billion colours

OPTICAL

Throw Ratio 0.27 - 0.37:1
Zoom Digital, Factor: 1 - 1.35
Lens Optical
Screen Size 65 inches - 130 inches
Projection Distance Wide 0.4 m ( 65 inch screen
Projection Distance Tele 0.8 m ( 130 inch screen
Projection Lens F Number 1.5
Projection Lens Focal Length 3.9 mm
Projection Lens Focus Manual
Offset 9 : 1

CONNECTIVITY

Interfaces USB 2.0 Type A (2x), USB 2.0 Type B, Powered USB, RS-232C, Ethernet interface (100 Base-

TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac (optional), VGA in (2x), VGA out, HDMI in
(3x), HDMI out, Composite in, HDBaseT, Miracast (optional), Stereo mini jack audio out, Stereo

mini jack audio in (3x)
Epson iProjection App Ad-Hoc / Infrastructure
Network Protocol HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

ADVANCED FEATURES

Security Kensington lock, Password lock, Padlock, Security cable hole, Password protection
Other features Arc Correction, Auto Power On, Auto source search, Built-in speaker, Customizable user logo,

Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera

Compatible, Driverless installation, Edge Blending, Email notification, Home Screen,

Horizontal and vertical keystone correction, Image Shift, Long light source life, Network

administration, OSD copy function, Quick Corner, Schedule Function, Split-Screen-Function,

Ultra-wide display (16:6), Web Control, Web Remote, iProjection App
Video Color Modes Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection
Projector control via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device

Discovery, Control4 Simple Device Discovery Protocol

EB-805F

WHAT'S IN THE BOX

CD Manual
Remote control incl. batteries
Cable cover
Power cable
Warranty document
Lens cap

PRODUCT SPECIFICATIONS

GENERAL

Power consumption 366 Watt, 262 Watt (economy), 0.5 Watt (standby)
Heat Dissipation 1,244 BTU/hour (max)
Supply Voltage AC 220 V - 240 V, 50 Hz - 60 Hz
Product dimensions 458 x 375 x 210 mm (Width x Depth x Height)
Product weight 9.4 kg
Noise Level Normal: 36 dB (A) - Economy: 27 dB (A)
Supported Temperature Storage -10° C - 60° C
Supported Humidity Operation 20% - 80%, Storage 10% - 90%

If the projector is suspended from a ceiling or wall mount and installed in an environment with

heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke

or bubbles are used for event staging, or where aroma oils are frequently burned, it can make

certain parts of our products susceptible to a material degradation which over time could

break and cause the projector to drop from the ceiling.

If you are concerned about the environment in which your projector is installed, or if you have

any other questions, please contact our support department and they can provide additional

assistance.
Included Software Content DIY App, iProjection, Epson Projector Content Manager, Epson Projector

Management
Options Wireless LAN unit
Loudspeaker 8 Watt, Stereo: Stereo
Room Type / Application Signage / Retail, Visitor Attraction
Positioning Ceiling Mounted, Desktop, Wall Mounted
Colour Black

OTHER

Warranty 60 months Carry in or 12,000 h

Optional warranty extension available

EB-805F

WHAT'S IN THE BOX

CD Manual
Remote control incl. batteries
Cable cover
Power cable
Warranty document
Lens cap

OPTIONAL ACCESSORIES

Wall Mount - ELPMB62 - EB-7xx / EB-8xx
V12HA06A06
HDBaseT Transmitter - ELPHD01
V12H547041
Active Speakers (2 x 15W) - ELPSP02
V12H467040DA
Dual Function Wireless Adapter (5Ghz Wireless & Miracast) -ELPAP11
V12H005A01
Control and Connection Box - ELPCB03
V12H927040DA
Air Filter - ELPAF56 - L600/EB-14XX Series
V13H134A56

LOGISTICS INFORMATION

SKU V11H923640

EAN code 8715946688695

Country of Origin China

EB-805F
