DOT MATRIX PRINTER RANGE
KEEPING BUSINESS
ON THE MOVE
EPSON
DOT MATRIX RANGE
Source: Interconnection Consulting, 2010
EPSON 9-PIN
Epson is the world’s largest manufacturer of dot matrix
printers with a product range that offers the ultimate
in high speed, low cost, reliable and durable printing
across all stationery types. Ideal for back ofce, high
volume data processing, and multi-part stationery –
for which there is simply no alternative – no other
technology offers such broad capability from a single
machine.
Offering a wider choice than any other manufacturer – and spanning every
duty cycle, from light to heavy duty – the Epson dot matrix range enables you
to strike exactly the right balance between capability, performance and cost.
DOT MATRIX PRINTERS
Featur ing durable, heavy and medium
duty printers for continuous data
processing and high speed back
ofce tasks. Competitively priced
– the Epson 9-pin dot matrix range
offers excep tional value.
Combining high precision alignment
and sophisticated paper handling
enables this comprehensive range of
narrow and wide carriage printers to
tackle the widest range of high speed
printing tasks with supreme accuracy,
ideal for commercial, industrial and
logistic applications – including
data processing, invoicing, stock
requisitions, cheque runs, label
printing etc.
NEW

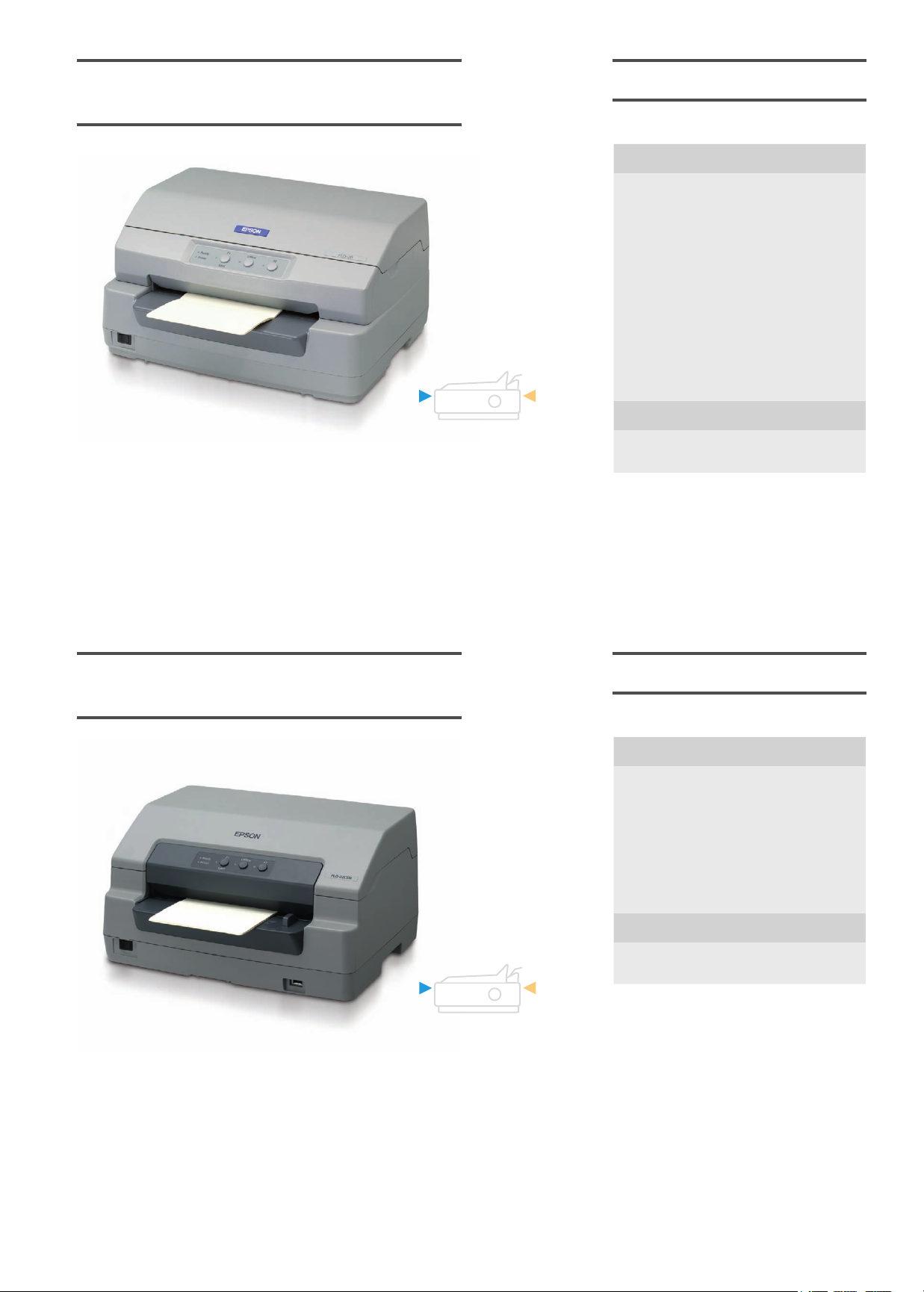

EPSON PLQ-22CS/22CSM
• Passbook printer with duplex scanner,
MSRW/MICR head and USB hub
• High reliability at Mean Time Between Failure
(MTBF) of 10,000 power on hours (POH)
• High ribbon yield of 10 million characters
EPSON 24-PIN
DOT MATRIX PRINTERS
Offering all the features available across
the Epson 9-pin range, but with the
addition of scalable fonts and letter
quality, for superior print quality, Epson
24-pin printers are ideal for front desk
applications in the retail and service
industries, and for tasks such as
invoice and order printing.
The range is further enhanced with
at-bed printers that enable 24-pin
printing to be achieved on thicker
materials and a wide variety of
non-standard stationery such
as receipts and label printing.
2
Printer Model Duty
Epson LX-300+II Light
Point
of sale
Instore Accounting Listing Passbook
Epson LX-1170II Medium
Epson FX-890 High
9-Pin
Epson FX-2190 High
Epson DFX-9000 Heavy
Epson LQ-50 Light
Epson LQ-300+II Light
Epson LQ-590 Medium
Epson LQ-630 Light
Epson LQ-680/680Pro Medium
Epson LQ-690 Medium
Epson LQ-2090 Medium
24-Pin
Epson LQ-2190 High
Epson DLQ-3500 Heavy
Epson PLQ-20/20M Medium
Epson PLQ-22CS Medium
Epson PLQ-22CSM Medium
Key Low Medium High
THE DOT MATRIX PRINTER ADVANTAGES
• Low TCO per print-outs (as low as 20 euro cents/
100 pages)
• Multi-part capability (up to 1 original + 9 copies)
• Long lasting print-outs (up to 100 years)
• Can work under harsh environments
(Hot, cold, dry, humid or dusty environments)
• Low maintenance
• Handles continuous paper (Good for transaction
continuity)
• Handles media of varying thickness
(Paper, multipart forms, envelopes, card etc)
• Multiple paper paths (Choose paper loading
paths that match your workstation environment)
• Handles cut sheets and continuous paper
simultaneously
COLOUR PRINTING
Colour printing highlights important information and
gives clarity to forms. Epson colour ribbons are ultra
tough and produce colourful results without bleed or
smudging. An easily installed colour upgrade is available
for selected printers.
COMPATIBILITY – ESC/P2
ESC/P (Epson Standard Code for Printers) is the defacto
standard dot matrix printer control language, worldwide.
Adopted in the vast majority of popular software packages,
ESC/P enables you to plug straight in – and print. The
versatility and quality of Epson impact printing is further
extended by ESC/P2 which enables Epson 24-pin printers
to achieve scalable fonts and high resolution graphics.
Fully compatible with existing software, ESC/P2 is
designed for use with non Windows® operating systems,
enabling you to achieve font manipulation without the
need for costly on-board processors. If you are working within the Windows® environment you will be able to
achieve your printer’s maximum speed by using printer
resident fonts.
3
EPSON DOT MATRIX PRINTER SELECTOR
speed is more important than print quality – 9 pin
≤ A4 ≤ A3/A4 landscape
PAPER SIZE
PRINT VOLUME
PRINT VOLUME
Low Low HighHigh
Epson
LX-300+II
Speed
Print volumes / durability
Footprint
Quieter printing
l m m m m
l m m m m llllm l m m m m llllm l m m m m
l m m m m l l m m m l l m m m llllm l m m m m
l m m m m l l l m m l m m m m l l l m m l m m m m
Flatbed printer atbed atbed atbed atbed atbed
Epson
FX-890
Epson
LX-1170II
llllm l m m m m
Epson
FX-2190
llllm
Epson
DFX-9000
lllll
l m m m m
Epson
LQ-50
lllll
lllll
llllm
LQ-300+II
l m m m m l m m m m l l m m m l l m m m l l m m m l l l m m l l m m m l l m m m llllm
l m m m m l m m m m l l l m m l l l m m llllm llllm l l l m m l l l m m lllll
l m m m m l m m m m l l m m m l l m m m llllm lllll llllm llllm lllll
l m m m m llllm llllm l m m m m l l m m m l l l m m l l l m m l l l m m lllll
Platen gap adjustment manual manual manual manual automatic* manual manual manual automatic manual manual manual
Multi copy capability
Paper feeds Continuous rear rear rear rear rear rear rear rear rear rear rear rear rear rear
top
1+4 parts 1+5 parts 1+4 parts 1+5 parts 1+9 parts 1+2 parts
bottom bottom bottom bottom bottom (front) bottom bottom bottom bottom
front
rear
front front front front front
Cut sheet top top top top top front front top top front front front front
front (optional) front (optional) front front rear
bottom
Print width
80 columns, 8"80 columns, 8"136 columns,
13.6"
136 columns,
13.6"
136 columns,
13.6"
50 columns,
5”
80 columns,
Colour printing optional optional standard
l m mmm
= low = high
* DFX-9000, LQ-680Pro, PLQ-22 and DLQ-3500 have automatic platen gap adjustment to ensure optimum settings when changing between different media types
with the minimum of user intervention. Automatic platen gap adjustment also allows printing on forms with varying thickness, such as multipart courier forms that
also include a label.
l l l l l
4
24 pin – print quality is as important as speed
PRINT QUALITY
≤ A4 ≤ A3/A4 landscape
PAPER SIZE
Low No Yes
PRINT VOLUME FLATBED
FLATBED
No Yes
Epson
LQ-300+II
l m m m m l m m m m l l m m m l l m m m l l m m m l l l m m l l m m m l l m m m llllm
l m m m m l m m m m l l l m m l l l m m llllm llllm l l l m m l l l m m lllll
l m m m m l m m m m l l m m m l l m m m llllm lllll llllm llllm lllll
l m m m m llllm llllm l m m m m l l m m m l l l m m l l l m m l l l m m lllll
1+3 parts 1+4 parts 1+6 parts 1+4 parts 1+4 parts 1+5 parts 1+5 parts 1+6 parts 1+7 parts
Epson
LQ-630
Epson
PLQ-20/22
High
Epson
LQ-590
Epson
LQ-2090
Epson
LQ-2190
Epson
LQ-680/
680Pro
manual
(LQ-680)
automatic*
(LQ-680 Pro)
A4 landscape
Epson
LQ-690
manual automatic*
A3
Epson
DLQ-3500
80 columns, 8"80 columns, 8"94 columns, 8"80 columns, 8"136 columns,
13.6"
136 columns,
13.6"
106 columns,
10.6"
106 columns,
10.6"
136 columns,
13.6"
5
Epson LX-300+II
Because of its compact dimensions, the Epson LX-300+II is not only the
ideal 9-pin printer for front and back of ce applications where space is
limited, it‘s also a low cost solution for measurement and control systems.
With auto switching USB, serial and parallel interfaces, the LX-300+II
provides exible standalone connectivity.
9-PIN DOT MATRIX PRINTER
Key features
• Compact 9-pin narrow carriage printer
• Up to 337 characters per second (12/cpi)
• Copy capability of 1 original + 4 copies
• Versatile top, bottom and rear paper
paths
• 8 built-in bar code fonts
• USB, parallel and serial interfaces
Options
• 50 sheet cut sheet feeder
• Roll paper holder
• Colour upgrade kit
• Push/pull tractor unit
For options and consumables see page 18 – 19.
Epson LX-1170II
The Epson LX-1170II is the ideal 9-pin printer for light workloads. The copy
capability of one original plus four copies makes it suitable for a variety of
environments including data reporting (e.g. telephone statistics and call
logs, helpdesk and computer system reporting), listings, shipping documents
and measurement and control systems.
9-PIN DOT MATRIX PRINTER
Key features
• Wide carriage 9-pin printer
• Up to 337 characters per second (12 cpi)
• Copy capability of 1 original + 4 copies
• Versatile top, bottom and rear paper
paths
• 8 built-in bar code fonts
• USB, parallel and serial interfaces
Options
• 50 sheet cut sheet feeder
• Roll paper holder
• Push/pull tractor unit
For options and consumables see page 18 – 19.
Standard Optional
Continuous
Cut sheet
6
Epson FX-890
This narrow carriage printer combines high speed with the highest reliability.
A mean volume between failure of 52 million lines makes it ideal for medium
and large print volumes. Paper can be fed from front, top, rear or bottom
and an optional additional push/pull tractor can store a second continuous
form – perfect for warehouses, wholesalers, freight forwarders and nance
departments.
9-PIN DOT MATRIX PRINTER
Key features
• One of the fastest printers in its class up
to 680 cps (12cpi)
• Copy capability of 1 original + 5 copies
• Extremely robust printer with an MTBF
of 20,000 POH
• Reliable print head life of 400 mill.
characters
• Long lasting ribbon of 7.5 mill.
characters
• Versatile front, top, bottom and rear
paper paths
• USB and parallel interfaces
Options
• 150 or 50 sheet cut sheet feeders
• Front sheet guide
• Front paper guide
• Additional push/pull tractor unit
• Roll paper holder
• Wired network interfaces, serial interface
For options and consumables see page 18 – 19.
Epson FX-2190/2190N
This wide carriage printer combines high speed printing with outstanding
reliability. A mean volume between failure of 52 million lines makes this
printer suitable for medium and large print volumes. The paper can be fed
from the front, top, rear or bottom and an optional additional push/pull tractor
unit can store a second continuous form, which is ideal for commercial and
industrial environments. Also available as network version FX-2190N.
9-PIN DOT MATRIX PRINTER
Key features
• One of the fastest printers in its class up
to 680cps (12cpi)
• Copy capability of 1 original + 5 copies
• Extremely robust printer with an MTBF
of 20,000 POH
• Reliable print head life of 400 mill.
characters
• Long lasting ribbon of 12 mill. characters
• Versatile front, top, bottom and rear
paper paths
• USB and parallel interfaces
Options
• 150 sheet cut sheet feeder
• 50 sheet cut sheet feeder
• Front sheet guide
• Front paper guide
• Additional push/pull tractor unit
• Roll paper holder
• Wired network interfaces, serial interface
For options and consumables see page 18 – 19.
7
Epson DFX-9000/9000N
The Epson DFX-9000 is a high print volume printer providing an
unprec edented level of speed and reliability for the most demanding business.
Its advanced paper handling accommodates a variety of paper types while
the standard front and rear push tractors can be switched easily between
different types of continuous paper. An optional perforation cutter provides
paper nishing capabilities. Also available as network version DFX-9000N.
9-PIN DOT MATRIX PRINTER
Key features
• Extremely fast and reliable 4 x 9 pin
wide carriage printer
• Extremely robust printer with an MTBF
of 20,000 POH
• Fast speed up to 1,550 cps
• Copy capability of 1 original + 9 copies
• Automatic platen gap adjustment
• USB, parallel and serial interfaces
Options
• Pull tractor unit
• Perforation cutter
• Wired network interfaces
• Printer cabinet (Order code 7102677)
For options and consumables see page 18 – 19.
Epson LQ-50
The Epson LQ-50 ts almost anywhere thanks to its small dimensions, which
measure just 275 x 240 x 153mm. A 24-pin, 50-column dot matrix, the printer
takes 6-inch paper, and is ideal for locations where space is at a premium
such as delivery vans and small shop counters. It’s even suitable for dusty
or dirty environments when used with the optional protective roll paper cover.
24-PIN DOT MATRIX PRINTER
Key features
• Ultra-compact measuring 275 x 240
x 153mm
• 24-pin, 50-column printer
• Copy capability of 1 original + 2 copies
• MTBF of around 10,000 POH
• USB and Parallel interfaces as standard
• 3 Million characters ribbon yield
• Energy star certifi ed
• Print speed of up to 360cps
Options
• Roll paper holder
For options and consumables see page 18 – 19.
Standard Optional
Continuous
Cut sheet
8
Epson LQ-300+II
The compact Epson LQ-300+II is the ideal printer for front and back of ce
applications where space may be limited as well as for measurement and
control systems. The copy capability of one original plus three copies makes
the 24-pin printer suitable for POS applications where reliable light duty
printing is required.
24-PIN DOT MATRIX PRINTER
Key features
• Compact 24-pin narrow carriage printer
• Up to 300 characters per second (10cpi)
• Copy capability of 1 original + 3 copies
• Versatile top, bottom and
rear paper paths
• 8 built-in bar code fonts
• USB, parallel and serial interfaces
Options
• 50 sheet cut sheet feeder
• Roll paper holder
• Colour upgrade kit
• Additional push/pull tractor unit
For options and consumables see page 18 – 19.
Epson LQ-590
With a mean volume between failure of 40 million lines and a high print
speed of 529 cps this extremely robust printer is ideal for medium and large
print volumes. Flexible paper management allows insertion from the front,
top, rear, and bottom, while a front sheet guide enables front feeding
of even small paper types. Typical applications are labels, barcodes and
point of sale invoice printing.
24-PIN DOT MATRIX PRINTER
Key features
• Very high print speed of up to 529cps
(12cpi)
• Copy capability of 1 original + 4 copies
• Extremely robust printer with an MTBF
of 20,000 POH
• Reliable print head life of 400 mill.
strokes/wire
• Long lasting ribbon of 5 mill. characters
• Versatile front, top, bottom and rear
paper paths
• Sound reduction down to 49 dB(A)
in low-noise mode
Options
• 150 sheet cut sheet feeder
• 50 sheet cut sheet feeder
• Front paper guide
• Additional push/pull tractor unit
• Roll paper holder
• Wired network interfaces, serial interface
For options and consumables see page 18 – 19.
9
Epson LQ-630
With a small footprint (39cm x 31cm) footprint, a column width of
80 characters, and print speed of up to 360cps, this printer is ideal for
environments with restricted space such as retail stores, doctors surgeries,
ticket of ces and industrial, trade and service companies.
24-PIN DOT MATRIX PRINTER
Key features
• Compact and robust design
• Copy capability of 1 original + 4 copies
• Print at up to 360cps (12cpi)
• Also prints on small cut sheet paper
(9cm x 7cm)
• Flatbed technology for ergonomic
front paper feed
• USB and parallel interfaces
For options and consumables see page 18 – 19.
Epson LQ-680Pro
These highly durable printers have a straight, at paper path for ultra
reliable atbed printing. The Epson LQ-680Pro also includes automatic
paper thickness adjustment for optimised print quality and optimised paper
feeding – ideal for frequent changing between different paper types.
It handles paper with varying thickness (e.g. overlapping forms and labels),
and has simple push button paper source selection (e.g. between
cut sheet and continuous paper).
24-PIN DOT MATRIX PRINTER
Key features
• Reliable and durable 24-pin fl at bed
printer
• 106 columns printing width
• Copy capability of 1 original + 5 copies
• Prints up to 413 characters per second
(10cpi)
• Parallel interface
• Automatic paper thickness adjustment
• Push button paper source selection
Options
• 150 sheet cut sheet feeder
• 50 sheet cut sheet feeder
• Roll paper holder
• Wired network and serial interfaces
1) 150 sheet cut sheet feeder must be fi tted fi rst
For options and consumables see page 18 – 19.
Standard Optional
Continuous
Cut sheet
1
10
Epson LQ-690
The Epson LQ-690 offers the best in dot matrix performance where
it matters most: speed, reliability, ribbon yield and ease of use. The LQ-690
is also versatile, handling cut sheets, continuous paper, labels, envelopes
and cards. The new innovative Print Speed Enhancer feature allows fast
printing of bit image data from Windows
®
.
24-PIN DOT MATRIX PRINTER
Key features
• 24 pin, 106 column, medium duty
fl atbed printer
• Prints up to 529cps (12cpi)
• Print Speed Enhancer: Fast printing
of bit image data from Windows®
• Highly reliable with an MTBF
of 20,000 POH
• High 10 million character ribbon yield
• High memory buffer of 128KB
• Copy capability of 1 original + 6 copies
• USB and parallel interfaces
Options
• Roll paper holder
For options and consumables see page 18 – 19.
Epson LQ-2090
An extremely robust printer with a mean volume between failure of 40 million
lines. Its high print speed of 529cps makes it an ideal solution for medium
and large print volumes. The Epson LQ-2090 impresses with exible paper
management which allows paper insertion from the front, top, rear, and
bottom. A front paper guide makes it easy to insert even small sheets from
the front.
24-PIN DOT MATRIX PRINTER
Key features
• Very high print speed of up to 529cps
(12cpi)
• Copy capability of 1 original + 4 copies
• Extremely robust printer with a MTBF
of 20,000 POH
• Reliable print head life of 400 mill.
strokes/wire
• Long lasting ribbon of 8 mill. characters
• Versatile front, top, bottom and rear
paper paths
• Sound reduction down to 50 dB(A)
in low-noise mode
Options
• 150 sheet cut sheet feeder
• 50 sheet cut sheet feeder
• Front sheet guide
• Additional push/pull tractor unit
• Roll paper holder
• Wired network interfaces, serial interface
For options and consumables see page 18 – 19.
11
Epson LQ-2190/2190N
The Epson LQ-2190 is a 24-pin wide-format printer and like its predecessor
– the LQ-2180 – it is a fast, exible, cost-effective and highly reliable printing
solution which combines large print volumes with high letter quality – ideal for
applications such as invoices, delivery notes, inventory listings or even labels.
Also available as network version LQ-2190N.
24-PIN DOT MATRIX PRINTER
Key features
• Robust and durable 24-pin wide format
impact printer
• Very high print speed up to 480cps (10 cpi)
• Equipped with ”Print Speed Enhancer” for
even faster printing
• Highly reliable with an MTBF of 20,000 POH
• Reliable print head life of 400 million
strokes/wire
• Long-lasting ribbon, approx. 15 million
characters
• Copy capability of 1 original + 5 copies
• USB and parallel interfaces
Options
• Additional pull tractor unit
• Roll paper holder
• Network print server, serial interface
For options and consumables see page 18 – 19.
Epson DLQ-3500
This printer offers ultra reliable high speed printing. An ability to print on
8-part stationery is especially useful for multiple copy forms, while up to
three media paths provide versatile paper handling – front sheet feed with
auto loading, rear tractor feed with paper park, and an optional automatic
cut sheet feeder. Supplied with both black and colour fabric ribbons.
24-PIN DOT MATRIX PRINTER
Key features
• Wide carriage 24-pin fl at-bed printer
• Very fast print speed of up to 550cps
(10cpi)
• Copy capability of 1 original + 7 copies
• Push button paper source selection
• Automatic paper thickness adjustment
• Colour printing
• USB and parallel interfaces
Options
• 250 sheet cut sheet feeder
• Automatic sheet alignment unit
• Wired network interfaces, serial interface
For options and consumables see page 18 – 19.
12
Standard Optional
Continuous
Cut sheet
Epson PLQ-20/PLQ-20M
Epson PLQ-20D/PLQ-20DM
The Epson PLQ-20 Series, Epson’s passbook printer is ideal for all front
desks applications such as banking, public administrations, and all booklet
or thick media high speed good quality printing requirement. With its tiny
footprint, automatic sheet alignment and print head adjustment it’s the
perfect solution for your atbed printing needs.
24-PIN DOT MATRIX PRINTER
Key features
• Neat, compact and robust design
• Automatic sheet alignment and thickness
adjustment
• High print speed of up to 480cps
• Quiet 24-pin document or passbook printer
• Copy capability of 1 original + 6 copies
• Flatbed technology for ergonomic
front paper feed
• Olivetti PR2, Epson ESC/P2, Wincor 4915,
IBM PPDS and IBM 4722 FP emulations
• Software tool for remote fi rmware upgrade,
confi guration and information retrieval
• PLQ-20: basic model
• PLQ-20M: with MSRW
• PLQ-20D: with dual serial IF
• PLQ-20DM: with dual serial IF + MSRW
Options
• Space saving kit (includes a top
paper tray and a rear paper guide)
For options and consumables see page 18 – 19.
Epson PLQ-22/PLQ-22M
Epson PLQ-22CS/PLQ-22CSM
Enhance specialist printing in your bank, post of ce or government of ce with
this all-in-one atbed dot matrix printer with dual-side colour scanner, MICR/
MSRW head and USB hub. It’s a great way to bring reliability, durability and
a low total cost of ownership to your of cial printing. PLQ-22 and PLQ-22M
are versions without the built-in scanner.
24-PIN DOT MATRIX PRINTER
Key features
• Automatic Sheet alignment and thickness
adjustment
• High print speed of up to 576cps
• Built in duplex, high speed colour
scanner
• Copy capability of 1 original + 6 copies
• Factory optional MICR/MSRW head
• Factory optional USB hub
• 10 Million characters of ribbon yield
• MTBF of 10,000 POH
Options
• Space saving kit (Includes a top paper
tray and a rear paper guide)
For options and consumables see page 18 – 19.
13
SPECIFICATIONS EPSON 24-PIN
CARRIAGE WIDTH IN COLUMNS 50 80 80 80 106
PRINT SPEEDS 10cpi | 12cpi 10cpi | 12cpi 10cpi | 12cpi 10cpi | 12cpi 10cpi | 12cpi
High speed draft 300 | 360 300 | n/a 440 | 529 300 | 360 413 | n/a
Draft 225 | 270 225 | 270 330 | 396 225 | 270 310 | 372
Letter quality 75 | 90 75 | 90 110 | 132 79 | 94 103 | 124
EMULATIONS
Epson ESC/P2 ESC/P2 ESC/P2 ESC/P2 ESC/P2
IBM / OLIVETTI IBM 2390 plus
PAPER HANDLING FEATURES
Auto paper loading
Auto and manual tear off position
Paper parking – continuous stationery
Micro feed
Automatic platen gap adjustment
CUT SHEET STATIONERY
Single sheet, paper, labels or envelopes
Multi-part forms (original + copies) 1+3
Sheets with varying thickness
Multipart with overlap
Front in front out
Front in rear out
Front in top out
Top in top out
50 sheet cut sheet feeder
150 sheet cut sheet feeder
250 sheet cut sheet feeder
Combined 50/150 sheet cut sheet feeders
Front paper guide
Front sheet guide
Automatic sheet alignment unit
ROLL PAPER
CONTINUOUS STATIONARY
Single sheet or labels
Multi-part (original + copies) 1+2 1+3 1+4 1+4 1+5
Sheets with varying thickness
Multipart with overlap
Rear in front out – push feed
Rear in top out – push feed
Rear in top out – pull feed
Rear in top out – push and pull feed
Front in top out – push feed
Front in top out – pull feed
Front in top out – push and pull feed
Bottom in top out – pull feed
Two stationery types loaded at once
BUFFER 64KB 64KB 128KB 32KB 64KB
ACOUSTIC NOISE LEVEL 54dB(A) 49dB(A) 49dB(A) 57dB(A) 55dB(A)
COLOUR PRINTING
FONTS
Epson Draft
Epson Courier
Epson OCR-B
Epson Orator
Epson Orator-S
Epson Prestige
Epson Roman
Epson Roman T
Epson Sans Serif
Epson Sans Serif H
Epson Script
Epson Script C
BARCODE FONTS
Code 128
Code 39
EAN-13
EAN-8
Interleave 2 of 5
PostNet
UPC-A
UPC-E
INTERFACES
USB
Parallel
Serial
Network print server
Type B space
DIMENSIONS IN MILLIMETRES
Width 262mm 366mm 437.5mm 386mm 497mm
Depth 240mm 275mm 374.5mm 306mm 387mm
Height 153mm 159mm 171.5mm 185mm 230mm
WEIGHT 3.3kg 4.4kg 7.1kg 3.5kg 9.4kg
MTBF (POWER ON HOURS) 10,000 6,000 20,000 6,000 10,000
P
RINT HEAD LIFE (MILLION STROKES PER WIRE)
Black 200m 200m 400m 200m 400m
Colour 100m
RIBBON LIFE (IN MILLION CHARACTERS)
BLACK RIBBON 3m 2m 5m 2m 2m
COLOUR RIBBON
Black 1m
Cyan 0.7m
Magenta 0.7m
Yellow 0.5m
*1) requires additional convertible tractor unit option *2) requires two additional convertible tractor unit options *3) 150 sheet cut sheet feeder must be tted rst *4) front feed only *5) can be used
in conjunction with front continuous paper feeding *6) cannot be used in conjunction with front continuous paper feeding *7) LQ-680Pro only
*9
n n n n n
n n n n n
n n n n n
n n n n n
n
n
n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n S n S n S
n S n S n S
n S n S n S
n S n S n S
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n
n n n n n
IBMX24E
2390 Plus
n n n n
n n
c c
c c
IBM PPDS IBM PPDS 2390 Plus
c
1+4 *4
1+4 1+5
n n
n
c c
c c
n *5
c
*6
n n
n n n n
n n
n n
c
*1 c *1
n n
c
n
n
n
c
*1
c
*1
n S n S
n S n S
n S n S
n S n S
c
c c
n n
n *7
n *7
n *7
n *7
n *7
14
LQ-50 LQ-300+II LQ-590 LQ-630 LQ-680/Pro
c
*3
c
c
SPECIFICATIONS EPSON 24-PIN
LQ-690 LQ-2090 LQ-2190/N DLQ-3500 PLQ-20/M PLQ-20D/DM PLQ-22CS/CSM
106 136 136 136 94 94 106
10cpi | 12cpi 10cpi | 12cpi 10cpi | 12cpi 10cpi | 12cpi 10cpi | 12cpi 10cpi | 12cpi 10cpi | 12cpi
440 | 529 440 | 529 480 | 576 550 | n/a 480 | 576 480 | 576 440 | 529
330 | 396 330 | 396 360 | 432 495 | 594 360 | 432 360 | 432 330 | 396
110 | 132 110 | 132 120 | 144 165 | 198 120 | 144 120 | 144 110 | 132
ESC/P2 ESC/P2 ESC/P2 ESC/P2 ESC/P2 ESC/P2 ESC/P2
IBM PPDS IBM PPDS IBM PPDS
n n n n
n n n n
n n n n
n n n n
n n n n
n n n n n n n
1+6 1+4 1+5 1+7 1+6 1+6 1+6
n n n n n
n n
c
n n *6 n
n
n n n n n n n
1+6 1+4 1+5 1+7
n n
128KB 128KB 128KB 128KB 64KB 64KB 128KB
57dB(A) 50dB(A) 54dB(A) 59dB(A) 53dB(A) 53dB(A) 51dB(A)
n n n n n n n
n n n n
n n n n n n n
n n n n
n n n n
n n n n
n S n S n S
n S n S n S
n S n S n S
n S n S n S
n n n n
n n n n
n n n n
n n n n n n n
n n n n n n n
n n n n n n n
n n n n n n n
n n n n n n n
n n n n n n n
n n n n n n n
n n n n n n n
n n n n n
n n
c
c
c
*5
c c c c c
n n
n n
c
*1
n n
n n
c
*1 c *1
n n
c
*1
c c c
c c
n *5
n
n
n n n
480mm 612.5mm 639mm 660mm 384mm 384mm 480mm
370mm 374.5mm 402mm 432mm 280mm 280mm 370mm
210mm 171.5mm 256mm 276mm 203mm 203mm 210mm
6.8kg 9.5kg 13kg 18.1kg
20,000 20,000 20,000 10,000 10,000 10,000 20,000
400m 400m 400m 400m 400m 400m 400m
ProPrinter 2391+
ProPrinter DS
n n n n
n n n n
IBM PPDS/PR2
n n n
c
c
n n n n
n n n n
n n n
n n n
n
n S
n S
n S
n S
c
n n n
n n n
n n Dual n Dual
7.7/8.7kg 7.7/8.7kg 8.2/9.2kg
IBM PPDS/PR2
IBM4722FP / WNI4915+
IBM PPDS
10m 8m 15m 6m or 9m 5m 5m 10m
1.5m
1.1m
1.1m
0.8m
*8) Multipart 1+6 copies when using pull feed *9) Not available in all countries. Please contact your local Epson representative.
n = Standard
c
= Optional S = Scalable from 2 to 32 point in 2 point steps
15
SPECIFICATIONS EPSON 9-PIN
CARRIAGE WIDTH IN COLUMNS 80 136 80 136 136
LX-300+II LX-1170II FX-890 FX-2190/N DFX-9000/N
PRINT SPEEDS 10cpi | 12cpi 10cpi | 12cpi 10cpi | 12cpi 10cpi | 12cpi 10cpi | 12cpi
Ultra high speed draft 566 | 680 566 | 680
High speed draft 300 | 337 300 | 337 559 | 627 559 | 627 1550 | 1450
Draft 225 | 270 225 | 270 419 | 503 419 | 503 1320 | 1320
Near letter quality 56 | 67 56 | 67 104.6 | 125.9 104.6 | 125.9 330 | 330
EMULATIONS
Epson ESC/P ESC/P ESC/P ESC/P ESC/P
IBM / OKI 2380 Plus 2381 Plus ProPrinter DS / ML ProPrinter DS / ML 2381 Plus / PPDS
PAPER HANDLING FEATURES
Auto paper loading
Auto and manual tear off position
Paper parking – continuous stationery
Micro feed
Automatic platen gap adjustment
CUT SHEET STATIONERY
Single sheet, paper, labels or envelopes
Multi-part forms (original + copies) 1+4 1+4 1+5 1+5
Front in top out
Top in top out
50 sheet cut sheet feeder
150 sheet cut sheet feeder
Combined 50/150 sheet cut sheet feeders
Front paper guide c *5 c *5
Front sheet guide
ROLL PAPER
CONTINUOUS STATIONERY
Single sheet or labels
Multi-part (original + copies) 1+4 1+4 1+5 *8 1+5 *8 1+9 front | 1+6 rear
Sheets with varying thickness
Multipart with overlap
Rear in top out – push feed
Rear in top out – pull feed
Rear in top out – push and pull feed c *1 c *1 c *1 c *1
Front in top out – push feed
Front in top out – pull feed
Front in top out – push and pull feed c *1 c *1
Bottom in top out – pull feed
Two stationery types loaded at once
Buffer 64KB 64KB 128KB 128KB 128KB
ACOUSTIC NOISE LEVEL 49dB(A) 49dB(A) 55dB(A) 55dB(A) 58dB(A)
COLOUR PRINTING
FONTS
Epson Draft
Epson Roman
Epson Sans Serif
BARCODE FONTS
Code 128
Code 39
EAN-13
EAN-8
Interleave 2 of 5
PostNet
UPC-A
UPC-E
INTERFACES
*9
USB
Parallel
Serial
Network print server
Type B internal interface slot
DIMENSIONS IN MILLIMETRES
Width 366mm 546mm 414mm 589mm 700mm
Depth 275mm 275mm 350mm 350mm 378mm
Height 159mm 163mm 167.5mm 167.5mm 363mm
WEIGHT 4.4kg 6.3kg 7.2kg 9.4kg 34kg
MTBF (POWER ON HOURS) 6,000 6,000 20,000 20,000 20,000
PRINT HEAD LIFE (MILLION STROKES PER WIRE)
Black 400m 400m 400m 400m 400m
Colour 100m
RIBBON LIFE (IN MILLION CHARACTERS)
BLACK RIBBON 3m 3m 7.5m 12m 15m
COLOUR RIBBON
Black 1m
Cyan 0.7m
Magenta 0.7m
Yellow 0.5m
n n n n n
n n n n n
n n n n n
n n n n n
n n n n
n n n n
c c c c
c c c c
c c
c c
c c
c
*6 c *6
n n n n n
n n n n n
n n n n
n n n
n n
n n n n
c
c
*1 c *1
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n
c c
c c c
n n n
n
n
n
c
c
c
c
n
n
*1) requires additional convertible tractor unit option *2) requires two additional convertible tractor unit options *3) 150 sheet cut sheet feeder must be tted rst *4) front feed only *5) can be used
in conjunction with front continuous paper feeding *6) cannot be used in conjunction with front continuous paper feeding *7) LQ-680Pro only *8) Multipart 1+6 copies when using pull feed *9) Not
available in all countries. Please contact your local Epson representative n = Standard
c
= Optional S = Scalable from 2 to 32 point in 2 point steps
16
OPTIONS, ACCESSORIES AND SUPPLIES
OPTIONAL
PAPER HANDLING
Colour upgrade kit C12C832082
Convertible tractor unit C12C800202
Pull tractor unit C12C800382
Roll paper holder C12C811141
Front paper guide C12C814022
Front sheet guide C12C814001
C12C814011
50 sheet cut sheet feeder C12C806372
150 sheet cut sheet feeder C12C806382
9-pin
Perforation cutter C12C815072
Order code LX-300+II LX-1170II FX-890 FX-2190/N DFX-9000/N
l
l
C12C800212
C12C800302
C12C800341
l
l
l
l l l l
l *2
C12C814032
l *3
l *2
l *3
l l
C12C806392
l l
l
C12C806402
l
SUPPLIES
Black fabric ribbon C13S015019 C13S015020 C13S015329 C13S015327 C13S015384
Colour fabric ribbon C13S015073
OPTIONAL INTERFACES
Serial interface (0K buffer) C12C824432
Epsonnet 10/100 Base Tx
Int. Printer Server 5e
WARRANTY
1 year replacement or repair
1 year on-site
Optional extension to 3 years ECPGRP10 ECPGRP20 ECPGRP20 ECPGRP25 ECPGRP70
*4
*4
l l l
C12C824352
l l l
l l l l
l
l
l
OPTIONAL
PAPER
HANDLING
Colour upgrade kit C12C832112
Convertible
tractor unit
Roll paper holder C12C811141
Front sheet guide C12C814011
Front paper guide C12C814022
50 sheet cut sheet
feeder
150 sheet cut sheet
feeder
24-pin
250 sheet cut sheet
feeder
Space saving kit C12C802202
Automatic sheet
alignment unit
Order code LQ-50
C12C800202
C12C800212
C12C800302
C12C800322
C12C811262
C12C806372
C12C806392
C12C806792
C12C806382
C12C806402
C12C806872
C12C806832
C12C806882
LQ-
300+II
LQ590
LQ630
LQ680/
Pro
LQ690
LQ-
2090
LQ-
2190/N
l
l
l
l
l
l l l l l l l l
l
l
l
l l
l
*1
l
l
l
l
DLQ-
3500
l
l
PLQ-
20/
M/D/
DM
l l
SUPPLIES
Black fabric ribbon C13S015(+) +624 +021 +337 +307 +262 +610 +336 +086 +066 +339 +339
Colour fabric ribbon C13S015(+) +077 +067
Black lm ribbon C13S015255
OPTIONAL
INTERFACES
Serial interface
(0K buffer)
EpsonNet 10/100 Base Tx
int. Print Server 5e
WARRANTY
1 year replacement
or repair
1 year On-site
Extension to 3 years ECP-(+) +GRP5 +GRP10 +GRP20 +GRP20 +GRP20 +GRP20 +GRP30 +GRP30 +GRP50 +GRP20 +GRP20
*4
C12C824432
C12C824352
*4
l l
l l l l l
l l l l l
l l l l l l l l l
l l
PLQ-
22CS/
CSM
*1) 150 sheet cut sheet feeder must be tted rst *2) can be used in conjunction with front continuous paper feeding *3) cannot be used in conjunction with front continuous paper feeding
*4) Not available in all countries. Please contact your local Epson representative.
17
OPTIONS AND ACCESSORIES
TYPICAL PAPER PATHS
MOTORISED SHEET FEEDERS
For high volume cut sheet printing, optional motorised
cut sheet feeders are available for selected products,
like the 150 sheet cut sheet feeder for the Epson
LQ-2090. Equipped with productivity enhancing,
independent motor drives, these feeders reduce paper
handling time and ensure optimum paper throughput.
CUT SHEET FEEDERS
Offering 50, 150 and 250 sheet, for automatic selection
of forms and plain stationery.
PAPER FEED TRACTORS
A choice of push, pull, and push/pull combined tractors
not only enable more than one stationery type to be
permanently loaded for delivery on demand, but handle
continuous and multi-part stationery more ef ciently.
LX-300 COLOUR UPGRADE KIT
C12C832082
LX-300 PULL TRACTOR UNIT
C12C800302
LQ-1170 PUSH/PULL TRACTOR UNIT
C12C800212
18
LQ-300 COLOUR UPGRADE KIT
C12C832112
LX-1170 PULL TRACTOR UNIT
C12C800341
FX-/LQ-2170 PULL TRACTOR UNIT
C12C800322
DLQ-3000+/3500 SINGLE-BIN CSF
C12C806832
DFX-9000 TRACTOR UNIT
C12C800382
LQ-870 PUSH/PULL TRACTOR UNIT
C12C800202
ROLL PAPER HOLDER
C12C811141
LQ-50 ROLL PAPER HOLDER
C12C811262
AUTOMATIC SHEET ALIGNMENT UNIT
C12C806882
FX-1180 FRONT SHEET GUIDE
C12C814032
PLQ-20 SPACE SAVING KIT
C12C802202
LQ-/SQ-870/LQ-570 SINGLE CSF
C12C806372
FX-880 FRONT SHEET GUIDE
C12C814022
LQ-1170 FRONT SHEET GUIDE
C12C814011
FX-1180/1170/SQ-1170/LX-1170 CSF
C12C806392
LQ-870 FRONT SHEET GUIDE
C12C814001
DFX-8500 PERFORATION CUTTER
C12C815072
LQ-670 SECOND-BIN CSF
C12C806792
LQ-570 HIGH CAPACITY CSF
C12C806382
SERIAL I/F BOARD NO BUFFER TYPE-B
C12C824432
LQ-680/680PRO HIGH CAPACITY CSF
C12C806872
EPSON NET 10/100 BASE TX. INT. PRINT
SERV. 5E
C12C824352
LQ-1170 HIGH CAPACITY CSF
C12C806402
DFX-9000 CABINET
7102677
19
*1 Source: Interconnection Consulting, 2010
All features and specications described are subject to change without notice. When Epson products are used for applications requiring
high reliability/safety such as transportation devices related to aviation, rail, marine, automotive etc.; disaster prevention devices; various
safety device etc.; or functional/precision device etc.; you should use the products only after giving consideration to inclusion of fail-safes
and redundancies into your design to maintain safety and total system reliability.
Not all products are available in all countries. Please contact your local Epson ofce for more detail.
For further information please contact your local Epson ofce or visit www.epson-europe.com
Austria 0810/20 01 13 (0,07 €/Min.) Belgium 070/350120 (0.1735 €/min.) Czech 800/142 052 Denmark 44 50 85 85 Finland 0201 552 091
France 09 74 75 04 04 (0,12€/min) Germany 01805/23 41 10 (0,14 €/Min.) Greece 210-8099499 Hungary 06800 147 83 Ireland 01 436 7742
Italy 02-660321 10 (0,12 €/min.) Luxembourg 900/43010 (0,24 €/min.) Middle East +9714 8818934 Netherlands 0900-5050808 (0.05 €/oproep
+ 0.15 €/min.) Norway 22 06 42 80 Poland 0-0-800 4911299 (0,16 zł/min.) Portugal 707 222 111 Russia (095) 777-03-55 Slovakia 0850 111 429
South Africa (+2711) 465-9621 Spain 93 582 15 00 Sweden 0771-400135 (Mobilsamtal – 0,99 kr/min, Lokala samtal – 0,30 kr/min,
Utlandssamtal – 0,89 kr/min) Switzerland 0848 448820 (4-8 cent./min.) Turkey (0212) 3360303 United Kingdom 0871 222 6702
Trademarks and registered trademarks are the property of Seiko Epson Corporation or their respective owners.
SIDM-Range_Brochure_1EN-INT_08/11
Product information is subject to change without prior notice.
Loading...
