User’s Guide

NPD4101-02 EN

Epson Stylus Pro WT7900/7910 User’s Guide

Copyrights and Trademarks

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. The information contained herein is designed only for use with this Epson printer. Epson is not responsible for any use of this information as applied to other printers.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.

Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation.

Seiko Epson Corporation shall not be held liable for any damage resulting from electromagnetic interference that occurs from the use of any interface cables other than those designated as Epson Approved Products by Seiko Epson Corporation.

EPSON

and EPSON STYLUS® are registered trademarks, and Exceed Your Vision is a trademark of Seiko Epson Corporation.

Microsoft

Apple

Info-ZIP copyright and license

, Windows®, and Windows Vista® are registered trademarks of Microsoft Corporation.

and Macintosh® are registered trademarks of Apple Inc.

This is version 2005-Feb-10 of the Info-ZIP copyright and license. The definitive version of this document should be available at ftp://ftp.info-zip.org/ pub/infozip/license.html indefinitely.

Mark Adler, John Bush, Karl Davis, Harald Denker, Jean-Michel Dubois, Jean-loup Gailly, Hunter Goatley, Ed Gordon, Ian Gorman, Chris Herborth, Dirk Haase, Greg Hartwig, Robert Heath, Jonathan Hudson, Paul Kienitz, David Kirschbaum, Johnny Lee, Onno van der Linden, Igor Mandrichenko, Steve P. Miller, Sergio Monesi, Keith Owens, George Petrov, Greg Roelofs, Kai Uwe Rommel, Steve Salisbury, Dave Smith, Steven M. Schweda, Christian Spieler, Cosmin Truta, Antoine Verheijen, Paul von Behren, Rich Wales, Mike White

This software is provided “as is,” without warranty of any kind, express or implied. In no event shall Info-ZIP or its contributors be held liable for any direct, indirect, incidental, special or consequential damages arising out of the use of or inability to use this software.Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:

- Redistributions of source code must retain the above copyright notice, definition, disclaimer, and this list of conditions.

- Redistributions in binary form (compiled executables) must reproduce the above copyright notice, definition, disclaimer, and this list of conditions in documentation and/or other materials provided with the distribution. The sole exception to this condition is redistribution of a standard UnZipSFX binary (including SFXWiz) as part of a self-extracting archive; that is permitted without inclusion of this license, as long as the normal SFX banner has not been removed from the binary or disabled.

- Altered versions--including, but not limited to, ports to new operating systems, existing ports with new graphical interfaces, and dynamic, shared, or static library versions--must be plainly marked as such and must not be misrepresented as being the original source. Such altered versions also must not be misrepresented as being Info-ZIP releases--including, but not limited to, labeling of the altered versions with the names “Info-ZIP” (or any variation thereof, including, but not limited to, different capitalizations), “Pocket UnZip,” “WiZ” or “MacZip” without the explicit permission of Info-ZIP. Such altered versions are further prohibited from misrepresentative use of the Zip-Bugs or Info-ZIP e-mail addresses or of the Info-ZIP URL(s).

- Info-ZIP retains the right to use the names “Info-ZIP,” “Zip,” “UnZip,” “UnZipSFX,” “WiZ,” “Pocket UnZip,” “Pocket Zip,” and “MacZip” for its own source and binary releases.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks.

Epson Stylus Pro WT7900/7910 User’s Guide

Operating System Versions

In this manual, the following abbreviations are used.

Windows refers to Windows Vista , XP , XP x64 , and 2000 .

❏ Windows Vista refers to Windows Vista Home

Basic Edition, Windows Vista Home Premium Edition, Windows Vista Business Edition, Windows Vista Enterprise Edition, and Windows Vista Ultimate Edition.

❏ Windows XP refers to Windows XP Home

Edition, Windows XP Professional x64 Edition, and Windows XP Professional.

❏ Windows 2000 refers to Windows 2000

Professional.

Epson Stylus Pro WT7900/7910 User’s Guide

Contents

Copyrights and Trademarks

Operating System Versions

Safety Instructions

Important Safety Instructions................. 6

Warning, Cautions, and Notes............... 6

When choosing a place for this product. . . . . . . . 6

When setting up this product............... 6

When using this product................... 7

When handling the ink cartridges............ 8

When transporting this product............. 8

Illustrations used in this guide............... 8

Introduction

White Ink Printing......................... 9

Epson ClearProof Film.................... 9

White Ink Maintenance................... 9

Cautions when powering off................ 9

Printer Parts............................. 11

Front section.......................... 11

Rear section........................... 11

Epson Film Basket....................... 12

Loading Cut Sheet A3 Size or Larger / Thick

paper................................ 40

Ejecting Paper............................ 41

For Roll Paper.......................... 41

For Cut Sheet Media..................... 42

Using the Paper Basket and Paper Guides...... 42

Using the Standard Paper Basket............ 46

Printable Area.......................... 49

Using Printer Software

Printer Software Introduction................ 51

EPSON LFP Remote Panel 2............... 51

Epson Network Utility.................... 51

EpsonNet Config....................... 51

EpsonNet Print......................... 51

Starting/Exiting Printer Software.............. 52

How to start EPSON LFP Remote Panel 2. . . . . 52

How to exit EPSON LFP Remote Panel 2...... 52

Uninstalling the Printer Software.............. 53

Uninstalling EPSON LFP Remote Panel 2. . . . . 53

Uninstalling EPSON Stylus Pro WT7900

Comm Driver.......................... 53

Options and Consumable Products

The Control Panel

Buttons, Lights, and Messages................ 13

Buttons .............................. 13

Lights................................ 14

Display............................... 15

Menu Mode............................. 17

Using the Menu mode.................... 17

Menu list............................. 20

Details of Menu mode.................... 22

Maintenance Mode........................ 31

Maintenance mode list................... 31

Paper Handling

Using Roll Paper.......................... 32

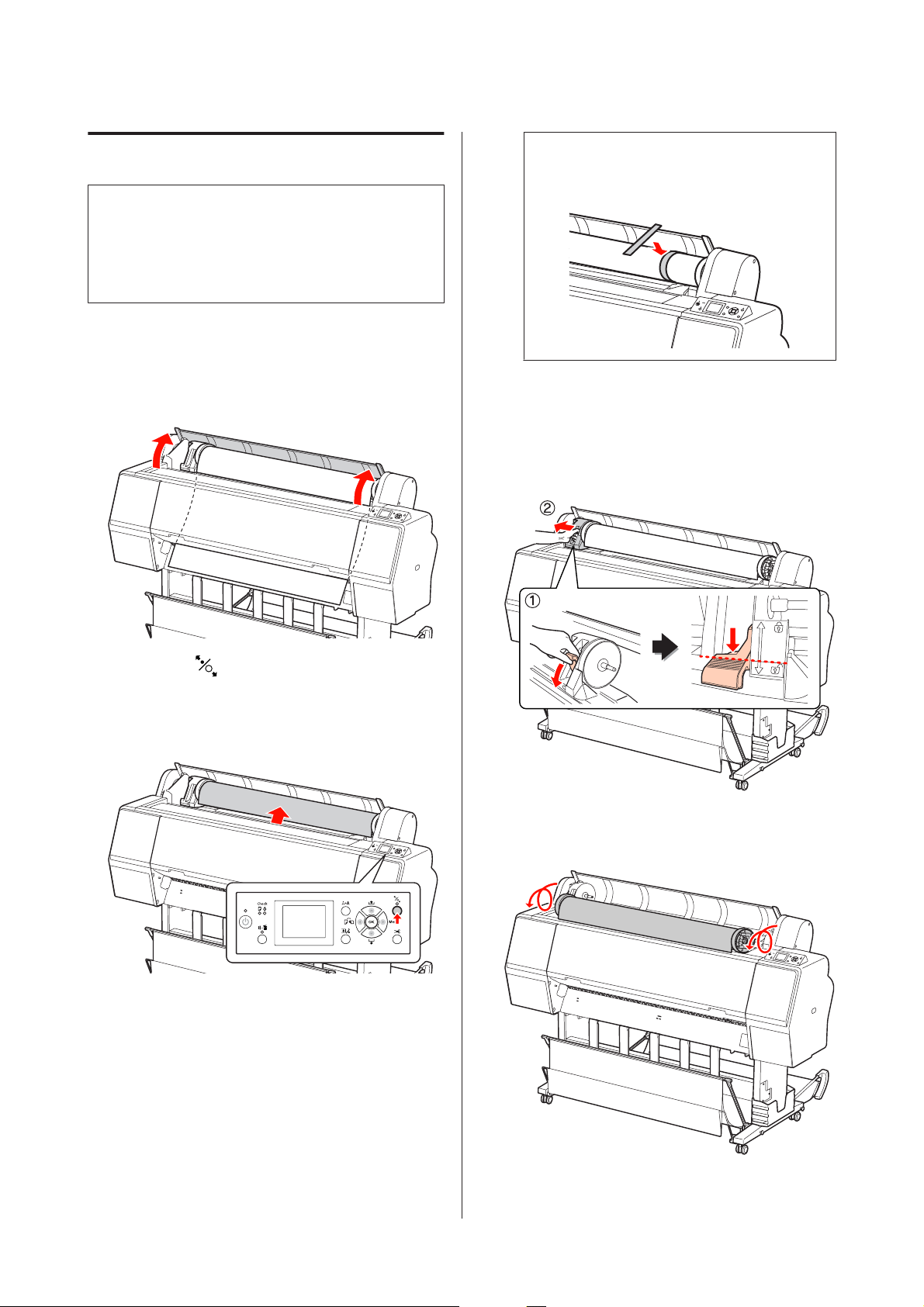

Loading Roll Paper...................... 32

Cutting the Roll Paper.................... 36

Removing the Roll Paper.................. 37

Using Cut Sheet Media..................... 38

Loading cut sheet smaller than A3 size. . . . . . . . 39

Paper Information

Supported Media Specifications............... 56

Roll paper............................. 56

Cut Sheet............................. 56

Instructions for Using Paper............... 57

Paper Information........................ 58

Roll paper............................. 58

Cut Sheet............................. 58

About Epson ClearProof Film (Epson special

media)................................. 59

Usage Environment..................... 59

About Release Film...................... 59

Notes for Setting up Media................ 59

Notes for After Printing................... 59

Printing with Non-Epson Media.............. 60

Setting the Custom Paper in the Printer. . . . . . . 60

Maintenance

Daily Maintenance........................ 63

Epson Stylus Pro WT7900/7910 User’s Guide

Contents

Instructions for placing the printer.......... 63

Maintaining White Ink................... 63

Notes for when you are not using the printer

.................................... 63

About ink cartridges....................... 63

Notes for handling the ink cartridges......... 64

Notes for replacing ink cartridges and shaking

the white ink cartridge.................... 64

Notes for storing the ink cartridges.......... 64

Notes for storing white ink cartridges. . . . . . . . . 65

Shaking a White Ink Cartridge................ 65

Checking the days remaining until next you

need to shake the cartridge................ 65

When the message appears on the LCD panel

.................................... 65

Shaking the White Ink Cartridge............ 66

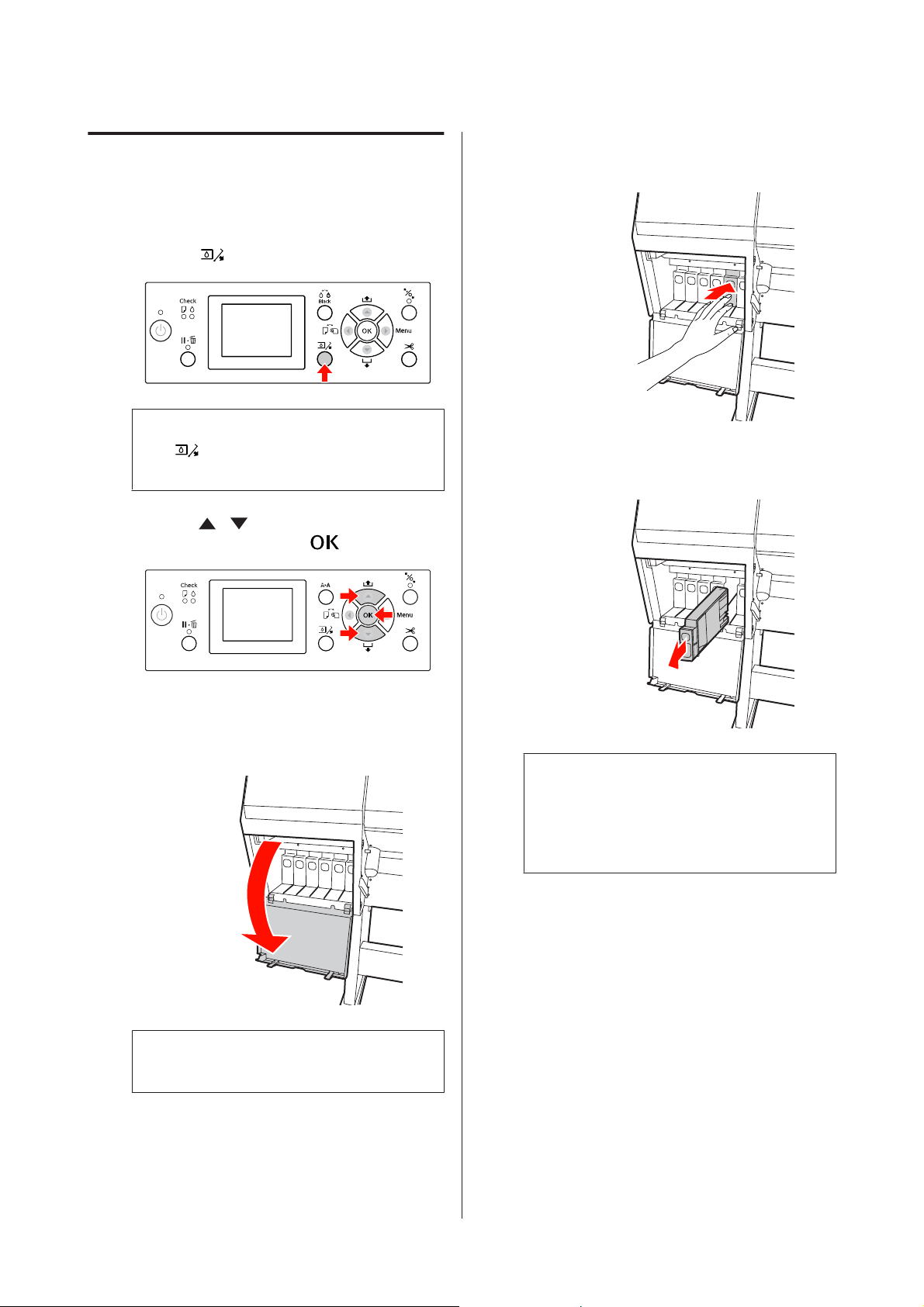

Replacing Ink Cartridges.................... 68

When ink needs to be replaced/When ink

gets low.............................. 68

Confirming the ink cartridge remaining. . . . . . . 68

Replacing ink cartridges.................. 68

Replacing the Maintenance Tank.............. 70

Confirming the empty space of the

maintenance tank....................... 70

Replacing the maintenance tank............ 70

Replacing the Cutter....................... 71

Adjusting the Print Head.................... 74

Nozzle check........................... 75

Head cleaning.......................... 77

Power cleaning......................... 78

White ink refresh....................... 78

Automatic maintenance function. . . . . . . . . . . . 79

Print head alignment..................... 80

Cleaning the Printer....................... 82

Cleaning outside of the printer.............. 82

Cleaning inside of the printer.............. 83

Keeping the Printer........................ 84

If you do not use your printer for a long time

.................................... 84

If you do not use your printer for more than a

month............................... 85

If you do not use your printer for more than

a year................................ 85

Protecting the print head.................. 85

Transporting the Printer.................... 86

Repacking the printer.................... 86

Transporting the printer.................. 86

Setting up the printer after transporting. . . . . . . 87

Problem Solver

Error Messages on the LCD Panel............. 88

Error messages......................... 88

When the maintenance request occurs........ 96

When the call for service occurs............. 96

Troubleshooting.......................... 97

You cannot print (because the printer does not

work)................................ 97

The printer sounds like it is printing, but

nothing prints.......................... 98

The prints are not what you expected. . . . . . . . . 99

Feeding or ejecting troubles............... 102

Other troubles......................... 105

Where To Get Help

Technical Support Web Site................. 106

Contacting Epson Support.................. 106

Before Contacting Epson................. 106

Help for Users in North America........... 107

Help for Users in Europe................. 107

Help for Users in Australia............... 107

Help for Users in Singapore............... 108

Help for Users in Thailand................ 108

Help for Users in Vietnam................ 108

Help for Users in Indonesia............... 108

Help for Users in Hong Kong.............. 109

Help for Users in Malaysia................ 109

Help for Users in India.................. 109

Help for Users in the Philippines........... 110

Product Information

System Requirements for the Printer Driver. . . . . 111

System requirements.................... 111

Connection requirements................ 111

Printer Specifications...................... 111

Printing............................. 111

Electrical............................. 112

Ink cartridges......................... 112

Environmental........................ 113

Standards and Approvals................. 114

Interface............................. 114

Index

Epson Stylus Pro WT7900/7910 User’s Guide

Safety Instructions

Important Safety Instructions

Read all of these instructions before using the printer. Also be sure to follow all warnings and instructions marked on the printer.

Warning, Cautions, and Notes

Warning:

must be followed carefully to avoid bodily injury.

Caution:

must be observed to avoid damage to your equipment.

When choosing a place for this product

❏ Place this product on a flat, stable surface that is

larger than this product. This product will not operate properly if it is tilted or at an angle.

❏ Avoid places subject to rapid changes in

temperature and humidity. Also keep it away from direct sunlight, strong light, or heat sources.

❏ Avoid places subject to shocks and vibrations.

❏ Keep this product away from dusty areas.

❏ Place this product near a wall outlet where the

plug can be easily unplugged.

When setting up this product

❏ Do not block or cover the openings in this

product’s cabinet.

Note:

contain important information and useful tips on the operation of this printer.

❏ Do not insert objects through the slots. Take care

not to spill liquid on this product.

❏ This product’s power cord is for use with this

product only. Use with other equipment may result in fire or electric shock.

❏ Connect all equipment to properly grounded

power outlets. Avoid using outlets on the same circuit as copiers or air control systems that regularly switch on and off.

❏ Avoid electrical outlets controlled by wall

switches or automatic timers.

❏ Keep the entire computer system away from

potential sources of electromagnetic interference, such as loudspeakers or the base units of cordless telephones.

❏ Use only the type of power source indicated on

the product’s label.

❏ Use only the power cord that comes with this

product. Use of another cord may result in fire or electric shock.

❏ Do not use a damaged or frayed power cord.

Epson Stylus Pro WT7900/7910 User’s Guide

Safety Instructions

❏ If you use an extension cord with this product,

make sure the total ampere rating of the devices plugged into the extension cord does not exceed the cord’s ampere rating. Also, make sure the total ampere rating of all devices plugged into the wall outlet does not exceed the wall outlet’s ampere rating.

❏ Do not attempt to service this product yourself.

❏ Unplug this product and refer servicing to

qualified service personnel under the following conditions:

The power cord or plug is damaged; liquid has entered the product; the product has been dropped or the cabinet damaged; the product does not operate normally or exhibits a distinct change in performance.

❏ If you plan to use the printer in Germany, observe

the following:

To provide adequate short-circuit protection and over-current protection for this printer, the building installation must be protected by a 10 or 16 amp circuit breaker.

When using this product

❏ Do not put your hand inside this product or

touch the ink cartridges during printing.

❏ Do not move the print heads by hand; otherwise

you may damage this product.

❏ Always turn the product off using the Power

button on the control panel. When this button is pressed, the Power light flashes then goes off. Do not unplug the power cord or turn off the product until the Power light stops flashing.

❏ If damage occurs to the plug, replace the cord set

or consult a qualified electrician. If there are fuses in the plug, make sure you replace them with fuses of the correct size and rating.

Epson Stylus Pro WT7900/7910 User’s Guide

Safety Instructions

When handling the ink cartridges

❏ Keep ink cartridges out of the reach of children

and do not drink.

❏ If ink gets on your skin, wash it off with soap and

water. If it gets in your eyes, flush them immediately with water.

❏ Before installing the new ink cartridge in the

printer, shake it horizontally as shown in the illustration. Shake it back and forth horizontally in five centimeter movements about 100 times within 30 seconds for white, and about 15 times within five seconds for all other cartridges.

❏ If you remove an ink cartridge for later use,

protect the ink supply area from dirt and dust, and store it in the same environment as this product. Note that there is a valve in the ink supply port, making covers or plugs unnecessary, but care is needed to prevent the ink from staining items that the cartridge touches. Do not touch the ink supply port or surrounding area.

When transporting this product

❏ Before transporting the printer, make sure the

print heads are in the home (far right) position.

Illustrations used in this guide

❏ The illustrations in this guide are from a similar

printer model. Although they may differ to your actual printer, the method of operation is the same.

Caution:

Do not shake cartridges (that have been installed previously) with too much force.

❏ Use the ink cartridge before the date printed on

its package.

❏ Use up the ink cartridge within six months of

installation for best results.

❏ Do not dismantle the ink cartridges or try to refill

them. This could damage the print head.

❏ Do not touch the green IC chip on the side of the

cartridge. This may affect normal operation and printing.

❏ The IC chip on this ink cartridge retains a variety

of cartridge-related information, such as the ink cartridge status, so that the cartridge may be removed and reinserted freely. However, each time the cartridge is inserted, some ink is consumed because the printer automatically performs a reliability check.

Epson Stylus Pro WT7900/7910 User’s Guide

Introduction

See “Shaking a White Ink Cartridge” on page 65

Automatic maintenance feature

This product is wide-format ink jet color printers that provide a white ink printing feature, supporting 24-inch paper. Read this section before using your printer.

White Ink Printing

In addition to normal color printing, white printing onto a transparent film is also possible by using a combination of newly developed white ink and Epson ClearProof Film (Epson special media). This allows you to use transparent films for your pre-press workflow and color proofing.

Epson ClearProof Film

Epson ClearProof Film requires a specific operating environment and handling method that differs from using traditional Epson special media. Follow the instructions that come with the media.

Auto white ink refresh

Automatically refreshes old white ink with new ink to avoid sedimentation in the ink tube.

See “White ink refresh” on page 78

See “Auto white ink refresh function” on page

Ink changing to protect the print head

Automatically changes white ink to cleaning liquid in the print head when powering off. Cleaning liquid prevents ink sedimentation in the print head. It cannot be used for printing or cleaning outside the printer. Turn off your printer if it will not be used for a long period of time, for example during nighttime hours or weekends.

See “Cautions when powering off” on page 9

See “MAINTENANCE” on page 25

See “About Epson ClearProof Film (Epson special

media)” on page 59

White Ink Maintenance

Sedimentation (ink components settle to the bottom of liquid) may be caused when using white ink. Continuing to use white ink when sedimentation has occurred may result in reduced print quality or printer failure. To avoid white ink sedimentation, you need to manually maintain the white ink as well as allowing the printer to perform automatic white ink maintenance.

User maintenance

Shaking the white ink cartridge

You must shake the white ink cartridge periodically to avoid sedimentation in the ink cartridge.

See “Maintaining White Ink” on page 63

See “Notes for storing white ink cartridges” on

page 65

Cautions when powering off

When not using your printer for a long period of time, sedimentation of the white ink may occur in the print head nozzle, which may cause problems such as printer failure. To avoid such problems, the printer automatically changes white ink to cleaning liquid in the print head when powering off. Make sure you follow the instructions below when turning off your printer.

❏ Always use the

Ink changing (auto) is not possible if you turn off your printer by unplugging the printer cable, or cutting the power at a distribution switchboard or circuit breaker.

❏ Do not unplug or operate a distribution

switchboard or circuit breaker until the LCD panel display switches off after pressing the button. Ink changing takes two to three minutes. Wait for a while until the ink changing procedure finishes and your printer is completely turned off.

button on the control panel.

Epson Stylus Pro WT7900/7910 User’s Guide

Caution:

If an unexpected power-off is triggered by electrical power failure or a short circuit, you must turn on your printer and then turn it off again by pressing the Power button.

❏ Make sure that there is enough cleaning liquid

remaining when powering off. Both white ink and cleaning liquid is required for the ink changing procedure. The printer turns off without changing ink if there is not enough cleaning liquid remaining. Prepare extra cleaning cartridges in advance.

See “Confirming the ink cartridge remaining”

on page 68

Introduction

Epson Stylus Pro WT7900/7910 User’s Guide

Introduction

Printer Parts

Front section

9. Manual box

Place the manual in here. You can set it either on the left or right side of the stand.

Rear section

1. Adapter holder

Holds the roll paper when loading the roll paper.

2. Roll paper cover

Open the roll paper cover when loading or removing the roll paper.

3. Control panel

The control panel consists of buttons, lights, and a liquid crystal display (LCD).

4. Ink covers (left and right)

Open the ink cover when installing ink cartridges. It opens slightly when you press the printer’s control panel.

5. Basket guides

Attachments to set the Epson Film Basket.

6. Front cover

Open the front cover when removing jammed paper and cleaning the inside of the printer.

7. Paper basket

Receives the ejected paper.

button on the

1. Maintenance tank

These tanks hold the waste ink.

2. USB interface connector

Connects the computer and printer with a USB interface cable.

3. Option interface connector

Connects the printer and a optional cable.

4. Network interface connector

Connects the printer to the network with a network interface cable.

5. AC inlet

Plug the power cord.

8. Paper guides

Adjusts to the roll paper for forward or backward ejection.

Epson Stylus Pro WT7900/7910 User’s Guide

Epson Film Basket

Introduction

A special basket for Epson special film. You can remove and store it when it is not in use.

Epson Stylus Pro WT7900/7910 User’s Guide

The Control Panel

Buttons, Lights, and

The Control Panel

5. Paper Source button ( )

❏ Selects a paper source and roll paper cut method.

The icon changes by pressing this button. However, you cannot change the paper source icon to Sheet REMAINING PAPER SETUP is set to ON.

when you load the paper while

Messages

You can check the ink remaining and printer status on the control panel.

Buttons

1. Power button ( )

Turns the printer on or off.

2. Pause/Reset button ( )

❏ The printer enters the PAUSE state when this

button is pressed in the READY state. To cancel the pause, select PAUSE CANCEL on the LCD panel. When selecting JOB CANCEL, it functions as the Reset button. The printer stops printing and clears print data in the printer. After clearing the data, it may take a while to return to the READY state.

❏ The printer returns to the READY state when this

button is pressed in the Menu mode.

❏ Clears errors if it is possible.

See “Error Messages on the LCD Panel” on

page 88

Icon Explanation

Roll Auto Cut On

Roll Auto Cut Off

Sheet Prints on the sheet.

❏ Returns to the previous level when pressed in the

Menu mode.

6. Paper Feed button ( / )

❏ Feeds the roll paper in the forward up to

three meters or reverse to feed the paper faster in the forward direction, press and hold it for three seconds. You can feed 20 cm of paper in the reverse direction with one press.

❏ If you press these buttons while the paper presser

is released, you can adjust the paper suction in the paper feed path in three stages.

See “Loading Cut Sheet A3 Size or Larger /

Thick paper” on page 40

❏ Press the

sheet with a thickness of under 0.5 mm, the printer starts feeding the paper and then goes to READY status.

button when setting a single cut

Prints on roll paper. Cuts the roll paper automatically after printing each page.

Prints on roll paper. Does not cut the paper automatically after printing. You need to manually cut the paper.

direction. If you want

3. Cleaning button ( )

Shortcut button to the CLEANING menu in MAINTENANCE. If you notice that print quality has

declined, press this button and select the best cleaning option to improve print quality.

See “Head cleaning” on page 77

4. Ink Cover Open button ( )

Slightly opens the ink cover, selecting right of left indicated on the display.

❏ Feeds the sheet in the forward direction when you

press the

❏ Changes the parameters in the forward

reverse Menu mode.

7. Menu button ( )

❏ Enters the Menu mode when pressed in the

READY status.

See “Menu Mode” on page 17

button.

order when selecting the parameter in

Epson Stylus Pro WT7900/7910 User’s Guide

The Control Panel

❏ Enters the PRINTER STATUS menu if pressed

during printing.

See “PRINTER STATUS” on page 26

❏ When pressed in the Menu mode, a desired menu

can be selected.

8. OK button ( )

❏ Sets the selected parameter in the selected item in

the Menu mode. Executes the item if the selected item is for execution only.

❏ By pressing this button after printing, the printer

ejects the cut sheet.

❏ By pressing this button during ink drying or color

chart drying, the printer stops the operation.

❏ When you press this button if there is no paper in

the printer, the paper feeding procedure is displayed on the LCD panel.

9. Paper Cut button ( )

Cuts the roll paper using the built-in cutter.

10. Paper Secure button ( )

❏ Locks or unlocks the paper presser. When you

load the paper, press this button to unlock the paper presser first, and then load the paper. Press this button again to start feeding the paper and then enter READY status.

❏ When you press this button while REMAINING

PAPER SETUP is ON, a barcode is printed on the

roll paper edge and the paper presser is released.

Lights

1 Power light On The printer is on.

Flashing The printer is receiving

data. The printer is turning off.

Off The printer is off.

2 Paper

Check light

3 Ink Check

light

On No paper is loaded in

the paper source. The paper setting is not correct.

Flashing Paper is jammed.

Paper is not loaded correctly.

Off The printer is ready to

print data.

On The installed ink

cartridge is expended. The ink cartridge is not installed. The wrong ink cartridge is installed.

Flashing The installed ink

cartridge is nearly expended.

Off The printer is ready.

4 Pause light On The printer is in the

Menu mode or pause mode. The printer has an error.

Off The printer is ready.

5 Paper

Secure light

On The paper presser is

released.

Off The printer is ready.

Epson Stylus Pro WT7900/7910 User’s Guide

The Control Panel

Display

1. Messages

Displays the printer status, operation, and error messages.

See “Error Messages on the LCD Panel” on page

See “Details of Menu mode” on page 22

2. Paper Source icon

Displays the paper source and roll paper cut setting. You can select the following paper source icons by pressing the

Icon Explanation

button.

3. Platen Gap icon/Paper Number

Normally, displays the PLATEN GAP setting.

See “PRINTER SETUP” on page 22

Icon Explanation

None STANDARD

NARROW

WIDE

WIDER

WIDEST

When you select paper number (1 to 10) for PAPER NUMBER from the CUSTOM PAPER menu, the number

you selected is displayed.

See “Printing with Non-Epson Media” on page

4. Roll Paper Margin icon

Displays the paper margin icon with the margins you have selected for the ROLL PAPER MARGIN.

Prints on roll paper. Cuts the roll paper automatically after printing each page.

Prints on roll paper. Does not cut automatically after printing.

Prints on the sheet.

❏ 15/35mm: When TOP 15/BOTTOM 35mm is

selected.

❏ 35/15mm: When TOP 35/BOTTOM 15mm is

selected.

❏ 3mm: When 3mm is selected.

❏ 15mm: When 15mm is selected.

❏ Auto: When DEFAULT is selected.

See “PAPER SETUP” on page 27

Epson Stylus Pro WT7900/7910 User’s Guide

The Control Panel

5. Roll Paper Counter icon

Displays the remaining amount of roll paper. When you make the following settings in ROLL PAPER REMAINING from the PAPER SETUP menu, the

icon and the remaining amount of roll paper is

displayed.

❏ REMAINING PAPER SETUP is set to ON.

❏ The length of the roll paper is set for ROLL PAPER

LENGTH.

❏ The roll length alert value is set for ROLL LENGTH

ALERT.

See “PAPER SETUP” on page 27

6. Ink cartridge status icon

Icons 1 to 11 display the amount of color ink remaining. 1 to 6 are installed on the left side and 7 to 11 are installed on the right side of the slot.

❏ Ink cartridge

Number Ink color

1 Cyan (C)

❏ Ink remaining

Icon Description

There is enough ink remaining.

Prepare a new ink cartridge. (flashing) This icon indicates the Yellow ink.

Cannot print because any of following errors. (flashing) This icon indicates the Yellow ink.

❏ Ink is expended.

❏ Ink cartridge is not installed.

❏ A cartridge error is occurred

Confirm the message displayed on the LCD panel and clear the error.

7. Maintenance tank icon

The rightmost icon show the empty space of the maintenance tank.

2 Orange (O)

3 Yellow (Y)

4 Light Cyan (LC)

5 White (WT)

6 Cleaning Liquid (CL1)

7 Vivid Magenta (VM)

8 Cleaning Liquid (CL2)

9 Green (G)

10 Photo Black (PK)

11 Vivid Light Magenta (VLM)

Icon Description

There is sufficient space in the maintenance tank.

We recommend you prepare a new maintenance tank. (flashing)

The maintenance tank is at the end of its service life. Replace the maintenance tank with a new one. (flashing)

Epson Stylus Pro WT7900/7910 User’s Guide

The Control Panel

8. Option usage icon

Displays whether options are available to use or not.

Option Icon Description

SpectroProofer Mounter 24"

No icon Not connected

9. White ink maintenance icon

Displays the days remaining until the next white ink maintenance is required. If this icon flashes, remove the white ink cartridge and shake it.

See “Shaking the White Ink Cartridge” on page

10. Ink selection

Displays the type of ink in the white ink nozzle. This printer protects the print head by changing white ink to cleaning liquid if you are not using white ink.

Icon Description

Available

Not available

Menu Mode

You can specify the platen gap, custom paper and more in the Menu mode. You can also display printer information, and operations such as nozzle check can be performed using the control panel.

Using the Menu mode

Note:

Press the Menu mode and return to READY state. Press the

Follow the steps below to use the Menu mode.

1. Select a menu.

Example: When selecting PRINTER SETUP

Press the button to enter the Menu mode.

button whenever you want to exit

button to return to the previous step.

White ink cartridge is installed in the print head. (For white ink printing)

Cleaning liquid cartridge is installed in the print head. (For print head protection)

The first menu appears on the LCD panel.

Press the / button to select PRINTER

SETUP.

Press the button to enter the PRINTER

SETUP menu.

Epson Stylus Pro WT7900/7910 User’s Guide

The Control Panel

2. There are three cases depending on the items you have selected.

A. When you can select a parameter

Example: When selecting PLATEN GAP in the PRINTER SETUP menu

Press the / button to select PLATEN

GAP.

Press the button to enter the PLATEN GAP.

B. When you execute a function

Example: When selecting NOZZLE CHECK from the TEST PRINT menu

In the TEST PRINT menu, press the /

button to select NOZZLE CHECK.

Press the button to enter NOZZLE CHECK,

and then press the PRINT WITH WHITE INK or PRINT NOW.

/ button to select

Press the / button to select a parameter

for the PLATEN GAP. The current setting is marked with (

Press the button to store the selected

parameter.

Press the button to return to the previous

level, or press the mode.

button to exit Menu

Press the button to execute the NOZZLE

CHECK.

Epson Stylus Pro WT7900/7910 User’s Guide

The Control Panel

C. When you want to display printer information

Example: When selecting INK LEVEL from the PRINTER STATUS menu.

In the PRINTER STATUS menu, press the /

button to select INK LEVEL.

Press the button to enter INK LEVEL.

Confirm the amount of ink remaining on the

display. Press the the amount of ink remaining for each color.

Example: Cyan 84%

Press the button to return to the previous

level or press the mode.

/ button to display

button to exit Menu

Epson Stylus Pro WT7900/7910 User’s Guide

The Control Panel

Menu list

Menu Item Parameter

“PRINTER SETUP” on page 22

“TEST PRINT” on page24NOZZLE CHECK PRINT WITH WHITE INK, PRINT NOW

PLATEN GAP NARROW, STANDARD, WIDE, WIDER, WIDEST

PAGE LINE ON, OFF

ROLL PAPER MARGIN DEFAULT, TOP 15/BOTTOM 35mm, TOP 35/BOTTOM

15mm, 3mm, 15mm

PAPER SIZE CHECK ON, OFF

PAPER SKEW CHECK ON, OFF

AUTO NOZZLE CHECK ON: PERIODICALLY, ON: EVERY JOB, OFF

PRINT NOZZLE PATTERN OFF, ON: EVERY PAGE, ON: EVERY 10 PAGES

AUTO WT INK REFRESH ON, OFF

INITIALIZE SETTINGS EXECUTE

STATUS SHEET PRINT

NETWORK STATUS SHEET PRINT

JOB INFORMATION PRINT

CUSTOM PAPER PRINT

“MAINTENANCE” on page 25

“PRINTER STATUS” on page 26

CHANGE INK CL->WT, WT->CL

CUTTER ADJUSTMENT -xxmm to +xxmm

CUTTER REPLACEMENT EXECUTE

CLEANING NORMAL CLEANING, CLEAN COLOR PAIRS, POWER

CLEANING, WT INK REFRESH

CLOCK SETTING MM/DD/YY HH:MM

VERSION AN0XXXX-XX.XX.IBCC

INK LEVEL (ink color) nn%

MAINTENANCE TANK RIGHT nn%

JOB HISTORY No. 0-No. 9

INK xxxxx.xml PAPER xxx cm2

TOTAL PRINTS nnnnnn PAGES

EDM (or myEpsonPrinter) STATUS INITIALIZING, NOT STARTED, ENABLED, DISABLED

LAST UPLOADED; (NOT UPLOADED) MM/DD/YY HH:MM GMT

Epson Stylus Pro WT7900/7910 User’s Guide

The Control Panel

Menu Item Parameter

“PAPER SETUP” on page 27

“HEAD ALIGNMENT” on page 30

“NETWORK SETUP” on page 30

ROLL PAPER REMAINING REMAINING PAPER SETUP

ROLL PAPER LENGTH ROLL LENGTH ALERT

PAPER TYPE ClearProof Film

Premium Glossy 250 Premium Glossy Sheet Proofing Paper W Sm CUSTOM PAPER NO PAPER SELECTED Bundled Roll Paper

CUSTOM PAPER PAPER NO.1 - 10

PAPER THICKNESS SELECT PAPER TYPE

SELECT THICKNESS

ALIGNMENT AUTO, MANUAL

NETWORK SETUP DISABLE, ENABLE

IP ADDRESS SETTING AUTO, PANEL

IP, SM, DG SETTING IP ADDRESS

000.000.000.000 - 255.255.255.255

SUBNET MASK

000.000.000.000 - 255.255.255.255

DEFAULT GATEWAY

000.000.000.000 - 255.255.255.255

“OPTIONS SETUP” on page 30

BONJOUR ON, OFF

INIT NETWORK SETTING EXECUTE

SpectroProofer STATUS INFORMATION, DEVICE ALIGNMENT

Epson Stylus Pro WT7900/7910 User’s Guide

The Control Panel

Details of Menu mode

PRINTER SETUP

* Default settings

Item Parameter Explanation

PLATEN GAP NARROW You can adjust the distance between the print head and the paper.

STANDARD *

WIDE

WIDER

WIDEST

❏ STANDARD: Normally, select STANDARD.

❏ When selecting a setting other than STANDARD, the following

icon is displayed on the LCD panel.

: NARROW

: WIDE

: WIDER

: WIDEST

PAGE LINE ON * You can select whether to print a page line (line along which to cut)

on the roll paper. Select ON if you want to print the page line, or OFF

OFF

ROLL PAPER MARGIN DEFAULT * You can select margins for roll paper.

TOP 15/BOTTOM 35mm

TOP 35/BOTTOM 15mm

3mm

15mm

otherwise.

A vertical line may be printed when the roll paper width set in the computer is smaller than the width of the roll paper that is loaded in the printer.

This setting is available for roll paper only.

❏ DEFAULT:

The top margin for Premium Glossy Photo Paper (250) is 20 mm and the bottom margin is 15 mm. The top and bottom margins for other paper types is 15 mm.

❏ TOP 15/BOTTOM 35mm:

The top margin is 15 mm, the bottom is 35 mm, and the left and right margins are 3 mm.

❏ TOP 35/BOTTOM 15mm:

The top margin is 35 mm, the bottom is 15 mm, and the left and right margins are 3 mm.

❏ 3mm:

The margins for all four sides are 3 mm.

❏ 15mm:

The margins for all four sides are 15 mm.

The print size does not change even when the margins are changed.

PAPER SIZE CHECK ON * You can select whether to check the paper width.

OFF

❏ ON:

Check the paper width and top edge of the paper.

❏ OFF:

Does not check the paper width and top edge of the paper. The printer continues to print even if the paper width does not match the data width, and the printer may print beyond the paper. When this happens, ink may smear inside and outside the printer when continuing to print. Normally, selecting ON is recommended. Also top margin of the paper size may be widen.

Epson Stylus Pro WT7900/7910 User’s Guide

The Control Panel

Item Parameter Explanation

PAPER SKEW CHECK ON * ❏ ON:

If the paper is not straight, an error message is displayed on the

OFF

AUTO NOZZLE CHECK ON: PERIODICALLY * The printer performs a nozzle check and if there are missing dots, it

ON: EVERY JOB

OFF

LCD panel and the printer stops printing.

❏ OFF:

A paper align error does not occur even if the printed data is out of range of the paper, and the printer continues to print.

This setting is effective for roll paper only.

performs cleaning automatically.

❏ ON: PERIODICALLY

Automatically performs a nozzle check periodically.

❏ ON: EVERY JOB

Performs a nozzle check before printing each job.

❏ OFF

Does not perform a nozzle check automatically.

You can change the number of times that cleaning is performed in AUTO CLEANING TIMES in the MAINTENANCE mode. You can set up to three times.

See “Maintenance Mode” on page 31

PRINT NOZZLE PATTERN

AUTO WT INK REFRESH ON * To clear white ink sediment inside the ink tube, this function

INITIALIZE SETTINGS EXECUTE You can return all setting values made in the PRINTER SETUP menu

OFF * When you select ON, the printer prints the nozzle check pattern

before printing each print job or the 10th sheet, depending on the

ON: EVERY PAGE

ON: EVERY 10 PAGES

OFF

settings.

This setting is effective for roll paper only.

automatically changes the white ink inside the ink tube. It takes about four minutes. Since the components of the white ink settle easily, ON is normally recommended. This printer does not change the white ink if you select OFF.

to their default factory settings.

Epson Stylus Pro WT7900/7910 User’s Guide

The Control Panel

TEST PRINT

Item Parameter Explanation

NOZZLE CHECK PRINT WITH WHITE INK There are two kinds of nozzle checks available. Use the option

that best suits your usage.

PRINT NOW

❏ PRINT WITH WHITE INK

Prints a nozzle check pattern with all color inks including the white ink. Even when white ink is not selected and cleaning liquid is selected, it automatically changes to white ink and prints a nozzle check pattern. In that case, it takes about two or three minutes.

❏ PRINT NOW

Prints a nozzle check pattern for selected color inks when printing. When white ink is selected, it prints the same pattern as selecting PRINT WITH WHITE INK. When cleaning liquid is selected, it prints the pattern except for white ink.

See “Nozzle check” on page 75

STATUS SHEET PRINT You can print the current printer status.

NETWORK STATUS SHEET PRINT You can print the current network status.

JOB INFORMATION PRINT You can print the job information saved in the printer (up to 10

jobs).

CUSTOM PAPER PRINT You can print custom paper information registered in the

CUSTOM PAPER menu.

Epson Stylus Pro WT7900/7910 User’s Guide

The Control Panel

MAINTENANCE

You can perform maintenance functions, such as head cleaning.

Item Parameter Explanation

CHANGE INK CL->WT Changes ink in the nozzle. It takes about three minutes for

replacement.

WT->CL

CUTTER ADJUSTMENT -3.0mm~+3.0mm You can adjust the cutter position with 0.2-mm increments.

CUTTER REPLACEMENT EXECUTE Starts the cutter replacement operation.

❏ CL->WT

Changes cleaning liquid with white Ink.

❏ WT->CL

Changes white ink with cleaning liquid.

See “Replacing the Cutter” on page 71

CLEANING NORMAL CLEANING You can perform normal cleaning.

CLEAN COLOR PAIRS You can select which nozzles to clean from the following

two-color combinations; C/VM, WT(CL1)/CL2, O/G, BK/Y, VLM/LC.

POWER CLEANING You can clean the print head more effectively than normal head

cleaning.

WT INK REFRESH You can change the white ink inside the ink tube to clear white

ink sediment.

CLOCK SETTING MM/DD/YY HH:MM You can set year, month, date, hour, and minute.

Epson Stylus Pro WT7900/7910 User’s Guide

The Control Panel

PRINTER STATUS

This menu shows the printer status.

Item Parameter Explanation

VERSION AN0XXXX-XX.XX.IBCC You can see the firmware version.

INK LEVEL (ink color) nn% You can see the status of each ink cartridge.

MAINTENANCE TANK RIGHT nn% You can see the empty space in the maintenance tank.

JOB HISTORY No. 0 - No.9

INK xxxxx.xml PAPER xxxx cm2

TOTAL PRINTS nnnnnn PAGES You can see the total amount of pages you have printed up to

EDM (or myEpsonPrinter) STATUS *

* This function is not supported in some areas. For details, visit your local Epson web site or contact your local Epson dealer/

representative.

INITIALIZING, NOT STARTED, ENABLED, DISABLED

LAST UPLOADED MM/DD/YY HH:MM GMT, (NOT UPLOADED)

You can see ink consumption (INK) in milliliters and paper size (PAPER) for each print job saved in the printer. The latest job is saved as No. 0.

six-digit.

You can see if the EDM (or myEpsonPrinter) is enabled or disabled. If it is enabled, the time that the EDM status was last uploaded is displayed.

Note:

❏ When the Ink Check light flashes or remains on, you need to replace the expended ink cartridge. If you replace the

cartridge correctly, the counter resets automatically.

See “Replacing ink cartridges” on page 68

❏ You need to replace the maintenance tank when the LCD panel instructs to do so. If you replace the tank correctly,

the counter resets automatically.

See “Replacing the maintenance tank” on page 70

Epson Stylus Pro WT7900/7910 User’s Guide

The Control Panel

PAPER SETUP

When you use non-Epson media, be sure to make the appropriate settings for the paper.

Item Parameter Explanation

ROLL PAPER REMAINING REMAINING PAPER SETUP You can load the paper remaining counter function only if paper

is not loaded in the printer.

❏ OFF:

The ROLL PAPER REMAINING function is disabled. The Roll Paper Counter icon does not appear on the LCD panel.

❏ ON:

The remaining amount of roll paper is displayed on the LCD panel. When you press the (including the PAPER TYPE, the ROLL PAPER LENGTH, and the ROLL LENGTH ALERT value information) is printed on the roll paper edge.

When the roll paper is changed, the barcode is scanned and the

PAPER TYPE, the ROLL PAPER LENGTH, and the ROLL LENGTH ALERT value information are set.

button, the barcode

ROLL PAPER LENGTH These settings are available only when REMAINING PAPER

SETUP is ON.

ROLL LENGTH ALERT

PAPER TYPE ClearProof Film You can select the media type loaded in the printer.

Premium Glossy 250

Premium Glossy Sheet

Proofing Paper W Sm

CUSTOM PAPER

NO PAPER SELECTED

Bundled Roll Paper

CUSTOM PAPER PAPER NO.1 - 10 You can select a number (between 1 to 10) to register the

You can receive a message when there is not much paper left by setting the roll alert.

When using roll paper, enter the length of the roll paper set in the printer and the alert value. You can set the ROLL PAPER REMAINING from 5.0 to 99.5 m, and the ROLL LENGTH ALERT from 1 to 15 m.

Bundled Roll Paper means matte paper supplied with the printer. Using Bundled Roll Paper for the initial setup of the printer and optional SpectroProofer mounter.

settings (such as PAPER TYPE, PLATEN GAP, PAPER THICKNESS, PAPER FEED ADJUST, DRYING TIME, PAPER SUCTION) or to recall the settings you have made. The number you select here is displayed on the LCD panel.

See “CUSTOM PAPER SETUP” on page 28

Epson Stylus Pro WT7900/7910 User’s Guide

The Control Panel

CUSTOM PAPER SETUP

When you use non-Epson media, you need to make settings suitable for the media.

After you have selected the paper number, make the following settings. Make sure to select the paper from PAPER TYPE first, and then make the PLATEN GAP setting and so on.

To set the custom paper, see the following section.

See “Printing with Non-Epson Media” on page 60

Item Parameter Explanation

PAPER TYPE ClearProof Film You can select the media type that is most similar to the paper

you are using.

Premium Glossy 250

Premium Glossy Sheet

Proofing Paper W Sm

NO PAPER SELECTED

PLATEN GAP NARROW You can adjust the distance between the print head and the

paper.

STANDARD

WIDE

WIDER

WIDEST

THICKNESS PATTERN PRINT You can print the paper thickness detection pattern and select

PAPER FEED ADJUST -0.70% to +0.70% You can set the paper feed amount of the printable area. The

DRYING TIME 0.0sec to 10.0sec You can set the ink drying time for each print head pass. The

PAPER SUCTION STANDARD You can set the suction pressure used to feed the printed paper.

-1 to -4

STANDARD: Normally, select STANDARD. NARROW: Use this when printing on thin paper. WIDE or WIDER: Select this if you find that printed images are

smeared. WIDEST: Select this if printed images are still smeared after trying WIDE or WIDER.

the appropriate number from the printed pattern.

range is -0.70 to 0.70%. If the paper feed value is too large, white horizontal micro-banding may appear. If the paper feed value is too small, dark horizontal micro-banding may appear.

range is 0 to 10 seconds. Depending on the ink density or paper type, the ink may not dry quickly. In this case, set a longer drying time.

SET ROLL PAPER TENSION NORMAL When using a cloth or thin paper or when wrinkles appear in the

paper during printing, select HIGH or EXTRA HIGH.

HIGH

EXTRA HIGH

REMOVE SKEW ON You can select whether or not to perform this operation to

reduce paper skew.

OFF

Epson Stylus Pro WT7900/7910 User’s Guide

The Control Panel

Item Parameter Explanation

FRONT EDGE STANDBY STANDARD POSITION You can select the paper top stand by position for pre printing

(paper is loaded) and post printing (after auto-cut) depending

BACK POSITION

on the paper type.

❏ STANDARD POSITION :

Normally use this option.

❏ BACK POSITION:

Loads the paper with less paper loading length. Use this option when printing on media such as transparent film to avoid the tracks of the paper.

Epson Stylus Pro WT7900/7910 User’s Guide

The Control Panel

HEAD ALIGNMENT

You can perform print head alignment. For more details, see the following section.

See “Print head alignment” on page 80

Item Parameter Explanation

PAPER THICKNESS SELECT PAPER TYPE When using Epson special media, select the paper type. If you

use non-Epson special media, enter the paper thickness in the

SELECT THICKNESS

ALIGNMENT AUTO When you select AUTO, the adjustment pattern for output is read

MANUAL

range of 0.1 to 1.5 mm.

by the sensor and the optimum adjustment value is registered automatically in the printer. When you select MANUAL, you need to check the pattern and enter the value for alignment.

NETWORK SETUP

When you use the printer on the network, set the following items.

* Default settings

Item Parameter Explanation

NETWORK SETUP DISABLE * You can make the network settings using the printer’s control

panel. The following items appear only when ENABLE is

ENABLE

IP ADDRESS SETTING AUTO * You can select the method for setting an IP address to the

PANEL

IP,SM,DG SETTING Ask your system administrator for detailed information.

BONJOUR ON * You can enable or disable the Bonjour setting.

OFF

INIT NETWORK SETTING EXECUTE You can return the network settings of the printer to the factory

selected. After setting the items, press the NETWORK SETUP menu, so the network is reset and the network connection is available after 40 seconds. The NETWORK SETUP menu does not appear while resetting the network.

printer. When you select PANEL, IP,SM,DG SETTING is displayed.

default value.

button in the

OPTIONS SETUP

When you use the optional equipment, set the following items.

Item Parameter Explanation

SpectroProofer STATUS INFORMATION Displays the settings of the attached SpectroProofer (DEVICE

VERSION: ILS20EP, CALIBRATION TILE S/N, DEVICE TEMPERATURE, FIRMWARE VERSION, AIR TEMPERATURE, BACKING COLOR, ILS Calibration Status).

DEVICE ALIGNMENT You can execute setting up for the attached SpectroProofer.

Epson Stylus Pro WT7900/7910 User’s Guide

The Control Panel

Maintenance Mode

You can change the language or the display units used or return all setting values to their factory defaults.

Turn off the printer by pressing the button.

Press both the button and the button

at the same time to turn on the printer. Hold down both buttons until MAINTENANCE MODE is displayed on the LCD panel.

Refer to the "Maintenance mode list" below for details. The setting procedures are the same as those for the Menu mode.

See “Menu Mode” on page 17

To exit Maintenance mode, press the

button to turn off the printer.

Maintenance mode list

* Default settings

Item Parameter Explanation

LANGUAGE JAPANESE You can select the

language to be

ENGLISH *

FRENCH

displayed on the LCD panel.

Item Parameter Explanation

LENGTH UNITS METRIC You can select the

unit of

FEET/INCH *

TEMPERATURE UNITS

ROLL PAPER TENSION

SS CLEANING EXECUTE You can perform

DEFAULT PANEL

AUTO CLEANING TIMES

˚C * You can select the

1 When you set

3 *

EXECUTE You can reset all

1 * You can set the

measurement to use for displaying length.

unit of temperature displayed on the LCD panel.

EXTRA HIGH to the SET ROLL PAPER TENSION setting in the CUSTOM PAPER SETUP menu of the PAPER SETUP menu

in Menu mode, you can change the value of ROLL PAPER TENSION on a scale of one to five. The higher the value the stronger the tension.

ultrasonic head cleaning.

setting values made in Menu mode to their factory default settings

number of times that the printer performs cleaning when it performs a nozzle check and detects missing dots.

ITALIAN

GERMAN

PORTUGUE

SPANISH

DUTCH

KOREAN

CHINESE

CUSTOM 0 - 255 You can make

custom settings. This does not normally need to be used.

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Handling

Using Roll Paper

Loading Roll Paper

To load roll paper, follow the steps below.

Note:

❏ When REMAINING PAPER SETUP is ON, the

barcode (including paper information) is printed on the roll paper edge before the paper is removed. This facilitates paper setting the next time the same paper is used.

See “PAPER SETUP” on page 27

❏ We recommend that you load the roll paper

immediately before printing. If the paper roll is left in the printer, the roller for securing the paper may leave a mark on the surface of the paper.

Paper Handling

Open the roll paper cover.

To unlock the adapter holder, push the lock lever of the adapter holder down firmly. Then move the adapter holder to the left with the handle.

Turn on the printer by pressing the button.

Note:

After turning on the printer, press the button before loading the paper to display the instructions for paper settings.

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Handling

Place the paper roll in the gap on the top face of

the printer.

Switch the lever of the roll media adapter to fit

the core size of the roll paper.

Using 2-inch core:

Attach the roll media adapters on both ends of

the roll paper. Then, pull down the lock lever of the adapters on both sides to lock.

Push the adapters into the paper core firmly.

Using 3-inch core:

Release the lock lever of the adapters on both

sides.

Move the roll paper to the right side until it

touches the roll paper set guide.

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Handling

Slide the adapter holder with the handle until

the left roll media adapter aligns with the on the adapter holder.

Roll the roll paper slowly into the roll paper

holder.

Slide the adapter holder with the handle to the

right to set it in the holder axis firmly.

Make sure you set both ends of the roll paper into the adapters firmly.

Push the lock lever of the adapter holder up to

lock.

Press the button.

Insert the paper into the insertion slot. Pull the

paper down through the paper insertion slot so that it comes out below.

Take care not to fold the edge of the paper, and insert it so that there is no slack.

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Handling

If you have difficulty feeding the paper, adjust the paper suction by pressing the button. Pull the paper to fit the edge of the paper to the label position.

Close the roll paper cover.

If ARE THESE SETTINGS OK? is displayed on

the LCD panel, press the select NO and then press the the media type and paper remaining, and then press the

The previous setting is displayed on the LCD panel. If the media type and paper remaining are correct, select YES and then press the button.

If the edge of the roll paper has folds, press the

button to cut the edge.

Mount the appropriate basket to the printer.

button to set the media.

or button to

See “Using the Paper Basket and Paper

Guides” on page 42

button. Set

Press the button.

After a few seconds, the paper moves to the printing position. When you press the button, it moves immediately.

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Handling

Cutting the Roll Paper

There are two ways to cut the roll paper.

Method Operation

Auto cut Cut the roll paper after printing each page

automatically.

Manual cut Cut the roll paper manually, or cut the roll

paper using cutter a commercially available cutter.

Auto cut is available for all genuine Epson paper usable by this printer.

See “Supported Media Specifications” on page

Note:

❏ Some of the roll paper may not be cut using the

built-in cutter. Use a commercially available cutter to cut the paper.

❏ It may take a while to cut the roll paper.

Cutting the roll paper after printing

Cutting the roll paper automatically

Cuts the roll paper automatically after printing each page.

Note:

The minimum length for cutting roll paper automatically is 420 mm for Epson ClearProof Film, and 80 mm to 127 mm for other paper types. This value cannot be changed. When printing at a lower length than this value, there will be a margin on the prints because the printer feeds the paper to the minimum cutting length. When printing at a lower length than this value, cut the paper manually.

Cutting the roll paper manually

To cut the roll paper manually using the built-in cutter, follow the steps below.

While looking inside the printer over the front

cover, press the paper and adjust the cutting position to the

mark on the left side of the print head.

button to feed the roll

Setting the cutting method

Before printing, select the cutting method.

Printing from the printer’s control panel (such as printing a status sheet)

Press the button to select cutting method.

Icon Explanation

Roll Auto Cut On

Roll Auto Cut Off

Note:

Settings in the software RIP take priority.

Press the button. When the selection

menu is displayed, select CUT by using the or button, and then press the button.

Note:

❏ If the paper cannot be cut by the built-in

cutter, press the automatically feeds the paper to a position where you can cut it manually. Cut the paper using the cutter.

❏ Depending on the paper type, the

minimum length of paper you can cut is set from 80 to 127 mm. This value cannot be changed.

After pressing the button, cutting starts

after a few seconds.

Prepare to receive the film before cutting starts. If the film is less than 420 mm in length, it will be damaged and scratched if you do not catch it before it falls.

button so the printer

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Handling

Removing the Roll Paper

Note:

We recommend that you remove the roll paper from the printer after printing. If the paper roll is left in the printer, the roller for securing the paper may leave a mark on the surface of the paper.

Make sure the printer is turned on.

Open the roll paper cover.

Note:

When you are not using the roll paper, wrap it using the optional roll paper belt.

To unlock the adapter holder, push the lock

lever of the adapter holder down firmly. Move the adapter holder to the left with the handle until the end. Then take it off from the holder axis.

Press the button to release the paper presser.

The roll paper is rewound automatically if the printer is in READY status after cutting the paper.

Roll the roll paper to the front side, and then

place it in the gap on the top face of the printer.

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Handling

Pull up the lock lever of the adapter to unlock.

Then remove the roll media adapter from the roll paper.

After rewinding the roll paper carefully, place it in the original bag that it came in when it was purchased.

Using Cut Sheet Media

The procedures differ depending on your paper size and thickness.

Paper Refer to

Smaller than A3 size

A3 or larger or thick paper

Note:

❏ Flatten the paper before loading it in the printer. If

paper that is wavy or slack is loaded, the printer may not recognize the paper size correctly or may not print normally. Also, we recommend that you repack the paper in its original package and store it flat, only taking it out of the bag just before you use it.

See “Loading cut sheet

smaller than A3 size” on page 39

See “Loading Cut Sheet A3 Size or Larger / Thick paper” on page 40

❏ If roll paper is loaded, rewind it first before loading

single sheet paper.

❏ When you use paper other than Epson special

media, see the instructions included with the paper, or contact your supplier for more information.

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Handling

Loading cut sheet smaller than A3 size

Turn on the printer by pressing the button.

Press the button repeatedly until Sheet

appears.

Make sure that the roll paper cover is closed.

Load the sheet into the paper insertion slot

until it meets resistance.

Align the right edge of the paper with the setting position, and then insert the paper until it meets resistance. When using paper sizes A4 or below, load the paper until it reaches the bottom along the line on the metal part under the paper insertion slot.

PRESS THE

panel.

BUTTON appears on the LCD

Note:

Load the sheet vertically, like most magazines.

Press the button.

The paper moves to the start position.

If ARE THESE SETTINGS OK? is displayed on

the LCD panel, press the select NO and then press the the media type and paper remaining, and then press the

The previous settings are displayed on the LCD panel. If the media type and paper remaining are correct, select YES and then press the button.

button to load the media.

or button to

button. Set

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Handling

If you are using the paper basket, set it to the

backward position.

See “Using the Standard Paper Basket” on

page 46

Loading Cut Sheet A3 Size or Larger / Thick paper

When you load a cut sheet media A3 or larger or thick paper (0.5 to 1.5 mm), follow the steps below.

The setting direction for the paper is as indicated below.

Paper Direction

A3 or larger cut sheet (with thickness of 0.5 mm or less)

Thick paper with length of 728 mm or less

Thick paper with length of 728 mm or longer

Turn on the printer by pressing the button.

Vertical

Horizontal

Press the button.

Load the sheet into the paper insertion slot.

Make sure that the right and bottom edges of

the sheet are straight and in line with the setting line.

If you have difficulty adjusting the thick paper, adjust the paper suction by pressing the

button.

Press the button repeatedly until Sheet

appears.

Make sure that the roll paper cover is closed.

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Handling

Press the button.

After a few seconds, the paper moves to the start position. If you press the moves at once.

If ARE THESE SETTINGS OK? is displayed on

the LCD panel, press the select NO and then press the the media type and paper remaining, and then press the

The previous setting is displayed on the LCD panel. If the media type and paper remaining are correct, select YES and then press the button.

button to load the media.

or button to

button, it

button. Set

Ejecting Paper

This section explains how to eject paper after printing.

Note:

When you use the paper basket, see the following section.

See “Using the Paper Basket and Paper Guides” on

page 42

For Roll Paper

See the following section to cut the roll paper.

See “Cutting the Roll Paper” on page 36

If you use the paper basket, set it in the forward

position.

See “Using the Paper Basket and Paper

Guides” on page 42

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Handling

For Cut Sheet Media

Make sure LOAD PAPER is displayed on the

LCD panel.

If READY is displayed on the LCD panel, press the

Press the button to remove the paper.

button to feed the paper.

Caution:

Do not press any buttons when the Power light or the Pause light is flashing.

Using the Paper Basket and Paper Guides

Using the supplied paper basket ejects the media smoothly and prevents damage when ejecting media. Use the appropriate basket to match the media you are using, otherwise the printouts may be smeared, folded or other damage may occur.

Media Type Basket Type

Epson Special Film Media (Epson ClearProof Film etc.)

Other media Standard Paper Basket

Epson Film Basket

Caution:

The paper may fall after ejecting. Make sure you hold the paper to avoid falling and damaging the paper.

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Handling

Using Epson Film Basket

Use Epson Film Basket only when printing on the Epson film such as Epson ClearProof Film. Remove and store it when using the other media. Ejectable sizes for the Epson Film Basket are shown below.

Ejection direction Paper Size

Forward Paper Length 420 to 914.4 mm

Caution:

❏ When using the Epson Film Basket, remove

one media per printout. Otherwise the printing surface may be scraped or scratched.

❏ Do not load or drop heavy materials such as

roll paper in this basket. Otherwise the basket may be deformed or damaged.

Parts names and functions

Part names and functions for the Epson Film Basket are shown below.

1. Handle part

Hold here when mounting or removing the basket.

2. Attachment part

Insert here into the basket guides when mounting.

3. Film guides

Receives the ejected media smoothly.

4. Basket cloth

On the handle part and the attachment part, there are white stitches indicating the position for adjusting the film guides.

5. Storing string

Gathers the edges of the basket when storing.

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Handling

Preparing for mounting

When using the Epson Film Basket, you need to change the position of the standard paper basket. Follow the steps below to prepare for mounting the Epson Film Basket.

Note:

You do not have to remove the standard paper basket and SpectroProofer Mounter 24" from the printer.

Fold down the paper guides.

Mounting to the printer

Follow the steps below to mount the Epson Film Basket to the printer.

Take off the storing string and open the film

basket.

Fold up the standard paper basket vertically,

and then fix the hook-and-loop fastener straps beneath.

If the film guide positions have slipped, adjust

them to fit between the white stitching on the basket cloth.

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Handling

Fix the storing string by the hook-and-loop

fastener straps.

Turn the attachment part towards the printer

and then fit it to the gutter of the basket guide by pressing down on the handle section.

Caution:

If the film basket is not mounted correctly, film is not ejected properly. Look through the small window on the basket guides to check that the protruding left and right attachment parts enter the basket guides securely.

Push the basket straight to the end of the gutter.

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Handling

Removing from the printer and storing

When not using the Epson Film Basket, follow the steps below to remove and store it.

Note:

❏ Remove the Film Basket first when replacing roll

paper or installing or removing the Epson SpectroProofer Mounter 24".

❏ Make sure nothing is loaded in the Film Basket

when removing.

Pull the Film Basket forward.

Using the Standard Paper Basket

The ejection direction differs depending on the media type.

Direction Paper Size

Forward Paper length:

914.4 mm or longer

Paper thickness:

0.5 mm or more (thick paper)

Backward Paper length:

Less than 914.4 mm

and

Paper thickness: Less than 0.5 mm

Fold up the basket and fix it by storing string.

Warning:

Be careful not to catch your fingers in the basket parts.

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Handling

When ejecting paper forward

The paper guides keep the ejected prints straight in front of the printer. This section explains how to switch the status from ejecting paper backward to ejecting paper forward.

Remove the hook-and-loop fastener straps of

the front paper basket, and tilt it down.

Bring the paper basket to the vertical position.

This tightens the basket cloth.

Move the paper guides to fix the basket cloth in

place.

Slightly tilt the front paper basket to set the

paper guides to the horizontal position.

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Handling

When ejecting paper backward

Ejects the prints backward and store them in the paper basket. This section explains how to switch the status from ejecting paper forward to ejecting paper backward.

Caution:

Do not stack more than one print in the paper basket. If you stack multiple prints, the space between the paper guides and the paper basket becomes narrow. This may cause a paper feed error.

Bring the paper guides to the horizontal position.

Move the paper guides to the vertical position,

and then bring the front basket back as far as it will go.

Bring the front paper basket up and fasten it

with the hook-and-loop fastener straps.

Tilt the front paper basket slightly down from

the fixed position.

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Handling

Storing the paper basket

If the paper basket is not used, bring the front basket up to the vertical position. This section explains how to switch the status from ejecting paper backward status to storing paper basket.

Move the paper guides to the horizontal position.

Remove the hook-and-loop fastener straps, and

refasten them below. Move the front paper basket up to the vertical position.

Printable Area

Roll Paper

Printable area depending on the ROLL PAPER MARGIN which is set on the LCD panel.

See “PRINTER SETUP” on page 22

ROLL PAPER MARGIN Parameter Settings

DEFAULT (Default settings) a=c=15mm*

b=d=3mm

TOP 15/BOTTOM 35mm a=15mm

Tilt the paper guides.

c=35mm

b=d=3mm

TOP 35/BOTTOM 15mm a=35mm

c=15mm

b=d=3mm

3mm a,b,c,d=3mm

15mm a,b,c,d=15mm

*For Premium Glossy Photo Paper (250), when DEFAULT is selected, the margin becomes a=20mm and c=15mm.

Caution:

❏ If the roll paper comes off the paper core,

printing quality declines. Do not use the final section of the roll paper.

❏ When the width of the margin is changed,

the size of the printed image is not changed.

Epson Stylus Pro WT7900/7910 User’s Guide

Note:

❏ The print area does not change even when the

margins are changed.

❏ The printer automatically detects the dimensions

of the paper that is loaded. Print data that exceeds the printable area of the paper cannot be printed.

❏ When the same data is printed with a 3-mm

margin and a 15-mm margin and compared, you may notice that part of the right side of the 15-mm margin image is not printed.

Paper Handling

Cut Sheet

Epson Stylus Pro WT7900/7910 User’s Guide

Using Printer Software

Note:

The printer software included on the CD-ROM is for Windows only.

Printer Software Introduction

The printer software CD-ROM includes the following software. For detailed information, see the Network Guide (PDF manual) or the online help for each software.

Utility software

EPSON LFP Remote Panel 2

EPSON LFP Remote Panel 2 gives the user a broad range of control over the printer from a computer, allowing you to update the firmware or monitor the printer.

Network software

❏ Epson Network Utility

❏ EpsonNet Config

❏ EpsonNet Print

Note:

❏ The printer driver is not included with the printer.

Software RIP is required for printing. See the Epson web site for the supported RIP software for this printer.

❏ Running the Easy Install from the software

CD-ROM installs EPSON Stylus Pro WT7900 Comm Driver automatically. EPSON Stylus Pro WT7900 Comm Driver differs from the printer driver for printing. It is a communication driver needed when using EPSON LFP Remote Panel 2.

Epson Network Utility

Epson Network Utility is required when using Epson LFP Remote Panel 2 via a network. If this module is not installed, some features, such as monitoring the amount of ink remaining from a computer, do not work normally when using a network.

EpsonNet Config

EpsonNet Config allows the user to set various types of addresses and protocols (TCP/IP, SNMP) for a network interface.

EpsonNet Print

EpsonNet Print is required when using EPSON LFP Remote Panel 2 via a network. This software can automatically trace an IP address. Even though the DHCP function allocates a network interface address automatically, the printer port setting does not need to be changed.

Epson Stylus Pro WT7900/7910 User’s Guide

Using Printer Software

Starting/Exiting Printer Software

Start or exit EPSON LFP Remote Panel 2 following the steps below.

Note:

The following manual gives you detailed information on how to start/exit or set network software.

See Network Guide (PDF manual)

How to start EPSON LFP Remote Panel 2

Start EPSON LFP Remote Panel 2 with either of the following two steps.

Note:

Make sure the LCD panel display shows READY state, before starting EPSON LFP Remote Panel 2.

How to exit EPSON LFP Remote Panel 2

Click Exit on the EPSON LFP Remote Panel 2 main window.

By double clicking the icon

The EPSON LFP Remote Panel 2 icon is created after installing the software. Double clicking the EPSON LFP Remote Panel 2 icon displays the EPSON LFP Remote Panel 2 main window.

From the Windows Start menu

Click Start - All Programs (or Programs) - EPSON LFP Remote Panel 2 - EPSON LFP Remote Panel 2. The EPSON LFP Remote Panel 2 main window is displayed.

Epson Stylus Pro WT7900/7910 User’s Guide

Using Printer Software

Uninstalling the Printer Software

To uninstall the printer software, follow the steps below.

Note:

❏ For Windows Vista/Windows XP, you must log in

as a user with an Administrator account. When you uninstall the printer software from Windows Vista, the password may be required. If you are asked for the password, enter it and continue the operation.

❏ For Windows 2000, you must log in as a user with

administrator rights (a user belonging to the Administrators group).

Uninstalling EPSON LFP Remote Panel 2

Select Epson Printer Driver/Utility Uninstall,

and then click Uninstall/Change

Select the target printer icon, and then click

OK.

Uninstall EPSON LFP Remote Panel 2 from the Windows Control Panel - Add or Remove Programs (or Add or Remove Applications), as well as the general application software. See the EPSON LFP Remote Panel 2 online help for details.

Uninstalling EPSON Stylus Pro WT7900 Comm Driver

To uninstall EPSON Stylus Pro WT7900 Comm Driver, follow the steps below.

Turn off the printer, and unplug the interface

cable connected with the computer and printer.

Click Windows Control Panel - Add or

Remove Programs (or Add or Remove Applications). For Windows Vista, click Control Panel Programs - Uninstall Programs.

Follow the on-screen instructions to complete

uninstallation. When the confirmation message appears, click Yes.

Restart the computer when you reinstall EPSON Stylus Pro WT7900 Comm Driver.

Epson Stylus Pro WT7900/7910 User’s Guide

Options and Consumable Products

The following consumable products are available for use with your printer (as of May, 2009).

For the latest information, see the Epson Web site.

Name Product Code Explanation

Epson special media See the following section for media.

“Paper Information” on page 58

Ink Cartridge

(Color) Epson Stylus Pro WT7900 Epson Stylus Pro WT7910 The printer

driver provided

150ml 350ml 700ml 150ml 350ml 700ml

Cleaning Cartridge (Cleaning Liquid)

Photo Black - T596100 T636100 - T597180 T637180

Cyan - T596200 T636200 - T597280 T637280

Vivid Magenta - T596300 T636300 - T597380 T637380

Yellow - T596400 T636400 - T597480 T637480

Light Cyan - T596500 T636500 - T597580 T637580

Vivid Light Magenta

Orange - T596A00 T636A00 - T597A80 T637A80

Green - T596B00 T636B00 - T597B80 T637B80

White T642C00 T596C00 - - T597C80 -

T642000 - - T648080 - -

- T596600 T636600 - T597680 T637680

with this printer is color adjusted for Epson genuine ink cartridges. If you use non-genuine cartridges, the print result may be faint, or the ink remaining may not be detected normally.

Note: The product number varies by country.

See the following section to replace the ink cartridge.

“Replacing ink cartridges” on page 68

Maintenance Tank C12C890191 for Epson Stylus Pro WT7900

C12C890193 for Epson Stylus Pro WT7910

See the following section to replace the maintenance tank.

“Replacing the maintenance tank” on page 70

Epson Stylus Pro WT7900/7910 User’s Guide

Options and Consumable Products

Name Product Code Explanation

Auto Cutter Spare Blade C12C815331 See the

following section to replace the cutter.

“Replacing the Cutter” on page 71

Roll Paper Belt C12C890121

SpectroProofer Mounter 24" C12C890531 for Epson Stylus Pro WT7900

C12C890533 for Epson Stylus Pro WT7910

Roll Media Adapter C12C811241 See the

See the SpectroProofer Mounter 24"/ 44" Setup Guide and User’s Guide for details.

following section for details.

“Loading Roll Paper” on page 32

Note:

❏ When using the USB connection and a USB hub, we recommend that you connect the printer to the first hub

connected directly to the computer. Also, some hubs may cause unstable operation. If problems occur, connect the printer directly to the USB port of the computer.

❏ When using an Ethernet connection, use a LAN cable. When using a 100BASE-TX STP (shielded twisted-pair)

cable, it should be Category 5 or higher.

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Information

Supported Media Specifications

We recommend you use Epson special media to enhance printing performance and the expressive power of the printing results. For more information about the appropriate media type and print settings when using media other than Epson special media or when using software RIP for printing, refer to the instructions supplied with the paper or contact the paper or software RIP suppliers. The following special media can be used with this printer.

Caution:

❏ Do not use paper that is wrinkled, scuffed,

torn, dirty, or otherwise imperfect.

❏ Insert the paper just before printing. Remove

it from the printer when printing is finished and store it according to the instructions for the media that you are using.

Roll paper

Roll paper size

Paper size

width × length of roll paper

Thickness 0.08 to 0.5 mm

Caution:

Since paper conforming to the specifications above can be attached to the printer, Epson cannot guarantee the paper path and print quality.

2-inch core: Outer diameter 103 mm or less × 1 roll can be set

3-inch core: Outer diameter 150 mm or less × 1 roll can be set

2-inch core: 254 to 610 mm × 45 m 3-inch core: 254 to 610 mm × 202 m

Cut Sheet

Paper size

Width: 210 to 610 mm Length: 279.4 to 914 mm (A4 to Super A1)

Note:

❏ When using paper other than Epson special media,

see the instructions included with the paper, or contact your supplier for more information. Test the print quality before purchasing a large amount of paper.

❏ When using paper other than Epson special media,

make custom paper setup settings in advance.

See “CUSTOM PAPER SETUP” on page 28

Thickness

Caution:

Since paper conforming to the specifications above can be attached to the printer, Epson cannot guarantee the paper path and print quality.

Length 279mm to 728 mm:

0.08 mm to 1.50 mm

Length 728 mm to 914 mm:

0.08 mm to 0.50 mm

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Information

Instructions for Using Paper

Notes for handling paper

See the instructions below and the handling instructions supplied with the paper for more details.

❏ Use Epson special media under the following

conditions (temperature: 15 to 25˚C and humidity: 40 to 60%). In particular, use Epson ClearProof Film under the following conditions (temperature: 20 to 25˚C and humidity: 40 to 60%).

See “About Epson ClearProof Film (Epson

special media)” on page 59

❏ Do not bend the paper or scratch on the surface

of the paper.

❏ Keep fingers off the printable surface of the

media, as fingerprints may reduce the print quality.

❏ Set the roll paper by handling the edges of the roll

paper. Whenever possible, use gloves to handle media.

❏ Do not use a dryer to dry the printouts.

❏ Avoid direct sunlight.

❏ See the instructions of the paper for keeping the

color from fading. The print can keep the color for a long time if you store it properly.

Note:

Typically, prints and photos fade over time (change color) due to the effects of light and various constituents in the air. This also applies to Epson special media. However, with the correct storage method, the amount of color change can be kept to a minimum.

❏ See the instructions included with the Epson

special media for detailed information on handling the paper after printing.

❏ The colors of photos, posters, and other printouts

appear different under different lighting conditions (light sources*). The colors of printouts from this printer may also appear different under different light sources. * Light sources includes sunlight, fluorescent light, incandescent light, and other types.

❏ The paper may bend if the temperature and

humidity will change rapidly. Be careful not to bend or soil the paper, and flatten it before setting it in the printer.

❏ Do not lose the paper package so that you can use

it for storing the paper.

Notes for after printing

See the instructions below for after printing.

❏ Do not rub or scratch the print; otherwise, the ink

may come off.

❏ Do not touch the surface of the print; otherwise,

the ink may come off.

❏ Be careful not to bend or pile paper on top of

another, and dry it completely. The color may be changed where the paper is piled. If you leave paper lying on top of another, the scratches may stay on the paper even after the paper dries.

Notes for storing the paper

See the instructions below and the handling instructions supplied with the paper for more details.

❏ Avoid locations that are subject to direct sunlight,

excessive heat, or moisture.

❏ Keep the paper in the package and keep it on a flat

surface.

❏ Remove roll paper that is not in use from the

printer. Roll it properly and then store it in the original packaging. If you leave the roll paper in the printer, its quality will deteriorate.

❏ Do not wet the paper.

❏ Store printouts in a dark place to avoid direct

sunlight, excessive heat, and moisture to retain the printed color.

❏ If you put the prints on the album before they dry,

they may be blurred. After you print, be sure to dry the paper completely.

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Information

Epson offers specially designed media for ink jet printers to meet most high-quality printing needs.

Item Explanation

Media name Describes the media name.

Size Describes the paper size for cut sheet

media and the width for roll paper.

Thickness Describes the thickness of each media.

Core diameter

Note:

❏ For the latest information on supported Epson

genuine media, visit the site at: http://www.epson.com And then select the Support section in your local Epson Web site.

❏ Matching conditions between SpectroProofer and

the paper may differ depending on the software RIP. Refer to the instruction of your software RIP for more details.

Describes the core diameter of the roll paper.

Roll paper

Media Name

Size 406 mm (16"), 610 mm (24")

Thickness 0.27 mm

Core diameter

Media Name

Size 432 mm (17"), 610 mm (24")

Thickness 0.15 mm (0.12 mm without release film)

Core diameter

Media Name

Size 330 mm (13"), 432 mm (17"), 610 mm (24")

Thickness 0.25 mm

Core diameter

Premium Glossy Photo Paper (250)

Epson ClearProof Film

Epson Proofing Paper White Semimatte

Cut Sheet

Media Name

Size A2, Super A3/B, US-C

Thickness 0.26 mm

Media Name

Size Super A3/B

Thickness 0.25 mm

Premium Glossy Photo Paper/ Premium Photo Paper Glossy

Epson Proofing Paper White Semimatte

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Information

About Epson ClearProof Film (Epson special media)

Pay careful attention to the following important notes for using Epson ClearProof Film. Refer to the instructions included with the media for more details.

Usage Environment

This media requires a limited environment for use. Temperature: 20 to 25 ˚C Humidity: 40 to 60 % Avoid direct sunlight, high temperature, and high humidity. To maintain quality, maintain this environment for after printing. Otherwise white ink may appear to change color due to the humidity.

About Release Film

Notes for Setting up Media

❏ Cut off the edge of the media in a straight line if

the conditions of the edge are as follows. Otherwise the media may jam inside the printer or print quality may decline. 1. The edge of the media is wrinkled 2. The media is folded, bent, wavy, or warped. 3. The release film is separated.

❏ When printing on Epson ClearProof Film after

printing on anything other than Epson ClearProof Film, clean the inside of the printer and the roller if they are smeared. Otherwise paper powder remaining inside the printer may stick to the printing surface and scratch the surface when wiped.

Notes for After Printing

❏ Do not touch the printing surface immediately

after printing is complete. Otherwise ink may come off and blotches may remain.

There is a white release film on the reverse of this media. Do not remove the release film until printing and drying is complete. This film protects the media from damage and prevents dust adhering during printing. Note the following usage points.

❏ Do not load the media into the printer after

removing the release film. Otherwise the surface of the media may be scratched and stained.

❏ Remove the release film slowly and carefully after

thoroughly drying the print surface. If it is not completely dry, the print surface may be folded or bent and defects may remain. If the release film is removed with too much force, part of the film may remain and this will be difficult to remove.

❏ Static electricity is generated when removing the

release film. Keep away from delicate instruments when removing, and touch a metal object to remove the static after removing the film.

❏ Do not wet the printed media. Otherwise water

stains may remains.

❏ Do not laminate the printed media. Otherwise

white ink becomes transparent.

❏ The minimum media length when using auto cut

is 420 mm. Cut manually if you want to cut a length less than 420 mm.

See “Cutting the roll paper after printing” on

page 36

❏ Make sure you do not stick the film on the

printing surface. Otherwise ink may come off or the surface may be scratched.

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Information

Printing with Non-Epson Media

When using non-Epson media, register a custom paper in Menu mode using the printer’s control panel and print using the registered settings. The registered contents are stored when this printer is turned off. You can register up to 10 types of custom paper.

Note:

❏ Make sure you check the paper characteristics such

as paper tension, ink fixing, or paper thickness before setting the custom paper. See the description that comes with the paper for information on the paper’s characteristics.

❏ Settings made on the printer’s control panel take

priority over the settings in the RIP software.

❏ For unidirectional print settings, refer to your

software RIP documentation.

Setting the Custom Paper in the Printer

Register custom paper on the printer’s LCD panel. Set the items for PAPER SETUP menu. The registered number is displayed on the LCD panel.

Note:

The printer enters READY status when you press the

button at any point of making the following settings. The settings you have made so far are registered as the custom settings (including unchanged settings).

Load the paper that you want to use.

Make sure you load the paper that is actually used.

Enter the CUSTOM PAPER menu.

1. Press the mode.

2. Press the SETUP, and then press the

3. Press the PAPER, and press the

button to enter the Menu

/ button to display PAPER

button.

/ button to display CUSTOM

button.

Select the registered number for the user settings.

You can select the number from 1 to 10.

1. Press the number you want to register.

2. Press the

The settings you make from step 4 are registered in the number you have selected here.

Note:

We recommend you write down the registered number and the settings you make from step 4.

Select paper type if necessary.

/ button to select the

button.

1. Press the TYPE, and then press the

2. Press the suitable paper type, and then press the button.

3. Press the

4. Press the

5. Press the previous menu.

Set the distance between the print head and the

paper (Platen Gap), if necessary.

1. Press the GAP, and then press the

2. Press the setting for the paper.

3. Press the

4. Press the previous menu.

Note:

You can adjust the distance between the print head and the paper. The print quality improves when the Platen Gap is adjusted correctly. If the Platen Gap is too narrow when you print on thick paper, the print head touches the paper so that the print head and the paper may be damaged.

Paper Thickness PLATEN GAP

Thick paper WIDE

/ button to select PAPER

button.

/ button to select the

/ button to select media.

button.

button twice to go back to the

/ button to select PLATEN

button.

/ button to select a suitable

button.

button to go back to the

WIDER

WIDEST

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Information

Normal paper STANDARD

Thin paper NARROW

Print a paper thickness test pattern.

1. Press the THICKNESS PATTERN, and then press the button.

2. Press the thickness test pattern.

Example of pattern:

Examine the printed pattern to determine

which set of lines are aligned (showing the smallest gap), and select the THICKNESS NUMBER (from 1 to 15).

1. Press the number. In the case of the illustration above, select 4.

2. Press the

/ button to select

button to print the paper

/ button to select the

button.

Note:

If the ink blurs on the paper, set a longer time for ink drying.

Select the paper suction if necessary.

1. Press the SUCTION, and then press the

2. Press the setting for the paper.

3. Press the

4. Press the previous menu.

Select the roll paper tension if necessary.

/ button to select PAPER

/ button to select a suitable

button.

button to go back to the

1. Press the PAPER TENSION, and then press the button.

2. Press the setting for the paper.

3. Press the

4. Press the previous menu.

/ button to select SET ROLL

/ button to select a suitable

button.

button to go back to the

button.

Set Paper feed adjustment if necessary.

Set the paper feed amount (- 0.7 to 0.7%).

1. Press the FEED ADJUST, and then press the

2. Press the feed amount.

3. Press the

4. Press the previous menu.

Set drying time, if necessary.

/ button to select PAPER

/ button to set the paper

button.

button to go back to the

You can set the ink drying time for each print head pass. The range is 0.0 to 10.0 seconds.

1. Press the TIME, and then press the

2. Press the in seconds.

3. Press the

4. Press the previous menu.

/ button to select DRYING

button.

/ button to select the time

button.

button to go back to the

button.

Select the remove skew setting if necessary.

1. Press the SKEW, and then press the

2. Press the setting for the paper.

3. Press the

4. Press the previous menu.

Select the FRONT EDGE STANDBY if necessary.

/ button to select REMOVE

button.

/ button to select a suitable

button.

button to go back to the

Depending on the media type, set the paper edge standby position for pre-printing (after paper is loaded) and post-printing (after auto cut).

1. Press the EDGE STANDBY, and then press the

2. Press the setting for the paper.

3. Press the

4. Press the previous menu.

/ button to select FRONT

/ button to select a suitable

button.

button to go back to the

button.

Epson Stylus Pro WT7900/7910 User’s Guide

Paper Information

After registering the paper settings, press the

To use the registered custom settings, follow the steps below.

button to exit Menu mode.

The custom paper setting is now complete. Start printing to print on the custom paper you just set.

1. Press the

2. Press the and then press the

3. Press the and then press the

4. Press the PAPER, and then press the

5. Press the then press Press the then print the data.

button to enter the Menu mode.

/ button to display PAPER SETUP,

button.

/ button to select PAPER TYPE,

button.

/ button to display CUSTOM

/ button to select media type, and

button.

button to exit the Menu mode and

button.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Daily Maintenance

Maintenance

❏ If you have not printed for a while, turn the

printer on once a month and execute PRINT WITH WHITE INK from NOZZLE CHECK on the control panel. This can prevent sedimentation in the nozzles.

See “Nozzle check” on page 75

Instructions for placing the printer

Observe the following when setting up the printer:

❏ Choose a flat and stable location that can support

the printer weight (about 103 kg).

❏ Use only an outlet that meets the power

requirements of this printer.

❏ Leave enough room for easy operation,

maintenance, and ventilation.

See "Choosing a place for the printer" in the

Setup Guide

❏ Operate the printer under the following

conditions (temperature is 10 to 35˚C and humidity is 20 to 80%).

Even when the conditions above are met, you may not print properly if the environmental conditions are not proper for the paper. Be sure to use the printer where the paper conditions are met. See the handling instructions of the paper for more detailed information. Keep the printer away from drying, direct sunlight, or heat sources to maintain the appropriate humidity.

Notes for when you are not using the printer

The print head nozzles are very small, thus, they can become clogged easily if dust gets on the print head. To avoid this, close the roll paper cover or the front cover when you are not using the printer. If you are not using the printer for a long time, put a non-static cloth on the printer to avoid getting dust on the printer.

About ink cartridges

Maintaining White Ink

Due to the properties of the white ink, sedimentation can occur. To maintain optimum printing conditions, make sure you periodically perform the following maintenance procedure.

❏ Turn the printer on once a week and shake the

white ink cartridge. This can prevent sedimentation in the white ink cartridge.

See “Shaking a White Ink Cartridge” on page

Be sure to use the ink cartridges that are supported with this printer.

See “Options and Consumable Products” on page

Caution:

If you do not use genuine Epson ink with this printer, print quality may decline, the print head may be blocked or ink may leak causing damage to the printer. Also, it may not be able to detect how much ink is remaining.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Notes for handling the ink cartridges

❏ When INK LOW appears on the LCD panel,

replace the cartridges with a new one as soon as possible to avoid ink to being expended while printing.

❏ Use up the ink cartridge within six months of

installation for best results.

❏ If you move the ink cartridge from the cold place

to warm place, condensation may occur. Leave it at room temperature for more than four hours before using the ink cartridge.

❏ We recommend using an ink cartridge by the

expiry date printed on the cartridge carton. If you use an ink cartridge after the expiry date, print quality may be affected.

❏ Store ink cartridges under the same condition as

the printer.

❏ Do not touch the ink supply port or its

surrounding area. The ink may leak from it.

❏ Do not touch the green IC chip on the side of the

ink cartridge. Doing so may affect normal operation and printing.

❏ Because the green IC chip has the cartridge’s own

information and the ink remaining information, you can still use the ink cartridge after pulling out the ink cartridge from the printer.

❏ Do not disassemble or remodel the ink cartridge,

otherwise you may not be able to print normally.

❏ Do not drop or knock it against hard objects;

otherwise, the ink may leak.

Notes for replacing ink cartridges and shaking the white ink cartridge

❏ To maintain optimum printing conditions, shake

the ink cartridge with referring to the sections below.

See “Shaking the White Ink Cartridge” on

page 66

See “Replacing ink cartridges” on page 68

❏ Do not leave the printer without ink cartridges

installed. The inks inside the printer may dry and you may not be able to print.

❏ Install all ink cartridges. You cannot print if any

of the slots are empty.

❏ Make sure that the printer is turned on when you

replace an ink cartridge or shake a white ink cartridge. If the printer is turned off while replacing an ink cartridge or shaking a white ink cartridge, the amount of ink remaining is not detected correctly and you cannot print properly.

❏ Be careful as there is ink around the ink system

port on the used ink cartridge.

❏ To ensure you receive premium print quality and

to help protect your print head, a variable ink safety reserve remains in the cartridge when your printer indicates to replace the cartridge.

Notes for storing the ink cartridges

❏ Store ink cartridges under the same condition as

the printer (temperature is 10 to 35˚C and humidity is 20 to 80%).

❏ Although nothing may be printed, the printer

uses ink from all cartridges during head cleaning and other maintenance operations to keep the print heads in good condition.

❏ Although the ink cartridges may contain recycled

materials, this does not effect printer function or performance.

❏ Ink cartridges that are removed before ink is

expended can be reinstalled in the printer and used again if the expiry date printed on the ink cartridge packaging has not passed. Avoid getting dirt on the ink system port and store the removed ink cartridge properly. You do not need to put the ink cartridge in the package. The ink system port has a valve in it so you do not need to put a cap on it; however, be careful not to tamper with the ink system port.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Notes for storing white ink cartridges

Note the following if you do not use white ink cartridges directly after purchase and store them for a long time.

❏ Before storing, shake the box with the white ink

cartridge inside quickly back and forth horizontally in roughly five centimeter movements, about 100 times within about 30 seconds.

❏ Lay the cartridge down flat. If you store the

cartridge vertically, you may not be able to clear white ink sedimentation even after performing maintenance.

❏ Every one month, shake the box with the white

ink cartridge inside quickly back and forth horizontally in about five centimeter movements, over 10 times.

When the message appears on the LCD panel

When the white ink cartridge needs shaking, a message appears on the LCD panel. Also, the date at the bottom of the LCD panel showing the days remaining until you next need to shake the white ink cartridge. You can continue printing even if the message is displayed, but we recommend that you shake the white ink cartridge to maintain the best print quality.

Shaking a White Ink Cartridge

Due to the properties of the white ink, sedimentation can occur. To maintain optimum printing conditions, make sure you remove and shake the cartridge once a week, even if it is installed in the printer.

Checking the days remaining until next you need to shake the cartridge

The LCD panel shows the days remaining until the next white ink maintenance is required.

See “Display” on page 15

Note:

If a month passes without shaking, a warning message is displayed and you cannot print. When this happens, shake the white ink cartridge to clear the error.

Follow the steps below to shake the white ink cartridge.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Shaking the White Ink Cartridge

Make sure the printer is on.

Press the button.

Note:

The or cleaning.

Press the / button to select OPEN LEFT

COVER, and then press the

button is not available while printing

button.

Push the white ink cartridge. A click sounds,

and the cartridge pops slightly out of the printer.

Carefully pull the white ink cartridge straight

out of the slot.

The ink cover is unlocked and slightly opened.

Open the ink cover by hand fully.

Note:

Do not open the cover until it is unlocked.

Warning:

If ink gets on your hands, wash them thoroughly with soap and water. If ink gets into your eyes, flush them immediately with water.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Shake the ink cartridge back and forth

horizontally as shown in the illustration in five centimeter movements, over 10 times.

When the warning message "WT INK MAINT. REQUIRED" is displayed on the LCD panel, shake the white ink cartridge with the same way but about 100 times within about 30 seconds.

Caution:

Do not touch the green chip on the side of the cartridge. Doing so may prevent normal operation and printing.

Close the ink cover.

Hold the white ink cartridge with the arrow

mark facing up and pointing to the rear of the printer, and then insert it into the slot as far as it will go until it clicks.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Replacing Ink Cartridges

Note:

When you replace the ink cartridges while the printer is turned off, the remaining ink cannot be detected correctly so the ink may become unusable before the Ink Check light comes on and you cannot print correctly. Follow the steps below to replace an ink cartridge.

When ink needs to be replaced/ When ink gets low

When the Ink Check light is flashing, this indicates that the ink level is low. If the ink is low, you need to replace the ink cartridge as soon as possible. You cannot continue to print even if only one of the ink cartridges is expended. If an ink cartridge runs out while printing, replace it with a new one so the printer can continue to print.

Replacing ink cartridges

Make sure the printer is on.

Press the button.

Note:

The or cleaning.

Select the cover that the target ink cartridge is

set, and then press the

button is not available while printing

button.

See “Display” on page 15

Click How to to see the instructions on replacing an ink cartridge.

Confirming the ink cartridge remaining

The remaining ink in the cartridges is always displayed on the LCD panel.

See “Display” on page 15

You can check the accurate amount of ink remaining in the PRINTER STATUS menu. You need to check the amount of ink remaining before printing a lot of data. If there is a low ink cartridge, prepare a new one.

See “Using the Menu mode” on page 17 See “PRINTER STATUS” on page 26

The ink cover is unlocked and slightly opened.

Open the ink cover by hand fully.

Note:

Do not open the cover until it is unlocked.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Push the expended cartridge so the cartridge is

slightly pushed out.

Carefully pull the expended cartridge straight

out of the slot.

Caution:

Do not touch the green chip on the side of the cartridge. Doing so may prevent normal operation and printing.

Hold the ink cartridge with the arrow mark

facing up and pointing to the rear of the printer, and then insert it into the slot as far as it will go until it clicks.

Match the ink cartridge color with the color label on the back side of the ink cover.

Warning:

If ink gets on your hands, wash them thoroughly with soap and water. If ink gets into your eyes, flush them immediately with water.

Remove the new cartridge from the package,

shake it back and forth horizontally as shown in the illustration in five centimeter movements about 100 times within 30 seconds for white, and about 15 times within five seconds for all other cartridges.

Close the ink cover.

Note:

Be sure to install all eleven ink cartridges. You cannot print if any of the ink cartridges is not installed.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Replacing the Maintenance Tank

The maintenance tank absorbs ink discharged when cleaning the print head. You need to replace the maintenance tank when the LCD panel instructs to do so.

Confirming the empty space of the maintenance tank

Using the printer’s control panel

The empty space of the maintenance tank is always displayed on the LCD panel.

See “Display” on page 15

You can check the empty space in the PRINTER STATUS menu. Prepare the new maintenance tank when REPLACE MAINTENANCE TANK SOON or NOT ENOUGH EMPTY SPACE is displayed on the LCD panel. Replace the maintenance tank with a new one when MAINTENANCE TANK is displayed on the LCD panel.

See “Using the Menu mode” on page 17 See “PRINTER STATUS” on page 26

Replacing the maintenance tank

Be sure to use a maintenance tank that is supported with this printer.

See “Options and Consumable Products” on page

Caution:

Do not replace the maintenance tank while printing data.

Turn off the printer.

Take a new maintenance tank out of the package.

Put your hand on the handle of the

maintenance tank, then gently pull it straight out.

Put the used maintenance tank in the plastic

bag provided with the replacement cartridge, and dispose of it properly.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Insert the new maintenance tank into place as

far as it will go.

Caution:

Do not touch the green chip on the side of the maintenance tank. Doing so may prevent normal operation.

Replacing the Cutter

When the paper cutter does not cut cleanly, it may be dull and require replacement. See the following section for the product code of the paper cutter that is supported with this printer.

See “Options and Consumable Products” on page

Caution:

Take care not to damage the cutter blade. Dropping it or knocking it against hard objects may chip the blade.

Make sure the printer is on.

If paper is loaded, remove it from the printer.

Press the button to enter the Menu mode.

Press the / button to select

MAINTENANCE, and then press the

Press the / button to select CUTTER

REPLACEMENT, and then press the

button.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Press the button.

The paper cutter holder stops at the replacement position.

Turn off the printer. If the optional

SpectroProofer is attached, remove it from the printer.

See the instruction comes with SpectroProofer how to remove it.

To remove the cover, lower it with the knob,

and pull it low.

Carefully remove the old cutter from the printer.

Warning:

Take care not to hurt yourself with the blade of the cutter. Do not let children touch the blade.

Note:

Put the used cutter in a bag or the like, and dispose of it in accordance with local regulations.

Screw down the cutter with a screwdriver.

Take the new paper cutter out of the package

and insert it as shown.

Install the cutter into the cutter holder, setting the pin of the cutter to the hole of the holder.

Screw up the cutter firmly with a cross head

screwdriver.

Epson Stylus Pro WT7900/7910 User’s Guide

Caution:

Screw up the cutter firmly, otherwise the cut position may be slightly shifted or skewed.

Align the downside of the cover and the cutter

holder, and then press the cover firmly until it clicks.

Maintenance

If the optional SpectroProofer is attached,

install it to the printer again, and then turn on the printer.

The cutter automatically returns to the stand by position. If the optional SpectroProofer is attached, you do not need to follow the steps below.

See the instruction comes with SpectroProofer how to attach it.

Press the button.

Make sure the cover is installed, and press the

button.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Adjusting the Print Head

You may need to adjust the print head if white lines appear in your printed data or if you notice the print quality has declined. You can perform the following printer maintenance functions for maintaining the print head in consistently good condition to ensure the best print quality.

Manual cleaning function

Functions Computer Printer Explanation

Nozzle check ✓ ✓ Checks the print head nozzles for clogging by printing a nozzle

check pattern.

Head cleaning ✓ ✓ Cleans the print head to improve the print quality. You can select

the print head to be cleaned.

Power cleaning

White ink refresh

- ✓ Cleans the print head more effectively than normal head cleaning. Power cleaning process consumes more ink than head cleaning. When you perform power cleaning, make sure that enough ink is remaining. Otherwise, prepare a new ink cartridge.

- ✓ Replaces the white ink inside the ink tube to clear any sedimentation. Execute this function when white ink print results are uneven (the density is not uniform) or if you have not used the printer for a long time when AUTO WT INK REFRESH is set to OFF. White ink refresh consumes more white ink and cleaning liquid than head cleaning. When you perform white ink refresh, make sure that enough white ink and cleaning liquid is remaining. Otherwise, prepare a new ink cartridge.

Auto cleaning function (Auto maintenance function)

Functions Explanation

AUTO NOZZLE CHECK The printer performs a nozzle check and if there are missing dots, it performs cleaning

automatically.

Capping Put a cap on the print head to keep it from drying.

Auto white ink refresh Automatically replaces the white ink inside the ink tube to clear any sedimentation

when AUTO WT INK REFRESH is set to ON.

Print head alignment function

Functions Computer Printer Explanation

Print head alignment

✓ ✓ Aligns the print head when misaligned lines appear on the printed

data.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Nozzle check

This function checks the print head*1 nozzles*2 for clogging by printing a nozzle check pattern. Perform head cleaning if you find that the nozzle check pattern is unexpectedly faint or has missing dots in the nozzle check pattern.

By using the AUTO NOZZLE CHECK function, the printer performs a nozzle check without printing a pattern and if there are missing dots, it performs cleaning automatically.

Print head: The part that prints by spraying ink

* onto the paper.

Nozzle: A minute hole for spraying ink. It is

* positioned where it cannot be seen from the outside.

Note:

You cannot perform a nozzle check when the Ink Check light is on.

Make sure that roll paper or A4/Letter size or

larger paper is loaded in the printer.

Select the correct paper source according to the paper.

See “Paper Handling” on page 32

Press the / button to display NOZZLE

CHECK, and then press the

Press the / button to select PRINT

WITH WHITE INK or PRINT NOW, and then press the

PRINT WITH WHITE INK

Print a nozzle check pattern with all colors including white ink. Even when white ink is not selected (cleaning liquid is selected), it automatically changes to white ink and then a nozzle check pattern is printed. In this case, it takes two or three minutes to start printing.

PRINT NOW

button.

Press the button to enter the Menu mode.

Press the / button to display TEST

PRINT, and then press the

button.

Selected inks are used to print a nozzle check pattern. The same pattern as PRINT WITH WHITE INK is printed when white ink is selected. When cleaning liquid is selected, it prints the pattern with all inks except for white ink.

Press the button to start printing a

nozzle check pattern.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Check the nozzle check pattern.

Good

There are no missing dots so the nozzles are not clogged.

Bad

There are missing dots so the nozzles are clogged. Perform head cleaning.

See “Head cleaning” on page 77

Checking the nozzle pattern for cleaning liquid

It is difficult to tell whether nozzles are clogged by looking at the nozzle check pattern because cleaning liquid is colorless. Instead, the nozzle check results are printed in black at the bottom left of the nozzle check pattern. The following is a description of the check results.

Check Results

CL:OK The cleaning liquid nozzles are not

CL:NG The cleaning liquid nozzles are

CL:-- Auto nozzle check of the cleaning

Explanation

clogged.

clogged. Execute head cleaning if needed.

See “Head cleaning” on page 77

liquid failed. A maintenance request (error message) is displayed on the LCD panel. Refer to the following to clear the error.

See “When the maintenance

request occurs” on page 96

Note:

When cleaning liquid nozzles are clogged and other nozzles are not clogged, print results are not affected because cleaning liquid is not used for printing.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Head cleaning

This function cleans the surface of the print head. If you find that the printed data is unexpectedly faint or dots in the printed data are missing, follow the steps below to clean the print head.

Caution:

❏ The cleaning process consumes ink of all ink

cartridges at the same time. Even if you are using only black inks, the head cleaning also consumes color inks.

❏ You do not need to perform head cleaning

unless the printed data is blurred or the color of the image is not good.

❏ After cleaning the print head, print a nozzle

check pattern to check if it is printed correctly.

❏ When the Ink Check light is flashing or on,

you cannot clean the print head. Replace the ink cartridge with a new one first. (If the ink enough remains for the head cleaning, you may perform head cleaning using the printer’s control panel.)

See “Replacing Ink Cartridges” on page

❏ When repeating head cleaning in a short

time period, the maintenance tank may be nearing the end of its service life quickly due to minimal ink evaporation in the tank.

Press the button to enter the CLEANING

menu.

The Power light starts flashing and head cleaning starts. It takes two to four minutes to complete normal cleaning. (However, if the cleaning was performed by the printer’s AUTO NOZZLE CHECK function, it takes four minutes or more.) Cleaning is finished when the Power light is on.

Note:

The CLEANING menu has three menu items; NORMAL CLEANING performs a normal

cleaning, CLEAN COLOR PAIRS allows you to select which nozzle combinations to clean, POWER CLEANING performs a stronger cleaning than NORMAL CLEANING. If you know which colors you want to clean, select CLEAN COLOR PAIRS and then press the the color combinations.

See “MAINTENANCE” on page 25

Print a nozzle check pattern, and check the result.

button to select

See “Nozzle check” on page 75

Note:

❏ If the nozzles are still clogged after cleaning

the print head a few times, perform power cleaning.

See “Power cleaning” on page 78

❏ If the CLEANING ERROR appears on the

LCD panel, see the following section to solve the problem.

See “Error Messages on the LCD

Panel” on page 88

Press the / button to display NORMAL

CLEANING, and then press the

button.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Power cleaning

If the nozzles are still clogged after performing head cleaning a few times, perform power cleaning.

Press the button to enter the CLEANING

menu.

Select POWER CLEANING, and then press the

button to execute power cleaning.

PLEASE WAIT appears on the LCD panel. It takes about four minutes to complete power cleaning. (However, if the cleaning was done by the AUTO NOZZLE CHECK function of printer, it takes four minutes or more.)

Caution:

❏ Power cleaning process consumes

more ink than normal cleaning.

❏ If the nozzles are still clogged after

performing the power cleaning, turn off the printer and leave it overnight or longer, so that the ink may dissolve. If the nozzles are still clogged, contact your Epson dealer.

Print a nozzle check pattern to see if there are any missing dots.

See “Nozzle check” on page 75

White ink refresh

Follow the steps below to execute white ink refresh in the following situations.

❏ When white ink print results are uneven (density

is not uniform).

❏ When you have not used the printer for a long

time when AUTO WT INK REFRESH is set to OFF.

Make sure the LCD panel display shows READY

state, then press the Menu mode.

Press the / button to select

MAINTENANCE, and then press the

Press the / button to select CLEANING,

and then press the

Press the / button to select WT INK

REFRESH, and then press the

Press the button.

button to enter the

button.

White ink refresh starts when the message PLEASE WAIT is displayed on the LCD panel. It takes about three to four minutes to finish. However, if the cleaning was performed by the printer’s AUTO NOZZLE CHECK function, it takes four minutes or more.

Print a nozzle check pattern and check the

quality

See “Nozzle check” on page 75

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Automatic maintenance function

This printer has self-maintenance functions for maintaining the print head in consistently good condition to ensure the best print quality.

Auto white ink refresh function

When white ink is not used for a long time, white ink sediment may remain inside the ink tube and may affect white ink print results. This function changes white ink inside the ink tube to prevent sedimentation. It takes about three to four minutes to complete auto white ink refresh. (However, if the cleaning was performed by the printer’s AUTO NOZZLE CHECK function, it takes 4 minutes or more.)

Note:

❏ White ink refresh does not automatically run

when you select OFF from AUTO WT INK REFRESH on the LCD panel.

See “Menu Mode” on page 17

❏ White ink refresh does not automatically run

when you select cleaning liquid even if ON is selected from AUTO WT INK REFRESH on the LCD panel.

The AUTO NOZZLE CHECK function works when printing is started at the time you set on the control panel; ON:PERIODICALLY or ON:EVERY JOB. Furthermore, the automatic head cleaning is performed the number of times you set on the control panel; one time for the default setting or three times (maximum) until the clogged nozzles are cleared. However, after manual head cleaning, the automatic head cleaning is performed once in spite of the settings on the control panel.

Capping function

Capping is a function for automatically covering the print head with a cap (lid) to prevent the print head from drying out. Capping is performed in the following situations.

❏ When several seconds have elapsed after printing

finishes (that is there is no print data sent).

❏ When printing is stopped.

Take care of the following points to ensure that the print head is capped properly.

❏ If the print head is not positioned on the right

side (it is not capped), turn the printer on, then off again. By turning the printer off with the button, the head is capped properly.

AUTO NOZZLE CHECK function

The printer performs a nozzle check without printing a pattern and detects the clogged nozzles automatically. If there are missing dots, it performs cleaning automatically (taking two to 12 minutes).

When the AUTO NOZZLE CHECK function is ON, it works in the following cases:

❏ After the initial ink charging is completed.

❏ After head cleaning.

❏ After changing the white ink and the cleaning

required.

❏ When printing is started.

❏ If you turn the power off when a paper jam or

error occurs and the print head is not capped, turn the printer on again. Shortly, the print head is capped automatically. Check that it is properly capped, then turn the printer off.

❏ Do not move the print head manually under any

circumstances.

❏ Do not remove the power plug of the printer or

cut the power at the circuit breaker when the power is on. The head may not be capped properly.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Print head alignment

When gaps appear in the printouts, follow the steps below to align the print head. The print head alignment function adjusts print head misalignments.

Note:

Align the print head for the paper width loaded in the printer. Use the Epson special media (except plain paper) which paper width is the same as the paper that you actually use for printing.

Select AUTO to correct any head misalignment automatically to obtain optimum printing results. If you select MANUAL, you need to check the pattern and enter the value for alignment.

Setting the paper type and paper thickness

Set the paper type for the Epson special media, and set the paper thickness for the non-Epson media.

Non-Epson media:

1. Press the THICKNESS, and then press the

2. Press the thickness value between 0.1 and 1.5 mm, and then press the

See the manual that comes with the paper for the paper thickness.

Press the button twice to return to the

HEAD ALIGNMENT menu.

To align the print head, see either of the following section.

See “Aligning the print head automatically”

on page 80

See “Aligning the print head manually” on

page 81

/ button to select SELECT

button.

/ button to select a paper

button.

Aligning the print head automatically

Press the / button to select ALIGNMENT,

and then press the

button.

Make sure that the roll paper or one sheet of A4/

Letter size or larger paper is loaded in the printer.

Make sure to load the paper correctly according to the paper.

See “Paper Handling” on page 32

Press the button to enter the Menu mode.

Press the / button to select HEAD

ALIGNMENT, and then press the

Press the / button to select PAPER

THICKNESS, and then press the

Set the paper type or paper thickness

depending on the paper you set in the printer.

Epson special media:

1. Press the / button to select SELECT PAPER TYPE, and then press the

2. Press the type you set in the printer, and then press the

button.

/ button to select the paper

button.

Press the / button to select AUTO, and

then press the

Press the / button to select BI-D, and

then press the

Press the button to print the pattern.

button.

The adjustment pattern for output is read by the sensor and the optimum adjustment value is registered automatically in the printer.

If you are not satisfied with the result of this alignment, select UNI-D.

You can also align the print head individually by selecting BI-D #1, BI-D #2, or BI-D #3 . Select an ink dot size from BI-D #1 to BI-D #3 depending on the media you use and the print mode you want to try.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Aligning the print head manually

Because there is a distance between the print head and paper, the misalignment may occur by the humidity or temperature or moving the print head bidirectionally. In this case, try UNI-D first, and then BI-D 2-COLOR. If you want to perform a highly accurate adjustment, try BI-D ALL.

Alignment Explanation

UNI-D Using Photo Black as the base

position, it uses all ink colors except Photo Black to perform a unidirectional alignment of the print head. When cleaning liquid is selected on the LCD panel, it automatically changes to white ink to print the alignment pattern.

BI-D 2-COLOR Using Photo Black as the base

position, it uses Light Cyan and Vivid Light Magenta to perform a bidirectional alignment of the print head.

BI-D ALL Uses all ink colors for bidirectional

printing to perform a bidirectional alignment of the print head.

Press the / button to select ALIGNMENT,

and then press the

Press the / button to select MANUAL, and

then press the

button.

Set the number for #1C to #3VLM, and press the

button.

Note:

When printing a pattern on non-transparent media, set the alignment value of the white ink to 4.

Press the / button to select BI-D 2-COLOR. Then press the

Press the button to print the pattern.

button.

Check the pattern and select the set number

that has the smallest gaps.

When BI-D 2-COLOR #1LC appears on the

LCD panel, press the the number, and then press the

Set the number for #1LC to #3VLM, and then

press the

If you are not satisfied with the result of this alignment, see the next section to try BI-D ALL.

After you set the patterns, press the button to return to the READY state.

BI-D ALL alignment

button.

/ button to select

button.

Press the / button to select UNI-D, and

then press the

Press the button to print the pattern.

button.

Check the pattern and select the set number

that has the smallest gaps.

Note:

When printing a pattern on a cut sheet media, you need to prepare several sheets. When the first page is printed, load the next paper.

When UNI-D #1C appears on the LCD panel,

press the and then press the

/ button to select the number,

button.

Press the / button to select BI-D ALL,

and then press the

Press the button to print the pattern.

button.

Check the pattern and select the set number

that has the smallest gaps.

When BI-D ALL #1C appears on the LCD

panel, press the number, and then press the

/ button to select the

button.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Set the number for #1C to #3VLM, and then

press the

Note:

❏ When printing a pattern on a cut sheet

media, you need to prepare several sheets. When the first page is printed, load the next paper.

❏ When printing a pattern on

non-transparent media, set the alignment value of the white ink to 4.

button.

Cleaning the Printer

To keep your printer in top operating condition, clean it thoroughly if it becomes soiled.

Warning:

Take care to prevent water or other foreign matter getting inside the printer. If moisture, dirt, or other matter gets inside of the printer, besides affecting print quality, it may cause the electric circuits to short.

Cleaning outside of the printer

Remove the paper from the printer.

Make sure the printer is turned off and all the

lights are off, and then unplug the power cord from the electrical outlet.

Use a soft, clean cloth to carefully remove any

dust or dirt.

If the dirt does not come off, clean it using a soft, clean cloth dampened with a mild detergent. Then, wipe the outside of the printer with a dry, soft cloth.

Caution:

Never use alcohol or thinners to clean the printer; these chemicals can damage the components as well as the case.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Cleaning inside of the printer

If the print gets a scratch or smudge, follow the steps below to wipe off the smudge inside of the printer.

Cleaning the roller

If the print is soiled by ink on the roller, follow the steps below to clean the roller by feeding the supported media.

Turn on the printer, and load the roll paper of

24-inch width.

See “Using Roll Paper” on page 32

Press the button to feed the paper.

Repeat step 2 for a few times until the paper is not soiled with ink. Cut the paper after cleaning is done.

See “Cutting the Roll Paper” on page 36

Open the front cover and use a soft, clean cloth

to carefully clean away any dust or dirt inside the printer.

Wipe the gray part by following the directions of the arrows. If there is a serious problem of dirt on the inside of the printer, clean it using a soft, clean cloth dampened with a mild detergent. Then, wipe the inside of the printer with a dry, soft cloth.

Cleaning inside

Make sure the printer is turned off and all the

lights are off, and then unplug the power cord from the electrical outlet.

Leave the printer for a minute.

Caution:

❏ Do not touch the roller shown in the

illustration above, otherwise, prints may be soiled.

❏ Do not touch the ink tubes located

inside the printer.

If the back of a print is soiled, wipe the gray

part carefully.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

If some powdery paper dust is accumulated on

the platen, use something like a toothpick to remove it.

Keeping the Printer

When storing the printer, place it on a horizontal surface with the ink cartridges installed in the printer.

Caution:

The printer must be kept flat. Do not tilt it, stand it on end, or turn it upside down.

If you do not use your printer for a long time

❏ If you do not use your printer for a long time, the

print head nozzles may become clogged. We recommend that you print regularly to prevent clogging. Also, turn on the printer at least once a month, and leave it on for a few minutes.

❏ Do not leave the printer without ink cartridges;

otherwise, the ink will dry out and the printer is not able to print properly. Even if you do not use the printer, leave all of the ink cartridges in the slots.

❏ Do not leave the paper in the printer for a long

period of time; otherwise, the roller for securing the paper may leave a mark on the surface of the paper.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

If you do not use your printer for more than a month

❏ If you do not use your printer for a long time,

execute white ink maintenance.

See “Maintaining White Ink” on page 63

❏ When activating AUTO NOZZLE CHECK in the

panel settings, the printer checks the print head nozzles for clogging, and performs print head cleaning automatically if needed.

❏ If you have not used your printer for a long time,

print a nozzle check pattern to check for clogging. If the nozzle check pattern is not good, perform head cleaning before printing your data.

See “Nozzle check” on page 75 See “Head cleaning” on page 77 See “Power cleaning” on page 78

❏ You need to perform head cleaning a few times

before the nozzle check pattern is correctly printed. If the nozzles are still clogged after performing head cleaning three times, perform power cleaning.

See “Head cleaning” on page 77 See “Power cleaning” on page 78

If you do not use your printer for more than a year

If you do not use your printer for more than a year, the white ink may be clogged in the print head and ink tube. If the print head and the ink tube are still clogged after executing POWER CLEANING and WT INK REFRESH, contact your local Epson dealer/ representative.

See “Power cleaning” on page 78

See “White ink refresh” on page 78

Protecting the print head

This printer has a capping function that automatically puts a cap on the print head to keep it away from drying. If the print head is left uncapped, the print quality may decline. When you are not using the printer, make sure the print head is located on the far right so that it is capped.

See “Capping function” on page 79

❏ After performing the head cleaning a few times,

turn off the printer and leave it overnight or longer, so that the ink may dissolve.

❏ If the nozzles are still clogged after trying the

instructions above, contact your Epson dealer.

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Transporting the Printer

When transporting the printer, repack the printer using the original box and packing materials to protect from shock and vibration.

Warning:

Do not remove the ink cartridges; otherwise, the print head nozzles may dry up or ink may leak from the cartridge.

Caution:

Be careful not to touch the parts unless you needed to; otherwise, the printer may be damaged.

Repacking the printer

Remove the roll paper and roll paper adapter if

it is installed.

Turn off the printer, and then unplug the cables

such as the power cord.

Transporting the printer

When transporting the printer, repack the printer using the original box and packing materials to protect it from shock and vibrations.

Caution:

❏ When moving or transporting the printer,

keep it flat. Do not tilt it, stand it on end, or turn it upside down. Doing so may cause the ink to leak inside the printer. Also, proper operation of the printer after moving or transportation cannot be guaranteed.

❏ When transporting the printer, repack the

printer using the original box and packing materials to protect it from shock and vibration.

❏ When moving or transporting this product

equipped with the stand on an uneven surface, lift the printer and carry it.

❏ When moving or transporting this product

equipped with the stand, check all the screws for proper tightness on the stand afterward.

Remove the paper basket if it is installed.

Remove the optional SpectroProofer Mounter

if it is installed.

Open the front cover to install the protective

material for fixing the print head, and then close the cover.

"Setup" in the Setup Guide

Epson Stylus Pro WT7900/7910 User’s Guide

Maintenance

Setting up the printer after transporting

The steps you need to take to set up the printer after transporting it are almost identical to the steps carried out the first time you set up the printer. When you set up the printer again, refer to the Setup Guide.

Make sure that the place is proper.

See "Choosing a place for the printer" in

the Setup Guide

Plug in the power cable to the electrical outlet,

and turn on the printer.

See "Setting up" in the Setup Guide

Perform a nozzle check to see if there are any

missing dots.

See “Nozzle check” on page 75

Perform the print head alignment to ensure

print quality.

See “Print head alignment” on page 80

Epson Stylus Pro WT7900/7910 User’s Guide

Problem Solver

Error Messages on the LCD Panel

Error messages

Messages are either status messages or error messages. Many common printer problems can be identified by the lights and messages on the LCD panel. See the following messages to solve problems.

Error messages related to paper

Error messages Description What to do

PAPER OUT LOAD PAPER

PAPER RELEASED LOAD PAPER

PAPER SKEW LOAD PAPER PROPERLY

PAPER SETTING ERROR CHECK THE PAPER SOURCE IN THE DRIVER SETTINGS AND LOAD PAPER CORRECTLY

No paper is loaded in the printer.

The button has been pressed without paper set in the printer.

The paper runs out while printing is in progress.

The paper presser is released and paper can be loaded.

The paper is not loaded straight.

Paper feed settings between the print data and the printer’s control panel do not match.

Load paper correctly.

See “Using Roll Paper” on page 32

See “Using Cut Sheet Media” on page 38

Press the button to release the paper presser, and then load the paper.

Press the button to release the paper presser, and then remove the printed paper. Then, load a new paper.

Load the paper, and then press the button.

❏ Printouts may not be printed in the printable area

correctly. Check the print results.

❏ Press the

and then load the paper straight.

See “Using Roll Paper” on page 32

See “Using Cut Sheet Media” on page 38

Check the settings on the printer's control panel and the loaded paper, and then load the paper correctly.

button to release the paper presser,

PAPER CUT ERROR REMOVE UNCUT PAPER

CUTTER UNIT NEARING END OF SERVICE LIFE. RECOMMEND REPLACING THE CUTTER UNIT

Roll Paper is not cut correctly.

Paper cutter may be dull. Replace the paper cutter.

❏ Press the button to release the paper presser,

and open the front cover. Then remove the uncut paper.

See “Feeding or ejecting troubles” on page

102

❏ Paper cutter may be dull. Replace the paper cutter.

See “Replacing the Cutter” on page 71

Epson Stylus Pro WT7900/7910 User’s Guide

Problem Solver

Error messages Description What to do

PAPER ERROR LOAD PAPER CORRECTLY REFER TO THE MANUAL

PAPER SENSOR ERROR PRESS THE DIFFERENT PAPER

PAPER LOW The roll paper is close to

PAPER EJECT ERROR REMOVE PAPER FROM PRINTER

PAPER SIZE ERROR LOAD CORRECT PAPER SIZE

PAPER JAM REMOVE PAPER

BUTTON LOAD

The paper is not loaded correctly.

The barcode has not been read correctly.

running out.

Roll paper is used in Sheet mode.

The loaded paper size does not match the data size.

The paper is jammed. Remove the jammed paper.

Press the button to release the paper presser, and remove the paper. Then, load the paper correctly.

See “Using Roll Paper” on page 32

See “Using Cut Sheet Media” on page 38

Press the button to clear the error, or press the

button to release the paper presser to load a

different paper.

See “Using Roll Paper” on page 32

See “Using Cut Sheet Media” on page 38

Replace the roll paper with a new one.

See “Using Roll Paper” on page 32

Press the button to release the paper presser, and then remove the paper.

Match the loaded paper size to the data size.

See “Feeding or ejecting troubles” on page 102

Epson Stylus Pro WT7900/7910 User’s Guide

Problem Solver

Error messages related to the printer

Error messages Description What to do

FRONT COVER OPEN CLOSE FRONT COVER

INK COVER OPEN CLOSE RIGHT AND LEFT INK COVERS

INK COVER OPEN CLOSE RIGHT INK COVER

INK COVER OPEN CLOSE LEFT INK COVER

CANNOT OPEN INK COVER IS ANYTHING OBSTRUCTING THE RIGHT INK COVER? PRESS INK COVER OPEN BUTTON

CANNOT OPEN INK COVER IS ANYTHING OBSTRUCTING THE LEFT INK COVER? PRESS INK COVER OPEN BUTTON

F/W INSTALL ERROR UPDATE FAILED RESTART THE PRINTER

PRINTER ERROR RESTART THE PRINTER

The front cover is open. Close the front cover.

The ink cover(s) is open. Close the ink cover(s).

The ink cover(s) cannot be opened.

The printer failed to update the firmware.

The printer needs to be restarted while recovering the error.

Remove any object if it is obstructing the ink cover(s). Then, press the

Turn the printer off, wait for a while and then restart the printer. Then, update the firmware again using EPSON LFP Remote Panel 2.

Turn the printer off, and after a while turn it on again.

button again.

COMMAND ERROR CHECK DRIVER SETTINGS

The printer receives data that is unsupported by the printer.

The printer receives data with a wrong command.

Stop printing and press the button to cancel the job and reset the printer. Confirm your software RIP is compatible to the connected printer.

Epson Stylus Pro WT7900/7910 User’s Guide

Problem Solver

Error messages related to the maintenance

Error messages Description What to do

REMOVE AND SHAKE WHITE INK CARTRIDGE ONCE A WEEK

WT INK MAINT. REQUIRED REMOVE AND SHAKE WHITE INK CARTRIDGE

PAPER SENSOR ERROR PRESS THE LOAD THE CORRECT PAPER REFER TO THE MANUAL

CLEANING ERROR AUTOMATIC HEAD CLEANING FAILED RETRY? YES NO

BUTTON

White ink cartridge became recommended timing to shake.

White ink cartridge is required to be shake.

The loaded paper is not proper for the Print Head Alignment.

Automatic head cleaning was performed but the nozzles are still clogged. (This message is displayed if automatic head cleaning was performed three times (maximum) when starting to print.)

To maintain optimum printing conditions, make sure you remove and shake the white ink cartridge once a week, even if it is installed in the printer.

See “Shaking a White Ink Cartridge” on page 65

A month has passed from the last shook the white ink cartridge. The printer cannot start printing unless you shake the white ink cartridge. Remove and shake the cartridge.

See “Shaking a White Ink Cartridge” on page 65

Press the button to clear the error. Press the button to release the paper presser, and then load paper that matches with the media type selected for Print Head Alignment. Printing on genuine Epson paper (except for plain paper) is recommended.

See “Print head alignment” on page 80

Press the button to clear the error, and then perform cleaning again.

See “Nozzle check” on page 75

If the cleaning does not start, stop the printing from the computer, and turn the printer off and on again.

SOME NOZZLES ARE CLOGGED Automatic head cleaning

when starting print was performed one or two times, but the nozzles are still clogged. This message continues to appear until the clogged nozzles are cleaned, but you can continue to print during that time.

CLEANING ERROR NOT ENOUGH INK CONTINUE CLEANING? YES (RECOMMENDED) NO

INK TOO LOW TO CLEAN REPLACE INK CARTRIDGE THE CARTRIDGE BEING USED CAN BE INSTALLED AGAIN FOR PRINTING

There is not enough ink to perform cleaning.

There is not enough ink to perform cleaning. Ink cartridge replacement required.

Print the nozzle check pattern and check if there are missing dots on the nozzle check pattern. If there are missing dots, perform head cleaning.

See “Nozzle check” on page 75

By selecting YES, the ink cartridge replacement message is displayed. Replace the ink cartridge with a new one to continue cleaning.

See “Replacing Ink Cartridges” on page 68

By selecting NO, cleaning stops and it returns to a print ready status.

By selecting YES during a cleaning error or when some nozzles are clogged, the ink cartridge replacement message is displayed. Replace the ink cartridge with a new one.

See “Replacing Ink Cartridges” on page 68

Epson Stylus Pro WT7900/7910 User’s Guide

Problem Solver

Error messages Description What to do

CLEANING ERROR NOT ENOUGH EMPTY SPACE IN MAINT TANK CONTINUE CLEANING? YES (RECOMMENDED) NO

NO CARTRIDGE INSTALL INK CARTRIDGE

INK CARTRIDGE INK LOW REPLACE INK CARTRIDGE

INK LOW The ink cartridge is nearly

INK CARTRIDGE ERROR REPLACE CARTRIDGE

There is not enough space in the maintenance tank to perform cleaning.

No ink cartridge is installed or the ink cartridge may not fit.

The ink cartridge is expended.

expended.

A fault was found in the ink cartridge. There may be a bad contact or condensation in the cartridge.

By selecting YES, the maintenance tank replacement message is displayed. Replace the maintenance tank with a new one to continue cleaning.

See “Replacing the Maintenance Tank” on page 70

By selecting NO, cleaning stops and it returns to a print ready status.

Install an ink cartridge correctly. Do not reinstall the ink cartridge that caused an error.

See “Replacing Ink Cartridges” on page 68

Replace the ink cartridge with a new one.

See “Replacing Ink Cartridges” on page 68

Replace the ink cartridge soon.

See “About ink cartridges” on page 63

❏ Remove the ink cartridge and reinstall it. If this

message is displayed after reinstalling the ink cartridge, replace it with a new one. (Do not reinstall the ink cartridge that caused the error.)

See “About ink cartridges” on page 63

See “Replacing ink cartridges” on page 68

❏ Condensation may occur in the ink cartridge so

leave it at room temperature for at least four hours before installing the ink cartridge.

See “Notes for replacing ink cartridges and

shaking the white ink cartridge” on page 64

NO MAINTENANCE TANK INSTALL THE RIGHT SIDE MAINTENANCE TANK

NOT ENOUGH EMPTY SPACE REPLACE THE RIGHT SIDE MAINTENANCE TANK

REPLACE MAINTENANCE TANK SOON

MAINTENANCE TANK ERROR REPLACE THE RIGHT SIDE MAINTENANCE TANK

MAINTENANCE TANK REPLACE THE RIGHT SIDE MAINTENANCE TANK

The maintenance tank is not set in the printer.

There is not enough empty space in the maintenance tank to perform cleaning.

The maintenance tank is nearing the end of its service life.

The installed maintenance tank is not working correctly due to either of the following problems.

1. An error has occurred.

2. There may be a bad connection at the maintenance tank.

The maintenance tank is at the end of its service life.

Install the maintenance tank.

See “Replacing the Maintenance Tank” on page 70

Replace the target maintenance tank with a new one.

See “Replacing the Maintenance Tank” on page 70

Although you can continue printing, you need to replace the maintenance tank with a new one as soon as possible.

See “Replacing the Maintenance Tank” on page 70

A message of ink cartridge replacement. This message is displayed when selecting YES on the cleaning error or nozzle clogged error. Replace the maintenance tank with a new one.

See “Replacing the Maintenance Tank” on page 70

Replace the maintenance tank with a new one.

See “Replacing the Maintenance Tank” on page 70

Epson Stylus Pro WT7900/7910 User’s Guide

Problem Solver

Error messages Description What to do

INK CARTRIDGE PLEASE USE GENUINE EPSON INK CARTRIDGES

INK CARTRIDGE NON-GENUINE CARTRIDGE! QUIALITY OF NON-GENUINE INK MAY VARY.

NON-GENUINE CARTRIDGE MAY NOT PERFORM AT OPTIMUM. CONTINUE?

DECLINE ACCEPT

WRONG MAINT. TANK RIGHT SIDE MAINT. TANK WRONG TYPE INSERT CORRECT TANK

INK CARTRIDGE ERROR PLEASE INSTALL THE CORRECT CARTRIDGE

Non-genuine ink cartridge is installed.

A non-genuine maintenance tank that cannot be used with this printer is installed.

An ink cartridge that cannot be used with this printer is installed.

Replace the ink cartridge with a genuine Epson ink cartridge.

See “About ink cartridges” on page 63

See “Replacing ink cartridges” on page 68

Select DECLINE to replace the ink cartridge with a genuine Epson ink cartridge. Selecting ACCEPT may void EPSON’s warranty.

See “About ink cartridges” on page 63

See “Replacing ink cartridges” on page 68

Install a genuine maintenance tank that can be used with this printer.

See “Replacing the Maintenance Tank” on page 70

Remove the ink cartridge, and install an ink cartridge that can be used with this printer.

See “About ink cartridges” on page 63

See “Replacing ink cartridges” on page 68

NOZZLE CLOG DETECTED NOT ENOUGH INK CONTINUE CLEANING? YES (RECOMMENDED) NO

NOZZLE CLOG DETECTED NOT ENOUGH EMPTY SPACE IN MAINT TANK CONTINUE CLEANING? YES (RECOMMENDED) NO

There is not enough ink to perform cleaning.

There is not enough space in the maintenance tank to perform cleaning.

By selecting YES, the message to replace the ink cartridge is displayed. Replace the ink cartridge with a new one to continue cleaning.

See “Replacing Ink Cartridges” on page 68

By selecting NO, stop cleaning and return to print ready.

By selecting YES, the maintenance tank replacement message is displayed. Replace the maintenance tank with a new one to continue cleaning.

See “Replacing the Maintenance Tank” on page 70

By selecting NO, cleaning stops and it returns to a print ready status.

Error messages related to the options

Error messages Description What to do

SProofer DISCONNECTED CONNECT SpectroProofer TO THE PRINTER AND RESTART THE PRINTER

ILS20EP DISCONNECTED REFER TO THE MANUAL AND CONNECT ILS20EP TO SpectroProofer RESTART THE PRINTER

The SpectroProofer is not connected to the printer properly.

The color measurement device (ILS20EP) is not connected properly.

Turn the printer off, and then connect the SpectroProofer to the printer properly.

See the SpectroProofer Mounter 24"/44" Setup

Guide

Turn the printer off, and then connect the color measurement device (ILS20EP) to the SpectroProofer properly.

See the SpectroProofer Mounter 24"/44" Setup

Guide

Epson Stylus Pro WT7900/7910 User’s Guide

Problem Solver

Error messages Description What to do

SpectroProofer ERROR REFER TO THE MANUAL TO FIND OUT HOW TO SOLVE THE PROBLEM NN

*NN is the error number.

Error No. 01

The SpectroProofer is not connected to the printer properly.

Error No. 13

The paper presser does not function properly due to one of the following factors:

❏ The backing is not

attached properly.

❏ There are some

foreign objects between the paper presser and backing.

❏ The media type is not

supported.

❏ The product is used

out of its operational environment.

Turn the printer off, and then remove the SpectroProofer from the printer. Connect the SpectroProofer to the printer properly, and then turn on the printer.

See "Removing the Mounter" in the

SpectroProofer Mounter 24"/44" User’s Guide

See the SpectroProofer Mounter 24"/44" Setup

Guide

If the same error occurs, contact your dealer.

❏ Turn off the printer, and then remove the

SpectroProofer. If there are objects such as packing materials around the backing, remove them. Then, attach the backing properly, and then turn on the printer.

See the SpectroProofer Mounter 24"/44"

User’s Guide

See the SpectroProofer Mounter 24"/44"

Setup Guide

❏ Check the media type and system requirements.

See "Supported Media" and "System Requirements" in the SpectroProofer Mounter 24"/ 44" User’s Guide

If the same error occurs, contact your dealer.

Error No. 15

The Color Measurement Device carriage does not function properly due to one of the following factors:

❏ There is some foreign

object in the moving range of the carriage.

❏ The backing is not

attached properly.

❏ The white calibration

tile holder is not installed properly.

❏ The media type is not

supported.

❏ The product is used

out of its operational environment.

Error No. 12, 14, D5, D6, 65

The SpectroProofer has an error.

❏ Turn off the printer, and then remove the

SpectroProofer. If there are objects such as packing materials around the backing, remove it. Then, attach the backing properly and turn on the printer.

See the SpectroProofer Mounter 24"/44" User’s Guide

See the SpectroProofer Mounter 24"/44" Setup Guide

❏ Check the media type and system requirements.

See "Supported Media" and "System Requirements" in the SpectroProofer Mounter 24"/ 44" User’s Guide

If the same error occurs, contact your dealer.

Note the code and contact your dealer.

Epson Stylus Pro WT7900/7910 User’s Guide

Problem Solver

Error messages Description What to do

SProofer DISCONNECTED SpectroProofer IS DISCONNECTED DO YOU CONTINUE? NO YES

DEVICE ALIGNMENT ADJUSTMENT NOT COMPLETE

ILS20EP DISCONNECTED ILS20EP IS DISCONNECTED DO YOU CONTINUE? NO YES

The SpectroProofer is not connected to the printer properly.

Initial settings have not been made for SpectroProofer.

The color measurement device (ILS20EP) is not connected properly.

Select NO, and then turn the printer off, and then connect the SpectroProofer to the printer properly. If you select YES, the printer continues printing.

See the SpectroProofer Mounter 24"/44" Setup

Guide

Refer to the following guide to make initial settings for SpectroProofer.

See the SpectroProofer Mounter 24"/44" User’s

Guide

Select NO, to turn the printer off, and then connect the color measurement device (ILS20EP) properly. If you select YES, the printer continues printing.

See the SpectroProofer Mounter 24"/44" Setup

Guide

Call for service / Maintenance request

Error messages Description What to do

MAINTENANCE REQUEST CODE NNNN REFER TO THE MANUAL

A part used in the printer has nearly reached the end of its life.

Note the code and contact your dealer.

See “When the maintenance request occurs” on

page 96

CALL FOR SERVICE CODE NNNN POWER OFF AND THEN ON. IF THIS DOESN’T WORK, NOTE THE CODE AND CALL FOR SERVICE

If 3000 is displayed, the power cable is not plugged into the electrical outlet or the AC inlet of the printer correctly.

A fatal error has occurred. (NNNN shows what kind of error is occurred.)

Turn the printer off. Plug the power cable into the electrical outlet or the AC inlet of the printer correctly. Turn the printer on and off a few times. If this message is displayed on the LCD panel again, contact your dealer.

See “When the call for service occurs” on page

Turn the printer off, leave it for a while, and then turn the printer on again. If this message is displayed on the LCD panel again, note the code and contact your dealer.

See “When the call for service occurs” on page

Epson Stylus Pro WT7900/7910 User’s Guide

Problem Solver

When the maintenance request occurs

A maintenance request warns you to replace the consumables with a new one very soon. If MAINTENANCE REQUEST CODE NNNN is displayed on the LCD panel, contact your dealer and tell them the maintenance request

code. If you continue to use the printer, the service call error occurs.

When the call for service occurs

A call for service occurs when:

❏ The power cord is not plugged properly into the electrical outlet or the power connector of the printer.

❏ An fatal error has occurred.

When a call for service has occurred, CALL FOR SERVICE CODE NNNN is displayed and the printer stops printing. Turn off the printer, and then check that the power cable is plugged into the electrical outlet or the power connector of the printer correctly. Plug the power cable in correctly and then turn on the printer. If the call for service is cleared, you can continue to use the printer. If the same call for service is displayed on the LCD panel, contact your dealer for assistance. Tell them the call for service code is "NNNN".

Epson Stylus Pro WT7900/7910 User’s Guide

Problem Solver

Troubleshooting

You cannot print (because the printer does not work)

Cause What to do

The printer does not turn on.

The printer is not correctly connected to the computer.

Is the power cord plugged into the electrical outlet or the printer?

Make sure the power cord is securely plugged into the printer.

Is there any problem with the electrical outlet?

Make sure your outlet works by trying to connect the power cord of another electric product.

Is the cable plugged properly?

Make sure the printer’s interface cable is securely plugged into the correct terminal of the computer. Also, make sure the cable is not broken nor bent. If you have a spare cable, try with the spare cable.

Does the interface cable specification match the specifications for the computer?

Make sure the interface cable specifications match the specifications for the printer and computer.

See “Interface” on page 114

Is the interface cable directly connected to the computer?

Make sure the interface cable is directly connected to the computer without passing through any device, such as a printer switching device, or extension cable.

When using a USB hub, is it being used correctly?

In the USB specification, daisy-chains of up to five USB hubs are possible. However, we recommend that you connect the printer to the first hub connected directly to the computer. Also, some hubs may cause unstable operation. If problems occur, connect the printer directly to the USB port of the computer.

Is the USB hub recognized correctly?

Make sure the USB hub is recognized correctly in the computer. If the USB hub is recognized correctly, unplug all of the USB hubs from the computer’s USB port, and then connect the printer’s USB connector directly to the computer’s USB port. Ask the USB hub manufacturer about USB hub operation.

Printing is not available under a network environment.

The printer has an error.

Are the network settings correct?

Ask your network administrator for the network settings.

Connect the printer directly to the computer using a USB cable, an d then try to print.

If you can print via USB, there are some problems with the network environment. Ask your system administrator, or refer to the manual for your network system. If you cannot print, see the appropriate section in this manual.

Confirm if errors have occurred in the printer by checking the lights and messages on the printer’s control panel.

See “Lights” on page 14

See “Error Messages on the LCD Panel” on page 88

Epson Stylus Pro WT7900/7910 User’s Guide

Problem Solver

The printer sounds like it is printing, but nothing prints

Cause What to do

The print head moves, but nothing prints.

The nozzle check pattern is not printed correctly

Cannot print with white ink

If the print head moves, but nothing prints, confirm the printer operation.

Print a nozzle check pattern. You can check the printer’s operation and status without connecting the printer to the computer.

See “Nozzle check” on page 75

If the print head moves, but nothing prints, make sure MOTOR SELF ADJUSTMENT is displayed on the LCD panel.

The printer adjusts the motor inside of the printer. Please wait without turning off the printer. After about three minutes, the printer returns to normal operation.

Are the print head nozzles clogged?

If the nozzles are clogged, the print quality is reduced. Clean the print head and then print the nozzle check pattern again.

See “Head cleaning” on page 77

If the nozzle check pattern has missing dots, perform a print head cleaning.

If you replace the ink cartridges while the printer is turned off, the remaining amount of ink cannot be detected correctly so that the Ink Check light does not come on even when the ink cartridge needs to be replaced; otherwise you cannot print correctly. Be sure to follow the instructions in this manual to replace the ink cartridge.

See “Replacing Ink Cartridges” on page 68

Has the printer not been used for a long time?

If the printer has not been used for a long time, the nozzles dry up and may be clogged. See the following section.

See “If you do not use your printer for more than a year” on page 85

Are the print head nozzles clogged?

If the nozzles are clogged, print quality is reduced. Execute head cleaning and then print a nozzle check pattern. If the nozzles are still clogged, try power cleaning or white ink refresh and then print the nozzle check pattern again.

See “Head cleaning” on page 77 See “Power cleaning” on page 78 See “White ink refresh” on page 78

Has the printer not been used for a long time?

When not using your printer for a long time, sedimentation of the white ink may occur in the print head nozzle, and then the nozzles may be clogged. See the following sections for more information on what to do if you have not used your printer for a long time.

See “If you do not use your printer for more than a month” on page 85 See “If you do not use your printer for more than a year” on page 85

Epson Stylus Pro WT7900/7910 User’s Guide

Problem Solver

The prints are not what you expected

Cause What to do

Print quality is poor, uneven, too light, or too dark.

Are the print head nozzles clogged?

If the nozzles are clogged, the print quality is reduced. Print the nozzle check pattern.

See “Nozzle check” on page 75

Is there any gap in the print head during bidirectional printing?

With bidirectional printing, the print head prints while moving left and right. If the print head is misaligned, ruled lines may be printed misaligned with gaps. If vertical ruled lines are misaligned with bidirectional printing, adjust the gap.

See “Print head alignment” on page 80

Are you using a genuine Epson ink cartridge?

If you use the non-genuine Epson ink cartridges, printouts may smear, or the color of the printed image may be changed because the ink remaining is not correctly detected. Be sure to use the correct ink cartridge.

Are you using an old ink cartridge?

Print quality decreases when an old ink cartridge is used. Replace the old ink cartridge with a new one. Be sure to use the ink cartridge before the expiry date (within six months after installing to the printer).

Does the Auto white ink refresh turn off?

If AUTO WT INK REFRESH is turned off, printouts may have uneven results depending on the printing frequency. When the white ink density is uneven, execute the WT INK REFRESH.

See “White ink refresh” on page 78

Has the printer not been used with white ink for a long time?

If the printer does not use the white ink for a long time, white ink sedimentation is not cleared even if AUTO WT INK REFRESH is turned on. In this case, execute WT INK REFRESH.

See “If you do not use your printer for more than a year” on page 85

Print quality is poor, uneven, too light, or too dark.

Did you open the front cover during printing?

If the front cover is opened during printing, the carriage stops suddenly causing unevenness in the color. Do not open the front cover during printing.

Does INK LOW appear on the LCD panel?

Print quality may decrease when the ink is nearly expended. Replace the ink cartridge with a new one. If the print quality is not good after replacing the ink cartridge, perform head cleaning a few times.

Epson Stylus Pro WT7900/7910 User’s Guide

Cause What to do

Problem Solver

The print is not positioned properly on the paper.

Left/right ruled lines are bumpy.

Have you specified the print area?

Check the print area in the settings of the application and printer.

Is the paper size setting correct?

If the PAPER SIZE setting and the size of the actual paper do not match, the print may not be where you want it, or part of it may be cut off. In this case, check the print settings.

Is the paper skewed?

If PAPER SKEW CHECK in the panel settings is OFF, the paper is printed even if it is skewed. In this case, the print will not be in the print area. Set PAPER SKEW CHECK to ON in the Menu mode.

See “PRINTER SETUP” on page 22

Does the print data fit within the paper width?

If the print image is bigger than the paper width, printing normally stops. However, if the PAPER SIZE CHECK is OFF, the paper is printed even if the paper width is exceeded. Set PAPER SIZE CHECK to ON in the Menu mode.

See “PRINTER SETUP” on page 22

Is the roll paper margin set to 15 mm or 35 mm?

When using auto rotation, or when printing to the full width of the paper (for example, printing at A2 horizontal size on 24-inch wide roll paper), if the ROLL PAPER MARGIN is set to 15 mm or 35 mm, the data extends beyond the print area on the right side of the paper is not printed. Set the ROLL PAPER MARGIN to 3mm.

See “PRINTER SETUP” on page 22

Is the print head misaligned (leaving gaps)? (during bidirectional printing)

See “Print head alignment” on page 80

100
