Epson 820P, 600P, 811P User Manual
EPSON® PowerLite® 600p/811p/820p
Multimedia Projector
User’s Guide
Important Safety Information
WARNING
Never let children look into the lens when it is on. Never open any cover on the projector, except the lamp and
filter covers. Dangerous electrical voltages inside the projector can severely injure you. Except as specifically
explained in this User’s Guide, do not attempt to service this product yourself. Refer all servicing to qualified service
personnel.
WARNING: The projector and its accessories come packaged in plastic bags. Keep plastic bags away from small
children to avoid any risk of suffocation.
Caution
the oil on your hands may shorten the lamp life. Use a cloth or glove to handle the new lamp.
: Never look into the projector lens when the lamp is turned on; the bright light can damage your eyes.
: When you replace the lamp, never touch the new lamp with your bare hands; the invisible residue left by
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of SEIKO EPSON CORPORATION. The information contained herein is designed only for
use with this EPSON product. EPSON is not responsible for any use of this information as applied to other
products.
Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or third
parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse,
or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the
U.S.) failure to strictly comply with SEIKO EPSON CORPORATION’s operating and maintenance instructions.
SEIKO EPSON CORPORATION shall not be liable for any damages or problems arising from the use of any
options or any consumable products other than those designated as Original EPSON Products or EPSON
Approved Products by SEIKO EPSON CORPORATION.
EPSON is a registered trademark of SEIKO EPSON CORPORATION.
EPSON Connection, EPSON Store, and Extra Care, are service marks; SizeWise is a trademark; and PrivateLine,
Presenters Club, and PowerLite are registered trademarks of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of
their respective owners. EPSON disclaims any and all rights in those marks.
Copyright © 2002 by Epson America, Inc. 4/02
Printed on recycled paper. CPD-13953
ii
Contents
C
1
Welcome
Getting the Most from Your Projector . . . . . . . . . . . . . . . . . . 2
Using Your Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Getting More Information . . . . . . . . . . . . . . . . . . . . . . . . 3
Registration and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Unpacking the Projector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Additional Components. . . . . . . . . . . . . . . . . . . . . . . . . . 6
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Setting Up the Projector
Positioning the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connecting to a Laptop Computer. . . . . . . . . . . . . . . . . . . . 12
Connecting the Computer Cable . . . . . . . . . . . . . . . . . . 12
Connecting the Cable for Remote Mouse Control . . . . . 13
Amplifying Computer Audio . . . . . . . . . . . . . . . . . . . . . 14
Connecting to Video Sources . . . . . . . . . . . . . . . . . . . . . . . . 15
Connecting the RCA A/V Cable . . . . . . . . . . . . . . . . . . 16
Connecting an S-Video Cable . . . . . . . . . . . . . . . . . . . . 17
Connecting a Component Video Cable . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
. . . . . . . . . . . . . . . . . . . . . . 9
2
Using the Projector
Turning On Your Equipment. . . . . . . . . . . . . . . . . . . . . . . . 20
Turning On the Projector . . . . . . . . . . . . . . . . . . . . . . . 20
What To Do If You See a Blank Screen . . . . . . . . . . . . . 22
Adjusting the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Focusing and Zooming Your Image . . . . . . . . . . . . . . . . 25
Adjusting the Height of Your Image . . . . . . . . . . . . . . . 26
Adjusting the Image Shape. . . . . . . . . . . . . . . . . . . . . . . 27
Resizing the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Adjusting the Tracking and Synchronization . . . . . . . . . 28
. . . . . . . . . . . . . . . . . . . . . . . . . . 19
iii
Controlling the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Switching Between Picture Sources . . . . . . . . . . . . . . . . 29
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Turning Off the Picture and Sound . . . . . . . . . . . . . . . 30
Shutting Down the Projector . . . . . . . . . . . . . . . . . . . . . . . . 30
3
4
Using the Remote Control
Turning On and Using the Remote Control . . . . . . . . . . . . 34
Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Turning On the Remote Control. . . . . . . . . . . . . . . . . . 34
Using the Remote Control. . . . . . . . . . . . . . . . . . . . . . . 35
Controlling the Picture and Sound. . . . . . . . . . . . . . . . . . . . 35
Switching Between Picture Sources . . . . . . . . . . . . . . . . 35
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Turning Off the Picture and Sound . . . . . . . . . . . . . . . 36
Stopping Action. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Zooming Your Image. . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Resizing the Image. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Displaying Picture-in-Picture Video . . . . . . . . . . . . . . . 38
Highlighting Your Presentation . . . . . . . . . . . . . . . . . . . . . . 39
Using the Pointer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Spotlighting Your Image . . . . . . . . . . . . . . . . . . . . . . . . 40
Using Horizontal and Vertical Highlights . . . . . . . . . . . 40
Using the Remote Control as a Wireless Mouse . . . . . . . . . . 41
Fine-tuning the Projector
Using the Projector’s Menu System . . . . . . . . . . . . . . . . . . . 44
Changing Menu Settings . . . . . . . . . . . . . . . . . . . . . . . . 45
Adjusting the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Repositioning the Image . . . . . . . . . . . . . . . . . . . . . . . . 48
Adjusting Image Appearance . . . . . . . . . . . . . . . . . . . . . 48
Saving and Recalling Computer Settings . . . . . . . . . . . . 50
Adjusting the Sound. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Customizing the Highlighting Tools . . . . . . . . . . . . . . . . . . 52
Creating Your Own Startup Screen . . . . . . . . . . . . . . . . . . . 53
Capturing the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Choosing When to Display the Image . . . . . . . . . . . . . 54
. . . . . . . . . . . . . . . . . . . 33
. . . . . . . . . . . . . . . . . . . . 43
iv
5
Customizing Projector Features . . . . . . . . . . . . . . . . . . . . . . 55
Setting Advanced Features . . . . . . . . . . . . . . . . . . . . . . . 57
Viewing Lamp Usage and Other Information. . . . . . . . . . . . 58
Restoring the Default Settings . . . . . . . . . . . . . . . . . . . . . . . 59
Maintaining and Transporting
the Projector
Cleaning the Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Cleaning the Projector Case . . . . . . . . . . . . . . . . . . . . . . . . . 62
Cleaning and Replacing the Air Filter. . . . . . . . . . . . . . . . . . 63
Replacing the Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Resetting the Lamp Timer . . . . . . . . . . . . . . . . . . . . . . . 67
Transporting the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . 68
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
6
A
Solving Problems
Using On-Screen Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
What To Do When the Lights Flash. . . . . . . . . . . . . . . . . . . 71
Solving Problems with the Image or Sound . . . . . . . . . . . . . 73
Solving Problems with the Remote Control . . . . . . . . . . . . . 79
Where To Get Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Telephone Support Services . . . . . . . . . . . . . . . . . . . . . . 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Appendix A: Connecting to
Additional Equipment
Installing the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Controlling the Projector from a Computer. . . . . . . . . . 83
Connecting to an External Audio System. . . . . . . . . . . . 83
Connecting to a PC Desktop Computer. . . . . . . . . . . . . . . . 84
Connecting the Computer Cable . . . . . . . . . . . . . . . . . . 84
Connecting the Mouse Cable. . . . . . . . . . . . . . . . . . . . . 86
Connecting the Audio Cable . . . . . . . . . . . . . . . . . . . . . 87
Connecting to a Desktop Macintosh . . . . . . . . . . . . . . . . . . 88
Connecting the Computer Cable . . . . . . . . . . . . . . . . . . 88
Connecting the Mouse Cable. . . . . . . . . . . . . . . . . . . . . 90
Connecting the Audio Cable . . . . . . . . . . . . . . . . . . . . . 91
Connecting to a Second Computer. . . . . . . . . . . . . . . . . . . . 92
. . . . . . . . . . . . . . . . . . . . . . 81
v
Connecting to a High-End Workstation . . . . . . . . . . . . . . . 93
Connecting to a DVI Video Source . . . . . . . . . . . . . . . . . . . 93
B
C
Appendix B: Notices
Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . 95
Remote Control Information . . . . . . . . . . . . . . . . . . . . . . . . 97
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . 98
FCC Compliance Statement. . . . . . . . . . . . . . . . . . . . . . . . . 99
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Appendix C: Technical Specifications
General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Projection Lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Mouse Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Computer Video Port Pin Assignments . . . . . . . . . . . . . . . 105
Compatible Video Formats . . . . . . . . . . . . . . . . . . . . . . . . 106
ESC/VP21 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
. . . . . . . . . . . . . . . . . . . . . . . . . 95
. . . . . . 103
vi
Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
-
Welcome
W
The
EPSON® PowerLite® 600p, 811p, and 820p are portable
projectors that weigh less than 10 pounds and offer up to 2500 ANSI
lumens of brightness. From classrooms to auditoriums, your full-color
presentations and videos will be bright and visible even in ordinary
room lighting.
Images are displayed at a resolution of 1024 × 768 pixels (PowerLite
811p and 820p) or 800 × 600 pixels (PowerLite 600p). The 0.9-inch
LCD provides a high contrast ratio for incredibly vivid images and
clear text. Improved color processing technology reduces “video noise”
for rich, saturated images, while 5-watt amplified sound and
whisper-quiet operation contribute to theater-quality video.
With EPSON’s patented SizeWise
computer displays ranging from VGA through UXGA (or SXGA on
the PowerLite 600p). The projector also supports the Digital Visual
Interface (DVI) format.
™
chip, the projector supports
You can connect the projector to a wide range of computers, including
PCs and laptops, Apple
(including G3 and G4 systems), PowerBook
®
iMac
and iBook® series systems, and high-end workstations such as
the Sun
You can use any of the following video sources: VCR, DVD player,
camcorder, digital camera, or laser disc player. The projector supports
composite video, S-Video, and component video, and it automatically
senses the video format (HDTV, NTSC, PAL, or SECAM).
Support for USB audio and horizontal keystone control contribute to
ease of setup in a wide variety of environments.
®
SPARCstation.
®
Macintosh,® Power Macintosh® series
®
computers, many
™
Welcome
1
note
You can connect a maximum
of four sources at the same
time.
Getting the Most from Your Projector
Your EPSON PowerLite projector is a highly versatile presentation
tool. You can connect it to one or two computer sources and up to
three video sources and easily switch between them. You can also
include sound for up to three of the sources.
Depending on your presentation, you can take advantage of any or all
of these options:
■
Connecting to a laptop or other computer
If you want to connect to a PC laptop or Macintosh PowerBook
or iBook, see page 12. To connect to a desktop computer, a
workstation, a computer that outputs video in Digital Visual
Interface (DVI) format, or more than one computer, see
Appendix A.
■
Connecting to video sources
You can connect a DVD player, VCR, camcorder, laser disc
player, digital camera, or any other video source to your projector.
You can connect up to three video sources at the same time (with
or without a computer) and easily switch between them.
See page 15 for instructions.
2
Welcome
■
Using the remote control
The remote control lets you switch from one computer or video
source to another, with access to picture-in-picture, pointer,
zoom, and many other projector features. For details, see
Chapter 3.
By connecting an additional cable, you can also use the remote
control as a wireless mouse. This lets you click through
slideshow-style presentations (such as PowerPoint
®
) from up to
30 feet away. For more information, see page 41.
■
Including sound in your presentation
If your presentation includes sound, you can connect the USB
cable or an optional audio cable to use the projector’s built-in
speakers. For details, see page 14 (for laptops) or Appendix A (for
other systems).
If you’re permanently installing the projector, you may wish to
connect external speakers or a public address system to the
projector’s
■
Controlling the Projector from a Computer
Audio Out
port; see page 83.
If you want to be able to control the projector’s settings from a
computer (for example, if the projector is ceiling-mounted), you
can install the EMP Link program. You can download this
program, plus its User’s Guide, from EPSON’s web site at
support.epson.com. You’ll also need a serial or USB cable to
connect the projector to the computer.
Using Your Documentation
To connect the projector to your laptop and get your presentation
up and running fast, see the Quick Setup sheet in your owner’s kit.
This book contains all the information you need to set up and use
your projector. Please follow these guidelines as you read through it:
■
Warnings must be followed carefully to avoid bodily injury.
■
Cautions must be observed to avoid damage to your equipment.
■
Notes contain important information about your projector.
Getting More Information
Need tips on giving presentations? Quick steps for setting up your
projector? Here’s where you can look for help:
■
presentersonline.com
Includes a library of articles covering presentation tips, tricks, and
technology. The site provides templates, clip art and sound clips,
as well as Presenters Services to use on the road. Even more
resources and services are available if you register to join the
Presenters Club
■
Quick Setup sheet
Gives you all the instructions you need to get your projector set
up and connected to a laptop or PowerBook computer.
®
—and it’s free.
Welcome
3
■
Owner’s Kit
Includes your Quick Setup sheet, warranty brochures, and
®
EPSON PrivateLine
Support card. Store this User’s Guide in the
folder and keep the folder with your projector at all times.
■
Built-in help system
Provides assistance for common problems. Available from the
Help
button on the projector or the remote control. See page 70
for details.
■
support.epson.com
Download FAQs and e-mail your questions to EPSON support.
If you still need help after checking this User’s Guide and the sources
listed above, you can use the EPSON PrivateLine Support service to
get help fast. Call (800) 637-7661 and enter the PIN on the card in
your owner’s kit. Or take advantage of EPSON’s automated support
services 24 hours a day. See page 80 for more information.
Registration and Warranty
Your projector comes with a basic carry-in warranty (on page 100) as
well as an international warranty that let you project with confidence
anywhere in the world. For details, see the warranty brochure included
in your owner’s kit.
4
Welcome
In addition, for customers who register their projector, EPSON offers
free Extra Care
SM
Road Service. In the unlikely event of an equipment
failure, you won’t have to wait for your unit to be repaired. Instead,
EPSON will ship you a replacement unit anywhere in the United
States or Canada, usually via overnight delivery. See the brochure in
your owner’s kit for details.
To register, simply fill out the registration card included in your
owner’s kit and mail it to EPSON. Or you can register online at
http://epsonwebreg.info2.net/. Registering also lets you receive special
updates on new accessories, products, and service.
Unpacking the Projector
After unpacking the projector, make sure you have all the parts shown
below:
projector
computer cable
remote control
batteries
A/V cable
power cord
USB cable
Save all packaging in case you need to ship the projector. Always use
the original packaging (or the equivalent) when you need to send the
projector to another location.
If you are moving the projector by hand, use a carrying case (such as
the optional cases available from EPSON). See page 7 for more
information about cases.
PS/2 mouse cable
Welcome
5
Additional Components
Depending on how you plan to use the projector, you may need
additional components:
■
To receive an S-Video signal, you need an S-Video cable. (One is
usually provided with your video device.)
■
To receive a component video signal from a VCR or other video
device, you need a VGA-to-component video cable. You can
purchase this from EPSON; see page 7.
■
To connect two computers to the projector at the same time, you
need a DVI/analog interface cable. You can purchase this from
EPSON; see page 7.
■
Some older PowerBooks and Macintosh desktop models may
need the Macintosh adapter set shown on page 89 (available from
EPSON; see page 7). Older iMac systems may need a special
adapter to provide a VGA output port; see your computer dealer.
■
Some systems may need an additional cable to use the remote
control as a wireless mouse. If your Macintosh doesn’t have a USB
port, you’ll need a Macintosh mouse cable. If your PC doesn’t
have a USB or PS/2 port, you’ll need a PC serial mouse cable. See
your projector dealer to obtain the correct cable.
6
Welcome
■
To take advantage of the projector’s Digital Visual Interface, you
need a DVI cable, and your computer must be capable of
producing video signals in DVI format (for details, see page 93).
You can purchase this cable from EPSON; see page 7.
■
To receive an audio signal, you may need a stereo mini-jack cable,
available from most electronics dealers.
Optional Accessories
To enhance your use of the projector, EPSON provides the following
optional accessories. You can purchase these accessories from your
dealer, by calling EPSON at (800) 873-7766, or by visiting the
EPSON Store
please call (800) 463-7766 for dealer referral.
Product Product number
Replacement lamp and air filter V13H010L15
Customized carrying cases:
Samsonite
ATA molded hard shell case
ATA shipping case
Soft shoulder bag
Ceiling mount
Suspension adapter
False ceiling plate
Kensington
Projection screens:
50-inch portable screen
60-inch Insta Theatre screen
80-inch Insta Theatre screen
Wireless microphone and two satellite speakers ELPCVSII
Auxiliary audio system ELPPAS1
Remote control receiver (plugs into projector to
extend range of remote control)
Remote control receiver kit (includes standard
receiver and clip-on receiver for attachment directly
to remote control)
Macintosh adapter set (includes monitor adapter
and desktop adapter)
Component video cable (VGA to component video) ELPKC19
Digital video cables:
DVI to DVI, 10 feet (3 meters)
DVI to DFP, 10 feet (3 meters)
DVI to analog video, 10 feet (3 meters)
High resolution document imager
Motion presentation camera
High resolution document camera
SM
at www.epsonstore.com (U.S. sales only). In Canada,
®
wheeled soft case
®
security lock ELPSL01
ELPKS35
ELPKS40
ELPKS41
ELPKS13
ELPMB36
ELPMBAPL
ELPMBFCP
ELPSC06
ELPSC07
ELPSC08
ELPST02
ELPST04
ELPAP01
ELPKC20
ELPKC21
V12H005C25
ELPDC02
ELPDC03
V12H064020
Welcome
7
8
Welcome
1
1
Setting Up the Projector
T
his chapter tells you how to set up the projector for a laptop
computer or video presentation. If you need to set up the projector for
a permanent installation or connect it to a desktop or workstation
computer, see Appendix A.
You’ll find instructions for the following in this chapter:
■
Positioning the projector
■
Connecting to a laptop computer
■
Connecting to video sources
Setting Up the Projector
9
Positioning the Projector
p
p
Before connecting the projector, you need to decide where to place it.
The location you choose depends on the size of the room and what
you are projecting.
■
Place the projector on a sturdy, level surface, approximately
2.85 to 41 feet from the screen.
■
Make sure there is plenty of space for ventilation around and
under the projector.
■
Make sure the projector is within 10 feet of a grounded electrical
outlet or extension cord, and within 5 feet of your computer
and/or video source.
note
It’s easier to position the
rojector when the screen is
directly in front of the room.
However, if you need to place
it off-center, you can use the
keystone correction feature to
maintain a square image. See
age 27 for more
information.
■
Place the projector directly in front of the center of the screen,
facing it toward the screen squarely.
Most presenters find it convenient to place the projector in front of
the audience, leaving as much space as possible between the projector
and the screen to get a good-sized image. This lets the presenter stand
in the front of the room, face the audience, and remain close enough
to the equipment to be able to control it.
Use the figure below as a guideline to help you determine how far
from the screen to place the projector. Image size generally increases
with distance, but may vary depending on how you position the zoom
ring and whether you have adjusted the image size with other settings.
3 to 4 ft6 to 8 ft30 to 41 ft distance from screen
10
Setting Up the Projector
If you place the projector below the level of the screen, you’ll have to
A
p
M
p
p
p
tilt it up by extending the feet as shown. Tilting the projector upward
causes the image to lose its square shape, but you can correct the
distortion by pressing the
Keystone
button as described in the next
chapter.
ideal
height
If you place the projector level with the bottom of the screen, the
image will be square and you won’t have to adjust it. If you place the
projector higher than the bottom of the screen, the image will still be
square, but you won’t be able to fill the whole screen with the image.
note
fter positioning the
rojector, you may want to
connect a Kensington
icroSaver® anti-theft
device to the lock port on the
rojector’s left side. You can
urchase this from EPSON;
see “Optional Accessories” on
age 7
.
Setting Up the Projector
11
Connecting to a Laptop Computer
A
f
p
note
To connect to desktops and
other computer systems, see
ppendix A. If you have
an iBook with an RCA
video-out port, follow the
instructions for connecting to
a video device on page 16.
You can connect the PowerLite projector to any computer that has a
standard video output (monitor) port, including PC notebook and
laptop computers, Macintosh PowerBooks and iBooks, and hand-held
devices.
Connecting the Computer Cable
Before you start, make sure your computer and the projector are
turned off.
1. Connect one end of the computer cable to the projector’s
Computer2/Component Video
port.
Computer2/Component Video port
note
Laptop configurations vary.
See your computer manual
or the location of the ports
needed to connect your
rojector.
12
Setting Up the Projector
2. Connect the other end of the computer cable to your laptop’s
video-out or monitor port.
If you’re using a PowerBook and you can’t connect the cable, you
may need to use the Macintosh desktop adapter as shown on
page 89 (available from EPSON; see page 7).
3. Tighten the screws on the connectors.
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 20 for instructions.
Connecting the Cable for Remote Mouse
y
p
Control
Using the remote control as a wireless mouse lets you control your
computer and click through slideshow-style presentations, such as
PowerPoint, from up to 30 feet away (for details, see page 41). This
gives you more flexibility in delivering your presentation, since you
won’t need to stand near your computer.
The USB cable also provides audio support. If your presentation
includes sound, you can play it through the projector’s speakers by
connecting the USB cable.
1. Locate the cable you need, depending on whether your laptop has
a round PS/2 mouse port or a flat USB mouse port.
2. Connect one end of the cable to the projector’s USB or
Mouse
port.
note
If you’re using a PowerBook
that has a round mouse port,
ou’ll need a Macintosh
mouse cable. If you have a
PC laptop with a serial
mouse port, you’ll need a
serial mouse cable. See your
rojector dealer to obtain the
correct cable.
On a PowerBook or iBook,
USB audio support is
available for Mac OS 9.0
and 9.1 only.
USB port
USB cable
3. Connect the other end of the cable to the external mouse port or
USB port on your laptop.
4. If necessary, configure your laptop to work with an external
mouse.
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 20 for instructions.
Setting Up the Projector
13
note
If you connected the USB
cable, you may not need a
separate audio cable to
amplify audio from your
computer.
Amplifying Computer Audio
Your laptop probably has its own sound system; however, it may not
be adequate for your presentation. If you need more volume or better
sound quality, you can connect a stereo, mini-jack audio cable (not
included).
1. Connect one end of the audio cable to the
Audio1
projector.
audio cable
2. Connect the other end of the audio cable to your laptop’s
headphone jack or audio-out jack. (Jack locations vary; see
your computer manual if you’re not sure which jack to use.)
jack on the
Audio1 jack
14
Setting Up the Projector
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 20 for instructions.
Connecting to Video Sources
You can connect a DVD player, VCR, camcorder, laser disc player,
digital camera, or any other compatible video source to your projector.
The projector supports HDTV, NTSC, PAL, and SECAM, and
automatically detects the video format.
The projector can receive composite video, S-Video, and component
video. You can connect one or more of these video sources at the same
time.
The type of cable you use depends on whether you have composite
video, S-Video, or component video.
■
For composite video, use the RCA A/V cable included with the
projector.
■
For S-Video, use the S-Video cable supplied with your video
device or obtain one from your electronics dealer.
■
For component video, you’ll need a VGA-to-component video
cable. You can purchase this from EPSON; see page 7.
Component video connectors are usually colored green, blue, and
red.
See the following illustration if you’re not sure which type of
connectors you have.
composite video
RCA connector
S-Video
4-pin, mini-DIN
Follow the instructions below for your type of connection.
note
The projector does not
support TV antenna cable
F-connectors.
Setting Up the Projector
15
Connecting the RCA A/V Cable
Before starting, make sure the projector and your DVD player or
other video source are turned off.
1. Connect the yellow plug on one end of the A/V cable to the
Video
projector’s yellow
2. Connect the other yellow plug to the video-out jack on your video
source.
3. Connect the red and white plugs on the A/V cable to the
projector’s
Audio L
4. Connect the red and white plugs on the other end of the cable to
the corresponding audio output jacks on your video source.
jack.
(white) and R (red) jacks.
16
Setting Up the Projector
A/V cable
If your video source has a stereo mini-jack instead of RCA jacks,
you can use a stereo mini-jack cable (not included). Connect it to
Audio 1
the
jack on the projector.
A/V cable
stereo mini-jack cable
Connecting an S-Video Cable
If your video source has an S-Video jack, you can use it to project a
higher quality video image. However, you’ll need an S-Video cable,
which may be included with your video source, or can be purchased
separately.
Before starting, make sure the projector and your DVD player or
other video source are turned off.
1. Insert one end of an S-Video cable into the projector’s
S-Video
connector.
2. Insert the other end into the S-Video output port of your video
source.
3. If your video source has RCA audio, you can use the A/V cable to
connect to the projector’s
S-Video cable
Audio L
A/V cable
(white) and R (red) jacks.
S-Video connector
If your video source has a stereo mini-jack instead of RCA jacks,
you can use a stereo mini-jack cable (not included). Connect it to
the
Audio 1
jack on the projector.
Setting Up the Projector
17
Connecting a Component Video Cable
If your video source has component (blue, green, and red) connectors,
you can use them to project a higher quality video image. However,
you’ll need a VGA-to-component video cable, which is available from
EPSON; see page 7.
Before starting, make sure the projector and your DVD player or
other video device are turned off.
1. Connect the VGA end of the cable to the projector’s
Computer 2/Component Video
2. Connect the red, green, and blue leads at the opposite end of the
cable to the corresponding connectors on your video source.
3. If your video source has RCA audio, you can use the A/V cable to
connect to the projector’s
Audio L
port.
(white) and R (red) jacks.
Computer 2/
Component Video port
18
Setting Up the Projector
VGA-to-component
video cable
A/V cable
If your video source has a stereo mini-jack instead of RCA jacks,
you can use a stereo mini-jack cable (not included). Connect it to
the
Audio 1
jack on the projector.
4. If the image doesn’t display properly, you may need to change the
Comp2/YCbCr
option in the projector’s Setting menu (see
page 56).
Using the Projector
2
O
nce you’ve connected the projector to your computer or other
equipment (as described in Chapter 1 or Appendix A), you’re ready to
turn on the projector, adjust the image, and give your presentation.
Although you can operate the projector without it, the remote control
lets you use additional features. See Chapter 3 for instructions on
using the remote. This chapter covers the following:
■
Turning on the projector and other equipment
■
Adjusting the image
■
Controlling the projector
■
Shutting down the projector
2
Using the Projector
19
Turning On Your Equipment
Make sure your projector and other equipment are set up and
connected correctly, as described in Chapter 1 or Appendix A. Then
turn on your projector, as described below, followed by any
equipment you’ve connected to it. You can turn on your computer
and video equipment in any order, but if you have more than one
computer or video source connected, you may have to switch to the
desired source as described on page 29.
Turning On the Projector
Follow these steps to plug in and turn on the projector:
1. If you’re projecting video, first plug in and turn on your VCR,
DVD player, or other video source. (If you’re projecting from a
computer, go to step 2.)
2. Connect one end of the power cord to the power inlet on the back
of the projector.
20
Using the Projector
3. Connect the other end to a grounded electrical outlet.
The
P power light on top of the projector turns orange,
indicating that the projector is receiving power but not yet
turned on.
4. Remove the lens cap.
5. Press the red
N
Power
button on top of the projector.
The power light flashes green as the projector warms up, and the
projection lamp comes on in about 30 seconds. The power light
stays green, and you may see a blue screen with the
No Signal
message displayed. This is normal.
power light
Power button
6. Do one of the following:
■
If you’re projecting from a computer, turn on or restart your
computer. In a few moments, you should see your computer
display projected.
If you see a New Hardware Wizard message saying that it has
found a plug-and-play monitor, click
Cancel
. If you see a
New Hardware Wizard message about USB audio, click
and follow the instructions on the screen. (Windows only).
Next
warning
ever look into the lens when
the lamp is on. This can
damage your eyes, and is
especially dangerous for
children.
■
If you’re projecting a video, press the
Play
button on your
video source.
If a projected image fails to appear, see the next section for help.
Once you see your image, turn to page 24 for instructions on focusing
and making other image adjustments.
When you’re done with your presentation, shut down the projector as
described on page 30. Shutting down the projector correctly prevents
premature lamp failure and possible damage to the projector from
overheating.
Using the Projector
21
What To Do If You See a Blank Screen
No Signal
If you see a blank screen or a blue screen with the
No Signal
message
after turning on your computer or video source, try the following:
■

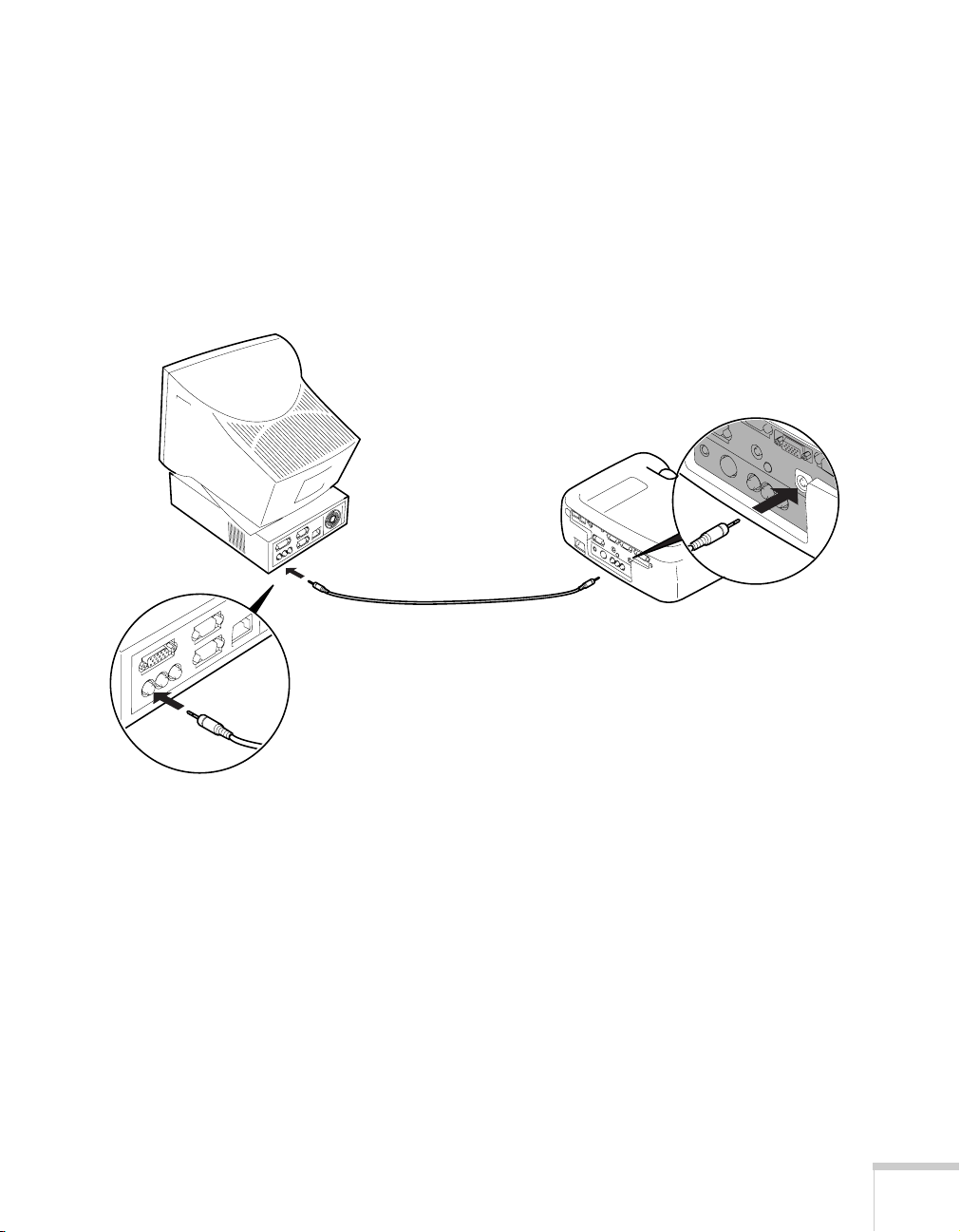

Make sure the cables are connected correctly, as described on
page 12 (for laptops) or in Appendix A (for other systems).
■
Make sure the power light is green and not flashing and the lens
cover is off.
■
Try restarting your computer.
■
If you’ve connected more than one computer and/or video source,
you may need to press the
Computer/YCbCr
or
Video
button on
the projector’s control panel to select the correct source. (Allow a
few seconds for the projector to sync up after pressing the button.)
If you’re using a PC laptop:
■
Press the function key that lets you display on an external
monitor. It’s often labelled with an icon such as but it may
also be labelled
while pressing it. Check your laptop’s manual or online help for
details.
On most systems, the key lets you toggle between the LCD
screen and the projector, or display on both at the same time.
Allow a few seconds for the projector to sync up after pressing it.
CRT/LCD
. You may have to hold down the Fn key
22
Using the Projector
■
Depending on your computer’s video card, you might need to use
the Display utility in the Control Panel to make sure that both the
LCD screen and external monitor port are enabled. See your
computer’s documentation or online help for details.
If you’re using a PowerBook or iBook with OS 9.x:
You may need to set up your system to display on the projector screen
as well as the LCD screen. Follow these steps:
1. From the Apple menu, select
Monitors and Sound.
2. Click the
drag one monitor
icon on top of
Arrange
the other
icon.
Control Panels
click here
, then click
3. Drag one monitor icon on top of the other.
If the Arrange option isn’t available, you may need to select one of the
Simulscan resolution settings:
1. Click the
2. Select a
Monitor
click here
Simulscan
icon.
resolution as shown. (Allow a few seconds for
the projector to sync up after making the selection.)
select a
Simulscan
resolution
Using the Projector
23
If you're using Macintosh OS X:
You may need to set up your system to display on the projector screen
as well as the LCD screen. Follow these steps:
1. From the Apple menu, select
Displays
2. Make sure the
3. Click the
Make sure
Mirror Displays
is checked
4. Make sure the
.
VGA Display
Arrange tab.
Mirror Displays
System Preferences
dialog box is selected.
checkbox is selected.
, then select
Select the
VGA Display
dialog box
Adjusting the Image
Once you see your image, you’ll need to make certain adjustments:
24
Using the Projector
■
To focus or zoom your image, see below.
■
If the image is too high or too low, you can reposition it. See
page 26.
■
If the image isn’t square, see page 27.
■

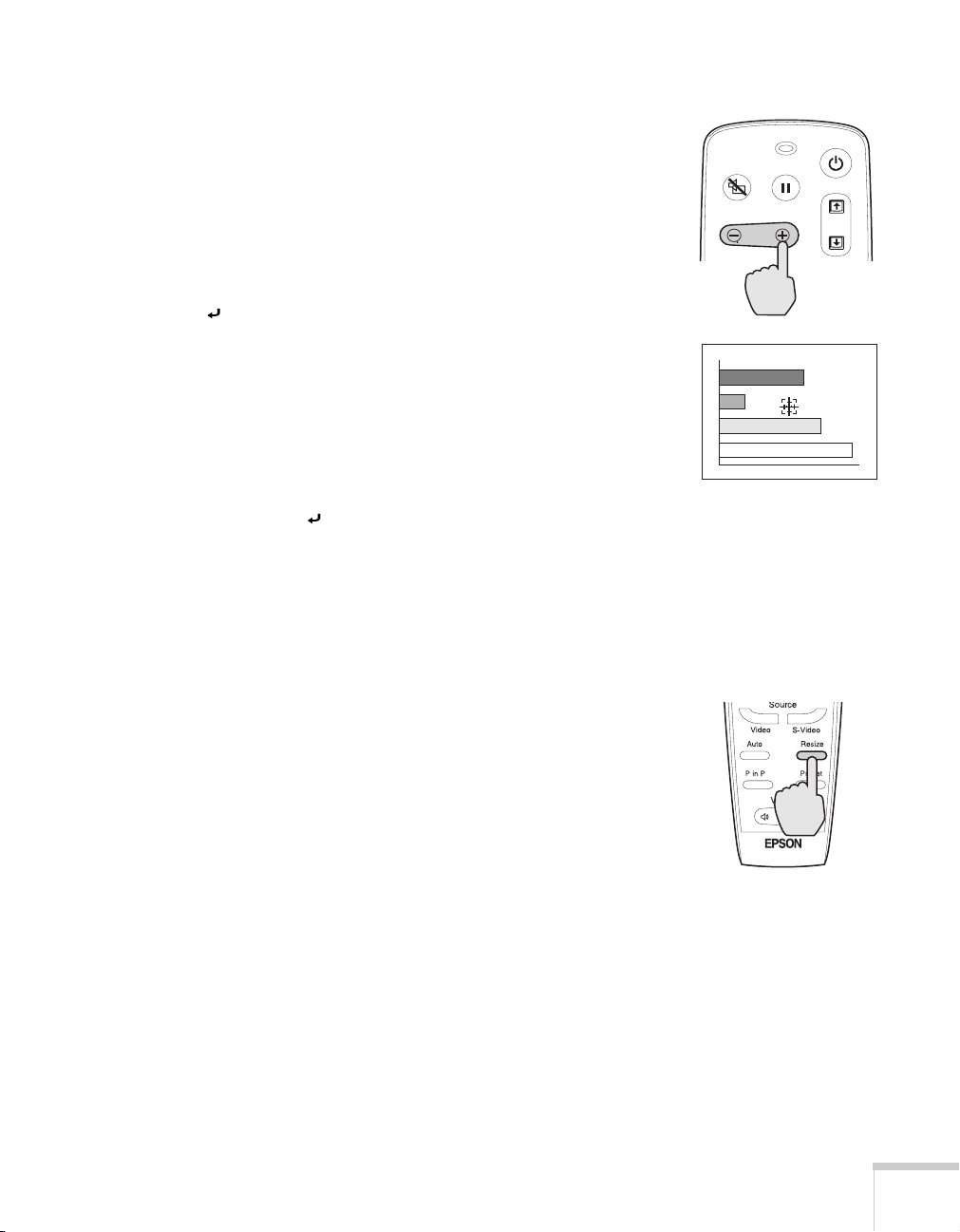

If only part of a computer image is displayed, you may need to
press the
■
If the projected image is flickering or “noisy,” see page 28.
Resize
button. See page 28 for more information.
