Epson 760c, 750c User Manual

Epson® PowerLite® 750c/760c

Multimedia Projector

User’s Guide

Important Safety Information

WARNING: Never look into the projector lens when the lamp is turned on; the bright light can damage your eyes. Never let children look into the lens when it is on. Never open any cover on the projector, except the lamp and filter covers. Dangerous electrical voltages inside the projector can severely injure you. Except as specifically explained in this User’s Guide, do not attempt to service this product yourself. Refer all servicing to qualified service personnel.

WARNING: The projector and its accessories come packaged in plastic bags. Keep plastic bags away from small children to avoid any risk of suffocation.

Caution: When you replace the lamp, never touch the new lamp with your bare hands; the invisible residue left by the oil on your hands may shorten the lamp life. Use a cloth or glove to handle the new lamp.

Copyright Notice

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. The information contained herein is designed only for use with this Epson product. Epson is not responsible for any use of this information as applied to other products.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.

Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation.

Epson is a registered trademark, and EasyManagement and EasyMP are trademarks of Seiko Epson Corporation.

PrivateLine, Presenters Club, and PowerLite are registered trademarks; SizeWise is a trademark; and Epson Connection, Epson Store, and Extra Care are service marks of Epson America, Inc.

Pixelworks, DNX, and the DNX logo are trademarks of Pixelworks, Inc.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks.

CPD-20247R1

Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Using Your Documentation . . . . . . . . . . . . . . . . . . . . . . . . . 8

Getting More Information . . . . . . . . . . . . . . . . . . . . . . . 8

Registration and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Unpacking the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Additional Components . . . . . . . . . . . . . . . . . . . . . . . . 10

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

1 Displaying and Adjusting the Image . . . . . . . 13

Positioning the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Projecting the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Turning On the Projector . . . . . . . . . . . . . . . . . . . . . . . 16

Selecting the Image Source . . . . . . . . . . . . . . . . . . . . . . 17

Troubleshooting Display Problems . . . . . . . . . . . . . . . . . . . 18

You Can’t Project an Image . . . . . . . . . . . . . . . . . . . . . 18

The Projector and Notebook Don’t Display

the Same Image . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Adjusting the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Adjusting the Height of Your Image . . . . . . . . . . . . . . . 21

Focusing and Zooming Your Image . . . . . . . . . . . . . . . 22

Adjusting the Image Shape . . . . . . . . . . . . . . . . . . . . . . 22

Correcting Computer Images . . . . . . . . . . . . . . . . . . . . 24

Shutting Down the Projector . . . . . . . . . . . . . . . . . . . . . . . . 24

Using the Direct Power On Function . . . . . . . . . . . . . . 25

2 Using the Remote Control . . . . . . . . . . . . . . . . . . 27

Using the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . 28

Replacing the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . 28

Controlling the Picture and Sound . . . . . . . . . . . . . . . . . . . 29

Switching Between Picture Sources . . . . . . . . . . . . . . . . 29

Turning Off the Picture and Sound . . . . . . . . . . . . . . . 30

Stopping Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Zooming Part of Your Image . . . . . . . . . . . . . . . . . . . . 31

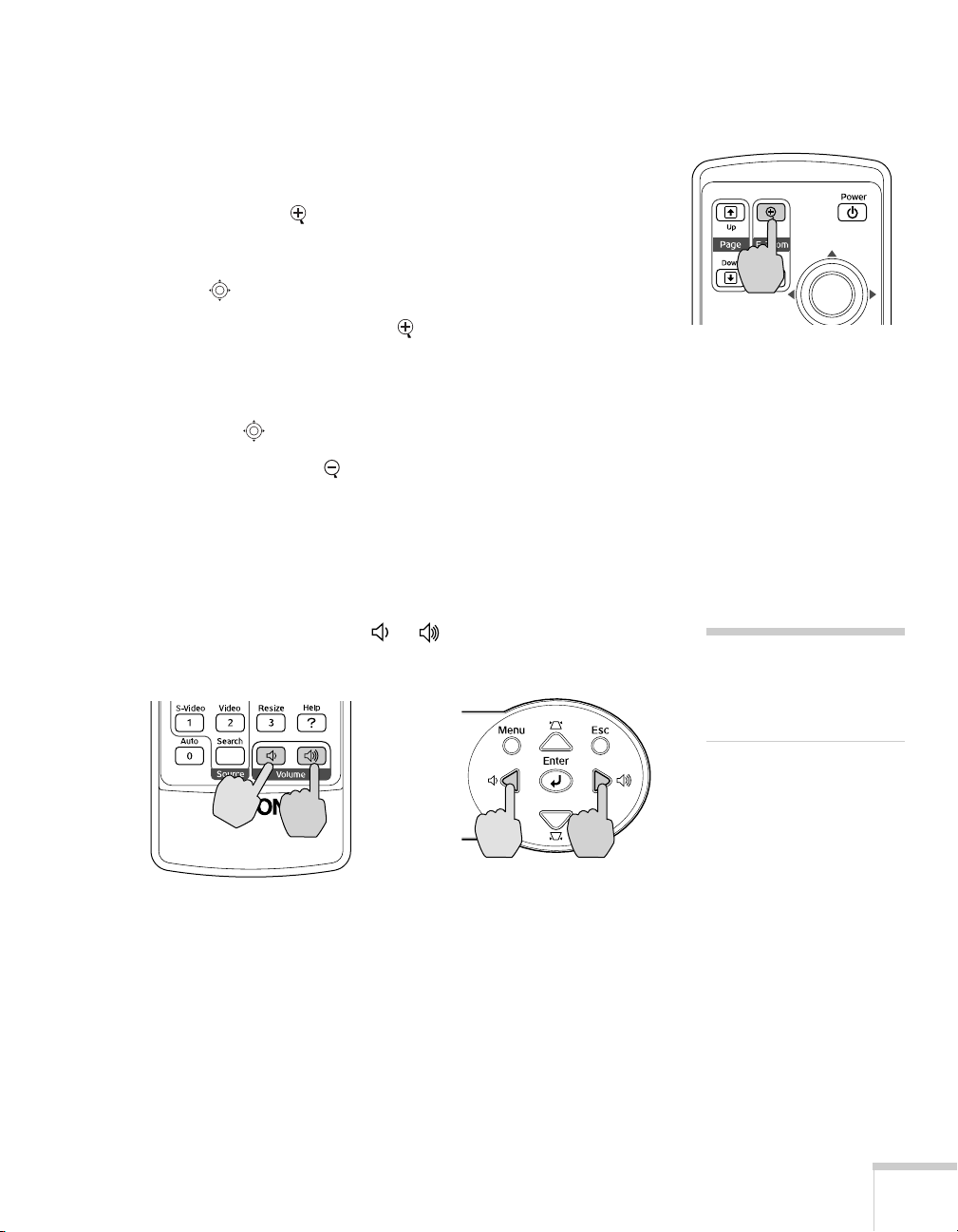

Controlling the Volume . . . . . . . . . . . . . . . . . . . . . . . . 31

Resizing Video images . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Adjusting the Color Mode . . . . . . . . . . . . . . . . . . . . . . 32

Operating Your Computer with the Remote Control . . . . . 33

Highlighting Your Presentation . . . . . . . . . . . . . . . . . . . . . . 34

Using the Pointer Tool . . . . . . . . . . . . . . . . . . . . . . . . . 34

Customizing the Pointer Tool . . . . . . . . . . . . . . . . . . . . 34

3 Connecting to Computers and

4 Contents

Other Equipment

Connecting to a Computer . . . . . . . . . . . . . . . . . . . . . . . . . 36

Connecting to the Computer Port . . . . . . . . . . . . . . . . 36

Using the Macintosh Desktop Adapter . . . . . . . . . . . . . 37

Connecting the Cable for Remote Mouse Control . . . 38

Connecting to Video Equipment . . . . . . . . . . . . . . . . . . . . . 39

Connecting a Composite Video Source . . . . . . . . . . . . . 40

Connecting an S-Video Source . . . . . . . . . . . . . . . . . . . 41

Connecting a Component Video Source . . . . . . . . . . . . 42

Connecting an RGB Video Source . . . . . . . . . . . . . . . . 43

Playing Sound Through the Projector . . . . . . . . . . . . . . . . . 44

. . . . . . . . . . . . . . . . . . . . . . . . . . . 35

4 Fine-Tuning the Projector . . . . . . . . . . . . . . . . . . 45

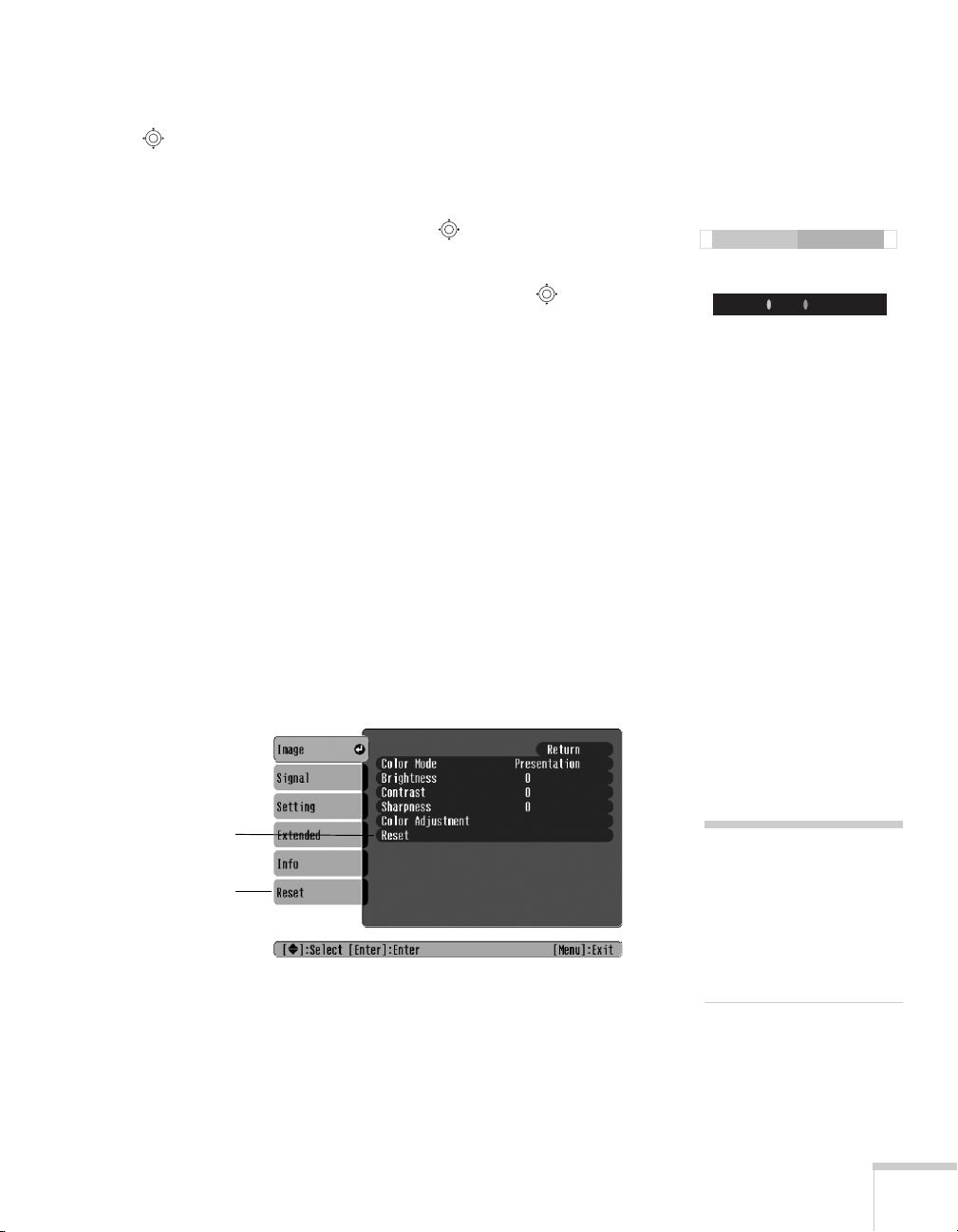

Using the Menu System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Restoring the Default Settings . . . . . . . . . . . . . . . . . . . 47

Adjusting the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Adjusting Signal Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Customizing Projector Features . . . . . . . . . . . . . . . . . . . . . . 51

Using the Projector Security Features . . . . . . . . . . . . . . . . . 52

Enabling Password Protection . . . . . . . . . . . . . . . . . . . . 52

Creating Your Own Startup Screen . . . . . . . . . . . . . . . . 55

Disabling the Projector’s Buttons . . . . . . . . . . . . . . . . . 57

Customizing Power and Operation . . . . . . . . . . . . . . . . . . . 57

5 Maintaining the Projector . . . . . . . . . . . . . . . . . . 59

Cleaning the Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Cleaning the Projector Case . . . . . . . . . . . . . . . . . . . . . . . . . 60

Cleaning the Air Filters and Vents . . . . . . . . . . . . . . . . . . . . 61

Replacing the Lamp and Air Filter . . . . . . . . . . . . . . . . . . . . 62

Resetting the Lamp Timer . . . . . . . . . . . . . . . . . . . . . . . 65

Transporting the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . 66

6 Solving Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Using On-Screen Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Checking Projector Status . . . . . . . . . . . . . . . . . . . . . . . . . . 69

What To Do When the Lights Flash . . . . . . . . . . . . . . . 69

Viewing Lamp Usage and Other Information . . . . . . . . 71

Solving Projector Operation Problems . . . . . . . . . . . . . . . . . 71

Solving Problems with the Image or Sound . . . . . . . . . . . . . 72

Solving Problems with the Remote Control . . . . . . . . . . . . . 78

Where To Get Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Telephone Support Services . . . . . . . . . . . . . . . . . . . . . 79

Contents 5

Projector Installation . . . . . . . . . . . . . . . . . . . . . . . 81

Technical Specifications . . . . . . . . . . . . . . . . . . . . 83

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Projection Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Compatible Video Formats . . . . . . . . . . . . . . . . . . . . . . . . . 85

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . 87

Remote Control Information . . . . . . . . . . . . . . . . . . . . . . . 89

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . 90

FCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . 91

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

6 Contents

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Welcome

The Epson

weighs less than 4 pounds. The projector offers up to 2500 lumens (760c) or 2000 lumens (750c) of brightness. You can connect it to a wide range of computers and video sources.

Easy control

The projector’s keystone correction feature automatically corrects image distortion, and you can use the remote control to take charge of your presentation from almost anywhere in the room. Freeze the action, zoom in on part of the picture, or use the remote as a pointer. You can even use it in place of your computer’s mouse to control your computer and change slides in Microsoft

Security

To prevent unauthorized use, this projector includes several security features including a password, user’s logo, and the ability to lock the projector buttons.

PowerLite® 750c/760c is an easy-to-use projector that

PowerPoint.®

Using Your Documentation

This book contains all the information you need to set up and use your projector. Please follow these guidelines as you read through it:

■ Warnings must be followed carefully to avoid bodily injury.

■ Cautions must be observed to avoid damage to your equipment.

■ Notes contain important information about your projector.

■ Tips contain additional projection hints.

Getting More Information

Need tips on giving presentations? Quick steps for setting up your projector? Here’s where you can look for help:

■ presentersonline.com

Includes a library of articles covering presentation tips, tricks, and technology. The site provides templates, clip art and sound clips, as well as Presenters Services to use on the road. Even more resources and services are available if you register to join the Presenters Club

—and it’s free.

8 Welcome

■ Quick Setup sheet

Gives you the instructions you need to get your projector up and running if you are connecting to a notebook, PowerBook,

iBook

■ Start Here kit

computer.

Includes this User’s Guide, your Quick Setup sheet, warranty brochures, and Epson PrivateLine

Support card. Keep the kit

with your projector at all times.

■ Built-in help system

Provides assistance for common problems. Available from the

Help button on the projector or the remote control. See page 68

for details.

■ support.epson.com

Download FAQs and e-mail your questions to Epson support.

■ If you still need help after checking this User’s Guide and the

sources listed above, you can use the Epson PrivateLine Support service to get help fast. Call (800) 637-7661 and enter the PIN on the card in your Start Here kit. Or take advantage of Epson’s automated support services 24 hours a day. See page 78 for more information.

Registration and Warranty

Your projector comes with a basic carry-in warranty as well as an international warranty that let you project with confidence anywhere in the world. For details, see page 92 and the warranty brochure included in your Start Here kit.

In addition, for customers who register their projector, Epson offers

free Extra Care failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States or Canada, usually via overnight delivery. See the brochure in your Start Here kit for details.

To register, simply fill out the registration card included in your Start Here kit and mail it to Epson. Or you can register online at http://www.epson.com/webreg. Registering also lets you receive special updates on new accessories, products, and service.

Road Service. In the unlikely event of an equipment

Welcome 9

Unpacking the Projector

After unpacking the projector, make sure you have all the parts shown below:

Remote control and

batteries

USB cable

Audio adapter

Projector

VGA computer cable

Power cable

Save all packaging in case you need to ship the projector. Always use the original packaging (or the equivalent) when you need to send the projector to another location. If you are moving the projector by hand, use the carrying case. See page 11 for ordering information, and page 66 for transportation instructions.

Carrying case

10 Welcome

Additional Components

Depending on how you plan to use the projector, you may need additional components:

■ To receive an S-Video signal, you’ll need an S-Video cable. One

may be provided with your video equipment, or you can purchase one from Epson; see page 11.

■ To receive a component video signal from a VCR or other video

device, you’ll need a component video cable. You can purchase one from Epson; see below.

■ Some older PowerBooks

and Macintosh® desktop models may need the Macintosh desktop adapter set shown on page 37 (available from Epson; see below). Older iMac

systems may need a special adapter to provide a VGA output port; see your computer dealer.

Optional Accessories

To enhance your use of the projector, Epson provides the following optional accessories:

Product Part number

Replacement lamp V13H010L32

Air filter replacement set (2 filters) V13H134A08

ATA molded hardshell case Samsonite Notebook/projector soft shoulder bag

Universal ceiling mount False ceiling plate Security bracket/cabling for gyro lock mounts

Adjustable ceiling channel

Kensington

50-inch portable screen 60-inch portable pop-up screen 80-inch portable pop-up screen

83.6-inch hanging pull-down screen

Macintosh adapter set ELPAP01

Component video cable S-Video cable

Distribution amplifier ELPDA01

Image presentation camera (ELPDC05) V12H162020

wheeled soft case

security lock ELPSL01

ELPKS42 ELPKS35-S ELPKS43

ELPMBUNI ELPMBFCP ELPMBSEC

ELPMBACC

ELPSC06 ELPSC07 ELPSC08 ELPSC09

ELPKC19 ELPSV01

You can purchase these accessories from an authorized Epson reseller. To find the nearest reseller, please call 800-GO-EPSON (800-463-7766). To purchase online, visit www.epsonstore.com (U.S. sales only). In Canada, please call (800) 463-7766 for reseller referral.

Welcome 11

12 Welcome

Displaying and Adjusting the Image

Whether you’re presenting from a computer or video equipment,

you need to follow some basic steps to display your image on the screen.

Follow the guidelines in this chapter for:

■ Positioning the projector

■ Turning the projector on and selecting the image source

■ Troubleshooting display problems

■ Adjusting the image

■ Turning off the projector

note

You can mount the projector on the ceiling, or place it behind a translucent screen for rear projection. See page 81 for details.

Positioning the Projector

If the projector isn’t already installed in the room you’re using, you’ll probably want to place it on a table in front of the screen, as shown. This lets you stand in the front of the room, face the audience, and remain close enough to the equipment to be able to control it. Try to leave as much space as possible between the projector and the screen to get a good-size image.

Use the figure below to help you determine placement. Image size increases with distance, but can vary depending on how you position the zoom ring and whether you’ve adjusted the image with other settings.

TBD

Also keep these considerations in mind:

■ Place the projector on a sturdy, level surface.

■ Make sure there is plenty of space for ventilation around and

under the projector. Do not set the projector on top of anything that could block the vents under the projector.

■ Make sure the projector is within 10 feet of a grounded electrical

outlet or extension cord.

14 Displaying and Adjusting the Image

3.2 to 3.9 ft6.6 to 7.9 ft33.1 to 39.7 ft Distance from screen

Ideally, you should place the projector directly in front of the center of the screen, facing it toward the screen squarely. The base of the lens should be at about the level of the bottom of the screen.

Projector

Screen

If you place the projector below screen level, you’ll have to tilt it up by extending the front adjustable foot. This causes the image to become “keystone” shaped, but you can correct the distortion by pressing the buttons on the projector. See page 22 for detailed information about correcting the image shape.

For instructions on installing the projector in a permanent location, such as a theater or conference room, see page 81.

note

After positioning the projector, you may want to connect a Kensington MicroSaver device to the lock port on the projector’s left side. You can purchase this from Epson; see page 11.

anti-theft

Displaying and Adjusting the Image 15

Projecting the Image

Make sure your projector and other equipment are set up as described on page 35. Then follow the instructions below to start the projector and display an image.

Turning On the Projector

note

To shut down the projector, see page 24. Shutting down the projector correctly prevents premature lamp failure and possible damage from overheating.

Turn on any connected computer or video equipment before starting the projector so it can automatically detect and display the image source. If you turn on the projector first, or have multiple pieces of connected equipment, you may have to select the image source manually (see page 17).

Follow these steps to turn on the projector:

1. Remove the lens cap.

2. Plug one end of the power cable into the projector, and the other end into an electrical outlet.

The

Power light comes on.

Power light

16 Displaying and Adjusting the Image

3. Press the red PPower button on the remote control or on top of

the projector.

The projector beeps once and the

Power light flashes green as the

projector warms up, then an image begins to appear. When the

Power light stops flashing and remains green, the projector is

ready for use.

4. If you’ve connected a Windows

-based computer to the projector, you may see a New Hardware Wizard screen saying your computer has found a plug-and-play monitor; if so, click

Cancel.

5. If you are prompted to enter a password, see page 52.

Selecting the Image Source

Selecting the image source lets you switch between images input from different pieces of connected equipment (such as a computer or DVD player).

If you don’t see the image you want, press the on the projector or the

Search button on the remote control until

you see the image you want to project.

You can also use the

Source buttons on the remote control to switch

between devices connected to the ports identified on each button. The PowerLite 750c/760c does not support EasyMP.

Source Search button

warning

Never look into the lens when the lamp is on. This can damage your eyes, and is especially dangerous for children.

note

To focus and adjust the image, see page 21. If a projected image fails to appear, see page 18 for help.

Displaying and Adjusting the Image 17

Troubleshooting Display Problems

Follow these guidelines if you’re having trouble displaying an image.

You Can’t Project an Image

If you don’t see the image you are trying to project, try the following:

■ Make sure the cables are connected correctly, as described

beginning on page 35.

■ Make sure the Power light is green and not flashing and the lens

cap is off.

■ If you’ve connected more than one computer and/or video source,

you may need to press the projector’s control panel or to select the correct source. (Allow a few seconds for the projector to sync up after pressing the button.)

■ If you’re using a PC notebook, press the function key on your

keyboard that lets you display on an external monitor. It may be labeled hold down the

CRT/LCD or have an icon such as . You may have to

Fn key while pressing it. Allow a few seconds for

the projector to sync up after changing the setting.

Source Search button on the

Search button on the remote control

The Projector and Notebook Don’t Display the Same Image

If you’re projecting from a notebook, and you can’t see your image on the projection screen and on your computer at the same time, follow these guidelines.

If you’re using a PC notebook:

■ On most systems, there’s a function key that lets you toggle

between the LCD screen and the projector, or display on both at the same time. It may be labeled

Allow a few seconds for the projector to sync up after changing the setting.

18 Displaying and Adjusting the Image

CRT/LCD or have an icon such as

. You may have to hold down the

Fn key while pressing it.

■ If the function key doesn’t permit you to display simultaneously

on both screens, you should check your monitor settings to make sure both the LCD screen and the external monitor port are enabled.

From the Control Panel, open the Properties dialog box, click the

Advanced. The method for adjusting the settings varies by

brand; you may need to click a

Display utility. In the Display

Settings tab, then click

Monitor tab, then make sure the

external Monitor port is set as your primary display and/or enabled. See your computer’s documentation or online help for details.

If you’re using Macintosh OS X:

You may need to set up your system to display on the projector screen as well as the LCD screen. Follow these steps:

1. From the Apple

Displays.

2. Make sure the

3. Click the

Arrangement (or Arrange) tab.

menu, select System Preferences, then select

VGA Display or Color LCD dialog box is selected.

Make sure Mirror Displays is checked

4. Make sure the

Mirror Displays checkbox is selected.

Displaying and Adjusting the Image 19

If you’re using OS 8.6 to OS 9.x:

You may need to set up your system to display on the projector screen as well as the LCD screen. Follow these steps:

1. From the Apple menu, select

Control Panels, then click

Monitors or Monitors and Sound.

2. Click the Arrange icon.

Click here

Drag one monitor icon on top of the other

3. Drag one monitor icon on top of the other.

If the Arrange option isn’t available, you may need to select one of the Simulscan resolution settings:

1. Click the

2. Select a the projector to sync up after making the selection.)

20 Displaying and Adjusting the Image

Monitor icon.

Click here

Select a Simulscan resolution

Simulscan resolution as shown. (Allow a few seconds for

Adjusting the Image

Once you see your image, you need to make certain adjustments:

■ If the image is too high or too low, you can reposition it. See

below.

■ To focus or zoom your image, see page 22.

■ If the image isn’t square, see page 22.

■ If a computer image displays incorrectly, see page 24.

If you need to fine-tune the image and/or sound, see Chapter 4.

Adjusting the Height of Your Image

If the image is too low on the screen, you can use the front adjustable foot to raise it.

1. Stand behind the projector. Press the blue foot release lever up and lift the front of the projector.

2. Once the image is positioned where you want it, release the lever to lock the foot in position.

3. If necessary, you can fine-tune the height or level the image by turning the projector’s rear foot.

Raising the projector causes the image to distort or “keystone,” but you can manually correct the shape as described on page 22.

Displaying and Adjusting the Image 21

Projector rear foot

Focusing and Zooming Your Image

Turn the focus ring on the projector to sharpen the image.

Turn the zoom ring on the projector to reduce or enlarge the image.

Focus Zoom

If the image still isn’t large enough, you may need to move the projector farther away from the screen. You can also use the

E-Zoom

buttons on the remote control to zoom in on a portion of the image. See page 31 for instructions.

Adjusting the Image Shape

In most cases, you can maintain a square or rectangular image by placing the projector directly in front of the center of the screen with the base of the lens level with the bottom of the screen.

Even if the projector is slightly tilted (within a range of 30° up or down), the projector has an automatic keystone correction function that detects and corrects vertical keystone distortion.

It takes about one second after projection starts for the image to be corrected. During this time, a vertical keystone correction gauge appears on the screen.

22 Displaying and Adjusting the Image

Corrected imageProjector tilted up Projector tilted down

If your image is still distorted, you can correct it using the Keystone buttons on the projector’s control panel or the projector’s Setting menu.

Using Keystone Correction

To adjust your image when it is wider on the top or bottom, do the following:

■ Press one of the two triangular buttons on the projector’s control

panel, as shown below. Continue pressing the button until you are satisfied with the shape of the image.

Keystone correction

note

The image will be slightly smaller after adjusting. If it’s important to maintain the correct aspect ratio, use the menu system to perform keystone correction, then use the remote’s to adjust the aspect ratio. See page 32.

Resize button

■ Or press the Menu button on the remote control or projector,

select the

From the Setting menu, select

Setting menu, and press Enter.

Keystone and press Enter. Use

the pointer button on the remote control to adjust the keystone setting as needed.

If the image becomes uneven, decrease the sharpness setting. (See page 49.)

Displaying and Adjusting the Image 23

Correcting Computer Images

note

You must be projecting an image for this button to have any effect. The works only with computer images.

note

You can set the projector to automatically turn off the

rojector lamp and enter “sleep mode” when it has not received any signals for

0 minutes. This conserves electricity, cools the

rojector, and extends the life of the lamp. If you want to start projecting again,

ress the P Power button. If you are done using the

rojector, unplug the power cord. To enable sleep mode, see page 58.

Auto button

If you’re connected to a computer and the image doesn’t look right, press the

Auto button on the remote control or the Enter button on

the projector. This automatically resets the projector’s tracking, sync, resolution, and position settings.

If the

Auto button doesn’t correct the problem, you may need to

adjust the tracking or sync using the projector’s Signal menu. See page 50 for more information.

Shutting Down the Projector

When you’ve finished using the projector, follow the recommended procedure to shut it down. This extends the life of the lamp and protects the projector from possible overheating.

1. Turn off any equipment plugged into the projector.

2. To turn off the projector, press the red P

remote control or projector.

Power button on the

You see a confirmation message. (If you don’t want to turn it off, press any other button.)

24 Displaying and Adjusting the Image

3. Press the PPower button again. The lamp turns off. When the

projector beeps twice (after about 3 seconds), you can unplug the power cord.

(If the projector is mounted on the ceiling, you will need to wait 10 seconds for the projector to cool down before you can unplug the power cord.)

If you want to turn the projector on again, make sure the orange light is not flashing, then press the P

Power button.

4. If you extended the adjustable front foot, press up on the blue foot release lever to retract it.

5. Replace the lens cap.

Using the Direct Power On Function

The Direct Power On function enables faster setup. The projector will start up automatically when you plug it in; you won’t have to press the

Power button.

Follow these steps to enable Direct Power On:

1. Press the

Extended menu.

2. Choose

Menu button on the remote control and select the

Operation and press Enter.

caution

Turn the projector off when not in use. Continuous 24-hour-a-day use may reduce the projector’s overall life.

note

If a power outage occurs when Direct Power On is enabled and the projector is plugged in, the projector will start when the power is restored.

3. Choose

4. Highlight

5. Press

Direct Power On and press Enter.

On and press Enter.

Esc or Menu to exit.

The setting will take effect the next time you plug in the projector.

Displaying and Adjusting the Image 25

26 Displaying and Adjusting the Image

Using the Remote Control

The projector includes a number of tools to enhance your

presentation. All of them can be accessed using the remote control, which lets you operate the projector from anywhere in the room—up to 20 feet away.

note

For information and resources to help you give the most professional

resentation, be sure to visit

presentersonline.com.

You can use the remote control to adjust the picture and sound (page 29) or as a pointer to highlight your presentation (page 34). You can also use it to adjust the color mode for various environments (page 32) or as a wireless mouse when projecting from a computer (page 33).

This chapter covers:

■ Using the remote control

■ Controlling the picture and sound

■ Operating your computer with the remote control

■ Highlighting your presentation

note

If a button is pressed longer than 30 seconds, the remote control stops operating to conserve power. When you release the button, normal operation resumes.

Using the Remote Control

Follow these tips for using the remote control:

■ Point the remote control at the front of the projector or at the

screen.

■ Stand within 20 feet of the projector.

■ Avoid using the remote under bright fluorescent lamps or in

direct sunlight, or the projector may not respond properly.

Replacing the Batteries

caution

When replacing batteries, take the following precautions:

■ Replace the batteries as

soon as they run out. If the batteries leak, wipe away battery fluid with a soft cloth. If fluid gets on your hands, wash immediately.

■ Do not expose batteries to

heat or flame.

■ Dispose of used batteries

according to local regulations.

■ Remove the batteries if

you won’t be using the projector for a long period of time.

Replace the batteries as described below:

1. Turn the remote control over.

2. Press down on the tab on the battery cover as you lift the cover off.

3. Install two AAA batteries, inserting the

+ and – ends as

shown.

4. Position the cover as shown, then press down until it snaps into place.

28 Using the Remote Control

Controlling the Picture and Sound

You can use the remote control to preview and select your picture sources, temporarily turn off the picture and sound, freeze the action, zoom in on the picture, and adjust the volume.

Switching Between Picture Sources

If your projector is connected to more than one computer and/or video source, you can switch between the different sources:

■ The easiest way to select your source is to press the Search button

on the remote control (or the projector) repeatedly until you see the image you want on the screen.

Source Search button on the

■ On the remote control, there are four Source buttons. Use them

to switch between equipment connected to the port identified on each button.

After you select a source, the screen goes dark for a moment before the image appears.

Using the Remote Control 29

Turning Off the Picture and Sound

You can use the A/V Mute button on the remote control to turn off the image and sound. This feature is useful if you want to temporarily redirect your audience’s attention.

■ To turn off the picture, press the A/V Mute button. The screen

turns blue.

■ To turn the image back on, press the button again.

note

This function pauses the image, but not the sound. Also, because the source continues to transmit signals, you won’t resume the action from the point you stopped it.

You can have the screen turn black when you press the

A/V Mute

button. You can also have an image, such as a company logo, display on the screen (see page 55).

Stopping Action

You can use the remote control to stop the action in your video or computer image.

■ To stop the action and keep the current image on the screen, press

the

Freeze button. The sound continues.

■ To restart it, press the Freeze button again.

30 Using the Remote Control

Zooming Part of Your Image

You can zoom in on a portion of the image using the E-Zoom buttons on the remote control.

1. Press the

E-Zoom button on the remote control.

You see a crosshair indicating the center of the zoom-in area.

2. Use the pointer button to position the crosshair.

3. Continue pressing the

E-Zoom button to enlarge the selected

area up to 4 times.

4. While the image is enlarged, you can:

■ Use the pointer button to move around the screen.

■ Press the E-Zoom button to zoom out.

5. When done, press the

ESC button to return the image to its

original size.

Controlling the Volume

To change the volume, press the or button on the remote control or projector.

note

To temporarily shut off the sound and picture, press the

A/V Mute button.

You can also adjust the volume using the projector’s menu system. See page 52.

Using the Remote Control 31

Resizing Video images

You can use the Resize button on the remote control to adjust how an image fits into the display area.

For video images, press

Resize to switch the aspect ratio between 4:3

and 16:9. This lets you play certain digital video images or movies recorded on certain DVDs in 16:9 widescreen format.

For computer images, resizing is normally unnecessary, since the projector automatically resizes the image to make the best use of the display area. If you press the

Resize button on the projector or remote

control, the projector displays the image at the output resolution of the computer (which makes the image larger or smaller, depending on its resolution). If the resolution of the image is the same as the projector’s (1024

× 768), pressing Resize has no effect.

Adjusting the Color Mode

You can use the Color Mode button on the remote control to adjust the vividness of your image.

Press the button repeatedly to select from the following six settings:

■ sRGB: To match the color palette of the sRGB standard for

computer displays

■ Blackboard: To adjust the white point so that colors appear

natural when projecting on a green chalkboard

32 Using the Remote Control

■ Dynamic: To increase brightness in bright rooms (the default

when projecting from non-computer sources)

■ Presentation: To optimize the image for computer presentations

(the default when projecting from a computer)

■ Theatre: To optimize movie images for increased contrast

■ Living Room: To increase brightness when projecting TV or

video images in brightly lit rooms (best for videos)

Operating Your Computer with the Remote Control

If you’ve connected a computer to the projector with a USB cable, as described on page 38, you can use the remote control in place of your computer’s mouse. This gives you more flexibility when delivering slideshow-style presentations, since you won’t have to stand next to the computer to change slides.

■ Use the Up and Down buttons to move through a

slideshow.

Page up or down to change slides in PowerPoint

Left-click

Right-click

■ Use the pointer button to move the cursor on the screen.

■ Press the Enter button once to left-click, or press it twice to

double-click. Press the

■ To drag-and-drop, hold down the Enter button. Then use the

pointer button to drag the object. When it’s where you want

it, press

Enter to release it.

Esc button to right-click.

Using the Remote Control 33

Highlighting Your Presentation

You can display a pointer to call out important information on the screen. If you want to customize the pointer tool, you can choose from three alternative shapes.

Using the Pointer Tool

1. To activate the pointer tool, press the Pointer button on the remote control. A pointer appears on the screen.

Pointer

If you prefer to use a different style of pointer, see the instructions in the next section.

2. Use the pointer button on the remote control to position the pointer on the screen.

34 Using the Remote Control

3. When done using the pointer, press

Esc to clear the screen.

Customizing the Pointer Tool

You can change the appearance of the pointer by choosing from three alternative shapes.

1. Press the

Setting menu, highlight Pointer Shape, and press Enter. You

can select one of the pointer shapes shown at the left.

2. Select the shape you want and press

3. Highlight

4. Press

Menu button on the remote control, highlight the

Enter.

Return and press Enter.

Menu to exit from the menu system.

Connecting to Computers and Other Equipment

This chapter tells you how to connect the projector to a notebook or

desktop computer, and/or to video equipment, such as a VCR, DVD player, or video camera.

Follow the instructions in this chapter on:

■ Connecting to a computer

■ Connecting video equipment

■ Playing sound through the projector

note

If you connect a Windowsbased computer to the projector, you may see a New Hardware Wizard saying your computer has found a plug-and-play monitor; if so, click Cancel.

Connecting to a Computer

You can connect the PowerLite projector to any computer that has a standard video output (monitor) port, including desktop models, PC notebook and notebook computers, Macintosh PowerBooks and

iBooks,

Component Video

instructions below. After connecting to the computer, you may also want to do one of the following:

■ Connect a USB cable so you can use the remote control as a

and hand-held devices. To connect to the blue Computer/

port (standard VGA cable connection), see the

mouse; see page 38

note

For newer PowerBooks with DVI connectors, see your computer’s documentation to see how to use a DVI to VGA adapter (usually included with the computer) to connect to the VGA computer port.

If you’re using an older Macintosh and you can’t connect the cable to your computer, you may need to use the Macintosh desktop adapter, as shown on page 37 (available from Epson; see page 11).

caution

Don’t try to force a connector to fit a port with a different shape or number of pins. You may damage the port or connector.

■ Connect an audio cable to play computer audio; see page 44

Connecting to the Computer Port

You can connect to the blue Computer/Component Video port using the VGA computer cable that came with the projector (the monitor port on your computer must be a mini D-sub 15-pin port).

1. If you’re using the VGA computer cable, connect one end to the projector’s blue other end to your computer’s monitor port. Then go to step 3.

2. You can connect an optional stereo mini-jack audio cable to play sound through the projector (see page 44), or connect a USB cable to use the remote control as a mouse (see page 38).

Computer/Component Video port, and the

36 Connecting to Computers and Other Equipment

3. When you’ve finished making any connections, see page 16 for instructions on turning on the projector and adjusting the image.

Using the Macintosh Desktop Adapter

If you have an older desktop Macintosh or PowerBook, the VGA cable may not fit when you try to connect it. If so, you’ll need to use the Macintosh desktop adapter to connect the VGA cable to your computer. This is available from Epson (see page 11).

1. To use the adapter, remove its cover as shown and set its DIP switches according to the resolution you want to use, such as 16-inch mode. See your Macintosh documentation for instructions.

2. Replace the cover and connect the adapter to the VGA cable. Then plug the cable (with the adapter) into the video port on your Macintosh.

3. Tighten the screws on the connectors.

Connecting to Computers and Other Equipment 37

Connecting the Cable for Remote Mouse Control

If you’ve connected a computer as described in this chapter (using

Computer/Component Video port), you can use the projector’s

the remote control as a wireless mouse. This lets you control your computer and click through slideshow-style presentations, such as PowerPoint,

from up to 20 feet away.

note

The remote mouse control function may not operate correctly on systems that have been upgraded from an earlier version of Windows.

note

For details on using the remote control in place of your computer’s mouse, see page 33.

The wireless mouse function is supported on systems with a USB port running Windows XP, 98SE, Me, or 2000, or Macintosh OS X 10.2.x to 10.3.x or OS 8.6 to OS 9.x. This function is not supported if you use an S-Video cable to connect your computer to the projector.

1. Locate the USB cable that came with your projector.

2. Connect the square end of the cable to the projector’s USB port.

USB cable

3. Connect the flat end of the cable to any available USB port on

your notebook or desktop computer.

Move

Left click

38 Connecting to Computers and Other Equipment

cursor

Right click

4. If necessary, configure your computer to work with an external

USB mouse. See your computer documentation for details.

Connecting to Video Equipment

You can connect several video sources to the projector at the same time. Before starting, look at your video equipment to determine its available video output connections:

■ If your video player has a yellow RCA-style video output

connector, see “Connecting a Composite Video Source” on page 40.

■ If your video player has an S-Video connector, see “Connecting

an S-Video Source” on page 41.

■ If your video player has a component video port (three connectors

labeled either Y/Cb/Cr or Y/Pb/Pr), see “Connecting a Component Video Source” on page 42.

■ If your video player has an RGB video port (either a single

connector for a VGA-style monitor cable or three connectors labeled R/G/B), see “Connecting an RGB Video Source” on page 43.

After connecting video cables, you may also want to connect an audio cable to play sound through the projector; see page 44.

RCA connector

(composite video)

S-Video

connector

VGA connector

(RGB video)

Connecting to Computers and Other Equipment 39

Connecting a Composite Video Source

1. Locate an RCA-style video cable (one is usually provided with

your video equipment or you can purchase one from an electronics dealer).

2. Connect the cable to the yellow video output connector on your

player and the yellow

3. If you want to play sound through the projector, see page 44 for

instructions on connecting audio cables.

Video connector on the projector:

4. If you don’t need to make any other connections, see page 16 or

the Quick Setup sheet for instructions on turning on the projector and adjusting the image. Once the projector is turned on, select the image source: press the or press the

Source Search button on the projector’s control

panel repeatedly until the image appears.

40 Connecting to Computers and Other Equipment

Search button on the remote control

Connecting an S-Video Source

1. Locate an S-Video cable (one is usually provided with your video equipment or you can purchase one from Epson; see page 10).

2. Connect the cable to the S-Video connector on your player and

S-Video connector on the projector:

the

3. If you want to play sound through the projector, see page 44 for instructions on connecting audio cables.

4. If you don’t need to make any other connections, see page 16 or the Quick Setup sheet for instructions on turning on the projector and adjusting the image. Once the projector is turned on, select the image source: press the or press the

Source Search button on the projector’s control

Search button on the remote control

panel repeatedly until the image appears.

Connecting to Computers and Other Equipment 41

note

Be sure your video player is not an RGB video source. If you select the wrong source, image quality may suffer. Check your video player’s documentation.

Also, make sure the Computer Input setting in the Signal menu is set to Auto or Component Video (see page 50).

Connecting a Component Video Source

You will need a component-to-VGA video cable or a component video-to-VGA adapter for this connection. You can order this cable (ELPKC19) from Epson; see page 11 for more information.

1. Locate a component-to-VGA video cable or adapter.

2. Connect the cable to your player and the blue

Computer/Component Video connector on the projector.

Component-toVGA adapter

Component-to-VGA cable

3. If you want to play sound through the projector, see page 44 for instructions on connecting audio cables.

4. If you don’t need to make any other connections, see page 16 for instructions on turning on the projector and adjusting the image. Once the projector is turned on, select the image source: press the

Search button on the remote control or press the Source Search

button on the projector’s control panel repeatedly until

the image appears.

42 Connecting to Computers and Other Equipment

Connecting an RGB Video Source

1. Locate the VGA computer cable provided with the projector.

2. Connect the cable to the video port on your player and

Computer/Component port on the projector.

the

3. If you want to play sound through the projector, see page 44 for instructions on connecting audio cables.

Search button on the remote control or press the Source Search

the image appears.

button on the projector’s control panel repeatedly until

note

Be sure your video player is not a component video source. If you select the wrong source, image quality may suffer. Check your video player’s documentation.

Connecting to Computers and Other Equipment 43

Playing Sound Through the Projector

You can play sound through the projector’s speaker system.

To play sound through the projector, follow these steps:

1. Locate the appropriate cable and connect it to the

Audio jack on

the projector.

■ If you have a computer connected to the blue Computer/

Component Video

■ If you have video equipment connected to the Video or

S-Video port, use an RCA-style audio cable and the audio

port, use a stereo mini-jack cable.

adapter included with the projector.

2. Connect the other end of the cable to the audio output connector(s) on your computer or video equipment.

44 Connecting to Computers and Other Equipment

Audio adapter

Fine-Tuning the Projector

You can use the projector’s on-screen menus to adjust the image,

sound, and other features. This chapter covers the following information:

■ Using the menu system

■ Adjusting the image

■ Adjusting signal settings

■ Customizing projector features

■ Using the projector security features

■ Customizing power and operation

Using the Menu System

You can use the remote control or the projector’s control panel to access the menus and change settings. Follow these steps:

1. To display the menu screen, press the remote control or on the projector.

You see a menu screen similar to the one below:

Options

Menu list

Menu button on the

2. Use the pointer button on the remote control (or the arrow

3. Once you’ve selected the menu, use the pointer button to

46 Fine-Tuning the Projector

The menus are listed on the left and the options available for the highlighted menu are shown on the right.

buttons on the projector) to scroll through the menu list. When you’ve highlighted the desired menu, press the

Enter button to

select it.

scroll through the list of options. (Some of the options may be grayed out or unavailable, depending on the selected source.)

4. After highlighting the option you want to adjust, use the

OFF

pointer button to change the setting. In some cases, you may

have to press the

Enter button to view a sub-screen for changing

the setting.

■ Press the left or right side of the pointer button to adjust

a slider bar.

■ To select from two or more settings, use the pointer

button to highlight the desired setting and press

5. After changing the settings, press the

Esc button to save your

Enter.

changes and return to the previous menu (or press it repeatedly to exit the menu system).

You can also press the

Menu button to exit.

Restoring the Default Settings

You can use the menu system’s Reset options to restore the factorydefault settings for all the settings listed in a specific menu, or all the settings in all menus.

To restore the settings in a specific menu, enter the menu whose settings you want to change, select (The example below shows how to reset the Image menu.)

Reset, and confirm as needed.

ONONOFF

Reset settings

for current menu

Reset settings for

all menus

To restore all the projector settings to their factory-default values, select the

Reset menu, highlight All Reset, and press Enter.

note

When you select Reset All in the Reset menu, it does not reset the Computer Input, Video Signal, User’s Logo, Language, and Lamp settings.

Fine-Tuning the Projector 47

Adjusting the Image

You can use the Image menu to adjust the brightness, sharpness, color, tint, and contrast.

1. Press the select the

Menu button on the projector or remote control and

Image menu. You see the Image menu screen.

2. Use the pointer button to highlight the desired option, then adjust it as needed:

■ Color Mode

Lets you quickly adjust the color and brightness for various environments. Use either the remote control or the

Mode

setting in the Image menu. You can save a different

Color

setting for each source. Select from these settings:

Dynamic: For increased brightness in bright rooms (the

default for non-computer display).

48 Fine-Tuning the Projector

Presentation: For computer presentations (the default when

projecting from a computer with analog video).

Theatre: For optimizing movie images with increased

contrast.

Living Room: For increased brightness when playing video

games or watching TV in a bright room.

sRGB: For matching the color palette of standard sRGB

computer displays.

Blackboard: For projecting accurate colors on a green

chalkboard (adjusts the white point).

■ Brightness

Lightens or darkens the overall image.

■ Contrast

Adjusts the difference between light and dark areas.

■ Color Intensity (video only)

Adjusts the color depth of the image.

■ Tint (video only)

Adjusts the balance of green to magenta in the image (available only for component video or NTSC signals).

■ Sharpness

Adjusts the sharpness of the image.

■ Color Adjustment

Adjusts the color temperature. Select Color Temp. to set a temperature between 5000 and 10000 °K. Or select adjust individual red, green, and blue values. (Not available if

sRGB is selected as the Color Mode setting.)

Adjusting Signal Settings

note

The Brightness setting changes the opacity of the projector’s LCD panels. You can also change the lamp’s brightness. Select

Brightness Control in the

Setting menu, then choose

High or Low (the default

setting is High).

RGB to

Although the projector normally detects and optimizes the input signal automatically, you can use the Signal menu to make manual adjustments. In addition to changing the position of the projected image, you can correct tracking and sync for computer images, or change the aspect ratio to widescreen format for video images.

1. Press the

Menu button and select the Signal menu.

You see a screen similar to one of those below. (The settings will be different depending on the source you are projecting from.)

Computer/RGB Video

Component Video Composite Video/S-Video

note

You can also use the remote control’s automatically reset the projector’s tracking, sync, resolution, and position settings. See page 24 for details.

Fine-Tuning the Projector 49

Auto button to

tip

Before adjusting tracking or sync, fill the screen with an image containing fine detail. For example, in Windows you can select a pattern to appear as your desktop background. If this option isn’t available, try projecting black text on a white background.

2. Use the pointer button to highlight the desired option, then adjust it as needed:

■ Auto Setup

Leave this setting

ON to automatically optimize the computer

image. Turn it off if you want to save adjustments you have made to the video settings.

■ Tracking

Adjust this value to eliminate vertical stripes in the image.

■ Sync

Adjust this value if the image appears blurry or flickers.

■ Progressive

Turn this setting ON to convert composite video signals into progressive signals (best for still images). Leave the setting

OFF for moving images.

■ Position

If the image is slightly cut off on one or more sides, it may not be centered exactly. Select this setting and use the pointer button to center it.

■ Computer Input

If the colors don’t look right on the Auto setting, select the setting for the type of equipment you’ve connected to the

Computer/Component Video port:

50 Fine-Tuning the Projector

RGB: For a computer connection.

Component Video: For a video player that outputs a

component video signal.

■ Video Signal

Leave this setting at system (then select

Auto unless you are using a 60-Hz PAL

PAL60).

Customizing Projector Features

You can use the Settings menu to lock the buttons on the projector, adjust audio volume, and customize several other features.

■ Keystone

Squares up the shape of the image after the projector has been tilted upward. If you notice lines or edges looking jagged after adjusting the shape, decrease the Sharpness setting (see page 48).

■ Auto Keystone

Automatically compensates for keystone distortion when the projector is tilted upward. This feature is available only when the projector is set for front projection (and enabled by default).

■ Operation Lock

Lets you disable all of the buttons on the projector except the Power button. See page 57 for more information.

■ Pointer Shape

Lets you choose from three alternative pointer shapes. See page 34 for more information.

■ Brightness Control

Lets you select from two levels of brightness. The Low setting reduces power consumption and noise, and extends the lamp’s operating life.

Fine-Tuning the Projector 51

note

You can also adjust the volume using the remote control.

■ Volume

Raises or lowers the volume of the projector’s speaker.

■ EasyMP Audio Out

The PowerLite 750c/760c does not support EasyMP.

Using the Projector Security Features

To prevent unauthorized use of the projector, you can do the following:

■ Assign a password; this can be disabled for a set period if you want

to loan the projector to someone.

■ Create an identifying user logo that is displayed at startup and/or

when the

■ Disable the projector’s buttons; this is useful, for example, if

you’re projecting in a classroom and you want to ensure that no one touches the projector’s buttons while you’re using the remote control. See page 57.

If you create a user’s logo for the projector, you can set up the logo so it is displayed as the startup screen and/or AV/Mute screen. Unauthorized users cannot turn it off or change it. This feature is intended to discourage theft and provides a way to identify the projector should it be stolen.

A/V Mute button is pressed. See page 55.

note

It’s a good idea to write down your password.

If you leave the projector plugged in, the Password Protect Release screen will not appear. You only need a password if you unplug and reconnect the power cable.

52 Fine-Tuning the Projector

Enabling Password Protection

To prevent unauthorized use, you can assign the projector a password. If you do, a screen will appear requesting the password whenever the projector is plugged in and turned on. If an incorrect password is entered three times in succession, the projector’s operation is locked and the power cord must be disconnected and reinserted to redisplay the password screen. If an incorrect password is entered thirty times in succession, the user must contact Epson to unlock the projector.

The default setting for the Password Protect function is OFF. Follow these steps to turn password protection on:

1. Press the

Freeze button on the remote control for about five

seconds.

You see this screen:

2. Use the pointer button to set Then press

3. Press

Enter.

Esc.

Power ON Protect to ON.

4. Select Password and press Enter.

5. When you see a message asking if you want to change the password, select

6. Hold down the

Yes and press Enter.

Num button on the remote control and use the

numeric keypad to enter a four digit password. (The default setting is 0000.)

caution

If you lose the remote control, you will not be able to enter the password. Keep the remote control in a safe place at all times.

7. When you see a confirmation message, reenter the password. Then press the

8. Press the

Menu button to exit the screen.

Num button on the remote control to deactivate the

numeric keypad.

9. If you want to disable the password temporarily, select press

Enter. Then hold down the Num button while you use the

Timer and

numeric keypad to enter the number of hours (from 0 to 9999) that you want the password feature disabled. If you want the projector to request the password every time it is turned on, set the timer to

0H.

Fine-Tuning the Projector 53

The countdown for the elapsed time begins as soon as you close the Password Protect menu. (You can check the elapsed time in this menu next to

Time elapsed.)

10. To enable your screen logo, select

Enter. Select ON and press Enter.

User’s Logo Protect and press

When this feature is on, the logo appears whenever you turn on the projector (if the

Startup Screen is enabled in the Extended

menu; see page 55). It also appears when you press the A/V Mute button (if you selected the

Logo as the Background Color in the

Extended menu). None of the User’s Logo features in the Extended menu can be changed when the User’s Logo Protect function is enabled.

Starting the Projector with a Password

When the password function is enabled, you see this screen when you plug in and turn on the projector:

Hold down the numeric keypad to enter the four digit password.

The password screen closes, the numeric keypad is automatically deactivated, and projection begins.

If the password is not correct, you see the message

Please try again.

succession, you see the message

locked. Request code xxxxx

mode for approximately 5 minutes. Write down the request code. Then disconnect the projector’s power cord from the electrical outlet, reconnect it, and turn the projector back on.

54 Fine-Tuning the Projector

Num button on the remote control and use the

Wrong password.

If you enter an incorrect password three times in

The projector’s operation will be

and the projector switches to standby

When you see the Password Protect Release screen again, you can try to enter the correct password.

If you enter an incorrect password 30 times in succession, the projector remains locked and you must contact Epson to unlock it.

If you have forgotten the password, contact Epson with the request code number that appears in the Password Protect Release screen for assistance. See “Where To Get Help” on page 78.

Creating Your Own Startup Screen

You can transfer any image from your computer or video source to the projector and then use it as your startup screen. You can also use it as the screen displayed when the projector is not receiving a signal or when you press the logo, slogan, photograph, or any other image you want to use.

Capturing the Image

Start by displaying the image you want to use from either a computer or video source, such as a DVD player. Then follow these steps to capture the image and transfer it to the projector:

A/V Mute button. The image can be a company

1. Press the

Extended menu, and press Enter.

2. Highlight

Menu button on the remote control, highlight the

User’s Logo and press Enter.

Fine-Tuning the Projector 55

3. When you see a message asking whether you accept the present image as the user’s logo, select

Yes and press Enter. A selection

box displays over the image.

4. Use the pointer button to select the area of the image you want to use. Then press

Enter.

5. When you see the message and press

Enter.

Select this Image?, highlight Yes

6. Use the arrow buttons to select a zoom rate (display size) and press

Enter.

7. When the message

Yes and press Enter. Saving the logo may take a few moments.

Save image as user’s logo? appears, select

Do not use your projector, remote control, or video source while the logo is being saved.

8. When you see the message

Completed, press Esc to return to the

menu screen.

Choosing When to Display the Image

After your image is saved, it is automatically set as the startup screen. You can also set it to display as the screen you see when there’s no signal or when you press the

1. Press the

Enter.

2. Select

Menu button, highlight the Extended menu, and press

Display and press Enter.

A/V Mute button (see page 30).

3. Highlight

4. Select

5. When you’re finished, press Esc to exit.

56 Fine-Tuning the Projector

Background Color and press Enter.

Logo and press Enter.

Disabling the Projector’s Buttons

When you enable the Operation Lock function, you can lock all the projector’s buttons except the

Power button.

1. Press the

Enter.

2. Select

3. Select

4. Select

5. Press the

Menu button, highlight the Setting menu, and press

Operation Lock and press the Enter button.

ON and press Enter.

Yes and press Enter to confirm the setting.

Menu button to exit.

Customizing Power and Operation

You can use the Extended menu to customize the way the projector displays images, enable quick startup, turn sleep mode on or off, and customize other projector operations.

■ Display

Use this setting to turn off the display of messages, change the background color, enable logo display, or turn off the startup screen display.

■ User’s Logo

Create a custom startup screen, as described on page 55.

Fine-Tuning the Projector 57

■ Projection

Select Front (to project from the front of a screen and right side

Front/Ceiling (when the projector is mounted upside-down

up), from the ceiling), transparent screen), or

Rear (to project from behind onto a

Rear/Ceiling (to project from behind onto

a transparent screen when the projector is mounted upside-down from the ceiling).

When you select one of the Ceiling projection methods, the projector requires a 10-second cool-down after you turn it off. You need to wait until you hear the projector beep before unplugging it.

note

If Direct Power ON is enabled, the power cable is connected, and a power outage occurs, the projector will start when the power is restored.

■ Operation

Enable Direct Power ON if you want to have the projector start when the power cable is connected (without pressing the button). Enable Sleep Mode if you want to have the projector turn off automatically if it is idle (and no signal is received) for 30 minutes.

■ Standby Mode

The PowerLite 750c/760c does not support Standby Mode.

■ Link 21L

Enable this setting if you want to be able to control the projector from a USB-connected computer.

■ Language

Select from nine languages to be used for the projector menus.

Power

58 Fine-Tuning the Projector

warning

Before you clean any part of the projector, turn it off and unplug the power cord. Never open any cover on the projector, except the lamp cover. Dangerous electrical voltages in the projector can injure you severely. Do not try to service this product yourself, except as specifically explained in this User’s Guide. Refer all other servicing to qualified service personnel.

Maintaining the Projector

Your projector needs little maintenance. All you have to do is keep

the lens clean and periodically clean the air filters at the side and bottom of the projector. A clogged air filter can block ventilation needed to cool the projector.

The only parts you should replace are the lamp and air filter. If any other part needs replacing, contact your dealer or a qualified servicer.

This chapter covers the following:

■ Cleaning the lens

■ Cleaning the projector case

■ Cleaning the air filters and vents

■ Replacing the lamp and air filter

■ Transporting the projector

caution

Do not use wax, alcohol, benzene, thinner, or other chemical detergents. These can damage the case.

Cleaning the Lens

Clean the lens whenever you notice dirt or dust on the surface.

Use a canister of compressed air to remove dust.

To remove dirt or smears on the lens, use lens-cleaning tissue. If necessary, moisten a soft cloth with lens cleaner and gently wipe the lens.

Remove the cap before cleaning

Cleaning the Projector Case

Before you clean the case, turn off the projector and unplug the power cord.

■ To remove dirt or dust, wipe the case with a soft, dry, lint-free

cloth.

■ To remove stubborn dirt or stains, moisten a soft cloth with water

and a neutral detergent. Then wipe the case.

60 Maintaining the Projector

Cleaning the Air Filters and Vents

Clean the air filters and air intake vents after every 100 hours of use. If they are not cleaned periodically, they can become clogged with dust, preventing proper ventilation. This can cause overheating and damage the projector.

Follow these steps:

1. Turn off the projector. Wait for the then unplug the power cord.

2. Turn the projector upside down.

3. To clean the intake vents, use a small vacuum cleaner designed for computers and other office equipment. If you don’t have one, gently clean the vents with a soft brush (such as an artist’s paintbrush).

Power light to stop flashing,

note

To order replacement air filters, request part number V13H134A08. See page 11 for ordering information.

4. If the dirt is difficult to remove or the filter is broken, replace the filter as described on page 64. Contact your dealer or call Epson at 800-GO-EPSON (800-873-7766) to obtain a new filter.

Maintaining the Projector 61

note

When you get a replacement lamp for your projector, you should replace the filters.

Replacing the Lamp and Air Filter

The life span of the projection lamp is about 2000 hours if

Brightness Control in the Setting menu is set to High (default), and

3000 hours if

Brightness Control is set to Low.

To check how long the lamp has been in use, see page 71.

warning

Let the lamp cool fully before replacing it.

In the unlikely event that the lamp has broken, small glass fragments may be present and should be removed carefully to avoid injury.

It is time to replace the lamp when:

■ The projected image gets darker or starts to deteriorate.

■ The message Replace the lamp appears on the screen when the

lamp comes on and the lamp warning light flashes orange. To maintain projector brightness and image quality, replace the lamp as soon as possible.

■ The lamp warning light flashes red (the lamp is burnt out).

Contact your dealer or call Epson at 800-GO-EPSON (800-873-7766). Request part number V13H010L32.

Follow these steps to replace the lamp and air filter:

1. Turn off the projector.

2. When the

Power light stops flashing, unplug the power cord.

3. Let the projector cool for at least an hour (if it has been on). The

62 Maintaining the Projector

lamp is extremely hot immediately after use.

4. Turn the projector over. Press in on the tabs and lift up the lamp cover.

5. Loosen the two screws holding the lamp in place (you don’t need to remove them).

Loosen, but don’t remove these screws

6. Hold the lamp as shown and pull it straight out.

7. Gently insert the new lamp. (If it doesn’t fit easily, make sure it is facing the right way.)

Maintaining the Projector 63

note

The lamp(s) in this product contain mercury. Please consult your state and local regulations regarding disposal or recycling. Do not put in the trash.

8. Once the lamp is fully inserted, tighten its screws.

9. Slide the air filter out and remove it.

10. Slide in the new air filter until it clicks in place.

11. Insert the two cover tabs, then press down on the cover until it snaps into place.

12. Reset the lamp timer as described in the next section.

64 Maintaining the Projector

Resetting the Lamp Timer

After you replace the lamp, you need to reset the lamp timer using the projector’s menus.

1. Press the

Menu button on the remote control or on the

projector’s control panel. You see the main menu.

2. Use the pointer button on the remote control (or the arrow buttons on the projector) to highlight

Reset, then press Enter.

You see this screen:

3. Select

Lamp Hours Reset and press Enter. You see this prompt:

4. Select

Yes and press Enter.

5. When you’re finished, press

Esc or Menu to exit.

Maintaining the Projector 65

Transporting the Projector

The projector contains many glass and precision parts. Follow these guidelines to prevent damage:

■ When shipping the projector for repairs, use the original

packaging material if possible. If you do not have the original packaging, use equivalent materials, placing plenty of cushioning around the projector.

note

Epson shall not be liable for any damages incurred during transportation.

■ When transporting the projector a long distance, first place it in a

hard-shell shipping case, then pack it in a firm box with cushioning around the case. (An optional case is available from Epson; see page 11.)

66 Maintaining the Projector

Solving Problems

This chapter helps you solve problems with your projector, and tells

you how to contact technical support for problems you can’t solve yourself. The following information is included:

■ Using the projector’s on-screen help system

■ What to do when the projector’s status lights flash

■ Solving projector operation problems

■ Solving problems with the image or sound

■ Solving problems with the remote control

■ Contacting technical support

Using On-Screen Help

If the image doesn’t look right or your audio isn’t working, you can get help by pressing the blue on the remote control. The following choices are available:

■ ”No Signal.” or no image appears on the screen

■ Problems with sound

■ Language change

Follow these steps to get help:

? Help button on top of the projector or

1. Press the blue

? Help button on the remote control or on the

projector.

You see the Help Menu.

2. Use the pointer button on the remote control or the arrow buttons on the projector to highlight menu items.

3. Press the

Enter button on the remote control or on the projector

to select the menu item.

4. To exit the help system, press the

? Help button.

If none of the suggestions solve your problem, see additional solutions to problems in the following sections.

68 Solving Problems

Checking Projector Status

If your projector isn’t working correctly, first turn it off, wait for it to cool (the plug the power cord back in and turn on the projector. If this doesn’t solve the problem, check the lights on top of the projector.

What To Do When the Lights Flash

The lights on top of the projector indicate the projector’s status.

Power light stops flashing orange), and unplug it. Then

Power light

Lamp light

Temperature light

Refer to the following table for a complete description of the projector’s status lights:

Status lights

Light Status Description

Orange The projector is in sleep or standby mode. You can unplug it or press the

P Power button to turn it on.

Flashing green The projector is warming up. Wait for the image to appear.

Green The projector is operating normally.

Flashing orange The projector is cooling down. You can’t turn it back on (and you should

not unplug it) until the light stops flashing and remains orange.

Red There is a problem with the projector. Check the other two lights and the

information on page 70 to diagnose the problem.

Solving Problems 69

Status lights

Light Status Description

Flashing red There is a problem with the fan or temperature sensor. Stop using the

projector, disconnect the power cable, and contact Epson as described on page 78.

Flashing orange Rapid cooling is in progress. Although this is not an abnormal condition,

projection will stop automatically if the temperature rises higher. Make sure there is plenty of space around and under the projector for ventilation, and that the air filters and vents are clear.

Red The projector is overheating, which turns the lamp off automatically.

Wait until the cooling fan stops, then unplug the power cord. Plug the power cord back in and press the temperature is not above 95 °F (35 °C), and there is plenty of space around and under the projector for ventilation.

The air filters may be clogged. Clean or replace them as described on page 61.

If the projector continues to overheat after you clean the air filter, the problem may be caused by damage to the cooling fan or temperature sensor. Contact Epson for help as described on page 78.

Warning: Except as specifically explained in this User’s Guide, do not attempt to service this product yourself.

Flashing orange It’s time to replace the lamp. See page 62 for instructions. If you continue

to use the lamp after the replacement warning, there is an increased possibility that the lamp may break.

P Power button. Make sure the room

Flashing red The lamp may be burnt out. First make sure the lamp cover is securely

Flashing red Power is cut off because of an internal problem. Unplug the power cord

70 Solving Problems

installed. If that’s not the problem, let the lamp cool, remove the lamp, and replace it as described on page 62. If this does not resolve the problem, contact Epson as described on page 78.

and contact Epson for help, as described on page 78.

Viewing Lamp Usage and Other Information

Use the Info menu to view information about the display settings of your computer and the number of hours the lamp has been used.

Press the

You see the lamp usage hours and various input signal settings on the right.

The life span of the lamp is about 2000 hours if the

Control

3000 hours if the sure you have a spare lamp handy if the usage hours on this menu are close to the life span of your lamp.

Menu button and highlight the Info menu.

Brightness

setting in the Setting menu is set to High (default), and

Brightness Control setting is set to Low. Make

Solving Projector Operation Problems

The power doesn’t turn on.

■ If the projector doesn’t turn on when you press the PPower

button, make sure the power cable is connected to the projector and plugged into a working electrical outlet.

■ The power cable may be defective. Disconnect the cable from the

outlet and contact Epson as described on page 78.

note

The information displayed depends on the input signal currently selected.

The buttons on the projector don’t work.

If the Operation Lock function has been enabled, you can’t use the buttons on the projector. Try using the remote control instead. See page 57 for information about the Operation Lock function.

Solving Problems 71

Solving Problems with the Image or Sound

No image appears on the screen.

■ Check that the Power light is green, not flashing, and the lens

cap is off.

■ The projector may be in standby or sleep mode. If the Power

light is orange, press the P on.

■ If the power was switched off and then on again, the projector

may be cooling down. Wait until the and remains orange; then press the P

■ Press the A/V Mute button on the remote control to make sure

the picture has not been turned off temporarily.

■ The attached computer may be in sleep mode or displaying a

black screen saver. Try pressing a key on the computer.

■ If you are projecting from a DVD player or other video source,

make sure you turn it on and press its

Power button to turn the projector

Power light stops flashing Power button again.

Play button.

72 Solving Problems

You’ve connected a computer and see a blue screen with the message No Signal displayed.

■ Make sure the cables are connected correctly, as described on

page 36.

■ Try restarting your computer.

■ If you’ve connected a computer and one or more video sources,

you may need to press the projector or one of the source buttons on the remote control to select the correct source. Allow a few seconds for the projector to sync up after pressing the button.

Source Search button on the

If you’re using a PC notebook:

■ Hold down the Fn key on the keyboard and press the function

key that lets you display on an external monitor. It may have an icon such as , or it may be labelled

CRT/LCD. Allow a few

seconds for the projector to sync up after pressing it. Check your notebook’s manual or online help for details.

On most systems, the key lets you toggle between the LCD screen and the projector, or display on both at the same time.

■ Depending on your computer’s video card, you might need to use

the Display utility in the Control Panel to make sure that both the LCD screen and external monitor port are enabled. See your computer’s documentation or online help for details.

If you’re using Macintosh OS X:

1. Open

2. Click

3. Make sure the

4. Click the

5. Make sure the

System Preferences.

Displays.

VGA Display or Color LCD dialog box is selected.

Arrangement or Arrange tab.

Mirror Displays checkbox is selected.

If you’re using Macintosh OS 8.6 to 9.x:

1. From the Apple menu, select

Monitors and Sound

2. Click the

Arrange icon.

Control Panels, then click

3. Drag one monitor icon on top of the other. This lets you display on the projector screen as well as the LCD screen.

4. If this option isn’t available, click the

5. Select one of the listed

Simulscan resolutions. (Allow a few

Monitor icon.

seconds for the projector to sync up after making the selection.)

Solving Problems 73

The message Not Supported is displayed.

■ Make sure the correct input signal is selected in the Signal menu

(see page 49).

■ Make sure your computer’s resolution doesn’t exceed UXGA

(1600

× 1200) and the frequency is supported by the projector

(see page 85). If necessary, change your computer’s resolution setting as described below.

Only part of the computer image is displayed.

■ Press the Auto button on the remote control.

■ Make sure the image Position setting is correct on the Signal

menu. See page 50 for more information.

■ Press the Resize button on the remote control.

■ Press the Esc button on the remote control to cancel the E-Zoom

function.

■ Make sure your computer’s resolution setting is correct. Ideally, it

should be 1024 If this option isn’t available, select one of the other compatible video formats listed on page 85.

× 768 to match the projector’s native resolution.

74 Solving Problems

■ Windows:

Right-click the desktop, select

Properties, click the Settings

tab, and select a different resolution.

■ Macintosh OS X:

Open

System Preferences, click Displays, and select a

different resolution.

■ Macintosh OS 8.6 to 9.x:

On the Apple menu, choose

Control Panels, and click

Monitors and Sound. Select a different resolution.

■ You also may need to modify existing presentation files if you

created them for a different resolution. See your software documentation for specific information.

The image isn’t square, but keystone-shaped.

■ If the top or bottom of the image is broader, press the or

button on the projector until the image is square.

■ If the projector is angled toward the screen from the left or right,

the image will be broader on one side. Center the projector in front of the middle of the screen, facing the screen squarely.

The image contains static or noise.

■ If you’re using a computer cable longer than 6 feet, or an

extension cable, the image quality may be reduced.

■ Keep your computer and video cables away from the power cord

as much as possible to prevent interference.

■ The video signal may be split between the computer and the

projector. If you notice a decline in the projected image quality when the image is displayed simultaneously on your notebook computer and the projector, turn off the notebook’s LCD display.

■ Make sure the correct input signal is selected in the Signal menu

(see page 50).

The image is blurry.

■ There may be dirt or smears on the lens. Clean the lens as

described on page 60.

■ Adjust the focus using the focus ring (see page 22).

■ Make sure the lens is not fogged by condensation. You may need

to wait before using the projector after moving it from a cold environment to a warm environment.

■ Adjust the Sharpness setting on the Image menu (see page 49).

When you change video settings, you should be able to see the effect on the screen immediately. If you’re projecting from a computer, you may also need to adjust the tracking and sync as described in the next section. If you don’t like the new settings, you can always select settings.

Reset to return to the factory default

Solving Problems 75

You see vertical bands or the image still looks blurry after trying the solutions in the previous section.

■ If you’re projecting from a computer and displaying an image that

contains a lot of fine detail, you may notice vertical bands or some of the characters may look heavy or blurred. Press the button on the remote control to reset the projector’s tracking and sync settings.

■ If further adjustment is needed, you can fine-tune the Tracking

Sync settings manually using the Signal menu, as described

and on page 50.

1. Fill the screen with an image containing fine detail, such as a pattern to appear as your desktop background, or try projecting black text on a white background.

Auto

note

Because of the different technologies used, your projected image may not exactly match the colors on your notebook or computer monitor.

2. Adjust the

3. Adjust the

Tracking to eliminate vertical bands.

Sync setting to increase the image sharpness.

The image is too light or dark, or colors are incorrect.

■ If you’re displaying a computer image, use the Color Mode

option in the projector’s Image menu to adjust the color (see page 48).

■ If you’re displaying video, adjust the Color Adjustment and

Color Mode settings on the Image menu. You can also try

adjusting the menu.

Color Intensity and Tint settings on the Image

76 Solving Problems

■ Try adjusting the Brightness and Contrast settings on the Image

menu.

■ Check your computer display settings to correct the color balance.

■ The projector’s lamp may need to be replaced. See page 62 for

instructions.

There is no sound, or the sound is not loud enough.

■ Press the button on the projector or remote control to increase

the volume.

■ Make sure A/V Mute is not enabled. (The A/V Mute button may

have been pressed.)

■ Try adjusting the Volume setting in the Setting menu (see

page 52).

■ If you’re using a VCR or other video source, make sure the

volume is not turned all the way down or muted. Also, make sure the cables are connected correctly, as described on page 44.

■ If your presentation includes computer audio, make sure the

volume control on your computer is not turned all the way down or muted. If you’re using the audio cable, make sure it is securely connected to both the projector and your computer’s

headphone jack or audio out jack.

■ Make sure the Windows volume controls on your computer are

not turned all the way down or set to Mute. You may be able to check this by clicking the volume control in your Windows system tray (lower right corner of the screen).

Solving Problems 77

Solving Problems with the Remote Control

The projector doesn’t respond to remote control commands.

■ The remote control’s batteries may not be installed correctly or

may be low on power. To change the batteries, see page 28.

■ Make sure you are within about 20 feet (6 meters) of the projector

and within range of the projector’s front or back sensor (approximately 30° to the left or right and 15° above or below).

■ Dim the room lights and turn off any fluorescent lights. Make

sure the projector is not in direct sunlight. Strong lighting, especially fluorescent lights, may affect the projector’s infrared receivers. Also, turn off any nearby equipment that emits infrared energy, such as a radiant room heater.

Where To Get Help

Epson provides technical assistance through electronic support services 24 hours a day, as listed in the following table.

78 Solving Problems

Service Access

World Wide Web

Presenters Online

From the Internet, you can reach Epson’s product support page at http://support.epson.com. After selecting your product, you can access troubleshooting information, download product documentation, and receive technical advice through e-mail.

Access tips, templates, and training for developing successful presentations at

http://www.presentersonline.com

Telephone Support Services

To use the Epson PrivateLine Support service, call (800) 637-7661 and enter the PIN on the Epson PrivateLine Support card included in your Start Here kit. This is the fastest way of speaking to a live representative, and it’s free. This service is available 6 Pacific Time, Monday through Friday, for the duration of your warranty period.

You may also speak with a projector support specialist by dialing one of these numbers:

■ U.S.: (562) 276-4394, 6 AM to 6 PM, Pacific Time, Monday

through Friday

■ Canada: (905) 709-3839, 6 AM to 6 PM, Pacific Time, Monday

through Friday

Toll or long distance charges may apply.

Before you call, please have the following information ready:

■ Product name (Epson PowerLite 750c760c)

■ Product serial number (located on the bottom of the projector)

AM to 6 PM,

■ Computer configuration

■ Description of the problem

You can purchase screens, carrying cases, or other accessories from an authorized Epson reseller. To find the nearest reseller, please call 800-GO-EPSON (800-463-7766). To purchase online, visit www.epsonstore.com (U.S. sales only). In Canada, please call (800) 463-7766 for reseller referral

Solving Problems 79

80 Solving Problems

Projector Installation

This appendix provides guidelines on installing the projector in a

permanent location, such as a theater or conference room.

The projector can be installed for four different viewing setups: front projection, ceiling mounting, rear projection onto a semi-transparent screen, or rear/ceiling projection, as shown:

Front projection Rear projection

Rear/ceiling projectionCeiling mounting

To project from overhead, you’ll need the optional ceiling mounting hardware; see page 11 for ordering information. You’ll also need to select

Front/Ceiling or Rear/Ceiling as the Projection option of the

projector’s Extended menu to flip the image upside-down. To project from the rear, onto a semi-transparent screen, select

Rear/Ceiling (see page 58).

Rear or

If you’re mounting the projector on the ceiling and you place it above screen level, you’ll have to tilt the projector down to position the image on the screen. This causes the image to lose its square shape. You can correct the distortion using the

Keystone function in the

projector’s menu system (see page 51).

If you place the projector so that the base of the lens is level with the bottom of the screen, the image should be square and you won’t have to adjust it. If you place the lens lower than the bottom of the screen, you’ll have to tilt the projector upward if you want to fill the whole screen with the image.

82 Projector Installation

Technical Specifications

General

Type of display Epson poly-silicon TFT active matrix

Resolution (native format) 1024 × 768 pixels (XGA)

Color reproduction 24 bit, 16.8 million colors

Brightness

750c 2000 lumens (High Brightness mode)

1500 lumens (Low Brightness mode)

760c 2500 lumens (High Brightness mode)

2000 lumens (Low Brightness mode)

Contrast ratio 400:1

Image size 30 to 300 inches

Projection distance 3.2 to 39.7 feet (1.0 to 12.1 meters)

Projection methods Front, rear, upside-down (ceiling mount)

Internal sound system 1 W monaural

Optical aspect ratio 4:3 (horizontal:vertical)

Zoom ratio 1:1.2

Noise level 35 dB in Low Brightness mode, 40 dB in

High Brightness mode

Keystone correction Automatic (manual adjustment capability

±30° vertical keystone correction)

Mouse compatibility Supports USB (type B)

Projection Lamp

Type UHE (Ultra High Efficiency)

Power consumption 170 W

Lamp life Approx. 2000 hours (High Brightness

mode) Approx. 3000 hours (Low Brightness mode)

Part number V13H010L32

Remote Control

Range 20 feet (6 meters)

Batteries (2) Alkaline AAA

Dimensions

Height 2.7 inches (70 mm), feet retracted

Width 10.9 inches (276 mm)

Depth 7.6 inches (193 mm)

Weight 3.8 lb (1.7 kg)

84 Technical Specifications

Electrical

Rated frequency 50/60 Hz AC

Power supply 100 to 120 VAC, 2.7 A

200 to 240 VAC, 1.1 A

Power consumption Operating: 240 W

Environmental

Temperature Operating: 41 to 95 °F (5 to 35 °C)

Storage: 14 to 140 °F (–10 to 60 °C)

Humidity (non-condensing) Operating: 20 to 80% RH

Storage: 10 to 90% RH

Operating altitude 0 to 7,500 ft (0 to 2,286 m)

Safety

United States FCC 47CFR Part 15B Class B (DoC)

UL60950 Third Edition

Canada ICES-003 Class B

CSA C22.2 No. 60950

CE Marking Directive 73/23/EEC

Directive 89/336/EEC IEC 60950 Third Edition EN 55022, EN 55024

Pixelworks

™

DNX™ ICs are used in this projector.

Compatible Video Formats

The projector supports NTSC, PAL, and SECAM international video standards, as well as the monitor display formats listed below.

To project images output from a computer, the computer’s video card must be set at a refresh rate (vertical frequency) that’s compatible with the projector. Some images are automatically resized to display in the projector’s “native” format (XGA). The frequencies of some computers may not allow images to display correctly; see your computer’s documentation for details.

Mode Refresh Rate (Hz) Resolution

VGA EGA 70 640 × 350

VGA—60 VESA—72 VESA—75 VESA—85

SVGA—56 SVGA—60 SVGA—72 SVGA—75 SVGA—85

60 72 75 85

56 60 72 75 85

640

× 480

640 × 480 640 × 480 640 × 480

800

× 600

800 × 600 800 × 600 800 × 600 800 × 600

Technical Specifications 85

Mode Refresh Rate (Hz) Resolution

XGA—60 XGA—70 XGA—75 XGA—85

SXGA1—70 SXGA1—75 SXGA1—85

SXGA2—60 SXGA2—75 SXGA2—85 SXGA+60 SXGA+75 SXGA+85

SXGA3—60 SXGA3—75 SXGA3—85

60 70 75 85

70 75 85

60 75 85 60 75 85

60 75 85

1024

× 768

1024

× 768

1024

× 768

1024

× 768

1152

× 864

1152 × 864 1152 × 864

1280

× 960

1280 × 960 1280 × 960 1400 × 1050 1400 × 1050 1400 × 1050

1280

× 1024

1280 × 1024 1280 × 1024

UXGA—60 60 1600 × 1200

iMAC VGA iMAC SVGA iMAC XGA MAC13 MAC16 MAC19 MAC19-60 MAC21

NTSC NTSC 4:43 PAL N-PAL

M-PAL PAL—60 SECAM

HDTV (720p) HDTV (720p) HDTV (1080i) HDTV (1080i)

TV480i TV480i SDTV (480p) SDTV (480p)

The image is resized using Epson’s SizeWise™ Technology.

117 95 75 67 75 75 59 75

60 60 50 50

60 60 50

60 50 60 50

640

× 480

800 × 600 1024 × 768 640

× 480

832 × 624 1024 × 768 1024

× 768

1152

× 870

— — — — —

— —

— — — —

86 Technical Specifications

Notices

This appendix includes safety instructions and other important information

about your Epson PowerLite projector.

Important Safety Instructions

Follow these safety instructions when setting up and using the projector:

■ Do not place the projector on an unstable cart, stand, or table.

■ Do not use the projector near water or sources of heat.

■ Use the type of power source indicated on the projector. If you are not

sure of the power available, consult your dealer or power company.

■ Place the projector near a wall outlet where the plug can be easily

unplugged.

Placez l’appareil près d’une prise de courant où la fiche peut être débranchée facilement.

■ Do not hold the plug with wet hands.

■ Take the following precautions for the plug. Failure to comply with

these precautions could result in sparks or fire: Do not insert the plug into an outlet with dust present. Insert the plug firmly into the outlet.

■ Do not overload wall outlets, extension cords, or integral convenience

receptacles. This can cause fire or electric shock.

■ Do not place the projector where the cord can be walked on. This may

result in fraying or damage to the plug.

■ Unplug the projector from the wall outlet before cleaning. Use a damp

cloth for cleaning. Do not use liquid or aerosol cleaners.

■ Do not block the slots and openings in the projector case. They provide

ventilation and prevent the projector from overheating. Do not operate the projector on a sofa, rug, or other soft surface, or in a closed-in cabinet unless proper ventilation is provided.

■ Never push objects of any kind through the cabinet slots. Never spill

liquid of any kind into the projector.

■ Except as specifically explained in this User’s Guide, do not attempt to

service this product yourself. Refer all servicing to qualified personnel. Opening or removing covers may expose you to dangerous voltages and other hazards.

■ Unplug the projector from the wall outlet and refer servicing to qualified

service personnel under the following conditions: When the power cord or plug is damaged or frayed. If liquid has been spilled into the projector, or if it has been exposed to rain or water. If it does not operate normally when you follow the operating instructions, or if it exhibits a distinct change in performance, indicating a need for service. If it has been dropped or the housing has been damaged.

■ The lamp(s) in this product contain mercury. Please consult your

state and local regulations regarding disposal or recycling. Do not put in the trash.

■ Unplug the projector during lightning storms or when it will not be used

for extended periods.

■ Do not place the projector and/or remote control on top of

heat-producing equipment or in a hot location.

■ If you use the projector in a country other than where you purchased it,

use the correct power cord for that country.

■ Do not stand on the projector or place heavy objects on it.

■ Do not use the projector outside of the required temperature range of 41

to 95 °F (5 to 35 °C). Doing so may cause an unstable display and could lead to projector damage.

■ Do not store the projector outside of the required temperature range of

14 to 140 °F (–10 to 60 °C) or in direct sunlight for long periods of time. Doing so may cause damage to the case.

88 Notices

WARNING: The cords included with this product contain chemicals, including lead, known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. (Provided in accordance

with Proposition 65 in Cal. Health & Safety Code §25249.5 et seq.)

Remote Control Information

You can operate the projector by remote control via a line-of-sight infrared (IR) receiver at the front and rear of the projector. The projector may not respond to remote control commands under the following conditions:

■ There is an object between the remote control IR emitter and the IR

receiver on the projector.

■ Ambient light is too bright.

■ Certain types of fluorescent lighting are used.

■ A strong light source shines into the IR receiver.

■ Other equipment that emits infrared energy, such as a radiant room

heater, is in the room.

These conditions commonly cause problems for most infrared-controlled equipment. Try the following:

■ The remote control’s batteries may be low on power; replace them.

■ Dim the ambient lighting and/or turn off any fluorescent lights.

■ Close any window coverings and/or move the projector out of direct

sunlight.

■ Turn off other equipment that emits infrared energy.

Notices 89

Declaration of Conformity

According to 47CFR, Part 2 and 15, Class B Personal Computers and Peripherals; and/or CPU Boards and Power Supplies used with Class B Personal Computers

We: Epson America, Inc. Located at: 3840 Kilroy Airport Way

MS: 3-13 Long Beach, CA 90806-2469

Telephone: (562) 290-5254

Declare under sole responsibility that the product identified herein, complies with 47CFR Part 2 and 15 of the FCC rules as a Class B digital device. Each product marketed, is identical to the representative unit tested and found to be compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due to quantity production and testing on a statistical basis as required by 47CFR §2.909. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Trade Name: Epson

Type of Product: Projector

90 Notices

Model: EMP-750/760

Marketing Name: PowerLite 750c/760c

FCC Compliance Statement

For United States Users

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.

■ Increase the separation between the equipment and receiver.

■ Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

■ Consult the dealer or an experienced radio/TV technician for help.

WARNING

The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC Certification of this device and may cause interference levels which exceed the limits established by the FCC for this equipment. It is the responsibility of the user to obtain and use a shielded equipment interface cable with this device. If this equipment has more than one interface connector, do not leave cables connected to unused interfaces. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

For Canadian Users

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le materiel brouilleur du Canada.

Notices 91

Warranty

Epson America, Inc. Limited Warranty

Basic Two-Year Warranty and 90-Day Lamp Warranty

What Is Covered: Epson America, Inc. (“Epson”) warrants to the original retail purchaser of the Epson product enclosed with this limited warranty statement that the product, if purchased new and operated in the United States or Canada, conforms to the manufacturer’s specifications and will be free from defects in workmanship and materials for a period of two (2) years from the date of original purchase (except that the warranty period is 90 days for projector lamps). For warranty service, you must provide proof of the date of original purchase.

What Epson Will Do To Correct Problems: If you elect carry-in warranty service, please bring the product securely packaged in its original container or an equivalent, along with proof of the date of original purchase, to your Epson Dealer or Epson Customer Care Center. Epson will, at its option, repair or replace on an exchange basis the defective unit, without charge for parts or labor. When warranty service involves the exchange of the product or of a part, the item replaced becomes Epson property. The exchanged product or part may be new or previously refurbished to the Epson standard of quality, and at Epson’s option, the replacement may be another model of like kind and quality. Epson’s liability for replacement of the covered product will not exceed the original retail selling price of the covered product. Exchange or replacement products or parts assume the remaining warranty period of the product covered by this limited warranty. However, each replacement lamp carries the limited 90-day warranty stated above.

92 Notices

What This Warranty Does Not Cover: This warranty does not apply to refurbished or reconditioned products. This warranty covers only normal consumer use in the United States and Canada. 24-hour-per-day use causes unusual strain and is not considered normal use. This warranty does not cover consumables (e.g., fuses), other than lamps. This warranty is not transferable. Epson is not responsible for warranty service should the Epson label or logo or the rating label or serial number be removed or should the product fail to be properly maintained or fail to function properly as a result of misuse, abuse, improper installation, neglect, improper shipping, damage caused by disasters such as fire, flood, and lightning, improper electrical current, software problems, interaction with non-Epson products, or service other than by an Epson Authorized Servicer. Postage, insurance, or shipping costs incurred in presenting your Epson product for carry-in warranty service are your responsibility. If a claimed defect cannot be identified or reproduced in service, you will be held responsible for costs incurred.

THE WARRANTY AND REMEDY PROVIDED ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME LAWS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES. IF THESE LAWS APPLY, THEN ALL EXPRESS AND IMPLIED WARRANTIES ARE LIMITED TO THE WARRANTY PERIOD IDENTIFIED ABOVE. UNLESS STATED HEREIN, ANY STATEMENTS OR REPRESENTATIONS MADE BY ANY OTHER PERSON OR FIRM ARE VOID. IN THE EVENT THE REMEDIES ABOVE FAIL, EPSON’S ENTIRE LIABILITY SHALL BE LIMITED TO A REFUND OF THE PRICE PAID FOR THE EPSON PRODUCT COVERED BY THIS LIMITED WARRANTY. EXCEPT AS PROVIDED IN THIS WRITTEN WARRANTY, NEITHER EPSON AMERICA, INC. NOR ITS AFFILIATES SHALL BE LIABLE FOR ANY LOSS, INCONVENIENCE, OR DAMAGE, INCLUDING DIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, RESULTING FROM THE USE OR INABILITY TO USE THE EPSON PRODUCT, WHETHER RESULTING FROM BREACH OF WARRANTY OR ANY OTHER LEGAL THEORY.

In Canada, warranties include both warranties and conditions.

Some jurisdictions do not allow limitations on how long an implied warranty lasts and some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from jurisdiction to jurisdiction.

To locate the Authorized Epson Servicer nearest you, call the Epson Connection

at (800) 637-7661 + PIN or (562) 276-4394 in the U.S. and (905) 709-3839 in Canada or write to: Epson America, Inc., P.O. Box 93012, Long Beach, CA 90809-3012.

Notices 93

94 Notices

Index

A/V Mute, 30, 56, 72 Accessories, 11, 79 Adapter

audio, 10, 44 Macintosh, 11, 37

Air filter

cleaning, 61 ordering, 11

replacing, 62 to 64 Anti-theft device, 11, 15 Aspect ratio, 83 Audio

adapter, 10, 44

controlling volume, 31

problems, troubleshooting, 77

turning off (using A/V Mute), 30 Auto button, 24 Auto Setup setting, 50

Background Color setting, 54 Bands, vertical, 76 Blackboard color mode, 48 Blackboard, projecting on, 32 Blank screen, 18 to 20 Blurry image, 75 Brightness, 83 Brightness setting, 49

Carrying case, 10, 11, 66 Ceiling mount, 11, 81 to 82 Cleaning

air filter, 61 lens, 60 projector case, 60

Color

correcting, 32 problems, 76

settings, 48 to 49 Color Mode setting, 48 Component video cable, 11, 39 Composite (RCA) video cable, 39 to 40 Computer

connecting to, 36 to 37

correcting images, 24

selecting source, 17 Connecting projector

to a computer, 36 to 37

to video equipment, 39 to 43 Contrast setting, 49

Declaration of Conformity, 90 Default settings, restoring, 47 Desktop adapter, Macintosh, 11, 37 Direct Power On, 25 Distance from projector to screen, 14, 83 Documentation, 8 DVD player, connecting, 39 to 43

Cables

illustrations, 10 mouse, 38 ordering, 11 remote control cable set, 11 S-video, 11, 41 VGA-to-component, 36

Capturing image, 55 to 56

Electrical specifications, 84 Environmental specifications, 84 Epson

accessories, 11, 79

presentation tips, 8

PrivateLine Support, 9, 79

technical support, 8, 78 to 79 E-Zoom button, 31

Index 95

FCC compliance statement, 91 Filter, see Air filter Focusing image, 22 Freeze button, 30

HDTV images, video formats, 86 Height of image, adjusting, 21 Help system, using, 68 Help, Epson, 8, 78 to 79


adjusting, 21 to 24, 48 to 49 blurry, 75 capturing and saving in projector, 55 to 56 correcting shape, 22 to 23, 51, 75 fitting on screen, 50, 74 height, adjusting, 21 problems with, 72 to 77 projecting on chalkboard, 32 raising, 21 selecting source, 17, 29, 40 to 43 size and projection distance, 14, 83 turning off (using A/V Mute), 30

zooming, 22, 31 Image menu, 48 to 50 Info menu, 71 Input signal, selecting, 17, 29, 40 to 43 Installing projector, 81 to 82

Lamp

number of hours used, 71 ordering, 11 replacing, 62 to 65 specifications, 84

status light, 69 to 70 Lamp timer, resetting, 65 Language setting, 58, 68 Laptop computer

connecting to, 36 to 37

display problems, 18 to 20, 72 to 73

selecting source, 17, 29 Lens, cleaning, 60 Lights, status, 69 to 70 Living Room color mode, 48 Logo, saving on projector, 55 to 56

Macintosh desktop adapter, 11, 37 Manuals, 8 Menus

changing settings, 46 to 47

default settings, restoring, 47

Image, 48 to 50

Info, 71

Signal, 49 to 50

User’s Logo, 55 to 56 Mouse, 83

connecting cable for remote, 38

using remote control as, 33

Kensington anti-theft device, 11, 15 Keystone correction, 22 to 23, 51, 75, 83

96 Index

New Hardware Wizard, 17 No Signal message, 18, 72 to 73 Noise level, 83 Not Supported message, 74 Numeric keypad, using, 53

Operation Lock setting, 57 Optical aspect ratio, 83 Options for projector, 11

Password

protection, 52 to 55 request code, 54

Picture source, selecting, 17, 29, 40 to 43 Picture, see Image Pointer tool, using, 34 Positioning

image, 21 projector, 14 to 15, 81 to 82

Power

button, 17 specifications, 84

status light, 17, 69 to 70 Presentation color mode, 48 Presentations

computer, 24, 36 to 38

room conditions, 14, 28

tips and training, 8

using the pointer tool, 34

video, 39 to 43 Presenters Online, 8, 78 PrivateLine Support, 9, 79 Problems

color, 76

image, 72 to 77

no signal, 18, 72 to 73

remote control, 78

sound, 77

using on-screen help, 68 Progressive format, 50 Projecting without screen, 32 Projection lamp, see Lamp Projector

carrying case, 11, 66

cleaning, 60

connections, see Connecting projector

disabling buttons, 57 distance from screen, 14, 83 installing, 81 to 82 lamp specifications, 84 options, 11 password protection, 52 to 55 positioning, 14 to 15 resolution, 83 specifications, 83 to 85 transporting, 66 troubleshooting, 67 to 70 turning off, 24 to 25 turning on, 16 to 17 unpacking, 10 viewing information about, 71

Raising image, 21 Rear-screen projection, 58, 81 to 82 Registration, 9 Remote control

A/V Mute button, 30 as wireless mouse, 33 battery used, 84 connecting cable for mouse, 38 correcting color, 32 E-Zoom button, 31 Freeze button, 30 information, 89 numeric keypad, using, 53 pointer tool, using, 34 problems, 78, 89 range, 84 specifications, 84 switching sources, 29

troubleshooting, 78 Replacing lamp, 62 to 65 Request code, password, 54 Resetting lamp timer, 65 Resetting menu options, 47 Resize image, 32 Resolution, 32, 74, 83

Index 97

Safety

instructions, 87 to 88 specifications, 85

Screen

blank, 18 to 20 distance from projector, 14 ordering, 11 startup screen, creating, 55 to 56

Screen image, See Image Security

Kensington lock, 11

password protection, 52 to 55 Sharpness setting, 49 Signal menu, 49 to 50 Sleep mode, 24 Sound

troubleshooting, 77 Source

selecting, 17, 29

viewing, 71 Speaker, specifications, 83 Specifications

brightness, 83

dimensions, 84

electrical, 84

environmental, 84

general, 83

lamp, 84

remote control, 84

resolution, 83

safety, 85 sRGB color mode, 48 Startup screen

user’s logo, See User’s Logo Startup screen, creating, 55 to 56 Status lights, 69 to 70 Support, see Technical support S-video cable, 11, 41 Switching picture source, 17, 29 Sync setting, 50 Synchronization, adjusting, 24, 76

Technical support, 8, 78 to 79 Temperature

requirements, 84

status light, 69 to 70 Theatre color mode, 48 Tracking, adjusting, 24, 76 Transporting projector, 66 Troubleshooting

blank screen, 18 to 20, 72 to 73

cut-off image, 74

distorted image, 22 to 23

image and sound problems, 72 to 77

no signal, 18, 72 to 73

projector problems, 67 to 70

remote control problems, 78 Turning off picture (using A/V Mute), 30 Turning off projector, 24 to 25

USB cable, 10, 38 User’s Logo menu, 55 to 56

VCR, connecting, 39 to 43 Video

cables, 10, 11, 39

connecting video equipment, 39 to 43

display settings, viewing, 71

formats, supported, 85 to 86

selecting source, 17, 29, 40, 41 Video Signal setting, 50 Volume, controlling, 31

Warning lights, 69 to 70 Warranty, 9, 92 to 93 Wireless, mouse, 33, 38

Zoom ratio, 83 Zooming image, 22, 31

98 Index

Exhaust air vent

Turn projector on and off

Optimize computer images

Stop action

Switch between equipment

connected to projector ports

Activate on-screen pointer

Enter (left mouse button)

Change slides in PowerPoint

Enlarge section of image

Esc (right mouse button)

Activate numeric keypad

Select color mode

Activate menu system

Access on-screen help

Control volume

Resize image or switch aspect ratio

Move cursor on screen

Turn off picture and sound

Foot adjust lever

Control panel

Zoom ring

Focus ring

Remote control receiver

Front adjustable foot

USB port

Power inlet

Rear adjustable foot

Audio port

deo port

S-Video port

Speaker

Security lock

Lens cover

Computer/Component Video port

Enlarge section of image

Turn projector on and off

Change slides in PowerPoint

Enter (left mouse button)

Esc (right mouse button)

Activate on-screen pointer

Switch between equipment

connected to projector ports

Optimize computer images

Move cursor on screen

Turn off picture and sound

Stop action

Activate numeric keypad

Select color mode

Activate menu system

Access on-screen help

Resize image or switch aspect ratio

Control volume

Epson 760c, 750c User Manual

Specifications and Main Features
