User Guide
Epiphan AV.io HD
Release 1.0.13
October 14, 2015
UG107-03
Terms and Conditions
This document, the Epiphan web site, and the information contained therein, including but not limited to the
text, videos and images as well as Epiphan System Inc.’s trademarks, trade names and logos are the property
of Epiphan Systems Inc. and its affiliates and licensors, and areprotected from unauthorized copying and
dissemination by Canadian copyright law, United States copyright law, trademark law, international
conventions and other intellectual property laws.
Epiphan, Epiphan Video, Epiphan Systems, Epiphan Systems Inc., and Epiphan logos are trademarks or
registered trademarks of Epiphan Systems Inc., in certain countries. All Epiphan product names and logos are
trademarks or registered trademarks of Epiphan. All other company and product names and logos may be
trademarks or registered trademarks of their respective owners in certain countries.
Copyright © 2015 Epiphan Systems Inc. All Rights Reserved.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN
THE INFORMATION PACKET OR PRODUCT INSTALLATION SOFTWARE PACKAGE THAT SHIPPED WITH THE
PRODUCT AND ARE INCORPORATED HEREIN BY REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE
LICENSES OR LIMITED WARRANTY, CONTACT YOUR EPIPHAN REPRESENTATIVE FOR A COPY.
PRODUCT DESCRIPTIONS AND SPECIFICATIONS REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT
TO CHANGE WITHOUT NOTICE. EPIPHAN PERIODICALLY ADDS OR UPDATES THE INFORMATION AND
DOCUMENTS ON ITS WEB SITE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION AND
RECOMMENDATIONS ARE BELIEVED TO BE ACCURATE AT TIME OF WRITING BUT ARE PRESENTED WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR
APPLICATION OF ANY PRODUCTS.
LIMITATION OF LIABILITY
UNDER NO CIRCUMSTANCES SHALL EPIPHAN BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL,
EXEMPLARY OR OTHER INDIRECT DAMAGES THAT RESULT FROM THE USE OF, OR THE INABILITY TO USE,
THIS PRODUCT OR THE INFORMATION CONTAINED IN THIS DOCUMENT OR PROVIDED ON EPIPHAN’S WEB
SITE, EVEN IF EPIPHAN HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL
EPIPHAN’S TOTAL LIABILITY TO YOU FOR ALL DAMAGES, LOSSES, AND CAUSES OF ACTION RESULTING FROM
YOUR USE OF THIS PRODUCT, WHETHER IN CONTRACT, TORT (INCLUDING, BUT NOT LIMITED TO,
NEGLIGENCE) OR OTHERWISE, EXCEED THE AMOUNTS YOU PAID TO EPIPHAN DURING THE MOST RECENT
THREE-MONTH PERIOD IN CONNECTION WITH AMOUNTS WHICH YOU PAID FOR USING THIS PRODUCT.
INFORMATION AND DOCUMENTS, INCLUDING PRODUCT SPECIFICATIONS, PROVIDED IN THIS DOCUMENT
OR THE EPIPHAN WEB SITE ARE PROVIDED “AS IS”. SPECIFICALLY, BUT NOT WITHOUT LIMITATION, EPIPHAN
DOES NOT WARRANT THAT: (i) THE INFORMATION IS CORRECT, ACCURATE, RELIABLE OR COMPLETE; (ii) THE
FUNCTIONS CONTAINED ON THE EPIPHAN WEB SITE WILL BE UNINTERRUPTED OR ERROR-FREE; (iii) DEFECTS
WILL BE CORRECTED, OR (iv) THIS WEB SITE OR THE SERVER(S) THAT MAKES IT AVAILABLE ARE FREE OF
VIRUSES OR OTHER HARMFUL COMPONENTS. EPIPHAN SPECIFICALLY DISCLAIMS ALL REPRESENTATIONS,
WARRANTIES, AND CONDITIONS, EITHER EXPRESS, IMPLIED, STATUTORY, BY USAGE OF TRADE OR
OTHERWISE INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY, NONINFRINGEMENT, TITLE, SATISFACTORY QUALITY OR FITNESS FOR A PARTICULAR PURPOSE.
For additional terms and conditions, please refer to additional sections in this document.
Thank you for choosing EpiphanVideo!
At EpiphanVideo, product function and quality are our top priority. We makeevery effort to make sure that
our products exceed your expectations.
Product feedback
Your feedback is important! We regularly contact our customers to ensure our products meet your
performance and reliability requirements. We strive to continually enhance our products to accommodate
your needs. Please let us know how you think we can improve our products by emailing your suggestions to
info@epiphan.com.
Specifications
Go to the USB Video Grabbers page of the EpiphanVideo website to get the most recent product
specifications and additional information about AV.io HD.
Warranty
All EpiphanVideo products are provided with a 100% return to depot warranty for one year from the date of
purchase.
Technical support
Epiphan’s products are backed by our professional support team. If you are having issues with your product,
pleasegather details about your system and contact our team by:
l E-mailing support@epiphan.com
l Live chat via the link on our support site
l Phone toll free at 1-877-599-6581 or call +1 613-599-6581
Be sure to include as much information about your problem as possible, including:
l Problem description •
l Details of the video or audio source (type, resolution, refresh rate, etc.)
l Product serial number
l Your operating system and version number
Copyright © 2015 Epiphan Systems Inc. All Rights Reserved
Firmware 1.0.13 release notes
Firmware 1.0.13 is a modest bug fix release that offers an improved video capture rate as well as a new online
format for the AV.io HD user guide.
What's new
This section provides details on the main features in firmware release 1.0.13.
Improved rate adjustment
AV.io HD now offers enhanced video capture in the form of smoothed frame rate adjustment when capturing
at a rate (e.g. 30 fps) different from that of the source (e.g. 24 fps).
AV.io HD web help
The AV.io HD user guide is now available in a convenient, searchable web help format! Look for it on Epiphan's
AV.io HD product page (http://www.epiphan.com/userguides/avio-hd/).
Limitations and Known Issues
This section includes known issues or limitations that affect functionality or usability and ways that you can
work around these limitations.
Affecting all operating systems
l Disconnecting and reconnecting the USB 3.0 cable on an AV.io HD device with an HDMI splitter halts
video capture.
o
Workaround: When possible, avoid this problem by not using a splitter. If a splitter is necessary,
disconnect both the USB 3.0 cable and HDMI splitter from the AV.io HD device, then first
reconnect the USB 3.0 cable before reconnecting the HDMI cable between AV.IO HD and the
splitter.
Affecting Windows
l Windows 7: The AV.io Config tool sometimes fails to display AV.io HD in the device list despite showing
up as an installed device on the computer’s Device Manager, therefore occasionally preventing
advanced configuration and firmware updates.
o
Workaround: Use AV.io Config on a different supported OS to configure AV.io HD. Firmware
updates and configuration changes are saved to the device. (Note that the AV.io HD device still
functions perfectly with the capture application on the original Windows 7 workstation despite
possible issues with the AV.io Config tool.)
l Windows 7/8.1: The AV.io Config tool may display the AV.io HD device more than once in the devicelist
possibly causing user confusion.
o
Workaround: Simply press the refresh icon to refresh the devicelist; only one AV.io HD device
now displays properly.
l Windows 8.1: Capturing using VLC media player occasionally results in repeated video frames causing
overlapping or teared frames to appear during capture (approximately 2% of the time).
o
Workaround: Avoid capturing on computers running Windows 8.1 or if that is not possible, use
different video capture software.
l Windows 8.1/10 (with an ASMedia ADM1042 A USB 3.0 controller only): Video capture fails when the
capture computer recovers from sleep mode, even if capture was stopped prior to sleep mode.
o
Workaround: Simply disconnect and re-connect AV.io HD’s USB 3.0 cable to the capture
computer.
l Windows 10 (64-bit): Capturing video with embedded audio using VLC media player or Windows
Camera can result in distorted audio capture.
o
Workaround: Capture on a computer with an OS different from Windows 10 (64-bit) or avoid
capturing using VLC and Windows Camera.
Affecting Mac
l It is not possibleto capture from AV.io HD if a webcam is connected when using VLC media player 2.2.1
on a Mac (this is a VLC-specific bug).
o
Workaround: Disconnect the webcam, downgradeto an older version of VLC media player (ex:
2.1) or use a different capture application.
Affecting Ubuntu
l Ubuntu 14.04 LTS: With the exception of the first capture after system reboot, the very first captured
frame is always green.
o
Workaround: Remove the green frame in post-production editing. If streaming the captured
video, begin streaming after the initial green frame as already been captured.
l Ubuntu 14.14: Capturing using VLC media player occasionally results in repeated video frames causing
overlapping or teared frames to appear during capture (approximately 2% of the time).
o
Workaround: Avoid capturing on computers running Ubuntu 14.14. If that is not possible, use
different video capture software.
Affecting Chromebook
l Google Chrome OS v43.0.2357.125 (64 bit): When using Chromebook Apps Clipchamp and WebRTC,
AV.io HD is not detected as a valid audio device.
o
Workaround: Use Clipchamp and WebRTC for capturing video only, or use a different
Chromebook app to capture both video and audio, such as Screencastify or MediaCore Capture.
Table of contents
Thank you for choosing EpiphanVideo! iv
Firmware 1.0.13 release notes v
What's new v
Limitations and Known Issues v
Table of contents vii
Getting started 1
What's In The Box? 1
System requirements 3
Technical specifications 4
Hardware 5

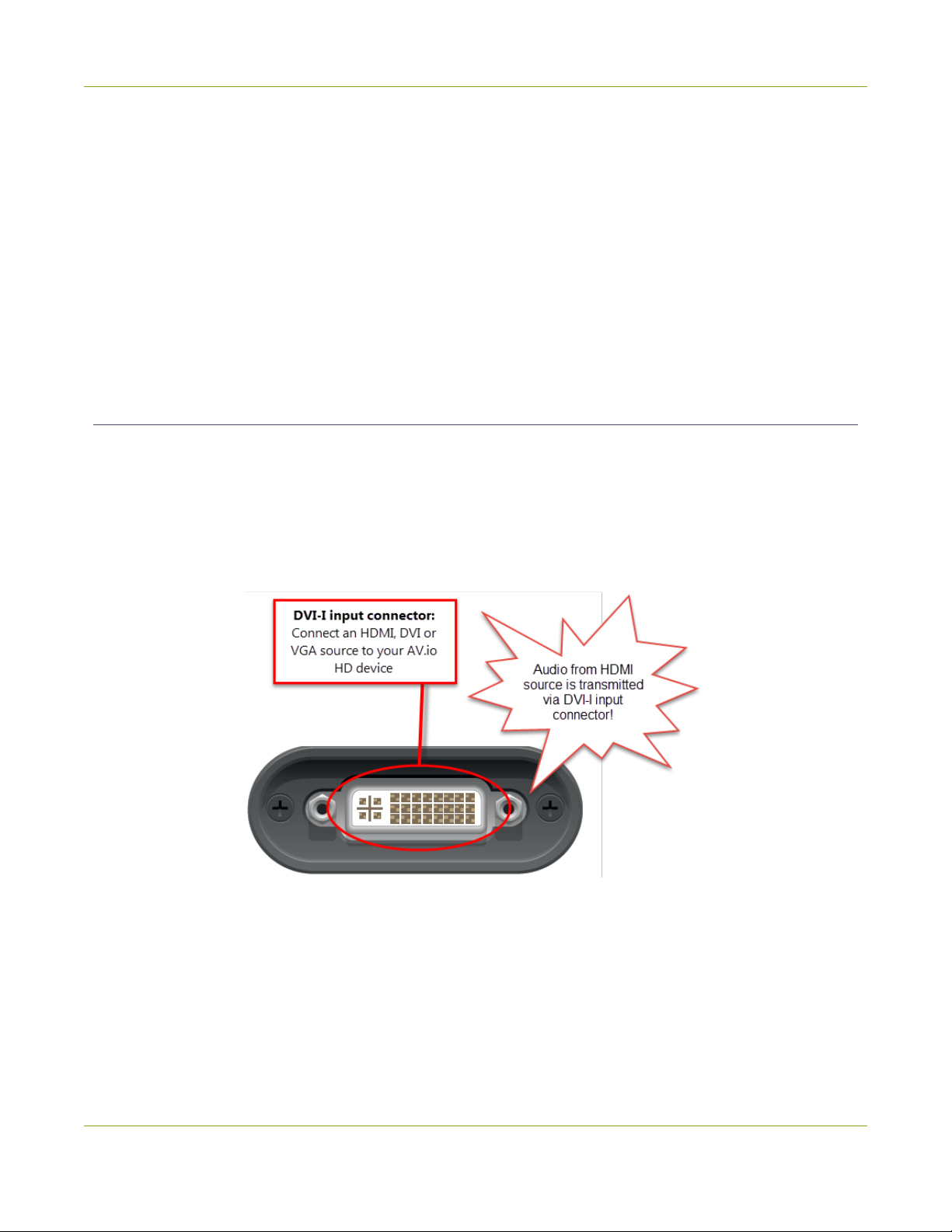

Hardware diagrams 5
Indicator LED details 7
Capture 8

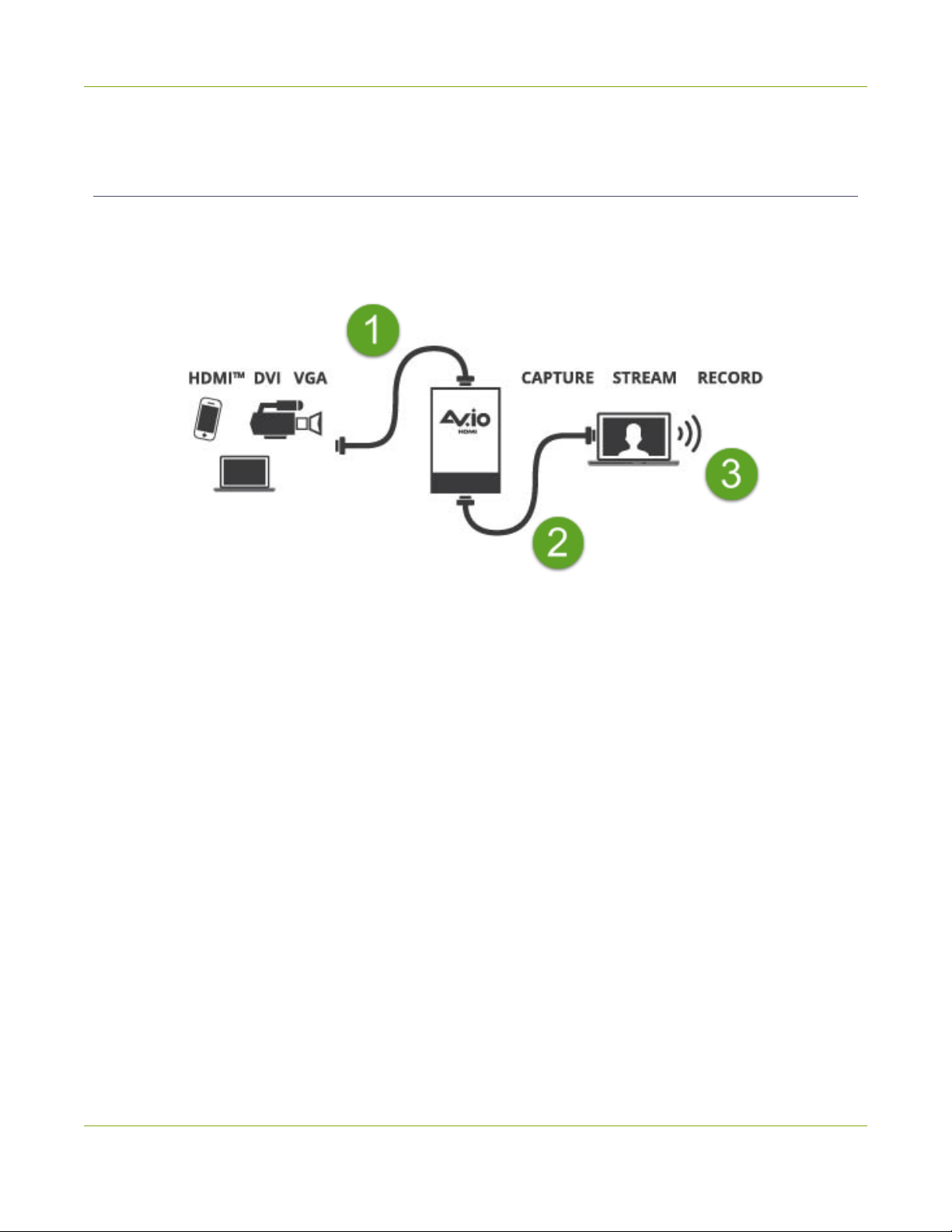

Set up your AV.io HD for capture 9
How AV.io HD works 10
Resolutions, capture rates and aspect ratios 11
Automatic imagescaling & audio resampling 12
Third-party applications 12
Configuration options 13
Input signal resolution 13
Preserve aspect ratio 13
Performance mode 13

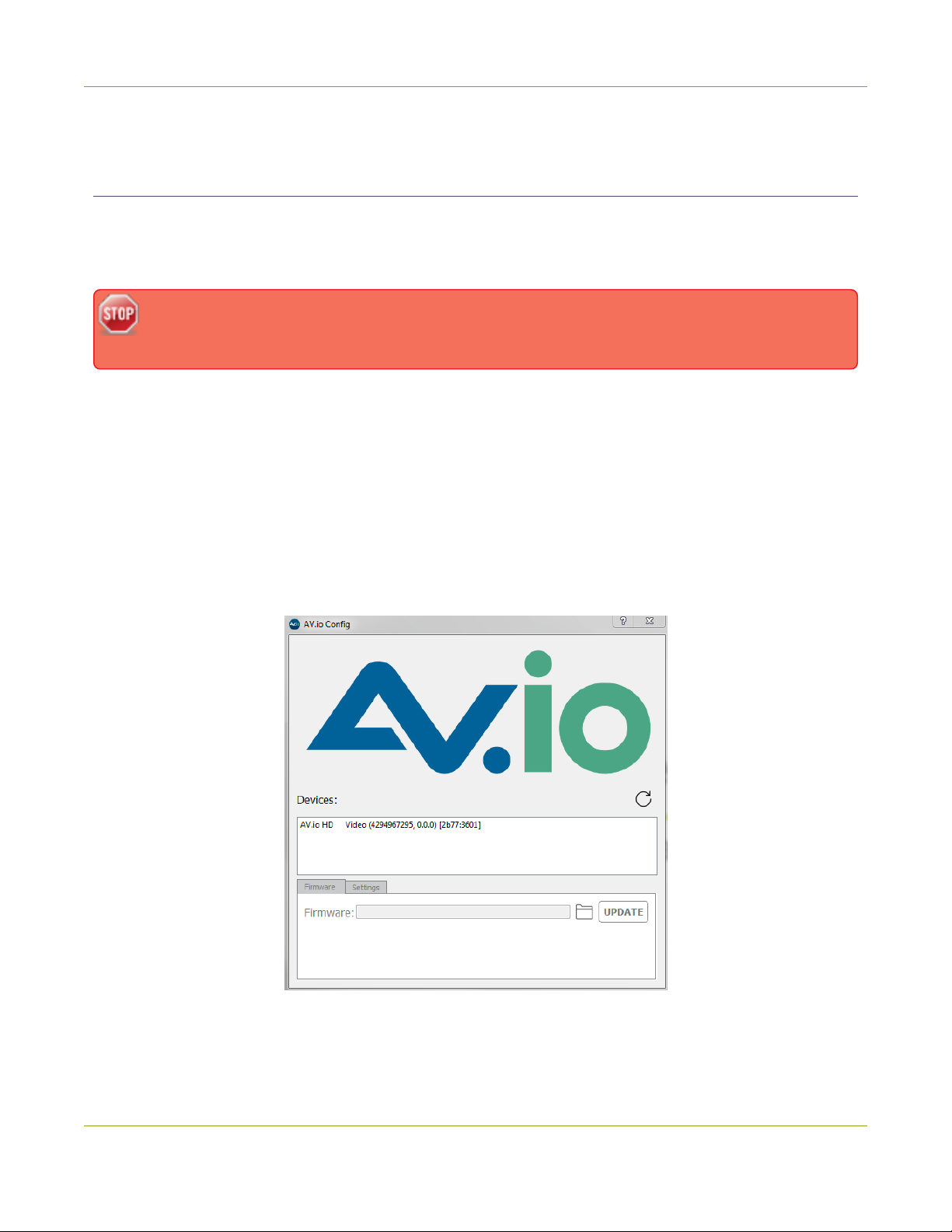

Configure settings using AV.io Config tool 15
Update firmware using the AV.io Config tool 17
Software and Documentation License 20
vii
AV.io HD User Guide Getting started
Getting started
Welcome and thank you for buying Epiphan Video’s AV.io HD!
This guide contains all the information necessary to successfully use AV.io HD to quickly and easily capture live
video content without any configuration – simply connect the cables and you’re ready to go!
This guide starts off by jumping right into it by showing you how to start capturing video, then we’ll take you
through how AV.io HD works, followed with some technical reference material, and we’ll conclude with a
walkthrough of some optional video capture configuration.
Let’s get started!
What's In The Box?
Your AV.io HD product contains everything you need to easily capture live video content with minimal setup.
Your purchase includes the following:
AV.io HD video grabber Your video capture device!
Connects a video source with a
DVI-to-VGA cable
VGA port to your AV.io HD’s
DVI port. This cable is included
with your AV.io HD purchase.
1
AV.io HD User Guide What's In The Box?
DVI single link cable (3
feet)
HDMI-to-DVI adapter
USB 3.0 cable (1 meter)
Connects a DVI source to your
AV.io HD’s DVI port.
Connects an HDMI source to
your AV.io HD’s DVI port
The USB 3.0 cable connects
your AV.io HD video grabber
with your computer’s USB 3.0
or 2.0 port.
2
AV.io HD User Guide System requirements
System requirements
System requirements are the barebones technical essentials your computer needs to work with AV.io HD.
System requirements to use AV.io HD include:
Video source
Video capture
workstation
Video capture
workstation operating
system
Processor frequency Minimum recommended value: 2.4 GHz
RAM Minimum recommended value: 4 GB
Any VESA-compatible VGA, DVI or HDMI source. (AV.io HD
cannot capture from an HDCP encrypted source)
Any computer (laptop/desktop/other format) with:
l a compatible USB 3.0 host controller for SuperSpeed
operation; or,
l a USB 2.0 controller
Windows 7, Windows 8.1, Windows 10
Mac OS X 10.10 and up
Linux distribution with kernel 3.5.0 or higher
3
AV.io HD User Guide Technical specifications
Technical specifications
Technical specifications for AV.io HD are included in the table below.
Connectors
Input
Audio (HDMI) Input
Audio (UAC) output
Color space YUV 4:2:2
Supported output resolutions
(at 15, 30 or 60 fps capture
rate)
Capture delay
DVI-I (integrated, digital and analog)
USB standard B type
HDMI (audio compatible)
VGA and DVI
16-bit and 24-bit PCM encoded
audio at 32 kHz, 44.1 kHz and 48
kHz sampling rates
16-bit 48 kHz stereo audio sampling
rates
640×360 ..........640×480
848×480.......... 960×540
1024×768 ....... 1280×720
1280×1024...... 1600×1200
1920×1080 ......1920×1200
Near-zero latency, although certain
third-party applications may
contribute to delay
Windows 7, Windows 8.1, Windows
OS support
(32-bit and 64-bit)
USB support USB 3.0 and 2.0
10
Mac OS X 10.10 and up
Linux distribution with kernel 3.5.0
or higher
4
