Epiphan AV.io HD User Manual
1
AV.io HD
Release 1.0.10
June 30, 2015
User Guide
Thank you for choosing Epiphan Video!
At Epiphan Video, product function and quality are our top priority. We make every effort to make sure that
our products exceed your expectations.
Product feedback
Your feedback is important! We regularly contact our customers to ensure our products meet your
performance and reliability requirements. We strive to continually enhance our products to accommodate your
needs. Please let us know how you think we can improve our products by emailing your suggestions to
info@epiphan.com.
Specifications
Go to the USB Video Grabbers page of the Epiphan website to get the most recent product specifications and
additional information about Epiphan AV.io HD.
Warranty
All Epiphan Video products are provided with a 100% return to depot warranty for one year from the date of
purchase.
Technical support
Epiphan’s products are backed by our professional support team. If you are having issues with your product,
please gather details about your system and contact our team by:
E-mailing support@epiphan.com
Live chat via the link on our support site http://www.epiphan.com/support/
Phone toll free at 1-877-599-6581 or call +1 613-599-6581
Be sure to include as much information about your problem as possible, including:
Problem description
Details of the video or audio source (type, resolution, refresh rate, etc.)
Product serial number
Your operating system and version number
Copyright © 2015 Epiphan Systems Inc. All Rights Reserved.
Table of contents
Introducing AV.io HD! ................................................................................... 1
Product Features ............................................................................................................................................................................ 1
Limitations and Known Issues .............................................................................................................................................. 1
Getting started ................................................................................................ 4
Contents of the kit ......................................................................................................................................................4
System requirements .................................................................................................................................................5
Capturing live video content ......................................................................... 6
How AV.io HD works ...................................................................................... 7
Resolutions and capture rates ...............................................................................................................................7
Aspect ratios ..................................................................................................................................................................7
Automatic image scaling & audio resampling ...............................................................................................8
Third-party applications ...........................................................................................................................................8

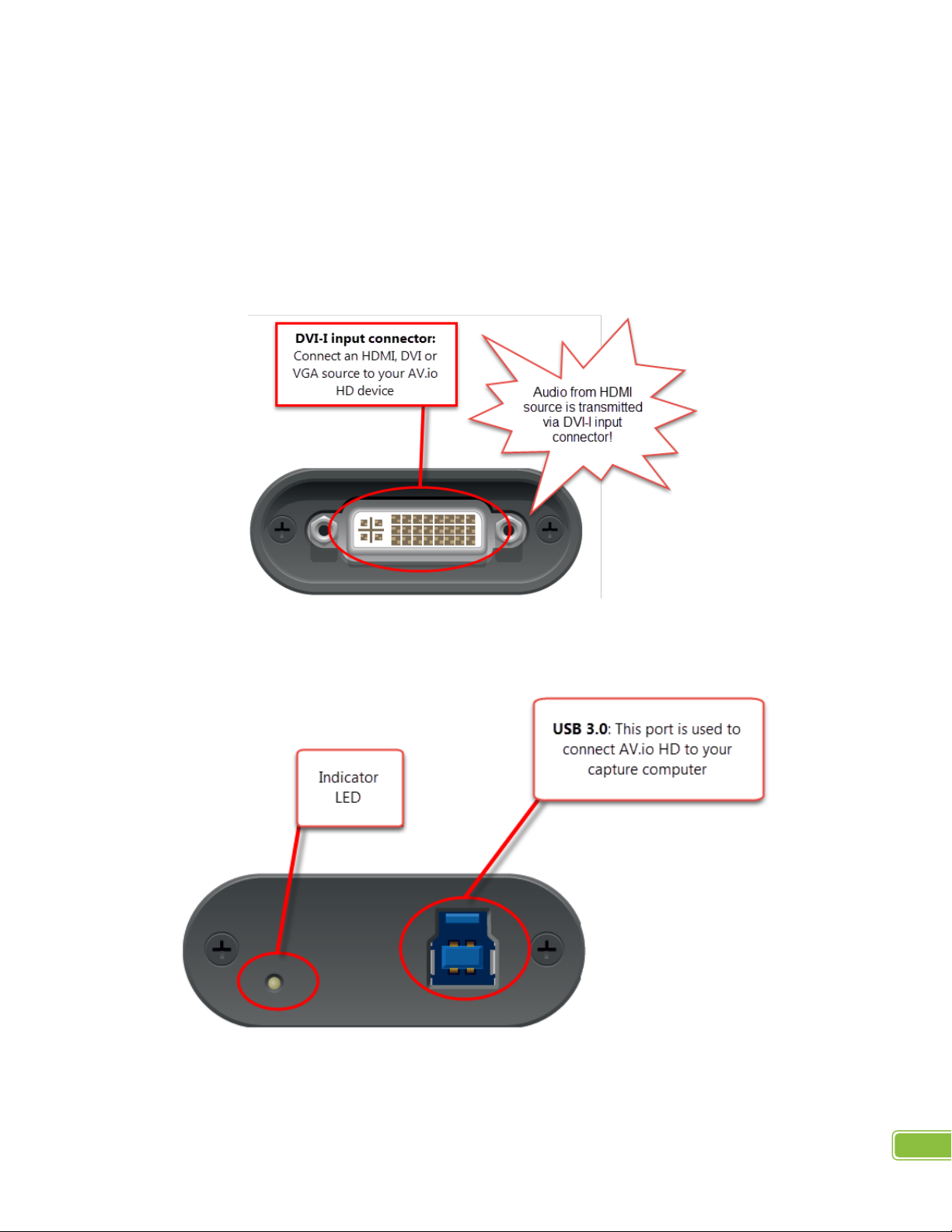

Physical features ............................................................................................. 9

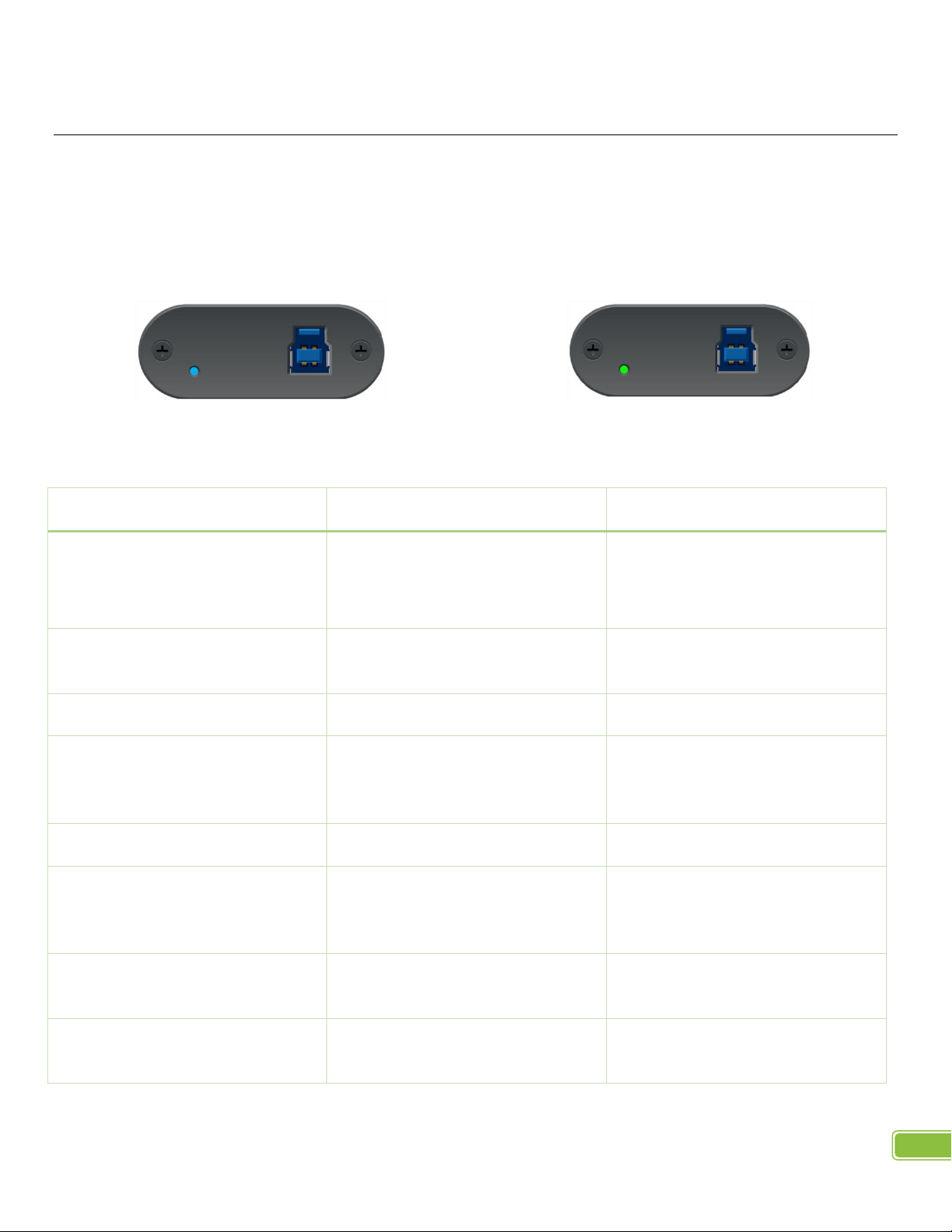

Indicator LED details ............................................................................................................................................... 10
Technical specifications ......................................................................................................................................... 11
Optional configuration ............................................................................... 12
Input signal resolution ............................................................................................................................................................ 12
Preserve aspect ratio ................................................................................................................................................................ 12
Performance mode .................................................................................................................................................................... 12

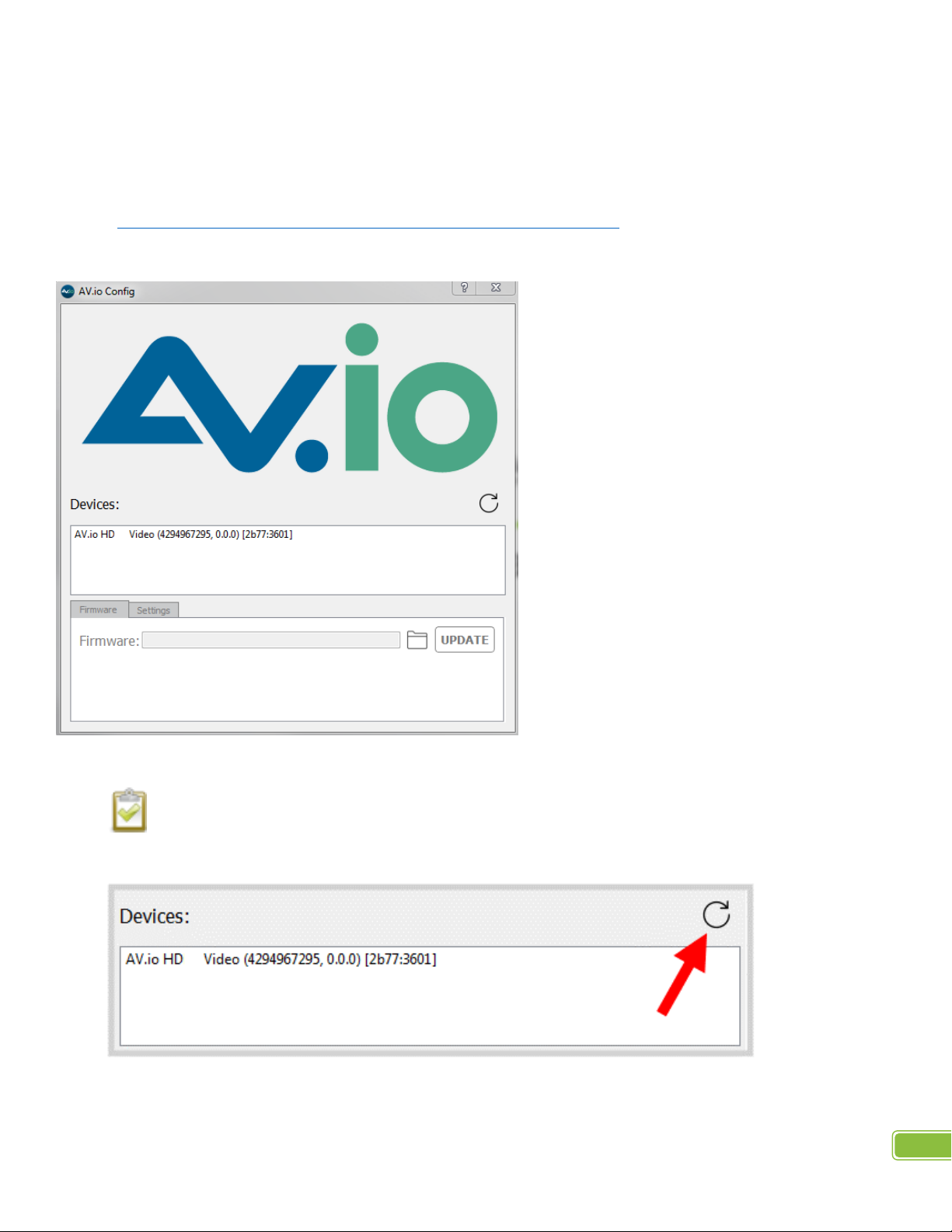

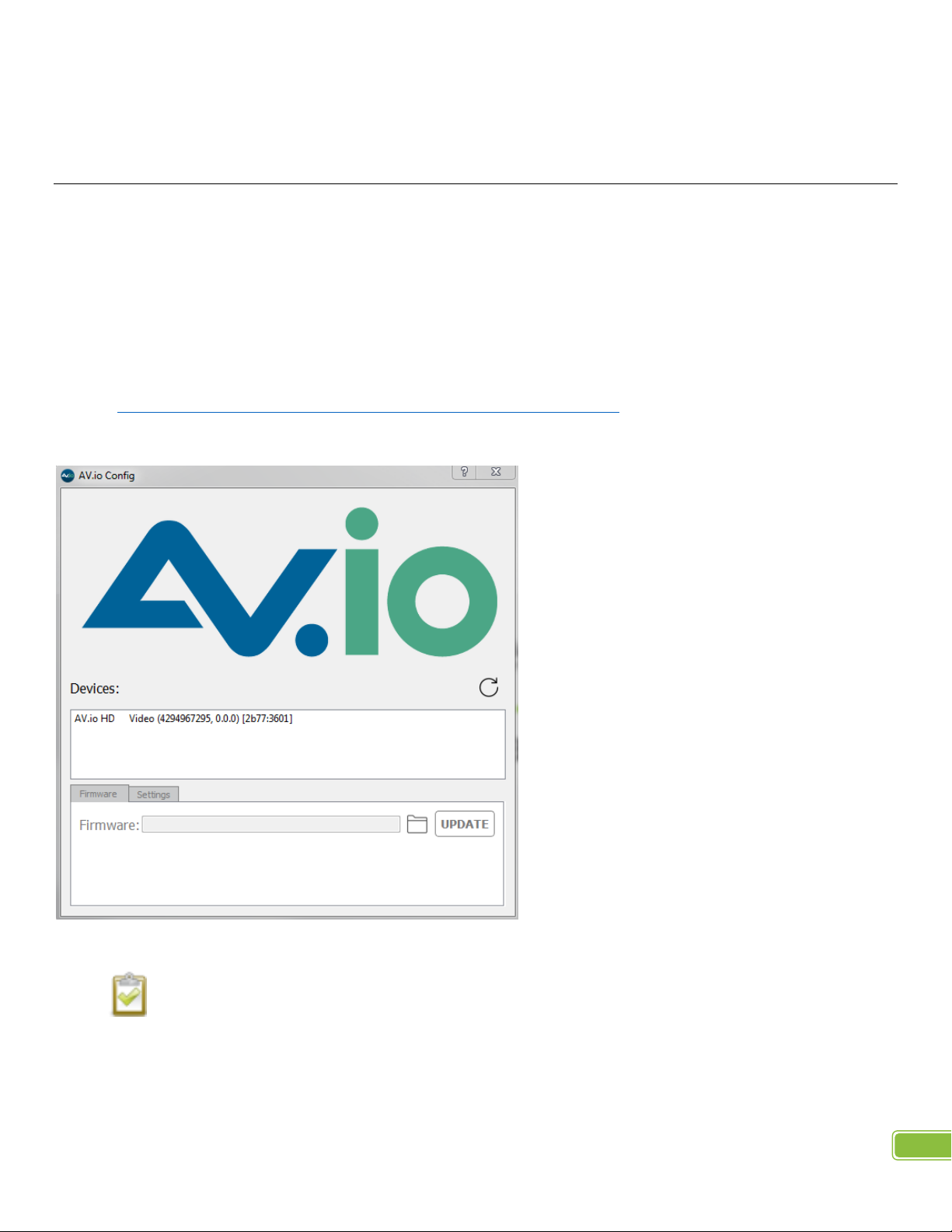

Changing the configurable settings using the AV.io Config tool ....................................................... 13

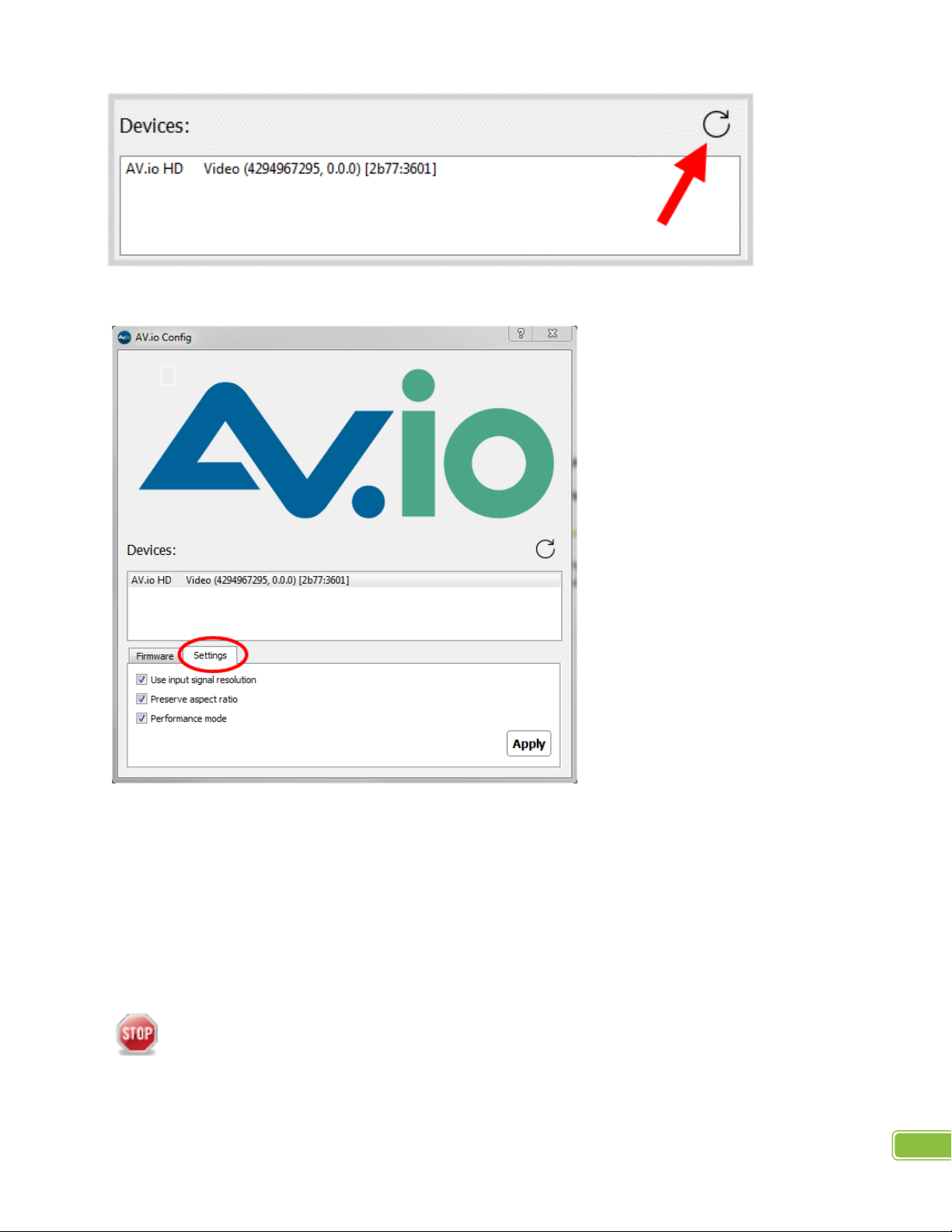

To change the configurable settings using the AV.io Config tool ................................................................................. 13

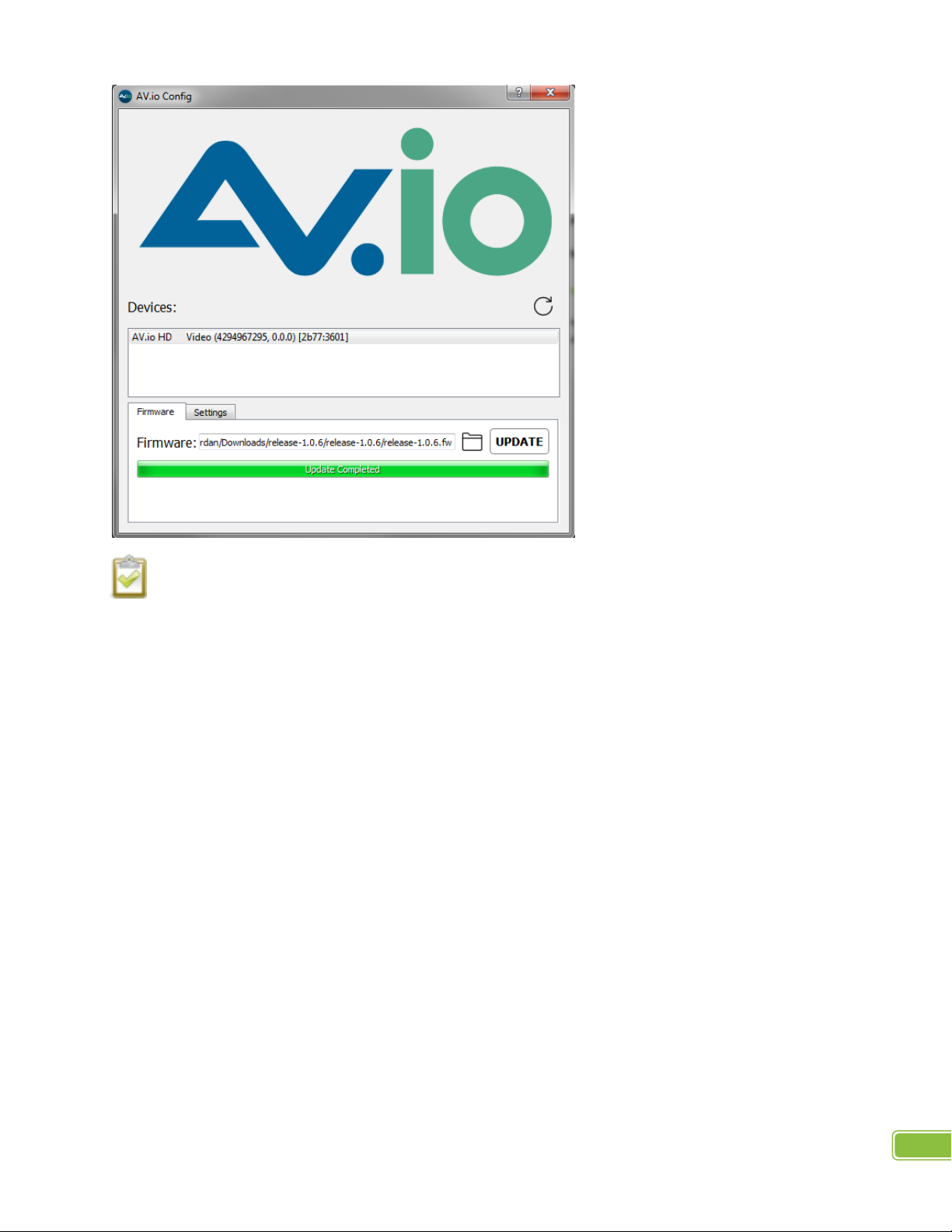

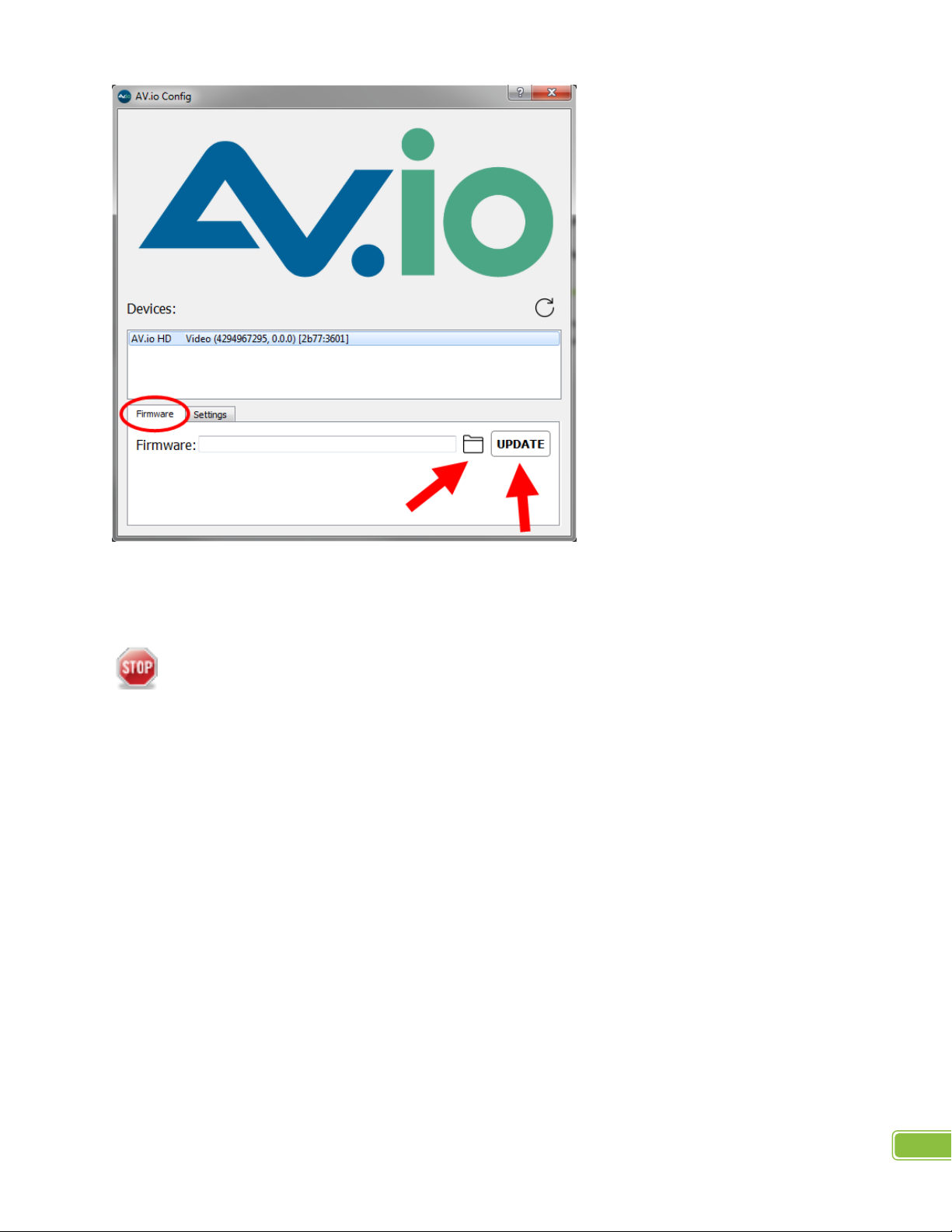

To update the firmware using the AV.io Config tool .......................................................................................................... 14
Software and Documentation License .......................................................... i
AV.io HD User Guide – Release Notes
1
Introducing AV.io HD!
Epiphan’s AV.io HD is a new video grabber – the first of its kind in Epiphan’s family of Grab & Go video capture
hardware!
AV.io HD provides cross-platform, high-definition video capture. It is portable, flexible, and simple to use: the
perfect companion to your HD video source! Best of all, there’s no installation required! Simply connect the
required cables and you’re ready to start capturing live HD video content with your favourite third-party
application!
Product Features
Simplicity of use
AV.io HD has no driver to install and is ready to capture right out of the box! This is because AV.io HD is a UVCcapture device, which means it works automatically with existing drivers on your operating system – just like a
webcam!
HD video capture
Looking for quality video capture? Look no further! Use AV.io HD to capture from HDMI (with HDMI audio),
DVI or VGA sources in Full HD at 60 fps!
Automated capture configuration
AV.io HD works automatically with all resolutions up to 1080p and also resizes video and resamples audio
outputs on your behalf for a worry-free and seamless video capture experience without any configuration
required!
Extensive third-party support
AV.io HD works with UVC-friendly applications including Skype, VLC media player, Wirecast, Adobe FMLE and
many more!
Limitations and Known Issues
This section includes known issues or limitations that affect functionality or usability and ways that you can
work around these limitations.
AV.io HD is not a selectable device when attempting to capture on Mac using VLC media player (this is
a VLC-specific bug).
Workaround: Upgrade to an older version of VLC media player (ex: 2.1) or use a different
capture application.
AV.io HD User Guide – Release Notes
2
On Windows 7, when AV.io HD is connected to the video source and capture computer, the AV.io
Config tool displays the device more than once in the device list.
Workaround: Press the refresh icon to refresh the device list; only one AV.io HD device will now
properly display.
When AV.io HD is connected to the video source and capture computer on Windows 7, the AV.io
Config tool sometimes does not display AV.io HD on the device list despite showing up as an installed
device on the computer’s Device Manager.
Workaround: Use AV.io Config on a different supported OS to configure AV.io HD. Firmware
updates and configuration changes will be saved to the device. (Note that the AV.io HD device
still functions with the selected capture application on the original Windows 7 workstation
despite possible issues with the AV.io Config tool.)
Plugging in AV.io HD to a USB 3.0 port on Windows 8.1 causes the Windows Device Setup window to
freeze.
Workaround: Close and ignore the frozen Device Setup window; AV.io HD is installed and
available for use.
On Windows 8.1/10, streaming is not possible when the capture computer with an ASMedia ASM1042A
USB 3.0 controller recovers from sleep mode.
In this scenario, AV.io HD is connected to both the capture computer and video source. Streaming is
initiated through the application, then stopped. The computer is then put in sleep mode, and upon
recovering from sleep, streaming cannot be resumed. This only occurs when using a capture computer
with an ASMedia ASM1042A USB 3.0 controller.
Workaround: Connect to a different USB 3.0 controller. Use the lsusb command to list all USB
devices and connect to a different USB 3.0 controller that is not ASMedia.
Using Chromebook Apps (Clipchamp) and WebRTC on Google Chrome OS
v 43.0.2357.125 (64 bit), AV.io HD is not detected as a valid audio device.
Workaround: Use Clipchamp and WebRTC for capturing video only, or use a different
Chromebook app to capture both video and audio.
In Ubuntu 14.04 LTS, the very first frame is always green in all streaming attempts (with the exception of
the first streaming attempt after device boot).
Workaround: Remove the green frame in post-production editing. If streaming, begin stream
after the initial green frame as already been captured.
AV.io HD User Guide – Release Notes
3
Disconnecting and reconnecting the USB 3.0 cable on an AV.io HD device with an HDMI splitter causes
video capture to become nonfunctional.
Workaround: Avoid using a splitter. If a splitter is necessary, disconnect then reconnect USB 3.0
cable from capture computer before reconnecting cable to AV.io HD.
AV.io HD User Guide – Getting Started
4
AV.io HD video grabber
Your video capture device!
DVI to VGA cable
Connects a video source with a
VGA port to your AV.io HD’s DVI
port. This cable is included with
your AV.io HD purchase.
DVI single link cable
(3 feet)
Connects a DVI source to your
AV.io HD’s DVI port.
Getting started
Welcome and thank you for buying Epiphan’s AV.io HD!
This guide contains all the information necessary to successfully use AV.io HD to quickly and easily capture live
video content without any configuration – simply connect the cables and you’re ready to go!
We’ll start off by jumping right into it by showing you how to start capturing video, then we’ll take you through
how AV.io HD works, followed with some technical reference material, and we’ll conclude with a walkthrough
of some optional video capture configuration.
Let’s get started!
Contents of the kit
Your Epiphan AV.io HD product contains everything you need to easily capture live video content with minimal
setup. Your purchase includes the following:
5
HDMI to DVI adapter
Connects an HDMI source to your
AV.io HD’s DVI port
USB 3.0 cable
(1 meter)
The USB 3.0 cable connects your
AV.io HD video grabber with your
desktop computer, laptop or
notebook’s USB 3.0 or 2.0 port.
System requirements
Video source
Any VESA-compatible VGA, DVI or HDMI source.
(AV.io HD cannot capture from an HDCP encrypted
source)
Video capture workstation
Any computer (laptop/desktop/other format) with:
a compatible USB 3.0 host controller for
SuperSpeed operation;
or a USB 2.0 controller
Video capture workstation
operating system
Windows 7, Windows 8.1, Windows 10
Mac OS X 10.10 and up
Linux distribution with kernel 3.5.0 or higher
Processor frequency
Minimum recommended value: 2.4 GHz
RAM
Minimum recommended value: 4 GB
AV.io HD User Guide – Getting Started
System requirements are the barebones technical essentials your computer needs to work with AV.io HD.
System requirements to use AV.io HD include:
AV.io HD User Guide – Capturing live video content
6
Capturing live video content
Setting up your AV.io HD device to capture live video content couldn’t be easier!
1. Connect your AV.io HD device to your video source
2. Connect your AV.io HD device to your desktop computer, laptop or notebook
3. Open your favourite built-in or third-party application, select AV.io HD from the list
of available cameras and start capturing!
And that’s it! No drivers to install and no extensive set-up! Just connect the cables and you’re ready to go!
