Epic EPSY5015.0, 700 Vx User Manual

Page 1
Model No. EPSY5015.0 Serial No.
Serial Number Decal (Under Seat)
QUESTIONS?
As a manufacturer, we are com­mitted to providing complete customer satisfaction. If you have questions, or if a part is damaged or missing, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT DIRECTLY
.
USER’S MANUAL
CALL TOLL-FREE:
1-866-997-6999
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB: www.iconservice.com
CAUTION
Read all precautions and instruc tions in this manual before using this equipment. Save this manual for future reference.
-
Page 2
TABLE OF CONTENTS
Keep hands and fingers clear of this area.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT
The decals shown here have been placed on the weight system. If a decal is missing or illegible, call the toll-free telephone number on the front cover of this manual and order a free replacement decal. Apply the decal in the location shown.
EPIC is a trademark of ICON IP
2
, Inc.
Page 3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight system.
1. Read all instructions in this manual and all arnings on the weight system before using
w the weight system. Use the weight system only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight system are ade­quately informed of all precautions.
3. The weight system is intended for home use
only. Do not use the weight system in any commercial, rental, or institutional setting.
4. Keep the weight system indoors, away from
moisture and dust. Place the weight system on a level surface, with a mat beneath it to protect the floor or carpet. Make sure that there is enough clearance around the weight system to mount, dismount, and use the weight system.
5. Inspect and properly tighten all parts regular-
ly. Replace any worn parts immediately.
6. Keep children under 12 and pets away from
the weight system at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protec-
tion while exercising.
9. Make sure that the cables remain on the pul-
leys at all times. If the cables bind as you are exercising, stop immediately and make sure
that the cables are on the pulleys. Replace all
ables at least every two years.
c
10. The weight system is designed to support a maximum user weight of 300 pounds.
11. The weight system is designed to be used only with the included weight. Do not use the weight system with dumbbells or any other type of weight to increase the resistance.
12. Always stand on the foot plate when per­forming an exercise that could cause the weight system to tip.
13. Never release the arms, leg lever, lat bar, leg press, ab strap, or handle while weights are raised. The weights will fall with great force.
14. Always disconnect the lat bar from the weight system when performing an exercise that does not use the lat bar.
15. Do not use the weight system with the top weight pinned in an elevated position.
16. Always secure the weight stack with the lock pin and lock after exercising to prevent unauthorized use of the weight system (see LOCKING THE WEIGHT STACK on page 27).
If you feel pain or dizziness at any time while
17. exercising, stop immediately and begin cool­ing down.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
3
Page 4
BEFORE YOU BEGIN
Thank you for selecting the versatile EPIC®700 VX weight system. The weight system offers a selection of weight stations designed to develop every major mus­cle group of the body. Whether your goal is to tone your body, build dramatic muscle size and strength, or improve your cardiovascular system, the weight sys­tem will help you to achieve the specific results you want.
For your benefit, read this manual carefully before using the weight system. If you have questions after
reading this manual, see the front cover of this manu-
Right Side
Butterfly Arm
al. To help us assist you, please note the product model number and serial number before calling. The model number is EPSY5015.0. The serial number can be found on a decal attached to the weight system (see the front cover of this manual).
To avoid a registration fee for any service needed under warranty, you must register the weight sys­tem at www.iconservice.com/registration.
Before reading further, please review the drawing below and familiarize yourself with the parts that are labeled.
Left Side
High Pulley Station
Lat Bar
Military Press Arm
Backrest
Curl Pad
Seat
Leg Lever
Low Pulley Station
Foot Plate
Note: The terms “right side” and “left side” are determined relative to a person sitting on the seat; they do not corre­spond to right and left on the drawings in the manual.
Weight
Adjustable Backrest
Press Arm
Leg Press
ASSEMBLED DIMENSIONS: Height: 80 in. / 203 cm Width: 80 in. / 203 cm Depth: 96 in. / 244 cm
4
Page 5
M6 Washer (114)
M8 Nylon Locknut (101)
M10 Washer (109)
M10 Nylon Locknut (111)
M6 Nylon Locknut (103)
M4 x 16mm Self-tapping Screw (100)
M4 x 13mm Self-tapping Screw (105)
M8 x 25mm Shoulder Bolt (92)
M10 x 40mm Bolt (116)
M10 x 35mm Screw (113)
M10 x 50mm Bolt (106)
M10 x 63mm Bolt (104)
M10 x 45mm Bolt (95)
M6 x 30mm Screw (99)
M10 x 55mm Button Bolt (115)
PART IDENTIFICATION CHART
Refer to the drawings below and on page 6 to identify small parts used in assembly. The number in parentheses by each drawing is the key number of the part, from the PART LIST on pages 34 and 35 of this manual.
Some small parts may have been pre-attached. If a part is not in the parts bag, check to see if it has
een pre-attached.
b
Note:
5
Page 6
M10 x 130mm Bolt (107)
M10 x 120mm Bolt (97)
M10 x 150mm Bolt (94)
M6 x 90mm Screw (98)
M10 x 80mm Carriage Bolt (112)
M10 x 65mm Bolt (110)
M10 x 95mm Bolt (108)
M10 x 90mm Bolt (102)
M
10 x 70mm Bolt (57)
M10 x 100mm Bolt (85)
M10 x 75mm Bolt (96)
Pulley (43)
(Not shown to scale)
"V"-pulley (44)
(Not shown to scale)
Small Pulley (84)
(Not shown to scale)
6
Page 7
ASSEMBLY
ake Assembly Easier for Yourself
M
Everything in this manual is designed to ensure that the weight system can be assem­bled successfully by almost anyone. Before
beginning assembly, make sure to read the information on this page. This brief intro­duction will save you much more time than it takes to read it.
Hire an Authorized Service Technician
To hire an authorized service technician to assemble the weight system, call toll-free 1-800-445-2480.
Assembly Requires Two Persons
For your convenience and safety, assemble the weight system with the help of another person.
Set Aside Enough Time
Assembling the weight system may require several hours. By deciding to make the task enjoyable, assembly will go smoothly. You may want to assem­ble the weight system over a couple of evenings.
Select a Location for the Weight System
Because of its weight and size, the weight system should be assembled in the location where it will be used. Make sure that there is enough clearance to walk around the weight system
How to Unpack the Box
To make assembly as easy as possible, we have divided the assembly process into four stages. parts needed for each stage are found in individual bags.
Important: Wait until you begin each stage
to open the parts bag for that stage. Place all
as you assemble it.
The
parts of the weight system in a cleared area and remove the packing materials. Do not dispose of the
acking materials until assembly is completed.
p
The included Allen wrench and grease, and the following tools (not included) may be required for assembly:
• Two adjustable wrenches
• One standard screwdriver
• One phillips screwdriver
• One rubber mallet
• A small amount of soapy water, and clear tape or
masking tape.
Note: Assembly may be more convenient if you have a socket set, a set of open-end or closed-end wrenches, or a set of ratchet wrenches.
How to Identify Parts
To help you identify the small parts used in assembly, we have included a PART IDENTIFICATION CHART on pages 5 and 6 of this manual. Note: Some parts
may have been pre-attached. If a part is not in the parts bag, check to see if it has been pre­attached.
How to Orient Parts
As you assemble the weight system, make sure all parts are oriented exactly as shown in the drawings.
ightening Parts
T
ighten all parts as you assemble them, unless
T instructed to do otherwise.
Questions?
If you have questions after reading the assembly
The Four Stages of the Assembly Process
Frame
the base and the uprights that form the skeleton of the weight system.
Arm Assembly—During this stage you will assem­ble the arms and the moving parts.
Assembly—You will begin by assembling
Assembly—
Cable
the cables and pulleys that connect the arms to the weights.
Seat Assembly—During the final stage you will assemble the seats, the backrests, and other parts.
During this stage you will attach
7
Page 8
Frame Assembly
1
1.
Before beginning assembly, make sure you understand the information in the box on
he previous page. For help identifying
t small parts, use the PART IDENTIFICATION CHART on pages 5 and 6 of this manual.
Attach the Foot Plate (90) to the Right Base (1) with an M10 x 120mm Bolt (97), two M10 Washers (109), and an M10 Nylon Locknut (111).
Do not overtighten the Nylon Locknut; the Foot Plate must be able to pivot easily.
Insert four M10 x 80mm Carriage Bolts (1 through the Right Base (1). Place a piece of tape over the Bolt heads to hold the Bolts in place.
2. Insert two M10 x 80mm Carriage Bolts (112) up through the Left Base (2). Place a piece of tape over the Bolt heads to hold the Bolts in place.
12) up
1
109
11
1
112
90
2
109
97
2
112
112
3. Attach the Center Base (5) to the Right and Left Bases (1, 2) with four M10 x 70mm Bolts (57), four M10 Washers (109), and two M10 Nylon Locknuts (111).
Do not tighten the Bolts yet.
3
57
109
1
111
5
2
1
1
1
109
57
8
Page 9

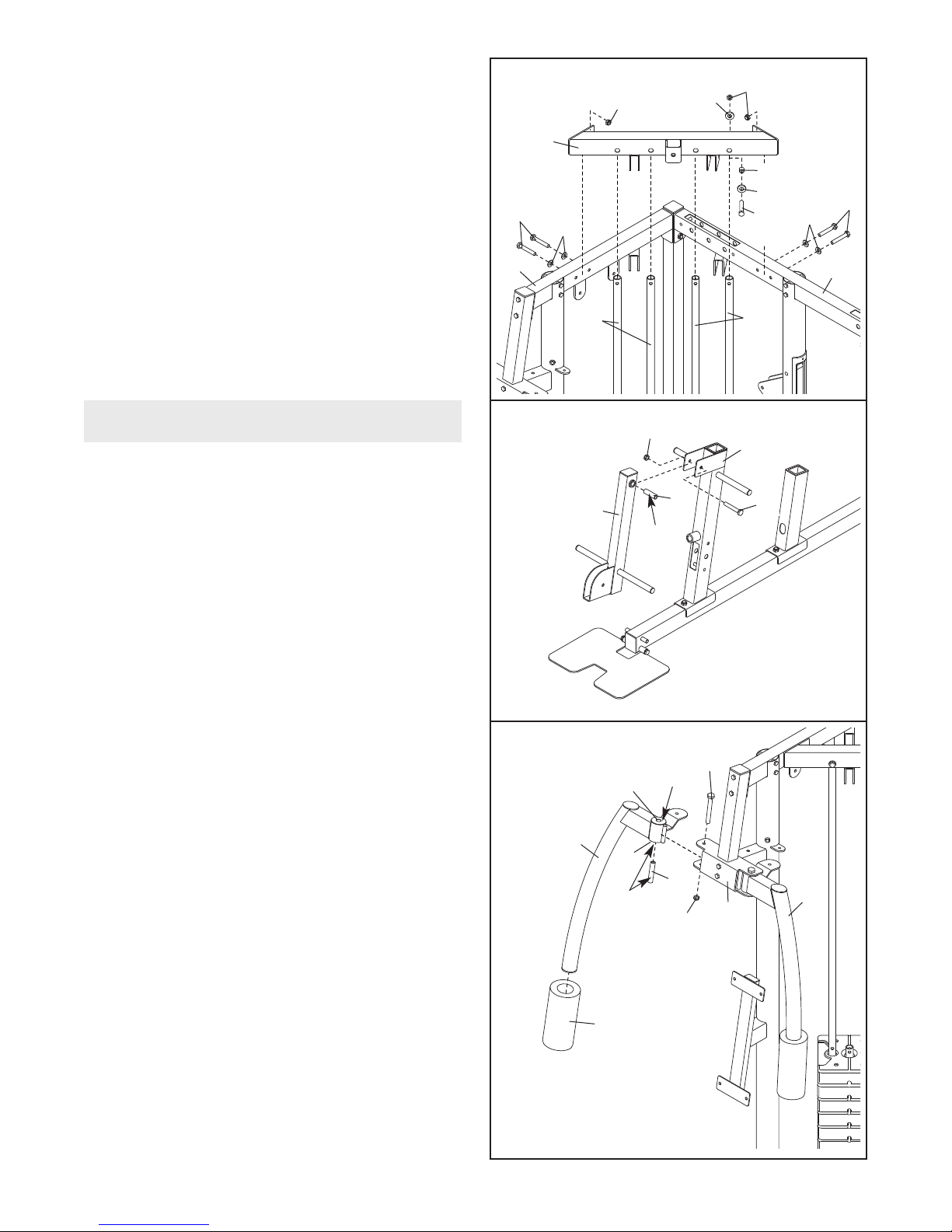

4. Orient the Center Upright (9) so the 2” Square Inner Cap (51) is in the position shown. Attach
he Center Upright (9) to the Right and Left Bases
t (1, 2) with four M10 x 70mm Bolts (57), four M10
ashers (109), and two M10 Nylon Locknuts
W (111). Do not tighten the Bolts yet.
4
9
51
5. Attach the Right Upright (7) to the Right Base (1) with two M10 x 90mm Bolts (102) and two M10 Nylon Locknuts (111). Do not tighten the nylon
Locknuts yet.
57
109
111 1
5
7
57
109
111
2
111
1
102
9
Page 10
6. Attach the Right Seat Upright (11) to the Right
ase (1) with the indicated M10 x 80mm Carriage
B Bolts (112) and two M10 Nylon Locknuts (111).
6
11
111
111
1
112
7. Attach the Curl Post Upright (10) to the Right Base (1) with the indicated M10 x 80mm Carriage Bolts (112) and two M10 Nylon Locknuts (111).
8. Attach the Left Upright (8) to the Left Base (2) with two M10 x 90mm Bolts (102) and two M10 Nylon Locknuts (111). Do not tighten the Nylon
Locknuts yet.
7
10
11
1
111
1
112
8
8
111
2
102
10
Page 11
9. Attach the Left Seat Upright (14) to the Left Base (2) with the indicated M10 x 80mm Carriage Bolts
112) and two M10 Nylon Locknuts (111).
(
9
111
2
112
14
111
10. Attach the Right Top Frame (3) to the Center Upright (9) with two M10 x 70mm Bolts (57), two M10 Washers (109), and an M10 Nylon Locknut
Do not tighten the Bolts yet.
(111).
Attach the Right Top Frame (3) to the Right Upright (7) with two M10 x 90mm Bolts (102) and two M10 Nylon Locknuts (1
the Nylon Locknuts yet.
11. Attach the Left Top Frame (4) to the Center Upright (9) with two M10 x 70mm Bolts (57), two M10 Washers (109), and an M10 Nylon Locknut (111). Do not tighten the Bolts yet.
Attach the Left Top Frame (4) to the Left Upright (8) with two M10 x 90mm Bolts (102) and two M10 Nylon Locknuts (111).
Nylon Locknuts yet.
Do not tighten
11).
Do not tighten the
10
11
57
111
109
9
109
57
1
1
1
3
111
7
111
9
102
4
12. Attach the Butterfly Frame (24) to the Right Top Frame (3) with two M10 x 65mm Bolts (1 an M10 Nylon Locknut (111). Do not tighten the
Bolts yet.
Attach the Butterfly Frame (24) to the Right Upright (7) with two M10 x 35mm Screws (113).
Do not tighten the Screws yet.
10) and
11
12
102
8
3
10
1
13
1
24
111
7
Page 12
13. Orient a Weight Guide (30) with the indicated ole closer to the bottom. Attach the Weight
h Guide to the Center Base (5) with an M10 x
5mm Bolt (110), two M10 Washers (109), a 1/2"
6 Spacer (68), and an M10 Nylon Locknut (111). Slide a Weight Bumper (66) onto the Weight Guide.
ttach the other three Weight Guides (30) to
A the Center Base (5) in the same manner.
Tighten the M10 x 70mm Bolts (57) used in step 3.
13
30
Hole
111
30
14. Slide eleven Weights (34), with the pin grooves
on the bottom, onto a set of Weight Guides (30).
Orient a Weight Tube (75) as shown. Insert the Weight Tube into the stack of Weights (34).
Slide another Weight (34) onto the set of Weight Guides (30).
Repeat this step with the other stack of Weights (34).
14
66
109
110
34
30
75
68
5
34
34
Pin
Groove
12
Page 13
15. Attach the Center Top Frame (6) to the Right and eft Top Frames (3, 4) with four M10 x 70mm
L Bolts (57), four M10 Washers (109), and two M10
ylon Locknuts (111). Do not tighten the Bolts
N
yet.
15
11
111
6
109
1
Attach a Weight Guide (30) inside the Center Top
rame (6) with an M10 x 65mm Bolt (110), two
F
10 Washers (109), a 1/2" Spacer (68), and an
M M10 Nylon Locknut (111).
Attach the other three Weight Guides (30) to the Center Top Frame (6) in the same manner.
Tighten the bolts, screws and locknuts used in steps 4, 5, 8, 10, 11, and 12.
Arm Assembly
16. Apply grease to a 2" Bushing (63). Attach the Leg
Lever (15) and the Bushing to the Curl Post Upright (10) with an M10 x 70mm Bolt (57) and an M10 Nylon Locknut (111).
16
57
3
109
30
15
111
Grease
63
10
30
68
109
110
57
57
09
1
4
17. Apply grease to a 3" Bushing (71) and the two
Large Round Bushings (61) in the Right Butterfly Arm (23). Attach the Butterfly Arm and the Bushing to the Butterfly Frame (24) with an M10 x 100mm Bolt (85) and an M10 Nylon Locknut (111).
Repeat this step with the Left Butterfly Arm (22).
17
23
61
61
Grease
91
Grease
71
11
1
85
22
24
13
Page 14
18. Apply grease to the 1 3/4" Bushing (64). Attach
he Military Press Frame (20) and the Bushing
t inside the Left Upright (8) with an M10 x 63mm
olt (104) and an M10 Nylon Locknut (111).
B
18
104
64
111
rease
G
20
Hole
8
19. Apply grease to an M10 x 45mm Bolt (95). Attach
the Military Press Arm (21) to the Military Press Frame (20) with the Bolt and an M10 Nylon Locknut (111).
Locknut; the Military Press Arm must be able to pivot easily.
20. Apply grease to a 2 3/4" Bushing (65). Attach the
Press Frame (13) and the Bushing to the Left Base (2) with an M10 x 90mm Bolt (102) and an M10 Nylon Locknut (111).
21. Attach the Right Press Arm (26) to the Press
Frame (13) with two M10 x 70mm Bolts (57) and two M10 Nylon Locknuts (111).
Do not overtighten the Nylon
19
20
21
Grease
102
95
65
20
111
21
13
111
2
Grease
Attach the Left Press Arm (25) to the Press Frame (13) in the same manner.
25
57
111
13
26
14
Page 15
22. Apply grease to an M10 x 70mm Bolt (57). Attach
a Press Arm Handle (27) to the Left Press Arm
25) with the Bolt and an M10 Nylon Locknut
(
Do not overtighten the Nylon Locknut;
(111).
he Press Arm Handle must be able to pivot
t easily.
Repeat this step with the other Press Arm Handle (27) and the Right Press Arm (26).
22
26
27
5
rease
G
11
1
7
27
25

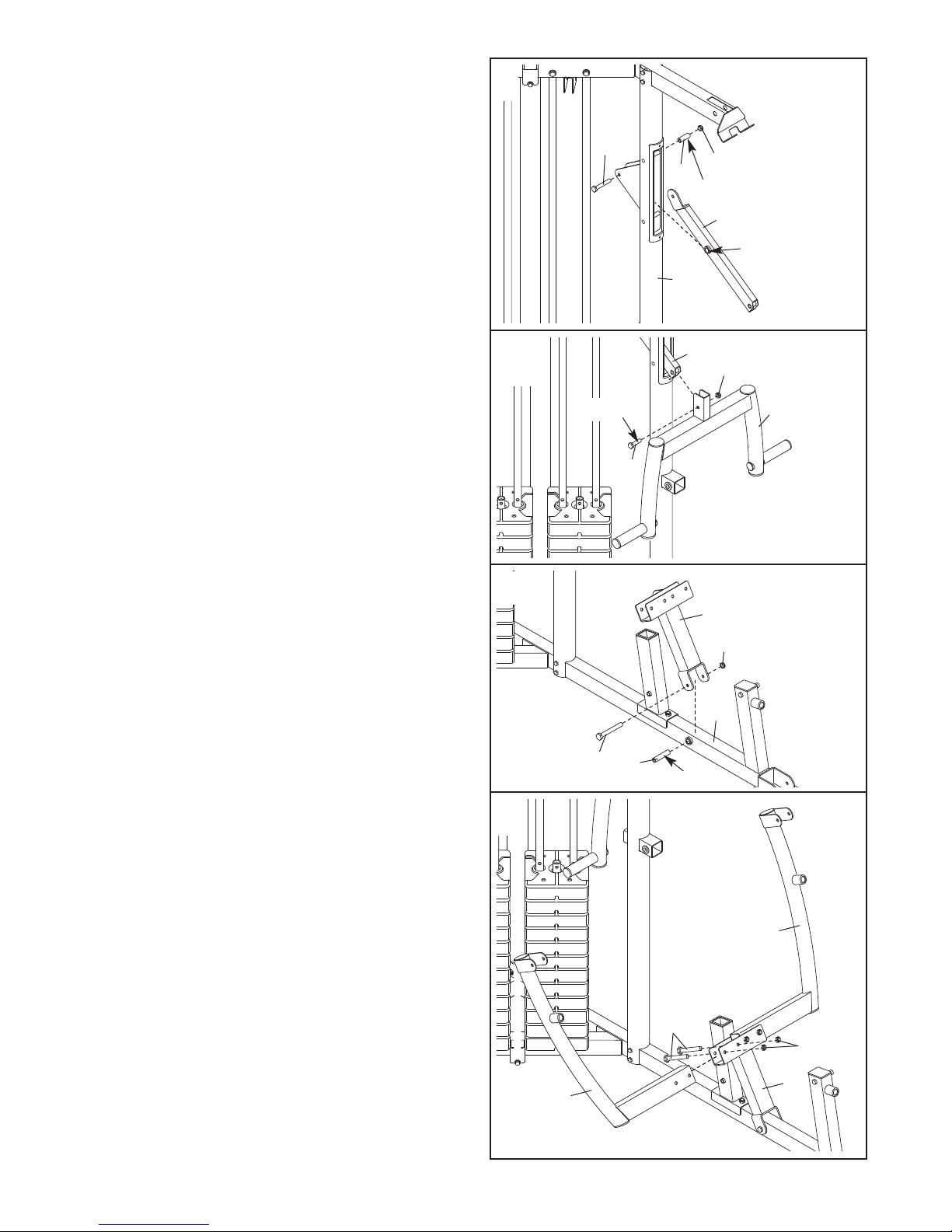

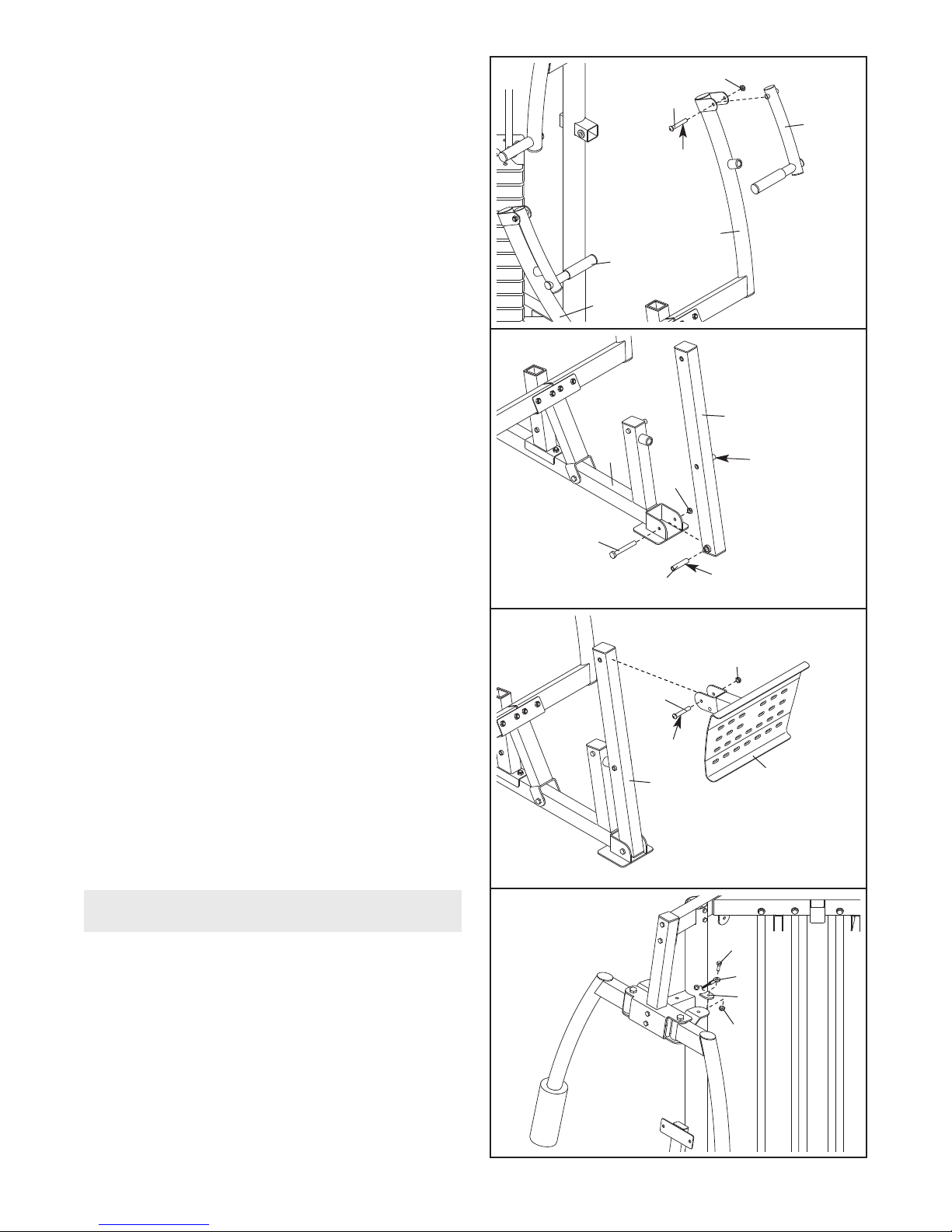

23. Apply grease to a 2 3/4" Bushing (65). Orient the
Leg Press (12) with the welded spacer on the indi­cated side. Attach the Leg Press and the Bushing to the Left Base (2) with an M10 x 95mm Bolt (108) and an M10 Nylon Locknut (111).
24. Apply grease to an M10 x 75mm Bolt (96). Attach
the Leg Press Plate (29) and a 2 3/4" Bushing (65) to the Leg Press (12) with the Bolt and an M10 Nylon Locknut (111). Do not overtighten the
Nylon Locknut; the Leg Press Plate must be able to pivot easily.
23
24
108
12
2
111
65
96
Grease
12
Welded Spacer
Grease
111
29
Cable Assembly

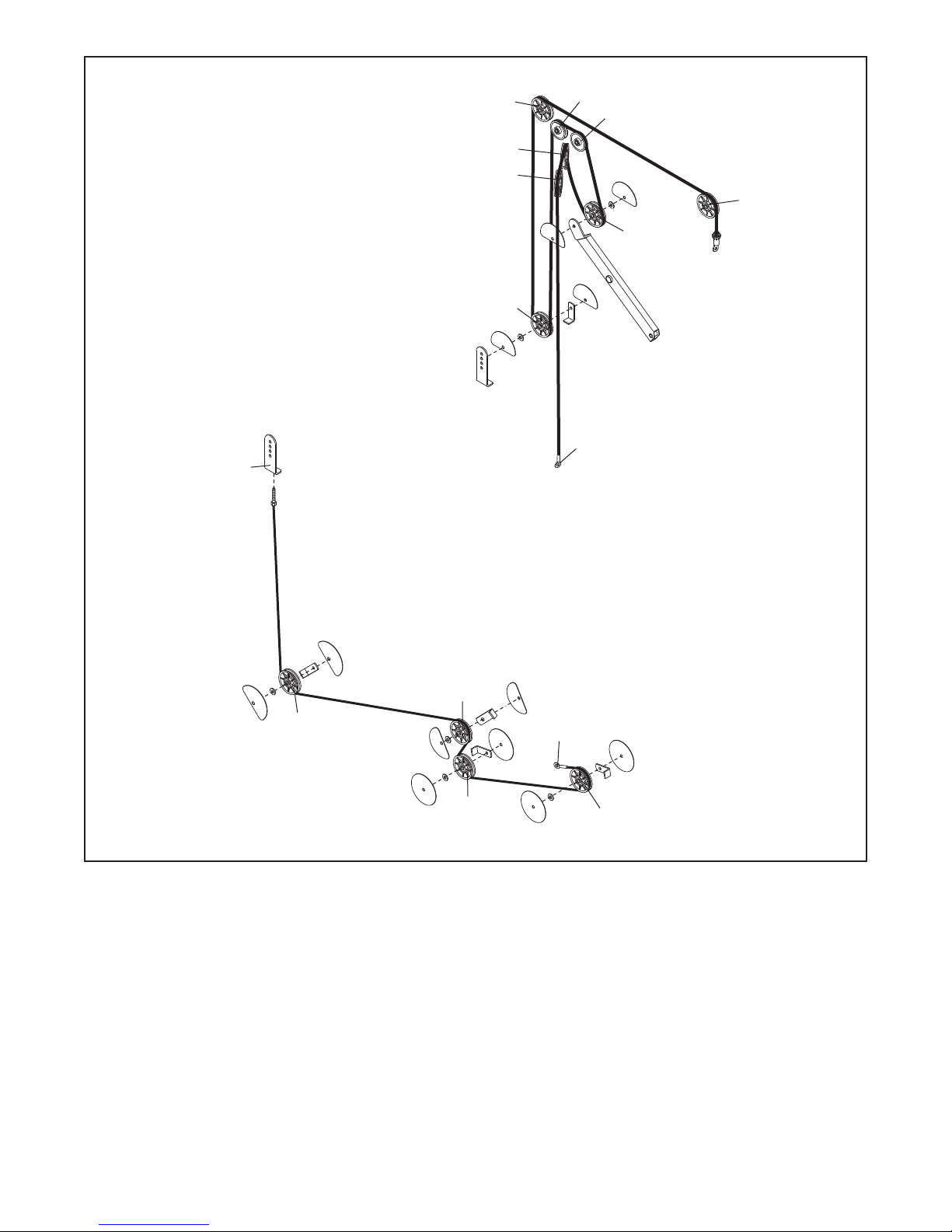

25. During steps 25–54, see the CABLE DIA-
GRAMS on pages 29 and 30 to identify the cables and ensure proper cable routing.
Identify the Butterfly Cable (73).
Cable to the Right Upright (7) with an M8 x 25mm Shoulder Bolt (92) and an M8 Nylon Locknut (101). Make sure that the Cable end can pivot
easily around the shoulder of the Bolt.
Attach the
25
92
73
7
101
15
Page 16
26. During steps 26–53, see the PART IDENTIFI-
CATION CHART to identify the different types
f pulleys.
o
rap the Butterfly Cable (73) around a Pulley
W (43). Attach the Pulley, a Cable Trap (48), an M10 Washer (109), and two Finger Guards (45) to the Left Butterfly Arm (22) with an M10 x 50mm Bolt (106) and an M10 Nylon Locknut (111).
sure that the Cable Trap is oriented to hold the Cable in the groove of the Pulley.
Make
26
106
111
45
3
4
48
3
7
109
5
4
22
27. Wrap the Butterfly Cable (73) around a Pulley
(43). Attach the Pulley, a Cable Trap (48), an M10 Washer (109), and two Half Finger Guards (46) to the Right Upright (7) with an M10 x 120mm Bolt (97), an M10 Washer (109), and an M10 Nylon Locknut (111).
oriented to hold the Cable in the groove of the Pulley
.
28. Wrap the Butterfly Cable (73) around a Pulley
(43). Attach the Pulley, a Cable Trap (48), an M10 Washer (109), and two Finger Guards (45) to the Right Butterfly Arm (23) with an M10 x 50mm Bolt (106) and an M10 Nylon Locknut (111). Make
sure that the Cable Trap is oriented to hold the Cable in the groove of the Pulley.
Make sure that the Cable Trap is
27
28
48 43
109
45
111
46
73
109
46
43
111
48
7
109
97
45
73
29. Wrap the Butterfly Cable (73) under the “V”-pulley
Attach the “V”-pulley
(44). (83), an M10 Washer (109), and two Finger Guards (45) to the Right Upright (7) with an M10 x 150mm Bolt (94) and an M10 Nylon Locknut
1).
1
(1
Make sure that the Cable T ed to hold the Cable in the groove of the “V”­pulley.
, the Long Cable
Trap
rap is orient
23
106
29
-
73
45
111
44
45
83
109
7
94
16
Page 17

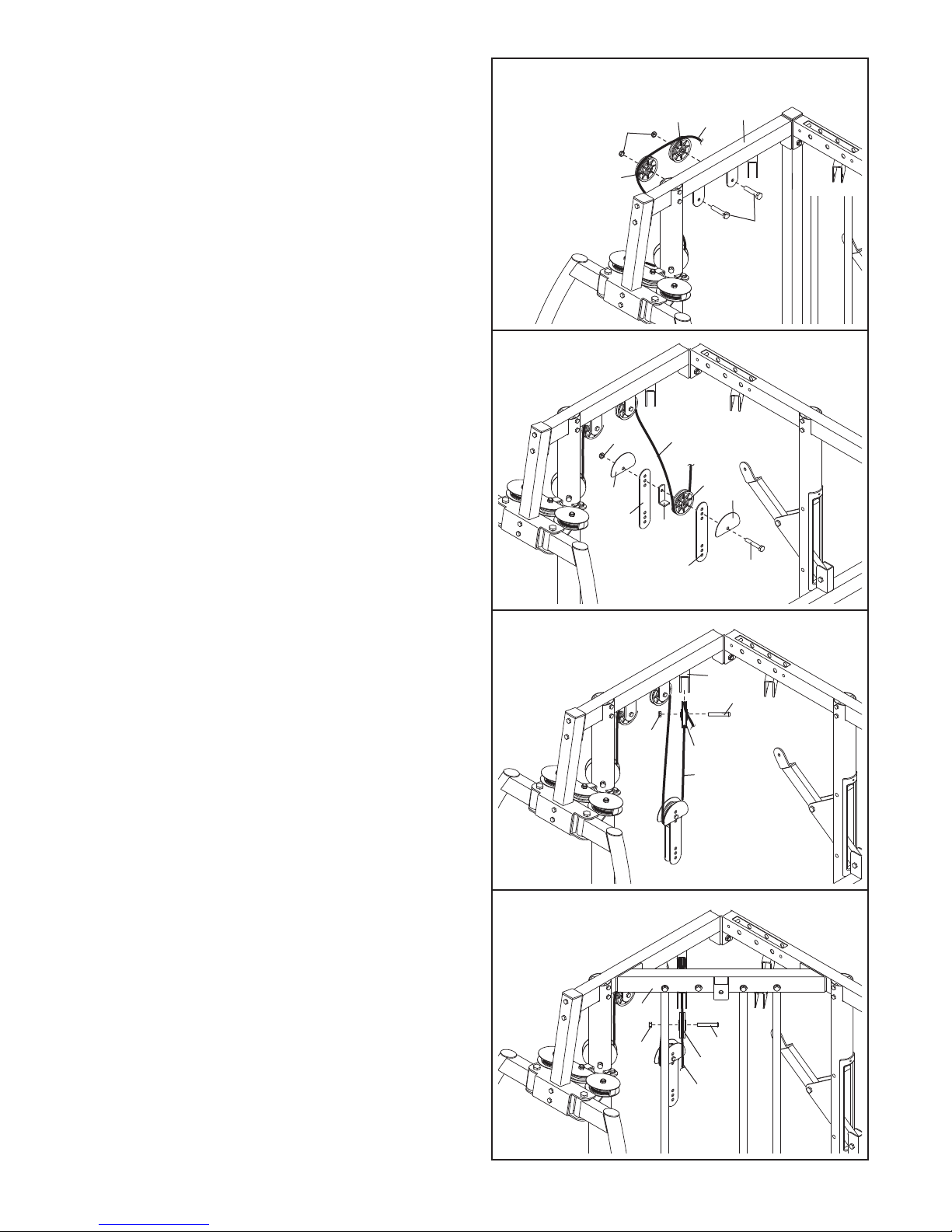

30. Wrap the Butterfly Cable (73) over a Pulley (43). Attach the Pulley to the Right Top Frame (3) with an M10 x 40mm Bolt (116) and an M10 Nylon Locknut (111).
Repeat this step with another Pulley (43).
30
111
4
73
3
116
3
4
3
31. Wrap the Butterfly Cable (73) under a Pulley (43). Attach the Pulley, a Cable Trap (48), and two Half Finger Guards (46) at the second hole from the top of the two Pulley Plates (49) with an M10 x 50mm Bolt (106) and an M10 Nylon Locknut
Makes sure that the Cable T
11).
(1
ed to hold the Cable in the groove of the Pulley.
32. Wrap the Butterfly Cable (73) over a Pulley (43). Attach the Pulley to the Right Top Frame (3) with an M10 x 45mm Bolt (95) and an M10 Nylon Locknut (111).
rap is orient-
31
32
46
111
49
111
48
73
49
43
73
43
46
106
3
95
rap the Butterfly Cable (73) over a Pulley (43).
33. W Attach the Pulley to the Center Top Frame (6) with an M10 x 45mm Bolt (95) and an M10 Nylon Locknut (111).
17
33
6
111
95
43
73
Page 18
34. Attach the Butterfly Cable (73) and a Weight Cap (67) to the indicated Weight Tube (75) with an
10 x 50mm Bolt (106) and an M10 Nylon
M Locknut (111).
34
1
111
06
75
7
67
3

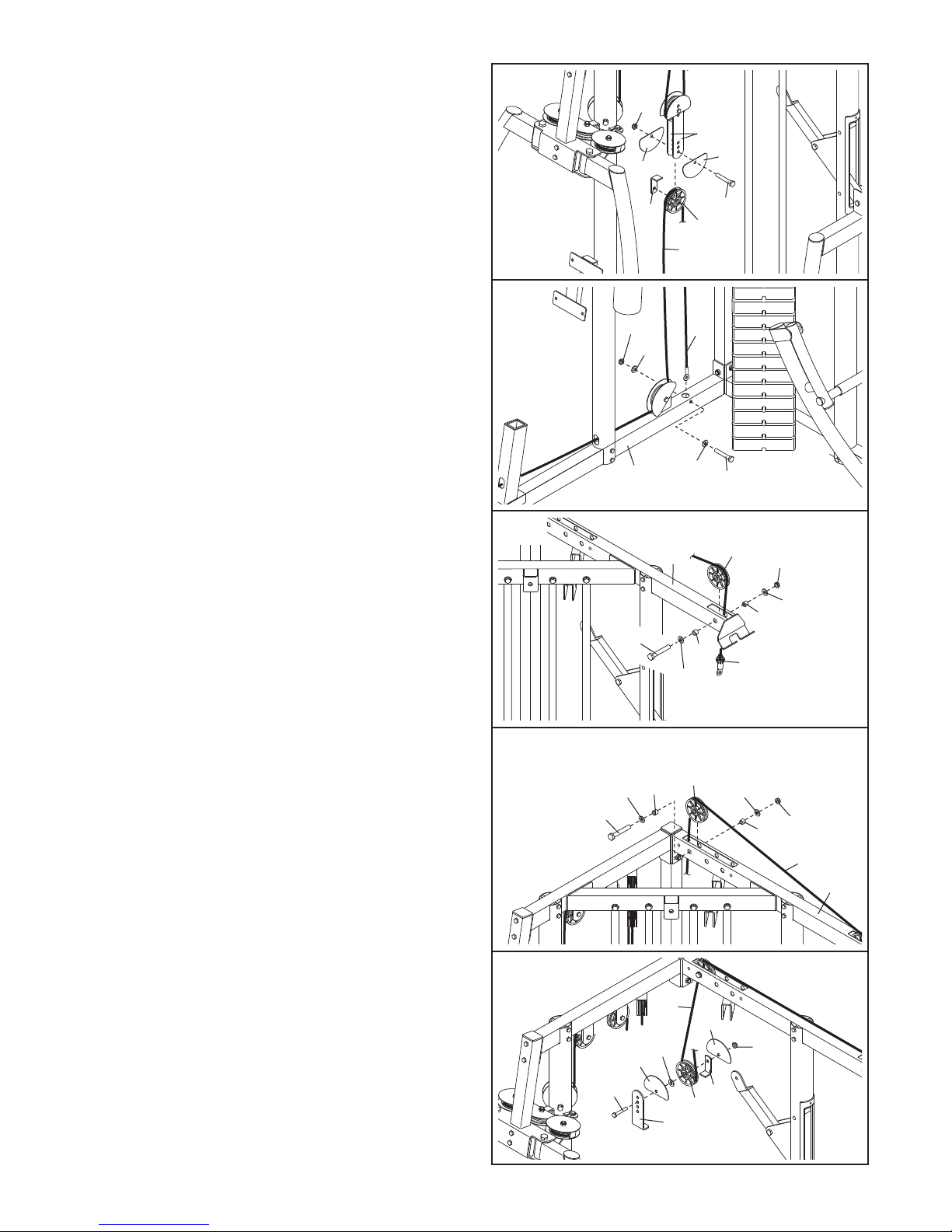

35. Identify the Low Cable (70). Route the Cable through the Leg Lever (15) and the Curl Post Upright (10).
Attach a Pulley (43) to the Leg Lever (15), over the Low Cable (70), with an M10 x 45mm Bolt (95) and an M10 Nylon Locknut (111).
36. Attach a Pulley (43) inside the Curl Post Upright (10), over the Low Cable (70), with an M10 x 65mm Bolt (110), two M10 Washers (109), two 1/2" Spacers (68), and an M10 Nylon Locknut (111).
35
36
70
111
109
43
111
68
15
10
95
10
43
70
109
110
68

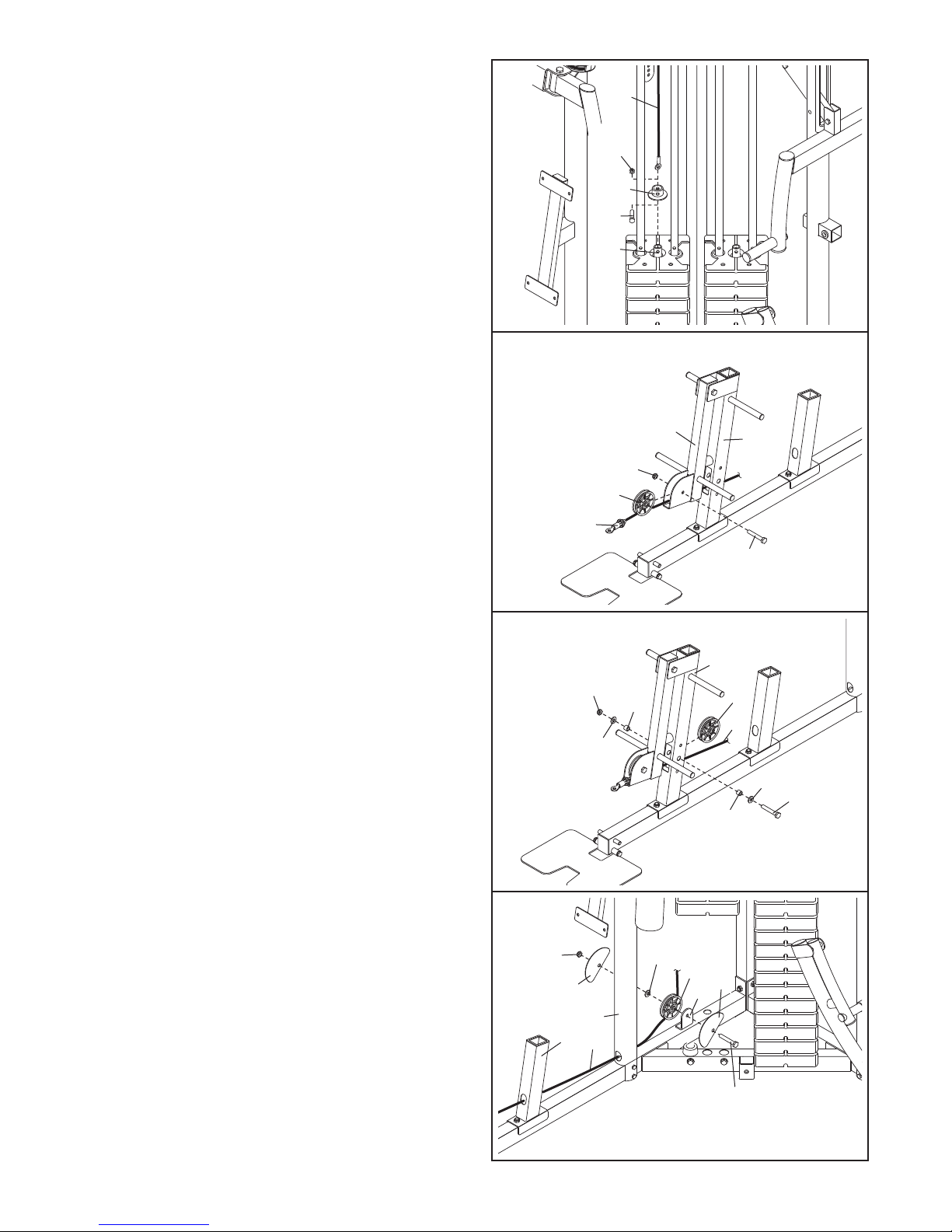

37. Route the Low Cable (70) through the Right Seat Upright (11) and the Right Upright (7) and under a Pulley (43). Attach the Pulley, an M10 Washer (109), and two Half Finger Guards (46) to the Right Base (1) with an M10 x 45mm Bolt (95) and an M10 Nylon Locknut (111).
18
37
1
1
1
46
7
11
70
109
43
46
1
95
Page 19

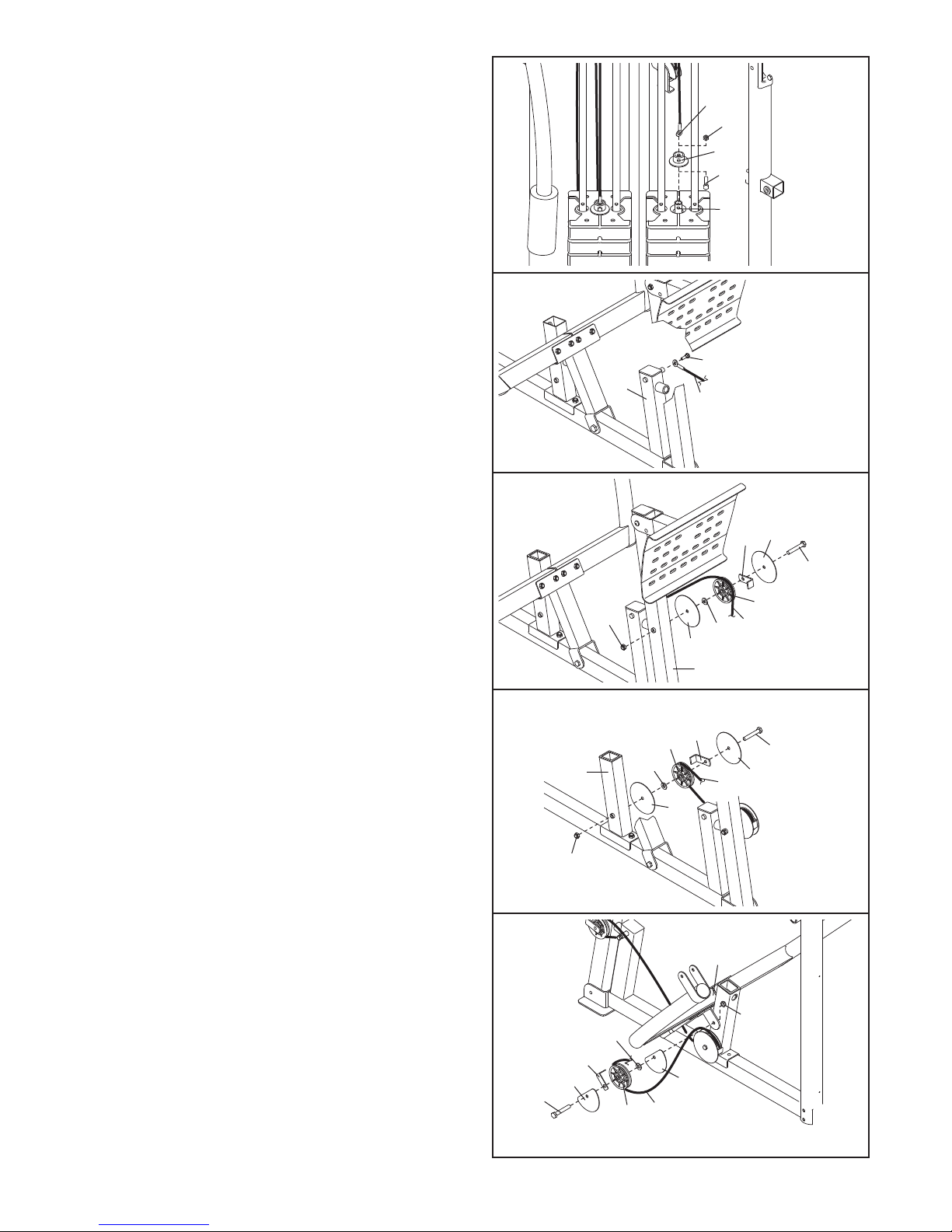

38. Wrap the Low Cable (70) over a Pulley (43).
ttach the Pulley, a Cable Trap (48), and two Half
A Finger Guards (46) at the bottom hole of the two Pulley Plates (49) with an M10 x 50mm Bolt (106) and an M10 Nylon Locknut (111). Makes sure
that the Cable Trap is oriented to hold the Cable in the groove of the Pulley.
38
11
1
49
6
4
8
4
46
106
43
70
39. Attach the Low Cable (70) inside the Right Base (1) with an M10 x 65mm Bolt (110), two M10 Washers (109), and an M10 Nylon Locknut (111).
40. Identify the High Cable (88). Route the Cable up through the Left Top Frame (4) and over a Pulley (43). Attach the Pulley inside the Left Top Frame with an M10 x 65mm Bolt (110), two M10 Washers (109), two 1/2" Spacers (68), and an M10 Nylon Locknut (111).
41. Route the High Cable (88) over a Pulley (43) and down through the Left Top Frame (4). Attach the Pulley inside the Left Top Frame with an M10 x 65mm Bolt (110), two M10 Washers (109), two 1/2" Spacers (68), and an M10 Nylon Locknut (111).
39
40
41
111
109
1
110
109
1

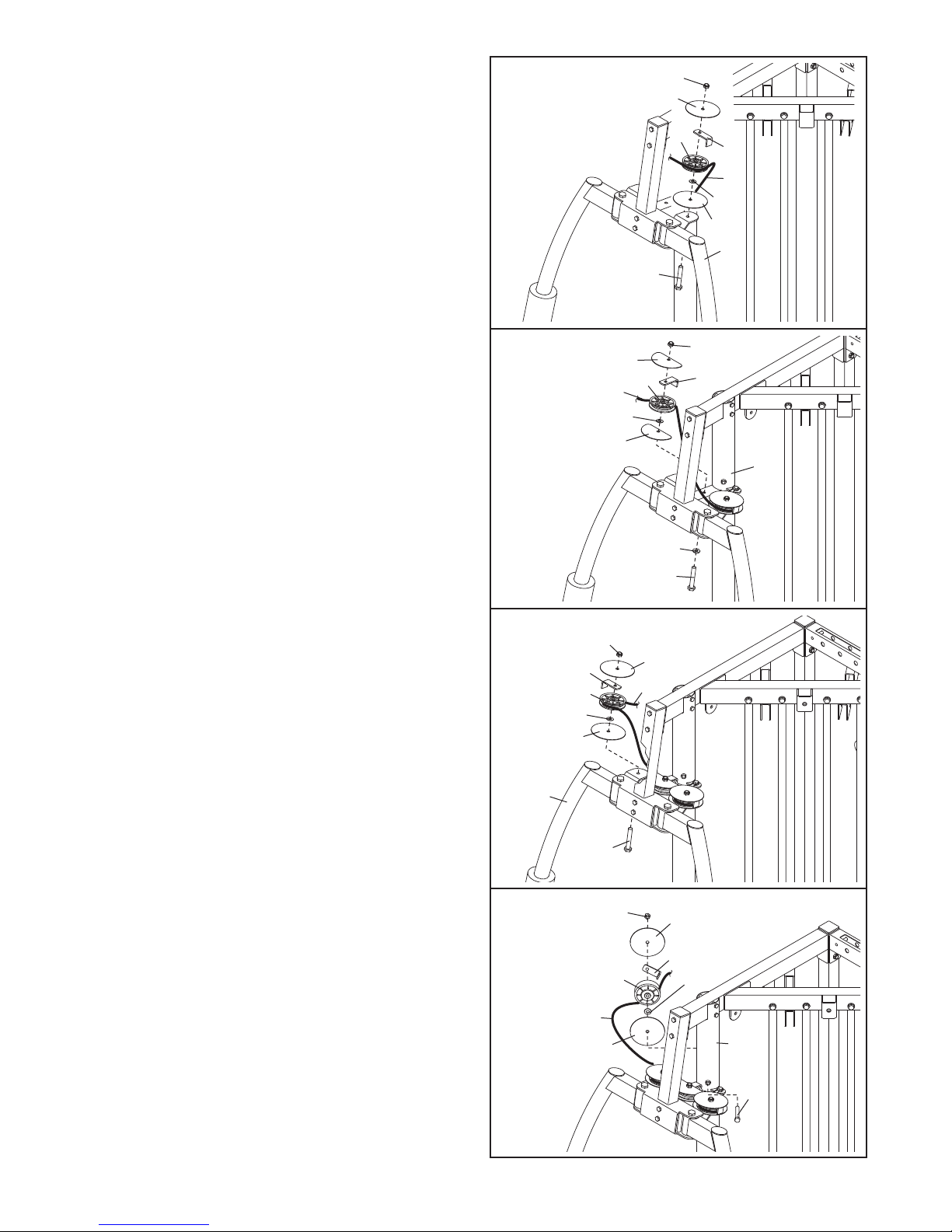

10
68
109
4
109
43
70
68
110
109
43
88
68
68
111
109
111
88
42. Wrap the High Cable (88) under a Pulley (43). Attach the Pulley, a Cable Washer (109), and two Half Finger Guards (46) at the second hole from the top of the Small Pulley Plate (50) with an M10 x 50mm Bolt (106) and an M10 Nylon Locknut (1
Cable Trap is oriented to hold the Cable in the groove of the Pulley.
Trap (48), an M10
1).
1
Makes sure that the
19
42
106
46
88
109
4
46
111
48
43
50
Page 20

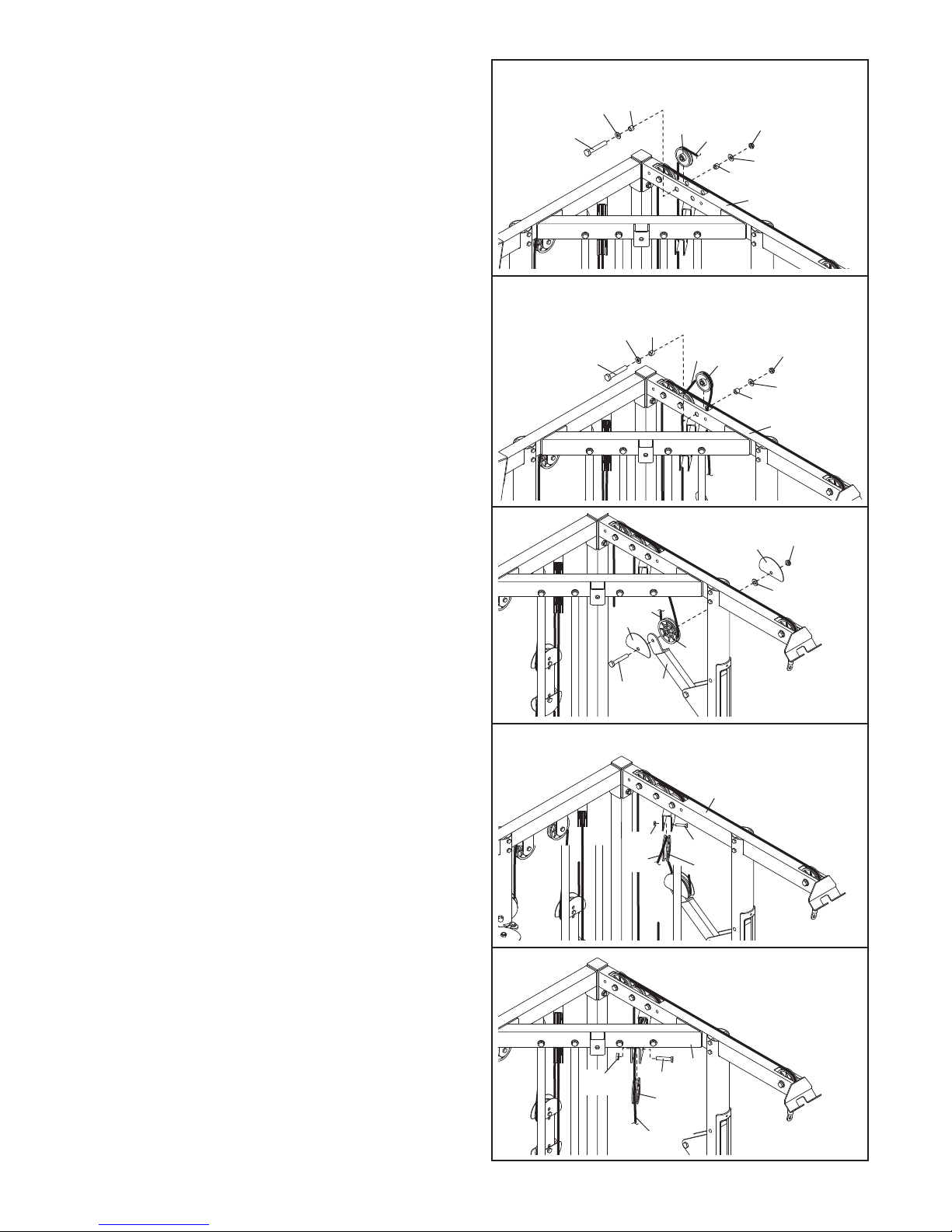

43. Route the High Cable (88) up through the Left Top Frame (4) and over a Small Pulley (84).
ttach the Pulley inside the Left Top Frame with
A an M10 x 65mm Bolt (110), two M10 Washers (109), two 1/2" Spacers (68), and an M10 Nylon Locknut (111).
43
110
109
68
84
88
111
109
8
6
4
44. Route the High Cable (88) over a Small Pulley (84) and down through the Left Top Frame (4). Attach the Pulley inside the Left Top Frame with an M10 x 65mm Bolt (110), two M10 Washers (109), two 1/2" Spacers (68), and an M10 Nylon Locknut (111).
45. Wrap the High Cable (88) under a Pulley (43). Attach the Pulley, an M10 Washer (109), and two Half Finger Guards (46) to the Military Press Frame (20) with an M10 x 45mm Bolt (95) and an M10 Nylon Locknut (111).
46. Wrap the High Cable (88) over a Pulley (43). Attach the Pulley to the Left Top Frame (4) with an M10 x 45mm Bolt (95) and an M10 Nylon Locknut (111).
44
45
46
110
109
46
95
88
68
20
88
43
46
111
109
68
4
111
109
84
4
47. Wrap the High Cable (88) over a Pulley (43). Attach the Pulley to the Center with an M10 x 45mm Bolt (95) and an M10 Nylon Locknut (111).
Top Frame (6)
20
47
11
1
88
1
1
1
95
43
6
95
43
88
Page 21

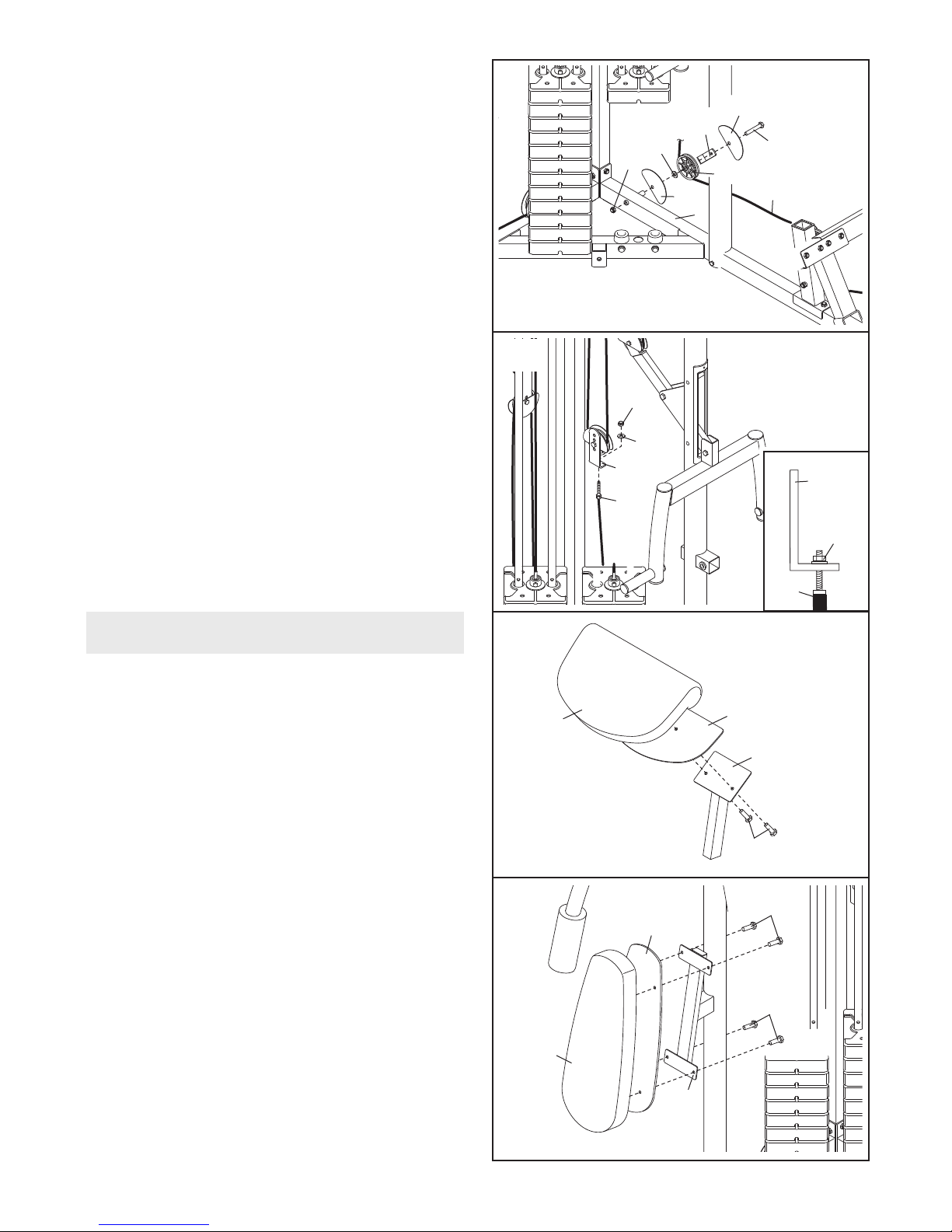

48. Attach the High Cable (88) and a Weight Cap (67) to the indicated Weight Tube (75) with an
10 x 50mm Bolt (106) and an M10 Nylon
M Locknut (111).
48
88
111
67
106
75

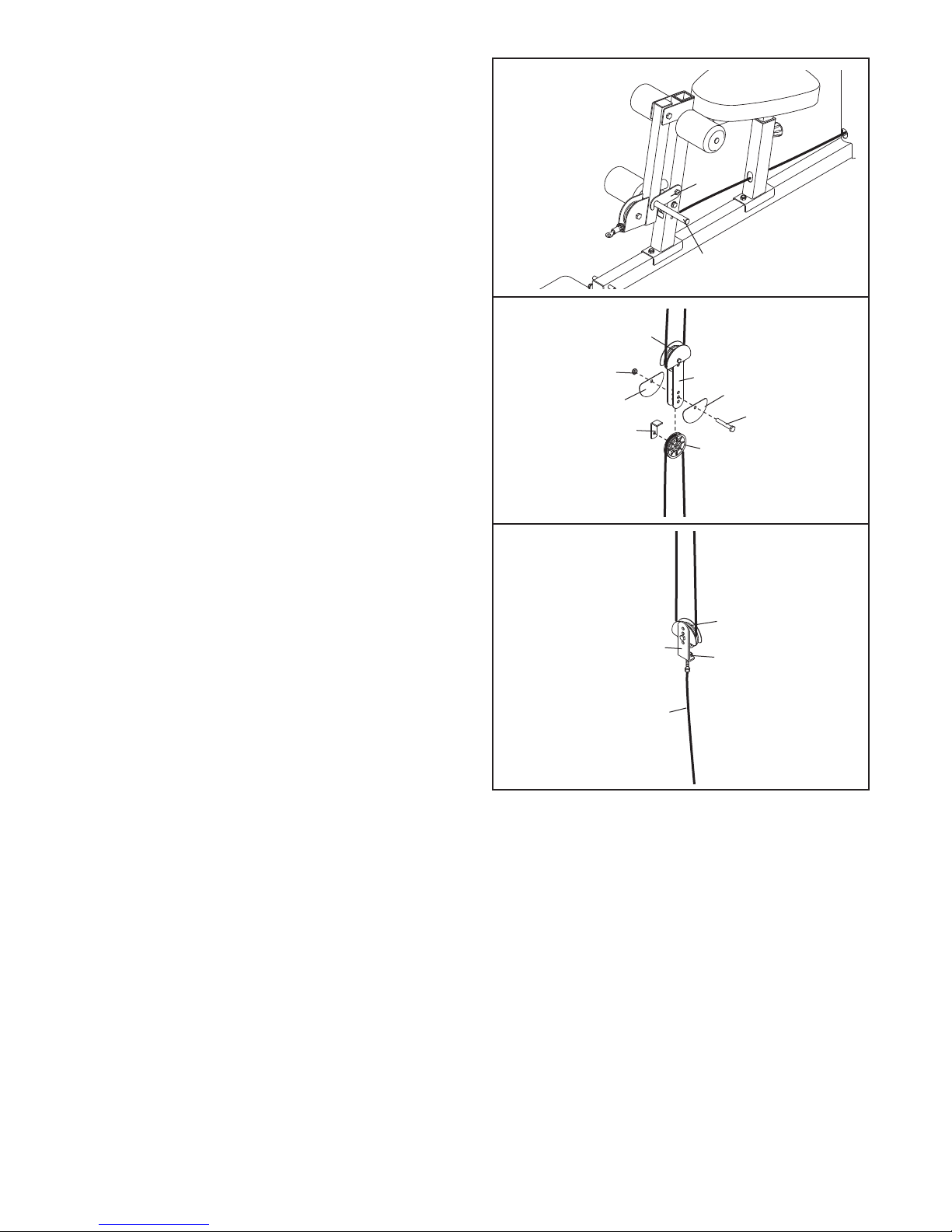

49. Identify the Press Cable (72). Attach the Cable to the Left Base (2) with an M8 x 25mm Shoulder Bolt (92). Make sure that the Cable end can
pivot easily around the shoulder of the Bolt.
50. Wrap the Press Cable (72) over a Pulley (43). Attach the Pulley, a Cable Trap (48), an M10 Washer (109), and two Finger Guards (45) to the Leg Press (12) with an M10 x 120mm Bolt (97) and an M10 Nylon Locknut (111). Make sure that
the Cable Trap is oriented to hold the Cable in the groove of the Pulley.
51. Wrap the Press Cable (72) under a Pulley (43). Attach the Pulley, a Cable Trap (48), an M10 Washer (109), and two Finger Guards (45) to the Left Seat Upright (14) with an M10 x 120mm Bolt (97) and an M10 Nylon Locknut (11
that the Cable Trap is oriented to hold the Cable in the groove of the Pulley.
1).
Make sure
49
50
51
14
111
92
2
109
43
45
45
48
72
12
109
72
48
45
97
43
72
97
45
52. The weigth system is shown from the oppo- site side in this step. Wrap the Press Cable (72) under a Pulley (43). Attach the Pulley, a Cable Trap (48), an M10 Washer (109), and two Half Finger Guards (46) to the Press Frame (13) with an M10 x 45mm Bolt (95) and an M10 Nylon Locknut (111).
oriented to hold the Cable in the groove of the Pulley.
Make sure that the Cable Trap is
21
52
95
1
46
1
1
48
109
43
13
111
46
72
Page 22
53. Wrap the Press Cable (72) under a Pulley (43). Attach the Pulley, a Cable Trap (48), an M10
asher (109), and two Half Finger Guards (46) to
W the Left Base (2) with an M10 x 130mm Bolt (107) and an M10 Nylon Locknut (111). Make
sure that the Cable Trap is oriented to hold the Cable in the groove of the Pulley.
53
111
109
46
46
48
107
43
72
2
54. Attach the Press Cable (72) to the Small Pulley Plate (50) with an M6 Washer (114) and an M6 Nylon Locknut (103). See the inset drawing. Do
not completely tighten the Nylon Locknut; it should be tightened so that only two threads of the Cable show past the Nylon Locknut.
Seat Assembly

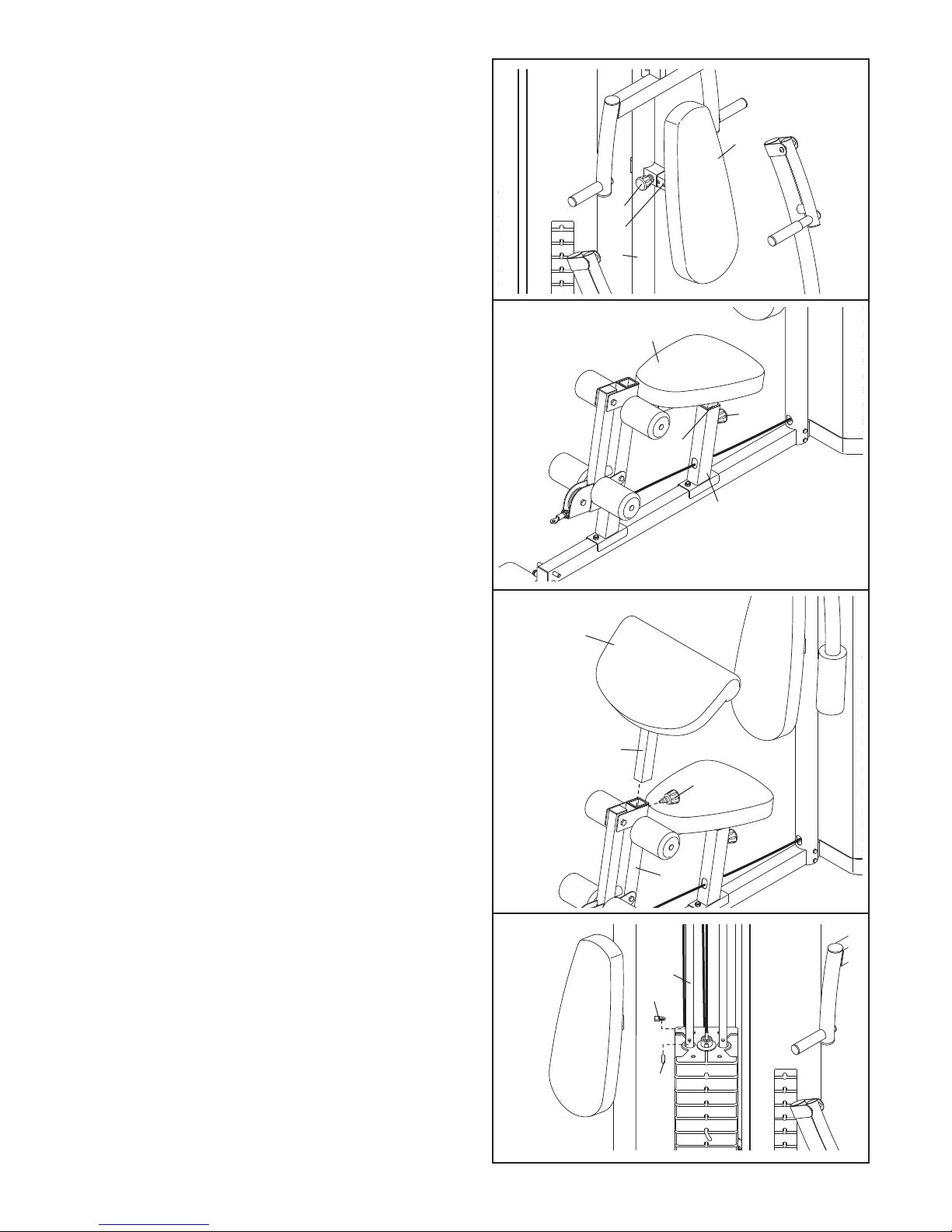

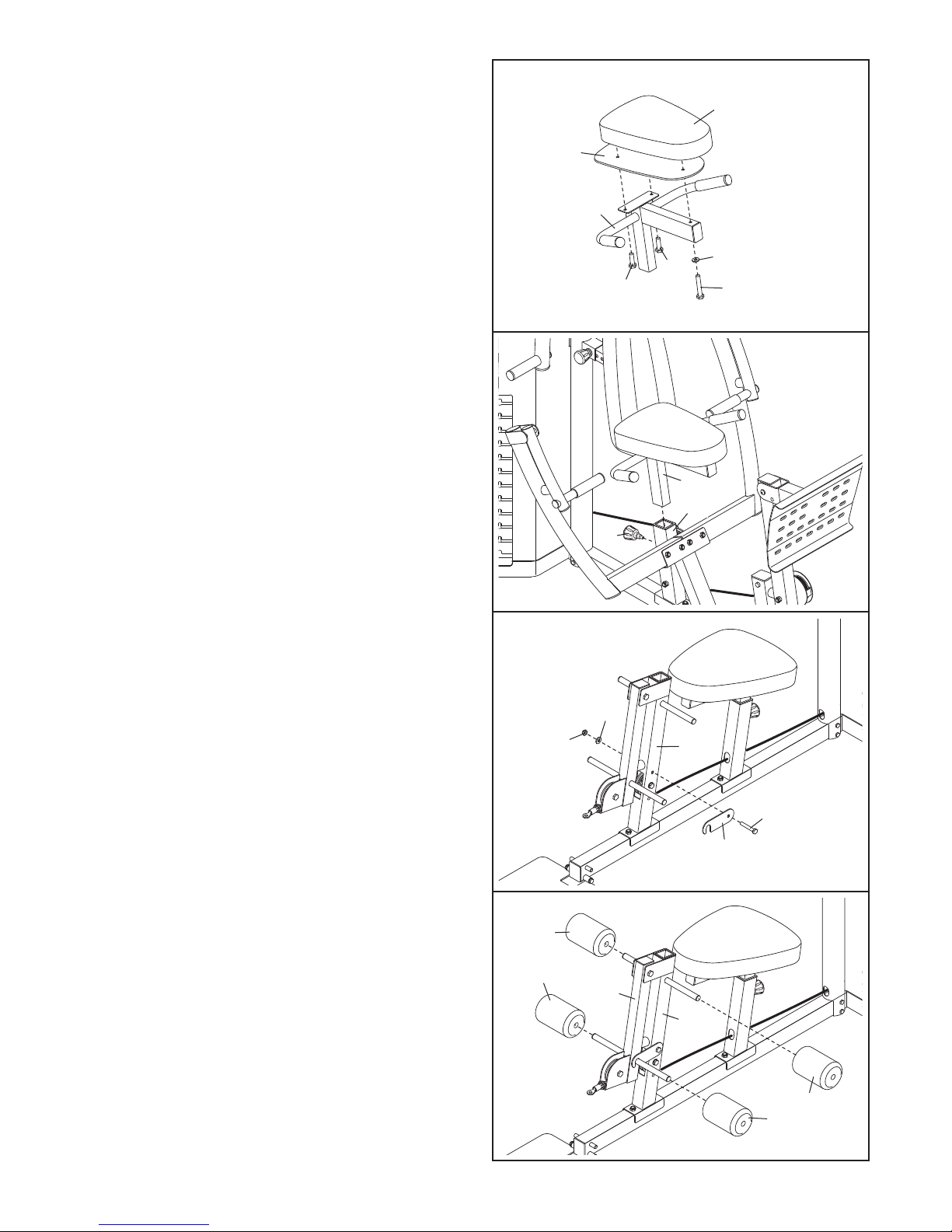

55. Attach the Curl Pad (38) and the Curl Plate (120) to the Curl Post (16) with two M6 x 30mm Screws (99).
54
55
38
50
72
103
1
14
50
103
72
120
16
56. Attach a Backrest (35) and a Backrest Plate (117) to the Right Upright (7) with four M6 x 30mm Screws (99).
99
56
99
117
99
35
7
22
Page 23

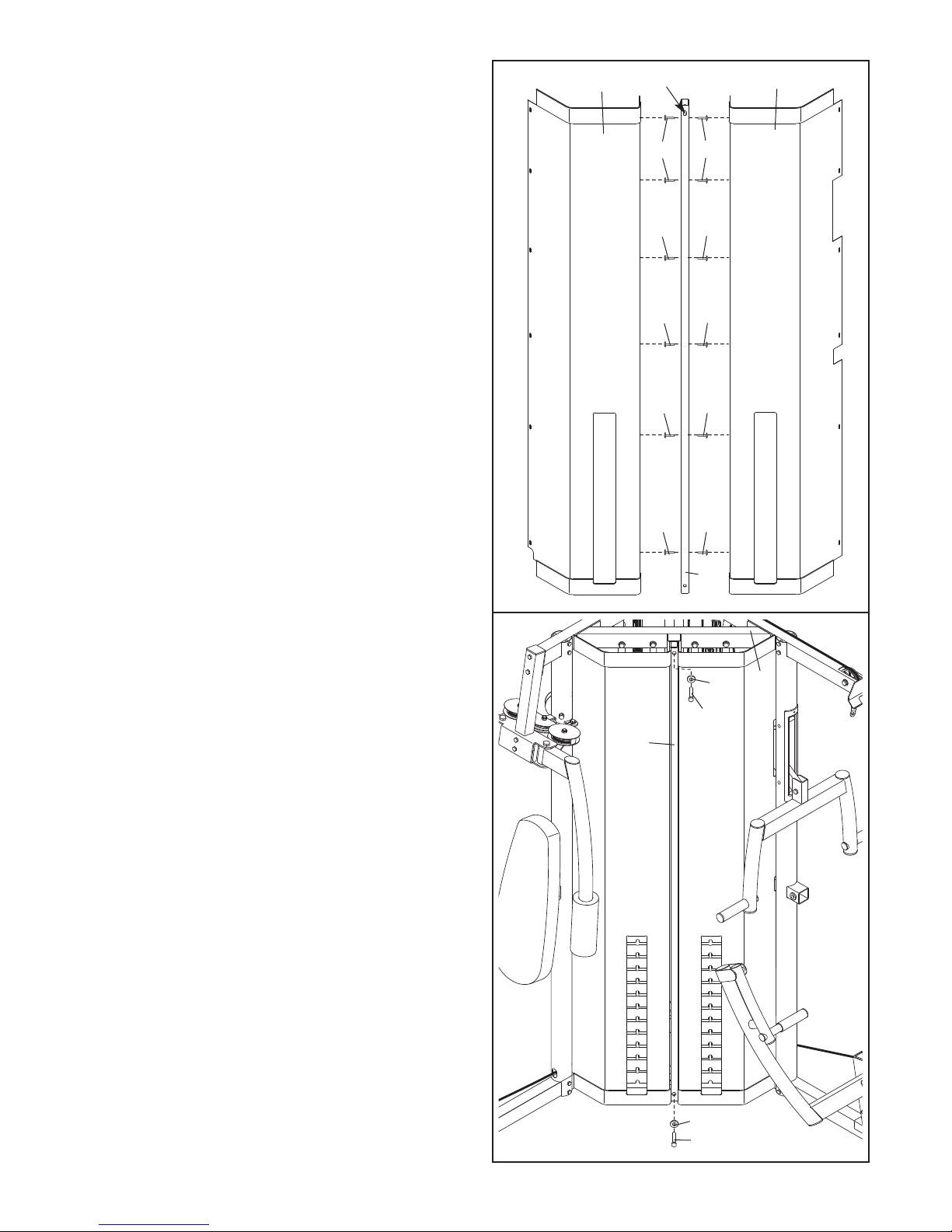

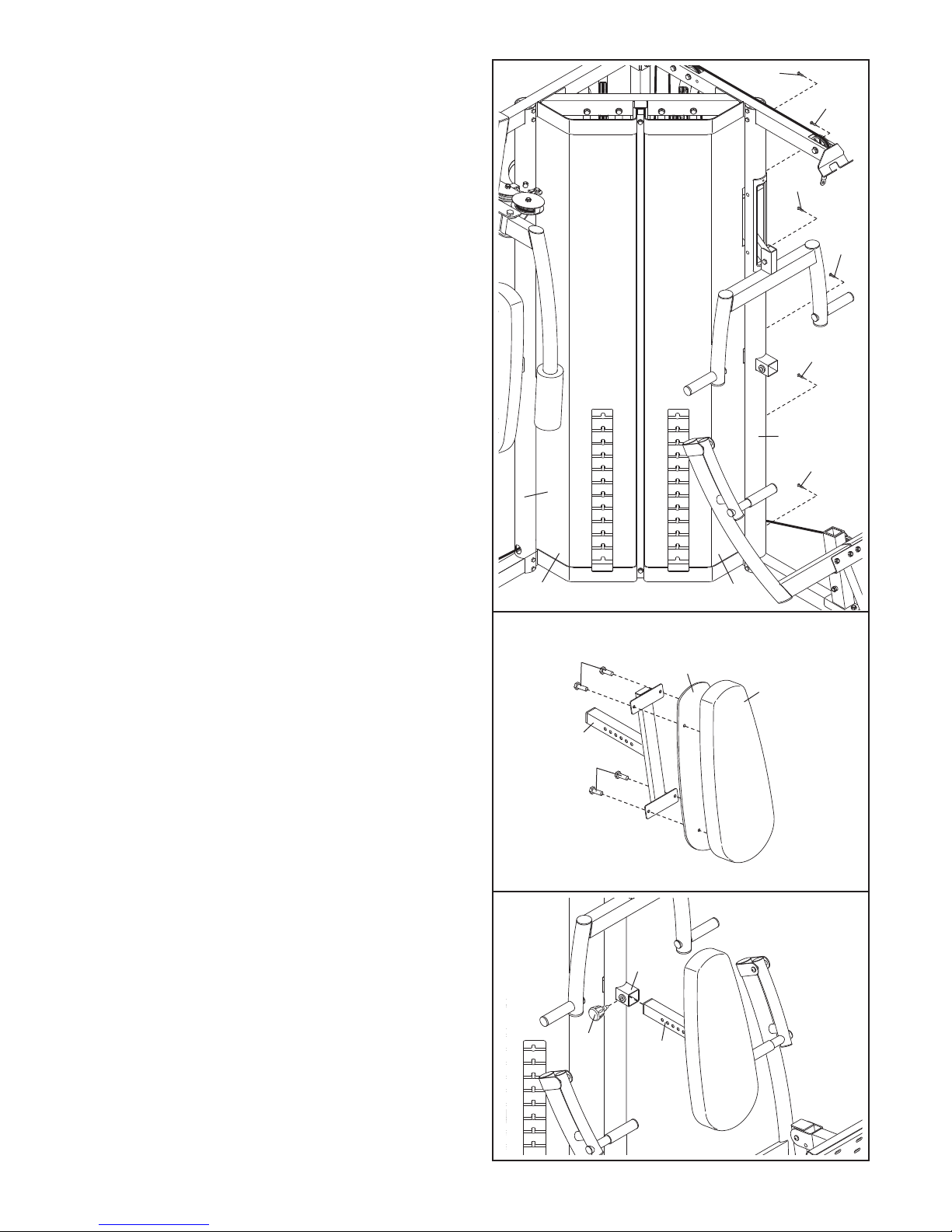

57. Orient the Shroud Frame (89) with the indicated
lot near the top. Attach the Right and Left
s Shrouds (32, 86) to the Shroud Frame with twelve M4 x 13mm Self-tapping Screws (105).
57
Slot
2
3
105
05
1
105
05
1
105
105
105
105
86
58. Attach the Shroud Frame (89) to the Center Top Frame (6) and to the Center Base (not shown) with two M10 x 55mm Button Bolts (115) and two M10 Washers (109).
58
89
105
105
89
115
109
6
23
109
15
1
Page 24
59. Attach the Left Shroud (86) to the Left Upright (8) with six M4 x 13mm Self-tapping Screws (105).
Attach the Right Shroud (32) to the Right Upright (7) in the same manner.
59
05
1
105
105
105
105
8
105
7
60. Attach a Backrest (35) and a Backrest Plate (117) to the Backrest Frame (19) with four M6 x 30mm Screws (99).
61. Tighten an Adjustment Knob (69) into the Left Upright (8). Insert the Backrest Frame (19) into the Left Upright and engage the Knob into the Backrest Frame.
60
61
32
99
19
69
86
117
35
99
8
19
24
Page 25
62. Attach the Large Seat (36) and the Large Seat Plate (118) to the Left Seat Frame (18) with two
6 x 30mm Screws (99), an M6 x 90mm Screw
M (98), and an M6 Washer (114).
Attach the Small Seat (not shown) and the Small Seat Plate (not shown) to the Right Seat Frame (not shown) in the same manner.
62
6
3
18
1
18
114
99
99
98
63. Tighten an Adjustment Knob (69) into the Left Seat Upright (14). Insert the Left Seat Frame (18) into the Left Seat Upright and engage the Knob into the Left Seat Frame.
Repeat this step with the Right Seat Frame (not shown) and the Right Seat Upright (not shown).
64. Attach the Leg Lever Lock (47) to the Curl Post Upright (10) with an M10 x 70mm Bolt (57), an M10 Washer (109), and an M10 Nylon Locknut
Do not overtighten the Nylon Locknut;
(111).
the Leg Lever Lock must be able to pivot easily.
63
64
111
18
14
69
109
10
65. Slide four Foam Pads (39) onto the Curl Post Upright (10) and the Leg Lever (15).
57
47
65
39
39
15
10
39
39
25
Page 26

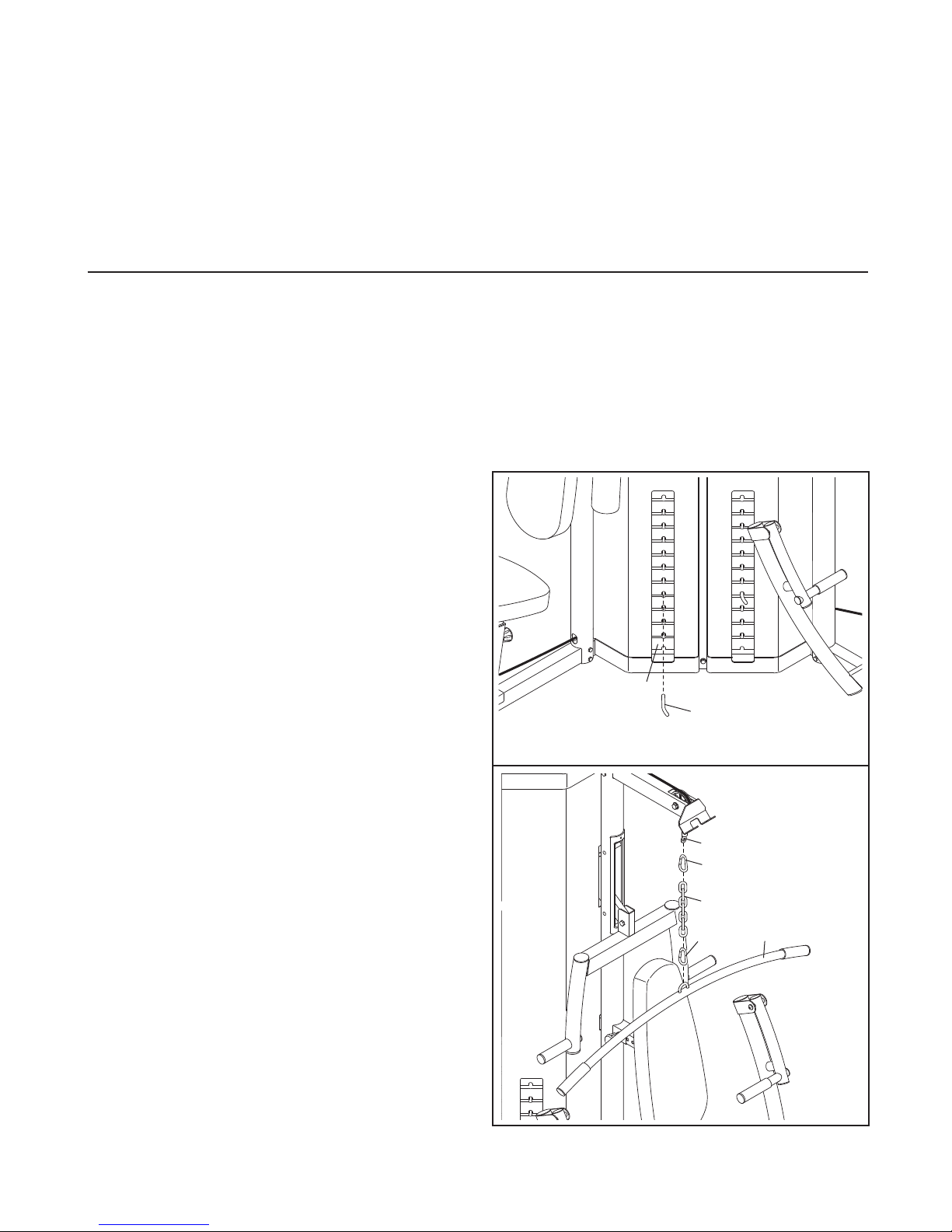

66. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
DJUSTMENTS, beginning below.
A
Before using the weight system, pull each cable a few times to make sure that the cables move smoothly over the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT:
If the cables are not properly installed, they may be damaged when heavy weight is used. See the
ABLE DIAGRAMS on pages 29 and 30 of this manual for proper cable routing. If there is any slack
C in the cables, you will need to remove the slack by tightening the cables (see page 28).
ADJUSTMENTS
This section explains how to adjust the weight system. See the EXERCISE GUIDELINES on page 32 for important information about how to get the most benefit from your exercise program. Also, refer to the accompanying exer­cise guide to see the correct form for each exercise.
Make sure all parts are properly tightened each time the weight system is used. Replace any worn parts immediate­ly. The weight system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
CHANGING THE WEIGHT SETTING
To change the setting of a weight stack, insert the Weight Pin (93) under the desired Weight (34). Insert the Weight Pin so that the bent end touches the weight stack. Turn the bent end down.
Note: Due to the cables and pulleys, the amount of resistance at each exercise station may vary from the weight setting. Use the WEIGHT RESISTANCE CHART on page 31 to find the approximate amount of resistance at each weight station.
ACHING THE LA
TT
A
Attach the Lat Bar (74) to the High Cable (88) with a Cable Clip (81). For some exercises, the Chain (82) should be attached between the Lat Bar and the Cable with two Cable Clips.
Chain between the Lat Bar and the Cable so that the Lat Bar is in the correct starting position for the exercise to be performed.
The Lat Bar (74) or the Ankle Strap (not shown) can be attached to the Low Cable (not shown) at the low pulley station in the same manner. Always engage the Leg Lever Lock (47) when using the low pulley station (see USING THE LEG LEVER LOCK on page 28).
T BAR
Adjust the length of the
34
93
81
88
81
82
74
26
Page 27
DJUSTING THE BACKREST
A
To adjust the position of the left Backrest (35), first loosen the indicated Adjustment Knob (69) and disen-
age it from the Backrest Frame (19). Next, move the
g
ackrest to the desired position. Reengage the Knob
B into the Backrest Frame and retighten the Knob into the Left Upright (8).
tightened.
ADJUSTING THE SEATS
Make sure the Knob is fully
69
19
5
3
8
To adjust the position of the Small Seat (37), loosen the indicated Adjustment Knob (69) and disengage it from the Right Seat Frame (17). Next, move the Seat to the desired position. Reengage the Knob into the Right Seat Frame and retighten the Knob into the Right Seat Upright (11).
tightened.
The Large Seat (not shown) can be adjusted in the same manner.
ATTACHING THE CURL PAD
Insert the Curl Post (16) into the Curl Post Upright (10) and secure it at the desired height with an Adjustment Knob (69). Remove the Curl Pad (38) from the weight system when performing an exercise that does not require it.
Make sure the Knob is fully
37
69
17
11
38
16
69
LOCKING THE WEIGHT ST
Lock a weight stack by inserting a Lock Pin (78) through a Weight Guide (30) and securing the Lock (77) onto the Lock Pin.
ACK
10
30
77
78
27
Page 28
USING THE LEG LEVER LOCK
When using the low pulley station, engage the Leg
ever Lock (47) onto the Leg Lever (15) tube.
L
47
15
TIGHTENING THE CABLES
Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used. If there is slack in the cables before resistance is felt, the cables should be tightened. To tighten the cables, first insert the weight pin into the middle of the weight stack. Slack can be removed from these cables in several ways:
See drawing A. Remove the M10 Nylon Locknut (111) and the M10 x 50mm Bolt (106) from the indicated Pulley (43), Cable Trap (48), Half Finger Guards (46), and Pulley Plates (49). Reattach the Pulley, Cable Trap, and Finger Guards using a hole closer to the center of the Pulley Plates.
Cable Trap is oriented to hold the cable in the groove of the Pulley, that the Finger Guards are oriented as shown, and that the Cable and Pulley move smoothly. Adjust the top Pulley (43) in the
same manner, if necessary.
See drawing B. Adjust the Pulley (43) attached to the Small Pulley Plate (50) as described above. To remove more slack, tighten the M6 Nylon Locknut (103) further onto the end of the Press Cable (72).
Make sure that the
A
43
111
46
48
B
50
49
46
106
43
43
103
72
28
Page 29

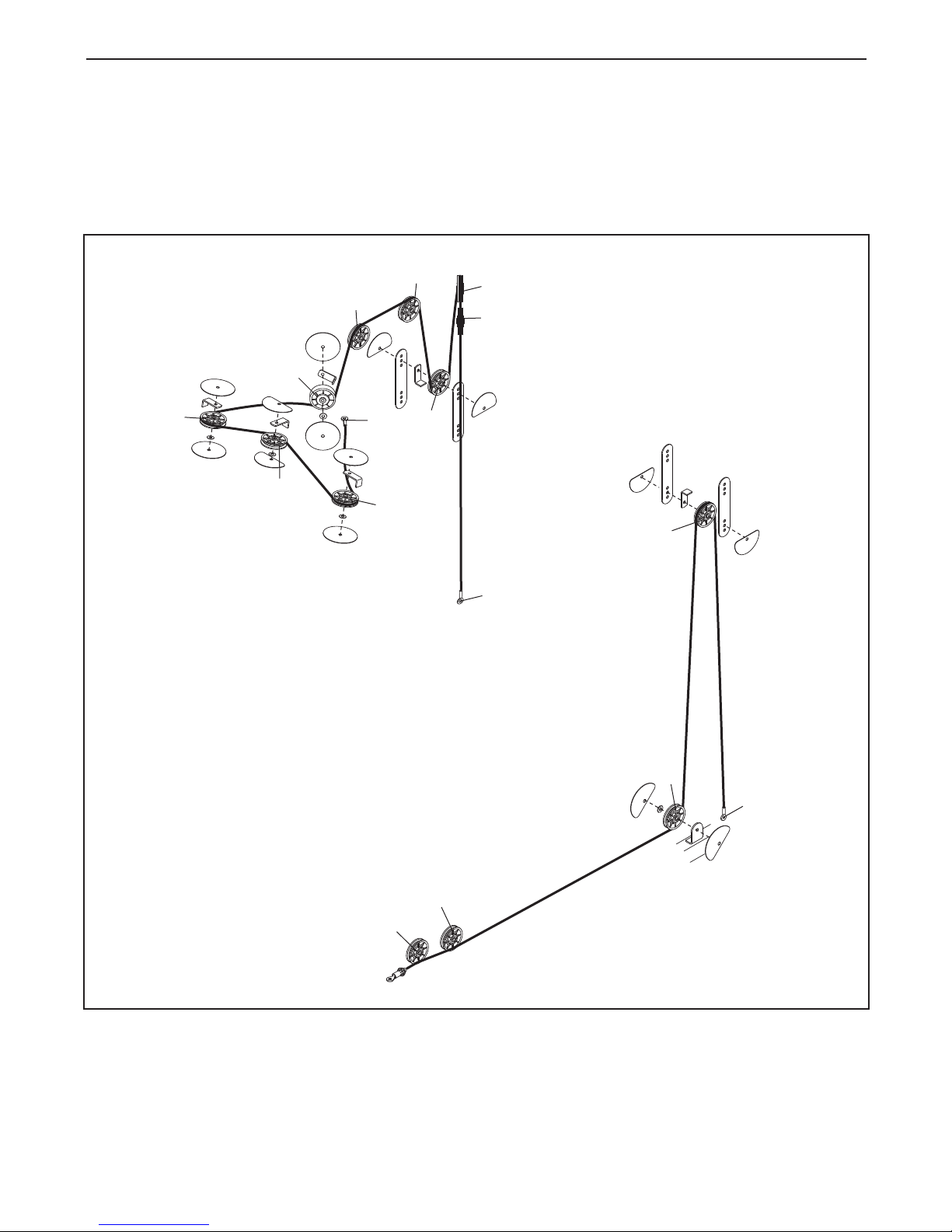

CABLE DIAGRAMS
The cable diagrams below show the proper routing of the Low Cable (70), the Press Cable (72), the Butterfly Cable (73), and the High Cable (88). Use the diagrams to make sure that the cables, the cable traps, and the finger guards have been assembled correctly. If the cables have not been correctly routed, the weight system will not function properly and damage may occur. The numbers show the correct route for each cable.
sure that the cable traps do not touch or bind the cables.
Make
4
3
Butterfly Cable (73)
Length: 10' 2"
7
6
5
1
8
2
9
10
4
11
3
5
Low Cable (70)
Length: 15' 3"
2
1
29
Page 30
2
7
High Cable (88)
Length: 13' 4 3/4"
6
8
3
4
5
1
6
9
Press Cable (72)
Length: 11' 6"
4
5
3
1
2
30
Page 31
WEIGHT RESISTANCE CHART
The chart below shows the approximate weight resistance at each exercise station. The numbers refer to the
12.5 lb. weight plates. Weight resistance shown for the butterfly arm station is for each arm. Note: The actual
resistance at each station may vary due to differences in individual weight plates as well as friction between the cables, pulleys, and weight guides.
WEIGHT
1
2
3
4
5
6
7
8
9
10
11
12
LOW
PULLEY
(lbs.)
27
45
64
77
94
108
122
136
151
173
187
198
LEG
LEVER
(lbs.)
36
53
79
90
106
124
144
164
179
195
213
246
BUTTER­FLY ARM
(lbs.)
31
41
51
62
73
81
93
105
114
126
135
145
HIGH
PULLEY
(lbs.)
38
54
73
86
103
116
131
149
163
171
188
202
MILITARY
PRESS
(lbs.)
29
39
48
57
68
77
85
97
104
117
126
135
PRESS
ARM (lbs.)
40
59
78
90
112
128
156
179
190
201
222
244
LEG
PRESS
(lbs.)
75
94
114
133
161
205
233
273
297
325
349
369
31
Page 32
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
To increase the size and strength of your muscles, push them close to their maximum capacity. Your mus­cles will adapt and grow as you progressively increase the intensity of your exercise. You can adjust the inten­sity level of an individual exercise in two ways:
• by changing the amount of weight used
• by changing the number of repetitions or sets per­formed. (A “repetition” is one complete cycle of an exercise, such as one sit-up. A “set” is a series of repetitions.)
The proper amount of weight for each exercise depends upon the individual user. You must gauge your limits and select the amount of weight that is right for you. Begin with 3 sets of 8 repetitions for each exercise you perform. Rest for 3 minutes after each set. When you can complete 3 sets of 12 repetitions without difficulty, increase the amount of weight.
Toning
You can tone your muscles by pushing them to a mod­erate percentage of their capacity. Select a moderate amount of weight and increase the number of repeti­tions in each set. Complete as many sets of 15 to 20 repetitions as possible without discomfort. Rest for 1 minute after each set. Work your muscles by complet­ing more sets rather than by using high amounts of weight.
Weight Loss
To lose weight, use a low amount of weight and increase the number of repetitions in each set. Exercise for 20 to 30 minutes, resting for a maximum of 30 seconds between sets.
Cross T
Cross training is an efficient way to get a complete and well-balanced fitness program. anced program is:
Plan strength training workouts on Monday
• W
• Plan 20 to 30 minutes of aerobic exercise, such as running on a treadmill or riding an exercise cycle, on T
• Rest from both strength training and aerobic exercise for at least one full day each week to give your body time to regenerate.
The combination of strength training and aerobic exer­cise will reshape and strengthen your body op your heart and lungs.
raining
ednesday
uesday and
, and Friday
Thursday
An example of a bal
,
.
.
, plus devel-
-
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout, as well as the number of repetitions or sets completed, is an individual matter. It is important to avoid overdo­ing it during the first few months of your exercise pro­gram. You should progress at your own pace and be sensitive to your body’s signals. If you experience pain or dizziness at any time while exercising, stop immedi­ately and begin cooling down. Find out what is wrong before continuing. Remember that adequate rest and a proper diet are important factors in any exercise pro­gram.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching and light exercise to warm up. Warming up prepares your body for more strenuous exercise by increasing circulation, raising your body temperature and deliver­ing more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercis­es. Select exercises for every major muscle group, emphasizing areas that you want to develop most. To give balance and variety to your workouts, vary the exercises from session to session.
Schedule your workouts for the time of day when your energy level is the highest. Each workout should be followed by at least one day of rest. Once you find the schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
fective exercise program. This requires moving
ef through the full range of motion for each exercise, and moving only the appropriate parts of the body Exercising in an uncontrolled manner will leave you feeling exhausted. On the exercise guide accompany ing this manual you will find photographs showing the correct form for several exercises, and a list of the muscles af next page to find the names of the muscles.
The repetitions in each set should be performed smoothly and without pausing. each repetition should last about half as long as the return stage. Proper breathing is important. Exhale during the exertion stage of each repetition and inhale during the return stroke. Never hold your breath.
fected. Refer to the muscle chart on the
The exertion stage of
.
-
32
Page 33
est for a short period of time after each set. The
O
P
Q
R
S
T
U
V
X
W
N
M
J
G
F
H
I
K
E
C
D
B
A
L

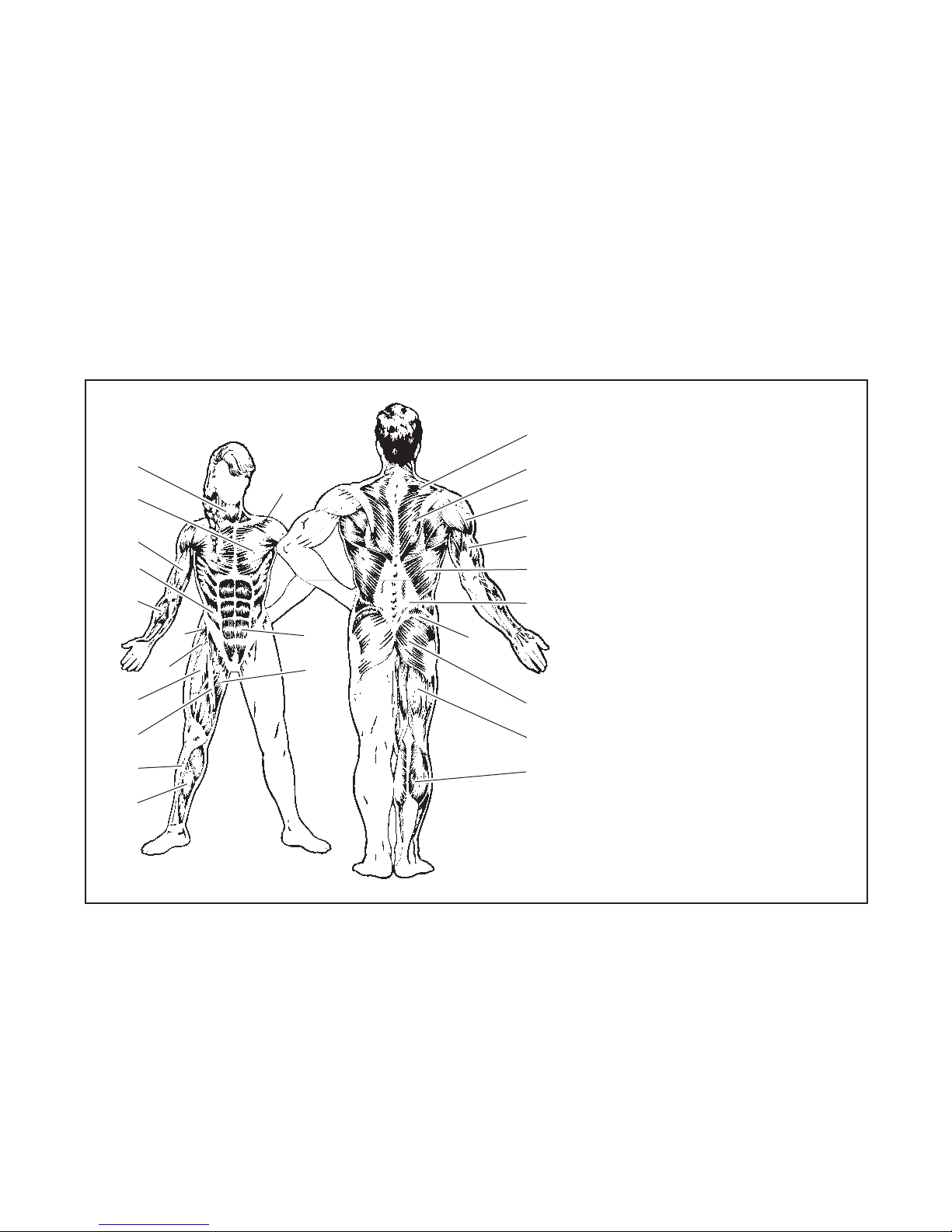

MUSCLE CHART
A. Sternomastoid (neck) B. Pectoralis Major (chest) C. Biceps (front of arm) D. Obliques (waist) E. Brachioradials (forearm) F. Hip Flexors (upper thigh) G. Abductor (outer thigh) H. Quadriceps (front of thigh) I. Sartorius (front of thigh) J. Tibialis Anterior (front of calf) K. Soleus (front of calf) L. Anterior Deltoid (shoulder) M. Rectus Abdominus (stomach) N. Adductor (inner thigh) O. Trapezius (upper back) P. Rhomboideus (upper back) Q. Posterior Deltoid (shoulder) R. Triceps (back of arm) S. Latissimus Dorsi (mid back) T. Spinae Erectors (lower back) U. Gluteus Medius (hip) V. Gluteus Maximus (buttocks) W. Hamstring (back of leg) X. Gastrocnemius (back of calf)
R ideal resting periods are:
• Rest for three minutes after each set for a muscle building workout. Rest for one minute after each set for a toning work-
• out.
• Rest for 30 seconds after each set for a weight loss workout.
Plan to spend the first couple of weeks familiarizing yourself with the equipment and learning the proper form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching. Include stretches for both your arms and legs. Move
lowly as you stretch and do not bounce. Ease into
s each stretch gradually and go only as far as you can without strain. Stretching at the end of each workout is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. List the date, the exercises performed, the resistance used, and the numbers of sets and repetitions completed. Record your weight and key body measurements at the end of every month. Remember, the key to achiev­ing the greatest results is to make exercise a regular and enjoyable part of your everyday life.
33
Page 34
PART LIST—Model No. EPSY5015.0 R0506A
ey Qty. Description
K
No.
1 1 Right Base 2 1 Left Base 3 1 Right Top Frame 4 1 Left Top Frame 5 1 Center Base 6 1 Center Top Frame 7 1 Right Upright 8 1 Left Upright
9 1 Center Upright 10 1 Curl Post Upright 11 1 Right Seat Upright 12 1 Leg Press 13 1 Press Frame 14 1 Left Seat Upright 15 1 Leg Lever 16 1 Curl Post 17 1 Right Seat Frame 18 1 Left Seat Frame 19 1 Backrest Frame 20 1 Military Press Frame 21 1 Military Press Arm 22 1 Left Butterfly Arm 23 1 Right Butterfly Arm 24 1 Butterfly Frame 25 1 Left Press Arm 26 1 Right Press Arm 27 2 Press Arm Handle 28 1 1 3/4" Square Inner Cap 29 1 Leg Press Plate 30 4 Weight Guide 31 2 Top Cover 32 1 Right Shroud 33 1 34 24 Weight 35 2 Backrest 36 1 Large Seat 37 1 Small Seat 38 1 Curl Pad 39 4 Foam Pad 40 3 Upright Bushing 41 1 Upright Cover 42 8 Handgrip 43 22 Pulley 44 1 “V”-pulley 45 10 Finger Guard 46 16 Half Finger Guard 47 1 Leg Lever Lock 48 10 Cable Trap 49 2 Pulley Plate 50 1 Small Pulley Plate 51 2 2" Square Inner Cap 52 1 2" x 1 1/2" Inner Cap 53
Right Bottom Cover
2 1/2" x 1 1/2" Inner Cap
2
ey Qty. Description
K
No.
54 4 1" x 2" Inner Cap 55 12 2" Round Inner Cap 56 4 1 1/2" Round Inner Cap 57 24 M10 x 70mm Bolt 58 4 3/4" Round Inner Cap 59 12 1 1/8" Round Inner Cap 60 8 Small Round Bushing 61 4 Large Round Bushing 62 4 Leg Lever Bumper 63 1 2" Bushing 64 1 1 3/4" Bushing 65 2 2 3/4" Bushing 66 4 Weight Bumper 67 2 Weight Cap 68 18 1/2" Spacer 69 4 Adjustment Knob 70 1 Low Cable 71 2 3" Bushing 72 1 Press Cable 73 1 Butterfly Cable 74 1 Lat Bar 75 2 Weight Tube 76 2 Weight Tube Cap 77 2 Lock 78 2 Lock Pin 79 4 2" x 2 1/2" Inner Cap 80 1 Ankle Strap 81 4 Cable Clip 82 1 Chain 83 1 Long Cable Trap 84 2 Small Pulley 85 2 M10 x 100mm Bolt 86 1 87 1 Left Bottom Cover 88 1 High Cable 89 1 Shroud Frame 90 1 Foot Plate 91 2 Butterfly Arm Foam 92 2 M8 x 25mm Shoulder Bolt 93 2 Weight Pin 94 1 M10 x 150mm Bolt 95 9 M10 x 45mm Bolt 96 1 M10 x 75mm Bolt 97 4 M10 x 120mm Bolt 98 2 M6 x 90mm Screw
99 14 M6 x 30mm Screw 100 6 M4 x 16mm Self-tapping Screw 101 1 M8 Nylon Locknut 102 9 M10 x 90mm Bolt 103 1 M6 Nylon Locknut 104 1 M10 x 63mm Bolt 105 24 M4 x 13mm Self-tapping Screw 106
Left Shroud
M10 x 50mm Bolt
7
34
Page 35
Key Qty. Description
No.
Key Qty. Description
No.
07 1 M10 x 130mm Bolt
1 108 1 M10 x 95mm Bolt 109 61 M10 Washer 110 16 M10 x 65mm Bolt
11 75 M10 Nylon Locknut
1
12 6 M10 x 80mm Carriage Bolt
1 113 2 M10 x 35mm Screw 114 3 M6 Washer 115 2 M10 x 55mm Button Bolt
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of this user’s manual for information about ordering replacement parts.
16 2 M10 x 40mm Bolt
1 117 2 Backrest Plate 118 1 Large Seat Plate 119 1 Small Seat Plate
20 1 Curl Plate
1
1 User’s Manual
# # 1 Exercise Guide # 1 Allen Wrench # 2 Grease Pack
35
Page 36

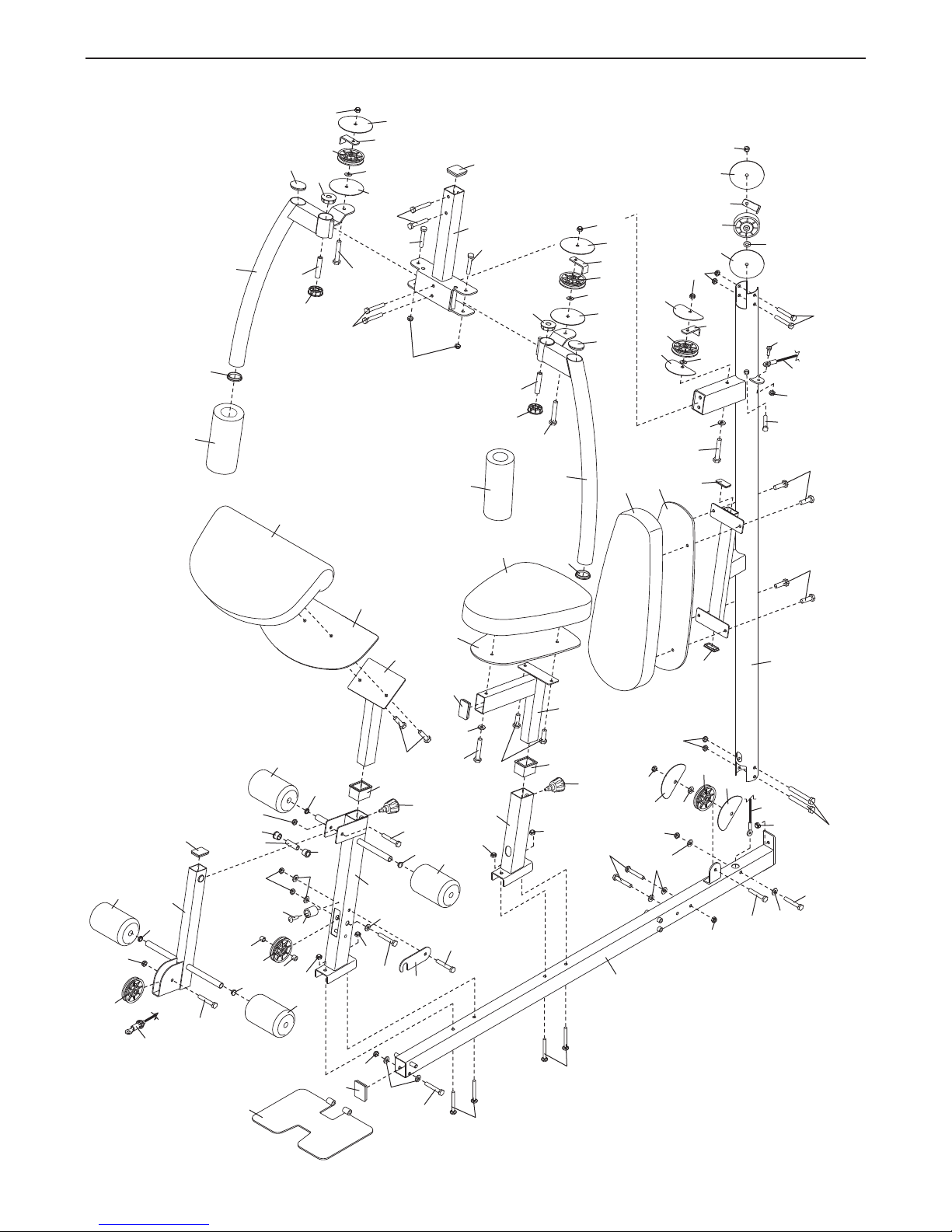

EXPLODED DRAWING A—Model No. EPSY5015.0 R0506A
46
46
45
45
4
4
46
48
43
46
7
35
54
54
55
37
22
61
61
45
55
43
48
45
2
4
51
45
43
48
45
61
61
5
5
23
55
38
16
17
40
53
11
69
69
39
58
39
58
40
10
60
60
63
52
15
39
39
58
58
68
68
43
62
43
70
79
47
1
73
71
71
83
90
43
70
113
85
106
110
102
92
99
94
97
99
102
110
95
97
112
112
57
99
98
99
100
110
57
57
106
95
91
91
111
111
111
111
109
109
111
111
111
109
111
111
109
111
109
111
111
111
114
109
101
111
111
109
109
111
111
109
111
109
85
109
119
117
120
36
Page 37

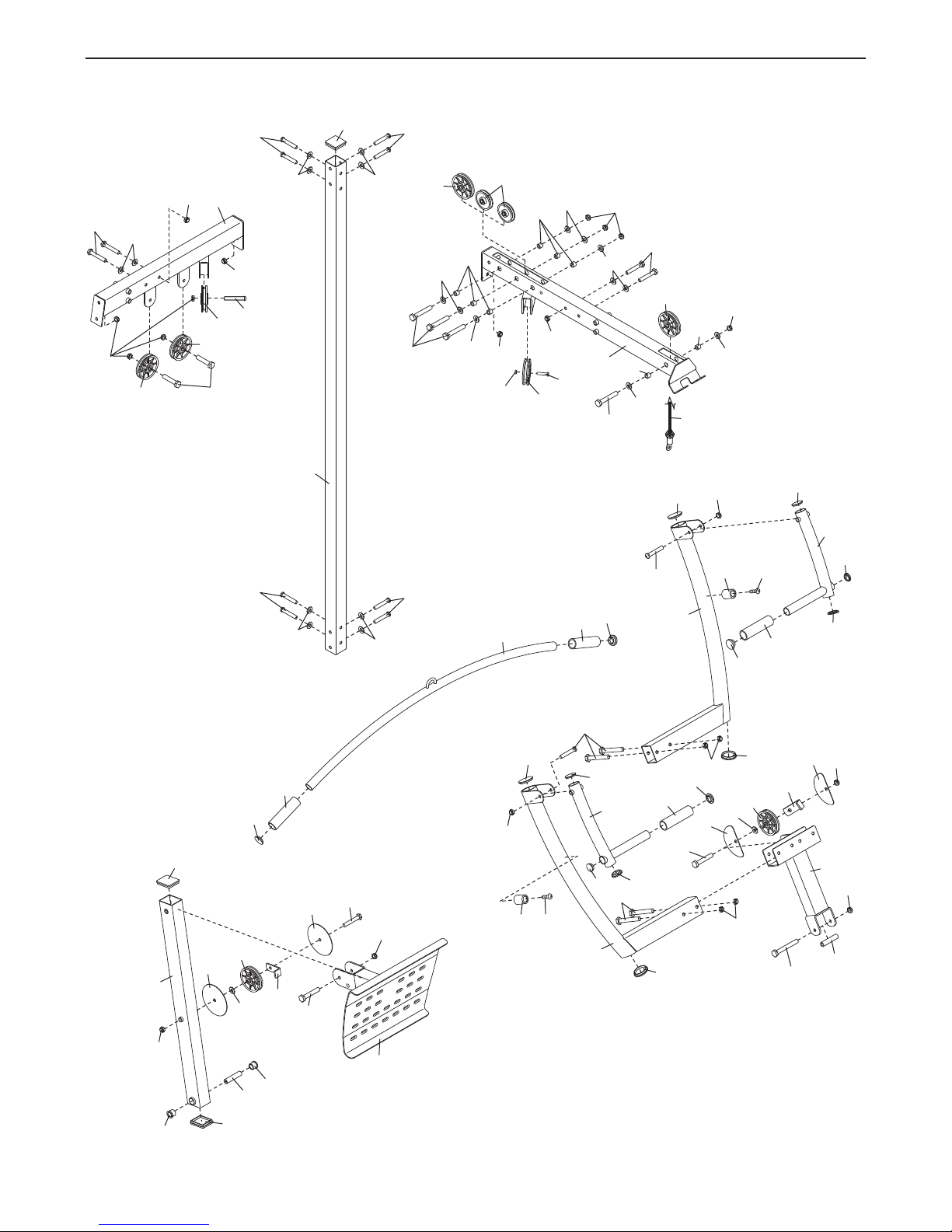

EXPLODED DRAWING B—Model No. EPSY5015.0 R0506A
4
6
46
43
60
60
64
2
0
55
55
21
59
42
55
59
59
55
42
59
41
54
35
19
28
54
69
8
80
81
82
79
72
62
60
60
2
46
46
43
48
45
45
43
48
14
40
69
59
42
53
59
42
18
36
72
50
46
43
48
46
49
46
46
43
43
48
48
46
4
9
99
99
98
57
107
108
100
99
99
100
100
104
106
9
5
95
112
97
106
103
1
11
111
111
46
102
111
102
111
111
109
109
109
111
111
111
114
114
109
111
111
1
11
109
111
92
118
117
37
Page 38

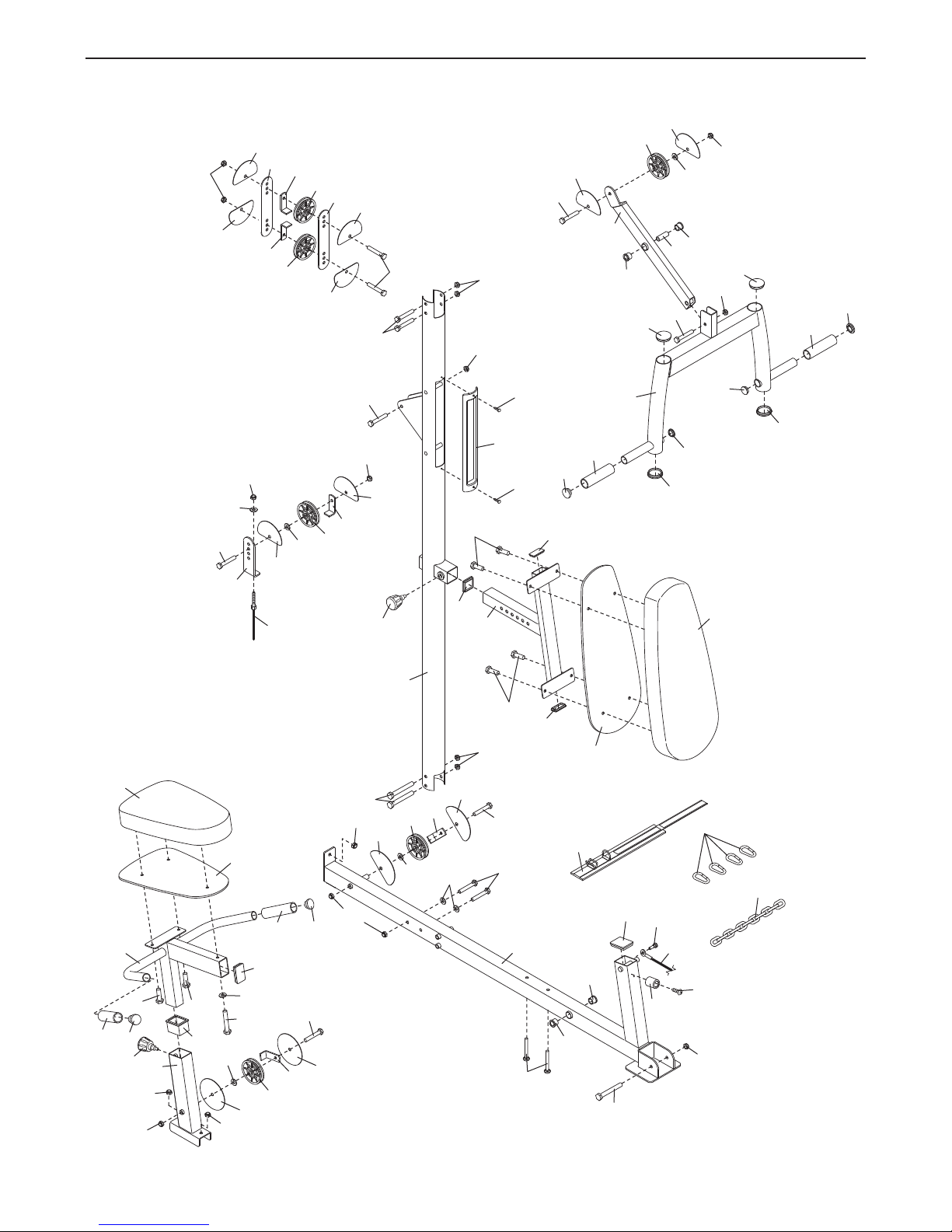

EXPLODED DRAWING C—Model No. EPSY5015.0 R0506A
33
32
31
77
78
30
6
5
75
34
34
67
73
76
75
34
34
67
88
76
68
68
66
68
68
66
68
66
68
68
68
66
77
78
31
86
87
89
43
43
109
111
95
95
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
106
106
93
93
109
1
11
111
109
109
109
110
110
111
111
111
111
109
111
109
111
111
109
109
109
110
110
30
30
30
109
115
109
115
38
Page 39
3
43
4
68
68
43
74
42
59
42
59
88
55
56
27
59
56
42
59
55
25
56
55
59
56
42
59
55
26
27
43
46
48
46
13
65
79
45
43
48
45
29
60
65
79
60
12
9
51
43
43
43
43
8
4
68
68
97
96
102
57
95
57
110
57
110
5
7
57
57
95
116
57
111
111
95
1
09
109
111
111
109
111
109
109
111
1
09
111
109
109
109
111
109
111
111
111
111
111
111
111
111
62
100
62
100
57
57
109
109
109
EXPLODED DRAWING D—Model No. EPSY5015.0 R0506A
39
Page 40
ORDERING REPLACEMENT PARTS
To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to give the following information:
• the MODEL NUMBER of the product (EPSY5015.0)
• the NAME of the product (EPIC 700 VX weight system)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING on pages 34–39 this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur­chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim­ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to a service center, freight charges to and from the service center will be the customer’s responsibility. For in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con­nection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci­dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 235104 R0506A
Printed in China
© 2006 ICON IP, Inc.
Loading...
