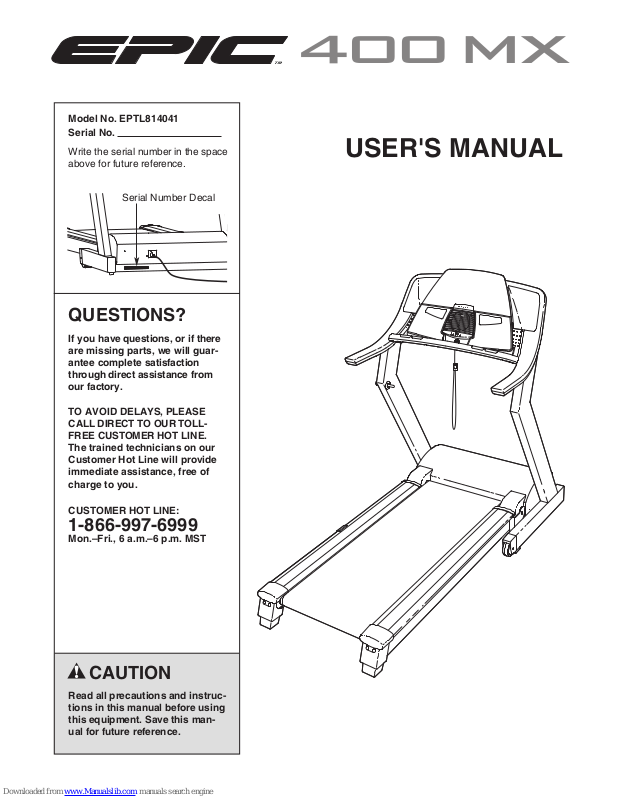

Epic 400 Mx User Manual

Page 1
Model No. EPTL814041 Serial No.
Write the serial number in the space above for future reference.
Serial Number Decal
QUESTIONS?
If you have questions, or if there are missing parts, we will guar­antee complete satisfaction through direct assistance from our factory.
TO AVOID DELAYS, PLEASE CALL DIRECT TO OUR TOLL­FREE CUSTOMER HOT LINE. The trained technicians on our Customer Hot Line will provide immediate assistance, free of charge to you.
USER'S MANUAL
CUSTOMER HOT LINE:
1-866-997-6999
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc tions in this manual before using this equipment. Save this man ual for future reference.
-
-
Page 2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
TREADMILL OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

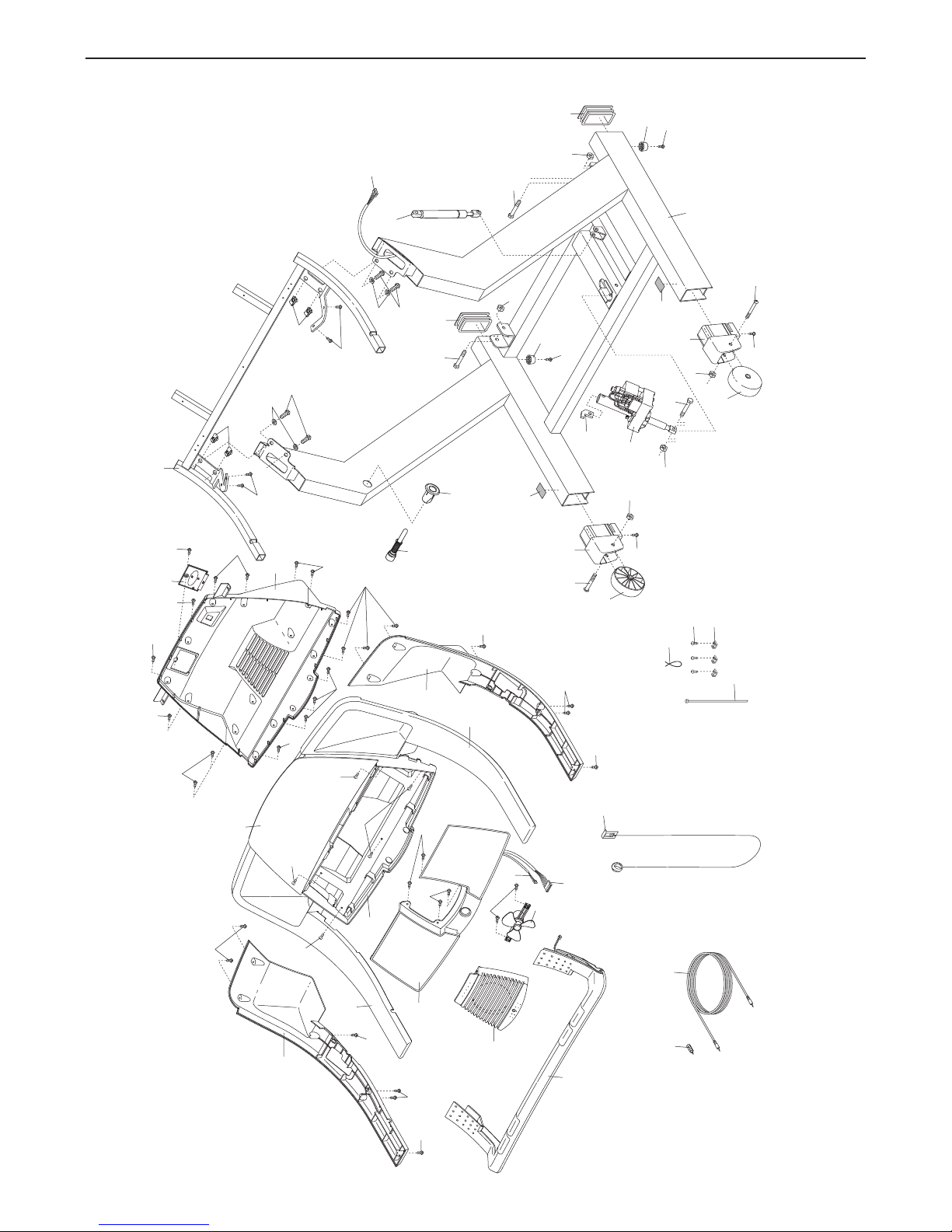

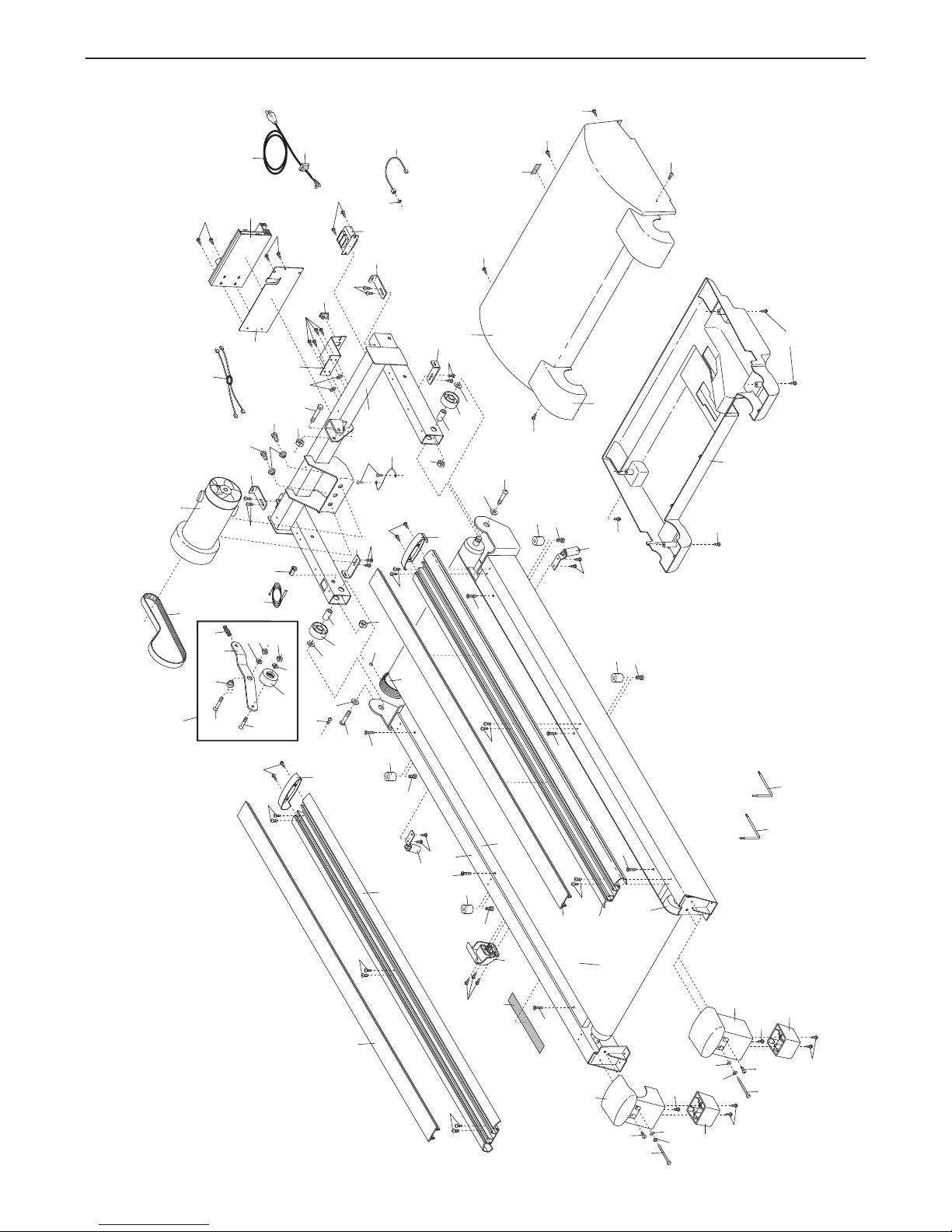

Note: An EXPLODED DRAWING is attached in the center of this manual.
2
Page 3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.
2. Use the treadmill only as described in this manual.
3. Place the treadmill on a level surface, with at least eight feet of clearance behind it and two feet on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol products are used or oxygen is administered.
6. Keep children under the age of 12 and pets away from the treadmill at all times.
7. The treadmill should not be used by persons weighing more than 350 pounds. Never allow more than one person on the treadmill at a time.
8. Wear appropriate exercise clothes when using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women.
letic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.
9. When connecting the power cord (see page 9), plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.
10. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. To purchase a surge suppressor, see your local EPIC dealer or call 1-866-997-6999 and order part number 146148, or see your local electronics store.
Always wear ath-
11. Failure to use a properly functioning surge suppressor could result in damage to the con­trol system of the treadmill. If the control sys­tem is damaged, the walking belt may change speed, accelerate, or stop unexpectedly, which may result in a fall and serious injury.
12. Keep the power cord and the surge suppres­sor away from heated surfaces.
13. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See BEFORE YOU BEGIN on page 5 if the tread­mill is not working properly.)
14. Never start the treadmill while you are stand­ing on the walking belt. Always hold the handrails while using the treadmill.
15. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.
16. The pulse sensor is not a medical device. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
17. Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord, and move the reset/off circuit breaker to the off position when the treadmill is not in use. (See the drawing on page 5 for the location of the circuit breaker.)
18. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 6, and HOW TO FOLD AND MOVE THE TREADMILL on page 25.) You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill.
19. When folding or moving the treadmill, make sure that the storage latch is fully closed.
3
Page 4
20. When using iFIT.com CDs and videos, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change. Always listen for the “chirp” and be prepared for speed and/or in­cline changes. In some instances, the speed and/or incline may change before the per­sonal trainer describes the change.
21. When using iFIT.com CDs and videos, you can manually override the speed and incline set­tings at any time by pressing the speed and in­cline buttons. However, when the next “chirp” is heard, the speed and/or incline will change to the next settings of the CD or video program.
22. Always remove iFIT.com CDs and videos from your CD player or VCR when you are not using them.
23. Inspect and properly tighten all parts of the treadmill every three months.
24. Never drop or insert any object into any open­ing.
25.
DANGER: Always unplug the power
cord immediately after use, before cleaning the treadmill, and before performing the main­tenance and adjustment procedures de­scribed in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.
26. The treadmill is intended for in-home use only. Do not use the treadmill in any commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS

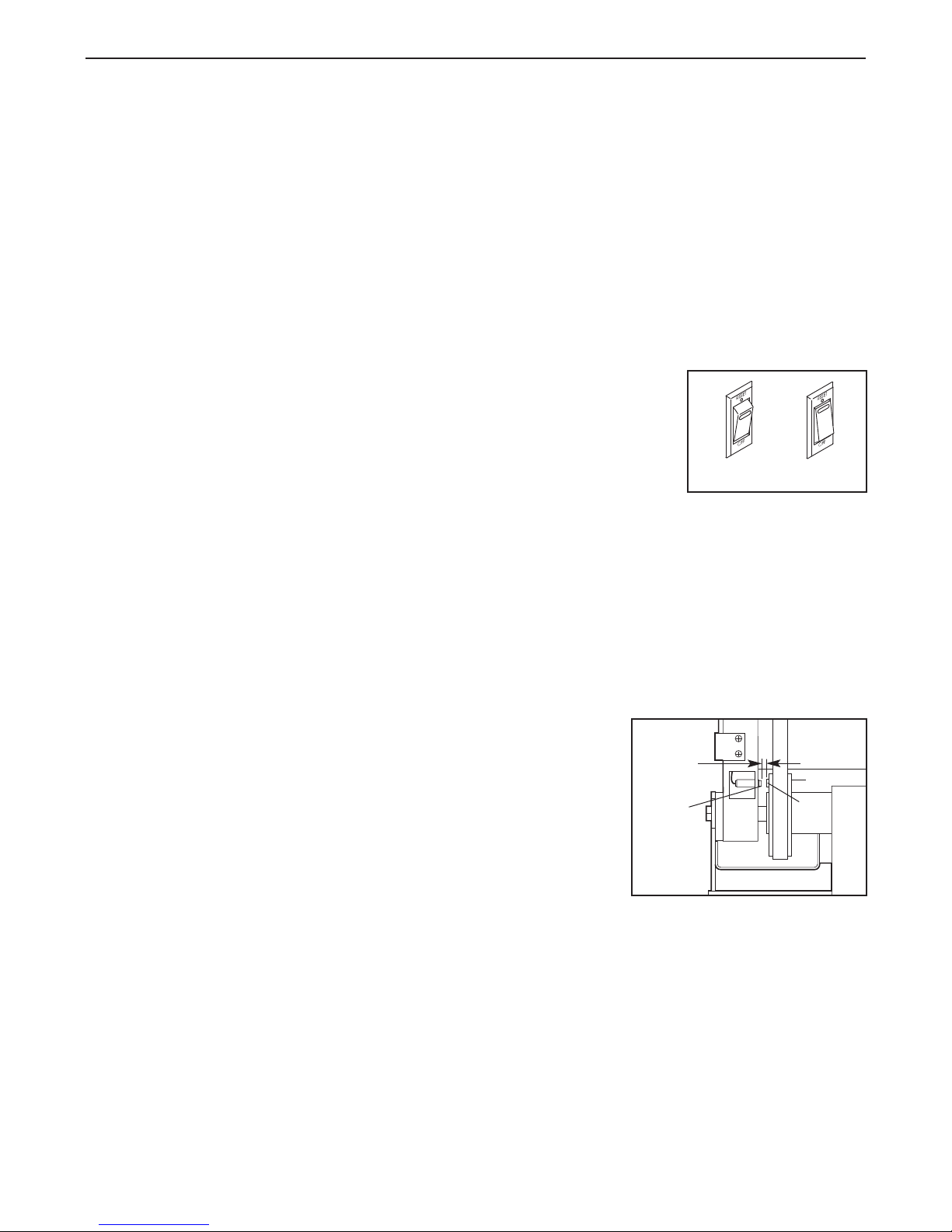

The decals shown below have been placed on your treadmill. If a decal is missing, or if it is not legible, please call our Customer Service Department toll-free at 1-866-997-6999 and order a free replacement decal. Apply the decal in the location shown. Note: The decals are not shown at actual size.
4
Page 5
BEFORE YOU BEGIN
Congratulations for purchasing the EPICTM400 MX treadmill. The 400 MX treadmill offers an impressive array of features to help you achieve your fitness goals in the convenience of your home. From the advanced console to the cushioned walking platform, the treadmill is designed to make each workout more ef­fective and enjoyable. And when you’re not exercising, the treadmill can be folded away, taking less than half the floor space of conventional treadmills.
For your benefit, read this manual carefully before using the treadmill. If you have questions after read-
Accessory Tray
Handrail
400 MX
ing this manual, call our Customer Service Department toll-free at 1-866-997-6999, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number is EPTL814041. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
Console
Key/Clip
Storage Latch
Handgrip Pulse Sensor
Walking Belt
Foot Rail
BACK
Reset/Off
Circuit Breaker
Power Cord
Cushion Walking Platform
RIGHT SIDE
Rear Roller Adjustment Bolts
5
Page 6
ASSEMBLY
1” Tek Screw (98)–4
Nut (25)–2
Star Washer (88)–4
Console Bolt (86)–4
Wheel Bolt (92)–2
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor­mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrench and your own Phillips screwdriver and adjustable wrench .
For help identifying assembly hardware, see the drawings below. Note: If a part is not found in the part bags, check to see if the part has been preattached.
1. With the help of a second person, carefully raise the Uprights (99) to the position shown. Have the second per­son hold the console assembly near the Uprights as shown. Look under the console assembly and locate the Console Wire Harness (22).
Cut the plastic ties securing the Upright Wire Harness (108) to the right Upright (99). Connect the Upright Wire Harness to the Console Wire Harness (22). Make sure to
connect the connectors properly (see the inset draw­ing). The connectors should slide together easily and snap into place. If the connectors do not slide together
easily and snap into again. IF THE CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAMAGED WHEN THE POWER IS TURNED ON.
place, turn one connector and try
1
Console
Assembly
22
108
22
99
108
6
Page 7

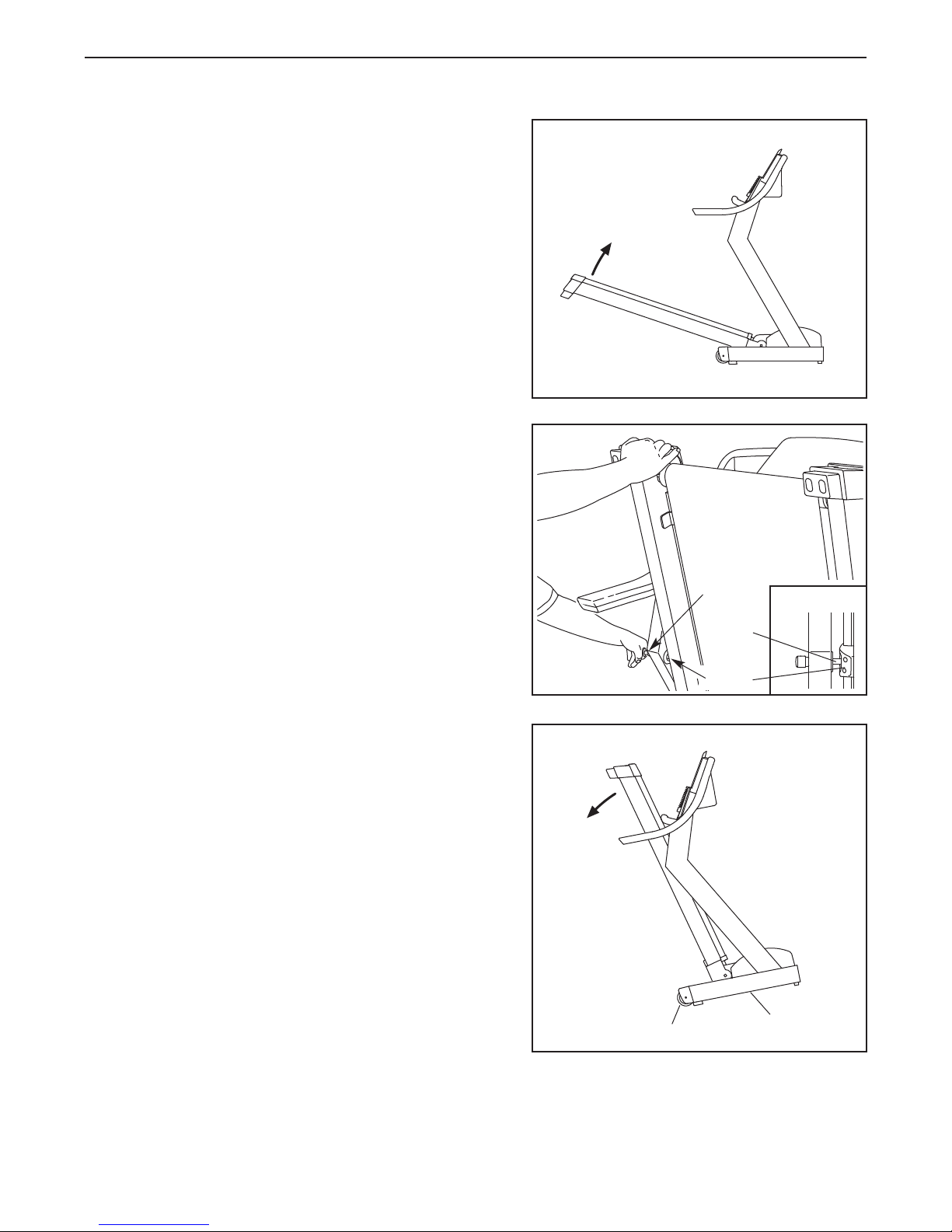

2. Insert the excess Wire Harnesses (22, 108) into the right Upright (99)
.
Set the console assembly on the Uprights (99). While a second person holds the console assembly, attach the console assembly with four Console Bolts (86) and four Console Washers (88) as shown. Start all four Console Bolts before firmly tightening them.
2
Console
Assembly
22, 108
3. Insert a Wheel (93) into a Wheel Housing (43). Attach the Wheel with a Wheel Bolt (92) and a Nut (25).
Note: Do not overtighten the Nut. The Wheel should be able to spin freely.
Tip the Uprights (99) forward slightly and insert a Wheel Housing (43) into the base of the Uprights as shown.
Attach the other Wheel and Wheel Housing as described above (not shown).
4. With the help of a second person, carefully lower the Uprights (99). Make sure that the Wheel Housings (43) remain in the base of the Uprights.
Attach each Wheel Housing (43) with a 1” Tek Screw (98). Attach two Base Pads (97) to the bottom on each side of the Upright (99) with 1” Tek Screws.
88
86
88
86
99
3
99
25
43
93
92
4
99
With the help of a second person, carefully raise the Uprights (99) to the vertical position.
98
43
7
Page 8

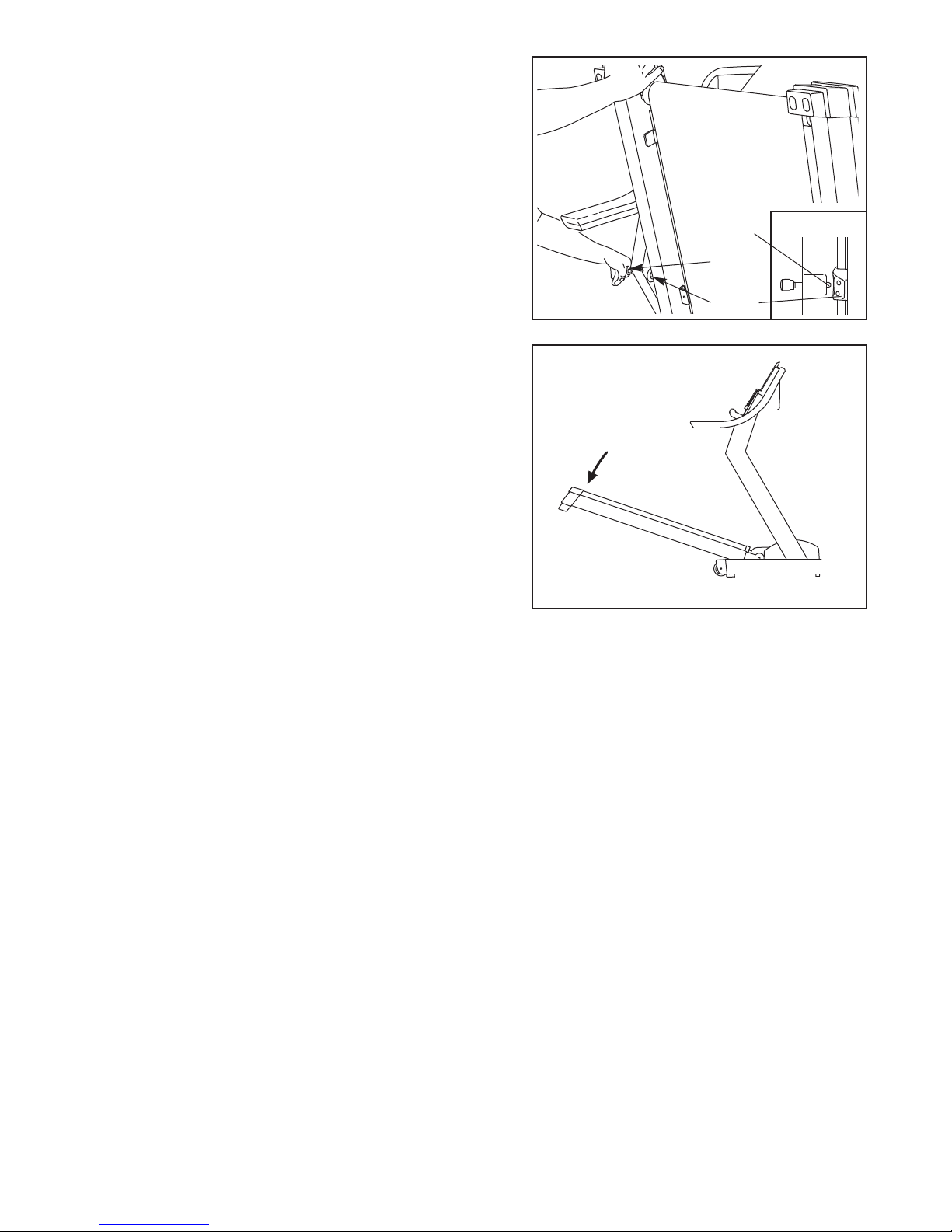

5. Press the Latch Sleeve (89) into the left Upright (99). Note: It may be helpful to use a rubber mallet to fully in­sert the Latch Sleeve.
Remove the latch knob from the latch pin. Make sure that the latch pin collar and the spring are on the latch pin. (Note: If there are two latch pin collars, place one on each side of the spring.) Insert the latch pin into the left Upright (99), and tighten the latch knob onto the latch pin.
5
Collar
Knob
89
Pin
Spring
99
6. Remove the backing from the indicated tape on the con­sole assembly. Press the Book Holder (62) firmly onto
6
62
the tape. Note: The Book Holder may be preassembled.
Console
Assembly
Tape
7. Make sure that all parts are properly tightened before you use the treadmill. Place a mat beneath the treadmill to protect the floor or carpet. For your benefit, we recommend that you familiarize yourself with the TROUBLESHOOTING section on pages 27 and 28.
If you purchase the optional chest pulse sensor (see page 24), follow the steps below to install the receiver included with the chest pulse sensor.
85
1. Make sure that the power cord is unplugged. Remove
the indicated Screw (2) and the Access Door (95).
111
2. Remove the paper from the adhesive pad on the back of
the receiver (A).
Orient the receiver so the small cylin­der is near the lower edge of the receiver and is fac­ing the Console Back (85) as shown. Firmly press the
receiver onto the indicated corner of the Access Door (95). Connect the wire on the receiver to the Pulse Wire (111) extending from the Console Back.
3.
Make sure that no wires are pinched. Reattach the Access Door (95)
with the Screw (2). Note: The other
wires included with the receiver may be discarded.
A
Cylinder
95
2
8
Page 9
TREADMILL OPERATION
THE PRE-LUBRICATED WALKING BELT
Your treadmill features a walking belt coated with high­performance lubricant.
icone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
IMPORTANT: Never apply sil-
DANGER: Improper connection
of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or service­man if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase a surge suppressor, see your local EPIC dealer or call 1-866-997-6999 and order part number 146148, or see your local elec­tronics store.
tric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug.
Plug the power cord into a surge suppressor, and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Important: The treadmill is not compatible with GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illus­trated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounded Outlet
2
Grounded Outlet Box
Adapter
Grounding Plug
Surge Suppressor
Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup­pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a moni­toring light on the surge suppressor to indicate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed, accelerate, or stop unexpect edly, which may result in a fall and serious injury.
This product must be grounded.
tion or break down, grounding provides a path of least resistance for electric current to reduce the risk of elec
-
If it should malfunc
Lug
Metal Screw
The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw.
-
covers are not grounded. Contact a qualified elec­trician to determine if the outlet box cover is
-
grounded before using an adapter.
Some 2-pole receptacle outlet box
9
Page 10
Note: If there is a sheet of clear plastic on the console or pulse bar, remove the plastic.
Key
Clip
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of features designed to help you get the most from your workouts.
When the manual mode of the console is selected, the speed and incline of the treadmill can be changed with the touch of a button. As you exercise, the console will display continuous exercise feedback. You can even measure your heart rate using the handgrip pulse sen­sor or the optional chest pulse sensor (see page 24).
In addition, the console offers 6 preset programs. Each program automatically controls the speed and incline of the treadmill as it guides you through an effective work
You can even create custom workout programs
out. and store them in memory for future use.
Two heart rate programs are also offered. Each pro
­gram automatically adjusts the speed and incline of the treadmill to keep your heart rate near a target heart rate while you exercise.
Note: The heart rate programs re
-
quire the use of the optional chest pulse sensor.
The console also features iFIT.com interactive technol­ogy. Having iFIT.com technology is like having a per­sonal trainer in your home. Using the included audio cable, you can connect the treadmill to your home stereo, portable stereo, computer, or VCR and play special iFIT.com CD and video programs (iFIT.com CDs and videocassettes are available separately). iFIT.com CD and video programs automatically control the speed and incline of the treadmill as a personal trainer guides you through every step of your workout. High-energy music provides added motivation.
chase iFIT.com CDs or videocassettes, call toll­free 1-866-997-6999.
With the treadmill connected to your computer, you
-
can also go to our Web site at www.iFIT.com and ac cess programs directly from the internet.
See
www.iFIT.com for more information.
To use the manual mode of the console, follow the
steps beginning on page 11. To use a preset program, see page 13. To create and use a custom program, see pages 15 and 16. To use a heart rate program, see page 17. To use an iFIT.com CD or video
gram
, see page 21. To use iFIT.com programs di-
rectly from our Web site, see page 23.
To pur-
-
-
pro
10
Page 11
HOW TO TURN ON THE POWER
Plug in the power cord (see page 9).
1

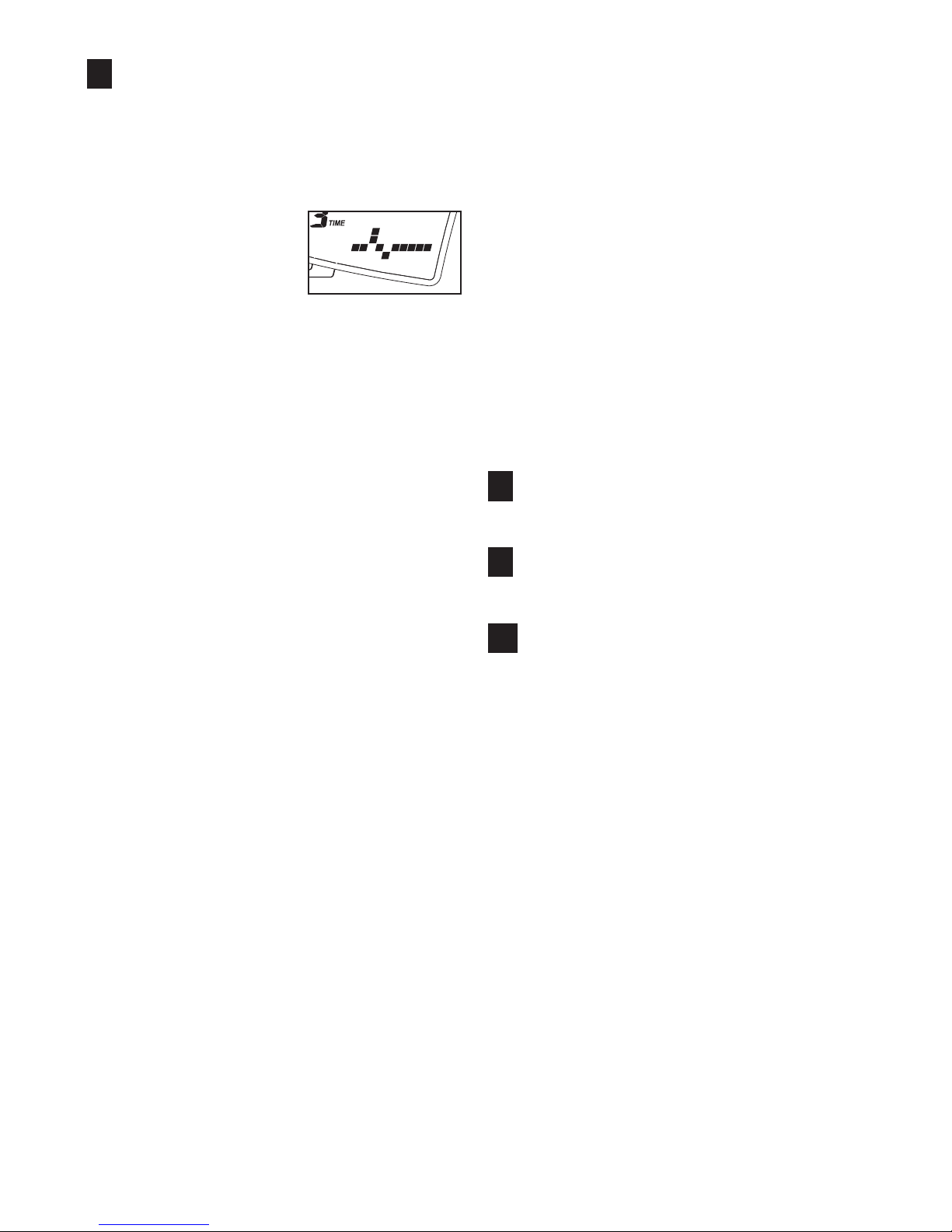

To stop the walking belt, press the Stop button. The time will begin to flash in the left display. To restart the walking belt, press the Start button, the Speed + button, or one of the Quick Speed but­tons.
Locate the reset/off
2
circuit breaker near the power cord. Make sure that the circuit breaker is in the “reset” position.
Stand on the foot rails of the treadmill. Find the clip
3
attached to the key (see the drawing on page 10) and slide the clip onto the waistband of your clothes. Next, insert the key into the console. After a moment, the displays will light. Test the clip by
carefully taking a few steps backward until the key is pulled from the console. If the key is not pulled from the console, adjust the position of the clip.
HOW TO USE THE MANUAL MODE
Insert the key into the console.
Reset
Position
1
See HOW TO TURN ON THE POWER above.
Note: The first time the treadmill is used, observe the alignment of the walking belt, and align the walking belt if necessary (see page 28).
Change the incline of the treadmill as desired.
4
To change the incline of the treadmill, press the Incline buttons. Each time a button is pressed, the incline will change by 0.5%. To change the incline setting quickly, press the Quick Incline buttons. Note: After the buttons are pressed, it may take a moment for the treadmill to reach the selected in­cline setting.
Follow your progress with the two displays.
5
The left display—This display will show the
elapsed time, your pace (in minutes per mile), and the incline level of the treadmill. Note: When a program is selected, this display will show the time remaining in the program instead of the elapsed time. Each time the incline of the treadmill changes, the display will show the incline setting for several seconds.
Select the manual mode.
2
When the key is inserted, the manual mode will be selected. If you have selected a program, press the Manual button to reselect the manual mode.
Start the walking belt.
3
To start the walking belt, press the Start button, the Speed + button, or one of the twelve Quick Speed buttons.
If the Start button or the Speed + button is pressed, the walking belt will begin to move at 1 mph. As you exercise, change the speed of the walking belt as desired by pressing the Speed + and – buttons. Each time a button is pressed, the speed setting will change by 0.1 mph; if a button is held down, the speed setting will change in in­crements of 0.5 mph. Note: After the buttons are pressed, it may take a moment for the walking belt to reach the selected speed setting.
If one of the Quick Speed buttons is pressed, the walking belt will gradually increase in speed until it reaches the selected speed setting.
Training Zone Bar
The left display will also show a training zone bar that indicates the approximate intensity of your ex­ercise. For example, if four to six segments of the bar appear, the bar shows that your exercise inten­sity is ideal for weight loss.
When the manual mode or the iFIT.com mode is selected, the left display will also show a track. As you exercise, the indicators around the track will light, one at a time, until the entire track is lit. The track will then disappear and a new lap will begin.
Track
1
1
Page 12

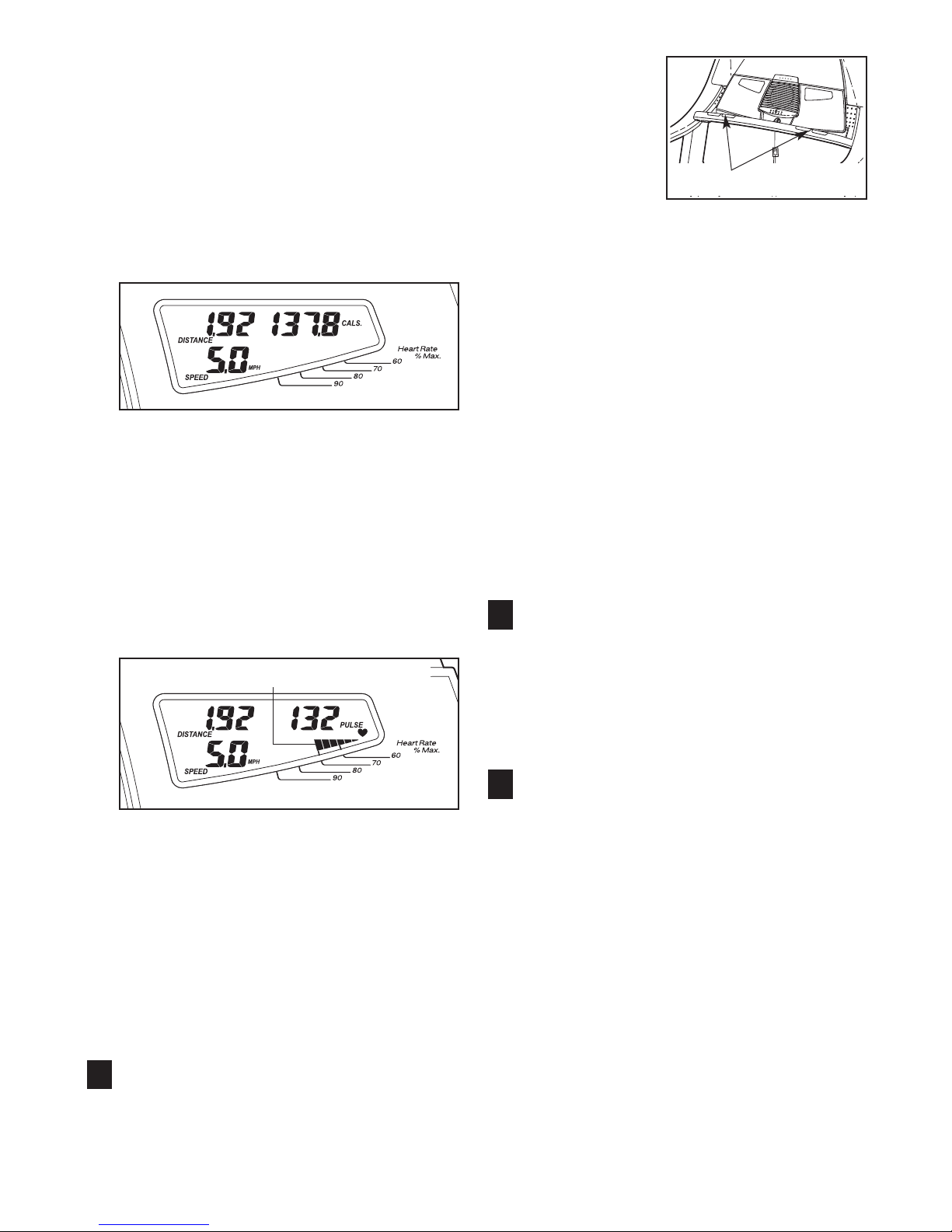

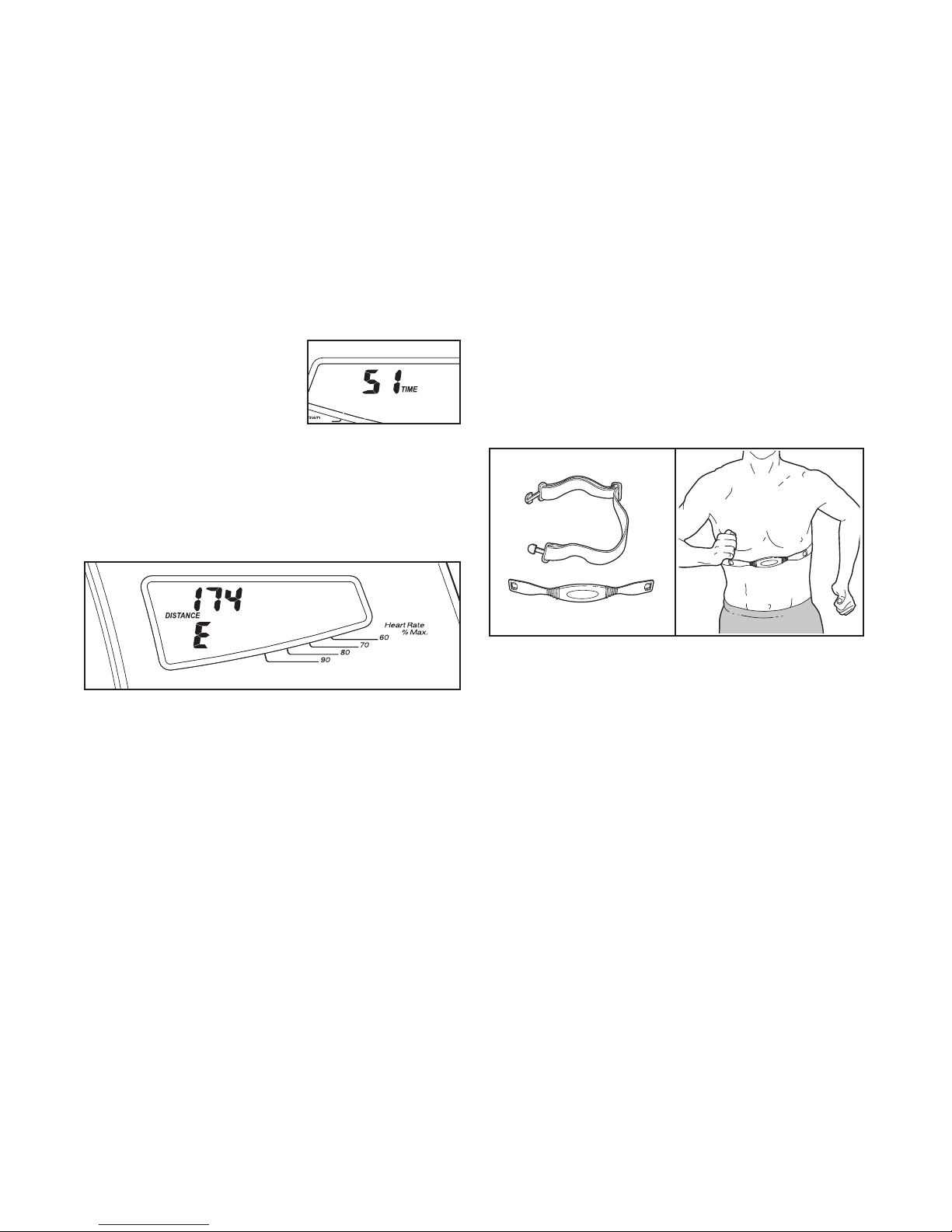

The right display—This display will show the dis-
tance that you have walked or run, the number of 1/4-mile laps you have completed, the speed of the walking belt, and the approximate numbers of calories and fat calories you have burned (see FAT BURNING on page 29). Note: For a more ac­curate reading on the number of calories burned, enter your weight by pressing the + and – buttons beside the Enter button. When your weight is shown, press the Enter button. Your weight will be saved in memory.
the console will not display your heart rate accu rately. Before using the hand grip pulse sen­sor, remove the clear plastic film from the metal contacts on the handgrip pulse sensor. In addi­tion, make sure that your hands are clean.
-
-
Contacts
The right display will also show your heart rate when you use the handgrip pulse sensor or the optional chest pulse sensor. In addition, during heart rate programs the right display will show a heart rate bar that shows your heart rate as a per­centage of your estimated maximum heart rate (see step 3 on page 17 for an explanation of your estimated maximum heart rate). For example, if four to six segments of the bar appear, your heart rate is between 60% and 70% of your estimated maximum heart rate.
Heart Rate Bar
To use the handgrip pulse sensor, foot rails and hold the pulse sensor with your palms resting on the metal contacts; avoid mov- ing your hands. When your pulse is detected, the heart-shaped indicator in the right display will flash each time your heart beats, one or two dashes (– –) will appear, and then your heart rate will be shown. For the most accurate heart rate
reading, continue to hold the contacts for about 15 seconds.
Note: The pulse bar is intended to be used only for heart rate measurement. Do not use the
pulse bar as a handlebar. Always hold the handrails for support when you are not mea­suring your heart rate.
Turn on the fan if desired.
stand on the
7
To turn on the fan, press the button below the fan. To turn on the fan at high speed, press the button a second time. To turn off the fan, press the but­ton a third time. Note: A few minutes after the walking belt is stopped, the fan will automatically turn off.
Note: The console can display speed and dis­tance in either miles or kilometers. The letters “MPH” or “Km/H” will appear in the right display to show which unit of measurement is selected. To change the unit of measurement, see THE IN FORMATION MODE/DEMO MODE on page 24.
For simplicity, all instructions in this section refer to miles.
To reset the displays, press the Stop button, re
the key, and then reinsert the key.
move
Measure your heart rate if desired.
6
Note: If you use the handgrip pulse sensor and the optional chest pulse sensor at the same time,
When you are finished exercising, remove the
8
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting when the treadmill is folded to the storage posi-
-
-
tion or the treadmill will be damaged. Next, re move the key from the console and put it in a se cure place. Note: If the displays on the console
remain lit after the key is removed, the console is in the “demo” mode. See page 24 and turn off the demo mode.
When you are finished using the treadmill switch the position and unplug the power cord.
reset/off circuit breaker to the “off”
-
-
,
12
Page 13
HOW TO USE A PRESET PROGRAM
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page 11.
Select one of the preset programs.
2

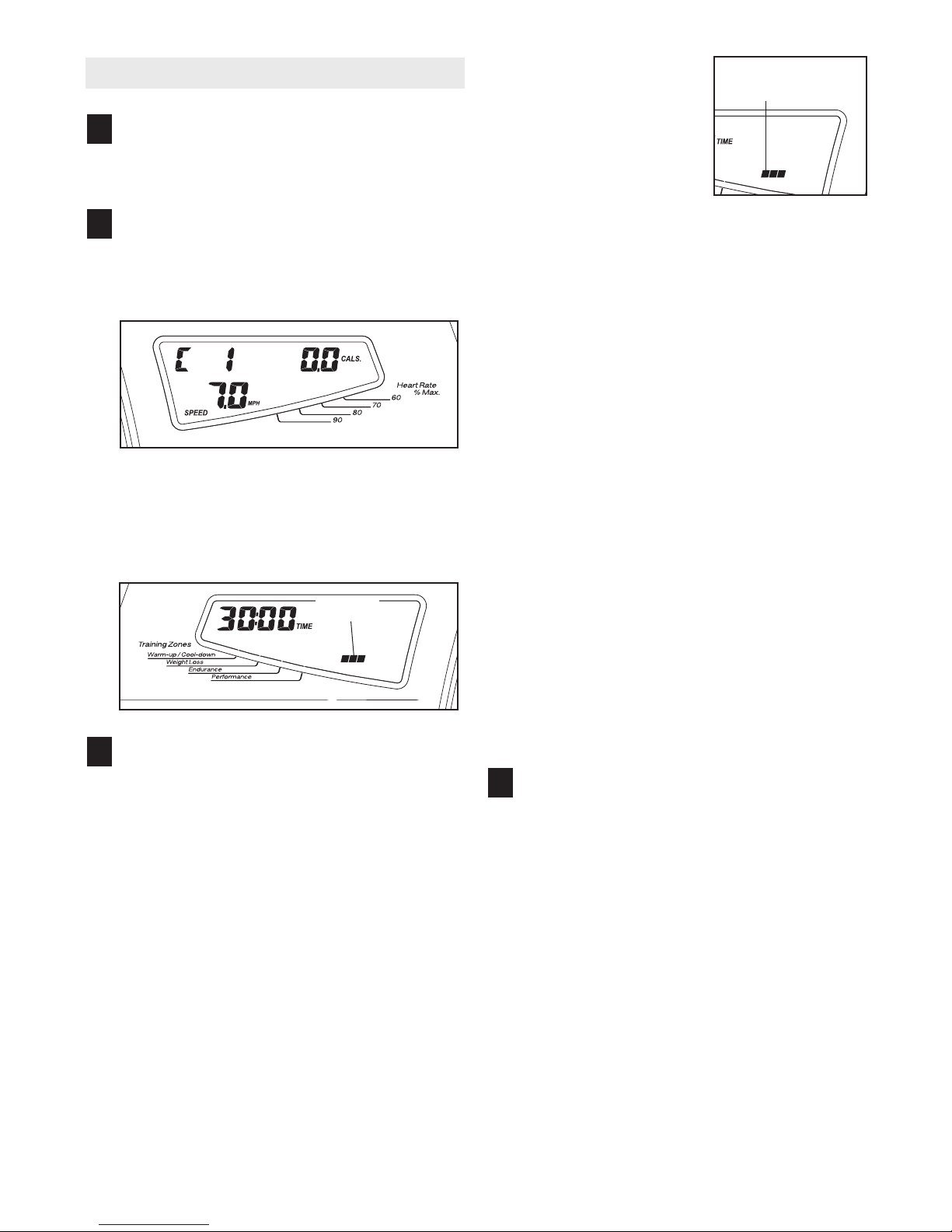

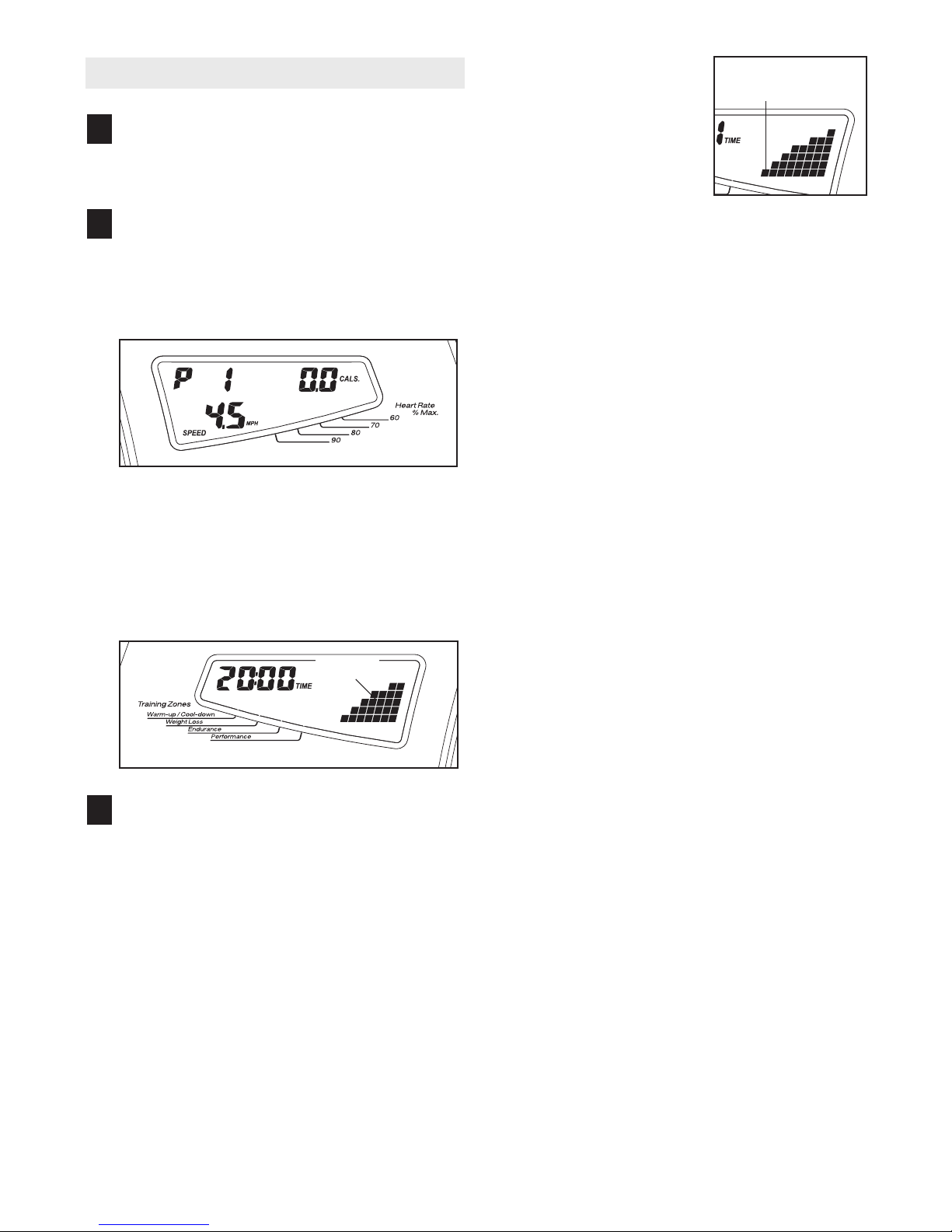

To select a preset program, press the Speed & Incline Programs button repeatedly. The right dis­play will show which program (P1 to P6) is se­lected.
When a preset program is selected, the left dis­play will flash the maximum incline setting of the program for a few seconds, and the right display will flash the maximum speed setting. The left dis­play will then show how long the program will last. In addition, the matrix in the left display will show the first seven speed settings of the program.
The speed setting for the first segment will be shown in the flashing Current Segment column of the matrix. (The in cline settings are not shown in the matrix.) The speed settings for the next seven segments will be shown in the columns at the right.
When only three seconds remain in the first seg­ment of the program, both the Current Segment column and the column to the right will flash, and a series of tones will sound. If the speed and/or in­cline of the treadmill is about to change, the left display and/or the right display will flash to alert you. When the first segment ends, all speed set- tings in the matrix will move one column to the left. The speed setting for the second segment will then be shown in the flashing Current Segment column and the treadmill will automatically adjust to the speed and incline settings for the second segment. Note: If all of the indicators in the Current Segment column are lit after the speed settings have moved to the left, so that only the highest indicators appear in the matrix. If some indicators in the Current Segment column are not lit when the speed settings move to the left again, the speed settings will move back up.
the speed settings may move downward
-
Current Segment
Column
Matrix
Press the Start button or the Speed + button to
3
start the program.
A moment after the button is pressed, the tread mill will automatically adjust to the first speed and incline settings of the program. Hold the handrails and begin walking.
Each program is divided into several time seg­ments of different lengths. One speed setting and one incline setting are programmed for each seg ment. Note: The same speed setting and/or in­cline setting may be programmed for two or more consecutive segments.
The program will continue in this way until the speed setting for the last segment is shown in the Current Segment column and the last segment ends. The walking belt will then slow to a stop.
If the speed or incline setting is too high or too low at any time during the program, you can manually override the setting by pressing the Speed or Incline buttons. Every few times a Speed button is pressed, an additional indicator will appear or dis-
-
-
appear in the Current Segment column. (If any of the columns to the right of the Current Segment column have the same number of indicators as the Current Segment column, an additional indicator may appear or disappear in those columns as well.)
Note: When the next segment of the pro­gram begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.
13
Page 14
To stop the program at any time, press the Stop button. The time will begin to flash in the left dis­play. To restart the program, press the Start or the Speed + button. The walking belt will begin to move at 1 mph. program begins, the treadmill will automatically ad­just to the speed and incline settings for the next segment.
Follow your progress with the displays.
When the next segment of the
4
See step 5 on page 11.
Measure your heart rate if desired.
5
See step 6 on page 12.
Turn on the fan if desired.
6
See step 7 on page 13.
button
When you are finished exercising, remove the
7
key from the console.
When the program ends, make sure that the in­cline of the treadmill is at the lowest setting.
Next, remove the key from the console and put it in a secure place. Note: If the displays and various
indicators remain lit after the key is removed, the console is in the “demo” mode. See page 24 and turn off the demo mode.
When you are finished using the treadmill, switch the reset/off circuit breaker to the “off” position and unplug the power cord.
14
Page 15
HOW TO CREATE A CUSTOM PROGRAM
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page 11.
Select one of the custom programs.
2

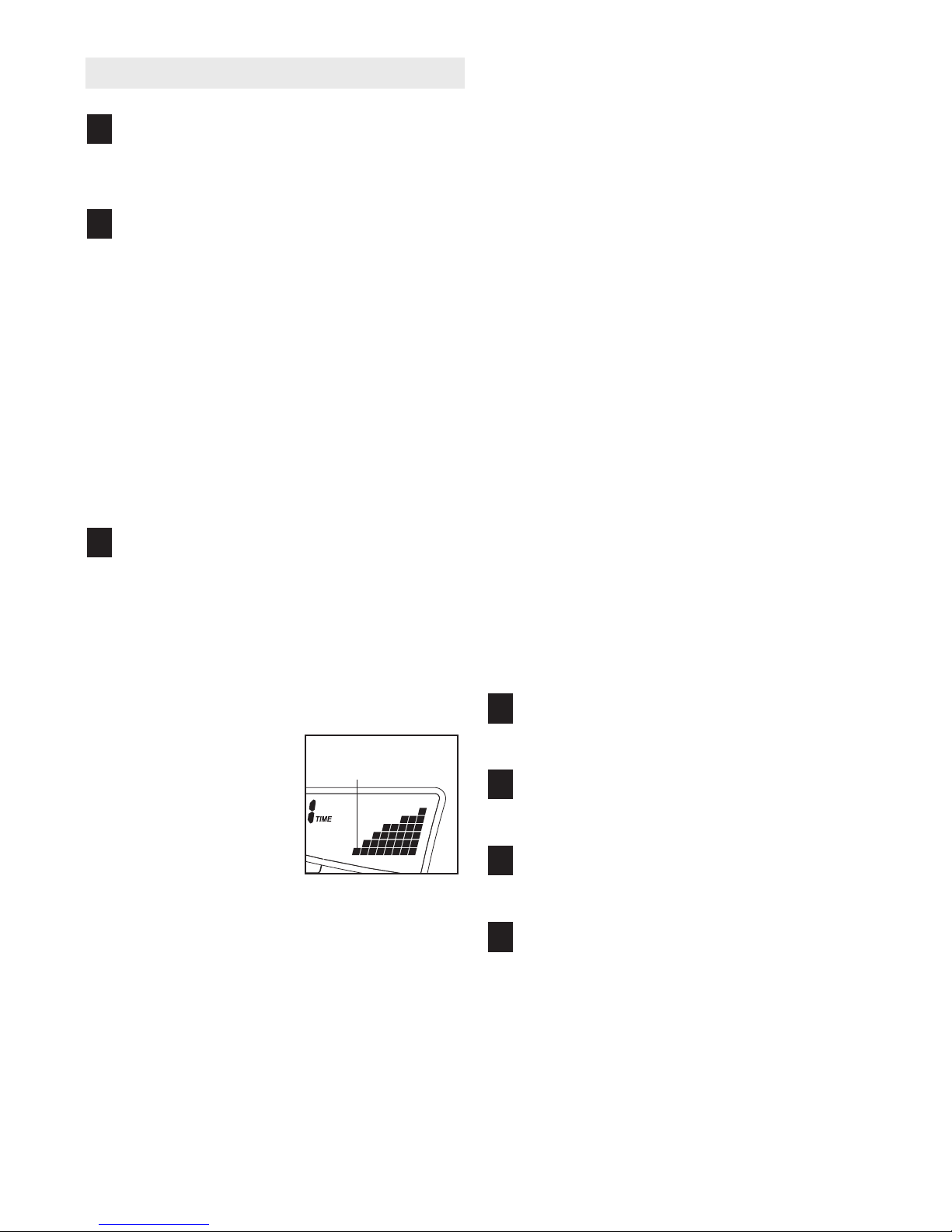

To select a custom program, press the Custom Programs button repeatedly until “C1,” “C2,” “C3,” or “C4” appears in the right display.
If the custom program has not yet been defined, one to three columns of indicators will appear in the matrix in the left display. If more than three
columns of indicators appear, see HOW TO USE A CUSTOM PROGRAM on page 16.
See the matrix in the left display. Each custom program is divided into one-minute segments. One speed setting and one incline setting can be programmed for each segment. The speed set­ting for the first segment will be shown in the flashing Current Segment col­umn of the matrix. (The incline settings are not shown in the matrix.) To program a speed setting and an incline setting for the first segment, simply adjust the speed and incline of the treadmill as de­sired by pressing the Speed and Incline buttons. Every few times one of the Speed buttons is pressed, an additional indicator will appear or dis­appear in the Current Segment column.
When the first segment of the program is com­pleted, the current speed setting and the current incline setting will be stored in memory.
columns of indicators will then move one column to the left, and the speed setting for the second
segment will be shown in the flashing Current Segment column. Program a speed setting and an incline setting for the second segment as de­scribed above.
Current Segment
Column
The three
Matrix
Press the Start button or the Speed + button
3
and program the desired speed and incline settings.
A moment after the button is pressed, the walking belt will begin to move. Hold the handrails and begin walking.
Continue programming speed and incline settings for as many segments as desired; custom pro­grams can have up to forty segments. When you are finished with your workout, press the Stop but­ton twice. The speed and incline settings that you have programmed and the number of segments that you have programmed will then be saved in memory.
When you are finished exercising, remove the
4
key from the console.
See step 7 on page 14.
15
Page 16
HOW TO USE A CUSTOM PROGRAM
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page 11.
incline setting will flash in the main display, and
speed settings will move one column to the left.
The speed setting for the second segment will then be shown in the flashing Current Segment column and the treadmill will automatically adjust to the second speed and incline settings that you pro­grammed previously.
all
Select one of the custom programs.
2
To select a custom program, press the Custom Programs button repeatedly until “C1,” “C2,” “C3,” or “C4” appears in the right display.
When a custom program is selected, the left dis­play will flash the maximum incline setting of the program for a few seconds, and the right display will flash the maximum speed setting. The left dis­play will then show how long the program will last. In addition, the matrix in the left display will show the first speed settings of the program. Note: If
only three columns of indicators appear in the matrix, see HOW TO CREATE A CUSTOM PROGRAM on page 15.
Press the Start button or the Speed + button to
3
start the program.
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed and incline settings that you programmed previously. Hold the handrails and begin walking.
Each program is divided into several one-minute segments. One speed setting and one incline set­ting are programmed for each segment. The speed setting for the first segment will be shown in the flashing Current Segment col­umn of the matrix. (The incline settings are not shown in the matrix.) The speed settings for the next several segments will be shown in the columns to the right.
When only three seconds remain in the first seg ment of the program, both the Current Segment column and the column to the right will flash, a se­ries of tones will sound, the speed setting and the
Current Segment
Column
The program will continue until the speed setting for the last segment is shown in the Current Segment column and the last segment ends. The walking belt will then slow to a stop.
If desired, you can redefine to the program while using it. To change the speed or incline setting during the current segment, simply press the Speed or Incline buttons. When the current segment is completed, the new setting will be saved in mem­ory. To increase the length of the program, first wait until the program is completed. Then, press the Start button, and program speed and incline settings for as many additional segments as desired. When you have added as many segments as desired, press the Stop button twice. To decrease the length of the program, press the Stop button twice at any time before the program is completed.
To stop the program temporarily, press the Stop button. The time will begin to flash in the main dis­play. To restart the program, press the Start but­ton or the Speed + button. To end the program, press the Stop button, remove the key, and then reinsert the key.
Follow your progress with the displays.
4
See step 5 on page 11.
Measure your heart rate if desired.
5
See step 6 on page 12.
Turn on the fan if desired.
6
See step 7 on page 12.
When you are finished exercising, remove the
7
key from the console.
­See step 7 on page 14.
16
Page 17
HOW TO USE A
HEART RATE PROGRAM
CAUTION: If you have heart prob-
lems, or if you are over 60 years of age and have been inactive, do not use the heart rate programs. If you are taking medication regu­larly, consult your physician to find whether the medication will affect your exercise heart rate.
Follow the steps below to use a heart rate program.
Note: You must wear the optional chest pulse sen­sor (see page 24) to use a heart rate program. While using the chest pulse sensor, do not use the hand­grip pulse sensor.
Put on the optional chest pulse sensor.
1
See the instructions included with the optional chest pulse sensor.
Insert the key into the console.
2
See HOW TO TURN ON THE POWER on page 11.
Enter your age.
4

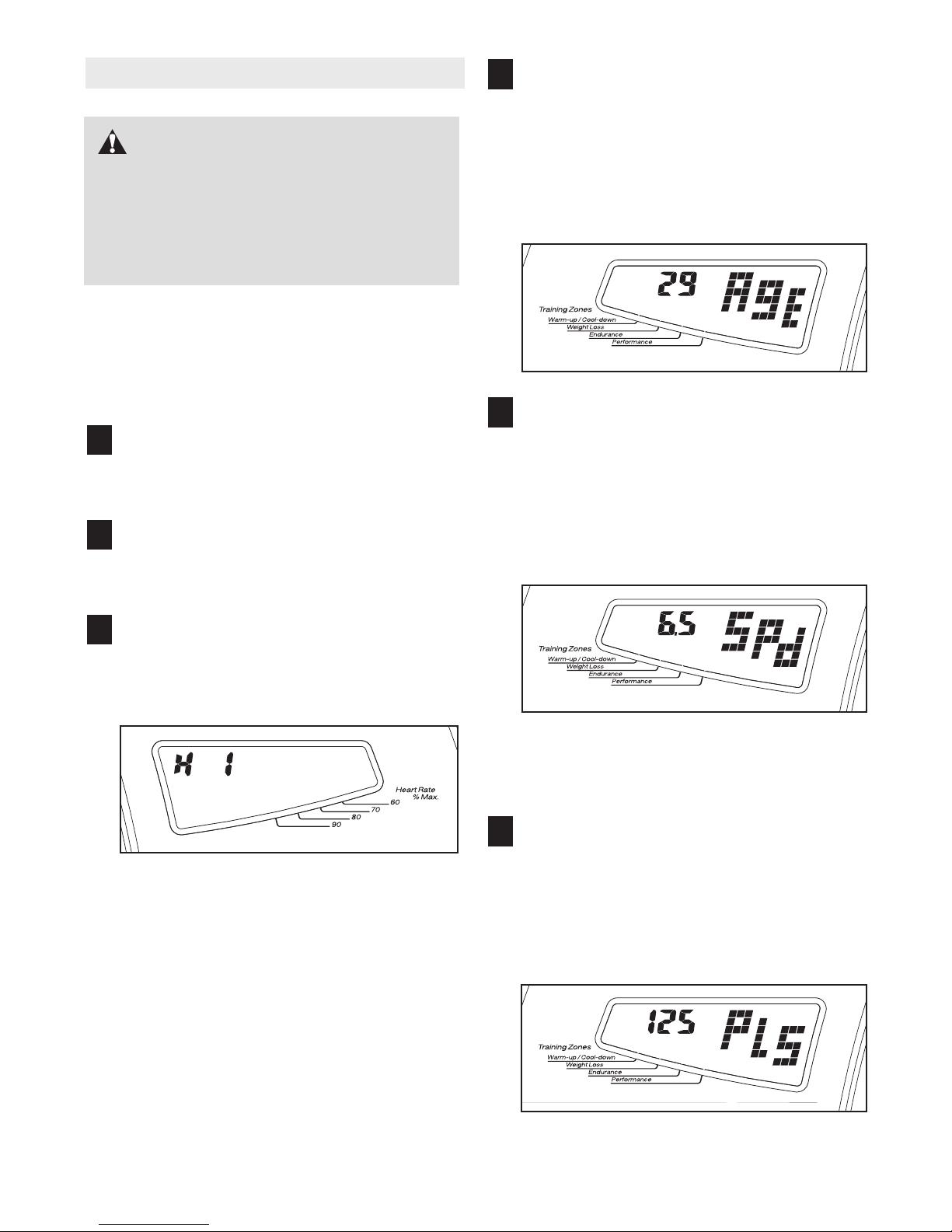

When a heart rate program is selected, the word “AgE” will appear in the left display and the cur­rent age setting will begin to flash. If you have al ready entered your age, simply press the Enter button. If you have not entered your age, press the + or – button beside the Enter button to enter your age, and then press the Enter button.
Enter a maximum speed setting.
5
After you have entered your age, the letters “SPd” will appear in the left display and the maximum speed setting of the program will begin to flash. If desired, press the + or – button beside the Enter button to adjust the maximum speed setting. When the desired setting is shown, press the Enter button.
-
Select a heart rate program.
3
To select a heart rate program, press the Heart Rate Control Programs button repeatedly until “H1” or “H2” appears in the right display.
During the 85% Max program, your heart rate will reach approximately 85% of your estimated maxi- mum heart rate. During the Self Select program, your heart rate will remain near a level that you select. Note: Your maximum heart rate is esti- mated by subtracting your age from 220. For ex ample, if you are 30 years old, your estimated maximum heart rate is 190 beats per minute (220 – 30 = 190).
If the 85% Max program is selected, go to step
7. If the Self Select program is selected, go to step 6.
Enter a target heart rate.
6
The letters “PLS” will appear in the left display and the target heart rate setting for the program will begin to flash. If desired, press the + or – button beside the Enter button to adjust the target heart rate setting. When the desired setting is shown, press the Enter button.
-
17
Page 18
Press the Start button or the Speed + button to
7
start the program.
The program will continue until the last segment ends. The walking belt will then slow to a stop.
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed and incline settings of the program. Hold the handrails and begin walking.
During heart rate pro­grams, the matrix in the left display will show a heart beat symbol. Each time a heart beat is detected, a peak will appear.
Each heart rate program is divided into several time segments of different lengths. One target heart rate is programmed for each segment. Note: If the Self Select program is selected, the same target heart rate is programmed for all segments.
During each segment, the console will compare your heart rate to the target heart rate. If your heart rate is too far below or above the target heart rate, the speed of the walking belt will auto­matically increase or decrease to bring your heart rate closer to the target heart rate. If the speed reaches the maximum speed setting of the pro­gram (see step 5 on page 17) and your heart rate is too far below the current target heart rate, the incline of the treadmill will also increase to bring your heart rate closer to the target heart rate.
During the last three seconds of each segment, a series of tones will sound and the incline setting and the speed setting will flash in the two displays.
If the speed or incline setting is too high or too low at any time during the program, you can adjust the setting with the Speed or Incline buttons. However, each time the console compares your heart rate to the target heart rate, the speed and/or incline of the treadmill may automatically change to bring your heart rate closer to the target heart rate.
If your pulse is not detected during the program, the letters “PLS” will flash in the right display and the speed and incline of the treadmill may auto­matically decrease.
To stop the program at any time, press the Stop button. Heart rate programs cannot be stopped temporarily and then restarted. To use a heart rate program the beginning.
Follow your progress with the displays.
again, reselect the program and start it at
8
See step 5 on page 11.
Turn on the fan if desired.
9
See step 7 on page 12.
When you are finished exercising, remove the
10
key from the console.
See step 7 on page 14.
18
Page 19

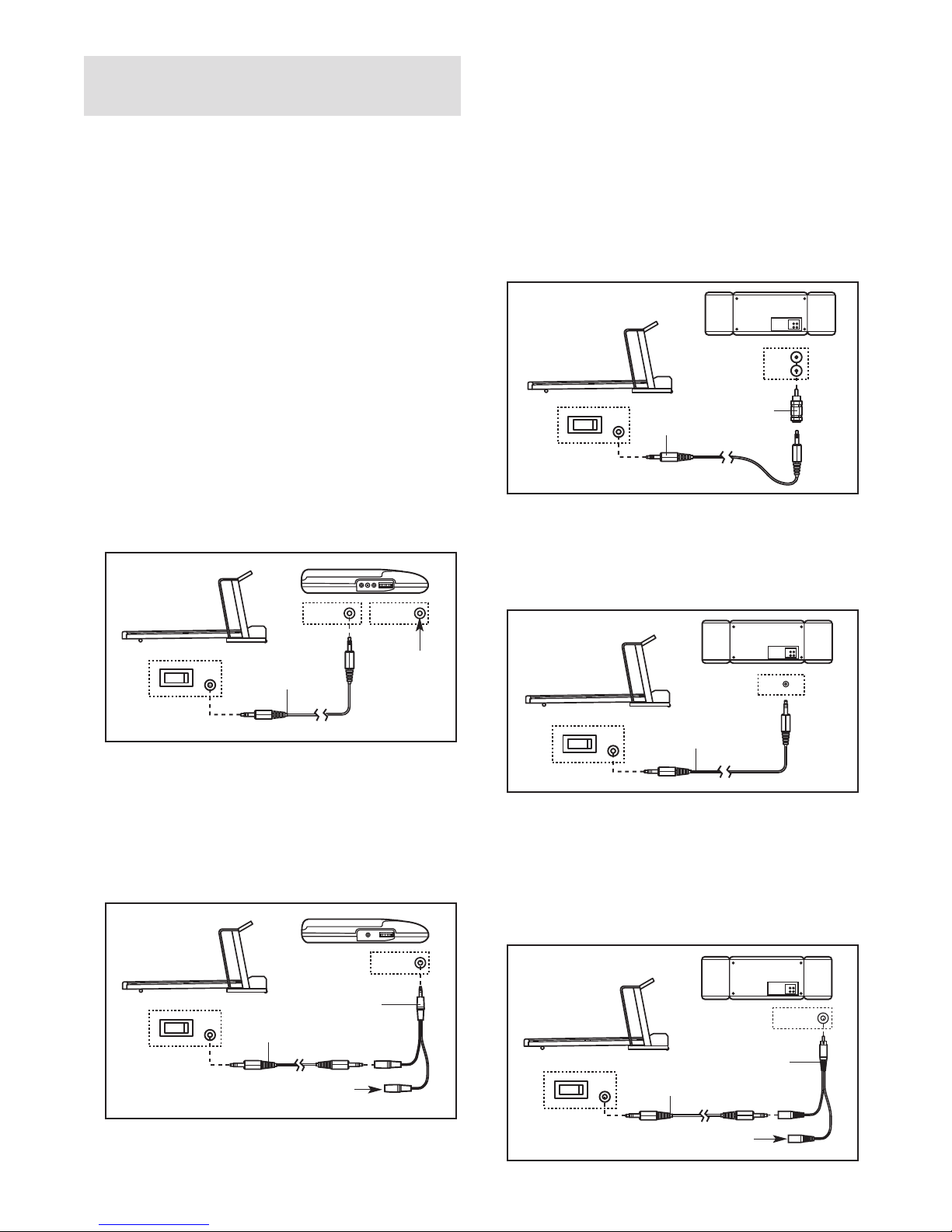

HOW TO CONNECT THE TREADMILL TO
LINE OUT
PHONES
PHONES
PHONES
LINE OUT
PHONES
LINE OUT
PHONES
AUDIO OUT
RIGHT
LEFT
YOUR CD PLAYER, VCR, OR COMPUTER
To use iFIT.com CDs
, the treadmill must be con­nected to your portable CD player, portable stereo, home stereo, or computer with CD player. See pages 19 and 20 for connecting instructions.
To use iFIT.com videocassettes, the treadmill must be connected to your VCR. See page 21 for connecting instructions. To use iFIT.com programs directly from our Web site,
the treadmill must be connected to your home com­puter. See page 20 for connecting instructions.

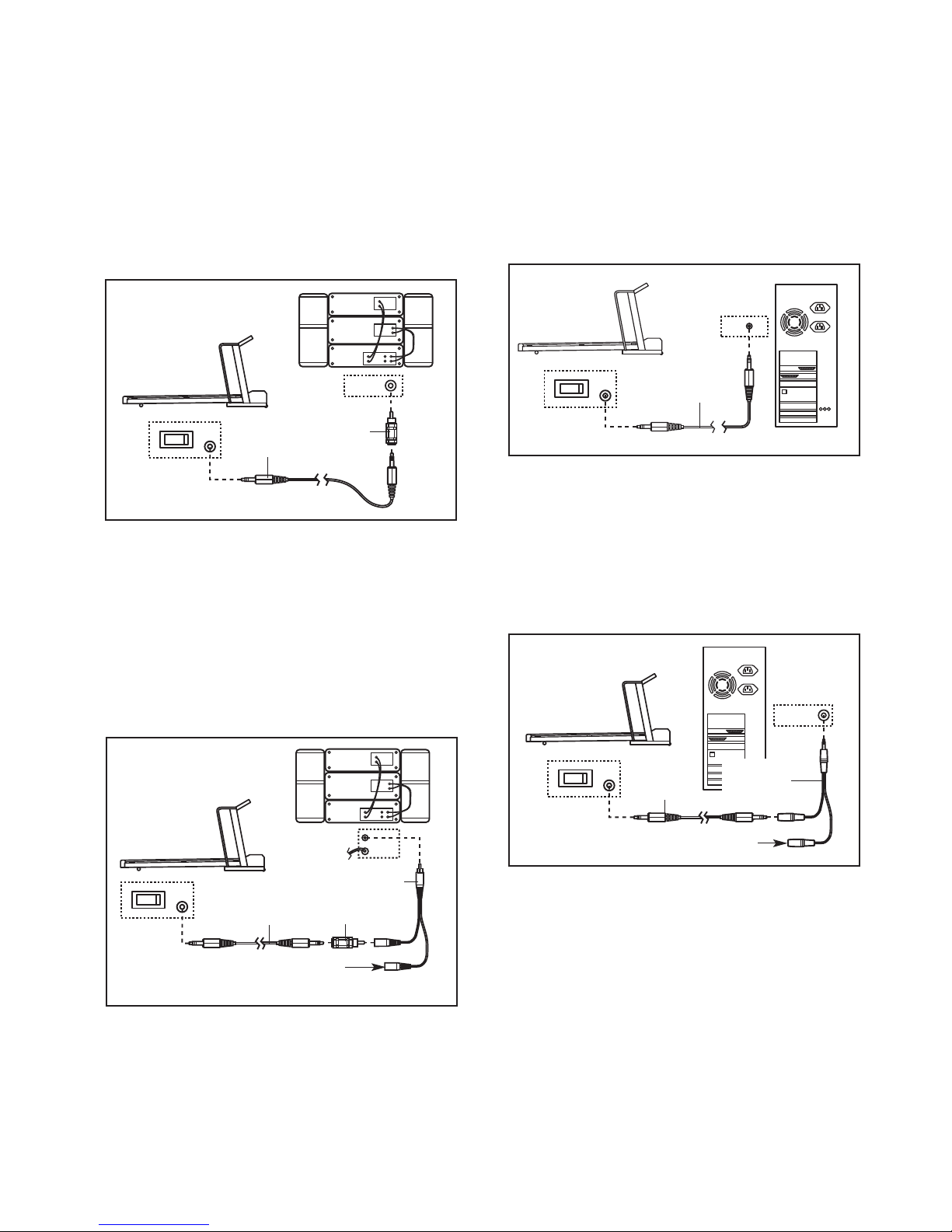

HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and PHONES jacks, see instruction A below. If your CD player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your CD player. Plug your headphones into the PHONES jack.
A
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an AUDIO OUT jack on your stereo.
A
Audio
Adapter
Cable
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your stereo.
Audio Cable
Plug one end of the audio cable into the jack on the
B.
Head-
phones
front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your CD player. Plug your headphones into the other side of the Y-adapter.
B
3.5mm
Audio
Y-adapter
Cable
Headphones
B
Audio Cable
C. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your stereo. Plug your headphones into the other side of the Y-adapter.
C
3.5mm
Audio
Y-adapter
Cable
Headphones
19
Page 20
HOW TO CONNECT YOUR HOME STEREO
LINE OUT
CD
VCR
Amp
LINE OUT
LINE OUT
CD
VCR
Amp
LINE OUT
PHONES
HOW TO CONNECT YOUR COMPUTER
Note: If your stereo has an unused LINE OUT jack, see instruction A below. If the LINE OUT jack is being used, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the LINE OUT jack on your stereo.
A
Audio
Adapter
Cable
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the LINE OUT jack on your stereo.
If your computer has a 3.5mm LINE OUT jack,
Note: see instruction A. If your computer has only a PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your computer.
A
Audio Cable
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your computer. Plug your headphones or speakers into the other side of the Y-adapter.
B
B
Audio Cable
3.5mm
Y-adapter
Headphones/Speakers
RCA Y-adapter
Audio
Cable
Adapter
Wire removed from
LINE OUT jack
20
Page 21

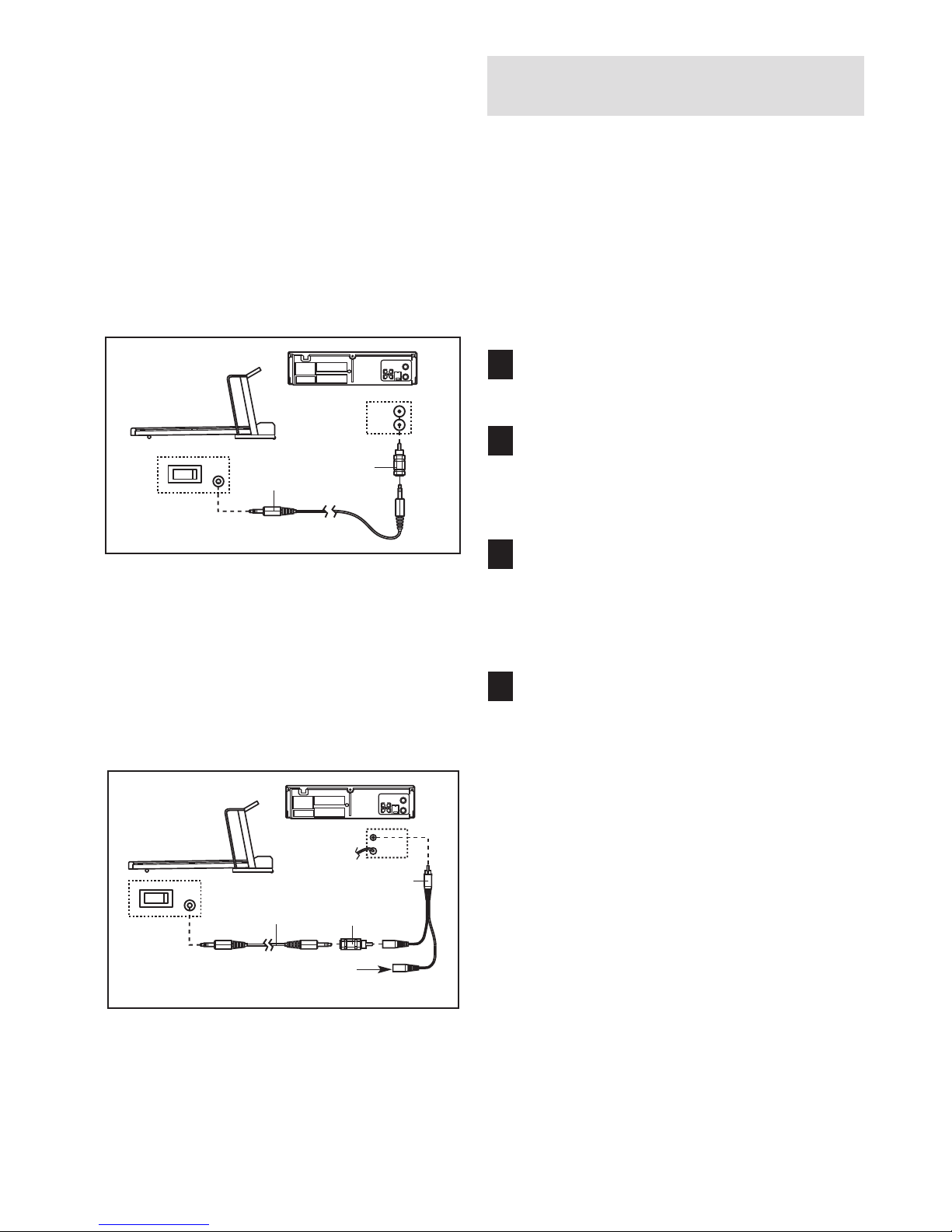

HOW TO CONNECT YOUR VCR
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT
. IN
RF OUT
IN
OUT
CH 3
4
VIDEO
AUDIO
ANT
. IN
RF OUT
IN
OUT
CH 3
4
Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 20.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the AUDIO OUT jack on your VCR.
HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS
To use iFIT.com CDs or videocassettes, the treadmill must be connected to your portable CD player, portable stereo, home stereo, computer with CD player, or VCR. See HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER on pages 19 to 21.
To purchase iFIT.com CDs or videocas-
settes, call toll-free 1-866-997-6999.
Follow the steps below to use an iFIT.com CD or video program.
A
Audio
Adapter
Cable
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.
B
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page 11.
Select the iFIT.com mode.
2
To use iFIT.com CDs or videocassettes, press the iFIT.com button. The indicator on the button will light.
Insert the iFIT.com CD or videocassette.
3
If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com videocassette, insert the videocassette into your VCR.
Press the PLAY button on your CD player or
4
VCR.
A moment after the button is pressed, your per­sonal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions. Note: If the time is flashing in the left display, press the Start button or the Speed + but ton on the console. The treadmill will not respond to a CD or video program while the time is flashing.
-
RCA Y-adapter
Audio
Cable
Wire removed from
AUDIO OUT jack
Adapter
During the CD or video program, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes. In some instances, the speed and/or incline may change before the personal trainer describes the change.
21
Page 22
If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However,
heard, the speed and/or incline will change the next settings of the CD or video program.
To stop the walking belt at any time, press the Stop button on the console. The time will begin to flash in the left display. To restart the program, press the Start button or the Speed + button. After a moment, the walking belt will begin to move at 1 mph. When the next “chirp” is heard, the
speed and incline will change to the next set­tings of the CD or video program
when the next “chirp” is
to
.
• Make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.
If you are using your portable CD player and
• the CD skips, set the CD player on the floor or another flat surface instead of on the console.
Follow your progress with the displays.
5
See step 5 on page 11.
Measure your heart rate if desired.
6
See step 6 on page 12.
When the CD or video program is completed, the walking belt will stop and the time will begin to flash in the left display. Note: To use another CD or video program, press the Stop button or remove the key and go to step 1 on page 21.
Note: If the speed or incline of the treadmill does not change when a “chirp” is heard:
• Make sure that the iFIT.com indicator is lit and that the time is not flashing in the left display. If the time is flashing, press the Start button or the Speed + button on the console.
• Adjust the volume of your CD player or VCR/TV. If the volume is too high or too low, the console may not detect the program sig­nals.
Turn on the fan if desired.
7
See step 7 on page 12.
When you are finished exercising, remove the
8
key from the console.
See step 7 on page 14.
CAUTION: Always remove iFIT.com CDs and videocassettes from your CD player and VCR when you are finished using them.
22
Page 23
HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE
To use programs from our Web site, the treadmill must be connected to your computer. See HOW TO CON­NECT YOUR COMPUTER on page 19. In addition, you must have an internet connection and an internet service provider. A list of specific system requirements is found on our Web site.
Follow the steps below to use a program from our Web site.
Hold the handrails, step onto the walking belt, and begin walking. During the program, an electronic
“chirping” sound and/or incline of the treadmill is about to change.
AUTION: Always listen for the “chirp” and be
C prepared for speed and/or incline changes.
If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However, when the next “chirp” is
heard, the speed and/or incline will change to the next settings of the program.
will alert you when the speed
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page 11.
Select the iFIT.com mode.
2
To use a program from our Web site, press the iFIT.com button. The indicator on the button will light.
Go to your computer and start an internet
3
connection.
Start your web browser, if necessary, and go to
4
our Web site at www.iFIT.com.
Follow the desired links on our Web site to se-
5
lect a program.
Read and follow the on-line instructions for using a program.
Follow the on-line instructions to start the
6
program.
To stop the walking belt at any time, press the Stop button on the console. The time will begin to flash in the left display. To restart the program, press the Start button or the Speed + button. After a moment, the walking belt will begin to move at 1 mph. When the next “chirp” is heard, the speed
and incline the program
When the program is completed, the walking belt will stop and the time will begin to flash in the left display. Note: To use another program, press the Stop button and go to step 5.
Note: If the speed or incline of the treadmill does not change when a “chirp” is heard, make sure that the iFIT.com indicator is lit and that the time is not flashing in the left display. In ad­dition, make sure that the audio cable is prop­erly connected, that it is fully plugged in, and that it is not wrapped around a power cord.
Follow your progress with the displays.
will change to the next settings of
.
8
See step 5 on page 11.
When you start the program, an on-screen count down will begin.
Return to the treadmill and stand on the foot
7
rails. Find the clip attached to the key and slide the clip onto the waistband of your clothes.
When the on-screen countdown ends, the program will begin and the walking belt will begin to move.
-
When you are finished exercising, remove the
9
key from the console.
See step 7 on page 14.
23
Page 24
THE INFORMATION MODE/DEMO MODE
The console features an information mode that keeps track of the total number of miles that the walking belt has moved and the total number of hours that the treadmill has been used. The information mode also allows you to select miles or kilometers as the unit measurement and to turn on and turn off the demo mode.
To select the information mode, hold down the Stop button while inserting the key into the console. When the information mode is selected, the following infor­mation will be shown:
The left display will show the total number of hours that the treadmill has been used.
The right display will show the total number of miles (or kilometers) that the walking belt has moved. In addition, the right display will show the letter “E” for English miles or the letter “M” for metric kilometers. Press the Speed + button to change the unit of measurement.
IMPORTANT: If the letter “d” appears in the right dis­play, the “demo” mode is selected. This mode is in­tended to be used only when a treadmill is displayed in a store. When the demo mode is selected, the power cord can be plugged in, the key can be removed from the console, and the displays and indicators on the console will automatically light in a preset sequence, although the buttons on the console will not operate.
If a “d” appears in the right display when the infor­mation mode is selected, press the Speed – button.
To exit the information mode, remove the key from the console.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor provides hands-free operation as it continuously monitors your heart rate.
To purchase the optional chest pulse sensor, call toll-free 1-866-997-6999.
24
Page 25
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be permanently damaged. Next, unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill.
1. Hold the end of the treadmill near the location indicated by the arrow at the right. To decrease the possibility of in-
jury, bend your legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your back. Raise the treadmill about halfway
to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the latch knob to the left and hold it. Raise the treadmill until the catch is aligned with the latch pin. Slowly release the latch knob.
Make sure that the catch is securely held by the latch pin.
To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the stor­age position in temperatures above 85° Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the
pin on the latch knob is fully inserted into the hole in the left handgrip.
1. Hold the treadmill and place one foot on one of the wheels.
2. Tilt the treadmill back until it rolls freely on the wheels. Carefully move the treadmill to the desired location. To re-
duce the risk of injury, use extreme caution while moving the treadmill. Do not attempt to move the treadmill over an uneven surface.
3. Place one foot on the wheel, and carefully lower the treadmill until the base is resting in the storage position.
Front Wheels
Latch Knob
Pin
Catch
Closed
Base
25
Page 26
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand
as shown. Using your left hand, pull the latch knob to the left and hold it. Pivot the treadmill down until the frame is past the latch pin. Slowly release the latch knob.
2. Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. To decrease the possibility of in-
jury, bend your legs and keep your back straight.
Pin
Latch
Knob
Catch
Open
26
Page 27
TROUBLESHOOTING
Most treadmill problems can be solved by following the instructions below. If further assistance is needed, please call our Customer Service Department toll-free at 1-866-997-6999, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 9). Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. Important: The treadmill is not compatible with GFCI-equipped outlets.
b. Make sure that the key is fully inserted into the console.
c. Check the reset/off circuit breaker located on the frame near the
power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes and then press the switch back in.
PROBLEM: The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker (see 1. c. above). If the circuit breaker has tripped, wait for five
minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console and then reinsert it.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD.Next, remove the screws from the hood
and carefully remove the hood. Locate the Reed Switch (42) and the Magnet (24) on the left side of the Pulley (23). Turn the Pulley until the Magnet is aligned with the Reed Switch. Make sure that the gap between the Magnet
and the Reed Switch is about 1/8”.
slotted screwdriver to move the Reed Switch slightly. Reattach the Hood, making sure that the Screws are in­serted into the same holes from which they were removed. Run the treadmill for a few minutes to check for a correct speed reading.
If necessary, use a
a
1/8”
42
Top
View
c
ResetOff
23
24
27
Page 28
PROBLEM: The walking belt slows when walked on
Use only a single-outlet surge suppressor that meets all of the specifications described on page 9.
SOLUTION:
a.
If the walking belt is overtightened, treadmill perfor-
b.
mance may decrease and the walking belt may be permanently damaged. Remove the key and
UN-
PLUG THE POWER CORD. Using the included allen
wrench, turn both rear roller adjustment bolts counter­clockwise 1/4 of a turn. When the walking belt is prop­erly tightened, you should be able to lift the edges of the walking belt 3 to 4 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, call our Customer Service Department toll-free.

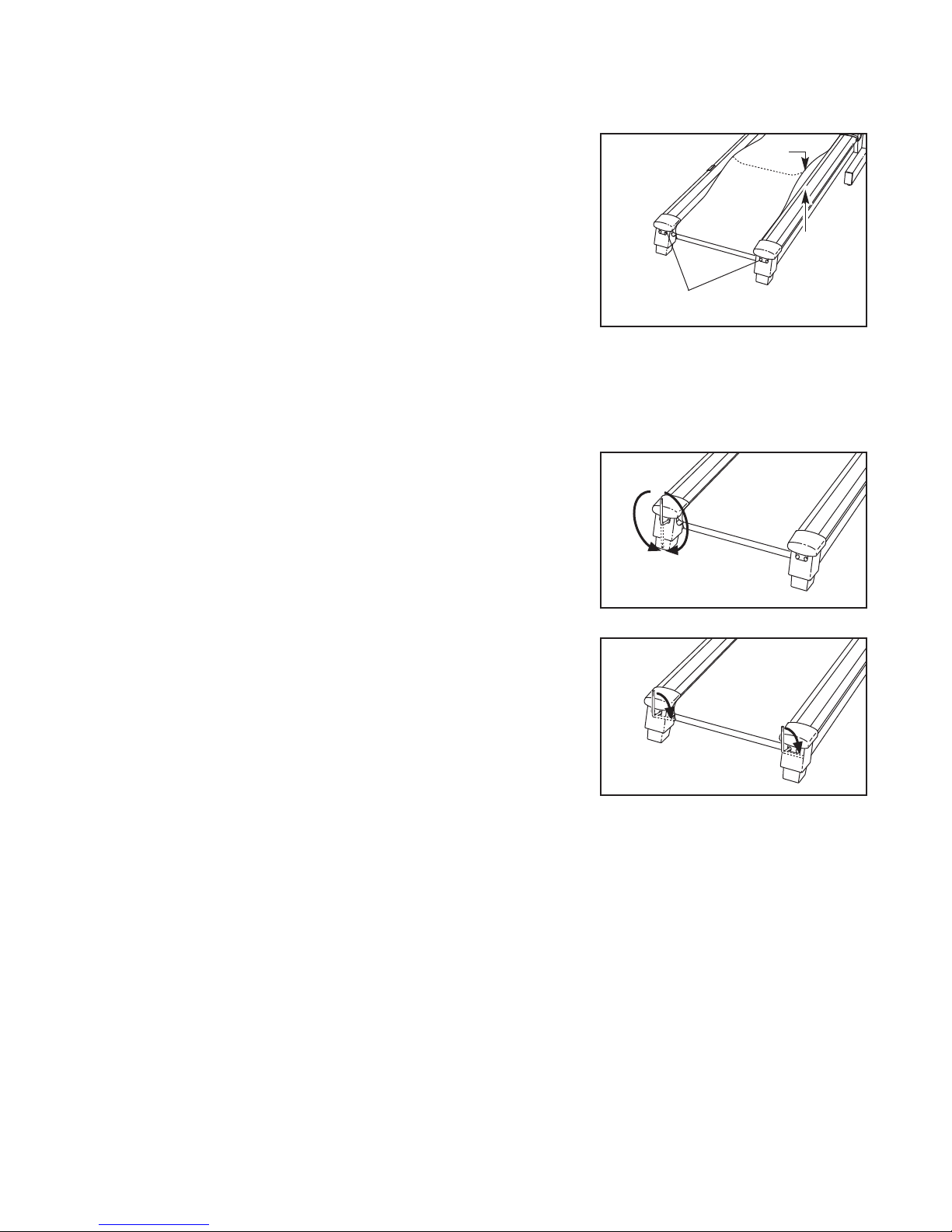

PROBLEM: The walking belt is off-center or slips when walked on
b
3–4”
Rear Roller Adjustment Bolts
SOLUTION:
a. If the walking belt is off-center, first remove the key
and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the allen wrench to turn the left rear roller bolt clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the bolt counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove
the key and
UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller bolts clockwise 1/4 of a turn. When the walking belt is correctly tight­ened, you should be able to lift each side of the walk­ing belt 3 to 4 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key, and walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.
a
b
28
Page 29
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi­cian. This is especially important for individu­als over the age of 35 or individuals with pre­existing health problems.
The pulse sensor is not a medical device. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
The following guidelines will help you to plan your ex­ercise program. For more detailed exercise informa­tion, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
ergy. Only after the first few minutes does your body begin to use stored is to burn fat, adjust the speed or incline of the tread­mill until your heart rate is near the lowest number in your training zone.
For maximum fat burning, adjust the speed or incline of the treadmill until your heart rate is near the middle number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed or incline of the treadmill until your heart rate is near the highest number in your training zone.
fat calories for energy. If your goal
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom­mended heart rates for fat burning and aerobic exercise.

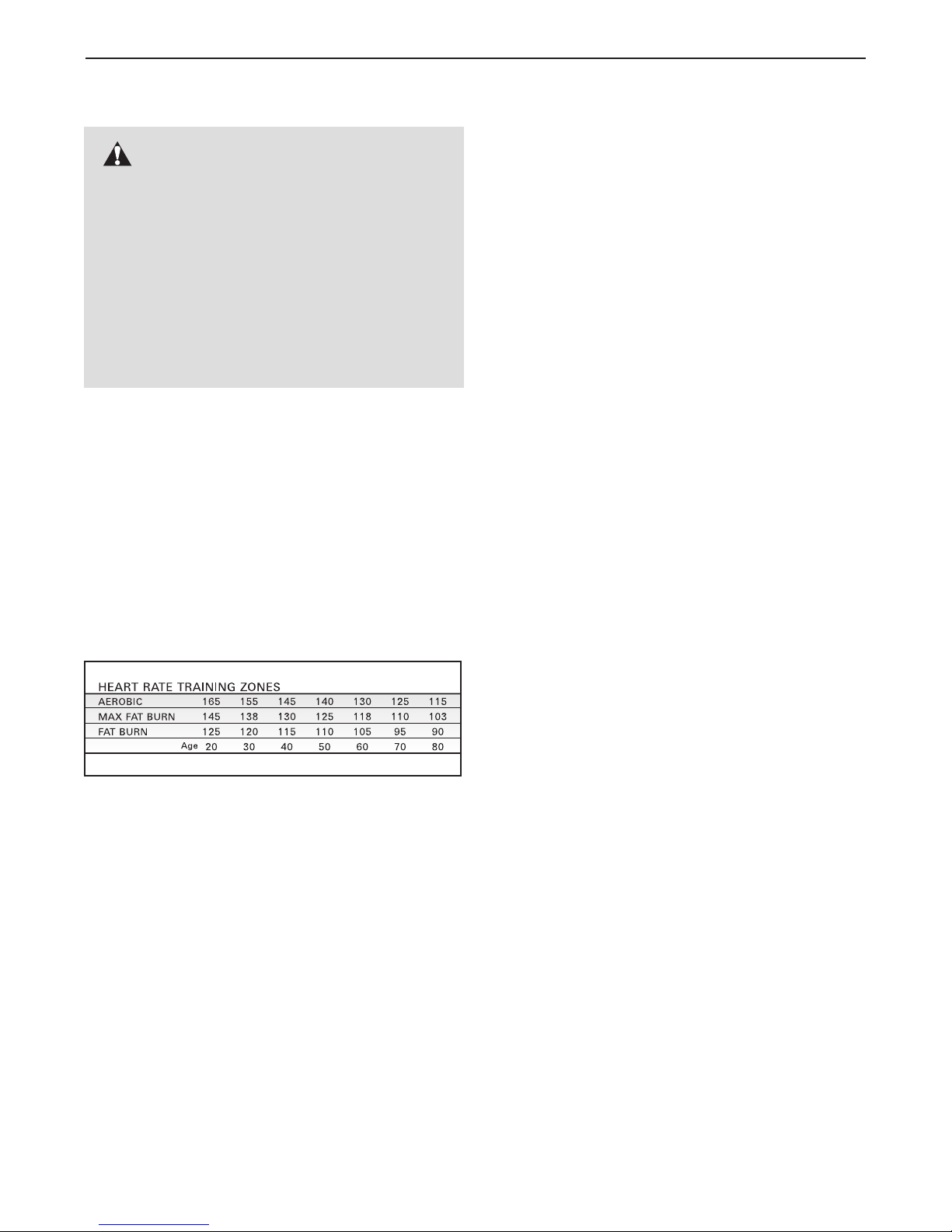

To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers define your “train ing zone.” The lower two numbers are recommended heart rates for fat burning; the highest number is the recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the handgrip pulse sensor.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for en-
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes of stretching and light exercise. A proper warm-up in­creases your body temperature, heart rate and circula­tion in preparation for exercise.
Training Zone Exercise—After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.
A Cool-down—Finish each workout with 5 to 10 min-
­utes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent post-ex­ercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest be­tween workouts. After a few months, you may com­plete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.
29
Page 30
SUGGESTED STRETCHES

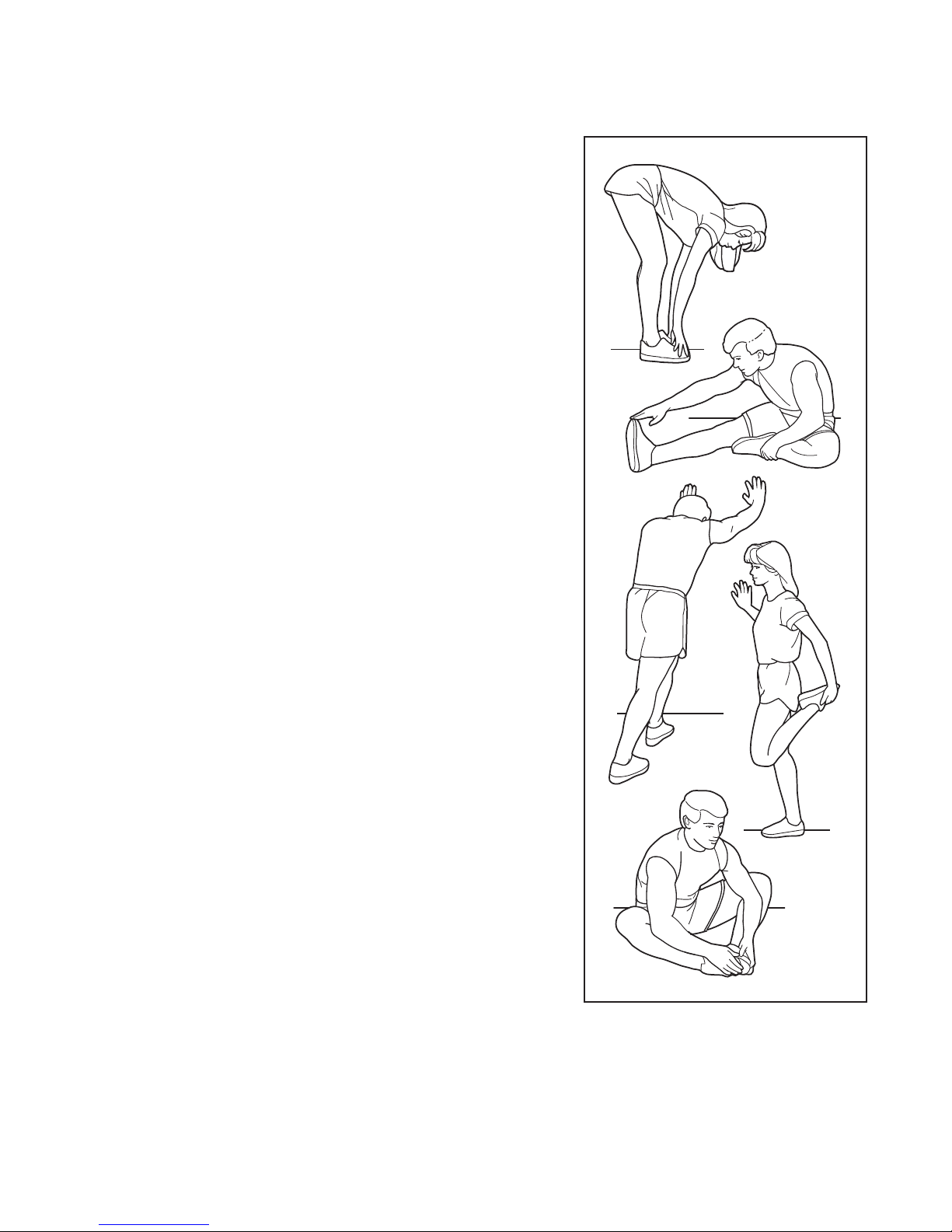

The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles ten­dons, bend your back leg as well. Stretches: Calves, achilles ten­dons and ankles.
4. Quadriceps Stretch
1
2
3
4
With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your but­tocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.
5
30
Page 31
PART LIST—Model No. EPTL814041 R1204A
To locate the parts listed below, see the
Key
No. Qty. Description
1 2 Foot Rail Cover 2 70 3/4” Screw 3 1 Left Foot Rail 4 1 Right Handgrip (Top) 5 1 Right Handgrip (Bottom) 6 1 Left Handgrip (Top) 7 1 Left Handgrip ( Bottom) 8 1 Fan 9 1 Fan Housing
10 9 1/2” Screw
1 Latch Warning Decal
11
4 Rear Platform Screw
12
1 Latch Catch
13 14 1 Walking Belt 15 1 Walking Platform 16 1 Frame 17 2 Belt Guide 18 4 Isolator Bolt 19 4 Isolator 20 4 Front Platform Screw 21 17 Screw 22 1 Console Wire Harness 23 1 Front Roller 24 1 Magnet 25 9 Nut 26 2 Frame Pivot Bushing 27 2 Frame Pivot Spacer 28 4 Frame Pivot Washer
Frame Pivot Bolt
2
29 30 1 Idler Pulley Nut
Hood
1
31 32 1 Idler Pulley 33 1 Idler Pulley Bolt 34 1 Idler Arm Bolt 35 1 Idler Arm Bushing 36 1 Idler Arm 37 1 Idler Arm Spring 38 2 Idler Arm Washer
Idler Arm Assembly
1
39*
Motor Belt
1
40
Drive Motor
1
41
EXPLODED DRAWING attached in the center of this manual.
Key
No. Qty. Description
42 1 Reed Switch 43 2 Wheel Housing 44 1 Reed Switch Clip 45 4 Hood Bracket 46 1 Ground Wire 47 1 Lift Frame 48 2 Motor Bolt 49 2 Motor Bushing 50 1 Filter Wire 51 1 Controller Plate
2 Small Star Washer
52
1 Lift Motor Bolt, Top
53
8 Electronic Screw
54 55 1 On/Reset
Circuit Breaker 56 1 Controller 57 1 Power Cord 58 1 Grommet 59 1 Transformer 60 1 Audio Wire Nut 61 1 Audio Wire 62 1 Book Holder 63 5 Hood Screw 64 1 Front Right Endcap 65 1 Front Left Endcap 66 4 Motor Belly Pan Screw 67 1 Motor Belly Pan 68 4 Pulse Bar Screw
Console Frame
1
69 70 1 Allen Wrench
Frame Belly pan
1
71 72 1 Right Endcap 73 2 Rear Foot 74 2 Rear Roller Bolt 75 2 Rear Roller
Star Washer 76 2 Rear Roller Washer 77 4 U-Nut
Jack
1
78
5/32” Allen Wrench
1
79
Console Base
1
80
Key
No. Qty. Description
81 1 Console 82 2 Static Decal 83 1 Audio Cable 84 1 Latch Pin Assembly 85 1 Console Back 86 4 Console Bolt 87 1 Outlet Bracket 88 4 Star Washer 89 1 Latch Sleeve 90 1 Left Endcap
2 Lift Pivot Bolt
91
2 Wheel Bolt
92
2 Front Wheel
93 94 1 Shock 95 1 Access Door 96 1 Right Foot Rail 97 2 Base Pad 98 4 1” Tek Screw
99 1 Upright 100 2 Upright Endcap 101 2 Caution Decal 102 1 Lift Motor
Bolt, Bottom 103 1 Incline Motor 104 1 Stop Bracket 105 1 Releasable Tie 106 3 Tie Holder 107 1 Plastic Tie
Upright Wire Harness
1
108 109 1 Key Clip
Pulse Bar
1
110 111 1 Pulse Wire
# 1 4” Green Wire, M/Ring # 1 8” Black Wire, 2 Ring # 1 8” Blue Wire, 2 F # 1 User’s Manual
*Includes all parts shown in the box #These parts are not illustrated
31
Page 32
66
67
66
66
27
26
25
28
55
87
54
61
50
60
40
41
42
48
49
48
25
53
39*
36
38
37
30
32
25
33
34
38
21
45
21
45
45
21
26
27
28
23
21
45
52
10
59
51
56
10
54
63
63
63
63
82
63
31
1
2
2
2
2
3
21
19
20
18
13
2
11
12
76
90
2
74
75
76
2
73
21
75
74
2
76
72
21
2
73
70
54
46
2
19
18
96
1
2
2
2
2
65
17
2
16
15
14
25
24
47
58
57
35
12
20
28
29
28
29
65
64
79
12
12
19
18
19
18
44
17
EXPLODED DRAWING—Model No. EPTL814041 R1204A
Page 33
81
5
4
62
80
2
2
9
7
6
2
2
2
2
2
95
2
2
2
85
2
2
2
2
2
2
2
2
2
2
2
2
2
69
86
68
86
68
88
88
77
77
109
100
91
98
25
94
97
99
104
103
25
102
98
97
91
25
25
93
92
101
101
21
106
105
107
108
83
78
110
93
8
22
25
93
92
98
98
89
84
100
43
43
111
EXPLODED DRAWING—Model No. EPTL814041 R1204A
Page 34
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-866-997-6999, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information:
• The MODEL NUMBER of the product (EPTL814041)
• The NAME of the product (EPICTM400 MX treadmill)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST on page 31)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions. The drive motor is warranted for twelve (12) years after the date of purchase. Parts and labor are warranted for ninety (90) days after the date of purchase.
This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All re­pairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not ex­tend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other warranty be­yond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con­nection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in­cidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 220987 R1204A
Printed in USA
© 2004 ICON IP, Inc.
Loading...
