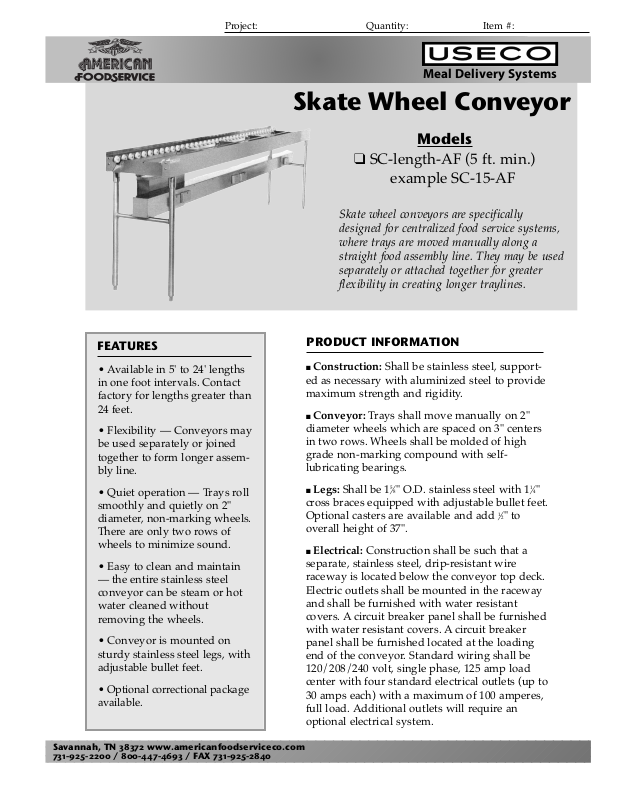

Epco SC-15-AF Specifications

Skate Wheel Conveyor

Models

❑ SC-length-AF (5 ft. min.)

example SC-15-AF

Skate wheel conveyors are specifically
designed for centralized food service systems,
where trays are moved manually along a
straight food assembly line. They may be used
separately or attached together for greater
flexibility in creating longer traylines.

FEATURES

• Available in 5' to 24' lengths
in one foot intervals. Contact
factory for lengths greater than
24 feet.

• Flexibility — Conveyors may
be used separately or joined
together to form longer assem­bly line.

• Quiet operation — Trays roll
smoothly and quietly on 2"
diameter, non-marking wheels.
There are only two rows of
wheels to minimize sound.

• Easy to clean and maintain
— the entire stainless steel
conveyor can be steam or hot
water cleaned without
removing the wheels.

• Conveyor is mounted on
sturdy stainless steel legs, with
adjustable bullet feet.

• Optional correctional package
available.

■ Construction: Shall be stainless steel, support-

ed as necessary with aluminized steel to provide
maximum strength and rigidity.

■ Conveyor: Trays shall move manually on 2"

diameter wheels which are spaced on 3" centers
in two rows. Wheels shall be molded of high
grade non-marking compound with self­lubricating bearings.

■ Legs: Shall be 1

5

⁄8" O.D. stainless steel with 11⁄4"

cross braces equipped with adjustable bullet feet.
Optional casters are available and add

1

⁄2" to

overall height of 37".

■ Electrical: Construction shall be such that a

separate, stainless steel, drip-resistant wire
raceway is located below the conveyor top deck.
Electric outlets shall be mounted in the raceway
and shall be furnished with water resistant
covers. A circuit breaker panel shall be furnished
with water resistant covers. A circuit breaker
panel shall be furnished located at the loading
end of the conveyor. Standard wiring shall be
120/208/240 volt, single phase, 125 amp load
center with four standard electrical outlets (up to
30 amps each) with a maximum of 100 amperes,
full load. Additional outlets will require an
optional electrical system.

PRODUCT INFORMATION

Savannah, TN 38372 www.americanfoodserviceco.com
731-925-2200 / 800-447-4693 / FAX [phone]

Project: Quantity: Item #:

Meal Delivery Systems

Skate Wheel Conveyor

TECHNICAL SPECIFICATIONS

BID SPECIFICATIONS

Savannah, TN 38372 www.americanfoodserviceco.com
731-925-2200 / 800-447-4693 / FAX [phone]

SC-length-AF (SC-15-AF)

Model _______ Skate Wheel Conveyor. Overall
dimensions shall be __" wide x __" long x __" high.
All seams shall be continuously welded and
polished. A

3

⁄8" stainless steel support rod shall run
the length of the unit and be welded to each spacer
in the center. Tray wheels shall be 2" diameter and
non-marking and set in two rows. Electric shall be
separate in a stainless steel drip-resistant wireway
with water resistant cover on all outlets mounted in
the raceway. Leg stands shall be 1

5

⁄8" O.D. stainless

steel with 1

1

⁄4" cross braces and equipped with

adjustable leveling bullet feet.

Model #

Approx. Shipping

L W H** Weight (lbs.)

SC-05-AF
SC-06-AF
SC-07-AF
SC-08-AF
SC-09-AF
SC-10-AF
SC-11-AF
SC-12-AF
SC-13-AF
SC-14-AF
SC-15-AF
SC-16-AF
SC-17-AF
SC-18-AF
SC-19-AF
SC-20-AF
SC-21-AF
SC-22-AF
SC-23-AF
SC-24-AF

5'
6'
7'
8'

9'
10'
11'
12'
13'
14'
15'
16'
17'
18'
19'
20'
21'
22'
23'
24'

18"
18"
18"
18"
18"
18"
18"
18"
18"
18"
18"
18"
18"
18"
18"
18"
18"
18"
18"
18"

37"
37"
37"
37"
37"
37"
37"
37"
37"
37"
37"
37"
37"
37"
37"
37"
37"
37"
37"
37"

200
230
260
290
320
350
370
390
410
430
450
460
470
480
490
500
510
520
530
540

Due to continued product improvement, specifications are subject to change without notice. 4/01/10 USA

Dimensions

OPTIONAL ACCESSORIES

• Three shelf starter station shelves on 8" spacing.
First and second shelves cut out for 12" x 20" pans.
(Pans not included.)

• Circuit breaker panel and electric raceway.

• Casters in lieu of legs with adjustable feet. Add

1

⁄2"

to overall height.

• Optional correctional package available.

NOTE:

Please state tray size to be used. Skate wheel
conveyors require width adapter.
*For conveyors mounted on optional casters add suffix “C” to
model number. For optional electrical raceway add suffix “E”.

**Height with casters is 371⁄2".
