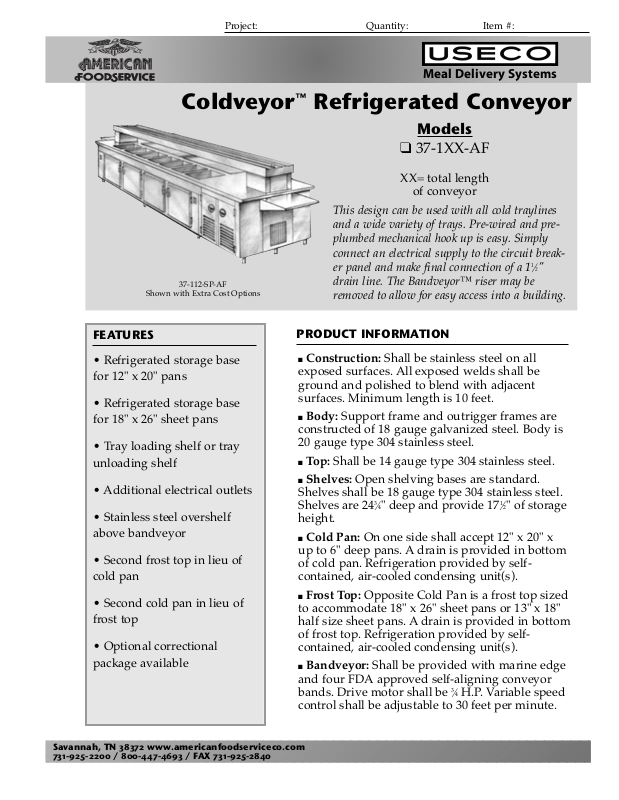

Coldveyor™ Refrigerated Conveyor
Models
❑ 37-1XX-AF
XX= total length
of conveyor
This design can be used with all cold traylines
and a wide variety of trays. Pre-wired and preplumbed mechanical hook up is easy. Simply
connect an electrical supply to the circuit breaker panel and make final connection of a 1
1
⁄2
"
drain line. The Bandveyor™ riser may be
removed to allow for easy access into a building.
FEATURES
• Refrigerated storage base
for 12" x 20" pans
• Refrigerated storage base
for 18" x 26" sheet pans
• Tray loading shelf or tray
unloading shelf
• Additional electrical outlets
• Stainless steel overshelf
above bandveyor
• Second frost top in lieu of
cold pan
• Second cold pan in lieu of
frost top
• Optional correctional
package available
PRODUCT INFORMATION
Savannah, TN 38372 www.americanfoodserviceco.com
731-925-2200 / 800-447-4693 / FAX 731-925-2840

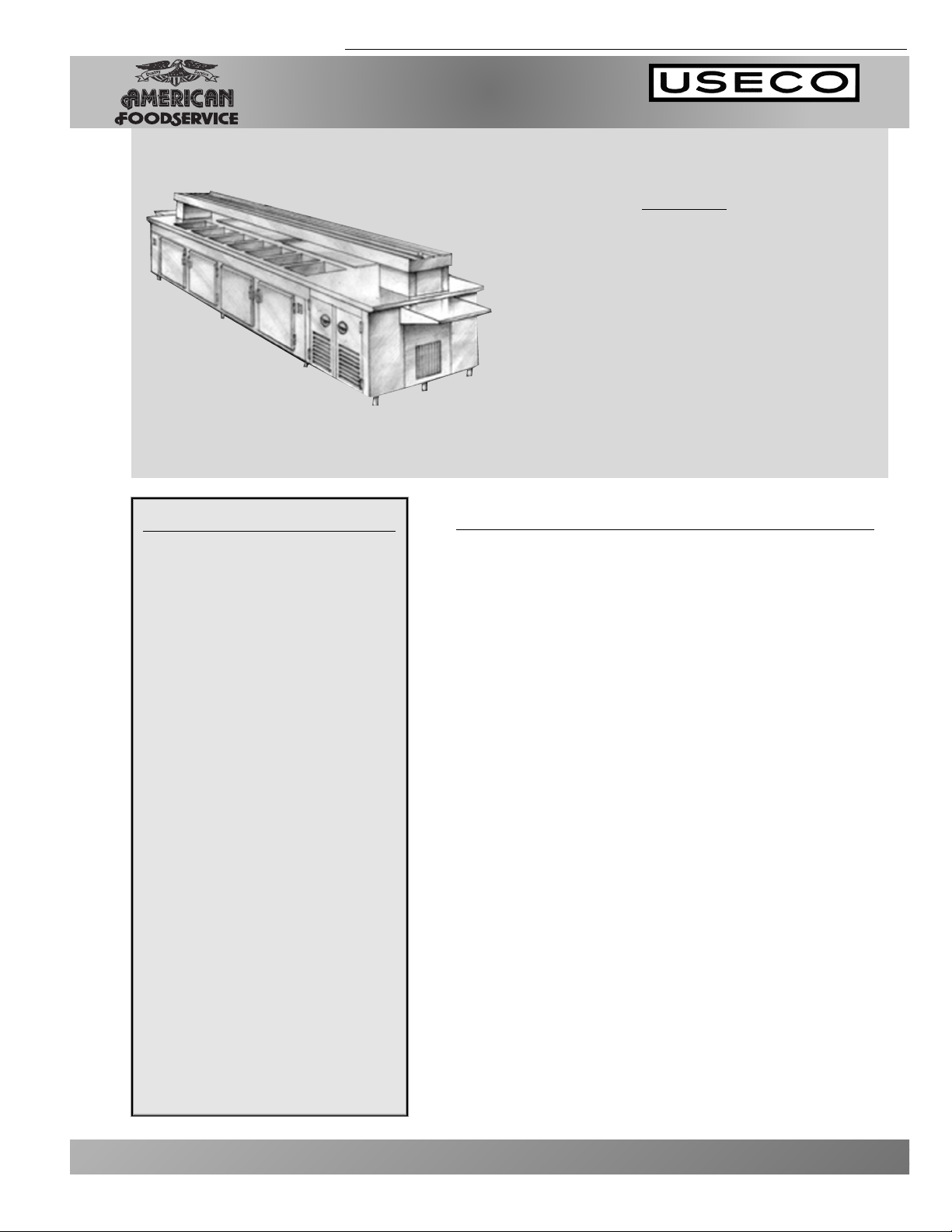

37-112-SP-AF
Shown with Extra Cost Options
■ Construction: Shall be stainless steel on all
exposed surfaces. All exposed welds shall be
ground and polished to blend with adjacent
surfaces. Minimum length is 10 feet.
■ Body: Support frame and outrigger frames are
constructed of 18 gauge galvanized steel. Body is
20 gauge type 304 stainless steel.
■ Top: Shall be 14 gauge type 304 stainless steel.
■ Shelves: Open shelving bases are standard.
Shelves shall be 18 gauge type 304 stainless steel.
Shelves are 24
3
⁄4
" deep and provide 17
1
⁄2
" of storage
height.
■ Cold Pan: On one side shall accept 12" x 20" x
up to 6" deep pans. A drain is provided in bottom
of cold pan. Refrigeration provided by selfcontained, air-cooled condensing unit(s).
■ Frost Top: Opposite Cold Pan is a frost top sized
to accommodate 18" x 26" sheet pans or 13" x 18"
half size sheet pans. A drain is provided in bottom
of frost top. Refrigeration provided by selfcontained, air-cooled condensing unit(s).
■ Bandveyor: Shall be provided with marine edge
and four FDA approved self-aligning conveyor
bands. Drive motor shall be
3
⁄4
H.P. Variable speed
control shall be adjustable to 30 feet per minute.
Project: Quantity: Item #:
Meal Delivery Systems
Page 2
Coldveyor™ Refrigerated Conveyor
BID SPECIFICATIONS
Savannah, TN 38372 www.americanfoodserviceco.com
731-925-2200 / 800-447-4693 / FAX 731-925-2840

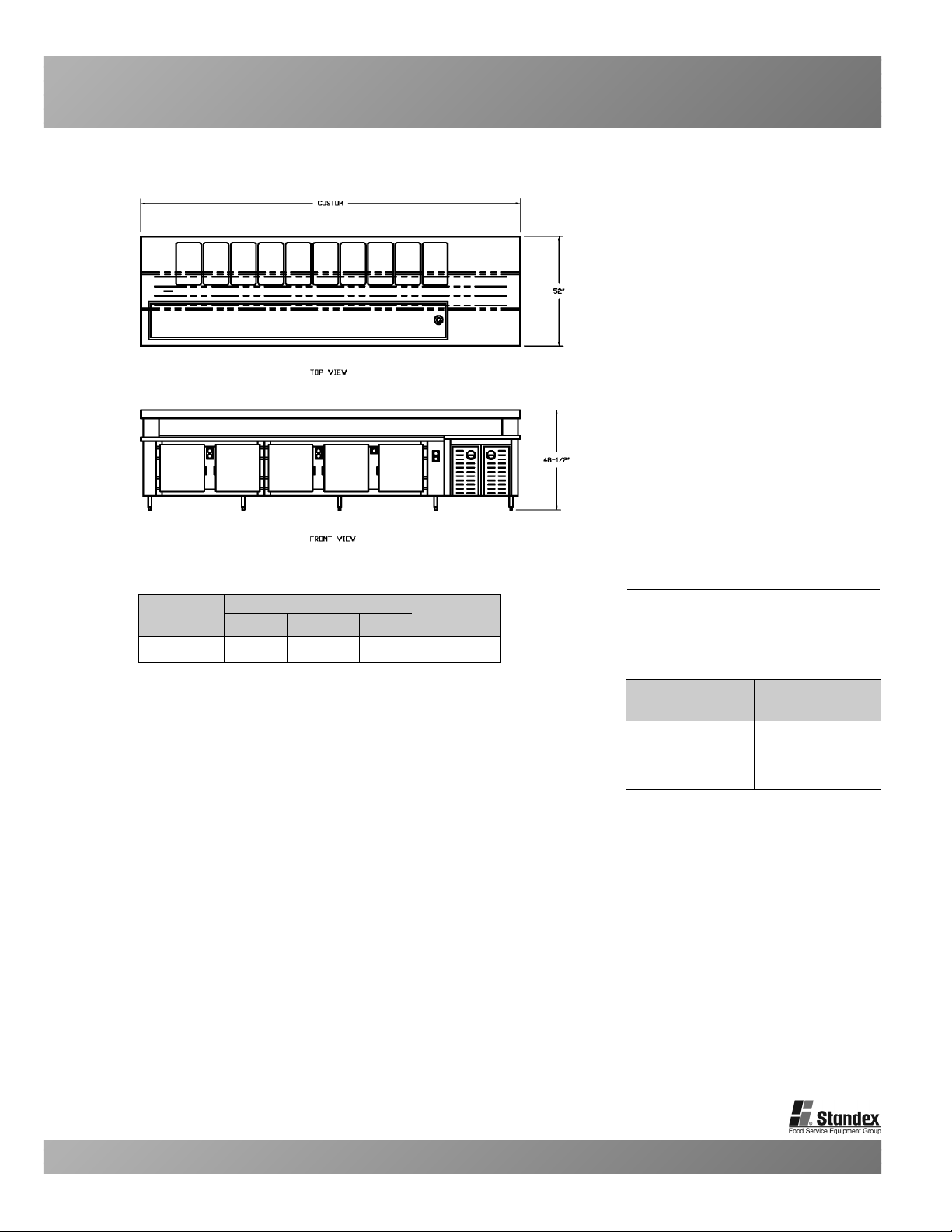

37-1XX-AF (XX=Total length of conveyor)
37-1XX-AF XX
52"
48
1
⁄2"
Due to continued product improvement, specifications are subject to change without notice. 4/01/10 USA
Provide (1) model 37-1__________ Coldveyor™ Conveyor. Unit to
be 52" wide, 35" high to work surface. Bandveyor is mounted 12
1
⁄2"
above the work surface. Length is customized to meet requirements.
Number of wells determined by length. Four (4) convenience
outlets are standard.
• Two
1
⁄2 h.p. refrigeration compressors are hermetically sealed,
equipped with thermal overload cut-off, and mounted under the
Coldveyor™ deck.
• Refrigeration system is designed to cool cold pans to 20ºF surface
temperature on bottom and sides with 80ºF ambient. Refrigeration
temperature is adjustable through a 15ºF range by means of a
calibrated control knob mounted on the side inset panel.
• Control group consists of On-Off master switch, dial control for
variable speed drive, dial control for refrigeration temperature,
indicator light for master switch On position, indicator light to
indicate cycle of refrigeration compressor.
• A circuit-breaker panel is provided and is to be wired directly
into power source by others.
TECHNICAL SPECIFICATIONS
Model
Shipping
L W H Weight
Dimensions
ELECTRICAL
120/208/1
Specify amp load,
number of outlets,
location of outlets and
load on each outlet.
Note: Minimum length is 10 ft.
XX = total length of Conveyor
OPTIONS
• Optimal length: specify number of
pan wells required and length
desired. Example: a 9 pan well is 15'
long. See chart below.
• Stainless steel overshelf is
available. It is positioned without
fastening devices and is movable.
• An end shelf 24" x 18" is available,
attachable to either start or take-off
end of Coldveyor™ top deck.
Shelves are stainless steel and are
easily detached and remounted.
• Legs with leveling feet may be
furinshed in place of casters.
• Additional electrical outlets.
• Optional correctional package
available.
approx.
300 lbs. per ft.
No. of 12" x 20"
Pan Wells
Coldveyor™
Length
7
9
12
12'
15'
18'
