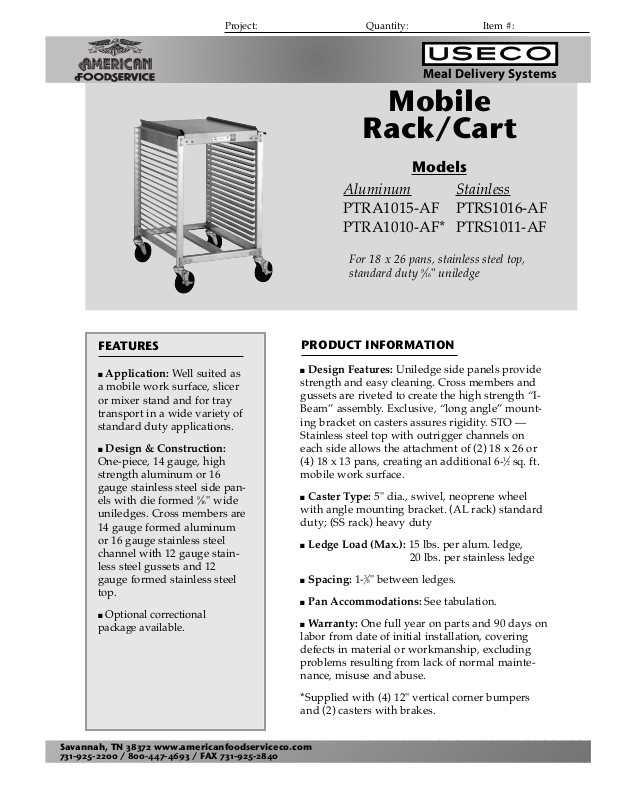

Epco PTRA1015-AF, PTRA1010-AF, PTRS1016-AF, PTRS1011-AF Specifications

Mobile

Rack/Cart

Aluminum

PTRA1015-AF
PTRA1010-AF*

Stainless

PTRS1016-AF
PTRS1011-AF

For 18 x 26 pans, stainless steel top,
standard duty

9

⁄16" uniledge

FEATURES

Savannah, TN 38372 www.americanfoodserviceco.com
731-925-2200 / 800-447-4693 / FAX [phone]

■ Design Features: Uniledge side panels provide

strength and easy cleaning. Cross members and
gussets are riveted to create the high strength “I­Beam” assembly. Exclusive, “long angle” mount­ing bracket on casters assures rigidity. STO —
Stainless steel top with outrigger channels on
each side allows the attachment of (2) 18 x 26 or
(4) 18 x 13 pans, creating an additional 6-

1

⁄2 sq. ft.

mobile work surface.

■ Caster Type: 5" dia., swivel, neoprene wheel

with angle mounting bracket. (AL rack) standard
duty; (SS rack) heavy duty

■ Ledge Load (Max.): 15 lbs. per alum. ledge,

20 lbs. per stainless ledge

■ Spacing: 1-

3

⁄8" between ledges.

■ Pan Accommodations: See tabulation.

■ Warranty: One full year on parts and 90 days on

labor from date of initial installation, covering
defects in material or workmanship, excluding
problems resulting from lack of normal mainte­nance, misuse and abuse.

*Supplied with (4) 12" vertical corner bumpers
and (2) casters with brakes.

PRODUCT INFORMATION

■ Application: Well suited as

a mobile work surface, slicer
or mixer stand and for tray
transport in a wide variety of
standard duty applications.

■ Design & Construction:

One-piece, 14 gauge, high
strength aluminum or 16
gauge stainless steel side pan­els with die formed

9

⁄16" wide
uniledges. Cross members are
14 gauge formed aluminum
or 16 gauge stainless steel
channel with 12 gauge stain­less steel gussets and 12
gauge formed stainless steel
top.

■

Optional correctional

package available.

Project: Quantity: Item #:

Models

Meal Delivery Systems

Mobile Rack/Cart

Savannah, TN 38372 www.americanfoodserviceco.com
731-925-2200 / 800-447-4693 / FAX [phone]

PTRA1015-AF, PTRA1010-AF, PTRS1016-AF, PTRS1011-AF

Due to continued product improvement, specifications are subject to change without notice. 4/01/10 USA

BID SPECIFICATIONS

Provide (1) model ___________ Mobile Rack/Cart.

Construction shall be (1) piece, die formed, corrosion resistant coated aluminum uniledge side panels
with integral

9

⁄16" wide ledges spaced 1-3⁄8" apart with riveted top and bottom I-beam cross braces and

stainless steel top with outrigger channels.

Provide with (4) 5" swivel casters, (2) locking, having neoprene wheels and vertical angle mounting
brackets.

Must be NSF approved.

TECHNICAL SPECIFICATIONS

Model

18" x 26" 18" x 13"

PTRA1015-AF

*PTRA1010-AF

17

12

34

24

Height

(in.)

13⁄8
13⁄8

255
180

54
51

Max. Load

(Lbs.)

Weights (lbs.)

Net

Pan Capacity

Spacing

(in.)

Ship

Width

Depth

Height

Shipping Dim. (in.)

Cu.

ft.

361⁄2

30

60
57

26
26

34
34

37
37

19
19

Aluminum

*Equipped with (4) 12" vertical corner bumpers and (2) casters with brakes.

Model

18" x 26" 18" x 13"

PTRS1016-AF
PTRS1011-AF

17

12

34

24

Height

(in.)

13⁄8
13⁄8

340
240

69
66

Max. Load

(Lbs.)

Weights (lbs.)

Net

Pan Capacity

Spacing

(in.)

Ship

Width

Depth

Height

Shipping Dim. (in.)

Cu.

ft.

361⁄2

30

75
72

26
26

34
34

37
37

19
19

Stainless
