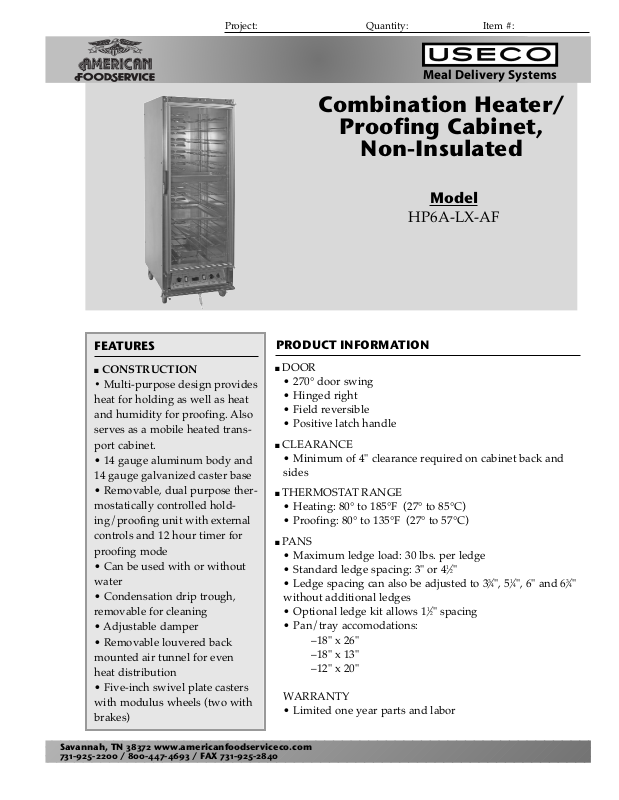

Epco HP6A-LX-AF Specifications
Combination Heater/
Proofing Cabinet,
Non-Insulated
FEATURES
Savannah, TN 38372 www.americanfoodserviceco.com
731-925-2200 / 800-447-4693 / FAX 731-925-2840
■ CONSTRUCTION
• Multi-purpose design provides
heat for holding as well as heat
and humidity for proofing. Also
serves as a mobile heated transport cabinet.
• 14 gauge aluminum body and
14 gauge galvanized caster base
• Removable, dual purpose thermostatically controlled holding/proofing unit with external
controls and 12 hour timer for
proofing mode
• Can be used with or without
water
• Condensation drip trough,
removable for cleaning
• Adjustable damper
• Removable louvered back
mounted air tunnel for even
heat distribution
• Five-inch swivel plate casters
with modulus wheels (two with
brakes)
Project: Quantity: Item #:
Meal Delivery Systems
Model
HP6A-LX-AF
■ DOOR
• 270° door swing
• Hinged right
• Field reversible
• Positive latch handle
■ CLEARANCE
• Minimum of 4" clearance required on cabinet back and
sides
■ THERMOSTAT RANGE
• Heating: 80° to 185°F (27° to 85°C)
• Proofing: 80° to 135°F (27° to 57°C)
■ PANS
• Maximum ledge load: 30 lbs. per ledge
• Standard ledge spacing: 3" or 4
1
⁄2"
• Ledge spacing can also be adjusted to 3
3
⁄4", 51⁄4", 6" and 63⁄4"
without additional ledges
• Optional ledge kit allows 1
1
⁄2" spacing
• Pan/tray accomodations:
–18" x 26"
–18" x 13"
–12" x 20"
WARRANTY
• Limited one year parts and labor
PRODUCT INFORMATION
Combination Heater/Proofing
Cabinet, Non-Insulated
Savannah, TN 38372 www.americanfoodserviceco.com
731-925-2200 / 800-447-4693 / FAX 731-925-2840
HP6A-LX-AF
Due to continued product improvement, specifications are subject to change without notice. 4/01/10 USA
BID SPECIFICATIONS
Provide____________( ) Combination Heater/Proofing Cabinet, Non-Insulated.
Cabinet will have die-formed, corrosion resistant aluminum body and door with 14 gauge galvanized caster base. Cabinet
will be provided with bottom mounted, removable, externally controlled, 1900 watt holding/proofing unit having main
on/off switch, dual thermostats, digital thermometer, holding or proofing selector switch and 12 hour timer for proofing.
Cabinet will have field reversible door with positive latching handle and gasket, 270° door swing, adjustable damper, drip
trough and louvered air tunnel for even heat distribution.
Cabinet will be provided with four 5-inch standard duty swivel plate casters having modulus wheels. Two casters will have
brakes. Electrical hookup will be via a nine foot long flexible three wire 12/3 SJO cord with molded NEMA 5-20P, 115v plug.
Cabinet to have limited one year parts and labor warranty.
Optional 1
1
⁄2" spaced ledge kit available.
Note: The above tray/pan sizes
can be loaded in the same cabinet.
Bottom Load Pans
ELECTRICAL
Via plug in, 9 foot long
flexible three wire
12/3 SJO cord with
molded plug.
Max.
Cabinet
Static
Load
(Lbs./Kg)
HP6A-LX-AF
263⁄4"
32
1
⁄4"
71
3
⁄4"
TECHNICAL SPECIFICATIONS
Model
LDH
1900
Dimensions
(inches)
Heating
Unit Watts
115
Volts
3" Ledge Spacing
(Bottom Load)
Pan Capacity
18 x 26
End Load
12 x 20
Side Load
12 x 20
Side Load
18 x 26
End Load
17 34
12
24
4-1⁄2" Ledge Spacing
(Bottom Load)
Pan Capacity
370/168
Ship
Cu.
Ft.
44
Ship
Wt.
(Lbs./
Kg)
180/82
