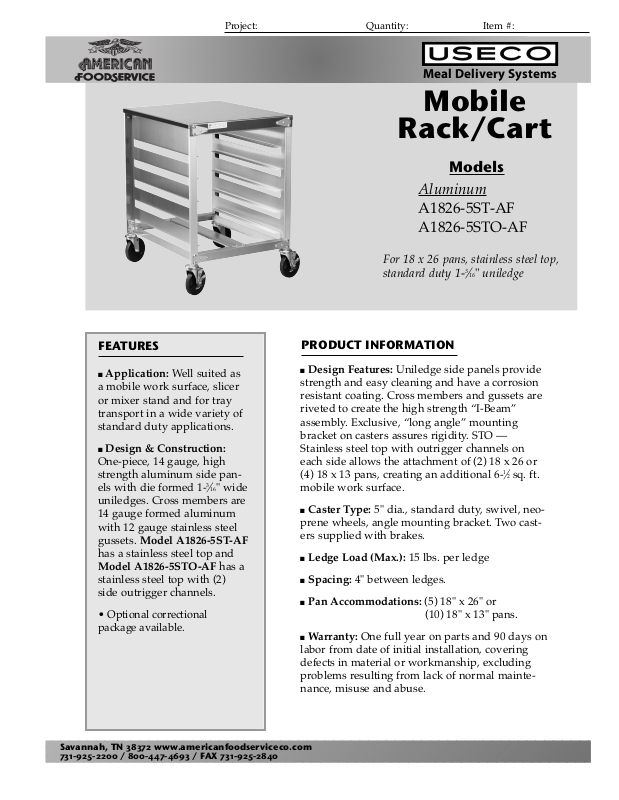

Epco A1826-5ST-AF, A1826-5STO-AF Specifications

Mobile

Rack/Cart

Aluminum

A1826-5ST-AF
A1826-5STO-AF

For 18 x 26 pans, stainless steel top,
standard duty 1-

3

⁄16" uniledge

FEATURES

Savannah, TN 38372 www.americanfoodserviceco.com
731-925-2200 / 800-447-4693 / FAX [phone]

■ Design Features: Uniledge side panels provide

strength and easy cleaning and have a corrosion
resistant coating. Cross members and gussets are
riveted to create the high strength “I-Beam”
assembly. Exclusive, “long angle” mounting
bracket on casters assures rigidity. STO —
Stainless steel top with outrigger channels on
each side allows the attachment of (2) 18 x 26 or
(4) 18 x 13 pans, creating an additional 6-

1

⁄2 sq. ft.

mobile work surface.

■ Caster Type: 5" dia., standard duty, swivel, neo-

prene wheels, angle mounting bracket. Two cast­ers supplied with brakes.

■ Ledge Load (Max.): 15 lbs. per ledge

■ Spacing: 4" between ledges.

■ Pan Accommodations: (5) 18" x 26" or

(10) 18" x 13" pans.

■ Warranty: One full year on parts and 90 days on

labor from date of initial installation, covering
defects in material or workmanship, excluding
problems resulting from lack of normal mainte­nance, misuse and abuse.

PRODUCT INFORMATION

■ Application: Well suited as

a mobile work surface, slicer
or mixer stand and for tray
transport in a wide variety of
standard duty applications.

■ Design & Construction:

One-piece, 14 gauge, high
strength aluminum side pan­els with die formed 1-

3

⁄16" wide
uniledges. Cross members are
14 gauge formed aluminum
with 12 gauge stainless steel
gussets. Model A1826-5ST-AF
has a stainless steel top and
Model A1826-5STO-AF has a
stainless steel top with (2)
side outrigger channels.

• Optional correctional
package available.

Project: Quantity: Item #:

Models

Meal Delivery Systems

Mobile Rack/Cart

Savannah, TN 38372 www.americanfoodserviceco.com
731-925-2200 / 800-447-4693 / FAX [phone]

A1826-5ST-AF, A1826-5STO-AF

Due to continued product improvement, specifications are subject to change without notice. 4/01/10 USA

BID SPECIFICATIONS

Provide (1) model ___________ Mobile Rack/Cart with stainless steel top.

Construction shall be (1) piece, die formed, corrosion resistant coated aluminum uniledge side panels
with integral 1-

3

⁄16" wide ledges spaced 4" apart with top and bottom I-beam cross braces, 16 gauge stain-

less steel top.

Provide with (4) 5" swivel casters, (2) with brakes, having neoprene wheels and vertical angle mounting
brackets.

Must be NSF approved.

TECHNICAL SPECIFICATIONS

Model

Width Depth Height Height with outriggers

A1826-5ST-AF
A1826-5STO-AF

22-1⁄2"

26-

5

⁄8"

31-1⁄8"

24
26

Weights (lbs.)

Net

Overall Dimensions

Ship

Width

Depth

Height

Shipping Dim. (in.)

Cu.

ft.

323⁄8"

30
32

26
26

34
34

37
37

18.9

18.9

Aluminum
