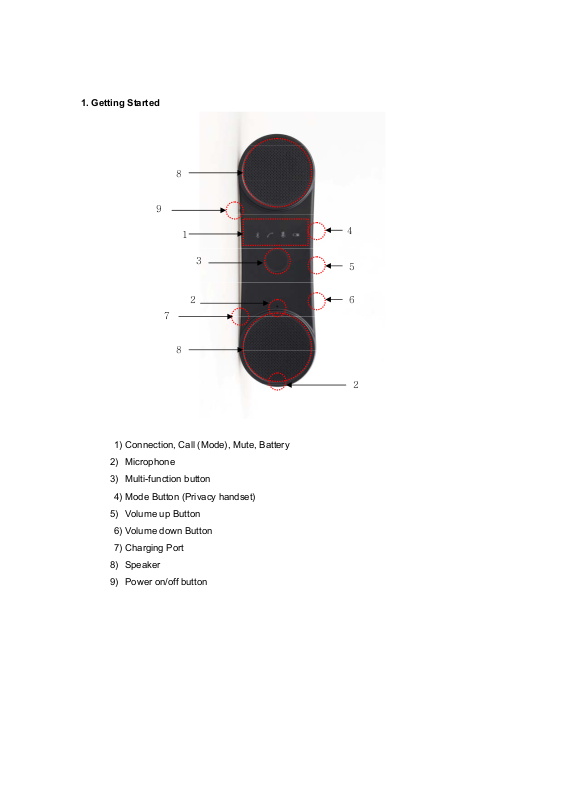

1. Getting Started
8
9
1
3
2
7
8
1) Connection, Call (Mode), Mute, Battery
2) Microphone
3) Multi-function button
4) Mode Button (Privacy handset)
4
5
6
2
5) Volume up Button
6) Volume down Button
7) Charging Port
8) Speaker
9) Power on/off button
2. Charge your BHF5000 device
Make sure that your speakerphone is fully charged before you start using it.
Use the USB cable to con nect BHF5000 to the car ch arger. Plug the ca r charger into your
car’s power outlet. The status light will light up red while charging. When fully cha rged the
status light green on.
Note)
A fully charged battery prior to first use is recommended.
A full charge is approximately two and a half hours.
Note)
When the battery only has enough charge for about 1- 2 hours of talk time, the flashing red
battery LED light indicator comes on (“Battery level low” is announced)
3. Pair your BHF5000 with your mobile phone
Prior to using the speakerphone for the first time , you must pair it with a Bluetooth-e nabled
mobile phone. Specific pairing steps may vary with dif ferent mobile phones. Please refer to
your mobile phone`s user`s manual for further information. The general pairing steps are as
follows:
1) Activate Bluetooth® on your mobile phone
2) Ensure that BHF-5000 is turned on, switch to pairing mode by holding onto the “MFB”
button until you hear “P air mode”. The co nnection and Call LED light sill blink
simultaneously in pairing mode.
(Put the speakerphone in pairing mode)
3) Set your mobile phone to ‘search’ for the BHF5000
4) Select “BHF 5000” from the search results on your mobile phone.
5) When prompted for the passkey, enter “0000”.
Note)
The first time you turn your BHF5000 on it will immediately go into pairing mode.
6) When the BHF50 00 is paired, the Bluetooth® Icon turns bl ue. Your mobile phone
might display a confirmation message, also.
Manual pairing mode
If you wish to use the sp eakerphone with a di fferent phone, or if the p airing process wa s
interrupted, you can manually set the speakerphone to pairing mode.
Turn the speakerphone on. Press and hold the MFB button for approximately 5 seconds until
speak “Pair mode”
4. Using Hands free
1) Slide the I/O switch to turn the speakerphone on or off.
The first time you turn your in-car speakerphone on, it automatically enters pairing mode.
When not conne cted to a phone, the speakerphone turns of f automatically af ter 5
minutes. Tap MFB button to turn the speakerphone on again.
2) Connecting with your phone automatically
Pairing is only neede d the first time a spea kerphone and phone are u sed together.
When the sp eakerphone and phone have been paired once they will auto matically
connect when the speakerphone is on and Bluetooth® is activated on the phone. The
speakerphone can be used when it is “connected” to the phone.
3) Call answer & end
a. Receiving Calls: When your mobile phone rings, press the “MFB” or “Mode” button on
the speakerphone to connect the call.
b. Ending calls:
* Hands free mode (When you have finished your call, press the “MFB” button on the
receiver to disconnect the call)
* Privacy mode (Wh en you have finish ed your call, press the “Mode” button on the
receiver to disconnect the call)
c. Making calls using voice dialing (If voice diali ng commands feature is supported by
your mobile phone): Press the “MFB” or “Mode” button once and call out the na me of
the person for the call to be placed.
Note)
In the midst of a conversation, press “Mode” button once to change privacy mode.
Note)
Hands free mode to Privacy mode – During a call, simply press “Mode” button once.
Privacy mode to Hands free mode – Press the “MFB” button once.
Note)
“Answer/Ignore” Voice Commands
You can also take calls with your voice. Just say “Answer” or “Ignore”.
4) Transferring calls
a. Hands free mode to mobile phone: During a call, simply press “MFB” button until you
hear 2 tones and the call is routed to your mobile phone.
b. Mobile phone to hands free mode: During a call, simply press “MFB” button until you hear
2 tones and the call is routed to your mobile phone.
5) Rejecting calls
Hold onto the “MFB” button for 1 second to reject an incoming call.
6) Redial last outgoing call
To redial a number th at you have rece ntly call, Press the “MFB” button twice and the
call is connected.
Note)
Recent call can be incoming or outgoing number depending on your m obile phone
function.
7) Volume control
To increase the volume: Press the “+” bu tton to increa se volume by one level.
Repeat this procedure until you have reached the desired level.
To decrease the volume: Press the “–” button to decrea se volume by one level.
Repeat this procedure until you have reached the desired level.
8) Mute / Un-mute
Mute: During a call, short press the “–” button briefly to mute the microphone so the
caller can`t hear you. Speakers normally work.
Note)
Un-mute: To deactivate mute mode, short press the “–” button briefly during mute
mode to restore sound to the speakerphone.
9) Removing paired list in the speakerphone.
To remove all the previous pairing and connection list, hold on to “MFB” and “–” button
until you hear a tone during pairing mode.
Note)
After removing is completed, speakerphone is pair mode.
10) Play music and GPS directions*
Make sure that the speakerph one and mobile phone are connected. When you play
music or GPS application directions from your mobile phone it will automaticall y
transfer to your speakerphone. Music or GPS dire ctions will automatically be paused
when you have an incoming call. When the call is ended it will start playing again.
11) Caller ID and name announcement
During an incoming call BHF5000 will access the phonebook on your m obile phone
and announce the name of the caller. If the name is not stored in your phonebook and
your phone supports PBAP it will announce the number of the caller instead.
12) Advanced Multiuse™
BHF5000 can be connected to two mobile devices at the same time.
5. Voice prompts
Event Prompt (US English)
Power on Power on jingle
Power off Power off jingle
Enter pairing mode Pair mode
Cancel pairing mode Pair mode canceled
One AG connected One active phone connected
Two AG connected Two active phones connected
TTS
When there is an in coming call hands-free speaks caller’s name if name information is
available otherwise speak caller’s name.
Voice recognition
After saying caller’s name or n umber hands-free waiting for ‘an swer’ or ‘ignore’ voice
command.
All AG disconnected
There is no active phone
connected
End of call Call terminated
Low battery Battery level low
6. LED Indicators – Technical description
Status LED Indicator
Standby/ Idle Link LED is blinking one time on every 3 seconds
Pairing mode
Link LED and Hands-free LED are alternately blinking
rapidly.
Connected Link LED blinking two times on every 2 seconds
Incoming/Outgoing call
Hands-free Call Status LED is blinking rapidly.
(Hands-free mode)
Incoming/Outgoing call
Handset Call Status LED is blinking rapidly.
(Handset mode)
Active call
Hands-free Call Status LED is on
(Hands-free mode)
Active call
Handset Call Status LED is on
(Handset mode)
Low battery Low battery LED is flickering slowly.
4.3.2.1. Common event
No Item Description Interface Timing
1. Power off state
Put slide
switch in “I”
1.1 Power On Turn on hands-free
position ->
N/A
Same as
Cruiser2
2. Power on state
Put slide
switch in
2.1 Power Off Turn off hands-free
“0” position
N/A
-> Same as
Cruiser 2
3. Pairing Mode
Enter pairing mode
3.1 Automatic pairing mode
3.2 Cancel pairing mode
3.3 Empty pairing list
4.1 Enter pairing mode
Connect to last
4.2
connected audio
gateway
automatically if paired
device list is empty
Cancels pairing mode.
Hands-free goes into
connectable state.
Delete paired device
information and last
connected device
information
4. Connectable state
Setting the hands free
device in manual
pairing mode
Establish Bluetooth
connection to phone.
No connection exists
N/A N/A
MFB Tap
MFB +
Volume
Long press
down
MFB Long press
MFB Tap
4.3.2.2. Single point connection
No Item Description Interface Timing
1. Connected state
Activate voice
1.1 Voice Dial
recognition function
MFB Press
resident in phone
Last number redial on
1.2 Last Number Redial
MFB Double Tap
target phone
2. Incoming call state
2.1 Answer Answer incoming call MFB Tap
2.2 Reject call Reject incoming call MFB Press
3. Outgoing call state
3.1 Cancel outgoing call Cancels outgoing call MFB Tap
4. Single call
Transfer call from
hands-free to phone
4.1 Transfer call
MFB Long press
or from phone to
hands-free
Audio does not exist
on hands-free.
4.2 Transfer call
MFB Long press
Transfer audio from
phone to hands-free
Audio exist on hands-
4.3 End call
MFB Tap
free. End active call
4.4 Hold active call Hold active call MFB Press
4.5 Activate held call Activate held call MFB Press
4.6 Volume up Increase volume level Volume up Tap
4.7 Volume down
Decrease volume
level
Volume
Ta p
down
Volume
4.8 Mute Mute Mic – Tx
Press
down
4.9 Un-mute Un-mute Mic – Tx
Press
down
5. Three way call – Call waiting
Answer incoming call
Release active accept
Volume
5.1
– release current
MFB Tap
waiting
active call
Answer incoming call
Hold active accept
5.2
– put active call on
MFB Press
waiting
hold
Reject incoming call –
5.3 Reject waiting
MFB Double Tap
maintain active call
5.4 Volume up Increase volume level Volume up Tap
5.5 Volume down
Decrease volume
level
Volume
Ta p
down
5.6 Mute Mute Mic – Tx
Volume
Press
down
5.7 Un-mute Un-mute Mic – Tx
Press
down
6. Three way call – On hold
Volume
Release active activate
6.1
held
Release active call
MFB Tap
and activate held call
Hold active call and
6.2 Swap calls
MFB Press
activate held call
6.3 Release held Release all held calls MFB Double tap
6.4 Volume up Increase volume level Volume up Tap
6.5 Volume down
Decrease volume
level
Volume
Ta p
down
Volume
6.6 Mute Mute Mic – Tx
Press
down
Volume
6.7 Un-mute Un-mute Mic – Tx
Press
down
4.3.2.3. Multi point connection
No Item Description Interface Timing
1. Connected state
Initiates a voice dial
command on primary
1.1 Voice Dial
or the last phone on
MFB Press
which an outgoing call
was made
Last number on either
primary phone or the
last phone on which
1.2 Last Number Redial
an outgoing call was
MFB Double Tap
made while the
Headset was
connected is dialed
2. Incoming call state
2.1 Answer Answer incoming call MFB Tap
2.2 Reject call Reject incoming call MFB Double tap
3. Outgoing call state
3.1 Cancel outgoing call Cancels outgoing call MFB Tap
4. Single call
Transfer call from
hands-free to phone
4.1 Transfer call
MFB Long press
or from phone to
hands-free
Audio does not exist
on hands-free.
4.2 Transfer call
MFB Tap
Transfer audio from
phone to hands-free
Audio exist on hands-
4.3 End call
MFB Tap
free. End active call
4.4 Hold active call Hold active call MFB Press
4.5 Activate held call Activate held call MFB Press
4.6 Volume up Increase volume level Volume up Tap
4.7 Volume down
Decrease volume
level
Volume
Ta p
down
Volume
4.8 Mute Mute Mic – Tx
Press
down
4.9 Un-mute Un-mute Mic – Tx
Press
down
5. One active call – other phone ringing
Answer incoming call
Volume
5.1
Release active accept
other
on other phone –
MFB Tap
release current active
call
5.2 Hold active accept Answer incoming call MFB Press
waiting on other phone – put
current call on hold
Reject incoming call
5.3 Reject waiting
on other phone –
MFB Double Tap
maintain current call
5.4 Volume up Increase volume level Volume up Tap
5.5 Volume down
Decrease volume
level
Volume
Ta p
down
Volume
5.6 Mute Mute Mic – Tx
Press
down
Volume
5.7 Un-mute Un-mute Mic – Tx
Press
down
6. Two active call – other phone’s call is on hold
Release current call
Release active activate
6.1
and activate other
MFB Tap
held
phone’s call
Hold current call and
6.2 Swap calls
activate other phone’s
MFB Press
call
Release other phone’s
6.3 Release held
MFB Double tap
call
6.4 Volume up Increase volume level Volume up Tap
6.5 Volume down
Decrease volume
level
Volume
Ta p
down
Volume
6.6 Mute Mute Mic – Tx
Press
down
Volume
6.7 Un-mute Un-mute Mic – Tx
Press
down
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rul es. These limits are de signed to pro vide reasonable
protection against harmful interference in a re sidential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will n ot occur in a particular installation. If this equipme nt does
cause harmful interference to radio or televi sion reception, which can be det ermined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receive r is
con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressl y approved b y the p arty responsible for compliance could void the
user’s authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rul es.
Operation is subject to the following t wo conditions: (1) Thi s device may n ot cause harmful
interference, and (2) this device mu st accept any interfere nce received, including interference
that may cause undesired operation
“This device complies with Industry Canada licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.”
Le présent app areil est conforme aux CNR d'Industrie Canada
applicables aux app areils radio exempt s de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1 )
l'appareil ne doit p as produire de brouillage, et (2) l'utilisateur
de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est su sceptible d'en compromettre le
fonctionnement.
Loading...
