User’s Guide
[BHF1800]
11th Mar. 2011
REVISION HISTORY
Version Date Name Revision History
00.10 7th Feb. 2011 OJ Sim Initial release
01.00 10th Feb. 2011 OJ Sim 1. Subsequent pairing key change
2. Deleting pairing list key correction
3. Key description correction
4. Other wording corrections
01.10 11th Mar. 2011 OJ Sim 1. MMI change
2. Waiting for Multi point MMI
Contents
1. Get familiar ................................................................................ 4
2. How to ....................................................................................... 5
2.1 Power on and off .............................................................................................. 6
2.2 Charging ....................................................................................................... 6
2.3 Pairing ............................................................................................................... 7
3. Others ........................................................................................ 8
3.1 Voice alerts ....................................................................................................... 8
3.2 Multi point ......................................................................................................... 8
3.3 Multi pairing ...................................................................................................... 8
3.4 3 way call .......................................................................................................... 8
3.5 Streaming audio ............................................................................................... 8
4. Specifications ........................................................................... 9
5. For more help .......................................................................... 10
6. Safety and General Information ............................................ 11
7. Certification and Safety approvals ........................................ 12
8. Warranty .................................................................................. 13
1. Get familiar
MFB (Multi Function Button):
Microphone
Volume buttons:
-Answer a call or end it: Tap
-Reject a call: Press when incoming call
-Last number redial: Double tap
-Transfer audio to or from phone during call: Long
press during call
-Reconnect lost connection: Tap
-Voice dial: Press
-Manual pairing: Press very long until you hear ‘Pair
mode’
Power switch:
-Power on: Slide up
-Power off: Slide down
-Increase volume: Tap the volume up button
-Decrease volume: Tap the volume down button
-Mute or un-mute: Press the volume down button
Status LED:
-Pairing mode: Red/blue flashes
-When connected: Blue flashes
-Low battery: Red flashes and voice alert
Micro USB charging port
-With micro USB or car charger: 2.5hours
(100% charge)
BHF1800 user’s guide DriveNTalk’s Confidential Proprietary
Speaker
4 of 16
* Key description
Instruction Duration of press
Tap Press briefly (0~0.75 sec)
Double Tap 2 quickly repeated taps (max 0.5 sec interval between taps)
Press Press and release for approx. 0.75~2.0 seconds (after 1
beep)
Long Press Press and release for approx. 2~4 seconds (after 2 beeps)
Very long Press Press and release for more than 5.0 seconds
BHF1800 user’s guide DriveNTalk’s Confidential Proprietary
5 of 16
2. How to

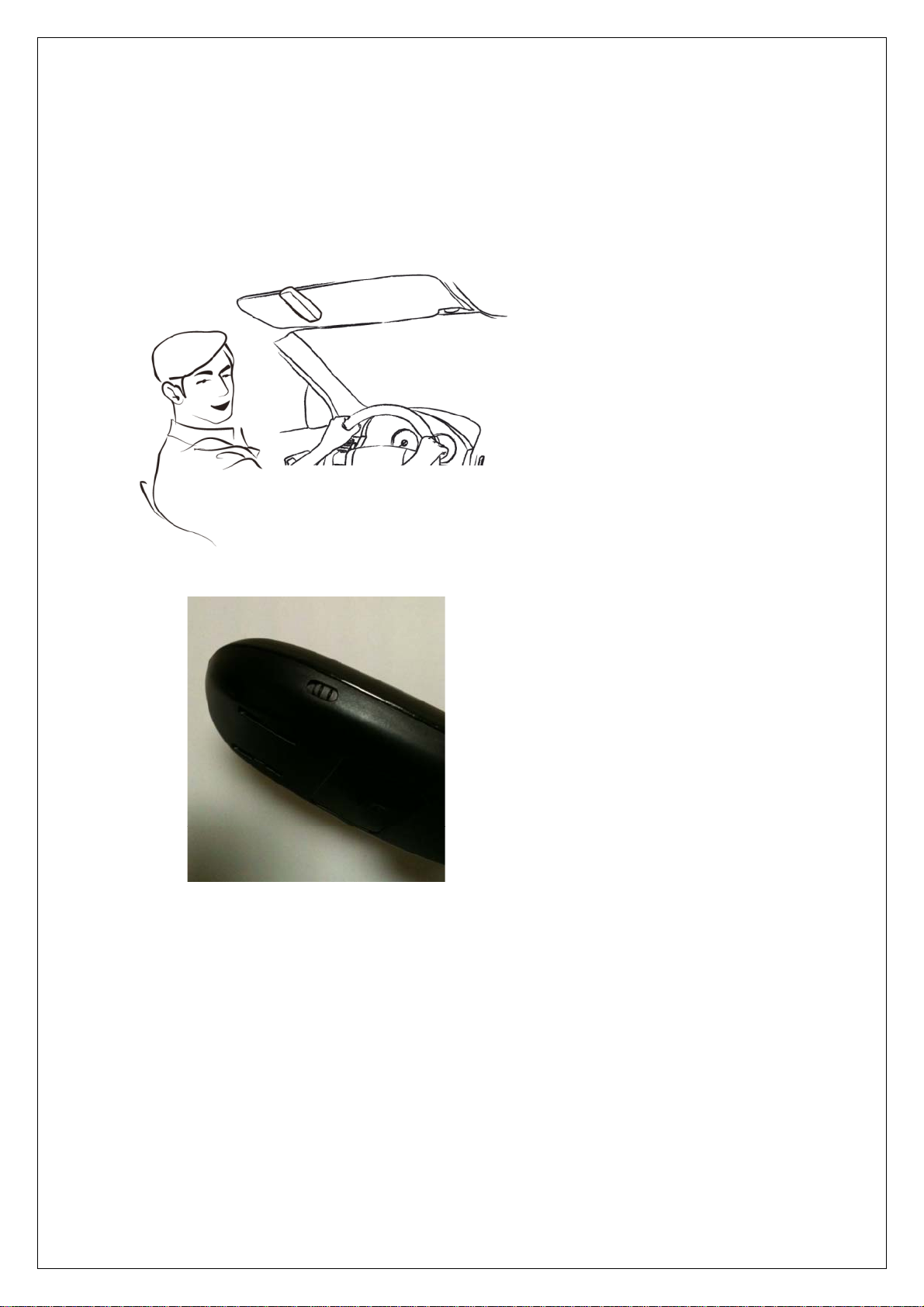

Your product should be placed on the sun visor using its wire clip. For optimal sound quality,
place it right in front of you and speak directly to it.
2.1 Power on and off
When disconnected from your phone, your product will automatically go to sleep mode after 10
minutes or you can turn off the power manually by switching it off when not in use.
2.2 Charging
Connect your product to the car charger using USB cable and plug the charger jack into your
car’s power outlet. A red LED icon will light up while charging. When fully charged the green
LED icon will appear . Make sure to fully charge the unit for best performance.
2.3 Pairing
1. BHF1800 preparation:
1.1 First pairing
1) Turn your prod uct off
2) When you turn it back on, you will hear ‘Pair mode’ and the red/blue begin to flash.
3) Your product is now ready. When it is paired with your phone, ‘BHF1800’ will display
on the screen.
1.2 Subsequent pairing
1) Turn on the Bluetooth feature on your phone.
2) Press and hold the MFB until you hear ‘Pair mode’ and the red/blue begin to flash.
3) Your product is now in pairing mode.
2. Phone preparation
2.1 Activate Bluetooth feature on your phone, then use the phone’s setting to
add/search/discover new Bluetooth devices.
2.2 Select ‘BHF1800’ from the list of Bluetooth devices shown on your phone.
2.3 If necessary, enter the PIN code (default is ‘0000’). You may see **** on screen.
3. Others
3.1 Voice alerts
What you'll hear Product status
Power on sound After sliding the Power switch to ‘On’ position
Power off sound After sliding the Power switch to ‘Off’ position
‘Battery level low' When you have approximately 30 minutes left before
‘Pair mode' While the product and phone are trying to pair/connect
‘Connected' After the product and phone are successfully paired/connected
3.2 Multi point
TBD
3.3 Multi pairing
BHF1800 supports multi pairing feature up to 8 phones. To delete the phone connection list,
press and hold the MFB for 5 seconds during pair mode. When deleted, pairing is activated
automatically.
3.4 3 way call
First call on hold, second call answer
Press the MFB to accept the second incoming call, then the first call will be automatically put on
hold. If you want to switch back the first call, press the MFB again.
First call end, second call answer
Tap the MFB, then you can answer the second call. The first call will be terminat ed.
Second call rejects
Long press the MFB, then you can reject the second call and keep the first call.
3.5 Streaming audio
If your phone supports the Bluetooth A2DP profile, you can also hear streaming audio like music
and GPS instructions through your product. Music streaming can be controlled from your phone
only.
A
4. Specifications
Product name BHF18 00
Dimension
Weight
Bluetooth V 3.0
RF Power Class 2
Profile HFP, HSP, A2DP
coustic Quality Full duplex/Noise reduction/ Echo cancellation
Voice prompts
Multi point
Talk Time 25 hrs
Stand by Time 50 days
Etc. Status LED, Micro USB I/O
61.9mm(W) x 111.9mm(L) x 19.6mm(T)
75g
9
9
5. For more help
Customer care
If you are having trouble getting your product to work, please visit our website
www.driventalks.com
store and we will help you through any difficulty you may have.
for help and support. Please contact us before returning your product to a
6. Safety and General Information
For the efficient and safe operation of your product, observe these manual-lines.
Pair your product with the phone and adjust the settings before driving to ensure your attention
and focus remain on driving safely.
All air bag inflates with great force. Do not place your product in the area over the air bag area.
If your product is improperly placed and the air bag inflates, serious injury could result.
Keep your product away from small children and pets. Small parts may cause chocking or
serious injury if swallowed.
Observe all signs and instructions regarding the use of an electrical device or RF radio product
in designated areas, such as gas stations, hospitals, potentially explosive atmospheres or
aircraft.
Use only provided chargers specifically designed for your product. Do not use the chargers for
any other purpose.
Never place your product on or in heating devices, such as microwave ovens, stoves, or
radiators. Battery may explode when overheated.
Do not allow your product to get wet. Liquid and moisture can cause serious damage to electric
devices.
Do not separate, repair nor remodel your product arbitrarily. If repair is needed, please contact
us or your dealer.
Do not use any chemical solvents or detergent. The use of chemicals on your product may
cause damage to it. Turn your p rod uct off and use a soft dry cloth to clean the phone.
If you use any other medical devices, please consult a physician or the manufacturer of the
medical devices to determine if they are adequately shielded from external RF energy. Your
physician may be able to assist you in obtaining this information. Always check the regulations
of the healthcare facilities, which generally request that all mobiles are switched off on entry.
7. Certification and Safety approvals
This product is CE marked according to the provisions of the R&TTE Directive (99/5/EC). We
declare that this product is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC. For further information, please refer to website.
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and ca n radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation
Note on environmental protection:
After the implementation of the European Directive 2002/96/EU in the national legal system, the
following applies: Electrical and electronic devices may not be disposed of with domestic waste.
Consumers are obliged by law to return electrical and electronic devices at the end of their
service lives to the public collecting points set up for this purpose or point of sale. Details to this
are defined by the national law of the respective country. This symbol on the product, the
instruction manual or the package indicates that a product is subject to these regulations. By
recycling, reusing the materials or other forms of utilizing old devices, you are making an
important contribution to protecting our environment.
8. Warranty
Limited One (1) Year Warranty
DriveNTalk (“DNT”) warrants this product to be free from defects in materials and workmanship
(subject to the terms set forth below) for a period of one (1) year from the date of purchase
(“Warranty Period”).
During the Warranty Period, DNT will repair or replace (at DNT’s sole discretion) this product or
any defective parts (“Warranty Service”).
If repair or replacement is not commercially practicable or cannot be timely made, DNT may
choose to refund to you the purchase price paid for the affected product. Repair or replacement
under the terms of this Warranty does not give right to any extension or a ne w beginning of the
period of warranty.
Claims under the Warranty
To obtain Warranty Service, please conta ct the DNT’s dealer from which you purchased this
product. You will need to return the product to the dealer in either its original packaging or
packaging affording an equal degree of protection.
The following information must be presented to obtain Warranty Service: (a) the product, (b)
proof of purchase, which clearly indicates the name and address of the dealer, the date of
purchase and the product type, and (c) reason for return.
As part of DNT’s efforts to reduce environmental waste you understand that the product may
consist of reconditioned equipment that contains used components, some of which have been
reworked. The used components all live up to DNT’s high quality standards and comply with
DNT’s product performance and reliability specifications.
You understand that replaced parts or components will become the property of DNT.
Limitation of Warranty
This Warranty is only valid for the original purchaser and will automatically terminate prior to
expiration, if this product is sold or otherwise transferred to another party. The warranty provided
by DNT in this statement applies only to products purchased for use, and not for resale. It does
not apply to open box purchases, which are sold “as is” and without any warranty.
Specifically exempt from warranty are limited-life consumable components subject to normal
wear and tear, such as cables, mount, clip, tapes, cushions, modular plugs, decorative finishes,
batteries, and other accessories.
This Warranty is invalid if the factory-applied serial number, date code label, or product label
has been altered or removed from the product.
This Warranty does not cover defects or damages that result from: (a) improper storage, misuse
or abuse, accident or neglect, such as physical damage (cracks, scratches, etc.) to the surface
of the product resulting from misuse; (b) contact with water, extreme humidity, sand, dirt or the
like or extreme heat; (c) use of the product or accessories for commercial purposes or
subjecting the product or accessories to abnormal usage or conditions; or (d) other acts which
are not the fault of DNT.
Furthermore, this Warranty does not cover damage due to improper operation, maintenance or
installation, or attempted repair by anyone other than DNT or a DNT’s dealer which is
authorized to do DNT warranty work. Any unauthorized repairs will void this Warranty. Neither
does this Warranty cover defects or damages that result from the use of non-DNT branded or
certified products, accessories, or other peripheral equipment, nor does this Warranty apply to
products which have not been charged for six (6) months.
DNT does not offer any warra nty for such performance.
REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE THE
EXCLUSIVE REMEDY OF THE BUYER. DNT SHALL NOT BE LIABLE FOR ANY INCIDENTAL
OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED
WARRANTY ON THIS PRODUCT.
EXCEPT TO THE EXTENT PROHIBITED BY LAW, THIS WARRANTY IS EXCLUSIVE AND IN
LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER, INCLUDING
BUT NOT LIMITED TO THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PRACTICAL PURPOSE.
! NOTE
This Warranty gives you specific legal rights. You may have other rights which vary from
location to location. Some jurisdictions do not allow the exclusion or limitation of incidental or
consequential damages or implied warranties, so the above exclusions may not apply to you.
This Warranty does not affect your legal statutory rights under your applicable national or local
laws.
© 2010 Enustech Inc. The driventalk is a registered trademark of Enustech Inc. All rights
reserved.
9. CERTIFICATION and SAFETY APPROVALS
Loading...
