ENTTEC PHERO 33
Mounting brackets (pre-attached)
This user manual
Features
33 independently controllable RGB Pixels
Powercon and Ethercon for touring
Flexible, light and slick design
In-built Power Supply
Compatible with ENTTEC Pixelator and Pixie
driver
Plink data bus allows to daisy-chain up to 10
units
Standard Cat6 wiring allows up to 300m
distances
Mains power through Powercon connectors for
convenient installation
50,000+ hours expected LED life
Up to 99 DMX channels through Pixelator
Over voltage input protection
Safety
Mains voltages inside, please never intend to open
it when mains connected
Do not expose the ENTTEC Phero 33 to rain or
moisture, doing this will void the warranty
Do not remove the cover, there are no serviceable
parts inside
This unit is intended for indoor use only
Ensure proper earth connections
Phero 33 Manual
(50977)
For latest version visit:
www.enttec.com
2
ID: 226394
Basic Setup
Connect the ENTTEC Phero 33 to a Plink enabled
device such as ENTTEC Pixelator using a cat5/6
cable
Power up the unit using the blue powercon
connector. The power LED should light up
Feed some data through your Plink enabled
device
Typical Installation with Pixelator
Mounting Brackets (pre-attached)
Typical Installation with Pixie Driver
Bracket Rotation
Phero 33 Manual
(50977)
For latest version visit:
www.enttec.com
3
ID: 226394
Hanging cable with Gripple (Sold
Separately)
Mounting bracket with Standard Truss
clamp

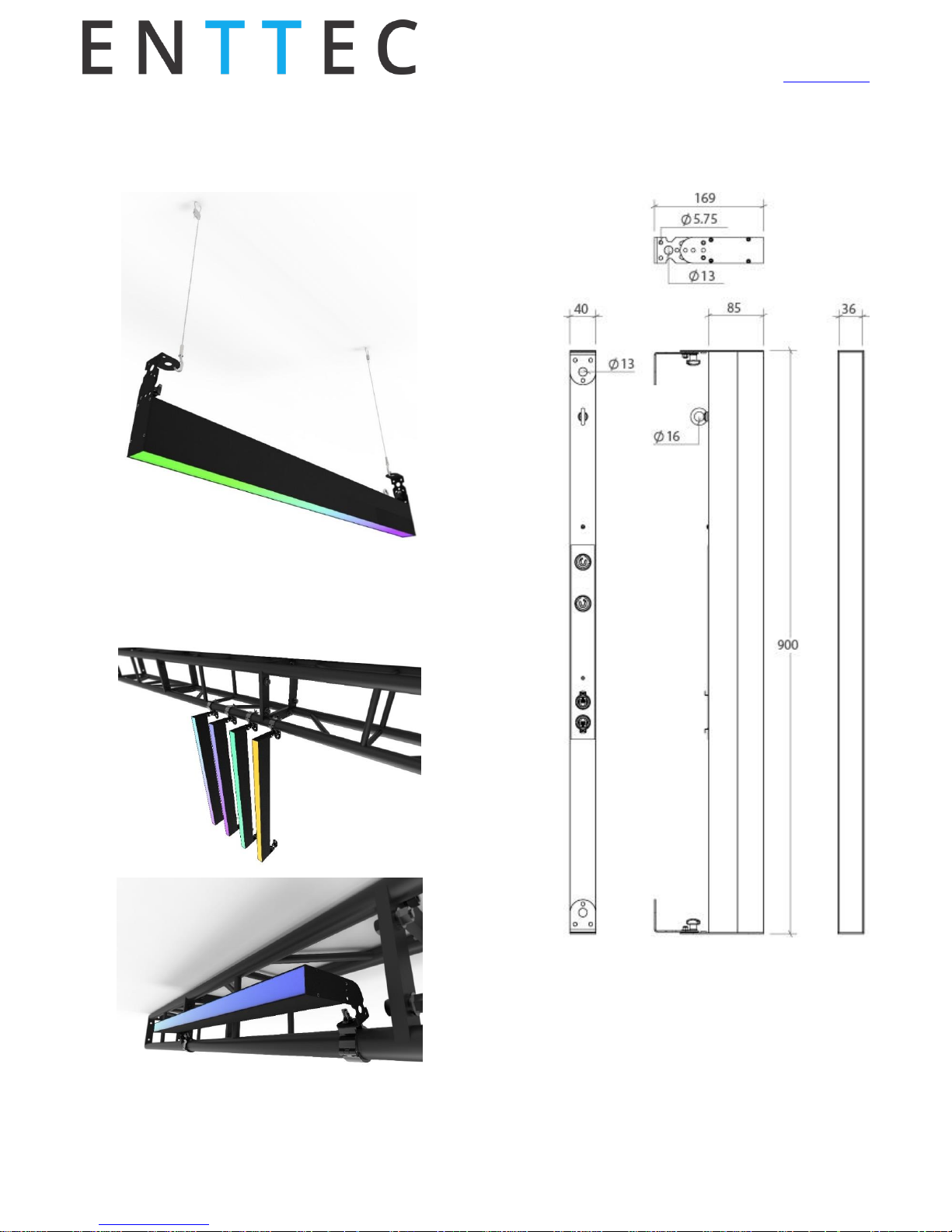

Physical Dimensions
DMX Addressing
Each Phero 33 contains 33 RGB Pixels, which means 99 DMX
slots. By default, the first unit connected to the controller
will auto address to DMX channel 1 to 90. Where CH1=Pixel1
Red, CH2=Pixel1 Green, CH3=Pixel1 Blue, CH4=Pixel2 Red and
so on.
Phero 33 Manual
(50977)
For latest version visit:
www.enttec.com
4
ID: 226394
When Pheros are daisy-chained, the following unit will
automatically take the next consecutive DMX slot, for
example, the second unit’s DMX start address will be 100.
A maximum number of 10 Pheros 33 can be daisy chained
per Plink port if using 2 universes mode from the
controller.
Please refer to Annex 1 to see a full DMX table of 10 daisy-
chained Pheros.
It is possible to change the DMX start address from the
controller and all the other pixels will auto-address to
the following slot. Please refer to Pixelator or Pixie Driver
documentation.
Mains Wiring
A maximum of 10 Phero 33 can be powered in DaisyChain. Please follow this table to select the best circuit
breaker to protect your installation:
Circuit Breaker
240VAC
110VAC
B10 5 8
B16 8 10
C10 8 10
C16
10
10
Technical Specifications
Due to continuous improvements and innovations of all
ENTTEC products, specifications and features are subject
to change without notice.
Item
73907-900
Max Input Power
25VA
Max Operating Power
18 Watt
Input Voltage
85~264 VAC
Max. input Current
0.4A/230VAC
0.6A/115VAC
Operating Ambient
Temperature
0°~40°C
Max Light output (all
leds 100%)
101 Lumens
Diffuser options
Frosted, Clear or Black
Viewing Angle
120°
Number of Pixels
33
RGB LEDs per Pixel
2
Pitch (pixels)
28mm
Pitch (LEDs)
14 mm
Number of 5050 LEDs
66 (2xRGB leds per pixel)
Item Weight
2.02 Kg / 4.41 lbs
Packed Weight
2.22 Kg / 4.96 lbs
IP Rating
IP40
Body
Base: Aluminum extrusion
Color: Sable Black
Connectors
2x Ethercon, 1x Blue Powercon,
1x Grey Powercon
Ordering Information
Phero 33 and compatible products can be ordered as
follows:
PN
Description
73907-900-FD
PHERO 33 PIXEL (900mm) (100~240VAC) FROSTED DIFFUSER
73907-900-BD
PHERO 33 PIXEL (900mm) (100~240VAC) BLACK DIFFUSER
73907-900-CD
PHERO 33 PIXEL (900mm) (100~240VAC) CLEAR DIFFUSER
70060
PIXELATOR
73541
PIXIE DRIVER
73546
PIXIELINKER
70066
PIXELATOR MINI
Registration
Please register your ENTTEC product to get latest software
updates and to validate your warranty.
To register, please visit enttec.com/register
www.enttec.com
Phero 33 Manual
(50977)
For latest version visit:
www.enttec.com
5
ID: 226394
ANNEX 1: Phero33 Recommended DMX Patch/Addressing Table (Daisy-Chain)
