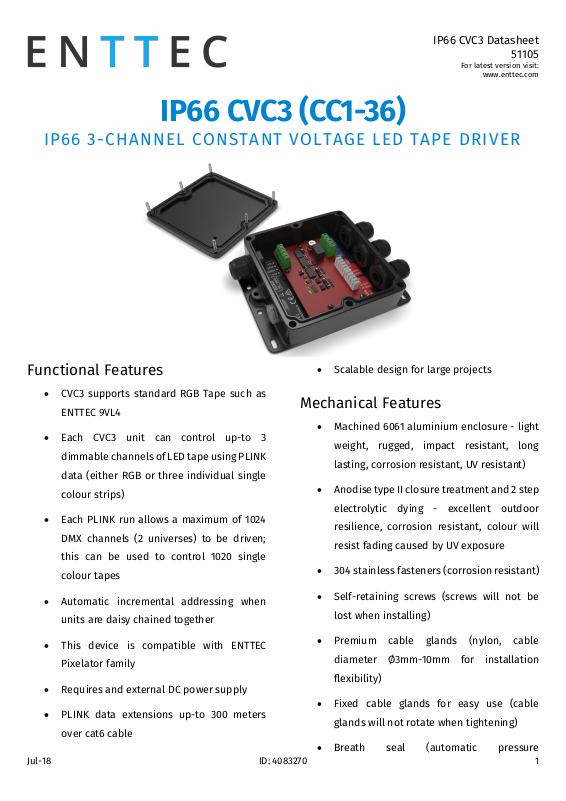

IP66 CVC3 (CC1-36)
IP66 3-CHANNEL CONSTANT VOLTAGE LED TAPE DRIVER
Functional Features
• CVC3 supports standard RGB Tape such as
ENTTEC 9VL4
• Each CVC3 unit can control up-to 3
dimmable channels of LED tape using PLINK
data (either RGB or three individual single
colour strips)
• Each PLINK run allows a maximum of 1024
DMX channels (2 universes) to be driven;
this can be used to control 1020 single
colour tapes
• Automatic incremental addressing when
units are daisy chained together
• This device is compatible with ENTTEC
Pixelator family
• Requires and external DC power supply
• PLINK data extensions up-to 300 meters
over cat6 cable
• Scalable design for large projects
Mechanical Features
• Machined 6061 aluminium enclosure - light
weight, rugged, impact resistant, long
lasting, corrosion resistant, UV resistant)
• Anodise type II closure treatment and 2 step
electrolytic dying - excellent outdoor
resilience, corrosion resistant, colour will
resist fading caused by UV exposure
• 304 stainless fasteners (corrosion resistant)
• Self-retaining screws (screws will not be
lost when installing)
• Premium cable glands (nylon, cable
diameter Ø3mm-10mm for installation
flexibility)
• Fixed cable glands for easy use (cable
glands will not rotate when tightening)
• Breath seal (automatic pressure
IP66 CVC3 Datasheet
51105
For latest version visit:
www.enttec.com
Jul-18 ID: 4083270 2
equalisation, manages condensation to
avoid electronic failures)
• IP66 enclosure (powerful water jets, high
pressure washdown resistant)
• High power screw down cage terminal
blocks for secure wiring
• Krone punch down terminal for fast secure
data wiring
• External earthing thread – reduces
electronic failures
• Broad operating temperature (suitable for
various environments)
• Multiple fixing points (flexible installation)
Safety
• Never plug PLINK ports in to Ethernet
outlets.
• Make all the connections before you plug in
the main power supply.
• Do not exceed the ratings of the device.
Physical Dimensions
IP66 CVC3 Datasheet
51105
For latest version visit:
www.enttec.com
Jul-18 ID: 4083270 3
Hardware Terminal Specifications
• Plink Data connection: Punch down
terminals, use a krone punch down tool.
Notes:
▪ Plink system only works with CAT5/6 straight-through cables, do
not use crossover cables.
• Plink Pinout
CC1-36 CVC3 Punch down pinout
Wire Colour
DMX Signal
Orange/White
Data A+
Orange
Data B-
Brown/White
GND
• Power supply connection: Green terminal
blocks
Wire strip length: 8mm
Ordering Information
Part Number
Description
73921
CC1-36 CVC3 (12-24v)
Specifications
Item
Details
Input Voltage
12-24v DC
Maximum Total
Output Power
12V
120 W
24V
240 W
Output Current
(Max) Per Pin
(Screw Terminal)
5 A per Channel
Data In
PLINK
Data Through
PLINK
Data Refresh Rate
400 Hz
Ambient Operating
Temperature
-15 o C to 40 o C
-15 o C to 60 o C (IF NOT IN
DIRECT SUNLIGHT)
Storage
Temperature
-20
o
C to 80 o C
IP Rating
IP66
Cable glands
3 to 10mmØ round cable only
Unit Weight
625 g / 1.378 lb
Shipped weight
840 g / 1.85 lb
Length
161.20mm/6.35 inches
Width
120mm/4.72 inches
Height
39mm/1.54 inches
Internal Connectors
4-way punch down (suits
krone) x 2
4 pin screw terminal x 2
Due to continuous improvements and innovations of
all ENTTEC products, specifications and features are
subject to change without notice
IP66 CVC3 Datasheet
51105
For latest version visit:
www.enttec.com
Jul-18 ID: 4083270 4

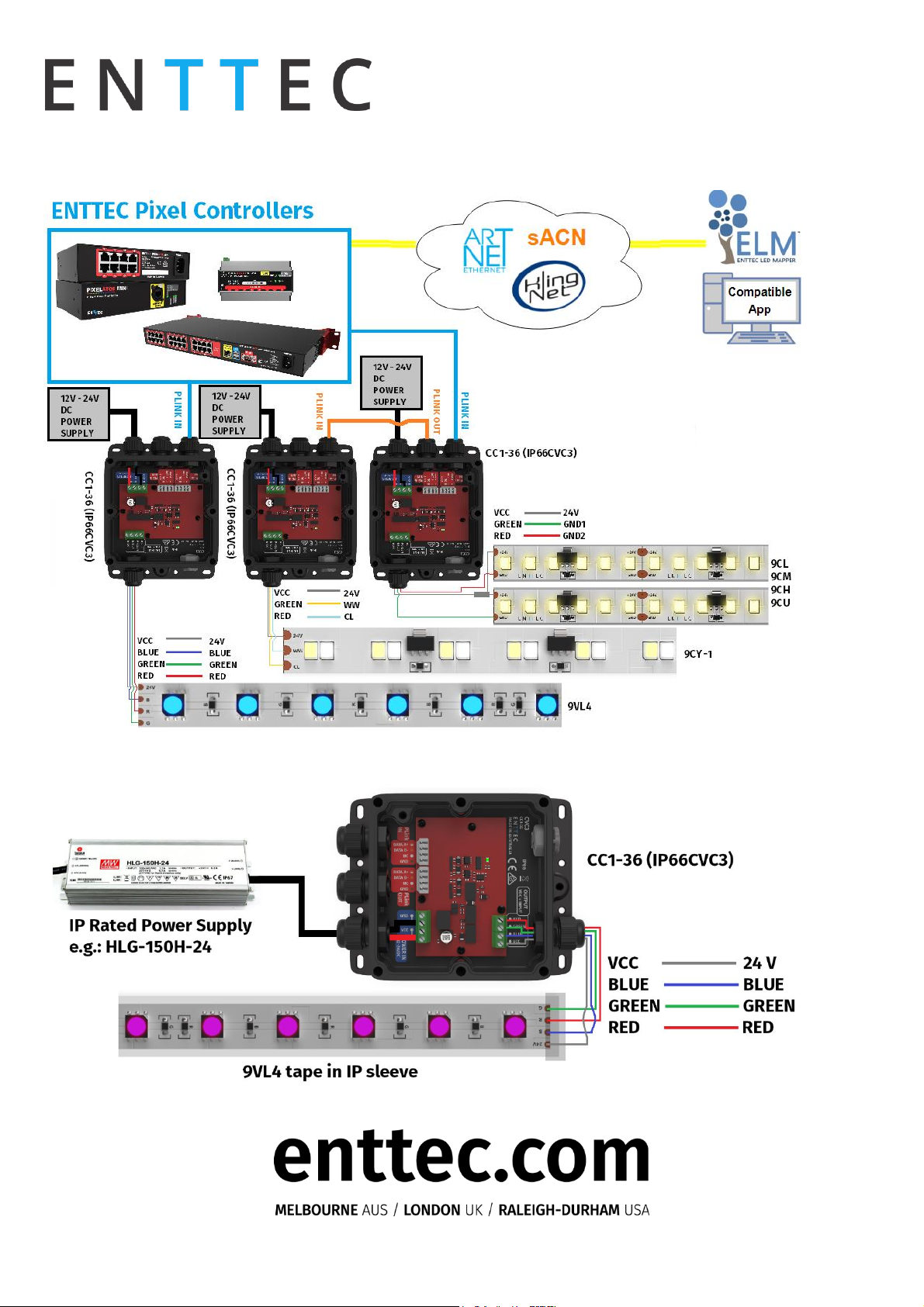

Application Diagram
Possible End to End IP Solution
