Enttec 8PX30-F, 8PX60-4 Data Sheet
Datasheet
50904
For latest version visit:
www.enttec.com
1
ID: 823407
RGBW Pixel Tape (8PX)
Features
• RGBW, 4 in 1 full colour LED
• Individually addressable, suitable for both
stage and architectural applications
• Available in two different densities: 30 and
60 pixels/Metre
• Designed for use with ENTTEC Pixel Link
System
• Total wattage - up to 14 Watt/Metre
• Up to 347 Lumens/Metre
• WS2812B chips built into 5050 RGBW LEDs
• Each pixel can achieve 4,294,967,296 colours
and scan frequency not less than 400Hz
• 3M adhesive double side tape at the back
• Built-in data signal reshaping circuit
• 5V DC input supply voltage
• Flexible construction material
• Front Polymer encapsulation seal
• Small LED pitch
• Can be joined together
• Can be cut to a smaller length
• IP20 Indoor use only
Safety
• Do not expose the units to rain
• Do not allow water or other liquids to build
up around the tape.
• Do not exceed the rated 5V DC power sup-
ply.
• This unit is intended for indoor use only,
use of
this product outdoors voids all warranties.
Physical Dimensions
30 Pixels/meter
60 Pixels/meter
Effects of Voltage Drop
Color
Maximum length, before color change is
evident
Single Injection
Dual Injection
Red
8.5 m
15 m
Green
8.5 m
15 m
Blue
8.5 m
15 m
White (only)
3 m
10 m
All on
5 m
10 m
Note:
Used 180W power supply at a lower intensity to evaluate
voltage drop for white (only) and all on tests
Datasheet
50904
For latest version visit:
www.enttec.com
2
ID: 823407

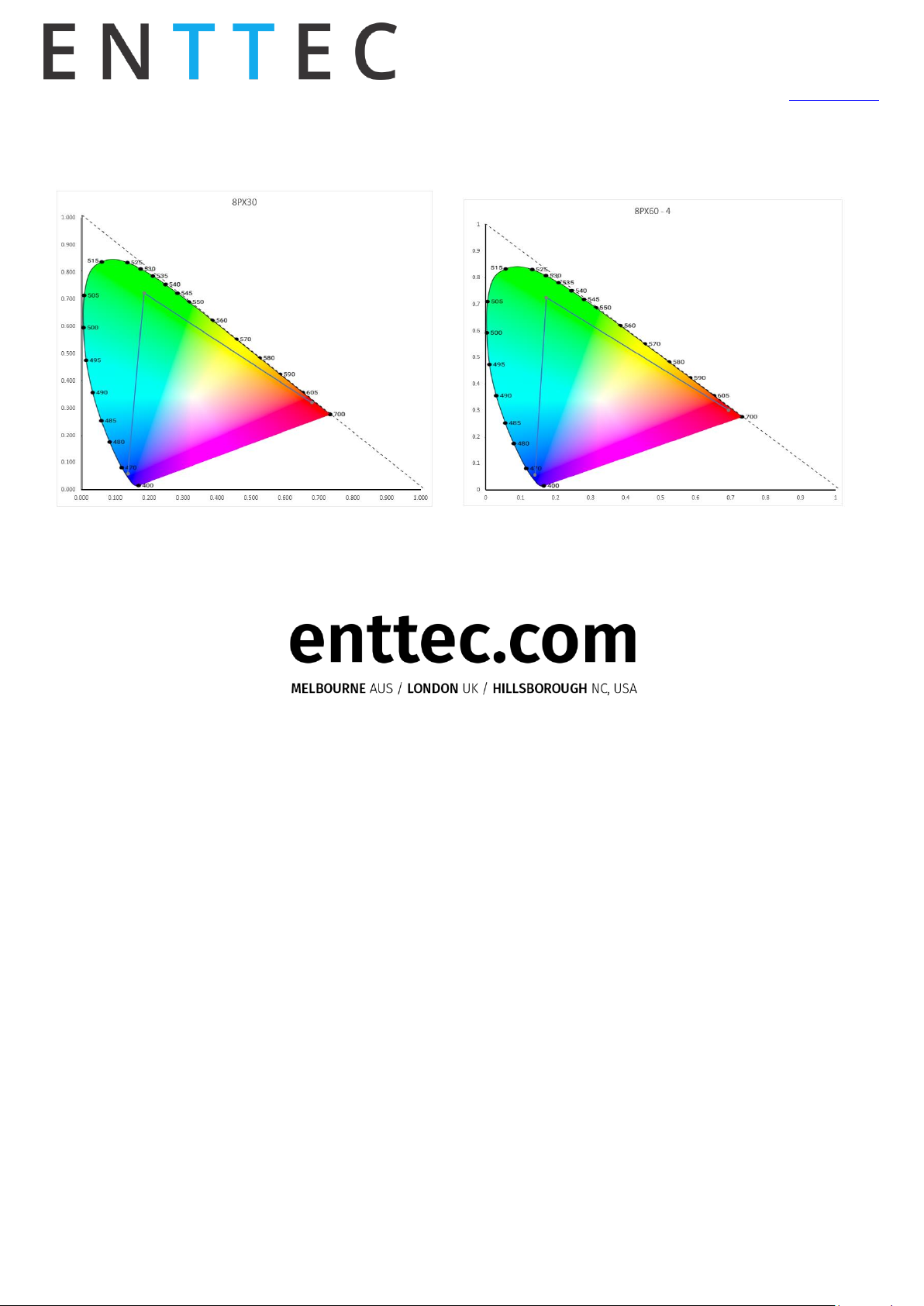

Specifications
Item
8PX30
8PX60
Input Voltage
+4.8V ~ +5.2VDC
Data line Voltage
-0.5V ~ VCC+0.5V
Watts/meter (max)
RGB: 3.9W
W: 2.7W
Total: 6.6W
RGB: 8.3W
W: 5.7W
Total: 14W
Lumens/meter
RGB: 63
W: 97
Total: 160
RGB: 150
W: 197
Total: 347
Efficacy (Lm/Watt)
24.4
24.9
DMX Channels/LED
4
Color temperatures
White LED: 4350K
RGB White: 15700K
Beam angle
120 °
Control protocol
WS2812B
Connector
JST SM connectors
Weight
258 g
Operating temperature
5 to 50°
Pixel Mapping Order
GRBW
Front Polymer encapsulation seal
Yes
IP Rating
IP20
PCB Color
White
White Temperature
4050K – 4250K
Connections with Plink Injector:
Note:
• The wire in the middle of a JST connector is al-
ways DATA regardless of color
• It is important to turn off the mains to the de-
vices before doing any led tape connections.
Connections with Pixie Driver:
The below diagram shows a standard connection between
8PX and ENTTEC Pixie Driver. It is important to turn off the
mains to the devices before doing any connections.
Note:
• The wire in the middle of a JST connector is always
DATA regardless of color
• It is important to turn off the mains to the devices
before doing any led tape connections.
Ordering Information
The ENTTEC RGBW Pixel strips and compatible products
can be ordered from our website or through your ENTTEC
dealer.
Item
Value
73540
PIXIE DRIVER 5V (110 WATTS)
73541
PIXIE DRIVER 5V (55 WATTS)
73546
Plink Injector 5V
8PX60-4
RGBW PIXEL TAPE 60 LEDS/METER 5V
- 4M Roll
8PX30-F
RGBW PIXEL TAPE 30 LEDS/METER 5V
- 5M Roll
