Ensemble Designs BE-1 User Manual

BrightEye

TM

4

4
4
4
4
4

Use with Cameras, Satellite Receivers and VHS Decks
Analog and SDI Input
SDI and Optical Output
TBC and Frame Sync
12 Bit

Specifications

Serial Digital Input

Number One
Signal Type 270Mb/s SD Serial Digital

(SMPTE 259M)
Impedance 75 Ω
Return Loss >15 dB
Max Cable Length 300 meters

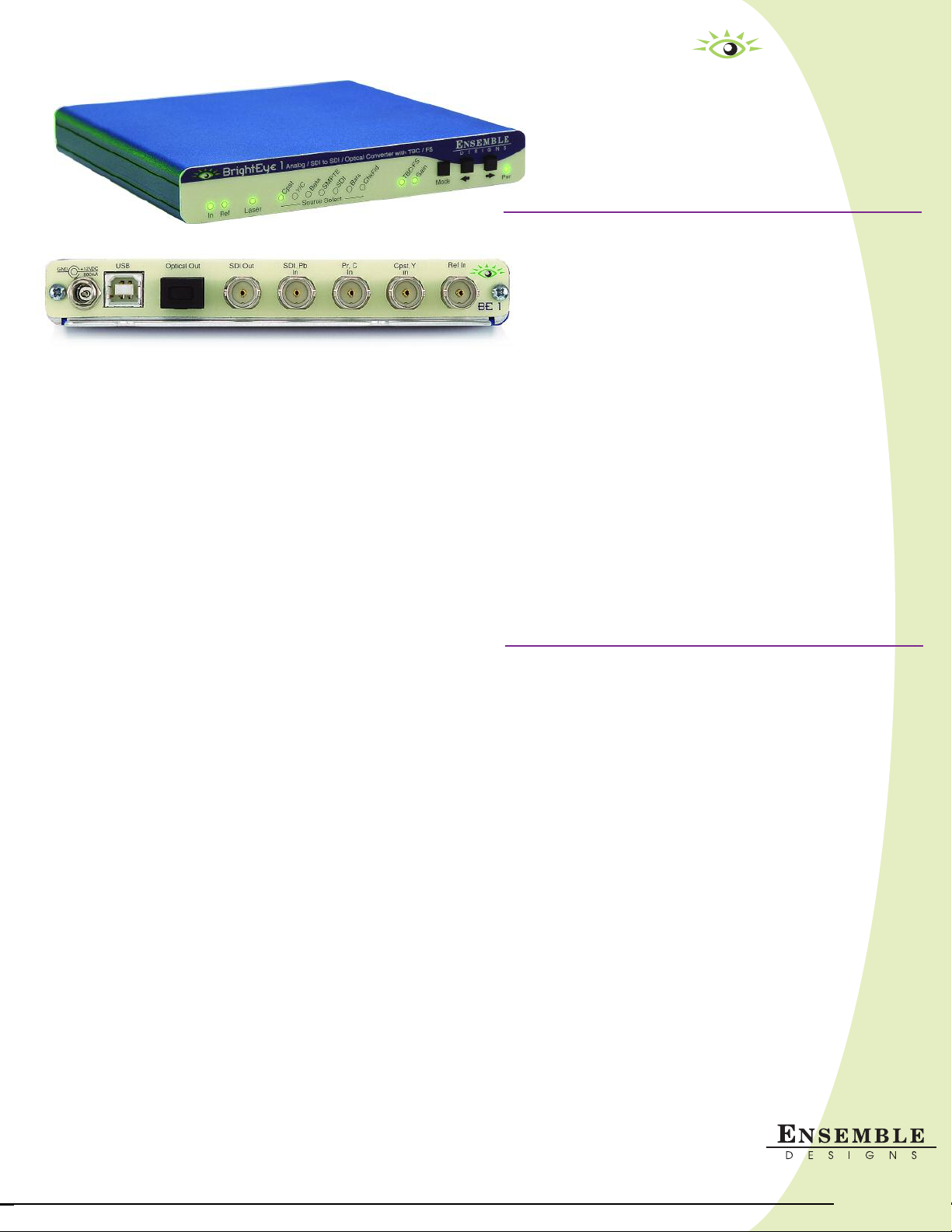

BrightEye 1

Analog/SDI to SDI/Optical Converter

with TBC and Frame Sync

BrightEye 1 is a comprehensive solution to signal
acquisition. With analog component, analog
composite S-Video (Y/C), and SDI video inputs, it can
take on any video source. The built-in Time Base
Corrector/Frame Synchronizer provides a rock steady
output — even with marginal inputs. The reference
input is used to genlock the converter output to
house reference such as color black.

Front panel controls select input source and format
and adjust video gain. Video levels can be adjusted
through BrightEye PC.

Simultaneous SDI (electrical) and Optical outputs are
provided, so you can deliver the signal just about
anywhere. Both Color Bars and the SDI Checkfield
(Pathological) test patterns are included to facilitate
transmission path testing.

Analog Input

Number One
Type Beta/SMPTE, Y, Pr, Pb

NTSC, PAL Composite

NTSC, PAL S-Video
Impedance 75 Ω
Return Loss >40 dB
Input DC +/-1 volt DC
Input Hum <100 mV

Serial Digital Output

Number One
Type 270Mb/s SD Serial Digital

(SMPTE 259M)
Impedance 75 Ω
Return Loss >15 dB
Output DC None (AC coupled)

Optical Output

Number One
Type 270Mb/s SD Serial Digital

(SMPTE 259M)

(Optical equivalent of 259M)
Wavelength 1310 nm
Power –7 dBm
Maximum length 20km
Fiber Type Single Mode

Multi-mode compatible with

ttenuation at transmit end

Connector SC

8 dB a

Analog to SDI Performance

Bit Resolution 12 bit input quantization

4 X oversampling
Signal to Noise >62 dB, weighted
Frequency Response
Composite and Y ±0.1 dB, 0 to 5.5 MHz
Pr, Pb ±0.1 dB, 0 to 2.75 MHz
Minimum Delay 90 µSec

Reference Input

Number One
Type 1 V p-p Composite Video, PAL or NTSC
Impedance 75 Ω
Return Loss >40 dB

General Specifications

Size 5.625” W x 0.8 “ H x 5.5” D

(143 mm x 20 mm x 140 mm)

including connectors
Power 12 volts, 7 watts

(100-230 VAC modular power supply)
Temperature Range 0 to 40˚ C ambient
Relative Humidity 0 to 95˚ non-condensing
