Ensemble Designs 7410 User Manual
This data pack provides detailed installation, configuration and operation information for
the 7410 Quad HD Tri-Level Sync Generator as part of the Avenue Signal Integration
System.
The module information in this data pack is organized into the following sections:
• Module Overview
• Applications
• Installation
• Cabling
• Module Configuration and Control
°

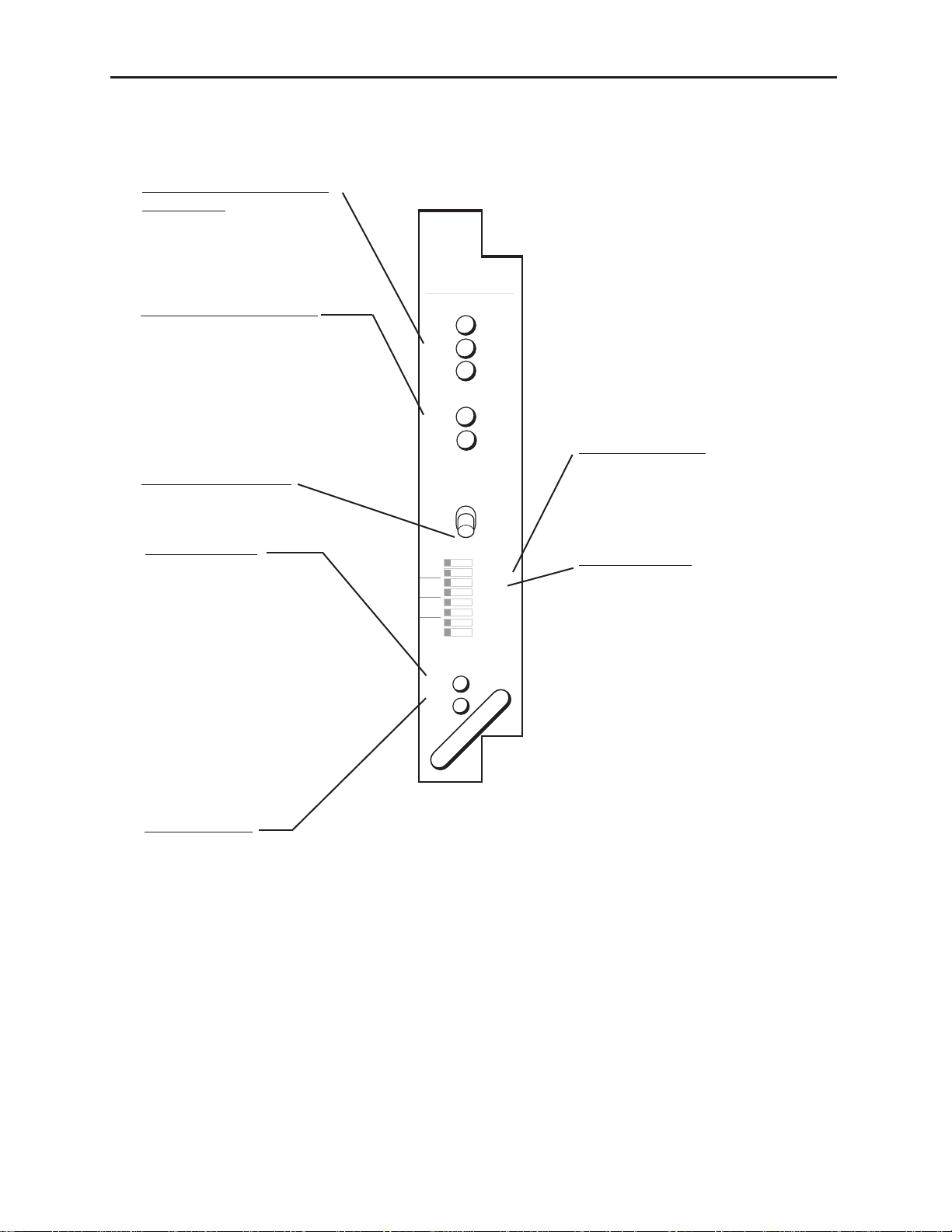

Front Panel Controls and Indicators
°

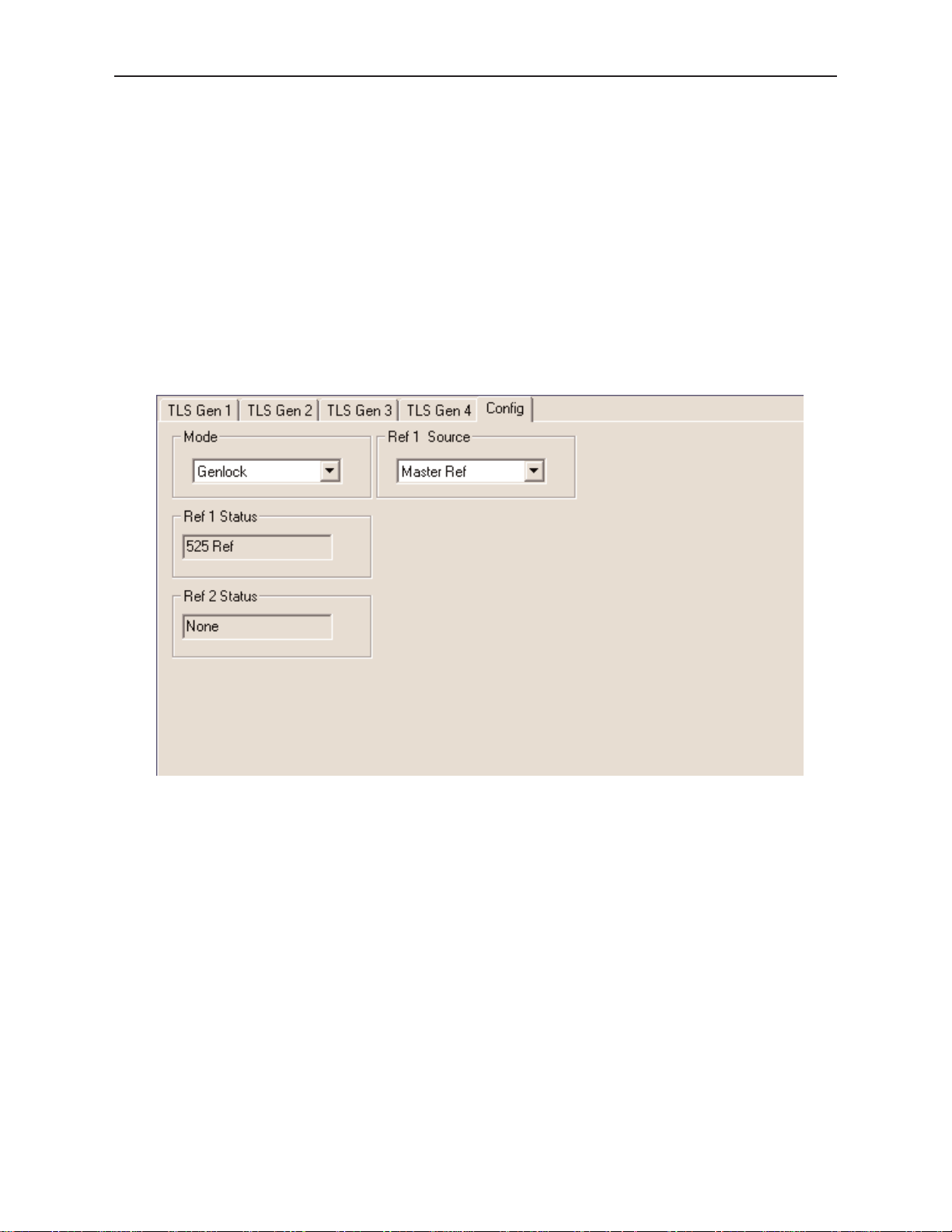

Avenue PC Remote Control
°
Avenue Touch Screen Remote Control
• Troubleshooting
• Software Updating
• Warranty and Factory Service
• Specifications
7410-1
Model 7410
Quad HD Tri-Level
Sync Generator
Data Pack
ENSEMBLE
DESIGNS
Revision 1.1 SW v2.0
MODULE OVERVIEW
The 7410 module is a stable timing source suitable for local reference generation for use
in broadcast, remote trucks and post-production. Four simultaneous HD tri-level sync
reference outputs are provided. Each output can each be set to a different HD standard.
The 7410 can operate from an internal precision frequency reference as a stand alone
master sync generator or lock to a PAL or NTSC video reference from an external source.
There are two video reference inputs on the 7410 module for maximum system flexibility.
The module can also lock to an external 10 MHz source such as an atomic standard or
GPS receiver for more precision.
Each of the four outputs can be timed with respect to the selected reference to any point
in the television frame. Timing adjustments are configured independently and the 7410
can be configured to output 525 and 625 standards simultaneously.
As shown in the block diagram below, the time base reference is selected from either the
Master reference or of of two Genlock (external) references. The selected reference passes
through a precision sync separator to derive the required sync components. The separated
sync signal provides the timing reference for the PLLs.
Power is derived from the ± 12 volt frame power. It is regulated to the required +5 volts
for the module by on-board regulator. The module is fused with a resettable fuse device. If
the fuse opens due to an overcurrent condition, the module will lose power. After pulling
the module, the fuse will reset automatically requiring no replacement fuse.
The on-board CPU can monitor and report module ID information (slot location, software
version and board revision), and power status to the optional frame System Control
module. This information can be accessed by the user or set to register an alarm if desired
using the remote control options available.
Model 7410 HD Tri-Level Sync Generator
7410-2
TLS Gen 1
Outputs
TLS Gen 2
Outputs
TLS Gen 3
Outputs
TLS Gen 4
Outputs
Ref 1
Input
Frame
Master Ref
Ref 2
Input
>
10Mhz
Detector
Sync
Stripper
Sync
Stripper
Internal
Precision
Reference
Reference
Selection
Logic
&
Timing
Control
TLS Gen 1
TLS Gen 2
TLS Gen 3
TLS Gen 4
Model 7410 HD Tri-Level Sync Generator
7410-3
7410 HD TLS Gen Block Diagram
APPLICATIONS
Simultaneous References
As shown in the application below, the 7410 module can provide simultaneous HD
Tri-Level Sync reference outputs that are different standards.
7410
HD TLS
Gen
625 Reference
525 Reference
720p 59.94
1080p 59.94
1080p 24
720p 50
Router
Switcher
Edit Suite
Camera
Model 7410 HD Tri-Level Sync Generator
7410-4
Digital, Analog and Audio Reference Generation and Distribution
Another application shown below, illustrates how the 7410 HD TLS Generator module
and the 5400 SPG/TSG module can be combined to provide complete digital, analog and
audio reference outputs which can then be distributed throughout a facility.
7410 HD TLS Gen Block Diagram
Test Signals
5400
Sync
Generator
625 Ref
AES Ref
7410
HD
TLS Gen
HD
TLS
HD
Production
Switcher
HD TLS
HD
Router
INSTALLATION
Plug the 7410 module into any one of the slots in the 3 RU frame or 1 RU frame. Install
the plastic overlay provided onto the corresponding group of rear BNC connectors associated with the module location. Note that the plastic overlay has an optional adhesive
backing for securing it to the frame. Use of the adhesive backing is only necessary if you
would like the location to be permanent and is not recommended if you need to change
module locations. This module may be hot-swapped (inserted or removed) without
powering down or disturbing performance of the other modules in the system.
CABLING
Refer to the 3 RU and 1 RU backplane diagrams of the module on the next page for
cabling instructions. Note that unless stated otherwise, the 1 RU cabling explanations are
identical to those given in the 3 RU diagram.
7410-5
Model 7410 HD Tri-Level Sync Generator
