Ensemble Designs 7160 User Manual

Model 7160 HD/SD/ASI/310 Protection DA
E NSEMBLE
DESIGNS
Model 7160
HD/SD/ASI/310
Data Pack
Revision 1.0 SW v2.2.10
www.ensembledesigns.com
7160-1
Model 7160 HD/SD/ASI/310 Protection DA
Contents
MODULE OVERVIEW 4
SDI Signal Evaluation 4
DVB-ASI and SMPTE 310M Signal Evaluation 5
Block Diagram 6
APPLICATIONS 9
Auto-Switched Trouble Slide Application 9
Auto-Switched Upconversion Application 10
3RU and 1RU Backplane Diagrams 11
Status and Alarm Cabling 12
MODULE CONFIGURATION AND CONTROL 13
7160 Parameter Table 14
Front Panel Controls and Indicators 16
AVENUE PC REMOTE CONFIGURATION 17
7160 Avenue PC Menus 17
Status Menu 17
Cong Menu 19
Black Detect Menu 20
Audio Detect Menu 21
Freeze Menu 22
ASI Cong Menu 23
ASI Status Menu 24
Pri Errors Menu 25
GPI Menu 26
Inputs Menu 27
Memory Menu 28
www.ensembledesigns.com
7160-2
Model 7160 HD/SD/ASI/310 Protection DA
AVENUE TOUCH SCREEN REMOTE CONFIGURATION 29
7160 Avenue Touch Screen Menus 30
Status Menu 30
Cong Menu 31

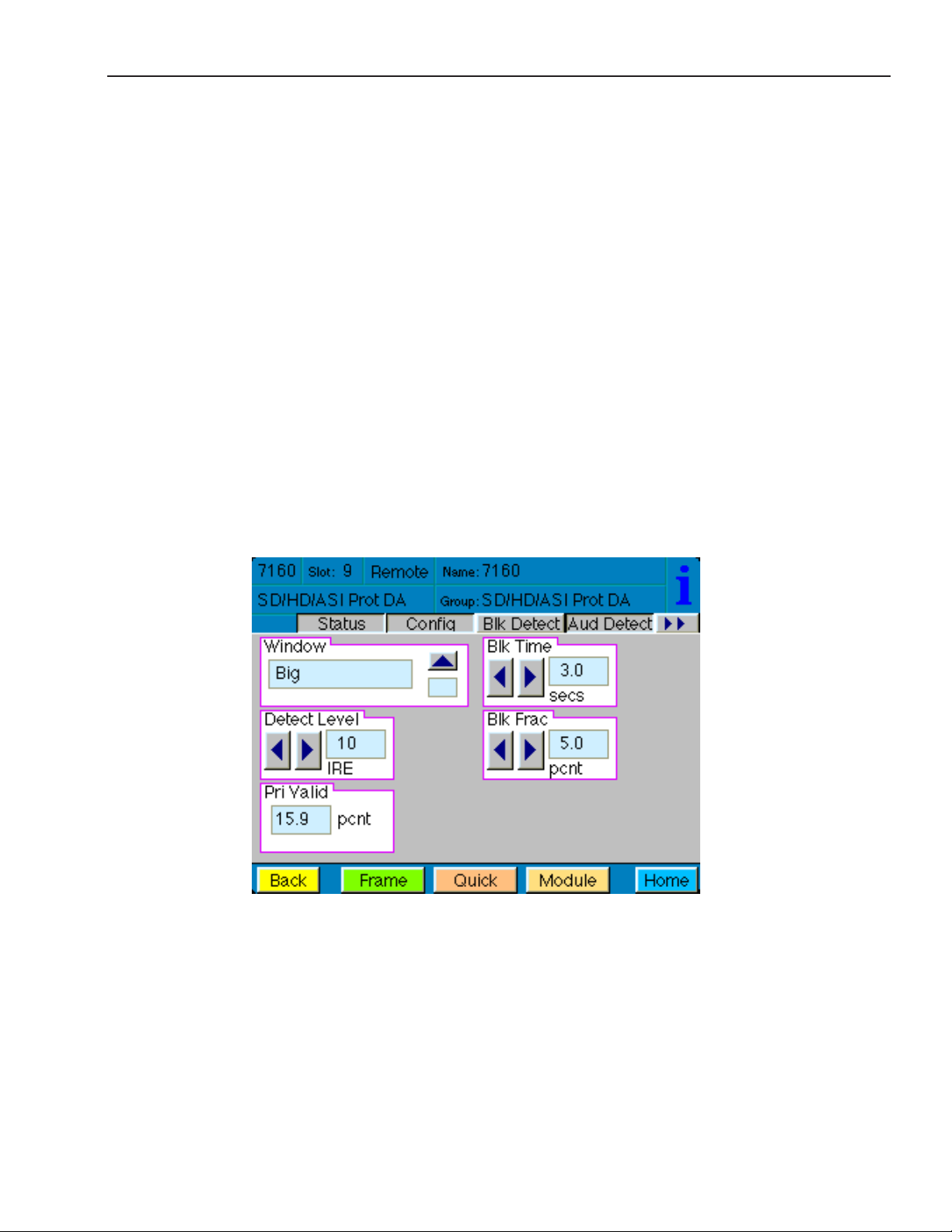

Black Detect Menu 32
Audio Detect Menu 33
Freeze Menu 34
ASI Cong Menu 35
ASI Status Menu 36
Pri Errors Menu 37
GPI Menu 38
Inputs Menu 39

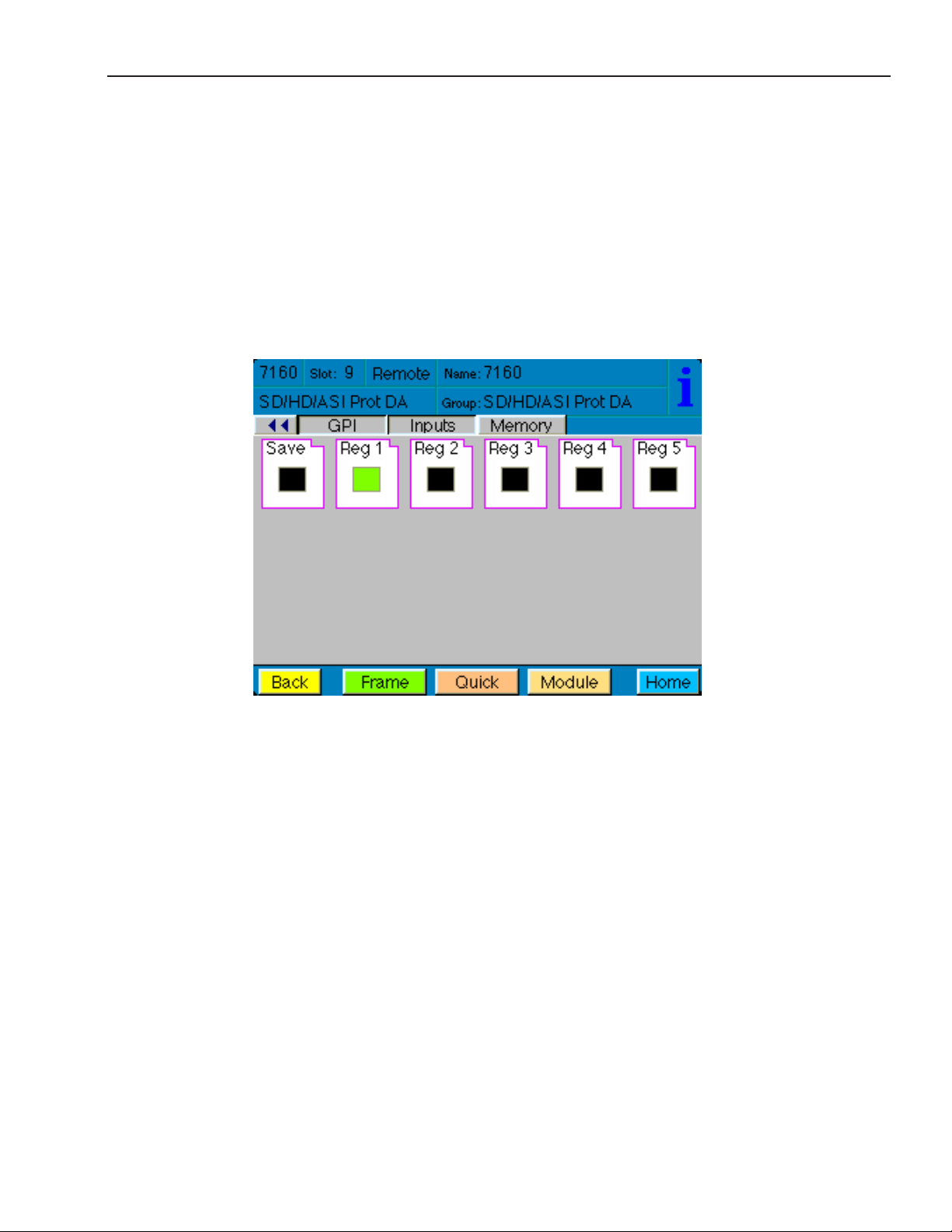

Memory Menu 40
TROUBLESHOOTING 41
SOFTWARE UPDATES 41
WARRANTY AND FACTORY SERVICE 42
Warranty 42
Factory Service 42
SPECIFICATIONS 43
www.ensembledesigns.com
7160-3
Model 7160 HD/SD/ASI/310 Protection DA

MODULE OVERVIEW

The 7160 Serial Digital Protection DA module is a fail-safe bypass protection switch for monitoring and switching critical SD and HD paths in broadcast and satellite applications. When a fault is detected in the Primary input, the switch will activate, causing the Secondary (backup) input to be switched to the module’s distributed outputs. The switch can operate in two modes; automatic or nonresetting.
The 7160 monitors the integrity of the Primary serial digital input stream and analyzes the audio and video content. Signal health and fault detection is determined by monitoring any or all of the following parameters: Closed Caption Data, Timing Reference Signal (TRS), Black, Embedded Audio, Error Detection and Handling (EDH), CRCs, and Freeze.
A sophisticated Black detection system is employed to activate the switch in the event signal is lost. It allows the user to select not only the threshold and percentage of non-black pixels, but also the portion of the picture to be considered.
The Freeze detection system can be set to detect a clean or noisy source. Freeze Time sets the number of seconds that can elapse before the 7160 switches to the secondary input after a video freeze condition is detected in the primary input.

SDI Signal Evaluation

The 7160 monitors the integrity of the serial digital input stream and analyzes its audio and video content. Signal health and fault detection of SD SDI and HD SDI signals is determined by monitoring any or all of the following parameters, in order of increasing complexity:
Timing Reference Signal (TRS)• – This parameter checks for the persistent loss of digital sync by looking for the correct Timing Reference Signal carried in the serial video stream. When this digital sync format is correct, the signal is considered good.
Black• – Black detection is based on three congurable parameters: black level threshold, black pixel count, and black duration time. All of these parameters can be set using the menu system to meet the needs of specic video signal inputs.
Embedded Audio• – This parameter will look for correctly congured embedded audio packets in the horizontal intervals of the signals. The actual audio content of the packets is further analyzed to detect silence. Specic audio parameters, such as audio group, silence threshold level, and audio silence duration can be congured in the Avenue PC and Touch Screen menus.
Freeze• – This parameter checks for a freeze condition as determined by the settings selected in the Freeze menu.
A sophisticated black detection system is employed to activate the switch in the event signal is lost. It allows the user to select not only the threshold and percentage of non-black pixels, but also the portion of the picture to be considered. The area of the picture checked is determined by selecting Small Window which is approximately two thirds of the picture width and height, or Big Window which covers approximately 90% of the width and height. This allows a corner Bug to be either excluded or included in the detection process.
www.ensembledesigns.com
7160-4
Model 7160 HD/SD/ASI/310 Protection DA
Black detection is performed on a pixel-by-pixel basis within the selected window, with user selectable Detect Level and Blk Frac adjustments. Pixels above the Detect Level are considered as being non- black. Blk Frac sets the percentage of pixels which must be non-black. If Detect Level is set to 12 IRE and Blk Frac is set to 10% then the 7160 expects there to be pixel levels above 12 IRE for more than 10% of each frame. For example, if Blk Time is set to 3 seconds, if less than 10% of the pixels in each frame are above the selected 12 IRE level for a period of 3 seconds, a switch will occur.
Pri Valid and Sec Valid are dynamic values based on incoming video. In the above example, if Pri Valid fell below Blk Frac continuously for 3 seconds there would be a switch, provided that there
is valid secondary video. Note however, that the display may not keep pace with short duration transitions of actual video. In the example, an excursion above 12 IRE for a single frame every 2 seconds would not cause a switch to take place, since the 3 second count would be reinitialized by these valid frames.

DVB-ASI and SMPTE 310M Signal Evaluation

For DVB-ASI and SMPTE 310M signals, there are two levels of signal analysis available: Simple or Advanced. Use the ASI Test control in the Cong menu to choose between these.
When ASI Test is set to Simple, the 7160 looks for:
Input signal presence and digital clock lock•
Presence of non-null (blank) packets•
Presence of Program Allocation Table (PAT) PIDs occurring at least two per second•
When ASI Test is set to Advanced, the 7160 looks for the above conditions, plus the following:
The presence of at least one program stream being called for in the PAT. The 7160 can • automatically look for the rst one, or the user can tell it which of the rst four it should look for. This selection is made with the Pgm Target control in the ASI Cong menu. The 7160 expects at least one Program Management Table (PMT) PID per second.
The targeted Program must contain at least one elementary Video Stream and one elementary • Audio Stream.
A user-dened minimum number of video packets each second in the Video PID.•
A user-dened minimum number of audio packets each second in the Audio PID.•
www.ensembledesigns.com
7160-5
Model 7160 HD/SD/ASI/310 Protection DA
The Pri ASI Status indicator show what has been detected in the incoming DVB-ASI or SMPTE 310M stream.
Possible indications are:
Good• – The DVB-ASI or SMPTE 310M signal passes all tests (either Simple or Advanced)
No ASI• – No DVB-ASI or SMPTE 310M signal has been detected
No Packets• - All of the packets in the stream are null. There are no actual program packets
No PAT• - There are non-null packets, but no Program Allocation Table can be found
No PMT• - No Program Management Table can be found
No Video• - The user-dened minimum number of video packets per second has not been met
No Audio• - The user-dened minimum number of audio packets per second has not been met
The ASI Status menu shows a breakdown of these elements of analysis with a display of live results. The displayed values for the rate (in PIDs per second) for the video and audio can be used as a guide to setting the Min Vid Rate and Min Aud Rate values for a particular system or installation.
Whenever the DVB-ASI test generates a result other than Good, a timer begins running. If that timer reaches the ASI Time value set in the ASI Cong menu, the channel will be marked as faulted and the switch will move to the Secondary input.
When the program assignments in a DVB-ASI stream change, it can take up to a second for the 7160 detector to re-acquire all of the table information needed to show that the signal is good. For this reason, a setting of between 2 - 5 seconds is recommended for the ASI Time parameter.
The Pri Errors menu shows error-seconds counters for all tests performed by the 7160. The ASI Vid ErrSec control shows the cumulative number of seconds where the minimum packet rate was not met. Depending on how the ASI Time control is set, these errors may or may not have actually caused a program switch to occur. To reset the error-seconds counters, click them.

Block Diagram

The block diagram on the following page illustrates the signal ow of the 7160. Note that in the event of power failure, the passive relay passes the primary input to the Relay Protected Output.
The Primary and Secondary inputs pass through serial digital receiver/equalizers for buering. When a fault is detected in the Primary input, and the Secondary input is seen as not faulted, the electronic solid state switch will activate, switching the Secondary input to the output.
www.ensembledesigns.com
7160-6
Model 7160 HD/SD/ASI/310 Protection DA
Rcvr/EQ
Deserializer
& EDH Processor
Primary
Loopback
Content
Analyzer
Protection Watchdog
GPI Inputs
Sel Sec
Sel Pri
Switch Position
GPI Override Inputs
Status Logging
Avenue System Control
Secondary Fail
Primary Fail
Common
Serial Port
Form C
Relay
Alarm Outputs
Backplane
Interface
Module Control System
Decision Arbitration
Reclocker
Relay
Rcvr/EQ
Secondary
Loopback
HD/SD
Primary Input
Relay
Protected
Output
(Fail-safe)
Protected
Outputs (5 each)
HD/SD
Secondary Input
Reclocker
Each of the signals is fed to identical detection circuits which evaluate multiple parameters and characteristics of the signal in order to arrive at a fault decision. Detection of TRS errors is done in a Receiver/Reclocker circuit which produces a reclocked serial output feeding a Deserializer circuit. The output of this section then feeds a Field Programmable Gate Array (FPGA) where the signals are vetted, or tested for congured parameters. The Signal Vetter™ process in the FPGA detects the parameters chosen by the user using either the front panel controls or through the Avenue PC or Touch Screen menus. Each of the chosen aspects are monitored independently, and when they fail to meet the vetted standard, a fault condition is issued. Fault conditions can be monitored with an external alarm system or other device through the 15-pin Control connector on the corresponding rear backplane connector. The Form C relays status outputs from this connector can be monitored by a device to show Primary and Secondary signal status and the current position of the protect switch (Primary or Secondary).
Two GPI Override Inputs are available to allow changing switch position in response to triggers from an external source. This can be used to manually reset the switch after the Primary has recovered from a fault condition or set to respond to a signal state from an external device to trigger a switch.
The on-board CPU can monitor and report module ID information (slot location, software version and board revision), and power status to the optional frame System Control module. This information can be accessed by the user or set to register an alarm if desired using the remote control options available.
Every function and parameter on the module can be controlled from an Avenue Touch Screen Control Panel or the Avenue PC Control Application. Memory registers can be used to save the complete conguration of the module, making it easy to change instantly between dierent congurations.
Modules at software version 2.2.0 or later support SNMP (Simple Network Management Protocol) monitoring. For each applicable signal processing module, module, signal, and reference status are reported. For complete details on using SNMP monitoring, refer to the Avenue System Overview in the manual that accompanies each frame.
7160 HD/SD/ASI/310 Protection DA, portrait layout
www.ensembledesigns.com
7160-7
Model 7160 HD/SD/ASI/310 Protection DA
Rcvr/EQ
Deserializer
& EDH Processor
Primary
Loopback
Content
Analyzer
Protection
Watchdog
GPI Inputs
Sel Sec
Sel Pri
Switch Position
GPI Override Inputs
Status Logging
Avenue System Control
Secondary Fail
Primary Fail
Common
Serial Port
Form C
Relay
Alarm Outputs
Backplane
Interface
Module Control System
Decision Arbitration
Reclocker
Relay
Rcvr/EQ
Secondary
Loopback
HD/SD
Primary Input
Relay
Protected
Output
(Fail-safe)
Protected
Outputs
(5 each)
HD/SD
Secondary Input
Reclocker
7160 HD/SD/ASI/310 Protection DA, landscape layout
www.ensembledesigns.com
7160-8
Model 7160 HD/SD/ASI/310 Protection DA
7160
Protect Switch
Primary
Secondary
Feed from program provider or network
SDI
Avenue
7420
SDI
“Trouble
Slide”
Program feed to air
SDI

APPLICATIONS

Auto-Switched Trouble Slide Application

In the example below, the main program feed is input to the 7160’s primary input. The secondary input is from a logo inserter and is a “Please stand by” graphic.
In the event that the provider’s program feed is not present, the 7160 automatically switches to the secondary “Trouble slide” feed.
Auto-switching “trouble slide” feed with 7160 Module
www.ensembledesigns.com
7160-9
Model 7160 HD/SD/ASI/310 Protection DA
Master
Control
7160
Protect Switch
HD SDI
Control
Alarm Outputs
Video
Server
(Backup)
SD SDI
Primary
Secondary
7900
Up/Down/
Cross
Converter
HD SDI
or
SD SDI
HD SDI
or
SD SDI
720p
To Transmitter

Auto-Switched Upconversion Application

The diagram below shows a typical use for the 7160 module, where it is used in conjunction with the 7900 Up/Down/Cross Converter module to form a fully-redundant, auto-switched conversion chain. The Primary input is backed up with a Secondary input from a video server.
The 7160 Protection Switch can accept dierent types of signals on its two inputs. The 7160 auto­senses and reports what type of signal it is receiving: HD SDI, SD SDI, ASI or SMPTE 310M.
Here, an HD SDI signal is fed to the Primary input while an SD SDI signal is fed to the Secondary input. If the HD SDI signal is bad, and the 7160 switches to the SD SDI signal, SD SDI will be output.
The 7900 Up/Down/Cross Converter shown above accepts an SD SDI or HD SDI signal. The user sets the 7900 to the desired output type. In this example, the 7900 is set to output HD 720p. If the incoming signal is 720p, the signal simply passes to the output. If the incoming signal is 1080i, the 7900 cross-converts the signal and outputs 720p. If the incoming signal is SD SDI, the 7900 upconverts the signal and outputs HD 720p.
Relay circuits accessible from the 15-pin D Control connector on the rear backplane can be connected to alarms for monitoring Primary status and switch position.
Redundant Auto-Switched Conversion with 7160 Module
www.ensembledesigns.com
7160-10
Model 7160 HD/SD/ASI/310 Protection DA
7160 PDA
Secondary In
Sec Loop Out
Out 6
Pri Loop Out
Primary In
Control
Out 5
Out 4
Out 3
Out 2
Fail-safe Out
Control
7160 PS
Pri Loop Out
Primary InFail-safe OutOut 3Out 5
Sec Loop Out
Out 2Out 4Out 6
Secondary In
PIN FUNCTION
1
1
6
11
5
10
15
Pri NC
Control
2 Pri NO
3
4 Pri Com
5
6
7
8
9 Prot NC
10 Prot NO
11 Prot Com
12 Pri Sel
13
14 Sec Sel
15

3RU and 1RU Backplane Diagrams

Connect the secondary (backup) digital signal to the Secondary In BNC and loop the Sec Loop Out BNC to another destination in the facility if needed.
Connect the Protect Out BNCs to destinations.
www.ensembledesigns.com
Connect Fail-safe Out to the nal destination.
Connect the primary digital signal to the Primary In BNC and loop the Pri Loop Out BNC to another destination in the facility if necessary.
Pinouts for the 15-pin Control connector for status monitoring and GPI inputs appear in the table at left.
3RU Backplane
1RU Backplane
7160-11
Model 7160 HD/SD/ASI/310 Protection DA

Status and Alarm Cabling

In addition to full monitoring and access through the control system, the 7160 module provides contact closure status indications through the 15-pin D Control connector on the corresponding rear slot of the frame. These connections can drive an alarm system or other external monitoring devices, including LEDs. Two override GPI Inputs can also be accessed through the connector. Pinouts for the status monitoring are given in the preceding illustration.
Form C relay contacts provide both NO (Normally Open) and NC (Normally Closed) switching to indicate fault status of the Primary and Secondary inputs and the protection switch output. Both the NO and NC contacts are simultaneously available on the Control connector. Each output is independently strappable to provide Ground, current limited +5V (1k resistor), or a Common which appears on the D connector.
The three relay contacts provide the following status reporting:
Primary Good or Failed• – indicates Primary input status as Good when NO contact is active (switched to Common).
Secondary Good or Failed• – indicates Secondary input status as Good when NO contact is active (switched to Common).
Switch Position• – indicates the position of the protect switch as either Primary or Secondary selected. The normal position corresponds to the Primary feeding the input.
An individual common is provided to each of the relays. For each of the three status relays there is a 3-position jumper on the module which congures the common signal that will be used by that relay. The choices are as follows:
COM• – uses the user-provided common signal from the Control connector.
+5• – provides a +5V signal through a 1k resistor to the relay common.
Gnd• – uses ground as the relay common.
Because both the NO and NC connections are provided, it is possible to have independent status lines for each of the two states of a status signal. For example, if the jumper is set to +5V, the Primary NO output will source +5V when the relay is in the normal position (Signal Failed) and the Primary NC output will source the +5V when the relay is closed (Signal Good). Additionally, in the case of selecting +5V as the common, the 1k resistor on the module will act as a current limiter, allowing the direct connection of ordinary LEDs to each of these output pins. A green LED could be connected to the NC output and a red LED to the NO output. This would provide complete and explicit indication to the operator as to the signal status.
Also available through the Control connector are two Override GPI inputs that when closed to ground, will force the switch to either Primary or Secondary. The GPI inputs are edge-triggered on a negative pulse, or simply a falling edge. These inputs may also be used to switch back to the Primary after a fault has cleared.
www.ensembledesigns.com
7160-12
Model 7160 HD/SD/ASI/310 Protection DA

MODULE CONFIGURATION AND CONTROL

The conguration parameters for each Avenue module must be selected after installation. This can be done remotely using one of the Avenue remote control options or locally using the module front panel controls. Each module has a REMOTE/LOCAL switch on the front edge of the circuit board which must rst be set to the desired control mode.
The conguration parameter choices for the module will dier between Remote and Local modes. In Remote mode, the choices are made through software and allow more selections. The 7160 Parameter Table on the following page summarizes and compares the various conguration parameters that can be set remotely or locally and the default/factory settings. It also provides the default User Levels for each control. These levels can be changed using the Avenue PC application.
If you are not using a remote control option, the module parameters must be congured from the front panel switches. Parameters that have no front panel control will be set to a default value. The
Local switches are illustrated in the Front Panel Controls and Indicators section following the 7160 Parameter Table.
Avenue module parameters can be congured and controlled remotely from one or both of the remote control options, the Avenue Touch Screen or the Avenue PC Application. Once the module parameters have been set remotely, the information is stored on the module CPU. This allows the module be moved to a dierent cell in the frame at your discretion without losing the stored information. Remote conguration will override the switch settings on the front edge of the module.
For setting the parameters remotely using the Avenue PC option, refer to the Avenue PC Remote Conguration section of this document.
For setting the parameters remotely using the Avenue Touch Screen option, refer to the Avenue Touch Screen Remote Conguration section of this document.
www.ensembledesigns.com
7160-13
Model 7160 HD/SD/ASI/310 Protection DA

7160 Parameter Table

CONTROL LOCAL REMOTE DEFAULT USER LEVEL
Auto Reset On On
O
Reset Time 15 seconds 0 - 60 seconds 15 seconds Admin
TRS Test Switch 1:
On O
ASI Test Switch 2:
O Simple Pgm Specic PID Specic
Audio Detect Switch 3:
On O
Black Detect Switch 4:
On O
Freeze Test/Mode Switch 5:
On O
Window Big Small
Black Time 3 sec 0 - 300 sec 3 sec Admin
Detect Level 10 IRE 0 - 100 IRE 10 IRE Admin
Black Fraction 5% 0 - 100% 5% Admin
Audio Group Group 1 Group 1
Audio Threshold -20 VU 0VU
Audio Time 3 sec .5 - 300 sec 3 sec Admin
Audio Channel enable
Freeze Mode Noisy Source
Freeze Time 3 sec 0 - 300 sec 3 sec Admin
Enabled Enabled Disabled Disabled
Clean Source
O Lenient Strict
O Simple Pgm Specic PID Specic
On O
On O
O Clean Source Noisy Source
Big
Group 2 Group 3 Group 4
-5 VU
-10 VU
-15 VU
-20 VU
-25 VU
-30 VU
-35 VU
-40 VU
Ch1 enable/disable Ch2 enable/disable Ch3 enable/disable Ch4 enable/disable
Noisy Source Clean Source
On Admin
Lenient Admin
O Admin
On Admin
On Admin
O Admin
Big Admin
Group 1 Admin
-20 VU Admin
Enabled Enabled Disabled Disabled
Clean Source Admin
Admin
www.ensembledesigns.com
7160-14
Model 7160 HD/SD/ASI/310 Protection DA
CONTROL LOCAL REMOTE DEFAULT USER LEVEL
ASI Time 2 sec 0.1 to 300 sec 2 sec Admin
Min Vid Rate 100 PIDs 1 to 10,000 PIDs 100 PIDs Admin
Min Aud Rate 20 PIDs 1 to 10,000 PIDs 20 PIDs Admin
PRI GPI Mode Neg Edge Switch O
Neg Edge Switch Ext Fault Low Ext Inhibit Low Neg Edge Reg 1
Pgm Target Any Any
Pgm 1 Pgm 2 Pgm 3 Pgm 4
Memory Registers Last Saved 1 – 5 Last Saved Level 1
Neg Edge Switch Admin
Any Admin
www.ensembledesigns.com
7160-15
Model 7160 HD/SD/ASI/310 Protection DA
7160
Serial
Protect
DA
In OK
Active
Auto
Remote Local
Run
Pwr
Pri
Sec
Black Freeze
Auto Reset On/Off
Control
EDH/CRC Audio
TRS
CC
Active

Front Panel Controls and Indicators

Each front edge indicator and switch setting of the 7160 is shown in the diagram below:
Pri In OK green LED: ON when Primary input passes
all enabled tests. OFF when Primary input fails an enabled test.
Pri Active green LED: ON when Primary input is
feeding the output. OFF when Primary input is not feeding the output.
Control Switch: Momentary switch to set output to Primary (Up) or Secondary (Down).
Remote/Local switch: Set to the mode you will use.
Run green LED: OFF A power fault or halted CPU ON A halted CPU FAST BLINK CPU Run error SLOW BLINK System OK. (If SPI
control is active from the main frame System Control Module, all Run indicators will be synchronized.).
Pwr green LED: Indicates the presence (ON) or absence (OFF) of power (+5V).
Auto green LED: ON when Auto is active. OFF when Auto is turned o.
Sec Active red LED: ON when Secondary input is
feeding the output. OFF when Secondary input is not feeding the output.
TRS switch: Select On (left) to monitor for TRS error condition as fault or
O (right) for no TRS testing.
EDH/CRC switch:
Select On (left) to monitor for EDH error condition as fault or
O (right) for no EDH testing.
Audio switch:
Select On (left) to detect audio silence condition as fault or O (right) for no audio detection.
Black switch: Select On (left) to detect black condition as fault or O (right) for no black detection.
Freeze switch: Select On (left) to detect freeze condition as fault or O (right) for no freeze detection.
www.ensembledesigns.com
CC switch: Select On (left) to enable detection of closed caption data or O (right) for no closed caption detection. (Note: not yet implemented.)
Auto Reset switch: Select On (left) to enable mod­ule to auto reset when Primary input is restored or O (right) for manual reset when Primary input is restored.
7160-16
Model 7160 HD/SD/ASI/310 Protection DA

AVENUE PC REMOTE CONFIGURATION

The Avenue PC remote control status menus for the 7160 module are illustrated and explained below. Refer to the 7160 Parameter Table for a summary of available parameters that can be set remotely through the menus illustrated. For more information on using Avenue PC, refer to the Avenue PC Control Application Software data pack that came with the option.
Parameter elds that are grayed out can indicate one of the following conditions:
An option is not installed. •
The function is not active.•
The module is locked.•
The User Level set with Avenue PC is not accessible from the current User Level.•

7160 Avenue PC Menus

Status Menu

The Status menu screen shown below displays overall status of selected parameters on both the Primary and Secondary inputs as Green = Good, Red = Bad, Gray = Not enabled. It allows you to set the
Auto Reset and Reset Time controls for the switching function.
Pri Status• – shows the status of the Primary Timing Reference Signal (TRS), embedded audio
present and correct (Aud), black detected as dened in the Black Detect menu (Blk), and if frozen video is detected as dened in the Freeze menu (Frz).
The • Pri Status window on the right will display the status of the Primary and can be monitored with the Avenue PC alarm function.
Pri• – lights green when the Primary input is selected to the output. Click this control to select the Primary as the output.
Auto• – lights green when Auto is turned on. Switch Auto on and o with this switch control. When Auto is on, the module will automatically switch to the Secondary input if the Primary fails and the Secondary is good.
Sec• – lights red when the Secondary input is selected to the output. Press this switch control to select the Secondary as the output.
• Switch Pos – the status window will indicate the current position of the protect switch. This window can be monitored by the Avenue PC alarm function.
Auto Reset• – set to On or O to determine if the switch will automatically switch back to the Primary after it recovers.
Reset Time• – set the amount of time the Primary signal must be good before the auto reset switches back to Primary from Secondary.
www.ensembledesigns.com
7160-17
Model 7160 HD/SD/ASI/310 Protection DA
www.ensembledesigns.com
7160-18
Model 7160 HD/SD/ASI/310 Protection DA
Cong Menu
The Cong menu shown below allows you to congure the various condition detectors:
TRS Test• – enables the test for any Timing Reference Signal (TRS) errors. O sets the input for
no TRS test, Lenient allows occasional TRS errors to be ignored (10 frames in a row), or Strict detects any TRS error as a fault.
ASI Test• – enables the test for ASI or SMPTE 310M signals. On detects ASI or SMPTE 310M present as determined by the settings made in the ASI Cong menu, or O sets the input for no ASI or SMPTE 310M test.
Audio Detect• – enables the test for embedded audio. On detects an audio condition as determined by the settings made in the Aud Detect menu, or O sets the input for no audio test.
Black Detect• – enables the test for black detection. On detects black present as dened by the settings made in the Blk Detect menu, or O sets the input for no black test.
Freeze Test• On enables the test for a freeze condition as determined by the settings chosen in the Freeze menu. Set to O for no freeze test.
www.ensembledesigns.com
7160-19
Model 7160 HD/SD/ASI/310 Protection DA

Black Detect Menu

The Blk Detect menu shown below allows you to congure the following black detector parameters:
Window• – select Big or Small. Big examines nearly the entire raster. Small limits the test to a
smaller portion of the raster (somewhat smaller than Safe Title limits).
Blk Time• – select the amount of time from one frame to 300 seconds that the signal must be continuously in black before the protect switch (and alarm) is generated.
Detect Level• – set the video value from 0 to 100 IRE, below which a pixel is considered to be black.
Blk Frac• – set the percentage of pixels in the detection window that must satisfy the detection level parameter.
The following status displays are also provided and can be monitored with Avenue PC alarms:
Pri Valid• – shows the portion of the Primary input which currently exceeds the Detect Level parameter. This display tracks the actual video content.
www.ensembledesigns.com
7160-20
Model 7160 HD/SD/ASI/310 Protection DA

Audio Detect Menu

The Aud Detect menu shown below allows you to congure the following audio parameters:
Audio Group• – select which embedded audio group (Group 1 – 4) to detect.
Aud Thrsh• – select the silence detection level from 0 VU to –40 VU.
Note: An audio signal level of 0 VU corresponds to -20dBFs and is the generally accepted
digital reference level for AES audio. The 7160 uses the standard weighting and ballistics of VU (Volume Unit) measurement rather than decibel-based measurement in order to more closely represent audio levels as perceived by the listener.
Audio Time• – set the time that the channels must be continuously silent before an alarm is trigged (0 – 20 seconds). Note that a loss of embedded audio will cause an immediate switch, regardless of this setting.
Ch1, Ch2, Ch3, Ch4• – enable or disable Channels 1 – 4. Each embedded group contains four audio channels. Sensing for each channel can be enabled separately.
The following status displays are also provided:
Pri Status• – shows the status of the four audio channels embedded in the Primary signal. Green indicates Channel OK, red indicates silence, and gray indicates channel not enabled. An
OK indicator shows the overall result of the test for all the channels enabled.
Pri Aud Status• – shows the overall status of the audio channels embedded in the Primary
signal. This window can be monitored by the Avenue PC alarm function.
www.ensembledesigns.com
7160-21
Model 7160 HD/SD/ASI/310 Protection DA

Freeze Menu

The Freeze menu shown below allows you to congure the following parameters for a video freeze condition:
Freeze Mode• – set the freeze detection to Clean Source, Noisy Source, or O.
Freeze Time• – set the amount of time that can elapse in seconds before the protect switch
switches to the Secondary input after a video freeze condition is detected.
The following status indicators can be monitored by Avenue PC alarm functions.
Pri Frz Status• – indicates the freeze status of the Primary as Frozen or Un-Frozen.
Note: If either Noisy Source or Clean Source are selected, and Freeze test is set to O in the Conguration menu, use of Avenue PC alarms is allowed without activating a switch to the
Secondary Source. Primary Freeze Error Counts are then active.
www.ensembledesigns.com
7160-22
Model 7160 HD/SD/ASI/310 Protection DA
ASI Cong Menu
The ASI Cong menu is used for both DVB-ASI and SMPTE 310M signals. The ASI Cong menu shown below allows you to congure the following parameters:
Pgm Target• – looks for PMTs in the ASI or SMPTE 310M stream. Select Any, Pgrm 1, Pgrm 2, Pgrm 3, or Pgrm 4. When Any is selected, a PMT in any program stream will dene the input
as good.
PID Target• – looks for PIDs in the ASI or SMPTE 310M stream. This control looks for the presence of Program Allocation Table (PAT) PIDs occurring on a per second basis. Use the arrow controls or enter a numeric value in this eld ranging from 0 to 8191.
ASI Time• – select the amount of time from 0.1 to 300 seconds that any enabled ASI or SMPTE 310M errors are continuously undetected before the protect switch (and alarm) is generated. A setting of between 2 - 5 seconds is recommended for most applications.
Min Vid Rate• – set the video value from 1 to 10,000 video PIDs, below which the protect switch (and alarm) is generated.
Min Aud Rate• – set the audio value from 1 to 10,000 audio PIDs, below which the protect switch (and alarm) is generated.
The following status display is also provided:
Pri ASI Status• – displays the status of the Primary and can be monitored with the Avenue PC alarm function.
www.ensembledesigns.com
7160-23
Model 7160 HD/SD/ASI/310 Protection DA

ASI Status Menu

The ASI Status menu is used for both DVB-ASI and SMPTE 310M signals. The ASI Status menu shown below displays the status of the following parameters:
Pri ASI Status• – displays the status of the Primary input and can be monitored with the Avenue PC alarm function.
PAT per Sec• – displays the number of Program Allocation Tables detected per second for the Primary input.
PMT per Sec• – displays the number of Program Management Tables detected per second for the Primary input.
PCR per Sec• – displays the number of Program Clock References detected per second for the Primary input.
Vid per Sec• – displays the number of video PIDs detected per second for the Primary input.
Aud per Sec• – displays the number of audio PIDs detected per second for the Primary input.
Packet Length• – displays the detected packet length per second for the Primary input.
www.ensembledesigns.com
7160-24
Model 7160 HD/SD/ASI/310 Protection DA

Pri Errors Menu

The Pri Errors menu shown below displays the amount of time in seconds that each of the error conditions have been present after detection on the Primary as well as the number of times the Primary feed has switched to the Secondary feed (Sec Sw Cnt).
The error counters display the number of cumulative errors that have occured since a counter was last reset. Errors may occur as a single event, or as multiple events over a period of time. Refer to the Avenue PC manual to learn how to use the alarms and logging capabilities of Avenue PC to obtain more detailed information on errors.
The upper limit for cumulative errors is 10,000. If an error counter reaches this upper limit, it will repeatedly cycle between 10,000 and 9,990. To reset the error counter, double-click it. ASI error counters apply to DVB-ASI or SMPTE 310M signals.
www.ensembledesigns.com
7160-25
Model 7160 HD/SD/ASI/310 Protection DA

GPI Menu

The 7160 can be set up to allow an external device to trigger a switch through the GPI interface. The GPI menu screen shown below allows conguration of the two external GPI inputs to the module.
The Primary GPI Mode can be set to one of the following:
O• – disables the GPI input.
Neg Edge Switch• – switches on a low-going transition to the GPI input.
Ext Fault Low• – acts in conjunction with the status of the input signal to the module. In this
case, a loss of proper signal to the module or a low signal detected from an external device will close the switch.
Ext Inhibit Low• – acts to prevent a switch regardless of the status of the input signal to the module. In this case, a loss of proper signal will not cause a switch.
Status of the Pri GPI input is indicated as GPI is Low or GPI is High in the Pri GPI Status eld.
www.ensembledesigns.com
7160-26
Model 7160 HD/SD/ASI/310 Protection DA

Inputs Menu

The Inputs menu displays the type of signal detected on the Primary and Secondary inputs.
Primary Input• displays the signal type detected on the Primary Input connector, SD-SDI, HD
SDI, ASI or SMPTE 310M.
Secondary Input• displays the signal type detected on the Secondary Input connector, SD SDI, HD SDI, ASI or SMPTE 310M.
www.ensembledesigns.com
7160-27
Model 7160 HD/SD/ASI/310 Protection DA

Memory Menu

The Memory menu allows you to save and recall up to 5 dierent setups for the 7160 module as follows:
Click • Save, then one of the ve memory registers Reg 1 – 5. The box will turn green. The entire module setup is now saved in the selected register.
To recall a setup, click the register box. If there is information saved, the box will turn green. • The saved setup will load into the module.
www.ensembledesigns.com
7160-28
Model 7160 HD/SD/ASI/310 Protection DA

AVENUE TOUCH SCREEN REMOTE CONFIGURATION

The Avenue Touch Screen remote control status menus for this module are illustrated and explained below. Refer to the 7160 Parameter Table for a summary of available parameters that can be set remotely through the menus illustrated. For more information on using Avenue Touch Screen, refer to the Avenue Touch Screen data pack.
Parameter elds that are grayed out can indicate one of the following conditions:
An option is not installed.•
The function is not active.•
The module is locked.•
The User Level set with Avenue PC is not accessible from the current User Level.•
www.ensembledesigns.com
7160-29
Model 7160 HD/SD/ASI/310 Protection DA

7160 Avenue Touch Screen Menus

Status Menu

The Status menu screen shown below displays overall status of selected parameters on both the Primary and Secondary inputs as Green = Good, Red = Bad, Gray = Not enabled. It allows you to set the
Auto Reset and Reset Time controls for the switching function.
Pri Status• – shows the status of the Primary Timing Reference Signal (TRS), embedded audio
present and correct (Aud), black detected as dened in the Black Detect menu (Blk), and if frozen video is detected as dened in the Freeze menu (Frz).
Pri• – lights green when the Primary input is selected to the output. Click this control to select the Primary as the output.
Auto• – lights green when Auto is turned on. Switch Auto on and o with this switch control. When Auto is on, the module will automatically switch to the Secondary input if the Primary fails and the Secondary is good.
Sec• – lights red when the Secondary input is selected to the output. Press this switch control to select the Secondary as the output.
Auto Reset• – set to On or O to determine if the switch will automatically switch back to the Primary after it recovers.
Reset Time• – set the amount of time the Primary signal must be good before the auto reset switches back to Primary from Secondary.
www.ensembledesigns.com
7160-30
Model 7160 HD/SD/ASI/310 Protection DA
Cong Menu
The Cong menu shown below allows you to congure the various condition detectors:
TRS Test• – enables the test for any Timing Reference Signal (TRS) errors. O sets the input for
no TRS test, Lenient allows occasional TRS errors to be ignored (10 frames in a row), or Strict detects any TRS error as a fault.
ASI Test• – enables the test for ASI or SMPTE 310M signals. On detects ASI or SMPTE 310M present as determined by the settings made in the ASI Cong menu, or O sets the input for no ASI or SMPTE 310M test.
Audio Detect• – enables the test for embedded audio. On detects an audio condition as determined by the settings made in the Aud Detect menu, or O sets the input for no audio test.
Black Detect• – enables the test for black detection. On detects black present as dened by the settings made in the Blk Detect menu, or O sets the input for no black test.
Freeze Test• On enables the test for a freeze condition as determined by the settings chosen in the Freeze menu. Set to O for no freeze test.
www.ensembledesigns.com
7160-31
Model 7160 HD/SD/ASI/310 Protection DA

Black Detect Menu

The Blk Detect menu shown below allows you to congure the following black detector parameters:
Window• – select Big or Small. Big examines nearly the entire raster. Small limits the test to a
smaller portion of the raster (somewhat smaller than Safe Title limits).
Blk Time• – select the amount of time from one frame to 300 seconds that the signal must be continuously in black before the protect switch (and alarm) is generated.
Detect Level• – set the video value from 0 to 100 IRE, below which a pixel is considered to be black.
Blk Frac• – set the percentage of pixels in the detection window that must satisfy the detection level parameter.
The following status displays are also provided and can be monitored with Avenue PC alarms:
Pri Valid• – shows the portion of the Primary input which currently exceeds the Detect Level parameter. This display tracks the actual video content.
www.ensembledesigns.com
7160-32
Model 7160 HD/SD/ASI/310 Protection DA

Audio Detect Menu

The Aud Detect menu shown below allows you to congure the following audio parameters:
Audio Group• – select which embedded audio group (Group 1 – 4) to detect.
Aud Thrsh• – select the silence detection level from 0 VU to –40 VU.
Note: An audio signal level of 0 VU corresponds to -20dBFs and is the generally accepted
digital reference level for AES audio. The 7160 uses the standard weighting and ballistics of VU (Volume Unit) measurement rather than decibel-based measurement in order to more closely represent audio levels as perceived by the listener.
Audio Time• – set the time that the channels must be continuously silent before an alarm is trigged (0 – 20 seconds). Note that a loss of embedded audio will cause an immediate switch, regardless of this setting.
Ch1, Ch2, Ch3, Ch4• – enable or disable Channels 1 – 4. Each embedded group contains four audio channels. Sensing for each channel can be enabled separately.
The following status display is also provided:
Pri Status• – shows the status of the four audio channels embedded in the Primary signal. Green indicates Channel OK, red indicates silence, and gray indicates channel not enabled. An OK indicator shows the overall result of the test for all the channels enabled.
www.ensembledesigns.com
7160-33
Model 7160 HD/SD/ASI/310 Protection DA

Freeze Menu

The Freeze menu shown below allows you to congure the following parameters for a video freeze condition:
Freeze Mode• – set the freeze detection to Clean Source, Noisy Source, or O.
Freeze Time• – set the amount of time that can elapse in seconds before the protect switch
switches to the Secondary input after a video freeze condition is detected.
The following status indicators can be monitored by Avenue PC alarm functions.
Pri Frz Status• – indicates the freeze status of the Primary as Frozen or Un-Frozen.
Note: If either Noisy Source or Clean Source are selected, and Freeze test is set to O in the Conguration menu, use of Avenue PC alarms is allowed without activating a switch to the
Secondary Source. Primary Freeze Error Counts are then active.
www.ensembledesigns.com
7160-34
Model 7160 HD/SD/ASI/310 Protection DA
ASI Cong Menu
The ASI Cong menu is used for both DVB-ASI and SMPTE 310M signals. The ASI Cong menu shown below allows you to congure the following parameters:
Pgm Target• – looks for PMTs in the ASI or SMPTE 310M stream. Select Any, Pgrm 1, Pgrm 2, Pgrm 3, or Pgrm 4. When Any is selected, a PMT in any program stream will dene the input
as good.
PID Target• – looks for PIDs in the ASI or SMPTE 310M stream. This control looks for the presence of Program Allocation Table (PAT) PIDs occurring on a per second basis. Use the arrow controls or enter a numeric value in this eld ranging from 0 to 8191.
ASI Time• – select the amount of time from 0.1 to 30 seconds that any enabled ASI or SMPTE 310M errors are continuously undetected before the protect switch (and alarm) is generated. A setting of between 2 - 5 seconds is recommended for most applications.
Min Vid Rate• – set the video value from 1 to 10,000 video PIDs, below which the protect switch (and alarm) is generated.
Min Aud Rate• – set the audio value from 1 to 10,000 audio PIDs, below which the protect switch (and alarm) is generated.
The following status display is also provided:
Pri ASI Status• – displays the status of the Primary and can be monitored with the Avenue PC alarm function.
www.ensembledesigns.com
7160-35
Model 7160 HD/SD/ASI/310 Protection DA

ASI Status Menu

The ASI Status menu is used for both DVB-ASI and SMPTE 310M signals. The ASI Status menu shown below displays the status of the following parameters:
Pri ASI Status• – displays the status of the Primary input and can be monitored with the Avenue PC alarm function.
PAT per Sec• – displays the number of Program Allocation Tables detected per second for the Primary input.
PMT per Sec• – displays the number of Program Management Tables detected per second for the Primary input.
PCR per Sec• – displays the number of Program Clock References detected per second for the Primary input.
Vid per Sec• – displays the number of video PIDs detected per second for the Primary input.
Aud per Sec• – displays the number of audio PIDs detected per second for the Primary input.
Packet Length• – displays the detected packet length per second for the Primary input.
www.ensembledesigns.com
7160-36
Model 7160 HD/SD/ASI/310 Protection DA

Pri Errors Menu

The Pri Errors menu shown below displays the amount of time in seconds that each of the error conditions have been present after detection on the Primary as well as the number of times the Primary feed has switched to the Secondary feed (Sec Sw Cnt).
The error counters display the number of cumulative errors that have occured since a counter was last reset. Errors may occur as a single event, or as multiple events over a period of time. Refer to the Avenue PC manual to learn how to use the alarms and logging capabilities of Avenue PC to obtain more detailed information on errors.
The upper limit for cumulative errors is 10,000. If an error counter reaches this upper limit, it will repeatedly cycle between 10,000 and 9,990. To reset the error counter, press it on the touch screen. ASI error counters apply to DVB-ASI or SMPTE 310M signals.
www.ensembledesigns.com
7160-37
Model 7160 HD/SD/ASI/310 Protection DA

GPI Menu

The 7160 can be set up to allow an external device to trigger a switch through the GPI interface. The GPI menu screen shown below allows conguration of the two external GPI inputs to the module.
The Primary GPI Mode can be set to one of the following:
O• – disables the GPI input.
Neg Edge Switch• – switches on a low-going transition to the GPI input.
Ext Fault Low• – acts in conjunction with the status of the input signal to the module. In this
case, a loss of proper signal to the module or a low signal detected from an external device will close the switch.
Ext Inhibit Low• – acts to prevent a switch regardless of the status of the input signal to the module. In this case, a loss of proper signal will not cause a switch.
Status of the Pri GPI input is indicated as GPI is Low or GPI is High in the Pri GPI Status window.
www.ensembledesigns.com
7160-38
Model 7160 HD/SD/ASI/310 Protection DA

Inputs Menu

The Inputs menu displays the type of signal detected on the Primary and Secondary inputs.
Primary Input• displays the signal type detected on the Primary Input connector, SD-SDI, HD
SDI, ASI or SMPTE 310M.
Secondary Input• displays the signal type detected on the Secondary Input connector, SD SDI, HD SDI, ASI or SMPTE 310M.
www.ensembledesigns.com
7160-39
Model 7160 HD/SD/ASI/310 Protection DA

Memory Menu

The Memory menu allows you to save and recall up to 5 dierent setups for the 7160 module as follows:
Click • Save, then one of the ve memory registers Reg 1 – 5. The box will turn green. The entire module setup is now saved in the selected register.
To recall a setup, click the register box. If there is information saved, the box will turn green. • The saved setup will load into the module.
www.ensembledesigns.com
7160-40
Model 7160 HD/SD/ASI/310 Protection DA

TROUBLESHOOTING

As a troubleshooting aid, reference signal status and presence, as well as power and CPU status can be easily monitored from the front panel of the 7160 module using the front panel indicators.
Refer to the troubleshooting tips below:
Can’t control module
Check status of CPU Run green LED. Should be blinking slowly and in unison with other • modules if System module is present. If not, try removing it and plugging it in again to be sure it is seated properly.
System module may not be working properly if installed. •
Module remote controls are grayed out
Module is locked or access to module controls is restricted by User Level. •
No signal out of module
Check status of Active LEDs. Primary or Secondary should be lit. If not, check the inputs for • signal presence and quality.
Check cabling to input of the module. •
Please also refer to the technical support section of the Ensemble Designs web site for the latest information on your equipment at the URL below:
http://www.ensembledesigns.com/support

SOFTWARE UPDATES

Software updates for each module can be downloaded remotely if the optional System Control module is installed. These can be downloaded onto your PC, then Avenue PC will distribute the update to the individual module. (Refer to the Avenue PC documentation for more information) Updates are periodically posted on the Ensemble Designs web site. If you do not have the required System Control Module and Avenue PC, modules can be sent back to the factory for software upgrades.
www.ensembledesigns.com
7160-41
Model 7160 HD/SD/ASI/310 Protection DA

WARRANTY AND FACTORY SERVICE

Warranty

This product is covered by a ve year limited warranty. If you require service (under warranty or not), please contact Ensemble Designs and ask for customer service before you return this product. This will allow the service technician to provide any other suggestions for identifying the problem and recommend possible solutions.

Factory Service

If you return equipment for repair, please get a Return Material Authorization Number (RMA) from the factory rst.
Ship the product and a written description of the problem to:
Ensemble Designs, Inc. Attention: Customer Service RMA ##### 870 Gold Flat Rd. Nevada City, CA. 95959 USA
(530) 478-1830 Fax: (530) 478-1832
service@ensembledesigns.com
http://www.ensembledesigns.com
Be sure to put your RMA number on the outside of the box.
www.ensembledesigns.com
7160-42
Model 7160 HD/SD/ASI/310 Protection DA

SPECIFICATIONS

Input Signal
Number Two Signal Type HD Serial Digital 1.485 Gb/s SMPTE 274M, 292M or 296M or SD Serial Digital 270 Mb/s SMPTE 259M DVB-ASI 270 Mb/s or SMPTE 310M Impedance 75 Ω Return Loss >15 dB to 1.485 GHz Automatic Cable Input Equalization
Standards Supported (auto-detected)
1080i (SMPTE 274M -4, 5, 6) 50, 59.94 or 60 Hz 720p (SMPTE 296M -1, 2, 3) 59.94 or 60 Hz 1080p (SMPTE 274M -9, 10, 11) 23.98, 24, 25 Hz 1080sF (RP211 -14, 15, 16) 23.98, 24, 25 Hz 625i 50 525i 59.94 DVB-ASI SMPTE 310M
Serial Digital Loopback
Number Two total One primary One secondary Signal Type Follows input Impedance 75 Ω
Serial Output Signal
Number Six Includes One Fail-safe bypass output Signal Type Follows selected input Impedance 75 Ω
General Specications
Connectors BNC Power Consumption <5 watts Temperature Range 0 to 40°C ambient (all specs met) Relative Humidity 0 to 95% noncondensing Altitude 0 to 10,000 ft Fusing 1.5 Amp PTC resettable fuse
www.ensembledesigns.com
7160-43
Loading...
